30''Gas Fire Pit Table
AF111
INSTRUCTION MANUAL
Thanks for purchasing and trusting NUUGARDEN with your home decorat-
ing plans. This product is a piece of furniture designed and made by
NUUGARDEN Corp.
We are committed to R&D and innovation and creating the most exquisite
and diverse outdoor series.
After unpacking and before every use, check whether the item shows any
damage. In addition, check that you have all parts and hardware before
assembly. If there is any damage, please do not use it and call customer
service at (800) 257-7108 or email [email protected]. If you do not
have all the parts lists, have your dealer contact us and we will send them to
you immediately.
This furniture is for outdoor use only. Please take time to read and follow the
instructions below. Then, use this item as described in this operating
manual. We accept no liability for damage caused by improper use.
1
INTRODUCTION
2
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide, which has no odor.
Using it in an enclosed space can cause injury or death. Never use this
appliance in an enclosed space such as a camper, tent or building.
WARNING
Never leave the fire pit unattended when hot or in use. Keep out of reach
of children.
WARNING
Improper installation, adjustment, alteration, service or maintenance
can cause property damage, injury or death. Read the installation,
operation and maintenance instructions thoroughly before installing or
servicing this gas appliance.
WARNING
FOR OUTDOOR USE ONLY!
WARNING
LIQUEFIED PROPANE GAS APPLIANCESAND THE PRODUCTS OF COMBUSTION OFSUCH FUELS, CAN EXPOSE
YOU TOCHEMICALS INCLUDING BENZENE. WHICHIS KNOWN TO THE STATE OF CALIFORNIATO CAUSE CANCER
AND CAUSE BIRTHDEFECTS OR OTHER REPRODUCTIVEHARM.
WARNING
Do not try to light this appliance without
reading the “LIGHTING” instructions section
of this manual.
Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance. It is not permitted
to store an LP cylinder that is not connected
for use in the vicinity of this or another
appliance. A fire or explosion may occur,
causing property damage, personal injury, or
death, if the information in this manual is not
followed exactly.
WARNING
CAUTION
Installer: Leave the manual with the user for future use.
Consumer: Please keep this manual for future reference.
WARNING
Read the instructions before use. You must install this appliance under
enforced regulations and follow the instructions.
DANGER
IF YOU SMELL GAS:
Shut off gas to the appliance.
Extinguish any open flame.
If odor continues, keep away from the appliance
and immediately call your gas supplier or fire
department.
WARNING
California Proposition 65
Combustion by-products produced when using this
product contain chemicals known to the State of
California to cause cancer, birth defects, and other
reproductive harm.
REMINDER
Before beginning assembly of your gas fire pit, it is important
to verify that all necessary parts are included. This can be
done by referring to the Parts and Hardware List. It is
possible that some parts may already be pre-assembled or
attached to other components of the heater. As you assemble
the fire pit, it is recommended to leave the hardware
half-tightened until the unit is fully assembled. Once
assembly is complete, you can then finish tightening all of the
hardware. Be sure to keep and store this Owner's Manual for
future reference. It contains important instructions and
procedures for safety and maintenance.
WARNING
3
WARNING: FUELS USED IN LIQUIFIED PROPANE GAS APPLIANCES, AND THE PRODUCTS OFCOMBUSTION
OF SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE, WHICH ISKNOWN TO THE
STATE OF CALIFORNIA TO CAUSE CANCER AND CAUSE BIRTH DEFECTS OR OTHERREPRODUCTIVE HARM.
You must provide propane gas and a propane cylinder. Use a standard 20 lb. propane
cylinder only.
Use this appliance only with a propane vapor withdrawal supply system. See Chapter 5 of the Standard for Storage and
Handling of Liquefied Petroleum Gas, ANSI/NFPA 58. Your local library or fire department should have this book.
It is necessary to use the pressure regulator and hose assembly supplied with the appliance.
The installation must conform with local codes, or in absence of local codes, with the National Fuel Gas Code, ANSI
Z223.1.
A dented, rusted, or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier.
Never use a propane cylinder with a damaged valve connection.
The LP-gas supply cylinder must be constructed and marked in accordance with the U.S. Department of Transporta-
tion (D.O.T) Specifications for LP-Gas Cylinders, or the standard for Cylinders, Spheres and Tubes for Transportation
of Dangerous Good and Commission, CAN/CSA -8339, as applicable.
The LP-gas supply cylinder must be provided with a cylinder connection device compatible with the connection for the
appliance.
The cylinder used must include a collar to protect the cylinder valve.
The LP-gas supply cylinder must be provided with a listed overfill protection device (OPD).
Do not store a spare LP Gas cylinder under or near this appliance.
Never fill the cylinder beyond 80 percent full.
For appliances designed to use a CGA No. 91 QCC connection.
WARNING:
The appliance is not intended for use with solid fuels.
The installation must conform with local codes. In the absence of local codes, it should comply with the National
Fuel Gas Code, ANSI Z223.1/NFPA 54, NFPA 58 Natural Gas and Propane Installation Code, CSA B149.1, or Propane
Storage and Handling Code, B149.2.
The appliance must be electrically grounded when installed, following local codes. In the absence of local codes,
adhere to the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.
Before use, check for damaged parts such as hoses, regulators, pilots, or burners.
Inspect the fuel supply connection for signs of leakage (including the hose for LP models) before each use of the
appliance.
All leak tests should be done with a soapy solution. Never use an open flame to check for leakage.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid
burns or clothing ignition.
Young children should be carefully supervised when they are in the vicinity of the appliance.
Clothing or other flammable materials should not be hung from the appliance or placed on or near it.
Any guard or other protective device that is removed for servicing the appliance must be replaced before operating
the appliance.
Installation and repair should be done by a qualified service person. The appliance should be inspected before use
and at least annually by a qualified service person.
More frequent cleaning may be necessary. It is imperative to maintain control.
The compartment, burners, and circulating air passageways of the appliance should be kept clean.
Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and
liquids.
Do not obstruct the flow of combustion and ventilation air.
Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
The appliance should only be used in a well-ventilated space and must not be used in a building, garage, or any
other enclosed area.
An appliance may be installed with shelter no more inclusive than with walls on all sides but without overhead
cover.
Within a partial enclosure which includes an overhead cover and no more than two side walls, these side walls may
be parallel, as in a breezeway, or at right angles to each other.

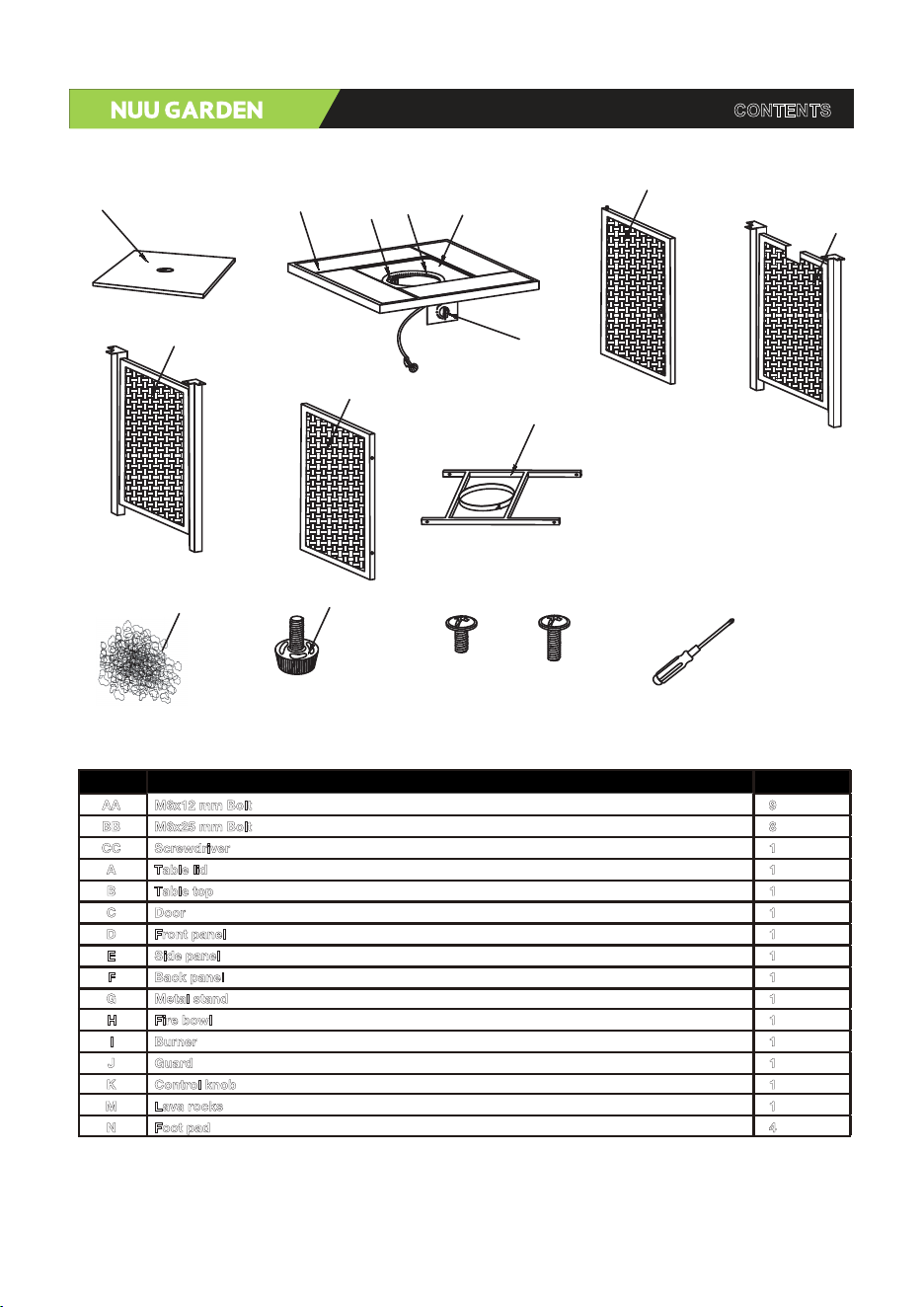

Part Description Qty
M6x12 mm Bolt
M6x25 mm Bolt
Screwdriver
Table lid
Table top
Door
Front panel
Side panel
Back panel
Metal stand
Fire bowl
Burner
Guard
Control knob
Lava rocks
Foot pad
9
8
1
1
1
1
1
1
1
1
1
1
1
1
1
4
AA
BB
CC
A
B
C
D
E
F
G
H
I
J
K
M
N
CONTENTS
4
OFF
(APAGADO)
LOW
(BAJO)
HIGH
(ALTO)
B
A
H
I
J
K
C
D
E
F
G
M N
AA
BB
CC

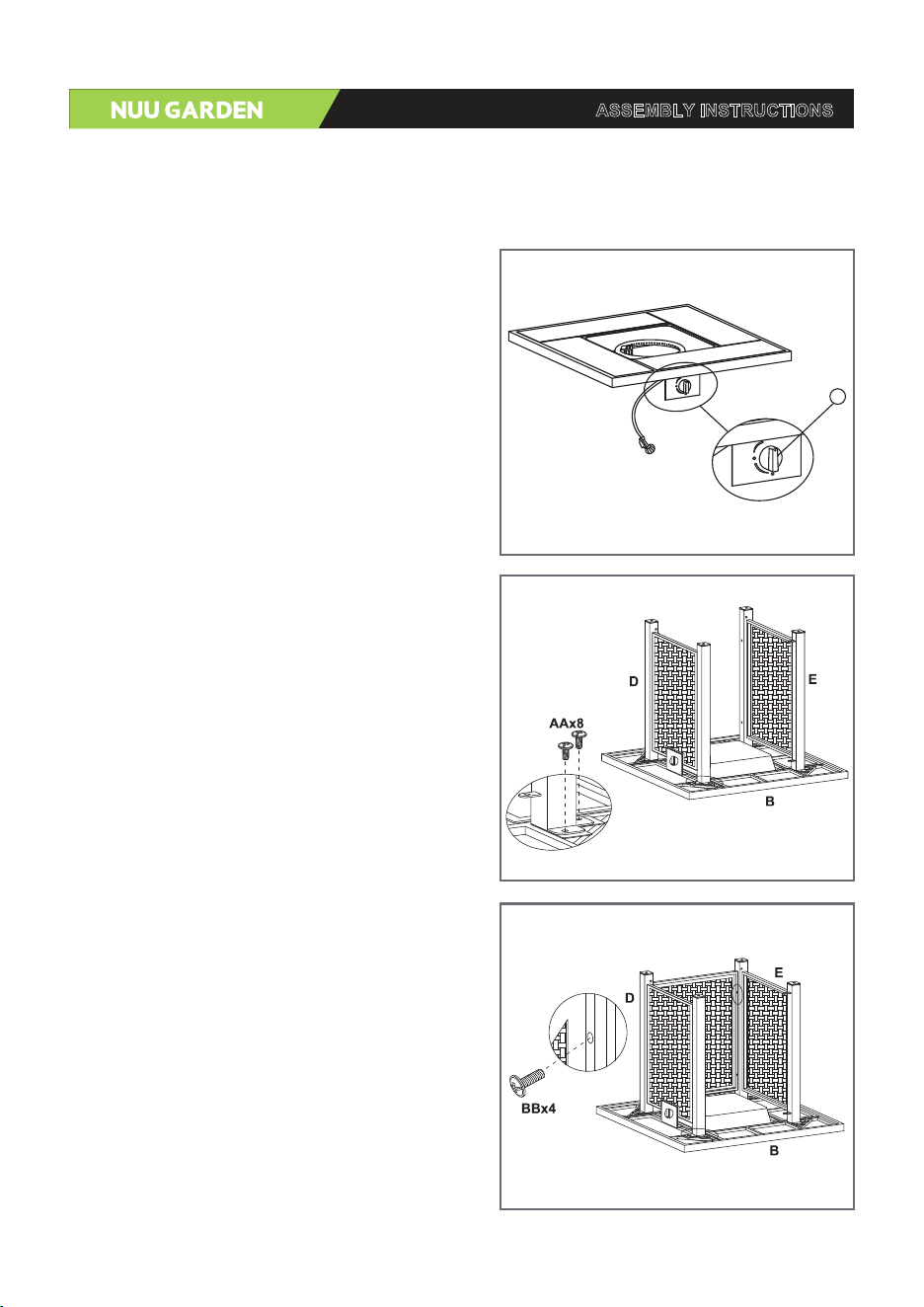

Step 1: Checking the gas control
Check that the control knob (K) for the gas supply system is turned to
the "OFF" position before starting any assembly.
Step 2: Attach the side panel
Connect the table top (B) and the panels (D&E) with 8 bolts (AA).
Do not over-tighten them.
Step 3: Attach the back panel
Attach the back panel (F) to the panels (D&E) using 4 bolts (BB).
Do not over-tighten them.
Note: Carefully unpack all parts from the box, compare parts with package content listed above, make sure all parts are present before
beginning assembly of product. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service
for replacement parts.
ASSEMBLY INSTRUCTIONS
5
OFF
(APAGADO)
LOW
(BAJO)
HIGH
(ALTO)
OFF
(APAGADO)
LOW
(BAJO)
HIGH
(ALTO)
K
F

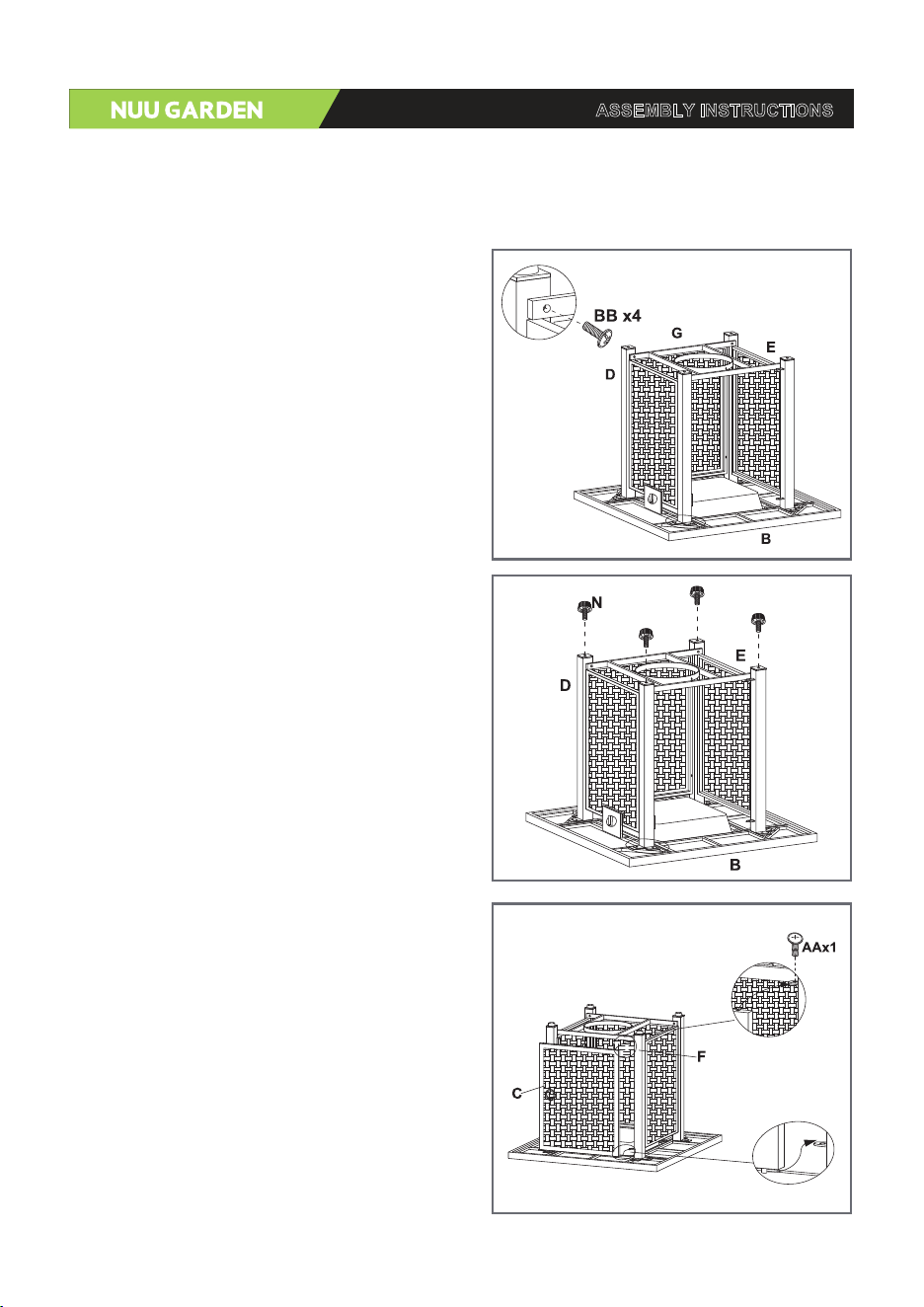

Step 4: Attach the metal bracket
Connect the metal bracket (G) and the panels (D&E) with 4 bolts (BB).
Do not over-tighten them.
ASSEMBLY INSTRUCTIONS
Step 6: Attach the door
Connect the door (C) and the panels (D&E) with 1 bolt (AA).
Do not over-tighten them. Upon completing the entire assembly
and bolting up, you can tighten down all screws.
Note: Carefully unpack all parts from the box, compare parts with package content listed above, make sure all parts are present before
beginning assembly of product. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service
for replacement parts.
Step 5: Attach the foot pads
Attach 4-foot pads (N) to the side panels (D&E).
6

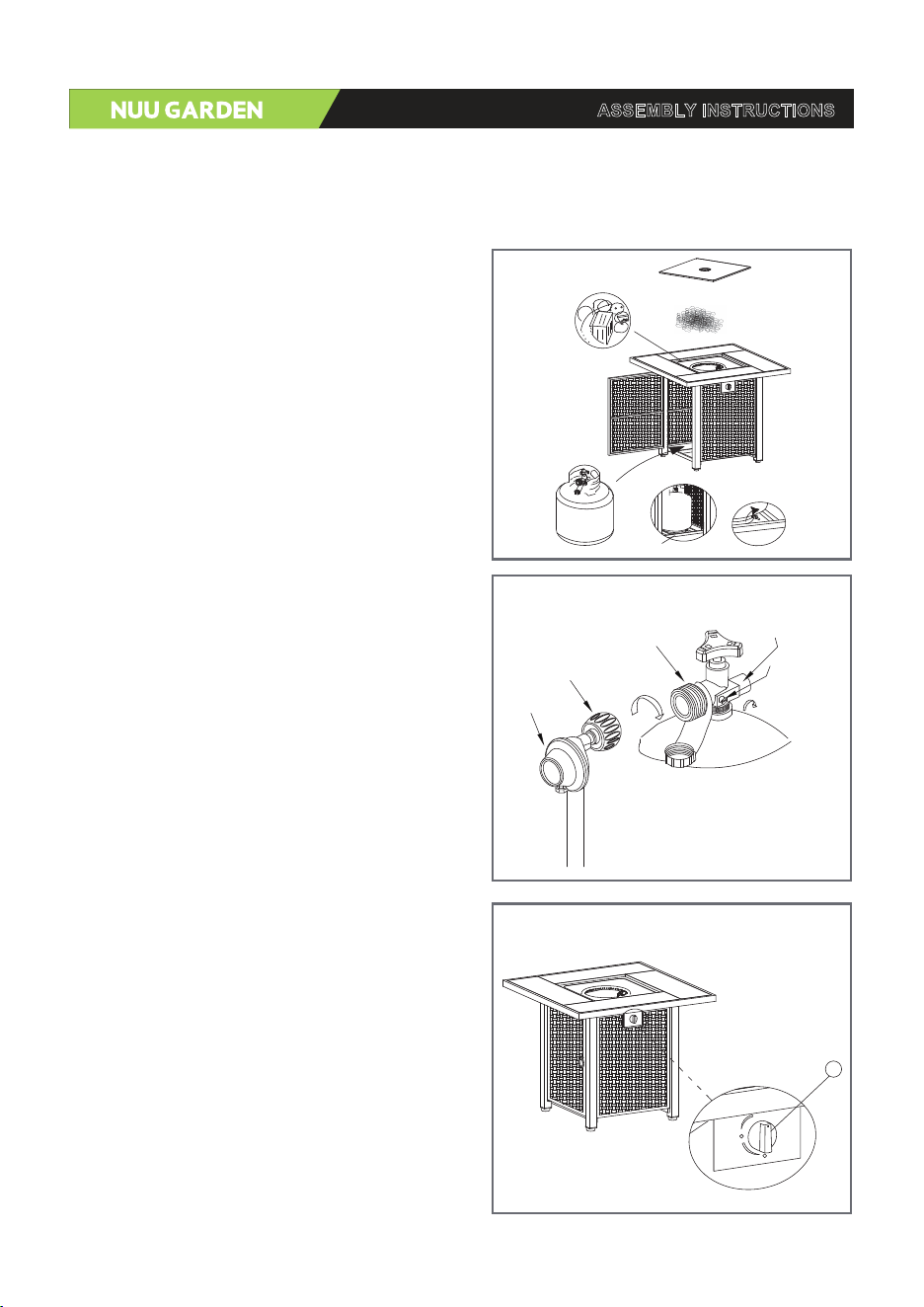

Step 9: Rotary button control mode
Adjust the flame to the desired level by using the control knob.
To switch from "OFF" to the igniter button, then turn the control knob
counterclockwise. To switch from "LOW" to "HIGH", release the igniter
button completely and then turn the control knob counterclockwise.
Note: Carefully unpack all parts from the box, compare parts with package content listed above, make sure all parts are present before
beginning assembly of product. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service
for replacement parts.
ASSEMBLY INSTRUCTIONS
7
Step 8: Attaching the regulator
Turn the cylinder valve on the tank clockwise to close the propane tank.
Attach the preassembled regulator from the tabletop (B) to the cylinder
valve by turning the regulator coupling nut clockwise. Ensure it is
fastened securely and tighten connections by hand only. Finally, secure
the gas hose to the bracket inside the front panel.
Step 7: Securing the propane tank
Place the propane gas tank (not included) into the metal stand (G).
Ensure the gas tank sits securely on the metal stand. Turn the
preassembled wing screw on the outer part of the metal stand (G)
clockwise to secure the propane gas tank tightly. Pour the glass
stones (M) around the burner. Make sure the lava rocks (M) are not
placed on the ignition portion of the burner. Put the lid (A) over the
fire bowl. Remember to remove the lid when the burner is in
operation. Wait until the unit cools completely before replacing the lid.
Pressure
reliefvalve
Cylinder valve
Black coupling nut
turn clockwise to connect
Regulator
Bleed-off
valve
turn clockwise
to reseal
OFF
(APAGADO)
LOW
(BAJO)
HIGH
(ALTO)
K
G
A
M
B
WARNING
This appliance should only be used for its intended purpose. Do not use it to prepare food.
Initial Lighting: When lit for the first time, the appliance may emit a slight odor. This is a normal, temporary condition
caused by the "burn-in" of the internal paints and lubricants used in the manufacturing process and will not occur
again. Turn the main burner to the “high” position and let it burn for about half an hour.
WARNING
The hazards of high surface temperatures should be communicated to both children and adults. And should stay
away from the appliance to avoid burns or clothing ignition.
Children should be carefully supervised when they are in the area of the appliance.
Clothing or other flammable materials should not be hung from the appliance, or placed on or near the appliance.
The area above the enclosure may be extremely hot. Direct contact with these surfaces should be avoided to prevent
burns or clothing ignition.
Any guards or protective devices that are removed for servicing the appliance must be replaced before operating the
appliance.
Installation and maintenance should be done by a qualified service person.
The appliance should be inspected before each use and at least annually by a qualified service person. More
frequent cleaning may be necessary. The control compartment, burners, and circulating air passageways of the
appliance must be kept clean.
WARNING
Never use the appliance while it is raining. Always turn the appliance off when it is raining.
Never use the appliance if the burner is damaged. Inspect the burner before each use.
Ensure that no debris, such as leaves, grass, or other objects, has entered or is on the appliance. If the burner is
damaged, it must be replaced with the manufacturer's specified burner before using the equipment.
Inspect the hose assembly before each use. If there is evidence of excessive abrasion.
If the hose is worn or damaged, it must be replaced before using the appliance with a replacement hose assembly
specified by your manufacturer.
WARNING: Any modification to the appliance may compromise the safety of this appliance. Special concerns are as
follows:
Do not bypass thermocouple safety.
Do not operate the appliance if any parts have been underwater. Call a qualified service technician immediately to
check the equipment and replace any flooded control systems and gas control components.
Lighting Instructions
1.Read instructions before lighting.
2.The control knob must be in the “OFF” position.
3.Connect the propane cylinder (refer to the manual), and then open the cylinder valve.
4.Push the ignition control knob in fully and rotate about 1/4 turn counterclockwise until a click is heard. It may take
several attempts to light the burner. Once lit, continue holding down the control knob for 15 seconds.
5.If ignition doesn't occur, release the control knob and rotate it to the "OFF" position. Wait for 5 minutes for the gas to
clear, and then repeat the above lighting instructions.
6.After ignition, adjust the flame to the desired level using the control knob.
WARNING
FOR YOUR SAFETY:
Keep your face and body away from the burner area when lighting.
Ensure burner controls are in the off position. Slowly turn on the gas supply valve.
The propane cylinder is equipped with an excess flow device. Unless burners are turned off before turning the
cylinder on, only small flames and low heat will be achievable.
If the burner does not light within 10 seconds, turn the valve off and wait for 5 minutes for any gas to dissipate
before repeating the procedure.
CAUTION: Disconnect the propane cylinder when this appliance is not in use.
1.Turn and push the control knob clockwise to the “OFF” position.
2.Close the cylinder valve, and disconnect the propane cylinder.
OPERATION GUIDE
8
MAINTENANCE：
To ensure years of outstanding performance from your appliance, make sure you regularly perform the following
maintenance activities:
At least once a year, the unit should be inspected for spiders, cobwebs, or other debris.
Airflow must be unobstructed. Keep controls, burner, and circulating air passageways clean. Signs of possible
blockage include:
Gas odor with extremely yellow flames.
The appliance does not reach the desired temperature.
Excessive unevenness of heat.
Popping sounds occur when heating.
Spiders and insects can nest in burners or orifices. This dangerous condition can damage the appliance and render
it unsafe for use. Clean burner holes by using a liquid clog remover.
Compressed air may help clear away smaller particles.
Carbon deposits may create a fire hazard. Clean the reflector, thermocouple, and emitter. Screen with a dry cloth if
any carbon deposits develop.
The burner is made of stainless steel, but it is susceptible to damage from extreme heat and corrosive environments
can occur. Inspect the burner at least annually for cracks, insect nests, excessive corrosion, or any other damage. If
the burner is damaged, it must be replaced with a burner specified by the manufacturer before the appliance is put into
operation.
STORAGE:
Between use
Turn the control knob to the "OFF" position.
Disconnect the LP source.
Store the appliance upright in an area sheltered from direct contact with inclement weather.
Weather conditions include rain, sleet, hail, snow, and dust.
Cover the appliance to protect exterior surfaces and help prevent build-up in the air passages.
NOTE: Wait until the appliance has cooled down before covering it.
During periods of extended inactivity or when transporting
Turn the control knob to the "OFF" position.
Disconnect the LP source and move it to a secure, well-ventilated, outdoor location.
Do not store in a location that will exceed 125°F.
Store the appliance upright in an area sheltered from direct contact with inclement weather, such as rain, sleet, hail,
snow, and dust.
Cover the appliance to protect exterior surfaces and help prevent build-up in the air passages.
NOTE: Wait until the appliance has cooled down before covering it.
MAINTENANCE AND CLEANING
9
10
TROUBLESHOOTING
Problem Cause Solution
When you turn the valve
to high, the flame and heat
are low.
The propane lighting
procedure was not followed
correctly.
Ensure the lighting procedure is follow carefully.
The valve must be in the off position when the tank valve
is turned on. Turn the tank on slowly to allow the pressure
to equalize. See lighting instrucions.
Thoroughly clean the burner venturi. See the
maintenance section.
Check the installation or replace it with a new battery.
Check that the electrode wire is firmly pushed onto the
terminal on the back of the igniter.
Check that the lead wires go from the module to the
ignition switch (if it has one). Check that they are firmly on
their terminals.
The thermocouple must have time to heat up. Hold the
knob in for 30 seconds after the burner lights, then
release.
The unit will shut down if winds are greater than 10
mph(16 km/h). Either locate the fire pit in a different area
or use it when it is less windy.
Ensure there is no lava rock or other debris in the ignition
area. Also, check that the small hole below the
thermocouple is clear.
Clean the thermocouple and clean the connection
between the valve and the thermocouple. Ensure the
connection is properly tightened.
Replace the thermocouple and valve.
Check the gas level in the propane cylinder.
Reposition the supply hoses as necessary.
Clean the burner orifice.
Clean out the venturi tube.
Make sure to follow the lighting procedure carefully. When
turning on the tank valve, make sure all valves are in the
off position. Turn the tank on slowly to allow pressure to
equalize. See the lighting instructions in the operating
section.
This is not a defect. Vibrations in the regulator cause it.
They do not affect the heater's performance or safety.
We will not replace the humming regulator.
There is possibly a spider
web or other debris.
The battery is either dead or
installed incorrectly.
There is a loose electrode
wire or switch terminal wires.
You are not holding the knob
in long enough.
It’s too windy outside.
Lava rock and debris are in
the burner's ignition area.
They block the thermocouple
from being fully in the flame.
Either the thermocouple or
thermocouple connection is
dirty.
Either the thermocouple or
valve is faulty.
This is a normal occurrence
on hot days.
There is not enough gas.
The supply hose is pinched.
The burner orifice is either
dirty or clogged.
There are spider webs or
other matter in the venturi
tube.
The propane regulator is in a
“low flow”state.
Burners burn with a
yellow flame, accompa-
nied by the smell of gas.
The burners will not light
with the igniter but will
light with a match.
The burner will not stay lit
when the control knob is
released.
The regulator is humming.
The valve is set to high
but there is low heat
output. There is also a
rumbling noise and a
fluttering blue flame at the
burner surface.
CARE AND MAINTENANCE
Follow the instruction for the material of your special product to make sure
that it stays in the best shape for as long as possible. The information below
is only intended as a general guideline. For more information, please contact
us.
• Only need to rinse it thoroughly with clean water to wash away dirt and
grime. Never use abrasive cleansers on the furniture, since it can attack
the surfaces and leave behind scratch marks.
• For the stubborn grime and stains, just use a soft sponge and mild soapy
water and then dry it with a cloth or paper towel.
• Check the stability of the screws, nuts and nut caps prior to each use.
Tighten up them after one to two month’s use whenever required.
• Avoid improper use, and be careful not to scratch or damage the surface
with sharp objects.
• When you move your furniture, make sure you lift it rather than pulling
or pushing it to avoid damaging the floor, legs and mounting.
11
12
Thanks for purchasing this NUUGARDEN furniture. We are here to help you
maximize your enjoyment and appreciation of it.
Please do not hesitate to contact our customer service when you have any
questions regarding assembly or accessories.
Add: 6366 Corley Road, Norcross, GA 30071.
Tel: (800) 257-7108
Web: https://nuumart.com
E-mail: [email protected]
Service time: Mon-Fri, 8:30 AM-5:30 PM, EST
CUSTOMER SERVICE
Nuu Garden Corp.
Add: 6366 Corley Road, Norcross GA 30071.
Tel: (800) 257-7108
Web: https://nuumart.com
E-mail: [email protected]
NUUGARDEN USA
