www.tsicustomerservice.comA486
1
www.tsicustomerservice.com
Twin-Star International, Inc; Delray Beach, FL 33445
Made in China • Printed in China
1-888-674-7517
MODEL:
DFS-7515-01, DFS-7515-02, DFS-7515-03
DFS-7515-04, DFS-7515-05, DFS-7515-06
https://manual-hub.com/
www.tsicustomerservice.comA486
2
1. Read all instructions before using this appliance.
2. is appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when
moving this appliance. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least
3 feet (0.9 m) from the front of this appliance. WARNING: In order to avoid overheating, do not cover the heater.
3. CAUTION: Never leave the heater operating unattended. Extreme caution is necessary if unsupervised children or invalids
are nearby.
4. e appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of ex-
perience and knowledge, unless they have been given supervision or instruction.
5. Children being supervised not to play with the appliance.
6. If possible, always unplug this appliance when not in use.
7. Do not operate any heater with a damaged cord or plug or aer the appliance malfunctions, or if it has been dropped or
damaged in any manner.
8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in
order to avoid a hazard.
9. Any repairs to this replace should be carried out by a qualied service person.
10. Under no circumstance should this replace be modied. Parts having to be removed for servicing must be replaced prior
to operating this replace again.
11. Do not use outdoors.
12. is heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate this appliance
where it may fall into a bathtub or other water container.
13. Do not run cord under carpeting. Do not cover cord with throw rugs, runners or the like. Arrange cord away from trac
areas and where it will not be tripped over.
14. To disconnect this appliance, turn controls to the o position, then remove plug from outlet.
15. Connect to properly grounded outlets only.
16. is appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local
codes, with the current CSA C22.2 Canadian Electrical Code or for U.S.A. installations, follow local codes and the National
Electrical Code, ANSI/NFPA NO.70.
17. ere is a thermostat limiter inside the heater. When the inner temperature over-heats or abnormal heating occurs, the
thermostat protective device would cut o power supply to prevent damage or risk of re.
18. e heaters must not be located immediately below a socket-outlet.
19. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or re,
or damage the appliance.
20. To prevent a possible re, do not block air intakes or exhaust in any manner. Do not use on so surfaces, like a bed, where
opening may become blocked.
21. is appliance has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or ammable liquids
are used or stored. is replace should not be used as a drying rack for clothing. Christmas stockings or decorations
should not be hung in the area of it.
22. Use this appliance only as described in the manual. Any other use not recommended by the manufacturer may cause re,
electric shock or injury to persons.
23. Always plug heaters directly into a wall outlet/ receptacle. is heater is for use on 120 volts. Never use with an extension
cord or relocatable power tap(power strip).
24. is heater is for use on 120 volts. is product is equipped with a polarized plug (one blade is wider than the other blade).
To reduce the risk of electrical shock, this plug will t into a polarized outlet only one way. is is a safety feature. If you
are unable to insert the plug into the electrical outlet, try reversing the plug. If the plug still does not t, contact a qualied
electrician.
IMPORTANT INSTRUCTIONS
SAVE THESE INSTRUCTIONS
When using electrical appliances, basic precautions should always be followed to reduce the risk of re, electrical shock, and injury
to persons including the following:
https://manual-hub.com/
www.tsicustomerservice.comA486
3
GETTING STARTED
1. e serial number is located on the back of the Fire Cube, the serial number is necessary for product
warranty registration and customer service.
2. Go to www.tsicustomerservice.com for product warranty registration.
For registration use the MODEL
NUMBER: DFS-7515-01, DFS-7515-02, DFS-7515-03,DFS-7515-04,DFS-7515-05,DFS-7515-05. If you
are unable to complete registration save your proof of purchase for warranty purposes.
PRODUCT SPECIFICATIONS
VOLTAGE 120VAC, 60 Hz
AMPS 12.5 Amps
WATTS (max.) 1500 Watts
Back of the Fire Cube
Serial Number
Model Number
CARE AND MAINTENANCE
Clearance To Combustibles
Keep electrical cords, drapery, furniture and other combustibles at least 3 (0.9 m) from the front of the heater
and away from the sides.
Cleaning Trim
Clean the metal trim using a so cloth, slightly dampened with a citrus oil-based product and bu with a so,
clean cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim.
Purchase citrus oil-based products at a hardware store.
SEE OWNERS MANUAL FOR SERVICE DETAILS
WARNING:
DISCONNECT POWER BEFORE CLEANING OR SERVICING
CAUTION:
HIGH TEMPERATURE, RISK OF FIRE, KEEP ELECTRICAL CORDS, DRAPERY,
FURNISHINGS AND OTHER COMBUSTIBLES AT LEAST 3 FEET(0.9M) FROM
THE FRONT OF THE HEATER AND AWAY FROM THE SIDE AND THE REAR.
CAUTION:
RISK OF ELECTRICAL SHOCK
DO NOT OPEN NO USER
SERVICEABLE PARTS INSIDE
CUIDADO: EL RIESGO DE CHOQUE ELÉCTRICO,NO ABRA.
NO HAY PARTES DE SERVICIO PARA EL USUARIO EN EL INTERIOR.
CUIDADO:
ALTA TEMPERATURA, RIESGO DE INCENDIO, MANTENGA LOS
CABLES ELÉCTRICOS, CORTINAS, MUEBLES Y OTROS
COMBUSTIBLES AL MENOS 3 PIES (0,9 m) DEL FRENTE DEL
CALENTADOR Y LEJOS DE LA PARTE TRASERA
AVISO:
DESCONECTE LA ENERGÍA ANTES DE LIMPIAR O REPARAR
VEA EL INSTRUCTIVO PARA DETALLES DE SERVICIO
VOIR LE MANUEL DU PROPRIÉTAIRE POUR LES DÉTAILS
SUR L’ENTRETIEN ET LA RÉPARATION
DÉBRANCHEZ L’APPAREIL AVANT DE NETTOYER OU
TEMPÉRATURE ÉLEVÉE,RISQUE DEFEU,GARDEZ LES
AVERTISSEMENT:
AVERTISSEMENT:
TIBLES À AU MOINS 0.9M(3 PIEDS) DE LA PARTIE FRONTALE DE L’APAREIL DE
RISQUE DE CHOC ÉLECTRIQUE NE PAS OUVRIR AUCUN
ENTRETIEN DES PIÈCES INTÉRIEURES PAR L’UTILISATEUR
AVERTISSEMENT:
EFFECTUER L’ENTRETIEN OU LA RÉPARATION.
CORDONS ÉLECTRIQUES,DRAPERIES,MEUBLES ET AUTRES MATIÈRES COMBU-
CHAUFFAGE ET ÉLOIGNÉS DES CÔTÉS.
ELECTRIC FIREPLACE/FOYER
ÉLECTRIQUE/INSERTO PARA CHIMENEA
MODEL / MODÈLE / MODELO
Twin-Star International, Inc.
www.twinstarhome.com
Made In China
Fabriqué en Chine
Fabricado en China
DFS-7515-01
VOLTS WATTS/VATIOS H
Z
120V~ 1500 60
220391
(+1) 1-888-674-7517
www.tsicustomerservice.com
SN #:AC-XXXXX-X
Date Code/ Code de Date/ Código Fecha:
https://manual-hub.com/
www.tsicustomerservice.comA486
4
OPERATION INSTRUCTIONS
Control Panel Location
Control Panel
Main Power Switch
e Power switch supplies power to all of the
functions of the Fire Cube including the ame
eect and heater.
NOTE:Main Power must be turned to ON for
the heat to be used.
750W
Low heat setting, 750 Watts.
1500W
High heat setting, 1500 Watts.
0
Heater o
Heater Settings
e power Switch must be in the ON position to
use the heater.
https://manual-hub.com/
www.tsicustomerservice.comA486
5
1500W
High heat setting, 1500 Watts.

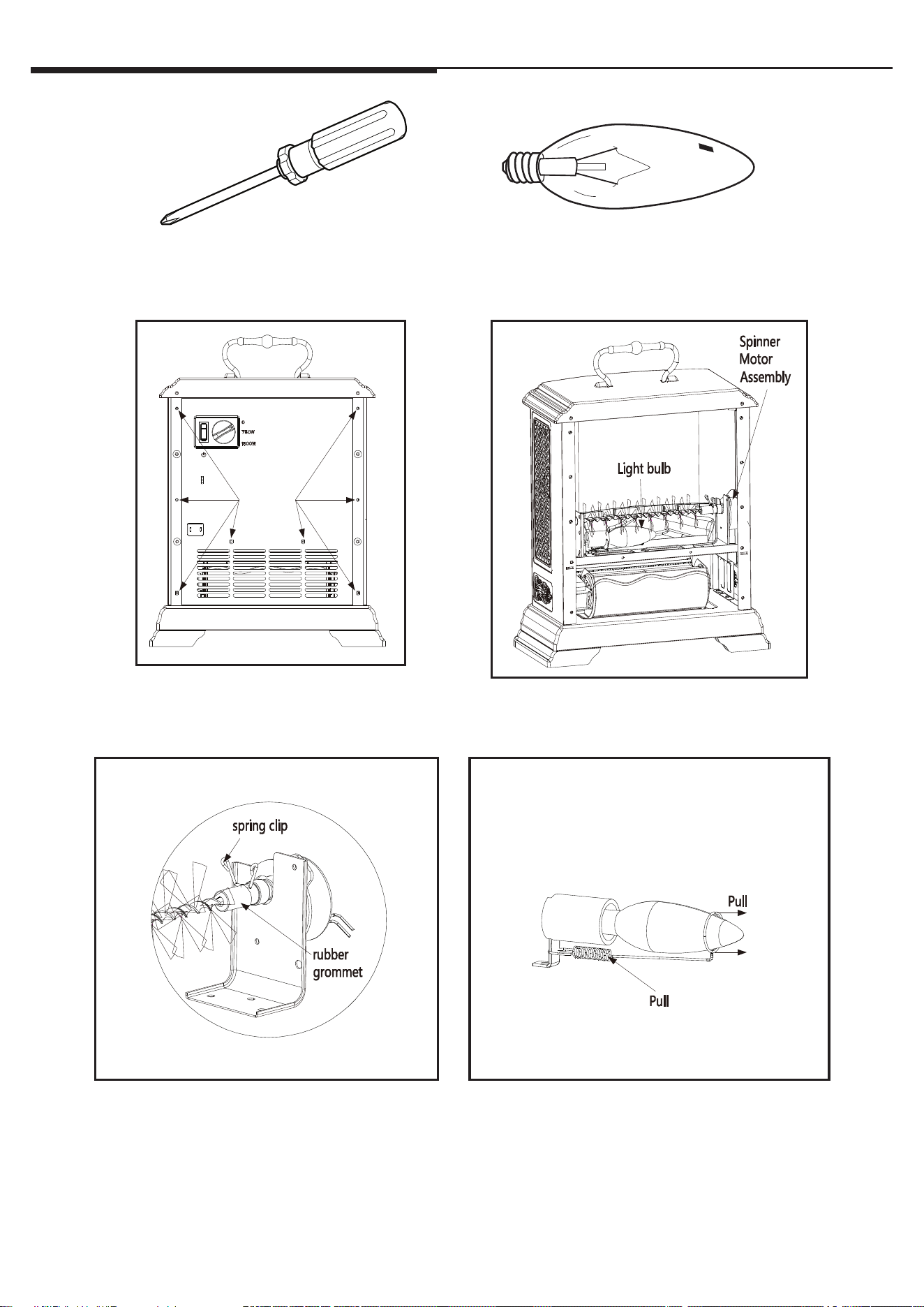

BULB REPLACEMENT
Clear, 40-watt, E12 socket base light bulb
(candelabra base, B bulb).
Tools Required for Assembly
Phillips Head Screwdriver
3. Pinch this spring clip to loosen. Gently
turn and pull the rubber grommet of
the motor sha.
Light bulb retaining spring
1. Remove the Phillips head screws. 2. Remove back panel to access light bulb.
4. Pull away the bulb retaining spring,
unscrew the old bulb, and replace with
a new 40w candelabra bulb.
https://manual-hub.com/
www.tsicustomerservice.comA486
6
TROUBLESHOOTING GUIDE
Problem Root Cause Corrective Action
1.
N
o power 1.
P
ower cord was not plugged into
t
he outlet.
1.
C
heck that unit is plugged directly into a standard 120 volt outlet.
2.
Fir
e Cube does not
t
urn on manually.
2a.
N
o incoming power from the
e
lectrical wall socket or switches.
2b. Improper operation.
2a.
C
heck circuit breakers and move unit to another outlet.
2b.
M
anually press main power button from back of unit.
3.
Fl
ames are not
moving
3.
Fl
ame Generator/Spinner
detached from the Flame
Generator Drive Motor
3.
U
nplug the Fire Cube and remove the back panel and check to see if
“Flame Generator/Spinner” is correctly mounted to the Flame
Generator Drive Motor.
4. Flames are not
visible
4. Burnt out light bulb. 4. Follow bulb replacement instructions to replace the light bulb.
5. Heater is not
t
urning on
5. Improper operation 5. Manually press main power button on back of unit.
6.
N
ot producing
enough heat
6a.
p
ower strip/surge protector/
extension cord being used
6b.
L
ocation of unit
6a.
P
lug unit directly into the wall.
6b. Make sure unit is located on an interior wall or away from dray
doors or windows.
7.
E
xcessive noise
with the heater on
7.
Dir
ty heater blower motor 7.
G
ently vacuum heater blower vents.
8.
N
oise with ames
o
n and heater o
8a.
D
ented back panel
8b.
W
arped Flame Generator/
Spinner sha
8a.
C
ontact customer service
8b.
C
ontact customer service
9.
P
ower cord gets
warm
9. Normal operation 9.
C
heck your heater cord and plug connections. Faulty wall outlet
co
nnections or loose plugs can cause the outlet or plug to overheat.
Be sure the plug ts tight in the outlet. Heaters draw more current
t
han small appliances, overheating of the outlet may occur even if
i
t has not occurred with the use of other appliances. During use
c
heck frequently to determine if your plug outlet or faceplate
i
s HOT! If so, discontinue use of the heater and have a qualied
electrician check and/or replace the faulty outlet(s).
10. Is it safe to place
uni
t on carpet?
10. Product inquiry 10. It is safe to place unit on carpet but make sure any ammable
i
tems are at least 3 feet (0.9 m) away from front and sides of the unit.
11. How many square
f
eet will my unit
wa
rm up?
11. Product inquiry 11. Provides supplemental heat up to 400 square feet
12.Heater doesn’t work,
but Power and
Heaters witches
are in the “ON”
position and
thermostat is set on
the highest level.
12. e thermal protector has
tripped.
12. Turn all switches to the “OFF” position and unplug the unit from the wall outlet
for 5 minutes. Aer 5 minutes, plug the unit back into wall outlet and operate
as normal.
https://manual-hub.com/
www.tsicustomerservice.comA486
7
EXPLODED VIEW
Note, the scale and size of your parts may be dierent depending on your exact model.
Part Part Name Part Number
1 Power Switch
P06-S
2
Heater Switch -
750W/1500W
Y16-S204-P06
3 Ember bed
Y17-S238-P02
4 Heater/Blower Assembly
Y16-S204-P01
5 Flame Generator Drive Motor
P10-Q-S
https://manual-hub.com/
www.tsicustomerservice.comA486
8
1-YEAR LIMITED WARRANTY
e manufacturer warrants that your new Electric stove is free from manufacturing and material defects for a period of one
year from date of puchase, subject to the following conditions and limitations.
1. Install and operate this appliance in accordance with the installation and operating instructions furnished with the
product at all times. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify
this warranty.
2. is warranty is non-transferable, and is made to the original owner, provided that the purchase was made through
an authorized supplier of the product.
3. e warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship,
provided that such part(s) have been subjected to normal conditions of use and service, aer said defect is conrmed
by the manufacturer’s inspection.
4. e manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding
the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s),
repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume
responsibility for same.
6. e owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or
damage arising out of the use, or inability to use the product,except as provided by law.
7. All other warranties – expressed or implied –with respect to the product, its components and accessories, or any
obligations/liabilities on the part of the manufacturer are hereby expressly excluded.
8. e manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other liabilities with
respect to the sale of the product.
9. e warranties as outlined within this document do not apply to non accessories used in conjunction with the
installation of this product.
10.is warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
is warranty is void if:
a. e stove is subjected to prolonged periods of dampness or condensation.
b. Any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
CUSTOMER SERVICE
www.tsicustomerservice.com
For Customer Service Call 1-888-674-7517
Questions? Our message centers are available 7 days a week 24 hours a day at our toll-free help line. Our
Consumer Service department is available Monday – Friday 8:30 am – 5:30 pm EST. We can help you with
assembly and if necessary, replace damaged/missing parts.
IMPORTANT:
Before contacting Customer Service please have this information available:
• Serial Number
• Model Number
• Sales Receipt or Proof of Purchase
https://manual-hub.com/
