Modular Ice Machine User’s Manual
- 1 -
Please read the manual thoroughly prior to equipment set-up,
operation and maintenance.
194MC35022FA, 194MC35022HA, 194MC42022FA, 194MC42022HA, 194MC50030FA,
194MC50030HA, 194KMC350B2F, 194KMC350B2H, 194KMC420B2F,
194KMC420B2H, 194KMC500B3F, 194KMC500B3H, 194BIN23022, 194BIN27530,
194KMC350L2F, 194KMC350L2H, 194KMC420L2F, 194KMC420L2H, 194KMC500L3F,
194KMC500L3H, 194BIN40022, 194BIN54030, 194KMC350H2F, 194KMC350H2H,
194KMC420H2F, 194KMC420H2H, 194KMC500H3F, 194KM
C500H3H, 194HBN12022,
194HBN18030
User Manual
User Manual
12/2021
8VHU0DQXDO
7DEOHRI&RQWHQWV
0RGXODU,FH0DFKLQHDQG%LQ8VHUV0DQXDO
a. Warning and Safety................................................................................3
b.Installation............................................................................................4

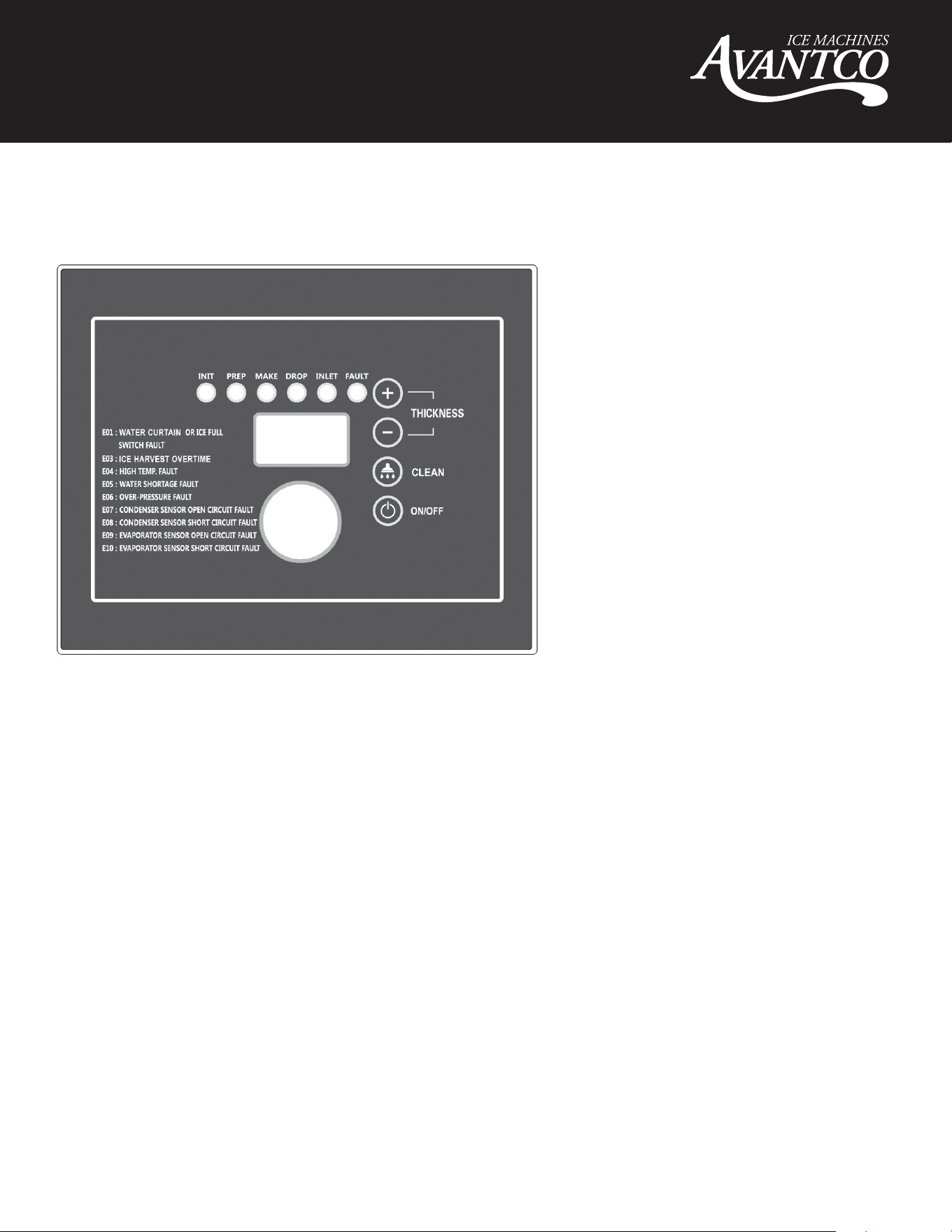

c. Startup and Operation...........................................................................7
d. Maintenance........................................................................................12
e. Clean Function.....................................................................................13

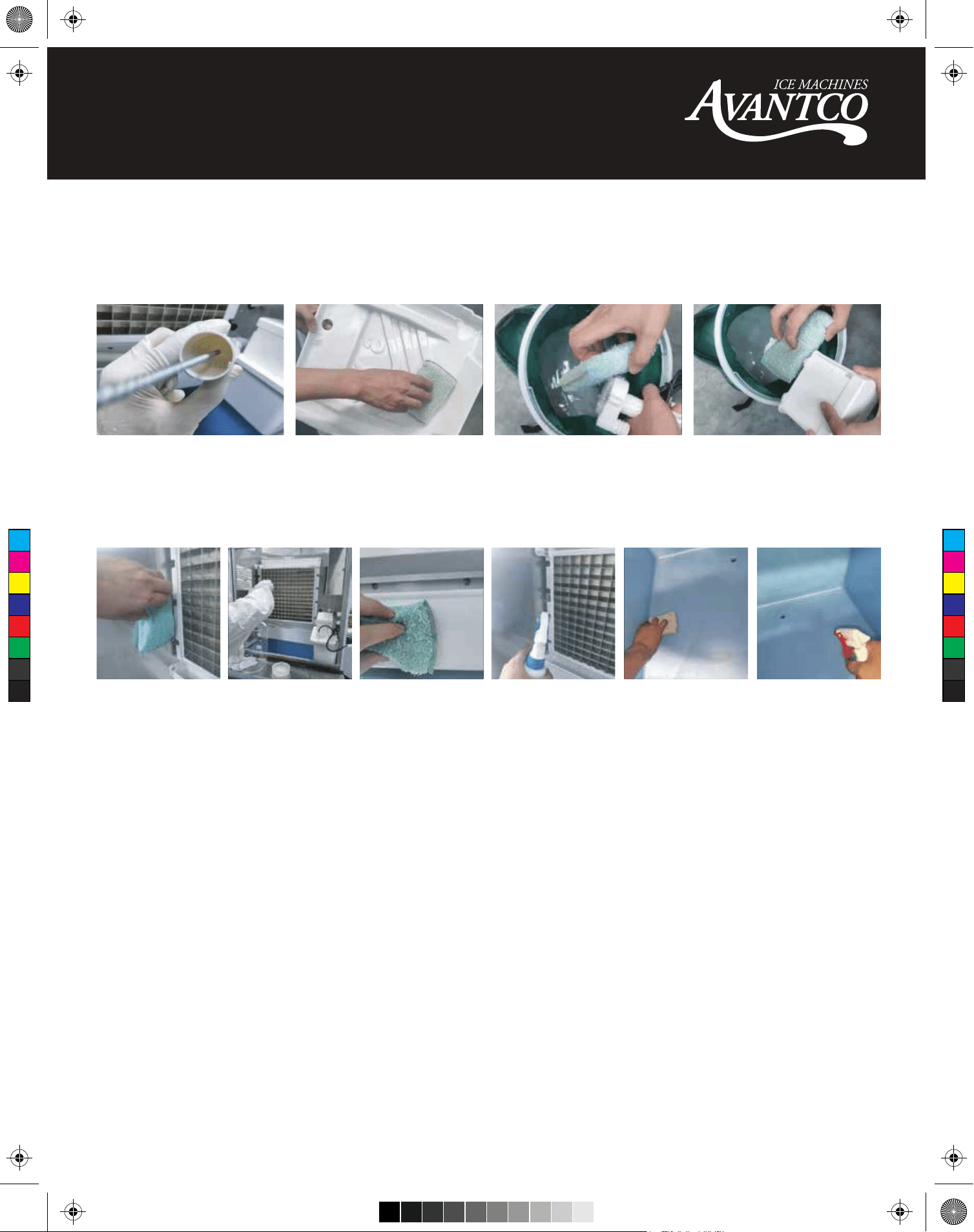

f. Manual Cleaning & Sanitizing..................................................................14
g. Service Call..........................................................................................17
h. Troubleshooting...................................................................................18
+RWHO,FH'LVSHQVHU8VHUV0DQXDO
a. General Description..............................................................................21

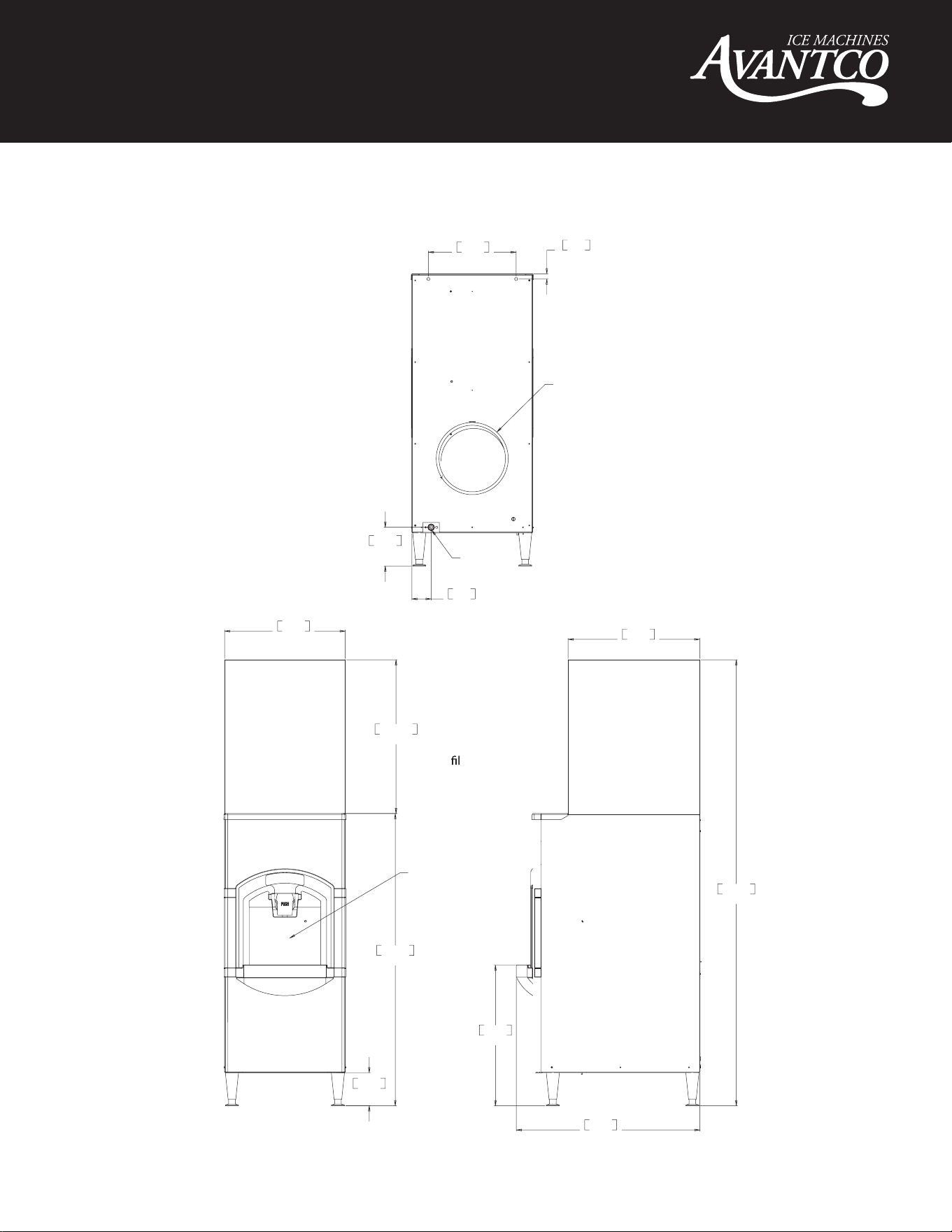

b. Basic Specifications & Dimensioned Illustrations.....................................21
c. Unpacking..........................................................................................26
d.Installation...........................................................................................27
e. Final Check List/Initial Start Up...............................................................29
f. Use.....................................................................................................30
g. General Care and Cleaning...................................................................31
h. Maintenance.......................................................................................33
i. Adjustments.........................................................................................34
j. Service Diagnosis.................................................................................35
:DUUDQW\
- -
- -
8VHU0DQXDO
:DUQLQJDQG6DIHW\
DANGER – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. TO BE REPAIRED ONLY BY
TRAINED SERVICE PERSONNEL. DO NOT PUNCTURE REFRIGERANT TUBING.
PELIGRO - RIESGO DE INCENDIO O EXPLOSION. REFRIGERANTE INFLAMABLE UTILIZADO. PARA
SER REPARADO SOLAMENTE POR PERSONAL DE SERVICIO CALIFICADO. NO PINCHAR LA TUBERÍA
REFRIGERANTE.
DANGER – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONFIER LES
RÉPARATIONS À UN TECHNICIEN SPÉCIALISÉ. NE PAS PERFORER LA TUBULURE CONTENANT LE
FRIGORIGENE.
CAUTION – RISK OF FIRE OR EXPLOSION. FLAMMABLE REFRIGERANT USED. CONSULT REPAIR
MANUAL/OWNER’S GUIDE BEFORE ATTEMPTING TO SERVICE THIS PRODUCT. ALL SAFETY
PRECAUTIONS MUST BE FOLLOWED.
ATENCION - RIESGO DE INCENDIO O EXPLOSIÓN. REFRIGERANTE INFLAMABLE UTILIZADO. CONSULTE
EL MANUAL DE REPARACIÓN / GUÍA DEL PROPIETARIO ANTES DE INTENTAR DAR SERVICIO A ESTE
PRODUCTO. DEBEN CUMPLIR CON TODAS LAS PRECAUCIONES DE SEGURIDAD.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION. LE FRIGORIGÈNE EST INFLAMMABLE. CONSULTER LE
MANUEL DU PROPRIÉTAIRE/GUIDE DE RÉPARATION AVANT DE TENTER UNE RÉPARATION. TOUTES LE
MESURES DE SÉCURITÉ DOIVENT ÊTRE RESPECTÉES.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO PUNCTURE OF REFRIGERANT TUBING; FOLLOW
HANDLING INSTRUCTIONS CAREFULLY. FLAMMABLE REFRIGERANT USED.
ATENCION - RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A LA PERFORACION DE LA TUBERÍA
REFRIGERANTE; SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO. REFRIGERANTE
INFLAMABLE UTILIZADO.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LA TUBULURE CONTENTANT LE FRIGORIGÈNE
EST PERFORÉE; SUIVRE LES INSTRUCTIONS DE MANUTENTION AVEC SOIN. LE FRIGORIGÈNE EST
INFLAMMABLE.
CAUTION – RISK OF FIRE OR EXPLOSION DUE TO FLAMMABLE REFRIGERANT USED. FOLLOW
HANDLING INSTRUCTIONS CAREFULLY IN COMPLIANCE WITH LOCAL GOVERNMENT REGULATIONS.
ATENCIÓN – RIESGO DE INCENDIO O EXPLOSIÓN DEBIDO A REFRIGERANTE INFLAMABLE UTILIZADO.
SIGA LAS INSTRUCCIONES DE MANIPULACIÓN CON CUIDADO CONFORME A LAS REGLAS DE LA
MUNICIPALIDAD.
ATTENTION – RISQUE DE FEU OU D’EXPLOSION SI LE FRIGORIGÈNE EST INFLAMMABLE. SUIVRE
LES INSTRUCTIONS DE MANUTENTION AVEC SOIN CONFORMÉMENT AUX RÈGLEMENTATION
GOUVERNEMENTALE LOCAUX.
8VHU0DQXDO
- -
8VHU0DQXDO
7KLVSURGXFWFDQQRWEHXVHGLQRXWGRRUHQYULRQPHQWV1RWLQWHQGHGIRUXVHE\FKLOGUHQ
SHUVRQVZLWKUHGXFHGSK\VLFDOVHQVRU\RUPHQWDOFDSDELOLWLHVRUODFNRIH[SHULHQFH
DQGNQRZOHGJH
• The installation, repair or maintenance of this ice machine must be carried out by professional and
qualified personnel. Electric shock, fire, personal injury may result from incorrect operation.
• After the ice machine is delivered, please keep the machine upright for at least 24 hours to have the
refrigerant be fully precipitated before startup. Otherwise the compressor may be damaged.
• When handling, keep the cabinet upright with the inclination not exceeding 45 degrees. Do not invert the
machine or lay it horizontally.
• This ice machine should not be placed in wet or easily splashed areas.
• The grounding of this ice machine cannot be connected to a gas pipe, water pipe, telephone line or
lightning rods, etc.
• There are rotating components in this ice machine. Do not insert slim objects into ventilation or exhaust
ports, or serious mechanical damage and injury may occur.
• Do not store volatile or flammable substances in this ice machine or it may result in DQexplosion or fire.
• Do not store any sundries or freeze any food in the storage bin. Keep the ice scoop clean.
• The ice machine must be placed on a floor sufficient enough to support its weight. $QLnsufficient base
maycause the equipment to fall over and cause injury.
• There should be sufficient ventilation space around the ice machine. See page 5 for
clearance requirements.
• Only the power supply specified on the machine nameplate can be used with this ice machine.
• This ice machine cannot be connected to hot water.
• Outlet for this ice maker must be reliably grounded with leakage protection.
• The ice machine must be disconnected from power before manual cleaning, repairing and maintenance.
• Before cleaning, repairing and maintenance, the remaining ice in the ice bin should be removed from the
ice machine to avoid contamination to ice.
• Do not splash water directly onto the surface of the ice machine during the cleaning process; otherwise it
may cause short circuit, leakage or other faults.
• Flammable foaming agent is used during the foaming process. The ice maker should be disposed of and
recycled by qualified personnel and institutions.
• The ice machine should be properly managed to ensure that children will not play with the machine.
• When the ice machine malfunctions, turn off the power and contact professional personnel WREH repairHG
8VHU0DQXDO
- -
8VHU0DQXDO
ThLV ice machine is fully automatic. With proper installation and connection to potable water
and power source, the ice making will start properly. When the ice cubes fill up the storage bin,
the machine will automatically stop. The ice machine is generally used in the following and
similar occasions:
• Indoor, ambient controlled environments only.
• The kitchen area of a store, office or other workplace;
• Hotel and restaurant;
• Catering and similar non-retail occasions;
• This ice machine is not intended for residential use
,WHP1XPEHU ,FH6KDSH ,FH3URGXFWLRQ
3HU+UV
5HFRPPHQGHG:DWHU
)LOWUDWLRQ6\VWHP
5HSODFHPHQW&DUWULGJH
194MC35022FA Full Dice 350 lbs. 790OCLOKITM 790OCLOCARTM
194MC35022HA Half Dice 350 lbs. 790OCLOKITM 790OCLOCARTM
194MC42022FA Full Dice 420 lbs. 790OCLOKITM 790OCLOCARTM
194MC42022HA Half Dice 420 lbs. 790OCLOKITM 790OCLOCARTM
194MC50030FA Full Dice 500 lbs. 790OCLOKITM 790OCLOCARTM
194MC50030HA Half Dice 500 lbs. 790OCLOKITM 790OCLOCARTM
8VHU0DQXDO
C Pure creates specialty water filters to be used with common restaurant equipment, ensuring that the water
utilized by the equipment is both clean and clear. These filters are easily installed into water lines, and their
cartridges can be quickly swapped out for fast, easy and efficient replacements. The water filters below
are approved for use with Avantco Ice Machines. Failure to use and maintain an appropriate water filter will
void warranty coverage on your Avantco Ice Machine. For installation instructions, refer to the C Pure water
filtration manual or contact a C Pure water filtration dealer.
0RGXODU,FH0DFKLQH
Avantco Ice warrants to the origina
- -
,WHP1XPEHU ,FH6KDSH ,FH3URGXFWLRQ
3HU+UV
5HFRPPHQGHG:DWHU
)LOWUDWLRQ6\VWHP
5HSODFHPHQW&DUWULGJH
194KMC350L2F Full Dice 350 lbs. 790OCLOKITM 790OCLOCARTM
194KMC350L2H Half Dice 350 lbs. 790OCLOKITM 790OCLOCARTM
194KMC420L2F Full Dice 420 lbs. 790OCLOKITM 790OCLOCARTM
194KMC420L2H Half Dice 420 lbs. 790OCLOKITM 790OCLOCARTM
194KMC500L3F Full Dice 500 lbs. 790OCLOKITM 790OCLOCARTM
194KMC500L3H Half Dice 500 lbs. 790OCLOKITM 790OCLOCARTM
,WHP1XPEHU ,FH6KDSH ,FH3URGXFWLRQ
3HU+UV
5HFRPPHQGHG:DWHU
)LOWUDWLRQ6\VWHP
5HSODFHPHQW&DUWULGJH
194KMC350H2F Full Dice 350 lbs. 790OCLOKITM 790OCLOCARTM
194KMC350H2H Half Dice 350 lbs. 790OCLOKITM 790OCLOCARTM
194KMC420H2F Full Dice 420 lbs. 790OCLOKITM 790OCLOCARTM
194KMC420H2H Half Dice 420 lbs. 790OCLOKITM 790OCLOCARTM
194KMC500H2F Full Dice 500 lbs. 790OCLOKITM 790OCLOCARTM
194KMC500H2H Half Dice 500 lbs. 790OCLOKITM 790OCLOCARTM
8VHU0DQXDO
0RGXODU+RWHO'LVSHQVHU
194KMC350B2F Full Dice 350 lbs. 790OCLOKITM 790OCLOCARTM
194KMC50B2H Half Dice 350 lbs. 790OCLOKITM 790OCLOCARTM
194KMC420B2F Full Dice 420 lbs. 790OCLOKITM 790OCLOCARTM
194KMC420B2H Half Dice 420 lbs. 790OCLOKITM 790OCLOCARTM
194KMC500B3F Full Dice 500 lbs. 790OCLOKITM 790OCLOCARTM
194KMC500B3H Half Dice 500 lbs. 790OCLOKITM 790OCLOCARTM
0RGXODU%LQ
purchaser of new equipment, that covered models of equipment will be free of defects
- -
8VHU0DQXDO
,QVWDOODWLRQ

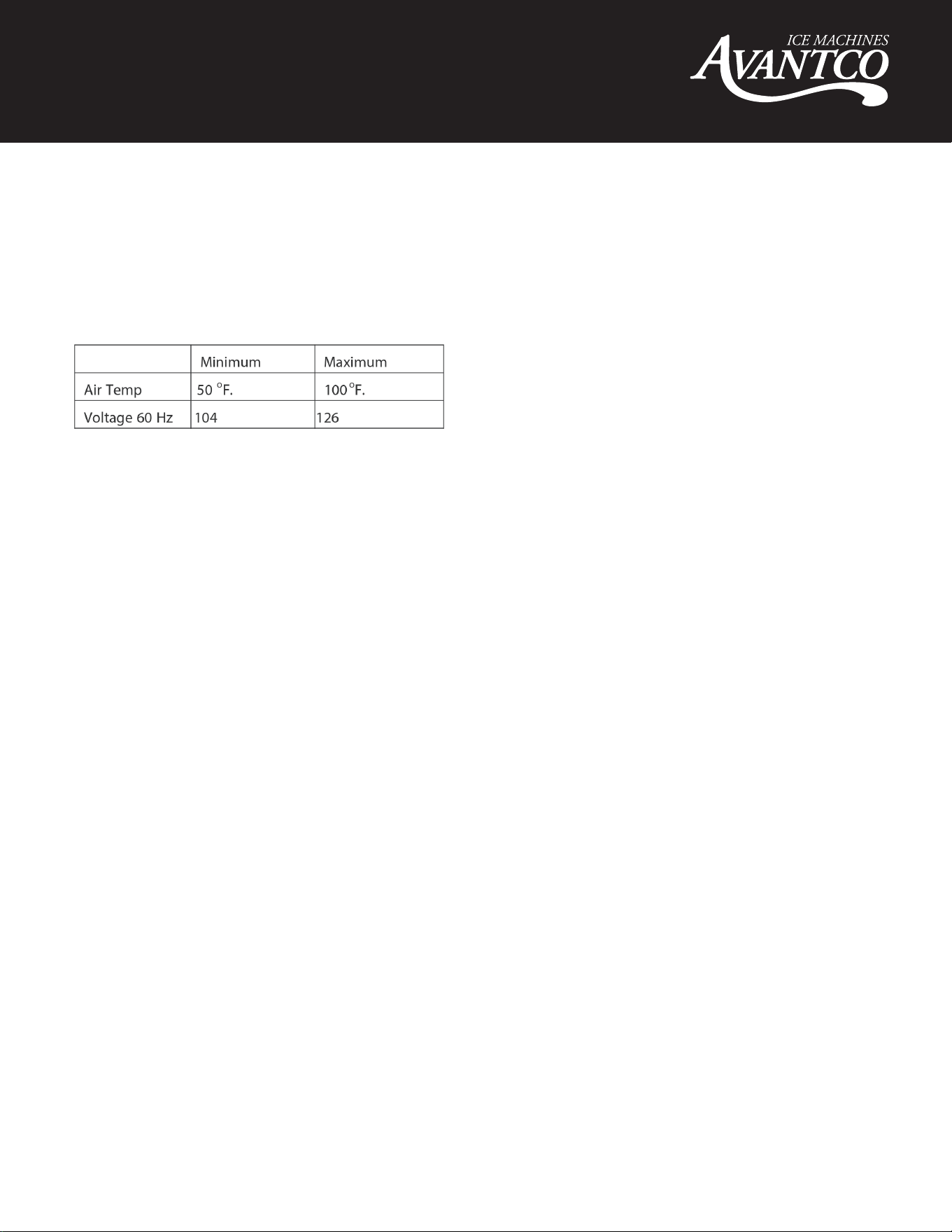

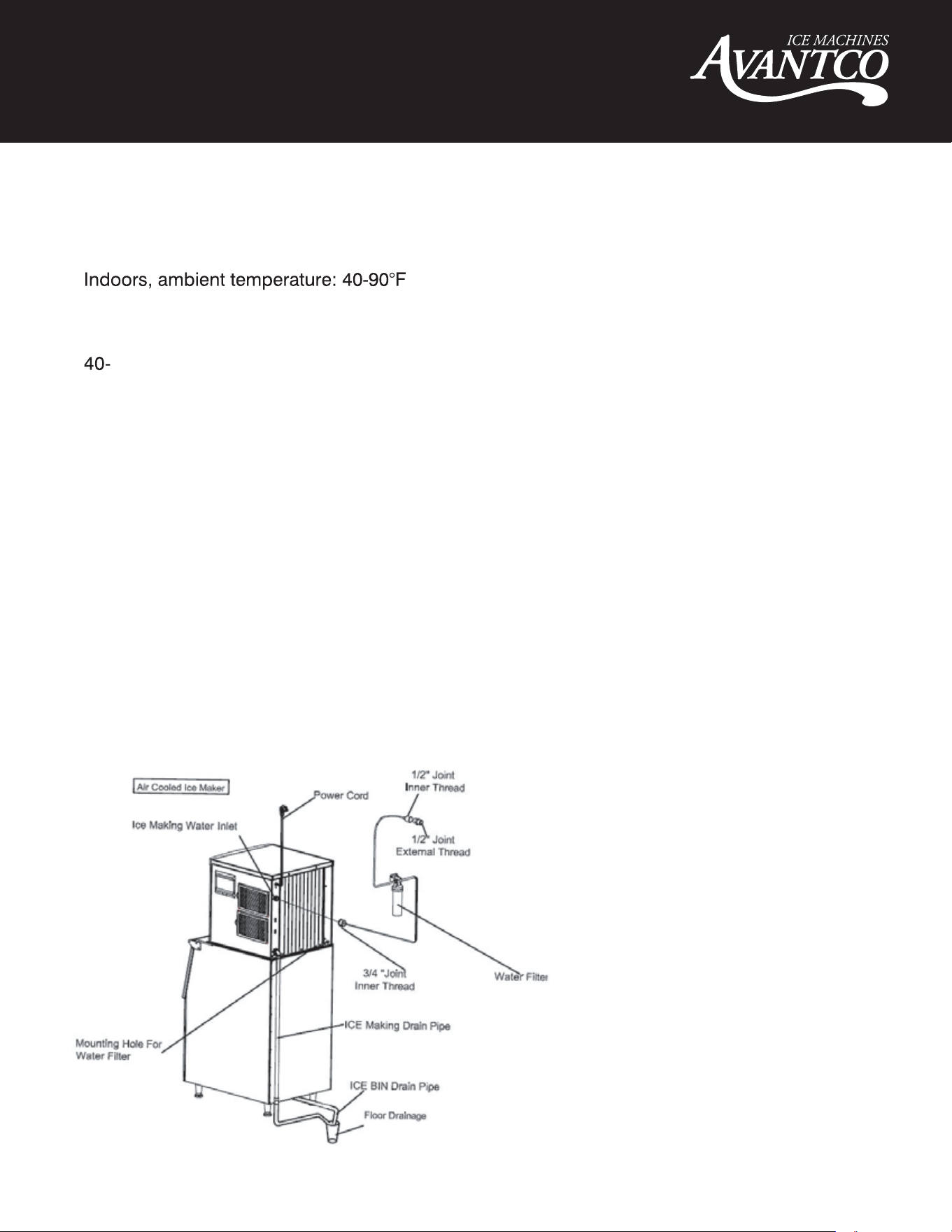

The ice machine should be installed in a proper location meeting the following conditions:
•
;
• Power supply: the rated voltage indicated on the machine nameplate ±6%;
• Water source: potable water, with water pressure from 18.75 psi to 80 psi; water temperature:
90°F;
• The ice machine should be kept away from heat sources, and should be SURKLELWHG touse LQ an
extremely high or low temperature environment, and should avoid directsunlight.
• There should be sufficient ventilation space around the ice machinH; thedistance from the ice
maker to the wall should be no less than 12” for the front, 6” for the sides,and 8” for the rear.
• The ice machine must be placed on a floor sufficient to support its weight;
• The socket for the ice maker must be reliably grounded and KDYH leakage protection;
• Proper floor drainage must be provided near the installation location of the ice machine.
6FKHPDWLF'LDJUDP
8VHU0DQXDO
- -
8VHU0DQXDO
,QVWDOODWLRQ6WHSV
Check to see if the ice machine is in good condition and the accessories are all present; check
the machine model and the machine nameplate.
Clean the ice storage bin and the food area inside with a sponge soaked in warm water and
soap. 7KHQULQVHZLWKSRWDEOHZDWHUDQGGU\
Place the ice machine in the operation area; ensure that the machine is placed on a leveled IORRU
VRWKHZDWHUIORZVHYHQO\LQWRWKHHYDSRUDWRU
7KHFRPSUHVVRUFKDPEHULVORFDWHGEHORZWKHIURQWRIWKHLFHELQZKHUHWKHFRPSUHVVRU
DQGFRQGHQVHUDUHLQVWDOOHG It requires good ventilationVRthe ice maker must haveventilation
space of more than 8” in the rear, 6” on the sides, and 12” in the front.
The bottom of the ice machine is equipped with adjustable legs for level adjustment and
clearance for floor cleaning.

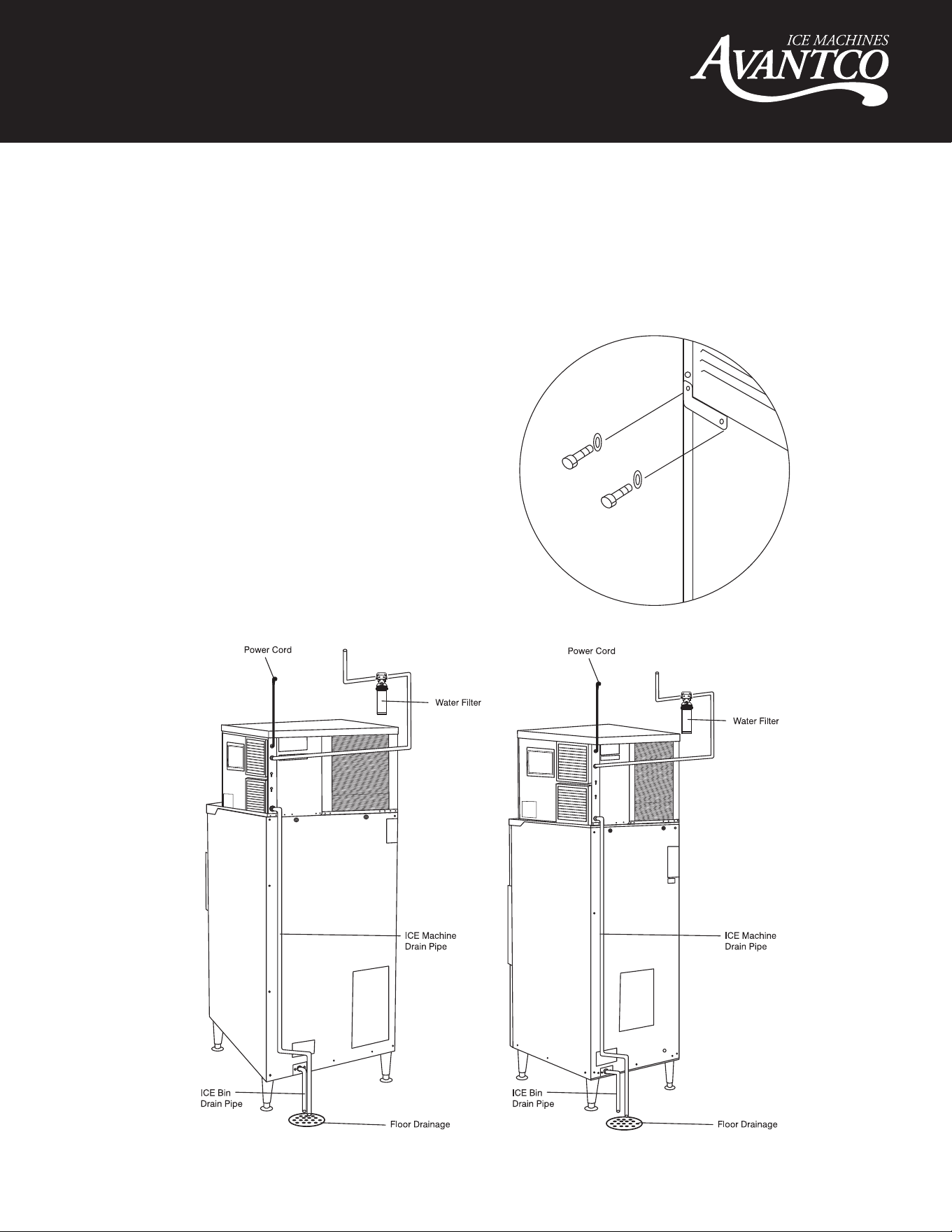

Connect the machine’s inlet water filter and water line referring to the installation instructions
of your water filter brand; if the installation site is already equipped with a drinking watersystem,
the water filter may not be QHHGed.
Connect the machine to the water supply using the 3/4” inlet fitting supplied with the
machine. It is recommended to install a water ball valve (not supplied with this machine) on
the water supply line.
Connect the drain line to the drain connector. 7o achieve a proper draining, it isrecommended
that the drain pipe should have a difference in level of more than 1” per 3’; andconfirm that the
drain line is not blocked. It is recommended that the drain line be connected
to an open drainage port.
Any joint in the drain line must not be higher than the machine drainage port; any joint in the
drain line cannot be higher than the previous joint.
Confirm the power requirements stated in the machine’s nameplate; ensure that the power
supply meets the requirements.
A circuit breaker or switch with leakage protector and reliable grounding is required.
Turn off the switch on the power line and connect the machine to the power source.
127(WKHILOWHUIORZGLUHFWLRQVKRXOGEHFRUUHFWO\LQVWDOOHGDVSHUWKHGLUHFWLRQPDUNHURQ
WKHILOWHUKHDGFRYHURUWKHILOWHUERG\7KHILOWHUFDUWULGJHVKRXOGEHUHSODFHGHYHU\
WRPRQWKV
8VHU0DQXDO
- -
8VHU0DQXDO
6WDUWXSDQG2SHUDWLRQ
1. Before you start up the machine, please check and confirm:
• That the packaging tape inside the ice machine has been removed;
• The accessories or items in the ice bin have been taken out;
• The ice machine has been adjusted to a leveled state;
• The water line has been connected and the water valve is open;
• The plug has been connected to the power supply and the power switch is off.
• The ambient temperature, water temperature, and pressure of the water supply meet the
above requirements.
2.
Start up: turn on the power switch. After power-on, the machine begins to make ice automatically.
3. For normal operation, please confirm:
• There is water in the water trough and no overflow occurs;
• The pump is working properly and water is flowing evenly in the evaporator;
• The compressor is running normally, the temperature of the evaporator and the ice making
water is gradually decreasing;
• For air cooled machines, make sure the fan is running normally, and there is stable air flow in
the inlet and outlet of the
ice machine;
• The ice machine has no abnormal noise;
• The ice machine has no abnormal vibration;
• It takes about 10 to 20 minutes to make one batch of ice, depending on the ambient
temperature and the temperature of the water. The higher the temperature is, the longer the
ice making will take;
• Ice cubes can be properly harvested from the machine.
8VHU0DQXDO
- 10 -
User Manual
Operation Instructions
• Startup: after proper installation, connect the water source and turn on the power
Please confirm that the machine is operating normally when you turn it
on for the first time.
• Self-check: with power on for the first time, the ice maker will do a self-check and pump out
any remaining water.
• Preparing: after the ice machine
, the inlet valve opens and the
inlet water will flow in until it reaches the set level; then the ice maker will defrost one time.
• Ice making: after pre-cooling for 30 seconds, the water pump starts, the water flows through
the evaporator smoothly and evenly, the ice cubes are gradually formed in the ice cube tray.
• Ice Harvest (Drop):
Warning: Do not put your hand into the ice storage bin during the ice-falling process to
prevent the ice from hitting your hand!
• Shutdown: The ice maker will stop working when you push the “on/off” button on the control
panel during the running process.
User Manual
•
•
Bin full stop: Once the ice storage bin is filled to a certain height, the ice making process
will stop after 40 seconds. There is a sensor at the top of the bin which will trigger this stop
in production. In order to maximize the bin space make sure to spread around the ice that
piles up in front of the sensor
Repeat ice-making: When the ice cubes triggering this sensor are moved or taken away,
the ice maker will go back to the ice making process within seconds
- -
8VHU0DQXDO
&RQWURO3DQHO

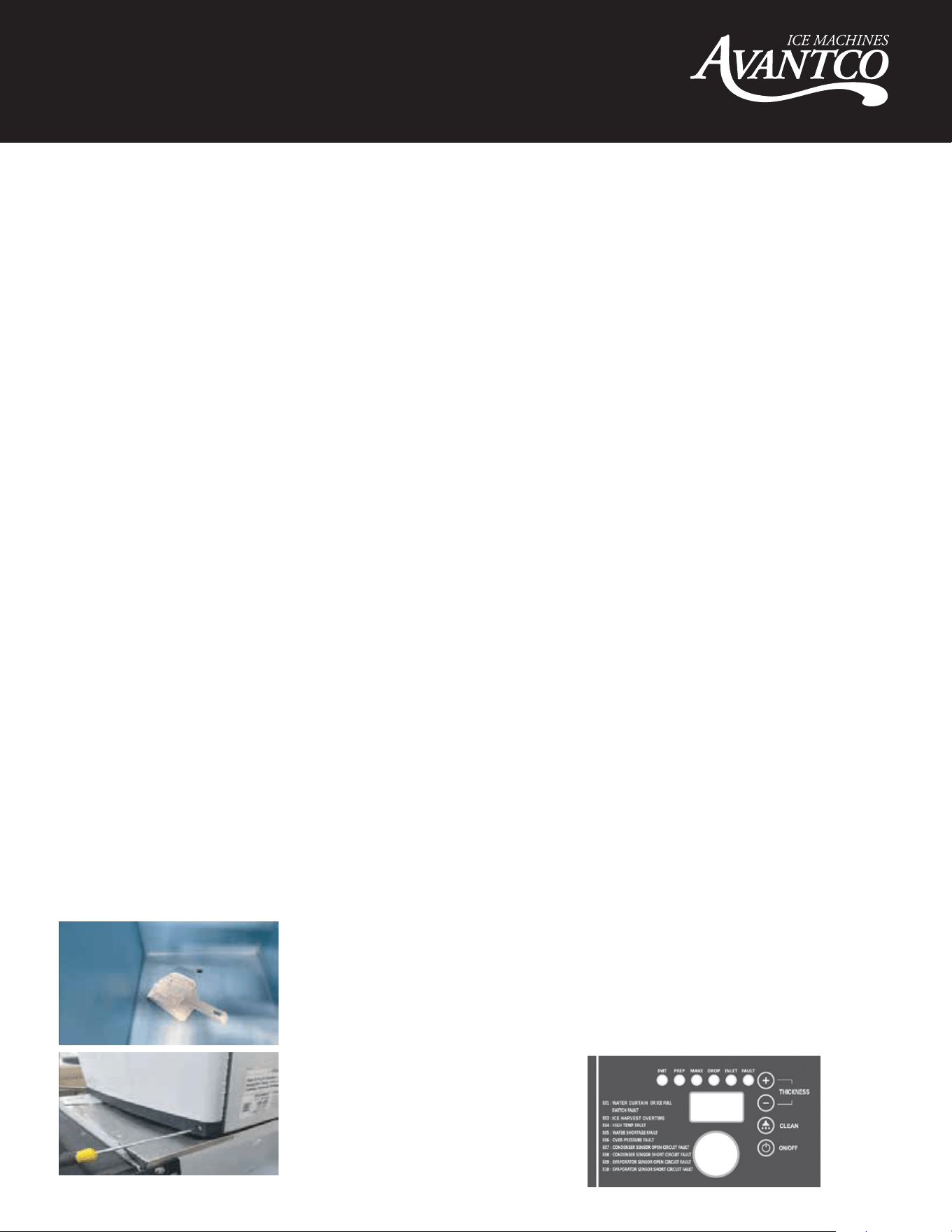

1. LED Display:
• Self-check: Display “ini” code.
• Preparing: Counts (in seconds) forwards.
• Ice making: Counts (in seconds) forwards prior to the water reaching 32 degrees F. Counts
seconds backwards to 0 seconds afterwards.
• Ice Harvest: Counts (in seconds) forwards.
• Clean: Display “CLE” during cleaning and descaling; Display “STL” during sanitizing; Display
“RIN” during rinsing.
2. LED Lamps: Turns lights on/off
3. Ice cube thickness adjustment: During the ice making process, if you are not satisf
ied with the
ice thickness, press the Ice cube “–” button for 3 seconds, then click the button “+” or “-” on the
panel to adjust the thickness of ice cube.
• Note: By clicking the “+” or “-“ button one time, the ice making time is extended or shortened
by 1.5 minutes.
8VHU0DQXDO
-1 -
8VHU0DQXDO
Cleaning: During the normal operation, hold the cleaning button for 3 seconds to enter the
cleaning process. During the entire cleaning process, cleaning agents and disinfectants need
to be put into the water trough. When the cleaning process is finished, the ice maker will go to
the ice making process.
1RWH$OOFOHDQLQJDQGVDQLWL]LQJFKHPLFDOVXVHGPXVWEHQLFNHOVDIH
ON/OFF: Press this button to switch the machine OFF/ON.
Please open and close the storage bin door gently. Do not slam the door. Keep door closed
when not UHPRYing ice.
If the ice maker is not in use for a long time, it should be energized and run for 2 to 4 hours
every 2 months.
2WKHU6SHFLDO3URWHFWLRQ6KXWGRZQ
• If the ice machine has not detected ice harvest in three cycles, it will shut down for safety
DQGprotection. The ice maker needs to be checked.
• If the ice machine detects that the ambient temperature is too high it will stop for safety
DQGprotection.

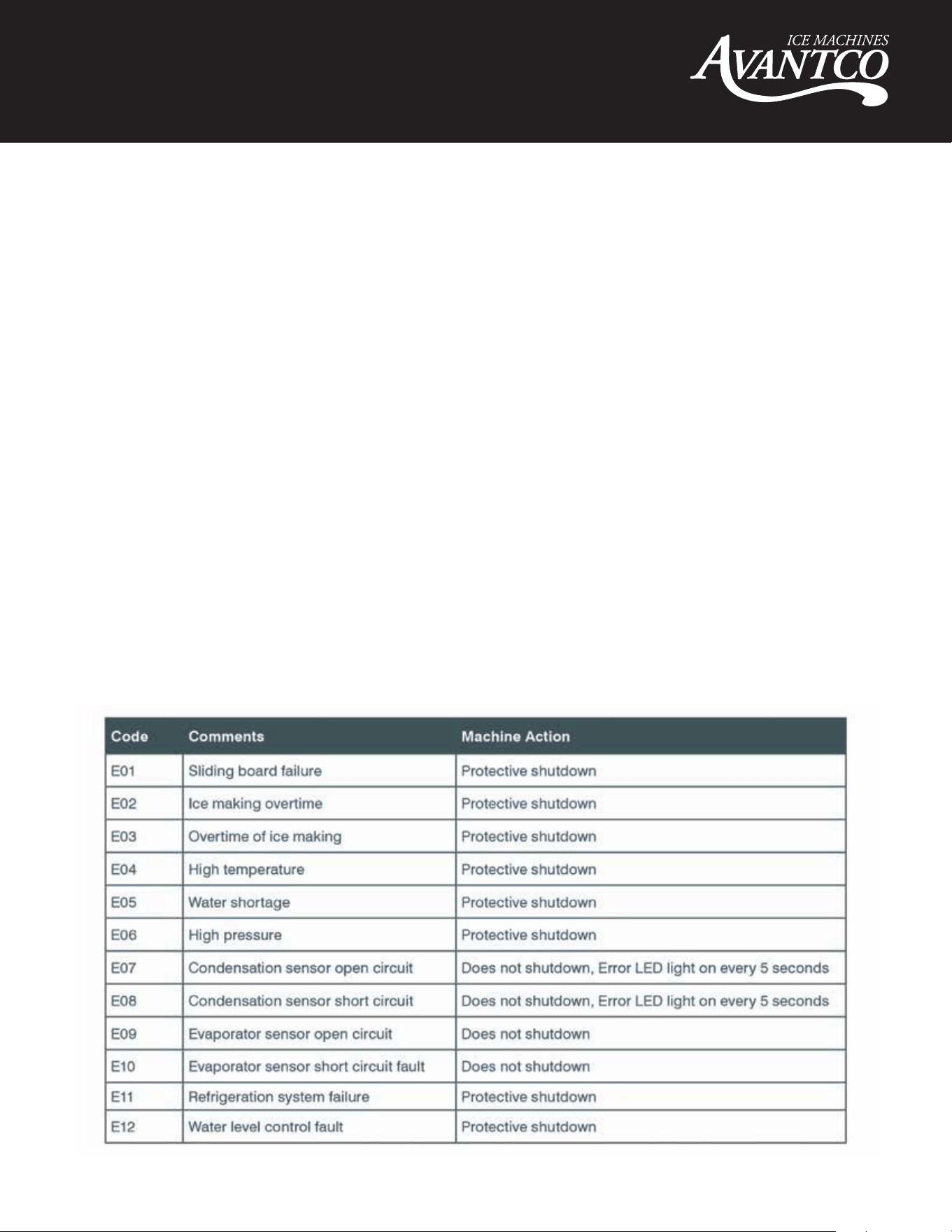

• The fault code and its comments are displayed as follows:
8VHU0DQXDO
-1 -
8VHU0DQXDO
Noble Chemical offers a full line of products to clean and sanitize your commercial ice machine.
These chemicals are approved for use with Avantco Ice Machines. Failure to regularly clean and
sanitize your Avantco Ice Machine will void warranty coverage. For information and instructions,
contact a Noble Chemical dealer. The ice machine needs to be cleaned every other month,
or once a month for high yeast environments.
&OHDQHUV
6DQLWL]HUV
,WHP1XPEHU 6L]H 7\SH
147ARCTIC 16 oz. Concentrate
147ARCTICRPT 16 oz. Ready to use
147ARCTICR1G 1 Gallon Ready to use
,WHP1XPEHU 6L]H 7\SH
147QKSANICE 12 Pack/16 oz. Bottles Concentrate
999QKSANICE 16 oz. Concentrate
8VHU0DQXDO
-1 -
8VHU0DQXDO
0DLQWHQDQFH
127(0DLQWHQDQFHPXVWEHGRQHE\DTXDOLILHGWHFKQLFLDQ
:$51,1*%HIRUHPDLQWHQDQFHRUPDQXDOFOHDQLQJEHVXUHWRVKXWRIIWKHZDWHUVRXUFH
DQGSRZHUVXSSO\
([WHULRU&OHDQLQJ
• Frequently clean the environment around the ice machine to keep it clean.
Do not block the vents.
• The outer enclosure should be cleaned with a mild detergent and then wiped clean.
If necessary, use commercial stainless steel cleaners and polishes.
127(6WDLQOHVVVWHHOPD\UXVWZLWKRXWSURSHUPDLQWHQDQFH
,QOHW:DWHU)LOWHU
• The water filter should be inspected regularly. It is recommended to replace the filter cartridge
every 3 to 6 months.
,QWHULRU&OHDQLQJ
• The inside of the ice storage bin can be washed with water and cleaner solution.
Rinse thoroughly with water. Repeat this process with a water and sanitizer solution.
• Note: Check and confirm the water pressure is lower than the maximum allowed pressure.
Do not flush the part above the water pump or the evaporator directly for water protection.
&RQGHQVHU
• For the air-cooled ice maker, the condenser should be cleaned every three weeks. Use a soft
brush or a vacuum cleaner with a brush to brush it up and down along the fin direction, to
avoid damage to the fins and further affecting the cooling effect.
• The condenser filter should be cleaned every 2 weeks.
127(%HFDUHIXOZKHQFOHDQLQJWKHFRQGHQVHUDVWKHHGJHVRIWKHILQVDUHVKDUS
:DWHU/LQH
• In order to ensure food safety, the water line of the ice machine should be cleaned regularly.
:LQWHUL]LQJ
• Turn off the water and power supply, drain the residual water from the water trough
inlet pipe and drain pipe.
127(7KHPDLQWHQDQFHRIWKHLFHPDFKLQHLVQRWFRYHUHGE\WKHPDQXIDFWXUHU·VZDUUDQW\
8VHU0DQXDO
8VHU0DQXDO
&OHDQ)XQFWLRQ
127(3OHDVHHPSW\WKHELQRILFHLQDGYDQFH
127(3OHDVHFOHDQDQGVDQLWL]HWKHELQDQGGRDFRPSOHWHULQVLQJ
127(3OHDVHFOHDQDQGVDQLWL]HWKHLFHVOLGLQJERDUGZDWHUGLVWULEXWLRQOLQH
ZDWHUVXSSO\OLQHZDWHUSXPSWKHQGRDFRPSOHWHULQVLQJ
• Turn on the ice maker; push “clean” button for 3 seconds, the ice maker will begin the
cleaning process. Put in WKHproper amount of cleaning solution manually into the water
troughfollowed by the clean and sanitizing process instruction.
• PushWKH “clean” button. The ice maker will do auto clean for about 15 minutes. 3OHDVHVSUD\
WKHHYDSRUDWRUZLWKWKHFOHDQLQJVROXWLRQLQWKHPHDQWLPHWRHQVXUHDFRPSOHWHFOHDQ:KHQ
ILQLVKHGWKH/('GLVSOD\ZLOOIODVK&OHDQVORZO\DJDLQ
• Put in the proper amount of sanitizing solution manually into the water trough followed by the
clean and sanitizing process instruction. Push the “clean” button again, the ice maker will do
auto sanitizing for about 15 minutes. Please spray the evaporator with the sanitizing solution
in the meantime to ensure complete sanitizDWLRQ. When finished, the ice maker will go into the
rinsing process, this process will take about 5 minutes, and do 5 rinsing cycles. Refer to your
cleaner and sanitizer for proper mixing & coding instructions.
• The ice maker will go back to making ice as soon as the cleaning process ends.
• Please throw away the next batch of ice in case of residual cleaner.
0DQXDO&OHDQLQJ6DQLWL]LQJ
3. To empty the water from the tank
while the machine is running, press and
hold the “Clean” button for 3 seconds
and enter the cleaning mode to display
CLE. In the cleaning mode, press the “-”
button for 3 seconds to drain.
Remove all ice from
the ice bin to avoid
contamination.
Remove the 4 screws from
the top and bottom of the ice
machine’s front panel and
remove the front panel.
-1 -
Note: Cut off
the power
supply after
draining
&OHDQLQJ,QVWUXFWLRQV
8VHU0DQXDO
-1 -
8VHU0DQXDO

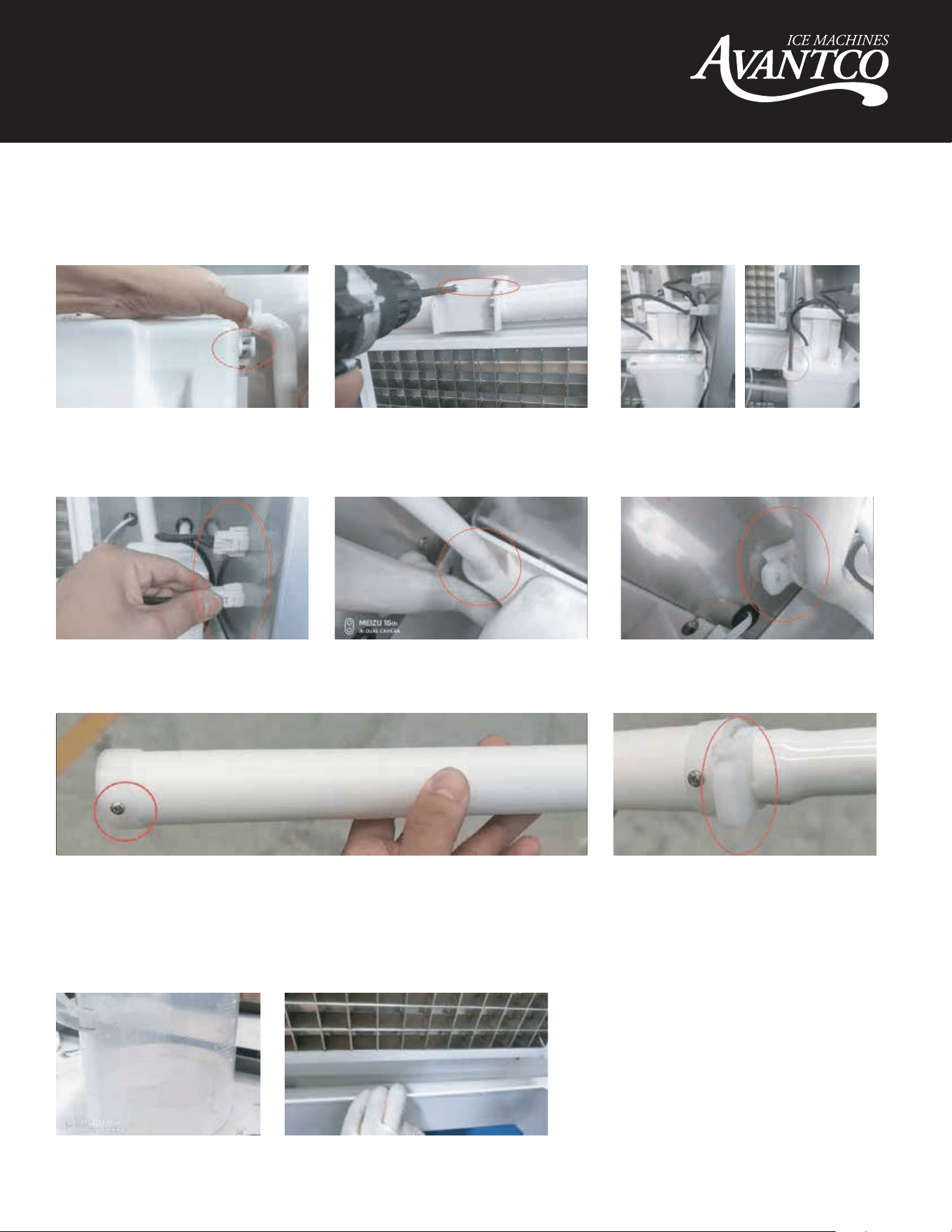

4. Make sure the power
supply is cut off. Remove
the water curtain.
5. Remove the 2 screws
which are securing the
spray pipe and remove it.
6. Remove the 2 screws
which are securing the
water pump.
7. Pull out the pump and
sensor wiring harness.
8. Pull out inlet water pipe. 9. Pull out the hose hoop
of the upper water pipe.

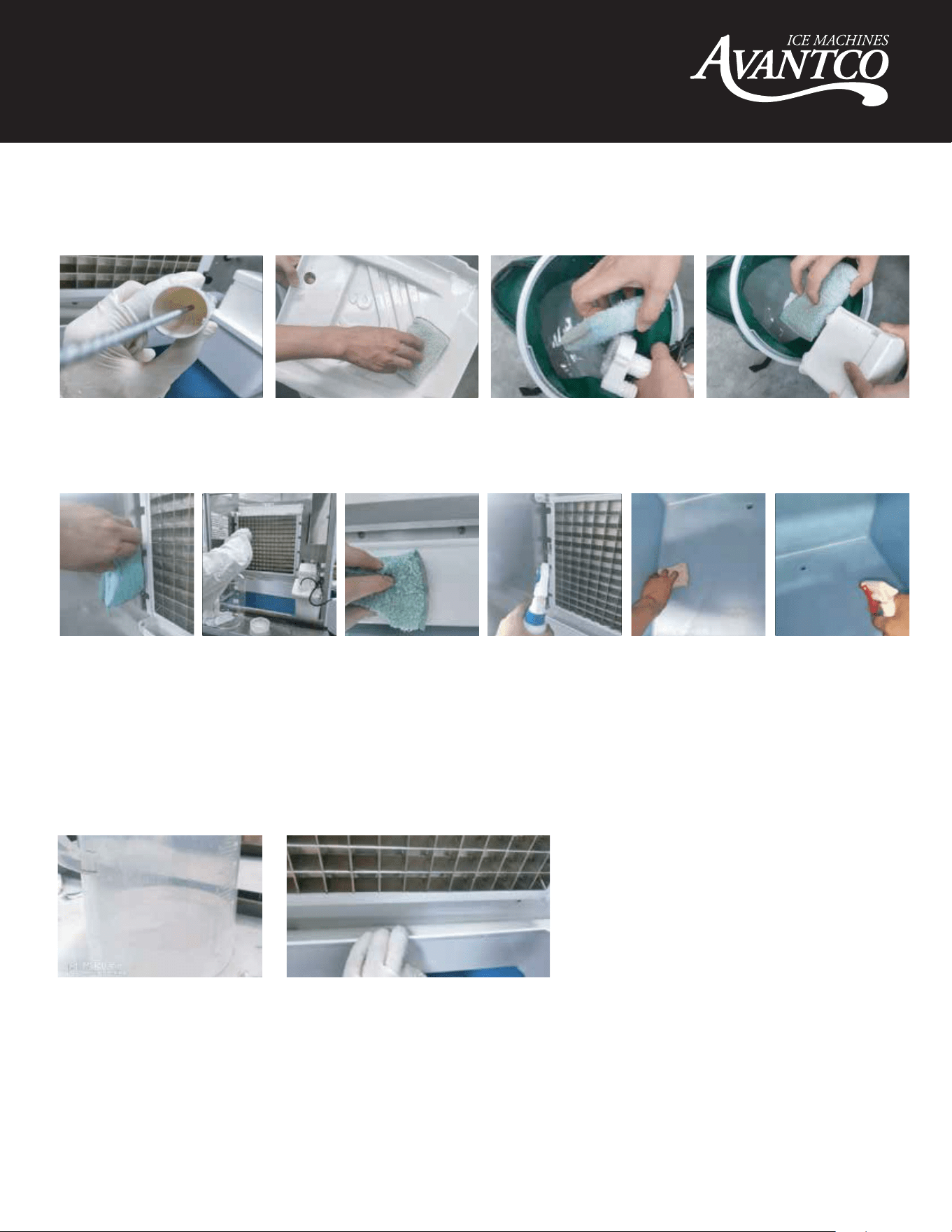

10. Disassemble fixed screws which are in the spray pipe. Dismantle the spray pipe.
11. Mix a solution of cleaner and water according to your ice machine cleaner instructions. Ensure
the cleaning agent dissolves completely. Soak the water pipe, inlet and outer spray pipe, head,
spray pipe fixing seat and screws, etc. in the cleaning solution for 5 minutes (or 15 minutes for
heavily scaled components). Rinse all components thoroughly with clean water.
8VHU0DQXDO
-1 -
8VHU0DQXDO
12. After soaking, scrub the spray pipe, water curtain and pump base bracket with cleaning
solution, and rinse with clean water.
13. Spray the cleaning solution into the evaporator and wipe clean. Repeatedly wipe the water
tank, ice plate and its plastic parts, side plates, ice buckets and other sanitary areas with cleaning
solution. Rinse all areas thoroughly with clean water.
6DQLWL]LQJ,QVWUXFWLRQV
1. Mix a solution of sanitizer and water according to your ice machine sanitizer instructions. Ensure
the sanitizer dissolves completely. Soak the water pipe, inner and outer spray pipe, head spray
pipe fixing seat and screws, etc. in the solution for 5 minutes. If using a no-rinse sanitizer, there is
no need to rinse.
8VHU0DQXDO
- 18 -
User Manual
Service Call
If the ice machine works abnormally, please confirm below before making a service call:
1. Check the water supply
• Whether there is water in the water trough;
• Whether the water pressure is 18.75 psi to 80 psi; the water temperature is 40-90°F;
• Whether the water valve is open;
• Whether there is no water leakage;
2. Check the power
• Whether the indicator on the display panel is ON;
• Whether the panel display does not display the OFF standby state;
• If the LED on the display panel is not ON, check whether
the plug and socket are normal, and
whether the power supply switch is ON.
3.
Spray the sanitizer solution into the ice evaporator with a spray bottle. Spray the water tank, ice
plate and its plastic parts, side plates, ice bin and other sanitary areas with sanitizer solution. If
using a no-rinse sanitizer, there is no need to rinse.
4. Allow the dismantled spray pipe, water pump, water pipe, and water curtain to dry.
Then install them back to their original position.
2. Spray the spray pipe, water curtain and pump base bracket with the sanitizer solution.
If using a no-rinse sanitizer, there is no need to rinse.
User Manual
C
M
Y
CM
MY
CY
CMY
K
194Modular_Manual.pdf 1 12/16/21 10:39 AM
-1 -
8VHU0DQXDO
)DXOW 3RWHQWLDO&DXVH 7URXEOHVKRRWLQJ
Not working Power switch not turned on Turn on the power switch
Indicator is OFF Plug is loose Check plug and socket
Shutdown every 3 minutes after
startup;
The ambient temperature is
too high
Normal working temperature
range of 41-95°F
The display shows E04
high temperature
Condenser is dirty and blocked
High pressure switch wires
fallen off
Clean the condenser
The display shows E06
high pressure protection
Fan does not start Check and correct high pressure
switch wires
Check a
nd correct the fan
Ice defrost abnormal Ambient temperature
too low
Normal working temperature
range of 41-95°F
Defrost valve does not
start normally
Check and correct the
defrosting valve
Ice thickness too thin or too thick Check and correct ice
thickness setting
7URXEOHVKRRWLQJ
&KHFNQDPHSODWHDQGVHULDOQXPEHU
• Check the nameplate located on the side or back of the ice machine and record the model
and series number of the ice machine.
1RWH,IWKHPDFKLQHIDLOVGXHWRWKHXVHU·VIDXOWVVXFKDVIDLOXUHWRXVHDQGPDLQWDLQD
ZDWHUI
LOWHUQRVXSSO\RIZDWHUHOHFWULFLW\RUHQYLURQPHQWDOIDFWRUVUDWKHUWKDQWKHIDXOWRI
WKHLFHPDNHUWKHGRRUWRGRRUVHUYLFHZLOOEHFKDUJHG
8VHU0DQXDO
- -
8VHU0DQXDO
Poor transparency of ice cubes;
ice cubes too thin or incomplete
Ice thickness is
too thin
Check and correct ice
thickness setting
Water pressure is
too low
Check that the water supply
pressure is 1.3 bar to 5.5 bar
Water temperature is
too high
Normal working temperature
range of 41-95°F
Inlet water valve does not work Check and correct the inlet
water valve
Inlet water valve is dirty and
blocked
Check whether water leaks
and correct
Water leaking Check and correct the inlet water
filter and water connection
Inlet water filter has not been
replaced for a long time
Too slow in ice making The condenser or air filter is dirty Clean the condenser and filter
screen
High ambient temperature Normal working temperature
range of 41-95°F
Poor ventilation Check the environment around
the ice machine
Water temperature is too high Check the water supply
temperature of 41-95°F
Too much noise The ice machine is not placed in
a leveled foundation or the ice
maker is not leveled
Level the ice machine
8VHU0DQXDO
Avantco Ice warrants to the origina
purchaser of new equipment, that covered models of equipment will be free of defects
8VHU0DQXDO
+RWHO,FH'LVSHQVHU8VHUV0DQXDO
Models: 194HBN12022, 194HBN18030
-2 -
8VHU0DQXDO
0RGHO 'LPHQVLRQV
Zµ[Kµ[Gµ
ZLWKµOHJ
%DVLF(OHFWULFDO
YROWVKHUW]SKDVH
0RGHO'HVFULSWLRQ%LQ6WRUDJH
&DSDFLW\
194HBN12022 22 x 53 x 33 ½ 115/60/1 Basic 22” model 60 Hz 120 lb
194HBN18030 30 x 53 x 33 ½ 115/60/1 Basic 30” model 60 Hz 180 lb
&XEHU 0RGHO )LWV 'LVSHQVHU $GDSWHU
194MC35022HA/FA 194HBN12022 194BKTHBN
194BKTHBN
194BKTHBN
194MC42022HA/FA 194HBN12022
194MC50030HA/FA 194HBN18030
C0530 or CB0530 HD30 None Needed
-2 -
The 194HBN12022 22"W and is designed to use an Avantco Ice
194MC35022HA/FA or 194MC42022HA/FA cube ice machine as
the source for ice production.
The 194HBN18030 is 30"W and designed to use an Avantco Ice
194MC50030HA/FA cube ice machine as the source for ice
production.
Ice from the cuber falls into the insulated hopper, where it is
stored until needed. When a user pushes the dispense chute a
rotating wheel scoops the ice up to the top front of the hopper
where there is an outlet to the ice chute.
*HQHUDO,QIRUPDWLRQ
%DVLF6SHFLILFDWLRQV
8VHU0DQXDO
-2-
6SHFLILFDWLRQV/LPLWDWLRQV
This ice dispenser is designed to be installed and operated
indoors in a controlled environment. Follow the Installation
Instructions in the Ice Machine Manual to ensure the ice machine
has been installed properly.
Check the nameplate, located on the back of the cabinet for
specific information.
Avantco Ice Machines assumes no liability or responsibility of any
kind for products manufactured by Avantco Ice Machines that
have been altered in any way, including the use of any parts
and/or other components not specifically approved by Avantco
Ice Machines.
8VHU0DQXDO

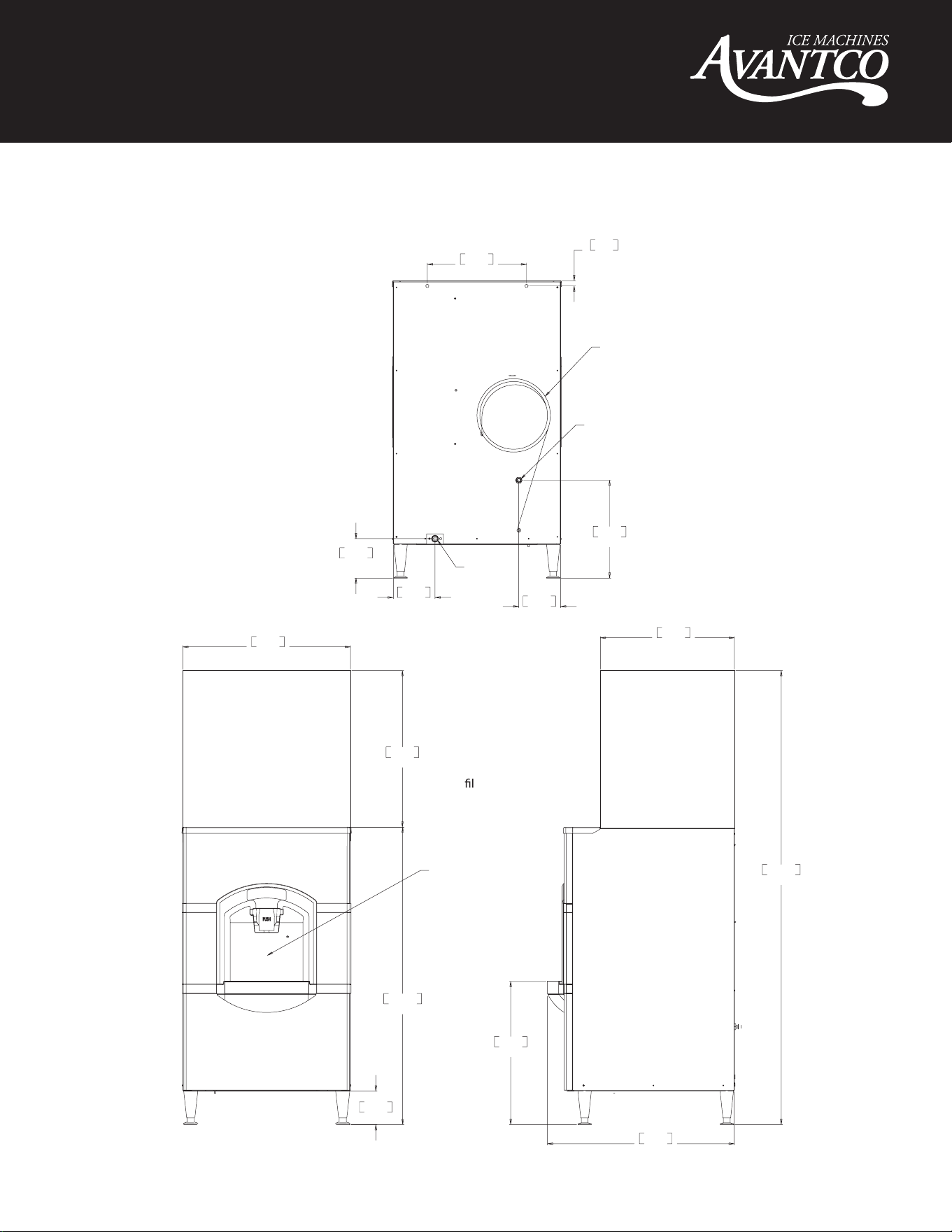

+%1
'LPHQVLRQHG
,OOXVWUDWLRQ
30"
762.4
28"
711.2
6"
152.4
53 1/4"
1351.3
ICE FILL STATION
8 3/4 [221.5] HIEGHT
13 1/2 [342.9] WIDTH
8 1/2 [215.9] DEPTH
RIGHT SIDE
FRONT
24"
609.6
81 1/4"
2062.5
25 5/8"
650.5
33 1/2"
849.4
ICE
HEAD
ICE
HEAD
BACK
POWER
CORD
17 3/4"
451.1
1"
24.1
7 1/2"
189.4
7"
179.1
7 1/2"
189.7
17 1/2"
444.4
WATER INLET
3/8 FLARE
(WATER FILLER ONLY)
3/4 FPT
DRAIN
Note: Ice l station depth is
curved to match large ice
buckets. Listed number is
the maximum depth.
-2 -
8VHU0DQXDO
+%1
'LPHQVLRQHG
,OOXVWUDWLRQ
28"
711.200
22"
558.8
6"
152.4
53 1/4"
1351.3
ICE FILL STATION
8 3/4 [221.5] HIEGHT
13 1/2 [342.9] WIDTH
8 1/2 [215.9] DEPTH
24"
609.6
81 1/4"
2062.5
33 1/2"
850.1
25 5/8"
650.6
ICE
HEAD
ICE
HEAD
FRONT
RIGHT SIDE
16"
406.4
1"
24.1
3 1/2"
88.9
7"
179.1
POWER
CORD
3/4 FPT
DRAIN
BACK
Note: Ice l station depth is
curved to match large ice
buckets. Listed number is
the maximum depth.
-2 -
8VHU0DQXDO

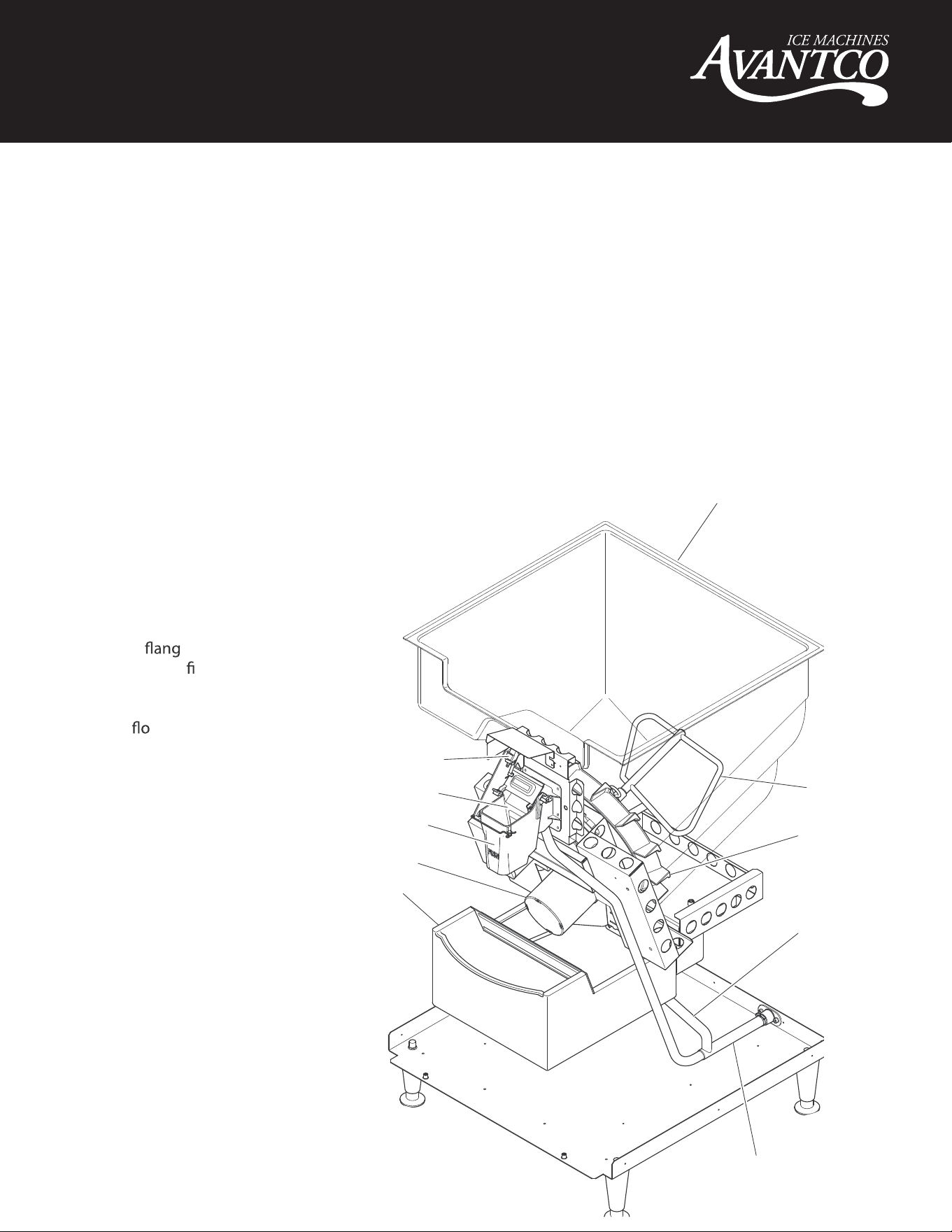

3URGXFW'HVFULSWLRQ
All models consist of a plastic lined, insulated
hopper mounted to a metal base. The hopper
contains a 15 blade plastic dispense wheel and a
stainless steel sweep arm. The top front of the
hopper has a removable door to facilitate
maintenance and cleaning of the hopper without
removal of the ice machine.
The dispense wheel and sweep arm rotate when
the dispense drive motor is actuated. The drive
motors actuation is controlled by the agitation timer
or the vend switch. When the ice dispense chute is
pushed back it moves the actuation lever up. The
actuation lever releases the chute door and
pushes the vend switch arm up. When the vend
switch arm has moved a preset distance the vend
switch contacts close, providing power to the
dispense drive motor. Ice is delivered to the top
end of the ice chute by the dispense wheel and it
slides down the chute to the container below.
The container rests on a grill, the grills
openings are over the ice catch pan,
and any spilled ice goes there. The
grill has a
e at the front to help
contain the ice i
t spills during vending.
After the ice dispense chute is
released, the ice chute door closes to
stop ice
w. Ice in the chute will
eventually melt. Melted ice water
is routed to the drain through a
hose attached to the bottom of
the chute. Spilled ice is
contained in an insulated ice
catch pan. Melted ice water
from the ice catch pan is
routed to the drain. User
debris is kept away from the
drain in the catch pan by a
slotted shield.
The side and front exterior panels are
stainless steel. The vending area and
top panel are made of plastic.
Bin
Vend Switch
Chute Door
Chute
Drive Motor
Ice Catch
Pan
Sweep
Arm
Dispense
Wheel
Drain Hose
to Ice
Catch Pan
Drain Hose
-2 -
8VHU0DQXDO
8QSDFNLQJ
After removing the carton, check for the
loose-shipped parts packed in the storage bin. The
parts will include a carton with four legs. Remove
the leg carton and any other loose-shipped items.
To remove the skid, place part of the carton behind
the unit and tip the unit on its back. Remove the
bolts holding the skid to the base of the HBN
dispenser and separate the skid from the unit.
Install the legs into the base of the unit, using the
holes where the skid bolts were. Turn the leg
leveler part of the legs in all the way, adjust them
later after the unit is in its
l installed position.
Move the dispenser to an upright position and set it
in the location where it will be installed. Note where
drain lines and electrical connections will be made.

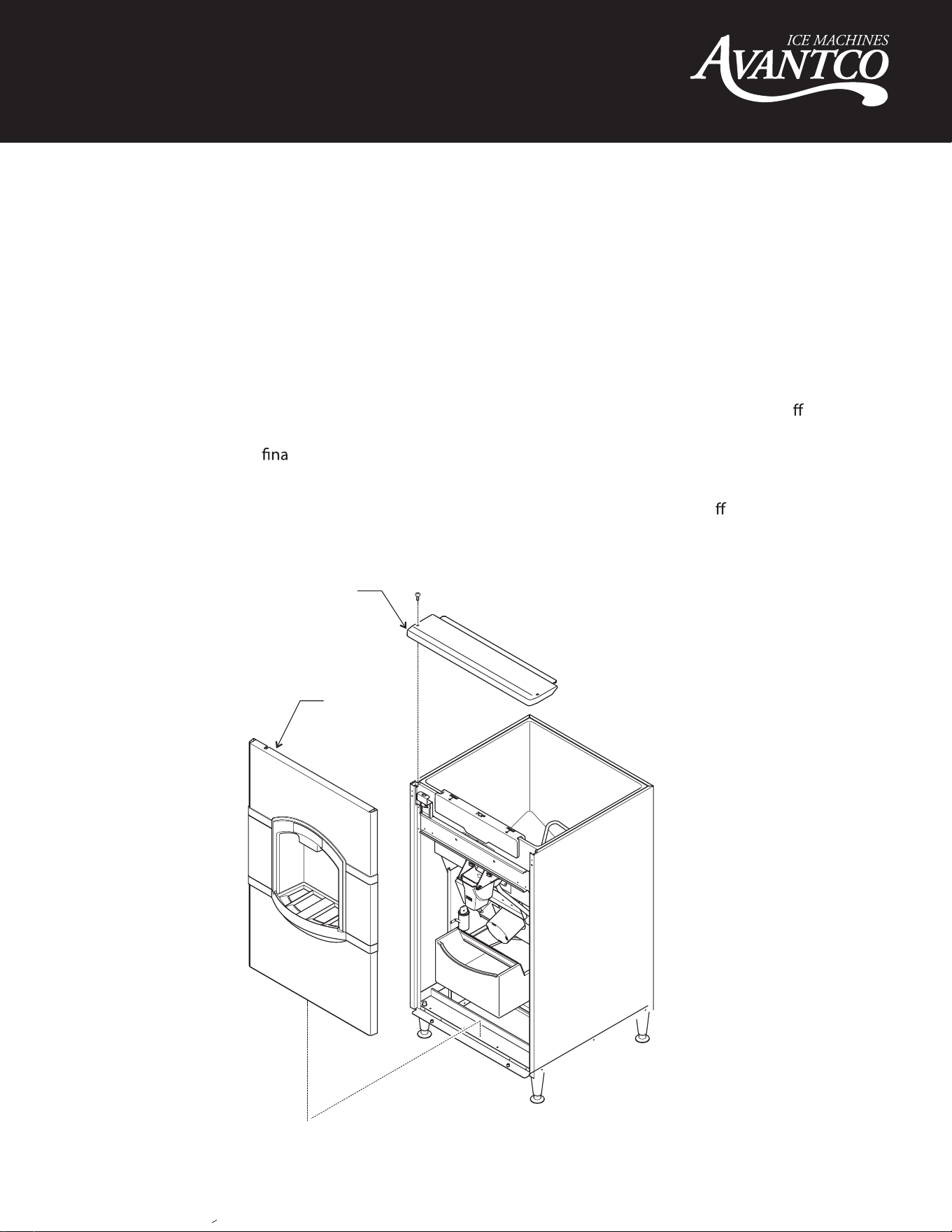

Front Panel Removal
The front panel rests on the base and is located
with pins that stick up from the base. It is retained
to the side panels by strikes and latches. The top
panel keeps the front panel from moving forward.
To remove:
1. Disconnect electrical power.
2. Remove the two screws holding the top panel to
the dispenser. Lift the top panel up and o
the
dispenser.
3. Pull the top edge of the front panel forward until
the two snaps disengage.
4. Lift the front panel up and o
the base.
Top Panel
Front
Panel
-2 -
8VHU0DQXDO
,QVWDOODWLRQ3OXPELQJ
Drain:
All models of the dispenser have a 3/4" FPT drain
g at the bottom of the back panel. Connect 3/4"
rigid tubing to this connection, a vent is
recommended for most installations. Route the
drain tubing to the building drain.
Note: Drain g material is plastic. If using
copper, sweat the copper tube to copper
together before installing on the dispenser.
Note: Keep PVC solvent away from all plastic parts
of the dispenser.
Follow all applicable plumbing codes.
Because the drain tubing will be very cold,
insulation is recommenced for the tubing.

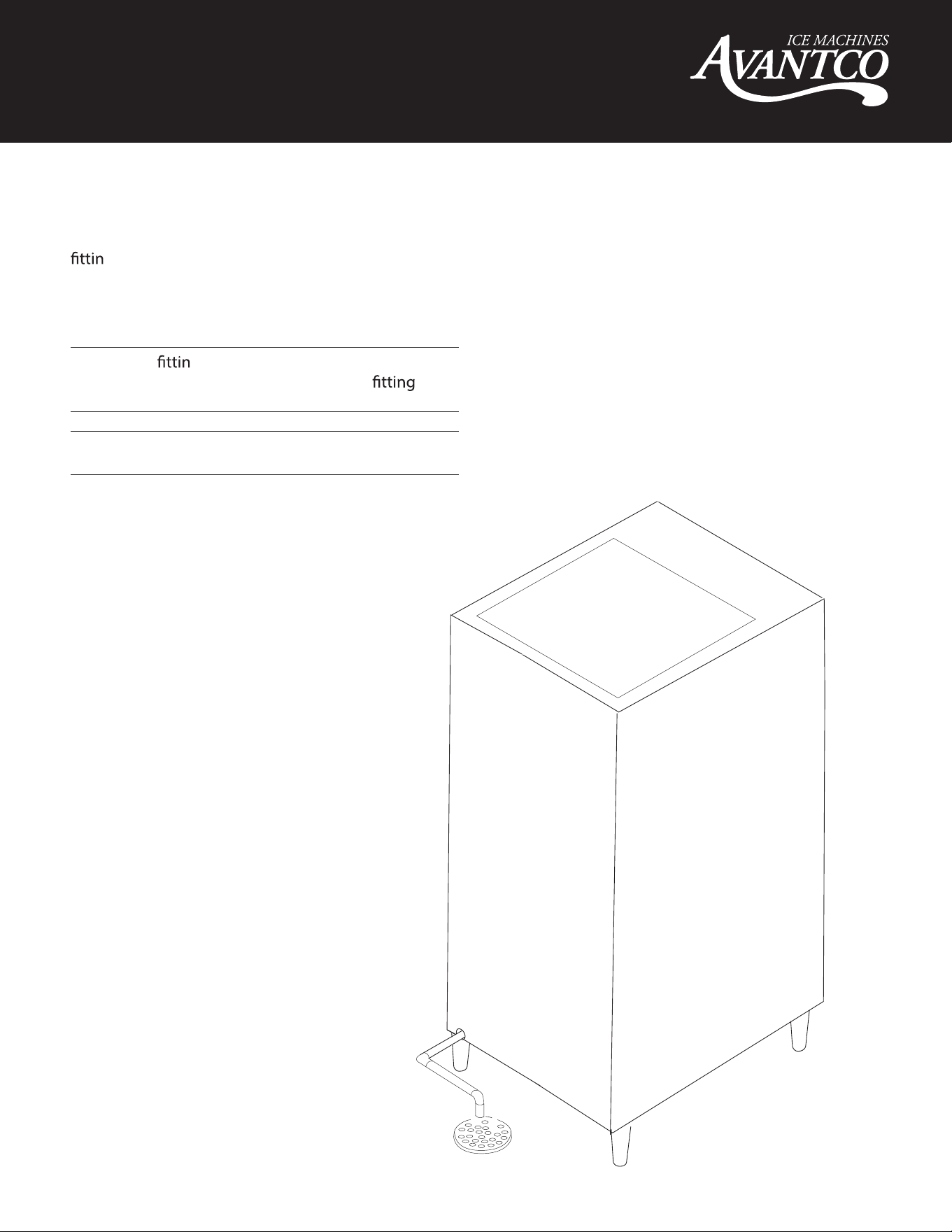

Drain Connection, Back View of Dispenser
-2 -
8VHU0DQXDO
,QVWDOODWLRQ(OHFWULFDODQG,FH0DFKLQH$VVHPEO\
The dispenser is supplied with a power cord. Do
not use with an extension cord. The unit must be
plugged into a properly grounded outlet.
The dispenser must be installed so that it is a
separate piece of equipment from the ice machine.
The drains and electrical supply must be separate.
Follow All Local State and National Codes
Ice Machine
All models: Place the dispenser in the location
where it will be used. Level the top edge of the
dispenser front to back and left to right
ensuring a seal between ice machine and dispenser.
Sanitize the dispenser bin with a locally
approved sanitizer. See page 11.
Back View of 194HBN12022 Installation
Back View of 194HBN18030 Installation
-2 -
Place the ice machine on the
dispenser and secure it to the
dispenser with the hardware from
194BKTHBN Kit.
)DVWHQ,FH0DFKLQHWR'LVSHQVHU
)DVWHQ,FH0DFKLQHWR'LVSHQVHU
If using a compatible Oceanloch lter
system, use the included M4 bolts from
194BKTHBN Kit to attach lter system to the
ice machine through the the brackets
provided holes.
8VHU0DQXDO
)LQDO&KHFN/LVW,QLWLDO6WDUW8S
1. Check that electrical power has been supplied.
2. Check that a drain, separate from the ice
machine, insulated and made of rigid tubing, has
been connected to the dispenser.
3. Check that the ice machine has been properly
installed per the ice machines installation
directions.
4. Check that the ice machine/dispenser assembly
is level front to back and left to right.
To Start:
1. Connect electrical power. The dispensing
system will cycle on for a few seconds.
2. Go thru ice machine start up procedures. Let ice
machine make two harvests.
3. Push the ice chute in.
4. Dispense wheel turns.
5. Ice will be dispensed from ice chute.
6. Give the operator any keys and the instructions
on the operation and maintenance of the product.
Check that the operator knows who to call for
service, and has the product/service manuals for
the machines.
Electrical Sequence
Pushing the ice chute closes a contact to the gear
motor.
The gearmotor will have power and the dispenser
will continue to operate as long as the ice chute is
pushed in. This model also has a agitation cycle of
3 seconds every 6 hours. Since the ice chute is not
pushed in during agitation no ice is dispensed.
- -
8VHU0DQXDO

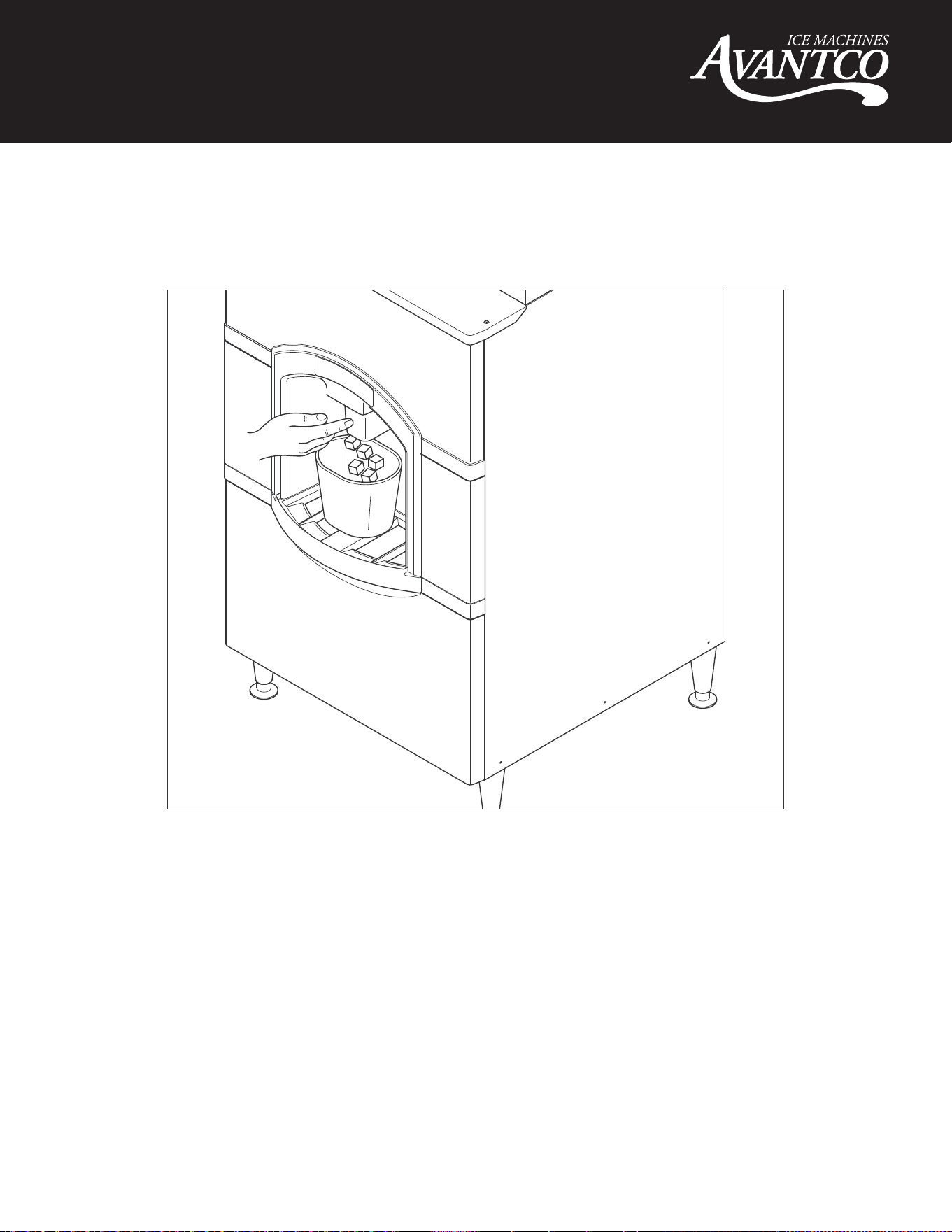

8VH
No ice is dispensed.
Push the chute back to dispense ice
-3 -
8VHU0DQXDO
*HQHUDO&DUHDQG&OHDQLQJ
Periodically inspect and clean the ice dispenser to
keep it operating at peak performance.
Wash the outside of the dispenser with warm water
and soap. Rinse o
and wipe dry.
Cleaning and Sanitizing of the Ice Storage Bin :
The minerals, chlorine and other impurities in the
water are rejected from the water during the freeze
cycle of the ice machine. These minerals will
collect in the storage bin. The ice storage bin
should be cleaned and sanitized every 90 days.
1. Remove all of the ice stored inside the dispenser
bin and shut o
the ice maker.
2. Disconnect electrical power to the dispenser.
3. Remove top front panel (in front o
e machine).
4. Remove the front panel.
5. Lift up and remove the access door at the front
of the bin
6. Reach into the opening, locate the hair pin and
pull it out of the shaft
7. Pull the sweep arm o
the shaft and remove it
from the dispenser.
8. Pull the dispense wheel o
the drive shaft and
remove it from the dispenser.
9. Mix a solution of 5 ounces o
e machine
cleaner to 1 gallon of warm (95
o
F.-115
0
F.) water.
Wash the entire bin area and the delivery
area.
Use a clean brush or cloth.
Electrical Shock
and Moving Parts
Hazard
Disconnect Electrical
Power Before
Beginning Service or
Maintenance
Procedures.

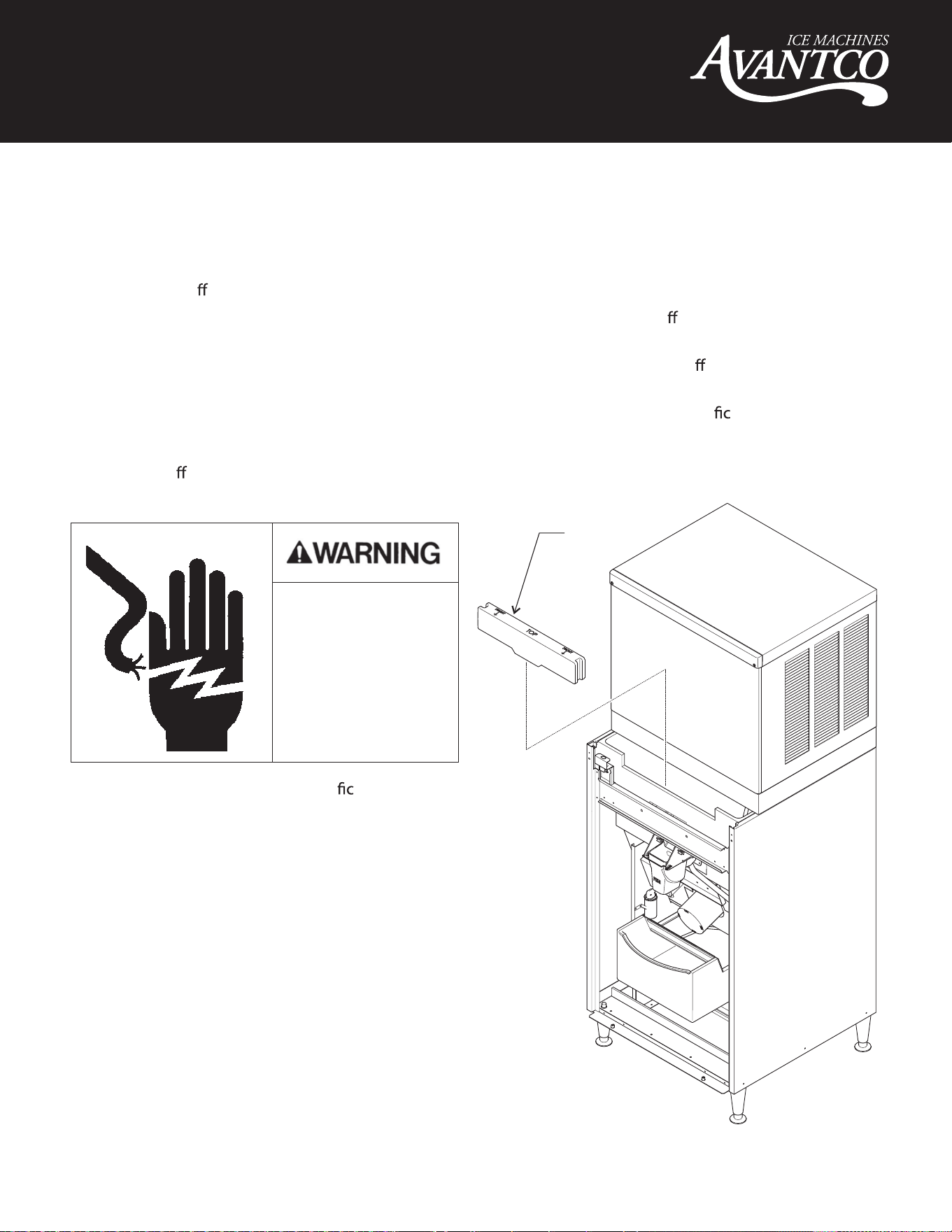

EZ Access
Door
-3 -
8VHU0DQXDO
*HQHUDO&DUH$QG&OHDQLQJ&RQWLQXHG
10. Rinse all areas washed with clean, fresh water.
11. Using the ice machine cleaning solution, clean
the ice grill, sink, sweep arm and dispense wheel.
Rinse these parts with clean, fresh water.
12. To sanitize: Use a locally approved sanitizer. A
possible sanitizer: Mix a solution o
e machine
sanitizer and water: 1 ounce of household bleach
to 2 gallons of (95
o
F.-115
0
F.) water. Wash
all interior surfaces, the sweep arm and
the dispense wheel with the sanitizer
solution. Use a clean cloth.
13. Allow the parts to air dry.

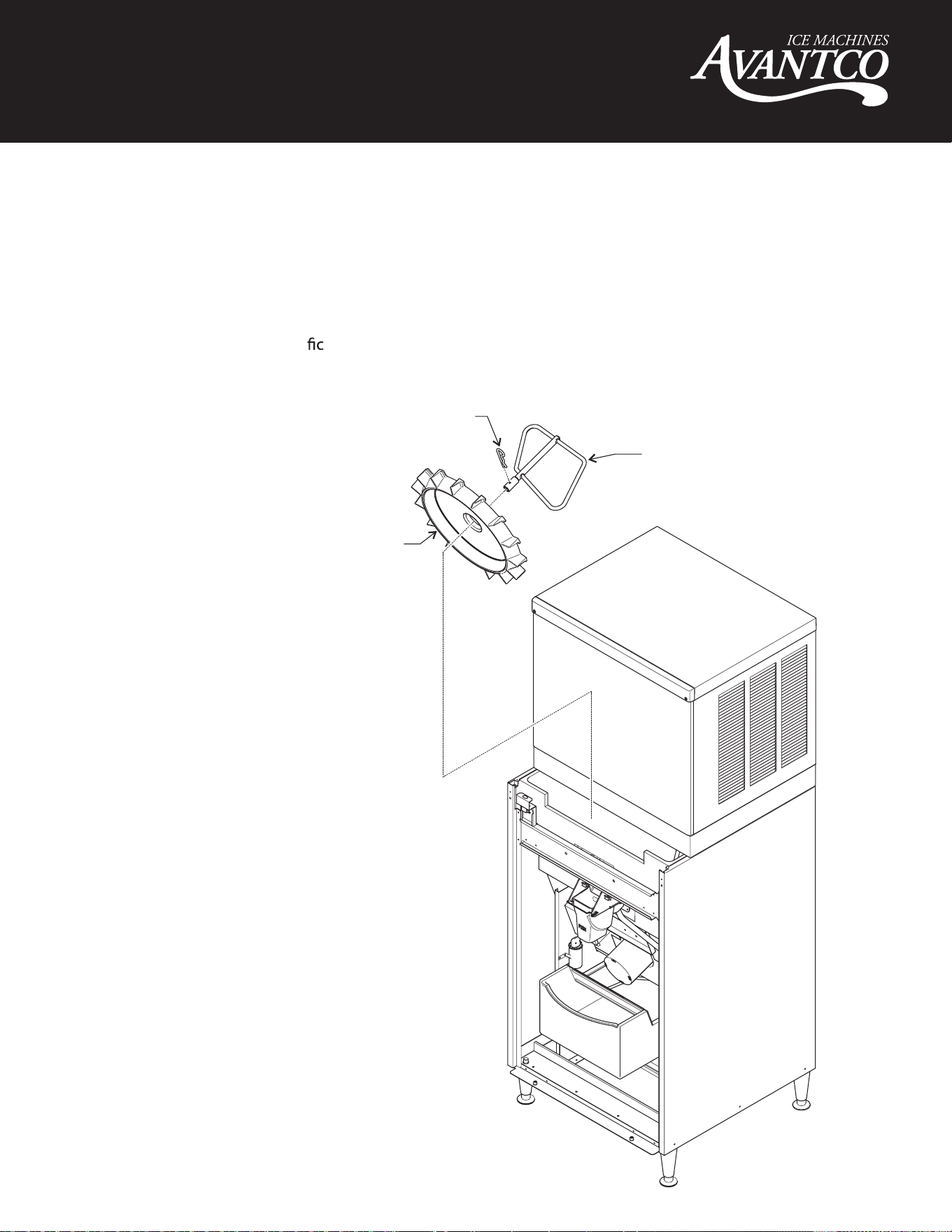

14. Reassemble wheel and sweep
arm onto drive shaft. Be sure to
reinsert hairpin.
15. Replace all panels.
16. Reconnect power, be sure
ice machine is switched back on.
Hair Pin
Sweep Arm
Dispense
Wheel
Be sure to clean and sanitize your
ice machine following the instruc-
tions that came with your ice
machine. The cleaning instructions
in this manual are only for the ice
dispenser.
-3 -
8VHU0DQXDO
0DLQWHQDQFH
Spilled ice and user debris will collect in the ice
catch pan, located just below the sink grill.
Occasionally the debris will need to be removed
and the drain
d out to prevent water back
ups.
Note: Failure to clean out the ice catch pan will
likely result in a water leak, one that is NOT
covered by warranty.
To clean out the ice catch pan:
1. Remove the front panel.
2. Disconnect electrical power.
3. Remove the two screws holding the top panel to
the dispenser. Lift the top panel up and o
the
dispenser.
4. Pull the top edge of the front panel forward until
the two snaps disengage.
If the unit is a coin op model, reach behind the
front panel and disconnect the coin mechanism
harness from the front panel.
If the unit is a water station model, reach behind
the front panel and shut o
the water supply valve
to the water faucet. Then disconnect the water line
from the shut o
valve.
5. Lift the front panel up and o
the base.

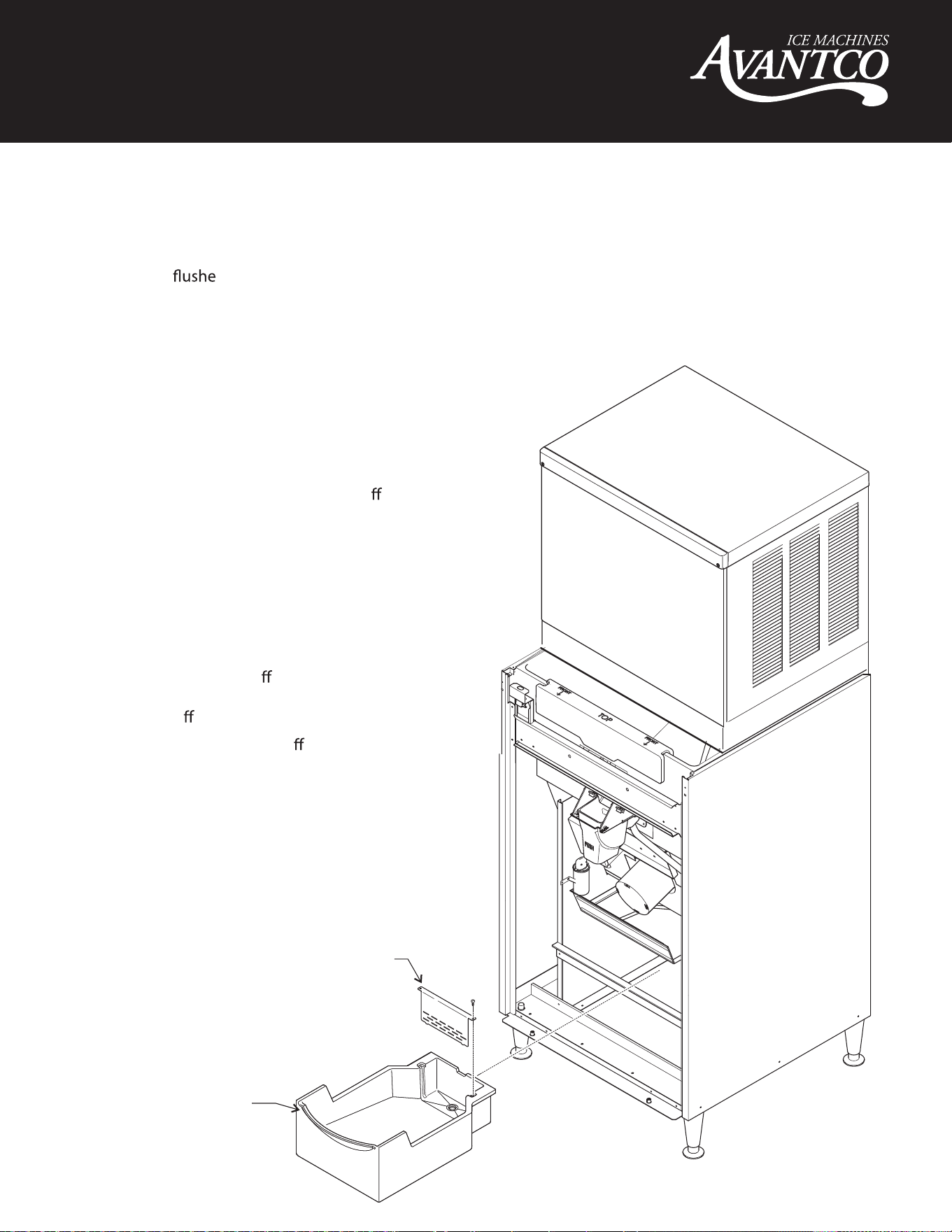

6. Pull the ice catch pan forward a few inches until
the drain hose can be reached.
7. Pull the drain hose from the ice catch pan.
8. Slide the ice catch pan out
of the ice dispenser
and clear it of any debris. Wash out the drain.
9. Return the ice catch pan to its normal position.
10. Re-attach the drain hose.
Screen
Ice Catch Pan
-3 -
8VHU0DQXDO
$GMXVWPHQWV
The dispenser is preset at the factory. Adjustments
are rarely needed.
Agitation Time Recommendations:
The standard time is 3 seconds on every 6 hours.
Adjust to agitate more frequently if the unit is
installed in a low temperature environment.
However, if the ice being produced by the ice
machine is cloudy and crumbles easily, adjust to
agitate less frequently.

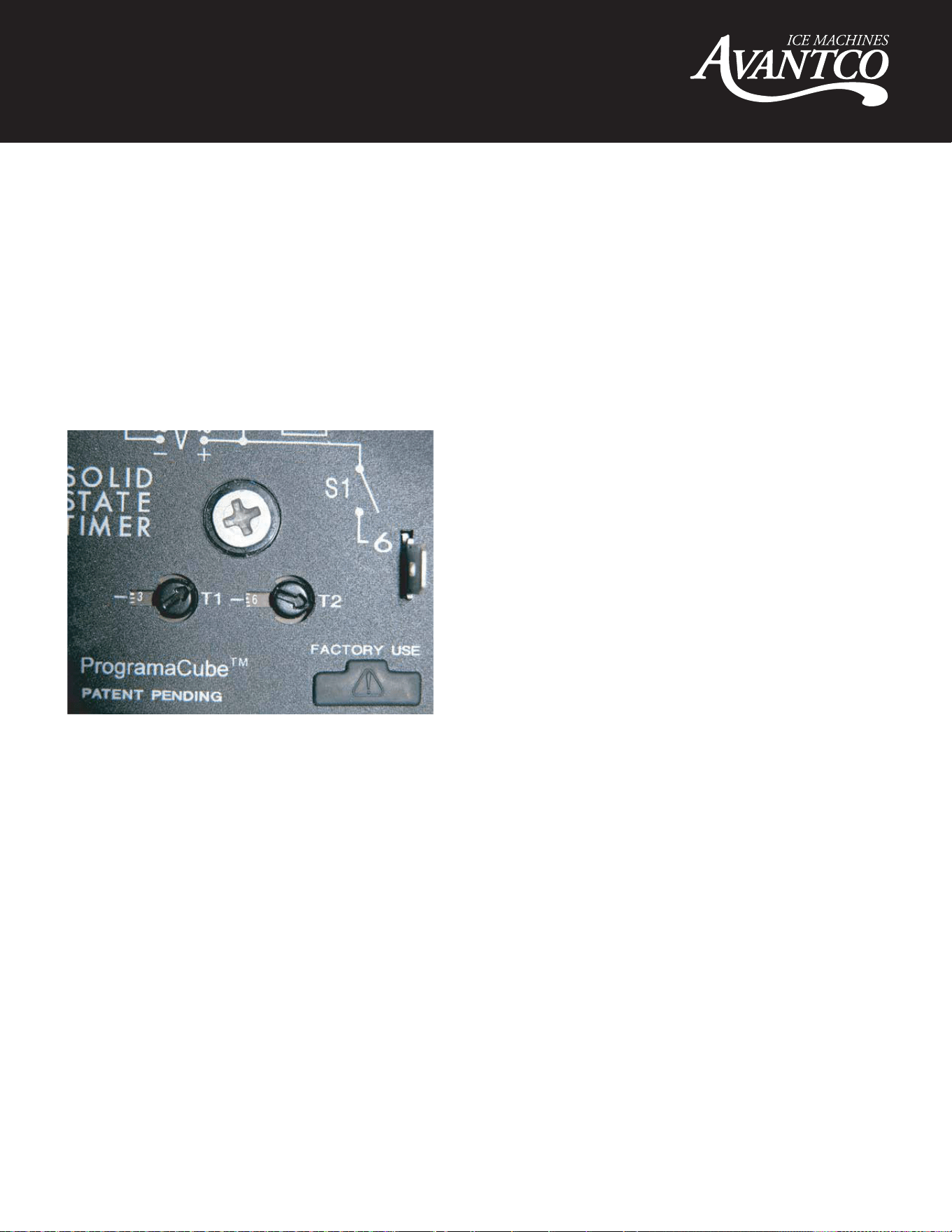

Agitation Timer, Shown Pre-set to 3 seconds
every 6 hours
-3 -
8VHU0DQXDO
6HUYLFH'LDJQRVLV
xiFelbissoPe s u a Ce l b a b o r Pmo t pmy S
No ice is dispensed No power to dispenser Check for proper power, is dispenser
plugged in?
en i hcamec ikcehCe c i oN
Vend switch does not close Check vend switch
Check chute for proper motion
Chute cannot be pushed back Check door lock for proper operation
Interlock switch open Check interlock switch, be sure top
panel is in place
Drive motor windings open Check drive motor
Drive gears failed Check gear reducer
No ice is dispensed Same as above plus coin switch
does not close
Check coin switch
Vend timer does not work Connect power to post 6 of coin
mech timer, timer should activate,
ready light should be on and pushing
the chute should start the gear motor,
if not replace the vend timer
Only dispenses small amount o
e Sweep arm damaged Check/replace sweep arm
No water is dispensed kcehc, t i nuo ty l ppusr e t awkcehCf fotuhsretaW
shut o
valve inside cabinet
noi tc i r tserrofn iardkcehCdeggu l ps in i a rDk a e l r e t aW
Ic
e catch pan has
d Remove excess ice
Ice catch pan screen is plugged Clean screen
Seal between ice machine and
dispenser is leaking
Remove ice machine and replace
gasket tape
Water drip from spout Some dripping is normal, but if
severe
Check spout drain for restriction
“Ready” light is on all the time Resistor is open Replace resistors (15K, 2 watt in
parallel)
-3 -
