Model:
VH-J120MMM
VH-J140MMM
OWNER’S MANUAL
Twin Tub Washing Machine
VH-J95MMM
CONTENTS
............................................. .......
.......
1
1
5
5
5
6
6
6
6
7
7
Safety precaution
OPERATIONS
Control panel
Preparation before washing
Washing
Rinse
Spin
Refer to the following table to select spinning time
Reference of laundry quantity corresponding to different capacities
Laundry volume and detergent dosage reference
Special features
MAINTENANCES
Cleaning and care
Cleaning the cabinet
Cleaning the inlet filter
Anti-freezing protection
8
8
8
Trouble shooting tips
Technical specifications
9
10
8
3
3
4
4
Unpacking the washing machine
Installation area
Product description
Change the position of the drain hose
INSTALLATION
Explanation of the symbols
Warning and caution
2
SAFETY INSTRUCTIONS
...........................................
.......................................................
.......................................................
................................
...............................................................
........................
....................................................................
..........................................
.............................................................................
...................................................................................
.....................................................................................
............
...
............
.................................................................
.............................................................
.......................................................
...................................................
................................................
.....................................................
.................................................
SAFETY INSTRUCTIONS
1
Warning!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in death
or serious injuries unless it’s avoided.
For your safety, the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Caution!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in slight or
minor injuries or damage to property and the environment.
Note!
This combination of symbol and signal word indicates a
potentially dangerous situation which may result in slight
or minor injuries.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid a hazard.
The new hose-sets supplied with the appliance are to be used and that old hos
e-sets
should not be reused.
The openings must not be obstructed by a carpet.
Explanation of the symbols:
0.6MPa
Safety precaution
Rated Washing Capacity
Model
4.6kg11.0 kg
VH-J120MMM
VH-J140MMM
7.0kg13.0 kg
Rated Spin Capacity
Maximum Water Pressure
0.6MPa
0.6MPa
4.6kg8.5kg
VH-J95MMM

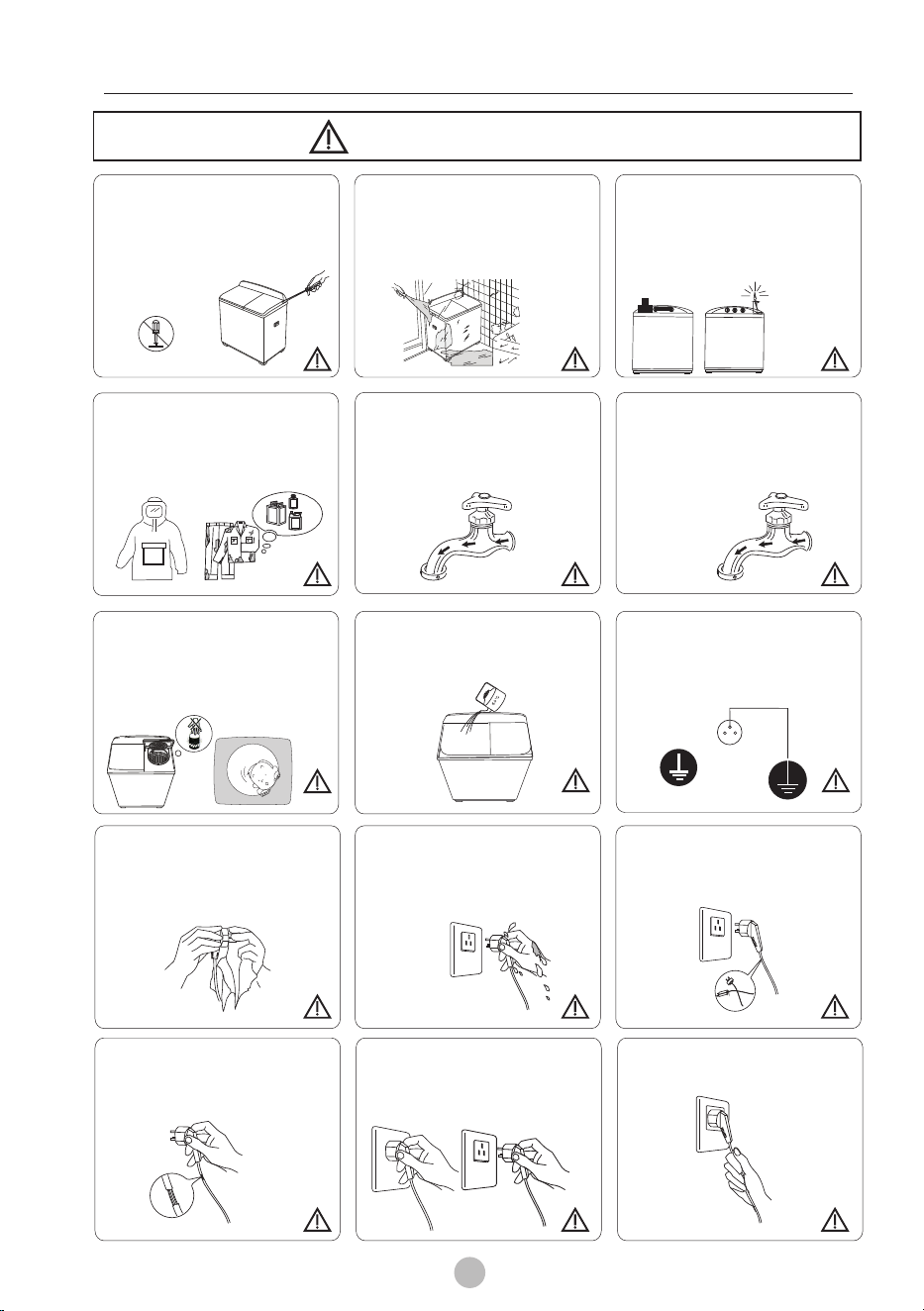

SAFETY INSTRUCTIONS
Do not install the machine in damp or
rainy environment to avoid electric shock,
fire, machine failure, or deformation.
Do not spray water directly to the
machine.
Do not dismantle the machine
by yourself.
Forbid dismantling
Do not place inflammable materials
like burning candle, mosquito incense,
cigaret etc. or heating source like electric
stove, calorifier etc. on the machine.
Do not let baby sit on it or place heavy
things on it.
To avoid electric shock resulting
from elec tr ic le ak age, please
connect grounding wire of the plug
properly.
Grounding
Wipe off dirty and dust on the plug
often to prevent poor contact with
power supply.
Do not exceed the max. water level
to avoid water overflowing and
machine failure.
+
+
Make sure that the water inlet
hose is connected and the tap
is opened before washing.
Do not let climb to the
machine or play near running tub
to avoi d accident.
children
Do not put hands into the tub before
it stopping running.
If use warm water, the water
temperature should not
exceed 50℃.
Do not replace power cord by
yourself.
Do not pull the cord when unplug
the plug.
wat erpro of
Insert the plug tightly when use.
Unplug the plug from socket after
use.
Do not wash clothes that are stained
with kerosene, petrol, alcohol, and
other flammable substance.
Do not wash down-filled coat, raincoat
or similar clothes.
Do not insert or unplug the plug
with wet hands to avoid electric
shock.
This appliance is for indoor use only.
If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
2
Warning and caution
INSTALLATION

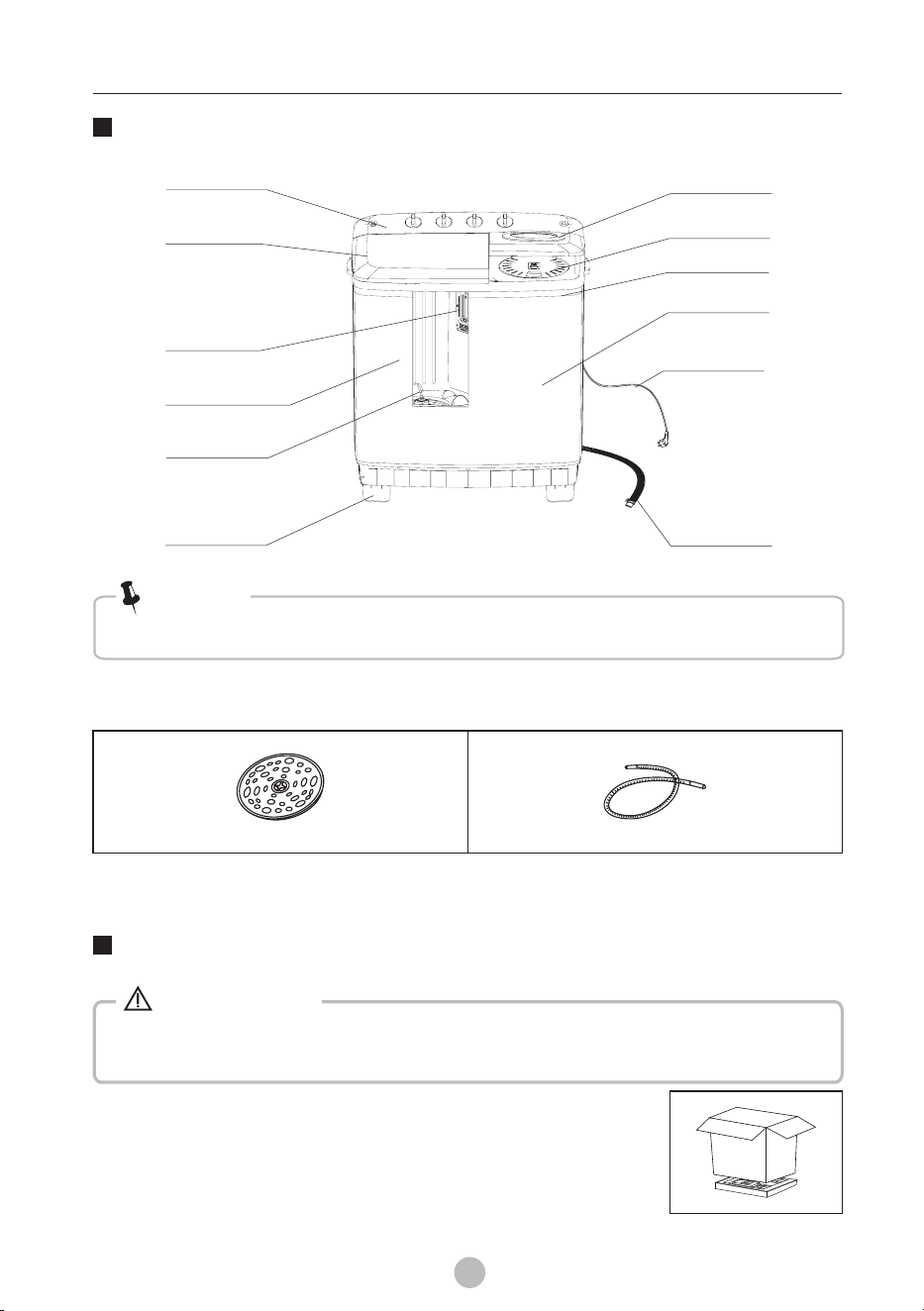

Product description
• The product line chart is for reference only, please refer to real product as standard.
Note!
Accessories
Inner spin cover
Water inlet hose
Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
•
•
Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
There is a risk of suffocation ! Keep all packaging well away from children.
Warning!
3
Control panel
Wash tub
Pulsator
Base
Lint filter
Wash cover
Spin c
o
v
er
Safety cover
Frame
Cabinet
Drain hose
Power cord

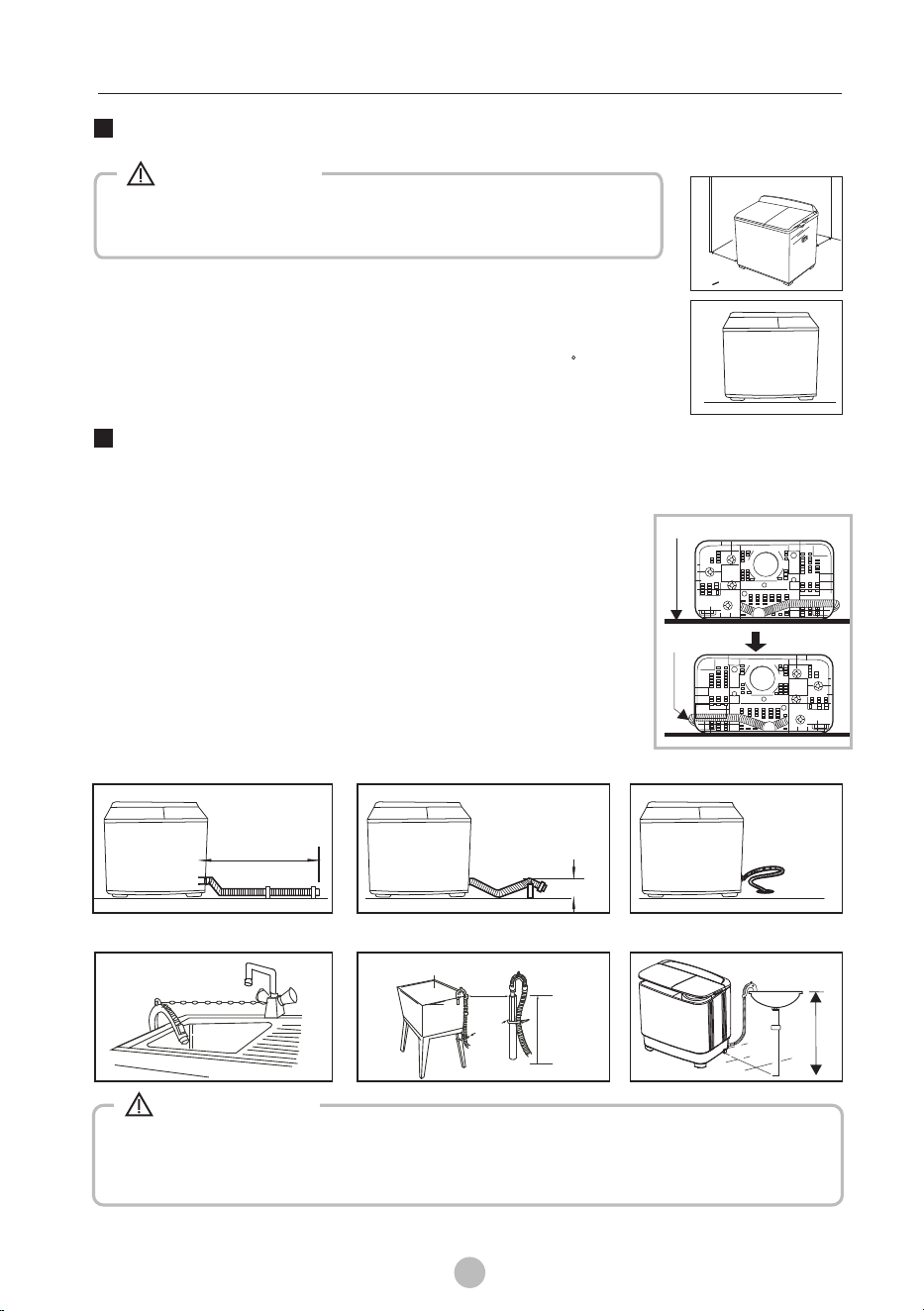

Installation area
Before installing the machine, the location characterized
follows shall be selected:
1.Rigid, dry, level surface
2.Sufficient ventilation
3.Keep far away from the heat resources such as coal or gas.
as
and Avoid direct sunlight
, Room temperature is above 0 C
• wandering!
•
Stability is important to prevent the product from
Make sure that the product should not stand on the power cord.
Warning!
INSTALLATION
w
w
W> 20mm
Change the position of the drain hose
Front
Drain hose
According to the installation site, the drain hose can also be at the wash
side of the machine . The method is as follows:
The ex-factory installation position of the drain hose is located the spin side.
installed
at
1 Unplug the power cord and empty water in the drain hose
completely.
2 Spread a piece of soft cloth on the floor (e.g. a blanket)
and place the washing machine on it gently.
Take the drain hose out from the buckle at the spin side,
put it into the buckle at the wash side.
Hang up the drain hose kit.
.
.
3.
and
4.
Blanket
There are two ways to place the end of drain hose:
•
• Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
• If drain hose is too long, do not force it into machine as it will cause abnormal noises.
Trough
Hose
Retainer
Bi
n
d
Max.100cm
Warning!
water trough
Under3m
Under 15cm
1
00c
m
Max
.
1.For lower drain system
2.For upper drain system
4
Wash-Drain Selector

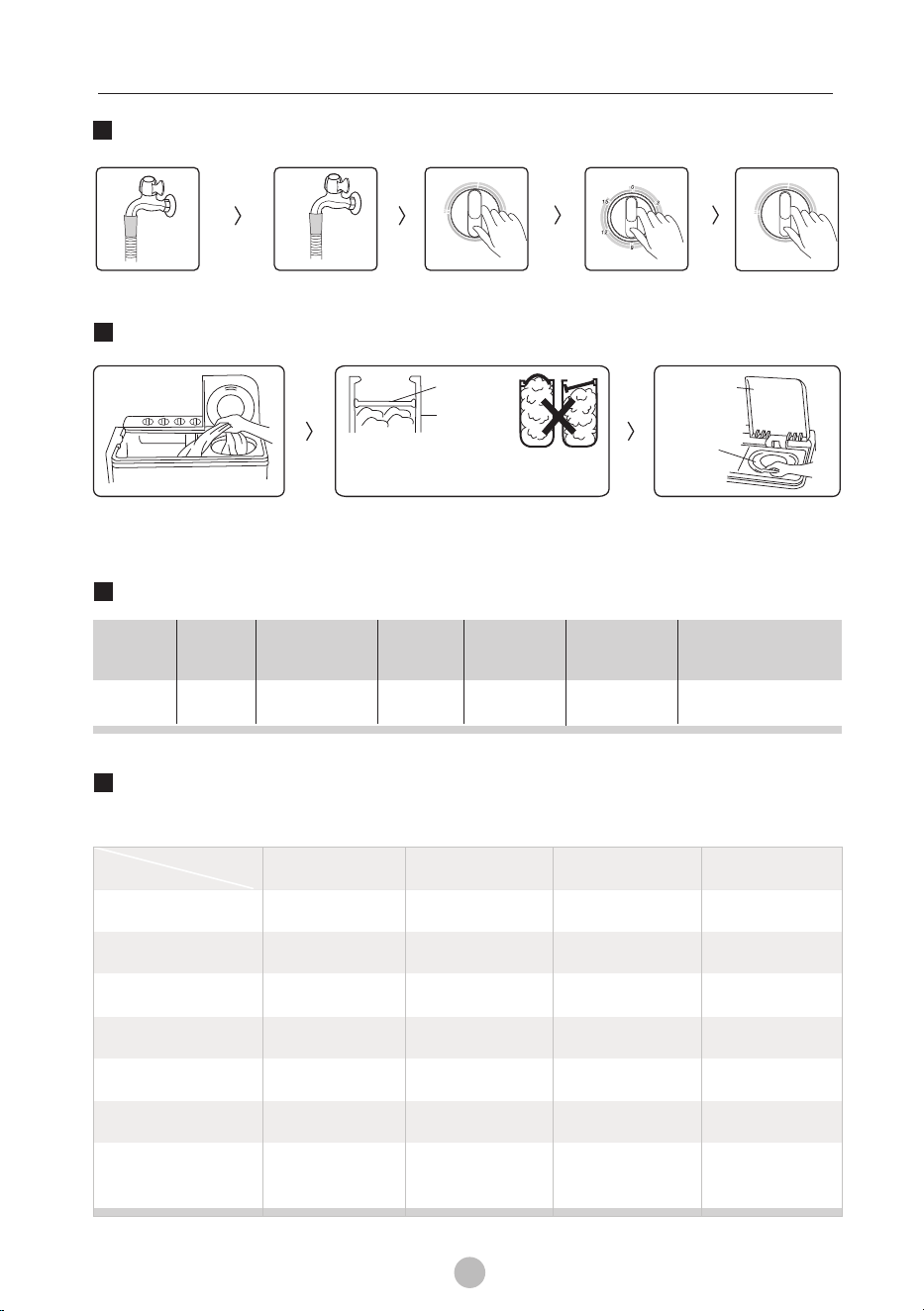

Preparation before washing
Heavy
Drain
Normal
Drain
Wash-Drain Selector
Heavy
Drain
Normal
Open tap
Plug in
Add detergent
Washing
Put down the drain
Choose washing
program
Choose the washing time
To start washing clothes
Arrived after the water
level, Close the tap
5
Open the door
•
Be sure to .
•Do not tear down electrical wires and components in the machine by yourself.
•There are holes on the base for ventilation. These holes should not be blocked by
foreign objects (carpets, etc.).
•Never connect the grounding wire with the live wire, or it may lead to an electric shock.
•Check that there are no objects such as coins, hairpins, mud or sand in the pocket.
•Strings should be knotted in advance to prevent entanglement.
•Clothes can be classified for washing according to the texture, dirty degree and color.
•For small pieces (e.g.,stockings) or fluffy clothes, put them into a nylon net for washing.
install washing machine horizontally
Warning!
OPERATIONS

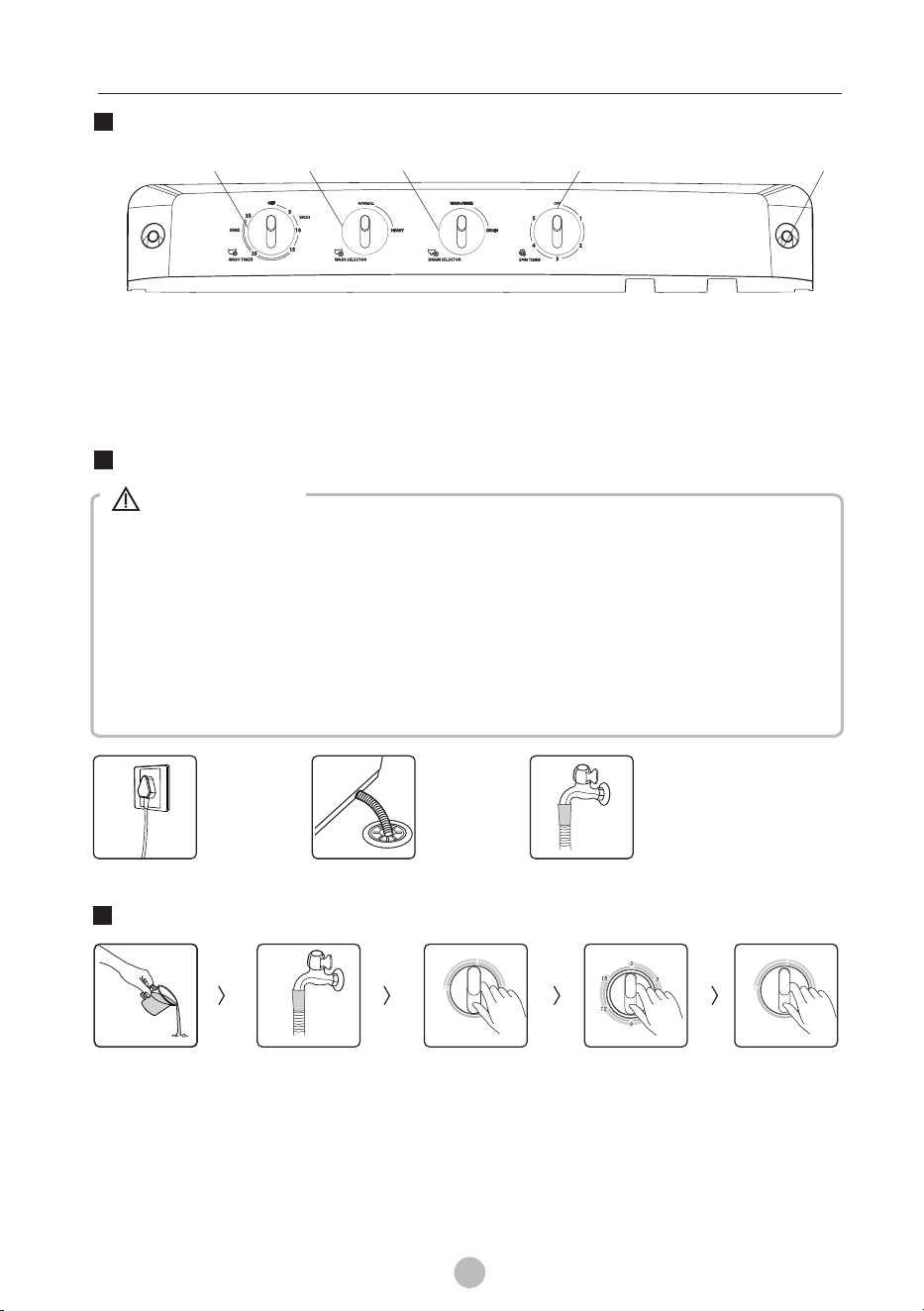

Control Panel
Water inlet
Wash timer
Wash selector
Spin timer
Drain selector
●
●
●
● Wash-Drain selector: For washing or rinsing, select “ Normal”or“ Heavy”. For Draining ,
select “Drain”.
Water inlet: be used to inject water.
Wash timer: be used to select required washing time.
Spin timer: be used to select required spinning time.
OPERATIONS
Spin
Spin cover
Safety cover
Shake out the laundry and
put them into the spin tub.
Put the inner spin cover on .
Confirm the inner spin cover is placed
horizontally.
the laundry
Close the safety cover
and the spin cover.
Correct
Incorrect
spin cover
Spin tub
Refer to the following table to select spinning time
About 50
seconds
About 1
minute
About 1-2
minutes
About 2-3
minutes
About 3-4
minutes
About 5
minutes
Spin time
Washing
materials
Silk
Light clothes
(fiber/blended)
Knitwear
(fiber)
Underwear
(cotton)
Slipover
(cotton/linen)
Toweling coverlet
(cotton)
Reference of laundry quantity corresponding to
different capacities
6
Drain
Open tap
Rinse
Choose washing
program
Choose the washing time
To start washing clothes
Arrived after the water
level, Close the tap
Wash-Drain Selector
Heavy
Drain
Normal
Wash-Drain Selector
Heavy
Drain
Normal
2.0kg Capacity
3.0kg Capacity
3.6kg Capacity
Capacity
Laundry
Jacket
about 1600 g
Shirt
about 500 g
Uniform
about 650 g
Jeans
about 900 g
about 4 pcs. about 3 pcs. about 2 pcs. about 1 pcs.
about 6 pcs. about 4 pcs. about 3 pcs. about 1 pcs.
about 7 pcs. about 5 pcs. about 4 pcs. about 2 pcs.
5.0kg Capacity
about 10 pcs. about 7 pcs. about 5 pcs. about 3 pcs.
5.5kg Capacity
about 11 pcs. about 8 pcs. about 6 pcs. about 3 pcs.
6.0kg Capacity
about 12 pcs. about 9 pcs. about 6 pcs. about 3 pcs.
7.0kg Capacity
about 14 pcs. about 10 pcs. about 7 pcs. about 4 pcs.
7.5kg Capacity
about 15 pcs. about 11 pcs. about 8 pcs. about 4 pcs.
8.0kg Capacity
about 16 pcs. about 12 pcs. about 8 pcs. about 5 pcs.
8.5kg Capacity
about 17 pcs. about 13 pcs. about 9 pcs. about 5 pcs.
10.0kg Capacity
about 20 pcs. about 15 pcs. about 11 pcs. about 6 pcs.
11.0kg Capacity
about 22 pcs. about 17 pcs. about 12pcs. about 5 pcs.
13.0kg Capacity
about 26 pcs. about 19 pcs. about 14 pcs. about 6 pcs.
4.6kg Capacity
about 9 pcs. about6 pcs. about 5 pcs. about 2 pcs.
...... ...... ...... ...... ......
OPERATIONS
Laundry volume and detergent dosage reference
7
Wash timer
Work time
about 5 about 5 about 5
Total: 35 (mins)
about 1.5 about 1.5 about 2
Static time
For seriously stained clothes, soak wash is useful to achieve better wash result.
15-35 minutes of the wash timer is for soak wash:(illustrate as follows)
35 15
(unit： )minutes
Special functions
Soak function
For machines having the function only
Synthetics,silk,
Delicate fabrics
High
Normal
3-5
About 61
Water
level
Fabric type
Laundry
capacity(kg)
Water flow
Wash time
(minutes)
Detergent
amount( g)
Cotton or linen
Heavy soils
0-6.5
6.5-13.0
0-6.5
6.5-13.0
5.0-6.5
0-5.0
Low
Mid
Mid
High
Mid
Heavy
Normal
10-35(soak 20)
10
7-10
7
3
About 50
About 77
About 61
About 77
About 61
13.0 kg
Synthetics,silk,
Delicate fabrics
High
Normal
3-5
About 61
Water
level
Fabric type
Laundry
capacity(kg)
Water flow
Wash time
(minutes)
Detergent
amount( g)
Cotton or linen
Heavy soils
0-6.5
6.5-11.0
0-6.5
6.5-11.0
5.0-6.5
0-5.0
Low
Mid
Mid
High
Mid
Heavy
Normal
10-35(soak 20)
10
7-10
7
3
About 50
About 77
About 61
About 77
About 61
11.0 kg
Synthetics,silk,
Delicate fabrics
High
Normal
3-5
About 48
Water
level
Fabric type
Laundry
capacity(kg)
Water flow
Wash time
(minutes)
Detergent
amount( g)
Cotton or linen
Heavy soils
0-5.0
5.0-8.5
0-5.0
5.0-8.5
3.5-5.0
0-3.5
Low
Mid
Mid
High
Mid
Heavy
Normal
10-35(soak 20)
10
7-10
7
3
About 39
About 51
About 48
About 63
About 48
8.5 kg
8

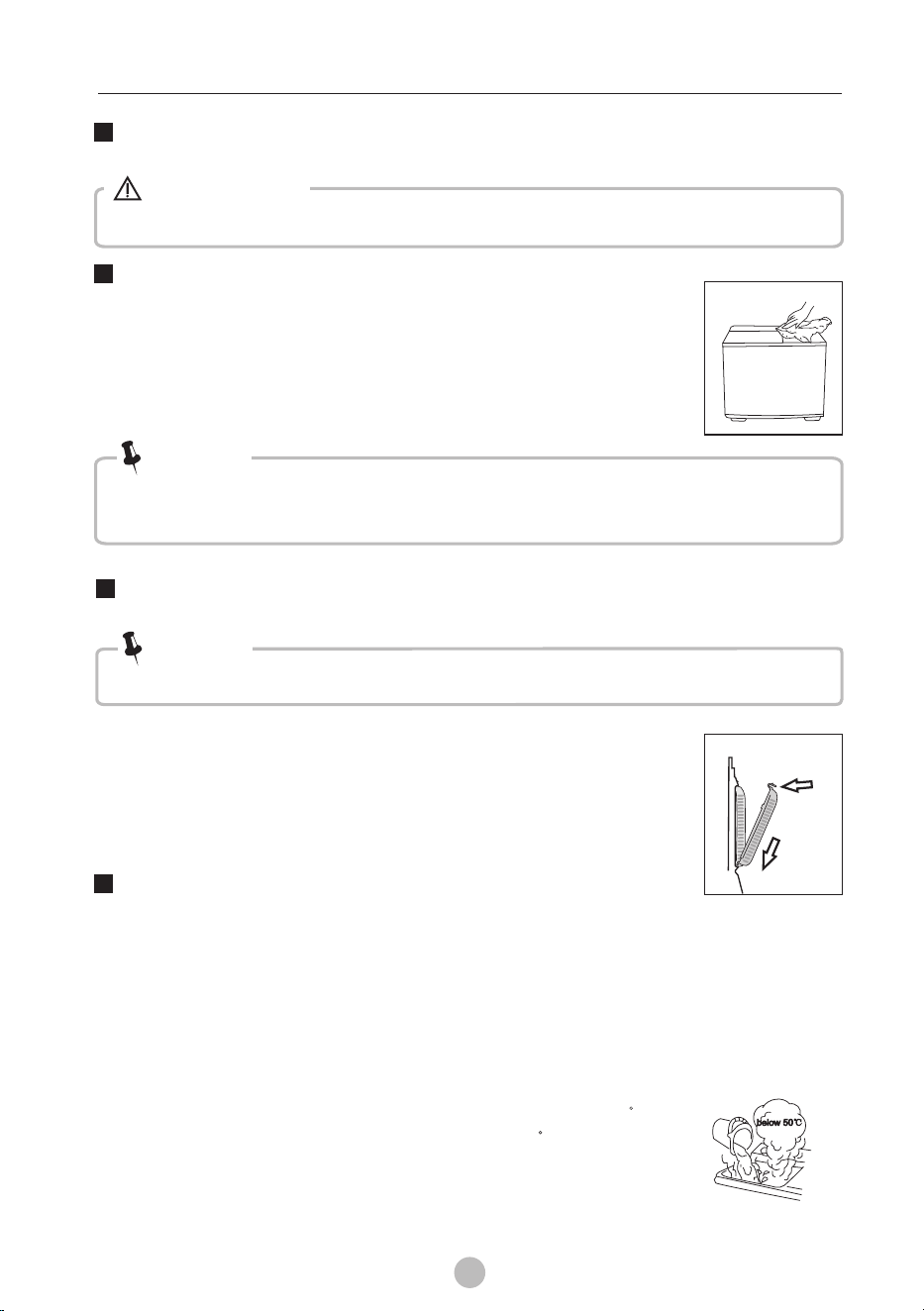

• Before your maintenance starts, please unplug the machine and close the tap.
Proper maintenance on the washing machine can extend its
working life. The surface can be cleaned with diluted
non-abrasive neutral detergents when necessary. If there is
any water overflow, use the wet cloth to wipe it off immediately.
No sharp items are allowed.
Formic acid and its diluted solvents or equivalent are forbidden, such as
solvents or chemical products,etc.
•
alcohol,
Warning!
Note!
Cleaning and care
• Inlet filter must be cleaned if there is less water.
Note!
Lint filter clean
MAINTENANCES
1.
2.
3.
4.
Press the button head, and pull the lint filter out.
Turn the filter net inside out, and rinse it in water.
After inserting the claw, press the button to insert it into place.
A sound of “ba” means proper installation.
Button head
Claw
Anti-freezing protection
To prevent from freezing:
If the water is frozen, please take the following steps:
hose completely.
Lay the drain hose and turn the drain selector knob to the “Drain”position to
empty the water in the tub.
1.
water inlet
2.
Turn off the water tap, remove the water inlet hose and empty water in the
.Keep about 2 liters of warm water below 50C in the wash
tub for about 10 minutes and then lay the drain hose and
turn the wash drain selector knob to the “Drain”position
to empty the water .
1
2
.Put the water inlet hose into warm water of about 50C.
Cleaning the inlet filter
Cleaning the cabinet
9
3.Fit the water inlet hose and turn on the water tap to confirm water filling
and draining work properly.
MAINTENANCES
Trouble shooting tips
If the following symptoms occur, please disconnect the power plug and
perform the following checks:
Check that the power supply is in good condition.
Check that the power plug is inserted properly.
●
●
● Check that the wash timer knob or the spin timer knob is not
in the "0" position.
Check that the drain hose is not laid too high.
Check that the drain hose is not frozen.
Check that the drain hose is not blocked by foreign matter.
●
●
●
Check that there are no coins or any other foreign objects
dropped into the wash tub.
●
Check that the washing machine is placed on flat, stable floor.
Check that clothes are evenly distributed in the spin tub.
Check that there are no clothers or foreign items
dropped into the outside of the spin tub.
●
●
●
The washing
machine does
not work.
Water remains in
drain hose.
There is abnormal
noise during washing.
There is abnormal
noise and violent
vibration during
spinning.
Symptom
Reason
10
Technical information
Technical specifications
Dimension
W*D*H mm)(
Washing Capacity
MAINTENANCES
Model
Wash
Spin
Wash
Spin
Water volume
Net
Weight
H:/M:/L:(L)
Rated Power
Power Supply
220-240V~,50Hz
24.5kg
4.6kg
400W 135W
11.0kg
870*512*957
H1:77 H:72
M:65 L:50
VH-J120MMM
VH-J140MMM
29.5kg
7.0kg
450W 180W
13.0kg
902*537*974
H1:92 H:87
M:65 L:42
21.0kg
4.6kg
370W 135W
8.5kg
827*485*865
H1:63 H:58
M:48 L:39
VH-J95MMM
