X-35AR HI-TEMP TURBO-PRO
Professional Axial Air Mover
(115V /60Hz)
OWNER’S MANUAL
4
com
Index
Introduction / Features................................................................................................................
Operation ...................................................................................................................................
Specifications .............................................................................................................................
Safety Instructions .....................................................................................................................
Warranty /Service ......................................................................................................................
Maintenance Instructions / Troubleshooting ..............................................................................
Parts List .....................................................................................................................................
Warranty Registration Form .......................................................................................................
2
4
5
6
7
8
9
10
- 1 -
Introduction
Thank you for purchasing the XPOWER X-35AR HI-TEMP TURBO-PRO Professional Axial Air
Mover! XPOWER Manufacture, Inc. has over 25 years of manufacturing experience, bringing a
series of products with the most advanced technology in today’s market. Our goal with the
X-35AR was to bring an axial air mover never seen before. Through our research and design, we
have brought a revolutionary series of air movers to the industry that provide long-life operation,
excellent performance, compact design and extremely low noise. Our axial air movers are
completely speed controllable-- a first in the industry. We also offer a high quality dual outlet for
daisy-chaining for ease of use in professional applications. Enjoy!
Features
SEALED INDUCTION MOTOR
The advanced design SEALED INDUCTION MOTOR protects the internal motor parts from
dust and moisture accumulation, thus, making it very suitable to be used in highly
contaminated and wet environment areas.
VARIABLE SPEED CONTROL SWITCH:
An industry first, our completely variable speed control allows you to adjust the fan speed
exactly to your liking. This is extremely useful in ventilation applications where precise volume
guidelines need to be met.
- 2 -
DAISY CHAIN FEATURE:
2 Built-In Outlets for Additional Machines.
SPECIALLY DESIGNED AIR FIN GUIDE:
Contoured to provide maximum focused and extended airflow volume and velocity.
(Technology targets air flow up to 60 ft.)
360° ROTATION- RACK STAND INCLUDED:
Full rotation of the axial air mover to fit the need of any project including drying flooded floors,
painted walls, and damp damaged ceilings.
SUPER LIGHTWEIGHT:
Durable ABS+PC Housing
COMPACT DESIGN W/ STACKABILITY:
Stackable Up To 5 Units
- 3 -
Operation
1) With the unit unplugged, carefully place the XPOWER unit on a stable, flat, and dry surface.
2) Plug the cord into a grounded G.F.C.I. outlet only, the use of a 3-prong to 2-prong adapter
is strictly prohibited.
3) Turn on the switch to make sure the axial air mover is operating correctly.
4) To reduce the risk of injury, close supervision is necessary when an appliance is used near
children. Do not allow children to play with or around an Axial Air Mover at any time.
Daisy Chain
If utilizing the Daisy-Chain feature, only use devices under 2 AMPS for 12-AMP circuit.
X-35AR axial air mover has an on-board circuit breaker. If the auxiliary outlet overloads, the circuit
breaker will trip. If the breaker does trip ,unplug the units and press the circuit breaker Reset
button. Plug the units back into the power source and turn on the switch.

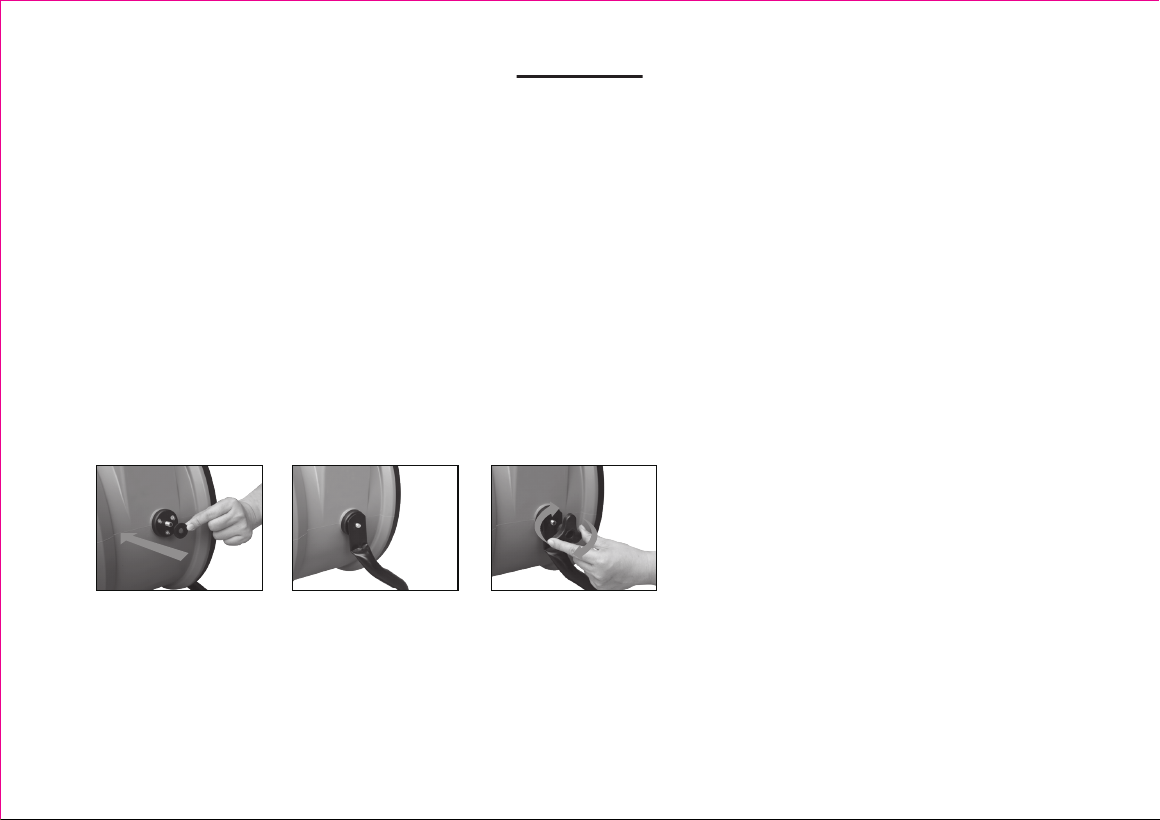

Place washer on before attaching rack.
- 4 -
Specifications
- 5 -
X-35AR
115V / 60Hz
1720 CFM
1.6 A
190W
17.6 lbs.
18.6x9.4x19.2 inch
20 ft. / 14AWG
Injection-molded ABS+PC
360° Rotational Coverage
Incl.
Dimensions (L x W x H)
Cord
Housing
Positions
Daisy Chain
Model
Volt/Frequency
Airflow
Amps
Power
Weight
Safety Instructions
1. To prevent electric shock, do not operate the unit in standing water. Never plug in or unplug
the unit with wet hands or while standing in water.
2. To avoid risk of injury, do not direct air flow at face or body.
3. Suitable for use with solid-state speed controls.
4. Use only with GFCI protected receptacles. Please contact a qualified electrician for
verification and / or installation of a GFCI receptacle if necessary.
5. Do not operate any unit with a damaged cord or plug. Discard axial air mover or return to an
authorized service facility for examination and/or repair.
6. To reduce the risk of injury, disconnect from power supply before servicing.
7. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area
and where it will not be tripped over.
8. Do not allow children to play with or around an axial air mover at any time.
9. Do not move or carry the axial air mover while unit is operating.
10. Keep air intakes and exhausts clean at all times to avoid clogging or blocking in order to
prevent overheating the unit. Blocking the air intake could result in a fire or electrical hazards.
11. To prevent injury to persons and to avoid objects from coming in contact with the fan blade,
do not remove any screens or safety guards from this unit. Altering this unit will void your
warranty.
12. Always place the axial air mover on a smooth and level surface for safe operation.
13. Do not use unit if defective or damaged.
14. Unplug the unit before performing any maintenance, cleaning, or servicing.
15. Any misuse or abuse of this product will void the warranty.
16. An electronic instruction manual can be obtained through the manufacture’s website
www.xpower.com.
- 6 -
XPOWER Limited Warranty (USA)
XPOWER’s Limited Warranty covers the unit (excluding POWER CORD) from defects in material
and craftsmanship. The Warranty covers normal use for a term of one year from the original date
of purchase including parts, labor and one way shipping. Non-contiguous states must pay for
roundtrip freight. A purchase receipt must be provided.
Important!
This warranty does not cover or apply to defects due directly or indirectly to misuse, abuse,
disassembly, alteration, corrosive chemicals, improper voltage, fire, flood, negligence, accident,
improperly or incorrectly performed maintenance or repair, or failure to perform necessary
maintenance or repair, or if the use of this product is not in compliance with the instructions and
specifications for its use.
Service
For Warranty service and parts replacement (US users only), you must:
A. Call 1-855-855-8868 for a RMA (Return-Merchandise-Authorization) number.
B. Have original proof of purchase.
C. Use the original undamaged packaging or an industrial certified packaging method.
End user will be responsible to ship the unit (with RMA Number showing on the shipping label) to
the XPOWER Service Department. XPOWER will inspect, assess and advise the repairs needed
and the applicable cost, if any. For users outside the US, please contact an XPOWER Distributor
in your country or region for Warranty service and parts replacement.
- 7 -
Maintenance Instructions
1. Always disconnect the axial air mover from its power source before performing any
maintenance or cleaning.
2. Never clean the unit with water directly.
3. When not in use, unplug and store the axial air mover in a dry indoor place out of reach of
children.
4. To keep the axial air mover clean, use a damp cloth to wipe the surface of the housing.
Troubleshooting
- 8 -
SYMPTOM PROBABLE CAUSE ACTION
Switched Off
Make sure unit is plugged in
and switch is turned to ON
mode
Power failure
Check outlet/Change to
another outlet
Wiring failure Contact XPOWER for repair
Obstructions at the
intake or exhaust of fan
Remove obstruction(s)
Fan broken
Weak Air Flow Obstructed vents/inlets Clean out vents/inlets
Motor Not Running
Scraping Noise From Fan
Contact XPOWER for repair

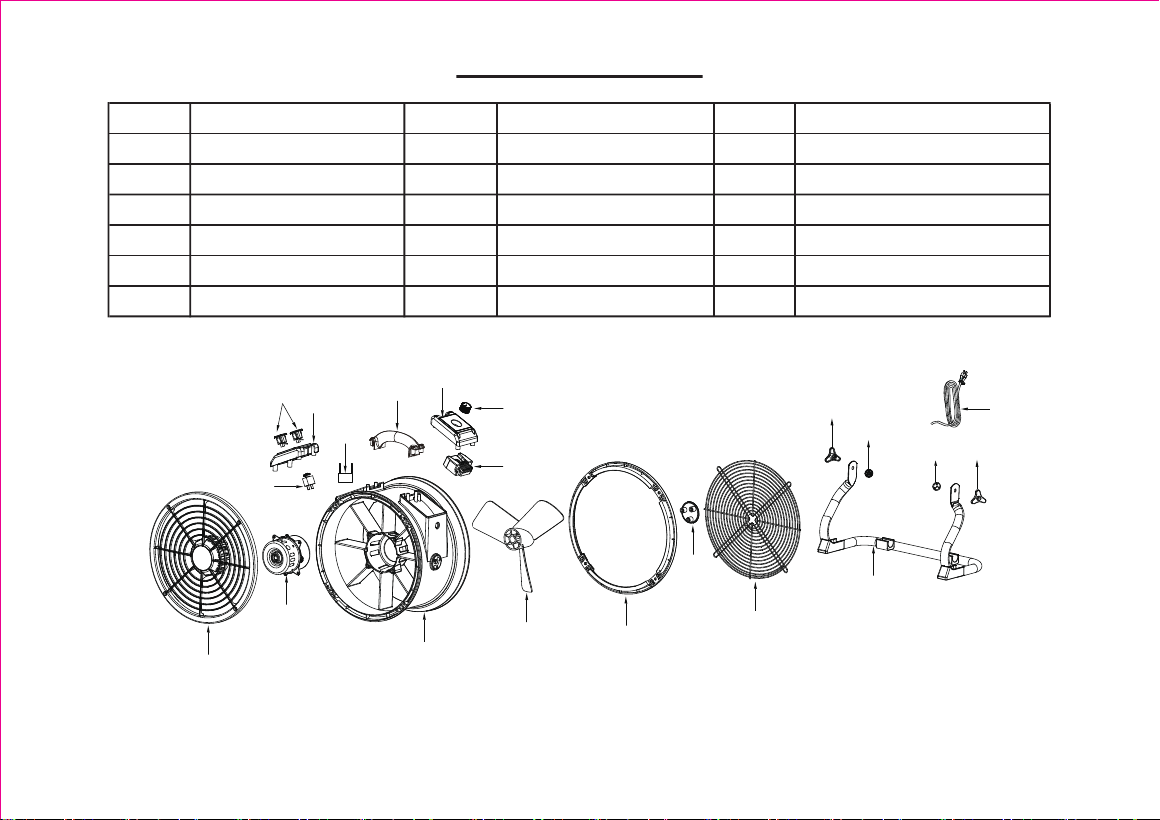

35 Series Parts List
- 9 -
1
2
3
4
5
7
6
8
9
10
11
12
13
14
15
16
18
17-1
17-2
17-1
17-2
Item No. Parts Name Item No. Parts Name Item No. Parts Name
1 Front Air Cover 2 Motor 3 Housing
4 Handle 5 AC Receptacle 6 Receptacle Plate
7 Circuit Breaker 8 Capacitor 9 Speed Knob
10 Speed Control Plate 11 PCB 12 Fan
13 Rear End Cover 14 Cover 15 Rear Air Cover
16 Rack 17-1/17-2 Washer / Rack Handle 18 Power Cord
