FGS-USI02G75AC
FGS-UBI02G75AC
FGS-USI02G90AC
FGS-USI02G75CC
FGS-USI02G90CC
FGS-USI16G75CC
FGS-UBI17G75CC
21
Introduction
Thank you for choosing this cooker hood.
This instruction manual is designed to provide you with all required
instructions related to the installation, use and maintenance of the
appliance.
In order to operate the unit correctly and safely, please read this
instruction manual carefully before installation and usage.
Accessible parts may become hot when used with cooking appliance.
CAUTION:
Never let the children operate the machine.
Clean the cooker hood according to the instruction manual and keep the
unit from danger of burning. There is a fire risk if cleaning is not carried
out in accordance with the instructions.
Please keep the kitchen room a good convection before connecting this
appliance; Please check that the power supply cord is undamaged. A
damaged supply cord must be replaced by qualified service personnel only.
Regulations concerning the discharge of air have to be fulfilled.
This appliance can be used by children aged from 8 years and above
also the persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
The cooker hood is for home use only, not suitable for barbecue,
roast shop and other commercial purpose.
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
Electrical Shock Hazard
Only plug this unit into a properly earthed outlet.
If you have doubts, seek advice from a suitably qualified engineer.
................................................ ........
2
...................................
2
...........
...................................................
...........................................................
...........................................................
7
............................. ...........................................................
Oil Cup Installation
..............
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
7-8
...........................................................
...........................................................
Filter Installation
Installation
...........
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
..............
10-14
...........................................................
Operation
....................................................
Introduction
Safety Precaution
Air Outlet Installation Method
................
10
9
5-6
Installation Instructions
....
CONTENT
Safety Precaution
....................................................................
3-4
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
15-16
17
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.

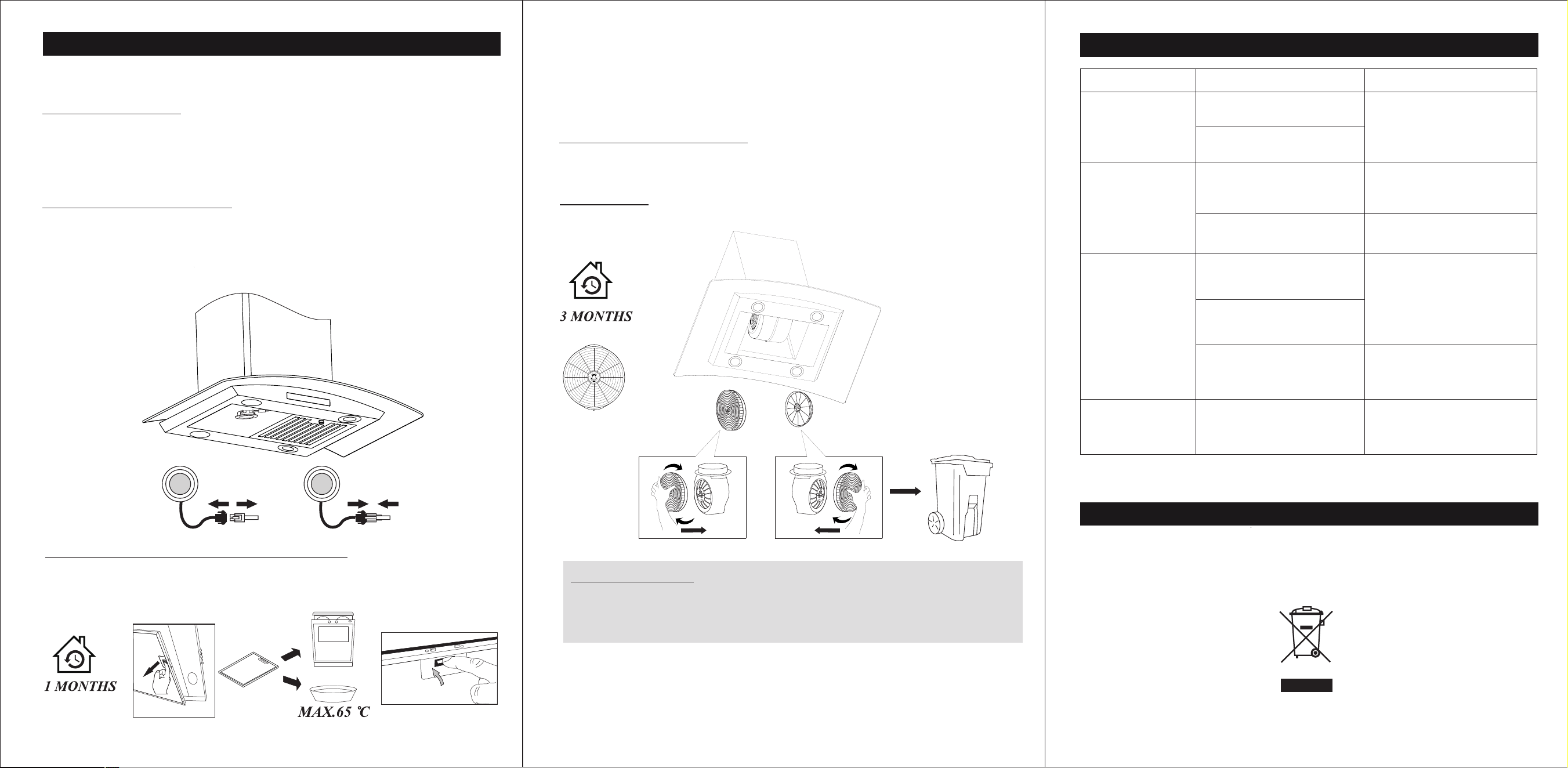

Maintenance
Trouble-Shooting
..............
17
...........................................................
Environmental Protection
...........
............
...................
...........
......................
.................................................
..........................................
.................................
.................
Parts Diagram
........................................
ATTENTION:
Please remove the carbon filter in rainy and humid weather,
and use high speed to exhaust air to prevent condensation
on the surface of the cooker hood.
St4×30
×13
φ5×φ8
×13
Measuring tape
Screwdriver
Pencil Hammer
Electric drill Level
43
Dampers

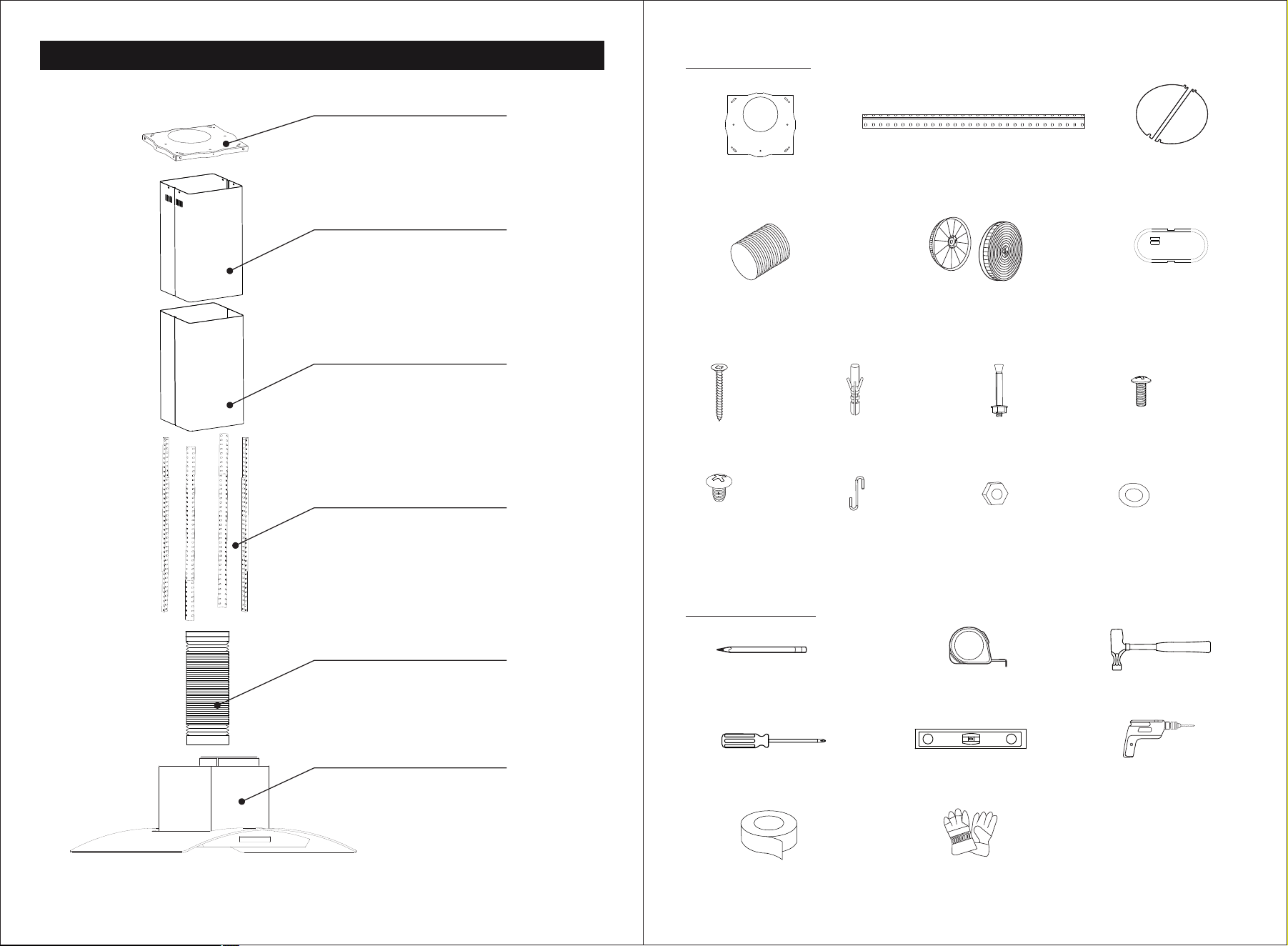

Parts Diagram
2.Top Chimney
(Inner Chimney)
3.Bottom Chimney
(Outer Chimney)
5.Exhaust Pipe
6. Core Unit
Charcoal Filters
Oil Cup
Parts Supplied
Duct Tape
ToolsRequired
4.Angle Bars
1.Mounting Plate
M5×10
×42
×18×18
×3
×8
M6×50
×6
St4×6
Mounting Plate
S-Shaped Hook
Nut
Metal Washer
Angle Bars
Exhaust Pipe
(2 screws extra)
(Please refer to the model list on the last page)
Gloves
Prepare for installation:

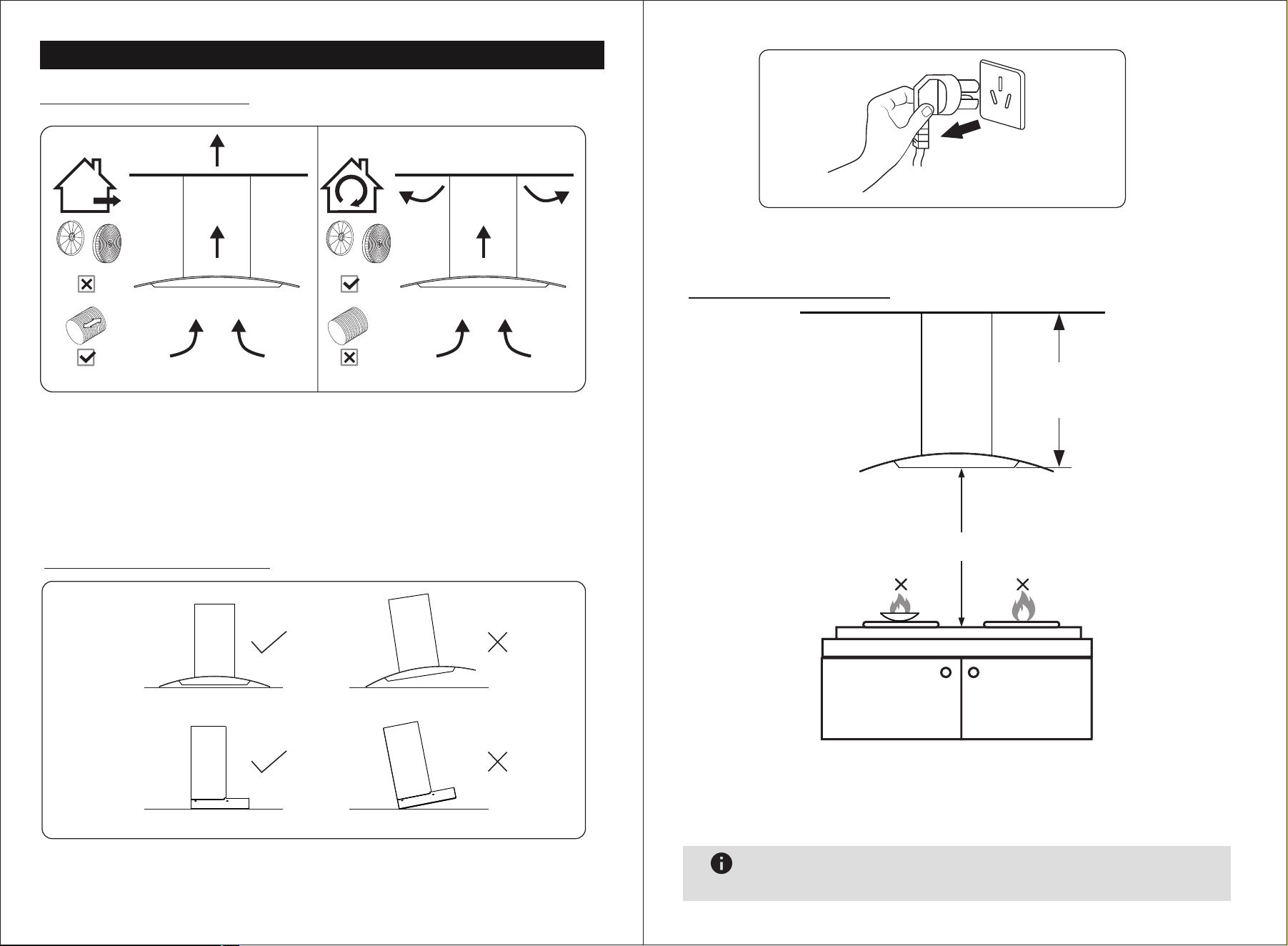

DUCTED OPTION RECIRCULATION OPTION
If you have an outlet to the outside, your cooker hood can be connected
as above picture by means of a pipe (with an interior diameter of 150mm).
If you don’t have an outlet to the outside, you can go with recirculation
mode by using charcoal filters.
Installation Instructions
65
After hanging the unit on the wall, ensure the range hood is straight and
leveled.
CORRECT WRONG
CORRECT WRONG
Level
Upright
installation dimensions
Before installation, turn the unit off and unplug it from the outlet.
Installation Requirements
25.6"-30"
22.55"
to
45.24"
Note
No open flames directly approach to the range hood.
The cooker hood should be placed at a distance of 25.6"~30"
above the cooktop for the best effect.
Note: The power cord is 44 (in) L . It is not recommended that user
replace the power cord or cut the power cord.
87
Installation
Please remove the white/blue protective
film on the range hood,chimney covers
and baffle filters for SS surface.
BEFORE USE
CAUTION:

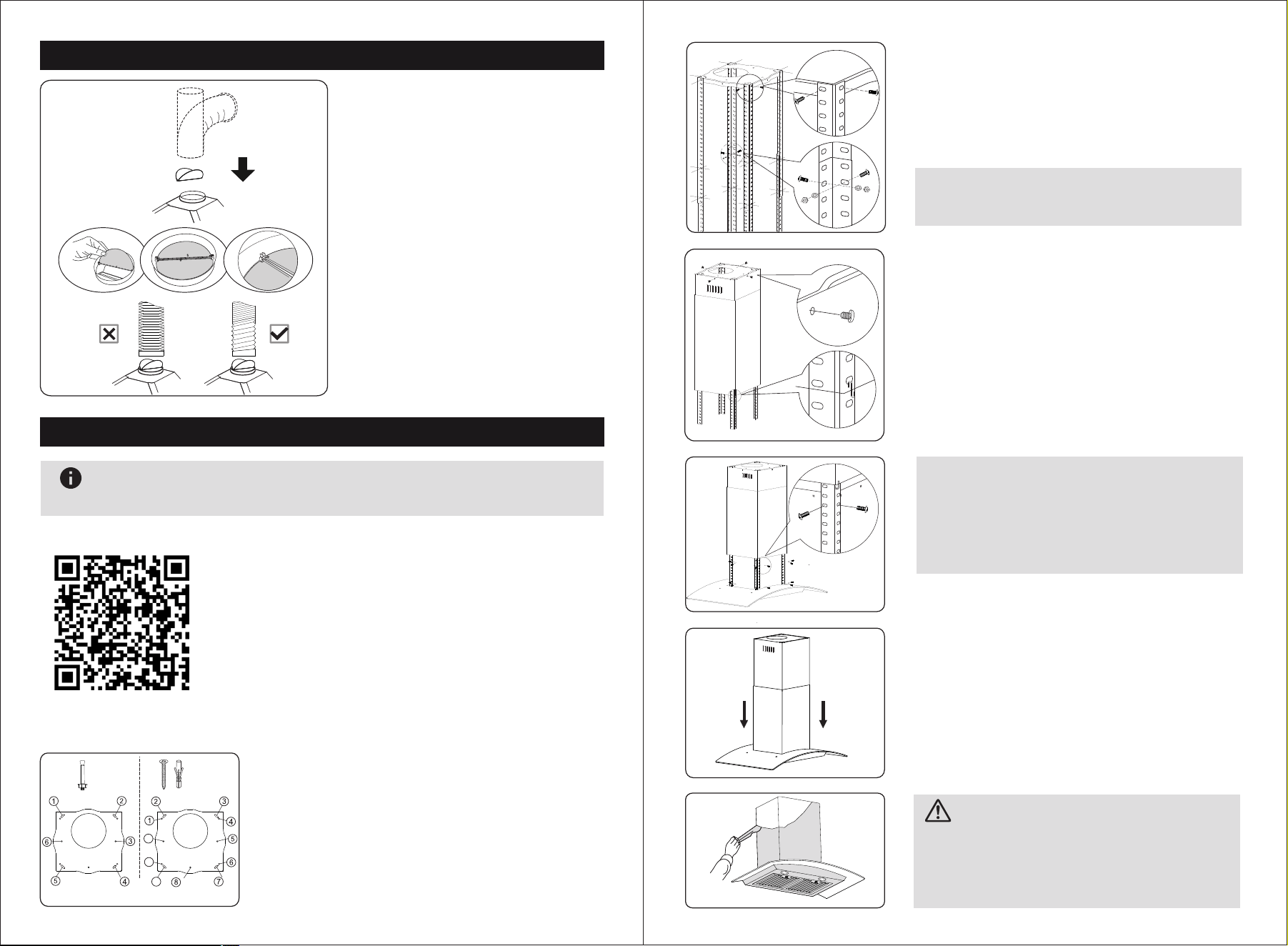

Position the mounting plate on the ceiling
and then mark the position of the screw
holes. The mounting plate should be securely
fixed to the ceiling.
(1) 6*expansion bolts for cement ceiling.
(2) 11*ST4x30 screws for wooden ceiling.
Fix the angle bars to the mounting plate,
using the 8*M5x10 screws.
Extend the angle bars to the required
height and then fix them in position using
the 16*M5x10 screws and nuts with metal
washers.
IMPORTANT: The angle bars must
have an overlap of AT LEAST 100 mm.
IMPORTANT:
This stage of the installation process
MUST be completed by two people.
IMPORTANT: The 16×M5 screws
MUST be securely tightened.
If your range hood is going to be used in
extraction mode, then you should connect
the pipe to the ceiling adaptor at
this point.
(Slide the lower chimney section onto the
angle bars and raise it until it sits just
below the upper chimney section.)
Fix the upper chimney section to the
hanging plate, using the 4pcs ST4x6
tapping screws.
Remove the hanging hook and then slide
the lower chimney section downwards,
until it rests against the main body of the
range hood.
φ150
Installation method for 150mm
diameter pipe: insert the one-way
-value as the pic and fix the duct.
Attention: The bump of the one-
way-value must be upward.
The pipe near the air outlet need
to be fully extended.
Air Outlet Installation Method
10
11
X11
X6
9
This side faces the switch
Note
Please connect the power supply to test and confirm that the
power is on before installing this island range hood.
(1) Watch the installation video:
(2) Refer to the installation instructions:
In order to know how to install this island range
hood more intuitively, please scan the QR code
to watch the installation video.
109

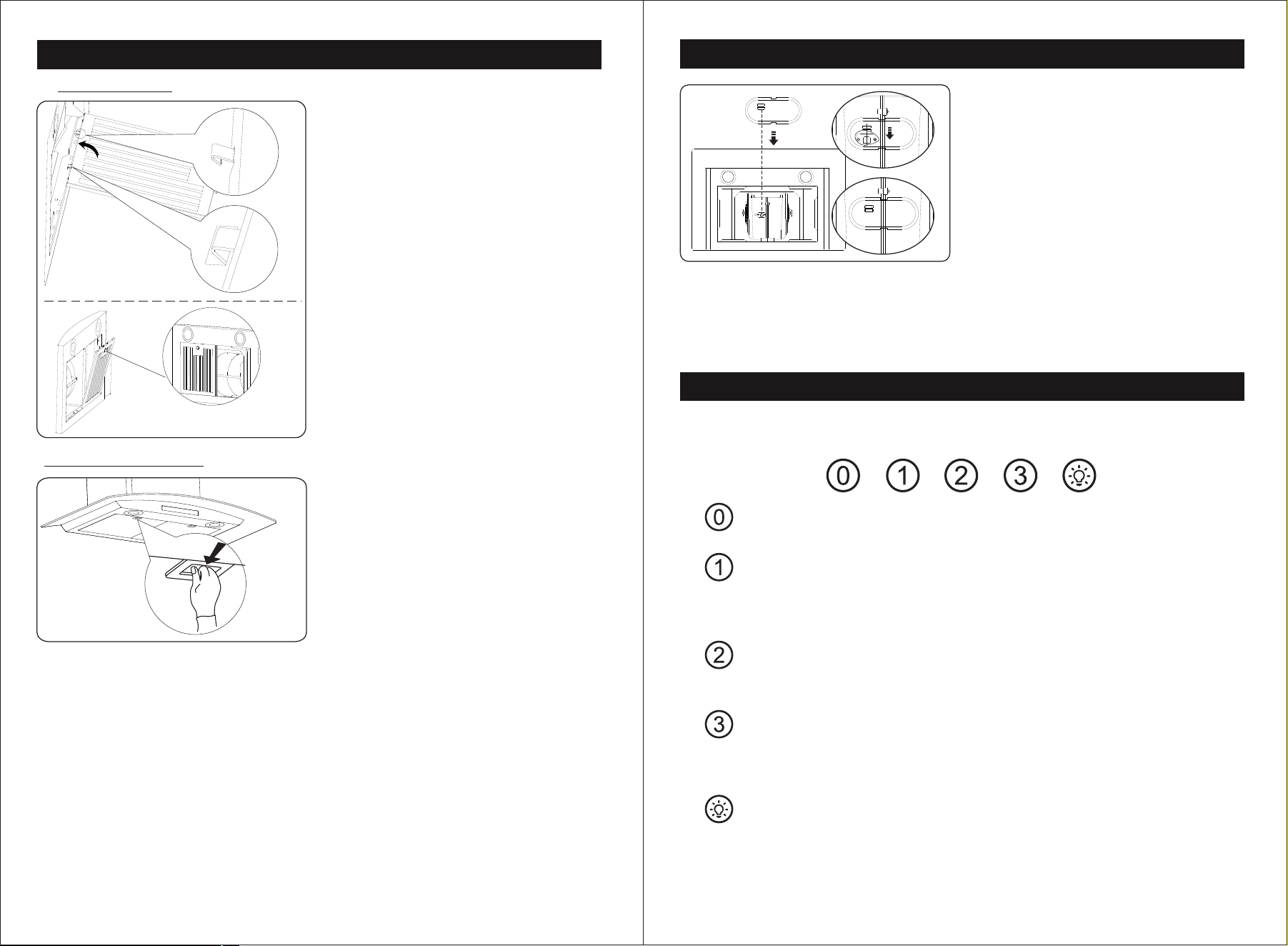

Filter Installation
1.Line up filter hooks to holes in unit.
2. Lift filter for hoohs to go into holes.
3. Lock Filter into place.
Baffle Filter:
Aluminium Filter:
Oil Cup Installation
1.Line up Oil Cup.
2. Pull down.
3. Snap into place.
Press button in and down
1.
3.
2.

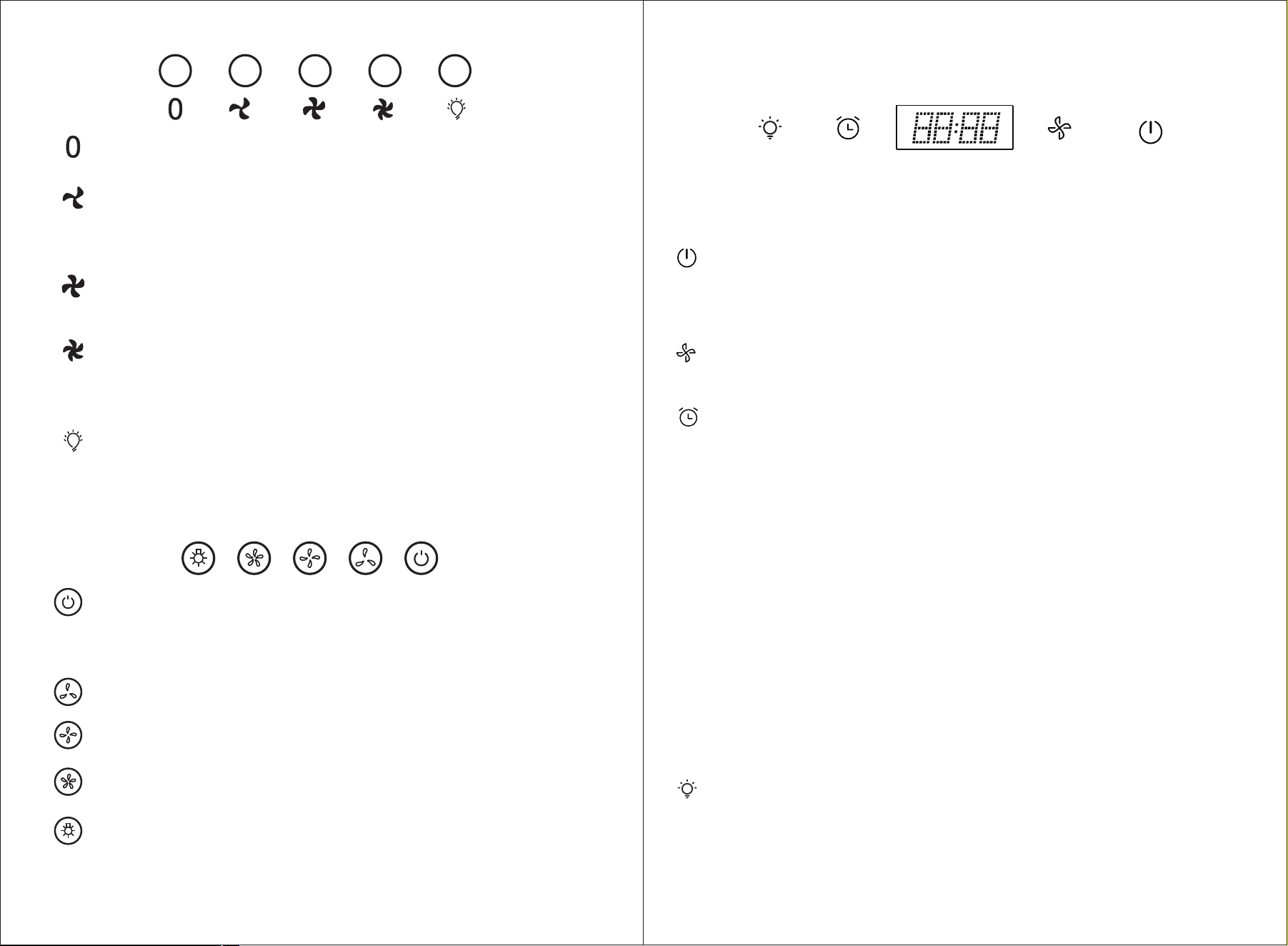

Push Button
OFF Button
Turn off the fan.
Low Speed Button
Starts the fan at low speed .
It is suitable for simmering and cooking
which does not make much steam.
Medium Speed Button
Starts the fan at medium speed.
This is ideal for ventilation during standard cooking operation.
High Speed Button
Starts the fan at high speed.
This is ideal for when a high density of smoke or steam has
been produced.
Light Button
Used for turning on/off the light.
Operation
OFF Button
Turn off the fan.
Low Speed Button
Starts the fan at low speed .
It is suitable for simmering and cooking
which does not make much steam.
Medium Speed Button
Starts the fan at medium speed.
This is ideal for ventilation during standard cooking operation.
High Speed Button
Starts the fan at high speed.
This is ideal for when a high density of smoke or steam has
been produced.
Light Button
Used for turning on/off the light.
Electronic Button
OFF Button
Press to turn unit Off.When motor is running,
press once to delay shut-off for 1 minute,
or press twice to shut off immediately.
Lowest Fan Setting
Medium Fan Setting
Highest Fan Setting
Light. Press to turn light on / off.
Touch control
During activated mode, press speed button to operate the machine
from 1st speed - 2nd speed - 3rd speed - Stop.
a,Delay function: When machine is running, press timer button to
access into delay function.Choose the time and without any operation
for 10s, the machine will start the count down and will be off after
count down is finishing.
Delay timer setting: Default time is 3 mins.When the delay button is
flashing, press this button to increase minutes.(Delay timer can be
set from 1-60mins)
Count down mode:The timer button illuminates in blue and the
machine will create “Bi”sound at the last 3 sec to finish the count
down.If you want to stop the count down, press this button again to
exit this mode.
During standby mode, press the ON/OFF button for 0.5 sec to
access activated mode.In activated mode, this button is illuminated
and speed button can be operated. Press ON/OFF button again can
access into standby mode.
Connect to the power, it access into standby mode with “Bi”sound.
LED screen shows time in blue color and only light button can be
operated . In activated mode, all icons are not illuminated.
b, Timer setting function: During standby or activated mode, press
this button for 1s to access into timer setting function with the LED
screen timer flashing. Press timer button to increase hour and press
light button to increase min. After setting, press this button again or
wait for 10 sec without any operation to settle down the timer.
Press light button to control light ON or OFF.
1211
ON/OFF Key
During shut down, press this button ON the cooker hood with
low speed. During machine is on, press this button to OFF the
machine. (Light is no effected)
Delay Timer Function
During machine is on, press light button one second to access
into delay time. Default is 5 minutes. The display blinking and
after 5 minutes the motor off. Press this button again to off the
delay timer function.
Light Key
During shutdown or standby mode, press this key to control light
ON/OFF.
Power Down Key
On working condition, press this key to decrease the power one
level.
Power Up Key
On working condition, press this key to increase the power one
level.
(1)Hand waved left to right for the first time - Range hood starts at
1st speed and light will glow. Hand waved left to right for the
second time - Range hood speed changes to 2nd speed. Wave left
to right for third time- Range hood speed changes to 3rd speed.
(2)Hand waved right to left, the range hood access into 3 minutes
delay and display start blinking. After 3 minutes countdown, the
machine will off and if you wave right to left again, the range hood
with shutdown.
Gesture control:
Remark: Wave sensor distance from switch is around 11cm to 15cm.
1413

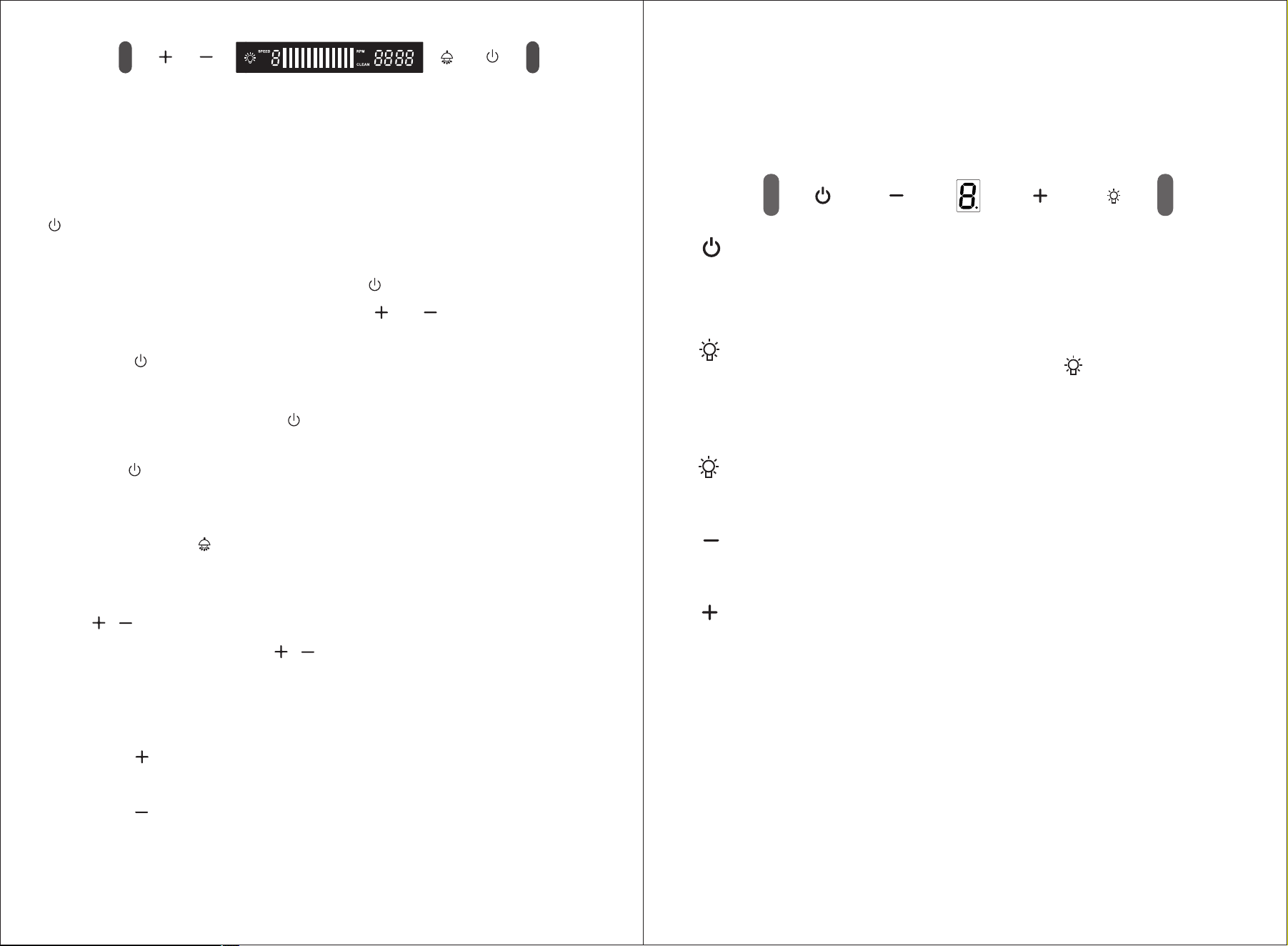

Electrify function
After connect to the power, the indicator will be power-on and off
after 1 second. Display show up white color and 12:00 then enter
to the shutdown mode.
Switch function
Press this button to access into standby or shutdown mode.
Time delay function
①Time delay setting: Long press the “ ” button for 3 seconds, the
display shows “5:00” and flash, press “ ” “ ”to adjust the shutdown
time (1-60 minutes), long press can adjust continuously.
Press “ ” or 10 seconds without operation, timer will be saved and
return to shutdown mode.
b. During power on or motor is running, move your hand from right to left
distance to access into 3 mins count down. Move your hand from right to
left again can off the machine.
Remark: Wave sensor distance from switch is around 11cm to 15cm.
Somatosensory
a. In the off mode, move your hand from left to right can control
the motor change from 1 to 3 speed in circle.
Motor function: (3 speed)
Increase:
Press “ ”to set speeds from 1 - 3 speeds.
Decrease:
Press “ ”button to decrease the speeds.
②Delay shutdown: Press “ ” to enter time delay mode, the indicator
lights on and start the countdown (5 minutes by default);
press“ ” again, can off the machine and return to shutdown mode.
Long press switch for 3 second, can exit time delay function.
Lighting function:
① Press this “ ” button to control light ON/OFF.
②Clock setting: Long press the lighting button for 3 seconds,
all the indicators light on and flash, the display will flash, press
“ ” to adjust hour. Press lighting button to access into
minutes setting, press “ ”adjust minutes. Press light button
again or no operation for 10 sec to confirm clock setting.
Before cleaning switch the unit off and pull out the plug.
I. Regular Cleaning
Use a soft cloth moistened with hand-warm mildly soapy water
or household cleaning detergent. Never use metal pads, chemical,
abrasive material or stiff brush to clean the unit.
II. LED Light Replacement
Switch the unit off and unplug the appliance.
Maintenance
III. Filter and charcoal filters replacement
In order to install the carbon filter, the grease filter should
be detached first. Press the lock and pull it downward.
CAUTION: LAMP UNIT MAY BE HOT!
WAIT UNTIL THE UNIT IS COOL. BEFORE attempting to replace
the LED lamps make sure the unit is powered off and UNPLUGGED.
1615
Filters: To avoid fires, clean thoroughly once a month
or wheneverthe display pilot lights up (if fitted). To do so,remove
the filters and soak inhot water and detergent for an hour.If using
a dishwasher,position the filters vertically to improve the cleaning
process.
Important Notice:
1.Make sure the filter is securely locked. Otherwise, it would loosen
and cause abnormal noise and danger.
2.Using charcoal filter would reduce the air flow of the range hood.
IV.Charcoal filter life time: Suggest changing to new one every 3
months (According to different kitchen condition, the life time of
charcoal filter might be longer or shorter than 3 months).
Installation: Fix carbon filter into the unit and turn it in as below
picture shows. Repeat the same on the other side.
Fault Cause Solution
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
The fan blade is jammed.
The motor is damaged.
Light is burnt out.
Power cord is loose.
Light on,but fan
does not work
Both light and fan
do not work
Serious Vibration
of the unit
Suction
performance not
good
Too far distance
between the unit
and the cooktop.
The unit is not hung
properly on the bracket.
The fan motor is not
fixed tightly.
The fan blade is
damaged.
Switch off the unit and
repair by qualified
service personnel only.
Replace the LED light
with correct rating.
Plug into the power
supply again.
Switch off the unit and
repair by qualified
service personnel only.
Take down the unit and
check whether the bracket
is in proper location.
Readjust the distance
between 25.6"-30"
Environmental Protection
Trouble-Shooting
17
Model List
Range Hood Model No. Charcoal Filter Model No.:
CC170FGS-USI02G75AC
FGS-UBI02G75AC
FGS-USI02G90AC
FGS-USI02G75CC
FGS-USI02G90CC
FGS-USI16G75CC
FGS-UBI17G75CC
