INSTALLATION/OWNER'S MANUAL
AM/FM/CD/USB Receiver
XDC100BT
2
XDC100BT INSTALLATION
Preparation
Please read entire manual before installation.
Before You Start
• Disconnect negative battery terminal. Consult a qualified technician for
instructions.
• Avoid installing the unit where it would be subject to high temperatures, such
as from direct sunlight, or where it would be subject to dust, dirt or excessive
vibration.
Getting Started
• Remove trim ring from unit.
• Remove 2 transit screws located on top of the unit.
• Insert the supplied keys into the slots as shown, and slide the unit out of the
mounting sleeve.
• Install mounting sleeve into opening, bending tabs to secure.
• Connect wiring harness and antenna. Consult a qualified technician if you are
unsure.
• Certain vehicles may require an installation kit and/or wiring
harness adapter (sold separately).
• Test for correct operation and slide into mounting sleeve to secure.

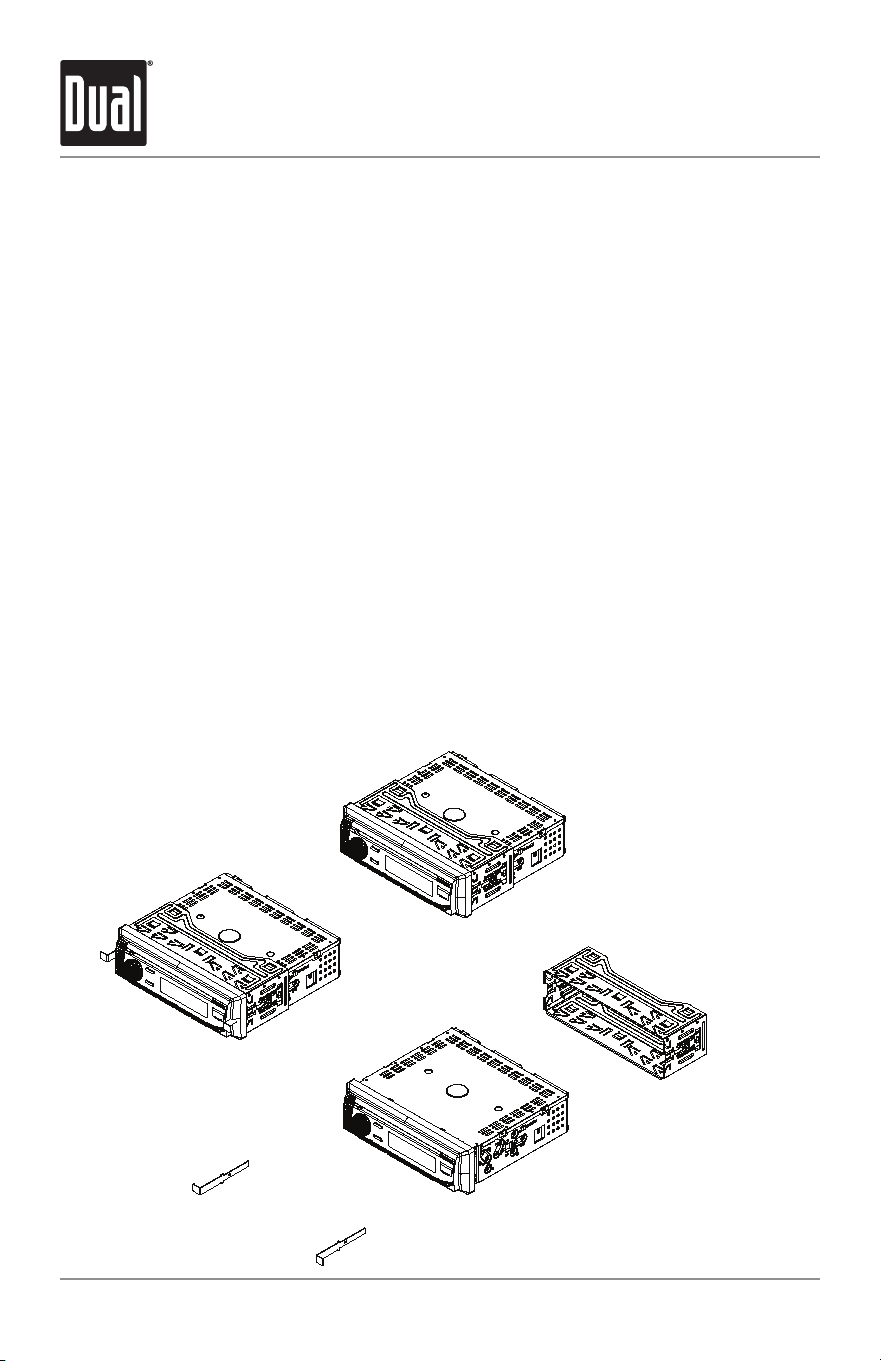

TYPICAL FRONT-LOAD
DIN MOUNTING METHOD
3
XDC100BT INSTALLATION

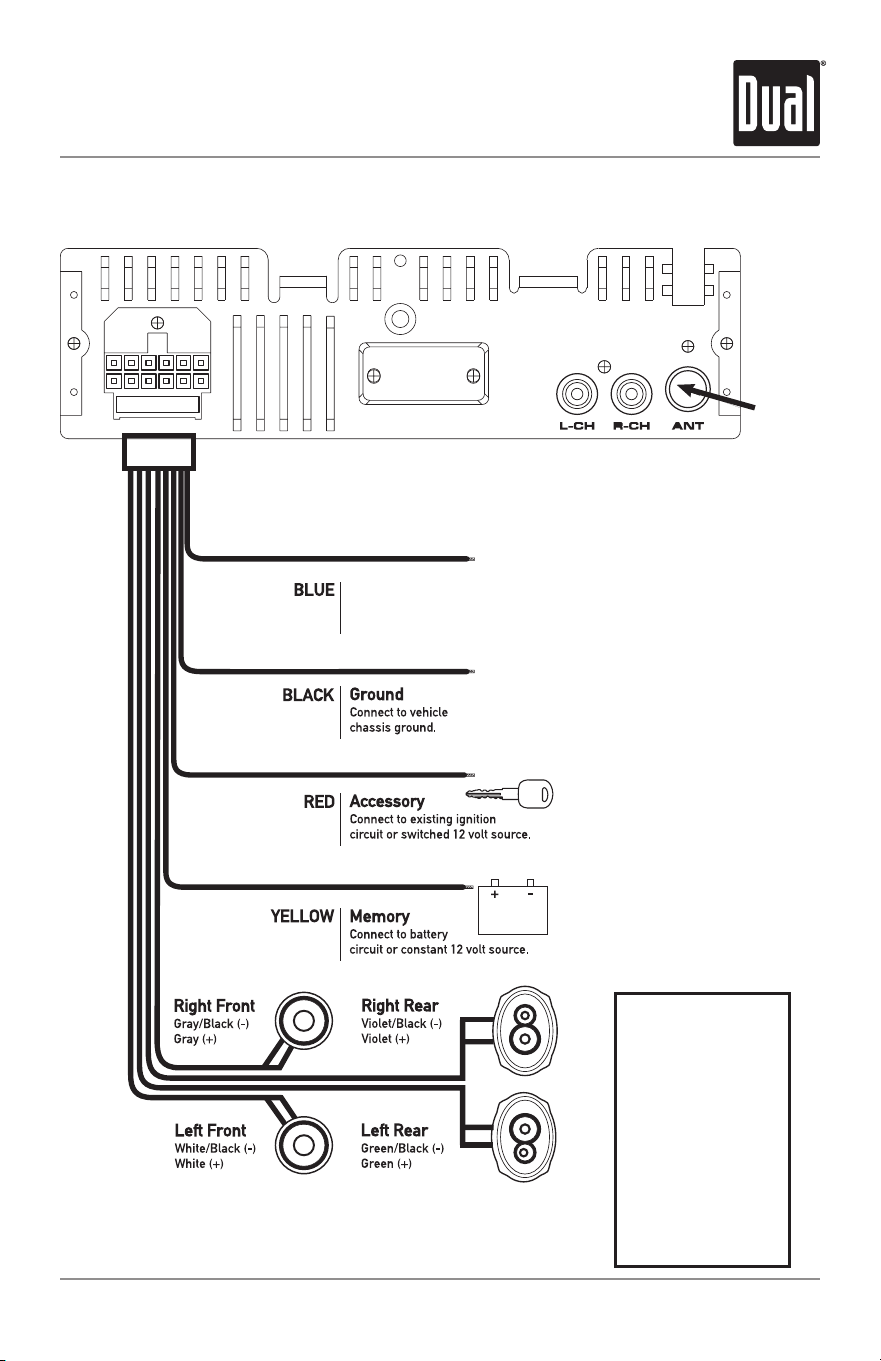

Wiring Diagram
FUSE
When replacing the
fuse, make sure new
fuse is the correct type
and amperage. Using
an incorrect fuse could
damage the radio.
The
10 amp ATC fuse
located beside the wiring
connector.
unit uses one
Antenna
Connector
Remote Turn On
Connect to amplifier or power
antenna. Insulate wire if not used.
4
XDC100BT OPERATION

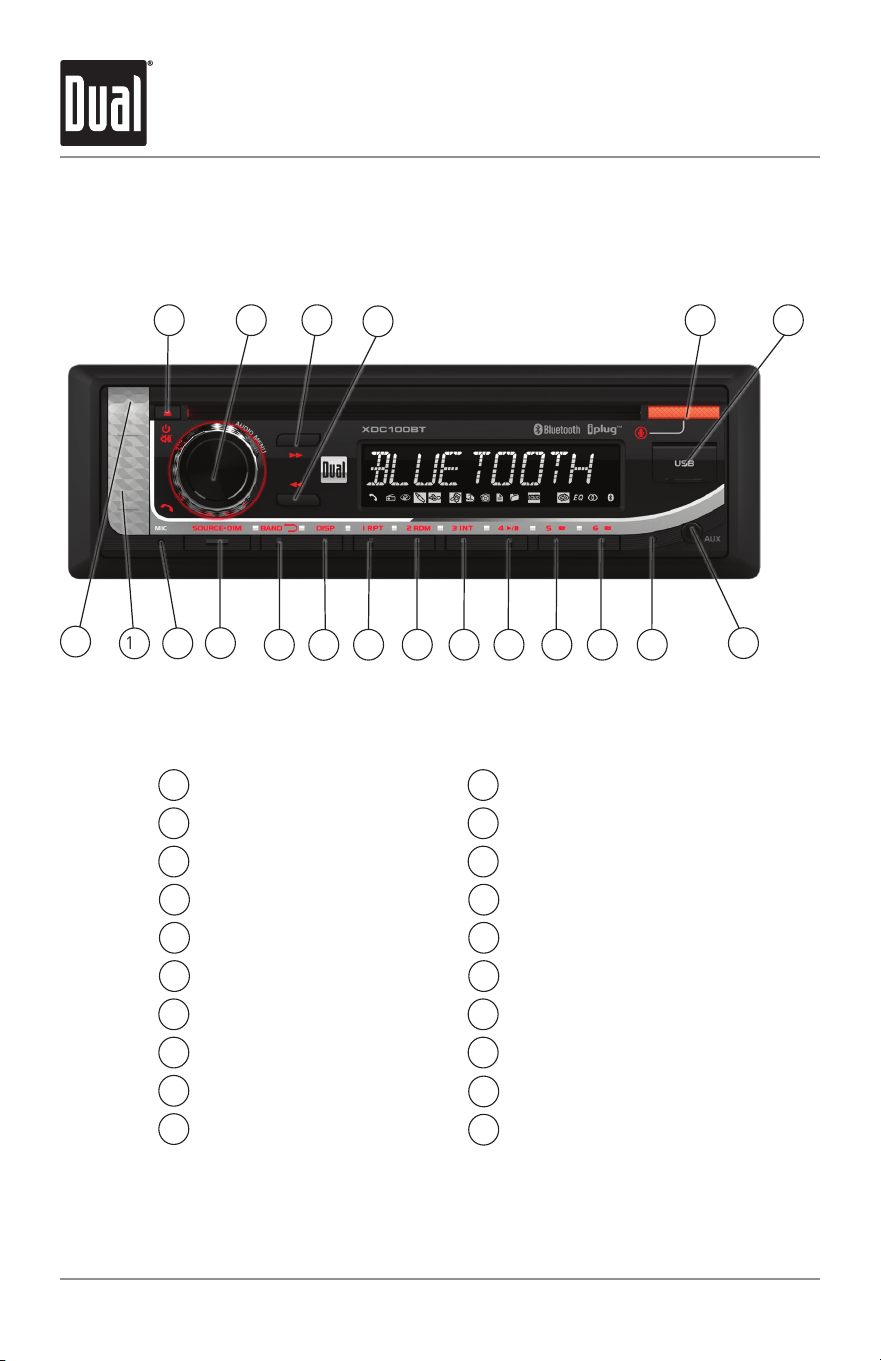

Control Locations
Preset 4 / Play / Pause
Preset 3 / Intro
Preset 2 / Random
Preset 1 / Repeat
Display
Band / Go Back
Source / Dimmer
Microphone
Bluetooth Talk
Power / Mute
Eject
Volume
Tune / Track Up
Tune / Track Down
Voice Activation
USB Port
Auxiliary Input
Reset
Preset 6 / Folder Up
Preset 5 / Folder Down
1 2 5
1 11
2 12
3 13
4 14
5 15
6 16
7 17
8 18
9
10
7
6
14 13 12 11 10 9 8
16
4
3
15
17
1819
20
19
20
5
XDC100BT OPERATION
Press to turn the unit on. Press again to turn the
unit off.
Press SOURCE to select between AM/FM, CD player,
auxiliary, USB and Bluetooth. Modes of operation are
shown in the display. CD and USB modes will not appear
unless a CD is inserted or USB device is connected.
The XDC100BT offers a 3.5 mm auxiliary input port on
the front panel of the unit for connecting an audio device,
MP3 player, etc. Press SOURCE to select auxiliary input
mode.
Adjust volume using volume knob.
Press to silence the audio. Press again to resume
listening at the previously selected volume.
Press DISP to toggle between various displayed
information.
Press and hold DIM to select the dimmer level and
rotate the volume knob to adjust it.
With the unit on, press and hold DISP until the clock
begins to flash, then release. Press TUNE
nn
to adjust
the hours or TUNE
ll
to adjust the minutes. Press the DISP
to save the selected time.
The clock will display 12-hour AM/PM time in USA
frequency spacing mode (PM 10
:
00). In European
frequency spacing mode, the clock will display 24-hour
time (22:00).
Press RESET to reset the unit back to the factory settings
if abnormal operation occurs. Reset button is located
near AUX port on the front panel.
Press the volume knob momentarily to select between
audio functions.
Press and hold the volume knob for more than two
seconds to select between the menu functions.
Rotate the volume knob left/right to adjust or activate
the desired function/audio.
Power On/Off
Changing Modes
Auxiliary Input
Volume
Mute
Display
Dimmer
Set the Clock
12/24-hour Clock
Reset
Audio / Menu
General Operation
6
XDC100BT OPERATION
General Operation - Setup Menu
Menu Function Options Action
Auto Station
Store
AUTO STORE
When you see Auto Store, press DISP to seek and save 6
strong stations in the current band. (Tuner mode only)
Local/Distance
Tuning
LOCAL OFF Activates distance tuning (Tuner mode only).
LOCAL ON
Activates local tuning for strong station reception only
(Tuner mode only).
Tuner
Frequency
Spacing
FREQ USA
Programs the unit to USA tuner spacing.
(200kHz for FM and 10kHz for AM). (Tuner mode only)
FREQ EURO
Programs the unit to European tuner spacing.
(50kHz for FM and 9kHz for AM). (Tuner mode only)
Auxiliary Input
AUX ON
Enables the front panel 3.5mm auxiliary input.
AUX OFF Disables the front panel 3.5mm auxiliary input.
Beep
Confirmation
BEEP OFF Disables the confirmation beep.
BEEP ON Enables the confirmation beep.
Programmable
Turn On
Volume
PRO OFF/
VOL#
Programs unit to always turn on at a specific volume
(default is OFF). Any volume level 1-30 can be selected.
Power On
Message
MSG OFF Disables power on message. (Example: GOOD MORNING)
MSG ON Enables power on message to be displayed.
Scrolling
Option
SCROLL 15
SP
Programs unit to scroll information every 15 seconds
(default).
SCROLL
ONCE
Programs unit to scroll once then show the first 10
characters on display
SCROLL ON Programs unit to scroll continuously.
SCROLL OFF
Programs the unit to show the first 10 characters on
display.
Demo
DEMO OFF Disables the demonstration mode.
DEMO ON Enables the demonstration mode.
Bluetooth
BT ON Enables Bluetooth functionality.
BT OFF Disables Bluetooth functionality.
Auto Answer
ANSWER
Auto
Programs unit to automatically answer every incoming
phone call after 2-3 rings.
ANSWER
Manual
Programs unit to require the
button must be pressed
to answer incoming phone calls (default).
Press and hold the volume knob for more than 3 seconds to access the setup menu.
Press the volume knob momentarily to select between the menu functions and
rotate the volume knob left/right to adjust or activate the desired function.
7
XDC100BT OPERATION
AM/FM Tuner Operation
Seek Tuning
Manual Tuning
Band
Storing Presets
Recalling Presets
Automatically Store
Preset Scan
Press and hold TUNE
nn
or TUNE
ll
for two seconds
to auto seek to the previous or next strong station.
Press TUNE
nn
or TUNE
ll
momentarily to change
radio frequency up or down one step at a time. Press
and hold TUNE
nn
or TUNE
ll
for three seconds
to advance quickly, then release it to stop on desired
station.
Press BAND to select between FM1, FM2, FM3, AM1 and
AM2 bands. Up to six presets can be programmed
for each band, enabling up to 18 FM stations and 12 AM
stations to be stored in memory.
To store a station, select the desired band and station.
Press and hold the desired preset button (1-6) for more
than two seconds. When stored, the preset number will
appear in the display.
Preset stations can be recalled anytime by pressing the
corresponding preset button.
Press and hold the volume knob for more than two
seconds, then press DISP to 18 FM stations and 12 AM
stations automatically.
Touch PS to recall each preset station that has been
stored in memory for each band.
(Available with the Dual Smart Remote App only.)
8
XDC100BT OPERATION
Insert CD
Eject CD
Track Select
Fast Forward/Reverse
Pause
Intro
Repeat
Random
CD-R/CD-RW
Compatibility
With the label facing up, insert a standard size CD into
the CD slot. The CD will automatically begin playback.
Press EJECT to eject the CD. The unit will change to
previous mode of operation. If the disc is not removed
within 10 seconds, the unit will reload the disc. The unit
does not have to be turned on to eject CD.
Press TRACK
ll
to skip to the beginning of the next
track. Press TRACK
nn
to return to the beginning of
the current track. Pressing TRACK
nn
again skips to
the beginning of the previous track.
Press and hold TRACK
ll
or TRACK
nn
to fast
forward or reverse a track.
Press
l
/
II
to temporarily stop CD playback.
Press
l
/
II
again to resume playback.
Press INT to enter the Intro menu, then turn the volume
knob to select one of the following options:
• OFF - Cancels the INT function.
• ALL - Plays the first 10 seconds of each track.
Press DISP to confirm.
Press RPT to enter the Repeat menu, then turn the
volume knob to select one of the following options:
• ALL - Plays all tracks on CD.
• SONG - Continuously repeats selected track.
Press DISP to confirm.
Press RDM to enter the Random menu, then turn the
volume knob to select one of the following options:
• OFF - Cancels the RDM function.
• ALL- Plays all tracks in random order.
Press DISP to confirm.
Some CD-Rs and CD-RWs may be incompatible with this
unit, depending on media type and recording method.
In addition, the following CDs may be incompatible with
this unit: CDs exposed to extreme temperatures or direct
sunlight for extended periods of time, CDs recorded in
which a recording session failed or a re-recording was
attempted and, or encrypted or copy-protected CDs
which do not conform to the audio CD-DA red book
recording standard.
CD Player Operation
9
XDC100BT OPERATION
CD Player Operation - MP3 Files
Playing an MP3 CD
Displaying Information
Title Icon
Artist Icon
Folder Icon
File Icon
Character Support
When an MP3 encoded disc is first inserted, “DISC READ"
will appear in the display. Depending on the number of
files and folders, this may take several seconds.
Press DISP to select between song title, artist, file name,
folder name, track number, and clock/elapsed time.
“NO ARTIST” or "NO TITLE" will be displayed if the MP3
file contains no ID3 tag information.
“ROOT” will be displayed if the directory name of a root
folder is not labeled.
This icon will illuminate when the song title is displayed.
This icon will illuminate when the artist name is
displayed.
This icon will illuminate when the folder name is
displayed.
This icon will illuminate when the file name is displayed.
Maximum character display information
• Track name – 32 character maximum
• Directory name – 32 character maximum
• *Song title – 32 character maximum
• *Artist name – 32 character maximum
*Song title and Artist Name will only be displayed if
included
with the MP3 file.
When referring to MP3 playback, the following terms
are synonymous:
• File name and track name
• Folder name and directory name
10
XDC100BT OPERATION
CD Player Operation - MP3 Files
The following types of discs/files are compatible:
• CD-ROM (ISO), CD-R, CD-RW
• CD-DA
• MP3 data
The following types of discs/files are not compatible:
• Discs recorded with Track At Once or packet writing
• MP3 PRO format
• MP3 playlists
• WAV format
MP3 playback sequence is based on recorded order
of files and begins in the root folder of the disc. Any
empty
folders or folders that do not include MP3 files are
skipped. This unit may not play files in the order they
were
recorded in. Refer to your recording software’s user’s
manual for more information.
• ISO9660 level 1
• ISO9660 level 2
• Yellow Book MODE 1
• Yellow Book MODE 2 FORM 1
• Multi session
• Maximum files - 999
• Maximum folders - 255
• Maximum folder levels - 8
• MPEG-1/2/2.5 Audio Layer-3
ISO9660 standards:
• Maximum nested folder depth is 8 (including the root
folder).
• Valid characters for folder/file names are letters A-Z
(all caps), numbers 0-9, and “_” (underscore). Some
characters may not be displayed correctly, depending
on the character type.
• This device can play back discs in Joliet, Romeo, and
other standards that conform to ISO9660. MP3 written
in the formats other than the above may not play
and/or their file names or folder names may not be
displayed properly.
Media Compatibility
Playback Order
Compatible Recording
Formats
11
XDC100BT OPERATION
CD Player Operation - MP3 Files
An internal buffer provides ESP (Electronic Skip
Protection) to virtually eliminate skipping.
When playing a disc recorded with regular audio files
(CD-DA or .WAV) and MP3 files, the unit will play the
MP3 files only.
Only MP3 files with filename extension (.mp3) can be
played.
Do not attempt to play discs which contain non-MP3
files with the MP3 extension.
8kHz ~ 48kHz
32kbps ~ 320kbps constant
Variable bit rates
Note: Some files may not play or be displayed correctly,
depending on sampling rates and bit rates.
ID3 tags Version 1.0 to 2.4.
This model will not display ID3 Version 2.4 or greater
tags.
For best results, use the following settings when burning
an MP3 disc:
128kbps or higher constant bit rate
44.1kHz or higher sampling frequency
Additional
MP3Information
Sampling Frequency
Rates MP3
Transfer Bit Rates MP3
MP3 Tag Display
Recommended Settings
12
XDC100BT OPERATION
USB Operation
To play MP3 files from most USB mass storage devices,
line up the USB connector and insert the USB device into
the unit's USB port.
When a USB device is first connected, “USB READ”
will appear in the display and playback will begin
momentarily. Depending on the number of files and
folders, it may take several seconds for the device
to begin playing. If no valid MP3 files are detected,
“NO FILE” will be displayed and the last mode will be
resumed.
Press TRACK
ll
to skip to the beginning of the next
track. Press TRACK
nn
to return to the beginning of
the current track. Pressing TRACK
nn
again skips to
the beginning of the previous track.
Press and hold TRACK
ll
or TRACK
nn
to fast
forward or reverse a track.
Press
l
/
II
to temporarily stop USB playback.
Press
l
/
II
again to resume playback.
Connecting a
USB Device
(sold separately)
Playing Music
Track Select
Fast Forward and
Reverse
Pause
13
XDC100BT OPERATION
USB Operation
When a file is accessed, the clock and elapsed time will
be displayed. Press DISP momentarily to select beween
song title, artist, file name, folder name, track number
and clock/elapsed time.
"NO TITLE" will be displayed if no song title information
is available.
"NO ARTIST" will be displayed if no artist information is
available.
Press
to select the previous folder. Press to select
the next folder.
Note: Folder access is only available on devices with
more than one folder.
Press RPT to enter the Repeat menu, then turn the
volume knob to select one of the following options:
• ALL - Plays all tracks on the device.
• SONG - Continuously repeats selected song.
• FOLDER - Continuously repeats all files in folder.
Press DISP to confirm.
Press RDM to enter the Random menu, then turn the
volume knob to select one of the following options:
• OFF - Cancels the RDM function.
• ALL - Plays all tracks in random order.
• FOLDER - Plays all tracks in folder in random order.
Press DISP to confirm.
Note: Random mode is retained in memory when
selecting between other modes and when the unit is
turned on/off.
Press INT to enter the Intro menu, then turn the volume
knob to select one of the following options:
• OFF - Cancels the INT function.
• ALL - Plays first 10 seconds of each track.
• FOLDER - Plays first 10 seconds of each track in folder.
Press DISP to confirm.
Displaying Information
Folder Access
Repeat
Random
Intro
14
XDC100BT OPERATION
USB Operation
Character Support
Media Compatibility
Playback Order
Playback Capacity
USB Device
Compatibility
Maximum character display information
• Track name – 32 character maximum
• Directory name – 32 character maximum
• *Song title – 32 character maximum
• *Artist name – 32 character maximum
*Song title and artist name will only be displayed if
included
with the MP3 file.
The following types of files are compatible:
• MP3 data
The following types of files are not compatible:
• MP3 PRO format
• MP3 playlists
• WAV format
MP3 playback sequence is based on order the files
are copied to the USB device and begins in the root
folder. Any empty folders or folders that do not include
MP3 files are skipped. Depending on your software, the
playback order may vary.
• Maximum number of files: 999
• Maximum number of folders: 255 plus the root
directory
• Maximum number of files in each folder and root: 999
Note: If the number of files/folders exceeds the
maximum outlined above, the additional files/folders will
be ignored.
Note: Devices that exceed the maximum number of files
or folders may not function properly.
Due to the differences of USB devices, some devices may
not be compatible. USB devices must be ‘mass storage
class’ and formatted to the FAT or FAT32 file system in
order to ensure compatibility.
15
XDC100BT OPERATION
USB Operation
Only MP3 files with filename extension (.mp3) can be
played. Do not attempt to play non-MP3 files with the
MP3 extension.
8kHz ~ 48kHz
32kbps ~ 320kbps constant
Variable bit rates
Note: Some files may not play or be displayed correctly,
depending on sampling rates and bit rates.
ID3 tags Version 1.0 to 2.4
Note: If an invalid ID3 tag version is detected, "NO
SUPPORT" will scroll on the display.
Additional
MP3Information
Sampling Frequency
Rates MP3
Transfer Bit Rates MP3
MP3 Tag Display
16
XDC100BT OPERATION
Bluetooth
®
Operation
Before you can use a Bluetooth device, it must be paired
and connected. Make sure that Bluetooth is activated on
your device before you begin the pairing process. The unit
broadcasts the pairing signal constantly when no devices
are currently connected. Complete the pairing sequence
from your Bluetooth device. Refer to the owner's manual
for your device for more details.
The device name is "DUAL BT"
The Bluetooth passcode "1234"
Note: If passcode "1234" does not pair your device to
the receiver, use passcode "0000".
Note: The unit can be in any mode of operation when
pairing is performed.
If a device is currently connected, press and hold
to
disconnect the current device before a new device can be
paired. Then begin the pairing sequence from the new
Bluetooth device.
Most Bluetooth devices support the auto-connect feature,
and will connect automatically if the device is in range
when the unit is powered-on. If your device was previously
paired but does not connect, use these instructions below.
• If a recently connected Bluetooth device becomes
disconnected or does not reconnect, press and hold
from Bluetooth mode to reconnect your mobile device.
• To connect a previously paired device that was not
recently connected:
1) Press and hold
to disconnect any connected mobile
devices when Bluetooth is paired. Press and hold
to
connect Bluetooth device again when Bluetooth is not
paired.
2) The paired device name will appear on the LCD once it is
connected.
3) Turn the volume knob to cycle through the list of
devices.
4) Press the volume knob to cycle through the list of recent
calls up to ten and select the phone number to dial when
Bluetooth is paired. NONE appears on the LCD if there are
no recent calls.
Press and hold
for 3 seconds to disconnect a connected
device. The device will remain paired and appear in the
SEARCH menu, but not be connected.
Note: Placing a phone call from your cell phone will also
initiate Bluetooth function.
Pairing a New Device
Pairing Additional
Devices
Connecting a
Paired Device
Disconnecting a
Device
17
XDC100BT OPERATION
Bluetooth
®
Operation
Press SELECT from Bluetooth mode to view recent calls
dialed, received or missed while connected to the head
unit. Turn the volume knob to cycle through the recent
phone numbers. Press SELECT or
to dial
To redial the last phone number, press
from Bluetooth
mode. Press
or SELECT again to redial the phone
number.
Incoming phone calls will automatically appear on the
display and a ring tone will be heard.
Note: The volume of the ring tone depends on the
volume level of the unit. The incoming ring tone may not
be heard if the volume is set to a low level or mute is
activated.
• Press
to receive the incoming phone call.
• Press and hold
to refuse the incoming phone call.
Note: If Auto Answer is set to ON in the setup menu, all
phone calls will be received automatically.
During an active phone call, press
to end a phone call.
If the phone call was received when listening to music in
another mode, the unit will resume the previous mode.
The unit supports A2DP (advanced audio distribution
profile) wireless streaming audio from your Bluetooth
mobile device directly to your head unit. The following
functions can be used to control the music:
• Press
ll
to skip to the next available audio track.
• Press
nn
to skip to the previous audio track.
• Press
l
/
II
to toggle between play and pause during
playback.
Recent Calls List
Redialing the last
number
Receiving a phone call
Ending a Phone Call
Streaming Audio
18
XDC100BT OPERATION
Bluetooth
®
Operation
The unit supports A2DP (advanced audio distribution profile) wireless streaming
audio from your Bluetooth mobile device directly to your head unit. You can also
control your music from the front panel of the head unit using AVRCP (audio video
remote control profile).
Notes:
• To stream music to your head unit, your mobile device must support the A2DP
and AVRCP Bluetooth profiles. Check the owner's manual of your mobile device for
details.
• Streaming audio must be enabled from your mobile device. This option will vary
depending on the device. Some devices allow streaming audio to be disabled.
After pairing, connecting and enabling streaming audio from a compatible mobile
device, begin playing music using the music player on your mobile device. Once the
music is playing, the following functions can be used to control the music:
• The
ll
button will skip to the next available audio track.
• The
nn
button will skip to the previous audio track.
• The
l
/
II
button will toggle between play and pause during playback.
Note: Some Bluetooth devices may not fully support these commands.
Streaming Audio Operation
19
XDC100BT OPERATION
Voice Activation
Your receiver is designed with an easy access voice activation button to use Siri®
or the Google Assistant™ via your car's Bluetooth. Interact with your smartphone
assistant while you drive with only the push of a button!
Bluetooth should be paired between your smartphone and the receiver. Press the
voice activation button, and the receiver will switch into Bluetooth mode, This will
activate Siri® or Google AssistantTM on your smartphone. You will need to manually
switch back to the previous or desired mode once this operation is terminated.
Dual iPlug P2 Smart App Remote Control
Use the Dual iPlug P2 Smart App
Remote Control on an Apple or Android
smartphone to control the receiver via
Bluetooth.
Change the mode, station, song,
volume, and settings directly from
your smartphone without being in the
receiver's line-of-sight.
Download the Dual iPlug P2 Smart App
Remote Control from Apple App Store or
Google Play Store and install it on your
smartphone or tablet (QR code download
link on the right).
20
XDC100BT OPERATION
Limited One Year Warranty
This warranty gives you specific legal
rights. You may also have other rights
which vary from state to state.
Dual Electronics Corp. warrants this
product to the original purchaser to
be free from defects in material and
workmanship for a period of one year
from the date of the original purchase.
Dual Electronics Corp. agrees, at our
option, during the warranty period,
to repair any defect in material or
workmanship or to furnish an equal
new, renewed or comparable product
(whichever is deemed necessary) in
exchange without charges, subject to
verification of the defect or malfunction
and proof of the date of purchase.
Subsequent replacement products are
warranted for the balance of the original
warranty period.
Who is covered? This warranty is
extended to the original retail purchaser
for products purchased from an
authorized Dual dealer and used in the
U.S.A.
What is covered? This warranty covers
all defects in material and workmanship
in this product. The following are not
covered: software, installation/removal
costs, damage resulting from accident,
misuse, abuse, neglect, product
modification, improper installation,
incorrect line voltage, unauthorized
repair or failure to follow instructions
supplied with the product, or damage
occurring during return shipment of the
product. Specific license conditions and
copyright notices for the software can be
found via www.dualav.com.
What to do?
1. Before you call for service, check the
troubleshooting guide in your owner’s
manual. A slight adjustment of any
custom controls may save you a
service call.
2. If you require service during the
warranty period, you must carefully
pack the product (preferably in the
original package) and ship it by
prepaid transportation with a copy of
the original receipt from the retailer
to an
authorized service center.
3. Please describe your problem in
writing and include your name, a
return UPS shipping address (P.O. Box
not acceptable), and a daytime phone
number with your shipment.
4. For more information and for the
location of the nearest authorized
service center please contact us by
one of the following methods:
• Call us toll-free at 1-866-382-5476
• E-mail us at cs@dualav.com
Exclusion of Certain Damages: This
warranty is exclusive and in lieu of any
and all other warranties, expressed or
implied, including without limitation the
implied warranties of merchantability
and fitness for a particular purpose
and any obligation, liability, right, claim
or remedy in contract or tort, whether
or not arising from the company’s
negligence, actual or imputed. No
person or representative is authorized
to assume for the company any other
liability in connection with the sale
of this product. In no event shall the
company be liable for indirect, incidental
or consequential damages.
21
XDC100BT OPERATION
FCC Compliance
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
22
XDC100BT OPERATION
Specifications
Frequency response: 20Hz-20kHz
Channel separation @ 1kHz: >60dB
D/A converter: 1 Bit
Tuning range: 87.5MHz-107.9MHz
Usable sensitivity: 8.5dBf
50dB quieting sensitivity: 10dBf
Stereo separation @ 1kHz: >30dB
Frequency response: 30Hz-13kHz
Tuning range: 530kHz-1710kHz
Usable sensitivity: <42dBu
Frequency response: 30Hz-2.2kHz
USB Charge: 1A
Speaker output impedance: 4~8 ohms
Line output voltage: 1.2 Volts RMS
Dimensions: 7" x 5.9" x 2" (178 x 150 x 50 mm)
Design and specifications subject to change without notice.
CD Player
FM Tuner
AM Tuner
General
CEA-2006 Power Standard Specifications
(reference: 14.4VDC +/- 0.2V, 20Hz~20kHz)
Power Output: 14 Watts RMS x 4 channels at 4 ohms and < 1%
THD+N
Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms)
23
XDC100BT OPERATION
Troubleshooting
Problem Cause Action
Unit will not turn on
(no power)
Yellow wire not connected or incorrect
voltage Red wire not connected or
incorrect voltage
Check connections for proper
voltage (11~16VDC)
Black wire not connected Check connection to ground
Fuse blown Replace fuse
Unit has power
(but no sound)
Speaker wires not connected
Check connections at
speakers
One or more speaker wires touching
each other or touching chassis
ground
Insulate all bare speaker
wires from each other and
chassis ground
Unit blows fuses
Yellow or red wire touching chassis
ground
Check for pinched wire
Speaker wires touching chassis
ground
Check for pinched wire
Incorrect fuse rating Use fuse with correct rating
Excessive skipping
Unit is not mounted correctly or
backstrap is not secure
Check mounting sleeve and
backstrap support
Physical defect in media (CD, CD-R or
CD-RW)
Check media for scratches
ERR FILE appears
on display
Disc read error Press eject or RESET
Focus error or disc is in upside down Press eject or RESET
NO FILE appears
on display
No playable MP3files found on the
device
Check the device for valid
MP3 files
Unit will not accept
a disc
CD mechanism position out of
alignment
Press EJECT to reset CD
mechanism position
CD transit screws still in place
Remove 2 transit screws
located on top of the unit
NO SUPPORT appears
on display
An invalid ID3 tag version is present
Version 1.0 to 2.0 ID3 tags
are supported.
Dual Electronics Corp.
Toll Free: 1-866-382-5476
9AM-5PM EST, Monday-Friday
www.dualav.com
©2023 Dual Electronics Corp. All rights reserved.
The Bluetooth(R) word mark and logos are owned by the Bluetooth SIG, Inc.
Other trademarks and trade names are those of their respective owners.
NSA011823-V01
