en Assembly Instructions
Leaf and Grass Collector
Art. 3565
en
A1
2
2
1
A2
3
4
x
5
A3
5
5
5
3
3
6
7
x 8
A6
e
e
w
w
9
7
0
S1
O1
z
3
r
O2
q
9
7
A4
0
9
q
9
A5
0
q
t
w
2
GARDENA Leaf and Grass Collector
Intended use:
The GARDENA Leaf and Grass Collector is intended to collect leaves,
scarifying material and grass cuttings on lawns in private gardens and
allotments.
The product is not intended for long term use.
1. SAFETY
DANGER! Risk of suffocation!
Small parts can be easily swallowed. There is also a risk that the
polybag can suffocate toddlers. Keep toddlers away when you
assemble the product.
2. ASSEMBLY

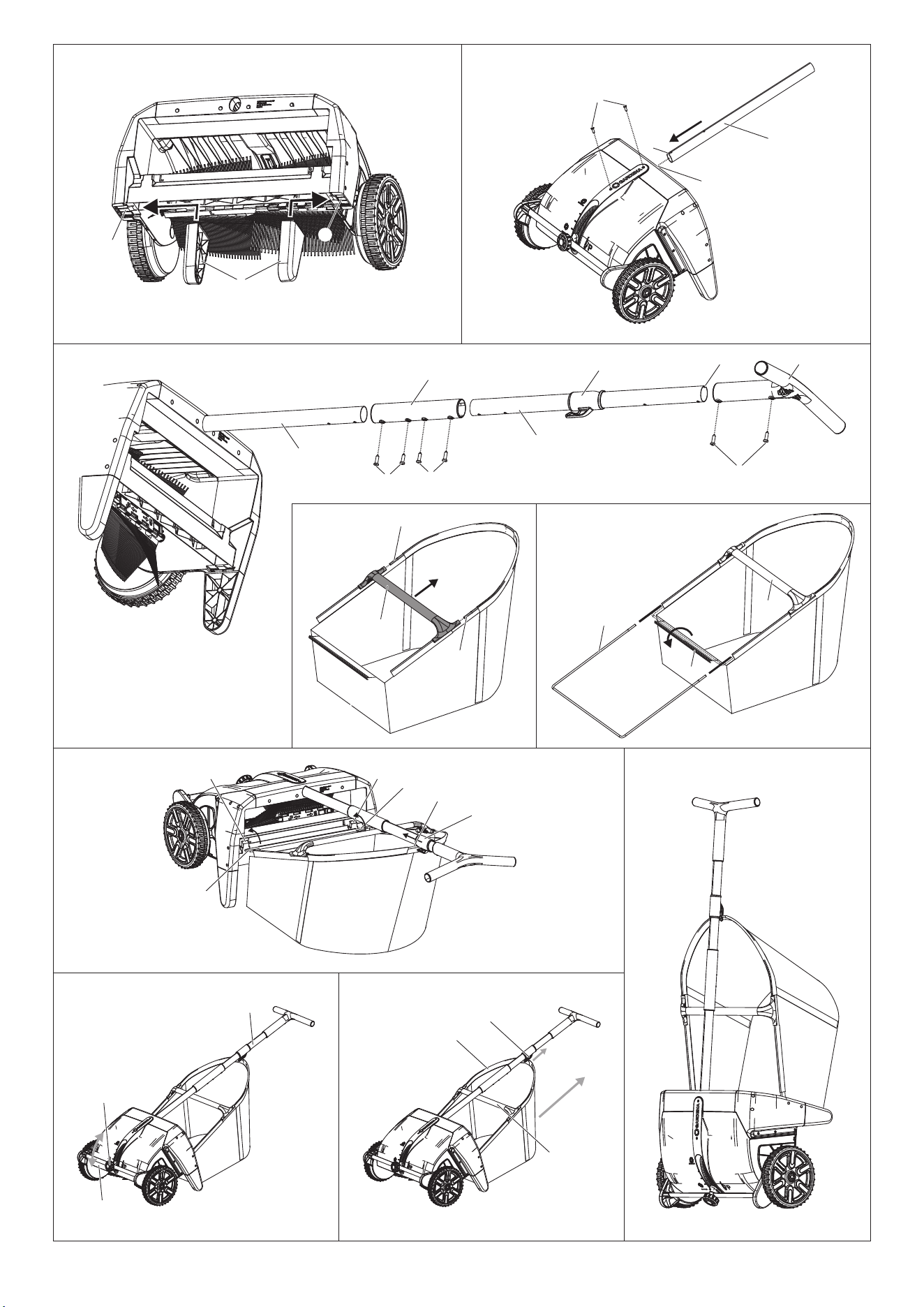

To assemble the feet [ Fig. A1 ]:
v Slide the feet
1
into the holders
2
on the leaf collector until they
audibly engage.
To assemble the tube [ Fig. A2 / A3 ]:
1. Slide the lower tube
3
with the cut-out
x
upwards into the tube
holder
4
until it stops.
2. Screw the tube tight with 2 screws
5
.
3. Slide the connecting piece
6
onto the tube
3
mounted in the leaf and
grass collector until it stops.
4. Screw the connecting piece
6
tight with 2 screws
5
.
5. Slide the upper tube
3
with the cut-out
x
upwards into the handle
8
until it stops.
6. Screw the handle
8
tight with 2 screws
5
.
7. Slide the collecting bag hook
7
in the direction of the product onto the
tube
3
.
8. Slide the upper tube
3
into the connecting piece
6
until it stops.
9. Screw the connecting piece
6
tight with 2 screws
5
.
To assemble the collecting bag [ Fig. A4 / A5 / A6 ]:
1. Thread the C-shaped bow
9
into the guides of the collecting bag
0
in
such a way that both ends of the C-shaped bow
9
are equally far out
of the bag
0
.
2. Push the handle
q
onto both ends of the C-shaped bow
9
until it
stops.
3. Thread the U-shaped bow
w
into the guides of the collecting bag
0
.
4. Push the U-shaped bow
w
into the handle
q
until it stops.
5. Push the plastic strip
t
onto the U-shaped bow
w
.
6. Hook the collecting bag with the U-shaped bow
w
into the hooks
e
.
7. Slide the collecting bag hook
7
onto the C-shaped bow
9
.
3. OPERATION
To adjust the height [ Fig. O1 ]:
With the help of the stepless height adjustment, you must adjust the leaf
collector to the ground in order to achieve an optimal collection result.
As different surfaces (e. g. lawn, asphalt) have different requirements,
you must adjust the leaf collector so that the brushes lightly touch the
ground. Moreover, you must quickly slide the leaf collector over the lawn.
1. Turn the rotary knob
z
in order to unlock the height adjustment
r
.
2. Set the tube
3
to the appropriate position.
3. Turn the rotary knob
z
in order to lock the height adjustment
r
.
Hints for the use of the leaf and grass collector:
The GARDENA leaf and grass collector works like a mechanical rake and
is therefore environmentally friendly. The rotating brushes are driven by the
wheels. The better the wheels grip the ground, the better the collection
result.
Solid objects such as acorns, chestnuts, fallen fruit etc. are not collected.
For large-leaved leaves with stems (e.g. chestnut) the leaf collector is
only suitable to a limited extent, as this can get entangled in the rotating
brushes.
Leaves on paved paths or asphalt can be collected to a limited extent. In
this case, however, it is sometimes necessary to drive several times.
Remove the collecting bag [ Fig. O2 ]:
1. Remove the collecting bag hook
7
from the C-shaped bow
9
.
2. Take the collecting bag with the handle
q
and remove it diagonally
upwards.
4. MAINTENANCE
To clean the leaf and grass collector:
DANGER! Risk of injury!
Risk of injury and risk of damage to the product.
v Do not clean the product with a high-pressure water jet.
v Do not clean with chemicals including petrol or solvents.
Some can destroy critical plastic parts.
5. STORAGE
In case of prolonged storage, you must set the position to P to relieve the
brushes and to avoid deformation of the brushes.
1. Set the height adjustment to position P.
2. Store the leaf collector in an upright position to save space [ Fig. S1 ].
6. TROUBLESHOOTING
Problem Possible Cause Remedy
The collection of leaves
is poor
Height adjustment is wrong. v Adjust the height adjustment
according to the ground.
Discharge or collecting bag
is full.
v Empty the collecting bag.
NOTE: For any other malfunctions please contact the GARDENA service depart-
ment. Repairs must only be done by GARDENA service departments or specialist
dealers approved by GARDENA.
7. SERVICE
Please contact the address on the back page.
