43''Gas Fire Pit Table
AF017
INSTRUCTION MANUAL
Thanks for purchasing and trusting NUUGARDEN with your home decorat-
ing plans. This product is a piece of furniture designed and made by
NUUGARDEN Corp.
We are committed to R&D and innovation and creating the most exquisite
and diverse outdoor series.
After unpacking and before every use, check whether the item shows any
damage. In addition, check that you have all parts and hardware before
assembly. If there is any damage, please do not use it and call customer
service at (800) 257-7108 or email [email protected]. If you do not
have all the parts lists, have your dealer contact us and we will send them to
you immediately.
This furniture is for outdoor use only. Please take time to read and follow the
instructions below. Then, use this item as described in this operating
manual. We accept no liability for damage caused by improper use.
1
INTRODUCTION
2

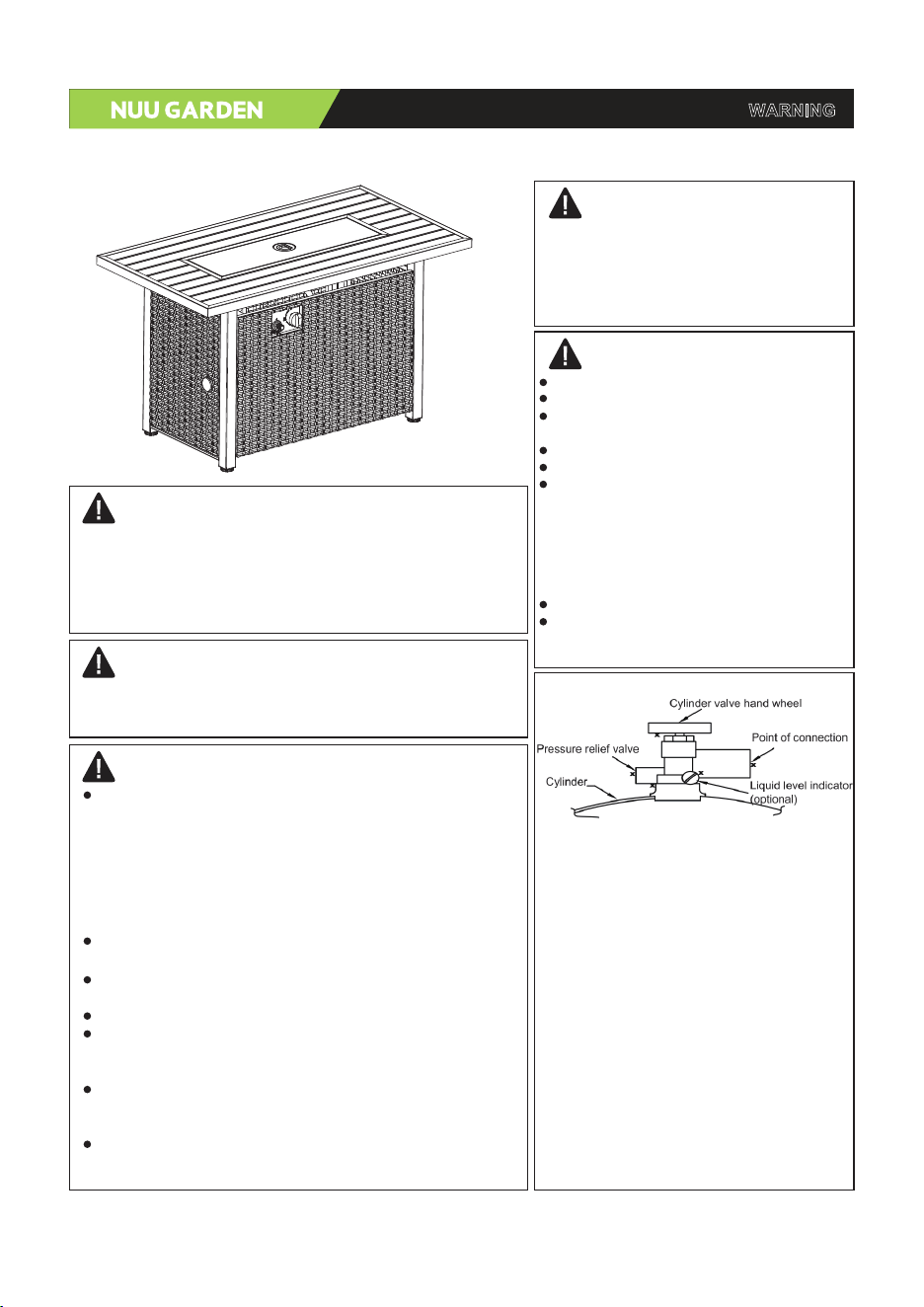

DANGER
FLAMMABLE GAS UNDER PRESSURE. LEAKING LP GAS
MAY CAUSE A FIRE OR EXPLOSION IF IGNITEDCAUSING
SERIOUS BODILY INJURY OR DEATH. CONTACT LP GAS
SUPPLIER FOR REPAIRS, OR DISPOSAL OF THISCYLIN-
DER OR UNUSED LP GAS.
WARNING
California Proposition 65
Combustion by-products produced when
using this product contain chemicals known
to the State of California to cause cancer,
birth defects, and other reproductive harm.
WHEN CONNECTING FOR USE
Use only in compliance with applicable codes.
Read and follow the manufacturer's instructions.
Consult manual instructions concerning the
cylinder connection provided with your appliance.
Be sure the regulator vent is not pointing up.
Turn off all valves on the appliance.
Do not check for gas leaks with a match or open
flame. Apply soapy water at areas marked "X".
Open the cylinder valve. If it appears, close the
valve and have the LP-gas service person make
the needed repairs. Also, check appliance valves
and connections to make sure they do not leak
before lighting the appliance.
Light appliance(s) following manual instructions.
When the appliance is not is use keep the
cylinder valve closed.
DO NOT REMOVE, DEFACE, OR OBLITERATE
THIS LABEL EXCEPT AS AUTHORIZED BY
ANSI/NFPA 58.
DANGER: Do not store a spare LP cylinder under or
near a barbecue grill, or other heat sources. NEVER
fill an LP cylinder beyond 80% full a fire causing death
or serious injury may occur.
Please keep this instruction manual for future
reference.
WARNING
READ INSTRUCTION MANUAL BEFORE
ATTEMPTING ASSEMBLE OROPERATE THIS
PRODUCT.
Keep the screws and parts out of reach of children.
WARNING
FOR OUTDOOR USE ONLY. DO NOT USE OR STORE
CYLINDER IN A BUILDING, GARAGE OR ENCLOSED AREA.
WARNING
Know the odor of LP gas. Ifyou hear, see, or smellleaking
LP gas,immediately get everyone awayfrom the cylinder
and call the Fire Department.Do not attempt repairs.
Caution your LP-gas supplier to:
Be certain the cylinder is purged of trapped air before first
filling.
Be certain not to overfill the cylinder.
Be certain the cylinder re-qualification date is checked.
LP-gas is heavier than air and may settle in low places when
dissipating.
Contact with the liquid contents of the cylinder will cause
freeze burns to the skin.
Do not allow children to tamper or play with cylinders.
When not connected for use, keep the cylinder valve turned
off. Self-contained appliances shall be limited to a cylinder
of 30 lb capacity or less.
Do not use, store, or transport a cylinder where it would be
exposed to high temperatures. A relief valve may open
allowing a large amount of flammable gas to escape.
When transporting, keep the cylinder secured in an upright
position while the cylinder valve is turned off.
WARNING
IMPORTANT SAFETY INFORMATION
3
WARNING: FUELS USED IN LIQUIFIED PROPANE GAS APPLIANCES, AND THE PRODUCTS OFCOMBUSTION
OF SUCH FUELS, CAN EXPOSE YOU TO CHEMICALS INCLUDING BENZENE, WHICH ISKNOWN TO THE
STATE OF CALIFORNIA TO CAUSE CANCER AND CAUSE BIRTH DEFECTS OR OTHERREPRODUCTIVE HARM.
SAFETY INFORMATION
Read the instruction before use. This appliance must be installed in accordance with such regulations as are enforced.
DANGER:
FIRE OR EXPLOSION HAZARD
If you smell gas:
· Shut off gas to the appliance.
· Extinguish any open flame.
· If odor continues, leave the area immediately.
After leaving the area, call your gas supplier or fire department.
Failure to follow these instructions could result in fire or explosion, which could cause property damage, personal injury, or
death.
DANGER
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space such as a camper, tent, car or home.
WARNING:
Do not store or use gasoline, or other flammable vapors and liquids, in the vicinity of this or any other appliance. An LP-cylinder
not connected for use shall not be stored in the vicinity of this or any other appliance.
INSTALLER: leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
WARNING: For Outdoor Use Only!
Installation and service must be performed by a qualified installer service agency, or the gas supplier.
WARNING:
Improper installation, adjustment, alteration, service or maintenance can cause property damage, personal injury or loss of life.
Read this installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
WARNING:
FOR YOUR SAFETY
If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury
or loss of life.
WHAT TO DO IF YOU SMELL GAS:
Do not try lighting any appliance.
Do not touch any electrical switch; do not use any phone in your building.
Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
If you cannot reach your gas supplier. Call the fire department.
Installation and service must be performed by a qualified installer, service agency or gas supplier. Save these instructions for
future reference. If you are assembling this unit for someone else, give this manual to him or her to read and save for future
reference.
WARNING:
You must provide propane gas and propane cylinder. Use a standard 20 lb. propane cylinder only.
Use this heater only with a propane vapor withdrawal supply system. See Chapter 5 of the Standard for Storage and Handling
of Liguelied Petroleum Gas, ANS/NFPA 58. Your local library or fire department should have this book.
The pressure regulator and hose assembly supplied with the appliance must be used.
The installation must conform with local codes, or in absence of local codes, with National Fuel Gas Code, ANS1 Z223.1.
A dented, rusted, or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use
a propane cylinder with a damaged valve connection.
The LP-gas supply cylinder must be constructed and marked in accordance with the U.S. Department of Transportation(D.0.T)
Specifications for LP-Gas Cylinders, or the standard for Cylinders, Spheres and Tubes for Transportation of Dangerous Good
and Commission, CAN/CSA-B339, as applicable.
The LP-gas supply cylinder must be provided with a cylinder connection device compatible with the connection for the
appliance.
The cylinder used must include a collar to protect the cylinder valve.
The LP-gas supply cylinder must be provided with a listed overfill protection device (OPD).
Do not store a spare LP gas cylinder under or near this appliance.
Never fill the cylinder beyond 80 percent full.
For appliances designed to use a CGA No. 791lQCC connection.
Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use.
Note: Gas supply pressure: 25 PSI to 250 PSI.
IMPORTANT SAFETY INFORMATION
4
WARNING:
Solid fuels shall not be burned in this appliance.
The installation must conform with local codes or, in the absence of local codes, ANSIZ223. 1/NFPA54, NFPA58 Natural Gas
and Propane Installation Code, CSA B149.1, or Propane Storage and Handling Code, B149.2.
This appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any
pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa).
Max. gas supply 6791.3 in wc (1725 kPa). Manifold pressure 11 in wc (2.74 kPa).

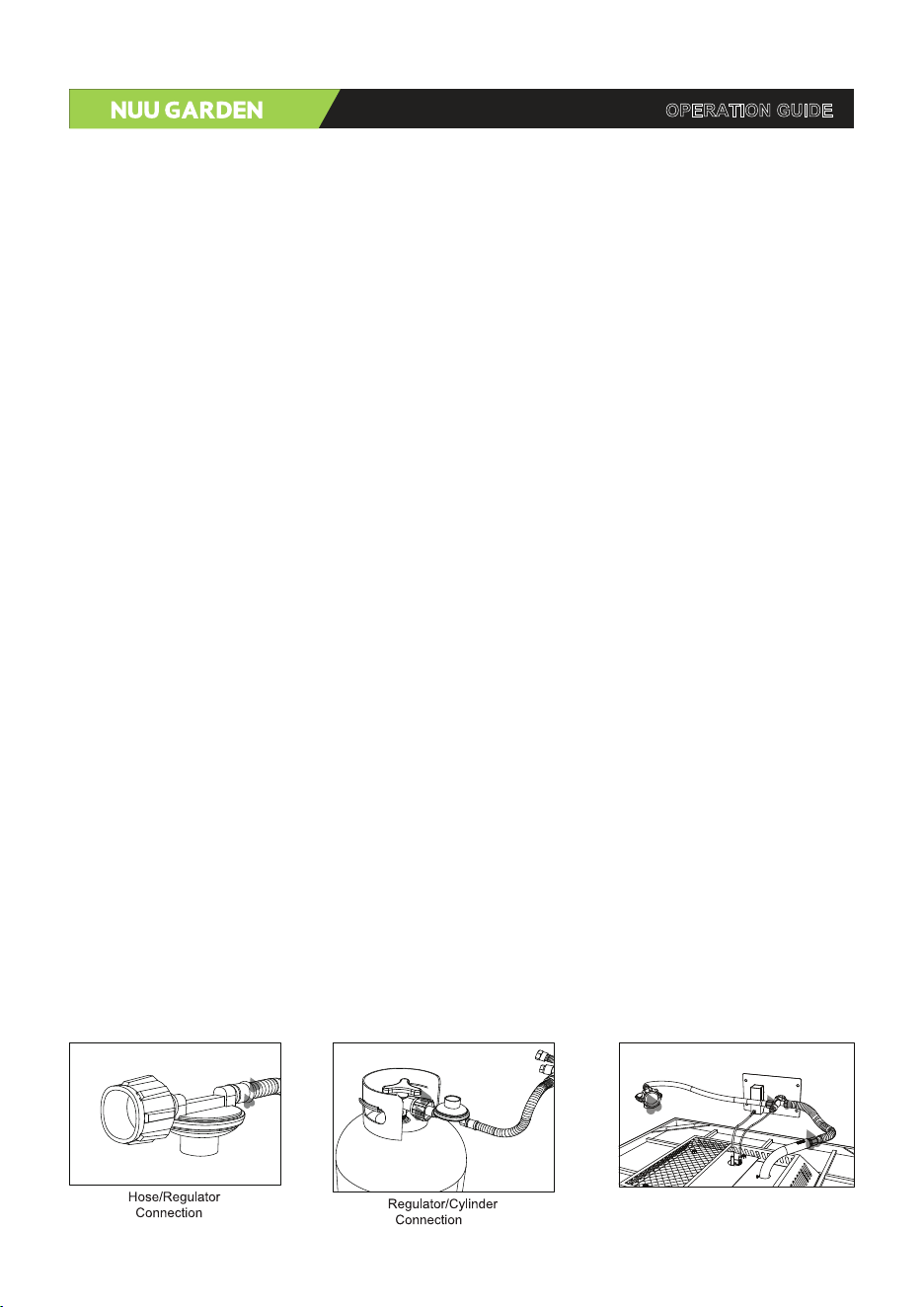

Inspect the fuel supply connection for signs of leakage (including the hose for the LP models) before each use of the appliance.
All leak tests should be done with a soapy solution, NEVER USE AN OPEN FLAME TO CHECK FOR LEAKS.
Children and adults should be alerted to the hazards of high surface temperatures and should stay away from the appliance to
avoid burns or clothing ignition. This appliance comes with a heat shield which is an important safety component preventing
contact with the fire bowl when adjusting the propane valve.
Young children should be carefully supervised when they are in the area of the heater.
Clothing or other flammable materials should be not be hung from the heater, or placed on or near the heater.
Any guard or other protective device removed for servicing the heater, must be replaced prior to operating the heater.
Installation and repair should be done by a qualified service person, The heater should be inspected before use and all east
annually by a qualified service person.
More frequent cleaning may be required as necessary. it is imperative that the control compartment, burners, and circulating air
passageways of the heater be kept clean.
Keep the appliance area clear and free from combustible materials, gasoline, and other flammable vapors and liquids.
DO NOT OBSTRUCT the combustion process or air ventilation flow.
Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
The appliance should be used in a well-ventilated space and not in a building, garage or any other enclosed area.
An appliance may be installed within a shelter if the shelter meets one of the following conditions: The shelter has walls on all
sides, but with no overhead cover. The shelter is within a partial enclosure which includes side walls. These side walls may be
parallel, as in a breezeway, or at right angles to each other.
WARRANTY
YEAR LIMITED WARRANTY
· We warranty the metal frame and burner to be free of manufacturing defects to the original purchaser for one year.
· Proof of purchase (dated register receipt) is required for warranty claimed.
WHAT IS NOT COVER
It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not
cover commercial use, acts of nature, fire, freezing and abusive use. In addition, purchased parts are not covered under this
warranty. We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in
production.
PRE-ASSEMBLED
5
PLANNING ASSEMBLY
Carefully remove all pieces from the carton and make sure that you have all the parts (refer to the hardware and package
contents list). If you are missing parts, please contact after-services for further assistance.
YOUR OWNER’S MANUAL
Keep and store this manual for future reference. It contains important instructions and procedures for safety and maintenance.
TOOLS REQUIRED (NOT INCLUDED)
Note:
Please read and understand the entire manual before you assemble,
operate, or install the fire pit table.

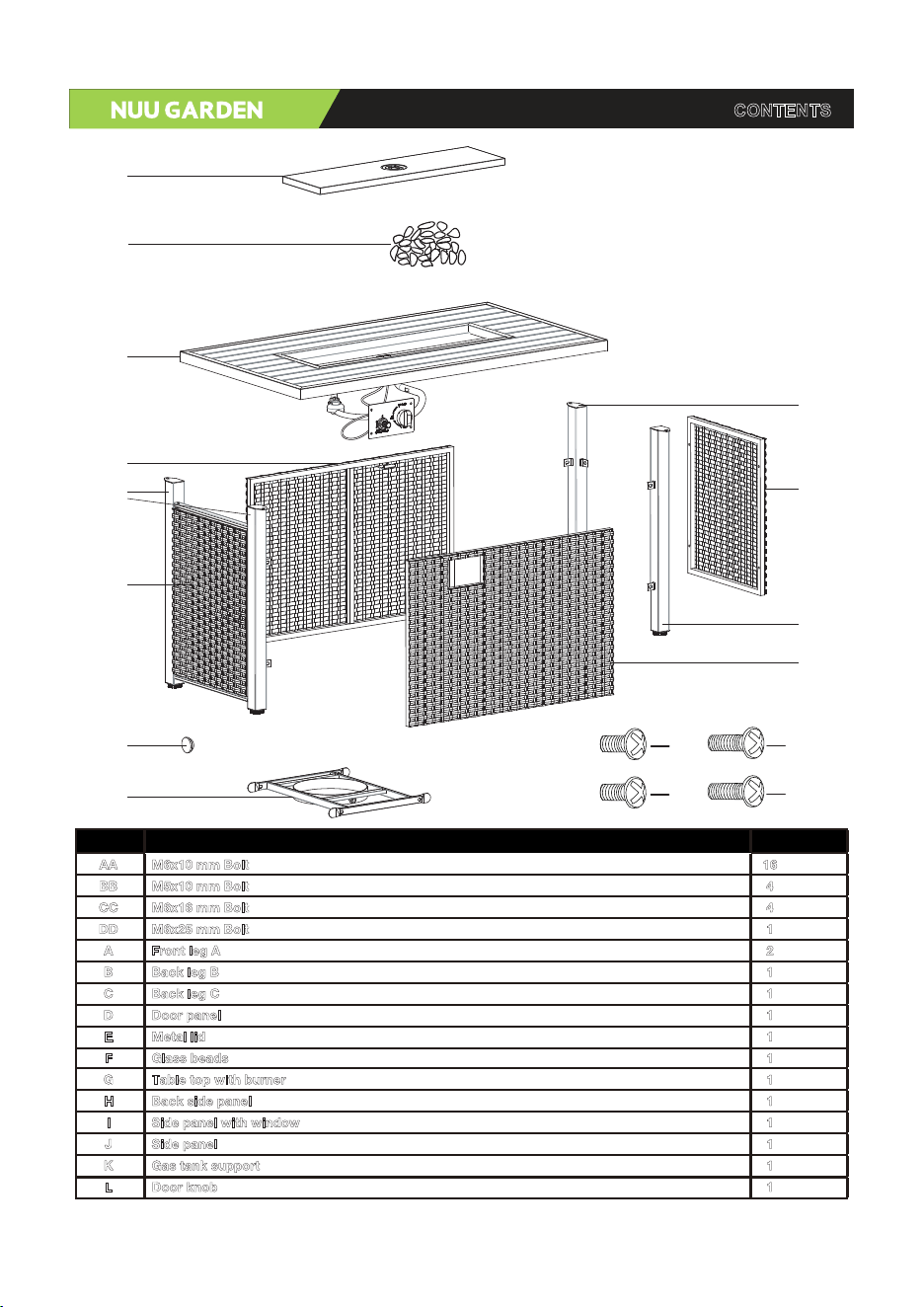

CONTENTS
6
Part Description Qty
M6x10 mm Bolt
M5x10 mm Bolt
M6x16 mm Bolt
M6x25 mm Bolt
Front leg A
Back leg B
Back leg C
Door panel
Metal lid
Glass beads
Table top with burner
Back side panel
Side panel with window
Side panel
Gas tank support
Door knob
16
4
4
1
2
1
1
1
1
1
1
1
1
1
1
1
AA
BB
CC
DD
A
B
C
D
E
F
G
H
I
J
K
L
E
F
G
J
A
D
L
K
B
H
C
I
AA
CC
BB
DD

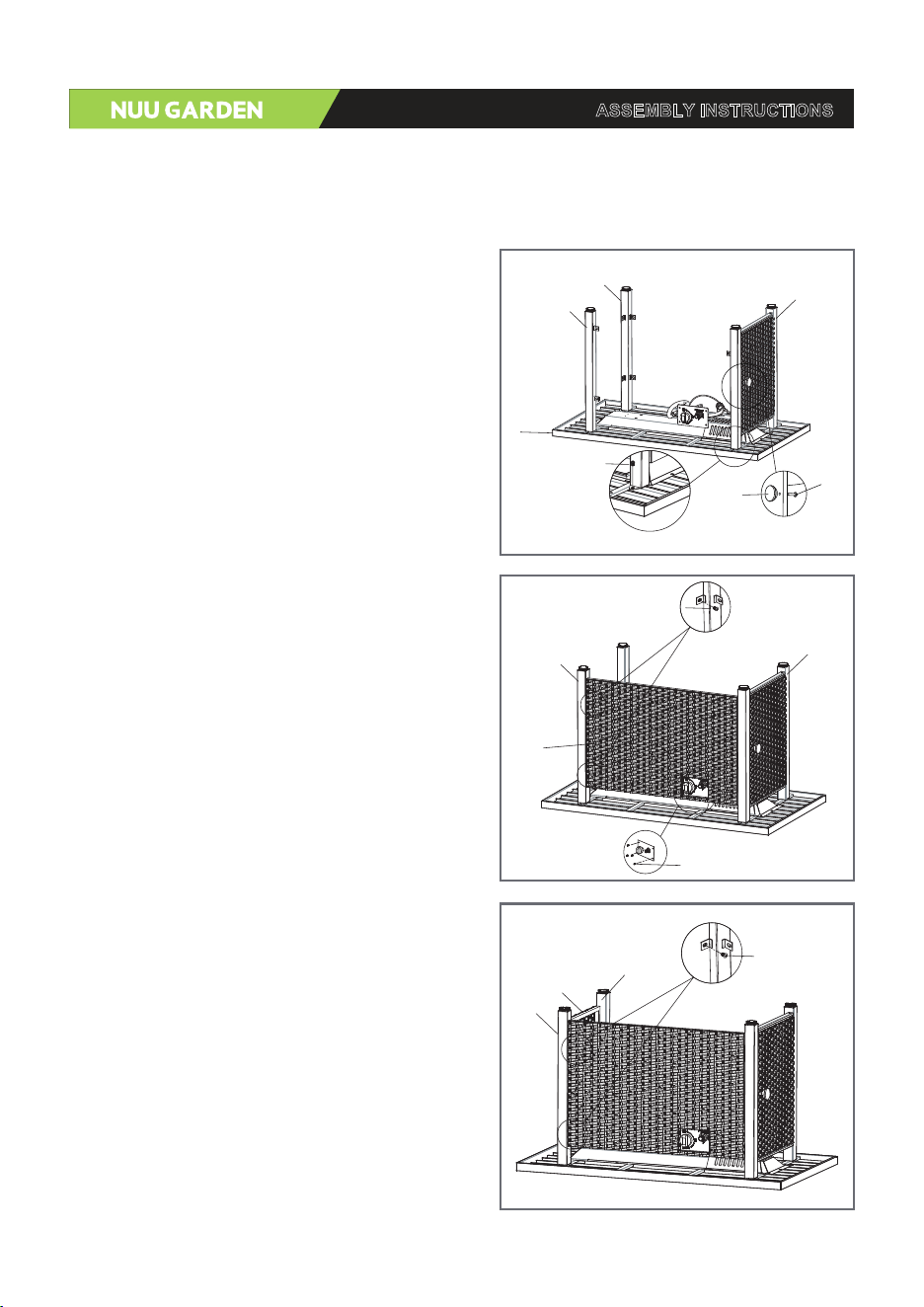

Step 1: Assembling the legs
Attach the legs (A&B&C) to the table top with burner (G) using
4 bolts (AA). Fasten the door knob (L) to the door panel (D)
with 1 bolt (DD). Do not over-tighten them.
Step 2: Assembling the side panel with window
Connect the side panel with window (I) and the legs (A&C) with 4 bolts (AA).
Attach the control panel to the side panel with window (I) using 4 bolts (BB).
Do not over-tighten them.
Step 3: Assembling the back side panel
Connect the back side panel (H) and the legs (B&C) with 4 bolts (AA).
Do not over-tighten them.
Note: Carefully unpack all parts from the box, compare parts with package content listed above, make sure all parts are present before
beginning assembly of product. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service
for replacement parts.
ASSEMBLY INSTRUCTIONS
7
DD
A
B
C
G
L
AA
A
C
I
AA
BB
B
C
H
AA

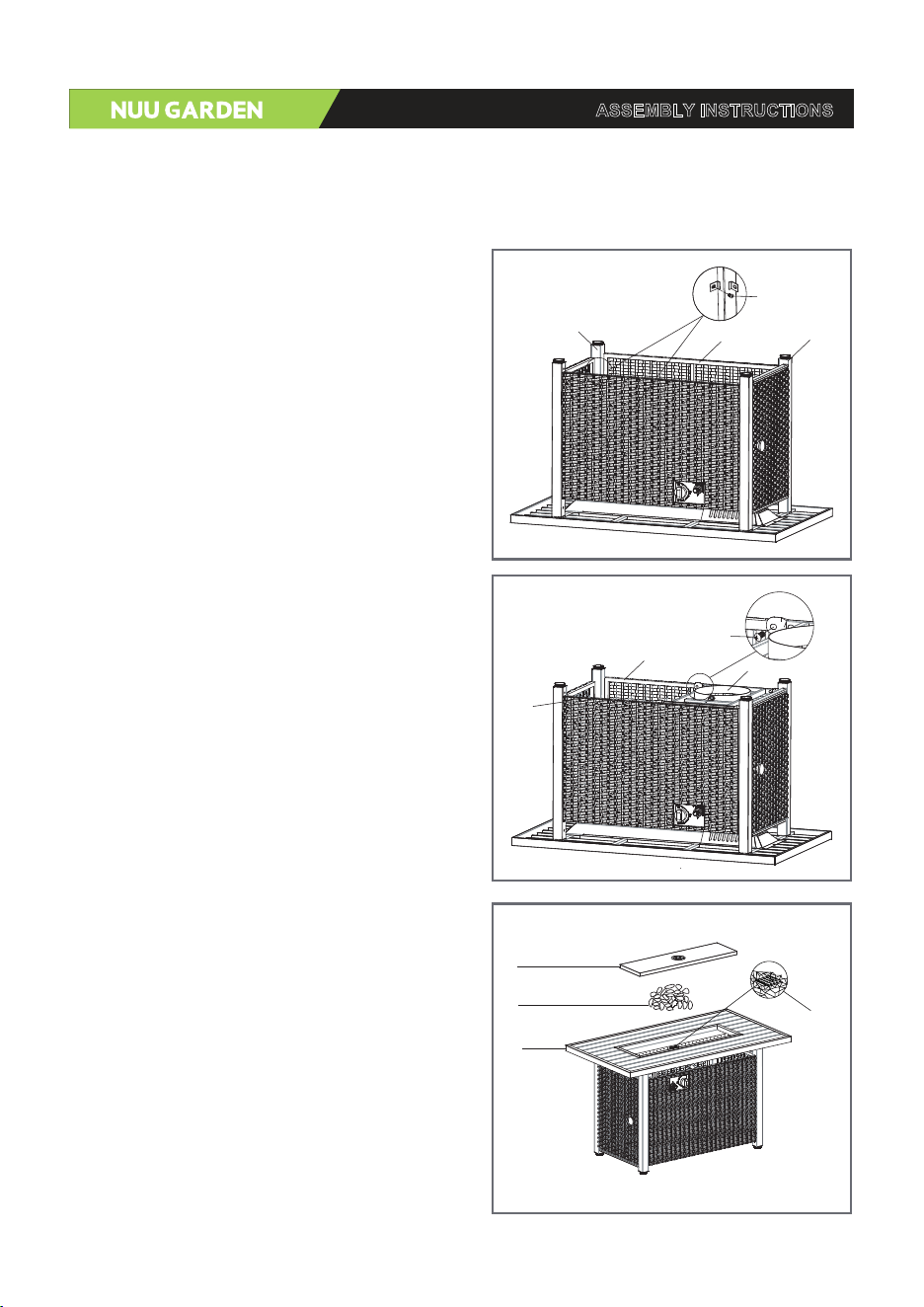

Step 4: Assembling the side panels
Connect the side panel (J) and the legs (A&B) with 4 bolts (AA).
Do not over-tighten them.
ASSEMBLY INSTRUCTIONS
Step 6: Place the glass beads
Place the glass beads (F) in the fire bowl.
Note: Make sure that no glass beads are placed on the ignition part
of the burner. Then put on the metal lid (E).
Note: Carefully unpack all parts from the box, compare parts with package content listed above, make sure all parts are present before
beginning assembly of product. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service
for replacement parts.
Step 5: Assembling the gas tank support
Attach the gas tank support (K) to panels (I&J) using 4 bolts (CC).
Do not over-tighten them.
8
AA
B
A
J
CC
J
K
I
E
G
F
Ignition

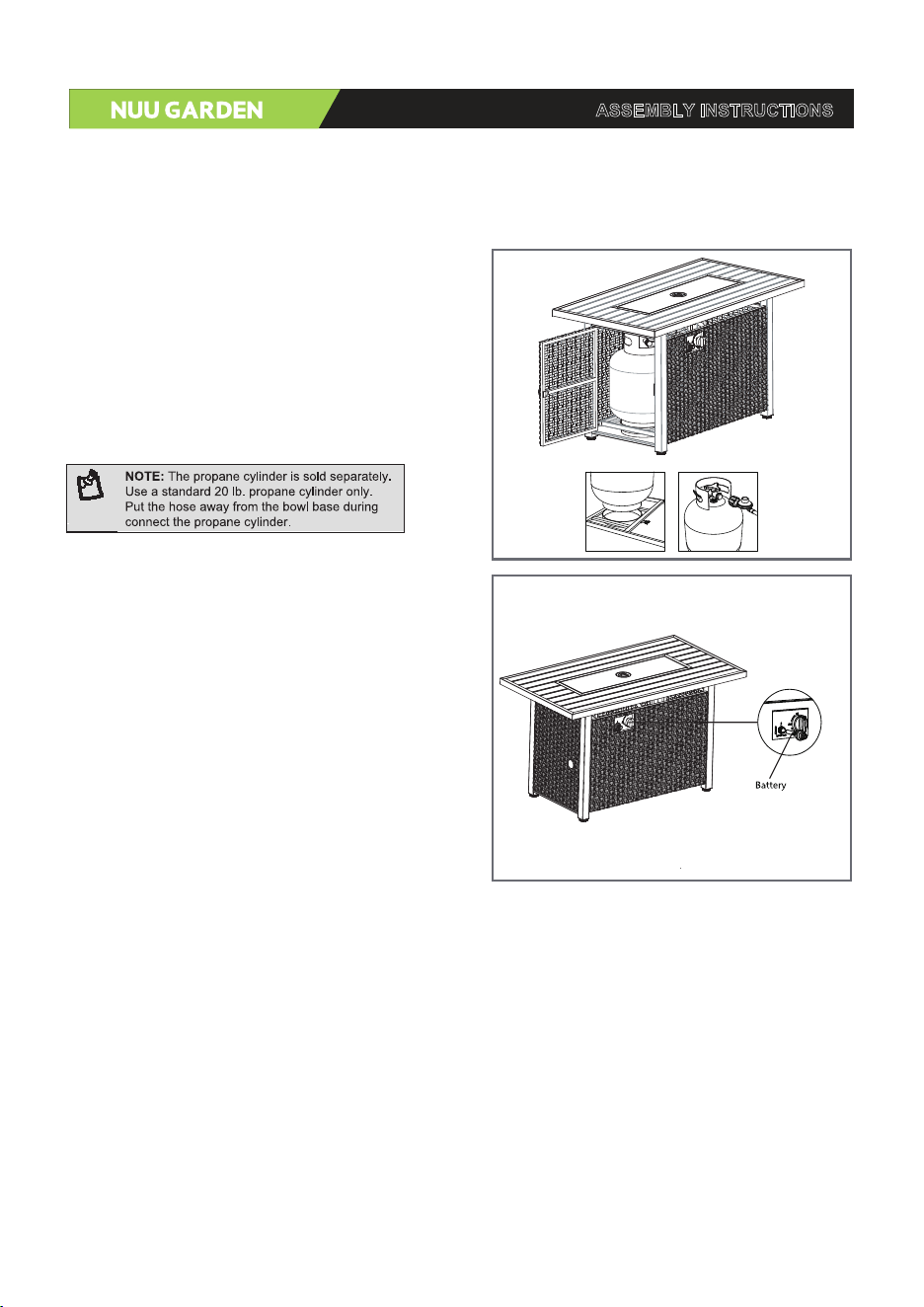

Step 7: Assembling the cylinder
Place the cylinder in the gas tank support (K) and secure the cylinder
by tightening the screw in the gas tank support (K). Connect the hose
and regulator to the cylinder.
NOTE: The propane cylinder is available separately.
Use a standard 20 lb propane cylinder.
ASSEMBLY INSTRUCTIONS
Note: Carefully unpack all parts from the box, compare parts with package content listed above, make sure all parts are present before
beginning assembly of product. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service
for replacement parts.
Step 8: Installing the AAA battery
Open the igniter and place the AAA battery (not included) into the igniter.
Then tighten clockwise.
9
(not included)
AAA
WARNING: Never use this appliance for other than the intended use. DO NOT use this appliance to prepare food.
Lighting: when lit for the first time, the appliance emits a slight odor. This is a normal, temporary condition. Internal paints and
lubricants used in manufacturing cause the "burn-in." It does not happen again, run the main burner on high for approximately
one-half hour.
WARNING:
Parents and caregivers should warn children. They should warn them about the dangers of high surface heat. They should stay
away from the appliance to avoid burns or their clothes catching fire. The appliance comes with a heat shield. It is an important
safety part. It stops contact with the fire bowl when adjusting the propane valve.
Parents should supervise children when they are near the appliance.
Do not hang flammable clothes from the appliance. Also, do not put them on or near the appliance. The area above the fire pit
may be extremely hot. Avoid touching these surfaces. It prevents burns and clothes from catching fire.
You must replace any guard or shield removed for appliance servicing. Do this before using the appliance. A qualified service
person should do the installation and repair.
Check the appliance before each use. Also, have a qualified service person inspect it at least once a year. You may need to
clean more frequently. It is vital to keep the control compartment, burners, and air passages of the appliance clean.
WARNING:
Never use the appliance while it is raining. Always turn the appliance off when raining.
Always avoid using the appliance if the burner is damaged. Inspect the burner before each use. Check that no debris, like
leaves, grass, or other objects, have entered or are on the appliance. Replace the burner if it is damaged before using this
appliance. Use a dealer-specified replacement.
Inspect the hose assembly before each use. If there is significant abrasion or wear, or if there is damage to the hose, replace it.
Do this before using the appliance with a hose specified by your dealer.
WARNING: Any modification to the appliance may compromise the safety of this appliance. Special concern is as follows:
Do not bypass the thermocouple safety.
Do not operate the appliance if any parts have been underwater. Immediately call a qualified technician. They will inspect the
appliance. They will replace any part of the control system or gas control that was under water.
LEAK TESTING OPERATION
WARNING: A leak test must be performed annually or if a part of the gas system is replaced.
WARNING: Never use an open flame to check for gas leaks. Be certain no sparks or open flames are in the area while you
check for leaks. Sparks or flames will cause a fire or explosion. They will damage property and cause serious injury or death.
LEAK TESTING:
1.Make 2-3oz of leak detection solution. Mix one part soap with three parts water.
2.Make sure all fire pit and light values are OFF.
3.Apply several drops of solution where the hose attaches to the regulator.
4.Apply several drops of solution where the regulator connects the cylinder.
5.Turn the cylinder valve ON.
If bubbles appear at any connection, there is a leak.
1.Turn cylinder valve off
2.If leak is at hose/regulator connection: tighten connection and perform another leak test. If bubbles continue appearing, please
contact after-service for assistance.
3.If leak is at regulator/cylinder vale connection: discount, reconnect, and perform another leak test. If you continue to see
bubbles after several attempts, cylinder valve is defective, and contact after services for assistance.
If no bubbles appear at any connection, the connection are secure.
Note: whenever gas connection are loosened or removed, you must perform a complete leak test.
OPERATION GUIDE
10
LIGHTING
CAUTION: Keep the outdoor gas appliance area clear of flammable things. This includes gasoline and other flammable vapors
and liquids.
CAUTION: Do NOT obstruct the flow of combustion and ventilation air.
CAUTION: Check and clean burner/venturi tubes for insects and insect nests. A clogged tube can lead to a fire.
1.Make sure all labels, packaging, and protective films are off the fire pit.

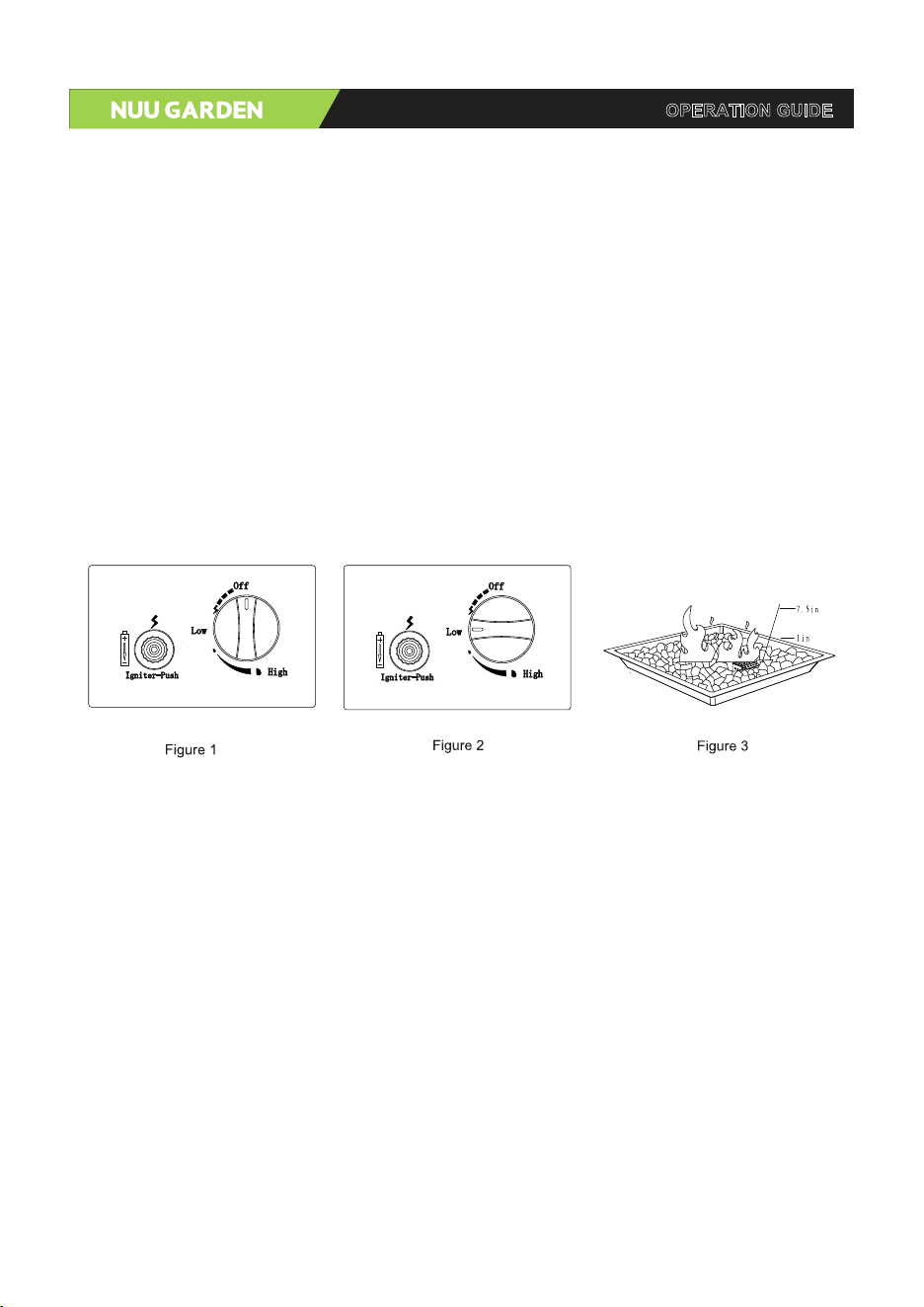

2.Control knob must be in the “OFF”position. (see figure 1)
3.Full open LP cylinder vale.
4.Press and hold the electronic igniter button.
5.Press the control knob, turn counterclockwise to the “LOW”position, press and hold. When the burner lights, release the
electronic igniter button. (see figure 2)
6.Continue to depress the gas control knob for 30 seconds and then release. If the flame goes out, repeat the procedure.
7.Adjust the flame to the desired height with the gas control knob. Visually check the burner flames as picture below. (see figure
3)
8.If the burner won't light with the igniter, hold a lit long match or butane lighter to the ignition area. Then, continue with step 5.
WARNING: If the burner does not light within 10 seconds, turn the valve off. Wait 5 minutes for the gas to dissipate
before trying again.
WARNING: The surface of the fire pit can remain extremely hot for a period after use. Allow 45 minutes to cool to
dissipate before repeating the procedure.
Shut Down
1. To extinguish the burner depress the control knob and continue to turn it clockwise to “OFF”.
2. Turn the cylinder valve clockwise to “OFF”and disconnect the regulator when the fire pit is not in use.
OPERATION GUIDE
11
Store between uses:
· Turn the control knob to the “OFF” position.
· Discount LP source.
· Store the heater upright. Put it in a sheltered area. Protect the area from rain, sleet, hail, snow, dust, and debris.
· If desired, cover the heater. This protects the exterior and helps prevent build-up in air passages.
Storage during periods of extended inactivity or when transporting:
· Turn the control knob to the “OFF”position.
· Discount LP source and move to a secure, well-intended location outdoors. Do not store in a location that will exceed 125℉.
· Store the heater upright. Put it in a sheltered area. Protect the area from rain, sleet, hail, snow, dust, and debris.
· If desired, cover the heater. This protects the exterior and helps prevent build-up in air passages.
Note: Wait until heater is cool before covering.
Care and cleaning
To enjoy years of great heater performance, do the following maintenance regularly:
· During hose/regulator inspection, pull the door using the handle.
· keep the exterior surface clean.
· Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
· While washing your unit, be sure to keep the area around the burner dry at all times. If water comes into contact with the gas
control, do not attempt to use it. Replace it.
· Keep the appliance area free and clean. Don't store combustible materials, gasoline, or other flammable vapors and liquids
there.
· Inspect the unit for the presence of spiders, spider webs, or other insects at least once a year.
· Ensure that there are no obstructions in the airflow. Keep controls, burner, and circulating air passageways clean. Signs of
possible blockage include:
Gas odor with extreme yellow tipping of flame.
The heater does NOT reach the desired temperature.
The heat flow is excessively uneven.
Heat makes popping noises.
· Spiders and insects can nest in burners or orifices. This danger can damage the heater. It can make it unsafe for use. Clean
the burner holes using a heavy-duty pipe cleaner. Compressed air may help clear away smaller particles.
· Carbon deposits may create a fire hazard. Clean the reflector, thermocouple, and emitter screen with a dry cloth. Do this if any
carbon deposits develop.
· The burner is steel. But, high heat and a corrosive environment can cause surface corrosion. You can remove this with a brass
wire brush. Check the burner once a year. Look for cracks, insect nests, too much rust, or any other damage. If you damage the
burner, you must replace it. Use a burner specified by the manufacturer before using the appliance.
MAINTENANCE AND CLEANING
12
13

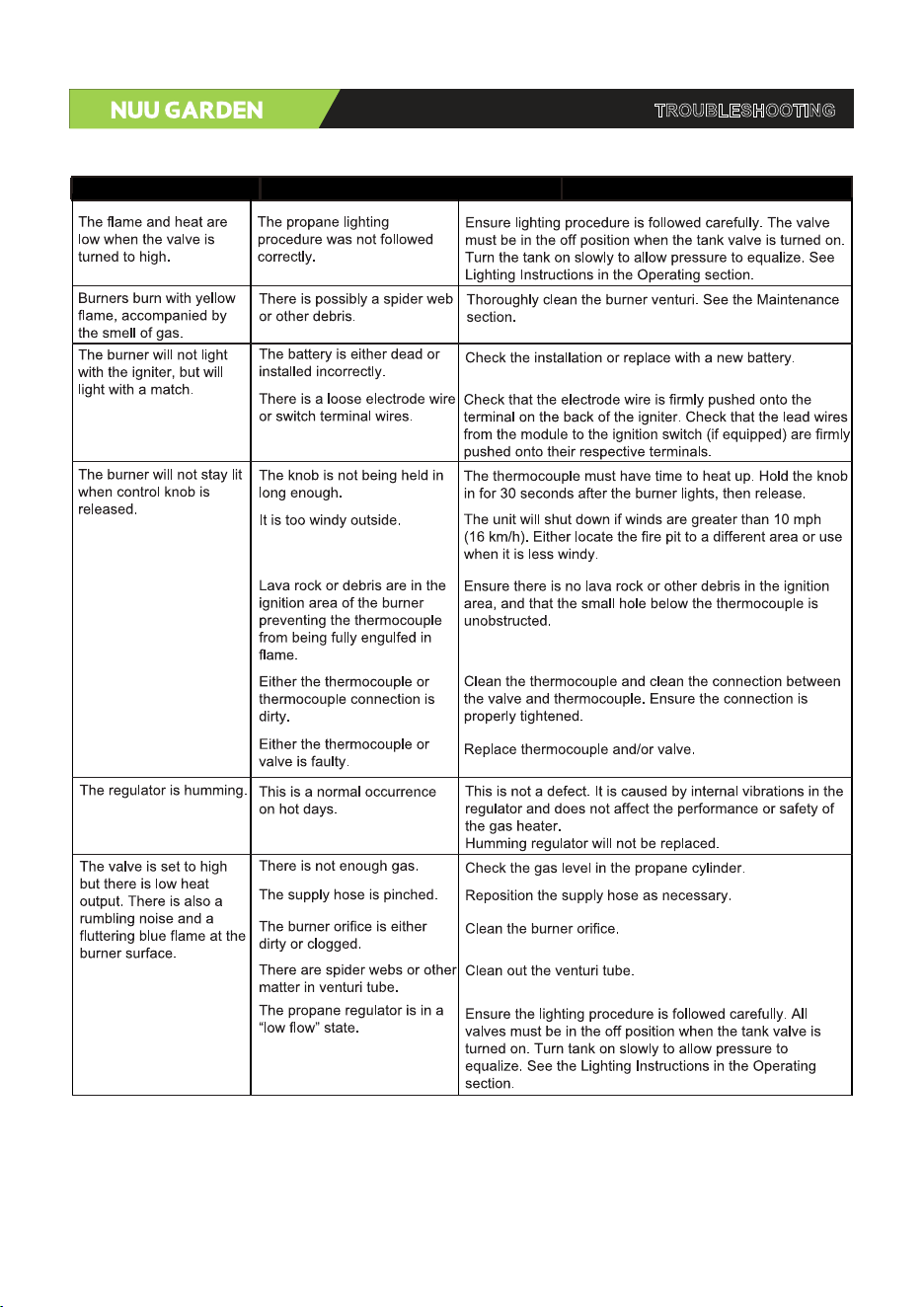

TROUBLESHOOTING
Problem Cause Solution
CARE AND MAINTENANCE
Follow the instruction for the material of your special product to make sure
that it stays in the best shape for as long as possible. The information below
is only intended as a general guideline. For more information, please contact
us.
• Only need to rinse it thoroughly with clean water to wash away dirt and
grime. Never use abrasive cleansers on the furniture, since it can attack
the surfaces and leave behind scratch marks.
• For the stubborn grime and stains, just use a soft sponge and mild soapy
water and then dry it with a cloth or paper towel.
• Check the stability of the screws, nuts and nut caps prior to each use.
Tighten up them after one to two month’s use whenever required.
• Avoid improper use, and be careful not to scratch or damage the surface
with sharp objects.
• When you move your furniture, make sure you lift it rather than pulling
or pushing it to avoid damaging the floor, legs and mounting.
14
15
Thanks for purchasing this NUUGARDEN furniture. We are here to help you
maximize your enjoyment and appreciation of it.
Please do not hesitate to contact our customer service when you have any
questions regarding assembly or accessories.
Add: 6366 Corley Road, Norcross, GA 30071.
Tel: (800) 257-7108
Web: https://nuumart.com
E-mail: [email protected]
Service time: Mon-Fri, 8:30 AM-5:30 PM, EST
CUSTOMER SERVICE
Nuu Garden Corp.
Add: 6366 Corley Road, Norcross GA 30071.
Tel: (800) 257-7108
Web: https://nuumart.com
E-mail: [email protected]
NUUGARDEN USA
