Owner’s Manual
REFRIGERATOR FREEZER
For Home Use Only
GR-RS682WE-PMT[06]
CONTENTS
1. Safety warnings ......................................................................................................1
1.1 Warning ...................................................................................................................1
1.2 Meaning of safety warning symbols ...........................................................5
1.3 Electricity related warnings .............................................................................5
1.4 Warnings for using ..............................................................................................6
1.5 Warnings for placement ...................................................................................7
1.6 Warnings for energy ...........................................................................................8
1.7 Warnings for disposal .........................................................................................8
2.1 Placement ..............................................................................................................9
2. Proper use of refrigerators .................................................................................9
2.2 Leveling feet ..........................................................................................................10
2.3 Leveling door ........................................................................................................11
2.4 Changing the Light ............................................................................................12
2.5 Starting ..................................................................................................................12
2.6 Energy saving tips ..............................................................................................12
3.1 Key components ..................................................................................................13
3. Structure and functions .......................................................................................13
3.2 Functions ...............................................................................................................14
4. Maintenance and care of the appliance ........................................................16
4.1 Overall cleaning ...................................................................................................16
4.2 Cleaning of door tray
、
Fruits and vegetables box and drawer .........17
4.3 Cleaning of Glass shelf......................................................................................17
4.4 Defrosting .............................................................................................................18
4.5 Out of operation ..................................................................................................18
5. Trouble shooting ...................................................................................................19
6. Disposal of your appliance ................................................................................20
How to Use this Water Dispenser .........................................................................21
1
READ SAFETY PRECAUTIONS BEFORE INSTALLATION
To prevent injury to the user or other people and property damage, the
following instructions must be followed. Incorrect operation due to
ignoring of instructions may cause harm or damage.
1.1 Warning
• WARNING: Risk of re disaster and explosion
The refrigerant of the appliance is ammable, please be care not to da-
mange the cooling pipes during installation and transportation.if gas
leakage happens, please contact the distributor or local service agent,
and the following precautions should be always taken:
1. Open the windows for ensuring good ventilation.
2. No re around and please do not use other electric appliance.
• This appliance is intended to be used in household and similar appli-
cations such as sta kitchen areas in shops, oces and other working
environments; farm houses and by clients in hotels, motels and other
residential type environments; bed and breakfast type environments;
catering and similar non-retail applications.
• Children should be supervised to ensure that they do not play with the
appliance.
• WARNING: Risk of re disaster and electric shock
The power cord should be replaced when it has been damaged. please
contact the distributor or local service agent for replacement.
• Please unplug the power plug from socket when clean the appliance or
leave the appliance nonuse for a long time.
• Do not use extension cord or ungrounded (two prong) adapters.
• WARNING: Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
1. Safety warnings
2
• WARNING: Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the manu-
facturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type recom-
mended by the manufacturer.
• WARNING:Please abandon the refrigerator according to local regulators
for it use ammable blowing gas and refrigerant.
• WARNING: When positioning the appliance, ensure the supply cord is
not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable
power supplies at the rear of the appliance.
• DANGER: Risk of child entrapment. Before you throw away your old re-
frigerator or freezer:
-Take o the doors.
-Leave the shelves in place so that children may not easily climb inside.
• The refrigerator must be disconnected from the source of electrical
supply before attempting the installation of accessory.
• Refrigerant and cyclopentane foaming material used for the refrigera-
tor are ammable.Therefore, when the refrigerator is scraped, it shall be
kept away from any re source and be recovered by a special recover-
ing company with corresponding qualication other than be disposed
by combustion, so as to prevent damage to the environment or any
other harm.
3
• For EN standard: This appliance can be used by children aged from 8
years and above and persons with reduce physical sensory or mental
capabilities or lack of experience and knowledge if they have been giv-
en supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with
the appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• For IEC standard: This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental capabili-
ties, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person
responsible for their safety.)
• Please do not use the appliance on trac means(such as ship and so
on).
• If noise, odor and smoking happens, please unplug the power plug im-
mediately,and contact the distributor or local service agent.
• Please do not put your hands under or behind the appliance to prevent
from being hurt.
• Please leave the packing materials and other parts out of the reach of
children to prevent from risk of suocation.
• Children should be supervised to ensure that they do not play with the
appliance.
• The instructions shall include the substance of the following: To avoid
contamination of food, please respect the following instructions:
• – Opening the door for long periods can cause a signicant increase
of the temperature in the compartments of the appliance.
• – Clean regularly surfaces that can come in contact with food and ac-
cessible drainage systems.
• – Clean water tanks if they have not been used for 48 h; ush the wa-
ter system connected to a water supply if water has not been drawn for
5 days. (note 1)
• – Store raw meat and sh in suitable containers in the refrigerator, so
that it is not in contact with or drip onto other food.
4
• – Two-star frozen-food compartments are suitable for storing
pre-frozen food, storing or making ice-cream and making ice cubes.
(note 2)
• – One -,two -and three-star compartments are not
suitable for the freezing of fresh food. (note 3)
• – If the refrigerating appliance is left empty for long periods, switch
o, defrost, clean, dry, and leave the door open to prevent mould de-
veloping within the appliance.
• Note 1,2,3 : Please confirm whether it is applicable according to you
product compartment type.
5
1.2 Meaning of safety warning symbols
This is a prohibition symbol.
Any incompliance with instructions marked with
this symbol may result in damage to the product or
endanger the personal safety of the user.
This is a warning symbol.
It is required to operate in strict observance of
instructions marked with this symbol; or otherwise
damage to the product or personal injury may be
caused.
This is a cautioning symbol.
Instructions marked with this symbol require
special caution. Insucient caution may result
in slight or moderate injury, or damage to the
product.
This manual contains lots of important safety information which
shall be observed by the users.
1.3 Electricity related warnings
• Do not pull the power cord when pulling the
power plug of the refrigerator. Please rmly
grasp the plug and pull out it from the socket
directly.
• To ensure safe use, do not damage the power
cord or use the power cord when it is damaged
or worn.
• Please do not touch the power plug with wet
hand to prevent from electric shock.
• Please use a dedicated power socket and the
power socket shall not be shared with other
electrical appliances. The power plug should
be rmly contacted with the socket or else res
might be caused.
Cautioning symbol
Prohibition symbol
6
• Please ensure that the grounding electrode of
the power socket is equipped with a reliable
grounding line.
• Please ask for help from persons with
professional qualication to examine whether
the socket is with reliable grounding line or not.
• It is the end-consumers' responsibility to
change the ungrounded socket into grounded
socket.
• Please turn o the valve of the leaking gas and
then open the doors and windows in case of
leakage of gas and other ammable gases. Do
not unplug the refrigerator and other electrical
appliances considering that spark may cause a
re.
• Do not use electrical appliances on the top
of the appliance, unless they are of the type
recommended by the manufacturer.
1.4 Warnings for using
• Do not arbitrarily disassemble or reconstruct
the refrigerator, nor damage the refrigerant
circuit; maintenance of the appliance must be
conducted by a specialist.
• Damaged power cord must be replaced by the
manufacturer, its maintenance department or
related professionals in order to avoid danger.
• The gaps between refrigerator doors and
between doors and refrigerator body are small,
be noted not to put your hand in these areas
to prevent from squeezing the nger. Please be
gentle when close the refrigerator door to avoid
falling articles.
7
• Do not pick foods or containers with wet hands
in the freezing chamber when the refrigerator is
running, especially metal containers in order to
avoid frostbite.
• Do not allow any child to get into or climb the
refrigerator; otherwise suocation or falling
injury of the child may be caused.
•
Please do not put heavy or dangerous objects
on top of the appliance(bottles,tableware,or
something containing liquid)
1.5 Warnings for placement
• Do not put ammable, explosive, volatile
and highly corrosive items in the refrigerator
to prevent damages to the product or re
accidents.
• Do not place ammable items near the
refrigerator to avoid res.
• The refrigerator is intended for household use,
such as storage of foods; it shall not be used for
other purposes, such as storage of blood, drugs
or biological products, etc.
• Do not store beer, beverage or other uid
contained in bottles or enclosed containers
in the freezing chamber of the refrigerator; or
otherwise the bottles or enclosed containers
may crack due to freezing to cause damages.
Freezing chamber
8
1.6 Warnings for energy
•
Refrigerating appliances might not operate consistently (possibility
of defrosting of contents or temperature becoming too warm in the
frozen food compartment) when sited for an extended period of
time below the cold end of the range of temperatures for which the
refrigerating appliance is designed.
•
The fact that eervescent drinks should not be stored in food freezer
compartments or cabinets or in low-temperature compartments or
cabinets, and that some products such as water ices should not be
consumed too cold;
•
The need to not exceed the storage time(s) recommended by the food
manufacturers for any kind of food and particularly for commercially
quick-frozen food in food-freezer and frozen-food storage
compartments or cabinets;
•
The precautions necessary to prevent an undue rise in the temperature
of the frozen food while defrosting the refrigerating appliance, such as
wrapping the frozen food in several layers of newspaper.
•
The fact that a rise in temperature of the frozen food during manual
defrosting, maintenance or cleaning could shorten the storage life.
•
The necessity that, for doors or lids tted with locks and keys, the
keys be kept out of the reach of children and not in the vicinity of the
refrigerating appliance, in order to prevent children from being locked
inside.
1.7 Warnings for disposal
•
Refrigerant and cyclopentane foaming material used
for the refrigerator are ammable. Therefore, when the
refrigerator is scrapped, it shall be kept away from any
re source and be recovered by a special recovering
company with corresponding qualication other than
be disposed by combustion, so as to prevent damage
to the environment or any other harm.
•
When the refrigerator is scrapped, disassemble the
doors, and remove gasket of door and shelves; put the
doors and shelves in a proper place, so as to prevent
trapping of any child.
9
2. Proper use of refrigerators
2.1 Placement
•
Before initial start, keep the refrigerator still for half an hour
before connecting it to power supply.
•
Before the refrigerator is moved, take all objects inside out,
x the glass partitions, vegetable holder, freezing chamber
drawers and etc. with tape, and tighten the leveling feet;
close the doors and seal them with tape. During moving, the
appliance shall not be laid upside down or horizontally, or be
vibrated; the inclination during movement shall be no more
than 45°.
•
Before use, remove all packing materials, including bottom
cushions, foam pads and tapes inside of the refrigerator;
tear o the protective lm on the doors and the refrigerator
body. Keep away from heat and avoid direct sunlight. Do not
place the freezer in moist or watery places to prevent rust or
reduction of insulating eect.
•
Do not spray or wash the refrigerator; do not put the
refrigerator in moist places easy to be splashed with water
so as not to aect the electrical insulation properties of the
refrigerator.
•
The refrigerator is placed in a well-ventilated indoor place; the
ground shall be at, and sturdy (rotate left or right to adjust
the wheel for leveling if unstable).
•
The top space of the refrigerator shall be greater than 30cm,
and the refrigerator should be placed against a wall with a
free distance more than 10cm to facilitate heat dissipation.
30cm
10cm
10cm
Precautions before installation:
Before installation or adjusting of accessories, it shall be ensured
that the refrigerator is disconnected from power. Precautions shall
be taken to prevent fall of the handle from causing any personal
injury.
10
2.2 Leveling feet
1. Precautions before operation:
Before operation of accessories, it shall be ensured that the refrigerator is disconnected from
power.
2. Schematic diagram of the levelling feet:
Before adjusting the leveling feet, precautions shall be taken to prevent any personal injury.
3. Adjusting procedures:
a. Turn the feet clockwise to raise the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.
(The picture above is only for reference.The actual configuration will depend on the physical
product or statement by the distributor)
L
H
11
2.3 Leveling door
1. Precautions before operation:
Before operation of accessories, it shall be ensured that the refrigerator is disconnected from
power. Before adjusting the door , precautions shall be taken to prevent any personal injury.

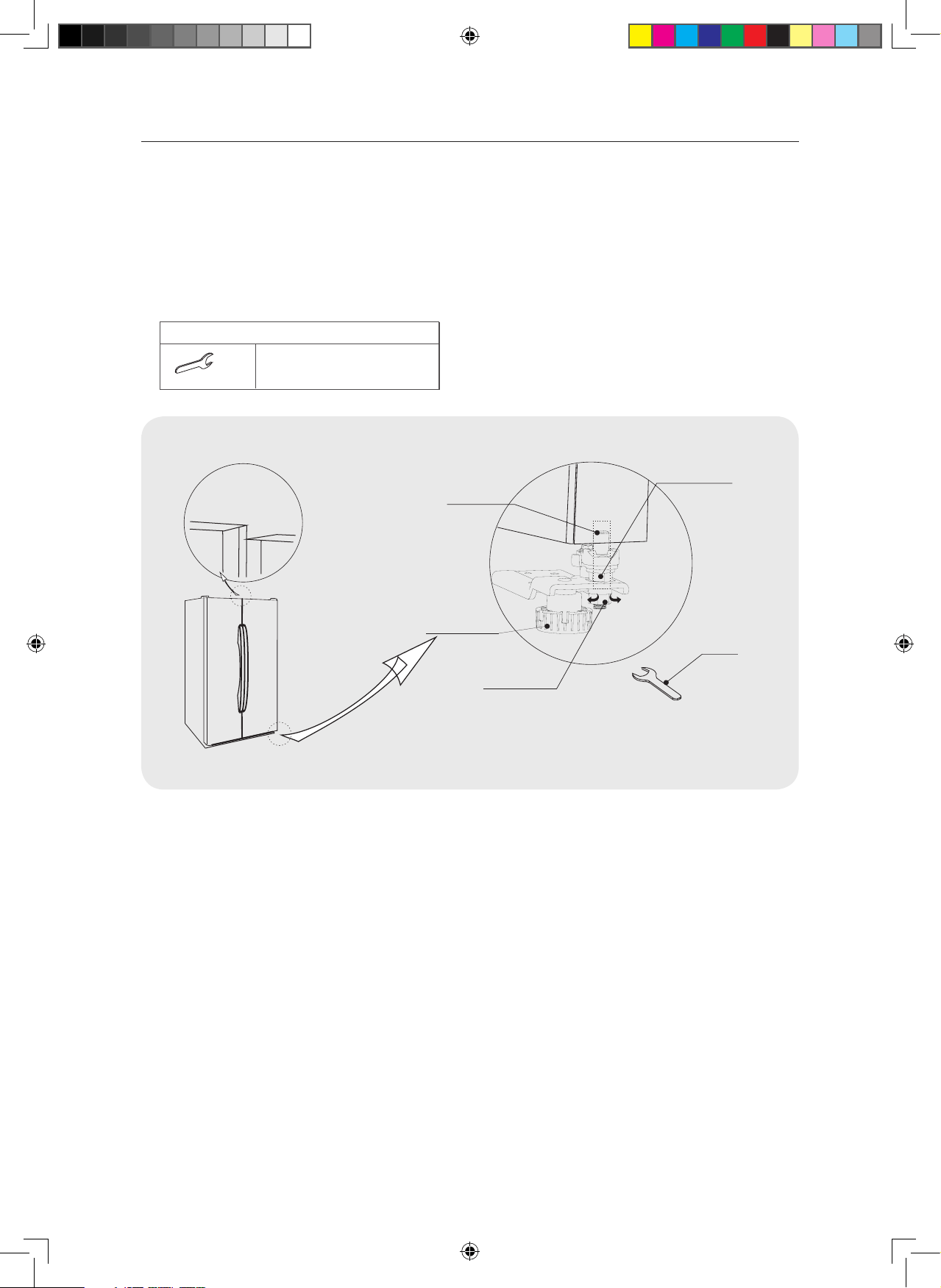

2. Schematic diagram of levelling the door body.
(The picture above is only for reference.The actual configuration will depend on the physical
product or statement by the distributor)
When the fridge door is low:
•
Open the door, use a wrench to loosen the locking nut and to rotate the adjusting nut
anti-clockwise to raise the height of the door. Once the doors are aligned, then tighten the
locking nut by rotating it anti-clockwise.
When the fridge door is high:
•
Open the door, use a wrench to rotate the adjusting nut clockwise to lower the height of the
door. Once the doors are aligned, then tighten the locking nut by rotating it anti-clockwise.
Wrench
List of tools to be provided by the user
M10
Fixed shaft
Adjusting nut
Wrench
Locking nut
Left
Right
Levelling feet
Not level
12
2.4 Changing the Light
Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer,
2.5 Starting
•
Before putting any fresh or frozen foods, the refrigerator shall
have run for 2-3 hours, or for above 4 hours in summer when
the ambient temperature is high.
•
Spare enough space for convenient opening of the doors and
drawers or statement by the distributor.
2.6 Energy saving tips
•
The appliance should be located in the coolest area of the room, away from heat producing
appliances or heating ducts, and out of the direct sunlight.
•
Let hot foods cool to room temperature before placing in the appliance. Overloading the
appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality,
or spoil.
•
Be sure to wrap foods properly, and wipe containers dry before placing them in the
appliance.This cuts down on frost build-up inside the appliance.
•
Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling.
•
Organize and label food to reduce door openings and extended searches. Remove as many
items as needed at one time, and close the door as soon as possible.
895mm
1557mm
130
745mm
941mm
13
3. Structure and functions
3.1 Key components
(The picture above is only for reference. The actual conguration will depend on the physical
product or statement by the distributor)
Refrigerating chamber
• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other
food consumed in the short term.
• Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.
Freezing chamber
• The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to
store frozen foods and making ice.
• The freezing chamber is suitable for storage of meat, sh, rice balls and other foods not to be
consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food
shall be consumed within the shelf time.
Two-Star freezing area
• Two-Star freezing area is located under the freezer door two bottle frame (16L or so), temperature
≤-12
℃
, suitable for storing ice cream and so on, external hard inside soft, taste times good.
LED lightin
gL
ED lighting
Glass shelf
Glass shelf
Two- Star
Door tra
y
Door tray
Fruits and
vegetables bo
x
Drawer
（Freezing chamber） （Refrigerating chamber）
Note: Storage of too much food during operation after the initial
connection to power may adversely aect the freezing eect of the
refrigerator. Foods stored shall not block the air outlet; or otherwise the
freezing eect will also be adversely aected.
14
3.2 Functions
(The picture above is only for reference.The actual configuration will depend on the physical
product or statement by the distributor)
3.Operation
1) Lock /unlock
In the unlocked state, long press the button for 3 seconds, enter the lock state;
In the locked state, long press the button for 3 seconds, enter the unlocked state.
All the following functions must be operated in the unlocking status.
2) Vacation mode
Click the button to enter the vacation mode. Icon lights up, the vacation mode will
start after locking the control panel.
Under vacation mode,the refrigerating compartment is turned o and temperature area display
-the freezer compartment temperature is set at -18
℃
.
3) Quick Cooling mode
Click the button to enter the quick cooling mode. Icon lights up, the quick
refrigerating mode will start after locking the control panel.
1. Display screen
1. Freezer compartment temperature
2. Refrigerating compartment temperature
3. Vacation icon
4. Quick Freezing icon
5. Quick Refrigerating icon
6.Lock/unlock icon
2. Button operation
A.Freezer compartment temperature
adjustment
B.Refrigerating compartment temperature
adjustment
C.Mode function/setting
D.Lock/unlock controls
15
4) Quick Freezing mode
Click the button to enter the quick freezing mode. Icon lights up, the quick freezing
mode will start after locking the control panel.
5) Temperature setting of refrigerating chamber
Click temperature adjusting button of the refrigerating chamber , refrigerating
compartment temperature will blink. Then click the button again to set the temperature,
and will hear one beep. Setting scope is between 2°C and 8°C.Every time you click the button, the
temperature will be changed 1°C. After adjusting,the digital tube will keep blinking for 5 seconds.
New temperature setting will take eect after locking the control panel.
6) Temperature setting of freezing chamber
Click temperature adjusting button of the freezing chamber , freezer compartment
temperature will blink . Then click the button again to set the temperature, and you will
hear one beep.
Setting scope is between -16°C and -24°C. Every time you click the button, the temperature
will be changed1°C. After adjusting, the digital tube will keep blinking for 5 seconds. New
temperature setting will take eect after locking the control panel.
7) Storage upon power failure
In case of power failure, the instant working state will be locked and maintained till re-
electrication.
8) Opening warning and alarm control
when open the refrigerator doors, the opening music will play. If the door is not closed in two
minutes, the buzzer will sound once every minute until the door is closed. Press anyone button
to stop the buzzer alarm.
9) Error code
The following warnings appearing on the display indicate corresponding faults of the refrigerator.
Though the refrigerator may still have cold storage function with the following faults, the user
shall contact a maintenance specialist for maintenance, so as to ensure optimized operation of
the appliance.
Error
Code
Error Description
Error
Code
Error Description
E1
E2
E5
E6
E7
Communication error
Temperature sensor failure
of refrigerating chamber
Temperature sensor failure
of freezing chamber
Ambient temperature
sensor error
Freezing defrost sensor
detection circuit error
16
4. Maintenance and care of the appliance
4.1 Overall cleaning
•
Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the
cooling eect and energy saving.
•
Check the door gasket regularly to make sure there are no debris. Clean the door gasket with
a soft cloth dampened with soapy water or diluted detergent.
•
The interior of the refrigerator should be cleaned regularly to avoid odor.
•
Please turn o the power before cleaning interior, remove all foods, drinks ,shelves, drawers,
etc.
•
Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of
baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning,
open the door and let it dry naturally before turning on the power.
•
For areas that are dicult to clean in the refrigerator (such as narrow sandwiches, gaps
or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and
when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no
contaminants or bacterials accumulation in these areas.
•
Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in
the interior of the refrigerator or contaminated food.
•
Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or
diluted detergent. Dry with a soft cloth or dry naturally.
•
Wipe the outer surface of the refrigerator with a soft cloth
dampened with soapy water, detergent, etc., and then wipe
dry.
•
Do not use hard brushes, clean steel balls, wire brushes,
abrasives (such as toothpastes), organic solvents (such as
alcohol, acetone, banana oil, etc.), boiling water, acid or
alkaline items, which may damage the fridge surface and
interior. Boiling water and organic solvents such as benzene
may deform or damage plastic parts.
•
Do not rinse directly with water or other liquids during
cleaning to avoid short circuits or aect electrical insulation after immersion.
Please unplug the refrigerator for defrost and cleaning.
17
4.2 Cleaning of door tray
、
Fruits and vegetables box and drawer
•
According to the direction arrow in the gure below, use both hands to squeeze the tray, and
push it upward, then you can take it out.
•
After washing the tray having been taken out, you can adjust its installing height in
accordance with your requirement.
•
Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested
for cleaning. The freezer of shall be nally cleaned with clean water and dry cloth. Open the
door for natural drying before the power is turned on.
•
Do not use hard brushes, clean steel balls, wire
brushes, abrasives, such as toothpastes, organic
solvents (such as alcohol, acetone, banana oil,
etc.), boiling water, acid or alkaline items clean
refrigerator considering that this may damage the
fridge surface and interior.
4.3 Cleaning of Glass shelf
•
As the innermost part of the refrigerator liner where contacting the shelves has a backstop,
you shall raise the shelves upward, then you can be able to take it out.
•
Adjust or clean the shelves according to your requirement. Soft towels or sponge dipped in
water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall
be nally cleaned with clean water and dry cloth. Open the door for natural drying before
the power is turned on. Do not use hard brushes, clean steel balls, wire brushes, abrasives,
such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling
water, acid or alkaline items clean refrigerator considering that this may damage the fridge
surface and interior.
backsto
raise the glass shelf upwardsk
then pull it out
（
The picture above is only for reference. The actual conguration will depend on the physical product or statement by the distributor
）
18
4.4 Defrosting
•
The refrigerator is made based on the air-cooling principle and thus has automatic
defrosting function. Frost formed due to change of season or temperature may also be
manually removed by disconnection of the appliance from power supply or by wiping with a
dry towel.
4.5 Out of operation
•
Power failure: In case of power failure, even if it is in summer, foods inside the appliance
can be kept for several hours; during the power failure, the times of door opening shall be
reduced, and no more fresh food shall be put into the appliance.
•
Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are
left open to prevent odor.
•
Moving: Before the refrigerator is moved, take all objects inside out, x the glass partitions,
vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet;
close the doors and x them with tape. During moving, the appliance shall not be laid upside
down or horizontally, or be vibrated; the inclination during movement shall be no more than
45°.
The appliance shall run continuously once it is started.
Generally, the operation of the appliance shall not be
interrupted;otherwise the service life may be impaired.
19
•
You may try to solve the following simple problems by yourself. If them cannot be solved,
please contact the after-sales department.
Failed operation
Check whether the appliance is connected to power or
whether the plug is in well contact
Check whether the voltage is too low
Check whether there is a power failure or partial circuits have tripped
Odor
Odorous foods shall be tightly wrapped
Check whether there is any rotten food
Clean the inside of the refrigerator
Long-time operation
of the compressor
Long operation of the refrigerator is normal in summer
when the ambient temperature is high
It is not suggestible having too much food in the appliance at the same time
Food shall get cool before being put into the appliance
The doors are opened too frequently
Light fails to get lit
Check whether the refrigerator is connected to power supply and
whether the illuminating light is damaged
Have the light replaced by a specialist
Doors cannot be
properly closed
The door is stuck by food packages Too much food is placed
The refrigerator is tilted
Loud noise
Door seal fails to
be tight
Remove foreign matters on the door seal
Heat the door seal and then cool it for restoration
(or blow it with an electrical drier or use a hot towel for heating)
There is too much food in the chamber or food stored contains
too much water,resulting in heavy defrosting
The doors are not closed properly, resulting in frosting due to entry
of air and increased water due to defrosting
Hot housing
Heat dissipation of the built-in condenser via the housing, which is normal
When housing becomes hot due to high ambient temperature,
storage of too much food or shutdown of the compressor is shut down,
provide sound ventilation to facilitate heat dissipation
Surface condensation
Condensation on the exterior surface and door seals of the refrigerator
is normal when the ambient humidity is too high. Just wipe the condensate
with a clean towel.
Abnormal noise
Occurrence Possible cause/inspection items
5. Trouble shooting
20
6. Disposal of your appliance

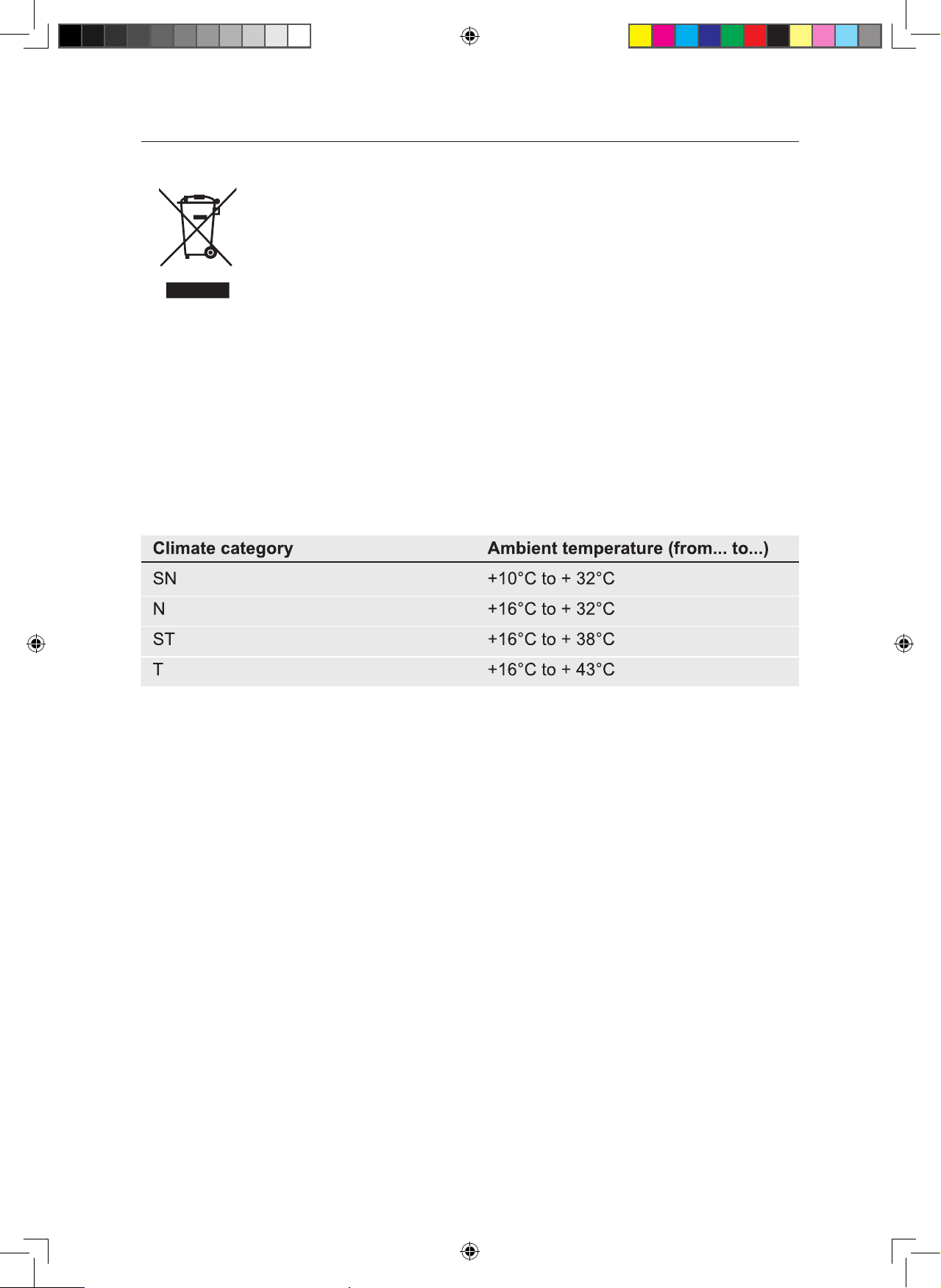

AMBIENT TEMPERATURE
This appliance is designed to operate in ambient temperature specied by its category marked
on the rating plate.
Correct Disposal of this product:
This marking indicates that this product should not be disposed with other
household wastes throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return
your used device, please use the return and collection systems or contact
the retailer where the product was purchased. They can take this product for
environmental safe recycling.
21
How to Use this Water Dispenser
Warning
1.Only puried and cold boiled water have access to this water dispenser, and the two kinds
must free from any impurity. Coke, apple juice and other soft drinks that contain Carbon dioxide
are forbidden.
2.It is not allowed to ll water when the water boxes is removed from the machine door.
3.Never ll more water than the maximum gure that indicated on the water box.
4.Check out whether the water box is on its foundation bed when you are not able to get water
normally as usual.
5.When you are trying to move the water box, be sure that there is no water in it.
6.You are not allowed to remove any element of the water valve.
7.When use the machine for the first time or it has been out of application for a long time,
remove and clean it up before you put it into application.
8.If water in this machine has been out of use for a long period, you had better to drain them out
of the dispenser and add pure water, and then it can be used as usual.
9.It is suggested that the product should be cleaned up every three to six months.
10.When you are cleaning this product, if cleaning solution is used, you had better put the water
box to its original position, and ll the water box, then you shall drain 5 to 6 cups of water, in case
that there is any rudimental dirt of water dispenser instruction after you used cleaning solution.
11.When you are opening or closing the door of the water dispenser, try to avoid overexerting in
case that water in the box move and overows.
12.Do not touch the bottle frame above when adding water.
Instruction of water dispenser
22

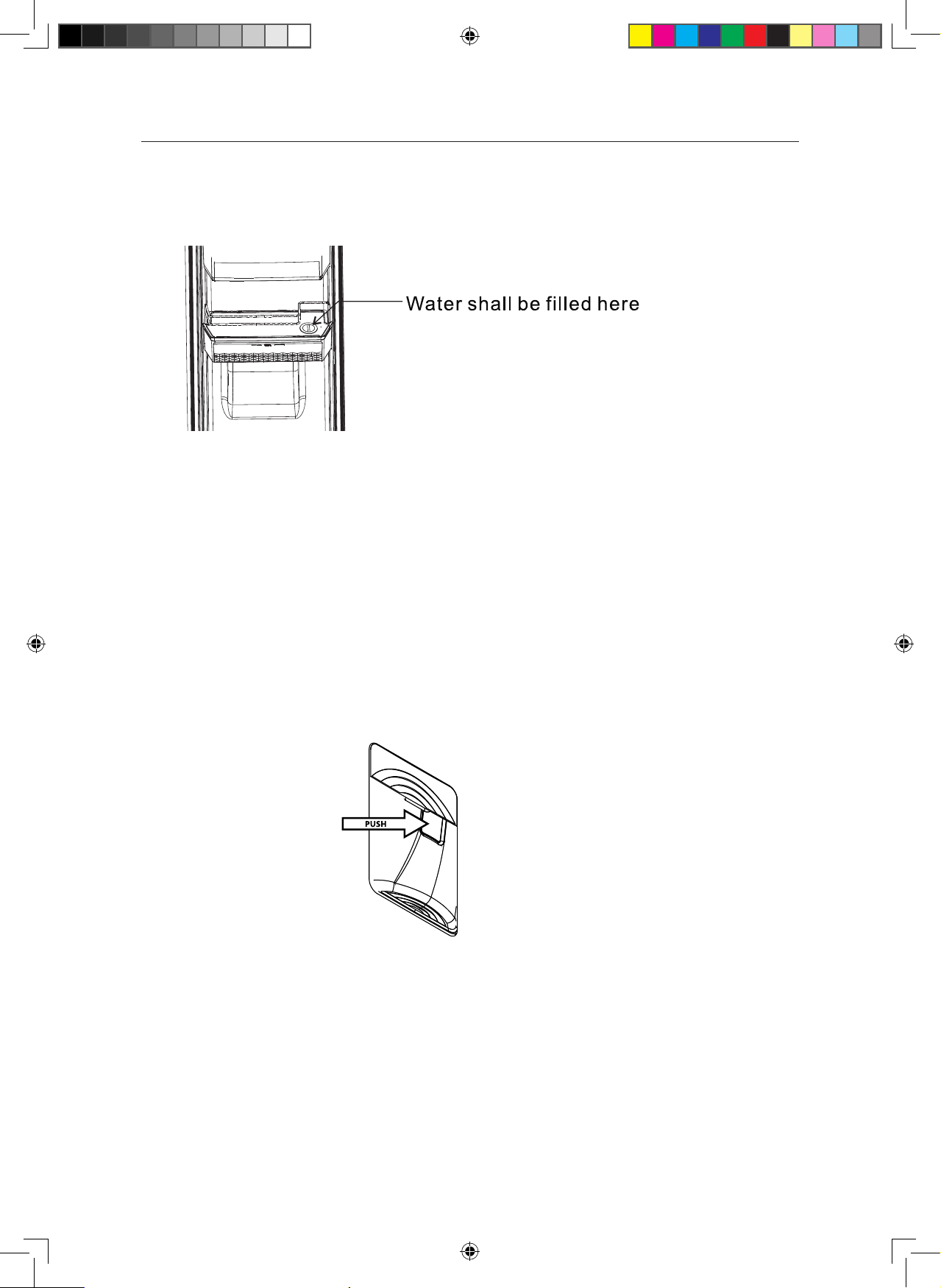

Filling of drinking water:
Open the water box, put the watering cover and then you can add water:
How to Get the Drinking Water
1.Push the water shank inward by the cup
2.When you put the hand shank inward, there will be some water outows, when the hand shank
is in its original position, no water outows.
23
How to Remove and Clean up the Water Dispenser

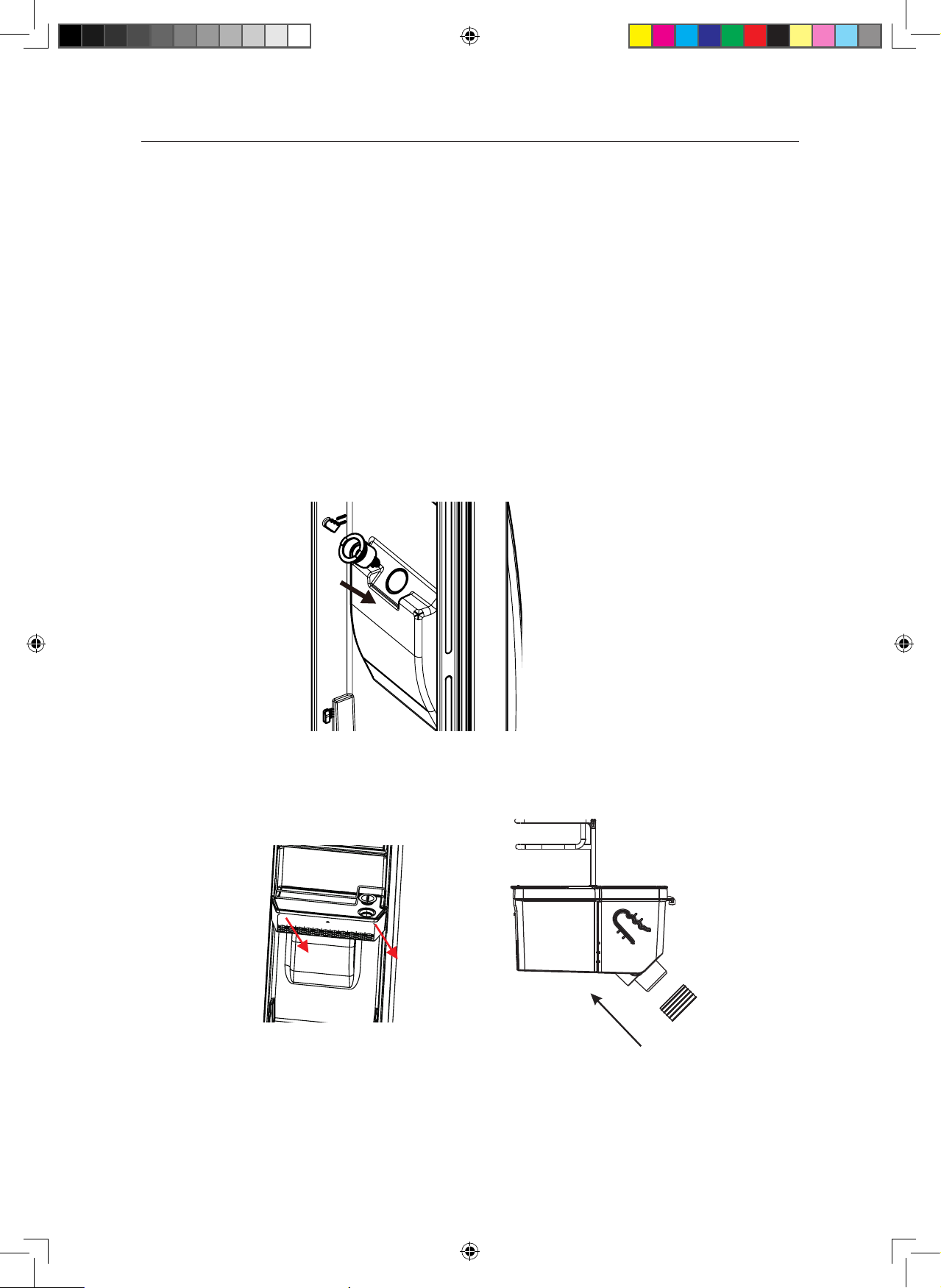

First Step: remove
1. Take out the elements of the water box Stick to both sides of the water box elements with
both of your hands, and draw out the elements of the water box outwards through 45 above. You
can translate the water box (to the side of the user) and get the elements when the elements are
out of water valve elements (when you move the box, be sure that there is no water in it.)
2. Take down the seal ring of the water box elements
3. Step to remove the elements of water valve Use the screwdriver and make the edge directs to
the water valve elements and then insert it in the free place that highlights outskirt, rotates the
screwdriver clockwise or anticlockwise, with the screwdriver moving, when it tops the penstock,
extracts the water valve elements by hands at the direction of above 45°(You can not remove the
elements of water valve)
24
Step 2: Clean up
1. Remove the water box itself, and the water box cover, the seal ring and the water valve
elements
2. Clean up the elements of the water box with cold or warm water.
3. Wipe out the water with dry cloth
Notes:
1. If you clean the water dispenser by cleaning solution, you had better put the box to its
originally position, and drain 5 to 6 cups of water out, then you can use it normally, in case that
there is remaining dirt of application instruction.
Step 3: Installation
1. Installation of water valve elements
Put the guide projecting platform directed to the guide groove, after that, push
it downside with 45?slantly at full tilt, until you hear a crack
2. Installation of seal ring of the water box
Put the seal ring to the bottom of the water box, and be sure that the seal ring is in place. Avoid
that wrinkle seal ring or in wrong place.
3. The Installation of water box elements
To keep the hanging slot of the water box elements direct to the hangers on the door liner. The
seal ring at the bottom of the box shall directed to the entrance of the water valve elements,
insert it to the corresponding position along with the 45°slantly
Hefei Hualing Co.,Ltd.
176 Jin Xiu Road, Hefei Economic and Technological Development
MADE IN CHINA
