HI LIFT SINGLE RAM PIT JACK 15 TONNE
MODEL NO’S: VPJ15M-1S, VPJ15S-1S
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
9 The user shall work in accordance with the instruction handbook. Only to be used by trained personnel.
9 It is necessary that the operator can watch the lifting device and the load during all movements.
9 It is not allowed to work under the raised load until it is secured by suitable means.
9 The operator shall be provided with all necessary information about training and about pumping and translating forces.
9 The A-weighted Sound Pressure Level of the product does not exceed 70dB(A).
9 Ensure the beam is in sound condition and good working order. Take action for immediate repair or replacement of damaged parts. Use
genuine parts only. The use of improper parts may be dangerous and will invalidate the warranty.
9 Inspect the beam before each use. DO NOT use the beam if it is damaged, altered, modified, in poor condition, leaking hydraulic fluid, or
unstable due to missing parts.
8 DO NOT alter or modify this beam, including the safety valve, in any way. DO NOT load the beam beyond its rated capacity. DO NOT
operate the beam if damaged.
8 DO NOT use the beam for purposes other than that for which it is intended.
9 Before installing and using the product, please carefully read and fully understand the contents of these instructions, and make sure
that every operator of the product has read and understood the contents, and put the instruction in a safe place for future reference.
8 DO NOT use for the lifting of persons.
9 Use the beam only for its intended purpose.
9 Consult the vehicle manufacturer for the correct lifting locations.
9 Make sure the vehicle is in park and the handbrake is on before attempting to raise the vehicle.
9 Only use the saddles provided with the jacking beam.
9 Be sure setup is stable and secure before lifting. Be careful of pinch points.
9 This is a lifting device only. Make sure the load is central on saddles before lifting.
9 The beam can only be used to lift one end of the vehicle.
9 Ensure that there are no persons or obstructions beneath the vehicle before lowering. Always lower load slowly and carefully.
9 Please check the spillage of oil before use, if you notice a spillage of oil, stop using the product and repair immediately.
9 In the event of a breakdown or accident, if the product can not be lowered as wished, the vehicle must be secured by suitable means
against unintended lowering. Get a new suitable product, with which you can lift the vehicle, so that the defect product can be repaired
or removed and changed. If you are unsure, please ask for professional help.
8 DO NOT work under the raised load until it is secured by suitable means.
9 Product safety markings need to be inspected before use and be maintained in as new condition. Contact Sealey for replacements if
damaged.
9 This product must be maintained and repaired in accordance with the manufacturers instructions. Such maintenance and repair shall
becarriedoutbyqualiedpersons.
9 This jacking beam is only to be mounted on lifts approved by the lift manufacturer for mounting of jacking beams. Be aware that not all
lifts are approved. Rated beam capacity must be max. 2/3 of vehicle lift capacity.
9 Mount the jacking beam with adequate support arms on horizontal, parallel and solid rails and secure arms before use.
9 Check before each lift, that the support arms are correctly placed on rail of lift or pit edge.
9 Always lower the jacking beam to the nearest safety stop immediately - or use axle stands for support before working on vehicle.
8 DO NOT overload, for instance due to sudden external overload can cause damage or failure of the jacking beam.
9 During lifting make sure that the saddles cannot slide.
9 Gravity of load must always be placed centrally.
WARNING! Failure to heed these precautions may result in loss of load, damage to beam and/or personal injury.
9 LIFETIME OF JACK: 6 to 8 years.
8 DO NOT use for lifting persons.
8 DO NOT use with foodstuffs.
9 In the event of oil spillage refer to MSDS.
WARNING! In the event of leakage of hazardous substances or fire, refer to MSDS.
VPJ15M-1S, VPJ15S-1S Issue:2 07/02/25
Original Language Version
© Jack Sealey Limited
Refer to
instruction
manual
Wear eye
protection
Wear protective
clothing
Wear safety
footwear
2. INTRODUCTION
Fitted with leaf spring support bearings for easy glide traversing the ram. Full 800mm lifting stroke for high axled vehicles. Air operation takes the
eortoutofliftingheavyplant,tractorsandcommercialvehicles.Rocketliftfeaturebringsthesaddleintocontactwiththejackingpointquickly
andslowsonceunderloadforacontrolledlift.Adjustabletosuitdierentpitwidths.

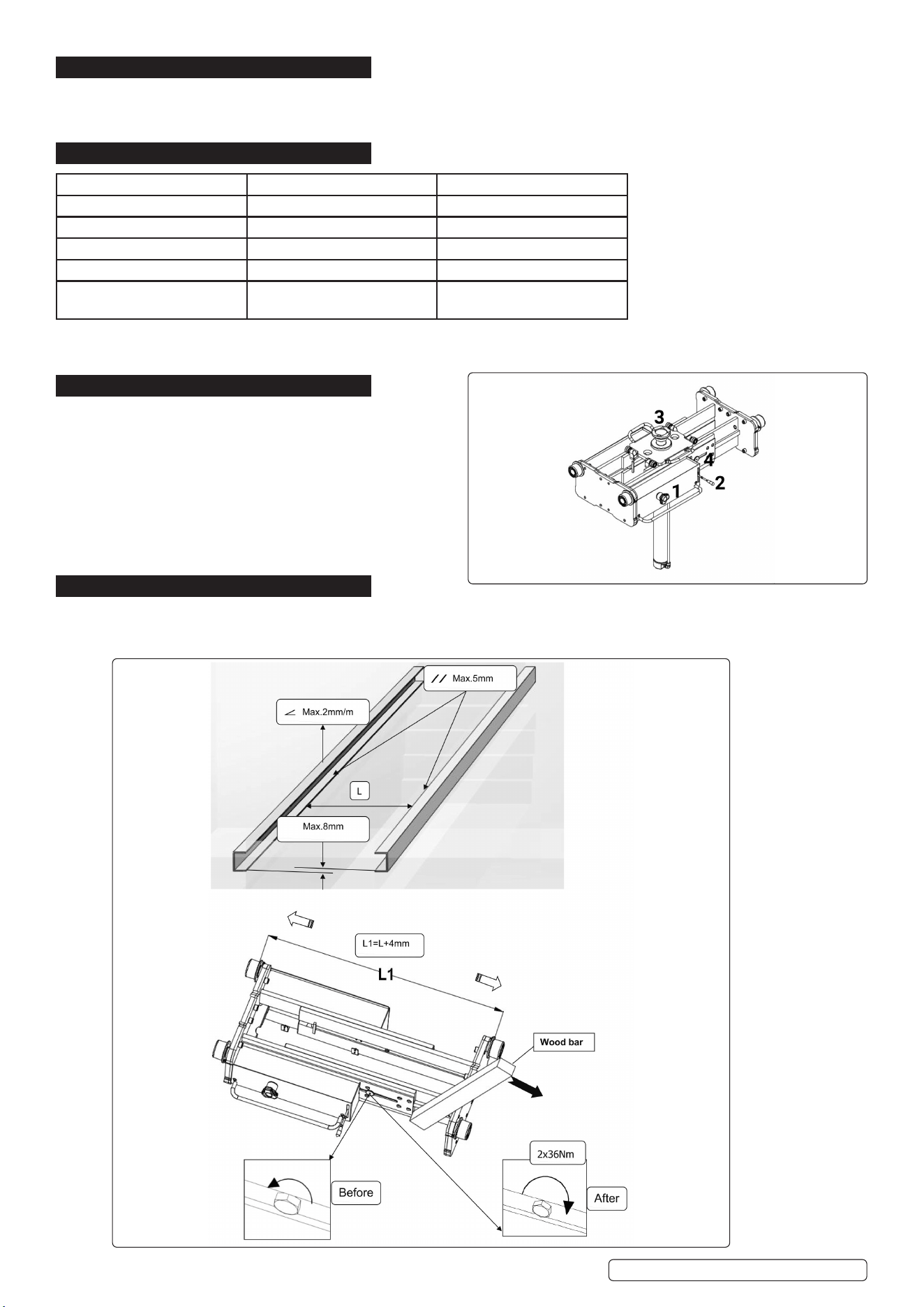

3. SPECIFICATION
4. FEATURES
1. Release knob
2. Up/down handle
3. Ram
4. Width adjustment screw
5. INSTALLATION
5.1. TRANSPORT
5.1.1. Very heavy product. Must only be transported using the correct equipment. Must only be lifted using the correct lifting points with the
suppliedliftingeyestted,seeStep3.
Model No: VPJ15M-1S VPJ15S-1S
Beam Lift: 800mm 200mm
Capacity: 15 Tonne 15 Tonne
Weight: 280kg 280kg
Applicable Standard: EN1494 EN1494
Range of Environmental
Conditions for use:
-20 to 50°C -20 to 50°C
Step 1: Dimensions of inspection pit
Step 2: How to expand to t width of pit
Original Language Version
© Jack Sealey Limited
VPJ15M-1S, VPJ15S-1S Issue:2 07/02/25
Original Language Version
© Jack Sealey Limited

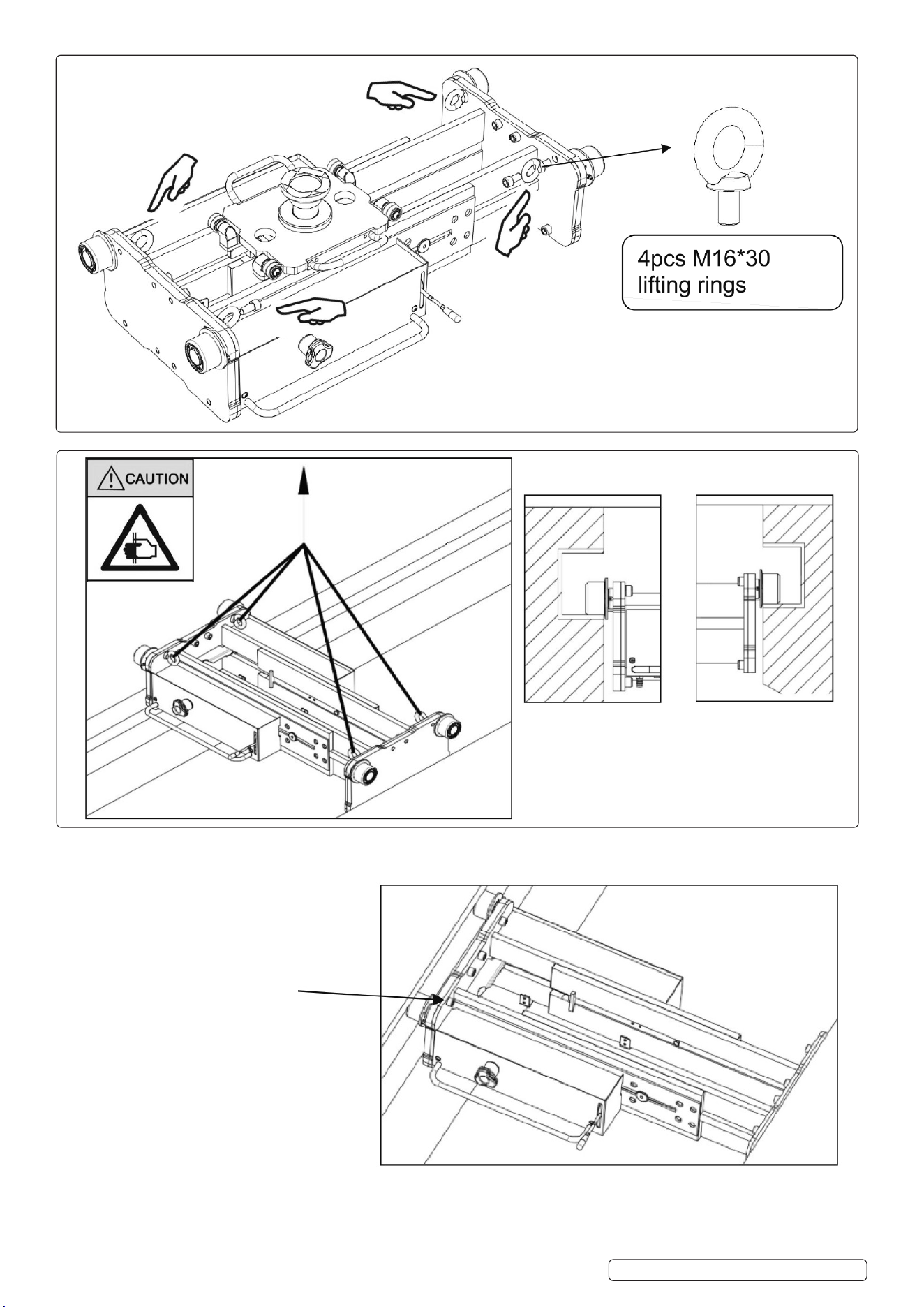

Step 3: Remove screws to t lifting
rings
Step 4: Lift into position. Ensure wheels are
running in correct position
Step 5: Ret 4 x M16x30 screws
VPJ15M-1S, VPJ15S-1S Issue:2 07/02/25
Original Language Version
© Jack Sealey Limited

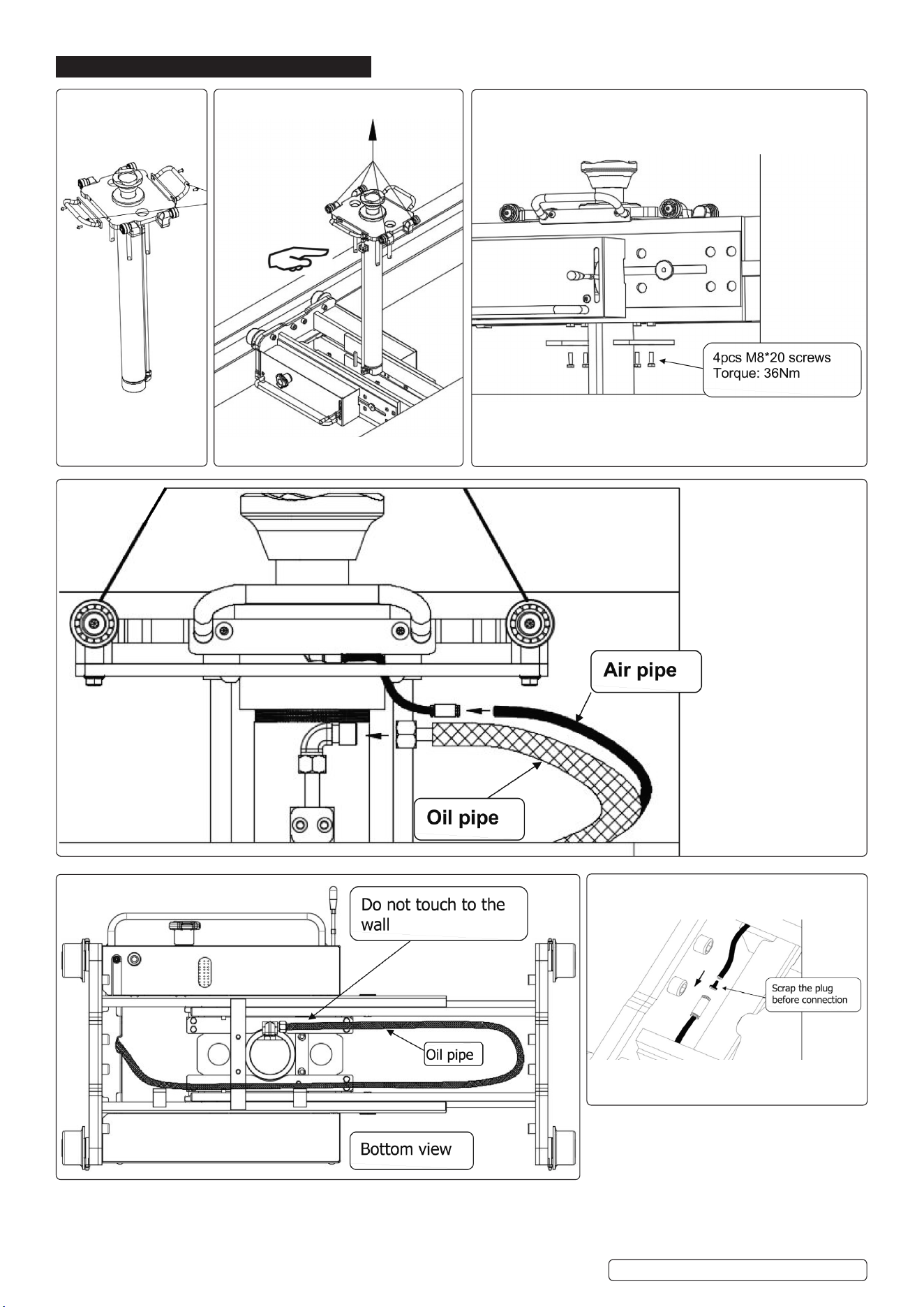

Place ram from aboveFit handles to ram with
4 x M8x16 screws
Torque : 25Nm
Secure from below
Connect oil and air hose to ram
Note: Remove transit plug.
See diagram below
6. ASSEMBLY
VPJ15M-1S, VPJ15S-1S Issue:2 07/02/25

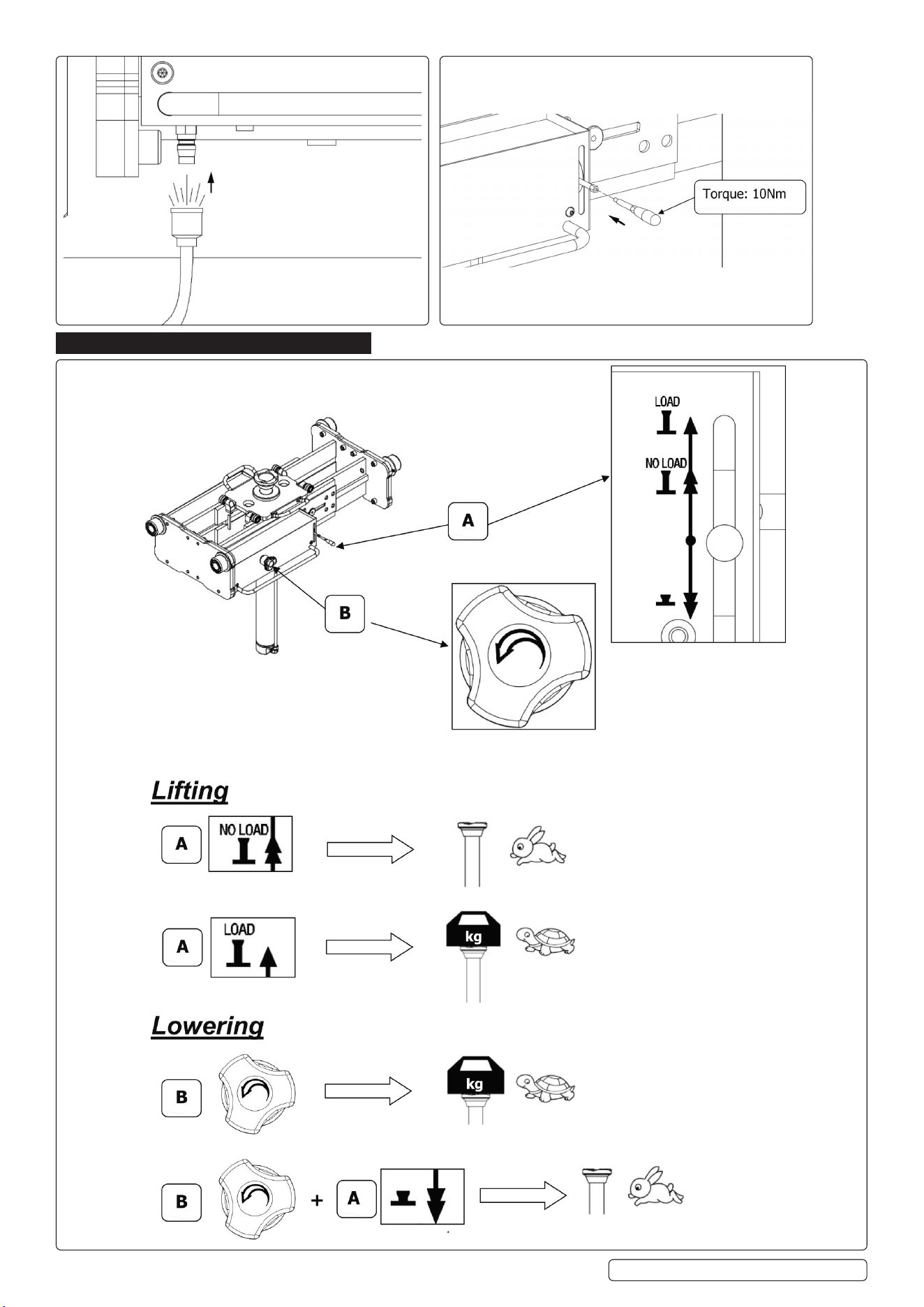

7. OPERATION
Original Language Version
© Jack Sealey Limited
Connect air supply Fit handle
VPJ15M-1S, VPJ15S-1S Issue:2 07/02/25
Original Language Version
© Jack Sealey Limited

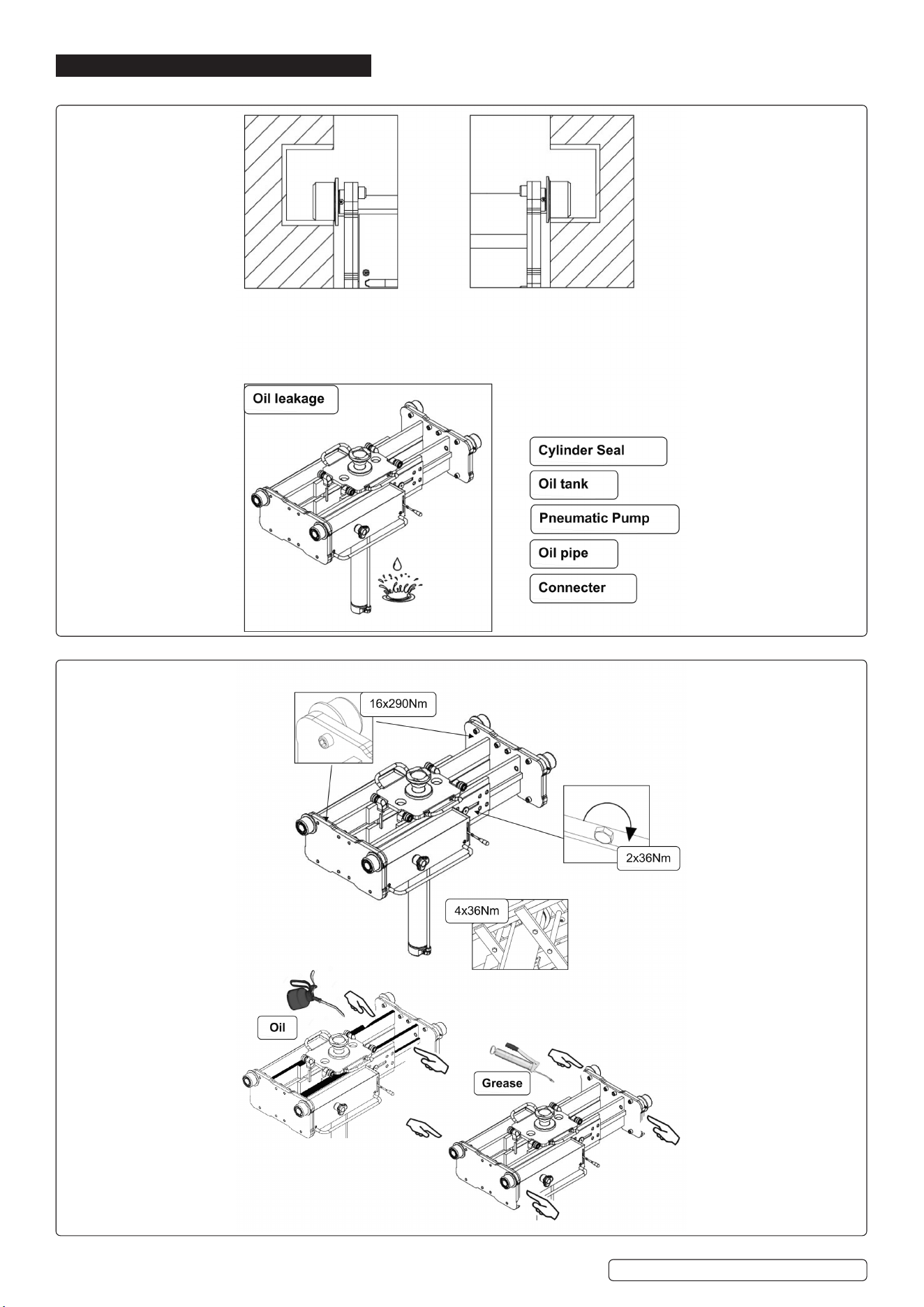

8. MAINTENANCE
8.1. DAILY MAINTENANCE
8.2. MONTHLY MAINTENANCE
Inspect condition of wheels
Check for oil leaks from:
VPJ15M-1S, VPJ15S-1S Issue:2 07/02/25

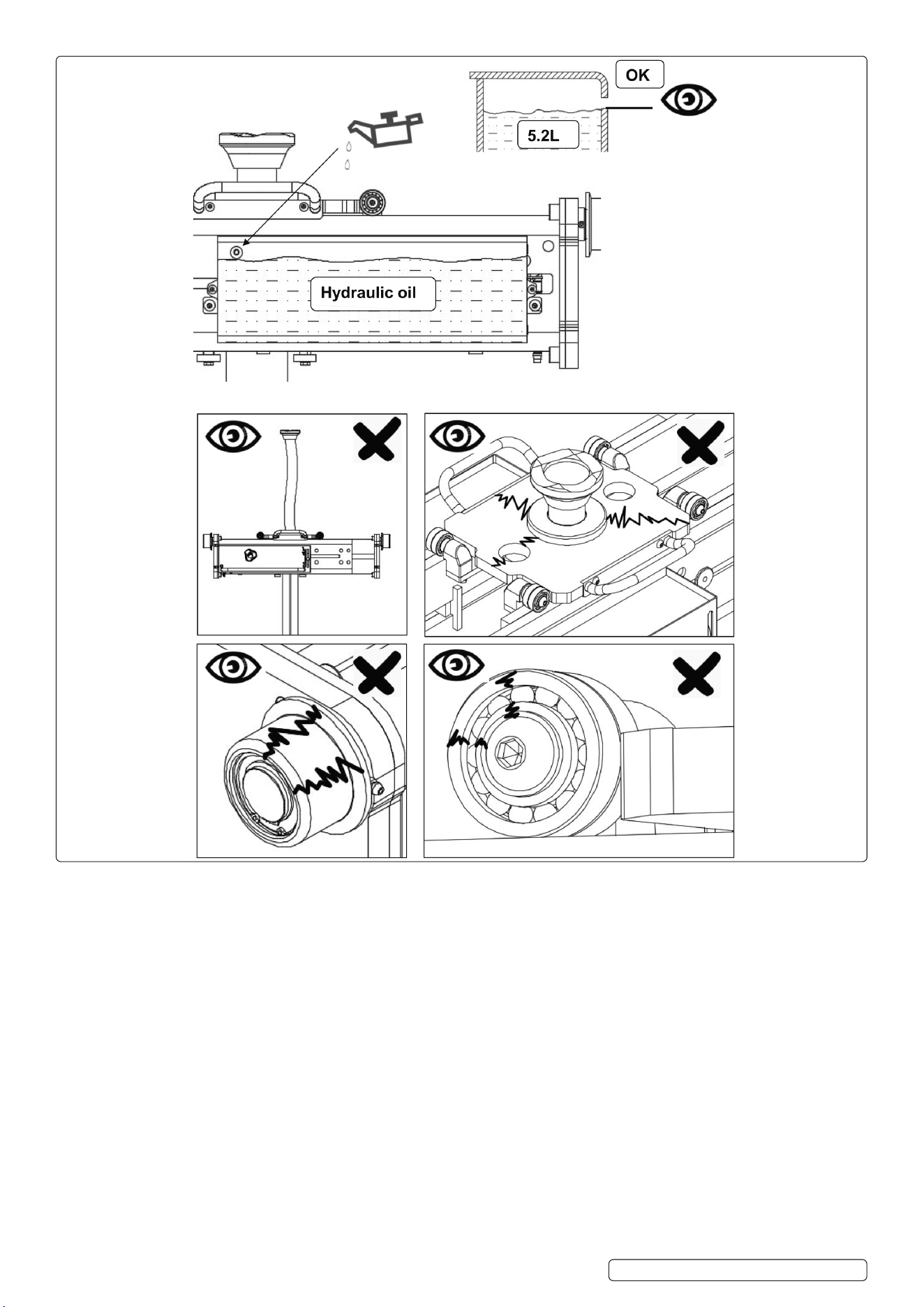

Check oil level
Check for deformation and cracks
8.3. GENERAL MAINTENANCE
NOTE:Onlyfullyqualiedpersonnelshouldattemptmaintenanceorrepairs.
8.3.1. Before each use check for broken, cracked, bent, or loose parts, or any visible damage to pump, saddles, lifting arms, frame and all
parts including nuts, bolts, pins and other fasteners. If any suspect item is found, remove beam from service and take action to
remedy the problem. DO NOT use the beam if it is believed to have been subjected to abnormal load or shock load. Inspect and take
appropriate action.
8.3.2. Periodically check the pump piston and the ram for signs of corrosion. Clean exposed areas with a clean oiled cloth.
N.B.: NO RESPONSIBILITY IS ACCEPTED FOR INCORRECT USE OF THIS PRODUCT. Hydraulic products are only repaired by
local service agents. We have service/repair agents in all parts of the UK.
8 DO NOT RETURN JACKS TO US. Please telephone us on 01284 757500 to obtain the address and phone number of your local
agent.
If jack is under guarantee you can also contact your local stockist.
Keep the beam clean and lubricate all moving parts on a regular basis
8.3.3. HYDRAULIC OIL
WARNING! DO NOTusebrakeuid,oranyuidotherthanagoodqualityjackoil,suchasSEALEYHYDRAULICJACKOIL,asthis
may cause serious damage to the jack and will invalidate the warranty!
8.3.3.1. Whenrellingthehydraulicsystem,thecharacteristicsofthehydraulicuidusedinthejackandthelevelofhydraulicuidasit
is given by the manufacturer shall be observed.
8.3.4. Jacks shall be maintained and repaired in accordance with the manufacturer’s instructions. Such maintenance and repair shall be
carriedoutbyqualiedpersons.
8.3.5. Nomodicationsshallbecarriedoutwhichadverselyaectthecomplianceofthejackwiththisstandard.
8.3.6. The markings must remain as they were initially supplied.
Original Language Version
© Jack Sealey Limited
VPJ15M-1S, VPJ15S-1S Issue:2 07/02/25
9. STORAGE
9.1. When not in use beam should be stored in its lowest position to minimise corrosion.
10. END OF LIFE
10.1. Dispose of according to local regulations in force:
Drainuids.
Dismantle by performing the Assembly section in reverse.

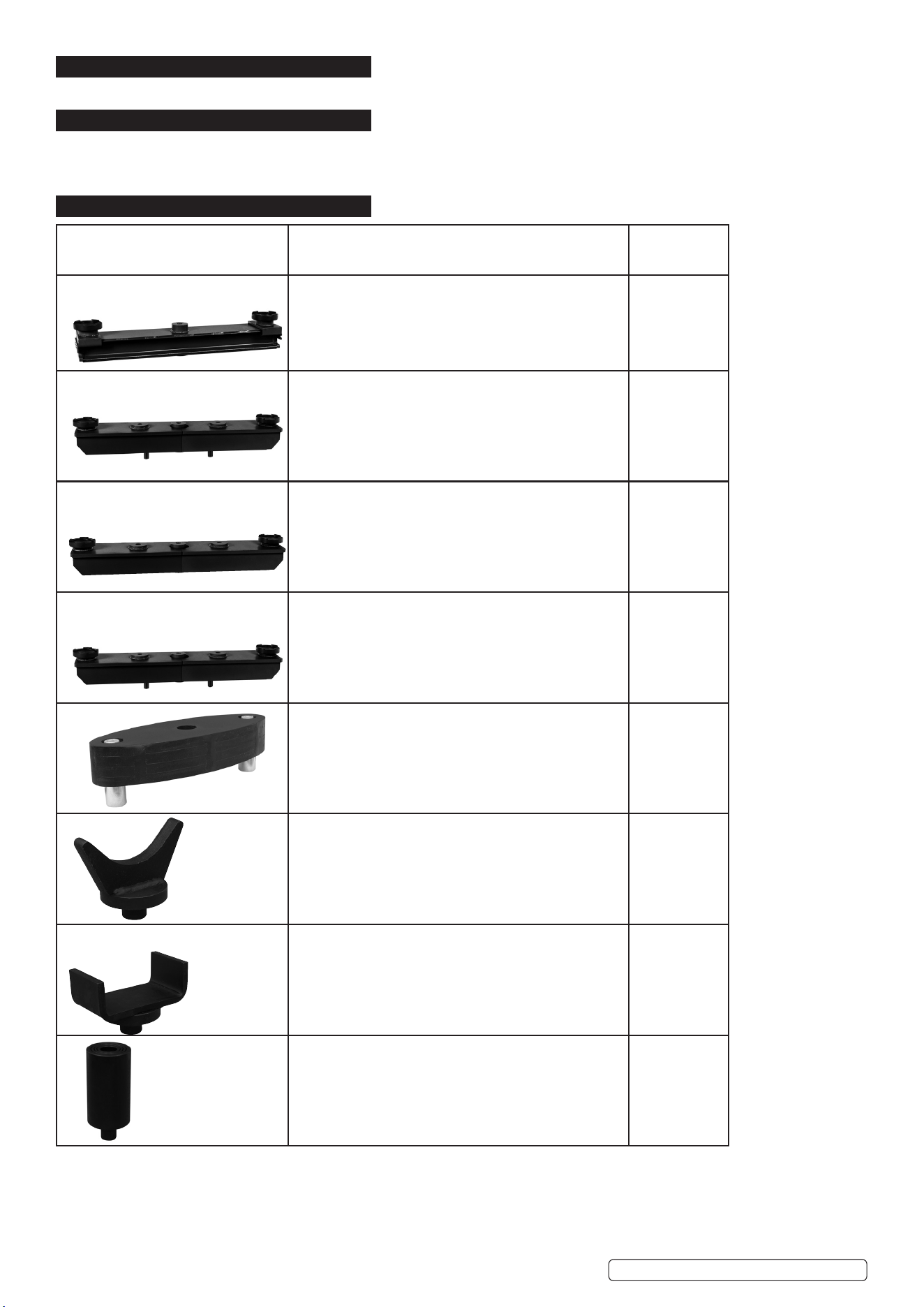

11. AVAILABLE ACCESSORIES
Original Language Version
© Jack Sealey Limited
Accessory Model No: VPJ15M-1S
VPJ15S-1S
VPJ15MCBA
Cross Beam Single Ram Adaptor 15 Tonne
VPJ20MCBA
Cross Beam Twin Ram Adaptor 15 Tonne
VPJ15M2CBA
Cross Beam Extendable Single Ram Adaptor
11-15 Tonne NOTE: 11TONNE CAPACITY
WHEN EXTENDED
VPJ20M2CBA
Cross Beam Extendable Twin Ram Adaptor
11-15 Tonne NOTE: 11TONNE CAPACITY
WHEN EXTENDED
VPJ-DB
DiBeamVikingAdaptor
VPJ-VA
V-Adaptor for Viking Pit Jacks
VPJ-UA
U-Adaptor for Viking Pit Jacks
VPJ-A7
Extension for Viking Pit Jacks 100mm
✓
✓
✓
✓
✓
VPJ15M-1S, VPJ15S-1S Issue:2 07/02/25

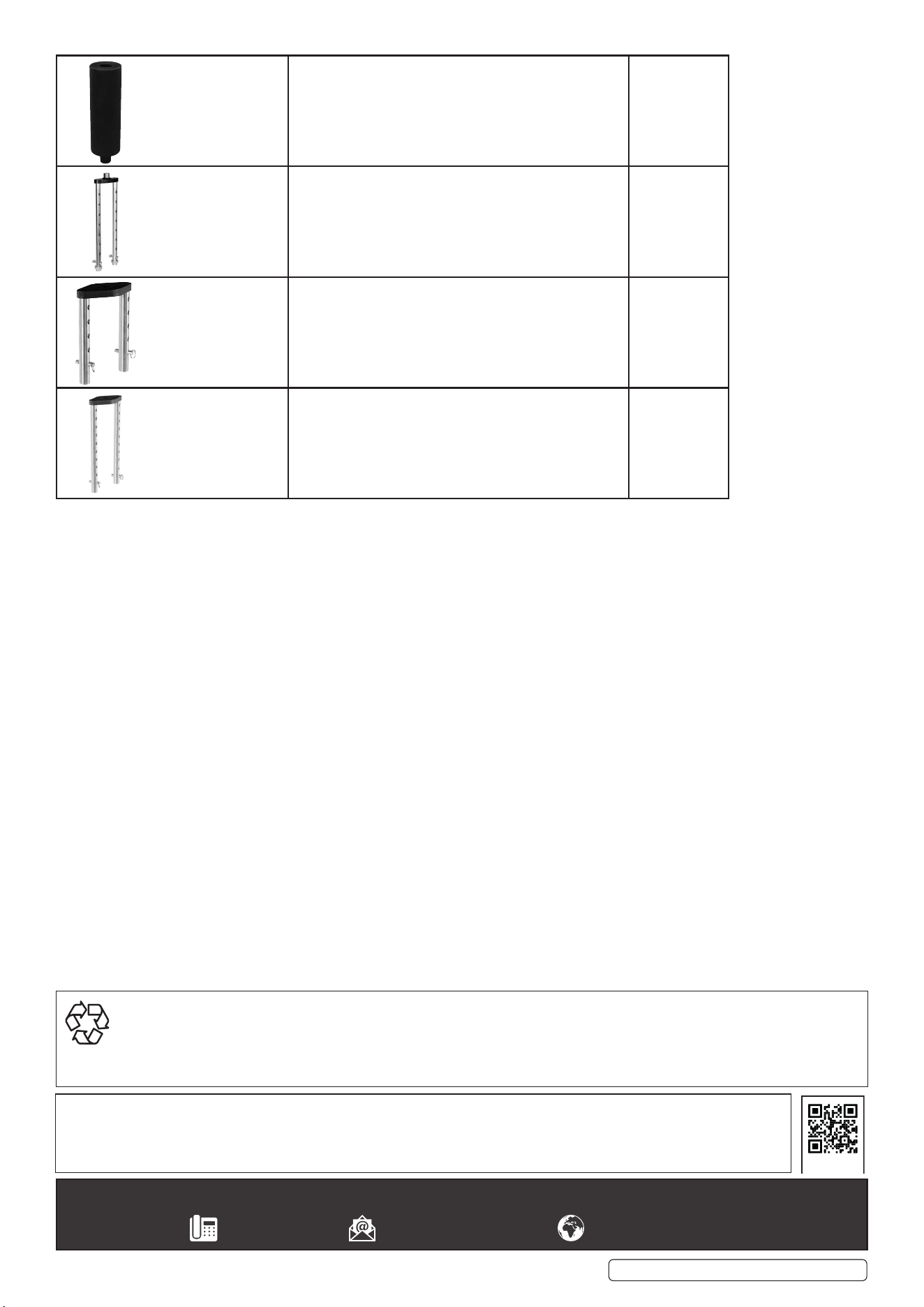

VPJ-A8
Extension for Viking Pit Jacks
200mm
VPJ15SS
Viking Pit Jack Safety Stand 10 Tonne
VPJ20-2LSS
Viking Pit Jack Safety Stand 10 Tonne
VPJ20-2HSS
Viking Pit Jack Safety Stand 10 Tonne - High
✓
✓
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts
without prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 36 months from purchase date, proof of which is required for any claim.
