PLEASE READ AND SAVE THESE INSTRUCTIONS
OWNER'S MANUAL
HIGH STATIC BLOWER
MODEL: BR-272A, BR-282A, BR-292A
(115V/60HZ)
XPOWER MANUFACTURE, INC.
668 S. 6th Ave.,
City of Industry, CA 91746, USA
Tel: 626-285-3301 Fax: 626-285-3302
www.xpower.com
Not all models in this manual
are ETL or C-ETL cerfied.
TABLE OF CONTENTS
Introducon..................................................................................................................................... 3
Operaon Intruscons .................................................................................................................... 4
Safety Instrucons ................................................................................................................... 5, 6, 7
Maintenance Instrucons ............................................................................................................... 8
Troubleshoong .............................................................................................................................. 8
Specificaons................................................................................................................................... 9
Parts List ................................................................................................................................. 10, 11
More XPOWER Products.......................................................................................................... 12, 13
XPOWER Warranty / Service ......................................................................................................... 14
Warranty Registraon Form .................................................................................................... 15, 16
- 3 -
Introducon
Thank you for purchasing an XPOWER High Stac Blower! With over 25 years of manufacturing
experience, XPOWER Manufacture, Inc. is bring a series of products with the most advanced
technology in today's market. Your new XPOWER blower is engineered with top quality motors
and superb housing to provide strong and lasng performance. All our products have a fully
integrated design with state-of-the art miniaturizaon, allowing them to be light weight, quiet
and rugged without sacrificing power or durability. Trust in XPOWER for all of your air blower
needs. Enjoy!
Features:
• For indoor and outdoor use
• L
ow amperage draw with high airflow
• Easy carry handle
• Mul posion operang angle
• Electrical seal weatherproof design
• Perfect for holiday decoraons and small adversement
- 4 -
Operaon Instrucons
XPOWER High Stac Blowers are intended to fill up inflatables, adversing displays, structures,
etc. Durable and easy to operate with an effecve balance of stac pressure and airflow, the
units are suitable for a variety of applicaons.
1. XPOWER High Stac Blowers are shipped ready-to-use. Prior to plugging the unit into the
power source, inspect completely for any shipping damage.
2. With the unit unplugged, carefully place the unit on stable, flat, and dry surface.
3. Snugly aach your inflatable tube around the exhaust opening by using the velcro strap o
r
any other form of ghtener.
4. Plug the cord into a grounded GFCI outlet only. Using a 3-prong to 2-prong adapter is strictly
prohibited.
5. Turn on the switch to make sure the blower is operang correctly and the inflatable
funcons properly.
6. All blowers in operaon must be supervised at all mes.
- 5 -
Safety Instrucons
1. Never place the XPOWER High Stac Blowers in close proximity to any heat source or open flame. The
inflatable is flammable and could cause a fire and serious injury if not handled properly.
2. Do not operate the unit close to any dangerous areas such as explosive gases, flammables, heaters
and unvenlated environments that may result in explosions or electrical hazards.
3. Do not operate the blower without the inflatable aached because the blower must have back
pressure in order to avoid any damage to the motor.
4. Keep children away from the unit at all mes while
in operaon or plugged in. This product is not a toy
and should only be used for its intended purpose.
5. Do not put fingers or other objects in any part of the unit while it is in operaon or plugged in.
6. To prevent electric shock, do not drop unit into water, never plug in or unplug the appliance with wet
hands or while standing in water.
7. Avoid sands, small rocks and other small objects being sucked in the blower.
8. To avoid risk of injury, do not direct stream of air at face or body.
9. If the power cord is damaged, it must be replaced by the XPOWER Manufacture, Inc. or an XPOWER
authorized service agent or a qualified electric
ian in order to avoid a hazard.
10. Do not operate in pooled or accumulated water to avoid electric shock.
(Connued at Page 6)
- 6 -
Safety Instrucons
11. Connect into a grounded receptacle protected by a ground-fault circuit interrupter(GFCI). Please
contact a qualified electrician for verificaon and / or installaon of a GFCI receptacle if necessary.
12. Indoor use use only with a grounded plug.
13. Never use a cord that has cuts, breaks, or any other apparent damage as harmful, electrical shock may
occur.
14. Make sure the power source is sufficient to meet the requirements of the blower (see Specificaons).
15. Keep air intakes and exhausts clean at all mes to avoid clogging or blocking which will cause electrical
hazards, overheang or fire.
16. To avoid objects from coming
in contact with the blower fan or injury to persons, do not remove any
screens or safety guards from the unit. Damage in this manner will void your warranty.
17. To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid-State Speed Control
Device.
18. Always place the blower on a smooth and level surface for safe operaon.
19. Do not use the unit if defecve or damaged.
20. Unplug the unit before maintenance, cleaning or servicing.
21. The blower and inflatable in operaon must be supervised at all mes.
22. Any misuse or abuse of this product will void your warranty.
- 7 -
GROUNDING
PIN
Grounding methods
METAL SCREW
OUTLET BOX
COVER OF GROUNDED
(A)
Grounding Instrucons:
This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by proving an escape wire for electric current. This product is equipped with a cord having
a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is
properly installed and grounded in accordance with all local codes and ordinances.
WARNING - Improper installaon of the grounding plug is able to result in a risk of electric shock. When
repair or replacement of the cord or plug
is required, do not connect the grounding wire to either flat blade
pin. The wire coated and insulated in green is the the grounding wire. Check with a qualified electrician
when you don't completely understand or have a problem to follow this instrucon. Do not modify the
original plug. If it does not fit your outlet, have the proper outlet installed by a qualified electrician.
This appliance is designed to use on a nominal
120V circuit, and has a grounding plug that
looks like the plug illustrated in Figure (A).
Only connect the product to an outlet having
the same configuraon as the plug. Do no use
a
n adapter with this product.
- 8 -
Maintenance Instrucons
Troubleshoong
PROBLEM POSSIBLE CAUSE SOLUTION
Motor not running
Unit is not plugged in or switch
is in "OFF" mode
Make sure the unit is plugged in
and switch is in "ON" mode
Defecve power outlet Check outlet or use another outlet
Faulty switch/cord Replace switch or cord
Scraping noise from blower
Obstrucons at the intake or
exhaust of blower
Remove obstrucons
Weak airflow Obstructed vents/inlets Clean out vens/inlets
1. Always store the unit when not in use. Store indoors in a dry and cool environment free from
debris or obstrucons that might affect the unit.
2. To keep the blower clean, use a dry or damp towel to wipe the surface of the blower.
3. Ne
ver clean the blower with water.
4. Unplug and store at a dry indoor place unreachable for children, when not in use.
- 9 -
Specificaons
Model BR-272A BR-282A BR-292A
Volt / Frequency 120V / 60Hz 120V / 60Hz 120V / 60Hz
Power 1 HP 2 HP 3 HP
Amp 8 A 12 A 14 A
Rated Airflow (On
High)
1000 CFM 1500 CFM 1700 CFM
RPM 3200 3200 3300
Unit / Box Weight 21.2 lbs. / 25.4 lbs. 22.0 lbs. / 25.6 lbs. 30.4 lbs. / 33.3 lbs.
Unit / Box Dimension
(L x W x H)
18.5" x 10.6" x 19.9" / 20" x
11.2" x 18.5"
18.5" x 10.6" x 19.9" / 20" x
11.2" x 18.5"
18.5" x 10.6" x 19.9" / 20" x
11.2" x 18.5"
Power Cord (Length /
Size)
12' / 18AWG 12' / 16AWG 12' / 14AWG
Thermal Protecon Dual Dual Dual
Housing PP PP PP
Safety Cerficaon ETL / C-ETL ETL / C-ETL -
- 10 -

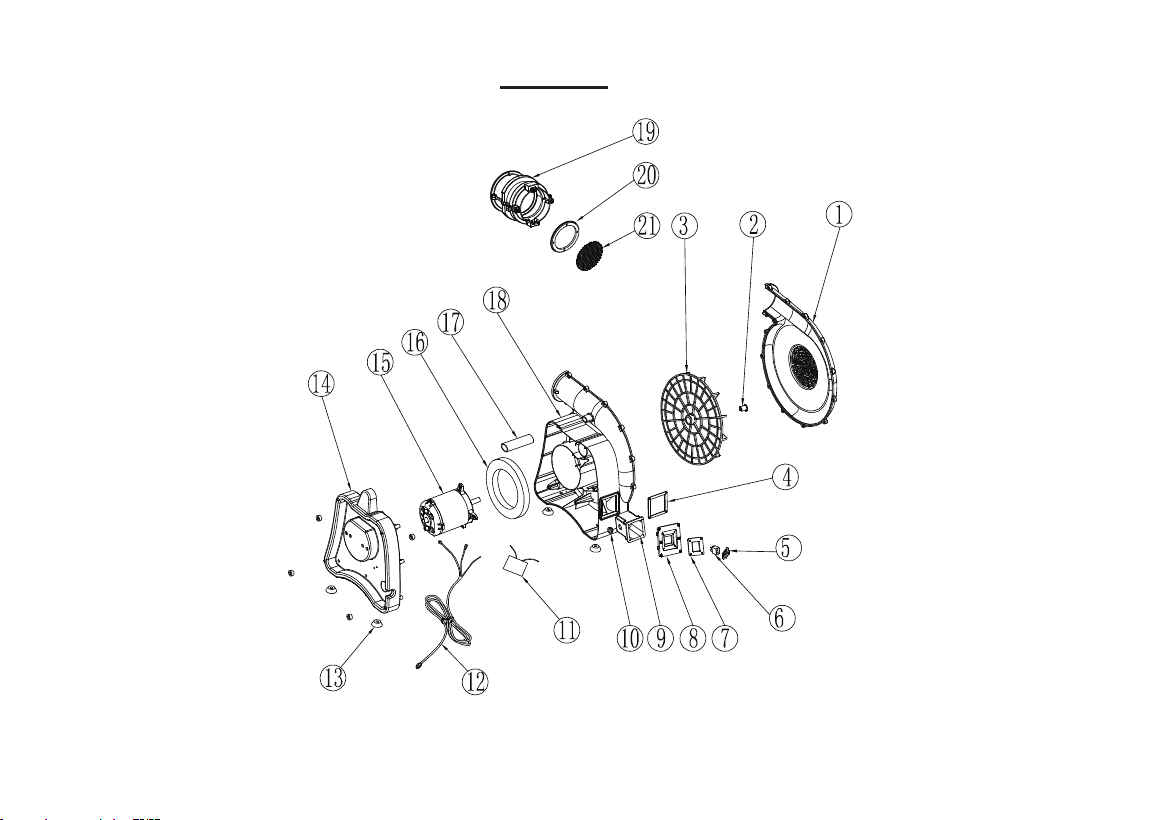

Parts List
- 11 -
Item No. Parts Name Item No. Parts Name Item No. Parts Name
1 Top Cover 8 Swch Panel 15 Motor
2 Axle Bushing 9 Switch Box 16 Fireproofing Sponge
3 Fan 10 Big Rubber Feet 17 Handle
4 Sealing Pad 11 Capacitor 18 Boom Cover
5 Switch Sleeve 12 Power Cord 19 Adaptor
6 Switch 13 Small Rubber Feet 20
Air Outlet Grid Pressing
Board
7 Switch Preesing Board 14 Rear Cover 21 Air Outlet Grid
- 12 -
Jan/San - Restoraon & Migaon Equipment:
Centrifugual Fans
Low Profile Air Movers
Scented Air Mover Fans
Airrow Pro Blowers
Confined Space Fans
Axial Fans
High Temp Axial Fans
Air Scrubbers
Dehumidifiers
Misng Fans
More XPOWER Products Available
- 13 -
Inflatable Adversing Equipment:
High Stac Blowers
Centrifugal Blowers
Vercal Adversement Blowers
Air Pumps
Professional & Retail Pet Grooming Equipment:
Professional Pet Grooming Dryers
DIY Pet Grooming Dryers
Air Care Equipment
Learn more at www.xpower.com or call 1-855-855-8868
- 14 -
XPOWER Limited Warranty (USA)
Service
XPOWER's Limited Warranty covers the unit (excludes power cord, motor brushes, and any other consumable parts) from defects
in material and crasmanship. The Warranty covers normal use for a term of one year from the original date of purchase including
parts, labor, and one way shipping. Non-conguous states must pay for roundtrip freight. Warranty honored with original proof of
purchase only.
Important!
This Warranty does not cover or apply to defects directly or indirectly due to misuse, abuse, disassembly, alteraon, corrosive
chemicals, improper voltage, fire, flood, negligence, accident, improperly or incorrectly performed maintenance or repair, or
failure to perform necessary maintenance or repair, or if the use of this product is not in compliance with the instrucons and
specificaons for its use.
For Warranty service and parts replacement (US customer only), you must:
A. Call 1-855-855-8868 for a RMA (Return-Merchandise-Authorizaon) number.
B. Have original proof of purchase provided.
C. Use the original undamaged packaging or an industrial cerfied packaging method.
End user will be responsible for shipping the unit (with RMA Number showing on the shipping label) to XPOWER Customer
Service Department. XPOWER will inspect, assess and advise the repairs needed and applicable cost, if any.
For users outside US, please contact an XPOW
ER Distributor in your country or region for warranty service and parts replacement.
For your product warranty, please complete and mail / fax this form to XPOWER MANUFACTURE, INC.
Address: 668 S. 6th Ave., City of Industry, CA 91746, USA Tel: 626-285-3301 Fax: 626-285-3302
Warranty Registration
Company Name / Contact Person / Title
State / Province
Zip Country
(for US customer only)
(For your convenience, register your product online at xpower.com)
TO:
XPOWER MANUFACTURE, INC.
668 S. 6th Ave.,
City of Industry, CA 91746, USA
Tel: 626-285-3301, Fax: 626-285-3302
From:
