Instruction Manual
TX-RZ30
9.2-CHANNEL AV RECEIVER /
9.2-CHANNEL AV AMPLIFIER
En

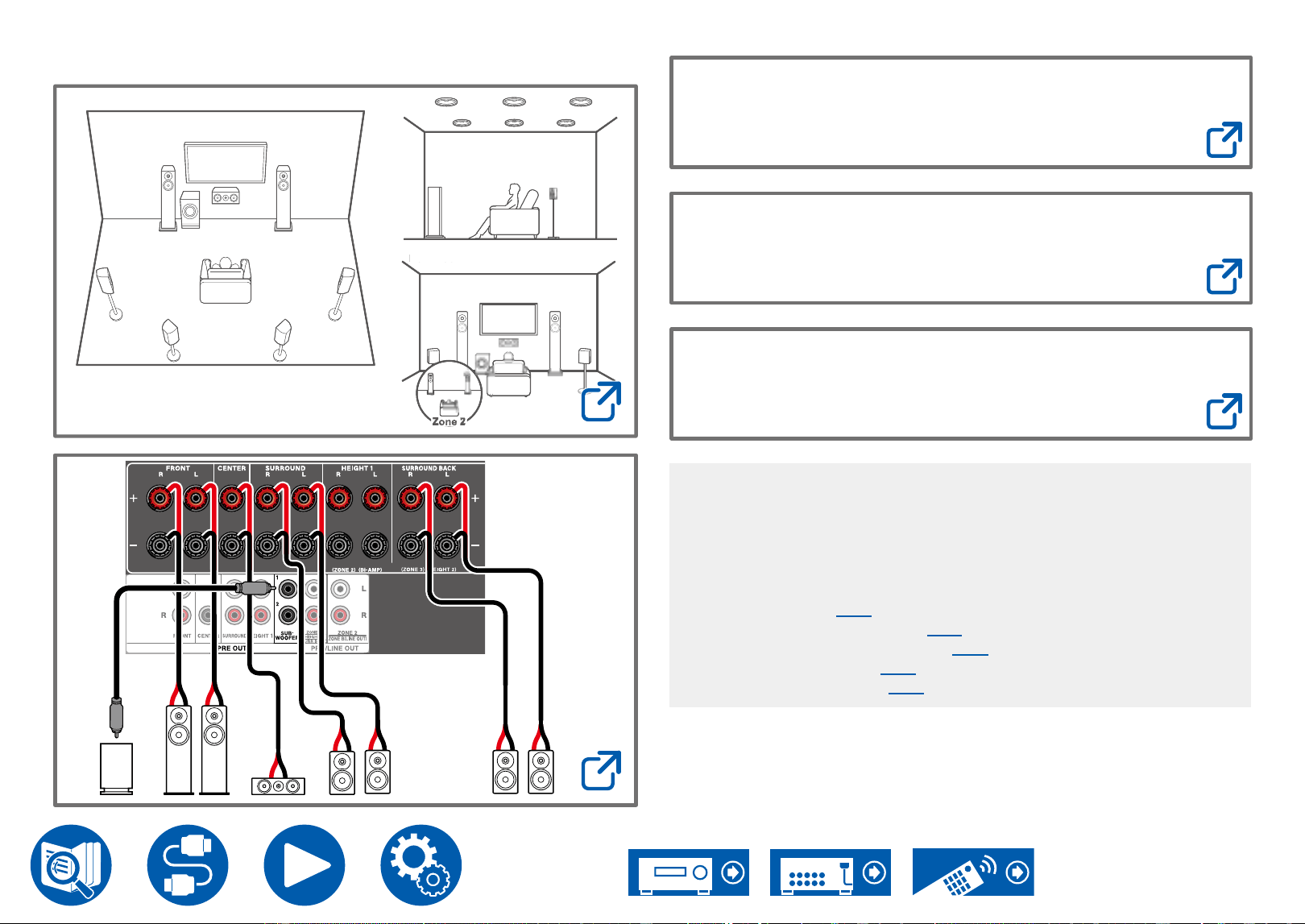

Contents
2
Reducing the Power Consumption in Standby
State
When the following functions are enabled, the power consumption in
standby state increases. To reduce the power consumption in standby state,
check each setting and set the functions to "O".
– HDMI CEC ( →p121)
– HDMI Standby Through ( →p121)
– USB Power Out at Standby ( →p128)
– Network Standby ( →p129)
– Bluetooth Wakeup ( →p129)
Table of contents
Detailed contents (Next page)
Firmware Update
Zone 2Zone 2
Main Room
Z2
Z2
Z
one
2
Zone 2
Main Room
Roo
m
Speaker LayoutSpeaker Layout
Speaker ConnectionsSpeaker Connections
Troubleshooting
Supplementary Information
Features, etc. released in rmware updates
3
Before starting the procedure 7
Firmware Update 8
Update Information of the rmware 8
Checking the Firmware Version of the Unit 8
Firmware Update Procedure 8
Part Names 11
Front Panel 11
Display 13

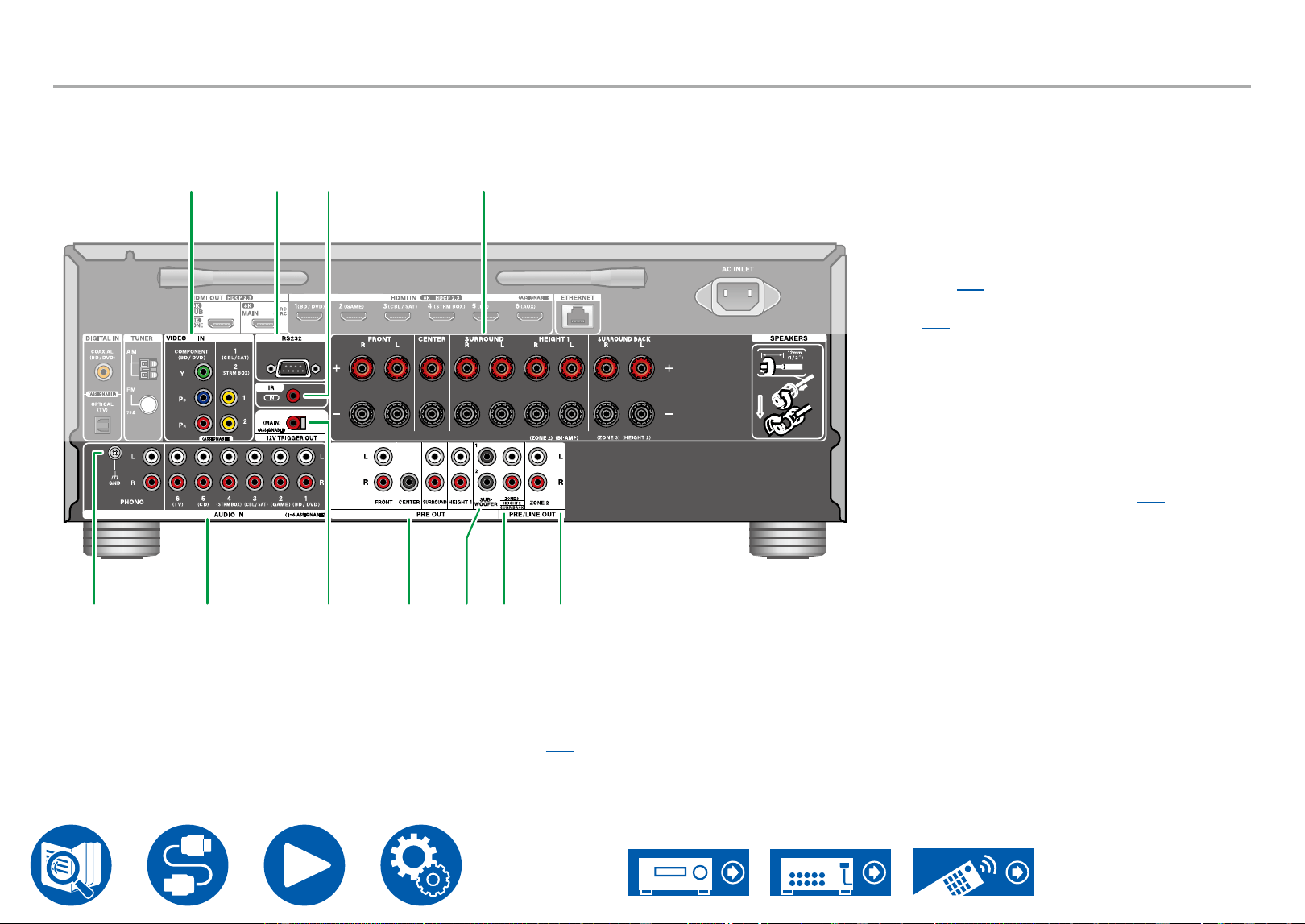

Rear Panel 14
Remote Controller 16
Inputting Characters 18
Speaker Layout
The listening room and the speaker layout 20
5.1 Channel System 21
7.1 Channel System 22
5.1.2 Channel System 23
7.1.2 Channel System 24
5.1.4 Channel System 25
Speaker Installation
Setting Up the Speakers 27
Speaker Connections
Speakers you can use with this unit and cable
connections 33
Connecting the Subwoofer 34
Connecting a Power Amplier 46
Connections
Notes regarding connections with HDMI cables 48
Connections 48
Connecting the TV 49
To ARC/eARC TV 49
To Non-ARC TV 49
Connecting the SUB Monitor 51
SUB Monitor 51
Connecting Playback Devices 52
Connections to Blu-ray/DVD Disc player and Game
consoler with HDMI jacks 52
Connecting a Blu-ray/DVD Disc player without HDMI
Jack Mounted 53
Connecting an Audio Component 54
Connecting a TV or Integrated Amplier in a separate
room (Multi-zone) 55
Connecting a TV (ZONE 2) 55
Connecting an Integrated Amplier (ZONE 2) 56
Connecting an Integrated Amplier (ZONE 3) 57
Connecting Antennas (North American and Taiwanese
models) 58
Network Connection 59
4
Connecting External Control Devices 60
IR IN port 60

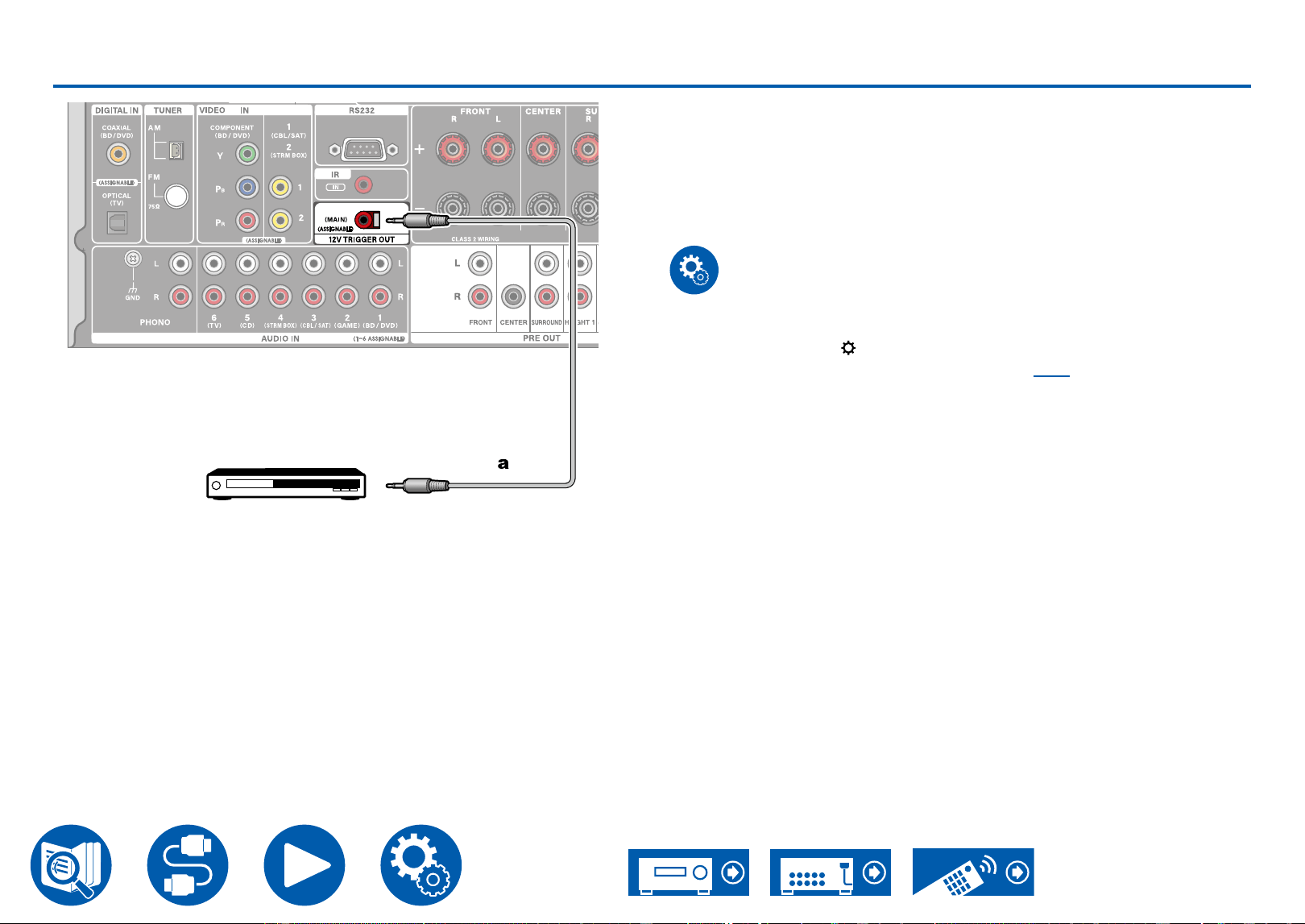

12V TRIGGER OUT jack 61
Connecting the Power Cord 62
Playback
Basic Operations 64
Turning the power on 64
Selecting a source to play 64
Adjusting the volume 65
Adjusting the sound quality 65
Using the linking function (HDMI CEC) 66
Switching the display 66
Listening Mode 67
Selecting a Listening mode 67
BLUETOOTH
®
Playback 68
Playing audio from BLUETOOTH wireless technology
enabled devices with this unit 68
Transmitting audio from this unit to BLUETOOTH
wireless technology enabled devices 69
Listening To the Radio
(North American and Taiwanese
models) 71
Listening To the AM/FM Radio 71
Presetting a Radio Station 72
Quick Menu 73
Spotify 76
AirPlay
® 77
Basic Operations 77
Playing Back on multiple devices (AirPlay2) 78
Amazon Music 79
Registering This Unit with Amazon Music 79
Playing Amazon Music using the Onkyo Controller 80
Playing Amazon Music using the remote controller 80
TIDAL 81
Registering This Unit with TIDAL 81
Playing TIDAL 81
Connecting the Sonos System for Playback 82
Necessary Equipment 82
How to Connect This Unit and Sonos Port 82
Setting Up 82
Playing Sonos on This Unit 83
Internet Radio 84
Playing Back 84
Multi-zone 86
Playing Back (ZONE 2) 87
Playing Back (ZONE 3) 89
Playing dierent audio and video 91
5
Displaying Your Favorite Video on TV While Playing
Music 91
Playing music les saved on a USB storage device 93
USB Storage Device Requirements 94
Music Server 95
Music Server notes 95
Windows Media
®
Player 12 settings 95
Playing Back 96
Play Queue 98
Adding Play Queue Information 98
Sort and Delete 98
Playing Back 99
Setup
Setup Menu 101
Menu list 101
1. Input/Output Assign 103
2. Speaker 108
3. Audio Adjust 116
4. Source 119
5. Hardware 121
6. Multi Zone 132
7. Miscellaneous 134
Web Setup 136
Menu operations 136
Initial Setup with Auto Start-up Wizard 137
Operations 137
1. Speaker Setup 138
2. Multi Zone Sound Check 139
3. ARC Setup 139
4. Room EQ 139
Onkyo Controller 143
Main features 143
Initial Setup 143
Dirac Live 144
Measuring with Dirac Live 144
Using Dirac Live 145
Manual Adjust 146
Troubleshooting
Before starting the procedure 148
When the unit is operating erratically 149
Troubleshooting 150
Appendix
Speaker Layouts and Selectable Listening Modes 156
LISTENING MODE buttons and Selectable Listening
Modes 159
Input Formats and Selectable Listening Modes 161
Listening Mode Eects 165
7
Before starting the procedure
What's in the box
A
2 3 4
5 6

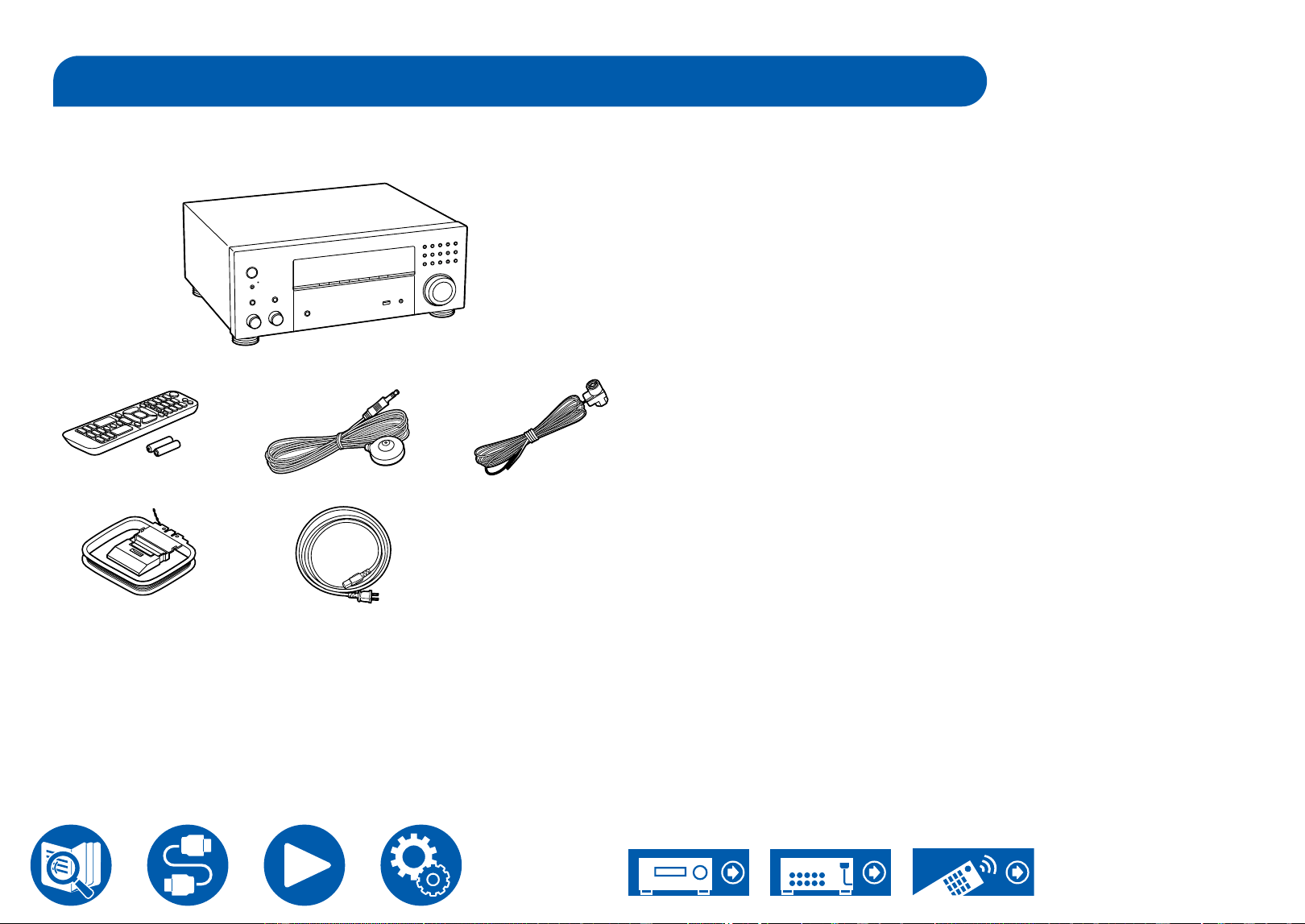

A Main unit (1)
B Remote controller (RC-972R) (1)
Batteries (AAA/R03) (2) (Some models only)
C Speaker setup microphone (1)
• Used during Initial Setup.
D Indoor FM antenna (North American and Taiwanese models) (1)
E AM loop antenna (North American and Taiwanese models) (1)
F Power cord (1) *Depending on the model, 2 or more Power Cords are
supplied. Use the type of cord suited to your area.
• Initial Setup Guide (1)
* This is an online user manual. This is not supplied with the product.
Note
• Connect speakers with an impedance of 4 Ω to 16 Ω.
• The power cord must be connected only after all other connections are
completed.
• Install new batteries in the remote controller. Do not mix dierent types of
batteries, or old and new batteries.
• We will not accept any responsibility for damage arising from the connection
with equipment manufactured by other companies.
• Network services and content that can be used may no longer be available
if new functions are added by updating rmware or the service providers
terminate their services. Also, available services may dier depending on
your area.
• Details on the rmware update will be posted on our website and through
other means at a later date.
• The illustrations in this manual use those of North American models unless
otherwise mentioned.
• Specications and appearance are subject to change without prior notice.
8
Firmware Update
Disclaimer: The program and accompanying online documentation are
furnished to you for use at your own risk.
Our company will not be liable and you will have no remedy for damages for
any claim of any kind whatsoever concerning your use of the program or the
accompanying online documentation, regardless of legal theory, and whether
arising in tort or contract.
In no event will our company be liable to you or any third party for any special,
indirect, incidental, or consequential damages of any kind, including, but not
limited to, compensation, reimbursement or damages on account of the loss of
present or prospective prots, loss of data, or for any other reason whatsoever.
Update Information of the rmware
For the latest rmware contents and the rmware version, visit website.
• When this unit is connected to the network, notications of rmware
updates may be displayed. To update the rmware, select "Update Now"
with the cursor buttons of the remote controller and press ENTER. The unit
automatically enters standby mode after "Completed!" is displayed, and the
update is completed.
Checking the Firmware Version of the Unit
To conrm the rmware version of your product, press the SETUP button
on the remote controller, and refer to "Miscellaneous" - "Firmware Update" -
"Version" ( →p134).
Firmware Update Procedure
Updating can take about 20 minutes. Furthermore, existing settings are
maintained regardless of the method used for update.
Updating the Firmware via Network
• While updating the rmware, do not do the following:
– Disconnecting and reconnecting cables, USB storage device, speaker
setup microphone or headphones, or performing operations on the unit
such as turning the power o
– Accessing this unit from a PC or smartphone using their applications
• Check that the unit is turned on, and the connection to the Internet is secured.
• Turn o control devices (PC etc.) connected to the network.
• Stop an Internet radio, USB storage device, or server content being played.
• If the multi-zone function is active, turn it o.
• If "HDMI CEC" is set to "On", set it to "O".
– Press the SETUP. Next, select "Hardware" - "HDMI" and press ENTER,
then select "HDMI CEC" and select "O".
* The descriptions may dier from the actual on-screen displays, however, operations
and functions are the same.
Update
1. Press SETUP.
The Setup menu is displayed on the TV screen.
2. Select “Miscellaneous” - “Firmware Update” - “Update via NET” in order and
press ENTER.
• If “Firmware Update” is not available for selection, wait until the system has
started.
• If there is no updatable rmware, “Update via NET” cannot be selected.
3. Press ENTER with "Update" selected, and start update.
• During the update, the TV screen may go black depending on the program
to be updated. In such a case, check the progress on the display of the
unit. The TV screen will remain black until the update is completed and the
power is turned on again.
• "Completed!" is displayed when updating is completed.
9
4. Press ON/STANDBY on the main unit to turn the unit into standby mode.
The process is completed, and your rmware is updated to the latest version.
• Do not use on the remote controller.
If an Error Message is Displayed
If an error occurs, "- Error!" is displayed on the display of the unit. (""
represents an alphanumeric character.) Refer to the following descriptions and
check.
Error Code
• -01, -10:
Ethernet cable not found. Connect the Ethernet cable properly.
• -02, -03, -04, -05, -06, -11, -13, -14, -16, -17, -18, -20,
-21:
Internet connection error. Check the following:
– Whether the router is turned on
– Whether this unit and the router are connected via the network
Unplug and plug the power cords of this unit and the router. This may solve
the problem. If you are still unable to connect to the Internet, the DNS server
or proxy server may be temporarily down. Check the server operation status
with your Internet service provider.
• Others:
After removing the power plug once, insert it to the outlet, and then start the
operation from the beginning.
Updating via USB
• While updating the rmware, do not do the following:
– Disconnecting and reconnecting cables, USB storage device, speaker
setup microphone or headphones, or performing operations on the unit
such as turning the power o
– Accessing this unit from a PC or smartphone using their applications
• Prepare a 1 GB or larger USB storage device. The format of USB storage
devices supports FAT16 or FAT32 le system format.
– Media inserted into a USB card reader may not be used for this function.
– USB storage devices equipped with the security function are not
supported.
– USB hubs and USB devices equipped with the hub function are not
supported. Do not connect these devices to the unit.
• Delete any data stored on the USB storage device.
• Turn o control devices (PC etc.) connected to the network.
• Stop an Internet radio, USB storage device, or server content being played.
• If the multi-zone function is active, turn it o.
• If "HDMI CEC" is set to "On", set it to "O".
– Press the SETUP. Next, select "Hardware" - "HDMI" and press ENTER,
then select "HDMI CEC" and select "O".
* Depending on the USB storage device or its content, long time may be required
for loading, the content may not be loaded correctly, or power may not be supplied
correctly.
* Our company will not be liable whatsoever for any loss or damage of data, or
storage failure arising from the use of the USB storage device. Please note this in
advance.
* The descriptions may dier from the actual on-screen displays, however, operations
and functions are the same.
Update
1. Connect the USB storage device to your PC.
2. Download the rmware le from the our company's website to your PC and
unzip.
Firmware les are named as below.
ONKAVR_R.zip
Unzip the le on your PC. The number of unzipped les and folders varies
depending on the model.
3. Copy all unzipped les and folders to the root folder of the USB storage
device.
• Make sure to copy the unzipped les.
10
4. Connect the USB storage device to the USB port of this unit.
• If an AC adapter is supplied with the USB storage device, connect the AC
adapter, and use it with a household outlet.
• If the USB storage device has been partitioned, each section will be
treated as an independent device.
5. Press SETUP.
The Setup menu is displayed on the TV screen.
6. Select “Miscellaneous” - “Firmware Update” - “Update via USB” in order and
press ENTER.
• If “Firmware Update” is not available for selection, wait until the system has
started.
• "Update via USB" will not be available for selection if the rmware of the
unit is the latest.
7. Press ENTER with "Update" selected, and start update.
• During the update, the TV screen may go black depending on the program
to be updated. In such a case, check the progress on the display of the
unit. The TV screen will remain black until the update is completed and the
power is turned on again.
• During the update, do not turn the power o, or disconnect or reconnect
the USB storage device.
• "Completed!" is displayed when updating is completed.
8. Disconnect the USB storage device from the unit.
9. Press ON/STANDBY on the main unit to turn the unit into standby mode.
The process is completed, and your rmware is updated to the latest version.
• Do not use ON/STANDBY on the remote controller.
If an Error Message is Displayed
If an error occurs, "- Error!" is displayed on the display of the unit. (""
represents an alphanumeric character.) Refer to the following descriptions and
check.
Error Code
• -01, -10:
The USB storage device cannot be recognized. Check if the USB storage
device or USB cable is securely inserted to the USB port of the unit.
Connect the USB storage device to an external power source if it has its own
power supply.
• -05, -13, -20, -21:
The rmware le is not present in the root folder of the USB storage device,
or the rmware le is for another model. Retry from the download of the
rmware le.
• Others:
After removing the power plug once, insert it to the outlet, and then start the
operation from the beginning.
11
Part Names

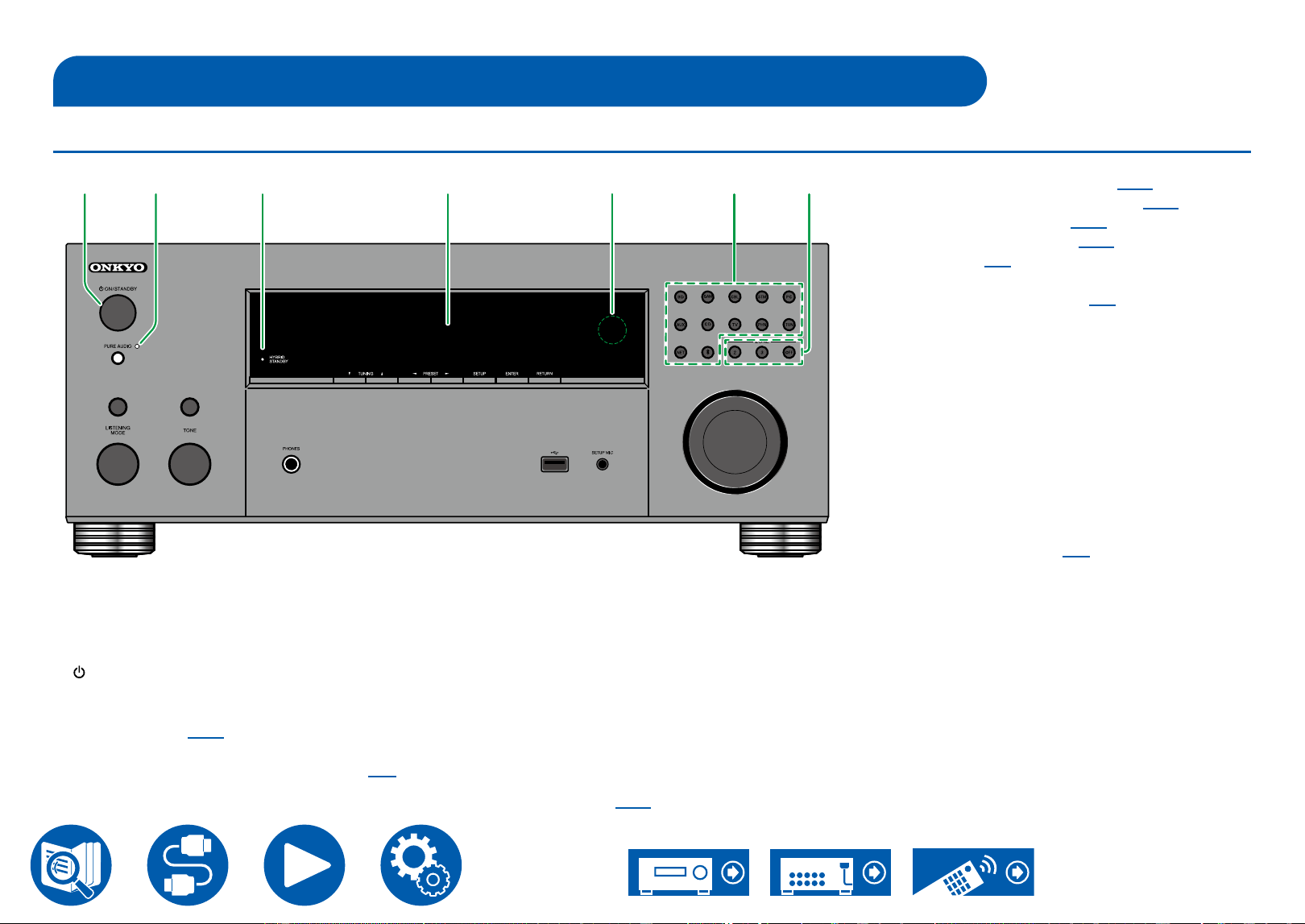

Front Panel
A ON/STANDBY button
B PURE AUDIO button/indicator: Switches to the
Pure Audio mode. The indicator lights when the
mode is on. ( →p169)
• The Pure Audio mode cannot be selected
when the Multi-zone feature is on. ( →p86)
C HYBRID STANDBY indicator: Lights up when
any of the following functions is working or
enabled in standby state of this unit. When this
indicator is lighting, the power consumption in
standby state increases, however, the increase
in power consumption is minimized by entering
the HYBRID STANDBY mode where only the
essential circuits operate.
– HDMI CEC ( →p121)
– HDMI Standby Through ( →p121)
– USB Power Out at Standby ( →p128)
– Network Standby ( →p129)
– Bluetooth Wakeup ( →p129)
D Display ( →p13)
• When the Dimmer function is working, the
display may go dim. ( →p17)
• When you press the 2 PURE AUDIO button,
the Pure Audio mode turns on and the display
panel turns o.
E Remote control sensor: Receives signals from
the remote controller.
• The reception range of the remote controller
is within a distance of approx. 16´/5 m, and
an angle of 20° in vertical direction and 30° to
right and left.
F Input selector buttons: Switches the input to be
played.
G ZONE 2/ZONE 3 buttons: Controls the
multizone function. ( →p86)
OFF button: Switches the multi-zone function
o.
A B
3 4 5 6 7
12

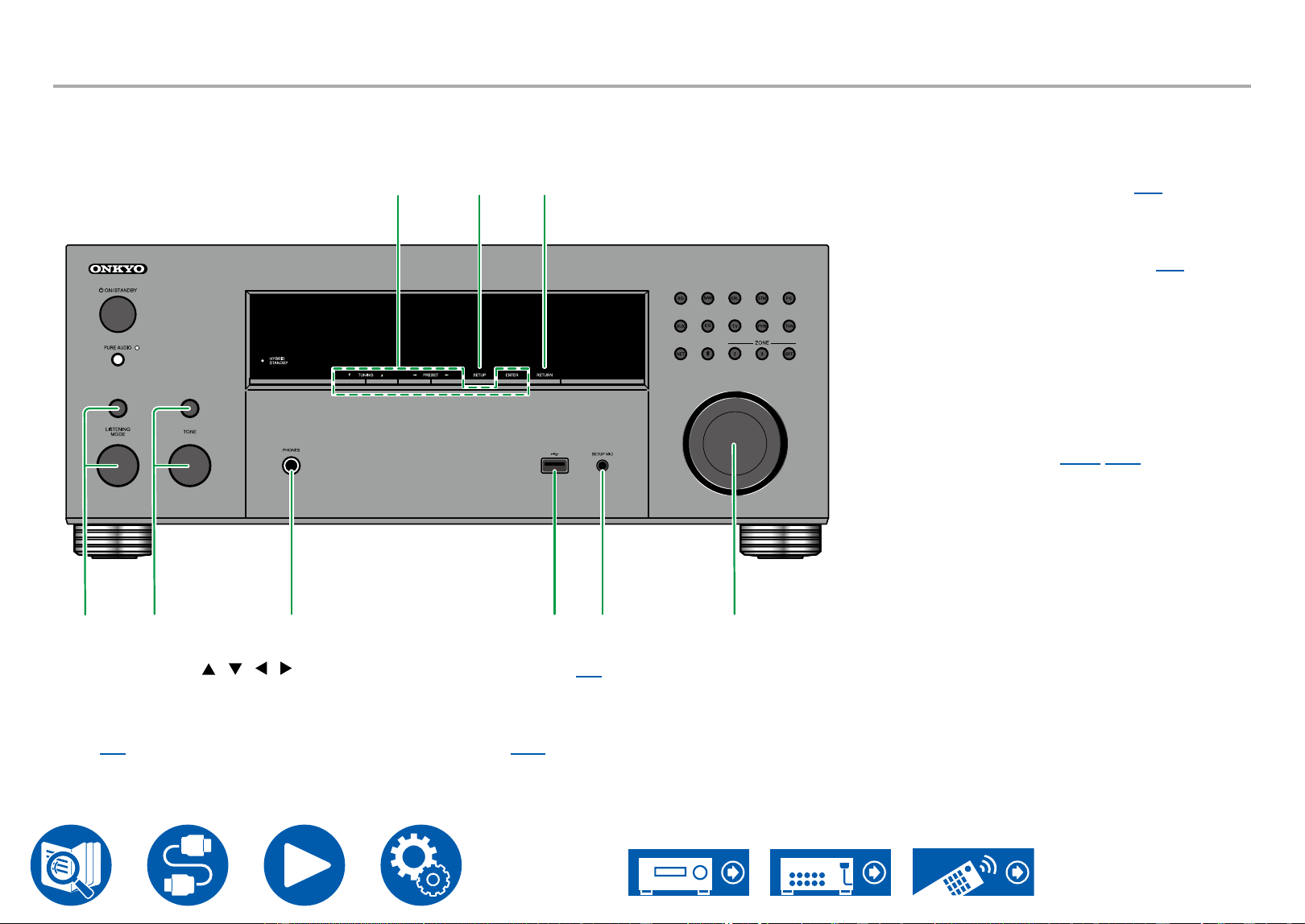

Front Panel
9 J
K
8
ML N O P
H Cursor buttons ( / / / ) and ENTER
button: Select an item with the cursors, and
press ENTER to conrm your selection.
Use them to tune to stations when using TUNER
( →p71)
TUNING/PRESET button (North American and
Taiwanese models): Used to select AM/FM radio
stations. ( →p71)
I SETUP button: You can display advanced
setting items on the TV and the display to have
a more enjoyable experience with this unit.
( →p101)
J RETURN button: Returns the display to the
previous state while setting.
K LISTENING MODE button/dial: Press the
LISTENING MODE button (above) to select a
category from “Movie/TV”, “Music” and “Game”,
and then turn the LISTENING MODE dial (below)
to change the listening mode ( →p67).
L TONE button: Adjusts the sound quality. Press
the TONE button (above) to select an item to
adjust from “Bass”, “Vocal” and “Treble”, and turn
the TONE dial (below) to adjust. ( →p65)
M PHONES jack: Connect headphones with a
standard plug (ø1/4″/6.3 mm).
• While headphones are connected to the
PHONES jack, no sound is output from the
speakers.
N USB port: Connect a USB storage device to play
music les. You can also supply power (5 V/1 A)
to USB devices with a USB cable.
O SETUP MIC jack: Connect the supplied speaker
setup microphone. ( →p140, p142)
P MASTER VOLUME dial
13

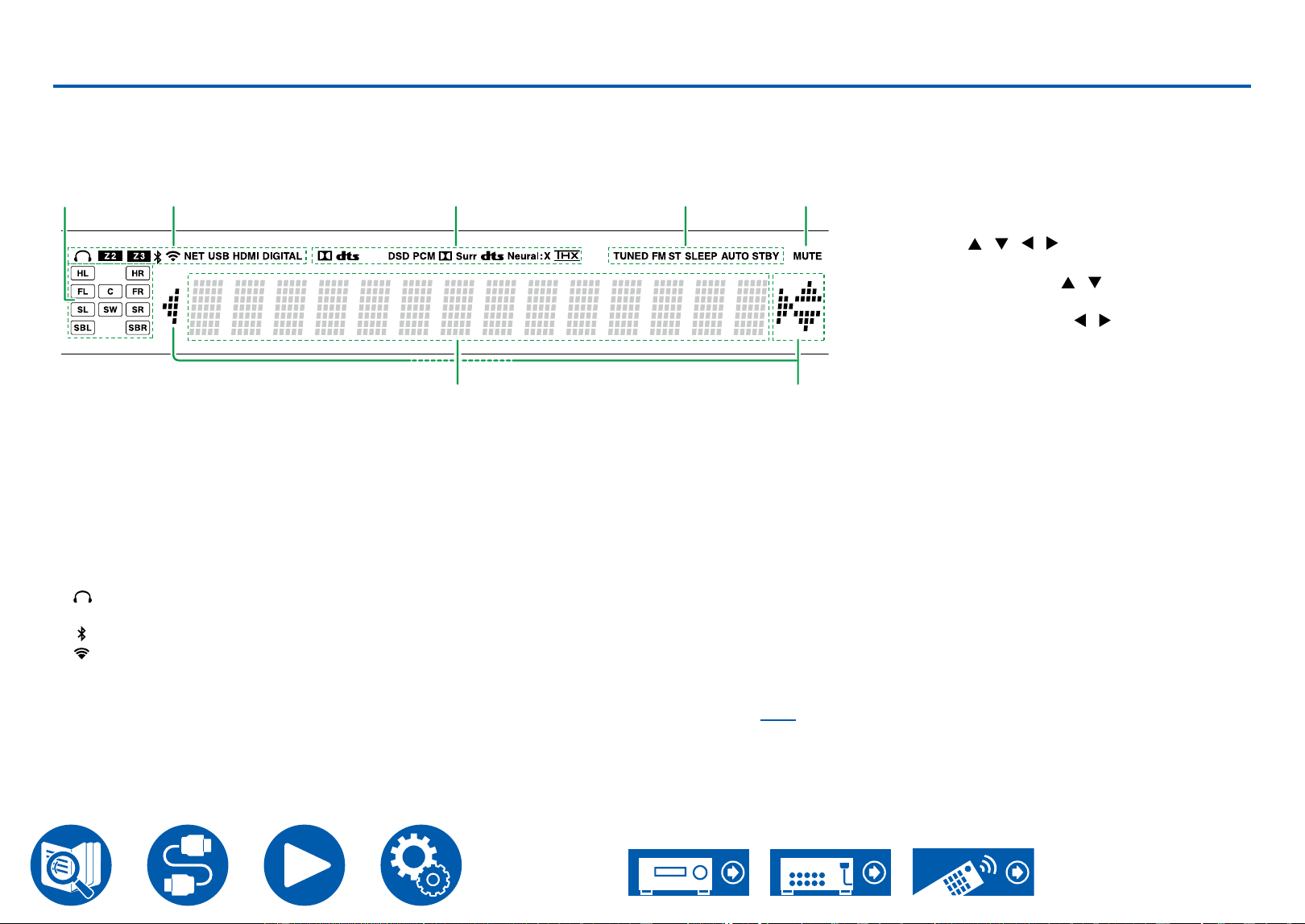

Display
A2 34
5
67
A Speaker/Channel display: Displays the output
channel that corresponds to the selected
listening mode.
B Lights in the following conditions.
: Headphones are connected.
Z2/Z3: ZONE 2/ZONE 3 is on.
: Connected by BLUETOOTH.
: Connected by Wi-Fi.
NET: Lights when connected to the network with
the "NET" input selector. It will blink if incorrectly
connected to the network.
USB: Lights when the "NET" input selector is
selected, a USB device is connected and the
USB input is selected. It will blink if the USB
device is not properly connected.
HDMI: HDMI signals are input and the HDMI
input is selected.
DIGITAL: Digital signals are input and the digital
input is selected.
C Lights according to the type of input digital audio
signal and the listening mode.
D Lights in the following conditions.
TUNED: Receiving AM/FM radio. *
FM ST: Receiving FM stereo. *
SLEEP: Sleep timer is set.
AUTO STBY: Auto Standby is set. ( →p128)
* North American and Taiwanese models
E Blinks when muting is on.
F Displays various information of the input signals.
• "DialogNorm: X dB" ("X" is a numerical value)
may be displayed when software recorded in
Dolby lineage or DTS lineage audio formats
is played. For example, if "DialogNorm:
+4 dB" is displayed, the source being played
is recorded with 4 dB plus the THX standard
level. If you play it with the THX standard
level, lower the volume by 4 dB.
G Cursors (
/ / / ): These may light when
performing operations while "NET" is selected
with the input selector. / UP/DOWN light
when there are multiple folders or les that are
available to be selected. / LEFT/RIGHT light
when text information does not t with the range
provided by "6".
14

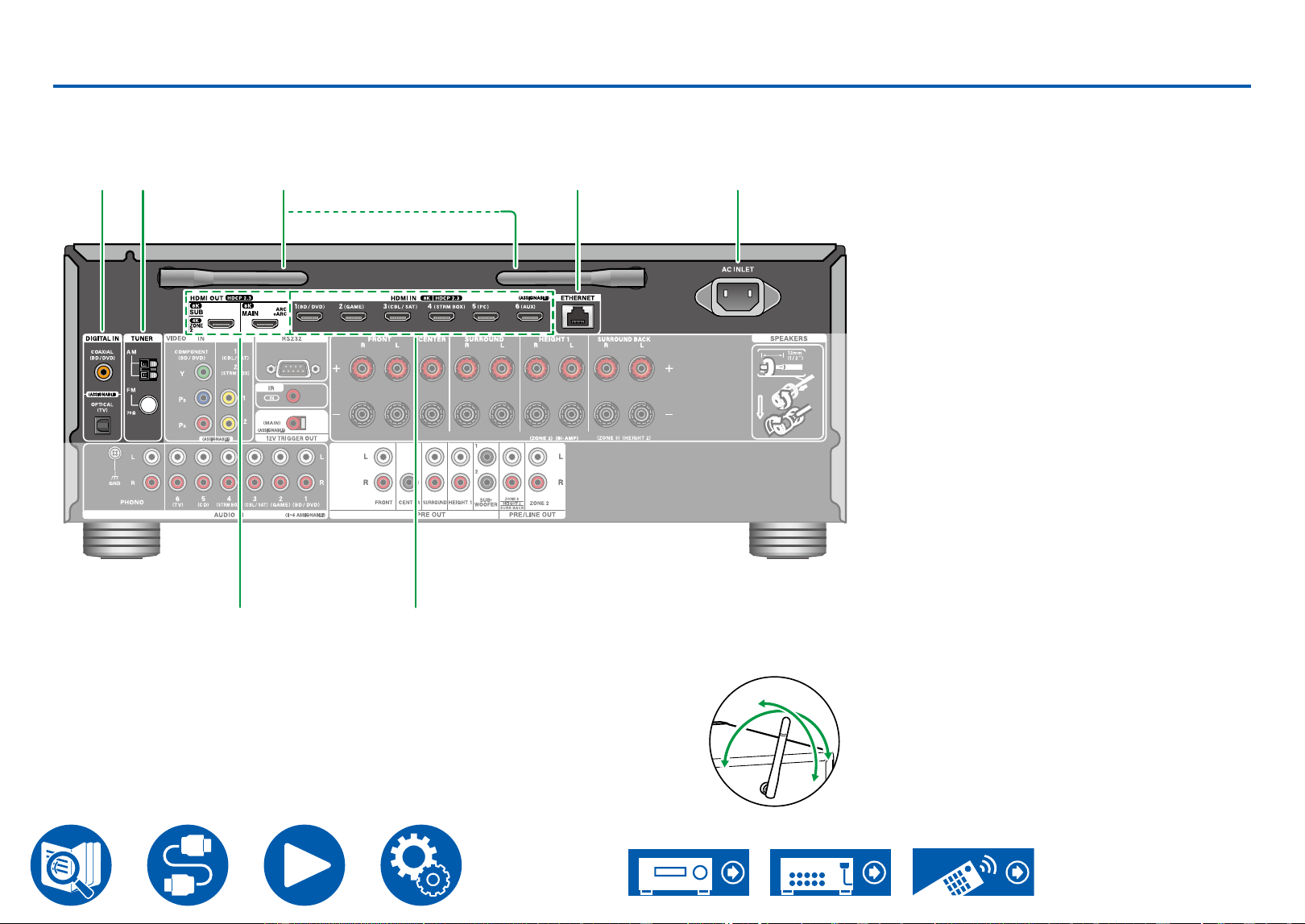

Rear Panel
A 2 3
6 7
4 5
A DIGITAL IN OPTICAL/COAXIAL jacks: Input
TV or AV component digital audio signals with a
digital optical cable or digital coaxial cable.

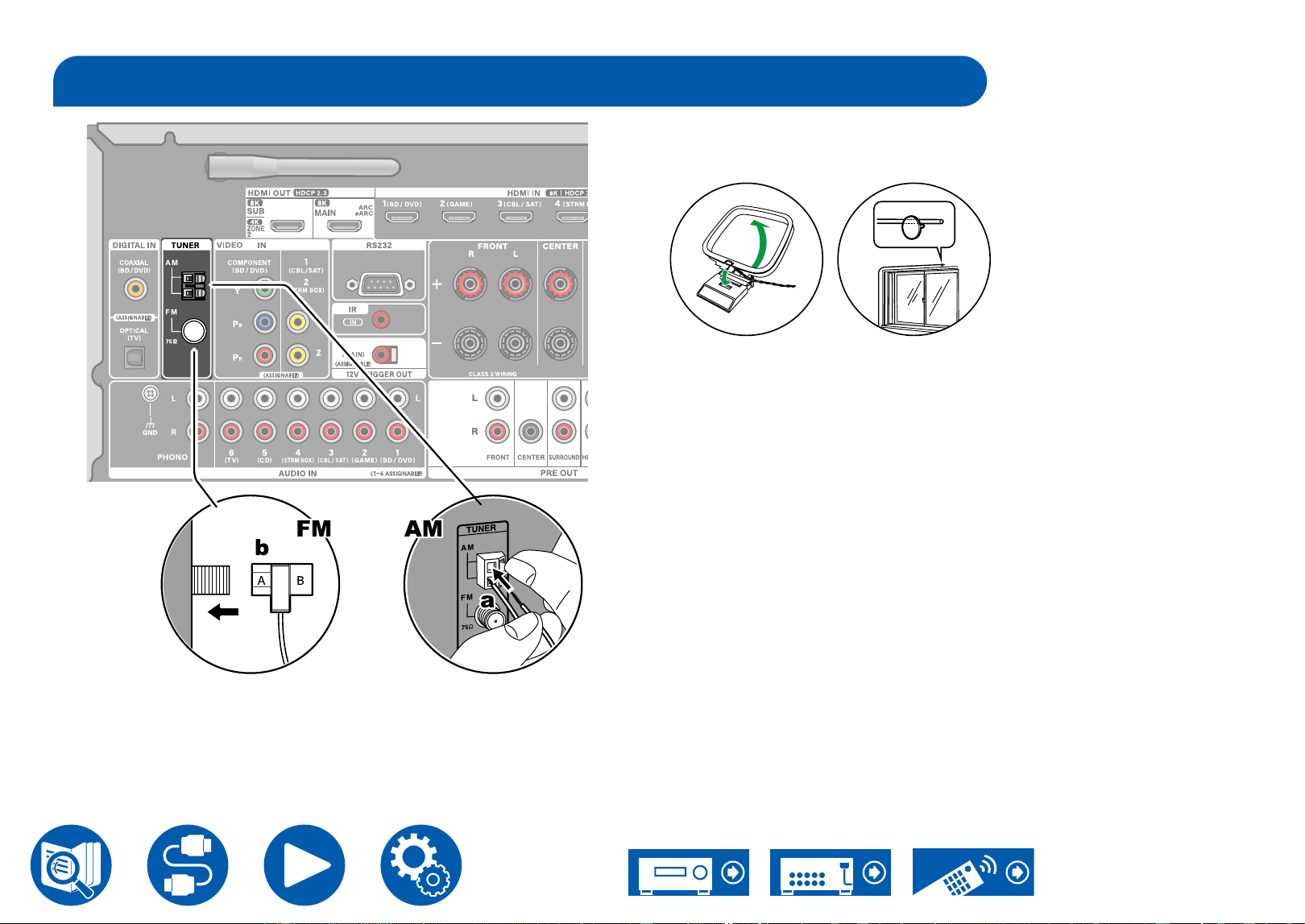

B TUNER AM/FM terminal (North American
and Taiwanese models): Connect the supplied
antennas.
C Wireless antenna: Used for
WI-Fi connection or when
using a BLUETOOTH enabled
device. Adjust the angles
according to the connection
status.

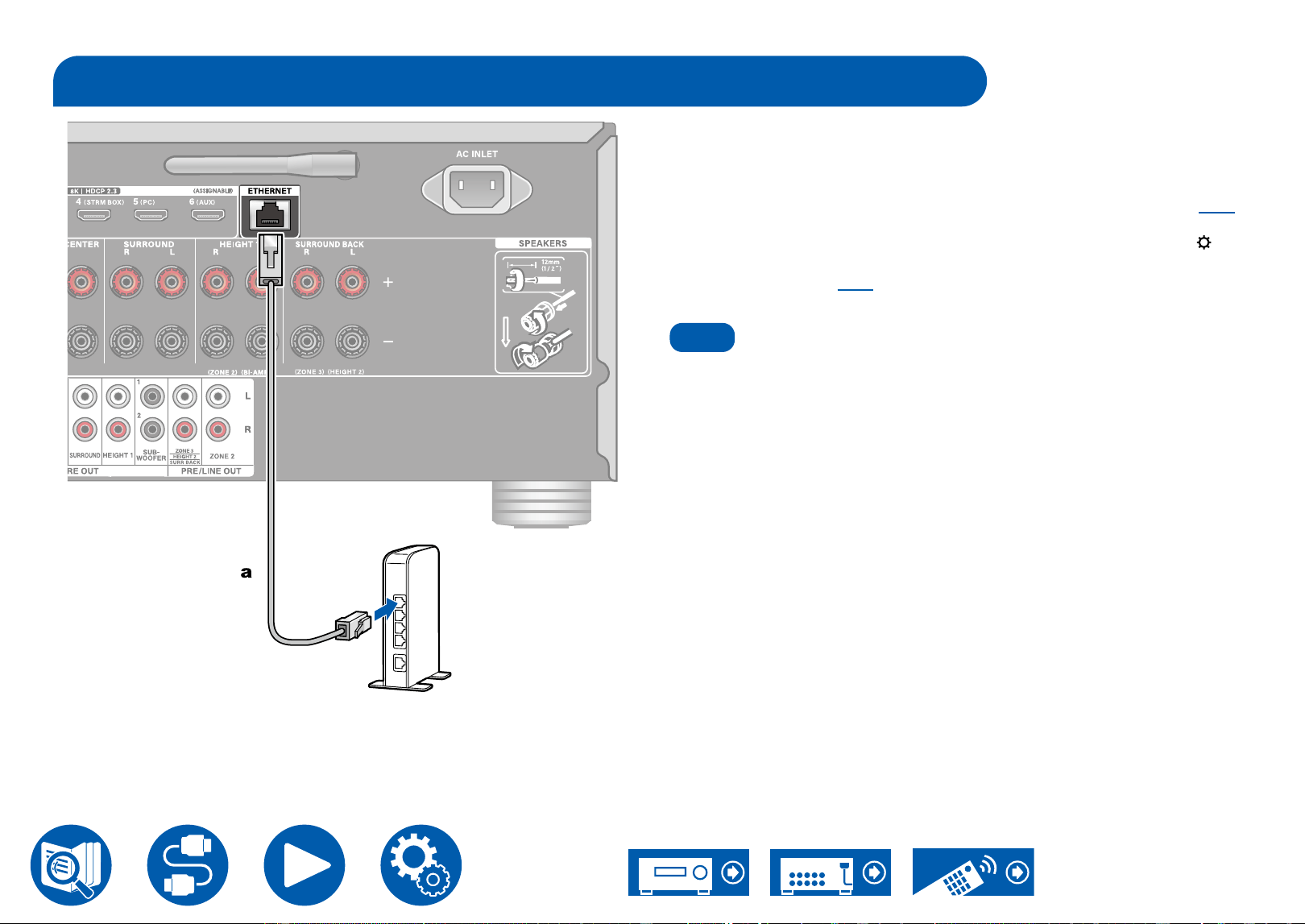

D ETHERNET port: Connect to the network with
an Ethernet cable.
E AC INLET: Connect the supplied power cord.

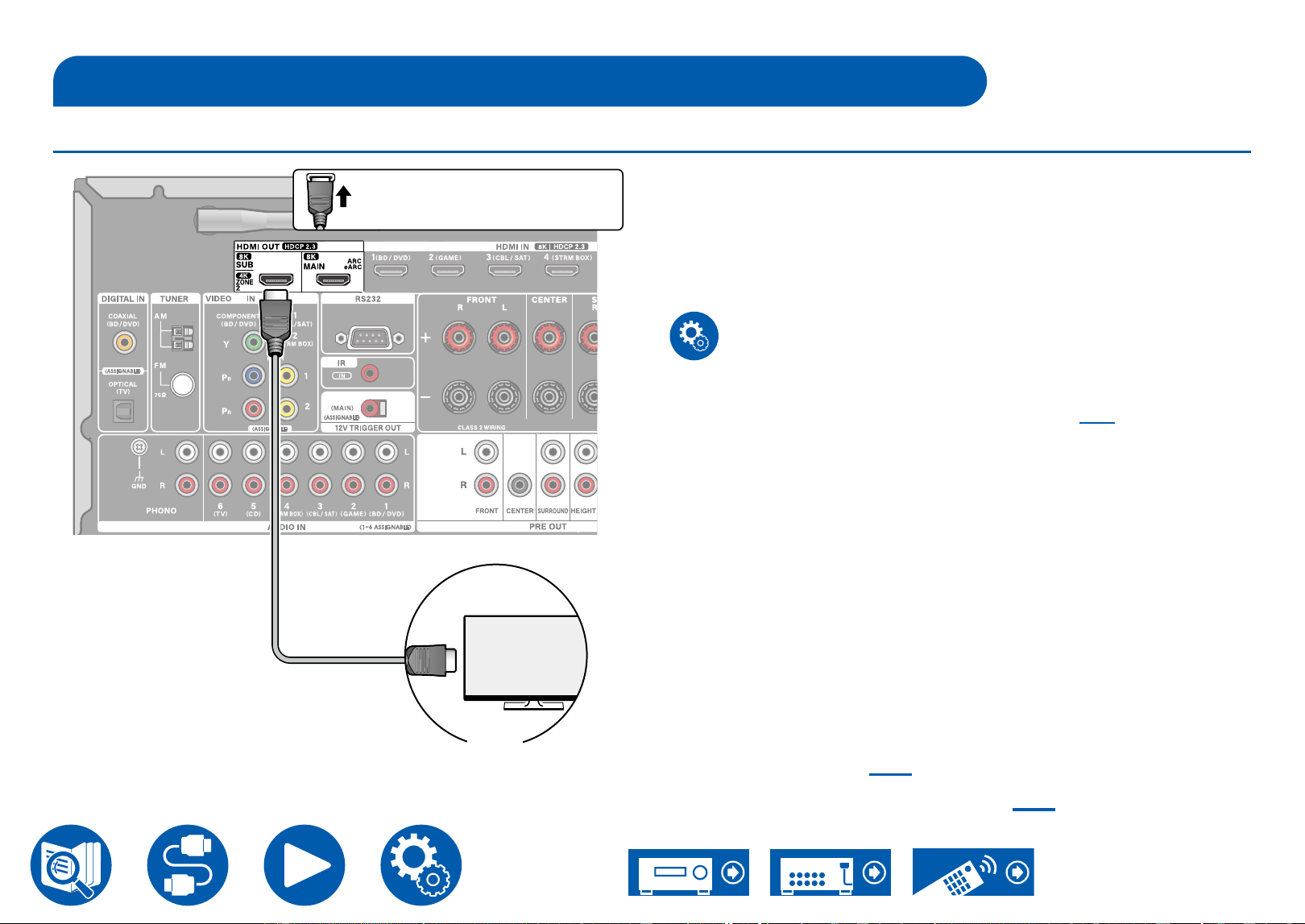

F HDMI OUT jacks: Transmit video signals and
audio signals with an HDMI cable connected to a
monitor such as a TV or projector.

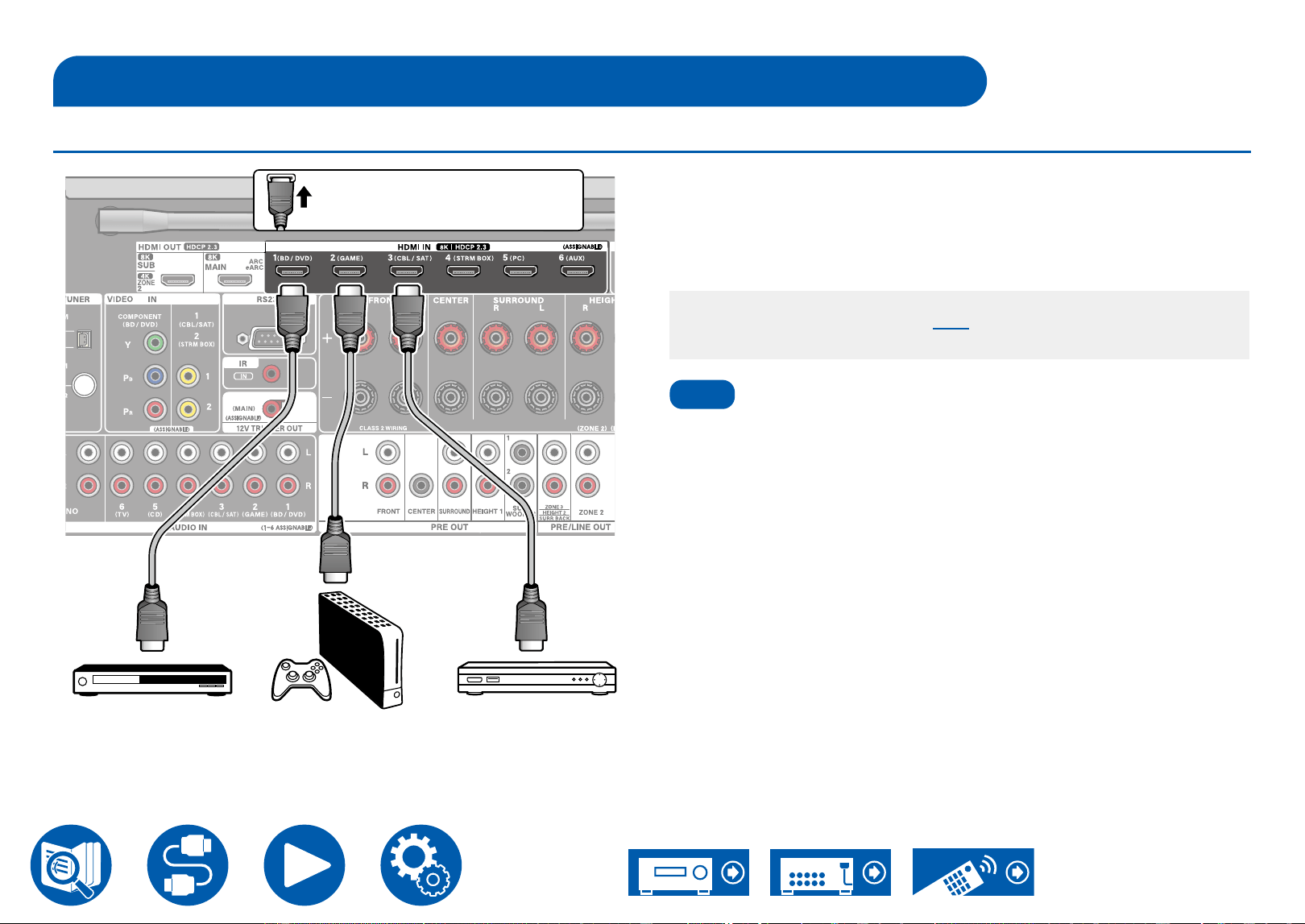

G HDMI IN jacks: Transmit video signals and audio
signals with an HDMI cable connected to an AV
component.
180°
90°
15
Rear Panel
8 9 J K
M N OL P Q R

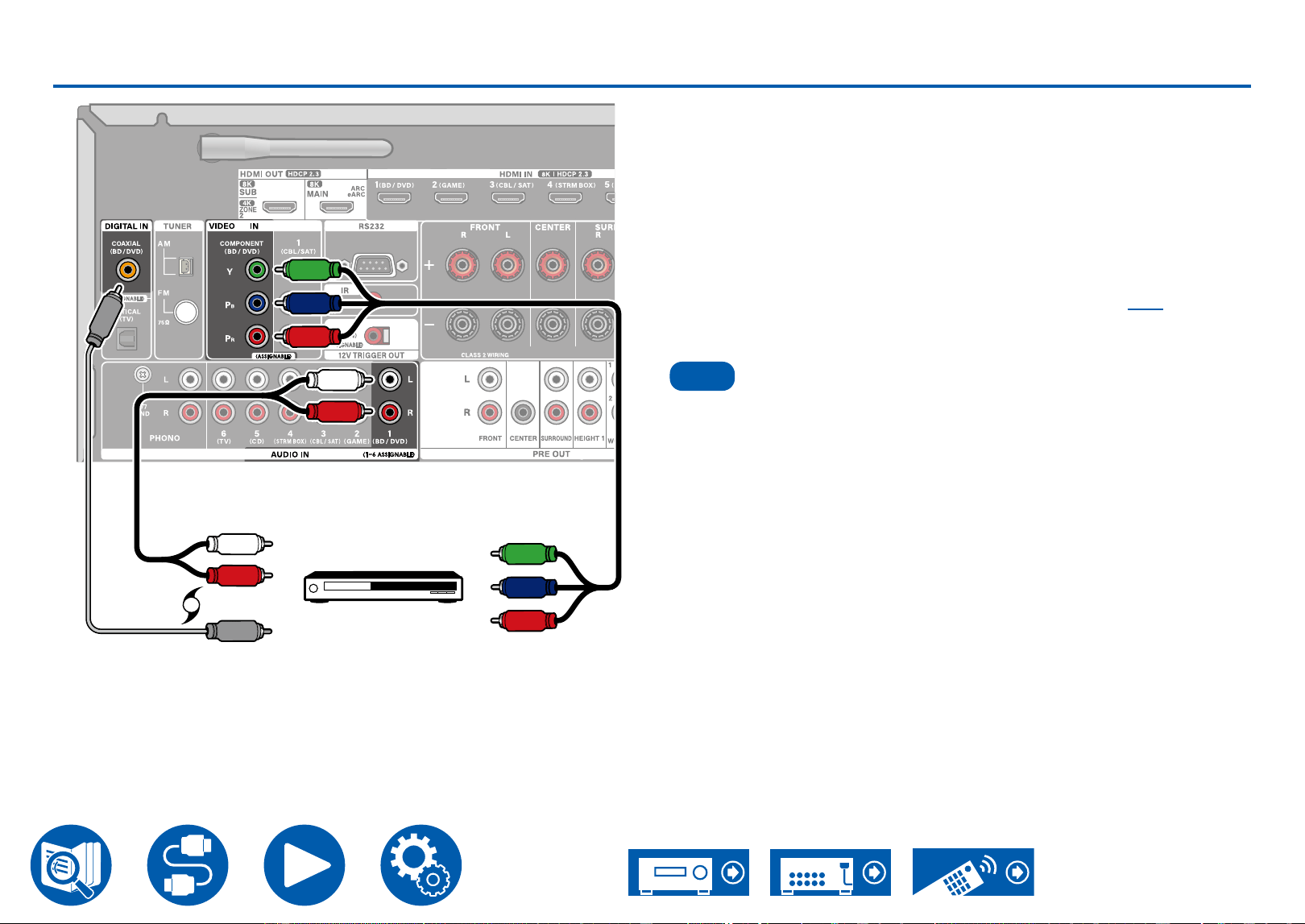

H COMPONENT VIDEO IN jacks: Input AV
component video signals with a component
video cable. (Compatible only with 480i or 576i
resolution.)
VIDEO IN jacks: Input AV component video
signals with an analog video cable.
I RS232 port: Connect a home control system
equipped with an RS-232C port. For installing
a home control system, contact the specialized
stores.
J IR IN port: Connect a remote control receiver
unit. ( →p60)

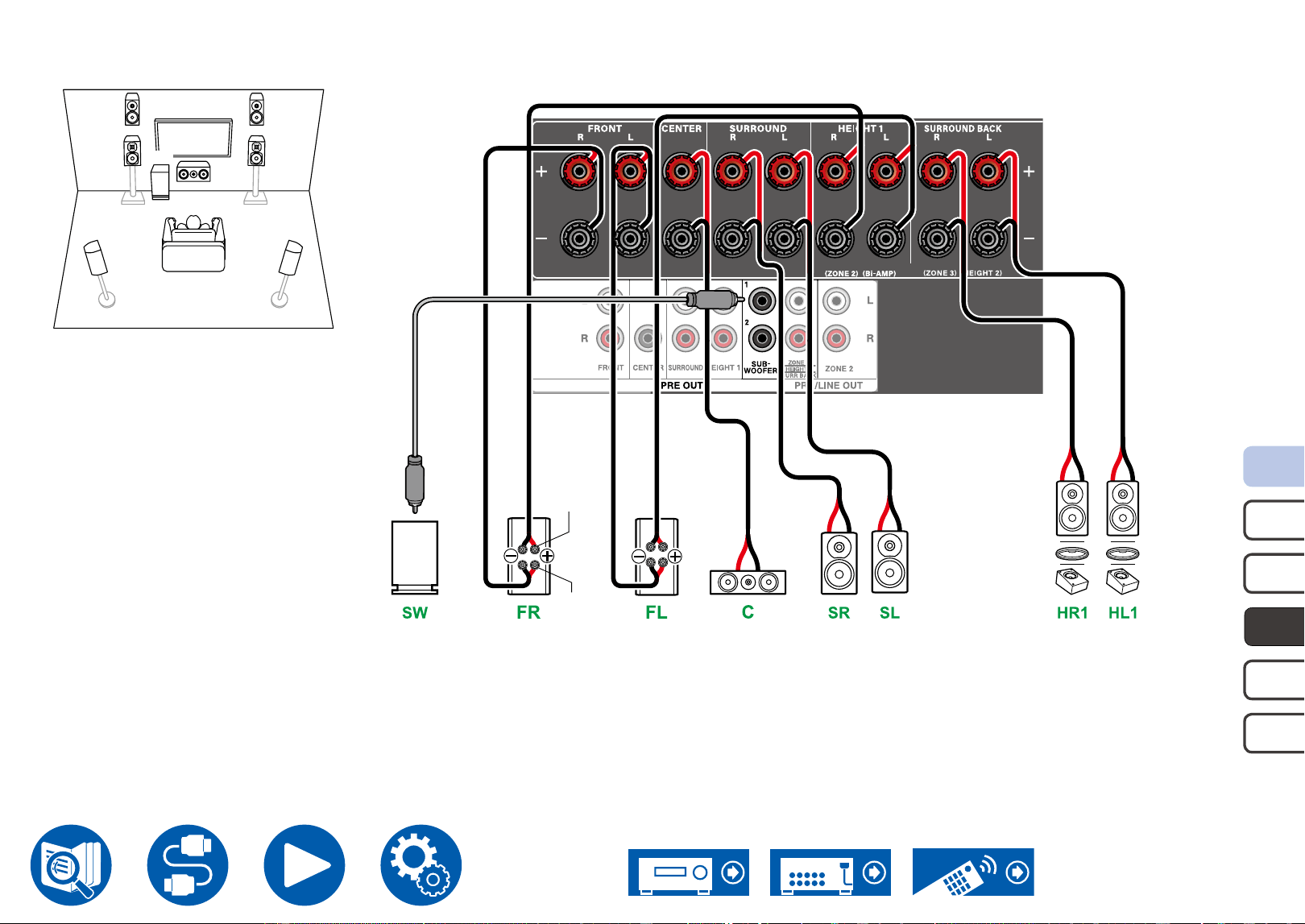

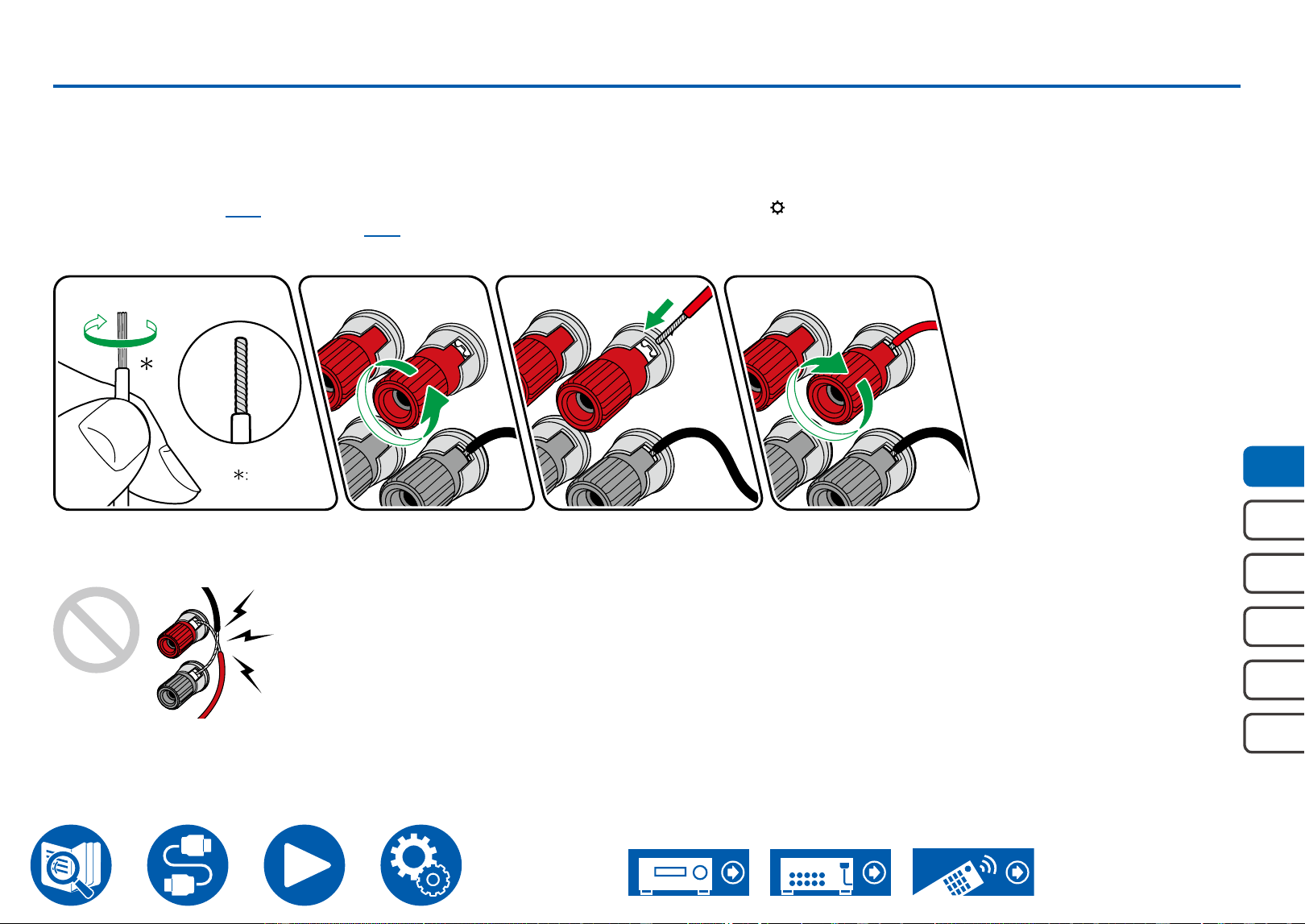

K SPEAKERS terminals: Connect speakers with
speaker cables. (North American models support
banana plugs. Use a plug 4 mm in diameter.)
Spade lug connection is not supported.
L GND terminal: Connect the ground wire of the
turntable.
M AUDIO IN jacks: Input AV component audio
signals with an analog audio cable.
N 12V TRIGGER OUT jack: Connect a device
equipped with a 12V trigger input jack to enable
power link operation between the device and this
unit. ( →p61)
O PRE OUT jacks: Connect to a power amplier.
( →p46)
P SUBWOOFER PRE OUT jacks: Connect a
powered subwoofer with a subwoofer cable. Up
to two powered subwoofers can be connected.

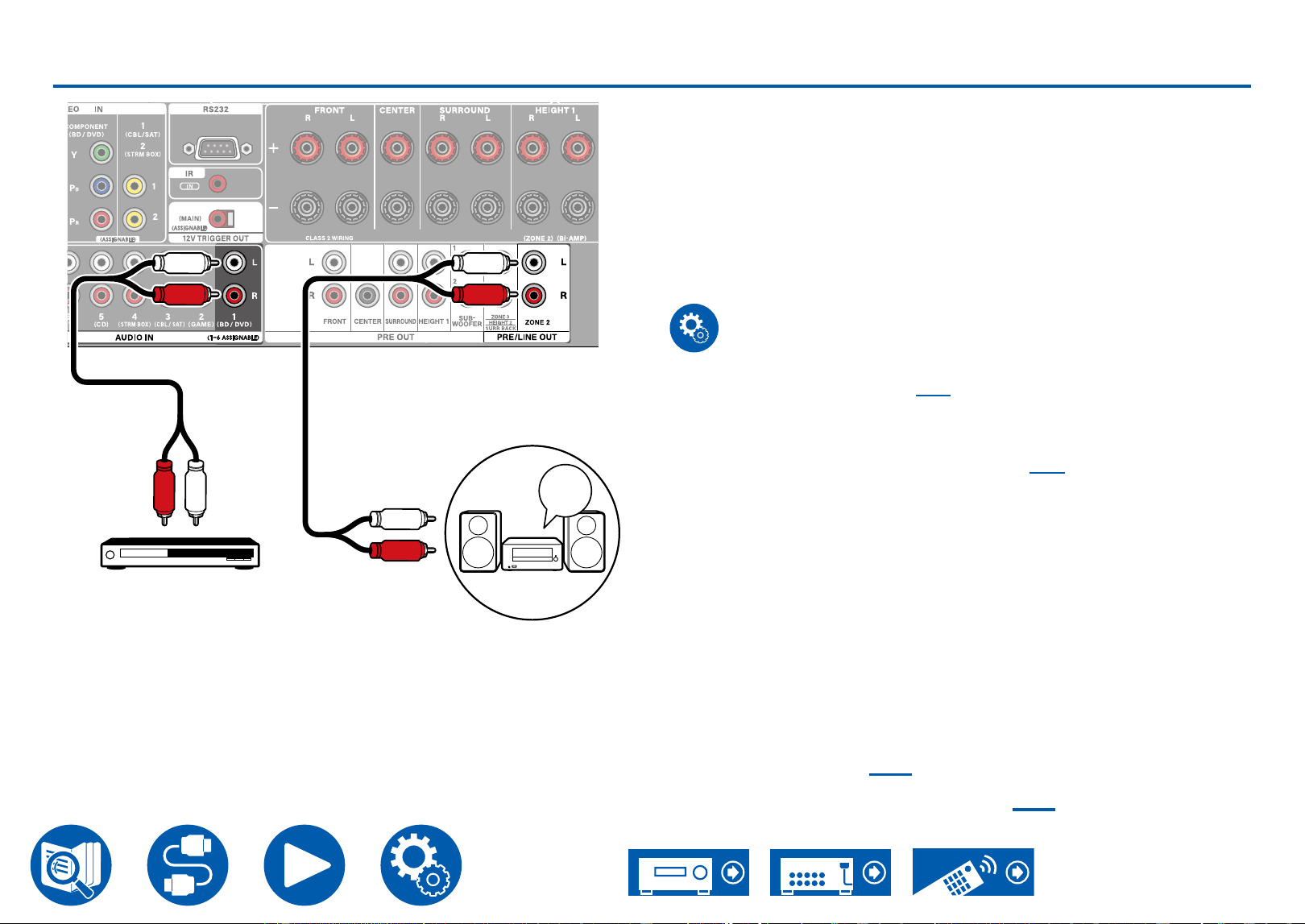

Q ZONE 3 PRE/LINE OUT jacks: Output audio
signals with an analog audio cable connected
to an integrated amplier in a separate room
(ZONE 3).
HEIGHT 2/SURR BACK PRE OUT jacks:
Connect to a power amplier. ( →p46)

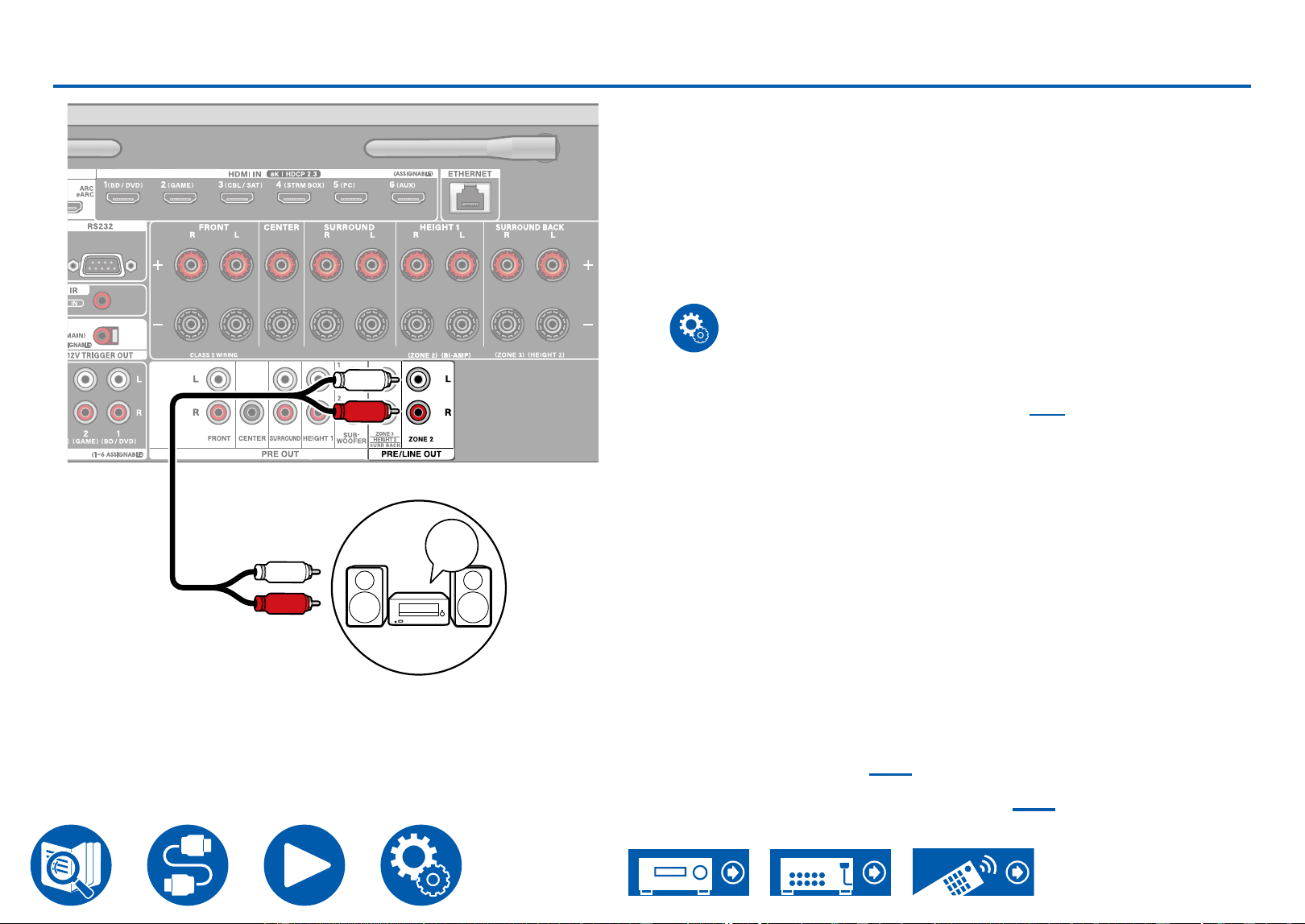

R ZONE 2 PRE/LINE OUT jacks: Output audio
signals with an analog audio cable connected
to an integrated amplier in a separate room
(ZONE 2).
16

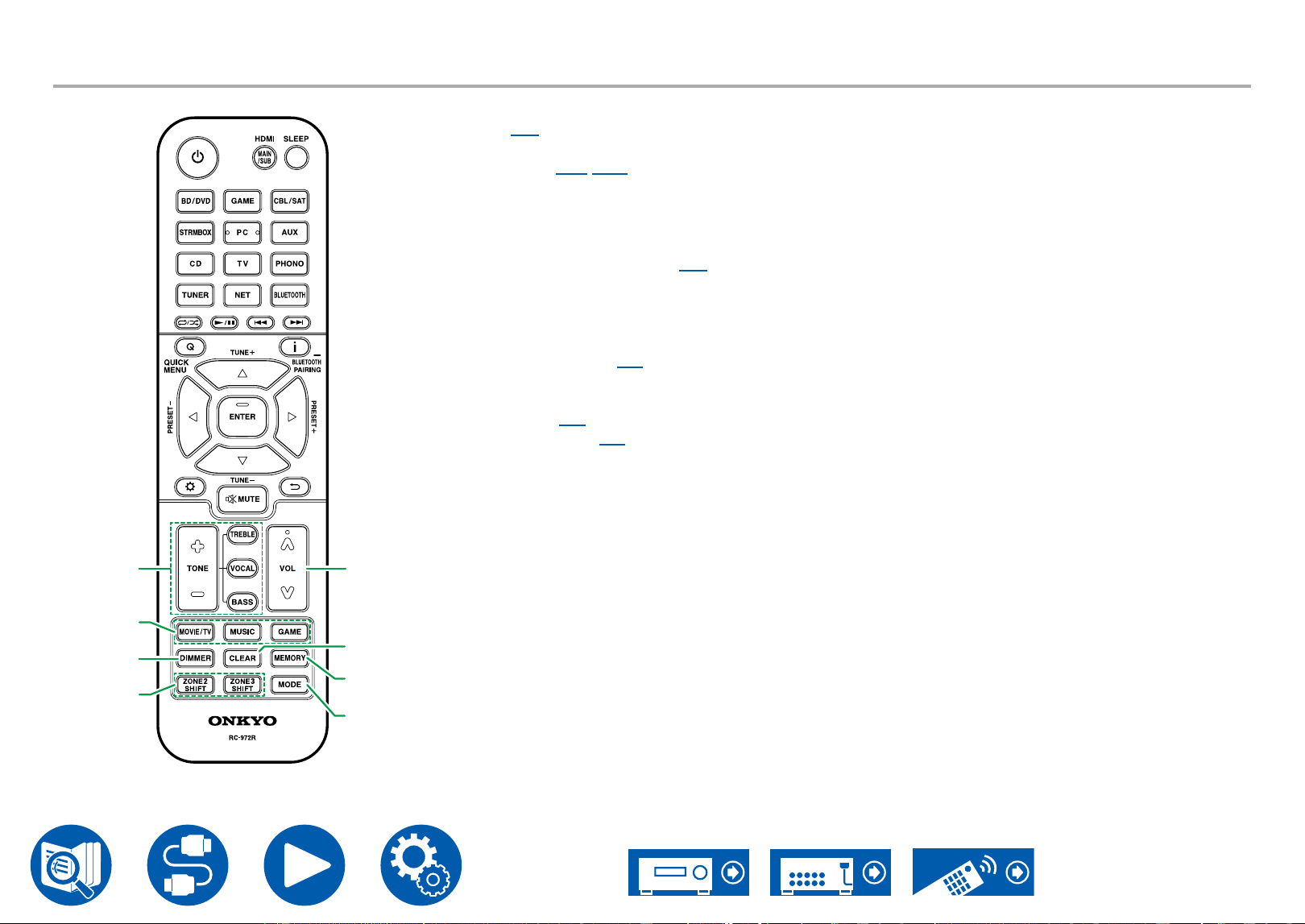

Remote Controller
A ON/STANDBY button
B Input selector buttons: Switches the input to be
played.
C Play buttons: Used for playback operations
for the Music Server ( →p95) or USB device
( →p93). Also, switching to “CEC MODE” with
S MODE button allows you to operate an HDMI
CEC function-enabled AV component. (Some
devices may not be operated.)
D Q (QUICK MENU) button: Pressing this button
during playback allows you to make settings
such as “HDMI” and “Audio” quickly on the TV
screen while playing. ( →p73)
E Cursor buttons and ENTER button: Select
an item with the cursors, and press ENTER to
conrm your selection. Pressing / LEFT/
RIGHT button allows you to switch the screen
when a music folder list or le list is not displayed
on one screen on the TV.
F SETUP button: Displays advanced setting
items on the TV or the display to have a more
enjoyable experience with this unit. ( →p101)
G SLEEP button: You can allow the unit to enter
standby automatically when the specied time
has elapsed. Select the time from “30 min”,
“60 min”, “90 min” and “O”. When you do not
want to turn the unit to standby automatically,
select “O”. You can also set this by pressing
SETUP button and selecting “Hardware” -
“Power Management” - “Sleep Timer” ( →p128)
on the Setup menu.
H HDMI MAIN/SUB button: Select the HDMI OUT
jack to output video signals from “MAIN”, “SUB”,
and “MAIN+SUB”.
I BLUETOOTH PAIRING button: Switches
the information on the display. Also, when
the “BLUETOOTH” input selector is selected,

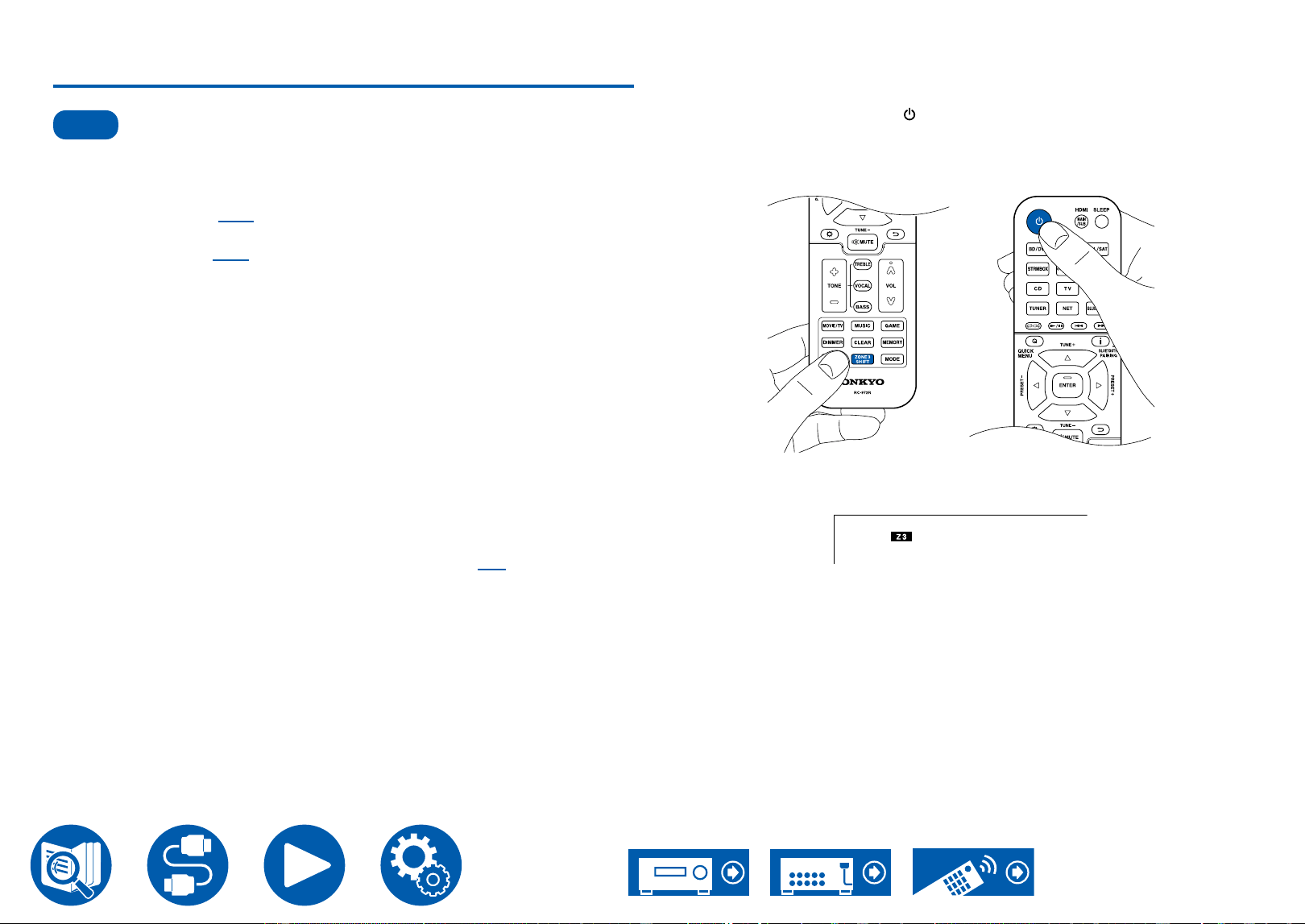

pressing and holding this button for 5 seconds or
more will switch to the pairing mode.
J RETURN button: Returns the display to the
previous state while setting.
K MUTE button: Temporarily mutes audio.
Press the button again to cancel muting.
A
2
3
4
5
6
7
8
9
J
K
17
Remote Controller
L TONE buttons: Adjusts the sound quality.
( →p65)
M LISTENING MODE buttons: Selects a listening
mode ( →p67, p159).
N DIMMER button: Switches the brightness of the
display with three levels. It cannot be turned o
completely.
O ZONE 2/ZONE 3 SHIFT button: Used to control
the multi-zone function ( →p86).
P VOLUME buttons
Q CLEAR button: Deletes all characters you have
entered when entering text on the TV screen.
R MEMORY button: Used to register AM/FM
radio stations. ( →p71) (North American and
Taiwanese models)
S MODE button: Switches between automatic
tuning ( →p71) and manual tuning for AM/
FM stations ( →p71) (North American and
Taiwanese models). Also, when an HDMI CEC
function-enabled AV component is connected to
this unit, you can switch 3 Play buttons between
“CEC MODE” and “RCV MODE” (normal mode).
P
Q
R
S
M
N
O
L
18

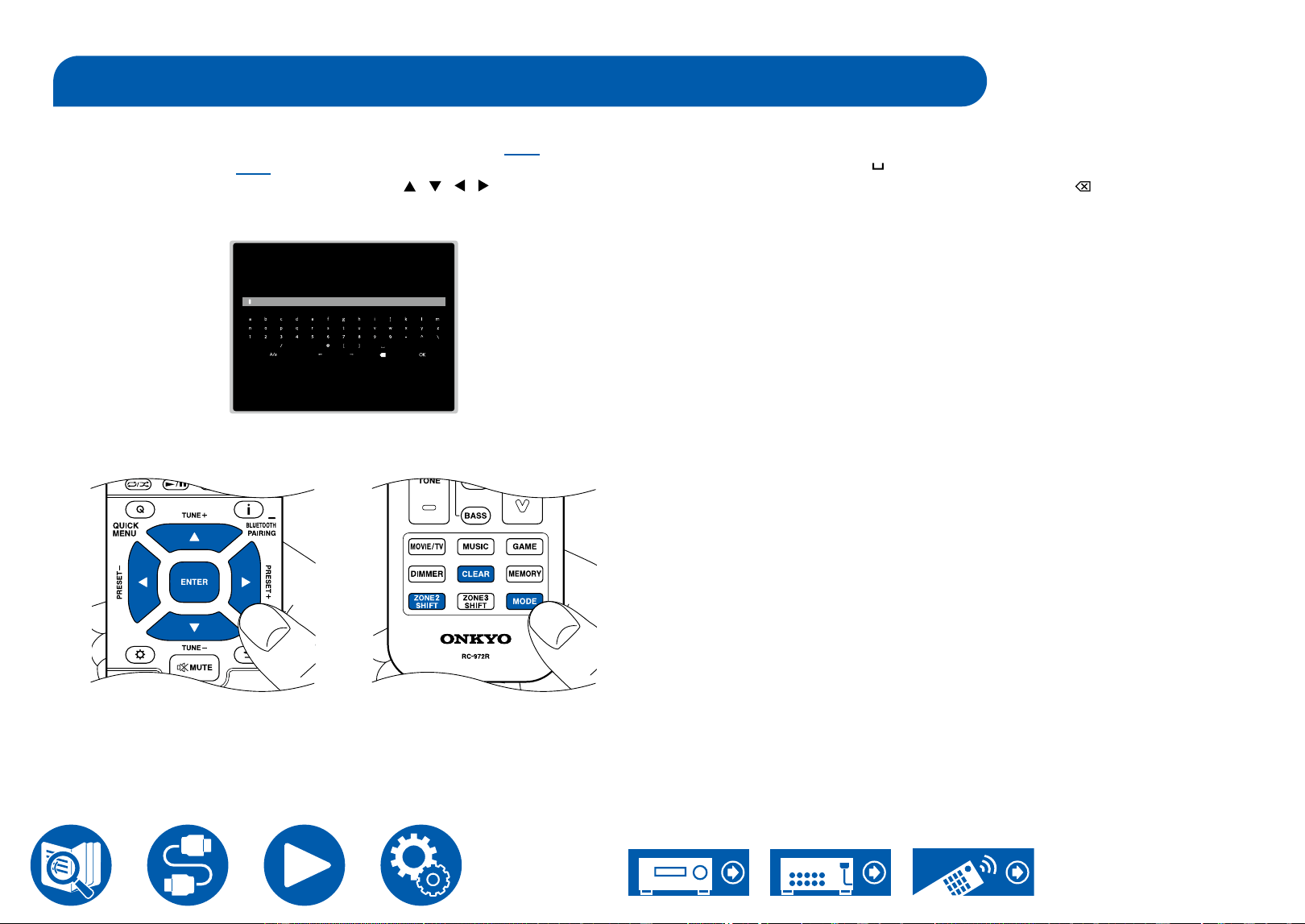

Inputting Characters
You can input characters or symbols on the keyboard displayed on the TV
screen such as when inputting a password for Wi-Fi Setup ( →p123) or naming
a preset radio station ( →p119).
1. Select a character or symbol with the cursors / / / UP/DOWN/LEFT/
RIGHT on the remote controller and press the ENTER button.
2. When saving characters after input, select "OK" and press the ENTER button.
, . ;/ : ], . ; :
• Select "A/a" to switch between upper and lower cases. (Can also be switched
with the MODE button on the remote controller.)
• To enter a space, select " ".
• To delete a character on the left of the cursor, select " ".
• To delete all the input characters, press the CLEAR button on the remote
control.
• On the ZONE 2 playback screen, operate the remote controller while pressing
and holding the ZONE 2 SHIFT button. To delete all the input characters, only
press the CLEAR button without pressing the ZONE 2 SHIFT button.

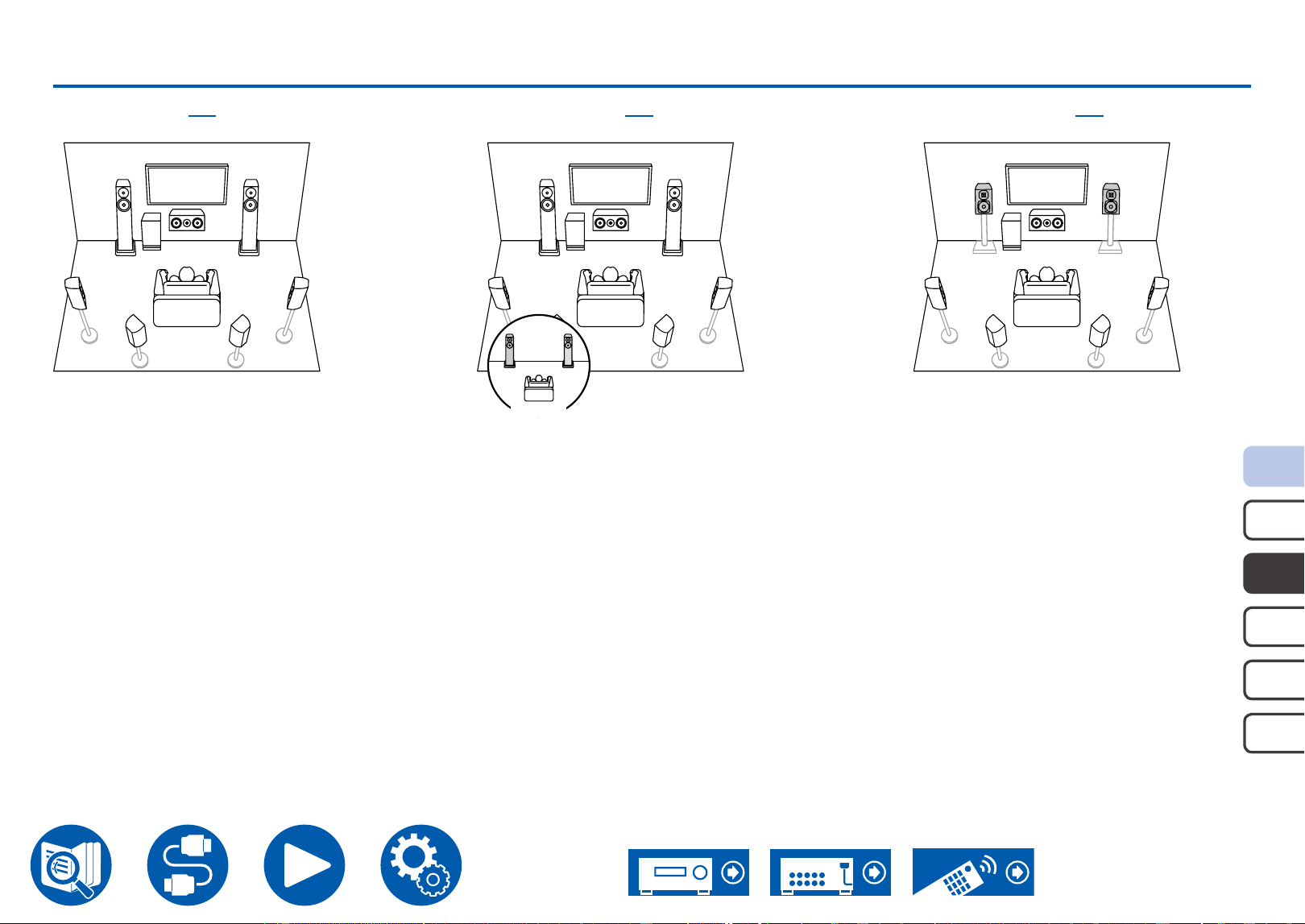

Speaker Layout
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
19
Speaker Layout
Speaker Layout
This unit can be used in dierent ways, depending on the layout of the
speakers you are installing. Select the speaker layout that suits the installation
environment, then conrm the methods for installation and connection.
Speaker Layout
Speaker layout ( →p20)
Speaker Installation ( →p27)
Speaker Connections ( →p32)

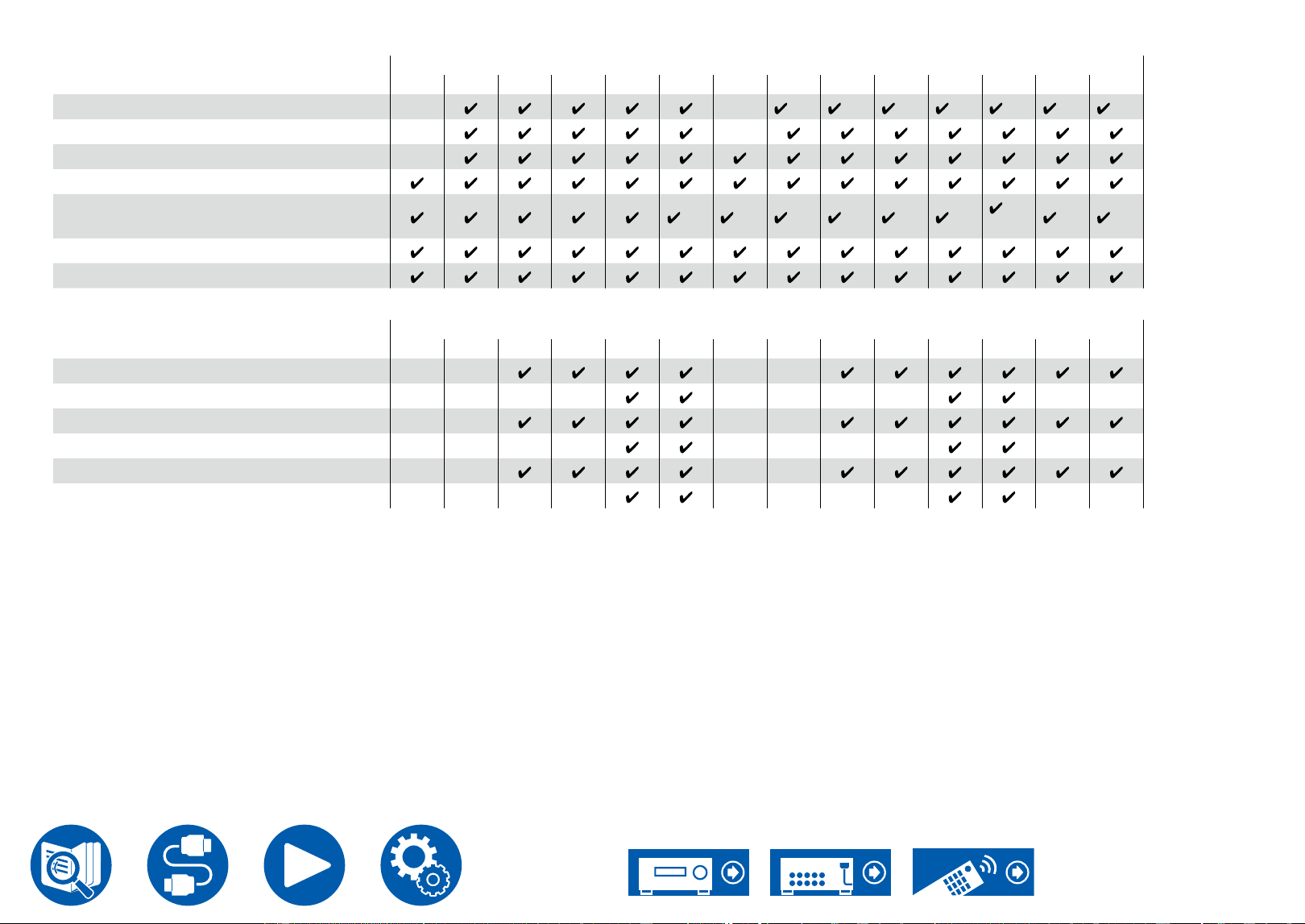

Speaker Combinations ( →p171)
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
20
Speaker Layout

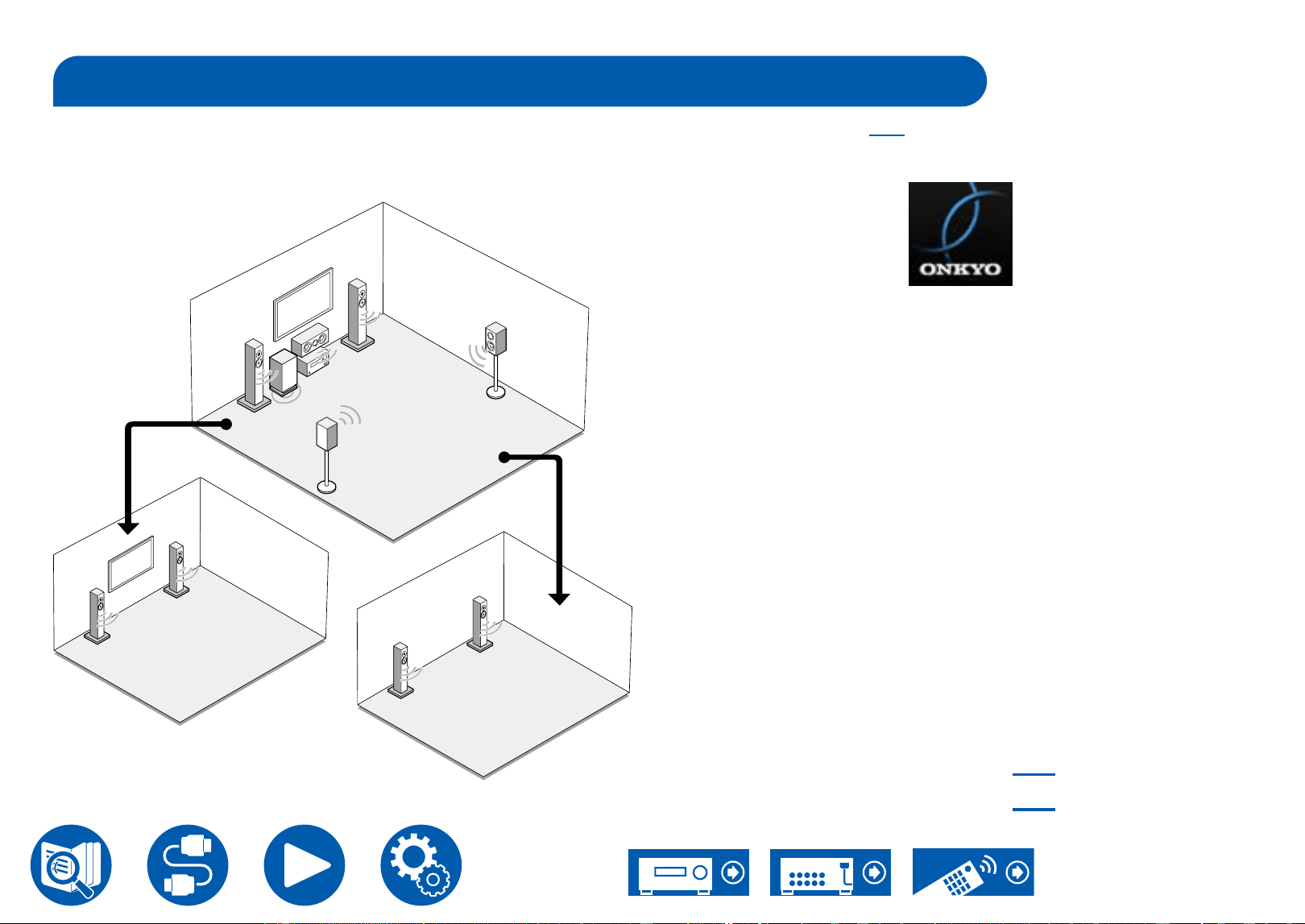

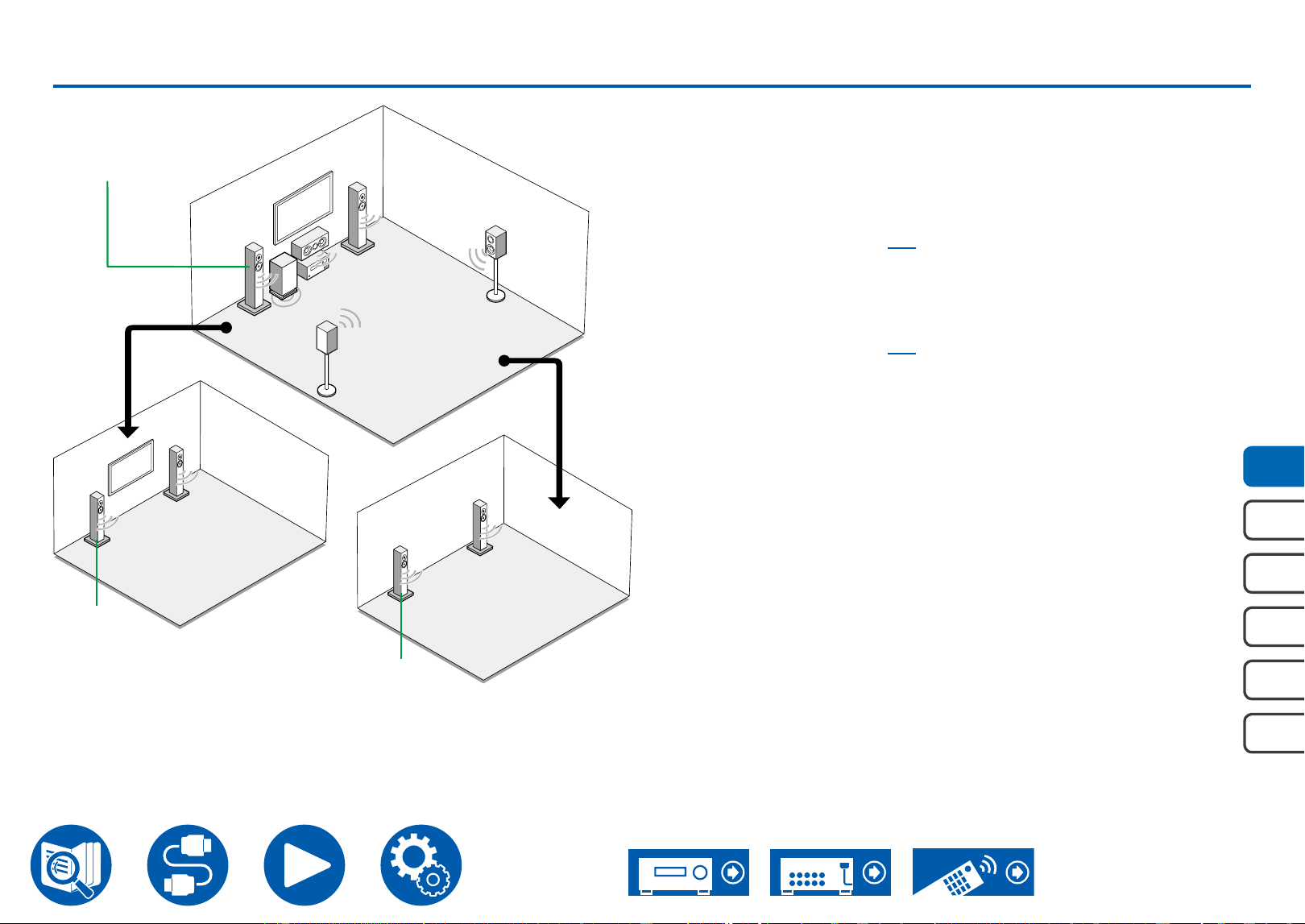

The listening room and the speaker layout
A
2
3
A ZONE A Speakers
The speaker system set up in the main room (where this unit is located).
B ZONE 2 Speakers
The 2 ch speaker system set up in a separate room (ZONE 2). This enables you
to play the same source in the main room and the separate at the same time, or
to play separate sources.
– Playing Back (ZONE 2) ( →p87)
C ZONE 3 Speakers
The 2 ch speaker system set up in a separate room (ZONE 3). This enables you
to play the same source in the main room and the separate at the same time, or
to play separate sources.
– Playing Back (ZONE 3) ( →p89)
ZONE A
(Main Room)
ZONE 2
ZONE 3
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch

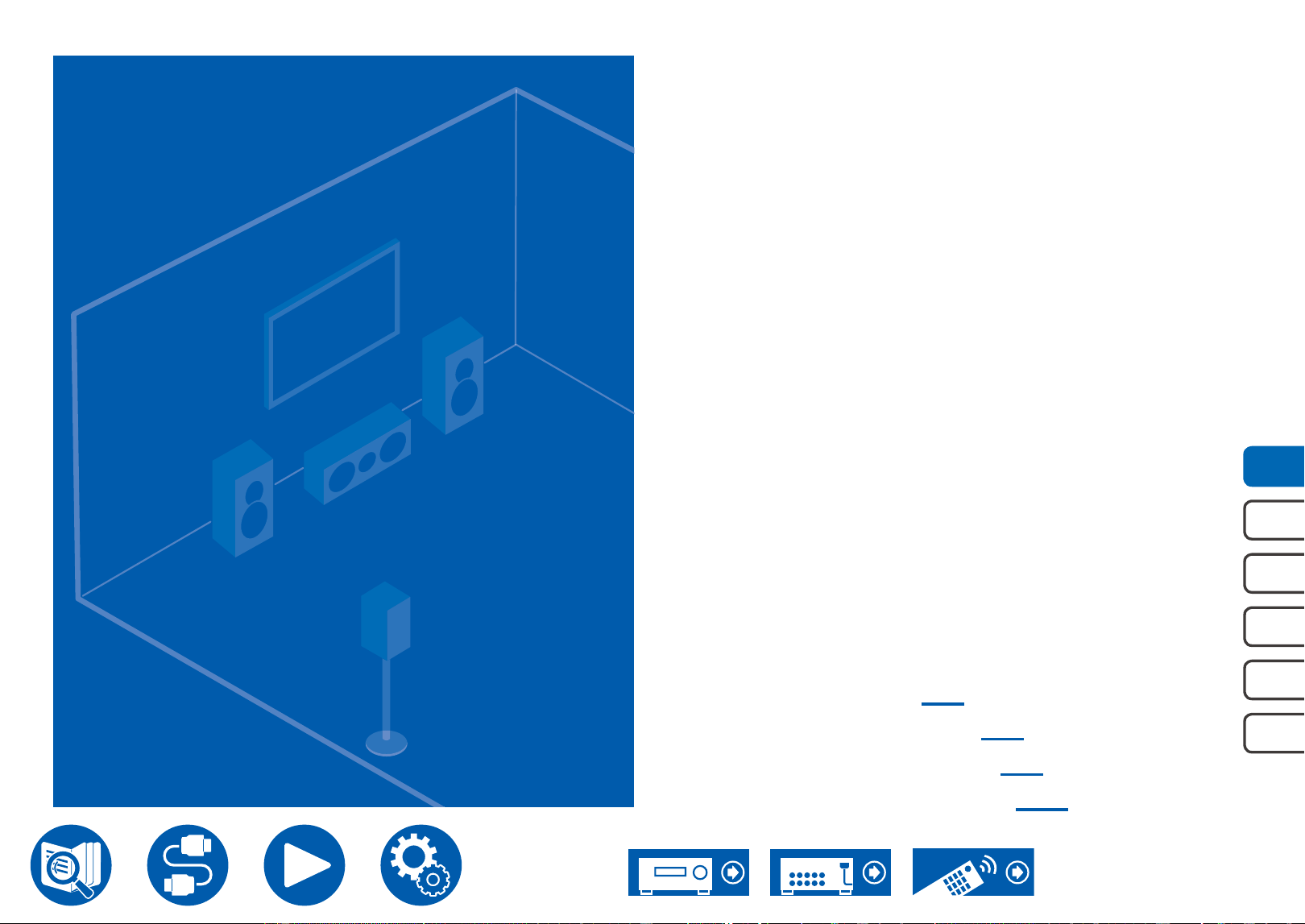

23
Speaker Layout

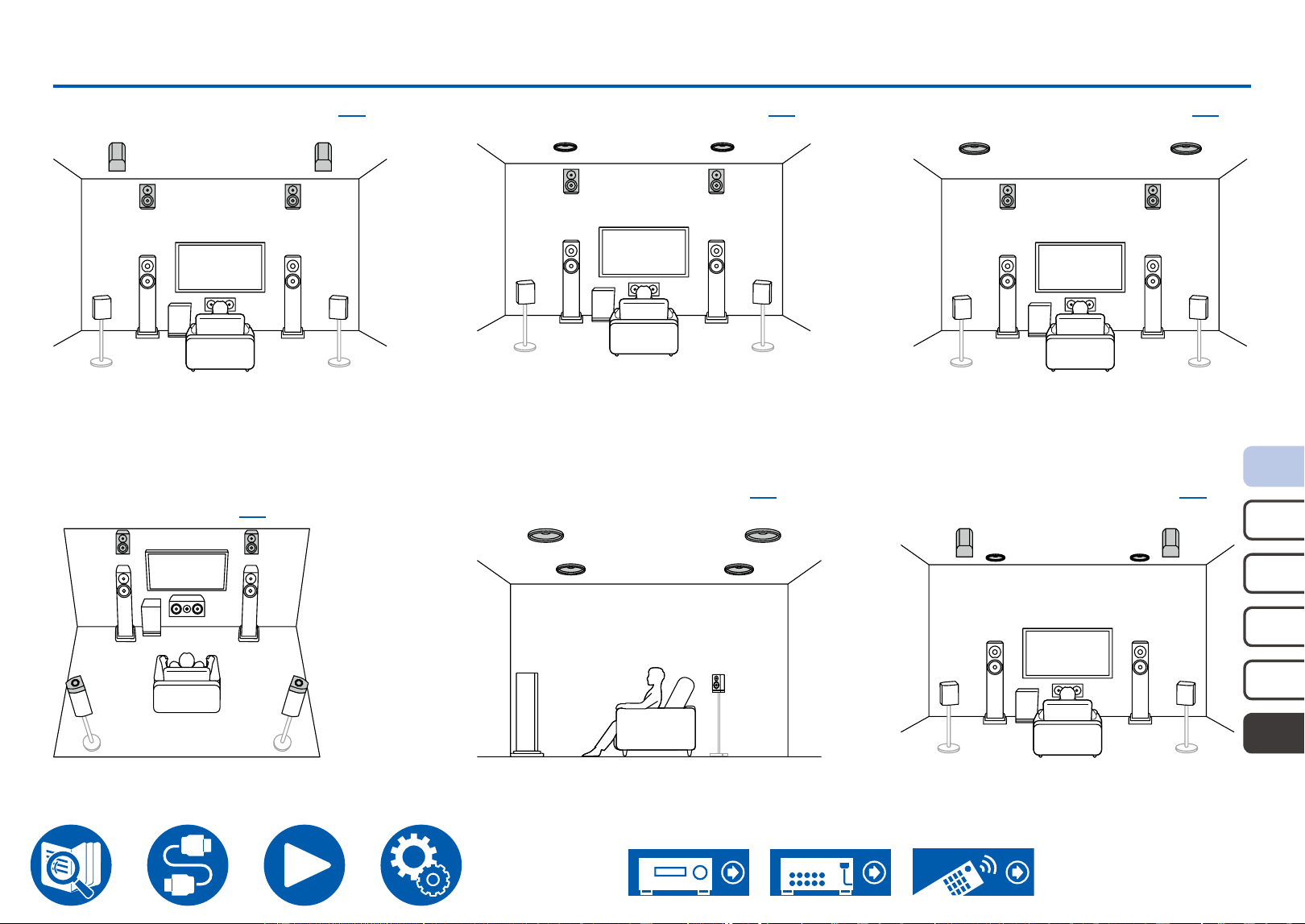

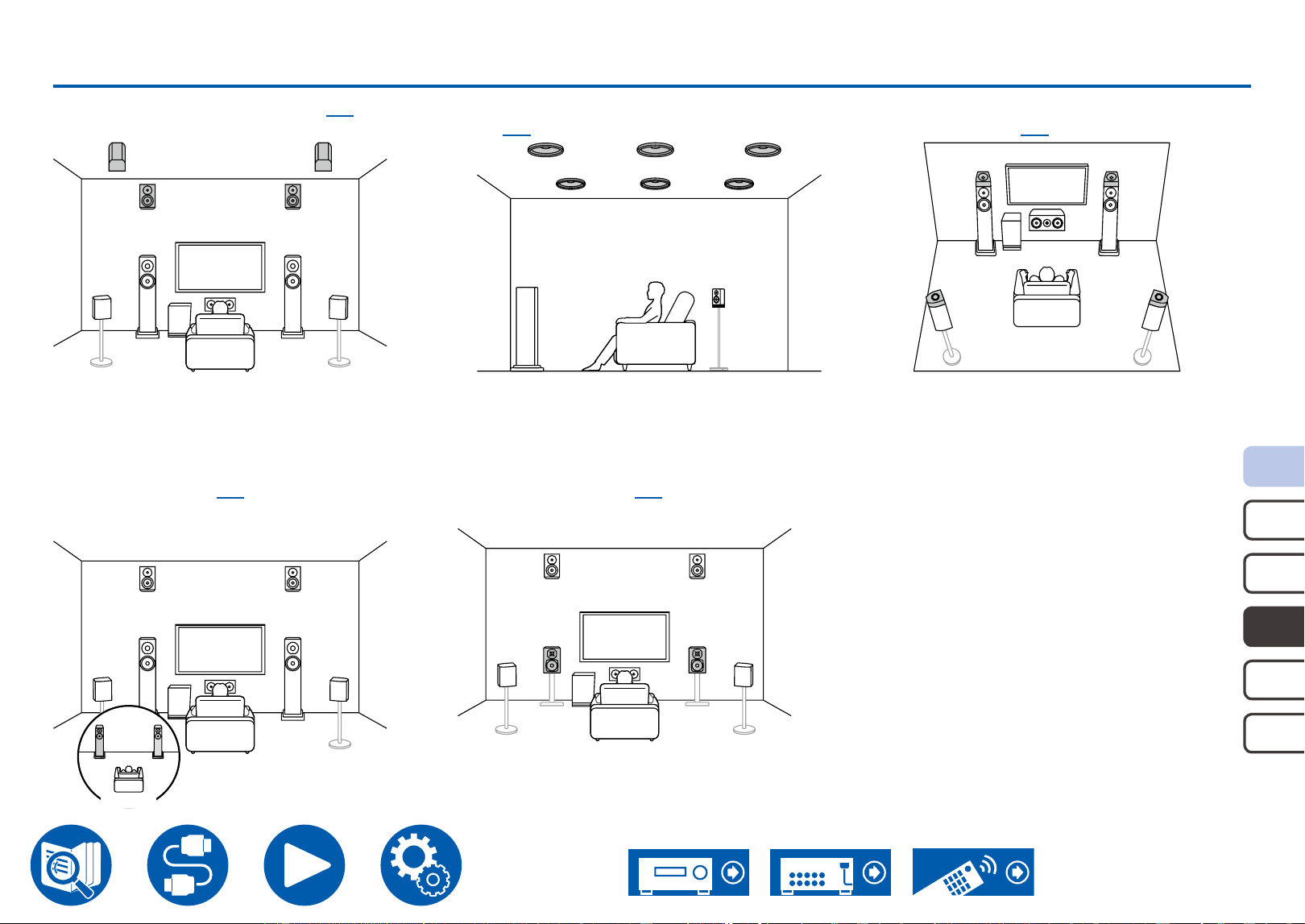

5.1.2 Channel System
A Speaker System that is a 5.1 Channel System with one set of height speakers added.
5.1.2 ch (Front High or Rear High) ( →p29) 5.1.2 ch (Top Front or Top Middle or Top Rear)
( →p29)
5.1.2 ch (Dolby Enabled Speakers (Front or
Surround)) ( →p29)
5.1.2 ch (Bi-Amping) ( →p29)5.1.2 ch + ZONE 2 ( →p29)
Zone 2Zone 2
Main Room
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
24
Speaker Layout

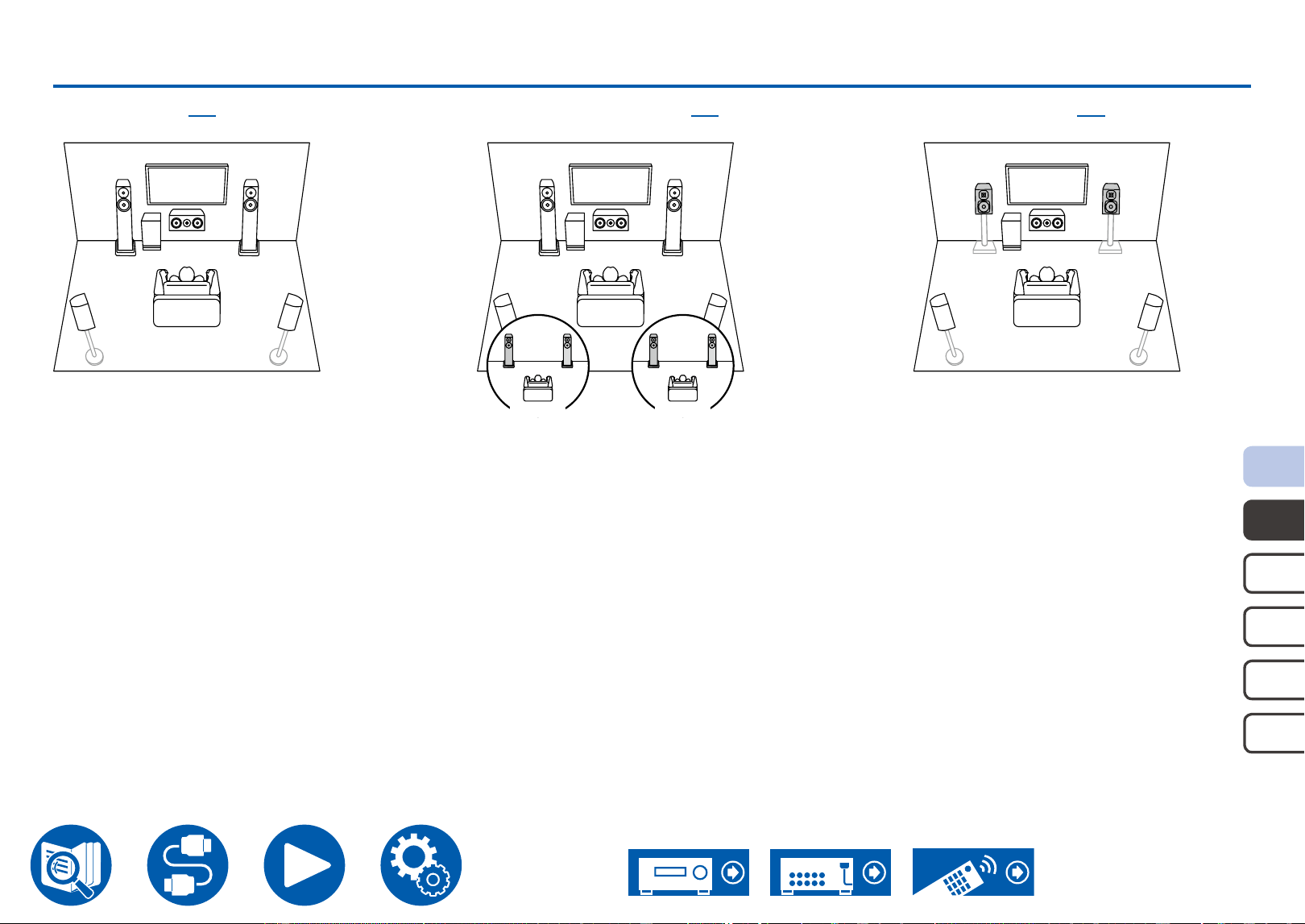

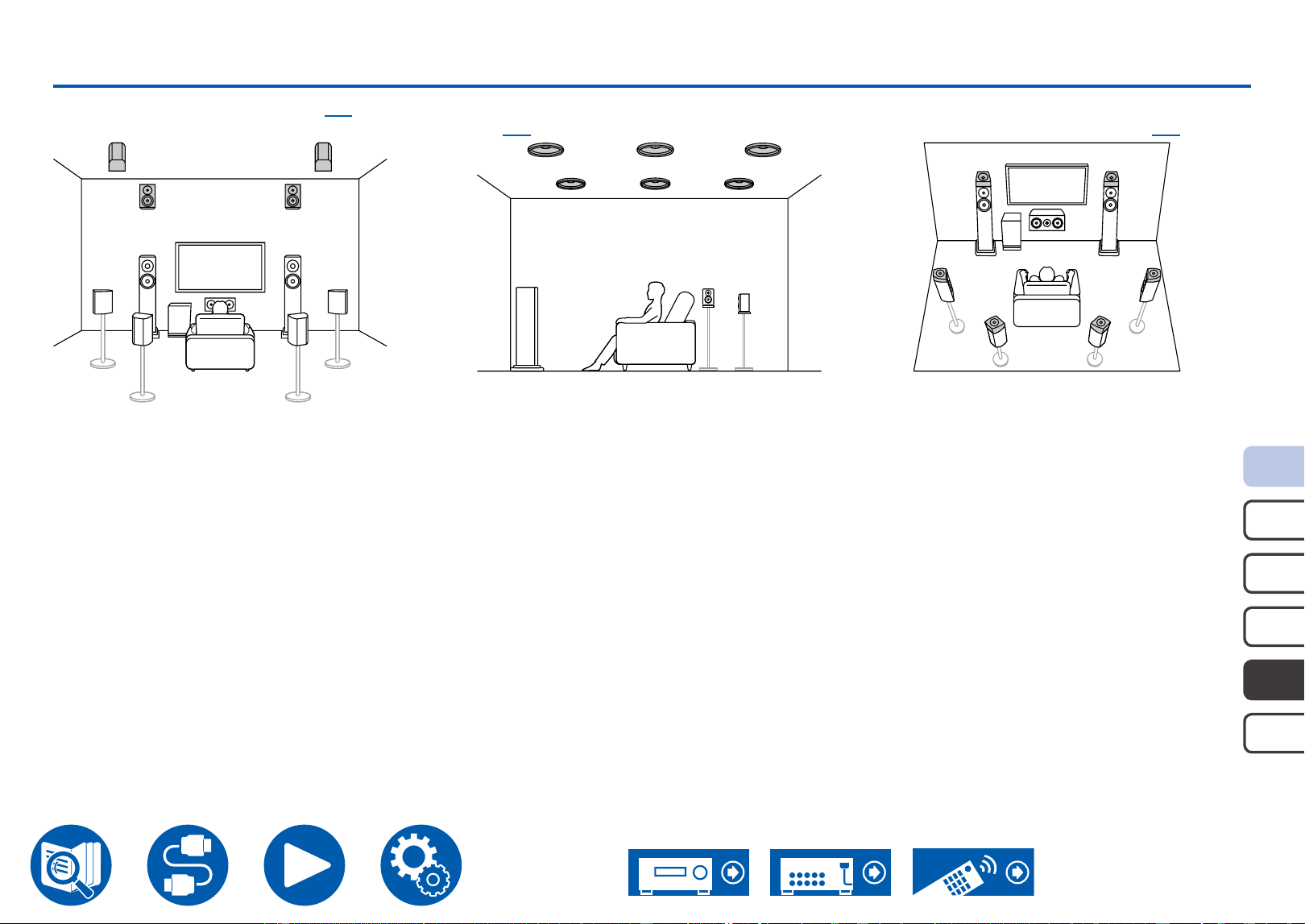

7.1.2 Channel System
A Speaker System that is a 7.1 Channel System with one set of height speakers added.
7.1.2 ch (Front High or Rear High) ( →p30) 7.1.2 ch (Top Front or Top Middle or Top Rear)
( →p30)
7.1.2 ch (Dolby Enabled Speakers (Front or
Surround or Surround Back)) ( →p30)
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
25
Speaker Layout
5.1.4 Channel System
A Speaker System that is a 5.1 Channel System with two sets of height speakers added.
5.1.4 ch (Front High and Rear High) ( →p31) 5.1.4 ch (Front High and Top Middle) ( →p31)
5.1.4 ch (Front High and Dolby Enabled
Speakers (Surround)) ( →p31)
5.1.4 ch (Top Front and Top Rear) ( →p31) 5.1.4 ch (Top Front and Rear High) ( →p31)
5.1.4 ch (Front High and Top Rear) ( →p31)
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
26
Speaker Layout

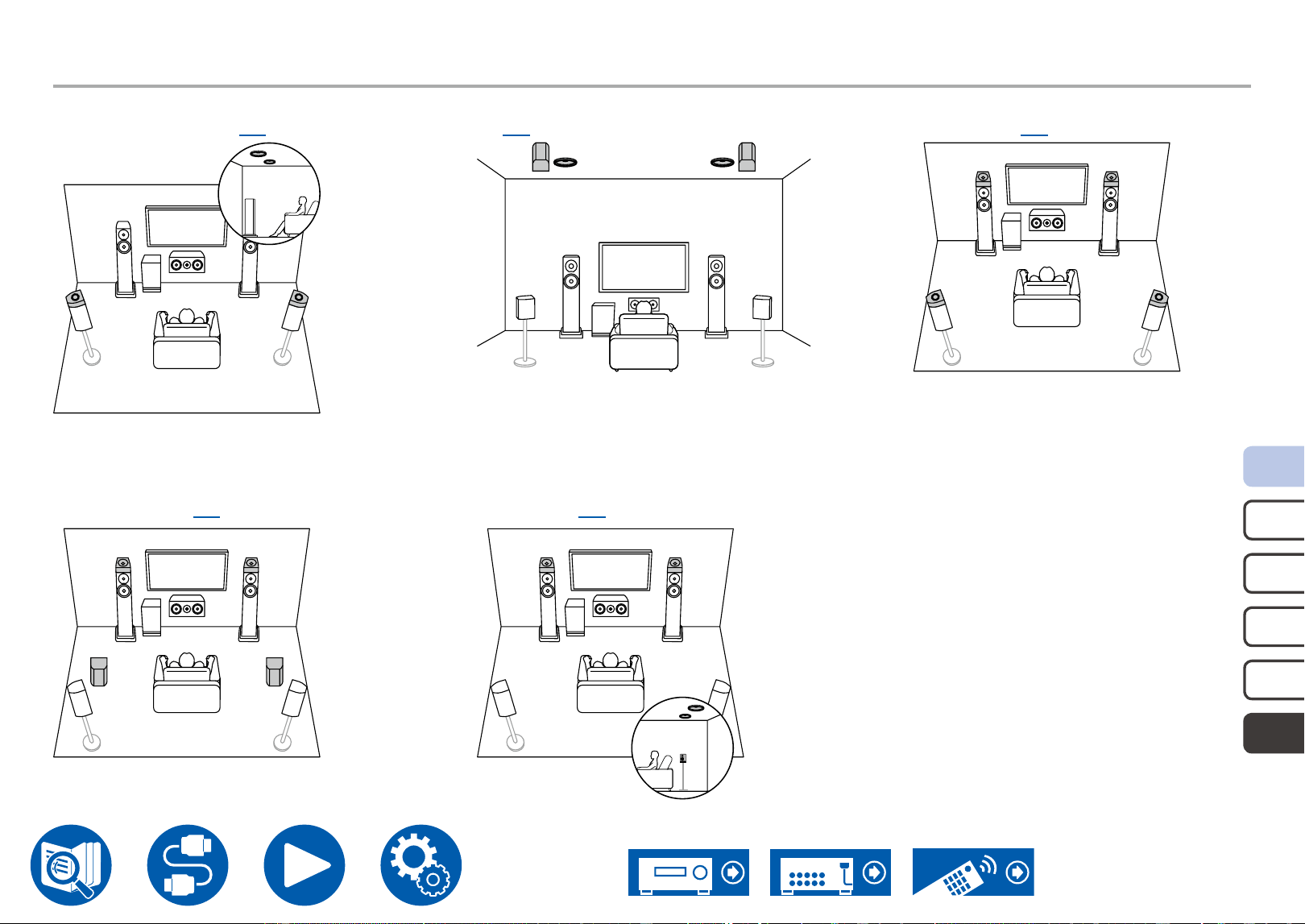

5.1.4 Channel System
5.1.4 ch (Top Middle and Rear High)
( →p31)
5.1.4 ch (Top Front and Dolby Enabled
Speakers (Surround)) ( →p31)
5.1.4 ch (Dolby Enabled Speakers (Front and
Surround)) ( →p31)
5.1.4 ch (Dolby Enabled Speakers (Front)
and Rear High) ( →p31)
5.1.4 ch (Dolby Enabled Speakers (Front) and
Top Rear) ( →p31)
Speaker Installation
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
27
Speaker Installation
Speaker Installation
Setting Up the Speakers
How the speakers are set up depends on the size and shape of the room, so
here we introduce just a basic layout example.
The alphabetic symbols used in this chapter represent the following speakers:
FL Front speaker Left
FR Front speaker Right
C Center speaker
SW powered SubWoofer
SL Surround speaker Left
SR Surround speaker Right
SBL Surround Back speaker Left
SBR Surround Back speaker Right
FHL Front High speaker Left
FHR Front High speaker Right
RHL Rear High speaker Left
RHR Rear High speaker Right
TFL Top Front speaker Left
TFR Top Front speaker Right
TML Top Middle speaker Left
TMR Top Middle speaker Right
TRL Top Rear speaker Left
TRR Top Rear speaker Right
DFL Dolby enabled speaker Front Left
DFR Dolby enabled speaker Front Right
DSL Dolby enabled speaker Surround Left
DSR Dolby enabled speaker Surround Right
DSBL Dolby enabled speaker Surround Back Left
DSBR Dolby enabled speaker Surround Back Right
Speaker Installation
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
28
Speaker Installation

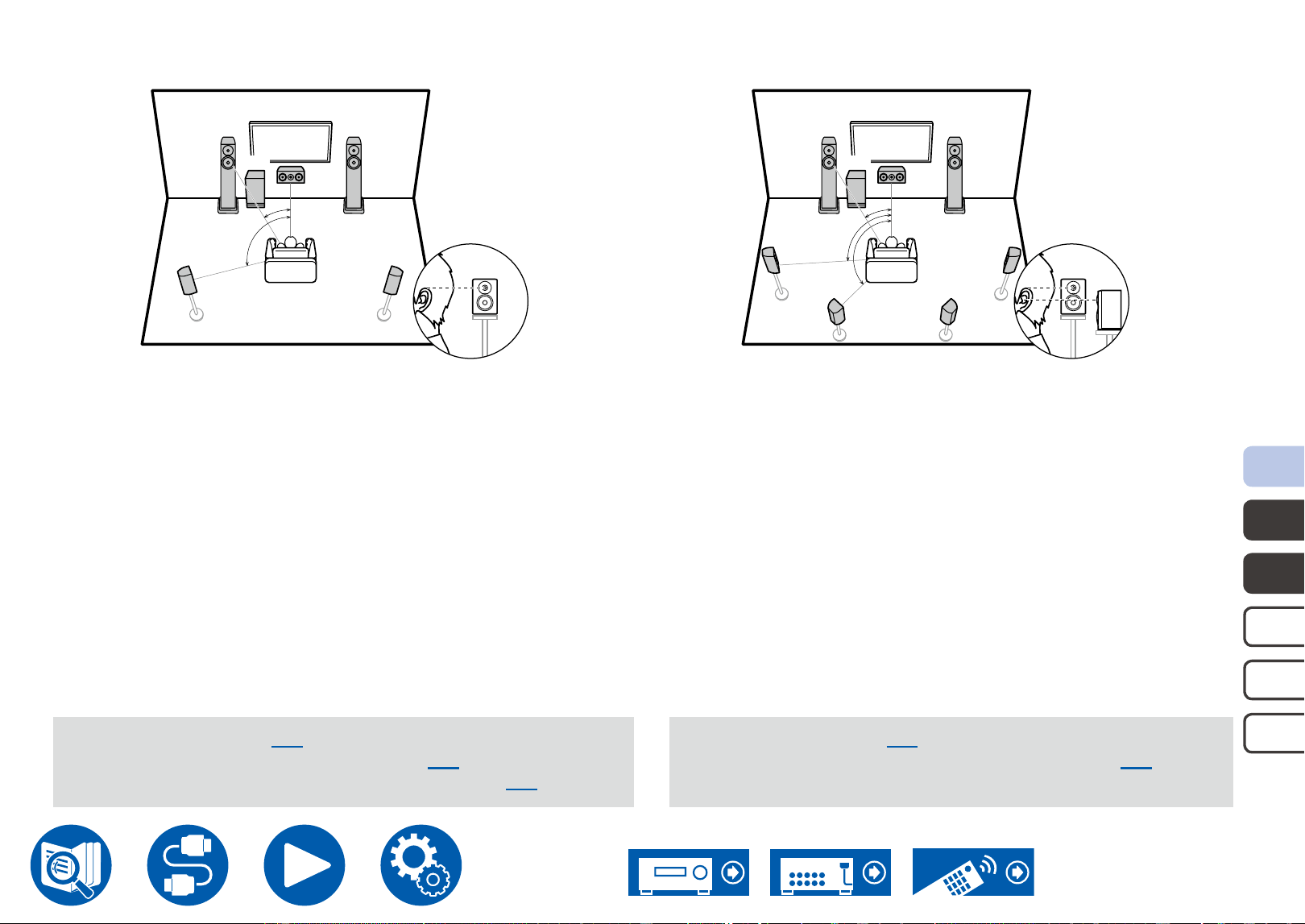

5.1 Channel System
b
a
FL FR
SL SR
C
SW
a: 22° to 30°
b: 120°
FL, FR Place the left and right front speakers to match ear height.
C The center speaker should be set up facing the listening position at
an angle.
SW Place the powered subwoofer between the center speaker and a
front speaker.
SL, SR Place the left and right surround speakers to be just above ear
height.

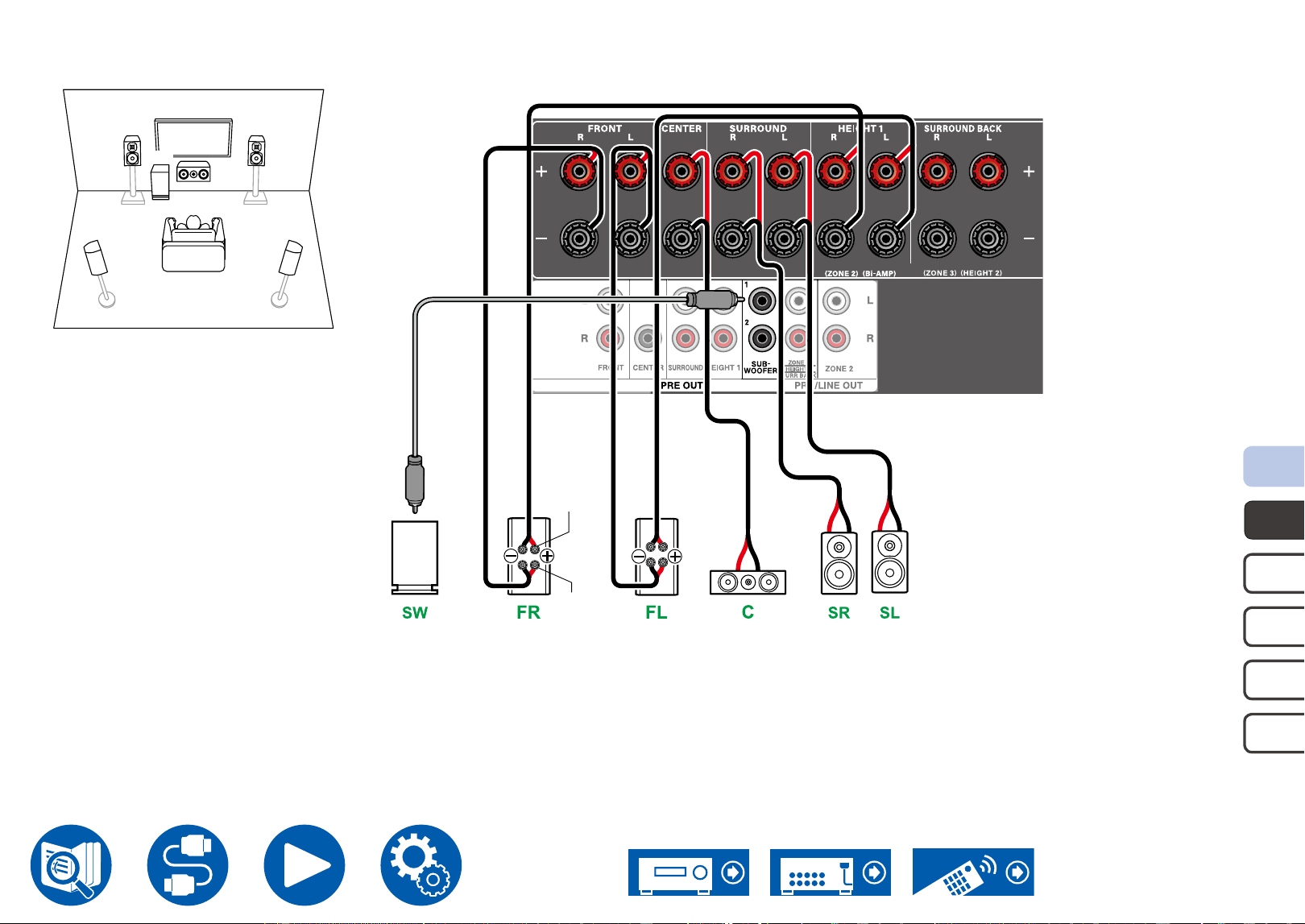

5.1 ch connection ( →p35)
5.1 ch + ZONE 2/ZONE 3 connection ( →p36)
5.1 ch (Bi-Amping (Front/Center)) connection ( →p37)
7.1 Channel System
b
c
a
FL FR
C
SW
SL SR
SBL SBR
a: 22° to 30°
b: 90° to 110°
c: 135° to 150°
FL, FR Place the left and right front speakers to match ear height.
C The center speaker should be set up facing the listening position
at an angle.
SW Place the powered subwoofer between the center speaker and a
front speaker.
SL, SR Place the left and right surround speakers to be just above ear
height.
SBL, SBR Place the left and right surround back speakers at ear height.
• If surround back speakers are installed, be sure to install surround
speakers as well.

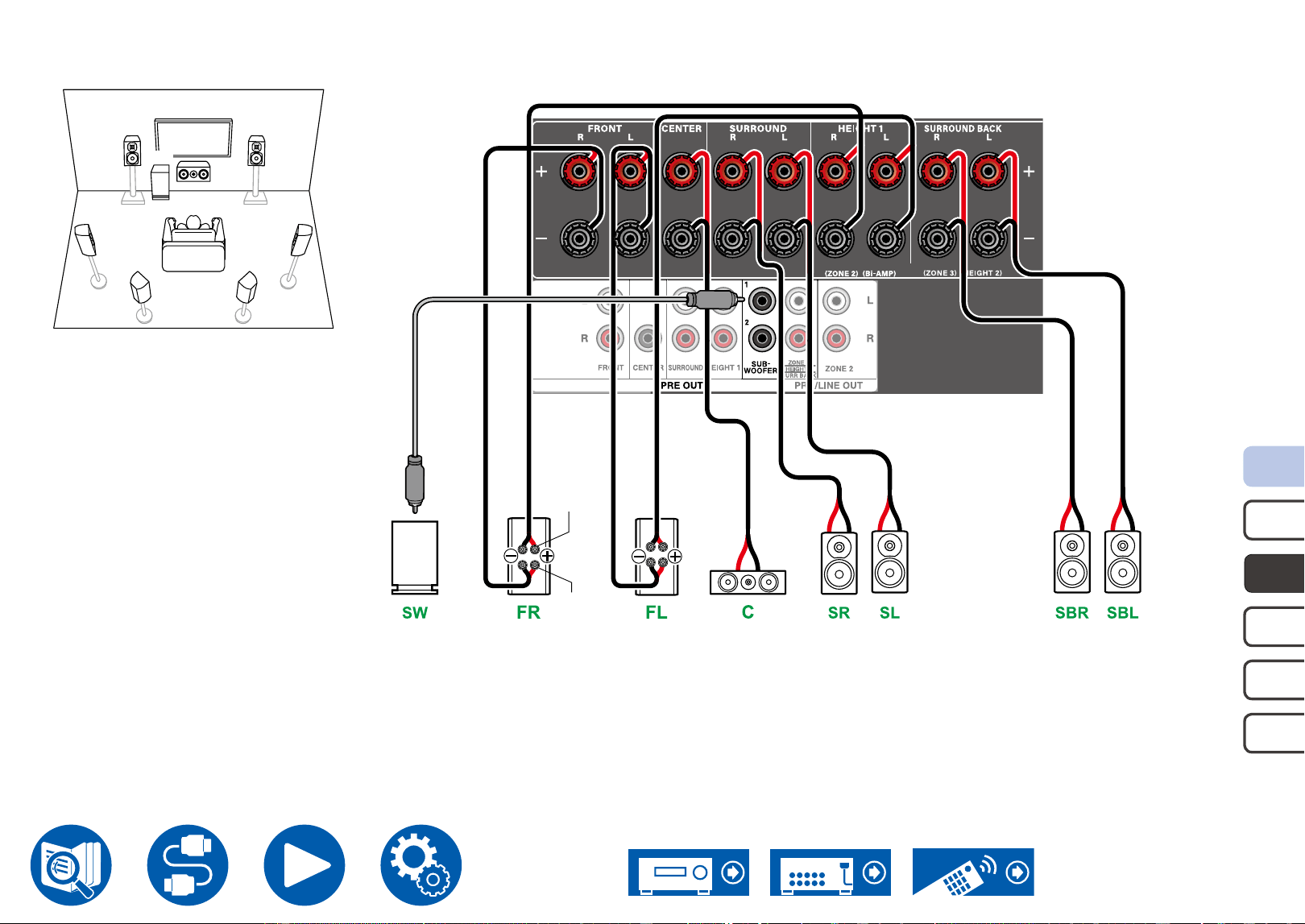

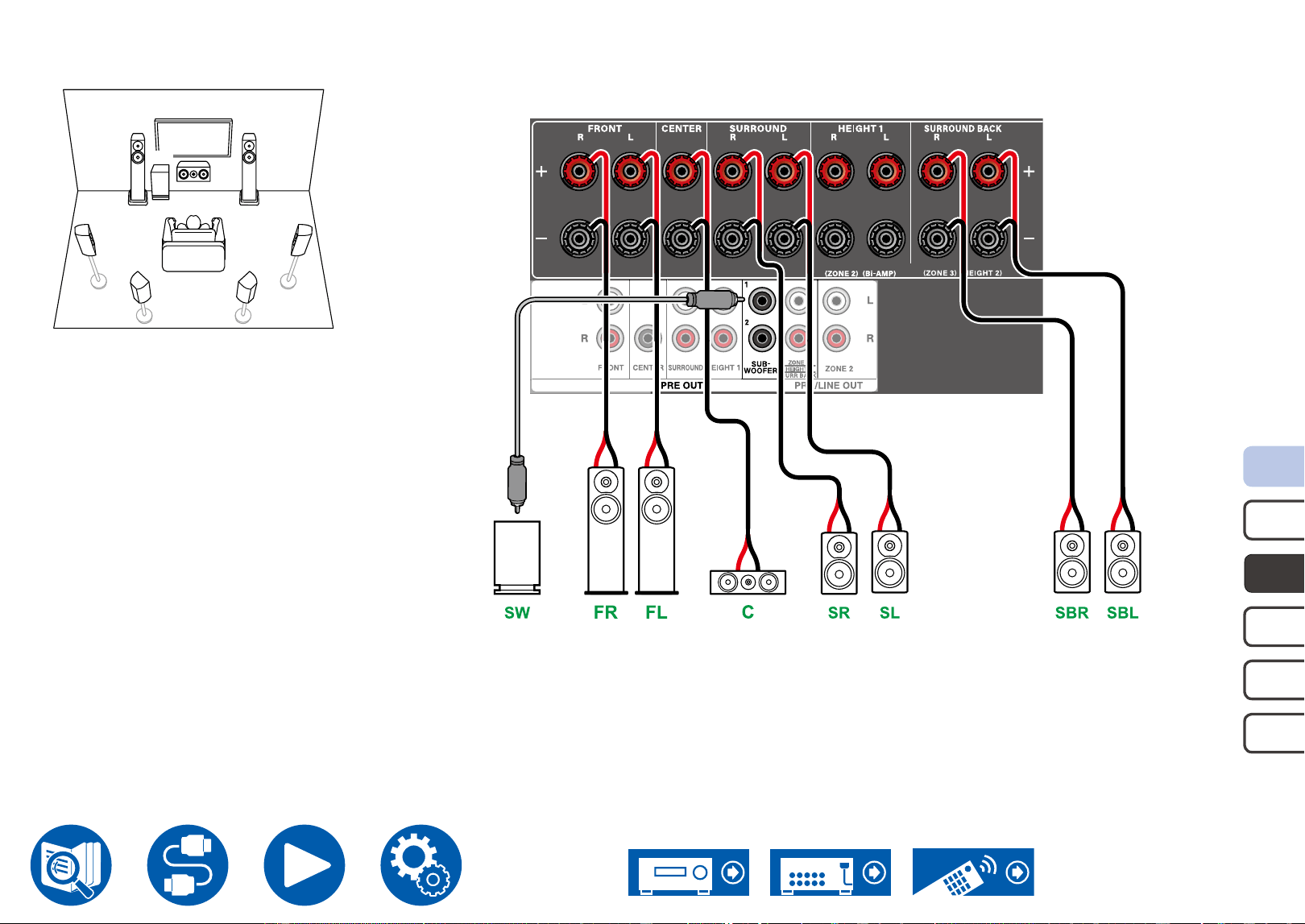

7.1 ch connection ( →p38)
7.1 ch (Bi-Amping (Front/Center)) connection ( →p40)
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
29
Speaker Installation

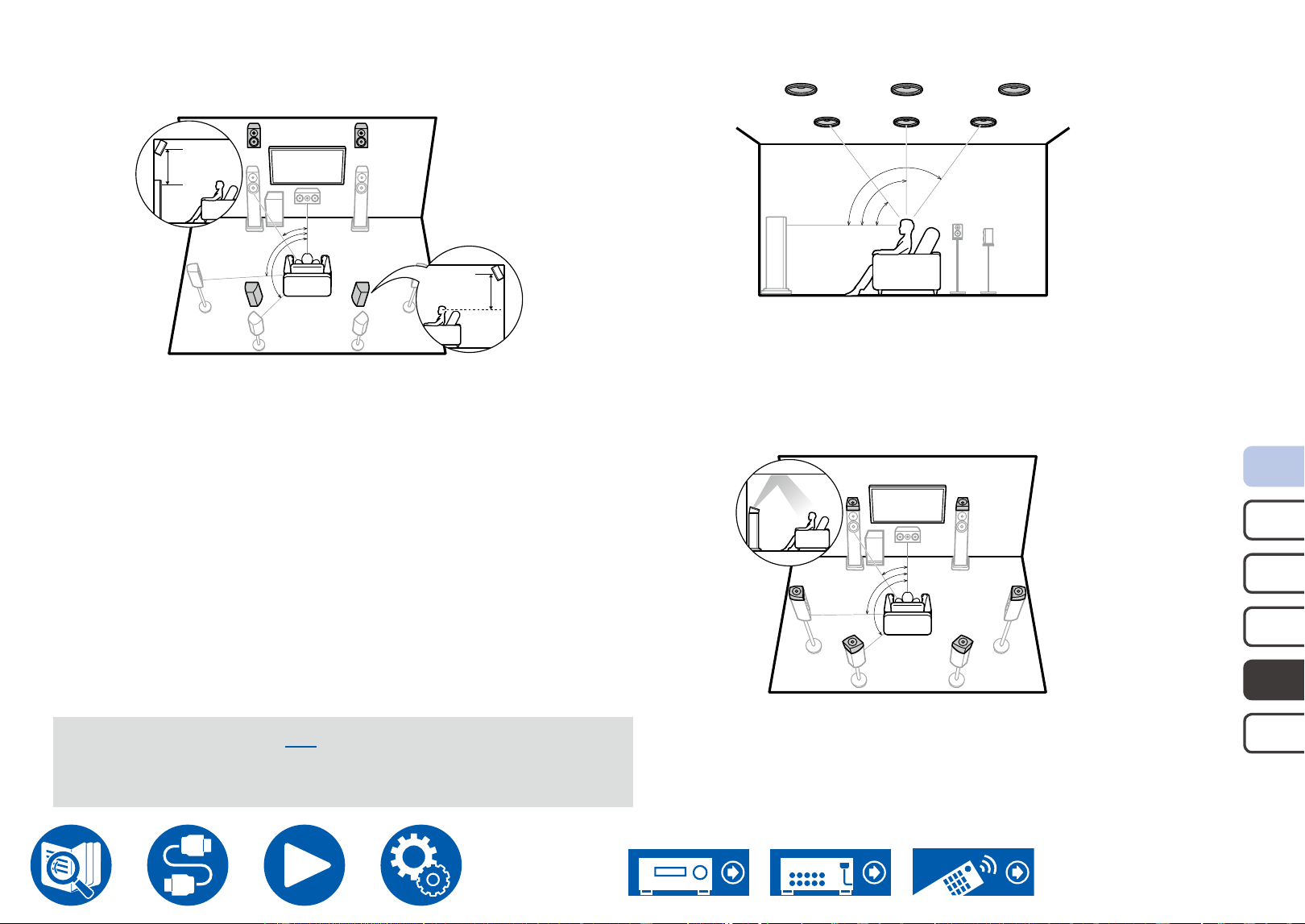

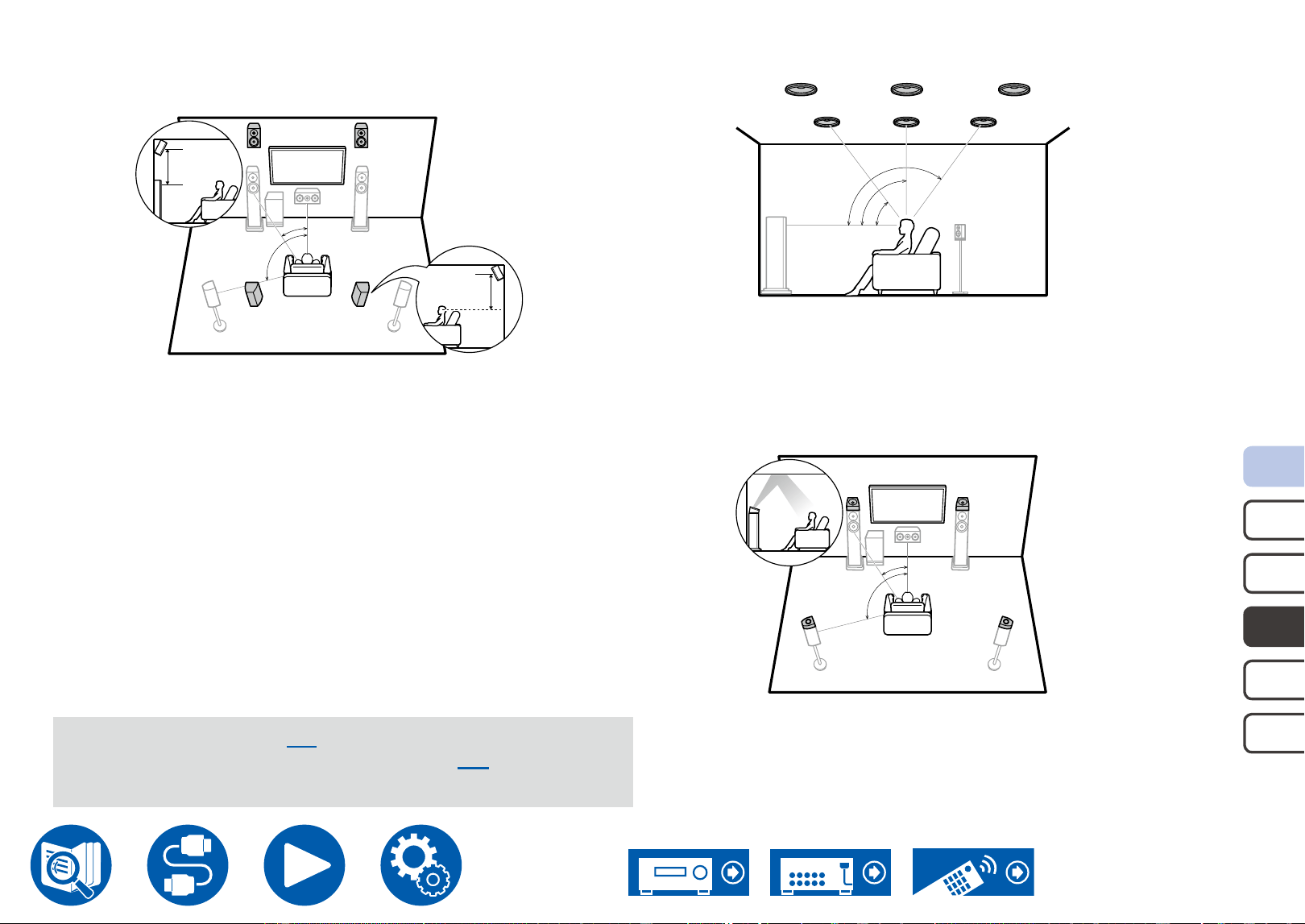

5.1.2 Channel System
High Speakers
b
FHL FHR
RHL RHR
a
a: 22° to 30°
b: 120°
3´ (0.9 m)
or more
3´ (0.9 m)
or more
FHL, FHR Place the front high speakers directly above the front speakers,
angled to face the listening position.
RHL, RHR Place the rear high speakers so the lateral distance matches the
front speakers, angled to face the listening position.
5.1.2 ch connection ( →p41)
5.1.2 ch (Bi-Amping (Front)) connection ( →p43)
Top Speakers
TFL
TFR
TML
TMR
TRL
TRR
a
b
c
a: 30° to 55°
b: 65° to 100°
c: 125° to 150°
TFL, TFR
Fit top front speakers on the ceiling in front of the listening position.
TML, TMR Fit top middle speakers on the ceiling directly above the listening
position.
TRL, TRR Fit top rear speakers on the ceiling behind the listening position.
• Match the lateral distance of the top speakers to the front speakers.
Dolby Enabled Speakers
b
a
DFL DFR
DSL DSR
a: 22° to 30°
b: 120°
DFL, DFR The Dolby enabled speakers (front) are installed on top of the front
speakers.
DSL, DSR The Dolby enabled speakers (surround) are installed on top of the
surround speakers.
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
30
Speaker Installation
7.1.2 Channel System
High Speakers
FHL FHR
RHL RHR
b
a
c
a: 22° to 30°
b: 90° to 110°
c: 135° to 150°
3´ (0.9 m)
or more
3´ (0.9 m)
or more
FHL, FHR Place the front high speakers directly above the front speakers,
angled to face the listening position.
RHL, RHR Place the rear high speakers so the lateral distance matches the
front speakers, angled to face the listening position.

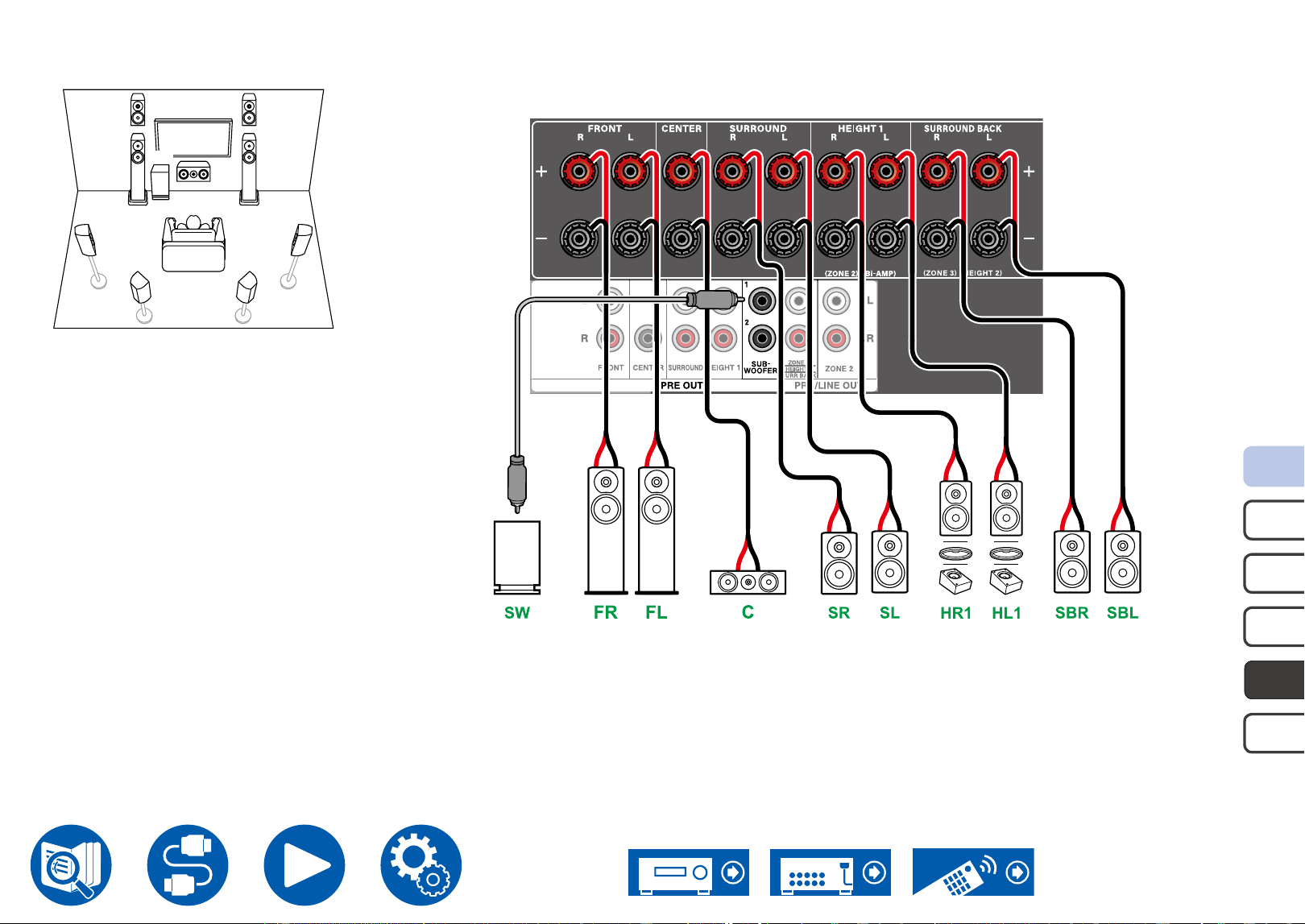

7.1.2 ch connection ( →p44)
Top Speakers
TFL
TFR
TML
TMR
TRL
TRR
a
b
c
a: 30° to 55°
b: 65° to 100°
c: 125° to 150°
TFL, TFR
Fit top front speakers on the ceiling in front of the listening position.
TML, TMR Fit top middle speakers on the ceiling directly above the listening
position.
TRL, TRR Fit top rear speakers on the ceiling behind the listening position.
• Match the lateral distance of the top speakers to the front speakers.
Dolby Enabled Speakers
b
c
a
DSL DSR
DSBL DSBR
DFL DFR
a: 22° to 30°
b: 90° to 110°
c: 135° to 150°
DFL, DFR The Dolby enabled speakers (front) are installed on top of the front
speakers.
DSL, DSR The Dolby enabled speakers (surround) are installed on top of the
surround speakers.
DSBL, DSBR
The Dolby enabled speakers (surround back) are installed on top
of the surround back speakers.
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
31
Speaker Installation

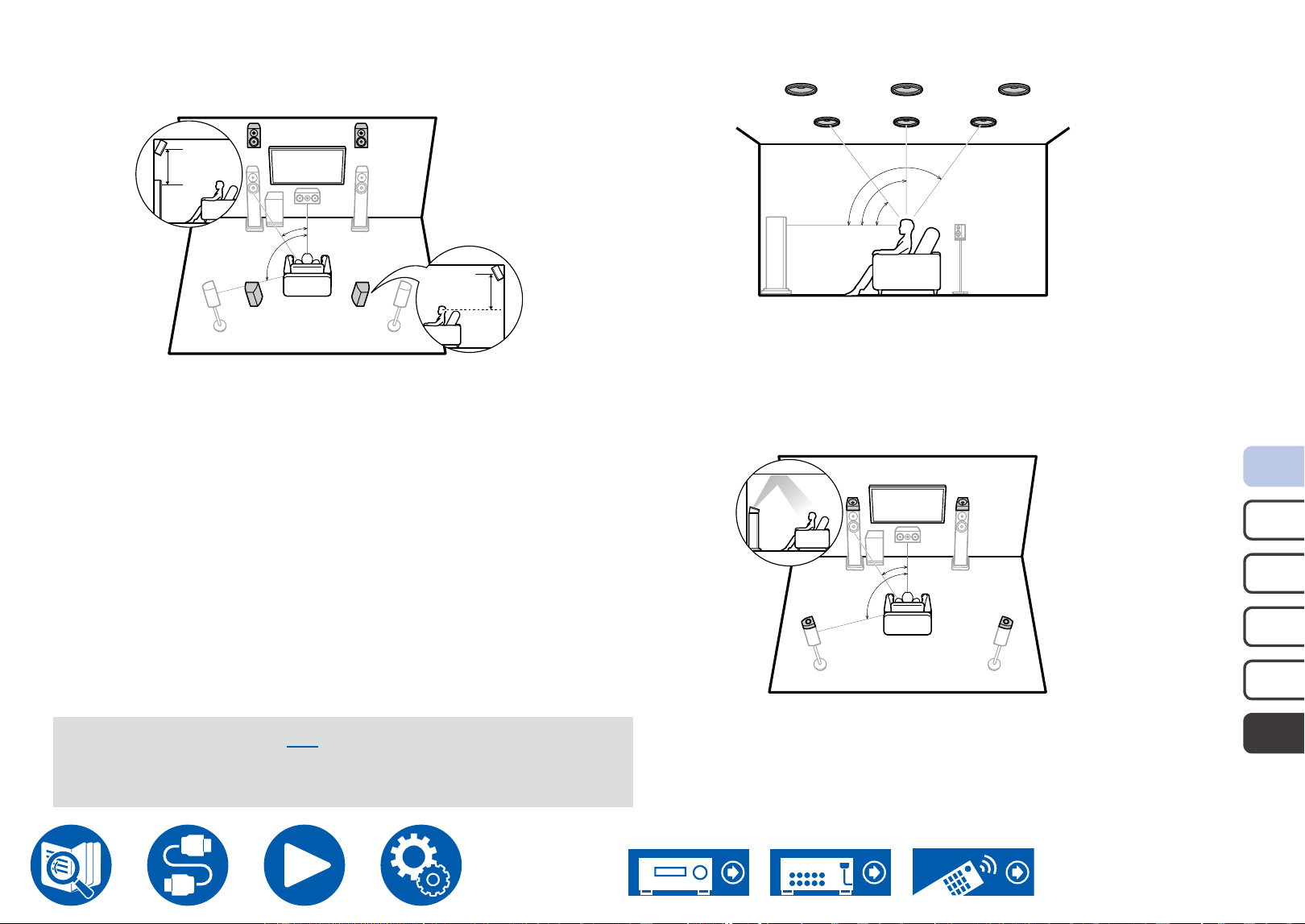

5.1.4 Channel System
High Speakers
b
FHL FHR
RHL RHR
a
a: 22° to 30°
b: 120°
3´ (0.9 m)
or more
3´ (0.9 m)
or more
FHL, FHR Place the front high speakers directly above the front speakers,
angled to face the listening position.
RHL, RHR Place the rear high speakers so the lateral distance matches the
front speakers, angled to face the listening position.
5.1.4 ch connection ( →p45)
Top Speakers
TFL
TFR
TML
TMR
TRL
TRR
a
b
c
a: 30° to 55°
b: 65° to 100°
c: 125° to 150°
TFL, TFR
Fit top front speakers on the ceiling in front of the listening position.
TML, TMR Fit top middle speakers on the ceiling directly above the listening
position.
TRL, TRR Fit top rear speakers on the ceiling behind the listening position.
• Match the lateral distance of the top speakers to the front speakers.
Dolby Enabled Speakers
b
a
DFL DFR
DSL DSR
a: 22° to 30°
b: 120°
DFL, DFR The Dolby enabled speakers (front) are installed on top of the front
speakers.
DSL, DSR The Dolby enabled speakers (surround) are installed on top of the
surround speakers.
Speaker Connections
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
32
Speaker Connections
Speaker Connections
(Before starting the procedure)
Speakers you can use with this unit and cable
connections 33
4-16Ω
A
B
C

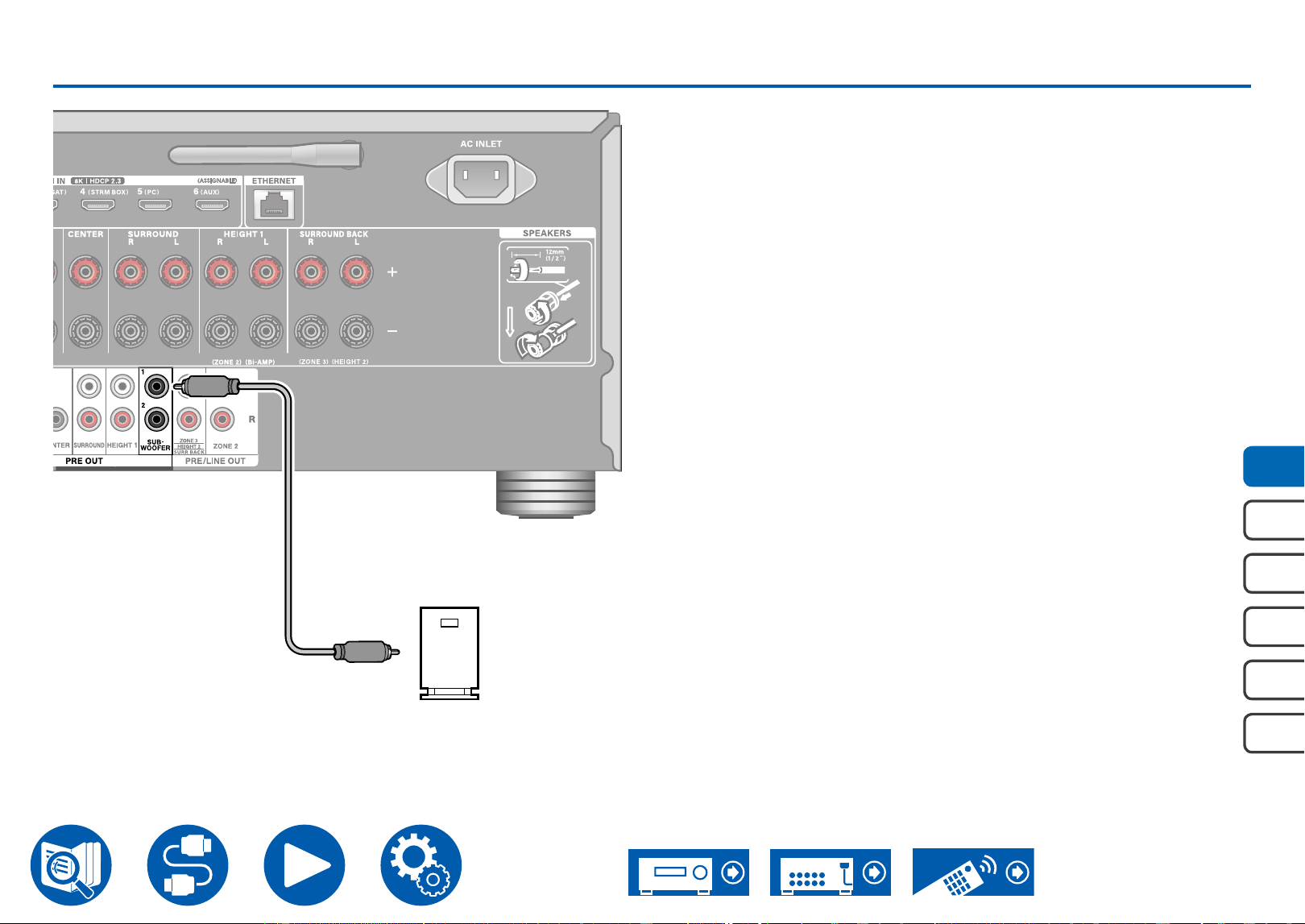

Connecting the Subwoofer 34

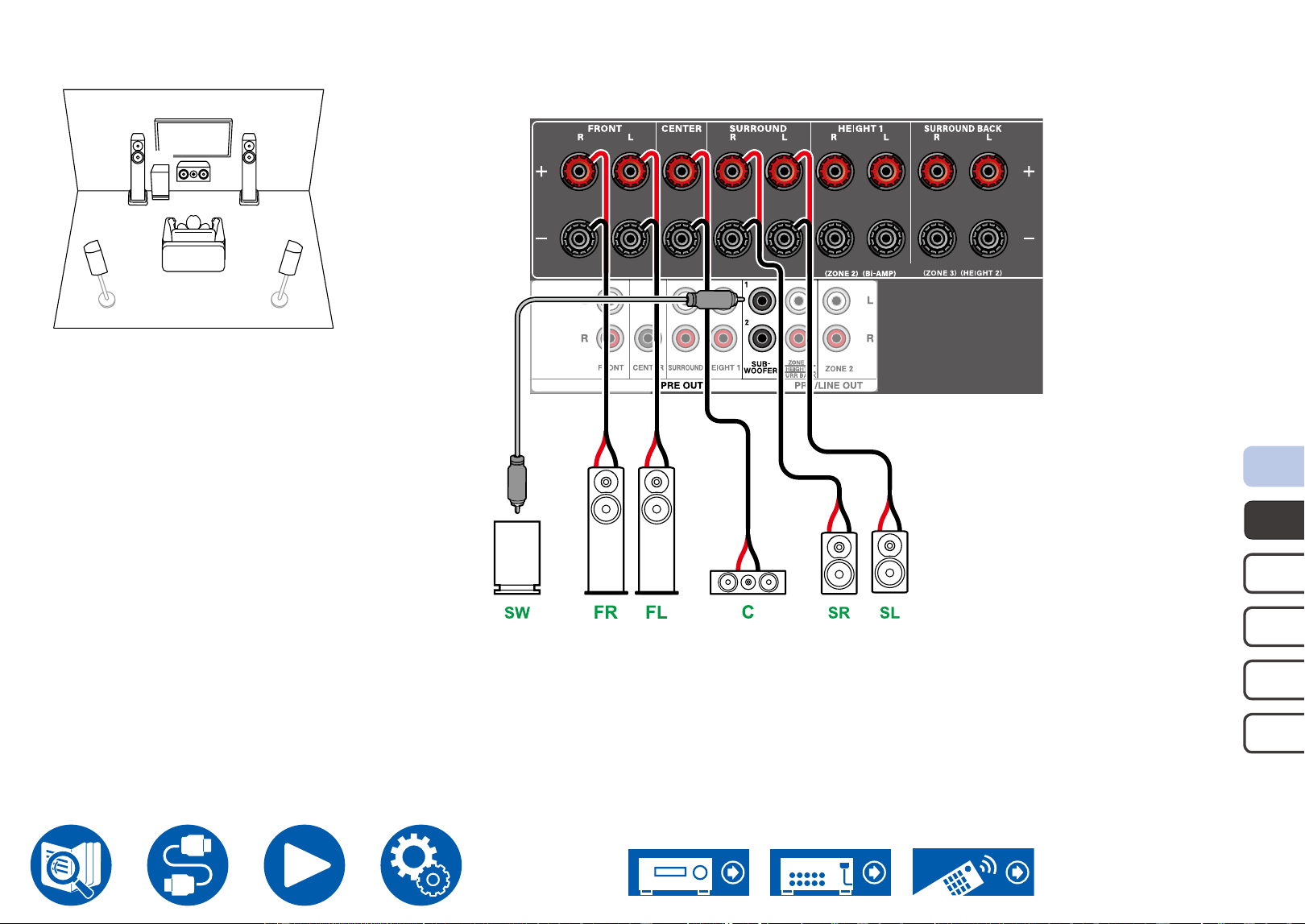

5.1 Channel System 35, 36, 37
7.1 Channel System 38, 39, 40
5.1.2 Channel System 41, 42, 43
7.1.2 Channel System 44
5.1.4 Channel System 45
Connecting a Power Amplier 46
Speaker Connections
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
33
Speaker Connections
Speakers you can use with this unit and cable connections
Speakers you can use with this unit
This unit supports speakers with 4 Ω to 16 Ω impedance. For speaker impedance, check the speaker instruction manual.
(Note) Speaker Impedance
If any of the speakers to be connected has an impedance of 4 Ω or more and less than 6 Ω, set "Speaker Impedance" to "4ohms" for "Speaker Setup" in the
Initial Setup section ( →p137). When setting "Speaker Impedance" from the Setup menu, press the SETUP on the remote controller, and set "Speaker" -
"Conguration" - "Speaker Impedance" ( →p109) to "4ohms".
Connect the Speaker Cables
1/2˝
(12 mm)
Make correct connection between the unit's jacks and speaker's jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass
sound will not be reproduced properly due to reverse phase. Twist the wires exposed from the tip of the speaker cable so that the wires do not stick out of the
speaker terminal when connecting. If the exposed wires touch the rear panel, or the + side and – side wires touch each other, a malfunction may occur.
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
37
Speaker Connections
5.1 Channel System (Bi-Amping the Speakers)
SL SR
C
SW
FL FR
For high-
frequency
For low-
frequency
Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of
your speakers as well.
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
40
Speaker Connections
7.1 Channel System (Bi-Amping the Speakers)
SL SR
SBL SBR
C
SW
FL FR
For high-
frequency
For low-
frequency
Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of
your speakers as well.

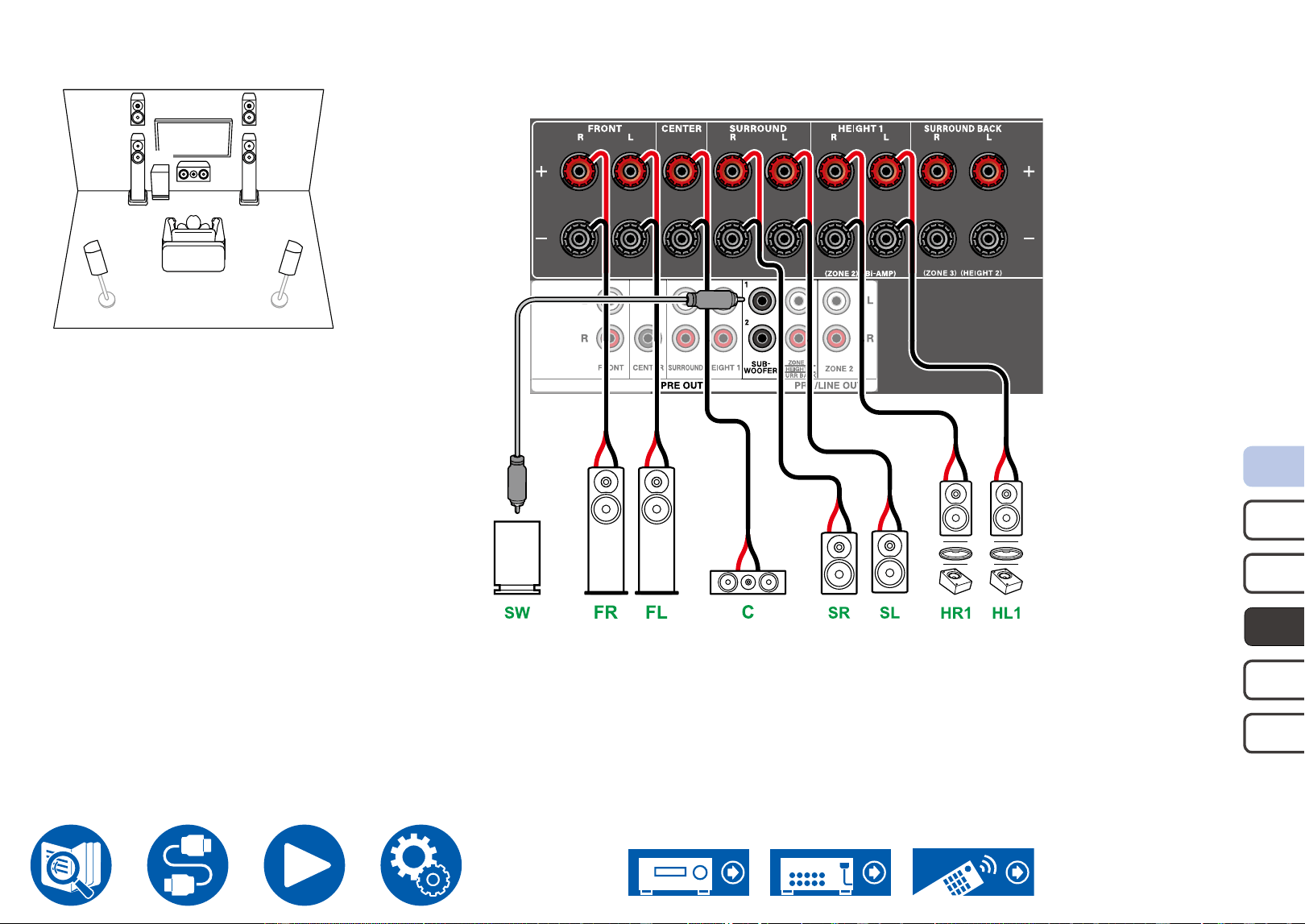

7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
42
Speaker Connections

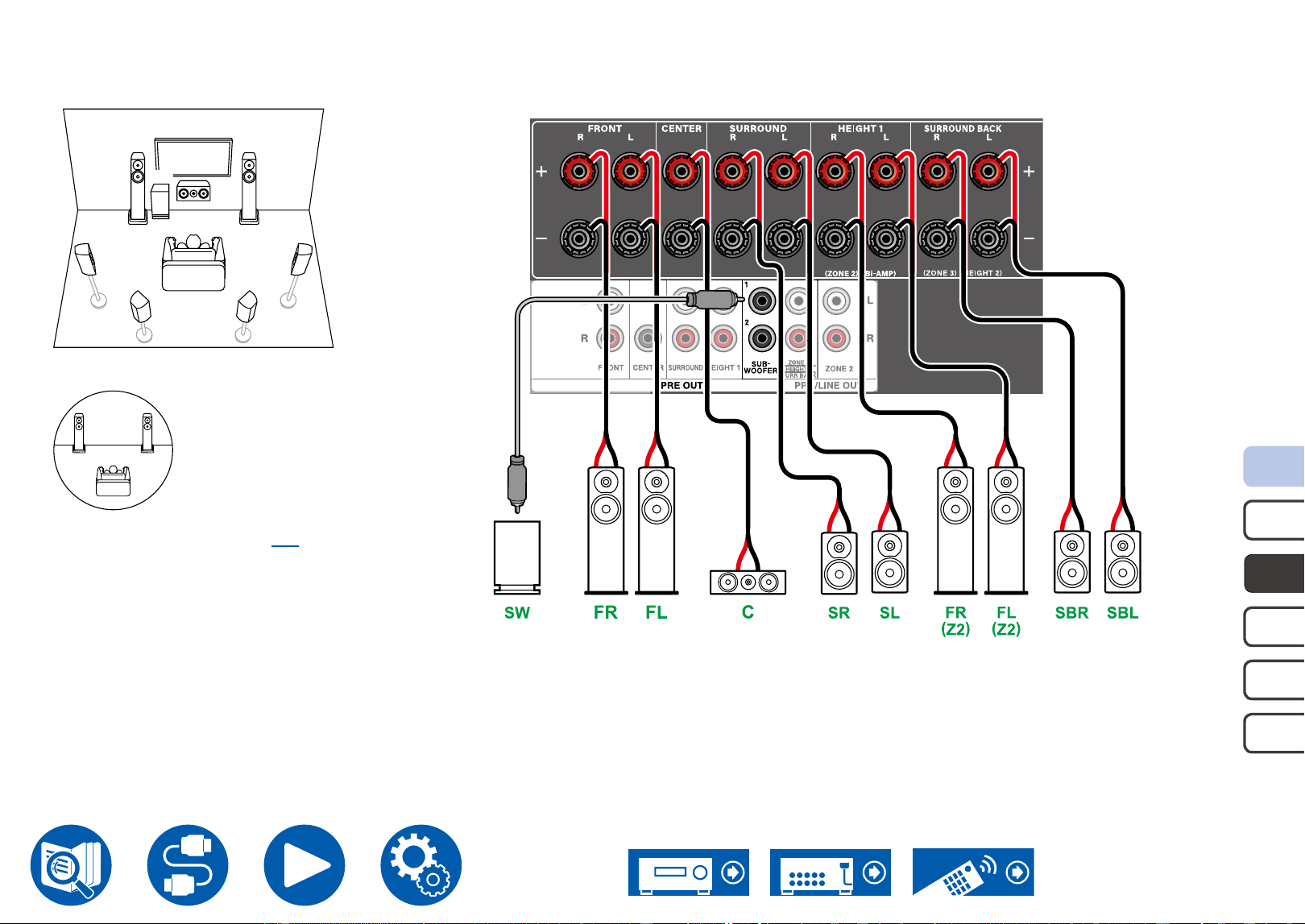

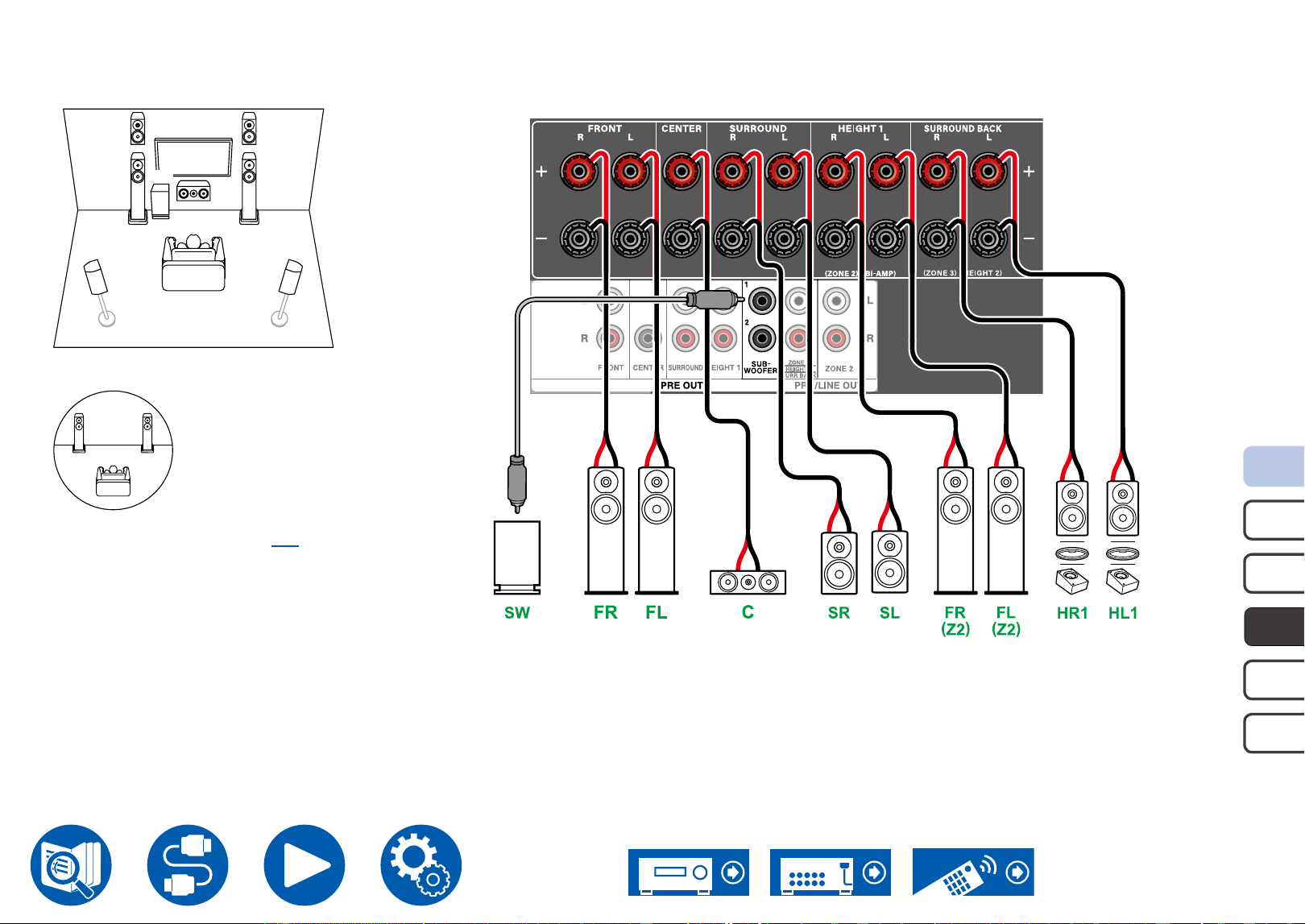

5.1.2 Channel System + ZONE SPEAKER (ZONE 2)
FL FR
SL SR
C
SW
HL HR
MAIN ROOM
– Playing Back (ZONE 2) ( →p87)
ZONE 2
FL(Z2)FR(Z2)
*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).
*1
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
43
Speaker Connections
5.1.2 Channel System (Bi-Amping the Speakers)
HL HR
C
SW
FL FR
SRSL
For high-
frequency
For low-
frequency
Be sure to remove the jumper bar connecting between the woofer jacks and tweeter jacks of the Bi-Amping supported speakers. Refer to the instruction manual of
your speakers as well.
*1 Connect the Height Speakers you have actually installed (HL/HR: Height Speakers, Top Speakers, Dolby Enabled Speakers).
*1
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
45
Speaker Connections

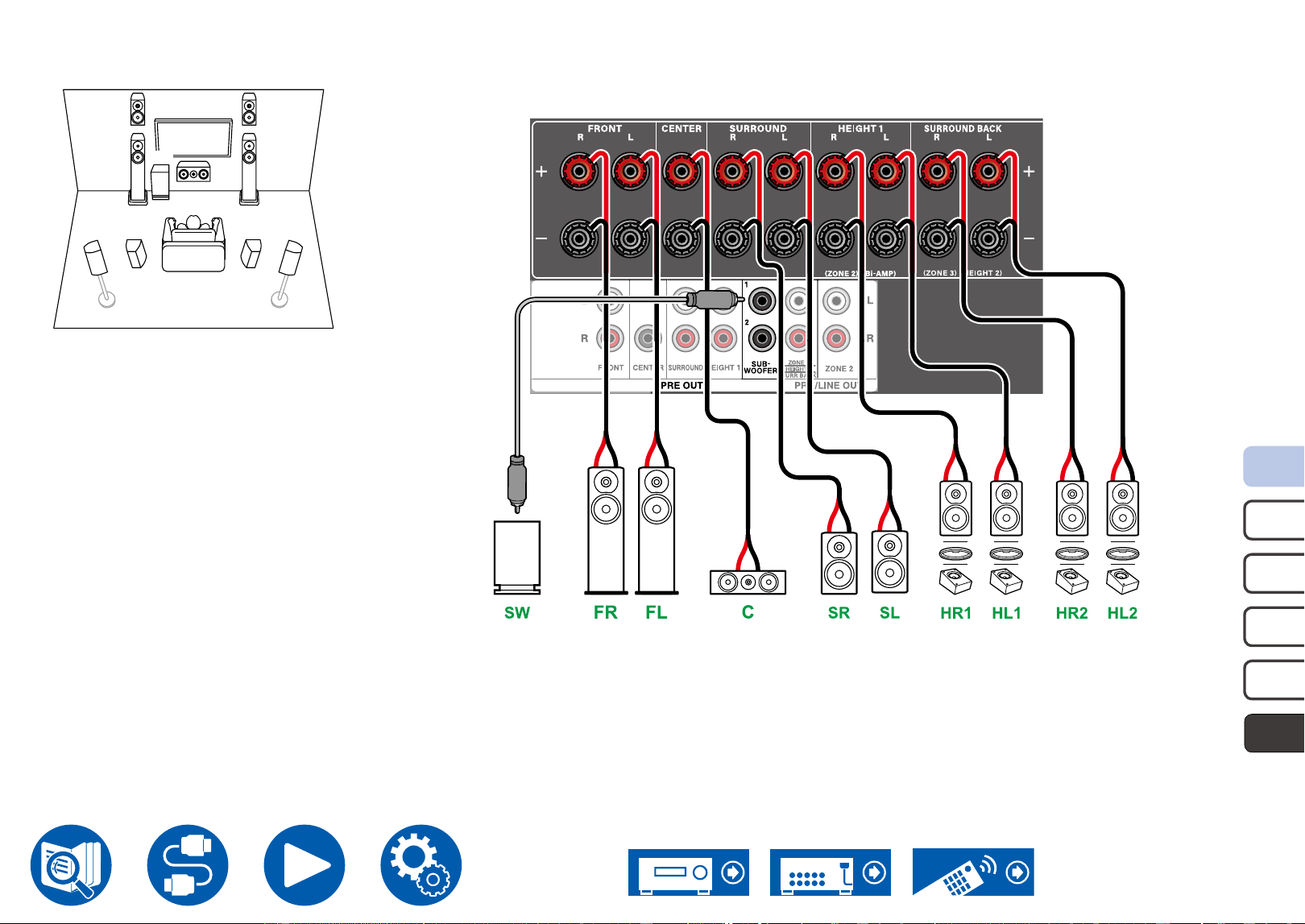

5.1.4 Channel System
SL SR
FL FR
C
SW
HL1 HR1
HR2HL2
*1 Connect the Height Speakers you have actually installed (HL1/HR1: Front Height Speakers, Top (front side) Speakers, Dolby Enabled Speakers (Front)).
*2 Connect the Height Speakers you have actually installed (HL2/HR2: Rear Height Speakers, Top (rear side) Speakers, Dolby Enabled Speakers (Surround)).
*1 *2
7.1.2ch
7.1ch
5.1.2ch
5.1.4ch
5.1ch
46
Speaker Connections

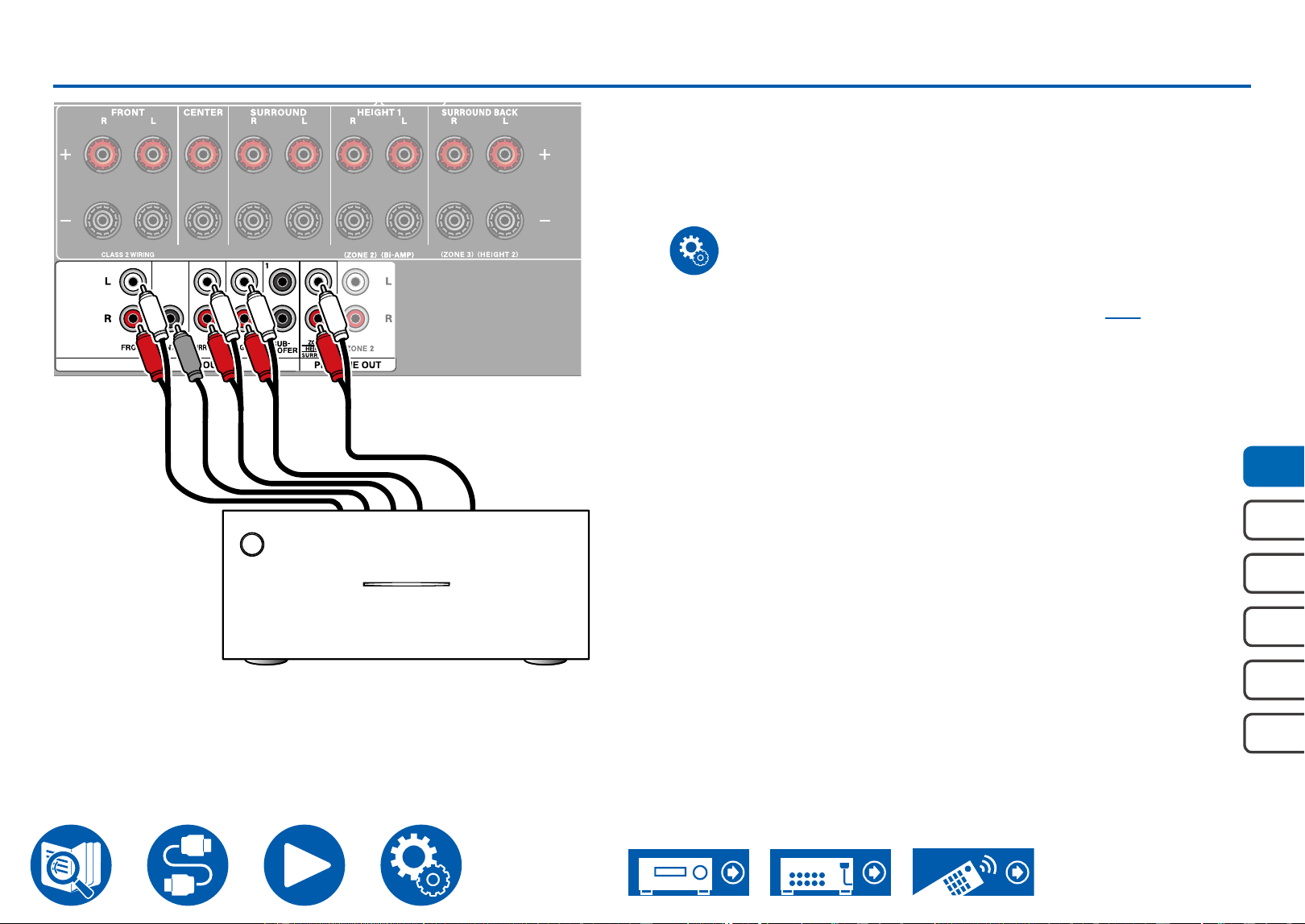

Connecting a Power Amplier
You can connect a power amplier to the unit and use the unit as a pre-amplier.
This enables you to playback at high volumes that the unit by itself cannot
produce. Connect the speakers to the power amplier. For details, refer to the
power amplier’s instruction manual.
• Use the PRE OUT terminals as shown in the illustration at left.
Setup
• Set "Speaker" - "Conguration" - "Speaker Channels" ( →p108) according to
the number of channels of the connected speakers.
a Analog audio cable
a
Power amplier
Connections
47
Connections
Connections
Notes regarding connections with HDMI cables 48
Connecting the TV 49
Connecting the SUB Monitor 51
Connecting Playback Devices 52
Connecting a TV or Integrated Amplier in a
separate room (Multi-zone) 55
Connecting Antennas (North American and
Taiwanese models) 58
Network Connection 59
Connecting External Control Devices 60
Connecting the Power Cord 62
Connections
48
Connections
Notes regarding connections with HDMI cables
HDMI (High-Denition Multimedia Interface) is a digital interface standard for
connecting TVs, projectors, Blu-ray Disc players, game consoles, and other
video components. With HDMI, a single cable can carry control signals, digital
video, and digital audio.
Connections

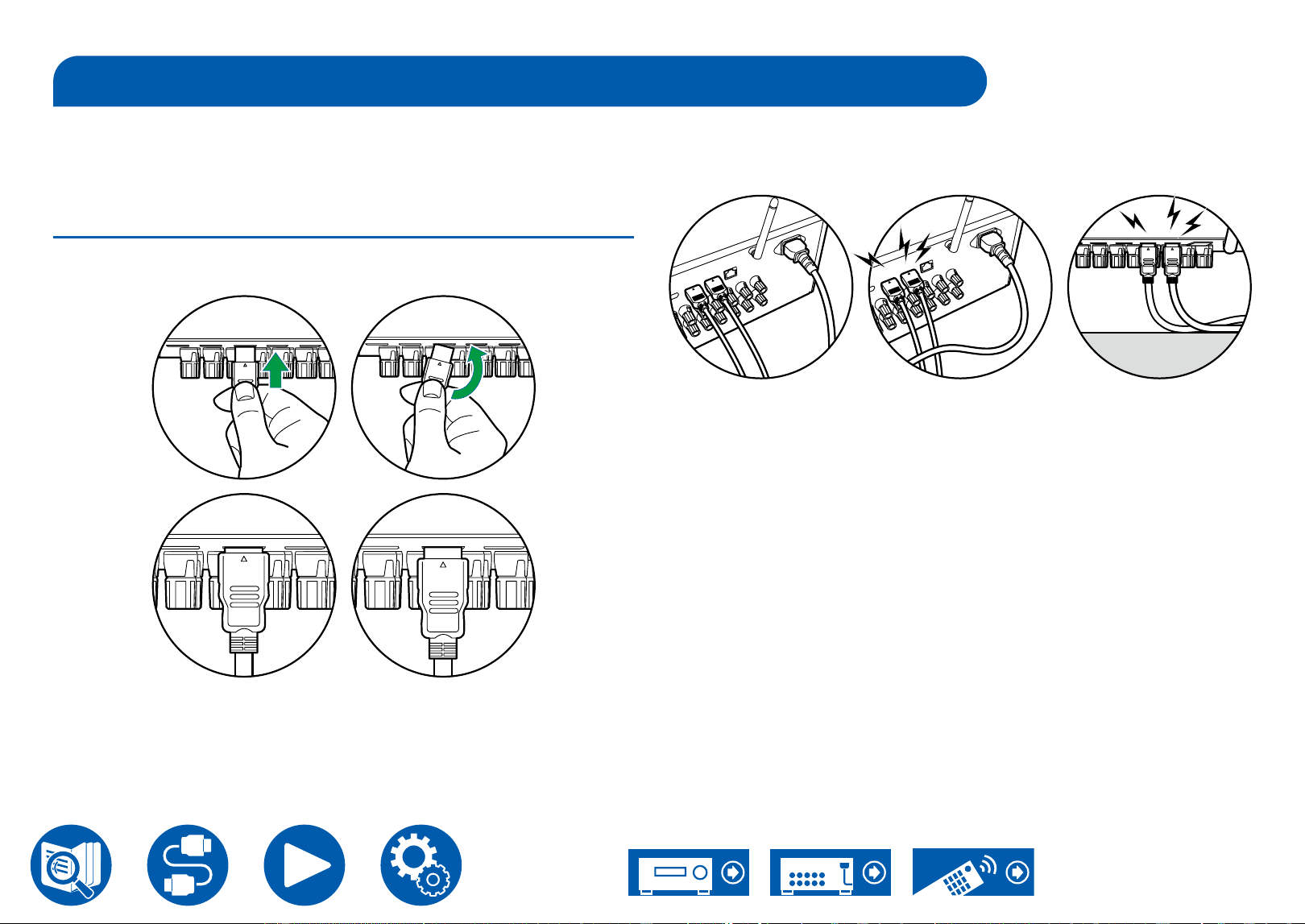

Push HDMI cables straight in and all the way. You can damage the terminals if
you try to insert at an angle.
Correct
Incorrect
Correct Incorrect
• Hold the terminal housing on the HDMI cable when unplugging. Pulling on the
cable may lead to damaged cabling.
(Note) Placement of cables
Putting a load on HDMI cables can lead to poor operational performance. Place
the cables so there is no load put on them.
Correct Incorrect Incorrect
• When 4K high-quality video (4K 120 Hz, etc.) or 8K high-quality video (8K
60 Hz, etc.) is to be played, use ULTRA High Speed HDMI Cable that has the
"ULTRA HIGH SPEED" label attached to the packaging.
49
Connections

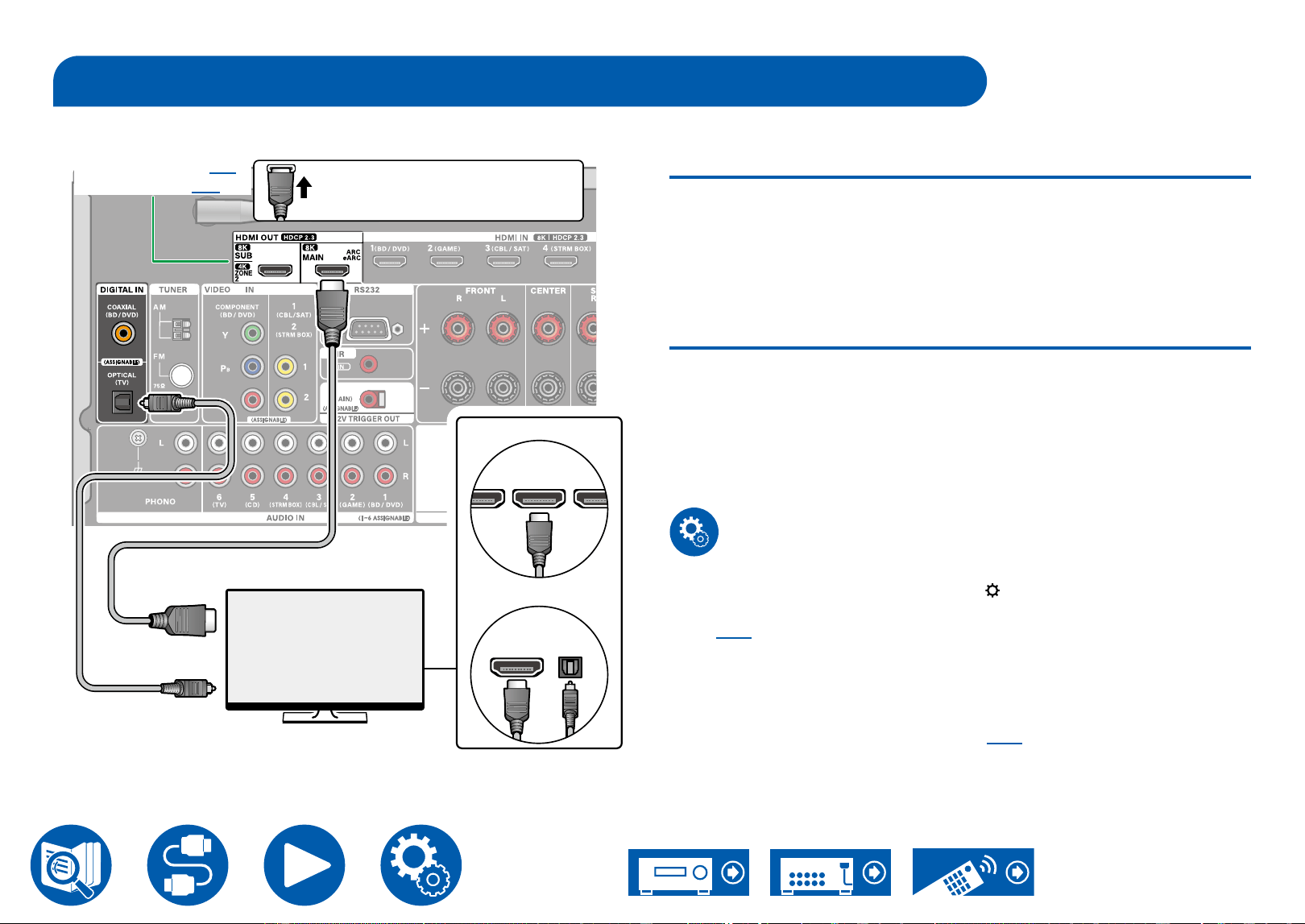

Connecting the TV
By connecting a TV to this unit, you can show the video from AV devices connected to this unit on the TV and also play the sound from the TV through this unit.
b
a
HDMI IN
DIGITAL
OPTICAL
OUT
HDMI IN
(
ARC
)
Be sure to insert the HDMI
cable all the way in.
To ARC/eARC TV
If the TV supports the ARC (Audio Return Channel) function(*), use only the
HDMI cable to connect with the TV. Use the ARC-compatible HDMI IN jack of
the TV for connection. You connect the HDMI cable to the HDMI OUT MAIN jack
labeled "ARC" on the receiver side.
• When a TV compatible with the eARC function is connected, use an HDMI
cable that supports Ethernet.
To Non-ARC TV
If the TV does not support the ARC (Audio Return Channel) function(*), connect
an HDMI cable and digital optical cable. If the TV does not have a DIGITAL
OPTICAL OUT jack, you can use an analog audio cable to connect with the
AUDIO IN TV jack.
• If you use a cable set-top box, etc. connected to the input jack of this unit to
watch TV (without using a TV’s built-in tuner), connection with a digital optical
cable or analog audio cable is not required.
Setup
• When not using the ARC function, press SETUP on the remote controller,
then set "Hardware" - "HDMI" - "Audio Return Channel (eARC supported)"
( →p122) to "O".
(*)The ARC function and eARC function transmit the audio signals of the TV via
an HDMI cable, and plays the audio of the TV on this unit. To check if the TV
supports the ARC function and eARC function, refer to the instruction manual
of the TV, etc.
ARC/eARC compatible audio formats ( →p178)
TV
ARC TV
Non-ARC TV
SUB Monitor ( →p51)
ZONE 2 ( →p55)
a HDMI cable,
b Digital optical cable
51
Connections

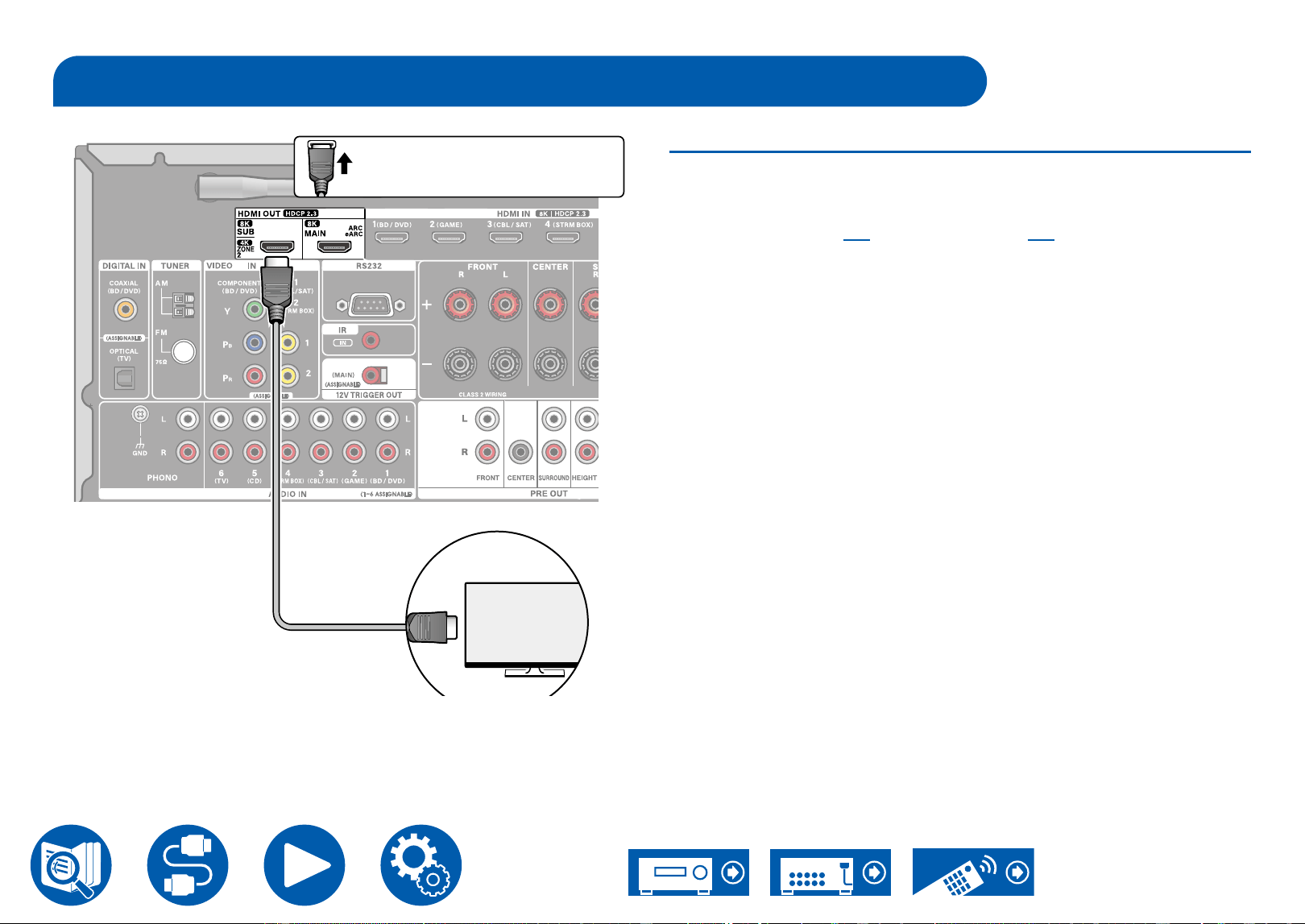

a
SUB Monitor
Be sure to insert the HDMI
cable all the way in.
SUB Monitor
This unit has multiple HDMI OUT jacks, and another TV or projector can be
connected to the HDMI OUT SUB jack.
• Switch between MAIN and SUB using the HDMI MAIN/SUB button on the
remote controller ( →p16) or "Quick Menu" ( →p73). Note that this jack
is not ARC-compatible.
• If devices with dierent resolutions are connected to HDMI OUT MAIN jack
and SUB jack, images are output with the lower resolution.
Connecting the SUB Monitor
a HDMI cable
52
Connections
Connecting Playback Devices
Connections to Blu-ray/DVD Disc player and Game consoler with HDMI jacks
a
Be sure to insert the HDMI
cable all the way in.
This is a connection example of an AV component equipped with an HDMI jack.
When connecting with an AV component that conforms to the CEC (Consumer
Electronics Control) standard, you can use the HDMI CEC function (*) that
enables linking with input selectors, etc. and the HDMI Standby Through
function that can transmit video and audio signals of the AV component to the
TV even if this unit is in standby mode.
• Settings are required when 8K high-quality video is to be played. Refer to
"HDMI 4K/8K Signal Format" ( →p104) for information on the settings.
Also, use an HDMI cable that supports 8K video.
Note
• To enjoy digital surround sound including Dolby Digital, set the audio output of
the connected Blu-ray Disc player etc. to the Bitstream output.
(*) The HDMI CEC function: This function enables various linking operations
with CEC-compliant devices, such as switching input selectors interlocking
with a CEC-compliant player, switching audio output between TV and this unit
or adjusting the volume using the remote controller of a CEC-compliant TV,
and automatically switching this unit to standby when the TV is turned o.
Blu-ray/
DVD Disc player
Game consoler
Cable/Satellite
Set-top box
a HDMI cable
53
Connections
Connecting a Blu-ray/DVD Disc player without HDMI Jack Mounted
This is a connection example of an AV component unequipped with an HDMI
jack. Select cables that match the jacks of the AV component for connection. For
example, when video input is connected to the BD/DVD jack, connect the audio
input to BD/DVD jack, too. Thus, video input jacks and audio input jacks should
have the same name for connection. Note that video signals input to the VIDEO
IN jack or the COMPONENT VIDEO IN jack are converted to HDMI video
signals, and then output from the HDMI OUT jack.
• To enjoy digital surround playback in formats such as Dolby Digital, you need
to make a connection for audio signals with a digital coaxial cable or a digital
optical cable.
• In the diagram example, when you change the allocation ( →p107) of the
AUDIO IN terminals, you can also connect to any terminal other than BD/
DVD.
Note
• The COMPONENT VIDEO IN jacks are compatible only with 480i or 576i
resolution. When connecting to the COMPONENT VIDEO IN jacks, set the
output resolution of the player to 480i or 576i. If there is no option such as
480i, select interlace. If your player does not support 480i or 576i output, use
the VIDEO IN jack.
• To enjoy digital surround sound including Dolby Digital, set the audio output of
the connected Blu-ray Disc player etc. to the Bitstream output.
a Analog audio cable,
b Digital coaxial cable,
c Component video cable
a
b
c
OR
Blu-ray/
DVD Disc player
54
Connections

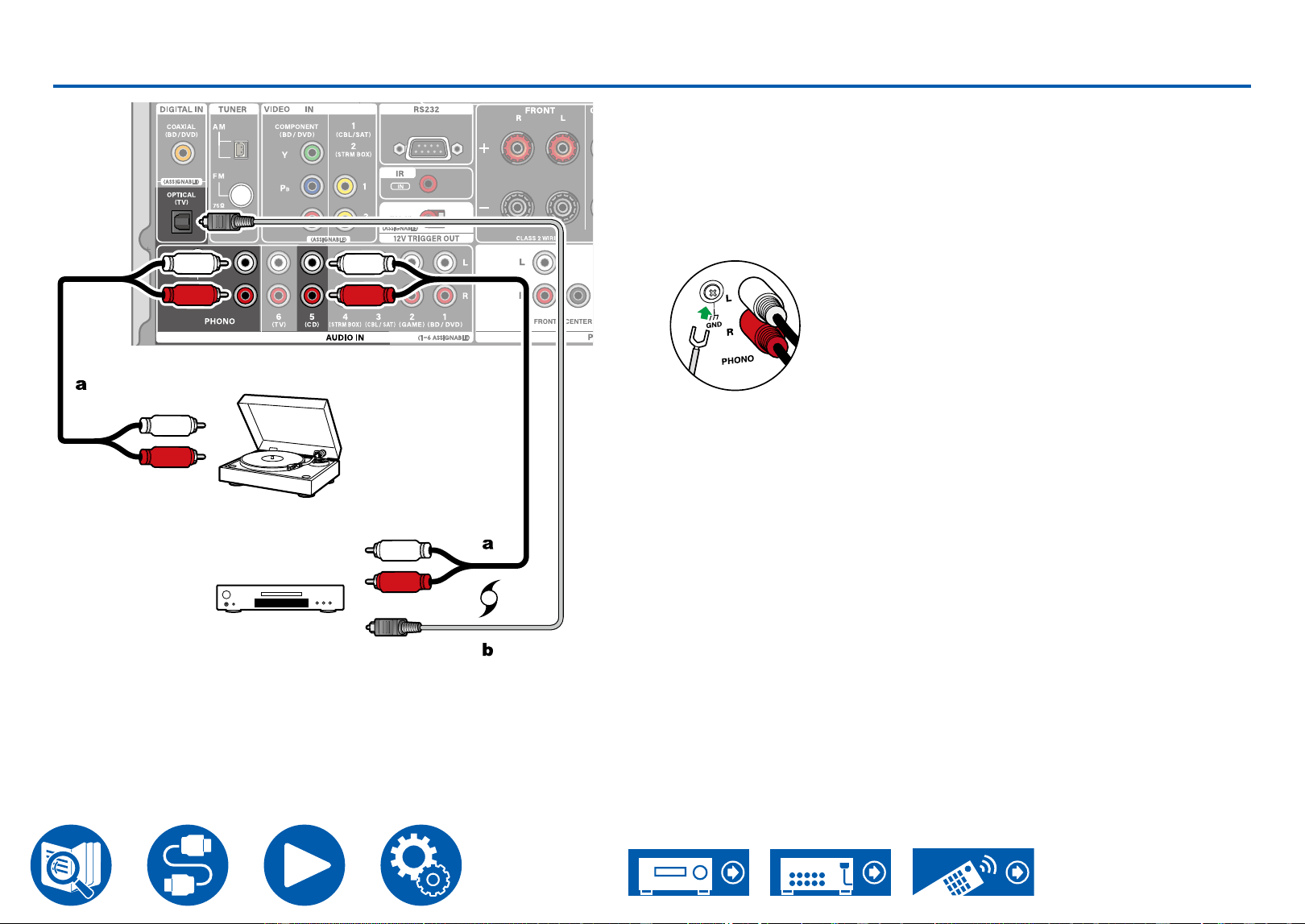

Connecting an Audio Component
This is a connection example of an audio component. Connect a CD player
using an analog audio cable. You can also connect a turntable that has an MM-
type cartridge to the PHONO jack.
• If the turntable has a built-in phono equalizer, connect it to any of the AUDIO
IN jacks other than the PHONO jack. Further, if the turntable uses an MC type
cartridge, install a phono equalizer compatible with the MC type cartridge
between the unit and the turntable, and then connect it to any of the AUDIO
IN jacks other than the PHONO jack.
If the turntable has a ground wire, connect it to the GND terminal of this unit.
OR
Turntable
CD player
a Analog audio cable,
b Digital optical cable
55
Connections
Connecting a TV or Integrated Amplier in a separate room (Multi-zone)
Connecting a TV (ZONE 2)
While a disc is played on a Blu-ray Disc player in the main room (where this unit
is located), you can play the video and audio of the same Blu-ray Disc player or
another AV component on the TV equipped with an HDMI IN jack in a separate
room (ZONE 2).
• Audio from an externally connected AV component can be output only
when the audio is 2 ch PCM audio signal. Also, the audio output of the AV
component may need to be changed to the PCM output.
Setup
• When video and audio via HDMI input are output to ZONE 2, set "Input/
Output Assign" - "TV Out / OSD" - "Zone 2 HDMI" ( →p104) to "Use" on the
Setup menu.
Multi-zone ( →p86)
Playing Back (ZONE 2) ( →p87)
a HDMI cable
a
TV
Be sure to insert the HDMI
cable all the way in.
56
Connections
Connecting an Integrated Amplier (ZONE 2)
You can enjoy 2 ch audio in the separate room (ZONE 2) while performing
playback in the main room (where this unit is located). Use an analog audio
cable to connect the ZONE 2 PRE/LINE OUT jacks on this unit to the input jack
on an integrated amplier in the separate room.
• If the AV component is not equipped with an HDMI jack, use a digital coaxial
cable, digital optical cable or analog audio cable. Also, the audio from
externally connected AV components can be output to ZONE 2 only when the
audio is analog or 2 ch PCM signal. When the AV component is connected to
this unit with a digital coaxial cable or digital optical cable, change the audio
output of the AV component to the PCM output.
Setup
• When connecting an integrated amplier that does not have a volume control,
set "Multi Zone" - "Zone 2" - "Output Level" ( →p132) to "Variable" (Default
Value: Fixed) on the Setup menu. If you do not set this, the volume output
will be very loud and there is a danger of damage to the integrated amplier,
speakers, etc. When connecting an integrated amplier that has a volume
control, leave this as "Fixed".
Multi-zone ( →p86)
Playing Back (ZONE 2) ( →p87)
Input
Terminal
a
Integrated
amplier
a Analog audio cable
57
Connections
Connecting an Integrated Amplier (ZONE 3)
You can enjoy 2 ch audio in the separate room (ZONE 3) while performing
playback in the main room (where this unit is located). Use an analog audio
cable to connect the ZONE 3 PRE/LINE OUT jack on this unit to the input jack
on an integrated amplier in the separate room. The same source can be played
back in the main room and ZONE 3 simultaneously. Also, dierent sources can
be played back in both rooms.
• To output audio from an externally connected AV component to ZONE 3,
use an analog audio cable for connection. Note that ZONE 3 output is not
possible with the connection using a HDMI cable, digital coaxial cable, or
digital optical cable.
Setup
• With speaker combinations ( →p171) 2.1.2 ch, 3.1.2 ch, 4.1.2 ch, or
5.1.2 ch, this function cannot be used when using Bi-AMP or ZONE 2 (ZONE
SPEAKER).
• When connecting an integrated amplier that has an external volume control,
set "Multi Zone" - "Zone 3" - "Output Level" ( →p132) to " Fixed (Default
Value)" on the Setup menu. If your external integrated amplier does not have
an external volume control please set this at "Variable". If you do not set this,
the volume output will be very loud and there is a danger of damage to the
integrated amplier, speakers, etc.
Input
Terminal
a
a
Integrated
amplier
a Analog audio cable
Blu-ray/
DVD Disc player
Multi-zone ( →p86)
Playing Back (ZONE 3) ( →p89)
58
Connections
Connecting Antennas (North American and Taiwanese models)
Connect the antenna to this unit, and set up the antenna at the best position for
listening while receiving radio signals. Attach the indoor FM antenna to the wall
using push pins or adhesive tape.
a
b
a AM loop antenna,
b Indoor FM antenna
59
Connections
Network Connection
This unit can be connected to the network using a wired LAN or Wi-Fi (wireless
LAN). You can enjoy network functions such as Internet radio by network
connection. If connection is made by the wired LAN, connect the router and the
ETHERNET jack with the Ethernet cable as shown in the illustration. To connect
by Wi-Fi, select your desired setting method in "Network Connection" ( →p138)
of Initial Setup, and then follow the on-screen instructions. To congure the
setting on the Setup menu after the completion of Initial Setup, press the
SETUP button on the remote controller, and select "Hardware" - "Network"
to make the setting ( →p123). For the Wi-Fi connection, stand the wireless
antenna for use.
Note
• For security reasons, always connect via a router, etc., when connecting this
unit to the Internet. Do not directly connect to the communication circuits
(including public wireless LAN) of a telecommunications provider (mobile
communications company, xed-line communications company, Internet
provider, etc.).
Router
a Ethernet cable
60
Connections

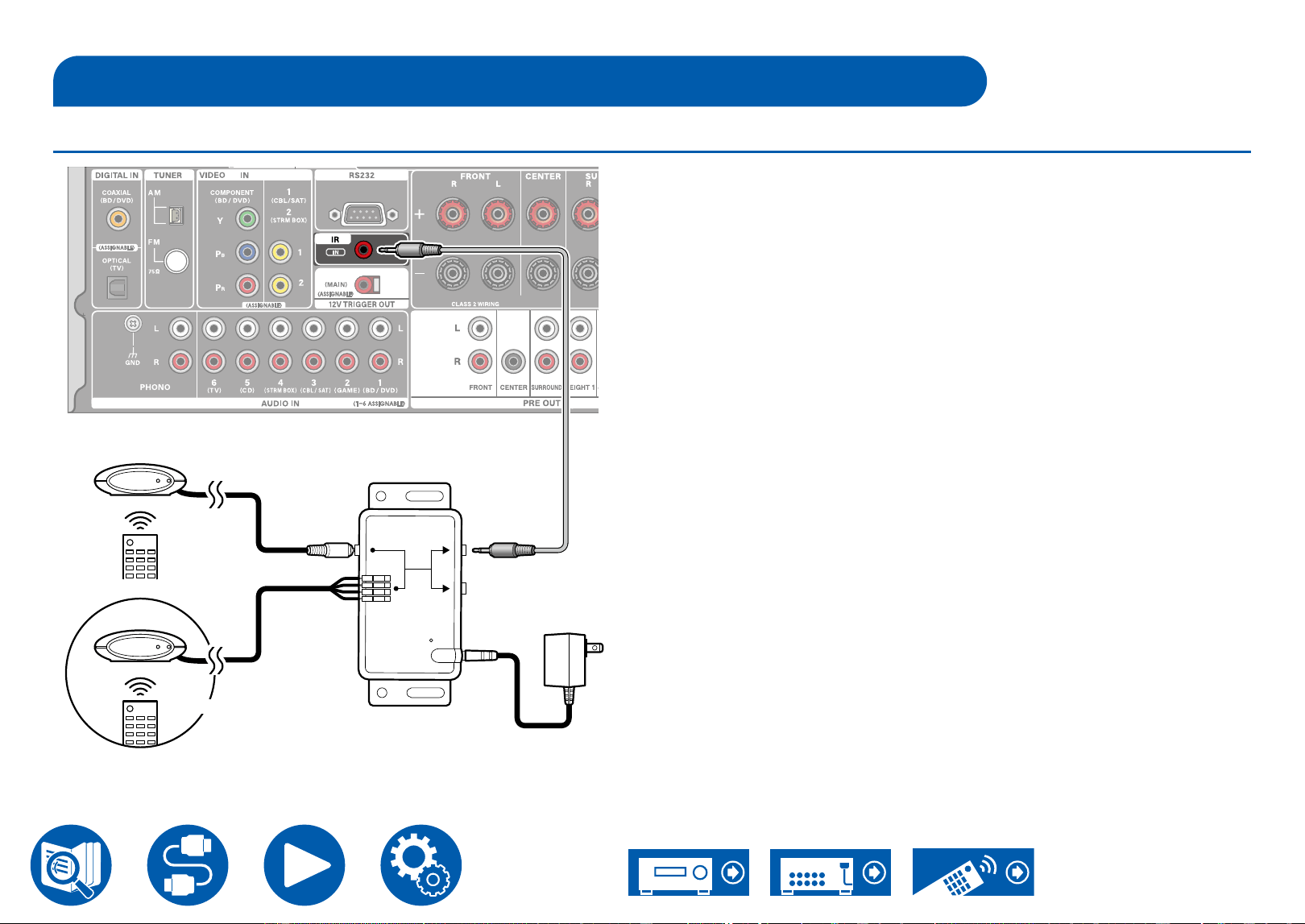

Connecting External Control Devices
IR IN port
When connecting a remote control receiver unit consisting of an IR Receiver,
etc. to this unit, operation using the remote controller is possible even if the
remote control signal is dicult to reach (due to installation in the cabinet,
etc.). You can also operate the unit using the remote controller from a separate
room such as ZONE 2. For installing a remote control receiver unit, contact the
specialized stores.
• For the type of cable required for connection, refer to the operation manual,
etc. of the remote control receiver unit.
• You will need a powered repeater to connect the IR Receiver to this unit.
a
POWER
Zone 2Zone 2
IR ReceiverIR Receiver
IR ReceiverIR Receiver
a Monaural mini plug cable (ø1/8″/3.5 mm)
Powered repeater
61
Connections
12V TRIGGER OUT jack
When connecting a device equipped with a 12V TRIGGER IN jack such as a
BD/DVD player to this unit, the device can be turned on or set to standby by
interlocking the operation on this unit. When the desired input is selected on
the unit, power link operation will be activated with a control signal of maximum
12 V/100 mA from the 12V TRIGGER OUT jack.
• For connection, use a monaural mini plug cable (ø1/8″/3.5 mm) without
resistance. Do not use a stereo mini plug cable.
Setup
• Settings are required to output control signals from the 12 V TRIGGER
OUT jack. Press the SETUP button on the remote controller, select the
input desired for "Hardware" - "12V Trigger" ( →p130), and set the output
destination for the control signal.
Blu-ray/
DVD Disc player
a Monaural mini plug cable (ø1/8″/3.5 mm)
62
Connections

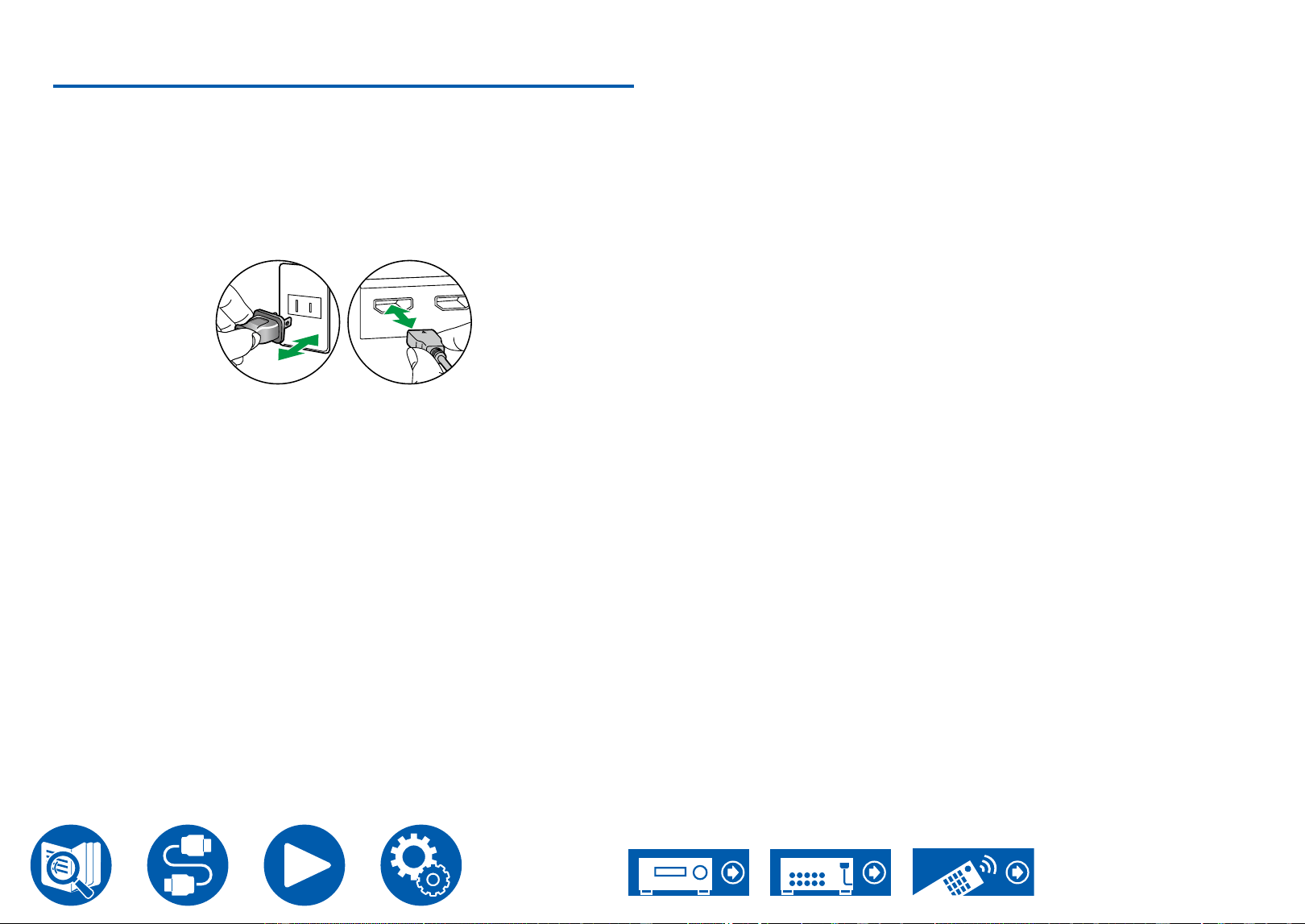

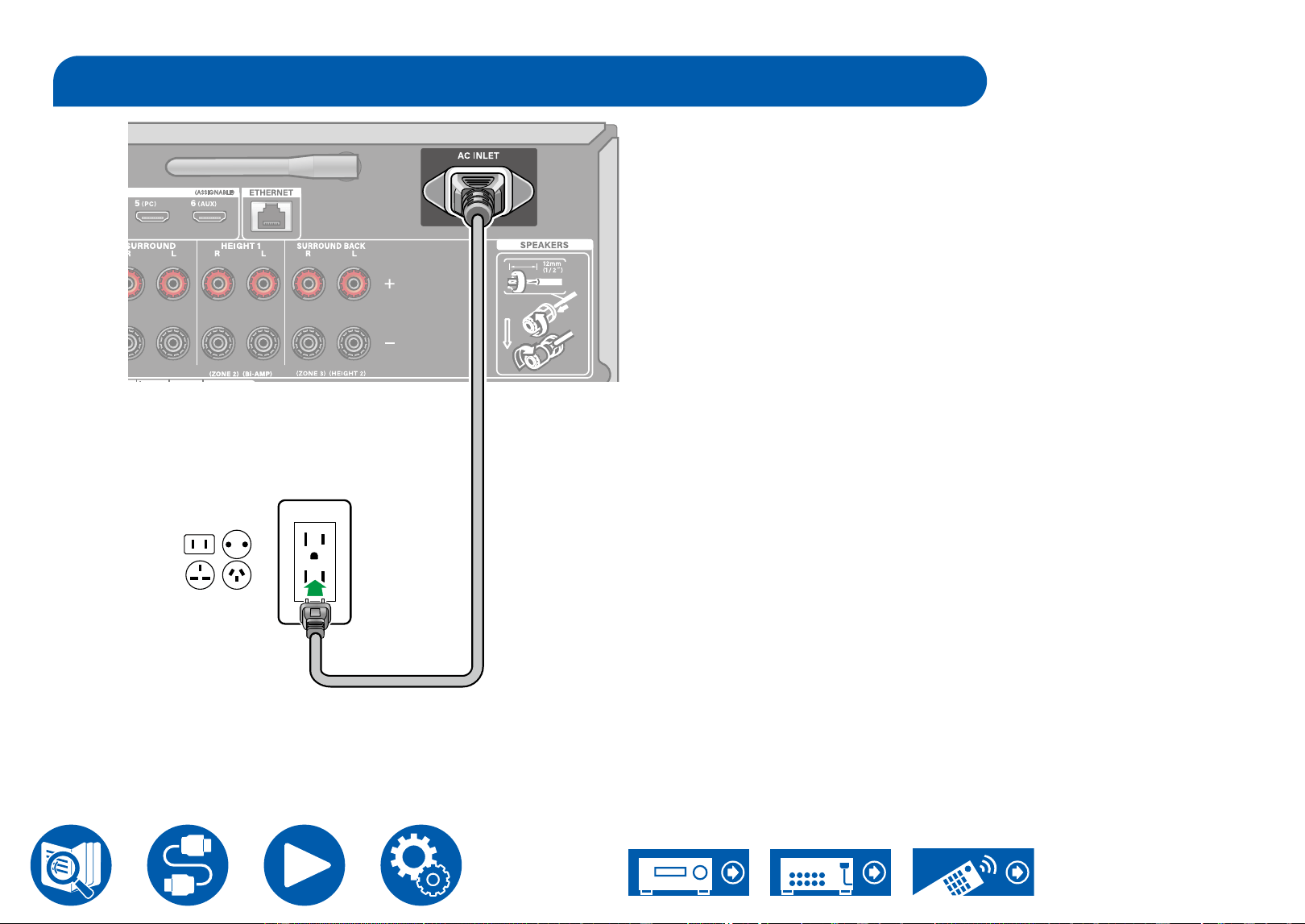

Connecting the Power Cord
Connect the power cord after all the connections are completed.
• This model includes a removable power cord. Be sure to connect the power
cord to the AC INLET of the unit rst, and then connect it to the outlet. Always
disconnect the outlet side rst when disconnecting the power cord.
a Power cord
a
Playback
63
Playback
Basic Operations
Basic Operations 64
Listening Mode 67
BLUETOOTH
®
Playback 68
Listening To the Radio (North American and Taiwanese
models) 71
Quick Menu 73
Network Services
Spotify 76
AirPlay
®
77
Amazon Music 79
TIDAL 81
Connecting the Sonos System for Playback 82
Internet Radio 84
Convenience functions
Multi-zone 86
Playing dierent audio and video 91
Playing music les saved on a USB storage device 93
Music Server 95
Play Queue 98
Playback
64
Playback

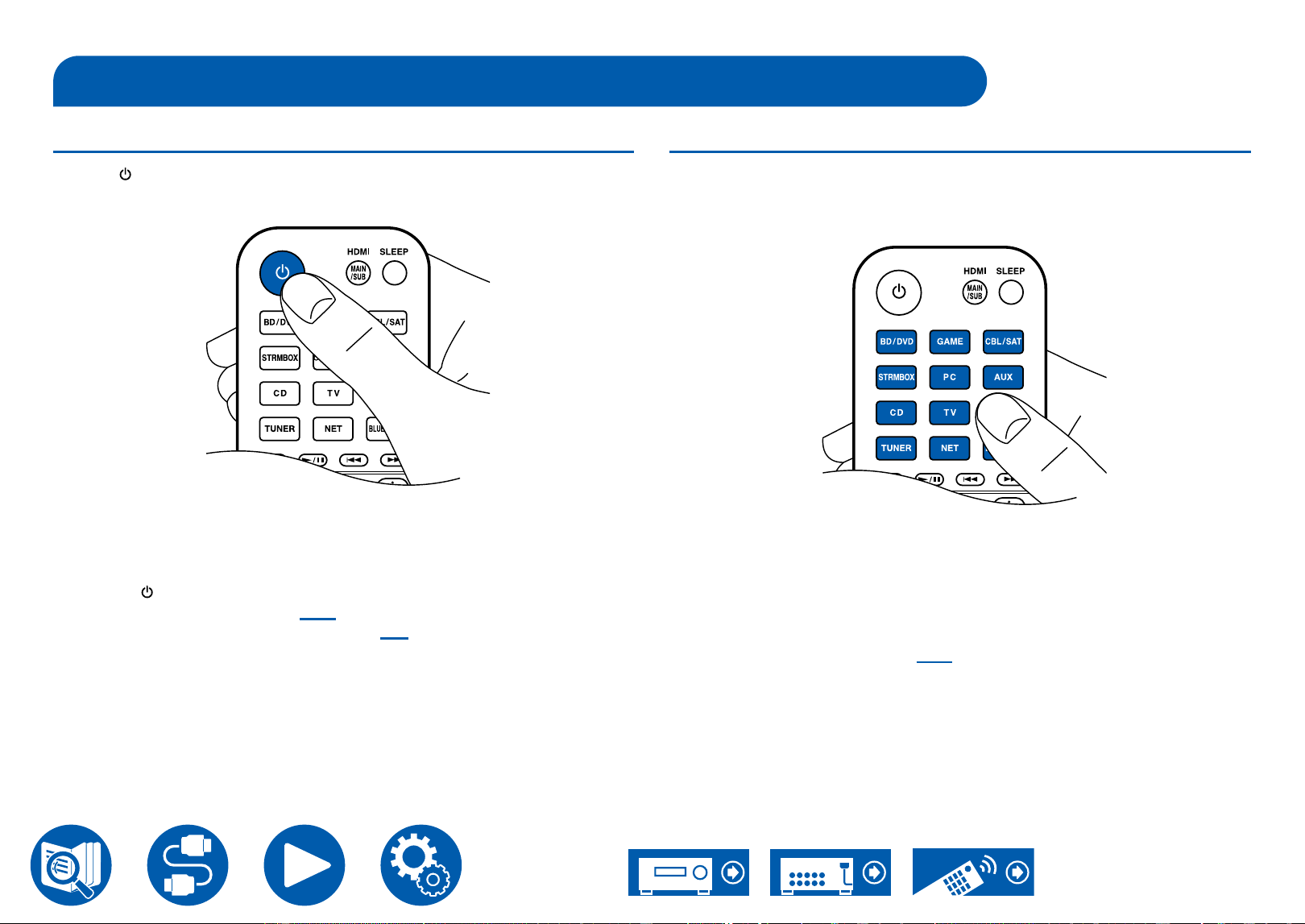

Basic Operations
Turning the power on
1. Press ON/STANDBY on the remote controller to turn on the power of the
unit.
• If the main unit is installed in a rack or cabinet with colored-glass doors, or if
the doors are closed, the remote controller may not work normally.
You can also turn on the power of the unit with the following operations:
– Pressing ON/STANDBY on the main unit.
– Using the Onkyo Controller ( →p143) app
– Using the linking function (HDMI CEC) ( →p66)
Selecting a source to play
1. Press an input selector button on the remote controller to select a source.
For example, to play the device connected to the BD/DVD jack, press the BD/
DVD button. To listen to the audio of the TV, press TV button.
• When playing an external device connected with a digital cable, an HDMI
cable, etc., the audio signal is rst recognized. This means that you may not
immediately hear the audio.
You can also select a source to play with the following operations:
– Pressing an input selector button on the main unit
– Using the Onkyo Controller ( →p143) app
65
Playback

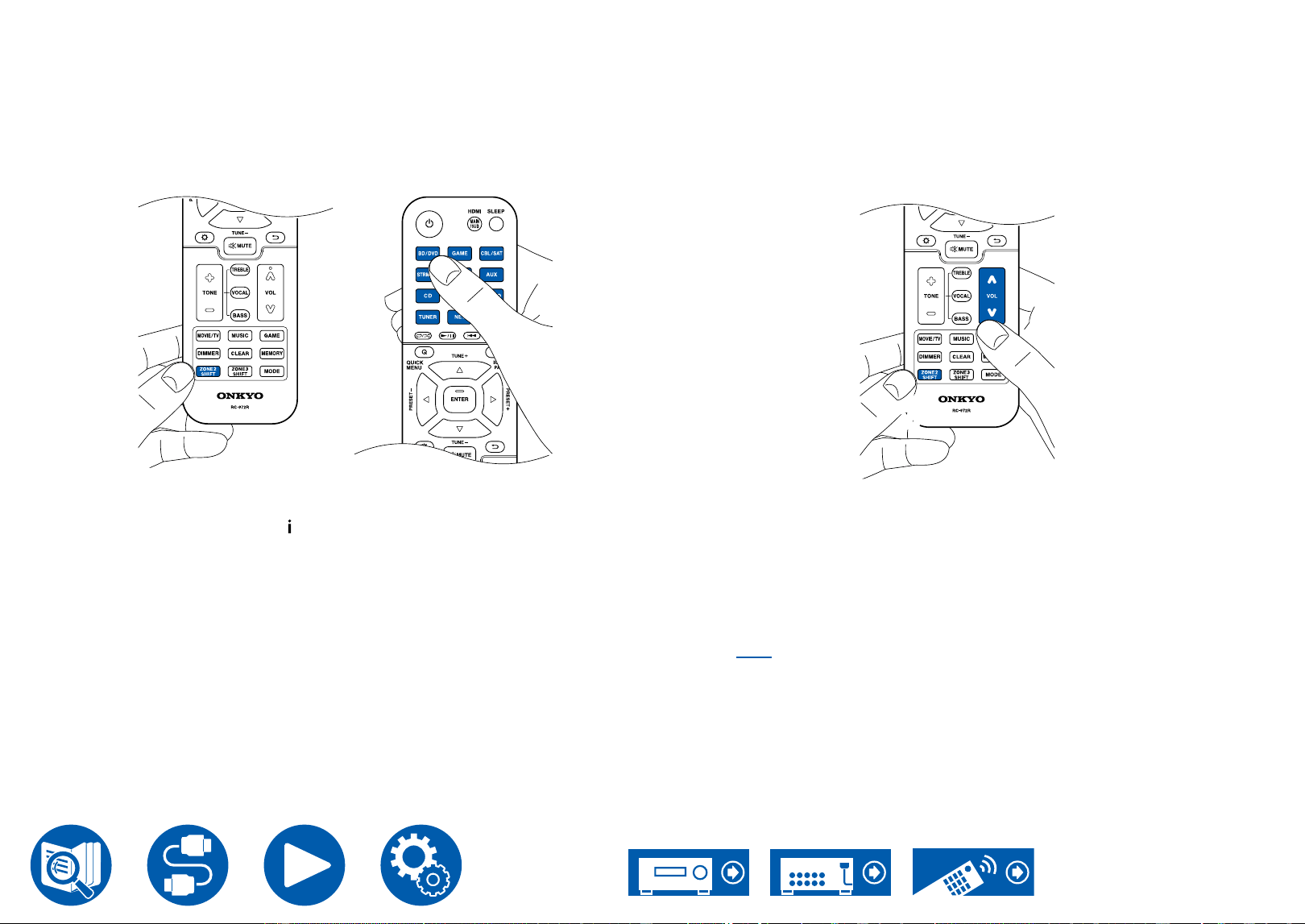

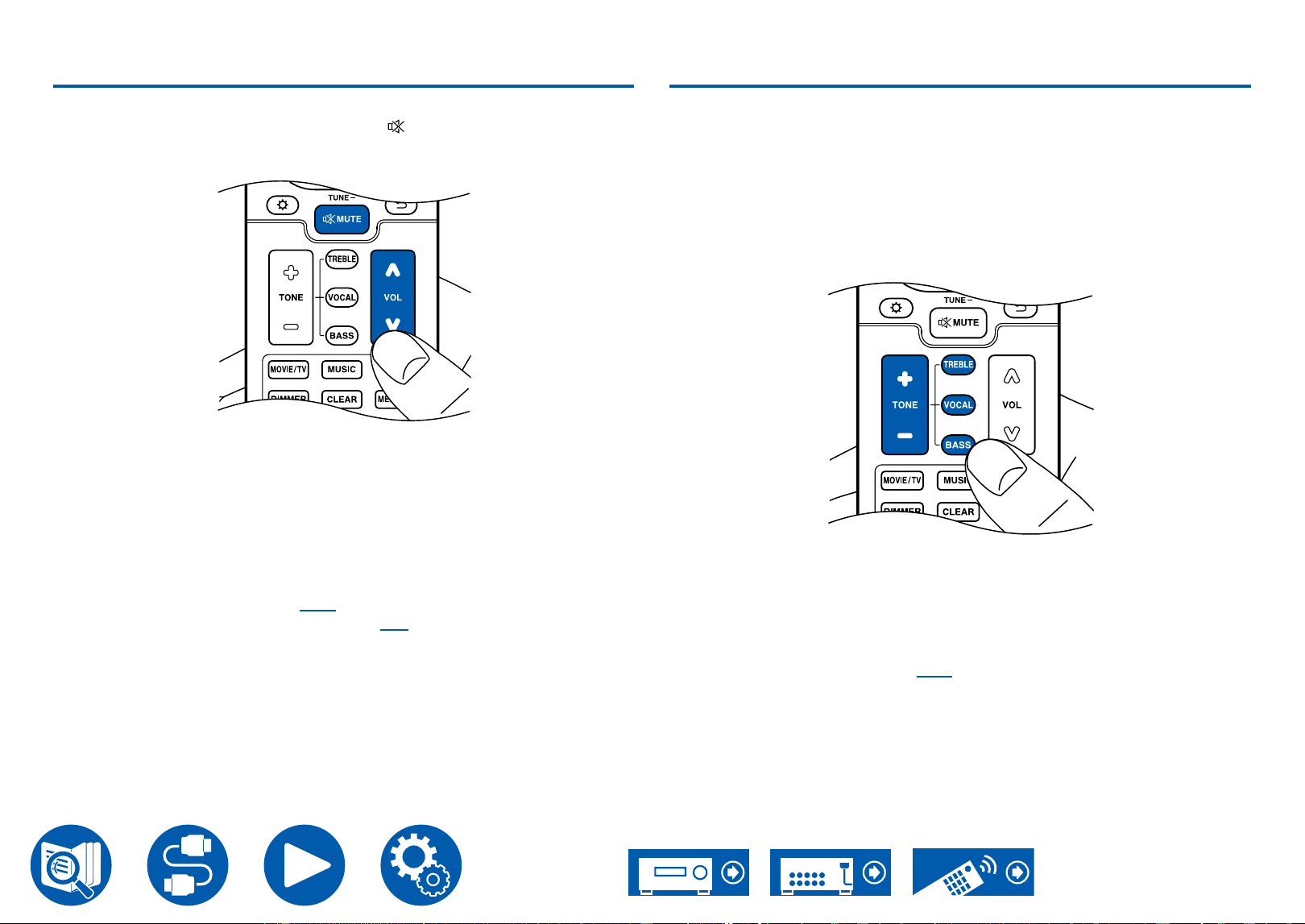

Adjusting the volume
1. Press the VOLUME buttons on the remote controller to adjust the volume.
To temporarily turn o the sound, press the MUTE button. Press again to
cancel.
• When Dolby Vision images are received, the volume bar on the TV screen
changes from blue to magenta.
• When using the unit for extended periods with the temperature inside the unit
exceeding a certain temperature, the volume may be reduced automatically
to protect the circuits.
You can also adjust the volume with the following operations:
– Using the MASTER VOLUME dial on the main unit
– Using the Onkyo Controller ( →p143) app
– Using the linking function (HDMI CEC) ( →p66)
Adjusting the sound quality
1. Press "TREBLE", "BASS", or "VOCAL" on the remote controller to select what
you want to adjust, then adjust with + and -.
Treble: Enhance or moderate the high pitched range of the speakers.
Bass: Enhance or moderate the low pitched range of the speakers.
Vocal: You can make it easier to hear dialog in movies or give more prominence
to the vocals in music. This is especially eective with the dialog in movies. This
eect can still be achieved even if you aren't using a center speaker. Select the
level you like from "1" (low) to "5" (high).
• This may not be available or the result may not be as expected depending on
the input source and listening mode setting.
You can also adjust the sound quality with the following operations:
– Press TONE button and turn the dial on the main unit
– Using the Onkyo Controller ( →p143) app
66
Playback
Using the linking function (HDMI CEC)
By using a HDMI cable and connecting to a TV that is compatible with the
HDMI CEC (Consumer Electronics Control) function, you are able to perform
operations such as adjusting the volume of this unit with the TV's remote
controller and link power On/O. Furthermore, if you have connected a Blu-ray
Disc player, Game consoler, etc. that is compatible with the HDMI CEC function,
input switching is performed automatically.
• HDMI CEC settings ( →p121) (the default value is On)
• For information about the HDMI CEC functions of the TV, refer to the
operating instructions, etc., for the TV.
• The unit is designed to link with products that comply with the CEC standard,
and that linked operation is not always guaranteed with all CEC devices.
• For linked functions to work properly, do not connect CEC-compliant devices
exceeding the connectable number to the HDMI jack as shown below.
– Blu-ray Disc/DVD players: up to 3 units
– Blu-ray Disc/DVD recorders: up to 3 units
– Cable TV tuner, terrestrial digital tuner, and satellite broadcasting tuner: up
to 4 units
Switching the display
Repeatedly pressing the button on the remote controller switches the display
of the main unit in the following order.
• The content displayed depends on the source, BLUETOOTH, etc., being
played.
• Not all the information is necessarily displayed.
DTS Neural : X
1 9 2 1 6 8 X X X X
DTS-HD 5 . 1
1 0 8 0 p / 5 9 1 6 : 9
1 7 6 . 4 k H z
BD/DVD 4 0 . 0
Input signal resolution
Input source and volume
IP Address
Listening mode
The display is switched in
a few seconds.
Input format
Sampling frequency
67
Playback
This unit is equipped with a variety of listening modes, and you can select the
optimum listening mode for movies, TV, music, and games by pressing MOVIE/
TV, MUSIC, and GAME. ( →p159)
• For details of the eects of each listening mode, refer to "Listening Mode
Eects" ( →p165).
• For listening modes selectable for each audio format of input signals, refer to
"Input Formats and Selectable Listening Modes" ( →p161).

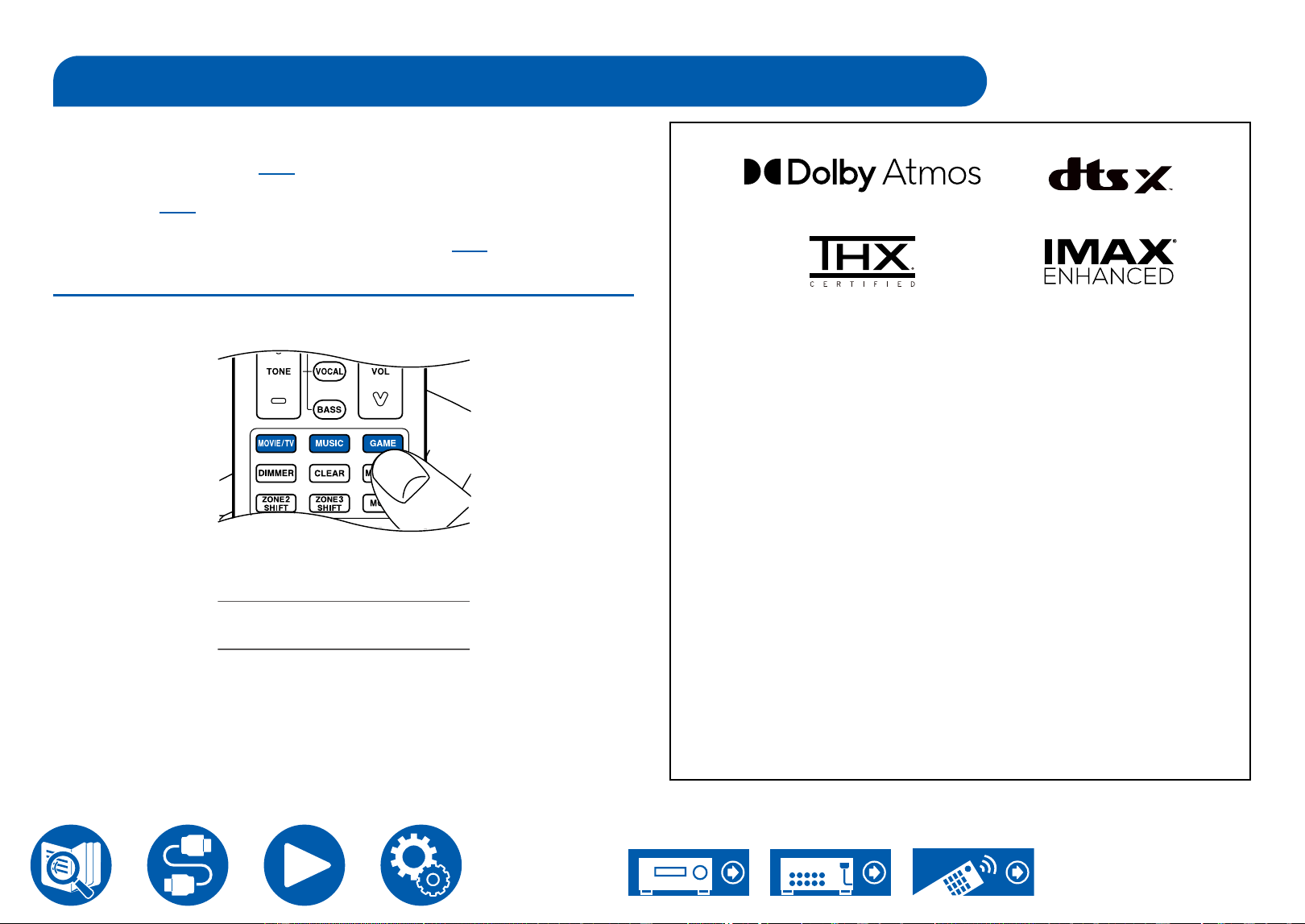

Selecting a Listening mode
1. Press one from among MOVIE/TV, MUSIC, and GAME during playback.
2. Press the selected button repeatedly to switch the modes displayed on the
display of the main unit.
DTS
• Each of MOVIE/TV, MUSIC and GAME buttons stores the listening mode that
was selected last. If content incompatible of the listening mode selected last
is played, the most standard listening mode for the content is automatically
selected.
Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision, Dolby Atmos,
Dolby
Audio, and the double-D symbol are trademarks of Dolby Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc.
(for companies headquartered in the U.S./Japan/T
aiwan) or under license from DTS
Licensing Limited (for all other companies). DTS, DTS:X, and the DTS:X logo are
registered trademarks or trademarks of DTS, Inc. in the United States and other countries.
© 2024 DTS, Inc.
ALL RIGHTS RESERVED.
Before any home theater component can be
THX Certified, it must pass a rigorous
series of quality and performance tests. Only then can a product feature the
THX logo,
which is your guarantee that the Home
Theater products you purchase will give you
superb performance for many years to come.
This device has passed THX Certification
requirements, which define thousands of parameters, from noise levels and distortion to
frequency response and bass management.
THX Certified AVRs recreate high impact
cinema sound and best-in-class audio fidelity
.
THX and the
THX Logo are the property of THX Ltd., registered in the U.S. and other
countries.
Manufactured under license from IMAX Corporation. IMAX
®
is a registered trademark of
IMAX Corporation in the United States and/or other countries. For DTS patents, see
http://patents.dts.com. Manufactured under license from DTS, Inc. DTS and the DTS
logo are registered trademarks or trademarks of DTS, Inc. in the United States and other
countries. © 2024 DTS, Inc. ALL RIGHTS RESERVED.
Listening Mode
68
Playback
BLUETOOTH
®
Playback

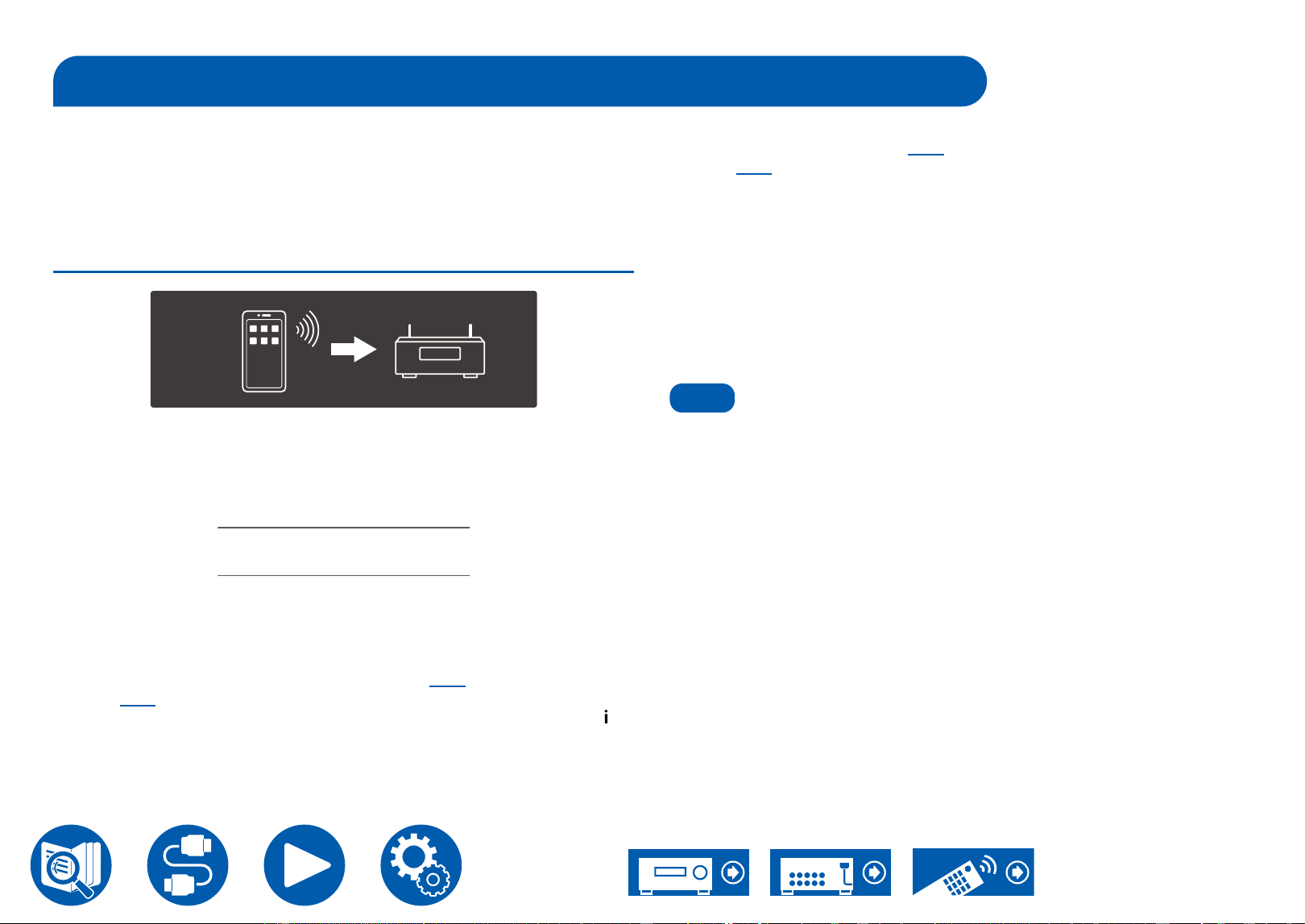

You can wirelessly play music on a smartphone or other BLUETOOTH wireless
technology enabled device through the speakers connected to this unit. It is
also possible to transmit the audio from this unit to BLUETOOTH enabled
headphones, wireless speakers, etc.
Playing audio from BLUETOOTH wireless
technology enabled devices with this unit
Perform the following procedure when this unit is on.
Pairing
1. When you press the BLUETOOTH button, "Now Pairing..." appears on the
display, and the pairing mode is enabled.
Now Pairing...
2. Enable (turn on) the BLUETOOTH function of the BLUETOOTH enabled
device, and then select this unit from among the devices displayed. If a
password is requested, enter "0000".
• This unit is displayed as "Onkyo TX-RZ30 XXXXXX". This display can be
changed using the Friendly Name function ( →p124) or Onkyo Controller
( →p143) (available on iOS or Android™).
• To connect another BLUETOOTH enabled device, press and hold the
button at least 5 seconds, and then perform step 2. This unit can store the
pairing information of up to 8 paired devices.
• The coverage area is approx. 48´/15 m. Note that connection is not always
guaranteed with all BLUETOOTH enabled devices.
• If pairing fails, then in the Setup menu, set "Hardware" - "Bluetooth" -
"Bluetooth Transmitter" ( →p127) to "O" and "Bluetooth Receiver"
( →p126) to "On".
Playing Back
1. Perform the connection procedure on the BLUETOOTH enabled device.
2. Playing the music le.
The input on this unit automatically switches to "BLUETOOTH".
Turn up the volume of the BLUETOOTH enabled device to an appropriate level.
• Due to the characteristics of BLUETOOTH wireless technology, the sound
produced on this unit may slightly be behind the sound played on the
BLUETOOTH enabled device.
Note
• If a BLUETOOTH wireless technology enabled device (PC, smartphone,
etc.) cannot connect to this unit, initialize the pairing information and perform
pairing again. Firstly delete all the pairing information saved on this unit. In
the Setup menu, select “Hardware” - “Bluetooth” - “Bluetooth Receiver” -
“Pairing Information”, then press ENTER while “Clear” is displayed. Next,
delete the pairing information of this unit that is saved on the BLUETOOTH
wireless technology enabled device. For information on how to clear the
pairing information, refer to the BLUETOOTH enabled device’s instruction
manual. Finally, perform pairing again.
69
Playback

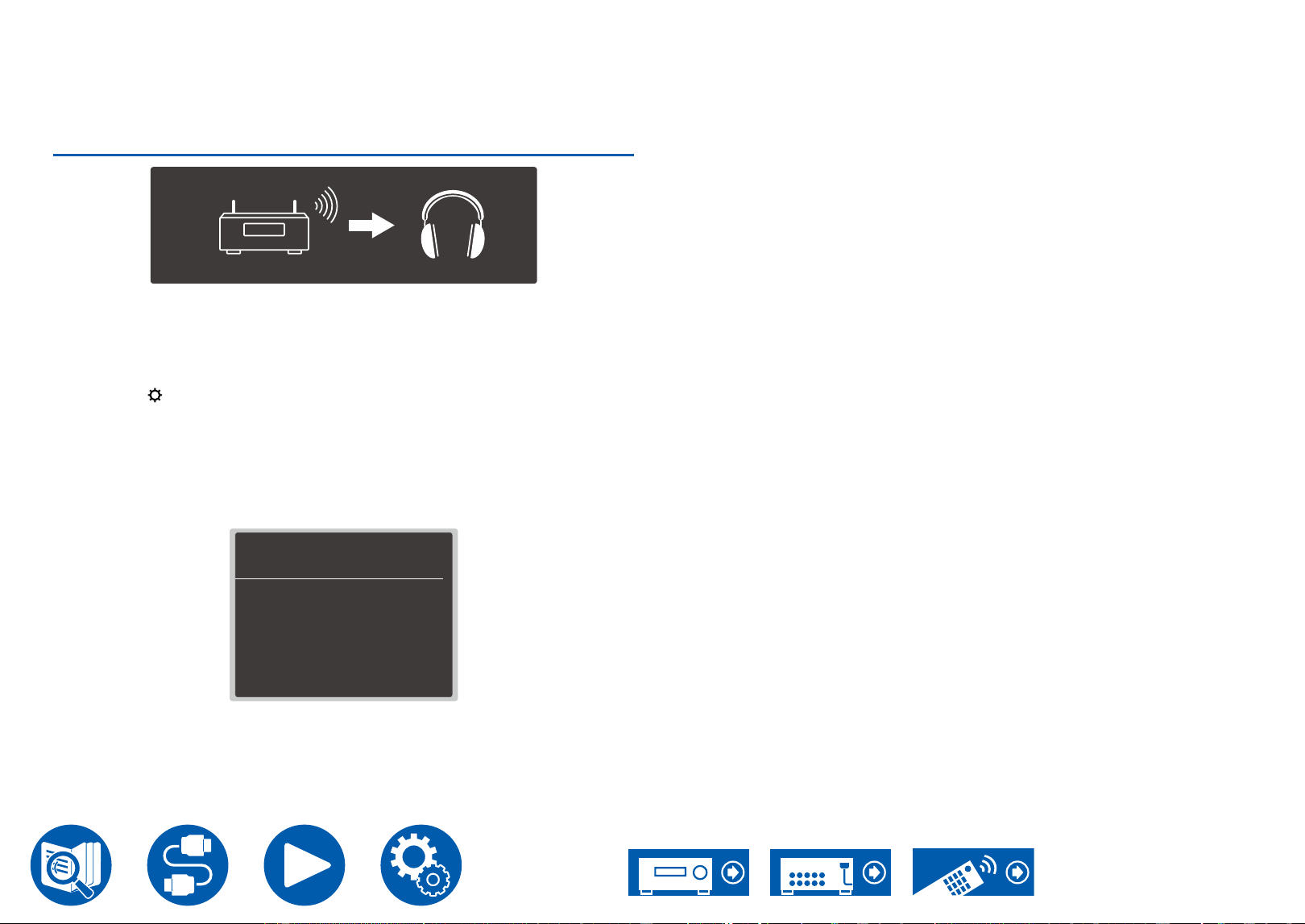

Transmitting audio from this unit to
BLUETOOTH wireless technology enabled
devices
Pairing
1. Press the input selector you want to play.
• Select a source other than "BLUETOOTH". This function does not work if
you select "BLUETOOTH".
2. Press the SETUP button on the remote controller, select "Hardware" -
"Bluetooth" - "Bluetooth Transmitter", and press the ENTER button.
3. Select either "On (Tx)" or "On (Main + Tx)" in "Bluetooth Transmitter".
• If you select "On (Tx)", playback is from the BLUETOOTH wireless
technology enabled device only, and if you select "On (Main + Tx)",
playback is from both the BLUETOOTH wireless technology enabled
device and the main unit.
Bluetooth Transmitter
Bluetooth Transmitter
Search Devices
Output Level
aptX HD
Low Latency Mode
Pairing Information
Device
Status
On (Tx)
Start
Variable
Off
Off
Clear
Ready
Set to “Off” if you are not using the Bluetooth Transmitter.
4. In "Search Devices", press ENTER.
• The search starts for BLUETOOTH wireless technology enabled devices
that are able to receive, then a list of relevant devices is displayed.
5. Select the device you want to output the audio from, and when you press
ENTER the message "Now Pairing…" is displayed and the two are paired.
• Depending on the BLUETOOTH wireless technology enabled device,
you may need to pair manually. If the device name does not appear in the
list, check the settings of the BLUETOOTH wireless technology enabled
device.
Playing Back
1. Do the play operations on the AV component connected to this unit. Do the
play operations on this unit when the input is TUNER or NET.
• If "Variable" has been selected for the "Output Level", the volume can
be adjusted on this unit. Adjust to a suitable volume on the connected
BLUETOOTH wireless technology enabled device beforehand. If "Fixed" is
selected, adjust the volume on the BLUETOOTH wireless technology enabled
device.
• You cannot transmit audio to multiple BLUETOOTH wireless technology
enabled devices from this unit.
• The coverage area is approx. 48´/15 m. Note that connection is not always
guaranteed with all BLUETOOTH enabled devices.
• When "Bluetooth Transmitter" is "On (Tx)" or "On (Main + Tx)" and in the
following cases, when this unit detects a paired BLUETOOTH wireless
technology enabled device, it will automatically reconnect with that device.
– When the power is turned on again after the unit is switched to standby
– While other than "BLUETOOTH" is selected
– When the "NET" input is selected and there is audio output from a network
service/content (some services excluded)
When not using this function, select "O" in "Bluetooth Transmitter" to cancel
the connection. Also disconnect on the receiving device (if disconnection is
possible on the receiving device).
• Audio cannot be output from a BLUETOOTH wireless technology enabled
device in the following cases:
– When the audio le is DSD format
– When playing audio from one of the following network services:
Chromecast built-in, AirPlay
• Sound quality adjustments and listening modes of this unit cannot be applied
to the output audio.
• This function can be used in the main room (where this unit is located). This
function turns o if you turn on the Multi-zone function which outputs audio
from a separate room (ZONE 2/ZONE 3).
70
Playback
Note
• If this unit cannot connect to a BLUETOOTH wireless technology enabled
device (wireless headphones, etc.), initialize the pairing information and
perform pairing again. Firstly delete all the pairing information saved on
this unit. In the Setup menu, select “Hardware” - “Bluetooth” - “Bluetooth
Transmitter” - “Pairing Information”, then press ENTER while “Clear” is
displayed. Next, delete the pairing information of this unit that is saved on the
BLUETOOTH wireless technology enabled device. For information on how
to clear the pairing information, refer to the BLUETOOTH enabled device’s
instruction manual. Finally, perform pairing again.
71
Playback

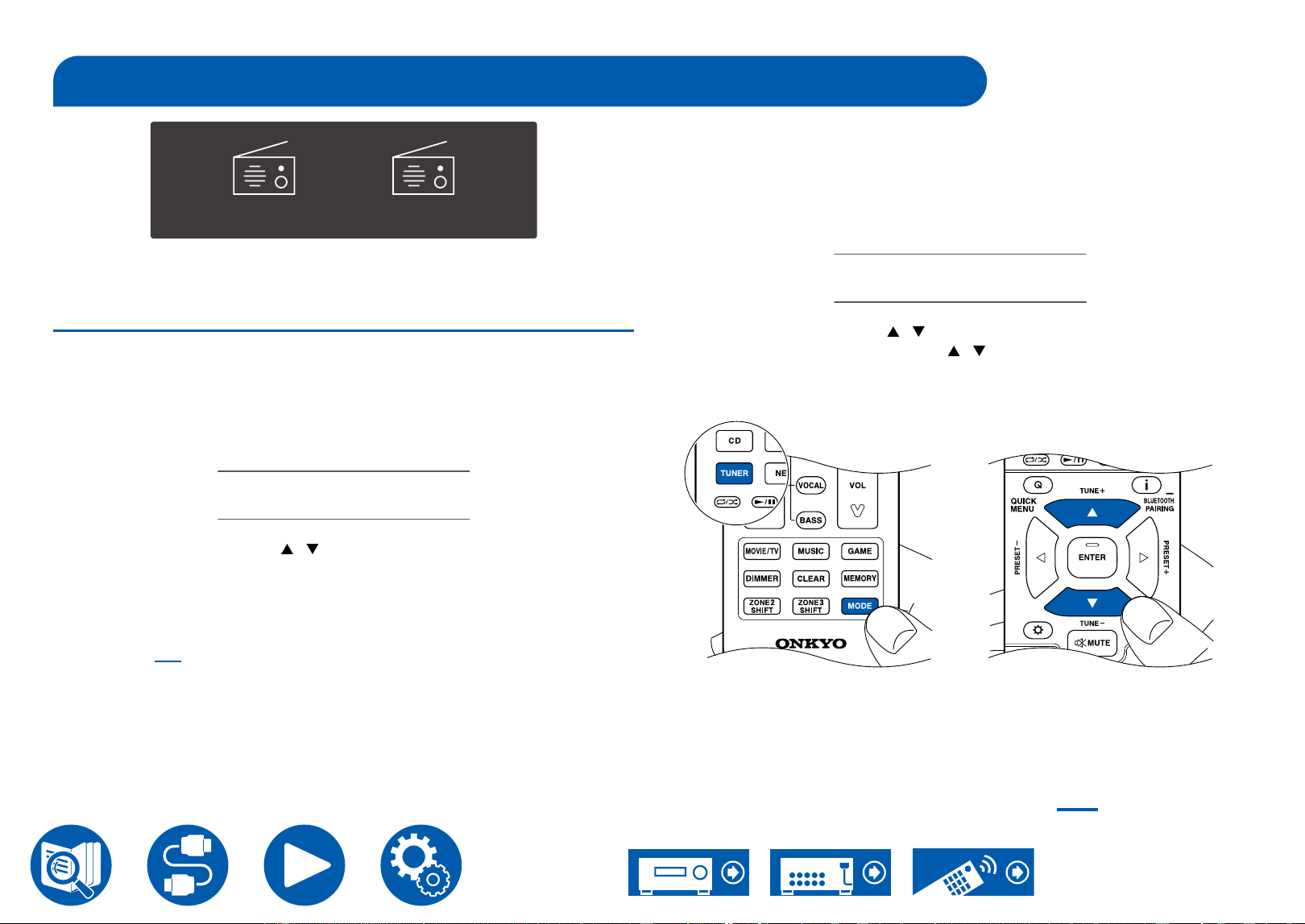

Listening To the Radio
(North American and Taiwanese models)
AM FM
You can receive AM/FM radio stations on this unit with the built-in tuner.
Listening To the AM/FM Radio
Perform the following procedure when this unit is on.
Tuning Automatically
1. Press the TUNER button on the remote controller repeatedly to select either
“AM” or “FM”.
2. Press MODE button repeatedly to display "TunMode: Auto" on the display.
TunMode:Auto
3. When you press the cursors / UP/DOWN, automatic tuning starts, and
searching stops when a station is found. When tuned in to a radio station,
the "TUNED" indicator on the display lights up. When tuned in to an FM radio
station, the "FM ST" indicator lights up.
When FM broadcasts reception is poor: Perform the procedure for "Tuning
Manually" ( →p71). Note that if you tune manually, the reception for FM
broadcasts will be monaural rather than stereo, irrespective of the sensitivity of
the reception.
Tuning Manually
Note that if you tune manually, the reception for FM broadcasts will be monaural
rather than stereo, irrespective of the sensitivity of the reception.
1. Press the TUNER button on the remote controller repeatedly to select either
“AM” or “FM”.
2. Press MODE button repeatedly to display "TunMode: Manual" on the display.
TunMode:Manual
3. While pressing the cursors / UP/DOWN, select the desired radio station.
• Each time you press the cursors
/ UP/DOWN, the frequency changes
by 1 step. If the button is held down, the frequency changes continuously,
and if the button is released, the frequency stops changing.
Presetting a Radio Station ( →p72)
72
Playback

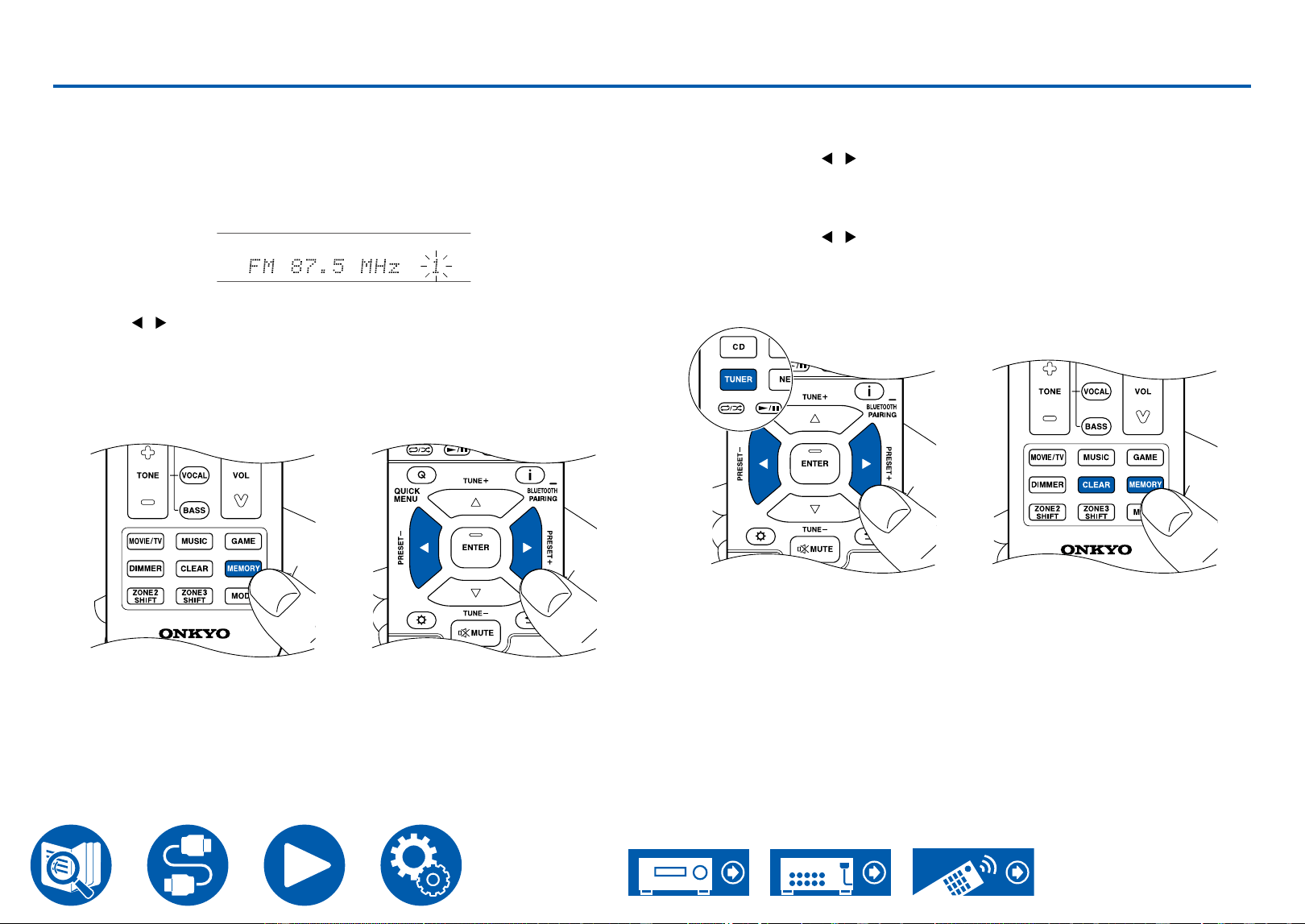

Presetting a Radio Station
Registration Procedure
You can preset up to 40 of your favorite radio stations.
After tuning in to the radio station you want to register, perform the following
procedure.
1. Press MEMORY so that the preset number on the display blinks.
2. While the preset number is blinking (approx. 8 seconds), repeatedly press the
cursors
/ LEFT/RIGHT to select a number between 1 and 40.
3. Press MEMORY again to register the station.
When the station is registered, the preset number stops ashing. Repeat this
procedure for all of your favorite radio stations.
Selecting a Preset Radio Station
1. Press TUNER.
2. Press the cursors / LEFT/RIGHT to select a preset number.
Deleting a Preset Radio Station
1. Press TUNER.
2. Press the cursors / LEFT/RIGHT to select the preset number to delete.
3. After pressing MEMORY, press CLEAR while the preset number is blinking,
and delete the preset number. When deleted, the number on the display
disappears.
73
Playback
You can quickly set convenient features such as adjusting sound quality.
Quick Menu
HDMI
Audio
Room EQ
Level
Discrete Audio Path Mode
HDMI Out
A/V Sync
Audio Return Channel
BD/DVD
You can make the settings on the TV screen during playback. Press Q QUICK
MENU on the remote controller to display the Quick Menu.
Select the item with the cursors / UP/DOWN of the remote controller, and
press the ENTER button to conrm your selection.
Use the cursors to change the settings.
• To return to the previous screen, press RETURN.
• To exit the settings, press Q QUICK MENU.
Note
• When the input signals are ones that need a high bandwidth, such as 8K
signals, the Quick Menu may not be displayed.
HDMI
HDMI Out: Select the HDMI OUT jack to output video signals from "MAIN",
"SUB", and "MAIN+SUB".
A/V Sync: If the video is behind the audio, you can delay the audio to oset the
gap. The setting can be set for each input.
• It cannot be set if the listening mode is Pure Audio or Direct.
Audio Return Channel: You can enjoy the sound of the HDMI-connected ARC-
compatible TV through the speakers connected to the unit. Select "On" when
listening to the audio of TV using the speakers of this unit. Select "O" when the
ARC function is not used.
Quick Menu
74
Playback
Audio
Music Optimizer: Improve the quality of the compressed audio. Playback sound
of lossy compressed les such as MP3 will be improved. The setting can be set
for each input. This works in signals whose sampling frequencies are 48 kHz or
less. The setting is not eective in the bitstream signals.
• This function cannot be used in the following cases.
– When the listening mode is Pure Audio or Direct
– When one of the slots has been selected with "Dirac Live" ( →p75)
Late Night: Enable small sounds to be easily heard in detail. It is useful when
you need to reduce the volume while watching a movie late night.
• This function cannot be used in the following cases.
– When playing Dolby Digital Plus or Dolby TrueHD with "Loudness
Management" set to "O"
– When the input signal is DTS:X, and "Dialog Control" is not 0 dB
– When the input signal is Analog/DSD and the listening mode is Pure Audio
or Direct
– When "Dirac Live Bass Control" ( →p110) is "On"

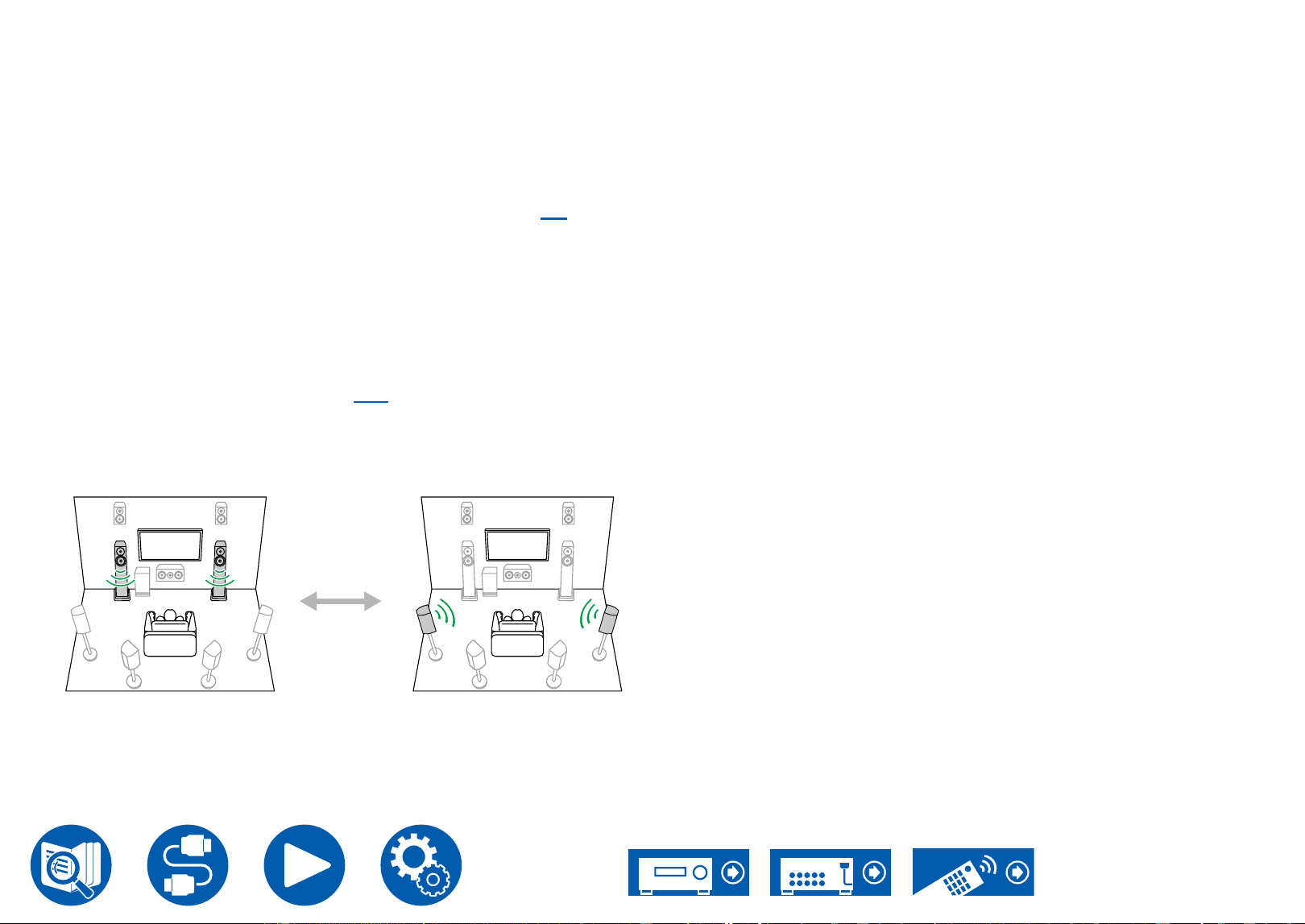

Stereo Assign: This function enables you to select a pair of speakers to output
stereo sound. Apart from the front speakers (Front), you can select the Surround
speakers (Surround), Surround Back speakers (Surround Back), Height 1
speakers (Height 1) and Height 2 speakers (Height 2).
"Front" "Surround"
Selectable
• The listening mode switches to "Stereo" if the audio output destination is
changed.
Digital Filter: You can switch the type of digital lter in the AUDIO DAC (digital
analog converter). You can choose "Slow" (gives the sound a soft and uid feel),
"Sharp" (gives the sound more structure and rmer feel), "Short" (gives the
sound a feeling of a quick start and moving forward), or "Auto" (automatic). The
setting can be separately set to each input selector. This can be set when the
sampling frequency is 44.1 kHz or more.
75
Playback
Room EQ

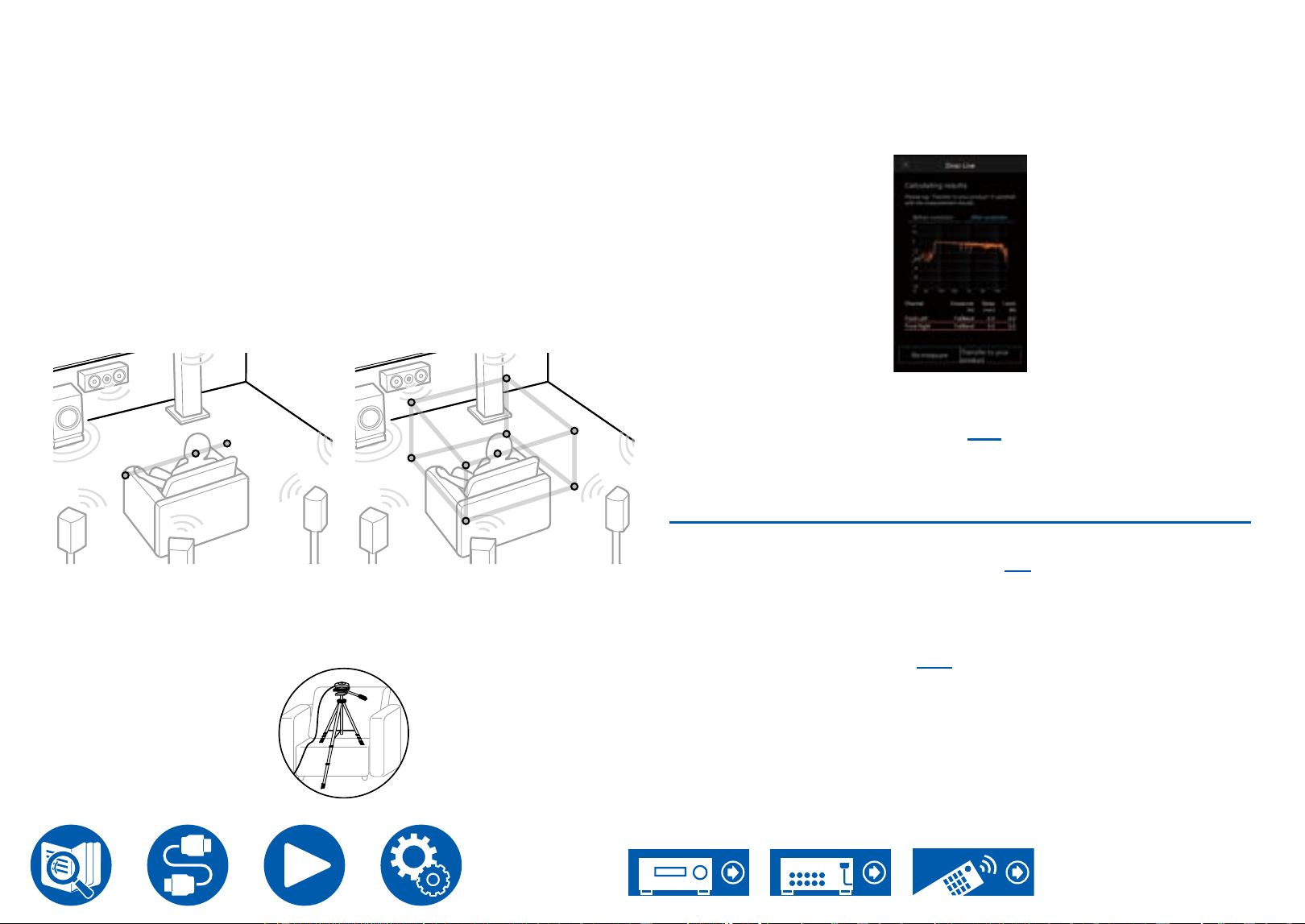

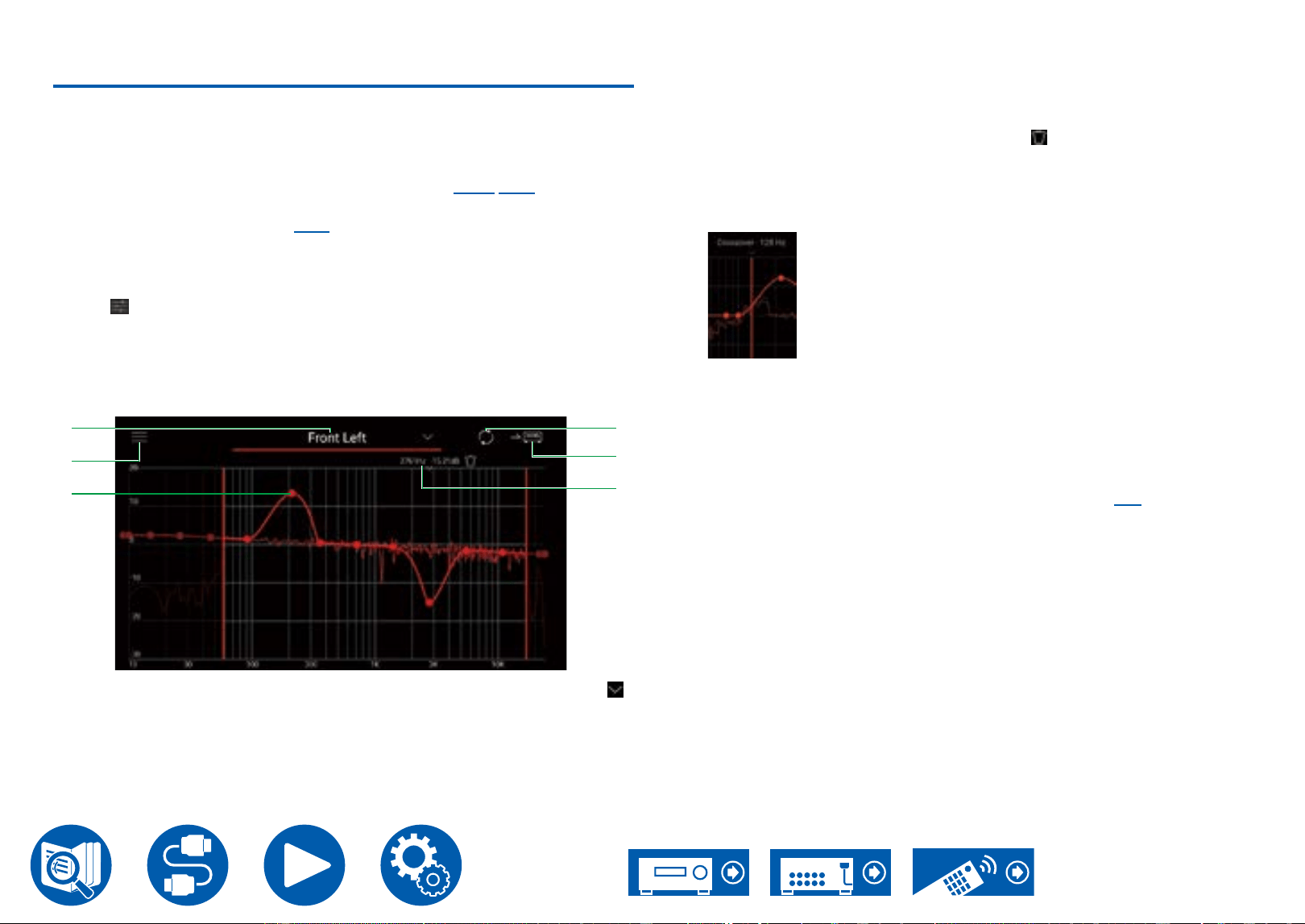

Dirac Live (*1): You can select the slots with registered lters measured with
Dirac Live ( →p140, p144) from "Slot1" to "Slot3".
• The Dirac Live measurement results are saved in "Slot1" to "Slot3", but you
are able to register your own original lter with "Manual Adjust" ( →p146).
• This cannot be selected when measurements are made using "AccuEQ
Room Calibration".
AccuEQ (*1)(*2): Enable or disable the equalizer function that corrects for
sound distortion caused by the acoustic environment of the room.
On (All Ch): EQ that corrects according to the room acoustics acquired with the
AccuEQ calibration is applied to all channels.
On (ex. L/R): The same EQ as "On (All Ch)" is applied to speakers other than the
Front Speakers. EQ correction for the Front Speakers is turned o.
• The setting can be separately set to each input selector.
On (F.MatchEQ): For speakers other than the front speakers, an EQ is applied
that suits the characteristics of the front speakers.
• The setting can be separately set to each input selector.
Manual Equalizer (*1)(*2): Select "Preset 1" to "Preset 3" congured in
"Speaker" - "Equalizer Settings" on the Setup menu. When this is set to "O",
the same sound eld setting is applied to all ranges.
Re-EQ, Re-EQ(THX) (*1)(*2): Adjusts the soundtrack with the enhanced high
range so that it suits a home theater.
The following listening modes can be used for Re-EQ: Dolby Audio - DD, Dolby
Audio - DD+, Dolby Audio - Surr, Dolby Audio - TrueHD, Multichannel, DTS,
DTS-HD, DTS Neural:X and DSD
In Re-EQ(THX), the following listening modes can be used: THX Cinema and
THX Select Cinema
EQ for Standing Wave (*1)(*2): Setting this "On" will control the eect of
the standing wave generated by the sound wave reected by wall or similar
interfering with the original sound wave.
(*1) It cannot be set if the listening mode is Pure Audio or Direct.
(*2) This function cannot be used if Dirac Live ( →p140, p144) is being used.
Furthermore, there is no eect even if it can be selected.
Level
Front: Adjust the speaker level of the front speakers while listening to the sound.
Center: Adjust the speaker level of the center speaker while listening to the
sound.
Subwoofer 1/Subwoofer 2: Adjust the speaker level of the subwoofer while
listening to the sound.
• If you set the unit to the standby mode, the adjustments you made will be
restored to the previous statuses.
77
Playback

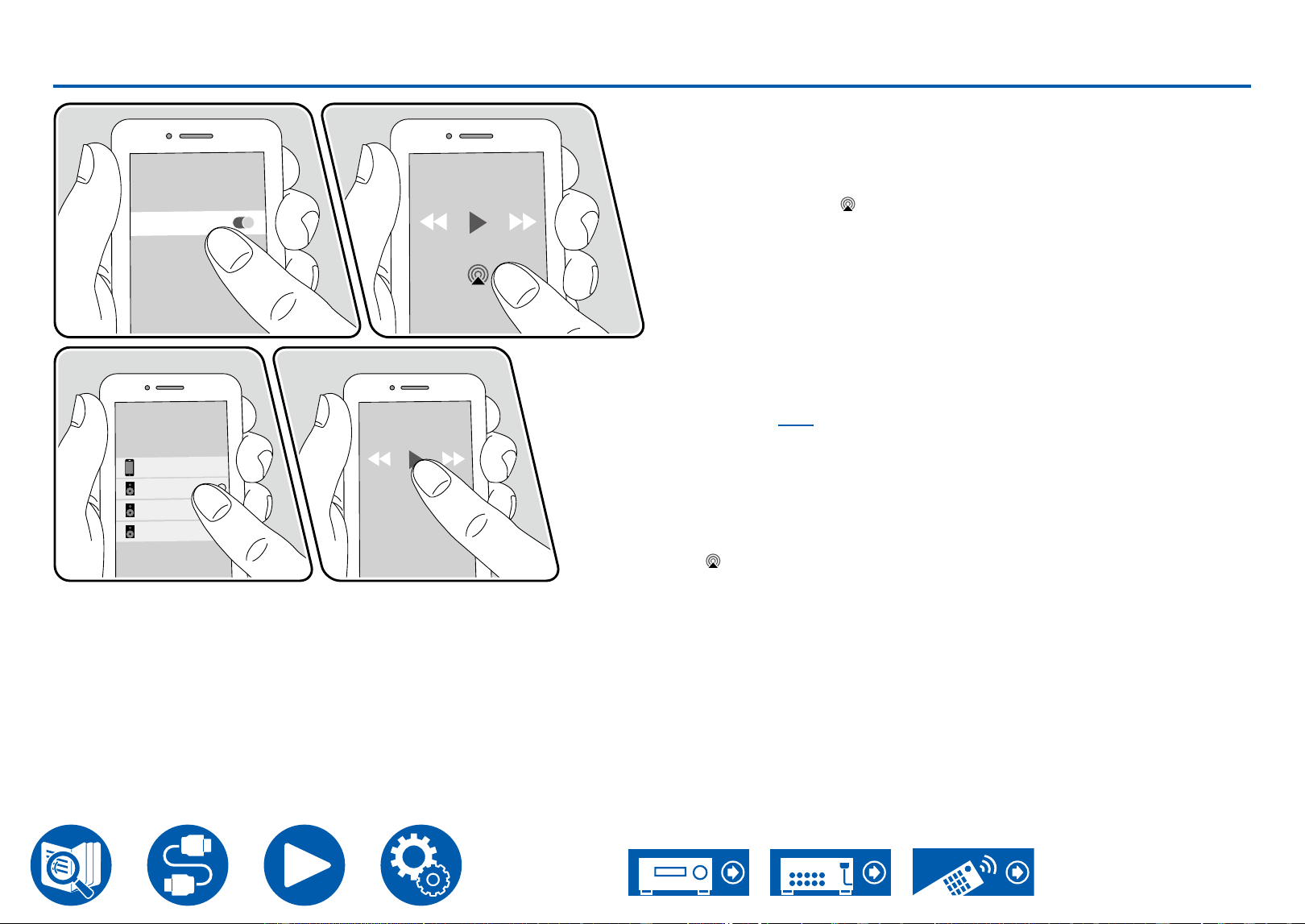

AirPlay
®
By connecting this unit to the same network as that of iOS devices such as iPhone
®
, iPod touch
®
and iPad
®
, you can enjoy music les on iOS devices wirelessly.
• Update the OS version on your iOS device to the latest version.
• Depending on the iOS version, operation screens or operation procedures on the iOS device may be dierent. For details, refer to the operating instructions for the
iOS device.
Basic Operations

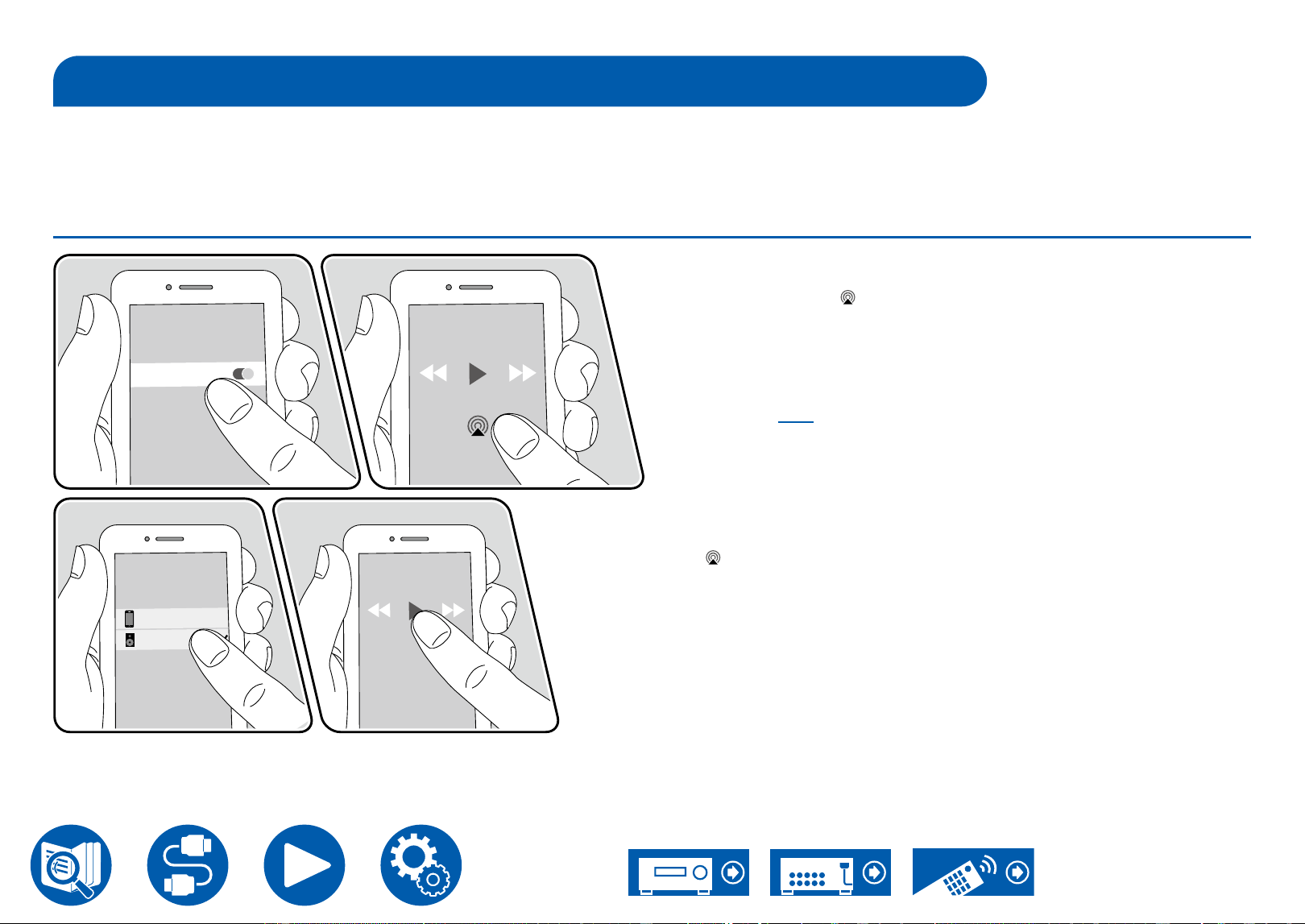

1. Connect the iOS device to the access point where this unit is connected via
network.
2. Tap the AirPlay icon in the play screen of the music app on an iOS device
that supports AirPlay and select this unit from the list of devices displayed.
3. Play the music le on the iOS device.
• When "Hardware" - "Power Management" - "Network Standby" is set to "O"
in the Setup menu, turn this unit on manually, and press the NET button on
the remote controller. In the factory default setting, the Network Standby
function ( →p129) is set to On.
• Due to the characteristics of AirPlay wireless technology, the sound produced
on this unit may slightly be behind the sound played on the AirPlay-enabled
device.
You can also play the music les on a PC with iTunes (Ver. 10.2 or later)
equipped. Conrm that this unit and the PC are connected to the same network
beforehand. Then, press NET on the remote controller. Next, click the AirPlay
icon
in iTunes, select this unit from the displayed devices, and start play of a
music le.
Onkyo TX-RZ
iPhone
Wi-Fi
e.g., iOS 10
78
Playback
Playing Back on multiple devices (AirPlay2)
This unit supports AirPlay2. If the version of the iOS device is iOS11.4 or later,
you can play the tracks on the iOS device simultaneously on this device and on
another device that supports AirPlay2.
1. Connect the iOS device to the access point where this unit is connected via
network.
2. Tap the AirPlay icon on the play screen of the music play application on
the iOS device, and select this unit and AirPlay2-supported devices to play
from the displayed devices.
• AirPlay2-supported devices are displayed with white circle on the right
side.
• Multiple AirPlay2-supported devices can be selected.
• The volume can be adjusted on individual devices.
3. Play the music le on the iOS device.
• When "Hardware" - "Power Management" - "Network Standby" is set to "O"
in the Setup menu, turn this unit on manually, and press the NET button on
the remote controller. In the factory default setting, the Network Standby
function ( →p129) is set to On.
• Due to the characteristics of AirPlay wireless technology, the sound produced
on this unit may slightly be behind the sound played on the AirPlay-enabled
device.
You can also play the music les on a PC with iTunes (Ver. 12.8 or later)
equipped. Conrm that this unit and the PC are connected to the same network
beforehand. Then, press NET on the remote controller. Next, click the AirPlay
icon
in iTunes, select this unit and AirPlay2-supported devices to play from
the displayed devices, and start play of a music le.
Onkyo TX-RZ
iPhone
Onkyo XXXXXXXX
Onkyo XXXXXXXX
Wi-Fi
e.g., iOS 11.4
79
Playback
Amazon Music
Registering this unit with Amazon Music allows you to enjoy the music
distribution service provided by Amazon.
• To play Amazon Music, you need to have your Amazon account and sign up
for Amazon Prime or Amazon Music Unlimited. For more information, see the
Amazon website.
Amazon Music is now available in several countries. If Amazon Music is not
available in your country, please visit https://music.amazon.com/ for more info.
Registering This Unit with Amazon Music
1. Register with the Amazon account on Onkyo Controller. This cannot be set
with operations on this unit.
Refer to "Onkyo Controller" ( →p143) for information about the app.
2. Start Onkyo Controller and tap the unit when displayed.
3. Tap "NET" or "NETWORK" on the upper part of the Onkyo Controller’s
screen to switch to the network menu. Then tap the "Amazon Music" icon to
display the login screen of Amazon Music. (Depending on the model, the icon
names may be dierent.)
• If the login screen is not displayed but an update or installation screen is
displayed instead, perform the update or installation according to the on-
screen instructions.
Available services may dier depending on your area.
4. Enter the Amazon account information such as email address and password
to log in to Amazon. When the login is successful and this unit is registered,
the Amazon Music menu is displayed.
For playback, proceed to step 3 in the next section.
80
Playback

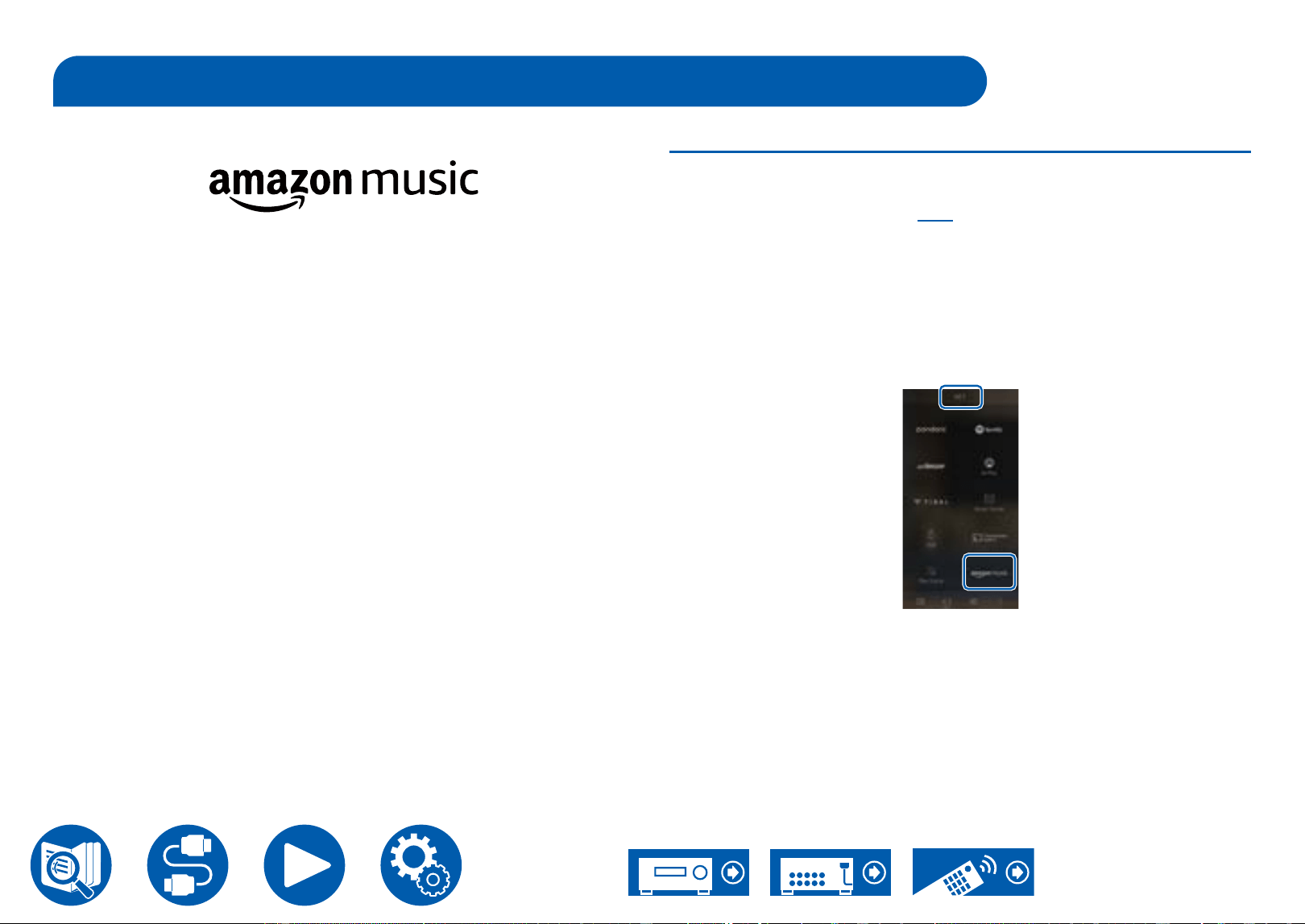

Playing Amazon Music using the Onkyo
Controller
1. Start up Onkyo Controller. This unit is automatically displayed after startup.
Then, tap and select this unit displayed.
2. Tap "NET" or "NETWORK" on the upper part of the screen to switch to the
network screen. Then tap the "Amazon Music" icon.
3. Select the content to play from the menu screen of Amazon Music to start
playback.
Playing Amazon Music using the remote
controller
1. Switch the input on the TV to the input connected to the unit.
2. Pressing NET will display the Network Functions list screen on the TV.
3. Select "Amazon Music" with the cursors and press ENTER to conrm.
4. Select the content to play from the menu screen of Amazon Music to start
playback.
81
Playback

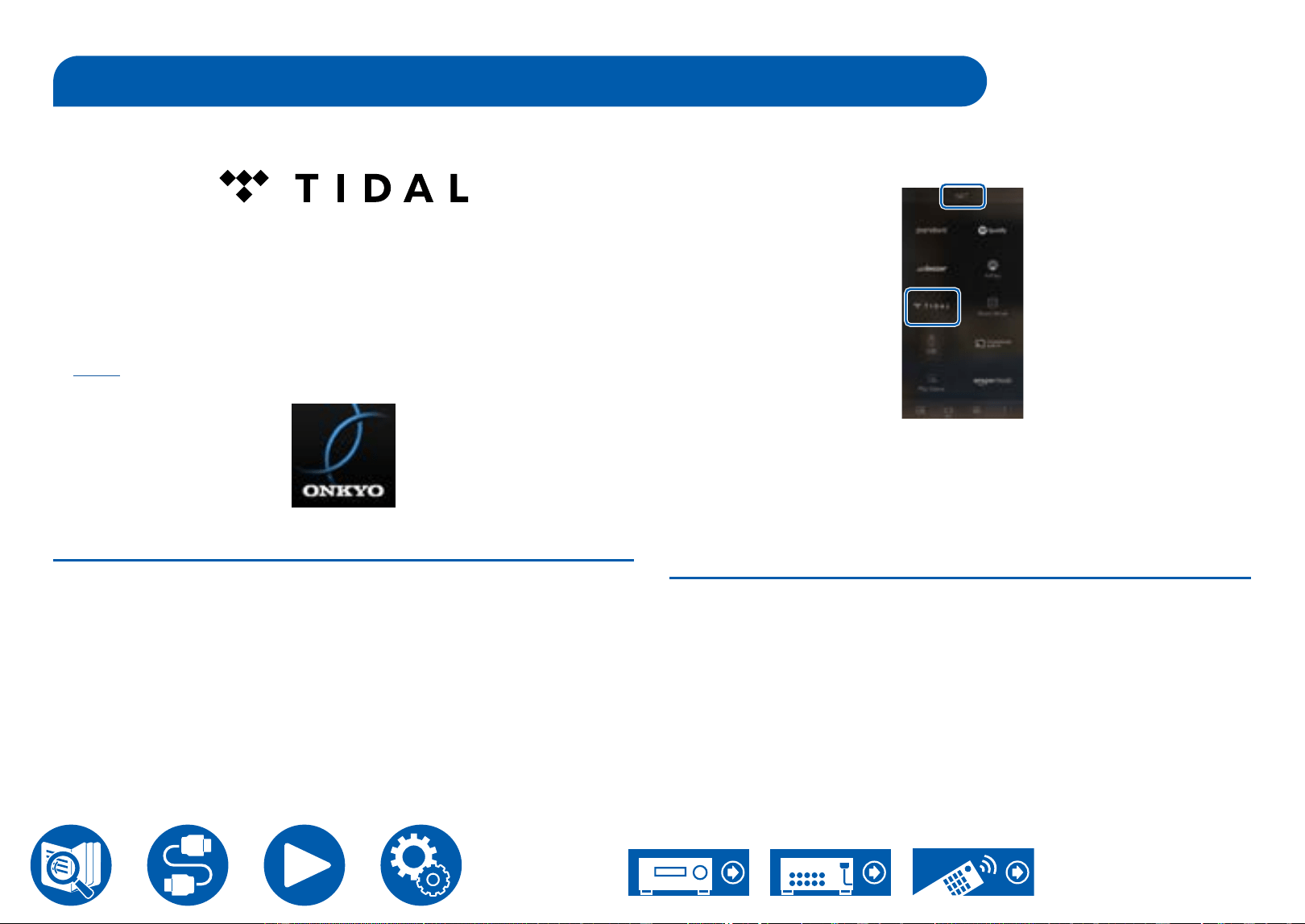

TIDAL
Registering this unit with TIDAL allows you to enjoy the music distribution
service provided by TIDAL. You can register this unit on the screen of Onkyo
Controller by downloading Onkyo Controller (available on iOS or Android™) to
mobile devices such as a smartphone and tablet.
• You need a TIDAL account to play back TIDAL. For more information, see the
TIDAL website.
• The services may not be available, depending on your area of residence.
Registering This Unit with TIDAL
• You can register this unit with TIDAL using Onkyo Controller. The registration
cannot be performed by operation of this unit.
1. Connect this unit to your home network by the network settings on this unit.
2. Download Onkyo Controller using your mobile device.
3. Connect the mobile device to the network where this unit is connected.
4. Start up Onkyo Controller to automatically display this unit. Tap and select
this unit displayed.
5. Tap "NET" or "NETWORK" on the upper part of the Onkyo Controller’s
screen to switch to the network menu. Then tap the "TIDAL" icon to display
the login screen of TIDAL. (Depending on the model, the icon names may be
dierent.)
• If the login screen is not displayed but an update or installation screen
is displayed instead, perform the update or installation according to the
onscreen instructions.
Available services may dier depending on your area.
6. Enter the TIDAL account information such as login ID and password to log in
to TIDAL. When the login is successful and this unit is registered, the TIDAL
menu is displayed.
For playback, proceed to step 3 in the next section.
Playing TIDAL
1. Start up Onkyo Controller. This unit is automatically displayed after startup.
Then, tap and select this unit displayed.
2. Tap "NET" or "NETWORK" on the upper part of the screen to switch to the
network screen. Then tap the "TIDAL" icon.
3. Select the content to play from the menu screen of TIDAL to start playback.
• To play TIDAL using the remote controller, operate the input selector on the
remote controller to display the network menu, and select "TIDAL" from the
menu.
82
Playback
Connecting the Sonos System for Playback
Connecting this unit and Sonos Port allows you to send the music or music
sources on the Sonos App to this unit. Through Sonos Port, you can play this
unit with the same group of another Sonos device on the network or can play
only on this unit. Also, if you start to play music from Sonos App, this unit is
automatically turned on and the link function to switch input works.
• When "Hardware" - "Power Management" - "Network Standby" is set to "O"
in the Setup menu, turn this unit on manually, and press the NET button on
the remote controller. In the factory default setting, the Network Standby
function ( →p129) is set to On.
• You can register a maximum of 3 Sonos Port.
Necessary Equipment
• Sonos Port
• RCA audio cable (supplied with Sonos Port)
How to Connect This Unit and Sonos Port
1. Connect the Sonos Port to the AUDIO IN jack of this unit with the RCA audio
cable supplied with the Sonos Port. Any input jacks other than the PHONO
jack can be used.
• A digital cable can also be connected. For details, refer to the instruction
manual of Sonos.
• You can change the name of the input selector displayed on this unit to
easier-to-understand name. For example, the input connected to Sonos
Port can be changed from "CD" (or another input selector name) to
"SONOS". Press the SETUP button on the remote controller, select
"Source" - "Name Edit" and then change the name.
Setting Up
A setup is required to play Sonos on this unit. Make the setting according to the
following procedure.
1. Press the SETUP button on the remote controller, select "Hardware" -
"Works with SONOS", and press the ENTER button.
2. Select the following items with the cursors / LEFT/RIGHT and set each
item.
Input Selector:
Enable the interlocking function with the Sonos Port. With the cursors /
LEFT/RIGHT, select the input selector to which the Sonos Port is connected.
Connected Device:
Press the ENTER button to display Sonos devices connected to the same
network as the network of this unit. Select the Sonos Port connected to the
unit and press the ENTER button.
• Products (e.g. Play:3 unequipped with an output terminal) other than the
Sonos Port are also displayed in the device list and selectable. In that
case, when playback on the Sonos side starts, the input is switched,
however, audio is not output. Select the room name of the connected
Sonos Port.
• Up to 32 devices can be displayed on the Sonos product list screen. If you
cannot nd the Sonos Port to be interlocked, return to the previous screen,
turn o the product you do not want to interlock, and try again.
83
Playback
Output Zone:
With the cursors / LEFT/RIGHT, select the ZONE where you want to
listen to the music.
"Main": Outputs audio only to the main room (where this unit is located).
"Zone 2": Outputs audio only to the separate room (ZONE 2).
"Main/Zone 2": Outputs audio to both the main room and separate room
(ZONE 2).
"Zone 3": Outputs audio only to the separate room (ZONE 3).
"Main/Zone 3": Outputs audio to both the main room and separate room
(ZONE 3).
"Zone 2/Zone 3": Outputs audio to both the separate rooms (ZONE 2 and
ZONE 3).
"Main/Zone 2/Zone 3": Outputs audio to the main room and both separate
rooms (ZONE 2 and ZONE 3).
Preset Volume:
You can set the volume that Sonos Port will be played at beforehand.
Select a value from "Last" (Volume level before entering standby mode),
"Min", "0.5" to "99.5" and "Max". (When "Volume Display" is set to "Absolute")
• When making the setting for the second and third unit, press the cursor
DOWN several times to move to the next page, and change the menu from
"SONOS-1" to "SONOS-2" or "SONOS-3".
Playing Sonos on This Unit
1. Select desired tracks using Sonos App and send the tracks to the room
where this unit is located (or to the group). It is recommended to give an easy-
to-remember name to the combination of this unit and Sonos Port, such as
TV Room or Living Room where this unit is located.
• If the input selector of this unit is not automatically switched even after the
start of music playback, stop the playback once and start again.
• When the "Volume Pass Through" mode has been selected with the Sonos
App settings, you can use the Sonos App to control the volume of this unit.
* You cannot use the "Preset Volume" function when the "Volume Pass
Through" mode has been selected.
84
Playback

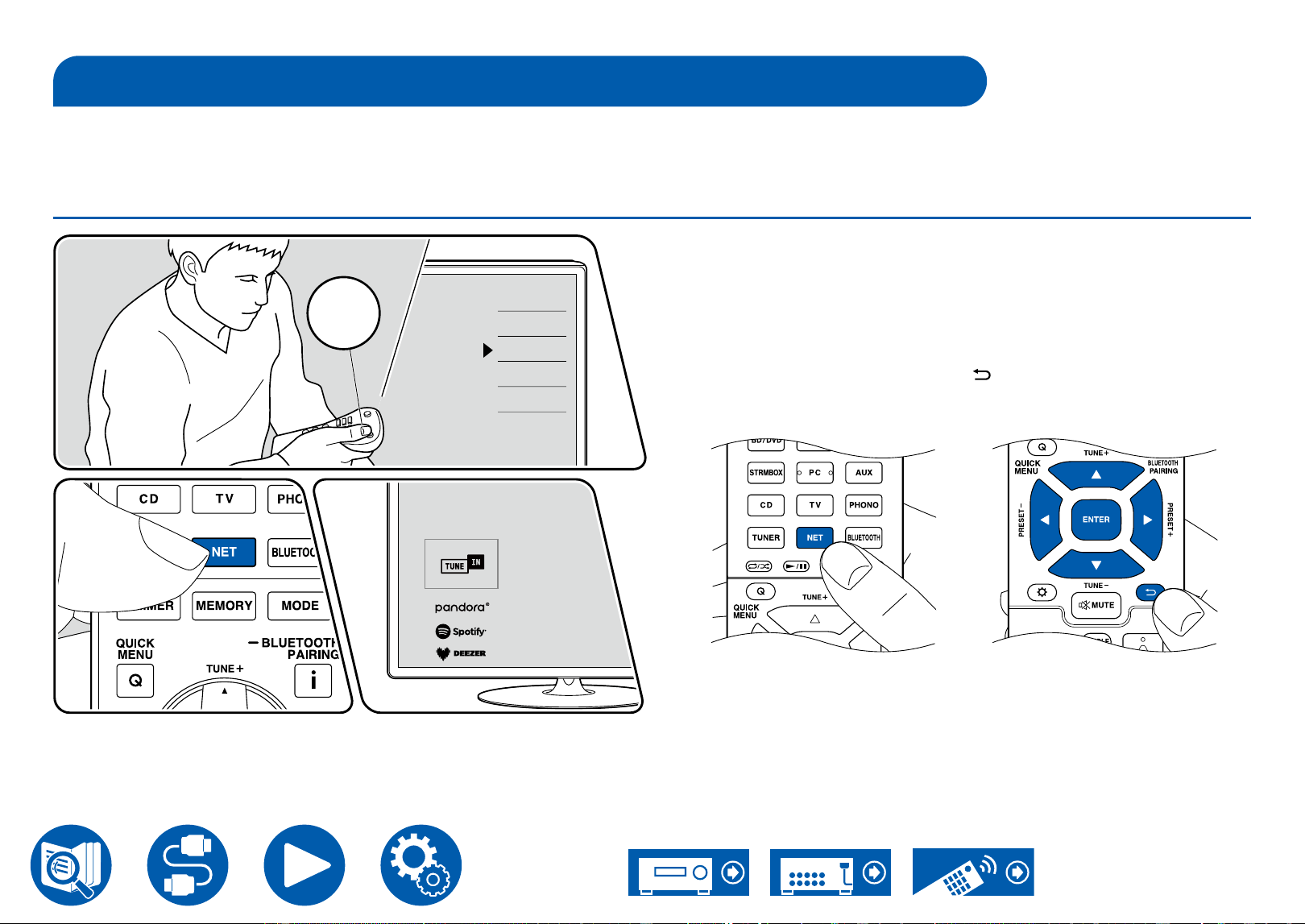

Internet Radio
By connecting this unit to an Internet-connected network, you can enjoy Internet radio services such as TuneIn Radio.
• To play Internet radio services, the network needs to be connected to the Internet.
• Depending on the Internet radio service, a user registration may be required on your PC beforehand. For details of each service, visit the website of each service.
Playing Back
Perform the following procedure when this unit is on.
1. Switch the input on the TV to the input connected to the unit.
2. Pressing NET will display the Network services list screen on the TV.
3. Select your preferred Internet radio service using cursor, and press ENTER to
conrm the selection.
4. Following the on-screen instructions, select a radio station and program using
cursor, and then press ENTER to play.
• To return to the previous screen, press RETURN.
Inputs
TV
HDMI 1
HDMI 2
HDMI 3
TV
INPUT
TV’s REMOTE
The illustration shows an image.
85
Playback
Internet Radio Service Menu
You can bookmark specic stations, or delete stations that have been
bookmarked. The displayed menu varies according to the service being
selected.
The menu icon
is displayed while a station is being played. When only this
icon is displayed, pressing ENTER will display the menu on the screen. When
multiple icons are displayed, select the
icon with the cursor, and press
ENTER.
Regarding the TuneIn Radio Account
If you create an account on the TuneIn Radio website (tunein.com), and log in it
from this unit, your favorite radio stations or programs you have followed on the
website are automatically added to your "My Presets" on this unit. "My Presets"
is displayed on the next level in the hierarchical structure of TuneIn Radio. To
display a radio station added to "My Presets", you need log into TuneIn Radio
from the unit. To log in, select "Login" - "I have a TuneIn account" in the "TuneIn
Radio" top list on the unit, and then enter your user name and password.
• If you select "Login" on this unit, a registration code is displayed. By using
this code, you can associate the device on the My Page section of the TuneIn
Radio website so that you can log in from "Login" - "Login with a registration
code" without entering the user name and password.
86
Playback
Multi-zone
You can enjoy 2 ch audio in the separate room (ZONE 2/ZONE 3) while
performing playback in the main room (where this unit is located). The
same source can be played back in the main room and ZONE 2/ZONE 3
simultaneously.
ZONE A
(Main Room)
ZONE 2
ZONE 3
Using Onkyo Controller ( →p143) is convenient for operations of multi-zone
playback. You can use it on mobile devices, such as a smartphone and tablet to
which Onkyo Controller (available on iOS or Android™) has been downloaded.
Playing Back (ZONE 2) ( →p87)
Playing Back (ZONE 3) ( →p89)
87
Playback
Playing Back (ZONE 2)
Note
• The audio from externally connected AV components can be output to ZONE
2 only when the audio is analog or 2 ch PCM signal. When the AV component
is connected to this unit with an HDMI cable, digital coaxial cable or digital
optical cable, change the audio output of the AV component to the PCM
output.
• When video and audio via HDMI input are output to ZONE 2, set "Input/
Output Assign" - "TV Out / OSD" - "Zone 2 HDMI" ( →p104) to "Use" on the
Setup menu.
• You can only select the same source for the main room and separate room
with the "NET", "BLUETOOTH" and "USB" input selectors. Furthermore,
if you have "NET" selected in the main room and you then select
"BLUETOOTH" in the separate room, the main room will also switch to
"BLUETOOTH".
• If the audio signal is from the NET input selector, zone output is not possible
for DSD and Dolby Atmos audio signals.
• It is not possible to select dierent stations in the main room and separate
room with AM/FM broadcasts. (North American and Taiwanese models)
• DSD audio signals cannot be output to ZONE 2 with the "NET" input selector.
• If ZONE 2 is on, power consumption during standby will increase.
• This function turns o if you use "Transmitting audio from this unit to
BLUETOOTH wireless technology enabled devices" ( →p69).

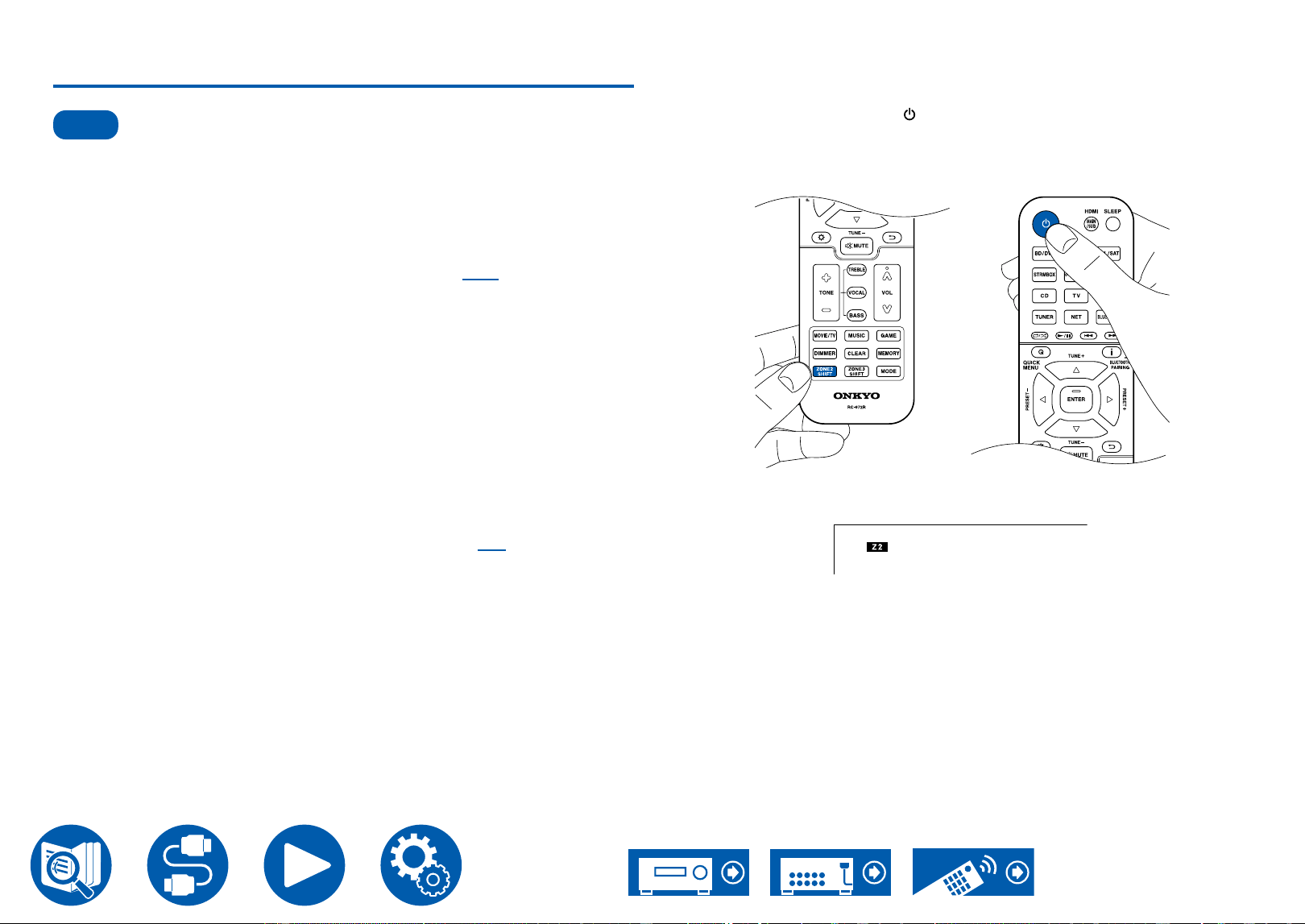

Turning ZONE 2 On/O
1. Face the remote controller at the unit, and while pressing and holding the
ZONE 2 SHIFT button, press ON/STANDBY.
To control on the main unit, press the ZONE 2 button on the main unit. When
turning o, within 8 seconds of pressing the ZONE 2 button, press the OFF
button.
2
1
"Z2" lights in the main unit display when ZONE 2 turns on. To turn ZONE 2 o,
repeat the same procedure.
• When the power of this unit is switched to standby while using ZONE 2, the
Z2 indicator lights dimly, and the mode switches to play only in the separate
room. Furthermore, the mode switches to play only in the separate room
when this unit is in standby mode and ZONE 2 is turned on.
88
Playback

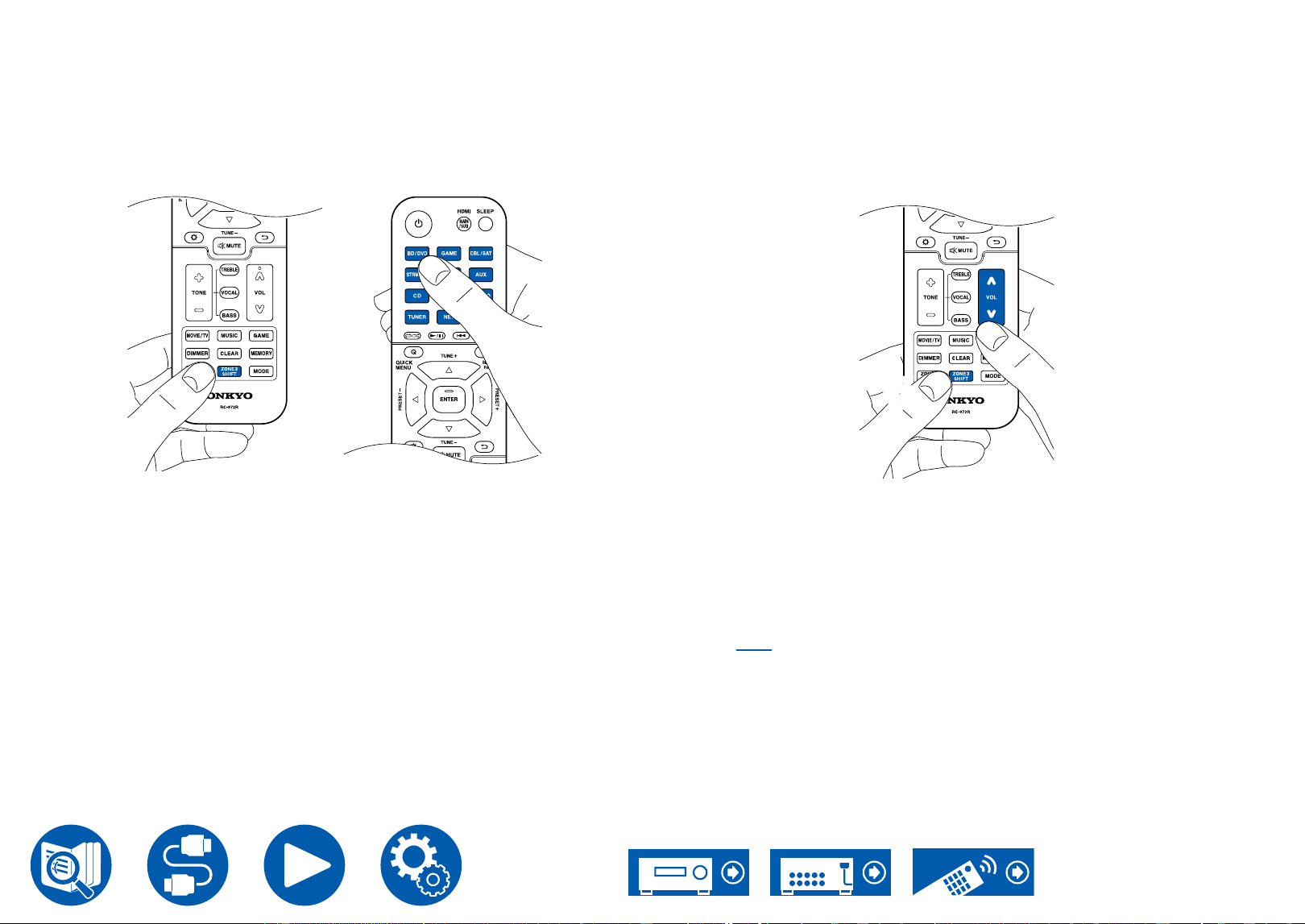

Selecting a source to play in ZONE 2
1. While pressing the ZONE 2 SHIFT button on the remote controller, press the
input selector of the input you want to play in the separate room.
To control on the main unit, press the ZONE 2 button on the main unit and
then within 8 seconds press the input selector button of the input you want to
play in the separate room.
2
1
• Information of a connected device can be displayed on the TV screen in the
separate room. While pressing and holding the ZONE 2 SHIFT button on the
remote controller, press the " " button.
Adjusting the volume in ZONE 2
When ZONE 2 speakers are used
1. While pressing the ZONE 2 SHIFT button on the remote controller, adjust with
the volume buttons. To control on the main unit, press the ZONE 2 button on
the main unit and then within 8 seconds adjust with the MASTER VOLUME
dial.
22
1
1
When using an Integrated amplier in the separate room
1. Use the volume dial on the integrated amplier to adjust the volume.
When using an integrated amplier that does not have a volume control,
adjust using the same procedure described in "When ZONE 2 speakers are
used".
• When connecting an integrated amplier that does not have a volume
control, in the Setup menu, set "Multi Zone" - "Zone 2" - "Output Level"
( →p132) to "Variable". If you do not set this, the volume output will be
very loud and there is a danger of damage to the integrated amplier,
speakers, etc.
• You can also adjust the sound quality of a power amplier connected in a
separate room. After pressing the ZONE 2 button on the main unit, within 8
seconds press the TONE button, and adjust by pressing the - and + buttons.
89
Playback
Playing Back (ZONE 3)
Note
• Analog play of the audio from externally connected AV components is
possible.
• To use Zone 3 speakers, in the Setup menu, set "Speaker" - "Conguration" -
"Zone Speaker" ( →p109) to "Zone 2/Zone 3".
• To use an integrated amplier, in the Setup menu, set "Speaker" -
"Conguration" ( →p108) to one of the following:
– Set "Speaker Channels" to "2.1 ch", "3.1 ch", "4.1 ch", or "5.1 ch"
– Set "Speaker Channels" to "2.1.2 ch", "3.1.2 ch", "4.1.2 ch", or "5.1.2 ch",
and set "Bi-Amp" and "Zone Speaker" to "No"
• You can only select the same source for the main room and separate room
with the "NET", "BLUETOOTH" and "USB" input selectors. Furthermore,
if you have "NET" selected in the main room and you then select
"BLUETOOTH" in the separate room, the main room will also switch to
"BLUETOOTH".
• If the audio signal is from the NET input selector, zone output is not possible
for DSD and Dolby Atmos audio signals.
• It is not possible to select dierent stations in the main room and separate
room with AM/FM broadcasts. (North American and Taiwanese models)
• DSD audio signals cannot be output to ZONE 3 with the "NET" input selector.
• If ZONE 3 is on, power consumption during standby will increase.
• This function turns o if you use "Transmitting audio from this unit to
BLUETOOTH wireless technology enabled devices" ( →p69).
Turning ZONE 3 On/O
1. Face the remote controller at the unit, and while pressing and holding the
ZONE 3 SHIFT button, press ON/STANDBY.
To control on the main unit, press the ZONE 3 button on the main unit. When
turning o, within 8 seconds of pressing the ZONE 3 button, press the OFF
button.
2
1
"Z3" lights in the main unit display when ZONE 3 turns on. To turn ZONE 3 o,
repeat the same procedure.
• When the power of this unit is switched to standby while using ZONE 3, the
Z3 indicator lights dimly, and the mode switches to play only in the separate
room. Furthermore, the mode switches to play only in the separate room
when this unit is in standby mode and ZONE 3 is turned on.
90
Playback
Selecting a source to play in ZONE 3
1. While pressing the ZONE 3 SHIFT button on the remote controller, press the
input selector of the input you want to play in the separate room.
To control on the main unit, press the ZONE 3 button on the main unit and
then within 8 seconds press the input selector button of the input you want to
play in the separate room.
2
1
Adjusting the volume in ZONE 3
When ZONE 3 speakers are used
1. While pressing the ZONE 3 SHIFT button on the remote controller, adjust with
the volume buttons. To control on the main unit, press the ZONE 3 button on
the main unit and then within 8 seconds adjust with the MASTER VOLUME
dial.
22
1
1
When using an Integrated amplier in the separate room
1. Use the volume dial on the integrated amplier to adjust the volume.
When using an integrated amplier that does not have a volume control,
adjust using the same procedure described in "When ZONE 3 speakers are
used".
• When connecting an integrated amplier that does not have a volume
control, in the Setup menu, set "Multi Zone" - "Zone 3" - "Output Level"
( →p132) to "Variable". If you do not set this, the volume output will be
very loud and there is a danger of damage to the integrated amplier,
speakers, etc.
91
Playback

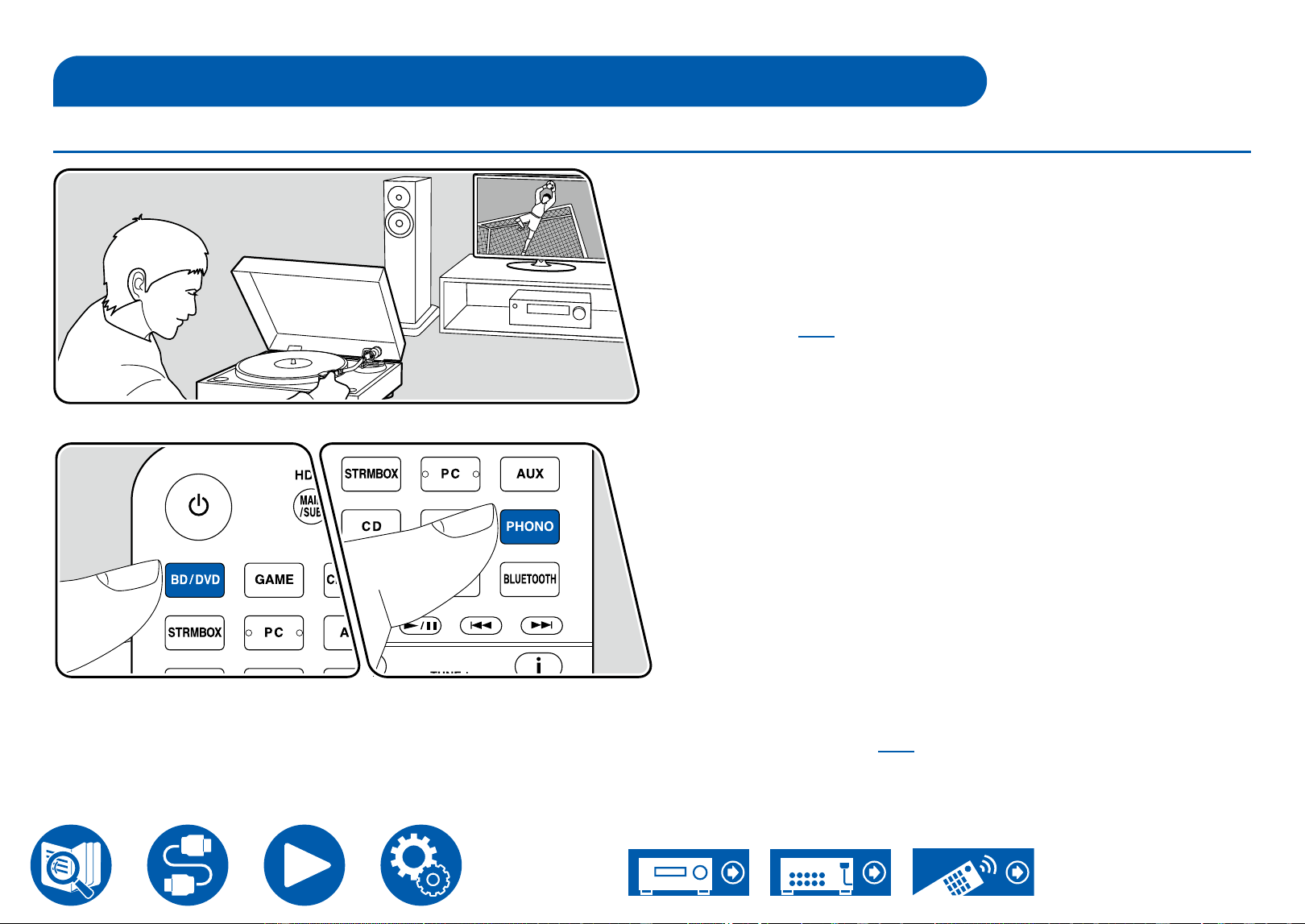

Playing different audio and video
Displaying Your Favorite Video on TV While Playing Music
While listening to the music from a CD or BLUETOOTH enabled device, you can
display video on TV from an AV component such as a Blu-ray Disc player.
• For audio playback, you can select an input selector to which video
input is not assigned, such as "CD", "PHONO", "TUNER"(*), "NET" and
"BLUETOOTH".
*The radio is played when "TUNER" is selected on a model with a built-in
tuner.
• (European, Taiwanes, Middle East, Australian and Asian models): If the "OSD
Language" ( →p104) is set to Chinese, it is not possible to play video while
playing the audio from "NET" or "BLUETOOTH".
Perform the following procedure when this unit is on.
1. Switch the input on the TV to the input connected to the unit.
2. Press an input selector such as BD/DVD button connected to the AV
component of which the video is to be displayed on TV.
• This operation is not necessary if the same input selector has been
selected in the previous operation.
3. Press an input selector of the audio you want to play, such as the CD or
BLUETOOTH button and perform playback operation.
4. Perform the playback operation of the AV component such as a Blu-ray Disc
player. To play the audio of NET or BLUETOOTH, the following step 5
operation is required.
5. To play the audio of NET or BLUETOOTH, press the MODE button to switch
the TV display from the NET or BLOOTOOTH playback screen to the video of
the AV component. Pressing the MODE button again will return to the NET or
BLOOTOOTH playback screen.
• When the TV display is switched to the video of the AV component, the
playback screen of NET or BLUETOOTH is displayed on the corner of the
screen as Mini Player. The setting for Mini Player can be changed on the
Setup Menu so that it automatically turns o in 30 seconds after displayed.
("Mini Player OSD" ( →p105))
The illustration shows an image.
92
Playback
Setting the video source to be displayed on TV beforehand: When playing
the audio of "TUNER", "NET" and "BLUETOOTH", you can set the input selector
to be displayed on TV beforehand using "Video Select" ( →p120) on the Setup
Menu. If a value other than "Last" is set, step 2 in the operation procedure is not
required.
93
Playback

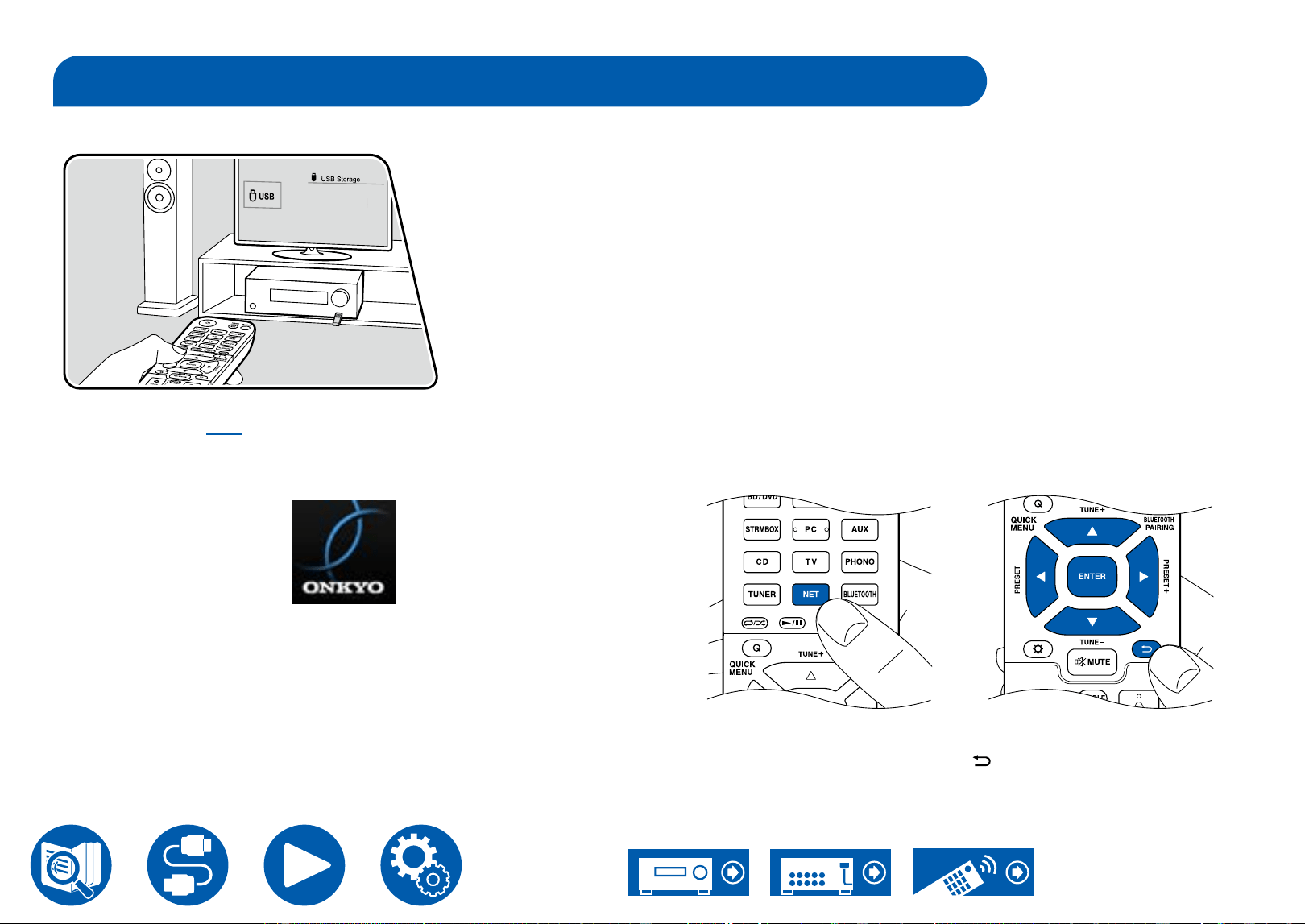

Playing music les saved on a USB storage device
You can play music les stored on a USB storage device.
Onkyo Controller ( →p143) is convenient for controlling the playback of music
stored on a USB storage device. It can be used on a smartphone or tablet to
which you have downloaded Onkyo Controller (for use on iOS and Android™).
Perform the following procedure when this unit is on.
1. Switch the input on the TV to the input connected to the unit.
2. Plug your USB storage device with the music les into the USB port on the
rear panel of this unit.
3. Press NET to display the network service list screen.
4. Select "USB" with the cursors, and then press ENTER.
• If the "USB" indicator blinks on the display, check whether the USB storage
device is plugged in properly.
• Do not unplug the USB storage device while "Connecting..." is being
displayed on the display. This may cause data corruption or malfunction.
5. Press ENTER on the next screen again. The list of folders and music les on
the USB storage device is displayed. Select the folder with the cursors, and
press ENTER to conrm your selection.
6. Select the music le with the cursors, and then press ENTER to start
playback.
• To return to the previous screen, press RETURN.
• Characters that cannot be displayed on this unit appear with "".
94
Playback
• The USB port of this unit complies with the USB 2.0 standard. The transfer
speed may be insucient for some content you play, and sound interruptions,
etc. may occur.
• When playing les recorded with VBR (Variable bit-rate), the playback time
may not be displayed correctly.
• This unit supports the gapless playback of the USB storage device in the
following conditions.
When continuously playing WAV, FLAC and Apple Lossless les with the
same format, sampling frequency, the number of channels and quantization
bit rate.

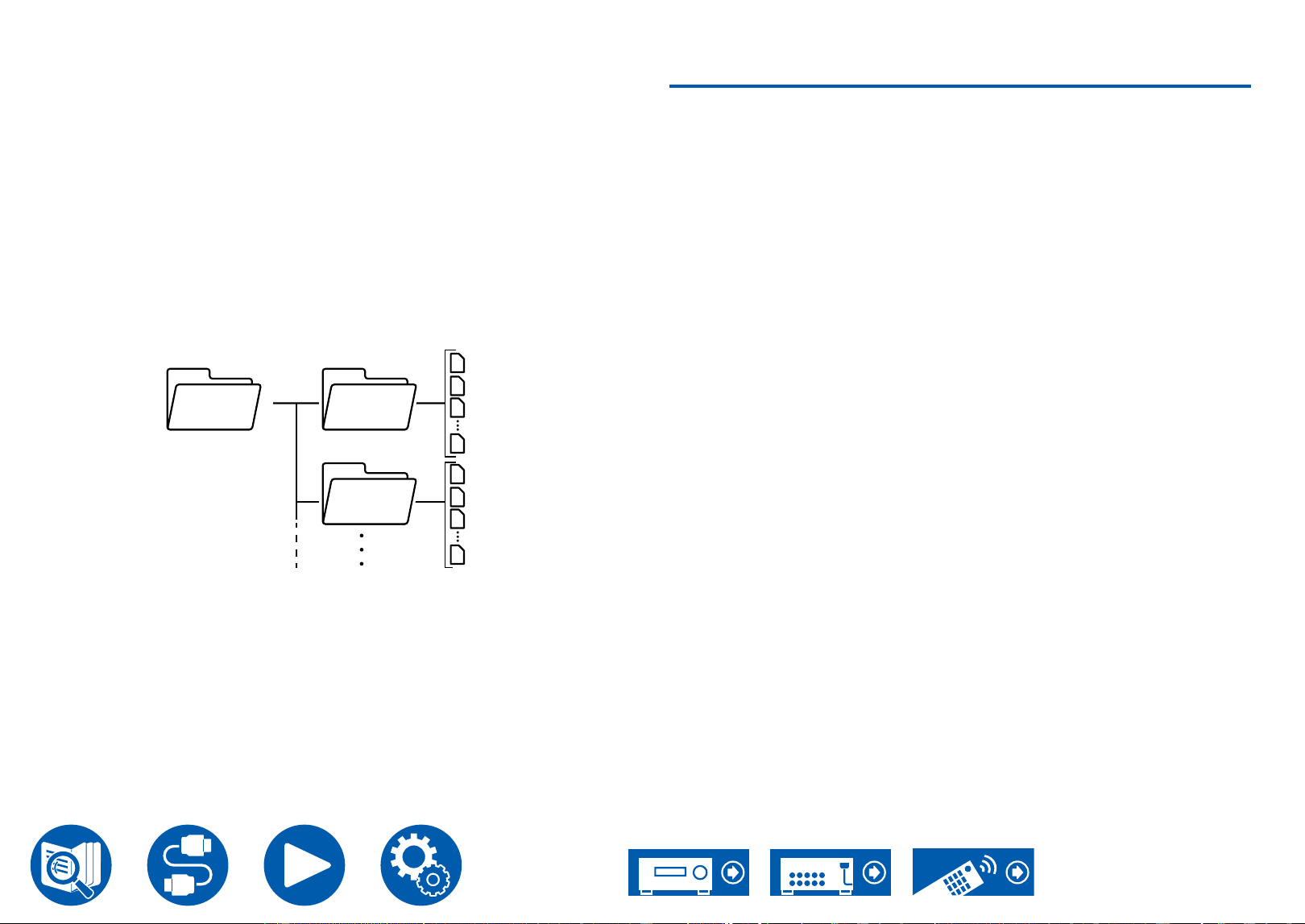

• To display an album title, artist name and album art of a le in WAV format,
make the folder structure and le names as shown below when saving music
les. The album art can be displayed by saving a .jpg le to display on the
screen in the folder of bottom level. Note that a large volume of .jpg le may
take time to be displayed, or may not be displayed.
file 1-1
file 2-1
file 3-1
.jpg file
Album name
file 1-2
file 2-2
file 3-2
.jpg file
Artist name
Album name
Folder 1 Folder 1-1
Folder 1-2
USB Storage Device Requirements
• This unit can use USB storage devices that comply with the USB mass
storage class standard. Also the format of USB storage devices supports
FAT16 or FAT32 le system format.
• If the USB storage device has been partitioned, each section will be treated
as an independent device.
• Up to 20,000 tracks per folder are supported, and folders can be nested up to
16 levels deep.
• USB hubs and USB storage devices with hub functions are not supported. Do
not connect these devices to the unit.
• If an AC adapter is supplied with the USB storage device, connect the AC
adapter, and use it with a household outlet. USB storage devices that receive
power from the USB port of this unit are not guaranteed to work.
• USB storage devices with security functions are not supported on this unit.
• Media inserted to the USB card reader may not be available in this function.
Furthermore, depending on the USB storage device, proper reading of the
contents may not be possible.
• In use of a USB storage device, our company accepts no responsibility
whatsoever for the loss or modication of data stored on a USB storage
device, or malfunction of the USB storage device. We recommend that you
back up the data stored on a USB storage device before using it with this unit.
• Note that operation is not always guaranteed for all USB storage devices.
95
Playback

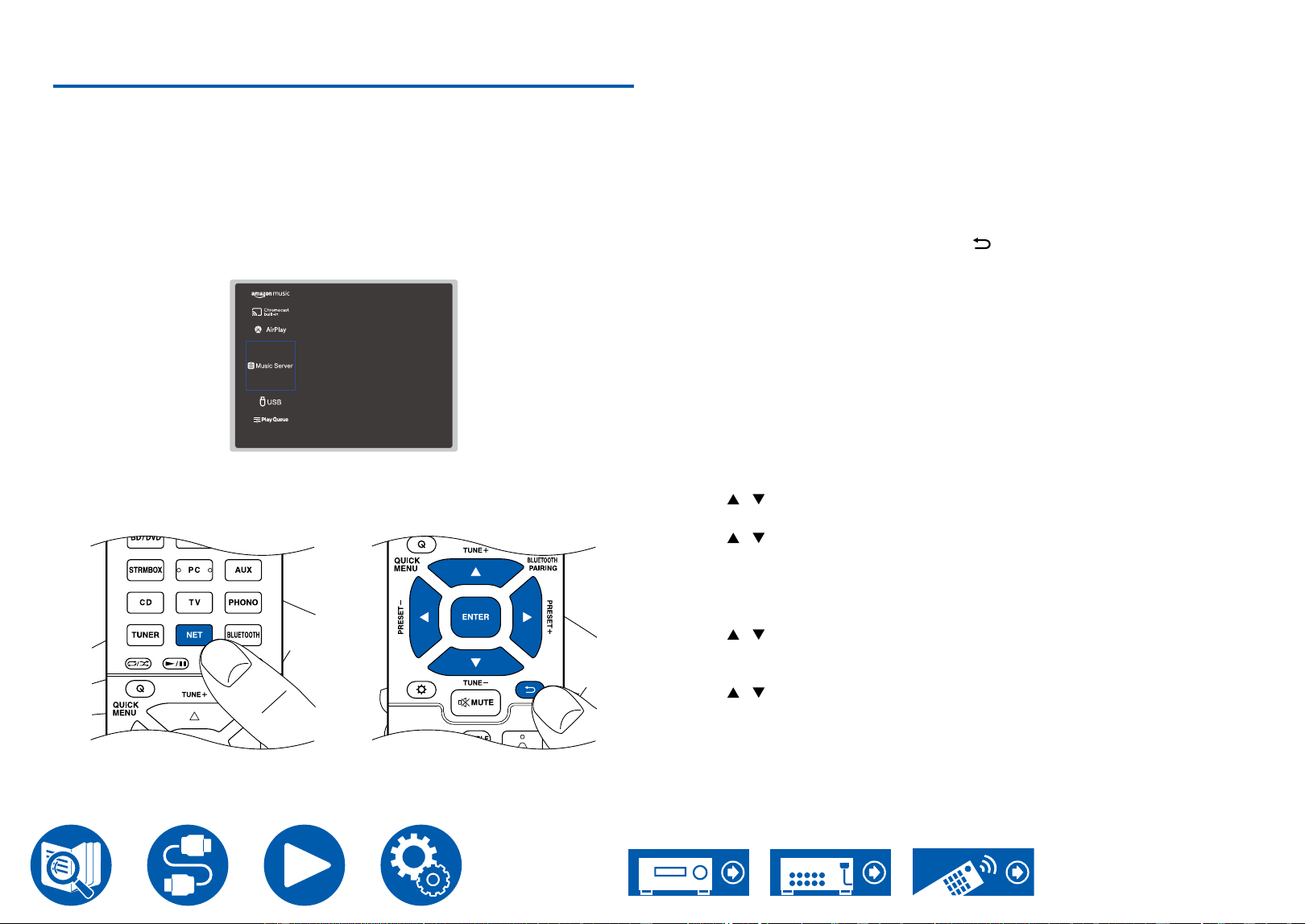

Music Server
Streaming play of music les stored on PCs or NAS devices connected to the
same network as this unit is supported.
Music Server notes
• The network servers this unit is compatible with are those PCs with players
installed that have the server functionality of Windows Media
®
Player 12,
or NAS that are compatible with home network functionality. When using
Windows Media
®
Player 12, you need to make the settings beforehand. Note
that with PCs, only music les registered in the library of Windows Media
®
Player can be played.
• When playing les recorded with VBR (Variable bit-rate), the playback time
may not be displayed correctly.
• For music les on a server, up to 20,000 tracks per folder are supported, and
folders can be nested up to 16 levels deep.
• Depending on the type of media server, the unit may not recognize it, or may
not be able to play its music les.
• Onkyo Controller ( →p143) is convenient for controlling the playback of
music stored on a PC or NAS. It can be used on a smartphone or tablet
to which you have downloaded Onkyo Controller (for use on iOS and
Android™).
Windows Media
®
Player 12 settings
1. Turn on your PC, and start Windows Media
®
Player 12.
2. In the "Stream" menu, select "Turn on media streaming" to display a dialog
box.
• If the media streaming is already turned on, select "More streaming
options..." in the "Stream" menu to display the list of playback devices in
the network, and then go to step 4.
3. Click "Turn on media streaming" to display the list of playback devices in the
network.
4. Select this unit in "Media streaming options" and check that it is set to "Allow".
5. Click "OK" to close the dialog.
6. Open the "Stream" menu and conrm that "Allow remote control of my
Player..." is checked.
• Depending on the version of Windows Media
®
Player, the names of items to
select may dier from the above description.
Playing Back ( →p96)
96
Playback
Playing Back
Perform the following procedure when this unit is on.
1. Switch the input on the TV to the input connected to the unit.
2. Start the server (Windows Media
®
Player 12 or NAS device) containing the
music les to play.
3. Make sure that the PC or NAS is properly connected to the same network as
this unit.
4. Press NET to display the network service list screen.
• If the "NET" indicator on the display blinks, the unit is not properly
connected to the network. Check the connection.
5. With the cursors, select "Music Server", and then press ENTER.
6. Select the target server with the cursors, and press ENTER to display the
items list screen.
• This unit cannot access pictures and videos stored on servers.
• Depending on the server sharing settings, contents stored on the server
may not be displayed.
7. With the cursors, select the music le to play, and then press ENTER to start
playback.
• If "No Item." is displayed on the screen, check whether the network is
properly connected.
• To return to the previous screen, press
RETURN.
• When playing les recorded with VBR (Variable bit-rate), the playback time
may not be displayed correctly.
• For music les on a server, up to 20,000 tracks per folder are supported, and
folders can be nested up to 16 levels deep.
• Depending on the type of media server, the unit may not recognize it, or may
not be able to play its music les.
Searching music les to select
If the server you use supports search functions, the following search function
can be used.
Perform the following procedure with available servers displayed using Music
Server.
1. With
/ UP/DOWN, select the server containing music les you want to
play, and select ENTER.
2. With
/ UP/DOWN, select the Search folder, and press ENTER. The
Search folder contains the following three folders.
• "Search by Artist": Select this when searching by artist name.
• "Search by Album": Select this when searching by album title.
• "Search by Track": Select this when searching by track title.
3. With / UP/DOWN, select the folder, and press ENTER.
4. Input a character string to search for, and press ENTER. Then, the search
result is displayed.
5. With
/ UP/DOWN, select the music les to play, and select ENTER.
97
Playback
Controlling Remote Playback from a PC
You can use this unit to play music les stored on your PC by operating the PC
in your home network. The unit supports remote playback via Windows Media
®
Player 12. To use the remote playback function of this unit with Windows Media
®
Player 12, it must be congured beforehand. ( →p95)
Remote playback
1. Turn on the power of the unit.
2. Turn on your PC, and start Windows Media
®
Player 12.
3. Select and right-click the music le to play with Windows Media
®
Player 12.
• To remotely play a music le on another server, open the target server
from "Other Libraries", and select the music le to play.
4. Select this unit in "Play to" to open the "Play to" window of Windows Media
®
Player 12, and start playback on this unit.
• If your PC is running on Windows
®
10, click "Cast to Device", and select
this unit. Operations during remote playback are possible from the "Play
to" window on the PC. The playback screen is displayed on the HDMI-
connected TV.
5. Adjust the volume using the volume bar on the "Play to" window.
• Sometimes, the volume displayed on the remote playback window may
dier from the volume displayed on the display of this unit.
• When the volume is changed on this unit, the value is not reected in the
"Play to" window.
• This unit cannot play music les remotely in the following conditions.
– It is using a network service.
– It is playing a music le on a USB storage device.
• Remote play of DSD is not supported.
• Remote playback does not support the gapless playback.
98
Playback

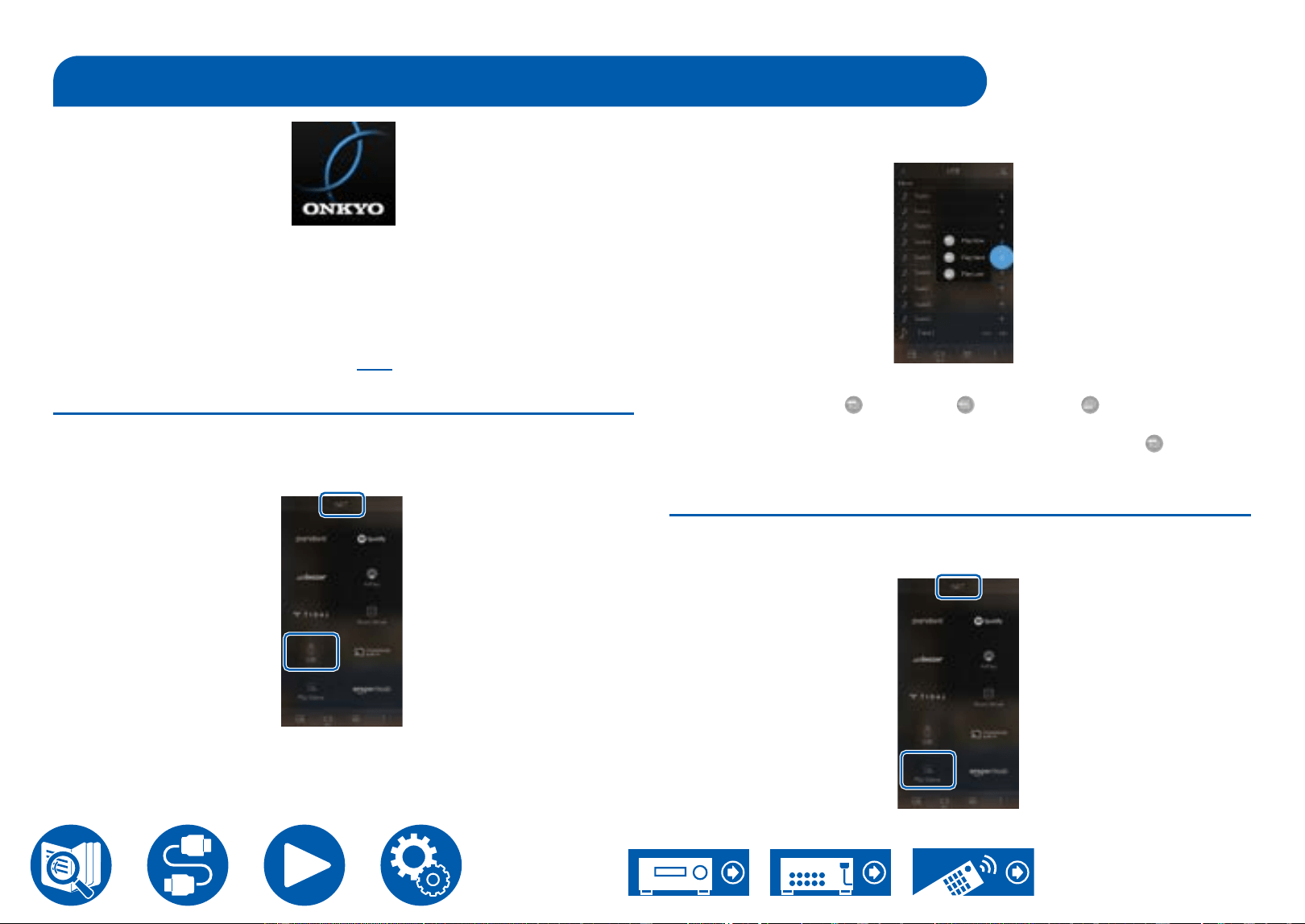

Play Queue
When downloading Onkyo Controller (available on iOS or Android™) to mobile
devices, such as a smartphone and tablet, you can save your favorite playlist
(Play Queue information) among music les stored in the USB storage device
connected to this unit and music les stored in PC or NAS connected to the
same network as this unit, and you can play the music on the playlist. The Play
Queue information is eective until the power cord of this unit is removed from
the outlet. Refer to "Onkyo Controller" ( →p143) for information about the app.
Adding Play Queue Information
1. Select the "INPUT" input on the application screen, and tap the "USB" icon.
Or, select the "NET" input, and tap the "USB" icon or "Music Server" icon.
(Depending on the model, the icon names may be dierent.)
2. Tapping the "+" icon of the track you want to add will open the pop-up to add
the Play Queue information.
3. Touch the "Play Now ", "Play Next " or "Play Last " icon to add the
track to Play Queue.
• If there are no tracks on the Play Queue list, only "Play Now " is
displayed.
Sort and Delete
1. Select the "NET" input, tap the "Play Queue" icon, and enter the Play Queue
service screen.
99
Playback

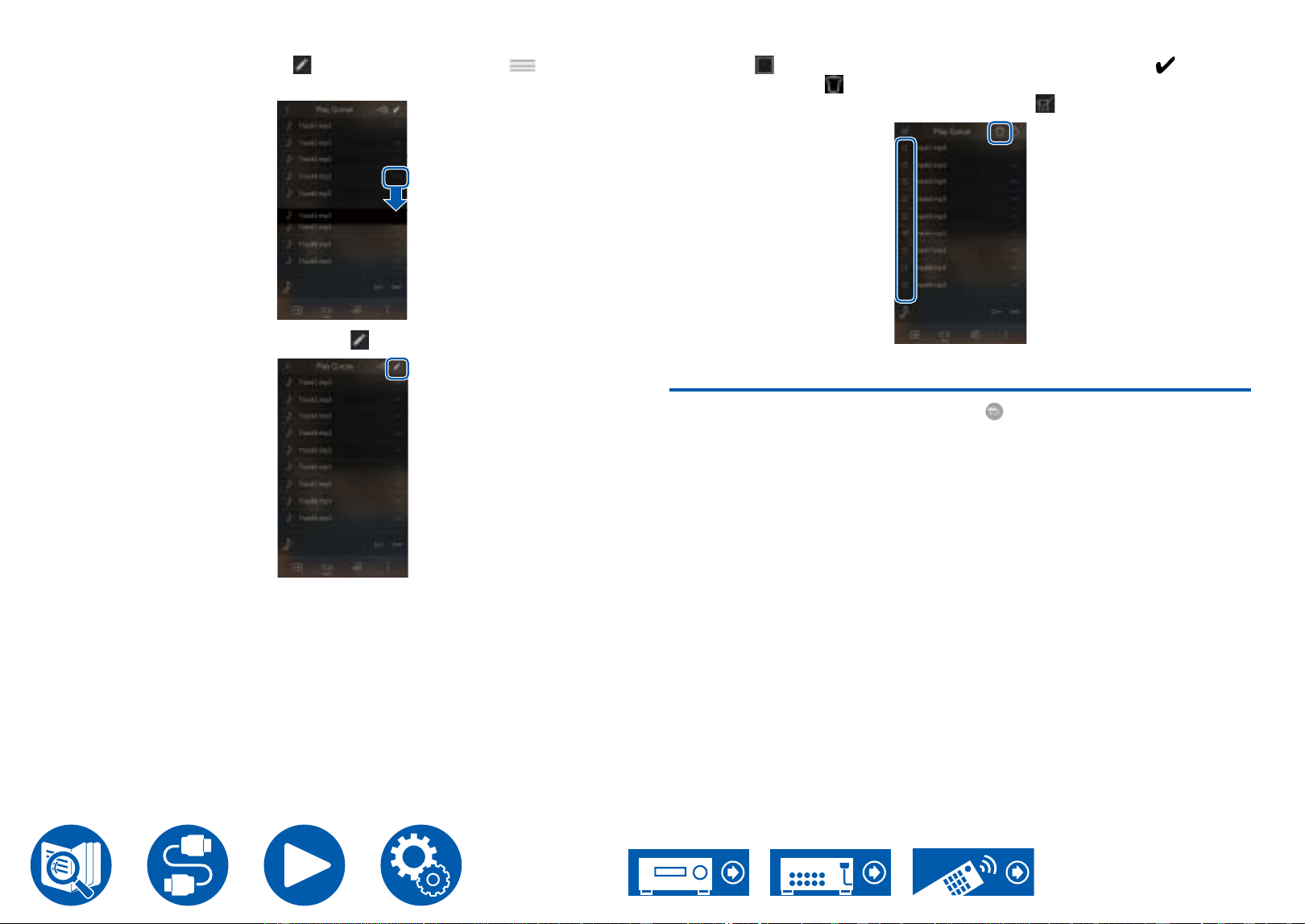

2. To reorder the tracks, tap the “ ” editing icon, then tap the “ ” icon of the
track and drag it to the destination.
3. To delete a track, tap the editing icon " " to switch to editing mode.
4. Tap the " " icon next to the track you want to delete to put in a " ", then
when you tap the "
" icon, the track is deleted from the Play Queue.
• To select or release all of the tracks, tap the "
" icon next to Play Queue.
Playing Back
Playback starts when you select "Play Now " for Play Queue addition, or
select the track in the Play Queue service screen.
101
Setup
Setup Menu
Use the on-screen displays (OSD) that appear on the TV to make the settings.
Press SETUP on the remote controller to display the Setup menu.
Select the item with the cursors / UP/DOWN of the remote controller, and press the ENTER button to conrm your selection.
Use the cursors / LEFT/RIGHT to change the default values.
• To return to the previous screen, press RETURN.
• To exit the settings, press the SETUP button.
Menu list
1.
Input/Output Assign
1. TV Out / OSD Make settings for TV output and On-Screen Displays (OSD) that appear on the TV. p103
2. HDMI Input You can change input assignment between the input selectors and HDMI IN jacks.
p105
3. Video Input Change input assignment between the input selectors and COMPONENT VIDEO IN jacks and
the VIDEO IN jacks.
p106
4. Digital Audio Input Change input assignment between the input selectors and DIGITAL IN COAXIAL/OPTICAL jacks.
p106
5. Analog Audio Input Change input assignment between the input selectors and AUDIO IN jacks.
p107
2. Speaker 1. Conguration Change the settings of connection environment of the speakers.
p108
2. Crossover Change the settings of crossover frequencies.
p110
3. Distance Set the distance from each speaker to the listening position.
p111
4. Level Calibration Adjust the volume level of each speaker.
p112
5.
Dolby Enabled Speaker
Change the settings of Dolby Enabled Speakers. p112
6. Equalizer Settings You can adjust the output volume of the range for each connected speaker.
p113
7. THX Audio Change the THX Audio settings.
p113
8. Speaker Virtualizer The Speaker Virtualizer function can be switched between On and O.
p114
9. Speaker Combo You can optimize the crossover value to match Klipsch speakers.
p115
Setup
1. Input/Output Assign
2. Speaker
3. Audio Adjust
4. Source
5. Hardware
6. Multi Zone
7. Miscellaneous
1. TV Out / OSD
2. HDMI Input
3. Video Input
4. Digital Audio Input
5. Analog Audio Input
102
Setup
3. Audio Adjust 1. Multiplex/Mono Change the settings of multiplex audio playback. p116
2. Dolby Change the setting of when Dolby signals are input.
p116
3. DTS/IMAX Change the setting of when DTS signals are input.
p117
4. LFE Level Set the low-frequency eect (LFE) level for Dolby Digital series, DTS series, Multichannel PCM,
and DSD signals.
p118
5. Volume Change the Volume settings.
p118
4. Source 1. My Input Volume Set a volume value for each input selector.
p119
2. Name Edit Set an easy name for each input.
p119
Audio Select Select the prioritized input terminal when multiple audio sources are connected to one input
selector.
p119
Video Select When "TUNER", "NET", or "BLUETOOTH" input is selected, you can set the input from which
video is displayed on the TV.
p120
5. Hardware 1. HDMI Change the settings for the HDMI functions.
p121
2. Network Change the settings for the Network functions.
p123
3. Bluetooth Change the settings for the BLUETOOTH function.
p126
4. Power Management Change the settings for the power-save function.
p128
5. 12V Trigger Change the settings for 12V TRIGGER OUT jack.
p130
6. Works with SONOS Change the settings to connect with the Sonos Port.
p130
6. Multi Zone 1. Zone 2 Change the settings for Zone 2.
p132
2. Zone 3 Change the settings for Zone 3.
p132
3. Remote Play Zone Change the settings for remote play.
p133
7. Miscellaneous 1. Tuner Change the settings for Tuner.
p134
2. Remote ID Change the remote controller ID.
p134
3. Firmware Update Change the settings for Firmware Update.
p134
4. Initial Setup Make the initial setup from the setup menu.
p135
5. Lock Lock the Setup menu so that the settings cannot be changed.
p135
6. Factory Reset All the settings are restored to factory defaults.
p135
103
SetupSetup
1. Input/Output Assign1. Input/Output Assign
1. TV Out / OSD
Make settings for TV output and On-Screen Displays (OSD) that appear on the
TV.
HDMI Out (Default Value: MAIN)
Select the HDMI jack to be connected with the TV.
• If devices with dierent resolutions are connected to HDMI OUT MAIN jack
and SUB jack, images are output with the lower resolution.
MAIN When connecting the TV to the HDMI OUT MAIN jack
SUB When connecting the TV to the HDMI OUT SUB jack
MAIN+SUB When connecting to both the MAIN and SUB jacks
Dolby Vision (Default Value: MAIN)
To output Dolby Vision video from the player to a TV that supports Dolby Vision,
select either the HDMI OUT MAIN jack or HDMI OUT SUB jack to which the
Dolby Vision-supported TV is connected. This setting is only necessary if you
have set "HDMI Out" to "MAIN+SUB" and you have connected a TV to both the
MAIN and SUB jacks.
MAIN To output Dolby Vision video to a Dolby Vision-supported TV
connected to the HDMI OUT MAIN jack
SUB To output Dolby Vision video to a Dolby Vision-supported TV
connected to the HDMI OUT SUB jack
O After selecting "MAIN" or "SUB", if the video on the TV does
not appear correctly
Upscaling (Default Value: O)
When a TV supporting 4K/8K is used, video signals input with 1080p can be
automatically output with 4K/8K. Video signals that are input at 4K can also
automatically be output as 8K. Note that to output as 8K, set "HDMI 4K/8K
Signal Format" ( →p104) to "8K Standard" or "8K Enhanced", and you need to
connect to a TV that is compatible with the 8K signal format with an HDMI cable.
• If the TV does not support the 4K/8K resolution with the same frequency
as the frequency of HDMI input video signals, upscaling to 4K or 8K is not
correctly performed. Check the frequency of 4K/8K resolution supported
by the TV, and change the resolution of the video signals input from the AV
component.
O When this function is not used
• If your TV does not support 4K/8K, set it to "O".
Auto When this function is used
Super Resolution (Default Value: 2)
When "Upscaling" is set to "Auto", select the correction level of the input video
signals from "O" and "1" (weak) to "3" (strong).
104
SetupSetup
1. Input/Output Assign
HDMI 4K/8K Signal Format
Set the 4K/8K signal format input and output by this unit. Set to suit the TV or
player connected.
• The corresponding resolution is dierent depending on the HDMI jack
connected. See "Corresponding input resolutions" ( →p179) for details.
BD/DVD (Default Value
: 4K Enhanced)
GAME (Default Value: 8K Enhanced)
CBL/SAT (Default Value: 4K Enhanced)
STRM BOX (Default Value: 4K Enhanced)
PC (Default Value: 4K Enhanced)
AUX (Default Value: 4K Enhanced)
CD (Default Value: 4K Enhanced)
TV (Default Value: 4K Enhanced)
PHONO (Default Value: 4K Enhanced)
TUNER (Default Value: 4K Enhanced) *
* Model not equipped with a tuner
4K Standard When using a High Speed HDMI Cable that supports
10.2 Gbps to connect a TV or player compatible with standard
4K signal formats (4K 30 Hz, etc.)
4K Enhanced When using a Premium High Speed HDMI Cable that supports
18 Gbps to connect a TV or player compatible with high-
denition 4K signal formats (4K 60 Hz, 4K HDR, etc.)
• There may be some image disruption depending on the
connected component and the HDMI cable. If this occurs,
switch to "4K Standard".
8K Standard When using a ULTRA High Speed HDMI Cable that supports
48 Gbps to connect a TV or player compatible with 4K 120 Hz,
5K 30 Hz, or 8K 30 Hz signal formats
8K Enhanced When using an ULTRA High Speed HDMI Cable that supports
48 Gbps to connect a TV or player compatible with 5K 60 Hz
or 8K 60 Hz signal formats
Zone 2 HDMI (Default Value: Not Use)
Make the setting when you output to the Zone 2 TV connected to the HDMI OUT
ZONE 2 jack.
Use Enable this function
Not Use Disable this function
• When video and audio via HDMI input are output to ZONE 2,
set it to "Use".
OSD Language (Default Value: English)
Select the on-screen display language from the following.
(North American models)
English, German, French, Spanish, Italian, Dutch, Swedish
(European, Middle East, Australian and Asian models)
English, German, French, Spanish, Italian, Dutch, Swedish, Russian, Chinese
Impose OSD (Default Value: On)
Set whether or not to display information such as volume adjustment or
switching of input on the TV screen.
On OSD is displayed on the TV
• OSD may not be displayed depending on the input signal
even if "On" is selected. In this case, change the resolution
of the connected device.
O OSD is not displayed on the TV
105
SetupSetup
1. Input/Output Assign
Mini Player OSD (Default Value: Always On)
You can display on the TV the images from another input selected last while
playing the audio from NET or BLUETOOTH input. After switching the input to
NET or BLUETOOTH, play the images and audio. And then when you press
MODE on the remote controller, the image is displayed in full-screen mode, and
the audio information (Mini Player) for NET or BLUETOOTH is displayed in the
corner of the screen. You can set whether to always display this Mini Player on
the screen.
• Each time the MODE button is pressed, the image display/non-display can be
switched.
• This setting cannot be selected if "Impose OSD" is set to "O".
• This function cannot be used when "OSD Language" is set to Chinese.
(European, Middle East, Australian and Asian models)
Always On The Mini Player is always displayed.
Auto O The Mini Player turns o automatically in 30 seconds after
displayed. If operation such as changing the volume is
performed, it is displayed again for 30 seconds.
Screen Saver (Default Value: 3 minutes)
Set the time to start the screen saver.
Select a value from "3 minutes", "5 minutes", "10 minutes" and "O".
2. HDMI Input
You can change input assignment between the input selectors and HDMI IN
jacks.
BD/DVD (Default Value: HDMI 1 (HDCP 2.3))
GAME (Default Value: HDMI 2 (HDCP 2.3))
CBL/SAT (Default Value: HDMI 3 (HDCP 2.3))
STRM BOX (Default Value: HDMI 4 (HDCP 2.3))
PC (Default Value: HDMI 5 (HDCP 2.3))
AUX (Default Value: HDMI 6 (HDCP 2.3))
CD (Default Value: ---)
TV (Default Value: ---)
PHONO (Default Value: ---)
TUNER (Default Value: ---) *
* Model not equipped with a tuner
"HDMI 1 (HDCP 2.3)" to "HDMI 6 (HDCP 2.3)":
Assign any HDMI IN jack to each of the input selectors. If you do not assign a
jack, select "---". To select an HDMI IN jack already assigned to another input
selector, change its setting to "---" rst.
106
SetupSetup
1. Input/Output Assign
3. Video Input
Change input assignment between the input selectors and COMPONENT
VIDEO IN jacks and the VIDEO IN jacks. If you do not assign a jack, select "---".
BD/DVD (Default Value: COMPONENT)
GAME (Default Value: ---)
CBL/SAT (Default Value: VIDEO 1)
STRM BOX (Default Value: VIDEO 2)
PC (Default Value: ---)
CD (Default Value: ---)
TV (Default Value: ---)
PHONO (Default Value: ---)
TUNER (Default Value: ---) *
* Model not equipped with a tuner
COMPONENT Assign the COMPONENT VIDEO IN jacks to any input
selector.
VIDEO 1,
VIDEO 2
Assign the VIDEO IN jacks to any input selector.
4. Digital Audio Input
Change input assignment between the input selectors and DIGITAL IN
COAXIAL/OPTICAL jacks. If you do not assign a jack, select "---".
BD/DVD (Default Value: COAXIAL)
GAME (Default Value: ---)
CBL/SAT (Default Value: ---)
STRM BOX (Default Value: ---)
PC (Default Value: ---)
CD (Default Value: ---)
TV (Default Value: OPTICAL)
PHONO (Default Value: ---)
TUNER (Default Value: ---) *
* Model not equipped with a tuner
COAXIAL,
OPTICAL
Assign the COAXIAL terminal or OPTICAL terminal to any
input selector.
107
Setup
1. Input/Output Assign
5. Analog Audio Input
Change input assignment between the input selectors and AUDIO IN jacks. If
you do not assign a jack, select "---".
BD/DVD (Default Value: AUDIO 1)
GAME (Default Value: AUDIO 2) *1
CBL/SAT (Default Value: AUDIO 3)
STRM BOX (Default Value: AUDIO 4)
PC (Default Value: ---)
CD (Default Value: AUDIO 5)
TV (Default Value: AUDIO 6)
PHONO (Default Value: PHONO) *2
TUNER (Default Value: AUDIO 2) *3
*1 North American and Taiwanese models
*2 The setting cannot be changed
*3 Model not equipped with a tuner
AUDIO 1,
AUDIO 2,
AUDIO 3,
AUDIO 4,
AUDIO 5,
AUDIO 6
Assign the AUDIO IN terminal to any input selector.
108
SetupSetup
2. Speaker2. Speaker
1. Conguration
Change the settings of connection environment of the speakers.
• If the settings for "Speaker Channels", "Subwoofer", "Height 1 Speaker", or
"Height 2 Speaker" have been changed, the Dirac Live ( →p140, p144)
measurement results are deleted.
Speaker Channels (Default Value: 7.1.2 ch)
Select "2.1 ch", "3.1 ch", "4.1 ch", "5.1 ch", "6.1 ch", "7.1 ch", "2.1.2 ch",
"3.1.2 ch", "4.1.2 ch", "5.1.2 ch", "6.1.2 ch", "7.1.2 ch", "4.1.4 ch" or "5.1.4 ch" to
suit the number of speaker channels connected.
Subwoofer (Default Value: 2 ch)
Set whether a powered subwoofer is connected or not.
No When a powered subwoofer is not connected
1 ch When 1 powered subwoofer is connected
2 ch When 2 powered subwoofers are connected
Height 1 Speaker (Default Value: Top Middle)
Set the speaker type if height speakers are connected to the HEIGHT 1
terminals.
Select "Top Middle", "Top Rear", "Rear High", "Dolby Speaker (Front)", "Dolby
Speaker (Surr)", "Dolby Speaker (Back)", "Front High" or "Top Front" according
to the type and layout of the connected speakers.
• The setting cannot be selected if "Bi-Amp" is set to "Front/Center".
• When two sets of height speakers are being used, "Top Rear", "Rear High",
"Dolby Speaker (Surr)", and "Dolby Speaker (Back)" cannot be selected.
• "Dolby Speaker (Surr)" and "Dolby Speaker (Back)" can only be selected
when surround speakers or surround back speakers are being used,
respectively. You can check speakers that you are using on the gure
displayed in "Speaker Channels".
• If an item cannot be selected even though connection is correct, check
that the settings in "Speaker Channels" matches the number of connected
channels.
109
SetupSetup
2. Speaker
Height 2 Speaker (Default Value: Rear High)
Set the speaker type if height speakers are connected to the SURROUND
BACK (HEIGHT 2) terminals.
Select "Front High", "Top Front", "Top Middle", "Top Rear", "Rear High", "Dolby
Speaker (Front)" or "Dolby Speaker (Surr)" according to the type and layout
of the connected speakers. However, the options selectable for the "Height 1
Speaker" are as follows.
If "Height 1 Speaker" is set to "Front High": Select from "Top Middle", "Top
Rear", "Rear High", "Dolby Speaker (Surr)" or "Dolby Speaker (Back)".
If "Height 1 Speaker" is set to "Top Front" or "Dolby Speaker (Front)": Select
from "Top Rear", "Rear High" or "Dolby Speaker (Surr)".
If "Height 1 Speaker" is set to "Top Middle": Fixed to "Rear High".
• “Dolby Speaker (Surr)” can only be selected when surround speakers
are being used. You can check speakers that you are using on the gure
displayed in "Speaker Channels".
• If an item cannot be selected even though connection is correct, check
that the settings in "Speaker Channels" matches the number of connected
channels.
Zone Speaker (Default Value: No)
Set whether ZONE 2 speakers and ZONE 3 speakers are being used.
No When neither ZONE 2 speakers nor ZONE 3 speakers are
used
Zone 2 When ZONE 2 speakers are used
Zone 2/Zone 3 When connecting speakers to both ZONE 2 speaker terminals
and ZONE 3 speaker terminals.
• This setting cannot be selected under any of following
conditions.
– When the surround back speakers are used
– When height speakers are being used
Bi-Amp (Default Value: No)
Set whether the speakers are bi-amp connected.
• You cannot select a setting other than "No" or "Front" when using ZONE
speakers.
No When front speakers are not bi-amp connected
Yes When front speakers are bi-amp connected
• This setting will be set to "No" in either of following cases.
– When 2 sets of height speakers are used
– When surround back speakers and height speakers are
being used at the same time.
– When "Zone Speaker" is set to "Zone 2" or "Zone 2/Zone
3"
Speaker Impedance (Default Value: 6 ohms or above)
Set the impedance (Ω) of the connected speakers.
• For impedance, check the indications on the back of the speakers or their
instruction manual.
4ohms When any of the connected speakers have 4 Ω or more to less
than 6 Ω impedance
6 ohms or above
When all the connected speakers have an impedance of 6 Ω
or more
110
SetupSetup
2. Speaker
2. Crossover
Set what number of Hz in the low frequency range is output from each speaker
and what should be output from the subwoofer. When a subwoofer is not to be
used, set to "Full Band" so that the bass is output from the speakers.
• When Dirac Live Bass Control ( →p144) is used, the crossover frequency
setting made here is not available. Set using Onkyo Controller ( →p143).
Dirac Live Bass Control (Default Value: O)
Use the Dirac Live Bass Control to adjust the crossover frequency.
On When using Dirac Live Bass Control. This can be selected
when Dirac Live Bass Control measurements are performed.
O When this function is to not be used
Crossover Type (Default Value: Normal)
Set the crossover frequency to suit the speakers.
Klipsch When Klipsch speakers are used. The crossover that is
optimum for the speakers selected in Speaker Combo
( →p115) is applied. In this case, the crossover for each
speaker cannot be changed.
Normal When other than Klipsch speakers are used
Front (Default Value: 80 Hz (THX))
Center (Default Value: 80 Hz (THX))
Height 1 (Default Value: 80 Hz (THX))
Height 2 (Default Value: 80 Hz (THX))
Surround (Default Value: 80 Hz (THX))
Surround Back (Default Value: 80 Hz (THX))
LPF of LFE (Default Value: 120 Hz)
Double Bass (Default Value: On)
• As for the THX-certied speakers, the following settings are recommended.
– Crossover frequency → "80 Hz (THX)"
– "LPF of LFE" → "80 Hz"
– "Double Bass" → "O"
• This setting is disabled when the IMAX sound mode has been applied.
However, when the "IMAX User Setting" ( →p117) is "Manual" (default value
is Auto), it is enabled.
Front:
Select the crossover frequency from "40 Hz" to "200 Hz" to start outputting
frequencies for each channel.
"Full Band": Full band will be output.
• If "Conguration" - "Subwoofer" is set to "No", "Front" is xed to "Full Band",
and the low pitched range of the other channels is output from the front
speakers. Refer to the instruction manual of your speakers to make the
setting.
Center, Height 1, Height 2, Surround:
Select the crossover frequency from "40 Hz" to "200 Hz" to start outputting
frequencies for each channel.
"Full Band": Full band will be output.
• "Full Band" can be selected only when "Front" is set to "Full Band".
• If the item cannot be selected even though connection is correct, check if
the setting in "Conguration" - "Speaker Channels" matches the number of
connected channels.
Surround Back:
Select the crossover frequency from "40 Hz" to "200 Hz" to start outputting
frequencies for each channel.
"Full Band": Full band will be output.
• "Full Band" can be selected only when "Surround" is set to "Full Band".
• If the item cannot be selected even though connection is correct, check if
the setting in "Conguration" - "Speaker Channels" matches the number of
connected channels.
LPF of LFE:
Set the low-pass lter for LFE (low-frequency eect) signals in order to pass
only the lower frequency signals than the set value, and thus cancel unwanted
noises. The low-pass lter is eective only on sources with LFE channel.
The value from "80 Hz" to "120 Hz" can be set.
"O": When this function is not used
111
SetupSetup
2. Speaker
Double Bass:
This can only be selected when the setting for "Conguration" - "Subwoofer" is
"1ch" or "2ch", and the "Front" setting is "Full Band".
Boost bass output by feeding bass sounds from the front left and right
speakers and the center speaker to the subwoofer.
"On": Bass output is boosted.
"O": Bass output is not boosted.
• This function is not automatically set even if AccuEQ Room Calibration or
Dirac Live is performed.
3. Distance
Set the distance from each speaker to the listening position.
Front Left (Default Value: 12.0 ft/3.60 m)
Center (Default Value: 12.0 ft/3.60 m)
Front Right (Default Value: 12.0 ft/3.60 m)
Height 1 Left (Default Value: 9.0 ft/2.70 m)
Height 1 Right (Default Value: 9.0 ft/2.70 m)
Height 2 Left (Default Value: 9.0 ft/2.70 m)
Height 2 Right (Default Value: 9.0 ft/2.70 m)
Surround Right (Default Value: 7.0 ft/2.10 m)
Surr Back Right (Default Value: 7.0 ft/2.10 m)
Surr Back Left (Default Value: 7.0 ft/2.10 m)
Surround Left (Default Value: 7.0 ft/2.10 m)
Subwoofer 1 (Default Value: 12.0 ft/3.60 m)
Subwoofer 2 (Default Value: 12.0 ft/3.60 m)
• Default values vary depending on the regions.
• The unit of distance can be changed by pressing the MODE button on the
remote controller. When the unit is set as feet, you can set between 0.1 ft
and 30.0 ft in increments of 0.1 ft. When using the unit "meter", the setting is
available in increments of 0.03 m from 0.03 m to 9.00 m.
• When measurements are made using Dirac Live ( →p140, p144), units are
displayed as "msec" and the value cannot be changed.
(Height 1 Left, Height 1 Right, Height 2 Left, Height 2 Right, Surr Back Right,
Surr Back Left):
• Depending on the use of the ZONE speakers, it may not be possible to select
this setting.
112
SetupSetup
2. Speaker
4. Level Calibration
Adjust the volume level of each speaker.
Front Left (Default Value: 0.0 dB)
Center (Default Value: 0.0 dB)
Front Right (Default Value: 0.0 dB)
Height 1 Left (Default Value: 0.0 dB)
Height 1 Right (Default Value: 0.0 dB)
Height 2 Left (Default Value: 0.0 dB)
Height 2 Right (Default Value: 0.0 dB)
Surround Right (Default Value: 0.0 dB)
Surr Back Right (Default Value: 0.0 dB)
Surr Back Left (Default Value: 0.0 dB)
Surround Left (Default Value: 0.0 dB)
Subwoofer 1 (Default Value: 0.0 dB)
Subwoofer 2 (Default Value: 0.0 dB)
Select a value between "-12.0 dB" and "+12.0 dB" ("-15.0 dB" and "+12.0 dB"
for Subwoofer) (in 0.5 dB increments). A test tone will be output each time you
change the value. Select the desired level.
(Height 1 Left, Height 1 Right, Height 2 Left, Height 2 Right, Surr Back Right,
Surr Back Left):
• Depending on the use of the ZONE speakers, it may not be possible to select
this setting.
5. Dolby Enabled Speaker
Change the settings of Dolby Enabled Speakers.
• This setting can be selected when "Conguration" - "Height 1 Speaker" /
"Height 2 Speaker" is set to "Dolby Speaker".
Distance from the ceiling (Default Value: 6' 0"/1.80 m)
Set the distance between the Dolby Enabled Speaker and the ceiling. Select
between "0.1 ft"/"0.03 m" and "15.0 ft"/"4.50 m" ("0.1 ft"/"0.03 m" units).
• The unit of distance (ft/m) is displayed using the unit selected for the
"Distance" setting.
AccuReex (Default Value: O)
You can enhance the reection eect of Dolby Enabled Speakers from the
ceiling.
• The function is not eective if the listening mode is Pure Audio or Direct.
• The function is not eective if "Dirac Live" ( →p75) has been enabled.
O When this function is not used
On When this function is used
113
SetupSetup
2. Speaker
6. Equalizer Settings
You can adjust the output volume of the range for each connected speaker.
Adjust the volume of dierent sound ranges for each speaker. You can set three
dierent equalizers in Preset 1 to 3. The number of frequencies that can be
selected for each speaker is up to ve bands for the Subwoofer and nine bands
for the other speakers.
Preset 1
Preset 2
Preset 3
Select the Preset to be set with the cursors /
UP/DOWN
, then press the
ENTER button.
Front (Default Value: 0.0dB)
Center (Default Value: 0.0dB)
Height 1 (Default Value: 0.0dB)
Height 2 (Default Value: 0.0dB)
Surround (Default Value: 0.0dB)
Surround Back (Default Value: 0.0dB)
Subwoofer (Default Value: 0.0dB)
Select the speaker to be set with the cursors /
UP/DOWN
, then press the
ENTER button. Next, after selecting the speaker frequency from between "25
Hz" and "16 kHz" ("25 Hz" and "160 Hz" for Subwoofer) with the cursors /
LEFT/RIGHT
, adjust the volume of that frequency between "-6.0 dB" and "+6.0
dB" with /
UP/DOWN
.
• Depending on the input source or listening mode setting, the desired eect
may not be achieved.
(Height 1 Left, Height 1 Right, Height 2 Left, Height 2 Right, Surround Back):
• Depending on the use of the ZONE speakers, it may not be possible to select
this setting.
(Subwoofer):
• This cannot be selected if "Conguration" - "Subwoofer" is set to "No".
7. THX Audio
Change the THX Audio settings.
Back Speaker Spacing (Default Value: >4.0 ft/>1.2 m)
Select the distance between the surround back speakers from "<1.0 ft/<0.3 m",
"1.0 - 4.0 ft/0.3 - 1.2 m", and ">4.0 ft/>1.2 m".
• The unit of distance (ft/m) is displayed using the unit selected for the
"Distance" setting.
• The setting cannot be changed if "Conguration" - "Zone Speaker" is set to a
selection item other than "No" and Zone 2 is on.
• If the item cannot be selected even though connection is correct, check if
the setting in "Conguration" - "Speaker Channels" matches the number of
connected channels.
THX Ultra / Select Subwoofer (Default Value: No)
Set whether a THX-certied subwoofer is connected or not.
• This cannot be selected if "Conguration" - "Subwoofer" is set to "No".
Yes When a THX-certied subwoofer is connected
No When a THX-certied subwoofer is not connected
BGC (Default Value: O)
Correct an emphasized bass sound when listening to music near the wall or
boundary of the room due to layout limitation of the listening room. The THX
Select receivers can adjust the balance of bass sound.
• In the following cases, the setting cannot be changed:
– "Conguration" - "Subwoofer" is set to "No".
– "THX Ultra / Select Subwoofer" is set to "No".
– One of the slots has been selected with "Dirac Live" ( →p75).
On When this function is used
O When this function is not used
114
SetupSetup
2. Speaker
Loudness Plus (Default Value: On)
• This cannot be selected when either of the slots is selected with "Dirac Live"
( →p75).
When this is set to "On", you can enjoy even subtle nuances of audio
expression at low volume. This is only available when the THX listening mode
is selected.
THX Loudness Plus
THX Loudness Plus is a new volume control technology mounted on THX Ultra
and THX Select-certied receivers. With THX Loudness Plus, home theater
audience can experience the rich details of surround sound at any volume
level.
If the volume is turned down below the reference level, elements of sound in a
certain range are lost or the sound is perceived dierently by the listener.
THX Loudness Plus compensates for the tonal and spatial shifts that occur
when the volume level is reduced, by intelligently adjusting the levels of the
surround channels and their frequency response in the environment.
This enables users to experience the true impact of soundtracks regardless of
the volume setting. THX Loudness Plus is automatically applied when listening
in any THX listening mode. In the newly developed THX Cinema, THX Music
and THX Games modes, the optimum THX Loudness Plus setting is applied
according to the type of content.
8. Speaker Virtualizer
The Speaker Virtualizer function can be switched between On and O.
Speaker Virtualizer (Default Value: On)
On Listening modes such as T-D that have virtual speaker eects
can be selected.
O Listening modes such as T-D that have virtual speaker eects
cannot be selected.
115
Setup
2. Speaker
9. Speaker Combo
"Speaker Combo" is a function that optimizes the crossover value suitable for
Klipsch speakers.
Setting the Klipsch speaker model to be used with "Speaker Combo" updates
the content of "Speaker" - "Crossover" on the Setup menu, and the crossover is
set to the optimized value suitable for the speakers.
Brand (Default Value: Other)
Select the brand of your speakers.
Klipsch When Klipsch speakers are used
Normal When other than Klipsch speakers are used
Front (Default Value: Other)
Center (Default Value: Other)
Height 1 (Default Value: Other)
Height 2 (Default Value: Other)
Surround (Default Value: Other)
Surround Back (Default Value: Other)
Subwoofer (Default Value: Other)
Select the model of your speakers.
Select "Other" if yours is not in the list.
"Series": Select the series of speaker.
"Model": Select the model of speaker.
116
SetupSetup
3. Audio Adjust3. Audio Adjust
1. Multiplex/Mono
Change the settings of multiplex audio playback.
Multiplex Input Channel (Default Value: Main)
Set the audio channel or language to be output when playing multiplex audio or
multilingual broadcasts, etc.
• For multiplex audio broadcasts, pressing the
button on the remote
controller will display "1+1" on the main unit’s display.
Main Main channel only
Sub Sub channel only
Main / Sub Main and sub channels will be output at the same time.
Mono Input Channel (Default Value: Left + Right)
Set the input channel when playing back analog or 2 ch PCM signals in the
Mono listening mode.
Left Left channel only
Right Right channel only
Left + Right Left and right channels
Mono Output Speaker (Default Value: Center)
Set the speaker to output monaural audio in the Mono listening mode.
• If an item cannot be selected even though connection is correct, check that
the settings in "Speaker" - "Conguration" - "Speaker Channels" matches the
number of connected channels.
Center Audio is output from the center speaker.
Left / Right Audio is output from the front L/R speakers.
2. Dolby
Change the setting of when Dolby signals are input.
Loudness Management (Default Value: On)
When playing Dolby TrueHD, enable the dialog normalization function which
keeps the volume of dialog at a certain level. Note that when this setting is O,
the Late Night function that allows you to enjoy surround at low volumes is xed
to o when playing Dolby Digital Plus/Dolby TrueHD.
On When this function is used
O When this function is not used
Center Spread (Default Value: O)
Adjust the width of the front sound eld created when playing back with the
Dolby Audio - Surr listening mode.
• Depending on the speaker settings, "O" is applied.
On The sound eld is spread to left and right.
O The sound eld is centralized.
117
SetupSetup
3. Audio Adjust
3. DTS/IMAX
Change the setting of when DTS signals are input.
DTS Auto Surround (Default Value: On)
When inputting DTS signals that include extended channel information, the
optimum listening mode is automatically selected according to the extended
information contained in the input signal and the speaker conguration of this
unit when playing in the straight decoding listening mode.
On When this function is used
O Audio is played using the same amount of channels in the
input signal according to the speaker conguration of this unit.
• If this function is set to "O", the ES Matrix and ES Discrete
listening modes cannot be selected.
Dialog Control (Default Value: 0 dB)
You can increase the volume of dialog portion of the audio up to 6 dB by 1 dB
step so that you can hear the dialog easily in noisy atmosphere.
• This cannot be set for content other than DTS:X.
• Depending on the content, this function may not be selected.
IMAX Mode (Default Value: Auto)
Set the IMAX sound mode.
Auto IMAX sound mode is automatically applied when IMAX
content is detected.
On In cases when this unit is unable to recognize IMAX content,
you can apply the IMAX sound mode by turning this setting
"On".
O The setting is disabled.
IMAX User Setting (Default Value: Auto)
When playing IMAX content with the IMAX sound mode, select whether to
automatically apply the speaker setting recommended by IMAX or to set it
manually.
• This cannot be selected when the IMAX Mode is "O".
Auto To use the speaker setup recommended by IMAX.
Manual To manually set "IMAX Bass Feeding" and "IMAX LFE Level".
IMAX Bass Feeding (Default Value: On)
Set the route for the bass component of the audio.
• This cannot be selected when the "IMAX User Setting" is "Auto".
On The bass component of each channel is output according to
the crossover settings ( →p110).
O Only the LFE signal is output.
IMAX LFE Level (Default Value: 0 dB)
• This cannot be selected when the "IMAX User Setting" is "Auto".
You can set the volume for the LFE when IMAX signals are being input. Select
"–∞ dB" or a value between "0 dB" and "-20 dB".
118
SetupSetup
3. Audio Adjust
4. LFE Level
Set the low-frequency eect (LFE) level for Dolby Digital series, DTS series,
Multichannel PCM, and DSD signals.
LFE Level (Default Value: 0 dB)
Select the low-frequency eect (LFE) level of each signal from "0 dB" to
"-∞ dB". If the low-frequency eect sound is too strong, select "-20 dB" or
"-∞ dB".
5. Volume
Change the Volume settings.
Volume Display (Default Value: Absolute)
Switch the volume display between the absolute value and relative value. The
absolute value 82.0 is equivalent to the relative value 0.0 dB.
Absolute Absolute value such as "0.5" and "99.5"
• If the absolute value is set to 82.0, "82.0Ref" will appear on
the display.
Relative Relative value such as "-81.0 dB" and "+18.0 dB"
Mute Level (Default Value: -∞ dB)
Set the volume lowered from the listening volume when muting is on. Select a
value from "-∞ dB", "-40 dB", and "-20 dB".
Maximum Volume (Default Value: O)
Set the maximum value to prevent the volume from becoming too loud.
Select a value from "O", and "50" to "99". (When "Volume Display" is set to
"Absolute")
Power On Volume (Default Value: Last)
Set the volume level of when the power is turned on. Select a value from "Last"
(Volume level before entering standby mode), "Min", "0.5" to "99.5" and "Max".
(When "Volume Display" is set to "Absolute")
• You cannot set a higher value than that of "Maximum Volume".
Headphone Level (Default Value: 0.0 dB)
Adjust the output level of headphones. Select a value between "-12.0 dB" and
"+12.0 dB".
119
SetupSetup
4. Source4. Source
1. My Input Volume
Set a volume value for each input selector.
My Input Volume (Default Value: Last)
Select a value from "Last", "Min", "0.5" to "81.5" and "Max". (When "Volume
Display" is set to "Absolute")
• The volume level when the power is turned on is the value set for "Power On
Volume".
• To set the volume to the current volume, press the button of the input
selector you wish to set for approx. 3 seconds.
2. Name Edit
Set an easy name for each input. The set name appears on the main unit’s
display. Select the input selector to make the setting.
Name Edit (Default Value: Input name)
1. Select a character or symbol with the cursors, and press ENTER.
Repeat this operation to input up to 10 characters.
"A/a": Switches between upper and lower cases. (Pressing MODE on the
remote controller also toggles between upper and lower cases)
"←" "→": Moves the cursor in the arrow direction.
" ": Removes a character on the left of the cursor.
" ": Enters a space.
• Pressing CLEAR on the remote controller will remove all the input
characters.
2. After inputting, select "OK" with the cursors, and press ENTER.
The input name will be saved.
To restore the name to the default value, press CLEAR on the remote
controller on the input screen. Then while nothing is entered, select "OK", and
press ENTER.
• To name a preset radio station, press TUNER on the remote controller, select
AM/FM and select the preset number. (North American and Taiwanese
models)
• This cannot be set if the "NET" or "BLUETOOTH" input is selected.
Audio Select
Select the priority for input selection when multiple audio sources are connected
to one input selector, such as connections to both the "BD/DVD" HDMI IN jack
and the "BD/DVD" AUDIO IN jack. The setting can be separately set to each
input selector button. Select the input selector to congure. Note that there are
some default values you cannot change.
BD/DVD (Default Value: HDMI)
GAME (Default Value: HDMI)
CBL/SAT (Default Value: HDMI)
STRM BOX (Default Value: HDMI)
PC (Default Value: HDMI)
AUX (Default Value: HDMI)
CD (Default Value: OPTICAL)
PHONO (Default Value: Analog)
TV (Default Value: ARC)
TUNER (Default Value: Analog) *
* Model not equipped with a tuner
ARC When giving priority to input signal from ARC compatible TV.
• The setting can be selected only when "Hardware" - "HDMI"
- "Audio Return Channel (eARC supported)" is set to "On"
and also the "TV" input is selected.
HDMI When giving priority to input signal from HDMI IN jacks
• This item can be selected only when the input to be set is
assigned to the HDMI jack in the "Input/Output Assign" -
"HDMI Input" setting.
COAXIAL When giving priority to input signal from DIGITAL IN COAXIAL
jacks
• This item can be selected only when the input to be set is
assigned to the COAXIAL jack in the "Input/Output Assign" -
"Digital Audio Input" setting.
120
SetupSetup
4. Source
OPTICAL When giving priority to input signal from DIGITAL IN OPTICAL
jacks
• This item can be selected only when the input to be set is
assigned to the OPTICAL jack in the "Input/Output Assign" -
"Digital Audio Input" setting.
Analog When giving priority to the input signal from AUDIO IN jacks
• This item can be selected only when the input to be set is
assigned to the AUDIO IN jack in the "Input/Output Assign" -
"Analog Audio Input" setting.
PCM Fixed Mode (Default Value: O)
Select whether to x input signals to PCM (except multi-channel PCM) when
you select "HDMI", "COAXIAL", or "OPTICAL" in the "Audio Select" setting. Set
this item to "On" if noise is produced or truncation occurs at the beginning of a
track when playing PCM sources. Select "O" normally.
• Each time the "Audio Select" setting is changed, the setting is restored to
"O".
• The setting cannot be changed when "TUNER"(*), "NET", "BLUETOOTH" or
"USB" input is selected.
* North American and Taiwanese models
Video Select
When "NET" or "BLUETOOTH" input is selected, you can set the input from
which video is displayed on the TV.
Video Select (Default Value: Last)
Last Select the video input played immediately prior.
BD/DVD,
GAME,
CBL/SAT,
STRM BOX,
PC,
CD,
TV,
PHONO,
TUNER
Play the video of each input.
• This setting is eective for an input selector which is
assigned in "Input/Output Assign" - "HDMI Input" and "Video
Input".
• The radio is played when "TUNER" is selected on a model
with a built-in tuner.
• If the OSD language is set to Chinese, you can only select this setting when
"TUNER" is selected as input. (European, Middle East, Australian and Asian
models)
121
SetupSetup
5. Hardware5. Hardware
1. HDMI
Change the settings of the HDMI function.
HDMI CEC (Default Value: On)
Setting this to "On" enables the input selection link and other link functions with
HDMI-connected CEC-compatible device.
When this setting is changed, turn o and then on again the power of all
connected devices.
• Depending on the TV to use, a link setting may be required on the TV.
• This function is eective only when the device is connected to the HDMI OUT
MAIN jacks.
• Setting this to "On" and closing the operation screen will display the name
of the connected CEC-compatible device and "CEC On" on the main unit’s
display.
• When this function is set to "On", the power consumption in standby state
increases, however, the increase in power consumption is minimized by
automatically entering the HYBRID STANDBY mode where only the essential
circuits operate.
• If you operate the MASTER VOLUME dial on the main unit when this setting is
"On" and audio is output from the TV speakers, audio will be output also from
the speakers connected to this unit. To output audio from only either of them,
change the setting of this unit or TV, or reduce the volume of this unit.
• If abnormal behavior is observed when this is set to "On", set it to "O".
• If a connected device is not CEC-compatible, or if you are not sure whether it
is compatible, set it to "O".
On When this function is used
O When this function is not used
HDMI Standby Through (Default Value: Auto (Eco))
When this is set to anything other than "O", you can play the video and audio of
an HDMI-connected player on the TV even if the unit is in standby mode. Also,
only "Auto" and "Auto (Eco)" can be selected if "HDMI CEC" is set to "On". If you
select anything else, set "HDMI CEC" to "O".
• When this function is set to a value other than "O", the power consumption
in standby state increases, however, the increase in power consumption is
minimized by automatically entering the HYBRID STANDBY mode where only
the essential circuits operate.
• To play a non-CEC compliant player on the TV, turn the unit on and switch the
input.
• When using a CEC-compliant TV, you can reduce the power consumption in
standby mode by selecting "Auto (Eco)".
O When this function is not used
BD/DVD,
GAME,
CBL/SAT,
STRM BOX,
PC,
AUX,
CD,
TV,
PHONO,
TUNER*
For example, if you select "BD/DVD", you can play the
equipment connected to the "BD/DVD" jack on the TV even
if the unit is in standby mode. Select this setting if you have
decided which player to use with this function.
Inputs that have not been allocated to HDMI jacks in "Input/
Output Assign" - "HDMI Input" cannot be selected.
• Even when an HDMI IN jack has been allocated to TV,
TV cannot be select when "Audio Return Channel (eARC
supported)" ( →p122) is set to "On".
*European, Middle East, Australian and Asian models
Last You can play on the TV the video and audio of the input
selected immediately before the unit is switched to standby.
When "Last" is selected, you can switch the input of the unit
using the remote controller or the Onkyo Controller even in the
standby mode.
Auto,
Auto (Eco)
Select one of these settings when you have connected
equipment that conforms to the CEC standard. You can
play the video and audio of the input selected on the TV,
irrespective of what input was selected immediately prior to the
unit being switched to standby, using the CEC link function.
122
SetupSetup
5. Hardware
Audio TV Out (Default Value: Auto)
You can enjoy audio through the speakers of the TV while this unit is on.
• This setting is xed to "Auto" if you set "Input/Output Assign" - "TV Out/
OSD" - "HDMI Out" or "HDMI" - "HDMI Out" in the "Quick Menu" to "MAIN"
or "MAIN+SUB" and set "HDMI CEC" to "On". If you change this setting, set
"HDMI CEC" to "O".
• Listening mode cannot be changed while "Audio TV Out" is set to "On" and
audio is being output from the TV.
• Depending on your TV or input signal of the connected device, audio may not
be output from the TV even if this is set to "On". In such a case, audio is output
from the speakers of the unit.
• Audio is output from this unit if you operate the MASTER VOLUME dial on this
unit when audio that is input to this unit is output from your TV speakers. If you
do not want to output audio, change the setting of this unit or TV, or reduce the
volume of this unit.
On When this function is used
O When this function is not used
Auto When the "HDMI Out" setting is "MAIN" or "MAIN+SUB" and
the "HDMI CEC" setting is "On", the setting is xed to "Auto".
With "Auto", when audio is output from the TV speakers, audio
is not output from the speakers of this unit, and when audio is
output from the speakers of this unit, audio is not output from
the TV speakers.
• If the HDMI CEC setting is o on the TV, there may be audio
output from both the TV speakers and the speakers of this
unit.
Audio Return Channel (eARC supported) (Default Value: On)
You can enjoy the sound of an HDMI-connected ARC-compatible TV or eARC-
compatible TV through the speakers connected to the unit.
On When enjoying the TV sound through the speakers connected
to the unit
O When the ARC function or eARC function is not used
Auto Lip Sync (Default Value: On)
Automatically corrects desynchronization between the video and audio signals
based on the information from the HDMI Lip-Sync-compatible TV.
On When enabling the automatic correction function
O When not using the automatic correction function
123
SetupSetup
5. Hardware
2. Network
Change the settings of the Network function.
• When LAN is congured with a DHCP, set "DHCP" to "Enable" to congure
the setting automatically. ("Enable" is set by default) To assign xed IP
addresses to each components, you must set "DHCP" to "Disable", assign an
address to this unit in the "IP Address" setting, and set information related to
your LAN, such as Subnet Mask and Gateway.
Wi-Fi (Default Value: O(Wired))
Connect the unit to the network via a wireless LAN router.
• When switching between "On" and "O(Wired)", stop the Network service.
Also, when group playback is in process, cancel the group playback once, and
then switch the setting.
On Wireless LAN connection
O(Wired) Wired LAN connection
Wi-Fi Setup (Default Value: -)
Congure wireless LAN settings by pressing ENTER with "Start" displayed.
Wi-Fi Status (Default Value: -)
The information of the connected access point is displayed.
SSID SSID of the connected access point.
Signal Signal strength of the connected access point.
Status Status of the connected access point.
MAC Address (Default Value: -)
Check the MAC address of this unit.
This value is specic to the component and cannot be changed.
DHCP (Default Value: Enable)
Enable Auto conguration by DHCP
Disable Manual conguration without DHCP
• If you select "Disable", set "IP Address", "Subnet Mask",
"Gateway", and "DNS Server" manually.
IP Address (Default Value: 0.0.0.0)
Displays/Sets the IP address.
Subnet Mask (Default Value: 0.0.0.0)
Displays/Sets the subnet mask.
Gateway (Default Value: 0.0.0.0)
Displays/Sets the gateway.
DNS Server (Default Value: 0.0.0.0)
Displays/Sets the primary DNS server.
Proxy URL (Default Value: -)
Displays/Sets the proxy server URL.
Proxy Port (Default Value: 8080)
Displays/Sets the proxy server port number when you input "Proxy URL".
124
SetupSetup
5. Hardware
Friendly Name (Default Value: Onkyo TX-RZ30 XXXXXX)
Change the model name of this unit which is displayed on the device
connected to the network to an easily recognized name.
1. Press ENTER to display the Edit screen.
2. Select a character or symbol with the cursors, and press ENTER.
Repeat this operation to input up to 31 characters.
"A/a": Switches between upper and lower cases. (Pressing MODE on the
remote controller also toggles between upper and lower cases)
"←" "→": Moves the cursor in the arrow direction.
" ": Removes a character on the left of the cursor.
" ": Enters a space.
• Pressing CLEAR on the remote controller will remove all the input
characters.
3. After inputting, select "OK" with the cursors, and press ENTER.
The input name will be saved.
AirPlay (Default Value: On)
Select whether or not to use the AirPlay function.
On When this function is used
O When this function is not used
AirPlay Device Name (Default Value: Onkyo TX-RZ30 XXXXXX)
Change the model name of this unit which is displayed on the AirPlay-
connected device to an easily recognized name.
1. Press ENTER to display the Edit screen.
2. Select a character or symbol with the cursors, and press ENTER.
Repeat this operation to input up to 31 characters.
"A/a": Switches between upper and lower cases. (Pressing MODE on the
remote controller also toggles between upper and lower cases)
"←" "→": Moves the cursor in the arrow direction.
" ": Removes a character on the left of the cursor.
" ": Enters a space.
• Pressing CLEAR on the remote controller will remove all the input
characters.
3. After inputting, select "OK" with the cursors, and press ENTER.
The input name will be saved.
• This function cannot be used when registering this unit to Home App.
125
SetupSetup
5. Hardware
AirPlay Password (Default Value: -)
You can set a password of up to 31 characters so that only users that have
input can use AirPlay.
1. Press ENTER to display the Edit screen.
2. Select a character or symbol with the cursors, and press ENTER.
Repeat this operation to input up to 31 characters.
"A/a": Switches between upper and lower cases. (Pressing MODE on the
remote controller also toggles between upper and lower cases)
"←" "→": Moves the cursor in the arrow direction.
" ": Removes a character on the left of the cursor.
" ": Enters a space.
• To select whether to mask the password with "" or display it in plain text,
press MEMORY on the remote controller.
• Pressing CLEAR on the remote controller will remove all the input
characters.
3. After inputting, select "OK" with the cursors, and press ENTER.
The input password will be saved.
• This function cannot be used when registering this unit to Home App.
Privacy Statement (Default Value: Not Accepted)
When using a network service that requires a login name, email address,
password, etc., you need to agree to the Privacy Statement of our company.
• This setting can be made after conrming the Privacy Statement. When
you select "Privacy Statement" and press ENTER, the Privacy Statement is
displayed.
• When "Not Accepted" is selected, the login name, email address, password,
etc., that are kept on this unit will be deleted and you will be logged out from
the network service you have logged in.
Network Check (Default Value: -)
You can check the network connection.
Press ENTER when "Start" is displayed.
• Wait for a while if "Network" cannot be selected. It can be selected when the
network function is activated.
126
SetupSetup
5. Hardware
3. Bluetooth
Change the settings for the BLUETOOTH function.
• Wait for a while if "Bluetooth" cannot be selected. It can be selected when the
BLUETOOTH function is activated.
(Bluetooth Receiver)
Bluetooth Receiver (Default Value: On)
Select whether or not to use the function that receives audio from BLUETOOTH
wireless technology enabled devices.
On When this function is used
O When this function is not used
Auto Input Change (Default Value: On)
When a BLUETOOTH enabled device is played while it is connected to the unit,
the input of the unit can be automatically switched to "BLUETOOTH".
On The input will automatically become "BLUETOOTH" when a
BLUETOOTH enabled device is connected.
O The function is disabled.
• If the input is not switched automatically, set this to "O",
and change the input manually.
Auto Reconnect (Default Value: On)
This function automatically reconnects to the BLUETOOTH enabled device
connected last when you change the input to "BLUETOOTH".
• This may not work with some BLUETOOTH enabled devices.
On When this function is used
O When this function is not used
Pairing Information (Default Value: -)
You can initialize the pairing information stored on this unit. If you are no longer
able to connect with a device you have paired, try doing this.
Pressing ENTER when "Clear" is displayed initializes the pairing information
stored on this unit.
• This function does not initialize the pairing information on the BLUETOOTH
enabled device. When pairing the unit again with the device, be sure to clear
the pairing information on the BLUETOOTH enabled device beforehand. For
information on how to clear the pairing information, refer to the instruction
manual of the BLUETOOTH enabled device.
Device (Default Value: -)
Displays the name of the BLUETOOTH enabled device connected to the unit.
• The name is not displayed when "Status" is "Ready" and "Pairing".
Status (Default Value: -)
Displays the status of the BLUETOOTH enabled device connected to the unit.
Ready Not paired
Pairing Paired
Connected Successfully connected
127
SetupSetup
5. Hardware
(Bluetooth Transmitter)
Bluetooth Transmitter (Default Value: O)
Select whether or not to use the function that transmits audio from this unit to
BLUETOOTH wireless technology enabled devices.
On (Tx) When this function is to be used (played back only on
BLUETOOTH
wireless technology enabled devices)
On (Main + Tx) When this function is to be used (played back both on this unit
and on
BLUETOOTH
wireless technology enabled devices)
O When this function is not used
Search Devices (Default Value: -)
Search for a BLUETOOTH wireless technology enabled device that is able to
receive the audio from this unit. Select "Start" then press ENTER. A list of the
names of BLUETOOTH wireless technology enabled devices that are able to
receive is displayed. Select the device to be connected with the cursors /
UP/DOWN, then pairing begins when you press ENTER.
Output Level (Default Value: Variable)
You can select whether to adjust the volume on this unit or to adjust it on the
BLUETOOTH
wireless technology enabled device.
Variable To use the volume controls on this unit
Fixed To use the volume controls on the
BLUETOOTH
wireless
technology enabled device
aptX HD (Default Value: O)
It is possible to use aptX HD to connect a BLUETOOTH wireless technology
enabled device and this unit.
• The codec of the receiving device must be compatible with aptX HD.
On When this function is used
O When this function is not used
Low Latency Mode (Default Value: O)
If the audio from a device connected via BLUETOOTH is delayed compared to
the video on the TV when watching a gaming screen, etc., you can reduce the
audio delay.
On When this function is used
O When this function is not used
Pairing Information (Default Value: -)
You can initialize the pairing information stored on this unit. If you are no longer
able to connect with a device you have paired, try doing this.
Pressing ENTER when "Clear" is displayed initializes the pairing information
stored on this unit.
• This function does not initialize the pairing information on the BLUETOOTH
enabled device. When pairing the unit again with the device, be sure to clear
the pairing information on the BLUETOOTH enabled device in advance. For
information on how to clear the pairing information, refer to the BLUETOOTH
enabled device's instruction manual.
Device (Default Value: -)
Displays the name of the BLUETOOTH enabled device connected to the unit.
• The name is not displayed when "Status" is "Ready" and "Pairing".
Status (Default Value: -)
Displays the status of the BLUETOOTH enabled device connected to the unit.
Ready Not paired
Pairing Paired
Connected Successfully connected
Connected
(aptX)
Successfully connected with aptX compatible device
Connected
(aptX HD)
Successfully connected with aptX HD compatible device
128
SetupSetup
5. Hardware
4. Power Management
Change the settings for the power-save function.
Sleep Timer (Default Value: O)
30 minutes,
60 minutes,
90 minutes
You can allow the unit to enter standby automatically when the
specied time has elapsed. Select a value from "30 minutes",
"60 minutes" and "90 minutes".
O Does not turn the unit to standby automatically.
Auto Standby (Default Value: On/O)
This setting allows the unit to enter standby mode automatically after 20
minutes of inactivity without any video or audio input. (When "USB Power Out
at Standby" or "Network Standby" is enabled, the unit enters the HYBRID
STANDBY mode which minimizes the increase in power consumption.)
• Default values vary depending on the regions.
On The unit will automatically enter standby mode ("AUTO STBY"
will light).
• "Auto Standby" is displayed on the main unit’s display and
TV screen 30 seconds before entering standby mode.
• "Auto Standby" does not work when Zone 2/Zone 3 is active.
O The unit will not automatically enter standby mode.
Auto Standby in HDMI Standby Through (Default Value: On/O)
Enable or disable "Auto Standby" while "HDMI Standby Through" is on.
• Default values vary depending on the regions.
On The setting will be enabled.
• This setting cannot be set to "On" if "Auto Standby" and
"HDMI Standby Through" are set to "O".
O The setting will be disabled.
USB Power Out at Standby (Default Value: O)
Devices connected to the USB port (5 V/1 A) on the rear of the unit can be
supplied with electricity even when this unit is in standby mode when this
function is "On".
• When this function is set to "On", the power consumption in standby state
increases, however, the increase in power consumption is minimized
by automatically entering the HYBRID STANDBY mode where only the
essential circuits operate.
129
SetupSetup
5. Hardware
Network Standby (Default Value: On)
When this function is set to "On", the network function works even in standby
state, and you can turn on the power of the unit via network using an
application such as Onkyo Controller that can control this unit.
• When this function is set to "On", the power consumption in standby state
increases, however, the increase in power consumption is minimized
by automatically entering the HYBRID STANDBY mode where only the
essential circuits operate. Note that even if this function is set to "O", when
any of the HDMI CEC ( →p121), HDMI Standby Through ( →p121),
USB Power Out at Standby ( →p128) and Bluetooth Wakeup ( →p129)
functions is enabled, this function will be in "On" state regardless of the
setting.
• When connection to the network is lost, "Network Standby" may be disabled
to reduce power consumption. In such a case, turn the unit on by using the
power button on the remote controller or main unit.
Bluetooth Wakeup (Default Value: O)
This function wakes up the unit on standby by connecting a BLUETOOTH
enabled device. This is eective when "Bluetooth" - "Bluetooth Receiver" is set
to "On".
On When this function is used
• When this function is set to "On", the power consumption
in standby state increases, however, the increase in power
consumption is minimized by automatically entering the
HYBRID STANDBY mode where only the essential circuits
operate.
O When this function is not used
• This setting is xed to "O" if "Bluetooth" - "Bluetooth
Receiver" is set to "O".
• This setting is also xed to "O" if "Bluetooth" - "Bluetooth
Receiver" - "Auto Input Change" is set to "O".
• Wait for a while if "Network Standby" and "Bluetooth Wakeup" cannot be
selected. It can be selected when the network function is activated.
130
SetupSetup
5. Hardware
5. 12V Trigger
Set when outputting the control signal (maximum 12 V/100 mA) through the 12V
TRIGGER OUT jack. You can enable power link operation when you connect the
unit and the external devices equipped with 12V trigger input jack.
Zone (Default Value: Main)
Set which zone to output the 12V trigger when playing. If you select "All", then
the 12V trigger is output to all zones that are playing.
O When the control signal is not output
Main When controlling the power of external devices linked to the
input selection in the main room
Zone 2 When controlling the power of external devices linked to the
input selection in ZONE 2
Zone 3 When controlling the power of external devices linked to the
input selection in ZONE 3
All When controlling the power of external devices linked to the
input selection in the main room, in ZONE 2 or in ZONE 3
6. Works with SONOS
Change the settings to connect with the Sonos Port.
(SONOS-1/SONOS-2/SONOS-3)
Input Selector (Default Value: O)
Select the input selector to which the Sonos Port is connected.
• Selecting "O" disables the interlock function with Sonos.
Connected Device (Default Value: -)
Displays the Sonos Port connected to the same network as the network of this
unit. Press the ENTER button to select the connected Sonos Port.
• Products (e.g. Play:3 unequipped with an output terminal) other than the
Sonos Port are also displayed in the device list and selectable. In that case,
when playback on the Sonos side starts, the input is switched, however,
audio is not output. Select the room name of the connected Sonos Port.
• Up to 32 devices can be displayed on the Sonos product list screen. If you
cannot nd the Sonos Port to be interlocked, return to the previous screen,
turn o the product you do not want to interlock, and try again.
• To use this function, set "Input Selector" beforehand.
131
Setup
5. Hardware
Output Zone (Default Value: Main)
Select the zone where you want to listen to the music.
• To use this function, set "Input Selector" beforehand.
Main Outputs audio only to the main room (where this unit is
located).
Zone 2 Outputs audio only to the separate room (ZONE 2).
Main/Zone 2 Outputs audio to both the main room and separate room
(ZONE 2).
Zone 3 Outputs audio only to the separate room (ZONE 3).
Main/Zone 3 Outputs audio to both the main room and separate room
(ZONE 3).
Zone 2/Zone 3 Outputs audio to both the separate rooms (ZONE 2 and
ZONE 3).
Main/Zone 2/
Zone 3
Outputs audio to the main room and both separate rooms
(ZONE 2 and ZONE 3).
Preset Volume (Default Value: Main=Last / Zone 2=Last / Zone
3=Last)
You can set the volume beforehand for playing back the Sonos Port. You
can set volumes for the main room (where this unit is located) and separate
room (ZONE 2 or ZONE 3) respectively. Select a value from "Last" (Volume
level before entering standby mode), "Min", "0.5" to "99.5" and "Max". (When
"Volume Display" is set to "Absolute")
• To use this function, set "Input Selector" beforehand.
132
SetupSetup
6. Multi Zone6. Multi Zone
1. Zone 2
Change the settings for Zone 2.
Output Level (Default Value: Fixed)
Select whether to adjust the volume on the integrated amplier in the separate
room or on this unit when outputting to the separate room (Zone 2).
Fixed Adjust on the integrated amplier in the separate room
Variable Adjust on this unit
Maximum Volume (Default Value: O)
Set the maximum value for Zone 2 to avoid too high volume. Select a value
from "O", "50" to "99". (When "Audio Adjust" - "Volume" - "Volume Display" is
set to "Absolute")
Power On Volume (Default Value: Last)
Set the Zone 2 volume level of when this unit is turned on. Select a value from
"Last" (Volume level when the unit was turned o), "Min", "0.5" to "99.5" and
"Max". (When "Audio Adjust" - "Volume" - "Volume Display" is set to "Absolute")
• You cannot set a higher value than that of "Maximum Volume".
Sound Check (Default Value: -)
Output test tones to Zone 2 to enjoy audio in a separate room (Zone 2) in
addition to the main room.
Press ENTER while "Start" is being displayed. Operate by following the on-
screen displays.
2. Zone 3
Change the settings for Zone 3.
Output Level (Default Value: Fixed)
Select whether to adjust the volume on the integrated amplier in the separate
room or on this unit when outputting to the separate room (Zone 3).
• This setting is xed to "Variable" if "Conguration" -"Zone Speaker" is set to
"Zone 2/Zone 3".
Fixed Adjust on the integrated amplier in the separate room
Variable Adjust on this unit
Maximum Volume (Default Value: O)
Set the maximum value for Zone 3 to avoid too high volume. Select a value
from "O", "50" to "99". (When "Audio Adjust" - "Volume" - "Volume Display" is
set to "Absolute")
Power On Volume (Default Value: Last)
Set the Zone 3 volume level of when this unit is turned on. Select a value from
"Last" (Volume level when the unit was turned o), "Min", "0.5" to "99.5" and
"Max". (When "Audio Adjust" - "Volume" - "Volume Display" is set to "Absolute")
• You cannot set a higher value than that of "Maximum Volume".
133
Setup
6. Multi Zone
3. Remote Play Zone
Change the settings for remote play.
Remote Play Zone (Default Value: Auto)
When playing with AirPlay or Spotify Connect, or when using the Music Server
function to play remotely from your PC, you can set whether to play in the main
room (where this unit is located) or in a separate room (Zone 2/Zone 3).
Auto When the main room input is NET, music is played in the main
room. When the separate room input is NET and the main
room input is other than NET, then the music is played in the
separate room.
Main,
Zone 2,
Zone 3
Select when limiting the play zone to a particular room. For
example, when playing only in the separate room, select "Zone
2" or "Zone 3".
• This function may not work if playback is already proceeding with the same
network function.
134
SetupSetup
7. Miscellaneous7. Miscellaneous
1. Tuner (North American and Taiwanese models)
Change the settings for Tuner.
AM/FM Frequency Step (Default Value: 10 kHz / 0.2 MHz)
Select a frequency step to suit your residential area.
Select "10 kHz/0.2 MHz" or "9 kHz/0.05 MHz".
• When this setting is changed, all radio presets are deleted.
2. Remote ID
Change the remote controller ID.
Remote ID (Default Value: 1)
If multiple ONKYO products are installed in the same room, select the ID
for the remote control used with this unit from "1", "2" and "3" to prevent
interference between the unit and other ONKYO products. After changing the
ID on the main unit, set the same ID on the remote controller as the main unit
with the following procedure.
While pressing and holding the MODE button, press the following buttons for
approx. 3 seconds.
• To change the remote controller ID to "1": MOVIE/TV
• To change the remote controller ID to "2": MUSIC
• To change the remote controller ID to "3": GAME
3. Firmware Update
Change the settings for Firmware Update.
Update Notice (Default Value: Enable)
Availability of a rmware update is notied via network.
Enable Notify updates
Disable Do not notify updates
Version (Default Value: -)
The current rmware version is displayed.
Update via NET (Default Value: -)
Press ENTER to select when updating the rmware via network.
• This setting cannot be selected if you do not have Internet access or there is
no updatable rmware.
Update via USB (Default Value: -)
Press ENTER to select when updating the rmware via USB.
• This setting cannot be selected if a USB storage device is not connected or
there is no updatable rmware in the USB storage device.
• Wait for a while if "Firmware Update" cannot be selected. It can be selected
when the network function is activated.
135
Setup
7. Miscellaneous
4. Initial Setup
Make the initial setup from the setup menu.
• Wait for a while if "Initial Setup" cannot be selected. It can be selected when
the network function is activated.
5. Lock
Lock the Setup menu so that the settings cannot be changed.
Setup Parameter (Default Value: Unlocked)
Lock the Setup menu so that the settings cannot be changed.
Locked The menu is locked.
Unlocked The menu is unlocked.
6. Factory Reset
All the settings are restored to factory defaults.
Factory Reset (Default Value: -)
All the settings are restored to factory defaults.
Select "Start" and press ENTER.
• If "Factory Reset" is performed, your settings are restored to the default
values. Be sure to note down your setting contents beforehand.
136
Setup

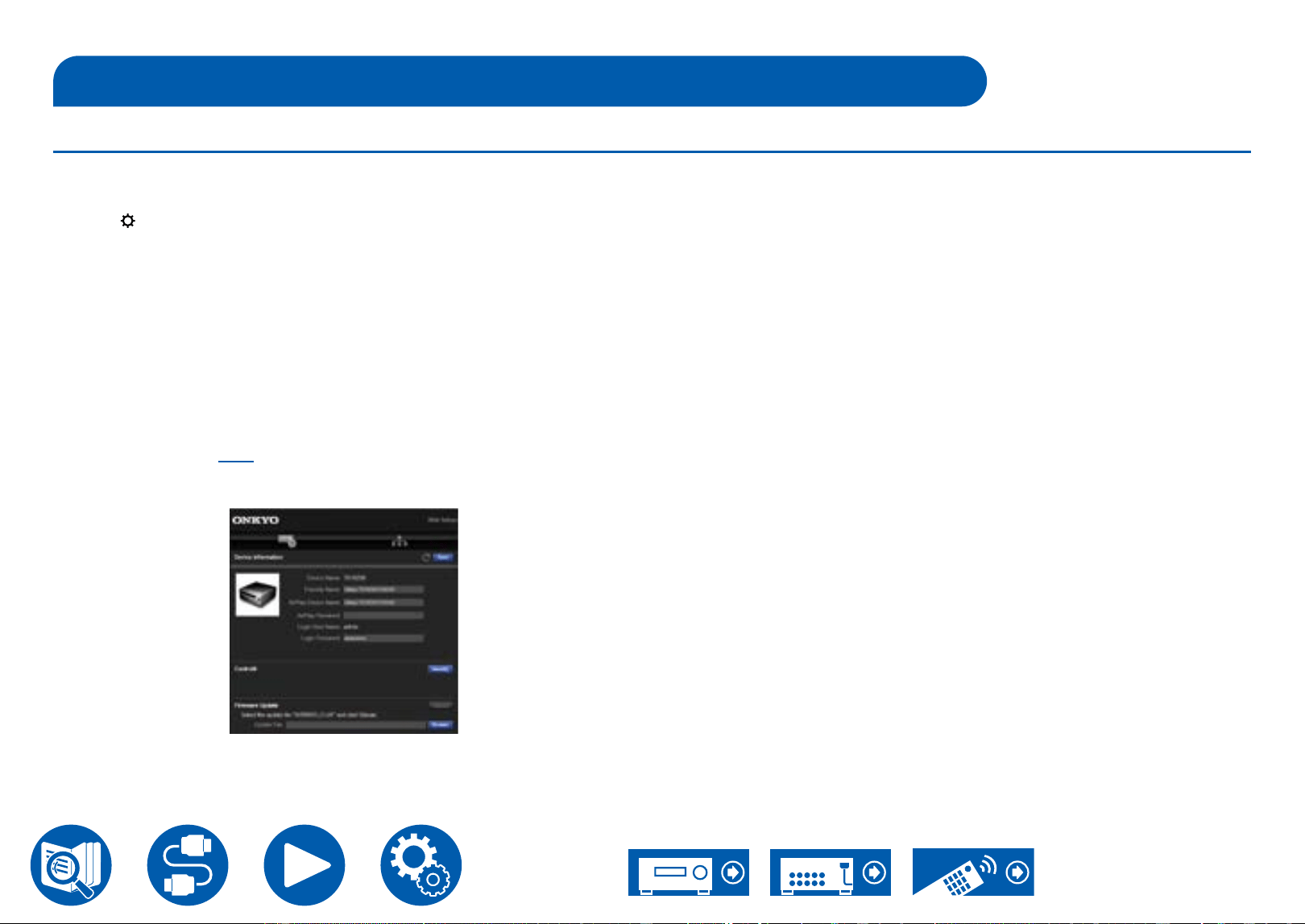

Web Setup
Menu operations
You can make the settings for the network function of this unit using an Internet
browser on a PC, smartphone, etc.
1. Press
SETUP on the remote controller to display the Setup menu.
2. Select "Hardware" - "Network" with the cursors, and then take a note of the IP
address displayed in "IP Address".
3. Start the Internet browser on your PC, smartphone, etc. and enter the IP
address of this unit in the URL eld.
4. The screen for entering the user name and password is displayed. Enter the
following then click "OK".
User name: admin (xed)
Password: admin (default value)
• Input is required again if you close the browser.
5. Change the password.
• Take a note of the password so that you do not forget it. If you do forget it,
reset the unit ( →p149) then log in again with the initial settings (admin).
6. Information for the unit (Web Setup screen) is displayed in the internet
browser.
7. After changing the settings, select "Save" to save the settings.
Device Information
You can change the Friendly Name or AirPlay Device Name, set an
AirPlay Password, etc.
Control4: Register this unit if you are using a Control4 system.
Firmware Update: Select the rmware le you have downloaded to your PC so
you can update this unit.
Network Setting
Status: You can see information for the network such as the MAC address and
IP address of this unit.
Network Connection: You can select a network connection method. If you select
"Wireless", select an access point from "Wi-Fi Setup" to connect.
DHCP: You can change DHCP settings. If you select "O", set "IP Address",
"Subnet Mask", "Gateway" and "DNS Server" manually.
Proxy: Display and set the URL for the proxy server.
137
Setup

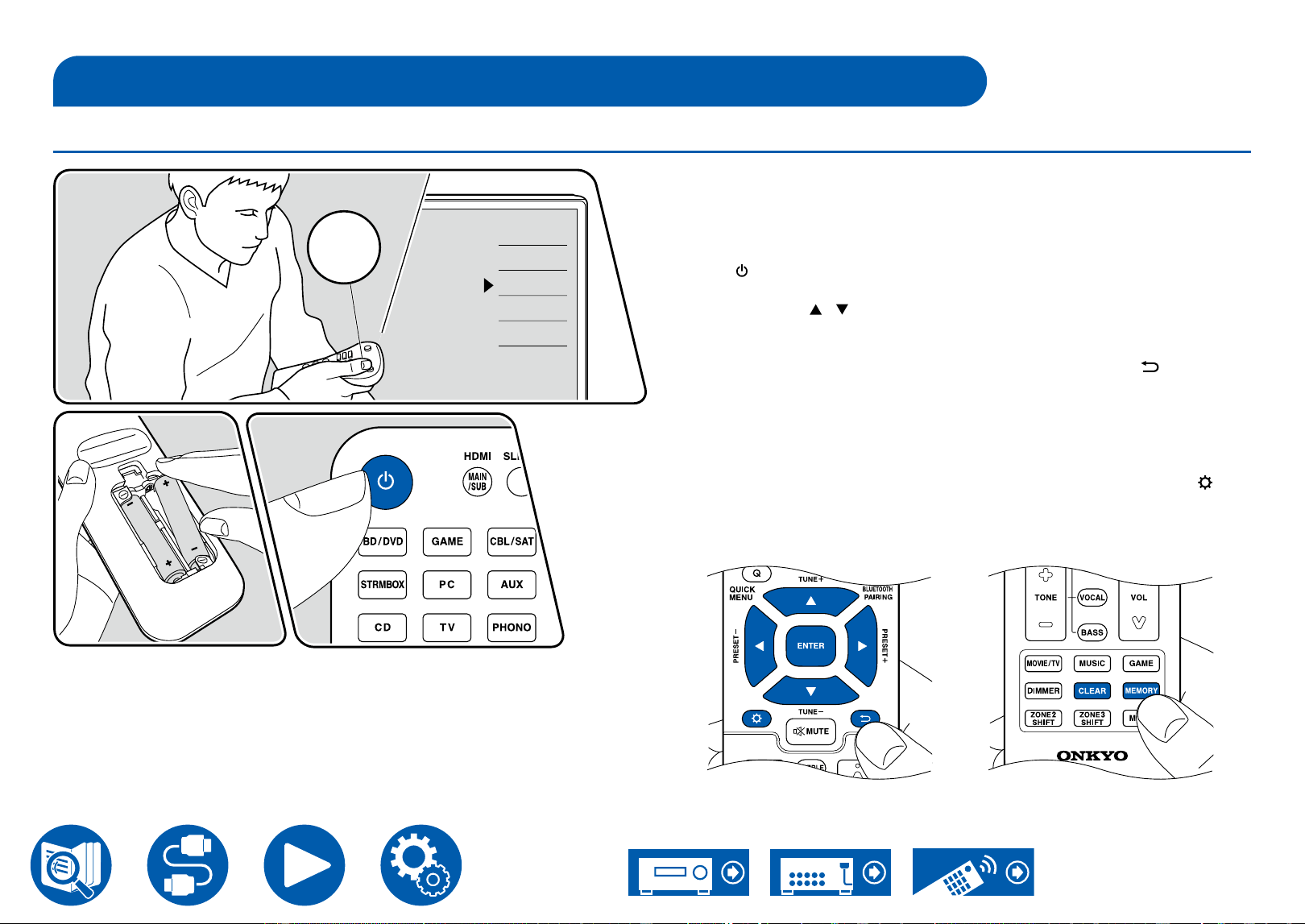

Initial Setup with Auto Start-up Wizard
Operations
When you turn the unit on for the rst time after purchase, the Initial Setup
screen is automatically displayed on the TV to allow you to make settings
required for startup using simple operations following on-screen guidance.
1. Switch the input of the TV to the input connected to the unit.
2. Put batteries into the remote controller of this unit.
3. Press ON/STANDBY on the remote controller to turn the unit on.
4. When the language selection screen is displayed on TV, select the language
with the cursors
/ UP/DOWN and press ENTER.
5. To make the network connection settings, select "Yes" and press ENTER.
• Select the item with the cursors of the remote controller, and press ENTER to
conrm your selection. To return to the previous screen, press
RETURN.
• If you have terminated the Initial Setup halfway, turn this unit to standby mode
and turn the power on again. Then you can display the Initial Setup again.
Unless you do the Initial Setup to the end or select "Never Show Again" in
the screen shown after setting the Network Connection, the wizard screen is
shown every time the power is turned on.
• To perform the Initial Setup again after the setting is completed, press
SETUP, select "Miscellaneous" - "Initial Setup", and press ENTER.
Inputs
TV
HDMI 1
HDMI 2
HDMI 3
TV
INPUT
TV’s REMOTE
138
Setup

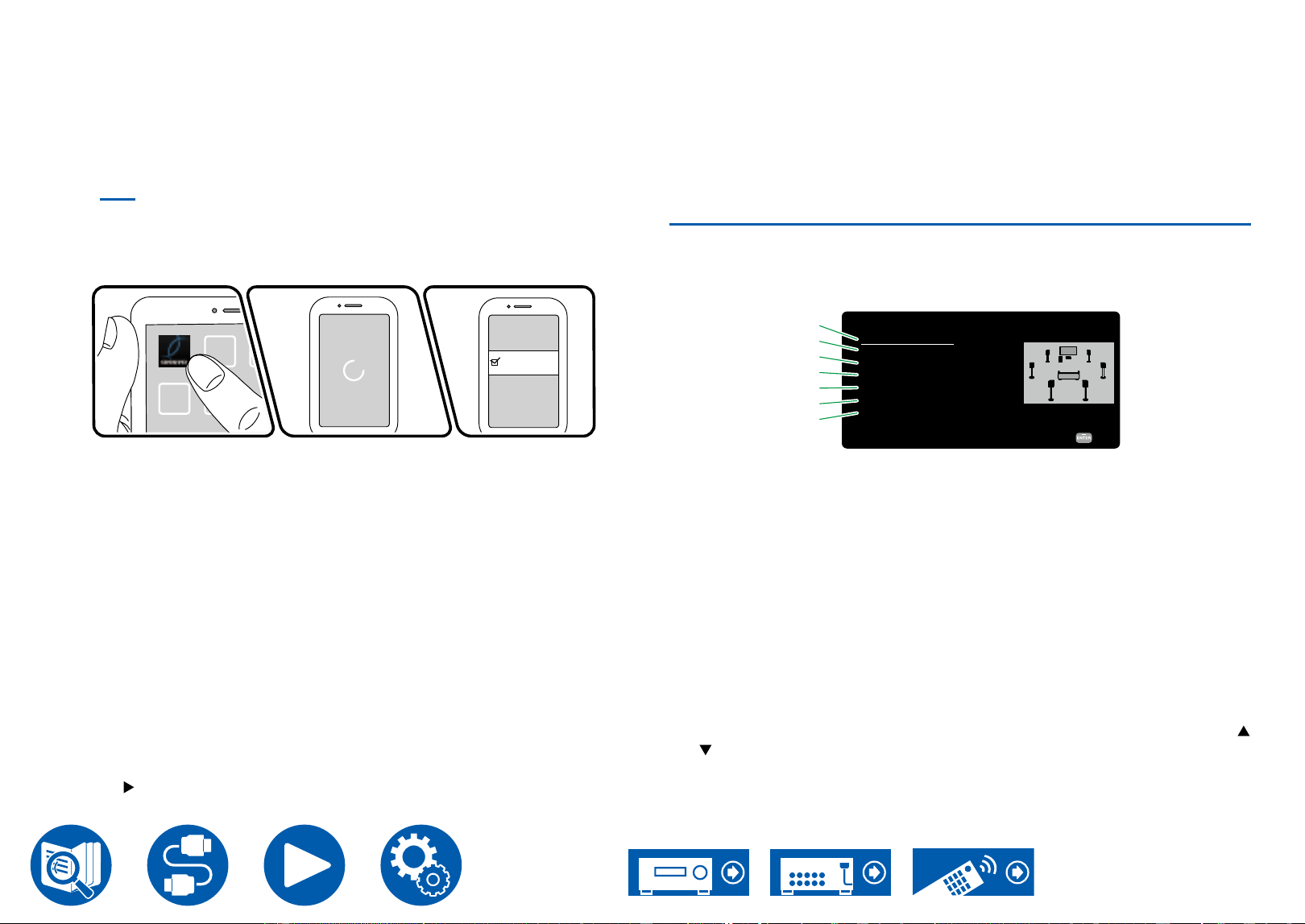

Network Connection
1. A conrmation screen asking you whether to agree to the privacy statement
is displayed during network setting. If you agree, select "Accept" and press
ENTER.
2. Select whether to use Chromecast built-in.
Select "Yes" to use Chromecast built-in, then use Onkyo Controller
( →p143) to agree to Google’s terms of service and Privacy Policy and make
Wi-Fi settings.
• The search for this unit starts automatically when you start Onkyo
Controller. Tap this unit to select it when it is displayed, then follow the
guidance on the app to make the settings.
TX-RZ30
TX-RZ30(192.168.XXX.XXX)
Select "No" if you do not want to use Chromecast built-in, then select whether
to connect via wired LAN or to connect via Wi-Fi.
"Wired": Use a wired LAN to connect to a network.
"Wireless": Wi-Fi connection using an access point such as a wireless LAN
router.
• There are two methods for Wi-Fi connection.
"Scan Networks": Search for an access point from this unit. Find out the
SSID of the access point beforehand.
"Use iOS Device (iOS7 or later)": Share the Wi-Fi settings of your iOS
device with this unit.
• If you select "Scan Networks", there are another two types of connection
methods. Check the following.
"Enter Password": Enter the password (or key) of the access point to
connect.
"Push Button": If the access point is equipped with an automatic setting
button, you can connect without entering the password.
• If the SSID of the access point is not displayed, select "Other..." with the
cursor RIGHT on the SSID list screen, press ENTER, and then follow the
on-screen instructions.
Keyboard Input
To switch between upper and lower cases, select "A/a" on the screen, and press
ENTER on the remote controller.
To select whether to mask the password with "" or display it in plain text, press
MEMORY on the remote controller. Pressing CLEAR on the remote controller
will delete all the input characters.
1. Speaker Setup
1. Select the connected speaker conguration and press ENTER.
Note that the image on the screen changes each time you select the number
of channels in "Speaker Channels".
Next
Speaker Setup
Speaker Channels
Subwoofer
Height 1 Speaker
Height 2 Speaker
Zone Speaker
Bi-Amp
Speaker Impedance
Select how many speakers you have.
7.1.2 ch
2ch
Top Middle
---
No
No
6ohms or above
1
2
3
4
5
6
7
< >
1 Select to suit the number of speaker channels connected.
2 Set whether a subwoofer is connected or not.
3 Set the speaker type if height speakers are connected to the HEIGHT 1
terminals.
4 Set the speaker type if height speakers are connected to the HEIGHT 2
terminals.
5 Set the connection of speakers to Zone 2/Zone 3 speaker terminals.
6 Set whether the front speakers are bi-amp connected.
7 Set the impedance of the connected speakers.
2. The speaker combination selected in step 1 is displayed. "Yes" is displayed
for the selected speakers. If the setting is correct, press ENTER.
3. Select "Next" and press ENTER. Then a test tone is output from each
speaker to conrm the connection. Selecting each speaker with the cursors
/ UP/DOWN will output the test tone. Press ENTER after conrmation.
4. If there is no problem with the speaker connection, select "Next" and press
ENTER. To return to "Speaker Setup", select "Back to Speaker Setup" and
press ENTER.
139
Setup
2. Multi Zone Sound Check
Output test tones to ZONE 2 to enjoy audio in a separate room (Zone 2) in
addition to the main room.
3. ARC Setup
If you have connected a TV that supports ARC, select "Yes" and press ENTER.
4. Room EQ
Measurements are performed to calibrate the sound eld to suit the room's
environment. When "Yes" is selected, you can choose between the "Dirac Live"
and "AccuEQ Room Calibration" methods of measurement in the "Dirac Live"
screen. Select "No, Later" if measurement is not to be performed. Note that both
measurement methods are also available after you have completed Initial Setup.
When measuring with Dirac Live
Download the Onkyo Controller to your mobile device and use the app to
operate the measurements. For details on how to measure with Dirac Live, refer
to "Measuring with Dirac Live" ( →p140).
When measuring with AccuEQ Room Calibration
Use the automatic sound eld calibration technology built into the unit. For
details on how to measure with AccuEQ Room Calibration, refer to "Measuring
with AccuEQ Room Calibration" ( →p142).
• Both measurement methods use the supplied speaker setup microphone.
• Each speaker outputs the test tone at high volume during measurement, so
be careful of your surroundings. Also, keep the room as quiet as possible
during measurement.
• If you connect a subwoofer, check the power and volume of the subwoofer.
Set the subwoofer volume to more than half.
• If the power of this unit suddenly turns o, the wires in the speaker cables
have touched the rear panel or other wires, and the protection circuit is
working. Twist the wires again securely, and make sure they do not stick out
of the speaker terminals when connecting.
• When using THX certied speakers, THX recommends that the crossover
frequency is set to "80Hz (THX)". Also, THX recommends that each speaker
setting is manually adjusted according to the specic characteristics of each
room.
The screen indicating that Initial Setup is complete is displayed when the
measurements are nished. Press ENTER while "Finished" is being displayed to
exit the Initial Setup.
Measuring with Dirac Live ( →p140)
Measuring with AccuEQ Room Calibration
( →p142)
140
Setup

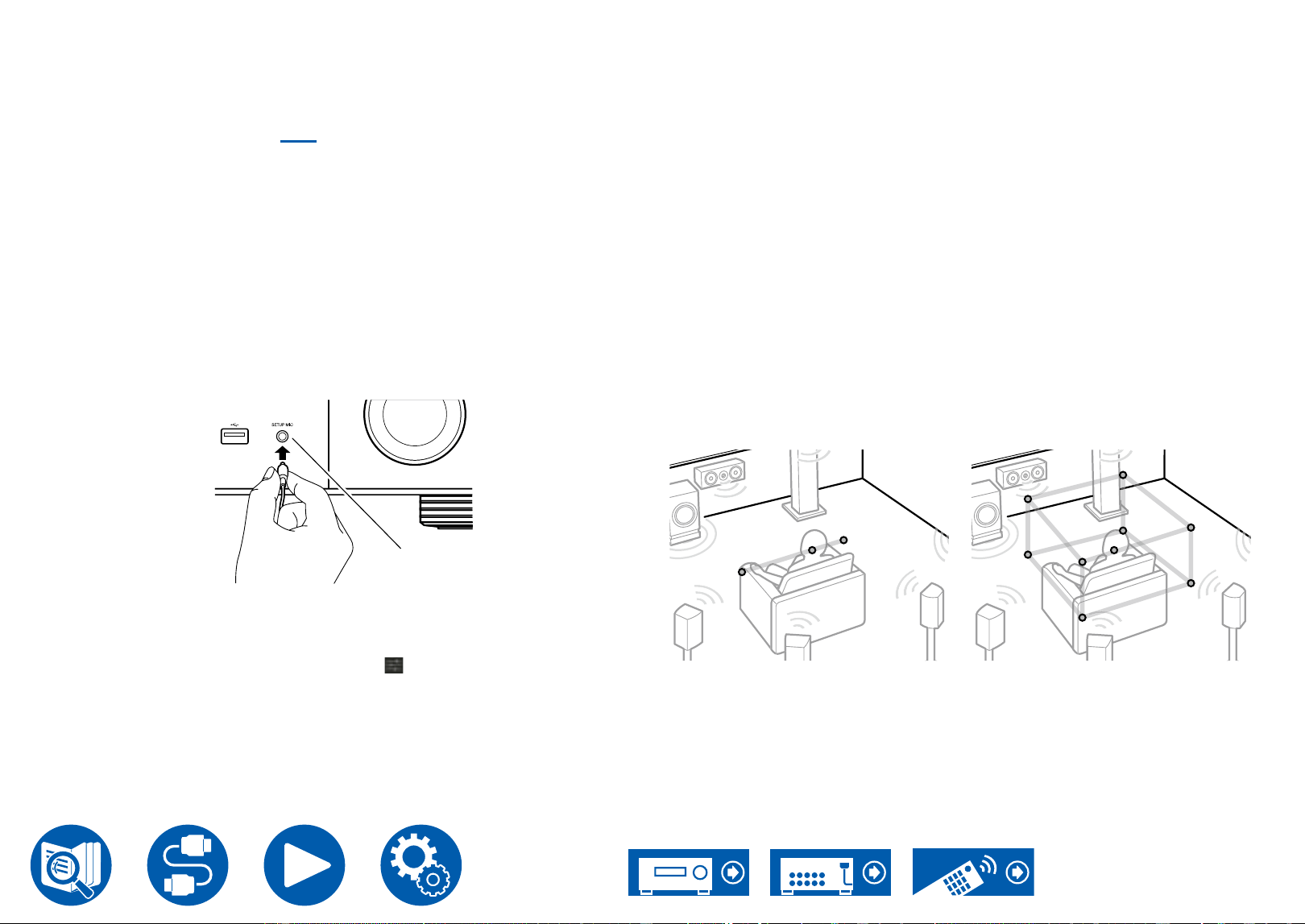

Measuring with Dirac Live
Use the Onkyo Controller to use Dirac Live to take measurements. Use the most
recent version. Note that you cannot make settings using operations on this unit.
Refer to "Onkyo Controller" ( →p143) for information about the app. Also have
a tripod ready to set up the speaker setup microphone.
• Calibration takes about 20 minutes to be completed.
Dirac Live
®
is an advanced room correction technology developed by Dirac
Research. As one of the most advanced room correction technology available
on the market, Dirac Live helps listeners to correct for one of the weakest
components in the audio chain: the listening room. Dirac Live not only corrects
the frequency response, but also the impulse response of the loudspeakers in a
room, yielding improved imaging and timbre, better clarity, tighter bass, and less
early reections, as well as reduced resonances and room modes.
1. Select "Start Dirac Live" in the "Dirac Live" screen, then press ENTER.
2. Connect the supplied speaker setup microphone to the SETUP MIC jack on
the main unit.
SETUP MIC
3. When you start the Onkyo Controller, a screen automatically appears to guide
you through measurement, so tap "Start".
• If the guidance screen does not automatically appear, after tapping this
unit when it appears on the screen, tap " " at the bottom of the screen
and select "Dirac Live".
4. Tap "Yes", conrm that the displayed speaker conguration is correct, then
tap "Yes".
• If the number of speaker channels set in "Speaker Setup" in Initial Setup
is dierent to the number of connected speaker channels, an error is
displayed and measurement cannot be performed.
5. Select the method of measurement. There are two methods of measuring
to choose from; "Quick Measurement" which measures 3 locations; at the
listening position and to the left and right of the listening position; and "Full
Measurement" which measures 9 positions including the listening position.
Tap the method you prefer.
"Quick Measurement": Set up the microphone at ear height in the listening
position for measurement. Next measure by setting up the microphone
between 50 and 100 cm (20" and 40") away to the left and right of the
listening position.
"Full Measurement": Set up the microphone at ear height in the listening
position for measurement. Next, measure in 8 positions to the front, back,
left, right, etc., centered on the listening position. Measure by setting up the
microphone in each of these positions, between 50 and 100 cm (20" and 40")
away from the listening position.
Quick Measurement Full Measurement
The illustration shows an image.
141
Setup

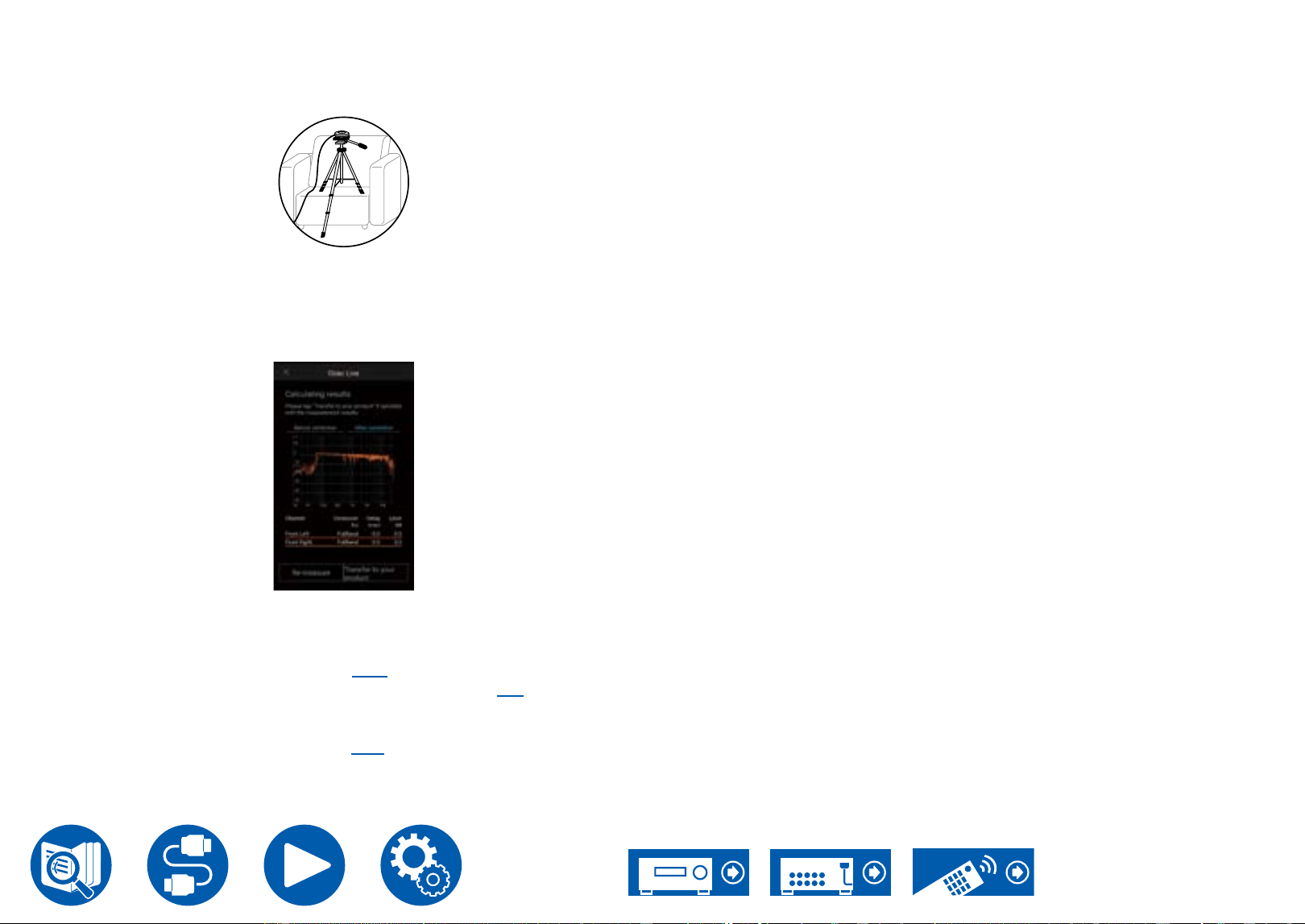

6. The guidance about outputting the test tone is displayed. Refer to the
illustration to set up the speaker setup microphone in the listening position.
Follow the on-screen instructions to measure.
• Measurement may not be possible if the test tone is too loud or too soft.
Tap "Level Adjust" to adjust the volume of the test tone.
7. When measurement is complete, "Calculating results" is displayed on the
screen. Tap "Transfer to your product" to transfer the measurement data to
the unit.
8. Disconnect the speaker setup microphone.
The speaker adjustments based on the measurement results are saved in
the unit. You can modify 3 patterns of the lter curves from the measurement
results and register them in 3 slots ( →p146). The lter curves that you
register can be selected with "Room EQ" - "Dirac Live" ( →p75) in "Quick
Menu".
• When Dirac Live is used for measurement, the measurement results are also
reected in "Speaker" - "Distance" ( →p111) in the Setup menu, and you will
no longer be able to change the values. (The setting units are displayed as
"msec".)
142
Setup
Measuring with AccuEQ Room Calibration
Place the supplied speaker setup microphone at the listening position. The unit
automatically measures the test tones output from each speaker, and sets the
optimum volume level for each speaker, the crossover frequencies, and the
distance from the listening position. This also reduces the eect of the standing
wave in accordance with the viewing environment and automatically adjusts the
equalizers for the speakers, and enables correction of sound distortion caused
by the acoustic environment of the room.
• It takes between 3 and 12 minutes for calibration to be completed.
1. Select "Exit Dirac Live & use AccuEQ" in the "Dirac Live" screen, then press
ENTER.

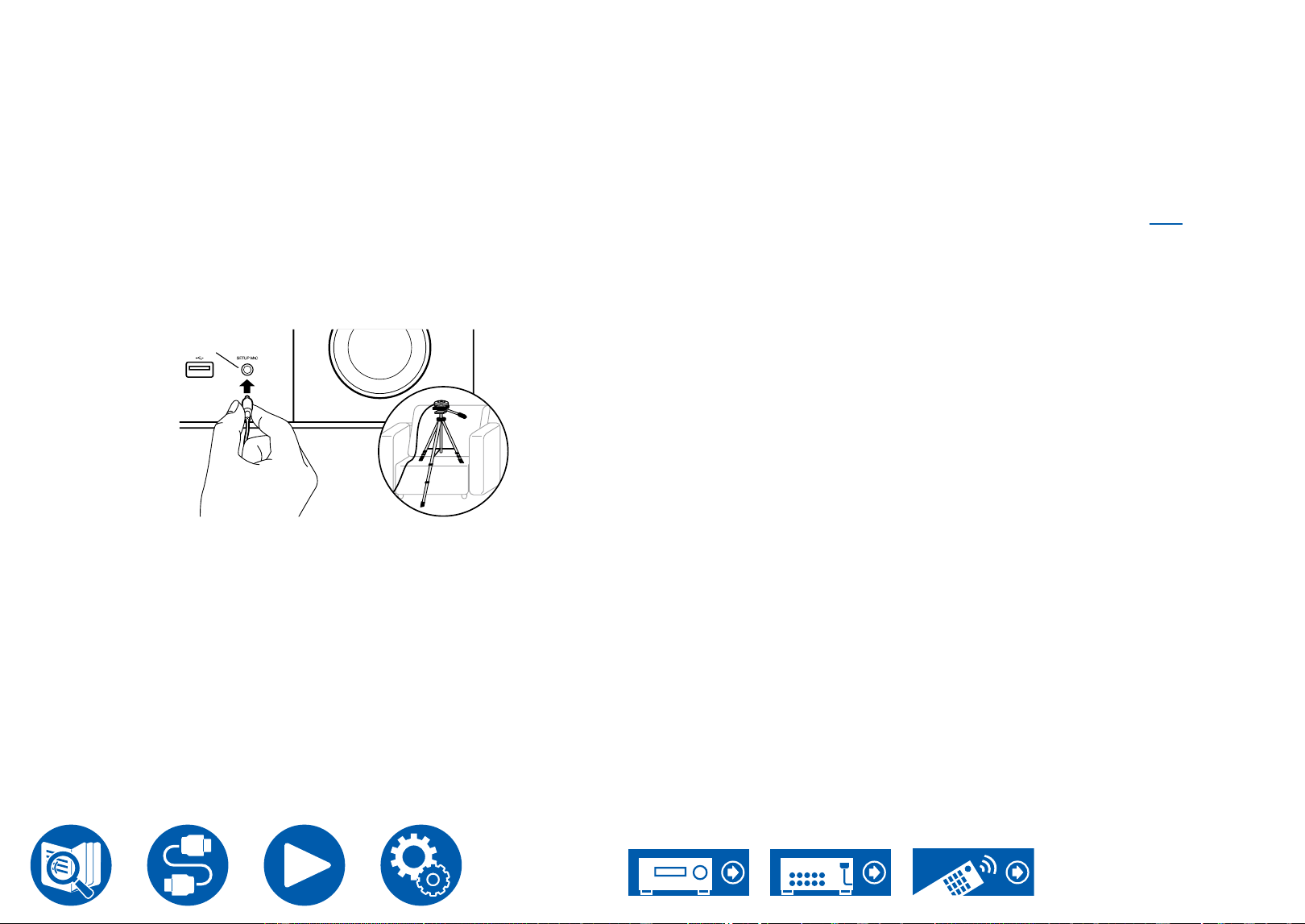

2. Connect the supplied speaker setup microphone to the SETUP MIC jack on
the main unit.
SETUP MIC
When placing the speaker setup microphone on a tripod, refer to the
illustration.
3. Conrm a test tone is output from the subwoofer and press ENTER.
4. Press ENTER to output test tones from each speaker, and the connected
speakers and the noise in the surrounding environment are automatically
measured.
5. The measurement results in step 4 are displayed. If there is no problem in
the detection result of the speaker, select "Next" and press ENTER to output
the test tone again to automatically set the settings such as volume level,
crossover frequency, etc., to their optimum. (The test tone is automatically
output when 10 seconds has elapsed without any operation.)
• When an error message is displayed or when the connected speakers
cannot be detected, perform re-measurement by selecting "Retry" and
pressing ENTER.
• When it cannot be resolved by performing the re-measurement, conrm
if the speakers are connected correctly. If there is any problem with the
speaker connection, perform the connection after disconnecting the power
cord.
• If the volume level of the subwoofer is corrected to the lower limit, reduce
the volume of the subwoofer and then measure again.
• Depending on the speakers you are using, some errors may occur in the
measurement results. In this case, when measurements are nished, do
the settings in "Speaker" - "Distance" in the Setup menu. ( →p111)
6. Once the measurement is completed, it is possible to perform the
measurement in 8 additional listening positions. To perform the measurement,
select "Next" and press ENTER, then follow the instructions. To not perform
the measurement, select "Finish (Calculate)" and press ENTER.
• After each listening position is detected, select "Finish (Calculate)" and
press ENTER to complete the detection process.
7. Disconnect the speaker setup microphone.
143
Setup

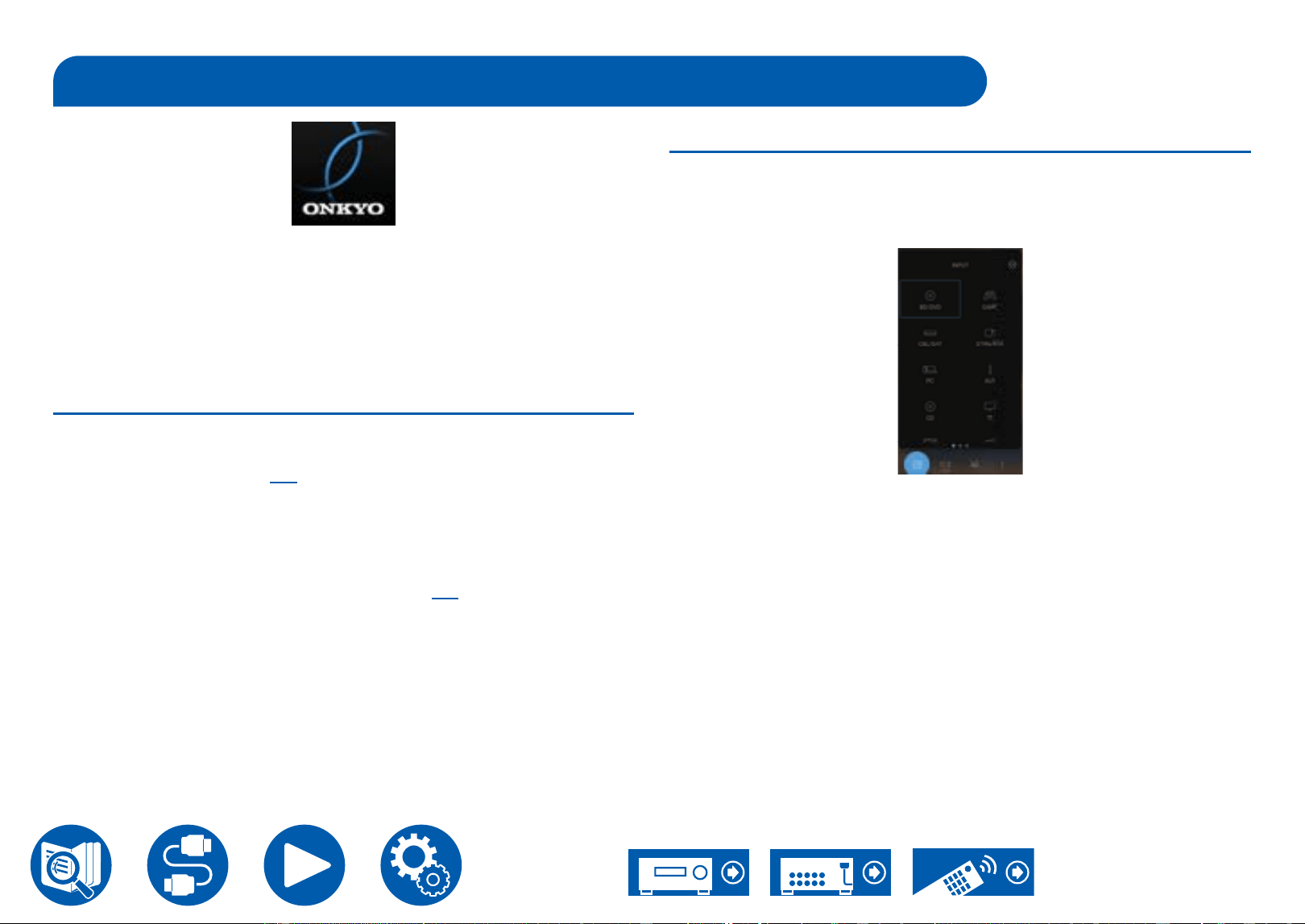

Onkyo Controller (available on iOS and Android™ handsets) is a dedicated app
available for free which allows you to use your handset as a remote controller.
Along with basic operations such as switching input and adjusting the volume,
you can also select a radio station or network service (internet radio or play of a
music le) without looking at the TV.
• To use Onkyo Controller, this unit needs to be connected to the same network
as the mobile device.
Main features
• Turning the power on/o, switching input, adjusting the volume, and other
such basic remote controller operations.
• When using Multi-zone ( →p86) , you can not only control with the app
in the main room (where this unit is located), but also in the separate room
(ZONE 2/ZONE 3).
• Playing internet radio services (TuneIn Radio, etc.) and selecting stations.
Control in the palm of your hands without looking at the TV.
• Play the music les saved on the mobile device via Wi-Fi.
• Play Amazon Music (compatible models only) ( →p79)
Initial Setup
1. Download the Onkyo Controller from the App Store or Google Play
TM
Store.
2. Connect the mobile device to the same network as the unit.
3. Start Onkyo Controller. This unit is displayed automatically when the app is
started, so tap the unit when displayed to select it.
Onkyo Controller
144
Setup

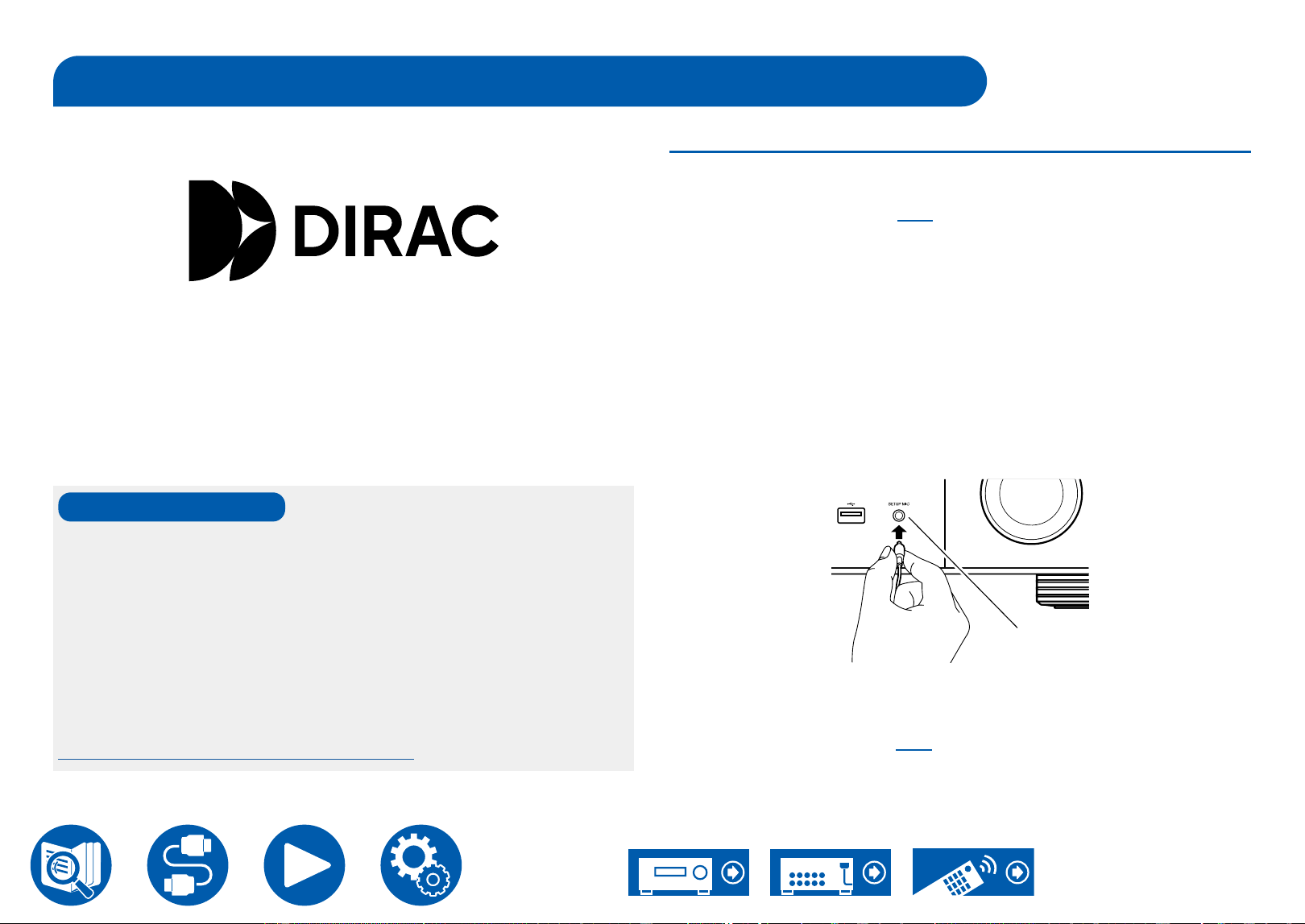

Dirac Live
Dirac Live
®
is an advanced room correction technology developed by Dirac
Research. As one of the most advanced room correction technology available
on the market, Dirac Live helps listeners to correct for one of the weakest
components in the audio chain: the listening room. Dirac Live not only corrects
the frequency response, but also the impulse response of the loudspeakers in a
room, yielding improved imaging and timbre, better clarity, tighter bass, and less
early reections, as well as reduced resonances and room modes.
Additional Functions
Dirac Live Bass Control
Dirac Live Bass Control is a technology to manage low-frequency channel
routing from the signal to the playback channels (speakers) of your audio
device. Additionally, with full control over the device’s channel and frequency
routing and output, the Dirac Live room correction technology is signicantly
augmented. In particular systems with multiple subwoofers will see a
substantially improved room correction and bass performance.
To use Dirac Live Bass Control, you need to register with Dirac Live and obtain
a Dirac Live Bass Control license. For more information, see the Dirac Live
website.
https://www.dirac.com/online-store/onkyo-tx-rz30
Measuring with Dirac Live
Use the Onkyo Controller to use Dirac Live to take measurements. Use the most
recent version. Note that you cannot make settings using operations on this unit.
Refer to "Onkyo Controller" ( →p143) for information about the app. Also have
a tripod ready to set up the speaker setup microphone.
• Calibration takes about 20 minutes to be completed.
Dirac Live
®
is an advanced room correction technology developed by Dirac
Research. As one of the most advanced room correction technology available
on the market, Dirac Live helps listeners to correct for one of the weakest
components in the audio chain: the listening room. Dirac Live not only corrects
the frequency response, but also the impulse response of the loudspeakers in a
room, yielding improved imaging and timbre, better clarity, tighter bass, and less
early reections, as well as reduced resonances and room modes.
1. Start the Onkyo Controller and tap the unit when displayed.
2. Connect the supplied speaker setup microphone to the SETUP MIC jack on
the main unit.
SETUP MIC
3. Tap "Yes", conrm that the displayed speaker conguration is correct, then
tap "Yes".
• If the number of speaker channels set in "Speaker" - "Conguration"
- "Speaker Channels" ( →p108) in the Setup menu is dierent to the
number of connected speaker channels, an error is displayed and
measurement cannot be performed.
4. Select whether to use Dirac Live Bass Control. Select "Use" to use it and log
into Dirac Live.
145
Setup
5. Select the method of measurement. There are two methods of measuring
to choose from; "Quick Measurement" which measures 3 locations; at the
listening position and to the left and right of the listening position; and "Full
Measurement" which measures 9 positions including the listening position.
Tap the method you prefer.
"Quick Measurement": Set up the microphone at ear height in the listening
position for measurement. Next measure by setting up the microphone
between 50 and 100 cm (20" and 40") away to the left and right of the
listening position.
"Full Measurement": Set up the microphone at ear height in the listening
position for measurement. Next, measure in 8 positions to the front, back,
left, right, etc., centered on the listening position. Measure by setting up the
microphone in each of these positions, between 50 and 100 cm (20" and 40")
away from the listening position.
Quick Measurement Full Measurement
The illustration shows an image.
6. The guidance about outputting the test tone is displayed. Refer to the
illustration to set up the speaker setup microphone in the listening position.
Follow the on-screen instructions to measure.
• Measurement may not be possible if the test tone is too loud or too soft.
Tap "Level Adjust" to adjust the volume of the test tone.
7. When measurement is complete, "Calculating results" is displayed on the
screen. Tap "Transfer to your product" to transfer the measurement data to
the unit.
8. Disconnect the speaker setup microphone.
• When Dirac Live is used for measurement, the measurement results are also
reected in "Speaker" - "Distance" ( →p111) in the Setup menu, and you will
no longer be able to change the values. (The setting units are displayed as
"msec".)
Using Dirac Live
You can apply the lter curves adjusted based on the measurement results of
Dirac Live. From "Room EQ" - "Dirac Live" ( →p75) in "Quick Menu", select
from "Slot1" to "Slot3". Note that the same data is saved in all of the slots, but
you are able to create any lter curve you like in the following “Manual Adjust”
section.
• In the Setup menu, when the number of speaker channels, etc., is changed in
"Speaker" - "Conguration" ( →p108), the measurement results are deleted.
• When using Dirac Live, signals with a sampling frequency of 32 kHz are not
supported.
146
Setup
Manual Adjust
You can modify the lter curve to one you like based on the volume level of the
speakers automatically measured with Dirac Live. Edit the lter curve in Onkyo
Controller.
• To adjust the sound quality with "Manual Adjust", it is rst necessary to
measure the speakers of this unit with Dirac Live ( →p140, p144).
• This function cannot be used when speaker measurement is done with
AccuEQ Room Calibration ( →p142).
Modifying the lter curve
1. Start the Onkyo Controller and tap the unit when displayed.
2. Tap "
" in the bottom of the Onkyo Controller screen to display a list of
menus, then tap "Manual Adjust".
3. Select the slot to modify from "Slot1" to "Slot3", then tap "Next".
• The measurement results from Dirac Live are registered in all of the slots
as the default values.
4. After selecting the speaker to adjust rst, modify the lter curve.
1
2
5
6
4
3
1 The speaker currently being adjusted. To adjust another speaker, tap the " "
next to it and select another speaker.
2 Displays the Menu screen. From the menu, you perform actions such as
reset the speaker adjustments and cancel and exit the adjustments. You can
also copy data from other slots.
3 Drag the points on the lter curve side to side to change the frequency and
up or down to change the boost.
• You can add a point by tapping on the curve where there isn't a point.
4 Recalculate the characteristics from the adjusted content.
5 Transfer the adjusted content to the unit.
6 The value of the point being adjusted. Tap the " " next to the point to delete
it.
• When the Dirac Live Bass Control is enabled, the bar for editing the
crossover frequency is displayed. Adjust the crossover value by moving the
bar side to side.
5. When adjustment is nished, tap 4 to recalculate, then tap 5 to transfer the
adjusted data to the unit.
• In the Setup menu, when the number of speaker channels, etc., is changed in
"Speaker" - "Conguration", the adjusted content is deleted.
Using an lter curve you have registered
When you select a saved slot in "Room EQ" - "Dirac Live" ( →p75) in Quick
Menu, you can use the registered lter curve.
Troubleshooting
147
Troubleshooting
Before starting the procedure 148
When the unit is operating erratically 149
Try restarting the unit 149
Resetting the unit (this resets the unit settings to the
default) 149
Troubleshooting 150
When the power is turned on, "AMP Diag Mode"
appears on the display of the main unit 150
The settings in "Crossover", "Distance", and "Level
Calibration" are returned to the default values 150
Cannot connect to wireless LAN 150
Determining the fault: None of the speakers produce
sound 151
Determining the fault: The left or right speakers
produce no sound 152
Determining the fault: The subwoofer produces no
sound 152
Determining the fault: There is no video 153
Determining the fault: Does not turn on 154
Determining the fault: Unit turns o 154
Troubleshooting
148
Troubleshooting
Before starting the procedure
Problems may be solved by simply turning the power on/o or disconnecting/
connecting the power cord, which is easier than working on the connection,
setting and operating procedure. Try the simple measures on both the unit and
the connected device. If the problem is that the video or audio is not output or
the HDMI linked operation does not work, disconnecting/connecting the HDMI
cable may solve it. When reconnecting, be careful not to wind the HDMI cable
since if wound the HDMI cable may not t well. After reconnecting, turn o and
on the unit and the connected device.
• The AV receiver contains a microPC for signal processing and control
functions. In very rare situations, severe interference, noise from an external
source, or static electricity may cause it to lockup. In the unlikely event that
this happens, unplug the power cord from the wall outlet, wait at least 5
seconds, and then plug it back in.
• Our company is not responsible for damages (such as CD rental fees) due to
unsuccessful recordings caused by the unit’s malfunction. Before you record
important data, make sure that the material will be recorded correctly.
149
Troubleshooting
When the unit is operating erratically

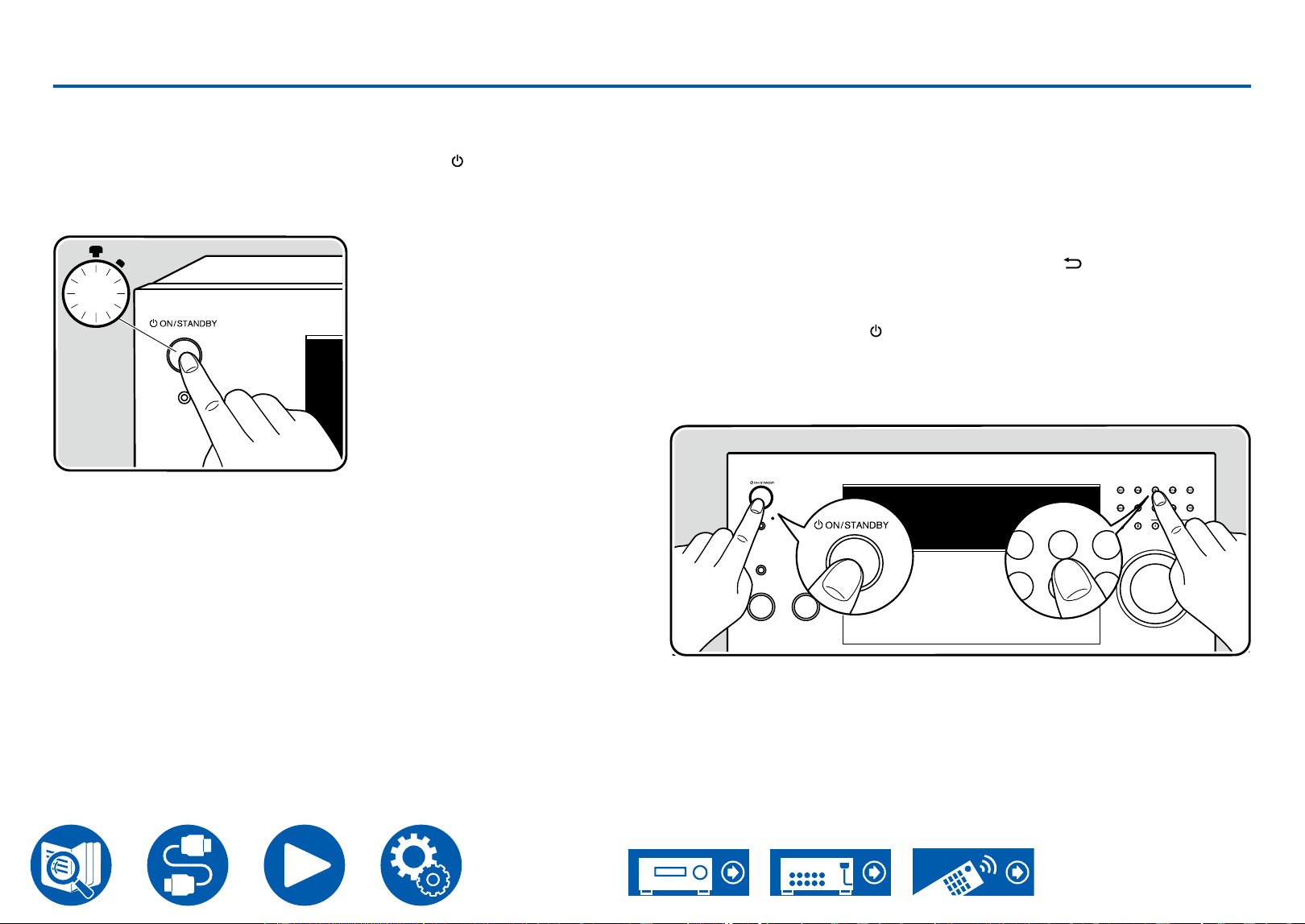

Try restarting the unit
Restarting this unit may solve the problem. Set the main unit to standby, then
after waiting for 5 seconds or more, press and hold the ON/STANDBY button
of the main unit for at least 5 seconds, and then restart the unit. (The settings
on this unit are kept.) If the problem persists after restarting the unit, unplug and
plug the power cords or HDMI cable of this unit and connected devices.
5"
Resetting the unit (this resets the unit settings to the
default)
If the restart of the unit does not solve the problem, reset the unit, and restore
all the settings to the factory default at the time of purchase. This may solve
the problem. If the unit is reset, your settings are restored to the default values.
Be sure to note down your setting contents before performing the following
operations. Note that it is not possible to reset the unit during the Initial Setup
process. Before doing the following procedures, press RETURN to exit Initial
Setup.
1. While pressing and holding CBL of the input selector on the main unit with the
unit turned on, press the
ON/STANDBY button.
2. "Clear" is displayed on the display, and the unit returns to the standby state.
Do not remove the power cord until "Clear" disappears from the display.
To reset the remote controller, while pressing and holding MODE, press the
CLEAR button at least 3 seconds.
Clear
2
2
GAM CBL
STM
1
1
150
Troubleshooting
Troubleshooting
When the power is turned on, "AMP Diag Mode" appears on the display of the main unit
• The protection circuit function may have operated. If the unit suddenly enters the standby state and "AMP Diag Mode" appears on the display
of the main unit when the power is turned on again, this function is diagnosing whether or not the main unit is malfunctioning or there is an
abnormality with the speaker cable connection. When the diagnosis is complete, the following messages are displayed.
CH SP WIRE
If the unit returns to the normal ON state after "CH SP WIRE" appears on the display, the speaker cable may have
been short-circuited. After setting the power of this unit to standby state, connect the speaker cable again. Twist the
wires exposed from the tip of the speaker cable so that the wires do not stick out of the speaker terminal.
NG:
If the operation has stopped with "NG" displayed on the display, set the power of this unit to standby state immediately
and remove the power plug from the outlet. The unit may be malfunctioning. Consult a dealer.
WARNING: If smoke, smell or abnormal noise is produced by the unit, unplug the power cord from the outlet immediately, and contact the dealer or
our company's support.
The settings in "Crossover", "Distance", and "Level Calibration" are returned to the default values
• When measurements are made with Dirac Live, if you change the settings in "Speaker Channels", "Subwoofer", "Height 1 Speaker", or "Height
2 Speaker" in "Speaker" - "Conguration" ( →p108) in the Setup menu, then the measurement results are returned to the default values.
Measure again.
Cannot connect to wireless LAN
– Cannot nd wireless LAN router
If the router is not displayed in the list of access points, then the wireless LAN router may be set to hide the SSID (stealth mode, etc.) or ANY
connection may be o. Check the settings.
– Wireless LAN router is found but cannot be connected
Make sure the upper-case and lower-case are correct in the password.
If there is no problem with the password, try plugging/unplugging the power supply of this unit and the router, and try rebooting the router.
If connection is not possible after trying these measures, there is probably a fault with this unit.
151
Troubleshooting
Determining the fault: None of the speakers produce
sound
Check the test tone
You can determine whether there is a fault by checking the test tone.
Use the following procedure to play the test tone:
1. Turn o external devices (TV, DVD player, etc.) and turn on this unit only.
After turning on, wait for about 30 seconds until the system turns on
completely.
2. Press
SETUP on the remote controller, then select "Speaker" - "Level
Calibration".
A test tone is played from the left front speaker after a moment.
3. Press the
DOWN cursor several times and check if the test tone is played
from other speakers.
– There is no test tone
There is probably a fault with this unit.
– There is a test tone
The audio signal from the external device may not be reaching this unit.
Check the audio signal in the below "Check the audio signal on the
external device".
Check the audio signal on the external device
When the connection is digital
Use the following procedure to check if the digital audio signal is being detected
by this unit.
1. Turn on the external device (TV, DVD player, etc.).
2. Switch the input on the main unit to the input, "TV", "DVD", etc., to be played.
3. Start playing a video, music, etc.
4. Repeatedly press "MUSIC" on the remote controller to switch to the "Stereo"
listening mode.
5. Repeatedly press
on the remote controller and see if the ”PCM”, "Dolby D",
or "DTS" digital audio signal indicators are displayed on the display panel of
the main unit.
– There is no digital audio signal indicator displayed
Either there is a mistake with where the connections have been made or with
the digital audio input settings ( →p106), or the digital audio output settings
on the external device have been set to o.
– The digital audio signal indicators are displayed
If there is still no sound even though the digital audio signals are being
detected, there is probably a fault with this unit.
• If only PCM signals are being output, go to "Source" - "Audio Select" - "PCM
Fixed Mode" ( →p120) in the Setup menu and change it to O. If this is On,
audio signals other than PCM signals are not played.
If the connection is analog
Either there is a mistake with where the connections have been made or with the
analog audio input settings ( →p107), or the analog audio output settings on
the external device have been set to o.
If there is no problem with the connections or settings, there is probably a fault
with this unit.
152
Troubleshooting
Determining the fault: The left or right speakers
produce no sound
There is no setting on this unit to turn o the audio of either the left or right
speaker.
If sound is only coming from one of the speakers, there may be a problem with
the connections of the speaker cables, or there may be a fault with the main unit
or the speaker.
Use the following procedure to check whether there is a fault.
1. Turn o the unit and unplug the power cord.
2. Swap the left and right speakers to check what happens with the output.
*If swapping the left and right speakers is dicult, disconnect the speaker
cables connected to the speakers and swap the cables with each other to see
what happens.
– No sound is output from the speaker from which no sound was output
before swapping left and right
There is either a fault with the speaker or a problem with the connections of
the speaker cables.
– Sound is now output from the speaker from which no sound was
output before swapping left and right, and no sound is output from the
speaker that was outputting sound
There is probably a fault with the main unit or a bad connection with the
speaker cables.
Determining the fault: The subwoofer produces no
sound
Check the test tone
You can determine whether there is a fault by checking the test tone.
Use the following procedure to play the test tone:
1. Turn o external devices (TV, DVD player, etc.) and turn on this unit only.
After turning on, wait for about 30 seconds until the system turns on
completely.
2. Turn on the power of the subwoofer.
• If the subwoofer has a volume control, increase the volume slightly.
3. Press SETUP on the remote controller, then select "Speaker" - "Level
Calibration".
A test tone is played from the left front speaker after a moment.
4. Press the
DOWN cursor several times to select "Subwoofer" and check if
the test tone is played from the subwoofer.
– There is no test tone
After turning it o, unplug the subwoofer cable, then plug it in again. If there is
still no sound after plugging the cable in again, there is probably a fault with
either this unit or the subwoofer.
– There is a test tone
The following causes are possible:
• A subwoofer element (LFE) is not included in the input signal.
• The front speakers are set to "Full Band". When set to "Full Band", then
during 2ch input such as from the TV or music, the low range elements
will be output from the front speakers rather than from the subwoofer. To
output the sound from the subwoofer, make one of the following settings.
1. Change the setting for the front speakers to a setting of crossover
frequency value other than “Full Band”.
The range below the specied frequency will be output from the subwoofer
instead of from the front speakers. If your front speakers have a high low-
range reproduction capability, changing this setting is not recommended.
2. Change “Double Bass” to “On”.
The low range elements of the front speakers will be output from both the
front speakers and the subwoofer. Due to this, the bass sound may be
emphasized too much. In such a case, do not change the setting, or make
the setting with the above option 1.
For the setting details, refer to “Speaker” - “Crossover” on the Setup menu.
( →p110)
153
Troubleshooting
Determining the fault: There is no video
• Normal operation with an HDMI-DVI adapter is not guaranteed. In addition,
video signals output from a PC are not guaranteed.
• Try switching o the Deep Color function. To turn o the Deep Color function,
while holding down STM of the input selector on the main unit, press ON/
STANDBY repeatedly until “Deep Color:O” appears on the display. To
reactivate the Deep Color function, repeat the above described step until
“Deep Color:On” is appeared on the display.
Check the setup menu screen
Press SETUP on the remote controller and conrm that the setup menu is
displayed on the television.
– If the setup menu is not displayed
There is probably a fault with this unit, or communications are not normal
between the television and this unit.
Perform the following operations to re-establish HDMI communications and
determine the fault:
1. Turn o the television and this unit and unplug the power cords.
Tips: By unplugging the power cords, HDMI communications will attempt to
re-establish the next time the units are turned on.
2. Unplug the HDMI cable from both the television and this unit, then plug them
in again using a small amount of force.
Tips: Using a small amount of force when plugging in the HDMI cable may
resolve any bad connection issues.
3. Plug in the power cords of the television and this unit.
4. Turn on the television only and wait for about 30 seconds.
Tips: As the television is the main component with regard to HDMI
communications, turn on the television rst.
5. Switch the input on the TV to that assigned to the HDMI terminal that the unit
is connected to.
6. Turn on the power of the unit and wait for about 30 seconds.
Tips: The television and this unit attempt to re-establish communications
while you are waiting.
7. Press
SETUP and conrm that the setup menu is displayed.
If it is not displayed, there is probably a fault with the HDMI cable or this unit.
– If the setup menu is displayed
If the setup menu is displayed, there is probably a fault with this unit, or
communications are not normal between this unit and the external device
(DVD player or game console).
Perform the following operations to re-establish HDMI communications and
determine the fault:
1. Turn o all devices.
2. Unplug the power cords of the external devices.
Tips: By unplugging the power cords, HDMI communications will attempt to
re-establish the next time the units are turned on.
3. Unplug the HDMI cable from both the external device and this unit, then plug
them in again using a small amount of force.
Tips: Using a small amount of force when plugging in the HDMI cable may
resolve any bad connection issues.
4. Plug in the power cords of the external devices.
*Do not turn on the devices yet.
5. Turn on the television and this unit. After this, wait for about 30 seconds until
the system turns on completely.
6. Switch the input on the TV to that assigned to the HDMI terminal that the unit
is connected to.
Also switch the input on this unit to the input source that the external device is
connected to.
7. Turn on the external devices. After this, wait for about 30 seconds until the
system turns on completely.
8. Check that images from the external device are shown on the television.
If images are not shown after trying these measures, there is probably a fault
with this unit.
154
Troubleshooting
Determining the fault: Does not turn on
First check if the HYBRID STANDBY indicator on the main unit is on.
The HYBRID STANDBY indicator lights just by plugging the unit in, so if it does
not light with the unit plugged in, there is probably a fault.
• If the model you have has an AC inlet that enables the power cord to be
unplugged from the unit, unplug it and then use a small amount of force to
plug it back in again.
If the unit does not turn on even though the HYBRID STANDBY indicator is on,
the protection circuit may have tripped.
The protection circuit trips when there is a fault with the main unit, but it also
trips when there is a bad speaker cable connection. Try disconnecting all
speaker cables and see if the unit turns on.
– Unit turns on when speaker cables are disconnected
The issue was probably a bad connection with the speaker cables. Connect
the speaker cables again and see if the unit turns on.
– Unit does not turn on when speaker cables are disconnected
There is probably a fault with this unit.
Determining the fault: Unit turns o
If the unit turn o during use, the protection circuit may have tripped.
The protection circuit trips when there is a fault with the main unit or when there
is a bad speaker cable connection.
To nd the fault, play some video or audio with all speaker cables disconnected
and see if the unit turns o.
– Unit does not turn o when speaker cables are disconnected
The issue was probably a bad connection with the speaker cables. Connect
the speaker cables again and see what happens.
– Unit turns o even when speaker cables are disconnected
There is probably a fault with this unit.
156
Appendix
Speaker Layouts and Selectable Listening Modes
See the following table for selectable listening modes for each speaker layout.
Speaker layout (ch)
Listening mode 2.1 3.1 4.1 5.1 6.1 7.1 2.1.2 3.1.2 4.1.2 5.1.2 6.1.2 7.1.2 4.1.4 5.1.4
DD (Dolby Audio - DD)
(*1) (*1) (*1) (*2) (*2) (*3) (*3) (*3)
(*2)
(*3)
(*2)
(*3)
(*3) (*3)
DD+ (Dolby Audio - DD+)
(*1) (*1) (*1)
(*1)
(*2)
(*1)
(*2)
(*1) (*1) (*1) (*1)
(*1)
(*2)
(*1)
(*2)
(*1) (*1)
DTHD (Dolby Audio - TrueHD)
(*1) (*1) (*1)
(*1)
(*2)
(*1)
(*2)
(*1) (*1) (*1) (*1)
(*1)
(*2)
(*1)
(*2)
(*1) (*1)
Atmos
Atmos 2.0/2.1
Atmos 3.0/3.1
Atmos 4.0/4.1
Atmos 5.0/5.1
Atmos 6.0/6.1
Atmos 7.0/7.1
Atmos 2.0.2/2.1.2
Atmos 3.0.2/3.1.2
DSur (Dolby Audio - Surr)
DSur 2.0/2.1 (Dolby Audio - Surr)
DSur 3.0/3.1 (Dolby Audio - Surr)
DSur 4.0/4.1 (Dolby Audio - Surr)
DSur 5.0/5.1 (Dolby Audio - Surr)
DSur 6.0/6.1 (Dolby Audio - Surr)
DSur 7.0/7.1 (Dolby Audio - Surr)
DSur 2.0.2/2.1.2 (Dolby Audio - Surr)
DSur 3.0.2/3.1.2 (Dolby Audio - Surr)
157
Appendix
Speaker layout (ch)
Listening mode 2.1 3.1 4.1 5.1 6.1 7.1 2.1.2 3.1.2 4.1.2 5.1.2 6.1.2 7.1.2 4.1.4 5.1.4
DTS
(*3) (*3) (*3) (*3) (*3) (*3) (*3)
DTS-HD
DTS:X
DTS Neural:X
IMAX DTS
(*4) (*3) (*3) (*3) (*3) (*3)
(*3)
(*4)
(*3) (*3)
IMAX DTS:X
IMAX Neural:X
Speaker layout (ch)
Listening mode 2.1 3.1 4.1 5.1 6.1 7.1 2.1.2 3.1.2 4.1.2 5.1.2 6.1.2 7.1.2 4.1.4 5.1.4
THX Cinema
THX Sel Cin
THX Music
THX Sel Mus
THX Games
THX Sel Gam
158
Appendix
Speaker layout (ch)
Listening mode 2.1 3.1 4.1 5.1 6.1 7.1 2.1.2 3.1.2 4.1.2 5.1.2 6.1.2 7.1.2 4.1.4 5.1.4
Multich (Multichannel)
(*1) (*1) (*1) (*1) (*1) (*3) (*3) (*3) (*3) (*3) (*3) (*3)
DSD
(*1) (*1) (*1) (*5) (*5) (*3) (*3) (*3)
(*3)
(*5)
(*3)
(*5)
(*3) (*3)
Direct
(*1) (*1) (*1)
(*1)
(*2)
(*1)
(*2)
(*1) (*1) (*1) (*1)
(*1)
(*2)
(*1)
(*2)
(*1) (*1)
Pure Audio
(*1) (*1) (*1)
(*1)
(*2)
(*1)
(*2)
(*1) (*1) (*1) (*1)
(*1)
(*2)
(*1)
(*2)
(*1) (*1)
Stereo
(*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6)
Mono
(*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6) (*6)
Mono Music
AllCh Stereo
Orchestra
Studio-Mix
TV Logic
Unplugged
Game-Action
Game-Rock
Game-RPG
Game-Sports
T-D (Theater-Dimensional)
(*6) (*7) (*6) (*7) (*6) (*7) (*6) (*7) (*6) (*7) (*6) (*7)
*1: Reproduced with the sound eld according to the number of channels of input signals.
*2: If 4.1ch or 5.1ch Dolby signals (DD, DD+, DTHD) are input, surround channel audio is output from the surround back speakers.
*3: Not output from height speakers.
*4: Surround channel audio is output from the surround back speakers.
*5: Not output from surround back speakers.
*6: Output only from front speakers.
*7: Output only from front speakers and center speaker.
159
Appendix
LISTENING MODE buttons and Selectable Listening Modes
Refer to the following table for the listening modes that can be selected with each LISTENING MODE button.
LISTENING MODE buttons
Listening mode MOVIE/TV MUSIC GAME
DD (Dolby Audio - DD)
DD+ (Dolby Audio - DD+)
DTHD (Dolby Audio - TrueHD)
Atmos
Atmos 2.0/2.1
Atmos 3.0/3.1
Atmos 4.0/4.1
Atmos 5.0/5.1
Atmos 6.0/6.1
Atmos 7.0/7.1
Atmos 2.0.2/2.1.2
Atmos 3.0.2/3.1.2
DSur (Dolby Audio - Surr)
DSur 2.0/2.1 (Dolby Audio - Surr)
DSur 3.0/3.1 (Dolby Audio - Surr)
DSur 4.0/4.1 (Dolby Audio - Surr)
DSur 5.0/5.1 (Dolby Audio - Surr)
DSur 6.0/6.1 (Dolby Audio - Surr)
DSur 7.0/7.1 (Dolby Audio - Surr)
DSur 2.0.2/2.1.2 (Dolby Audio - Surr)
DSur 3.0.2/3.1.2 (Dolby Audio - Surr)
LISTENING MODE buttons
Listening mode MOVIE/TV MUSIC GAME
DTS
DTS-HD
DTS:X
DTS Neural:X
IMAX DTS
IMAX DTS:X
IMAX Neural:X
LISTENING MODE buttons
Listening mode MOVIE/TV MUSIC GAME
Multich (Multichannel)
PCM
DSD
Pure Audio
Direct
Stereo
Mono
THX Cinema
THX Sel Cinema
THX Music
THX Sel Music
161
Appendix
Input Formats and Selectable Listening Modes
You can select a variety of listening modes
according to the audio format of the signal to be
input.
• Selectable listening modes when headphones
are connected are Pure Audio, Mono, Direct, and
Stereo only.
Listening mode
Input format
Pure Audio
Direct
Stereo
DD
(Dolby Audio
- DD) (*2)
DD+
(Dolby Audio
- DD+)
(*2)(*3)
DTHD
(Dolby
Audio -
TrueHD) (*2)
Atmos
(*13)
DSur
(Dolby Audio
- Surr)
(*13)
2-channel signal input
Analog / PCM
Music le / DSD (*1)
DD / DD+ / DTHD
DTS / DTS 96/24 / DTS Express / DTS-
HD HR / DTS-HD MSTR (*16)(*17)
(*14)
Multi-channel signal input
Multich PCM
DSD (*1)
DD
DD+
DTHD
ATMOS
DTS
DTS 96/24
(*16)
DTS Express
(*17)
DTS-HD HR
(*17)
DTS-HD MSTR
(*17)
DTS-ES Discrete
(*16)
DTS-ES Matrix
(*16)
DTS:X
IMAX DTS
IMAX DTS:X
162
Appendix
Listening mode
Input format
DTS (*2)
DTS-HD
(*2)
DTS:X
DTS
Neural:X
(*6)
IMAX DTS
(*10)
IMAX
DTS:X (*10)
IMAX
Neural:X
(*10)
2-channel signal input
Analog / PCM
Music le / DSD (*1)
DD / DD+ / DTHD
DTS / DTS 96/24 / DTS Express / DTS-
HD HR / DTS-HD MSTR (*16)(*17)
Multi-channel signal input
Multich PCM
DSD (*1)
DD
DD+
DTHD
ATMOS
DTS
DTS 96/24
(*16)
DTS Express
(*17)
DTS-HD HR
(*17)
DTS-HD MSTR
(*17)
DTS-ES Discrete
(*16)
(*4)
DTS-ES Matrix
(*16)
(*4)
DTS:X
IMAX DTS
(*15) (*15)
IMAX DTS:X
(*15)
163
Appendix
Listening mode
Input format
PCM
(Multich
PCM) (*2)
DSD
(*2)(*12)
Mono
Orchestra/ Unplugged/
Studio-Mix/ TV Logic/ Game-
Action/ Game-Rock/Game-
RPG/ Game-Sports (*7)
AllCh
Stereo /
Mono Music
(*8)
T-D (Theater-
Dimensional)
(*9)
THX
Cinema/
Music/
Games (*11)
THX Select
Music/
Cinema/
Games (*5)
2-channel signal input
Analog / PCM
Music le / DSD (*1)
DD / DD+ / DTHD
DTS / DTS 96/24 / DTS Express / DTS-
HD HR / DTS-HD MSTR (*16)(*17)
Multi-channel signal input
Multich PCM
DSD (*1)
DD
DD+
DTHD
ATMOS
DTS
DTS 96/24
(*16)
DTS Express
(*17)
DTS-HD HR
(*17)
DTS-HD MSTR
(*17)
DTS-ES Discrete
(*16)
DTS-ES Matrix
(*16)
DTS:X
IMAX DTS
IMAX DTS:X
164
Appendix
(*1) You cannot select any mode other than Pure Audio, Stereo, AllCh Stereo and Mono Music if the sampling rate is 5.6/11.2 MHz.
(*2) A center speaker or surround speakers need to be installed.
(*3) If the input source is Blu-ray Disc and the speaker layout is 5.1 ch or less, DD+ cannot be selected. Instead, the listening mode for DD can be selected.
(*4) This can only be selected when no surround back speaker is connected.
(*5) Surround back speakers need to be installed. Can be selected when the input format is 5.1 ch.
(*6) If the input format is any of the following and the number of channels is monaural, this listening mode becomes unavailable.
– DTS, DTS 96/24, DTS Express, DTS-HD HR, DTS-HD MSTR, PCM, music le
(*7) Surround speakers or height speakers need to be installed.
(*8) A center speaker, surround speakers, or height speakers need to be installed.
(*9) Cannot be selected if "Speaker Virtualizer" ( →p114) is set to "O".
(*10) Cannot be selected when the "IMAX Mode" ( →p117) is set to "O" (the default value is Auto).
(*11) Surround speakers need to be installed.
(*12) Cannot be selected when the input format is monaural.
(*13) The listening mode displayed depends on the speaker layout ( →p156). Furthermore, when the setting for "Speaker Virtualizer" ( →p114) is "O" (the default
value is On), then modes other than Atmos and DSur cannot be selected.
(*14) This cannot be selected when the input format is DTS Express.
(*15) Can only be selected when the "IMAX Mode" ( →p117) is set to "O" (the default value is Auto).
(*16) Displayed as "DTS" on this unit.
(*17) Displayed as "DTS-HD" on this unit.
Speaker Layouts and Selectable Listening
Modes ( →p156)
165
Appendix
Listening Mode Eects
In alphabetical order
AllCh Stereo
This mode is ideal for background music. Stereo sound is played through the
surround speakers as well as the front speakers, creating a stereo image.
Atmos
Since this mode calculates the positional data of audio recorded in Dolby Atmos
audio in real-time and outputs it from appropriate speakers, you can enjoy the
natural and stereophonic sound eld of Dolby Atmos with any speaker layout
including connection of only front speakers. Also, the Dolby Atmos sound design
can be reproduced more faithfully by connecting surround back speakers or
height speakers. You can select this mode when inputting the Dolby Atmos
audio format.
Unlike existing surround systems, Dolby Atmos does not rely on channels, but
rather enables the accurate placement of sound objects that have independent
motion in a 3D space with even greater clarity. Dolby Atmos is an optional
audio format for Blu-ray Discs and achieves a more stereophonic sound eld by
introducing a sound eld above the listener.
According to the speaker layout, the following listening modes are displayed.
– Atmos 2.0/2.1: When only front speakers are installed
– Atmos 3.0/3.1: When front speakers and center speaker are installed
– Atmos 4.0/4.1: When front speakers and surround speakers are
installed
– Atmos 5.0/5.1: When front speakers, center speaker and surround
speakers are installed
– Atmos 6.0/6.1: When front speakers, surround speakers and surround
back speakers are installed
– Atmos 7.0/ 7.1: When front speakers, center speaker, surround speakers
and surround back speakers are installed
– Atmos 2.0.2/2.1.2: When front speakers and height speakers are
installed
– Atmos 3.0.2/3.1.2: When front speakers, center speaker and height
speakers are installed
– Atmos: Selectable in the "4.1.2 ch", "5.1.2 ch", "6.1.2 ch", "7.1.2 ch",
"4.1.4 ch" or "5.1.4 ch" setting with surround speakers and height speakers
installed.
• To enable transfer of this audio format, connect via an HDMI cable and set
the audio output on the player to Bitstream output.
• When "Speaker Virtualizer" ( →p114) is set to "O" (Default: On), modes
other than
Atmos cannot be selected.
DD (Dolby Audio - DD)
This mode faithfully reproduces the sound design recorded in the Dolby Digital
audio format.
Dolby Digital is a multi-channel digital format developed by Dolby Laboratories,
Inc. and is widely adopted for use in movie production. It is also a standard audio
format for DVD-Video and Blu-ray Discs. It is possible to record a maximum of
5.1 channels on a DVD-Video or Blu-ray Disc; two front channels, one center
channel, two surround channels, and the LFE channel dedicated to the bass
region (sound elements for the subwoofer).
• To enable transfer of this audio format, connect via a digital cable and set the
audio output on the player to Bitstream output.
DD+ (Dolby Audio - DD+)
This mode faithfully reproduces the sound design recorded in the Dolby Digital
Plus audio format.
The Dolby Digital Plus format has been improved based on Dolby Digital,
increasing the number of channels and endeavoring to improve sound quality
by giving more exibility in data bit rates. Dolby Digital Plus is an optional audio
format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of
7.1 channels with additional channels such as the surround back channel.
• To enable transfer of this audio format, connect via an HDMI cable and set
the audio output on the player to Bitstream output.
166
Appendix
Direct
This listening mode can be selected for all input signals. Processing that aects
sound quality is shut down, and sound closer to the original is reproduced. The
sound is reproduced with the sound eld based on the number of channels
in the input signal. For example, a 2 ch signal is output only from the front
speakers.
Note that the sound adjustment is not available when this mode is selected.
• The speaker calibrations measured with Dirac Live are disabled.
DSur (Dolby Audio - Surr)
This listening mode expands 2 ch or 5.1 ch input signals to 5.1 ch, 7.1 ch or
5.1.2 ch. This mode expands actual channels to more channels for playback
according to the conguration of the connected speakers. Also, even if there is
no speaker for expansion, for example when only front speakers are connected,
audio of surround channel or height channel is virtually created for expansion
playback.
According to the speaker layout, the following listening modes are displayed.
–
DSur 2.0/2.1: When only front speakers are installed
– DSur 3.0/3.1: When front speakers and center speaker are installed
–
DSur 4.0/4.1: When front speakers and surround speakers are installed
– DSur 5.0/5.1: When front speakers, center speaker and surround
speakers are installed
– DSur 6.0/6.1: When front speakers, surround speakers and surround
back speakers are installed
– DSur 7.0/7.1: When front speakers, center speaker, surround speakers
and surround back speakers are installed
– DSur 2.0.2/2.1.2: When front speakers and height speakers are
installed
–
DSur 3.0.2/3.1.2: When front speakers, center speaker and height
speakers are installed
– DSur: Selectable in the "4.1.2 ch", "5.1.2 ch", "6.1.2 ch", "7.1.2 ch",
"4.1.4 ch" or "5.1.4 ch" setting with surround speakers and height speakers
installed.
• When "Speaker Virtualizer" ( →p114) is set to "O" (Default: On), modes
other than
DSur cannot be selected.
DTHD (Dolby Audio - TrueHD)
This mode faithfully reproduces the sound design recorded in the Dolby TrueHD
audio format.
The Dolby TrueHD audio format is a "lossless" format expanded based on the
lossless compression technology referred to as MLP, and it faithfully reproduces
the master audio recorded in the studio. Dolby TrueHD is an optional audio
format based on 5.1 ch for Blu-ray Discs. It is possible to record a maximum of
7.1 channels with additional channels such as the surround back channel. 7.1 ch
is recorded at 96 kHz/24 bit, and 5.1 ch is recorded at 192 kHz/24 bit.
• To enable transfer of this audio format, connect via an HDMI cable and set
the audio output on the player to Bitstream output.
DSD
This mode is suitable for playing sources recorded in DSD.
• This unit supports the DSD signal input from the HDMI input terminal.
However, depending on the connected player, better sound may be obtained
by setting the output on the player side to the PCM output.
• This listening mode cannot be selected if the output setting on your Blu-ray
Disc/DVD player is not set to DSD.
DTS
This mode faithfully reproduces the sound design recorded in the DTS audio
format.
The DTS audio format is a multi-channel digital format developed by DTS, Inc.
This format is an optional audio format for DVD-Video and a standard format
for Blu-ray Discs. It enables recording of 5.1 channels; two front channels, one
center channel, two surround channels, and the LFE channel dedicated to the
bass region (sound elements for the subwoofer). The content is recorded with a
rich volume of data, with a maximum sampling rate of 48 kHz, at a resolution of
24 bits and a bit rate of 1.5 Mbps.
• To enable transfer of this audio format, connect via a digital cable and set the
audio output on the player to Bitstream output.
167
Appendix
DTS-HD
This mode faithfully reproduces the sound design recorded in the DTS-HD High
Resolution Audio audio format or DTS-HD Master Audio.
These audio formats are optional audio formats on Blu-ray Discs. They are
based on 5.1ch, but with channels such as the surround back channel added for
a maximum of 7.1ch. These formats allow recording at a sampling rate of 96kHz
with a resolution of 24 bits.
• To enable transfer of this audio format, connect via an HDMI cable and set
the audio output on the player to Bitstream output.
DTS Neural:X
This listening mode expands actual channels to more channels for playback to
suit the conguration of the connected speakers by expanding the input signals
from 2 channels or 5.1 channels to 5.1 channels or 7.1 channels respectively.
DTS:X
This mode faithfully reproduces the sound design recorded in the DTS:X audio
format.
The DTS:X audio format is a combination of the mixing method based on
traditional channel based formats (5.1 ch and 7.1 ch) and object based dynamic
audio mixing, and it is characterized by the precise positioning of sounds and the
ability to express sound movement.
• To enable transfer of this audio format, connect via an HDMI cable and set
the audio output on the player to Bitstream output.
Game-Action
This mode is suitable for games with a lot of action.
• The speaker calibrations measured with Dirac Live are disabled.
Game-Rock
This mode is suitable for games with rock content.
• The speaker calibrations measured with Dirac Live are disabled.
Game-RPG
This mode is suitable for role-playing games.
• The speaker calibrations measured with Dirac Live are disabled.
Game-Sports
This mode is suitable for sports games.
• The speaker calibrations measured with Dirac Live are disabled.
168
Appendix
IMAX
IMAX is an innovator in entertainment technology, combining proprietary
software, architecture and equipment to create experiences that take you
beyond the edge of your seat to a world you've never imagined. Top lmmakers
and studios utilize IMAX theatres to connect with audiences in extraordinary
ways. IMAX leverages its proprietary image enhancement process, DMR,
to create clearer, sharper images--just as the director intended. With its
specialized, custom theatre environment designed to widen the eld of view, and
unique sound systems that cover the entire theatre evenly, IMAX delivers a truly
immersive lm experience.
IMAX Enhanced :
IMAX Enhanced brings the world's most immersive entertainment experience
into the home. IMAX Enhanced products include the highest-end TVs,
projectors, sound bars and A/V receivers that meet stringent performance
standards established by IMAX, DTS and Hollywood's leading colorists to
deliver unparalleled quality and scale to in-home entertainment.
IMAX Enhanced content is digitally re-mastered for the home environment
to provide sharper images and more powerful sound--just as the lmmaker
intended. Available on Ultra HD Blu-ray discs and 4K streaming services, it
leverages DTS:X codec technology integrated in certied home entertainment
devices to deliver an exclusive, fully immersive experience.
IMAX Mode optimizes all settings for the playback of remastered IMAX
Enhanced content, ensuring the best possible picture and sound. When "IMAX
DTS" is displayed, IMAX Mode is optimized for the playback of 5.1 IMAX
Enhanced content. When "IMAX DTS:X" is displayed, IMAX Mode is optimized
for the playback of fully immersive IMAX Enhanced content.
• To enable transfer of this audio format, connect via an HDMI cable and set
the audio output on the player to Bitstream output.
IMAX listening modes:
– IMAX DTS: Displayed when there is DTS audio format input which includes
IMAX Enhanced content.
– IMAX DTS:X: Displayed when there is DTS:X audio format input which
includes IMAX Enhanced content.
– IMAX Neural:X: This listening mode expands the playback signal to
5.1.4 channels or 7.1.2 channels to suit the connected speaker conguration
when the input signal is 5.1 channels. Displayed when there is DTS audio
format input which includes IMAX Enhanced content.
• IMAX Mode is set to "Auto" at the time of purchase ( →p117). The listening
mode automatically switches when IMAX Enhanced content is recognized,
but when playing IMAX Enhanced content received through streaming
services on a TV, etc., the IMAX Enhanced content may not be recognized
and the listening mode may not switch. Set the IMAX Mode to "On" in this
case.
• When surround back speakers are connected and DTS audio format that
includes 5.1-channel IMAX Enhanced content is played with IMAX DTS, the
surround channel audio is output from the surround back speakers.
Mono
In this mode, monaural audio is played from the center speaker at the time
of inputting an analog signal or PCM signal. If there is no center speaker
connected, monaural audio is played from the front speakers.
Mono Music
In this mode, all speakers output the same sound in mono, so the sound you
hear is the same regardless of where you are within the listening room.
Multich (Multichannel)
This mode is suitable to play sources recorded in multichannel PCM.
Orchestra
This mode is suitable for classical or operatic music. This mode emphasizes the
surround channels in order to widen the sound image, and simulates the natural
reverberation of a large hall.
• The speaker calibrations measured with Dirac Live are disabled.
169
Appendix
Pure Audio
This mode reproduces the original sound more faithfully. The display and analog
video circuit are turned o to provide purer sound.
Note that the sound adjustment is not available when this mode is selected.
• Selecting this mode turns o the analog video circuit, so the video signals
input through jacks other than the HDMI IN jack cannot be displayed on the
TV.
• This cannot be selected when using the Multi-zone function. Activating the
Multi-zone function while this mode is selected will automatically switch the
listening mode to Direct.
• The speaker calibrations measured with Dirac Live are disabled.
Stereo
In this mode, sound is output from the right and left front speakers and
subwoofer.
Studio-Mix
This mode is suitable for rock or pop music. This mode creates a lively sound
eld with a powerful acoustic image as if you are at a club or rock concert.
• The speaker calibrations measured with Dirac Live are disabled.
T-D (Theater-Dimensional)
In this mode, you can enjoy a virtual playback of multichannel surround sound
even with only two or three speakers. This works by controlling how sounds
reach the listener’s left and right ears.
• This mode cannot be selected when "Speaker Virtualizer" ( →p114) is set to
"O" (Default: On).
• The speaker calibrations measured with Dirac Live are disabled.
THX
THX is a series of specications for the accurate reproduction of movies
propounded by the lm director George Lucas. THX listening modes include
the THX Cinema mode, etc. Using technology such as THX Loudness Plus and
Timbre Matching, the sound of a movie theater is reproduced accurately.
• The speaker calibrations measured with Dirac Live are disabled.
THX technology:
A movie soundtrack is mixed in a large-scale theater specially made for mixing
that is called a dubbing stage on the assumption that the soundtrack is played
in such theaters with similar equipment and conditions. These soundtracks
are recorded as is, even when recording to a DVD-Video, for example, without
making any modications to suit a home theater environment. THX technology
is able to reproduce the movie theater sound accurately in a home theater
environment by minimizing acoustic and spatial deviation.
• THX Loudness Plus
THX Loudness Plus is a new volume control technology mounted on THX Ultra
and THX Select-certied AV receivers. With THX Loudness Plus, home theater
audience can experience the rich details of surround sound at any volume level.
If the volume is turned down below the reference level, elements of sound in a
certain range are lost, or the sound is perceived dierently by audience. THX
Loudness Plus compensates for the tonal and spatial shifts that occur when the
volume is reduced, by intelligently adjusting ambient surround channel levels
and frequency response.
• Re-EQ
The speakers for the front channel in a movie theater are installed behind
the screen. For this reason the high range is enhanced in the sound track of
the front channel in view of acoustic characteristics such as the necessity to
penetrate the screen. Re-EQ adjusts the soundtrack with the enhanced high
range to make it suitable for a home theater.
• Timbre Matching
The perception of human ears diers depending on the sound direction. Movie
theaters have many surround speakers installed, so they are excellent at
surrounding the viewers with natural sound, but home theaters have only two
surround speakers installed. The Timbre Matching function lters the signals
sent to the surround speakers, and adjusts the tonal characteristics of front
speakers and surround speakers to create smooth sound movement from front
170
Appendix
speakers to surround speakers.
• Adaptive Decorrelation
While movie theaters have many surround speakers to enable the experience
where viewers are surrounded with sound, home theaters normally have only
two surround speakers. Such two surround speakers give a headphone-like
sound, which is not a broad and embracing surround sound. If a listener moves
away from the middle position between the surround speakers, the sound from
the surround speakers is absorbed into the sound from the nearby speakers,
and cannot be distinguished any more. Adaptive Decorrelation changes the time
axis and phase between the surround channels so that you can enjoy the same
spatial sound with two surround speakers as in a movie theater.
• ASA (Advanced Speaker Array)
ASA is a technology patented by THX to provide a broad surround sound
experience by adjusting the sounds of two surround speakers on the sides and
two surround speakers at the back. When installing the surround back speakers,
be sure to select the distance between the two surround back speakers in the
THX Audio settings. This setting optimizes the surround sound environment.
THX listening modes:
– THX Cinema: Use this mode in a home theater environment to play the
soundtrack that was recorded on the assumption that it is played in a movie
theater or similar large area. In this mode, THX Loudness Plus is set to the
theater level, and Re-EQ, Timbre Matching and Adaptive Decorrelation are all
enabled.
– THX Games: Use this mode for high-delity spatial reproduction of game
sound. THX Loudness Plus is set to a level suited to the audio level of the
game, and Timbre Matching is enabled.
– THX Music: This mode mainly adjusts the playback of music sources that are
mastered to a much higher quality obviously than movie audio. In this mode,
THX Loudness Plus is set to a level suited to the playback of music, and
Timbre Matching is enabled.
– THX Sel Cin (THX Select Cinema): The THX Select Cinema mode provides
a high-quality surround sound experience by expanding movie sources
recorded in 5.1 ch for 7.1 ch playback. In this mode, the THX ASA processing
technology gives smooth transition between side and back surround sounds,
creating the best atmosphere and directional sense of surround sound.
– THX Sel Gam (THX Select Games): Select the THX Select Games mode
to play game sound recorded in a multichannel format. In this mode, the
THX ASA processing technology enables the playback of game sound in a
360-degree sound eld which was recorded in PCM, DTS, Dolby Digital and
other 5.1 ch formats.
– THX Sel Mus (THX Select Music): Select THX Select Music to play music
sources recorded in a multichannel format. In this mode, the THX ASA
processing technology creates a broad and stable back sound eld when
playing music sources recorded in 5.1 ch, such as DTS, Dolby Digital, and
DVD-Audio.
TV Logic
Suitable for TV shows produced in a TV studio. This mode gives clarity to voices
by enhancing the entire surround sounds, and creates a realistic acoustic image.
• The speaker calibrations measured with Dirac Live are disabled.
Unplugged
Suitable for acoustic instruments, vocals and jazz. This mode emphasizes the
front sound eld image, giving the impression of being in front of the stage.
• The speaker calibrations measured with Dirac Live are disabled.
171
Appendix
Speaker Combinations
• Up to two powered subwoofers can be connected in either combination.
Speaker
Channels
FRONT CENTER SURROUND
SURROUND
BACK
HEIGHT 1 HEIGHT 2 Bi-AMP (*1)
ZONE 2 (*1)
(ZONE SPEAKER)
ZONE 3 (*1)
(ZONE SPEAKER)
2.1 ch
3.1 ch
4.1 ch
5.1 ch
6.1 ch
7.1 ch
2.1.2 ch
(*2)(*3) (*3) (*2)
3.1.2 ch
(*2)(*3) (*3) (*2)
4.1.2 ch
(*2)(*3) (*3) (*2)
5.1.2 ch
(*2)(*3) (*3) (*2)
6.1.2 ch
7.1.2 ch
4.1.4 ch
5.1.4 ch
(*1) It is not possible to use Bi-AMP and ZONE speakers at the same time.
(*2) When using the ZONE 2 speakers, it is necessary to connect the ZONE 2 speakers to the HEIGHT 1 terminals, and the height speakers to the SURROUND
BACK terminal.
(*3) When using Bi-Amp speakers, it is necessary to connect the Bi-Amp speakers to the HEIGHT 1 terminals, and height speakers to the SURROUND BACK
terminals.
About the HEIGHT 1/HEIGHT 2
When connecting 2 sets of the height speakers, the combination of the height speakers that can be selected is as follows.
– Height 1 Speaker: Top Middle, Height 2 Speaker: Rear High
–
Height 1 Speaker: Front High
,
Height 2 Speaker: One of Rear High/Top Middle/Top Rear/Dolby Enabled Speaker (Surround))
– Height 1 Speaker: Top Front or Dolby Enabled Speaker (Front), Height 2 Speaker: One of Rear High/Top Rear/Dolby Enabled Speaker (Surround)
When only 1 set of the height speakers is connected, 1 from the height speakers types can be selected.
172
Appendix
License and Trademark
Manufactured under license from Dolby Laboratories. Dolby, Dolby Vision,
Dolby Atmos, Dolby Audio, and the double-D symbol are trademarks of Dolby
Laboratories.
For DTS patents, see http://patents.dts.com. Manufactured under license from
DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under
license from DTS Licensing Limited (for all other companies). DTS, DTS:X, and
the DTS:X logo are registered trademarks or trademarks of DTS, Inc. in the
United States and other countries. © 2022 DTS, Inc. ALL RIGHTS RESERVED.
Manufactured under license from IMAX Corporation. IMAX
®
is a registered
trademark of IMAX Corporation in the United States and/or other countries. For
DTS patents, see http://patents.dts.com. Manufactured under license from DTS,
Inc. DTS and the DTS logo are registered trademarks or trademarks of DTS,
Inc. in the United States and other countries. © 2020 DTS, Inc. ALL RIGHTS
RESERVED.
®
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
Administrator,Inc. in the United States and other countries.
The Wi-Fi CERTIFIEDTM Logo is a certication mark of Wi-Fi Alliance
®
.
The BLUETOOTH
®
word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc.
Amazon, Amazon Music, and all related logos and motion marks are trademarks
of Amazon.com, Inc. or its aliates.
173
Appendix
Apple, AirPlay
®
, iPad
®
, iPad Air
®
, iPad Pro
®
, iPhone
®
, iPod touch
®
and Lightning
are trademarks of Apple Inc., registered in the U.S. and other countries.
Use of the Made for Apple badge means that an accessory has been designed
to connect specically to the Apple product(s) identied in the badge, and has
been certied by the developer to meet Apple performance standards. Apple is
not responsible for the operation of this device or its compliance with safety and
regulatory standards. Please note that the use of this accessory with an Apple
product may aect wireless performance.
Apple, AirPlay, iPad, iPad Air, iPad Pro, iPhone, iPod touch and Lightning are
trademarks of Apple Inc., registered in the U.S. and other countries.
Use of the Works with Apple badge means that an accessory has been designed
to work specifically with the technology identified in the badge and has been
certied by the developer to meet Apple performance standards.
Apple, AirPlay, iPad, iPad Air, iPad Pro, iPhone, iPod touch et Lightning sont
des marques commerciales d'Apple Inc., enregistrées aux États-Unis et dans
d'autres pays.
L’utilisation du badge Made for Apple signifie qu’un accessoire a été conçu
pour se connecter spéciquement aux produits Apple identiés dans le badge,
et qu’il a été certifié par le développeur comme répondant aux normes de
performances d’Apple. Apple n’est pas responsable du fonctionnement de cet
appareil ou sa conformité aux normes réglementaires et de sécurité. Veuillez
noter que l’utilisation de cet accessoire avec un produit Apple peut aecter les
performances de la connexion sans l.
Apple, AirPlay, iPad, iPad Air, iPad Pro, iPhone, iPod touch et Lightning sont
des marques commerciales d'Apple Inc., enregistrées aux États-Unis et dans
d'autres pays.
L’utilisation du badge Works with Apple signifie qu’un accessoire a été conçu
pour fonctionner spécifiquement avec la technologie identifiée dans le badge
et qu’il a été certifié par le développeur comme répondant aux normes de
performances d’Apple.
App Store is a service mark of Apple Inc., registered in the U.S. and other
countries.
IOS is a trademark or registered trademark of Cisco in the U.S. and other
countries and is used under license.
"Theater-Dimensional" and "Theater-Dimensional (logo)" are trademarks of
Onkyo Corporation.
Use your phone, tablet or computer as a remote control for Spotify.
Go to spotify.com/connect to learn how.
The Spotify software is subject to third party licenses found here:
https://developer.spotify.com/esdk-third-party-licenses/
This product is protected by certain intellectual property rights of Microsoft. Use
or distribution of such technology outside of this product is prohibited without a
license from Microsoft.
Windows Media, and the Windows logo are trademarks or registered trademarks
of Microsoft Corporation in the United States and/or other countries.
Google Play and the Google Play logo are trademarks of Google LLC.
Google and Chromecast built-in are trademarks of Google LLC.
Android is a trademark of Google LLC.
"x.v.Color" and "x.v.Color" logo are trademarks of Sony Corporation.
DSD and the Direct Stream Digital logo are trademarks of Sony Corporation.
174
Appendix
SELECT
Before any home theater component can be THX Certified, it must pass a
rigorous series of quality and performance tests. Only then can a product
feature the THX logo, which is your guarantee that the Home Theater products
you purchase will give you superb performance for many years to come. This
device has passed THX Certication requirements, which dene thousands of
parameters, from noise levels and distortion to frequency response and bass
management. THX Certied AVRs recreate high impact cinema sound and best-
in-class audio delity.
THX and the THX Logo are the property of THX Ltd., registered in the U.S. and
other countries.
All other trademarks are the property of their respective owners.
176
Appendix
General Specications
Amplier Section North American and Taiwanese models
European, Middle East, Australian and Asian models
Rated Output Power
(North American models)
With 8 ohm loads, both channels driven, from 20 Hz-
20 kHz; rated 100 watts per channel minimum RMS
power, with no more than 0.08% total harmonic
distortion from 250 milliwatts to rated output. (FTC)
(Taiwanese models)
9 ch × 170 W at 6 ohms, 1 kHz, 1 ch driven of 1% THD (IEC)
9 ch × 170 W at 6 ohms, 1 kHz, 1 ch driven of 1% THD
(IEC)
Maximum Eective Output Power
(North American models)
220 W at 6 ohms, 1 kHz, 1 ch driven of 10% THD
(Taiwanese models)
9 ch × 185 W at 6 ohms, 1 kHz, 1 ch driven of 10% THD (JEITA)
9 ch × 185 W at 6 ohms, 1 kHz, 1 ch driven of 10% THD
(JEITA)
THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz - 20,000 Hz, Rated output power)
Input Sensitivity and Impedance 200 mV/47 kΩ (LINE(RCA)), 3.5 mV/47 kΩ (PHONO MM)
Rated RCA Output Level and Impedance
PRE OUT : 1 V/470 Ω
PRE/LINE OUT (ZONE 2): 1 V/200 mV/2.2 kΩ
PRE/LINE OUT (ZONE 3): 1 V/200 mV/470 Ω
Phono Maximum Input Signal Voltage 70 mV (MM 1 kHz 0.5%)
Frequency Response 5 Hz - 100 kHz/+1 dB, –3 dB (Direct)
Tone Control Characteristics
MAIN : ±10 dB, 20 Hz (Bass), ±10 dB, 20 kHz (Treble)
ZONE 2 : ±10 dB, 100 Hz (Bass), ±10 dB, 10 kHz (Treble)
Signal to Noise Ratio 106 dB (IHF-A, LINE IN, SP OUT), 80 dB (IHF-A, PHONO IN, SP OUT)
Supported impedance of Speakers 4 Ω - 16 Ω
Headphone Rated Output 85 mW + 85 mW (32 Ω, 1 kHz, 10% THD) 80 mW + 80 mW (32 Ω, 1 kHz, 10% THD)
Supported impedance of Headphones 8 Ω - 600 Ω
Headphones Frequency Response 5 Hz - 100 kHz (Direct/Pure Audio)
177
Appendix
Video Section North American and Taiwanese models
European, Middle East, Australian and Asian models
Signal level
1 Vp-p/75 Ω (Composite Video)
1 Vp-p/75 Ω (Component Video Y)
0.7 Vp-p/75 Ω (Component Video Pb/Pr)
Correspoinding maximum resolution 480i/576i (Component Video)
Tuner Section North American and Taiwanese models
European, Middle East, Australian and Asian models
FM Tuning Frequency Range 87.5 MHz - 107.9 MHz -
50 dB quieting sensitivity (FM MONO) 1.0 μV, 11.2 dBf (IHF, 1 kHz, 100% MOD) -
AM Tuning Frequency Range 530 kHz - 1710 kHz -
Preset Channel 40 -
BLUETOOTH Section North American and Taiwanese models
European, Middle East, Australian and Asian models
Communication system BLUETOOTH Specication version 5.1
Frequency band 2.4 GHz (2.402 - 2.480 GHz)
Modulation method FHSS (Frequency Hopping Spread Spectrum)
Compatible BLUETOOTH proles A2DP 1.4, AVRCP 1.4, AVDTP 1.3, AVRCP 1.6.2
Supported Codecs
Receiving: SBC, AAC
Transmitting: SBC, aptX, aptX HD
Transmission range (A2DP) 20 Hz - 20 kHz (Sampling frequency 44.1 kHz)
Maximum communication range
Line of sight approx. 15 m(*)
(*)The actual range will vary depending on factors such as obstacles between devices, magnetic elds around
a microwave oven,static electricity, cordless phone, reception sensitivity, antenna's performance, operating
system, software application, etc.
178
Appendix
HDMI North American and Taiwanese models
European, Middle East, Australian and Asian models
Input 6
Output 2 (MAIN, SUB/ZONE2)
Input *1 Output
HDMI 1 HDMI 2 HDMI 3 HDMI 4 HDMI 5 HDMI 6 MAIN
SUB/ZONE 2
SUB ZONE 2
bandwidth 40Gbps 40Gbps 40Gbps 24Gbps 24Gbps 24Gbps 40 Gbps 40 Gbps 18 Gbps
ALLM
Gaming-VRR
QFT
SBTM
DSC
Uncompressed 8K/60p
4:2:0
8K/60p
4:2:0
8K/60p
4:2:0
8K/24p
4:2:0
8K/24p
4:2:0
8K/24p
4:2:0
8K/60p
4:2:0
8K/60p
4:2:0
4K/60p
4:4:4
Compressed
(TV needs DSC)
8K/60p
4:4:4
8K/60p
4:4:4
8K/60p
4:4:4
8K/60p
4:4:4
8K/60p
4:4:4
8K/60p
4:4:4
8K/60p
4:4:4
8K/60p
4:4:4
-
ARC / eARC *2
HDR10 /
HLG (BT.2020)
HDR10+
*1 Audio Format: 2 ch linear PCM (32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 16/20/24 bit)
Multi-channel linear PCM (Maximum 7.1 channels, 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz,
16/20/24 bit)
Bitstream (Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-ES, DTS 96/24, DTS-HD Master Audio,
DTS-HD High Resolution Audio, DTS Express, DTS:X, IMAX DTS, IMAX DTS:X, DSD(2.8 MHz), PCM)
*2
ARC compatible audio formats
: PCM, Dolby Digital, Dolby Digital Plus, DTS (DTS 96/24, DTS-ES, etc.), DTS-HD High Resolution Audio, IMAX DTS
eARC compatible audio formats
: PCM, Dolby Digital, Dolby Digital Plus, DTS (DTS 96/24, DTS-ES, etc.), Dolby TrueHD, Dolby Atmos, DTS- HD Master Audio,
DTS:X, Multichannel PCM, DTS-HD High Resolution Audio, IMAX DTS, IMAX DTS:X
179
Appendix
Corresponding
input resolutions
Frame rate Color space Color depth HDMI IN 1 - 3 HDMI IN 4 - 6
4K
(3840x2160p)
4K SMPTE
(4096x2160p)
24/25/30 Hz YCbCr4:2:2 12 bit
(*1)Video compressed with DSC (Display
Stream Compression) can be input and
output. DSC is a video compression
technique that enables the transmission
of high-resolution video, which requires
high bandwidth, via HDMI. While playing
this video format, there is no on-
screen display when you perform such
operations as using the Quick Menu or
adjusting the volume.
(*2)5K, 48 Hz, YCbCr4:2:0, 8/10/12 bit is not
supported.
YCbCr4:4:4/RGB 8 bit
10/12 bit
48/50/60 Hz YCbCr4:2:0 8 bit
10/12 bit
YCbCr4:2:2 12 bit
YCbCr4:4:4/RGB 8 bit
10/12 bit
100/120 Hz YCbCr4:2:0 8/10/12 bit
YCbCr4:2:2 12 bit
(*1)
YCbCr4:4:4/RGB 8/10 bit
(*1)
12 bit
(*1) (*1)
5K
(5120x2160p)
24/25/30 Hz YCbCr4:2:2 12 bit
YCbCr4:4:4/RGB 8 bit
10/12 bit
48/50/60 Hz YCbCr4:2:0 8/10/12 bit
(*2) (*2)
YCbCr4:2:2 12 bit
YCbCr4:4:4/RGB 8 bit
10/12 bit
(*1)
8K
(7680x4320p)
24/25/30 Hz YCbCr4:2:0 8/10/12 bit
YCbCr4:2:2 12 bit
(*1)
YCbCr4:4:4/RGB 8/10 bit
(*1)
12 bit
(*1) (*1)
48/50/60 Hz YCbCr4:2:0 8/10 bit
(*1)
12 bit
(*1) (*1)
YCbCr4:2:2 12 bit
(*1) (*1)
YCbCr4:4:4/RGB 8/10/12 bit
(*1) (*1)
180
Appendix
Network Section North American and Taiwanese models
European, Middle East, Australian and Asian models
Ethernet LAN 1 (10BASE-T/100BASE-TX)
Wireless LAN IEEE 802.11 a/b/g/n/ac standard (Wi-Fi
®
standard) 5 GHz/2.4 GHz band
Music Server ( →p95)
Supported Audio Formats
MP3 (.mp3)
• MPEG-1/MPEG-2 Audio Layer-3/44.1 kHz, 48 kHz/Between 8 and 320 kbps, and VBR/2 ch
WMA (.wma)
• 44.1 kHz, 48 kHz/Between 5 and 320 kbps, and VBR/2 ch
WAV (.wav)
WAV les contain uncompressed PCM digital audio.
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit/2 ch
AIFF (.ai/.aif)
AIFF les contain uncompressed PCM digital audio.
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit/2 ch
AAC (.aac/.m4a/.mp4/.3gp/.3g2)
• MPEG-2/MPEG-4 Audio/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/Between 8 and 320 kbps, and VBR/2 ch
FLAC (.ac)
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit/2 ch
LPCM (Linear PCM)
• 44.1 kHz, 48 kHz/16 bit/2 ch
Apple Lossless (.m4a/.mp4)
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz,192 kHz/16 bit, 24 bit/2 ch
DSD (.dsf/.d)
• DSF/DSDIFF/2.8 MHz, 5.6 MHz, 11.2 MHz/2 ch
181
Appendix
USB Section North American and Taiwanese models
European, Middle East, Australian and Asian models
USB 1 (Front : Ver.2.0, 5 V/1 A)
USB Storage Device ( →p93)
Supported Audio Formats
MP3 (.mp3)
• MPEG-1/MPEG-2 Audio Layer-3/44.1 kHz, 48 kHz/Between 8 and 320 kbps, and VBR/2 ch
WMA (.wma)
• 44.1 kHz, 48 kHz/Between 5 and 320 kbps, and VBR/2 ch
WAV (.wav)
WAV les contain uncompressed PCM digital audio.
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit/2 ch
AIFF (.ai/.aif)
AIFF les contain uncompressed PCM digital audio.
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz/8 bit, 16 bit, 24 bit/2 ch
AAC (.aac/.m4a/.mp4/.3gp/.3g2)
• MPEG-2/MPEG-4 Audio/44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz/Between 8 and 320 kbps, and VBR/2 ch
FLAC (.ac)
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz,192 kHz/8 bit, 16 bit, 24 bit/2 ch
Apple Lossless (.m4a/.mp4)
• 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz,192 kHz/16 bit, 24 bit/2 ch
DSD (.dsf/.d)
• DSF/DSDIFF/2.8 MHz, 5.6 MHz, 11.2 MHz/2 ch
182
Appendix
General North American and Taiwanese models
European, Middle East, Australian and Asian models
Power Supply AC 120 V, 60 Hz AC 220 - 240 V, 50/60 Hz
Power Consumption 750 W 760 W
Full Standby mode 0.2 W 0.2 W
Network Standby (wired) 1.6 W 1.8 W
Network Standby (wireless) 1.5 W 1.6 W
Bluetooth Wakeup 1.6 W 1.8 W
HDMI CEC Standby 0.2 W 0.2 W
Standby mode (ALL ON) 1.7 W 1.8 W
Dimensions (W × H × D)
435 mm × 177.5 mm × 382.5 mm
17-1/8" × 7" × 15 1/16"
Weight 11.5 kg (25.4 lbs.)
Maximum radio-frequency power transmitted in
the frequency band(s)
2400 MHz - 2483.5 MHz (20 dBm (e.i.r.p))
5150 MHz - 5350 MHz (23 dBm (e.i.r.p))
5470 MHz - 5725 MHz (23 dBm (e.i.r.p))
183
Appendix
Video Inputs North American and Taiwanese models
European, Middle East, Australian and Asian models
Composite 2
Component 1
Audio Inputs North American and Taiwanese models
European, Middle East, Australian and Asian models
Analog 7 (Including PHONO×1)
Digital
2 (COA XIAL×1, OPTICAL×1)
• Supported sampling rates for PCM signals (stereo, mono) from a digital input are 32 kHz, 44.1 kHz, 48 kHz,
88.2 kHz, 96 kHz/16 bit, 20 bit, and 24 bit.
Audio Outputs North American and Taiwanese models
European, Middle East, Australian and Asian models
Analog
FRONT L/R, CENTER, SURROUND L/R, HEIGHT 1 L/R,
SUBWOOFER 1/2
SURROUND BACK L/R or HEIGHT 2 L/R or ZONE 3 PRE/LINE OUT,
ZONE 2 PRE/LINE OUT
Speaker Outputs
FRONT L/R, CENTER, SURROUND L/R, HEIGHT 1 L/R or ZONE 2 L/R or Bi-AMP,
SURROUND BACK L/R or ZONE 3 L/R or HEIGHT 2
(North American and Taiwanese models support spade lugs)
Phones 1 (ø 6.3 mm, 1/4")
Others North American and Taiwanese models
European, Middle East, Australian and Asian models
Setup Mic 1 (Front)
RS-232 1
12V TRIGGER OUT 1 (100 mA)
IR 1 (IN)
Specications and features are subject to change without notice.
