IM404_ref_K_En_11 (K)© 2020 JVCKENWOOD Corporation
MONITOR WITH DVD RECEIVER
DDX9907XR
DDX9707S
MONITOR WITH RECEIVER
DMX957XR
DMX907S
DMX9707S
INSTRUCTION MANUAL
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the best performance from your new
receiver.
For your records
Record the serial number, found on the top of the unit, in the spaces designated on the warranty card, and in the space
provided below. Refer to the model and serial numbers whenever you call upon your KENWOOD dealer for information or
service on the product.
Model DDX9907XR / DDX9707S / DMX957XR / DMX907S / DMX9707S Serial number
US Residence Only
Register Online
Register your KENWOOD product at www.kenwood.com/usa/
• Updated information (the latest Instruction Manual, system updates, new
functions, etc.) is available from
<https://www.kenwood.com/cs/ce/>.
• The Instruction manual is subject to change for modification of
specifications and so forth. Be sure to download the latest edition of the
Instruction manual for reference.
<https://manual.kenwood.com/edition/im404/>
2
Important Notice on Software
Ñ Software License on This
Product
The software embedded in this product
comprises a number of independent software
components, each of which is copyrighted by
JVCKENWOOD Corporation or by a third party.
This product uses software components that
are based on an End-User License Agreement
(hereinafter called “EULA”) stipulated by
JVCKENWOOD Corporation and by third parties.
The EULA dictates the availability of the source
codes of free-software components as a
prerequisite to distributing them in executable
form under the terms of the GNU General
Public License or the Lesser General Public
License (hereinafter called “GPL/LGPL”). To get
information about the software components
that are subject to the terms of the GPL/LGPL,
please visit the following Website:
Website URL https://www2.jvckenwood.com/gpl/
Queries concerning the contents of the source
code or the like will not be accepted.
Please note that software components based
on a EULA that is not subject to the terms of the
GPL/LGPL or those that have been developed
or created by JVCKENWOOD Corporation will
be excluded from the scope of source code
disclosure.
Because licenses to use software components
distributed under the GPL/LGPL are offered to
the customers for free of charge, no warranty is
granted to the customers, whether explicitly or
implicitly, to the extent of the applicable laws.
Unless otherwise stipulated by the applicable
laws or agreed upon in writing, the copyright
holders or those who are entitled to modify
and redistribute the software components are
not held responsible for any and all damages
resulting from their use or from inability to use
them. For more information about the terms of
use of the software components, required items
of compliance and so on, please refer to the
GPL/LGPL.
Customers wishing themselves to use a software
component that is subject to the GPL/LGPL
embedded in this product are encouraged to
read the terms of the corresponding license
before use. Because each individual license
is prescribed by a third party other than
JVCKENWOOD Corporation, the original (English)
of the license is presented.
EULA
Ñ Software License Agreement
JVCKENWOOD Corporation (hereinafter called
“Licensor”) holds either the copyright to the
embedded software or the right to sublicense it.
This agreement establishes the conditions under
which the customer uses this “Licensed Software.”
The customer shall agree to the terms of this
license agreement before proceeding to use
Licensed Software.
This agreement is deemed to have taken effect
when the customer (hereinafter called “User”)
has used a product implementation of Licensed
Software.
The Licensed Software may contain software
Licensor has been licensed to use by third parties
directly or indirectly. Some third parties may
have terms of use prescribed for their customers,
apart from this Software License Agreement. This
agreement does not apply to such software. Be
sure to consult “Important Notice on Software” as
presented separately.
Article 1 (General)
Licensor grants to User a non-exclusive, non-
assignable right of use Licensed Software
within the country where the User purchases
the Product (hereinafter the "Country") (except
for the exception provided for in Paragraph 1,
Article 3).
Article 2 (Right of Use)
1.
The rise of use granted under this agreement
is the right to use Licensed Software in this
product.
2.
User may not duplicate, copy, modify, add to,
translate or otherwise alter, or loan licensed
Software and the associated literature in
whole or in part.
3.
Use of Licensed Software is limited to a private
extent , and Licensed Software may not be
distributed, licensed or sublicensed for any
purposes whatsoever, including commercial
use.
4.
User shall use Licensed Software as per the
instruction manual or instructions given in the
help file and may not use or duplicate data in
violations of the regulations of the Copyright
Law or other governing laws by using
Licensed Software in whole or in part.
3
Article 3 (Terms of License)
1.
In assigning this product, User may not retain
the original copy of the embedded Licensed
Software (including associated literature,
updates and upgrades) and any duplicates
and associated literature with regard to
the license to use Licensed Software. User
may transfer Licensed Software only to the
condition of binding the assignee to abide by
the terms of this Software License Agreement.
2.
User may not reverse-engineer, disassemble,
decompile or otherwise analyze the source
code of Licensed Software.
Article 4 (Rights to Licensed Software)
All rights to Licensed Software and the
associated literature, including copyrights, shall
reside with Licensor or
the original right holder who has granted the
Right of Use and right to sublicense to Licensor
(hereinafter referred to as “Original Right
Holder”), and User does not have any rights
other than Right of Use granted hereunder
with regard to Licensed Software and the
associated literature.
Article 5 (Exemption Granted to Licensor)
1.
Licensor and Original Right Holder do not
assume any responsibility for damages
caused to User or third parties resulting from
the exercise by User of the license granted
hereunder, unless otherwise provided by any
law to the contrary.
2.
Licensor does not warrant Licensed Software
to be merchantable, compatible and fit for
specific purposes.
Article 6 (Responsibility for Third Parties)
If disputes over the infringement of third
parties’ intellectual property rights, such as
copyrights and patent rights, arise out of the
use of Licensed Software by User, User shall
resolve these disputes at User’s own expenses
while keep Licensor and Original Right Holder
harmless.
Article 7 (Secrecy Obligation)
User shall keep confidential Licensed Software
provided hereunder, information contained in
the associated literature or the like and those
provisions of this agreement not yet in public
knowledge and may not disclose or leak these
to third parties without prior written consent
from Licensor.
Article 8 (Cancellation of the Agreement)
Licensor reserves the right to cancel this
agreement forthwith and claim compensation
from User for the damages caused by such
cancellation when User:
(1)
Breaches any of the provisions of this
agreement, or
(2)
Has received a petition for seizure, provisional
seizure, provisional disposition or any other
kind of compulsory execution.
Article 9 (Destruction of Licensed Software)
If this agreement is terminated under the
provision of the foregoing paragraph, User
shall destroy Licensed Software, along with all
associated literature and its duplicates, within
two (2) weeks from the date of termination.
Article 10 (Copyright Protection)
1.
Copyrights and all other intellectual property
rights relating to Licensed Software shall
reside with Licensor and Original Right Holder
and in no circumstances with User.
2.
User shall abide by the laws relating to
copyrights and intellectual property rights in
using Licensed Software.
Article 11 (Export Control)
1.
Licensed Software and the associated
literature or the like may not be exported
to places outside the Country (including
transmission outside the Country over the
Internet or the like).
2.
User agrees that Licensed Software is subject
to export controls imposed by the Country
and the United States of America.
3.
User agrees to comply with all the
international and domestic laws that apply
to this software (U.S. Export Administration
Regulations and regulations established by
the U.S., the Country and their governmental
agencies regarding usage by end users and
export destinations).
Article 12 (Miscellaneous)
1.
Even if this agreement is invalidated in part by
law, all other provisions shall remain in effect.
2.
Licensor and User shall consult each other in
good faith to resolve any matters not provided
for in this agreement or questions arising from
the interpretation of this agreement.
3.
Licensor and User agree that this agreement
is governed by the law of Japan and that all
disputes involving claims and obligations that
may arise out of this agreement will be settled
by arbitration at the Tokyo District Court as the
court of first instance.
4
Contents
Before Use 6
Precautions ................................................................... 6
How to read this manual .........................................7
Basic Operations 8

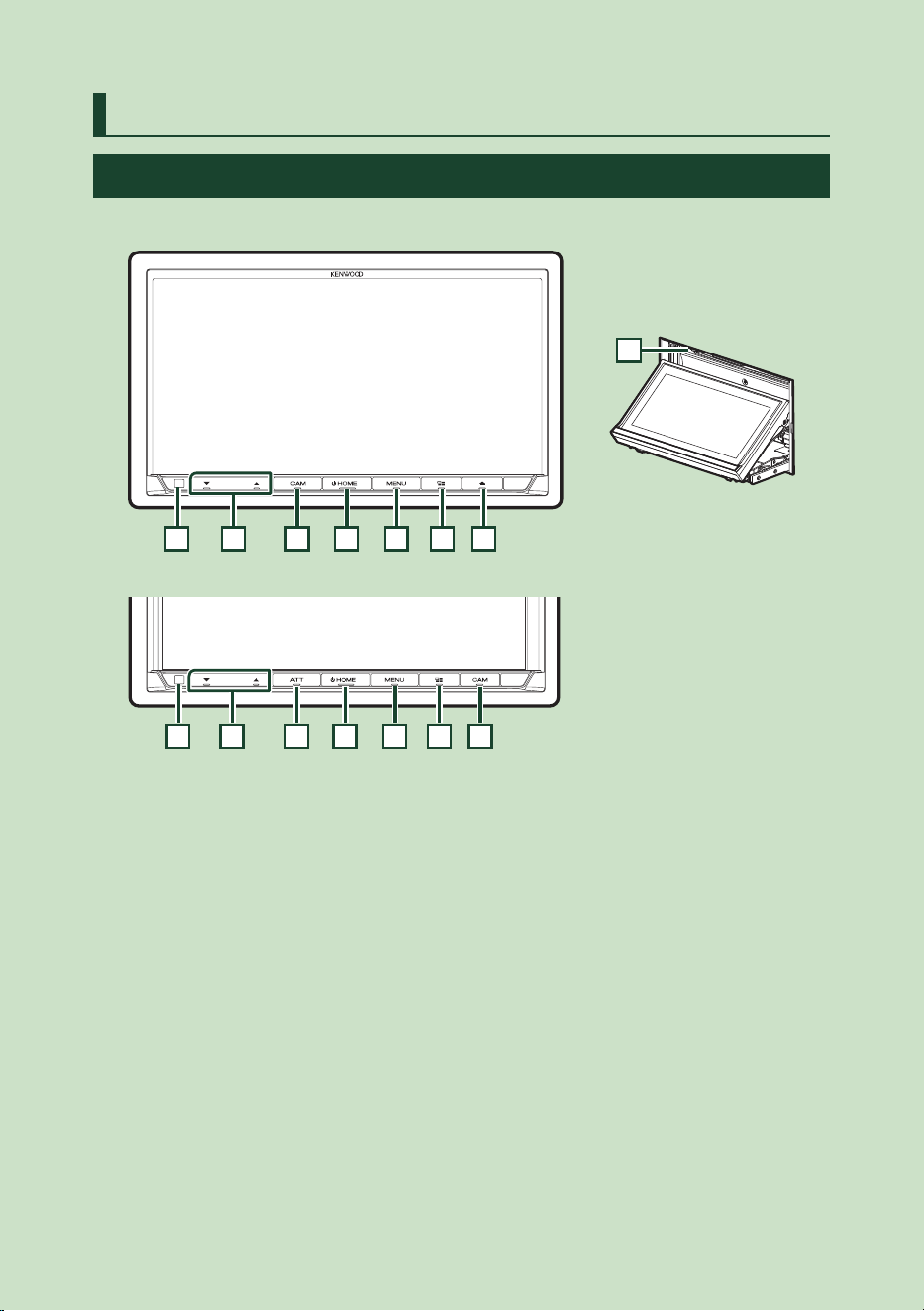

Functions of the Buttons on the Front Panel ... 8
Turning on the Unit .................................................10
Initial Settings ............................................................ 10
Adjusting the volume .............................................12

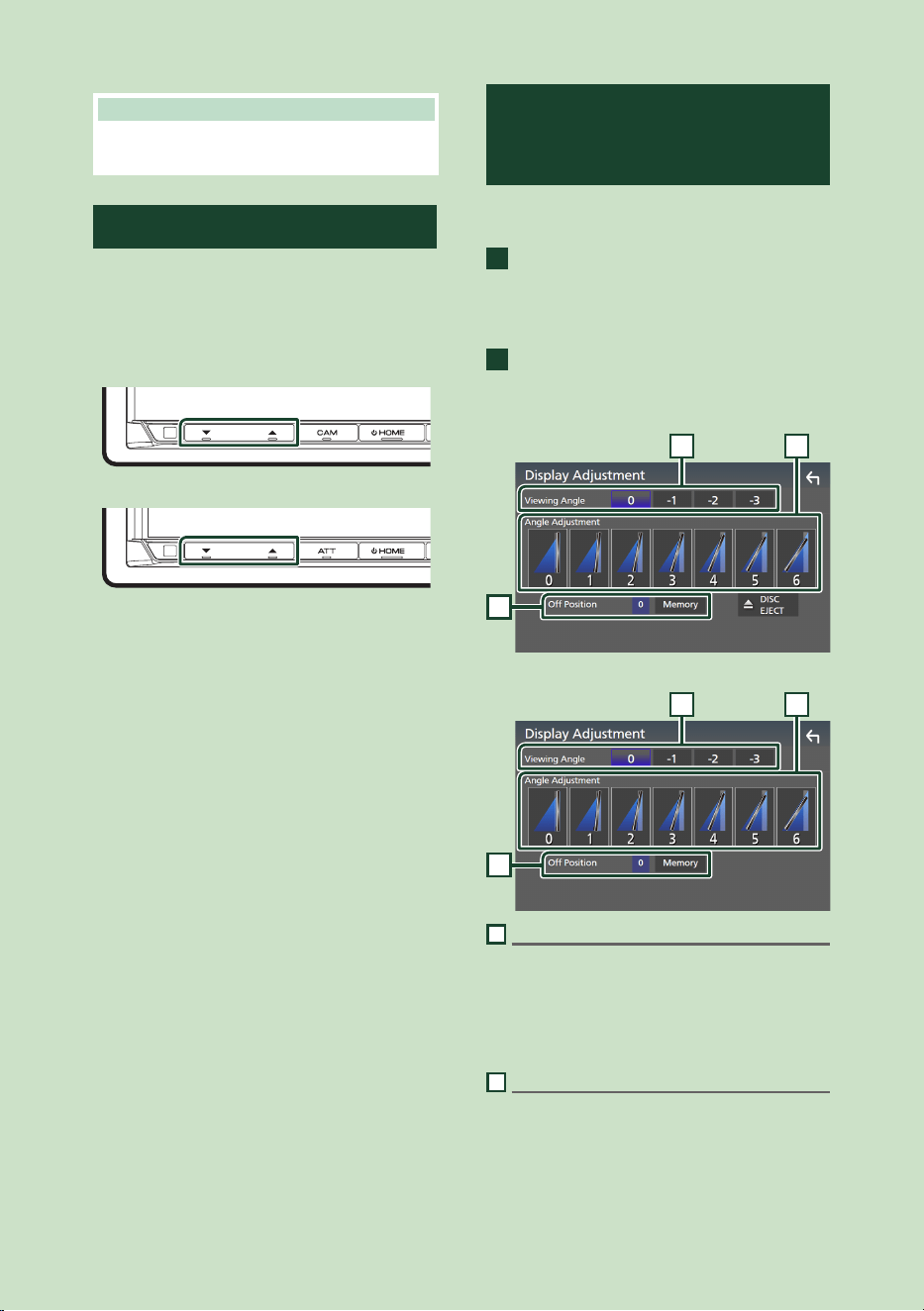

Display Adjustment .................................................12

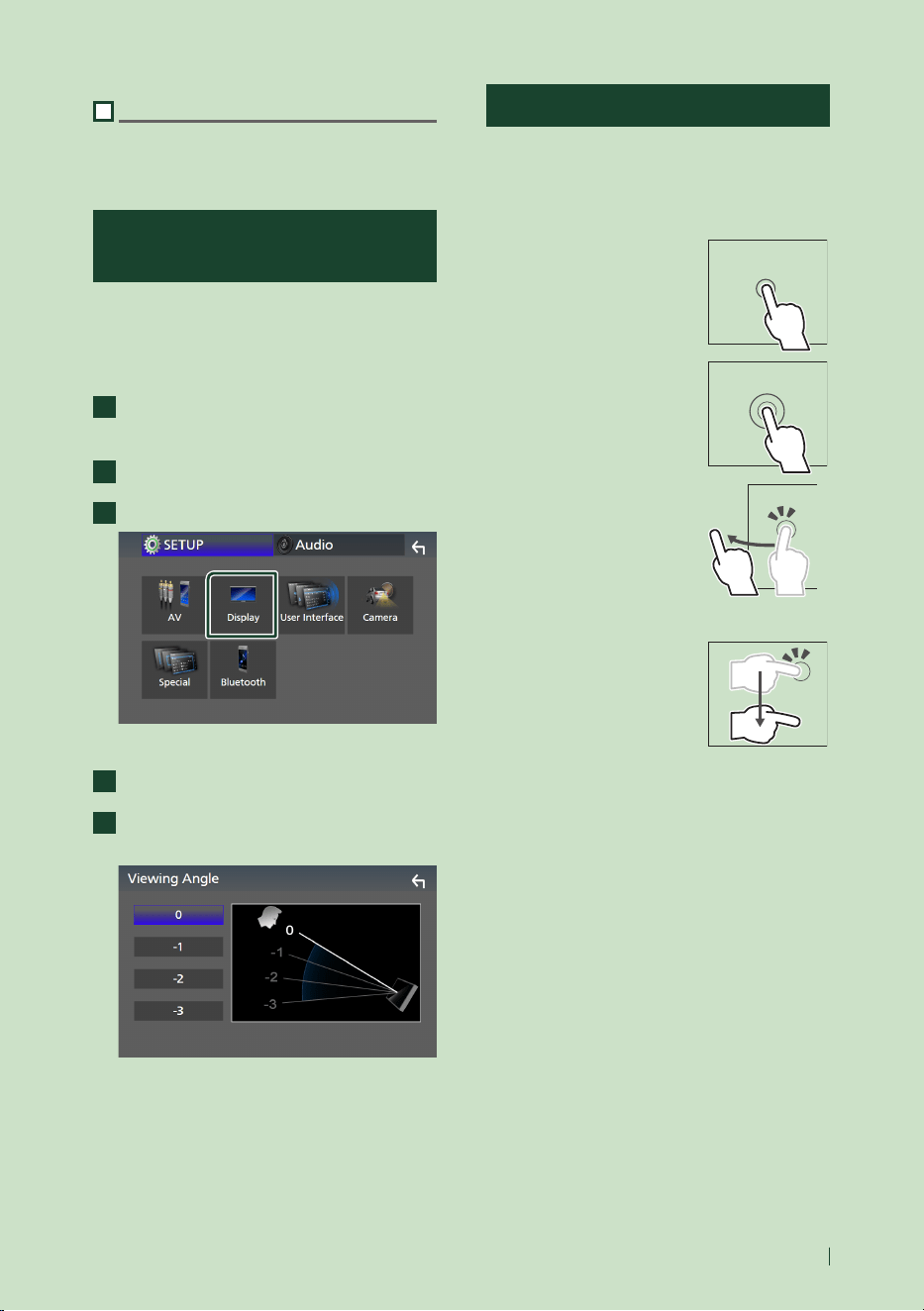

Viewing Angle ...........................................................13
Touch screen operations .......................................13

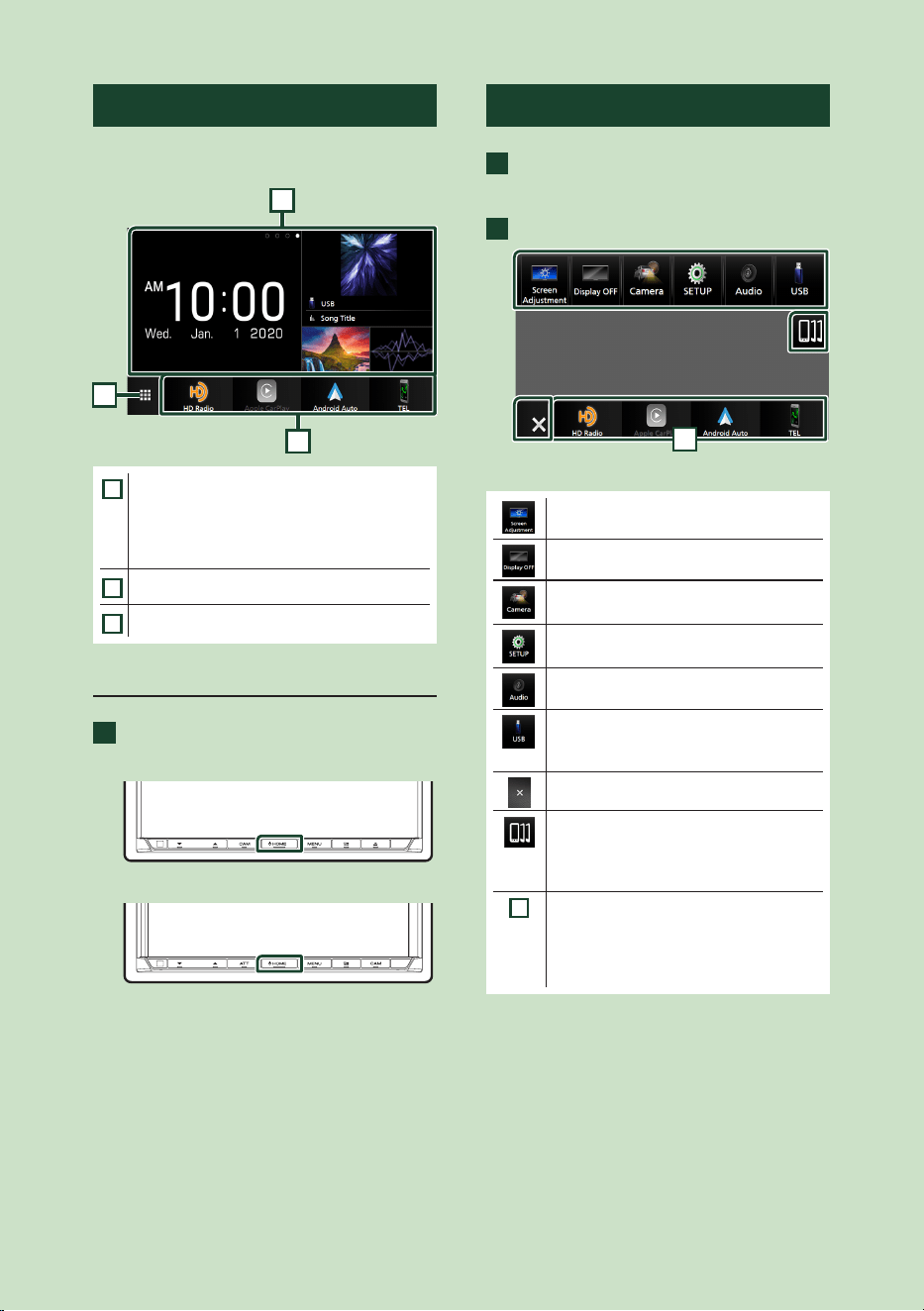

HOME screen descriptions ....................................14
Popup menu ..............................................................14

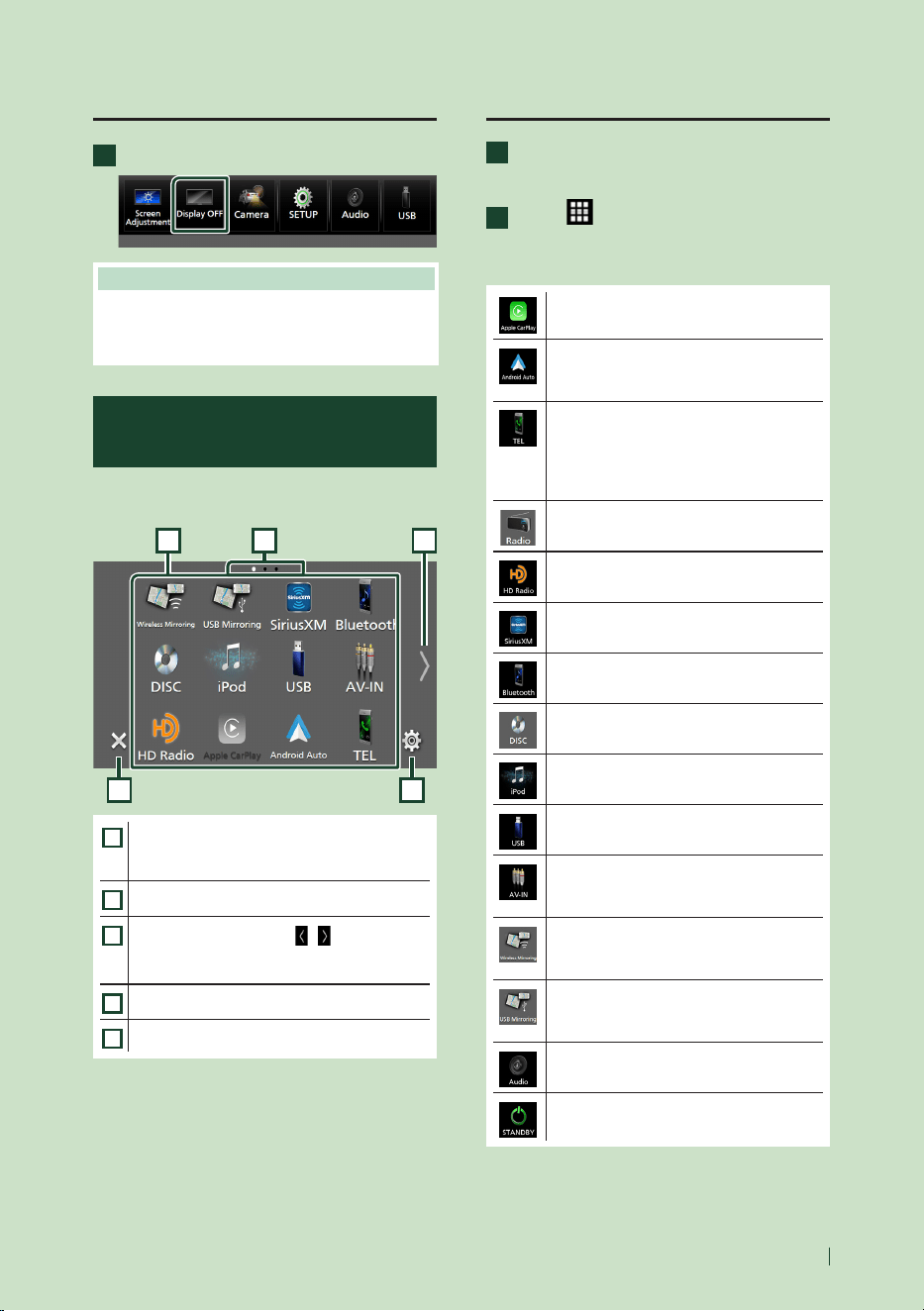

Source selection screen description .................. 15
Source control screen descriptions ...................17
List screen ...................................................................18
Widget 19
Widget ..........................................................................19
Multi Widget ...............................................................19
Photo Frame Widget ...............................................21
Widget SETUP ............................................................21
Disc 23
Playing a disc .............................................................23
DVD/VCD Basic Operation ....................................23

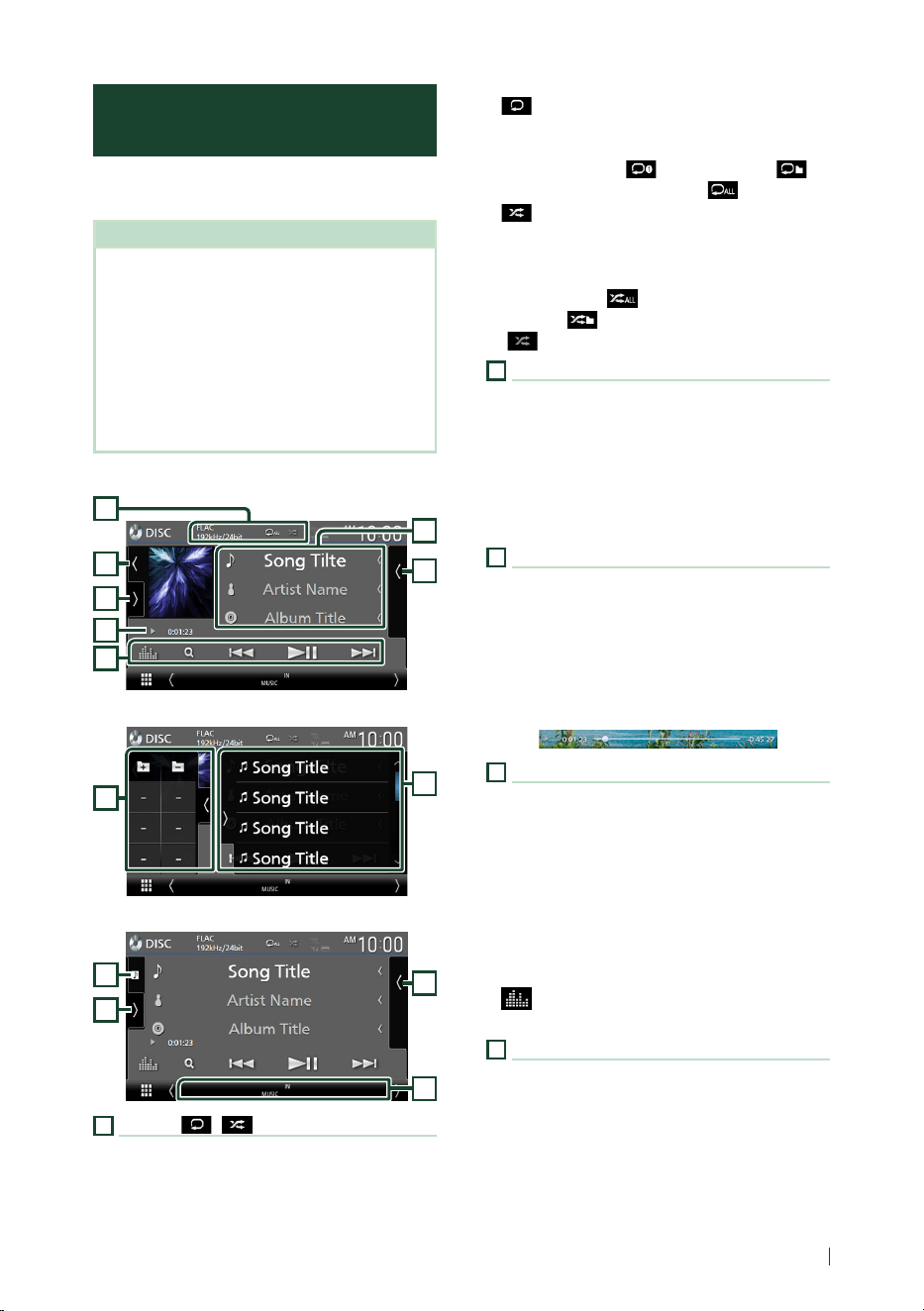

Music CD/Disc media Basic Operation .............25

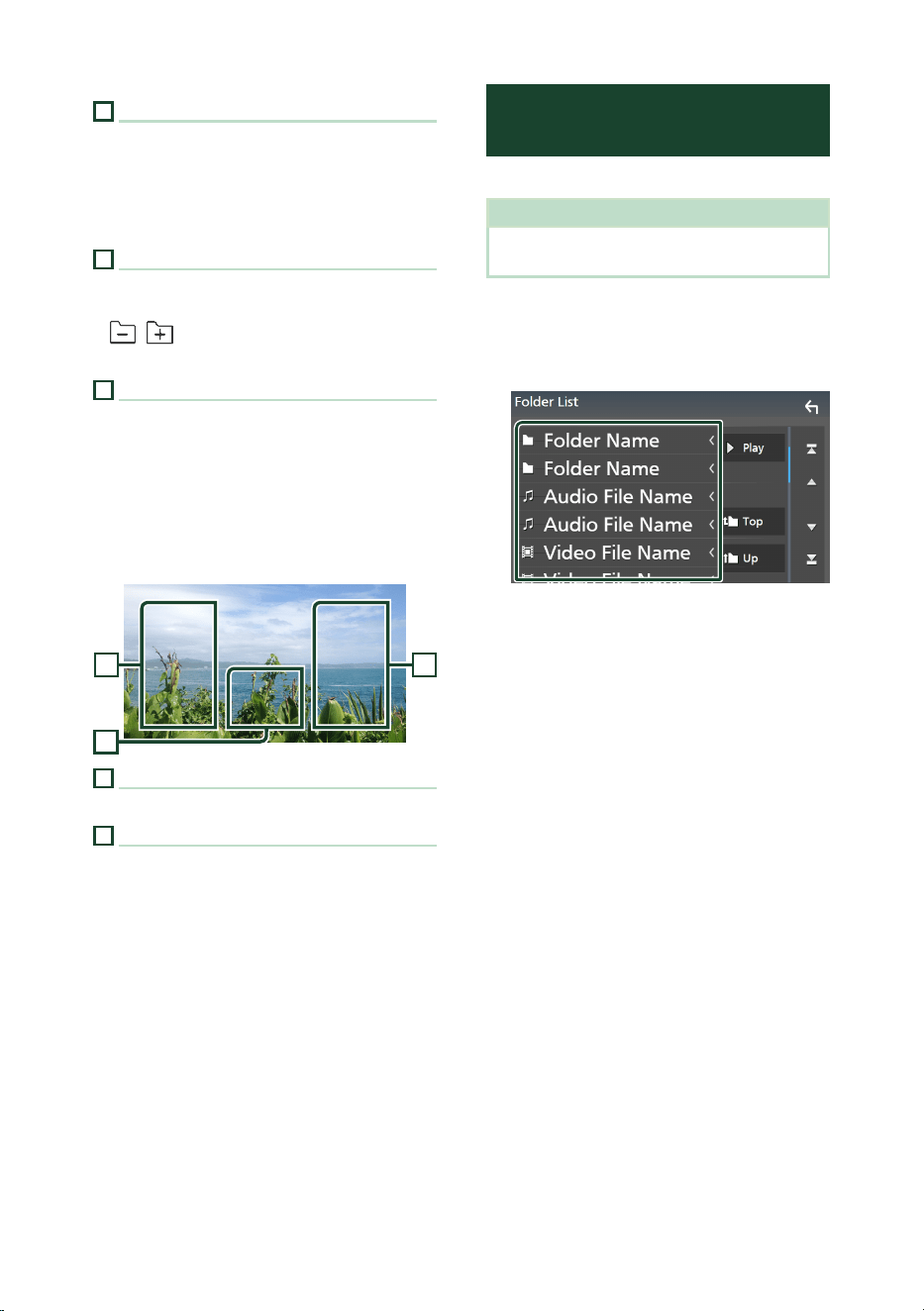

File search Operation ..............................................26

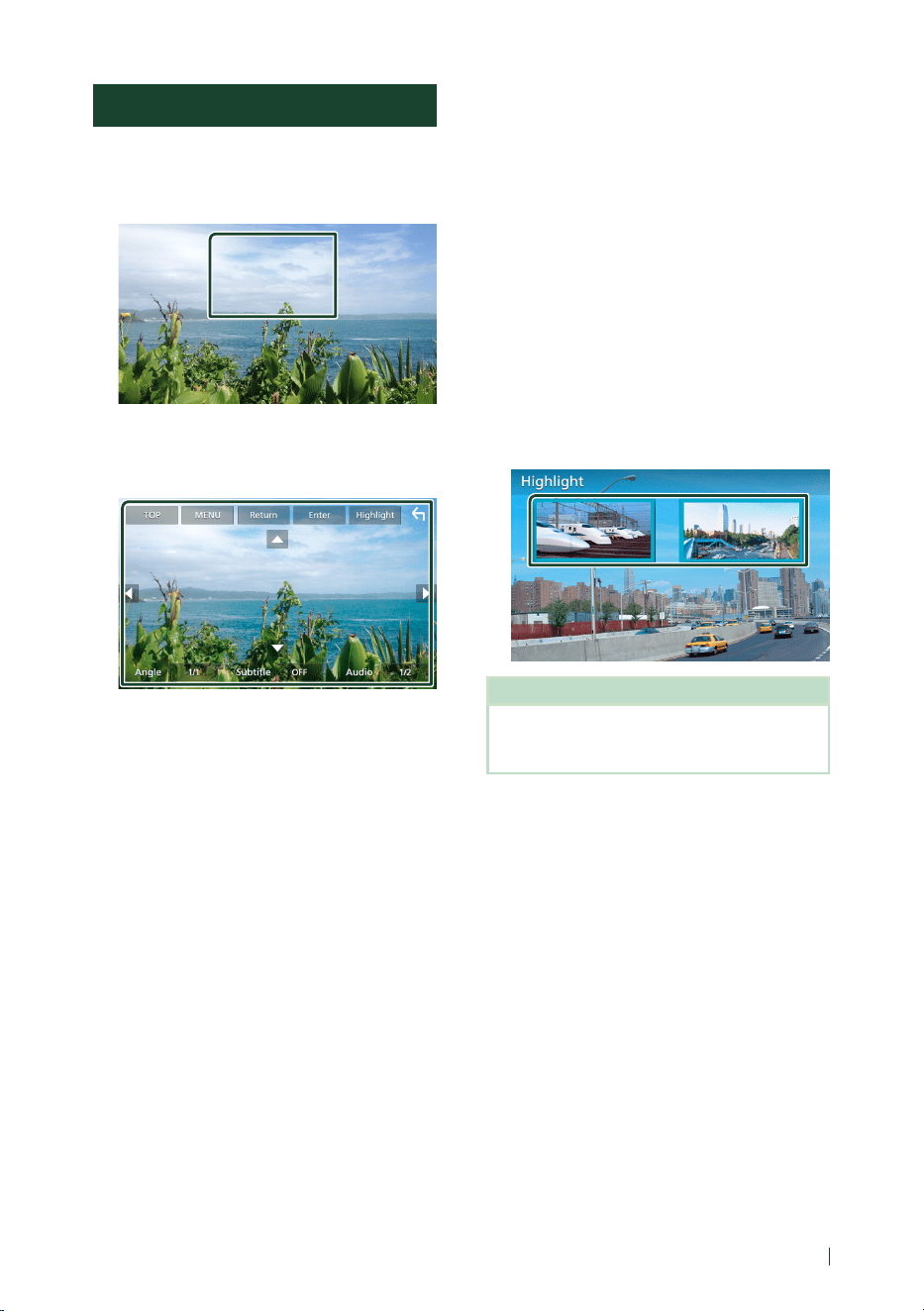

DVD Disc Menu Operation .................................... 27

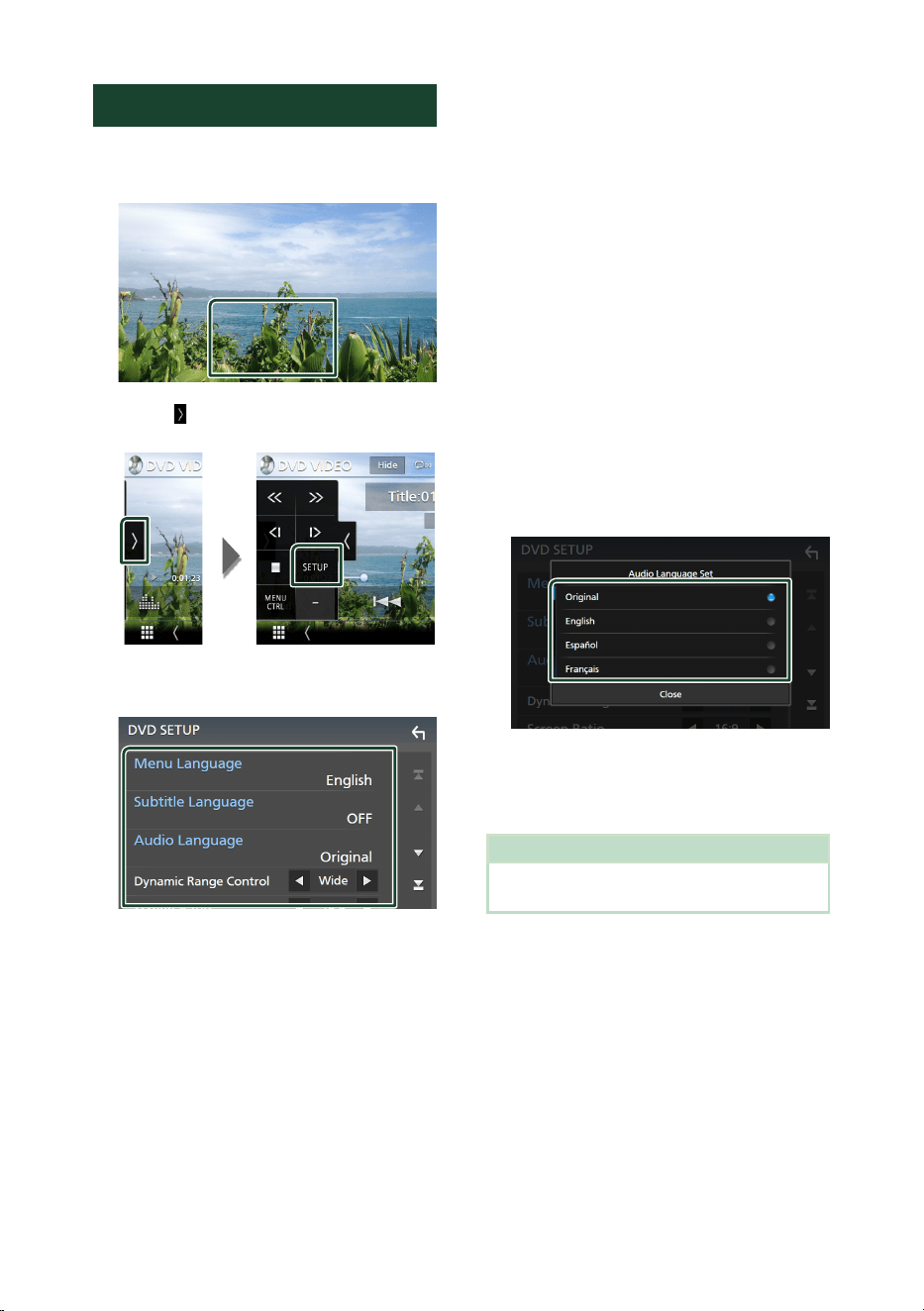

DVD SETUP .................................................................28
APPS 29
Wireless Mirroring Operation ...............................29
USB Mirroring Operation .......................................29

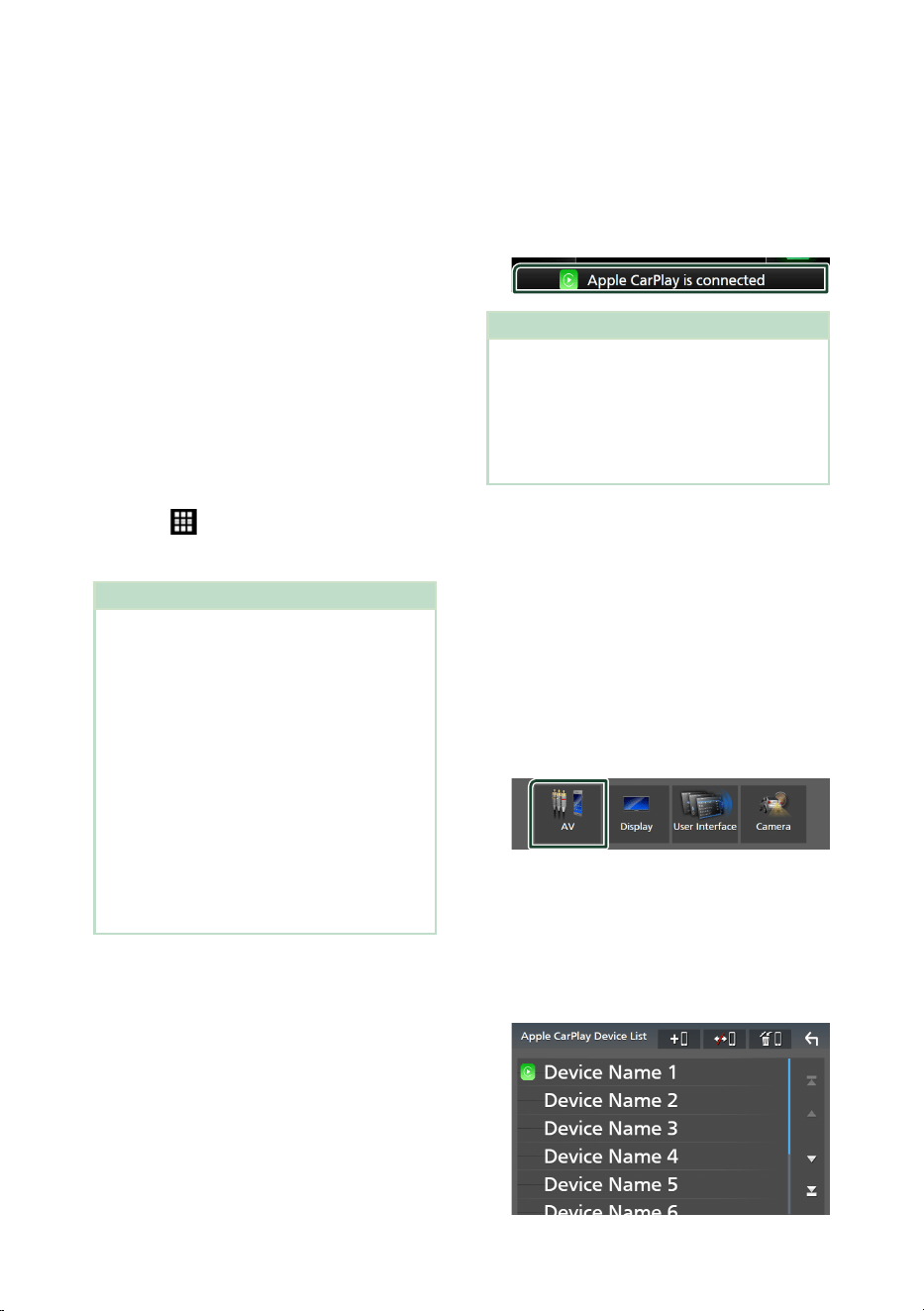

Apple CarPlay Operation .......................................31

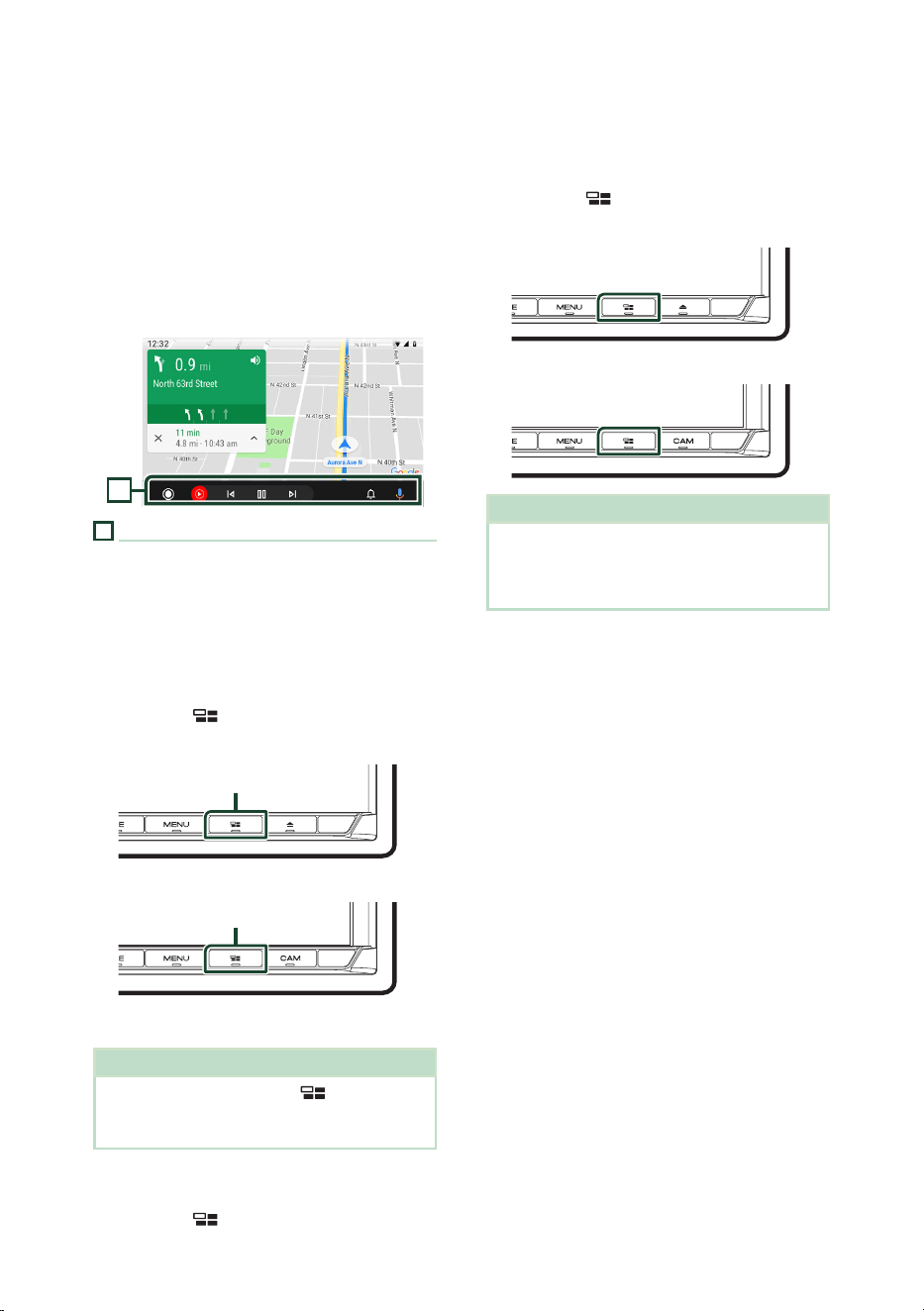

Android Auto Operation ........................................ 34
USB 37

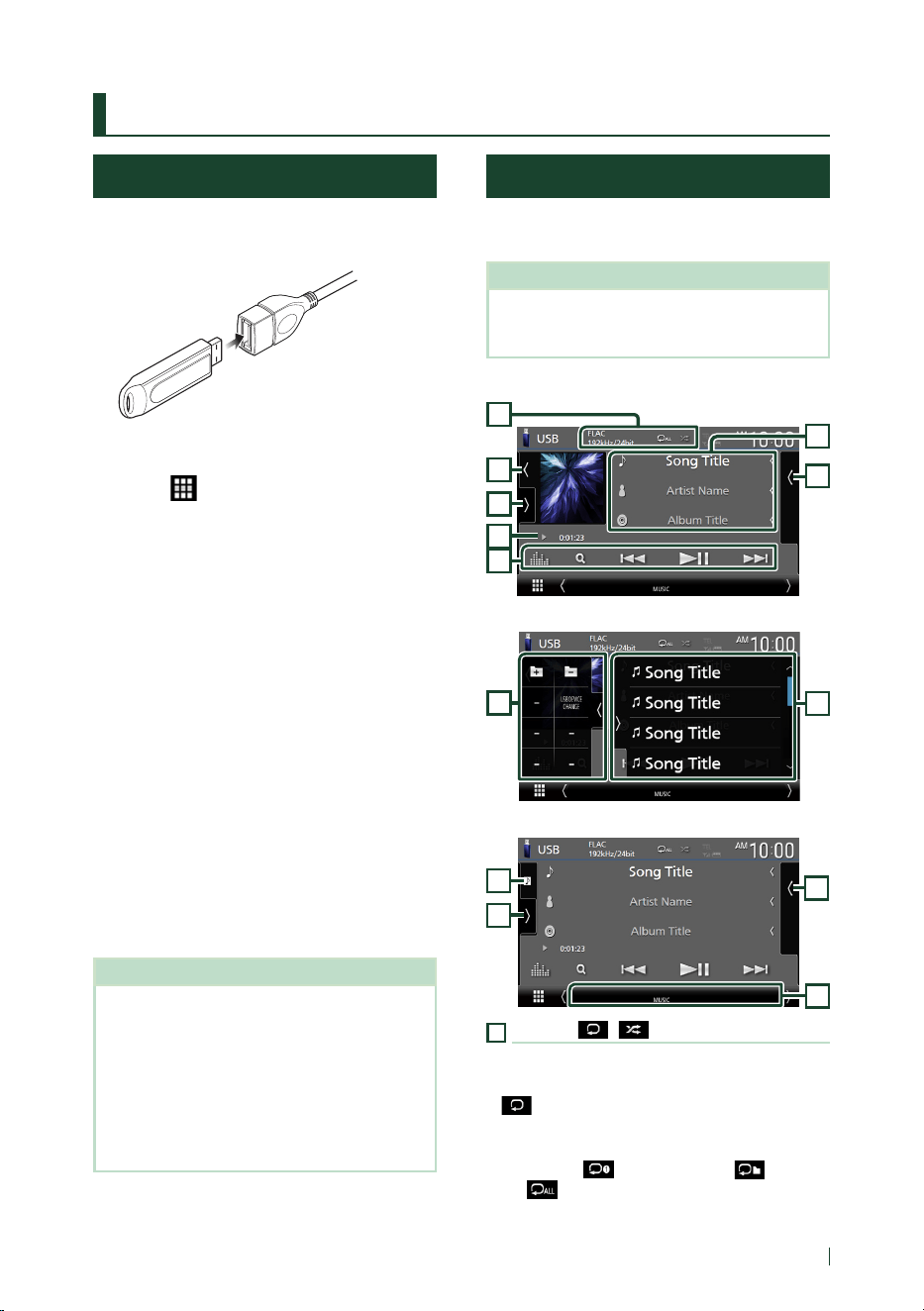

Connecting a USB device ......................................37
USB Basic Operation ................................................37

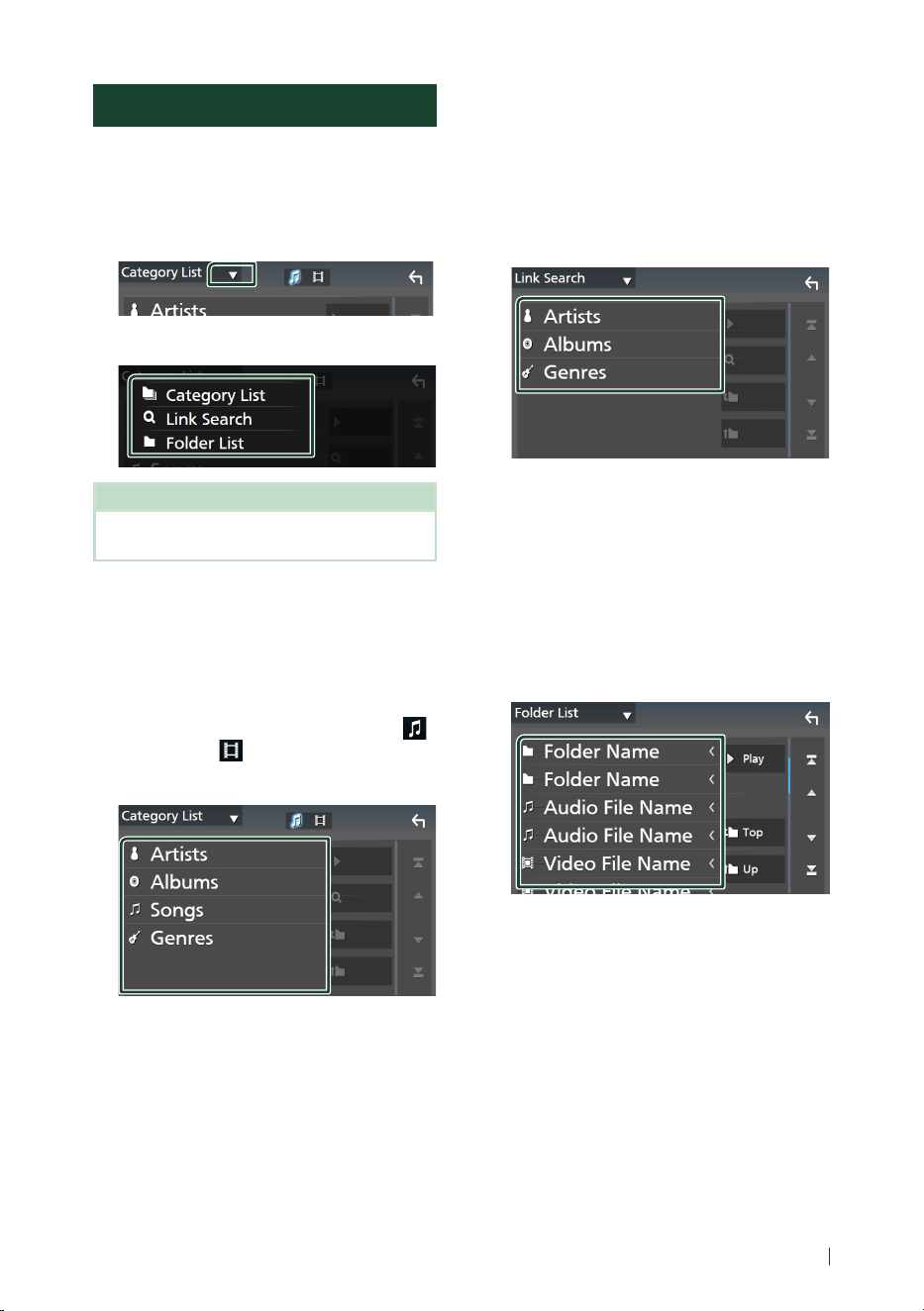

Search Operation ......................................................39
iPod/iPhone 40
Preparation .................................................................40

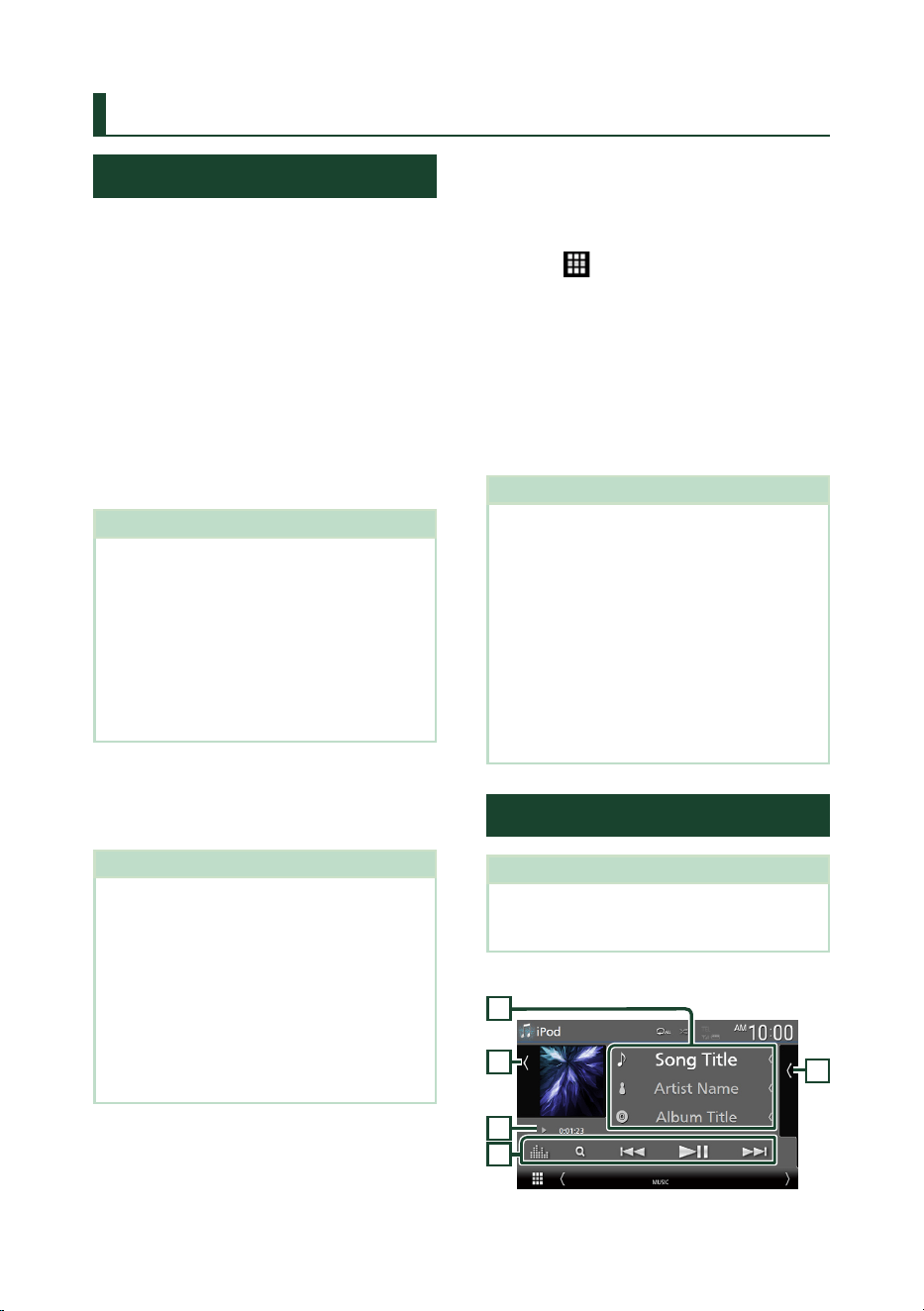

iPod/iPhone Basic Operation ...............................40
Search Operation ......................................................41

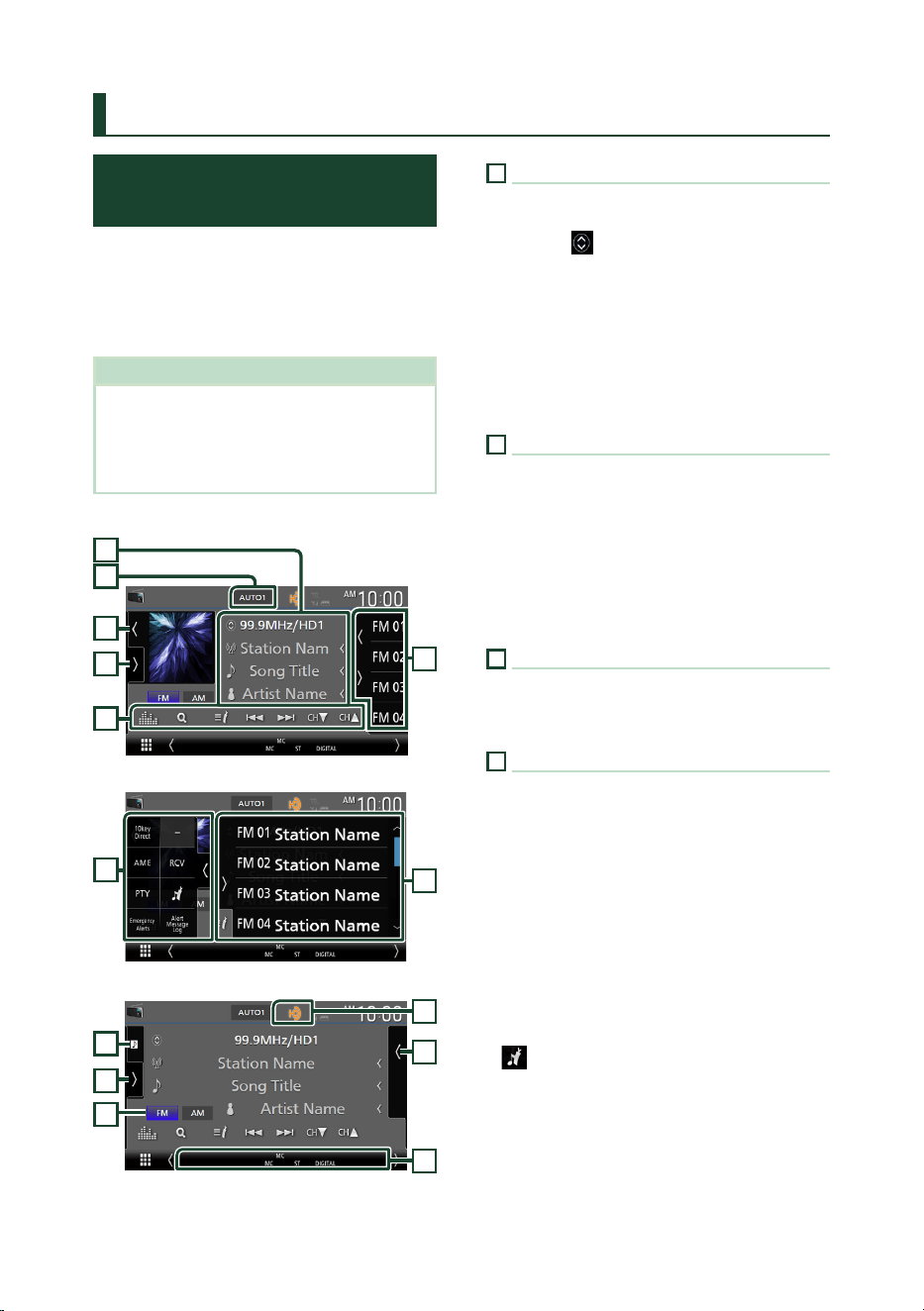

Radio 43

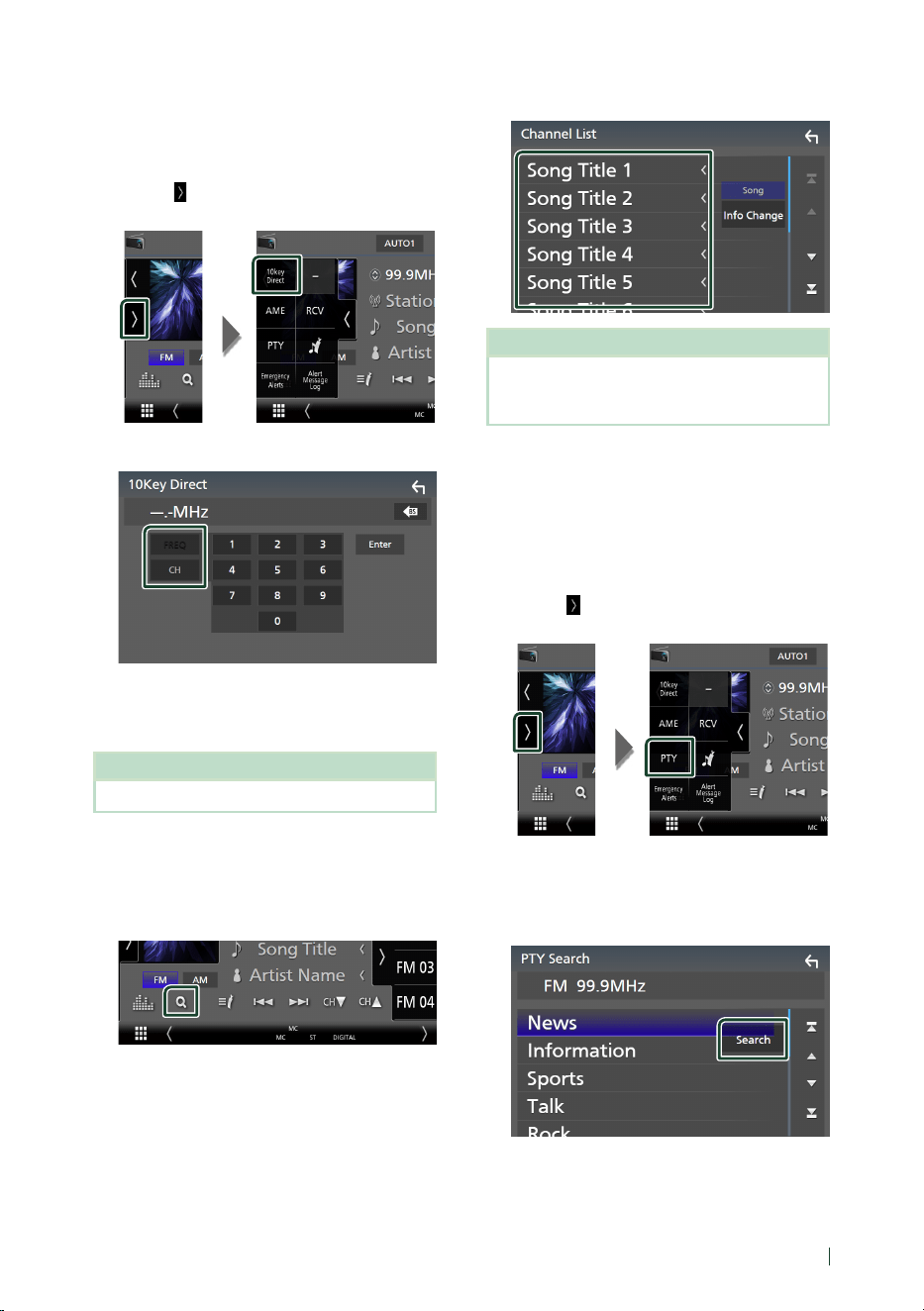

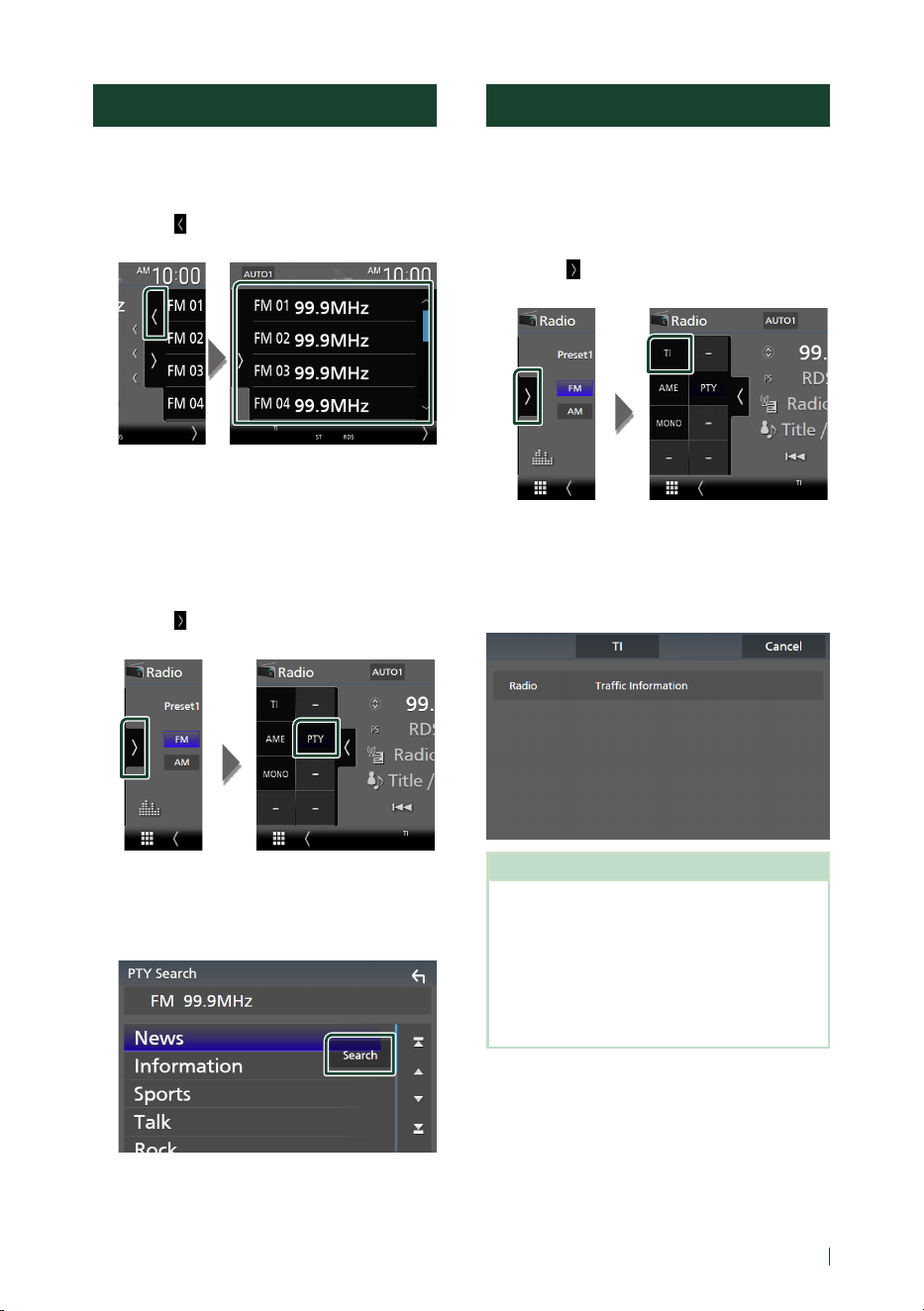

Radio Basic Operation ............................................43

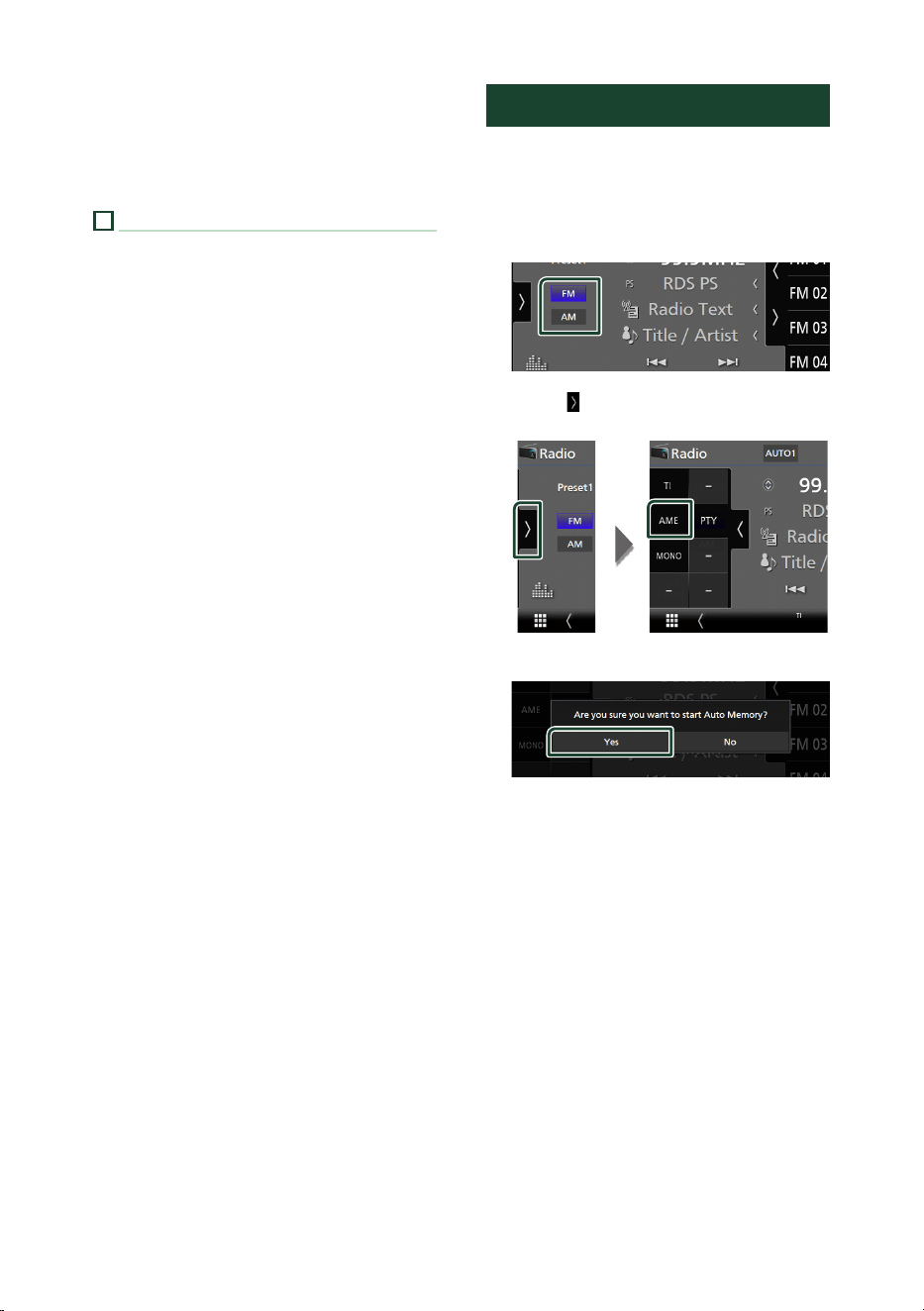

Memory Operation ..................................................44
Selecting Operation ................................................45
Traffic Information ...................................................45

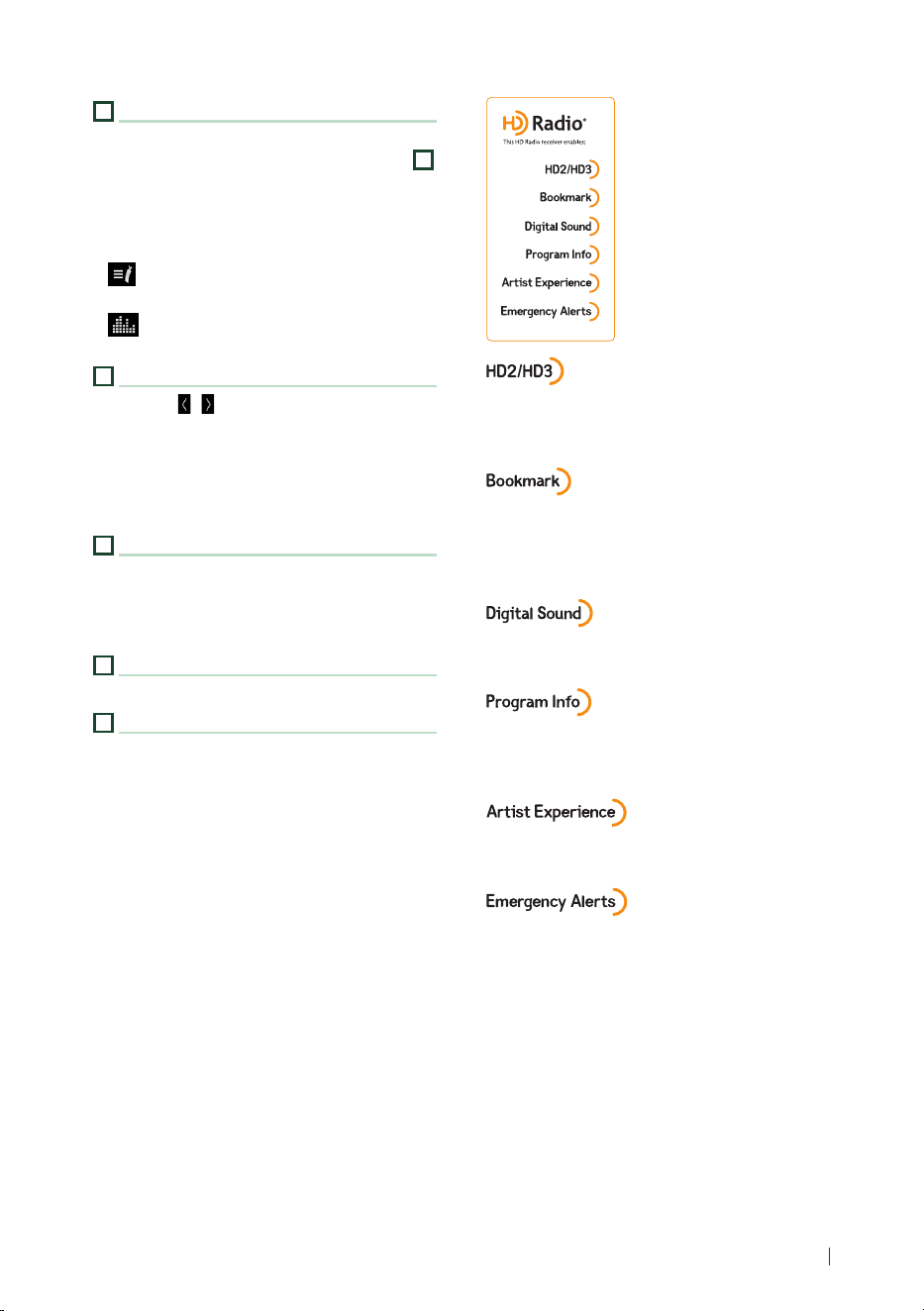

HD Radio™ Tuner 46
HD Radio Tuner Basic Operation ......................... 46
Receive Mode ............................................................48
Memory Operation ..................................................48
Selecting Operation ................................................48

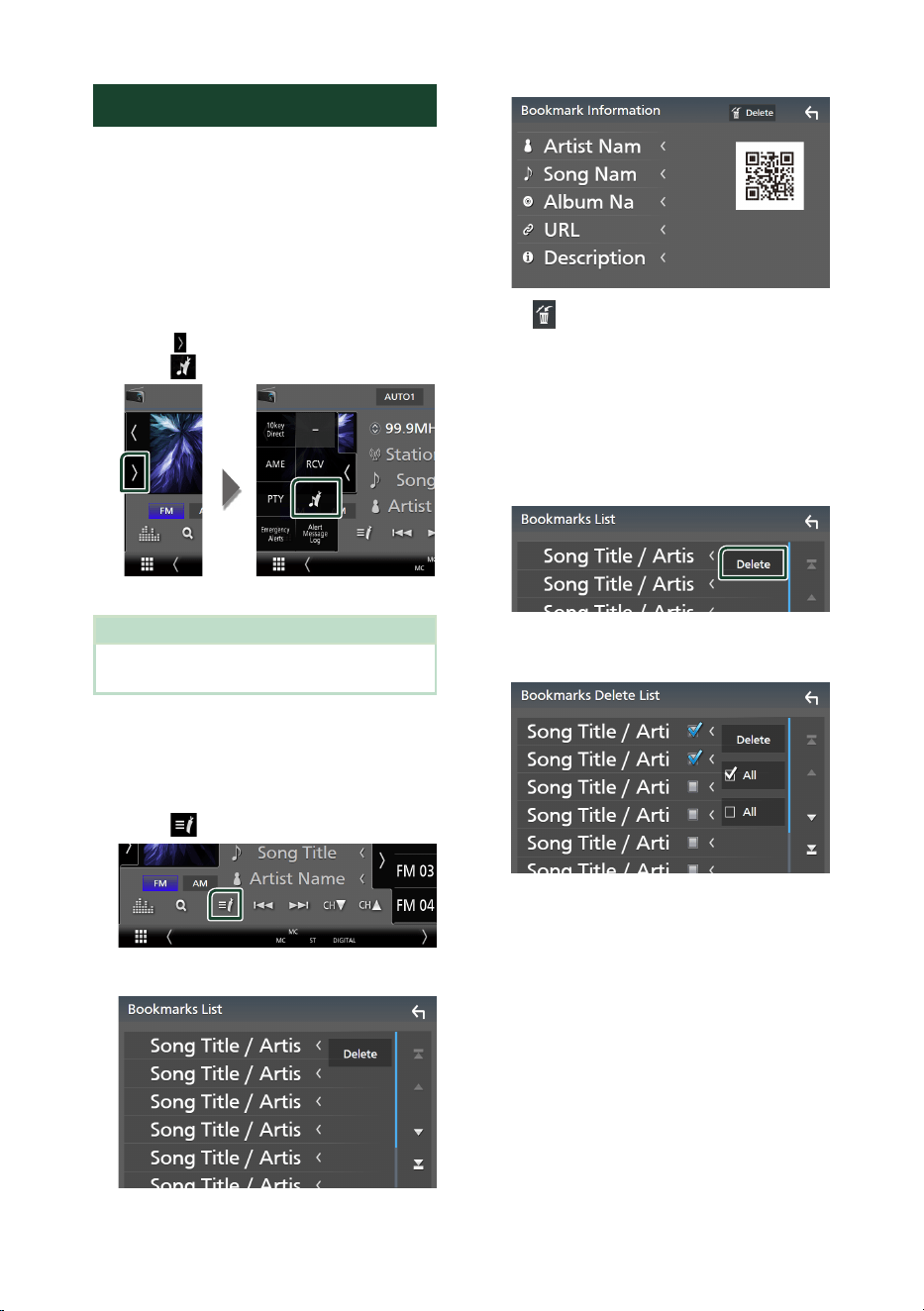

Bookmark ....................................................................50

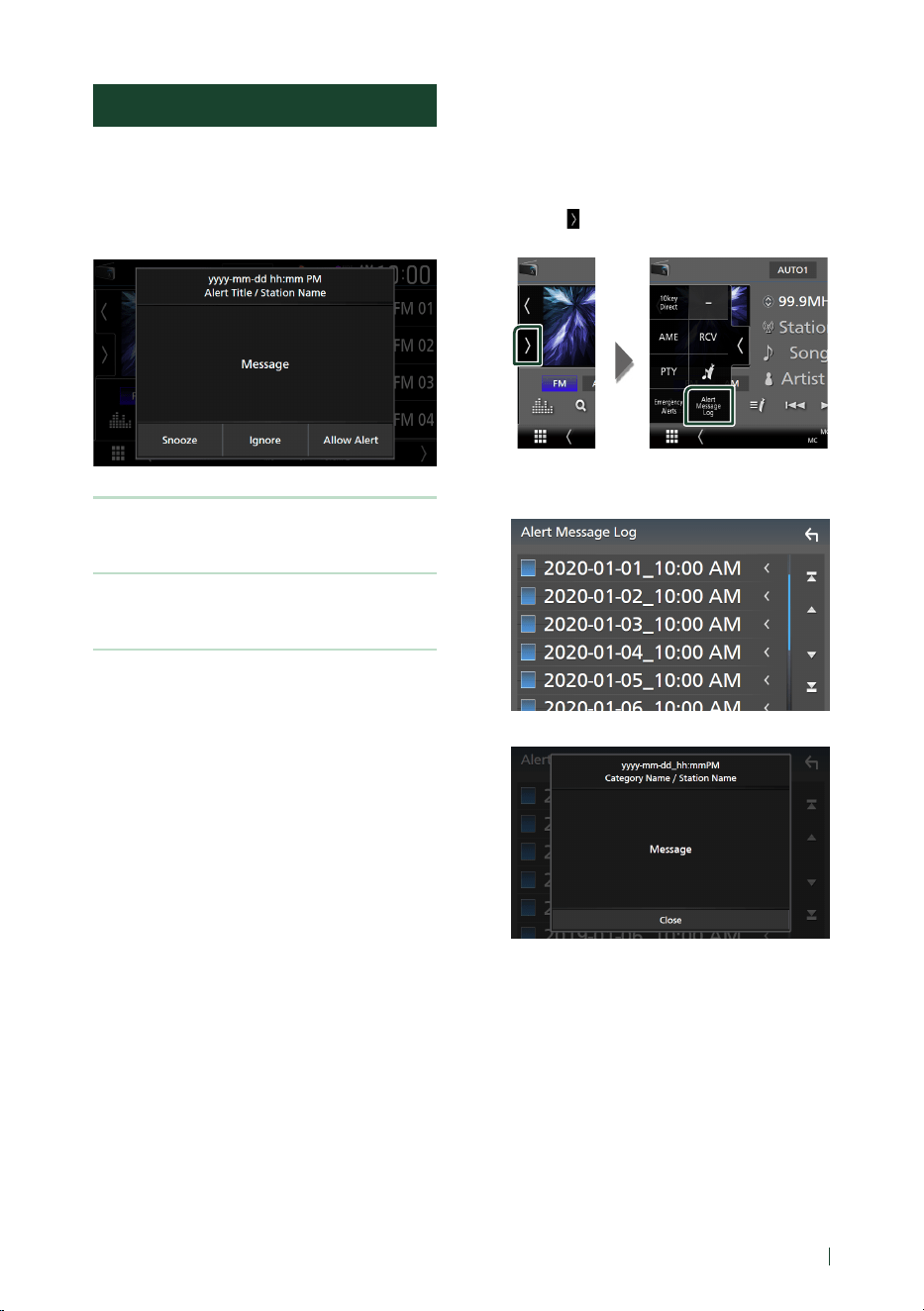

Alert Message ............................................................51
5English
SiriusXM® 52

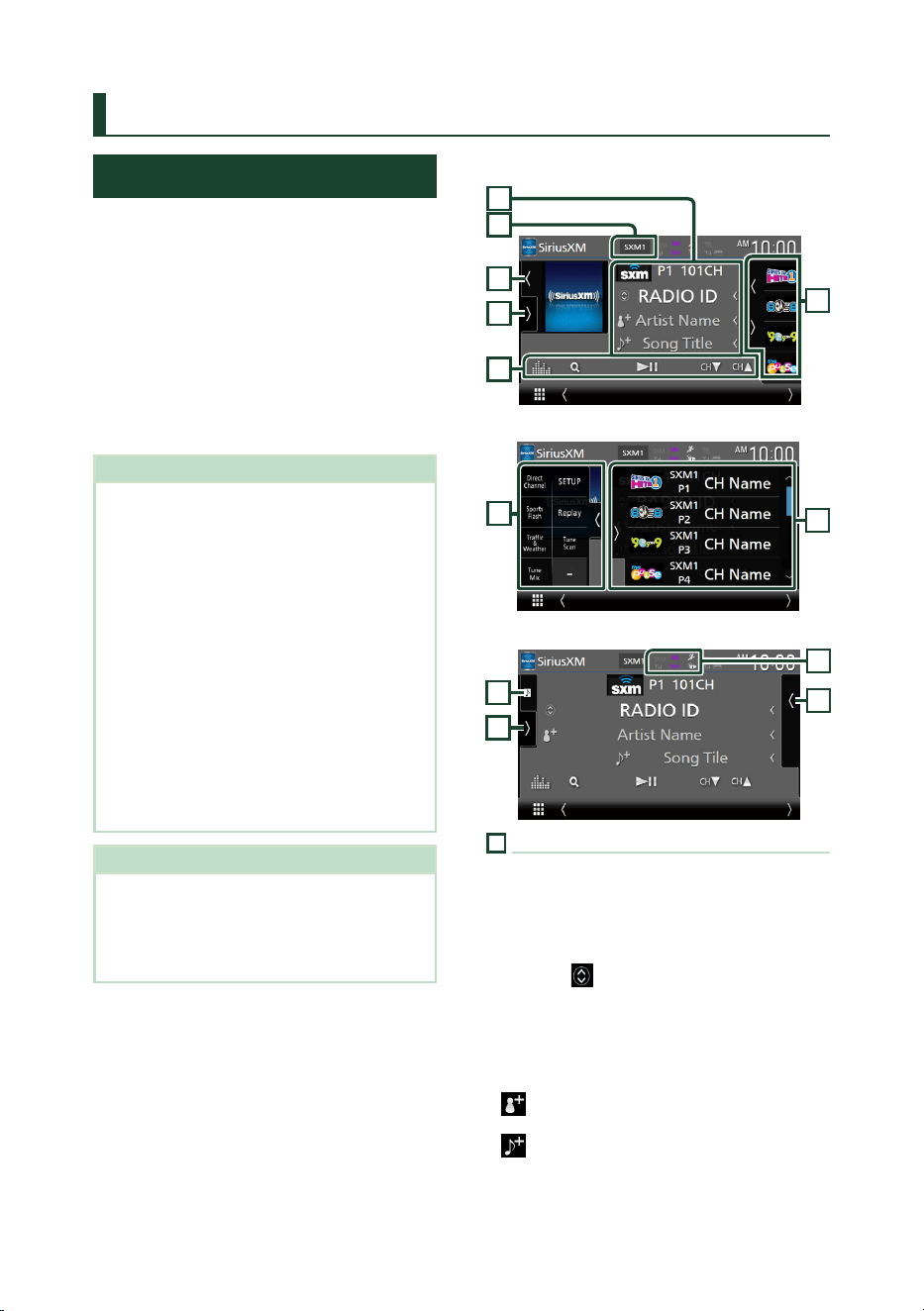

SiriusXM® Basic Operation ....................................52
Storing Channels in Preset Memory ..................54
Preset select ...............................................................54
Direct search ..............................................................54

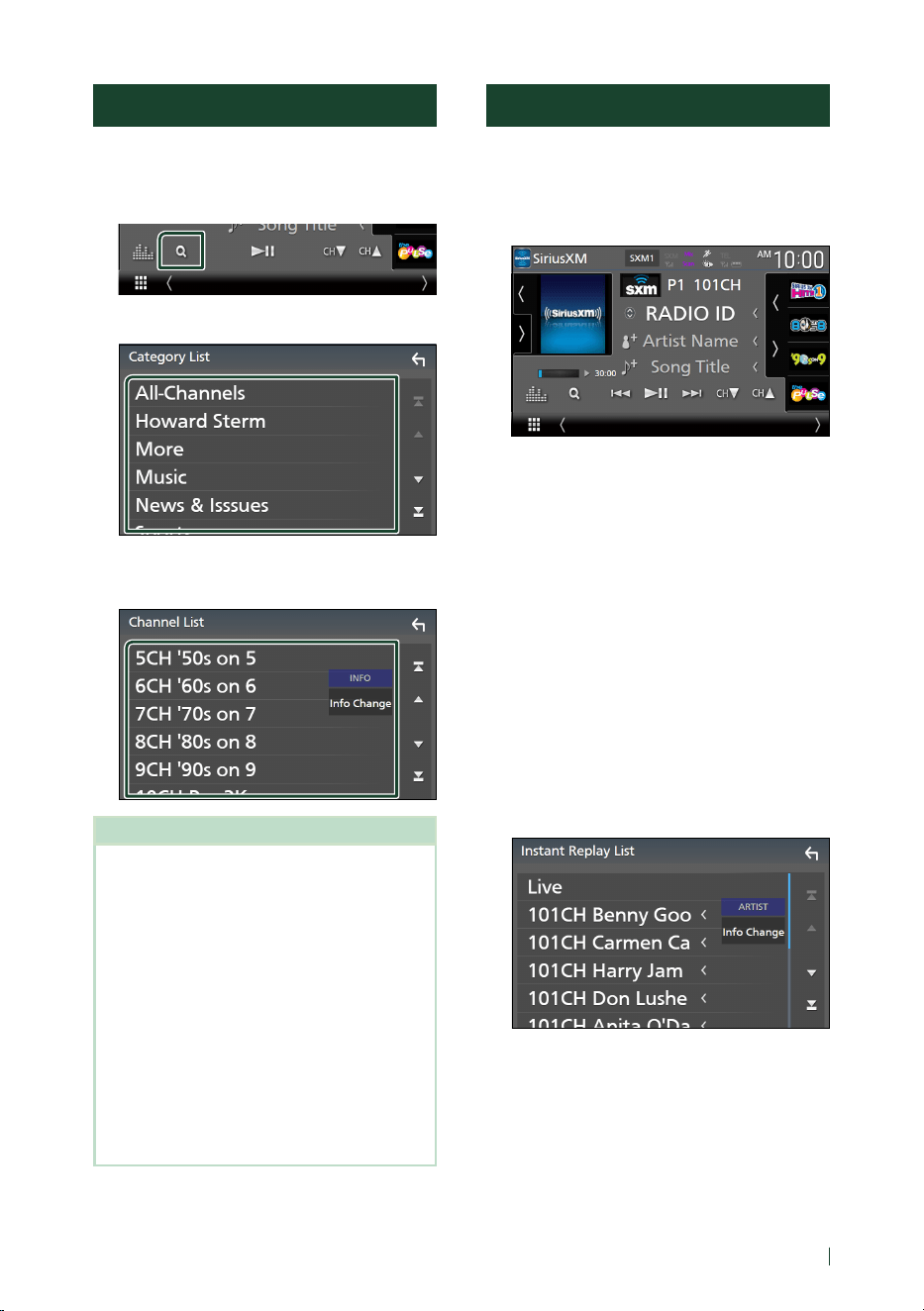

Category/Channel search ...................................... 55
Replay ...........................................................................55
TuneMix™ ....................................................................56
SmartFavorites, TuneStart™ ..................................56
TuneScan™ ..................................................................56
Traffic & Weather Now™ .........................................57

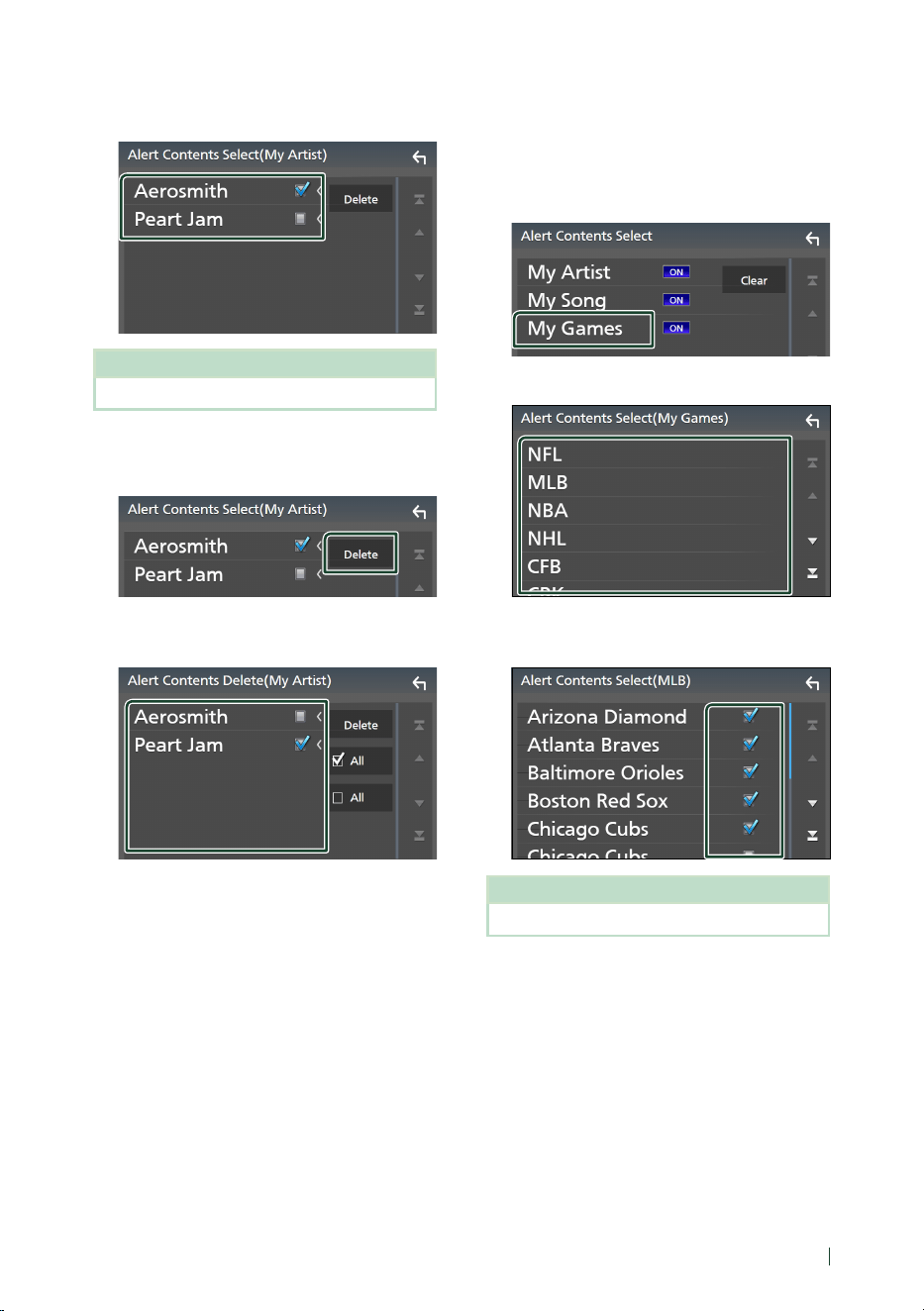

Content Alerts............................................................57
SportsFlash™ ..............................................................58
SiriusXM SETUP .........................................................58
Bluetooth Control 64
Information for using Bluetooth® devices .......64

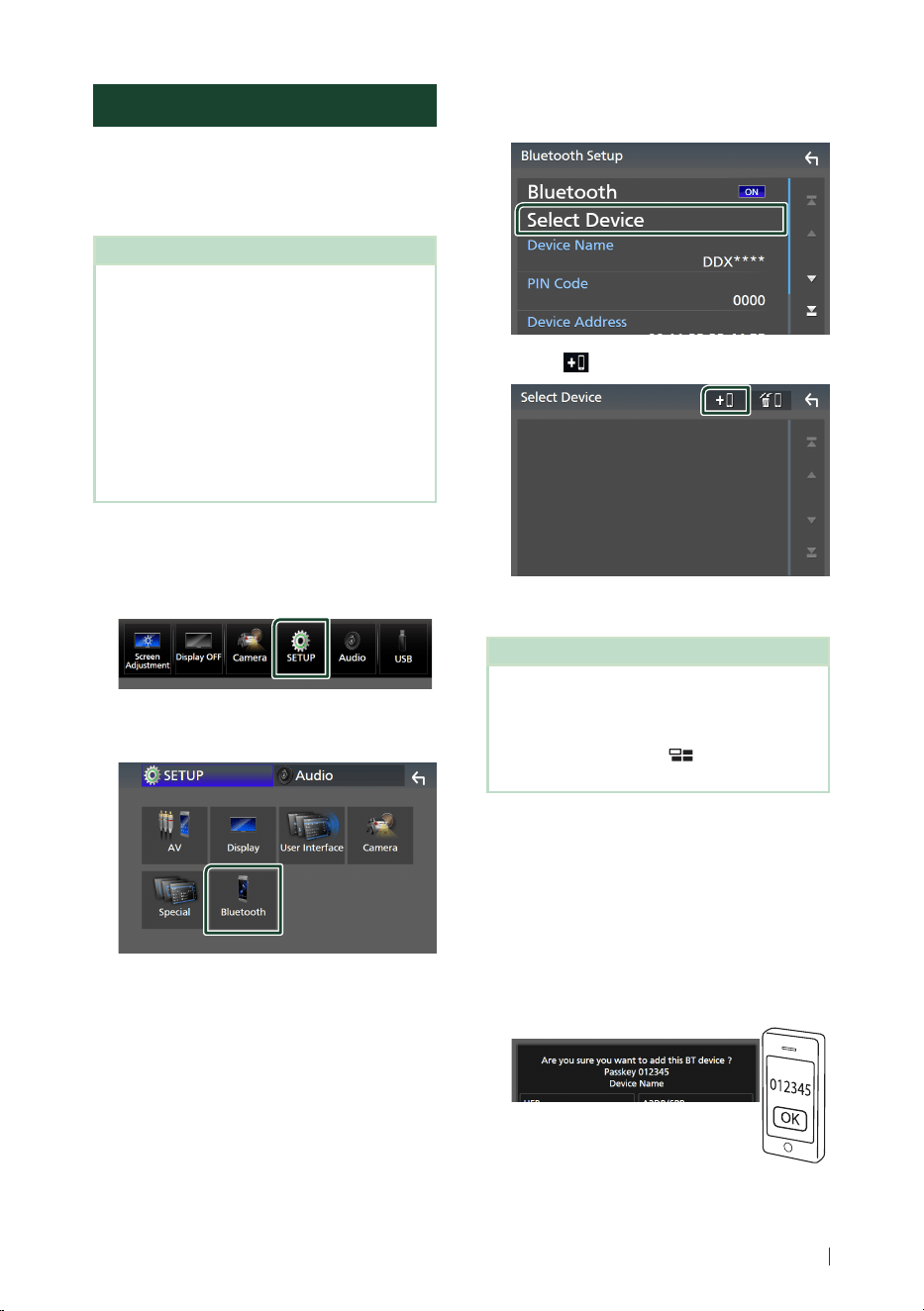

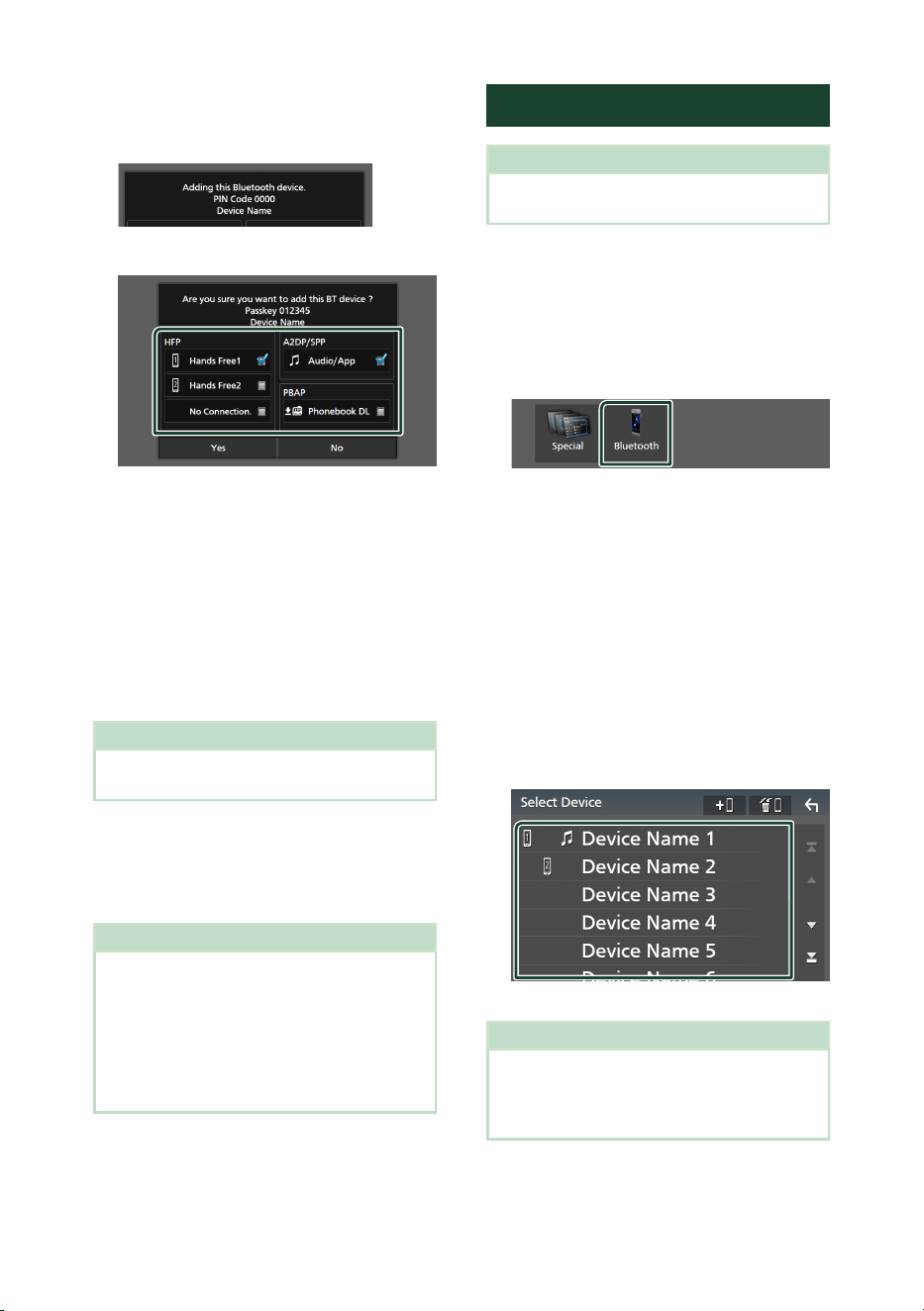

Register the Bluetooth device .............................65
Bluetooth Setup ........................................................ 66
Playing the Bluetooth Audio Device .................68

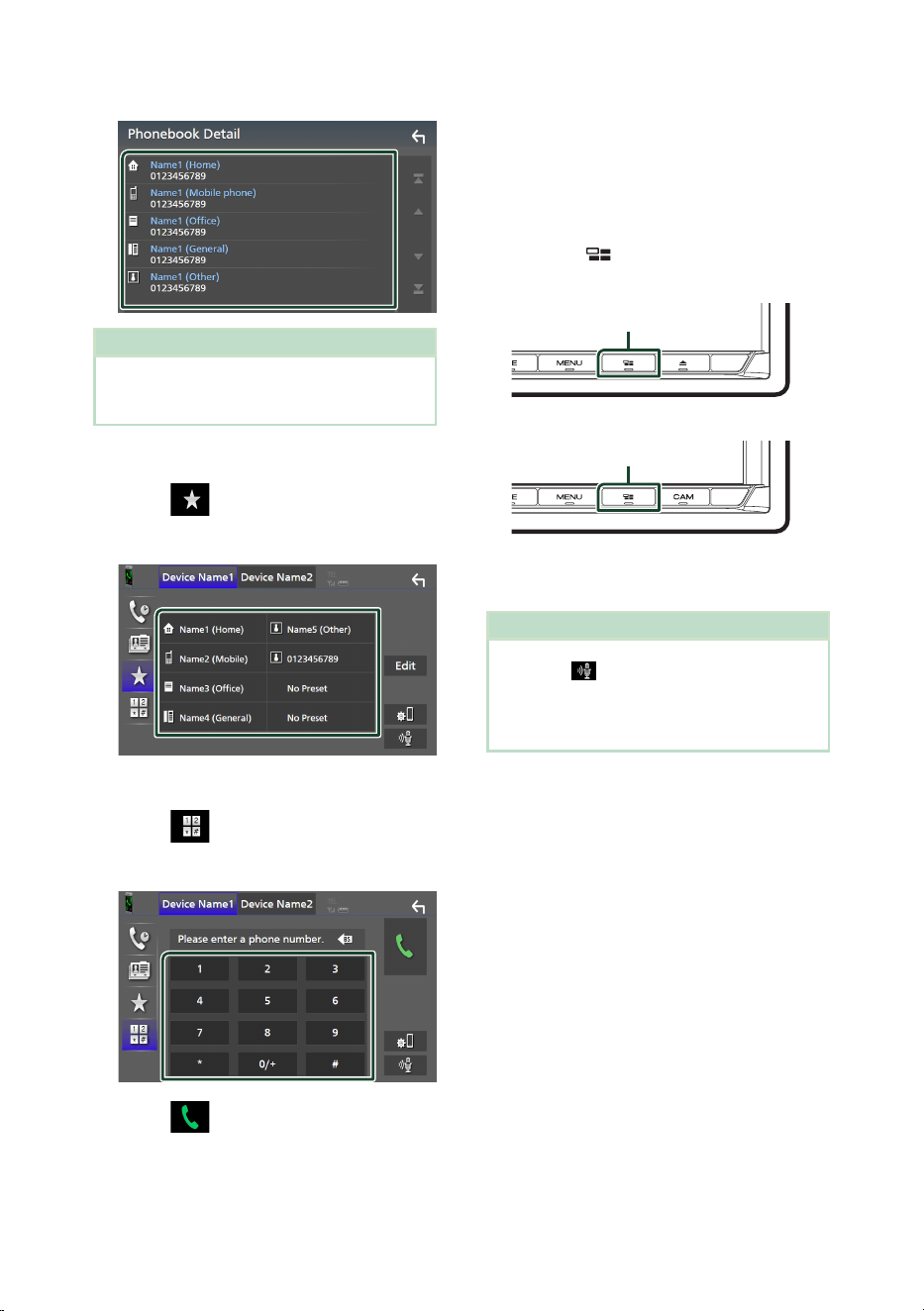

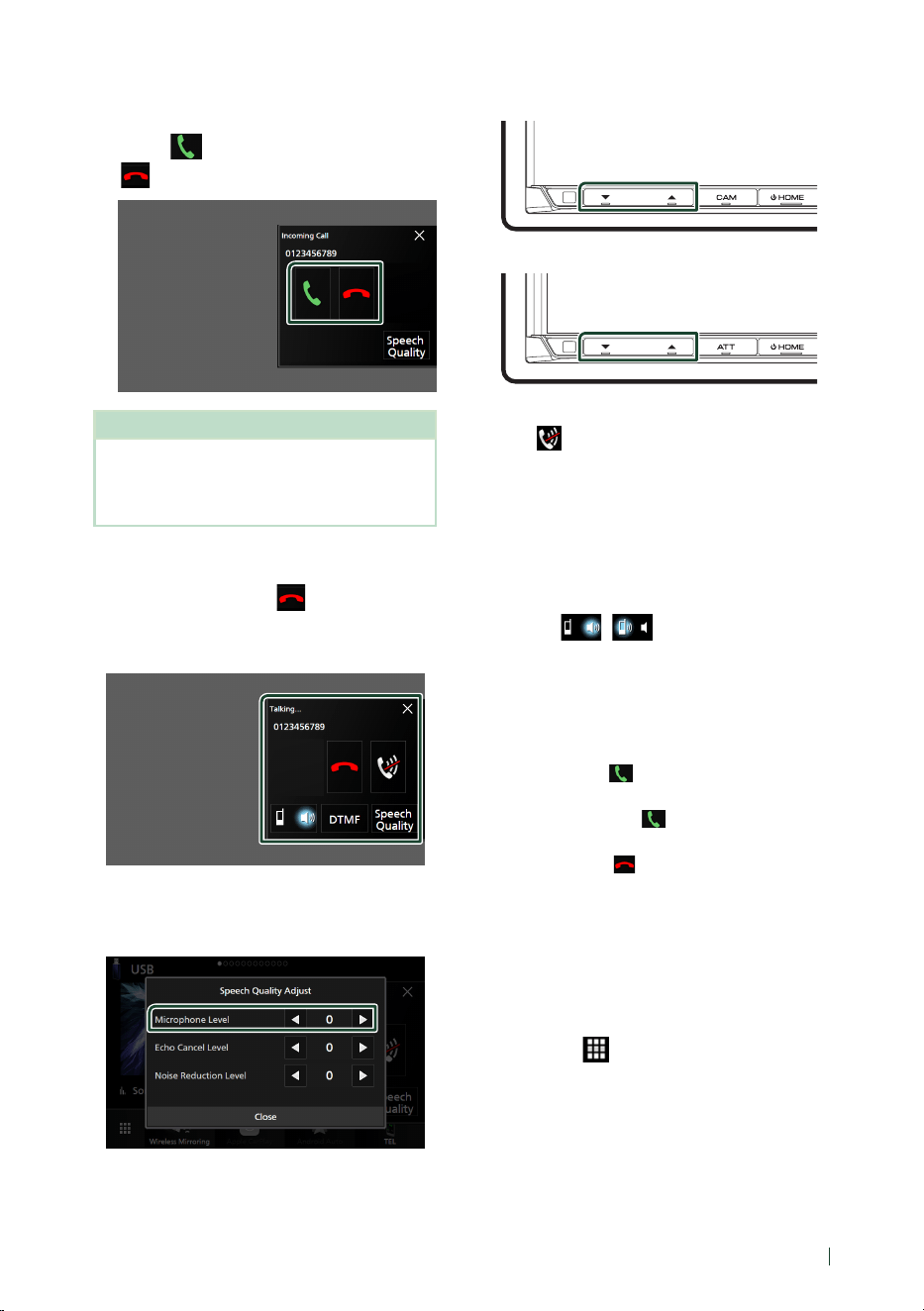

Using the Hands-Free Unit .................................... 70

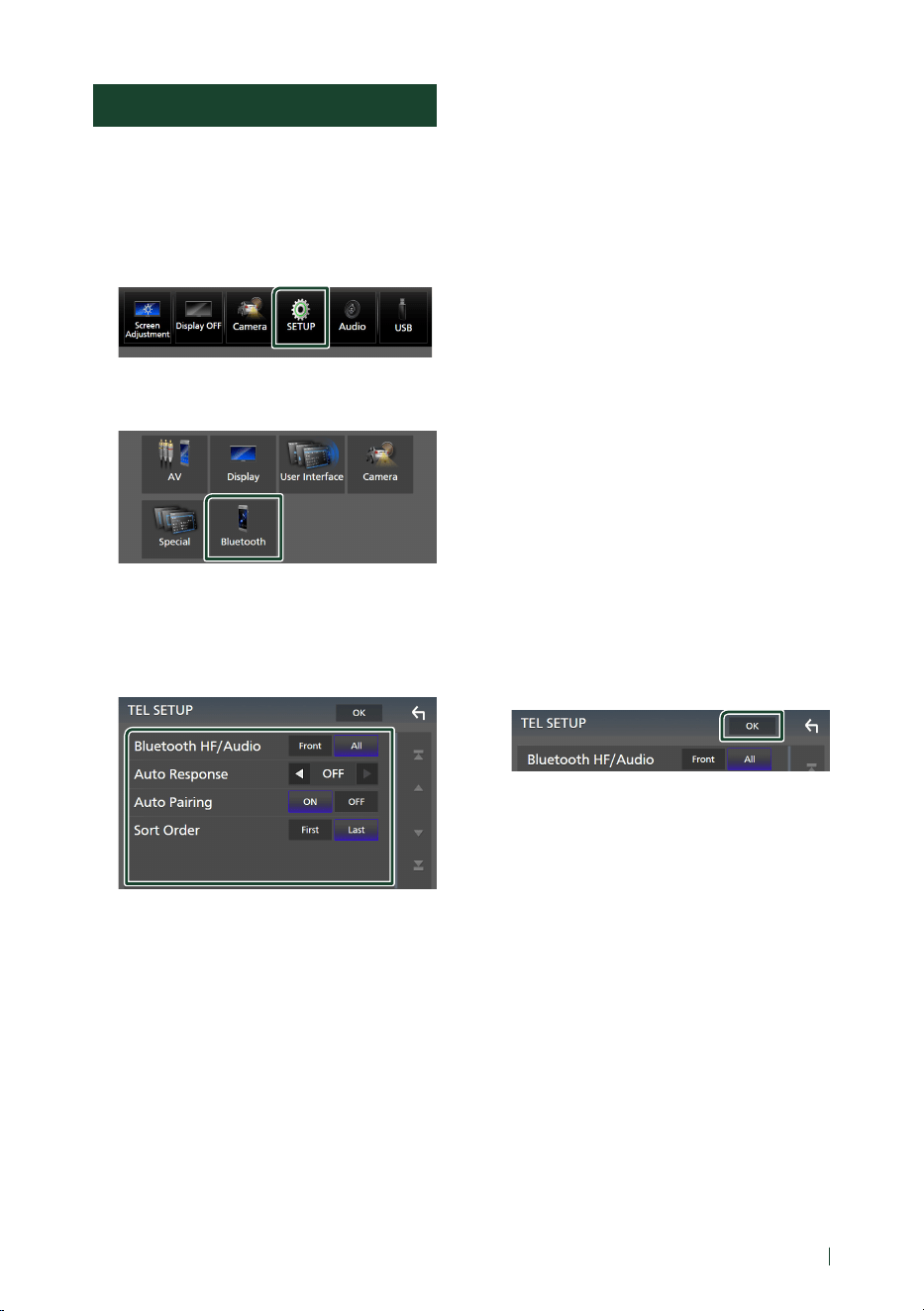

Hands-Free Setup .....................................................75
Other External Components 76

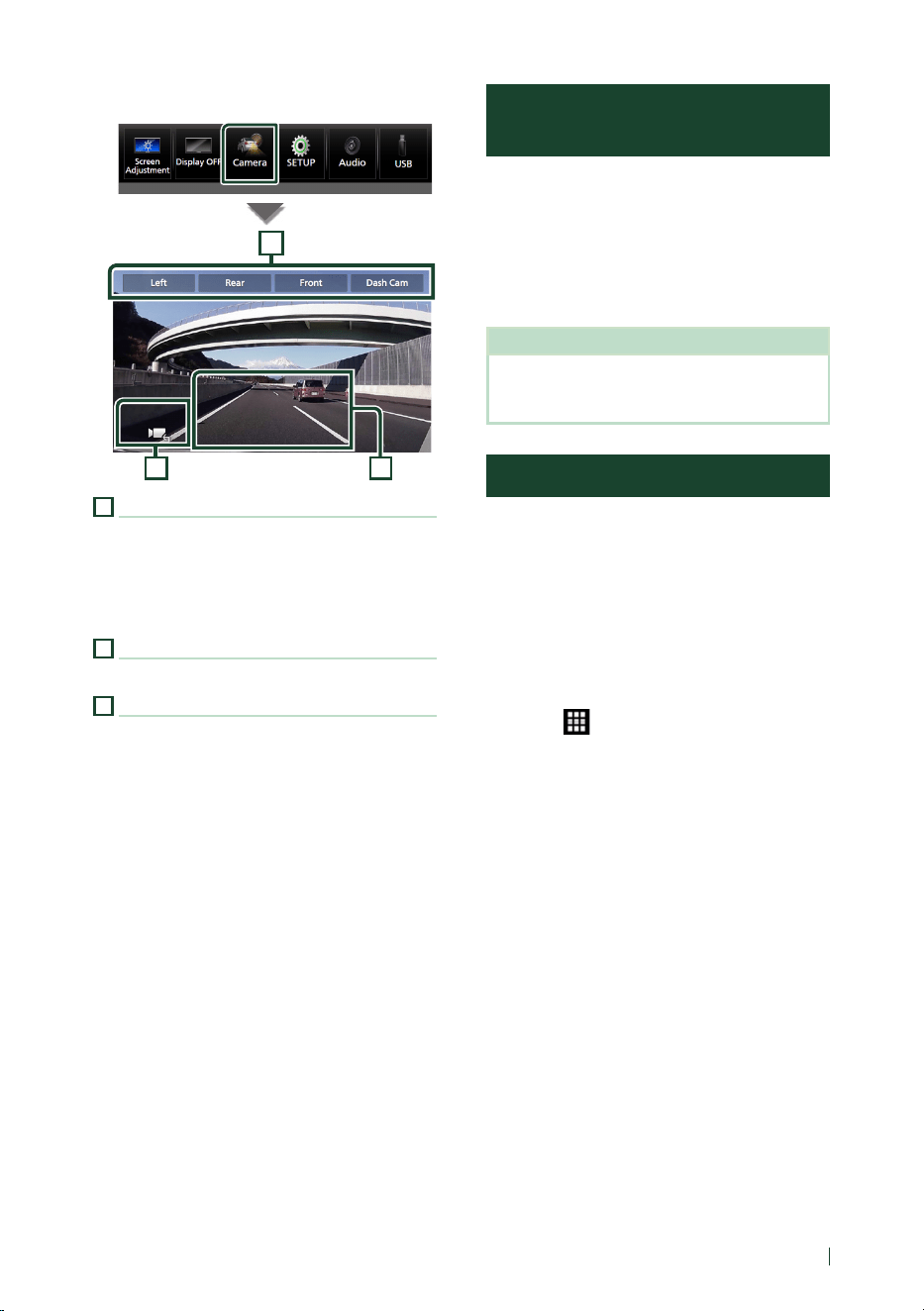

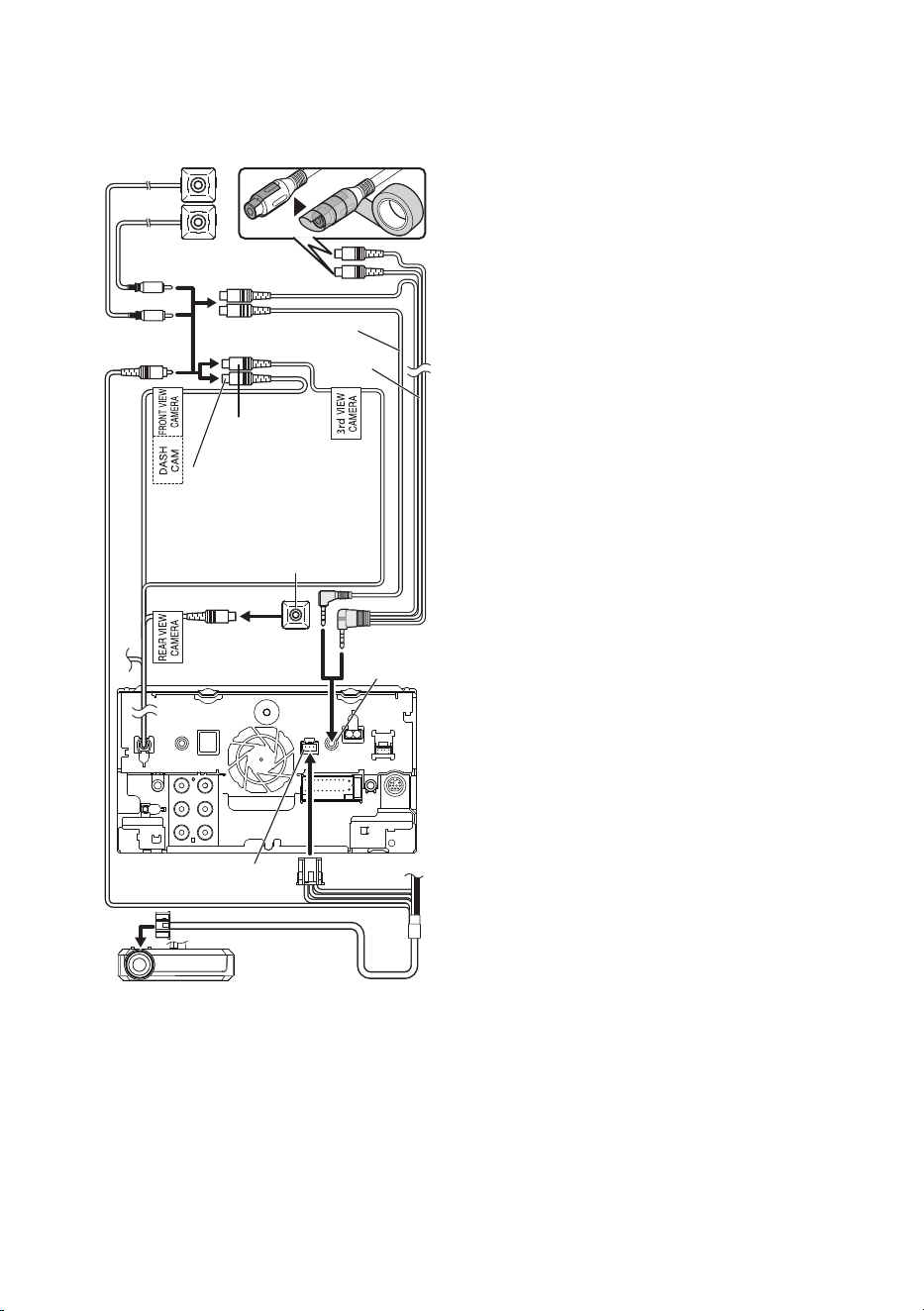

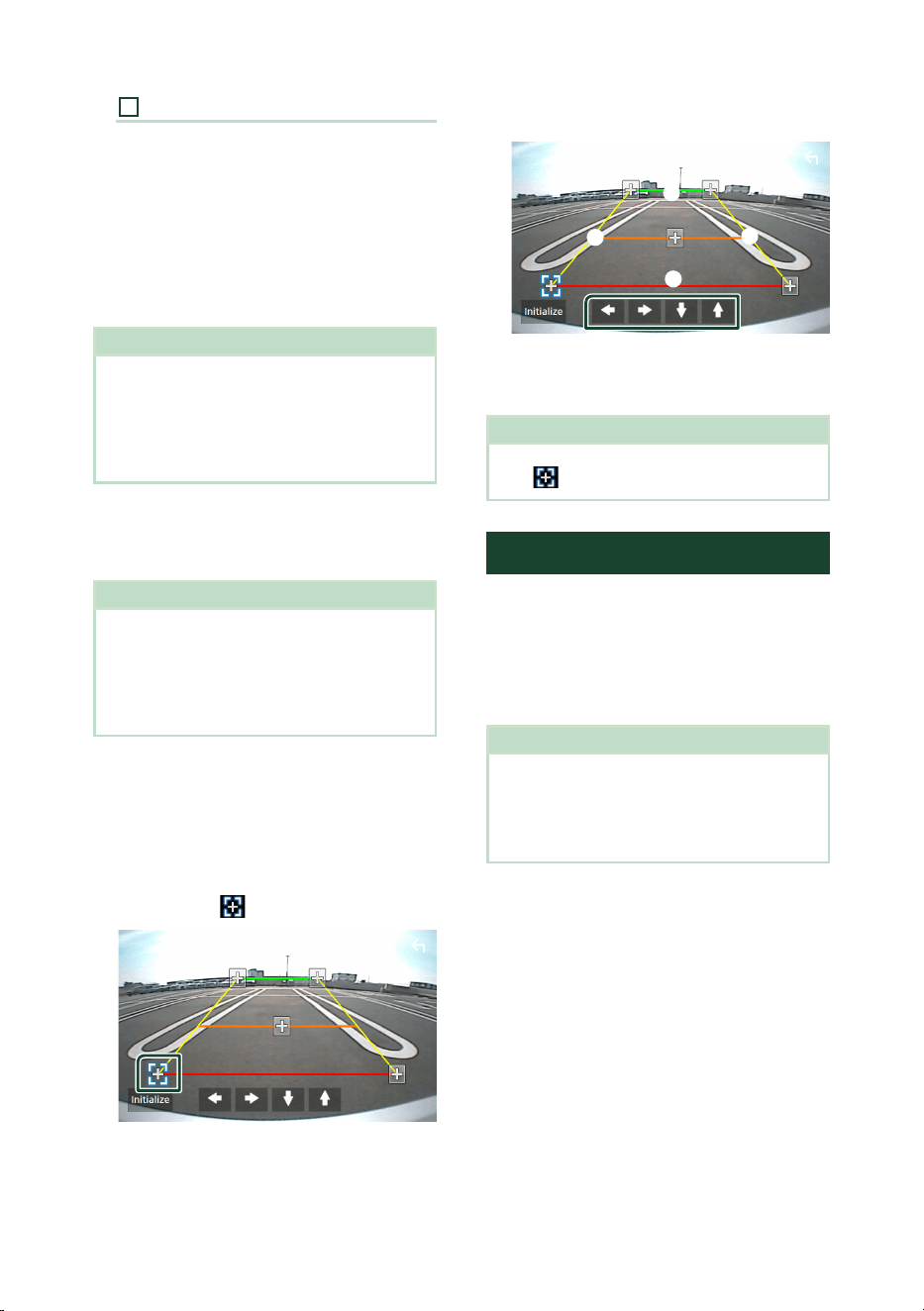

View Camera ..............................................................76
Use Dashboard Camera..........................................78
External audio/video players (AV-IN).................79

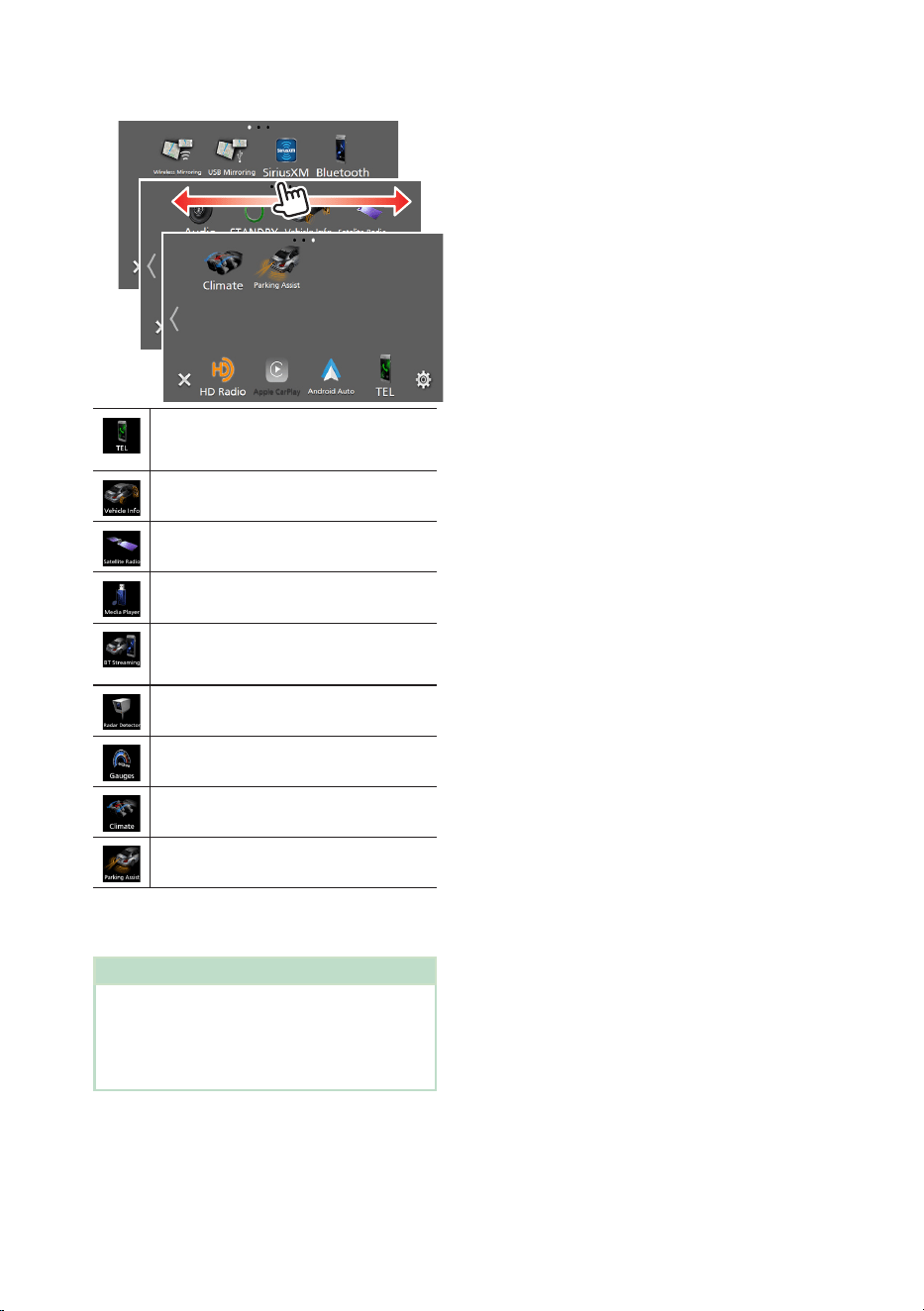

OEM Features Operation .......................................79
Setup 81
Monitor Screen Setup ............................................. 81
System Setup .............................................................81

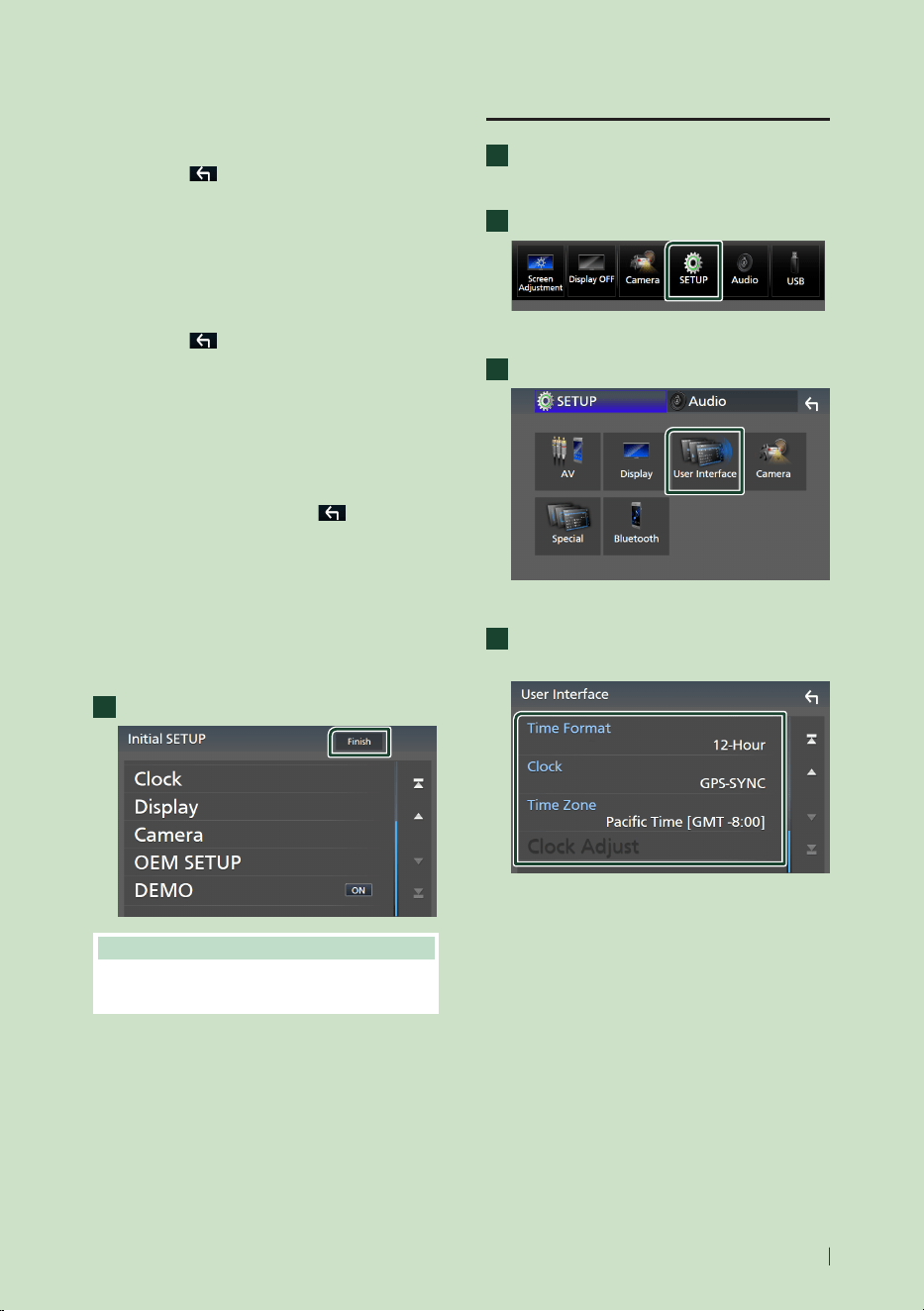

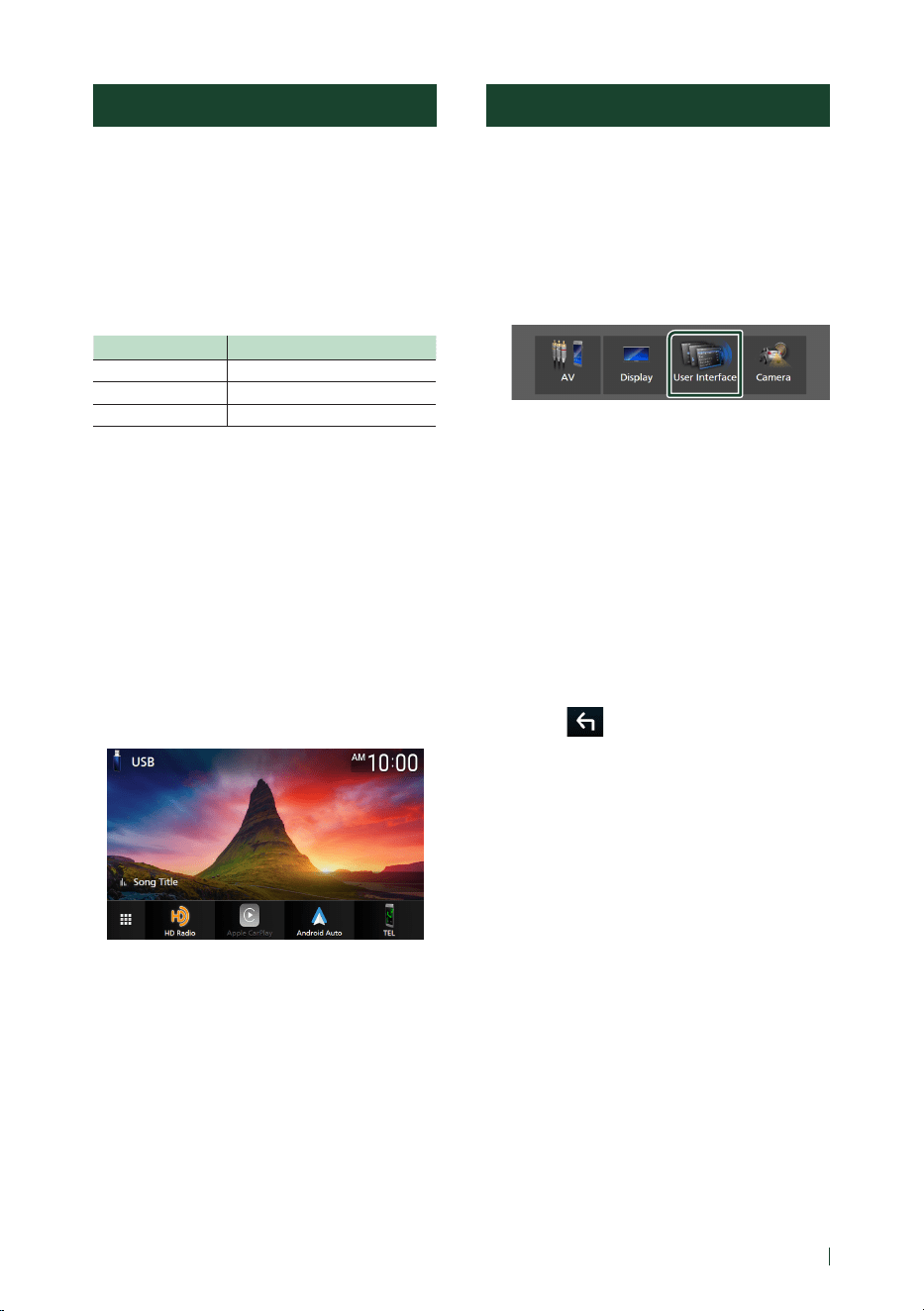

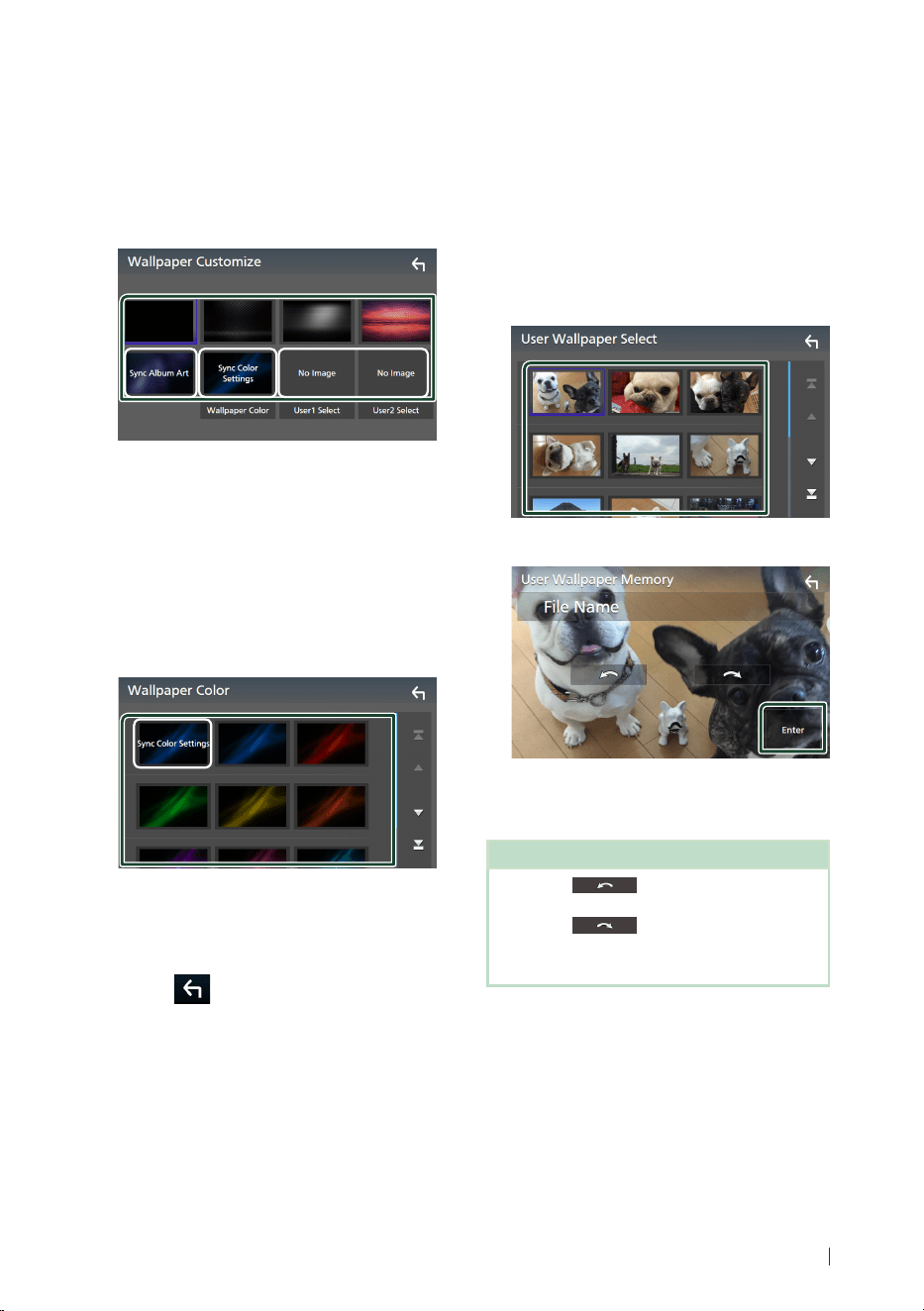

User Interface Setup ................................................ 82
Special Setup .............................................................83

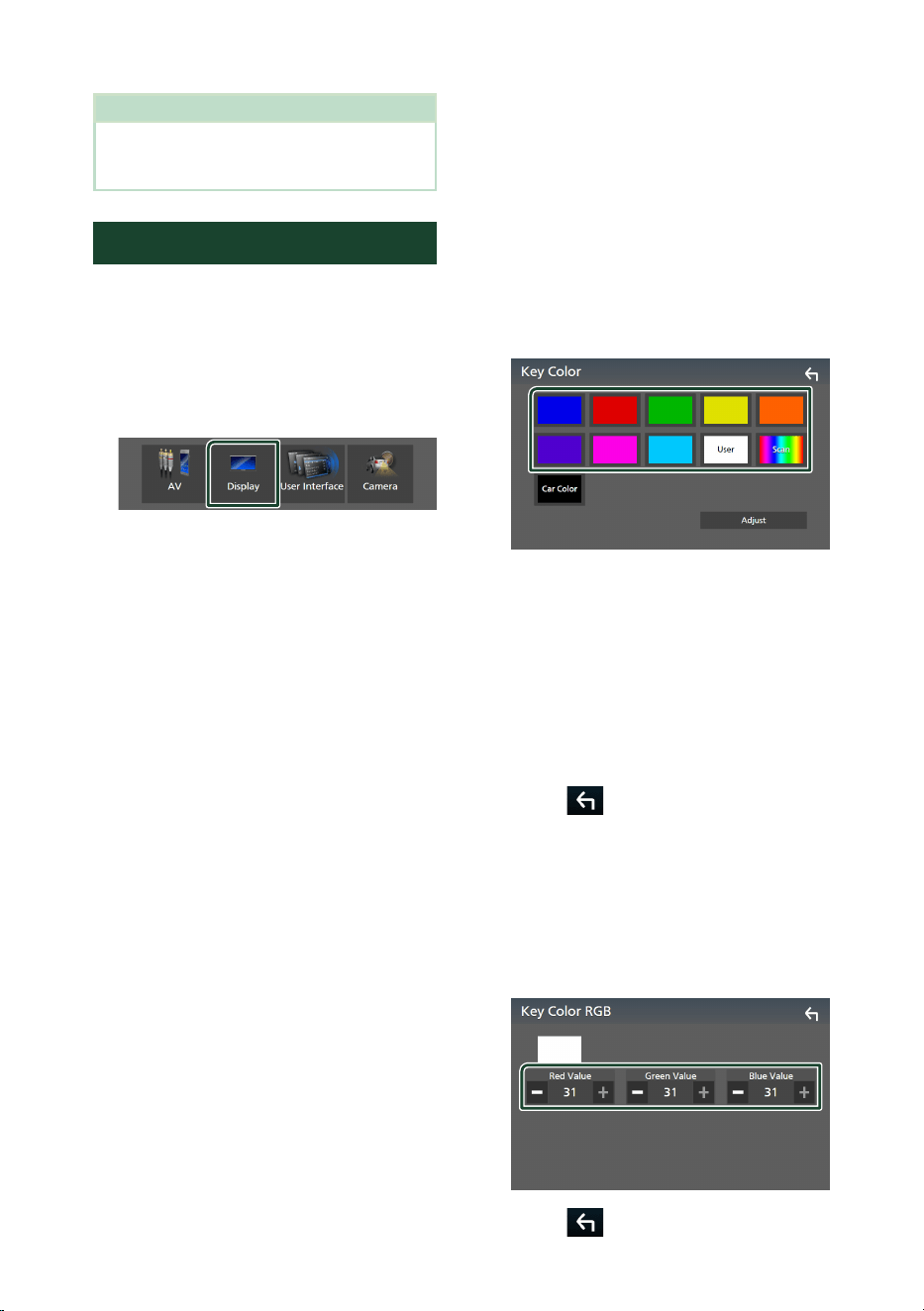

Display Setup .............................................................84

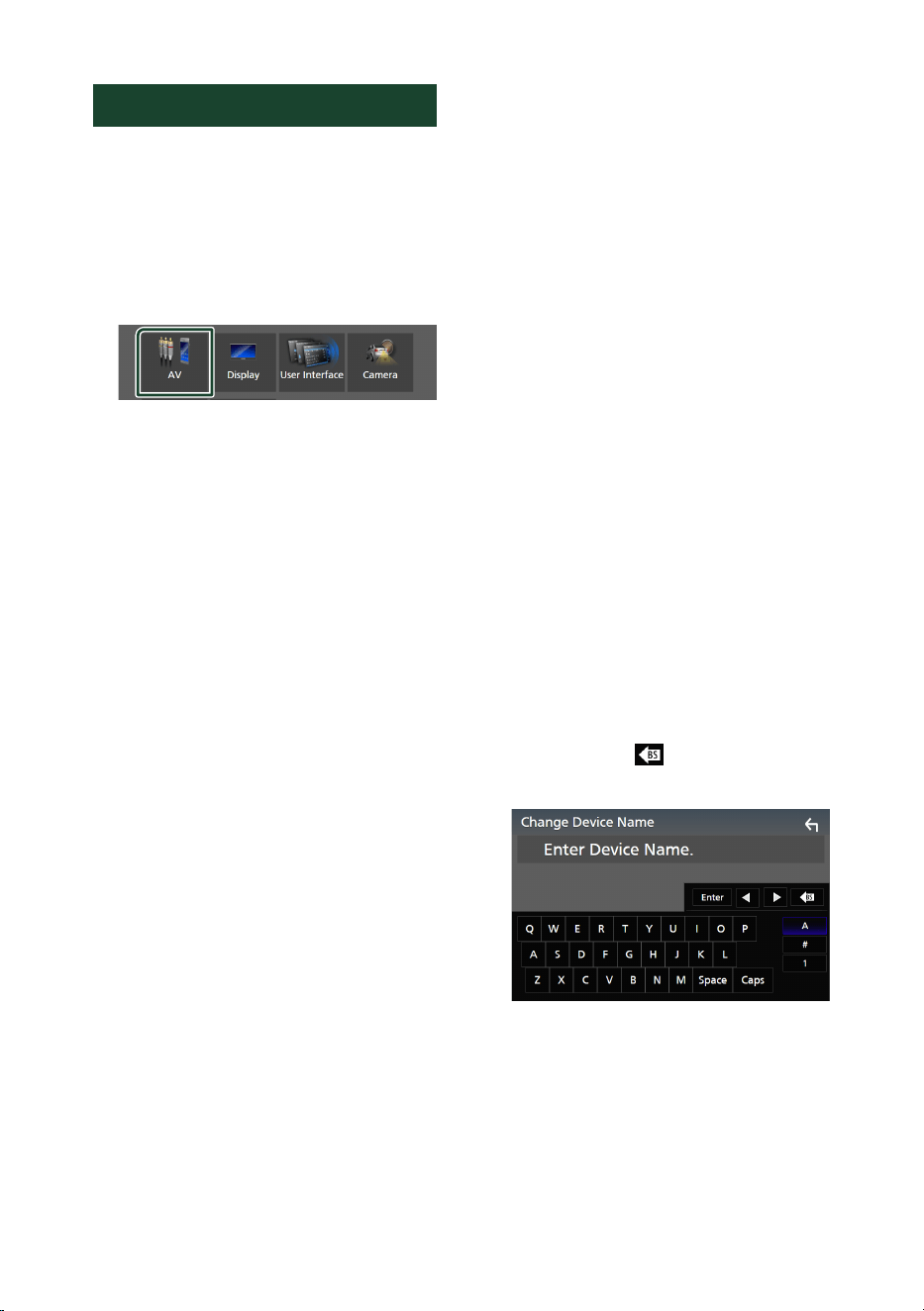

AV Setup ......................................................................86
Controlling Audio 87

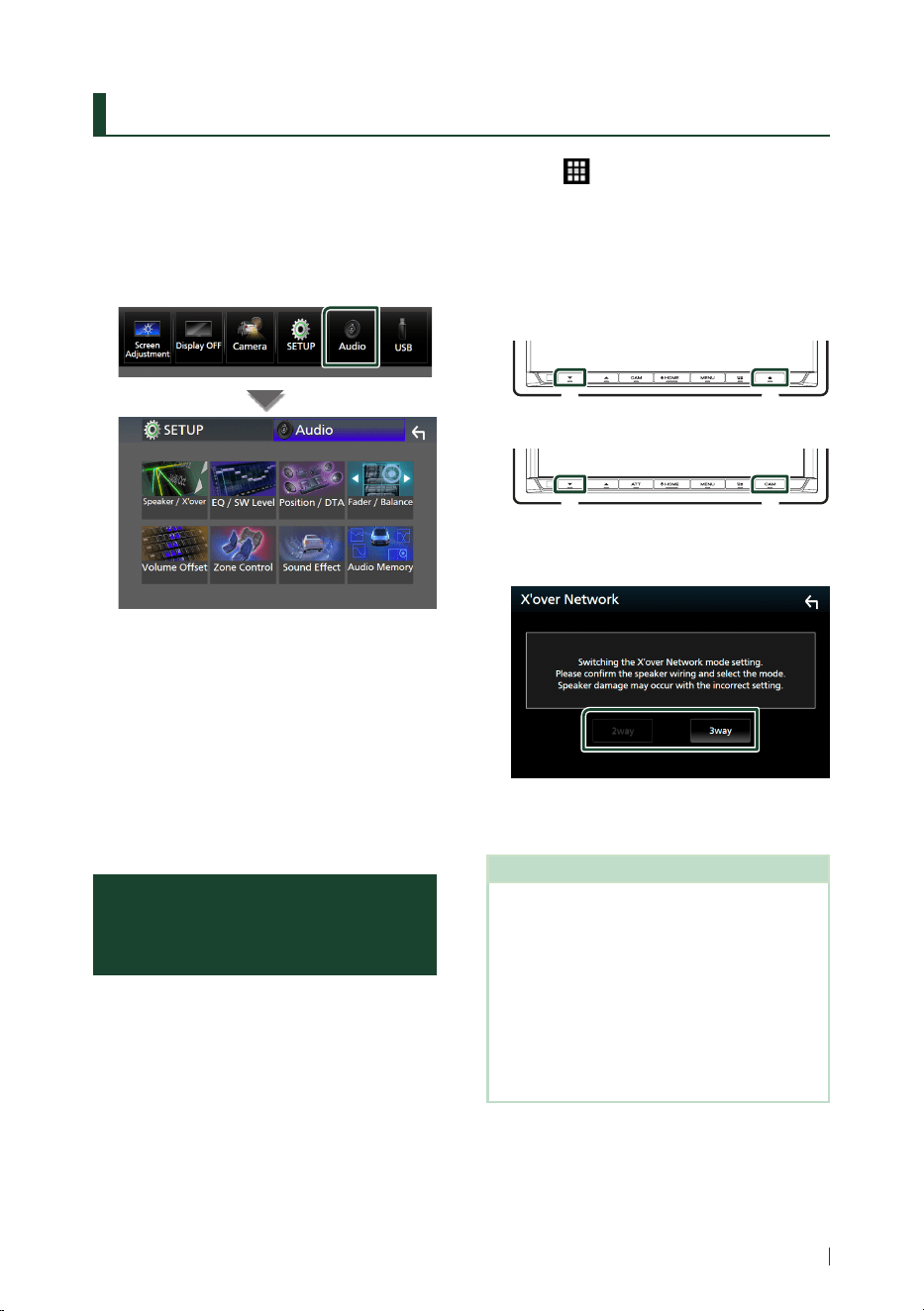

3-way speaker system setup ................................87

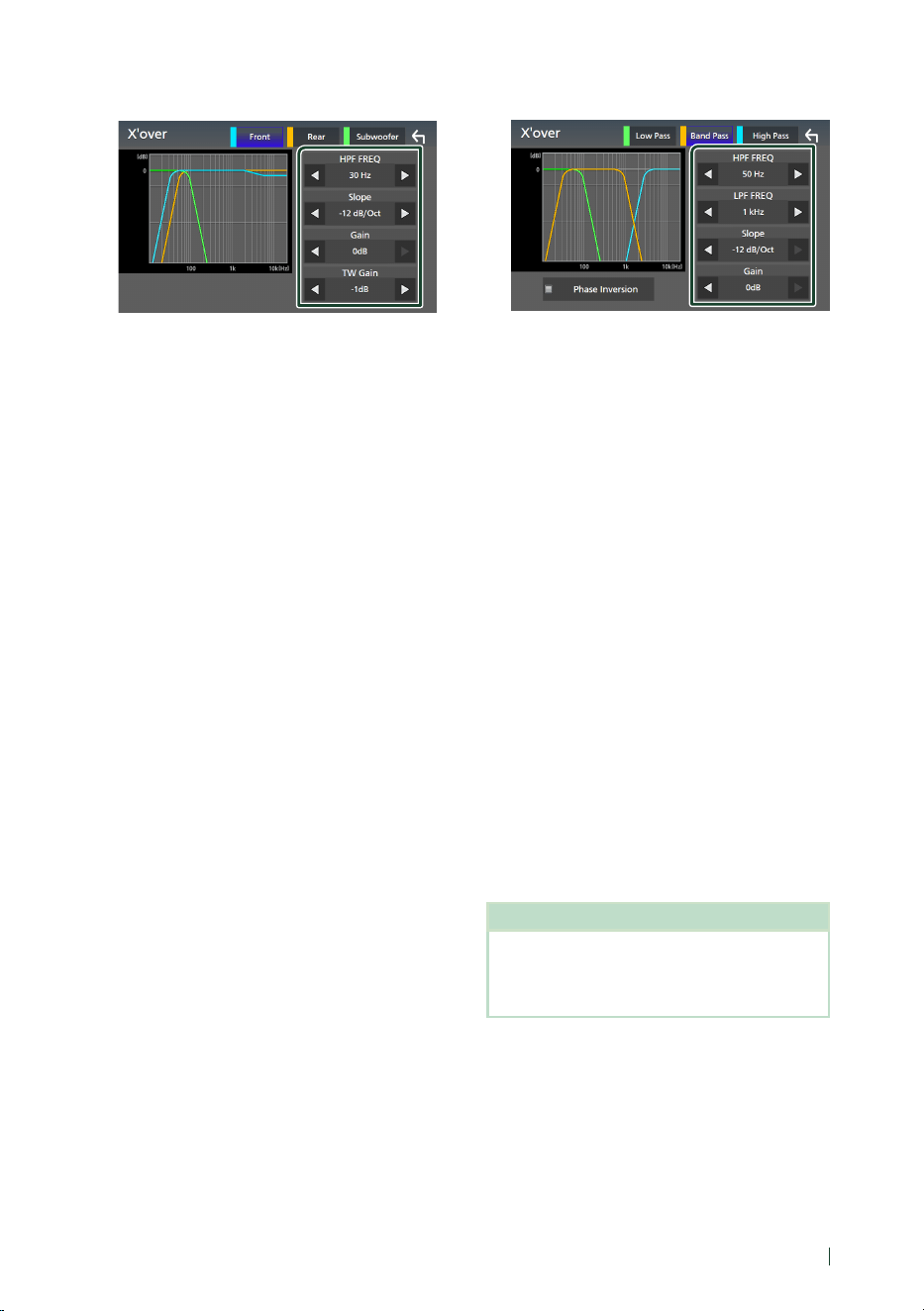

Speaker / X’over setup ............................................88
Controlling General Audio ....................................90

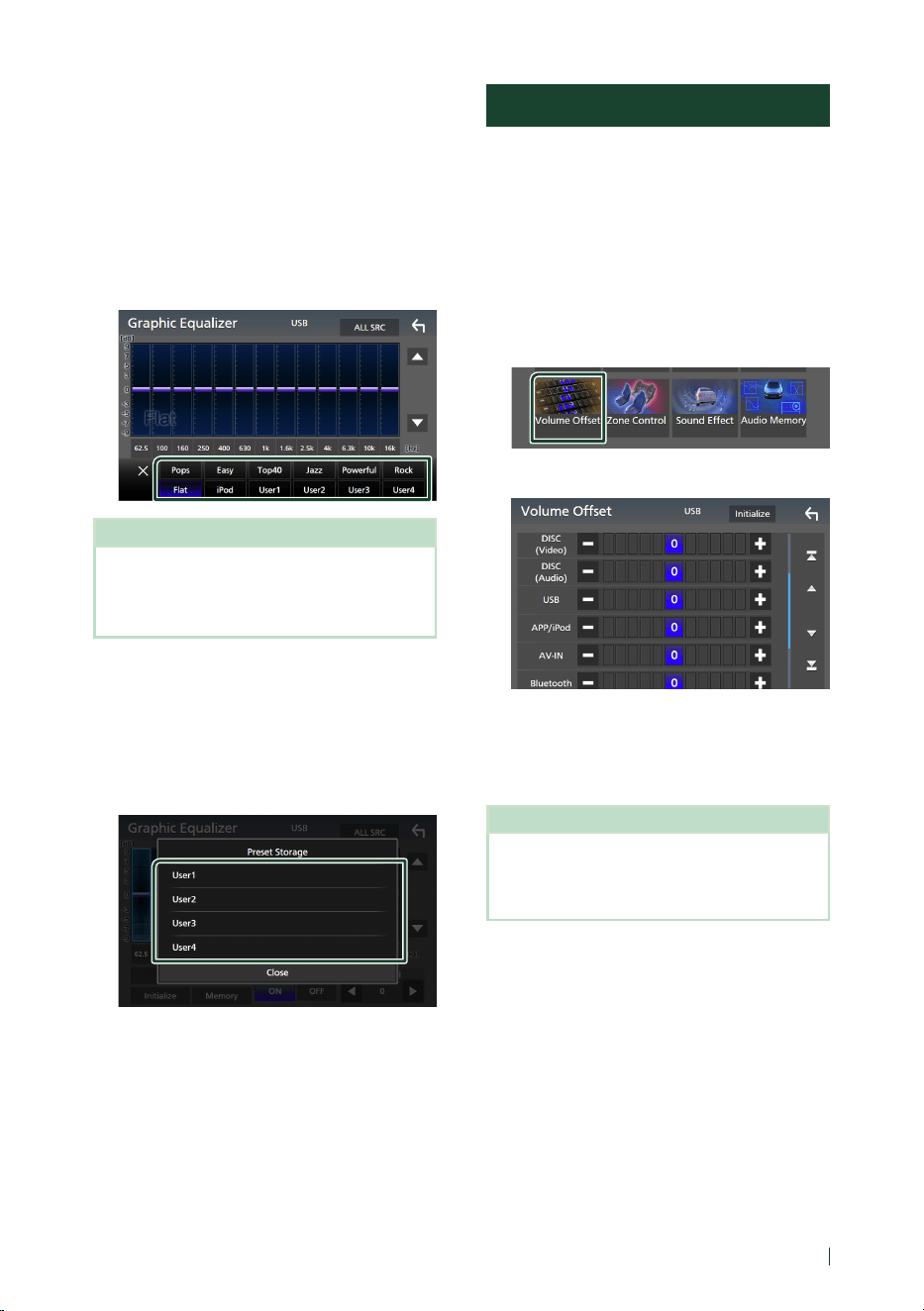

Equalizer Control ......................................................90
Volume Offset ............................................................91

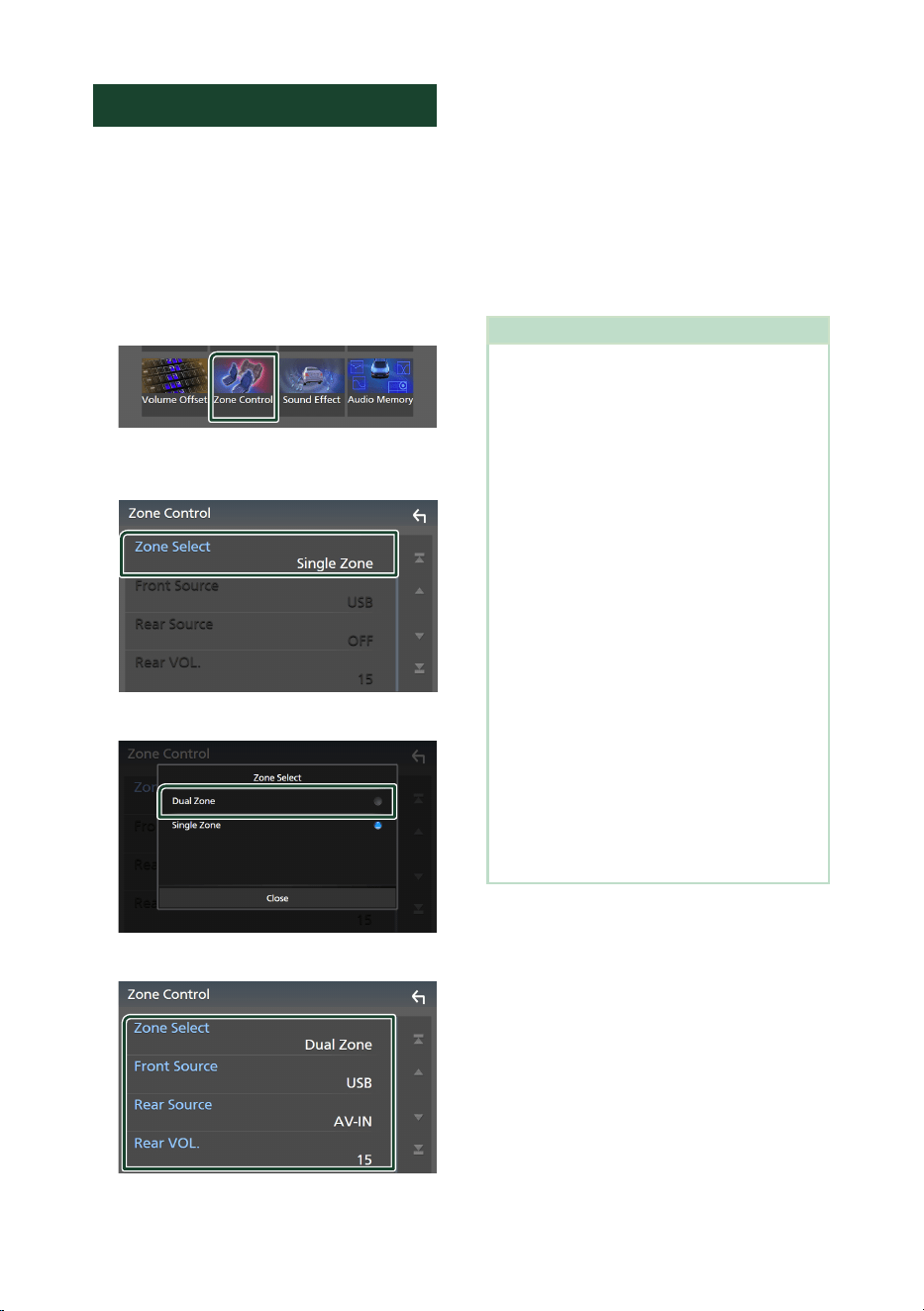

Zone Control ..............................................................92

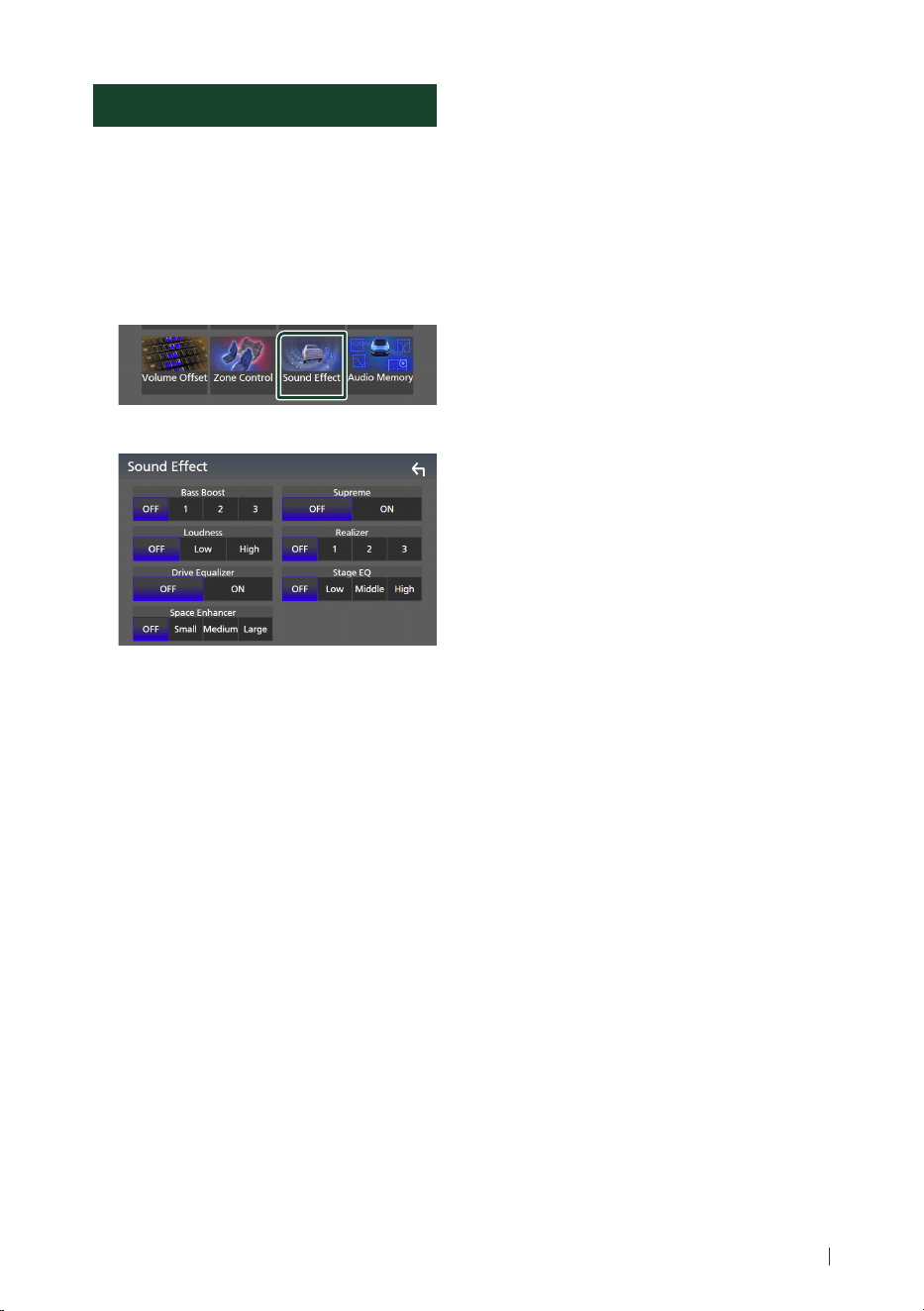

Sound Effect ...............................................................93

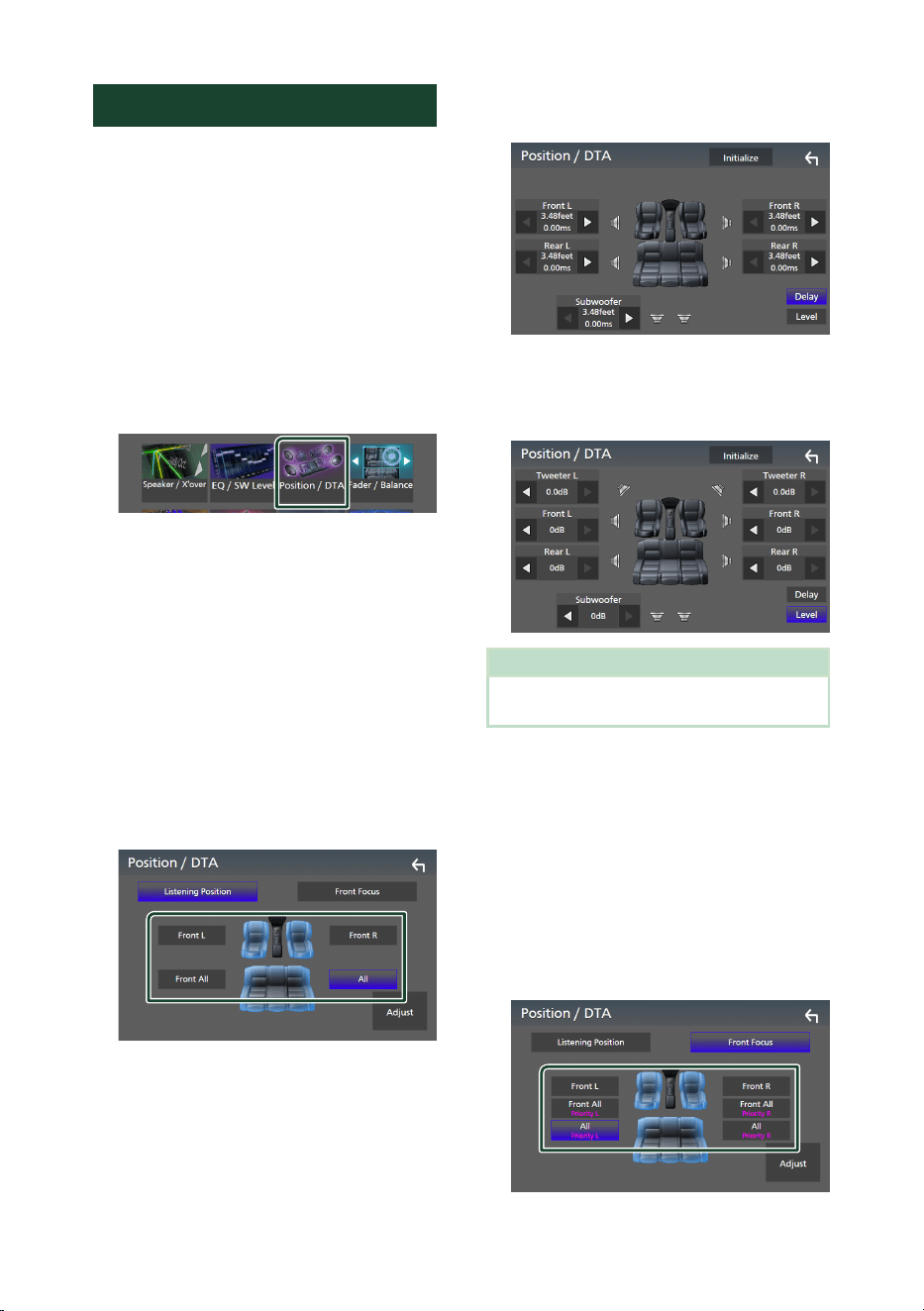

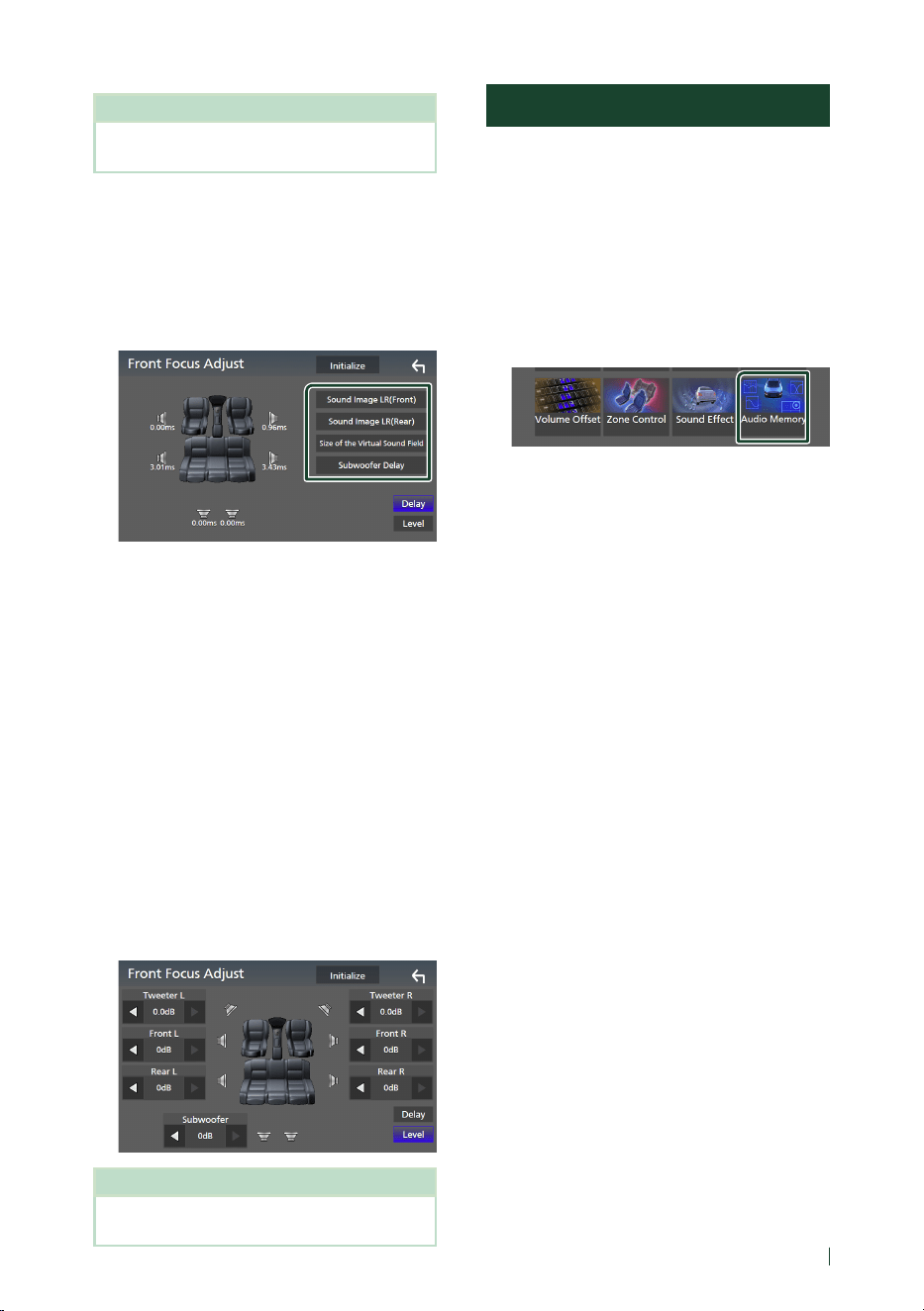

Listening Position / DTA .........................................94
Audio Setup memory .............................................95

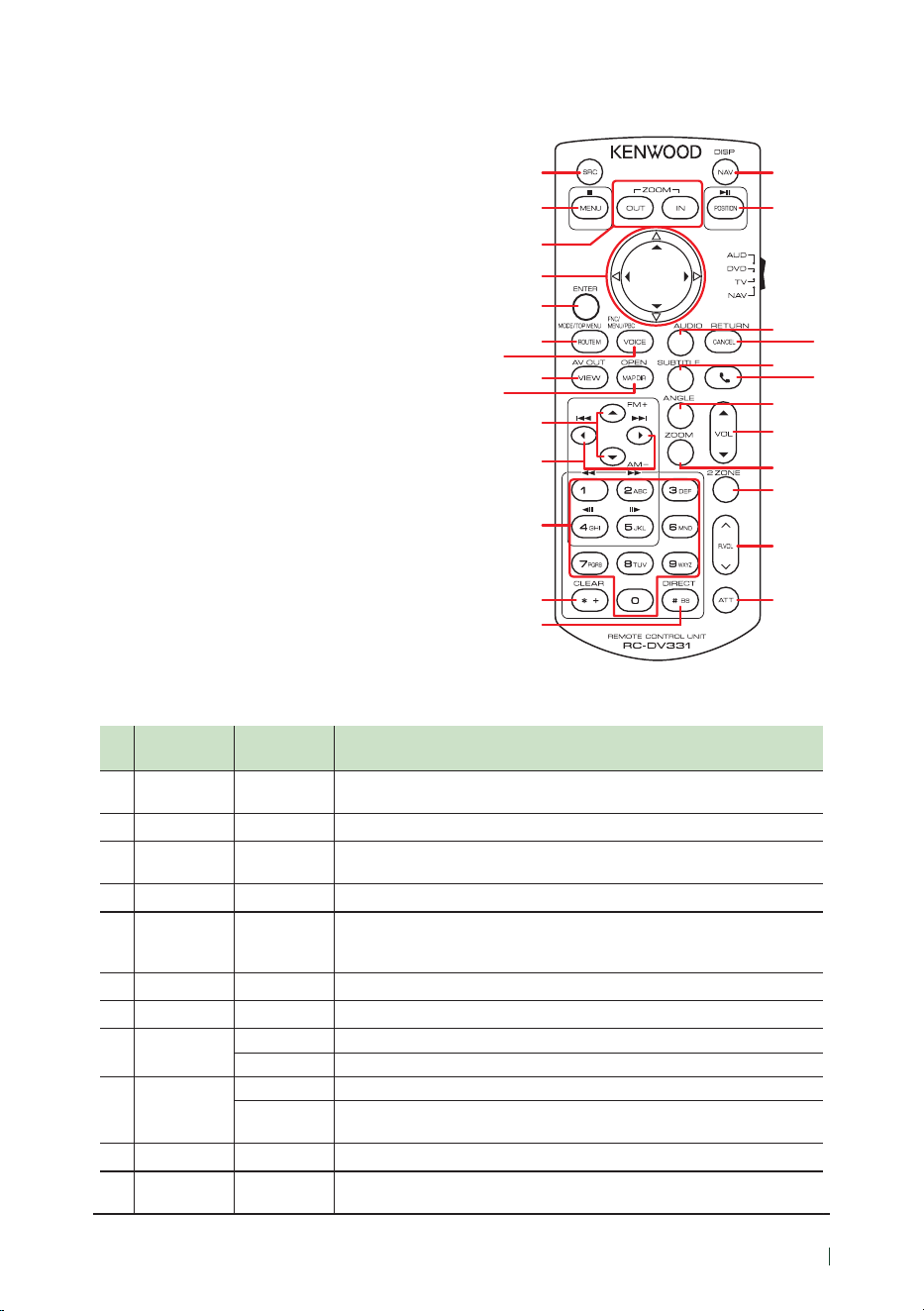

Remote control 96

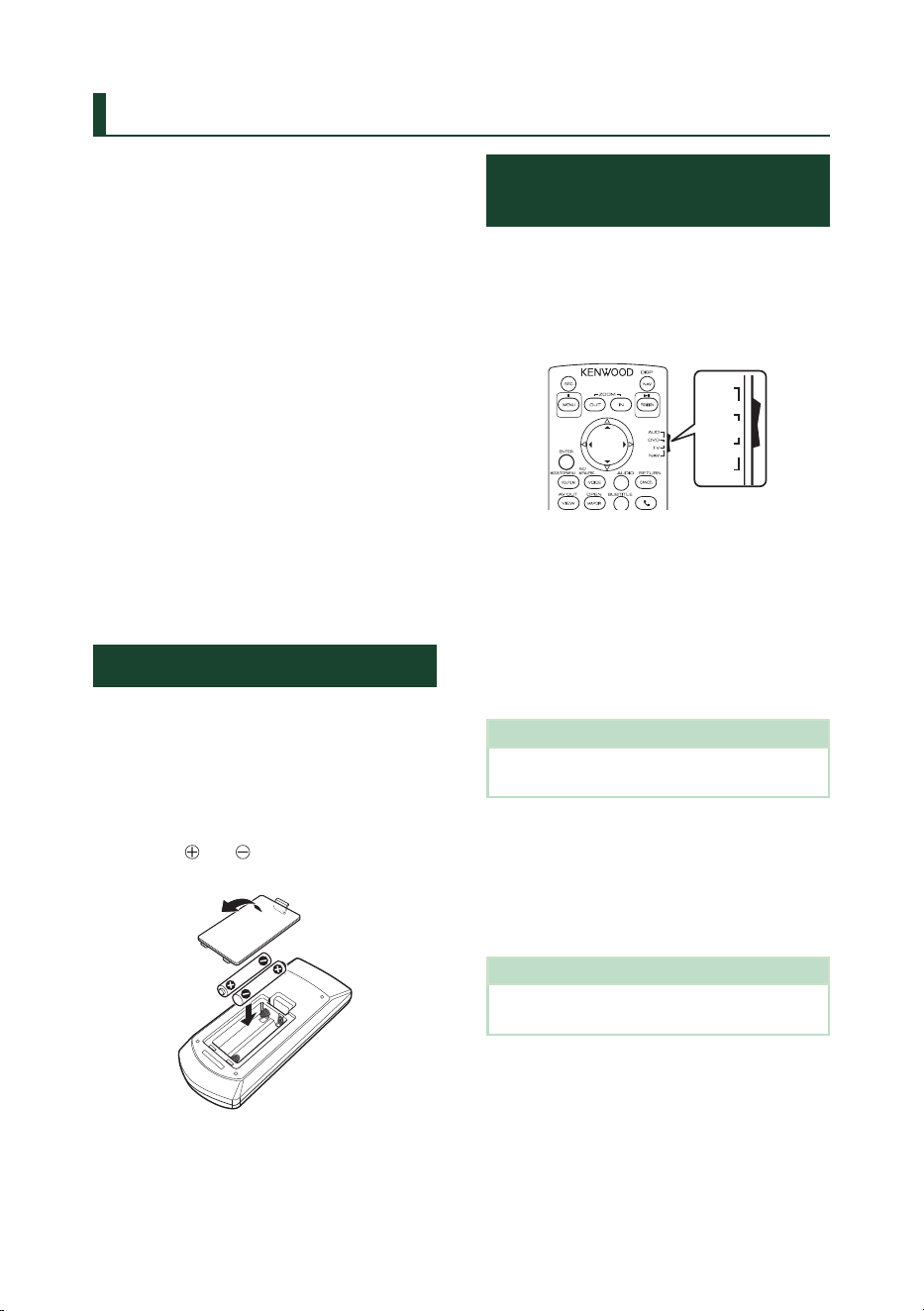

Battery Installation ...................................................96
Functions of the Remote control Buttons .......96

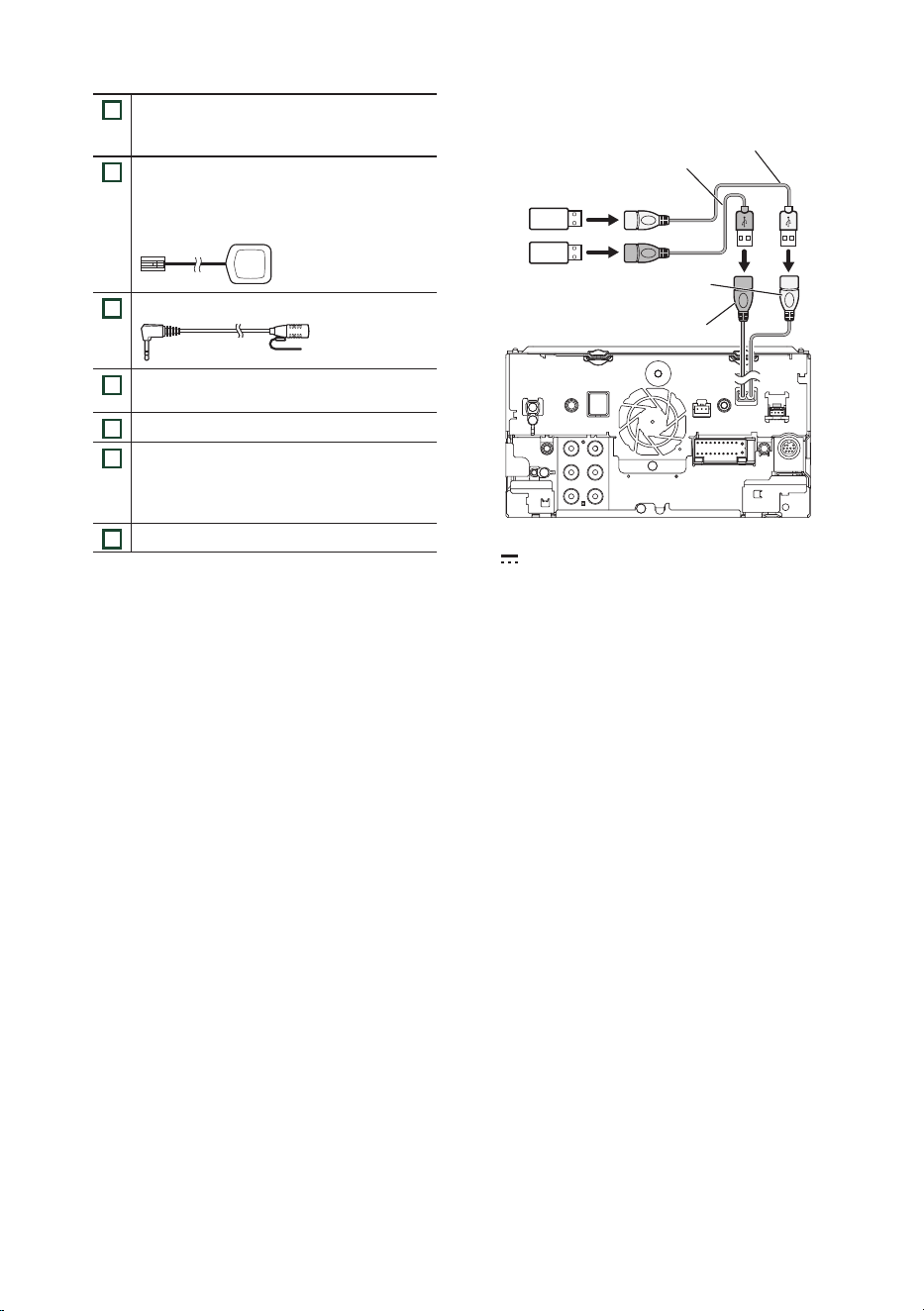

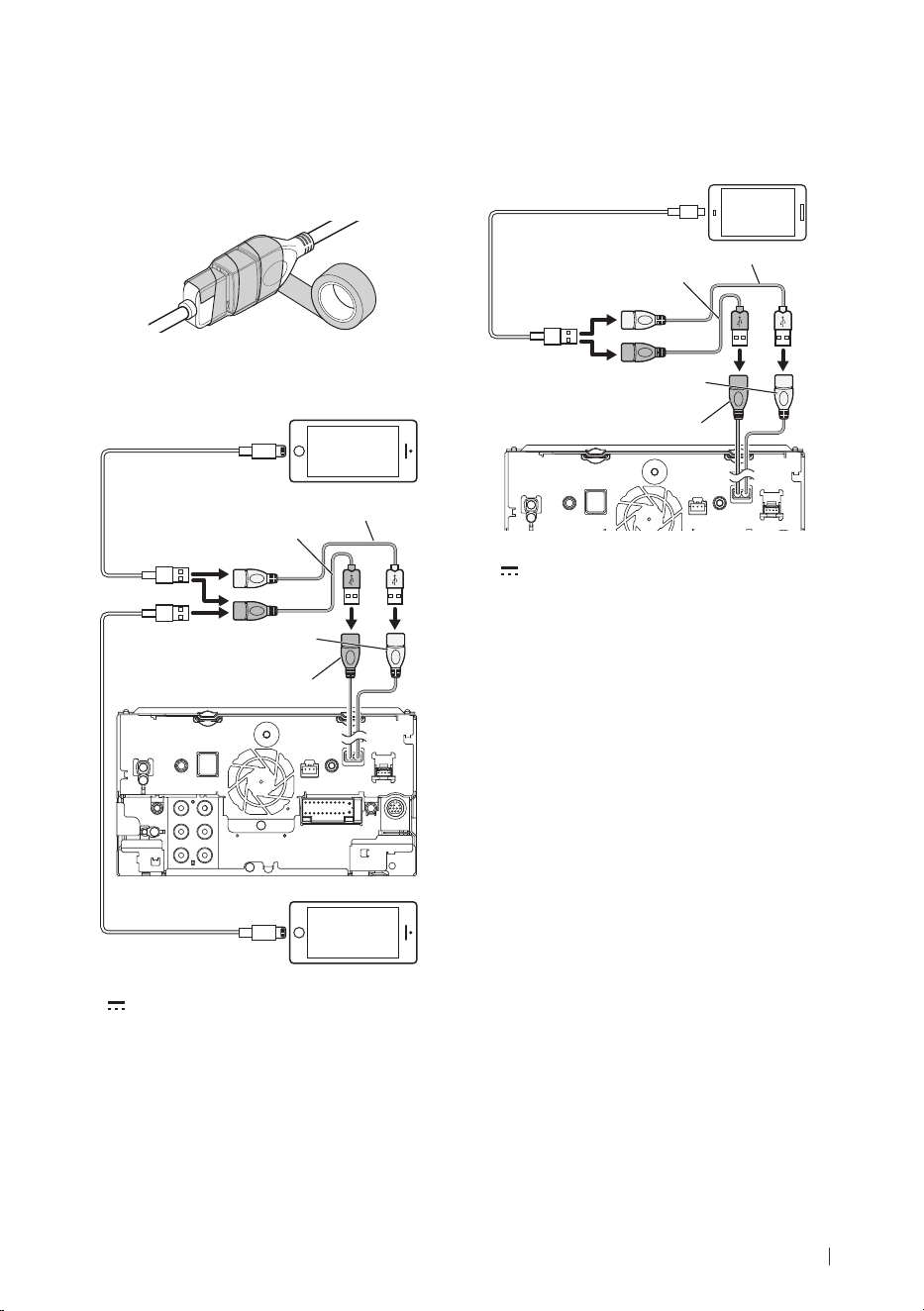

Connection/Installation 99
Before Installation ....................................................99

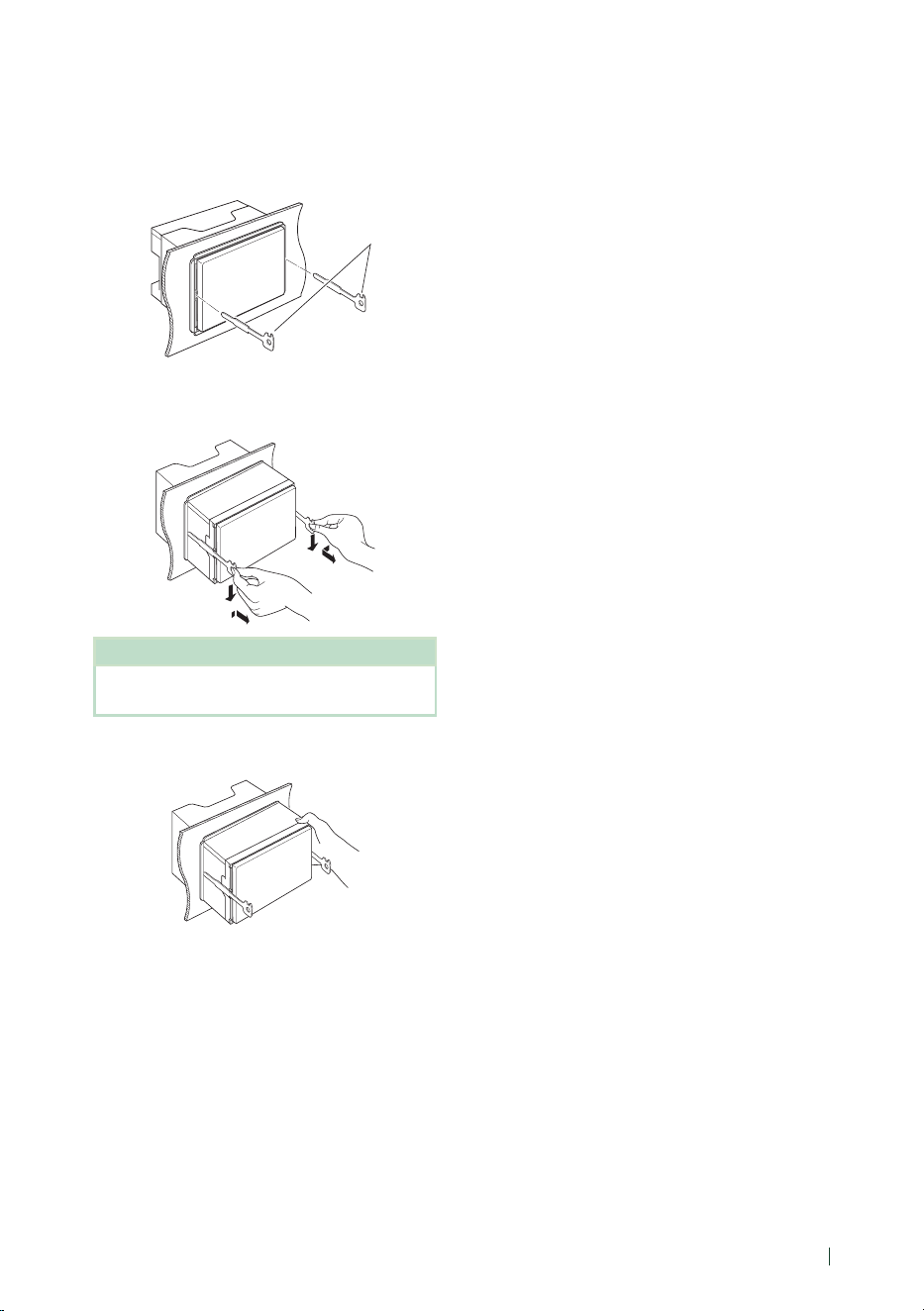

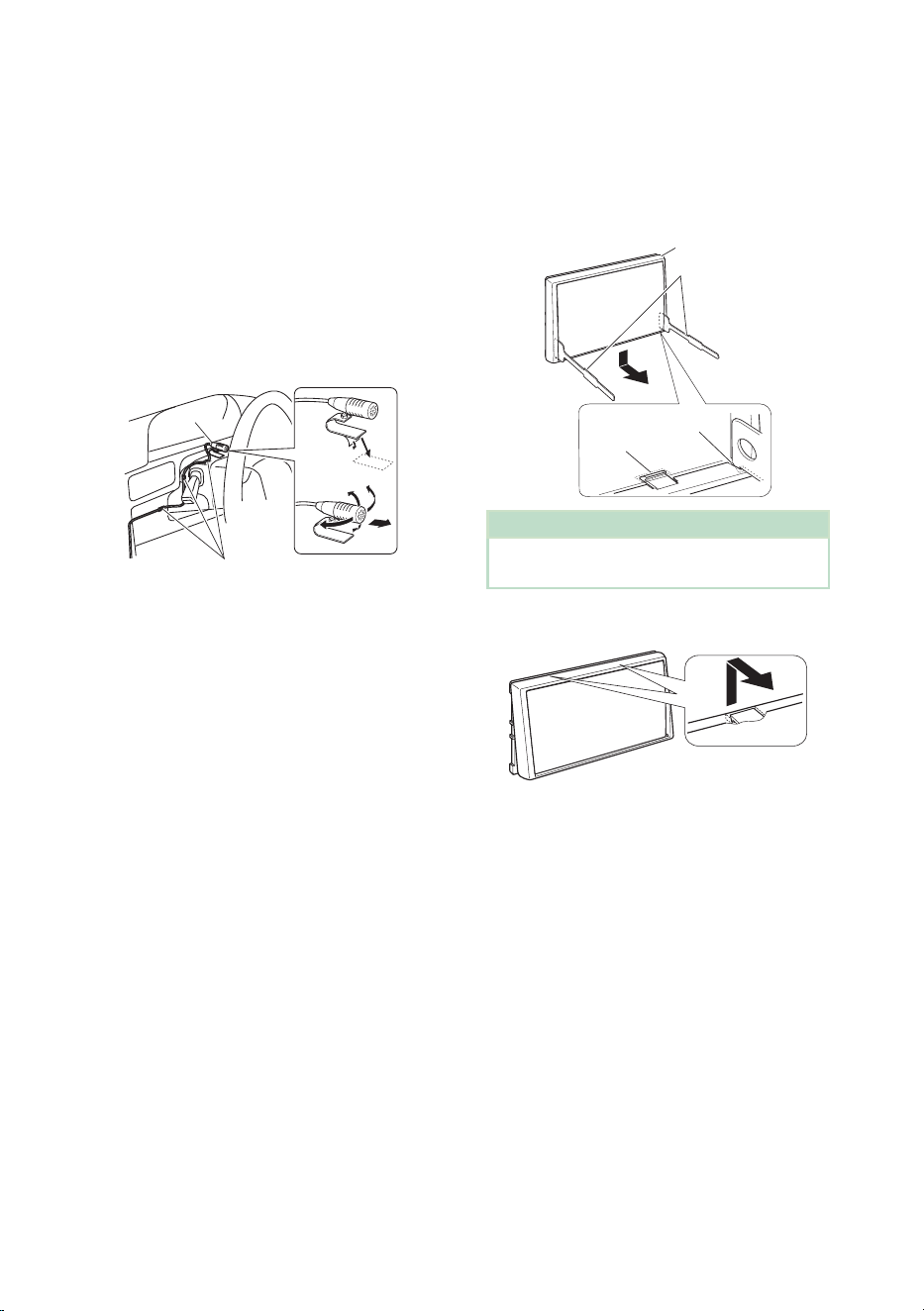

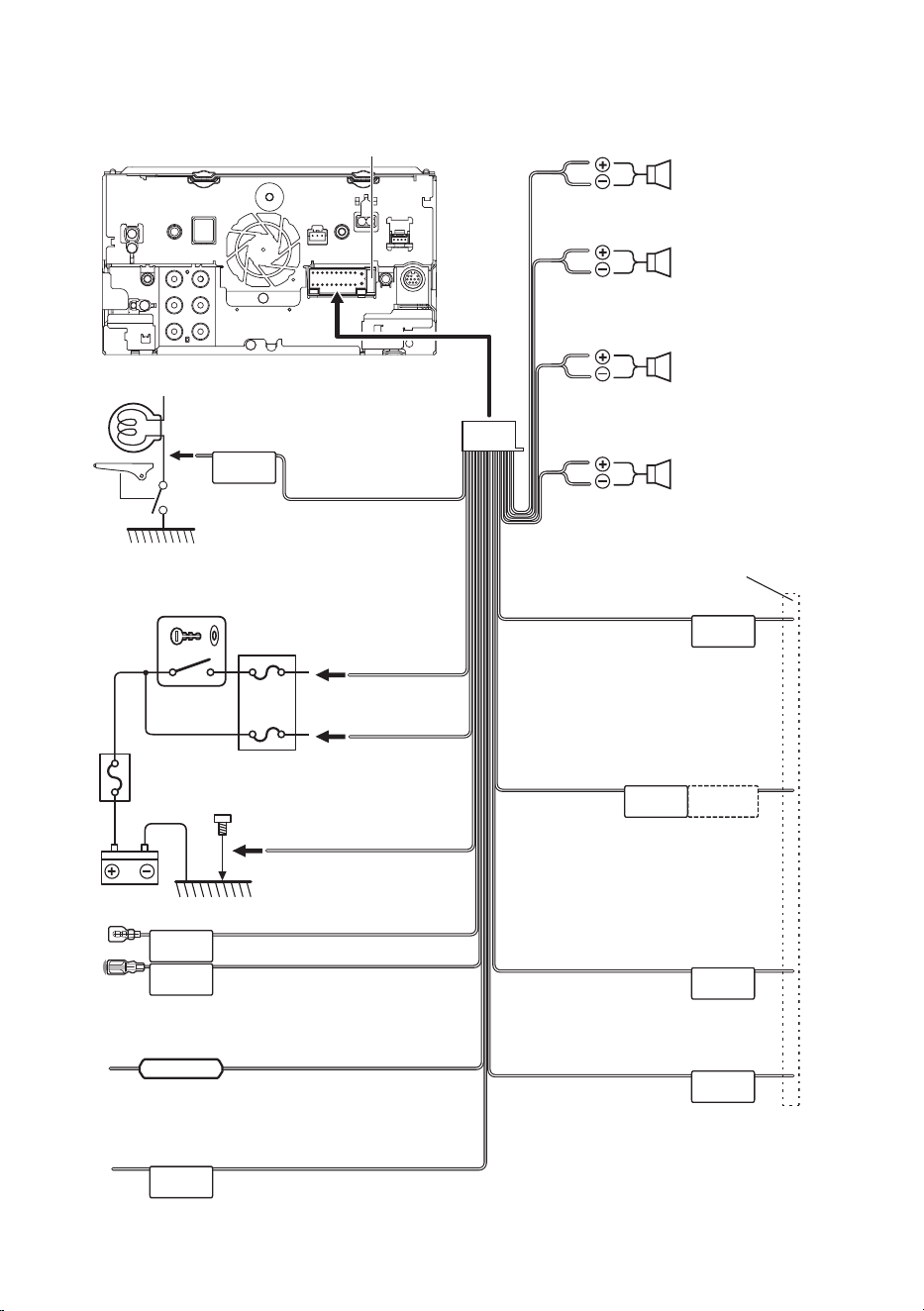

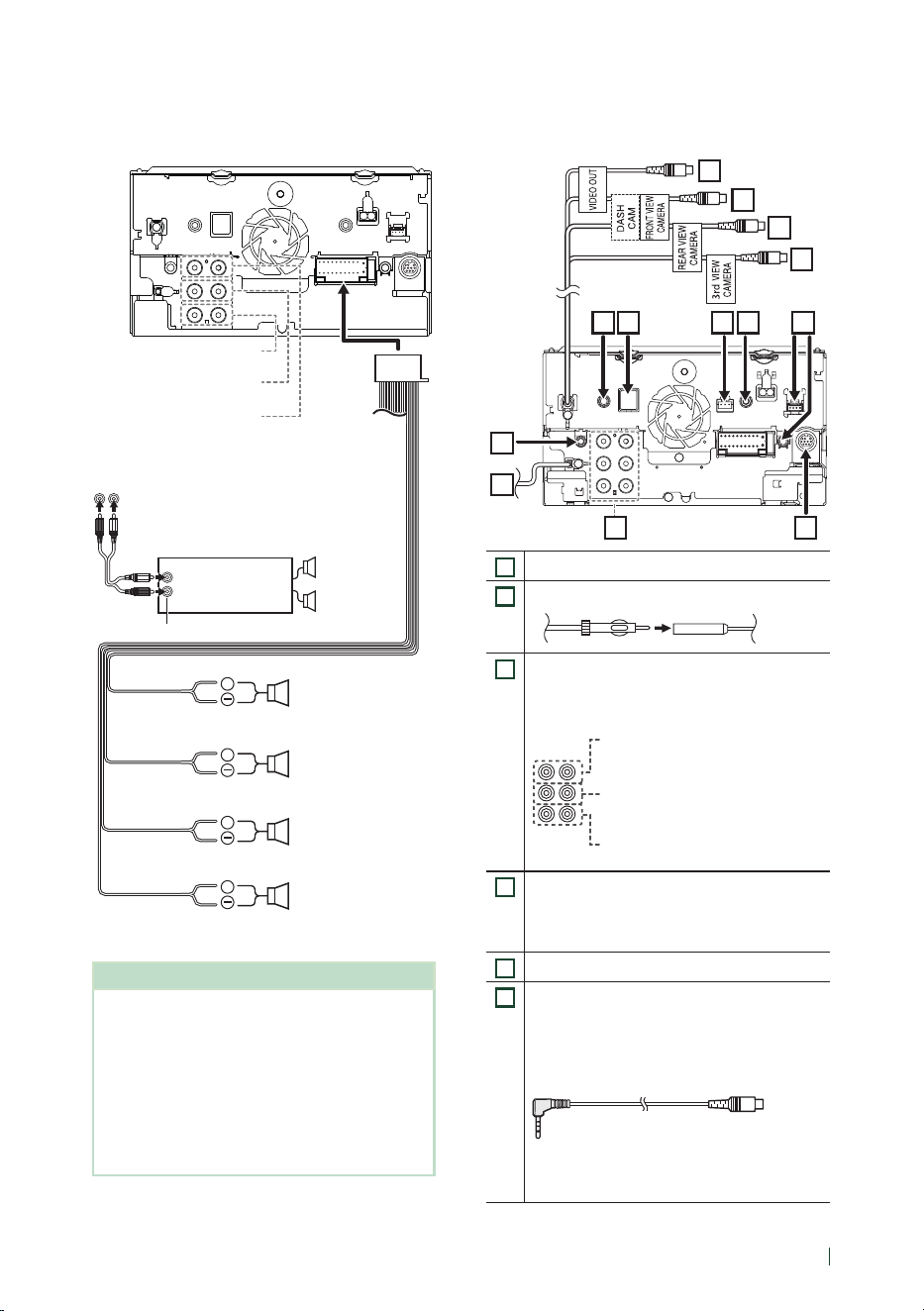

Installing the unit .................................................. 101
Troubleshooting 109
Problems and Solutions ...................................... 109
Error Messages ....................................................... 110
Appendix 112
Playable Media and Files..................................... 112

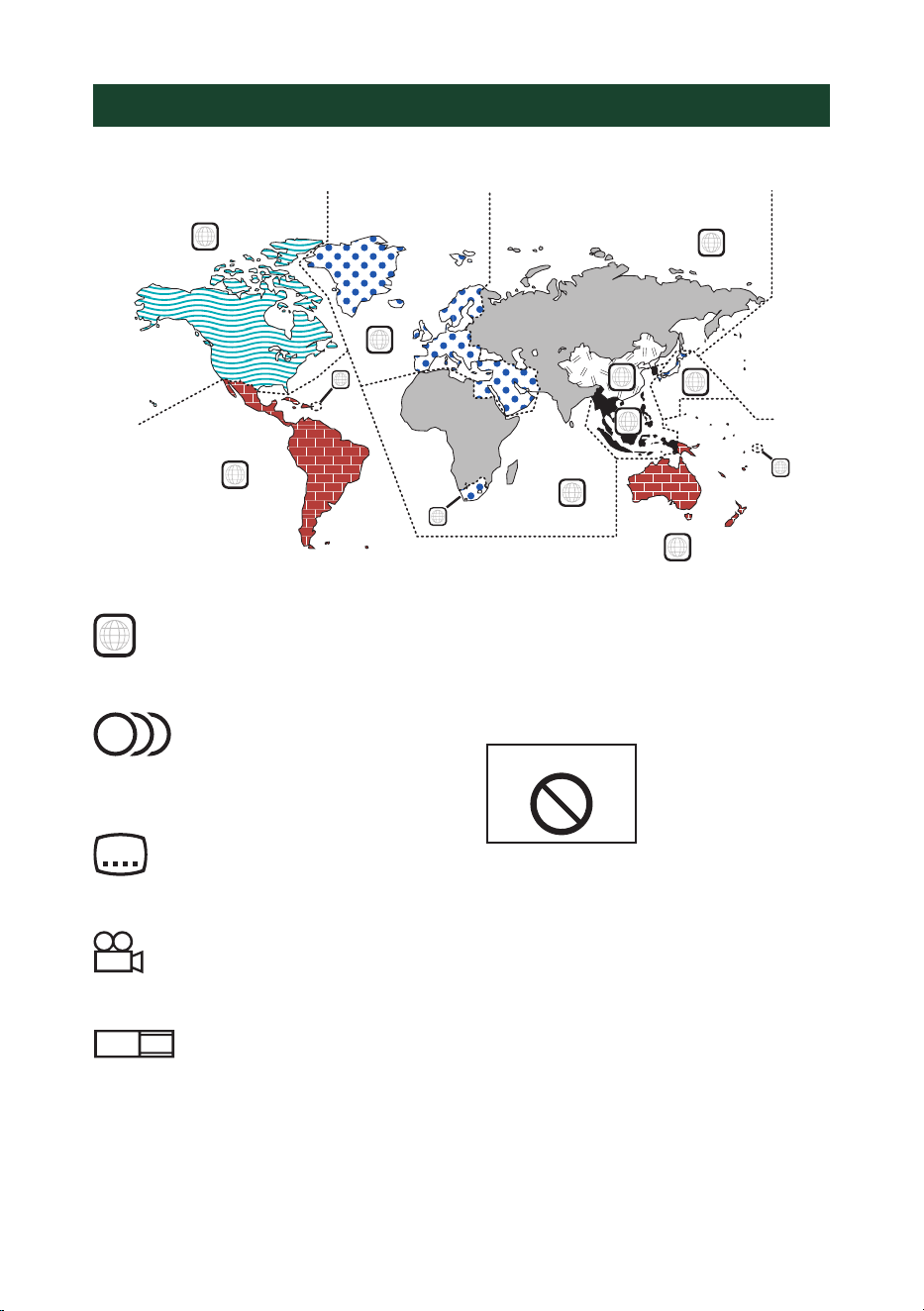

Region Codes in the World ................................ 114
DVD Language Codes .......................................... 115
Specifications .......................................................... 116
About this Unit ....................................................... 119
Before Use
6
Before Use
Precautions
# WARNINGS
Ñ To prevent injury or fire, take
the following precautions:
• To prevent a short circuit, never put or leave
any metallic objects (such as coins or metallic
tools) inside the unit.
• Do not watch or fix your eyes on the unit’s
display when you are driving for any extended
period.
• If you experience problems during installation,
consult your KENWOOD dealer.
Ñ Precautions on using this unit
• When you purchase optional accessories,
check with your KENWOOD dealer to make
sure that they work with your model and in
your area.
• You can select a language to display menus,
audio file tags, etc. See User Interface Setup
(P.82).
• The Radio Data System or Radio Broadcast
Data System feature won’t work in areas
where the service is not supported by any
broadcasting station.
Ñ Protecting the monitor
• To protect the monitor from damage, do not
operate the monitor using a ball point pen or
similar tool with a sharp tip.
Ñ Cleaning the unit
• If the faceplate of this unit is stained, wipe it
with a dry soft cloth such as a silicon cloth.
If the faceplate is stained badly, wipe it with
a cloth moistened with neutral cleaner, then
wipe it again with a clean soft dry cloth.
NOTE
• Applying spray cleaner directly to the unit
may damage its mechanical parts. Wiping the
faceplate with a hard cloth or using a volatile
liquid such as thinner or alcohol may scratch the
surface or erase the screened print.
Ñ Lens fogging
When you turn on the car heater in cold
weather, dew may form on the lens in the
disc player of the unit due to condensation.
This condensation on the lens (also called lens
fogging) may not allow discs to play. In such a
situation, remove the disc and wait for the dew
to evaporate. If the unit still does not operate
normally after a while, consult your KENWOOD
dealer.
Ñ Precautions on handling discs
• Do not touch the recording surface of the disc.
• Do not stick tape etc. on the disc, or use a disc
with tape stuck on it.
• Do not use disc type accessories.
• Clean the disc from the center toward the
outside rim.
• When removing a disc from this unit, pull it out
horizontally.
• If the disc center hole or outside rim has burrs,
use the disc only after removing the burrs with
a ballpoint pen etc.
• Discs that are not round cannot be used.
• 8-cm (3 inch) discs cannot be used.
• Discs with coloring on the recording surface or
discs that are dirty cannot be used.
• This unit can only play the following types of
CDs.
• This unit may not correctly play discs which do
not have the mark.
• You cannot play a disc that has not been
finalized. (For the finalization process, see
your writing software and your recorder's
instruction manual.)
Before Use
7English
Ñ Acquiring GPS signal
The first time you turn on this unit, you must
wait while the system acquires satellite signals
for the first time. This process could take up
to several minutes. Make sure your vehicle
is outdoors in an open area away from tall
buildings and trees for fastest acquisition.
After the system acquires satellites for the first
time, it will acquire satellites quickly each time
thereafter.
Ñ About GLONASS
This unit uses Global Navigation Satellite System
(GLONASS) in addition to GPS.
Combining GPS and GLONASS can refine
positioning accuracy than using GPS only.
Ñ Caution for Smartphone Users
Simultaneously running multiple applications
on your smartphone while screen sharing places
heavy demand on the microprocessor of the
phone, potentially affecting communication and
performance.
For best results while pairing with your
KENWOOD receiver, please be sure to close any
unused applications.
How to read this manual
• The screens and panels shown in this manual are
examples used to provide a clear explanation of
operations.
For this reason, they may be different from the actual
screens or panels, or some display patterns may be
different from the actual ones.
• Display language: English is used for the purpose
of explanation. You can select a display language
from the [SETUP] menu. See User Interface Setup
(P.82).
Basic Operations
8
Basic Operations
Functions of the Buttons on the Front Panel
DDX9907XR / DDX9707S
9
1 2 3 4 5 6 7
DMX957XR / DMX907S / DMX9707S
1 2 8 4 5 6 3
Basic Operations
9English
NOTE
• The panels shown in this manual are examples used to provide a clear explanation of operations. For this reason,
they may be different from the actual panels.
Number Name Motion
1
Remote
Sensor
• Receives the remote control signal.
2
S, R
(Volume)
• Adjusts the volume.
The volume will go up to 15 when you keep pressing R. (P.12)
3
CAM • Switches view camera display on/off.
The camera whose view is displayed first changes according to the "Camera Setup"
setting and the shift lever position in the shift gate. The camera whose view was
displayed last is kept and the same camera view will be displayed the next time. If its
assignment setting is changed, the rear camera view is displayed.
• Pressing and holding turns the screen off. (DDX9907XR / DDX9707S)
• Pressing and holding displays the Angle Adjust screen. (DMX957XR only)
4
HOME • Displays the HOME screen (P.14).
• Pressing for 1 second turns the power off.
• When the power is off, turns the power on.
5
MENU • Displays the popup menu screen.
• Pressing for 1 second switches attenuation of the volume on/off.
(DDX9907XR / DDX9707S)
• Pressing for 1 second turns the screen off. (DMX957XR / DMX907S / DMX9707S)
6
• Displays the APP (Apple CarPlay/Android Auto/Wireless Mirroring) screen.
• Pressing and holding displays the Voice Recognition screen (P.72).
• When neither Apple CarPlay, Android Auto, nor a Bluetooth Hands-Free phone is
connected, pressing and holding displays Bluetooth pairing waiting dialog. ( P.65)
7
G
• Displays the Angle Adjust screen.
– [DISC EJECT]: Ejects the disc.
• When the panel is opened, closes the panel.
• To forcibly eject the disc, press it for 2 seconds and then touch [DISC EJECT] after the
message is displayed.
8
AT T • Switches attenuation of the volume on/off.
9
Disc insert
slot
• A slot to insert a disc media.
(DDX9907XR / DDX9707S only)
Basic Operations
10

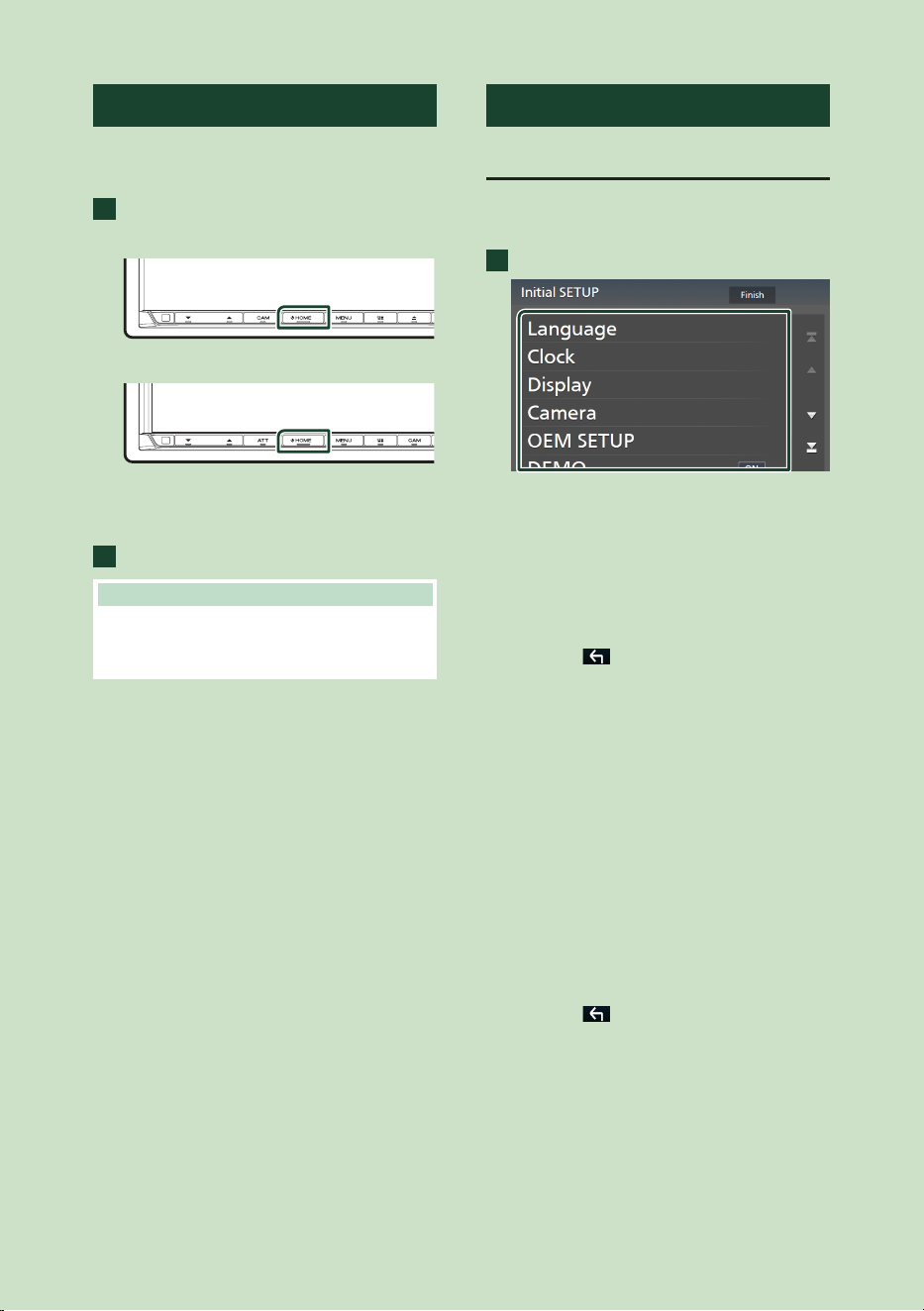

Turning on the Unit
The method of turning on is different
depending on the model.
1
Press the [HOME] button.
DDX9907XR / DDX9707S
DMX957XR / DMX907S / DMX9707S
hh The unit is turned on.
● To turn off the unit:
1
Press the [HOME] button for 1 second.
NOTE
• If it is your first time to turn the unit on after
installation, it will be necessary to perform Initial
SETUP (P.10).
Initial Settings
Initial SETUP
Perform this setup when you use this unit first
time.
1
Set each item as follows.
■ [Language]
Select the language used for the control
screen and setting items. Default is “American
English(en)”.
1 Touch [Language].
2 Touch [Language Select].
3 Select the desired language.
4 Touch [
].
For details, see User Interface Setup
(P.82).
■ [Clock]
Sets the synchronization of the clock and
adjusts it.
For details, see Calendar/clock settings
(P.11).
■ [Display]
Set the key illumination color.
If it is hard to see the image on the screen
even, adjust the viewing angle.
1 Touch [Display].
2 Touch [Key Color].
3 Select the desired color.
4 Touch [
].
Basic Operations
11English
(DDX9907XR / DDX9707S / DMX957XR only)
5 Touch [Display Adjustment].
6 Adjust a viewing angle and a tilt position.
7 Touch [
].
For details, see Display Adjustment
(P.12).
(DMX907S / DMX9707S only)
5 Touch [Viewing Angle].
6 Select a viewing angle.
7 Touch [
].
For details, see Viewing Angle (P.13).
For details, see Display Setup (P.84).
■ [Camera]
Set the parameters for the camera.
1 Touch [Camera].
2 Set each item and touch [
].
For details, see Camera Setup (P.76).
■ [OEM SETUP]
This function requires a commercial adaptor.
Consult your KENWOOD dealer for details.
■ [DEMO]
Set the demonstration mode. Default is “ON”.
2
Touch [Finish].
NOTE
• These settings can be made from the SETUP
menu. See Setup (P.81).
Calendar/clock settings
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [SETUP].
hh SETUP Menu screen appears.
3

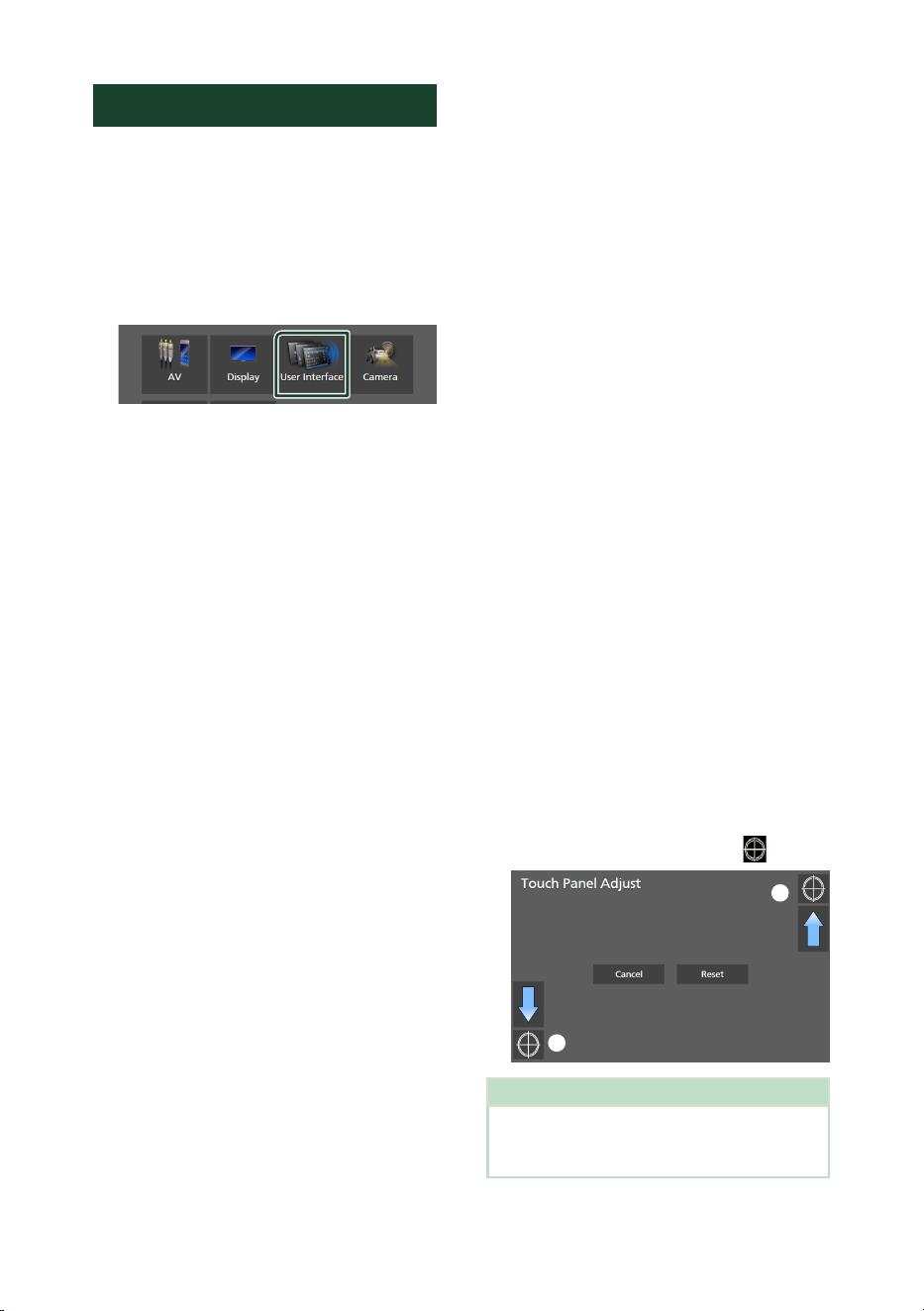

Touch [User Interface].
hh User Interface screen appears.
4
Set each item as follows.
Scroll the page to show hidden items.
■ [Time Format]
Select the time display format.
[12-Hour ](Default)/24-Hour]
■ [Clock]
[GPS-SYNC ](Default): Synchronizes the clock
time with the GPS.
[Manual]: Set the clock manually.
■ [Time Zone]
Select the time zone.

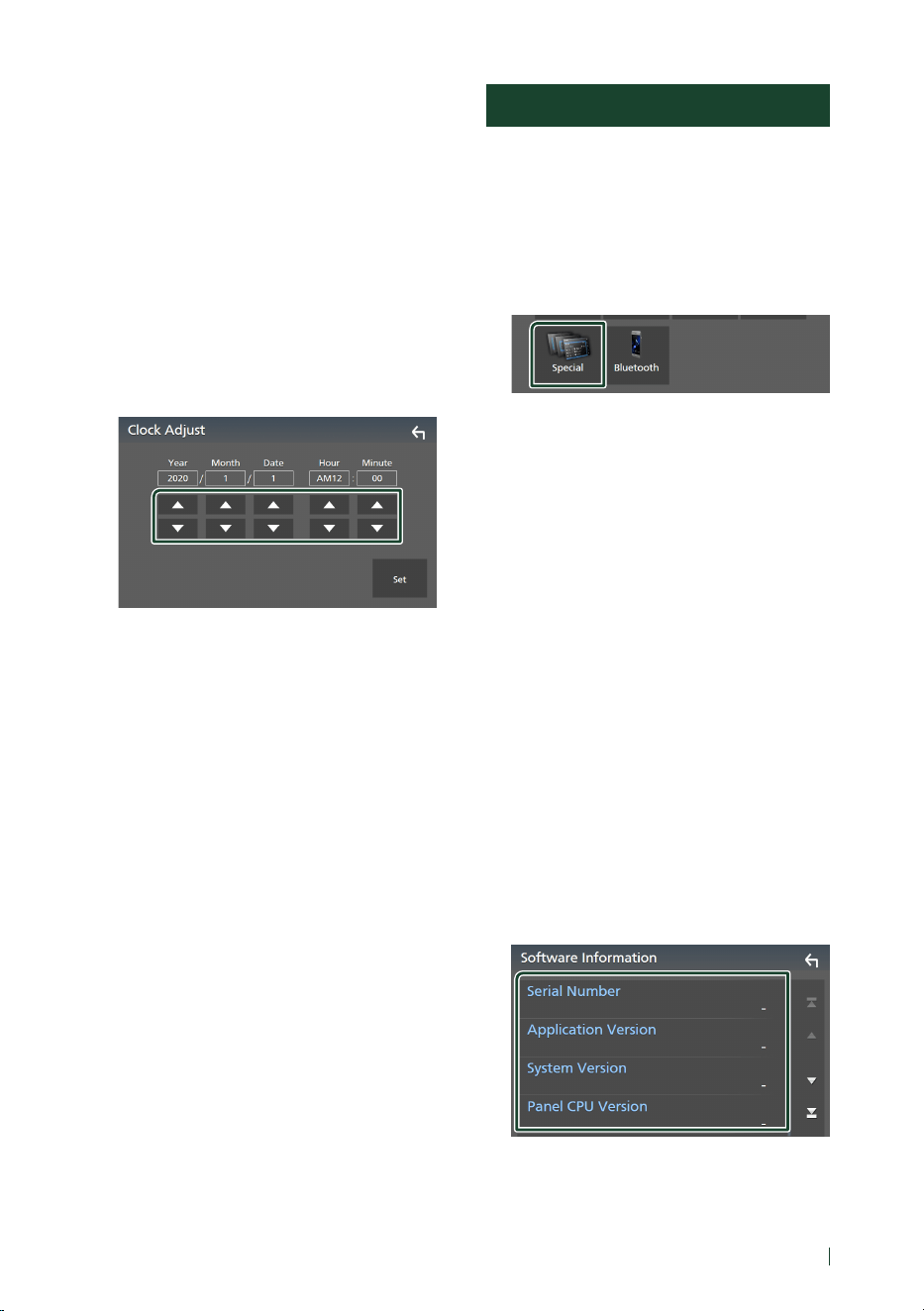

■ [Clock Adjust]
If you select [Manual] for Clock, adjust the
date and time manually. (P.83)
Basic Operations
12
NOTE
• Please set the date and time. If they are not set,
some functions may not work.
Adjusting the volume
You can adjust the volume (0 to 40).
Press [R] to increase, and press [S] to decrease.
Holding [R] increases the volume continuously
to level 15.
DDX9907XR / DDX9707S
DMX957XR / DMX907S / DMX9707S
Display Adjustment
(DDX9907XR / DDX9707S /
DMX957XR)
DDX9907XR / DDX9707S
1
Press the [G] button.
hh Display Adjustment screen appears.
DMX957XR
1
Press and hold the [CAM] button.
hh Display Adjustment screen appears.
DDX9907XR / DDX9707S
1 2
3
DMX957XR
1 2
3
1
Viewing Angle
You can adjust the viewing angle when the
image on the screen is difficult to see evenly.
The smaller the (negative) value, the more
whitish the image on the screen looks.
"0" (Default)/"-1"/"-2"/"-3"
2
Angle Adjustment
Select a tilt position you want to set up.
Default is "0".
Basic Operations
13English
3
Off Position
You can store the current monitor angle as the
angle during power off. Touch [Memory] when
the desired angle is selected.
Viewing Angle
(DMX907S / DMX9707S)
You can adjust the viewing angle when the
image on the screen is difficult to see evenly.
The smaller the (negative) value, the more
whitish the image on the screen looks.
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [SETUP].
3
Touch [Display].
hh Display screen appears.
4
Touch [Viewing Angle].
5
Select an angle you want to set up.
Default is "0". (P.84)
Touch screen operations
To perform operations on the screen, you need
to touch, touch and hold, flick or swipe to
select an item, display a setting menu screen
or change pages.
● Touch
Touch the screen gently to
select an item on the screen.
● Touch and hold
Touch the screen and keep
your finger in place until
the display changes or a
message is displayed.
● Flick
Slide your finger quickly
to the left or right on the
screen to change the page.
You can scroll a list screen
by flicking up/down on the
screen.
● Swipe
Slide your finger up or down
on the screen to scroll the
screen.
Basic Operations
14
HOME screen descriptions
Most functions can be performed from the
HOME screen.
1
3
2
1
• Widget (P.19)
– You can change the widget by flicking left
or right on the widget area.
– Touch the widget to display the detailed
screen.
2
• Displays the source selection screen. (P.15)
3
• Short-cut playback source icons (P.16)
Display the HOME screen
1
Press the [HOME] button.
DDX9907XR / DDX9707S
DMX957XR / DMX907S / DMX9707S
hh HOME screen appears.
Popup menu
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch to display the popup menu.
1
The contents of the menu are as follows.
• Displays the Screen Adjustment screen.
(P.81)
• Turns the display off. (P.15)
• Displays the view camera screen.
(P.76)
• Displays the SETUP Menu screen.
(P.81)
• Displays the Audio screen. (P.87)
• Displays the control screen of current
source. Icon feature differs depending on
the source. This icon is for USB source.
• Close the popup menu.
• Displays the Android Auto device list. This
icon appears only when Android Auto is
connected and two or more devices can
be used as Android Auto source.
1
• Short-cut source icons: The source
changes to the one you have set with a
short-cut. For the short-cut setting, refer
to Customize Short-cut source icons on
HOME screen (P.16).
Basic Operations
15English
Turn off the screen
1
Select [Display OFF] on the popup menu.
NOTE
• Touch the display to turn on the screen.
• To display the clock while the screen is off, it is
necessary to set "OSD Clock" to "ON". (P.84)
Source selection screen
description
You can display icons of all playback sources
and options on the source selection screen.
4 5
321
1
• Changes playback sources.
For playback sources, see Select the
playback source (P.15).
2
• Page indication
3
• Changes pages. (Touch [ ]/[ ].)
You can also change pages by flicking left or
right on the screen.
4
• Returns to the previous screen.
5
• Displays the SETUP Menu screen. (P.81)
Select the playback source
1
Press the [HOME] button.
hh HOME screen appears.
2
Touch [ ].
From the screen, you can select the
following sources and functions.
• Switches to the Apple CarPlay screen
from the connected iPhone. (P.31)
• Switches to the Android Auto
screen from the connected Android
smartphone. (P.34)
• Displays the Hands Free screen. (P.70)
When neither Apple CarPlay, Android
Auto, nor a Bluetooth Hands-Free phone
is connected, displays Bluetooth pairing
waiting dialog.*
1
(P.65)
• Switches to the Radio broadcast.*
2
(P.43)
• Switches to the HD Radio broadcast.*
3
(P.46)
• Switches to the SiriusXM® satellite radio
broadcast. (P.52)
• Plays a Bluetooth audio player. (P.68)
• Plays a disc.*
4
(P.23)
• Plays an iPod/iPhone. (P.40)
• Plays files on a USB device. (P.37)
• Switches to an external component
connected to the AV-IN input terminal.*
5
(P.79)
• Switches to the Wireless Mirroring
screen from the connected Android
smartphone. (P.29)
• Switches to the USB Mirroring screen
from the connected iPhone/Android
smartphone. (P.29)
• Displays the Audio screen. (P.87)
• Puts the unit in standby. (P.16)
Basic Operations
16
• For sources and information displayed when an ADS
adapter is connected, see OEM Features Operation
(P.79).
*1 When connecting as Apple CarPlay or Android Auto,
it works as a phone provided in Apple CarPlay or
Android Auto. If Apple CarPlay or Android Auto are
connected during talking by the Bluetooth device or
iDatalink phone, the current call will be continued.
*2 DDX9707S / DMX9707S only
*3 DDX9907XR / DMX957XR / DMX907S only
*4 DDX9907XR / DDX9707S only
*5 CA-C3AV (optional accessory) is connected to the
AV-IN input terminal for visual. (P.105)

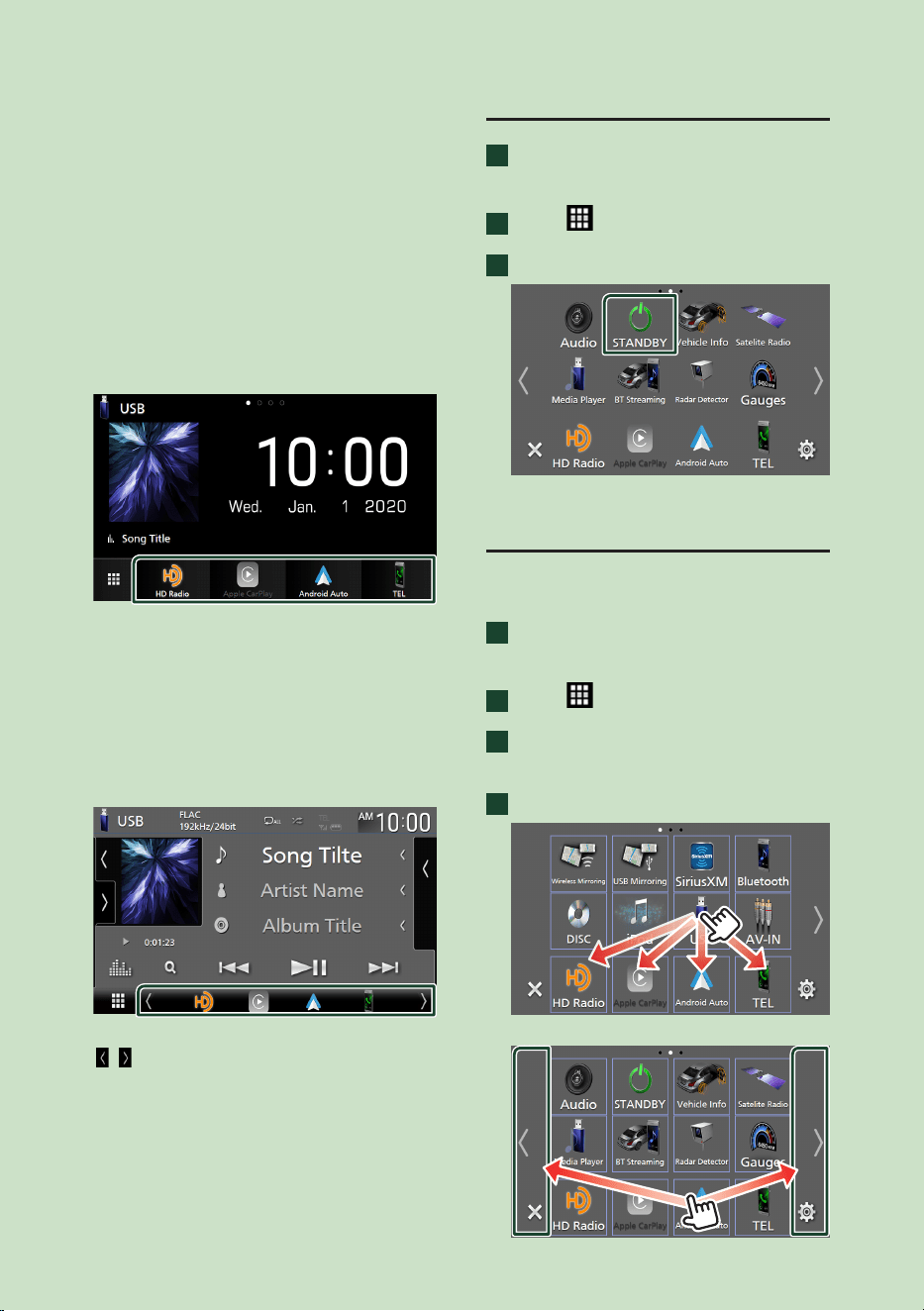

To select the playback source on the
HOME screen
The 4 items displayed on the source selection
screen with large icons are shown on the
HOME screen.
You can change the items displayed on this
area by customizing the source selection
screen. (P.16)
To select the playback source on the
source control screen
Display source selection icons by touching
[ ]/[ ] or flicking left or right on the source
control screen, then select a playback source.
Put the unit in standby
1
Press the [HOME] button.
hh HOME screen appears.
2
Touch [
].
3
Touch [STANDBY].
Customize Short-cut source icons
on HOME screen
You can arrange the positions of the source
icons as you like.
1
Press the [HOME] button.
hh HOME screen appears.
2
Touch [ ].
3
Touch and hold the icon which you want
to move in the customizing mode.
4
Drag the icon to the desired position.
Changes the page
Basic Operations
17English

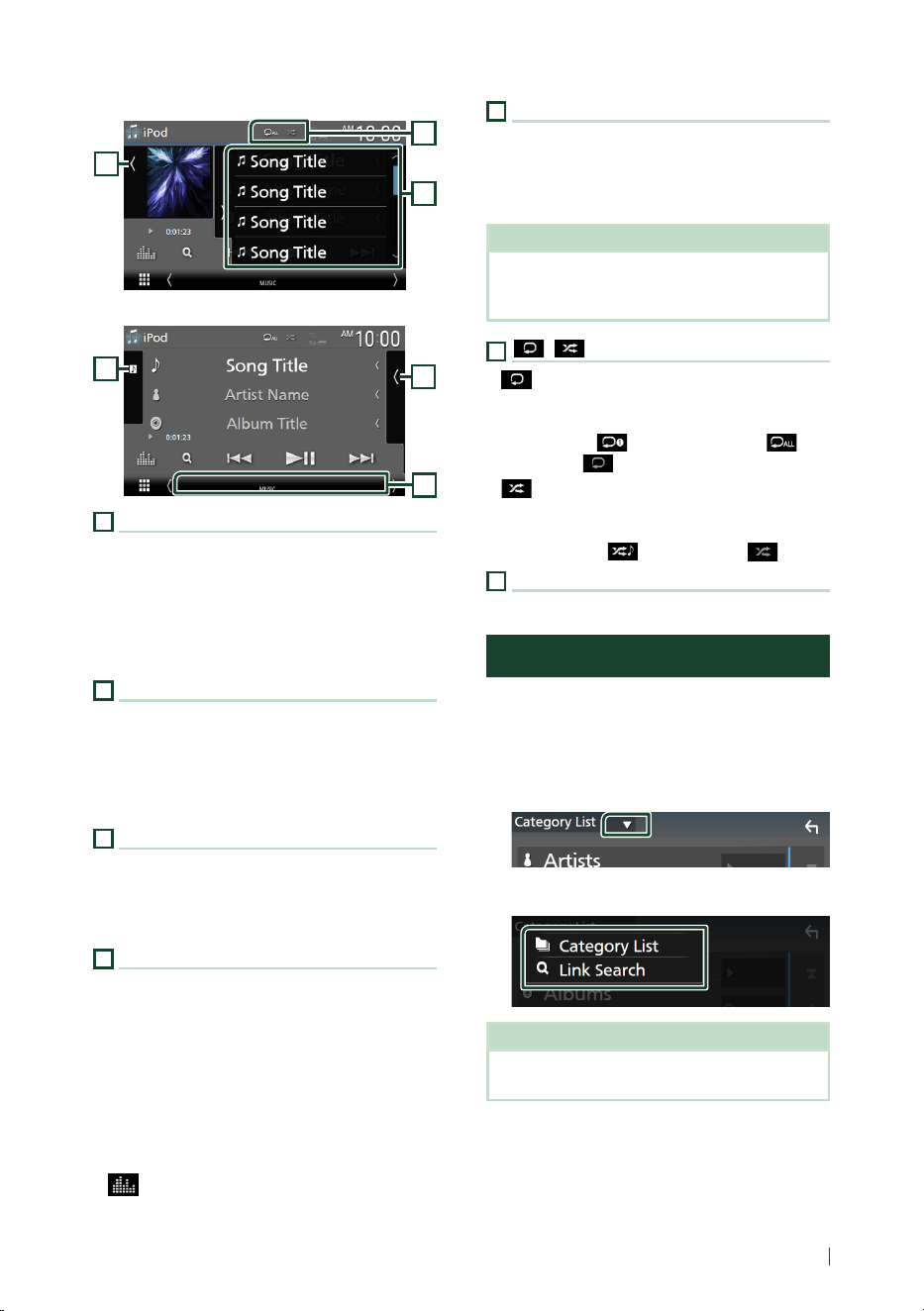

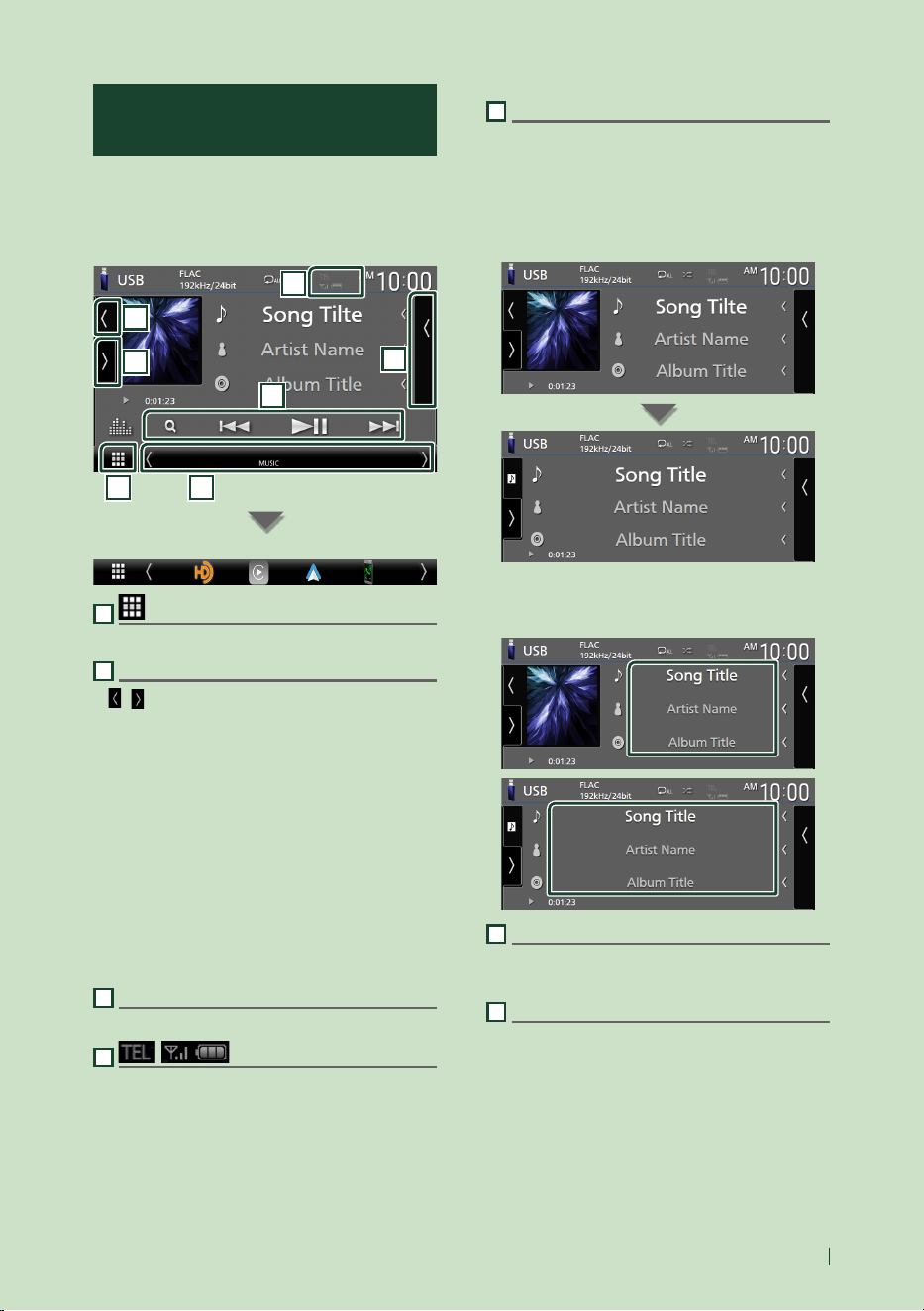

Source control screen
descriptions
There are some functions which can be
performed from most screens.
Indicators
5
6
1 2
3
4
7
Short-cut source icons
1
All sources icon
Displays the source selection screen. (P.15)
2
Secondary screen
• [
]/[ ] : The Secondary screen changes to
another one every time you touch it. You can
also change the Secondary screen by flicking
left or right on the screen.
• Indicators: Displays the current source
condition and so on.
– [ATT]: The attenuator is active.
– [DUAL]: The dual zone function is active.
– [MUTE]: The mute function is active.
– [LOUD]: The loudness control function is active.
• Short-cut source icons: The source changes to
the one you have set with a short-cut. For the
short-cut setting, refer to Customize Short-
cut source icons on HOME screen (P.16).
3
Content list
Displays the track/file/station/channel list.
4
• Connected Bluetooth device information.
5
Artwork & information
You can select whether to display an artwork
and song information or only song information
in more detail.
Touching the artwork area switches to the VU
meter. (The Disc, USB, iPod, Bluetooth audio
sources only)
Change the text size of song information smaller
when the "Small Audio Text" is set to "ON" in the
User Interface screen (P.82).
6
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
7
Operation keys
You can operate the current source with these
operation keys. The available functions are
different depending on the source type.
Basic Operations
18

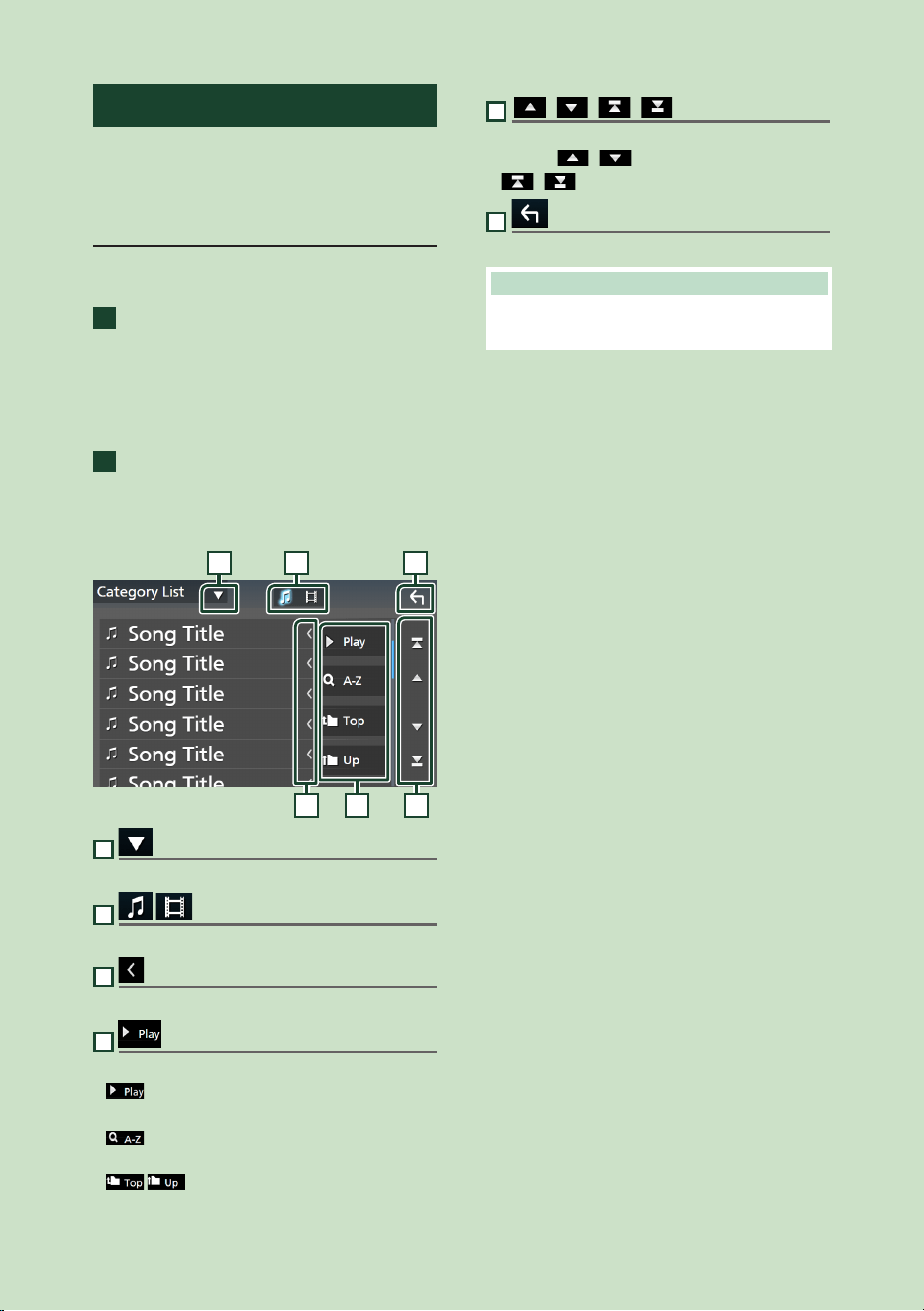

List screen
There are some common function keys in the
list screens of most sources.
See (P.26, 39, 41, 70).
Display the list screen
For Disc media/USB/iPod:
1
Touch [1] or the item listed on the
information area in the source control
screen.
hh The list screen appears.
For Bluetooth audio:
1
Touch [1].
hh The list screen appears.
You can use following operation keys from this
screen.
61 2
3 4 5
1
Displays the list type selection window.
2
Displays a music/movie file list.
3
Text scroll
Scrolls the displayed text.
4
etc.
Keys with various functions are displayed here.
•
: Plays all tracks in the folder containing
the current track.
•
: Jumps to the letter you entered
(alphabetical search).
•
: Moves to the upper hierarchy
level.
5
[ ]/[ ]/[ ]/[ ] Page scroll
You can change pages to display more items by
touching [
]/[ ].
• [
]/[ ] : Displays the top or bottom page.
6
Return
Returns to the previous screen.
NOTE
• Depending on the current source or mode, some
function key may not appear.

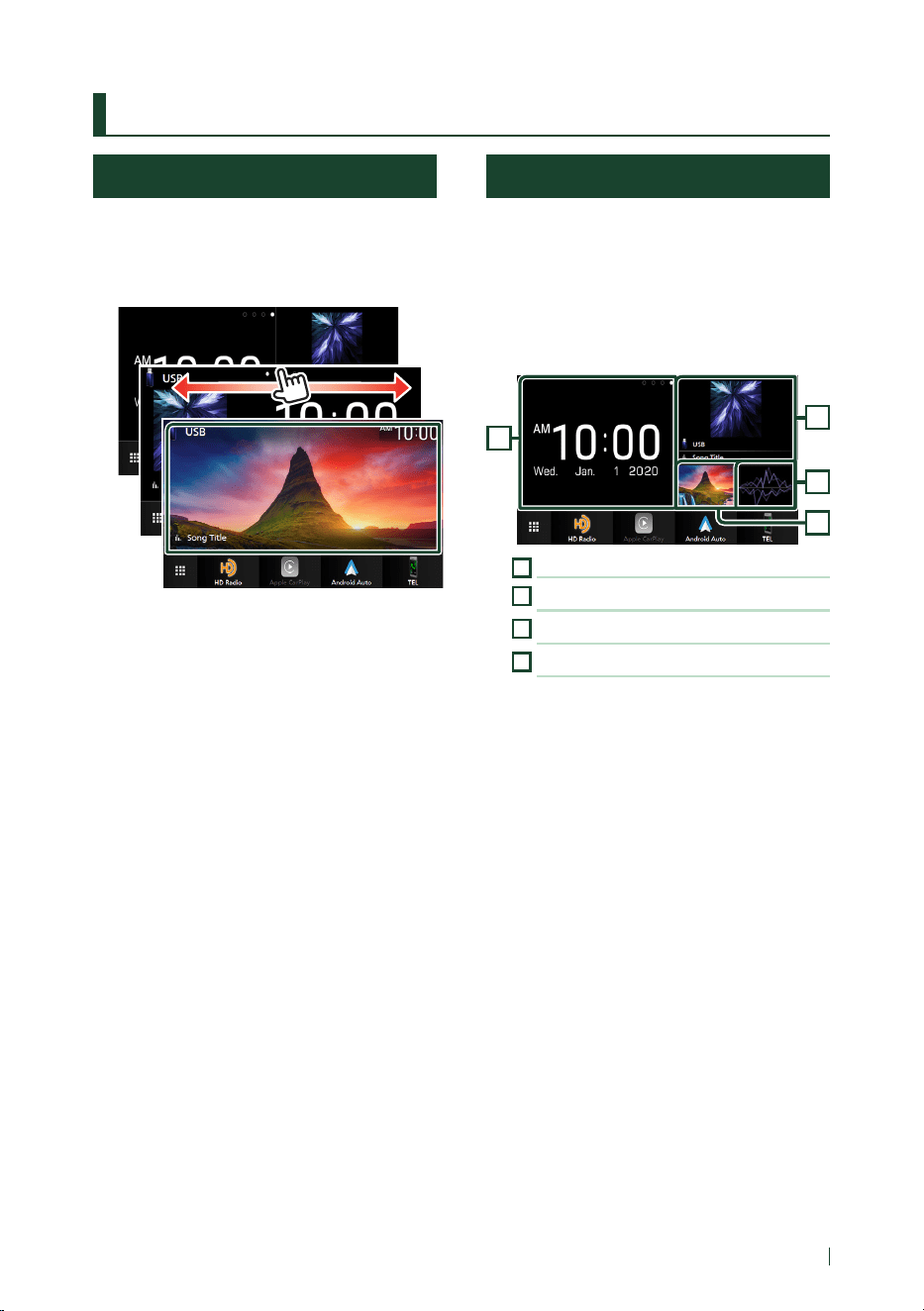

Widget
19English
Widget
Widget
1
Press the [HOME] button.
2
You can change the widget by flicking left
or right on the widget area.
Widget list
• Multi Widget *
1
• Clock Widget
• Tire Pressure Widget *
2
• Rader Widget *
2
• Climate Widget *
2
• Photo Frame Widget
*1 Up to 3 pages can be set to the multi widget screen.
*2 Displayable widgets vary depending on the type of
the connected iDataLink (commercially available)
and the model of the vehicle.
Multi Widget
You can place a widget on each of the
following areas. Up to 4 widgets can be placed
per a multi widget screen.
1
Press the [HOME] button.
2
Flick the widget area to the left/right to
display the multi widget.
1
2
3
4
1
Widget (L)
2
Widget (M)
3
Widget (S1)
4
Widget (S2)
Ñ Replace the widget
● To move the widget
1
Touch and hold the widget.
hh Widget customize mode is activated.
2
Drag the widget to the desired position.
● To delete the widget
1
Touch and hold the widget.
hh Widget customize mode is activated.
2
Touch [×] on the right top corner of the
widget.
hh The selected widget is deleted.
Widget
20

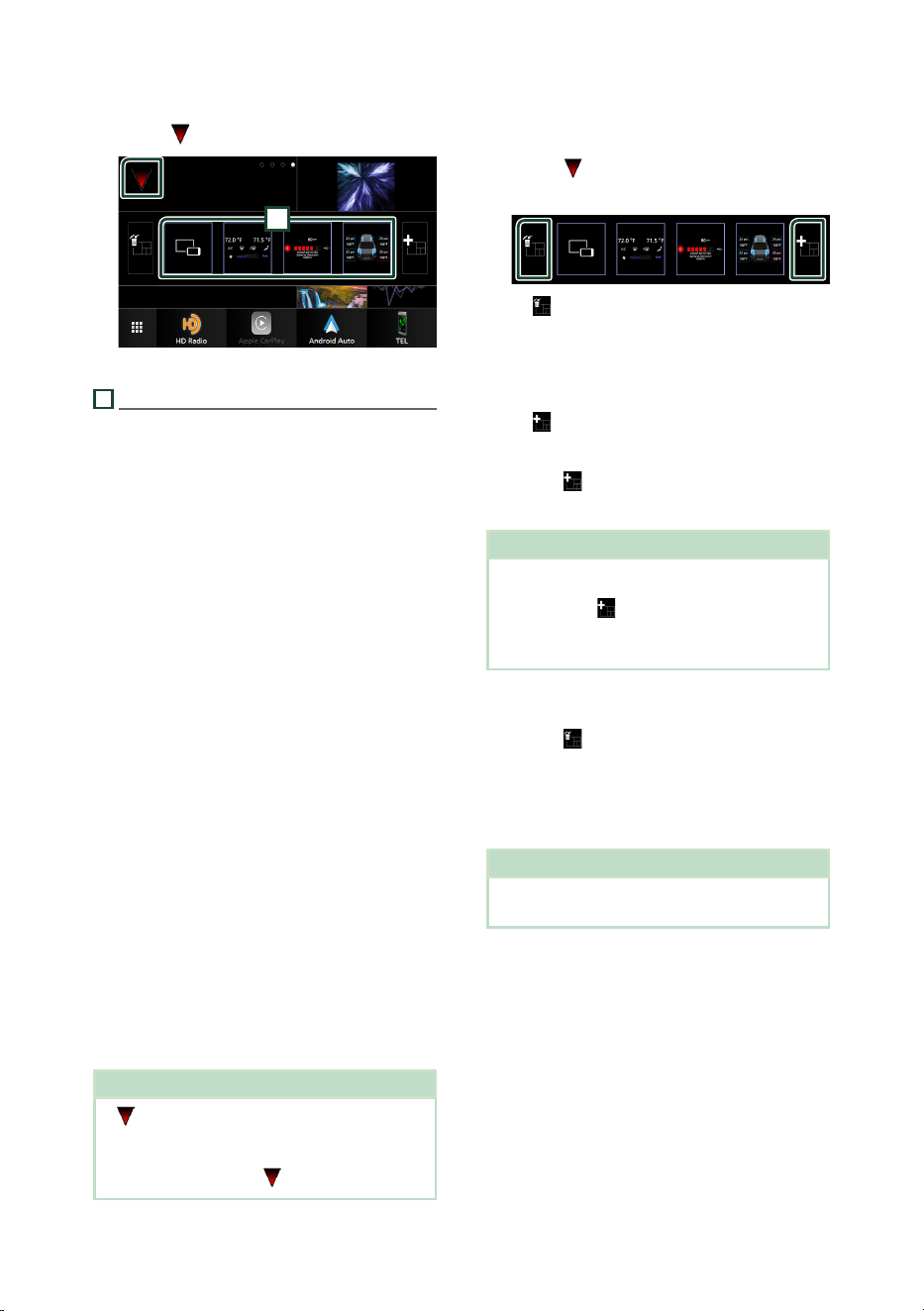

● To replace the widget
1
Touch [ ] on the multi widget screen.
1
hh Widget list popup appears.
1
Widget icon
The widgets which can be placed to the multi
widget screen are listed.
2
Flick the widget list popup to the left/
right to select the widget to replace.
3
Touch and hold the new widget.
hh Widget customize mode is activated.
4
Drag the widget from the widget list
popup to the desired widget area.
You can set up following items.
• Clock Widget
• Compass Widget
• Current source information *
1
• Visualizer Widget
• Mirroring Widget *
2
*
3
• Photo Frame Widget
• Climate Widget *
4
• Radar Widget *
4
• Tire Pressure Widget *
4
*1 You cannot display the screen of Wireless Mirroring/
USB Mirroring on this widget. To display the screen of
the source, select the Mirroring Widget.
*2 This can be selected when using Wireless Mirroring/
USB Mirroring.
*3 You cannot play the video file on the USB/Disc media
when using Wireless Mirroring/USB Mirroring.
*4 This can be selected when a compatible ADS adapter
is connected.
NOTE
• and the widget list popup disappear when no
operation is done for 5 seconds.
• When the screen is switched from another widget
to multi widget screen, [
] appears again.
Ñ Add a new multi widget
You can add pages to the multi widget screen.
1
Touch [ ] on the multi widget screen.
hh Widget list popup appears.
■ [ ]
Displays confirmation message to delete the
current page from the multi widget screen.
For details, see To delete the multi widget
(P.20).
■ [
]
Adds a page to the multi widget screen.
2
Touch [ ] on the widget list popup.
hh A new page is added.
NOTE
• You can add up to 2 pages to the multi widget
screen. If you have already added 2 pages, you
cannot select [
].
• The widget list popup is displayed on the new
page until you place a widget to.
To delete the multi widget
1
Touch [ ] on the widget list popup.
hh Confirmation message appears.
2
Touch [YES].
hh Current page is deleted.
NOTE
• You cannot delete the first page of the multi
widget screen.
Widget
21English
Photo Frame Widget
You can display a slideshow of the image
files stored in the USB memory on the Home
screen.
Ñ Preparation
• Select “ON” for Photo Frame Widget. See
Widget SETUP (P.21).
● Acceptable Picture files
Max. Picture size
JPEG (.jpg, .jpeg) *
1
5,000 × 5,000
PNG (.png) 1,000 × 1,000
BMP (.bmp) 1,000 × 1,000
• This unit can only play back files which are less
than 50 MB.
• The maximum number of files per device is
500.
• Picture files may not be played depending on
their condition.
*1 A progressive format is not supported.
Ñ Photo Frame
1
Press the [HOME] button.
2
Flick the widget area to the left/right to
display the photo frame widget.
• Scroll the screen to display the hidden part.
Widget SETUP
Set up the widgets on the Home screen.
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [SETUP].
hh SETUP screen appears.
3
Touch [User Interface].
hh User Interface screen appears.
4
Touch [Widget SETUP] in the User
Interface screen.
5
Set each item as follows.
■ [Photo Frame Widget]
Determine whether to use the photo frame
widget.
"ON" (Default)/"OFF"
■ [Photo Frame SETUP]
Make settings related to display of the photo
frame widget.
6
Touch [ ].
Widget
22
To Photo Frame Setup
Make settings related to display of the photo
frame widget.
1
Touch [Photo Frame SETUP] on the
Widget SETUP screen.
2
Set each item as follows.
■ [Sort Order]
Specify a file sorting criterion.
"By Name(Ascending)"/
"By Name(Descending)"/
"By Date(Newest First)"(Default)/
"By Date(Oldest First)"
■ [Slide Show Interval]
Specify the slideshow interval.
"5" to "30" seconds.
Default is "5" seconds.
■ [Photo Frame is • • • • •]
Display help topics about the photo frame.
3
Touch [ ].
Disc
23English
Disc
(DDX9907XR / DDX9707S)

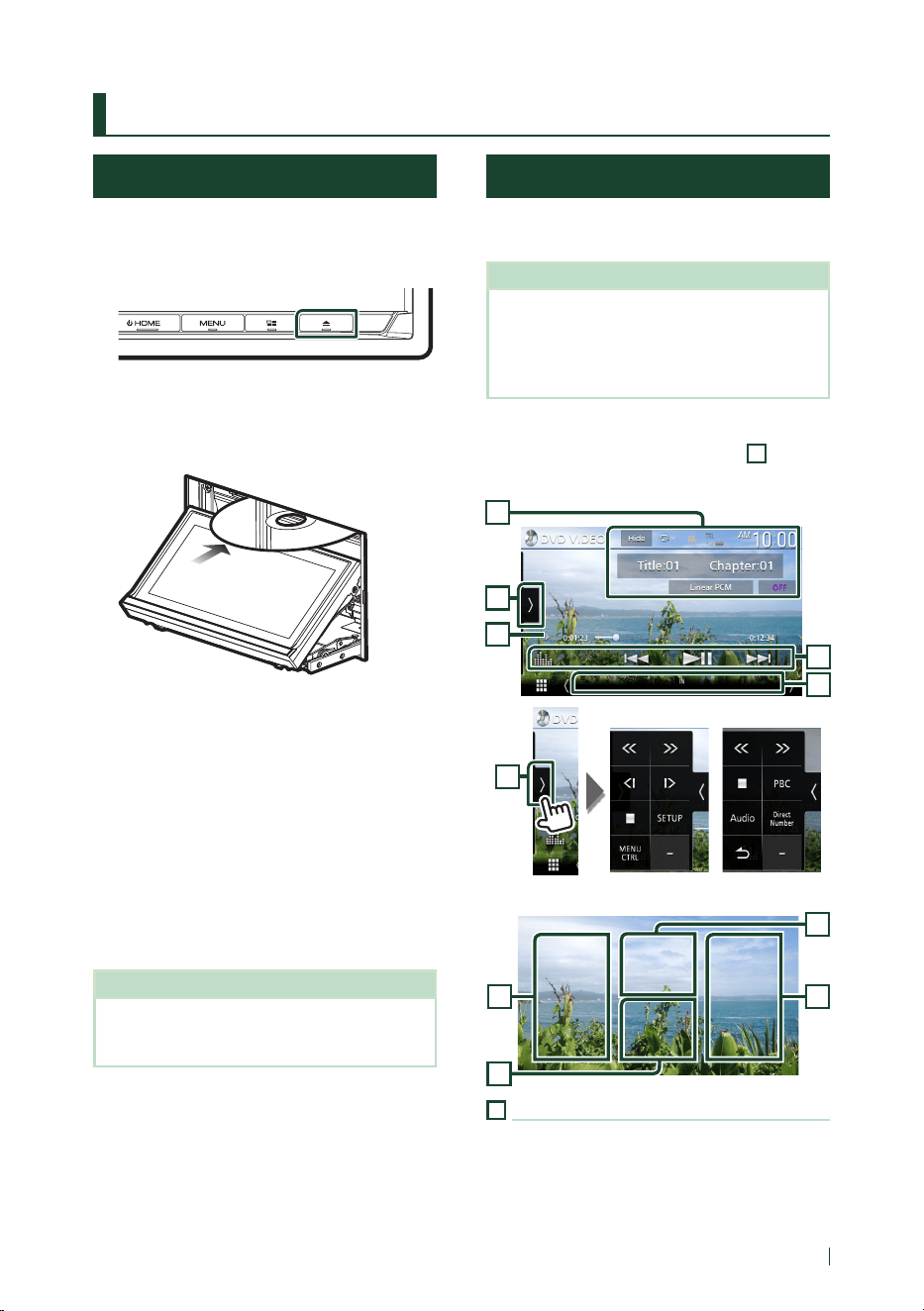

Playing a disc
Ñ Insert a disc
1
Press the [G] button.
2
Touch [DISC EJECT].
hh The panel opens.
3
Insert the disc into the slot.
hh The panel closes automatically.
The unit loads the disc and playback
starts.
Ñ Eject a disc
1
Press the [G] button.
2
Touch [DISC EJECT].
When removing a disc, pull it horizontally.
3
Press the [G] button.
hh The panel closes.
NOTE
• To forcibly eject the disc, press and hold the
[G] button for 2 seconds and then touch [DISC
EJECT] after the message is displayed.
DVD/VCD Basic Operation
Most functions can be controlled from the
source control screen and playback screen.
NOTE
• Set the remote control mode switch to DVD
mode before starting operation for DVD and VCD,
see Switch the operation mode (P.96).
• The screen shot below is for DVD. It may be
different from the one for VCD.
1
When the operation keys are not
displayed on the screen, touch
7
area.
Control screen
2
3
4
5
1
DVD VCD
2
Video screen
7
6
8
6
1
Information display area
Displays the following information.
• Title #, Chapter #: DVD title and chapter
number
Disc
24
• Track #/Scene #: VCD track or scene number.
Scene # is displayed only when Playback
control (PBC) is on.
• Linear PCM, etc.: Audio format
• OFF/Zoom2 – 4 (DVD)/Zoom2 (VCD): Displays
the zoom ratio.
This function can be used from the remote
control. (P.96)
• [Hide]: Hides the control screen.
• [
] : Repeats the current content. Each time
you touch the key, repeat modes are switched
in the following sequence;
DVD: Title repeat ( ), Chapter repeat
( ), Repeat off ( )
VCD (PBC On): Does not repeat
VCD (PBC Off ): Track repeat ( ), Repeat off
( )
2
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• I]: Stops playback. Touching twice will play
the disc from the beginning when you play it
next time.
• [
] [ ]: Fast-forwards or fast-backward the
disc. Each time you touch the key, the speed
changes. 2 times, 10 times.
• [
] [ ] (DVD only): Plays in slow motion
forward or backward.
• [SETUP] (DVD only): Touch to display the DVD
SETUP screen. See DVD SETUP (P.28).
• [MENU CTRL] (DVD only): Touch to display
the DVD-VIDEO disc menu control screen. See
DVD Disc Menu Operation (P.27).
• [PBC] (VCD only): Touch to turn Playback
control (PBC) on or off.
• [Audio] (VCD only): Touch to change audio
output channels.
• [Direct Number] (VCD only): Touch to display
the Direct Number dialog only when Playback
control (PBC) is on. You can directly enter the
track number to play when scene is selected.
• [
] (VCD only): Returns to the previous scene
only when Playback control (PBC) is on.
3
Play mode indicator/Playing time
• D, B, I, etc.: Current play mode indicator
Meanings of the icons are as follows: D (play),
B (fast forward), A (fast backward),
I (stop),
R
(resume stop), H (pause), (slow
playback), (slow reverse playback).
• For confirmation of current playing position.
You can drag the circle left or right to change
the playing position.
4
Operation keys
• [E] [F] : Searches for the previous/next
content.
Touch and hold to fast-forward or fast-
backward the disc. (It will be cancelled
automatically after about 50 seconds.)
• [DH] : Plays or pauses.
• [
] : Displays the Graphic Equalizer screen.
(P.90)
5
Indicator Items
• [IN]: Disc insertion status.
White: A Disc is inside the unit.
Orange: Disc player failure.
VCD
• [1chLL/2chLL]: Identifies the left audio output
of channel 1 or 2.
• [1chLR/2chLR]: Identifies the monaural audio
output of channel 1 or 2.
• [1chRR/2chRR]: Identifies the right audio
output of channel 1 or 2.
• [1chST/2chST]: Identifies the stereo audio
output of channel 1 or 2.
• [LL]: Identifies the left audio output.
• [LR]: Identifies the monaural audio output.
• [RR]: Identifies the right audio output.
• [ST]: Identifies the stereo audio output.
• [PBC]: The PBC function is on.
• [VER1]: The VCD version is 1.
• [VER2]: The VCD version is 2.
6
Searching area
Touch to search for the next/previous content.
7
Key display area
Touch to display the control screen.
8
[MENU CTRL] (DVD only)
Touch to display the DVD-VIDEO disc menu
control screen. See DVD Disc Menu Operation
(P.27).
NOTE
• The control screen disappears when no operation
is done for 5 seconds.
• If you use a remote control, you can jump directly
to the desired image by entering the chapter
number, scene number, etc. (P.96).
Disc
25English
Music CD/Disc media Basic
Operation
Most functions can be controlled from the
source control screen and playback screen.
NOTE
• Set the remote controller mode switch to AUD
mode before starting operation for Music CD
and audio files, see Switch the operation mode
(P.96).
• In this manual, “Music CD” means a general CD
which includes music tracks.
“Disc media” means a CD/DVD disc which
includes audio or video files.
• The screen shot below is for disc media. It may be
different from the one for CD.

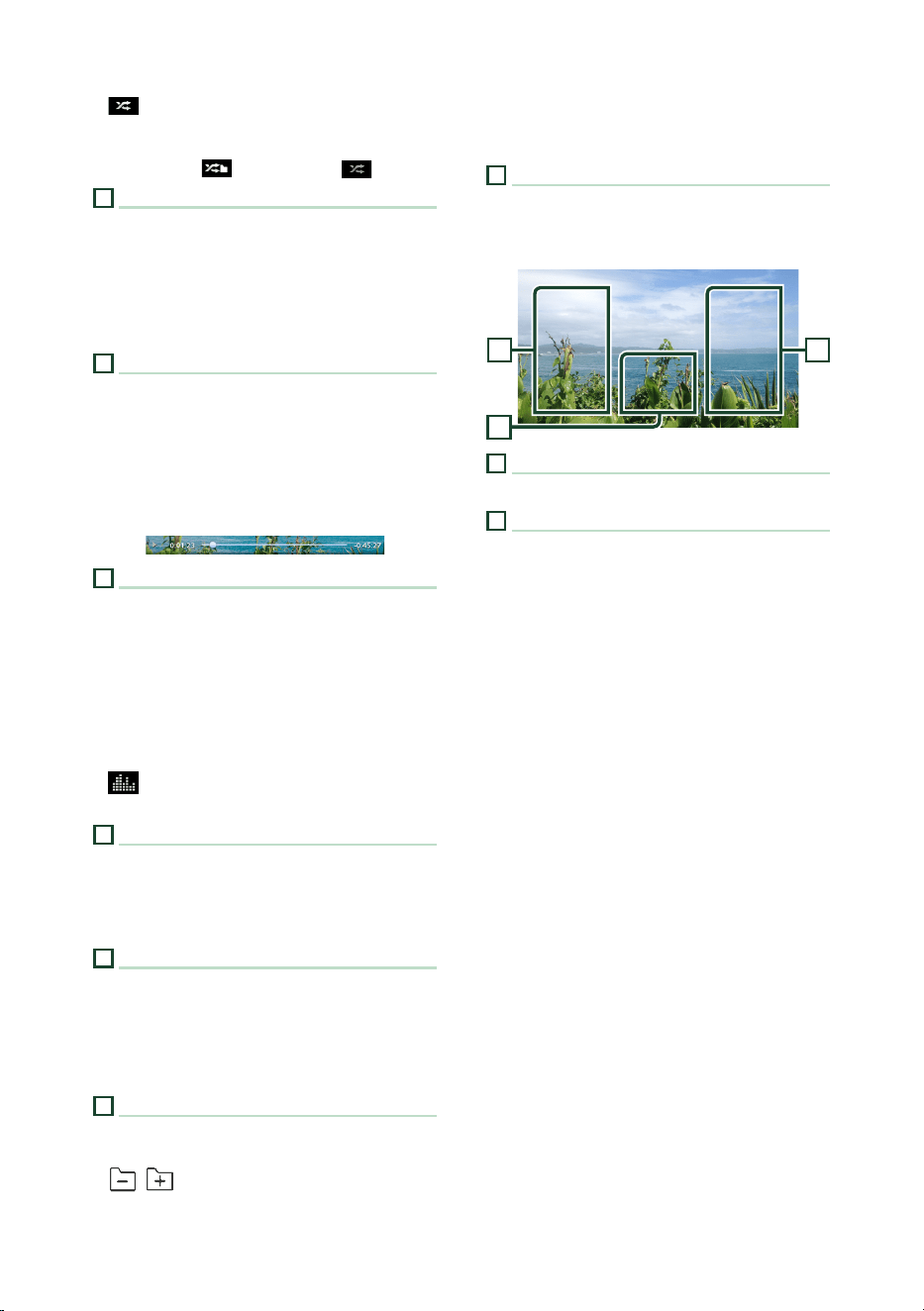

Control screen
7
3
4
5
2
6
1
Open the drawer
5
7
Close the drawer
5
7
6
8
1
CODEC/[ ]/[ ]
• When a high-resolution source is played, its
format information is displayed. (Disc media
only)
• [ ] : Repeats the current track/folder. Each
time you touch the key, repeat mode switches
in the following sequence;
Track/File repeat ( ), Folder repeat ( )
(Disc media only), Repeat all (
)
• [
] : Randomly plays all tracks in current
folder/disc. Each time you touch the key,
random mode switches in the following
sequence;
Track random ( ) (Music CD only), Folder
random ( ) (Disc media only), Random off
( )
2
Track information
• Displays the information of the current track/file.
Only a file name and a folder name are
displayed if there is no tag information. (Disc
media only)
• Change the text size of the information smaller
when the "Small Audio Text" is set to "ON" in
the User Interface screen (P.82).
3
Play mode indicator/Playing time
• D, B, etc.: Current play mode indicator
Meanings of the icons are as follows: D (play),
B (fast forward), A (fast backward),
H (pause).
• For confirmation of current playing position.
You can drag the circle left or right to change
the playing position. (Video file only)
4
Operation keys
• [1] (Disc media only) : Searches files. For
details on search operation, see File search
Operation (P.26).
• [E] [F] : Searches for the previous/next
content.
Touch and hold to fast-forward or fast-
backward the disc. (It will be cancelled
automatically after about 50 seconds.)
• [DH] : Plays or pauses.
• [
] : Displays the Graphic Equalizer screen.
(P.90)
5
Content list
• Touch the right side of the screen to display
the Content list. Touch again to close the list.
• Displays the playing list. When you touch a
track/file name on the list, playback will start.
Disc
26
6
Artwork/VU meter
• Displays/hides artwork area.
• The jacket of the currently playing file is
displayed. (Disc media only)
• Touch to switch between the artwork and VU
meter.
7
Function panel (Disc media only)
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• [
] [ ] : Searches for the previous/next
folder.
8
Indicator Items
• [IN]: Disc insertion status.
White: A Disc is inside the unit.
Orange: Disc player failure.
• [VIDEO]: Identifies the video file.
• [MUSIC]: Identifies the music file.
Video screen
10
99
9
File search area (Video file only)
Touch to search for the next/previous file.
10
Key display area (Video file only)
Touch to display the control screen.
File search Operation
(Disc media only)
You can search for a file according to hierarchy.
NOTE
• For operations in the list screen, see List screen
(P.18).
1
Touch [1].
hh Folder List screen appears.
2
Touch the desired folder.
hh When you touch a folder its contents are
displayed.
3
Touch the desired item in the content list.
hh Playback starts.
Disc
27English
DVD Disc Menu Operation
You can set up some functions using the DVD-
VIDEO disc menu.
1
Touch the framed area during playback.
hh Menu Control screen appears.
2
Perform your desired operation as
follows.
■ To display the top menu
Touch [TOP].*
■ To display the menu
Touch [MENU].*
■ To display the previous menu
Touch [Return].*
■ To enter selected item
Touch [Enter].
■ To enable direct operation
Touch [Highlight] to enter the highlight
control mode (P.27).
■ To move the cursor
Touch [R], [S], [C], [D].
■ To switch among subtitle languages
Touch [Subtitle]. Each time you touch this
key, subtitle languages are switched.
■ To switch among audio languages
Touch [Audio]. Each time you touch this key,
audio languages are switched.
■ To switch among picture angles
Touch [Angle]. Each time you touch this key,
picture angles are switched.
* These keys may not function depending on
the disc.
Ñ Highlight control
Highlight control lets you control the DVD
menu by touching the menu key directly on
the screen.
1
Touch [Highlight] on the Menu Control
screen.
2
Touch your desired item on the screen.
NOTE
• The highlight control function is cancelled
automatically if you do not operate for a
predetermined period of time.
Disc
28
DVD SETUP
You can set up the DVD playback functions.
1
Touch the framed area during playback.
2
Touch [ ] on the left side of the screen.
Touch [SETUP].
hh DVD SETUP screen appears.
3
Set each function as follows.
■ [
Menu Language/Subtitle Language/
Audio Language]
See Language setup (P.28).
■ [Dynamic Range Control]
Sets the dynamic range.
[Wide]: The dynamic range is wide.
[Normal]: The dynamic range is normal.
[Dialog] (Default): Makes the total sound
volume larger than the volumes in other
modes. This is effective only when the
Dolby Digital software is in use.
■ [Screen Ratio]
Sets the screen display mode.
[16:9 ](Default): Displays wide pictures.
[4:3 LB]: Displays wide pictures in the Letter
Box format (having black stripes at the top
and bottom of screen).
[4:3 PS]: Displays wide pictures in the Pan &
Scan format (showing pictures cut at the
right and left ends).
Ñ Language setup
This setting is for the languages used for the
menu, subtitle, and voice.
1
Touch the desired item;
[Menu Language], [Subtitle Language],
[Audio Language].
hh Language Set screen appears.
2
Select a language.
For language codes, refer to DVD
Language Codes (P.115).
Touch Close to set the entered language
and return to the DVD SETUP screen.
NOTE
• To set the DVD’s original language as the audio
language, touch [Original].
APPS
29English
APPS
Wireless Mirroring Operation
You can display the same screen of the
Android smartphone on the monitor of the
unit using the Wireless Mirroring function of
the Android smartphone.
Preparation
• You can use the Wireless Mirroring function
with Android smartphones compatible with this
function.
• This function may be called Wireless Display,
Screen Mirroring, AllShare Cast, etc., depending
on the manufacturer.
• The settings on the Android smartphone differ
depending on the device type. For details, refer
to the instruction manual supplied with your
Android smartphone.
• If your Android smartphone is locked, Mirroring
screen may not appear.
• If the Android smartphone is not ready for UIBC,
you cannot perform touch operation.
1
Press the [HOME] button.
2
Touch [ ].
3
Touch [Wireless Mirroring]. (P.15)
hh The App screen is displayed.
4
Operate your Android smartphone to
activate the Wireless Mirroring function,
then connect to this unit.
5
Select (”DDX****”/”DMX****”) as the
network to use.
hh When the connection is established,
then the same screen displayed on the
Android smartphone is displayed.
NOTE
• Apps is discontinued when the power is turned
ON/OFF or you leave the vehicle. To restart Apps,
operate the Android smartphone.
• When the Apps source is displayed, you cannot
register or reconnect a Bluetooth device. Switch
the Apps source to another source, and then
operate the Bluetooth device.
USB Mirroring Operation
With Mirroring for KENWOOD application
installed on your smartphone, you can display
the screen of your smartphone on the screen
of this unit and listen to either the audio of
your smartphone or current source of this unit.
You may access your smartphone from this
unit.
You can use the USB Mirroring function
with your smartphone compatible with this
function.
Compatible devices
• Android smartphone
– Bluetooth support
– Android version 5.0 or later
– Linux Kernel version 3.5 or later
• iPhone
– Bluetooth support
– iOS version 11 or later
Preparation
• Install the latest version of the Mirroring
for KENWOOD application and activate the
application on your smartphone.
[Android smartphone]: Search for “Mirroring for
KENWOOD” in Google Play to find and install the
most recent version.
[iPhone]: Search for “Mirroring for KENWOOD”
in Apple App Store to find and install the most
recent version.
Mirroring for KENWOOD application is a free
application. You can check “how to” tutorial in
Mirroring for KENWOOD application.
Ñ Connect the device
Screen is mirrored through USB (Black)
terminal connection while audio is shared via
Bluetooth connection between this unit and
your smartphone.
APPS
30
For Android smartphones:
1
Pair your Android smartphone with
this unit via Bluetooth. See Register the
Bluetooth device (P.65).
Select A2DP/SPP [Audio/App].
2
Press the [HOME] button.
3
Touch [ ].
4
Touch [USB Mirroring]. (P.15)
5
Connect your Android smartphone via
the USB (Black) terminal. (P.107)
When you use Mirroring for KENWOOD
application for the first time, the terms
of service are displayed. It is necessary to
agree to the terms of service to use this
function.
For iPhone:
1
Pair your iphone with this unit via
Bluetooth. See Register the Bluetooth
device (P.65).
Select A2DP/SPP [Audio/App].
2
Touch “Mirroring for KENWOOD” and start
broadcast.
3
Press the [HOME] button.
4
Touch [ ].
5
Touch [USB Mirroring]. (P.15)
6
Connect your iPhone using KCA-iP103 via
the USB (Black) terminal. (P.107)
7
Operate your iPhone to complete
followings.
• Launch “Settings”, then touch “Control
Center” and then “Customize Controls”.
• Touch “Screen Recording” and add to
“INCLUDE” list.
• Launch “Control Center” of your iPhone,
then touch and hold Screen Recording
icon.
NOTE
• USB (Gray) terminal does not support USB
Mirroring.
• You cannot use the Bluetooth and iPod sources
at the same time with Mirroring for KENWOOD
application.
• OSD clock is not shown on the mirroring screen
of this unit regardless of the setting made for
[OSD Clock] ( P. 84).
• Depending on the connected Android
smartphone, you may need to enable virtual
keyboard setting on your smartphone to display
software keyboard on the screen of this unit and
on your smartphone.
• Mirroring for KENWOOD application is
discontinued by the following operations if you
use the application with an iPhone:
– Receiving an incoming call
– iPhone's screen recording function is stopped
– iPhone screen is turned off
To resume the mirroring operation, disconnect
the iPhone from the USB Audio cable, and try
connecting it again.
• The audio may be of poor quality, interrupted or
skipped, depending on several conditions such as
network condition, the application and etc.
• If you perform pairing with another device during
mirroring, mirroring (audio and/or video) will be
disturbed or paused.
• Some applications may not support audio
sharing.
• Some operations may not work depending on
the compatibility between this unit, Mirroring for
KENWOOD application and your smartphone.
Ñ Operation keys on the
mirroring screen
On the USB mirroring screen, the following
virtual hard keys are available. The keys are
hidden when no operation is done for about
5 seconds. You can display back them anytime
by touching the screen.
• [
]/[ ]: Changes the virtual hard keys position
shown on the screen of this unit.
• []: Returns to home page.
• [×]: Closes the virtual hard keys.
• [
]: Shows the recent applications (Android
only).
• [
]: Returns to the previous page (Android
only).
APPS
31English
NOTE
• These keys differ depending on the connected
device and may differ from the function operated
from the device.
• These keys can be displayed even if there is no
hard key on the connected device.
Ñ Disconnect mirroring
You can disconnect mirroring by
disconnecting your smartphone from the USB
(Black) terminal from the rear panel.
NOTE
• Once you disconnect from mirroring operations,
stop broadcast on iPhone's screen recording
function. Otherwise “iPod” source and “Bluetooth”
source may not work correctly.
Apple CarPlay Operation
Apple CarPlay is a smarter, safer way to use
your iPhone in the car. Apple CarPlay takes
the things you want to do with iPhone while
driving and displays them on the screen of
the product. You can get directions, make
calls, send and receive messages, and listen to
the music from iPhone while driving. You can
also use Siri voice control to make it easier to
operate iPhone.
For details about Apple CarPlay, visit https://
www.apple.com/ios/carplay/.
Compatible iPhone devices
You can use Apple CarPlay with the following
iPhone models.
• iPhone XS Max
• iPhone XS
• iPhone XR
• iPhone X
• iPhone 8 Plus
• iPhone 8
• iPhone 7 Plus
• iPhone 7
• iPhone SE
• iPhone 6s Plus
• iPhone 6s
Ñ Connecting an iPhone
Preparation
• To register an iPhone by the connection via the
USB (Black) terminal
– Connect an iPhone via the USB (Black) terminal
and operate the iPhone according to the
confirmation messages displayed on the
iPhone. The iPhone is registered in [Apple
CarPlay Device List]. Removing the iPhone
from the USB (Black) terminal and selecting
the registered iPhone from [Apple CarPlay
Device List], the iPhone will be connected
wirelessly.
• To register an iPhone by the connection via
Bluetooth
– Touching [
] on the [Apple CarPlay
Device List] screen (P.32), displays
Bluetooth pairing waiting dialog. Referring
to Register the Bluetooth device (P.65)
and registering the iPhone, the iPhone will be
connected wirelessly.
APPS
32
Wired connection
1
Connect your iPhone using KCA-iP103 via
the USB (Black) terminal. (P.107)
When an iPhone compatible with Apple
CarPlay is connected to the USB (Black)
terminal, the Bluetooth Hands-Free phone
currently connected is disconnected. If the
Bluetooth Hands-Free phone is being used,
disconnection will occur after ending the
call.
2
Unlock your iPhone.
Wireless connection
You can select the iPhone registered as the
Bluetooth device from [Apple CarPlay Device
List] and use it as the Apple CarPlay device.
1
Press the [HOME] button.
2
Touch [ ].
3
Touch [Apple CarPlay]. (P.15)
NOTE
• Turn on the Bluetooth function and Wi-Fi function
of an iPhone.
• If two or more iPhones have been registered,
select the iPhone to be used as the [Apple
CarPlay] source. (P.32)
• You can also select the iPhone registered in
[Apple CarPlay Device List] (P.32) even
when the [Apple CarPlay] icon is not activated
on the source selection screen.
• It is necessary to connect the GPS antenna and
the speed pulse input in order to use a wireless
Apple CarPlay.
• When the Wi-Fi connection becomes unavailable,
the HOME screen is displayed.
• You cannot use Apple CarPlay if the iPhone's
screen recording function is enabled.
To switch the Current Screen to the
Apple CarPlay Screen When Connecting
Your iPhone
• Touch [Apple CarPlay] icon on the source
selection screen. (P.15)
• Touch the following connection message if the
message appears.
NOTE
• The connection message appears when;
– The iPhone you used previously is connected
again.
– The screen other than HOME and the source
selection screen is displayed.
• The connection message is displayed for about
5 seconds.
Ñ Select an Apple CarPlay device
If two or more iPhones compatible with Apple
CarPlay have been registered, select the
iPhone to be used as the Apple CarPlay source.
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [SETUP].
hh SETUP screen appears.
3
Touch [AV].
4
Touch [Apple CarPlay Device List].
5
Select a device.
The Apple CarPlay device connected via
the USB and the registered Apple CarPlay
devices ready for wireless connection are
displayed.
APPS
33English

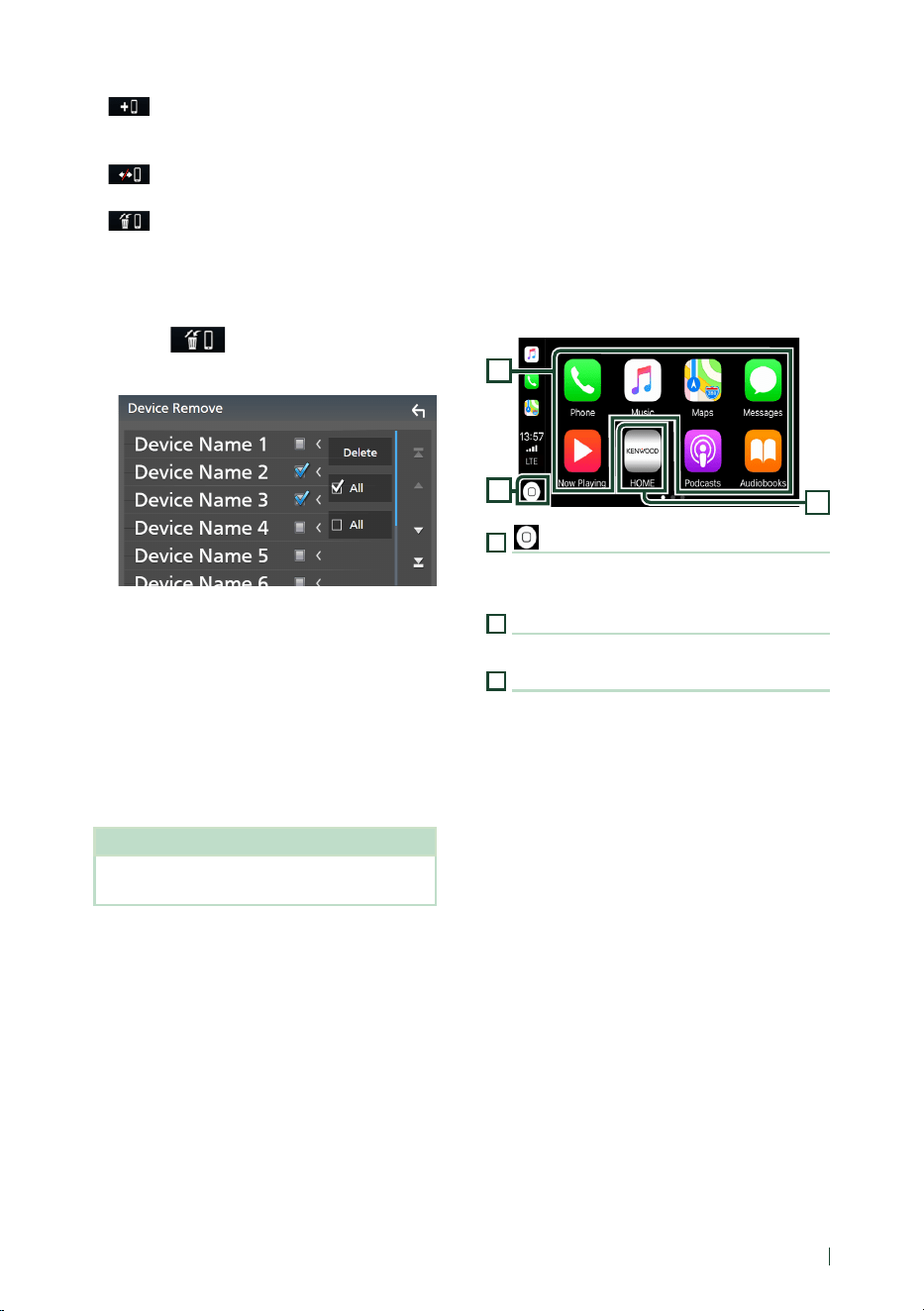

• [ ] : Displays a Bluetooth pairing waiting
dialog. For details, see Register the Bluetooth
device (P.65).
• [
] : Displays confirmation message to
disconnect the device.
• [
] : Displays Device Remove screen.
(P.33)
To delete the registered Apple CarPlay
device
1
Touch [ ].
2
Touch the device name to check.
■ [þ [ALL]
Selects all Apple CarPlay devices.
■ [¨ [ALL]
Clears all check marks.
3
Touch [Delete].
hh Confirmation message appears.
4
Touch [Ye s].
hh All the selected device(s) is deleted.
NOTE
• This operation also deletes the same device(s)
from the Bluetooth device list screen. (P.67)
Ñ Operation keys and available
Apps on the home screen of
Apple CarPlay
You can use the Apps of the connected iPhone.
The items displayed and the language used
on the screen differ among the connected
devices.
To enter the Apple CarPlay mode, touch
[Apple CarPlay] icon on the source selection
screen. (P.15)
3
1
2
1
[ ]
*
• Displays the home screen of Apple CarPlay.
• Touch and hold to activate Siri.
2
Application keys
Starts the application.
3
[HOME]
Exits the Apple CarPlay screen and displays the
Home screen.
* The icon design may change depending on
the iOS version.
To exit the Apple CarPlay screen
1
Press the [HOME] button.
APPS
34
Ñ Use Siri
You can activate Siri.
1
Press the [ ] button for 1 second.
DDX9907XR / DDX9707S
Press for 1 second
DMX957XR / DMX907S / DMX9707S
Press for 1 second
2
Talk to Siri.
To deactivate
1
Press the [ ] button.
Ñ Switch to the Apple CarPlay
screen while listening to
another source
1
Press the [ ] button.
DDX9907XR / DDX9707S
DMX957XR / DMX907S / DMX9707S
NOTE
• When listening to another source with the Apple
CarPlay screen displayed, playing music in the
Apple CarPlay mode will switch the current
source to the Apple CarPlay source.
Android Auto™ Operation
Android Auto enables you to use the functions
of your Android smartphone convenient
for driving. You can easily access route
guidance, make calls, listen to music, and
access convenient functions on the Android
smartphone while driving.
For details about Android Auto, visit https://
www.android.com/auto/ and https://support.
google.com/androidauto.
Compatible Android devices
You can use Android Auto with Android
devices of Android version 5.0 or later.
For Wi-Fi connection, Android 8.0 or later.
NOTE
• Android Auto may not be available on all devices
and may not be available in all countries or regions.
● About the placement of smartphone
Install the smartphone connected as Android
Auto device in the place where it can receive
the GPS signals.
When using Google Assistant, install the
smartphone in the place where the smartphone
easily catch a voice by the microphone.
NOTE
• Do not put the smartphone in a spot exposed
to direct sunlight or near an air blowing out
port of an air conditioner. The placement of
the smartphone in such places can lead to
malfunction or damage of your smartphone.
• Do not leave the smartphone in the vehicle.
APPS
35English

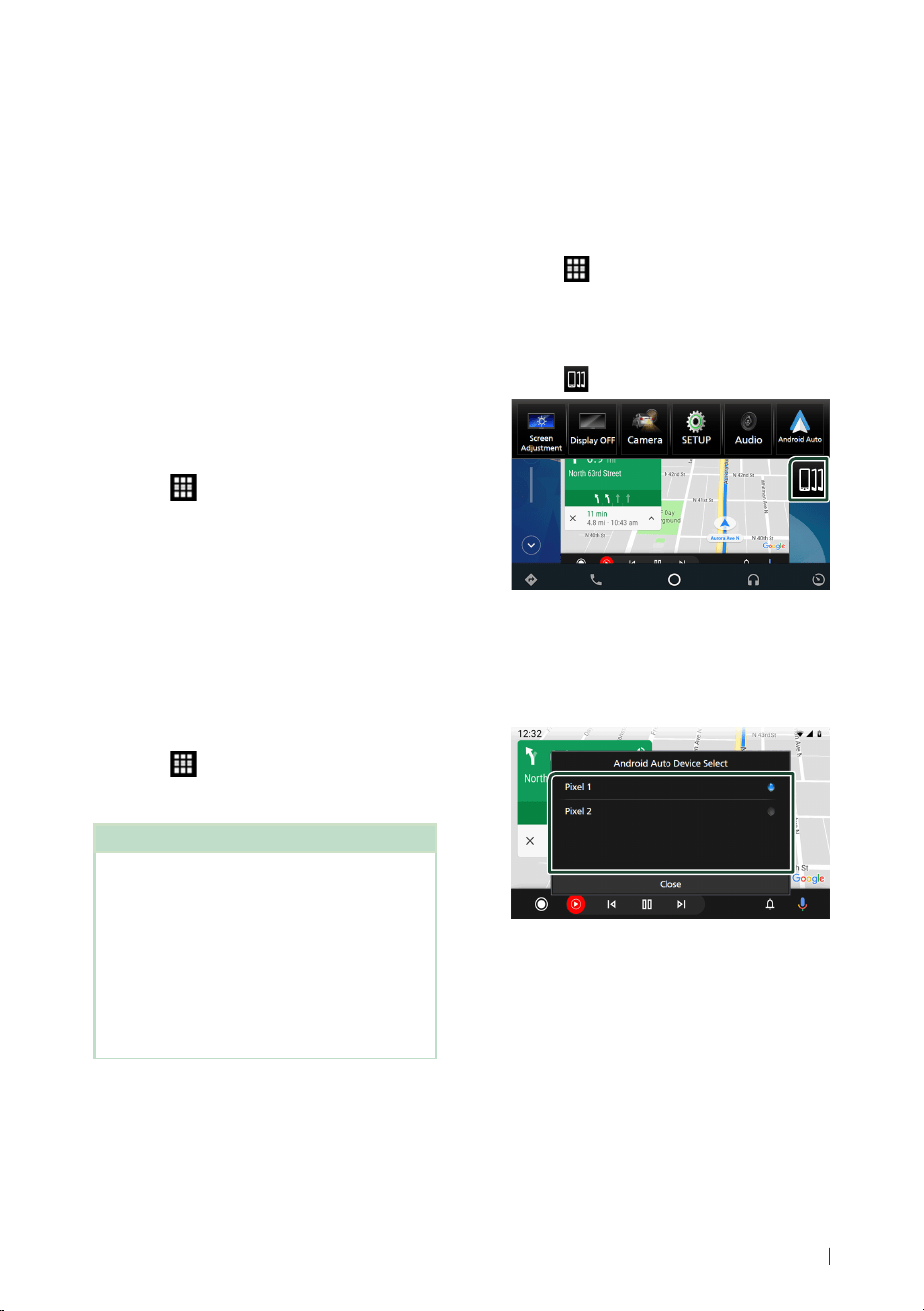

Ñ Connect Android smartphone
Wired connection
1
Connect an Android smartphone via the
USB terminal. (P.107)
To use the hands-free function, connect the
Android smartphone via Bluetooth.
When an Android smartphone compatible
with Android Auto is connected to the
USB terminal, the device is connected via
Bluetooth automatically, and the Bluetooth
Hands-Free phone currently connected is
disconnected.
2
Unlock your Android smartphone.
3
Press the [HOME] button.
4
Touch [ ].
5
Touch [Android Auto]. (P.15)
Wireless connection
When the Android smartphone is ready for
wireless connection, connecting it via the USB
registers Bluetooth and Wi-Fi automatically.
Thus, the registered Android smartphone will
be able to be connected wirelessly to be used
as an Android Auto source.
1
Press the [HOME] button.
2
Touch [ ].
3
Touch [Android Auto]. (P.15)
NOTE
• Turn on the Bluetooth function and Wi-Fi function
of Android smartphone.
• If two or more Android smartphones have been
registered, select the Android smartphone to be
used as the Android Auto source. (P.35)
• To change the password for wireless connection
manually, refer to [Reset Android Auto
Wireless Connection] ( P. 86).
• When the Wi-Fi connection becomes unavailable,
the HOME screen is displayed.
Ñ Select an Android smartphone
If two or more Android smartphones
have been registered, select the Android
smartphone to be used as the Android Auto
source.
1
Press the [HOME] button.
2
Touch [ ].
3
Touch [Android Auto]. (P.15)
4
Press the [MENU] button.
5
Touch [ ].
6
Select an Android smartphone.
The registered Android smartphones ready
for wireless connection and the Android
smartphone connected via the USB are
displayed.
APPS
36
Ñ Operation keys and available
Apps on the Android Auto
screen
You can perform the operations of the Apps of
the connected Android smartphone.
The items displayed on the screen differ
among the connected Android devices.
To enter the Android Auto mode, touch the
[Android Auto] icon on the source selection
screen. (P.15)
1
1
Application/information keys
Starts the application or displays information.
To exit the Android Auto screen
1
Press the [HOME] button.
Ñ Using voice control
1
Press the [ ] button for 1 second.
DDX9907XR / DDX9707S
Press for 1 second
DMX957XR / DMX907S / DMX9707S
Press for 1 second
2
Start speaking.
NOTE
• When you press and hold the button while
inputting voice, you can start over from the
beginning.
To cancel
1
Press the [ ] button.
Ñ Switch to the Android Auto
screen while listening to
another source
1
Press the [ ] button.
DDX9907XR / DDX9707S
DMX957XR / DMX907S / DMX9707S
NOTE
• When listening to another source with the
Android Auto screen displayed, playing music in
the Android Auto mode will switch the current
source to the Android Auto source.
USB
37English
USB
Connecting a USB device
1
Connect the USB device with the USB
cable. (P.106)
2
Press the [HOME] button.
3
Touch [ ].
4
Touch [USB]. (P.15)
Ñ Disconnect the USB device
1
Press the [HOME] button.
2
Touch a source other than [USB].
3
Detach the USB device.
Ñ Usable USB device
You can use a mass-storage-class USB device
with this unit.
The word “USB device” appearing in this manual
indicates a flash memory device.
● About the file system
The file system should be the one of the
following.
• FAT16 • FAT32 • exFAT • NTFS
NOTE
• Install the USB device in the place where it will
not affect safe driving.
• You cannot connect a USB device via a USB hub
and Multi Card Reader.
• Take backups of the audio files used with this
unit. The files can be erased depending on the
operating conditions of the USB device.
We shall have no compensation for any damage
arising from any erased data.
USB Basic Operation
Most functions can be controlled from the
source control screen and playback screen.
NOTE
• Set the remote controller mode switch to AUD
mode before starting operation, see Switch the
operation mode (P.96).
Control screen
7
4
3
5
2
6
1
Open the drawer
5
7
Close the drawer
5
7
6
8
1
[CODEC/[ ]/[ ]
• When a high-resolution source is played, its
format information is displayed.
• [
] : Repeats the current track/folder. Each
time you touch the key, repeat modes are
switched in the following sequence:
File repeat ( ), Folder repeat ( ), Repeat
all ( )
USB
38
• [ ] : Randomly plays all tracks in the current
folder. Each time you touch the key, random
modes are switched in the following sequence:
File random ( ), Random off ( )
2
Track information
• Displays the information on the current file.
Only a file name and a folder name are
displayed if there is no tag information.
• Change the text size of the information smaller
when the "Small Audio Text" is set to "ON" in
the User Interface screen (P.82).
3
Play mode indicator/Playing time
• D, B, etc.: Current play mode indicator
Meanings of individual icons are as follows:
D (play), B (fast forward), A (fast
backward), H (pause).
• For confirmation of current playing position.
You can drag the circle left or right to change
the playing position. (Video file only)
4
Operation keys
• 1] : Searches track/file. For details on search
operation, see Search Operation (P.39).
• E] [F] : Searches the previous/next track/
file.
Touch and hold to fast forward or fast
backward. (It will be cancelled automatically
after about 50 seconds.)
• [DH] : Plays or pauses.
• [
] : Displays the Graphic Equalizer screen.
(P.90)
5
Content list
• Touch the right side of the screen to display
the Content list. Touch again to close the list.
• Displays the playing list. When you touch a
track/file name on the list, playback will start.
6
Artwork/VU meter
• Displays/hides artwork area.
• The jacket of the currently playing file is
displayed.
• Touch to switch between the artwork and VU
meter.
7
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• [
] [ ] : Searches for the previous/next
folder.
• [USB DEVICE CHANGE]
:
Switches to another USB device when two USB
devices are connected.
8
Indicator Items
• [VIDEO]: Identifies the video file.
• [MUSIC]: Identifies the music file.
Video screen
10
99
9
File search area (Video file only)
Touch to search for the next/previous file.
10
Key display area (Video file only)
Touch to display the control screen.
USB
39English
Search Operation
You can search music or video files by the
following operations.
1
Touch [1].
2
Touch [S].
3
Select a list type.
NOTE
• For operations on the list screen, see List screen
(P.18).

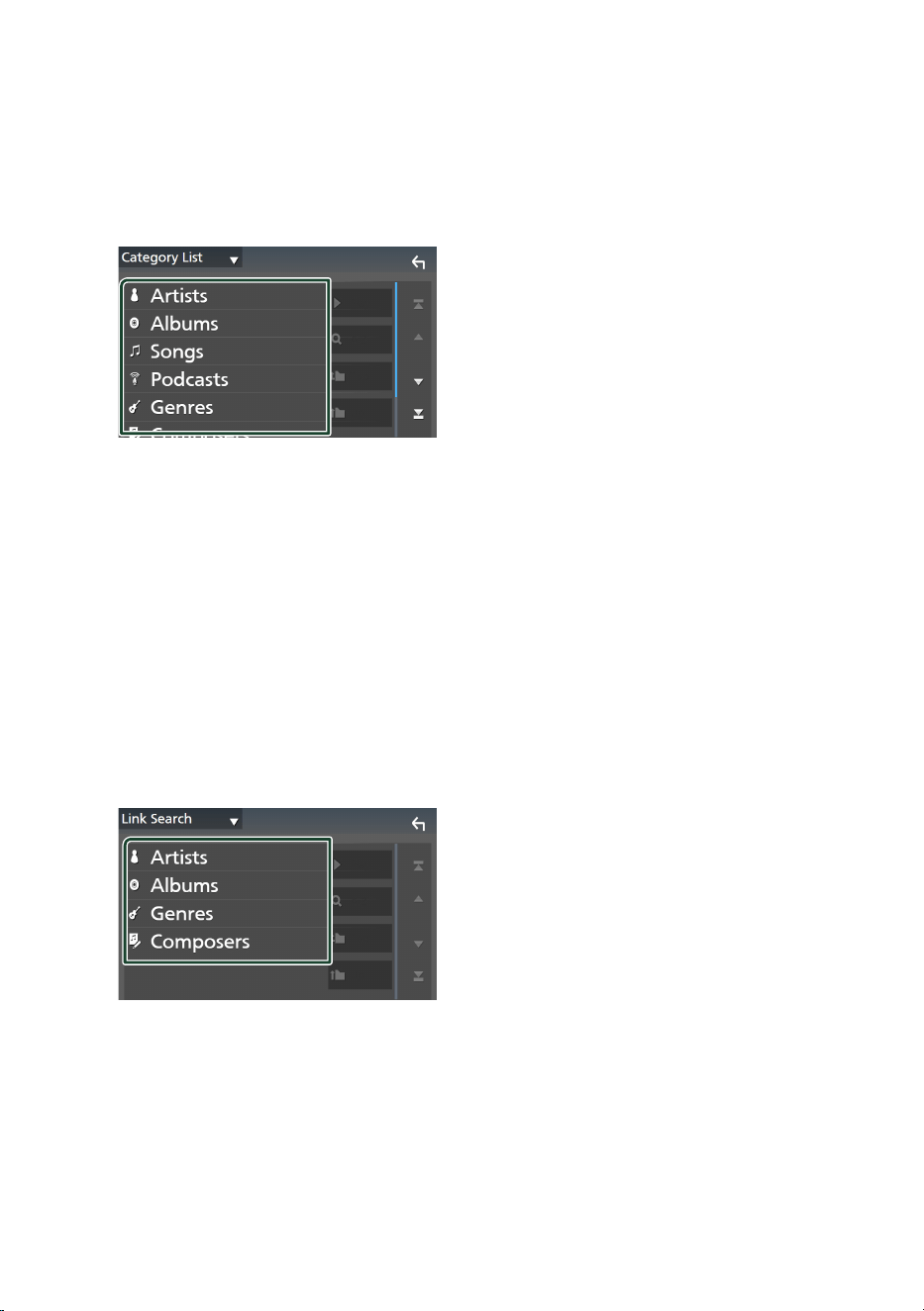

Ñ Category search
You can search for a file by selecting a
category.
1
Touch [Category List].
2
Select whether you search audio files
or video files
.
3
Touch the desired category.
hh The list corresponding to your selection
appears.
4
Touch to select the desired item in the
list. Repeat this step until you find the
desired file.
Ñ Link search
You can search for a file of the same artist/
album/genre as that in the current track.
1
Touch [Link Search].
2
Touch the desired tag type. You can select
from artists, albums and genres.
hh The list corresponding to your selection
appears.
3
Touch the desired item in the content list.
Ñ Folder search
You can search for a file according to hierarchy.
1
Touch [Folder List].
2
Touch the desired folder.
When you touch a folder its contents are
displayed.
3
Touch to select your desired item in the
list. Repeat this step until you find the
desired file.
iPod/iPhone
40
iPod/iPhone
Preparation
Ñ Connectable iPod/iPhone
The following models can be connected to
this unit.
Made for
• iPhone XS Max
• iPhone XS
• iPhone XR
• iPhone X
• iPhone 8 Plus
• iPhone 8
• iPhone 7 Plus
• iPhone 7
• iPhone SE
• iPhone 6s Plus
• iPhone 6s
• iPod touch (6th
generation)
NOTE
• Latest compatible list of iPod/iPhone. For details,
see www.kenwood.com/cs/ce/ipod/.
• By connecting your iPod/iPhone to this unit with
the iPod connection cable KCA-iP103 (optional
accessory), you can supply power to your iPod/
iPhone as well as charge it while playing music.
Note that the power of this unit must be held on.
• If you restart playback after connecting the iPod,
the music that has been played by the iPod is
played first.
Ñ Connect iPod/iPhone
Wired connection
Preparation
• Connect an iPod/iPhone with the KCA-iP103
(optional accessory) while Apple CarPlay is not
connected.
• With an iPhone compatible with Apple CarPlay,
turn
off Apple CarPlay by operating the iPhone
at functional setup before connecting iPhone.
For details of the setup method, contact the
manufacturer of the terminal.
• Plug the iPod/iPhone into the gray USB terminal
with the KCA-iP103 (optional accessory).
• Only one iPod/iPhone can be connected.
1
Connect the iPod/iPhone using the KCA-
iP103. (P.107)
2
Press the [HOME] button.
3
Touch [ ].
4
Touch [iPod]. (P.15)
● To disconnect the iPod/iPhone connected
with the cable:
1
Detach the iPod/iPhone.
Bluetooth connection
Pair the iPhone through Bluetooth.
Preparation
• To connect an iPhone via Bluetooth, register it
as a Bluetooth device and do the profile setting
for the connection beforehand. See Register the
Bluetooth device (P.65) and Connect the
Bluetooth device (P.66).
• Connect an iPhone via Bluetooth while Apple
CarPlay and an iPod/iPhone are not connected
via USB.
• With an iPhone compatible with Apple CarPlay,
turn off Apple CarPlay by operating the iPhone
at functional setup before connecting iPhone.
For details of the setup method, contact the
manufacturer of the terminal.
iPod/iPhone Basic Operation
NOTE
• Set the remote controller mode switch to AUD
mode before starting operation, see Switch the
operation mode (P.96).
Control screen
4
2
3
5
1
iPod/iPhone
41English
Open the drawer
6
5
2
Close the drawer
5
7
2
1
Track information
• Displays the information on the current file.
• Touch to display the category list screen. See
Category search (P.42).
• Change the text size of the information smaller
when the "Small Audio Text" is set to "ON" in
the User Interface screen (P.82).
2
Artwork/VU meter
• Displays/hides artwork area.
• The jacket of the currently being played file is
displayed.
• Touch to switch between the artwork and VU
meter.
3
Play mode indicator/Playing time
• D, B, etc.: Current play mode indicator
Meanings of individual icons are as follows:
D (play), B (fast forward), A (fast
backward), H (pause).
4
Operation keys
• 1] : Searches for a track/file. For details on
search operation, see Search Operation
(P.41).
• E] [F] : Searches for the previous/next
track/file.
Touch and hold to fast forward or fast
backward. (It will be cancelled automatically
after about 50 seconds.)
• [DH] : Plays or pauses.
• [
] : Displays the Graphic Equalizer screen.
(P.90)
5
Content list
• Touch the right side of the screen to display
the Content list. Touch again to close the list.
• Displays the playing list. When you touch a
track/file name on the list, playback will start.
NOTE
• Content list cannot be used unless Category List
is selected. To select a file, see Category search
(P.42).
6
[ ]/[ ]
• [
] : Repeats the current track/album. Each
time you touch the key, repeat modes are
switched in the following sequence:
Song repeat ( ), All songs repeat ( ),
Repeat off ( )
• [
] : Randomly plays all tracks in the current
album. Each time you touch the key, random
modes are switched in the following sequence:
Song random ( ), Random off ( )
7
Indicator Items
• [MUSIC]: Identifies the music file.
Search Operation
You can search music files by the following
operations.
1
Touch [1].
2
Touch [S].
3
Select a list type.
NOTE
• For operations on the list screen, see List screen
(P.18).
iPod/iPhone
42
Ñ Category search
You can search for a file by selecting a
category.
1
Touch [Category List].
2
Touch the desired category.
hh The list corresponding to your selection
appears.
3
Touch to select the desired item in the
list. Repeat this step until you find the
desired file.
Ñ Link search (Audio file only)
You can search for a file of the same artist/
album/genre/composer as that in the current
track.
1
Touch [Link Search].
2
Touch the desired tag type. You can
select from artists, albums, genres and
composers.
hh The list corresponding to your selection
appears.
3
Touch the desired item in the content list.
Radio
43English

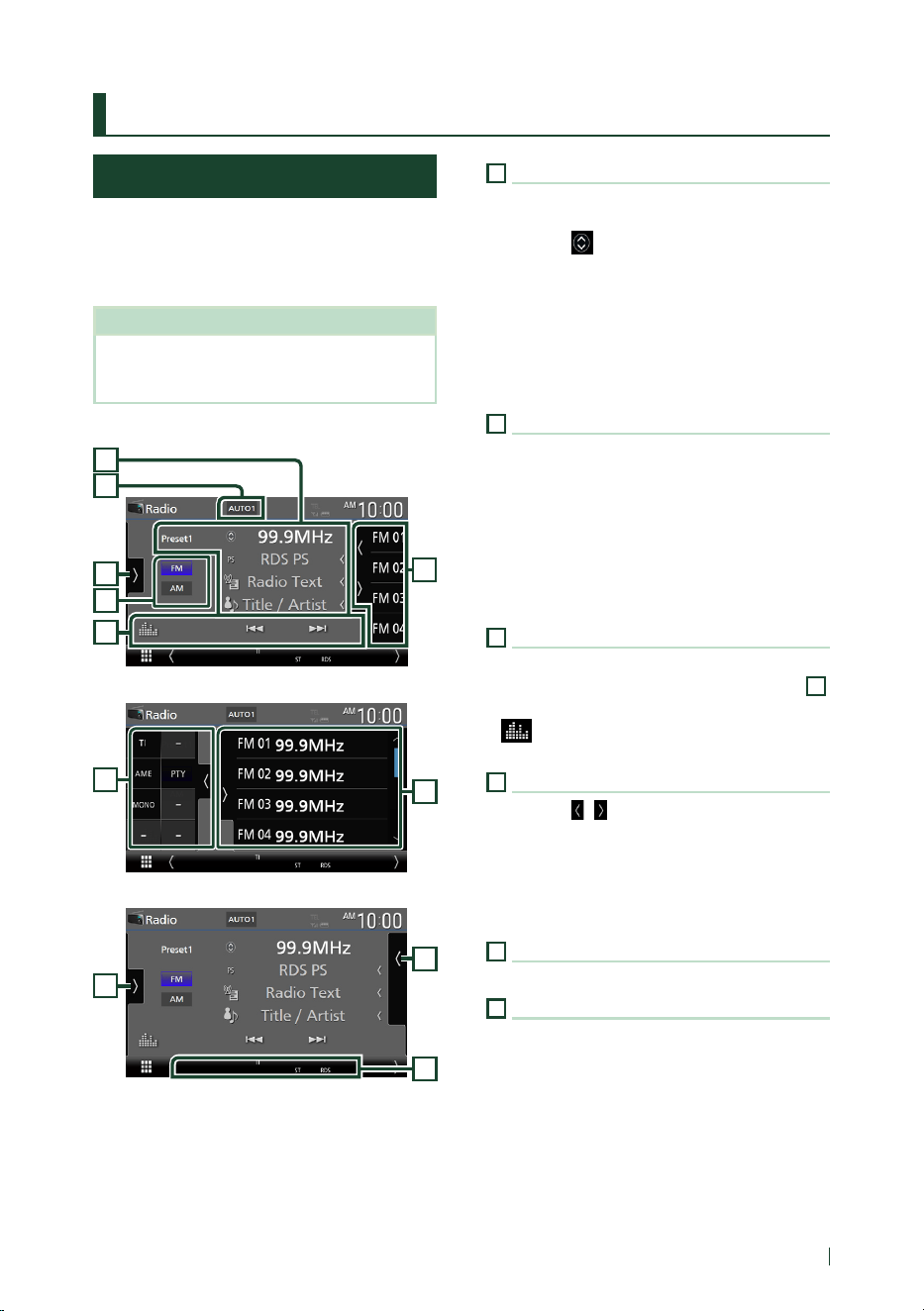

Radio (DDX9707S / DMX9707S)
Radio Basic Operation
Most functions can be controlled from the
source control screen.
To listen to the Radio source, touch [Radio]
icon on the source selection screen. (P.15)
NOTE
• Set the remote control mode switch to AUD
mode before starting operation, see Switch the
operation mode (P.96).
Control screen
4
1
6
5
3
2
Open the drawer
4
6
Close the drawer
7
6
4
1
Information display
• Displays the information on the current station:
Frequency
Touching [
] allows you to switch between
Content A and Content B.
Content A: PS name, Radio Text, Title & Artist
Content B: PTY Genre, Radio Text plus
Preset#: Preset number
• Change the text size of the information smaller
when the "Small Audio Text" is set to "ON" in
the User Interface screen (P.82).
2
Seek mode
Touch to switch seek mode in the following
sequence: [AUTO1], [AUTO2], [MANUAL].
• [AUTO1]: Tunes in a station with good
reception automatically.
• [AUTO2]: Tunes in the memorized stations one
after another.
• [MANUAL]: Switches to the next frequency
manually.
3
Operation keys
• [E] [F] : Tunes in a station. The method of
switching frequencies can be changed (see
2
Seek mode).
• [
] : Displays the Graphic Equalizer screen.
(P.90)
4
Preset list
• Touching [
]/[ ] allows you to change the
display size.
• Recalls the memorized station.
• When touched for 2 seconds, stores the
currently being received station in the
memory.
5
Band keys
Switches bands (between FM and AM).
6
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• [TI] (FM only) : Selects the traffic information
mode. For details, see Traffic Information
(P.45).
• [AME] : Presets stations automatically. For
details, see Auto memory (P.44).
Radio
44
• [PTY] (FM only) : Searches for a program by
program type. For details, see Search by
program type (P.45).
• [MONO] (FM only) : Selects the Monaural
reception mode.
7
Indicator Items
• [ST]: A stereo broadcast is being received.
• [MONO]: The forced monaural function is
active.
• [TI]: Indicates the reception state of traffic
information.
White: TP is being received.
Orange: TP is not being received.
Memory Operation
Ñ Auto memory
You can store stations with good reception in
the memory automatically.
1
Touch desired band key.
2
Touch [ ] on the left side of the screen.
Touch [AME].
3
Touch [Ye s].
hh Auto memory starts.
Ñ Manual memory
You can store the currently being received
station in the memory.
1
Select the station you wish to store in the
memory.
2
Touch [FM#] (#:1-15) or [AM#] (#:1-5) in
which you want to store the station for 2
seconds until a beep sounds.
Radio
45English
Selecting Operation
Ñ Preset select
You can list and select memorized stations.
1
Touch [ ] on the right side of the screen.
Select a station from the list.
Ñ Search by program type
(FM only)
You can tune in the station broadcasting the
specified type of program when listening to
FM.
1
Touch [ ] on the left side of the screen.
Touch [PTY].
hh TUNER PTY Mode screen appears.
2
Select a program type from the list.
3
Touch [Search].
You can search for the station broadcasting
the selected type of program.
Traffic Information (FM only)
You can listen to and watch traffic information
automatically when a traffic bulletin starts.
However, this feature requires a Radio
Broadcast Data System that includes TI
information.
1
Touch [ ] on the left side of the screen.
Touch [TI].
hh Traffic information mode is set.
Ñ When the traffic bulletin starts
The Traffic Information screen appears
automatically.
NOTE
• It is necessary to turn on the Traffic Information
function in order to allow the Traffic Information
screen to appear automatically.
• The volume setting made during reception of
traffic information is automatically memorized.
When the traffic information is received next time,
this unit recalls the volume setting automatically.
• To cancel Traffic Information: Touch [Cancel].
HD Radio™ Tuner
46
HD Radio™ Tuner (DDX9907XR / DMX957XR / DMX907S)
HD Radio Tuner Basic
Operation
Most functions can be controlled from the
source control screen.
To listen to the HD Radio source, touch [HD
Radio] icon on the source selection screen.
(P.15)
NOTE
• Set the remote control mode switch to AUD
mode before starting operation, see Switch the
operation mode (P.96).
• HD Radio broadcasting is for North American
sales area only.
Control screen
4
3
6
1
5
2
Open the drawer
4
6
Close the drawer
3
7
6
8
4
9
1
Information display
• Displays the information on the current station:
Frequency and Channel
Touching [
] allows you to switch between
Content A, Content B and Content C.
Content A: Station name, Song Title, Artist
Name
Content B: Station Message, Radio Text
Content C: PTY Genre, Album Name
• Change the text size of the information smaller
when the "Small Audio Text" is set to "ON" in
the User Interface screen (P.82).
2
Seek mode
Touch to switch seek mode in the following
sequence: [AUTO1], [AUTO2], [MANUAL].
• [AUTO1]: Tunes in a station with good
reception automatically.
• [AUTO2]: Tunes in the memorized stations one
after another.
• [MANUAL]: Switches to the next frequency
manually.
3
• Displays/hides picture area.
• The picture data or station Logo data is
displayed if available from current content.
4
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• [10key Direct]: Display the direct station/
channel search screen. For details, see Direct
search (P.49).
• [AME]: Presets stations automatically. For
details, see Auto memory (P.48).
• [RCV]: Change the HD Radio reception mode.
For details, see Receive Mode (P.48).
• [PTY] (FM only): Searches for a program by
program type. For details, see Search by
program type (P.49).
• [
] : Stores the information about the song
being received. See Bookmark (P.50).
• [Emergency Alerts] : Turn on or off the alert
message. See Alert Message (P.51).
• [Alert Message Log] : Displays the alert
message received. See Alert Message
(P.51).
HD Radio™ Tuner
47English
5
Operation keys
• [E] [F] : Tunes in a station. The method of
switching frequencies can be changed (see
2
Seek mode).
• [CHS] [CHR] : Selects a channel.
• [1] : Display the Channel List screen. See
Channel search (P.49).
• [ ] : Display a list of registered bookmarks.
See Bookmark list (P.50).
• [
] : Displays the Graphic Equalizer screen.
(P.90)
6
Preset list
• Touching [
]/[ ] allows you to change the
display size.
• Recalls the memorized station or channel.
• When touched for 2 seconds, stores the
currently being received station or channel in
the memory.
7
Indicator display
While receiving an HD Radio station, it lights
with orange when the audio is digital and lights
with gray when it is analog. While receiving an
analog station, it is off.
8
Band keys
Switches bands (between FM and AM).
9
Indicator Items
• [MC]: A multicast digital broadcast is being
received.
• [ANALOG]: An analog broadcast is being
received.
• [DIGITAL]: A digital broadcast is being received.
• [ST]: A stereo broadcast is being received.
• [EA]:
White: Emergency Alert is on.
No light: Emergency Alert is off.
Orange: Interrupting or in snooze/ignore
state.
• Adjacent to traditional main stations are
HD2/HD3 Channels, providing new original
programming on the FM dial
• A music & product discovery feature that
enables users to store information about
content on the radio, and can deliver
interactive information via QR codes
• Crystal clear, CD-like digital audio quality to
consumers; eliminates background noise
• Provides song name, artist, station ID, and
other relevant data to enrich the listening
experience
• Visual images, such as album art of over-the-air
broadcasts from HD Radio stations
• Delivers critical and life-saving messages to the
public during emergency situations
HD Radio™ Tuner
48

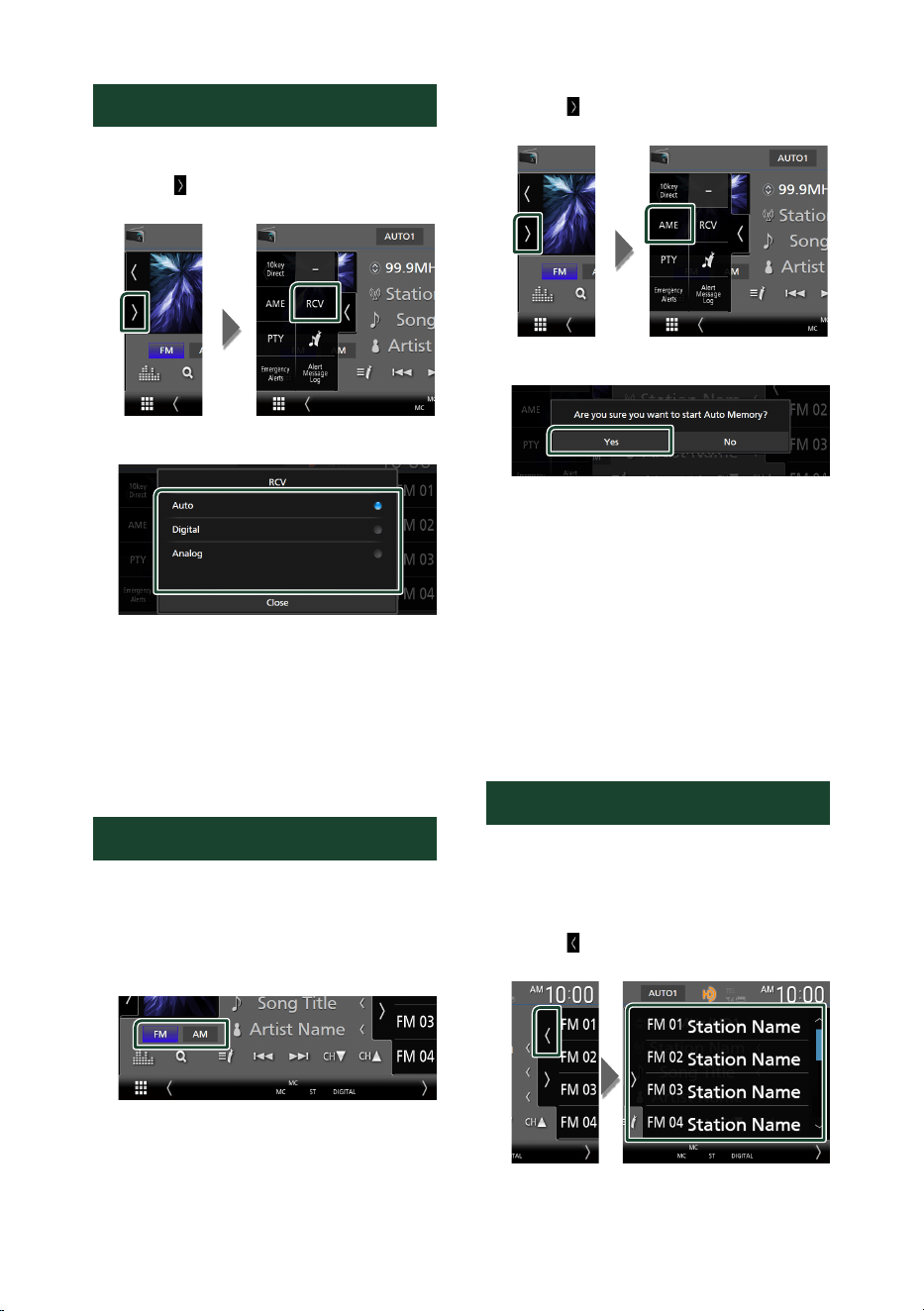

Receive Mode
You can set the radio broadcasts receive mode.
1
Touch [ ] on the left side of the screen.
Touch [RCV].
2
Select a receive mode.
■ [Auto]
Switch between digital and analog audio
automatically.
■ [Digital]
Select this to tune to digital audio only.
■ [Analog]
Select this to tune to analog audio only.
Memory Operation
Ñ Auto memory
You can store stations with good reception in
the memory automatically.
1
Touch desired band key.
2
Touch [ ] on the left side of the screen.
Touch [AME].
3
Touch [Ye s].
hh Auto memory starts.
Ñ Manual memory
You can store the currently being received
station or channel in the memory.
1
Select the station or channel you wish to
store in the memory.
2
Touch [FM#] (#:1-15) or [AM#] (#:1-5)
in which you want to store the station
or channel for 2 seconds until a beep
sounds.
Selecting Operation
Ñ Preset select
You can list and select memorized stations or
channels.
1
Touch [ ] on the right side of the screen.
Select a station or channel from the list.
HD Radio™ Tuner
49English
Ñ Direct search
You can tune in by entering the desired
frequency or channel number.
1
Touch [ ] on the left side of the screen.
Touch [10key Direct].
2
Select the search method.
3
Enter the frequency or channel number.
4
Touch [Enter].
NOTE
• To clear the number you entered, touch [BS].
Ñ Channel search
You can specify the desired channel.
1
Touch [1].
2
Select the desired content from the list.
NOTE
• Touch [Info Change] in the channel list. Select
the sequence of the list (Song title, artist name,
album name).
Ñ Search by program type
(FM only)
You can tune in the station broadcasting the
specified type of program when listening to
FM.
1
Touch [ ] on the left side of the screen.
Touch [PTY].
hh TUNER PTY Mode screen appears.
2
Select a program type from the list.
3
Touch [Search].
You can search for the station broadcasting
the selected type of program.
HD Radio™ Tuner
50
Bookmark
Stores tag information (title, artist, album,
URL, and description) about the song you are
listening to now.
Detailed information and QR codes can
be displayed according to the stored tag
information.
Ñ Bookmark registration
1
Touch [ ] on the left side of the screen.
Touch [
].
hh Registers a bookmark.
NOTE
• Up to 100 bookmarks can be registered to this
unit.
Ñ Bookmark list
Displaying a list of registered bookmarks and
detailed information and QR code of the song.
1
Touch [ ].
2
Select the desired bookmark from the list.
hh The bookmark information appears.
■ [ Delete]
Deletes the bookmarks being displayed.
Touch [Delete] and then touch [Yes ] on the
confirmation screen.
Bookmark delete
Deleting a bookmark.
1
Touch [Delete].
2
Select the bookmark to delete from the
list.
■ [þ All]
Select all bookmarks.
■ [¨ All]
Erases all check marks.
3
Touch [Delete].
hh Confirmation message appears.
4
Touch [Ye s].
hh All the selected bookmark(s) is deleted.
HD Radio™ Tuner
51English
Alert Message
This function is to receive alert messages. First,
you need to turn on the “Emergency Alerts”.
(P.46)
Ñ When an Alert Message comes
[Snooze]
The alert message is erased. Same alert message
cannot be displayed for next 10 minutes.
[Ignore]
The alert message is erased. Same alert message
cannot be displayed for next 12 hours.
[Allow Alert]
Touch to tune to that channel of HD Radio
source.
Ñ Display of the received Alert
Message
You can read the received alert message
afterward.
1
Touch [ ] on the left side of the screen.
Touch [Alert Message Log].
2
Select the desired Alert Message from
the list.
hh The Alert Message appears.
3
Touch [Close].
SiriusXM®
52
SiriusXM®
SiriusXM® Basic Operation
Only SiriusXM® brings you more of what you
love to listen to, all in one place. Get over 140
channels, including commercial-free music
plus the best sports, news, talk, comedy
and entertainment. Welcome to the world
of satellite radio. A SiriusXM Vehicle Tuner
and Subscription are required. For more
information, visit www.siriusxm.com.
To listen to the SiriusXM source, touch the
[SiriusXM] icon on the source selection screen.
(P.15)
Activating subscription
• Check your Radio ID.
The SiriusXM Satellite Radio ID is required for
activation and can be found by tuning in Channel
0 as well as on the label found on the SiriusXM
Connect tuner and its package.
The Radio ID does not include the letters I, O, S
or F.
• Activate the SiriusXM Connect Vehicle Tuner
using either one of the two methods below:
– For users in U.S.A.
Online: Visit www.siriusxm.com/activatenow
Phone: Call SiriusXM Listener Care at 1-866-
635-2349
– For users in Canada:
Online: Visit https://www.siriusxm.ca/help/
activation-help/
Phone: Call XM customer Care at 1-877-438-
9677
NOTE
• Set the remote control mode switch to AUD
mode before starting operation, see Switch the
operation mode (P.96).
• To use SiriusXM® Satellite Radio, the optional
accessory is necessary.
Control screen
7
3
1
5
4
2
Open the drawer
5
7
Close the drawer
6
5
7
3
1
Information display
• Displays the information on the current
channel: Channel Name
P#: Preset number
#CH: Channel number
Logo: Channel logo
Touching [
] allows you to switch between
Content A, Content B and Content C.
Content A: Artist Name, Song Title
Content B: Content Info, Category Name
Content C: Channel Description, Similar
Channels
[ ] : Touch for 2 seconds to register the artist
of the current song as a Content Alert.
[ ] : Touch for 2 seconds to register the
current song as a Content Alert.
For details, see Content Alerts (P.57).
SiriusXM®
53English
• Change the text size of the information smaller
when the "Small Audio Text" is set to "ON" in
the User Interface screen (P.82).
NOTE
• While getting contents, "Waiting" is showing on
the display.
2
Band key
Switches among bands. (SXM1/SXM2/SXM3/
SXM4)
3
Artwork
• Displays/hides artwork area.
• Displays the album artwork for most SiriusXM
music channels
4
Operation keys
• [1] : Display the Category search screen. For
details on search operation, see Category/
Channel search (P.55).
• DH] : Plays or pauses. See Replay (P.55).
• [CHS] [CHR] : Selects a channel.
• [
] : Displays the Graphic Equalizer screen.
(P.90)
5
Preset list
• Touching [
]/[ ] allows you to change the
display size.
• Recalls the memorized channel.
• When touched for 2 seconds, stores the
currently being received channel in the
memory.
6
Indicator display
Displays the “Mix” (TuneMix™), “Scan”
(TuneScan™),
(Traffic&Weather), or
(SportsFlash™) indicator and the received
signal strength of the SiriusXM tuner.
7
Function panel
Touch the left side of the screen to display the
function panel. Touch again to close the panel.
• [Direct Channel]: Touch and enter the
desired number. For details, see Direct search
(P.54).
• [SETUP]: Touch to display the SiriusXM SETUP
screen. For details, see SiriusXM SETUP
(P.58).
• [Replay/Live]: Touch to turn on or off the
replay mode. See Replay (P.55).
• [Traffic & Weather]
For SXV300 *
1
Traffic & Weather Now™ allows you to access
the latest report whenever you want to hear
it. Select your city from the set up menu
(see Select a City for Traffic & Weather
(P.63)) and touch [Traffic & Weather] to
check the latest report. It will start from the
beginning.
•
(White) : Played already.
•
(Green) : New information arrived.
•
(Purple) : Playing.
•
(Gray) : No information.
For SXV200 or SXV100 *
2
Turns the Traffic & Weather Jump function
on or off.
•
(White) : Function on.
•
(Purple) : Playing.
•
(Gray) : Function off.
• [TuneScan]*
3
: Allows you to hear a
few seconds of songs from each of the
SmartFavorite music channels on the current
preset band. See TuneScan™ (P.56).
• [TuneMix]*
4
: When turned ON, shuffles the
preset channels on P1-P6 to play a blend
of songs from your favorite channels. See
TuneMix™ (P.56).
• [SportsFlash]*
4
: Displays during SportsFlash™.
Touch to cancel the SportsFlash™ function
and return to the previous channel. See
SportsFlash™ (P.58) and SportsFlash™
setup (P.62).
*
1
Compatible with SXV300 or later tuner
models. It may take a few minutes after power
on to get the first full report on your city.
Traffic channels are not available in Canada.
*
2
When SXV200 or SXV100 is connected with
this unit.
*
3
Compatible with SXV200 or later tuner models.
*
4
Compatible with SXV300 or later tuner models.
SiriusXM®
54

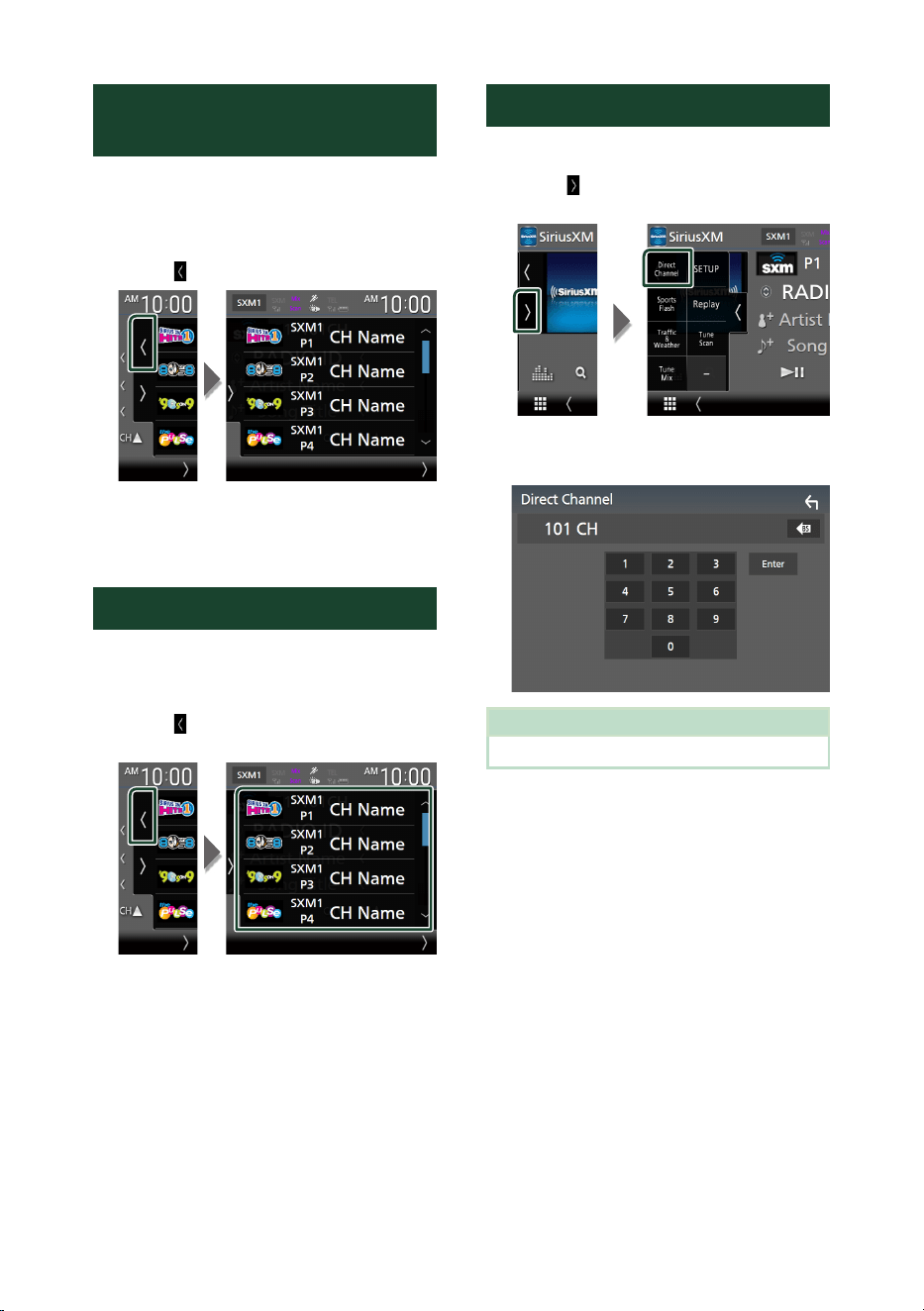

Storing Channels in Preset
Memory
You can store the current channel in memory.
1
Tune in the channel you wish to store in
the memory.
2
Touch [ ] on the right side of the screen.
3
Touch [SXM(1-4) P(1-6)] in which you
want to store the channel for 2 seconds
until a beep sounds.
Preset select
You can list and select memorized channels.
To select from the preset list
1
Touch [ ] on the right side of the screen.
Select a channel from the list.
Direct search
You can tune in a channel directly.
1
Touch [ ] on the left side of the screen.
Touch [Direct Channel].
2
Enter the channel number and touch
[Enter].
NOTE
• To clear the number you entered, touch [BS].
SiriusXM®
55English
Category/Channel search
You can specify the desired category and
select a channel.
1
Touch [1].
2
Select a category.
hh Channel list appears.
3
Select the desired content from the list.
NOTE
• All channels in the selected category appear.
• Touching [All-Channels] displays all channels.
• Touch [Info Change] in the channel list. Select a
desired item:
content info, channel name, artist name, song
title, category name.
• Categories which have the prefix “Featured - “ are
Featured Favorites.
• Featured Favorites are groups of channels that
are created by the SiriusXM Programming
department allowing you to discover new
channels. Featured Favorite channels are dynamic
and can change often, allowing you to discover
new channels.
– You can set whether to be notified when the
featured seasonal theme is updated. (P.63)
Replay
You can replay the last 60 minutes of the
program from the current channel.
1
Touch [L] or [Replay] on the function
panel.
■ [E] [F]
Press to skip to the previous/next track.
Press and hold to rewind or fast forward. (It
will be cancelled automatically after about
50 seconds.)
■ [DH]
Plays or pauses.
■ Replay time bar/Play mode indicator
Displays the recorded data capacity and
playback position.
D, B, etc.: Current play mode indicator
■ [1]
Displays a list of recorded data on a program
basis.
2
Touch [1] to display an Instant Replay List
screen.
■ Instant Replay List
Touching this plays back the displayed
program.
[Live]: Touch to return to the live music/
content.
■ [Info Change]
Touch [Info Change]. Select a desired item:
content info, channel name, artist name, song
title, category name.
SiriusXM®
56
To return to live music/content
1
Touch the left side of the screen.
2
Touch [Live].

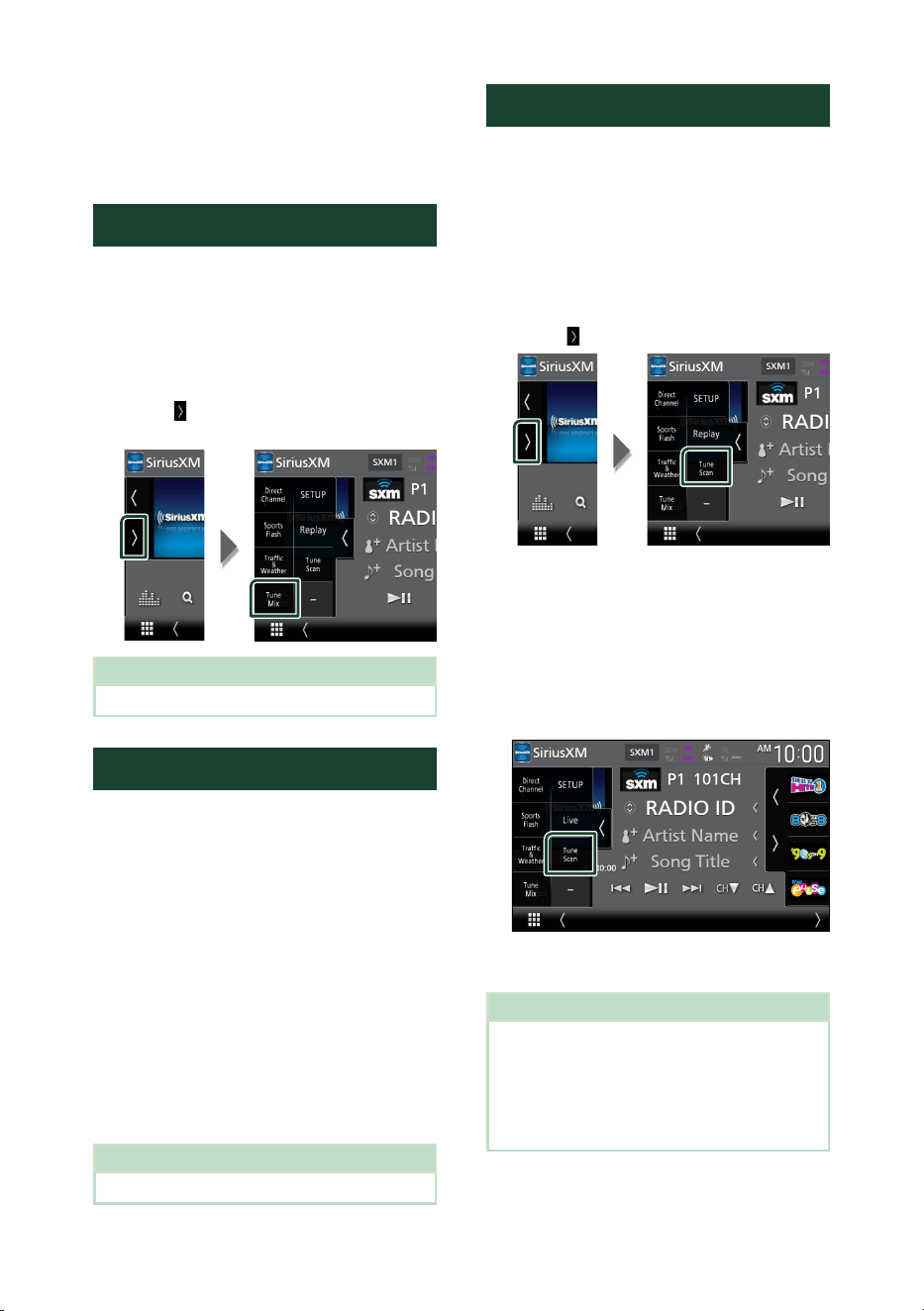

TuneMix™
TuneMix™ plays a unique blend of songs from
your Preset music channels of the current
SiriusXM Preset Band, allowing you to build a
custom channel from as few as two to as many
as 6 music channels. You can even skip songs
you don’t want to hear.
1
Touch [ ] on the left side of the screen.
Touch [TuneMix] to set ON or OFF.
NOTE
• Compatible with SXV300 or later tuner models.
SmartFavorites, TuneStart™
Preset channels 1 through 6 of the current
band are SmartFavorites channels.
The SiriusXM Vehicle Tuner automatically
buffers the broadcast audio content of the
SmartFavorites channels in the background.
You can rewind and replay up to 30 minutes of
any of the missed news, talk, sports or music
content on SmartFavorites channels. (See
Replay (P.55).)
When tuning in a SmartFavorites channel,
songs will be played from the beginning of
each track (TuneStart™). You can enable/
disable TuneStart. (See TuneStart™ (P.63).)
NOTE
• Compatible with SXV200 or later tuner models.
TuneScan™
TuneScan™ is a feature that plays samples
from the starts of multiple buffered songs
from each of the SmartFavorites channels that
predominantly play music selections.
You have easy access to a large sampling
of music content and can enjoy hearing a
full song by stopping the scan on a song of
interest.
1
Touch [ ] on the left side of the screen.
2
Touch [TuneScan] to begin scanning your
SmartFavorites channels.
You will hear a few seconds of the songs
from each of the SmartFavorite channels.
3
While your favorite song is being played,
touch [TuneScan] again to start listening
to that song.
hh Scan finishes and the song is played
continuously.
NOTE
• To cancel TuneScan™, touch the left side of the
screen. Touch [TuneScan].
• Touch and hold [TuneScan] to cancel TuneScan,
and the music/content which was present on the
channel before starting TuneScan will be played.
• Compatible with SXV200 or later tuner models.
SiriusXM®
57English

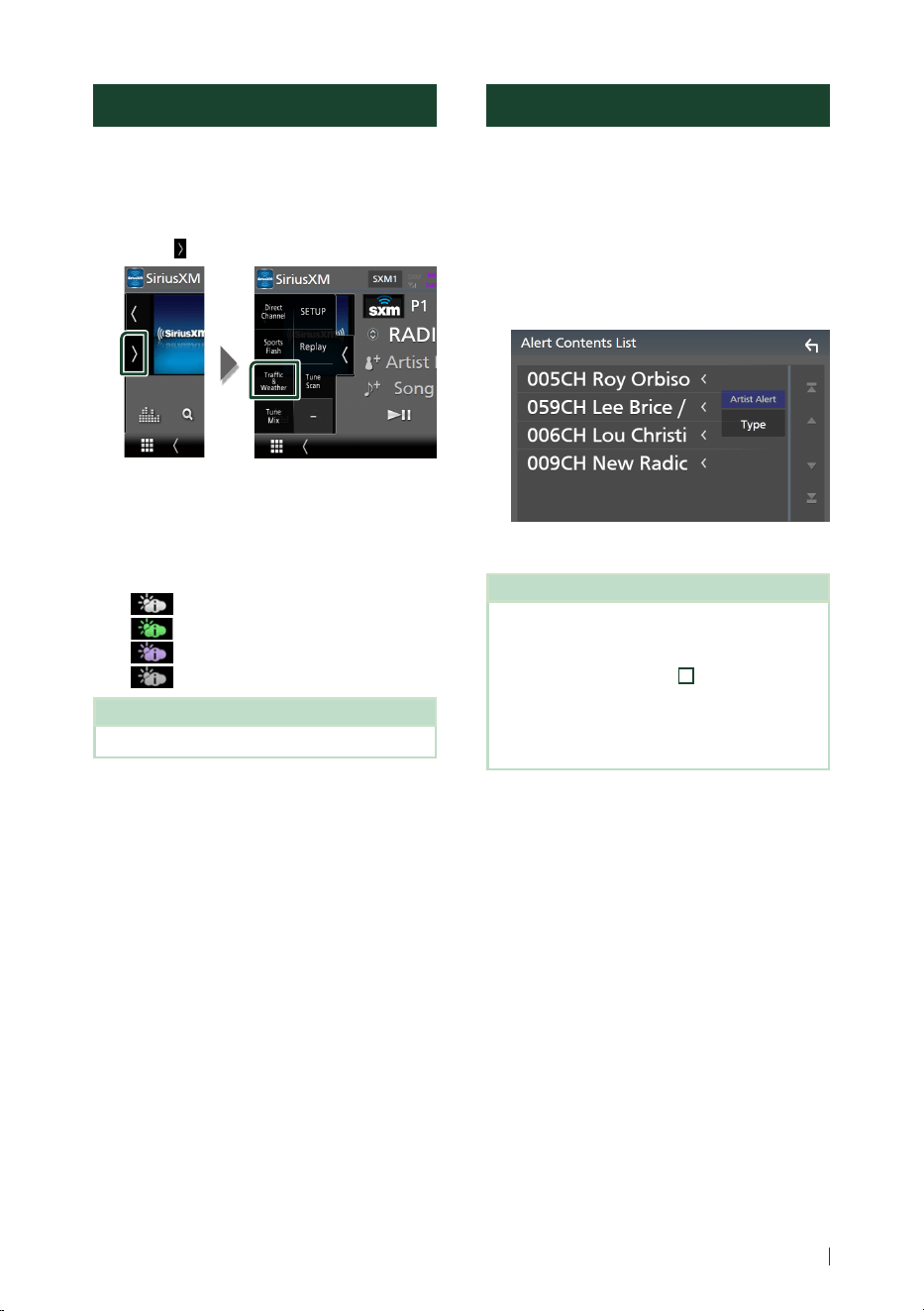

Traffic & Weather Now™
Traffic & Weather Now™ allows you to access
the latest report whenever you want to hear
it. First select your city in the set up menu. See
Select a City for Traffic & Weather (P.63).
1
Touch [ ] on the left side of the screen.
2
Touch [Traffic & Weather].
The report starts from the beginning. To stop
and return to the previous channel, touch it
again.
Indicator display
•
(White) : Played already.
•
(Green) : New information arrived.
•
(Purple) : Playing.
•
(Gray) : No information.
NOTE
• Compatible with SXV300 or later tuner models.
Content Alerts
When a broadcast program related to the
registered artist, song or team starts, an Alert
Content List screen appears to allow you to
switch the current channel to the relevant
channel.
1
When the broadcast of the registered
content starts, an Alert Content List
screen appears.
2
Select a content from the list.
NOTE
• Touch [Type]. Select a desired item.
Artist Alert, Song Alert, GameAlert™
• To learn how to register artists and songs for the
Content Alert function, see
1
Information display
in SiriusXM® Basic Operation (P.52).
• To learn how to set up the Content Alerts
function and select Teams for alerts, see Content
Alerts setup (P.60).
SiriusXM®
58

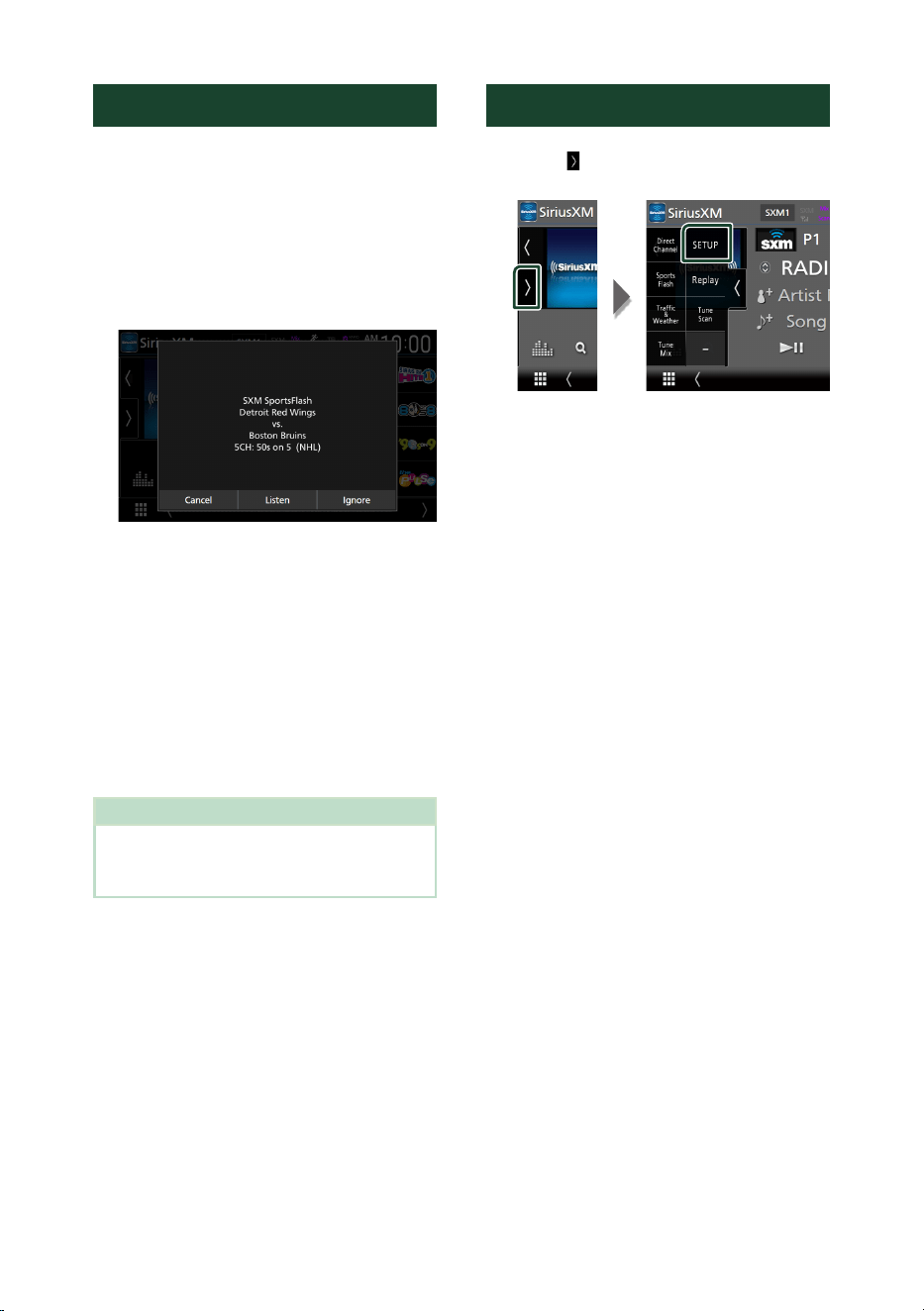

SportsFlash™
SportsFlash™ will notify you when a big play
happens during a game with one of your
favorite sports teams. Choose to tune in and
hear the play unfold like it was live. Continue
listening to the game or return to your
previous channel.
1
When a big play happens during one of
the games, an Alert screen appears.
■ [Listen]
Touch to tune in that channel and play back
the big play.
■ [Ignore]
Touch to cancel this specific SportsFlash
alert. Touching [Ignore] will ignore this
specific alert but will allow future alerts for
this game.
■ [Cancel]
Touch to cancel SportsFlash alert. No alerts
for this game will be displayed afterward.
NOTE
• Compatible with SXV300 or later tuner models.
• To learn how to set up the SportsFlash alert
function, see SportsFlash™ setup (P.62).
SiriusXM SETUP
1
Touch [ ] on the left side of the screen.
Touch [SETUP].
hh SiriusXM SETUP screen appears.
See the following sections for each
setting.
• Set up the parental code (P.59)
• Set up the Parental Control (P.59)
• Set up the skip channel select (P.60)
• Set up the Content Alerts (P.60)
• Set up the teams for SportsFlash™
(P.62)
• Select the city for Traffic & Weather Jump
or Traffic & Weather Now™ (P.63)
• Select the Featured Bands Update
Messages (P.63)
• Set up the TuneStart™ (P.63)
• Reset to the default settings (P.63)
SiriusXM®
59English

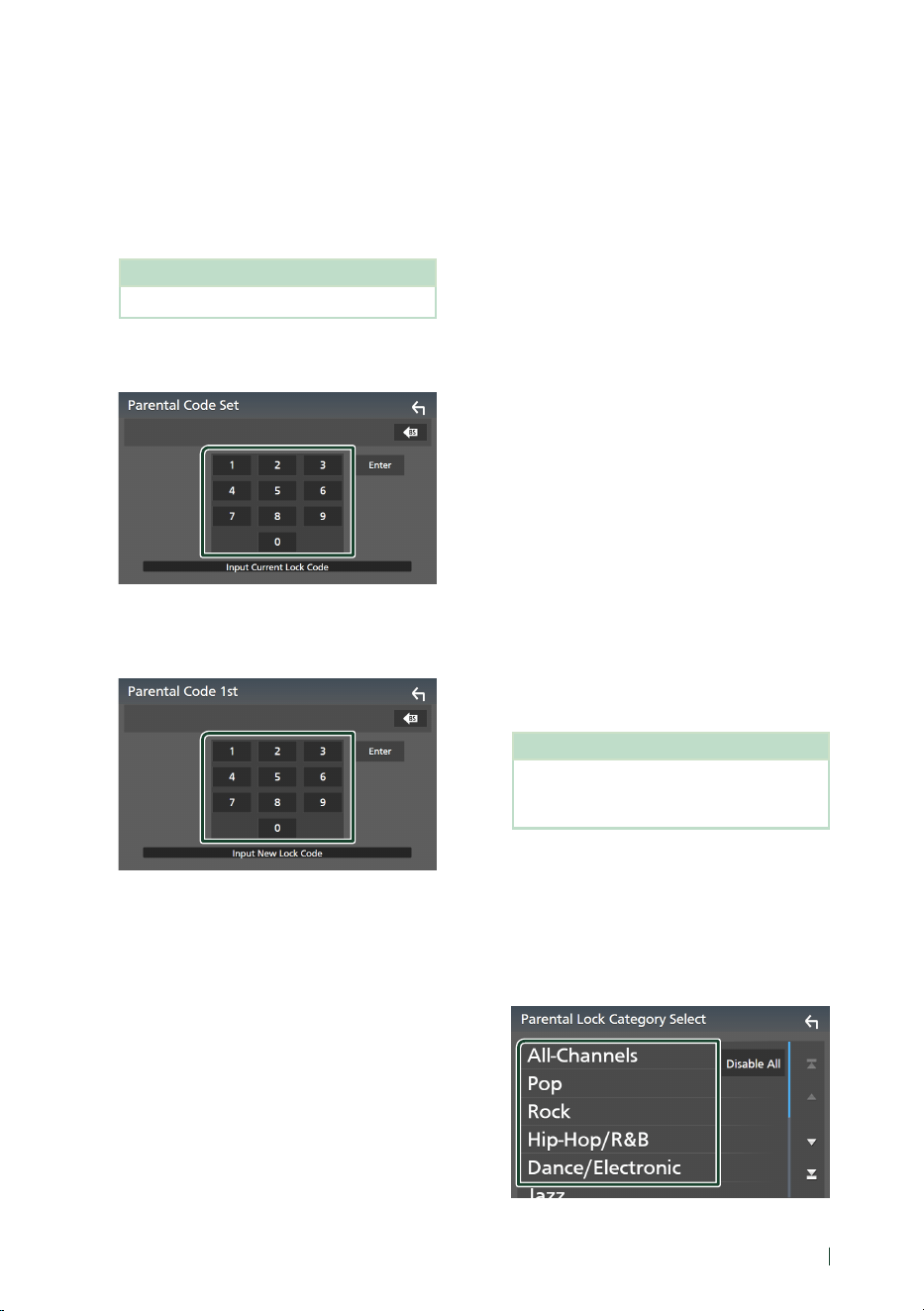

Ñ Parental code
You can set a SiriusXM parental code for
Parental Control.
1
Touch [Parental Code] on the SiriusXM
SETUP screen.
hh Parental Pass Check screen appears.
NOTE
• The code number is set to “0000” as default.
2
Enter the current code number and touch
[Enter].
hh Parental Pass 1st screen appears.
3
Enter the new code number and touch
[Enter].
hh Parental Pass 2nd screen appears.
4
Enter the same code number as that you
entered in step 3 and touch [Enter].
hh The code number is confirmed and the
SiriusXM parental code is now set.
Ñ Parental Control
Parental Control is a feature that provides the
user with the ability to prevent unauthorized
access to mature content and user selected
channels.
1
Touch [Parental Control] on the SiriusXM
SETUP screen.
2
Touch [User], [Mature] or [OFF].
■ [User]
Locks only the selected channels.
■ [Mature]
Locks channels classified as “mature” only.
■ [OFF]
Deactivates the parental mature and user
locks.
3
Enter the parental code you originally
input in as stated in Parental code
(P.59) and touch [Enter].

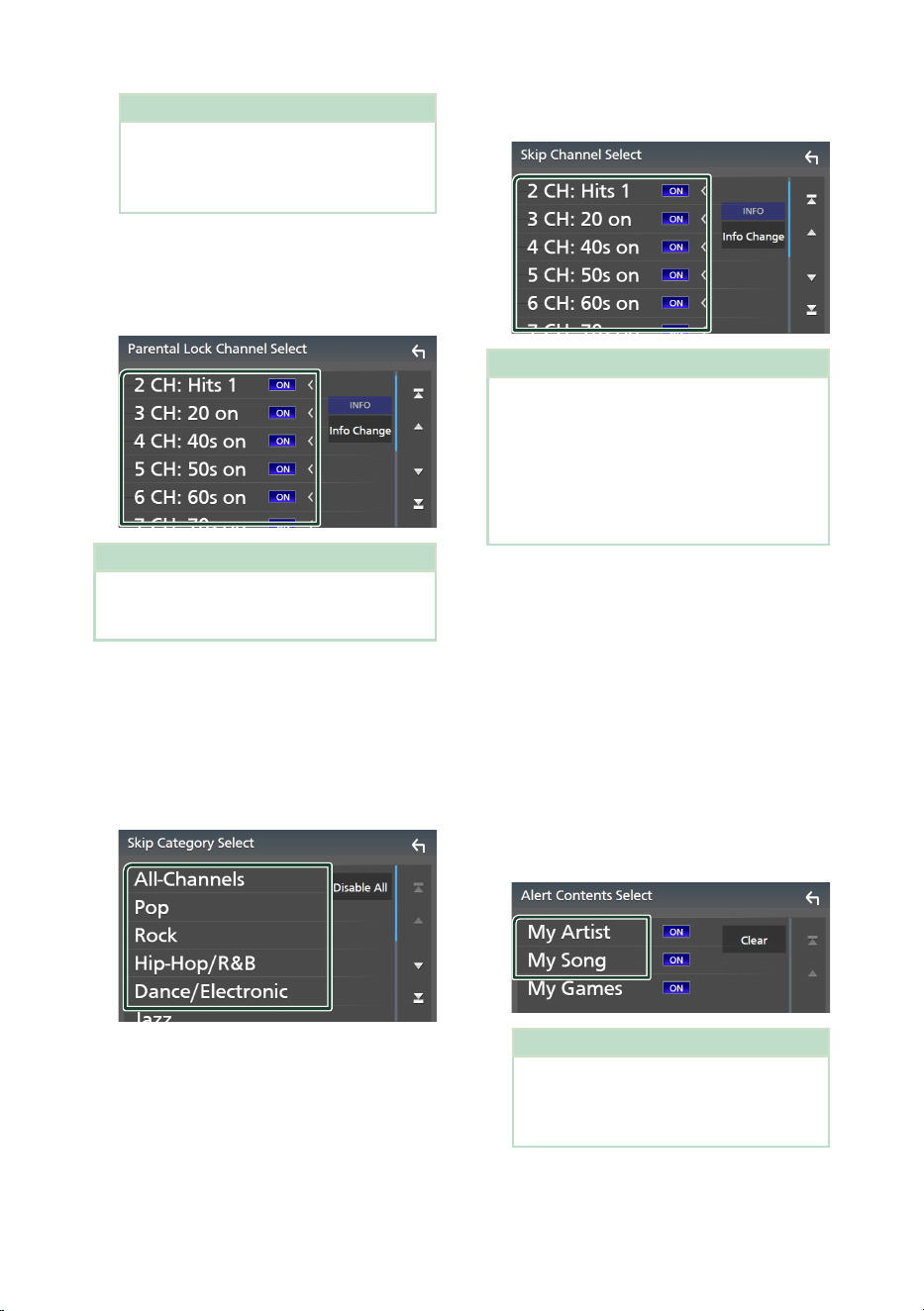

When selecting [User]
This allows you to limit access to any SiriusXM
channel (Parental Lock Channel).
1
Touch [Parental Lock Channel Selection]
on the SiriusXM SETUP screen.
hh Parental Pass Check screen appears.
NOTE
• You need to set up a parental code
beforehand as stated in Parental code
(P.59).
2
Enter the parental code you originally
input as stated in Parental code (P.59)
and touch [Enter].
hh Parental Lock Category Select screen
appears.
3
Touch the desired category in the list.
hh Displays all channels in the selected
category.
SiriusXM®
60
NOTE
• Touch [All-Channels] to display all channels.
• To delete the parental lock channel setting,
touch [Disable All] and then touch [YES] on
the confirmation screen.
4
Touch each channel on the list and set to
ON or OFF.
[ON]: Locks the channel.
[OFF]: Unlocks the channel.
NOTE
• Touch [Info Change]. Select a desired item:
content info, channel name, artist name, song
title, category name.
Ñ Skip channel select
You can set the undesired channels to skip.
1
Touch [Skip Channel Select].
hh Skip Category Select screen appears.
2
Touch the desired category from the list.
hh Displays all channels in the selected
category.
3
Touch each channel in the list and set to
ON or OFF.
NOTE
• To delete the skip channel setting, touch
[Disable All] and then touch [YES] on the
confirmation screen.
• Touch [Info Change]. Select a desired item:
content info, channel name, artist name, song
title, category name.
• Direct Channel and Preset Memory functions
allow you to select channels.
Ñ Content Alerts setup
Activating content alert
1
Touch [Content Alerts] on the SiriusXM
SETUP screen.
hh Content Alerts is turned on or off.
Default is “ON”.
Selecting the content for Content Alerts
1
Touch [Content Alerts Contents Set] on
the SiriusXM SETUP screen.
2
Select the content you want to set up.
NOTE
• To cancel all alert contents, touch [Clear] and
then touch [YES] on the confirmation screen.
• Select [OFF] for the content you want to
deactivate the content alert for.
SiriusXM®
61English
3
Touch each content list item you want to
check or uncheck.
NOTE
• You can select (þ) up to 60 artists or songs.
● To delete the Artist and Song
1
Touch [Delete].
2
Touch the content(s) in the list you want
to select.
■ [þ All]
Selects all contents.
■ [¨ All]
Clears all check marks.
3
Touch [Delete] and then touch [YES] on the
confirmation screen.
To select a Team
Get alerted when your favorite sports team
is playing on another SiriusXM channel with
GameAlert™
1
Touch [My Games].
2
Touch the desired league in the list.
3
Touch the team(s) in the list you want to
select.
NOTE
• You can select (þ) up to 30 teams.
SiriusXM®
62

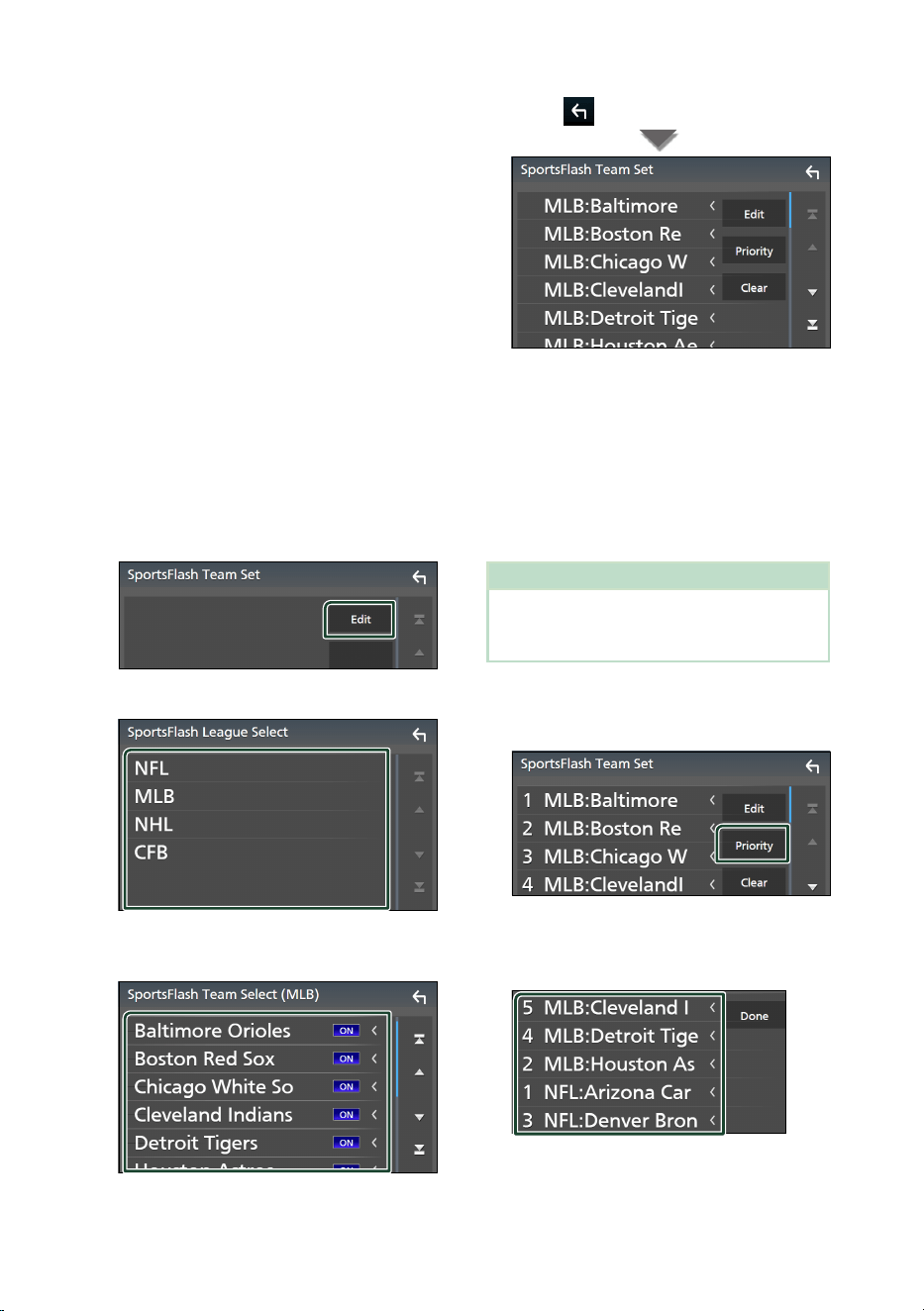

Ñ SportsFlash™ setup
Activating SportsFlash
1
Touch [SportsFlash] on the SiriusXM
SETUP screen.
hh SportsFlash is turned on or off.
Default is “ON”.
Selecting SportsFlash Beep
1
Touch [SportsFlash Beep] on the SiriusXM
SETUP screen.
hh SportsFlash Beep is turned on or off.
Default is “ON”.
Selecting the teams for SportsFlash
1
Touch [SportsFlash Team Set] on the
SiriusXM SETUP screen.
hh Team Set screen appears.
2
Touch [Edit].
3
Touch the desired league in the list.
4
Touch each team(s) in the list you want
to select.
5
Touch [ ] twice.
■ [Edit]
Sets and removes teams.
■ [Priority]
Sets the priority of a team.
■ [Clear]
Removes all teams that have been set.
Touch [Clear]. When the confirmation screen
appears, touch [YES].
NOTE
• SportsFlash™ is available on SXV300 or later tuner
models.
• Up to 50 teams can be added.
Set the SportsFlash™ Team Priority
1
Touch [Priority].
2
Set the priority of a team.
Each time you touch a Team, the priority is
set of reset.
SiriusXM®
63English

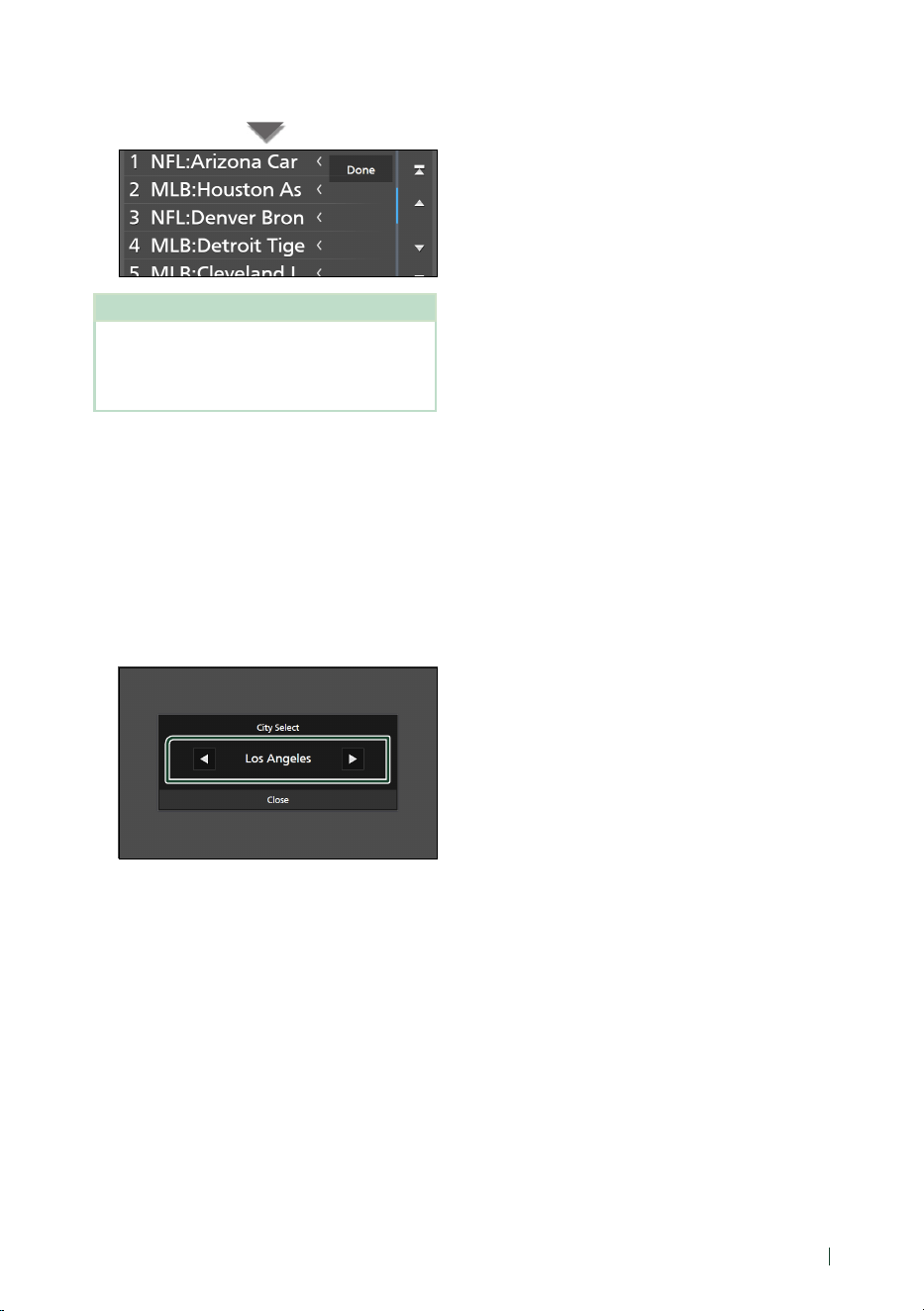

3
Touch [Done].
NOTE
• Priority can be set on up to 5 teams.
• When priority has already been set for 5 teams,
it cannot be set for any other team. Delete an
unnecessary team.
Ñ Select a City for Traffic &
Weather
You can select a city for which you wish to
receive SiriusXM Traffic & Weather broadcasts
and hear them from the beginning.
1
Touch [Traffic & Weather City Select] on
the SiriusXM SETUP screen.
2
Touch [T] and [U] to select a city.
3
Touch [Close].
Ñ Selecting Featured Bands
Update Messages
You can set whether to be notified when the
featured seasonal theme is updated.
1
Touch [Featured Bands Update
Messages] on the SiriusXM SETUP screen.
Featured Bands Update Messages is turned
on or off.
Ñ TuneStart™
1
Touch [Tune Start] on the SiriusXM SETUP
screen.
The TuneStart is turned on or off.
Default is “ON”.
Ñ Reset
1
Touch [SiriusXM Reset] on the SiriusXM
SETUP screen.
hh Confirmation screen appears.
2
Touch [YES].
hh All SiriusXM settings are reset to defaults.
Bluetooth Control
64
Bluetooth Control
Using the Bluetooth function allows you to use
various functions such as listening to the audio
file and making/receiving a call.
Information for using
Bluetooth® devices
Bluetooth is a short-range wireless radio
communication technology for mobile devices
such as cell-phones, portable PCs, and other
devices.
Bluetooth devices can be connected without
cables and communication with each other.
NOTE
• While driving, do not perform complicated
operations such as dialing numbers, using
the phonebook, etc. When you perform these
operations, stop your car in a safe place.
• Some Bluetooth devices may not be connected
to this unit depending on the Bluetooth version
of the device.
• This unit may not work for some Bluetooth
devices.
• Connecting conditions may vary depending on
your environment.
• Some Bluetooth devices are disconnected when
this unit is turned off.
• The Bluetooth devices cannot be used while
using Apple CarPlay.
• The Bluetooth currently connected with
other device is disconnected when an iPhone
compatible with Apple CarPlay is connected.
Ñ About the cell-phone and
Bluetooth audio player
This unit conforms to the following Bluetooth
specifications:
Version
Bluetooth Ver. 5.0
Profiles
Cell-phone:
HFP (V1.7) (Hands Free Profile)
SPP (Serial Port Profile)
PBAP (Phonebook Access Profile)
Audio player:
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.6) (Audio/Video Remote Control
Profile)
Sound codec
LDAC (DDX9907XR / DMX957XR), SBC, AAC
NOTE
• The units supporting the Bluetooth function have
been certified for conformity with the Bluetooth
Standard according to the procedure prescribed
by Bluetooth SIG.
• However, it may be impossible for such units to
communicate with your cell-phone depending
on its type.
Bluetooth Control
65English
Register the Bluetooth device
It is necessary to register the Bluetooth audio
player or cell-phone in this unit before using
the Bluetooth function.
You can register up to 10 Bluetooth devices.
NOTE
• Up to 10 Bluetooth devices can be registered. If
an attempt is made to register the 11th Bluetooth
device, the Bluetooth device connected on the
earliest date will be deleted to register the 11th
one.
• This unit is compatible with the Apple Easy
Pairing function. When an iPod touch or
iPhone connected via USB terminal previously
is connected again, an authentication dialog
appears. Performing operation for authentication
on this unit or iOS smartphone registers the
smartphone as a Bluetooth device.
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [SETUP].
hh SETUP Menu screen appears.
3
Touch [Bluetooth].
hh Bluetooth Setup screen appears.
4
Touch [Select Device] on the Bluetooth
Setup screen.
5
Touch [ ] on the Select Device screen.
hh Bluetooth pairing waiting dialog
appears.
NOTE
• You can also register an iPhone on the Apple
CarPlay Device List screen. (P.32)
• When neither Apple CarPlay, Android Auto, nor
a Bluetooth Hands-Free phone is connected,
pressing and holding the [
] button displays
Bluetooth pairing waiting dialog.
6
Search for the unit
(”DDX****”/”DMX****”) from your
smartphone/cell-phone.
Complete steps 6 to 9 within 30 seconds.
7
Operate your smartphone/cell-phone
according to the displayed messages.
● Confirm the request both on the
smartphone/cell-phone.
Bluetooth Control
66
● Input the PIN Code in your
smartphone/cell-phone.
PIN Code is set to “0000” as the default.
8
Select the function you want to use.
■ HFP [Hands Free1/Hands Free2/No
Connection.]
Select the hands-free number to connect.
■ A2DP/SPP [Audio/App]
Select if you want to use the audio player
app in your smartphone over A2DP, and the
other apps in your smartphone over SPP.
■ PBAP [Phonebook DL]
Select if you want to transfer your
phonebook data.
NOTE
• To select [Phonebook DL], first select [Hands
Free1] or [Hands Free2] for HFP.
9
Touch [Ye s].
When data transmission and connection
have completed, the Bluetooth connection
icon appears on the screen.
NOTE
• When registering the iPhone that is available for
Apple CarPlay wirelessly, a confirmation message
appears.
– [Ye s ]: Displays the Apple CarPlay screen for
wireless connection.
– [No]: Apple CarPlay is not connected. When
using Apple CarPlay, see Select an Apple
CarPlay device (P.32).
Bluetooth Setup
NOTE
• The Bluetooth Setup is disabled while using
Apple CarPlay.
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [SETUP].
hh SETUP Menu screen appears.
3
Touch [Bluetooth].
hh Bluetooth Setup screen appears.
See the following section for each
setting.
• Connect the Bluetooth device (P.66)
• Change the PIN Code (P.68)
• Change the device name (P.67)
Ñ Connect the Bluetooth device
1
Touch [Select Device] on the Bluetooth
Setup screen.
2
Touch the name of the device you want
to connect.
hh Profile select screen appears.
NOTE
• If the icon is lighted, it means that the unit will
use that device.
• You cannot select an Android smartphone
connected as an Android Auto device.
Bluetooth Control
67English
3
Set each profile as follows.
■ [TEL (HFP) 1], [TEL (HFP) 2]
Select when the device is connected with
the unit as hands-free phone 1 or 2.
■ [Audio (A2DP)/App (SPP)]
Select to interwork with an application
installed in a smartphone or to use as an
audio player.
4
Touch [Close].
To delete the registered Bluetooth
device
1
Touch [ ] on the Select Device screen.
2
Touch the device name to check.
■ [þ All]
Selects all Bluetooth devices.
■ [¨ All]
Clears all check marks.
NOTE
• You cannot select an Android smartphone
connected as an Android Auto device.
3
Touch [Delete].
hh Confirmation message appears.
4
Touch [Ye s].
hh All the selected device(s) is deleted.
NOTE
• If the device compatible with wireless Apple
CarPlay is deleted, the same device is deleted
from the Apple CarPlay device list screen.
Ñ Change the device name
1
Touch [Device Name] on the Bluetooth
Setup screen.
hh Change Device Name screen appears.
2
Touch and hold [ ].
3
Input the device name.
4
Touch [Enter].
Bluetooth Control
68

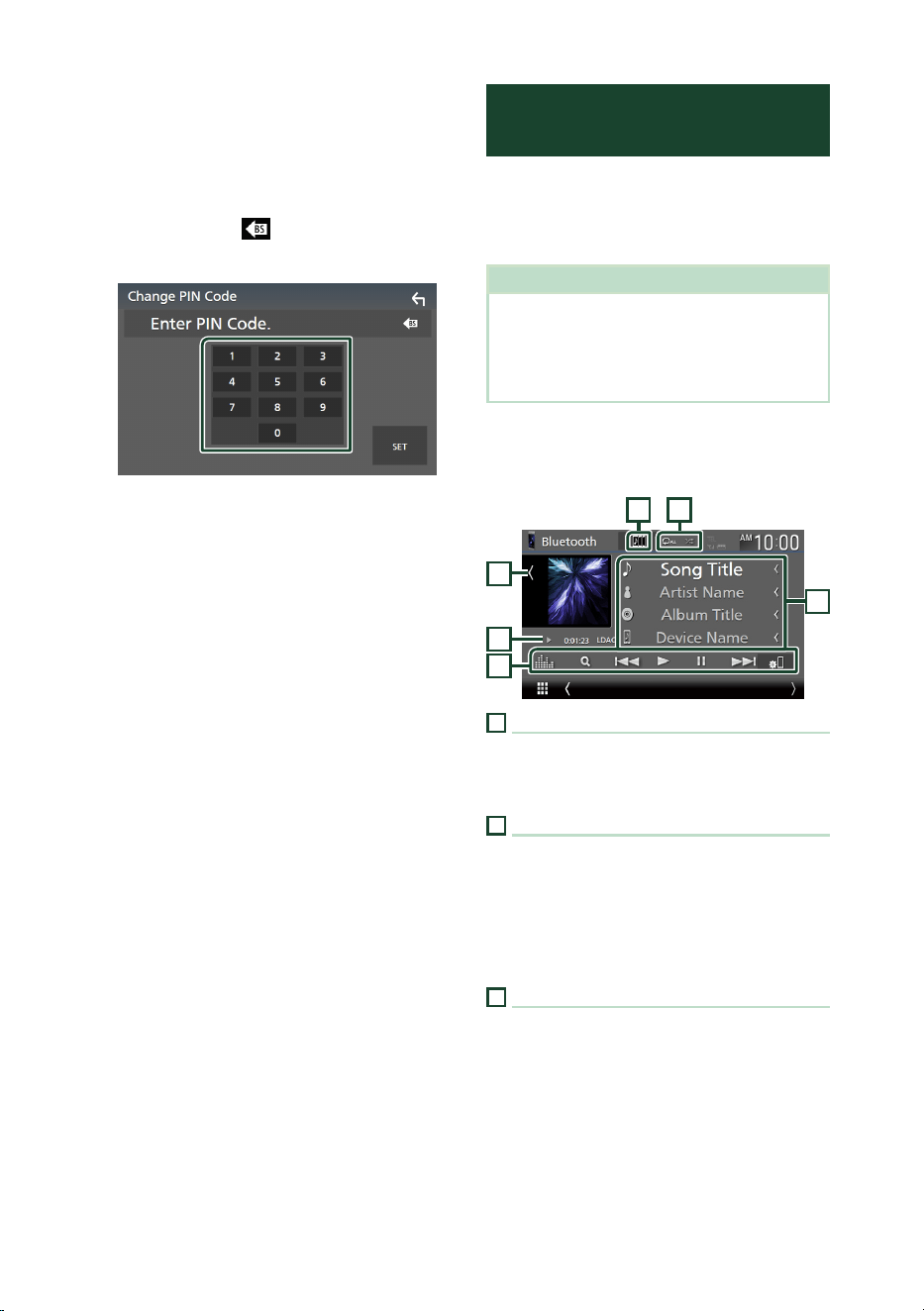

Ñ Change the PIN Code
1
Touch [PIN Code] on the Bluetooth Setup
screen.
hh Change PIN Code screen appears.
2
Touch and hold [ ].
3
Input the PIN Code.
4
Touch [SET].
Playing the Bluetooth Audio
Device
Most function can be controlled from the
source control screen.
To select Bluetooth source, touch [Bluetooth]
icon on the source selection screen. (P.15)
NOTE
• The Bluetooth audio source is disabled while
using Apple CarPlay.
• The Bluetooth audio source is disabled when
the device set as Audio(A2DP)/App(SPP) is using
Android Auto.
Ñ Bluetooth basic operation
Control screen
3
2
1
6
54
1
Artwork/VU meter
• Displays/hides artwork area.
• Touch to switch between the artwork and VU
meter.
2
Play mode indicator/Playing time
D, H: Current play mode indicator
Meanings of individual icons are as follows:
D (play), B (fast forward), A (fast backward),
H (pause), I (stop).
LDAC (DDX9907XR / DMX957XR): Indicates that
an LDAC-compatible device is connected.
3
Operation keys *
• [1]: Searches for a file. See File search
(P.70).
• [E] [F]: Searches for the previous/next
content.
Touch and hold to fast forward or fast
backward. (It will be cancelled automatically
after about 50 seconds.)
• [D]: Plays.
• [H]: Pauses.
Bluetooth Control
69English
• [ ]: Displays the Bluetooth Setup screen.
(P.66)
• [
] : Displays the Graphic Equalizer screen.
(P.90)
4
KENWOOD Music Mix
Bluetooth audio devices can be switched easily
to play music. See KENWOOD Music Mix
(P.69).
5
[ ]/[ ] *
• [
] : Repeats the current track/folder. Each
time you touch the key, repeat modes are
switched in the following sequence:
File repeat ( ), Folder repeat ( ), All
songs repeat ( ), Repeat off ( )
• [
] : Randomly plays all tracks in the current
folder. Each time you touch the key, random
modes are switched in the following sequence:
Folder random (
), All random ( ),
Random off ( )
6
Information display *
• Displays the name of track information.
• Connected device name.
• Change the text size of the information smaller
when the "Small Audio Text" is set to "ON" in
the User Interface screen (P.82).
* These items appear only when the audio player
which supports AVRCP profile is connected.
NOTE
• The operation keys, indications and information
displayed on the screen differ depending on the
connected device.
• If the operation keys do not appear, operate from
the player.
• Depending on your cell-phone or audio player,
sound may be heard and controlled but text
information may not appear.
• If the volume is too low, raise it on your cell-
phone or audio player.
• It is recommended that you change the playback
quality from "priority on sound quality" to
"priority on stable connection" in the settings
of your LDAC-compatible device so that the
intermittent sound problem is less likely to occur.
(DDX9907XR / DMX957XR)

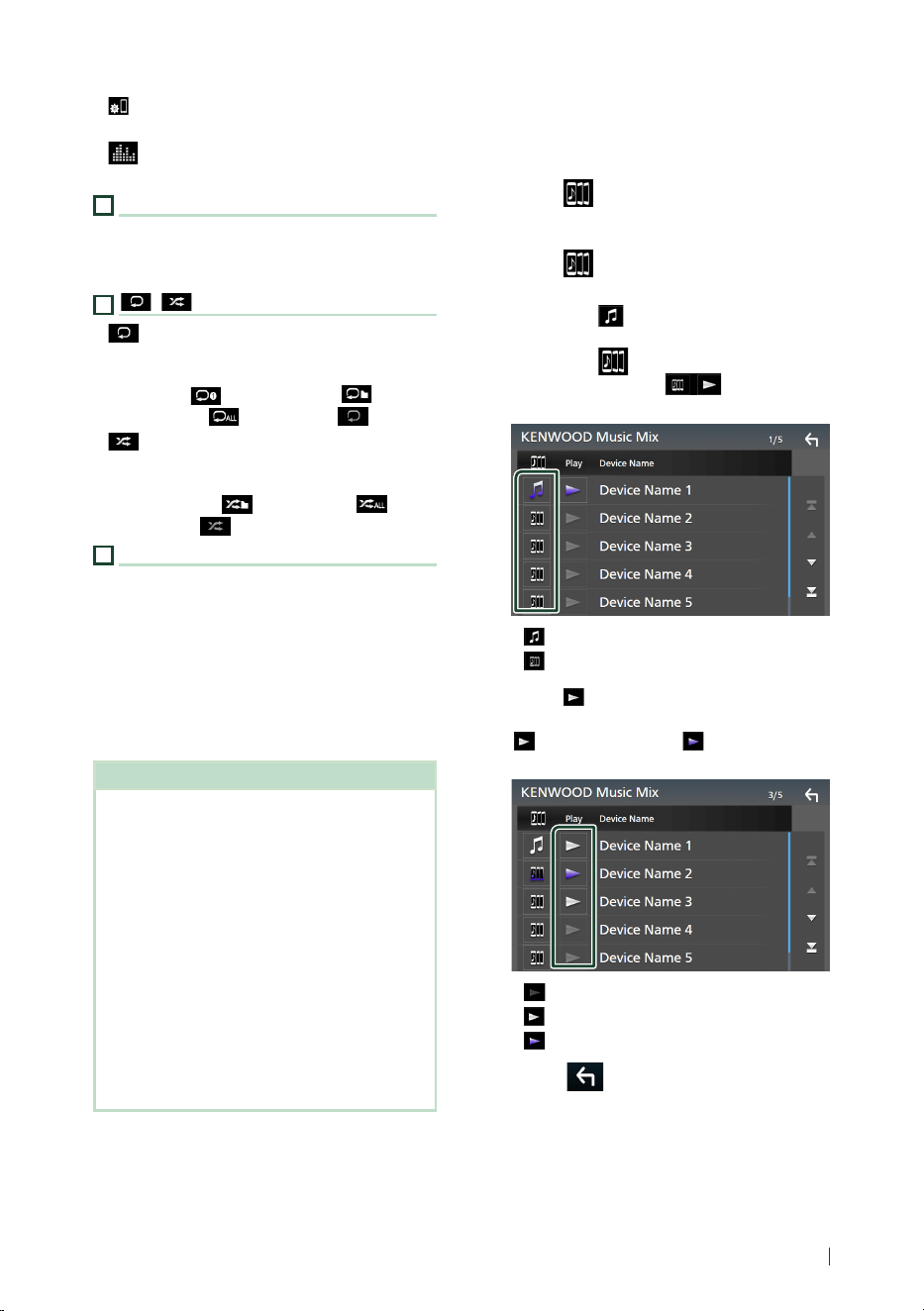

Ñ KENWOOD Music Mix
Up to 5 Bluetooth audio device can be
connected and switched easily to play music.
1
Touch [ ].
hh A list of registered devices is displayed.
2
Touch [ ] of device name you want to
connect.
• Touching [
] displays the Bluetooth
device connection setup screen. (P.66)
• Touching [
] on the left of the
connected device ([ ]) disconnects
this device.
• : Device used normally.
•
: Device used for KENWOOD Music Mix
3
Touch [ ] (white) on the left of the name
of the device to be played.
[
] (white) changes to [ ] (purple) and
starts playback.
• (Gray) : Not connected.
•
(White) : Connected.
•
(Purple) : During playback.
4
Touch [ ].
Bluetooth Control
70
NOTE
• If a connected Bluetooth audio device is operated
to play music, connections are switched.
• When a Bluetooth source is switched to another
one, its settings are deleted and the connection
is restored to the connection before source
switching.
• You cannot select an Android smartphone
connected as an Android Auto device.

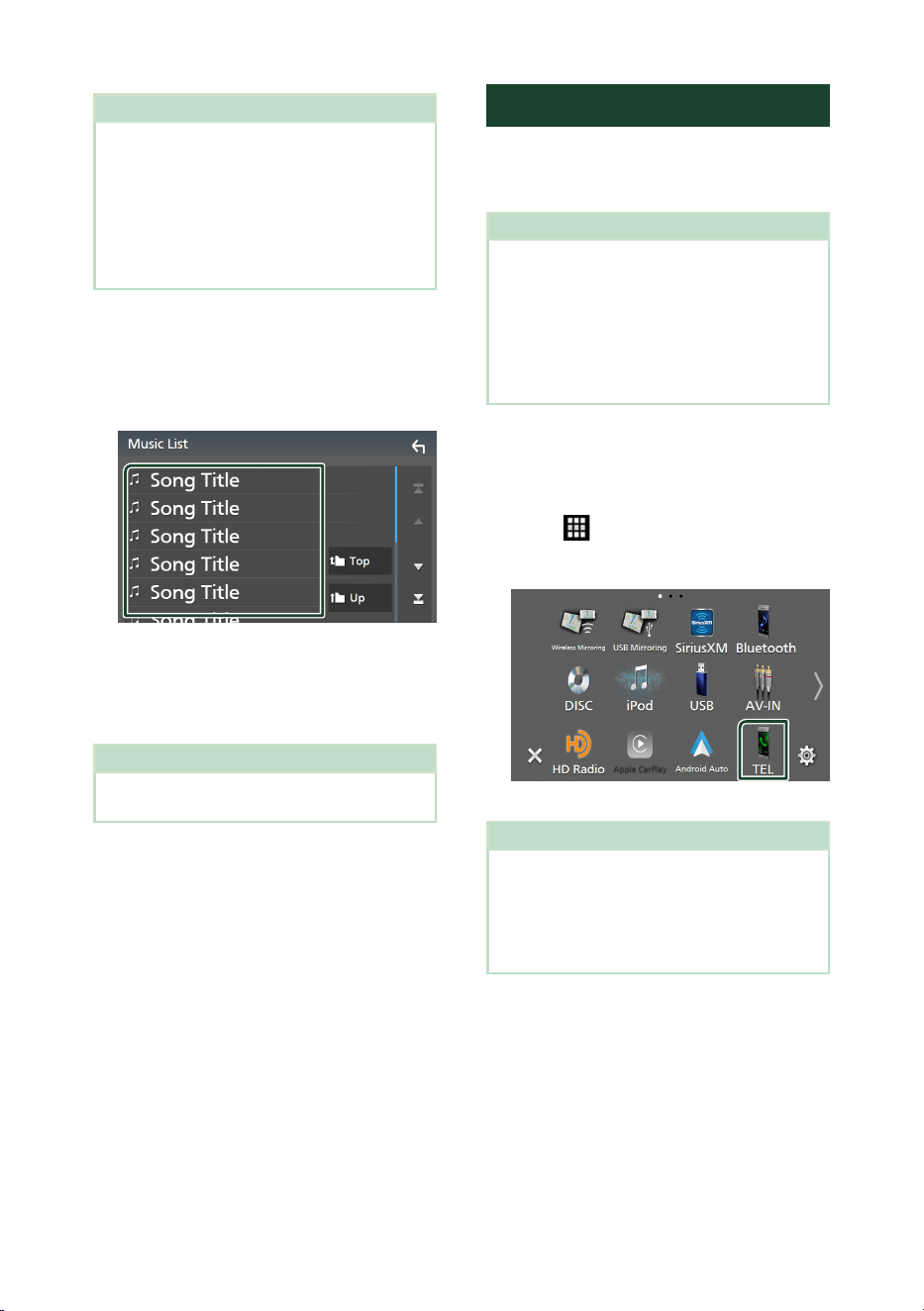

Ñ File search
1
Touch [1].
2
Touch the desired file or folder.
When you touch a folder its contents are
displayed.
3
Touch the desired item in the content list.
hh Playback starts.
NOTE
• For operations in the list screen, see List screen
(P.18).
Using the Hands-Free Unit
You can use the telephone function by
connecting the Bluetooth telephone to this
unit.
NOTE
• If you use the hands-free function frequently,
move the TEL short-cut key (icon) to the Home
screen. (P.16)
• While Apple CarPlay or Android Auto is
connected, the Bluetooth Hands-Free function
and two Bluetooth devices connections cannot
be used. Only the Apple CarPlay or Android Auto
Hands-Free function can be used.

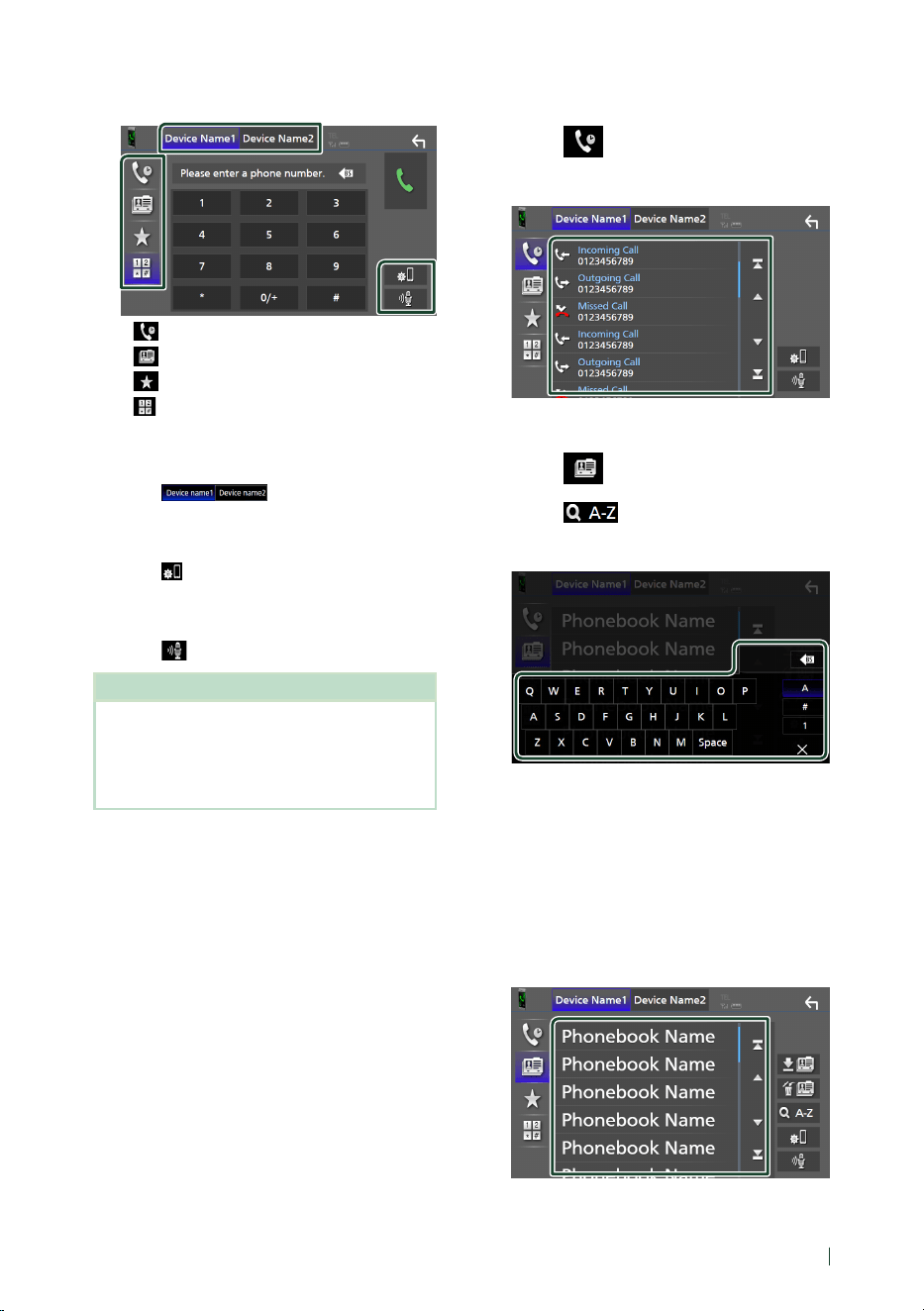

Ñ Make a call
1
Press the [HOME] button.
2
Touch [ ].
3
Touch [TEL].
hh Hands Free screen appears.
NOTE
• If your cell-phone supports PBAP, you can display
the phonebook and call lists onto the touch panel
screen when the cell-phone is connected.
– Phonebook: up to 1000 entries
– Up to 50 entries including dialed calls, received
calls, and missed calls
Bluetooth Control
71English
4
Select a dialing method.
• [ ]: Call using call records
• [
]: Call using the phonebook
• [
]: Call using the preset number
• [
]: Call by entering a phone number
● Select the cell-phone to use
When you connect two cell-phones
1) Touch [
] to select the phone
you want to use.
● Bluetooth Setup
1) Touch [
].
Bluetooth Setup screen appears.
● Voice Recognition
1) Touch [
]. (P.72)
NOTE
• Status icons such as battery and antenna icons
may differ from those displayed on the cell-
phone.
• Setting the cell-phone in the private mode can
disable the hands-free function.
Call using call records
1
Touch [ ].
2
Select the phone number from the list.
Call using the phonebook
1
Touch [ ].
2
Touch [ ].
3
Select the initial.
• Characters with no corresponding name
will not appear.
• A first character with an accent character
such as “ü” can be searched for with a
non-accent character “u” . A character
with an accent character in a sentence
cannot be searched for.
4
Select the person you want to call from
the list.
Bluetooth Control
72
5
Select the phone number from the list.
NOTE
• You can sort the phone numbers in the list by last
name or first name. For details, see Hands-Free
Setup (P.75).
Call using the preset number
1
Touch [ ].
2
Touch the name or phone number.
Call by entering a phone number
1
Touch [ ].
2
Enter a phone number with number keys.
3
Touch [ ].
Ñ Voice Recognition
You can access the voice recognition function
of the cell-phone connected to this unit.
You can search the cell-phone phonebook
by voice. (The functionality depends on the
cell-phone.)
1
Press the [ ] button for 1 second.
DDX9907XR / DDX9707S
Press for 1 second
DMX957XR / DMX907S / DMX9707S
Press for 1 second
hh Voice Recognition screen appears.
2
Start speaking.
NOTE
• You can use the voice recognition function by
touching [
] on the Hands Free screen.
• You can use the voice recognition function for
the connected cell-phone if you selected [Hands
Free1] or [Hands Free2] for HFP when registered.
Bluetooth Control
73English
Ñ Receive a call
1
Touch [ ] to answer a phone call or
[
] to reject an incoming call.
NOTE
• When shifting the gear to the reverse (R) position
and monitoring the picture from the rear view
camera, this screen does not appear even if a call
comes in.
To end call
1
While talking, touch [ ].
Ñ Operations during a call
● Adjust the volume of your voice
1) Touch [Speech Quality].
2) Touch [T] or [U] for [Microphone Level].
● Adjust the receiver volume
Press the [S] or [R] button.
DDX9907XR / DDX9707S
DMX957XR / DMX907S / DMX9707S
● Mute your voice
Touch [
] to mute or not to mute your voice.
● Output the dial tone
Touch [DTMF] to display the tone input screen.
You can send tones by touching desired keys
on the screen.
● Switching between speaking voice
output destinations
Touching [
]/[ ] each time switches
speaking voice output destinations between
the cell-phone and the speaker.
● Call-waiting
When you receive a new call while talking on
the phone, you can answer the newly received
call by touching [
]. The current call is put on
hold.
Each time you touch [
], the caller will change
to the other one.
When you touch [
], the current call will end
to be switched to the call waiting on hold.
● To close the Hands-Free popup screen
Touch [×] to close the Hands-Free popup
screen.
To display it again
1 Press the [HOME] button.
2 Touch [
].
3 Touch [TEL].
Bluetooth Control
74

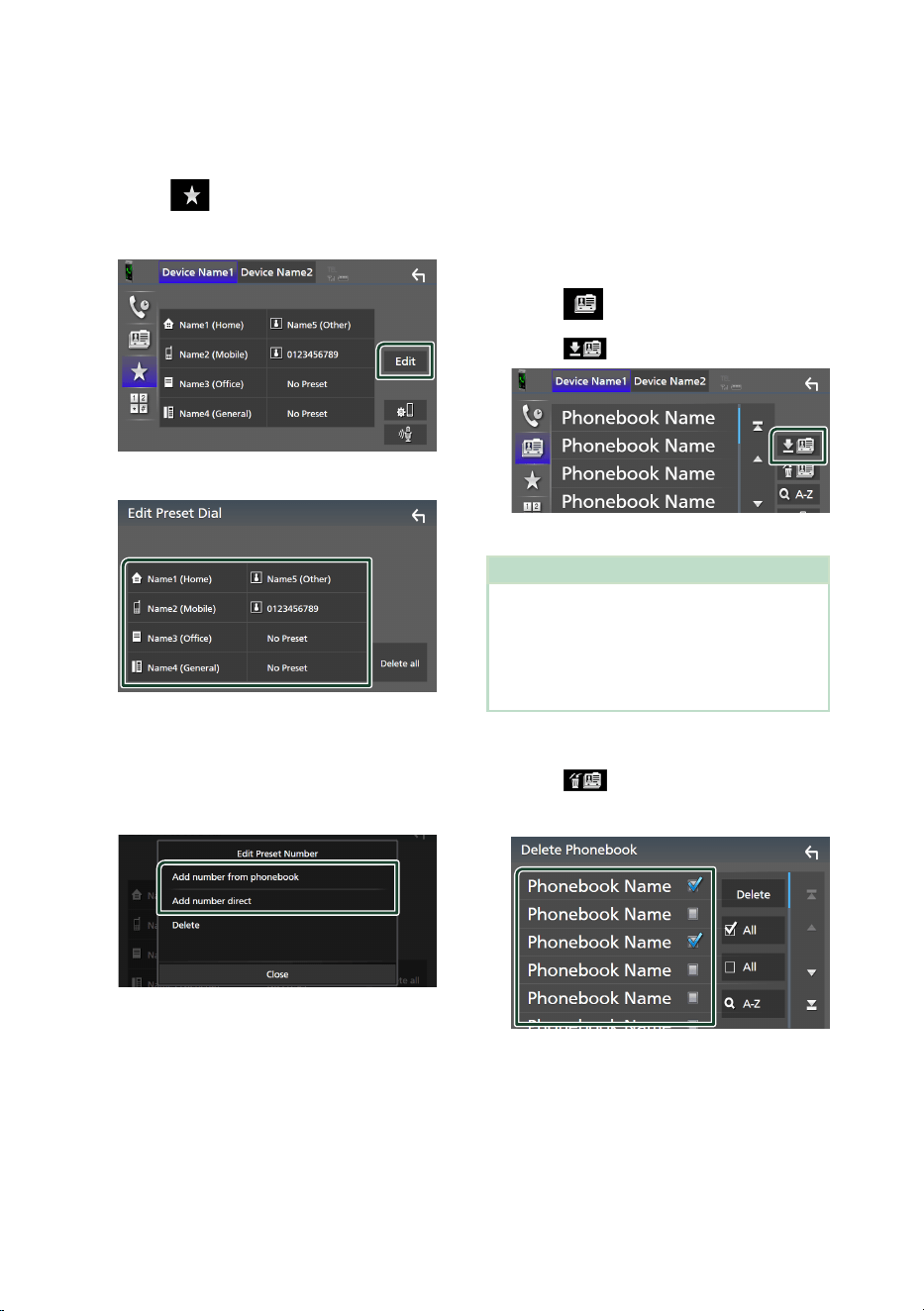

Ñ Phone number preset
You can register frequently used phone
numbers in this unit.
1
Touch [ ].
2
Touch [Edit].
3
Select where to preset.
■ [Delete all]
To delete all preset numbers, touch [Delete
all] and then touch [Ye s ] on the confirmation
screen.
4
Select how to preset.
■ [Add number from phonebook]
Select the number to preset from the
phonebook. See Call using the phonebook
(P.71).
■ [Add number direct]
Enter the telephone number directly and
touch [SET]. See Call by entering a phone
number (P.72).
■ [Delete]
To delete a preset number, touch [Delete]
and then touch [OK] on the confirmation
screen.
Ñ Phonebook transfer
You can transfer phonebook data from your
Bluetooth smartphone using PBAP.
1
Touch [ ].
2
Touch [ ].
hh Phonebook data transfer starts.
NOTE
• If the Phonebook contains more than 1000
entries, only 1000 entries are transferred. The
1001st and later entries are not transferred.
• If no Phonebook has been downloaded, touching
[Download Phonebook Now] will start
downloading the Phonebook.
Phonebook deletion
1
Touch [ ].
2
Touch the name to check.
■ [þ All]
Checks all boxes.
■ [¨ All]
Clears all check marks.
3
Touch [Delete].
hh Confirmation message appears.
4
Touch [Ye s].
Bluetooth Control
75English
Hands-Free Setup
You can make various settings for the Hands-
Free function.
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [SETUP].
hh SETUP Menu screen appears.
3
Touch [Bluetooth].
hh Bluetooth Setup screen appears.
4
Touch [TEL SETUP].
hh TEL SETUP screen appears.
5
Set each function as follows.
■ [Bluetooth HF/Audio]
Select the speakers to output the sound from
the cell-phone (such as phone call voice and
ringing tone) and Bluetooth audio player.
[Front]: Outputs sound from the front
speakers.
[All ](Default): Outputs sound from all
speakers.
■ [Auto Response]*
Set the automatic response time to pick-up
an incoming call.
[OFF ](Default): Turns off the Automatic
response function.
[1/5/10/15/20/25/30]: Sets the ringing time
(second).
■ [Auto Pairing]
When set to “ON”, the Apple Auto Pairing
function is turned on to automatically
register the iPod touch or iPhone connected
to this unit.
[ON ](Default): Turns on the Apple Auto
Pairing function.
[OFF]: Turns off the Apple Auto Pairing
function.
■ [Sort Order]
Set how to sort the data in the cell-phone
phonebook.
[First]: Sorts data by the first name.
[Last ](Default): Sorts data by the last name.
* Either the auto response time set on this
unit or the time set on the cell-phone,
whichever is shorter takes effect.
6
Touch [OK].
Other External Components
76
Other External Components
View Camera
NOTE
• To connect a camera, see Connecting the
camera (P.108).
• To use a rear view camera, a REVERSE lead
connection is required. (P.104)
• If [Rear Camera Interruption] is active the
camera screen is displayed when you shift the
gear to the reverse (R) position.
• The camera whose view was displayed last is kept
and the same camera view will be displayed the
next time. If its assignment setting is changed, the
rear camera view is displayed.
• Rear/front camera interruption screen is not kept
as the camera screen which will be displayed the
next time.

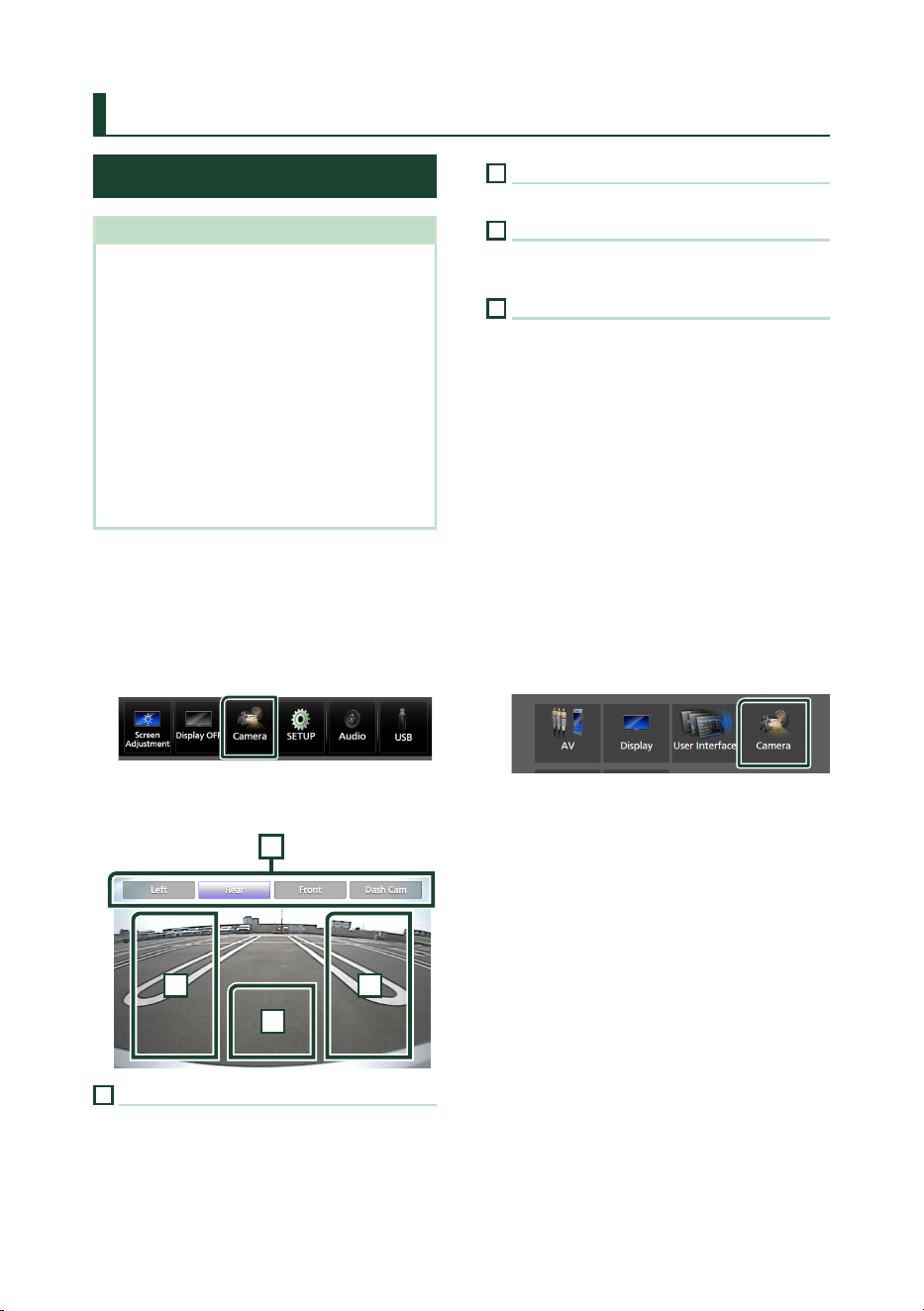

Ñ Display the camera screen
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [Camera].
hh View camera screen appears.
3
Adjust each item as follows.
2
3 4
1
1
Camera Switching Keys *
1
Touch to switch the view camera. It is
necessary to set “Camera Assignment
Settings” beforehand except “Rear”. See To
set up the camera assignment settings
(P.77).
2
Camera off
Touch to exit the camera screen.
3
Switching the Guideline *
2
Touching each time turns on or off the
guideline.
4
Switching the Angle *
2
Touching each time changes camera angles.
*1 When two or more cameras of rear, front,
dashboard, left, right, and 3rd are connected
with this unit.
*2 Only when the rear camera screen is
displayed and CMOS-3xx series is connected
with this unit as the rear camera.
Ñ Camera Setup
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [SETUP].
hh SETUP Menu screen appears.
3
Touch [Camera].
hh Camera screen appears.
4
Set each item as follows.
■ Camera Assignment Settings
Set up the camera assignment. See To set up
the camera assignment settings (P.77).
■ [Rear Camera Interruption]
[ON]: Displays the picture from the rear view
camera when you shift the gear to the
reverse (R) position.
[OFF ](Default): Select this when no camera is
connected.
■ [Rear Camera Message *]
1
[Always display] (Default): Always displays
the caution message on the rear camera
interruption screen.
[Clear after 5 seconds]: Displays the
caution message for about 5 seconds on
the rear camera interruption screen.
Other External Components
77English
■ [Rear Camera Settings *]
2
Adjusts the CMOS-3xx series with ID 1 ("Rear
Camera") set. For details, see the instruction
manual of your camera.
■ [Parking Guidelines]
You can display parking guidelines to enable
easier parking when you shift the gear to the
reverse (R) position.
Default is “ON”.
■ [Guidelines SETUP]
If you select [ON] for [Parking Guidelines],
you can adjust the parking guidelines. See To
adjust the parking guidelines (P.78).
■ [Front Camera Settings *]
3
Adjusts the CMOS-3xx series with ID 2 ("Front
Camera") set. For details, see the instruction
manual of your camera.
■ [Front Camera Interruption *]
4
[10 sec]/[15 sec] (Default)/[20 sec]: The front
camera screen is displayed when return the
gear from the reverse (R) position.
[OFF]: Cancel.
*1 To use the function, it is necessary to set [Rear
Camera Interruption] to [ON].
*2 When CMOS-3xx series is connected with
this unit.
*3 To use the function, it is necessary to connect
CMOS-3xx series and to set [Camera
Assignment Settings] to [Front]. (P.77)
*4 To use the function, it is necessary to set [Rear
Camera Interruption] to [ON] and to set
[Camera Assignment Settings] to [Front].
(P.77)
Ñ To set up the camera
assignment settings
1
Touch [Camera Assignment Settings] on
the Camera screen. (P.76)
2
Select the item to set up.
■ [REAR VIEW CAMERA] (DDX9907XR /
DMX957XR)
Change the HD camera picture quality
setting when an HD camera is connected.

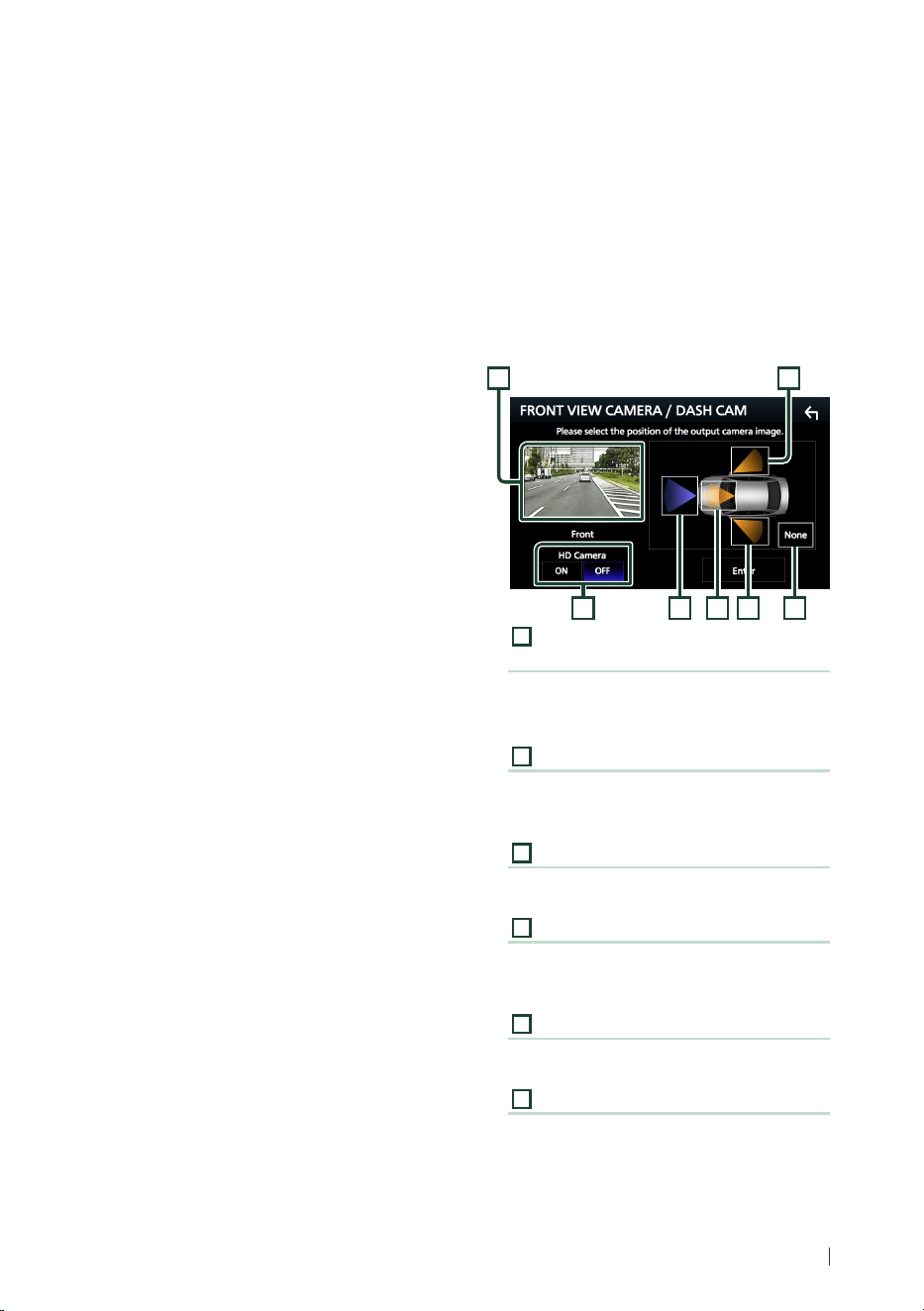

■ [FRONT VIEW CAMERA / DASH CAM]
Set the camera assignment from view
camera connected to Front view camera/
Dashboard camera input terminal.
Change the HD camera picture quality
setting when an HD camera is connected.
(DDX9907XR / DMX957XR only)
■ [3rd VIEW CAMERA]
Set the camera assignment from view
camera connected to 3rd view camera input
terminal.
■ [AV-IN]
Set the camera assignment from view
camera connected to AV-IN input terminal.
3
Select the view camera to set up.
63 41 7
2 5
1
Picture quality settings
(DDX9907XR / DMX957XR) *
1
Switch the picture quality setting when an
HD camera for the rear/front view camera.
"ON"/"OFF" (Default)
2
[Picture from view camera]
Displays the picture from the view camera
connected to the input terminal to be set.
(P.108)
3
[Front] *
2
Assign front position to the view camera
connected to the selected input terminal.
4
[Dashboard Camera] *
2
Assign dashboard camera position to the
view camera connected to the selected
input terminal.
5
[Right] *
2
Assign right position to the view camera
connected to the selected input terminal.
6
[Left] *
2
Assign left position to the view camera
connected to the selected input terminal.
Other External Components
78
7
[None] *
2
Assign no position to the view camera
connected to the selected input terminal.
*1 The [REAR VIEW CAMERA] and [FRONT
VIEW CAMERA / DASH CAM] setting
screens only.
*2 Except the [REAR VIEW CAMERA] setting
screen.
4
Touch [Enter].
NOTE
• The screen shot above is for the [FRONT VIEW
CAMERA / DASH CAM] setting screen. It may
be different from the ones for [REAR VIEW
CAMERA], [3rd VIEW CAMERA] and [AV-IN].
• The Dashboard Camera can be selected when it is
connected. (P.108)
Ñ To adjust the parking
guidelines
NOTE
• Install the rear view camera in the appropriate
position according to the instruction manual
supplied with the rear view camera.
• When adjusting the parking guidelines, make
sure to apply the parking brake to prevent the car
from moving.
1
Touch [Parking Guidelines] in the Camera
screen and set to [ON]. (P.76)
2
Touch [Guidelines SETUP] on the Camera
screen.
3
Adjust the parking guidelines by
selecting the
mark.
4
Adjusting the position of the selected
mark.
A
B
C
D
Make sure that lines A and B are
horizontally parallel, and that lines C and
D are of the same length.
NOTE
• Touch [Initialize] and then touch [Ye s] to set all
the
marks to their initial default position.
Use Dashboard Camera
A Dashboard Camera, DRV-N520 (optional
accessory), connected to this unit lets you play
video-recorded data and so on.
For details, see the instruction manual of
the Dashboard Camera DRV-N520 (optional
accessory).
NOTE
• To connect a dashboard camera, see Connecting
the camera (P.108).
• To use the dashboard camera function, it is
necessary to set “Camera Assignment Settings” to
“Dashboard Camera”. (P.77)
Ñ Display the dashboard camera
screen
1
Press the [MENU] button.
hh Popup menu appears.
Other External Components
79English
2
Touch [Camera].
23
1
1
Camera Switching Keys
Touch to switch the view camera. It is
necessary to set “Camera Assignment
Settings” beforehand except “Rear”. See To
set up the camera assignment settings
(P.77).
2
Camera off
Touch to exit the camera screen.
3
Key display
Touch to display the dashboard camera
control keys.
External audio/video players
(AV-IN)
1
Connect an external component to the
AV-IN input terminal. (P.105)
2
Select [AV-IN] as the source. (P.15)
3
Turn on the connected component and
start playing the source.
NOTE
• To select the AV-IN source, it is necessary to set
"AV-IN" to "None" in [Camera Assignment
Settings]. (P.77)
OEM Features Operation
By connecting this unit to the bus system of
the vehicle using an iDatalink (commercially
available), This unit can display vehicle
information when connected to the bus
system of the vehicle using an iDataLink
(commercially available).
1
Press the [HOME] button.
hh HOME screen appears.
2
Touch [ ] on the HOME screen.
Other External Components
80
3
Touch icon.
• Displays the control screen of the
Bluetooth Hands Free function provided
for the vehicle.
• Displays information about the tire
pressures of the vehicle. *
• Displays the control screen of the satellite
radio source provided for the vehicle.
• Displays the control screen of the media
player source provided for the vehicle.
• Displays the control screen of the
Bluetooth streaming source provided for
the vehicle.
• Displays information about the Radar
Detector. *
• Displays information about the
instruments such as a speedometer.
• Displays information about the air
conditioner of the vehicle. *
• Displays information about the Parking
Distance Sensor of the vehicle.
* These ADS adapter features are displayed as the
widget on the Home screen. (P.14) You can display
the relevant screens by touching the widget.
NOTE
• Displayable screens, key names, and screen
names vary depending on the type of the
connected iDatalink and the model of the vehicle.
For more details, access the following URL:
www.idatalink.com/
Setup
81English
Setup
Monitor Screen Setup
You can adjust the image quality of video,
menu screen, etc.
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [Screen Adjustment].
hh Screen Adjustment screen appears.
3
Adjust each setting as follows.
■ [Backlight/Contrast/Black/
Brightness/Color/Tint]
Adjust each setting.
■ [Aspect]
Select a screen mode.
[Full]: Changes the aspect ratio of video and
displays video fully on the screen.
[Normal]: Displays video at the ratio of 4:3.
[Auto]:
DVD, VCD and disc media: 16:9 video is
displayed in the Full mode and 4:3 video is
displayed in the Regular mode.
USB device: Displays video fully (vertically
or horizontally) with no ratio change.
NOTE
• Settings to adjust vary depending on the current
source.
System Setup
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [SETUP].
See the following section for each
setting.
• Set up AV (P.86)
• Set up display (P.84)
• Set up the user interface (P.82)
• Set up camera (P.76)
• Set up special (P.83)
• Set up Bluetooth (P.66)
Setup
82
User Interface Setup
You can setup user interface parameters.
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [SETUP].
hh SETUP screen appears.
3
Touch [User Interface].
hh User Interface screen appears.
4
Set each parameter as follows.
■ [Small Audio Text]
Change the text size for the source control
screen.
[ON] : Change the text size smaller.
[OFF] (Default): Cancel.
■ [Beep]
Turn the key touch tone on or off.
Default is “ON”.
■ [Widget SETUP]
Set up the widget displayed on the Home
screen. (P.21)
■ [Parking Assist Display]
When an ADS adapter is connected, you can
display information about obstacles around
the car.
[ON]: Always displays information.
[Dyn.] (Default): Displays information when
the sensor detects obstacles.
[OFF]: Cancels this function.
This can be set when the iDatalink
(commercially available) is connected.
■ [Parking Assist Position]
Select where to display information about
obstacles on the screen (left or right).
“Left”/“Right” (Default)
This can be set when the iDatalink
(commercially available) is connected.
■ [Language Select]
Select a language.
■ [Touch Panel Adjust]
(DDX9707S / DMX9707S)
Adjust the sensing position of the touch
panel. (P.82)
■ [Time Format]
Select the time display format.
"12-Hour" (Default)/"24-Hour"
■ [Clock]
[GPS-SYNC ](Default): Synchronizes the clock
time with the GPS.
[Manual]: Set the clock manually.
■ [Time Zone]
Select the time zone.
■ [Clock Adjust]
If you select [Manual] for Clock, adjust the
date and time manually. (P.83)
Ñ Touch panel adjustment
1
Touch [Touch Panel Adjust] on the User
Interface screen.
hh Touch Panel Adjust screen appears.
2
Follow the instruction on the screen and
long touch the center of each [ ].
1
2
NOTE
• To cancel the touch panel adjustment, touch
[Cancel].
• To reset it to the default, touch [Reset].
Setup
83English
Ñ Adjust the date and time
manually
1
Touch [Clock] on the User Interface screen.
2
Select [Manual].
3
Touch [Time Zone] on the User Interface
screen.
4
Select the time zone.
5
Touch [Clock Adjust] on the User Interface
screen.
6
Adjust the date, then adjust the time.
7
Touch [Set].
Special Setup
You can setup special parameters.
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [SETUP].
hh SETUP screen appears.
3
Touch [Special].
hh Special screen appears.
4
Set each parameter as follows.
■ [DEMO]
Select the demonstration mode. Default is
“ON”.
■ [Software Information]
Confirm the software version of this unit.
(P.83)
■ [Open Source Licenses]
Display the open source licenses.
■ [Initialize]
Touch [Initialize] and then touch [Yes ] to set
all the settings to the initial default settings.
• Audio SETUP Memory is not initialized.
Ñ Software Information
You can confirm the software version of this
unit.
1
Touch [Software Information] in the
Special screen.
2
Confirm the software version.
Setup
84
NOTE
• For how to update the software, see the relevant
update procedure manual which comes with the
software.
Display Setup
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [SETUP].
hh SETUP screen appears.
3
Touch [Display].
hh Display screen appears.
4
Set each parameter as follows.
■ [Dimmer]
Select the dimmer mode.
[OFF]: Does not dim the display and keys.
[ON]: Dims the display and keys.
[SYNC ](Default): Turns the dimmer function
on or off when the vehicle light control
switch is turned on or off.
■ [OSD Clock]
Select if you want to display the clock while
the screen is off, or while watching DVD
video and video files (USB, Disc media), etc.
■ [Key Color]
You can set the key illumination color.
(P.84)
■ [Wallpaper Customize]
You can change the wallpaper image or
color. (P.85)
■ [Viewing Angle]
(DMX907S / DMX9707S)
If it is hard to see the image on the screen
evenly, adjust the viewing angle. The smaller
the (negative) value, the more whitish the
image on the screen looks.
"0" (Default)/"-1"/"-2"/"-3"
■ [Screen transition effect]
Select whether to use the screen transition
effect when the source control screen is
switched to the Home screen.
"ON" (Default)/"OFF"
Ñ Customizing the key color
You can set the key illumination color.
1
Touch [Key Color] on the Display screen.
2
Touch the desired color.
■ [User]
The color you have set in the process of
[Adjust] is registered.
■ [Scan]
You can set the key color to continuously
scan through the color spectrum.
■ [Car Color]
This can be selected when a compatible ADS
adapter is connected.
3
Touch [ ].
To register an original color
You can register your original color.
1
Touch [User] on the Key Color screen.
2
Touch [Adjust].
3
Use [−] and [+] to adjust each color value.
4
Touch [ ].
Setup
85English
Ñ Change the wallpaper image or
color
1
Touch [Wallpaper Customize] on the
Display screen.
2
Select an image.
*
2
*
1
*
3
*
1
The album art currently being displayed is
used as a wallpaper.
*
2
Select a wallpaper color in advance.
*
3
Select an original image in advance.
To select wallpaper color
1
Touch [Wallpaper Color] on the
Background screen.
2
Select a wallpaper color.
*
1
*
1
The color you have selected at [Key Color]
is added on the image. If you select “Scan”
at [Key Color], you cannot select this
image.
3
Touch [ ].
To register an original image
You can load an image from the connected
USB device and set it as the wallpaper image.
Before starting this procedure, it is necessary
to connect the device which has the image to
load.
1
Touch [User1 Select] or [User2 Select] on
the Wallpaper Customize screen.
2
Select the image to load.
3
Touch [Enter].
hh The selected image is loaded and
the display returns to the Wallpaper
Customize screen.
NOTE
• Touching [ ] rotates the image counter-
clockwise.
• Touching [
] rotates the image clockwise.
• Picture files: JPEG (.jpg, .jpeg), PNG (.png), BMP
(.bmp)
Setup
86
AV Setup
You can set AV parameters.
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [SETUP].
hh SETUP screen appears.
3
Touch [AV].
hh AV screen appears.
4
Set each parameter as follows.
■ [Android Auto Device Select]
Select the device to be used in the Android
Auto mode. (P.35)
■ [Apple CarPlay Device List]
Select the device to be used in the Apple
CarPlay mode. (P.32)
■ [Speech Quality Adjust]
Adjust the speech quality.
[Microphone Level] : Adjust the level of
microphone gain. Default is “0”.
[Echo Cancel Level] : Adjust the level of
echo cancellation. Default is “0”.
[Noise Reduction Level] : Reduce the noise
generated in the surrounding environment
without changing the microphone volume.
Use this function when the voice of caller is
not clear. Default is “0”.
■ [AV-OUT]
You can select an AV source to be output
from the AV OUTPUT port.
OFF, AV-IN, DISC (DDX9907XR / DDX9707S
only), USB or iPod
• You cannot select AV-IN if the AV-IN input
terminal is used for camera.
• You cannot select iPod if it is connected via
Bluetooth.
• If you select USB, iPod, DISC (Music CD/Disc
media), Bluetooth audio, Radio or HD Radio
as the main source, you cannot select USB,
iPod or DISC (Music CD/Disc media) as the
AV output source.
• If you select Wireless Mirroring, Apple
CarPlay or Android Auto as the main
source, you cannot select DISC (Music CD/
Disc media), USB or iPod as the AV output
source.
■ [Driving Position]
Select the driving position (left or right).
“Left” (Default)/“Right”
■ [Wi-Fi SETUP]
You can change the device name and display
the device address, password. See Change
the device name (P.86).
■ [OEM SETUP]
Confirm the information about or change
the settings for using the ADS adapter.
■ [Reset Android Auto Wireless
Connection]
You can change the password for wireless
Android Auto.
The system of the unit is rebooted after
selecting [YES].
Ñ Change the device name
1
Touch [Wi-Fi SETUP] on the AV screen.
2
Touch [Device Name].
hh Change Device Name screen appears.
3
Touch and hold [ ].
4
Input the device name.
5
Touch [Enter].
Controlling Audio
87English
Controlling Audio
You can adjust various settings such as audio
balance or subwoofer level.
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [Audio].
See the following section for each
setting.
• Set up Speaker / X’over (P.88)
• Controlling EQ / SW Level (P.90)
• Set Position / DTA (P.94)
• Controlling Fader / Balance (P.90)
• Set Volume Offset (P.91)
• Performing Zone Control (P.92)
• Set Sound Effect (P.93)
• Use Audio Memory (P.95)
3-way speaker system setup
(DDX9907XR / DMX957XR /
DMX907S)
Select the appropriate crossover network
mode for the speaker system used (2-way or
3-way speaker system).
# CAUTION
• Connecting 3-way speakers with the 2-way
mode selected can break the speakers.
1
Press the [HOME] button.
hh HOME screen appears.
2
Touch [ ].
hh Source selection screen appears.
3
Touch [STANDBY].
4
Press the button 1 followed by the
button 2 for 1 second at the same time.
DDX9907XR
2 1
DMX957XR / DMX907S
1 2
hh Speaker system select screen appears.
5
Select the crossover network mode.
hh A confirmation screen appears.
6
Touch [Ye s].
NOTE
• When the 3-way speaker system is selected, the
following functions are disabled.
– Front focus of Listening Position / DTA
– Fader for Controlling General Audio
– Zone Control
– Selection of the speakers to output sound from
the cell-phone of Bluetooth HF/Audio
– Beep for User Interface Setup
• When the dual zone is selected and audio source
other than "OFF" is selected as Rear Source, the
speaker system cannot be switched.
Controlling Audio
88

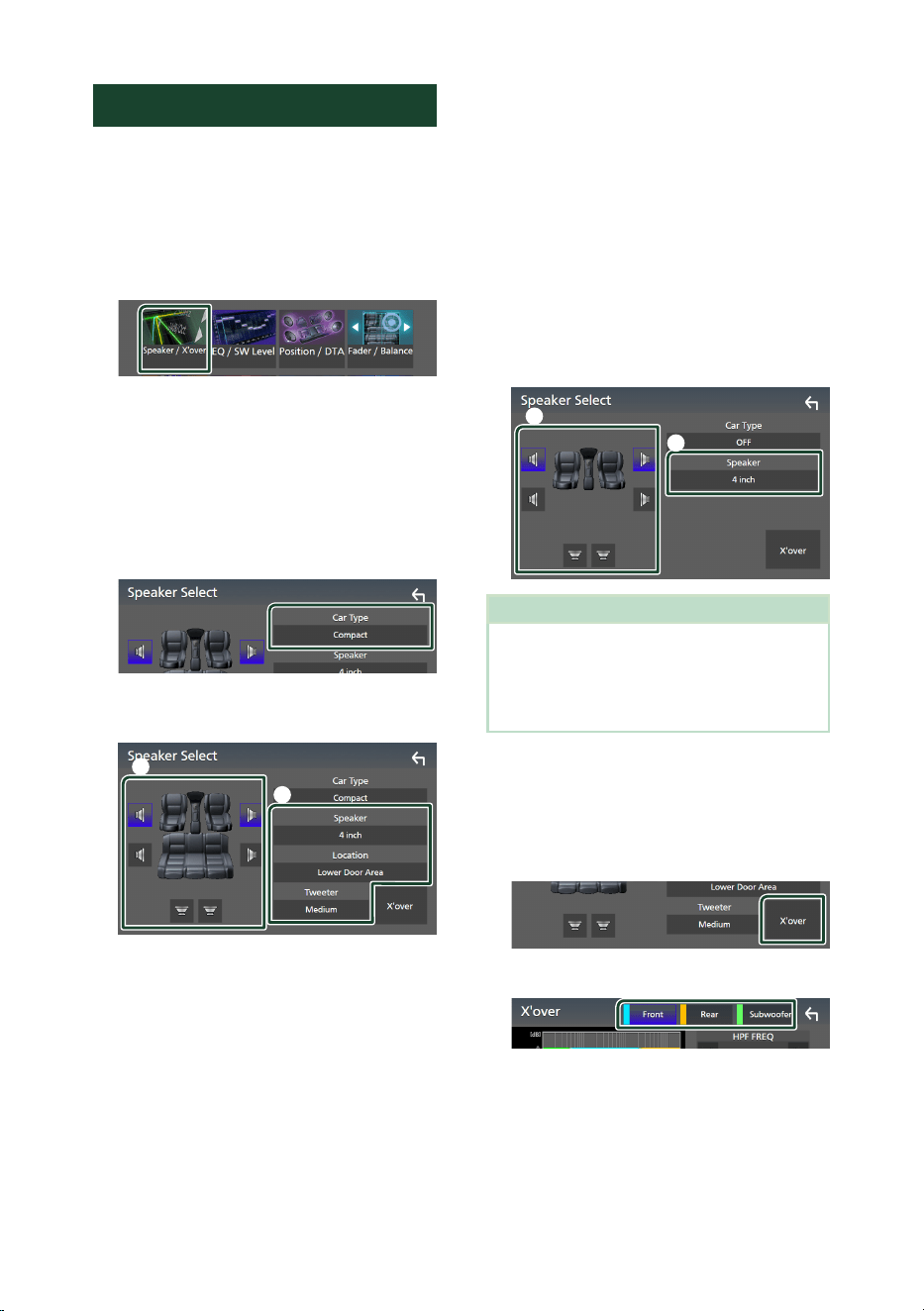

Speaker / X’over setup
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [Audio].
hh Audio screen appears.
3
Touch [Speaker / Xʼover].
4
Select a car type.
You can select the car type and speaker
network, etc.
When you select your car type, the Delay
Time Alignment is activated automatically
(for timing adjustment of sound output for
each channel) to have the highest surround
effects.
5
Touch the speaker (1) you wish to adjust
and set each parameter (2) as follows.
1
2
■ [Speaker]
You can select a speaker type and its size to
get the best sound effects.
When the speaker type and size are selected,
the speaker crossover network is set
automatically.
■ [Location] (Only for Front, Rear)
Select the speaker position you have
installed.
■ [Tweeter] (Only for Front)
You can set up the tweeter when you are
selecting front speakers.
None, Small, Medium, Large
■ [Xʼover]
Display the speaker crossover setup screen.
You can adjust the crossover frequency that
was set automatically when you selected the
speaker type.
For details, see Crossover network setup
(P.88)
When Speaker network is set to 3-way:
1
2
NOTE
• For how to switch to the 3-way speaker system,
see 3-way speaker system setup (P.87).
Connecting 3-way speakers with the 2-way mode
selected can break the speakers.
• Select “None” if you have no speakers.
Ñ Crossover network setup
You can set the crossover frequency of
speakers.
1
Touch [Xʼover].
2
Touch the speaker to set up.
Controlling Audio
89English
3
Set each parameter as follows.
■ [HPF FREQ]
High Pass Filter adjustment. (When Front or
Rear is selected on the Speaker Select screen)
■ [LPF FREQ]
Low Pass Filter adjustment. (When
Subwoofer is selected on the Speaker Select
screen)
■ [Slope]*
1
Set a crossover slope.
■ [Gain]
Adjust the gain of the front speaker, rear
speaker, or subwoofer.
■ [TW Gain] *
2
Adjust the tweeter level. (When Front is
selected on the Speaker Select screen)
■ [Phase Inversion]*
3
Set the phase of subwoofer output.
Check [Phase Inversion] to shift the phase
180 degrees. (When Subwoofer is selected
on the Speaker Select screen)
*
1
Only when “LPF FREQ”/“HPF FREQ” is set to
a mode other than “Through” in [Xʼover].
*
2
Only when “Tweeter” is set to “Small”,
“Medium”, “Large” in [Speaker Setup].
*
3
Only when “Subwoofer” is set to a mode
other than “None” in [Speaker Setup].
When Speaker network is set to 3-way:
■ [FREQ] (High Pass)
High Pass Filter adjustment.
■ [HPF FREQ], [LPF FREQ] (Band Pass)
Band Pass Filter adjustment. (When Mid
Range Speaker is selected on the Speaker
Select screen)
■ [FREQ] (Low Pass)
Low Pass Filter adjustment. (When Woofer is
selected on the Speaker Select screen)
■ [Slope]*
1
*
2
Set a crossover slope.
■ [Gain]
Set the gain of each speaker.
■ [Phase Inversion]
Set the phase of tweeter, mid range, and
woofer output.
Check [Phase Inversion] to shift the phase
180 degrees.
*
1
Only when “LPF FREQ”/“HPF FREQ” (Band
Pass) is set to a mode other than “Through”
in [Xʼover].
*
2
Only when “FREQ” (Low Pass) is set to a
mode other than “Through” in [Xʼover].
NOTE
• For how to switch to the 3-way speaker system,
see 3-way speaker system setup (P.87).
Connecting 3-way speakers with the 2-way mode
selected can break the speakers.
Controlling Audio
90

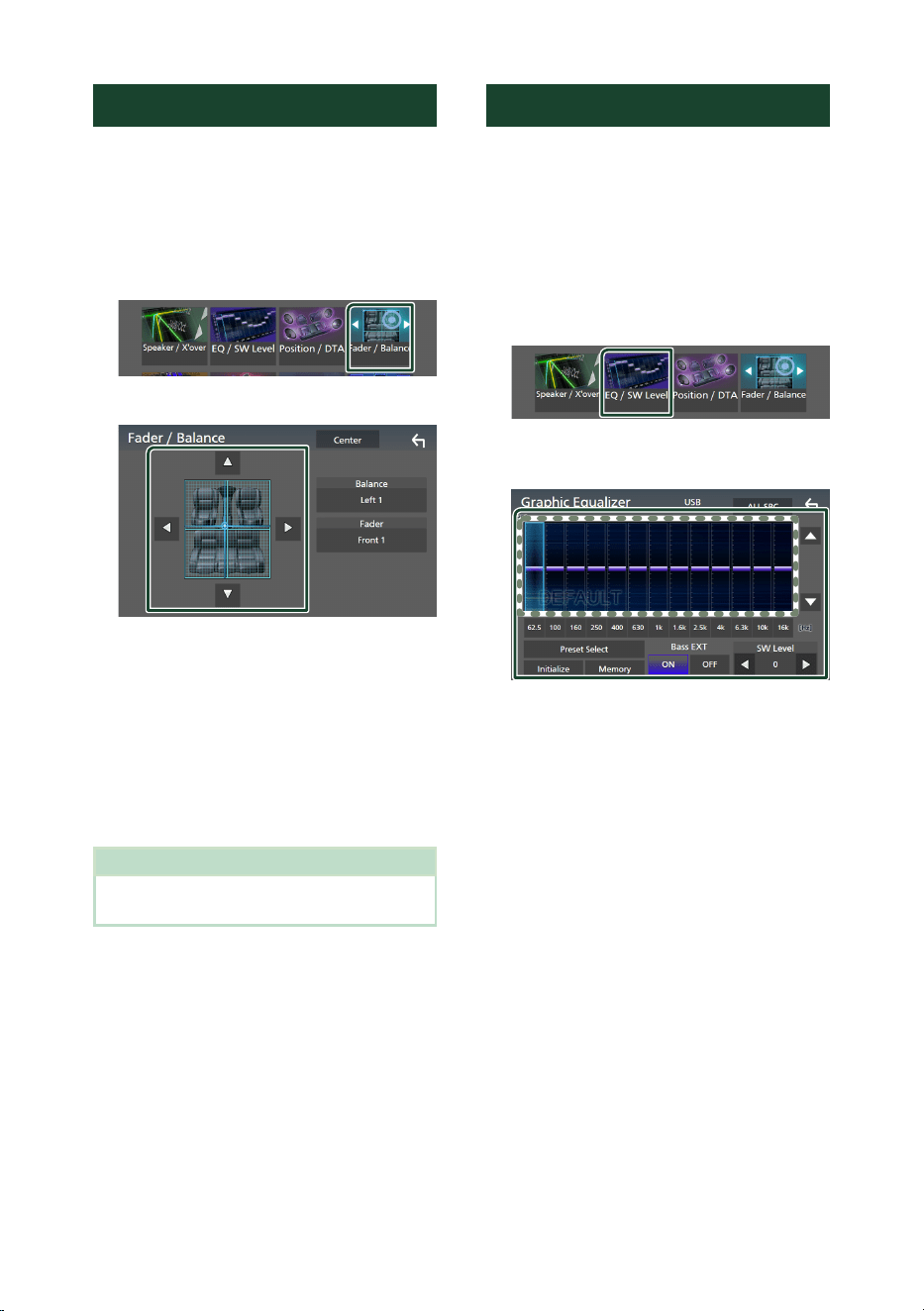

Controlling General Audio
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [Audio].
hh Audio screen appears.
3
Touch [Fader / Balance].
4
Set each parameter as follows.
■ [Fader / Balance]
Adjust the volume balance around the
touched area.
[C] and [D] adjust the right and left volume
balance.
[R] and [S] adjust the front and rear volume
balance.
■ [Center]
Clear the adjustment.
NOTE
• When the 3-way speaker system is selected,
"Fader" adjustment is disabled.
Equalizer Control
You can adjust equalizer by selecting the
optimized setting for each category.
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [Audio].
hh Audio screen appears.
3
Touch [EQ / SW Level].
4
Touch the screen and set the Graphic
Equalizer as desired.
■ Gain level (area in dotted frame)
Adjust the gain level by touching each
frequency bar.
You can select a frequency bar and adjust its
level by [R], [S].
■ [Preset Select]
Display the screen for selecting the preset
equalizer curve. (P.91)
■ [Memory]
Saves the adjusted equalizer curve as “User1”
to “User4”. (P.91)
■ [Initialize]
Initialize (flatten) the current EQ curve.
■ [ALL SRC]
Apply the adjusted equalizer curve to all
sources. Touch [ALL SRC] and then touch
[OK] on the confirmation screen.
■ [Bass EXT] (Bass Extend Settings)
When turned on, the frequencies lower than
62.5 Hz is set to the same gain level (62.5 Hz).
Controlling Audio
91English
■ [SW Level]
Adjust the subwoofer volume. This setting
is not available when Subwoofer is set to
“None”. See Speaker / X’over setup (P.88).
Ñ Recall the EQ curve
1
Touch [Preset Select].
2
Select an EQ curve.
NOTE
• [iPod] is available for the iPod and Apple CarPlay
sources and it is connected via USB.
• [iPod] is also available for the Apple CarPlay
source that is connected wirelessly.
Ñ Save the EQ curve
1
Adjust the EQ curve.
2
Touch [Memory].
3
Select where to save.
Volume Offset
Finely adjust the volume of the current source
to minimize the difference in volume between
different sources.
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [Audio].
hh Audio screen appears.
3
Touch [Volume Offset].
4
Touch [+] or [-] to adjust the level.
■ [Initialize]
Returns to the initial settings.
Touch [Initialize] and then touch [YES] on
the confirmation screen.
NOTE
• If you have increased the volume first, then
reduce the volume using “Volume Offset”.
Switching the current source to another source
suddenly may output extremely loud sound.
Controlling Audio
92
Zone Control
You can select different sources for front and
rear positions in the vehicle.
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [Audio].
hh Audio screen appears.
3
Touch [Zone Control].
hh Zone Control screen appears.
4
Touch [Zone Select].
5
Touch [Dual Zone].
6
Set each source as follows.
■ [Zone Select]
Touch [Single Zone] to turn off the dual
zone function.
■ [Front Source], [Rear Source]
Select an audio source for each.
Rear Source;
“AV-IN”/“DISC”/“iPod”/“USB”/“OFF”
■ [Rear VOL.]
Adjust the rear source volume.
NOTE
• When the rear source is switched, the audio
source that is output at the AV OUTPUT terminal
is also switched to the same source.
• When the dual zone function is set to on, the
following functions are not available.
– Output from the subwoofer
– Subwoofer Level/Bass Boost (P.93)
– Equalizer Control/Sound Effect/Listening
Position (P.90, 93, 94)
– Speaker Setup (P.88)
– High-resolution Sound Source File Playback
• When the dual zone is selected and audio source
other than "OFF" is selected as Rear Source, the
speaker system cannot be switched.
• You cannot select AV-IN if the AV-IN input
terminal is used for camera.
Rear Source
• You cannot select iPod if it is connected via
Bluetooth.
• If you select USB, iPod, DISC (Music CD/Disc
media), Bluetooth audio, Radio or HD Radio as the
Front Source, you cannot select USB, iPod or DISC
(Music CD/Disc media) as the Rear Source.
• If you select Wireless Mirroring, Apple CarPlay or
Android Auto as the Front Source, you cannot
select DISC (Music CD/Disc media), USB or iPod as
the Rear Source.
Controlling Audio
93English
Sound Effect
You can set sound effects.
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [Audio].
hh Audio screen appears.
3
Touch [Sound Effect].
4
Set each parameter as follows.
■ [Bass Boost]
Set the amount of bass boost “OFF”/ “1”/ “2”/
“3”.
■ [Loudness]
Set the amount of boost of low and high
tones.
“OFF”, “Low”, “High”
■ [Drive Equalizer]
Reduces the driving noise by raising the
bandwidth.
“OFF”, “ON”
■ [Space Enhancer]
Select the feeling of sound space
enhancement.
“OFF”/ “Small”/ “Medium”/ “Large”.
This setting is not available for the HD Radio
tuner source.
■ [Supreme]
Turn ON/OFF the Supreme function.
Technology to extrapolate and supplement
with proprietary algorithm, the high-
frequency range that is cut off when
encoding.
■ [Realizer]
Virtually make the sound more realistic using
the Digital Signal Processor (DSP) system.
Select the level from “OFF”/ “1”/ “2”/ “3”.
■ [Stage EQ]
You can adjust the height of speakers
virtually to suit your listening position.
“OFF”/ “Low”/ “Middle”/ “High”.
Controlling Audio
94
Listening Position / DTA
Listening Position / DTA allows you to improve
the sound field depending on the position of
the seat you sit.
Listening Position / DTA allows you to set
“Listening Position” and “Front Focus”. You
cannot set both at the same time.
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [Audio].
hh Audio screen appears.
3
Touch [Position / DTA].
• Set up Listening Position (P.94)
• Set up Front Focus (P.94)
Ñ Listening Position
Adjust the sound delay time so that the
sounds from different speakers arrive at the
listener sitting on the selected seat at the
same time.
1
Touch [Listening Position] on the Position
/ DTA screen.
2
Select a listening position from [Front R]
(Right front), [Front L] (Left front),
[Front All] (All front), and [All].
Position DTA control
You can fine-adjust your listening position.
1
Touch [Adjust].
2
Touch [Delay].
3
Touch [T] or [U] to adjust the delay time of
the selected speaker.
4
Touch [Level].
5
Touch [T] or [U] to adjust the sound level
of the selected speaker.
NOTE
• To initialize the Delay and Level settings, touch
[Initialize] and [YES] on the confirmation screen.
Ñ Front Focus
You can focus the imaginary sound image on
the front of the selected seat.
1
Touch [Front Focus] in the Position / DTA
screen.
2
Select a front focus position.
For [Front All] and [All], select Priority L or R
depending on which side you want to put
the imaginary sound image.
Controlling Audio
95English
NOTE
• When the 3-way speaker system is selected, front
focus feature is disabled.
Ñ Front Focus fine adjustment
1
Touch [Adjust].
2
Touch [Delay].
3
Set each parameter as follows.
■ [Sound Image LR (Front)]
Focus the sound image on the front of front
seats.
■ [Sound Image LR (Rear)]
Focus the sound image on the front of rear
seats.
■ [Size of the Virtual Sound Field]
Adjust the size of sound image to meet your
taste. If the sound image is shifted from the
front, move it back by [Sound Image LR
(Front)] or [Sound Image LR (Rear)].
■ [Subwoofer Delay]
Adjust the delay time of subwoofer sound.
4
Touch [Level].
5
Touch [T] or [U] to adjust the sound level
of the selected speaker.
NOTE
• To initialize the Delay and Level settings, touch
[Initialize] and [YES] on the confirmation screen.
Audio Setup memory
Audio Control settings can be memorized.
The memorized settings can be recalled at any
time.
1
Press the [MENU] button.
hh Popup menu appears.
2
Touch [Audio].
hh Audio screen appears.
3
Touch [Audio Memory].
■ [SETUP Memory]
Lock or unlock the Audio SETUP Memory/
Recall/Clear.
■ [Audio SETUP Memory]
Memorize the current audio settings.
• Fader / Balance, Speaker / X’over, Equalizer
(User Preset, SW Level), Position / DTA,
Sound Effect (P.87)
■ [Audio SETUP Recall]
Recall the memorized audio setting.
■ [Audio SETUP Clear]
Clear the Audio SETUP Memory and the
currently memorized audio settings.
Remote control
96
Remote control
This unit can be operated using the remote
control KNA-RCDV331 (optional accessory).
# CAUTION
• Put the remote control in a place where it will
not move during braking or other operations.
A dangerous situation could result, if the
remote control falls down and gets wedged
under the pedals while driving.
• Do not leave the battery near fire or under
direct sunlight. A fire, explosion or excessive
heat generation may result.
• Do not recharge, short, break up or heat the
battery or place it in an open fire. Such actions
may cause the battery to leak fluid. If spilled
fluid comes in contact with your eyes or on
clothing, immediately rinse with water and
consult a physician.
• Place the battery out of reach of children. In
the unlikely event that a child swallows the
battery, immediately consult a physician.
Battery Installation
If the remote control operates only over
shorter distances or does not operate at all, it
is possible that the batteries are depleted.
In such instances, replace the both batteries
with new ones.
1
Insert two “AAA”/“R03”-size batteries
with the and poles aligned properly,
following the illustration inside the case.
Functions of the Remote
control Buttons
Ñ Switch the operation mode
The functions operated from the remote
control differ depending on the position of the
mode switch.
DVD
T V
NAV
AUD
•
•
•
•
■ AUD mode
Switch to this mode when controlling a
selected source or tuner source, etc.
■ DVD mode
Switch to this mode when playing a disc
media including DVD, VCD, and CD.
■ TV mode/NAV mode
Not used.
NOTE
• When controlling a player that is not integrated in
the unit, select “AUD” mode.
Ñ Direct search mode
Using the remote control, you can jump
directly to the desired file, track, chapter, etc.
by entering the number corresponding to the
content.
NOTE
• This operation cannot be performed for the USB
device and iPod.
1
Press the [#BS] button several times until
the desired content appears.
The available contents are different
depending on the source type.
Remote control
97English
■ DVD
Title number/Chapter number
■ VCD 1.X and 2.X (PBC OFF)
Track number
■ VCD 2.X (PBC ON)
Scene number/Track number
■ Music CD
Track number
■ Radio
(DDX9707S / DMX9707S)
Frequency value
■ HD Radio tuner
(DDX9907XR / DMX957XR / DMX907S)
Frequency value/Channel number
■ SiriusXM
Channel number
2
Enter the number of the content you want
to play using the numeric keypad.
3
For DVD, VCD or music CD, press the
[ENTER] button.
For radio, press the [C] or [D]/[E] or [F]
button.
hh The content corresponding to the
number you entered is played.
Ñ Basic Operation
1
2
5
17
19
21
22
23
24
25
26
18
20
3
6
7
8
10
12
13
14
15
16
9
11
4
Key Name Mode
switch
Function
1
SRC AUD, DVD Switches to the source to be played.
In hands-free mode, hangs up the phone.
2
NAV − Displays the APP (Apple CarPlay/Android Auto/Wireless Mirroring) screen.
3
MENU DVD Stops playing and memorizes the last point where the disc stopped. The last
point is deleted by pressing twice.
4
OUT, IN − Not used.
5
POSITION AUD, DVD Pauses the track or file, and resumes playing by pressing twice.
For the Radio (DDX9707S / DMX9707S only) and HD Radio (DDX9907XR /
DMX957XR / DMX907S only) sources in AUD mode, switches the seek mode.
6
Cursor Key DVD Moves the cursor in the DVD menu.
7
ENTER − Performs the selected function.
8
ROUTE M AUD Screen mode changes each time you press this key during video playback.
DVD Returns to the DVD top menu.
9
VOICE AUD Displays the control screen of current source. (USB, DISC)
DVD Displays the DVD menu.
Turns the playback control on or off while playing VCD.
10
VIEW AUD, DVD Switches the AV source to be output.
11
MAP DIR AUD, DVD Switches the display angle each time it is pressed. (DDX9907XR / DDX9707S /
DMX957XR only)
Remote control
98
Key Name Mode
switch
Function
12
R/S
AUD, DVD Selects the folder to be played.
For the Radio (DDX9707S / DMX9707S only) and HD Radio (DDX9907XR /
DMX957XR / DMX907S only) sources in AUD mode, selects FM/AM band to
be received.
For the SiriusXM source in AUD mode, selects the band to be received.
For the DVD source in DVD mode, selects the title to be played.
13
C/D
AUD, DVD Selects the track or file to be played.
For the Radio (DDX9707S / DMX9707S only) and HD Radio (DDX9907XR /
DMX957XR / DMX907S only), and SiriusXM sources in AUD mode, switches to
broadcast stations received by the unit.
For the DVD/VCD source in DVD mode, selects the chapter/scene/track to be
played.
14
Numeric
Keypad
AUD Allows you to enter the number to search in the direct search mode.
For details on the direct search mode, see Direct search mode (P.96).
For the Radio (DDX9707S / DMX9707S only) and HD Radio (DDX9907XR /
DMX957XR / DMX907S only), and SiriusXM sources, allows you to enter the
preset number.
• If the preset number is one digit, press the number.
• If the preset number is two digits, press continuously the numbers within
3 seconds.
• Pressing [C][D] within 3 seconds allows you to determine the preset number
of one digit.
For the VCD source, allows you to enter the track number when Playback
control (PBC) is on and the menu is displayed.
• If the track number is one digit, press the number.
• If the track number is two digits, switch to the direct search mode to enter
the numbers.
DVD For the DVD source in DVD mode, allows you to enter the number to search in
the direct search mode.
For details on the direct search mode, see Direct search mode (P.96).
For the DVD source in DVD mode, change the play mode as follows:
• Press [1] [2] to fast forward/backward.
• Press [4] [5] to slow forward/backward. Switches the slow playback speed
each time you press this key.
15
* + DVD Deletes a character while in direct search mode.
16
# BS AUD, DVD Switches to the direct search mode.
For details on the direct search mode, see Direct search mode (P.96).
17
AUDIO DVD Switches the voice language each time you press this key.
18
CANCEL DVD Cancels the direct search mode and returns to the previous screen.
For the VCD source in DVD mode, returns to the previous scene.*
*Only when Playback control (PBC) is on.
19
SUBTITLE DVD Switches the subtitle language.
20
− When a call comes in, answers the call.
21
ANGLE DVD Switches the picture angle each time you press this key.
22
VOL RS
− Adjusts the volume.
23
ZOOM DVD Switches the zoom ratio (2, 3, 4, Off ) each time you press this key.
24
2 ZONE AUD, DVD Switches the Dual Zone function on and off.
25
R.VOL − Adjusts volume at rear when the Dual Zone function is on.
26
AT T − Lowers the volume when pressed once.
Restores the previous volume when pressed twice.
Connection/Installation
99English
Connection/Installation
This section is for the professional installer.
For safety’s sake, leave wiring and mounting to
professionals. Consult the car audio dealer.
Before Installation
Before installation of this unit, please note the
following precautions.
# WARNINGS
• If you connect the ignition wire (red) and
the battery wire (yellow) to the car chassis
(ground), you may cause a short circuit, that
in turn may start a fire. Always connect those
wires to the power source running through
the fuse box.
• Do not cut out the fuse from the ignition wire
(red) and the battery wire (yellow). The power
supply must be connected to the wires via
the fuse.
# CAUTION
• Install this unit in the console of your vehicle.
Do not touch the metal part of this unit during
and shortly after the use of the unit. Metal part
such as the heat sink and enclosure become
hot.
NOTE
• Mounting and wiring this product requires
skills and experience. For best safety, leave the
mounting and wiring work to professionals.
• Make sure to ground the unit to a negative 12V
DC power supply.
• Do not install the unit in a spot exposed to
direct sunlight or excessive heat or humidity.
Also avoid places with too much dust or the
possibility of water splashing.
• Do not use your own screws. Use only the
screws provided. If you use the wrong screws,
you could damage the unit.
• If the power is not turned ON (“There is an
error in the speaker wiring. Please check the
connections.” is displayed), the speaker wire
may have a short-circuit or touched the chassis
of the vehicle and the protection function may
have been activated. Therefore, the speaker
wire should be checked.
• If your car’s ignition does not have an ACC
position, connect the ignition wires to a power
source that can be turned on and off with the
ignition key. If you connect the ignition wire to
a power source with a constant voltage supply,
such as with battery wires, the battery may be
drained.
• If the console has a lid, make sure to install the
unit so that the front panel will not hit the lid
when closing and opening.
• If the fuse blows, first make sure the wires
aren’t touching to cause a short circuit, then
replace the old fuse with one with the same
rating.
• Insulate unconnected wires with vinyl tape or
other similar material. To prevent a short circuit,
do not remove the caps on the ends of the
unconnected wires or the terminals.
• Connect the speaker wires correctly to the
terminals to which they correspond. The unit
may be damaged or fail to work if you share
the ¤ wires or ground them to any metal part
in the car.
• When only two speakers are being connected
to the system, connect the connectors either
to both the front output terminals or to both
the rear output terminals (do not mix front
and rear). For example, if you connect the ¢
connector of the left speaker to a front output
terminal, do not connect the ¤ connector to
a rear output terminal.
• After the unit is installed, check whether the
brake lamps, blinkers, wipers, etc. on the car
are working properly.
• Mount the unit so that the mounting angle is
30° or less.
• This unit has the cooling fan to decrease the
internal temperature. Do not mount the unit
in a place where the cooling fan of the unit is
blocked. Blocking these openings will inhibit
the cooling of the internal temperature and
result in malfunction.
Connection/Installation
100

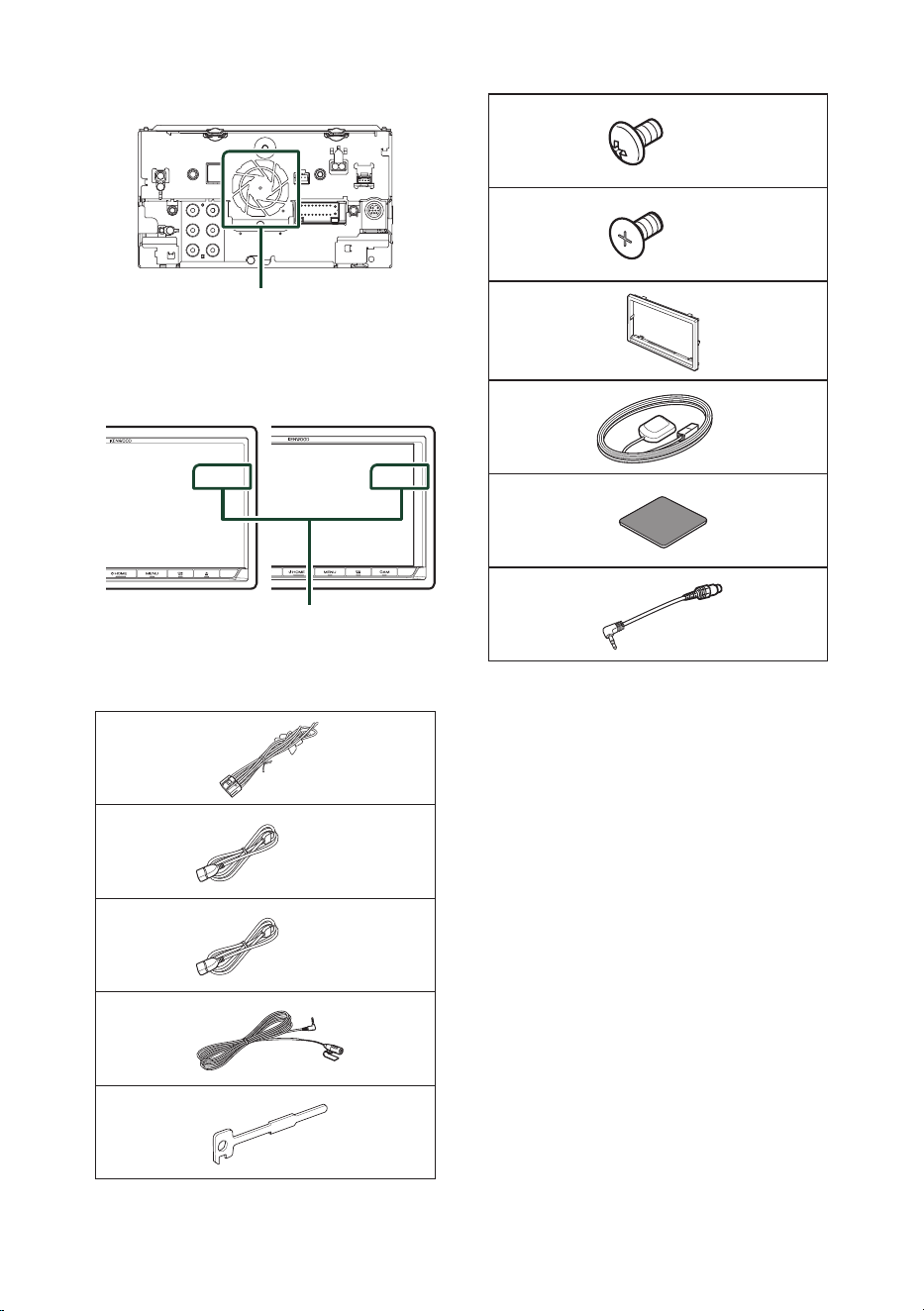

In case of DDX9907XR
Cooling fan
• Do not press hard on the panel surface when
installing the unit to the vehicle. Otherwise
scars, damage, or failure may result.
• Reception may drop if there are metal objects
near the Bluetooth antenna.
Bluetooth antenna unit
Ñ Supplied accessories for
installation
1
x1
2
(Black 1 m)
x1
3
(Gray 1 m)
x1
4
(3 m)
x1
5
x2
6
(M5 x 8 mm)
x6
7
(M5 x 8 mm)
x6
8
x1
9
(3.5 m)
x1
0
x1
-
[1]
x1
[1]
DDX9907XR / DMX907S / DMX957XR only
Ñ Installation procedure
1) To prevent a short circuit, remove the key
from the ignition and disconnect the ¤
terminal of the battery.
2) Make the proper input and output wire
connections for each unit.
3) Connect the speaker wires of the wiring
harness.
4) Connect the wiring harness wires in the
following order; ground, battery, ignition.
5) Connect the wiring harness connector to the
unit.
6) Install the unit in your car.
7) Reconnect the ¤ terminal of the battery.
8) Perform the Initial Setup.
See Initial SETUP (P.10).
Connection/Installation
101English

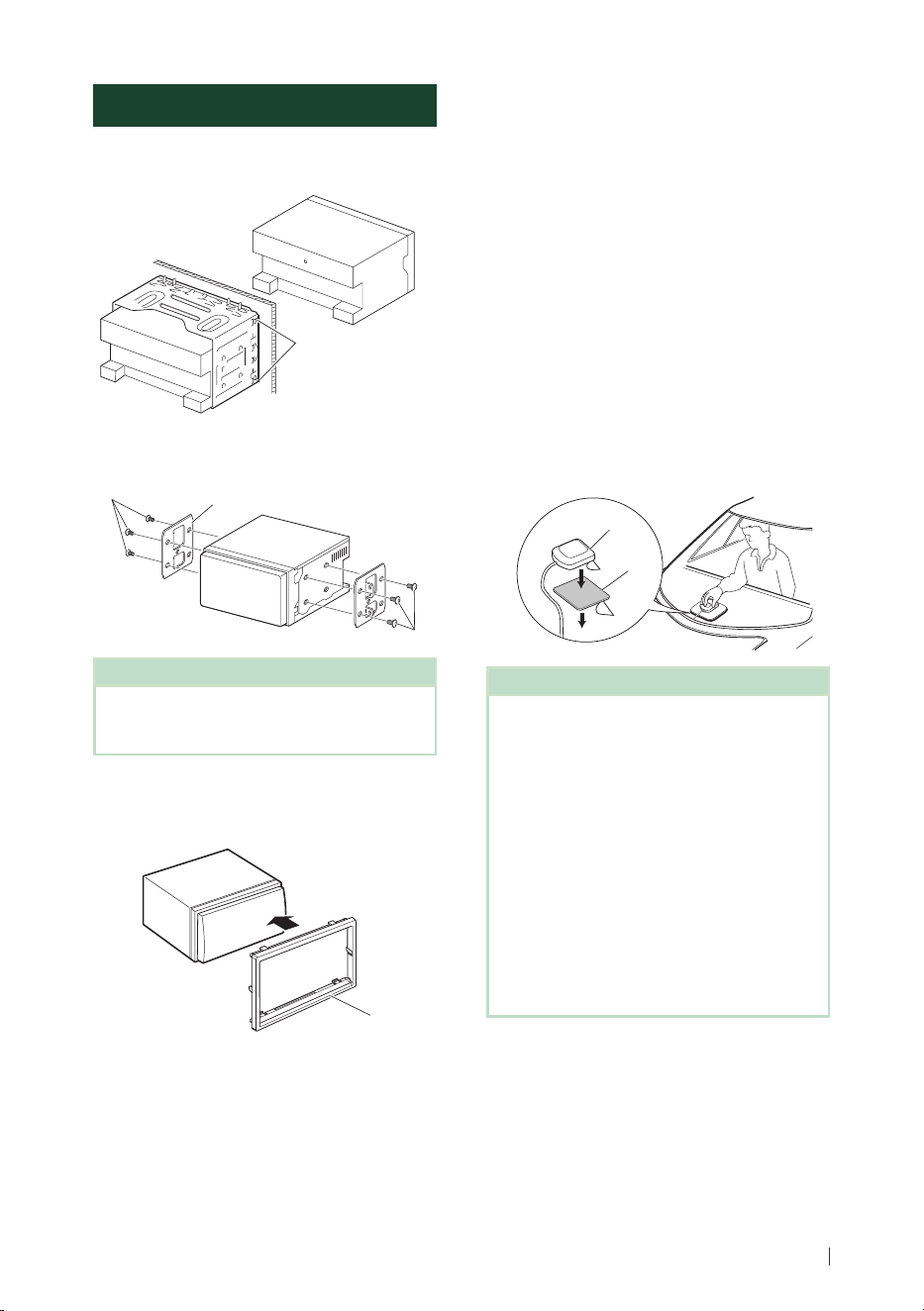

Installing the unit
Ñ Non-Japanese cars
Bend the tabs of the
mounting sleeve
with a screwdriver
or similar utensil and
attach it in place.
Ñ Japanese cars
6 or 7
6 or 7
Car Bracket
NOTE
• Make sure that the unit is installed securely in
place. If the unit is unstable, it may malfunction
(eg, the sound may skip).
Ñ Trim plate
1) Attach accessory 8 to the unit.
8
Ñ GPS antenna
GPS antenna is installed inside of the car. It
should be installed as horizontally as possible
to allow easy reception of the GPS satellite
signals.
To mount the GPS antenna inside your vehicle:
1) Clean your dashboard or other surface.
2) Remove the separator of the metal plate
(accessory 0).
3) Press the metal plate (accessory 0) down
firmly on your dashboard or other mounting
surface. You can bend the metal plate
(accessory 0) to conform to a curved surface,
if necessary.
4) Remove the separator of the GPS antenna
(accessory 9), and stick the antenna to the
metal plate (accessory 0).
0
9
NOTE
• Use the supplied GPS antenna. Using the GPS
antenna other than the supplied one may cause a
drop in positioning accuracy.
• Depending on the type of car, reception of the
GPS satellite signals might not be possible with
an inside installation.
• Please install this GPS antenna in an area away
from any antennas that are used with CB radios or
satellite televisions.
• The GPS antenna should be installed at a position
that is spaced at least 12 inch (30 cm) from
cellular phone or other transmitting antennas.
Signals from the GPS satellite may be interfered
with by these types of communication.
• Painting the GPS antenna with (metallic) paint
may cause a drop in performance.
Connection/Installation
102
Ñ Microphone unit
1) Check the installation position of the
microphone (accessory 4).
2) Clean the installation surface.
3) Remove the separator of the microphone
(accessory 4), and stick the microphone to
the place shown below.
4) Wire the microphone cable up to the unit
with it secured at several positions using tape
or other desired method.
5) Adjust the direction of the microphone
(accessory 4) to the driver.
4
Fix a cable with a commercial item of tape.
Ñ Removing the trim plate
1) Engage the catch pins on the extraction key
(accessory 5) and remove the two locks on
the lower level.
Lower the trim plate (accessory 8) and pull it
forward as shown in the figure.
5
8
Lock
Catch
NOTE
• The trim plate can be removed from the top side
in the same manner.
2) When the lower level is removed, remove the
upper two locations.
Connection/Installation
103English
Ñ Removing the unit
1) Remove the trim plate. (P.102)
2) Insert the two extraction key (accessory 5)
deeply into the slots on each side, as shown.
5
3) Lower the extraction key toward the bottom,
and pull out the unit halfway while pressing
towards the inside.
NOTE
• Be careful to avoid injury from the catch pins on
the extraction key.
4) Pull the unit all the way out with your hands,
being careful not to drop it.
Connection/Installation
104
Ñ Connecting wires to terminals
ILLUMI
ANT CONT
STEERING WHEEL
REMOTE INPUT
REMOTE CONT
PRK SW
REVERSE
P. CONT
CAM+
CAM–
S SENS
Fuse (15A)
When using the optional power amplifier,
connect to its power control terminal. (Max.
200mA, 12V)
Depending on what antenna you are using,
connect either to the control terminal of the
motor antenna, or to the power terminal for
the booster amplifier of the film-type antenna.
(Max. 300mA, 12V)
Blue/White
(Power control wire)
Green/White
Green/Red
To CMOS-3xx series (optional accessory) camera
control terminal
Pink (Speed Pulse Input) (2m)
Blue
(Antenna control wire)
To car light control switch
Orange/White
(Dimmer control wire)
Connect to the vehicle’s speed pulse harness.
Do not cut the "S SENS" tag or failure may result.
Purple/White (Reverse sensor wire) (2 m)
Light Blue/Yellow
(Steering remote control wire)
Connect to vehicle’s reverse lamp harness when
using the optional rear view camera.
To steering remote
To use the steering wheel remote control
feature, you need an exclusive remote
adapter (not supplied) matched to your car.
If no connections are made, do not let
the cable come out from the tab.
Purple/Black
To rear right speaker
To rear left speaker
To front right speaker
To front left speaker
Speaker impedance: 4-8 Ω
Purple
Green/Black
Green
Gray/Black
Gray
White/Black
White
Accessory 1
Connect to the vehicle’s
parking brake detection switch
harness.
Light Green
(Parking sensor wire)
(2 m)
For best safety, be sure to
connect the parking sensor.
Ignition key switch
Red
(Ignition wire)
Yellow
(Battery wire)
Car fuse box
Battery
Black
(Ground wire) ¤
(To car chassis)
Connection/Installation
105English
+
+
+
+
When connecting to an external amplifier,
connect its ground wire to the car’s chassis to
avoid damaging the unit.
White/Black
Gray/Black
Green/Black
Purple/Black
Speaker impedance: 4-8 Ω
Purple
Green
Gray
White
To mid range left
speaker
Subwoofer Preout
To mid range right
speaker
Mid Range Preout
To tweeter left speaker
Tweeter Preout
To tweeter right
speaker
Power amplifier
(optional
accessory)
RCA Cable
(Sold separately)
Input
Speaker
Preout
NOTE
• For speaker system setup, see 3-way speaker
system setup (P.87).
• For speaker setup and crossover setup, see
Speaker / X’over setup (P.88).
• For how to connect speaker wires to terminals
other than speaker terminals and Preout
terminals, see Connecting the system and
external components (P.105) and Connecting
wires to terminals (P.104).
Ñ 3-way speaker system setup
● DDX9907XR / DMX957XR / DMX907S
Ñ Connecting the system and
external components
11
12
13
56789
2
1
3 4
10
1
AV Audio output (ø3.5 mini jack)
2
FM/AM antenna input
3
When connecting to an external amplifier,
connect its ground wire to the car’s chassis to
avoid damaging the unit.
Rear Audio Preout
(Left; White, Right; Red)
Front Audio Preout
(Left; White, Right; Red)
Subwoofer Preout
(Left; White, Right; Red)
4
SiriusXM Connect Vehicle Tuner connector
For more information on how to install the
SiriusXM Connect Vehicle tuner, consult the
installation guide included with the tuner.
5
iDatalink connector
6
This jack accepts either AV-IN or camera input.
For more information, see To set up the
camera assignment settings (P.77).
[DDX9907XR / DMX957XR / DMX907S :]
Accessory -: Mini plug to RCA cable*
1
or CA-C3AV (optional accessory)
[DDX9707S / DMX9707S :]
CA-C3AV (optional accessory)
Connection/Installation
106
7
Dashboard camera interface
Connect a Dashboard Camera DRV-N520
(optional accessory). (P.108)
8
Accessory 9: GPS Antenna
Use the supplied GPS antenna. Using the GPS
antenna other than the supplied one may
cause a drop in positioning accuracy.
9
Accessory 4: Bluetooth Microphone
10
3rd view camera input (Yellow). See To set up
the camera assignment settings (P.77).
11
Rear view camera input (Yellow) *
2
12
Front view camera/Dashboard camera input
(Yellow).
See To set up the camera assignment
settings (P.77). *
3
13
VIDEO Output (Yellow)
*1 Connecting Mini plug to RCA cable to AV-IN
terminal enables you to use cameras only. If
you connect CA-C3AV (optional accessory),
AV-IN (for visual) or the camera is available.
*2 Connect an HD camera to Rear view camera
input terminal to use HD video. (DDX9907XR /
DMX957XR only)
*3 Connect an HD camera to Front view camera/
Dashboard camera input terminal to use HD
video. (DDX9907XR / DMX957XR only)
Ñ Connecting a USB device
USB device
[2]
USB (Gray) terminal
[1]
USB (Black) terminal
[1]
Accessory 2 (Black) (1 m)
[3]
Accessory 3 (Gray) (1 m)
[3]
[1]
USB maximum power supply current :DC 5 V
1.5 A
[2]
Sold separately
[3]
See Securing the USB extension cable
(P.107).
Connection/Installation
107English
Ñ Securing the USB extension
cable
Secure the USB extension cable with insulating
tape or the like so that its connectors are not
disconnected.
Ñ Connecting an iPod/iPhone
KCA-iP103 (0.8m)
[3]
KCA-iP103 (0.8m)
[3]
iPod/iPhone
[2]
iPhone (with Apple CarPlay)
[2]
USB (Gray) terminal
[1] [5]
USB (Black) terminal
[1]
Accessory 2 (Black) (1 m)
[4]
Accessory 3 (Gray) (1 m)
[4]
[1]
USB maximum power supply current :DC 5 V
1.5 A
[2]
Sold separately
[3]
Optional accessory
[4]
See Securing the USB extension cable
(P.107).
[5]
USB (Gray) terminal does not support USB
Mirroring.
Ñ Connecting an Android
smartphone
Micro USB to USB cable
[2]
Android smartphone
[2]
USB (Gray) terminal
[1] [4]
USB (Black) terminal
[1]
Accessory 2 (Black) (1 m)
[3]
Accessory 3 (Gray) (1 m)
[3]
[1]
USB maximum power supply current :DC 5 V
1.5 A
[2]
Sold separately
[3]
See Securing the USB extension cable
(P.107).
[4]
USB (Gray) terminal does not support USB
Mirroring.
Connection/Installation
108
Ñ Connecting the camera
DRV-N520
[1]
3rd view camera
input (Yellow)
Front view camera/
Dashboard camera
input (Yellow)
[4]
[3]
Front view camera
[5] [7]
Left side view camera and
Right side view camera
[2]
Accessory -
[8]
CA-C3AV
[1]
VIDEO input (Yellow)
AV-IN input
Rear view camera
input (Yellow)
Dashboard camera interface
Rear view camera
[5] [6]
[1]
Optional accessory
[2]
Sold separately
[3]
Up to 3 cameras of Dashboard camera, Front
view camera, Left side view camera and Right
side view camera can be connected. For
more information, see Camera Assignment
Settings (P.76).
[4]
Insulate audio input terminals of a CA-C3AV
(optional accessory) when connecting to the
Camera.
[5]
CMOS-3xx series (optional accessory) or
commercially available camera.
[6]
For HD video, an HD camera is also used as
Rear view camera. (DDX9907XR / DMX957XR
only)
[7]
For HD video, an HD camera is also used as
Front view camera. (DDX9907XR / DMX957XR
only)
[8]
DDX9907XR / DMX957XR / DMX907S only
Troubleshooting
109English
Troubleshooting
Problems and Solutions
If any trouble occurs, first check the following
table for possible problems.
NOTE
• Some functions of this unit may be disabled by
some settings made on this unit.
• What might seem to be a malfunction in your
unit may just be the result of slight misoperation
or miswiring.
Ñ About settings
• Cannot set up the subwoofer.
• Cannot set up subwoofer phase.
• No output from the subwoofer.
• Cannot set up the low pass filter.
• Cannot set up the high pass filter.
Subwoofer is not set to on.
h Set the subwoofer to on. See Speaker / X’over
setup (P.88).
The dual zone function is enabled.
h Set the dual zone function to off. See Zone Control
(P.92).
• Cannot select the output destination of the
subsource in the dual zone.
• Cannot adjust the volume of the rear speakers.
The dual zone function is disabled.
h Set the dual zone function to on. See Zone Control
(P.92).
• Cannot set up the equalizer.
• Cannot set up the crossover network.
The dual zone function is enabled.
h Set the dual zone function to off. See Zone Control
(P.92).
Ñ About audio operations
Radio reception is poor.
The car antenna is not extended.
h Pull out the antenna all the way.
The antenna control wire is not connected.
h Connect the wire correctly. See Connecting the
system and external components (P.105).
Cannot select a folder.
The random play function is enabled.
h Turn off the random function.
Cannot perform repeat play during VCD playback.
The PBC function is enabled.
h Turn off the PBC function.
The specified disc does not play, but another one
plays instead.
The disc is quite dirty.
h Clean the disc. See Precautions on handling discs
(P.6).
The disc is severely scratched.
h Try another disc instead.
The sound skips when an audio file is being
played.
The disc is scratched or dirty.
h Clean the disc. See Precautions on handling discs
(P.6).
The recording condition is bad.
h Record the file again or use another disc.
No sound while using Mirroring for KENWOOD
application.
h Make sure the smartphone and the unit is
connected via Bluetooth and connected over
A2DP/SPP. (P.29)
h Raise the volume on your smartphone.
Some application does not support Mirroring for
KENWOOD application playback. (Apple Music
App does not support playback using Mirroring for
KENWOOD application.)
h Try another music application.
No sound while using “iPod” source or “Bluetooth”
source.
h Make sure you stop broadcast on iPhone's screen
recording function after you disconnect from
mirroring operations.
Cannot operate Mirroring for KENWOOD
application with touch panel operation.
Available functions may differ from the ones operated
on the smartphone.
Depending on the connected smartphone, some
functions do not work on this unit.
Depending on the operating system (OS) of the
connected smartphone, some functions do not work
on this unit.
h Change the smartphone to compatible device. See
USB Mirroring Operation (P.29).
The unit does not respond when you try to
perform a operation during USB mirroring.
h Unplug the smartphone from the USB (Black)
terminal, then reattach the smartphone again.
Ñ Others
The Touch Sensor Tone doesn’t sound.
The preout jack is being used.
h The Touch Sensor Tone cannot be output from the
preout jack.
Troubleshooting
110
Error Messages
When you fail to operate the unit correctly, the
cause of the failure appears as the message on
the screen.
There is an error in the speaker wiring. Please
check the connections.
Protective circuit has been activated because a speaker
cord has shorted or it has come in contact with the car
chassis.
h Wire or insulate the speaker cord as appropriate and
turn the power off and on again.
Hot Error
When the internal temperature of this unit rises to 60°C
or more, the protection circuit is activated and you may
not be able to operate the unit.
h Use the unit again after reducing the temperature
of the unit.
Mecha Error
The disc player is malfunctioning.
h Eject the disc and try inserting it again. Contact the
KENWOOD dealer if this indicator continues blinking
or the disc cannot be ejected.
Disc Error
An unplayable disc is inserted.
h Change the disc. See Playable Media and Files
(P.112).
Read Error
The disc is quite dirty.
h Clean the disc. See Precautions on handling discs
(P.6).
Disc is upside down.
h Load the disc with the labeled side up.
Region Code Error
The disc you wanted to play has a region code that
cannot be played with this unit.
h See Region Codes in the World (P.114) or try
another disc.
Error 07–67
The unit is not operating correctly due to some reason
or other.
h Turn the power off and on again. If the “Error 07−67”
message does not disappear, contact your nearest
KENWOOD dealer.
No Device (USB device)
The USB device is selected as a source although no USB
device is connected.
h Change the source to any source other than USB/
iPod. Connect a USB device, and change the source
to USB again.
Disconnected (iPod, Bluetooth audio player)
The iPod/Bluetooth audio player is selected as a source
although no iPod/Bluetooth audio player is connected.
h Change the source to any source other than iPod/
Bluetooth. Connect an iPod/Bluetooth audio player,
and change the source to iPod/Bluetooth again.
No Media file
The connected USB device contains no playable audio
file. Media was played that doesn’t have data recorded
that the unit can play.
h See Playable Media and Files (P.112) and try
another USB device.
The USB device which contains no playable audio file
is selected.
h Switch USB devices. See [USB DEVICE CHANGE]
(P.38).
USB device over current status detected.
The connected USB device is rated a current capacity
higher than the allowable limit.
h Check the USB device. Some trouble may have
occurred to the connected USB device.
h Change the source to any source other than USB.
Remove the USB device.
Troubleshooting
111English
Ñ SiriusXM
Check Tuner
A SiriusXM tuner is not connected to this unit.
h Verify that the SiriusXM Connect Vehicle Tuner cable
is securely connected to the radio.
Subscription Updated - Press Return To Continue
The SiriusXM subscription has been renewed.
h Touching [Return] on the popup screen will clear
the message.
SXM Chan Unavailable
The currently selected channel is unavailable.
h Visit www.siriusxm.com for more information about
the SiriusXM channel lineup.
SXM Ch Unsubscribed
The currently selected channel is not subscribed to.
h In the U.S.A., visit www.siriusxm.com or call
1-866-635-2349 if you have questions about your
subscription package or would like to subscribe to
this channel.
h In Canada, visit www.siriusxm.ca or call 1-877-438-
9677.
SXM Check Antenna
No antenna is connected to the SiriusXM tuner.
h Check that an antenna is connected to the SiriusXM
tuner. Check antenna for damages.
SXM No Signal
No SiriusXM radio signal is received.
h Verify that your vehicle is outdoors with a clear view
of the sky.
Channel Locked
The selected channel has been locked by the parental
controls.
h Enter the unlock code when you are asked. See
Parental Control (P.59).
Incorrect Pass Code entered
The selected channel is a mature or parental lock
channel, and locked by the parental lock or user lock
code.
h Enter the correct lock code.
Ñ Apple CarPlay
The GPS antenna must be connected to use
Apple CarPlay wirelessly. Please verify the proper
connections or plug in by USB to use Apple
CarPlay.
The GPS antenna is not connected when the Apple
CarPlay is started by connecting wirelessly or when
the iPhone compatible with wireless Apple CarPlay is
registered in [Apple CarPlay Device List].
h Check the connection of the GPS antenna or plug in
over USB to use Apple CarPlay.
The speed sensor and the GPS antenna must be
connected to use Apple CarPlay wirelessly. Please
verify the proper connections or plug in by USB to
use Apple CarPlay.
The speed pulse is not detected and the GPS antenna
is not connected when the Apple CarPlay is started by
connecting wirelessly or when the iPhone compatible
with wireless Apple CarPlay is registered in [Apple
CarPlay Device List].
h Check the connection of the speed pulse and the
GPS antenna or plug in over USB to use Apple
CarPlay.
Appendix
112
Appendix
Playable Media and Files
You can play various kinds of media and files on this unit.
Ñ List of playable discs (DDX9907XR / DDX9707S)
Disc types / Standard Support Remark
DVD DVD Video
v
DVD Audio ×
DVD-VR ×
DVD-R*
1
v
• MP3 / WMA / AAC / WAV / FLAC / Vorbis / MPEG1 /
MPEG2 / MPEG4 / H.264 / WMV / MKV playback
• Multi-border/Multisession playback (Playback depends on
authoring conditions)
DVD-RW
v
DVD+R
v
DVD+RW
v
DVD-R DL (Dual layer)
v
Only video format
DVD+R DL (Double layer)
v
DVD-RAM ×
CD Music CD*
1
v
CD-ROM
v
• MP3 / WMA / AAC / WAV / FLAC / Vorbis playback
• Multisession is supported.
• Packet write is not supported.
CD-R
v
CD-RW
v
DTS-CD ×
Video CD (VCD)
v
Super video CD ×
Photo CD ×
CD-EXTRA
r
Only music CD session can be played.
HDCD
r
Normal music CD sound quality
CCCD ×
Others Dualdisc ×
Super audio CD
r
Only CD layer can be played.
v : Playback is possible.
r : Playback is partly possible.
× : Playback is impossible.
*
1
Incompatible with 8 cm (3 inch) discs.
■ Use of DualDisc
When playing a “DualDisc” on this unit, the surface
of the disc that is not played may be scratched
while the disc is inserted or ejected. Since the music
CD surface does not conform to the CD standard,
playback may be impossible.
(A “DualDisc” is a disc with one surface containing
DVD standard signals and the other surface
containing music CD signals.)
■ About disc format
The disc format should be the one of the
following.
• ISO 9660 Level 1, 2
• Joliet
• Romeo
• Long file name
Appendix
113English
Ñ About files
The following audio and video files are supported.
■ Playable Audio files
Format Bit rate Sampling frequency Bit count
AAC-LC (.m4a) MPEG-2/MPEG-4 AAC LC
HE-AAC(V1,V2)
8 – 320kbps, VBR 16 – 48 kHz 16 bit
MP3 (.mp3) MPEG-1/MPEG-2 Audio
Layer 3
8 – 320kbps, VBR 16 – 48 kHz 16 bit
WMA (.wma) Windows Media Audio
Standard L3 profile
(Version 7,8,9)
8 – 320kbps 16 – 48 kHz 16 bit
Linear PCM
(WAVE) (.wav)
RIFF waveform Audio
Format
–
16 – 48 kHz (Disc),
16 – 192 kHz (USB)
16 bit/24 bit
FLAC (.flac)
flac –
16 – 48 kHz (Disc),
16 – 192 kHz (USB)
16 bit/24 bit
Vorbis (.ogg) vorbis – 16 – 48 kHz 16 bit
• If music of normal CD and other playback systems are recorded in the same disc, only the playback system recorded at
the first setout is played.
• WMA and AAC files with DRM cannot be played.
• Although the audio files complies with the standards listed above, they may not be played depending on the types or
conditions of media or device.
• This unit supports playback of High-Resolution Audio files.
It is recommended that a car audio system should be configured with all High-Resolution Audio compatible products
from player to speaker to enjoy its high quality sound.
■ Acceptable Video files
Profile Max. Picture size Max. bit rate Audio format
MPEG-1 (.mpg, .mpeg) – 352 × 240, 352 × 288 1.5 Mbps MPEG Audio Layer 2
MPEG-2 (.mpg, .mpeg) MP@ML 720 × 480, 720 × 576 8 Mbps MPEG Audio Layer 2
H.264/MPEG-4 AVC
(.mp4, .m4v, .avi, .flv, .f4v)
Baseline Profile,
Main Profile
1920 × 1080 (30 fps) 8 Mbps MP3, AAC
MPEG-4 (.mp4, .avi) Advanced Simple
Profile
1920 × 1080 (30 fps) 8 Mbps MP3, AAC
WMV (.wmv) Main Profile 1920 × 1080 (30 fps) 8 Mbps WMA
MKV (.mkv)
Video format follows H.264/MPEG-4 AVC, MPEG-4, WMV
MP3, AAC, WMA, Vorbis,
FLAC
• This unit can only play back files which are smaller than 4 GB.
■ Limitation on structure of file and folder
Disc media USB device
Maximum number of folder layers 8 8
Maximum number of files (per folder) 999 999
Maximum number of folders (per folder) 5000 9999
Maximum number of folders (per device) 5000 Unlimited
• You can enter a folder name and file name with 254 (for Disc)/255 (for USB) or fewer single-byte characters.
• Files in the folder whose folder name begins with a dot (.) cannot be played.
Appendix
114
Region Codes in the World
The DVD players are given a region code according to the country or area it is marketed, as shown in
the following map.
1
2
4
1
5
4
5
2
1
2
6
3
■ DVD disc marks
ALL
Indicates a region number. The discs with this
mark can be played with any DVD player.
8
Indicates the number of audio languages
recorded. Up to 8 languages can be recorded in
a movie. You can select a favorite language.
32
Indicates the number of subtitled languages
recorded. Up to 32 languages can be recorded.
9
If a DVD disc has scenes shot from multiple
angles, you can select a favorite angle.
16:9 LB
Indicates the type of screen for the image. The
left mark indicates that a wide image picture
(16:9) is displayed on a standard TV set screen
(4:3) with a black band at both the top and
bottom of the screen (letter box).
■ Operation regulatory marks
With this DVD, some functions of this unit
such as the play function may be restricted
depending on the location where the DVD is
playing. In this case, the following marks will
appear on the screen. For more information,
refer to the disc manual.
Prohibition Mark
■ Discs with limited period of use
Do not leave discs with a limited period of use in
this unit. If you load an already expired disc, you
may not be able to remove it from this unit.
Appendix
115English
Code Language
aa Afar
ab Abkhazian
af Afrikaans
am Amharic
ar Arabic
as Assamese
ay Aymara
az Azerbaijani
ba Bashkir
be Byelorussian
bg Bulgarian
bh Bihari
bi Bislama
bn Bengali, Bangla
bo Tibetan
br Breton
ca Catalan
co Corsican
cs Czech
cy Welsh
da Danish
de German
dz Bhutani
el Greek
en English
eo Esperanto
es Spanish
et Estonian
eu Basque
fa Persian
fi Finnish
fj Fiji
fo Faroese
fr French
fy Frisian
ga Irish
gd Scots Gaelic
gl Galician
gn Guarani
gu Gujarati
ha Hausa
he Hebrew
hi Hindi
hr Croatian
hu Hungarian
hy Armenian
Code Language
ia Interlingua
ie Interlingue
ik Inupiak
id Indonesian
is Icelandic
it Italian
ja Japanese
jv Javanese
ka Georgian
kk Kazakh
kl Greenlandic
km Cambodian
kn Kannada
ko Korean
ks Kashmiri
ku Kurdish
ky Kirghiz
la Latin
lb Luxembourgish
ln Lingala
lo Laotian
lt Lithuanian
lv Latvian, Lettish
mg Malagasy
mi Maori
mk Macedonian
ml Malayalam
mn Mongolian
mo Moldavian
mr Marathi
ms Malay
mt Maltese
my Burmese
na Nauru
ne Nepali
nl Dutch
no Norwegian
oc Occitan
om (Afan) Oromo
or Oriya
pa Punjabi
pl Polish
ps Pashto, Pushto
pt Portuguese
qu Quechua
rm Rhaeto-Romance
Code Language
rn Kirundi
ro Romanian
ru Russian
rw Kinyarwanda
sa Sanskrit
sd Sindhi
sg Sangho
sh Serbo-Croatian
si Singhalese
sk Slovak
sl Slovenian
sm Samoan
sn Shona
so Somali
sq Albanian
sr Serbian
ss Siswati
st Sesotho
su Sundanese
sv Swedish
sw Swahili
ta Tamil
te Telugu
tg Tajik
th Thai
ti Tigrinya
tk Turkmen
tl Tagalog
tn Setswana
to Tongan
tr Turkish
ts Tsonga
tt Tatar
tw Twi
uk Ukrainian
ur Urdu
uz Uzbek
vi Vietnamese
vo Volapuk
wo Wolof
xh Xhosa
yo Yoruba
zh Chinese
zu Zulu
DVD Language Codes
Appendix
116
Specifications
■ Monitor section
Picture Size
DDX9907XR / DMX957XR
: 6.75 inches (diagonal) wide
: 152.1 mm (W) × 79.5 mm (H)
5-63/64 × 3-1/8 inch
DDX9707S / DMX907S / DMX9707S
: 6.95 inches (diagonal) wide
: 156.6 mm (W) × 81.6 mm (H)
6-3/16 × 3-3/16 inch
Display System
DDX9907XR / DMX957XR: AAS LCD panel
DDX9707S / DMX907S / DMX9707S: TN LCD panel
Drive System
: TFT active matrix system
Number of Pixels
DDX9907XR / DMX957XR
: 2,764,800 (1280H x 720V x RGB)
DDX9707S / DMX907S / DMX9707S
: 1,152,000 (800H x 480V x RGB)
Effective Pixels
: 99.99 %
Pixel Arrangement
: RGB striped arrangement
Back Lighting
: LED
■ DVD player section
(DDX9907XR / DDX9707S)
D/A Converter
: 24 bit/32 bit
Audio Decoder
: Linear PCM / Dolby Audio / MP3 / WMA / AAC /
WAV / FLAC / Vorbis
Video Decoder
: MPEG-1 / MPEG-2 / MPEG-4 / WMV / H.264 / MKV
Wow & Flutter
: Below Measurable Limit
Frequency Response
• 96 kHz : 20 – 44,000 Hz
• 48 kHz : 20 – 22,000 Hz
• 44.1 kHz : 20 – 20,000 Hz
Total Harmonic Distortion
: 0.010 % (1 kHz)
S/N Ratio (dB)
: 90.5 dB (DVD-Video 96 kHz)
Dynamic Range
: 89 dB (DVD-Video 96 kHz)
Disc Format
: DVD-Video / VIDEO-CD / CD-DA
Quantifying Bit Number
: 16 bit/20 bit/24 bit
■ USB interface section
USB Standard
: USB 2.0 High Speed
File System
: FAT16, FAT32, exFAT, NTFS
Maximum Power Supply Current
: DC 5 V
1.5 A × 2
D/A Converter
: 24 bit/32 bit
Audio Decoder
: MP3 / WMA / AAC / WAV / FLAC / Vorbis
Video Decoder
: MPEG-1 / MPEG-2 / MPEG-4 / WMV / H.264 / MKV
Frequency Response
(DMX957XR / DMX907S / DMX9707S)
• 192 kHz : 20 – 88,000 Hz
• 96 kHz : 20 – 44,000 Hz
• 48 kHz : 20 – 22,000 Hz
• 44.1 kHz : 20 – 20,000 Hz
Total Harmonic Distortion
(DMX957XR / DMX907S / DMX9707S)
: 0.010 % (1 kHz)
S/N Ratio (dB) (DMX957XR / DMX907S / DMX9707S)
: 98.5 dB
Dynamic Range (DMX957XR / DMX907S / DMX9707S)
: 89 dB
■ Wireless Mirroring Section
Mode
: Sink
Copyright protection
: HDCP2.2
Touch Control
: UIBC
■ Wi-Fi section
IEEE Standard
: 802.11 a/b/g/n/ac
Frequency Range
: Dual Band (2.4GHz/5GHz)
Channels
: Auto(1-11ch)/Auto(149,153,157,161ch)
Transfer rates (MAX)
: 11a: 54 Mbps / 11b: 11 Mbps / 11g: 54 Mbps /
11n: 300 Mbps / 11ac: 867 Mbps
Appendix
117English
Output Power
2.4 GHz/SISO
: 11b: 14 dBm ± 2 dB / 11g: 13 dBm ± 2 dB /
11n(20MHz):12 dBm ± 2 dB
5 GHz/SISO
: 11a: 9 dBm ± 2 dB /
11n (20 MHz)/11ac (20 MHz): 9 dBm ± 2 dB /
11n (40 MHz)/11ac (40 MHz): 8 dBm ± 2 dB /
11ac (80 MHz): 8 dBm ± 2 dB
5 GHz/MIMO
: 11n (20 MHz)/11ac (20 MHz): 11 dBm ± 2 dB /
11n (40 MHz)/11ac (40 MHz): 11 dBm ± 2 dB /
11ac (80 MHz): 11 dBm ± 2 dB
■ Bluetooth section
Technology
: Bluetooth Ver.5.0
Frequency
: 2.402 – 2.480 GHz
Output Power
: Power Class2
Maximum Communication range
: Line of sight approx. 10m (32.8 ft)
Audio Codec
: LDAC (DDX9907XR / DMX957XR) / SBC / AAC
Profile (Multi Profile support)
• HFP (V1.7) (Hands Free Profile)
• SPP (Serial Port Profile)
• A2DP (Advanced Audio Distribution Profile)
• AVRCP (V1.6) (Audio/Video Remote Control Profile)
• PBAP (Phonebook Access Profile)
■ DSP section
Graphics equalizer
Band: 13 Band
Frequency (BAND1 – 13)
: 62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/
10k/16k Hz
Gain
: -9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9 dB
2-way X'Over
High pass filter
Frequency: Through, 30/40/50/60/70/80/90/100/
120/150/180/220/250 Hz
Slope: -6/-12/-18/-24 dB/Oct.
Low pass filter
Frequency: 30/40/50/60/70/80/90/100/120/150/
180/220/250 Hz, Through
Slope: -6/-12/-18/-24 dB/Oct.
3-way X'Over (DDX9907XR / DMX957XR / DMX907S)
High pass filter
Frequency: 250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/
10k/12.5k Hz
Slope: -12/-18/-24 dB/Oct.
Band pass filter
Frequency: Through, 50/60/70/80/90/100/120/150/
180/220/250/300 Hz
250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k Hz,
Through
Slope: -12/-18/-24 dB/Oct.
Low pass filter
Frequency: 30/40/50/60/70/80/90/100/120/150 Hz,
Through
Slope: -12/-18/-24 dB/Oct.
Position
Front/Rear/Subwoofer Delay
: 0 – 20.01 ft (0.03 or 0.04 ft Step)
Gain
: -8 – 0 dB
Subwoofer level
: -50 – +10 dB
■ Digital FM tuner section
(DDX9907XR / DMX957XR / DMX907S)
Frequency Range (step)
: 87.9 MHz – 107.9 MHz (200 kHz)
Frequency Response (± 3.0 dB)
: 20 Hz – 20 kHz
S/N Ratio
: 80 dB (STEREO)
■ Digital AM tuner section
(DDX9907XR / DMX957XR / DMX907S)
Frequency Range (step)
: 530 kHz – 1700 kHz (10 kHz)
Frequency Response (± 3.0 dB)
: 40 Hz – 15 kHz
S/N Ratio (dB)
: 80 dB (STEREO)
■ FM tuner section
Frequency Range (step)
: 87.9 MHz – 107.9 MHz (200 kHz)
Usable Sensitivity (S/N : 30 dB)
: 9.3 dBf (0.8 μV/ 75 Ω)
Quieting Sensitivity (S/N : 46 dB)
: 10.2 dBf (1.13 μV/ 75 Ω)
Frequency Response
: 30 Hz – 15 kHz
S/N Ratio (dB)
: 65 dB (MONO)
Selectivity (± 400 kHz)
: Over 80 dB
Appendix
118
Stereo Separation
: 45 dB (1 kHz)
■ AM tuner section
Frequency Range (step)
: 530 kHz – 1700 kHz (10 kHz)
Usable Sensitivity
: 28 dBμ
■ Video section
Color System of External Video Input
: NTSC/PAL
External Video Input Level (mini jack)
: 1 Vp-p/75 Ω
External Audio Max Input Level (mini jack)
: 2 V/25 kΩ
Video Input Level (RCA jacks)
: 1 Vp-p/75 Ω
Video Output Level (RCA jacks)
: 1 Vp-p/75 Ω
Audio Output Level (mini jack)
: 0.9 V/10 kΩ
■ Audio section
Maximum Power (Front & Rear)
: 50 W × 4
Typical Power Output (Front & Rear)
Full Bandwidth Power (at less than 1% THD)
: 22 W × 4
Output frequency band
: 20 – 88,000 Hz
Preout Level (V)
DDX9907XR / DMX957XR / DMX907S
: 5 V/10 kΩ
DDX9707S / DMX9707S
: 4 V/10 kΩ
Preout Impedance
: ≤ 300 Ω
Speaker Impedance
: 4 – 8 Ω
■ General
Operating Voltage
: 12V DC car battery
Installation Dimensions (W × H × D)
DDX9907XR / DDX9707S / DMX957XR
: 178 × 100 × 160 mm
7 × 3-15/16 × 6-5/16 inch
DMX907S / DMX9707S
: 178 × 100 × 155 mm
7 × 3-15/16 × 6-1/8 inch
With Sleeve
DDX9907XR / DDX9707S / DMX957XR
: 182 × 112 × 163 mm
7-3/16 × 4-7/16 × 6-7/16 inch
DMX907S / DMX9707S
: 182 × 112 × 153 mm
7-3/16 × 4-7/16 × 6 inch
Weight
DDX9907XR / DDX9707S
: 2.4 kg (5.3 lbs)
DMX957XR
: 1.9 kg (4.2 lbs)
DMX907S / DMX9707S
: 1.7 kg (3.8 lbs)
NOTE
• Although the effective pixels for the liquid crystal
panel is given as 99.99% or more, 0.01% of pixels
may not light or may light incorrectly.
Specifications are subject to change without
prior notice.
Appendix
119English
About this Unit
■ Copyrights
• The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use
of such marks by JVCKENWOOD Corporation is under
license. Other trademarks and trade names are those
of their respective owners.
• LDAC and LDAC logo are trademarks of Sony
Corporation.
• Hi-Res Audio logo and Hi-Res Audio Wireless logo are
used under license from Japan Audio Society.
• Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio and the double-D symbol are
trademarks of Dolby Laboratories.
•
is a trademark of DVD Format/Logo
Licensing Corporation registered in the U.S., Japan
and other countries.
• This item incorporates copy protection technology
that is protected by U.S. patents and other
intellectual property rights of Rovi Corporation.
Reverse engineering and disassembly are prohibited.
• Windows Media is a registered trademark or
trademark of Microsoft Corporation in the United
States and/or other countries.
This product is protected by certain intellectual
property rights of Microsoft. Use or distribution of
such technology outside of this product is prohibited
without a license from Microsoft.
• This software is based in part on the work of the
independent JPEG Group.
• Use of the Made for Apple badge means that an
accessory has been designed to connect specifically
to the Apple product(s) identified in the badge, and
has been certified by the developer to meet Apple
performance standards. Apple is not responsible for
the operation of this device or its compliance with
safety and regulatory standards. Please note that the
use of this accessory with an Apple product may
affect wireless performance.
• Apple, iPhone, iPod, iPod touch, and Lightning are
trademarks of Apple Inc., registered in the U.S. and
other countries.
• Apple, Siri, Apple CarPlay, Apple Music and Apple
CarPlay logo are trademarks of Apple Inc., registered
in the U.S. and other countries.
• IOS is a trademark or registered trademark of Cisco
in the U.S. and other countries and is used under
license.
• Sirius, XM and all related marks and logos are
trademarks of Sirius XM Radio Inc. All rights reserved.
• HD Radio Technology manufactured under license
from iBiquity Digital Corporation. U.S. and Foreign
Patents. For patents see https://dts.com/patents.
HD Radio and the HD, HD Radio, and "ARC" logos
are registered trademarks or trademarks of iBiquity
Digital Corporation in the United States and/or other
countries.
• Google, Android, Google Play and Android Auto are
trademarks of Google LLC.
• To use Android Auto on your car display, you’ll need
an Android Auto compatible vehicle or aftermarket
stereo, an Android phone running Android 5.0 or
higher, and the Android Auto app.
• Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
• The Wi-Fi CERTIFIED™ Logo is a certification mark of
Wi-Fi Alliance®.
• Copyright© 2018 Techpoint, Inc. All rights reserved.
• Linux® is the registered trademark of Linus Torvalds in
the U.S. and other countries.
• This product includes FontAvenue® fonts licenced
by NEC Corporation.FontAvenue is a registered
trademark of NEC Corporation.
• This product includes "Ubiquitous QuickBoot
TM" technology developed by Ubiquitous Corp.
Ubiquitous QuickBoot TM is a trademark of
Ubiquitous Corp. Copyright© 2017 Ubiquitous Corp.
All rights reserved.
• THIS PRODUCT IS LICENSED UNDER THE AVC
PATENT PORTFOLIO LICENSE FOR THE PERSONAL
USE OF A CONSUMER OR OTHER USES IN WHICH IT
DOES NOT RECEIVE REMUNERATION TO (¡)ENCODE
VIDEO IN COMPLIANCE WITH THE AVC STANDARD
(“AVC VIDEO”) AND/OR (¡¡)DECODE AVC VIDEO
THAT WAS ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL ACTIVITY AND/OR WAS OBTAINED
FROM A VIDEO PROVIDER LICENSED TO PROVIDE
AVC VIDEO. NO LICENSE IS GRANTED OR SHALL
BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION MAY BE OBTAINED FROM MPEG LA,
L.L.C. SEE HTTPS://WWW.MPEGLA.COM
• THIS PRODUCT IS LICENSED UNDER THE MPEG-
4 VISUAL PATENT PORTFOLIO LICENSE FOR
THE PERSONAL AND NON-COMMERCIAL USE
OF A CONSUMER FOR (¡) ENCODING VIDEO IN
COMPLIANCE WITH THE MPEG-4 VISUAL STANDARD
(“MPEG-4 VIDEO”) AND/OR (¡¡) DECODING MPEG-
4 VIDEO THAT WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND NON-COMMERCIAL
ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO
PROVIDER LICENSED BY MPEG LA TO PROVIDE
MPEG-4 VIDEO. NO LICENSE IS GRANTED OR SHALL
BE IMPLIED FOR ANY OTHER USE. ADDITIONAL
INFORMATION INCLUDING THAT RELATING TO
PROMOTIONAL, INTERNAL AND COMMERCIAL USES
AND LICENSING MAY BE OBTAINED FROM MPEG LA,
LLC. SEE HTTPS://WWW.MPEGLA.COM.
Appendix
120
• THIS PRODUCT IS LICENSED UNDER THE VC-1 PATENT
PORTFOLIO LICENSE FOR THE PERSONAL AND NON-
COMMERCIAL USE OF A CONSUMER TO ( i ) ENCODE
VIDEO IN COMPLIANCE WITH THE VC-1 STANDARD
(“VC-1 VIDEO”) AND/OR ( ii ) DECODE VC-1 VIDEO
THAT WAS ENCODED BY A CONSUMER ENGAGED
IN A PERSONAL AND NON-COMMERCIAL ACTIVITY
AND/OR WAS OBTAINED FROM A VIDEO PROVIDER
LICENSED TO PROVIDE VC-1 VIDEO. NO LICENSE IS
GRANTED OR SHALL BE IMPLIED FOR ANY OTHER
USE. ADDITIONAL INFORMATION MAY BE OBTAINED
FROM MPEG LA, L.L.C. SEE HTTPS://WWW.MPEGLA.
COM
• libFLAC
Copyright (C) 2000-2009 Josh Coalson
Copyright (C) 2011-2013 Xiph.Org Foundation
Redistribution and use in source and binary forms,
with or without modification, are permitted provided
that the following conditions are met:
– Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
– Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and
the following disclaimer in the documentation
and/or other materials provided with the
distribution.
– Neither the name of the Xiph.org Foundation
nor the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS ``AS IS'' AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
• libvorbis
Copyright (c) 2002-2008 Xiph.org Foundation
Redistribution and use in source and binary forms,
with or without modification, are permitted provided
that the following conditions are met:
– Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
– Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and
the following disclaimer in the documentation
and/or other materials provided with the
distribution.
– Neither the name of the Xiph.org Foundation
nor the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
• libogg
Copyright (c) 2002, Xiph.org Foundation
Redistribution and use in source and binary forms,
with or without modification, are permitted provided
that the following conditions are met:
– Redistributions of source code must retain the
above copyright notice, this list of conditions and
the following disclaimer.
– Redistributions in binary form must reproduce the
above copyright notice, this list of conditions and
the following disclaimer in the documentation
and/or other materials provided with the
distribution.
– Neither the name of the Xiph.org Foundation
nor the names of its contributors may be used to
endorse or promote products derived from this
software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT
HOLDERS AND CONTRIBUTORS ``AS IS’’ AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE
FOUNDATION OR CONTRIBUTORS BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,
OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT
NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE
GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER
CAUSED AND ON ANY THEORY OF LIABILITY,
WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING
IN ANY WAY OUT OF THE USE OF THIS SOFTWARE,
EVEN IF ADVISED OF THE POSSIBILITY OF SUCH
DAMAGE.
Appendix
121English
■ FCC CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user's authority to operate the equipment.
NOTE
• This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation.
• This equipment generates, uses and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected.
– Consult the dealer or an experienced radio/TV
technician for help.
# CAUTION
Use of controls or adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.
In compliance with Federal Regulations, following
are reproductions of labels on, or inside the product
relating to laser product safety.
JVCKENWOOD Corporation
2967-3, ISHIKAWA-MACHI,
HACHIOJI-SHI, TOKYO, JAPAN
THIS PRODUCT COMPLIES WITH DHHS RULES
21 CFR SUBCHAPTER J IN EFFECT AT DATE OF
MANUFACTURE.
Location: Bottom plate (DDX9907XR)
Top plate (DDX9707S)
This transmitter must not be co-located or operated in
conjunction with any other antenna or transmitter.
■ ISED CAUTION
This device contains licence-exempt transmitter(s)/
receiver(s) that comply with Innovation, Science and
Economic Development Canada’s licence-exempt
RSS(s).
Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including
interference that may cause undesired operation of
the device.
# CAUTION
This equipment complies with FCC/ISED radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF)
Exposure Guidelines and RSS-102 of the ISED radio
frequency (RF) Exposure rules. This equipment should
be installed and operated keeping the radiator at least
20cm or more away from person’s body.
Supplier’s Declaration of Conformity
Trade Name: KENWOOD
Products: MONITOR WITH DVD RECEIVER
Model Name: DDX9907XR / DDX9707S
Products: MONITOR WITH RECEIVER
Model Name: DMX957XR / DMX907S /
DMX9707S
Responsible Party: JVCKENWOOD USA
CORPORATION
2201 East Dominguez Street,
Long Beach, CA 90810, U.S.A.
PHONE: 310 639-9000
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC
RULES. OPERATION IS SUBJECT TO THE FOLLOWING
TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE HARMFUL
INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
Appendix
122
■ Información acerca de la eliminación
de equipos eléctricos y electrónicos
al final de la vida útil (aplicable a los
países que hayan adoptado sistemas
independientes de recogida de
residuos)
Los productos con el símbolo de un contenedor con
ruedas tachado no podrán ser desechados como
residuos domésticos.
Los equipos eléctricos y electrónicos al final de la vida
útil, deberán ser reciclados en instalaciones que puedan
dar el tratamiento adecuado a estos productos y a sus
subproductos residuales correspondientes. Póngase
en contacto con su administración local para obtener
información sobre el punto de recogida más cercano.
Un tratamiento correcto del reciclaje y la eliminación
de residuos ayuda a conservar los recursos y evita al
mismo tiempo efectos perjudiciales en la salud y el
medio ambiente.
■ Informação sobre a eliminação de
pilhas
Este produto não deve ser eliminado como lixo
doméstico geral. Devolva a pilha usada ao revendedor
ou entidade autorizada para que a mesma seja
devolvida ao fabricante ou importador.
A reciclagem e a eliminação de lixo de maneira
apropriada ajudarão a conservar os recursos naturais ao
mesmo tempo que prevenirão os efeitos prejudicais à
nossa saúde e ao meio ambiente.
■ Para cumplimiento de la IFT:
“La operación de este equipo esta sujeta a las
siguientes dos condiciones:
(1) es posible que este equipo o dispositivo no
cause interferencia perjudicial y
(2) este equipo o dispositivo debe aceptar
cualquier interferencia,
incluyendo la que pueda causar su operación no
deseada.”
Hi-Res Audio logo and Hi-Res Audio
Wireless logo are used under license
from Japan Audio Society.
