USER MANUAL
AQUA-DRY
AQUA-DRYB
5-LITRE COMPRESSOR DEHUMIDIFIER
Thank you for choosing electriQ.
Please read this user manual before using this innovative dehumidifier and keep it safe for future reference.
Visit our page, www.electriQ.co.uk, for our entire range of Intelligent Electricals.
2
3
CONTENTS
SAFETY INSTRUCTIONS
4
VISUAL SAFETY GUIDE
6
FEATURES
7
INSTALLATION
7
POSITIONING THE DEHUMIDIFIER
7
PARTS
8
CONTROL PANEL
10
WATER DRAINAGE
12
CARE AND MAINTENANCE
12
SUPPORT
14
TROUBLESHOOTING
15
TECHNICAL DATA
16
4
SAFETY INSTRUCTIONS
IMPORTANT
• Carefully read the instructions before
operating the unit.
• This appliance is only intended for
use in an indoor domestic
environment. The manufacturer does
not recommend any other use and
may cause fire, electrical shock or
other injuries to a person or damage
to property.
• Rating: This unit must only be
connected to an AC 220-240V / 50 Hz
earthed outlet. Installation must be in
accordance with the regulations of the
country where the unit is used.
• If you are in any doubt about the
suitability of your electrical supply,
have it checked and, if necessary,
modified by a qualified electrician.
• This dehumidifier has been tested
and is safe to use. However, as with
any electrical appliance – care must
be taken during use.
• CAUTION: In order to avoid a hazard
due to inadvertent resetting of the
thermal cut-out, this appliance must
not be supplied through an external
switching device, such as a timer, or
connected to a circuit that is regularly
switched on and off by the utility.
• Disconnect the power from the
appliance before dismantling,
assembling or cleaning.
• Avoid touching any moving parts of
the appliance.
• Never insert fingers, pencils or any
other objects through the guard.
• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities. It is also not intended for
use by those with a lack of experience
and knowledge unless they have
been given supervision or instruction
concerning the use of the appliance
by a person responsible for their
safety.
• Children should be supervised to
ensure they do not play with the
appliance.
• Do not clean the unit by spraying it or
immersing it in water.
• Never connect the unit to an electrical
outlet using an extension cord. If a
power outlet is not available, one
should be installed by a qualified
electrician.
• Never operate this appliance if the
unit is damaged. Call the retailer first.
Ensure the power cord is not
stretched or exposed to sharp objects
or edges.
• If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
• R290 refrigerant gas complies with
European environmental directives.
• R290 has a low GWP (Global Warming
Potential) of 3.
• An authorised service representative
should perform any service other than
regular cleaning or filter replacement.
Failure to comply could result in a
voided warranty.
• The unit must be disconnected from
the power prior to any cleaning,
maintenance or servicing.
• This unit contains a UVC light source,
which is inaccessible.
• The unit must only be opened by a
suitably competent engineer when the
power is disconnected and after
reading the service manual.
5
• Unintended use or damage to the
casing may result in the escape of
dangerous UV-C radiation. UV-C
radiation may, even in small doses,
cause harm to the eyes and skin.
• Do not use the appliance for any
purpose other than its intended use.
• Do not tilt the unit while in use. The
unit is designed to work only in a
vertical position. This dehumidifier
must always be stored upright;
otherwise, irreparable damage may
be caused.
• This unit will still operate for
approximately 3-4 minutes after
pressing the power button to turn off.
• Never use the mains plug as a switch
to start or turn off the dehumidifier.
Instead, use the power button
provided on the control panel.
• Always place the unit on a dry and
stable surface.
• The appliance should not be installed
in a laundry or wet room where the
humidity is higher than 85% RH. This
unit should be operated at an ambient
temperature between 5°C and 32°C.
• Do not dry laundry directly above the
unit. To prevent water from entering
the dehumidifier, laundry should be
placed at least 40 cm away from your
dehumidifier.
• Do not place the unit next to heat
sources (e.g. electrical fires,
fireplaces, etc.)
• Do not store or use gasoline, petrol,
paint, solvents or other flammable
vapours and liquids in the vicinity of
this dehumidifier or any other
appliance. Do not use dehumidifiers
where flammable gases or VOC can
be released or accumulate.
• Do not use or store the unit in a room
smaller than 4m
2
.
ENERGY SAVING AND UNIT
SAFETY PROTECTION TIPS
Do not cover or restrict the airflow from
the outlet or inlet grills.
For maximum performance, the unit
should be operated at least 20 cm away
from walls and 50 cm from other objects
within the room. Whilst storing the unit
when not in use, ensure the same
ventilation clearances as in operation. Do
not store anything on top or leaning
against the unit.
Always store the unit in a dry room away
from direct sunlight.
Keep the appliance's filters and grills
clean. Under normal conditions, filters
and grills should only need cleaning once
every three weeks (approximately). Do
not use the unit without the mesh air filter,
as this will allow dirt to gather inside the
dehumidifier, which could invalidate the
warranty.
A dirty filter restricts the airflow into the
machine, increasing the resistance of the
fan. This can damage the unit and
invalidate your warranty.
Since the filters remove airborne
particles, more frequent cleaning may be
necessary depending on the air quality.
Vacuum and wash the mesh filters with
hot, soapy water and dry them before
placing them back in the unit.
6

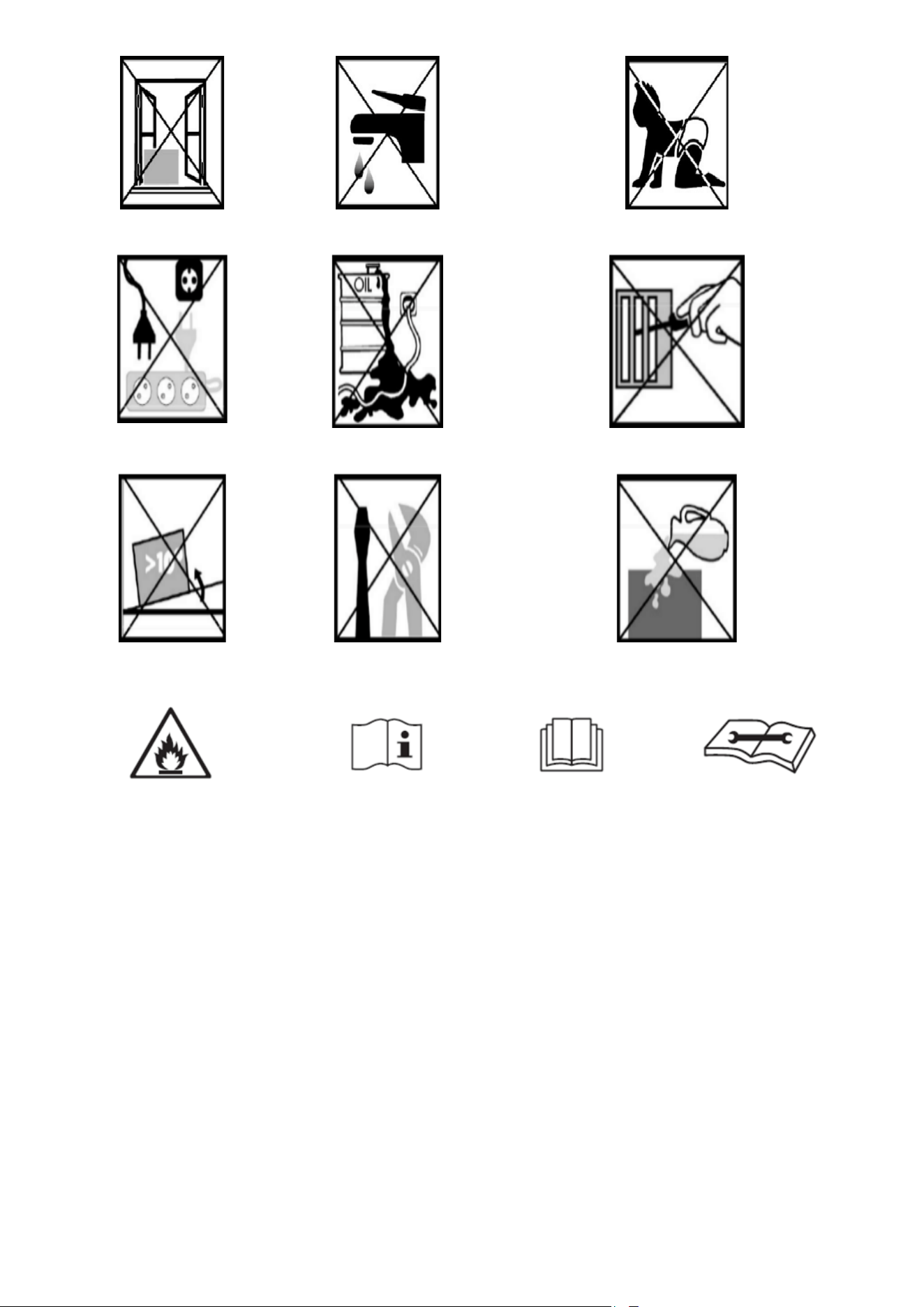

Exposed to the weather
outdoors
Near water
Where small children may be left unattended
If an extension lead becomes
overloaded
Where chemicals may
damage it
Where there is a risk of interference by foreign
objects
On a slope or uneven surface
This product is not for
DIY repair
Where there is a risk of water falling on the unit
Flammable Refrigerant
Read the operating
instructions.
Read the operator's
manual.
Read the service/technical
manual.
7
FEATURES
Your dehumidifier belongs to the electriQ dehumidifier range.
1. Easy to use controls
2. Lightweight and portable
3. Cost-effective way to combat mould, condensation and damp
4. Designed to complement any modern space
5. Intelligent CPU-controlled digital humidistat with 35-80% RH and room humidity display
6. 24-hour stop timer
7. Easy to remove front tank.
8. Tank operation or permanent drainage option
9. Tank full alarm & auto-stop function
10. Auto restart following power cut.
11. Ioniser and optional carbon filter to improve air quality
INSTALLATION
Remove any water from within the water tank before starting the unit. To save energy, do not open windows
or doors while the unit is running. Place the unit on a hard/flat surface. On first use, run the unit continuously
for 24 hours.
TO REDUCE NOISE LEVELS:
Place a piece of carpet or a rubber mat under the unit to reduce vibrations while it is running.
The AQUA-DRY dehumidifier uses compressor technology to extract water from the environment.
Compressor dehumidifiers are ideal for normal domestic or office environments, which are heated during
the winter months and maintain a temperature above 12-15⁰C.
Your dehumidifier is lightweight and easy to move. It is designed to extract unwanted humidity while
saving money due to its power-saving logic. The unit features an intelligent humidistat, where the desired
relative humidity can be adjusted in increments of 5% between 35 and 80%, ensuring your room is not
dried out too much and power is not wasted.

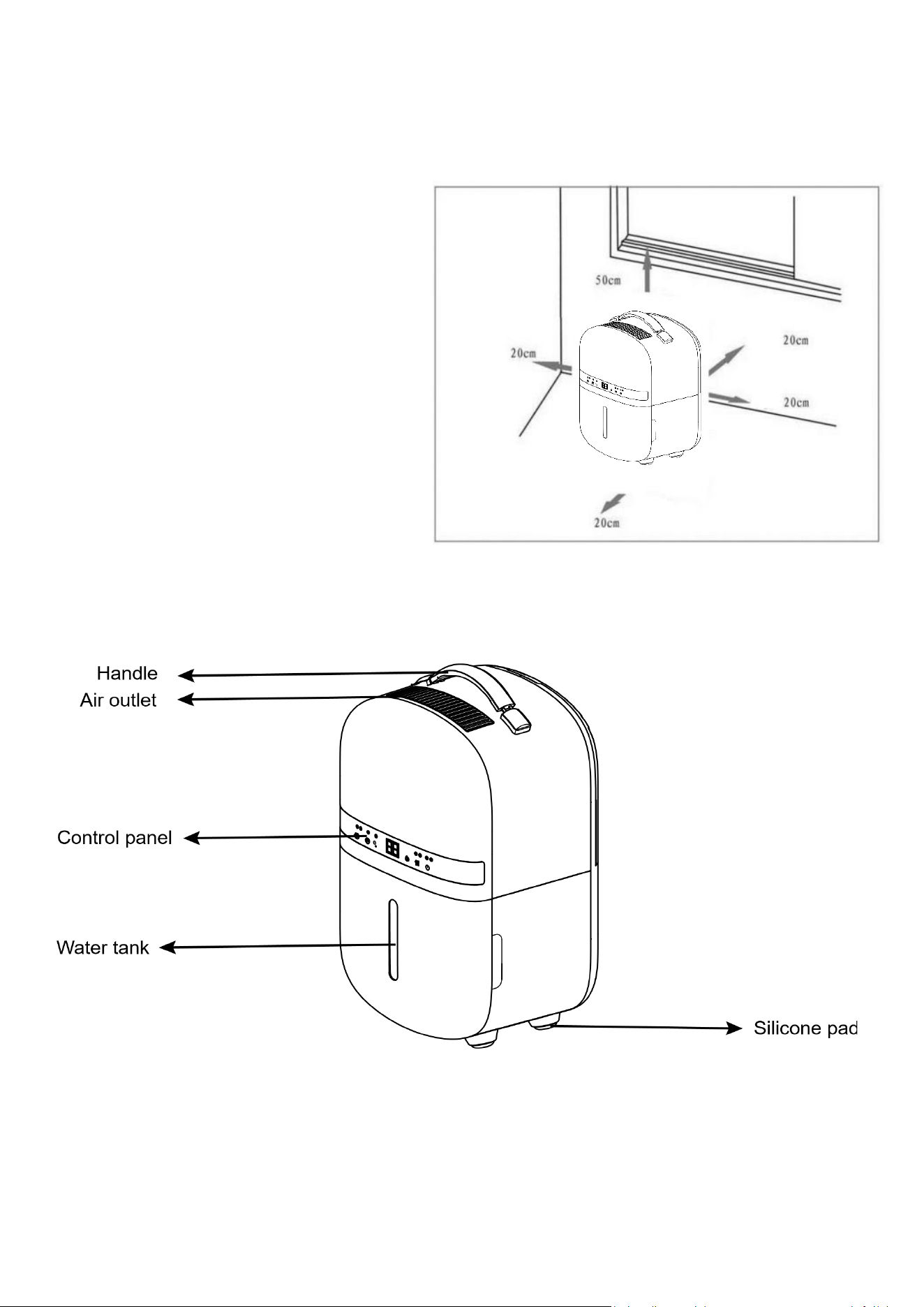

POSITIONING THE DEHUMIDIFIER
A badly positioned dehumidifier will have little effect. When positioning the dehumidifier, please ensure
air circulation is not restricted around the unit.
Allow at least 20 cm of space around the unit. This dehumidifier is designed only for indoor residential or
small office applications, and any commercial or industrial use will invalidate the warranty.
Use in an enclosed area for maximum efficiency: close all doors and windows to create an effective
operating environment. Do not use outdoors.
8
Your electriQ dehumidifier will begin to protect your space from the harmful effects of excessive moisture
as soon as it is turned on. Excess moisture is dispersed throughout your home. For this reason, the
dehumidifier should be positioned in a central and clear location so that it can draw this moist air towards
it from all over the home. A warm hallway or landing is an excellent position for your dehumidifier. If
possible, leave interior doors ajar to allow air circulation.
Alternatively, if you have a serious problem in
one area, you can begin by positioning the
dehumidifier there and moving it to a more
central location later. For the most effective
use, run your dehumidifier with external doors
and windows kept closed. Please note that the
unit should not be placed directly against a
radiator or other heat source.
The water tank should be emptied before
moving the appliance. When carrying the unit,
it should be kept upright and sufficiently
supported from its base.
When positioning your electriQ dehumidifier,
ensure that it is clear of any obstacle that may limit air movement. Place the dehumidifier on a flat, dry
surface.

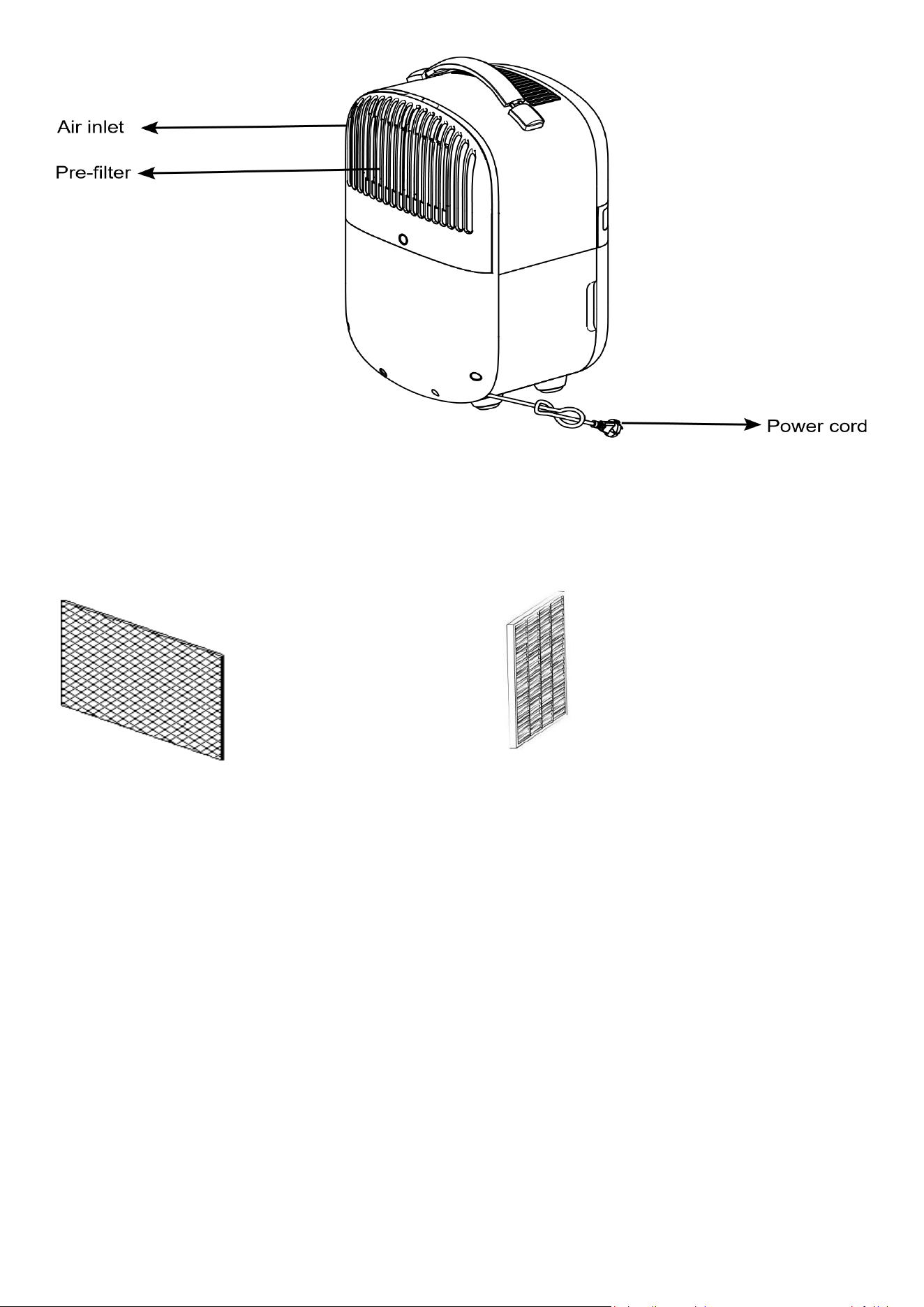

PARTS
9
OPTIONAL

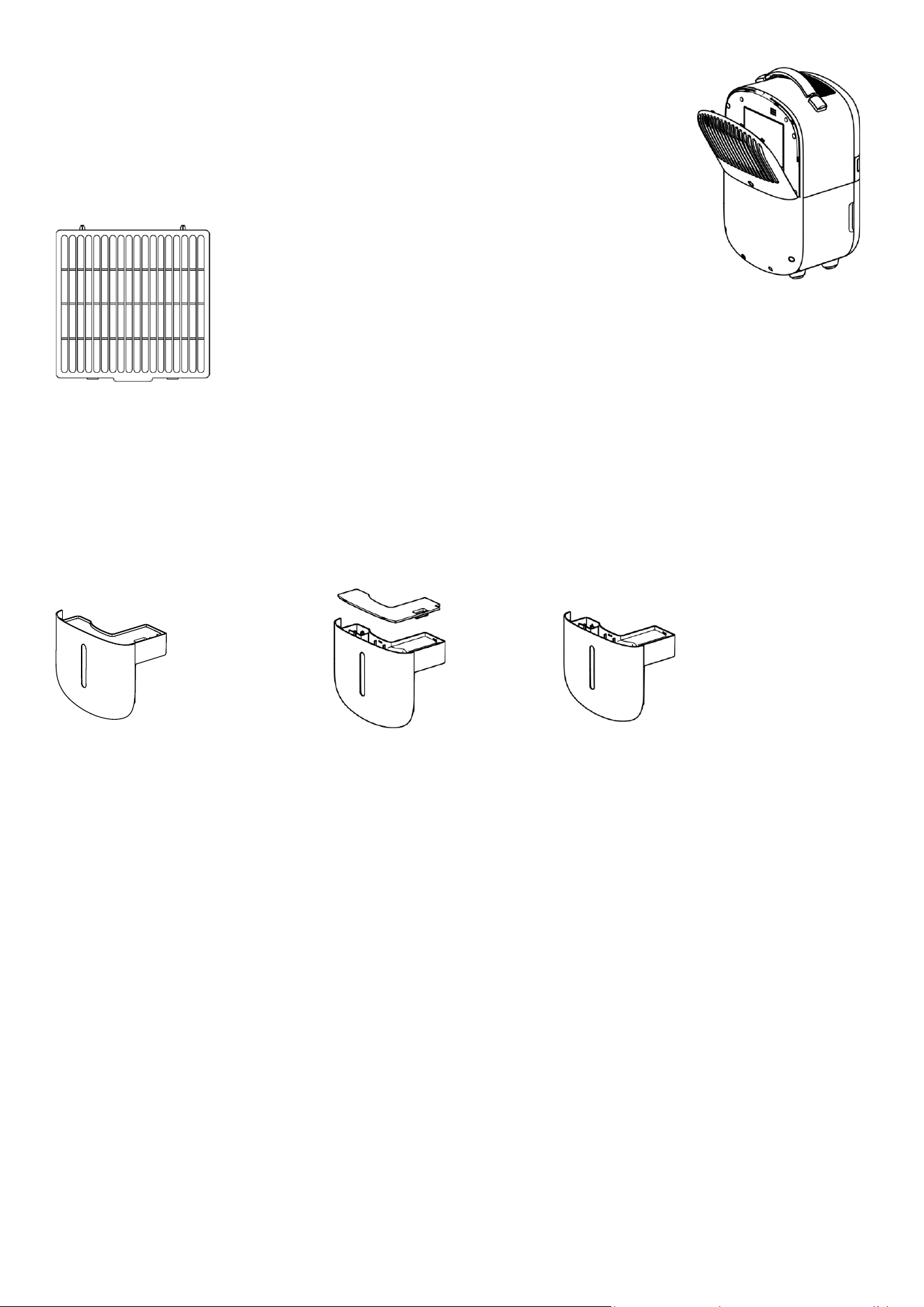

To fit the filters, remove the filter frame from the air inlet and place it flush with the air inlet. If both the
carbon and HEPA filters are used in combination, the carbon filter should be inserted first.
CARBON FILTER (Supplied)
Used for the removal of
odours. Replacement
Activated carbon filters are
available from the retailer
under reference:
CARBON-AQUADRY
HEPA FILTER (Not Supplied)
Used for the removal of
airborne particles. HEPA
filters are available from
the retailer under
reference:
HEPA-AQUADRY
10
CONTROL PANEL
POWER BUTTON
Turn the appliance on/off.
Note: When the power light is flashing, the unit is in defrost mode
MODE BUTTON
Select the unit's operating mode between Smart and Air Purifier.
SMART MODE: The unit will start dehumidifying when the humidity increases to
5% above the desired humidity and will stop when the humidity drops to 5%
below the desired humidity. The default desired humidity is 55% RH. Use the
humidity button to adjust the desired humidity.
AIR PURIFIER MODE: The fan will run without a dehumidifying effect. This is ideal
when the unit is only to be used as an air purifier. It can also be used in
combination with the ioniser function.
HUMIDITY BUTTON
Repeatedly press to adjust the desired humidity. The currently selected level
will be shown on the display. This button is also used to change the duration of
the timer after pressing the TIMER button.
IONISER BUTTON
Press to turn the ioniser on and off. The ioniser indicator will illuminate to show
the feature is activated.
TIMER BUTTON
Press the TIMER button to program the timer. When the timer is activated, the
"TIMER" light will illuminate. Before programming the timer, ensure the timer
function has not been activated (the light must be off). The following timer
programs are available.
DELAYED POWER-OFF FUNCTION: While the appliance is running with the
desired settings, press the TIMER button to initiate the timer and then
repeatedly press the HUMIDITY BUTTON to set how many hours you require the
unit to stop (024 hours).
DELAYED POWER-ON FUNCTION: While the appliance is on standby, press the
TIMER button to initiate the timer and then repeatedly press the HUMIDITY
BUTTON to set how many hours you require the unit to start (0~24 hours). The
unit will operate with the previously used settings.
SLEEP BUTTON
Press the button to activate sleep mode. All indicators other than the sleep
indicator will turn off.
Press and hold the button for 3 seconds to lock the control panel. The lock
indicator will illuminate. When the lock is initiated, the unit will also enter sleep
mode. To avoid this, the unit should be put into sleep mode before activating
the lock.
11
DISPLAY
During normal operation, the current humidity of the room is shown.
Shows the desired humidity when the HUMIDITY button is pressed.
Shows the timer duration when the TIMER button is pressed.
NOTES
• If a permanent drainage pipe is fitted, the unit will not stop operating. Setting the desired humidity
to around 35% is good for laundry mode, a quick drying boost, or in emergencies. It is not
recommended for long normal operation in a domestic or office environment.
• To allow more moisture in the air, set a higher desired humidity (e.g. 60-70%).
• We recommend setting the desired humidity to 50-55%. This is great for domestic operation and
dry storage
• Setting the humidity to 60% is great for personal comfort and applications where 50% RH is
considered too dry
• Setting the humidity to 70% is ideal for unoccupied properties or where an economical run is needed
without further reducing the humidity.
OTHER FEATURES AND INDICATORS
TANK FULL INDICATOR
When the water tank is full, removed, or incorrectly inserted, the unit will stop dehumidifying, and the
TANK FULL indicator will illuminate. Empty the tank and reinsert it correctly to resume operation.
AUTO DEFROST
When frost builds up on the evaporator coils, the compressor cycles off, and the unit goes into defrost
mode. Following the defrost mode's completion, the unit returns to its previous operating settings.
• When the unit is running in a room with a temperature between 5℃ and 12C, it will enter defrost
mode for 8 minutes, roughly every 20 minutes.
• When the unit is running in a room with a temperature between 12℃ and 18℃, it will enter
defrost mode for 8 minutes roughly every 25 minutes.
• When the unit is running in a room with a temperature between 18℃ and 23℃, it will enter
defrost mode for 8 minutes, roughly every 120 minutes.
POWER
To protect the compressor, it is not recommended that the operation resume for at least 5 minutes after
the unit has stopped. The operation can resume after this period lapses. When the unit is restarted, there
is a 3-minute delay before the compressor starts.
AUTOMATIC RESTART
If, for any reason, there is a power cut and the appliance is still plugged into the main power supply, when
the main power is restored, the unit will automatically restart and continue to function normally.
12
WATER DRAINAGE
When the water tank is full, the unit will stop
automatically. When this happens, the TANK FULL
indicator will illuminate
NOTE: Only empty the water tank when it is full or
before moving or storing the unit.
There are two ways to dispense collected water.
USE THE TANK
When the tank is full, the unit automatically stops running, and the TANK FULL indicator illuminates.
Slowly pull out the tank. Empty the water tank and reinsert it into the dehumidifier. The tank must be in
place and securely seated for the dehumidifier to operate again. The dehumidifier will restart when the
tank is restored to its correct position.
NOTES:
When you remove the water tank, please do not touch the sensors or any parts behind it. Doing so may
damage the product. Be sure to push the tank gently all the way into the unit. Banging the bucket against
anything or failing to push it in securely may cause the unit not to operate.
Do not remove any parts from the water tank or tank enclosure. The full water sensor will no longer be able
to detect the water level correctly, and water may leak from the water tank.
CONTINUOUS DRAINAGE (PIPE NOT INCLUDED)
Attaching a pipe to the unit allows water to be automatically plumbed in or drained into a sink, a larger
recipient, or through the wall into an outside drain. Remove the rubber bung on the rear of the unit and
insert the pipe into the drain outlet at the back of the unit.
Make sure the connection between the pipe
and the drain outlet is tight and does not
leak. Then, direct the pipe to a suitable
drainage point. This unit uses gravity to
dispose of water; hence, the drain should be
lower than the water outlet on the unit. Put
the tank back. Be sure to run the water pipe
downward and let the water to flow out
smoothly. Do not kink or bend the pipe.
The permanent drain can be used in conjunction with an external water pump (e.g. when draining from a
cellar) to lift the water upwards. The drainpipe is not included in the product; please purchase one using
the dimensions provided.
CARE AND MAINTENANCE
Always shut off the unit and unplug it from the mains before cleaning or performing any maintenance. When
it is not in use for long periods, it is advisable to remove the plug from the power socket. Please do not use
chemical solvents (such as benzene, alcohol, or gasoline), as they may cause irreversible damage to the unit.
13
1. CLEAN THE GRILLE AND CASE
Use water and a mild detergent to clean the washable filter frame. Do not use
bleach or abrasives. Do not splash water directly onto the main unit. Doing so may
cause an electric shock, deteriorate the insulation, or cause the unit to rust. The air
intake and outlet grilles get soiled easily, so use a vacuum attachment or soft brush
to clean them. Wipe the dehumidifier body with a soft, damp cloth or kitchen towel.
Remove the filter frame. If the optional carbon filters are
fitted, remove them from the frame and hoover gently
approximately every 2-3 weeks.
If the mesh filter is dirty, hoover it. If it is heavily soiled, wash it with warm, soapy
water and dry it thoroughly before reinserting it in the unit.
When filter cleaning is finished and the filters are dry, place them back into the unit.
NOTE: While the carbon filter is optional, never run the unit without the filter frame correctly inserted.
2. CLEAN THE WATER TANK
Clean the tank every few weeks to prevent the growth of mould, mildew, and bacteria. Partially fill the tank
with clean water and add a little mild detergent. Swish it around, then empty the tank and rinse.
NOTE: Do not use a dishwasher to clean the tank. After cleaning and drying, the tank must be reinserted
securely into a dehumidifier in order to restart operation.
END-OF-SEASON MAINTENANCE
1. Run the unit for at least 30 minutes in Air Purifier mode; this will allow the unit to internally dry.
2. After 30 minutes, empty and clean the water tank, ensuring it is fully dry before reinserting into the
unit.
3. Clean the unit and the filters as per the cleaning procedure above.
4. Coil the power cord on the special cord storage rest at the back of the unit
5. Cover the unit and keep it in a dry place.
FREQUENTLY ASKED QUESTIONS
Why doesn’t the dehumidifier seem to extract much water if the temperature is low?
This is a compressor dehumidifier which works best in temperatures above 15⁰C. If the temperature is low
and the air is dryer than the setting on the humidistat, the unit will not extract water. If you want to use a
dehumidifier for outside buildings, unheated properties, boats or garages, please check our desiccant
range.
Why doesn’t the unit work /or stops suddenly?
The water tank may be full or displaced. To rectify this, empty the tank and carefully place it back in the
unit. Also, the unit may be running in dehumidifying mode with a low room temperature. Please check if
14
the room temperature is lower than 5⁰C. If so, the unit will stop working while in dehumidifying mode.
(The unit may be defrosting.)
The ambient operating range is between 5⁰C and 35⁰C, with relative humidity ranging from 35% to 80%.
For maximum efficiency, use the unit between 15⁰C and 32⁰C.
Sometimes cold and hot air comes out from the air outlet grill; why?
When the unit is in dehumidifying mode, it absorbs humid air from the room and freezes it to reduce the
humidity. During the cold cycle, cold air should come out of the unit. During the hot cycle, hot, dry air
should come out of the outlet grill.
electriQ UK SUPPORT
www.electriQ.co.uk/support
Please, for your own convenience, make these simple checks before calling the service line.
1. Has the unit been standing upright for at least 2 hours?
2. Is the unit plugged into the mains?
3. Is the fuse OK?
4. Switch the unit off and wait three minutes to see if the issue is resolved. Restart the unit.
5. Check if the water tank is full.
6. Was the troubleshooting guide followed?
If the unit still fails to operate, call: 0330 390 3061 or complete the online form
Office hours: 9 AM - 5 PM Monday to Friday
Unit 2A, Trident Business Park,
Neptune Way, Leeds Road,
Huddersfield, HD2 1UA
15
TROUBLESHOOTING
Issue
Cause
Solution
Hot or cold
air being
produced.
Normal Operation
When the unit is in dehumidifying mode, it absorbs
humid air from the room and freezes it to reduce the
humidity.
During the cold cycle, there should be cold air coming
out of the unit
During the defrost cycle, hot, dry air should be coming
out of the outlet grill.
The unit
does not
operate.
Is the plug properly
inserted in the socket?
Insert the plug into the socket and turn the switch on.
Is E2 displayed on the
control panel
The tank is full, the float is displaced, or the tank is not
properly inserted. Empty the tank, check the float, and
make sure the tank is properly inserted in the unit.
The
dehumidifier
does not
extract
water
Is the unit set to a
humidity level lower than
the one in the room?
Set the humidity level on the humidistat below the
current humidity reading.
Is the temperature too low
for water extraction to be
efficient?
Increase the temperature in the room or reposition the
unit.
Is any intake grill or
discharge blocked? Is the
unit too close to walls.
Remove obstructions and restart the unit.
Ensure a distance of at least 20 [cm between the unit &
walls
Airflow
seems weak
Is the filter dirty or
clogged?
Please service the filters regularly as per the user
manual.
The unit is
noisy during
operation.
Is the unit on an uneven
surface?
Please place it on a flat horizontal surface.
Is the filter clogged?
Please service the filters regularly as per the user
manual.
E3 or E4
Humidity sensor error
Use the unit within the prescribed humidity range.
Unplug the unit rest and plug it back in. If the error
repeats， call the service centre.
E1 or E2
Temperature sensor error
Use the unit within the prescribed temperature range.
Unplug the unit rest and plug it back in. If the error
repeats， call the service centre.
Tank full
indicator
light
Water tank full
notification
The tank is full or is not in the right position. Empty the
tank and replace it in the right position.
Any other malfunctions must be reported to the electriQ service centre. Do not attempt unauthorised
repairs, as these may invalidate the warranty.
16
TECHNICAL DATA
Model
AQUA-DRY / AQUA-DRYB
Voltage
220-240V～50Hz
Dehumidifying capacity
5L / day
(at 30⁰ C / 80%RH)
Fan Speeds
1
Electrical Equipment Type
Class 1
Ingress Protection
IPX1
Rated Input Power
155W
Running Amps
0.75 Amps
Tank Capacity
1.5 litres
Desired Humidity Range
35 – 80%
High / Low Pressure
3.2/0.7MPa
Filters
Carbon (Optional)
Weight (Kgs)
7.5
Refrigerant
R290, 30 grams
GWP
3
Dimensions
253x215x410mm
Disposal: Do not dispose of this product as unsorted waste. Collection of such waste must be handled
separately as special treatment is necessary.
Recycling facilities are now available for all customers, where they can deposit their old
electrical products. Customers can take any old electrical equipment to participating sites
run by their local councils. Please remember that this equipment will be further handled
during the recycling process, so please be considerate when depositing your equipment.
Please get in touch with the local council for details of your local household waste
recycling centres.
20241124S
