Frigidaire.com USA 1-800-944-9044 Frigidaire.ca Canada 1-800-265-8352
use
&
care
Portable Air Conditioner
13326050003447_V1 (September 2024)
Introduction...................................................... 2
Important Safety Instructions.................... 3
FCC Statement................................................ 11
Operating Instructions............................... 18
Care and Cleaning........................................ 27
Before You Call............................................. 29
Major Appliance Limited Warranty....... 31
Air Conditioner Features............................ 17
Unit Description..............................................12
Accessories Included....................................13
Installation Instructions............................... 13
2 INTRODUCTION
Welcome to our
family
Model Number
Serial Number
Purchase Date
Thank you for bringing Frigidaire into your
home! We see your purchase as the
beginning of a long relationship together.
This manual is your resource for the use and
care of your product. Please read it before
using your appliance. Keep it handy for quick
reference. If something doesn’t seem right,
the troubleshooting section will help you
with common issues.
FAQs, helpful tips and videos, cleaning
products, and kitchen and home accessories
are available at www.frigidaire.com.
We are here for you! Visit our website, chat
with an agent, or call us if you need help. We
may be able to help you avoid a service visit.
If you do need service, we can get that
started for you.
Let’s make it official! Be sure to register your
product.
Keep your product info here so it’s easy to
find.
3
For Your Safety
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance. Read product
labels for flammability and other warnings.
Prevent Accidents
WARNING
To reduce the risk of fire, electrical shock, or
injury to persons when using your air
conditioner, follow basic precautions,
including the following:
• Be sure the electrical service is adequate
for the model you have chosen. This
information can be found on the serial
plate, which is located on the side of the
cabinet.
• If the air conditioner is to be installed in a
window, you will probably want to clean
both sides of the glass first.
• Be sure the air conditioner has been
securely and correctly installed according
to the installation instructions in this
manual. Save this manual for possible
future use in removing or reinstalling this
unit.
WARNING
Avoid fire hazard or electric shock. Do not
use an extension cord or an adaptor plug.
Do not remove any prong from the power
cord.
Electrical Information
WARNING
The complete electrical rating of your new
portable air conditioner is stated on the
serial plate. Refer to the rating when
checking the electrical requirements.
• Be sure the air conditioner is properly
grounded. To minimize shock and fire
hazards, proper grounding is important.
The power cord is equipped with a
three-prong grounding plug for protection
against shock hazards.
• Your air conditioner must be used in a
properly grounded wall receptacle. If the
wall receptacle you intend to use is not
adequately grounded or protected by a
time delay fuse or circuit breaker, have a
qualified electrician install the proper
receptacle.
• Do not run air conditioner without outside
protective cover in place. This could result
in mechanical damage within the air
conditioner.
• Do not use an extension cord or an
adapter plug.

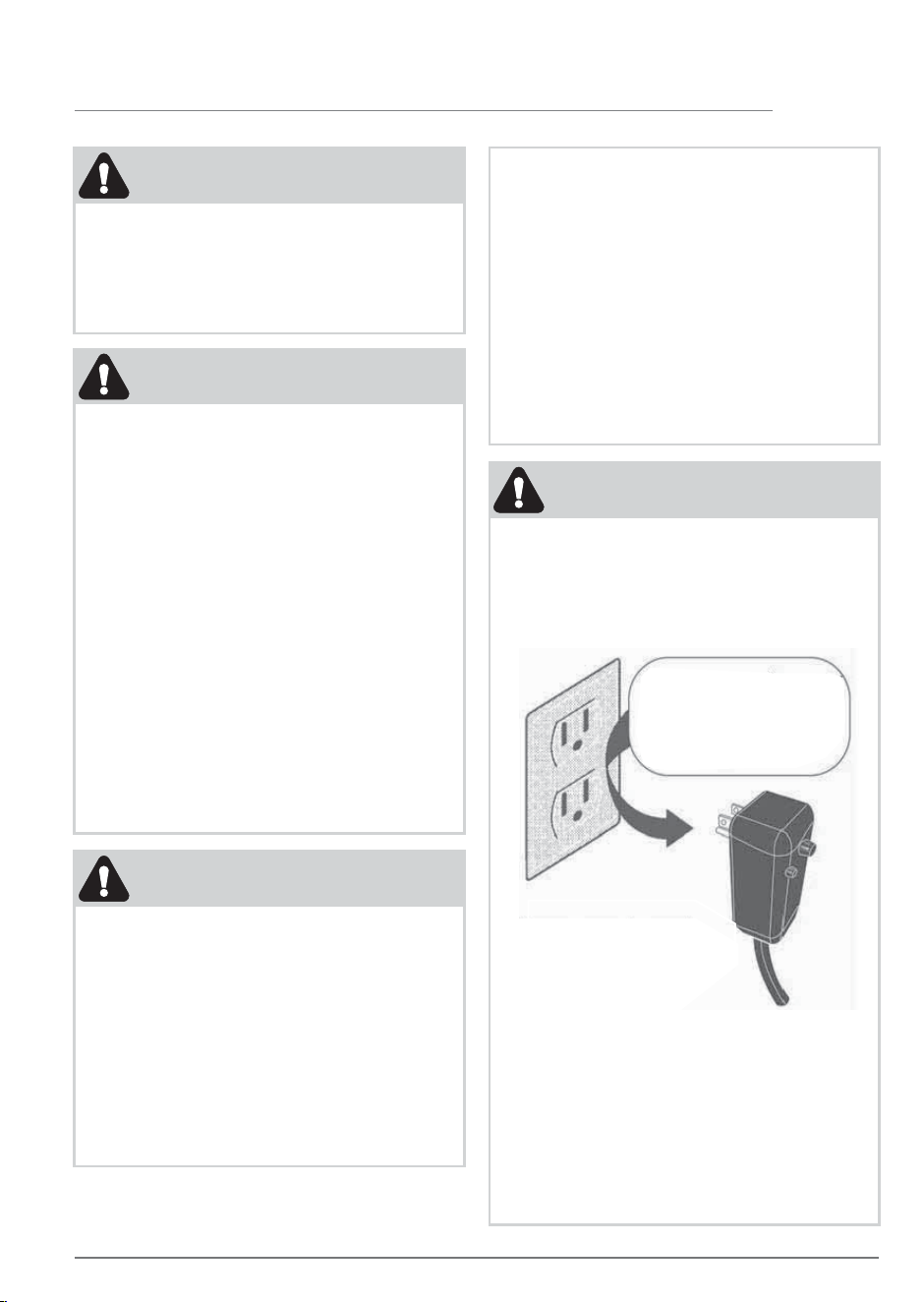

Grounding type wall receptacle
Do not, under any
circumstances, cut,
remove, or bypass the
grounding prong.
Power supply cord
with 3-prong grounding
plug and current
detection device
NOTE: The power supply cord with this air
conditioner contains a current detection
device designed to reduce the risk of fire.
Please refer to the section ‘Operation of
Current Device’ for details.
In the event that the power supply cord is
damaged, it cannot be repaired. It must be
replaced with a cord from the product
manufacturer.
4 IMPORTANT SAFETY INSTRUCTIONS
SAFETY PRECAUTIONS
DANGER! Avoid Serious Injury or Death
• This air conditioner contains no
user-serviceable parts. Always call an
authorized Electrolux servicer for repairs.
• Do not insert or place fingers or objects
into the air discharge area in the front of
the unit.
• Do not start or stop the air conditioner by
unplugging the power cord or turning off
the power at the electrical box.
• Do not cut or damage the power cord.
• If the power cord is damaged, it should
only be replaced by an authorized
Electrolux servicer.
• In the event of a malfunction (sparks,
burning smell, etc.), immediately stop the
operation, disconnect the power cord, and
call an authorized Electrolux servicer.
• Do not operate the air conditioner with
wet hands.
• Do not pull on the power cord.
• Do not drink any water that is drained
from the air conditioner.
• This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the
appliance by a person responsible for their
safety.
• Children should be supervised to ensure
that they do not play with the appliance.
• If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in
order to avoid a hazard.
• The appliance shall be installed in
accordance with national wiring
regulations.
• Provide ventilation per installation
instructions.
• Do not direct airflow at fireplaces or other
heat related sources as this could cause
flare ups or make units run excessively.
• Do not climb on or place objects on the
unit.
• Do not hang objects off the unit.
• Do not place containers with liquids on the
unit.
• Turn off the air conditioner at the power
source when it will not be used for an
extended period of time.
• Periodically check the condition of the
unit’s installation accessories for any
damage.
• Do not apply heavy pressure to the
radiator fins of the unit.
• Operate the unit with air filter in place.
• Do not block or cover the intake grille,
discharge area and outlet ports.
• Ensure that any electrical/electronic
equipment is one yard away from the unit.
• Do not use or store flammable gases near
the unit.
• Do not touch the metal parts of the unit
when removing the filter. Injuries can
occur when handling sharp metal edges.
• Do not use water to clean inside the air
conditioner. Exposure to water can
destroy the insulation, leading to possible
electric shock.
• When cleaning the unit, first make sure
that the power and circuit breaker are
turned off.
• Improper use may cause hands to be
pinched.
SAFETY PRECAUTIONS
CAUTION! Avoid Injury or damage to the
unit or other property
WARNING
• Servicing shall only be performed as
recommended by the equipment
manufacturer. Maintenance and repair
requiring the assistance of other skilled
personnel shall be carried out under the
supervision of the person competent in
the use of flammable refrigerants.
FOR FLAMMABLE REFRIGERANT
defrosting process or to clean, other than
those recommended by the
manufacturer.
• The appliance shall be stored in a room
without continuously operating ignition
sources (for example: open flames, an
operating gas appliance) and ignition
sources or (for example: an operating
electric heater) close to the appliance.
• Do not pierce or burn.
• Be aware that the refrigerants may not
contain an odour.
1. Transport of equipment containing
flammable refrigerants.
See transport regulations.
2. Marking of equipment using signs
See local regulations.
3. Disposal of equipment using flammable
refrigerants
See national regulations.
4. Storage of equipment/appliances
The storage of the appliance should be in
accordance with the applicable
regulations or instructions, whichever is
more stringent.
5. Storage of packed (unsold) equipment
Storage package protection should be
constructed such that mechanical
damage to the equipment inside the
package will not cause a leak of the
refrigerant charge. The maximum
number of pieces of equipment
permitted to be stored together will be
determined by local regulations.
6. Information on servicing
a) Checks to the area
Prior to beginning work on systems
containing flammable refrigerants, safety
checks are necessary to ensure that the
risk of ignition is minimised. For repair to
the refrigerating system, the following
precautions shall be complied with prior
to conducting work on the system.
b) Work procedure
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
any hot work. A degree of ventilation shall
continue during the period that the work
is carried out. The ventilation should
safely disperse any released refrigerant
and preferably expel it externally into the
atmosphere.
h) Checks to the refrigerating equipment
Where electrical components are being
changed, they shall be fit for the purpose
and to the correct specification. At all
times the manufacturer's maintenance
and service guidelines shall be followed. If
in doubt consult the manufacturer's
technical department for assistance. The
following checks shall be applied to
installations using flammable refrigerants:
The actual refrigerant charge is in
accordance with the room size within
which the refrigerant containing parts are
installed; The ventilation machinery and
outlets are operating adequately and are
not obstructed; If an indirect refrigerating
circuit is being used, the secondary circuit
shall be checked for the presence of
refrigerant; Marking to the equipment
continues to be visible and legible.
Markings and signs that are illegible shall
be corrected; Refrigerating pipe or
components are installed in a position
where they are unlikely to be exposed to
any substance which may corrode
refrigerant containing components,
unless the components are constructed
of materials which are inherently resistant
to being corroded or are suitably
protected against being so corroded.
i) Checks to electrical devices
Repair and maintenance to electrical
components shall include initial safety
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the circuit
until it is satisfactorily dealt with. If the
fault cannot be corrected immediately
but it is necessary to continue operation,
an adequate temporary solution shall be
used. This shall be reported to the owner
of the equipment so all parties are
advised. Initial safety checks shall include:
refrigerant is found which requires
brazing, all of the refrigerant shall be
recovered from the system, or isolated
(by means of shut off valves) in a part of
the system remote from the leak.
Removal of refrigerant shall be according
to Removal and evacuation.
11. Removal and evacuation
When breaking into the refrigerant circuit
to make repairs – or for any other
purpose–conventional procedures shall
be used. However, for flammable
refrigerants it is important that best
practice be followed, since flammability is
a consideration. The following procedure
shall be adhered to:
a) Safely remove refrigerant following
local and national regulations;
b) Evacuate;
c) Purge the circuit with inert gas
(optional for A2L);
d) Evacuate (optional for A2L);
e) continuously flush or purge with inert
gas when using flame to open circuit;
and;
f) open the circuit.
The refrigerant charge shall be recovered
into the correct recovery cylinders if
venting is not allowed by local and
national codes. For appliances containing
flammable refrigerants, the system shall
be purged with oxygen-free nitrogen to
render the appliance safe for flammable
refrigerants. This process might need to
be repeated several times. Compressed
air or oxygen shall not be used for
purging refrigerant systems. For
appliances containing flammable
refrigerants, refrigerants purging shall be
achieved by breaking the vacuum in the
system with oxygen-free nitrogen and
continuing to fill until the working
pressure is achieved, then venting to
atmosphere, and finally pulling down to a
vacuum (optional for A2L). This process
shall be repeated until no refrigerant is
within the system (optional for A2L).
When the final oxygen-free nitrogen
charge is used, the system shall be vented
down to atmospheric pressure to enable
That capacitors are discharged: this shall
be done in a safe manner to avoid
possibility of sparking; That there no live
electrical components and wiring are
exposed while charging, recovering or
purging the system; That there is
continuity of earth bonding.
7. Sealed electrical components shall be
replaced.
8. Intrinsically safe components must be
replaced.
9. Cabling
Check that cabling will not be subject to
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used.
The following leak detection methods are
deemed acceptable for systems
containing flammable refrigerants.
Electronic leak detectors shall be used to
detect flammable refrigerants, but the
sensitivity may not be adequate, or may
need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area). Ensure that the
detector is not a potential source of
ignition and is suitable for the refrigerant
used. Leak detection equipment shall be
set at a percentage of the LFL of the
refrigerant and shall be calibrated to the
refrigerant employed and the appropriate
percentage of gas (25 % maximum) is
confirmed. Leak detection fluids are
suitable for use with most refrigerants but
the use of detergents containing chlorine
shall be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work. If a leak is suspected,
all naked flames shall be
removed/extinguished. If a leakage of
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated on the
scales before recovery takes place.
g) Start the recovery machine and operate
in accordance with instructions.
h) Do not overfill cylinders. (No more than
80% volume liquid charge).
i) Do not exceed the maximum working
pressure of the cylinder, even
temporarily.
j) When the cylinders have been filled
correctly and the process completed,
make sure that the cylinders and the
equipment are removed from site
promptly and all isolation valves on the
equipment are closed off.
k) Recovered refrigerant shall not be
charged into another refrigeration system
unless it has been cleaned and checked.
14.
Labelling
Equipment shall be labelled stating that it
has been de-commissioned and emptied
of refrigerant. The label shall be dated
and signed. Ensure that there are labels
on the equipment stating the equipment
contains flammable refrigerant.
15. Recovery
When removing refrigerant from a
system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
removed safely. When transferring
refrigerant into cylinders, ensure that only
appropriate refrigerant recovery
cylinders are employed. Ensure that the
correct number of cylinders for holding
the total system charge is available. All
cylinders to be used are designated for
the recovered refrigerant and labelled for
that refrigerant (i.e. special cylinders for
the recovery of refrigerant). Cylinders
shall be complete with pressure relief
valve and associated shut-off valves in
good working order. Empty recovery
work to take place. Ensure that the outlet
for the vacuum pump is not close to any
potential ignition sources and that
ventilation is available.
12. Charging procedures
In addition to conventional charging
procedures, the following requirements
shall be followed. Ensure that
contamination of different refrigerants
does not occur when using charging
equipment. Hoses or lines shall be as
short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept in an appropriate
position according to the instructions.
Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant. Label the system when
charging is complete (if not already).
Extreme care shall be taken not to overfill
the refrigeration system. Prior to
recharging the system it shall be pressure
tested with OFN. The system shall be leak
tested on completion of charging but
prior to commissioning. A follow up leak
test shall be carried out prior to leaving
the site.
13. Decommissioning
Before carrying out this procedure, it is
essential that the technician is completely
familiar with the equipment and all its
detail. It is recommended good practice
that all refrigerants are recovered safely.
Prior to the task being carried out, an oil
and refrigerant sample shall be taken in
case analysis is required prior to re-use of
reclaimed refrigerant. It is essential that
electrical power is available before the
task is commenced.
a) Become familiar with the equipment and
its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure
that: Mechanical handling equipment is
available, if required, for handling
refrigerant cylinders; All personal
protective equipment is available and
being used correctly; The recovery
process is supervised at all times by a
competent person; Recovery equipment
and cylinders conform to the appropriate
cylinders are evacuated and, if possible,
cooled before recovery occurs.
The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand
and shall be suitable for the recovery of
flammable refrigerants. If in doubt, the
manufacturer should be consulted. In
addition, a set of calibrated weighing
scales shall be available and in good
working order. Hoses shall be complete
with leak-free disconnect couplings and
in good condition.
The recovered refrigerant shall be
processed according to local legislation in
the correct recovery cylinder, and the
relevant waste transfer note arranged.
Do not mix refrigerants in recovery units
and especially not in cylinders.
If compressors or compressor oils are to
be removed, ensure that they have been
evacuated to an acceptable level to make
certain that flammable refrigerant does
not remain within the lubricant. The
compressor body shall not be heated by
an open flame or other ignition sources to
accelerate this process. When oil is
drained from a system, it shall be carried
out safely.
• DO NOT modify the length of the power
cord or use an extension cord to power
the unit.
• DO NOT share a single outlet with other
electrical appliances. Improper power
supply can cause fire or electrical shock.
• Please follow the instruction carefully to
handle, install, clear, service the air
conditioner to avoid any damage or
hazard.
• Flammable Refrigerant R32 is used within
appliance. When maintaining or disposing
the appliance, the refrigerant (R32) shall
be recovered properly, shall not discharge
to air directly.
• Compliance with national gas regulations
shall be observed.
• Keep ventilation openings clear of
obstruction.
• The appliance shall be stored so as to
prevent mechanical damage from
occurring.
• The appliance shall be store in a
well-ventilated area where the room size
corresponds to the room area as specified
for operation.
• Any person who is involved with working
on or breaking into a refrigerant circuit
should hold a current valid certificate from
an industry-accredited assessment
authority, which authorises their
competence to handle refrigerants safely
in accordance with an industry recognised
assessment specification. All training shall
follow the ANNEX HH requirements of UL
60335-2-40 4th Edition.
Examples for such working procedures are:
• breaking into the refrigerating circuit;
• opening of sealed components;
• opening of ventilated enclosures.
• No any open fire or device like switch
which may generate spark/arcing shall be
around air conditioner to avoid causing
ignition of the flammable refrigerant used.
Please follow the instruction carefully to
store or maintain the air conditioner to
prevent mechanical damage from
occurring.
• Do not use means to accelerate the
defrosting process or to clean, other than
those recommended by the
manufacturer.
• The appliance shall be stored in a room
without continuously operating ignition
sources (for example: open flames, an
operating gas appliance) and ignition
sources or (for example: an operating
electric heater) close to the appliance.
• Do not pierce or burn.
• Be aware that the refrigerants may not
contain an odour.
1. Transport of equipment containing
flammable refrigerants.
See transport regulations.
2. Marking of equipment using signs
See local regulations.
3. Disposal of equipment using flammable
refrigerants
See national regulations.
4. Storage of equipment/appliances
The storage of the appliance should be in
accordance with the applicable
regulations or instructions, whichever is
more stringent.
5. Storage of packed (unsold) equipment
Storage package protection should be
constructed such that mechanical
damage to the equipment inside the
package will not cause a leak of the
refrigerant charge. The maximum
number of pieces of equipment
permitted to be stored together will be
determined by local regulations.
6. Information on servicing
a) Checks to the area
Prior to beginning work on systems
containing flammable refrigerants, safety
checks are necessary to ensure that the
risk of ignition is minimised. For repair to
the refrigerating system, the following
precautions shall be complied with prior
to conducting work on the system.
b) Work procedure
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
5IMPORTANT SAFETY INSTRUCTIONS
any hot work. A degree of ventilation shall
continue during the period that the work
is carried out. The ventilation should
safely disperse any released refrigerant
and preferably expel it externally into the
atmosphere.
h) Checks to the refrigerating equipment
Where electrical components are being
changed, they shall be fit for the purpose
and to the correct specification. At all
times the manufacturer's maintenance
and service guidelines shall be followed. If
in doubt consult the manufacturer's
technical department for assistance. The
following checks shall be applied to
installations using flammable refrigerants:
The actual refrigerant charge is in
accordance with the room size within
which the refrigerant containing parts are
installed; The ventilation machinery and
outlets are operating adequately and are
not obstructed; If an indirect refrigerating
circuit is being used, the secondary circuit
shall be checked for the presence of
refrigerant; Marking to the equipment
continues to be visible and legible.
Markings and signs that are illegible shall
be corrected; Refrigerating pipe or
components are installed in a position
where they are unlikely to be exposed to
any substance which may corrode
refrigerant containing components,
unless the components are constructed
of materials which are inherently resistant
to being corroded or are suitably
protected against being so corroded.
i) Checks to electrical devices
Repair and maintenance to electrical
components shall include initial safety
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the circuit
until it is satisfactorily dealt with. If the
fault cannot be corrected immediately
but it is necessary to continue operation,
an adequate temporary solution shall be
used. This shall be reported to the owner
of the equipment so all parties are
advised. Initial safety checks shall include:
refrigerant is found which requires
brazing, all of the refrigerant shall be
recovered from the system, or isolated
(by means of shut off valves) in a part of
the system remote from the leak.
Removal of refrigerant shall be according
to Removal and evacuation.
11. Removal and evacuation
When breaking into the refrigerant circuit
to make repairs – or for any other
purpose–conventional procedures shall
be used. However, for flammable
refrigerants it is important that best
practice be followed, since flammability is
a consideration. The following procedure
shall be adhered to:
a) Safely remove refrigerant following
local and national regulations;
b) Evacuate;
c) Purge the circuit with inert gas
(optional for A2L);
d) Evacuate (optional for A2L);
e) continuously flush or purge with inert
gas when using flame to open circuit;
and;
f) open the circuit.
The refrigerant charge shall be recovered
into the correct recovery cylinders if
venting is not allowed by local and
national codes. For appliances containing
flammable refrigerants, the system shall
be purged with oxygen-free nitrogen to
render the appliance safe for flammable
refrigerants. This process might need to
be repeated several times. Compressed
air or oxygen shall not be used for
purging refrigerant systems. For
appliances containing flammable
refrigerants, refrigerants purging shall be
achieved by breaking the vacuum in the
system with oxygen-free nitrogen and
continuing to fill until the working
pressure is achieved, then venting to
atmosphere, and finally pulling down to a
vacuum (optional for A2L). This process
shall be repeated until no refrigerant is
within the system (optional for A2L).
When the final oxygen-free nitrogen
charge is used, the system shall be vented
down to atmospheric pressure to enable
That capacitors are discharged: this shall
be done in a safe manner to avoid
possibility of sparking; That there no live
electrical components and wiring are
exposed while charging, recovering or
purging the system; That there is
continuity of earth bonding.
7. Sealed electrical components shall be
replaced.
8. Intrinsically safe components must be
replaced.
9. Cabling
Check that cabling will not be subject to
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used.
The following leak detection methods are
deemed acceptable for systems
containing flammable refrigerants.
Electronic leak detectors shall be used to
detect flammable refrigerants, but the
sensitivity may not be adequate, or may
need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area). Ensure that the
detector is not a potential source of
ignition and is suitable for the refrigerant
used. Leak detection equipment shall be
set at a percentage of the LFL of the
refrigerant and shall be calibrated to the
refrigerant employed and the appropriate
percentage of gas (25 % maximum) is
confirmed. Leak detection fluids are
suitable for use with most refrigerants but
the use of detergents containing chlorine
shall be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work. If a leak is suspected,
all naked flames shall be
removed/extinguished. If a leakage of
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated on the
scales before recovery takes place.
g) Start the recovery machine and operate
in accordance with instructions.
h) Do not overfill cylinders. (No more than
80% volume liquid charge).
i) Do not exceed the maximum working
pressure of the cylinder, even
temporarily.
j) When the cylinders have been filled
correctly and the process completed,
make sure that the cylinders and the
equipment are removed from site
promptly and all isolation valves on the
equipment are closed off.
k) Recovered refrigerant shall not be
charged into another refrigeration system
unless it has been cleaned and checked.
14.
Labelling
Equipment shall be labelled stating that it
has been de-commissioned and emptied
of refrigerant. The label shall be dated
and signed. Ensure that there are labels
on the equipment stating the equipment
contains flammable refrigerant.
15. Recovery
When removing refrigerant from a
system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
removed safely. When transferring
refrigerant into cylinders, ensure that only
appropriate refrigerant recovery
cylinders are employed. Ensure that the
correct number of cylinders for holding
the total system charge is available. All
cylinders to be used are designated for
the recovered refrigerant and labelled for
that refrigerant (i.e. special cylinders for
the recovery of refrigerant). Cylinders
shall be complete with pressure relief
valve and associated shut-off valves in
good working order. Empty recovery
work to take place. Ensure that the outlet
for the vacuum pump is not close to any
potential ignition sources and that
ventilation is available.
12. Charging procedures
In addition to conventional charging
procedures, the following requirements
shall be followed. Ensure that
contamination of different refrigerants
does not occur when using charging
equipment. Hoses or lines shall be as
short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept in an appropriate
position according to the instructions.
Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant. Label the system when
charging is complete (if not already).
Extreme care shall be taken not to overfill
the refrigeration system. Prior to
recharging the system it shall be pressure
tested with OFN. The system shall be leak
tested on completion of charging but
prior to commissioning. A follow up leak
test shall be carried out prior to leaving
the site.
13. Decommissioning
Before carrying out this procedure, it is
essential that the technician is completely
familiar with the equipment and all its
detail. It is recommended good practice
that all refrigerants are recovered safely.
Prior to the task being carried out, an oil
and refrigerant sample shall be taken in
case analysis is required prior to re-use of
reclaimed refrigerant. It is essential that
electrical power is available before the
task is commenced.
a) Become familiar with the equipment and
its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure
that: Mechanical handling equipment is
available, if required, for handling
refrigerant cylinders; All personal
protective equipment is available and
being used correctly; The recovery
process is supervised at all times by a
competent person; Recovery equipment
and cylinders conform to the appropriate
cylinders are evacuated and, if possible,
cooled before recovery occurs.
The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand
and shall be suitable for the recovery of
flammable refrigerants. If in doubt, the
manufacturer should be consulted. In
addition, a set of calibrated weighing
scales shall be available and in good
working order. Hoses shall be complete
with leak-free disconnect couplings and
in good condition.
The recovered refrigerant shall be
processed according to local legislation in
the correct recovery cylinder, and the
relevant waste transfer note arranged.
Do not mix refrigerants in recovery units
and especially not in cylinders.
If compressors or compressor oils are to
be removed, ensure that they have been
evacuated to an acceptable level to make
certain that flammable refrigerant does
not remain within the lubricant. The
compressor body shall not be heated by
an open flame or other ignition sources to
accelerate this process. When oil is
drained from a system, it shall be carried
out safely.
defrosting process or to clean, other than
those recommended by the
manufacturer.
• The appliance shall be stored in a room
without continuously operating ignition
sources (for example: open flames, an
operating gas appliance) and ignition
sources or (for example: an operating
electric heater) close to the appliance.
• Do not pierce or burn.
• Be aware that the refrigerants may not
contain an odour.
1. Transport of equipment containing
flammable refrigerants.
See transport regulations.
2. Marking of equipment using signs
See local regulations.
3. Disposal of equipment using flammable
refrigerants
See national regulations.
4. Storage of equipment/appliances
The storage of the appliance should be in
accordance with the applicable
regulations or instructions, whichever is
more stringent.
5. Storage of packed (unsold) equipment
Storage package protection should be
constructed such that mechanical
damage to the equipment inside the
package will not cause a leak of the
refrigerant charge. The maximum
number of pieces of equipment
permitted to be stored together will be
determined by local regulations.
6. Information on servicing
a) Checks to the area
Prior to beginning work on systems
containing flammable refrigerants, safety
checks are necessary to ensure that the
risk of ignition is minimised. For repair to
the refrigerating system, the following
precautions shall be complied with prior
to conducting work on the system.
b) Work procedure
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
c) General work area
All maintenance staff and others working
in the local area shall be instructed on the
nature of work being carried out. Work in
confined spaces shall be avoided. The
area around the workspace shall be
sectioned off. Ensure that the conditions
within the area have been made safe by
control of flammable material.
d) Checking for presence of refrigerant
The area shall be checked with an
appropriate refrigerating detector prior
to and during work, to ensure the
technician is aware of potentially
flammable atmospheres. Ensure that the
leak detection equipment being used is
suitable for use with flammable
refrigerants, i.e. non-sparking, adequately
sealed or intrinsically safe.
e) Presence of fire extinguisher
If any hot work is to be conducted on the
refrigeration equipment or any
associated parts, appropriate fire
extinguishing equipment shall be
available to hand. Have a dry powder or
CO2 fire extinguisher adjacent to the
charging area.
f) No ignition sources
No person carrying out work in relation to
a refrigerating system which involves
exposing any pipe work that contains or
has contained flammable refrigerant shall
use any sources of ignition in such a
manner that it may lead to the risk of fire
or explosion. All possible ignition sources,
including cigarette smoking, should be
kept sufficiently far away from the site of
installation, repairing, removing and
disposal, during which flammable
refrigerant can possibly be released to
the surrounding space. Prior to work
taking place, the area around the
equipment is to be surveyed to make sure
that there are no flammable hazards or
ignition risks. No Smoking signs shall be
displayed.
g) Ventilated area
Ensure that the area is in the open or that
it is adequately ventilated before
breaking into the system or conducting
any hot work. A degree of ventilation shall
continue during the period that the work
is carried out. The ventilation should
safely disperse any released refrigerant
and preferably expel it externally into the
atmosphere.
h) Checks to the refrigerating equipment
Where electrical components are being
changed, they shall be fit for the purpose
and to the correct specification. At all
times the manufacturer's maintenance
and service guidelines shall be followed. If
in doubt consult the manufacturer's
technical department for assistance. The
following checks shall be applied to
installations using flammable refrigerants:
The actual refrigerant charge is in
accordance with the room size within
which the refrigerant containing parts are
installed; The ventilation machinery and
outlets are operating adequately and are
not obstructed; If an indirect refrigerating
circuit is being used, the secondary circuit
shall be checked for the presence of
refrigerant; Marking to the equipment
continues to be visible and legible.
Markings and signs that are illegible shall
be corrected; Refrigerating pipe or
components are installed in a position
where they are unlikely to be exposed to
any substance which may corrode
refrigerant containing components,
unless the components are constructed
of materials which are inherently resistant
to being corroded or are suitably
protected against being so corroded.
i) Checks to electrical devices
Repair and maintenance to electrical
components shall include initial safety
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the circuit
until it is satisfactorily dealt with. If the
fault cannot be corrected immediately
but it is necessary to continue operation,
an adequate temporary solution shall be
used. This shall be reported to the owner
of the equipment so all parties are
advised. Initial safety checks shall include:
6 IMPORTANT SAFETY INSTRUCTIONS
refrigerant is found which requires
brazing, all of the refrigerant shall be
recovered from the system, or isolated
(by means of shut off valves) in a part of
the system remote from the leak.
Removal of refrigerant shall be according
to Removal and evacuation.
11. Removal and evacuation
When breaking into the refrigerant circuit
to make repairs – or for any other
purpose–conventional procedures shall
be used. However, for flammable
refrigerants it is important that best
practice be followed, since flammability is
a consideration. The following procedure
shall be adhered to:
a) Safely remove refrigerant following
local and national regulations;
b) Evacuate;
c) Purge the circuit with inert gas
(optional for A2L);
d) Evacuate (optional for A2L);
e) continuously flush or purge with inert
gas when using flame to open circuit;
and;
f) open the circuit.
The refrigerant charge shall be recovered
into the correct recovery cylinders if
venting is not allowed by local and
national codes. For appliances containing
flammable refrigerants, the system shall
be purged with oxygen-free nitrogen to
render the appliance safe for flammable
refrigerants. This process might need to
be repeated several times. Compressed
air or oxygen shall not be used for
purging refrigerant systems. For
appliances containing flammable
refrigerants, refrigerants purging shall be
achieved by breaking the vacuum in the
system with oxygen-free nitrogen and
continuing to fill until the working
pressure is achieved, then venting to
atmosphere, and finally pulling down to a
vacuum (optional for A2L). This process
shall be repeated until no refrigerant is
within the system (optional for A2L).
When the final oxygen-free nitrogen
charge is used, the system shall be vented
down to atmospheric pressure to enable
That capacitors are discharged: this shall
be done in a safe manner to avoid
possibility of sparking; That there no live
electrical components and wiring are
exposed while charging, recovering or
purging the system; That there is
continuity of earth bonding.
7. Sealed electrical components shall be
replaced.
8. Intrinsically safe components must be
replaced.
9. Cabling
Check that cabling will not be subject to
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used.
The following leak detection methods are
deemed acceptable for systems
containing flammable refrigerants.
Electronic leak detectors shall be used to
detect flammable refrigerants, but the
sensitivity may not be adequate, or may
need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area). Ensure that the
detector is not a potential source of
ignition and is suitable for the refrigerant
used. Leak detection equipment shall be
set at a percentage of the LFL of the
refrigerant and shall be calibrated to the
refrigerant employed and the appropriate
percentage of gas (25 % maximum) is
confirmed. Leak detection fluids are
suitable for use with most refrigerants but
the use of detergents containing chlorine
shall be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work. If a leak is suspected,
all naked flames shall be
removed/extinguished. If a leakage of
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated on the
scales before recovery takes place.
g) Start the recovery machine and operate
in accordance with instructions.
h) Do not overfill cylinders. (No more than
80% volume liquid charge).
i) Do not exceed the maximum working
pressure of the cylinder, even
temporarily.
j) When the cylinders have been filled
correctly and the process completed,
make sure that the cylinders and the
equipment are removed from site
promptly and all isolation valves on the
equipment are closed off.
k) Recovered refrigerant shall not be
charged into another refrigeration system
unless it has been cleaned and checked.
14.
Labelling
Equipment shall be labelled stating that it
has been de-commissioned and emptied
of refrigerant. The label shall be dated
and signed. Ensure that there are labels
on the equipment stating the equipment
contains flammable refrigerant.
15. Recovery
When removing refrigerant from a
system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
removed safely. When transferring
refrigerant into cylinders, ensure that only
appropriate refrigerant recovery
cylinders are employed. Ensure that the
correct number of cylinders for holding
the total system charge is available. All
cylinders to be used are designated for
the recovered refrigerant and labelled for
that refrigerant (i.e. special cylinders for
the recovery of refrigerant). Cylinders
shall be complete with pressure relief
valve and associated shut-off valves in
good working order. Empty recovery
work to take place. Ensure that the outlet
for the vacuum pump is not close to any
potential ignition sources and that
ventilation is available.
12. Charging procedures
In addition to conventional charging
procedures, the following requirements
shall be followed. Ensure that
contamination of different refrigerants
does not occur when using charging
equipment. Hoses or lines shall be as
short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept in an appropriate
position according to the instructions.
Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant. Label the system when
charging is complete (if not already).
Extreme care shall be taken not to overfill
the refrigeration system. Prior to
recharging the system it shall be pressure
tested with OFN. The system shall be leak
tested on completion of charging but
prior to commissioning. A follow up leak
test shall be carried out prior to leaving
the site.
13. Decommissioning
Before carrying out this procedure, it is
essential that the technician is completely
familiar with the equipment and all its
detail. It is recommended good practice
that all refrigerants are recovered safely.
Prior to the task being carried out, an oil
and refrigerant sample shall be taken in
case analysis is required prior to re-use of
reclaimed refrigerant. It is essential that
electrical power is available before the
task is commenced.
a) Become familiar with the equipment and
its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure
that: Mechanical handling equipment is
available, if required, for handling
refrigerant cylinders; All personal
protective equipment is available and
being used correctly; The recovery
process is supervised at all times by a
competent person; Recovery equipment
and cylinders conform to the appropriate
cylinders are evacuated and, if possible,
cooled before recovery occurs.
The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand
and shall be suitable for the recovery of
flammable refrigerants. If in doubt, the
manufacturer should be consulted. In
addition, a set of calibrated weighing
scales shall be available and in good
working order. Hoses shall be complete
with leak-free disconnect couplings and
in good condition.
The recovered refrigerant shall be
processed according to local legislation in
the correct recovery cylinder, and the
relevant waste transfer note arranged.
Do not mix refrigerants in recovery units
and especially not in cylinders.
If compressors or compressor oils are to
be removed, ensure that they have been
evacuated to an acceptable level to make
certain that flammable refrigerant does
not remain within the lubricant. The
compressor body shall not be heated by
an open flame or other ignition sources to
accelerate this process. When oil is
drained from a system, it shall be carried
out safely.
defrosting process or to clean, other than
those recommended by the
manufacturer.
• The appliance shall be stored in a room
without continuously operating ignition
sources (for example: open flames, an
operating gas appliance) and ignition
sources or (for example: an operating
electric heater) close to the appliance.
• Do not pierce or burn.
• Be aware that the refrigerants may not
contain an odour.
1. Transport of equipment containing
flammable refrigerants.
See transport regulations.
2. Marking of equipment using signs
See local regulations.
3. Disposal of equipment using flammable
refrigerants
See national regulations.
4. Storage of equipment/appliances
The storage of the appliance should be in
accordance with the applicable
regulations or instructions, whichever is
more stringent.
5. Storage of packed (unsold) equipment
Storage package protection should be
constructed such that mechanical
damage to the equipment inside the
package will not cause a leak of the
refrigerant charge. The maximum
number of pieces of equipment
permitted to be stored together will be
determined by local regulations.
6. Information on servicing
a) Checks to the area
Prior to beginning work on systems
containing flammable refrigerants, safety
checks are necessary to ensure that the
risk of ignition is minimised. For repair to
the refrigerating system, the following
precautions shall be complied with prior
to conducting work on the system.
b) Work procedure
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
any hot work. A degree of ventilation shall
continue during the period that the work
is carried out. The ventilation should
safely disperse any released refrigerant
and preferably expel it externally into the
atmosphere.
h) Checks to the refrigerating equipment
Where electrical components are being
changed, they shall be fit for the purpose
and to the correct specification. At all
times the manufacturer's maintenance
and service guidelines shall be followed. If
in doubt consult the manufacturer's
technical department for assistance. The
following checks shall be applied to
installations using flammable refrigerants:
The actual refrigerant charge is in
accordance with the room size within
which the refrigerant containing parts are
installed; The ventilation machinery and
outlets are operating adequately and are
not obstructed; If an indirect refrigerating
circuit is being used, the secondary circuit
shall be checked for the presence of
refrigerant; Marking to the equipment
continues to be visible and legible.
Markings and signs that are illegible shall
be corrected; Refrigerating pipe or
components are installed in a position
where they are unlikely to be exposed to
any substance which may corrode
refrigerant containing components,
unless the components are constructed
of materials which are inherently resistant
to being corroded or are suitably
protected against being so corroded.
i) Checks to electrical devices
Repair and maintenance to electrical
components shall include initial safety
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the circuit
until it is satisfactorily dealt with. If the
fault cannot be corrected immediately
but it is necessary to continue operation,
an adequate temporary solution shall be
used. This shall be reported to the owner
of the equipment so all parties are
advised. Initial safety checks shall include:
refrigerant is found which requires
brazing, all of the refrigerant shall be
recovered from the system, or isolated
(by means of shut off valves) in a part of
the system remote from the leak.
Removal of refrigerant shall be according
to Removal and evacuation.
11. Removal and evacuation
When breaking into the refrigerant circuit
to make repairs – or for any other
purpose–conventional procedures shall
be used. However, for flammable
refrigerants it is important that best
practice be followed, since flammability is
a consideration. The following procedure
shall be adhered to:
a) Safely remove refrigerant following
local and national regulations;
b) Evacuate;
c) Purge the circuit with inert gas
(optional for A2L);
d) Evacuate (optional for A2L);
e) continuously flush or purge with inert
gas when using flame to open circuit;
and;
f) open the circuit.
The refrigerant charge shall be recovered
into the correct recovery cylinders if
venting is not allowed by local and
national codes. For appliances containing
flammable refrigerants, the system shall
be purged with oxygen-free nitrogen to
render the appliance safe for flammable
refrigerants. This process might need to
be repeated several times. Compressed
air or oxygen shall not be used for
purging refrigerant systems. For
appliances containing flammable
refrigerants, refrigerants purging shall be
achieved by breaking the vacuum in the
system with oxygen-free nitrogen and
continuing to fill until the working
pressure is achieved, then venting to
atmosphere, and finally pulling down to a
vacuum (optional for A2L). This process
shall be repeated until no refrigerant is
within the system (optional for A2L).
When the final oxygen-free nitrogen
charge is used, the system shall be vented
down to atmospheric pressure to enable
That capacitors are discharged: this shall
be done in a safe manner to avoid
possibility of sparking; That there no live
electrical components and wiring are
exposed while charging, recovering or
purging the system; That there is
continuity of earth bonding.
7. Sealed electrical components shall be
replaced.
8. Intrinsically safe components must be
replaced.
9. Cabling
Check that cabling will not be subject to
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used.
The following leak detection methods are
deemed acceptable for systems
containing flammable refrigerants.
Electronic leak detectors shall be used to
detect flammable refrigerants, but the
sensitivity may not be adequate, or may
need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area). Ensure that the
detector is not a potential source of
ignition and is suitable for the refrigerant
used. Leak detection equipment shall be
set at a percentage of the LFL of the
refrigerant and shall be calibrated to the
refrigerant employed and the appropriate
percentage of gas (25 % maximum) is
confirmed. Leak detection fluids are
suitable for use with most refrigerants but
the use of detergents containing chlorine
shall be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work. If a leak is suspected,
all naked flames shall be
removed/extinguished. If a leakage of
7IMPORTANT SAFETY INSTRUCTIONS
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated on the
scales before recovery takes place.
g) Start the recovery machine and operate
in accordance with instructions.
h) Do not overfill cylinders. (No more than
80% volume liquid charge).
i) Do not exceed the maximum working
pressure of the cylinder, even
temporarily.
j) When the cylinders have been filled
correctly and the process completed,
make sure that the cylinders and the
equipment are removed from site
promptly and all isolation valves on the
equipment are closed off.
k) Recovered refrigerant shall not be
charged into another refrigeration system
unless it has been cleaned and checked.
14.
Labelling
Equipment shall be labelled stating that it
has been de-commissioned and emptied
of refrigerant. The label shall be dated
and signed. Ensure that there are labels
on the equipment stating the equipment
contains flammable refrigerant.
15. Recovery
When removing refrigerant from a
system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
removed safely. When transferring
refrigerant into cylinders, ensure that only
appropriate refrigerant recovery
cylinders are employed. Ensure that the
correct number of cylinders for holding
the total system charge is available. All
cylinders to be used are designated for
the recovered refrigerant and labelled for
that refrigerant (i.e. special cylinders for
the recovery of refrigerant). Cylinders
shall be complete with pressure relief
valve and associated shut-off valves in
good working order. Empty recovery
work to take place. Ensure that the outlet
for the vacuum pump is not close to any
potential ignition sources and that
ventilation is available.
12. Charging procedures
In addition to conventional charging
procedures, the following requirements
shall be followed. Ensure that
contamination of different refrigerants
does not occur when using charging
equipment. Hoses or lines shall be as
short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept in an appropriate
position according to the instructions.
Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant. Label the system when
charging is complete (if not already).
Extreme care shall be taken not to overfill
the refrigeration system. Prior to
recharging the system it shall be pressure
tested with OFN. The system shall be leak
tested on completion of charging but
prior to commissioning. A follow up leak
test shall be carried out prior to leaving
the site.
13. Decommissioning
Before carrying out this procedure, it is
essential that the technician is completely
familiar with the equipment and all its
detail. It is recommended good practice
that all refrigerants are recovered safely.
Prior to the task being carried out, an oil
and refrigerant sample shall be taken in
case analysis is required prior to re-use of
reclaimed refrigerant. It is essential that
electrical power is available before the
task is commenced.
a) Become familiar with the equipment and
its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure
that: Mechanical handling equipment is
available, if required, for handling
refrigerant cylinders; All personal
protective equipment is available and
being used correctly; The recovery
process is supervised at all times by a
competent person; Recovery equipment
and cylinders conform to the appropriate
cylinders are evacuated and, if possible,
cooled before recovery occurs.
The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand
and shall be suitable for the recovery of
flammable refrigerants. If in doubt, the
manufacturer should be consulted. In
addition, a set of calibrated weighing
scales shall be available and in good
working order. Hoses shall be complete
with leak-free disconnect couplings and
in good condition.
The recovered refrigerant shall be
processed according to local legislation in
the correct recovery cylinder, and the
relevant waste transfer note arranged.
Do not mix refrigerants in recovery units
and especially not in cylinders.
If compressors or compressor oils are to
be removed, ensure that they have been
evacuated to an acceptable level to make
certain that flammable refrigerant does
not remain within the lubricant. The
compressor body shall not be heated by
an open flame or other ignition sources to
accelerate this process. When oil is
drained from a system, it shall be carried
out safely.
defrosting process or to clean, other than
those recommended by the
manufacturer.
• The appliance shall be stored in a room
without continuously operating ignition
sources (for example: open flames, an
operating gas appliance) and ignition
sources or (for example: an operating
electric heater) close to the appliance.
• Do not pierce or burn.
• Be aware that the refrigerants may not
contain an odour.
1. Transport of equipment containing
flammable refrigerants.
See transport regulations.
2. Marking of equipment using signs
See local regulations.
3. Disposal of equipment using flammable
refrigerants
See national regulations.
4. Storage of equipment/appliances
The storage of the appliance should be in
accordance with the applicable
regulations or instructions, whichever is
more stringent.
5. Storage of packed (unsold) equipment
Storage package protection should be
constructed such that mechanical
damage to the equipment inside the
package will not cause a leak of the
refrigerant charge. The maximum
number of pieces of equipment
permitted to be stored together will be
determined by local regulations.
6. Information on servicing
a) Checks to the area
Prior to beginning work on systems
containing flammable refrigerants, safety
checks are necessary to ensure that the
risk of ignition is minimised. For repair to
the refrigerating system, the following
precautions shall be complied with prior
to conducting work on the system.
b) Work procedure
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
any hot work. A degree of ventilation shall
continue during the period that the work
is carried out. The ventilation should
safely disperse any released refrigerant
and preferably expel it externally into the
atmosphere.
h) Checks to the refrigerating equipment
Where electrical components are being
changed, they shall be fit for the purpose
and to the correct specification. At all
times the manufacturer's maintenance
and service guidelines shall be followed. If
in doubt consult the manufacturer's
technical department for assistance. The
following checks shall be applied to
installations using flammable refrigerants:
The actual refrigerant charge is in
accordance with the room size within
which the refrigerant containing parts are
installed; The ventilation machinery and
outlets are operating adequately and are
not obstructed; If an indirect refrigerating
circuit is being used, the secondary circuit
shall be checked for the presence of
refrigerant; Marking to the equipment
continues to be visible and legible.
Markings and signs that are illegible shall
be corrected; Refrigerating pipe or
components are installed in a position
where they are unlikely to be exposed to
any substance which may corrode
refrigerant containing components,
unless the components are constructed
of materials which are inherently resistant
to being corroded or are suitably
protected against being so corroded.
i) Checks to electrical devices
Repair and maintenance to electrical
components shall include initial safety
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the circuit
until it is satisfactorily dealt with. If the
fault cannot be corrected immediately
but it is necessary to continue operation,
an adequate temporary solution shall be
used. This shall be reported to the owner
of the equipment so all parties are
advised. Initial safety checks shall include:
refrigerant is found which requires
brazing, all of the refrigerant shall be
recovered from the system, or isolated
(by means of shut off valves) in a part of
the system remote from the leak.
Removal of refrigerant shall be according
to Removal and evacuation.
11. Removal and evacuation
When breaking into the refrigerant circuit
to make repairs – or for any other
purpose–conventional procedures shall
be used. However, for flammable
refrigerants it is important that best
practice be followed, since flammability is
a consideration. The following procedure
shall be adhered to:
a) Safely remove refrigerant following
local and national regulations;
b) Evacuate;
c) Purge the circuit with inert gas
(optional for A2L);
d) Evacuate (optional for A2L);
e) continuously flush or purge with inert
gas when using flame to open circuit;
and;
f) open the circuit.
The refrigerant charge shall be recovered
into the correct recovery cylinders if
venting is not allowed by local and
national codes. For appliances containing
flammable refrigerants, the system shall
be purged with oxygen-free nitrogen to
render the appliance safe for flammable
refrigerants. This process might need to
be repeated several times. Compressed
air or oxygen shall not be used for
purging refrigerant systems. For
appliances containing flammable
refrigerants, refrigerants purging shall be
achieved by breaking the vacuum in the
system with oxygen-free nitrogen and
continuing to fill until the working
pressure is achieved, then venting to
atmosphere, and finally pulling down to a
vacuum (optional for A2L). This process
shall be repeated until no refrigerant is
within the system (optional for A2L).
When the final oxygen-free nitrogen
charge is used, the system shall be vented
down to atmospheric pressure to enable
That capacitors are discharged: this shall
be done in a safe manner to avoid
possibility of sparking; That there no live
electrical components and wiring are
exposed while charging, recovering or
purging the system; That there is
continuity of earth bonding.
7. Sealed electrical components shall be
replaced.
8. Intrinsically safe components must be
replaced.
9. Cabling
Check that cabling will not be subject to
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used.
The following leak detection methods are
deemed acceptable for systems
containing flammable refrigerants.
Electronic leak detectors shall be used to
detect flammable refrigerants, but the
sensitivity may not be adequate, or may
need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area). Ensure that the
detector is not a potential source of
ignition and is suitable for the refrigerant
used. Leak detection equipment shall be
set at a percentage of the LFL of the
refrigerant and shall be calibrated to the
refrigerant employed and the appropriate
percentage of gas (25 % maximum) is
confirmed. Leak detection fluids are
suitable for use with most refrigerants but
the use of detergents containing chlorine
shall be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work. If a leak is suspected,
all naked flames shall be
removed/extinguished. If a leakage of
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated on the
scales before recovery takes place.
g) Start the recovery machine and operate
in accordance with instructions.
h) Do not overfill cylinders. (No more than
80% volume liquid charge).
i) Do not exceed the maximum working
pressure of the cylinder, even
temporarily.
j) When the cylinders have been filled
correctly and the process completed,
make sure that the cylinders and the
equipment are removed from site
promptly and all isolation valves on the
equipment are closed off.
k) Recovered refrigerant shall not be
charged into another refrigeration system
unless it has been cleaned and checked.
14.
Labelling
Equipment shall be labelled stating that it
has been de-commissioned and emptied
of refrigerant. The label shall be dated
and signed. Ensure that there are labels
on the equipment stating the equipment
contains flammable refrigerant.
15. Recovery
When removing refrigerant from a
system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
removed safely. When transferring
refrigerant into cylinders, ensure that only
appropriate refrigerant recovery
cylinders are employed. Ensure that the
correct number of cylinders for holding
the total system charge is available. All
cylinders to be used are designated for
the recovered refrigerant and labelled for
that refrigerant (i.e. special cylinders for
the recovery of refrigerant). Cylinders
shall be complete with pressure relief
valve and associated shut-off valves in
good working order. Empty recovery
work to take place. Ensure that the outlet
for the vacuum pump is not close to any
potential ignition sources and that
ventilation is available.
12. Charging procedures
In addition to conventional charging
procedures, the following requirements
shall be followed. Ensure that
contamination of different refrigerants
does not occur when using charging
equipment. Hoses or lines shall be as
short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept in an appropriate
position according to the instructions.
Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant. Label the system when
charging is complete (if not already).
Extreme care shall be taken not to overfill
the refrigeration system. Prior to
recharging the system it shall be pressure
tested with OFN. The system shall be leak
tested on completion of charging but
prior to commissioning. A follow up leak
test shall be carried out prior to leaving
the site.
13. Decommissioning
Before carrying out this procedure, it is
essential that the technician is completely
familiar with the equipment and all its
detail. It is recommended good practice
that all refrigerants are recovered safely.
Prior to the task being carried out, an oil
and refrigerant sample shall be taken in
case analysis is required prior to re-use of
reclaimed refrigerant. It is essential that
electrical power is available before the
task is commenced.
a) Become familiar with the equipment and
its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure
that: Mechanical handling equipment is
available, if required, for handling
refrigerant cylinders; All personal
protective equipment is available and
being used correctly; The recovery
process is supervised at all times by a
competent person; Recovery equipment
and cylinders conform to the appropriate
8 IMPORTANT SAFETY INSTRUCTIONS
cylinders are evacuated and, if possible,
cooled before recovery occurs.
The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand
and shall be suitable for the recovery of
flammable refrigerants. If in doubt, the
manufacturer should be consulted. In
addition, a set of calibrated weighing
scales shall be available and in good
working order. Hoses shall be complete
with leak-free disconnect couplings and
in good condition.
The recovered refrigerant shall be
processed according to local legislation in
the correct recovery cylinder, and the
relevant waste transfer note arranged.
Do not mix refrigerants in recovery units
and especially not in cylinders.
If compressors or compressor oils are to
be removed, ensure that they have been
evacuated to an acceptable level to make
certain that flammable refrigerant does
not remain within the lubricant. The
compressor body shall not be heated by
an open flame or other ignition sources to
accelerate this process. When oil is
drained from a system, it shall be carried
out safely.
defrosting process or to clean, other than
those recommended by the
manufacturer.
• The appliance shall be stored in a room
without continuously operating ignition
sources (for example: open flames, an
operating gas appliance) and ignition
sources or (for example: an operating
electric heater) close to the appliance.
• Do not pierce or burn.
• Be aware that the refrigerants may not
contain an odour.
1. Transport of equipment containing
flammable refrigerants.
See transport regulations.
2. Marking of equipment using signs
See local regulations.
3. Disposal of equipment using flammable
refrigerants
See national regulations.
4. Storage of equipment/appliances
The storage of the appliance should be in
accordance with the applicable
regulations or instructions, whichever is
more stringent.
5. Storage of packed (unsold) equipment
Storage package protection should be
constructed such that mechanical
damage to the equipment inside the
package will not cause a leak of the
refrigerant charge. The maximum
number of pieces of equipment
permitted to be stored together will be
determined by local regulations.
6. Information on servicing
a) Checks to the area
Prior to beginning work on systems
containing flammable refrigerants, safety
checks are necessary to ensure that the
risk of ignition is minimised. For repair to
the refrigerating system, the following
precautions shall be complied with prior
to conducting work on the system.
b) Work procedure
Work shall be undertaken under a
controlled procedure so as to minimise
the risk of a flammable gas or vapour
being present while the work is being
performed.
any hot work. A degree of ventilation shall
continue during the period that the work
is carried out. The ventilation should
safely disperse any released refrigerant
and preferably expel it externally into the
atmosphere.
h) Checks to the refrigerating equipment
Where electrical components are being
changed, they shall be fit for the purpose
and to the correct specification. At all
times the manufacturer's maintenance
and service guidelines shall be followed. If
in doubt consult the manufacturer's
technical department for assistance. The
following checks shall be applied to
installations using flammable refrigerants:
The actual refrigerant charge is in
accordance with the room size within
which the refrigerant containing parts are
installed; The ventilation machinery and
outlets are operating adequately and are
not obstructed; If an indirect refrigerating
circuit is being used, the secondary circuit
shall be checked for the presence of
refrigerant; Marking to the equipment
continues to be visible and legible.
Markings and signs that are illegible shall
be corrected; Refrigerating pipe or
components are installed in a position
where they are unlikely to be exposed to
any substance which may corrode
refrigerant containing components,
unless the components are constructed
of materials which are inherently resistant
to being corroded or are suitably
protected against being so corroded.
i) Checks to electrical devices
Repair and maintenance to electrical
components shall include initial safety
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical
supply shall be connected to the circuit
until it is satisfactorily dealt with. If the
fault cannot be corrected immediately
but it is necessary to continue operation,
an adequate temporary solution shall be
used. This shall be reported to the owner
of the equipment so all parties are
advised. Initial safety checks shall include:
refrigerant is found which requires
brazing, all of the refrigerant shall be
recovered from the system, or isolated
(by means of shut off valves) in a part of
the system remote from the leak.
Removal of refrigerant shall be according
to Removal and evacuation.
11. Removal and evacuation
When breaking into the refrigerant circuit
to make repairs – or for any other
purpose–conventional procedures shall
be used. However, for flammable
refrigerants it is important that best
practice be followed, since flammability is
a consideration. The following procedure
shall be adhered to:
a) Safely remove refrigerant following
local and national regulations;
b) Evacuate;
c) Purge the circuit with inert gas
(optional for A2L);
d) Evacuate (optional for A2L);
e) continuously flush or purge with inert
gas when using flame to open circuit;
and;
f) open the circuit.
The refrigerant charge shall be recovered
into the correct recovery cylinders if
venting is not allowed by local and
national codes. For appliances containing
flammable refrigerants, the system shall
be purged with oxygen-free nitrogen to
render the appliance safe for flammable
refrigerants. This process might need to
be repeated several times. Compressed
air or oxygen shall not be used for
purging refrigerant systems. For
appliances containing flammable
refrigerants, refrigerants purging shall be
achieved by breaking the vacuum in the
system with oxygen-free nitrogen and
continuing to fill until the working
pressure is achieved, then venting to
atmosphere, and finally pulling down to a
vacuum (optional for A2L). This process
shall be repeated until no refrigerant is
within the system (optional for A2L).
When the final oxygen-free nitrogen
charge is used, the system shall be vented
down to atmospheric pressure to enable
That capacitors are discharged: this shall
be done in a safe manner to avoid
possibility of sparking; That there no live
electrical components and wiring are
exposed while charging, recovering or
purging the system; That there is
continuity of earth bonding.
7. Sealed electrical components shall be
replaced.
8. Intrinsically safe components must be
replaced.
9. Cabling
Check that cabling will not be subject to
wear, corrosion, excessive pressure,
vibration, sharp edges or any other
adverse environmental effects. The check
shall also take into account the effects of
aging or continual vibration from sources
such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential
sources of ignition be used in the
searching for or detection of refrigerant
leaks. A halide torch (or any other
detector using a naked flame) shall not be
used.
The following leak detection methods are
deemed acceptable for systems
containing flammable refrigerants.
Electronic leak detectors shall be used to
detect flammable refrigerants, but the
sensitivity may not be adequate, or may
need re-calibration. (Detection
equipment shall be calibrated in a
refrigerant-free area). Ensure that the
detector is not a potential source of
ignition and is suitable for the refrigerant
used. Leak detection equipment shall be
set at a percentage of the LFL of the
refrigerant and shall be calibrated to the
refrigerant employed and the appropriate
percentage of gas (25 % maximum) is
confirmed. Leak detection fluids are
suitable for use with most refrigerants but
the use of detergents containing chlorine
shall be avoided as the chlorine may react
with the refrigerant and corrode the
copper pipe-work. If a leak is suspected,
all naked flames shall be
removed/extinguished. If a leakage of
standards.
d) Pump down refrigerant system, if
possible.
e) If a vacuum is not possible, make a
manifold so that refrigerant can be
removed from various parts of the
system.
f) Make sure that cylinder is situated on the
scales before recovery takes place.
g) Start the recovery machine and operate
in accordance with instructions.
h) Do not overfill cylinders. (No more than
80% volume liquid charge).
i) Do not exceed the maximum working
pressure of the cylinder, even
temporarily.
j) When the cylinders have been filled
correctly and the process completed,
make sure that the cylinders and the
equipment are removed from site
promptly and all isolation valves on the
equipment are closed off.
k) Recovered refrigerant shall not be
charged into another refrigeration system
unless it has been cleaned and checked.
14.
Labelling
Equipment shall be labelled stating that it
has been de-commissioned and emptied
of refrigerant. The label shall be dated
and signed. Ensure that there are labels
on the equipment stating the equipment
contains flammable refrigerant.
15. Recovery
When removing refrigerant from a
system, either for servicing or
decommissioning, it is recommended
good practice that all refrigerants are
removed safely. When transferring
refrigerant into cylinders, ensure that only
appropriate refrigerant recovery
cylinders are employed. Ensure that the
correct number of cylinders for holding
the total system charge is available. All
cylinders to be used are designated for
the recovered refrigerant and labelled for
that refrigerant (i.e. special cylinders for
the recovery of refrigerant). Cylinders
shall be complete with pressure relief
valve and associated shut-off valves in
good working order. Empty recovery
work to take place. Ensure that the outlet
for the vacuum pump is not close to any
potential ignition sources and that
ventilation is available.
12. Charging procedures
In addition to conventional charging
procedures, the following requirements
shall be followed. Ensure that
contamination of different refrigerants
does not occur when using charging
equipment. Hoses or lines shall be as
short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept in an appropriate
position according to the instructions.
Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant. Label the system when
charging is complete (if not already).
Extreme care shall be taken not to overfill
the refrigeration system. Prior to
recharging the system it shall be pressure
tested with OFN. The system shall be leak
tested on completion of charging but
prior to commissioning. A follow up leak
test shall be carried out prior to leaving
the site.
13. Decommissioning
Before carrying out this procedure, it is
essential that the technician is completely
familiar with the equipment and all its
detail. It is recommended good practice
that all refrigerants are recovered safely.
Prior to the task being carried out, an oil
and refrigerant sample shall be taken in
case analysis is required prior to re-use of
reclaimed refrigerant. It is essential that
electrical power is available before the
task is commenced.
a) Become familiar with the equipment and
its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure
that: Mechanical handling equipment is
available, if required, for handling
refrigerant cylinders; All personal
protective equipment is available and
being used correctly; The recovery
process is supervised at all times by a
competent person; Recovery equipment
and cylinders conform to the appropriate
cylinders are evacuated and, if possible,
cooled before recovery occurs.
The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand
and shall be suitable for the recovery of
flammable refrigerants. If in doubt, the
manufacturer should be consulted. In
addition, a set of calibrated weighing
scales shall be available and in good
working order. Hoses shall be complete
with leak-free disconnect couplings and
in good condition.
The recovered refrigerant shall be
processed according to local legislation in
9IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT NOTE: Read this manual carefully
before installing or operating your new appliance
unit. Make sure to save this manual for future
reference.
CAUTION:
Risk of fire flammable materials
CAUTION
CAUTION
CAUTION
This symbol shows that the operation manual should be read
carefully.
This symbol shows that information is available such as the
operating manual or installation manual.
This symbol shows that a service personnel should be
handling this equipment with reference to the installation
manual.
the correct recovery cylinder, and the
relevant waste transfer note arranged.
Do not mix refrigerants in recovery units
and especially not in cylinders.
If compressors or compressor oils are to
be removed, ensure that they have been
evacuated to an acceptable level to make
certain that flammable refrigerant does
not remain within the lubricant. The
compressor body shall not be heated by
an open flame or other ignition sources to
accelerate this process. When oil is
drained from a system, it shall be carried
out safely.
10 IMPORTANT SAFETY INSTRUCTIONS

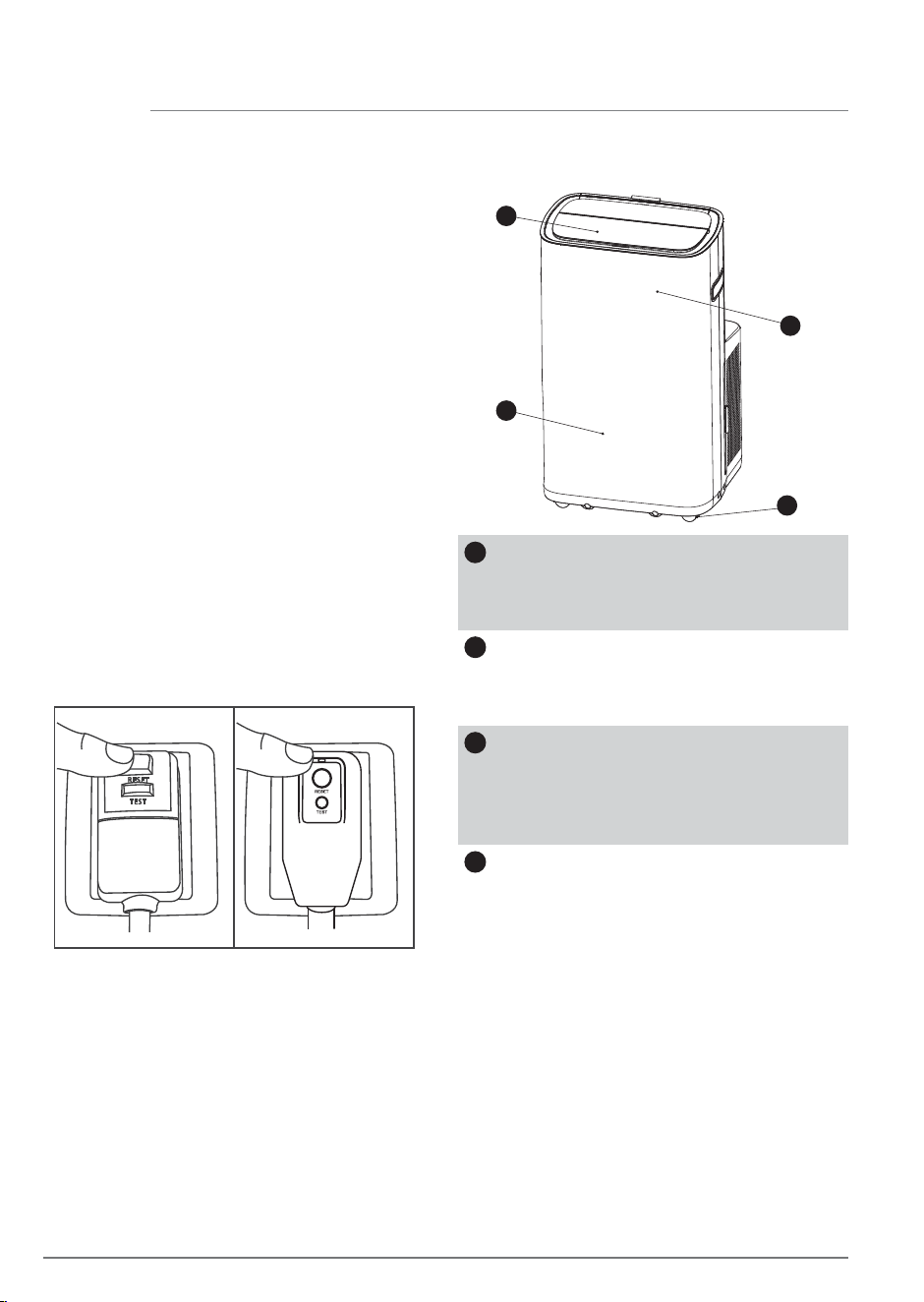

Normal Sounds
1
2
3
4
High pitched Chatter
Today’s high efficiency compressors
may have a high pitched chatter during
the cooling cycle.
1
Sound of Rushing Air
At the top of the unit, you may hear the
sound of rushing air being moved by
the fan.
2
Gurgle/Hiss
“Gurgling or hissing” noise may be
heard due to refrigerant passing
through evaporator during normal
operation.
3
Vibration
Unit may vibrate and make noise
because of uneven floor.
4
• Do not use this device to turn the unit on or
off.
• Always make sure the RESET button is
pushed in for correct operation.
• The power supply cord must be replaced if
it fails to reset when either the TEST button
is pushed, or it cannot be reset. A new one
can be obtained from the product
manufacturer.
• If power supply cord is damaged, it
CANNOT be repaired. It MUST be replaced
by one obtained from the product
manufacturer.
READ THIS SECTION BEFORE ATTEMPTING
TO OPERATE AIR CONDITIONER.
Unit must be upright for one hour prior to
operating.
The unit should be operated in a temperature
range of 41°F - 95°F (5°C - 35°C).
Performance may be reduced outside of
these operating temperatures.
Operation of Current Device
The power supply cord contains a current
device that senses damage to the power
cord. To test your power supply cord do the
following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO
buttons on the plug head. Press the TEST
button. You will notice a click as the
RESET button pops out.
3. Press the RESET button. Again you will
notice a click as the button engages.
4. The power supply cord is now supplying
electricity to the unit. (This is also
indicated by a light on the plug head).
Plug in & press RESET
11FCC STATEMENT
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential environment.
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be
determined by tuning the device off and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.
FCC CAUTION: Any changes or
modifications not expressly approved by the
party responsible for compliance could void
the user’s authority to operate the
equipment.
Host device Labeling
This device includes the following module.
Contains FCC ID: 2ATEV-5027-P
INDUSTRY CANADA (IC) STATEMENT
This Class B digital apparatus complies with
Canadian ICES-003.
This device complies with Industry Canada
license-exempt RSS standard(s). Operation
is subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR
d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage,
et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en
compromettre le fonctionnement.
RF Exposure
The antenna (or antennas) must be installed
so as to maintain at all times a distance
minimum of at least 20 cm between the
radiation source (antenna) and any
individual. This device may not be installed or
used in conjunction with any other antenna
or transmitter.
l'exposition aux RF
L’antenne (ou les antennes) doit être installé
e de façon à maintenir à tout instant une
distance minimum de au moins 20 cm entre
la source de radiation (l’antenne) et toute
personne physique.
Host device Labeling
This device includes the following module.
Contains IC: 25062-5027P
Host dispositif d'étiquetage
Ce dispositif inclut le module suivant.
Contient module émetteur IC: 25062-5027P
FCC Interference Statement
• Reorient or relocate the receiving antenna.
• Increase the separation between the device
and receiver.
• Connect the equipment into an outlet other
than the one used for the receiver.
• Consult the dealer or an experienced
radio/TV technician for assistance.
RF exposure statement
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be
installed and operated with minimum 20 cm
between the radiator and your body. This
transmitter must not be collocated or
operating in conjunction with any other
antenna or transmitter unless authorized to
do so by the FCC.
This is the location
of the module.

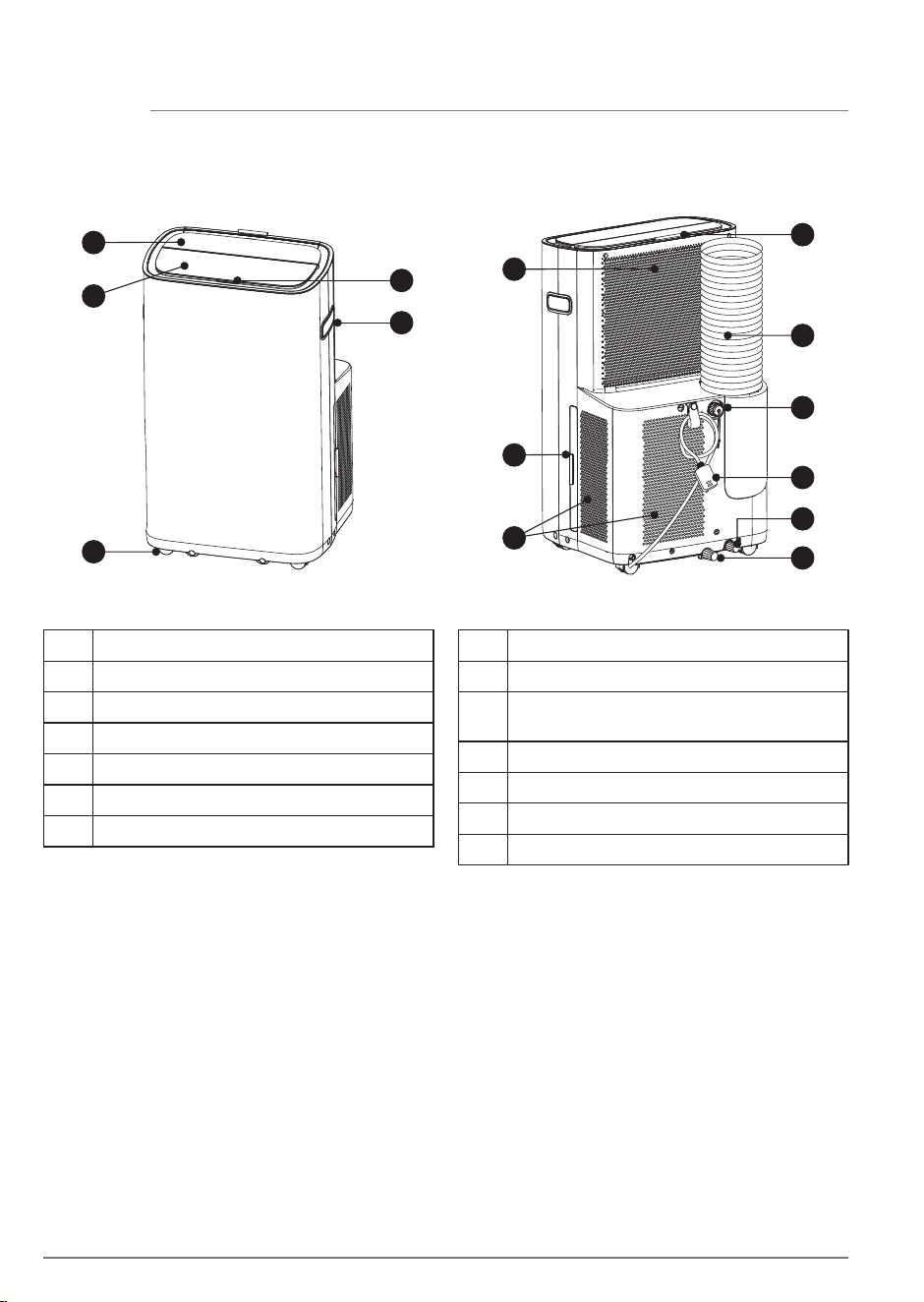

12 UNIT DESCRIPTION
A Control Panel
B Air Outlet Louver
C Casters
D Handles
E Air Quality Light
F Indoor Air Inlet
G Lower Filter
H Lower Air Inlet
J
Heat Pump Drain Outlet
(for heat pump model only)
K Power Cord
M Exhaust Hose
N Upper Filter Handle
L Continuous Drain Outlet
Unit Description
B
C
D
E
A
F
G
L
H
M
N
J
I
K
I Bottom Drain Outlet
13

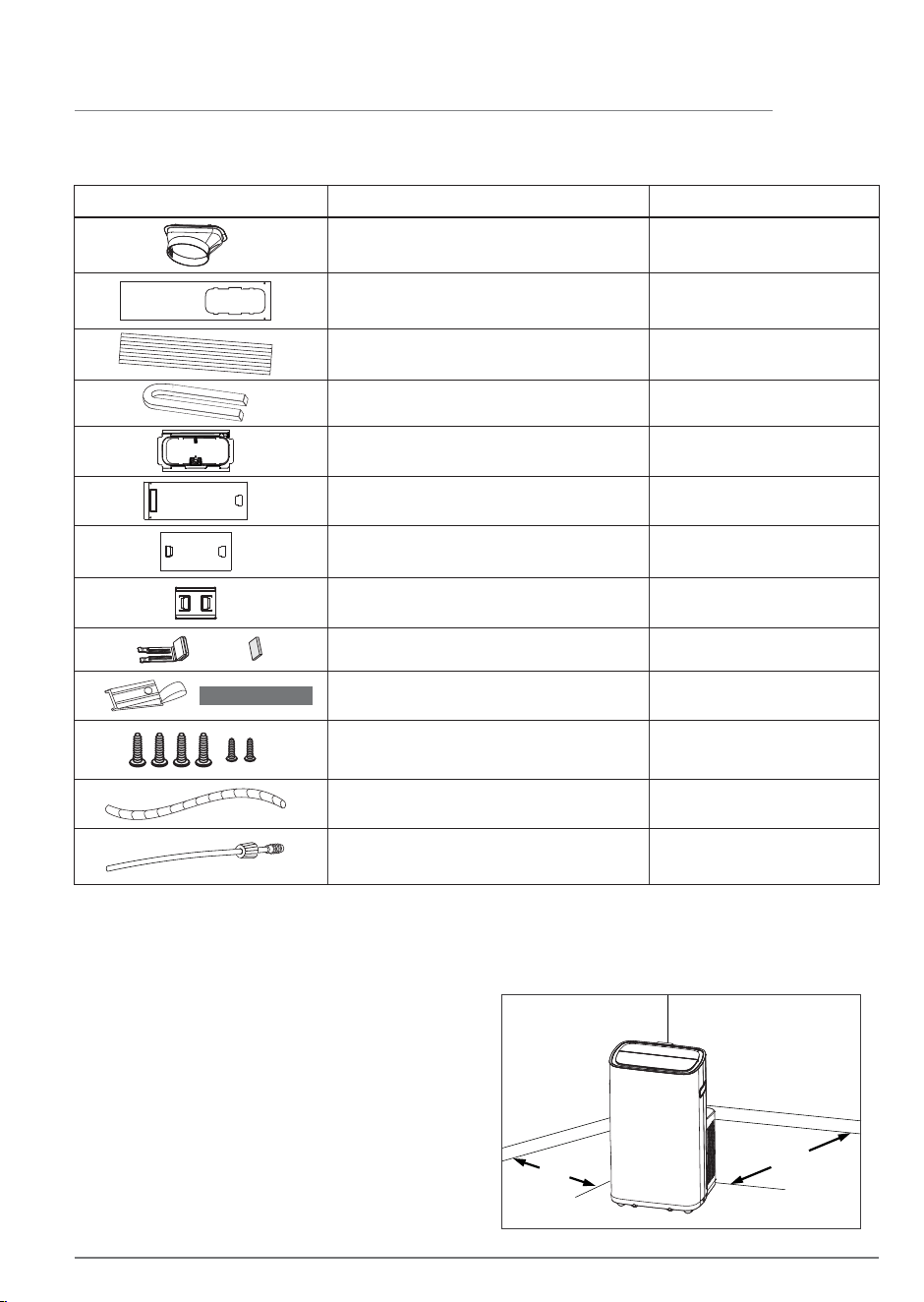

ACCESSORIES INCLUDED & INSTALLATION INSTRUCTIONS
Installation Instructions
In the Cool Mode the appliance must be
placed close to a window or opening so that
the warm exhaust air can be ducted outside.
First position the unit on a flat surface, and
make sure it is within the vicinity of a single
circuit outlet power source. Make sure there’s
a minimum of 19.7" clearance in the
front/back of the unit, and a minimum of
19.7" clearance in the left/right sides of the
unit.
EXHAUSTING HOT AIR
19.7"
19.7"
Accessories Included
PARTS: PARTS NAME:
QUANTITY:
Connector
Main Panel
1 pc
1 pc
Extender Panel 1 pc
1 pc
Clamp Plate & Clamp Plate Foam 1 set
Interface Panel 1 pc
Wedge & Velcro
Sealing Strip
Window Foam
Drain hose
1 set
7 pcs
1 pc
Telescopic Panel 1 pc
1 pc
Screws
4 pcs (3/4" screws)
2 pcs (1/2" screws)
Drain hose and connector
(for heat pump model)
1 set(78.7”(2m))
Panel connector
Note: Clamp plate foam and one of the 1/2” screw are provided as spare

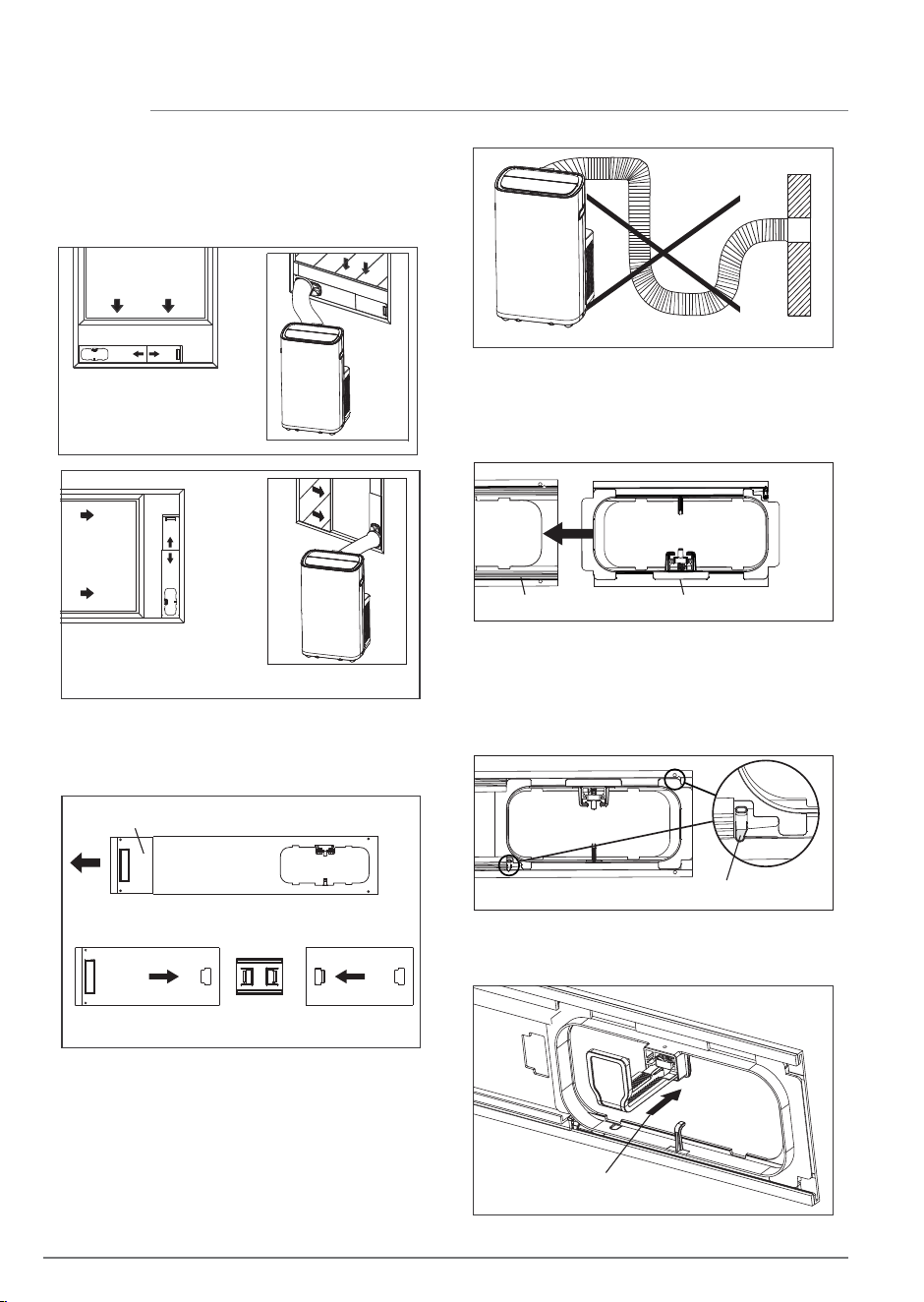

14 INSTALLATION INSTRUCTIONS
Install the clamp plate into the window slider
kit from the back as shown below.
Slide in from here
Window slider kit can be installed in a
double-hung sash window or a sliding sash
window with a dimension of 22.8” to 42.7”.
The hose can be extended from its original
length of 15" up to 59" but try to maintain the
minimum required length. Also make sure
that the hose does not have any sharp bends
or sags.
Select a suitable window.
If the window’s width/Height is between 32”
to 42.7”, take out the telescopic panel and
install the telescopic panel extender.
Vertical
window
Window Slider Kit
Minimum:22.8(58cm)
Maxmum:42.7(108cm)
Horizontal
window
Window Slider Kit
Minimum:22.8(58cm)
Maxmum:42.7(108cm)
Install the interface panel into the main panel
of window slider kit. It can be installed from
both ends of the interface panel. Choose
according to the actual need.
After the interface panel is installed correctly,
tab A should be fixed in the lower left corner
or upper right corner as shown.
To release the interface panel press down tab
A and pull out.
Interface panel
Main panel
Tab A
Connect telescopic panel and extender
panel with panel connector.
Reinstall the extended telescopic panel.
Slide out the telescopic panel.
No sharp bends or sags.

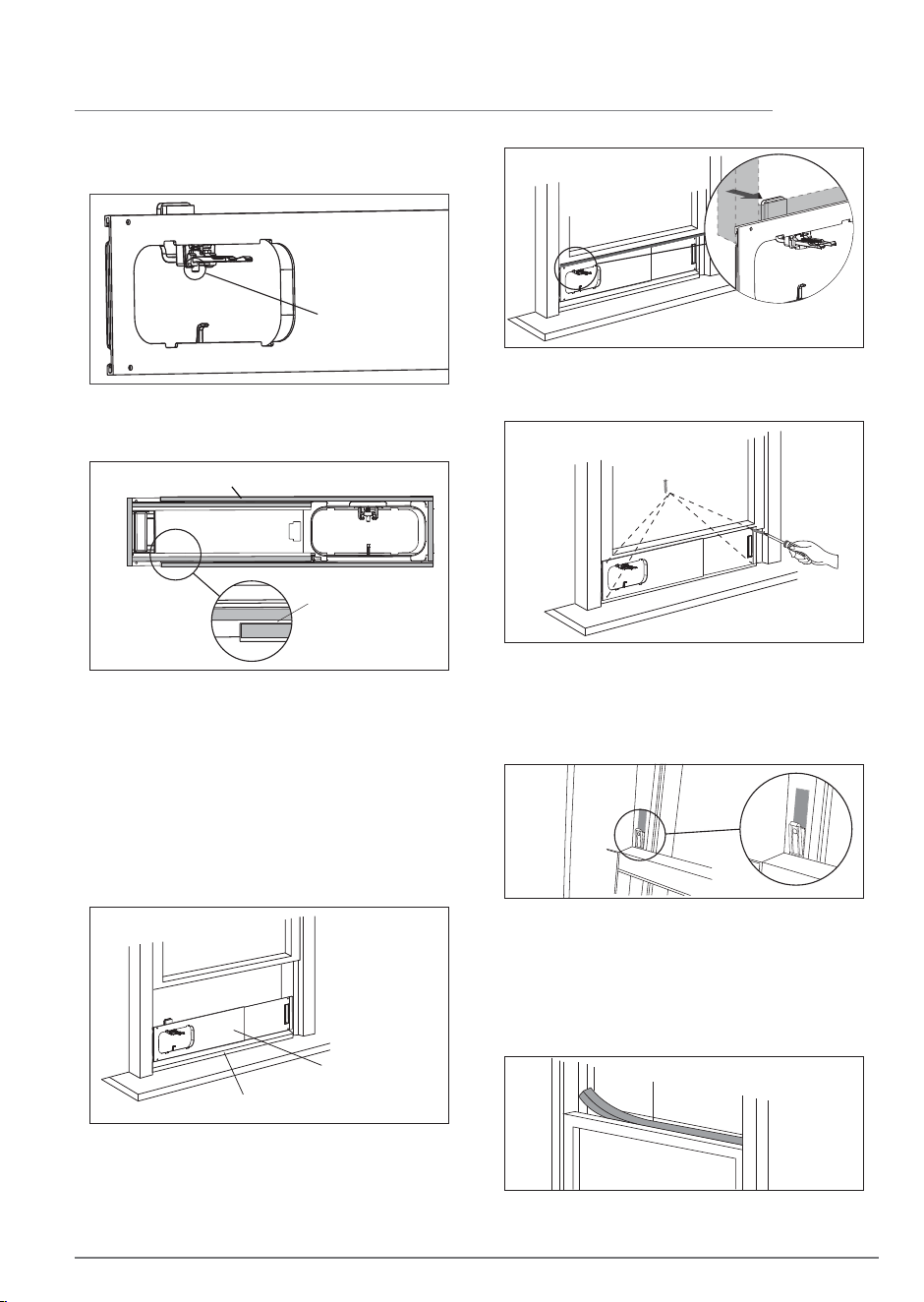

15INSTALLATION INSTRUCTIONS
1. Open the window sash and place the
window slider kit on the window sill. The
clamp must face to the window sash. Adjust
the length of the window slider kit according
to the width of window.
Note: Reserve gaps between sealing strips on
the main panel and telescopic panel to
ensure telescopic panel can move normally.
Window slider kit
window sill
Installation in a double-hung sash window
Adhesive the sealing strip to the four edge of
the back of window slider kit.
3. Drive four 3/4" screws to secure the
window slider kit.
5. Cut the non-adhesive window foam to an
appropriate length and seal the open gap
between the lower window sash and upper
window sash.
3/4"screws
4. To secure lower sash in place, attach
adhesive velcro on the upper sash frame,
then adhere the wedge on it to lock the lower
sash.
Note: the wedge can also be fix by a 1/2”
screws.
2. Close the window sash securely against
the window slider kit. Then fasten the clamp
on the window sash.
To release the clamp, press down the button
as shown below.
Press button
to release
Gaps
Sealing strip (adhesive type)
Window foam

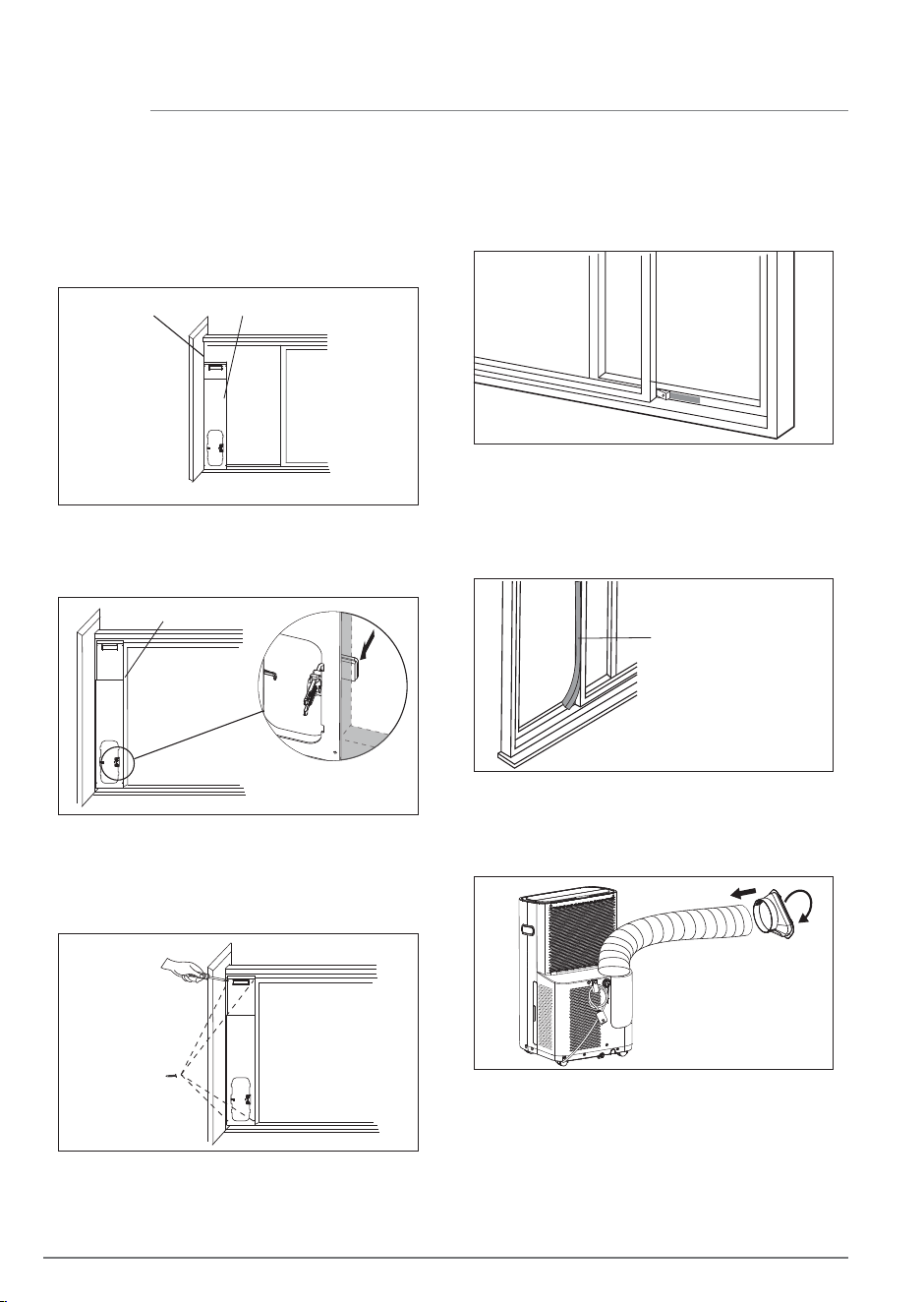

16 INSTALLATION INSTRUCTIONS
2. Close the window sash securely against
the window slider kit. Then fasten the clamp
on the window sash.
1. Open the window sash and place the
window slider kit on the window sill.
Note: The clamp must face to the window
sash.
window sill
Window slider kit
Window sash
Installation in a sliding sash window
3. Adjust the length of the window slider kit
according to the height of window.
Drive four 3/4" screws to secure the window
slider kit.
3/4" screws
5. Cut the window foam to an appropriate
length and seal the open gap between the
sliding sash and outer window sash.
Window foam
Note: the wedge can also be fix by a 1/2”
screws.
4. To secure lower sash in place, attach
adhesive velcro on the outer sash frame, then
adhere the wedge on it to lock the sliding
sash.
1. Extend the exhaust hose, then turn the
connector anticlockwise into the exhaust
hose.
Installation of exhaust hose

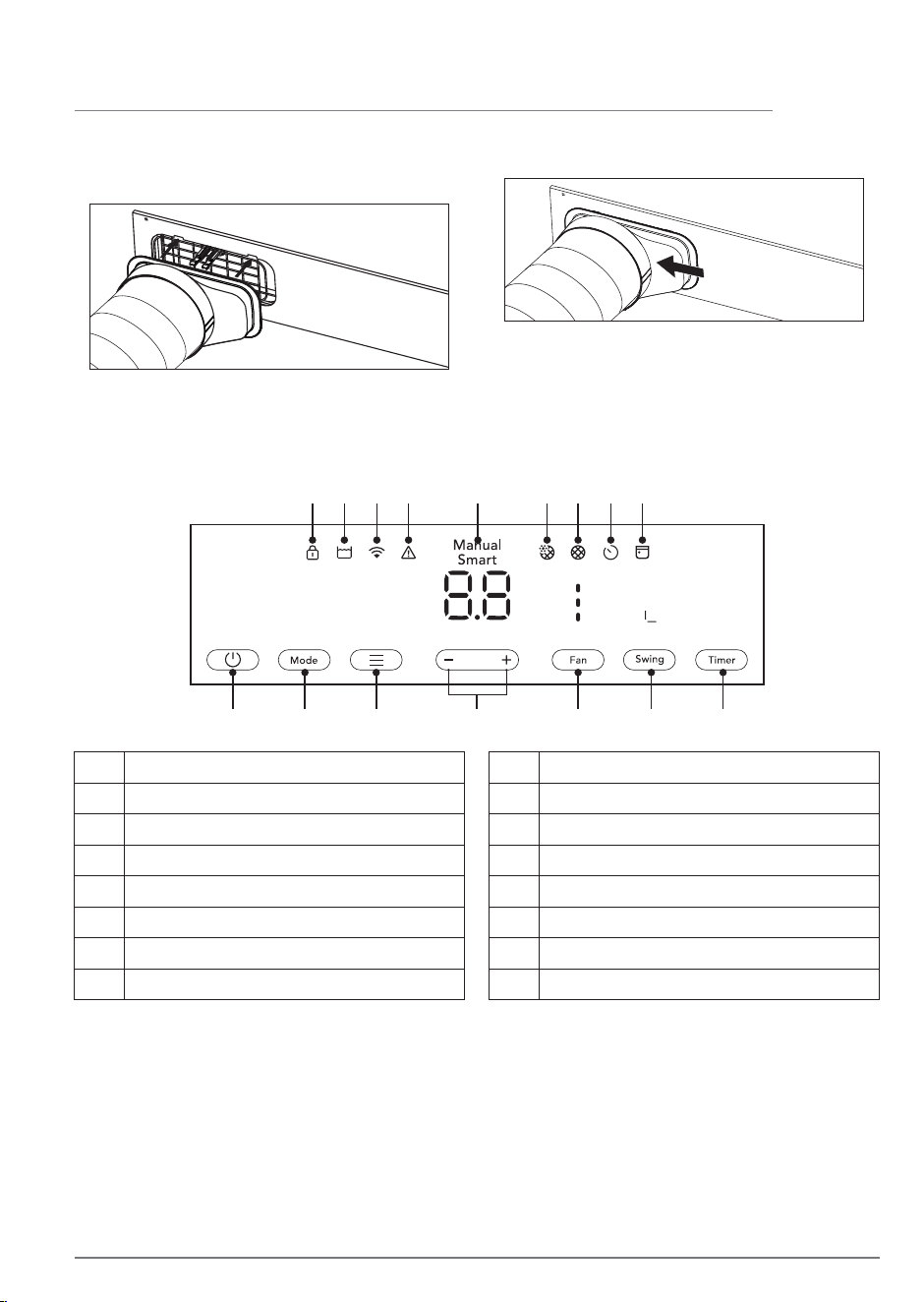

17
INSTALLATION INSTRUCTIONS &
AIR CONDITIONER FEATURES
AIR CONDITIONER FEATURES
Control Panel
*Refer to the Quick Start Guide that came with your Smart Air Conditioner for detailed
instructions on setting up your air conditioner for connected operation from your smart
phone or tablet.
The software in the <PRODUCT/appliance> is partly based on free and open source software.
To see the full copyright information and applicable license terms, please visit:
https://emtech.delta.electrolux.com/license
Note: Heat function is for heat pump model only.
A
A B C D E F G
HIJKLMNOP
Power on/off Button
B Smart/Manual Mode Button
C Function Selection Button
D Adjust Temperature
F Swing Button
G Timer Button
H Scheduler Indicator
E Fan Speed Button
J Dust Filter Indicator
I Timer Indicator
°C
°F
Heat
Fan
Dry
Cool
Auto
K PureAir
TM
Filter Indicator
L Manual/Smart Indicator
M Error Indicator
N WIFI Indicator*
O Water Full Indicator
P Child Lock Indicator
2. Insert the connector to the window slider
board.
3. Slide to the left to lock the connector.
18 OPERATING INSTRUCTIONS
OPERATING INSTRUCTION
Cool mode
Press the “ ” button until the Cool mode indicator lights up.
Press the "Fan Speed" button to choose the fan speed according to the illumination of the fan
speed indicator.
You can choose the “Auto”, “Low”, “Med”, or “Hi” fan speed setting.
Press the “ - ” or “ + ”button to choose the temperature you want.
To change temperature setting
Press the “ ” button to turn the unit ON.
Press the “ - ” or “ + ” button to choose the temperature in a range of 60°F - 90°F (16°C -
32°C).
Note: In Dry, Fan function or Smart mode, temperature setting is disabled.
RH%
°C
°F
Heat
Fan
Dry
Cool
Auto
RH%
°C
°F
Heat
Fan
Dry
Cool
Auto
RH%
°C
°F
Heat
Fan
Dry
Cool
Auto
Standby status
After plugging in, unit will be in standby status. Only “ ” and Timer buttons are available.
19OPERATING INSTRUCTIONS
Fan mode
Press the “ ” button until the Fan mode indicator lights up.
In this mode, you can select fan speed “Auto”, “Low”, “Med”, or “Hi”.
In this mode, the “ - ” or “ + ” button is disabled and the screen displays will be off.
Note: If PureAir
TM
filter(sold separately) is not installed, Auto fan speed will be disabled.
RH%
°C
°F
Heat
Fan
Dry
Cool
Auto
Dry mode
Press the “ ” button until the Dry mode indicator lights up.
In this mode, the “ - ” or “ + ” button is disabled and the screen displays will be off. The unit
will continuously drain moisture from the room.
Note: In this mode, the fan speed will be automatically set to "Low", which cannot be
changed.
In this mode, condensate drainage is required, refer to the "Drainage Instructions" for more
instructions to drain the excess condensate.
RH%
°C
°F
Heat
Fan
Dry
Cool
Auto
Heat Mode(For heat pump models only)
Press the “ ” button until the Heat mode indicator lights up.
Press the “ - ” or “ + ” button to choose the temperature you want.
Press the Fan button to choose the fan speed according to the illumination of the fan speed
indicator. You can choose the “Hi”, “Med”, “Low”, or “Auto” fan speed setting.
Note: In this mode, the air exhaust hose needs to be connected.
The unit has a built-in condensate pump to pump out the excess condensate during heating
mode. Condensate drainage is required, refer to the "Drainage Instructions" for more
instructions to drain the excess condensate.
RH%
°C
°F
Heat
Fan
Dry
Cool
Auto
20OPERATING INSTRUCTIONS
RH%
°C
°F
Heat
Fan
Dry
Cool
Auto
Press and hold the “Swing” button for 3 seconds to set the louver as indirect airflow. The
louver will move to the maximum opening position. The indirect icon will light up. Press this
button again to cancel.
Indirect airflow
Smart mode
Press the “Mode” button the unit will change between Manual and Smart mode.
In Smart mode, the unit will automatically select functions/fan speed to operate depending
on the room temperature, humidity and air quality.
Note: In Smart mode, temperature can not be change, screen displays will be off and the fan
speed will be automatically set to "Auto", which cannot be changed.
RH%
°C
°F
Heat
Fan
Dry
Cool
Auto
RH%
°C
°F
Heat
Fan
Dry
Cool
Auto
Louver Swing Function
Press the “Swing” button to enable louver swing function, the swing button will illuminate and
the louver on the top panel will swing up and down. Press this button again to disable the
louver swing function.
Auto swing
21OPERATING INSTRUCTIONS
Dust filter reset
This feature is a reminder to clean the Air Filter (See Care and Cleaning) for more efficient
operation.
The “Dust Filter” indicator will illuminate after 250 hours of fan operation. Press and hold the
“Fan” button for 3 seconds to reset, after cleaning the filter.
RH%
°C
°F
Heat
Fan
Dry
Cool
Auto
How to delay startup
Plug in the unit, so the unit turns to standby. Press the “Timer” button, when the unit is off. The
Timer button will be activated, the screen will display “00” and "Timer indicator" will flash.
Press the " - " or " + " to change delay start timer at 0.5 hour increments up to 10 hours, then
at 1 hour increments up to 24 hours. After 5 seconds, the timer function is enabled, then
“Timer indicator” will stop flashing, the display will be off. Once the timer function is enabled,
adjust the desired settings using the buttons on the display. If no changes are made, the unit
will start with the previous settings.
To cancel the setting, press the “timer” button again. You can also cancel the setting by
pressing the “ ” button.
RH%
°C
°F
Heat
Fan
Dry
Cool
Auto
How to delay shutdown
You can delay shutdown when the unit is on. Press the “timer” button, when the unit is on. The
Timer button will be activated, the screen will display “00” and "Timer indicator" will flash.
Press the " - " or " + " to change delay start timer at 0.5 hour increments up to 10 hours, then
at 1 hour increments up to 24 hours. After 5 seconds, the timer function is enabled, then
“Timer indicator” will stop flashing, the display will back to original status. The unit will turn
off.
To cancel the setting, press the “timer” button again. You can also cancel the setting by
pressing the “ ” button.
RH%
°C
°F
Heat
Fan
Dry
Cool
Auto
22OPERATING INSTRUCTIONS
PureAir
TM
filter indicator
This feature is a reminder to replace the PureAir
TM
Filter(sold separately) for more efficient
operation.
If the PureAir
TM
filter(sold separately) is installed, the “PureAir
TM
Filter” indicator will illuminate
after service life of the PureAir
TM
Filter end. Press and hold the “Fan” button for 3 seconds to
reset, after replacing the advanced filter.
Note: If both dust filter indicator and PureAir
TM
filter indicator illuminate, Long press the Fan
button will reset the dust filter indicator first. Do it again to reset PureAir
TM
filter indicator.
RH%
°C
°F
Heat
Fan
Dry
Cool
Auto
Dimming Display
After 20 seconds of control inactivity the active icon and button will reduce the brightness,
and the inactive icon and button will turn off. Press any button on the control panel and the
display will resume.
Child Lock
Press and hold the “ ” and “ ” button for 5 seconds to activate the Child Lock mode. In this
mode, the unit’s setting cannot be changed by pressing the buttons on control panel. The
display will show “LC” for 5 seconds then return to the normal display. Press and hold the
Power and “ ” button for another 5 seconds to quit this mode.
Note: After the child lock feature activated the setting can still be changed by app.
RH%
°C
°F
Heat
Fan
Dry
Cool
Auto
°F/°C function
Press the “ - ” and “ + ” button at the same time for more than 3 seconds to switch between
degrees Fahrenheit and degrees Celsius.
Note: °F/°C can only be change during cool or heat(for heat pump models) function.
23OPERATING INSTRUCTIONS

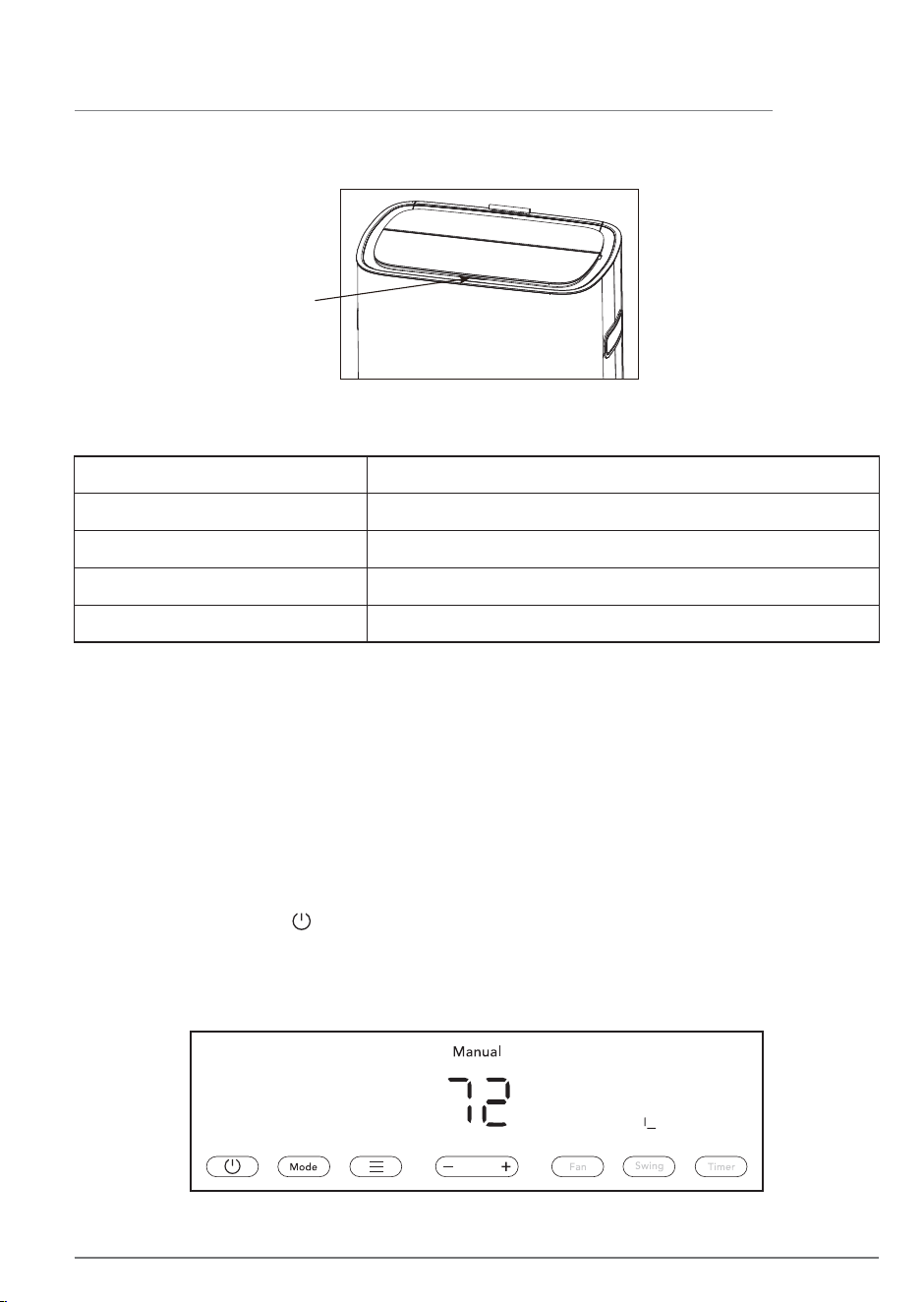

The air quality light will show different color according to the value from air quality sensor as
shown below:
Air Quality Light
Air quality light
Air Quality Light Color Air Quality
Good
Average
Poor
Very Poor
Green
Yellow
Orange
Red
Sleep mode
In this mode, the fan speed will automatically set to "Auto", which cannot be changed.
In Cool mode the selected temperature will increase by 2 °F 30 minutes after the mode is
selected. The temperature will then increase by another 2 °F for an additional 30 minutes. This
new temperature will be maintained for 7 hours before it returns to the originally selected
temperature. This ends the "Sleep" mode and the unit will continue to operate as originally
programmed.
The Sleep mode program can be cancelled at any time during operation by pressing the
“Mode”, “Fan speed” or “ ” button.
Note: Sleep mode can only be activated by app.
Sleep mode only available in cool or heat function.
In Sleep mode, air quality light will be off.
RH%
°C
°F
Heat
Fan
Dry
Cool
Auto
24OPERATING INSTRUCTIONS
RH%
°C
°F
Heat
Fan
Dry
Cool
Auto
RH%
°C
°F
Heat
Fan
Dry
Cool
Auto
Water full indicator
When the condensate is full, the water full indicator will turn on and display will show P1.
Emptying the condensate residue inside the unit to reset. Refer to the "Drainage Instructions"
more instructions to drain the successive condensate.
If error repeats more than 4 times in one day, contact your Authorized Frigidaire Service
Center.
Error code
When the unit detect error, the screen will display error code and the error indicator will be
on. Turn off the unit and restart. If the error persists, contact your authorized Frigidaire
Service Center.
Error code
“AS”, “E2”, “ES”
“L3”
“E4”
A temperature sensor has failed.
The lower fan motor has failed.
Communication between display PCB and main control PCB
is faulty.
Possible reason
25OPERATING INSTRUCTIONS

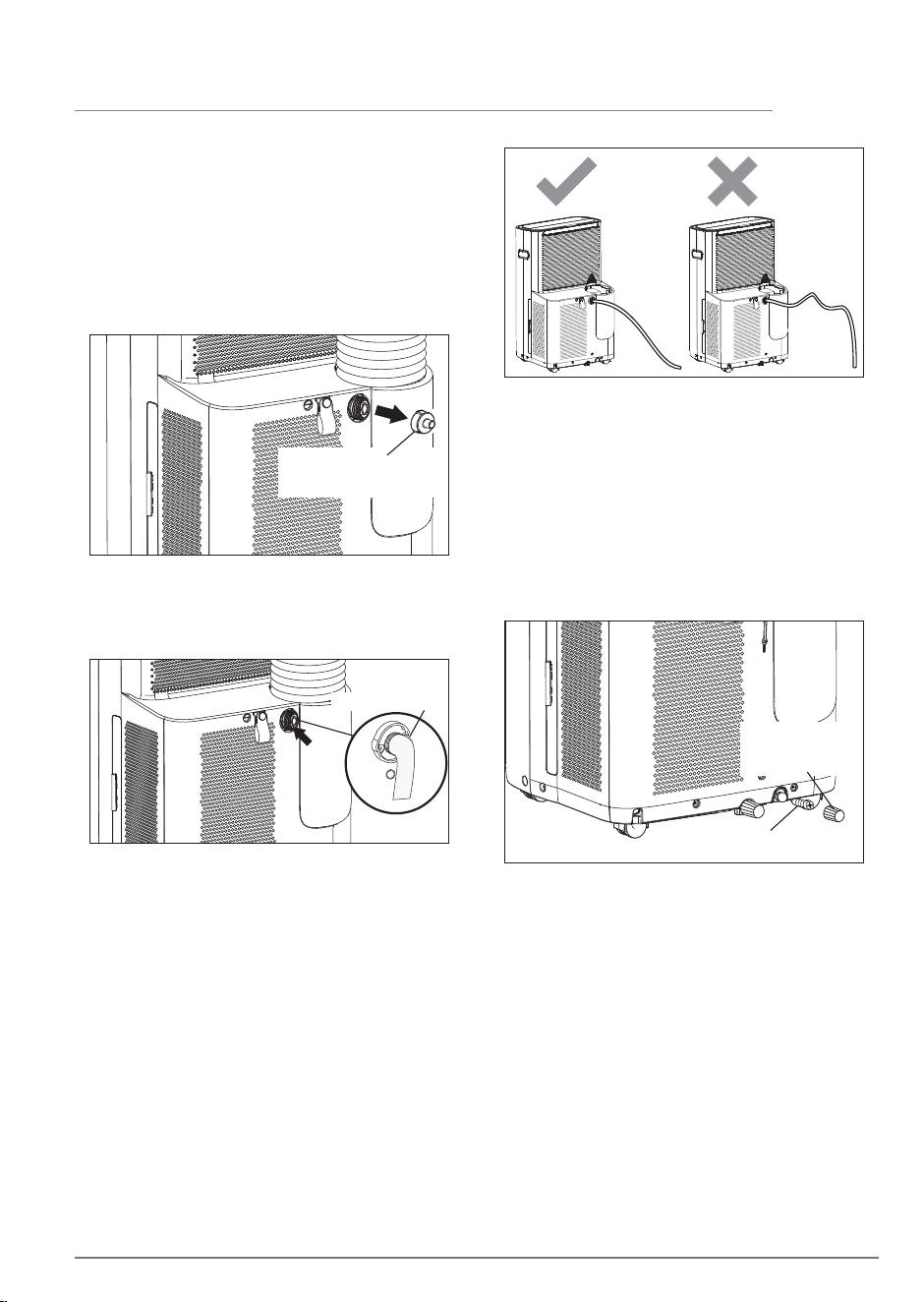

Drainage Instructions
Continuous Drainage
During the Dry mode, you will need a garden
hose (sold separately) to drain the
condensed water from the unit. Follow the
steps below:
• Unscrew the drain cap of continuous drain
outlet.
• Connect one end of the garden hose (sold
separately) to the drain outlet then lead the
other end into a drain that is lower than the
unit.
NOTE:
• Condensate may flow out after removing
the drain cap, if the unit is running in Smart
mode or Cool, Dry function. When you want
to remove the garden hose, prepare a drip
tray (not supplied) to collect the
condensate from the drain outlet.
• Please be sure that the height of the drain
and section of the drain hose should not be
higher than that of the drain outlet, or the
continuous drainage may not work
properly.
• During Cool function or Smart mode, it is
recommended to disable continuous
drainage by replacing the drain cap to the
drain outlet, to reach the maximum
performance.
Drain cap for Dry
mode
Garden hose
During the Heat mode, you will need a 1/4"
drainage hose (packed with the unit) to drain
the condensate from the unit.
Follow the steps below:
Heat pump Drainage(For heating & cooling
model only)
• Unscrew the heat pump drain cap then pull
off the rubber plug of heat pump drain
outlet.
Heat pump
Rubber plug
drain cap
26OPERATING INSTRUCTIONS

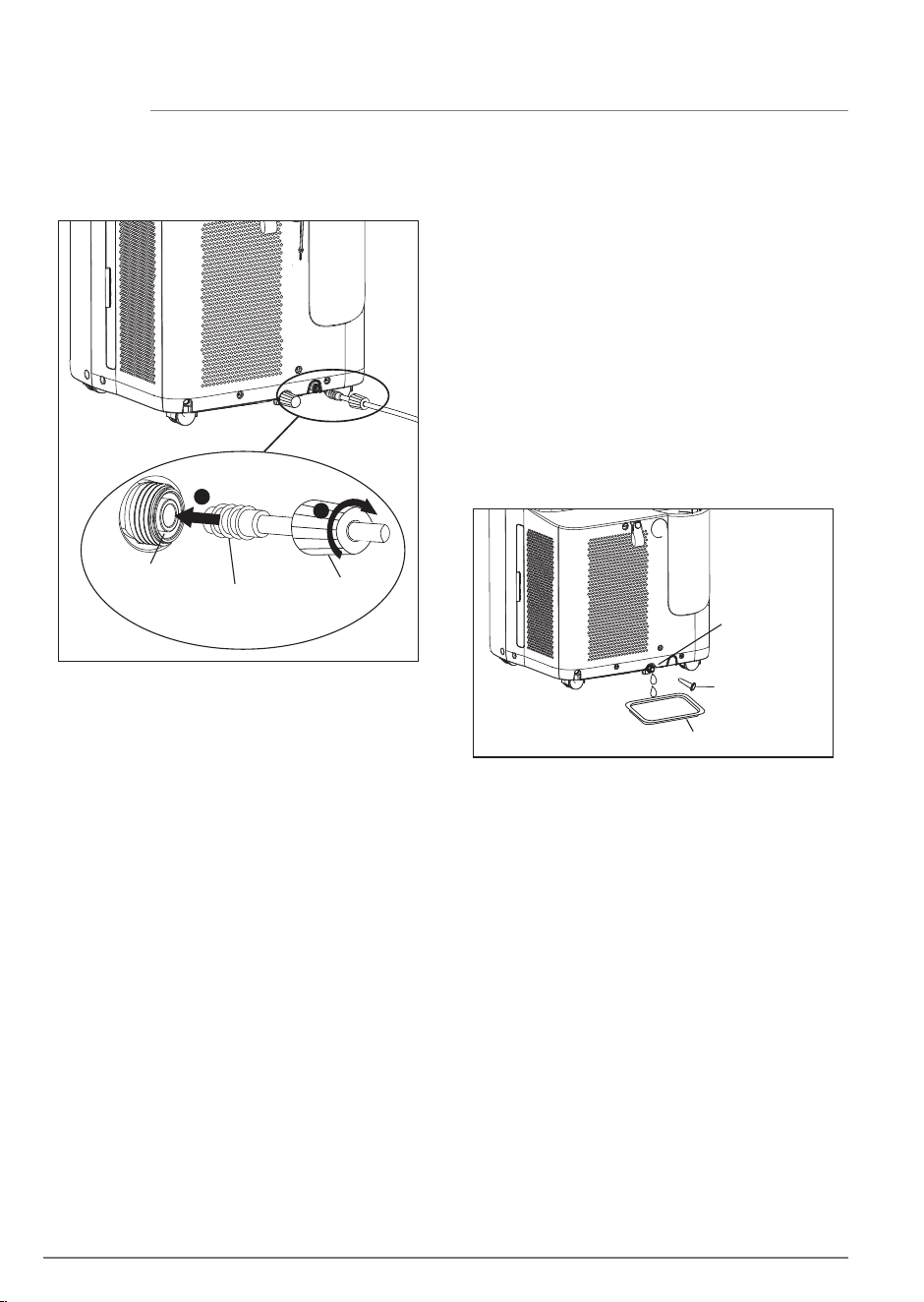

Note: To ensure all condensate residue has
been removed, tilt the unit by lifting it slightly
upwards from the front until no more
condensate comes out from the drain outlet.
Put a drip tray (not supplied) under the
continuous drain outlet, then unscrew the
drain cap to allow the condensate to flow
into the drip tray. Replace the drain cap to
the continuous drain outlet when no
condensate flows out.
Put the drip tray under the bottom drain
outlet, then remove the rubber stopper from
the drain outlet, to allow the condensate to
flow into the drip tray. If your drip tray can’t
hold all the condensate, a number of fills will
be needed.
Replace the drain cap to the bottom drain
outlet when no condensate flows out.
Emptying the condensate residue inside the
unit during winter storage.
Bottom
Drain Outlet
Drip tray
Drain cap
Note:
Do not drain condensate outside when
outside temperature is below 32°F (0°C).
• Lead the other end of the 1/4" drainage
hose to a drain that is not 16ft(5m) higher
than the heat pump drain outlet.
• Insert the rubber head into the outlet. Then
screw the sealing cap into the heat pump
drain outlet.
heat pump
drain outlet
rubber head
sealing cap
1
2
27CARE AND CLEANING

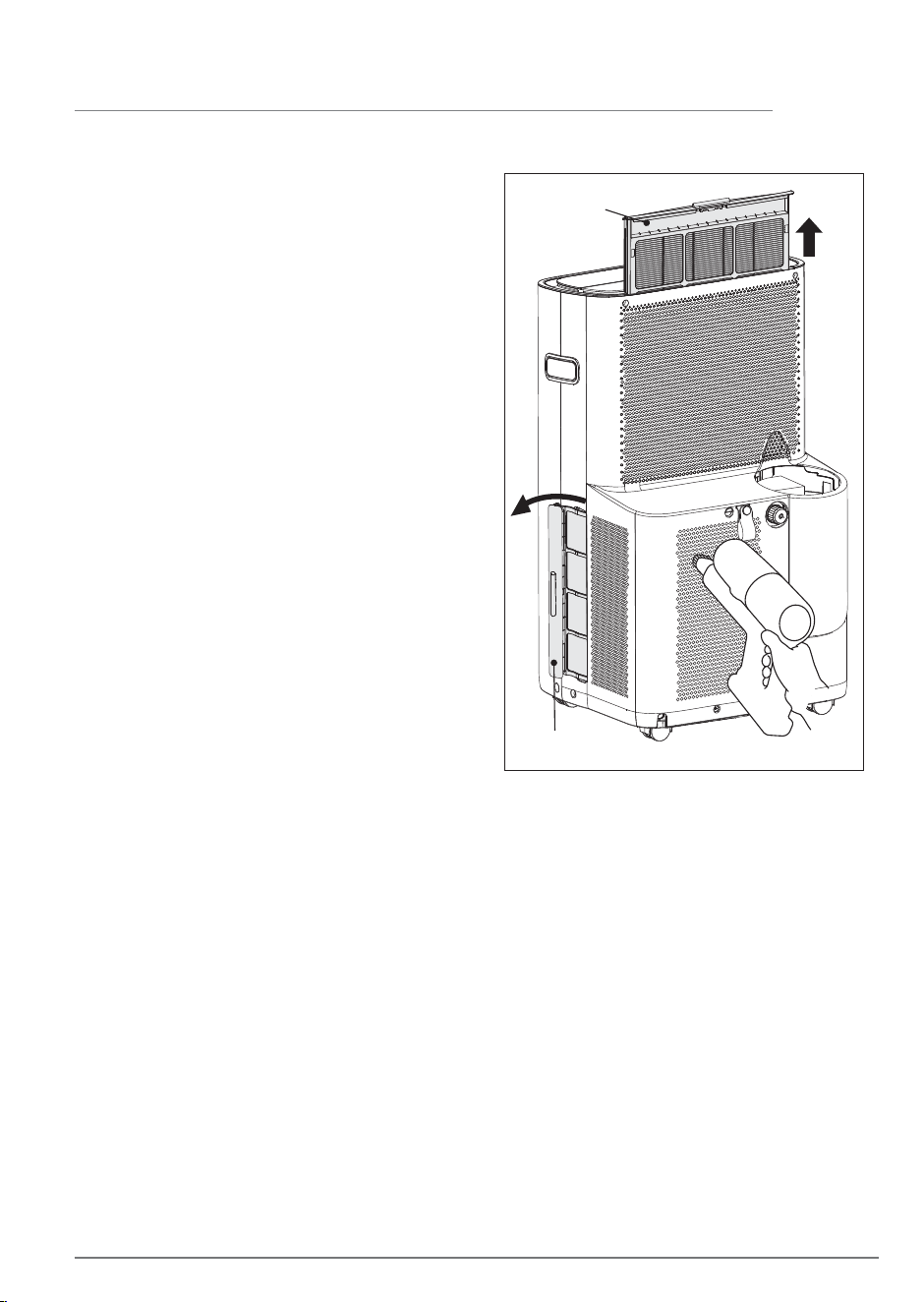

Clean your air conditioner every 2 weeks to
keep it looking new. Be sure to unplug the
unit before cleaning to prevent shock or fire
hazards.
CLEANING THE UNIT
The cabinet and front may be dusted with an
oil-free cloth or washed with a cloth
dampened in a solution of warm water and
mild liquid dishwashing detergent.
Never use harsh cleaners, wax or polish on
the cabinet front.
Be sure to wring excess water from the cloth
before wiping around the controls. Excess
water in or around the controls may cause
damage to the air conditioner.
CLEANING THE FILTERS
To keep your air conditioner working
efficiently, you should clean the Dust filters
every 2 weeks of operation.
Grasp the handle of the upper filter and pull
up to take off the upper filter.
Grasp the handle of the lower filter and pull
towards to the front panel direction to take
off the filter.
Wash the dust filters using liquid
dishwashing detergent and warm water.
Rinse Dust filters thoroughly. Gently shake
excess water from the Dust filter. Be sure
Dust filter is thoroughly dry before replacing.
Note: If PureAir
TM
filter(sold separately) is
installed, take off the PureAir
TM
filter before
cleaning the upper dust filter.
PureAir
TM
filter
This unit has available space for use with a
PureAir
TM
Filters (sold separately). Different
types of PureAir
TM
Filters can be purchased
by scanning the QR code on the air inlet
grille, by visiting Frigidaire.com, or by calling
Frigidaire Customer Service Center
1-800-944-9044(US) / 1-800-265-8352
(Canada).
To install PureAir
TM
filter:
1. Take out the upper filter.
2. Put the PureAir
TM
filter in reserved space
on the upper filter grille.
3. Replace the upper filter together with the
PureAir
TM
filter.
The PureAir
TM
filter can not be clean by
water.
Cleaning
Lower filter
Upper filter
Note:
Use vacuum cleaner to clean the lower filter
area before taking out the filter can avoid
dust popping out when taking out the filter.
When pulling out the lower filter, pull it
slightly to the side.
28

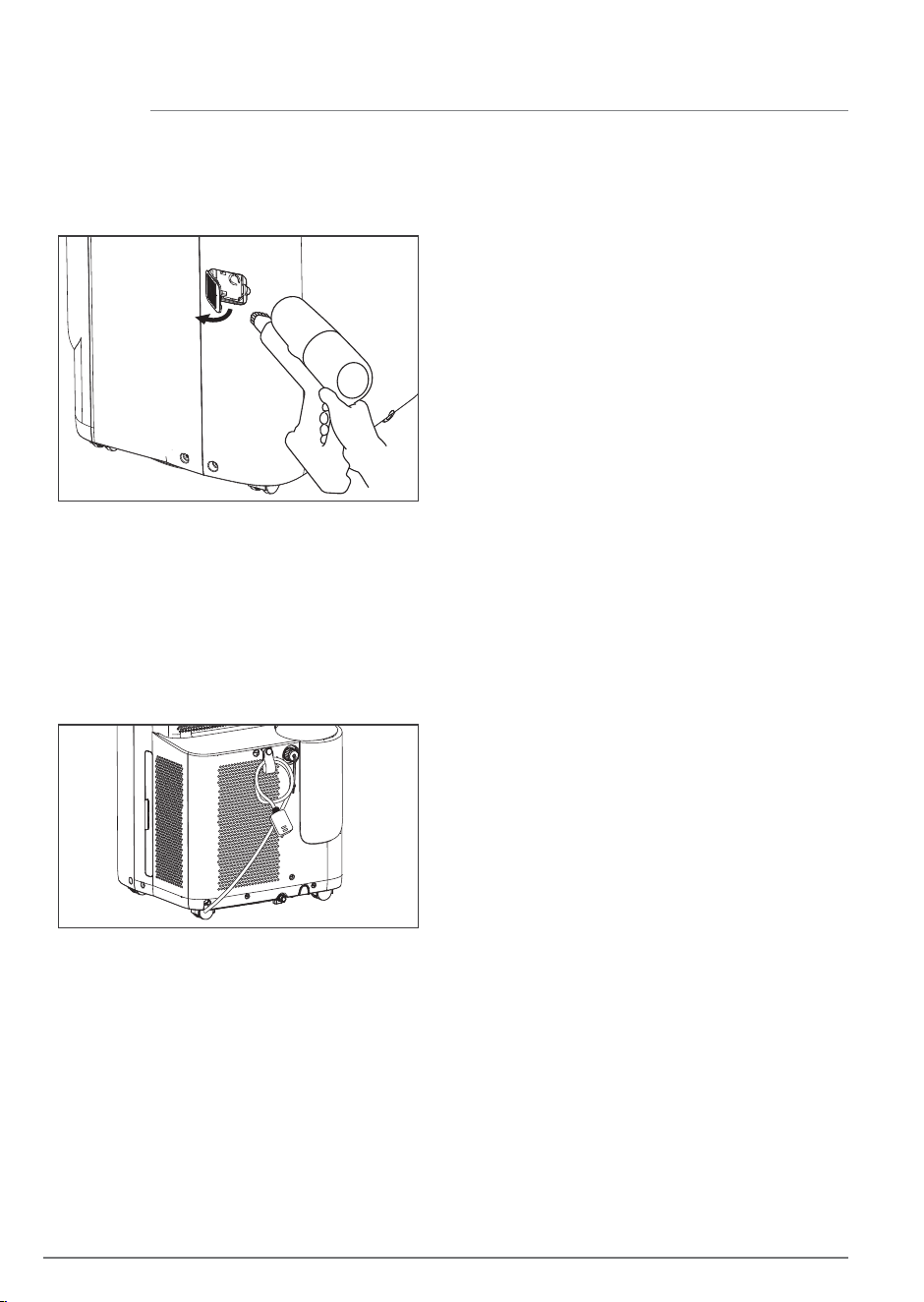

If the air conditioner will not be used for an
extended period of time:
1.Drain the water collection tank completely
and leave the bottom drain cap and rubber
plug off for an extended period of time to
allow any residual. Once the tank is
completely drained and no more water flows
out, reinstall the rubber plug and cap.
2.Remove and clean the filter, allow it to dry
completely, then reinstall it.
3.Remove the batteries from the remote
control(If applicable).
4.Store the air conditioner in a cool, dry
location, away from direct sunlight, extreme
temperature, and excessive dust.
Before using the air conditioner again:
1.Make sure the filter and drain cap are in
place.
2.Check the cord to make sure it is in good
condition, without cracks or damage.
3.Place new batteries in the remote control.
(If applicable)
4.Install the air conditioner as described in
the Installation Instructions.
Winter Storage
Air quality sensor cleaning
Air quality sensor need to be clean every 2
weeks. Open the air quality sensor door and
clean the sensor by vacuum cleaner.
Note: The evaporator contains sharp part,
user should not clean it by themselves.
Aways wear gloves before touching any
sharp part.
Power cord storage
When unit is not in use or need to move the
unit, pull out the plug and store the power
cord as show below.
CARE AND CLEANING
29BEFORE YOU CALL
Noise when unit is
cooling.
• Air movement sound. This is normal. If too loud, set to lower FAN setting.
• Vibration from uneven floor. Move or support appliance correctly on even
surface.
Air conditioner turns
on and off rapidly.
• Dirty air filter - air restricted. Clean air filter.
• Outside temperature extremely hot. Set FAN speed to a faster setting to
bring air through cooling coils more frequently.
Air conditioner
cooling, but room is
too warm - NO ice
forming on cooling
coil behind
decorative front.
• Dirty air filter - air restricted. Clean air filter. Refer to Care and Cleaning
section.
• Temperature is set too high. Set temperature to a lower setting.
• Air directional louvers positioned improperly. Position louvers for better air
distribution.
• Front of unit is blocked by drapes, blinds, furniture, etc. - restricts air
distribution. Clear blockage in front of unit.
• Doors, windows, registers, etc. open - cool air escapes. Close doors,
windows, registers, etc.
• Unit recently turned on in hot room. Allow additional time to remove
“stored heat” from walls, ceiling, floor and furniture.
Air from unit does not
feel cold enough.
• Room temperature below 60°F (16°C). Cooling may not occur until room
temperature rises above 60°F (16°C).
• Reset to a lower temperature.
• Compressor shut-off by changing modes. Wait approximately 4 minutes
and listen for compressor to restart when set in the COOL mode.
Before calling for service, review this list. It may save you time and expense. This list
includes common occurrences that are not the result of defective workmanship or materials
in this appliance.
SOLUTIONOCCURRENCE
Air conditioner will
not operate.
• Wall plug disconnected. Push plug firmly into wall outlet.
• Plug Current Device Tripped. Press the RESET button.
• House fuse blown or circuit breaker tripped. Replace fuse with time delay
type or reset circuit breaker.
• Control is OFF. Turn Control ON and set to desired setting.
• P1 appears in the display window. Drain water as described in Drainage
Section.
• Room Temperature lower than the set temperature. Reset the temperature.
Air conditioner
cooling, but room is
too warm - ice
forming on cooling
coil behind
decorative front
• Outdoor temperature below 60°F (16°C). To defrost the coil, set FAN
ONLY mode.
• Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To
defrost, set to FAN ONLY mode.
• Temperature is set too low for night-time cooling. To defrost the coil, set to
FAN ONLY mode. Then, set temperature to a higher setting.
• Exhaust duct not connected or blocked. See EXHAUSTING HOT AIR
Section.
30BEFORE YOU CALL
SOLUTIONOCCURRENCE
Room too cold. • Set temperature too low. Increase set temperature.
Room too hot. • Set temperature too high. Lower setting.
If These Solutions Fail, Call 1-800-944-9044(US)/1-800-265-8352(Canada)
For Frigidaire Service.
Exclusions
This warranty does not cover the following:
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
If You Need
Service
Canada
1.800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
L5V 3E4
USA
1.800.944.9044
Electrolux Major Appliances
10200 David Taylor Drive
Charlotte, NC 28262
Your appliance is covered by a limited one-year warranty for functional repairs only. For one year from your
original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that
prove to be defective in materials or workmanship when such appliance is installed, used and maintained in
accordance with the provided instructions. After one year from your original date of purchase, the consumer
will be responsible for diagnostic, labor and parts costs as well as any removal, transportation and
reinstallation expenses which are incurred during service on components.
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT
REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE
YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX
SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE
AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR
ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF
IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN
WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY
FROM STATE TO STATE.
Keep your receipt, delivery slip, or some other appropriate payment record to establish the
warranty period should service be required. If service is performed, it is in your best interest to
obtain and keep all receipts. Service under this warranty must be obtained by contacting
Electrolux at the addresses or phone numbers below.
This limited warranty only applies in the USA and Canada. In the USA, your appliance is warranted by
Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your
appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any
obligations under this warranty. Obligations for service and parts under this warranty must be performed by
Electrolux or an authorized service company. Product features or specifications as described or illustrated are
subject to change without notice.
1. Products with original serial numbers that have been removed, altered or cannot be readily determined.
2. Product that has been transferred from its original owner to another party or removed outside the USA or
Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased "as-is" are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances
not in ordinary household use or used other than in accordance with the provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,
etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or
knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip
charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not limited to
floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
31MAJOR APPLIANCE LIMITED WARRANTY
welcome
home
Frigidaire.com
1-800-944-9044
Frigidaire.ca
1-800-265-8352
owner support
accessories
service
Our home is your home. Visit us if you
need help with any of these things:
registration
(See your registration card
for more information.)
