JXPT36K and JXPT46K
POWER TROWEL
Parts Manual
Parts Diagram

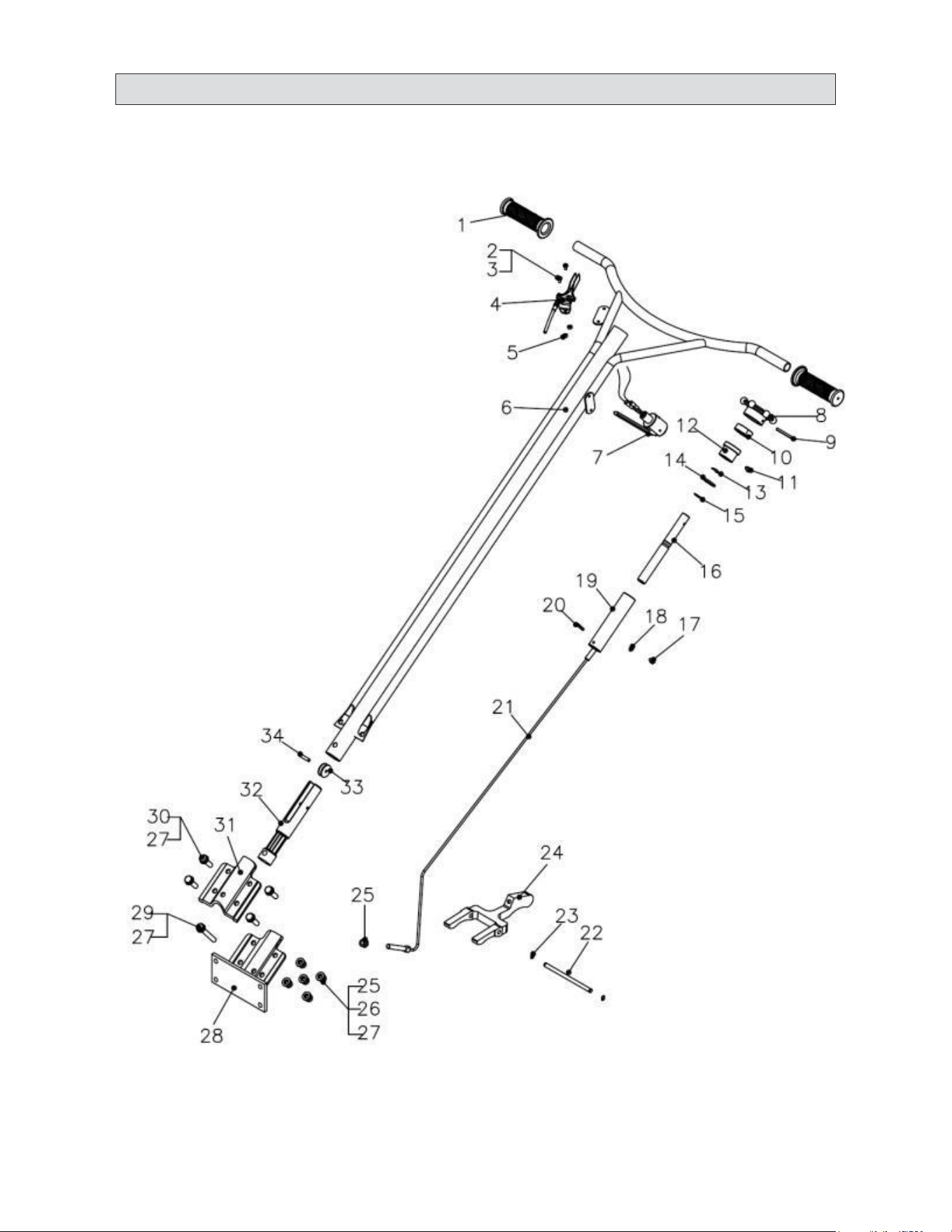

Handle
REF Parts No. Description Q’TY Dimension
1 RG-003 Plastic Cover 2
2 QSC-M4*8 Screw 2 M4x8
3 QWS-PM4 Plate Washer 2 M4
4 TSA-01 Throttle Assy. 1
5 QNT-NM4 Nylock Nut 2 M4
6 W436F-001 Handle WA 1
7 PAS-02 Stop Switch(release bar Type) 1
8 436F-01-001 Adjust Knob 1
9 QSP-5X50 Spring Pin 1 5x50
10 QBR-51104 Bearing 1
11 QBL-M6X10 Bolt 1 M6x10
12 436F-01-004 Aluminium Guide 1
13 QWS-WM19 Wave Washer 1 M19
14 QWS-PM19 Plate Washer 1 M19
15 QSR-S18 Snap Ring 1 S18
16 436F-01-002 Adjust Screw Pipe 1
17 QBL-M6X8 Bolt 1 M6x8
18 QWS-PM6 Spring Washer 1 M6
19 436F-01-003 Screw Guide 1
20 QSP-5X30 Spring Pin 1 5x30
21 436F-01-007 WT Steel Wire 1
22 436F-02-004 Yoke Arm Pin 1
23 QSR-S10 Snap Ring 2 S10
24 436F-02-003B Yoke Arm 1
25 QNT-NM10 Nylock Nut 10 M10
26 QWS-SM10 Spring Washer 14 M10
27 QWS-PM10 Plate Washer 18 M10
28 436F-02-001 Handle Support Base 1
29 QBL-M10X70 Bolt 1 M10x70
30 QBL-M10X35 Bolt 4 M10x35
31 436F-02-002 Upper Bracket 1
32 436F-01-005 Alumium yoke 1
33 436A-01-010 Wheel 1
34 QSP-3X30 Spring Pin 1 3x30
Page 28 of 33
Safety Ring
Blade
Page 29 of 33
REF
Parts No.
Description
Q’TY
Dimension
77
QWS-SM8
Spring Washer
M8
86
GX160
Engine GX-160
1
87
W436F-005
Hook Lift
1
(Option)
88
QBL-SHM8X20
Socket Head Cap Bolt
4
(Option)
89
436F-04-013
Clutch Busing
1
90
CA-01
Clutch
1
90-1
CA-01-004
Face Plate
1
90-2
QBL-AM8x16
Set Screw
2
M8x16
90-3
CA-01-005
Clutch Spring
1
90-4
CA-01-003
Shoe Weight
1
90-5
CA-01-002
Clutch Drum
1
90-6
QBR-6006
Bearing
1
6006
90-7
CA-01-001
Clutch Shaft
1
91
QBL-M8X35
Bolt
1
92
QWS-SPM8
Special Plate Washer
1
93
QKY-5x5x50
Key
1
95
436F-04-006
Belt Cover
1
97
QBT-A26
V-Belt
1
A26
98
W436F-002
Engine Mount Plate
99
436F-04-107
Engine Mount Bushing
100
QBL-FHM8X20
Flat Head Cap Bolt
4
101
QNT-M8
Nut
8
M8
102
QBL-LM8X40
Socket Head Bolt
4
M8X40
103
QWS-PM8
Plate Washer
8
M8
104
436F-04-004
Cup
4
105
436F-04-003
Rubber
4
106
W436F-004B
Safety Ring
1

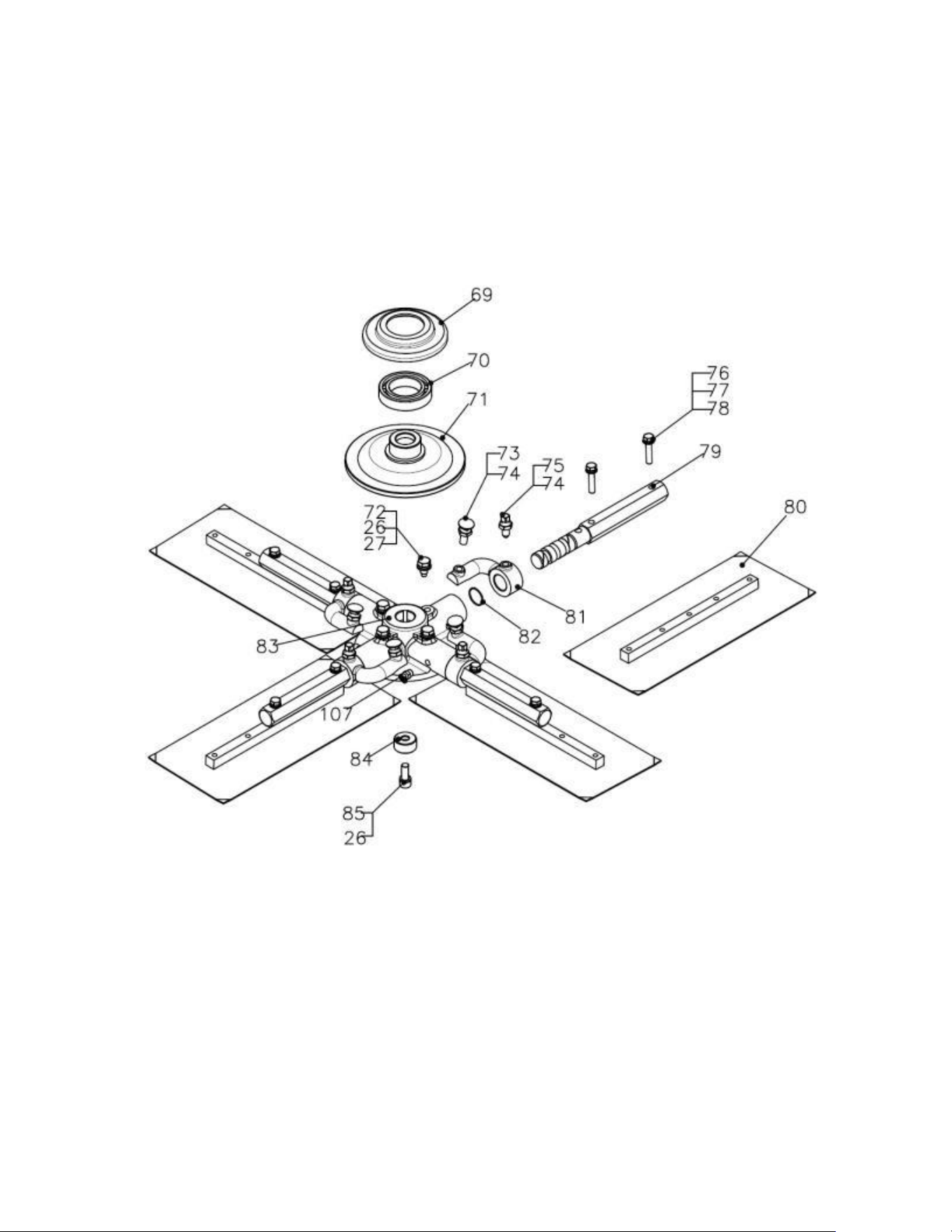

REF Parts No. Description Q’TY Dimension
26 QWS-SM10 Spring Washer 5 M10
27 QWS-PM10 Plate Washer 4 M10
69 436F-02-005B Press Plate Cap 1
70 QBR-6009 Bearing 1 6009
71 436F-02-006B Press Plate Cap 1
72 QBL-M10X20 Bolt 4 M10x20
73 QBL-BBM10X35 Round Head Bolt 4 M10x35
74 QNT-TM10 Thin Nut 8 M10
75 QBL-SHM10X30 Square Head Bolt 4
76 QBL-7/16X11/2 Bolt 8 7/16*3/2L
77 QWS-SM8 Spring Washer 8 M8
78 QWS-PM8 Plate Washer 8 M8
79 436F-02-009B Blade Arm 4
80 436F-02-014 Blade Assembly 4
81 436F-02-008 Tilt Arm 4
82 QOR-S22 O-ring 4 22x1.5t
83 436F-02-007B Spider 1
84 436F-02-010 Spider Bushing 1
85 QBL-LM10X30 Socket Bolt 1 M10x30

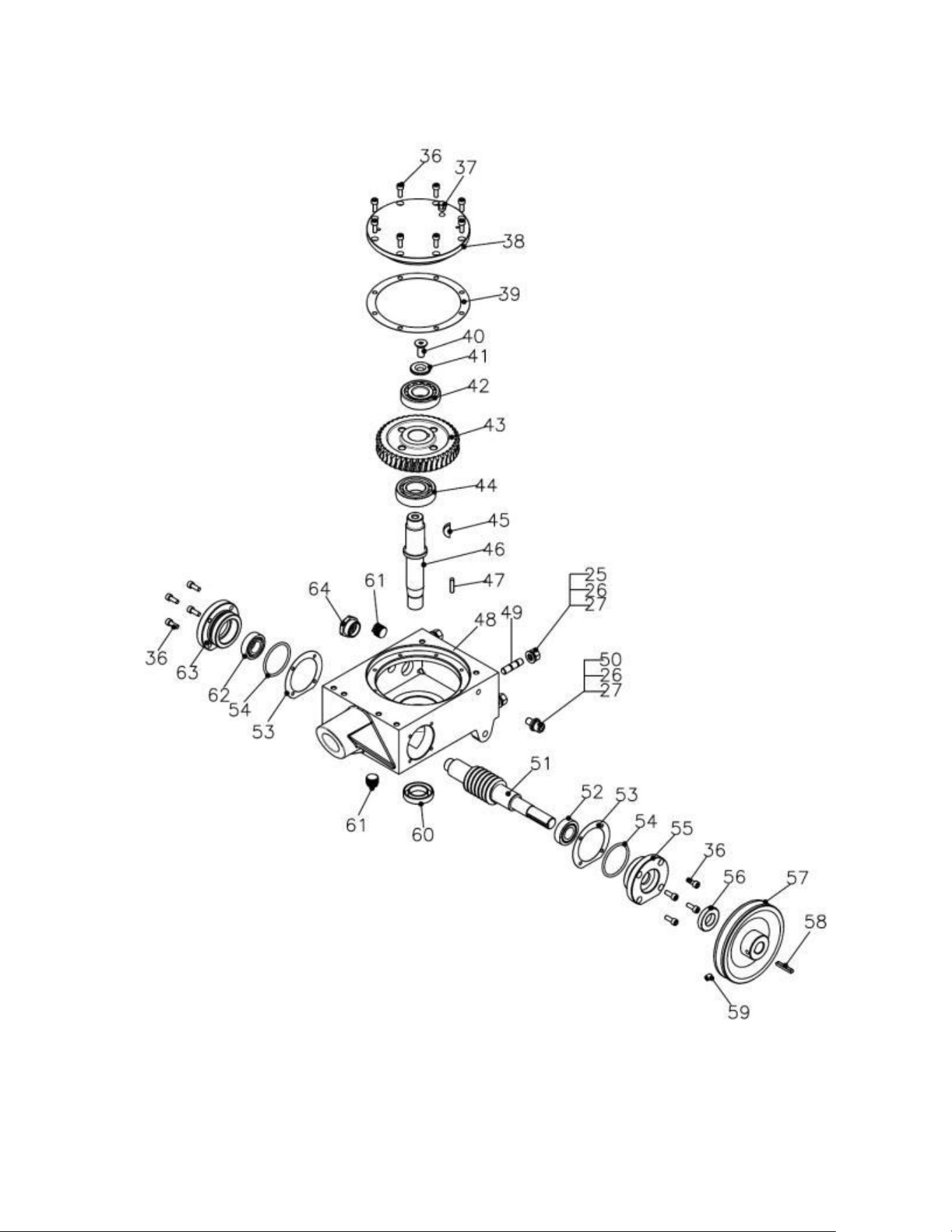

Gear Box
REF Parts No. Description Q’TY Dimension
436F-03 Gear Box Assembly 1
25 QNT-NM10 Nylock Nut 4 M10
26 QWS-SM10 Spring Washer 5 M10
27 QWS-PM10 Plate Washer 5 M10
36 QBL-M6X16 Bolt 16 M6x16L
37 QRV-M8 Release Valve 1
38 436F-03-004 Big Cover 1
39 436F-03-005 Gasket of Big Cover 1
40 QBL-FHM10x25 Flat Socket Head Bolt 1 M10x25
41 QWS-SSM10 Washer 1 M10
42 QBR-30305 Bearing 1 30305
43 436F-03-008 Worm Gear 1
44 QBR-6206 Bearing 1 6206
45 QKY-W6X10X25 Wood Key 1 6x10x25
46 436F-02-012 Main Shaft 1
47 QKY-6X25 Key 1 6x25
48 436F-03-001 Shell 1
49 QBL-STM10x40 Stud Bolt 4 M10x40
50 QBL-M10X16 Bolt 1 M10x16
51 436F-03-007 Worm Shaft 1
52 QBR-32004 Bearing 1 32004
53 436F-03-006 Gasket of Side Cover 2
54 QOR-P55 O-Ring 2 55x3.5t
55 436F-03-003 Output Side Cover 1
56 QOS-20X40X8 Oil Seal 1 20x40x8t
57 436F-04-005 Pulley 1
58 QKY-5X35 Key 1 5x35
59 QBL-M8X10 Bolt 1 M8x10
60 QOS-27X47X10 Oil Seal 1 27x47x10t
61 436A-03-008WT Oil Drain 2
62 QBR-6004 Bearing 1 6004
63 436F-03-002 Side Cover 1
64 QOCW-M27x1.5 Oil Check Windows 1 M27x1.5
Page 23 of 33
REF
Parts No.
Description
Q’TY
Dimension
1
RG-003
Plastic Cover
2
2
QSC-M4*8
Screw
2
M4x8
3
QWS-PM4
Plate Washer
2
M4
4
TSA-01
Throttle Assy.
1
5
QNT-NM4
Nylock Nut
2
M4
6
W436F-001
Handle WA
1
7
PAS-02
Stop Switch(release bar Type)
1
8
436F-01-001
Adjust Knob
1
9
QSP-5X50
Spring Pin
1
5x50
10
QBR-51104
Bearing
1
11
QBL-M6X10
Bolt
1
M6x10
12
436F-01-004
Aluminium Guide
1
13
QWS-WM19
Wave Washer
1
M19
14
QWS-PM19
Plate Washer
1
M19
15
QSR-S18
Snap Ring
1
S18
16
436F-01-002
Adjust Screw Pipe
1
17
QBL-M6X8
Bolt
1
M6x8
18
QWS-PM6
Spring Washer
1
M6
19
436F-01-003
Screw Guide
1
20
QSP-5X30
Spring Pin
1
5x30
21
436F-01-007 WT
Steel Wire
1
22
436F-02-004
Yoke Arm Pin
1
23
QSR-S10
Snap Ring
2
S10
24
436F-02-003B
Yoke Arm
1
25
QNT-NM10
Nylock Nut
10
M10
26
QWS-SM10
Spring Washer
14
M10
27
QWS-PM10
Plate Washer
18
M10
28
436F-02-001
Handle Support Base
1
29
QBL-M10X70
Bolt
1
M10x70
30
QBL-M10X35
Bolt
4
M10x35
31
436F-02-002
Upper Bracket
1
32
436F-01-005
Alumium yoke
1
33
436A-01-010
Wheel
1
34
QSP-3X30
Spring Pin
1
3x30
Safety Ring
Page 24 of 33
Blade

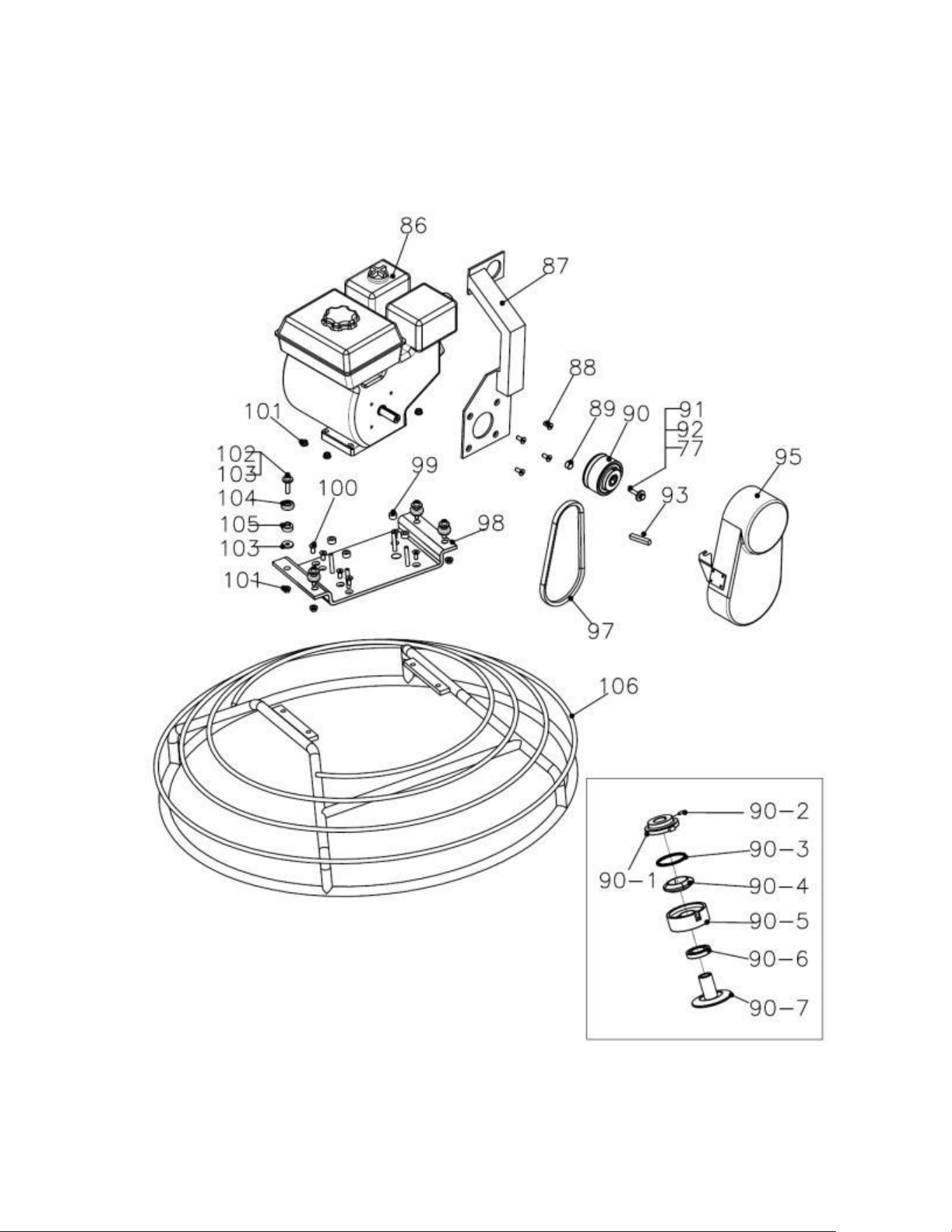

REF Parts No. Description Q’TY Dimension
77 QWS-SM8 Spring Washer M8
86 GX160 Engine GX-160 1
87 W436F-005 Hook Lift 1 (Option)
88 QBL-SHM8X20 Socket Head Cap Bolt 4 (Option)
89 436F-04-013 Clutch Busing 1
90 CA-01 Clutch 1
90-1 CA-01-004 Face Plate 1
90-2 QBL-AM8x16 Set Screw 2 M8x16
90-3 CA-01-005 Clutch Spring 1
90-4 CA-01-003 Shoe Weight 1
90-5 CA-01-002 Clutch Drum 1
90-6 QBR-6006 Bearing 1 6006
90-7 CA-01-001 Clutch Shaft 1
91 QBL-M8X35 Bolt 1
92 QWS-SPM8 Special Plate Washer 1
93 QKY-5x5x50 Key 1
95 436F-04-006 Belt Cover 1
97 QBT-A26 V-Belt 1 A26
98 W436F-002 Engine Mount Plate
99 436F-04-107 Engine Mount Bushing
100 QBL-FHM8X20 Flat Head Cap Bolt 4
101 QNT-M8 Nut 8 M8
102 QBL-LM8X40 Socket Head Bolt 4 M8X40
103 QWS-PM8 Plate Washer 8 M8
104 436F-04-004 Cup 4
105 436F-04-003 Rubber 4
106 W436F-004B Safety Ring 1
