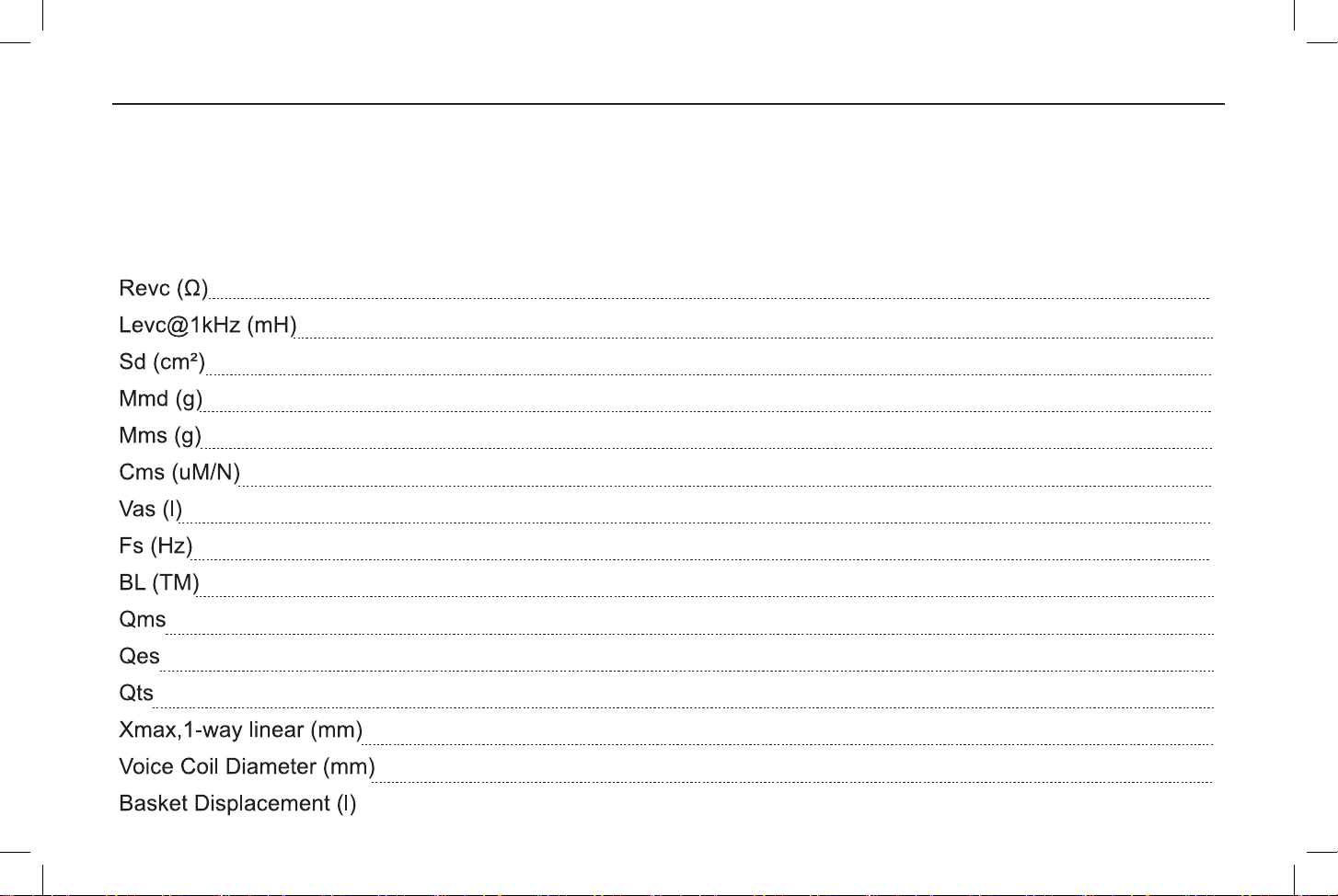

GS42
GS62
GS682
GS693
Instruction Manual
Mode d'emploi
Manual de instrucciones
Bedienungsanleitung
руководство по
эксплуатации
manual de Instruções
Manuale di istruzioni
Käyttöohje
Gebruiksaanwijzing
Bruksanvisning
Instruktionsbog
Kullanma Kılavuzu
Instrukcja obsługi
Manual Pemilik
使用说明书
GS42
GS62
GS682
GS693

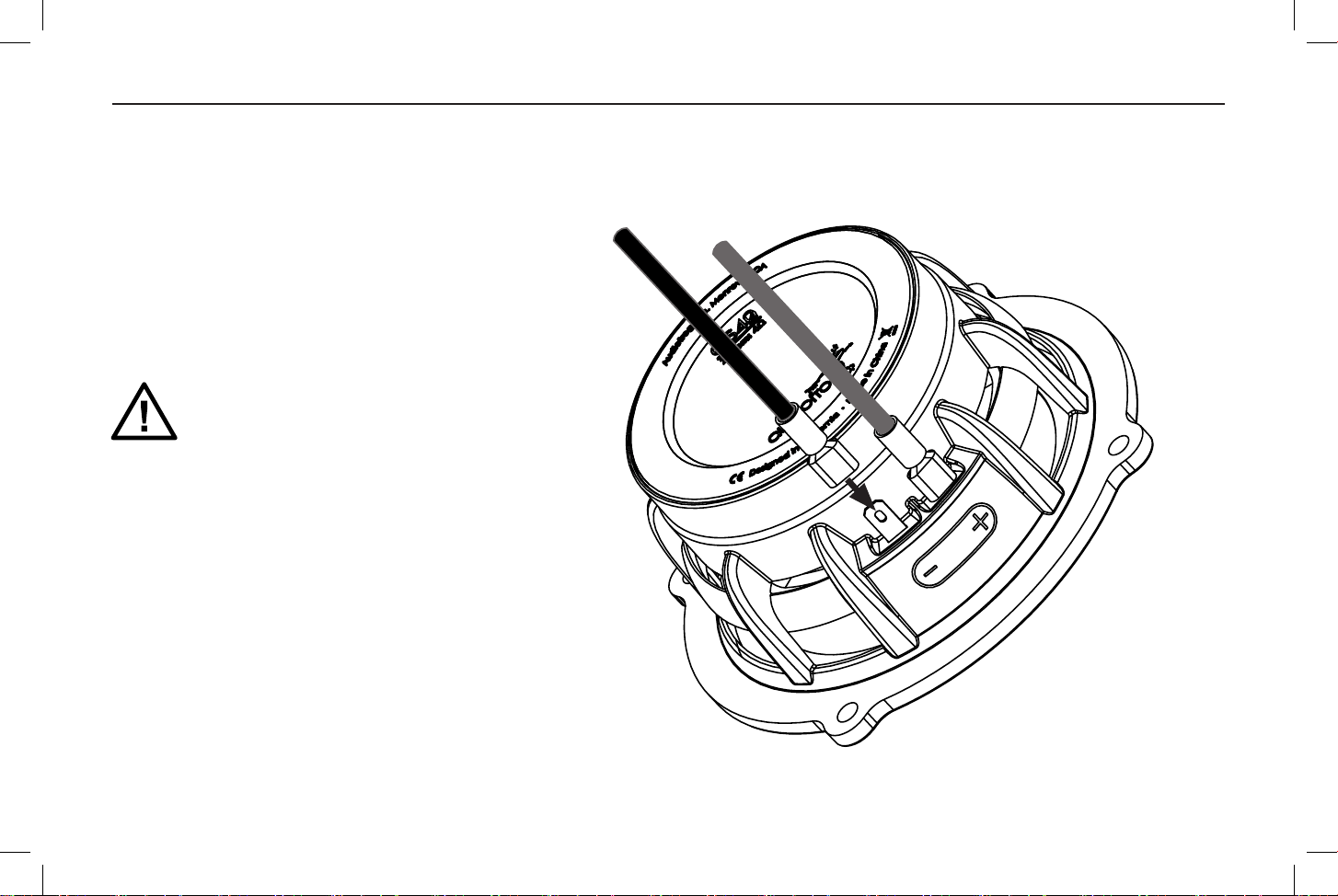

Do not solder wires directly to the terminals!
Ne soudez pas directement aux bornes!
No soldar los cables directamente a los terminales!
Löten Sie keine Drähte direkt an die Klemmen!
Не припаять провода непосредственно к клеммам!
Não solde os os diretamente nos terminais!
Non saldare i li direttamente ai terminali!
Älä juota johtoja suoraan liittimiin!
Laat draden niet direct solderen op de klemmen!
Löd inte kablar direkt till terminalerna!
Lod ikke ledninger direkte til terminalerne!
Terminallerine doğrudan telleri lehim yapmayın!
Nie lutować przewodów bezpośrednio do zacisków!
Jangan solder kabel langsung ke terminal!
不要直接焊接导线的接线端子！

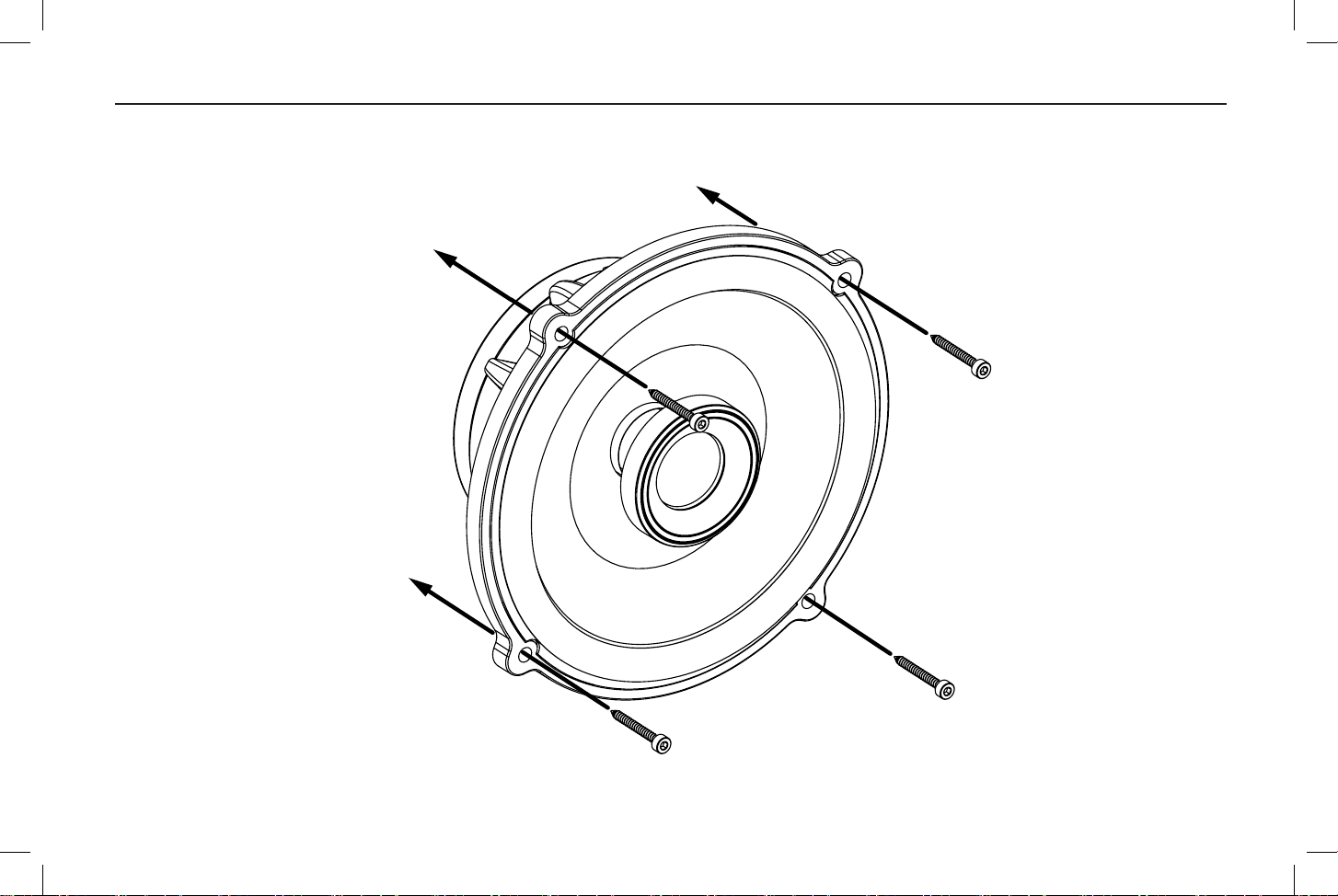

GS42
GS62
GS682
GS693

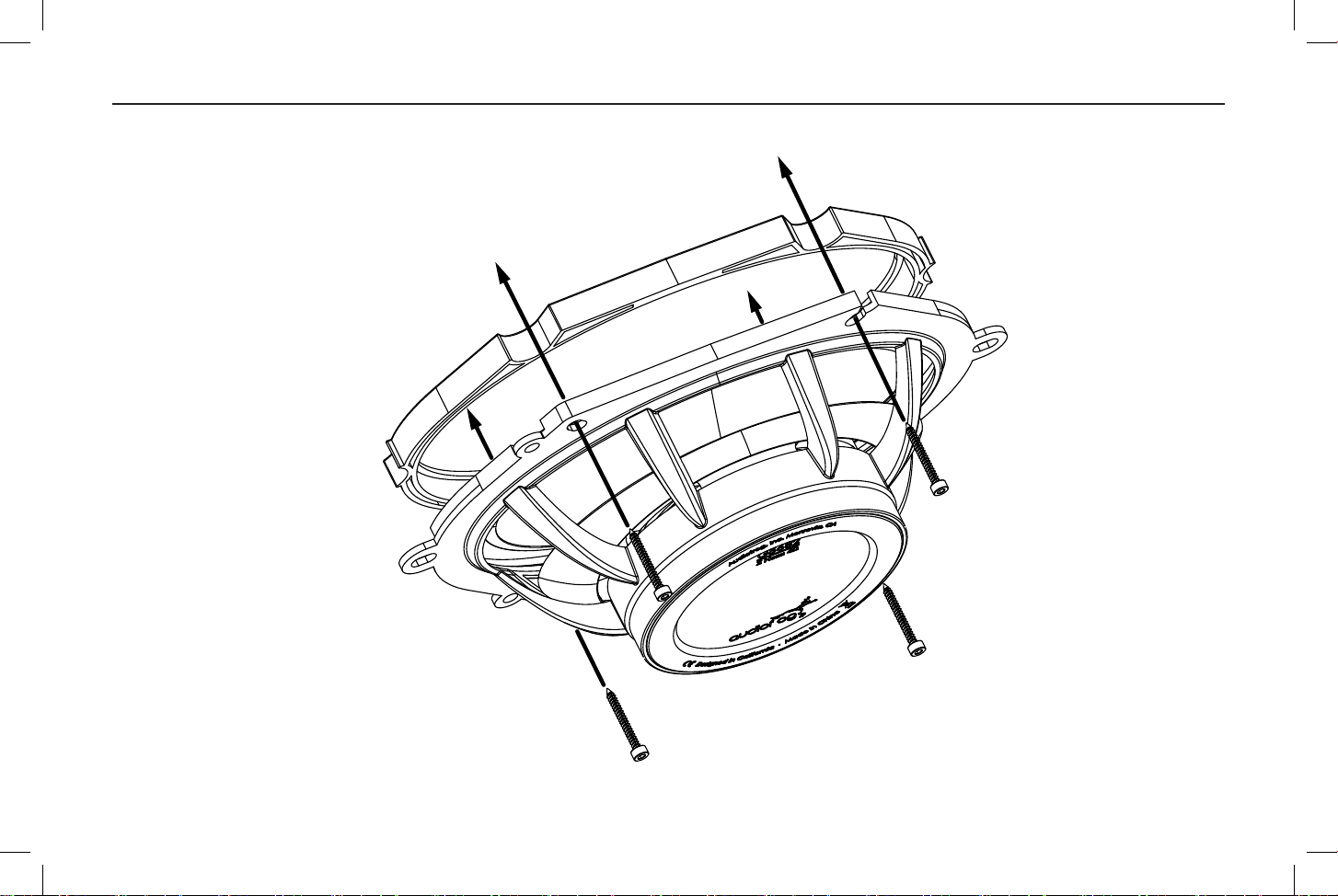

GS682
GS693

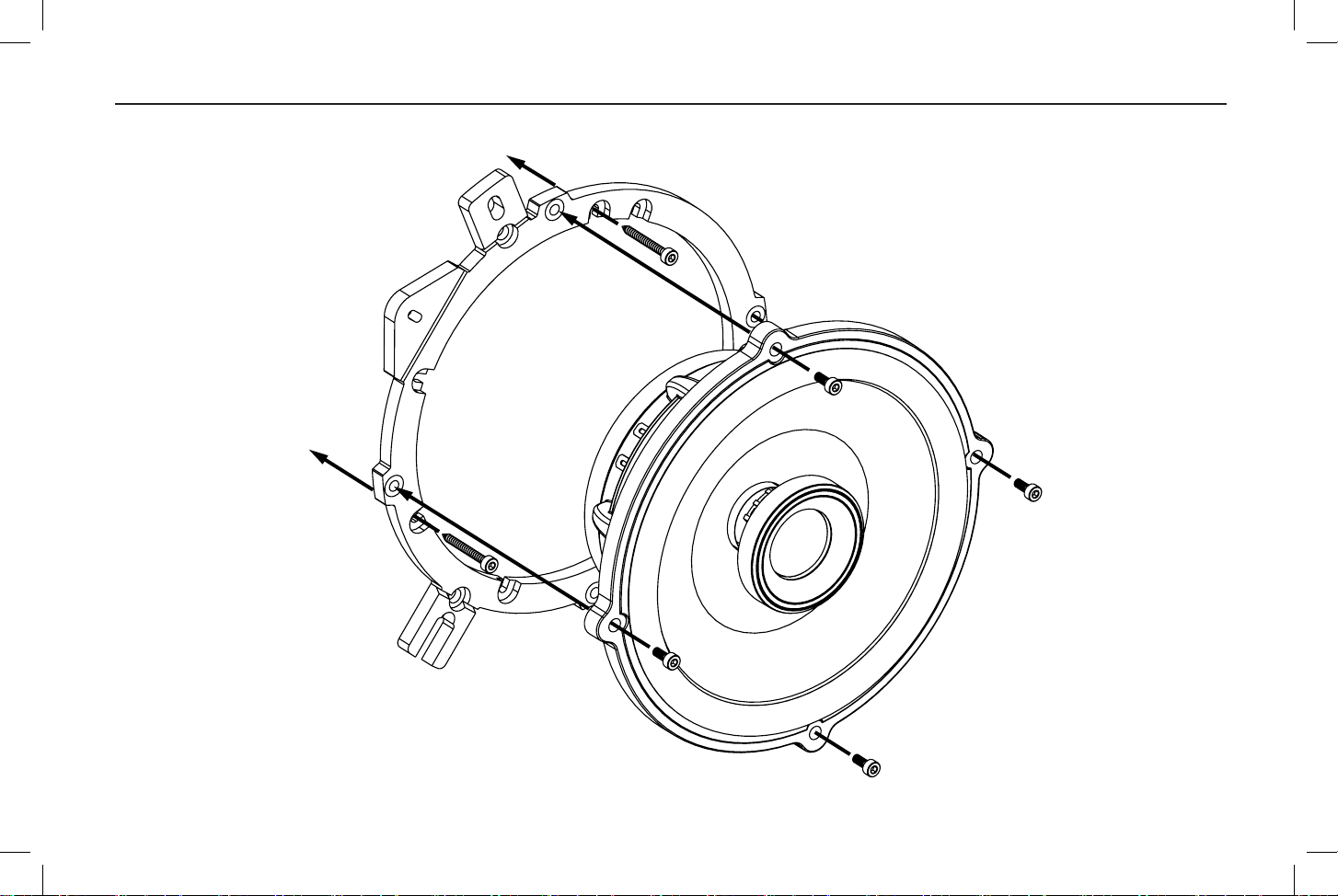

GS62
GS42

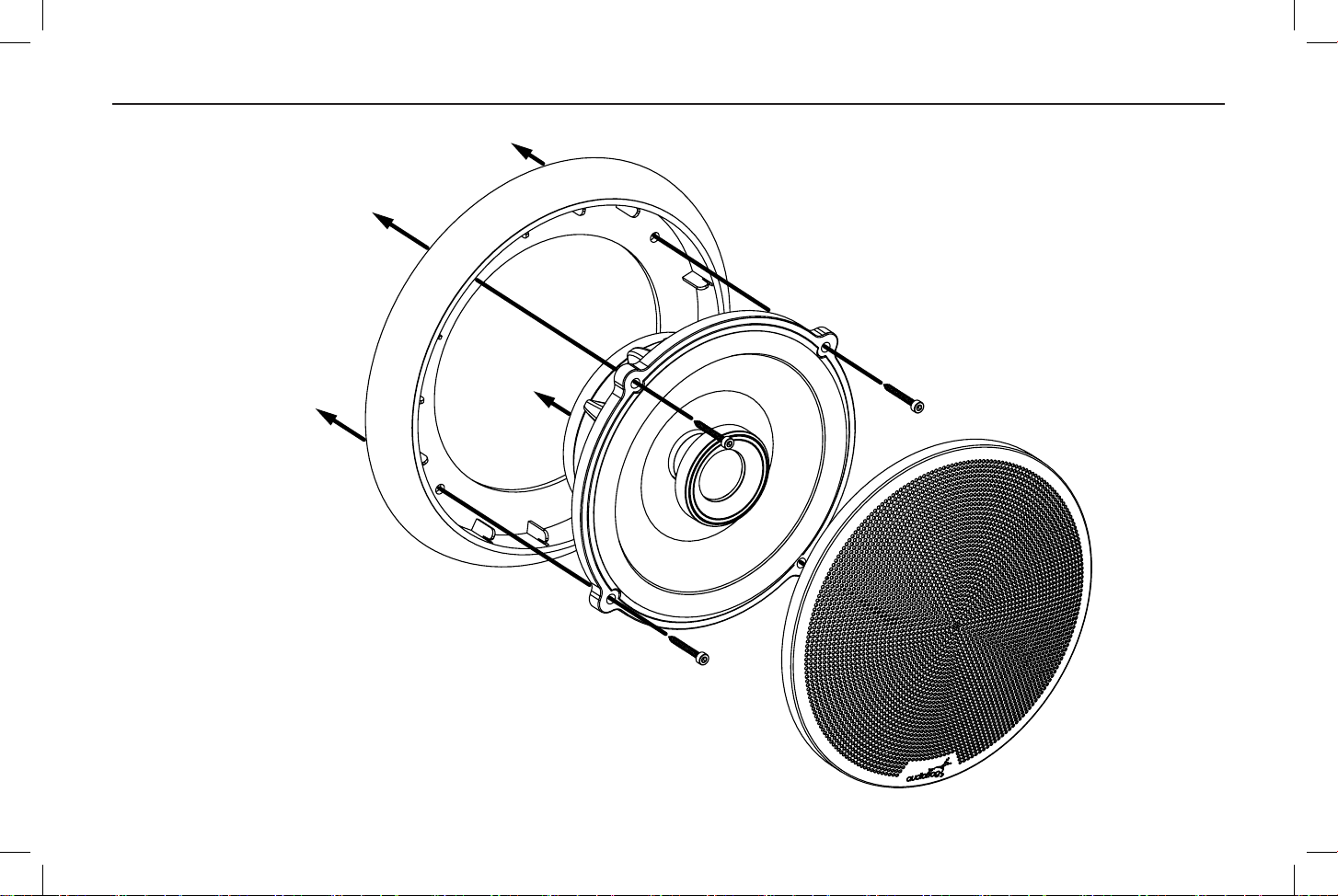

GS62
GS693
T a ations T Técnicas•
Technische Daten• ções Técnicas•
Tecniche• Tekniset Tiedot•T aties• Teknisk kationer•
Tek kationer• Teknik zellikler• Dane T kasi Teknis•技术规格
Recommendations• Recommandations• Recomendaciones• Empfehlung•
Rekommendation• Anbefaling• Tavsiye• Rekomendacja• Rekomendasi• 推荐
RMS
50 Watts
MAX
150 Watts
NOMINAL
Z
-3dB
90Hz-20kHz
2.83V/1M
88dB
RMS
15-75 Watts

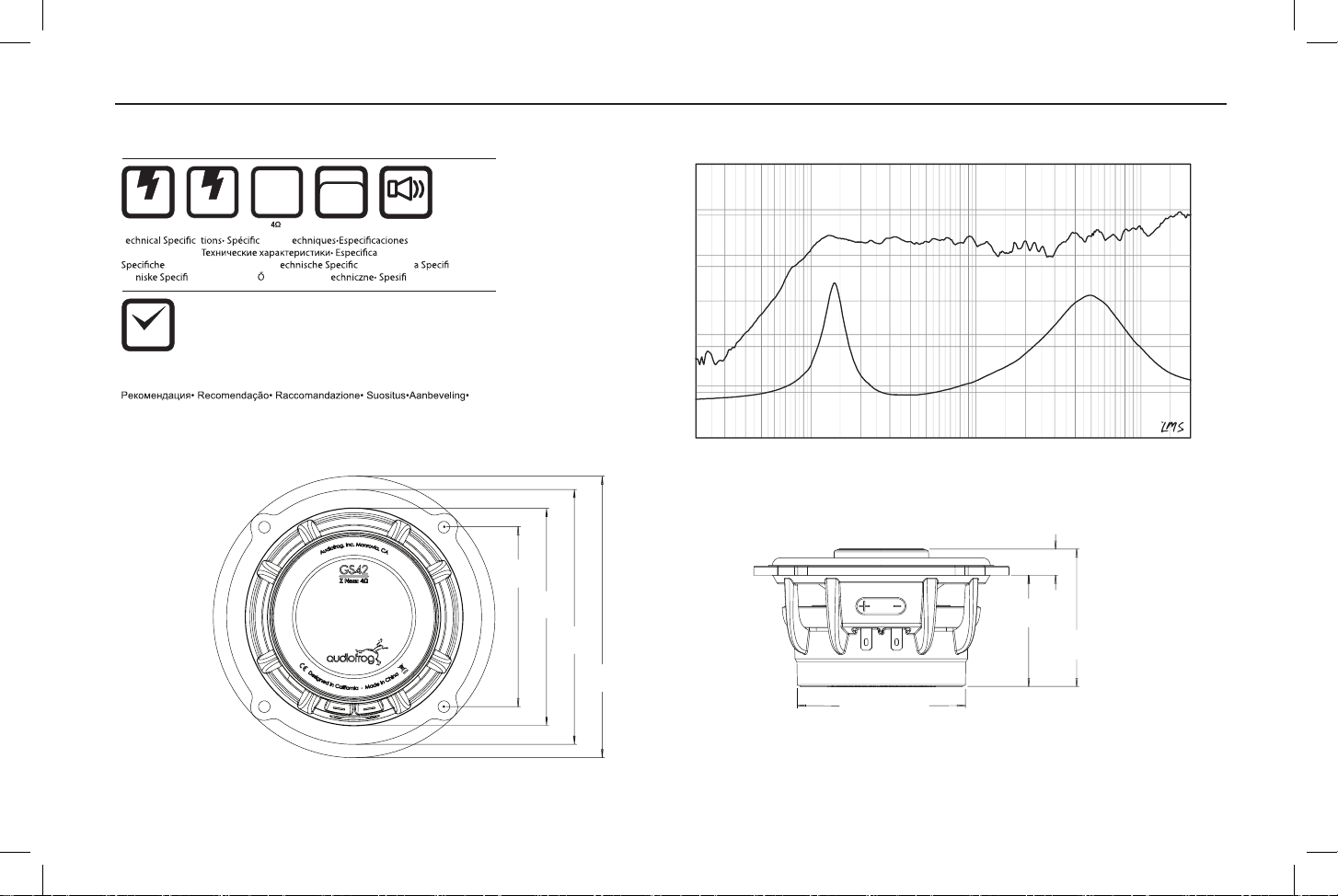

GS42
dBSPL
45
55
65
75
85
95
105
20 50 100 200 500 1K 2K 5K 10K 20K
2
4
8
20
40
80
Ohm
93.6mm
(3-11/16”)
110mm
(4-11/32”)
121.5mm
(4-13/16”)
77.6mm
(3-1/16”)
72.5mm (2-7/8”)
48mm
(1-29/32”)
11.3mm
15/32”
59.3mm
(2-11/32”)

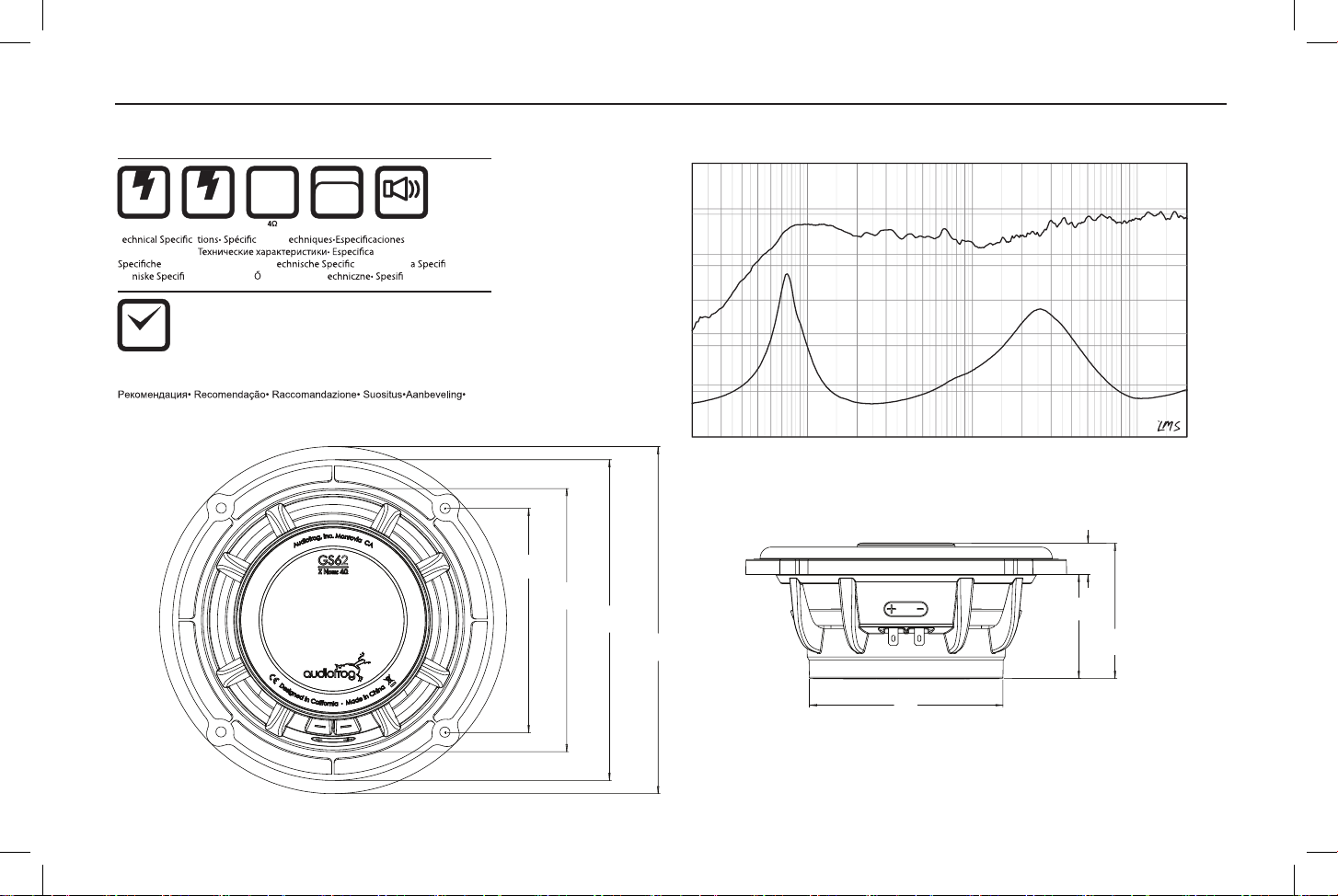

GS62
T a ations T Técnicas•
Technische Daten• ções Técnicas•
Tecniche• Tekniset Tiedot•T aties• Teknisk kationer•
Tek
kationer• Teknik zellikler• Dane T kasi Teknis•技术规格
Recommendations• Recommandations• Recomendaciones• Empfehlung•
Rekommendation• Anbefaling• Tavsiye• Rekomendacja• Rekomendasi• 推荐
RMS
70 Watts
MAX
200 Watts
NOMINAL
Z
-3dB
50Hz-20kHz
2.83V/1M
89dB
RMS
15-75 Watts
dBSPL
45
55
65
75
85
95
105
20 50 100 200 500 1K 2K 5K 10K 20K
2
4
8
20
40
80
Ohm
129.8mm
(5-1/8”)
158.1mm
(6-1/4”)
110.6mm
(4-3/8”)
171.1mm
(6-3/4”)
95.4mm
3-25/32”
51.2mm
(2-1.32”)
15.4mm
(5/8”)
66.6mm
(2-5/8”)

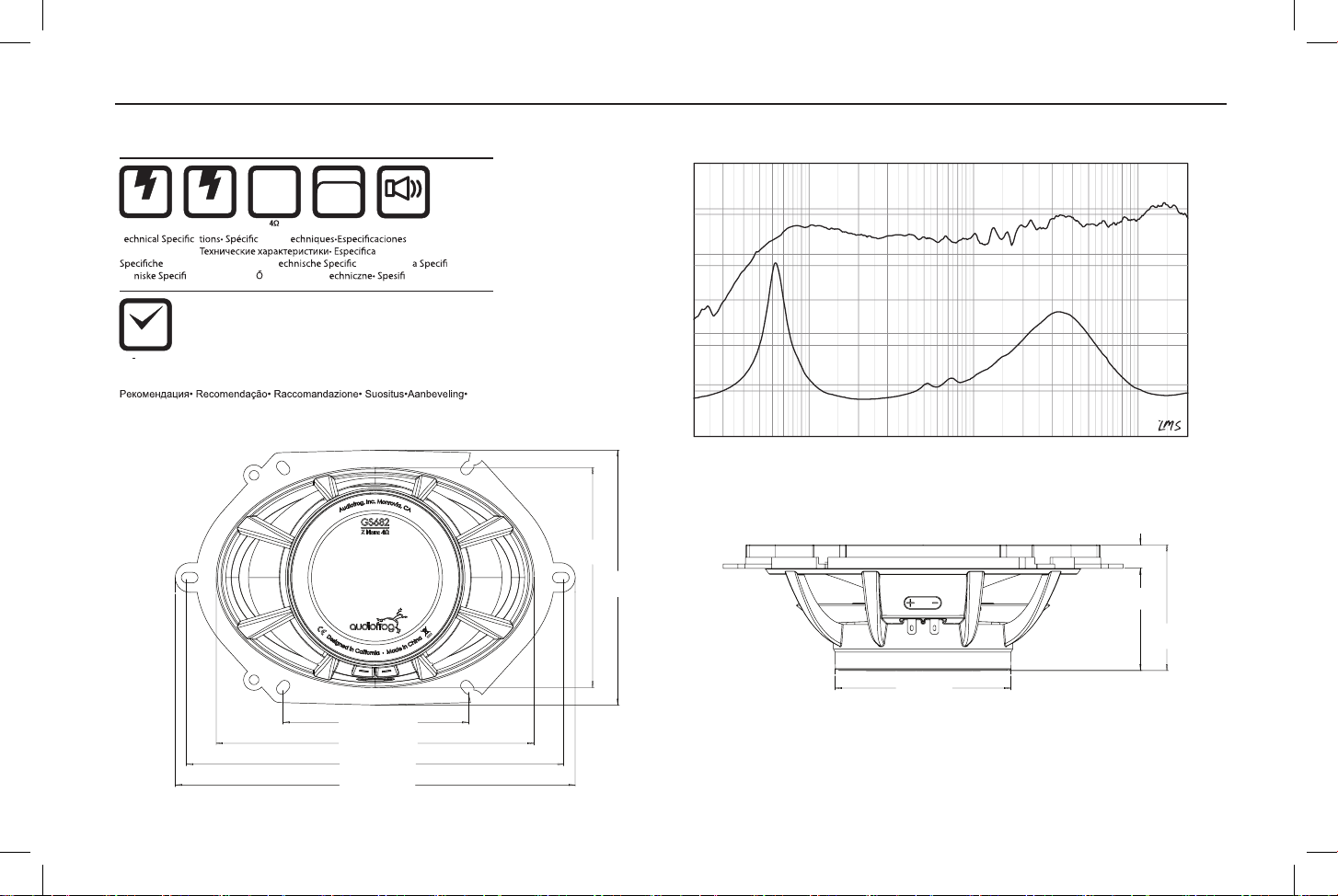

GS682
T a ations T Técnicas•
Technische Daten• ções Técnicas•
Tecniche• Tekniset Tiedot•T aties• Teknisk kationer•
Tek kationer• Teknik zellikler• Dane T kasi Teknis•技术规格
Recommendations• Recommandations• Recomendaciones• Empfehlung•
Rekommendation• Anbefaling• Tavsiye• Rekomendacja• Rekomendasi• 推荐
RMS
70 Watts
MAX
200 Watts
NOMINAL
Z
-3dB
47Hz-20kHz
2.83V/1M
89dB
RMS
15-75 Watts
dBSPL
45
55
65
75
85
95
105
20 50 100 200 500 1K 2K 5K 10K 20K
2
4
8
20
40
80
Ohm
217mm (8-9/16”)
146.6mm
(5-25/32”)
126.6mm
(5”)
182.8mm (7-7/32”)
230mm (9-1/16”)
106.7mm (4-7/32”)
58.8mm
(2-11/32”)
13.5mm
(17/32”)
72.3mm
(2-7/8”)
100.9mm (4”)
72.3mm
2-7/8”
18.5mm
3/4”
90.8mm
3-19/32”
108.9mm (4-5/16”)
148.5mm
(5-7/8”)
122.6mm
(4-27/32”)
166.2mm (6-9/16”)
242.6mm (9-9/16”)
219.1mm (8-21/32”)
171.6mm
(6-25/32”)
GS693
T a ations T Técnicas•
Technische Daten• ções Técnicas•
Tecniche• Tekniset Tiedot•T aties• Teknisk kationer•
Tek kationer• Teknik zellikler• Dane T kasi Teknis•技术规格
Recommendations• Recommandations• Recomendaciones• Empfehlung•
Rekommendation• Anbefaling• Tavsiye• Rekomendacja• Rekomendasi• 推荐
RMS
100 Watts
MAX
300 Watts
NOMINAL
Z
-3dB
42Hz-20kHz
2.83V/1M
92dB
RMS
15-100 Watts
dBSPL
45
55
65
75
85
95
105
20 50 100 200 500 1K 2K 5K 10K 20K
2
4
8
20
40
80
Ohm
GS42
GS62
GS682
GS693
2.33
0.08
122.17
3.14
4.19
284.23
6.05
145.8
3.06
5.74
0.995
0.82
3.2
25
0.113
2.28
0.14
138.93
11.8
12.75
306.5
8.45
80.5
4.4
6.33
0.76
0.67
4
25
0.33
2.35
0.14
163
14.3
15.54
351.26
13.33
68
4.05
6.66
0.95
0.83
4
25
0.37
2.31
0.22
221
21.6
23.46
314
21.9
58.6
5.43
8.64
0.68
0.63
5
25
0.42
GS42 GS62 GS682 GS693
Audiofrog, Inc.
1703 S. Magnolia Ave.
Monrovia, CA 91016
www.audiofrogusa.com
Audiofrog and the Audiofrog logo are trademarks of
Audiofrog, Inc, registered in the United States and/or
other countries. Audiofrog et le logo sant des marques
est une marque commerciale de Audiofrog, Inc dépo-
sée aux Étas-Unis et/ou dans d’autres pays.
Limited Warranty--USA
Audiofrog GS Series products sold in the
USA through authorized Audiofrog dealers
are warranted to the original purchaser
against defects in materials and workman-
ship for one year after the date of original
purchase. They are covered for an addition-
al year if they are installed by an authorized
Audiofrog dealer. Please save your receipt.
A valid receipt from an authorized Audio-
frog dealer is required for warranty service.
If you have purchased your GS Series
products outside the USA, please consult
your local distributor for warranty terms and
conditions.
