Models
FS-1501MLJ-C with SRC-14J
Modular Cubelet
Serenity Series
Instruction Manual
Issued: 6-10-2019
Revised: 10-24-2023
hoshizakiamerica.com
2
WARNING
Only qualied service technicians should install and service the appliance. To
obtain the name and phone number of your local Hoshizaki Certied Service
Representative, visit www.hoshizakiamerica.com. No installation or service should
be undertaken until the technician has thoroughly read this Instruction Manual.
Likewise, the owner/manager should not proceed to operate the appliance until the
installer has instructed them on its proper operation. Failure to install, operate, and
maintain the appliance in accordance with this manual will adversely affect safety,
performance, component life, and warranty coverage and may result in costly water
damage. Proper installation is the responsibility of the installer. Product failure or
property damage due to improper installation is not covered under warranty.
Hoshizaki provides this manual primarily to assist qualied service technicians in the
installation, maintenance, and service of the appliance.
Should the reader have any questions or concerns which have not been satisfactorily
addressed, please call, send an e-mail message, or write to the Hoshizaki Technical
Support Department for assistance.
Phone: 1-800-233-1940; (770) 487-2331
Fax: 1-800-843-1056; (770) 487-3360
E-mail: techsuppor[email protected]
618 Highway 74 South
Peachtree City, GA 30269
Attn: Hoshizaki Technical Support Department
NOTE: To expedite assistance, all correspondence/communication MUST include the
following information:
• Model Number
• Serial Number
• Complete and detailed explanation of the problem.
3
CONTENTS
Important Safety Information ................................................................................................. 4
I. Specications ...................................................................................................................... 6
A. Electrical and Refrigerant Data ..................................................................................... 6
1. Icemaker .................................................................................................................. 6
2. Remote Condensing Unit ......................................................................................... 6
B. Dimensions/Connections .............................................................................................. 7
1. FS-1501MLJ-C ......................................................................................................... 7
2. SRC-14J .................................................................................................................. 8
II. Installation and Operating Instructions .............................................................................. 9
A. Location ........................................................................................................................ 9
1. Icemaker .................................................................................................................. 9
2. Remote Condensing Unit ....................................................................................... 10
B. Checks Before Installation ............................................................................................11
1. Icemaker .................................................................................................................11
2. Remote Condensing Unit ........................................................................................ 11
C. How to Remove Panels ............................................................................................... 12
1. Icemaker ................................................................................................................ 12
2. Remote Condensing Unit ....................................................................................... 12
D. Installation of the Icemaker ......................................................................................... 13
1. Dispenser Unit/Ice Storage Bin and Icemaker Setup ............................................. 13
2. Icemaker Electrical Connection ............................................................................. 14
3. Water Supply and Drain Connections .................................................................... 15
E. Installation of the Remote Condensing Unit ................................................................ 17
1. Remote Condensing Unit Setup ............................................................................. 17
2. Line Set Size and Refrigerant Charge ................................................................... 17
3. Line Set Installation ............................................................................................... 18
4. Remote Condensing Unit Electrical Connection .................................................... 20
F. Final Checklist .............................................................................................................. 21
1. Pre-Startup ............................................................................................................. 21
2. Post-Startup ........................................................................................................... 22
G. Startup ........................................................................................................................ 23
1. Bin Control Setting ................................................................................................. 23
2. Bin Control Check .................................................................................................. 25
a) Bin Control 1 (Ultrasonic) ................................................................................... 25
b) Bin Control 2 (Mechanical Backup) .................................................................... 27
H. Operation Notes .......................................................................................................... 28
I. Alarm Safeties .............................................................................................................. 29
III. Maintenance ................................................................................................................... 30
A. Maintenance Schedule ................................................................................................ 31
B. Cleaning and Sanitizing Instructions ........................................................................... 32
IV. Preparing the Appliance for Periods of Non-Use ............................................................ 36
V. Disposal ........................................................................................................................... 37
IMPORTANT
This manual should be read carefully before the appliance is installed and operated.
Read the warnings and guidelines contained in this manual carefully as they
provide essential information for the continued safe use and maintenance of the
appliance. Retain this manual for any further reference that may be necessary.
4
Important Safety Information
Throughout this manual, notices appear to bring your attention to situations which could
result in death, serious injury, damage to the appliance, or damage to property.
WARNING Indicates a hazardous situation which could result in death or
serious injury.
NOTICE Indicates a situation which could result in damage to the
appliance or property.
IMPORTANT Indicates important information about the use, installation, and
care of the appliance.
WARNING
The appliance should be destined only to the use for which it has been expressly
conceived. Any other use should be considered improper and therefore dangerous.
The manufacturer cannot be held responsible for injury or damage resulting from
improper, incorrect, and unreasonable use. Failure to install, operate, and maintain the
appliance in accordance with this manual will adversely affect safety, performance,
component life, and warranty coverage and may result in costly water damage.
To reduce the risk of death, electric shock, serious injury, or re, follow basic
precautions including the following:
• Only qualied service technicians should install and service the appliance.
• The appliance must be installed in accordance with applicable national, state, and
local codes and regulations.
• To reduce the risk of electric shock, do not touch the icemaker power switch or plug
with damp hands. Make sure the icemaker power switch is in the "OFF" position
before plugging in or unplugging the icemaker.
• Before Servicing: FS: Move the icemaker's power switch to the "OFF" position.
Unplug the icemaker from the electrical outlet. SRC: Turn off the power supply to
the remote condensing unit. Place the disconnect (if applicable) in the off position.
Lockout/Tagout to prevent the power supply from being turned back on inadvertently.
• Do not make any alterations to the icemaker or condensing unit. Alterations could
result in electric shock, injury, re, or damage to the appliance.
FS
• The icemaker requires an independent power supply of proper capacity. See the
nameplate for electrical specications. Failure to use an independent power supply of
proper capacity can result in a tripped breaker, blown fuse, damage to existing wiring,
or component failure. This could lead to heat generation or re.
• THE ICEMAKER MUST BE GROUNDED. The icemaker is equipped with a
NEMA5-15 three-prong grounding plug to reduce the risk of potential shock
hazards. It must be plugged into a properly grounded, independent 3-prong wall outlet.
If the outlet is a 2-prong outlet, it is your personal responsibility to have a qualied
electrician replace it with a properly grounded, independent 3-prong wall outlet. Do not
remove the ground prong from the power cord and do not use an adapter plug. Failure
to properly ground the icemaker could result in death or serious injury.
5
WARNING, continued
FS continued
• Do not use an extension cord.
• Do not use an icemaker with a damaged power cord. The power cord should not be
altered, jerked, bundled, weighed down, pinched, or tangled. Such actions could result
in electric shock or re. To unplug the icemaker, be sure to pull the plug, not the cord,
and do not jerk the cord.
• Do not place ngers or any other objects into the ice discharge opening.
SRC
• Electrical connection must be hard-wired to the remote condensing unit and must
meet national, state, and local electrical code requirements. Failure to meet these
code requirements could result in death, electric shock, serious injury, re, or damage.
• The remote condensing unit requires an independent power supply of proper capacity.
See the nameplate for electrical specications. Failure to use an independent power
supply of proper capacity can result in a tripped breaker, blown fuse, damage to
existing wiring, or component failure. This could lead to heat generation or re.
• THE REMOTE CONDENSING UNIT MUST BE GROUNDED. Failure to properly
ground the remote condensing unit could result in death or serious injury.
NOTICE
• Follow the instructions in this manual carefully to reduce the risk of costly water
damage.
• In areas where water damage is a concern, install in a contained area with a oor
drain.
• Install the icemaker in a location that stays above freezing. Normal operating ambient
temperature must be within 45°F to 100°F (7°C to 38°C).
• Do not leave the icemaker on during extended periods of non-use, extended
absences, or in sub-freezing temperatures. To properly prepare the icemaker for
these occasions, follow the instructions in "IV. Preparing the Appliance for Periods of
Non-Use."
• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear
of obstruction.
• Do not place objects on top of the appliance.
• The dispenser unit/ice storage bin is for ice use only. Do not store anything else in the
dispenser unit/ice storage bin.
6
I. Specications
A. Electrical and Refrigerant Data
IMPORTANT
Icemaker and remote condensing unit power supplies are separate.
The rating label (Icemaker) and nameplate (Icemaker and Remote Condensing Unit)
provide electrical and refrigerant data. For certication marks, see the nameplate.
We reserve the right to make changes in specications and design without prior notice.
1. Icemaker
Model Number FS-1501MLJ-C
AC Supply Voltage 115/60/1
Amperes 5.6A
Design Pressure HI-467PSI LO-230PSI
Total Refrigerant
Charge
404A
3.5 OZ.
Total Refrigerant Charge
with Hoshizaki Remote
Condensing Unit
SRC-14J: 11 LB. 0 OZ.
2. Remote Condensing Unit
Model Number SRC-14J
AC Supply Voltage 208-230/60/1 (3 Wire with
Neutral for 115V)
Compressor 208-230V 6.9RLA 56LRA
Fan Motor 115V 1.45FLA 65W (EACH)
Other 120V 0.2A
Maximum Fuse Size 20 AMPS
Max. HACR Breaker
(USA Only)
20 AMPS
Max. Circuit Breaker
(Canada Only)
20 AMPS
Minimum Circuit
Ampacity
20 AMPS
Design Pressure HI-467PSI LO-230PSI
Refrigerant 404A
10 LB. 12.8 OZ.
Total Refrigerant Charge
with Hoshizaki Icemaker
FS-1501MLJ-C:
11 LB. 0 OZ.
7
B. Dimensions/Connections

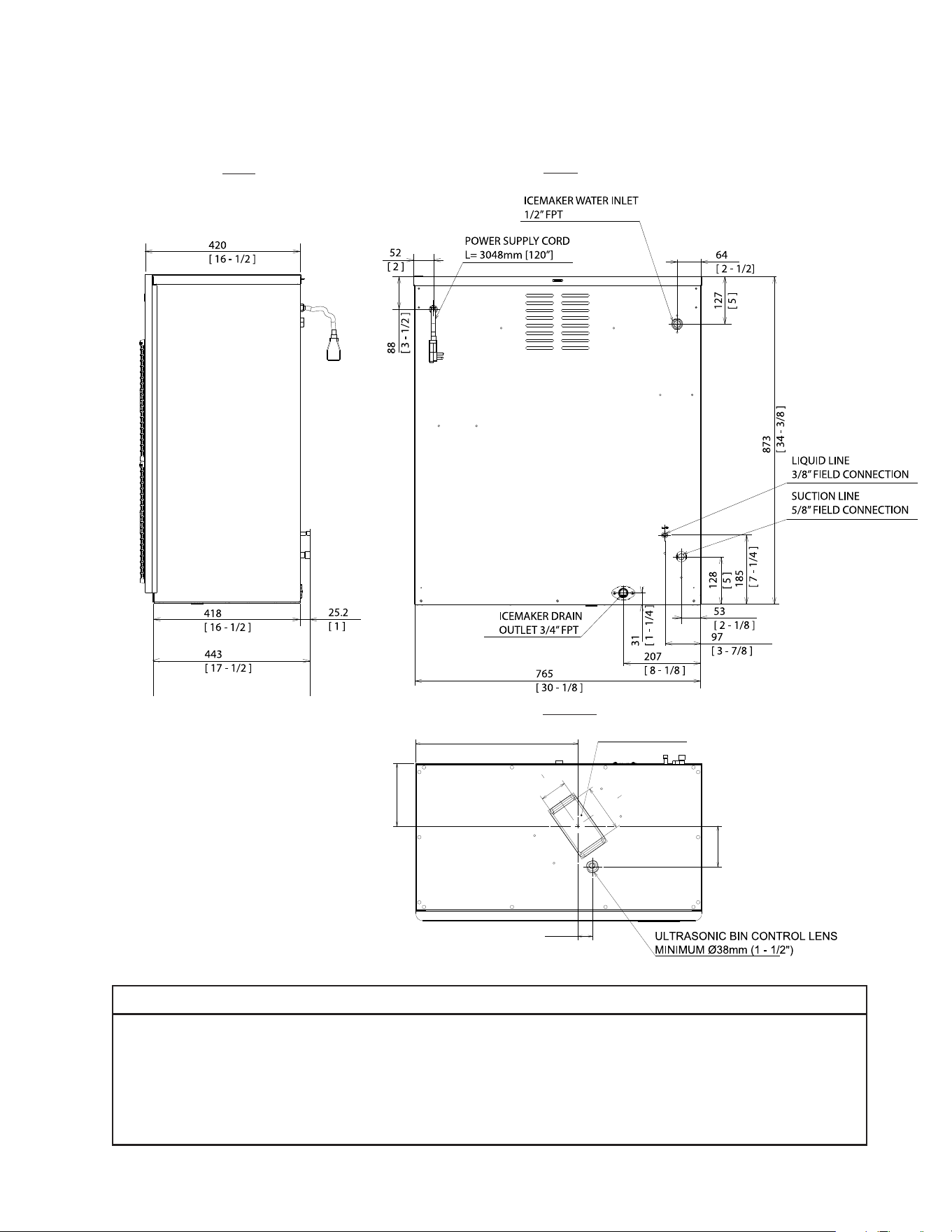

1. FS-1501MLJ-C
Units: mm [in.]
Rear
Side
Bottom
NOTICE
• Allow 6" (15-cm) clearance at rear and sides for proper air circulation and ease of
maintenance and/or service should they be required. Allow 24" (61-cm) clearance at
top to allow for removal of the auger.
• The ice storage bin opening must accommodate the bottom opening as in the
illustration.
ICE DROP ZONE
40
[1-1/2]
433
[17]
109
[4-1/4]
167
[6-1/2]
72
[3]
125
[5]
8

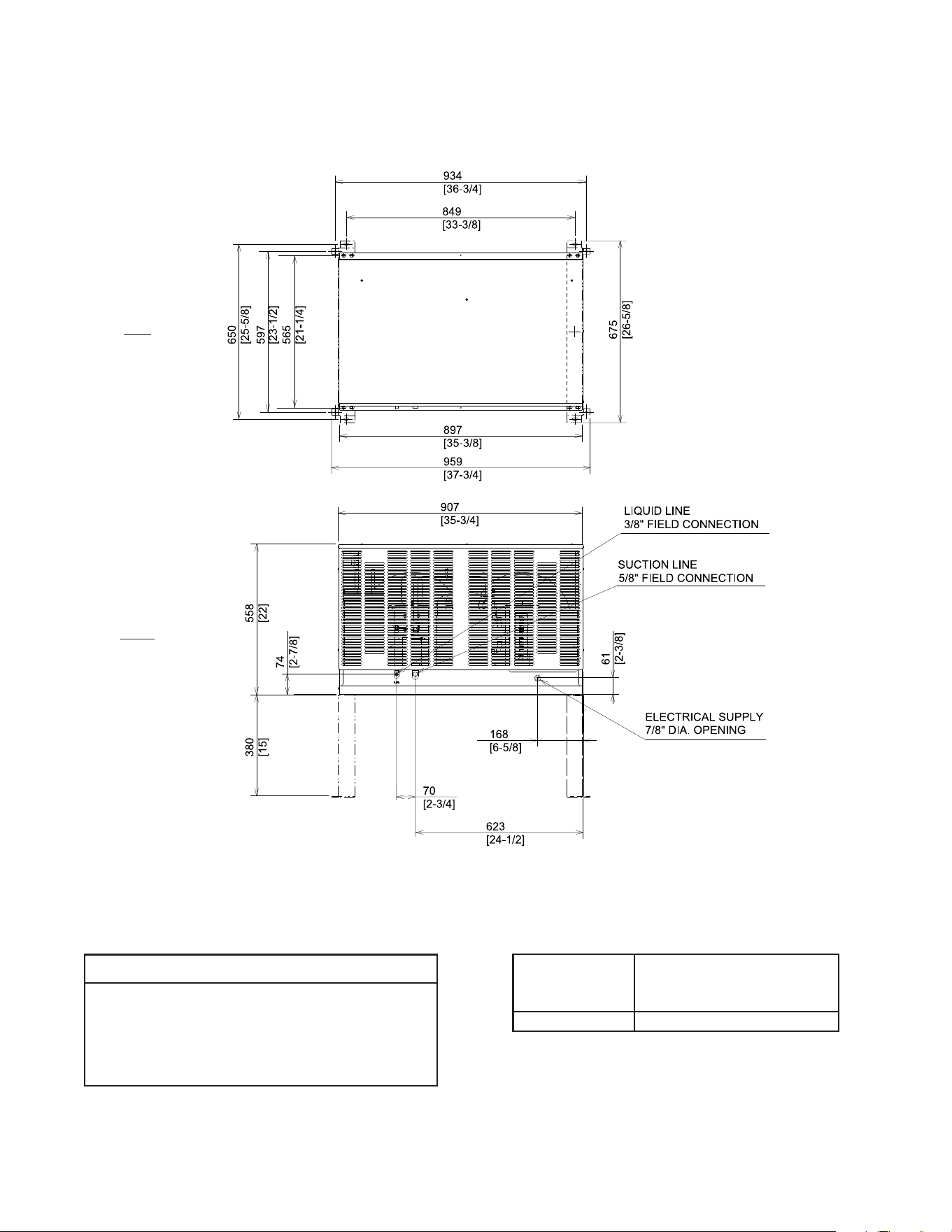

2. SRC-14J
Unit: mm [in.]
Note: Legs are included with condensing unit.
Leg height is 380 mm (14-15/16 in.).
Rear
Top
Icemaker Model
SRC-14J Heat of Rejection
AT 90°F (32°C)
WT 70°F (21°C)
FS-1501MLJ-C 15,300 BTU/hr
NOTICE
Allow 24" (61-cm) clearance at front
and rear for proper air circulation and
ease of maintenance and/or service
should they be required.
9
II. Installation and Operating Instructions
WARNING
• Installation of appliance must be performed by properly trained and EPA-certied
service personnel.
• The appliance must be installed in accordance with applicable national, state,
and local codes and regulations.
• Failure to install, operate, and maintain the appliance in accordance with this
manual will adversely affect safety, performance, component life, and warranty
coverage and may result in costly water damage.
• CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews
are securely in place after installation. Make sure that none have fallen into the
dispenser unit/ice storage bin.
A. Location
1. Icemaker
NOTICE
• The icemaker is not intended for outdoor use. Normal operating ambient
temperature must be within 45°F to 100°F (7°C to 38°C); Normal operating
water temperature must be within 45°F to 90°F (7°C to 32°C). Operation of the
icemaker, for extended periods, outside of these normal temperature ranges may
affect icemaker performance.
• The icemaker will not work at sub-freezing temperatures. To prevent damage
to the water supply line, drain the icemaker if the air temperature is going to go
below 32°F (0°C). See "IV. Preparing the Appliance for Periods of Non-Use."
• The icemaker should not be located next to ovens, grills, or other high heat producing
equipment.
• Allow 6" (15 cm) clearance at rear and sides for proper air circulation and ease of
maintenance and/or service should they be required. Allow 24" (61 cm) clearance at top to
allow for removal of the auger.
• The location must provide a rm and level foundation for the appliance.
10
2. Remote Condensing Unit
NOTICE
• The remote condensing unit is intended for outdoor use. Normal operating ambient
temperature must be within -4°F to 122°F (-20°C to 50°C). Operation of the remote
condensing unit, for extended periods, outside of this normal temperature range
may affect icemaker performance.
• The maximum line set length is 55' (17 m). No refrigerant charge adjustment is
necessary.
• The maximum vertical distance between the remote condensing unit and icemaker
is 33' (10 m) above or 10' (3 m) below the icemaker. These distances are measured
tting to tting. See Fig. 1.
• If the vertical distance between the remote condensing unit and the icemaker
is greater than 20' (6 m) (not to exceed 33' (10 m)), an "S" oil-trap (5/8"OD
copper tubing) must be installed in the suction line. The "S" oil-trap must be
located halfway between the icemaker and remote condensing unit. This ensures
sufficient oil return to the compressor.
The remote condensing unit must be positioned in a permanent site under the following
guidelines:
• A rm and at site.
• A dry and well ventilated area with 24" (61 cm) clearance in both front and rear for proper
air circulation and ease of maintenance and/or service should they be required. See Fig. 2.

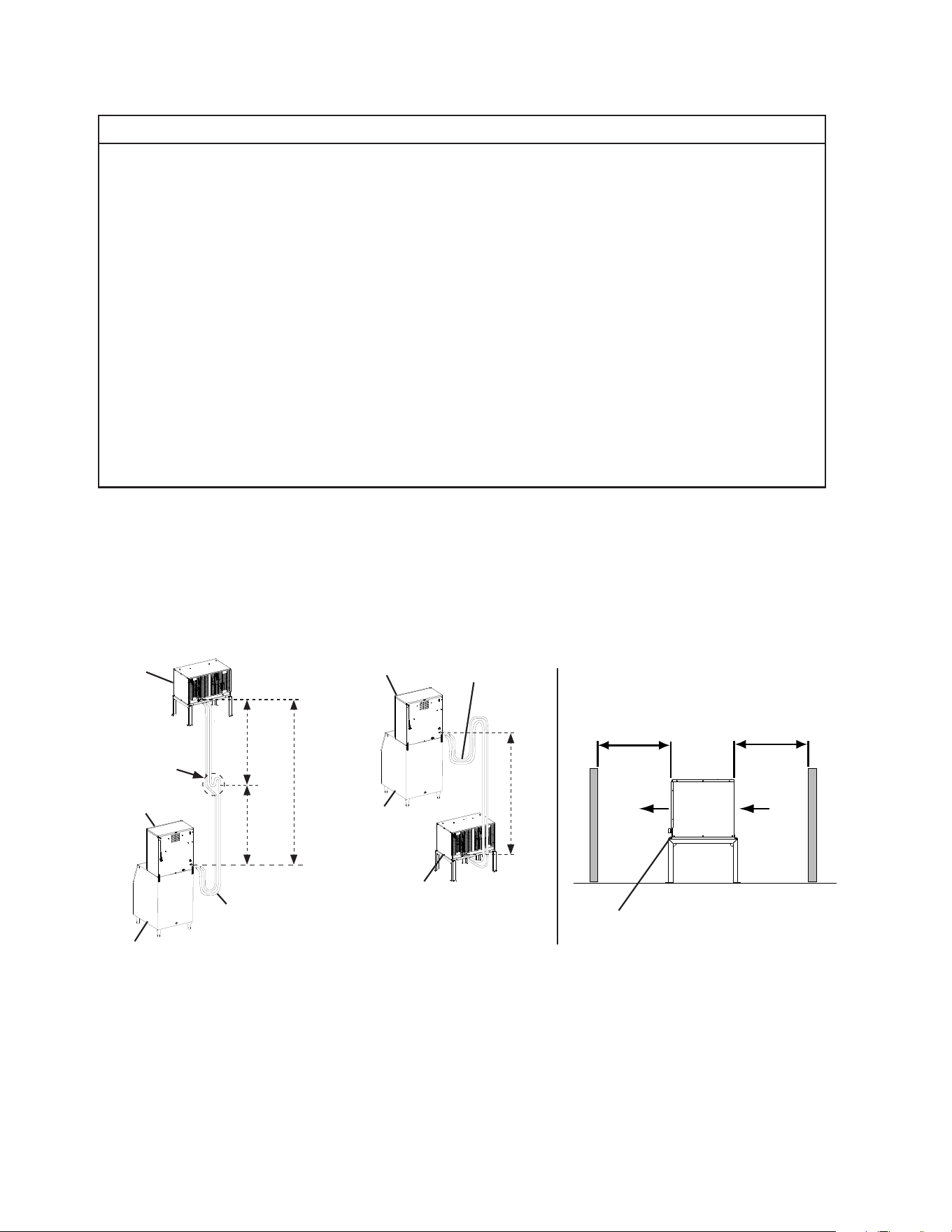

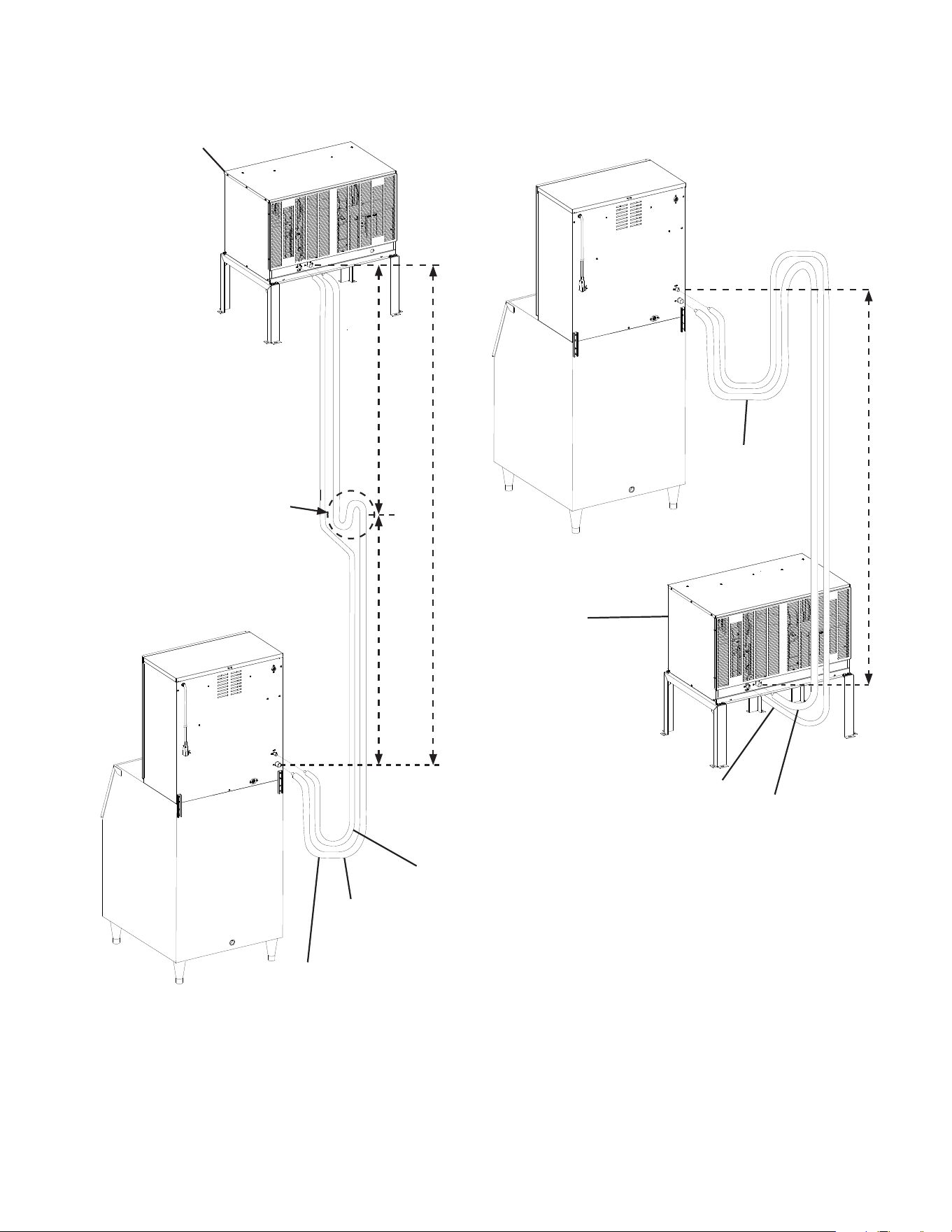

Fig. 1
Fig. 2
24"
(61 cm)
Min. 24" (61 cm) Clearance
Air
Air
24"
(61 cm)
Icemaker
Remote
Condensing
Unit
Suction Line
"S" Oil-Trap
Service Loop
Icemaker
Service
Loop
Remote
Condensing
Unit
Max. 33' (10 m)
Max.
16.5'
(10 m)
Max.
16.5'
(10 m)
Max. 10' (3 m)
Ice Storage Bin
Ice Storage Bin
Remote
Condensing
Unit
11
B. Checks Before Installation
• Visually inspect the exterior of the shipping containers and immediately report any
damage to the carrier. Upon opening the containers, any concealed damage should
also be immediately reported to the carrier.
• Remove the shipping carton, tape, and packing material. If any are left in the icemaker
or remote condensing unit, they will not work properly.
1. Icemaker
• See the nameplate on the rear panel. Check that your voltage supplied corresponds
with the voltage specied on the nameplate.
• Remove the panels to prevent damage when installing the icemaker. See "II.C. How to
Remove Panels."
• Remove the package containing the accessories.
• Remove the protective plastic lm from the panels. If the icemaker is exposed to the sun
or to heat, remove the lm after the icemaker cools.
• Check that the refrigerant lines do not rub or touch lines or other surfaces.
• The icemaker can be installed on a dispenser unit or ice storage bin as listed below:
Hoshizaki Icemaker Dispenser Unit or Ice Storage Bin Width
FS-1501MLJ-C 30" wide or wider
For further options, contact your local Hoshizaki distributor.
• NOTICE! The icemaker must be connected to the appropriate Hoshizaki Remote
Condensing Unit listed below. Connection to another remote condensing unit will
void the warranty.
Hoshizaki Icemaker
Hoshizaki Remote
Condensing Unit
FS-1501MLJ-C SRC-14J
2. Remote Condensing Unit
• See the nameplate on the remote condensing unit. Check that your voltage supplied
corresponds with the voltage specied on the nameplate.
• Remove the panels to prevent damage when installing the remote condensing unit.
See "II.C. How to Remove Panels."
• Remove the package containing the accessories.
• Check that the refrigerant lines do not rub or touch lines or other surfaces, and that the
fan blade(s) turn freely.
• Check that the compressor is snug on all mounting pads.
12

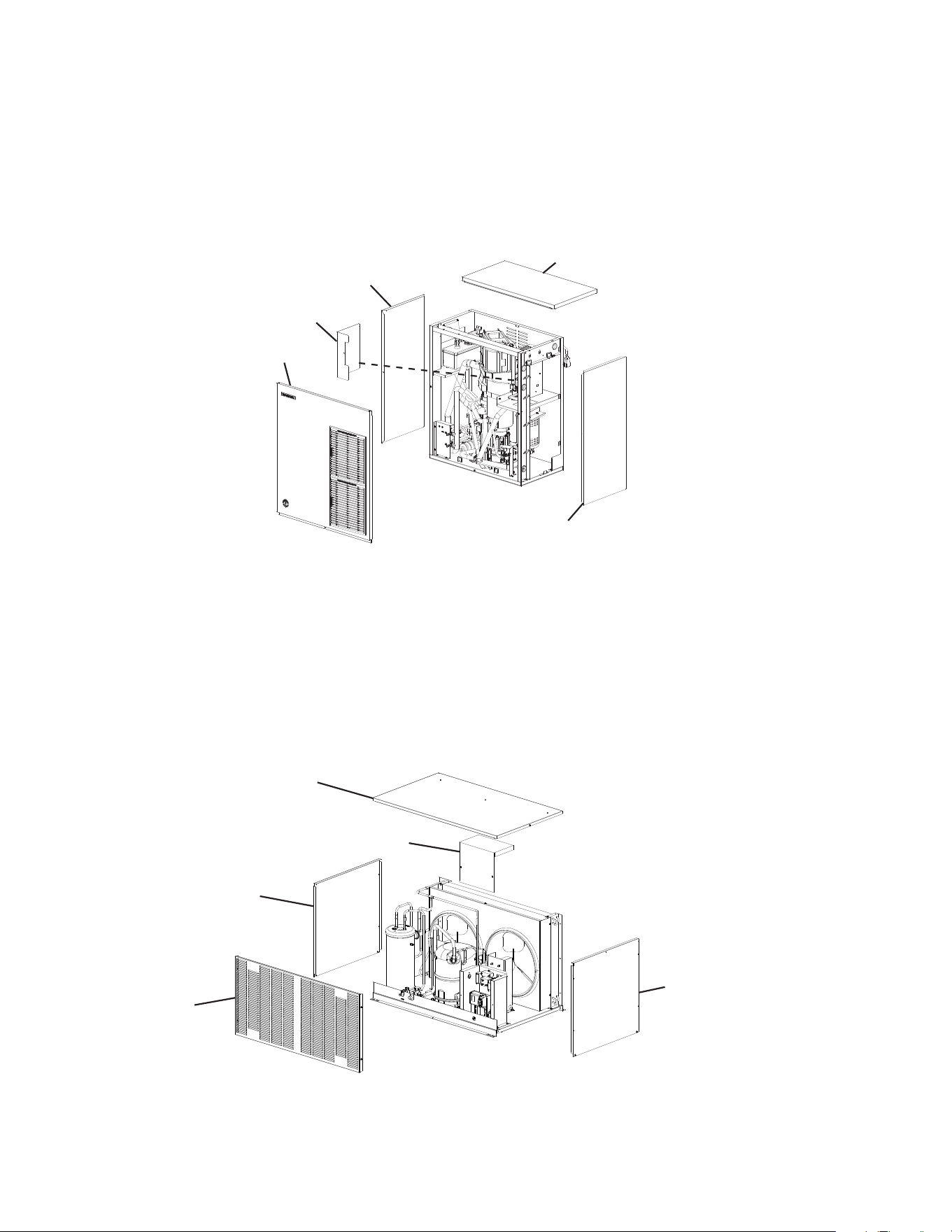

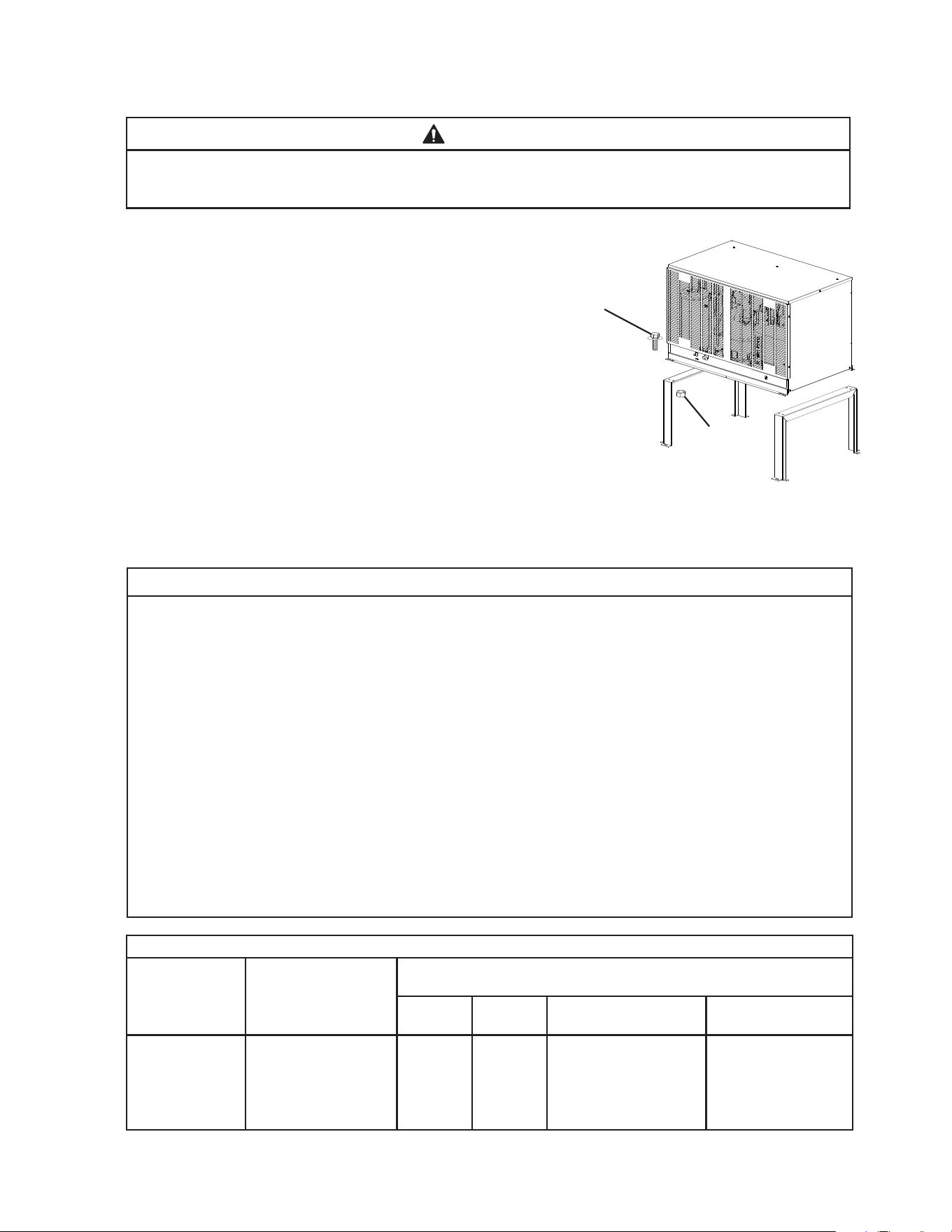

C. How to Remove Panels
1. Icemaker
• Front Panel: Remove the screw. Lift up and towards you.
• Top Panel: Lift up at front slightly, push rearward and lift off.
• Left Side Panel and Right Side Panel: Remove the screw. Slide forward slightly and lift
off.
2. Remote Condensing Unit
• Top Panel: Remove the screws and lift off.
• Louver Panel: Remove the screws and lift off.
• Left Side Panel and Right Side Panel: Remove the screws and lift off.
• Control Box Cover: Remove the screws and lift off.
Left Side Panel
Fig. 4
Top Panel
Right Side Panel
Louver Panel
Left Side Panel
Right Side Panel
Fig. 3
Top Panel
Front Panel
Control Box Cover
Control Box Cover
13

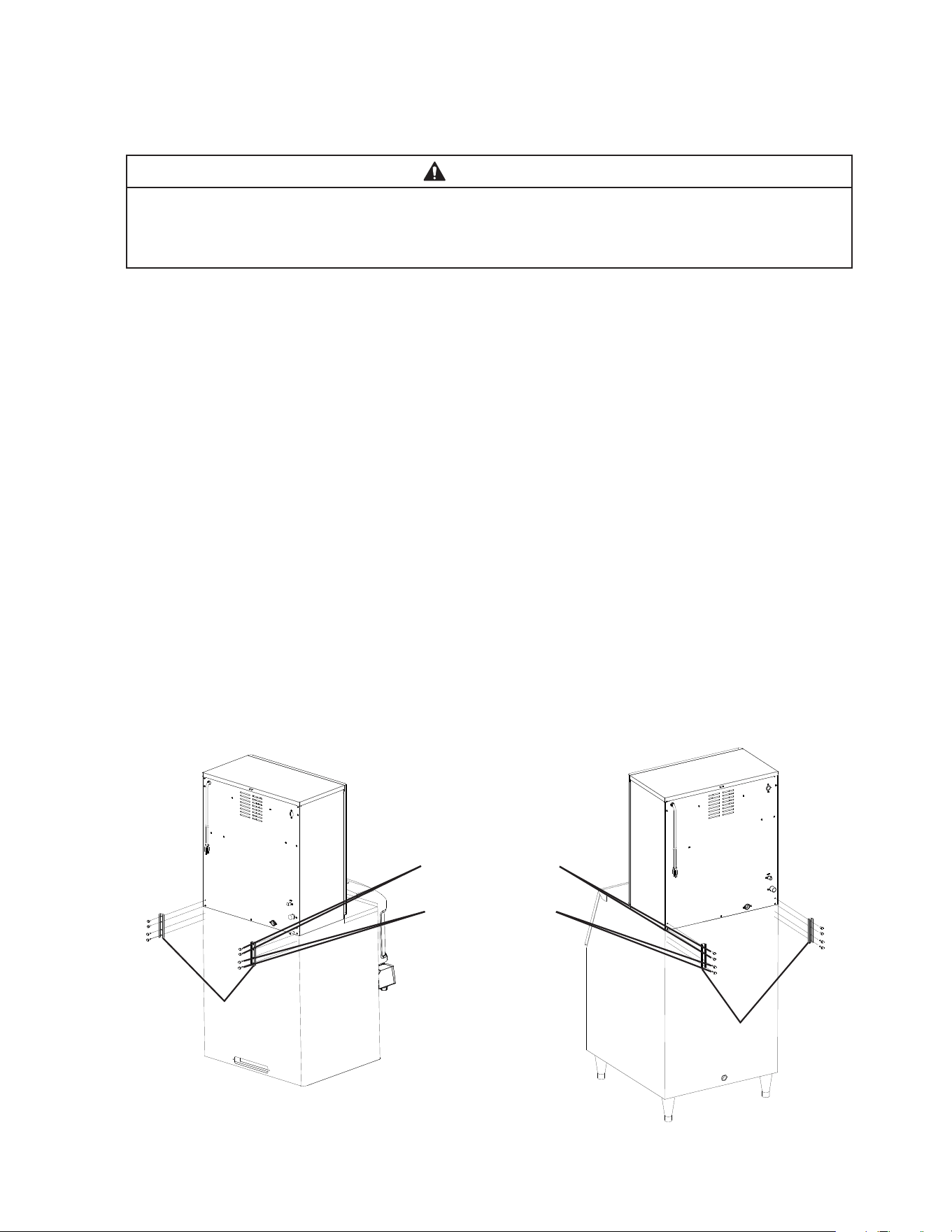

D. Installation of the Icemaker
1. Dispenser Unit/Ice Storage Bin and Icemaker Setup
WARNING
The installer must ensure the dispenser unit/ice storage bin is compatible with
the icemaker, and the dispenser unit/ice storage bin and icemaker are properly
attached and secured.
1a) Dispensing Unit: Follow dispenser unit's setup procedure.
1b) Ice Storage Bin: Unpack the ice storage bin, and attach the 4 adjustable legs provided
(bin accessory) to the bottom of the ice storage bin.
2) Position the dispenser unit/ice storage bin in its permanent location.
3) If required, install an adapter kit or top kit. Contact your local Hoshizaki distributor for
recommendations.
4) Level the dispenser unit/ice storage bin in both the left-to-right and front-to-rear
directions. Ifusing an ice storage bin, adjust the ice storage bin legs to level.
5) Place the icemaker on top of the dispenser unit/ice storage bin.
6) Follow the dispenser unit/ice storage bin, adapter kit, or top kit instructions for securing
the icemaker. If no instructions are available, secure the icemaker using the mounting
brackets provided. Secure the mounting brackets to the icemaker with the 5×12
machine bolts provided. See Fig. 5. Secure the mounting brackets to the dispenser unit
with the self-tapping bolts provided. NOTICE! Use care to avoid damage to dispenser
unit/ice storage bin components when attaching the mounting brackets.
Icemaker
Fig. 5
Self-Tapping Bolts
Mounting
Brackets
5×12 Machine Bolts
Dispenser
Unit
Ice
Storage
Bin
Mounting
Brackets
Icemaker
14
2. Icemaker Electrical Connection
IMPORTANT
Icemaker and remote condensing unit power supplies are separate.
WARNING
• Electrical connection must meet national, state, and local electrical code
requirements. Failure to meet these code requirements could result in death,
electric shock, serious injury, re, or damage.
• The icemaker requires an independent power supply of proper capacity. See the
nameplate for electrical specications. Failure to use an independent power supply
of proper capacity can result in a tripped breaker, blown fuse, damage to existing
wiring, or component failure. This could lead to heat generation or re.
• THE ICEMAKER MUST BE GROUNDED. The icemaker is equipped with a
NEMA5-15 three-prong grounding plug to reduce the risk of potential shock
hazards. It must be plugged into a properly grounded, independent 3-prong wall
outlet. If the outlet is a 2-prong outlet, it is your personal responsibility to have
a qualied electrician replace it with a properly grounded, independent 3-prong
wall outlet. Do not remove the ground prong from the power cord and do not use
an adapter plug. Failure to properly ground the icemaker could result in death or
serious injury.
• Do not use an extension cord.
• To reduce the risk of electric shock, do not touch the icemaker power switch or
plug with damp hands. Make sure the icemaker power switch is in the "OFF"
position before plugging in or unplugging the icemaker.
• Do not use an icemaker with a damaged power cord. The power cord should not
be altered, jerked, bundled, weighed down, pinched, or tangled. Such actions could
result in electric shock or re. To unplug the icemaker, be sure to pull the plug, not
the cord, and do not jerk the cord.
• The GREEN ground wire in the factory-installed power cord is connected to the
icemaker. If it becomes necessary to remove or replace the power cord, be sure
to connect the power cord's ground wire.
• Usually an electrical permit and services of a licensed electrician are required.
• The maximum allowable voltage variation is ±10 percent of the nameplate rating.
15

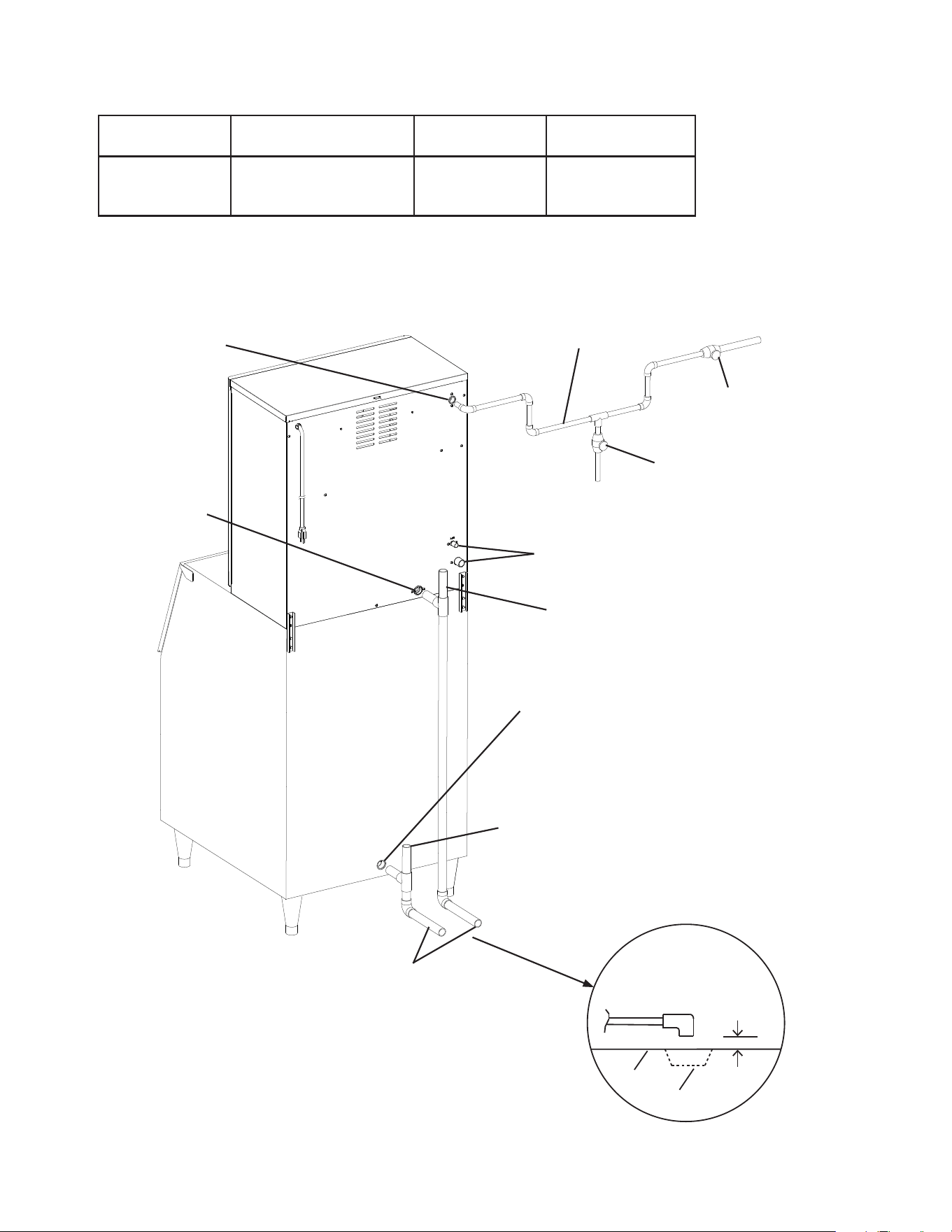

3. Water Supply and Drain Connections
See Fig. 6
WARNING
Water supply and drain connections must be installed in accordance with applicable
national, state, and local regulations.
NOTICE
• Normal operating water temperature should be within 45°F to 90°F (7°C to
32°C). Operation of the appliance, for extended periods, outside of this normal
temperature range may affect performance.
• To prevent damage to the appliance, do not operate the appliance when the
water supply is off, or if the pressure is below 10 PSIG. Do not run the appliance
until the proper water pressure is reached.
• A plumbing permit and services of a licensed plumber may be required in some areas.
• External lters, strainers, or softeners may be required depending on water quality. Contact
your local Hoshizaki Certied Service Representative or local Hoshizaki distributor for
recommendations.
• Water supply pressure must be a minimum of 10 PSIG and a maximum of 113 PSIG. If the
pressure exceeds 113 PSIG, the use of a pressure reducing valve is required.
• The icemaker drain line and dispenser unit/ice storage bin drain line must be run
separately.
• Drain lines must have 1/4" fall per foot (2 cm per 1 m) on horizontal runs to get a good
ow. A vented tee connection is also required for proper ow.
• Drain lines should not be piped directly to the sewer system. An air gap of a minimum of
2 vertical inches (5 cm) should be between the end of the drain pipe from the icemaker
and dispenser unit/ice storage bin and the oor drain.
16
Icemaker
Icemaker Water
Supply Inlet
Minimum Icemaker
Water Supply Line Size
Icemaker Drain
Outlet
Minimum Icemaker
Drain Line Size
1/2" Female Pipe
Thread (FPT)
1/4" Nominal ID
Copper Water Tubing or
Equivalent
3/4" Female Pipe
Thread (FPT)
3/4" Nominal
ID Hard Pipe or
Equivalent
• An icemaker water supply line shut-off valve and drain valve must be installed.
• Be sure there is sufficient extra water supply line and drain line for the appliance to be
pulled out for service.
Fig. 6
2-inch
(5-cm)
air gap
Floor
Drain
Icemaker Water
Supply Inlet
1/2" FPT
Shut-Off Valve
Drain Valve
Icemaker Drain
Outlet 3/4" FPT
Bin Drain Outlet
3/4" FPT
Ice
Storage
Bin
Icemaker
Vent Tube
Minimum 1/4" Nominal ID Copper
Water Tubing or Equivalent
Minimum 3/4" Nominal ID Hard Pipe
or Equivalent
Vent Tube
Remote Condensing Unit
Line Set Connections
Separate piping to
approved drain. Leave a
two-inch (5 cm) vertical air
gap between the end of
each pipe and the drain.
Be sure there is sufficient
extra water supply line and
drain line for the appliance
to be pulled out for service.
17
E. Installation of the Remote Condensing Unit
WARNING
Installation must be performed by properly trained and EPA-certied service
personnel.
1. Remote Condensing Unit Setup
1) Secure the legs to the remote condensing
unit with the 8 bolts and nuts provided.
See Fig. 7.
2) The legs have 8 mounting holes. Secure
the legs to the permanent site with 8 bolts
(not included).
2. Line Set Size and Refrigerant Charge
NOTICE
• The icemaker, line set, and remote condensing unit must contain the same type
of refrigerant. Mixing of refrigerants will result in improper operation and possible
damage to the refrigeration system.
• The maximum line set length is 55' (17 m). No refrigerant charge adjustment is
necessary.
• The maximum vertical distance between the remote condensing unit and icemaker
is 33' (10 m) above or 10' (3 m) below the icemaker. These distances are measured
tting to tting. See Fig. 8.
• If the vertical distance between the remote condensing unit and the icemaker
is greater than 20' (6 m) (not to exceed 33' (10 m)), an "S" oil-trap (5/8"OD
copper tubing) must be installed in the suction line. The "S" oil-trap must be
located halfway between the icemaker and remote condensing unit. This ensures
sufficient oil return to the compressor.
Line Set Size and Refrigerant Charge
Hoshizaki
Icemaker
Hoshizaki Remote
Condensing Unit
Line Set
Maximum 55' (17 m)
Liquid
Line
Suction
Line
Factory Line Set
Lengths
Charge
Adjustment
FS-1501MLJ-C SRC-14J 3/8" OD 5/8" OD
20' (6 m), 35' (11 m),
55' (17 m)
Not Applicable:
Factory Charge
is Sufficient to
Maximum Line Set
Length of 55' (17 m)
Nut
Fig. 7
Bolt with
Split Lock
Washer and
Flat Washer
18
3. Line Set Installation
WARNING
• R-404A itself is not ammable at atmospheric pressure and temperatures up to
176°F (80°C).
• R-404A itself is not explosive or poisonous. However, when exposed to high
temperatures (open ames), R-404A can be decomposed to form hydrouoric
acid and carbonyl uoride both of which are hazardous.
• Do not use silver alloy or copper alloy containing arsenic.
• Do not open any service valve until the line set installation is complete and leak
tested.
• Ensure that there are no unnecessary traps and no kinks in the line set.
• Do not coil extra line set.
• Use an electronic leak detector or soap bubbles to check for leaks. Add a trace of
refrigerant to the line set tubing through the service valve access ports (ifusing
an electronic leak detector), and then raise the pressure using nitrogen gas
(140PSIG). Do not use R-404A as a mixture with pressurized air for leak testing.
1) Route the factory line set or appropriate size copper tubing. When eld fabricating,
insulate the copper tubes separately. Leave a service loop behind the icemaker to
allow the icemaker to be pulled out for service. See Fig. 8. Note: The service loop is not
considered an oil trap.
2) Remove any extra line set length.
3) NOTICE! Before brazing, remove the Schrader valve cores from the service valve
access ports. When brazing, protect the service valve by using a wet cloth to
prevent the service valve from overheating.
4) Braze the line set to the icemaker service valves rst, then to the remote condensing
unit service valves.
5) Allow the service valves to cool, then replace the Schrader valve cores.
6) Use an electronic leak detector or soap bubbles to check for leaks. Add a trace of
refrigerant to the line set tubing through the service valve access ports (if using an
electronic leak detector), and then raise the pressure using nitrogen gas (140 PSIG).
WARNING! Do not use R-404A as a mixture with pressurized air for leak testing.
7) Attach the gauge manifold hoses to the service valve access ports and evacuate the
line set tubing. Allow the vacuum pump to pull down to a 29.9" Hg vacuum. Evacuating
period depends on pump capacity. Next, charge each line set tube with R-404A vapor
to a pressure of 15 to 30 PSIG.
8) Close both gauge manifold valves. Disconnect the gauge manifold hoses.
9) Replace the service valve access port caps and tighten.
10) Open the icemaker service valves rst, then open the remote condensing unit service
valves.
11) Replace the service valve caps and tighten.
12) Insulate all exposed tubing and ttings.
Hoshizaki Technical Support is available at 1-800-233-1940 for recommendations
19
Max.
16.5'
(10 m)
Max.
16.5'
(10 m)
Line Set Connections
Fig. 8
Remote
Condensing Unit
(with compressor)
Icemaker
Service Loop
Icemaker
Suction Line
"S" Oil-Trap
Service Loop
Remote
Condensing Unit
(with compressor)
5/8" OD Suction Line
(insulated)
Ice
Storage
Bin
Ice
Storage
Bin
Max. 33' (10 m)
5/8" OD Suction Line
(insulated)
3/8" OD Liquid Line
3/8" OD Liquid Line
Max. 33' (10 m)
20
WARNING
ELECTRICAL CONNECTION
THIS UNIT MUST BE GROUNDED
Failure to properly ground or wire
this unit could result in death,
serious injury, or severe damage
to the icemaker. The white lead
must be connected to the neutral
conductor of the power source.
See diagram below.
4A5700-010
208-230/60/1
(3 wire with neutral for 115V)
JUNCTION BOX
208-230
V
BLACK
BROWN
L1
L2
WHITE
N
1
15-
120V
Fig. 9
4. Remote Condensing Unit Electrical Connection
IMPORTANT
Icemaker and remote condensing unit power supplies are separate.
WARNING
• Remote condensing unit electrical connection must be hard-wired and must
meet national, state, and local electrical code requirements. Failure to meet these
code requirements could result in death, electric shock, serious injury, re, or
damage.
• The remote condensing unit requires an independent power supply of proper
capacity. See the nameplate for electrical specications. Failure to use an
independent power supply of proper capacity can result in a tripped breaker,
blown fuse, damage to existing wiring, or component failure. This could lead to
heat generation or re.
• THE REMOTE CONDENSING UNIT MUST BE GROUNDED. Failure to properly
ground the remote condensing unit could result in death or serious injury.
• Remote condensing unit electrical connection must be made in accordance with
the instructions on the "WARNING" tag provided with the pig tail leads in the
remote condensing unit's power supply junction box. See Fig. 9.
NOTICE
The remote condensing unit should have power for a minimum of 4 hours prior to
startup to prevent compressor damage.
• Usually an electrical permit and services of a
licensed electrician are required.
• The maximum allowable voltage variation is
±10 percent of the nameplate rating.
• The white lead must be connected to the
neutral conductor of the power source.
NOTICE! Miswiring may result in damage
to the appliance.
• The opening for the power supply connection
is 7/8" DIA to t a 1/2" trade size conduit.
SRC-14J
21
F. Final Checklist
1. Pre-Startup
1) Is the icemaker level?
2) Is the icemaker in a site where the ambient temperature is within 45°F to 100°F (7°C to
38°C) and the water temperature within 45°F to 90°F (7°C to 32°C) all year around?
3) Is there at least 6" (15 cm) clearance at rear and sides of the icemaker for proper
air circulation and ease of maintenance and service? Is there at least 24" (61 cm)
clearance at the top of the icemaker to allow for removal of the auger?
4) Is the remote condensing unit in a site where the ambient temperature is within -4°F to
122°F (-20°C to 50°C) all year around?
5) Is there at least 24" (61 cm) clearance around the remote condensing unit for proper air
circulation and ease of maintenance and service?
6) Have the shipping carton, tape, and packing material been removed from the icemaker
and remote condensing unit?
7) Have all electrical and water connections been made? Do electrical and water
connections meet applicable national, state, and local code and regulation
requirements?
8) Has the power supply voltage been checked or tested against the nameplate rating?
Has a proper ground been installed to the icemaker?
9) Has the remote condensing unit power supply voltage been checked or tested against
the nameplate rating? Has a proper ground been installed to the remote condensing
unit?
10) Has the electrical power supply been on to the remote condensing unit for a minimum of
4 hours?
11) Are the water supply and drain lines sized as specied? Are the water supply line
shut-off valve and drain valve installed? Has the water supply pressure been checked to
ensure a minimum of 10 PSIG and a maximum of 113 PSIG?
12) Is the compressor snug on all mounting pads? Have the refrigerant lines been checked
to make sure they do not rub or touch other lines or surfaces? Has the fan blade been
checked to make sure it turns freely?
13) Is the line set free of leaks and kinks? If needed, has an "S" oil-trap been installed?
14) Continue to "II.G. Startup".
22
2. Post-Startup
1) Has bin control 1 (Ultrasonic) been set to the proper setting for the application?
2) Has bin control 1 (Ultrasonic) operation been conrmed?
3) Has bin control 2 (Mechanical Backup) operation been conrmed?
4) Are all components, fasteners, and thumbscrews securely in place?
5) Has the end user been given the instruction manual, and instructed on how to operate
the appliance and the importance of the recommended periodic maintenance?
6) Has the end user been given the contact information of an authorized service agent?
7) Has the warranty registration been completed and submitted to the factory?
23
G. Startup
1. Bin Control Setting
An ultrasonic sensor is used as the bin control to control the level of ice in the dispenser
unit/ice storage bin. The bin control setting must be set to match the application to avoid
possible icemaker movement, water leakage, or ice overow.
WARNING
• Improper adjustment may adversely affect safety, performance, component life,
and warranty coverage.
• On dispenser unit applications, do not increase ice level above the recommended
setting listed below. Higher ice levels could result in icemaker movement, water
leakage, or ice overow.
NOTICE
Do not allow top kits or top kit risers (if applicable) to interfere with the bin control
lens sensing area or the icemaker will not operate properly.

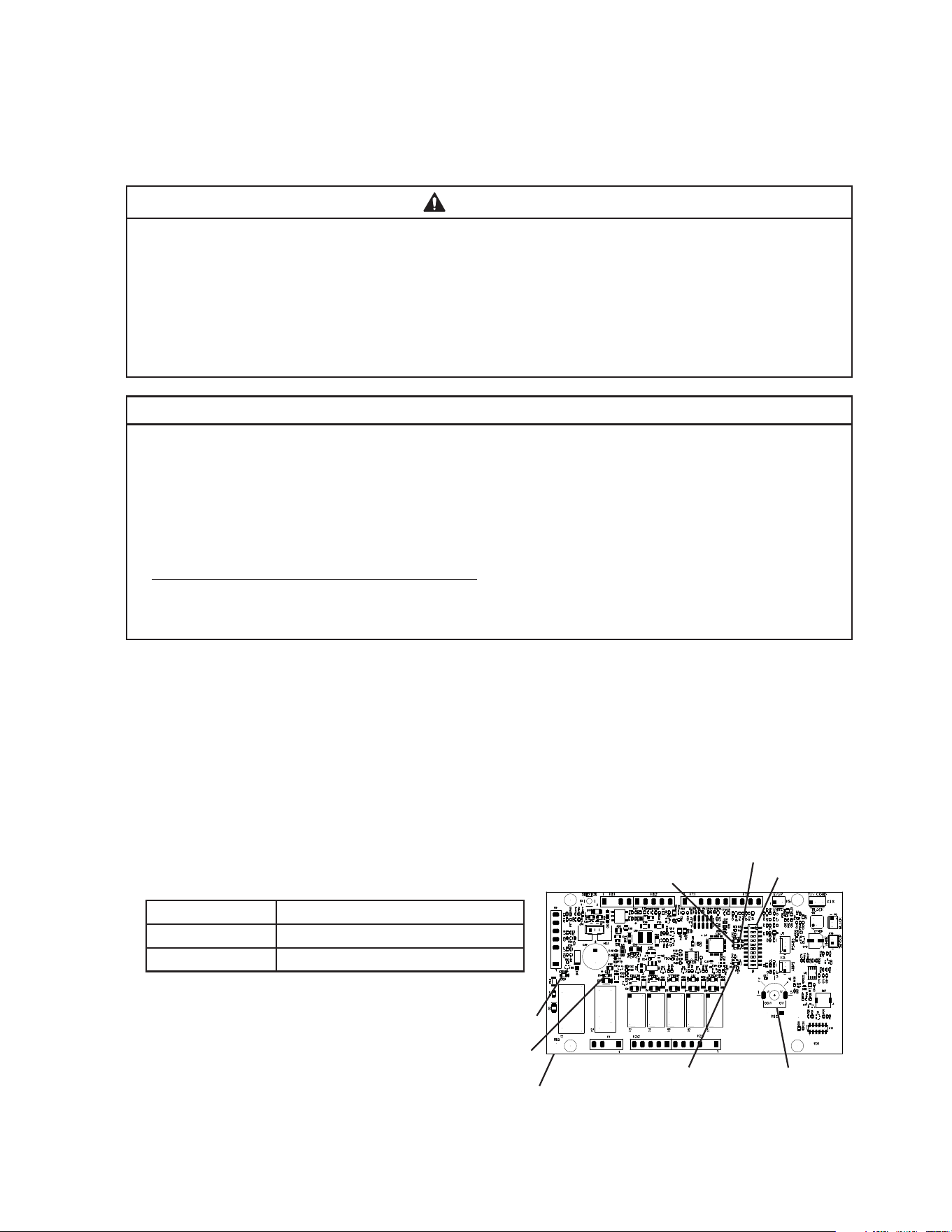

1) Move the power switch to the "OFF" position. Make sure the power supply is off to
the icemaker and condensing unit. Remove the front panel to access the control box
assembly. Remove the control box cover to access the control board. See Fig. 10 and
Fig. 11.
2) Conrm the correct control board bin control setting required for your application and
adjust according to the following table. See Fig. 12.

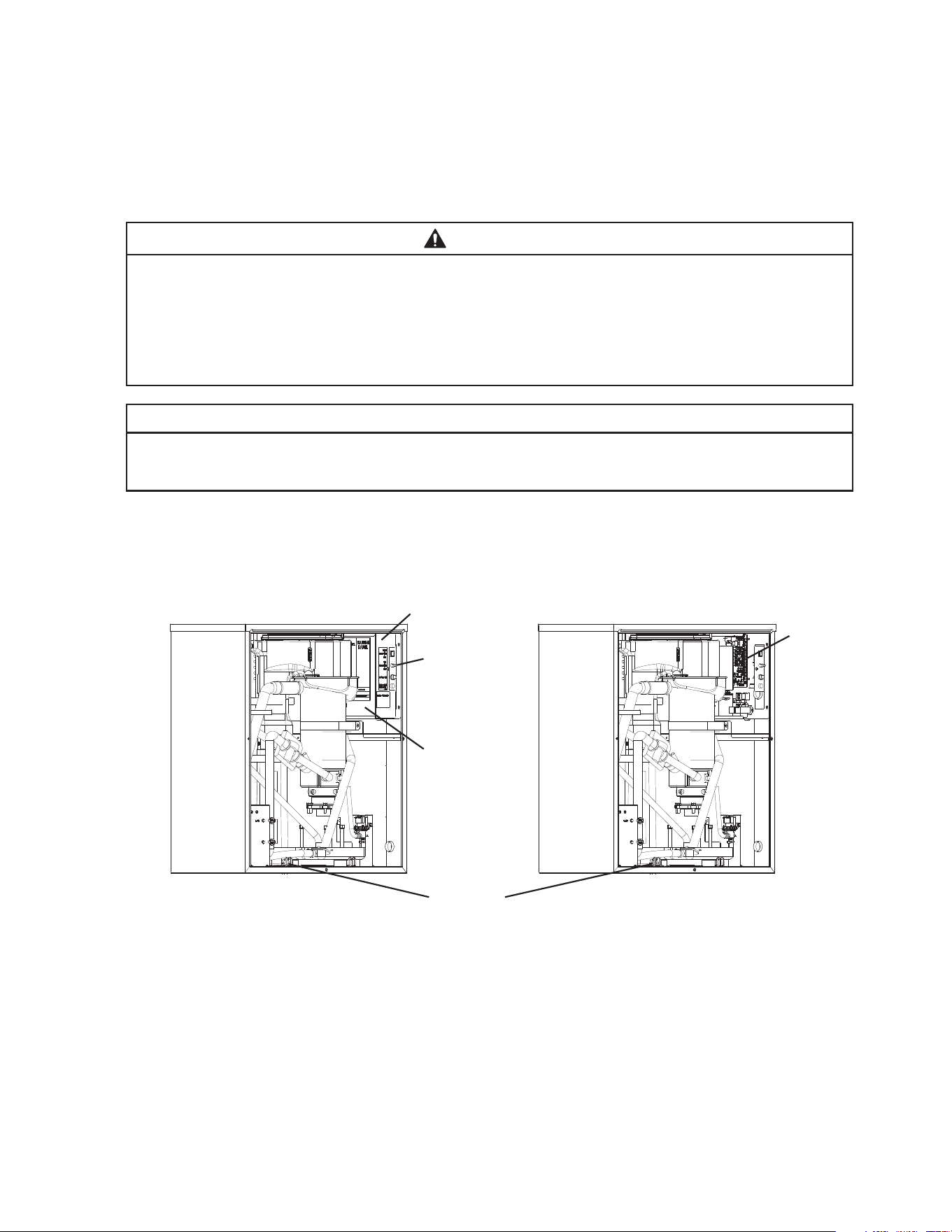

Fig. 11Fig. 10
Control Board
Control Box
Cover
Power Switch
Control Box Assembly
Ultrasonic
Bin Control
24
For Non-Hoshizaki Dispenser Units
Bin Control Ice Level Settings
Bin Control Setting
Shutdown Distance From Bin Control Lens
(Restart is 4 in. (102 mm) below shutdown distance)
1
(Factory Default)
127 mm ( 5" )
Do not adjust dispensers to this setting.
2 178 mm ( 7" )
3 254 mm (10")
4 356 mm (14")
5 457 mm (18")
WARNING
Conrm that the nal ice level location does not allow for icemaker movement,
water leakage, or ice overow.
NOTICE
The ice level must be lower than the top of the dispenser unit. Also, be sure the top
kit or top kit riser (if applicable) are clear from the bin control lens sensing area.

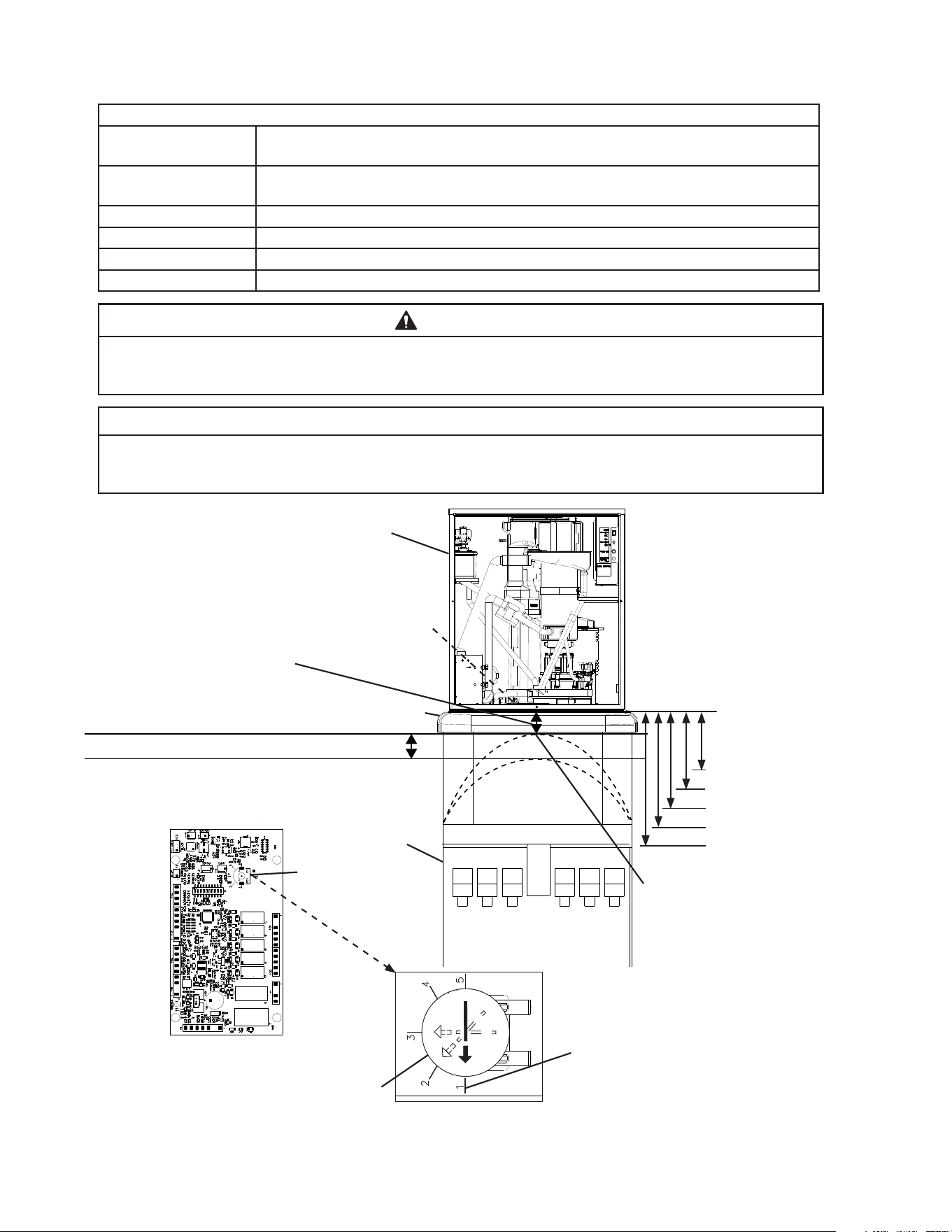

Fig. 12
Full Bin Measured Distance
(Shutdown Distance)
Measure from the bottom of
the compressor base (bin
control lens) to the preferred
full bin level of ice; refer to the
dispenser instruction manual.
Icemaker Restart Level
(4" (102 mm) below preferred
full bin level of ice)
Set Bin Control Setting at or Below
Maximum Full Bin Level of Ice
(Shutdown Position) Shown Here
Top Kit
Icemaker
Non-Hoshizaki
Dispenser Unit
Ultrasonic
Bin Control Setting
Ultrasonic
Bin Control
Control Board
Factory Default for Standard
Ice Storage Bins
WARNING! Do not use this
setting with dispensers.
Turn dial to adjust to setting
that matches Full Bin Measured
Distance (Shutdown Distance)
Ultrasonic
Bin Control
Lens
Setting #1
Setting #3
Setting #4
Setting #5
Setting #2
Maximum Full Bin Level of
Ice (Shutdown Position).
WARNING! Do not adjust
bin control setting above
this level.
25
2. Bin Control Check
An ultrasonic sensor is used as the primary bin control to control the level of ice in the
dispenser unit/ice storage bin. A mechanical bin control is used as a backup bin control.
a) Bin Control 1 (Ultrasonic)
WARNING
• All parts are factory-adjusted. Improper adjustments may adversely affect safety,
performance, component life, and warranty coverage.
• Make sure the icemaker has been installed as outlined in this manual and that
the water supply is on.
• Improper adjustment may adversely affect safety, performance, component life,
and warranty coverage.
NOTICE
• If the appliance is turned off, wait for at least 3 minutes before restarting the
icemaker to prevent damage to the compressor.
• At startup, conrm that all internal and external connections are free of leaks.
• Do not allow top kits or top kit risers (if applicable) to interfere with the bin control
lens sensing area or the icemaker will not operate properly.
Additional Notice for Remote Models
• The appliance must have power for a minimum of 4 hours prior to startup to
prevent compressor damage.
1) If not already removed, remove the front panel, left side panel, and control box cover.
2) Make sure the power switch is in the "OFF" position and that the power suppy is off.
3) Conrm that control board S2 dip switch 1, 2, and 3 are in the proper position for your
application.
4) Move the control switch to the "ICE" position, then move the power switch to the "ON"
position. Turn on the power supply, and allow the icemaker to operate.
5) Conrm the control board orange "BIN FULL" LED
is off (bin empty). "POWER" LED is on.
See Fig. 13.
Ice Level in Bin Control Board "BIN FULL" LED
Empty OFF
Full ON
6) If the control board "BIN FULL" LED
is on (indicating a full bin), correct
any interference from the top kit or
top kit riser (if applicable).
Control Board
"BIN FULL" LED
Fig. 13
"COMP" LED
"GM" LED
"POWER" LED
"ALARM" LED
S2 Dip Switch
Ultrasonic Bin
Control Setting
26
7) Make sure the "GM" LED is on. See Fig. 13. There
is a delay of at least 30 sec. before the "GM" LED
turns on after power-up. After "GM" LED turns
on, press the "Service" button on the control
board to bypass the 5-minute compressor delay.
WARNING! Risk of electric shock. Care should
be taken not to touch live terminals. Conrm
the "COMP" LED turns on.
8) "GM" LED and "COMP" LED are on. Place an
object 5" to 7" (127 to 178mm) away from the
bin control lens at the bottom of the icemaker.
See Fig. 14. If the bottom of the icemaker is
not accessible in your application, remove the
thumbscrew securing the bin control sensor
housing to the base, then remove the bin control
sensor housing. See Fig. 15.
9) "BIN FULL" LED turns on. 30 sec. later, the "COMP" LED turns off. 5 min. later, "GM"
LED turns off. Remove the object from the bin control lens. Approximately 30sec. later,
orange "BIN FULL" LED will be off. 5 min. later, the "GM" LED will turn on.
10) If you removed the Bin Control Sensor from the base, replace it back in its correct
position and secure with thumbscrew.
11) Replace the left side panel in its correct position.
12) Move the power switch and control switches to their "OFF" position, then turn off power
supply. Proceed to "II.K.2. Mechanical Backup Bin Control Check."
13) Continue to "II.G.2.b) Bin Control 2 (Mechanical Backup)".

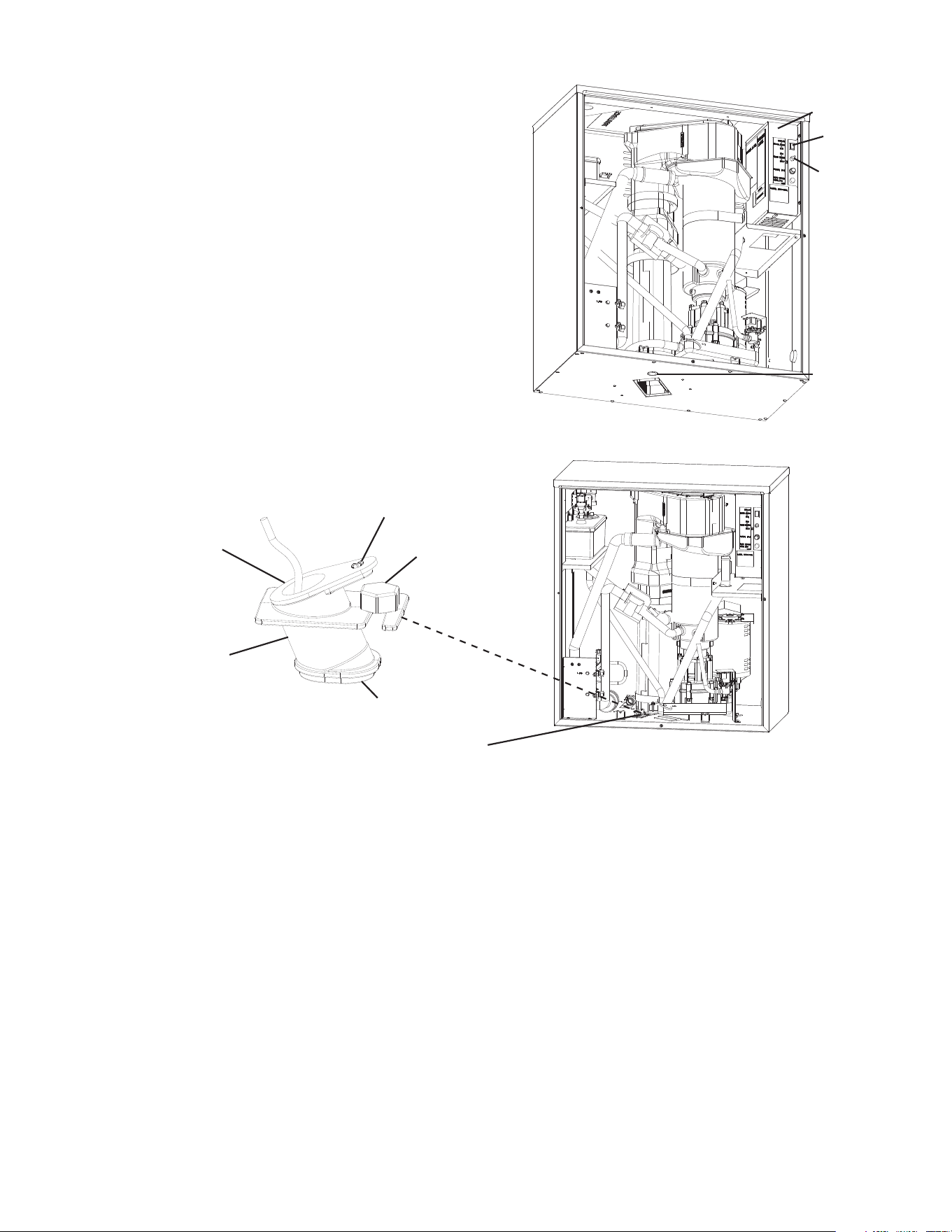

Ultrasonic
Bin Control
Control
Switch
Power
Switch
Control
Box Cover
Left
Side
Panel
Fig. 15
Fig. 14
Thumbscrew
Ultrasonic
Bin Control
Ultrasonic Bin
Control Housing
Lens
Ultrasonic
Bin Control
Clip
27
b) Bin Control 2 (Mechanical Backup)
1) Make sure the power switch is in the "OFF" position and that the icemaker is unplugged
from the electrical outlet.
2) If not already removed, remove the front panel, top panel, and control box cover.
3) Remove the spout spring from the spout. See Fig. 16.
4) Plug in the icemaker. Make sure the control switch is in the "ICE" position, then move
the power switch to the "ON" position.
5) 30 seconds after the upper oat switch closes, the control board "GM" LED turns on.
After "GM" LED turns on, press the "SERVICE" button on the control board to bypass
the 5-minute compressor delay. WARNING! Risk of electric shock. Care should be
taken not to touch live terminals.
6) "GM" LED and "COMP" LED are on. Open the spout cover slightly. See Fig. 17.
"GM" LED and "COMP" LED turn off within 10 seconds and the control board sounds a
9 beep alarm. Close the spout cover.
7) Move the power switch to the "OFF" position, then unplug the appliance from the
electrical outlet. Note: The control board alarm resets when power is turned off.
8) Replace the spout spring in its correct position.
9) Replace the control box cover and top panel in their correct positions.
10) Plug in the icemaker. Make sure the control switch is in the "ICE" position, then move
the power switch to the "ON" position to start the automatic icemaking process.
11) Replace the front panel in its correct position.
Fig. 16
Spout Spring
Spout Cover
Spout
Fig. 17
Spout Cover
Spout
28
H. Operation Notes
The appliance utilizes a pump-down solenoid valve in the icemaker and a control
low-pressure switch in the remote condensing unit to control operation of the magnetic
contactor in the remote condensing unit. This eliminates the need for an electrical
connection between the icemaker and remote condensing unit.
Control Low-Pressure Switch Settings:
Cut-Out: 9 PSIG. Differential: 20 PSIG. Cut-In: 29 PSIG.
29
I. Alarm Safeties
Should an alarm occur, follow the instructions in the table below to address the alarm.
If an alarm continues to occur, contact an authorized service agent.
In case of alarm, the built-in safeties shut down the unit, the orange "ALARM" LED
turns on, and audible alarms sound as listed below.
No. of Beeps
(every 5 sec.)
Type of Alarm Reset Options
1 Low Water Safety
UFS open>90 sec. after WV energized.
Automatic reset once water supply is restored
and UFS closes.
2 Control Switch
In "DRAIN" position longer than 15 min.
Automatic reset once the control switch is moved
to the "ICE" position.
3 High-Pressure Switch
First and second activation in 1 hr.
Automatic reset once pressure drops below the
high pressure threshold and the high pressure
switch closes.
4 High-Pressure Switch
Third activation in 1 hr.
Call for service. To avoid possible catastrophic
failure, it is recommended to leave the icemaker
off until this alarm is resolved. Manual reset. Turn
power off and on again.
5 Freeze Timer
WV off > 30 min. since last WV activation.
Call for service. Manual reset. Turn power off and
on again. Check for FS stuck (up), WV leaking by,
TXV defective, LLV not opening, low charge, HM
not bypassing, or inefficient Comp.
6 Low Voltage
92VAC±5% or less
Green "POWER" LED turns off if voltage
protection operates.
Control voltage safeties automatically reset when
voltage is corrected.
7 High Voltage
147VAC±5% or more
8 a) Gear Motor Fuse or
Protector Open
CCR contacts fail to close.
Used on all models.
Turn power off. Check for GM fuse or protector
open. Replace fuse or let protector cool and
reset.
If persistent trips occur, call for service.
b) Evaporator Thermistor
At GM startup Evaporator
thermistor
<
-4°F (-20°C).
Used on cubelet (-C)(-SC)(-CB)
models only.
Turn power off. Call for service.
To avoid possible catastrophic failure, it is
recommended to leave the icemaker off until this
alarm is resolved.
Manual reset. Turn power off and on again.
9 Bin Control 2 (Mechanical)
Open Circuit Control Board K8
(#3 and #4)
Not used on DCM or
self-contained models.
Manual reset. Turn power off and on again.
Modular Flaker and Cubelet (-C)(-SC)(-CB)
Models:
Control Board S2 Dip Switch #7 must be ON.
DCM and Self-Contained Models:
Control Board S2 Dip Switch #7 must be OFF.
10 Evaporator Thermistor
Evaporator thermistor reaches
-22°F (-30°C) for 3 consecutive cycles.
Used on cubelet (-C)(-SC)(-CB)
models only.
Turn power off. Call for service.
To avoid possible catastrophic failure, it is
recommended to leave the icemaker off until this
alarm is resolved.
Manual reset. Turn power off and on again.
Legend: CCR–compressor control relay; FS–oat switch; GM–gear motor;
HM–headmaster (C.P.R.); L LV –liquid line valve; S LV –suction line valve;
TXV–thermostatic expansion valve; UFS–upper oat switch; WV–inlet water
valve
Dip switches are factory set and must be adjusted per the unit's service manual or
Hoshizaki Technical Support recommendation.
30
III. Maintenance
The appliance must be maintained in accordance with the instruction manual and labels
provided. Consult with your local Hoshizaki Certied Service Representative about
maintenance service. To obtain the name and phone number of your local Hoshizaki
Certied Service Representative, visit www.hoshizakiamerica.com.
WARNING
• Only qualied service technicians should service the appliance.
• To reduce the risk of electric shock, do not touch the icemaker power switch or plug
with damp hands. Make sure the icemaker power switch is in the "OFF" position
before plugging in or unplugging the icemaker.
• Before Servicing: FS: Move the icemaker's power switch to the "OFF" position.
Unplug the icemaker from the electrical outlet. SRC: Turn off the power supply
to the remote condensing unit. Place the disconnect (if applicable) in the off
position. Lockout/Tagout to prevent the power supply from being turned back on
inadvertently.
• CHOKING HAZARD: Ensure all components, fasteners, and thumbscrews are
securely in place after any maintenance is done to the unit. Make sure that none
have fallen into the storage bin.

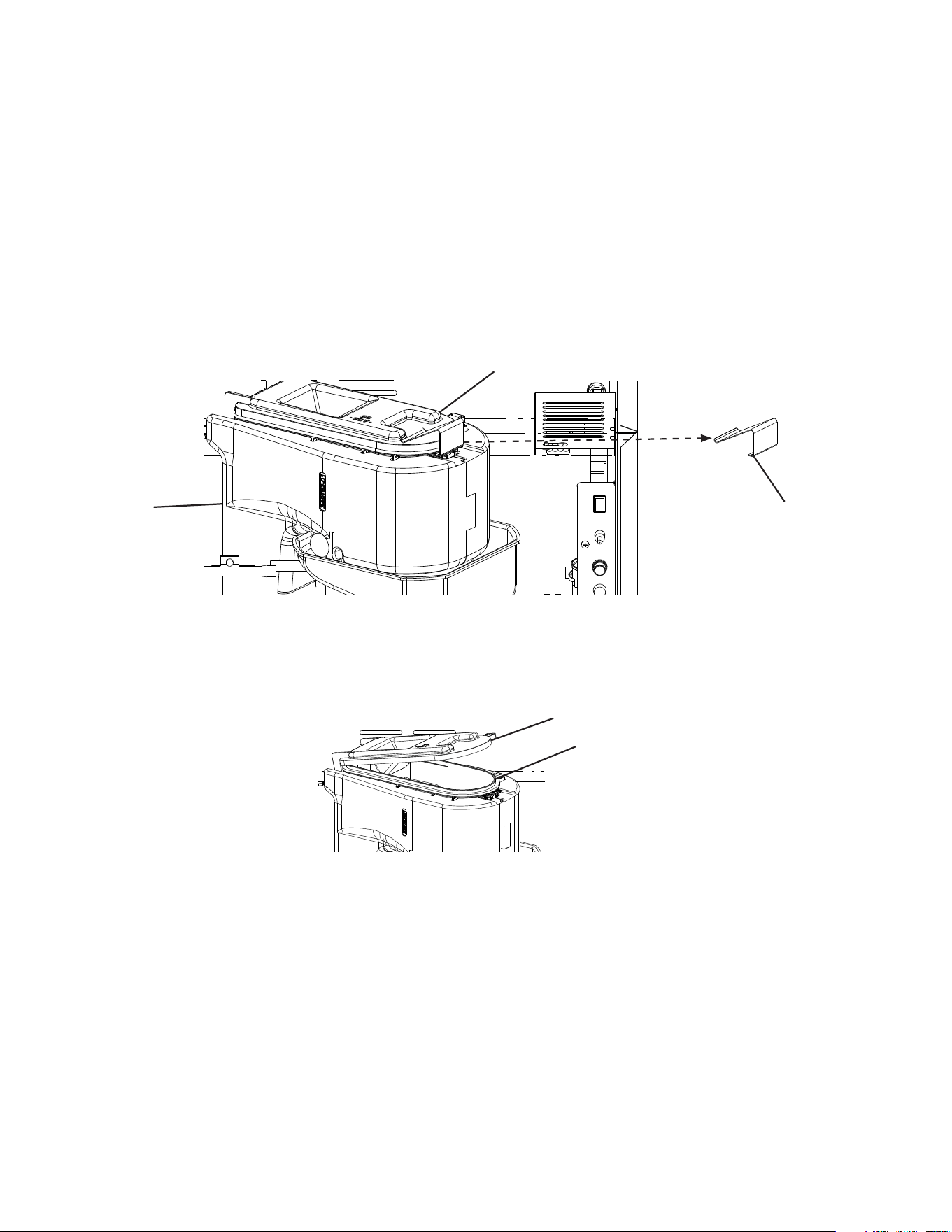

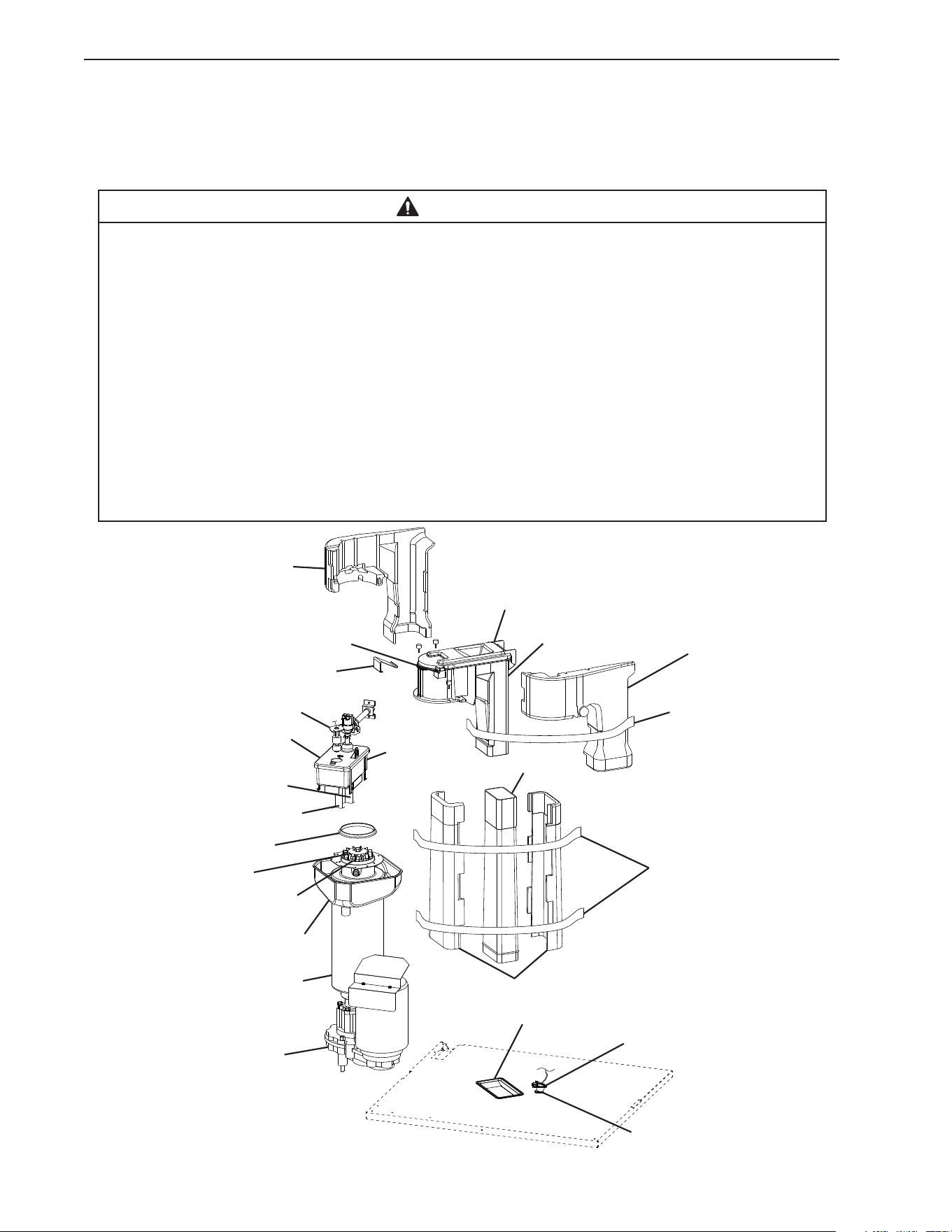

Fig. 18
Spout
Chute
Chute Insulation
Extruding Head
Evaporator Assembly
Reservoir
Float Switch
Spout Packing
Evaporator Condensate Drain Pan
Reservoir Cover
Cutter
Proximity Switch
(mechanical bin control)
Spout Spring
Spout Insulation
Spout Insulation
Spout Cover
Gear Motor
Reservoir Hose
Overow Hose
Bin Control Housing
Insulation Straps
Insulation Strap
Chute Packing
Lens
31
A. Maintenance Schedule
The maintenance schedule below is a guideline. More frequent maintenance may be
required depending on water quality, the appliance's environment, and local sanitation
regulations.
Maintenance Schedule
Frequency Area Task
Daily Scoop Clean the ice scoop using a neutral cleaner. Rinse thoroughly after
cleaning.
Monthly External Water
Filters
Check for proper pressure and change if necessary.
Icemaker Exterior Wipe down with clean, soft cloth. Use a damp cloth containing a neutral
cleaner to wipe off oil or dirt build up. Clean any chlorine staining (rust
colored spots) using a non-abrasive cleaner.
Bin Control Lens Wipe down the bin control lens, (located on the bottom of the icemaker) with
a neutral cleaner. Rinse thoroughly after cleaning.
Underside of
Icemaker and Top
Kits; Bin Door and
Snout (if applicable)
Wipe down with clean cloth and warm water.
Every 6
Months
Icemaker and
Dispenser Unit/Ice
Storage Bin
Clean and sanitize per the cleaning and sanitizing instructions provided in
this manual.
Evaporator
Condensate Drain
Pan and Gear
Motor Drain Pan
Wipe down with clean cloth and warm water. Slowly pour one cup of
sanitizing solution (prepare as outlined in the sanitizing instructions in
this manual) into the evaporator condensate drain pan. Be careful not to
overow the pan. The solution will ow down to the gear motor drain pan
and out the drain line to sanitize these areas. Repeat with a cup of clean
water to rinse.
Icemaker and
Dispenser Unit/Ice
Storage Bin Drains
Check to make sure they are clear.
Extruding Head
Seal Bolts
Inspect for leakage around seal bolts. Tighten (see torque values below) or
replace as necessary. Seal bolts must be replaced once removed because
seal material is one-time use only. If new seal bolts do not have preapplied
threadlocker, apply Loctite243 or equivalent threadlocker to seal bolt
threads.
• Torque for FS-1501 and Larger: 25.8 ft-lb/35 N·m
Tighten 2 times. Allow at least 5 sec. in between each tightening.
Yearly Inlet Water Valve
and Drain Valve
Close the water supply line shut-off valve and drain the water system. Clean
the inlet water valve screen and clean and inspect the drain valve.
Water Hoses Inspect the water hoses and clean/replace if necessary.
Condenser Inspect. Clean if necessary by using a brush or vacuum cleaner.
Icemaker Inspect for oil spots, loose components, fasteners, and wires.
Upper Bearing
(extruding head)
Check for wear using .02" round stock or pin gauge. Replace both upper
bearing and lower bearing if wear exceeds factory recommendations. See
the Service Manual for details.
After
3 Years,
then Yearly
Upper Bearing
(extruding head);
Lower Bearing
and O-Ring
(lower housing);
Mechanical
Seal; Evaporator
Cylinder; Auger
Inspect. Replace both upper bearing and lower bearing if wear exceeds
factory recommendations. Replace the mechanical seal if the seal's contact
surfaces are worn, cracked, or scratched.
32
B. Cleaning and Sanitizing Instructions
The appliance must be cleaned and sanitized at least twice a year. More frequent
cleaning and sanitizing may be required in some conditions.
WARNING
• To prevent injury to individuals and damage to the appliance, do not use
ammonia type cleaners.
• Carefully follow any instructions provided with the cleaning and sanitizing
solutions.
• Always wear liquid-proof gloves and goggles to prevent the cleaning and
sanitizing solutions from coming into contact with skin or eyes.
• After cleaning and sanitizing, do not use ice made from the cleaning and
sanitizing solutions. Be careful not to leave any solution on the parts or in the
dispenser unit/ice storage bin.
1. Cleaning Solution
Dilute 9.6 . oz. (0.29 l) of Hoshizaki "Scale Away" with 1.6 gal. (6.0 l) of warm water.
This is a minimum amount. Make more solution if necessary. IMPORTANT! For safety
and maximum effectiveness, use the solution immediately after dilution.
2. Cleaning Procedure
1) Close the icemaker water supply line shut-off valve.
2) After the gear motor starts, remove the front panel. Move the power switch to the "OFF"
position. Move the control switch to the "DRAIN" position, then move the power switch
back to the "ON" position. Replace the front panel in its correct position.
3) Allow the water system to drain completely.
4) Remove the front and top panels. Move the power switch to the "OFF" position, then
unplug the icemaker from the electrical outlet.
5) Remove all of the ice from the dispenser unit/ice storage bin. WARNING! If on a
dispenser unit, turn off the dispenser unit power supply after dispensing the ice.
6) Remove the spout spring, then open the spout cover. See Fig. 14.
7) Pour the cleaning solution over the extruding head until the evaporator assembly and
the reservoir are full and the solution starts to run through the overow hose on the
reservoir.
Note: If there is excess scale on the extruding head, ll the evaporator assembly and
reservoir as described above, then use a clamp on the reservoir hose between the
reservoir and evaporator assembly to block ow. Pour additional cleaning solution over
the extruding head until the evaporator assembly is completely full.
8) Close the spout cover and replace the spout spring in its correct position.
9) Allow the icemaker to sit for 10 minutes before operation. If you placed a clamp on the
reservoir hose in step 7, remove it before operation.
33
10) In bad or severe water conditions, clean the oat switch as described below. Otherwise,
continue to step 11.
a. Remove the oat switch from the reservoir cover.
b. Wipe down the oat switch with the cleaning solution.
c. Rinse the oat switch thoroughly with clean water.
d. Replace the oat switch in its correct position.
11) Wipe down the bin control lens, (located on the bottom of the icemaker) with the
cleaning solution. Next, rinse the cleaning solution off of the bin control lens with a
clean, damp cloth.
Note: If the bottom of the icemaker is not accessible in your application, remove the
thumbscrew securing the bin control housing, then remove the housing from
the base. After cleaning and rinsing the lens, replace the housing in its correct
position and secure it with the thumbscrew.
12) Replace the top panel in its correct position. Move the control switch to the "ICE"
position, plug the appliance back into the electrical outlet, then move the power switch
to the "ON" position. Replace the front panel in its correct position and allow the
appliance to make ice using the solution until the icemaker stops making ice.
13) Remove the front panel. Move the power switch to the "OFF" position, then move
the control switch to the "DRAIN" position. Move the power switch back to the "ON"
position, then replace the front panel in its correct position.
14) Allow the water system to drain completely.
15) Remove the front panel. Move the power switch to the "OFF" position, then move the
control switch to the "ICE" position. Move the power switch to the "ON" position, then
replace the front panel in its correct position.
16) Open the icemaker water supply line shut-off valve to supply water to the reservoir.
17) After the gear motor starts, remove the front panel. Move the power switch to the "OFF"
position. Move the control switch to the "DRAIN" position, then move the power switch
back to the "ON" position. Replace the front panel in its correct position.
18) Allow the water system to drain completely.
Note: If you do not sanitize the unit, go to step 14 in "III.B.5. Sanitizing
Procedure - Final."
19) Remove the front panel. Move the power switch to the "OFF" position, then unplug the
icemaker from the electrical outlet. Close the water supply line shut-off valve.
34
3. Sanitizing Solution
Dilute 2.5 . oz. (74 ml or 5 tbs) of a 7.5% sodium hypochlorite solution (chlorine bleach)
with 5 gal. (19 l) of warm water. This is a minimum amount. Make more solution if
necessary. IMPORTANT! For safety and maximum effectiveness, use the solution
immediately after dilution.
4. Sanitizing Procedure - Initial
1) Make sure the power switch is in the "OFF" position, the icemaker is unplugged from
the electrical outlet, and the water supply line shut-off valve is closed. Remove the top
panel.
2) Remove the spout spring, then open the spout cover. See Fig. 14.
Next, remove the proximity switch from the spout assembly, then remove the spout and
chute assembly, and spout packing from the icemaker.
3) Pour the sanitizing solution over the extruding head until the evaporator assembly and
the reservoir are full and the solution starts to run through the overow hose on the
reservoir.
4) Remove the spout and chute insulation straps, then remove the spout and chute
insulation and set aside.
5) Soak the spout assembly, chute, and spout packing in the sanitizing solution for
10 minutes then wipe them down. Next, wipe down the chute packing at the base of the
icemaker.
6) Rinse the parts thoroughly with clean water.
7) Replace the spout packing, chute, spout assembly, insulation, and insulation straps in
their correct positions. Next, open the spout cover and replace the proximity switch in its
correct position, then close the spout cover and replace the spout spring in its correct
position. IMPORTANT! Be sure the insulation is placed back in its correct position
and secured with the insulation straps.
8) Move the control switch to the "ICE" position, then plug the icemaker back in to the
electrical outlet. Move the power switch to the "ON" position. Replace the panels in their
correct positions, then make ice using the solution until the icemaker stops making ice.
9) Remove the front panel. Move the power switch to the "OFF" position, then move the
control switch to the "DRAIN" position. Move the power switch to the "ON" position, then
replace the front panel in its correct position.
10) Allow the water system to drain completely.
11) Remove the front panel. Move the power switch to the "OFF" position, then unplug the
icemaker from the electrical outlet.
35
5. Sanitizing Procedure - Final
1) Dilute 2.5 . oz. (74 ml or 5 tbs) of a 7.5% sodium hypochlorite solution (chlorine bleach)
with 5 gal. (19 l) of warm water. This is a minimum amount. Make more solution if
necessary. IMPORTANT! For safety and maximum effectiveness, use the solution
immediately after dilution.
2) Make sure the power switch is in the "OFF" position, the icemaker is unplugged from
the electrical outlet, and the water supply line shut-off valve is closed. Remove the top
panel.
3) Remove the spout spring and open the spout cover.
4) Pour the sanitizing solution over the extruding head until the evaporator assembly and
the reservoir are full and the solution starts to run through the overow hose on the
reservoir.
5) Close the spout cover, then replace the spout spring in its correct position.
6) Allow the icemaker to sit for 10 minutes before operation.
7) Move the control switch to the "ICE" position, then plug the icemaker back in to the
electrical outlet. Move the power switch to the "ON" position. Replace the panels in their
correct positions, then make ice using the solution until the icemaker stops making ice.
8) Remove the front panel. Move the power switch to the "OFF" position. Move the control
switch to the "DRAIN" position, then move the power switch to the "ON" position, then
replace the front panel in its correct position.
9) Allow the water system to drain completely.
10) Remove the front panel. Move the power switch to the "OFF" position. Move the control
switch to the "ICE" position, then move the power switch to the "ON" position, then
replace the front panel in its correct position.
11) Open the icemaker water supply line shut-off valve to supply water to the reservoir.
12) After the gear motor starts, remove the front panel. Move the power switch to the "OFF"
position. Move the control switch to the "DRAIN" position, then move the power switch
to the "ON" position. Replace the front panel in its correct position.
13) Allow the water system to drain completely.
14) Remove the front panel. Move the power switch to the "OFF" position, then move the
control switch to the "ICE" position. Move the power switch to the "ON" position, then
replace the front panel in its correct position.
15) Allow the icemaker to run for 30 minutes, then remove the front panel. Move the power
switch to the "OFF" position, then unplug the icemaker from the electrical outlet.
16) Pour warm water into the dispenser unit/ice storage bin and melt any remaining ice.
Clean the dispenser unit/ice storage bin liner using a neutral cleaner. Rinse thoroughly
after cleaning.
17) Plug the icemaker back in to the electrical outlet. Make sure the control switch is in the
"ICE" position, then move the power switch to the "ON" position to start the automatic
icemaking process.
18) Replace the front panel.
36
IV. Preparing the Appliance for Periods of Non-Use
NOTICE
When storing the icemaker for an extended time or in sub-freezing temperatures,
follow the instructions below to prevent damage.
When the icemaker is not used for two or three days under normal conditions, it
is sufficient to only move the power switch to the "OFF" position. When storing the
appliance for extended time or in sub-freezing temperatures, follow the instructions
below.
1. Remove the water from the icemaker water supply line:
1) Remove the front panel.
2) Move the power switch to the "OFF" position.
3) Close the icemaker water supply line shut-off valve, then open the icemaker water
supply line drain valve.
4) Allow the line to drain by gravity.
5) Attach a compressed air or carbon dioxide supply to the icemaker water supply line
drain valve.
6) Move the control switch to the "ICE" position, then move the power switch to the "ON"
position.
7) Blow the icemaker water line out using the compressed air or carbon dioxide supply.
8) Close the icemaker water supply line drain valve.
2. Drain the evaporator:
1) Move the power switch to the "OFF" position. Move the control switch to the "DRAIN"
position, then move the power switch back to the "ON" position. Replace the front panel
in its correct position.
2) Allow the water system to drain for 5 minutes.
3) Remove the front panel, then move the power switch to the "OFF" position.
4) Remove the evaporator drain line hose from the evaporator and attach a compressed air
or carbon dioxide supply to the hose.
5) Move the power switch to the "ON" position. Blow out the evaporator drain line using the
compressed air or carbon dioxide supply until water stops coming out.
6) Move the power switch to the "OFF" position, then reconnect the evaporator drain line
hose.
7) Move the control switch to the "ICE" position. Replace the front panel in its correct
position, then unplug the unit from the electrical outlet.
8) Remove all ice from the dispenser unit/ice storage bin. Clean the dispenser unit/ice
storage bin liner using a neutral cleaner. Rinse thoroughly after cleaning.
3. Turn off the power supply to the remote condensing unit:
1) Turn off the power supply to the remote condensing unit.
2) When restarting, follow the instructions in "II.G. Startup." The remote condensing unit
should have power for a minimum of 4 hours prior to startup to prevent compressor
damage.
37
V. Disposal
The icemaker and remote condensing unit contain refrigerant and must be disposed of in
accordance with applicable national, state, and local codes and regulations. Refrigerant
must be recovered by properly certied service personnel.
38
618 Hwy. 74 South, Peachtree City, GA 30269 USA (P) 770.487.2331 (F) 770.487.3360 hoshizakiamerica.com 1A7224-011
