Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 24e
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1‑888‑866‑5797 as soon as possible.
Copyright
©
2024 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.
Page 2 For technical questions, please call 1-888-866-5797. Item 64856
SaFety OperatiOn MaintenanceSetup
table of contents
Safety ......................................................... 2
Specifications ............................................ 10
Setup ......................................................... 10
Operation ................................................... 12
Maintenance .............................................. 14
Warranty .................................................... 16
tM
WarninG SyMBOLS anD DeFinitiOnS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
iMpOrtant SaFety inFOrMatiOn
General power tool Safety Warnings
read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term ″power tool″ in the warnings refers to your mains-operated (corded) power tool.
Work area Safety
1. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders
away while operating a power tool.
Distractions can cause you to lose control.
Page 3For technical questions, please call 1-888-866-5797.Item 64856
SaFetyOperatiOnMaintenance Setup
electrical Safety
1. power tool plugs must match the outlet.
never modify the plug in any way.
Do not use any adapter plugs with grounded
power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
2. avoid body contact with grounded surfaces
such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is grounded.
3. Do not expose power tools to rain or wet
conditions. Water entering a power tool
will increase the risk of electric shock.
4. Do not abuse the cord. never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
5. When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use
reduces the risk of electric shock.
6. if operating a power tool in a damp location
is unavoidable, use a Ground Fault circuit
interrupter (GFci) protected supply.
Use of a GFCI reduces the risk of electric shock.
personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication.
A moment of inattention while operating power
tools may result in serious personal injury.
2. use personal protective equipment. always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
3. prevent unintentional starting. ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energizing power
tools that have the switch on invites accidents.
4. remove any adjusting key or wrench
before turning the power tool on. A wrench
or a key left attached to a rotating part of the
power tool may result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry
or long hair can be caught in moving parts.
7. if devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8. Do not let familiarity gained from frequent
use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause
severe injury within a fraction of a second.
9. Only use safety equipment that has been approved
by an appropriate standards agency. Unapproved
safety equipment may not provide adequate
protection. Eye protection must be ANSI‑approved
and breathing protection must be NIOSH‑approved
for the specific hazards in the work area.
10. Avoid unintentional starting.
Prepare to begin work before turning on the tool.
11. Do not lay the tool down until it has come to
a complete stop. Moving parts can grab the
surface and pull the tool out of your control.
12. When using a handheld power tool,
maintain a firm grip on the tool with both
hands to resist starting torque.
13. Do not depress the spindle lock when
starting or during operation.
14. Do not leave the tool unattended when it is plugged
into an electrical outlet. Turn off the tool, and
unplug it from its electrical outlet before leaving.
15. This product is not a toy.
Keep it out of reach of children.
16. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
In addition, people with pacemakers should:
• Avoid operating alone.
• Do not use with Trigger locked on.
• Properly maintain and inspect to avoid
electrical shock.
• Properly ground power cord.
Ground Fault Circuit Interrupter (GFCI)
should also be implemented – it prevents
sustained electrical shock.
Page 4 For technical questions, please call 1-888-866-5797. Item 64856
SaFety OperatiOn MaintenanceSetup
17. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
power tool use and care
1. Do not force the power tool. use the correct
power tool for your application. The correct
power tool will do the job better and safer
at the rate for which it was designed.
2. Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the switch
is dangerous and must be repaired.
3. Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the power tool before making any adjustments,
changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions
to operate the power tool. Power tools are
dangerous in the hands of untrained users.
5. Maintain power tools and accessories.
check for misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power tool’s
operation. if damaged, have the power tool
repaired before use. Many accidents are
caused by poorly maintained power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
8. Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles
and grasping surfaces do not allow for safe handling
and control of the tool in unexpected situations.
Service
1. Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
2. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
Page 5For technical questions, please call 1-888-866-5797.Item 64856
SaFetyOperatiOnMaintenance Setup
Safety Warnings common for Grinding, Wire Brushing,
or abrasive cutting-off Operations
1. this power tool is intended to function as a
grinder, wire brush, or cut-off tool. read all
safety warnings, instructions, illustrations and
specifications provided with this power tool.
Failure to follow all instructions listed below may
result in electric shock, fire and/or serious injury.
2. Operations such as sanding or polishing
are not recommended to be performed
with this power tool. Operations for which
the power tool was not designed may create
a hazard and cause personal injury.
3. Do not use accessories which are not
specifically designed and recommended
by the tool manufacturer. Just because the
accessory can be attached to your power tool,
it does not assure safe operation.
4. the rated speed of the accessory must be at
least equal to the maximum speed marked on
the power tool. Accessories running faster than
their RATED SPEED can break and fly apart.
5. the outside diameter and the thickness of your
accessory must be within the capacity rating
of your power tool. Incorrectly sized accessories
cannot be adequately guarded or controlled.
6. the arbor size of wheels, flanges, backing
pads or any other accessory must properly
fit the spindle of the power tool. Accessories
with arbor holes that do not match the mounting
hardware of the power tool will run out of balance,
vibrate excessively and may cause loss of control.
7. Do not use a damaged accessory.
Before each use inspect the accessory such
as abrasive wheels for chips and cracks, wire
brush for loose or cracked wires. if power
tool or accessory is dropped, inspect for
damage or install an undamaged accessory.
after inspecting and installing an accessory,
position yourself and bystanders away from
the plane of the rotating accessory and run
the power tool at maximum no-load speed
for one minute. Damaged accessories will
normally break apart during this test time.
8. Wear personal protective equipment. Depending
on application, use face shield, safety goggles
or safety glasses. as appropriate, wear dust
mask, hearing protectors, gloves and workshop
apron capable of stopping small abrasive or
workpiece fragments. the eye protection must
be capable of stopping flying debris generated
by various operations. The eye protection must
be capable of stopping flying debris generated by
various operations. The dust mask or respirator
must be capable of filtering out particles generated
by your operation. Prolonged exposure to high
intensity noise may cause hearing loss.
9. Keep bystanders a safe distance away
from work area. anyone entering the
work area must wear personal protective
equipment. Fragments of workpiece or of a
broken accessory may fly away and cause
injury beyond immediate area of operation.
10. Hold power tool by insulated gripping surfaces
only, when performing an operation where
the accessory may contact hidden wiring
or its own cord. An accessory contacting a
″live″ wire may make exposed metal parts of
the power tool ″live″ and shock the operator.
11. position the cord clear of the spinning
accessory.
If you lose control, the cord may be cut or
snagged and your hand or arm may be
pulled into the spinning accessory.
12. never lay the power tool down until the
accessory has come to a complete stop.
The spinning accessory may grab the surface
and pull the power tool out of your control.
13. Do not run the power tool while carrying
it at your side. Accidental contact with the
spinning accessory could snag your clothing,
pulling the accessory into your body.
14. regularly clean the power tool’s air vents.
The motor’s fan will draw the dust inside
the housing and excessive accumulation of
powdered metal may cause electrical hazards.
15. Do not operate the power tool near flammable
materials. Sparks could ignite these materials.
16. Do not use accessories that require liquid
coolants. Using water or other liquid coolants
may result in electrocution or shock.
17. Use clamps (not included) or other practical
ways to secure and support the workpiece to
a stable platform. Holding the work by hand
or against your body is unstable and may
lead to loss of control and personal injury.
18. The warnings, precautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions and situations
that may occur. It must be understood by the
operator that common sense and caution are
factors which cannot be built into this product,
but must be supplied by the operator.
Page 6 For technical questions, please call 1-888-866-5797. Item 64856
SaFety OperatiOn MaintenanceSetup
Kickback and related Warnings
Kickback is a sudden reaction to a pinched or
snagged rotating wheel, backing pad, brush
or any other accessory. Pinching or snagging
causes rapid stalling of the rotating accessory
which in turn causes the uncontrolled power
tool to be forced in the direction opposite of the
accessory’s rotation at the point of the binding.
For example, if an abrasive wheel is snagged or
pinched by the workpiece, the edge of the wheel
that is entering into the pinch point can dig into the
surface of the material causing the wheel to climb
out or kick out. The wheel may either jump toward
or away from the operator, depending on direction
of the wheel’s movement at the point of pinching.
Abrasive wheels may also break under these conditions.
Kickback is the result of power tool misuse and/or
incorrect operating procedures or conditions and can be
avoided by taking proper precautions as given below.
1. Maintain a firm grip on the power tool and
position your body and arm to allow you to
resist kickback forces. always use auxiliary
handle, if provided, for maximum control over
kickback or torque reaction during start-up.
The operator can control torque reactions or
kickback forces, if proper precautions are taken.
2. never place your hand near the
rotating accessory. Accessory may
kickback over your hand.
3. Do not position your body in the area where
power tool will move if kickback occurs.
Kickback will propel the tool in direction opposite
to the wheel’s movement at the point of snagging.
4. use special care when working corners, sharp
edges etc. avoid bouncing and snagging the
accessory. Corners, sharp edges or bouncing
have a tendency to snag the rotating accessory
and cause loss of control or kickback.
5. Do not attach a saw chain woodcarving
blade or toothed saw blade. Such blades
create frequent kickback and loss of control.
Safety Warnings Specific for Grinding and
abrasive cutting-off Operations
1. use only wheel types that are recommended
for your power tool and the specific
guard designed for the selected wheel.
Wheels for which the power tool was not designed
cannot be adequately guarded and are unsafe.
2. the guard must be securely attached
to the power tool and positioned for
maximum safety, so the least amount of
wheel is exposed towards the operator.
The guard helps to protect operator from broken
wheel fragments and accidental contact with wheel.
3. Wheels must be used only for recommended
applications. For example: do not grind with
the side of cut-off wheel. Abrasive cut-off wheels
are intended for peripheral grinding, side forces
applied to these wheels may cause them to shatter.
4. always use undamaged wheel flanges
that are of correct size and shape for your
selected wheel. Proper wheel flanges support
the wheel thus reducing the possibility of wheel
breakage. Flanges for cut-off wheels may
be different from grinding wheel flanges.
5. Do not use worn down wheels from larger
power tools. Wheel intended for larger
power tool is not suitable for the higher
speed of a smaller tool and may burst.
6. Dress appropriately. Wear leather leggings and
fire resistant footwear during use. Do not wear pants
with cuffs, shirts with open pockets, or any clothing
that can catch and hold molten metal or sparks.
Page 7For technical questions, please call 1-888-866-5797.Item 64856
SaFetyOperatiOnMaintenance Setup
Safety Warnings Specific for abrasive cutting-off Operations
1. Do not “jam” the cut-off wheel or apply
excessive pressure. Do not attempt to make
an excessive depth of cut. Overstressing the
wheel increases the loading and susceptibility
to twisting or binding of the wheel in the cut and
the possibility of kickback or wheel breakage.
2. Do not position your body in line with and
behind the rotating wheel. When the wheel,
at the point of operation, is moving away from
your body, the possible kickback may propel the
spinning wheel and the power tool directly at you.
3. When wheel is binding or when interrupting a
cut for any reason, switch off the power tool
and hold the power tool motionless until the
wheel comes to a complete stop. never attempt
to remove the cut-off wheel from the cut while
the wheel is in motion otherwise kickback
may occur. Investigate and take corrective
action to eliminate the cause of wheel binding.
4. Do not restart the cutting operation in
the workpiece. Let the wheel reach full
speed and carefully reenter the cut.
The wheel may bind, walk up or kickback if the
power tool is restarted in the workpiece.
5. Support panels or any oversized
workpiece to minimize the risk of wheel
pinching and kickback. Large workpieces
tend to sag under their own weight. Supports
must be placed under the workpiece near
the line of cut and near the edge of the
workpiece on both sides of the wheel.
6. use extra caution when making a “pocket cut”
into existing walls or other blind areas.
The protruding wheel may cut gas or water pipes,
electrical wiring or objects that can cause kickback.
Safety Warnings Specific for Wire Brushing Operations
1. Be aware that wire bristles are thrown by
the brush even during ordinary operation.
Do not overstress the wires by applying
excessive load to the brush. The wire bristles
can easily penetrate light clothing and/or skin.
2. if the use of a guard is recommended for
wire brushing, do not allow any interference
of the wire wheel or brush with the guard.
Wire wheel or brush may expand in diameter
due to work load and centrifugal forces.
Vibration Safety
This tool vibrates during use. Repeated or
long‑term exposure to vibration may cause
temporary or permanent physical injury,
particularly to the hands, arms and shoulders. To
reduce the risk of vibration‑related injury:
1. Anyone using vibrating tools regularly or for an
extended period should first be examined by a
doctor and then have regular medical check‑ups
to ensure medical problems are not being caused
or worsened from use. Pregnant women or
people who have impaired blood circulation to
the hand, past hand injuries, nervous system
disorders, diabetes, or Raynaud’s Disease should
not use this tool. If you feel any medical or
physical symptoms related to vibration (such as
tingling, numbness, and white or blue fingers),
seek medical advice as soon as possible.
2. Do not smoke during use. Nicotine reduces
the blood supply to the hands and fingers,
increasing the risk of vibration‑related injury.
3. Wear suitable gloves to reduce the
vibration effects on the user.
4. Use tools with the lowest vibration when there
is a choice between different processes.
5. Include vibration‑free periods each day of work.
6. Grip tool as lightly as possible (while still keeping
safe control of it). Let the tool do the work.
7. To reduce vibration, maintain the tool as
explained in this manual. If any abnormal
vibration occurs, stop use immediately.
SaVe tHeSe inStructiOnS.
Page 8 For technical questions, please call 1-888-866-5797. Item 64856
SaFety OperatiOn MaintenanceSetup

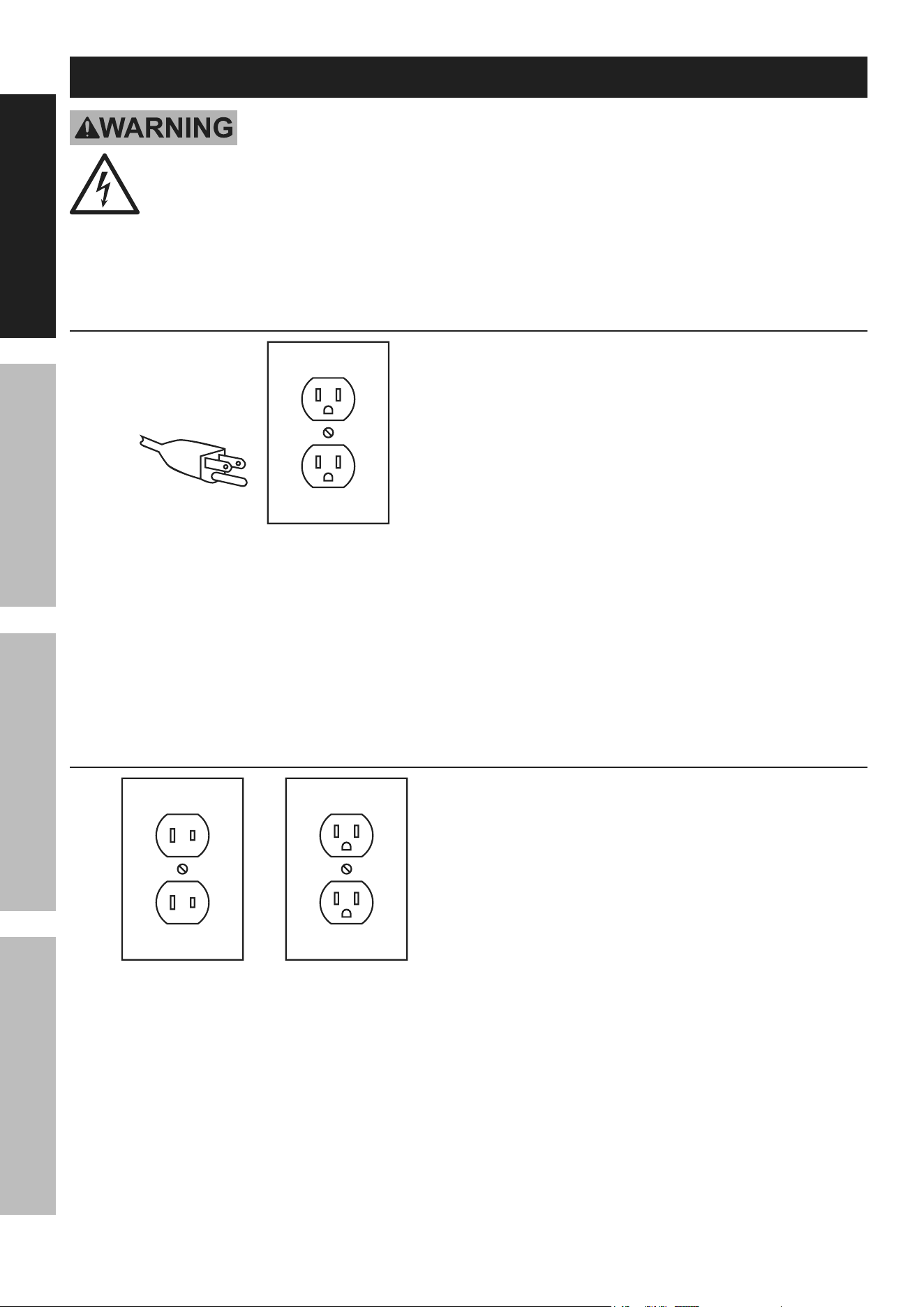

Grounding
tO preVent eLectric SHOcK anD DeatH FrOM
incOrrect GrOunDinG Wire cOnnectiOn:
check with a qualified electrician if you are in doubt as to whether the outlet is properly
grounded. Do not modify the power cord plug provided with the tool. never remove the
grounding prong from the plug. Do not use the tool if the power cord or plug is damaged. if damaged, have
it repaired by a service facility before use. if the plug will not fit the outlet, have a proper outlet installed by
a qualified electrician.
Grounded tools: tools with three prong plugs
3-prong plug and Outlet
1. Tools marked with “Grounding Required” have
a three wire cord and three prong grounding
plug. The plug must be connected to a properly
grounded outlet. If the tool should electrically
malfunction or break down, grounding provides
a low resistance path to carry electricity away
from the user, reducing the risk of electric
shock. (See 3-prong plug and Outlet.)
2. The grounding prong in the plug is connected
through the green wire inside the cord to the
grounding system in the tool. The green wire
in the cord must be the only wire connected
to the tool’s grounding system and must
never be attached to an electrically “live”
terminal. (See 3-prong plug and Outlet.)
3. The tool must be plugged into an appropriate outlet,
properly installed and grounded in accordance
with all codes and ordinances. The plug and outlet
should look like those in the preceding illustration.
(See 3-prong plug and Outlet.)
Double insulated tools: tools with two prong plugs
Outlets for 2-prong plug
1. Tools marked “Double Insulated” do not
require grounding. They have a special
double insulation system which satisfies OSHA
requirements and complies with the applicable
standards of Underwriters Laboratories, Inc.,
the Canadian Standard Association,
and the National Electrical Code.
2. Double insulated tools may be used in either of the
120 volt outlets shown in the preceding illustration.
(See Outlets for 2-prong plug.)
Page 9For technical questions, please call 1-888-866-5797.Item 64856
SaFetyOperatiOnMaintenance Setup
extension cords
1. Grounded tools require a three wire extension cord.
Double Insulated tools can use either
a two or three wire extension cord.
2. As the distance from the supply outlet increases,
you must use a heavier gauge extension cord.
Using extension cords with inadequately sized wire
causes a serious drop in voltage, resulting in loss of
power and possible tool damage. (See table a.)
3. The smaller the gauge number of the wire, the
greater the capacity of the cord. For example,
a 14 gauge cord can carry a higher current
than a 16 gauge cord. (See table a.)
4. When using more than one extension cord
to make up the total length, make sure
each cord contains at least the minimum
wire size required. (See table a.)
5. If you are using one extension cord for more
than one tool, add the nameplate amperes
and use the sum to determine the required
minimum cord size. (See table a.)
6. If you are using an extension cord outdoors, make
sure it is marked with the suffix “W‑A” (“W” in
Canada) to indicate it is acceptable for outdoor use.
7. Make sure the extension cord is properly wired
and in good electrical condition. Always replace
a damaged extension cord or have it repaired
by a qualified electrician before using it.
8. Protect the extension cords from sharp objects,
excessive heat, and damp or wet areas.
taBLe a: recOMMenDeD MiniMuM Wire
GauGe FOr eXtenSiOn cOrDS* (120/240 VOLt)
naMepLate
aMpereS
(at full load)
eXtenSiOn cOrD
LenGtH
25´ 50´ 75´ 100´ 150´
0 – 2.0 18 18 18 18 16
2.1 – 3.4 18 18 18 16 14
3.5 – 5.0 18 18 16 14 12
5.1 – 7.0 18 16 14 12 12
7.1 – 12.0 18 14 12 10 ‑
12.1 – 16.0 14 12 10 ‑ ‑
16.1 – 20.0 12 10 ‑ ‑ ‑
* Based on limiting the line voltage drop to five volts at
150% of the rated amperes.
Symbology
Double Insulated
V
Volts
~
Alternating Current
a
Amperes
n
0
xxxx/min.
No Load Revolutions per Minute (RPM)
WARNING marking concerning Risk
of Eye Injury. Wear ANSI‑approved
safety goggles with side shields.
WARNING marking concerning Risk
of Respiratory Injury. Wear NIOSH‑
approved breathing protection rated
for the hazards in your work area.
Read the manual before
set‑up and/or use.
WARNING marking
concerning Risk of Fire.
Do not cover ventilation ducts.
Keep flammable objects away.
WARNING marking concerning
Risk of Electric Shock.
Properly connect power cord
to appropriate outlet.
Page 10 For technical questions, please call 1-888-866-5797. Item 64856
SaFety OperatiOn MaintenanceSetup
Specifications
Electrical Rating 120V
~
/ 60Hz / 7A
No Load Speed n
0
: 11000/min
Arbor Hole Diameter 7/8″
Spindle Thread 5/8″ - 11 UNC
Wheel Diameter 4-1/2″ (Ø115mm)
Setup - Before use:
read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn:
Make sure that the power Switch/trigger is in the off-position and unplug the tool
from its electrical outlet before performing any procedure in this section.
aSSeMBLy

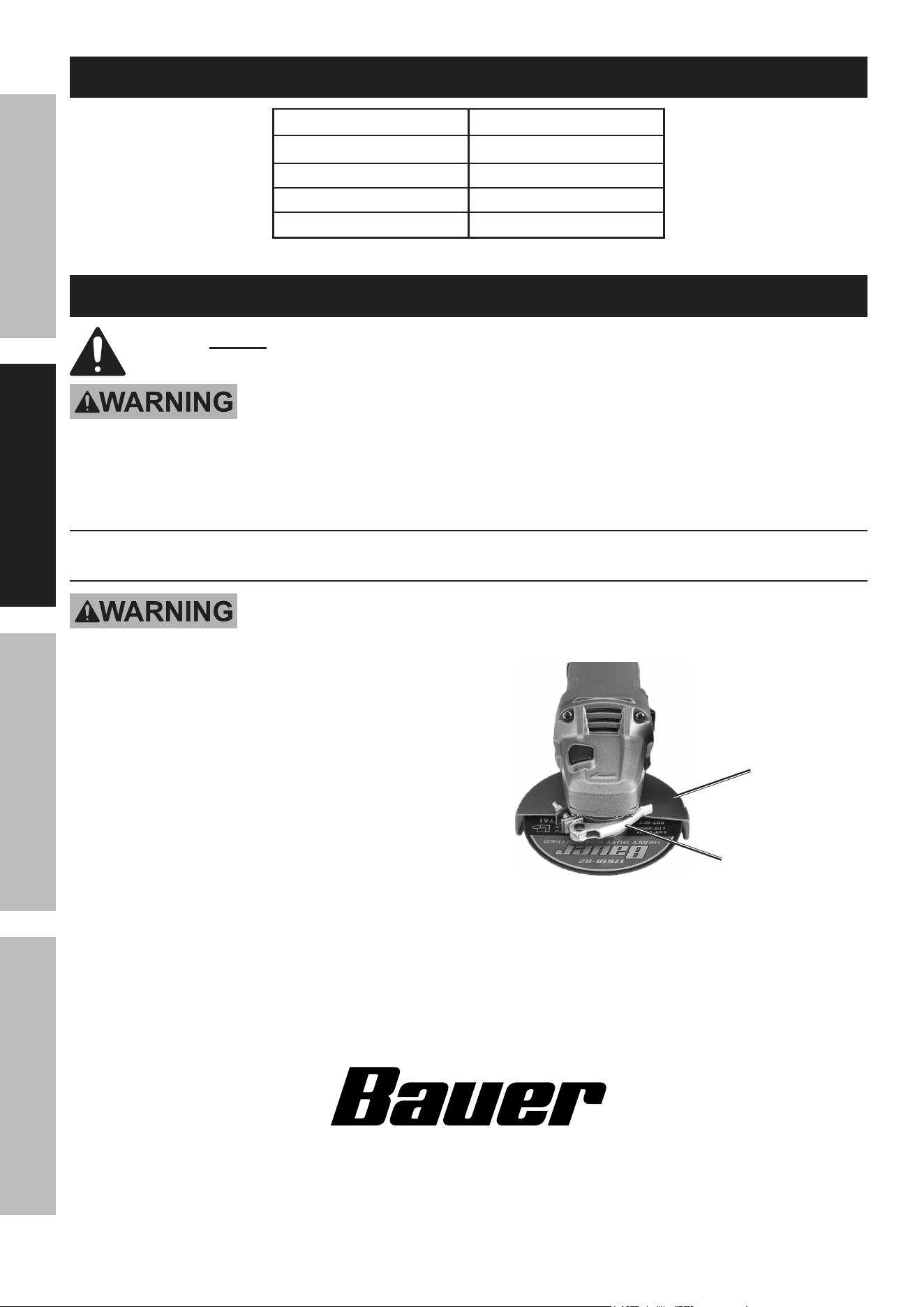

installing the Wheel Guard
tO preVent SeriOuS inJury: Do not operate this tool without the Wheel Guard properly installed.
1. Pull the Clamp Handle open to
loosen the Wheel Guard.
2. Slide the collar of the Wheel Guard
over the rim of the Gear Housing.
3. Rotate the Wheel Guard as needed to
shield you during the planned work.
4. Once in place, push to close the Clamp
Handle to secure the Wheel Guard.
5. Check the Wheel Guard to ensure
it is firmly in place. Adjust if
necessary before proceeding.
Wheel Guard
clamp Handle
tM
Page 11For technical questions, please call 1-888-866-5797.Item 64856
SaFetyOperatiOnMaintenance Setup
installing the auxiliary Handle
tO preVent SeriOuS inJury:
Do not operate this tool with one hand only or without the auxiliary Handle properly installed.
1. The Auxiliary Handle may be installed
on either side of the Gear Housing.
2. Screw the threaded end of the
Auxiliary Handle into the selected position.
Tighten securely before beginning work.
Handle alternate location

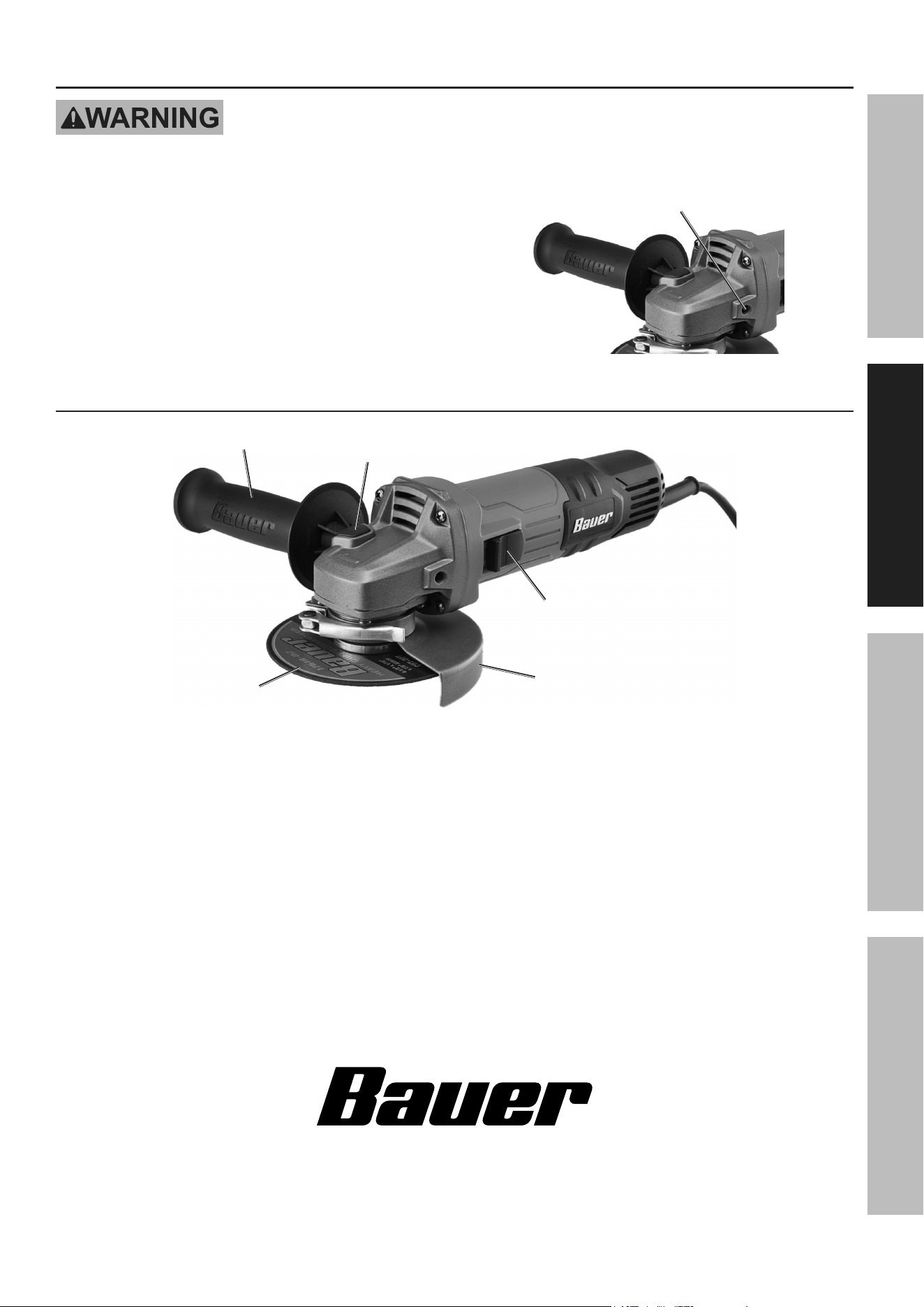

Functions
Handle
Spindle Lock
Button
power Switch
Wheel
Guard
Grinding
Disc
tM
Page 12 For technical questions, please call 1-888-866-5797. Item 64856
SaFety OperatiOn MaintenanceSetup
Operating instructions
read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
tool Set up
tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn:
Make sure that the power Switch/trigger is in the off-position and unplug the tool
from its electrical outlet before performing any procedure in this section.

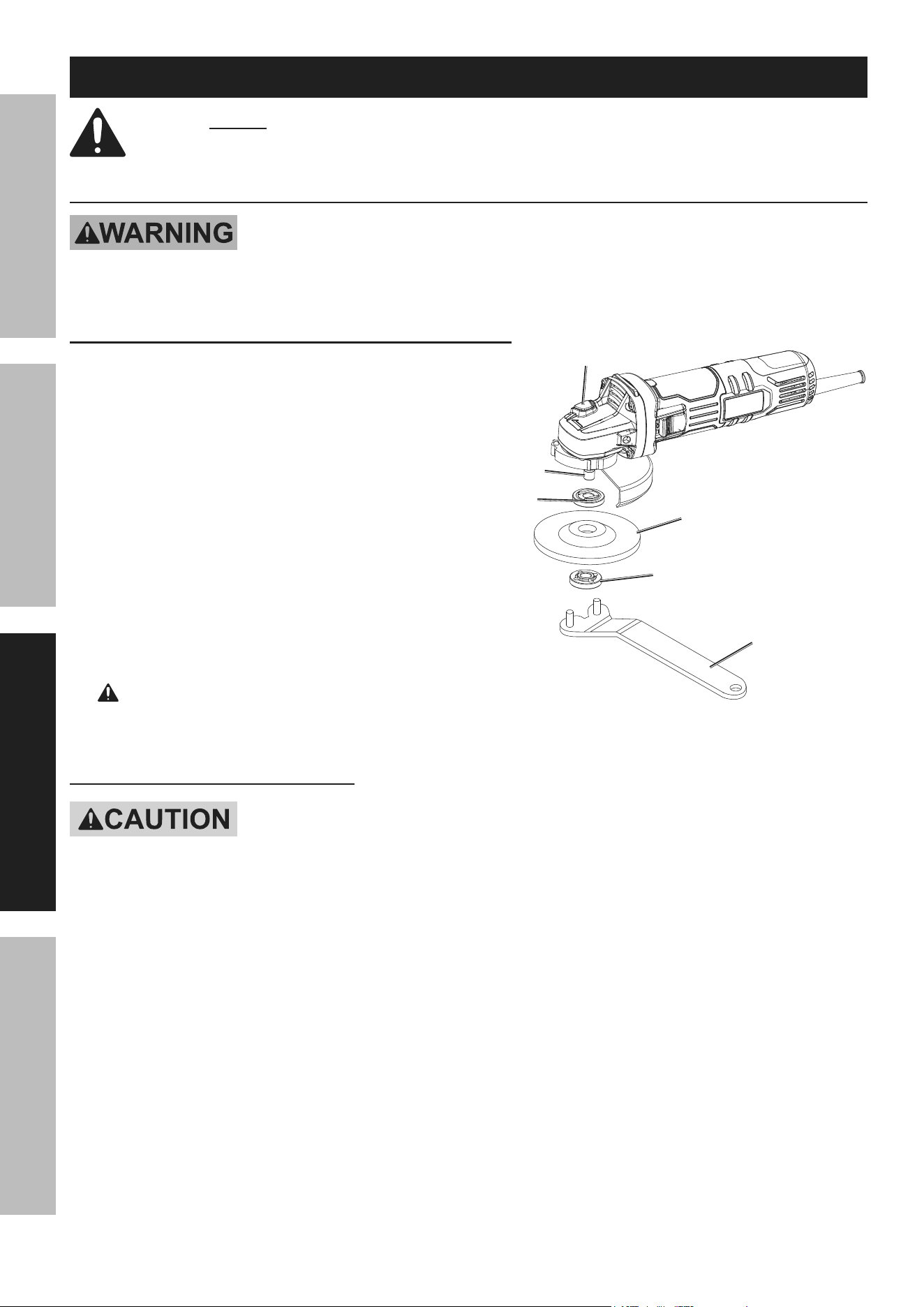

installing a non-threaded Grinding (cut-off) Wheel
1. The Grinding (cut‑off) Wheel MUST be:
• rated to at least 11,000 RPM.
• no larger than 4-1/2″ (115 mm) in diameter.
• fitted with a 7/8″ round arbor hole.
• 1/4″ (6mm) thick or less.
• suitable for surface edge grinding,
not edge surface grinding.
• dry and clean.
• proven undamaged by inspection
2. Press in and hold the Spindle Lock Button
to prevent the Spindle from turning.
3. Remove the Outer Flange.
Keep the Inner Flange in position on the Spindle.
4. Thread the Outer Flange onto the Spindle.
Wrench tighten only enough so that the wheel is
securely held on the spindle.
WarninG: to prevent serious injury,
do not overtighten flange. Overtightening can
damage the wheel, causing wheel failure.
Grinding Disc
Wrench
Spindle Lock Button
inner
Flange
Outer Flange
Spindle
installing a threaded accessory
tO preVent inJury: Wear heavy-duty work gloves when handling wire wheels and brushes.
these accessories are sharp and can cause injury.
1. The accessory MUST be:
• rated to at least 11,000 RPM.
• no larger than 4-1/2″ (115 mm) in diameter.
• fitted with a threaded opening of 5/8″ - 11 UNC.
• undamaged.
• a wire wheel, or a wire cup brush;
(accessories not included).
2. Press in and hold the Spindle Lock Button
to prevent the Spindle from turning.
3. Remove the Outer Flange and Inner
Flange, and keep in a safe place.
4. Thread disc accessory onto the Spindle.
Wrench tighten onto the Spindle.
Page 13For technical questions, please call 1-888-866-5797.Item 64856
SaFetyOperatiOnMaintenance Setup
Workpiece and Work area Set up
1. Designate a work area that is clean and well‑lit.
The work area must not allow access by children
or pets to prevent distraction and injury.
2. Route the power cord along a safe route
to reach the work area without creating a
tripping hazard or exposing the power cord to
possible damage. The power cord must
reach the work area with enough extra length
to allow free movement while working.
3. Secure loose workpieces using a vise or clamps
(not included) to prevent movement while working.
4. There must not be hazardous objects, such
as utility lines or foreign objects, nearby that
will present a hazard while working.
5. You must use personal safety equipment including,
but not limited to, ANSI‑approved eye and hearing
protection, as well as heavy‑duty work gloves.
6. Before beginning work, provide for sparks
and debris that will fly off the work surface.
Grinding, abrasive cutting-off and Wire Brushing instructions
tO preVent SeriOuS inJury: Grip the tool firmly in both hands.
1. Make sure that the Switch/Trigger is in
the off‑position, then plug in the tool.
2. Squeeze the Trigger to start the tool.
3. Allow the tool to come up to full speed
before touching the work material.
4. Apply the wheel to the work material at a 10° – 15°
angle, allowing the tool to operate at full speed.
If the tool bogs down, use lighter pressure.
5. To create a smoother surface,
keep the tool moving over the work surface.
6. tO preVent acciDentS, aFter uSe:
Turn off the tool.
WarninG! tO preVent SeriOuS inJury:
allow the tool to come to a complete stop before
setting it down.
Unplug the tool. Clean, then store the
tool indoors out of children’s reach.
tM
Page 14 For technical questions, please call 1-888-866-5797. Item 64856
SaFety OperatiOn MaintenanceSetup
Maintenance and Servicing
procedures not specifically explained in this manual must
be performed only by a qualified technician.
tO preVent SeriOuS inJury FrOM acciDentaL OperatiOn:
Make sure that the power Switch/trigger is in the off-position and unplug the tool
from its electrical outlet before performing any procedure in this section.
tO preVent SeriOuS inJury FrOM tOOL FaiLure:
Do not use damaged equipment. if abnormal noise or vibration occurs,
have the problem corrected before further use.
cleaning, Maintenance, and Lubrication
1. BeFOre eacH uSe, inspect the general
condition of the tool. Check for:
• loose hardware,
• misalignment or binding of moving parts,
• damaged cord/electrical wiring,
• cracked or broken parts, and
• any other condition that may
affect its safe operation.
2. aFter uSe, wipe external surfaces
of the tool with clean cloth.
3. Periodically, wear ANSI‑approved safety goggles
and NIOSH‑approved breathing protection
and blow dust and grit out of the motor
vents using dry compressed air.
4. WarninG! tO preVent SeriOuS
inJury: if the plug or the supply cord of this
power tool is damaged, it must be replaced
only by a qualified service technician.
accessory Storage and Handling
1. Handle accessories carefully to prevent
dropping or bumping. Do not use wheels
that have been dropped or bumped.
2. Store accessories in shelves, racks, boxes, or
drawers. Keep storage area dry and above
freezing. Any grinding or cut‑off wheels exposed to
humidity or freezing temperatures must not be used.
record product’s Serial number Here:
note: if product has no serial number, record month and year of purchase instead.
note: Replacement parts may be available for this item. Visit harborfreight.com/parts
for a list of in stock parts. Reference UPC 193175527141.
Page 15For technical questions, please call 1-888-866-5797.Item 64856
SaFetyOperatiOnMaintenance Setup
troubleshooting
problem possible causes Likely Solutions
Tool will not start. 1. Cord not connected.
2. No power at outlet.
3. Tool’s thermal reset
breaker tripped (if equipped).
4. Internal damage or wear. (Carbon
brushes or switch, for example.)
1. Check that cord is plugged in.
2. Check power at outlet.
If outlet is unpowered, turn off tool and
check circuit breaker. If breaker is tripped,
make sure circuit is right capacity for
tool and circuit has no other loads.
3. Turn off tool and allow to cool.
Press reset button on tool.
4. Have technician service tool.
Tool operates slowly. 1. Excess pressure applied to workpiece.
2. Power being reduced by long or small
diameter extension cord.
1. Decrease pressure, allow tool to do the work.
2. Eliminate use of extension cord.
If an extension cord is needed, use
one with the proper diameter for
its length and load. See Extension
Cords in GROUNDING section.
Performance
decreases over time.
Carbon brushes worn or damaged. Have qualified technician replace brushes.
Excessive noise
or rattling.
Internal damage or wear.
(Carbon brushes or bearings, for example.)
Have technician service tool.
Overheating. 1. Forcing tool to work too fast.
2. Blocked motor housing vents.
3. Motor being strained by long or
small diameter extension cord.
1. Allow tool to work at its own rate.
2. Wear ANSI‑approved safety goggles
and NIOSH‑approved dust mask/
respirator while blowing dust out of
motor using compressed air.
3. Eliminate use of extension cord.
If an extension cord is needed,
use one with the proper diameter for
its length and load. See Extension
Cords in GROUNDING section.
Tool does not
operate effectively.
1. Accessory loose.
2. Accessory damaged, worn or
wrong type for the material.
1. Confirm accessory arbor is correct and
Outer Flange/Arbor Nut is tight.
2. Check condition and type of disc accessory.
Use only proper type of disc
accessory in good condition.
Follow all safety precautions whenever diagnosing or servicing
the tool. Disconnect power supply before service.
26677 agoura road • calabasas, ca 91302 • 1-888-866-5797
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
tM
