CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
Illustrated Parts Manual
Form No. 769-07554
(October 12, 2011)
Push and Self-Propelled Mowers
Thank you for purchasing a Cub Cadet Lawn Mower. It was
carefully engineered to provide excellent performance when
properly operated and maintained.
All information in this manual is relative to the most recent
product information available at the time of printing. Please be
aware that this Illustrated Part’s Manual may cover a range of
product specifications for various models.
Components listed and/or illustrated in this manual may not be
applicable to all models. We reserve the right to change product
specifications, designs and equipment without notice and
without incurring obligation.
Throughout this manual, all references to right (RH) and left (LH)
are observed from the operating position.
Thank You
0637 Black
4021 Yellow (Cub Cadet)
0499 Beige (Cub Cadet)
0685 Blue (Cub Cadet)
0691 Black Jack (Cub Cadet Commercial)
To The Owner
2
Model CC 500 ........................................................... 4
Model CC 550 ES ...................................................... 6
Model CC 550 SP ...................................................... 8
Model CC 46 ES (Kohler Engine) ............................10
Model CC 46 ES (MTD Engine) ...............................12
Model CC 94M ......................................................... 14
Model CC 98H .........................................................18
Model CC 98M ........................................................ 22
Model CC 999 ES .................................................... 26
Engine Model 5P65M0B ........................................ 30
Engine Model 5P70M0B ........................................ 40
Honda Model GCV160LA ...................................... 50
Kohler Engine XT173-3316 .................................... 64
Engine Model 2P70M0D ....................................... 78
Engine Model 5P70MU ......................................... 88
Engine Model 2P70MU.......................................... 98
Briggs Model 114P05-6873-F1 ........................... 108
Kohler Engine XT800-3016 ..................................116
Briggs Model 111P05-0963-F1 .............................132
Engine Model 5P65MU ....................................... 140
Table of Contents
Record Product Information
To ease in ordering replacement parts, please locate the model
plate on the equipment and record the information in the
provided area to the right. You can locate the model plate by
standing at the operator’s position and looking down at the rear
of the deck.
Model NuMber
Serial NuMber
Painted Parts
When ordering painted service parts, a four digit color suffix must be added to the part number (e.g. 783-XXXXX-0637).
Please refer to the table below for current color codes:
3
This page left intentionally blank.
4

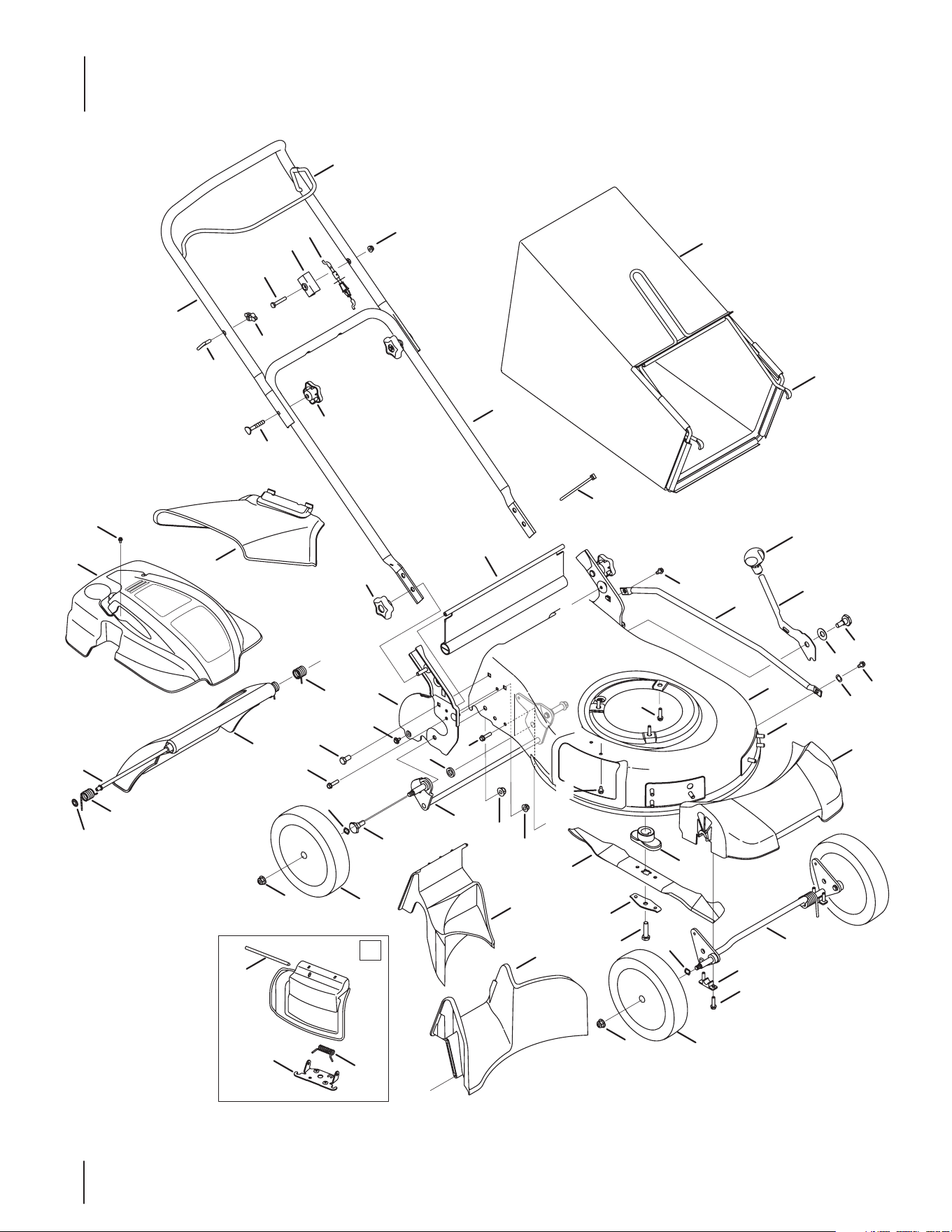

Model CC 500 (11A-18X)
17
14
18
16
20
15
A
A
B
B
5
36
44
25
24
49
35
55
22
3
53
13
32
31
47
30
11
10
37
9
1
26
8
27
50
56
51
33
28
2
3
52
21
48
19
48
3
54
57
4
6
46
12
29
58
23
34
32
32
40
56
46
45
41
39
38
42
43
7
7
5
Model CC 500 (11A-18X)
Ref
No.
Part Number Description
1 787-01649 19” Deck
2 731-05880 Spacer, .515 x 1.00 x .310 Lg.
3 710 -1241 Screw, 1/4-15 x 1.000
4 710- 04744 Screw, HL, #12-16 x 1.00
5 749-04556 Lower Handle
6 931-04232B Engine Shroud
7 936-0504 Washer, Wave, .510 x .750 x .017
8 748-0376E Blade Adapter
9 942-0739 Mulching Blade
10 736-0524B Blade Bell Support
11 710-1044 Screw, 3/8-24 x 1.50
12 731-05639A Trailing Shield
13 731-05746 Rear Mulch Plug
14 731- 04177 Side Discharge Chute
15 987-02055 Mulch Plug (Incl. 16-18)
16 732-1014C Torsion Spring
17 747-0710A Hinge Pin
18 17032A Chute Deector Adapter
19 710-0779A Screw, #10-16 x .500
20 710-05073 Screw
21 931-05686 Rear Door
22 931-05673 Front Cover
23 687-02325 Handle Bracket - RH
687-02324 Handle Bracket - LH
24 964-04066 Grass Bag
25 647-04082 Grass Bag Frame
26 687-02225 Front Bracket Assembly
27 938-0148 Screw, Shoulder, .50 x .66
28 687-02228 Rear Bracket Assembly
29 710-3025 Hhcs, 5/16-18 x .625
Ref
No.
Part Number Description
30 710-04995A Screw, 5/16-14 x .750
31 712- 04063 Nut, Flange Lock, 5/16-18
32 712-04065 Nut, Flange Lock, 3/8-16
33 634-04346 Front Wheel
34 634-04347 Rear Wheel
35 720-04096 Knob
36 712- 04064 Nut, Flange Lock, 1/4-20
37 749- 04550 Upper Handle
38 710-0606 Screw, 1/4-20 x 1.50
39 720-0279 Knob
40 725-0157 Cable Tie
41 710-1205 Rope Guide
42 731-06749 Control Cable Mount
43 946-04535 Control Cable
44 747-05045 Blade Control
45 710 -1174 Bolt Carriage, 5/16-18 x 2.0
46 720-04072A Star Knob
47 731-05710A Rear Bae
48 732-04534 Door Torsion Spring - RH
732-04535 Door Torsion Spring - LH
49 732-04745 Spring Lever
50 936-0255 Washer, Bell, .510 x 1.14 x .040
51 736 -04413 Washer, Wave, .385 x .598
52 938-0507B Screw, Shoulder, .500 Dia. X .434
53 741- 0492A Bushing, Lock, .505 Dia. X .62
54 747-04589 Rear Door Pivot Rod
55 749-04307 Cross Bracket
56 738-04278 Screw, 1/4-20 x .50
57 726-0201 Nut, Spd.
58 710-0654A Screw, tt, 3/8-16 x 1.00
6

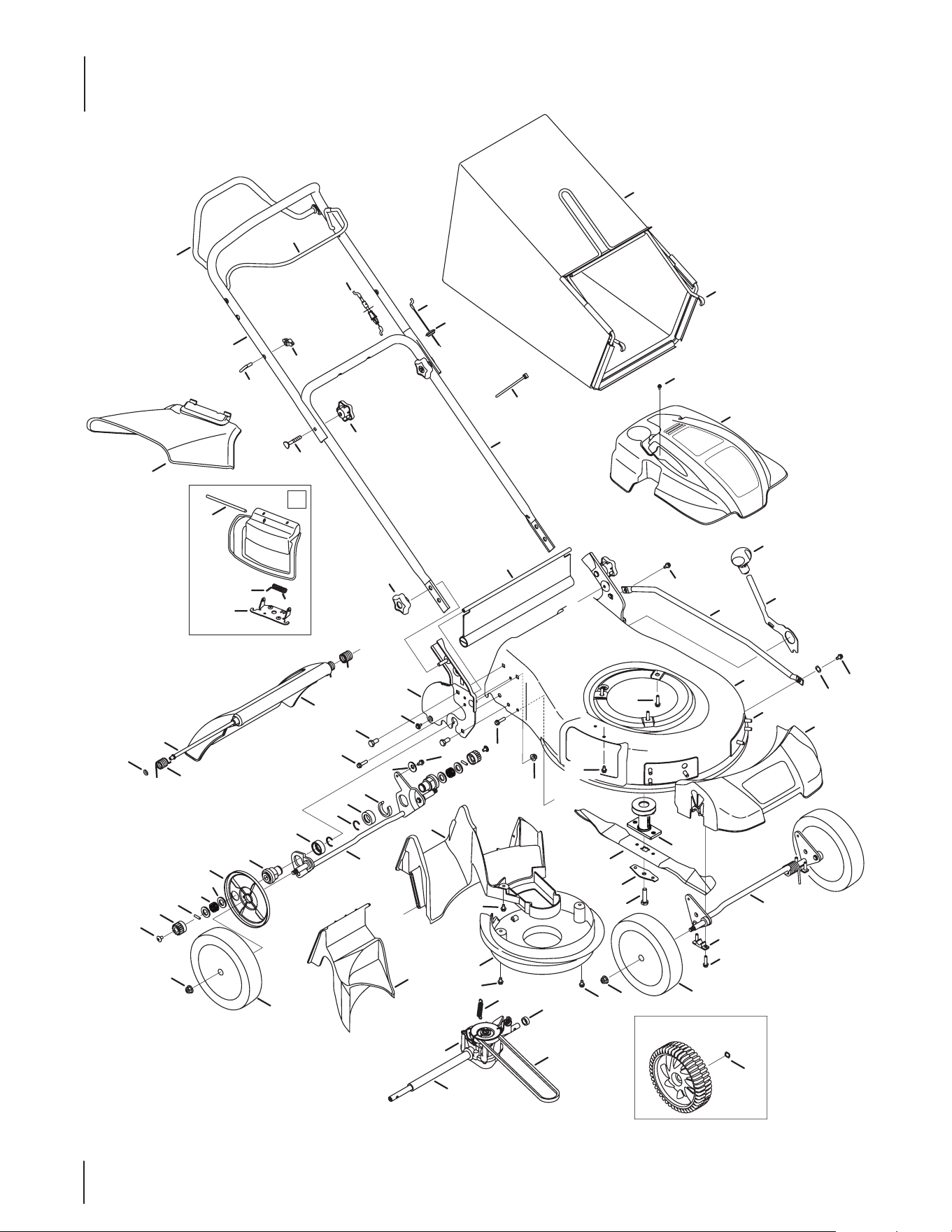

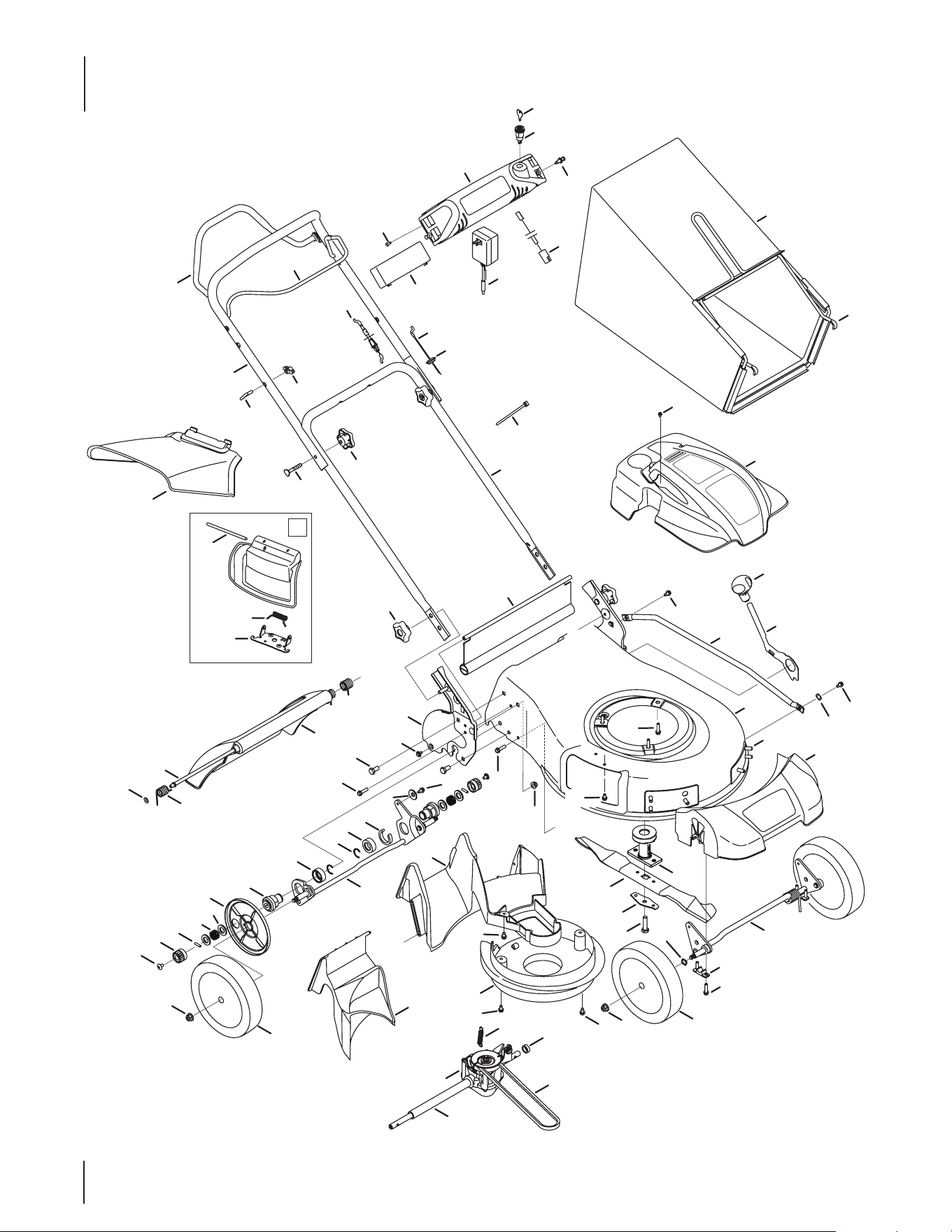

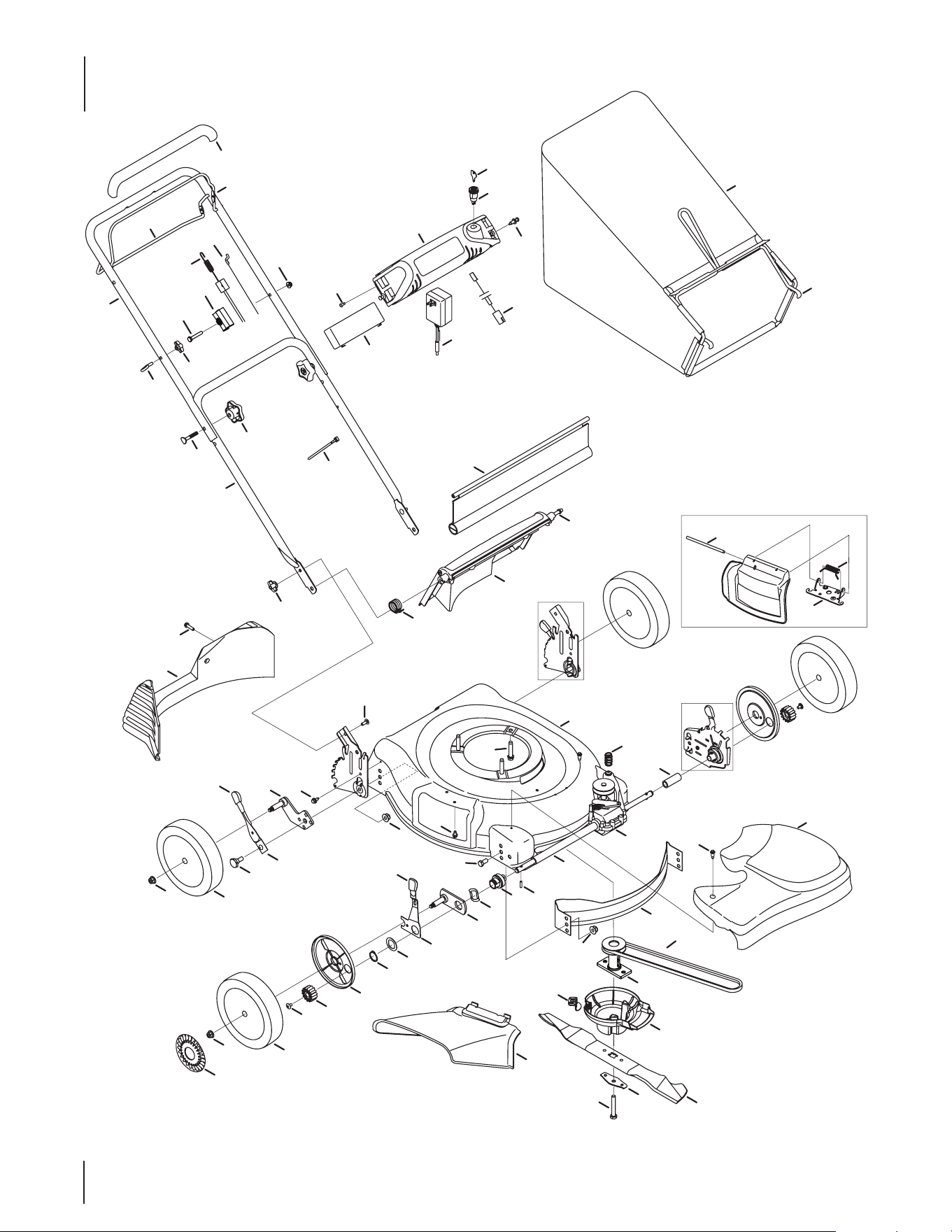

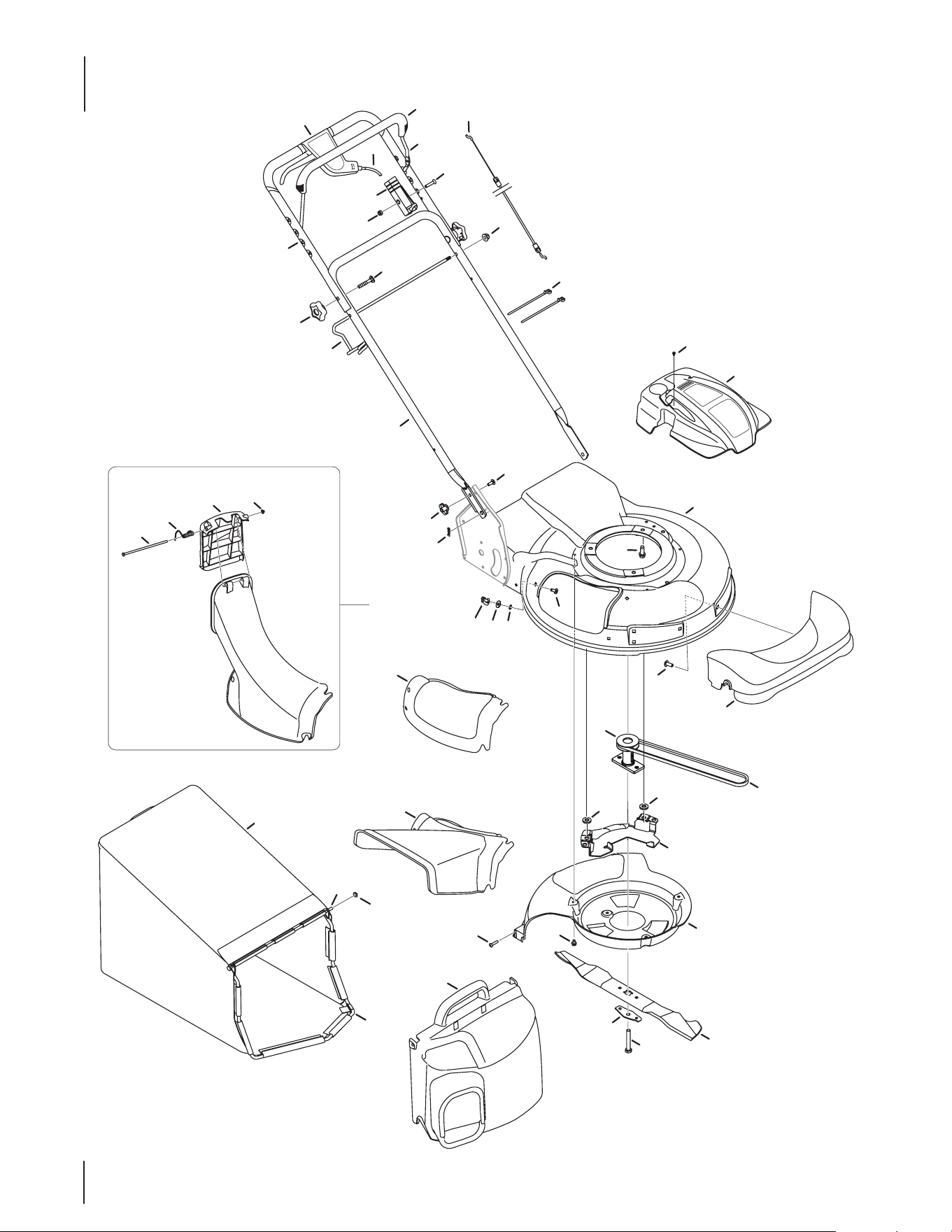

Model CC 550 ES (12AE18X)
17
14
18
16
19
15
A
79
A
B
B
5
59
58
44
25
24
49
35
4
6
55
22
3
53
3
31
30
70
68
61
52
11
67
20
20
20
10
9
37
60
1
26
8
28
34
71
13
21
48
3
29
47
54
69
69
66
64
2
57
27
36
50
63
65
62
32
46
12
38
20
42
7
23
32
33
56
51
56
40
46
45
41
39
43
77
78
73
75
73
76
74
72
7
Model CC 550 ES (12AE18X)
Ref
No.
Part Number Description
1 787-01629 19” Deck
2 687-02415 Transmission Support Bearing
3 710 -1241 Screw, 1/4-15 x 1.000
4 710- 04744 Screw, HL, #12-16 x 1.00
5 749-04556 Lower Handle
6 931-04232B Engine Shroud
7 710-0654A Screw, 3/8-16 x 1.00
8 687-02555 Blade Adapter
9 942-0739 Mulching Blade
10 736-0524B Blade Bell Support
11 710-1044 Screw, 3/8-24 x 1.50
12 731-05639A Trailing Shield
13 731-05746 Rear Mulch Plug
14 731- 04177 Side Discharge Chute
15 987-02055 Mulch Plug (Incl. 16-18)
16 732-1014C Torsion Spring
17 747-0710A Hinge Pin
18 17032A Chute Deector Adapter
19 710-05073 Screw
20 710-0599 Screw
21 931-05686 Rear Door
22 931-05673 Front Cover
23 687-02323 Handle Bracket - RH
687-02322 Handle Bracket - LH
24 964-04066 Grass Bag
25 647-04082 Grass Bag Frame
26 687-02225 Front Bracket Assembly
27 936-0369 Washer, Flat, .508 x 1.00 x .020
28 687-02304 Self Propelled Bracket Ass’y
29 710-3025 Hhcs, 5/16-18 x .625
30 710-1242 Screw, 5/16-14 x .750
31 712- 04063 Nut, Flange Lock, 5/16-18
32 712-04065 Nut, Flange Lock, 3/8-16
33 634-04346 Front Wheel
34 934-04348 Rear Wheel
35 720-04096 Knob
36 732-04650 Wave Spring
37 749- 04550 Upper Handle
38 736-0242 Washer, Bell, .340 x .872 x .060
39 720-0279 Knob
40 725-0157 Cable Tie
Ref
No.
Part Number Description
41 710-1205 Rope Guide
42 710-0779A Screw, #10-16 x .500
43 946-04633 Control Cable
44 747-05045 Blade Control
45 710 -1174 Bolt Carriage, 5/16-18 x 2.0
46 720-04072A Star Knob
47 731-06190 Rear Bae
48 732-04534 Door Torsion Spring - RH
732-04535 Door Torsion Spring - LH
49 732-04338C Spring Lever
50 726-0201 Nut, Spd
51 736 -04413 Wshr, Wave, .385 ID x .598 OD
52 954-04158 V-Belt
53 741- 0492A Bushing, Lock, .505 Dia. X .62
54 747-04589 Rear Door Pivot Rod
55 749-04307 Cross Bracket
56 738-04278 Scr., Shldr., 1/4-20 x .50
57 731-06974 Wheel Dust Cover
58 946-04519B Drive Cable
59 735-04059 Grommet
60 747-05559 Drive Control
61 918-04463A Transmission
62 710-04531 Screw, 1/4-20 x .390
63 915- 0221 Dowel Pin
64 716-0198 Retainer Ring
65 917-04192C Spur Gear - RH
917-04184C Spur Gear - LH
66 731-05872 Spacer, Clip
67 731- 06164 Engine Bae
68 932-04262 Exten. Spring, .429OD x 2.515
69 748-0390 Bearing Support Spacer
70 750-04870 Sleeve Spacer, .550ID x .340 Lg.
71 750-04853 Sleeve Spacer, .550ID x 7.97 Lg.
72 725-04329 Battery Charger
73 925-04072 Electric Start Harness Assembly
74 925-04347 Key Switch
75 710 -1667A Screw, #10-16 x .750
76 925-0201 Key
77 925-04323 Battery
78 728-0199 Rivet
79 936-0504 Washer, Wave, .510 x .750 x .017
8

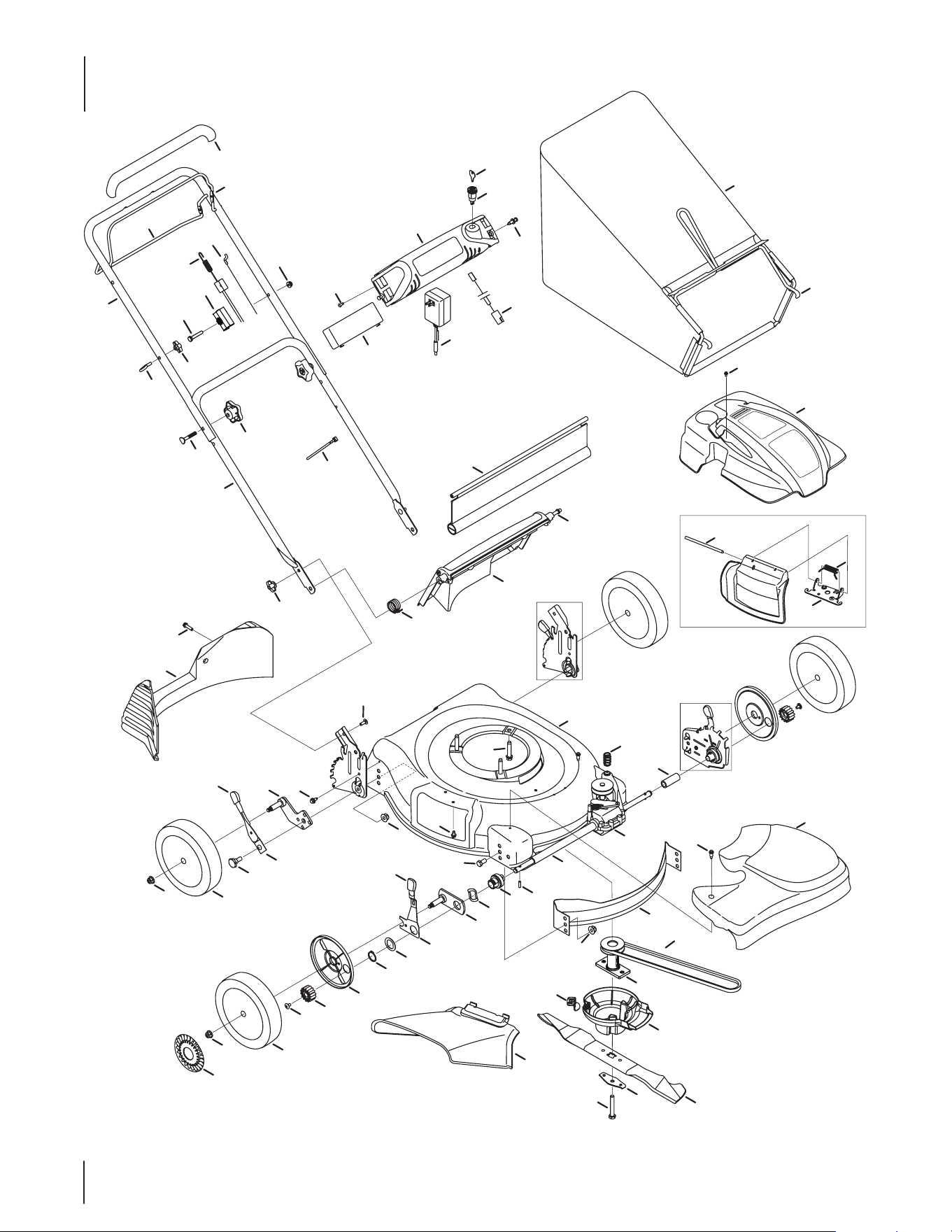

Model CC 550 SP (12A-18X)
17
14
18
16
19
15
A
Wheel Tread
A
B
B
5
59
58
44
25
24
49
35
4
6
55
22
3
53
3
31
30
70
68
61
52
11
67
20
20
20
10
9
37
60
1
26
8
28
34
71
7
13
21
48
3
29
47
54
69
69
66
64
2
57
27
36
50
63
65
62
32
46
12
38
20
42
72
23
32
33
56
51
56
40
46
45
41
39
43
9
Model CC 550 SP (12A-18X)
Ref
No.
Part Number Description
1 787-01629 19” Deck
2 687-02415 Transmission Support Bearing
3 710 -1241 Screw, 1/4-15 x 1.000
4 710- 04744 Screw, HL, #12-16 x 1.00
5 749-04556 Lower Handle
6 931-04232B Engine Shroud
7 936-0504 Washer, Wave, .510 x .750 x .017
8 687-02555 Blade Adapter
9 942-0739 Mulching Blade
10 736-0524B Blade Bell Support
11 710-1044 Screw, 3/8-24 x 1.50
12 731-05639A Trailing Shield
13 731-05746 Rear Mulch Plug
14 731- 04177 Side Discharge Chute
15 987-02055 Mulch Plug (Incl. 16-18)
16 732-1014C Torsion Spring
17 747-0710A Hinge Pin
18 17032A Chute Deector Adapter
19 710-05073 Screw
20 710-0599 Screw
21 931-05686 Rear Door
22 931-05673 Front Cover
23 687-02323 Handle Bracket - RH
687-02322 Handle Bracket - LH
24 964-04066 Grass Bag
25 647-04082 Grass Bag Frame
26 687-02225 Front Bracket Assembly
27 936-0369 Washer, Flat, .508 x 1.00 x .020
28 687-02304 Self Propelled Bracket Ass’y
29 710-3025 Hhcs, 5/16-18 x .625
30 710-1242 Screw, 5/16-14 x .750
31 712- 04063 Nut, Flange Lock, 5/16-18
32 712-04065 Nut, Flange Lock, 3/8-16
33 634-04346 Front Wheel
34 934-04348 Rear Wheel
35 720-04096 Knob
36 732-04650 Wave Spring
37 749- 04550 Upper Handle
Ref
No.
Part Number Description
38 736-0242 Washer, Bell, .340 x .872 x .060
39 720-0279 Knob
40 725-0157 Cable Tie
41 710-1205 Rope Guide
42 710-0779A Screw, #10-16 x .500
43 946-04721 Control Cable
44 747-05045 Blade Control
45 710 -1174 Bolt Carriage, 5/16-18 x 2.0
46 720-04072A Star Knob
47 731-06190 Rear Bae
48 732-04534 Door Torsion Spring - RH
732-04535 Door Torsion Spring - LH
49 732-04731 Spring Lever
50 726-0201 Nut, Spd
51 736 -04413 Wshr, Wave, .385 ID x .598 OD
52 954-04158 V-Belt
53 741- 0492A Bushing, Lock, .505 Dia. X .62
54 747-04589 Rear Door Pivot Rod
55 749-04307 Cross Bracket
56 738-04278 Scr., Shldr., 1/4-20 x .50
57 731-06974 Wheel Dust Cover
58 946-04519B Drive Cable
59 735-04059 Grommet
60 747-05559 Drive Control
61 918-04463A Transmission
62 710-04531 Screw, 1/4-20 x .390
63 915- 0221 Dowel Pin
64 716-0198 Retainer Ring
65 917-04192C Spur Gear - RH
917-04184C Spur Gear - LH
66 731-05872 Spacer, Clip
67 731- 06164 Engine Bae
68 932-04262 Exten. Spring, .429OD x 2.515
69 748-0390 Bearing Support Spacer
70 750-04870 Sleeve Spacer, .550ID x .340 Lg.
71 750-04853 Sleeve Spacer, .550ID x 7.97 Lg.
72 710-0654A Screw, 3/8-16 x 1.00
10

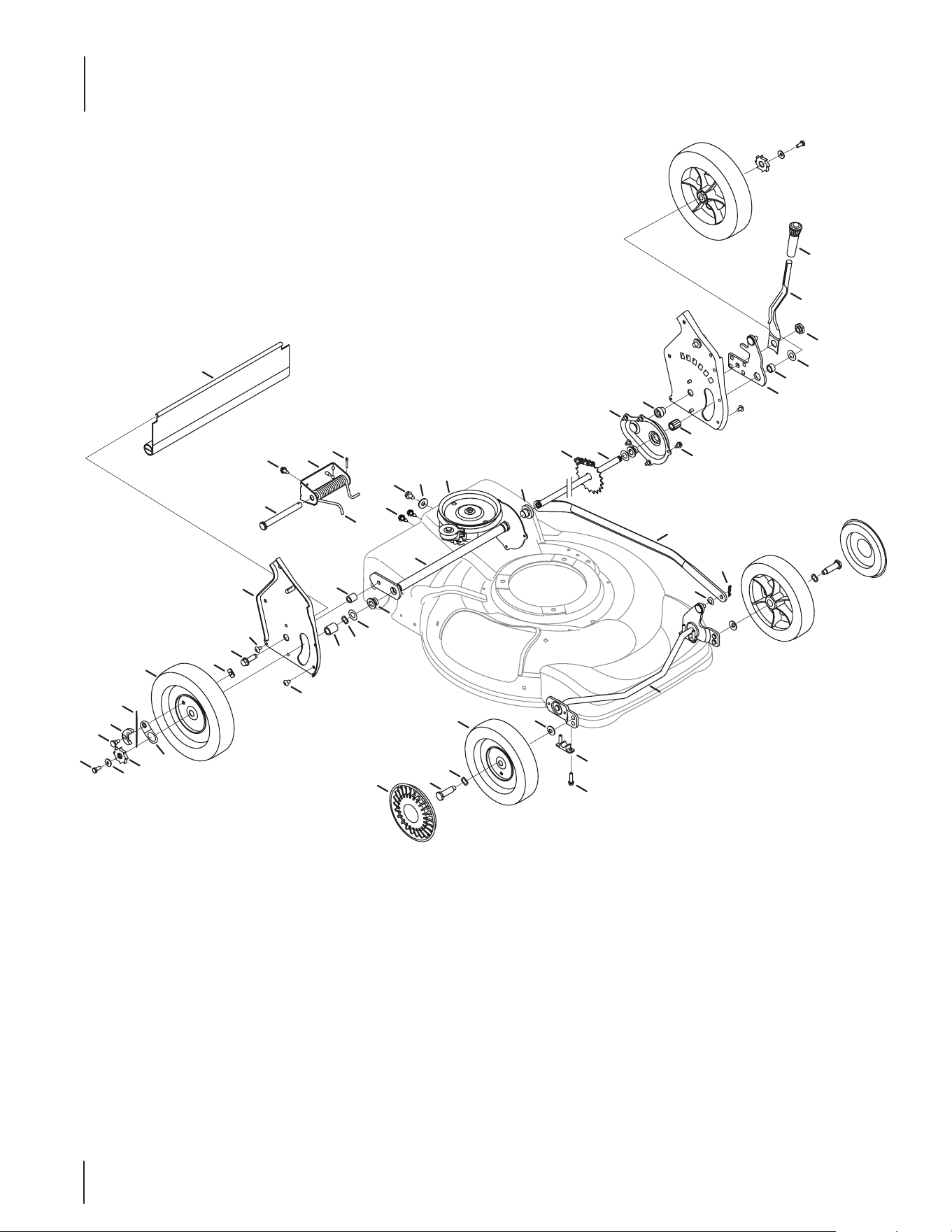

Model CC 46 ES (12AE46K8) (Kohler Engine)
67
63
7
28
16
13
22
3
26
29
45
8
30
17
15
14
1
19
52
23
11
5
4
6
35
37
40
36
46
31
24
21
64
43
38
57
25
48
65
58
54
61
34
32
12
62
51
60
50
34
34
34
49
9
41
42
44
59
55
47
47
53
2
39
33
66
56
10
27
18
73
20
69
71
69
72
70
68
75
74
76
11
Model CC 46 ES (12AE46K8) (Kohler Engine)
Ref
No.
Part Number Description
1 747-1214 Drive Control
2 710-05073 Screw
3 747-1161A Blade Control
4 17032A Deector Chute Adapter
5 732-1014C Torsion Spring
6 918-04376B Transmission Assembly
7 731-05564 Blade Control Cover
8 749-04726 Upper Handle
9 731-04177 Chute Deector
10 987-02055 Mulch Plug Complete
11 747-0710A Hinge Pin
12 782-7551A Wheel Dust Cap
13 720-0279 Handle Knob
14 720-04072A Star Knob
15 710-1205 Eye Bolt
16 946-04589 Control Cable
17 710 -1174 Carriage Bolt 5/16-18 x 2.0
18 731-07048 Hub Cap
19 926-0240 Cable Tie
20 728-0199 Rivet
21 710-0654A Self-Tapping Sems Screw
22 946-04303 Drive Cable
23 964-04054 Grass Bag
24 710-1650 Shoulder Screw # 12 -24
25 987-02347 Front Bearing Assembly
26 710-1241 Screw, 1/4-15 x 1.000
27 987- 02194A Height Adjustment Ass’y - RH
987-02193A Height Adjustment Ass’y - LH
28 787-01278 21” Deck
29 731-04150C Rear Bae
30 712- 0397 Wing Nut
31 750-04595 Slev. Spacer 1.4” Lg.
32 710-0216 Hex Screw, 3/8-16 x.75
33 732-04090A Torsion Spring - RH
34 712-04065 Flange Lock Nut, 3/8-16
35 931-05013A Transmission Cover
36 782-5002B Front Bae
37 954- 0637A V-Belt
38 936-0447 Wave Washer
39 750-04594 Sleeve Spacer 8.985” Lg.
40 687-02195A Blade Adapter
Ref
No.
Part Number Description
41 942-0741A 21” Mulching Blade
42 736-0524B Blade Bell Support
43 987-02334 Pivot Plate Assembly
44 710 -1257 Hex Screw 3/8-24 x 2.50
45 749- 0928A Lower Handle
46 732-1043 Belt Tension Spring
47 720-0426 Adjustment Knob
48 731-06847 Rear Discharge Door
49 734-04223A Front Wheel
50 710-04531 Screw, 1/4-20 x .390
51 717-1762 Gear 14T RH FWD
717-1761 Gear 14T LH FWD
52 747-04080A Grass Bag Frame
53 710-0703 Carriage Bolt 1/4-20
54 916-0102 Snap Ring
55 710-1652 TT Scr. w/Washer 1/4-20 x.625
56 987-02271A Handle Bracket Assembly - RH
987-02270A Handle Bracket Assembly - LH
57 915-0221 Dowel Pin
58 736- 0474 Washer
59 987-02333 Pivot Arm Assembly - RH
987-02332 Pivot Arm Assembly - LH
60 732- 04175 Rear Spring Lever
61 738-04266 Shoulder Scr.500 Dia. x.434
62 734-04226A Rear Wheel
63 787-01593 Engine Bae Bracket
64 732-0706 Front Lever - RH
732-0707 Front Lever - LH
65 747-04587 Pivot Rod
66 731-05642A Rear Trailing Shield
67 753 - 06116 Engine Bae
68 725-04329 Battery Charger
69 925-04072 Electric Start Harness Ass’y.
70 925-04347 Key Switch
71 710 -1667A Screw, #10-16 x .750
72 925-0201 Key
73 925-04323 Battery
74 710-0606 Screw, 1/4-20 x 1.50
75 712-04064 Nut, Flglk, 1/4-20
76 731-06749 Control Cable Mount
12
Model CC 46 ES (12AE46JX) (MTD Engine)
67
68
7
28
16
13
22
3
26
29
45
8
30
17
15
14
1
19
52
23
11
5
4
6
35
37
40
36
46
31
24
21
64
43
38
57
25
48
65
58
54
61
34
32
12
62
51
60
50
34
34
34
49
9
41
42
44
59
55
47
47
53
2
39
33
66
56
10
27
78
69
20
75
76
71
73
71
74
72
70
63
77
18
13
Model CC 46 ES (12AE46JX) (MTD Engine)
Ref
No.
Part Number Description
1 747-1214 Drive Control
2 710-05073 Screw
3 747-1161A Blade Control
4 17032A Deector Chute Adapter
5 732-1014C Torsion Spring
6 918-04376B Transmission Assembly
7 731-05564 Blade Control Cover
8 749-04726 Upper Handle
9 731-04177 Chute Deector
10 987-02055 Mulch Plug Complete
11 747-0710A Hinge Pin
12 782-7551A Wheel Dust Cap
13 720-0279 Handle Knob
14 720-04072A Star Knob
15 710-1205 Eye Bolt
16 746- 04705 Control Cable
17 710 -1174 Carriage Bolt 5/16-18 x 2.0
18 731-06749 Control Cable Mount
19 926-0240 Cable Tie
20 710- 04744 Screw, HL, #12-16 x 1.00
21 710-0654A Self-Tapping Sems Screw
22 946-04303 Drive Cable
23 964-04054 Grass Bag
24 710-1650 Shoulder Screw # 12 -24
25 987-02347 Front Bearing Assembly
26 710-1241 Screw, 1/4-15 x 1.000
27 987- 02194A Height Adjustment Ass’y - RH
987-02193A Height Adjustment Ass’y - LH
28 787-01278 21” Deck
29 731-04150C Rear Bae
30 712- 0397A Wing Nut
31 750-04595 Slev. Spacer 1.4” Lg.
32 710-0216 Hex Screw, 3/8-16 x.75
33 732-04090A Torsion Spring - RH
34 712-04065 Flange Lock Nut, 3/8-16
35 931-05013A Transmission Cover
36 782-5002B Front Bae
37 954- 0637A V-Belt
38 936-0447 Wave Washer
39 750-04594 Sleeve Spacer 8.985” Lg.
40 687-02195A One Piece Blade Adapter
41 942-0741A 21” Mulching Blade
Ref
No.
Part Number Description
42 736-0524B Blade Bell Support
43 987-02334 Pivot Plate Assembly
44 710 -1257 Hex Screw 3/8-24 x 2.50
45 749- 0928A Lower Handle
46 732-1043 Belt Tension Spring
47 720-0426 Adjustment Knob
48 731-06847 Rear Discharge Door
49 734-04223A Front Wheel
50 710-04531 Screw, 1/4-20 x .390
51 717-1762 Gear 14T RH FWD
717-1761 Gear 14T LH FWD
52 747-04080A Grass Bag Frame
53 710-0703 Carriage Bolt 1/4-20
54 916-0102 Snap Ring
55 710-1652 TT Scr. w/Washer 1/4-20 x.625
56 987-02271A Handle Bracket Assembly - RH
987-02270A Handle Bracket Assembly - LH
57 915-0221 Dowel Pin
58 736- 0474 Washer
59 987-02333 Pivot Arm Assembly - RH
987-02332 Pivot Arm Assembly - LH
60 732- 04175 Rear Spring Lever
61 738-04266 Shoulder Scr.500 Dia. x.434
62 734-04226A Rear Wheel
63 712-04064 Nut, Flglk, 1/4-20
64 732-0706 Front Lever - RH
732-0707 Front Lever - LH
65 747-04587 Pivot Rod
66 731-05642A Rear Trailing Shield
67 753 - 06116 Engine Bae
68 787-01593 Engine Bae Bracket
69 931-04232B Engine Shroud
70 725-04329 Battery Charger
791-182534† Battery Charger (w/LED Light)
71 925-04072 Electric Start Harness Assembly
72 925-04347 Key Switch
73 710 -1667A Screw, #10-16 x .750
74 925-0201 Key
75 925-04323 Battery
76 728-0199 Rivet
77 710-0606 Screw, 1/4-20 x 1.50
78 731-07048 Hub Cap
† If Equipped
14

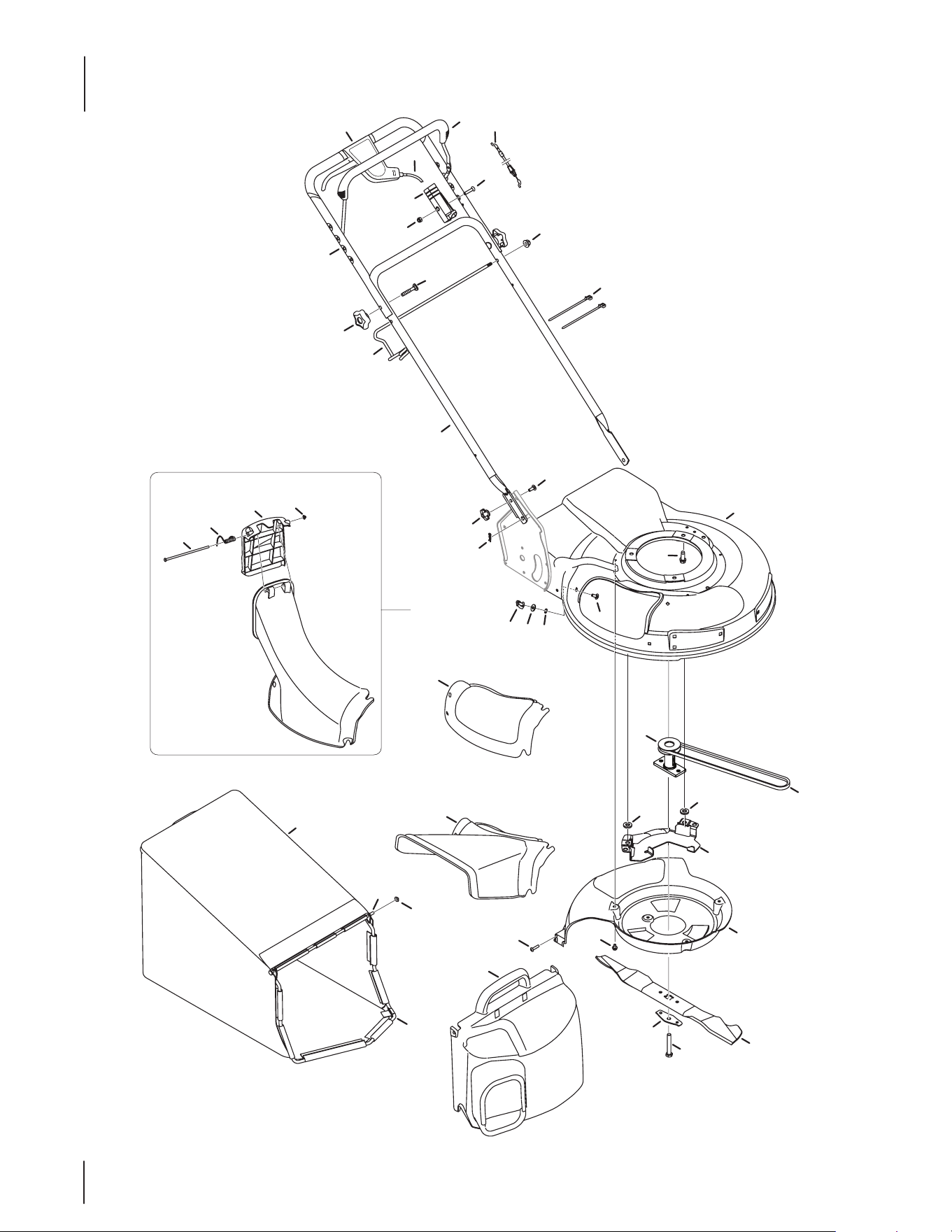

Model CC 94M (12A-94X)
28
14
16
17
18
10
9
41
42
44
46
2
34
12
11
45
8
7
43
4
30
3
32
1
20
1
35
5
13
10
26
39
38
37
36
15
19
22
21
27
25
23
24
31
40
42
43
6
33
29
47
15
Ref
No.
Part Number Description
1 647-04008A Blade Control Assembly
2 749-04482 Upper Handle
3 712-04063 Flange Lock Nut, 5/16-18
4 926-0240 Cable Tie
5 946-04708 Control Cable
6 710-0654A TT Screw, 3/8-16 x 1.00
7 787-01948 21-inch Deck
8 731-1836 Front Axle Cover
9 710 -1242 HL Screw, 5/16-14 x .750
10 736-3010 Washer, Flat, .407 x .812 x .135
11 731-06749 Control Cable Mount
12 710-0606 Screw, 1/4-20 x 1.50
13 931-04232B Engine Shroud
14 931-04564A Engine Bae
15 687-02195A Blade Adapter
16 942- 0741A 21-inch Mulching Blade
17 710-1257 HH Cap Screw, 3/8-24 x 2.50
18 736-0524B Bell Blade Spacer
19 631-0071 Grass Bag Cover Assembly
20 712-04064 Flange Lock Nut 1/4-20
21 710-0653 TT Screw 1/4-20 x .375
22 710-0895 HL Screw 1/4-15 x .75
23 747-0937 Grass Bag Frame
24 747-0939 Grass Bag Pivot Rod
Ref
No.
Part Number Description
25 926-0106 Cap Speed Nut
26 9 64- 04112 Grass Bag
27 731-1832 Side Discharge Chute
28 782-9063A Belt Keeper
29 954-0460 V-Belt
30 710 -04744 Screw, #12-16 x 1.00
31 931-1833A Mulch Cover
32 710 -1174 Carriage Bolt 5/16-18 x 2
33 726-0233 Push Nut
34 753-06060 Drive Control Assembly
35 94 6 - 0711B Drive Cable
36 747- 0965 Chute Door Pivot Rod
37 732-0819 Torsion Spring
38 731-1874A Top Discharge Door Chute
39 726 - 0111 Push Cap
40 931-0066 Top Discharge Chute Assembly
41 914-0104 Cotter Pin
42 712-0397A Wing Nut
43 710-0703 Carriage Screw 1/4-20 x .75
44 749-0907B Lower Handle
45 747-0940A Grass Bag Support Rod
46 720-04072A Star Knob
47 736-3090 Flat Washer, .260 x .720 x .060
Model CC 94M (12A-94X)
16
Model CC 94M (12A-94X)
41
42
44
46
47
48
45
8
49
7
6
21
5
4
43
36
37
35
33
34
1
2
14
13
11
10
9
12
3
24
22
21
20
28
26
27
25
29
15
17
17
16
18
19
30
31
23
32
40
38
39
35
50
17
Ref
No.
Part Number Description
1 710-0751 HH Cap Screw 1/4-20 x .620
2 736-0270 Bell Washer .265 x .75 x .062
3 948-0318 Wheel Ratchet
4 720-0223 Grip
5 732-0803A Spring Lever
6 938-0529 Shoulder Nut
7 750-0515 Spacer .51 x .70 x .38
8 741-0978 Hex Sleeve Bearing
9 782-0565 Single Lever Control Arm
10 914-0104 Hairpin Clip
11 936-0286 Bowed Washer
12 611- 0 0 64 Front Axle Assembly
13 741- 0492A Block Bushing
14 710-1241 Hex Screw 1/4-15 x 1
15 731-07048 Hubcap
16 938-0102 Shoulder Scr., .498x1.445x3/8-16
17 936-0504 Wave Washer .510 x .750 x .017
18 734-04226A Front Wheel 8 x 2.125 COG
19 736-0105 Bell Washer .375 x .870 x .063
20 741-0324A Hex Flange Bearing
21 936-0369 Flat Washer .508 x 1 x .020
22 950- 0151 Spacer .550 x .755 x 1.1
23 687-02494 Handle Bracket Assy RH
687-02495 Handle Bracket Assy LH
24 710-1348 AB Screw 1/4-14 x .50
25 10622BP Plastic Ratchet Spring
Ref
No.
Part Number Description
26 938-0137A Shoulder Scr., .340x.285x1/4-20
27 748- 0381 Pawl - RH
948-0188B Pawl - LH
28 16855 Ratchet Pawl Plate
29 734-2010B Rear Wheel 9 x 2.125 Rwd PM
30 912-0414 Weld Nut
31 710 -1315 TT Screw 3/8-16 x 1.25
32 750-0807 Spacer .385 x .625 x .700
33 732-0832 Torsion Spring RH
34 911- 0 835 Clevis Pin .500 x 4.62
35 710-1652 TT Screw 1/4-20 x .625
36 782-0568B Lift Assist Spring Bracket
37 914-0474 Cotter Pin
38 731-06874 Trail shield
39 710-0779A AB Screw, #10-16 x .500
40 682-7526 Transmission Axle Assembly
41 710-0604A TT Screw 5/16-18 x .625
42 918-0263A Transmission
43 941-0522 Hex Flange Bearing
44 913-0453 Chain
45 938-0012A Axle Assembly RR
46 682-7528 Chain Cover Assembly
47 950-1056 Shoulder Spacer .385 x .715
48 710-0653 TT Screw, 1/4-20 x .375
49 682-0531 RR Pivot Arm Assembly
50 936- 0159 Flat Washer, .349 x .879 x .063
Model CC 94M (12A-94X)
18
Model CC 98H (12A-989Q)
6
2
28
14
16
17
18
10
41
42
13
35
8
34
32
7
30
4
3
2
1
9
10
26
39
38
37
36
15
19
22
21
27
25
23
24
31
40
30
33
9
12
11
20
5
42
43
19

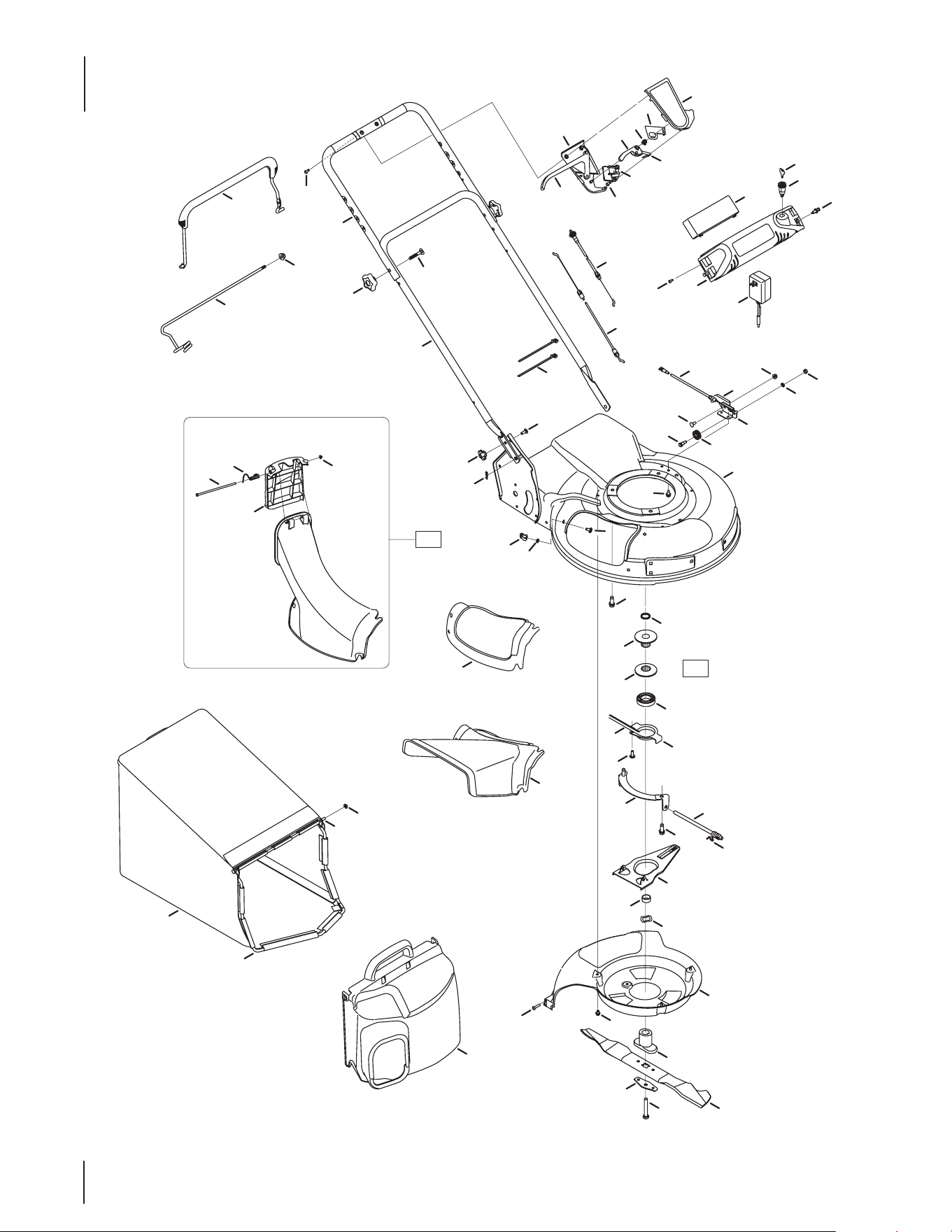

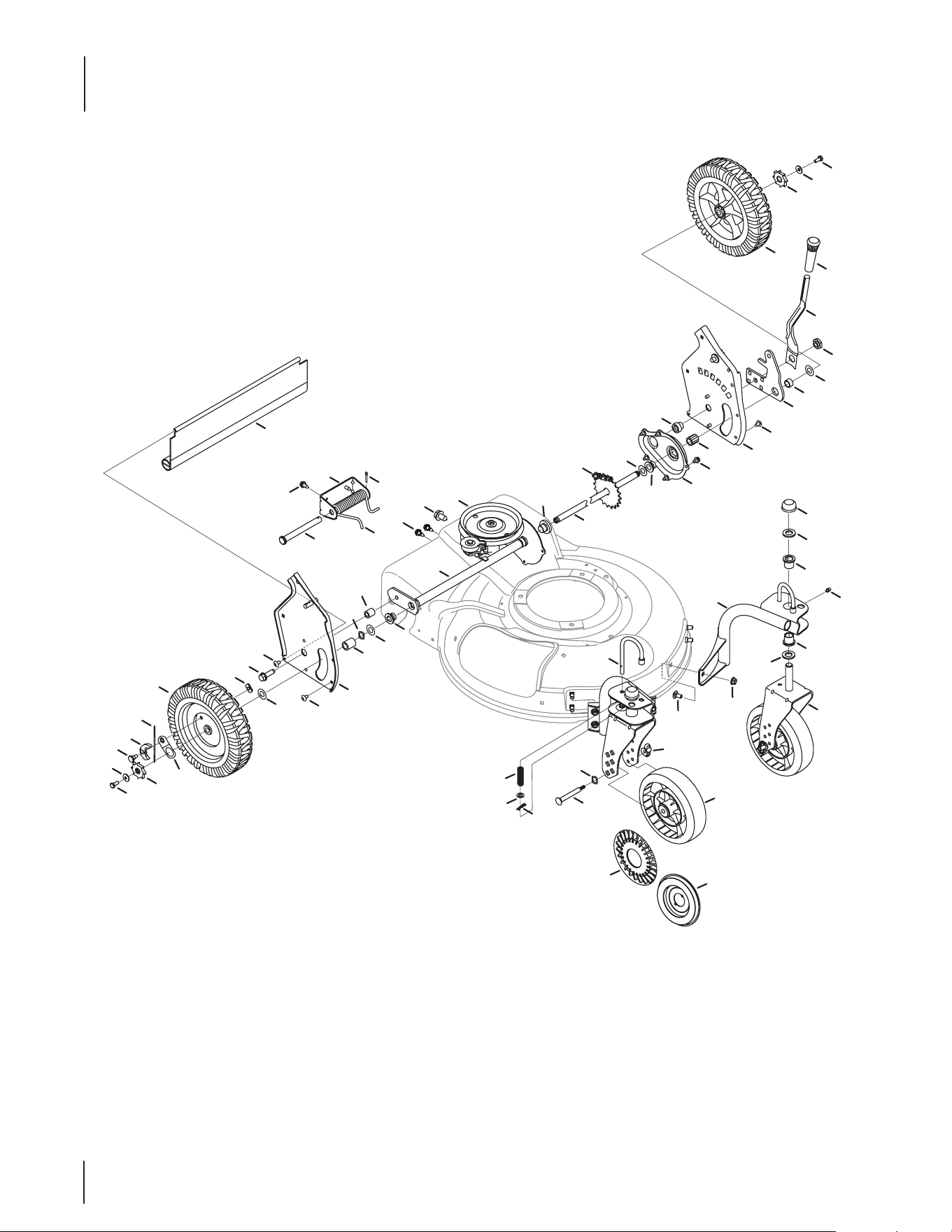

Model CC 98H (12A-989Q)
Ref
No.
Part Number Description
1 647-04008A Blade Control
2 710 -1174 Carriage Bolt 5/16-18 x 2
3 712-04063 Flange Lock Nut, 5/16-18
4 926-0240 Cable Tie
5 946-0557 Control Cable
6 710-0654A TT Screw, 3/8-16 x 1.00
7 787-01948 21-inch Deck
8 749-0439E Upper Handle
9 94 6 - 0711B Drive Cable
10 736-3010 Washer, Flat, .407 x .812 x .135
11 746-0883 Control Cable Mount
12 710 -1270 Screw, 1/4-20 x 1.310
13 749-0907B Lower Handle
14 931-04564A Engine Bae
15 987-02221 Blade Adapter
16 942- 0741A 21-inch Mulching Blade
17 710-1257 HH Cap Screw, 3/8-24 x 2.50
18 736-0524B Bell Blade Spacer
19 631-0071 Grass Bag Cover Assembly
20 712-0324 Hex Lock Nut 1/4-20
21 710-0653 TT Screw 1/4-20 x .375
22 710-0895 HL Screw 1/4-15 x .75
Ref
No.
Part Number Description
23 747-0937 Grass Bag Frame
24 747-0939 Grass Bag Pivot Rod
25 926-0106 Cap Speed Nut
26 9 64- 04112 Grass Bag
27 731-1832 Side Discharge Chute
28 782-9063A Belt Keeper
29 954-0460 V-Belt
30 710-0703 Carriage Screw 1/4-20 x .75
31 931-1833A Mulch Cover
32 747-0940A Grass Bag Support Rod
33 726-0233 Push Nut
34 753-06060 Drive Control Assembly
35 720-04072A Star Knob
36 747- 0965 Chute Door Pivot Rod
37 732-0819 Torsion Spring
38 731-1874A Top Discharge Door Chute
39 726 - 0111 Push Cap
40 931-0066 Top Discharge Chute Assembly
41 914-0104 Cotter Pin
42 712-0397A Wing Nut
43 736-3090 Flat Washer, .260 x .720 x .060
20
Model CC 98H (12A-989Q)
42
1
40
44
2
37
32
31
41
39
7
9
6
10
11
13
30
23
38
35
36
34
47
23
29
30
28
26
45
48
24
25
23
22
21
20
12
13
14
6
56
18
53
17
55
15
56
19
50
54
54
4
49
51
52
55
33
27
16
3
5
46
48
23
14
12
8
43
2
57
58
21
Model CC 98H (12A-989Q)
Ref
No.
Part Number Description
1 914-0474 Cotter Pin
2 710-1652 Screw 1/4-14 x .825
3 936-0264 Flat Washer.330 ID x.630 OD
4 914-0104 Cotter Pin
5 932-0306A Compression Spring
6 734-2010B Wheel, 9 x 2.125 Bar
7 912-0414 Top Lock Tab Weld Nut 1/4-20
8 16855 Ratchet Pawl Plate
9 10622BP Plastic Spring Ratchet
10 748-0381 Pawl RH
948-0188B Pawl LH
11 938- 0137A Shlder Screw.340 ID x.285 OD
12 948-0318 Wheel Ratchet
13 736-0270 Bell Washer.265 ID x.75 OD
14 710-0751 Hex Cap Screw 1/4-20 x.620
15 737-04331 Grease Fitting
16 731-1888 Hubcap - Spoke w/ Hole
17 747-0924 Wheel Pin Lock
18 682-9020A Caster Assembly RH
682-9021A Caster Assembly LH
19 682-9024 Caster Bracket Assembly RH
682-9026 Caster Bracket Assembly LH
20 720-0223 Grip
21 732-0803A Spring Lever
22 938-0529 Shoulder Nut.825 x .165 Lg.
23 936-0369 Flat Washer .508 ID x 1.0 OD
24 782-0566B Pivot Arm Assembly
25 750 -0515 Spacer .510 ID x .70 OD
26 741-0978 Slv Bearing .504 ID x .830 OD
27 731-07048 Hubcap - Radial Spoke
28 710-0653 Tap Screw 1/4-20 x .375
Ref
No.
Part Number Description
29 682-7528 Chain Cover Assembly
30 741-0324A Flge Bearing .506 ID x .590 Lg
31 682-7526 Transmission Axle Assembly
32 918-0263A Transmission Ass’y Complete
33 734-1857 Wheel 7 x 2
34 913- 0453 Chain
35 938- 0012A Rear Axle Assembly
36 941-0522 Flge Bearing .506 ID x .715 Lg
37 782-0568B Height Adjustment Spring Brkt.
38 950- 0151 Spacer .550 ID x .750 OD
39 710 -1315 Screw 3/8-16 x .25
40 911- 0835 Clevis Pin .50 Dia x 4.82 Lg.
41 750-0807 Spacer .385 ID x .624 OD
42 732-0832 Torsion Spring
43 710-0779A AB Screw, #10-16 x .500
44 731-06874 Trail Shield
45 687-02495 Handle Bracket Assembly - LH
46 687-02494 Handle Bracket Assembly - RH
47 710-0604A Screw, 5/16-18 x .625
48 710-1348 Screw 1/4-14 x.500
49 710-0260A Carriage Bolt 5/16-18 x.62
50 911-114 6 Caster Axle
51 912-0397 Wing Nut
52 712- 04063 Flange Lock Nut 5/16-18
53 726-0214 Push Cap
54 936-0504 Wave Washer.510 ID x.750 OD
55 736-0366 Flat Washer.640 ID x 1.12 OD
56 741- 0685 Flange Bearing
57 950-1056 Shlder Spacer, .385ID x .715Lg
58 936- 0159 Flat Washer, .349 x .879 x .063
22
Model CC 98/M (12A-98X)
28
14
16
17
18
10
41
42
44
35
8
34
45
7
43
4
30
3
2
1
1
9
13
10
26
39
38
37
36
15
19
22
21
27
25
23
24
31
40
43
6
29
12
11
20
5
32
33
42
46
23
Model CC 98/M (12A-98X)
Ref
No.
Part Number Description
1 647-04008A Blade Control Assembly
2 710 -1174 Carriage Bolt 5/16-18 x 2
3 712-04063 Flange Lock Nut, 5/16-18
4 926-0240 Cable Tie
5 946-04708 Control Cable
946-0557 Control Cable - Kohler
6 710-0654A TT Screw, 3/8-16 x 1.00
7 787-01948 21-inch Deck
8 749-0439E Upper Handle
9 94 6 - 0711B Drive Cable
10 736-3010 Washer, Flat, .407 x .812 x .135
11 731-06749 Control Cable Mount
746-0883 Control Cable Mount - Kohler
12 710-0606 Screw, 1/4-20 x 1.50
13 931-04232B† Engine Shroud
14 931-04564A Engine Bae
15 687-02195A Blade Adapter
987-02221 Blade Adapter - Kohler
16 942- 0741A 21-inch Mulching Blade
17 710-1257 HH Cap Screw, 3/8-24 x 2.50
18 736-0524B Bell Blade Spacer
19 631-0071 Grass Bag Cover Assembly
20 712-04064 Flange Lock Nut 1/4-20
21 710-0653 TT Screw 1/4-20 x .375
22 710-0895 HL Screw 1/4-15 x .75
Ref
No.
Part Number Description
23 747-0937 Grass Bag Frame
24 747-0939 Grass Bag Pivot Rod
25 926-0106 Cap Speed Nut
26 9 64- 04112 Grass Bag Assembly
27 731-1832 Side Discharge Chute
28 782-9063A Belt Keeper
29 954-0460 V-Belt
30 710 -04744† Screw, #12-16 x 1.00
31 931-1833A Mulch Cover
32 946-04430A† Choke Cable
33 726-0233 Push Nut
34 753-06060 Drive Control Assembly
35 720-04072A Star Knob
36 747- 0965 Chute Door Pivot Rod
37 732-0819 Torsion Spring
38 731-1874A Top Discharge Door Chute
39 726 - 0111 Push Cap
40 931-0066 Top Discharge Chute Assembly
41 914-0104 Cotter Pin
42 712-0397A Wing Nut
43 710-0703 Carriage Screw 1/4-20 x .75
44 749-0907B Lower Handle
45 747-0940A Grass Bag Support Rod
46 736-3090 Flat Washer, .260 x .720 x .060
† If Equipped
24
Model CC 98/M (12A-98X)
42
1
40
44
2
37
32
31
41
39
7
9
6
10
11
13
30
23
38
35
36
34
23
27
29
30
28
26
45
48
24
25
23
22
21
20
12
13
14
6
56
18
53
17
55
15
56
19
50
54
54
4
49
51
52
55
33
16
57
3
5
46
48
23
14
12
8
43
2
47
58
25
Model CC 98/M (12A-98X)
Ref
No.
Part Number Description
1 914-0474 Cotter Pin
2 710-1652 Screw 1/4-14 x .825
3 936-0264 Flat Washer.330 ID x.630 OD
4 914-0104 Cotter Pin
5 932-0306A Compression Spring
6 734-2010B Wheel, 9 x 2.125 Bar
7 912-0414 Top Lock Tab Weld Nut 1/4-20
8 16855 Ratchet Pawl Plate
9 10622BP Plastic Spring Ratchet
10 748-0381 Pawl RH
948-0188B Pawl LH
11 938- 0137A Shlder Screw.340 ID x.285 OD
12 948-0318 Wheel Ratchet
13 736-0270 Bell Washer.265 ID x.75 OD
14 710-0751 Hex Cap Screw 1/4-20 x.620
15 737-04331 Grease Fitting
16 731-07048 Hubcap - Radial Spoke
17 747-0924 Wheel Pin Lock
18 682-9020A Caster Assembly RH
682-9021A Caster Assembly LH
19 682-9024 Caster Bracket Assembly RH
682-9026 Caster Bracket Assembly LH
20 720-0223 Grip
21 732-0803A Spring Lever
22 938-0529 Shoulder Nut.825 x .165 Lg.
23 936-0369 Flat Washer .508 ID x 1.0 OD
24 782-0566B Pivot Arm Assembly
25 750 -0515 Spacer .510 ID x .70 OD
26 741-0978 Slv Bearing .504 ID x .830 OD
27 950 -1056 Shlder Spacer, .385ID x .715Lg
28 710-0653 Tap Screw 1/4-20 x .375
Ref
No.
Part Number Description
29 682-7528 Chain Cover Assembly
30 741-0324A Flge Bearing .506 ID x .590 Lg
31 682-7526 Transmission Axle Assembly
32 918-0263A Transmission Ass’y Complete
33 734-1857 Wheel 7 x 2
34 913- 0453 Chain
35 938- 0012A Rear Axle Assembly
36 941-0522 Flge Bearing .506 ID x .715 Lg
37 782-0568B Height Adjustment Spring Brkt.
38 950- 0151 Spacer .550 ID x .750 OD
39 710 -1315 Screw 3/8-16 x .25
40 911- 0835 Clevis Pin .50 Dia x 4.82 Lg.
41 750-0807 Spacer .385 ID x .624 OD
42 732-0832 Torsion Spring
43 710-0779A AB Screw, #10-16 x .500
44 731-06874 Trail Shield
45 687-02495 Handle Bracket Assembly - LH
46 687-02494 Handle Bracket Assembly - RH
47 710-0604A Screw, 5/16-18 x .625
48 710-1348 Screw 1/4-14 x.500
49 710-0260A Carriage Bolt 5/16-18 x.62
50 911-114 6 Caster Axle
51 712-0397A Wing Nut
52 712- 04063 Flange Lock Nut 5/16-18
53 726-0214 Push Cap
54 936-0504 Wave Washer.510 ID x.750 OD
55 736-0366 Flat Washer.640 ID x 1.12 OD
56 741- 0685 Flange Bearing
57 731-1888 Hubcap - Spoke w/ Hole
58 936- 0159 Flat Washer, .349 x .879 x .063
26
Model CC 999 ES
34
41
44
49
47
48
45
40
5
1
43
33
32
38
42
39
57
21
51
54
58
20
46
22
24
23
11
7
2
10
9
8
50
64
73
525
65
22
17
13
12
25
23
14
27
28
37
23
36
19
53
55
56
30
29
26
16
67
62
66
59
61
15
3
4
5
6
68
71
70
69
63
60
72
18
51
31
35
27
Ref
No.
Part Number Description
1 647-04008A Blade Control
2 753-0717 Upper Control Housing†
3 731-0620A Drive Control
4 753-0717 Lower Control Housing†
5 710 -1667A C Sunk Tap Screw, #10 x.75 Lg
6 753-0717 Cable Mounting Cap†
7 94 6 - 0711B Drive Cable
8 728-0199 Rivet
9 925-04347 Key Switch
10 925-0201 Key
11 946-04639 Control Cable
12 749-04354A Upper Handle
13 720-04072A Star Knob
14 710-1652 Screw, 1/4-20 x .625
15 710 -1174 Carriage Bolt, 5/16-18 x 2.0
16 926-0240 Cable Tie
17 749- 0907B Lower Handle
18 931-0066 Adapter Assembly
19 731-1832 Side Discharge Chute
20 931-1833A Mulch Cover
21 787-01948 Deck 21”
22 712- 0397A Wing Nut
23 710-0703 Carriage Bolt, 1/4-20 x .75”
24 914-0104 Cotter Pin
25 726-0233 Push Nut, .25 x ID x .50 OD
26 950-1071 Sleeve Spacer, .88ID x 1.13OD
27 756- 0612A Half Pulley: 2.62 OD
28 756-0613 Half Pulley: 2.62 OD x 1.61
29 741-0545 Ball Bearing
30 682-7527 Cup
31 748-0377E Blade Adapter
32 736-0524B Blade Bell Support
33 710-1257 Hex Bolt, 3/8-24 x 2.5
34 942- 0741A 21” Mulching Blade
35 710-0653 Screw, 1/4-20 x 3.75
36 931-04564A Engine Bae
37 954-0460 Belt, 3/8 x 39.24
Ref
No.
Part Number Description
38 710-0895 Screw, 1/4-15 x .750
39 9 64- 04112 Grass Catcher
40 747-0940A Support Rod w/ Rope Guide
41 747-0939 Pivot Rod
42 747-0937 Grass Catcher Frame
43 631-0071 Grass Catcher Cover
44 926-0106 Cap Nut
45 712-04063 Flange Lock Nut, 5/16-18
46 731-1874A Chute Door
47 732-0819 Torsion Spring
48 726 - 0111 Push Cap
49 747-0965 Pivot Rod
50 925-04323 12V Batter y
51 710-0654A Sems Screw, 3/8-16 x 1.00
52 925-04072 Harness Assembly
53 936-0526 Wave Washer, 1.38 ID x.88 OD
54 950-1070 Slve Spacer, .88 ID x 1.00 OD
55 782-7596A Control Arm
56 932-0807 Torsion Spring
57 711-1114 Pivot Shaft
58 782-7597 Pivot Bracket
59 738-0924A Shlder Screw, .375 ID x 1/4-14
60 756-0625 Cable Roller
61 710 -0134 Carriage Screw, 1/4-20 x .62
62 936-0329 Lock Washer, 1/4
63 782-7575B Cable Mounting Bracket
64 946-0939A 6 Speed Cable
65 782-7574A Cable Adjustment Bracket
66 712-04064 Hex Nut 1/4-20
67 912- 0138 Hex Nut 1/4-28
68 732-04937 Shift Lever Spring
69 731-0924 6 Speed Shift Lever
70 913-0397 Gear Insert
71 16864 6 Spd. Rack Cable Bracket
72 956-0613A Pulley Assembly
73 725-04329 12V Battery Charger
74 736-3090 Flat Washer, .260 x .720 x .060
Model CC 999 ES
† Only available as part of this kit
28

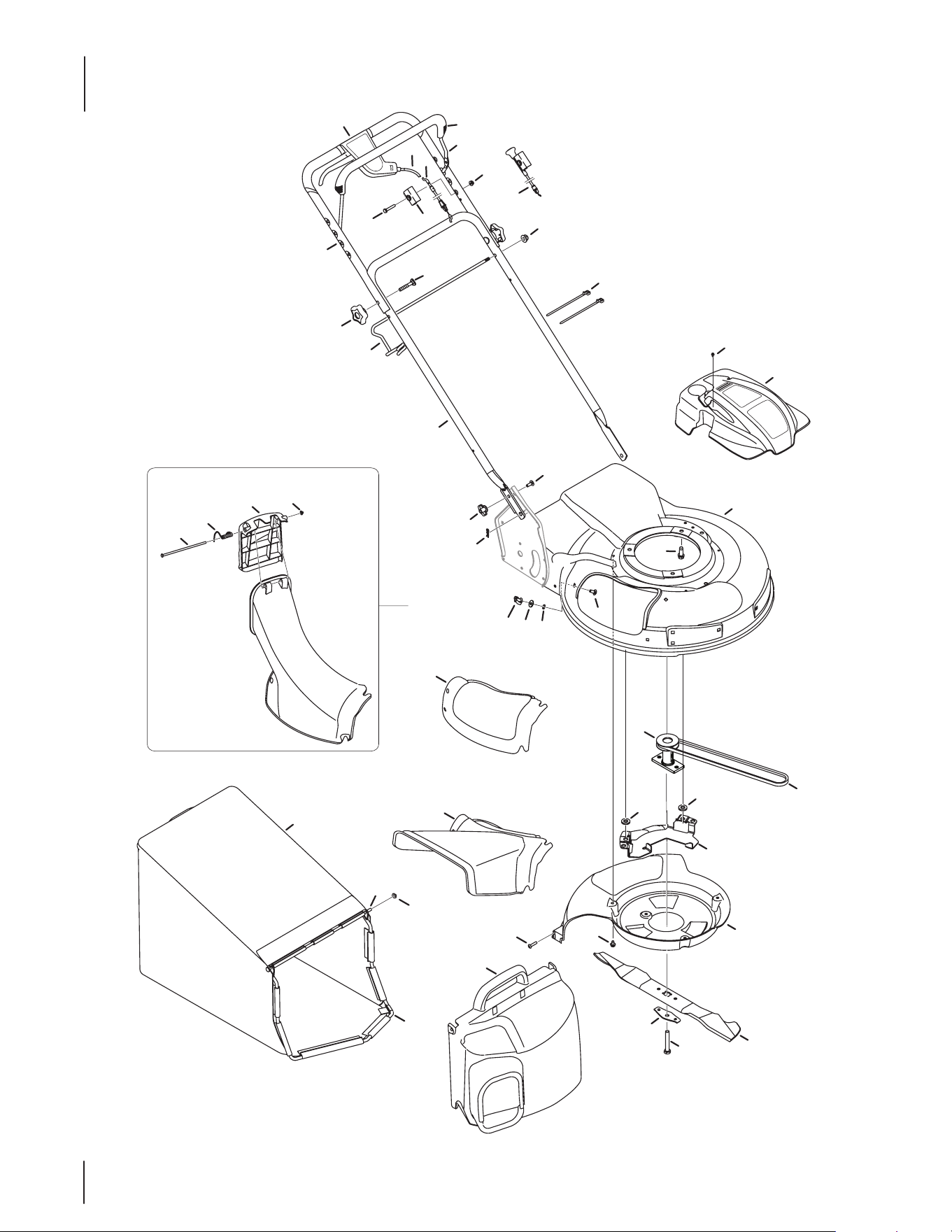

Model CC 999 ES
42
1
40
44
2
37
32
31
41
39
7
9
6
10
11
13
30
23
38
35
36
34
47
23
27
29
30
28
26
45
48
24
25
23
22
21
20
12
13
14
6
56
18
53
17
55
15
56
19
50
54
54
4
49
51
52
55
33
58
57
3
5
46
48
23
14
12
8
43
2
29
Model CC 999 ES
Ref
No.
Part Number Description
1 914-0474 Cotter Pin
2 710-1652 Screw 1/4-14 x .825
3 936-0264 Flat Washer.330 ID x.630 OD
4 914-0104 Cotter Pin
5 932-0306A Compression Spring
6 734-2010B Wheel, 9 x 2.125 Bar
7 912-0414 Top Lock Tab Weld Nut 1/4-20
8 16855 Ratchet Pawl Plate
9 10622BP Plastic Spring Ratchet
10 748-0381 Pawl RH
948-0188B Pawl LH
11 938- 0137A Shlder Screw.340 ID x.285 OD
12 948-0318 Wheel Ratchet
13 736-0270 Bell Washer.265 ID x.75 OD
14 710-0751 Hex Cap Screw 1/4-20 x.620
15 737-04331 Grease Fitting
16 731-07048 Hubcap - Radial Spoke
17 747-0924 Wheel Pin Lock
18 682-9020A Caster Assembly RH
682-9021A Caster Assembly LH
19 682-9024 Caster Bracket Assembly RH
682-9026 Caster Bracket Assembly LH
20 720-0223 Grip
21 732-0803A Spring Lever
22 938-0529 Shoulder Nut.825 x .165 Lg.
23 936-0369 Flat Washer .508 ID x 1.0 OD
24 782-0566B Pivot Arm Assembly
25 750 -0515 Spacer .510 ID x .70 OD
26 741-0978 Slv Bearing .504 ID x .830 OD
27 950 -1056 Shlder Spacer, .385ID x .715Lg
28 710-0653 Tap Screw 1/4-20 x .375
Ref
No.
Part Number Description
29 682-7528 Chain Cover Assembly
30 741-0324A Flge Bearing .506 ID x .590 Lg
31 682-7526 Transmission Axle Assembly
32 918-0263A Transmission Ass’y Complete
33 734-1857 Wheel 7 x 2
34 913- 0453 Chain
35 938- 0012A Rear Axle Assembly
36 941-0522 Flge Bearing .506 ID x .715 Lg
37 782-0568 Height Adjustment Spring Brkt.
38 950- 0151 Spacer .550 ID x .750 OD
39 710 -1315 Screw 3/8-16 x .25
40 911- 0835 Clevis Pin .50 Dia x 4.82 Lg.
41 750-0807 Spacer .385 ID x .624 OD
42 732-0832 Torsion Spring
43 710-0779A AB Screw, #10-16 x .500
44 731-06874 Trail Shield
45 687-02495 Handle Bracket Assembly - LH
46 687-02494 Handle Bracket Assembly - RH
47 710-0604A Screw, 5/16-18 x .625
48 710-1348 Screw 1/4-14 x.500
49 710-0260A Carriage Bolt 5/16-18 x.62
50 911-114 6 Caster Axle
51 712-0397A Wing Nut
52 712- 04063 Flange Lock Nut 5/16-18
53 726-0214 Push Cap
54 936-0504 Wave Washer.510 ID x.750 OD
55 736-0366 Flat Washer.640 ID x 1.12 OD
56 741- 0685 Flange Bearing
57 731-1888 Hubcap - Spoke w/ Hole
58 731-07048 Hubcap - Radial Spoke
30

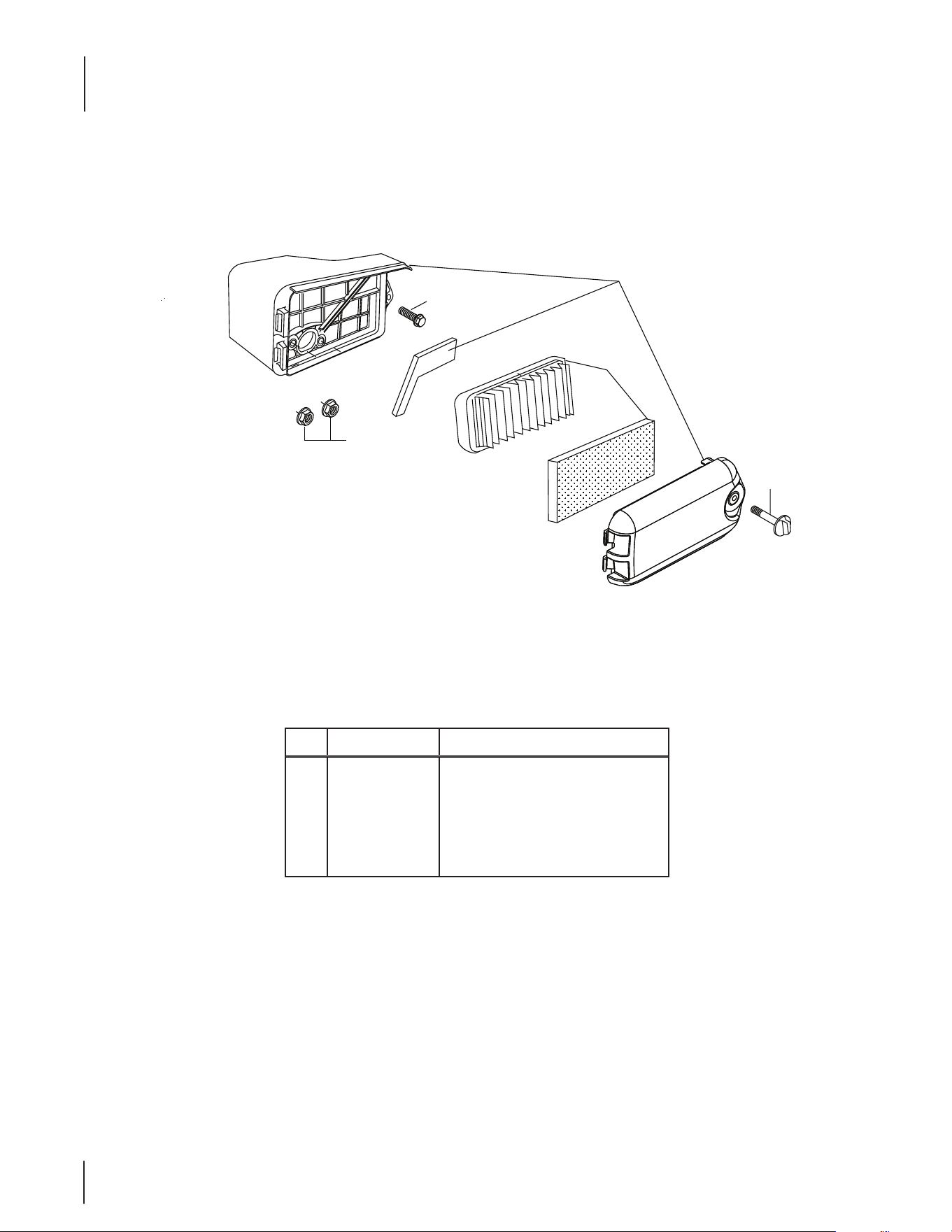

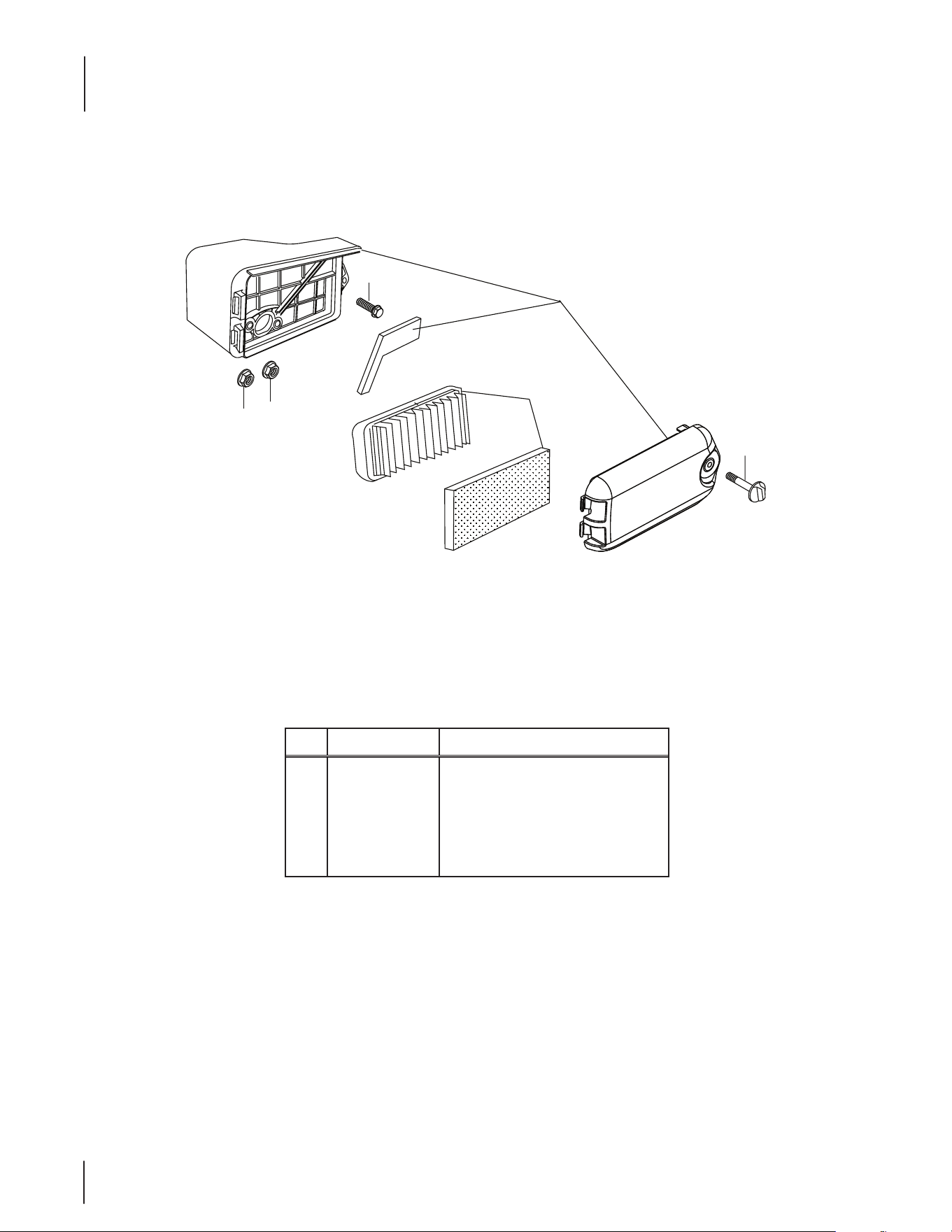

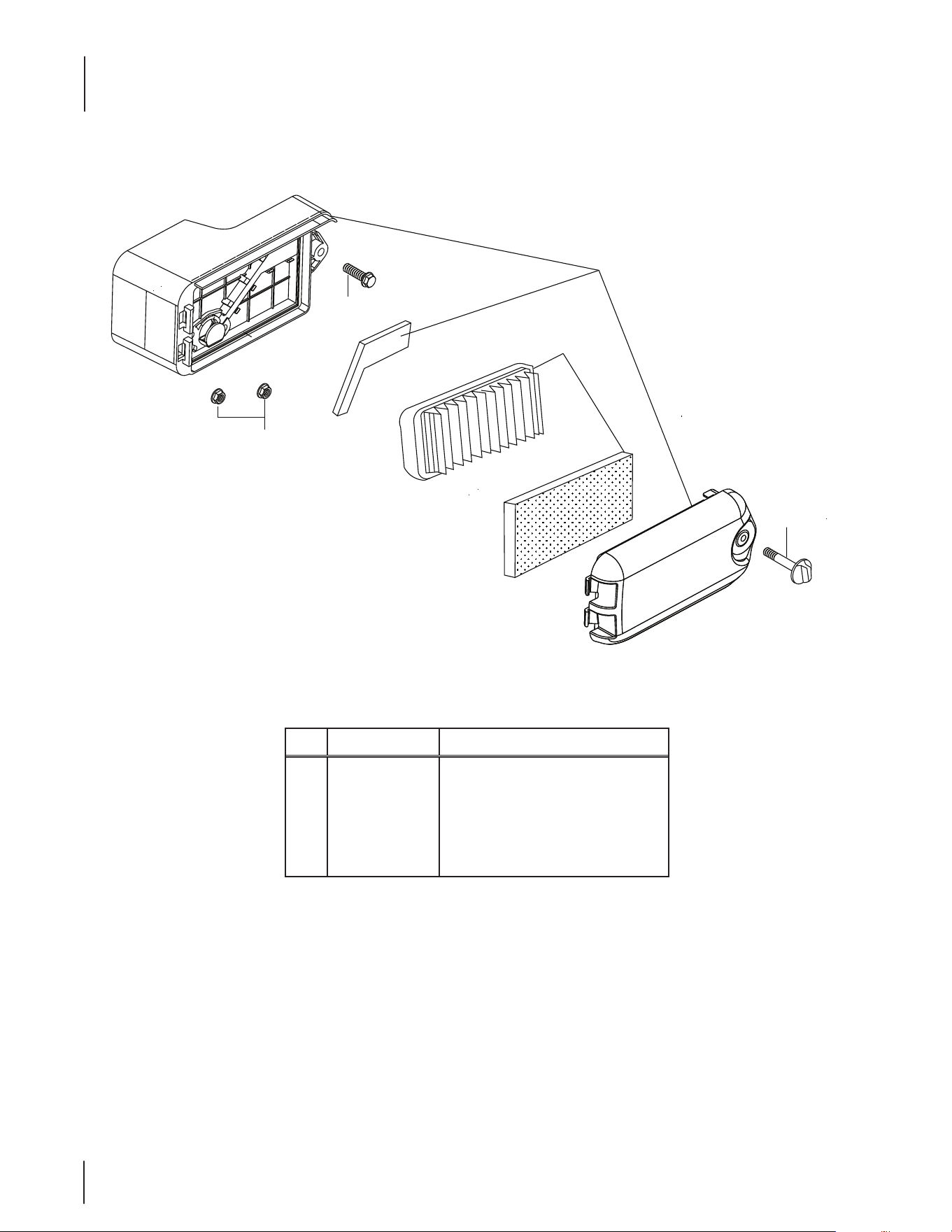

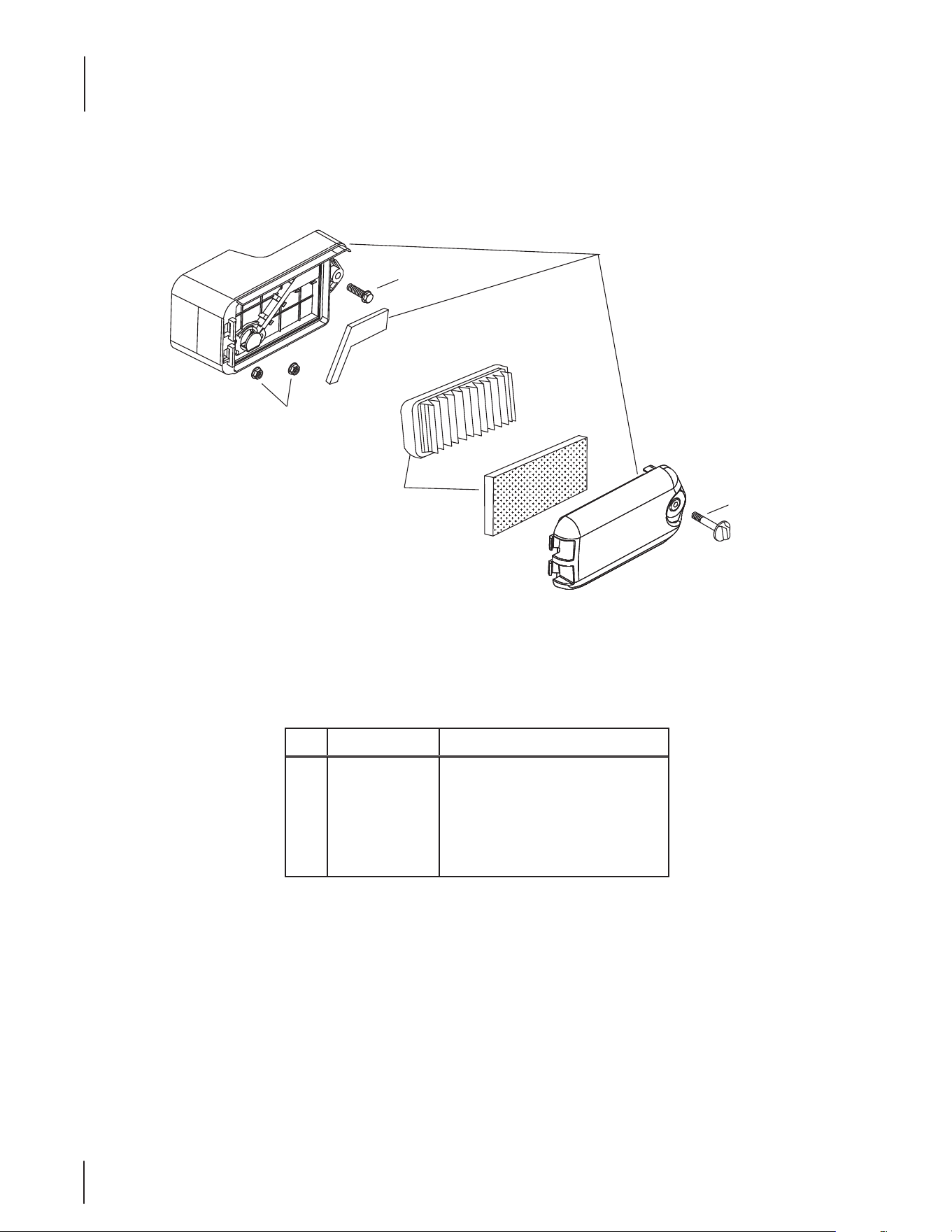

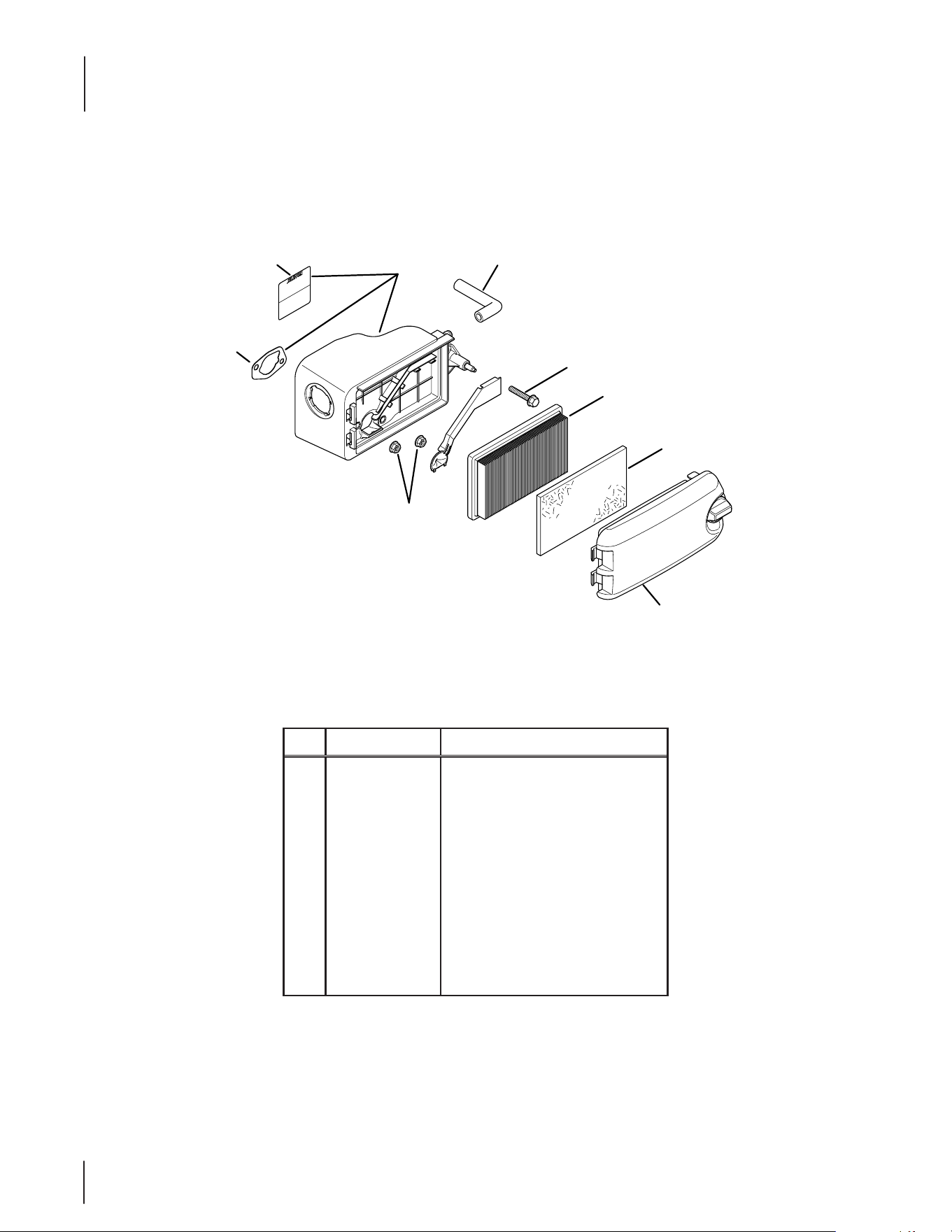

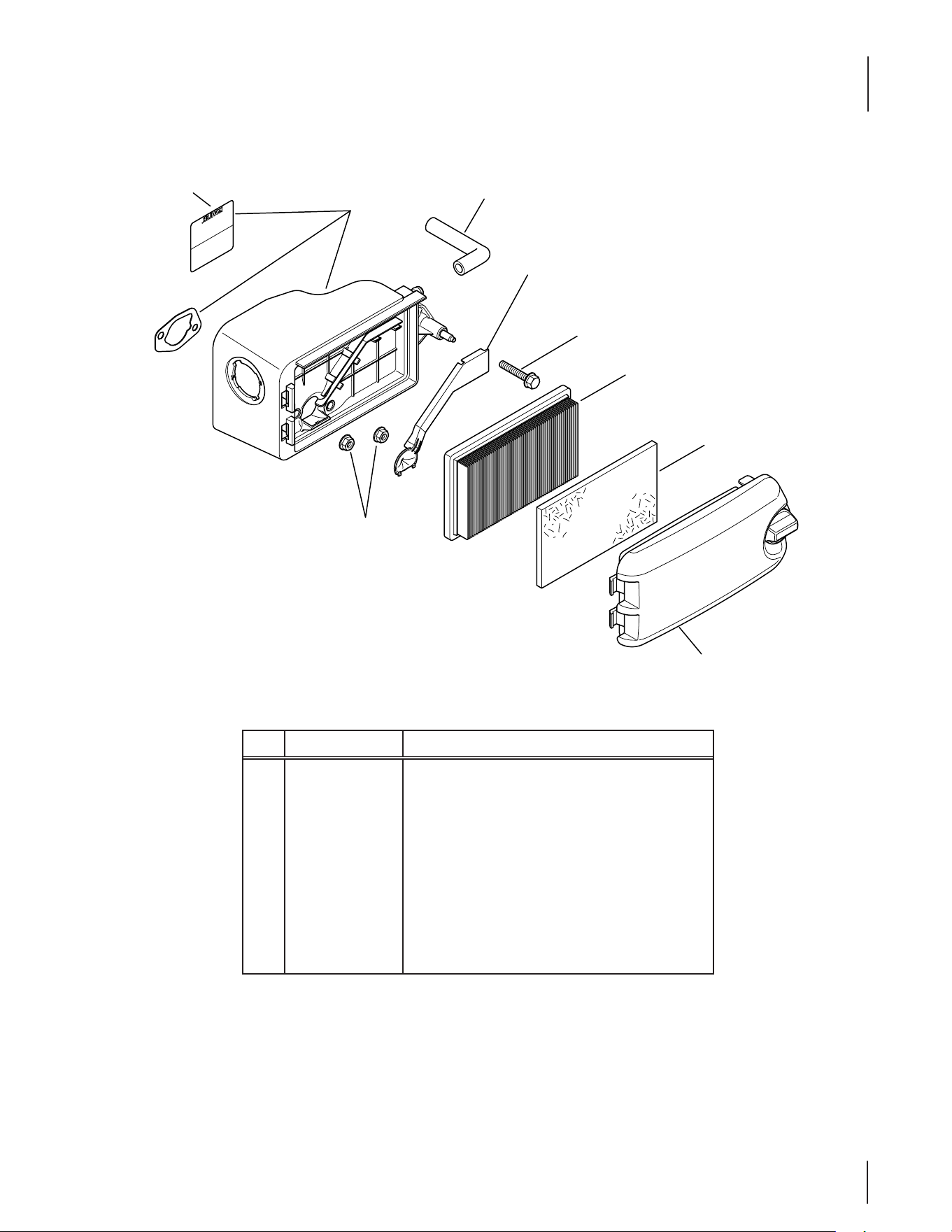

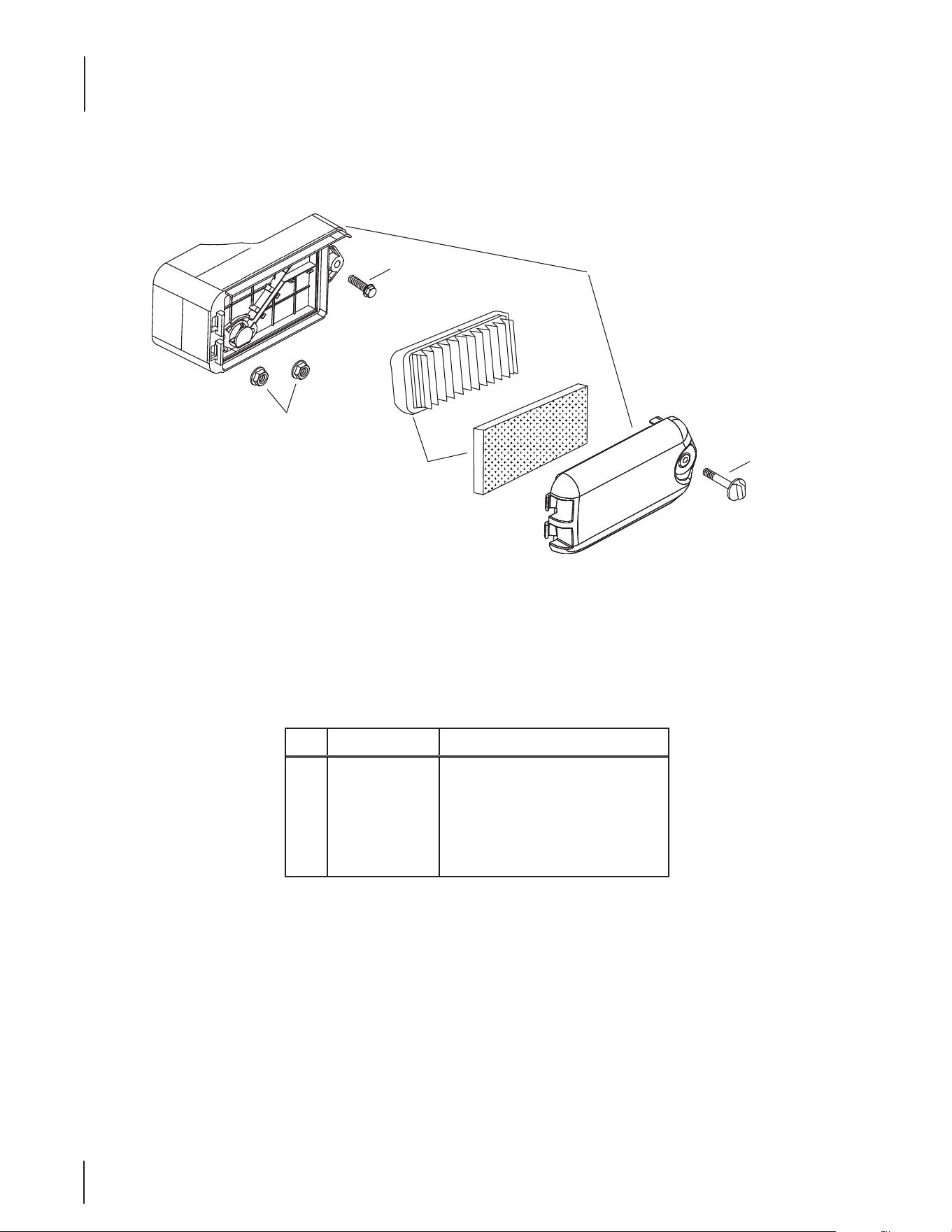

5P65M0B Air Cleaner
Ref. Part Number Description
6 712-04212 Nut M6 X 10 Mm
39 710-04969 Bolt M6×30
112 951-10297 Air Filter Cover Thumb Screw
113 951-10876 Air Cleaner Housing Ass'y Comp
114 951-10298 Air Cleaner Kit
114
113
112
6
39
31

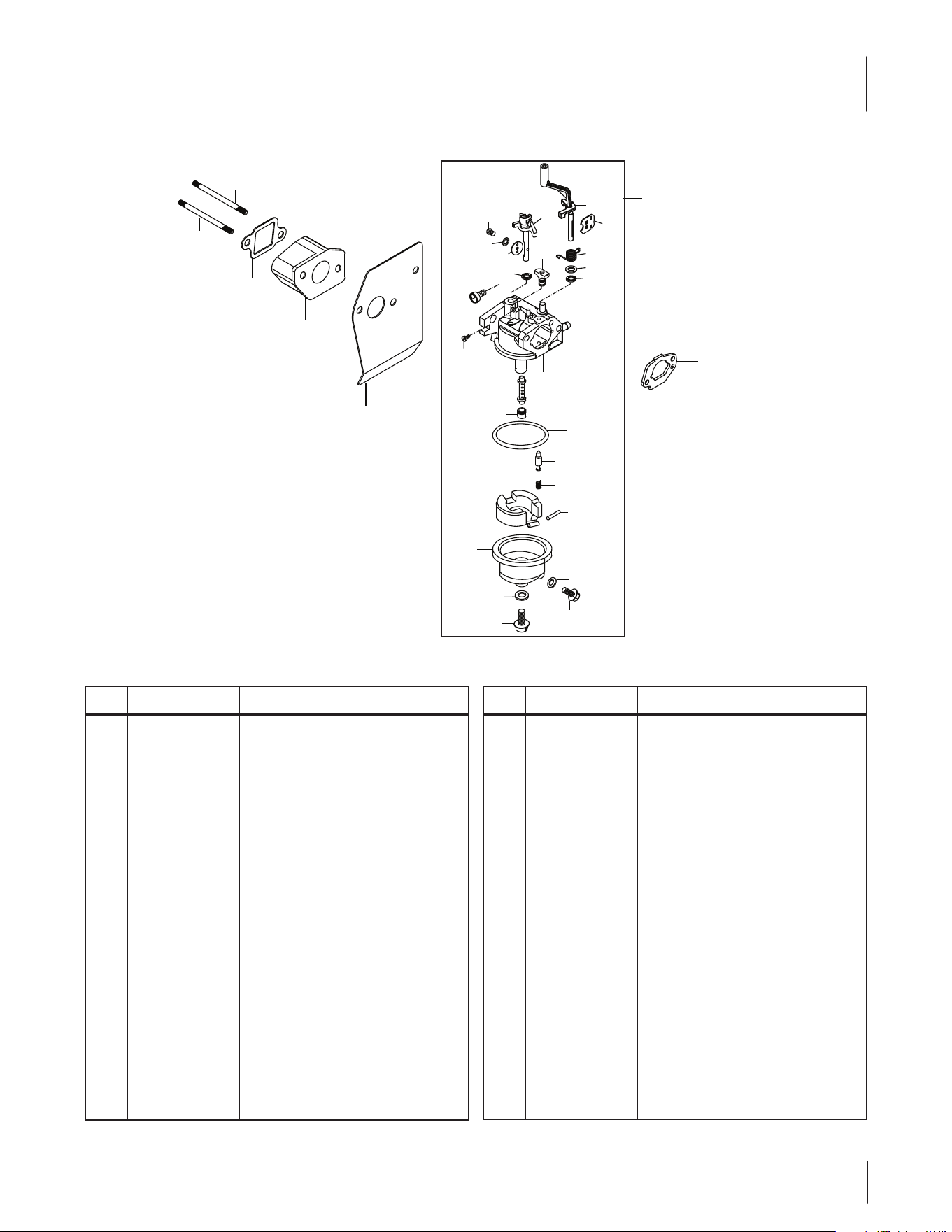

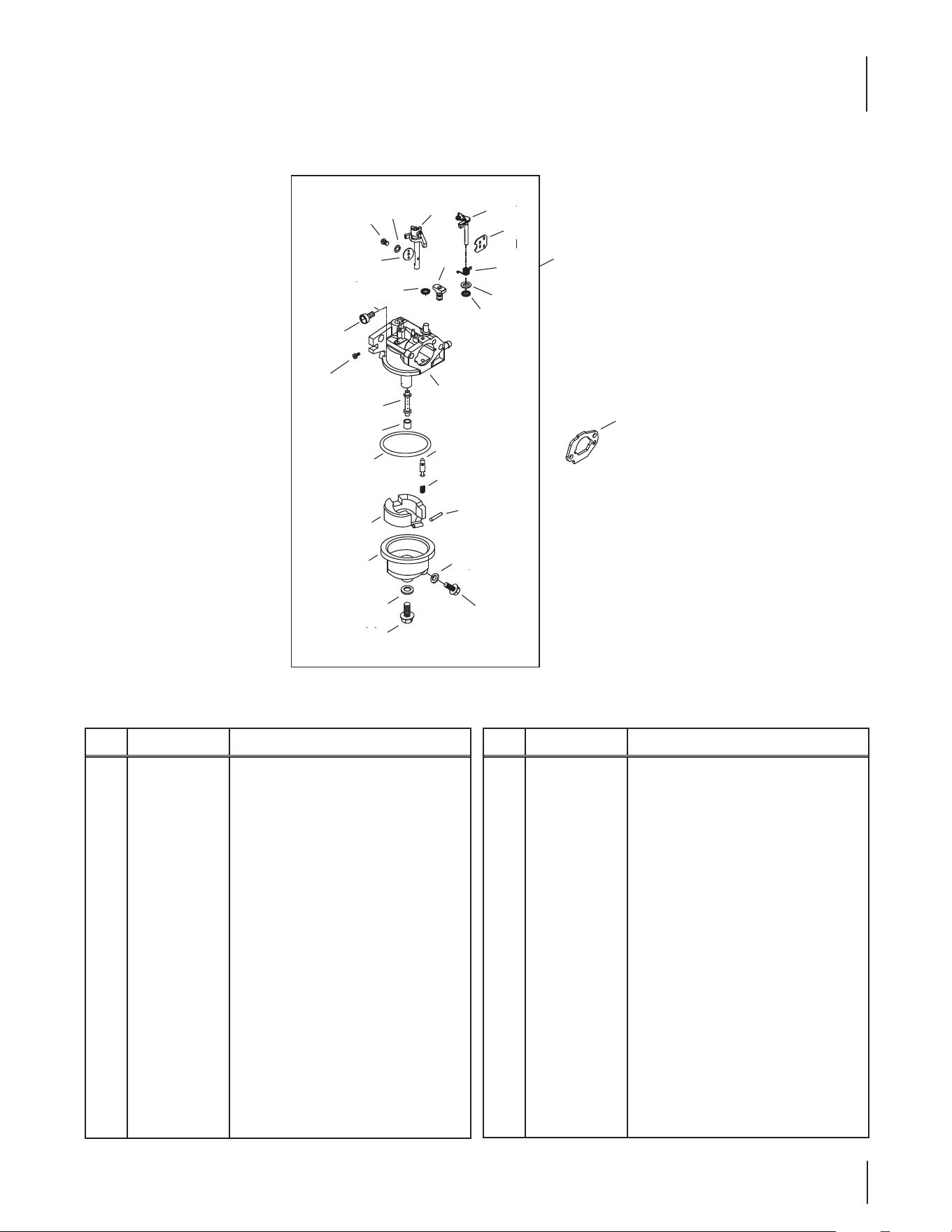

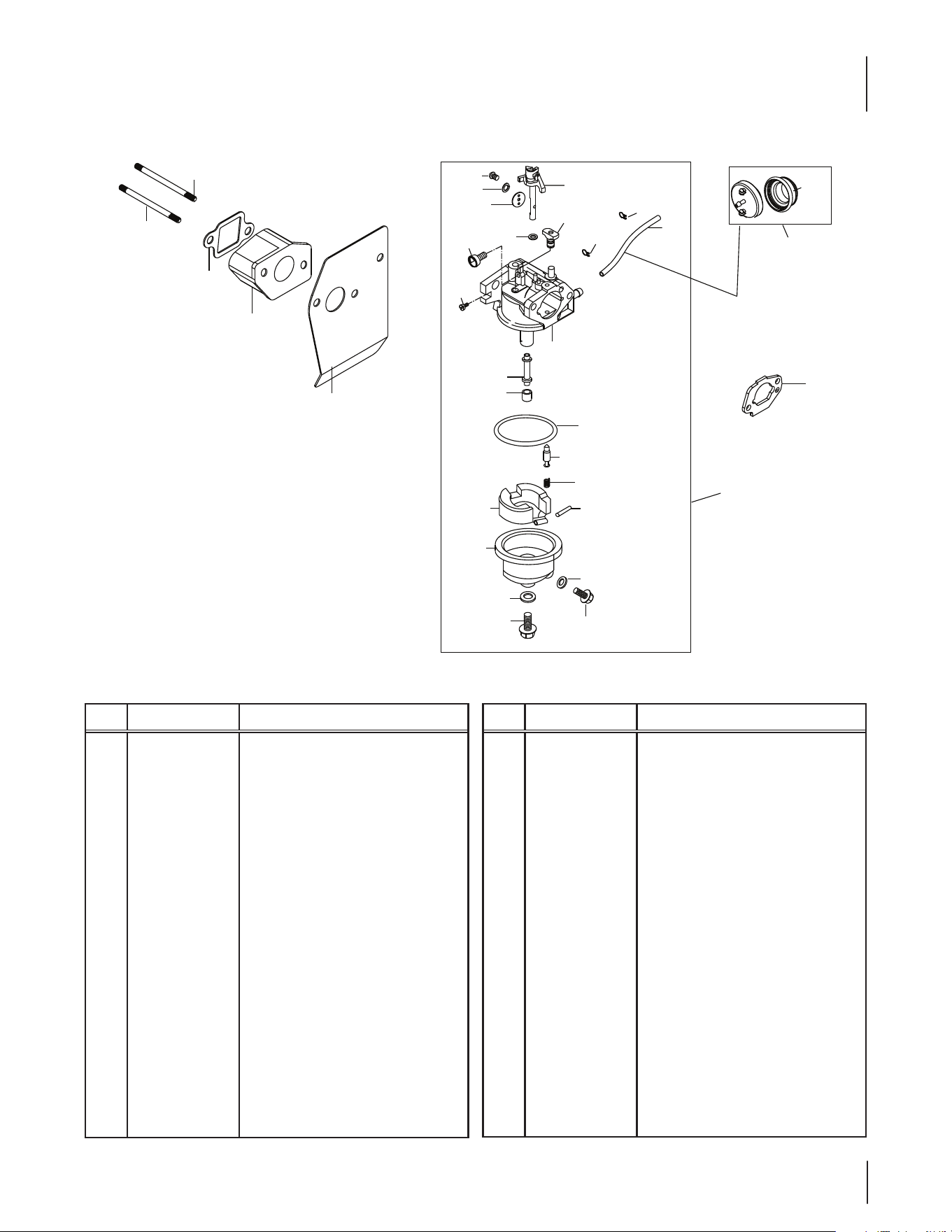

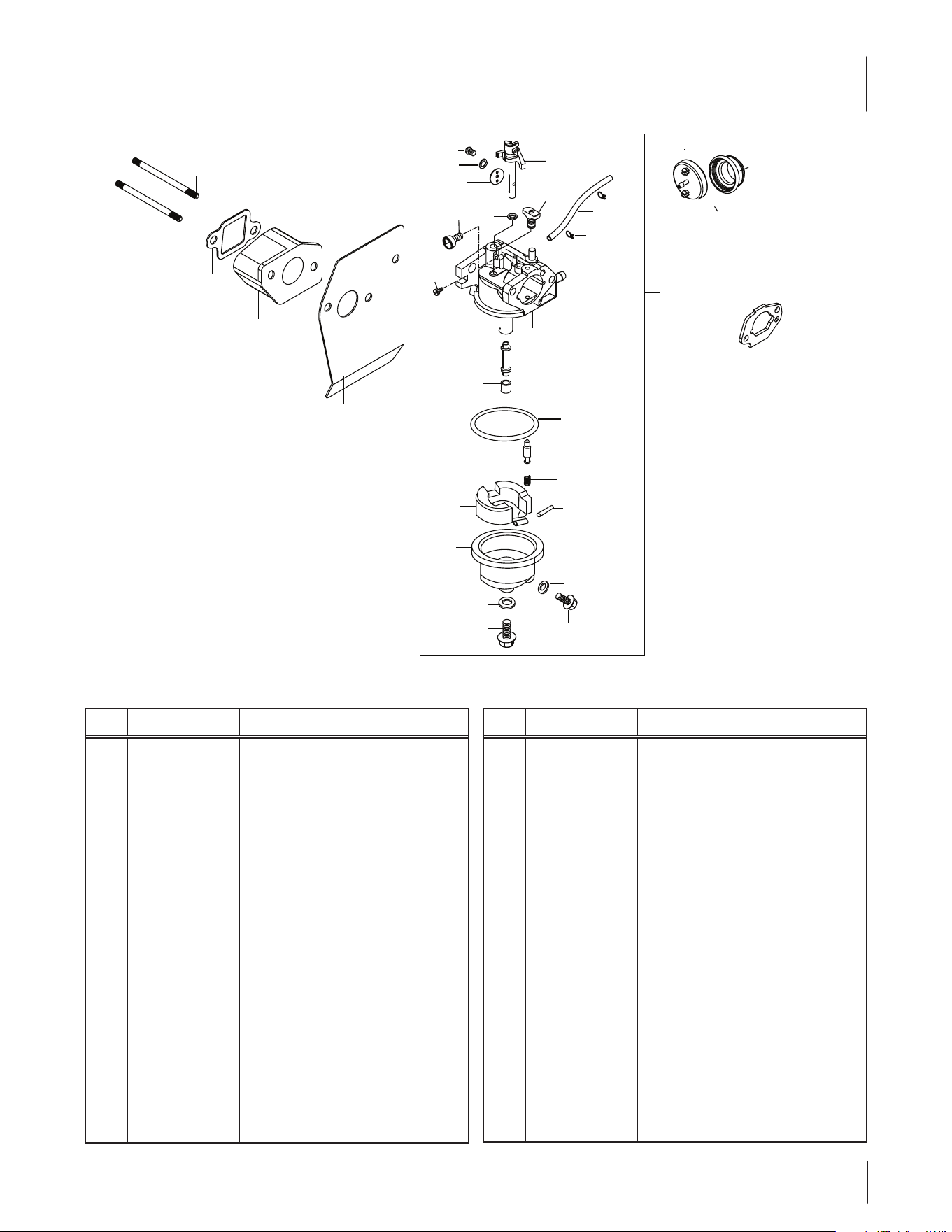

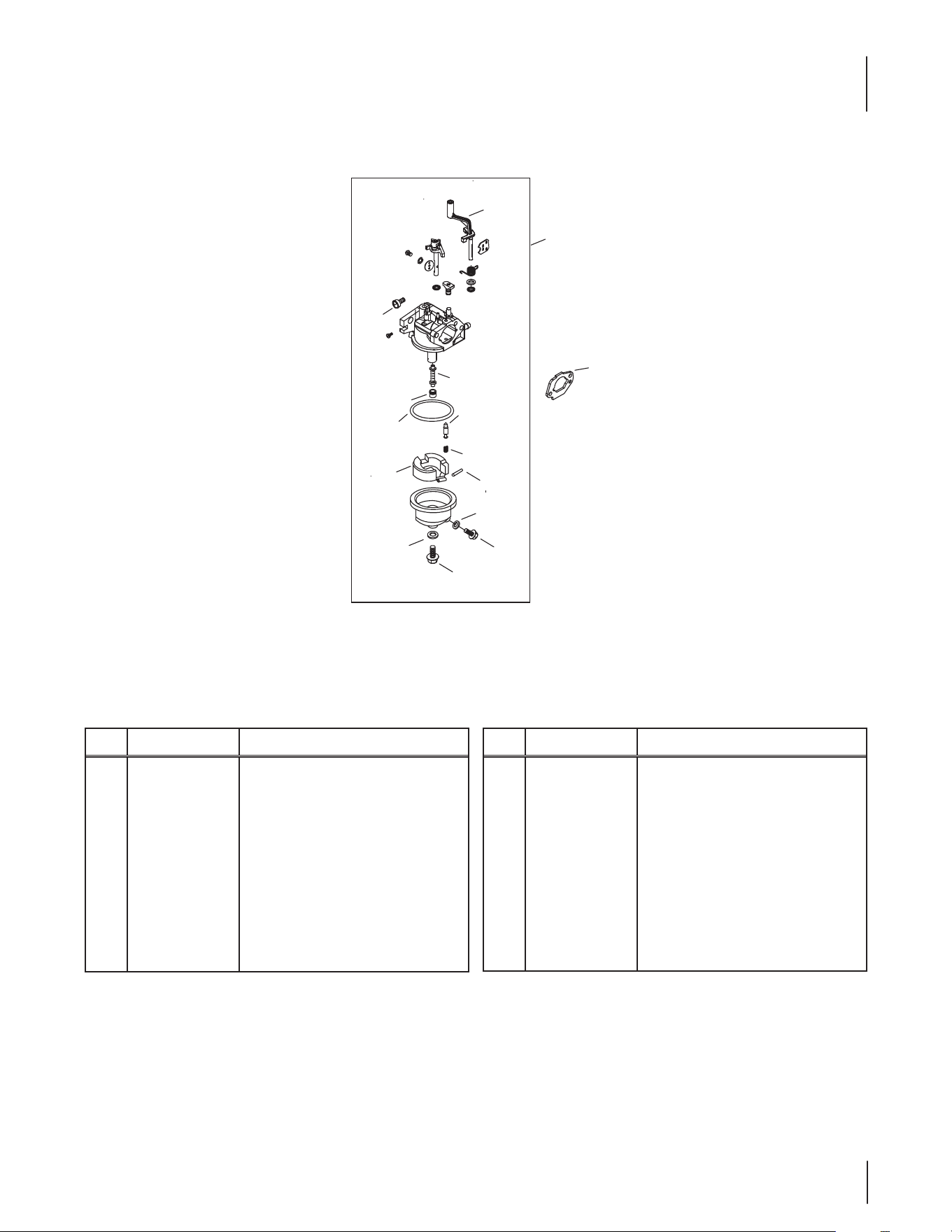

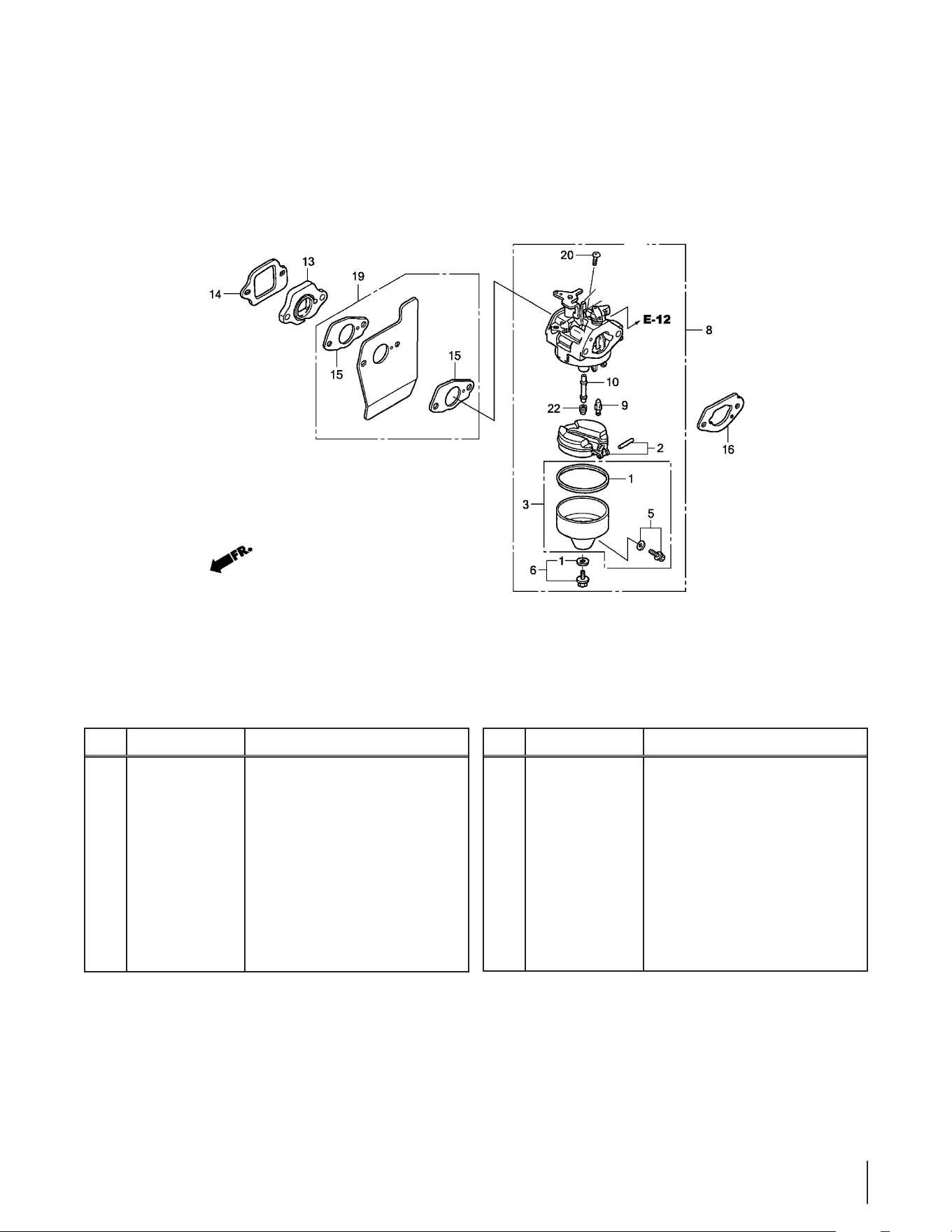

5P65M0B Carburetor
Ref.
Part Number Description
118 951-112 57 Carburetor Gasket Plate
119 951-10873 Carburetor Ass'y (Incl Ref No. 120-145)
120 N/A Choke Shaft
121 N/A Choke Plate
122 N/A Choke Return Spring
123 N/A Choke Shaft Washer
124 N/A Fiber O-Ring
125 N/A Throttle Plate
126 N/A Throttle Plate Lock Washer
127 N/A Throttle Plate Screw
128 N/A Throttle Shaft
129 N/A Idle Jet Assembly
130 N/A Fiber O-Ring
131 N/A Idle Speed Adjusting Screw
132 N/A Idle Mixture Screw
133 N/A Carburetor Body
Ref.
Part Number Description
134 N/A Main Nozzle / Emulsion Tube
135 N/A Main Jet
136 951-11589 Fuel Bowl O-Ring
137 N/A Needle Valve
138 N/A Needle Valve Spring
139 N/A Float
140 N/A Float Pin
141 N/A Fuel Bowl
142 951-11348 Fuel Bowl Gasket
143 710-04945 Fuel Bowl Mounting Bolt
144 710-04903 Fuel Drain Plug
145 951-113 49 Fuel Drain Plug Gasket
951-10874 Carburetor Repair Kit - Major
(Incl Ref No. 124,130,131,
134-140,142,145)
118
119
120
121
122
123
130
126
127
128
129
132
133
134
135
136
137
138
139
140
141
142
143
144
145
124
125
131
32

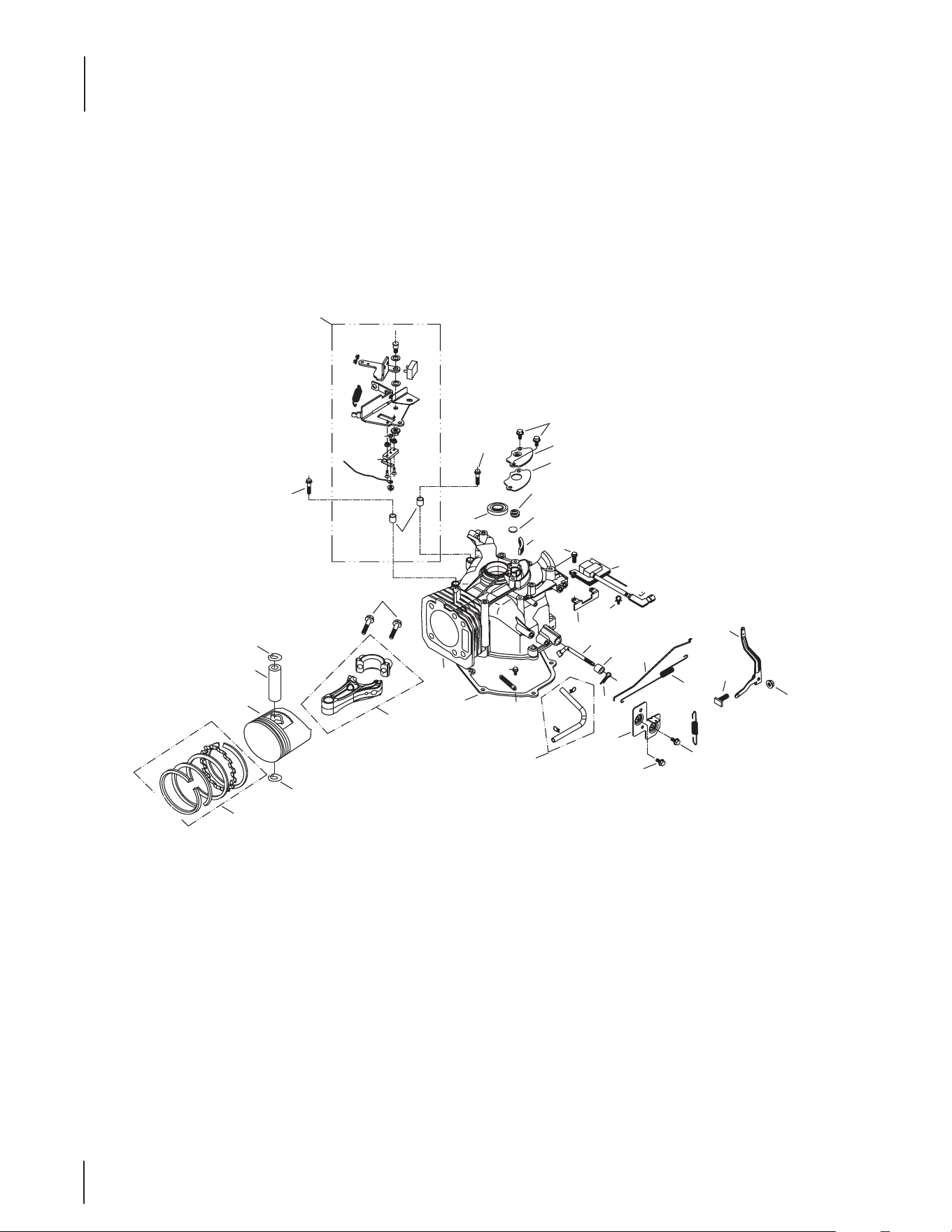

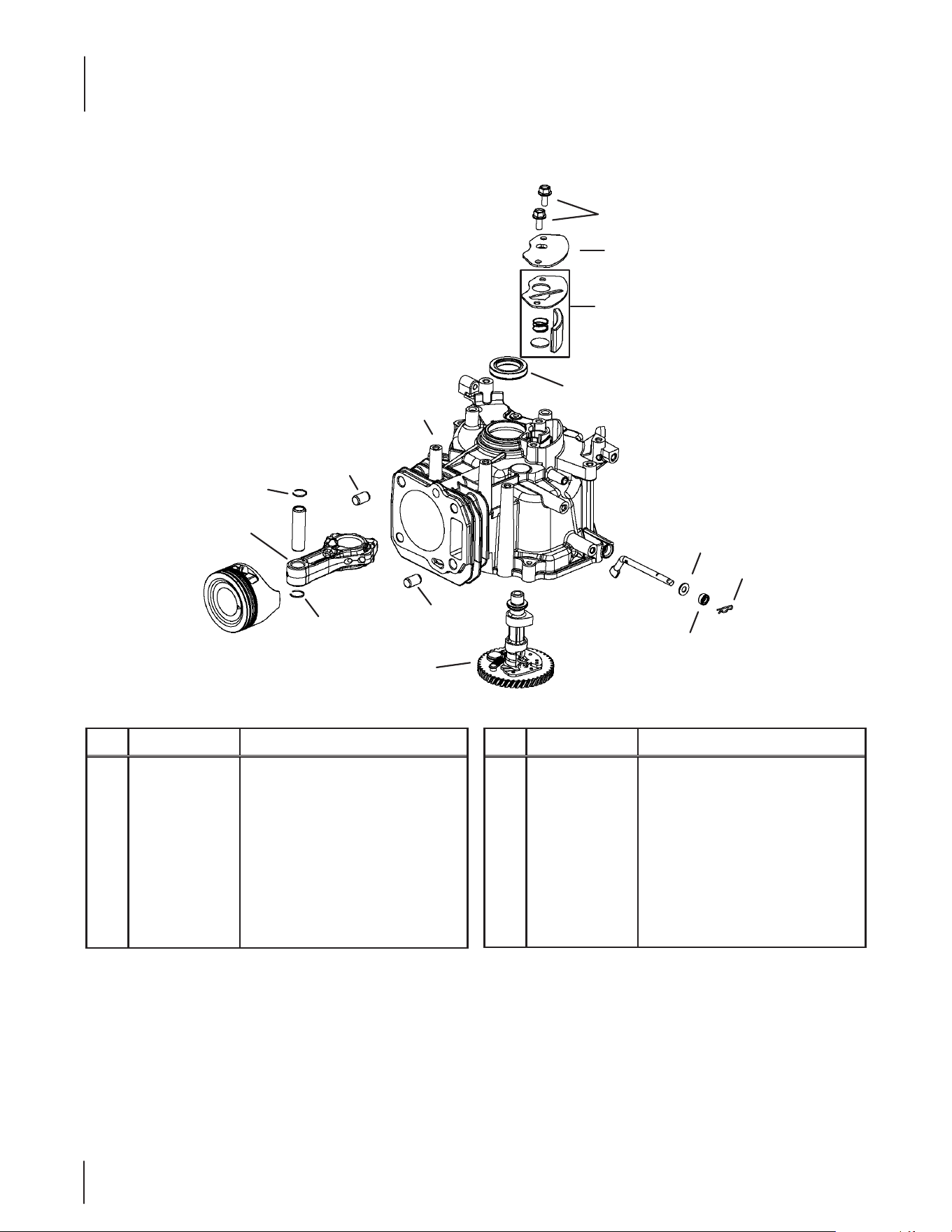

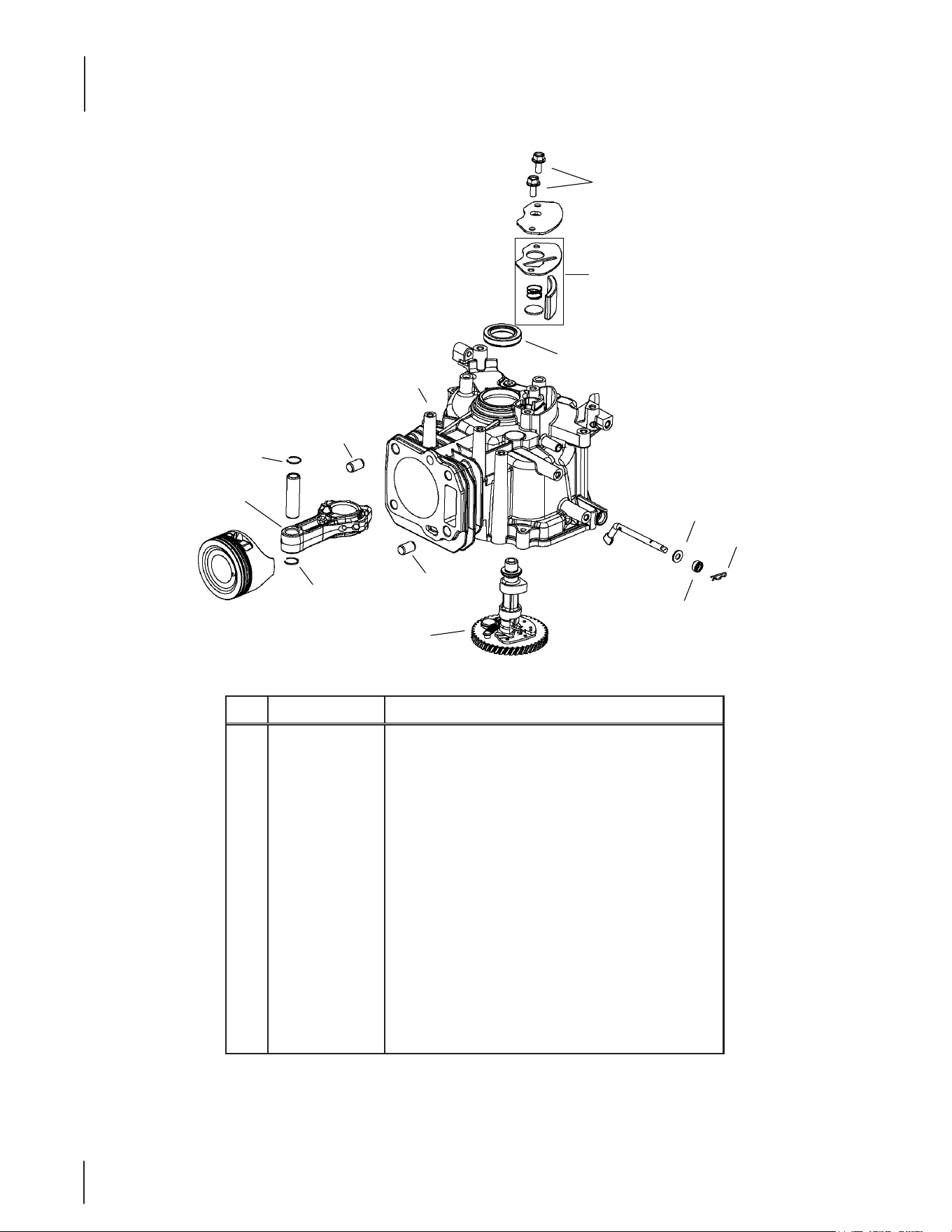

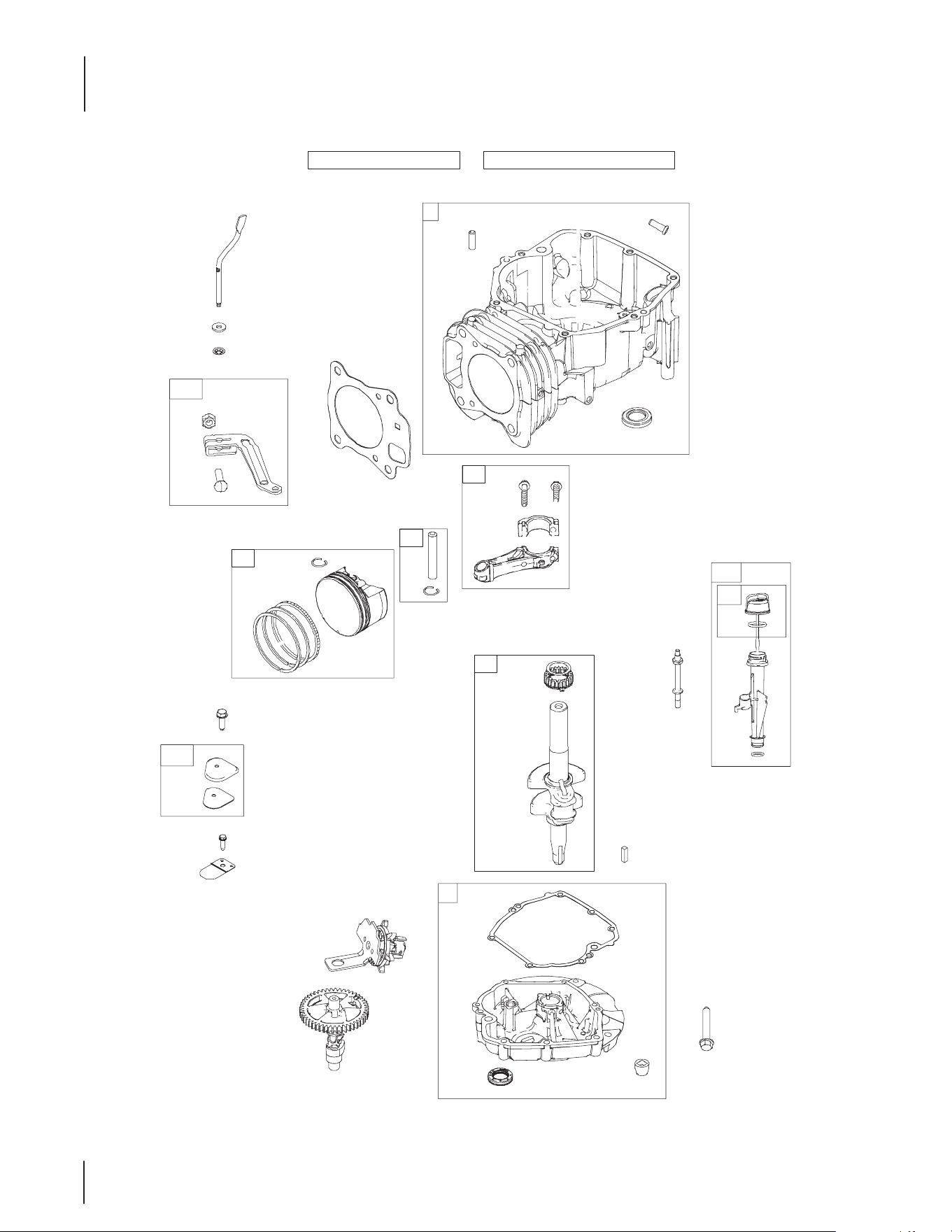

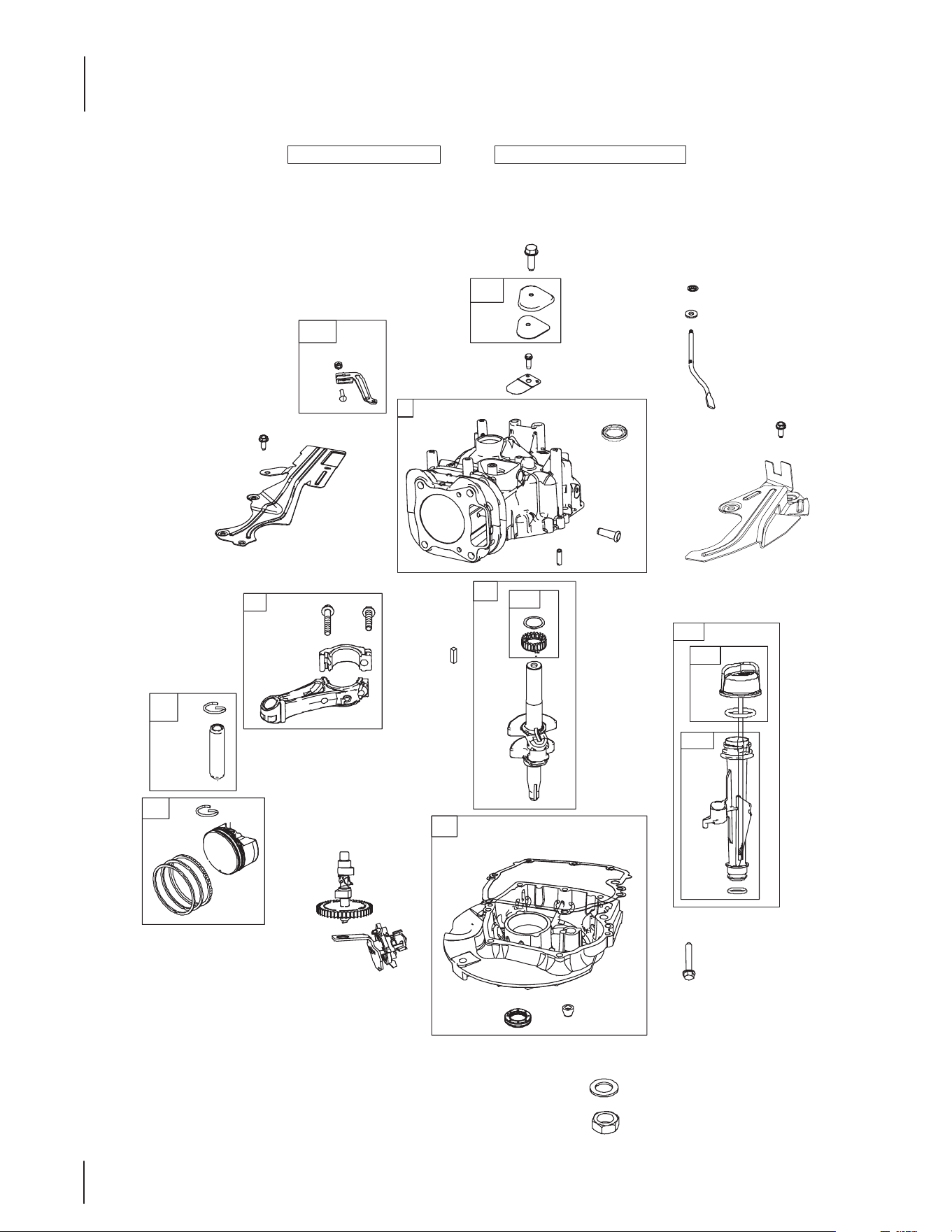

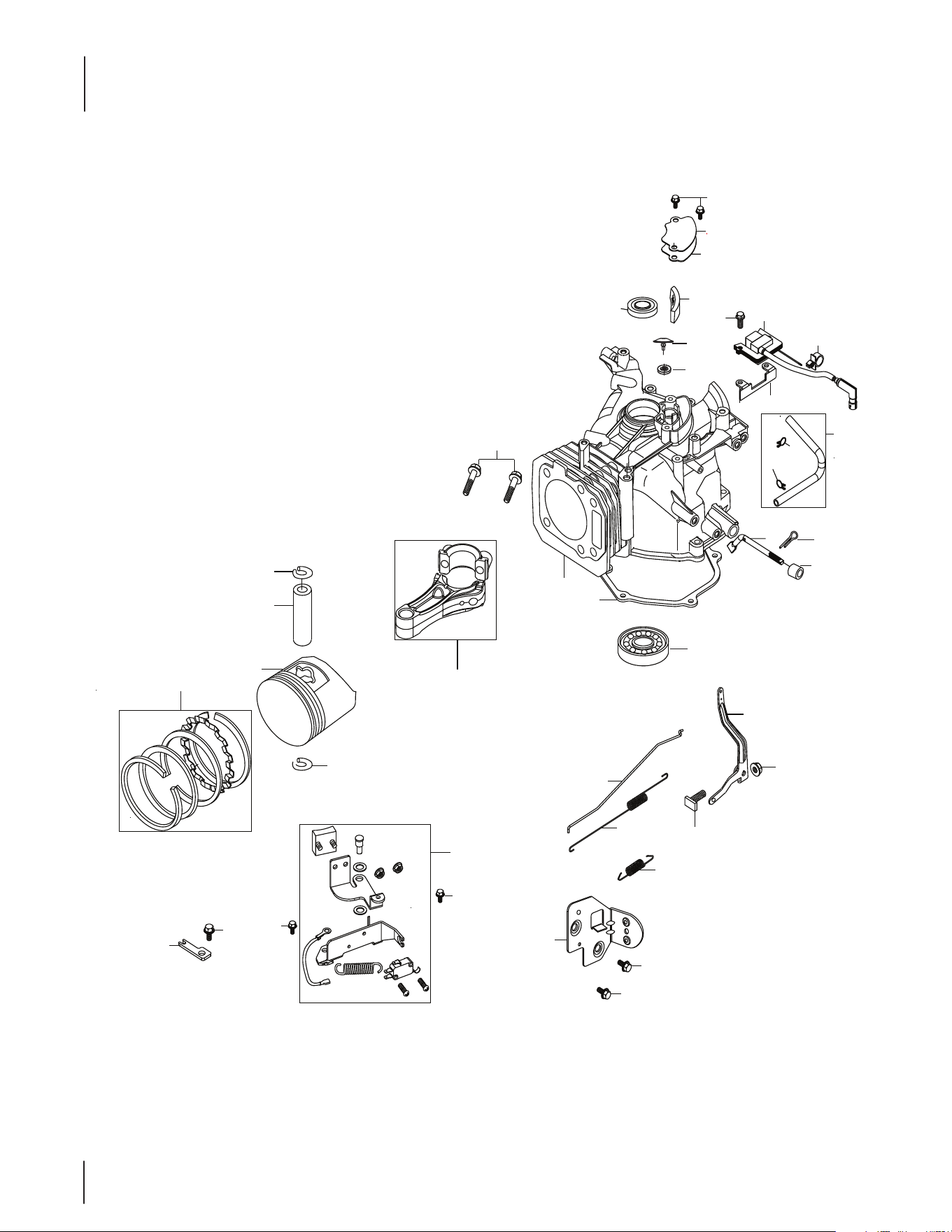

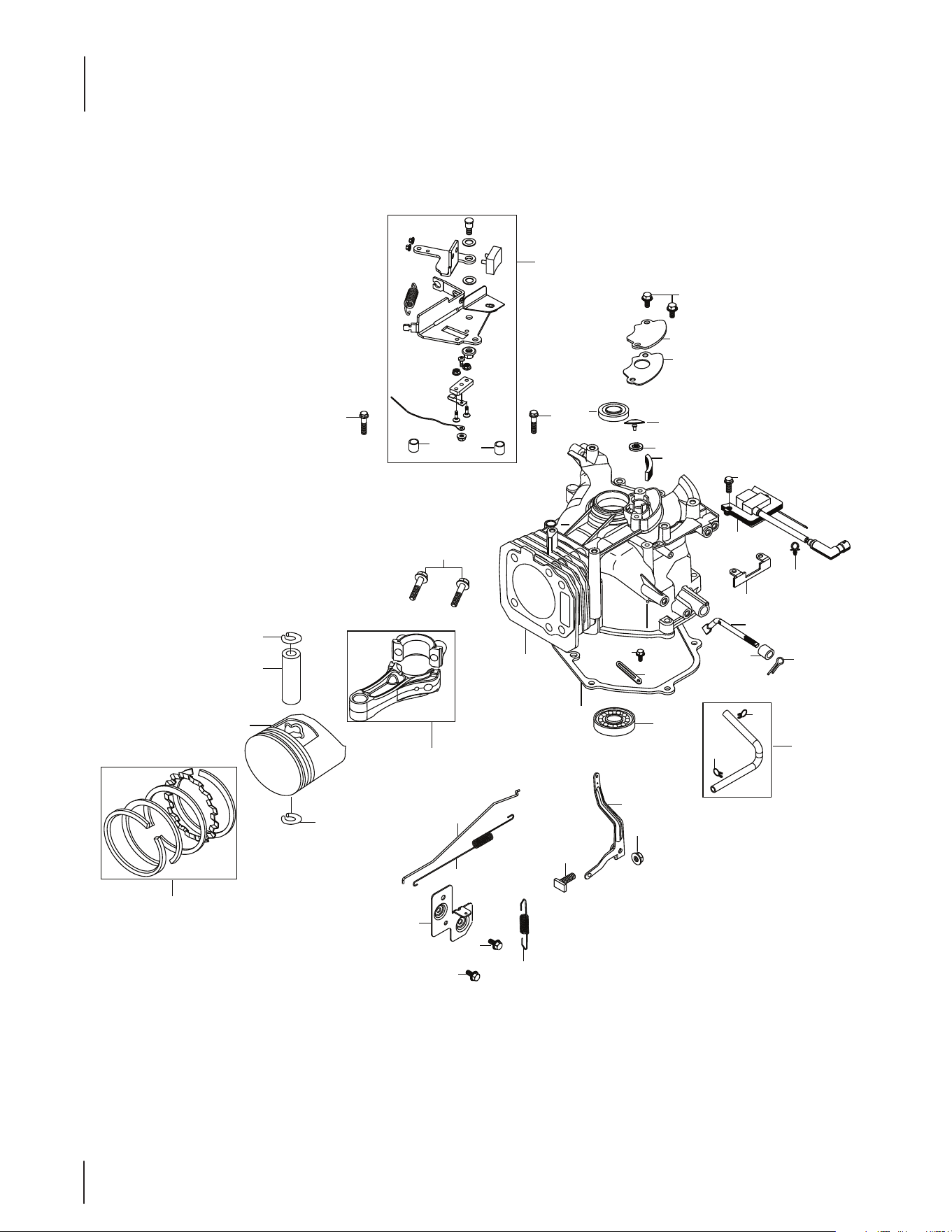

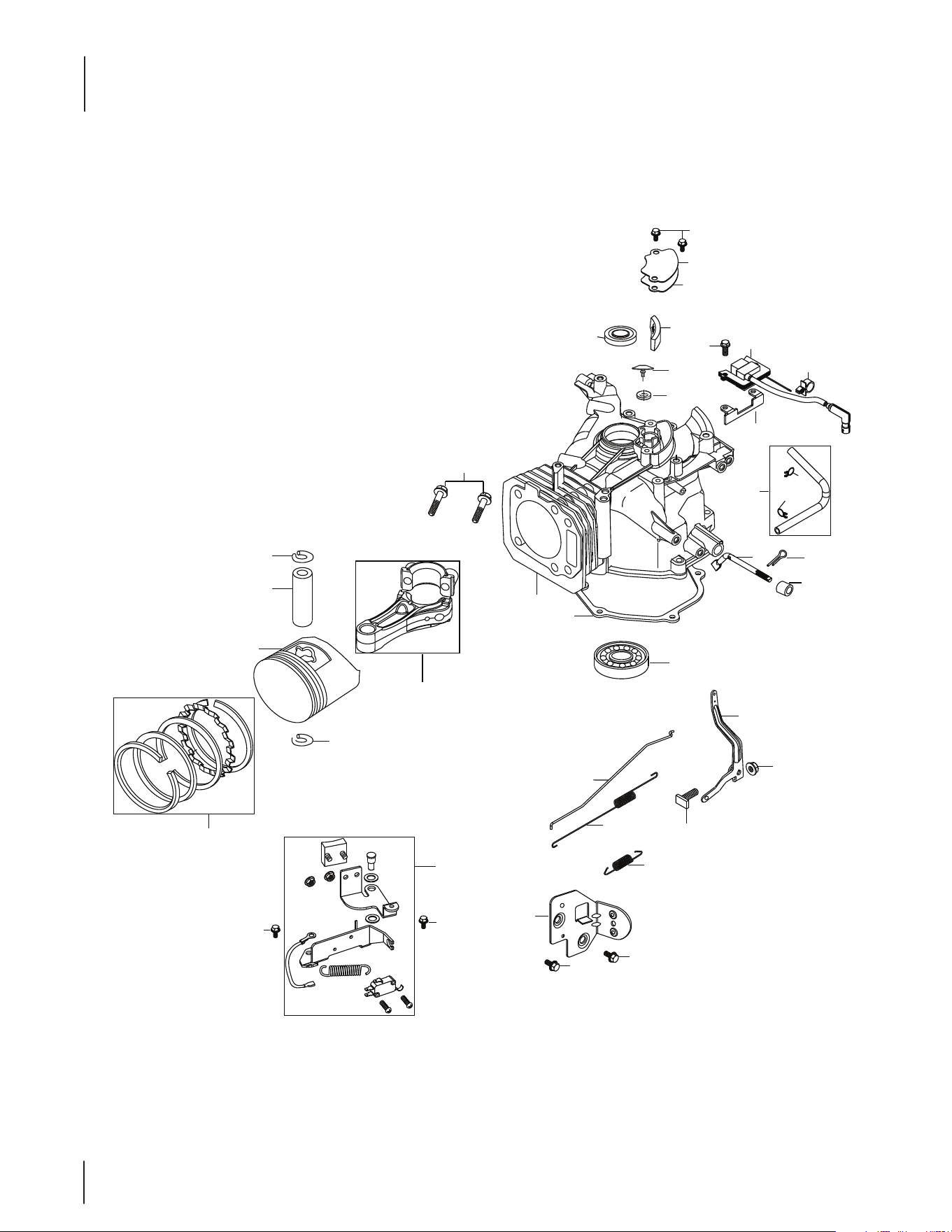

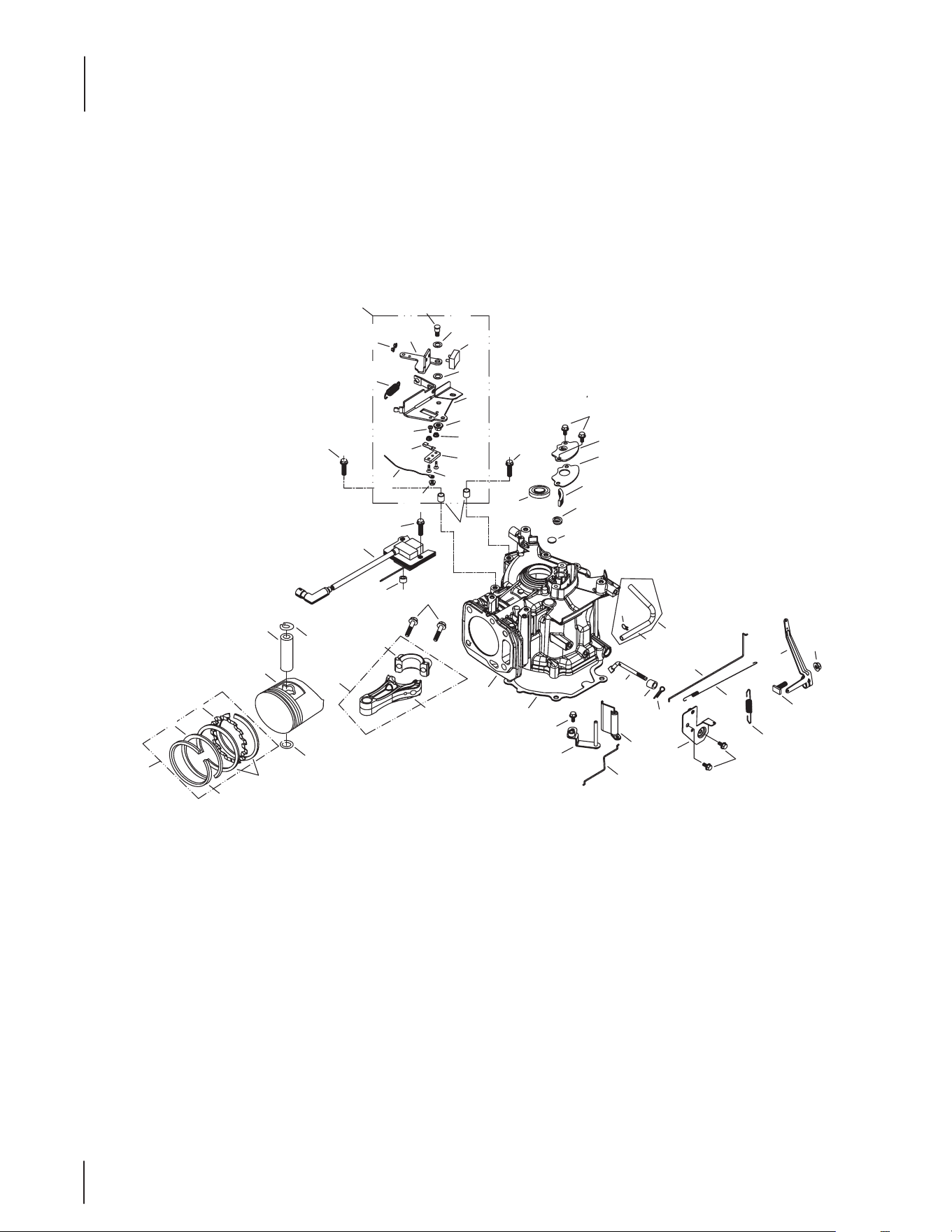

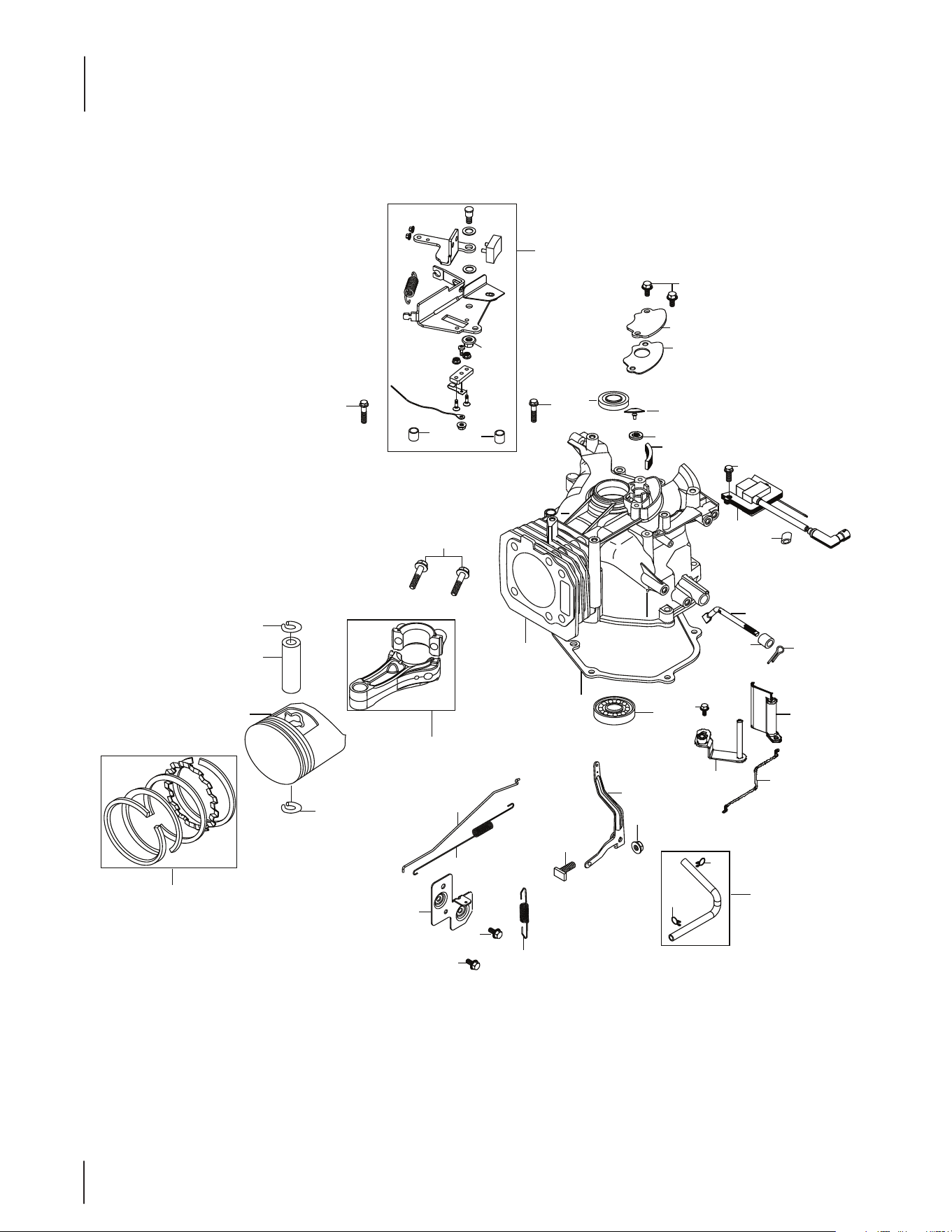

5P65M0B Crankcase
Ref.
Part Number Description
22 951-10320A Brake Assembly (Incl Ref No. 23-36)
37 750-05384 Brake Spacer
38 710-04980 Bolt M6×35
39 710-04969 Bolt M6×30
40 951-10367 Ignition Coil Assembly
41 750-05383 Ignition Coil Spacer
42 710-04916 Bolt M6×14
42 710-04916 Bolt M6×14
43 951-11612 Breather Cover Plate
43 951-11612 Breather Cover Plate
44 951-11613 Breather Gasket
45 951-11596 Upper Crankshaft Seal
46 951-11730 Mesh Screen
47 732-04718 Breather Valve Spring
48 951-11614 Breather Valve
64 951-11520 Breather Hose Assembly
65 N/A Breather Hose Clamp
66 N/A Breather Hose

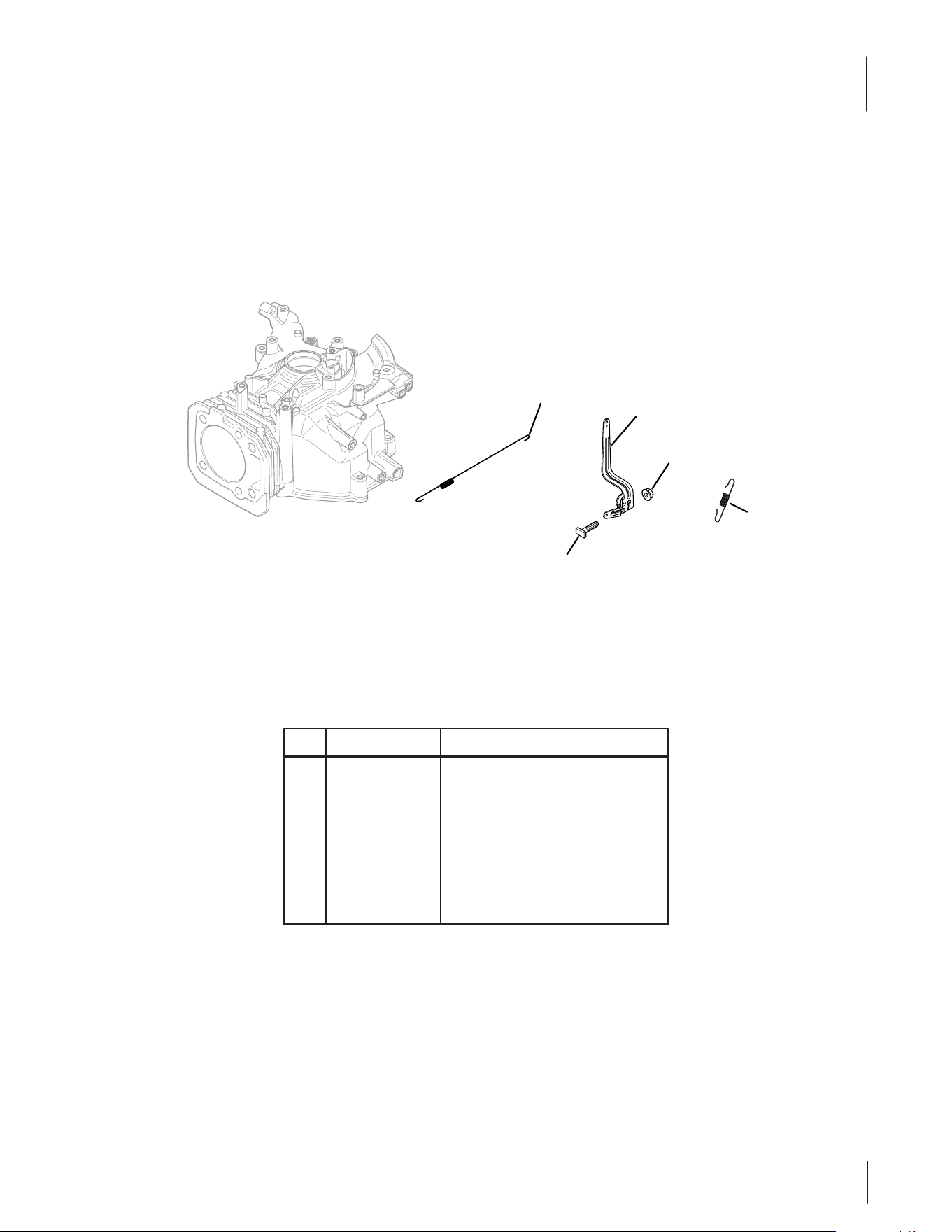

67 951-116 08 Governor Arm Shaft
68 951-11574 Governor Seal
69 714-04074 Governor Cotter Pin
70 951-11521 Throttle Linkage Rod
71 951-11522 Throttle Linkage Spring
72 N/A Gover Arm Assembly
73 951-11523 Governor Arm
74 712-04212 Governor Arm Nut M6
75 710-04908 Governor Arm Bolt
76 951-10293 Governor Spring
40
41
44
64
82
185
188
39
66
65
77
71
70
83
42
67
68
69
78
81
80
79
75
74
73
76
48
47
46
38
45
42
43
22
23
24
25
26
27
36
24
28
37
38
29
30
31
32
33
34
35
30
186
187
178
181
182
184
179
177
180
182
183
33
5P65M0B Crankcase
Ref.
Part Number Description
22 951-10320A Brake Assembly (Incl Ref No. 23-36)
37 750-05384 Brake Spacer
38 710-04980 Bolt M6×35
39 710-04969 Bolt M6×30
40 951-10367 Ignition Coil Assembly
41 750-05383 Ignition Coil Spacer
42 710-04916 Bolt M6×14
42 710-04916 Bolt M6×14
43 951-11612 Breather Cover Plate
43 951-11612 Breather Cover Plate
44 951-11613 Breather Gasket
45 951-11596 Upper Crankshaft Seal
46 951-11730 Mesh Screen
47 732-04718 Breather Valve Spring
48 951-11614 Breather Valve
64 951-11520 Breather Hose Assembly
65 N/A Breather Hose Clamp
66 N/A Breather Hose
67 951-116 08 Governor Arm Shaft
68 951-11574 Governor Seal
69 714-04074 Governor Cotter Pin
70 951-11521 Throttle Linkage Rod
71 951-11522 Throttle Linkage Spring
72 N/A Gover Arm Assembly
73 951-11523 Governor Arm
74 712-04212 Governor Arm Nut M6
75 710-04908 Governor Arm Bolt
76 951-10293 Governor Spring
Ref.
Part Number Description
77 710-04915 Bolt M6×12
78 951-1154 4 Throttle / Governor Bracket
79 951-11524 Choke Linkage Rod
80 951-11792 Air Vane Bracket
81 951-11529 Air Vane
82 N/A Crankcase
83 951-11732 Crankcase Cover Gasket

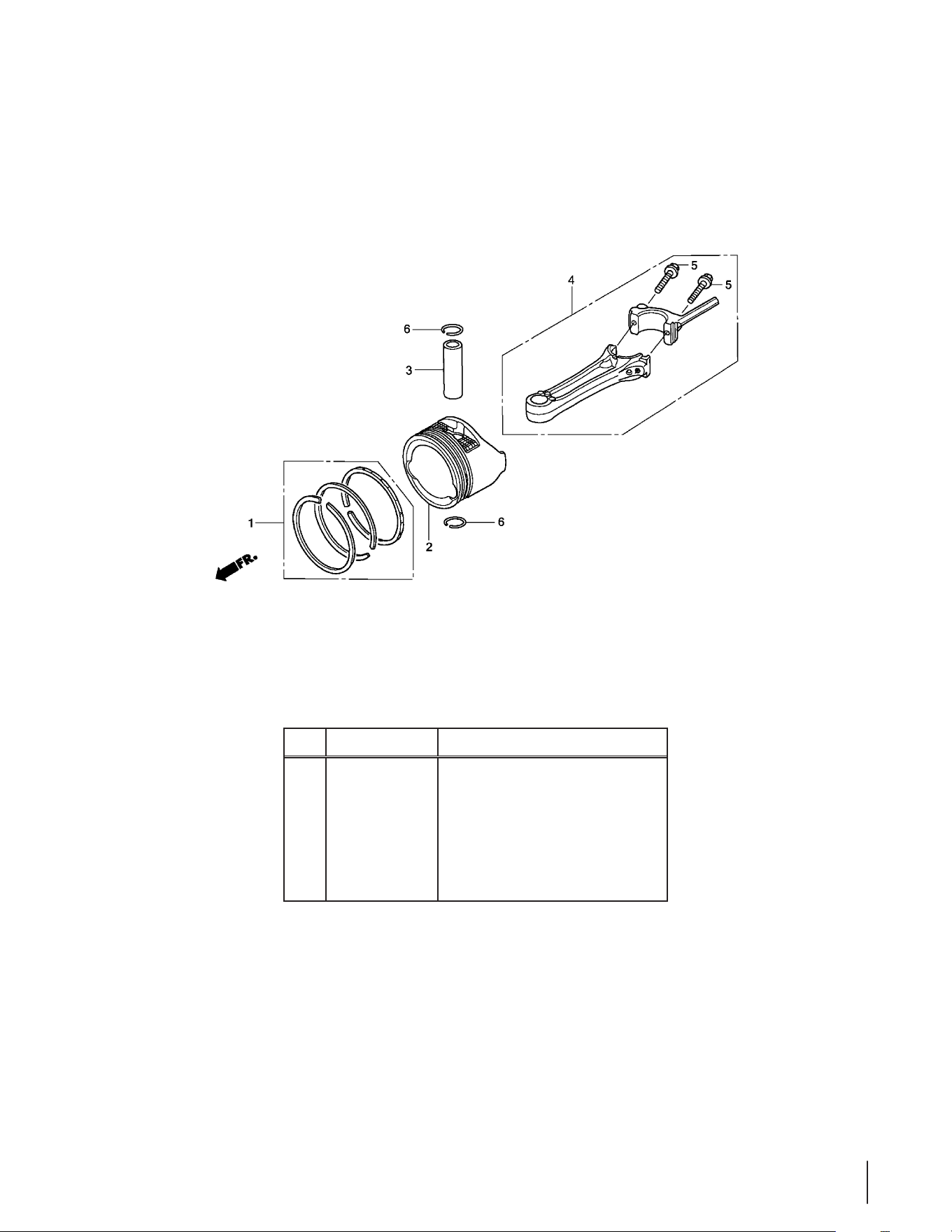

177 951-116 88 Piston Ring Set
178 N/A Upper Piston Compression Ring
179 N/A Lower Piston Compression Ring
180 N/A Piston Oil Ring Segment
181 N/A Piston Oil Ring Expander
182 951-11603 Piston Pin Snap Ring
183 951-1160 4 Piston Pin
184 951-11605 Piston
185 951-1174 4 Connecting Rod Assembly
186 N/A Connecting Rod
187 N/A Connecting Rod Cap
188 710-05162 Connecting Rod Bolt

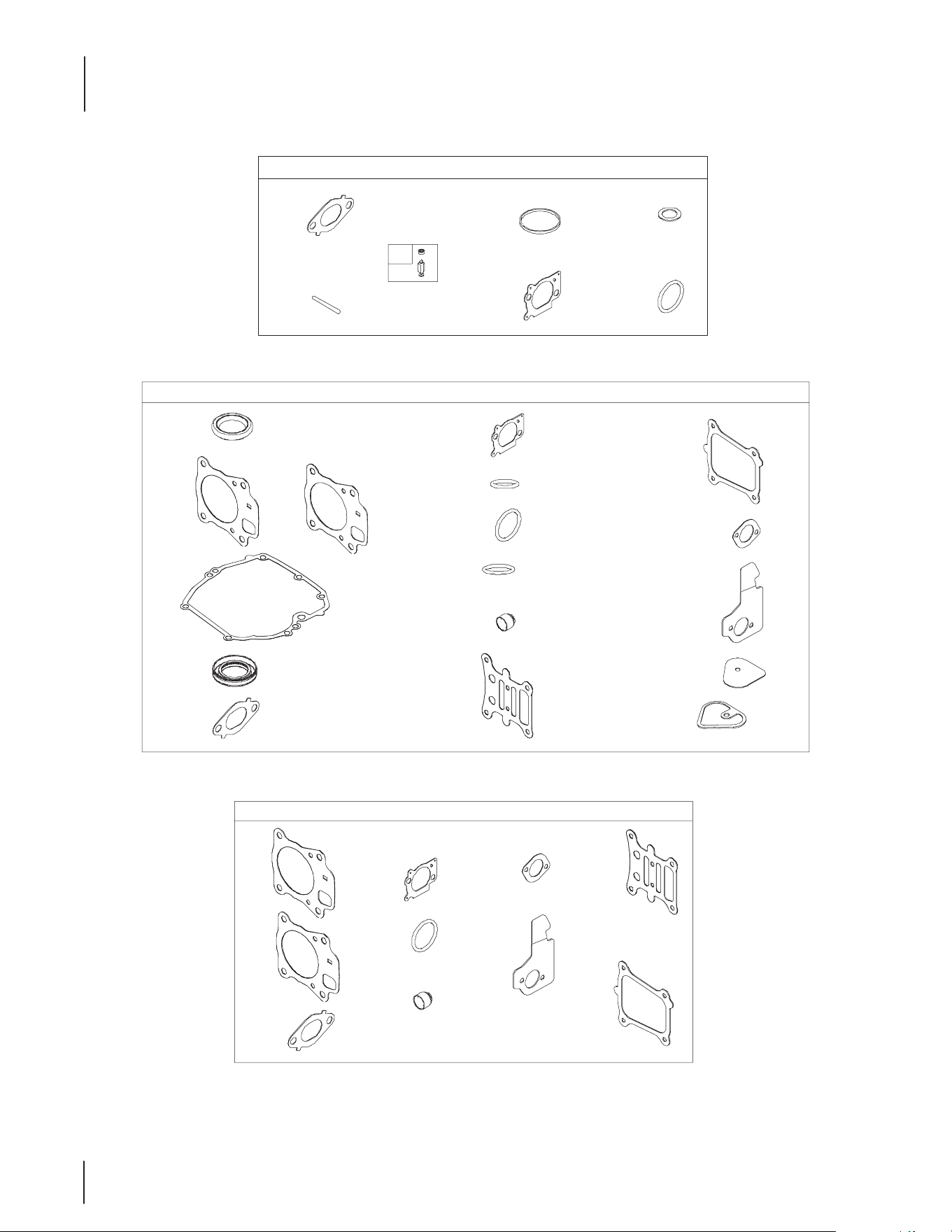

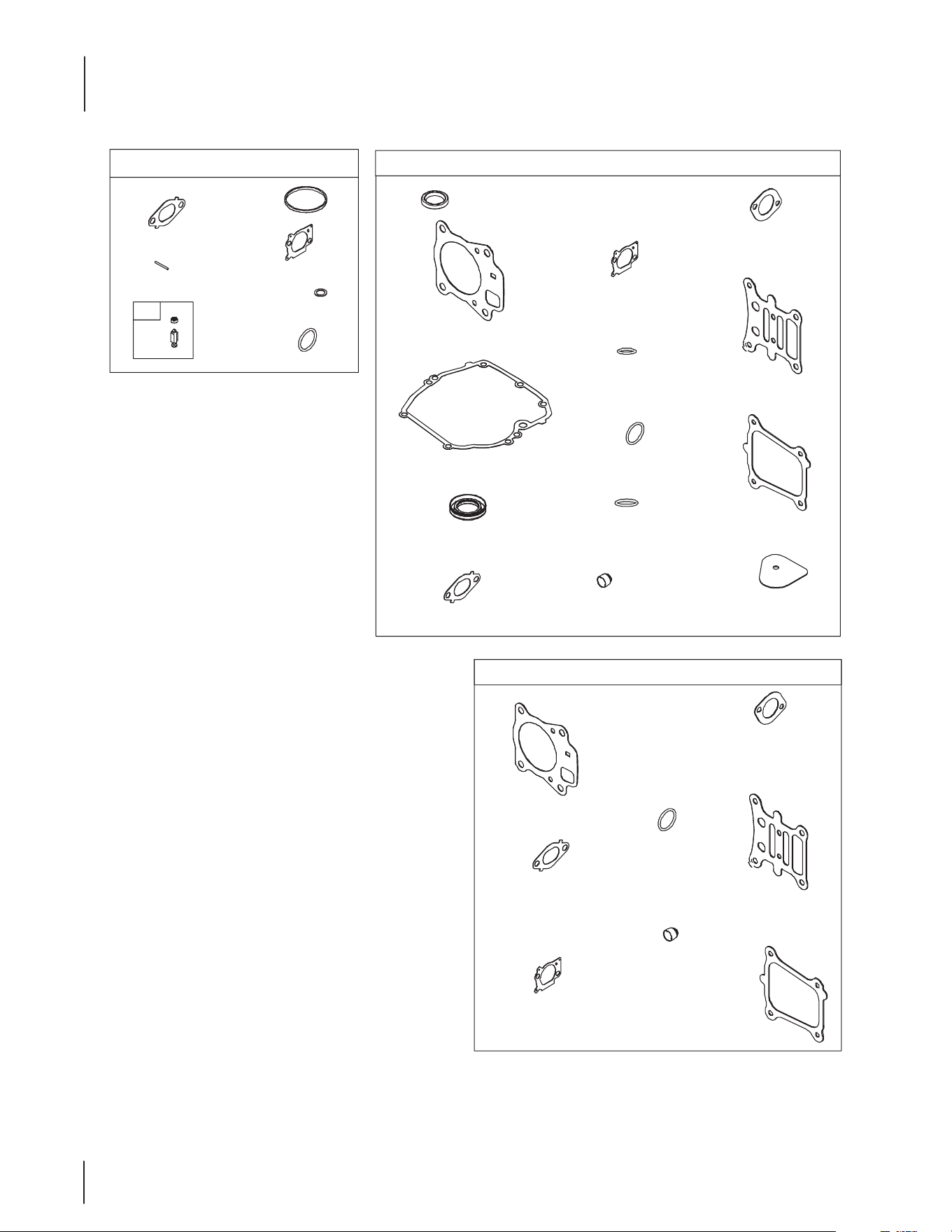

951-11787 Gasket Kit - Complete
(Incl Ref No. 44,45,68,83,91,
108,110,146 -148,164,-167,172)
951-11789 Short Block
(Incl Ref No. 42-48,67-69,82-88,
91,93,94,104-110,118,147,148,
164,167,172,173-175-177,182-185,188)
952Z5P65M0B Engine Complete
34

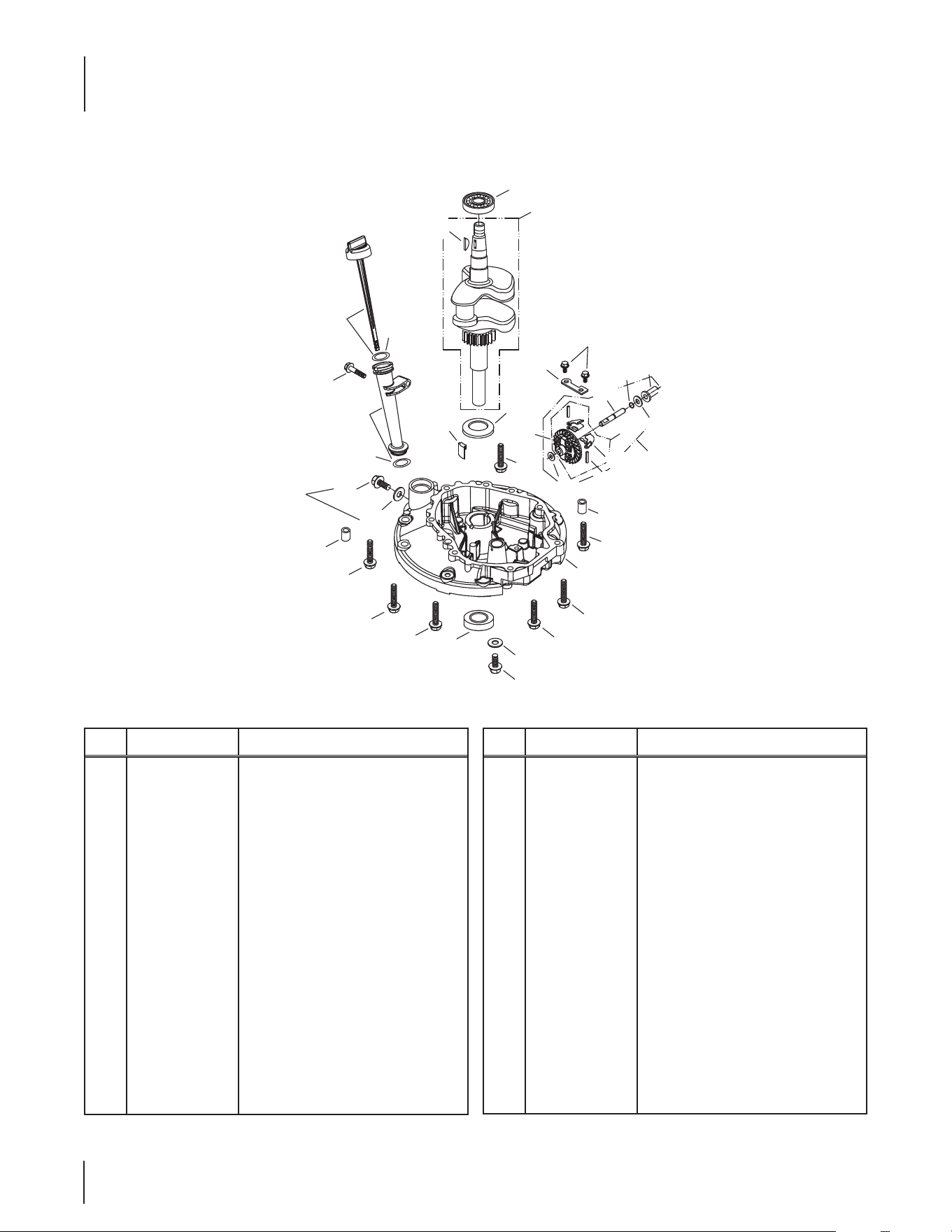

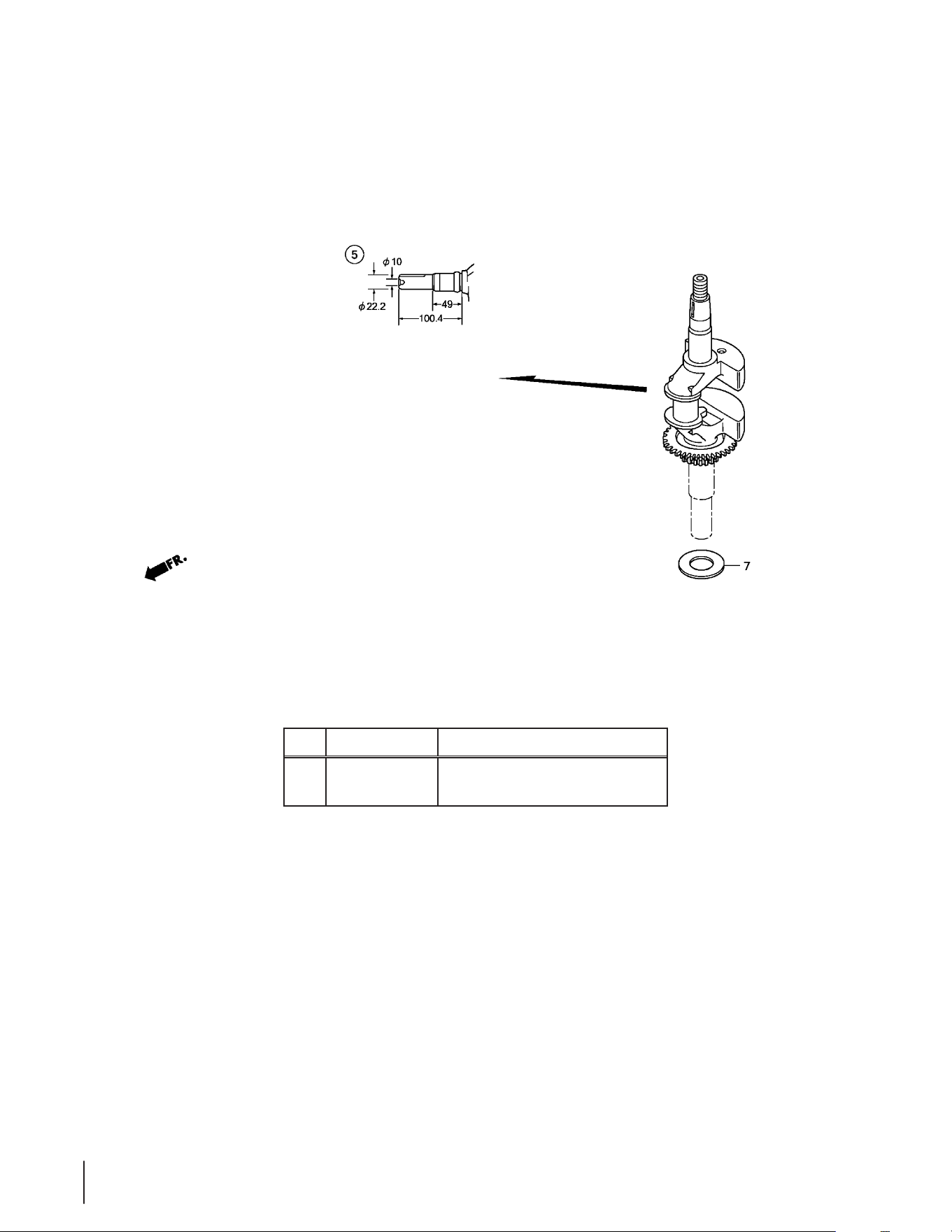

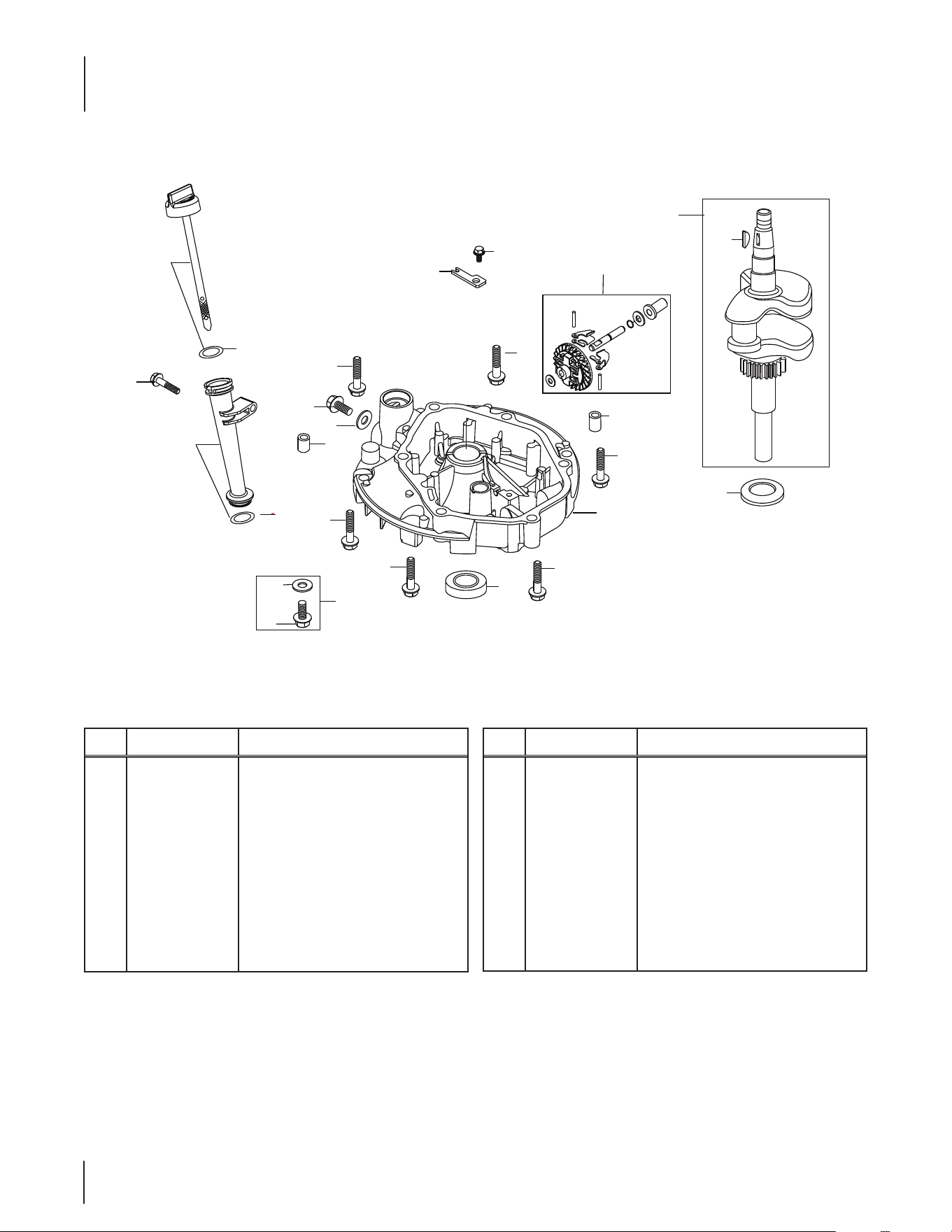

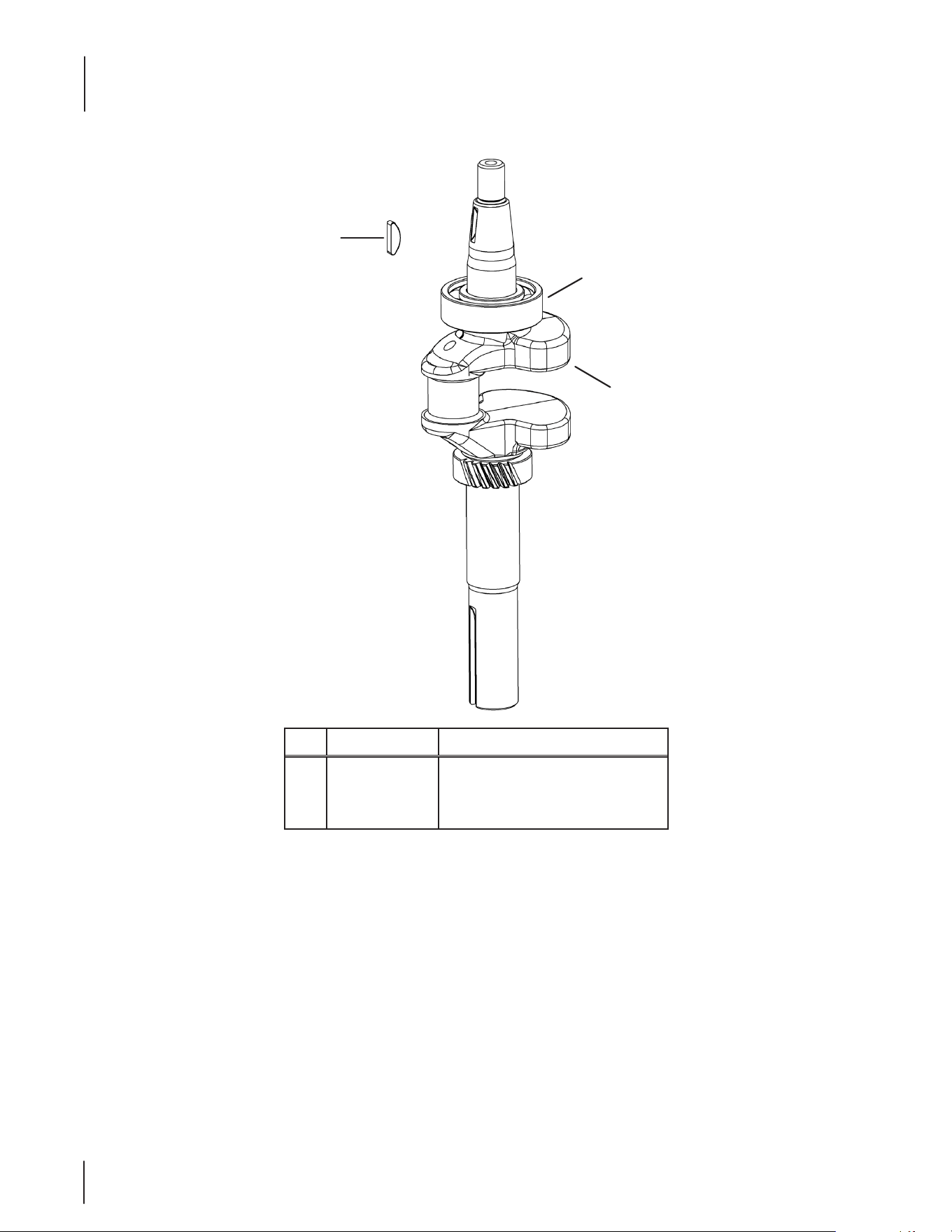

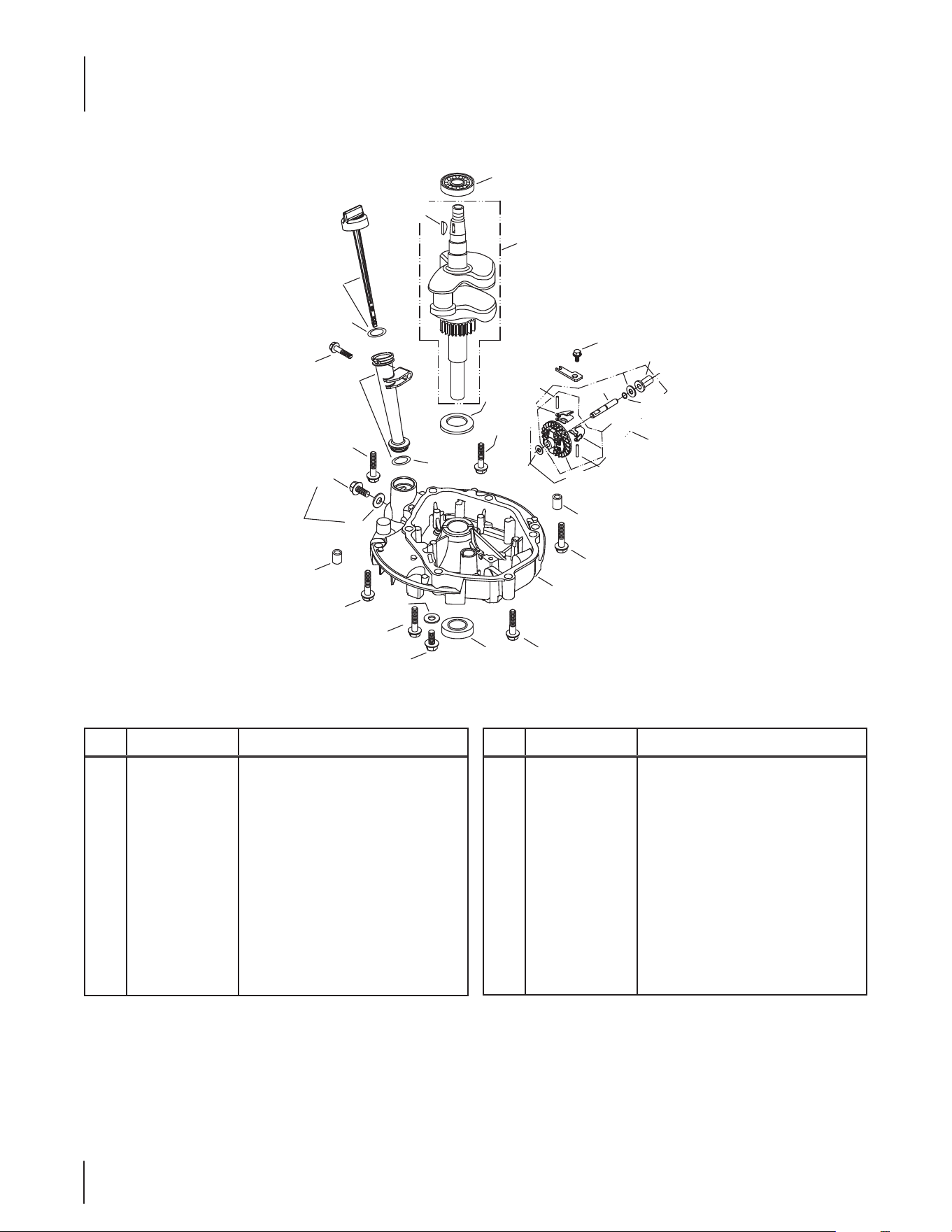

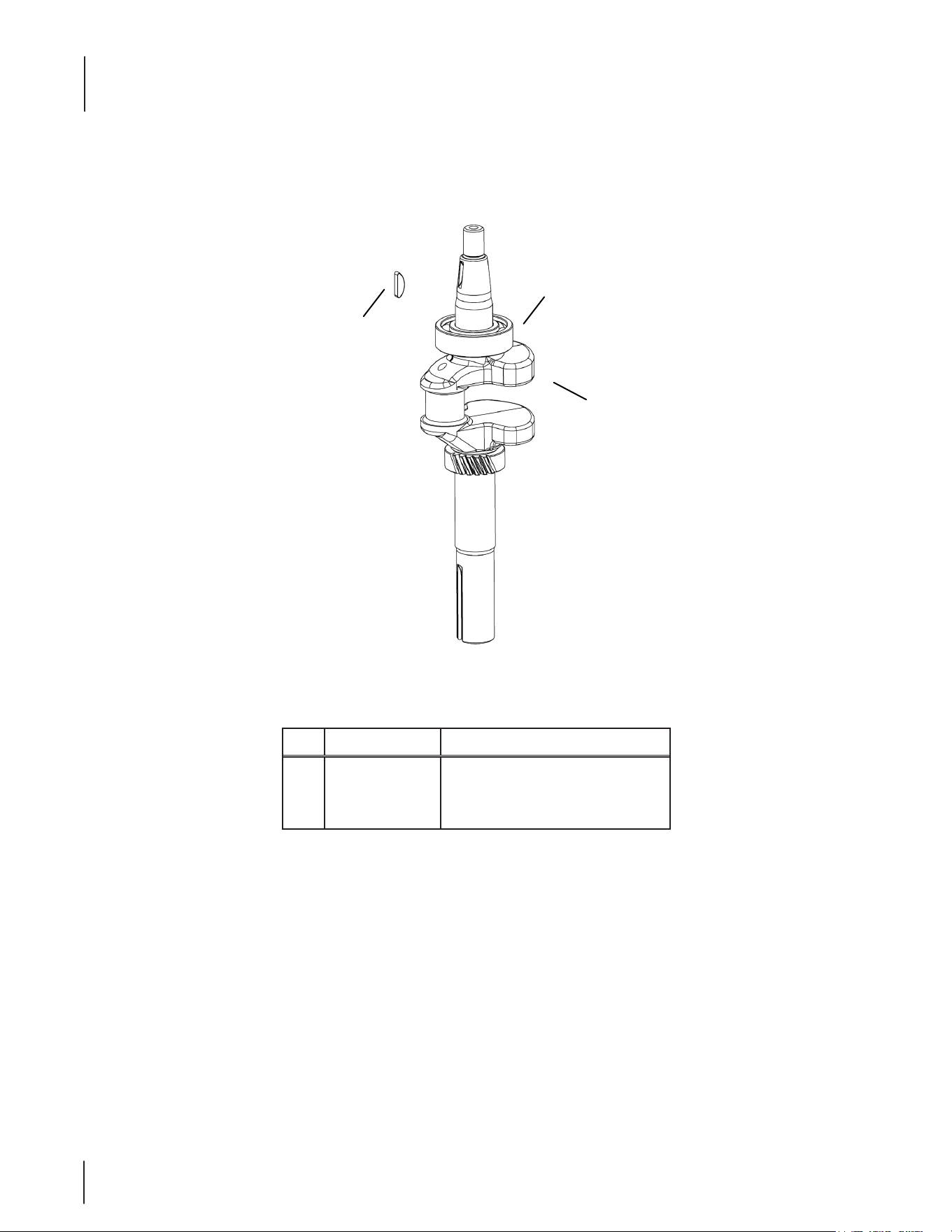

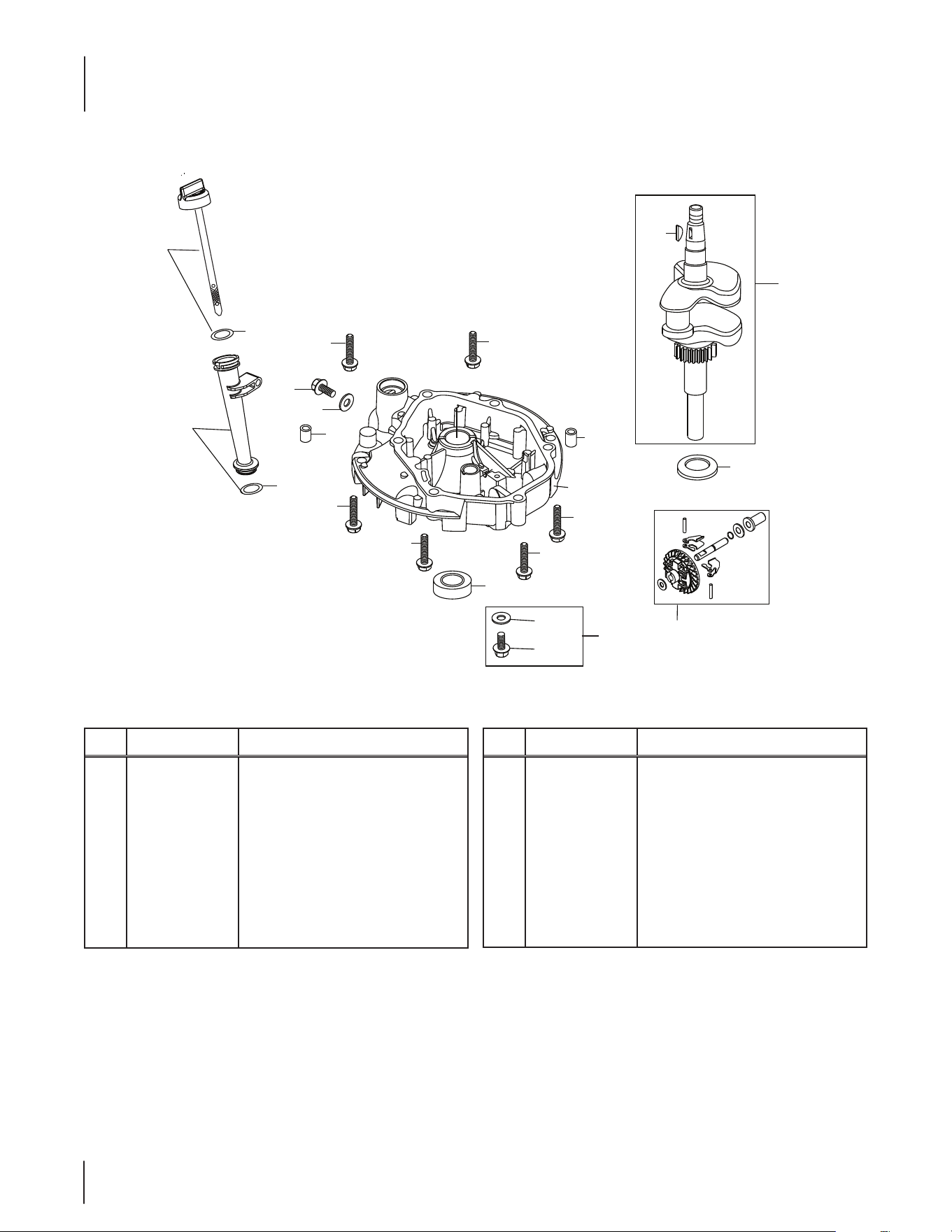

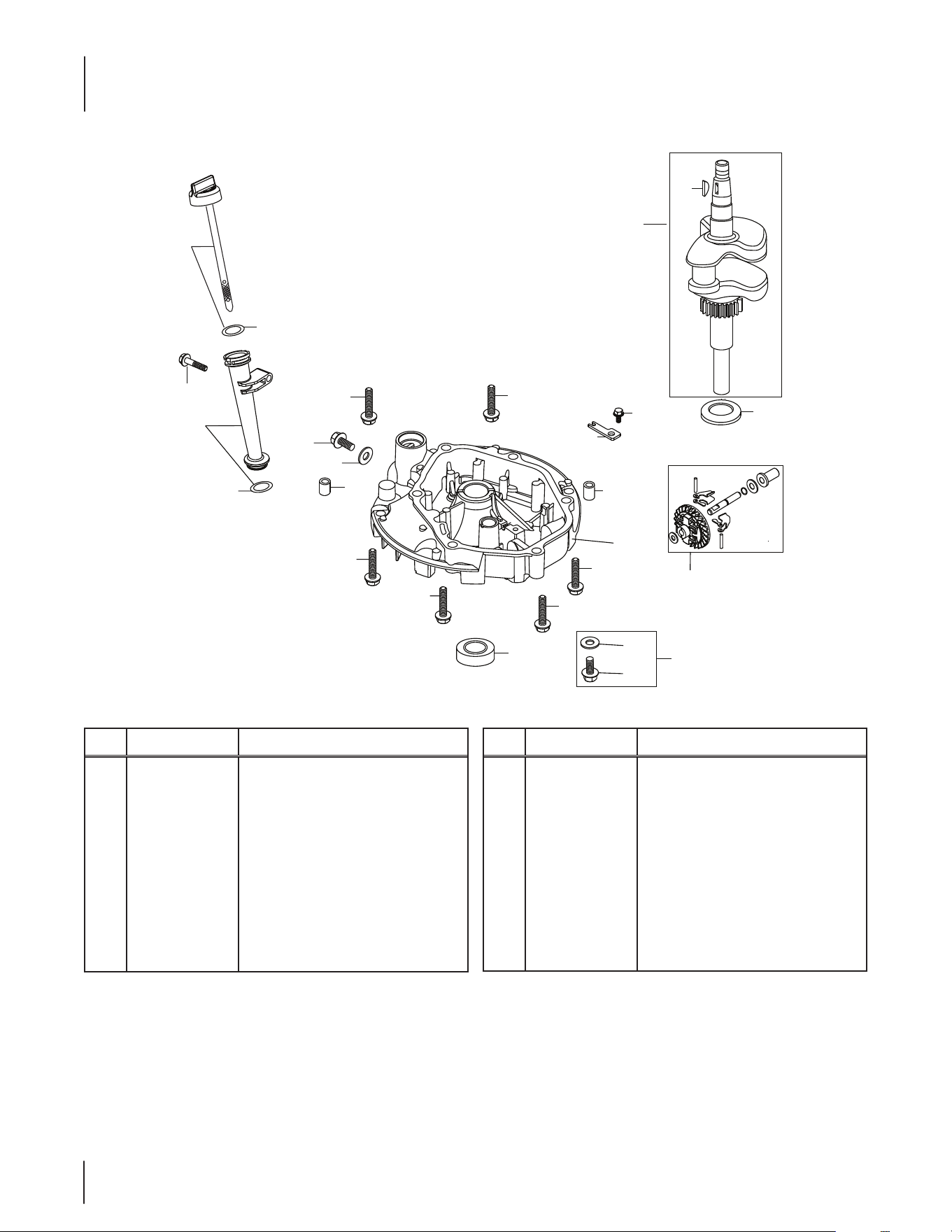

5P65M0B Crankshaft
Ref. Part Number Description
38 710-04980 Bolt M6×35
42 710-04916 Bolt M6×14
84 951-11369 Main Bearing
85 951-11591 Crankshaft Assembly
86 951-10307 Woodru Key
87 951-11733 Oil Return Seal
88 736-04491 Crankshaft Thrust Washer
90 951-11795 Dipstick Assembly
91 951-11547 Dipstick and Oil Fill Tube O-Ring
92 951-11765 Oil Filler Tube Assembly
93 951-11609 Governor Gear Mounting Plate
94 951-11549 Governor Gear/Shaft Assembly
95 N/A Governor Slide Cap
96 N/A Governor Slide Cap Washer
97 N/A Governor Ring
90
91
38
92
91
84
86
85
109
105
105
105
105
105
105
106
108
107
1
1
0
0
9
9
110
104
108
103
102
42
105
87
88
93
99
98
97
96
95
94
101
100
Ref. Part Number Description
98 N/A Governor Gear Shaft
99 N/A Governor Gear Assembly
100 N/A Governor Fly Weight
101 N/A Governor Fly Weight Pin
102 N/A Governor Gear
103 N/A Governor Gear Washer
104 715- 04092 Crankcase Cover Dowel 7×14
105 710-04920 Coil/Sump Bolt M6x28
106 951-11793 Crankcase Cover
107 715-04096 Dowel Pin 9×14
108 736-04440 Oil Drain Plug Washer
109 710-04906 Oil Drain Plug
110 951-11545 Lower Crankshaft Seal
190 951-10370 Oil Drain Plug and Washer Ass'y
35

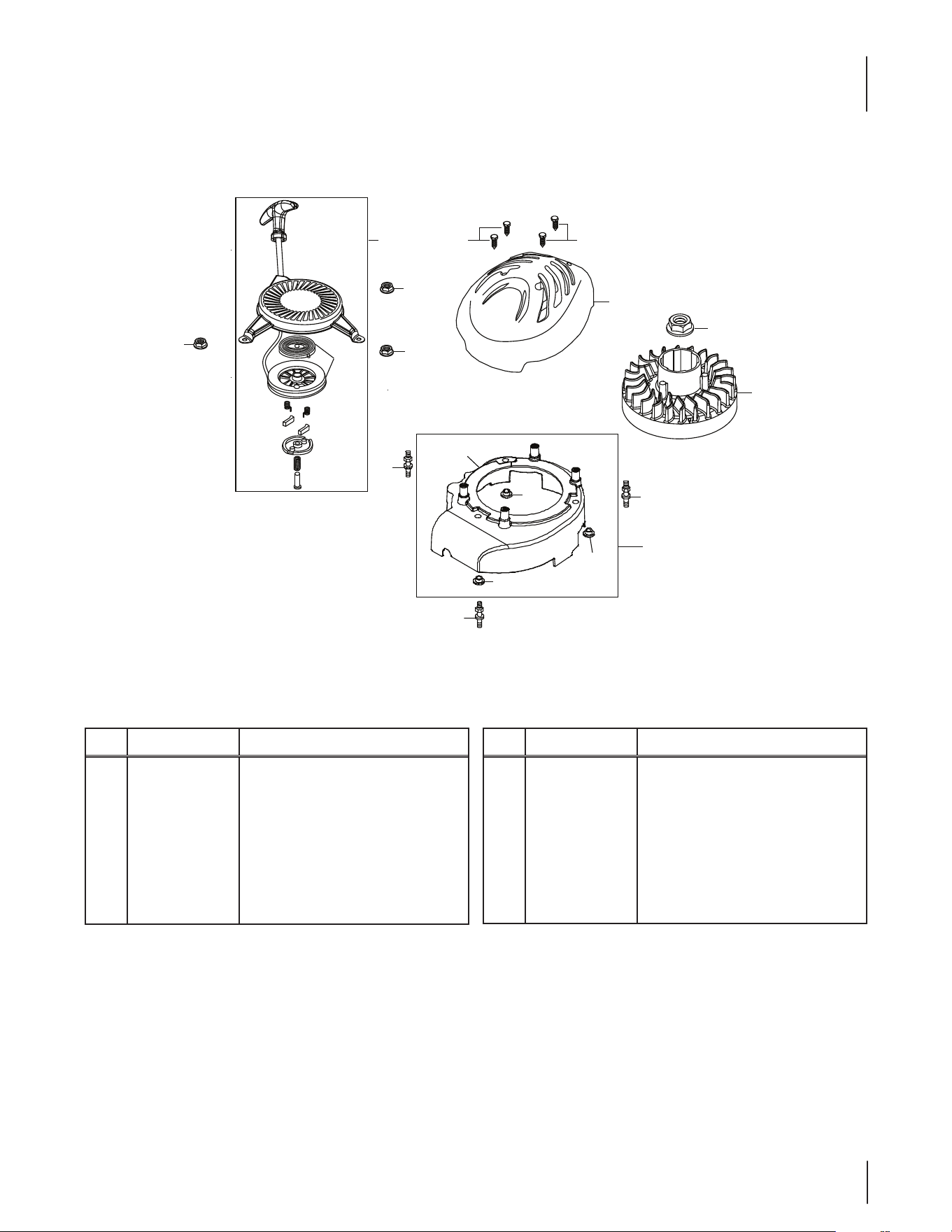

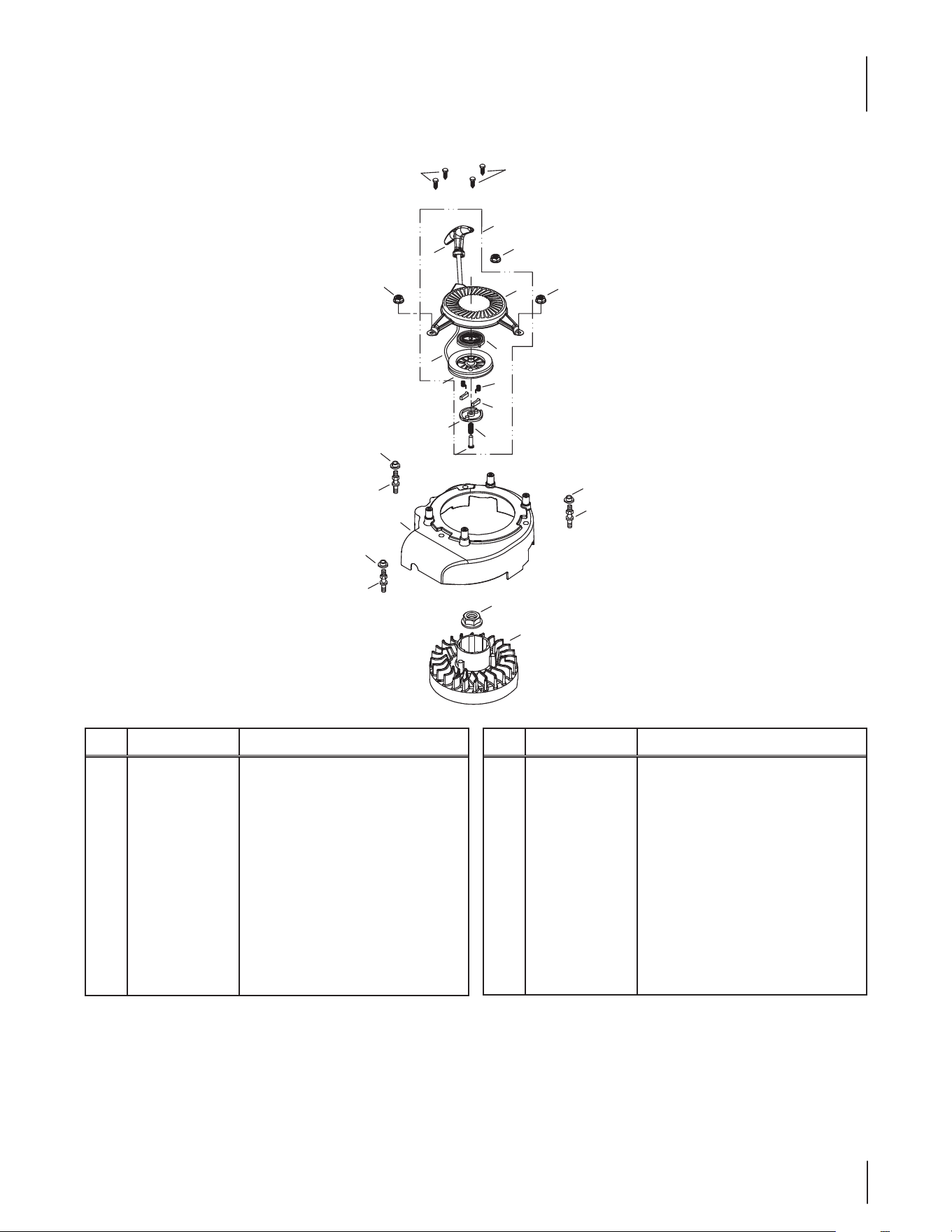

5P65M0B Flywheel & Shroud
Ref.
Part Number Description
1 710-04744 Self-Tap Bolt, Hilo #12-16 x 1.00"
3 951-11720 Recoil Starter Assembly
4 N/A Starter Handle
5 N/A Starter Housing
6 712- 04212 Nut M6 X 10 Mm
7 951-11721 Recoil Spring & Pulley Ass'y
8 951-11721 Recoil Spring & Pulley Ass'y
9 N/A Starter Rope
10 N/A Starter Pawl Return Spring
11 N/A Starter Pawl
Ref.
Part Number Description
12 N/A Pressure Plate
13 N/A Pressure Plate Spring
14 N/A Pressure Plate Bolt
15 751-11722 Starter/Shroud Stud Black/M6 x 75
16 951-11723 Starter/Shroud Stud Front/M6 x 5.3
17 951-11724 Starter/Shroud Stud White/M6 x 73
18 951-10875 Inner Shroud
19 750-05320 Engine Shroud Spacer
20 712-04221 Flywheel Nut M14
21 951-11043 Flywheel
20
21
1
1
5
7
8
9
15
17
18
19
19
19
14
16
10
11
12
13
6
4
6
6
3
36

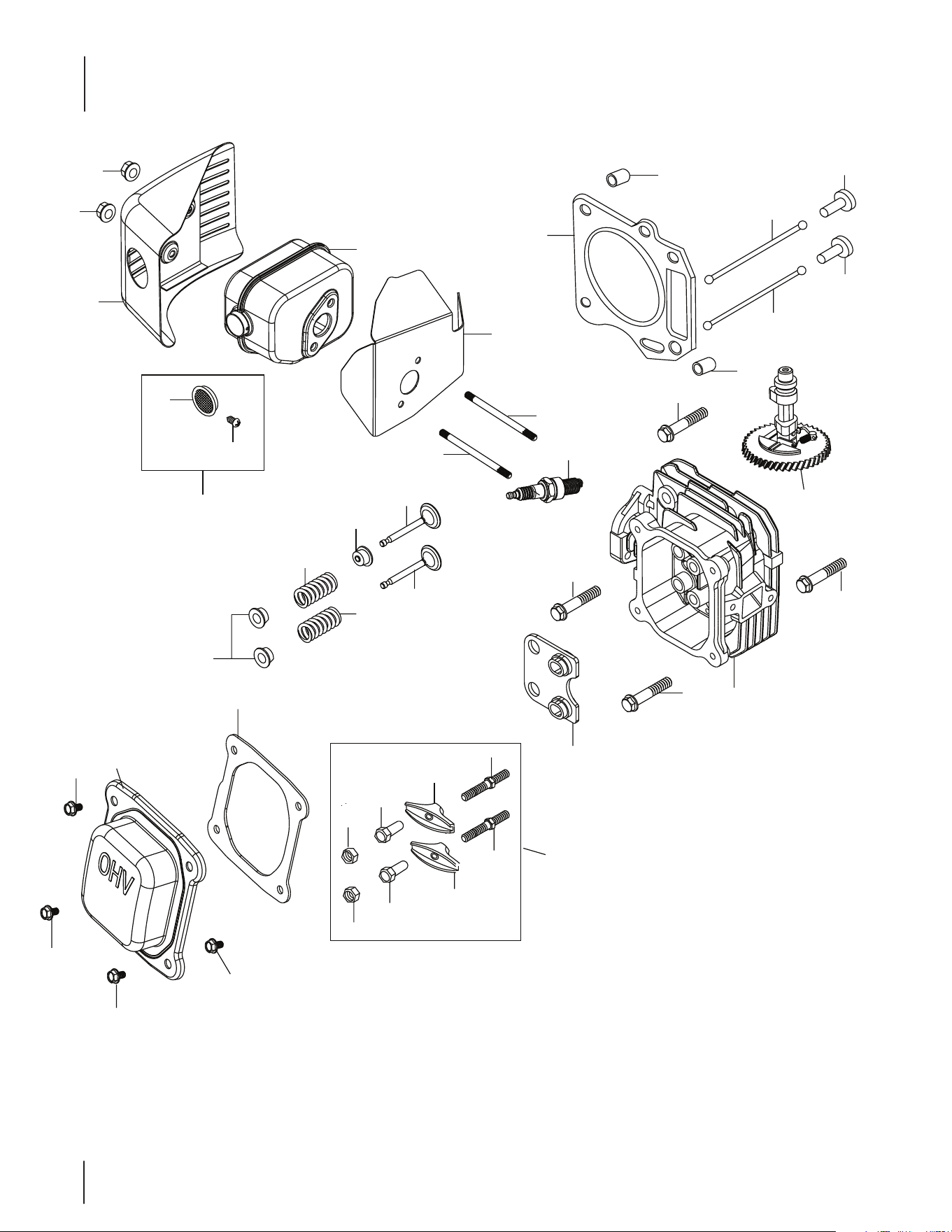

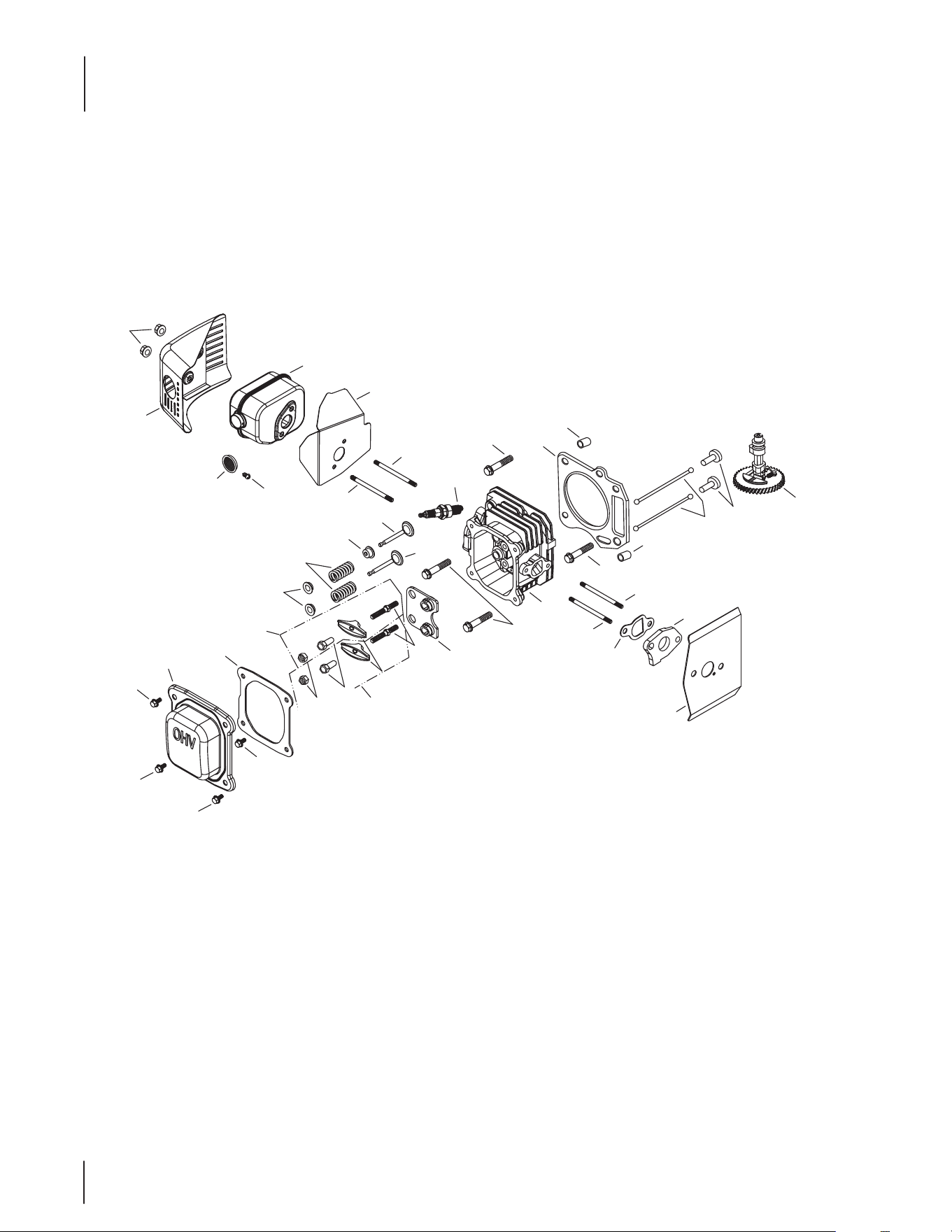

5P65M0B Cylinder Head
Ref.
Part Number Description
6 712- 04212 Nut M6 X 10 Mm
42 710-04916 Bolt M6×14
146 951-11737 Carburetor Gasket
147 951-11738 Carburetor Insulator
148 951-11528 Carburetor Insulator Gasket
149 710-05093 Carb Stud M6x92
150 710-04982 Head Bolt M8×54
151 N/A Cylinder Head
152 951-10292 Spark Plug/F6rtc
153 951-10313 Valve Kit (Incl Ref No. 153,155)
154 951-11818 Valve Seal
155 951-10313 Valve Kit (Incl Ref No. 153,155)
156 N/A Valve Spring
157 N/A Valve Spring Retainer
158 951-116 87 Push Rod Guide
159 951-116 06 Rocker Arm Assembly
160 710-04902 Rocker Arm Stud
161 N/A Rocker Arm
162 751-11123 Valve Adjustment Nut
163 751-11124 Pivot Locking Nut
164 951-11551 Valve Cover Gasket
165 951-115 48 Valve Cover
166 710-05094 Muer Stud M6x95
166 951-10342 Muer Stud Assembly
167 951-11739 Muer Gasket
146
6
169
174
175
176
168
167
166
171
170
147
148
149
151
150
152
153
155
158
173
172
173
149
166
150
150
154
156
160
161
162
157
163
42
165
164
42
42
42
159
159
37
5P65M0B Cylinder Head
Ref.
Part Number Description
6 712- 04212 Nut M6 X 10 Mm
42 710-04916 Bolt M6×14
146 951-11737 Carburetor Gasket
147 951-11738 Carburetor Insulator
148 951-11528 Carburetor Insulator Gasket
149 710-05093 Carb Stud M6x92
150 710-04982 Head Bolt M8×54
151 N/A Cylinder Head
152 951-10292 Spark Plug/F6rtc
153 951-10313 Valve Kit (Incl Ref No. 153,155)
154 951-11818 Valve Seal
155 951-10313 Valve Kit (Incl Ref No. 153,155)
156 N/A Valve Spring
157 N/A Valve Spring Retainer
158 951-116 87 Push Rod Guide
159 951-116 06 Rocker Arm Assembly
160 710-04902 Rocker Arm Stud
161 N/A Rocker Arm
162 751-11123 Valve Adjustment Nut
163 751-11124 Pivot Locking Nut
164 951-11551 Valve Cover Gasket
165 951-115 48 Valve Cover
166 710-05094 Muer Stud M6x95
166 951-10342 Muer Stud Assembly
167 951-11739 Muer Gasket
Ref.
Part Number Description
168 951-10295 Muer Assembly
169 951-11791 Muer Shield
170 951-10351 Spark Arrestor
171 710-04983 Spark Arrestor Screw
172 951-11555 Cylinder Head Gasket
173 715- 04090 Cylinder Head Dowel 10×16
174 951-10314 Push Rod Kit
175 951-11607 Tappet
176 951-11741 Camshaft Assembly
951-11787 Gasket Kit - Complete
(Incl Ref No. 44,45,68,83,91,108,
110,146-148,164,-167,172)
951-11789 Short Block
(Incl Ref No. 42-48,67-69,82-88,
91,93,94,104-110,118,147,148,
164,167,172,173-175-177,182-185,188)
951-1178 8 Gasket Kit - External
(Incl Ref No. 44,91,108,146-148,
164,167,174)
951-1174 6 Cylinder Head Assembly
(Incl Ref No. 147,148,151,153-158,
160-164,167,172)
951-10846A Cylinder Head Kit
(Incl Ref No. 150,154,164,172)
952Z5P65M0B Engine Complete
38

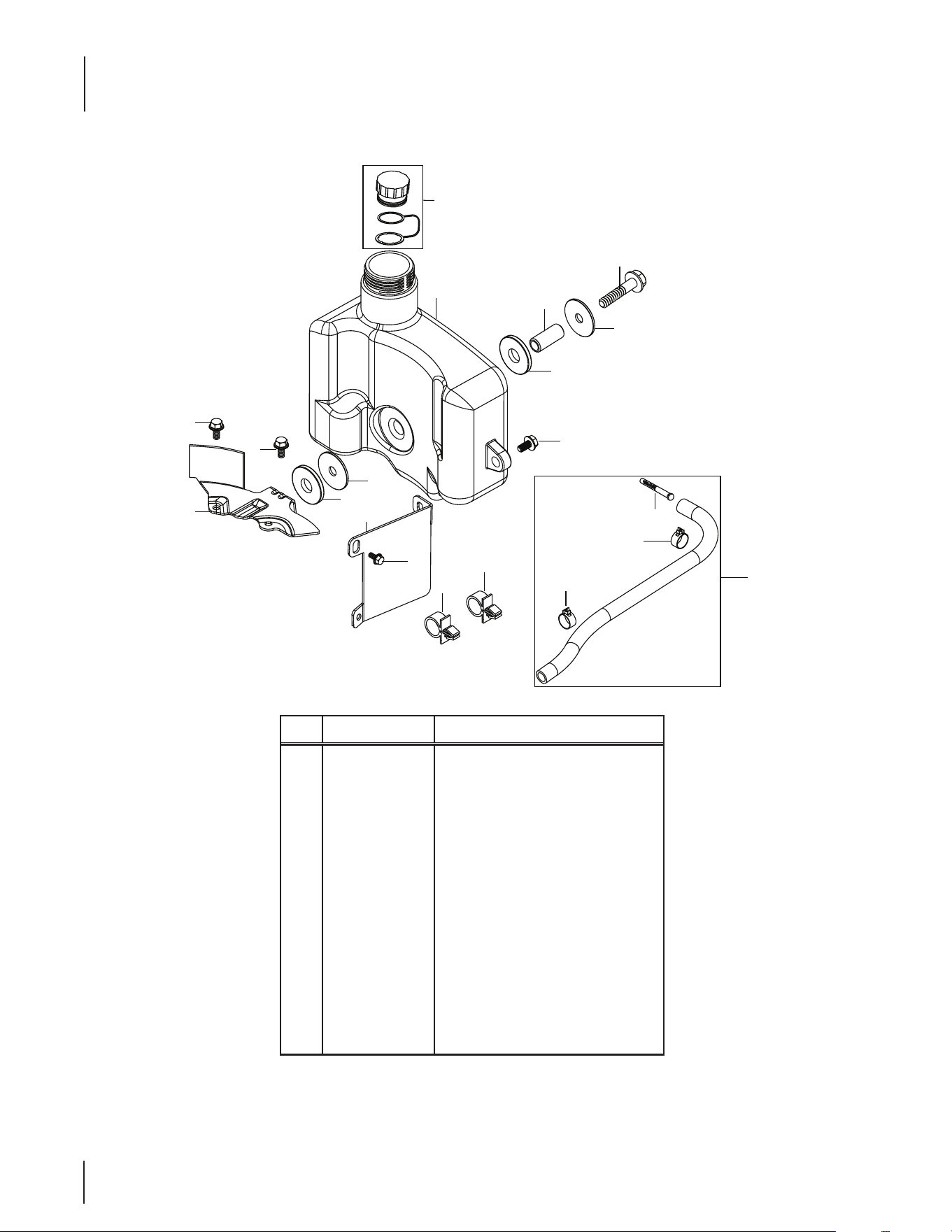

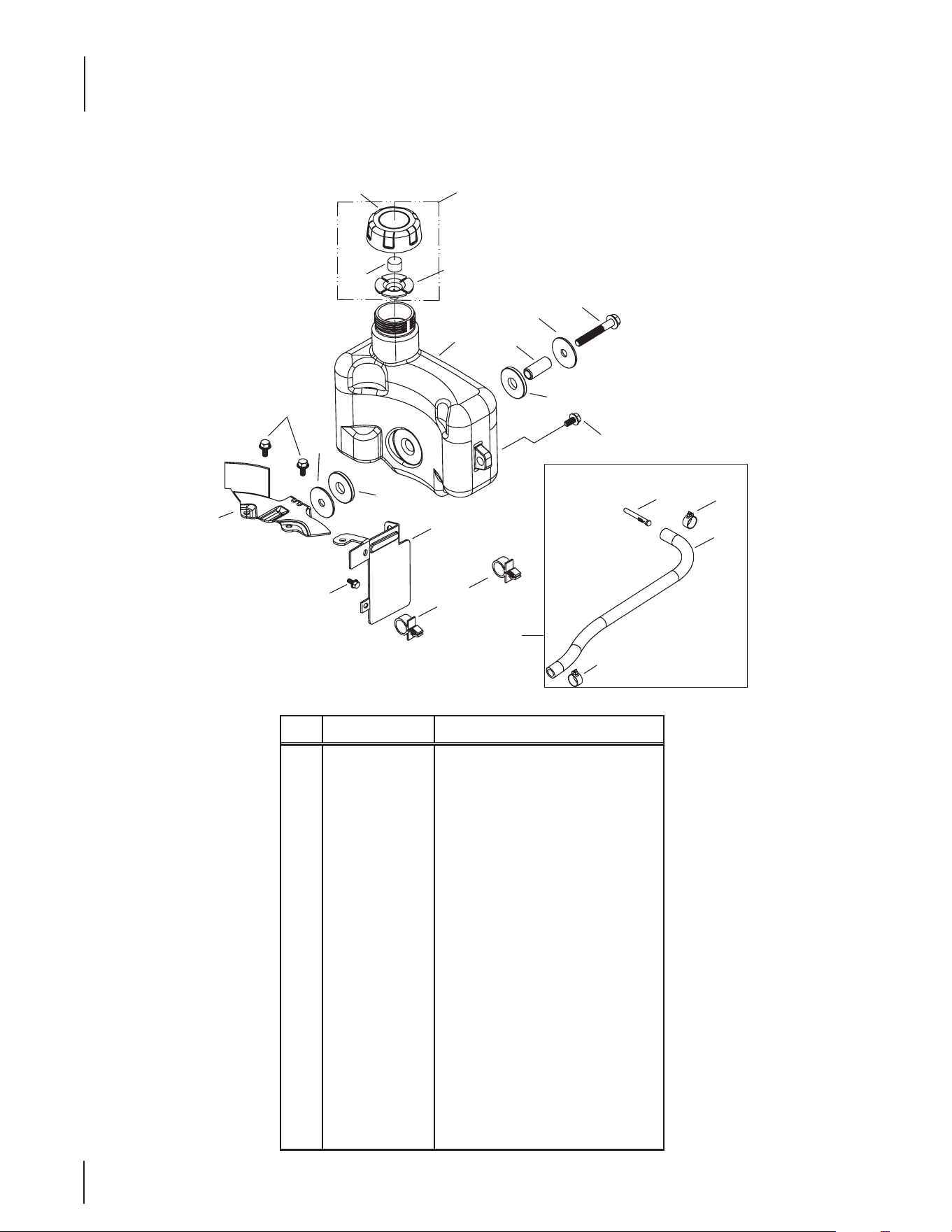

5P65M0B Fuel Tank
Ref. Part Number Description
42 710-04916 Bolt M6×14
49 951-11542 Fuel Tank Bottom Bracket
50 736-04456 Fuel Tank Washer
51 951-10335 Rubber Bushing
52 951-11748 Tank/Label Bracket
53 750-05322 Fuel Tank Bushing
54 710-04922 Tank Bolt M8×50
55 951-10300 Fuel Cap Assembly (Incl. 56-58)
56 N/A Fuel Cap
57 N/A Foam Insert
58 N/A Vent Gasket
59 951-10337 Fuel Tank Assembly
60 951-10358 Fuel Filter
61 951-11731 Fuel Hose Clamp
62 N/A Fuel Hose
63 723-04071 Plastic Support Clamp
189 951-10363 Fuel Line Kit (Incl. 60-62)
58
8
59
9
51
52
60
61
62
63
61
57
56
55
42
53
50
54
42
51
1
49
50
42
39
Page Left Blank Intentionally
40
5P70M0B Air Cleaner
Ref. Part Number Description
6 712-04212 Nut M6 X 10 Mm
110 710-04969 A/F Base Bolt M6×30
112 951-10297 Air Filter Cover Thumb Screw
113 951-10412A Air Cleaner Housing Ass'y Comp
114 951-10298 Air Filter, Sponge Pre-Filter
6
112
113
114
110
41
5P70M0B Carburetor
Ref.
Part Number Description
118 951-112 57 Carburetor Gasket Plate
119 951-10765 Carburetor Assembly
120 N/A Choke & Throttle Shaft Dust Seals
131 N/A Idle Speed Adjusting Screw
134 N/A Main Nozzle / Emulsion Tube
135 N/A Main Jet
136 951-11589 Fuel Bowl O-Ring
137 N/A Needle Valve (Float)
138 N/A Needle Valve Spring
Ref.
Part Number Description
139 N/A Float
140 N/A Float Pin
142 951-11348 Fuel Bowl Gasket
143 710-04945 Fuel Bowl Mounting Bolt
144 710-04903 Fuel Drain Plug
145 951-11349 Fuel Drain Plug Gasket
951-11773 Carburetor Repair Kit - Major
(Incl Ref No. 120,131,134-142,145)
119
120
134
135
136
137
138
139
140
142
143
144
145
131
118
42
5P70M0B Crankcase
Ref.
Part Number Description
22 951-10321A Brake Assembly
41 710-04916 Bolt M6×14
42 951-11728 Breather Cover Plate
43 951-11729 Breather Gasket
44 732-04718 Breather Spring
45 951-11545 Lower Crankshaft Seal
46 951-11735 Breather Valve
47 951-11762 Breather Screen
50 951-11618 Plastic Clamp 6.3×8
51 951-11619 Ignition Coil Bracket
52 951-10366 Ignition Coil Assembly
53 710-04979 Bolt M6×18
68 951-11238 Governor Arm Bracket
69 712- 04212 Governor Arm Nut M6
70 710-04908 Governor Arm Bolt
71 951-112 59 Throttle Linkage
72 951-112 58 Throttle Linkage Spring
73 951-11620 Component Bracket
74 710- 04915 Bolt M6×12
75 951-10293 Governor Spring
76 714-04074 Governor Cotter Pin
76 714-04074 Governor Cotter Pin
71
177
182
183
184
182
37
38
42
43
45
46
47
188
44
70
69
68
22
38
78
76
83
84
185
74
74
73
79
50
75
72
82
41
41
77
51
52
53
43
5P70M0B Crankcase
Ref.
Part Number Description
22 951-10321A Brake Assembly
41 710-04916 Bolt M6×14
42 951-11728 Breather Cover Plate
43 951-11729 Breather Gasket
44 732-04718 Breather Spring
45 951-11545 Lower Crankshaft Seal
46 951-11735 Breather Valve
47 951-11762 Breather Screen
50 951-11618 Plastic Clamp 6.3×8
51 951-11619 Ignition Coil Bracket
52 951-10366 Ignition Coil Assembly
53 710-04979 Bolt M6×18
68 951-11238 Governor Arm Bracket
69 712- 04212 Governor Arm Nut M6
70 710-04908 Governor Arm Bolt
71 951-112 59 Throttle Linkage
72 951-112 58 Throttle Linkage Spring
73 951-11620 Component Bracket
74 710- 04915 Bolt M6×12
75 951-10293 Governor Spring
76 714-04074 Governor Cotter Pin
76 714-04074 Governor Cotter Pin
Ref.
Part Number Description
77 951-11574 Governor Seal
78 951-116 08 Governor Arm Shaft
79 951-11260 Breather Hose Assembly
82 951-11622 Flexible Clamp
83 N/A Crankcase Complete
84 951-11763 Crankcase Cover Gasket
177 951-11253 Piston Ring Set
182 951-11632 Piston Pin Snap Ring
183 951-11633 Piston Pin
184 951-11634 Piston
185 951-11768 Connecting Rod Assembly
188 710-05162 Connecting Rod Bolt
951-10414B Short Block Assembly
(Incl Ref No. 41-47,57,76-78,83-86,
88,91,93-97,107-109,118,147,148,164,
167,172,173,175-177,182-185,188)
951-11770 Gasket Kit - Complete
(Incl Ref No. 43,45,77,84,91,94,
109,146,148,164,167,182)
951-11772 Gasket Kit - External
(Incl Ref 43,91,94,146,148,164,167)
952Z5P70M0B Engine Complete
44
5P70M0B Crankshaft
Ref. Part Number Description
38 710-04980 Bolt M6×35
41 710-04916 Bolt M6×14
57 710-04922 Tank/Sump Bolt M8x50
85 951-11369 Main Bearing
86 951-11624 Crankshaft Assembly
87 951-10307 Woodru Key
88 736-04491 Crankshaft Thrust Washer
90 951-1176 4 Dipstick Assembly
91 951-11547 Dipstick / Oil Fill Tube O-Ring
92 951-11765 Oil Filler Tube Assemlby
Ref. Part Number Description
93 710-04906 Oil Drain Plug
94 736-04440 Oil Drain Plug Washer
95 715-04089 Crankcase Cover Dowel 9×14
96 951-11625 Governor Gear Mounting Plate
97 951-11626 Governor Gear/Shaft Assembly
107 715-04092 Crankcase Cover Dowel 7×14
108 N/A Crankcase Cover - dual drain
109 951-11627 Lower Crankshaft Seal
190 951-10370 Oil Drain Plug and Washer Ass'y
41
85
87
86
91
90
38
91
1
92
88
107
9
9
3
94
109
108
96
97
57
57
57
57
57
57
93
94
95
102
101
100
99
98
10
0
6
105
104
103
103
104
45

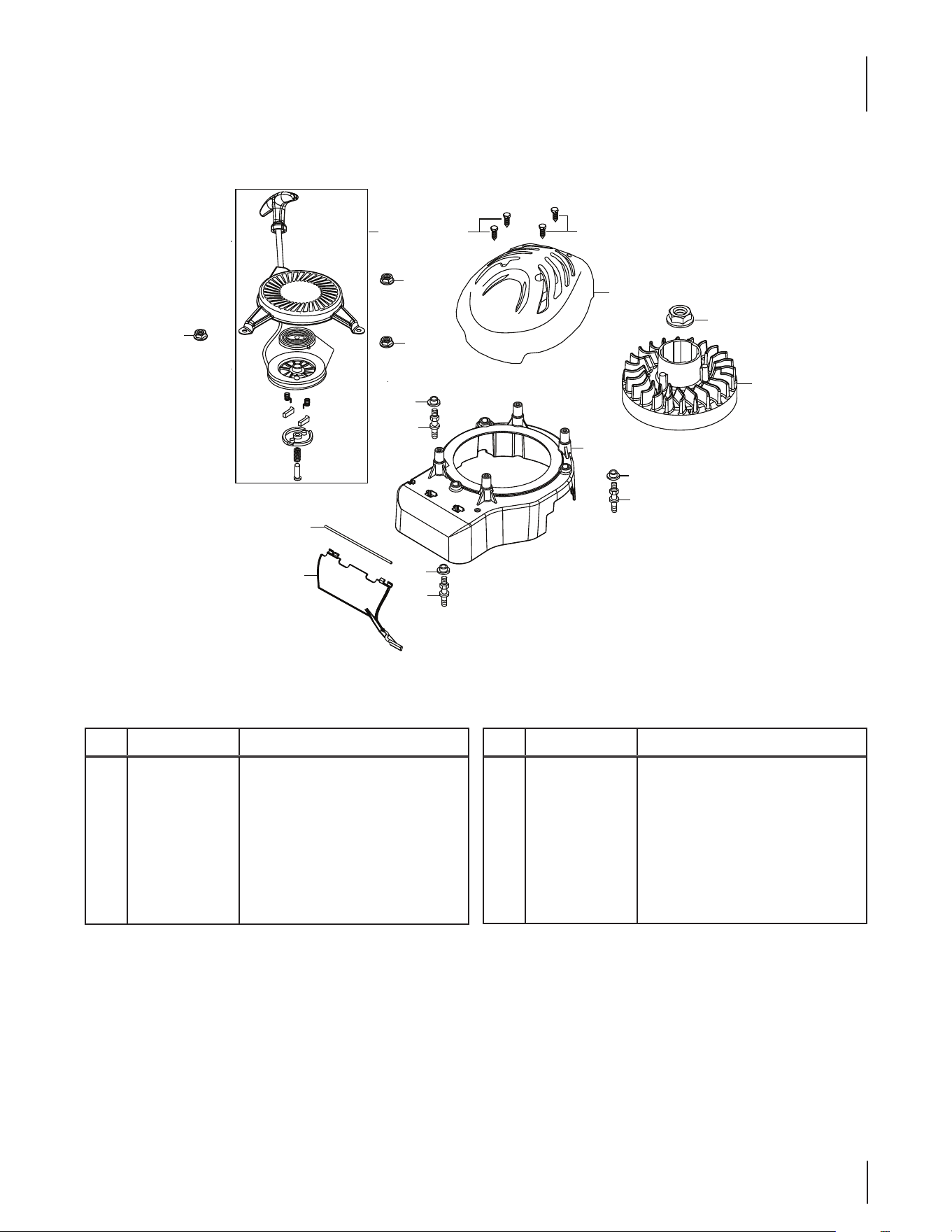

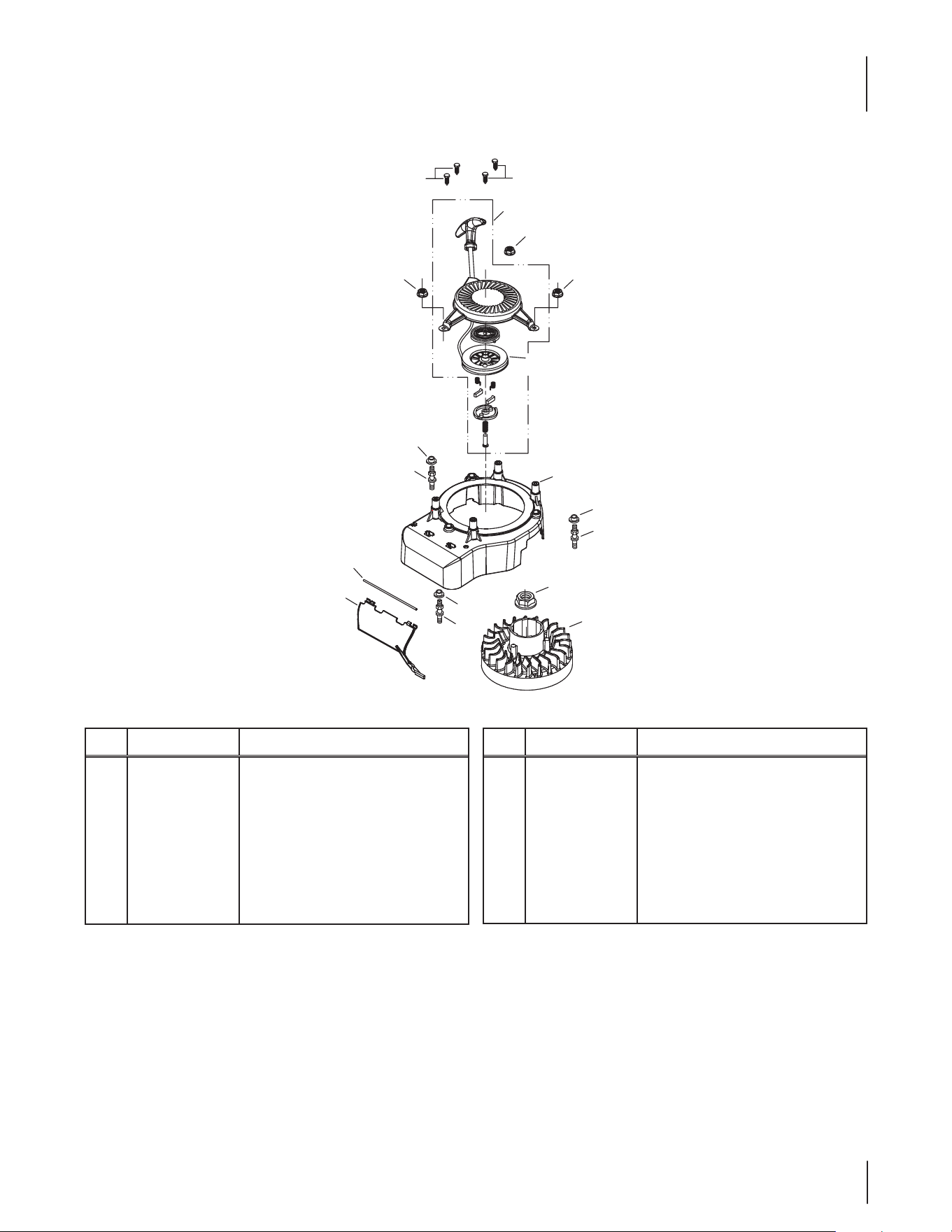

5P70M0B Flywheel & Shroud
Ref.
Part Number Description
1 710-04744 Self-Tapping Bolt, #12-16 x 1.0"
3 951-11720 Recoil Starter Assembly
6 712- 04212 Nut M6 X 10 Mm
8 951-11721 Recoil Spring & Pulley Assembly
15 710-04976 Starter/Shroud Stud M6x85-48
16 710-04977 Starter/Shroud Stud M6x87-51.5
17 710-04978 Starter/Shroud Stud M6x79
Ref.
Part Number Description
18 951-10764 Inner Shroud
19 750-05320 Engine Shroud Spacer
20 951-11610 Air Vane Shaft
21 951-11611 Air Vane
39 712-04221 Flywheel Nut M14
40 951-11046 Flywheel
39
40
16
19
20
21
15
17
18
19
19
6
6
3
6
8
1
1
46

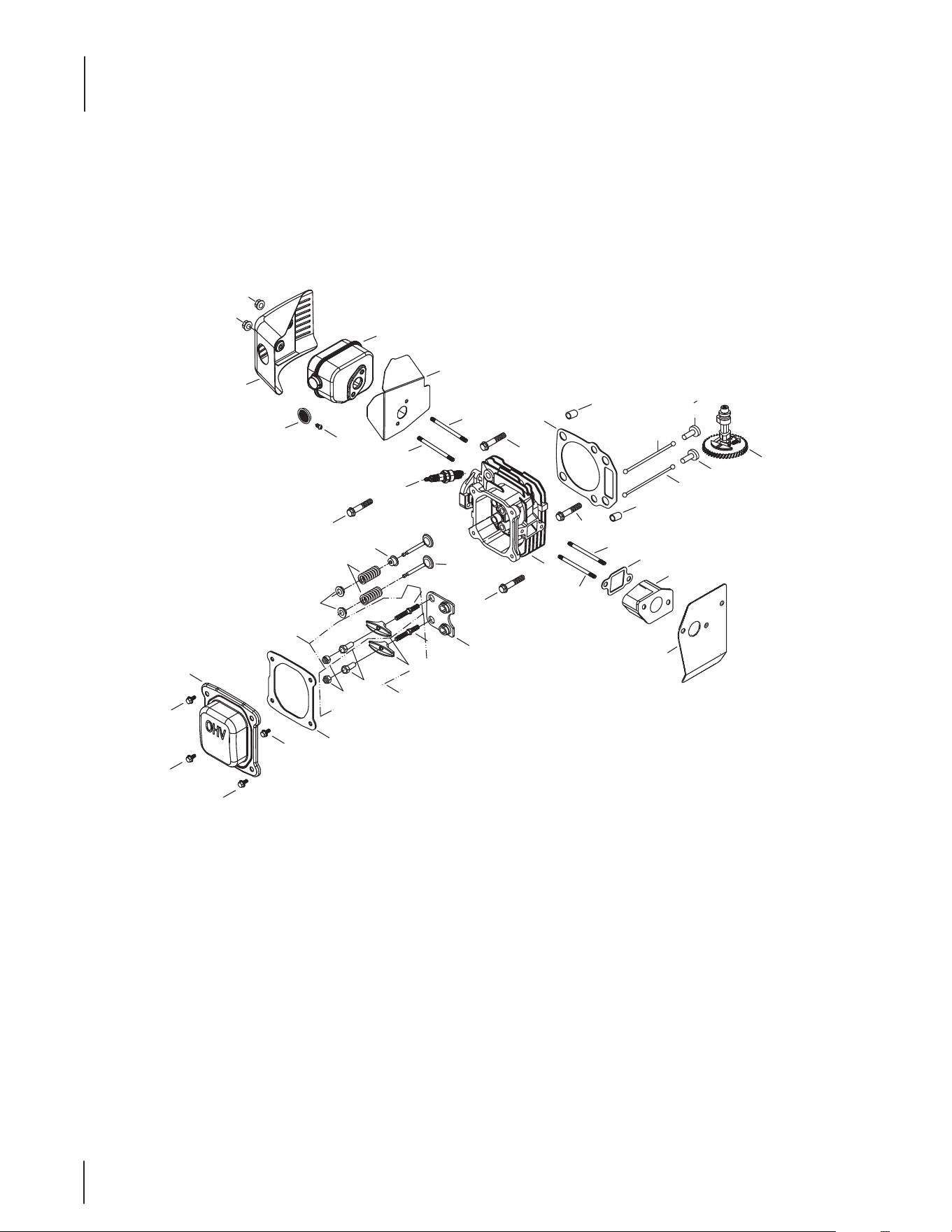

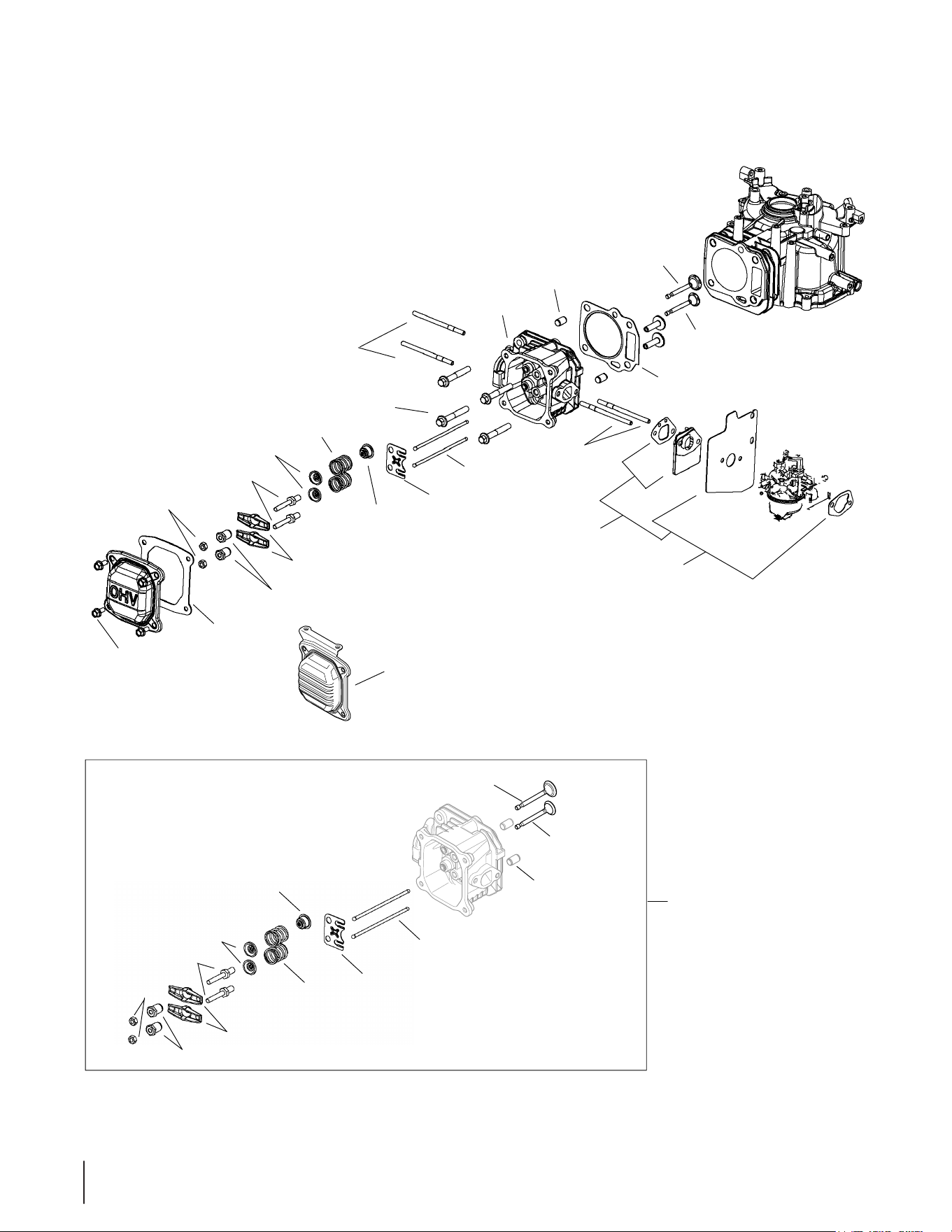

5P70M0B Cylinder Head
Ref.
Part Number Description
6 712- 04212 Nut M6 X 10 Mm
41 710-04916 Bolt M6×14
146 951-11766 Carburetor Gasket
147 951-112 55 Carburetor Insulator
148 951-11254 Carburetor Insulator Gasket
149 710-04981 Carb Stud M6x113
150 N/A Cylinder Head
151 710-04982 Head Bolt M8×54
152 951-10292 Spark Plug/F6rtc
153 951-10345 Valve Kit
154 N/A Valve Seal
155 951-10345 Valve Kit
156 N/A Valve Spring
157 N/A Valve Spring Retainers
158 951-11629 Push Rod Guide
159 951-11606 Rocker Arm Assembly
160 710-04902 Rocker Arm Stud
161 N/A Rocker Arm
162 751-11123 Fulcrum Nut
163 751-11124 Jam Nut
164 951-11551 Valve Cover Gasket
165 951-11548 Valve Cover
166 710-05094 Muer Stud M6x95
166 951-10342 Muer Stud Assemlby
146
147
148
150
151
173
149
149
153
155
154
158
160
161
156
162
163
159
160
41
41
41
41
157
164
165
159
6
6
166
166
151
152
167
168
169
172
173
174
175
171
170
151
151
174
175
176
47
5P70M0B Cylinder Head
Ref.
Part Number Description
6 712- 04212 Nut M6 X 10 Mm
41 710-04916 Bolt M6×14
146 951-11766 Carburetor Gasket
147 951-112 55 Carburetor Insulator
148 951-11254 Carburetor Insulator Gasket
149 710-04981 Carb Stud M6x113
150 N/A Cylinder Head
151 710-04982 Head Bolt M8×54
152 951-10292 Spark Plug/F6rtc
153 951-10345 Valve Kit
154 N/A Valve Seal
155 951-10345 Valve Kit
156 N/A Valve Spring
157 N/A Valve Spring Retainers
158 951-11629 Push Rod Guide
159 951-11606 Rocker Arm Assembly
160 710-04902 Rocker Arm Stud
161 N/A Rocker Arm
162 751-11123 Fulcrum Nut
163 751-11124 Jam Nut
164 951-11551 Valve Cover Gasket
165 951-11548 Valve Cover
166 710-05094 Muer Stud M6x95
166 951-10342 Muer Stud Assemlby
Ref.
Part Number Description
167 951-11739 Muer Gasket
168 951-10403 Muer Assembly
169 951-10411 Muer Shield
170 951-10351 Spark Arrestor
171 710-04983 Spark Arrestor Screw
172 951-11630 Cylinder Head Gasket
173 715-04108 Cylinder Head Dowel 10×16
174 951-10344 Push Rod Kit
175 951-11607 Tappet
176 951-11767 Camshaft Assembly
951-10413A Cylinder Head Assembly
(Incl Ref No. 147,148,150,
153-158,160-164,167,172)
951-10414B Short Block Assembly
(Incl Ref No. 41-47,57,76-78,83-86,
88,91,93-97,107-109,118,147,148,164,
167,172,173,175-177,182-185,188)
951-11770 Gasket Kit - Complete
(Incl Ref No. 43,45,77,84,91,94,
109,146,148,164,167,182)
951-11772 Gasket Kit - External
(Incl Ref 43,91,94,146,148,164,167)
952Z5P70M0B Engine Complete
48

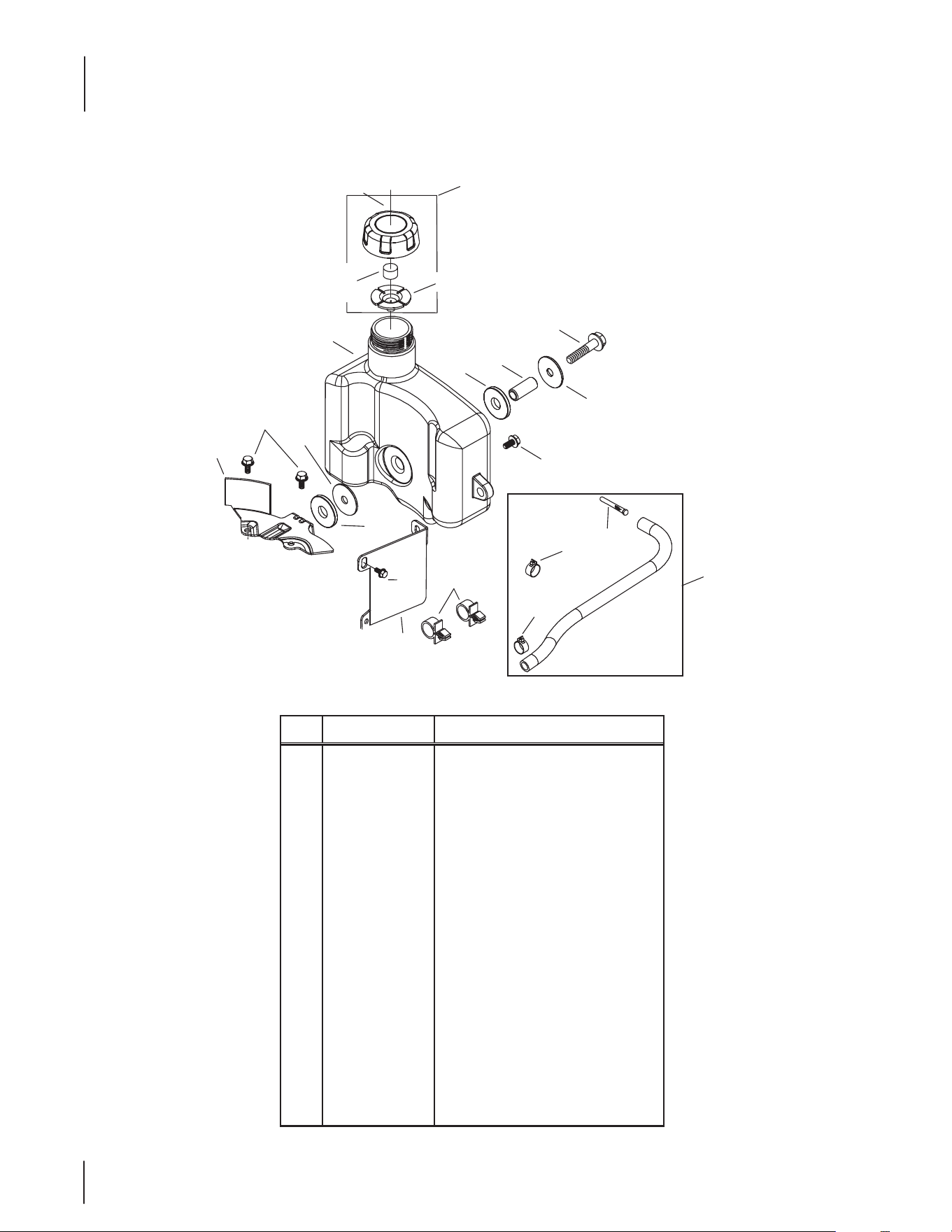

5P70M0B Fuel Tank
Ref. Part Number Description
41 710-04916 Bolt M6×14
48 951-11616 Fuel Tank Bottom Bracket
49 951-11617 Tank/Label Bracket
54 736-04456 Fuel Tank Washer
55 951-10335 Rubber Bushing
56 750-05322 Fuel Tank Bushing
57 710-04922 Tank/Sump Bolt M8x50
58 951-10300 Fuel Cap Assembly
59 N/A Fuel Cap
60 N/A Foam Insert
61 N/A Vent Gasket
62 951-10368 Fuel Tank Assembly
63 951-10358 Fuel Filter
64 951-11731 Fuel Hose Clamp
65 951-10364 Fuel Line Kit
66 723-04071 Plastic Support Clamp
41
59
61
62
55
56
54
57
64
60
58
41
48
41
55
64
63
65
49
54
66
49
Page Left Blank Intentionally

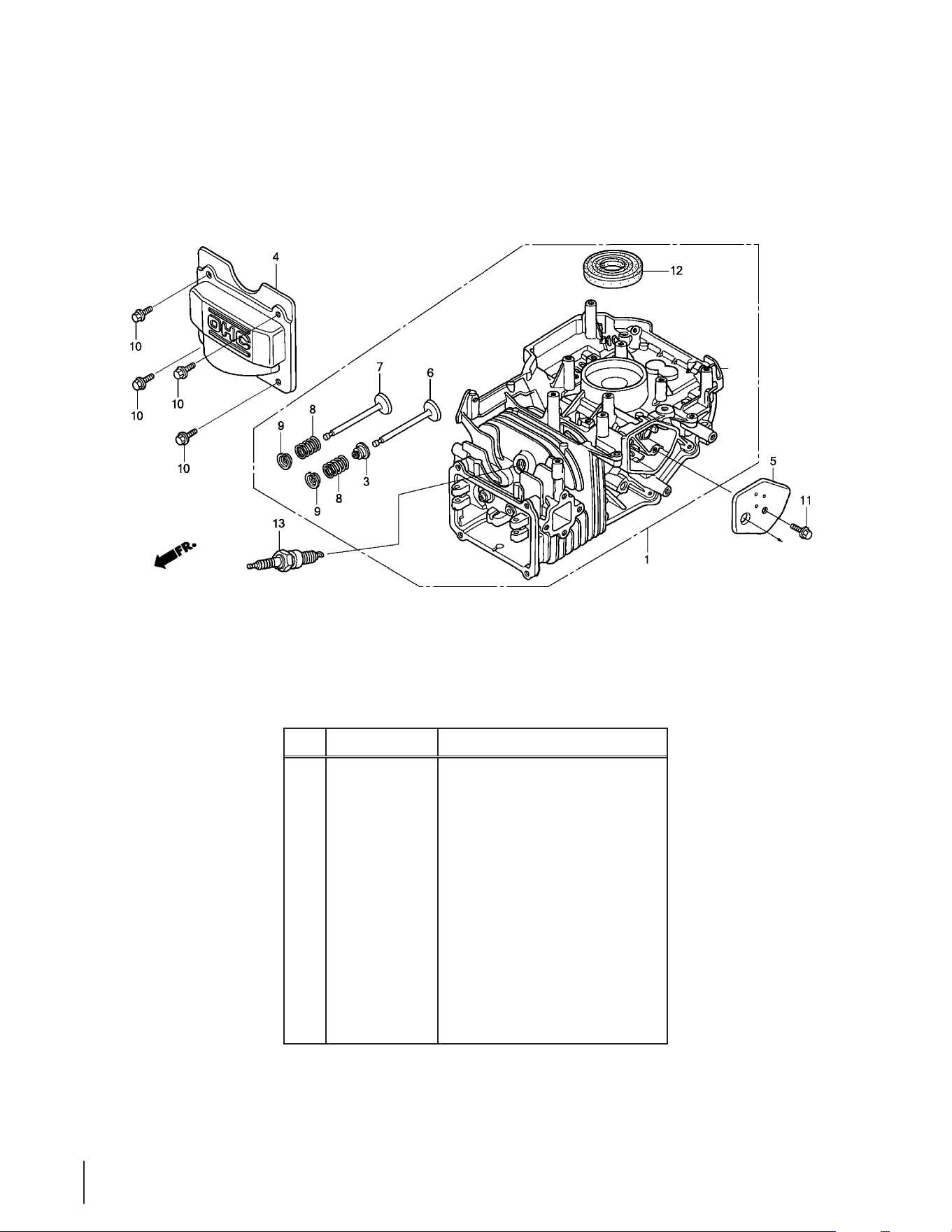

Engine Model (Honda GCV160LA)
50
Ref.
PartNumber Description
1 12000-Z0L-840 Cylinder Assembly
3 12209-ZM0-003 Valve Stem Seal
4 12310-Z0J-000 Head Cover
5 12355-ZL8-000 Cover, Breather
6 14711-Z0J-000 Intake Valve
7 14721-ZL8-000 Exhaust Valve
8 14751-ZL8-000 Valve Spring
9 14771-Z0J-000 Valve Spring Retainer
10 90013-883-000 Flange Bolt, 6 x 12
11 90014-952-000 Flange Bolt, 6 x 14
12 91201-ZL8- 003 Oil Seal, 25.4 x 62 x 6
13 98079-56846 SparkPlug,BPR6ES(NGK)

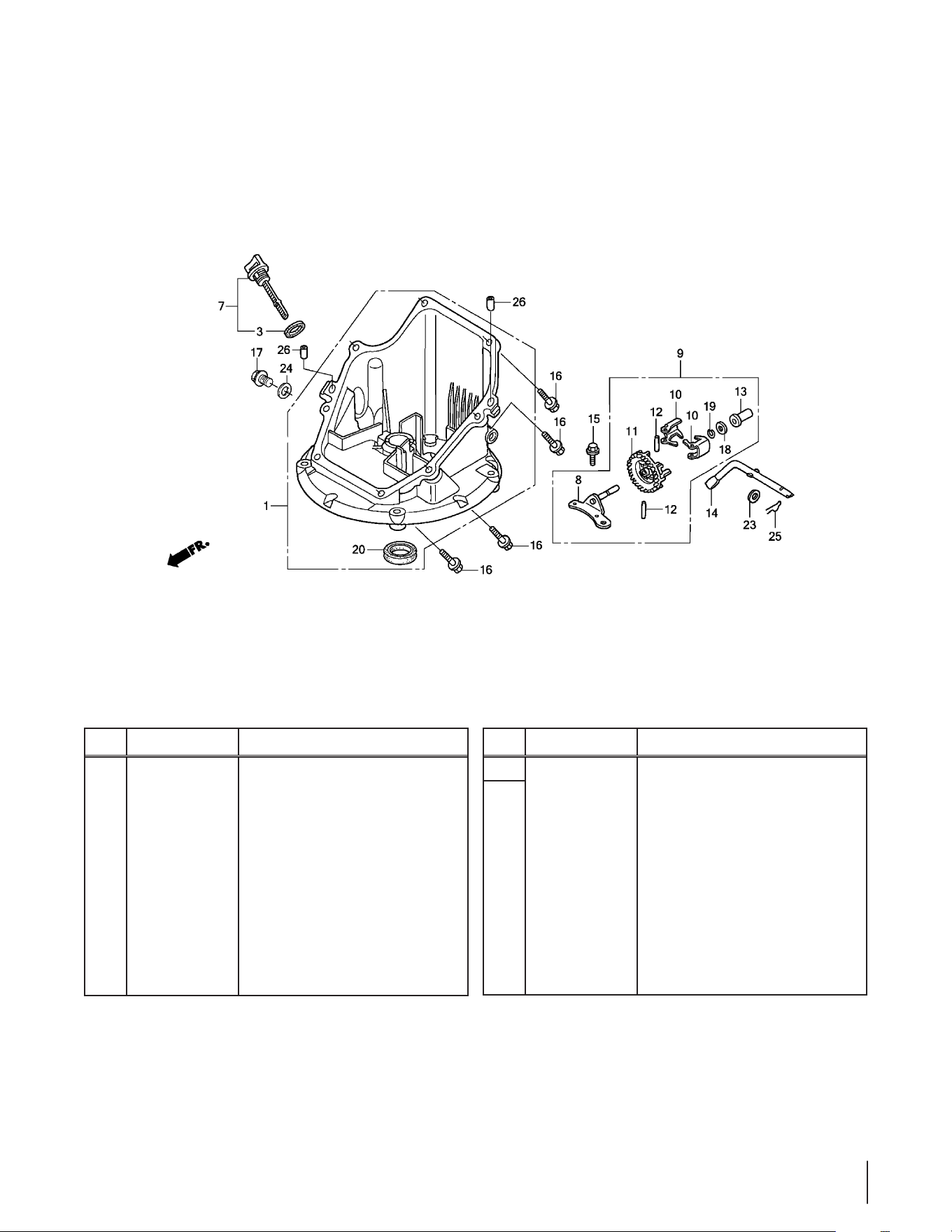

Engine Model (Honda GCV160LA)
51
Ref.
PartNumber Description
1 1130 0 -Z0 L- 821 Oil Pan Assembly
3 15625 -Z2L- 801 Oil Filler Cap Gasket
7 15650-Z0L-000 Oil Level Gauge Assembly
8 16508-ZM0-010 Governor Holder Shaft
9 16510-ZM0-010 Governor Assembly
10 16511-ZL8-000 Governor Weight
11 16512-ZM0-000 Governor Weight Holder
12 16513-ZE1-000 Governor Weight Pin
13 16531-ZE1-000 Governor Slider
14 16541-ZM0-000 Governor Arm Shaft
Ref.
PartNumber Description
15 90014-952-000 Flange Bolt, 6 x 14
16 90121-952-000 Flange Bolt, 6 x 25
17 90131-896- 650 Drain Plug Bolt
18 90451-ZE1-000 Thrust Washer, 6mm
19 90602-ZE1-000 Governor Holder Clip
20 91202-ZL8 -003 Oil Seal, 28 x 41.25 x 6
23 94101-06800 Plain Washer, 6mm
24 94109-12000 Drain Plug Washer, 12mm
25 94251-08000 Lock Pin, 8mm
26 94301-08200 DowelPin,8x20
Engine Model (Honda GCV160LA)
52
Ref.
PartNumber Description
5 13310-Z0L-650 Crankshaft
7 90402-ZL8-000 ThrustWasher
Engine Model (Honda GCV160LA)
53
Ref.
PartNumber Description
1 13010-Z0L-014 Piston Ring Set
2 13101-Z2A-010 Piston
3 13111-ZE0 - 0 00 Piston Pin
4 13200-Z0J-000 Connecting Rod Assembly
5 90001-ZE1-000 Connecting Rod Bolt
6 90551-ZE0-000 PistonPinClip,13mm
Engine Model (Honda GCV160LA)

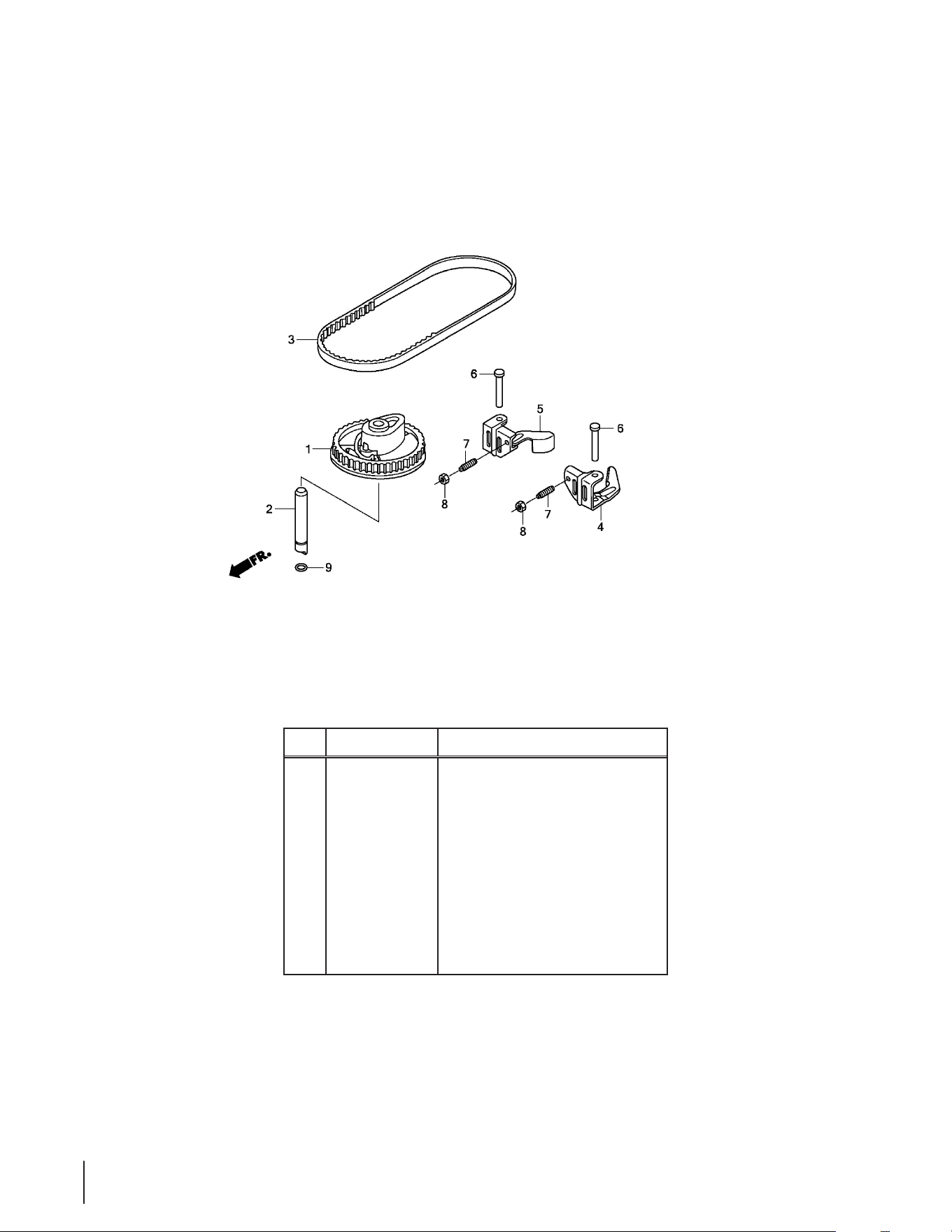

54
Ref.
PartNumber Description
1 14320-ZL8-010 Camshaft Pulley
2 14324-ZL8-000 Cam Pulley Shaft
3 14400-Z0J-014 Timing Belt
4 14431-Z0J-000 Intake Rocker Arm
5 14441-Z0J-000 Exhaust Rocker Arm
6 14461-ZL8-000 Rocker Arm Shaft
7 90012-333-000 Tappet Adjusting Screw
8 90206-001-000 Tappet Adjusting Nut
9 91301-ZM0-V31 O-Ring,6.8x1.9

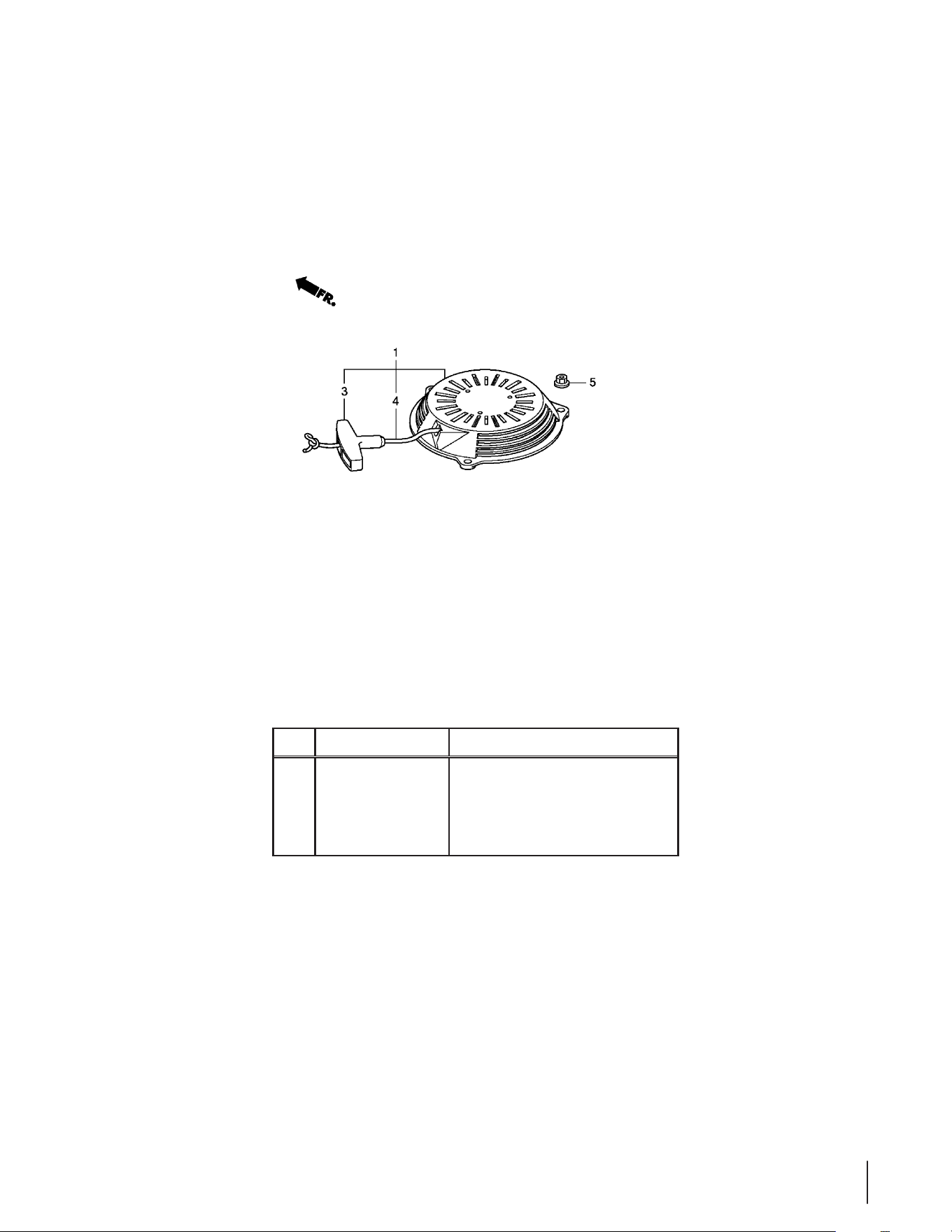

Engine Model (Honda GCV160LA)
55
Ref.
Part Number Description
1 28400-ZL8-023ZA Recoil Starter Assembly
3 28461-ZL8-003 Starter Grip
4 28462-ZL8-003 Recoil Starter Rope
5 90201-ZM0-000 Flange Nut, 6mm
Engine Model (Honda GCV160LA)

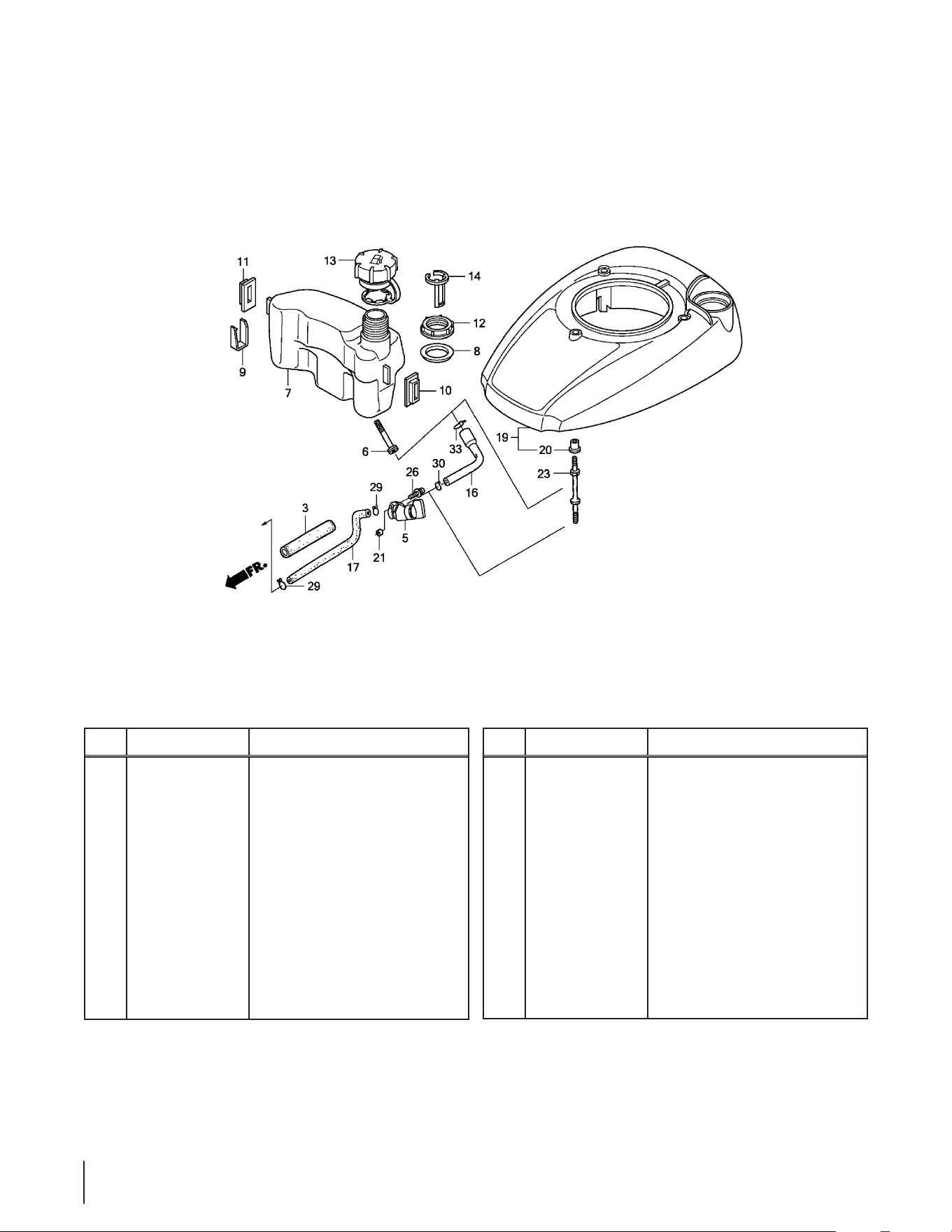

56
Ref.
Part Number Description
3 16854-ZH8-000 Fuel Line Sleeve
5 16950-ZM0-003 Petcock Assembly
6 16952-ZA8-800 Fuel Filter
7 17511-Z0L-000 Fuel Tank
8 17514-Z0L-000 Fuel Filler Neck Seal
9 17516-Z0L-000 Tank Mounting Clip
10 17532-Z0L-000 Tank Mounting Rubber
11 17533-Z0L-000 Tank Mounting Rubber
12 17534-Z0L-000 Tank Mounting Nut
13 17620 -Z0J-800 Fuel Cap Assembly
14 17636-Z0L-000 Fuel Level Gauge
Ref.
Part Number Description
16 17701-Z0L- 810 Fuel Tank Tube
17 17702-ZM0-800 Fuel Tube
19 19610 -Z0L-850ZA Fan Cover, Black
20 19619-ZL8-300 Fan Cover Collar
21 91501-Z0L-80 0 Fuel Petcock Collar
23 90043-ZL8-000 Stud Bolt, 42.5mm
26 93891-05010-08 Screw w/ Washer, 5 x 10
29 95002-02080 Tube Clip, B8
30 95002-02100 Tube Clip, B10
33 95002-70000 Tube Clip, C11
Engine Model (Honda GCV160LA)
57
Ref.
Part Number Description
1 16010-883-015 Gasket Set
2 16013-ZL1- 003 Float Set
3 16015-887-782 Float Chamber Set
5 16024 -ZE1- 811 Drain Screw Set
6 16028-ZE0-005 Screw Set
8 16100-Z0L-862 Carburetor Assembly
9 16155-ZM0- 013 Float Valve
10 16166-ZM0-003 Main Nozzle
13 16211-ZL8-000 Carburetor Insulator
Ref.
Part Number Description
14 16212-ZL8-000 Insulator Gasket
15 16221-887-800 Carburetor Gasket
16 16228-ZL8-000 Carburetor Gasket
19 19650-ZM0-000 Air Guide
20 93500-05006-0H Pan Screw, 5 x 6
22 99101-124-0600 Main Jet, #60
22 99101-124-0620 Main Jet, #62
22 99101-124-0650 Main Jet, #65

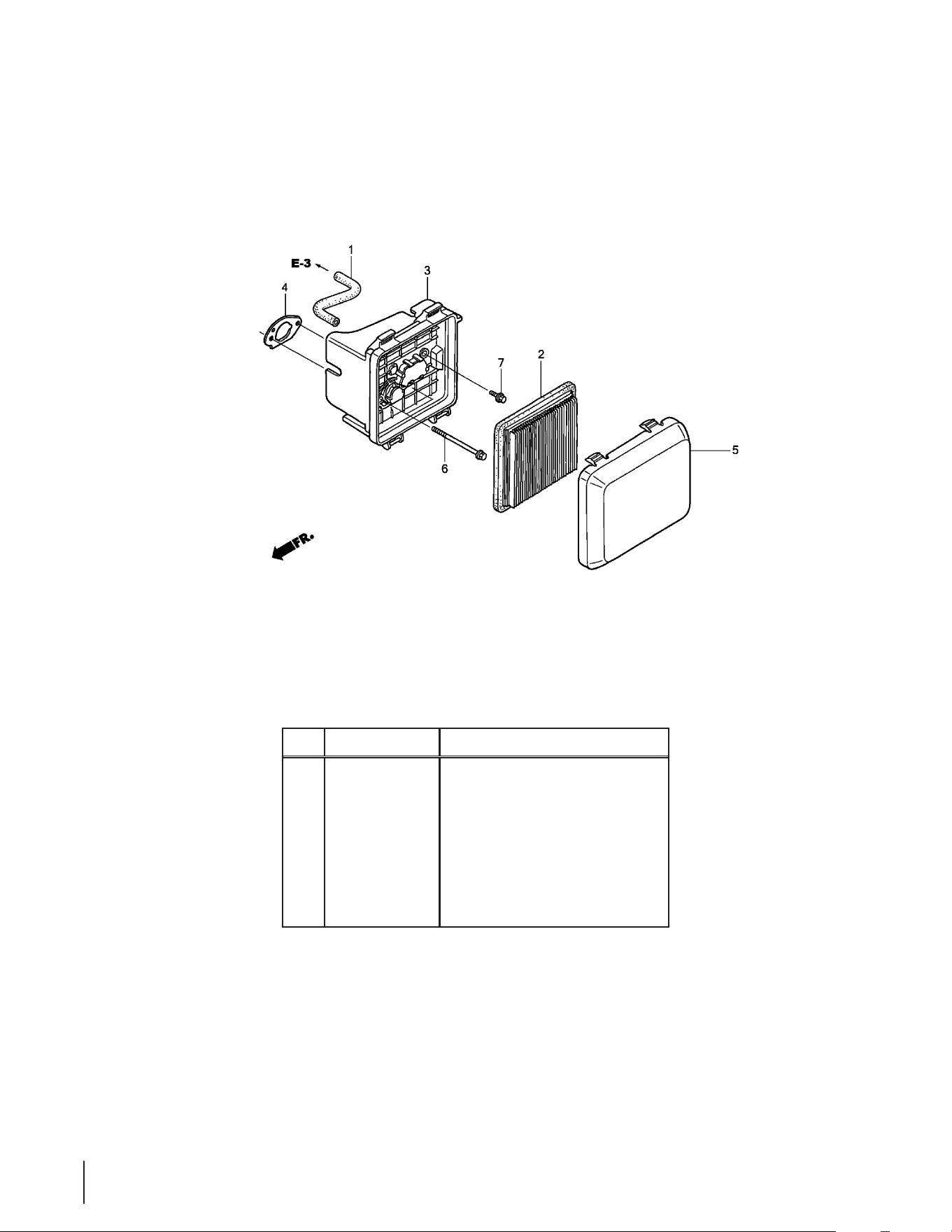

Engine Model (Honda GCV160LA)
58
Ref.
Part Number Description
1 15721-ZM0-000 Breather Tube
2 17211-ZL8 - 023 Air Cleaner Element
3 17220-ZM0-010 Air Cleaner Case Assembly
4 17228-ZM0-000 Air Cleaner Gasket
5 17231-Z0L- 030 Air Cleaner Cover
6 90003-ZM0-000 Flange Bolt, 6 x 86
7 95701-06014-08 Flange Bolt, 6 x 14

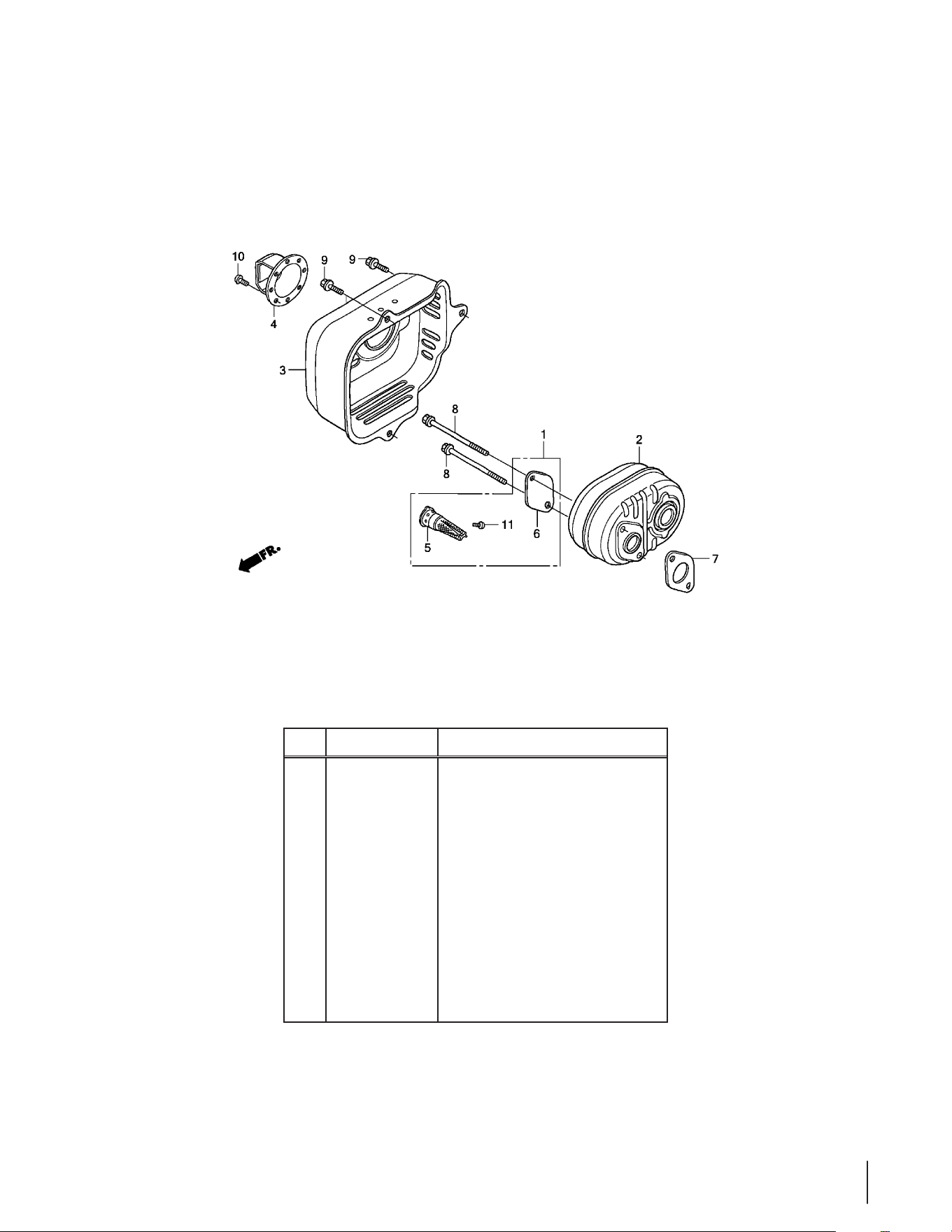

Engine Model (Honda GCV160LA)
59
Ref.
PartNumber Description
1 06180-Z0J-000 Spark Arrester Kit
2 18310-ZM0-000 Muer
3 18321-Z0L-000 Muer Protector
4 18348-Z0L-000 Muer Cap
5 18350-ZL8-000 Spark Arrester
6 18356-ZL8-000 Arrester Number Plate
7 18381-ZL8-305 Muer Gasket
8 90004-ZL8-000 Flange Bolt, 6 x 79
9 90013-883-000 Flange Bolt, 6 x 12
10 90055-ZE1-000 Tapping Screw, 4 x 6
11 90055-ZE1-000 Tapping Screw, 4 x 6

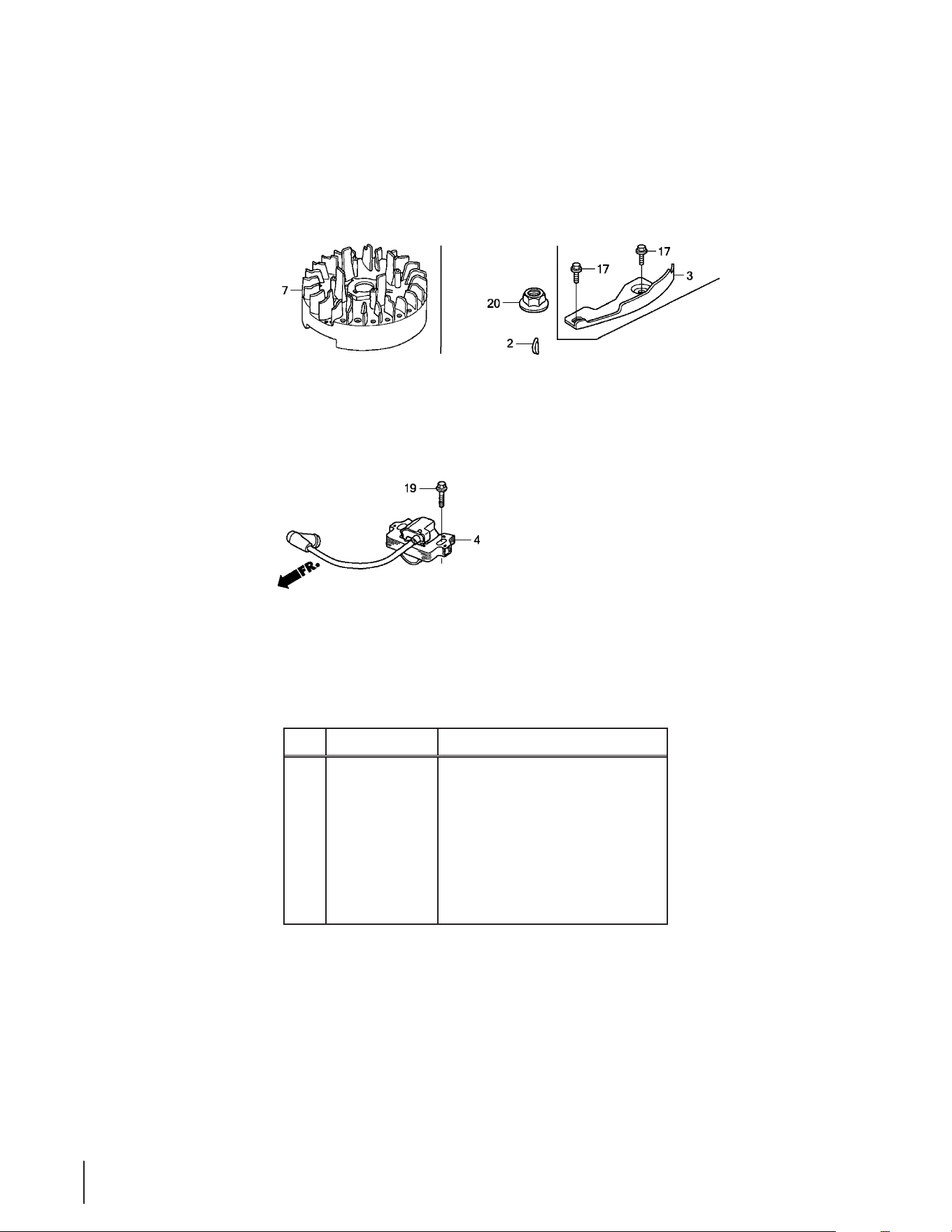

Engine Model (Honda GCV160LA)
60
Ref.
PartNumber Description
2 13331-357-000 Woodru Key
3 19612-Z0L-000 Side Plate
4 30500-Z0J-003 Ignition Coil Assembly
7 31110 -Z0J - 013 Complete Flywheel
17 90013-883-000 Flange Bolt, 6 x 12
19 90022-888-010 Flange Bolt, 6 x 20
20 90201-878-003 Nut, 14mm

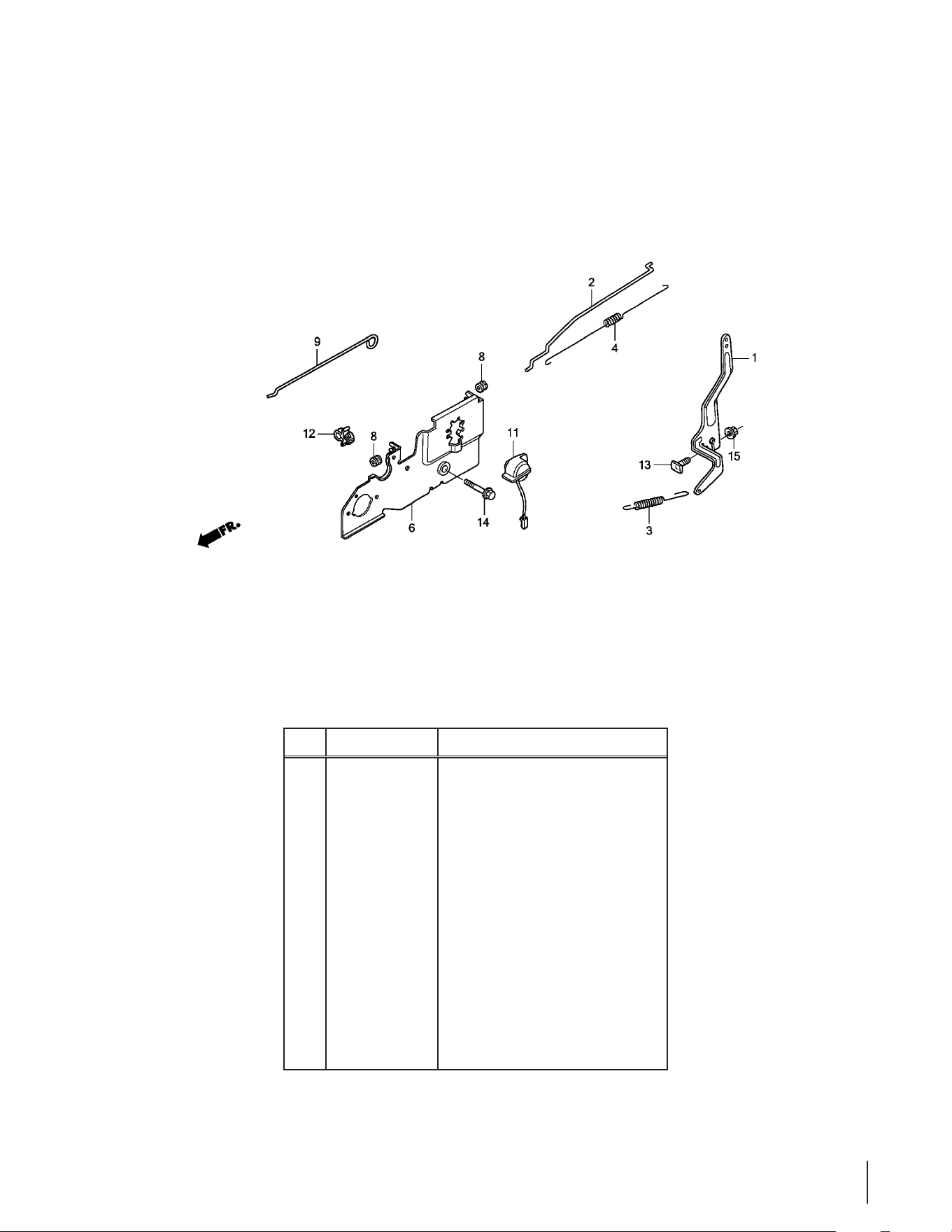

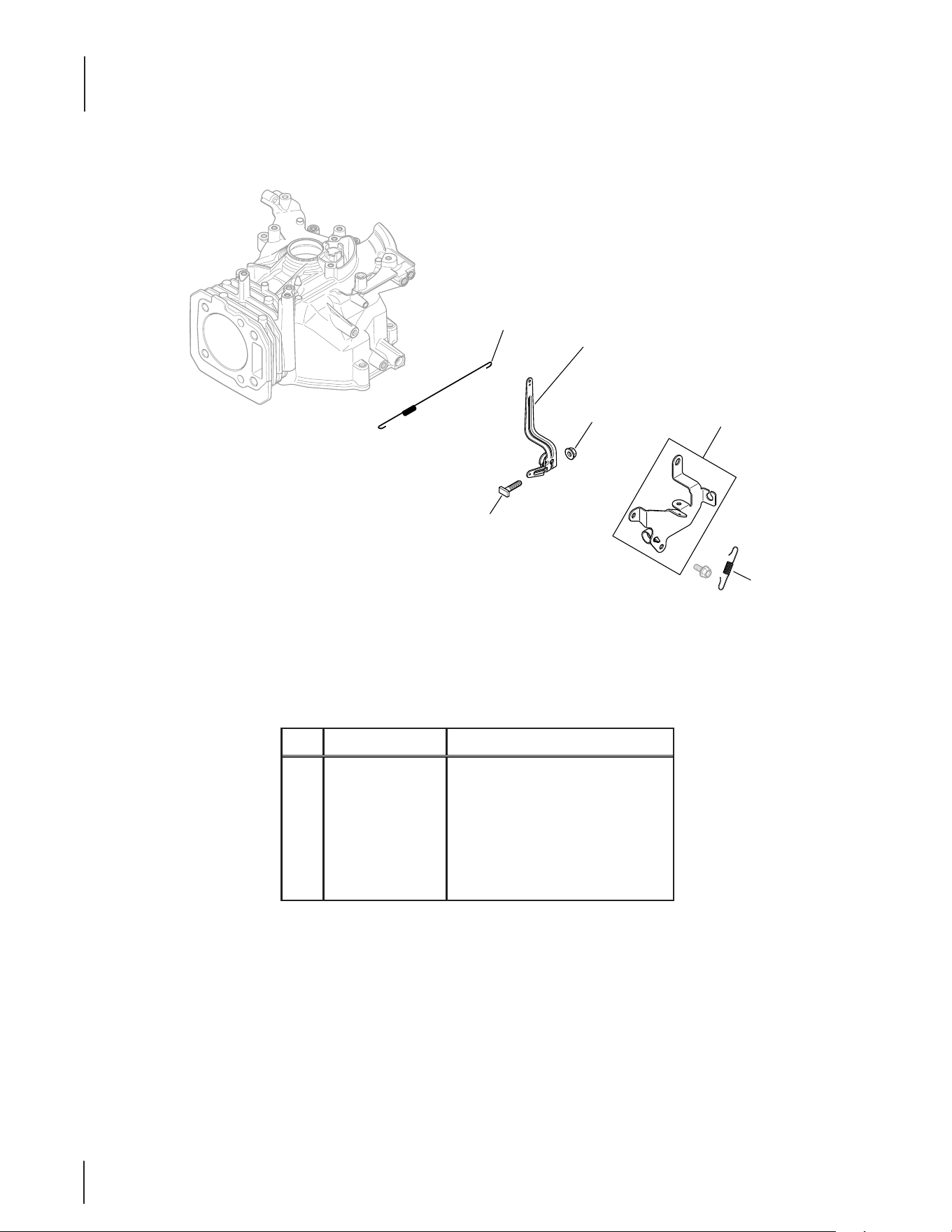

Engine Model (Honda GCV160LA)
61
Ref.
PartNumber Description
1 16551-ZM0-010 Governor Arm
2 16555-Z0L-800 Governor Rod
3 16561-ZM0-V30 Governor Spring
4 16562-ZM0-000 Throttle Return Spring
6 16580-Z0L-800 Control Base
8 16613-893-000 Choke Rod Grommet
9 16674-Z0L-800 Choke Rod
11 35120 -Z0L-801 Engine Stop Switch Assembly
12 51125 -Z0 L- 003 Wire Holder
12 90681-959-003 Cable Clip
13 90015-ZE5-010 Governor Arm Bolt
14 90016-ZE8-000 Flange Bolt, 6 x 45
15 94050-06000 FlangeNut, 6mm

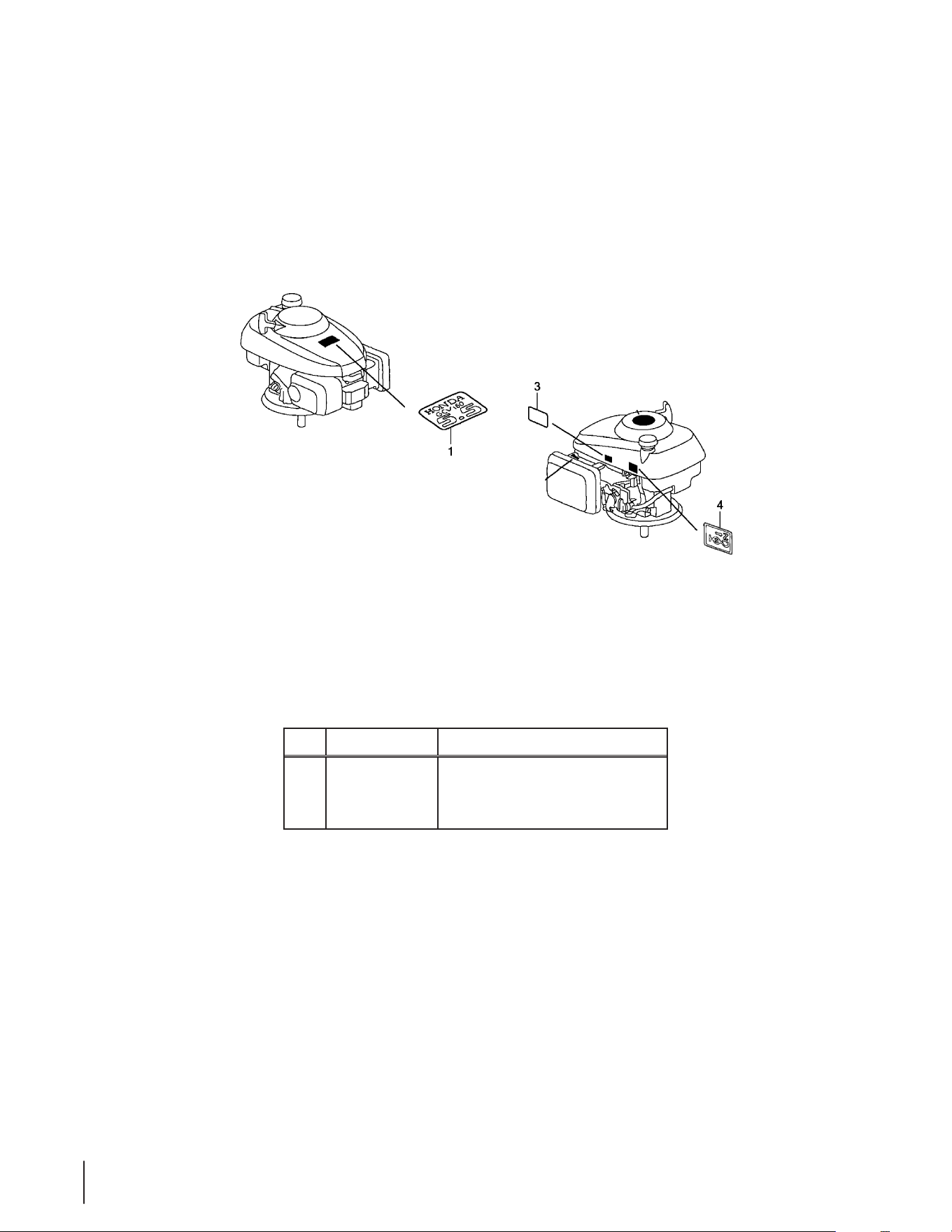

Engine Model (Honda GCV160LA)
62
Ref.
PartNumber Description
1 87101-ZM0-010 Emblem Label
3 87114 -ZH7- 821 Warning Label
4 87528-ZL8-000 Choke Label
63
Notes
64
Kohler XT173-3316 Crankshaft
Ref. Part Number Description
1 KH-14-014-123-S Crankshaft Assembly
2 KH-14-340-01-S Key, Flywheel
3 KH-17-030 -12-S Ball Bearing
1
2
3
65
Kohler XT173-3316 Oil Pan/Lubrication
Ref. Part Number Description
1 KH-14-123-13-S Oil Fill Tube Assembly
2 KH-14-153-03-S Oil Fill Tube O-Ring
3 KH-14-199-06-S
Oil Pan Kit (Inc. Governor Gear
Assembly, Dowel Pins)
4 KH-25-086-145-S Hex Flange Screw, M6
5 KH-14-041-06-S Oil Pan Gasket
6 KH-14-032-07-S Oil Seal
7 KH-25-086 -161-S Hex Flange Screw, M8
8 KH-14-153-05-S O-Ring
9 KH-25-086 -159-S Hex Flange Screw, M6
3
7
4
2
8
1
7
5
6
9
66
Kohler XT173-3316 Crankcase
Ref. Part-Number Description
1 KH-14-050-01-S
Breather Filter Kit (Inc. Breather Cover Gasket, Breather
Cover Spring, Breather Filter, Breather Reed)
2 KH-14-032-02-S Oil Seal
3 KH-14-032-04-S Oil Seal
4 KH-14-380-06-S Cylinder Head Dowel
5 KH-14-018-03-S Piston Pin Retainer
6 KH-14-067-01-S Connecting Rod
7 KH-14-468-07-S Flat Washer (Dia. 13mm O.D.)
8 KH-14-154-01-S Governor Shaft Clip
9 KH-14-010-12-S Camshaft Assembly
10 KH-25-086 -159-S Hex Flange Screw, M6
11 KH-14-561- 09-S Crankcase
N/A KH-14-874-02-S Piston Kit
N/A KH-17-108-01-S Piston Ring Set
9
3
2
1
6
4
4
7
8
10
5
5
13

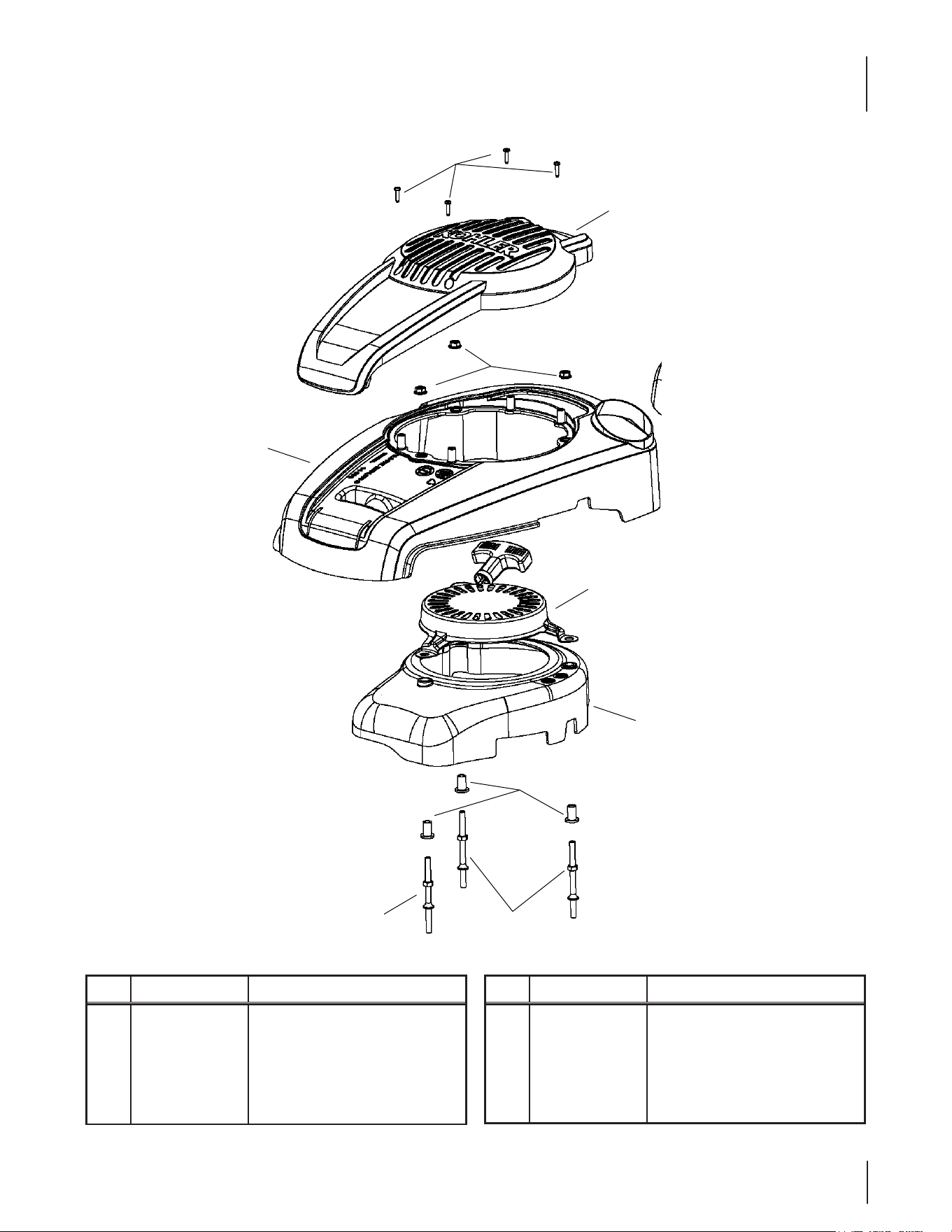

67
2
9
7
8
4
3
5
6
1

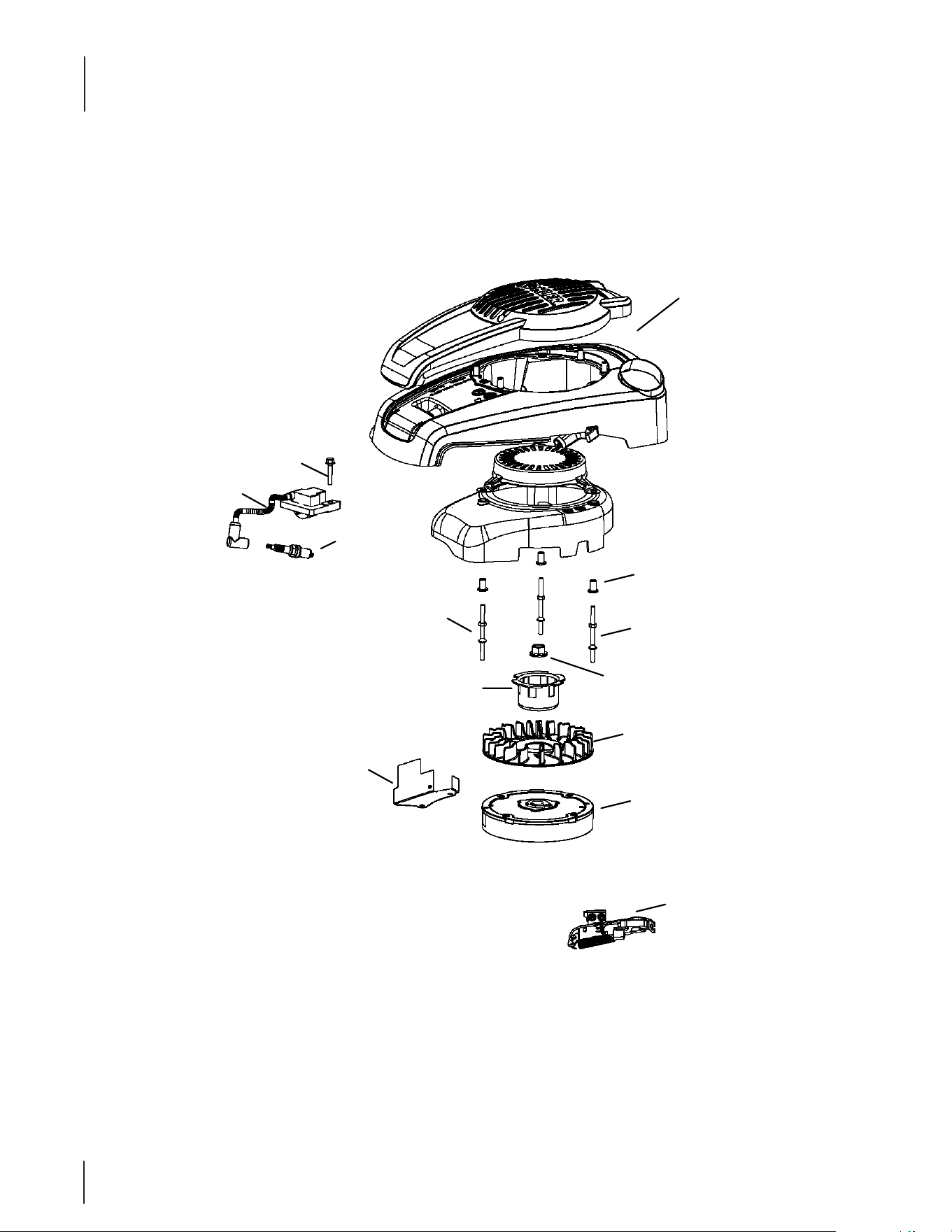

Kohler XT173-3316 Blower Housing & Baffles
Ref. Part-Number Description
1 KH-14-165-07-S Retractable Starter Assembly
2 KH-14-096 -27-S Engine Cover, Black
3 KH-14-072-12-S Stud
4 KH-14-072-13-S Stud
5 KH-14-112-07-S Spacer
Ref. Part-Number Description
6 KH-14-100-08-S Hex Flange Nut, M6
7 KH-14-027-03-S Blower Housing
8 KH-25- 086-167-S Screw, #15 6-Lobe Pan Hd
9 KH-14-332-04-S Engine Cover Insert, Black
68

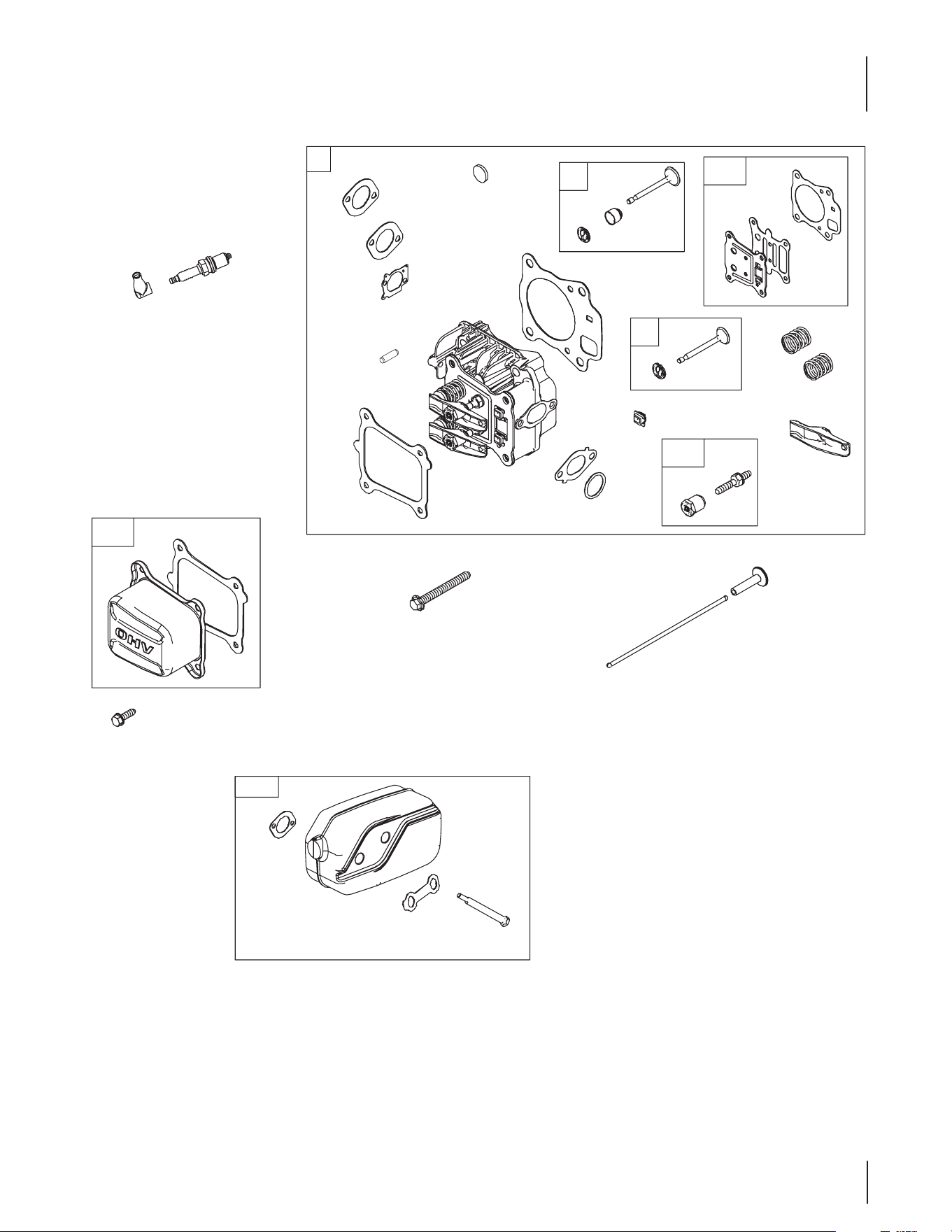

Kohler XT173-3316 Head/Valve/Breather
2
3
4
5
8
16
11
9
2
11
14
3
12
13
Valve Seal also included
in Gasket Set.
Intake & Exhaust Valves
available separately.
1
10
14
12
13
10
22
6
19
17
18
23
17
18
19
23
15
21
21
20
7
69
Kohler XT173-3316 Head/Valve/Breather
Ref. Part-Number Description
1 KH-14-755-02-S
Valve Train Kit (Inc. Valve Stem Seal, Valve Springs, Push Rod
Guide Plate, Cylinder Head Dowels, Push Rods)
2 KH-14-017-01-S Intake Valve
3 KH-14-016-01-S Exhaust Valve
4 KH-14-841-04-S Head Gasket Kit (Inc. Muer Gasket)
5 KH-14-318- 03-S Cylinder Head Kit
6 KH-14-096-05-S Valve Cover Kit
7 KH-14-041-01-S Valve Cover Gasket
8 KH-14-072-06-S Stud (M6)
9 KH-24-072-06-S
Stud, M6 x 1.0 x 93 (Inc. Muer Gasket, Exhaust & Flange
Lock Nuts)
10 KH-14-018-02-S Valve Spring Retainer
11 KH-14-100-01-S Hex Jam Nut
12 KH-14-599- 01-S Rocker Arm Pivot
13 KH-14-186-02-S Rocker Arm
14 KH-14-072-22-S Rocker Arm Stud
15 KH-14-041-24-S Gasket Kit
16 KH-25-086-140-S Hex Flange Screw, M8
17 KH-14-411-01-S Push Rod
18 KH-14-146-01-S Push Rod Guide Plate
19 KH-14-032-08-S Valve Stem Seal
20 KH-14-112-13-S Carburetor Spacer
21 KH-14-089-02-S Valve Spring
22 KH-25-086-159-S Hex Flange Screw, M6
23 KH-14-380- 06-S Cylinder Head Dowel
70
6
4
1
3
7
5
8
2
BLOWER
HOUSING
& BAFFLES
AIR INTAKE

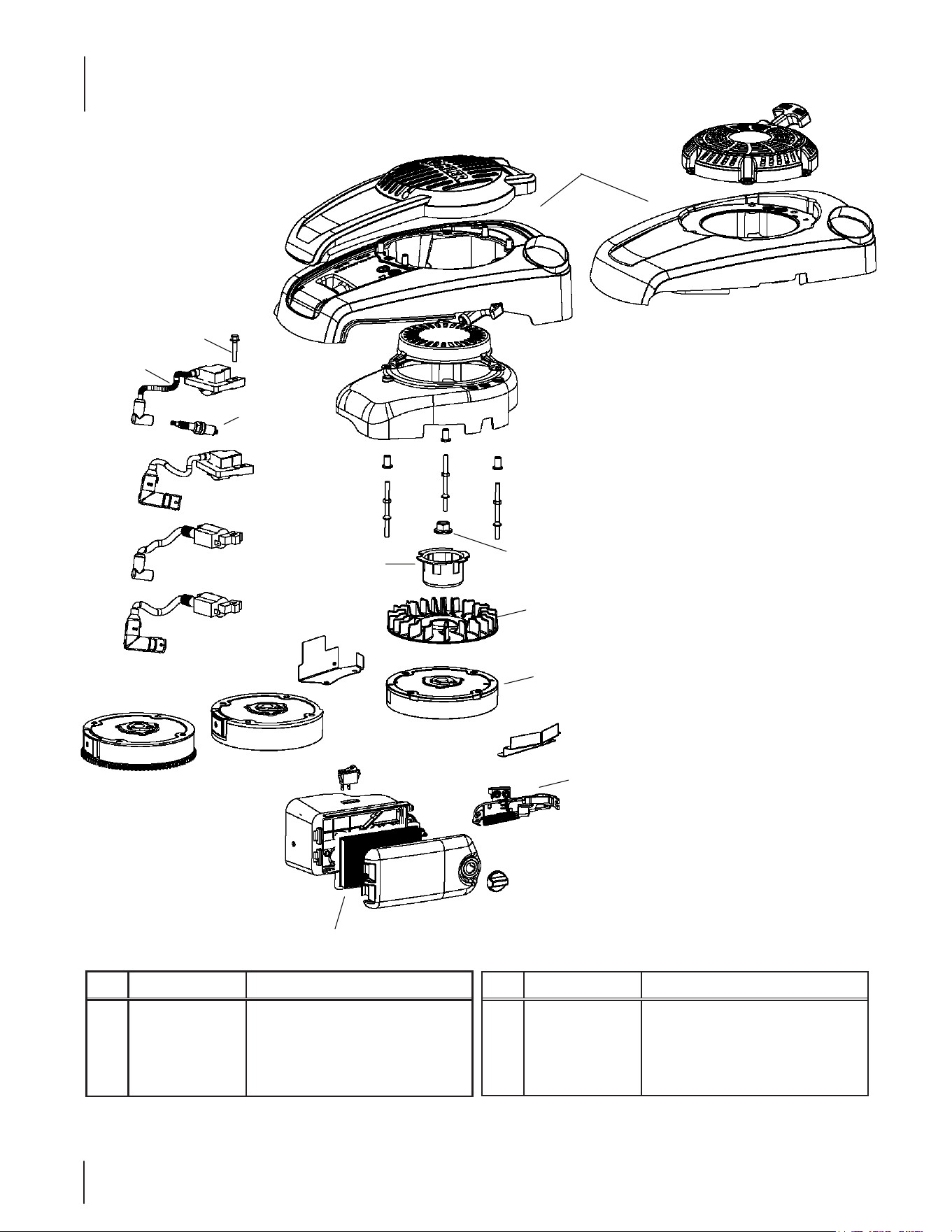

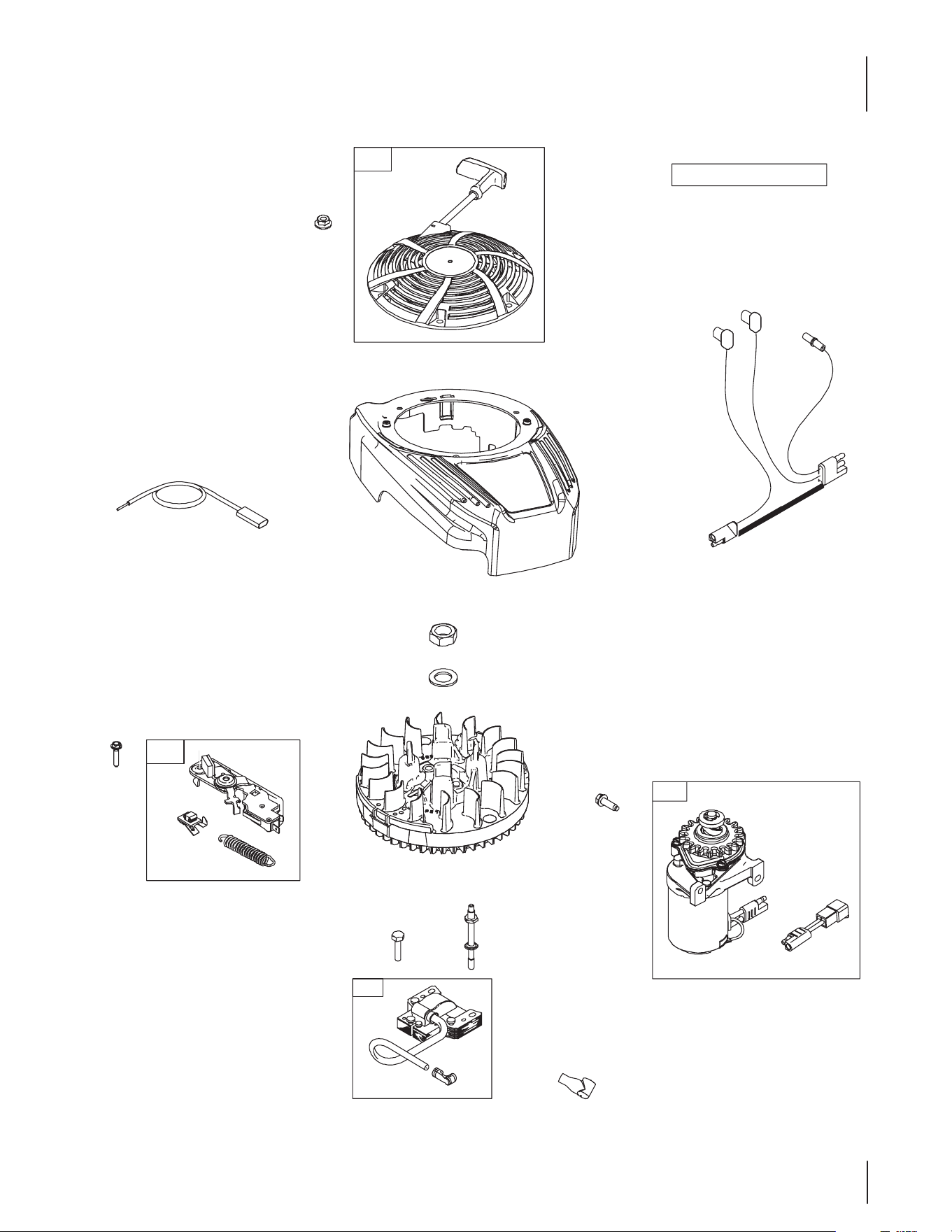

Kohler XT173-3316 Ignition/Electrical
Ref. Part Number Description
1 KH-14-100-10-S Nut, Flywheel (w/ serrations)
2 KH-14-109-02-S Drive Cup
3 KH-14-025-05-S Flywheel Assembly
4 KH-14-584-04-S Ignition Module
Ref. Part Number Description
5 KH-25-086-145-S Hex Flange Screw, M6
6 KH-14-132-03-S Spark Plug
7 KH-14-157-01-S Flywheel Fan
8 KH-14-219-11-S Brake Assembly, ES
71

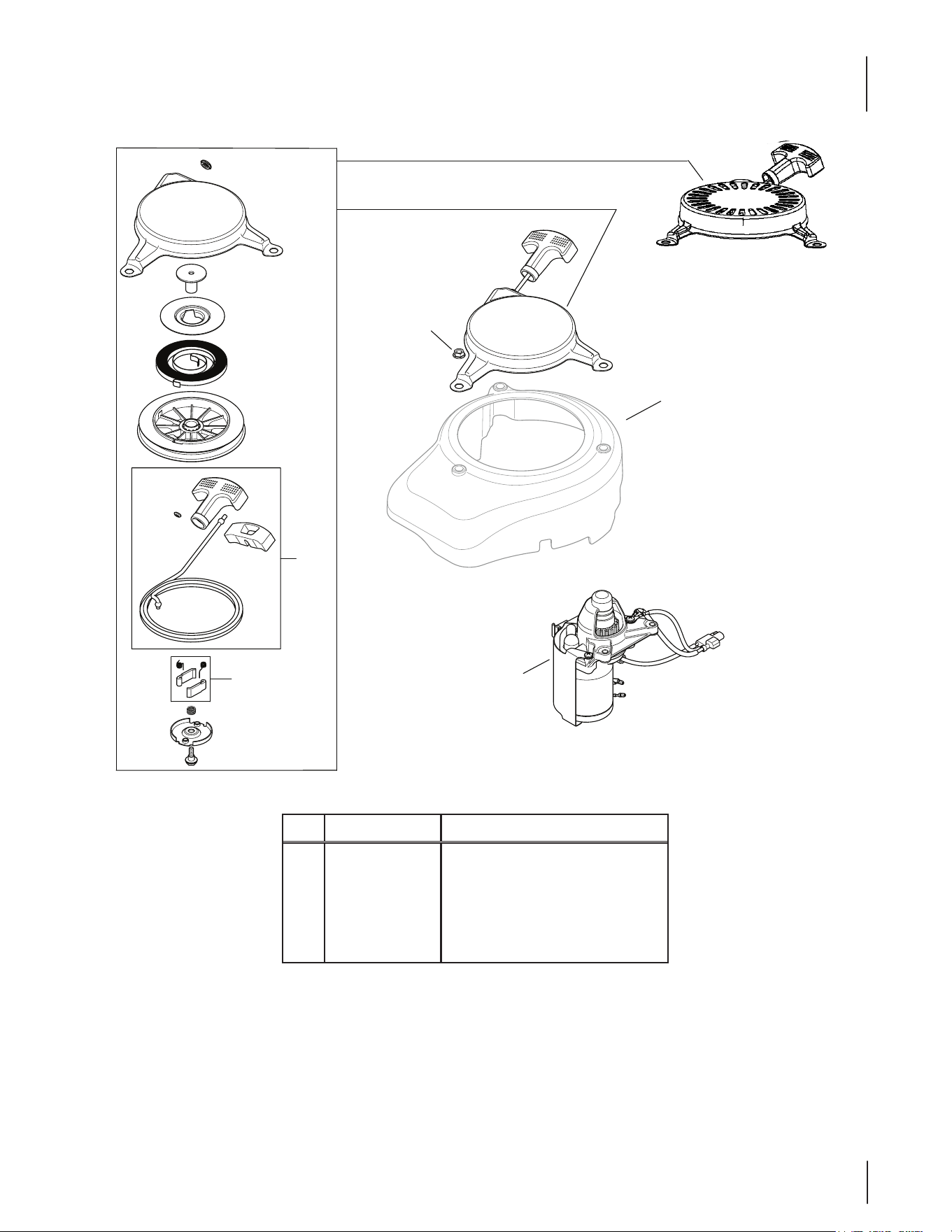

Kohler XT173-3316 Starting System
Ref. Part-Number Description
1 KH-14-100- 08-S Nut, Hex Flange, M6
2 KH-14-165-07-S Starter Assembly, Retractable
3 KH-14-160- 01-S Recoil Starter Rope
4 KH-14-379- 01-S Kit, Pawl Repair
5 KH-14-098-04-S Electric Starter w/ BBC
1
BLOWER HOUSING
& BAFFLES
3
4
2
5
72

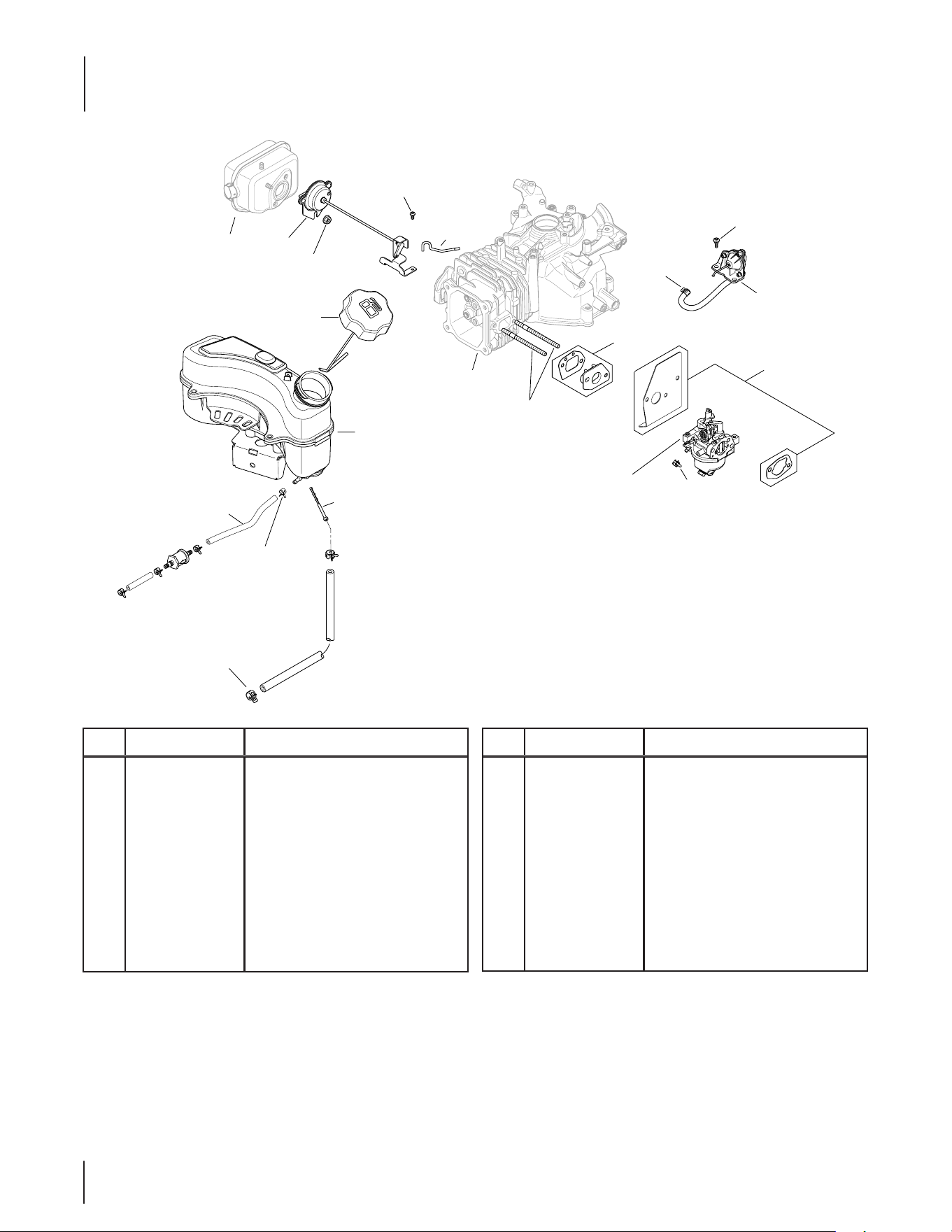

Ref. Part-Number Description
1 KH-14-853-41-S Carburetor, 13MM Auto Choke
2 KH-14-065-29-S Fuel Tank Assembly
3 KH-14-041-24-S Kit, Gasket
4 KH-14-237-05-S Hose Clamp
5 KH-14-112-13-S Carburetor Spacer Kit
6 KH-14-187-01-S Arm, Assembly
7 KH-14-100- 08-S Nut, Hex Flange, M6
8 KH-25-086-277-S Screw, M4 Thread Forming
9 KH-14-079-17-S Linkage, Auto Choke
Ref. Part-Number Description
10 KH-14-237-07-S Hose Clamp
11 KH-14-268-04-S Diaphragm, Assembly
12 KH-25-086-275-S Screw, Shoulder
13 KH-24-072-06-S Stud, M6 x 1.0 x 93
14 KH-14-227-15-S Fuel Cap Assembly
15 KH-25 -111- 69 -S Fuel Hose, Low-Permeation
16 KH-14-237-07-S Hose Clamp
17 KH-14- 050-14-S Filter, Fuel In-Nipple
Kohler XT173-3316 Fuel System
15
8
HEAD/VALVE
BREATHER
EXHAUST
16
17
10
3
4
11
12
13
5
14
6
7
2
1
9
4
73
Kohler XT173-3316 Air Intake/Filtration
Ref. Part-Number Description
1 KH-14-094-13-S Kit, Air Cleaner Base (Inc. Air Cleaner Base Gasket)
2 KH-14-123-05-S Breather Hose
3 KH-14-096 -51-S Cover, A/C Base (Breather Gas)
4 KH-14-083-01-S Air Cleaner Element
5 KH-14-100- 08-S Nut, Hex Flange, M6
6 KH-25-086-145-S Screw, Hex Flange, M6
7 KH-41-037-10-S Nameplate, Service
8 KH-14-096 -110-S Air Cleaner Cover
9 KH-14-083-11-S Carbon Pre-Filter Element
1
2
4
3
6
5
9
8
7
74
Ref. Part-Number Description
1 KH-14-090-12-S Governor Lever
2 KH-14-100- 08-S Nut, Hex Flange, M6
3 KH-25-086-166-S Screw, Rectangle Head, M6
4 KH-14-126-22-S Control Bracket
5 KH-14-089-14-S Governor Spring
6 KH-14-089- 43-S Linkage Spring
1
2
5
3
4
6
Kohler XT173-3316 Engine Controls
75

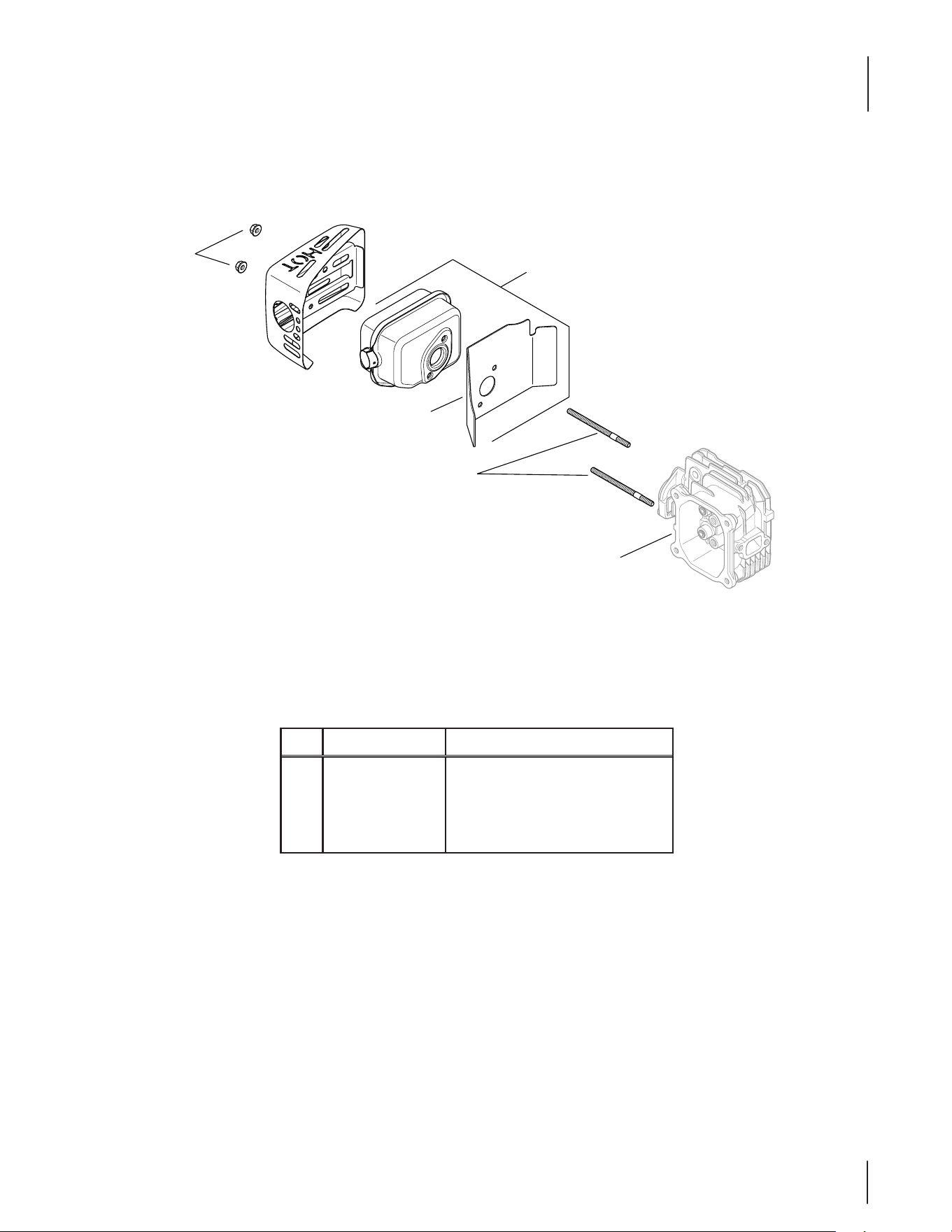

Kohler XT173-3316 Exhaust
Ref. Part-Number Description
1 KH-14-072-06-S Stud, M6
2 KH-14-068-05-S Kit, Muer
3 KH-14-100- 09-S Nut, Hex Flange Lock, M6
4 KH-14- 041-22-S Muer Gasket
2
1
HEAD/ VA LVE/
BRE AT HER
3
4
76
Kohler XT173-3316 Decals
Ref. Part Number Description
1 KH-41-037-10-S Nameplate, Service
2 KH-14-113-57-S Decal, Warning
Artwork is representative.
Actual labels may differ depending on model and specification number.
WARNING
2
1
77Notes
78
2P70M0D Air Cleaner
Ref. Part Number Description
3 712-04212 Nut M6X10Mm
106 710-04980 Bolt M6X35
133 951-10297 Air Filter Cover Thumb Screw
135 951-10298 Air Cleaner Kit
138 951-10412B Air Cleaner Housing Assy
138
135
3
106
133
79
2P70M0D Carburetor
Ref.
Part Number Description
139 951-1152 5 Carburetor Gasket Plate
140 951-10639A Primer Assembly
142 951-11824 Primer Bulb
143 951-10881 Carburetor Assembly
144 723-04093 Primer Hose Clamp
145 951-12473 Primer Hose
146 n/a Screw M3X6 Throttle Plate
147 n/a Throttle Plate Lock Washer
148 n/a Throttle Plate
149 n/a Throttle Shaft Fiber O-Ring
150 n/a Throttle Shaft
151 n/a Idle Jet Assembly
152 n/a Idle Speed Adjusting Screw
153 n/a Idle Mixture Screw
154 n/a Carburetor Body
155 n/a Emulsion Tube
156 n/a Main Jet
Ref.
Part Number Description
157 951-11597 Fuel Bowl O-Ring
158 n/a Needle Valve
159 n/a Needle Valve Spring
160 n/a Float
161 n/a Float Pin
162 n/a Fuel Bowl
163 951-113 48 Fuel Bowl Gasket
164 710-04945 Fuel Bowl Mounting Bolt
165 710-04938 Fuel Drain Plug
166 951-113 49 Fuel Drain Plug Gasket
167 951-12110 Carburetor Gasket
168 951-112 55 Carburetor Insulator
169 951-112 54 Carburetor Insulator Gasket
170 710-04981 Carb Stud M6X113
211 951-10888B Primer Assembly
212 751-12425A Carburetor Kit - Major
(Incl.149,151,152,155-161,163,166)
170
170
169
168
167
146
147
148
149
152
153
150
151
144
144
145
140
142
211
154
155
156
157
158
159
160
162
161
166
165
164
163
143
139
212-Carburetor Kit
80
2P70M0D Crankcase
Ref.
Part Number Description
45 710-04916 Bolt M6×14
46 951-12684 Breather Cover Plate
47 951-11613 Breather Gasket
48 951-11762 Breather Screen
49 951-11545 Upper Crankshaft Seal
50 951-12685 Breather Valve
51 951-12686 Breather Valve Base
52 951-11619 Ignition Coil Bracket
53 951-10854 Ignition Coil Assembly
54 710-04979 Bolt M6X18
56 951-11618 Ignition Wire Clip
71 951-1126 0 Breather Hose Assembly
72 726-04101 Breather Hose Clamp
74 951-116 08 Governor Arm Shaft
75 714-04074 Governor Arm Shaft Cotter Pin
76 951-11574 Governor Seal
77 951-112 59 Throttle Linkage
78 951-11258 Throttle Linkage Spring
80 951-11238 Governor Arm
81 712-04212 Governor Arm Nut M6
82 710-04908 Governor Arm Bolt
83 951-11273 Governor Spring
45
46
47
48
49
50
51
54
53
56
52
71
72
72
75
76
74
97
98
99
85
80
81
82
77
78
83
84
84
45
86
45
118
45
198
203
205
204
203
206
209
213 - Gasket Kit - External
214 - Gasket Kit - Complete
215 - Complete Engine
81
2P70M0D Crankcase
Ref.
Part Number Description
45 710-04916 Bolt M6×14
46 951-12684 Breather Cover Plate
47 951-11613 Breather Gasket
48 951-11762 Breather Screen
49 951-11545 Upper Crankshaft Seal
50 951-12685 Breather Valve
51 951-12686 Breather Valve Base
52 951-11619 Ignition Coil Bracket
53 951-10854 Ignition Coil Assembly
54 710-04979 Bolt M6X18
56 951-11618 Ignition Wire Clip
71 951-1126 0 Breather Hose Assembly
72 726-04101 Breather Hose Clamp
74 951-116 08 Governor Arm Shaft
75 714-04074 Governor Arm Shaft Cotter Pin
76 951-11574 Governor Seal
77 951-112 59 Throttle Linkage
78 951-11258 Throttle Linkage Spring
80 951-11238 Governor Arm
81 712-04212 Governor Arm Nut M6
82 710-04908 Governor Arm Bolt
83 951-11273 Governor Spring
Ref.
Part Number Description
84 710 -04915 Bolt M6X12
85 951-12472 Primer Bracket
86 751-10858B Brake Assembly
97 751-10857C Short Block Assembly
(Incl.45-51,61,74-76,97-100,104,
114-119,129-131,139,168,169,
185,188,193,196-198,203-206)
98 951-11763 Crankcase Cover Gasket
99 951-11369 Main Bearing
118 951-11625 Governor Gear Mounting Plate
198 951-12111 Piston Ring Set
203 951-11632 Piston Pin Snap Ring
204 951-11633 Piston Pin
205 951-11634 Piston
206 951-1176 8 Connecting Rod Assembly
209 710-05162 Connecting Rod Bolt
213 951-10417A Gasket Kit - External
(Incl.47,104,115,167,169,185,188)
214 951-10416A Gasket Kit - Complete
(Incl.47,49,76,99,104,115,131,
167,169,185,188,193)
215 952Z2P70M0D Complete Engine
82
2P70M0D Crankshaft & Crankcase Cover
Ref. Part Number Description
61 710-04922 Bolt M8X50
100 951-11624 Crankshaft Assembly
101 951-10307 Woodru Key
103 951-1176 4B Dipstick Assembly
104 951-115 47 Dipstick / Oil Fill Tube O-Ring
105 951-11765A Oil Fill Tube Assemlby
114 710-04906 Oil Drain Plug
115 736-04440 Oil Drain Plug Washer
Ref. Part Number Description
116 715- 04089 Crankcase Cover Dowel Pin 9×14
117 736-04491 Crankshaft Thrust Washer
119 951-11626 Governor Gear/Shaft Assembly
129 715- 04092 Crankcase Cover Dowel Pin 7×14
130 951-1179 4 Crankcase Cover
131 951-11627 Lower Crankshaft Seal
210 951-10370 Oil Drain Plug And Washer Assy
103
104
105
104
61
114
115
116
61
61
131
115
114
61
61
130
129
61
100
101
117
119
210
83

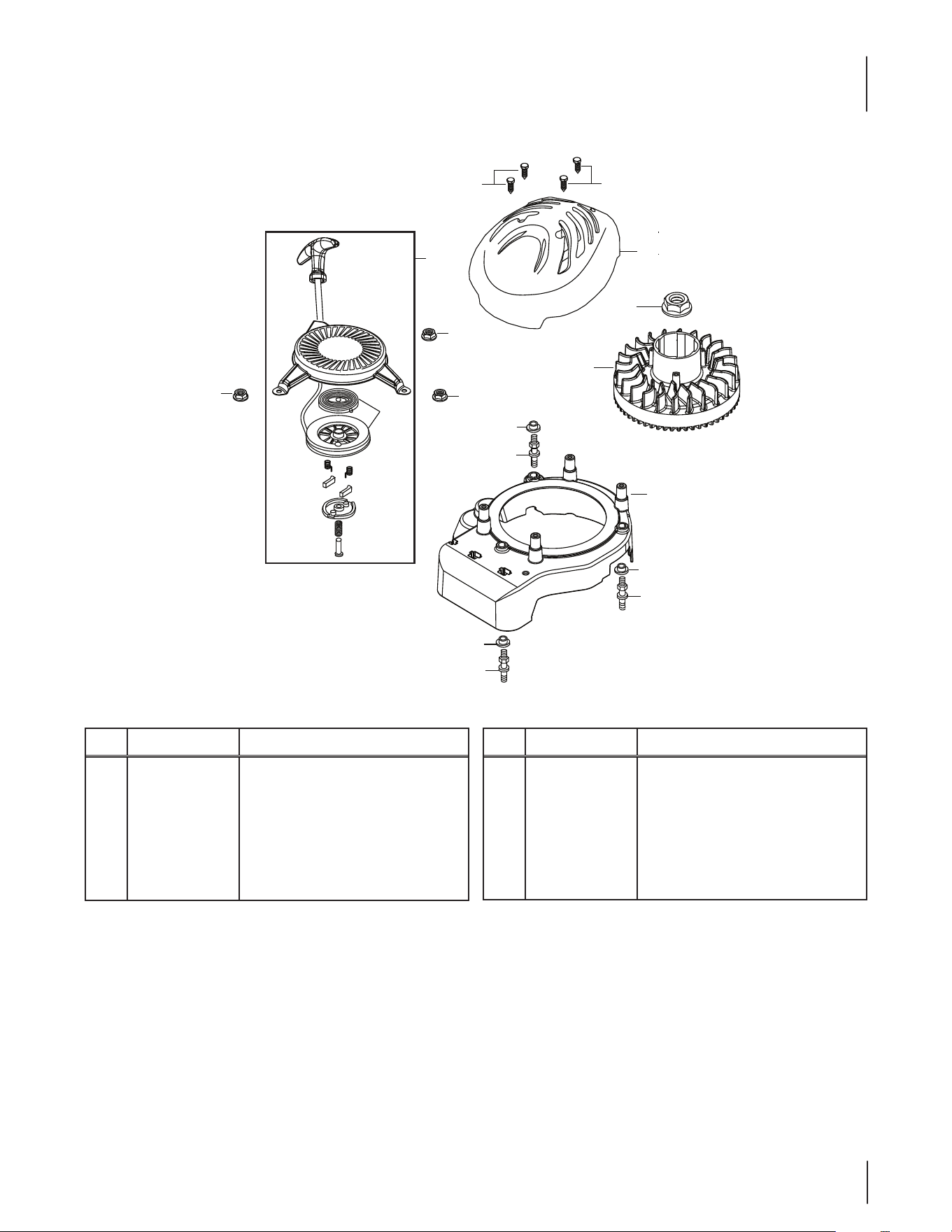

2P70M0D Flywheel & Shroud
Ref.
Part Number Description
1 710 -04744 Screw, #12-16 X 1.00"
2 Outer Shroud (Application Specic)
3 712- 04212 Nut M6X10Mm
4 751-12683 Recoil Starter Assembly
7 951-11721 Recoil Spring And Pulley Ass'Y
15 710-04976 Stud Left/Black/Wh Zinc
Ref.
Part Number Description
16 710-04977 Stud Front/Unmarked/Wh Zinc
17 710-04978 Stud Right/White/Wh Zinc
18 951-10855 Inner Shroud
19 750-05320 Engine Shroud Spacer
20 712- 04287 Flywheel Nut M14
21 951-12470 Flywheel
1
1
2
3
3
3
4
7
20
21
19
15
18
19
17
19
16
84
2P70M0D Cylinder Head
Ref.
Part Number Description
3 712- 04212 Nut M6X10Mm
45 710-04916 Bolt M6×14
171 951-10870 Cylinder Head Service Kit
(Incl.172,175,185,193)
951-10413B Cylinder Head Assembly
(Incl.168,169,171,174-179,
181-185,188,193)
172 710-04982 Bolt M8X54 Cylinder Head
173 951-10292 Spark Plug/F6Rtc
174 951-10345 Valve Kit
175 951-11818 Intake Valve Seal
176 951-10345 Valve Kit
177 951-12116 Valve Spring
178 951-12000 Valve Spring Retainer
179 951-11629 Push Rod Guide
180 951-1160 6 Rocker Arm Assembly
181 710-04902 Rocker Arm Stud
182 951-12001 Rocker Arm
183 751-11123 Fulcrum Nut
184 751-11124 Jam Nut
3
3
190
189
191
192
Optional
188
187
187
173
174
175
177
178
177
176
172
172
171
179
180
181
182
183
184
184
183
182
181
185
186
45
45
45
45
172
197
172
194
195
195
196
196
194
193
213 - Gasket Kit - External
214 - Gasket Kit - Complete
215 - Complete Engine
85
2P70M0D Cylinder Head
Ref.
Part Number Description
3 712- 04212 Nut M6X10Mm
45 710-04916 Bolt M6×14
171 951-10870 Cylinder Head Service Kit
(Incl.172,175,185,193)
951-10413B Cylinder Head Assembly
(Incl.168,169,171,174-179,
181-185,188,193)
172 710-04982 Bolt M8X54 Cylinder Head
173 951-10292 Spark Plug/F6Rtc
174 951-10345 Valve Kit
175 951-11818 Intake Valve Seal
176 951-10345 Valve Kit
177 951-12116 Valve Spring
178 951-12000 Valve Spring Retainer
179 951-11629 Push Rod Guide
180 951-1160 6 Rocker Arm Assembly
181 710-04902 Rocker Arm Stud
182 951-12001 Rocker Arm
183 751-11123 Fulcrum Nut
184 751-11124 Jam Nut
Ref.
Part Number Description
185 951-11551 Valve Cover Gasket
186 951-1154 8 Valve Cover
187 710-05094 Muer Stud M6X95
187 951-10342 Muer Stud Assemlby
188 951-12474 Muer Gasket
189 951-10403 Muer Assembly
190 951-10411 Muer Shield
191 951-10351 Spark Arrestor
192 710-04983 Spark Arrestor Screw
193 951-11630 Cylinder Head Gasket
194 715- 04090 Cylinder Head Dowel Pin 10×16
195 751-10344 Push Rod Kit
196 951-11607 Tappet
197 951-11767 Camshaft Assembly
213 951-10417A Gasket Kit - External
(Incl.47,104,115,167,169,185,188)
214 951-10416A Gasket Kit - Complete
(Incl.47,49,76,99,104,115,131,
167,169,185,188,193)
215 952Z2P70M0D Complete Engine
86

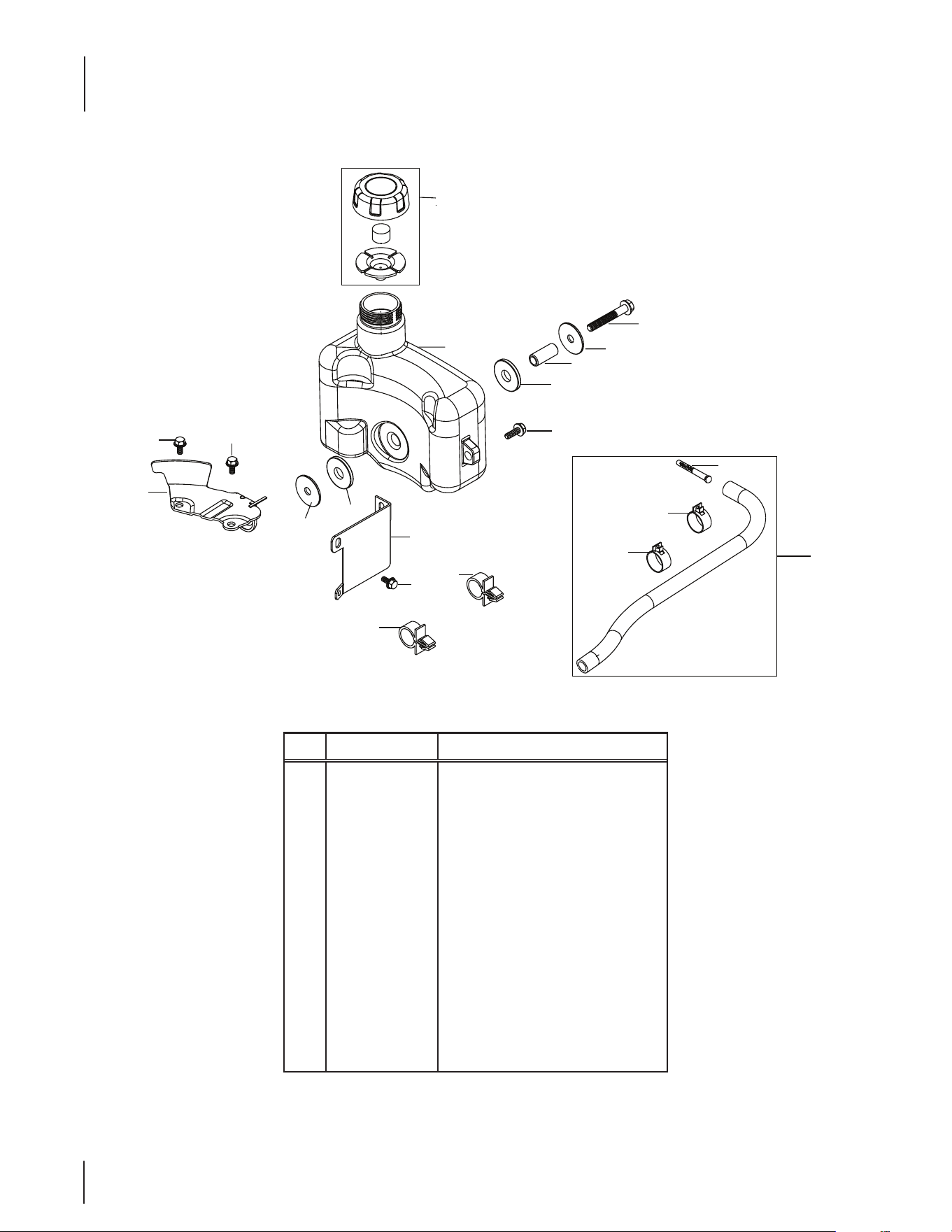

2P70M0D Fuel Tank & Mounting
Ref. Part Number Description
45 710-04916 Bolt M6×14
55 951-12471 Fuel Tank Bottom Bracket
57 736-04456 Fuel Tank Washer
58 951-10335 Rubber Bushing
59 951-11617 Fuel Tank / Label Bracket
60 750-05322 Fuel Tank Bushing
61 710-04922 Bolt M8X50
62 951-10300 Fuel Cap Assembly
66 951-10368 Fuel Tank Assembly
67 951-10358A Fuel Filter
68 951-1170 0 Fuel Hose Clamp
69 723-04071 Plastic Support Clamp
70 951-10364 Fuel Line Kit
62
66
61
57
60
58
45
45
45
55
57
58
59
45
69
69
68
68
67
70
87

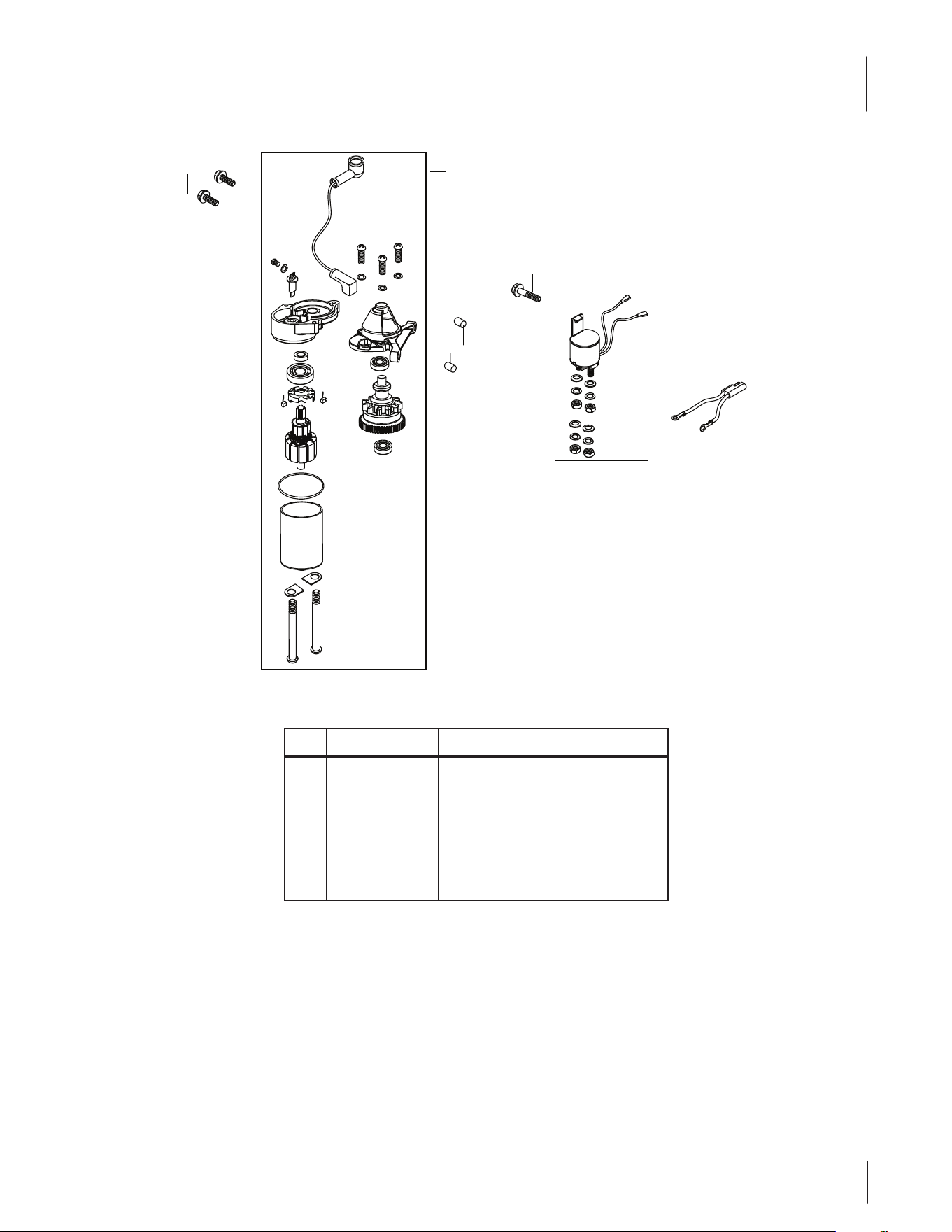

2P70M0D Starter
Ref.
Part Number Description
22 951-12457 Electric Starter Assembly (53:9)
30 710-04969 Bolt M6X30
44 715-04088 Starter Housing Dowel 8X8
106 710-04980 Bolt M6X35
107 951-10823 Starter Relay Assembly
112 951-10824 Power Connector Harness
30
22
44
44
106
107
112
88
5P70MU Air Cleaner
Ref. Part Number Description
6 712-04212 Nut M6X10Mm
38 710-04980 Bolt M6X35
110 951-10297 Air Filter Cover Thumb Screw
113 951-10298 Air Cleaner Kit
115 951-10412B Air Cleaner Housing Assy Comp
110
113
115
38
6
89
5P70MU Carburetor
Ref.
Part Number Description
116 951-11525 Carburetor Gasket Plate
117 951-10765 Carburetor Assembly
118 n/a Choke Shaft
119 n/a Choke Plate
120 n/a Choke Return Spring
121 736-04556 Choke Shaft Washer
122 n/a Choke Shaft Fiber O-Ring
123 n/a Throttle Plate
124 n/a Throttle Plate Lock Washer
125 n/a Screw M3X5 Throttle Plate
126 n/a Throttle Shaft
127 n/a Idle Jet Assembly
128 n/a Throttle Shaft Fiber O-Ring
129 n/a Idle Speed Adjusting Screw
130 n/a Idle Mixture Screw
131 n/a Carburetor Body
132 n/a Emulsion Tube
Ref.
Part Number Description
133 n/a Main Jet
134 951-11589 Fuel Bowl O-Ring
135 n/a Needle Valve
136 n/a Needle Valve Spring
137 n/a Float
138 n/a Float Pin
139 n/a Fuel Bowl
140 951-1134 8 Fuel Bowl Gasket
141 710-04945 Fuel Bowl Mounting Bolt
142 710-04938 Fuel Drain Plug
143 951-11349 Fuel Drain Plug Gasket
144 951-11766 Carburetor Gasket
145 951-11255 Carburetor Insulator
146 951-11254 Carburetor Insulator Gasket
147 710-04981 Carb Stud M6X113
192 951-11773 Carburetor Kit - Major
(Incl.118,129,132-138,140,143)
118
119
117
120
121
122
131
116
134
135
136
138
143
142
141
140
139
137
133
132
130
129
128
127
125
124
123
126
144
145
146
147
147
192 - Carburetor Kit
90
5P70MU Crankcase
Ref.
Part Number Description
22 951-10321A Stop Switch & Brake Assy
37 750-05384 Brake Spacer
38 710-04980 Bolt M6X35
41 710-04916 Bolt M6X14 Multi-Purpose
42 951-12684 Breather Cover Plate
43 951-11613 Breather Gasket
44 951-12685 Breather Valve
45 951-11545 Upper Crankshaft Seal
46 951-12686 Breather Valve Base
47 951-11762 Breather Screen
50 951-11618 Ignition Wire Clip
51 951-11619 Ignition Coil Bracket
52 951-10366 Ignition Coil Assembly
53 710-04979 Bolt M6X18
67 951-11238 Governor Arm
68 712- 04212 Governor Arm Nut M6
69 710-04908 Governor Arm Bolt
70 951-112 59 Throttle Linkage
71 951-112 58 Throttle Linkage Spring
72 951-11620 Component Bracket
73 710 -04915 Bolt M6X12
74 951-11273 Governor Spring
75 714-04074 Governor Arm Shaft Cotter Pin
22
41
42
43
45
44
46
47
53
52
51
50
77
76
75
78
80
80
84
41
81
83
82
67
68
69
70
71
74
73
73
72
187
179
184
185
186
184
190
38
38
37
37
193 - Gasket Kit - External
194 - Gasket Kit - Complete
195 - Complete Engine
91
5P70MU Crankcase
Ref.
Part Number Description
22 951-10321A Stop Switch & Brake Assy
37 750-05384 Brake Spacer
38 710-04980 Bolt M6X35
41 710-04916 Bolt M6X14 Multi-Purpose
42 951-12684 Breather Cover Plate
43 951-11613 Breather Gasket
44 951-12685 Breather Valve
45 951-11545 Upper Crankshaft Seal
46 951-12686 Breather Valve Base
47 951-11762 Breather Screen
50 951-11618 Ignition Wire Clip
51 951-11619 Ignition Coil Bracket
52 951-10366 Ignition Coil Assembly
53 710-04979 Bolt M6X18
67 951-11238 Governor Arm
68 712- 04212 Governor Arm Nut M6
69 710-04908 Governor Arm Bolt
70 951-112 59 Throttle Linkage
71 951-112 58 Throttle Linkage Spring
72 951-11620 Component Bracket
73 710 -04915 Bolt M6X12
74 951-11273 Governor Spring
75 714-04074 Governor Arm Shaft Cotter Pin
Ref.
Part Number Description
76 951-11574 Governor Seal
77 951-1160 8 Governor Arm Shaft
78 951-11260 Breather Hose Assembly
80 726-04101 Breather Hose Clamp
81 951-11622 Flexible Clamp
82 951-12724 Short Block Assembly
(In cl. 41- 47, 57,75-77,82- 85, 87,90,
92-96,106-108,116,145,146,162,165,
174,175,177-179,184-187,190)
83 951-11763 Crankcase Cover Gasket
84 951-11369 Main Bearing
179 951-12111 Piston Ring Set
184 951-11632 Piston Pin Snap Ring
185 951-11634 Piston
186 951-11633 Piston Pin
187 951-11768 Connecting Rod Assembly
190 710-05162 Connecting Rod Bolt
193 951-11772 Gasket Kit - External
(Incl.43,90,93,144,146,162,165)
194 951-11770 Gasket Kit - Complete
(Incl.43,45,76,83,90,93,108,114,
146,162,165,174)
195 752Z5P70MU Complete Engine
92
5P70MU Crankshaft & Crankcase Cover
Ref. Part Number Description
38 710-04980 Bolt M6X35
41 710-04916 Bolt M6X14 Multi-Purpose
57 710-04922 Bolt M8X50
85 951-11624 Crankshaft Assembly
86 951-10307 Woodru Key
87 736-04491 Crankshaft Thrust Washer
89 951-1176 4B Dipstick Assembly
90 951-11547 Dipstick / Oil Fill Tube O-Ring
91 951-11765A Oil Filler Tube Assemlby
Ref. Part Number Description
92 710-04906 Oil Drain Plug
93 736-04440 Oil Drain Plug Washer
94 715-04089 Crankcase Cover Dowel Pin 9×14
95 951-11625 Governor Gear Mounting Plate
96 951-11626 Governor Gear/Shaft Assembly
106 715- 04092 Crankcase Cover Dowel Pin 7×14
107 951-1179 4 Crankcase Cover
108 951-11627 Lower Crankshaft Seal
191 951-10370 Oil Drain Plug & Washer Assy
38
89
90
91
90
41
95
57
92
93
94
57
57
96
106
57
107
57
108
57
93
92
191
87
85
86
93
5P70MU Flywheel & Shroud
Ref.
Part Number Description
1 710 -04744 Screw, Hilo #12-16 X 1.00"
2 Outer Shroud (Model Specic)
3 951-12683 Recoil Starter Assembly
6 712- 04212 Nut M6X10Mm
8 951-11721 Recoil Spring & Pulley Assy
15 710-04976 Stud Left/Black/Wh Zinc
16 710-04977 Stud Front/Unmarked/Wh Zinc
Ref.
Part Number Description
17 710-04978 Stud Right/White/Wh Zinc
18 951-10764 Inner Shroud
19 750-05320 Engine Shroud Spacer
20 951-11610 Air Vane Shaft
21 951-11611 Air Vane
39 712-04287 Flywheel Nut M14
40 951-11046 Flywheel
1
1
2
3
6
6
6
8
19
18
19
19
15
17
20
21
16
39
40
94
5P70MU Cylinder Head
Ref.
Part Number Description
6 712- 04212 Nut M6X10Mm
41 710-04916 Bolt M6X14 Multi-Purpose
148 951-10413A Cylinder Head Assembly
(Incl.145,146,148,151-156,
158-162,165,174)
149 710-04982 Bolt M8X54
150 951-10292 Spark Plug/F6Rtc
151 951-10345 Valve Kit
152 951-11818 Intake Valve Seal
153 951-10345 Valve Kit
154 951-12116 Valve Spring
155 951-12000 Valve Spring Retainer
156 951-11629 Push Rod Guide
157 951-11606 Rocker Arm Assembly
158 710-04902 Rocker Arm Stud
159 951-12001 Rocker Arm
160 751-11123 Fulcrum Nut
161 751-11124 Jam Nut
162 951-11551 Valve Cover Gasket
163 951-11548 Valve Cover
164 710-05094 Muer Stud M6X95
6
6
173
166
167
168
169
170
168
170
175
177
176
176
177
178
175
174
165
164
164 150
149
149
148
149
149
151
152
153
154
154
155
171
172
Optional
157
156
158
159
160
161
161
160
159
158
162
163
41
41
41
41
193 - Gasket Kit - External
194 - Gasket Kit - Complete
195 - Complete Engine
95
5P70MU Cylinder Head
Ref.
Part Number Description
6 712- 04212 Nut M6X10Mm
41 710-04916 Bolt M6X14 Multi-Purpose
148 951-10413A Cylinder Head Assembly
(Incl.145,146,148,151-156,
158-162,165,174)
149 710-04982 Bolt M8X54
150 951-10292 Spark Plug/F6Rtc
151 951-10345 Valve Kit
152 951-11818 Intake Valve Seal
153 951-10345 Valve Kit
154 951-12116 Valve Spring
155 951-12000 Valve Spring Retainer
156 951-11629 Push Rod Guide
157 951-11606 Rocker Arm Assembly
158 710-04902 Rocker Arm Stud
159 951-12001 Rocker Arm
160 751-11123 Fulcrum Nut
161 751-11124 Jam Nut
162 951-11551 Valve Cover Gasket
163 951-11548 Valve Cover
164 710-05094 Muer Stud M6X95
Ref.
Part Number Description
164 951-10342 Muer Stud Assemlby
165 951-11739 Muer Gasket
166 751-12740 Muer Assembly
167 751-12741 Secondary Air Valve
168 710-05434 Bolt M6×12
169 751-12742 Secondary Air Tube
170 751-12743 Secondary Air Valve Gasket
171 951-10351 Spark Arrestor
172 710-04983 Spark Arrestor Screw
173 751-12744 Muer Shield
174 951-1163 0 Cylinder Head Gasket
175 715-04090 Cylinder Head Dowel Pin 10×16
176 751-10344 Push Rod Kit
177 951-11607 Tappet
178 951-11767 Camshaft Assembly
193 951-11772 Gasket Kit - External
(Incl.43,90,93,144,146,162,165)
194 951-11770 Gasket Kit - Complete
(Incl.43,45,76,83,90,93,108,114,
146,162,165,174)
195 752Z5P70MU Complete Engine
96
5P70MU Fuel Tank & Mounting
Ref. Part Number Description
41 710-04916 Bolt M6X14 Multi-Purpose
48 951-11616 Fuel Tank Bottom Bracket
49 951-11617 Fuel Tank / Label Bracket
54 736-04456 Fuel Tank Washer
55 951-10335 Rubber Bushing
56 750-05322 Fuel Tank Bushing
57 710-04922 Bolt M8X50
58 751-12738 Fuel Cap Assembly
61 751-12739 Fuel Tank Assembly
62 951-10358A Fuel Filter
63 951-1170 0 Fuel Hose Clamp
64 951-10364 Fuel Line Kit
65 723-04071 Plastic Support Clamp
58
61
55
56
54
57
41
64
62
63
63
65
65
41
49
54
55
48
41
41
97Notes
98
2P70MU Air Cleaner
Ref. Part Number Description
3 712-04212 Nut M6X10mm
105 710-04980 Bolt M6X35
132 951-10297 Air Filter Cover Thumb Screw
133 951-10412B Air Cleaner Housing Ass'Y Comp
135 951-10298 Air Cleaner Kit
133
132
135
3
3
105
99
2P70MU Carburetor
Ref.
Part Number Description
138 951-1152 5 Carburetor Gasket Plate
139 951-10639A Primer Assembly
141 951-11824 Primer Bulb
142 951-10881 Carburetor Assembly
143 723-04093 Primer Hose Clamp
144 951-12473 Primer Hose
145 n/a Screw M3X6 Throttle Plate
146 n/a Throttle Plate Lock Washer
147 n/a Throttle Plate
148 n/a Throttle Shaft Fiber O-Ring
149 n/a Throttle Shaft
150 n/a Idle Jet Assembly
151 n/a Idle Speed Adjusting Screw
152 n/a Idle Mixture Screw
153 n/a Carburetor Body
154 n/a Emulsion Tube
155 n/a Main Jet
Ref.
Part Number Description
156 951-11597 Fuel Bowl O-Ring
157 n/a Needle Valve
158 n/a Needle Valve Spring
159 n/a Float
160 n/a Float Pin
161 n/a Fuel Bowl
162 951-113 48 Fuel Bowl Gasket
163 710-04945 Fuel Bowl Mounting Bolt
164 710-04938 Fuel Drain Plug
165 951-113 49 Fuel Drain Plug Gasket
166 951-12110 Carburetor Gasket
167 951-11255 Carburetor Insulator
168 951-112 54 Carburetor Insulator Gasket
169 710-04981 Carb Stud M6X113
213 951-12425A Carburetor Kit - Major
(Incl.148,150,151,154-160,162,165)
169
169
168
167
166
145
146
147
149
148
150
143
144
143
151
152
153
154
155
156
157
158
160
159
161
165
164
162
163
138
142
141
139
213 - Carburetor Kit - Major
100
2P70MU Crankcase
Ref.
Part Number Description
45 710-04916 Bolt M6X14
46 951-12684 Breather Cover Plate
47 951-11729 Breather Gasket
48 951-11762 Breather Screen
49 951-11545 Upper Crankshaft Seal
50 951-12685 Breather Valve
51 951-12686 Breather Valve Base
52 951-11619 Ignition Coil Bracket
53 951-10854 Ignition Coil Assembly
54 710-04979 Bolt M6X18
56 951-11618 Ignition Wire Clip
70 951-1126 0 Breather Hose Assembly
71 726-04101 Breather Hose Clamp
73 951-11608 Governor Arm Shaft
74 714-04074 Governor Shaft Arm Cotter Pin
75 951-11574 Governor Seal
76 951-11259 Throttle Linkage
77 951-112 58 Throttle Linkage Spring
79 951-11238 Governor Arm
80 712-04212 Governor Arm Nut M6
81 710-04908 Governor Arm Bolt
82 951-11273 Governor Spring
45
46
47
48
50
51
49
54
53
56
52
70
71
71
73
74
75
96
97
98
79
80
81
76
77
82
84
83
83
45
45
85
201
206
208
207
206
209
212
215 - Gasket Kit - Complete
216 - Gasket Kit - External
217 - Complete Engine
101
2P70MU Crankcase
Ref.
Part Number Description
45 710-04916 Bolt M6X14
46 951-12684 Breather Cover Plate
47 951-11729 Breather Gasket
48 951-11762 Breather Screen
49 951-11545 Upper Crankshaft Seal
50 951-12685 Breather Valve
51 951-12686 Breather Valve Base
52 951-11619 Ignition Coil Bracket
53 951-10854 Ignition Coil Assembly
54 710-04979 Bolt M6X18
56 951-11618 Ignition Wire Clip
70 951-1126 0 Breather Hose Assembly
71 726-04101 Breather Hose Clamp
73 951-11608 Governor Arm Shaft
74 714-04074 Governor Shaft Arm Cotter Pin
75 951-11574 Governor Seal
76 951-11259 Throttle Linkage
77 951-112 58 Throttle Linkage Spring
79 951-11238 Governor Arm
80 712-04212 Governor Arm Nut M6
81 710-04908 Governor Arm Bolt
82 951-11273 Governor Spring
Ref.
Part Number Description
83 710 -04915 Bolt M6X12
84 951-12472 Primer Bracket
85 951-10858B Brake Assembly
96 951-10857C Short Block Assembly
(Incl.45-51,61,73-75,96-99,103,
113-118,128-130,138,167,168,184
187,196,199,200,201,206-209)
97 951-11763 Crankcase Cover Gasket
98 951-11369 Main Bearing
201 951-12111 Piston Ring Set
206 951-11632 Piston Pin Snap Ring
207 951-11633 Piston Pin
208 951-11634 Piston
209 951-1176 8 Connecting Rod Assembly
212 710-05162 Connecting Rod Bolt
215 951-10416A Gasket Kit - Complete
(Incl.47,49,75,97,103,114,130,166,
168,184,187,196)
216 951-10417A Gasket Kit - External
(Incl.49,103,114,166,168,184,187)
217 952Z2P70MU Complete Engine
102
2P70MU Crankshaft & Crankcase Cover
Ref. Part Number Description
45 710-04916 Bolt M6X14
61 710-04922 Bolt M8X50
99 951-11624 Crankshaft Assembly
100 951-10307 Flywheel Key
102 951-11764 B Dipstick Assembly
103 951-11547 Oil Fill Tube O-Ring
104 951-11765A Oil Filler Tube Assemlby
105 710-04980 Bolt M6X35
113 710-04906 Oil Drain Plug
Ref. Part Number Description
114 736-04440 Oil Drain Plug Washer
115 715- 04089 Crankcase Cover Dowel Pin 9×14
116 736-04491 Crankshaft Thrust Washer
117 951-11625 Governor Gear Mounting Plate
118 951-11626 Governor Gear/Shaft Assembly
128 715- 04092 Crankcase Cover Dowel Pin 7×14
129 951-1179 4 Crankcase Cover
130 951-11627 Lower Crankshaft Seal
214 951-10370 Oil Drain Plug And Washer Assy
102
103
105
104
103
99
100
116
61
61
128
129
118
117
45
61
61
214
114
113
130
61
61
115
113
114
103

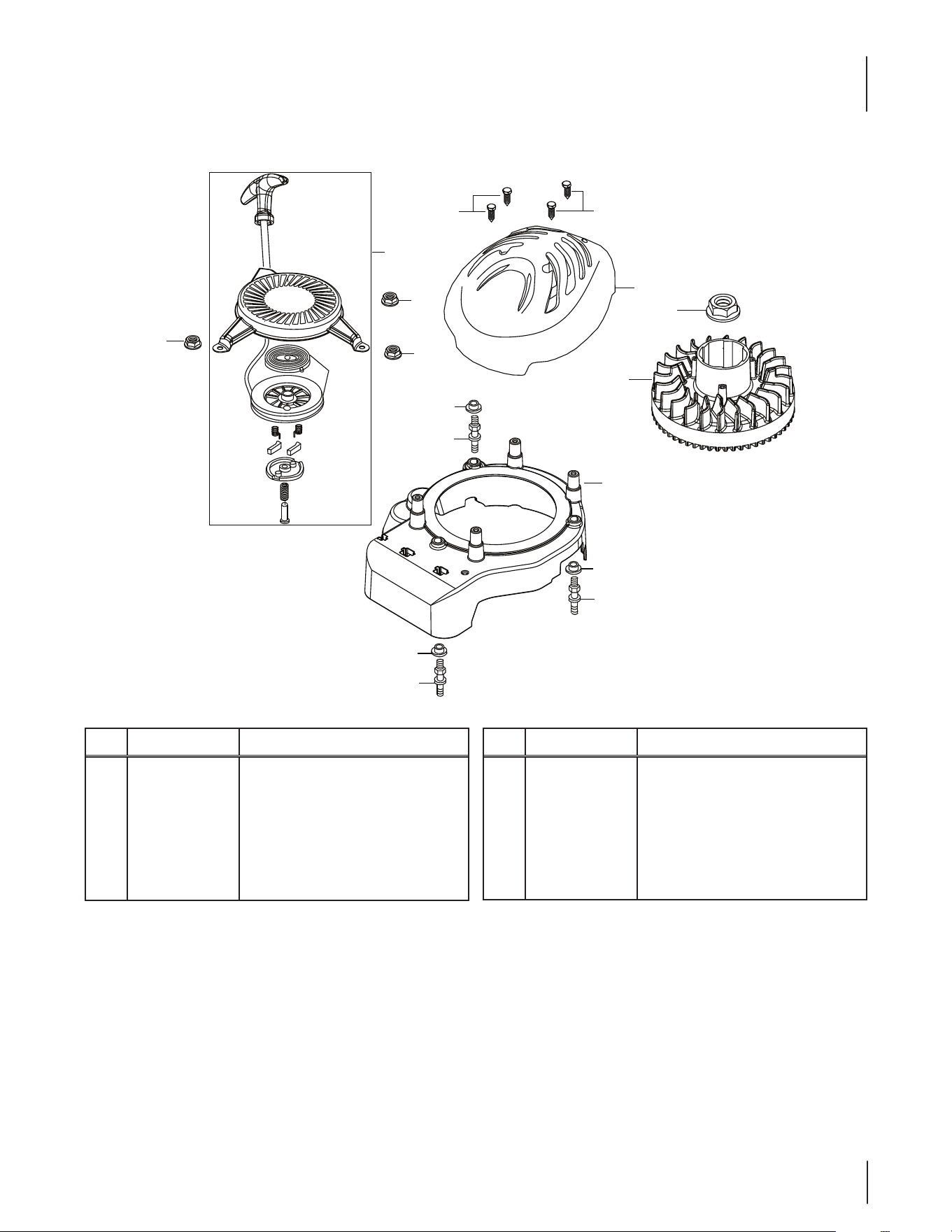

2P70MU Flywheel & Shroud
Ref.
Part Number Description
1 710 -04744 Bolt, Hilo #12-16 X 1.00"
2 Outer Shroud (Model Specic)
3 712- 04212 Nut M6X10mm
4 951-12683 Recoil Starter Assembly
8 951-11721 Recoil Spring And Pulley Ass'Y
15 710-04976 Stud Left/Black/Wh Zinc
Ref.
Part Number Description
16 710-04977 Stud Front/Unmarked/Wh Zinc
17 710-04978 Stud Right/White/Wh Zinc
18 951-10855 Inner Shroud
19 750-05320 Engine Shroud Spacer
20 712- 04287 Flywheel Nut M14
21 951-12470 Flywheel
3
3
8
3
4
1
1
2
20
21
19
15
18
19
17
19
16
104

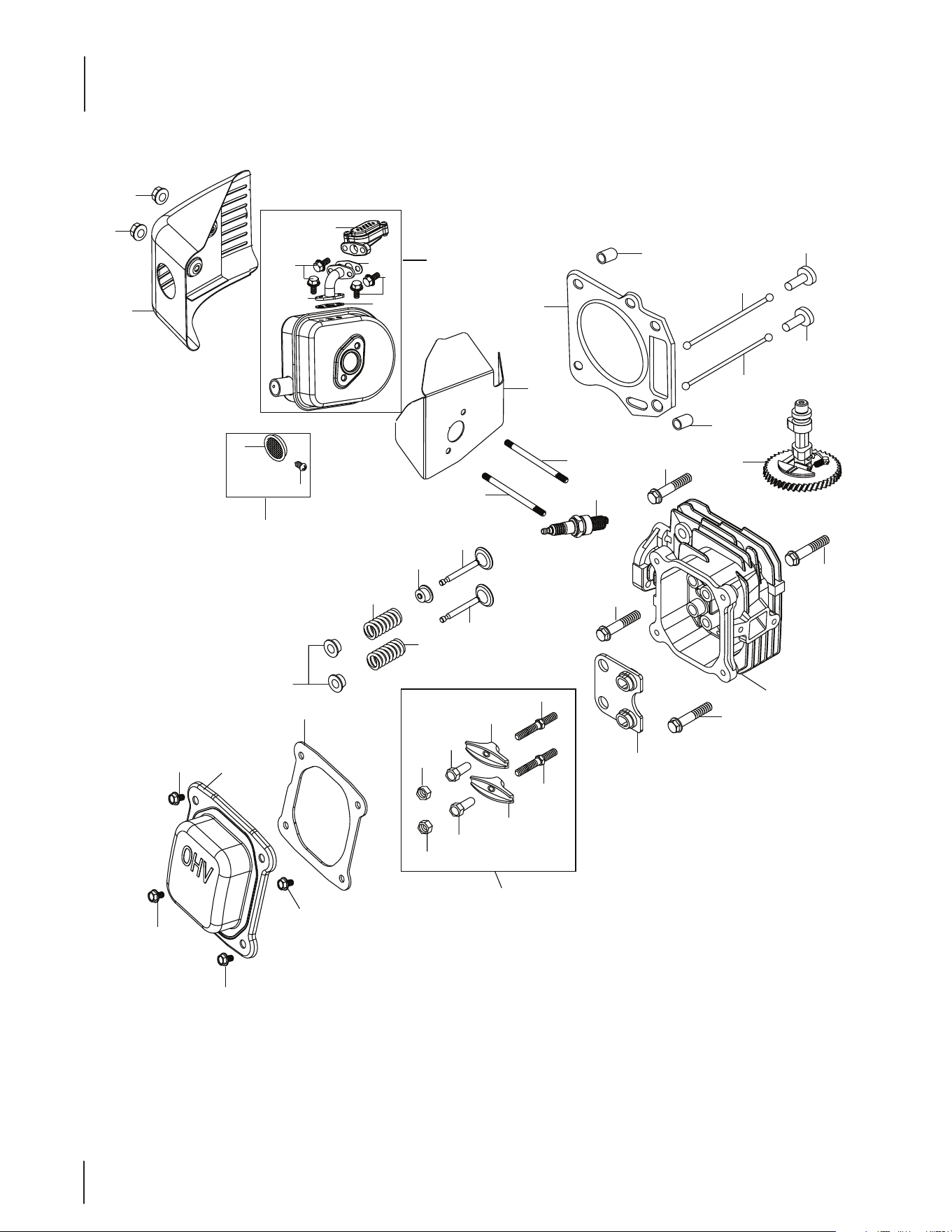

2P70MU Cylinder Head
Ref.
Part Number Description
3 712- 04212 Nut M6X10mm
45 710-04916 Bolt M6X14
170 951-10413B Cylinder Head Assembly
(Incl.167,168,170,173- 478,
180-184,187,196)
171 710-04982 Bolt M8X54
172 951-10292 Spark Plug/F6Rtc
174 951-11818 Intake Valve Seal
175 951-10345 Valve Kit
176 951-12116 Valve Spring
177 951-12000 Valve Spring Retainer
178 951-11629 Push Rod Guide
179 951-1160 6 Rocker Arm Assembly
180 710-04902 Rocker Arm Stud
181 951-12001 Rocker Arm
182 751-11123 Fulcrum Nut
183 751-11124 Jam Nut
184 951-11551 Valve Cover Gasket
185 951-1154 8 Valve Cover
186 710-05094 Muer Stud M6X95
186 951-10342 Muer Stud Assemlby
3
3
193
Optional
194
195
189
190
192
191
190
191
188
187
196
197
198
199
199
198
197
200
171
186
186
172
175
175
174
176
176
177
184
185
45
45
45
45
179
183
182
181
180
183
182
181
180
178
171
171
171
170
215 - Gasket Kit - Complete
216 - Gasket Kit - External
217 - Complete Engine
105
2P70MU Cylinder Head
Ref.
Part Number Description
3 712- 04212 Nut M6X10mm
45 710-04916 Bolt M6X14
170 951-10413B Cylinder Head Assembly
(Incl.167,168,170,173- 478,
180-184,187,196)
171 710-04982 Bolt M8X54
172 951-10292 Spark Plug/F6Rtc
174 951-11818 Intake Valve Seal
175 951-10345 Valve Kit
176 951-12116 Valve Spring
177 951-12000 Valve Spring Retainer
178 951-11629 Push Rod Guide
179 951-1160 6 Rocker Arm Assembly
180 710-04902 Rocker Arm Stud
181 951-12001 Rocker Arm
182 751-11123 Fulcrum Nut
183 751-11124 Jam Nut
184 951-11551 Valve Cover Gasket
185 951-1154 8 Valve Cover
186 710-05094 Muer Stud M6X95
186 951-10342 Muer Stud Assemlby
Ref.
Part Number Description
187 951-12474 Muer Gasket
188 951-12740 Muer Assembly
189 951-12741 Secondary Air Valve
190 710-05434 Bolt M6×12
191 951-12743 Secondary Air Valve Gasket
192 951-12742 Secondary Air Tube
193 951-12744 Muer Shield
194 951-10351 Spark Arrestor
195 710-04983 Spark Arrestor Screw
196 951-11630 Cylinder Head Gasket
197 715- 04108 Cylinder Head Dowel Pin 10×16
198 751-10344 Push Rod Kit
199 951-11607 Tappet
200 951-11767 Camshaft Assembly
215 951-10416A Gasket Kit - Complete
(In cl. 47,49,75,97,103,114,130,
166,168,184,187,196)
216 951-10417A Gasket Kit - External
(Incl.49,103,114,166,168,184,187)
217 952Z2P70MU Complete Engine
106

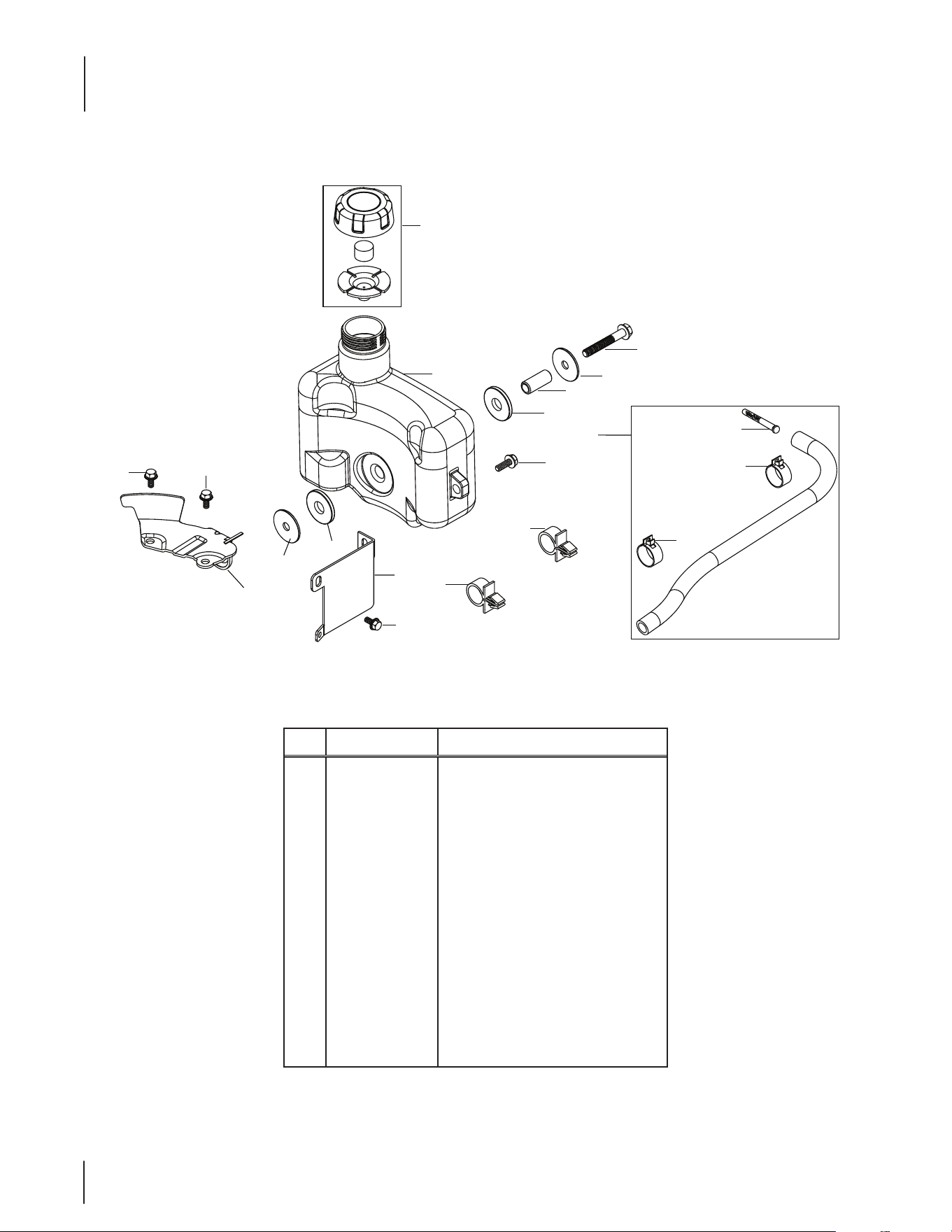

2P70MU Fuel Tank & Mounting
Ref. Part Number Description
45 710-04916 Bolt M6X14
55 951-12471 Fuel Tank Bottom Bracket
57 736-04456 Fuel Tank Washer
58 951-10335 Rubber Bushing
59 951-11617 Fuel Tank / Label Bracket
60 750-05322 Fuel Tank Bushing
61 710-04922 Bolt M8X50
62 951-12738 Fuel Cap Assembly
65 951-12739 Fuel Tank Assembly
66 951-10358A Fuel Filter
67 951-1170 0 Fuel Hose Clamp
68 723-04071 Plastic Support Clamp
69 951-10364 Fuel Line Kit
62
65
61
57
60
58
45
69
66
67
67
68
68
45
59
58
57
45
45
55
107

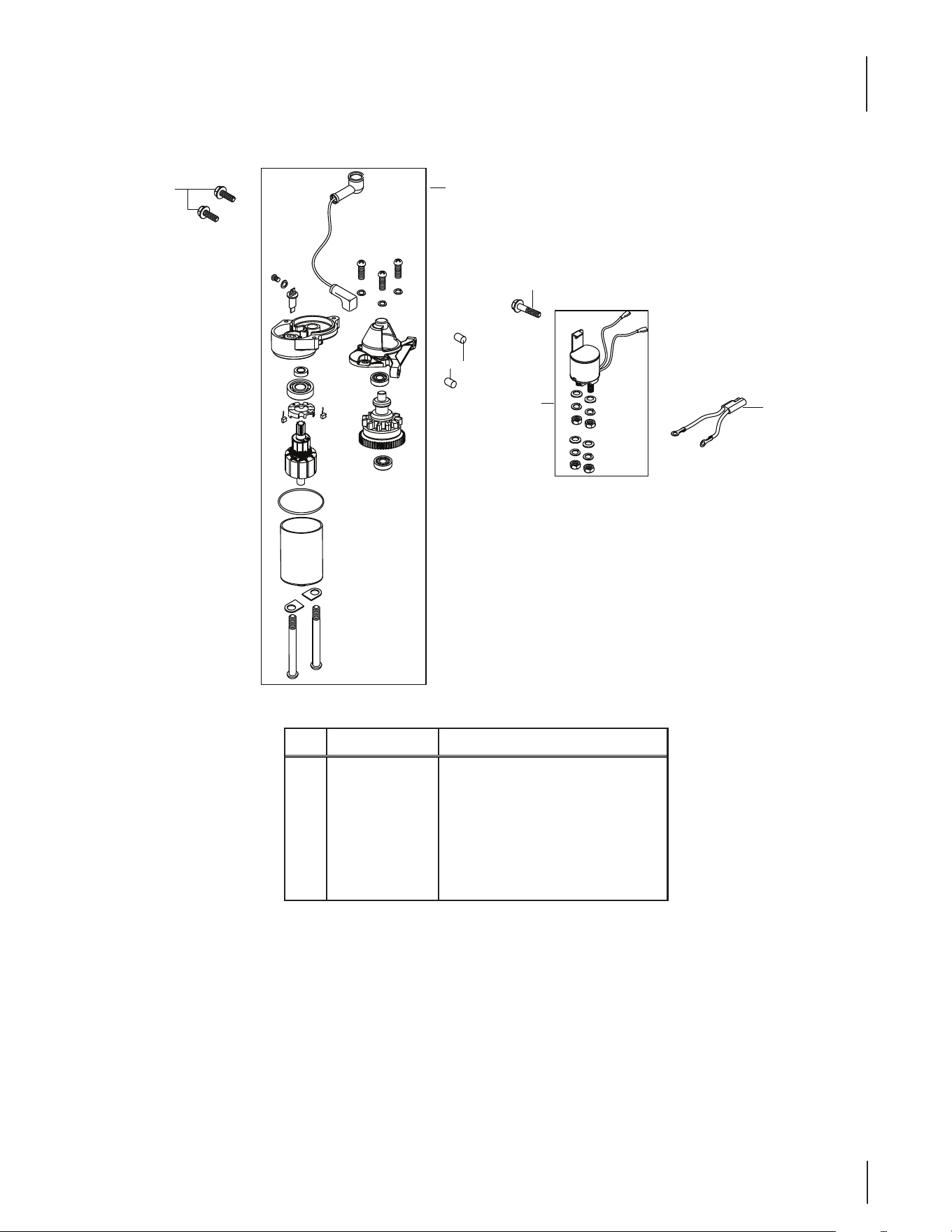

2P70MU Starter
Ref.
Part Number Description
22 951-12457 Electric Starter Assembly (53:9)
30 710-04969 Bolt M6X30
44 715-04088 Starter Housing Dowel 8X8
105 710-04980 Bolt M6X35
106 951-10823 Starter Relay Assembly
111 951-10824 Power Connector Harness
30
22
44
44
105
106
111
108
Briggs & Stratton 114P05-6873-F1
48 SHORTB LOCK 1329 REPLACEMENTE NGINE
847
523
524
525
842
24
37A
1
718
78
505
562
227
16
741
4
22
615
404
46
616
43
20
15
28
27
32
32A
29
25
26
12
27
78
37
1430
1263
1376
1264
1375
332
75
89
3
109
Briggs & Stratton 114P05-6873-F1
7
883
623
51
5
1022
883
13
914
192
830
993
886
7
45
868
35
36
40
238
1034
1026
1029
1023
33
34
300
81
613
883
635
337
40
163
718
110

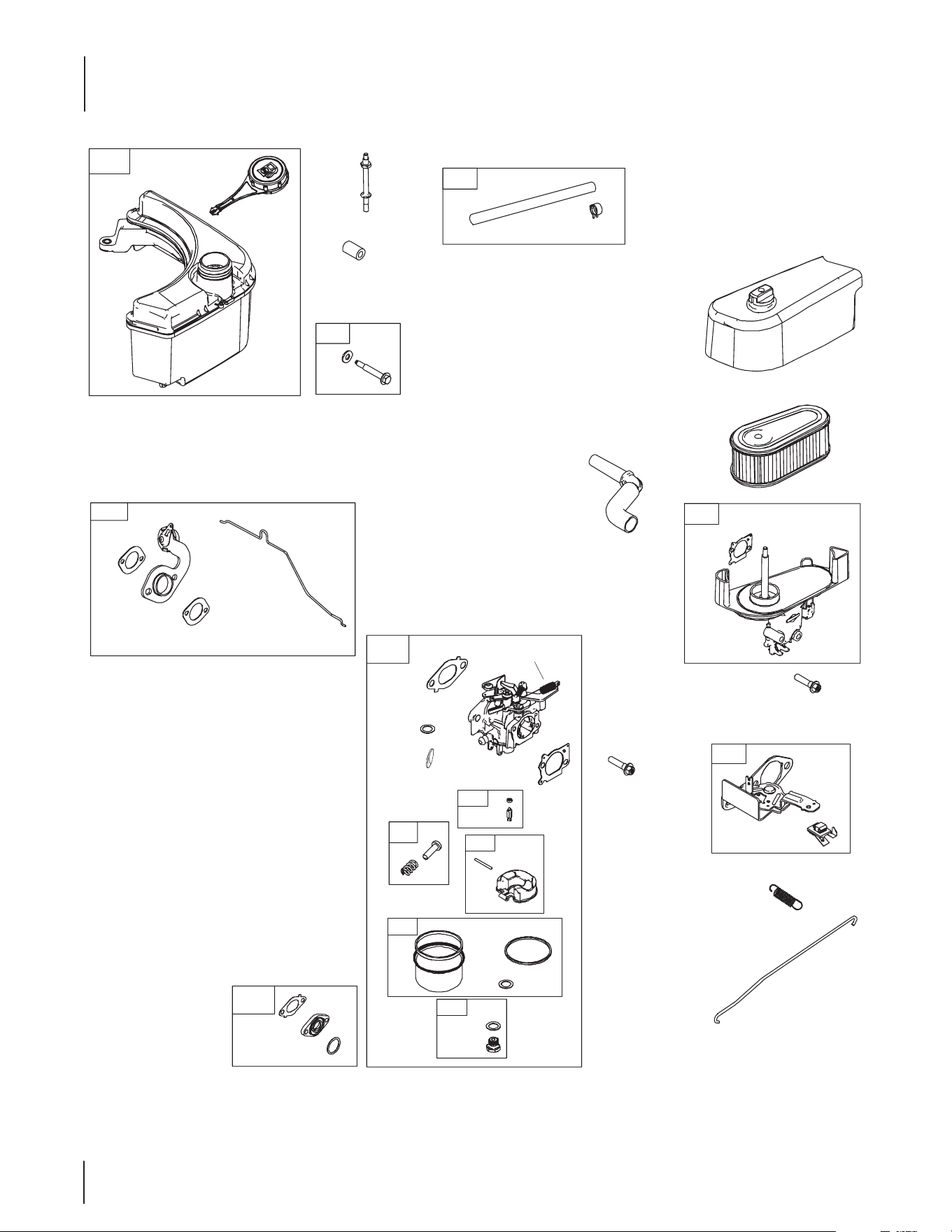

Briggs & Stratton 114P05-6873-F1
445
968
163
875
11
365
621
122
51
623
209
222
125
133
137
975
276
134
104
117
163
51
670
1059
972
957
190
291
216
883
883
187
601
202
1395
137A
276
217
987
127
98
111
Briggs & Stratton 114P05-6873-F1
309
697
635
923
922
745
789
334
332
75
23
621
851
333
334A
356
304
592
608
1036 EMISSIONSL ABEL
853
112
Briggs & Stratton 114P05-6873-F1
121 CARBURETOR OVERHAUL KIT
134
137
51
276
623
104
163
1430
993
1022
163
51
358 ENGINE GASKET SET
868
3
20
524
842
12
623
883
7
1095 VALVEG ASKET SET
163
51
868
883
623
7
993
1022
113
Briggs & Stratton 114P05-6873-F1
Ref. Part No. Description
1 BS-798948 Cylinder Assembly
3 BS-299819s Seal-Oil (Magneto Side)
4 BS-493279 Sump-Engine
5 BS-796471 Head-Cylinder
7 BS-796475 Gasket-Cylinder Head
11 BS-796478 Tube-Breather
12 BS-692232 Gasket-Crankcase
13 BS-793451 Screw (Cylinder Head)
15 BS-691680 Plug-Oil Drain
16 BS-796469 Crankshaft
20 BS-399781s Seal-Oil (PTO Side)
22 BS-691092 Screw (Crankcase Cover/Sump)
23 BS-590420 Flywheel
24 BS-222698s Key-Flywheel (Aluminum)
25 BS-796643 Piston Assembly (Standard)
BS-796644 Piston Assembly (.020” Oversize)
26 BS-796645 Ring Set (Standard)
BS-796646 Ring Set (.020” Oversize)
27 BS-691588 Lock-Piston Pin
28 BS-298909 Pin-Piston
29 BS-796470 Rod-Connecting
32 BS-691664 Screw (Connecting Rod) (1/4-20x1.09)
32A BS-695759 Screw (Connecting Rod) (1/4-20x1.50)
33 BS-499642 Valve-Exhaust
34 BS-795443 Valve-Intake
35 BS- 691304 Spring-Valve (Intake)
36 BS-691304 Spring-Valve (Exhaust)
37 BS-590921 Guard-Flywheel
37A BS-799242 Guard-Flywheel
40 BS- 692194 Retainer-Valve
43 BS-796650 Slinger-Governor/Oil
45 BS-690977 Tappet-Valve
46 BS-694039 Camshaft
48 BS-798770 Short Block
51 BS-796596 Gasket-Intake
75 BS- 691736 Washer (Flywheel)
78 BS-793480 Screw (Flywheel Guard) (M5x14.1mm)
81 BS-691740 Lock-Muer Screw
89 BS-692348 Plug (Cylinder)
98 BS-797156 Kit-Idle Speed
104 BS-797622 Pin-Float Hinge
117 BS-798661 Jet-Main (Standard)
121 BS-799235 Kit-Carburetor Overhaul
Ref. Part No. Description
122 BS-796595 Spacer-Carburetor
125 BS -591137 Carburetor
127 BS-694468 Plug-Welch
133 BS-797626 Float-Carburetor
134 BS -799177 Kit-Needle/Seat
137 BS-797625 Gasket-Float Bowl
163 BS-691894 Gasket-Air Cleaner
187 751-10349-16 Line-Fuel
190 BS-793479 Screw (Fuel Tank)
192 BS-796631 Adjuster-Rocker Arm
202 BS-796657 Link-Mechanical Governor
209 BS-796484 Spring-Governor (Metallic Gold)
216 BS-798944 Link-Choke
217 BS-799179 Spring-Choke Return
222 BS-796482 Bracket-Control
227 BS-796487 Lever-Governor Control
238 BS- 691300 Cap-Valve
276 BS-797632 Washer-Sealing
291 BS-798938 Thermostat
300 BS-798940 Muer
304 BS-798945 Housing-Blower
309 BS-799241 Motor-Starter
332 712-0318 Nut (Flywheel)
333 BS-796499 Armature-Magneto
334 BS-793454 Screw (Magneto Armature) (M6x27.1mm)
334A BS-796537 Screw (Magneto Armature)
337 759-3336 Plug-Spark
356 BS-692390 Wire-Stop
358 BS-799495 Gasket Set-Engine
365 BS-793458 Screw (Carburetor) (M6x21mm)
404 BS-690272 Washer (Governor Crank)
445 BS-795066 Filter-Air Cleaner Cartridge
505 BS-793515 Nut (Governor Control Lever)
523 BS-796503 Dipstick
524 BS-692296 Seal- Dipstick Tube
525 BS-796502 Tube-Dipstick
562 BS-793514 Bolt (Governor Control Lever)
592 BS-793481 Nut (Rewind Starter)
601 BS-791850 Clamp-Hose (Green)
608 BS-796497 Starter-Rewind
613 BS-796496 Screw (Muer)
615 BS-690340 Retainer-Governor Shaft
616 BS-798327 Crank-Governor
114
Briggs & Stratton 114P05-6873-F1
Ref. Part No. Description
621 BS-692310 Switch-Stop
623 BS-793628 Seal-O Ring (Carburetor Spacer)
635 BS-66538s Boot-Spark Plug
670 BS-793485 Spacer-Fuel Tank
697 BS- 691127 Screw (Drive Cap)
718 BS-690959 Pin-Locating
741 BS-797521 Gear-Timing
745 BS-793491 Screw (Brake)
789 BS-792685 Harness-Wiring
830 BS-796472 Stud-Rocker Arm
842 BS-691031 Seal-O Ring (Dipstick Tube)
847 BS-796501 Dipstick/Tube Assembly
851 BS-493880s Terminal-Spark Plug
853 BS-695268 Adapter-Wire
868 BS-795440 Seal-Valve
875 BS-796492 Base-Air Cleaner
883 BS-793497 Gasket-Exhaust
886 BS-796474 Gasket Kit-Cylinder/Plate
914 BS-794451 Screw (Rocker Cover)
922 BS- 692135 Spring-Brake
923 BS-796635 Brake
957 BS-799585 Cap-Fuel Tank
968 BS-796493 Cover-Air Cleaner
972 BS-590949 Tank-Fuel
975 BS-797631 Bowl-Fuel
987 BS-797629 Seal-Throttle Shaft
993 BS-796473 Gasket-Cylinder Head Plate
1022 BS-796480 Gasket-Rocker Cover
1023 BS-796479 Cover-Rocker
1026 BS-796481 Rod-Push
1029 BS- 691230 Arm-Rocker
1034 BS-691343 Guide-Push Rod
1036
Label-Emissions (Available from a Briggs
& Stratton Authorized Dealer)
1059 BS-793471 Kit-Screw/Washer (Fuel Tank)
1095 BS-799496 Gasket Set-Valve
1263 BS- 697124 Reed -Breather
1264 BS-793453 Screw (Breather Reed)
1329
BS-121S02-
2060-F1
Replacement Engine
1375 BS-796476 Cover-Breather/Reed
1376 BS-794451 Screw (Breather/Reed Cover)
1395 BS-690349 Screw (Air Cleaner Base to Carburetor)
1430 BS-796477 Gasket-Breather/Reed
115Notes
116
Kohler XT800-3016 Crankshaft
Ref. Part Number Description
1 KH-14-340-01-S Flywheel Key
2 KH-14-014-123-S Crankshaft Assembly
3 KH-17-030 -12-S Ball Bearing
2
1
3
117
Kohler XT800-3016 Oil Pan/Lubrication
8
4
12
1
7
7
6
5
9
3
Ref. Part Number Description
1 KH-14-123-13-S Oil Fill Tube Assembly
2 KH-14-153-03-S Oil Fill Tube O-Ring
3 KH-14-199-06-S
Oil Pan Kit (Inc. Governor Gear As-
sembly & Dowel Pins
4 KH-25-086-145-S Screw Hex Flange (M6)
5 KH-14-041-06-S Gasket Oil Pan
6 KH-14-032-07-S Seal Oil
7 KH-25-086-161-S Screw Hex Flange (M8)
8 KH-14-153-05-S O-Ring
9 KH-25-086-159-S Screw Hex Flange (M6)
118
Kohler XT800-3016 Crankcase
2
1
12
10
6
5
5
4
4
11
9
7
3
8
Ref. Part-Number Description
1 KH-14-050-01-S
Breather Filter Kit (Inc. Breather
Cover Gasket, Breather Cover Spring,
Breather Filter, Breather Reed)
2 KH-14-032-02-S Oil Seal
3 KH-14-032-04-S Oil Seal
4 KH-14-380-06-S Cylinder Head Dowel
5 KH-14-018-03-S Piston Pin Retainer
6 KH-14-067-01-S Connecting Rod
Ref. Part-Number Description
7 KH-14-468-07-S Flat Washer, 13 mm
8 KH-14-154-01-S Governor Shaft Clip
9 KH-14-010-12-S Camshaft Assembly
10 KH-25-086 -159-S Hex Flange Screw, M6
11 KH-14-561- 09-S Crankcase
12 KH-14-096 -22-S Breather Cover
N/A KH-14-874-03-S Piston Kit
N/A KH-14-108-02-S Ring Set
119

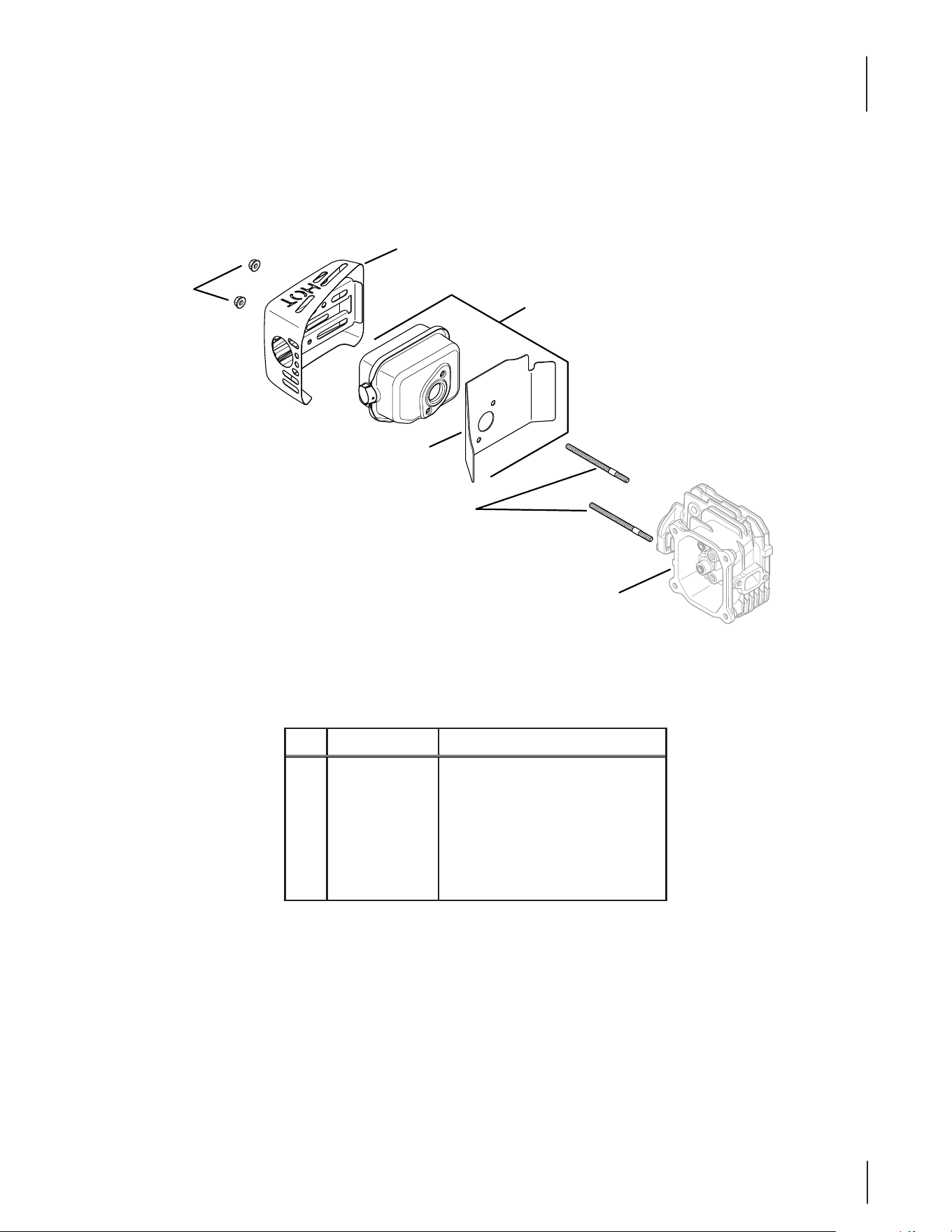

Kohler XT800-3016 Exhaust
3
5
1
Head/Valve/
Breather
4
2
Ref. Part-Number Description
1 KH-14-072-06-S
Stud, M6 (Inc. Muer Gasket, Ex-
haust Studs & Flange Lock Nuts)
2 KH-14-068-05-S Muer Kit (Inc. Muer Gasket)
3 KH-14-100- 09-S Hex Flange Lock Nut, M6
4 KH-14- 041-22-S Muer Gasket
5 KH-14-314-04-S Muer Shield
120

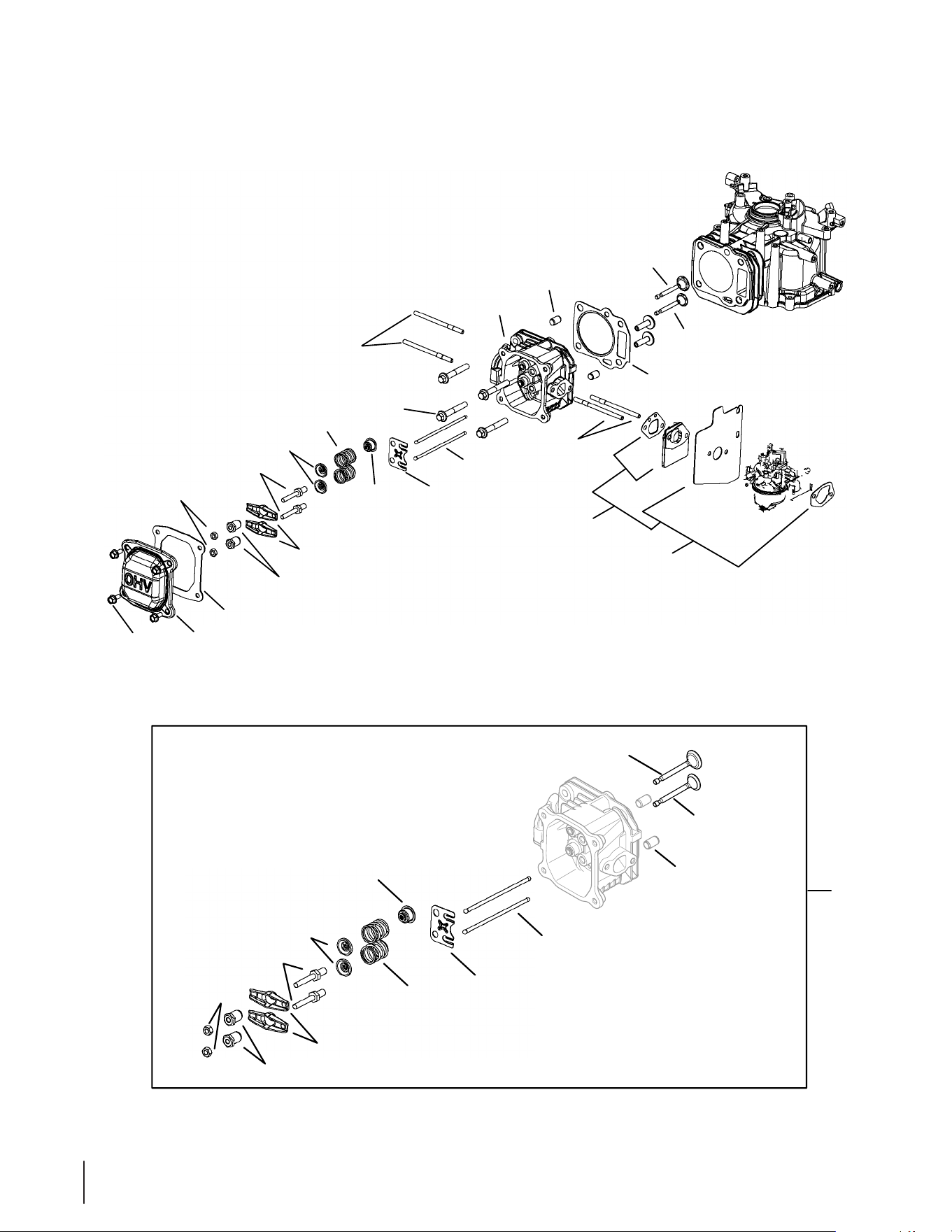

Kohler XT800-3016 Head/Valve/Breather
2
4
20
9
17
18
19
16
8
5
23
3
15
13
6
22
11
7
12
14
10
21
14
21
16
18
19
17
23
3
2
13
12
11
1
121
Kohler XT800-3016 Head/Valve/Breather
Ref. Part-Number Description
1 KH-14-755-02-S
Valve Train Kit (Inc. Valve Stem Seal,
Valve Springs, Push Rod Guide Plate,
Cylinder Head Dowels, Push Rods)
2 KH-14-017-01-S Intake Valve
3 KH-14-016-01-S Exhaust Valve
4 KH-14-841-04-S
Head Gasket Kit (Inc. Muer
Gasket)
5 KH-14-318- 03-S Cylinder Head Kit
6 KH-14-096-115-S Valve Cover
7 KH-14-041-01-S Valve Cover Gasket
8 KH-14-072-06-S Stud, M6
9 KH-24-072-06-S
Stud, M6 x 1.0 x 93 (Inc. Muer Gas-
ket, Exhaust Studs & Flange Lock Nuts)
10 KH-14-018-02-S Valve Spring Retainer
11 KH-14-100-01-S Hex Jam Nut
12 KH-14-599- 01-S Rocker Arm Pivot
13 KH-14-186-02-S Rocker Arm
14 KH-14-072-22-S Rocker Arm Stud
15 KH-14-041-24-S Gasket Kit
16 KH-25-086-140-S Hex Flange Screw, M8
17 KH-14-411-01-S Push Rod
18 KH-14-146-01-S Pushrod Guide Plate
19 KH-14-032-08-S Valve Stem Seal
20 KH-14-112-09 -S Spacer Kit
21 KH-14-089-02-S Valve Spring
22 KH-25-086-159-S Hex Flange Screw, M6
23 KH-14-380- 06-S Cylinder Head Dowel
122
8
9
6
2
1
4
5
7
3

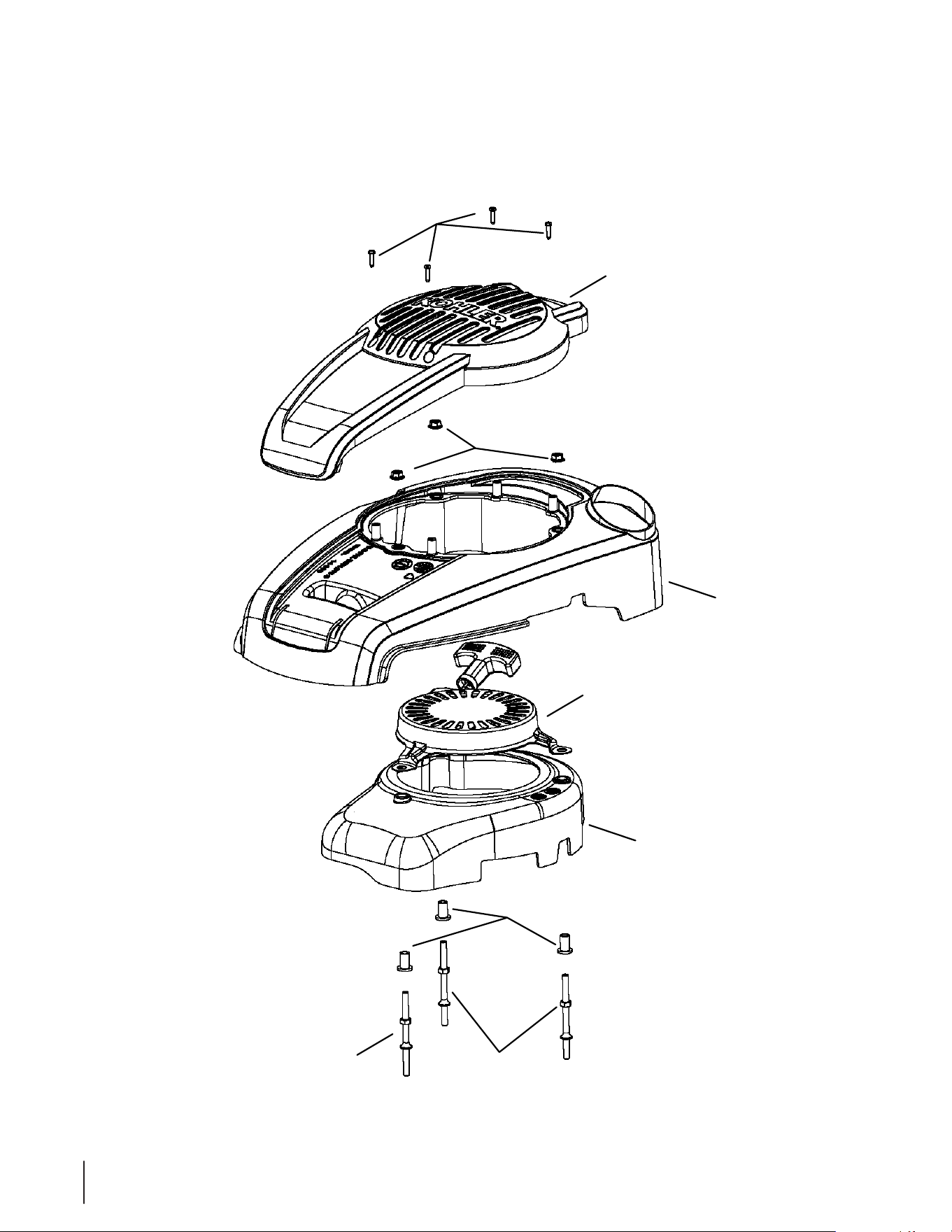

Kohler XT800-3016 Blower Housing & Baffles
123
Kohler XT800-3016 Blower Housing & Baffles
Ref. Part-Number Description
1 KH-14-165-07-S Retractable Starter Assembly
2 KH-14-096 -27-S Engine Cover (Black)
3 KH-14-072-12-S Stud
4 KH-14-072-13-S Stud
5 KH-14-112-07-S Spacer
6 KH-14-100-08-S Hex Flange Nut, M6
7 KH-14-027-03-S Blower Housing
8 KH-25- 086-167-S Hi-Lo Screw, #15
9 KH-14-332-04-S Engine Cover Insert (Black)
124
Kohler XT800-3016 Ignition/Electrical
8
Blower
Housing &
Baffle
9
4
12
11
3
10
7
2
1
6
5
125
Ref. Part Number Description
1 KH-14-100-10-S Flywheel Nut w/ Serrations
2 KH-14-109-02-S Drive Cup
3 KH-14-025-02-S Flywheel Assembly (Aluminum)
4 KH-14-584-05-S Ignition Module (Alum STD)
5 KH-14-112-07-S Spacer
6 KH-14-072-12-S Stud
7 KH-14-072-13-S Stud
8 KH-25-086-145-S Hex Flange Screw, M6
9 KH-14-132-03-S Spark Plug
10 KH-14-157-01-S Flywheel Fan
11 KH-14-314-01-S Guard
12 KH-14-219-07-S Carb Side Brake Assembly
Kohler XT800-3016 Ignition/Electrical
126

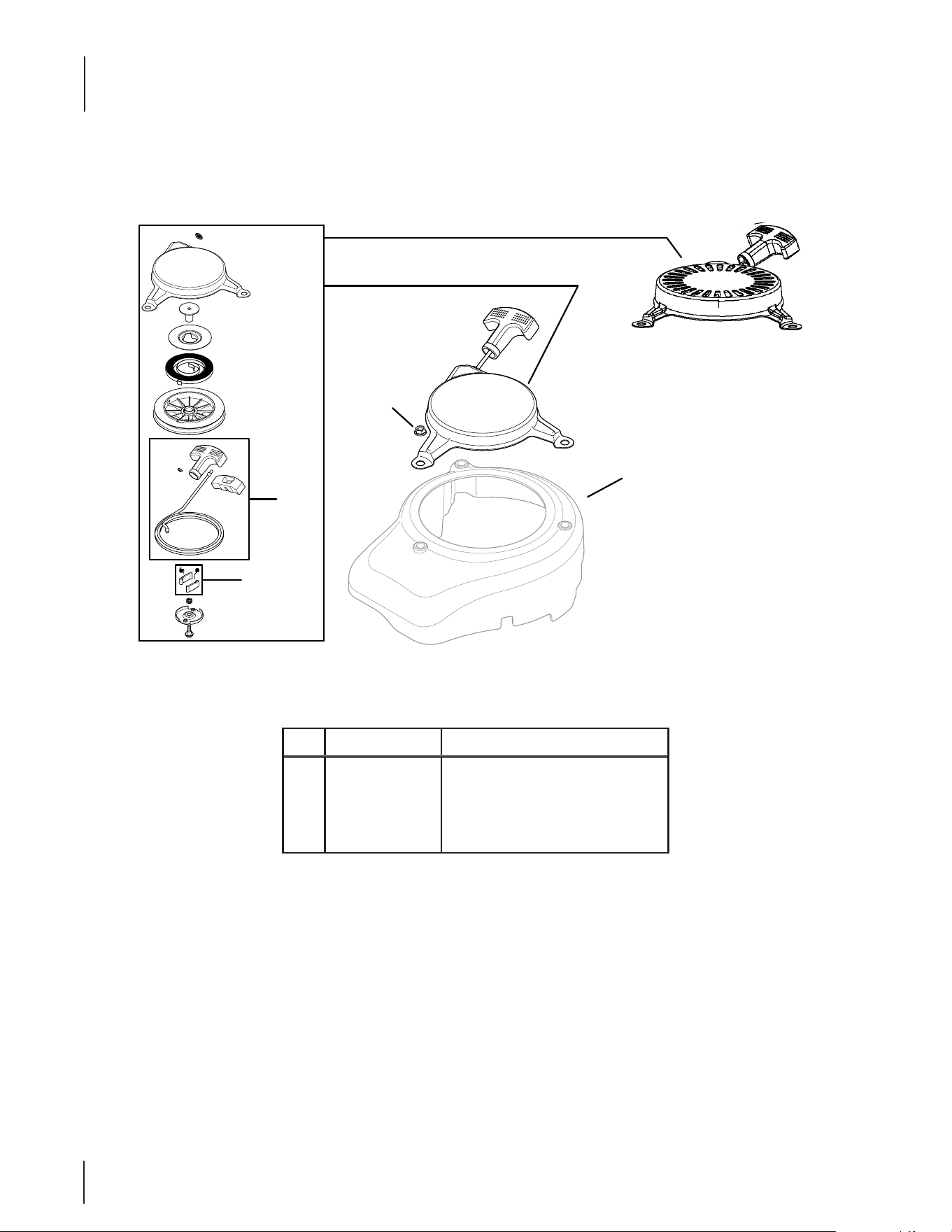

Kohler XT800-3016 Starting System
Ref. Part-Number Description
1 KH-14-100- 08-S Hex Flange Nut, M6
2 KH-14-165-07-S Retractable Starter Assembly
3 KH-14-160- 01-S Rope
4 KH-14-379- 01-S Pawl Repair Kit
Blower Housing
& Baffle
2
1
3
4
127

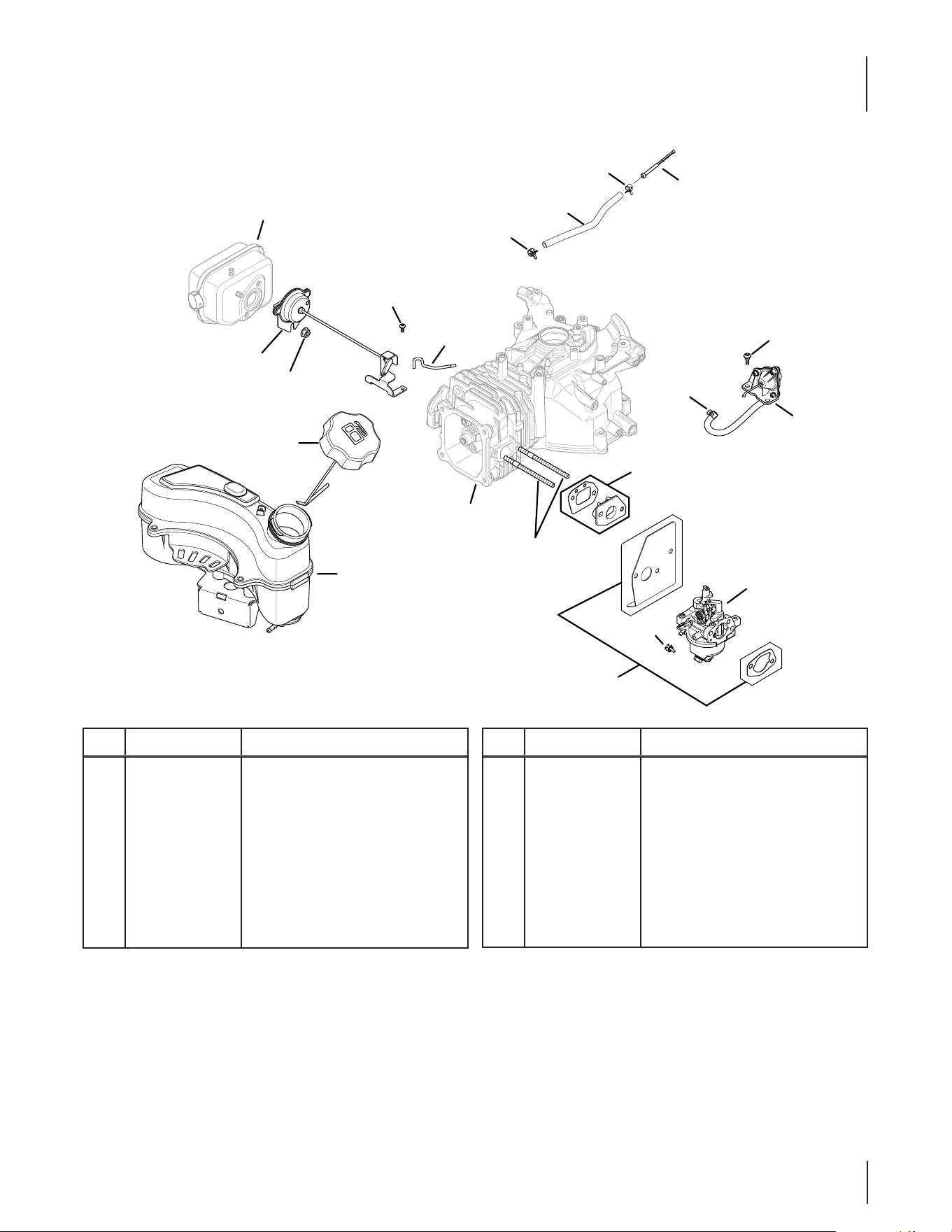

Kohler XT800-3016 Fuel System
Ref. Part-Number Description
1 KH-14-853-45-S Carburetor Kit
2 KH-14- 065-41-S Fuel Tank Assembly Fuel (Xenoy)
3 KH-14-041-24-S Gasket Kit
4 KH-14-237-05-S Hose Clamp
5 KH-14-112-09-S Spacer Kit
6 KH-14-100- 08-S Hex Flange Nut, M6
7 KH-14-237-07-S Hose Clamp (Non-California)
8 KH-14-072-23-S Carburetor Stud
Ref. Part-Number Description
9 KH-14-227-16-S Fuel Cap Assembly (Evap.)
10 KH-14-050-14-S In-Nipple Fuel Filter
11 KH -2 5-111- 69 -S Low-Permeation Fuel Hose (Cky.)
12 KH-25-086-275-S Shoulder Screw
13 KH-14-268-04-S Diaphragm Assembly
14 KH-14- 079-17-S Auto Choke Linkage
15 KH-25-086-277-S Thread Forming Screw, M4
16 KH-14-187-03-S Auto Choke Arm Assembly
Exhaust
15
7
7
11
10
2
9
6
16
14
Head/Valve
Breather
8
5
3
4
1
4
13
12
128
Kohler XT800-3016 Air Intake/Filtration
Ref. Part-Number Description
1 KH-14-094-23-S
Air Cleaner Base Kit (Inc. Air Cleaner
Base Gasket)
2 KH-14-123-05-S Breather Hose
3 KH-14-083-01-S Air Cleaner Element
4 KH-14-100- 08-S Hex Flange Nut, M6
5 KH-25-086-145-S Hex Flange Screw, M6
6 KH-41-037-10-S Service Nameplate
7 KH-14-096-110-S Air Cleaner Cover
8 KH-14-083-11-S Carbon Pre-Filter Element
9 KH-17-041-03-S Intake Gasket Kit
2
5
3
7
8
4
1
6
9
129
Kohler XT800-3016 Engine Controls
Ref. Part-Number Description
1 KH-14-090-12-S Governor Lever
2 KH-14-100- 08-S Hex Flange Nut, M6
3 KH-25-086-166-S Rectangle Head Screw, M6
4 KH-14-089-14-S Governor Spring (2800-3300 RPM)
5 KH-14-089- 43-S Linkage Spring
N/A KH-14-126-53-S
Fixed Speed Control Bracket As-
sembly (Not Shown)
3
4
2
1
5
130
WARNING
1
3
2
Ref. Part Number Description
1 KH-41-037-10-S Service Nameplate
2 KH-14-113-57-S Warning Decal
3 KH-14-113-72-S Name XT8 Decal (Walk Styling)
Kohler XT800-3016
131Notes
132
Briggs & Stratton 111P05-0963-F1
48 SHORTB LOCK 1329 REPLACEMENTE NGINE
3
1
718
7
27
26
27
25
29
28
24
741
16
89
32
32A
615
404
22
15
4
20
46
616
43
12
847
525
523
524
842
505
562
227
1376
1375
1263
1264
287
1430
133

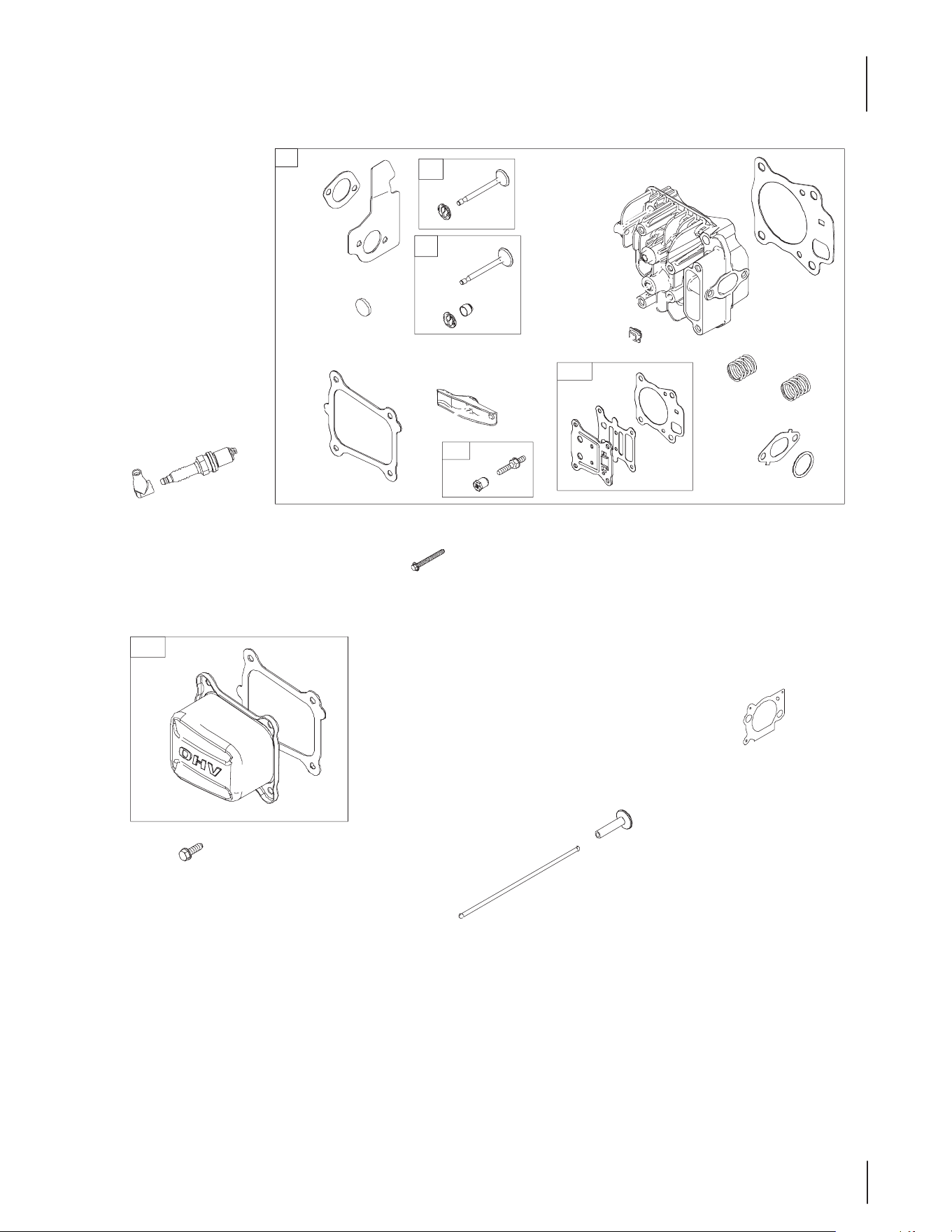

Briggs & Stratton 111P05-0963-F1
868
993
40
238
33
7
883
5
34
883A
1029
1034
886
192
830
623
51
40
1022
13
1023
1022
914
1026
45
163
635
337
35
36
134

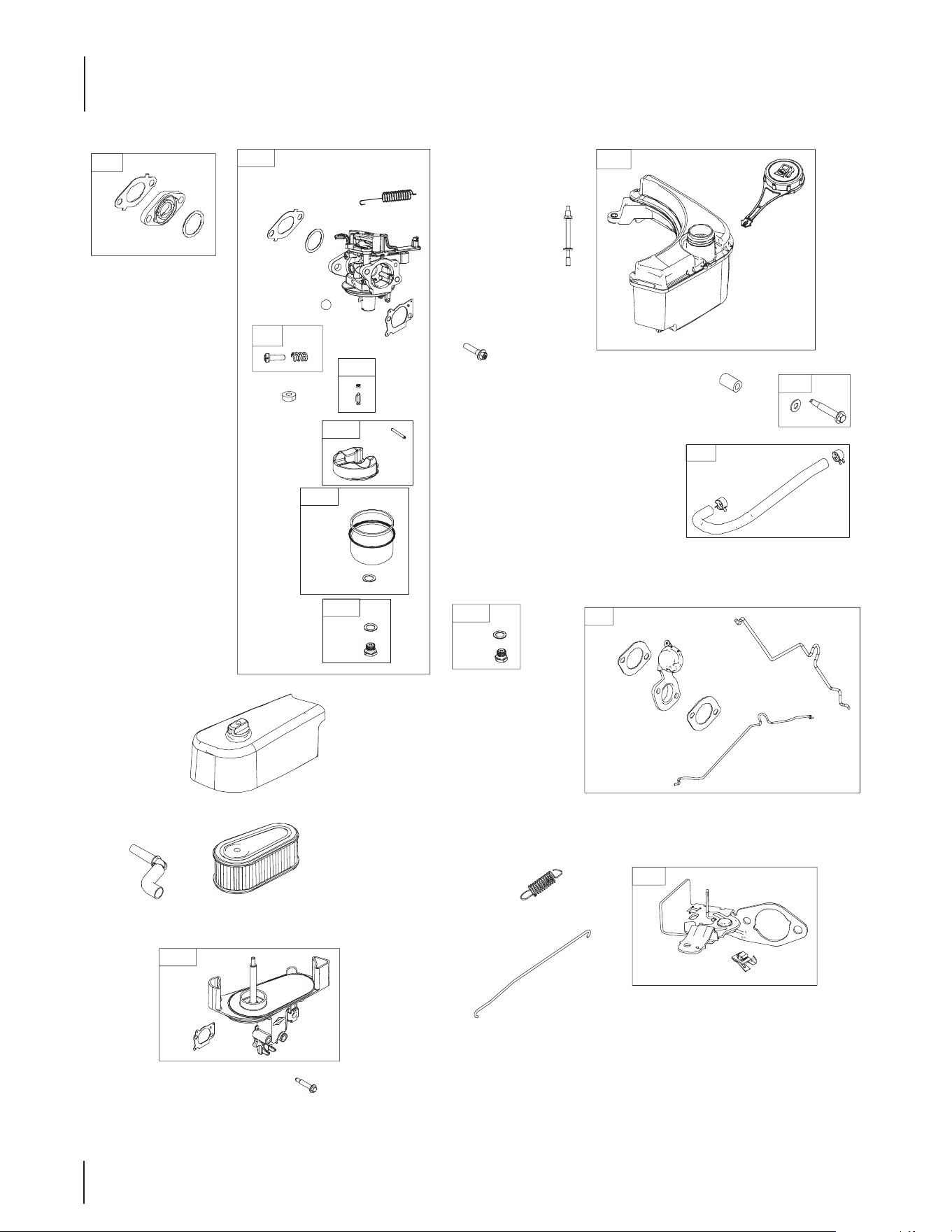

Briggs & Stratton 111P05-0963-F1
209
122
222
623
51
621
187
601
957
972
670
1059
202
291
216
883
883
190
216A
11
445
968
875
163
971
163
137
51
276
104
365
217
125
975
133
134
276
117
623
276
118
127
98
987
135

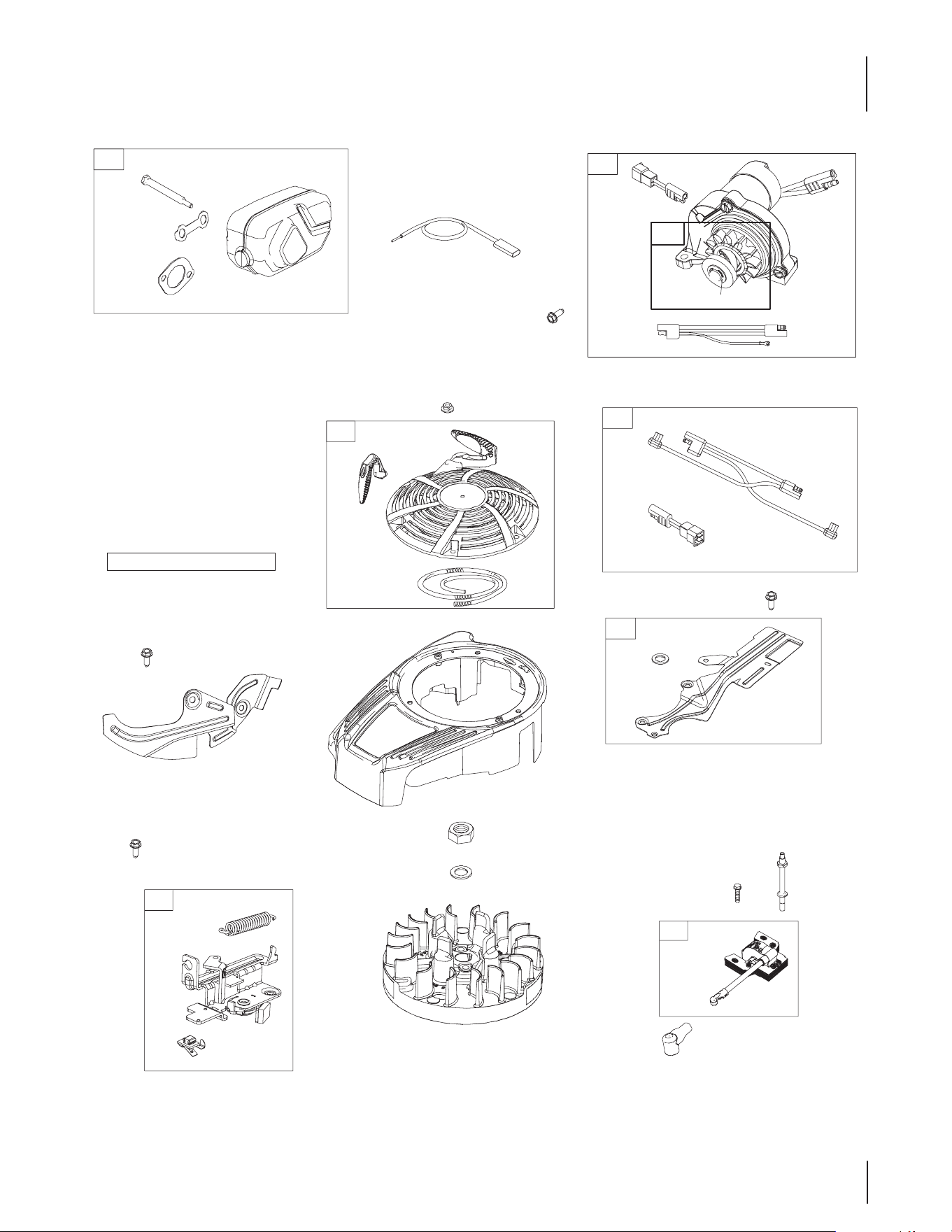

Briggs & Stratton 111P05-0963-F1
332
1036E MISSIONS LABEL
356
334
608
60
58
592
23
78
37
300
81
613
883
333
334A
304
635
851
37A
75
78
745
923
922
621
309
937
789
697
742
853
853A
853
545
136
Briggs & Stratton 111P05-0963-F1
121 CARBURETOR OVERHAUL KIT
51
163
623
276
104
137
134
358 ENGINE GASKET SET
20
51
3
163
623
868
883
883A
1430
12
524
842
7
1022
993
1095V ALVE GASKET SET
993
1022
883
883A
868
51
7
623
163
7A
1430A
7A
137
Briggs & Stratton 111P05-0963-F1
Ref. Part No. Description
1 BS-798948 Cylinder Assembly
3 BS-299819s Seal-Oil (Magneto Side)
4 BS-493279 Sump-Engine
5 BS-796471 Head-Cylinder
7 BS-796475 Gasket-Cylinder Head
7A BS-799275 Gasket-Cylinder Head
11 BS-796478 Tube-Breather
12 BS-692232 Gasket-Crankcase
13 BS-793451 Screw (Cylinder Head)
15 BS-691680 Plug-Oil Drain
16 BS-796469 Crankshaft
20 BS-399781s Seal-Oil (PTO Side)
22 BS-691092 Screw (Crankcase Cover/Sump)
23 BS-590420 Flywheel
24 BS-222698s Key-Flywheel (Aluminum)
25 BS-796643 Piston Assembly (Standard)
BS-796644 Piston Assembly (.020” Oversize)
26 BS-796645 Ring Set (Standard)
BS-796646 Ring Set (.020” Oversize)
27 BS-691588 Lock-Piston Pin
28 BS-298909 Pin-Piston
29 BS-796470 Rod-Connecting
32 BS-691664 Screw (Connecting Rod) (1/4-20x1.09)
32A BS-695759 Screw (Connecting Rod) (1/4-20x1.50)
33 BS-499642 Valve-Exhaust
34 BS-795443 Valve-Intake
35 BS- 691304 Spring-Valve (Intake)
36 BS-691304 Spring-Valve (Exhaust)
37 BS-590921 Guard-Flywheel (Carburetor Side)
37A BS-799242 Guard-Flywheel (Muer Side)
40 BS- 692194 Retainer-Valve
43 BS-796650 Slinger-Governor/Oil
45 BS-690977 Tappet-Valve
46 BS-694039 Camshaft
48 BS-798770 Short Block
51 BS-796596 Gasket-Intake
58 BS- 697316 Rope-Starter
60 BS-795426 Grip-Starter Rope
75 BS- 691736 Washer (Flywheel)
78 BS-793480 Screw (Flywheel Guard) (M5x14.1mm)
81 BS-691740 Lock-Muer Screw
Ref. Part No. Description
89 BS-692348 Plug (Cylinder)
98 BS-797156 Kit-Idle Speed
104 BS-797622 Pin-Float Hinge
117 BS-798661 Jet-Main (Standard)
121 BS-796612 Kit-Carburetor Overhaul
122 BS-796595 Spacer-Carburetor
125 BS -591137 Carburetor
127 BS-694468 Plug-Welch
133 BS-797626 Float-Carburetor
134 BS-799177 Kit-Needle/Seat
137 BS-797625 Gasket-Float Bowl
163 BS-691894 Gasket-Air Cleaner
187 751-10349-16 Line-Fuel
190 BS-793479 Screw (Fuel Tank)
192 BS-796631 Adjuster-Rocker Arm
202 BS-796657 Link-Mechanical Governor
209 BS-796484 Spring-Governor (Metallic Gold)
216 BS-796485 Link-Choke
216A BS-798944 Link-Choke
217 BS-799179 Spring-Choke Return
222 BS-796482 Bracket-Control
227 BS-796487 Lever-Governor Control
238 BS-691300 Cap-Valve
276 BS-797632 Washer-Sealing
287 BS-793479 Screw (Dipstick Tube)
291 BS-798938 Thermostat
300 BS-798940 Muer
304 BS-798945 Housing-Blower
309 BS-799241 Motor-Starter
332 712-0318 Nut (Flywheel)
333 BS-796499 Armature-Magneto
334 BS-793454 Screw (Magneto Armature)
334A BS-793479 Stud (Magneto Armature)
337 759-3336 Plug-Spark
356 BS-692390 Wire-Stop
358 BS-799495 Gasket Set-Engine
365 BS-793458 Screw (Carburetor) (M6x27mm)
404 BS-690272 Washer (Governor Crank)
445 BS-795066 Filter-Air Cleaner Cartridge
505 BS-793515 Nut (Governor Control Lever)
523 BS-796503 Dipstick
138
Briggs & Stratton 111P05-0963-F1
Ref. Part No. Description
524 BS-692296 Seal- Dipstick Tube
525 BS-796502 Tube-Dipstick
545 BS-690402 Washer Set (Starter Motor)
562 BS-793514 Bolt (Governor Control Lever)
592 BS-793481 Nut (Rewind Starter)
601 BS-791850 Clamp-Hose (Green)
608 BS-796497 Starter-Rewind
613 BS-796496 Screw (Muer)
615 BS-690340 Retainer-Governor Shaft
616 BS-798327 Crank-Governor
621 BS-692310 Switch-Stop
623 BS-793628 Seal-O Ring (Carburetor Spacer)
635 BS-66538s Boot-Spark Plug
670 BS-793485 Spacer-Fuel Tank
697 BS - 691127 Screw (Drive Cap)
718 BS-690959 Pin-Locating
741 BS-797521 Gear-Timing
742 BS-93941 Retainer-E Ring (Starter Spline)
745 BS-793491 Screw (Brake)
789 BS-792685 Harness-Wiring
830 BS-796472 Stud-Rocker Arm
842 BS-691031 Seal-O Ring (Dipstick)
847 BS-796501 Dipstick/Tube Assembly
851 BS-493880s Terminal-Spark Plug
853 BS-695268 Adapter-Wire
853A BS-695897 Adapter-Wire
868 BS-795440 Seal-Valve
875 BS-796492 Base-Air Cleaner
883 BS-793497 Gasket-Exhaust
883A BS-796677 Gasket-Exhaust
886 BS-796474 Gasket Kit-Cylinder/Plate
914 BS-794451 Screw (Rocker Cover)
922 BS-692135 Spring-Brake
923 BS-796635 Brake
937 BS-799420 Spline-Starter
957 BS-799585 Cap-Fuel Tank
968 BS-796493 Cover-Air Cleaner
971 BS-690349 Screw (Air Cleaner Base to Carburetor)
972 BS-590949 Tank-Fuel
975 BS-797631 Bowl-Fuel
987 BS-797629 Seal-Throttle Shaft
Ref. Part No. Description
993 BS-796473 Gasket-Cylinder Head Plate
1022 BS-796480 Gasket-Rocker Cover
1023 BS-796479 Cover-Rocker
1026 BS-796481 Rod-Push
1029 BS-691230 Arm-Rocker
1034 BS-691343 Guide-Push Rod
1036
Label-Emissions (Available from a
Briggs & Stratton Authorized Dealer)
1059 BS-793471 Kit-Screw/Washer (Fuel Tank)
1095 BS-799496 Gasket Set-Valve
1263 BS-697124 Reed -Breather
1264 BS-793453 Screw (Breather Reed)
1329
BS-121S07-
2060-F1
Replacement Engine
1375 BS-796476 Cover-Breather/Reed
1376 BS-794451 Screw (Breather/Reed Cover)
1430 BS-796477 Gasket-Breather/Reed
1430A BS-799494 Gasket-Breather/Reed
139Notes
140
5P65MU Air Cleaner
Ref. Part Number Description
6 712-04212 Nut M6X10Mm
39 710-04980 Bolt M6X35
113 951-10297 Air Filter Cover Thumb Screw
114 951-10876 Air Filter Cover
116 951-10298 Air Filter Element, Paper
113
116
114
39
6
141
5P65MU Carburetor
Ref.
Part Number Description
119 951-11525 Carburetor Gasket Plate
120 951-10873 Carburetor Assembly
121 n/a Choke Shaft
122 n/a Choke Plate
123 n/a Choke Return Spring
124 736-04556 Choke Shaft Washer
125 n/a Choke Shaft Fiber O-Ring
126 n/a Throttle Plate
127 736-04638 Throttle Plate Lock Washer
128 n/a Screw M3X5 Throttle Plate
129 n/a Throttle Shaft
130 n/a Idle Jet Assembly
131 n/a Throttle Shaft Fiber O-Ring
132 n/a Idle Speed Adjusting Screw
133 n/a Idle Mixture Screw
134 n/a Carburetor Body
135 n/a Emulsion Tube
Ref.
Part Number Description
136 n/a Main Jet
137 951-11589 Fuel Bowl O-Ring
138 n/a Needle Valve
139 n/a Needle Valve Spring
140 n/a Float
141 n/a Float Pin
142 n/a Fuel Bowl
143 951-1134 8 Fuel Bowl Gasket
144 710-04945 Fuel Bowl Mounting Bolt
145 710-04938 Fuel Drain Plug
146 951-11349 Fuel Drain Plug Gasket
147 951-11737 Carburetor Gasket
148 951-11738 Carburetor Insulator
149 951-11528 Carburetor Insulator Gasket
150 710-05093 Carb Stud M6X92
195 951-10874A Carburetor Kit -Major
(Incl.125,130-132,135-141,143,146)
121
122
120
123
124
125
134
119
137
138
139
141
146
145
144
143
142
140
136
135
133
132
131
130
128
127
126
129
147
148
149
150
150
195 - Carburetor Kit
142
5P65MU Crankcase
Ref.
Part Number Description
23 951-10320A Brake Assembly
30 712-04219 Brake Arm Nut
38 750-05384 Brake Spacer
39 710-04980 Bolt M6X35
40 710-04969 Bolt M6X30
41 951-10367 Ignition Coil Assembly
42 750-05383 Ignition Coil Spacer
43 710-04916 Bolt M6X14 Multi-Purpose
44 951-12684 Breather Cover Plate
45 951-11729 Breather Gasket
46 951-11596 Upper Crankshaft Seal
47 951-11730 Breather Screen
48 951-12685 Breather Valve
49 951-12686 Breather Valve Base
64 951-11520 Breather Hose Assembly
65 726-04101 Breather Hose Clamp
66 726-04128 Breather Hose Clamp
68 951-1160 8 Governor Arm Shaft
69 951-11574 Governor Seal
70 714-04074 Governor Arm Shaft Cotter Pin
71 951-11521 Throttle Linkage
72 951-11522 Throttle Linkage Spring
74 951-11523 Governor Arm
75 712- 04212 Governor Arm Nut M6
76 710-04908 Governor Arm Bolt
23
43
44
45
46
48
49
47
40
41
68
69
70
64
66
65
85
43
82
80
81
84
83
74
75
76
71
72
77
78
78
79
190
182
187
189
188
187
193
39
39
38
38
31
196 - Gasket Kit - External
197 - Gasket Kit - Complete
198 - Complete Engine
42
143
5P65MU Crankcase
Ref.
Part Number Description
23 951-10320A Brake Assembly
30 712-04219 Brake Arm Nut
38 750-05384 Brake Spacer
39 710-04980 Bolt M6X35
40 710-04969 Bolt M6X30
41 951-10367 Ignition Coil Assembly
42 750-05383 Ignition Coil Spacer
43 710-04916 Bolt M6X14 Multi-Purpose
44 951-12684 Breather Cover Plate
45 951-11729 Breather Gasket
46 951-11596 Upper Crankshaft Seal
47 951-11730 Breather Screen
48 951-12685 Breather Valve
49 951-12686 Breather Valve Base
64 951-11520 Breather Hose Assembly
65 726-04101 Breather Hose Clamp
66 726-04128 Breather Hose Clamp
68 951-1160 8 Governor Arm Shaft
69 951-11574 Governor Seal
70 714-04074 Governor Arm Shaft Cotter Pin
71 951-11521 Throttle Linkage
72 951-11522 Throttle Linkage Spring
74 951-11523 Governor Arm
75 712- 04212 Governor Arm Nut M6
76 710-04908 Governor Arm Bolt
Ref.
Part Number Description
77 951-11273 Governor Spring
78 710- 04915 Bolt M6X12
79 951-1154 4 Component Bracket
80 951-11524 Choke Linkage
81 951-11792 Air Vane Bracket
82 951-11529 Air Vane
83 951-11789A Short Block
(Incl.43-49,68-70,83-89,92,94,95,
105-111,119,148,149,165,168,
177,178,180-182,187-190,193)
84 951-11732 Crankcase Cover Gasket
85 951-11369 Main Bearing
182 951-1168 8 Piston Ring Set
187 951-11603 Piston Pin Snap Ring
188 951-1160 4 Piston Pin
189 951-11605 Piston
190 951-1174 4 Connecting Rod Assembly
193 710-05162 Connecting Rod Bolt
194 951-10370 Oil Drain Plug And Washer Ass'y
196 951-11788 Gasket Kit - External
(Incl.44,92,109,147-149,165,168)
197 951-11787 Gasket Kit - Complete
(In cl. 45,4 6, 69, 8 4,92,109,111,
147-149,165,168,177)
198 952Z5P65MU Complete Engine
144
5P65MU Crankshaft & Crankcase Cover
Ref. Part Number Description
39 710-04980 Bolt M6X35
43 710-04916 Bolt M6X14
86 951-11591 Crankshaft Assembly
87 951-10307 Flywheel Key
88 951-11733 Oil Return Seal
89 736-04491 Crankshaft Thrust Washer
91 951-12696 Dipstick
92 951-11547 Dipstick / Oil Fill Tube O-Ring
93 951-11765A Oil Fill Tube
94 951-11609 Governor Gear Mounting Plate
Ref. Part Number Description
95 951-11549 Governor Gear/Shaft Assembly
105 715- 04092 Crankcase Cover Dowel Pin 7×14
106 710-04920 Bolt M6X28
107 951-11793 Crankcase Cover
108 715- 04089 Crankcase Cover Dowel Pin 9×14
109 736-04440 Oil Drain Plug Washer
110 710-04906 Oil Drain Plug
111 951-115 45 Lower Crankshaft Seal
194 951-10370 Oil Drain Plug And Washer Ass'y
39
91
92
93
92
43
94
88
106
110
109
108
106
106
95
105
106
107
106
111
106
109
110
194
89
86
87
145
5P65MU Flywheel & Shroud
Ref.
Part Number Description
1 710 -04744 Screw, #12-16 X 1.00"
2 Outer Shroud (Model Specic)
3 951-12683 Recoil Starter Assembly
6 712- 04212 Nut M6X10Mm
7 951-11721 Recoil Spring
15 751-11722 Stud Left/Black/Ye Zinc
16 951-11723 Stud Front/Unmarked/Ye Zinc
Ref.
Part Number Description
17 951-11724 Stud Right/White/Ye Zinc
18 951-10875 Inner Shroud
19 750-05320 Engine Shroud Spacer
20 951-12863 Inner Shroud Assembly
21 712-04287 Flywheel Nut M14
22 951-11043 Flywheel
1
1
2
3
6
6
15
19
18
19
19
16
17
20
6
7
21
22
146

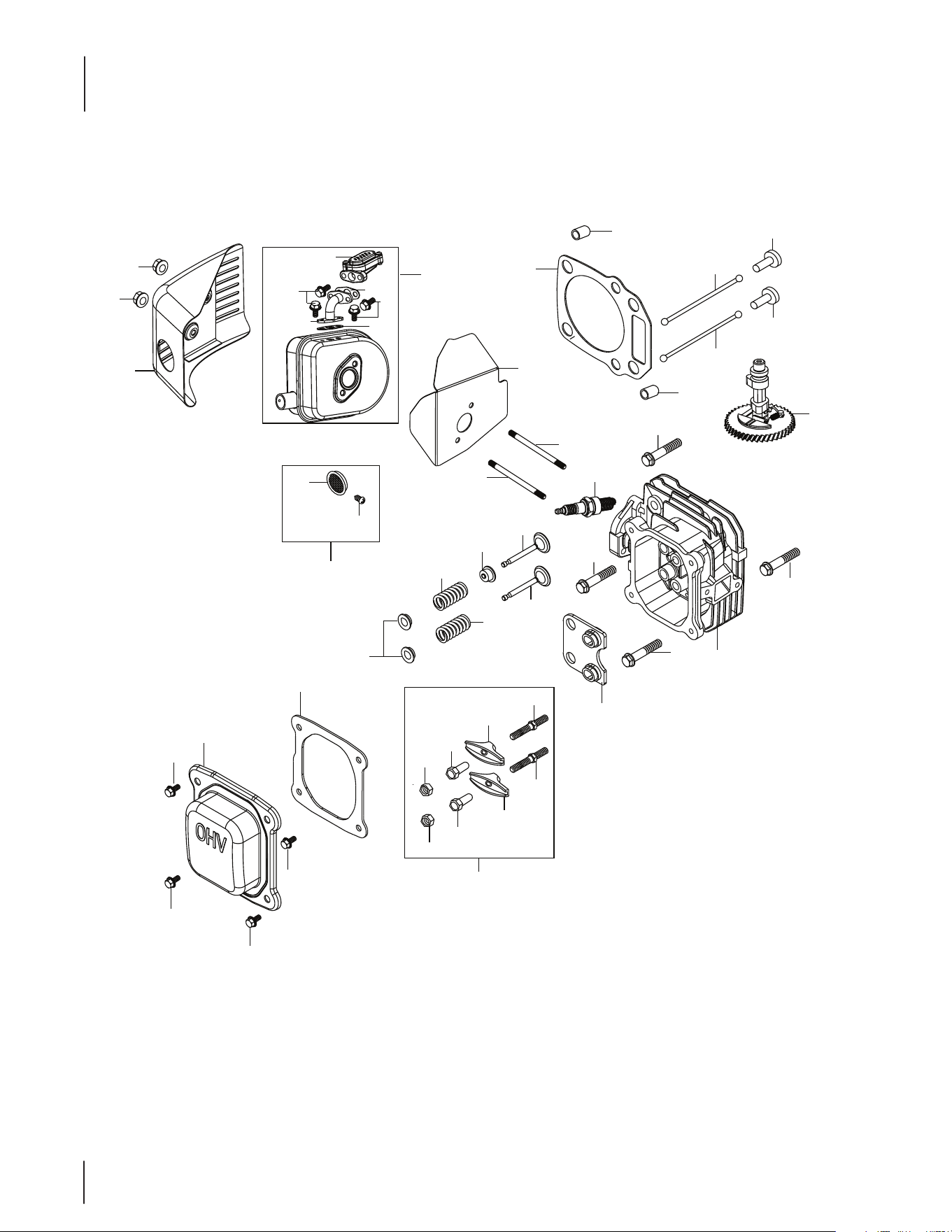

5P65MU Cylinder Head
Ref.
Part Number Description
6 712- 04212 Nut M6X10
43 710-04916 Bolt M6X14
151 710-04982 Bolt M8X54
152 951-1174 6 Cylinder Head Asm
(Incl.148,149,152,154-159,
161-165,168,177)
951-10846A Cylinder Head Svc Kit
(Incl.151,155,165,177)
153 951-10292 Spark Plug/F6Rtc
154 951-10313 Valve Kit
155 951-11818 Intake Valve Seal
157 951-12004 Valve Spring
158 951-11977 Valve Spring Retainer
159 951-11687 Push Rod Guide
160 951-1160 6 Rocker Arm Assembly
161 710-04902 Rocker Arm Stud
162 951-12001 Rocker Arm
163 751-11123 Fulcrum Nut
164 751-11124 Jam Nut
165 951-11551 Valve Cover Gasket
166 951-11548 Valve Cover
167 710-05094 Muer Stud M6X95
6
6
174
169
173
172
171
170
172
170
178
180
179
179
180
181
178
177
168
167
167 153
151
151
152
151
151
154
155
154
157
157
158
175
176
Optional
160
159
161
162
163
164
164
163
162
161
165
166
43
43
43
43
196 - Gasket Kit - External
197 - Gasket Kit - Complete
198 - Complete Engine
147
5P65MU Cylinder Head
Ref.
Part Number Description
6 712- 04212 Nut M6X10
43 710-04916 Bolt M6X14
151 710-04982 Bolt M8X54
152 951-1174 6 Cylinder Head Asm
(Incl.148,149,152,154-159,
161-165,168,177)
951-10846A Cylinder Head Svc Kit
(Incl.151,155,165,177)
153 951-10292 Spark Plug/F6Rtc
154 951-10313 Valve Kit
155 951-11818 Intake Valve Seal
157 951-12004 Valve Spring
158 951-11977 Valve Spring Retainer
159 951-11687 Push Rod Guide
160 951-1160 6 Rocker Arm Assembly
161 710-04902 Rocker Arm Stud
162 951-12001 Rocker Arm
163 751-11123 Fulcrum Nut
164 751-11124 Jam Nut
165 951-11551 Valve Cover Gasket
166 951-11548 Valve Cover
167 710-05094 Muer Stud M6X95
Ref.
Part Number Description
167 951-10342 Muer Stud Assemlby
168 951-11739 Muer Gasket
169 951-12740 Muer Assembly
170 951-12743 Secondary Air Valve Gasket
171 951-12742 Secondary Air Tube
172 710-05434 Bolt M6×12
173 951-12865 Secondary Air Valve
174 951-12744 Muer Shield
175 951-10351 Spark Arrestor
176 710-04983 Spark Arrestor Screw
177 951-11555 Cylinder Head Gasket
178 715-04108 Cylinder Head Dowel Pin 10×16
179 951-10314 Push Rod
180 951-11607 Tappet
181 951-11741 Camshaft Assembly
196 951-11788 Gasket Kit - External
(Incl.44,92,109,147-149,165,168)
197 951-11787 Gasket Kit - Complete
(In cl. 45,4 6, 69, 8 4,92,109,111,
147-149,165,168,177)
198 952Z5P65MU Complete Engine
148

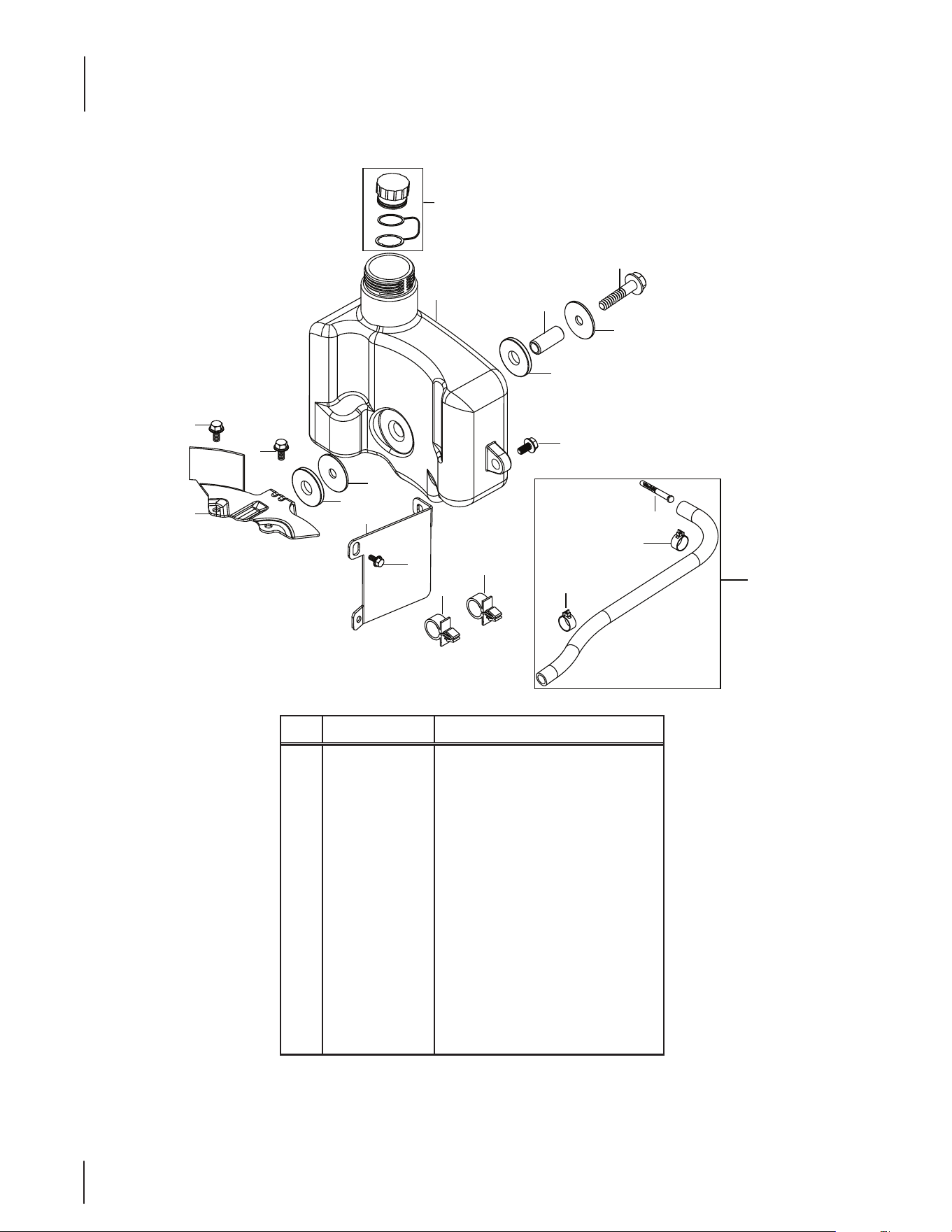

5P65MU Fuel Tank & Mounting
Ref. Part Number Description
43 710-04916 Bolt M6X14 Multi-Purpose
50 951-115 42 Fuel Tank Bottom Bracket
51 736-04456 Fuel Tank Washer
52 951-10335 Rubber Bushing
53 951-1174 8 Fuel Tank / Label Bracket
54 750-05322 Fuel Tank Bushing
55 710-04922 Bolt M8X50 Fuel Tank
56 951-12738 Fuel Cap Assembly
59 951-12864 Fuel Tank Assembly
60 951-10358A Fuel Filter
61 951-1170 0 Fuel Hose Clamp
62 951-10363 Fuel Hose
63 723-04071 Plastic Support Clamp
56
59
52
54
51
55
43
62
60
61
61
63
63
43
53
51
52
50
43
43
No tes
149
150 Notes
151Notes
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
G
E
N
U
I
N
E
F
A
C
T
O
R
Y
P
A
R
T
S
To order replacement parts, call a Customer Support Representative at (800) 965-4CUB.
Locate your nearest Cub Cadet dealer at (877) 282-8684
or visit www.cubcadet.com to find the nearest Cub Cadet dealer in your area.
