BULLETIN NO.
SERVICE PARTS LIST
54-26-2741
Aug. 2019
REVISED BULLETIN
DATE
WIRING INSTRUCTION

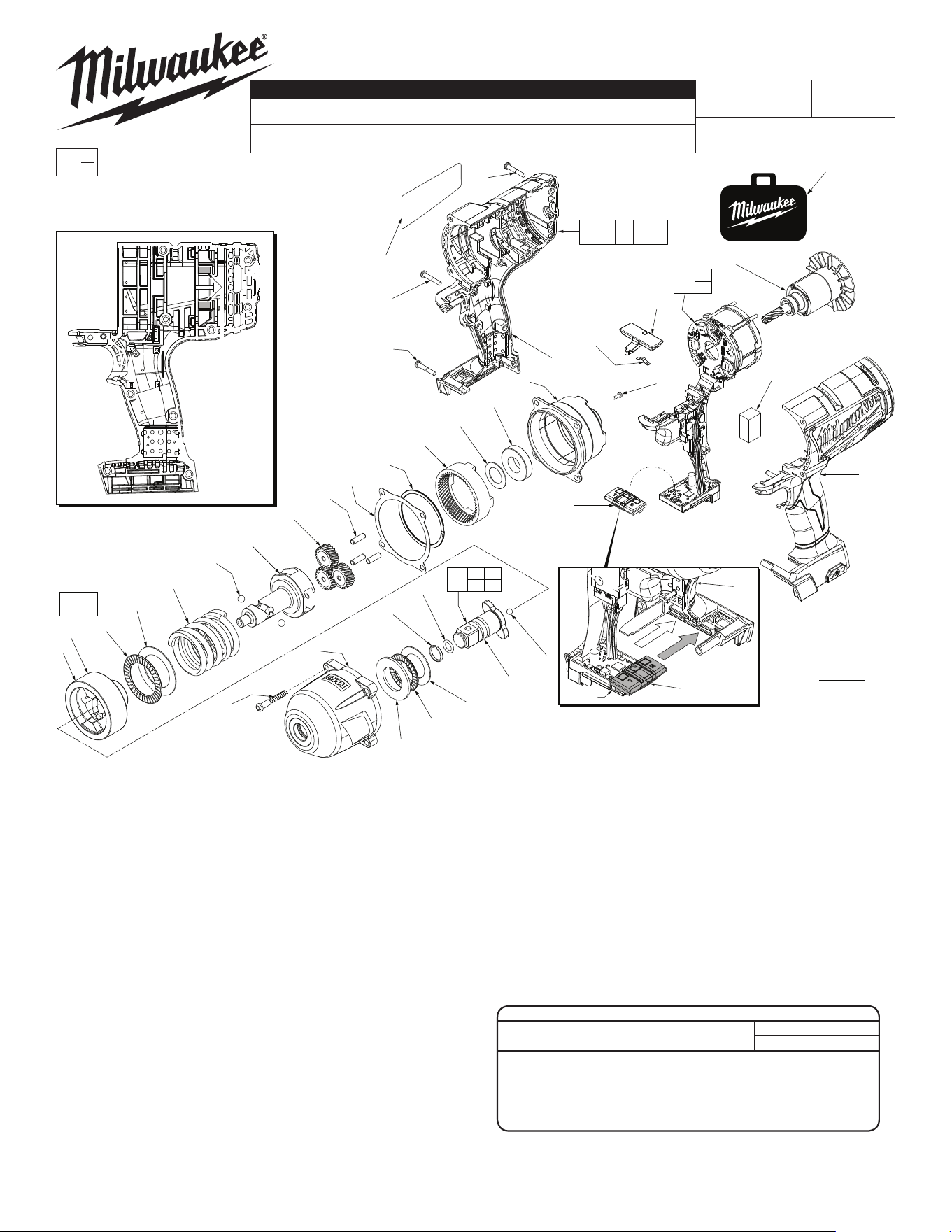

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 ---------------
Handle Support (Housing Halve-Left) w/ metal pin
1
6 45-30-0255 Rubber Slug 4
12 44-66-0417 Rear Case 1
13 02-04-0375 Ball Bearing 1
14 45-88-1655 Thrust Washer 1
15 32-65-0025 Ring Gear 1
16 44-60-1960 Planet Pin 3
17 32-62-0500 Planet Gear 3
18 30-40-0052 Retaining Ring 1
19 43-44-0065 Gasket 1
20 --------------- Camshaft 1
21 02-02-0251 1/4" Steel Ball 2
22 40-50-0995 Hammer Spring 1
23 45-88-1006 Thrust Washer 1
24 02-80-0200 Hammer Thrust Bearing 1
25 --------------- Hammer 1
26 02-02-7010 7/32" Steel Ball 1
27 --------------- 3/4" Square Anvil 1
28 45-88-1875 Thrust Washer 1
29 02-80-3256 Thrust Bearing 1
30 45-88-0032 Thrust Washer 1
33 14-30-0150 Front Housing Assembly with Bushing 1
34 06-82-2210 50 x 40mm Pan Hd. PT T-20 Screw 4
35 06-82-0995 M4 x 16mm Pan Hd. Plastite T-20 Screw 8
36 06-82-2230 M4 x 22mm Pan Hd. Plastite T-20 Screw 1
37 --------------- Handle Cover (Housing Halve Right) 1
38 45-24-0130 Forward / Reverse Shuttle 1
39 40-50-1135 Shuttle Spring 1
See Page 2
F43B
STARTING
SERIAL NO.
2764-20
CATALOG NO.
M18 FUEL™ 3/4" SQUARE IMPACT WRENCH with friction ring
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
0
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
00
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED (KG/CM) (IN/LBS)
34 06-82-2210 Front Housing Assy. 36 31
35 06-82-0995 Housing Assembly 12.5 11
36 06-82-2230 Housing Assembly 8.5 7
56 06-82-2240 Housing Assembly 12.5 11
59 06-82-0165 High Voltage Screw
72
1
25
24
23
22
21
(2x)
20
15
14
13
12
37
39
38
71
34
(4x)
49
30
29
28
27
33
26
60
36
(1x)
56
(1x)
35
(8x)
58
59
58
59
70
73
1 6 35 36
37 56 60
27 49
50
74
50
20
25
85
6
Rubber Slugs
are (2x) per
handle halve
(4 total)
65
As an aid for servicing,
the Speed Switch
Assembly #72 should
be mounted onto the
PCBA first and than
carefully installed
together into the Left
Housing Halve #1.
PCBA
72
1
19
18
17
(3x)
16
(3x)
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
49 34-40-1210 O-Ring 1
50 44-90-4540 Friction Ring 1
56 06-81-5383 M4 x 35mm Pan Hd. Plastite T-20 Screw 1
58 44-52-0025 Foam Pad 1
59 06-82-0165 High Voltage Screw 1
60 12-20-2626 Service Nameplate 1
65 42-55-2762 Carrying Case 1
70 14-20-0092 Electronics Assembly
ConsistingofOn-OSwitch,Stator,PCBA,
Forward/ReverseSwitch,LED,Battery
TerminalConnectorBlock,FoamPadand
High Voltage Screw 1
71 16-01-0105 Rotor Assembly 1
72 45-24-0110 Speed Switch Assembly 1
73 31-44-0868 Housing Assembly 1
74 42-06-0060 3/4" Square Anvil Assembly w/ friction ring 1
85 14-46-6025 Camshaft/Hammer Kit 1
54-26-2740
= Part number change
from previous service
parts list.
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135W.LisbonRoad,Brookeld,WI53005
Drwg. 2
2
1
3
4
5
6

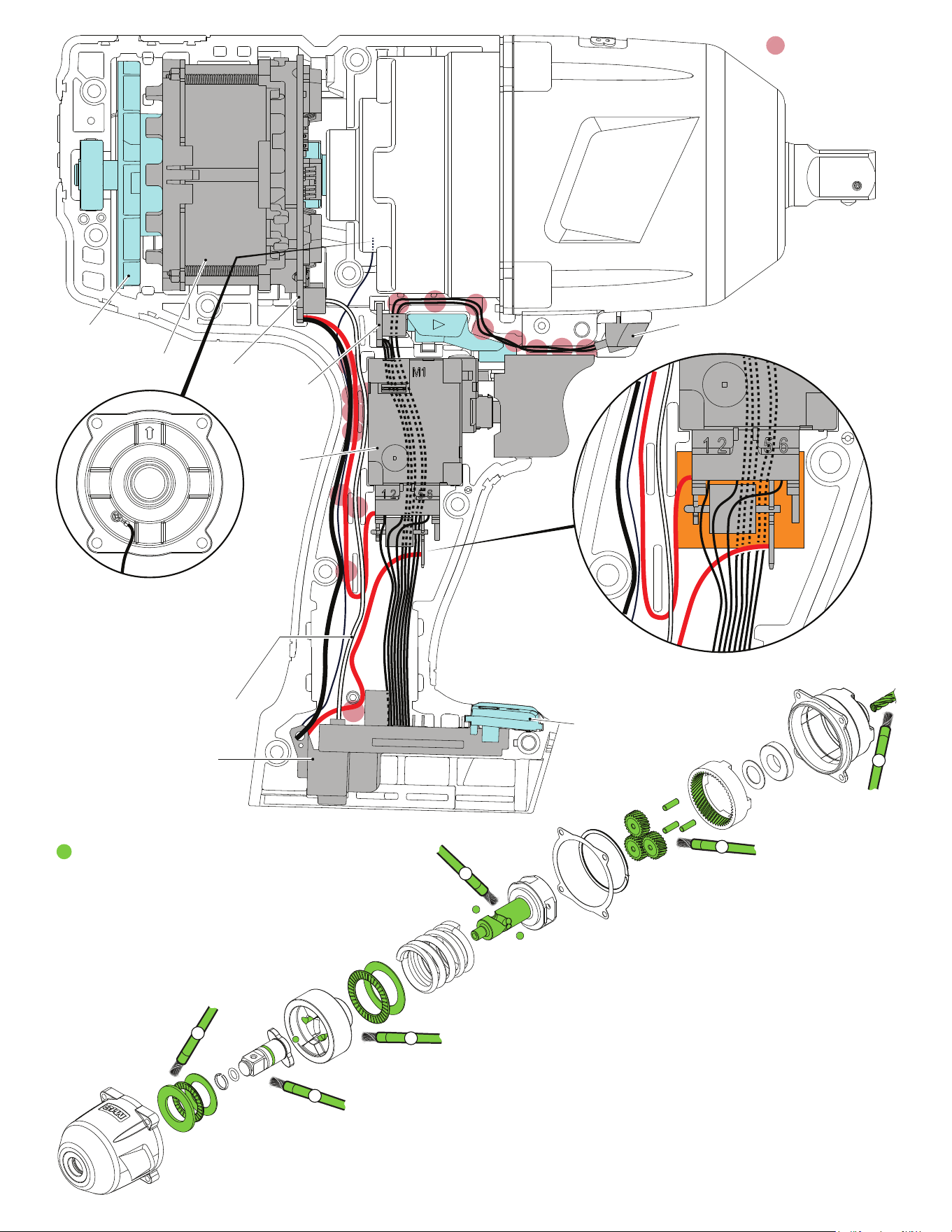

LUBRICATION NOTES:
Type ‘J’ Grease
No. 49-08-4220, 1 lb. can
A total of approx. 11 grams (.4 oz) will be used.
Prior to reinstalling, clean gear assemblies
with a clean, dry cloth. Lightly coat all parts
highlighted here with ‘J’ grease. Apply a
greater amount of grease to all internal and
external gear teeth.
1). Coat both sides of the Thrust Bearing and the two Thrust
Washers with grease.
2). Lightly coat the Steel Ball and Roll Pin with grease. Apply a thin
coat of grease to the groove in the Anvil.
3). Place grease in both ball grooves of the Hammer. Coat both
sides of the Thrust Bearing and Thrust Washer with grease.
4). Coat the shaft surface of the Camshaft with grease, being sure to
place approximately 1 gram of grease in each ball groove. Lightly
coat the two Steel Balls.
5). Coat the three Planet Pins with grease. Place a generous
amount of grease to the exterior teeth of the three Planet Gears
and the interior teeth of the Ring Gear.
6). Place a generous amount of grease to the pinion teeth of the
Rotor Assembly.
= WIRE TRAPS
or GUIDES
Rotor
Assembly
Stator
Assembly PCBA
Fwd/Rev
Switch
On-Off
Switch
LED
Assembly
Speed Switch
Assembly
Battery Terminal
Connector Block
Ribbon Cable
Place Foam Pad
#58 (44-52-0025)
over the two LED
wires and the three
Fwd/Rev wires. Place
the On-Off Switch into
position,with the terminals
and diode over the foam pad,
as shown.
Model 2762-20
shown
Back View of Rear Case #12
showing the orientation of the Rear
Case (arrow facing upward) and
showing location of High Voltage
Screw #59 and wire.
