INSTALLATION GUIDE
CONTEMPORARY
DD60SA9, DD60SC9, DD60SCT9, DD60SDF9, DD60SDFT9,
DD60STN9, & DD60STZ9 models
SINGLE DISHDRAWER™ DISHWASHER
NZ AU UK IE
3
!
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• Before installing the DishDrawer, remove the
house fuse or open the circuit breaker.
• This appliance must be earthed. In the event
of a malfunction or breakdown, earthing will
reduce the risk of electric shock by providing a
path of least resistance for electric current. This
appliance is equipped with a cord having an
equipment-earthing conductor and an earthing
plug.
• The plug must be plugged into an appropriate
outlet that is installed and earthed in accordance
with all local codes and ordinances.
• WARNING - Improper connection of the
equipment-earthing conductor can result in a
risk of electric shock. Check with a qualified
electrician or service representative if you are in
doubt as to whether the appliance is properly
earthed.
• Do not modify the power supply plug provided
with the appliance - if it will not fit the outlet,
have a proper outlet installed by a qualified
electrician. Do not use an extension cord, adapter
plug or multiple outlet box.
!
WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care - panel edges are sharp.
SAFETY AND WARNINGS
WARNING!
To reduce the risk of fire, injury to persons or damage when using the appliance, follow the
important safety instructions listed below. Read all the guidance before using the appliance.
Servicing
z
Do not repair or replace any part of the appliance unless specifically recommended in
this guide. All other servicing should be undertaken be a Fisher & Paykel trained and
supported service technician or qualified person.
Installation
z
Installation of this DishDrawer requires basic mechanical and electrical skills.
z
Installation must comply with your local building and electricity regulations.
z
Remove all packaging materials supplied with the dishwasher.
z
Be sure to leave these Instructions with the Customer.
z
At the completion of the installation, the Installer must perform the Final Checklist.
z
This dishwasher is manufactured for indoor use only.
z
Ensure all water connections are turned OFF. It is the responsibility of the plumber and
electrician to ensure that each installation complies with all Codes and Regulations.
z
The DishDrawer MUST be installed to allow for future removal from the enclosure if
service is required.
z
The switched power outlet must be outside the dishwasher cavity, so that it is
accessible after installation.
z
Care should be taken when the appliance is installed or removed to reduce the
likelihood of damage to the power supply cord and hoses.
z
If the DishDrawer is relocated from one installation site to another it must be kept
upright to avoid damage from water spillage.
z
Ensure only supplied hoses are used for connection. Old hoses should not be reused.
z
Failure to install correctly could invalidate any warranty or liability claims.
z
If the product is installed in a motor vehicle, boat or similar mobile facility, you must
bring the vehicle, boat or mobile facility containing the product to the service shop at
your expense or pay the service technician’s travel to the location of the product.
z
This appliance is fitted with a water heating feature and intended for connection to a
hot water supply.
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to
change at any time. For current details about model and specification availability in your country,
please go to our website www.fisherpaykel.com or contact your local Fisher&Paykel dealer.
4
TOOLS AND COMPONENTS
z
Keep all packing materials until the unit has been inspected.
z
Inspect the product to ensure there is no shipping damage. If any damage is detected
contact the dealer or retailer you bought the product from to report the damage.
z
Fisher & Paykel is not responsible for shipping damage.
Side mounting bracket
kits (2)*
*Optional | **Comes fitted to the product | ***DD60DA models only | ****DD60DC & DD60DD models only
Rubber washer (1)** Drain hose support (1)
Flat-blade screwdriver
Level
Top mounting bracket
kit (1)*
Drain hose joiner (1)
Powered driver
Pliers
Box cutter
Router
Pencil
Multi-tool
Moisture protection
tape (1)
Wire clip (1)
16mm Phillips screws (7)
Clamp (1)
Supplied
Not supplied
PARTS SUPPLIED TOOLS REQUIRED
To access installation videos
Scan the QR code with your smartphone or watch online at:
fisherpaykel.com/dishdrawer-install
INSTALL VIDEO
This video provides an overview of what is needed to install a DishDrawer™ Dishwasher. It is
intended as an overview only of the installation process and is not intended to be used as a
standalone guide on how to install a DishDrawer™ Dishwasher yourself. Installation should be
undertaken by a Fisher & Paykel trained and supported service technician or qualified person.
38mm bottom fixing
screws and washers (2)
5
PRODUCT DIMENSIONS — DD60SC MODELS
Actual product dimensions may vary by ± 2 mm
PRODUCT DIMENSIONS
DD60SC/SA DD60SCT
MM MM
A Overall height 410 454
B Overall width 599 599
C Overall depth 573 573
D Depth of chassis 553 553
E Height of door panel 394 438
F Depth of door panel 20 20
G Ventilation gap below door panel 8 8
H Height from top of drawer panel
to top of chassis
8 8
I Max. drawer extension from front
of chassis
547 547
PLAN ISOMETRIC
PROFILEFRONT
A
Cb
E
h
I
D
g
f
6
PRODUCT DIMENSIONS — DD60SD MODELS
PRODUCT DIMENSIONS
DD60SD DD60SDT
MM MM
A Overall height 410 478
B Overall width 599 599
C Overall depth* 573 573
D Depth of chassis 553 553
E Height of door panel 398 470
F Depth of door panel 20 20
G Ventilation gap below door panel 8 8
H Height from top of drawer panel
to top of chassis
2 26
I Max. drawer extension from front
of chassis
547 547
*excluding handle
PLAN ISOMETRIC
PROFILEFRONT
A
Cb
E
h
I
D
g
f
Actual product dimensions may vary by ± 2 mm
7
PRODUCT DIMENSIONS — DD60STN MODELS
PLAN ISOMETRIC
PROFILEFRONT
b
g
f
c
a
E
d
Actual product dimensions may vary by ± 2 mm
PRODUCT DIMENSIONS
DD60ST
MM
A Overall height 454
B Overall width 599
C Overall depth 573
D Depth of chassis 553
E Height of door panel 442
F Depth of door panel 20
G Ventilation gap below door panel 8
H Height from top of drawer panel
to top of chassis
2
I Max. drawer extension from front
of chassis
547
i
h
8
CABINETRY

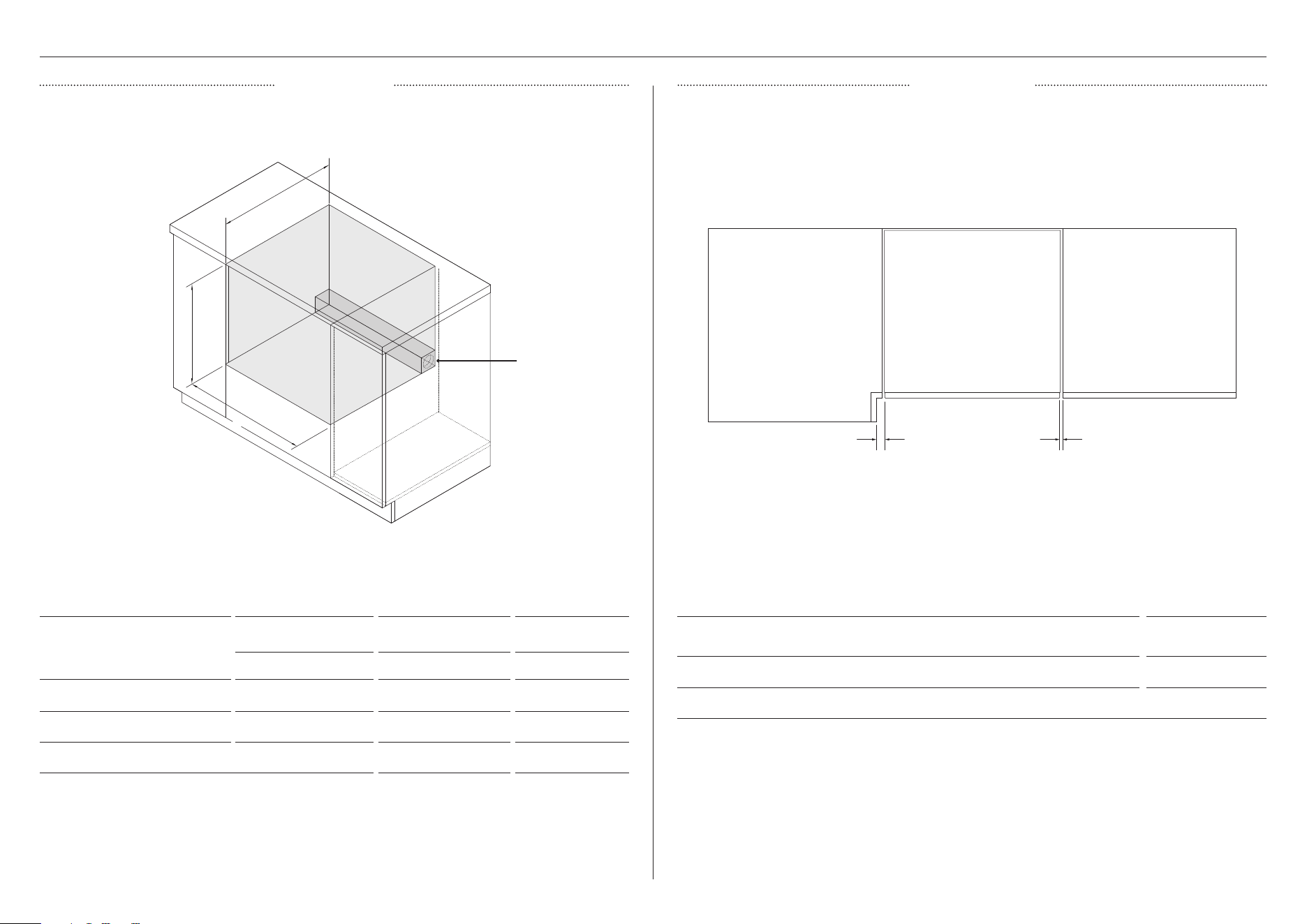

CABINETRY DIMENSIONS
DD60SA, DD60SC,
DD60SD MODELS
DD60SCT, DD60STN,
DD60STZ MODELS
DD60SDT MODELS
MM MM MM
A Minimum inside height min. 412 min. 456 min. 480
B Inside width* 600 – 610
600 – 610
600 – 610
C Minimum inside depth 579
579
579
*including 19mm door panels on adjacent cabinetry
**For more information on service requirements, refer to ‘Plumbing & electrical considerations’ and ‘Cabinetry preparation’.
CABINETRY CLEARANCES MM
A Minimum clearance to adjacent cupboard door 2
B Minimum clearance to corner cupboard 13
DIMENSIONS CLEARANCES
B A
ISOMETRIC
PLAN
A
C
Connections can
be located in an
adjacent cabinet
on either side of
the DishDrawer**
B
Ensure the relationship between benchtop overhang and the recessed handle has been
considered.
9
PLUMBING & ELECTRICAL CONSIDERATIONS

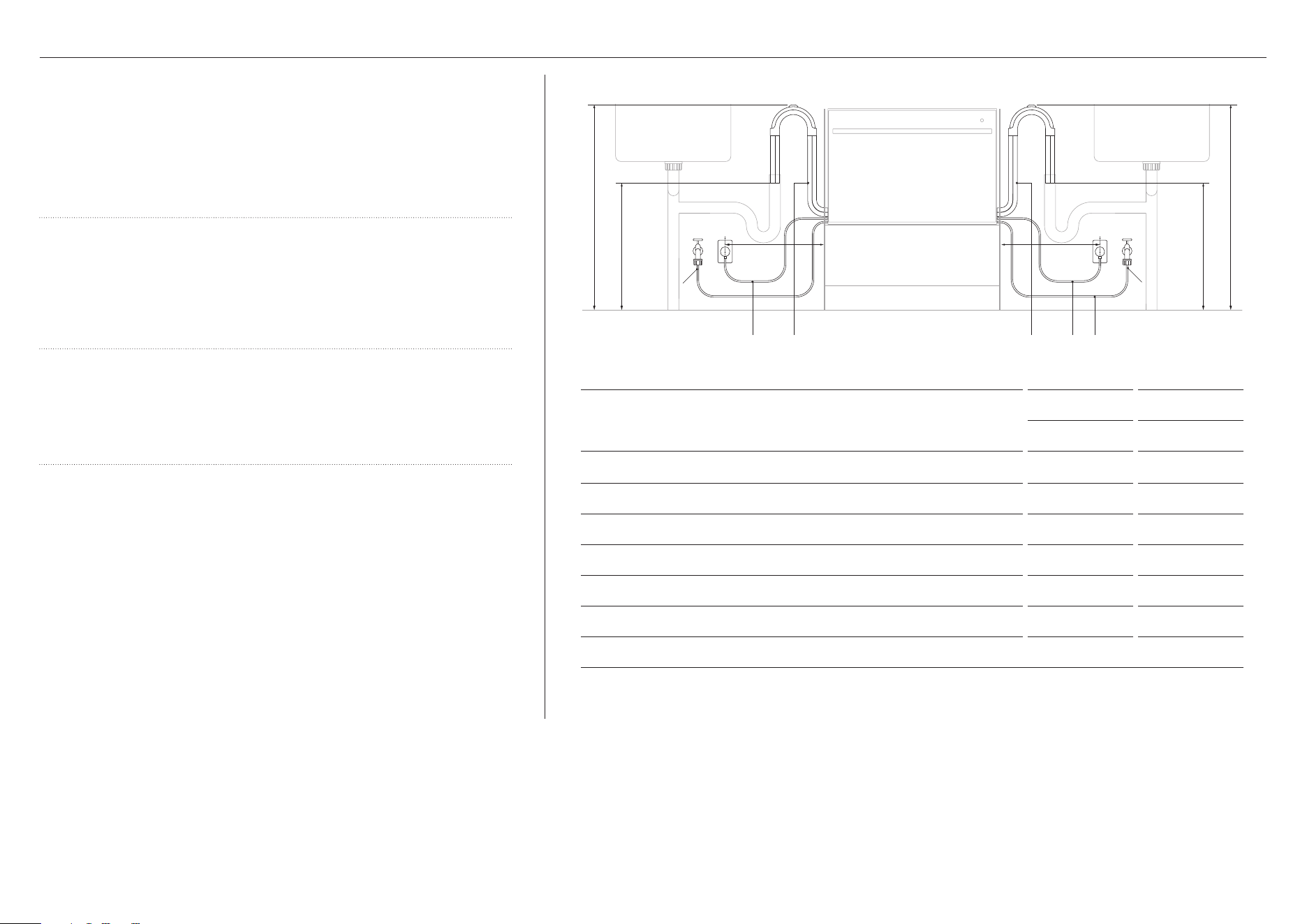

SERVICE DIMENSION
LEFT SIDE* RIGHT SIDE*
MM MM
A Length of drain hoses 2000 1800
B Length of power cord** 1650 1650
C Length of inlet hose 1650 1250
D Distance from floor to top of hose support 750 – 883 750 – 883
E Minimum distance from floor to end of drain hoses*** 500 500
F Minimum inlet hose radius 200 200
G Maximum distance from cabinetry centre of electrical outlet 450 450
*dimensions taken from the chassis edge where applicable
**excluding plug
***standpipe install illustrated. Distance is the same for all plumbing installs.
Hose and cord lengths
z
Your services can be installed to either the left-hand or right-hand side
of the product in an adjacent cabinet. Refer to ‘Cabinetry preparation’
for service access requirements.
z
If the drain hoses supplied are not long enough to reach your services,
you may purchase a Fisher & Paykel drain hose extension kit which will
extend the drain hoses by 3.6m (part number 525798).
Water connection
z
Recommended water temperature: Hot (maximum 60°C)
z
Supplied hose to suit 3/8” male compression fitting.
z
Ensure water connection complies with local plumbing regulations.
Water pressure
z
Water softener models: max. 1 MPa (145 psi), min. 0.1 MPa (14.5 psi)
z
Non-water softener models: max. 1 MPa (145 psi), min. 0.03 MPa (4.3 psi)
Electrical requirements
z
220 – 240VAC min 4.2A
a a b cbc
d d
e e
f f
10
CABINETRY PREPARATION
SERVICE ACCESS MOISTURE PROTECTION
REAR
WALL
SHELF
PROFILE

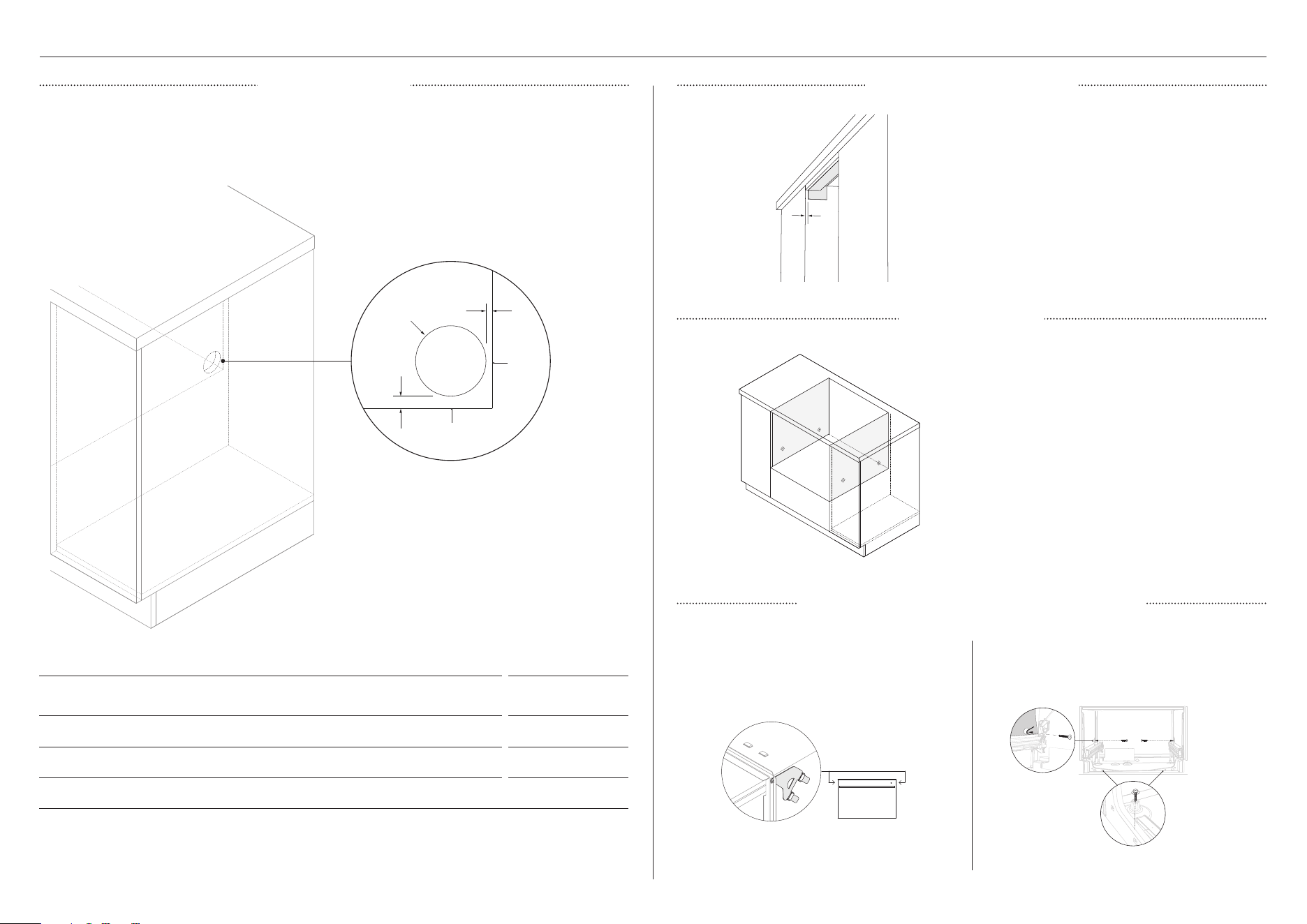

SERVICE HOLE DIMENSIONS MM
A Maximum distance between rear of cavity and service hole 5
B Maximum distance between shelf and service hole 10
C Minimum diameter of service hole 57
A
B
C
z
We recommend locating the service holes on either side of the DishDrawer as shown below.
z
If the hole is created through wood, ensure the edges are smooth and rounded
z
If the holes is created through metal, ensure the edge protector is fitted.
Align the supplied moisture protection
tape to the cabinetry as illustrated
Ensure this area is free of debris
before carefully applying the tape to
the surface.
1
10mm
SIDE PARTITION
SELECT CABINETRY SECURING METHOD
1
Recommended method*
*Frameless cabinetry only
METHOD A
Secure to cabinetry via brackets
METHOD B
Secure via drawer removal
If securing via the drawer removal method,
ensure the marked locations provide
adequate support.
If there are no side partitions, construct timber
bracing to secure the fixings to.
11
SECURE TO CABINETRY VIA BRACKETS (METHOD A)

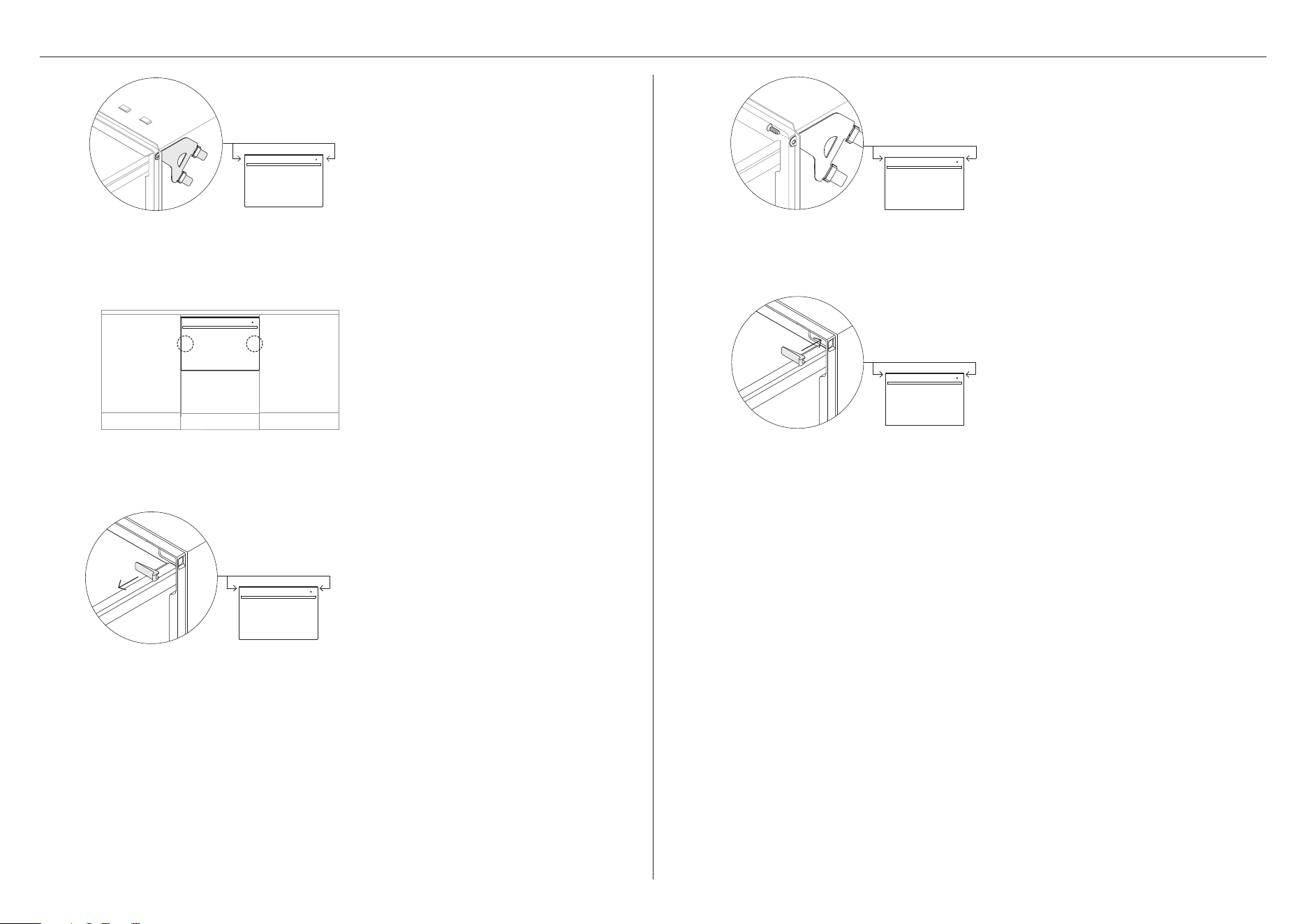

Partially open the drawer and
remove the first screw cover from
the trim moulding.
Secure to cabinetry via the brackets.
Pre-drilling a pilot hole may be required
depending on the cabinetry material.
1
3
4
5
2
Replace the trim cover and repeat for
the remaining brackets.
Push the product into the cavity, pulling
the hoses through as you push to avoid
crushing or twisting them.
Push the product in the positions
illustrated to avoid denting the door.
Secure all four side brackets to the
DishDrawer™ Dishwasher, aligning
bracket A with slot A and bracket B
with slot B.
Ensure the ends of the brackets are not
pushed into the chassis.
A
A
B
B
12
Push the product into the cavity, pulling
the hoses through as you push to avoid
crushing or twisting them.
Push the product in the positions
illustrated to avoid denting the door.

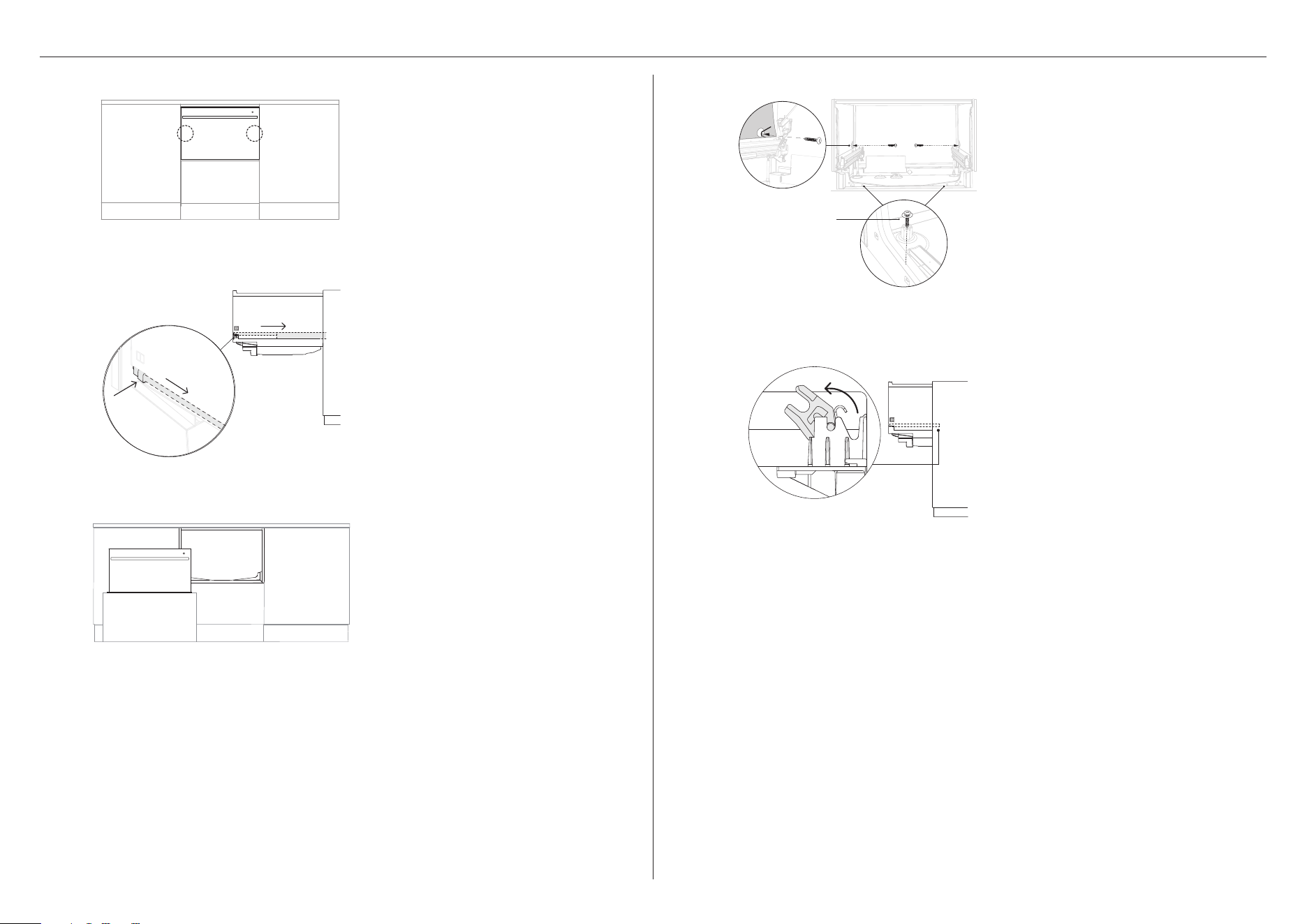

SECURE TO CABINETRY VIA DRAWER REMOVAL (METHOD B)
4
2
3
5
1
Open the drawer and press both
locking tabs back to release.
Lift the drawer off the runners and
carefully set aside on a protected
surface. Push runners back in.
Take care not to pull drawer out
too far to prevent any strain on the
hoses. Where possible, protect the
base of the tub to prevent damage.
Secure to cabinetry via all three fixing
locations in the chassis.
Ensure sound insulation is
replaced correctly.
38mm screw
and large washer
Before refitting the drawer, ensure the
hoses are not twisted.
Refit the drawer to the runners and clip
into place via both locking tabs.
13
PLUMBING & ELECTRICAL CONNECTION
Install the drain hose support to the
back wall, as close to the underside of
the countertop as possible. Refer to
‘Plumbing & electrical considerations’ for
minimum install heights.
Install the drain hose support to the
back wall, as close to the underside of
the countertop as possible. Refer to
‘Plumbing & electrical considerations’ for
minimum install heights.
Pull the hose through the support guide
and rest in standpipe.
Ensure the drain hose does not extend
into water retained in the trap; an air
gap is required to prevent waste water
from siphoning back into the tub.
Pull the hose through the drain hose
support before threading the wire
clip on to the hose and fitting to the
supplied hose joiner. Secure using the
wire clips.
Ensure hose is routed straight to the
joiner, removing excess drain hose if
necessary. Do not shorten the inlet hose.
Unplug or drill out the waste tee before
securing joiner to sink trap or waste tee.
Plug product in. Plug product in.

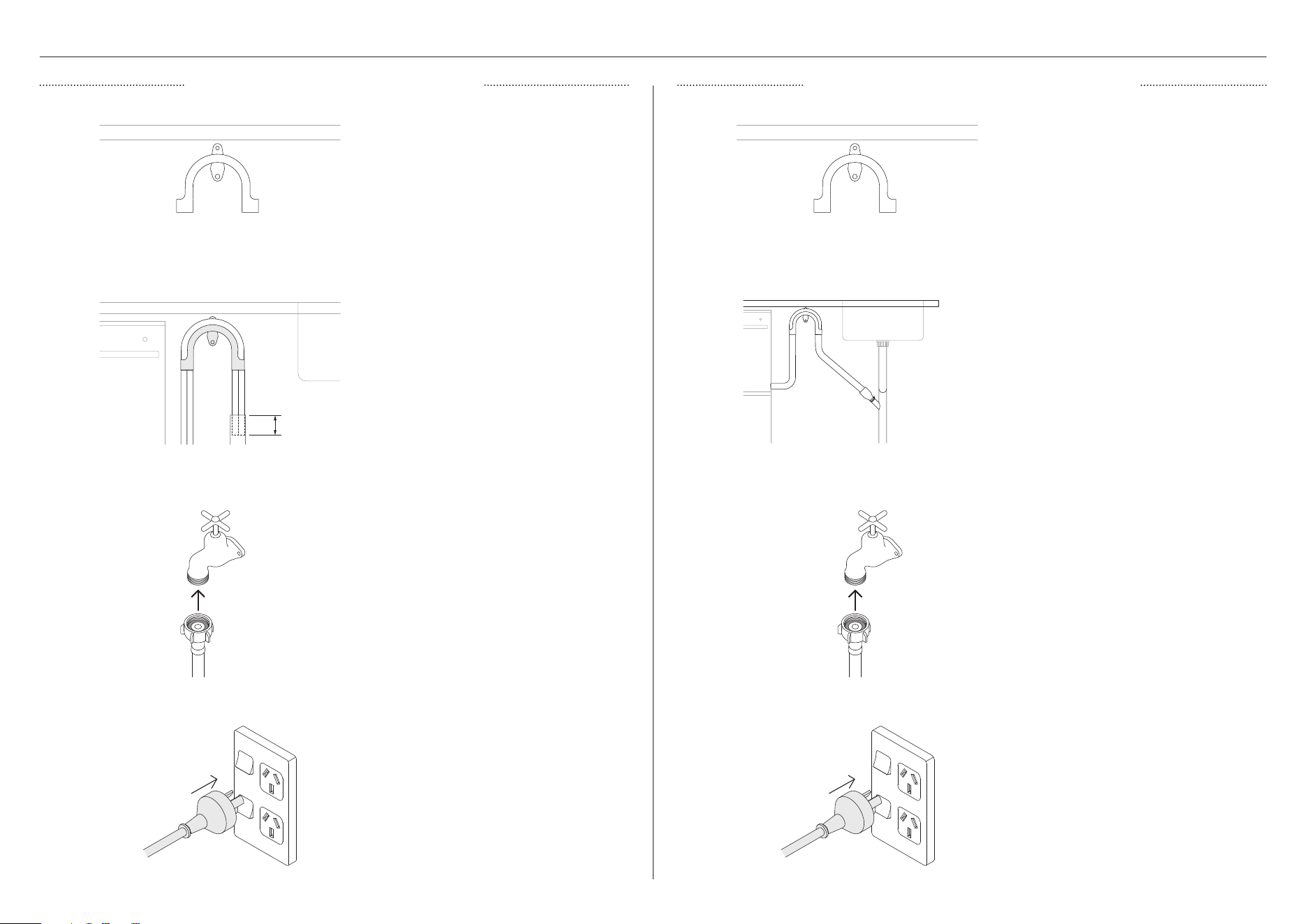

Ø38MM STANDPIPE INSTALLATION SINK TRAP/WASTE TEE INSTALLATION
1 1
2 2
3 3
4 4
Ensure the supplied rubber washer is
fitted to the coupling before connecting
the inlet hose to tap. Hand-tighten
into place.
Using a spanner or pliers, turn a further
180° to secure. Avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be
powered on for the flood protection
feature to be enabled.
Ensure the supplied rubber washer is
fitted to the coupling before connecting
the inlet hose to tap. Hand-tighten
into place.
Using a spanner or pliers, turn a further
180° to secure. Avoiding over-tightening.
Do not turn water supply on. The
DishDrawer™ Dishwasher must be
powered on for the flood protection
feature to be enabled.
min.
120mm
14
TO BE COMPLETED BY THE INSTALLER
Check all parts are installed correctly and are secure.
Ensure DishDrawer™ Dishwasher is securely fastened to the cabinetry and drawer opens
and closes freely with no resistance.
Ensure any packaging or tape securing the racks and spray arm is removed.
Check the spray arm is in place, mounted correctly and rotate freely.
Ensure all electrical tests have been conducted in accordance with local regulations.
Electrical
Installation
Ensure any knock-outs or plugs in drain connection have been drilled out and drain
connection has been made.
The drain hose joiner must not support the weight of excess hose material. Keepdrain
hose as fully extended as possible to prevent sagging. Any excess length of drain hose
should be kept on the dishwasher side of the highloop.
Ensure inlet hose has supplied rubber washer fitted, and that it’s tightened.
If connecting the drain hose to the sink trap, ensure the highloop is a minimum 150mm
higher than the drain hose joiner.
Water softener models: adjust the water softener setting from the default setting to suit
the water hardness of the area. Refer to your user guide.
Ensure water supply is turned off until power is connected and turned on. The
DishDrawer™ Dishwasher must be powered on for the flood protection feature to
be enabled.
Plumbing
Turn on the power and water supplies, then open the drawer. You should hear a beep
and see a program indicator light up on the control panel.
Add three cups of water into the drawer.
Navigate to RINSE and start the program.
Repeat for the other drawer.
After the Rinse cycle has finished, ensure the dishwasher has run and drainedcorrectly.
Check the water supply has been shut off correctly.
Check drainage connections for leaks.
If site is left without power after installation is complete, ensure water supply is
turned off to prevent flooding.
Test operation
INSTALLER CHECKLIST
15
TROUBLESHOOTING
The DishDrawer is beeping continuously
z
Refer to the ‘Fault codes’ section of your User guide
No program indicator lights up when the drawer is opened
z
Ensure power is connected and is switched on.
z
AUTO POWER-ON may need to be activated. Refer to your User guide for details.
Drawer doesn’t close properly
z
Ensure nothing is obstructing the drawer from closing such as hoses or drawer latches.
Water appears around water supply and drain connections
z
Check hoses, connections and existing plumbing for leaks.
z
Check rubber washer and hose clamp are correctly fitted.
Product is tipping
z
Ensure the product is secured to the cabinetry.
Front panels are misaligned to surrounding cabinetry
z
Check the cabinetry is square. Unscrew the product from the cabinetry. Refer to page 12
12 for guidance. Re-secure to the cabinetry.
If a problem occurs that is not listed, refer to your user guide for additional troubleshooting If
after checking these points, you still need assistance, please refer to the Service & Warranty
book for warranty details or contact us through our website fisherpaykel.com
DD24SA, DD24SC and DD24ST2N models
DD24SD, DD24SP, DD24ST4N and DD24ST4Z models
DISPLAY POSSIBLE CAUSE WHAT TO DO
A1
Water supply fault. 1 Ensure the water supply is turned on.
2 Press
once to stop the beeping, then again
to clear the fault.
3 Press
to resume the wash program.
A3
Drawer cannot drain. The
drainage hose may be
blocked or kinked, or the
connection to drainage
pipe may be blocked.
1 Ensure the drainage hose and connection to
pipes are not blocked.
2 Press
once to stop the beeping, then again
to clear the fault.
3 Press
to resume the wash program.
A6
The spray arm has
loosened or come off
its mounting, or water
pressure is too low.
1 Open the drawer and check the spray arm.
2 If the spray arm has loosened or come off its
mounting, re-fit it. Check that it is firmly seated
and turns freely. Refer to ‘Maintenance’ in your
user guide.
3 Press
once to stop the beeping, then again
to clear the fault.
4 Press
to resume the wash program.
DISPLAY POSSIBLE CAUSE WHAT TO DO
RINSE + all modifiers
A1: Water
Supply fault.
1 Ensure the water supply is turned on.
2 Press
once to stop the beeping,
then again to clear the fault.
3 Press
to resume the wash program.
DELICATE, RINSE + all modifiers
A3: Drawer cannot
drain. The drainage
hose may be
blocked or kinked,
or the connection
to drainage pipe
may be blocked.
1 Ensure the drainage hose and
connection to pipes are not blocked.
2 Press
once to stop the beeping,
then again to clear the fault.
3 Press
to resume the wash program.
FAST, DELICATE + all modifiers
A6: The spray
arm has loosened
or come off its
mounting, or
water pressure
is too low, or a
combination of low
water pressure and
excessive foaming.
1 Open the drawer and check the
spray arm.
2 If the spray arm has loosened or
come off its mounting, re-fit it.
Check that it is firmly seated and
turns freely. Refer to ‘Maintenance’
in your user guide.
3 Press
once to stop the beeping,
then again to clear the fault.
4 Press
to resume the wash program.
431375B 03.23
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2023. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
