CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
Printed In USA
OperatOr’s Manual
Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
Self Propelled Mower — Models SC 500 ez +
Form No. 769-10349
(December 8, 2014)
Customer Support
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, you can seek help from the experts. Choose from the options below:
◊ Visit us on the web at www.cubcadet.com
◊ Call a Customer Support Representative at (800) 965-4CUB
◊ Locate your nearest Cub Cadet Dealer at (877) 282-8684
◊ Write us at Cub Cadet LLC • P.O. Box 361131 • Cleveland, OH • 44136-0019
Thank you for purchasing a Lawn Mower manufactured by
Cub Cadet. It was carefully engineered to provide excellent
performance when properly operated and maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain your machine. Please be sure that you, and any other
persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review
this manual frequently to familiarize yourself with the machine,
its features and operation. Please be aware that this Operator’s
Manual may cover a range of product specifications for various
models. Characteristics and features discussed and/or illustrated
in this manual may not be applicable to all models. We reserve
the right to change product specifications, designs and
equipment without notice and without incurring obligation.
If applicable, the power testing information used to establish
the power rating of the engine equipped on this machine can be
found at www.opei.org or the engine manufacturer’s web site.
If you have any problems or questions concerning the machine,
phone your local Cub Cadet dealer or contact us directly. Cub
Cadet’s Customer Support telephone numbers, website address
and mailing address can be found on this page. We want to
ensure your complete satisfaction at all times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position
Thank You
Record Product Information
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. You can locate the
model plate by standing at the operator’s position and looking
down at the rear of the deck. This information will be necessary,
should you seek technical support via our web site, Customer
Support Department, or with a local authorized service dealer.
Model NuMber
Serial NuMber
To The Owner
1
2
Safe Operation Practices ........................................ 3
Assembly & Set-Up .................................................. 9
Controls & Features ................................................13
Operation ................................................................14
Maintenance & Adjustment .................................16
Service .....................................................................18
Troubleshooting .....................................................21

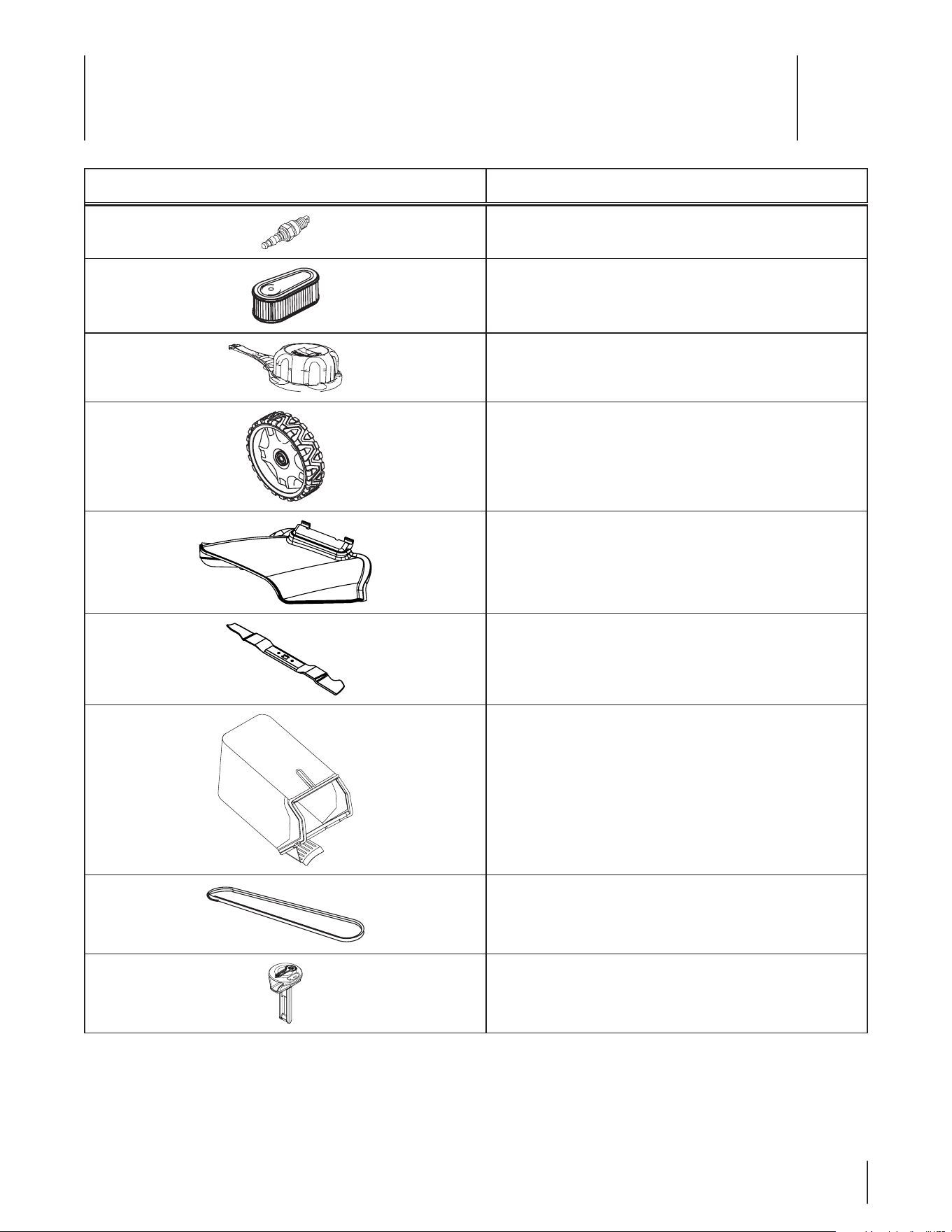

Replacement Parts ................................................ 23
Attachments & Accessories .................................. 24
Warranty ...................................................Back Page
Table of Contents
Important Safe Operation Practices
2
3
General Operation
1. Read this operator’s manual carefully in its entirety before
attempting to assemble this machine. Read, understand,
and follow all instructions on the machine and in the
manual(s) before operation. Keep this manual in a safe
place for future and regular reference and for ordering
replacement parts.
2. Be completely familiar with the controls and the proper use
of this machine before operating it.
3. This machine is a precision piece of power equipment,
not a plaything. Therefore, exercise extreme caution at all
times. This machine has been designed to perform one job:
to mow grass. Do not use it for any other purpose.
4. Never allow children under 14 years of age to operate this
machine. Children 14 and over should read and understand
the instructions and safe operation practices in this manual
and on the machine and should be trained and supervised
by an adult.
5. Only responsible individuals who are familiar with these
rules of safe operation should be allowed to use this
machine.
6. Thoroughly inspect the area where the equipment is to be
used. Remove all stones, sticks, wire, bones, toys and other
foreign objects, which could be tripped over or picked up
and thrown by the blade. Thrown objects can cause serious
personal injury.
7. Plan your mowing pattern to avoid discharge of material
toward roads, sidewalks, bystanders and the like. Also,
avoid discharging material against a wall or obstruction,
which may cause discharged material to ricochet back
toward the operator.
8. To help avoid blade contact or a thrown object injury,
stay in operator zone behind handles and keep children,
bystanders, helpers and pets at least 75 feet from mower
while it is in operation. Stop machine if anyone enters area.
9. Always wear safety glasses or safety goggles during
operation and while performing an adjustment or repair
to protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
10. Wear sturdy, rough-soled work shoes and close-fitting
slacks and shirts. Shirts and pants that cover the arms
and legs and steel-toed shoes are recommended. Never
operate this machine in bare feet, sandals, slippery or light-
weight (e.g. canvas) shoes.
11. Do not put hands or feet near rotating parts or under the
cutting deck. Contact with blade can amputate fingers,
hands, toes and feet.
WARNING: This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!
DANGER: This machine was built to be operated according to the safe operation practices in
this manual. As with any type of power equipment, carelessness or error on the part of the
operator can result in serious injury. This machine is capable of amputating fingers, hands,
toes and feet and throwing objects. Failure to observe the following safety instructions could
result in serious injury or death.
CALIFORNIA PROPOSITION 65
WARNING: Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to State of California to cause cancer and birth defects
or other reproductive harm.
WARNING: Battery posts, terminals, and related accessories contain lead and lead
compounds, chemicals known to the State of California to cause cancer and reproductive
harm. Wash hands after handling.
4 Section 2 — important Safe operation practiceS
12. A missing or damaged discharge cover can cause blade
contact or thrown object injuries.
13. Many injuries occur as a result of the mower being pulled
over the foot during a fall caused by slipping or tripping.
Do not hold on to the mower if you are falling; release the
handle immediately.
14. Never pull the mower back toward you while you are
walking. If you must back the mower away from a wall or
obstruction first look down and behind to avoid tripping
and then follow these steps:
a. Step back from mower to fully extend your arms.
b. Be sure you are well balanced with sure footing.
c. Pull the mower back slowly, no more than half way
toward you.
d. Repeat these steps as needed.
15. Do not operate the mower while under the influence of
alcohol or drugs.
16. Do not engage the self-propelled mechanism on machines
so equipped while starting engine.
17. The blade control is a safety device. Never attempt to
bypass its operation. Doing so makes the safety device
inoperative and may result in personal injury through
contact with the rotating blade. The blade control must
operate easily in both directions and automatically return
to the disengaged position when released.
18. Never operate the mower in wet grass. Always be sure of
your footing. A slip and fall can cause serious personal
injury. If you feel you are losing your footing, release the
blade control handle immediately and the blade will stop
rotating within three seconds.
19. Mow only in daylight or good artificial light. Walk, never
run.
20. Stop the blade when crossing gravel drives, walks or roads.
21. If the equipment should start to vibrate abnormally, stop
the engine and check immediately for the cause. Vibration
is generally a warning of trouble.
22. Shut the engine off and wait until the blade comes to
a complete stop before removing the grass catcher or
unclogging the chute. The cutting blade continues to
rotate for a few seconds after the blade control is released.
Never place any part of the body in the blade area until you
are sure the blade has stopped rotating.
23. Never operate mower without proper trail shield,
discharge cover, grass catcher, blade control or other safety
protective devices in place and working. Never operate
mower with damaged safety devices. Failure to do so can
result in personal injury.
24. Muffler and engine become hot and can cause a burn. Do
not touch.
25. Never attempt to make a wheel or cutting height
adjustment while the engine is running.
26. Only use parts and accessories made for this machine by
the manufacturer. Failure to do so can result in personal
injury.
27. When starting engine, pull cord slowly until resistance
is felt, then pull rapidly. Rapid retraction of starter cord
(kickback) will pull hand and arm toward engine faster than
you can let go. Broken bones, fractures, bruises or sprains
could result.
28. If situations occur which are not covered in this manual, use
care and good judgement. Contact Customer Support for
assistance or the name of the nearest service dealer.
Slope Operation
Slopes are a major factor related to slip and fall accidents, which
can result in severe injury. Operation on slopes requires extra
caution. If you feel uneasy on a slope, do not mow it. For your

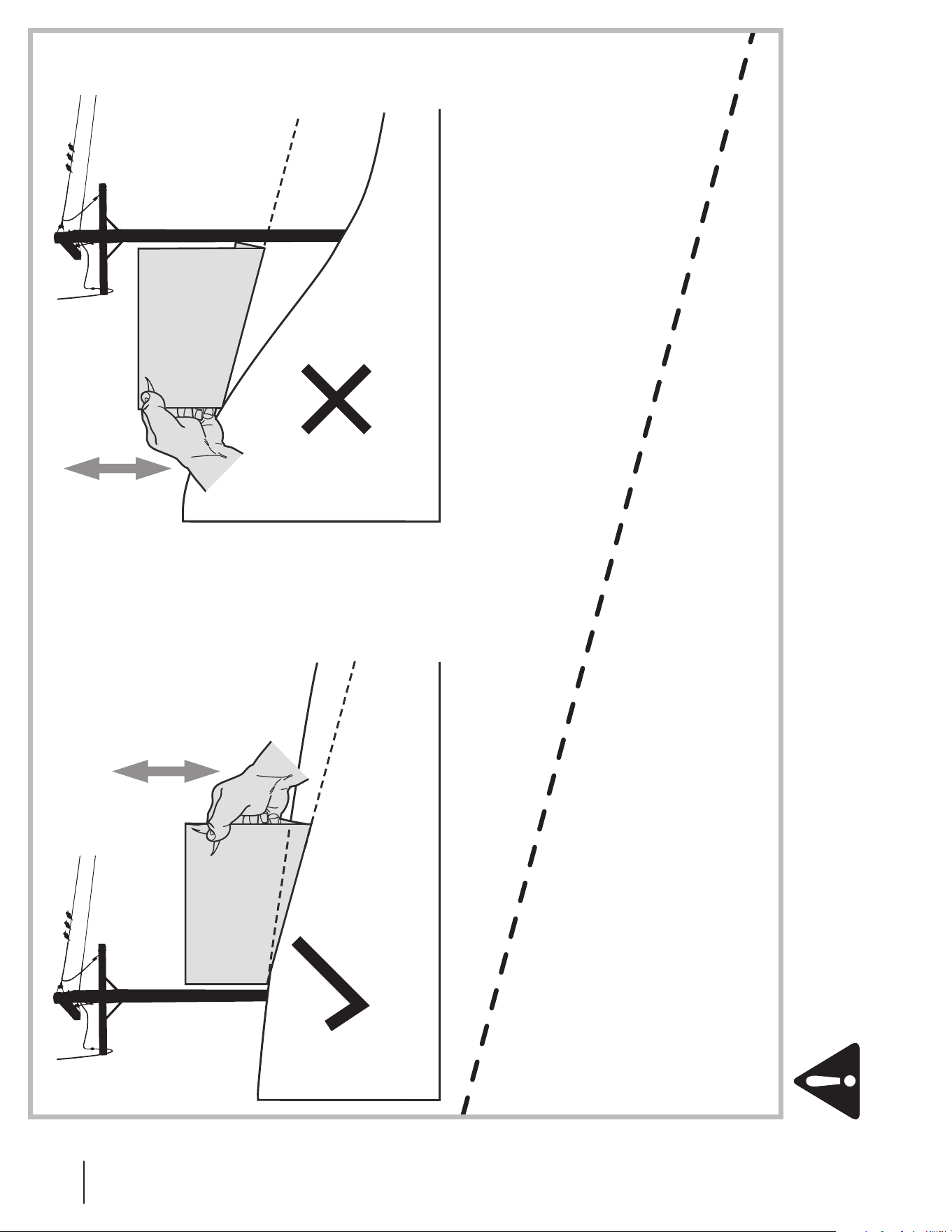

safety, use the slope gauge included as part of this manual to
measure slopes before operating this machine on a sloped or
hilly area. If the slope is greater than 15 degrees, do not mow it.
Do:
1. Mow across the face of slopes; never up and down. Exercise
extreme caution when changing direction on slopes.
2. Watch for holes, ruts, rocks, hidden objects, or bumps
which can cause you to slip or trip. Tall grass can hide
obstacles.
3. Always be sure of your footing. A slip and fall can cause
serious personal injury. If you feel you are losing your
balance, release the blade control handle immediately and
the blade will stop rotating within three (3) seconds.
Do Not:
1. Do not mow near drop-offs, ditches or embankments, you
could lose your footing or balance.
2. Do not mow slopes greater than 15 degrees as shown on
the slope gauge.
3. Do not mow on wet grass. Unstable footing could cause
slipping.
Children
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the mower
and the mowing activity. They do not understand the dangers.
Never assume that children will remain where you last saw them.
1. Keep children out of the mowing area and under watchful
care of a responsible adult other than the operator.
2. Be alert and turn mower off if a child enters the area.
3. Before and while moving backwards, look behind and
down for small children.
4. Use extreme care when approaching blind corners,
doorways, shrubs, trees, or other objects that may obscure
your vision of a child who may run into the mower.
5. Keep children away from hot or running engines. They can
suffer burns from a hot muffler.
6. Never allow children under 14 years of age to operate this
machine. Children 14 and over should read and understand
the instructions and safe operation practices in this manual
and on the machine and be trained and supervised by an
adult.
7. After stopping engine, remove Electric Start Push Key (if
equipped) and keep it in a safe place out of the reach of
children.
5Section 2 — important Safe operation practiceS
Service
Safe Handling Of Gasoline:
1. To avoid personal injury or property damage use extreme
care in handling gasoline. Gasoline is extremely flammable
and the vapors are explosive. Serious personal injury can
occur when gasoline is spilled on yourself or your clothes,
which can ignite. Wash your skin and change clothes
immediately.
2. Use only an approved gasoline container.
3. Never fill containers inside a vehicle or on a truck or trailer
bed with a plastic liner. Always place containers on the
ground away from your vehicle before filling.
4. Remove gas-powered equipment from the truck or
trailer and refuel it on the ground. If this is not possible,
then refuel such equipment on a trailer with a portable
container, rather than from a gasoline dispenser nozzle.
5. Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete. Do
not use a nozzle lock-open device.
6. Extinguish all cigarettes, cigars, pipes and other sources
of ignition.
7. Never fuel machine indoors because flammable vapors will
accumulate in the area.
8. Never remove gas cap or add fuel while engine is hot or
running. Allow engine to cool at least two minutes before
refueling.
9. Never over fill fuel tank. Fill tank to no more than 1 inch
below bottom of filler neck to provide for fuel expansion.
10. Replace gasoline cap and tighten securely.
11. If gasoline is spilled, wipe it off the engine and equipment.
Move machine to another area. Wait 5 minutes before
starting engine.
12. Never store the machine or fuel container near an open
flame, spark or pilot light as on a water heater, space
heater, furnace, clothes dryer or other gas appliances.
13. To reduce fire hazard, keep machine free of grass, leaves,
or other debris build-up. Clean up oil or fuel spillage and
remove any fuel soaked debris.
14. Allow machine to cool at least 5 minutes before storing.
General Service:
1. Never run an engine indoors or in a poorly ventilated area.
Engine exhaust contains carbon monoxide, an odorless
and deadly gas.
2. Before cleaning, repairing, or inspecting, make certain the
blade and all moving parts have stopped. Disconnect the
spark plug wire and ground against the engine and remove
Electric Start Push Key (if equipped) to prevent unintended
starting.
3. Check the blade and engine mounting bolts at frequent
intervals for proper tightness. Also, visually inspect blade
for damage (e.g., bent, cracked, worn) Replace blade with
the original equipment manufacture’s (O.E.M.) blade only,
listed in this manual. “Use of parts which do not meet the
original equipment specifications may lead to improper
performance and compromise safety!”
4. Mower blades are sharp and can cut. Wrap the blade or
wear gloves, and use extra caution when servicing them.
5. Keep all nuts, bolts, and screws tight to be sure the
equipment is in safe working condition.
6. Never tamper with safety devices. Check their proper
operation regularly.
7. After striking a foreign object, stop the engine, disconnect
the spark plug wire and ground against the engine.
Thoroughly inspect the mower for any damage. Repair the
damage before starting and operating the mower.
8. Never attempt to make a wheel or cutting height
adjustment while the engine is running.
9. Grass catcher components, discharge cover, and trail shield
are subject to wear and damage which could expose
moving parts or allow objects to be thrown. For safety
protection, frequently check components and replace
immediately with original equipment manufacturer’s
(O.E.M.) parts only, listed in this manual. “Use of parts which
do not meet the original equipment specifications may
lead to improper performance and compromise safety!”
10. Do not change the engine’s governor setting or over-speed
the engine. The governor controls the maximum safe
operating speed of the engine.
11. Check fuel line, tank, cap, and fittings frequently for cracks
or leaks. Replace if necessary.
12. Do not crank engine with spark plug removed.
13. Maintain or replace safety and instruction labels, as
necessary.
14. Observe proper disposal laws and regulations. Improper
disposal of fluids and materials can harm the environment.
15. According to the Consumer Products Safety Commission
(CPSC) and the U.S. Environmental Protection Agency (EPA),
this product has an Average Useful Life of seven (7) years,
or 140 hours of operation. At the end of the Average Useful
Life have the machine inspected annually by an authorized
service dealer to ensure that all mechanical and safety
systems are working properly and not worn excessively.
Failure to do so can result in accidents, injuries or death.
Do not modify engine
To avoid serious injury or death, do not modify engine in any
way. Tampering with the governor setting can lead to a runaway
engine and cause it to operate at unsafe speeds. Never tamper
with factory setting of engine governor.
6 Section 2 — important Safe operation practiceS
Notice Regarding Emissions
Engines which are certified to comply with California and federal
EPA emission regulations for SORE (Small Off Road Equipment)
are certified to operate on regular unleaded gasoline, and
may include the following emission control systems: Engine
Modification (EM), Oxidizing Catalyst (OC), Secondary Air
Injection (SAI) and Three Way Catalyst (TWC) if so equipped.
Spark Arrestor
WARNING: This machine is equipped with an
internal combustion engine and should not be used
on or near any unimproved forest-covered, brush
covered or grass-covered land unless the engine’s
exhaust system is equipped with a spark arrestor
meeting applicable local or state laws (if any).
If a spark arrestor is used, it should be maintained in effective
working order by the operator. In the State of California the
above is required by law (Section 4442 of the California Public
Resources Code). Other states may have similar laws. Federal laws
apply on federal lands.
A spark arrestor for the muffler is available through your
nearest engine authorized service dealer or contact the service
department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
7Section 2 — important Safe operation practiceS
WARNING: Your Responsibility—Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!

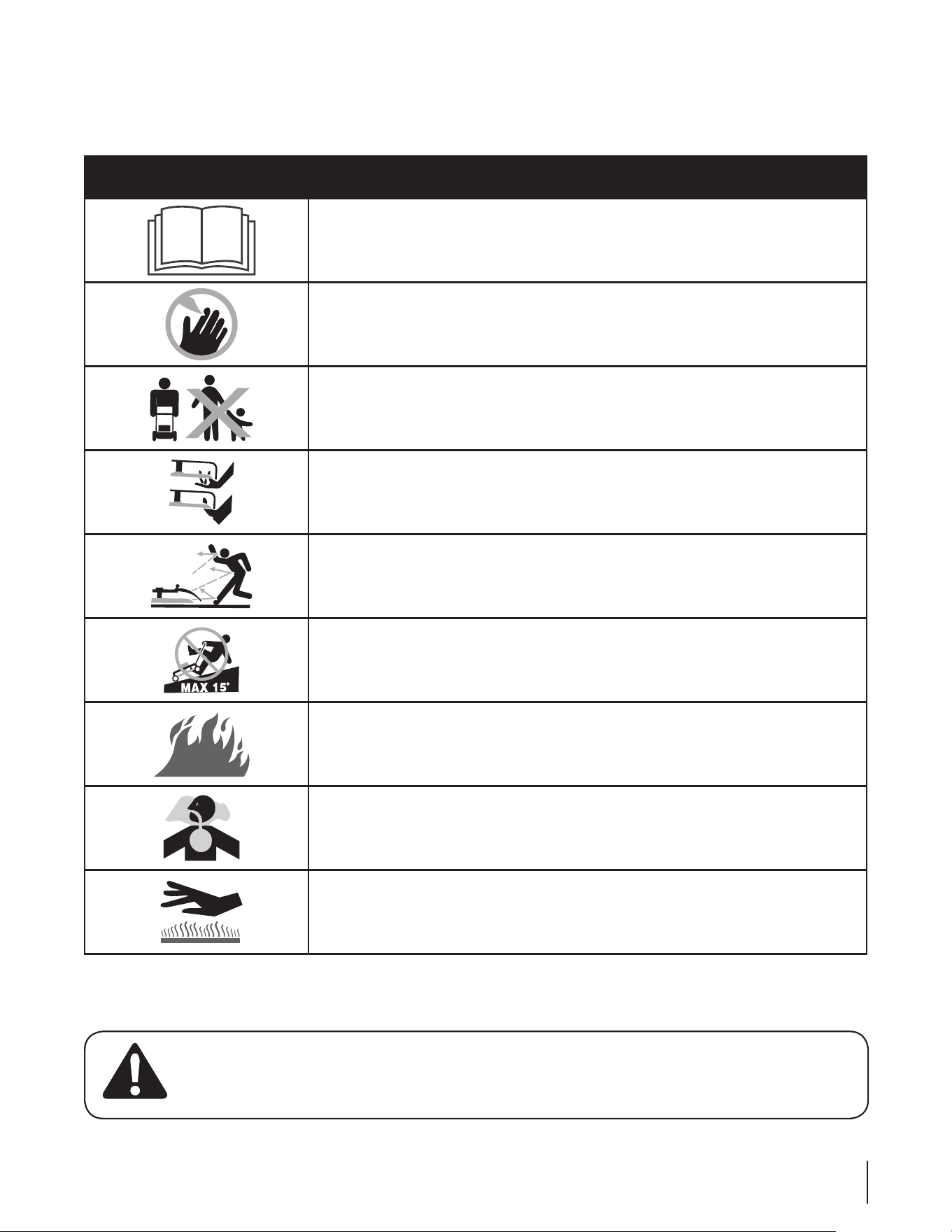

Safety Symbols
This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the
machine before attempting to assemble and operate.
Symbol Description
READ THE OPERATOR’S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to
assemble and operate
DANGER — ROTATING BLADES
To reduce the risk of injury, keep hands and feet away. Do not operate unless discharge cover
or grass catcher is in its proper place. If damaged, replace immediately.
DANGER — BYSTANDERS
Do not mow when children or others are around.
DANGER — HAND/ FOOT CUT
Keep hands and feet away from rotating parts.
DANGER — THROWN DEBRIS
Remove objects that can be thrown by the blade in any direction. Wear safety glasses.
DANGER — SLOPES
Use extra caution on slopes. Do not mow slopes greater than 15°.
WARNING—GASOLINE IS FLAMMABLE
Allow the engine to cool at least two minutes before refueling.
WARNING— CARBON MONOXIDE
Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon
monoxide, an odorless and deadly gas.
WARNING— HOT SURFACE
Engine parts, especially the muffler, become extremely hot during operation. Allow engine
and muffler to cool before touching.
8 Section 2 — important Safe operation practiceS
(OK) (TOO STEEP)
USE THIS SLOPE GAUGE TO DETERMINE
IF A SLOPE IS TOO STEEP FOR SAFE OPERATION!
To check the slope, proceed as follows:
1. Remove this page and fold along the dashed line.
2. Locate a vertical object on or behind the slope (e.g. a pole, building, fence, tree, etc.)
3. Align either side of the slope gauge with the object (See Figure 1 and Figure 2 ).
4. Adjust gauge up or down until the left corner touches the slope (See Figure 1 and Figure 2).
5. If there is a gap below the gauge, the slope is too steep for safe operation (See Figure 2 above).
15° dashed line
Slope Gauge
Figure 2Figure 1
15° Slope
15° Slope
WARNING! Slopes are a major factor related to tip-over and roll-over accidents which can result in severe injury or death.
Do not operate machine on slopes in excess of 15 degrees. All slopes require extra caution.
Always mow across the face of slopes, never up and down slopes.
Assembly & Set-Up
3
9
Contents of Carton
• One Lawn Mower • One Grass Catcher • One Bottle of Oil
• One Lawn Mower Operator’s Manual • One Engine Operator’s Manual • One Side Discharge Chute

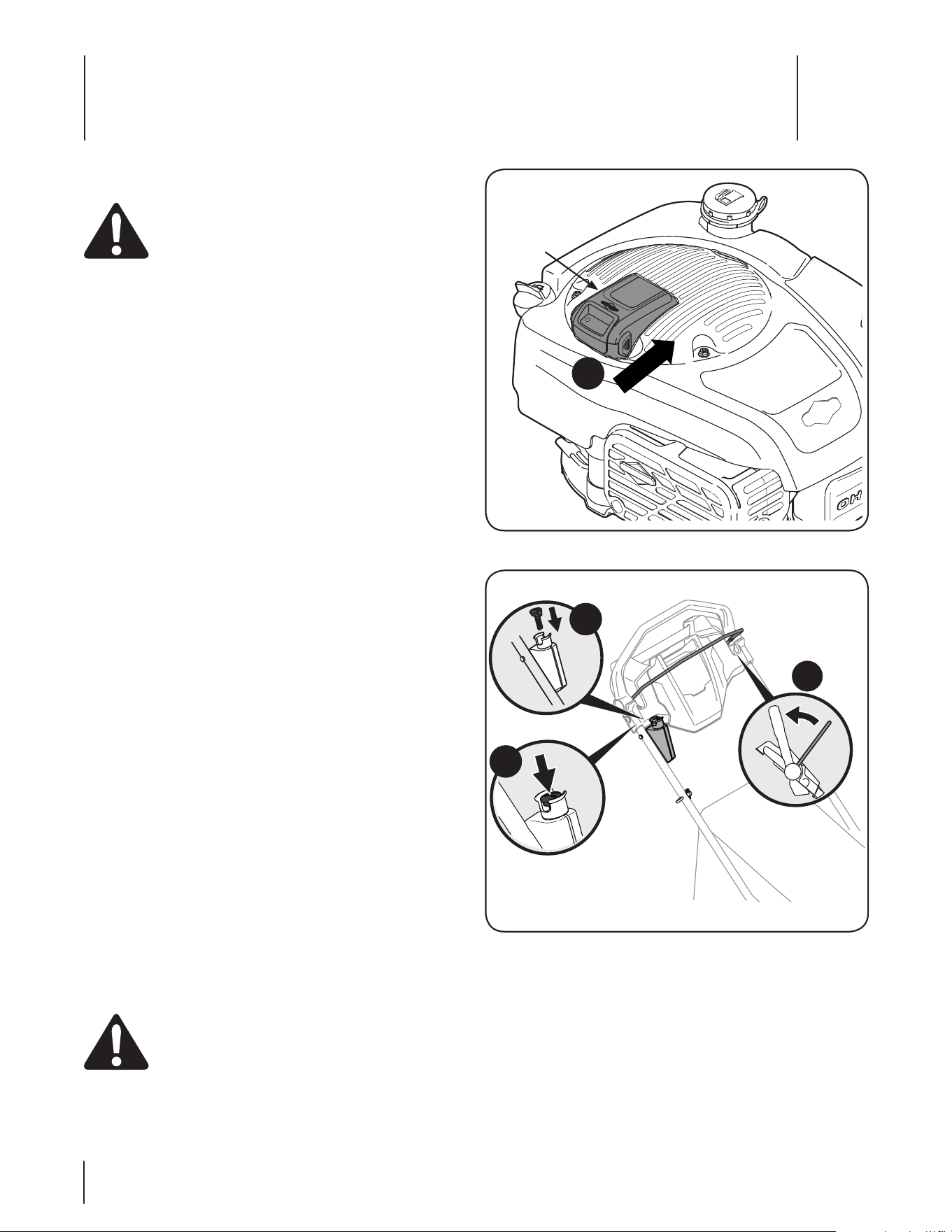

• Battery Charger • Electric Start Push Key • Battery Pack
b. While stabilizing mower so it doesn’t move, pivot
upper handle up as shown in Figure 3-2. Do not
crimp cables while lifting the handle up and make
sure they go on the outside of the handle.
b
Figure 3-2
Assembly
NOTE: This unit is shipped without gasoline or oil in the engine.
Fill up with gasoline and oil as instructed in the accompanying
engine manual BEFORE operating your mower.

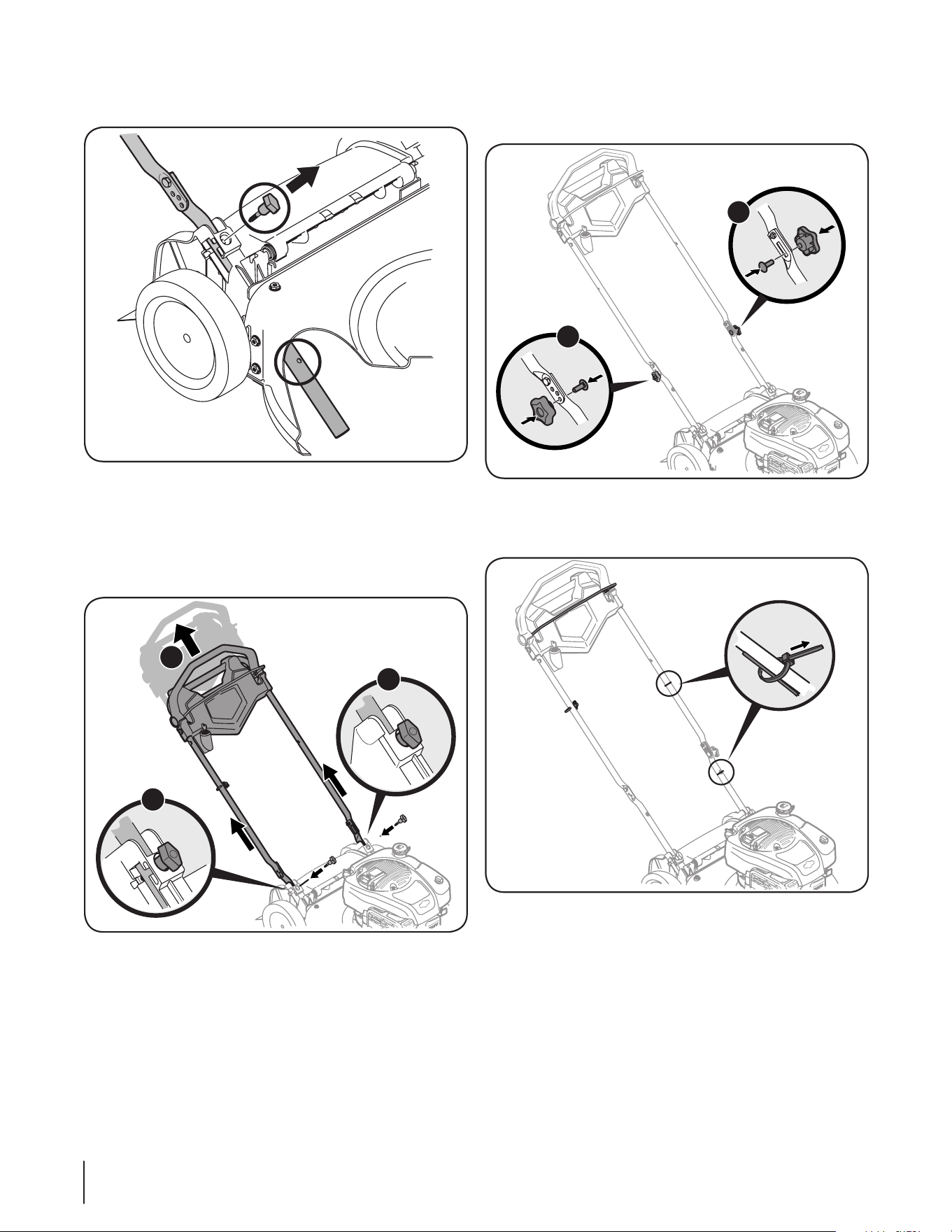

Handle
1. Remove any packing material which may be between
upper and lower handles.

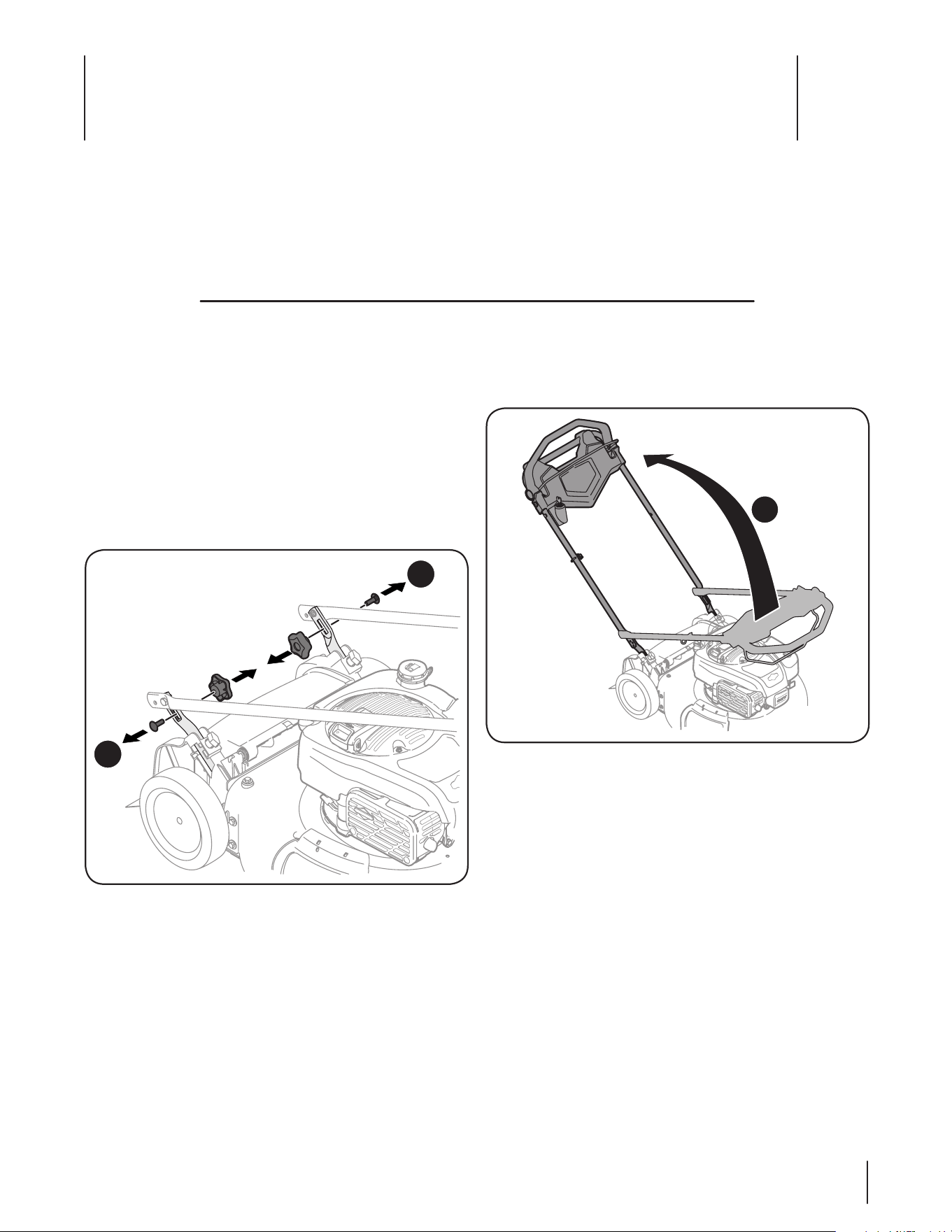

a. Remove star knobs and carriage bolts from handle
as shown in Figure 3-1. Do not loosen or remove
adjacent hex head screws.
a
a
Figure 3-1
10 Section 3 — ASSembly & Set-Up
c. Reattach star knobs and carriage bolts removed
earlier into lower holes of handle as shown in Figure
3-5.
c
c
Figure 3-5

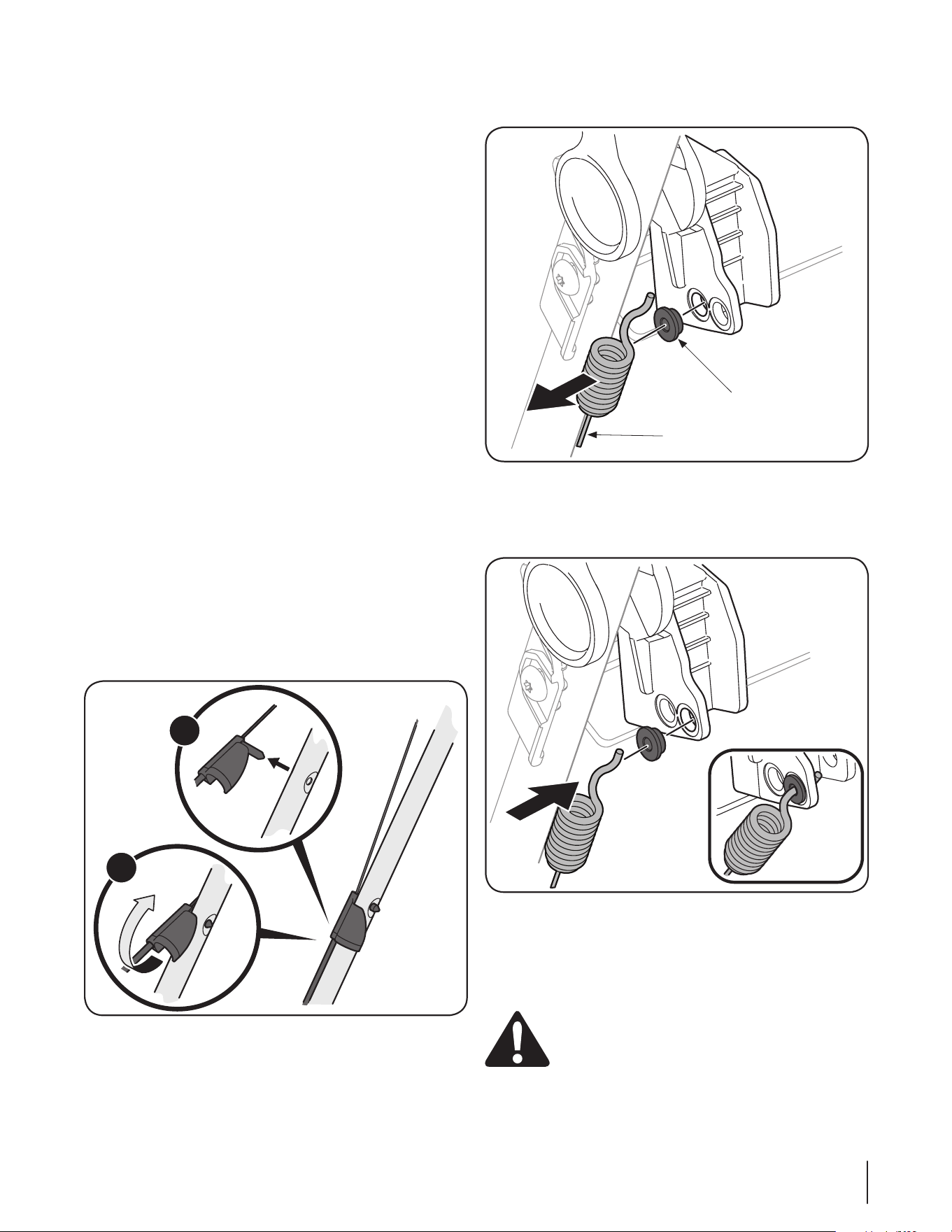

4. Use cable ties provided to secure blade control and drive
cables to lower handle as shown in Figure 3-6.
Figure 3-6
IMPORTANT: To reduce wear and allow for proper
operation, make sure to leave some slack in the upper
portion of the cable(s).
2. Remove the T-bolts from the handle brackets as shown in
Figure 3-3.
Figure 3-3
3. Follow the steps below to complete handle assembly:
a. Pull upward on the handle approximately 8 inches
until holes in lower handle (shown in Figure 3-3 deck
cutaway) line up with holes in handle bracket. See
Figure 3-4.
a
b
b
Figure 3-4
NOTE: When pulling upward on handle, make sure to not
pull handle all the way out.
b. Insert the T-bolts removed earlier through the
handle brackets and lower handle and tighten
securely to secure the handle in place. See Figure
3-4.
11Section 3 — ASSembly & Set-Up
To remove grass catcher, lift rear discharge door on the mower.
Lift grass catcher up and off of the slots in the handle brackets.
Release rear discharge door to allow it to close rear opening of
mower.

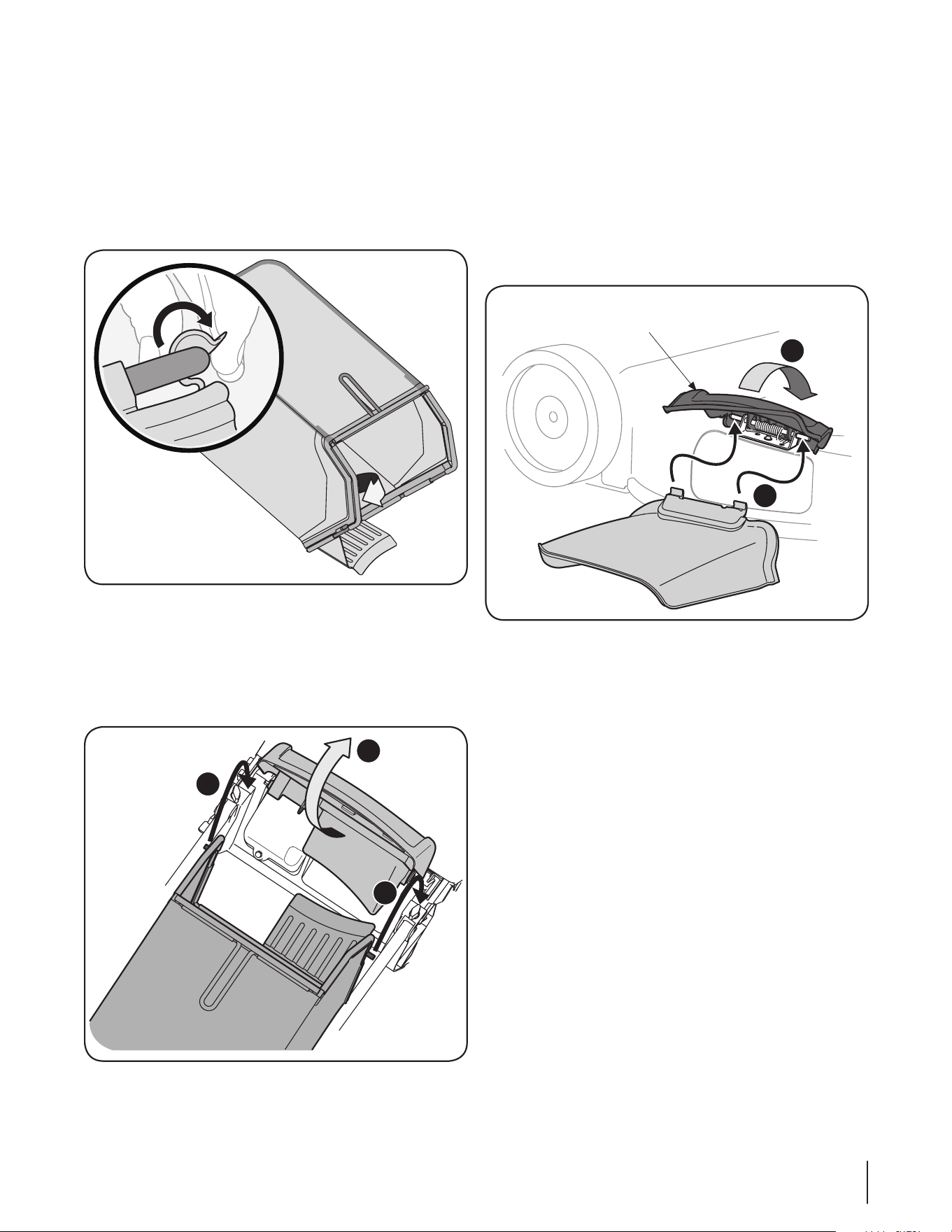

Side Discharge Chute
Your mower is shipped as a mulcher. To convert to side discharge,
make sure grass catcher is off of the unit and rear discharge door
is closed.
1. On the side of the mower, lift the side mulching plug. See
Figure 3-9.
1
2
Side Mulching
Plug
Figure 3-9
2. Slide two hooks of side discharge chute under hinge pin on
mulching plug assembly. Lower the mulching plug. Do not
remove side mulching plug at any time, even when you are
not mulching.
Grass Catcher
1. Follow steps below to assemble the grass catcher (if
needed). Make certain bag is turned right side out before
assembling (warning label will be on the outside).
a. Place bag over frame so that its black plastic side is
at the bottom.
b. Slip plastic channel of grass bag over hooks on the
frame. See Figure 3-7.
Figure 3-7
2. Follow steps below to attach grass catcher:
a. Lift rear discharge door.
b. Place grass catcher into the slots in the handle
brackets as shown in Figure 3-8. Let go of discharge
door so that it rests on the grass catcher.
a
b
b
Figure 3-8
12 Section 3 — ASSembly & Set-Up
Adjustments

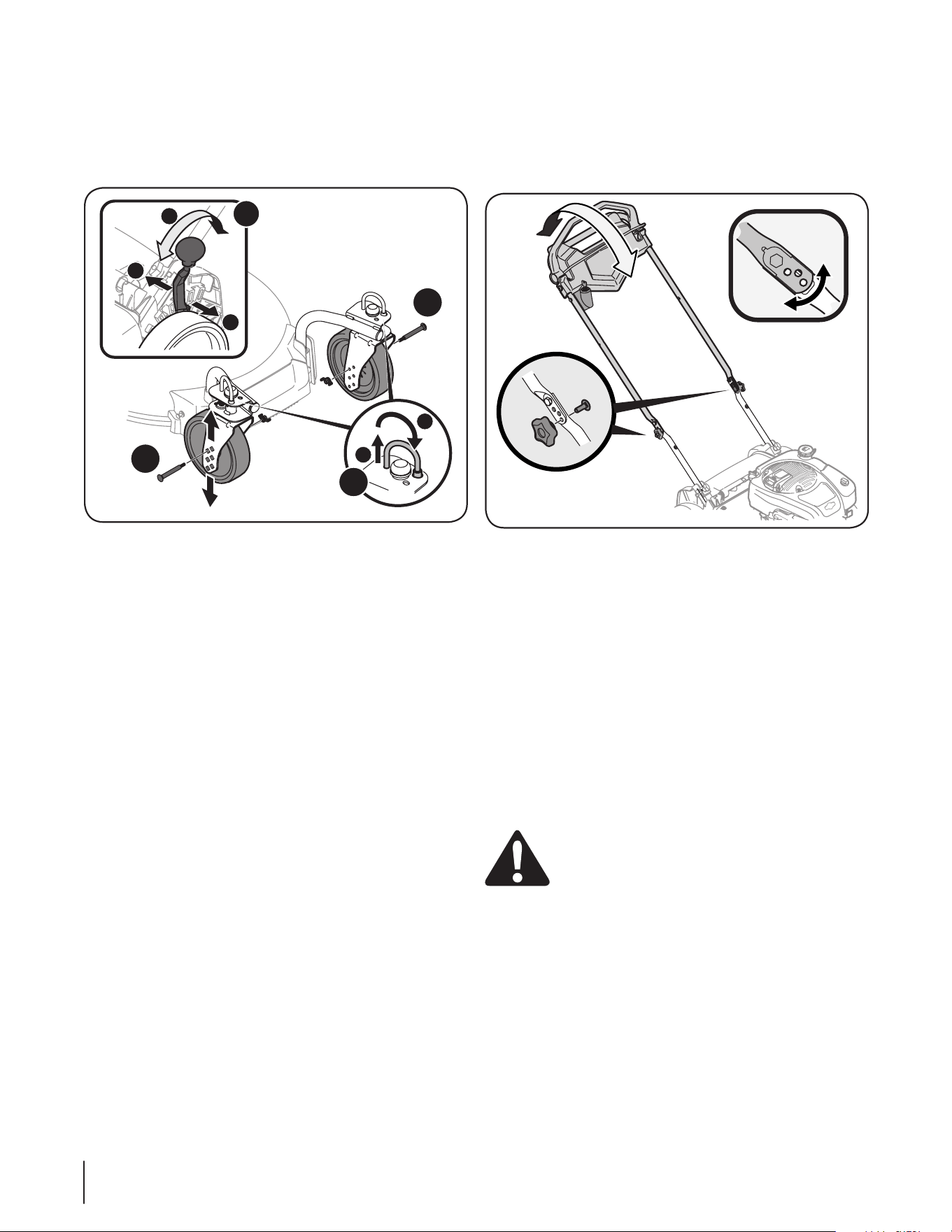

Cutting Height
The rear wheel cutting height adjustment lever is located above
the rear left wheel. See Figure 3-10A insert.
1
2
1
2
3
B
B
C
A
Figure 3-10
1. Pull lever out and away from mower.
2. Move lever forward or back for desired cutting height.
3. Release lever towards mower deck.
The front wheel cutting height is determined by selecting one
of six positions on each caster assembly. To adjust front cutting
height, refer to Figure 3-10B and proceed as follows:
1. Remove wing nut from axle bolt. Slide axle bolt and wave
washer from the assembly and select a cutting height.
2. With wave washer on axle bolt, reinsert hardware in the
square hole desired through wheel assembly and secure
with wing nut previously removed.
IMPORTANT: All wheels must be placed in the same
relative position. For rough or uneven lawns, move the
height adjustment lever to a higher position. This will stop
scalping of grass.
The casters can be locked in a straight ahead position or
positioned to swivel freely. See Figure 3-10C insert.
1. Lift lock pins.
2. Place in larger holes to lock wheels. Place pins in smaller
holes to allow casters to rotate freely for turning.
Handle Pitch
For convenience of operation, you may adjust the pitch of the
handle as follows:
1. Remove star knobs and carriage bolts from handle. See
Figure 3-11.
Figure 3-11
2. Position the handle in one of the three positions that is
most comfortable. See Figure 3-11 inset.
3. Secure into position with star knobs and carriage bolts
removed earlier.
Set-Up
Gas and Oil Fill-Up
Refer to the separate engine owner’s manual for additional
engine information.
1. Add oil provided before starting unit for the first time out
of the box.
2. Service the engine with gasoline as instructed in the
separate engine owner’s manual.
WARNING: Use extreme care when handling
gasoline. Gasoline is extremely flammable and the
vapors are explosive. Never fuel the machine
indoors or while the engine is hot or running.
Extinguish cigarettes, cigars, pipes and other
sources of ignition.
Controls and Features
4
13
Deck Wash
Your mower’s deck is equipped with a water port on its surface
as part of its deck wash system. Use the deck wash to rinse grass
clippings from the deck’s underside.
Side Discharge Chute
Your mower is shipped as a mulcher. To discharge the grass
clippings to the side instead, follow the instructions in the
“Assembly & Set-Up” section to attach the side discharge chute.
WARNING: Keep hands and feet away from the
chute area on cutting deck. Refer to warning label
on the unit.
Electric Starter Push Key
The electric starter push key is located on the right side of the
upper handle. It is both a removable key and push button and is
only provided on electric start models.
Blade Control
The blade control is attached to the upper handle of the mower.
Depress and squeeze it against the drive control to operate the
unit. Release it to stop engine and blade.
WARNING: This blade control is a safety device.
Never attempt to bypass its operations.
Premium Drive Control
The premium drive control is located on the upper handle and
is used to engage the drive. Pushing the control forward will
engage the drive. The farther the control is pushed forward, the
faster the mower will propel. Once pressure is released from the
control it will return to the neutral position and the drive will be
disengaged.

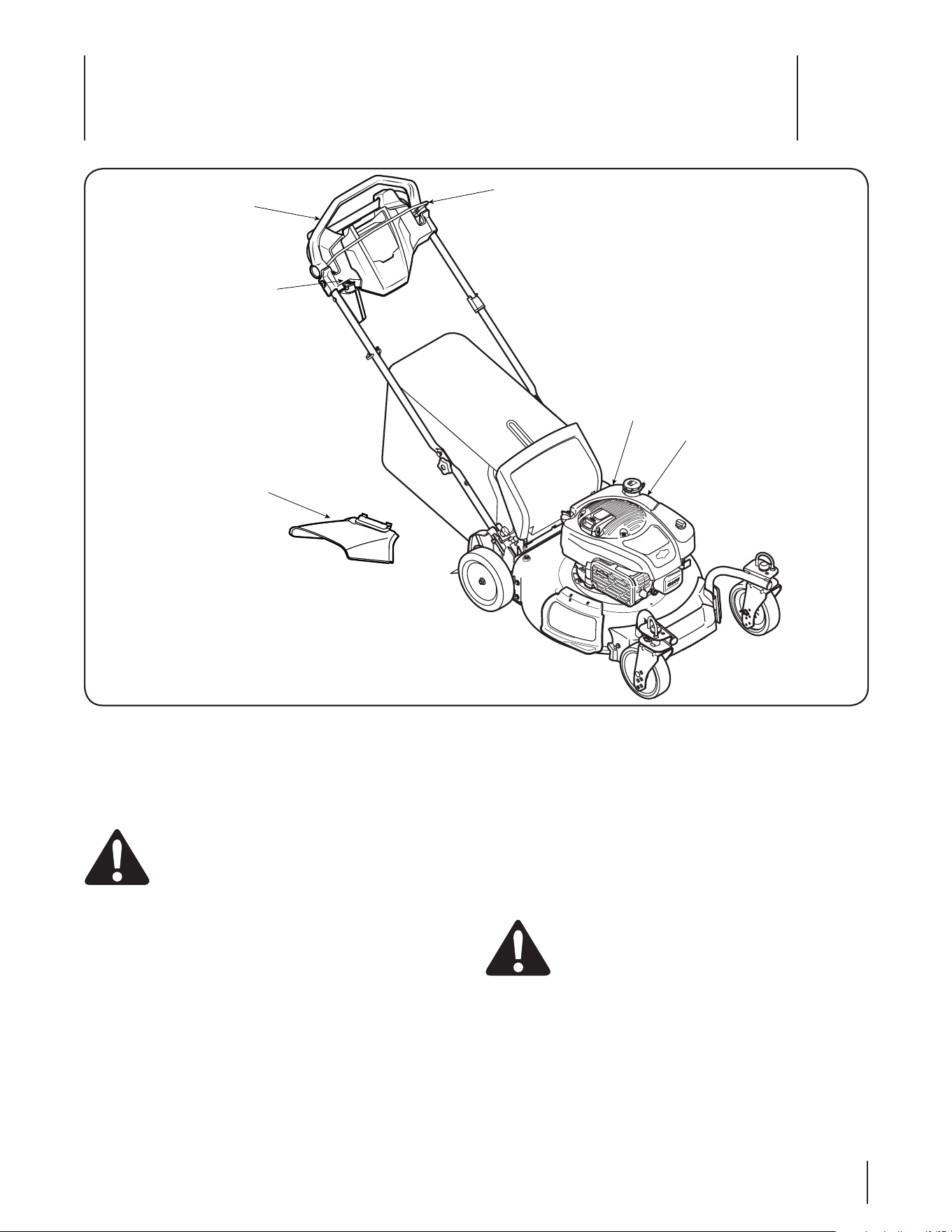

Cutting Height Adjustment Lever
The cutting height adjustment lever is located above the left
rear wheel. To adjust the cutting height, refer to the “Assembly &
Set-Up” Section.
Blade Control
Deck Wash
Cutting Height
Adjustment
Lever
Side Discharge
Chute
Premium
Drive Control
Electric Starter
Push Key
Figure 4-1
Operation
5
14
Starting Engine
WARNING: Be sure no one other than the operator
is standing near the lawn mower while starting
engine or operating mower. Never run engine
indoors or in enclosed, poorly ventilated areas.
Engine exhaust contains carbon monoxide, an
odorless and deadly gas. Keep hands, feet, hair and
loose clothing away from any moving parts on
engine and lawn mower.
Refer to engine manual for more detailed information pertaining
to the starting of the engine.
1. Check the battery tray on top of the engine for debris and if
dirty clean with a brush or cloth. Push the battery pack into
the battery tray until it clicks on top of engine. See Figure
5-1.
Note: To wake up a new battery, a First Time quick charge
of approximately ten (10) seconds is required. See the
When To Charge Battery Pack section.
2. Insert plastic Electric Start Push Key into starter housing
located on the right side of upper handle until it snaps in
place.
3. Standing behind the mower, pull the blade control back
against the drive control. See Figure 5-2.
4. Push the electric starter push key to start the engine. See
Figure 5-2.
NOTE: To extend the life of the starter, use short starting
cycles (five seconds maximum). Wait one minute between
starting cycles.
IMPORTANT: If the engine will not crank and the battery
pack display lights are flashing, then the battery pack
temperature is too hot or current draw is too high. All
four battery display lights will flash a warning for 10
seconds. The battery pack does not have a fuse, but
will automatically reset after 10 seconds. If battery pack
temperature is too hot, remove the battery and allow it to
cool. To avoid excess current draw on lawnmower, keep the
mower housing clean of grass build-up and debris.
Stopping Engine
1. Release blade control to stop the engine and blade.
2. Remove Electric Start Push Key if mower is to be left
unattended, stored, or serviced. To remove key, grasp the
key’s top push button and pull it straight up and out. Keep
key in a safe place out of the reach of children.
3. Remove the battery pack.
WARNING: Wait for the blade to stop completely
before performing any work on the mower or to
remove the grass catcher.
1
Battery
Figure 5-1
3
2
4
Figure 5-2
15Section 5 — operation
Using Your Lawn Mower
Be sure lawn is clear of stones, sticks, wire, or other objects
which could damage lawn mower or engine. Such objects could
be accidently thrown by the mower in any direction and cause
serious personal injury to the operator and others.
1. Once the engine is running and while continuing to hold
the blade and drive controls together, push the drive
control forward to propel mower. The farther the control
is pushed forward, the faster the mower will propel. Once
pressure is released from the control it will return to the
neutral position and the drive will be disengaged.
NOTE: For ease of use, while gripping the controls,
simply lock your wrist and elbows and walk - the unit will
automatically adjust to your speed.
WARNING: The operation of any lawn mower can
result in foreign objects being thrown into the eyes,
which can damage your eyes severely. Always wear
safety glasses while operating the mower, or while
performing any adjustments or repairs on it.
Using as Mulcher
For mulching grass, remove the grass catcher and allow the rear
discharge door to close the rear opening of mower. For effective
mulching, do not cut wet grass. If the grass has been allowed to
grow in excess of four inches, mulching is not recommended. Use
the grass catcher to bag clippings instead.
Using Grass Catcher
You can use the grass catcher to collect clippings while you are
operating the mower.
1. Attach grass catcher following instructions in the
“Assembly & Set-Up” section. Grass clippings will
automatically collect in bag as you run mower. Operate
mower till grass bag is full.
2. Stop engine completely by releasing the blade control.
Make sure that the unit has come to a complete stop.
3. Lift discharge door and pull grass bag up and away from
the mower to remove the bag. Dispose of the grass
clippings and reinstall the bag when complete.
NOTE: Make sure to clean any excess grass from around
the rear opening of the mower, especially between the
transmission cover and sidewall on the left hand side and
along the bottom, to ensure tight fit of bag onto mower.
WARNING: If you strike a foreign object, stop the
engine. Remove wire from the spark plug,
thoroughly inspect mower for any damage, and
repair damage before restarting and operating.
Extensive vibration of mower during operation is an
indication of damage. The unit should be promptly
inspected and repaired.
Maintenance & Adjustments
6
16
Maintenance
General Recommendations
• Always observe safety rules when performing any
maintenance.
• The warranty on this lawn mower does not cover items that
have been subjected to operator abuse or negligence. To
receive full value from warranty, operator must maintain
the lawn mower as instructed here.
• Changing of engine-governed speed will void engine
warranty.
• All adjustments should be checked at least once each
season.
• Periodically check all fasteners and make sure these are
tight.
WARNING: Always stop engine, remove Electric
Start Push Key (if equipped), allow engine to cool,
disconnect spark plug and ground against engine
before performing any type of maintenance on your
machine.
Lubrication

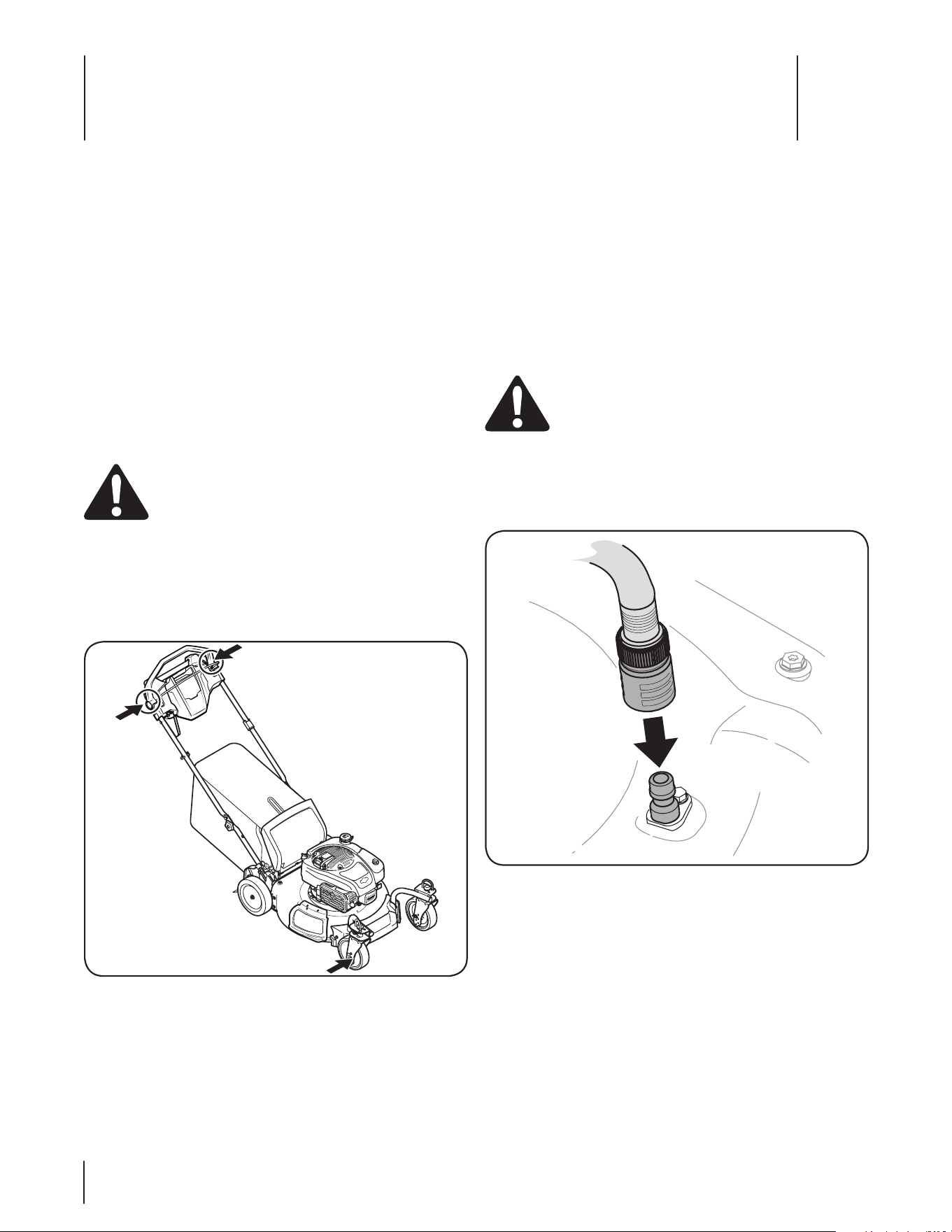

1. Lubricate pivot points on the blade and drive controls
at least once a season with light oil. These controls must
operate freely in both directions. See Figure 6-1.
Figure 6-1
2. Lubricate the front wheels and casters at least once a
season with light oil (or motor oil). If wheels are removed
for any reason, lubricate the axle bolt and inner surface of
the wheel with light oil.
3. The transmission is pre-lubricated and sealed at the factory
and does not require lubrication.
4. Follow the accompanying engine manual for lubrication
schedule and instruction for engine lubrication.
Deck Wash
Your mower’s deck is equipped with a water port on its surface as
part of its deck wash system.
Use the deck wash to rinse grass clippings from the deck’s
underside and prevent the buildup of corrosive chemicals.
Complete the following steps AFTER EACH MOWING:
1. Push the mower to a level, clear spot on your lawn, near
enough for your garden hose to reach.
CAUTION: Make certain the mower’s discharge
chute is directed AWAY from your house, garage,
parked cars, etc.
2. Thread the hose coupler (packaged with your mower’s
Operator’s Manual) onto the end of your garden hose.
3. Attach the hose coupler to the water port on your deck’s
surface. See Figure 6-2.
Figure 6-2
4. Turn the water on.
5. Start the engine as described in the Operation section.
6. Run the engine for a minimum of two minutes, allowing
the underside of the cutting deck to thoroughly rinse.
7. Release blade control to stop the engine and blade.
8. Turn the water off and detach the hose coupler from the
water port on your deck’s surface.
After cleaning your deck, restart the mower. Keep the engine
and blade running for a minimum of two minutes, allowing the
underside of the cutting deck to thoroughly dry.
17Section 6 — Maintenance & adjuStMentS
3. Unhook the cable and remove the metal bushing from the
plastic drive handle. See Figure 6-4.
Metal Bushing
Cable
Figure 6-4
4. Replace bushing in the lower hole and reattach the cable
through the bushing and lower hole in the handle. See
Figure 6-5.
Figure 6-5
5. Reinsert the drive cable fitting into the upper handle and
rotate it downward.
6. Start the mower and check the function of the drive
handle.
CAUTION: If the drive is engaged without pushing
on the handle after this adjustment is made return
the cable to its original position on the plastic drive
handle.
Engine Care
A list of key engine maintenance jobs required for good
performance by the mower is given below. Follow the
accompanying engine manual for a detailed list and instructions.
• Maintain oil level as instructed in engine manual.
• Service air filter every 50 hours or annually under normal
conditions. Clean more often under extremely dusty
conditions. Poor engine performance and flooding usually
indicates that the air cleaner should be serviced. To service
the air cleaner filter, refer to the engine manual.
• Clean spark plug and reset the gap once a season. Spark
plug replacement is recommended at the start of each
mowing season. Check engine manual for correct plug
type and gap specifications.
• Clean engine regularly with a cloth or brush. Keep the
top of the engine clean to permit proper air circulation.
Remove all grass, dirt, and combustible debris from muffler
area.
• Engines stored between 30 and 90 days need to be treated
with a gasoline stabilizer such as STA-BIL® to prevent
deterioration and gum from forming in fuel system or on
essential carburetor parts.
Adjustments
Drive Adjustment
The drive system consists of pulleys, a belt , and a cable linking
the transmission to the drive handle. As these components wear
adjustment may be needed. To adjust the drive linkage perform
the following:
1. Rotate the drive cable fitting located on the left upper
handle upward. See Figure 6-3.
1
2
Figure 6-3
2. Pull the fitting away from the handle.
Se rvice
7
18
Blade Care
WARNING: When removing the cutting blade for
sharpening or replacement, protect your hands with
a pair of heavy gloves or use a heavy rag to hold the
blade.
Periodically inspect the blade adapter for cracks, especially if you
strike a foreign object. Replace when necessary. Follow the steps
below for blade service.
1. Disconnect spark plug boot from spark plug and remove
Electric Start Push Key (if equipped). Turn mower on its side
making sure that the air filter and the carburetor are facing
up.

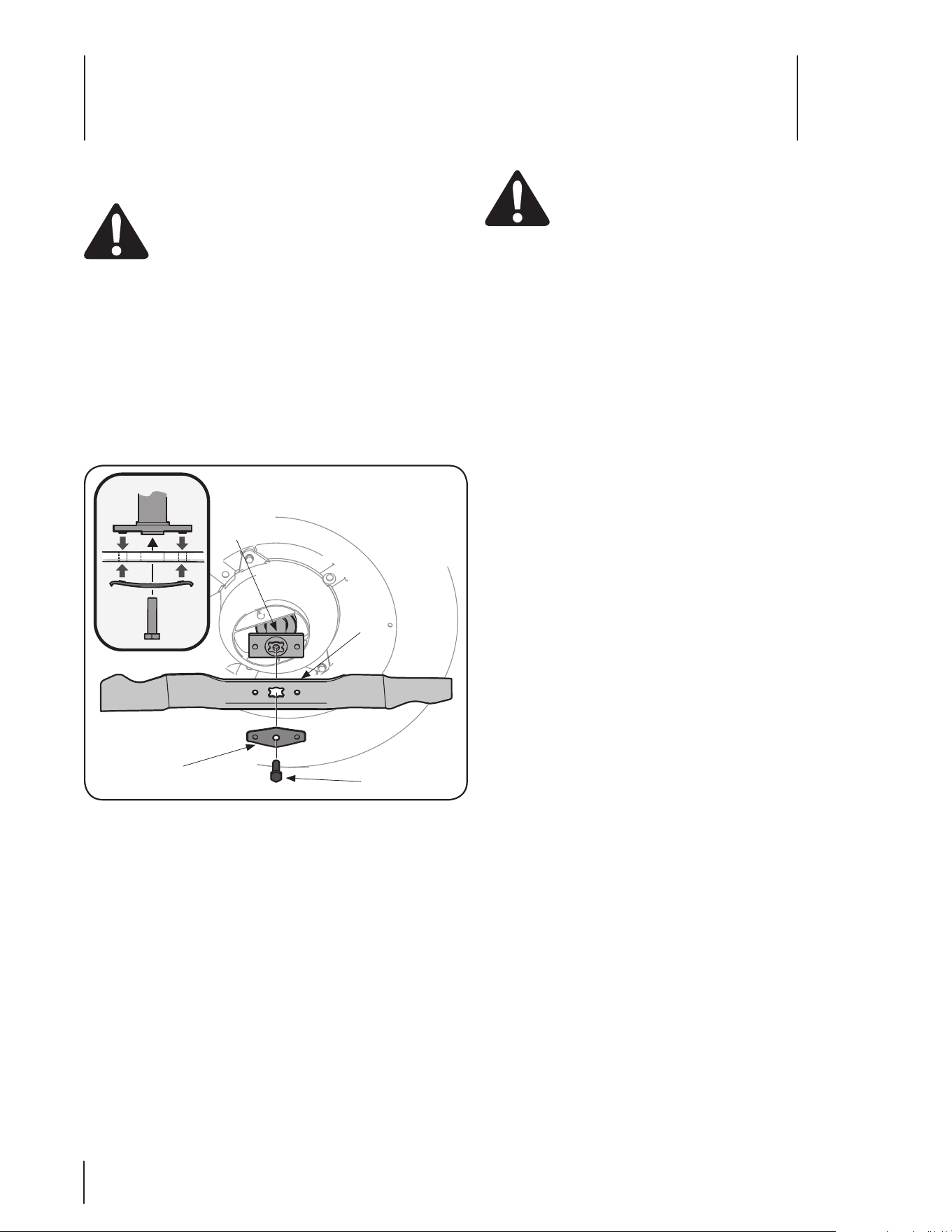

2. Remove the bolt and the blade bell support which hold the
blade and the blade adapter to the engine crankshaft. See
Figure 7-1.
Blade
Blade
Adapter
Bolt
Blade Bell
Support
Figure 7-1
3. Remove blade from the adapter for testing balance.
4. Balance the blade on a round shaft screwdriver to check.
Remove metal from the heavy side until it balances evenly.
When sharpening the blade, follow the original angle of
grind. Grind each cutting edge equally to keep the blade
balanced.
WARNING: An unbalanced blade will cause
excessive vibration when rotating at high speeds. It
may cause damage to mower and could break
causing personal injury.
5. Place the blade on the adapter such that the side of the
blade marked “Bottom” (or with part number) faces the
ground when the mower is in the operating position. Make
sure that the blade is aligned and seated on the blade
adapter flanges. See Figure 7-1 inset.
6. Place blade bell support on the blade. Align notches on the
blade bell support with small holes in blade.
7. Replace hex bolt and tighten hex bolt to torque: 450 in. lbs.
min., 600 in. lbs. max.
To ensure safe operation of your mower, periodically check the
blade bolt for correct torque.
Belt Care
NOTE: Several components must be removed in order to change
the mower’s belt. See an authorized Service Dealer to have your
belt replaced.
19Section 7 — Service
When To Charge Battery Pack
Refer to engine manual for more detailed information regarding
the battery pack and charger.
First Time - The Lithium‐Ion battery pack was partially charged
before shipment. To maintain charge and to prevent damage
while in storage, the battery pack is programed to enter a “sleep
mode”. A quick charge of approximately ten (10) seconds is
required to wake up the battery. Leave battery pack in charger
until fully charged. To charge the battery pack, see the How To
Charge Battery Pack section.
As Required - To check available charge, press the Battery Fuel
Gauge button and charge if required. See Figure 7-2. Refer to the
Battery Fuel Gauge section below.
How To Charge Battery Pack
1. Connect battery charger to electrical outlet.
WARNING: Keep battery pack and battery charger
dry. Do not expose battery pack or charger to rain or
wet conditions.
2. Slide the battery pack firmily into the battery charging
bay. See Figure 7-3. If the red charging light does not come
on, remove the battery pack and reinstall. Make sure the
battery pack is firmly seated in the battery charging bay.
• Red light (A, Figure 7-2) indicates battery pack is charging
normally.
• Green light (B) indicates battery pack is fully charged.
• FLASHING red light (C) indicates the battery pack is either
too hot or too cold and will not accept a charge. Leave
the battery pack connected and when normal operating
temperature is reached it will automatically start charging.
• FLASHING red/green lights (D) indicate that battery pack
will not charge and must be replaced. See Lithium Ion
Battery Pack Disposal at the end of this section.
3. From “sleep mode”, the battery will wake up in
approximately ten (10) seconds.
4. A completely discharged battery pack will fully charge in
approximately one (1) hour. The battery pack will stay fully
charged if left on the charger.
5. When the green light indicates that the battery pack is fully
charged, it can be removed from the charger.
6. To check available charge, press the Battery Fuel Gauge
button.
7. When not in use, disconnect battery charger from electical
outlet.
Battery
Fuel Gauge
Button
A
B
C
D
E
Figure 7-2
Charger
Battery
Figure 7-3
Battery Fuel Gauge
To check available charge, press the Battery Fuel Gauge button.
The display lights (E, Figure 7-2) will indicate the approximate
amount of charge remaining in the battery pack.
• Four lights - 78% to 100%
• Three lights - 55% to 77%
• Two lights - 33% to 54%
• One light - 10% to 32%
• Flashing light - less than 10%
20 Section 7— Service
Off-Season Storage
The following steps should be taken to prepare your lawn mower
for storage.
• Clean and lubricate mower thoroughly as described in the
lubrication instructions.
• Coat mower’s cutting blade with chassis grease to prevent
rusting.
• Refer to engine manual for correct engine storage
instructions.

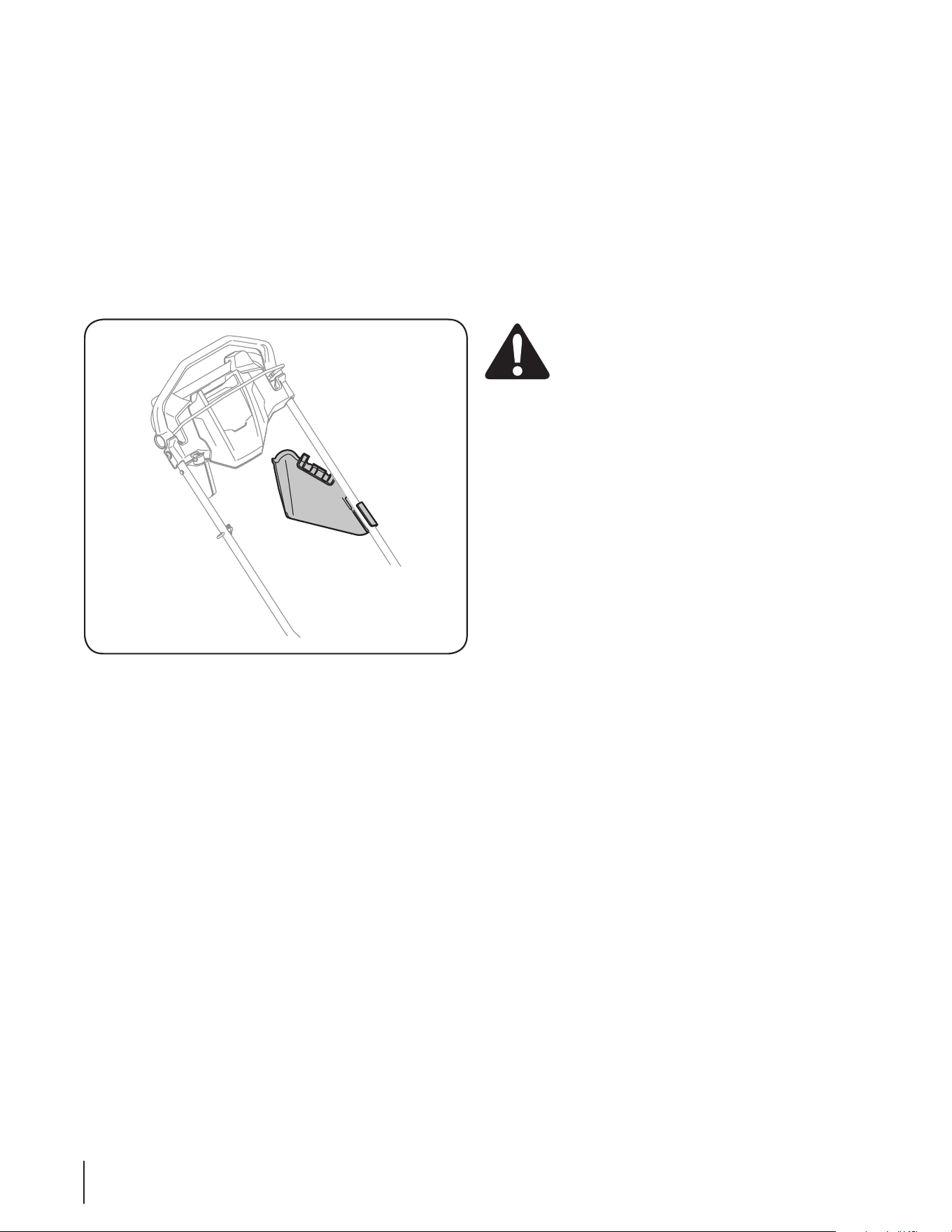

• Secure side discharge chute to handle as shown in Figure
7-4.
Figure 7-4
• Store mower in a dry, clean area. Do not store next to
corrosive materials, such as fertilizer.
When storing any type of power equipment in a poorly
ventilated or metal storage shed, care should be taken to
rust-proof the equipment. Using a light oil or silicone, coat the
equipment, especially cables and all moving parts of your lawn
mower before storage.
Battery Pack and Charger
• When not in use, disconnect charger and store in a cool,
dry area. Wet, damp areas can cause corrosion of terminals
and electrical contacts. If stored for long periods in high
temperatures (120 degrees F), permanent damage to the
battery pack can result. Check electrical terminals and
contacts on battery packs and charger. Wipe with clean
cloth or blow clean with compressed air.
• After storage, a normal charge may be required. To check
available charge, press the Battery Fuel Gauge button and
charge if required. See the Battery Fuel Gauge section.
Lithium Ion Battery Pack Disposal
WARNING: Battery chemicals are toxic and
corrosive. Fire or explosion can cause severe burns
or death.
• Never burn or incinerate discarded or used battery packs
as they may explode. Toxic fumes and materials are created
when battery packs are burned.
• Do not use a battery that has been crushed, dropped, or
damaged.
Used and discarded battery packs will likely still carry a small
electrical charge and should be handled with care. Always
dispose of discarded or used battery packs according to federal,
state and local regulations.
Troubleshooting
8
21
Problem Cause Remedy
Engine Fails to start 1. Blade control disengaged.
2. Spark plug boot disconnected.
3. Fuel tank empty or stale fuel.
4. Faulty spark plug.
5. Blocked fuel line.
6. Engine flooded.
7. Battery not charged.
8. Battery pack temperature too hot or current
draw too high.
1. Engage blade control.
2. Connect wire to spark boot.
3. Fill tank with clean, fresh gasoline.
4. Clean, adjust gap, or replace.
5. Clean fuel line.
6. Wait a few minutes to restart, but do not
prime.
7. Charge battery. See Service section.
8. Allow battery to cool. Battery does not have
a fuse but will automatically reset after 10
seconds.
Engine runs erratic 1. Spark plug boot loose.
2. Blocked fuel line or stale fuel.
3. Vent in gas cap plugged.
4. Water or dirt in fuel system.
5. Dirty air cleaner.
1. Connect and tighten spark plug boot.
2. Clean fuel line; fill tank with clean, fresh
gasoline.
3. Clear vent.
4. Drain fuel tank. Refill with fresh fuel.
5. Refer to engine manual.
Engine overheats 1. Engine oil level low.
2. Air flow restricted.
1. Fill crankcase with proper oil.
2. Clean area around and on top of engine.
Occasional skips
(hesitates) at high speed
1. Spark plug gap too close. 1. Adjust spark plug gap. Refer to engine
manual.
Idles poorly 1. Spark plug fouled, faulty, or gap too wide.
2. Dirty air cleaner.
1. Reset gap or replace spark plug. Refer to
engine manual.
2. Refer to engine manual.
Excessive Vibration 1. Cutting blade loose or unbalanced.
2. Bent cutting blade.
1. Tighten blade and adapter. Balance blade.
2. See an authorized service dealer.
Mower will not
mulch grass
1. Wet grass.
2. Excessively high grass.
3. Dull blade.
1. Do not mow when grass is wet; wait until
later to cut.
2. Mow once at a high cutting height, then
mow again at desired height or make a
narrower cutting path.
3. Sharpen or replace blade.
Uneven cut 1. Wheels not positioned correctly.
2. Dull blade.
1. Place front and rear wheels in same height
position. (Dual Height Adjusters)
2. Sharpen or replace blade.
22 Section 8 — troubleShooting
Problem Cause Remedy
Mower will not self propel 1. Belt not installed properly.
2. Debris clogging drive operation.
3. Damaged or worn belt.
4. Drive control out of adjustment.
1. Check belt for proper pulley installation and
movement.
2. Stop engine, disconnect spark plug boot,
and clean out debris.
3. Inspect and replace belt.
4. Adjust drive control. (See Maintenance &
Adjustments section)
High pullback effort 1. Pulling mower backwards before
transmission disengages.
1. Allow the unit to roll forward slightly without
the drive lever(s) engaged before pulling
backwards.
Replacement Parts & Accessories
9
23
Phone 877-282-8684 for your nearest Cub Cadet Dealer to order replacement parts or a complete Parts Manual (have your full model
number and serial number ready). Parts Manual downloads are also available free of charge at www.cubcadet.com.
Component Part Number and Description
759-3336 Spark Plug
BS-795066 Air Filter Element
BS-796254† Pre-Cleaner
BS-799585 Fuel Tank Cap
634-04733 Wheel (Front)
934-04714 Wheel (Rear)
731-07131 Discharge Chute
942-0741A Mulching Blade
942-0741-X Xtreme Mulching Blade
964-05005 Grass Bag
954-04282 Belt
731-09728 Push Key
† If Equipped
Attachments & Accessories
10
24

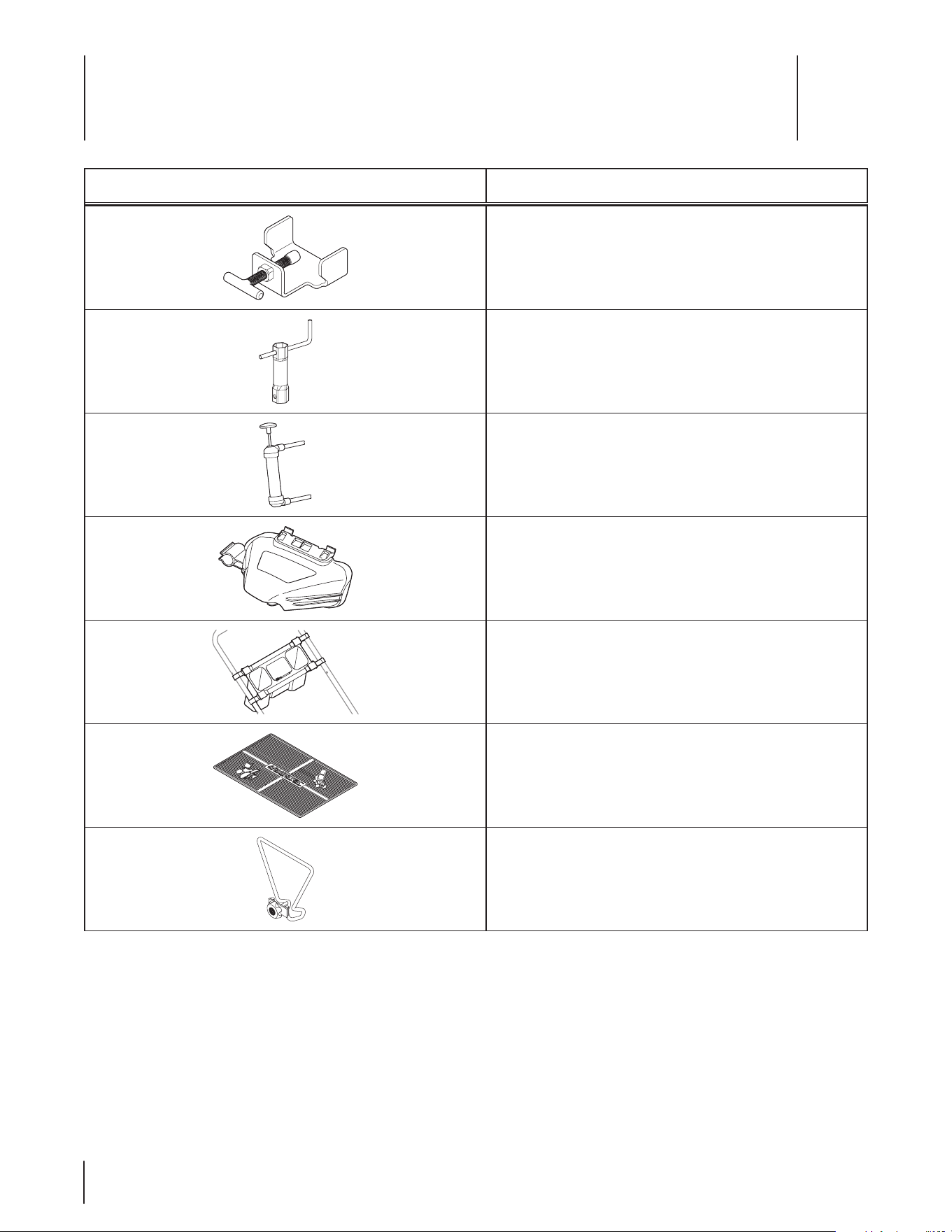

Component Model Number and Description
490-850-0005 Blade Removal Tool —
Holds blade in place for faster, safer
removal.
SPW-134 Spark Plug Wrench —
Duel ended wrench to serve multiple
uses. Fits ¾” or 13⁄16” hex plug.
490-850-0008 Oil Siphon —
Makes it easy to transfer gas, oil and
liquids from tank to container.
490-850-0016 Side Discharge Blower —
Blows leaves, grass clippings and
debris. Eliminates need for separate
blower. Easy installation with no tools.
490-850-0015 Cargo Carrier —
Conveniently holds drinks, tools and
more. Simple installation. Attaches in
less than two minutes with no tools.
490-241-0034 Garage Floor Mat —
Anti-skid mat, measures 24” x 36”.
Projects garage floor form stains.
490-850-0012 Mower Kick Stand —
Keeps mower stable for changing/
sharpening blade and cleaning
underside of deck.
Phone (800) 800-7310 or (330) 220-4683 to order attachments and accessories. Have your mower’s full model number and serial
number ready to assure compatibility. Items can also be purchased online at www.cubcadet.com.
25Section 10 — AttAchmentS & AcceSSorieS
Component Model Number and Description
22216 STA-BIL® fuel Stabilizer, 32 oz —
Treats 80 gallons of fuel. Keeps stored
fuel fresh for quick, easy starts.
Prevents corrosion from moisture and
ethanol-induced attraction. Prevents
gum and varnish.
490-290-0012 Mower Cover —
Protects your mower against sun, rain
and dust damage. Coated for maximum
water resistance and repellency. U.V.
and milddew resistant
490-900-0062 Non-Stick Mower Deck Spray —
Long-Lasting anti-stick graphite spray.
Prevents grass clippings buildup in
mowing deck.
Phone (800) 800-7310 or (330) 220-4683 to order attachments and accessories. Have your mower’s full model number and serial
number ready to assure compatibility. Items can also be purchased online at www.cubcadet.com.
No tes
11
26
27Section 11 — noteS
IMPORTANT: To obtain warranty coverage owner must present an
original proof of purchase and applicable maintenance records to the
servicing dealer. Please see the operator’s manual for information on
required maintenance and service intervals.
The limited warranty set forth below is given by Cub Cadet LLC with
respect to new merchandise purchased or leased and used in the United
States and/or its territories and possessions, and by MTD Products Limited
with respect to new merchandise purchased or leased and used in
Canada and/or its territories and possessions (either entity respectively,
“Cub Cadet”).
This warranty is in addition to any applicable emissions warranty provided
with your product.
Cub Cadet warrants this product (excluding its Normal Wear Parts
and Batteries, as described below) against defects in material and
workmanship for a period of three (3) years, commencing on the date
of original retail purchase or lease and will, at its option, repair or
replace, free of charge, any part found to be defective in materials or
workmanship.
Normal Wear Parts are warranted to be free from defects in material and
workmanship for a period of thirty (30) days from the date of original
purchase or lease. Normal wear parts include, but are not limited to items
such as: belts, blades, blade adapters, grass bags and wheels.
Batteries have a one-year prorated limited warranty against defects in
material and workmanship, with 100% replacement during the first three
months. After three months, the battery replacement credit is based on
the months remaining in the twelve (12) month period dating back to
the original date of original sale or lease. Any replacement battery will be
warranted only for the remainder of the original warranty period.
This limited warranty shall only apply if this product has been operated
and maintained in accordance with the Operator’s Manual furnished with
the product, and has not been subject to misuse, abuse, commercial use,
neglect, accident, improper maintenance, alteration, vandalism, theft,
fire, water, or damage because of other peril or natural disaster. Damage
resulting from the installation or use of any part, accessory or attachment
not approved by Cub Cadet for use with the product(s) covered by this
manual will void your warranty as to any resulting damage. In addition,
Cub Cadet may deny warranty coverage if the hour meter, or any part
thereof, is altered, modified, disconnected or otherwise tampered with.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF
PURCHASE AND APPLICABLE MAINTENANCE RECORDS, through your local
authorized service dealer. To locate the dealer in your area:
In the U.S.A.
Check your Yellow Pages, or contact Cub Cadet LLC at P.O. Box 361131,
Cleveland, Ohio 44136-0019, call 1-877-282- 8684
or log on to our website at www.cubcadet.com.
In Canada
Contact MTD Products Limited, Kitchener, ON N2G 4J1, call 1-800-668-
1238 or log on to our website at www.mtdcanada.com.
Without limiting the foregoing, this limited warranty does not provide
coverage in the following cases:
a. The engine or component parts thereof. These items may
carry a separate manufacturer’s warranty. Refer to applicable
manufacturer’s warranty for terms and conditions.
b. Routine maintenance items such as lubricants, filters, blade
sharpening, tune-ups, brake adjustments, clutch adjustments, deck
adjustments, and normal deterioration of the exterior finish due to
use or exposure.
c. Service completed by someone other than an authorized service
dealer.
d. Cub Cadet does not extend any warranty for products sold or
exported outside of the United States and/or Canada, and their
respective possessions and territories, except those sold through
Cub Cadet’s authorized channels of export distribution.
e. Replacement parts and\or accessories that are not genuine Cub
Cadet parts.
f. Transportation charges and service calls.
g. Cub Cadet does not warrant this product for commercial use.
There are no implied warranties, including without limitation any
implied warranty of merchantability or fitness for a particular
purpose. No warranties shall apply after the applicable period
of express written warranty above. No other express warranties
beyond those mentioned above, given by any person or entity,
including a dealer or retailer, with respect to any product, shall bind
Cub Cadet. The exclusive remedy is repair or replacement of the
product as set forth above.
The terms of this warranty provide the sole and exclusive remedy
arising from the sale and/or lease of the products covered hereby.
Cub Cadet shall not be liable for any incidental or consequential
loss or damage including, without limitation, expenses incurred for
substitute or replacement lawn care services or for rental expenses
to temporarily replace a warranted product.
Some jurisdictions do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty
lasts, so the above exclusions or limitations may not apply to you.
In no event shall recovery of any kind be greater than the amount of the
purchase price of the product sold. Alteration of safety features of the
product shall void this warranty. You assume the risk and liability for
loss, damage, or injury to you and your property and/or to others and
their property arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the original
purchaser or to the person for whom it was purchased as a gift.
HOW LOCAL LAWS RELATE TO THIS WARRANTY: This limited warranty
gives you specific legal rights, and you may also have other rights that
vary in different jurisdictions.
CUB CADET LLC
MANUFACTURER’S LIMITED WARRANTY FOR
WALK-BEHIND MOWERS
Cub Cadet LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019, Phone: 1-877-282-8684
MTD Products Limited, Kitchener, ON N2G 4J1, Phone: 1-800-668-1238
GDOC-100089 REV. A
