INSTALLATION GUIDE
US CA
INTEGRATED COLUMN
MULTIPLE PRODUCT INSTALLATION
REFRIGERATOR & FREEZER
RS2484S, RS2484SH, RS3084S, RS3084SH
RS1884F, RS2484F & RS3084F
REFRIGERATOR-FREEZER
RS2484W, RS3084W & RS3684W models
WINE CABINET
RS2484V
2
SAFETY AND WARNINGS
!
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electrical shock or death.
• Read and follow the safety and warnings
outlined in this User guide before operating
this appliance.
!
WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care: panel edges may be sharp.
• Do not put fingers in the drawers when closing.
!
WARNING!
Tip Hazard
• This product may tip. Keep children away and
take care. Failure to follow this advice may
result in injury.
• This appliance is top-heavy and must
be secured to prevent the possibility of
tippingforward.
To ensure that the appliance is stable
under all loading conditions:
• Theanti-tip bracket and fittings supplied
must be installed by a professional installer
according tothe installation steps in this
guide.
3
SAFETY AND WARNINGS
READ AND SAVE THIS GUIDE
WARNING!
To avoid hazard, follow these instructions carefully before Installing or using
thisappliance.
z
Please make this information available to the persons installing the appliance.
z
Assume all electrical parts are live.
z
Disconnect power supply before servicing and installation.
BEFORE INSTALLATION
z
The appliance has front and rear rollers to easily move forward and backward.
Do not move the appliance sideways to avoid damaging the rollers or the floor
covering/surface.
z
Ensure your appliance is not exposed to any heat generating appliance eg cooktop,
oven or dishwasher.
z
The appliance must be installed by a qualified installer, or Fisher and Paykel trained and
supported service technician to avoid faulty electrical and plumbing connections.
z
All connections for electrical power and grounding must comply with local codes and
ordinances and be made by licensed personnel when required.
z
Avoid installation of the appliance/s under a ground fault circuit interrupter (GFCI).
z
Ensure the appliance is installed properly. Improper installation that results in appliance
failure is not covered under the appliance warranty.
UNPACKING
z
The appliance is heavy and requires at least twopersons to move and install.
z
Remove the installation kit (internal box) and trims kit (external box) while the product
is still on the pallet.
z
Avoid scratching the surface of your appliance when moving or installing.
z
Keep the appliance stable and door closed to prevent tipping over when moving to the
installation location.
z
Ensure the feet of the appliance are retracted before moving to the installation location.
z
If the appliance is damaged, contact your Fisher and Paykel dealer.
z
Ensure all components and accessories are complete. Refer to 'Before installation' page.
z
Record the default Wifi password, and the model and registration numbers for future
servicing or repair of your appliance.
ELECTRICAL/PLUMBING
z
We recommend to locate the electrical and water supply connections of the appliance
in an adjacent area or unit (cabinet or cupboard) that are easily accessible in case of
repair or disconnection.
z
Ensure an isolating switch is available if electrical connection is not easily accessible.
4
SAFETY AND WARNINGS
INSTALLATION
z

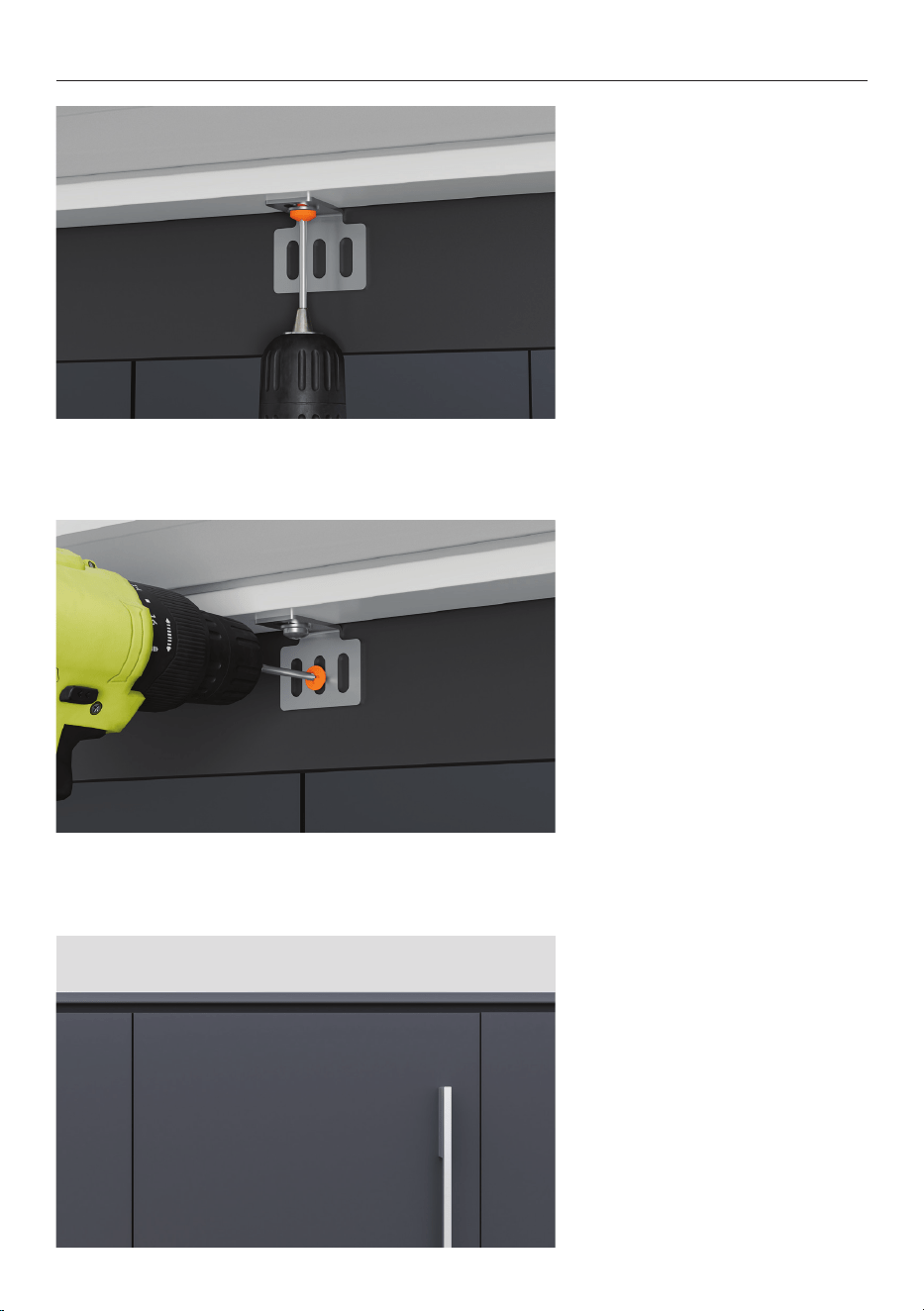

The anti-tip bracket and fittings supplied must be fitted tothe wall of the finished
enclosure to withstand a 220lbs (100kg) load.
z
Ensure that the anti-tip bracket is installed correctly to prevent the possibility of the
appliance tipping forward when the door is open.
z
Ensure the door of the appliance is closed when rolling into thecabinetry.
z
Ensure the power cord is not run over or damaged when rolling the product
into the cabinetry.
z
For flush installation, ensure the door panels are installed flush with cabinetry front
surface. Ensure the appliance is properly centered.
z
All four corners of the appliance must be supported firmly on the floor to eliminate
any movement. Installing the appliance on a soft, uneven, or not level floor may cause
twisting and poor door sealing.
z
Use low speed, low torque setting when using a powered driver for the screws when
fixing or aligning the product.
z
Open the appliance door to remove the alignment brackets from both sides of the
appliance, and then re-tighten the screws.
z
When removing the top door extrusion, ensure the magnet remains in place and not
damaged as this will affect the operation of the appliance.
Stainless steel panel
z
Protect the finish of the Fisher and Paykel Stainless Steel door panels from any
scratch or damage.
z
Remove the blue tape attached to inner edges of the door panels after the
handles are installed.
z
We recommend to load the shelves in the appliance door with weights to ensure an
accurate door panel gap width. Load 33lbs (15kg) for 24" models, and 44lbs (20kg)
for 30" models.
Custom panel
z
If using Custom door panels, ensure they are prepared as per 'Custom door panel install
dimensions' section.
z
The thickness of the custom door panel can vary as long as the screws do not penetrate
beyond the full depth of the door panel, and as long as the overall weight of door panel
does not exceed the allowable weight. Refer to 'Door panel dimensions' for maximum
door panel weight of your product.
z
Do not place the handle holes in marked areas to avoid clashing with panel
attachment brackets.
z
Minimum panel thickness where screw hole is drilled must be 5/8" (16mm).
Changing the door hinge (optional)
z
Door hinges are interchangeable for each model. A hinge change kit is available
and can be purchased separately if you prefer to change from ‘right hinge door’ to
‘left hinge door’ or vice versa.
5
PARTS SUPPLIED
INSTALLATION KIT (INTERNAL BOX)
TRIMS INSTALLATION KIT (EXTERNAL BOX)
MISCELLANEOUS ITEMS (MI) PACK
WATER CONNECTION KIT
F Side bracket (12)
F Bracket slider (12)
F Side spacer bracket (12)
F M5x12 Cross-head screw (44)
F Upper door panel side cover (2)
F Lower door panel side cover (2)
F Drawer top trim (1)
F Door panel template (1)
F Safety Guide
F Water filter (pre-installed) F 6mm Stainless steel braided hose with
7/16-24 UNS thread (1)
F Door panel side cover (2) F Door panel template (1)
F Safety Guide F Air carbon filters #862755 (2)
F Anti-tip bracket (1)
F Masonry plug (5)
F 10-12x35mm crosshead screw (5)
F Hinge limiting pin (3)
F Air toe kick seal (1)
F Flow divider cap (1)
Door panel attachment kit
Refrigerator-Freezer
Refrigerator-Freezer, Refrigerator, Freezer,
Ice & Water models only
Refrigerator, Freezer, Wine Cabinet
Wine Cabinet
Anti-tip bracket assembly
Miscellaneous parts
6
PARTS SUPPLIED
INSTALL JOINER KIT
F Joiner Sleeve (2)
F Screw WSH M6 (1)
F M6 Hex Nut (1)
F Bolt M5 HEX (2)
F Flange Joiner Trim (2)
F Aluminium center trim (1)
Joiner fastener kit
Trim
Used for combined installation of multiple appliances. Supplied in selected appliances
only (Freezer and Wine Cabinets). For other models, the joiner kit (AJ-RS84LR) can be
purchased separately through an authorised Fisher and Paykel dealer. Visitfisherpaykel.com
for more information.
HINGE SWAP KIT
F M5 hex nut (2)
F Left hinge bracket (1)
F Left top hinge bracket (1)
F Dual lock tape (4)
F Left bracket adapter K05 (2)
F Left top alcove bracket (2)
F Left top hinge pocket (1)
F Top grille (1)
(refrigerator, freezer and wine cabinet kits only)
F M5 hex nut (2)
F Right hinge bracket (1)
F Right top hinge bracket (1)
F Dual lock tape (4)
F Right bracket adapter K05 (2)
F Right top alcove bracket (2)
F Right top hinge pocket (1)
F Top grille (1)
(refrigerator, freezer and wine cabinet kits only)
Right hand to left hand kit
Left hand to right hand kit
Hinge swap kits can be purchased separately through an authorised Fisher and Paykel
dealer. Visitfisherpaykel.com for more information.
HINGE KIT REFRIGERATOR OR FREEZER WINE CABINET REFRIGERATOR-FREEZER
18" 24" 30" 24" 24" 30" 36"
LEFT TO RIGHT
848186P 848188P 848190 864757P 848184P 848184P 848184P
RIGHT TO LEFT
848185P 848187P 848189 864759P 848183P 848183P 848183P
7
TOOLS
F Spanner F M4 hex key
F Powered driver
F Flathead screwdriver
F Cross-head screwdriver
F Hand truck
F Cutter (1)
F T20 star-head screwdriver
(Used for changing hinge)
F 8mm socket wrench
(Used for joiner bolts)
F 13mm socket wrench
(Used for drawer panel of
Refrigerator-Freezer model)
F Hacksaw
(For cutting air flow divider to length)
Supplied
Not supplied
More information about available accessories can be found
in the planning guide. To access the Planning Guide, scan
the QR code or visit fisherpaykel.com/specify. Search by
appliance type, product name or model code.
8
ACCESSING YOUR PRODUCT SPECIFICATIONS
For full product, cabinetry and service specifications, refer
to the Planning Guide. To access the Planning Guide, scan
the QR code or visit fisherpaykel.com/specify. Search by
appliance type, product name or model code.
CAVITY DIMENSIONS DUAL
INSTALL
18" Models 24" Models
30" Models 36" Models
in mm in mm in mm in mm
A Overall height of cavity
84 2134 84 2134 84 2134 84 2134
B Overall width of cavity
42 915 48 1219 54 1525 60 1829
C Minimum overall depth of cavity*
25 635 25 635 25 635 25 635
D Custom door panel widths
17 27/32 453 23 13/16 605 29 27/32 758 35 13/16 910
*Assumes a door panel thickness of 19mm
A
C
B
D
Dual installation cavity dimensions.
All other product, cavity and panel dimensions can be found in the planning guide. The installation guide and the
planning guide should be used together to achieve an optimal installation.
9
ACCESSING YOUR PRODUCT SPECIFICATIONS
For full product, cabinetry and service specifications, refer
to the Planning Guide. To access the Planning Guide, scan
the QR code or visit fisherpaykel.com/specify. Search by
appliance type, product name or model code.

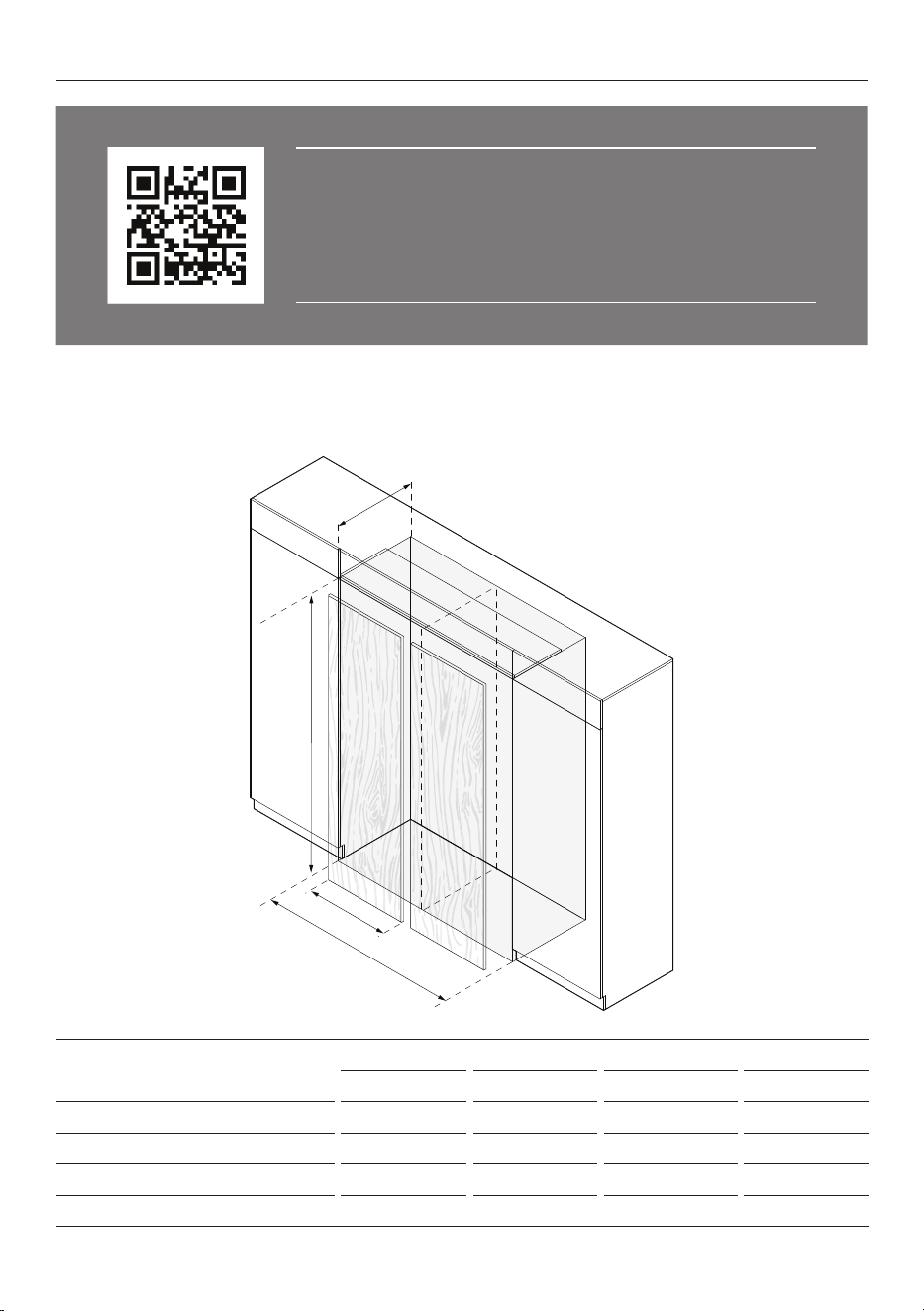

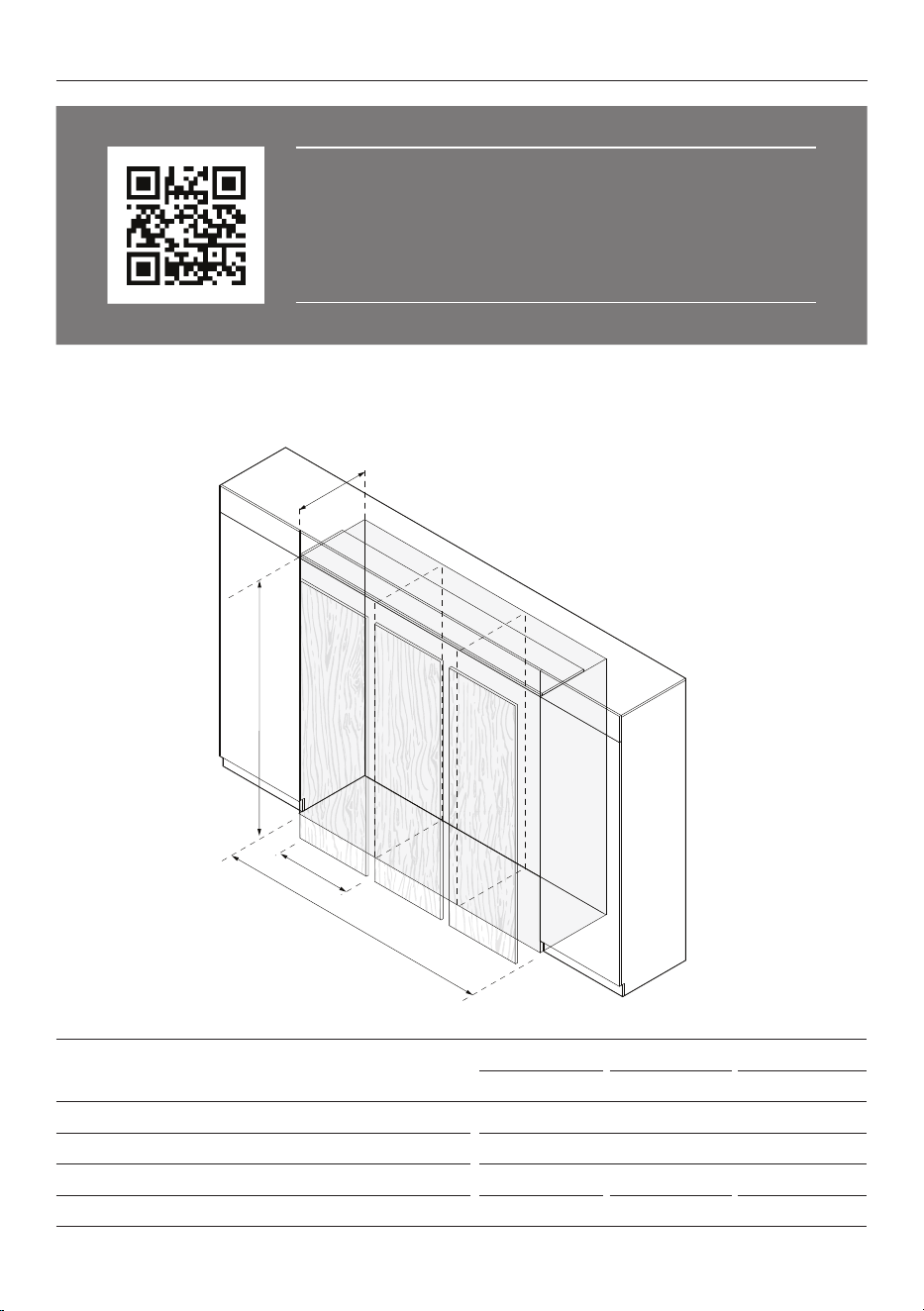

CAVITY DIMENSIONS TRIPLE INSTALL
18" Models 24" Models
30" Models
in mm in mm in mm
A Overall height of cavity
84 2134 84 2134 84 2134
B Overall width of cavity
66 1371 72 1827 78 2286
C Minimum overall depth of cavity*
25 635 25 635 25 635
D Custom door panel widths
17 27/32 453 23 13/16 605 29 27/32 758
*Assumes a door panel thickness of 19mm
A
C
B
D
Triple installation cavity dimensions.
All other product, cavity and panel dimensions can be found in the planning guide. The installation guide and the
planning guide should be used together to achieve an optimal installation.
10
PRIOR TO INSTALLATION
1. Measure cavity dimensions.
Ensure all minimum
specifications have been met
and clearances have been
considered.
2. Ensure floor is level and clear
and a finished return has been
created if required.
3. Ensure services are
accessible and correctly
installed. If connections are
located behind the appliance,
an isolating switch is
recommended.
fisherpaykel.com/specify
11

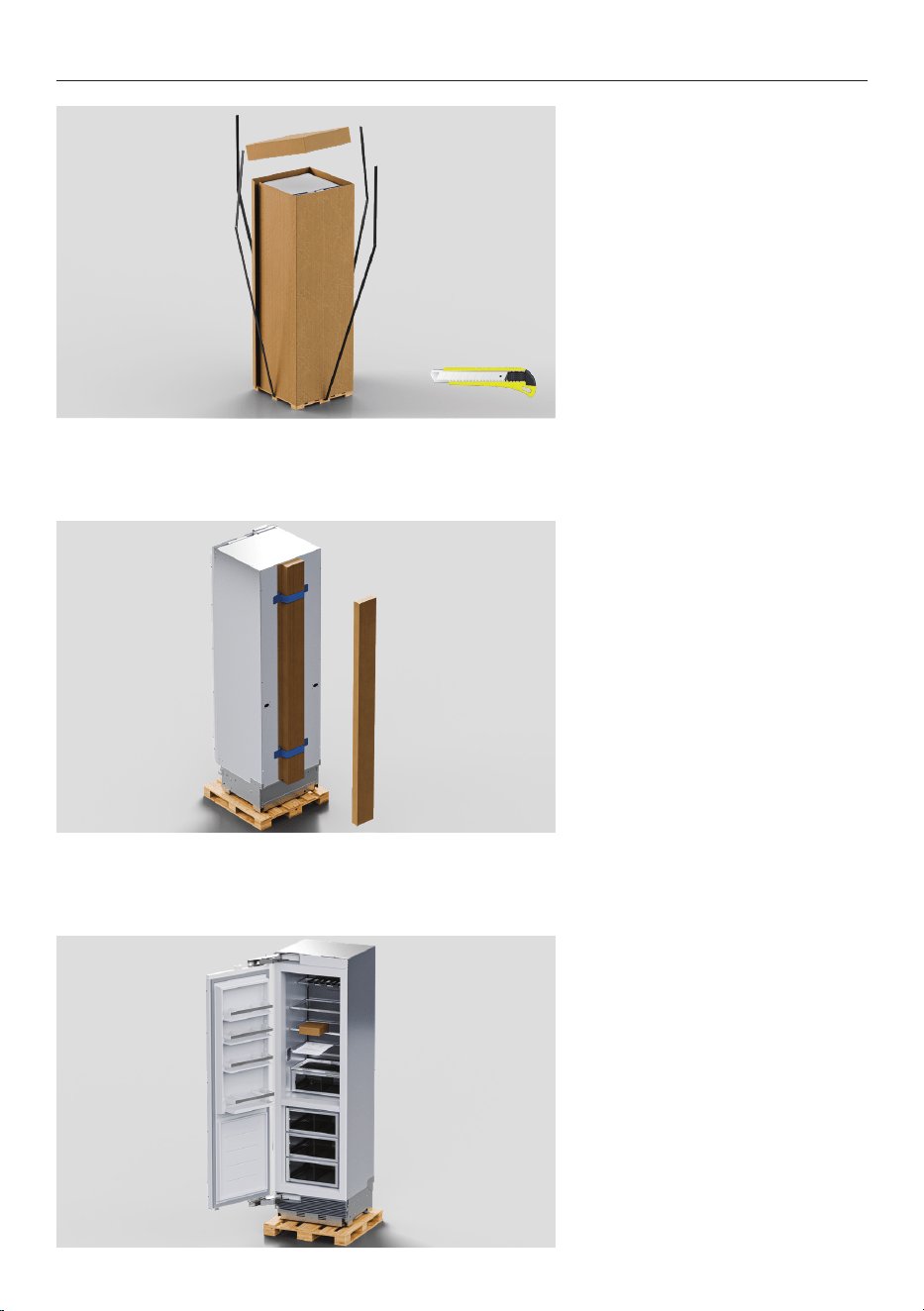

UNPACK
1. Cut the straps and the line
printed on the top of the
carton. Lift to remove.
Set cardboard aside for later
use.
2. Remove the trim kit from the
back of the product.
3. Remove the installation and
miscellaneous item kits from
inside the product.
12

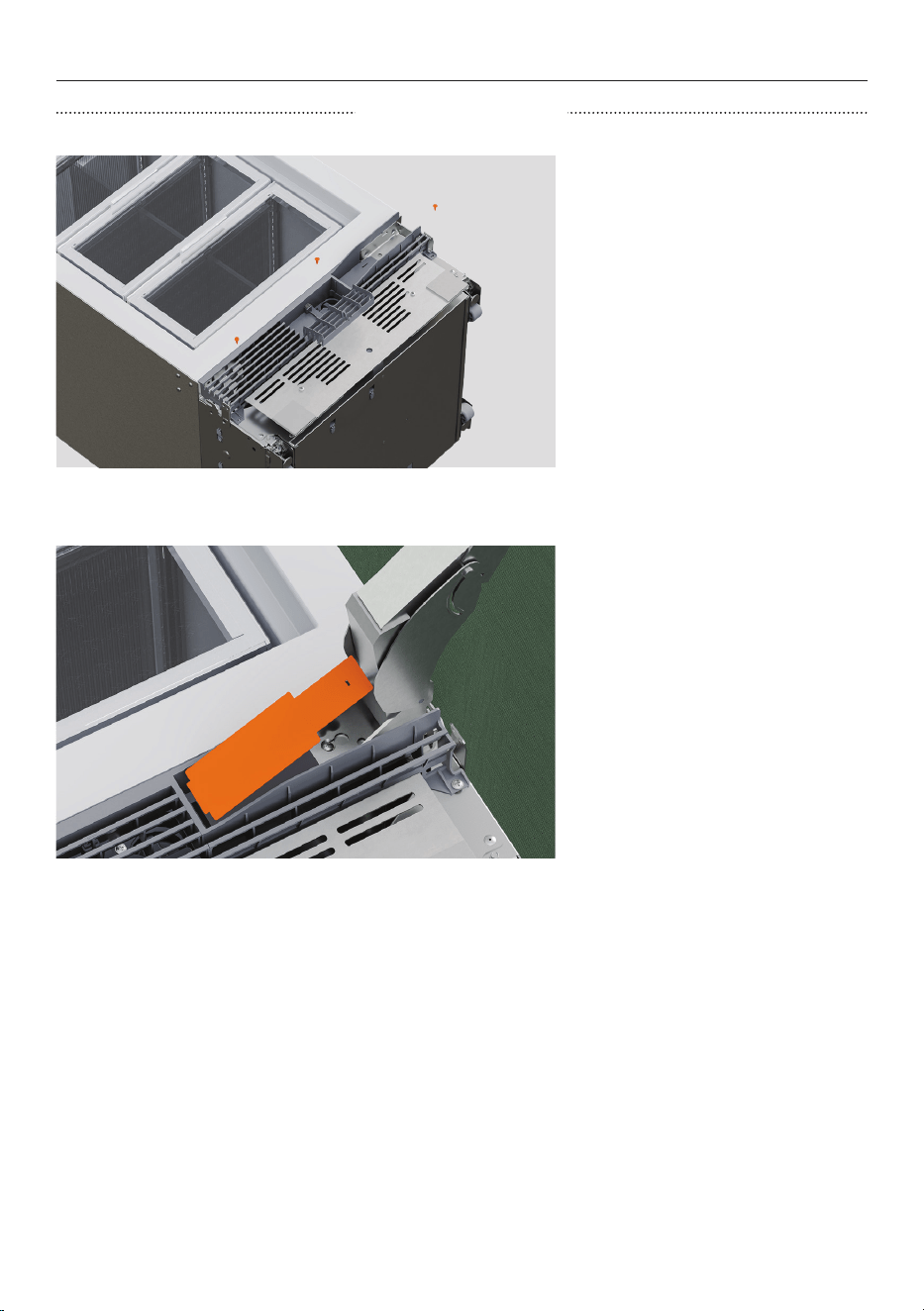

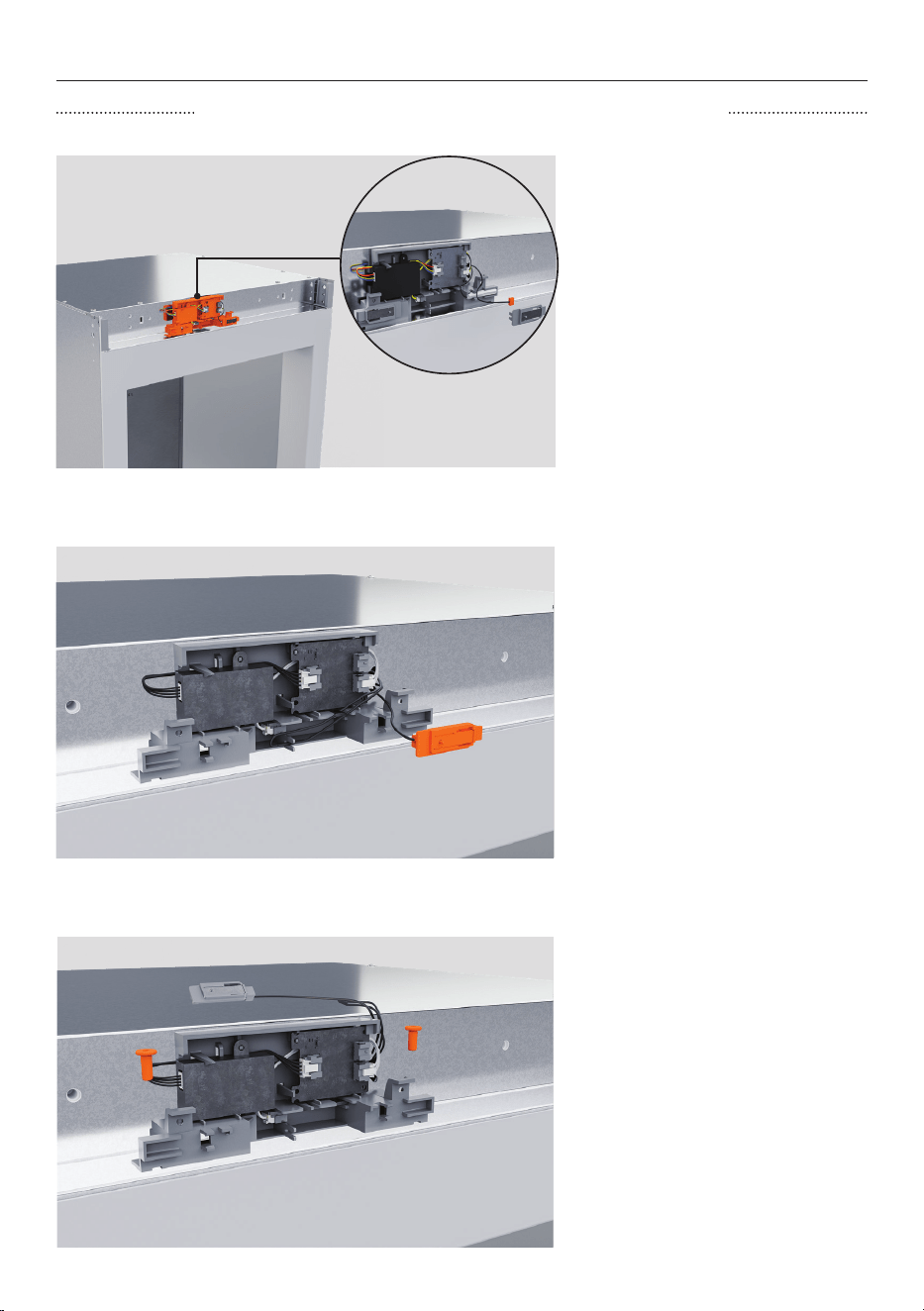

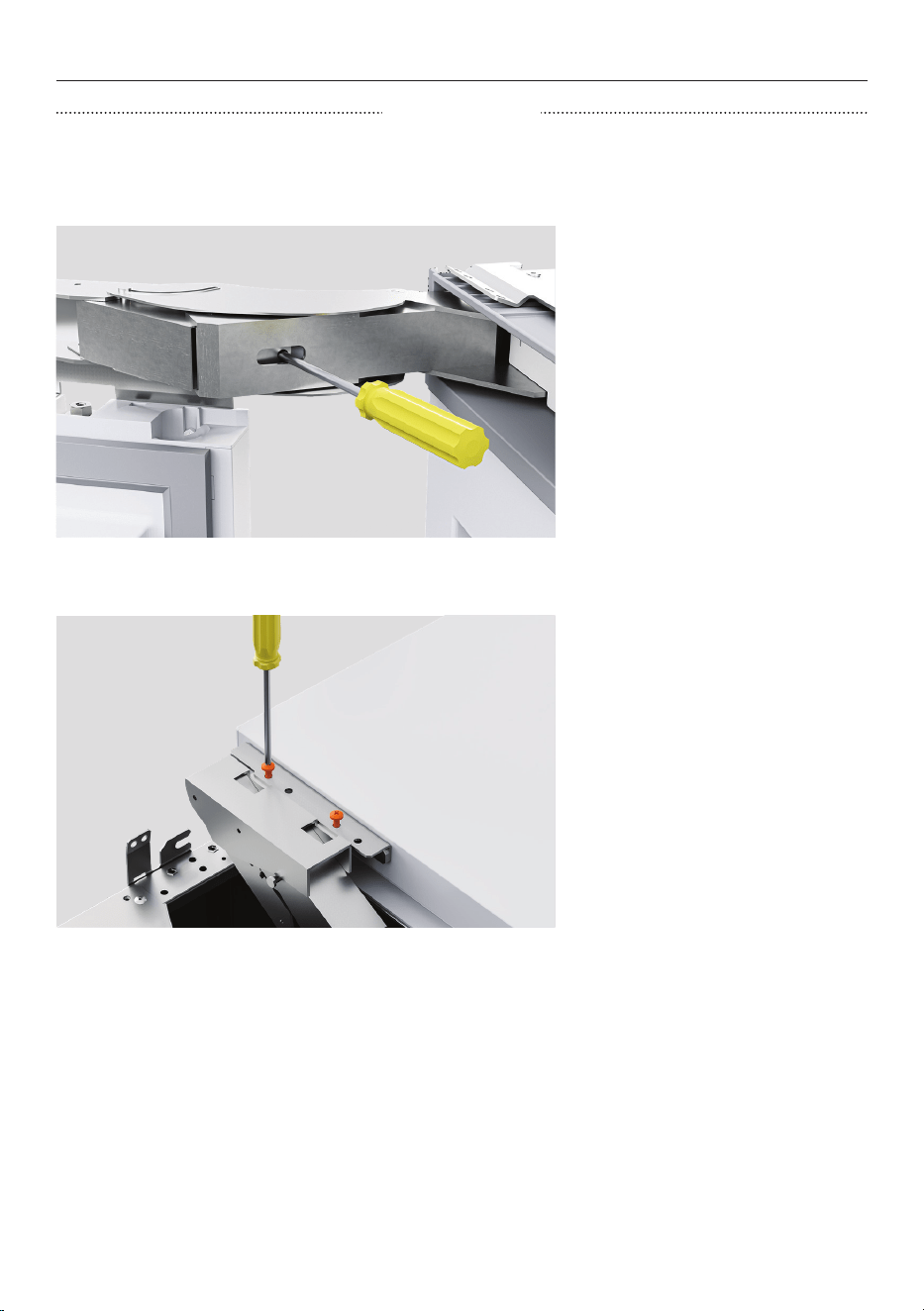

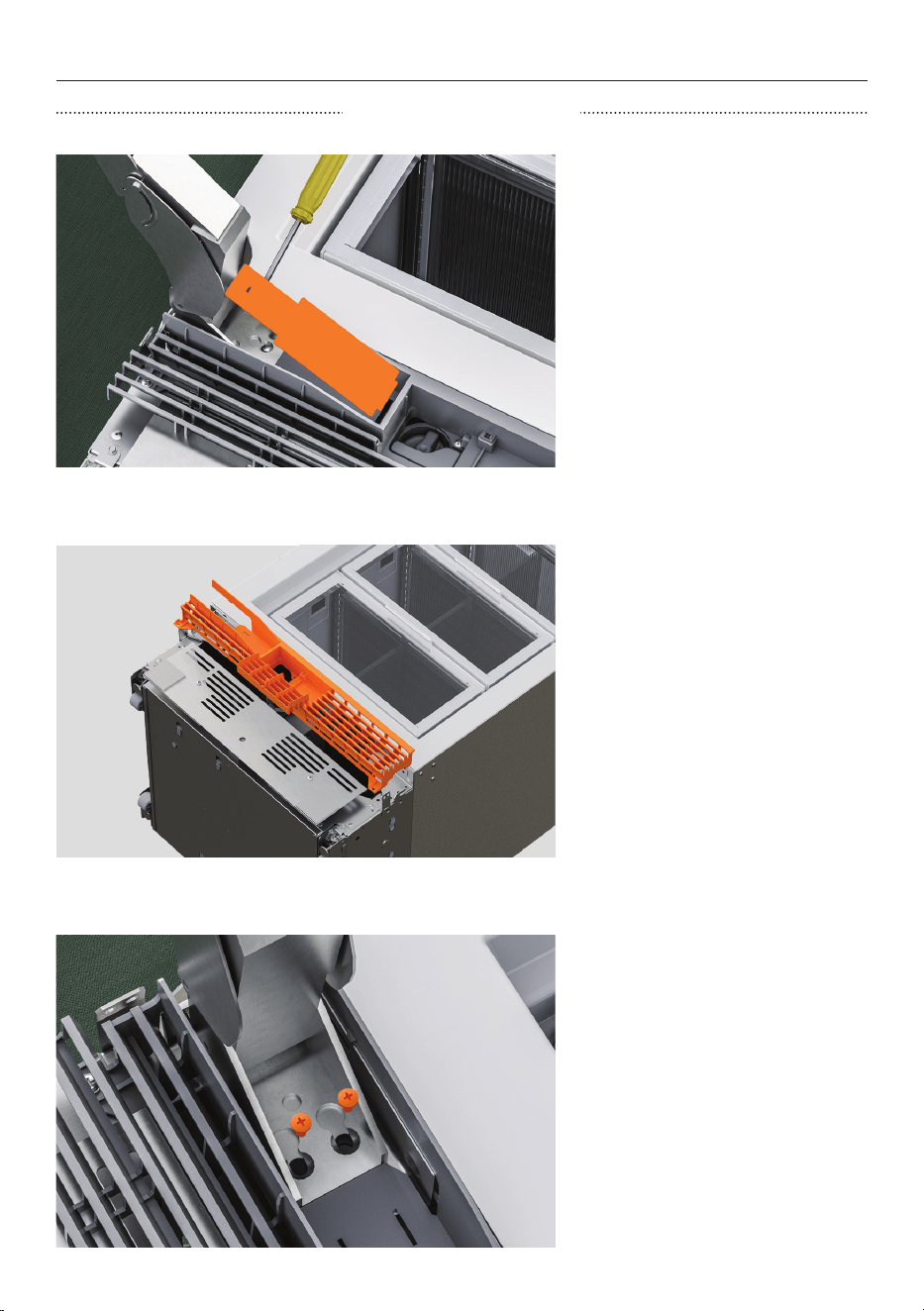

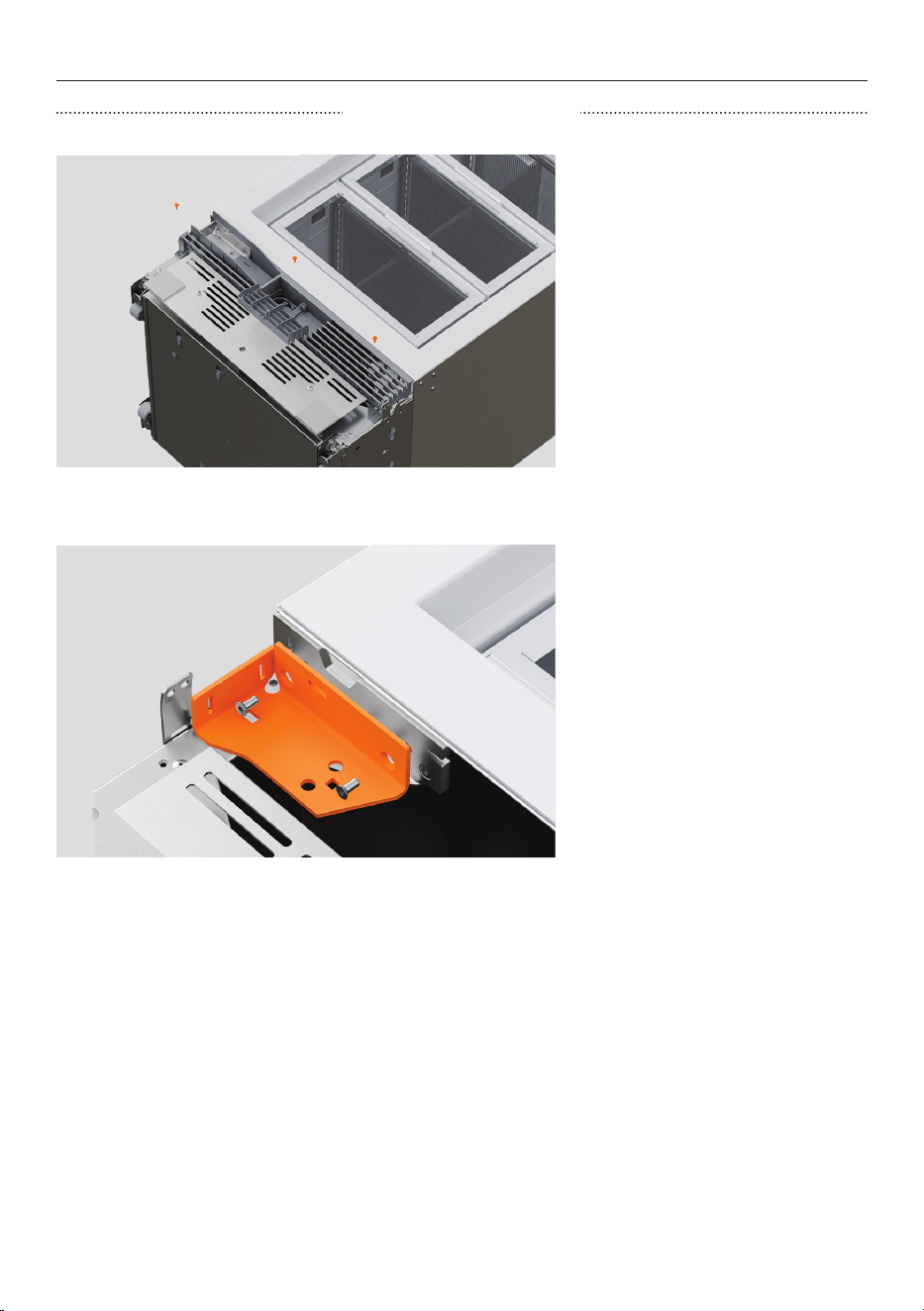

REMOVE PRE-INSTALLED PARTS
Top trim
Unclip the top trim from the
non-hinge side of the product
before sliding out from the
hinge.
Top door caps
Unclip both ends of the top
door caps and pull outwards to
remove. Ensure magnet stays
in place.
Bottom grille
Pull outwards to remove the
bottom grille from the magnets.
13
REMOVE PRE-INSTALLED PARTS
Top grille
Open the water filter cover and
remove the #8x16 screw.
Remove both #8x16 screws
from either end of the grille.
Pull grille outwards to remove.
Toe kick mounting plate
Remove the screws to detach
the toe kick mounting plate.
Air flow divider
Remove the screw to detach
the air flow divider.
14
MOVE APPLIANCE
1. Take care when moving the
appliance. Tape the door shut
to prevent it opening.
2. Remove the brackets from
the non-hinge side of the pallet.
3. Tilt the appliance forward
slightly and insert the hand
truck between the pallet and
product.
Two people required at all times.
15
MOVE APPLIANCE
4. Restrain the product to the
hand truck using the corner
posts to prevent side trims
pinching.
5. Removing the remaining
brackets.
6. Tilt product and remove
pallet. Move product to the
installation location.
16

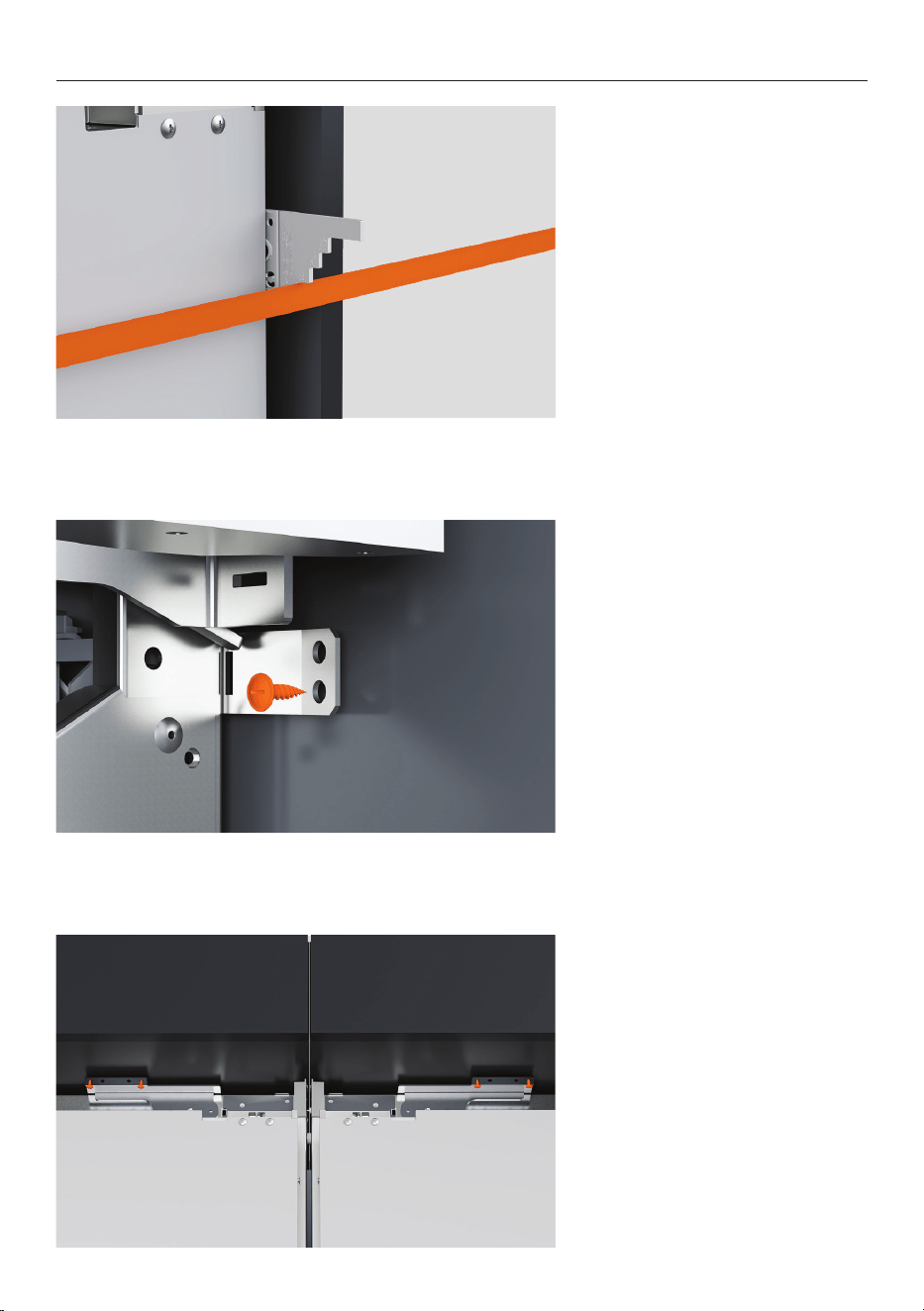

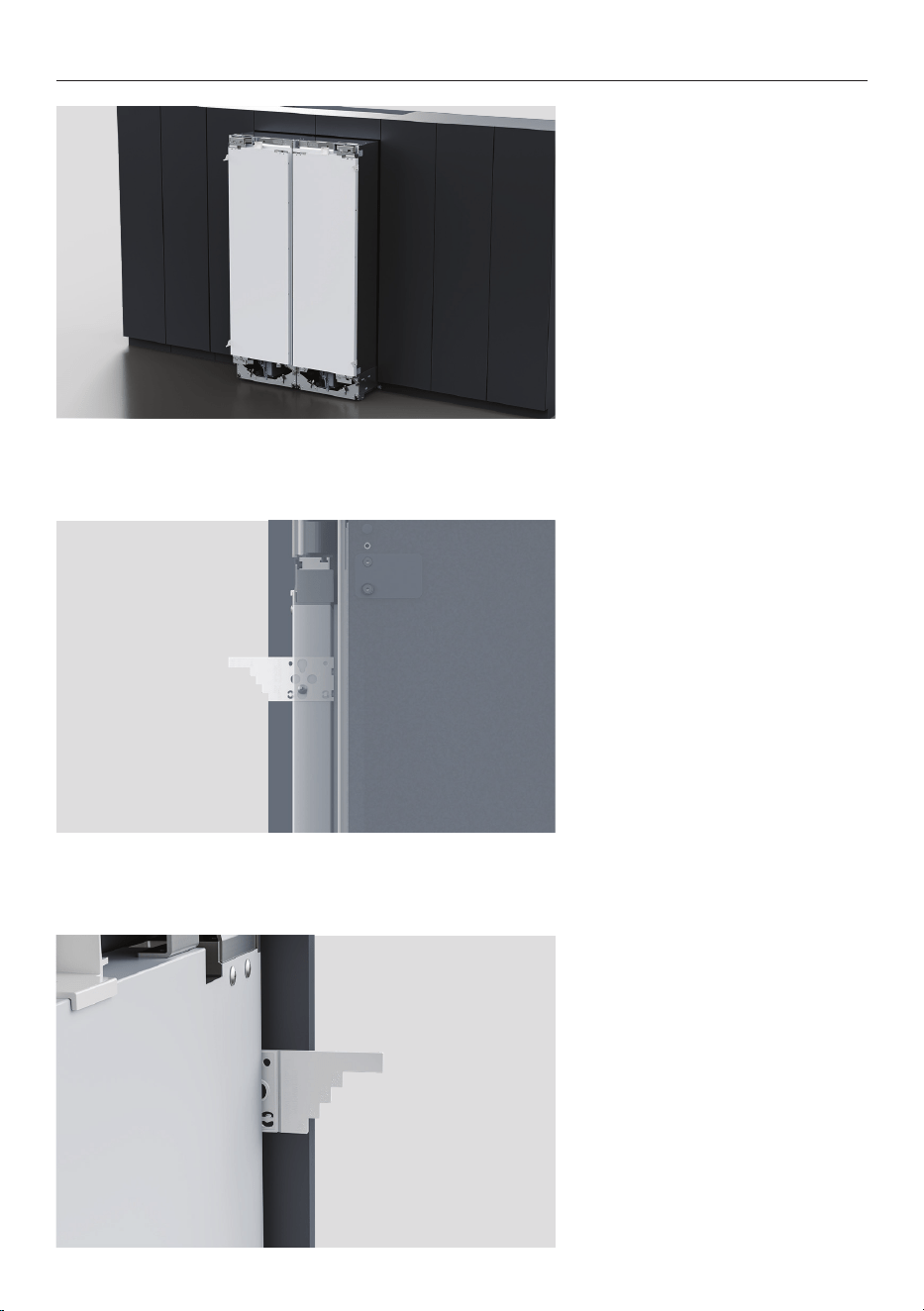

INSTALL ANTI-TIP BRACKET
1. Ensure wall stud or solid
surface is present.
2. Measure the height from the
floor to the front overhang and
mark on the rear wall.
The installation height of the
anti-tip bracket must not
exceed 84 3/16" (2138mm) to
ensure product does not tip.
3. If alcove depth is greater
than 25" (635mm)
A spacer will be required to
be installed behind the anti-tip
bracket to bring depth to 25"
(635mm).
17

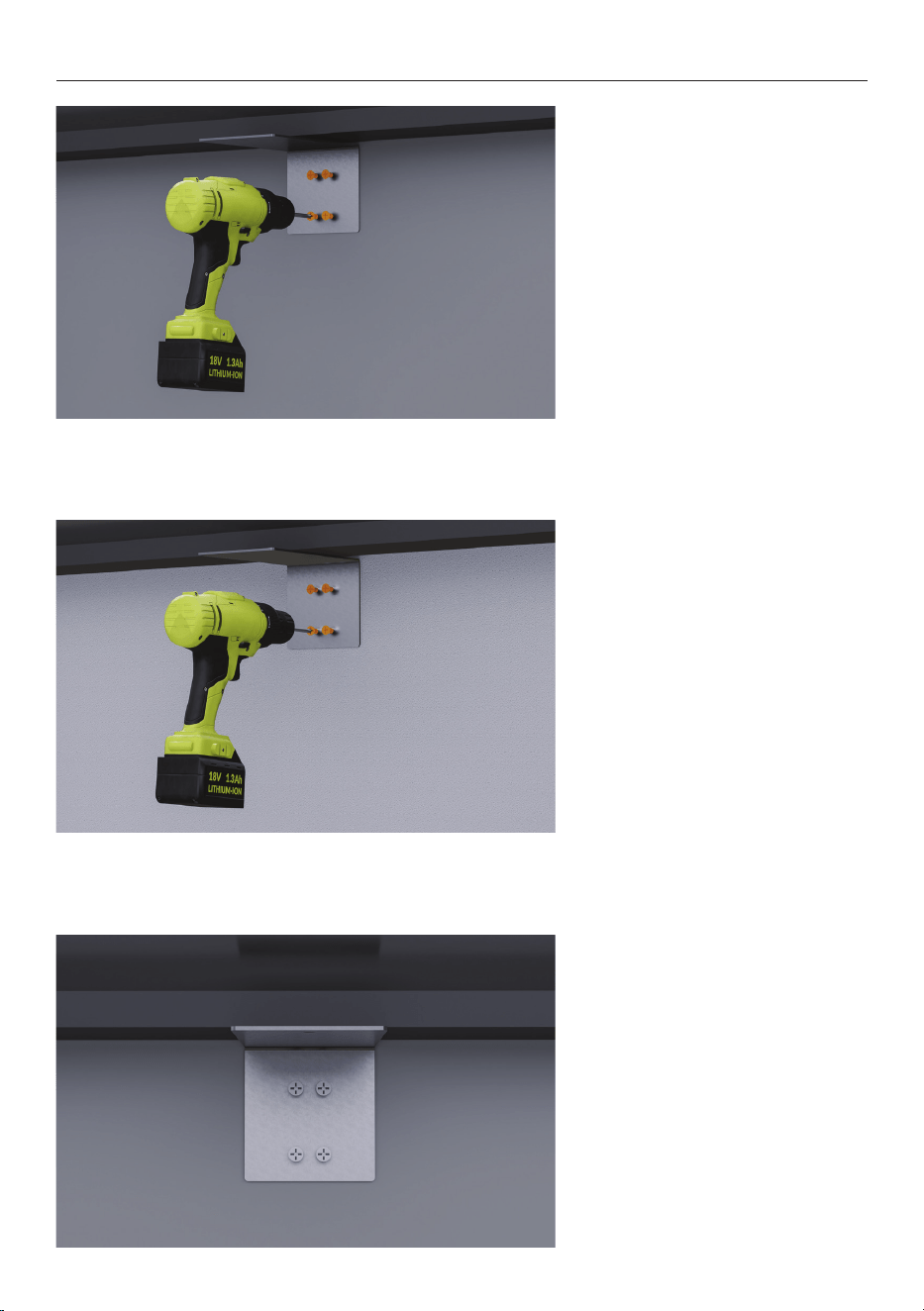

INSTALL ANTI-TIP BRACKET

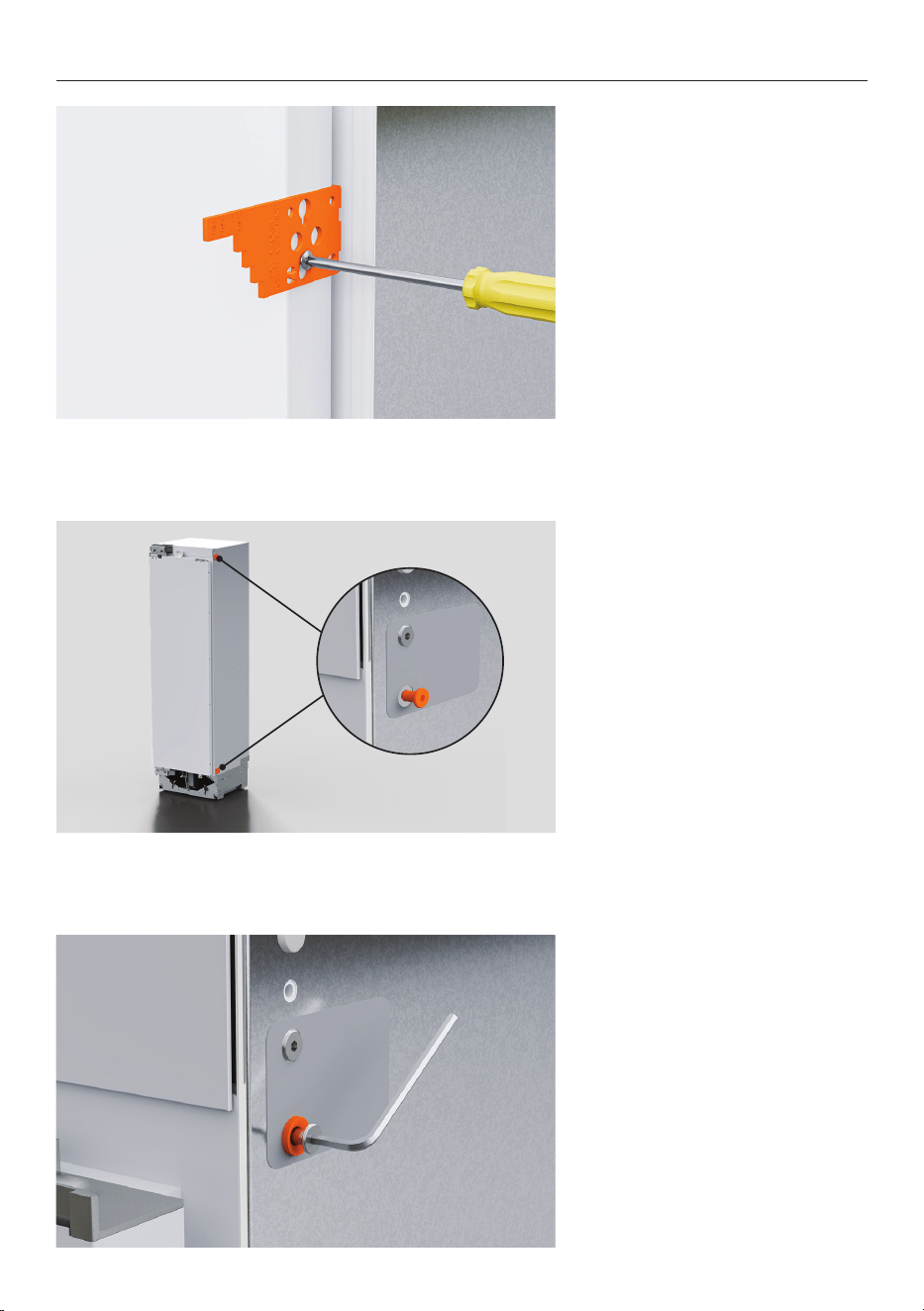

4. Solid wall installations
Using the bracket as a guide,
pre-drill four holes into the wall
or spacer. Secure using four
Phillips screws
5. Masonry wall installations
Using the bracket as a guide,
pre-drill four holes into the wall.
Hammer four masonry plugs
into the wall until flush before
securing using four Phillips
screws
6. Ensure the anti-tip bracket
is installed correctly to prevent
the product tipping forward
when the door is opened.
18

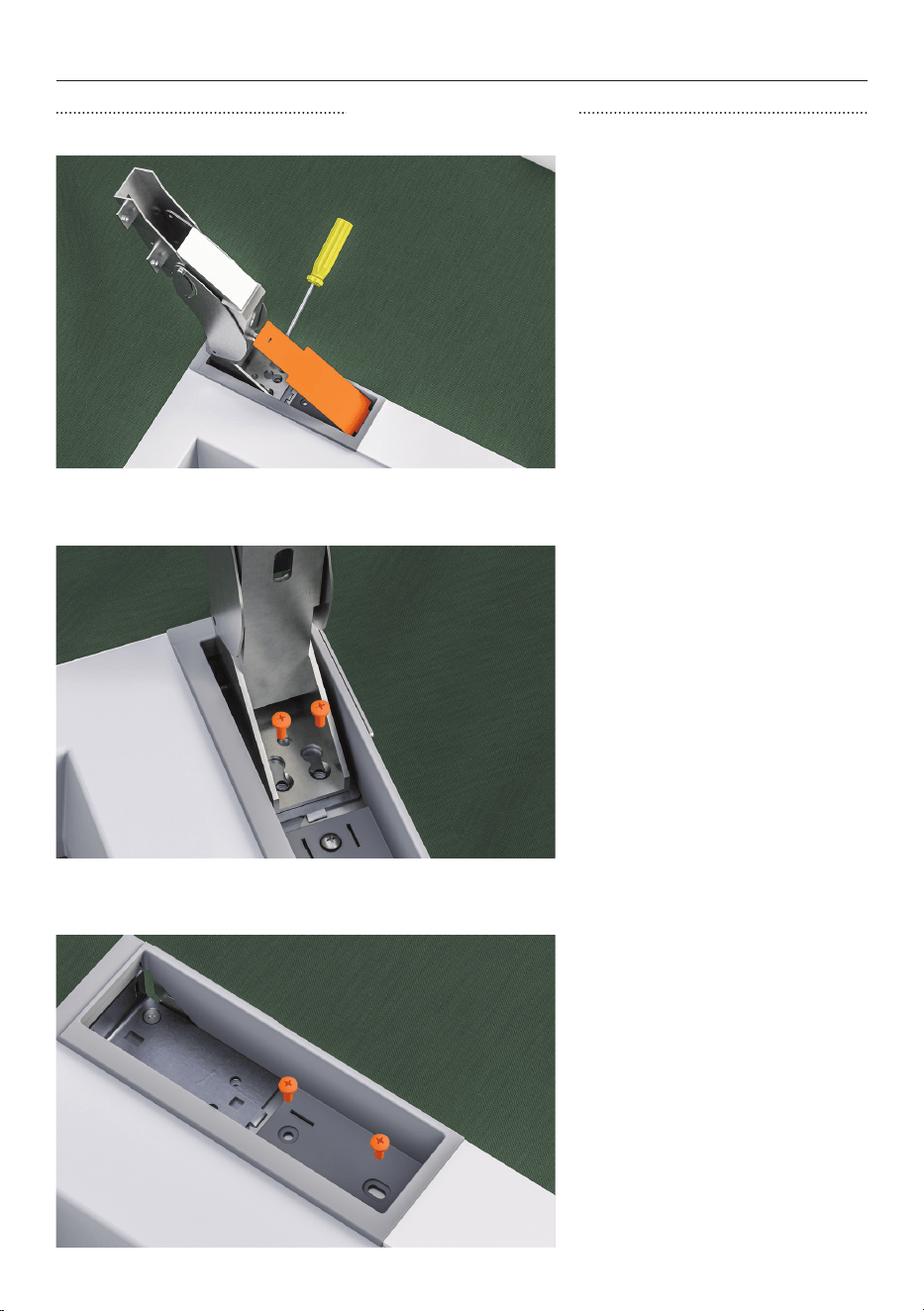

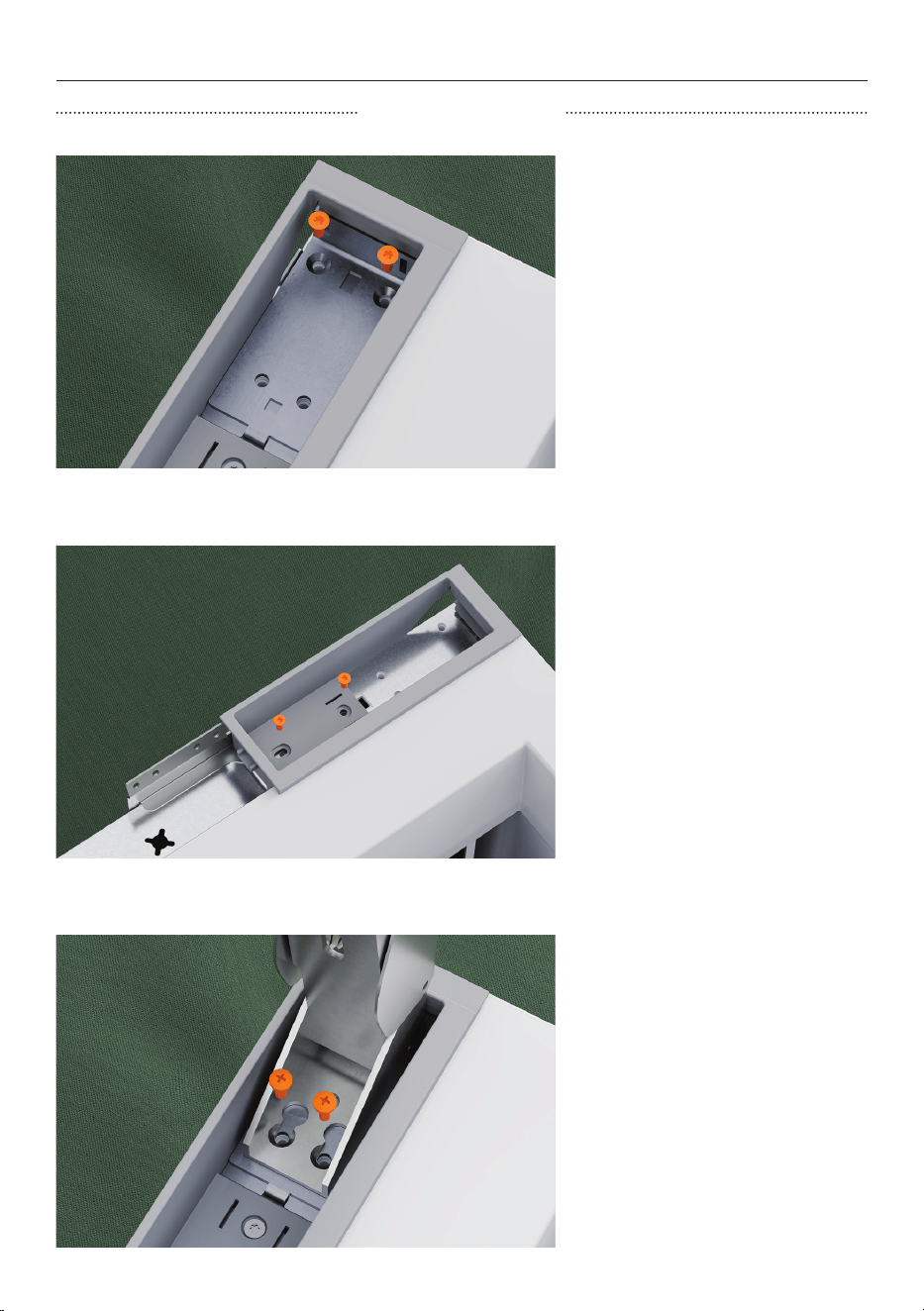

PRODUCT PREPARATION

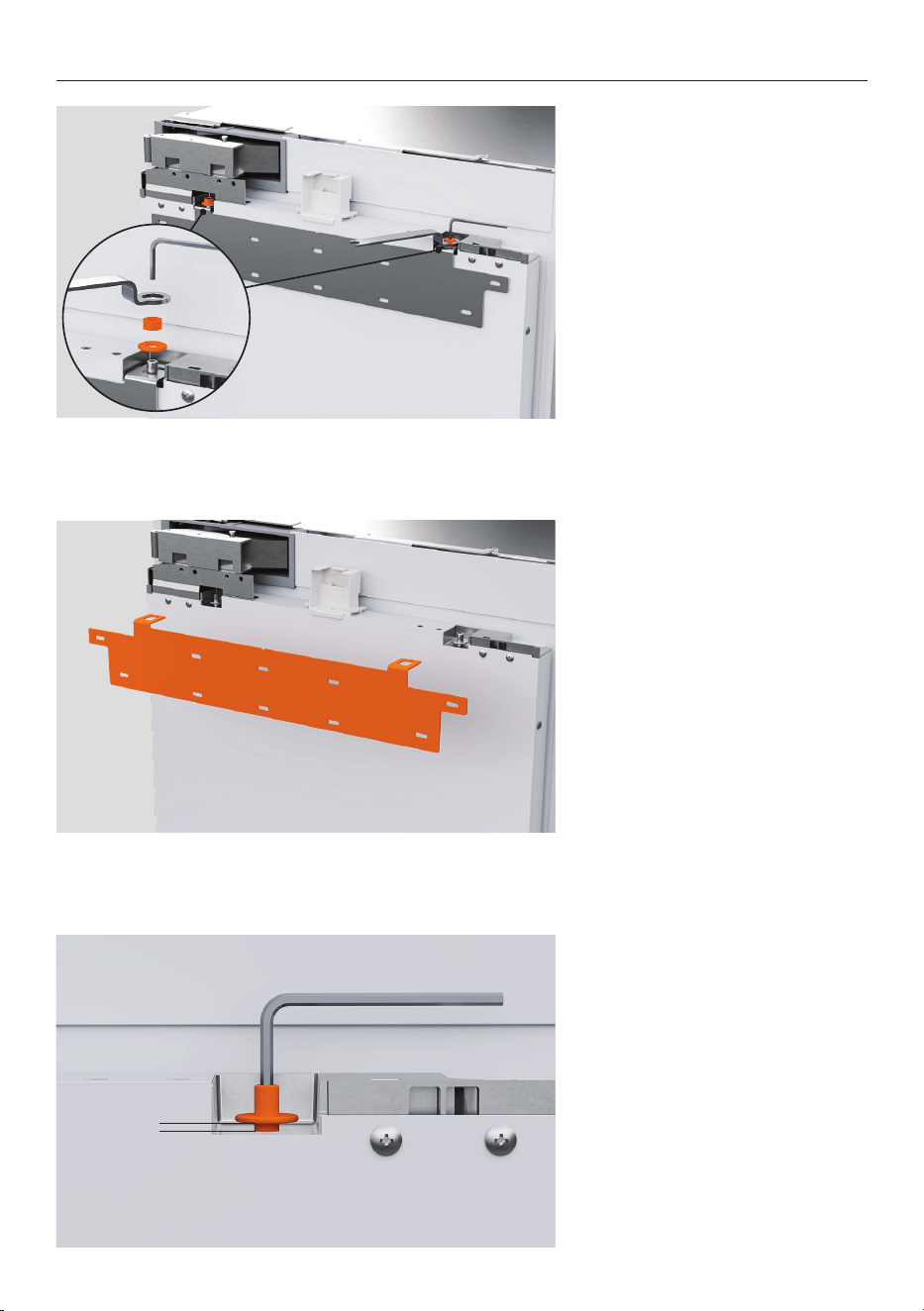

1. Remove the M8 nut and M8
washer from the M8 screw at
the top of the door using the
supplied hex key and spanner.
2. Remove the hanging bracket
and set aside for later use.
Repeat for lower drawer if
required.
3. Loosen the M8 screws by
3mm.
3mm
19
PRODUCT PREPARATION

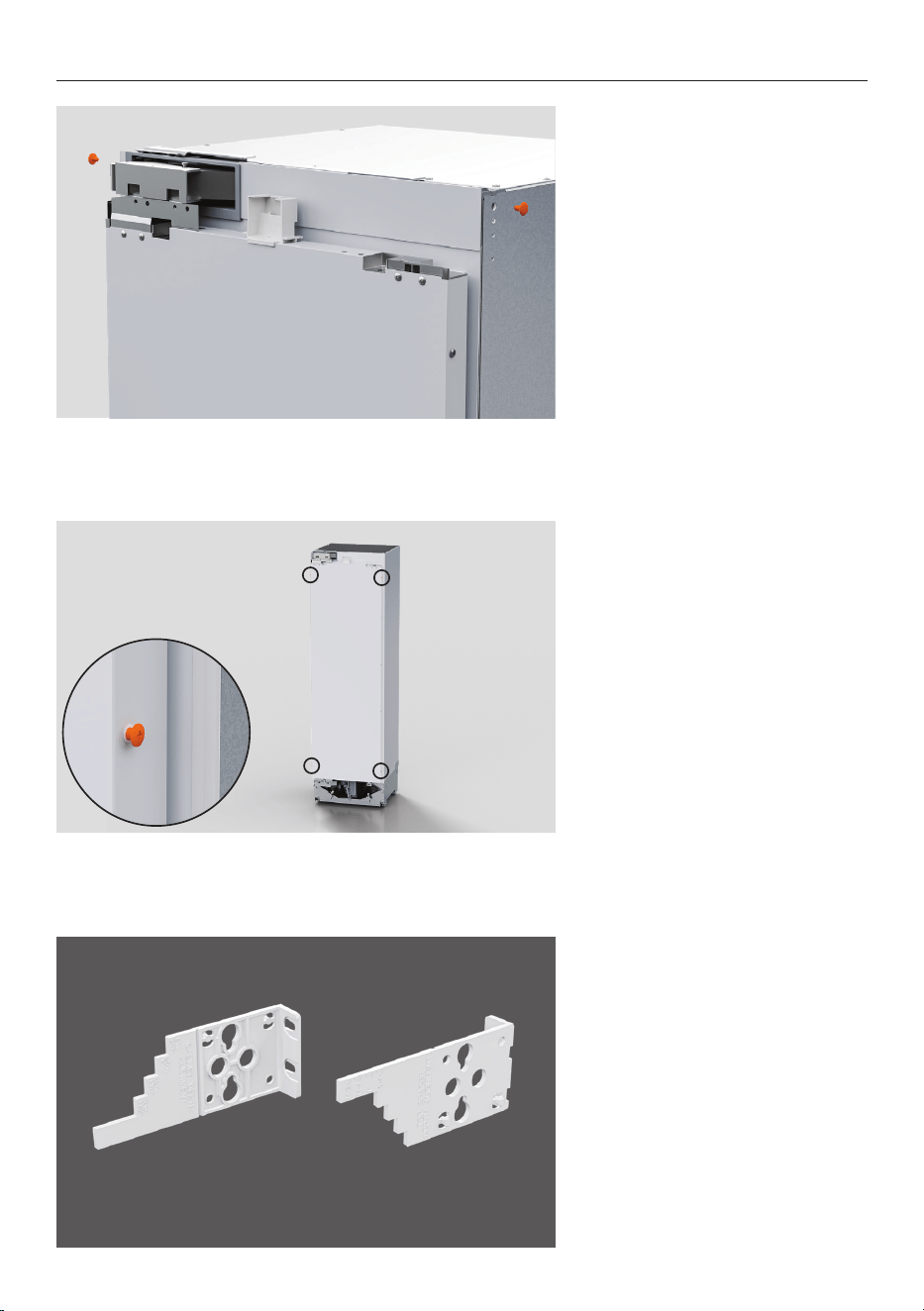

4. Insert the barbed plugs into
the top left and right sides
of the product to protect the
cabinetry.
5. Loosen the screws at the top
and bottom of the door.
6. Ensure orientation of the
gauges are correct before
aligning to the door.
LEFT RIGHT
20
PRODUCT PREPARATION
7. Slot the gauges onto the
door screws. Push the gauges
down to lock into position
before tightening the screw to
secure.
8. Remove both bolts from the
side that will connect to the
adjacent product.

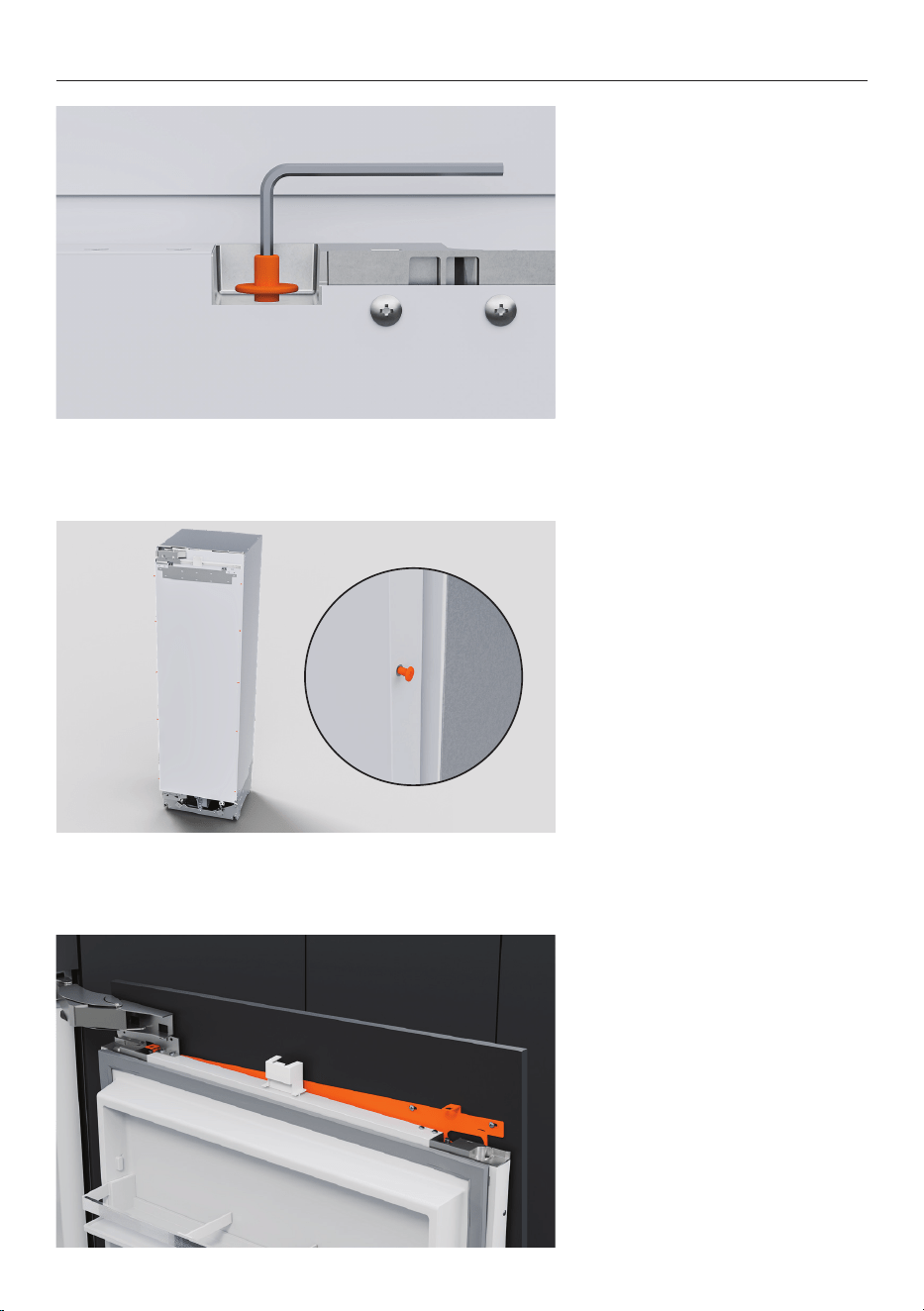

9. Add the flange joiners and
tighten using a 1/8" (3mm)
Allen key.
21
PRODUCT PREPARATION

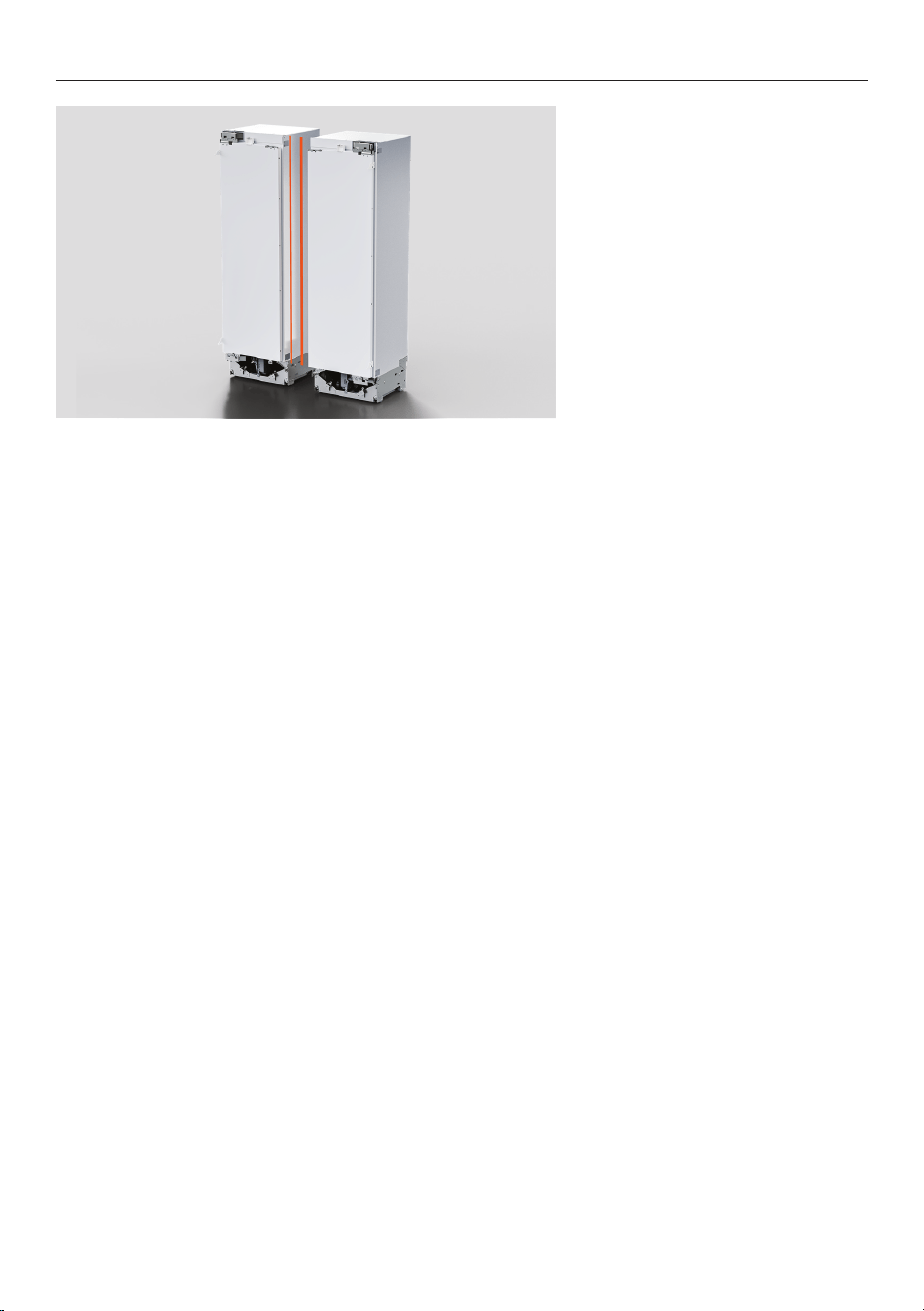

10. Remove alcove trims
between adjacent products.
22

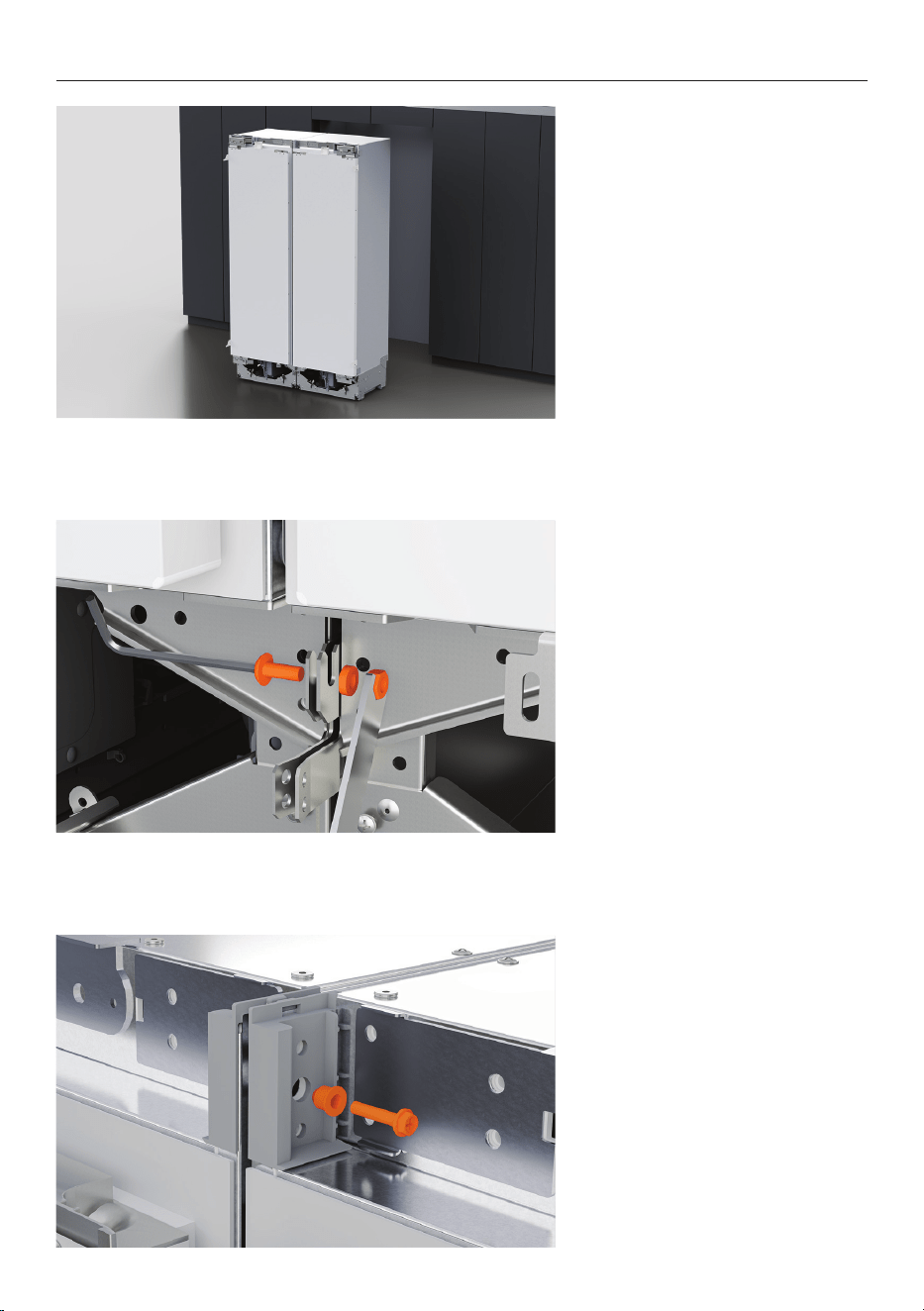

JOIN PRODUCTS
1. Ensure doors are closed
before rolling products into
position.

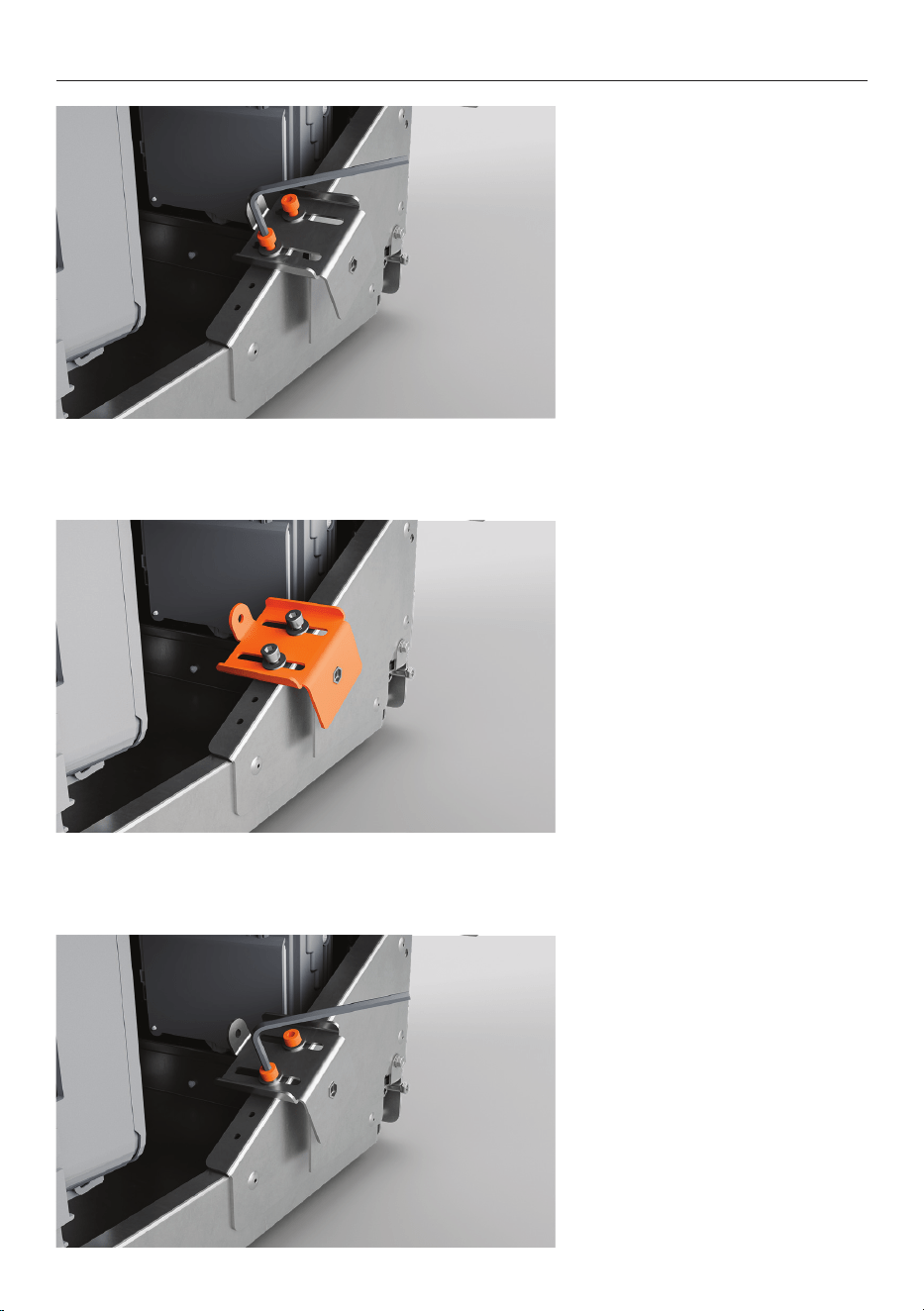

2. Secure the lower brackets
together using the supplied M6
screw and Nut. Secure using
a 4mm Allen key and 3/8"
(10mm) spanner.
Ensure brackets are clamped
tightly before proceeding.

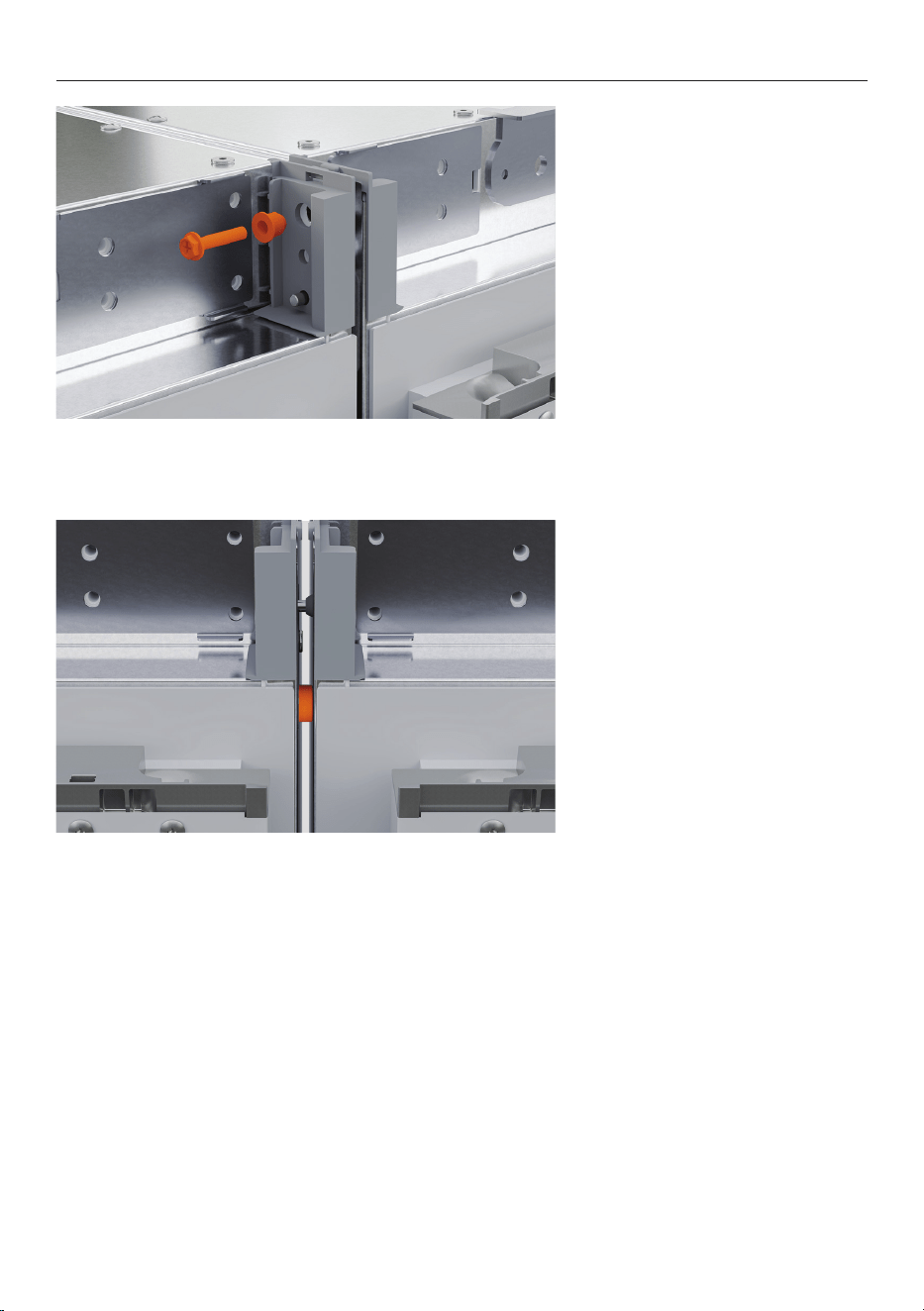

3. Clamp the upper brackets
together by fitting the first
supplied M5 bolt and joiner
sleeve. Tighten using a 5/16"
(8mm) socket and Phillips
screwdriver until the sleeve sits
flush.
23
JOIN PRODUCTS
5. Ensure the flange joiners
contact the adjacent product
as shown.
4. Handle to handle installations:
Fit the second supplied M5 bolt
and joiner sleeve.
For handle to handle install, use
two bolts from both sides.
For handle to hinge, only one
joiner bolt from handle side be
inserted.
24

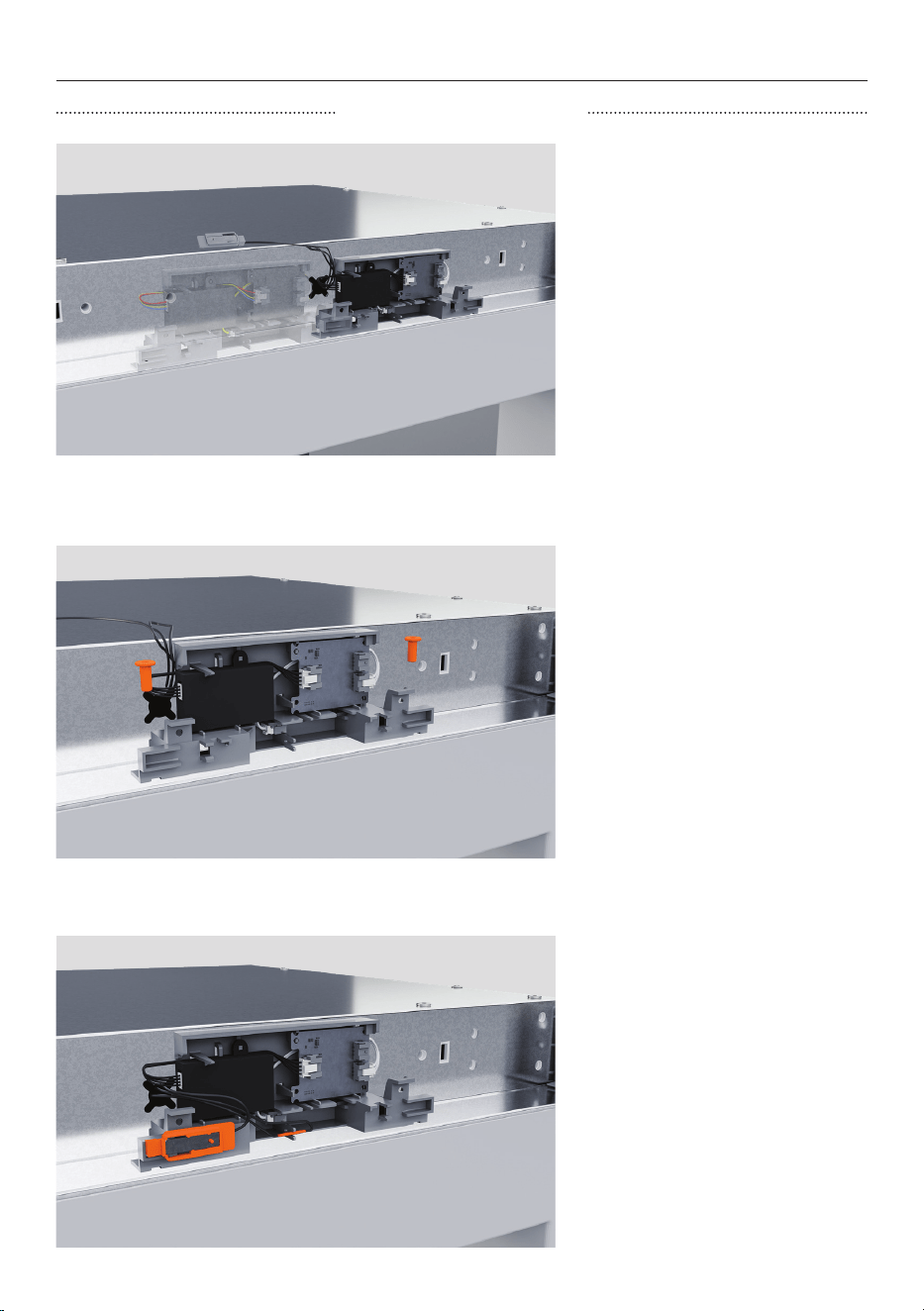

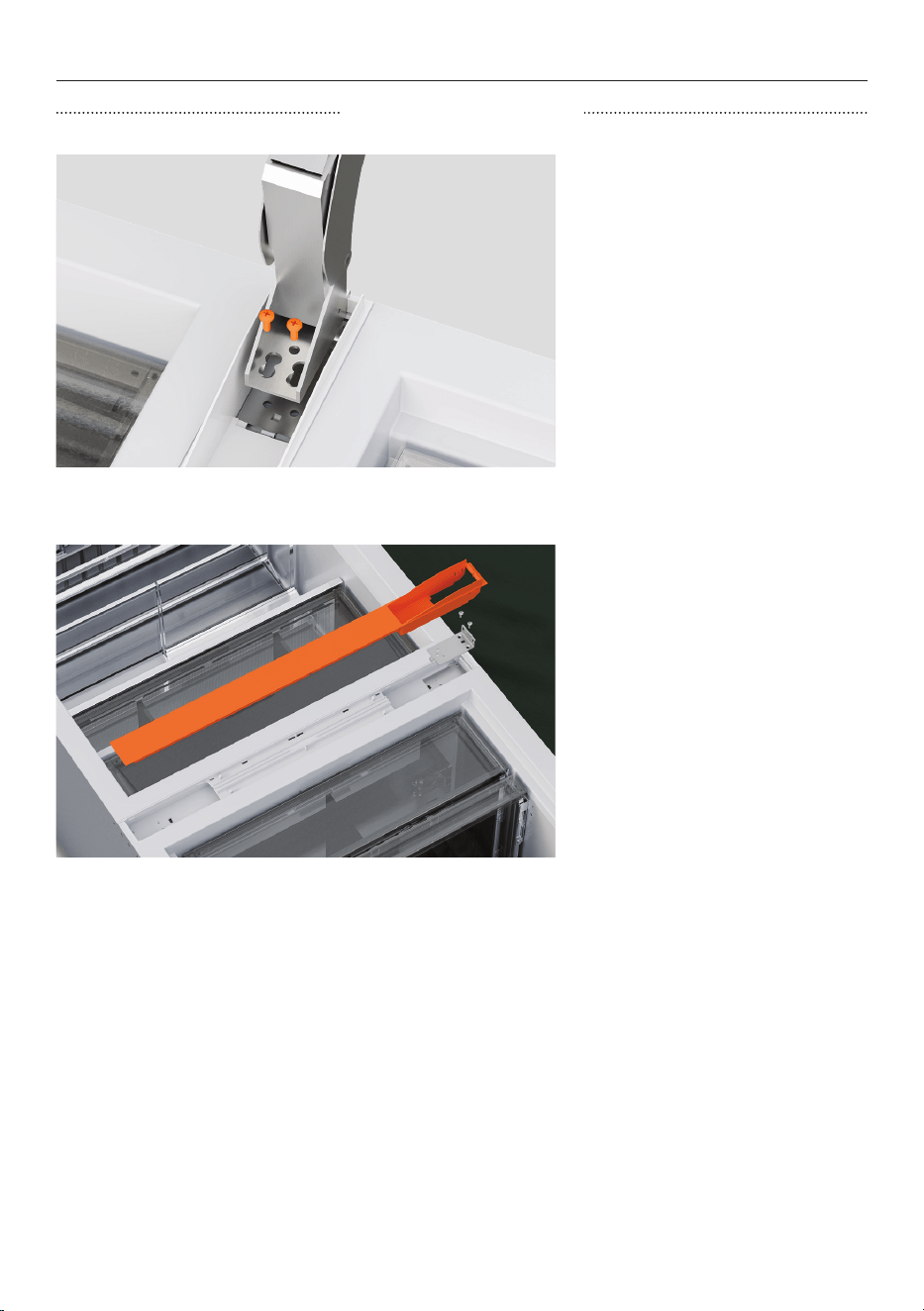

INSERT HINGE LIMITING PIN (OPTIONAL)
1. To limit the door opening to
90°, lower the hinge limiting
pin into the upper and lower
hinges.
2. Refrigerator-Freezer models:
Unclip the centre divider before
fitting the pin to the lower
hinge.
Refit the centre divider.
25

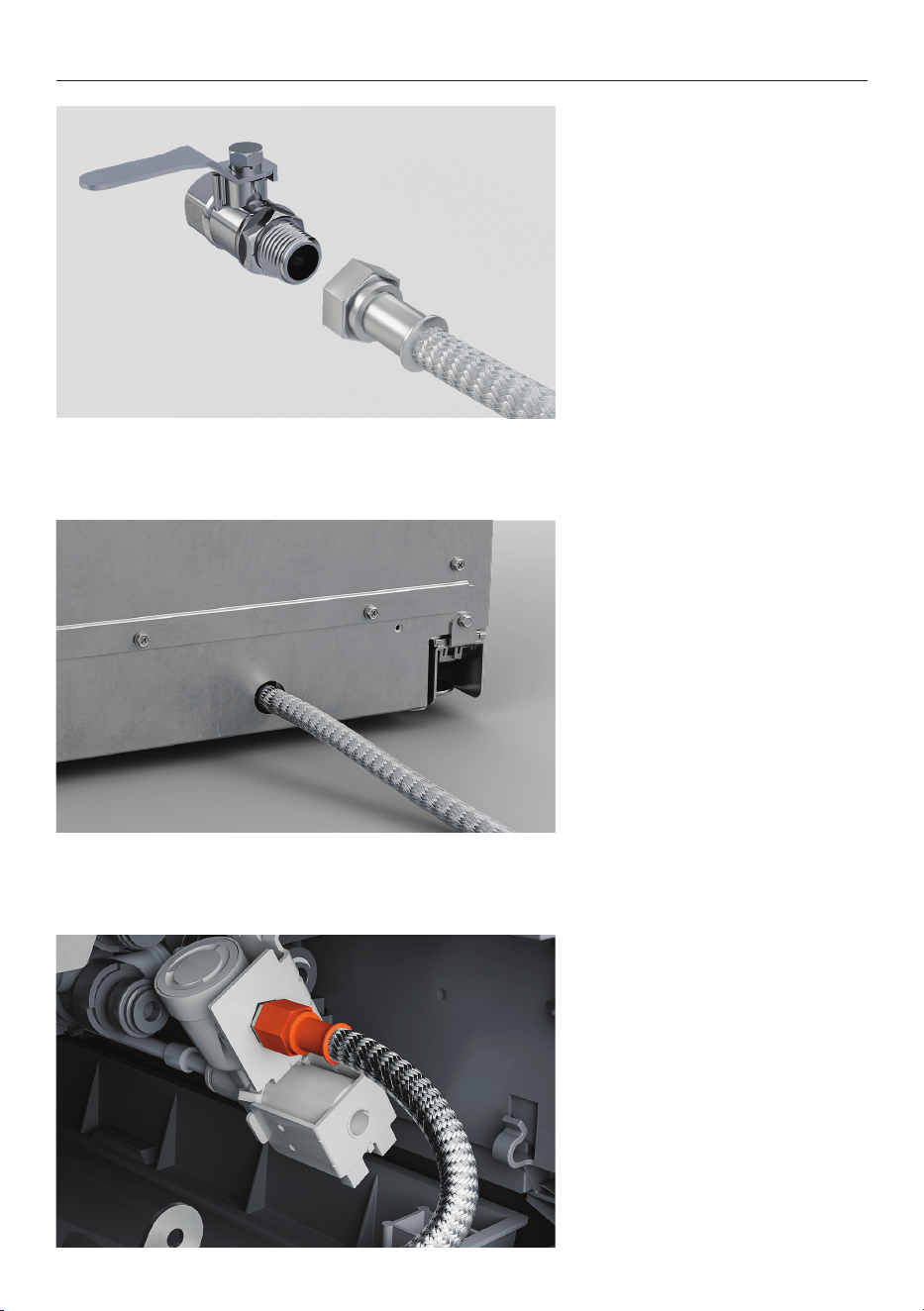

CONNECT SERVICES
1. Connect one end of a braided
hose to the tap.
Flush water through hose prior
to connection to remove any
debris.
2. Push the hose through the
plinth from the rear of the
product.
3. Connect the hose to the
isolation valve.
26
CONNECT SERVICES
1. If required, wrap a thread
around the power cord to
reduce slack and decrease the
risk of it tangling behind the
product.

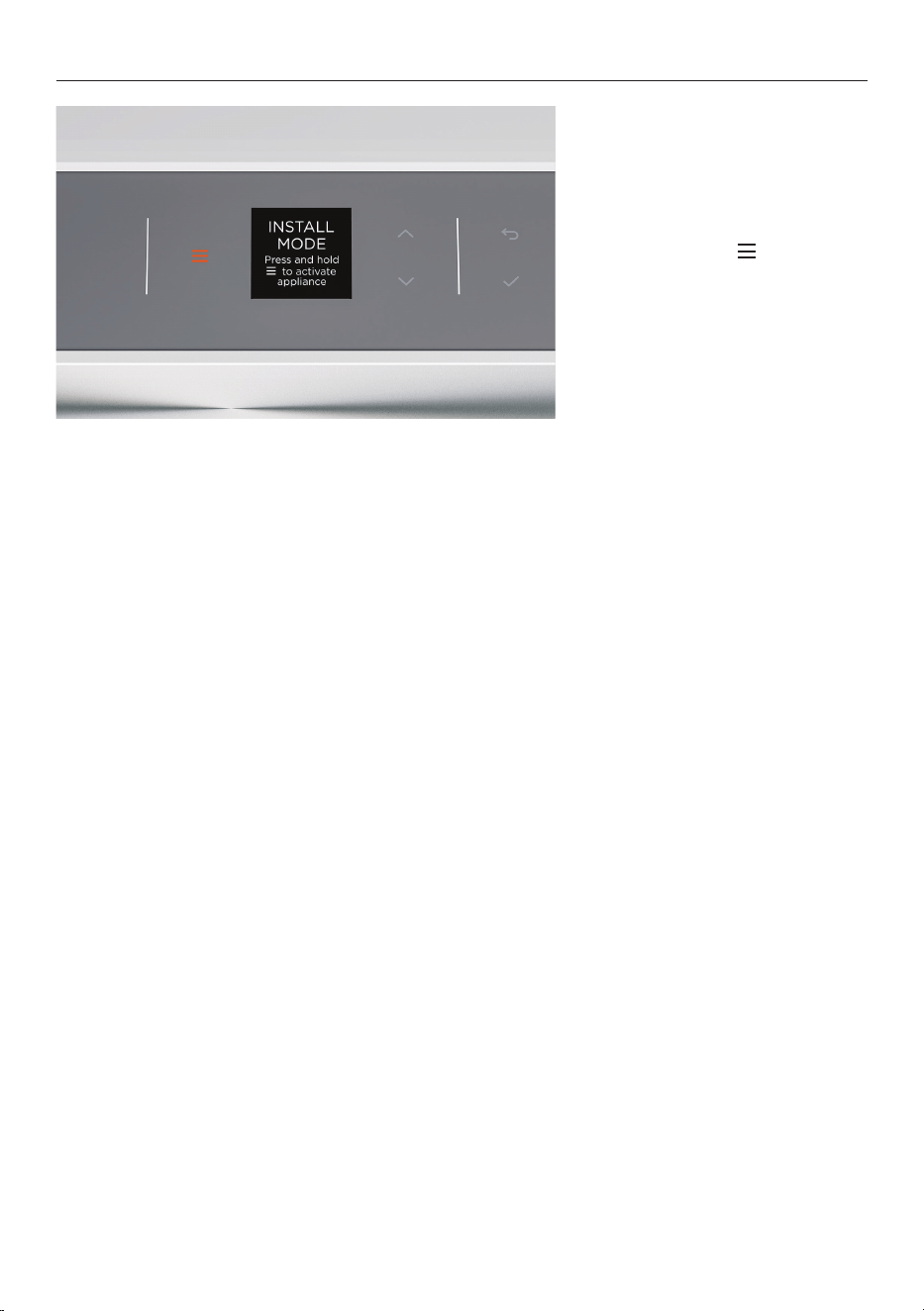

2. Connect to outlet and turn
power on.
3. When powered on for the
first time, your appliance will
default to install mode.
27
1. Carefully roll both products
into cabinetry.
2. Mark the step of depth
gauge on the cabinetry sides
of the doors based on the
thickness of door panel.
3. Align the marked line flush
with the front surface of the
adjacent cabinetry.
POSITION IN CAVITY
28

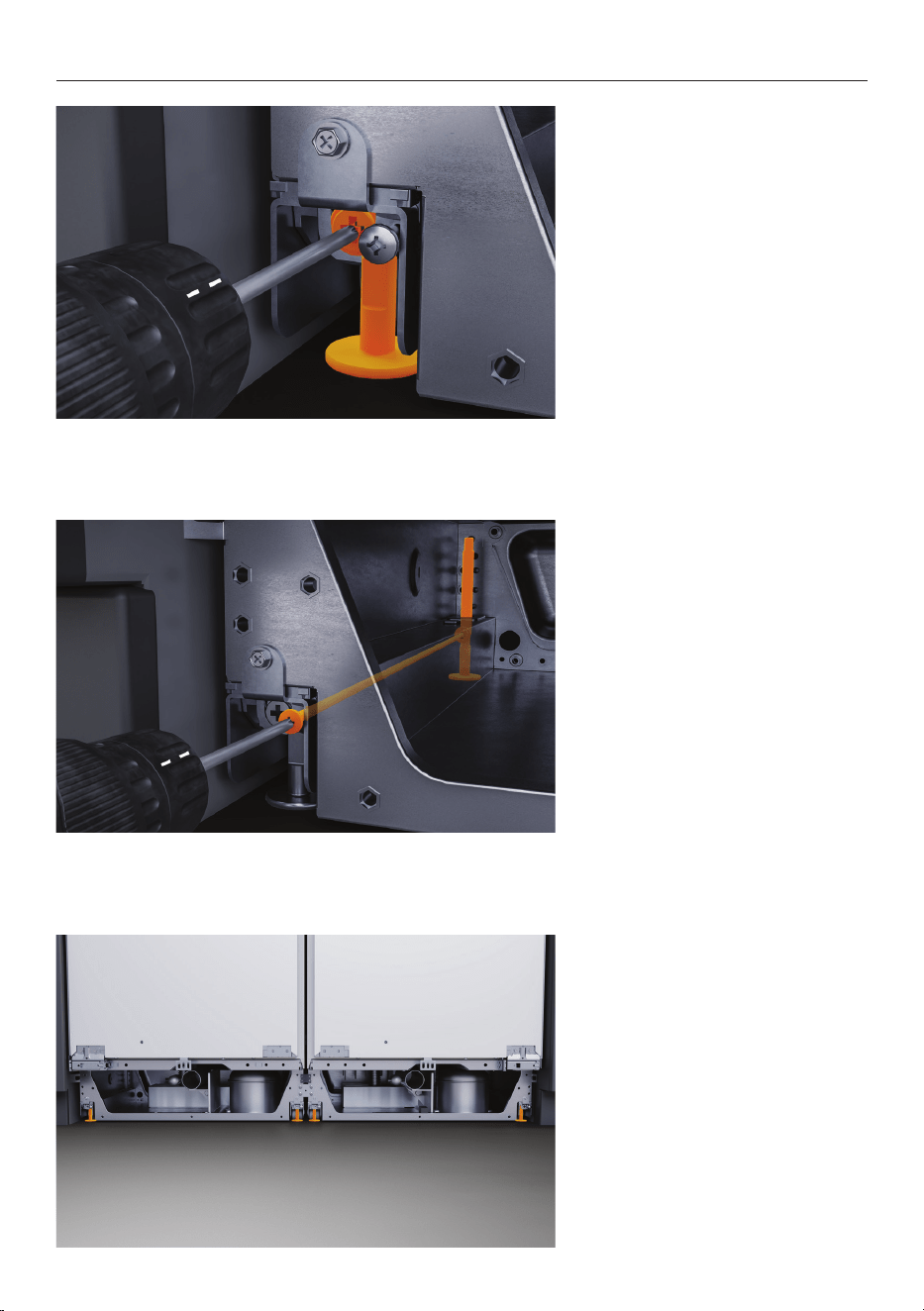

1. Adjust the front of the
product by turning the left-
hand screw clockwise to lower
the feet.
We recommend marking a drill
and counting the number of
turns required to fully engage
the feet.
2. Adjust the rear of the
product by turning the right-
hand screw clockwise to lower
the feet.
3. Adjust the outside front feet
followed by the outside rear
feet. Once product is set in
cavity, lower the central feet.
Ensure the upper bracket
touches the alcove.
LEVEL AND SECURE
29
LEVEL AND SECURE
4. Check the alignment gauges
while adjusting the screws.
Using a ruler, check if the
gaps between appliance and
cabinetry side wall are even.
5. Fit the two lower side
brackets to the cabinetry
side surface with a 8Gx16
countersunk screw on each
side.
6. Fit the two upper brackets to
the cabinetry using two 8Gx16
countersunk screws on each
side.
30

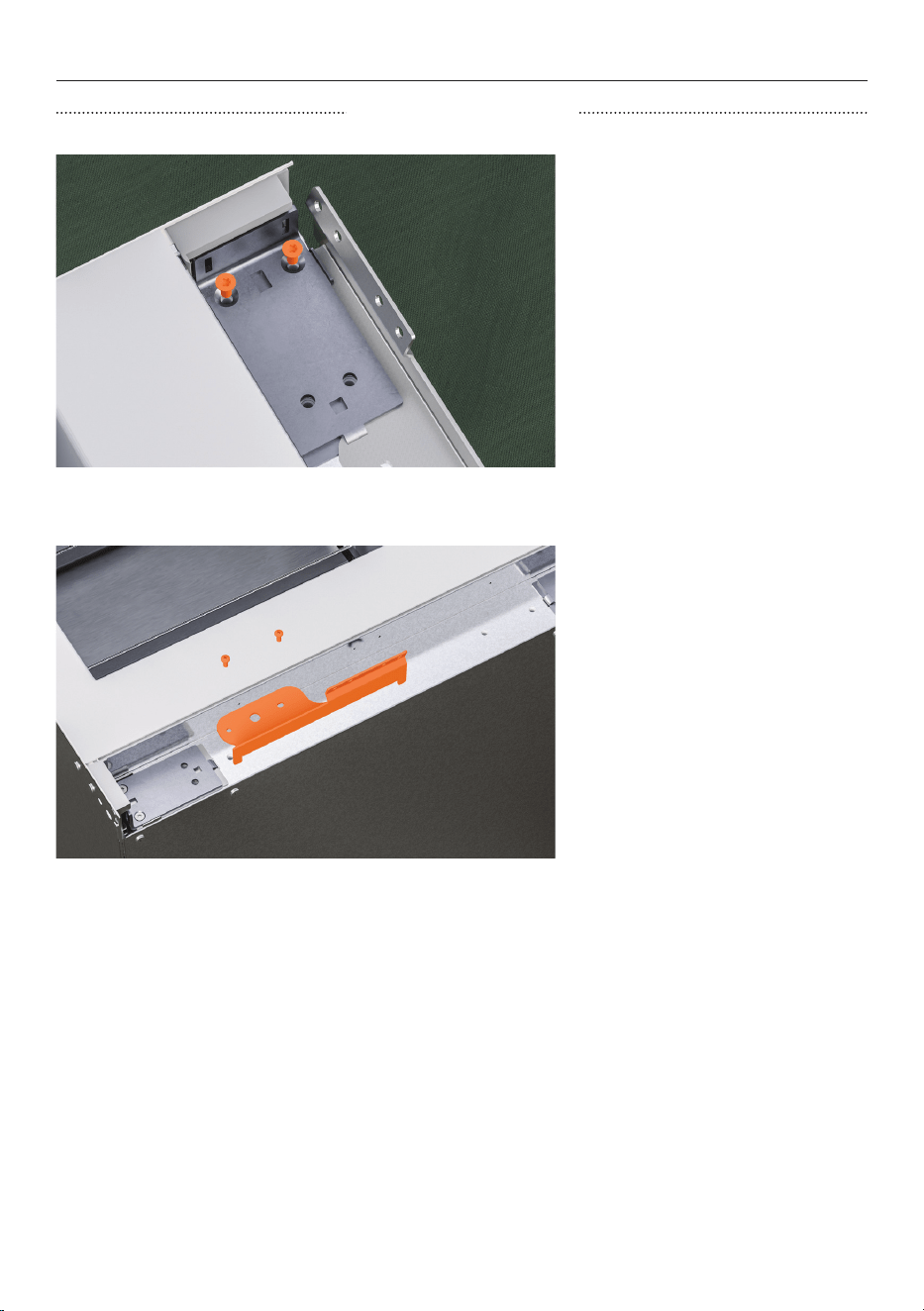

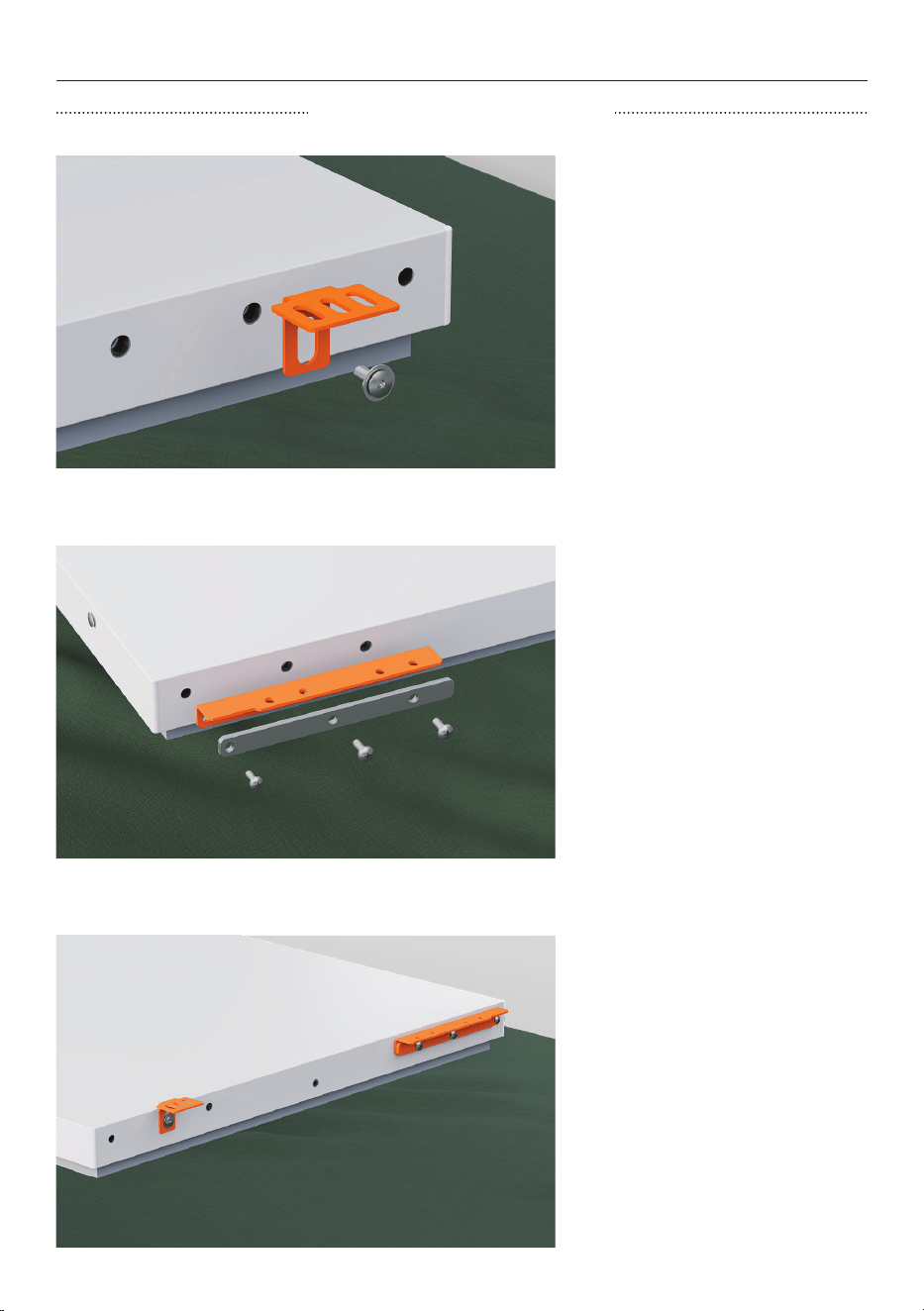

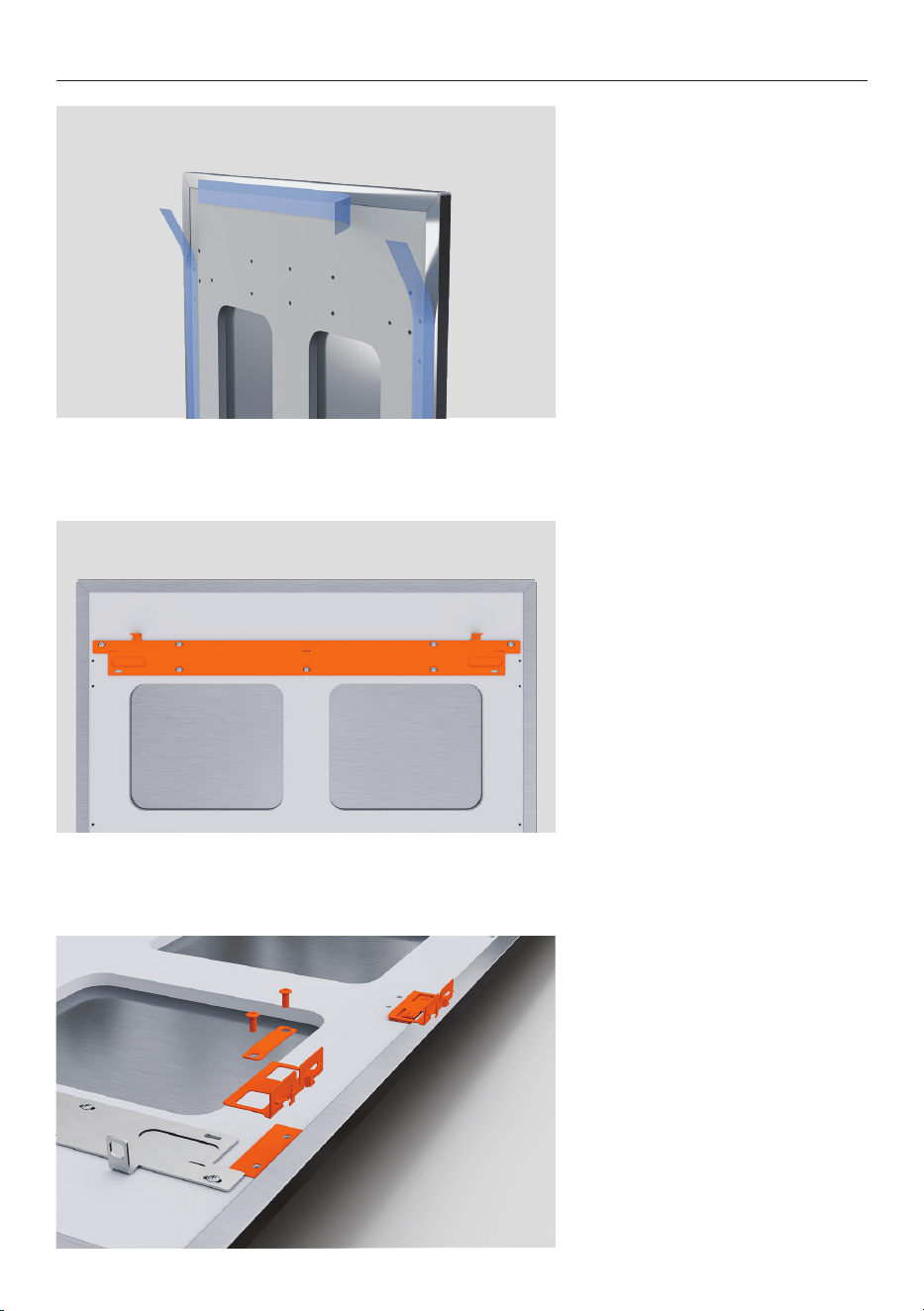

DOOR PANEL PREPARATION (PRE-FINISHED PANEL)
1. Remove the blue tape and
protective film from the handle
attachment area.
2. Remove the four plugs from
the door panel.
3. Fit the handle to the panel
using four M5x25 hex screws.
Refrigerator-Freezer models:
Repeat for lower drawer.
31
DOOR PANEL PREPARATION (PRE-FINISHED PANEL)
5. Secure the top hanging
bracket to the screw holes of
the door panel with M5 x 12 PH
Screws.
4. Remove the blue tape
attached to the inner edges of
the door panel after the handle
is installed.
6. Align the side brackets
to the panel. Secure using
the supplied screws. Ensure
brackets are fitted tightly
and the fasteners are secured
straight.
32
7. Refrigerator-Freezer models:
Repeat for lower drawer.
DOOR PANEL PREPARATION (PRE-FINISHED PANEL)

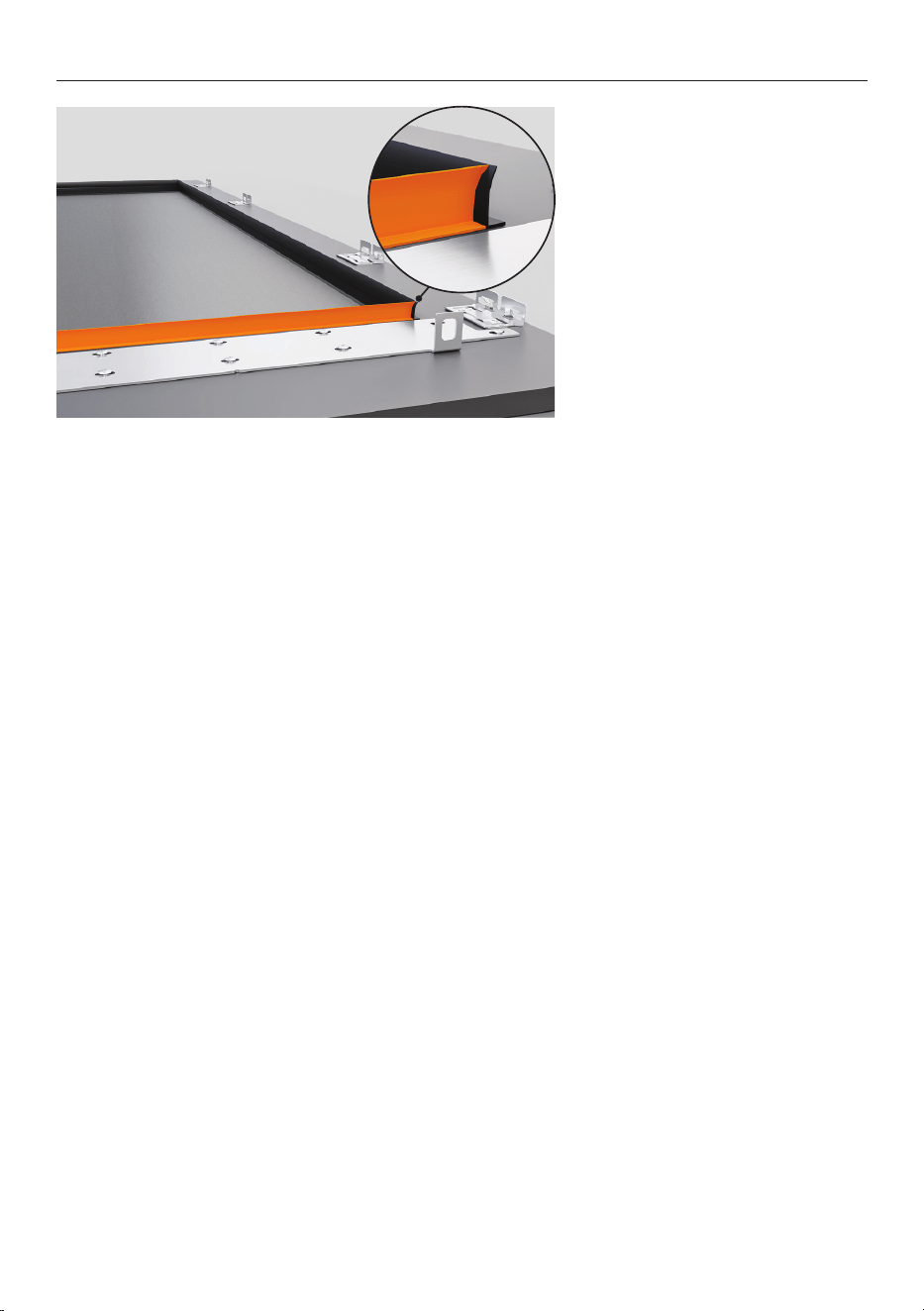

8. Wine Cabinet models:
Fit the supplied rubber trims
around the window cut-out
on the rear of the door panel.
Ensure trims are flush with
the inside edge and do not
overlap the hanging bracket.
33

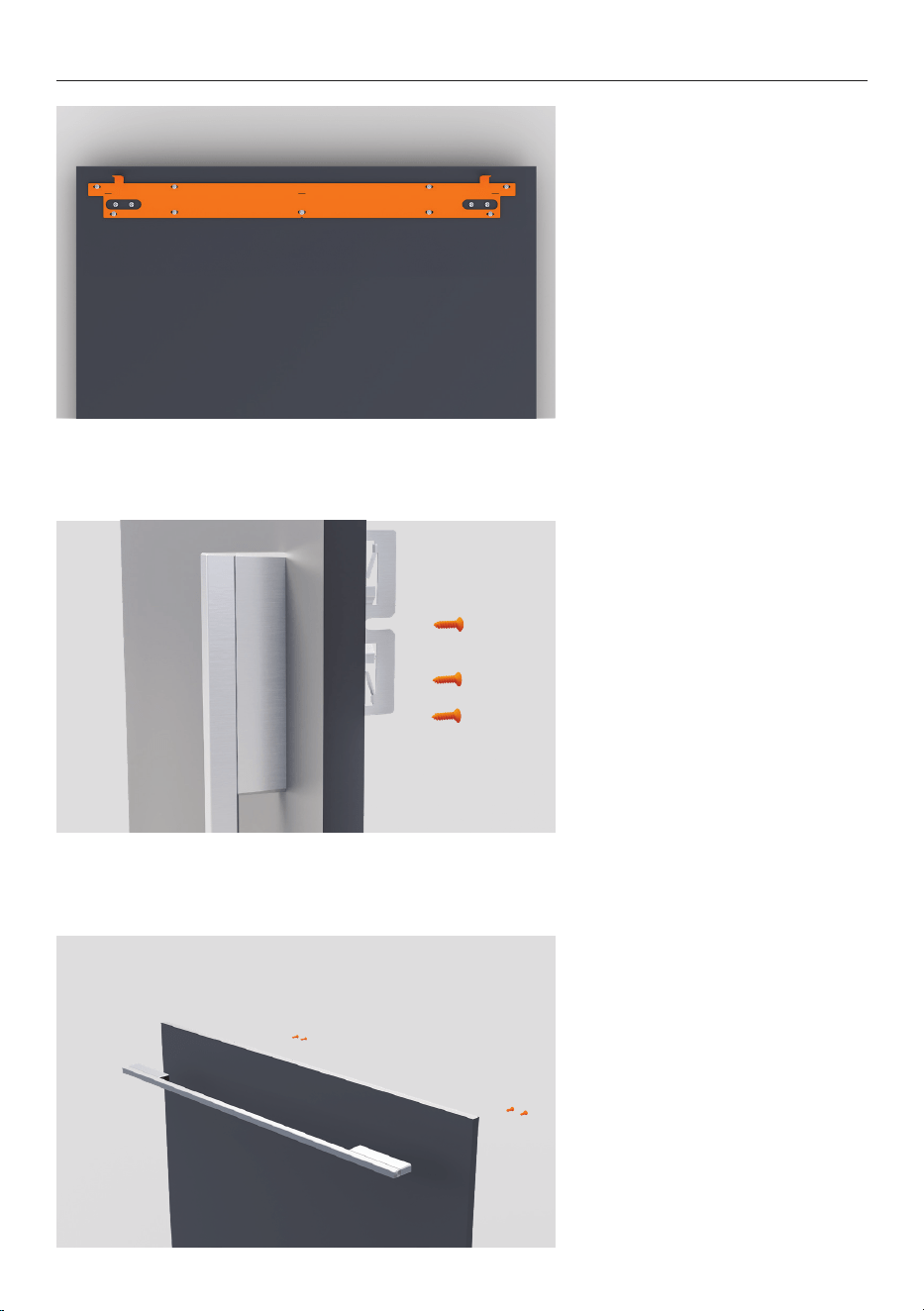

DOOR PANEL PREPARATION (CUSTOM PANEL)
1. Recheck the door panel
specifications and ensure all
bracket locations have been
marked. Refer to the planning
guide for all custom panel
details.
The supplied template can also
be used to locate bracket hole
locations. Follow the guidance
on the template.
fisherpaykel.com/specify
2. Align the door panel bracket
to the panel. Secure using the
supplied M5x12 screws.
3. Align the side brackets
to the panel. Secure using
the supplied screws. Ensure
brackets are fitted tightly
and the fasteners are secured
straight.
34
4. Fit the handle to the panel
using four M5x25 hex screws.
Ensure handle fixings do not
interfere with side brackets.
5. Refrigerator-Freezer models:
Repeat for lower drawer.
DOOR PANEL PREPARATION (CUSTOM PANEL)
6. Refrigerator-Freezer models:
Repeat for lower drawer.
35
DOOR PANEL PREPARATION (CUSTOM PANEL)

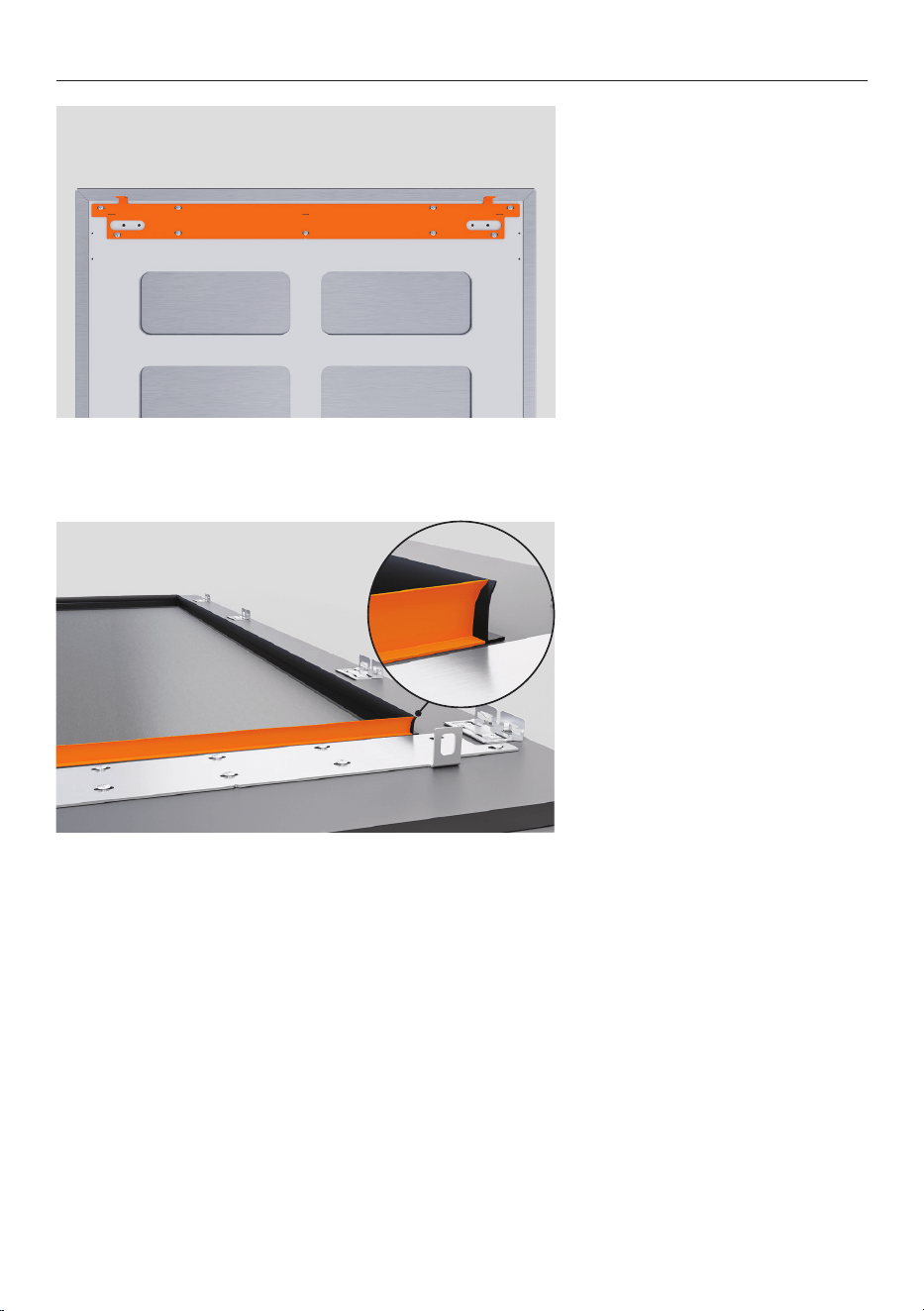

7. Wine Cabinet models:
Fit the supplied rubber trims
around the window cut-out
on the rear of the door panel.
Ensure trims are flush with the
inside edge and do not overlap
the hanging bracket.
36

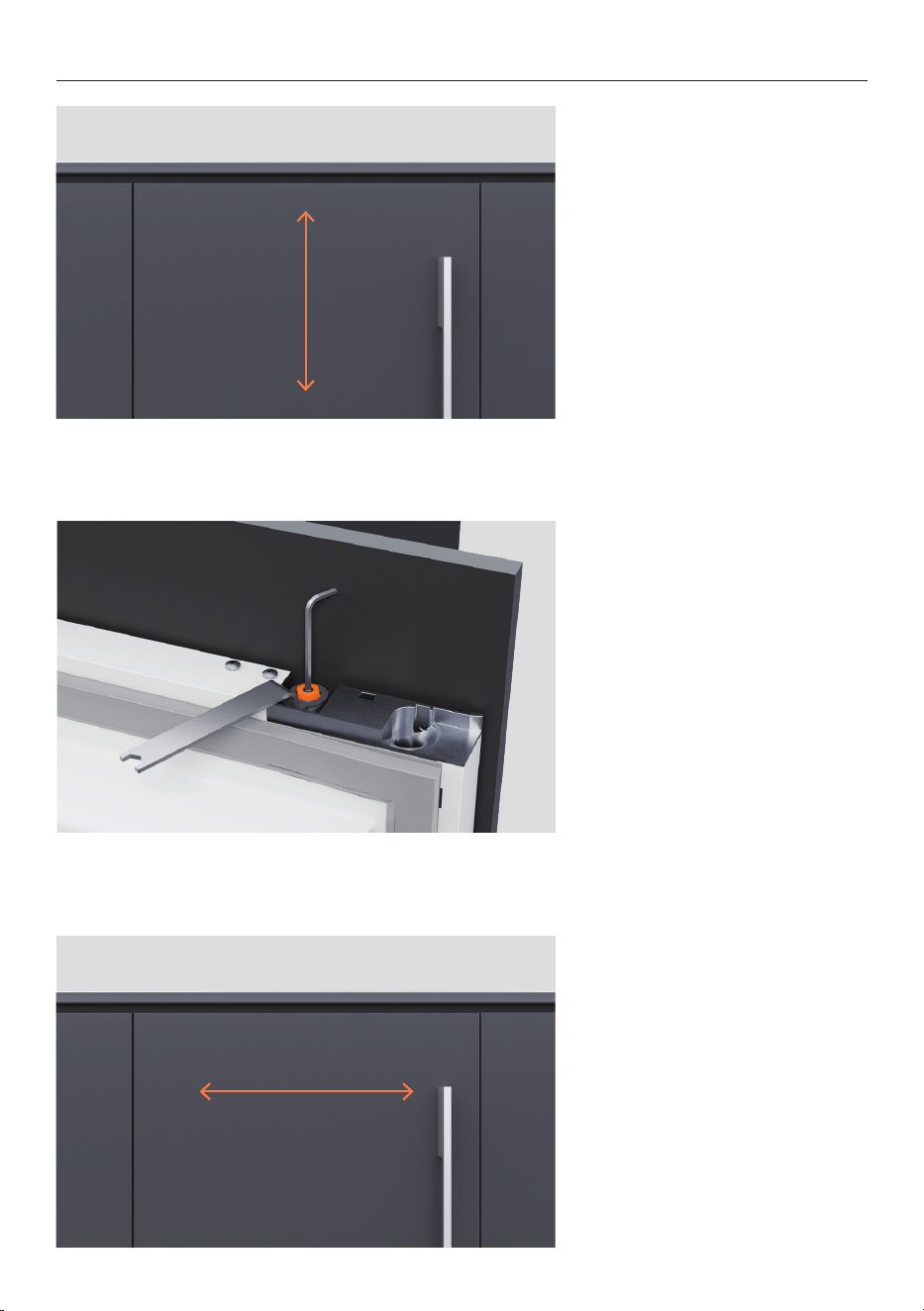

INSTALL PANELS
1. Ensure top mounting screws
have been loosened by 3mm.
2. Loosen the side screws.
3. Hold the panel at an angle
from the top of the door and
lower onto the mounting
screws..
37
INSTALL DOOR PANEL

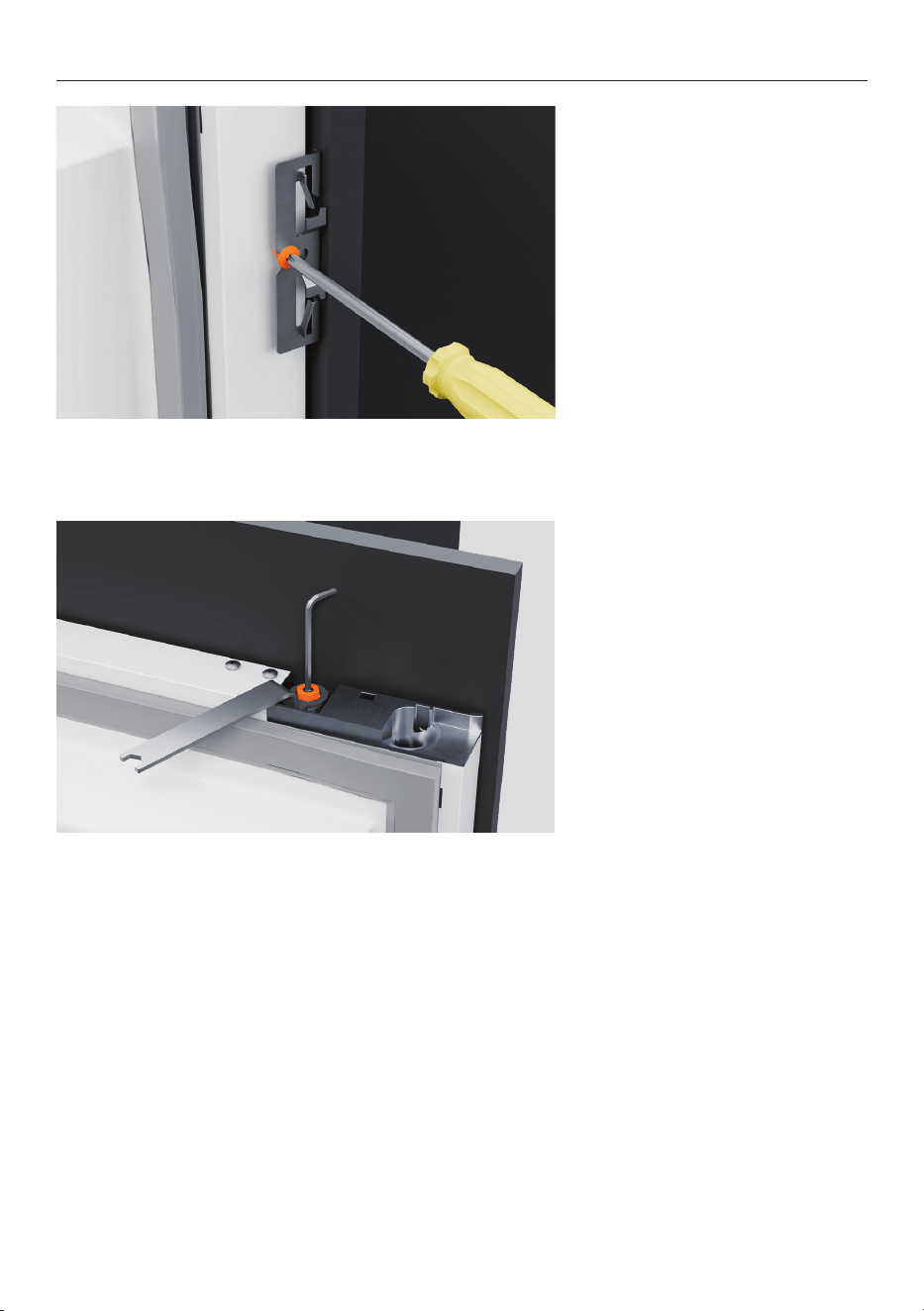

4. Ensure side brackets are
disengaged and top mounting
screws have been loosened.
Rotate the mounting studs
clockwise to lower the panel
and anti-clockwise to raise it.
5. Loosely tighten the side
screws and the top M8 washers
using the spanner and L key
provided in the install kit.
6. Push panel side-to-side to
adjust horizontally. Ensure
panels are flush with the front
of the cabinet.
38
7. Fit side screws to panel.
8. Tighten the M8 nuts using
the supplied spanner and hex
key.
INSTALL DOOR PANEL
39
1. With the door open, loosen
the lower bracket screw. Adjust
bracket to rest against the door
panel. Re-tighten the bracket
screw.
2. Fit an additional screw
through the bracket to lock
panel into position.
3. Recheck all gaps and any
clashing.
INSTALL DOOR PANEL
40
1. Loosen the adjustment
bracket cap screws on both
sides of the plinth using a hex
key.
2. Adjust the brackets to
achieved desired toe kick
depth.
3. Re-tighten the cap screws.
ADJUST MOUNTING PLATE BRACKETS
41

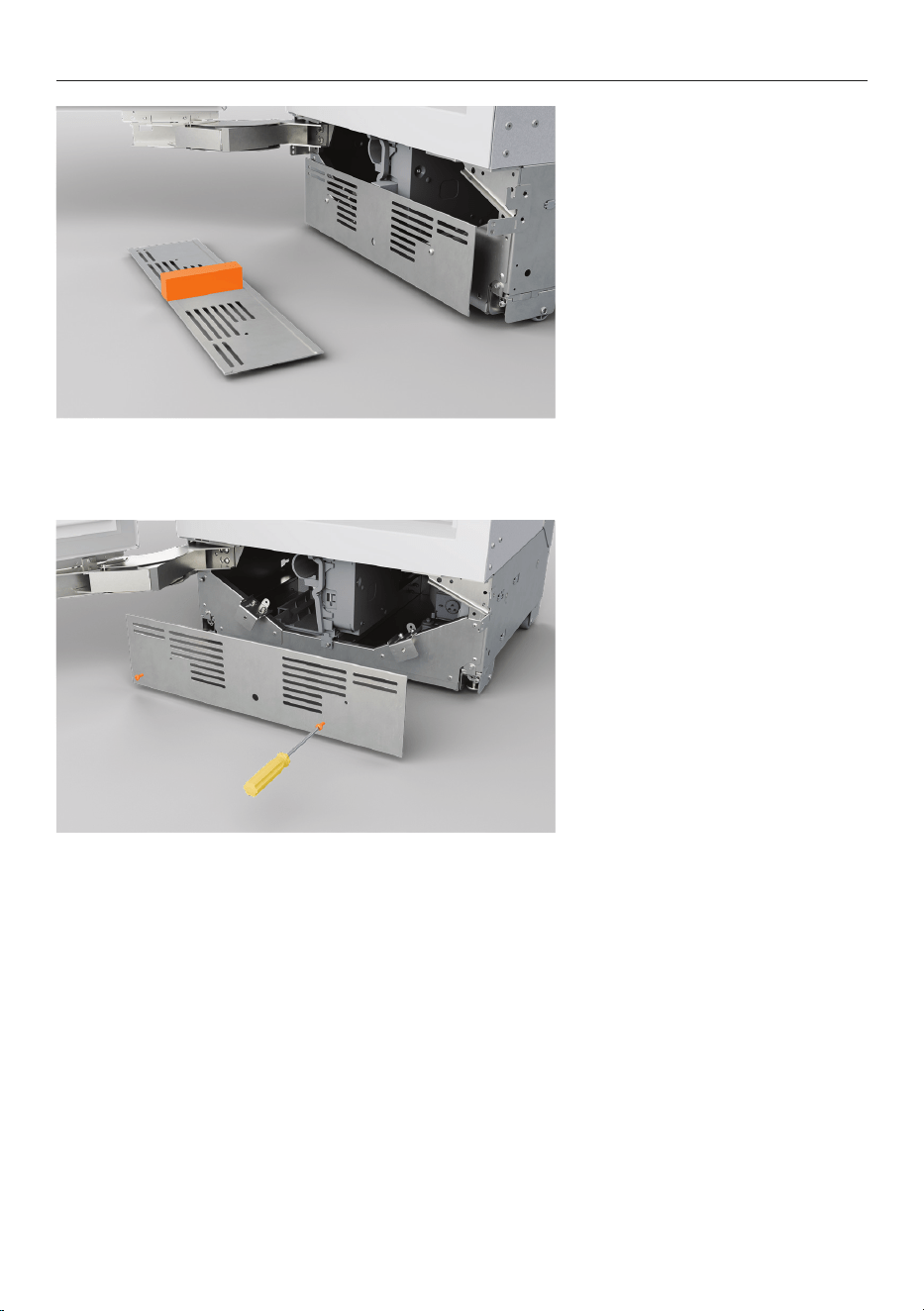

1. If there is a gap between the
mounting plate and the plinth:
Attach the foam block to the
back of the mounting plate.
Press firmly to secure.
INSTALL MOUNTING PLATE
2. Refit mounting plate using
the screws that were set aside
earlier.
42

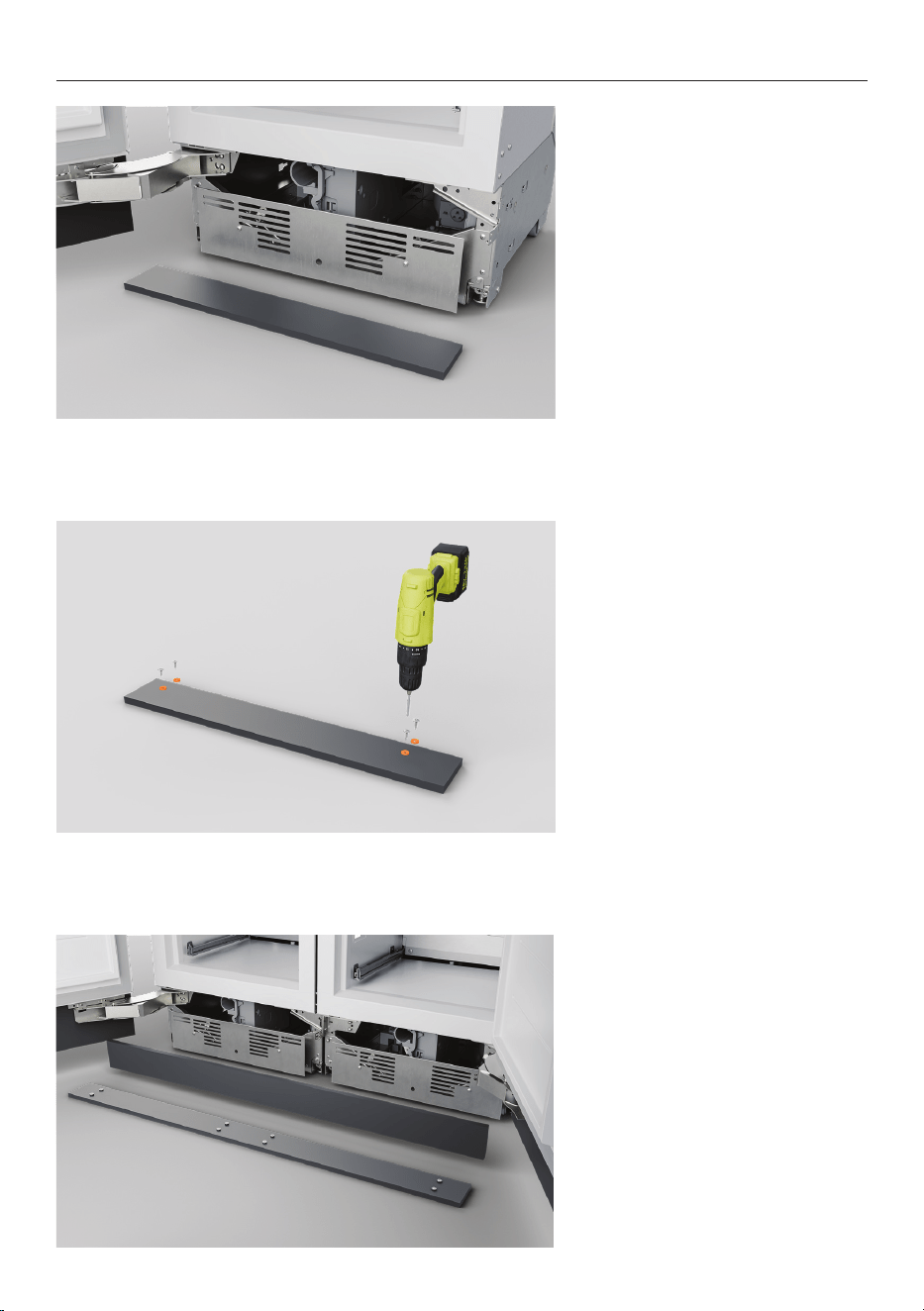

INSTALL TOE KICK (PRE-FINISHED PANEL)
1. Center the spacers to the
attachment points of the
appliance, then mark the
magnet fixing locations at the
center of each spacer.
2. Secure the magnets to the
spacers.
3. Clip toe kick into place
43
INSTALL TOE KICK (CUSTOM PANEL)
1. Align the panel to the
attachment points of the
appliance, then mark the
magnet fixing locations.
2. Secure the magnets to the
spacers.
3. Clip toe kick into place.
44

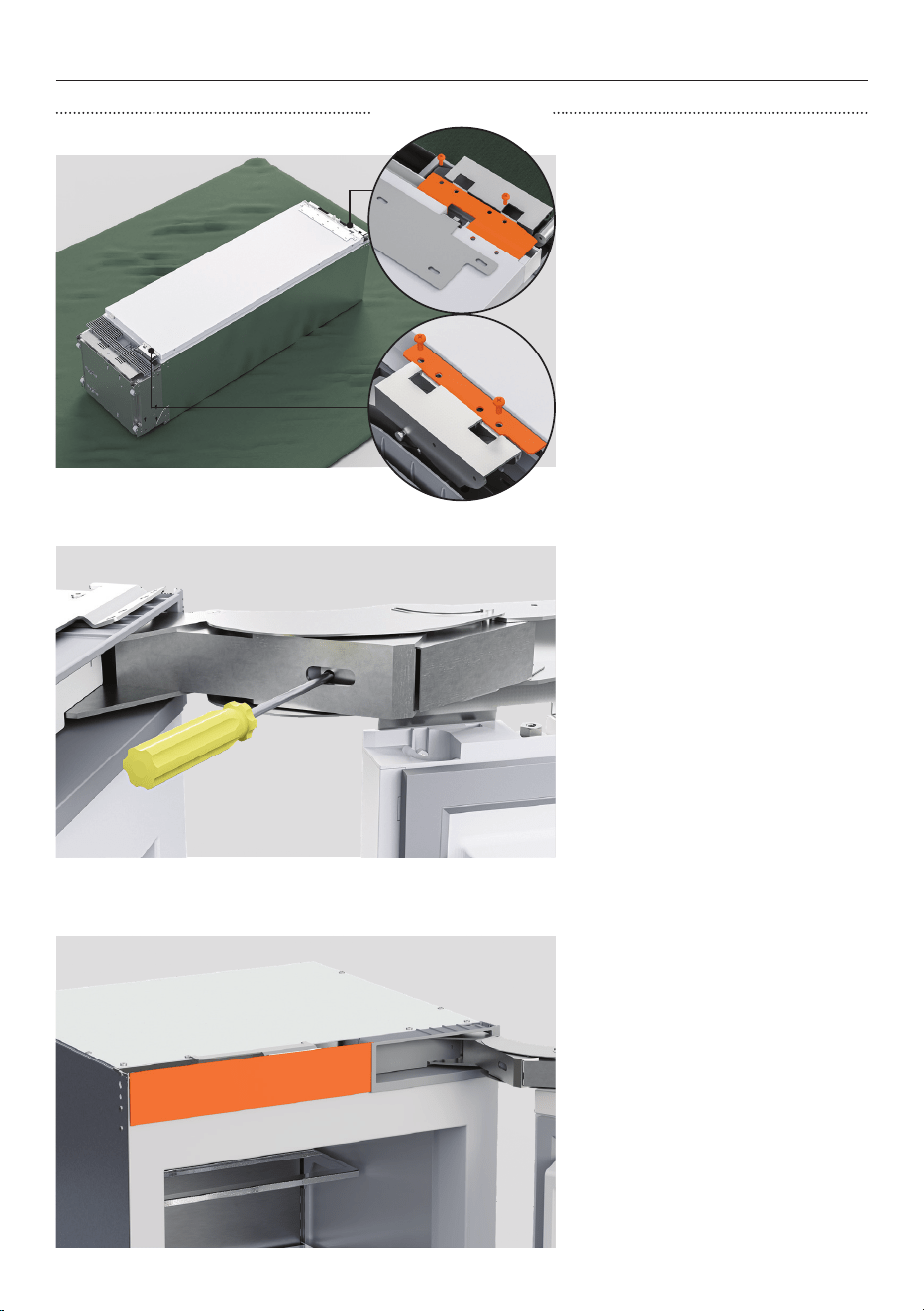

FIT GRILLES
Top grille – Refrigerator,
Freezer, Wine Cabinet
Open the door and secure both
ends of the grille behind the
water filter hatch using #8x16
screws.
Top grille –
Refrigerator-Freezer
Reattach the top grille with
#8x16 screws.
Bottom grille
Re-attach the bottom grille via
the magnets.
For toe kick heights
114 – 127mm, shorten the bottom
grille by cutting along the
vertical ribs.
45

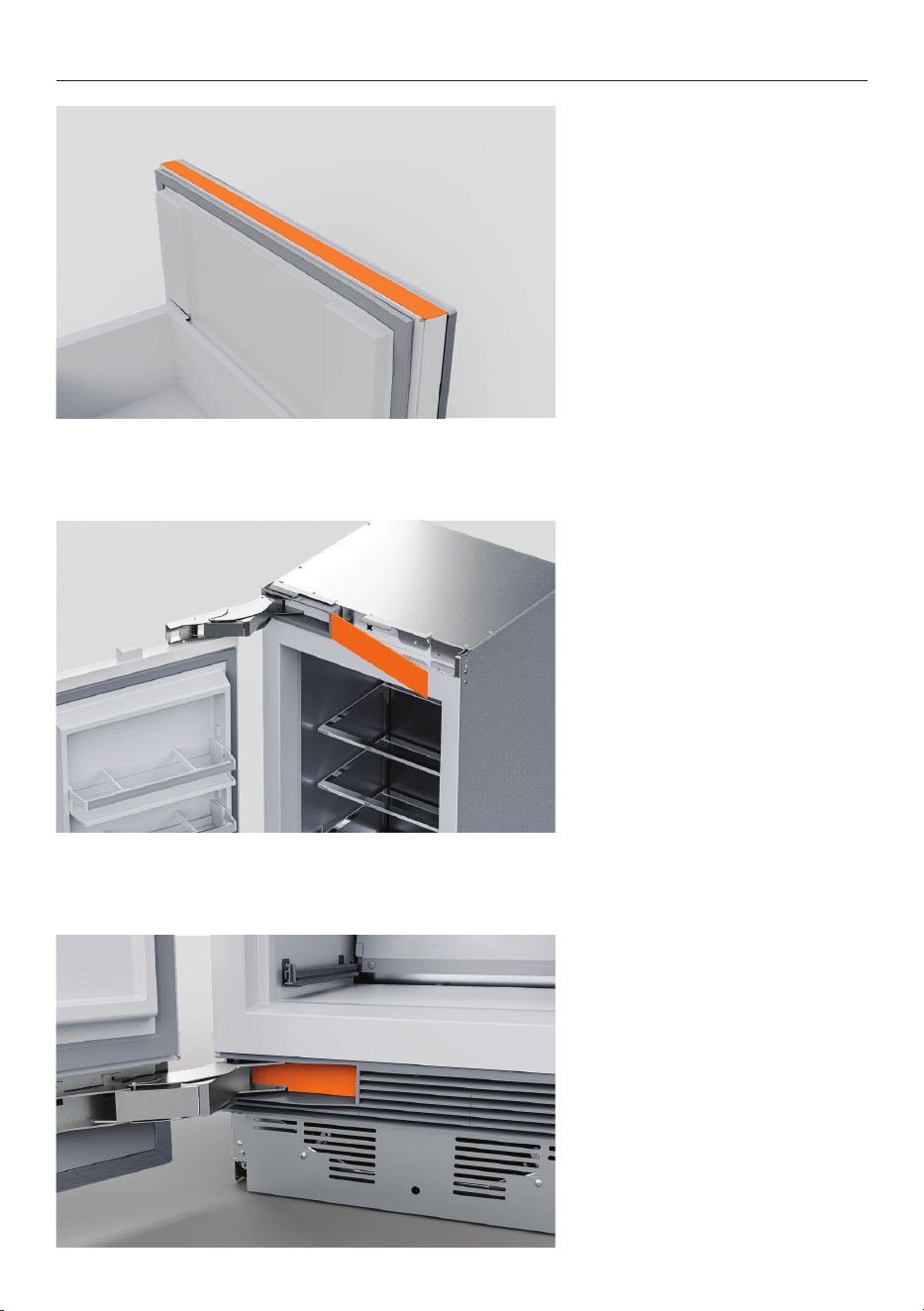

FIT TRIMS
Top door caps
Remove the backing film and
ensure the magnet is in place.
Clip the notch into the magnet
housing, and the trim caps on
top of the adhesive strips. Press
down firmly to secure.
Ensure the magnet remains
in place and not damaged as
this will affect the operation of
the appliance.
Door side covers
Insert door side covers into
the gaps on the sides slide
downwards to clip into place.
Press firmly to secure.
Ensure side cover is aligned
with the top door panel
extrusion.
Drawer side covers
Insert the drawer side covers
into the panel gaps on the right
and left sides of the drawer.
Ensure the cabinet is centered
to prevent the side covers from
interfering with the cabinet.
46

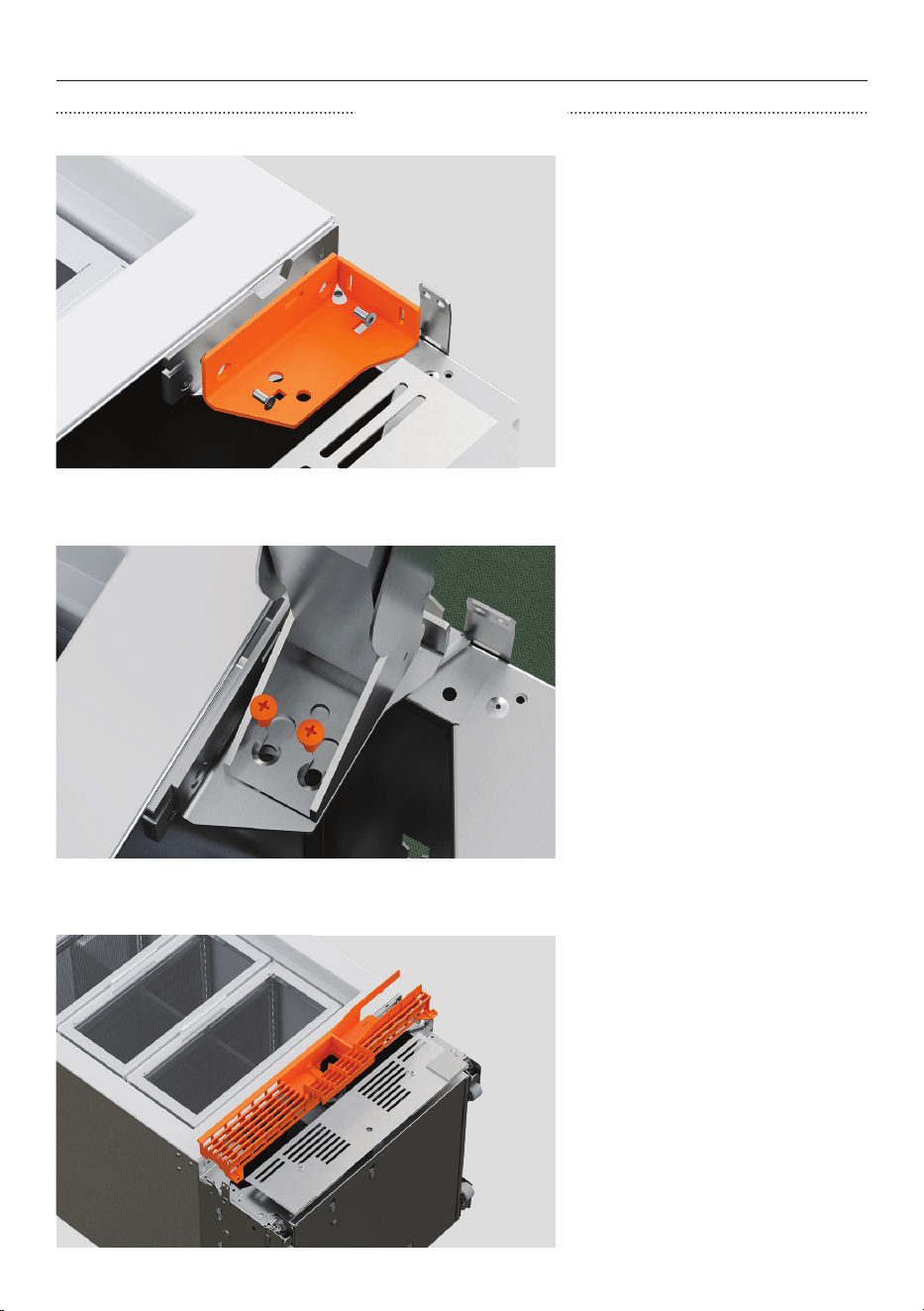

Drawer top trim
Align top trim to drawer and
press down firmly to secure
within panel bracket clips.
Ensure top trim is aligned with
the drawer side covers.

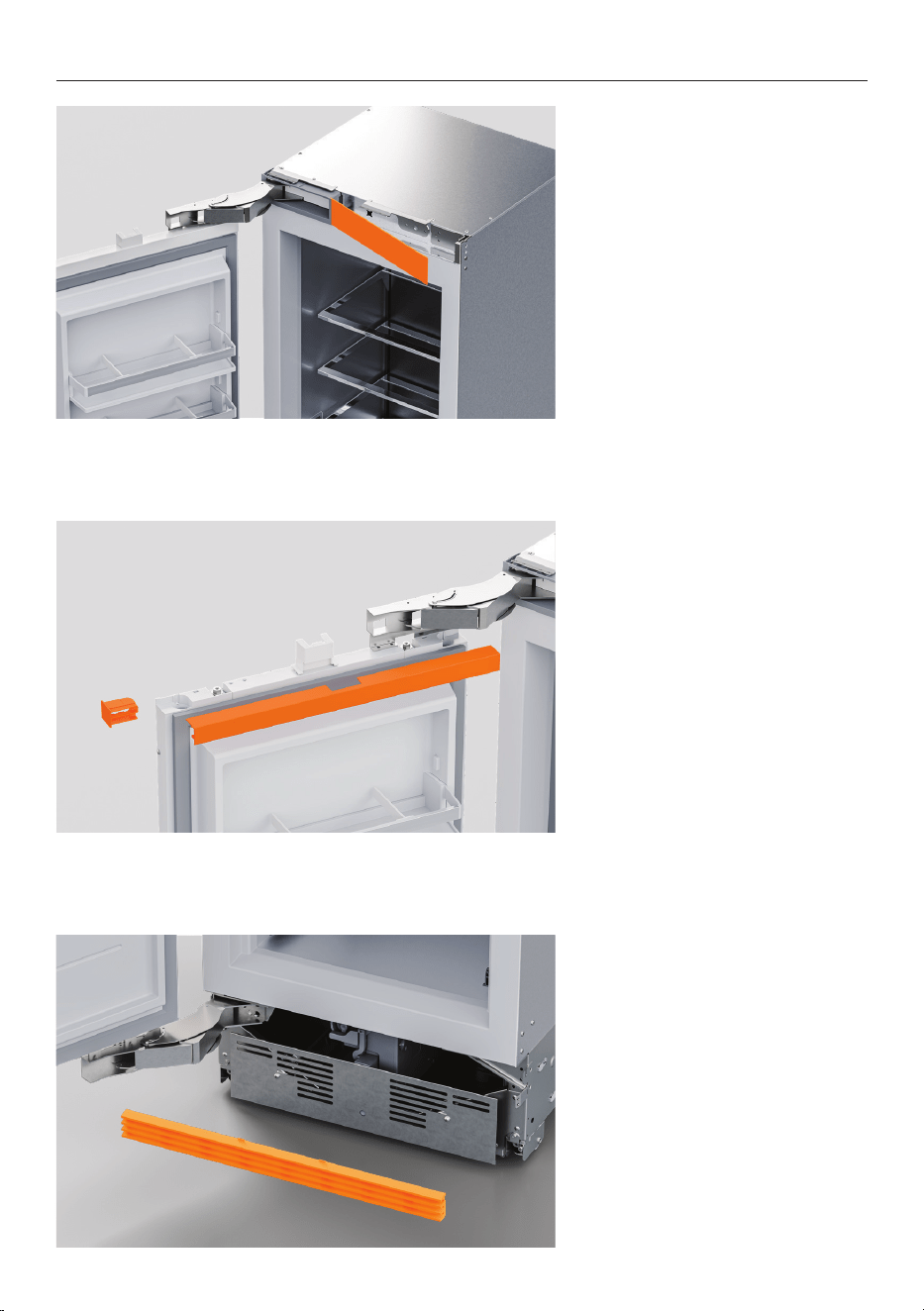

Top trim
Slide one end of the top trim
into the hinge pocket.
Press the other end to secure.
Hinge pocket cover
Slide the hinge pocket cover
inside the pocket. Press to
secure.
FIT TRIMS
47

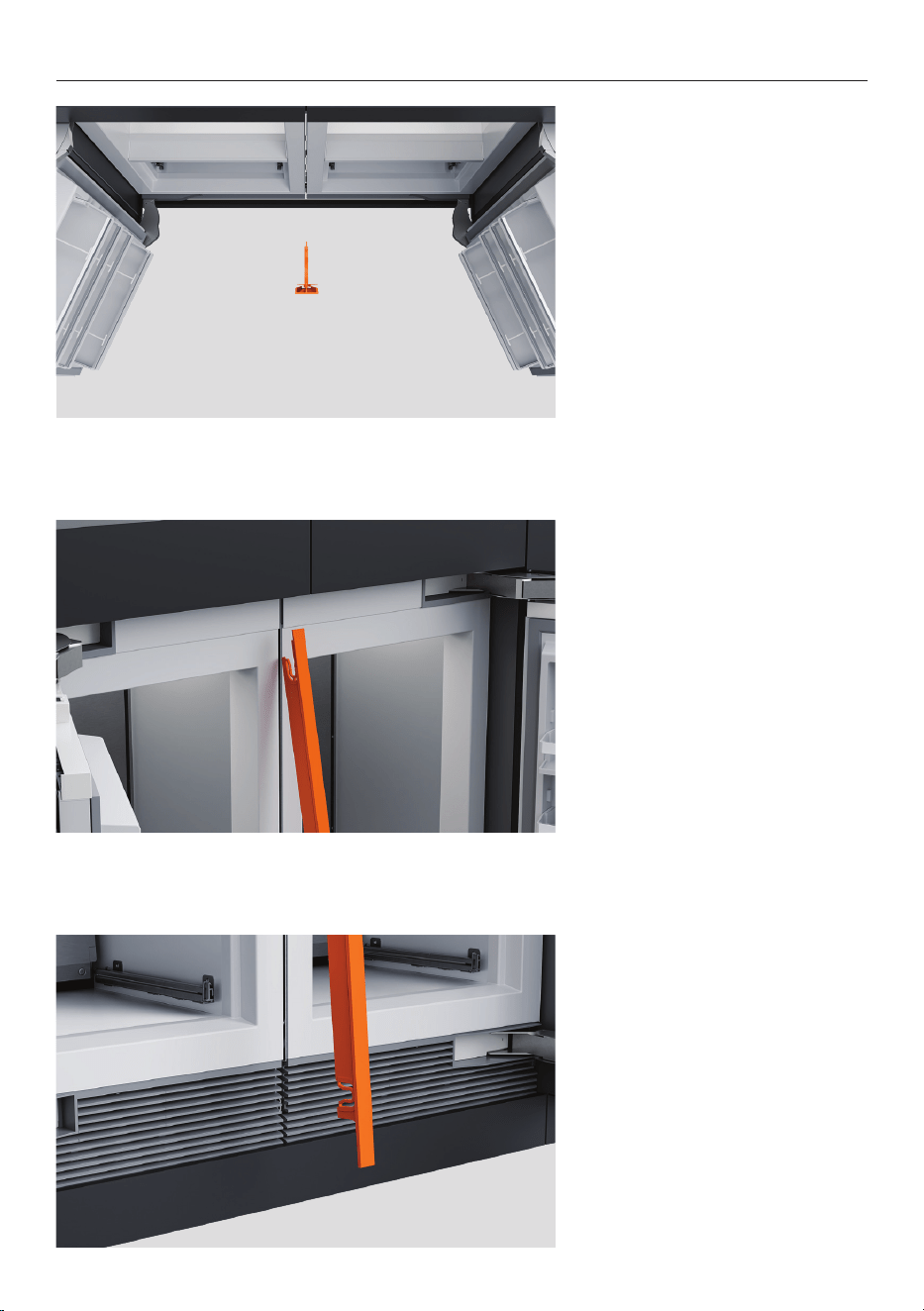

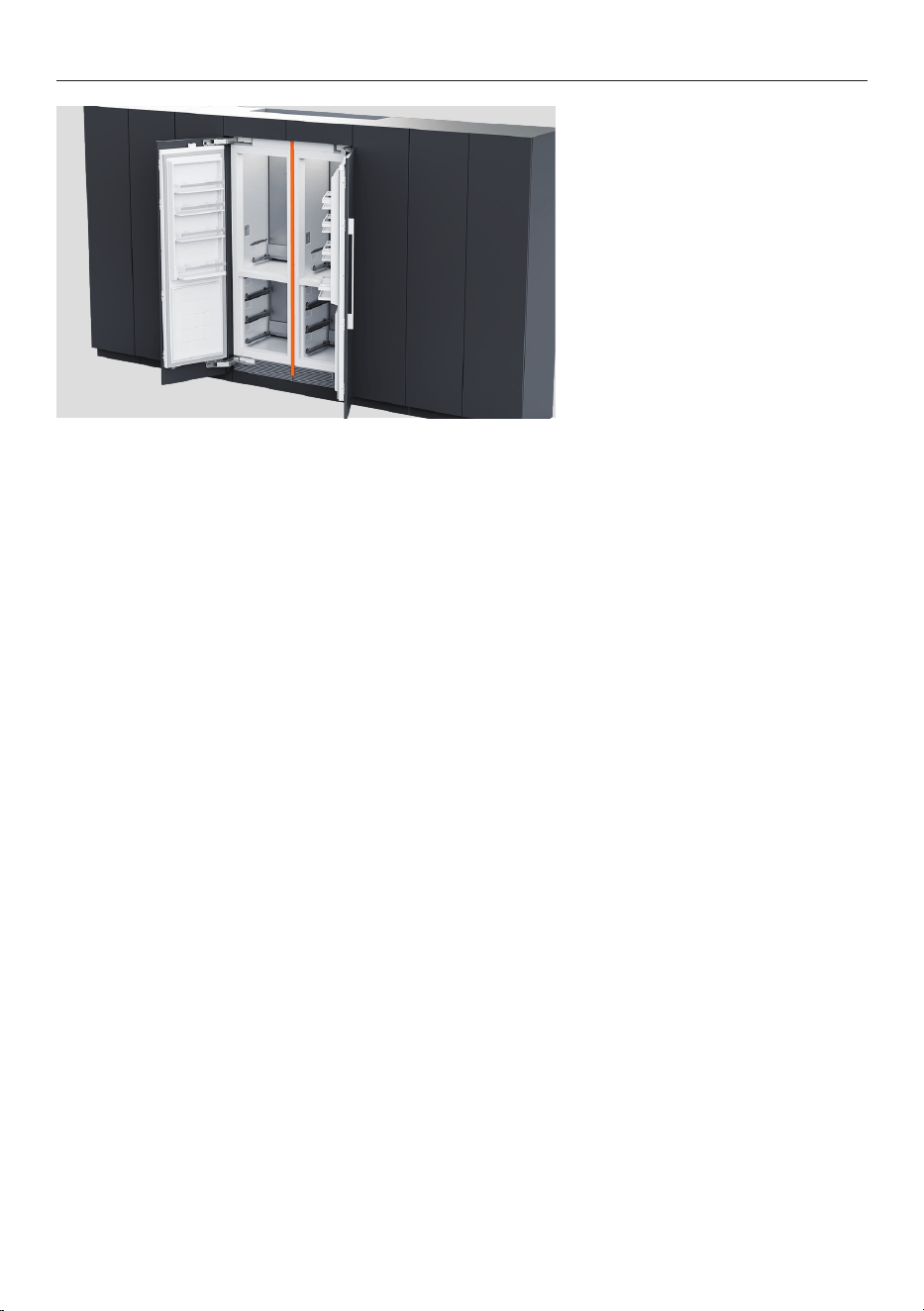

1. Position centre trim between
products.
2. Push trim up into the upper
bracket.
3. Push trim into the lower
bracket.
FIT TRIMS
48
4. Press the centre trim to fix
the position.
FIT TRIMS
50

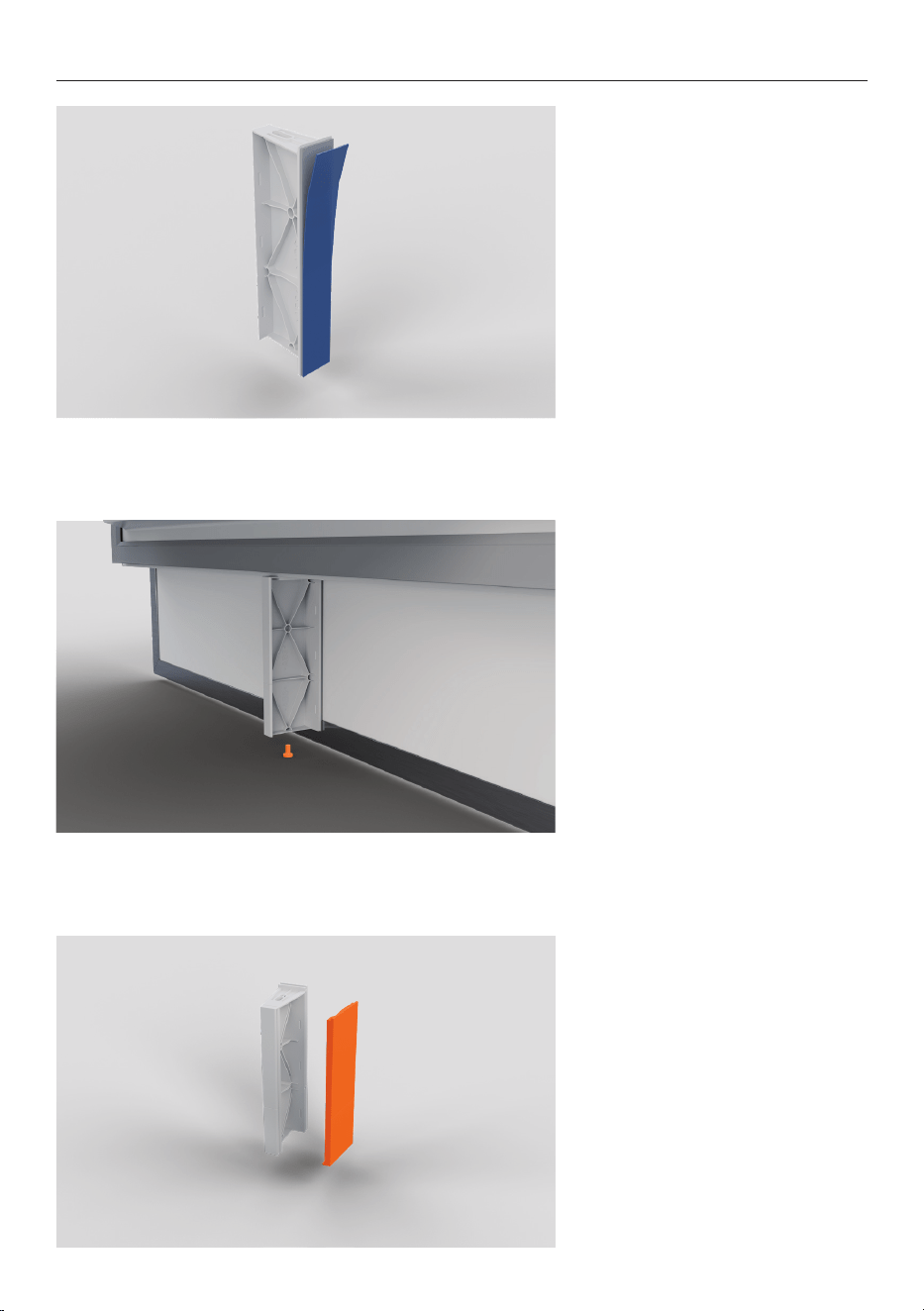

SECURE FLOW DIVIDER
1. Remove the adhesive layer
off the flow divider.
2. Press the flow divider firmly
against the bottom of the
panel. Secure flow divider to
the panel using a screw.
3. Slot flow divider cap into
place.
51
EXIT INSTALLER MODE
1. Press and hold to exit
Install Mode.
52
HINGE SWAP (OPTIONAL)
1. Release the hinge spring by
turning the T20 screw in the
hinge to the ‘0’ position.
Close the door and lay the
appliance on its back on the
pallet.
We recommend removing shelves prior to removing the door. Take care when removing the
door.
2. Detach the door from the
appliance by unscrewing the
door hinge M6x10 hex screws
(4x) at the top hinge and
bottom/middle hinge.

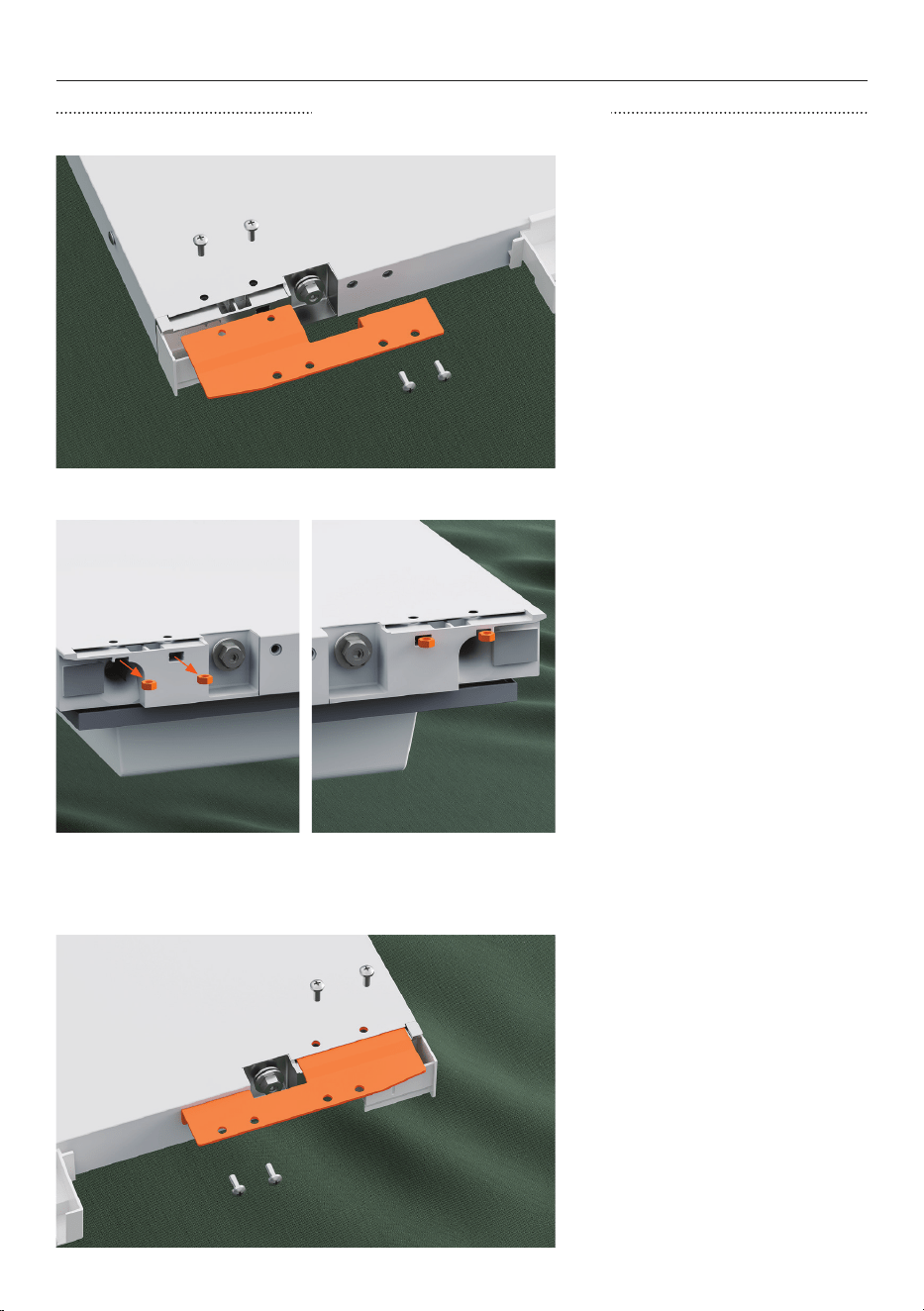

REMOVE DOOR
53
HINGE SWAP (OPTIONAL)

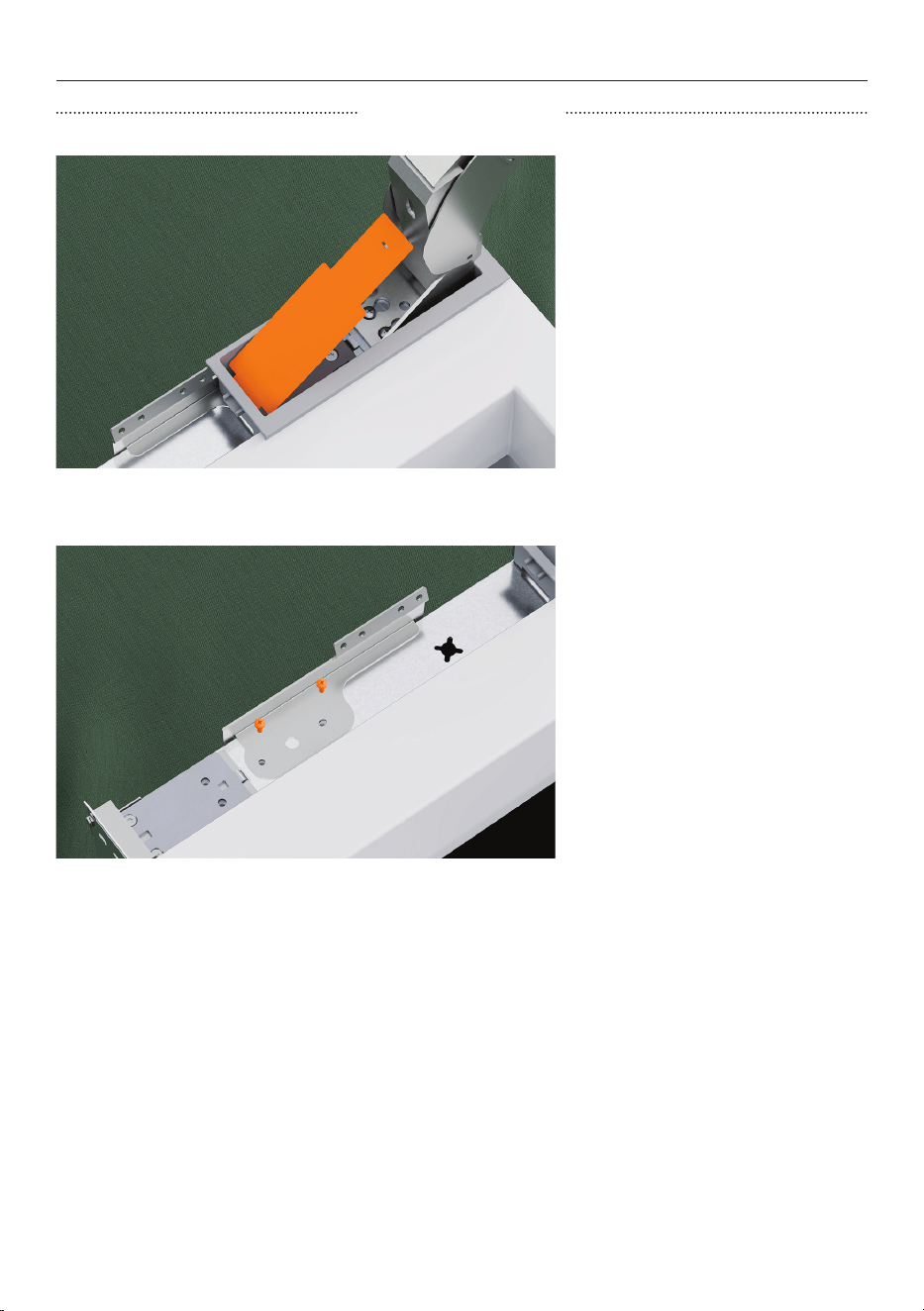

1. Open the upper hinge fully
and remove the hinge pocket
cover using the flat head
screwdriver.
REMOVE UPPER HINGE
2. Unscrew M6x16 countersunk
screws to remove upper hinge
and set aside.
3. Unscrew M6x16 countersunk
screws from hinge pocket
to remove hinge pocket and
upper alcove bracket.
54
HINGE SWAP (OPTIONAL)
4. Unscrew M5x12 countersunk
screws to remove upper hinge
bracket and spacer.
5. For the non-hinge side,
remove the alcove bracket
by unscrewing the M6x16
countersunk screws.
REMOVE UPPER HINGE
55
1. Refrigerator, Freezer and
wine cabinet models:
Open the lower hinge fully and
remove the hinge pocket cover
using the flat head screwdriver.
HINGE SWAP (OPTIONAL)
REMOVE LOWER HINGE
2. Refrigerator, Freezer and
wine cabinet models:
Open the water filter hatch on
the bottom grille and unscrew
the #8x16 screw while holding
the grille in place.
3. Refrigerator, Freezer and
wine cabinet models:
Remove the hinge by
unscrewing the M6x16
countersunk screws (2x).
56
4. Refrigerator, Freezer and
wine cabinet models:
Remove the lower grille by
unscrewing the #8x16 screws
from the bottom left and right
of the grille.
5. Refrigerator, Freezer and
wine cabinet models:
Remove bottom hinge
bracket by unscrewing M6x16
countersunk screws.
Do not remove plinth-to-
cabinet retention brackets.
HINGE SWAP (OPTIONAL)
REMOVE LOWER HINGE
57
1. Refrigerator-Freezer models:
Open the centre hinge
fully and remove the hinge
cover. Unscrew the M6x16
countersunk screws to remove.
2. Refrigerator-Freezer
models:
Unscrew M5x12 countersunk
screws to remove top hinge
bracket and spacer.
HINGE SWAP (OPTIONAL)
REMOVE CENTRE HINGE
58
HINGE SWAP (OPTIONAL)
MOVE SENSOR HOUSING (18" AND 24" MODELS ONLY)
1. Unclip the hall sensor from
the housing.
2. Unhook the interceptor
board harness from the
housing.
3. Remove the two #8x16
screws from the sensor
housing.
59
HINGE SWAP (OPTIONAL)
MOVE SENSOR HOUSING
4. Move the sensor housing to
align the opposite hall sensor
clip with the centre of the
cabinet
5. Reinstall the sensor housing
using two #8x16 screws into
the pre-drilled holes in the
cabinet top panel.
6. Clip the hall sensor into the
sensor housing in the pocket
closest to the centreline of the
cabinet before pressing the
interceptor board harness into
the forks.
60
HINGE SWAP (OPTIONAL)
REFIT UPPER HINGE
1. Reinstall the upper hinge
bracket and bracket spacer
with M5x12 countersunk screws
onthe new hinge side.
2. Install the new hinge pocket
and alcove top bracket on
the new hinge side using two
M6x16 countersunk screws.
The new hinge pocket and top
alcove bracket are supplied
with the hinge kit.
3. Secure the hinge in the
pocket using two M6x16
countersunk screws.
61
HINGE SWAP (OPTIONAL)
REFIT UPPER HINGE
4. Open the hinge and clip the
upper hinge pocket cover into
place.
5. For the non-hinge side, fit
a new alcove bracket using
M6x16 countersunk screws.
62
HINGE SWAP (OPTIONAL)
REFIT LOWER HINGE
1. Fit a new lower hinge bracket
on the new hinge side using
two M6x16 screws
Ensure the tab on the top of
the bracket inserts into the slot
in the plinth front bracket.
2. Insert the removed top hinge
into the lower bracket tabs.
Rotate it into place and secure
with two M5x12 countersunk
screws.
3. Open the hinge, and install
the new top grille assembly.
63
HINGE SWAP (OPTIONAL)
REFIT LOWER HINGE
4. Secure with three #8x16
screws: one at the bottom left,
one at the bottom right of the
grille, and one behind the water
filter hatch.
5. Clip the bottom hinge pocket
cover into place.
64
HINGE SWAP (OPTIONAL)
REFIT CENTRE HINGE
1. Reinstall the centre hinge
bracket and spacer using M5x12
countersunk screws.
2. Open the centre hinge and
reinstall using two M6x16
countersunk screws.
65
HINGE SWAP (OPTIONAL)
SWAP UPPER DOOR BRACKET
1. Unscrew the four M5x10
screws to remove the upper
adapter bracket from the top of
the door.
2. Move the two nuts to the
other side of thetop of the
door.
3. Install the new upper adapter
bracket into the other side of
thetop of the door with four
M5x10 screws.
66
HINGE SWAP (OPTIONAL)
SWAP LOWER DOOR BRACKET
1. Unscrew the M6x25 screw to
remove the door panel locking
bracket and washer from the
bottom of the door.
2. Remove two M6x25 screws
and one M5x30 screw to
remove the lower adapter
bracket and spacer.
3. Install the new lower adapter
bracket and existing spacer on
the other side using the same
screws.
Reinstall the door panel locking
bracket and washer on the
other side with one M6x25
screw.
67
HINGE SWAP (OPTIONAL)
REINSTALL DOOR
1. Secure the door to the top
hinge and bottom/middle hinge
with four M6x10 hex screws.
2. Activate the hinge spring by
turning the T20 screws to the I
position.
3. Reinstall all covers and trims
68
Complete and keep for safe reference:
Model
Serial no.
Purchase date
Purchaser
Dealer address
Installer’s name
Installer’s signature
Installation company
Installation date
INSTALLER CHECKLIST
432136A 11.24
FISHERPAYKEL.COM
© Fisher & Paykel Appliances 2024. All rights reserved.
The models shown in this guide may not be available in all markets
and are subject to change at any time.
The product specifications in this guide apply to the specific products and
models described at the date of issue. Under our policy of continuous product
improvement, these specifications may change at any time.
For current details about model and specification availability in your country,
please go to our website or contact your local Fisher&Paykel dealer.
