DESCRIPTION OF THE APPLIANCE

(see diagram pag. 3)

a. Basket handle

B. handle slide

c. lid

d. Viewing window

e. filter cover

f. Basket

g. filter cover hook

h. cable holder compartment

i. handle for lifting up the appliance

J. foot

k. Minute timer (some models only)

l. Minute timer button (some models only)

M. signal lamp

N. thermostat

O. Opening button

p. removable pan

q. pan lifting handles

RECOMMENDATIONS

• Beforeusecheckthatthevoltagepowersupplycorresponds

to the one shown on the appliance data plate.

• Onlyconnecttheappliancetoelectricalsocketswhichhavea

minimum load of 10a and which are properly earthed. (if the

socket and the plug on the appliance should prove incompa-

tible, get a professionally qualied technician to replace the

socket with a more suitable one).

• Donotplacetheappliancenearheatsources.

• Ifthesupplycordisdamaged,itmustbereplacedbythema-

nufacturer, its service agent in order to avoid a hazard.

• Theapplianceishotwhenitisinuse.DONOTLEAVEITWITHIN

the reach Of childreN.

• Donotmovethedeepfryerwhentheoilishot,asthereit

could cause serious burns.

• Thedeepfryermustonlybeswitchedonafterithasbeenl-

led with oil or fat. if it is heated up while empty, a thermal sa-

fety device comes into operation which stops it from working.

in this case it is necessary to contact our nearest authorised

service centre.

• Ifthedeepfryerleaksoil,contactthetechnicalservicecentre

or sta authorised by the company.

• Thebasketclipsautomaticallyintothecentralpininthepan

boiler. therefore, to avoid breaking it, do not turn it manually

in order to seek the correct position.

• Beforeusingthedeepfryerforthersttime,washthepan,

the basket and the lid (removing the lter) carefully with hot

waterandwashingupliquid.Whenthishasbeendone,dry

carefully. after washing, dry thoroughly. remove any water

left in the bottom of the container. this avoids dangerous

spurts of hot oil during use.

• Theapplianceisnotintendedforusebypersons(including

children) with reduced physical, sensory or mental capabili-

ties, or lack of experience and knowledge, unless they have

been given supervision or instruction concerning use of the

appliance by a person responsible for their safety. children

should be supervised to ensure that they do not play with the

appliance.

• Nevermovetheappliancewhiletheoilisstillhot.

• To move the appliance, use the special lifting handles (I).

(Never lift by the basket handle). check that the oil is cool

enough (waiting about 2 hours).

• Itistotallynormalthat,onrstuse,therefrigeratoremitsa

“new appliance” smell. if this happens, aerate the room.

• Neverleavethepowercablehangingfromtheedgeofthe

surface the deep fryer is resting on, where it could be grasped

by a child or get in the way of the user.

• Whenopeningthelid,takegreatcaretoavoidhotsteamand

splashes of boiling oil.

• Neverusehomemadeorveryacidoils.

• Applianceisnotintendedtobeoperatedbymeansofanex-

ternal timer or separate remote-control system.

• ThisapplianceconformstoECdirective2004/108/EConElec-

tromagnetic compatibility and ec regulation no. 1935/2004

of 27/10/2004 on materials intended for contact with food.

• Thisisahouseholdapplianceonly.Itisnotintendedforuse:

in sta kitchen areas in shops, oce and other working envi-

ronments, farm houses, by clients in hotels, motels and other

residential type environments, bed and Breakfast type envi-

ronments.

Important information for correct disposal of the

product in accordance with EC Directive 2002/96/EC.

at the end of its working life, the product must not be disposed

of as urban waste. it must be taken to a special local authority

dierentiated waste collection centre or to a dealer providing

this service. disposing of a household appliance separately avoids

possible negative consequences for the environment and health

deriving from inappropriate disposal and enables the constituent

materials to be recovered to obtain signicant savings in energy

and resources.as a reminder of the need to dispose of household

appliances separately, the product is marked with a crossed-out

wheeled dustbin.

INSTRUCTIONS FOR USE

Filling with oil or fat

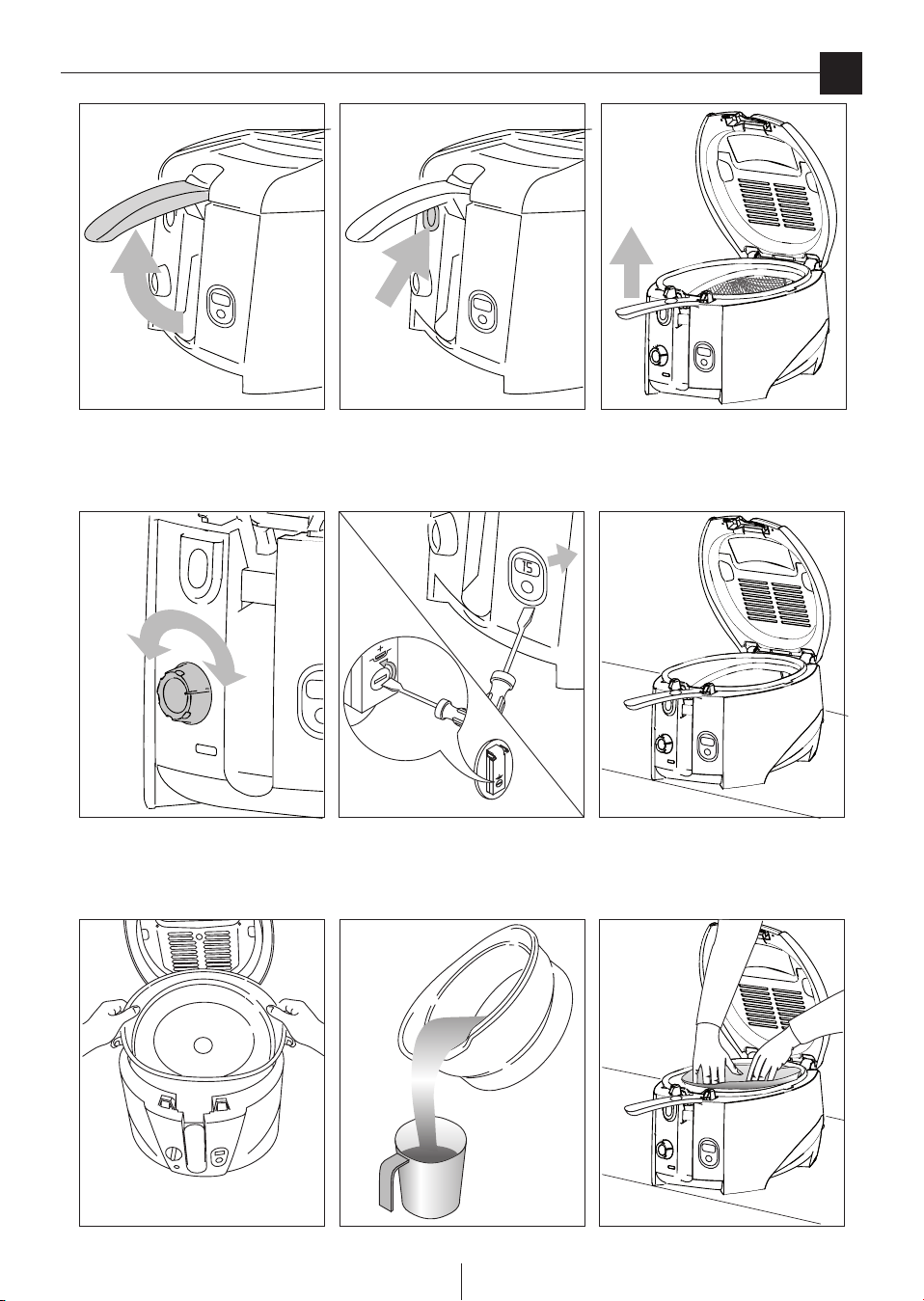

• Raise thebasket (F)to the highestposition bypulling the

special “a” handle upwards (g.1).

 ThelidshouldALWAYSbeclosedwhenthebasketisraised

and lowered.

• Openlid“C”bypressingbutton“O”(g.2).

• Removethebasketbypullingitupwards(g.3).

• Pourintothecontainer1.2litresofoil(or1kg.offat).

WARNING:Thelevelmustalwaysbebetweenthemaximumand

minimum levels indicated.

Never use the deep fryer when the oil is below the “min” level as it

could cause the thermal safety device to come into operation; to

replace it you need to contact one of our service centres.

Best results are obtained by using a good peanut oil. avoid mixing

dierent types of oil. if you use lumps of solid fat, cut them into

small pieces so that the deep fryer does not heat up in the rst few

minutes without a covering of fat. the temperature must be set to

150°c until the fat has melted completely. the required tempera-

ture can then be set.

STARTING TO FRY

1. put the food which is to be fried into the basket, without ever

overlling it (max. 1 kg. of fresh potatoes).

in order to obtain a more even frying, we recommend con-

centrating the food especially around the perimeter of the

basket., leaving the central part more sparingly lled.

2. put the basket into the boiler pan in a raised position (g.3)

and close the lid by pressing lightly down upon it until the

hooks click. always close the lid before lowering the basket in

order to avoid hot oil from splashing out.

3. plug into the mains socket and set thermostat knob “N” to the

requiredtemperature(g.4).Whenthetemperaturesethas

been reached, signal lamp “M” will go o.

4. as soon as the signal lamp goes o, immerse the basket in the

oil, lowering the handle slowly after sliding the handle’s “B”

slider back.

• Itiscompletelynormalforaconsiderableamountofveryhot

steam to pour out of lter cover “e” immediately after this.

• Atthestartofcooking,immediatelyafterthefoodhasbeen

immersed in the oil, the internal wall of viewing window “d”

will steam up, before progressively clearing.

• Itisnormalfordropsofcondensationtoformaroundtheba-

sket handle while the appliance is working.

MODELS WITH ELECTRONIC MINUTE TIMER

1 set the cooking time by pressing the “l” button. the display

“k” will show the minutes set.

2 the numbers will straight away begin to ash. this shows

that the cooking time has begun. the last minute is displayed

in seconds.

3 if an error is made, the new cooking time can be set by hol-

ding the button down for more than 2 seconds. the display

will reset and the process can then be repeated from point 1.

4 the minute timer will indicate the end of the cooking time

with two series of beeps about 20 seconds apart. to turn the

acoustic signal o, press the minute timer button “l”.

IMPORTANT:theminutetimerdoesnotturntheapplianceo.

Replacing the minute timer battery (g. 5)

• Removetheminutetimerfromitshousingbyprisingitfrom

the lower side (see g. 5a).

• Turnthebatterycoveronthebackofthebatteryanticlockwi-

se (g. 5B) until it comes free.

• Replacethebatterywithanotherofthesametype(L1131).

Whenreplacingordisposing oftheappliance,the batterymust

be removed and disposed of according to current legislation as it

represents a hazard to the environment.

AFTER FRYING

Whenthecookingtimerunsoutraisethebasketandcheckifthe

food has reached the required golden colour. in the models tted

with a viewing window this check can be carried out by looking

through the window without opening the lid.

if cooking is complete, turn o the appliance by turning the ther-

mostat knob to the “O” position until the internal switch clicks.

drain excess oil by leaving the basket inside the deep fryer for a

while in the high position.

FILTERING THE OIL OR FAT

Werecommendthatyoucarryoutthisprocedureeachtimeyou

have nished frying as, especially when the food has been breaded

or oured, the food particles tend to burn if they remain in the li-

quid thus causing much quicker deterioration in the oil or fat.

check that the oil is cool enough (waiting about 2 hours).

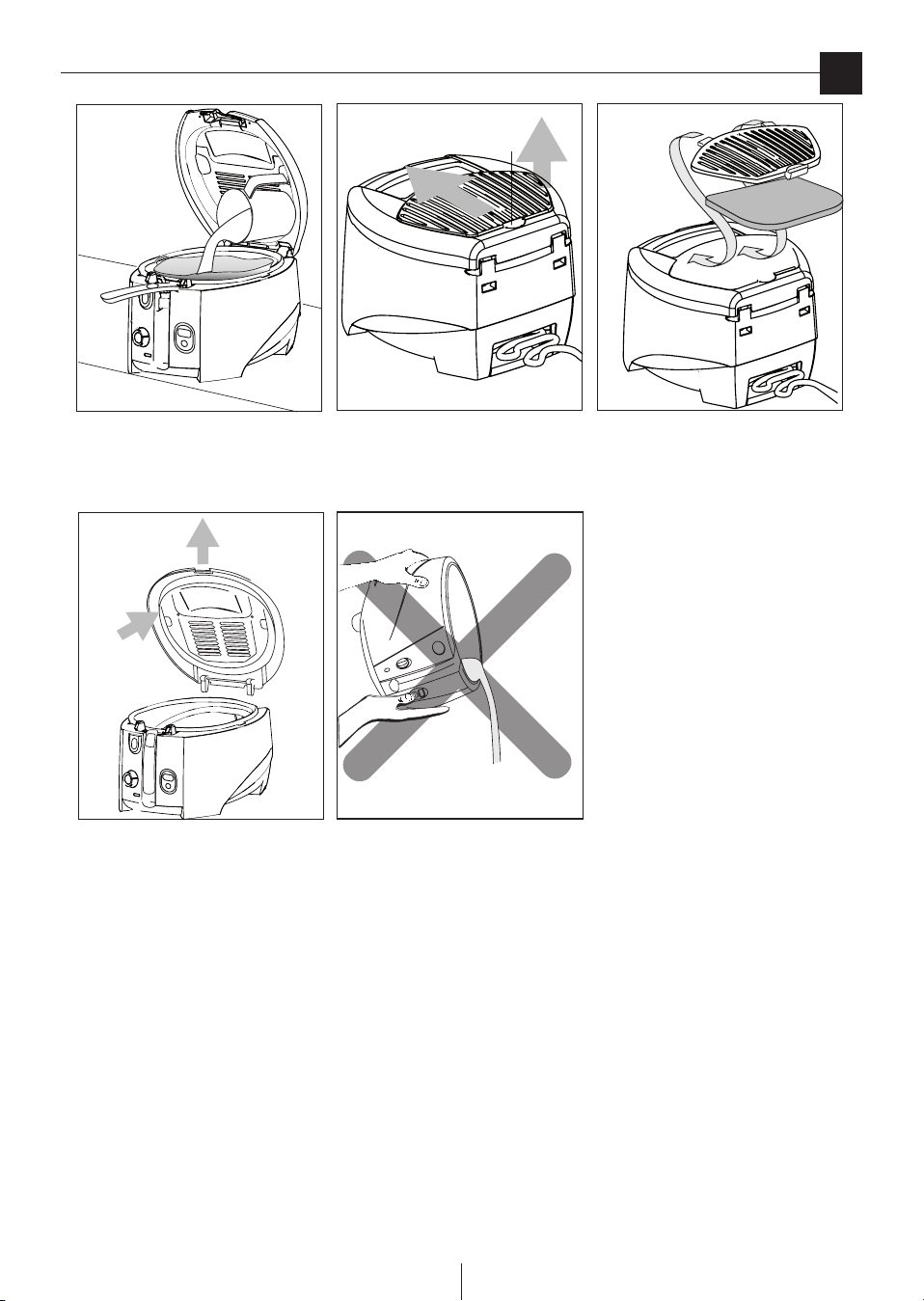

1. remove the lid (g. 6) and the removable pan “p”, holding it

bythehandle“Q”(g.7).Emptythepan(g.8).

2. remove any residues from the pan using a sponge or ab-

sorbent paper. put the removable pan “p” back into the pan

housing.

3. place the basket in the high position and put the lter in the

bottom (g. 9). filters can be obtained from your dealer or an

authorised service centre.

4. pour the oil or fat into the deep fryer very slowly to avoid the

lter overowing (g. 10).

IMPORTANT:Oncetheoilhasbeenltered,itcanbekeptinside

the deep fryer. however, if the deep fryer is not to be used again

for some time, you are recommended to keep the oil in a closed

container to avoid it deteriorating. it is good practice to keep oil

used to fry sh separately from oil used to fry other foods

Whenusingfat,donotallowittocoolexcessivelyoritwillsoli-

dify.

MAINTENANCE OF THE ANTI-ODOUR FILTER

Removablelter:overtime,theanti-odourlterinsidethelidlo-

ses its eciency. you are therefore recommended to replace it after

every 10/15 frying sessions. to replace, remove the plastic lter

grille (g. 11/12).

CLEANING

Before cleaning, always remove the plug from the electrical so-

cket.

Never immerse the deep fryer in water or hold it under the tap. By

getting inside the water would cause short circuiting.

check that the oil is suciently cold (wait about 2 hours), then

empty out the oil or fat as previously described in the paragraph

headed “ltering the oil or fat”.

remove the lid as shown in g. 13.

Thelidisremovable,totakeito,proceedasfollows:pushthe

lid back (see arrow “1” g. 13) and at the same time, lift it up (see

arrow “2” g. 13).

always remove the lter before immersing the lid in water.

Tocleantheremovablepan“P”,proceedasfollows:

• Removeitfromthepanhousingandwashwithhotwater

and washing up liquid or in a dish washer, use a soft cloth

with a neutral detergent, never use objects or abrasive deter-

gents.

• Rinseanddrythoroughly.Ifwashedinadishwasher,make

sure it is positioned in such a way as to avoid scratching the

non-stick coating.

Never empty the deep fryer by tipping it or turning it upside down

(g. 14).

• Youarerecommendedtocleanthebasketregularly,taking

care to remove any residues which may have built up on the

wheel guide ring.

• Afterremovingtheremovablepan“P”,drytheinsideofthe

pan housing and the outside of the deep fryer with a soft

damp cloth to eliminate any splashes or drips of oil or con-

densation.

• Cleananddrythesealtoavoiditstickingtothepanwhilethe

appliance is not in use. if it does become stuck, to open the

lid, just raise it with the hand while at the same time holding

down the open button.

COOKING HINTS

HOW LONG THE OIL OR FAT LASTS

the oil or fat must never go below the minimum level. from time

to time it is necessary to renew it completely. the length of time

the oil or fat lasts depends on what is fried.

Breading, for example, dirties the oil more than simple frying.

as for all types of deep fryer, the oil deteriorates if it is reheated

several times! therefore, even if it is used and ltered correctly, we

recommend replacing it completely fairly often.

since the deep fryer works with little oil, due to its rotating basket,

there is the considerable advantage that you only have to get rid of

about half the amount of oil that you would with the other deep

fryers on the market.

HOW TO FRY CORRECTLY

• Itisimportanttofollowtherecommendedtemperaturefor

every recipe. if the temperature is too low, the fried food ab-

sorbs oil. if the temperature is too high a crust quickly forms

on the outside while the inside remains uncooked.

• Thefoodwhichistobefriedmustonlybeimmersedwhen

the oil has reached the right temperature, i.e. when the signal

lamp goes o.

• Donotoverllthebasket.Thiswouldcausethetemperature

of the oil to drop suddenly, resulting in fried food which is too

greasy and not uniformly fried.

• Whenfryingsmallquantitiesoffood,thetemperatureofthe

oil must be set lower than the temperature indicated to avoid

the oil boiling too violently.

• Checkthatthefoodisthinlyslicedandofeventhickness,as

food which is too thick cooks badly on the inside, despite lo-

oking nice, while food of an even thickness reaches the ideal

cooking point all at the same time.

• Drythefoodcompletelybeforeimmersingitintheoilorfat,

as wet food becomes soggy after cooking (especially potato-

es). it is advisable to bread or our food which has a high wa-

ter content (sh, meat, vegetables), being careful to remove

the excess bread or our before immersing it in the oil.

Food Max. quantity gr Temperature °C Time (minutes)

chips

recommended quantity for excellent frying

MaX quantity (safety limit)

500

1000

190

7-8

14-16

fish

squid

canestrelli

scampi tails

sardines

cuttlesh

sole (n. 3)

500

600

500-600

500

500-600

160

170

160

9-10

7-10

8-10

6-7

Meat

Beef steak (n. 2)

chicken steak (n. 3)

 Meatballs(n.8-10)

250

300

400

170

160

5-6

6-7

7-9

VegetaBles

artichokes

cauliower

Mushrooms

aubergines

courgettes

250

400

300

200

150

160

150

170

10-12

8-9

9-10

11-12

8-10

FRYING NON-FROZEN FOOD

Bear in mind that the cooking times and temperatures are approxi-

mate and must regulated according to the ammount of food which

is to be fried and to personale taste.

Fault Cause Remedy

Bad smell the odour-eater lter is saturated.

the oil has deteriorated.

the cooking liquid is unsuitable.

replace the lter.

replace the oil or fat.

use a good peanut oil.

the oil overows the oil has deteriorated and causes too much

foam.

you have immersed food which is not suciently

dry in the hot oil.

the basket has been immersed too quickly.

the oil

level in the deep fryer is over the maximum limit.

replace the oil or fat.

dry the food well.

immerse it slowly.

reduce the amount of oil in the boiler

pan.

the oil does not heat up the deep fryer has previously been used without

oil in the boiler pan, causing the thermal safety

device to break.

contact the service centre (the device

must be replaced).

Only half of the basket has fried

properly

the basket does not rotate during cooking. clean the bottom of the boiler pan.

clean the basket wheel guide ring.

Food Max. quantity gr Temperature °C Time (minutes)

chips

recommended quantity for excellent frying

MaX quantity (safety limit)

180(*)

1000

190

4-6

16-18

pOtatO sticks 500 190 7-8

fish

cod ngers

shrimps

300

190

4-6

Meat

chicken steak (n. 3) 200 180 6-8

WARNING:Beforeimmersingthebasket,checkthatthelidisrmly

closed.

(*)Thisistherecommendeddosetoachieveexcellentfrying.Itis

naturally possible to fry a larger amount of frozen chips, but you

should bear in mind that in this case they will end up being a little

greasier because of the sudden drop in the oil temperature at the

time of immersion.

OPERATING FAULTS

FRYING FROZEN FOOD

• Frozenfoodshaveverylowtemperatures.Asaresult

they inevitably cause a considerable drop in the tem-

perature of the oil or fat. to achieve a good result, we

advise you not to exceed the quantities recommended

in the following table.

• Frozenfoodsareoftencoveredinicecrystalswhichit

is necessary to remove before cooking by shaking the

basket. then immerse the basket very slowly into the

frying oil to avoid the oil reboiling.

the cooking times are approximate and must be varied ac-

cording to the initial temperature of the food which is to be

fried and according to the temperature recommended by

the frozen food producer.

Delonghi D28533 RotoFry deep fryer rotating basket

Product's Documents

User Manual

Specifications

Delonghi D28533 Questions and Answers
