USER GUIDE
Mid Bass Woofer
Sound Speaker System
www.PyleUSA.com2 www.PyleUSA.com 3
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THIS PRODUCT.
RETAIN THIS OWNER’S MANUAL FOR FUTURE REFERENCE.
About Pyle GEARX Series Woofer
Congratulations!
You have just purchased one of the most advanced Subwoofers in the history
of car audio. Pyle GEARX Series Woofer is the latest series, which has been
designed and engineered for consistent and high performance.
Let’s enjoy the nice music that Blue Wave Woofer provides.
Features:
• Yellow Injection-Molded Cone
• Non-fatiguing Big Rubber Suspension
• Bumped & Vented Extended Pole Piece
• Silver Plated Terminal
• Flat Progressive Spider
• Plastic Magnet Boot
Pyle Blue Wave Series Woofer
continually strives to improve
the performance and value of its
products. All specications are
subject to change.
PLG54
PLG64
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
Register Product
Thank you for choosing PyleUSA. By registering your
product, you ensure that you receive the full benets of
our exclusive warranty and personalized customer
support. Complete the form to access expert support and
to keep your PyleUSA purchase in perfect condition.
PyleUSA.com/register
Specication
PLG54
Power (Watts Peak)
Nom. Impedance (Ohm)
Voice Coil 1.0” KSV
4
200
30 OZ
80
6.50
0.9
1.0
81
2.0
PLG64
1.0” KSV
4
300
30 OZ
70
6.02
0.8
0.9
82
2.20
Magnet Structure
Fs (Hz)
Qms
Qes
Qts
SPL (dB)
Vas (L)
Overall
Diameter
5.15”
Mounting
Diameter
4.56”
Mounting
Depth
2.55”
Overall
Depth
2.79”
Overall
Diameter
6.29”
Mounting
Diameter
5.78”
Mounting
Depth
2.59”
Overall
Depth
3.07”
www.PyleUSA.com4 www.PyleUSA.com 5

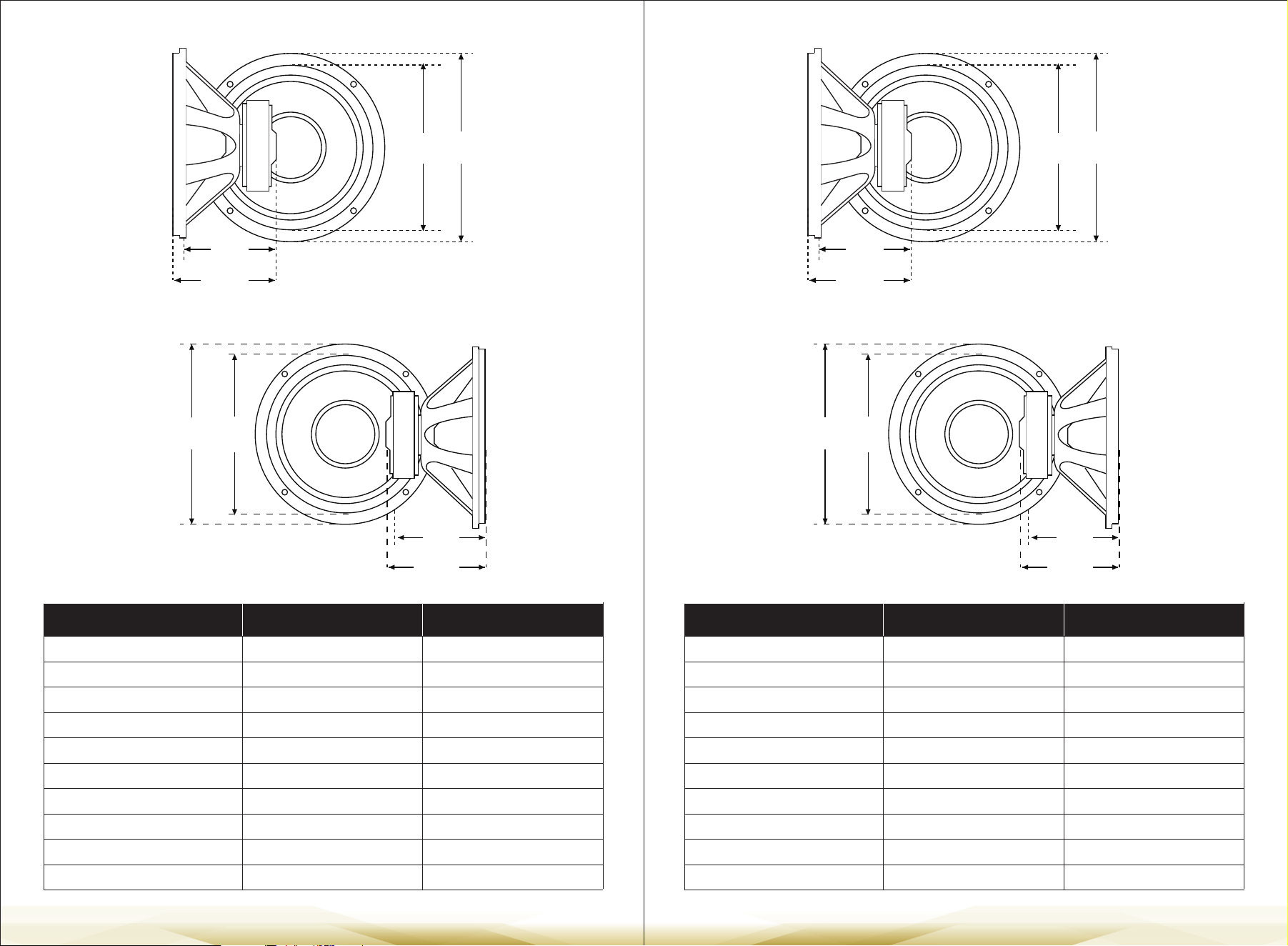

PLG84
PLG104
PLG124
PLG154
Specication
PLG124
Power (Watts Peak)
Nom. Impedance (Ohm)
Voice Coil 2.0” KSV
4
800
60 OZ
40
5.0
0.90
0.75
84
5.204
PLG154
2.5” KSV
4
1000
80 OZ
30
5.0
0.91
0.70
86
5.100
Magnet Structure
Fs (Hz)
Qms
Qes
Qts
SPL (dB)
Vas (L)
Specication
PLG84
Power (Watts Peak)
Nom. Impedance (Ohm)
Voice Coil 1.5” KSV
4
400
50 OZ
60
5.23
0.89
0.76
83.5
2.50
PLG104
2.0” KSV
4
600
60 OZ
50
4.92
0.84
0.72
85
4.908
Magnet Structure
Fs (Hz)
Qms
Qes
Qts
SPL (dB)
Vas (L)
Overall
Diameter
8.40”
Mounting
Diameter
7.12”
Mounting
Depth
3.60”
Overall
Depth
4.20”
Overall
Diameter
10.24”
Mounting
Diameter
9.08”
Mounting
Depth
4.20”
Overall
Depth
5.10”
Overall
Diameter
12.36”
Mounting
Diameter
11.0”
Mounting
Depth
5.04”
Overall
Depth
5.60”
Overall
Diameter
15.40”
Mounting
Diameter
13.88”
Mounting
Depth
6.12”
Overall
Depth
6.80”
www.PyleUSA.com6 www.PyleUSA.com 7

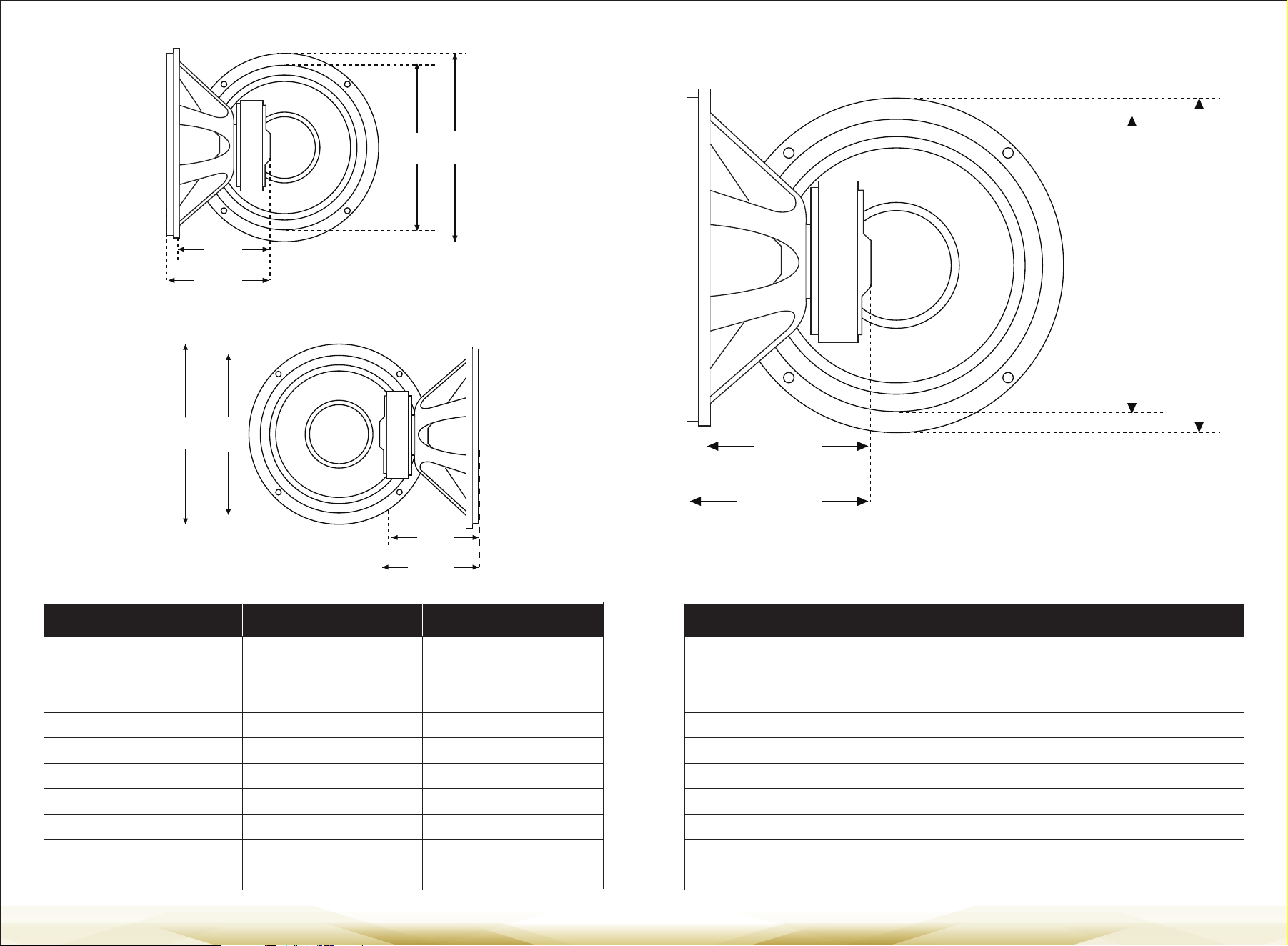

PLG10D
PLG12D
PLG15D
Specication
PLG15D
Power (Watts Peak)
Nom. Impedance (Ohm)
Voice Coil 2.5” KSV
4X4
1000
80 OZ
30
5.0
0.91
0.70
86
5.10
Magnet Structure
Fs (Hz)
Qms
Qes
Qts
SPL (dB)
Vas (L)
Specication
PLG10D
Power (Watts Peak)
Nom. Impedance (Ohm)
Voice Coil 2.0” KSV
4x4
600
60 OZ
50
4.92
0.84
0.72
85
4.908
PLG12D
2.0” KSV
4x4
800
60 OZ
40
5.0
0.90
0.75
84
5.204
Magnet Structure
Fs (Hz)
Qms
Qes
Qts
SPL (dB)
Vas (L)
Overall
Diameter
10.24”
Mounting
Diameter
9.08”
Mounting
Depth
4.20”
Overall
Depth
5.10”
Overall
Diameter
12.36”
Mounting
Diameter
11.0”
Mounting
Depth
5.04”
Overall
Depth
5.60”
Overall
Diameter
15.40”
Mounting
Diameter
13.88”
Mounting
Depth
6.12”
Overall
Depth
6.80”
