MINIMAL
OB60SMPTDG1, OB60SMPTNG1, OB60SMPTDB1, OB60SMPTNB1,
OB60SM16PLG1 & OB60SM16PLB1 models
CONTEMPORARY
OB60SDPTDX2, OB60SD16PLX1, OB60SD13PLX1, OB60SD11PLX1 &
OB60SD9PLX1 models
BUILT-IN OVEN
INSTALLATION GUIDE
NZ AU UK IE EU SG
2
SAFETY AND WARNINGS
!
WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electric shock or death.
• Before carrying out any work on the
electrical section of the appliance, it must
be disconnected from the mains electricity
supply.
• Connection to a good earth wiring system is
absolutely essential and mandatory.
• Alterations to the domestic wiring system
must only be made by a qualified electrician.
!
WARNING!
Fire Hazard
Failure to follow this advice may result in
overheating, burning, and injury.
• Do not use adapters, reducers, or branching
devices to connect this appliance to the
mains power supply.
!
WARNING!
Cut Hazard
Failure to use caution could result in injury.
• Take care: some edges are sharp.
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this installation guide may not be available in all markets and are subject to
change at any time. For current details about model and specification availability in your country,
please go to our website www.fisherpaykel.com or contact your local Fisher & Paykel dealer.
3
SAFETY AND WARNINGS
WARNING!
To avoid hazard, follow these instructions carefully before installing or using this
appliance.
• Please make this information available to the person installing the appliance—doing so
could reduce your installation costs.
• This appliance must be installed and connected to the mains power supply only by a
suitably qualified person according to these installation instructions and in compliance
with any applicable local building and electricity regulations. Failure to install the
appliance correctly could invalidate any warranty or liability claims.
• If the power supply cable is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified person in order to avoid a hazard.
• Isolating switch: make sure this oven is connected to a circuit which incorporates an
isolating switch providing full disconnection from the power supply in accordance with
the wiring rules.
• The oven must be earthed.
• Do not use adaptors, reducers or branching devices to connect the oven to the mains
electricity supply, as they can cause overheating and burning.
• The appliance must not be installed behind a decorative door in order to avoid
overheating.
• Please take extra care not to damage the lower trim of the oven during installation.
The trim is important for correct air circulation and allows the door to open and close
without obstruction. The manufacturer does not accept any responsibility for damage
resulting from incorrect installation.
4
PRIOR TO INSTALLATION
AFTER INSTALLATION
Ensure that:
• The countertop and oven cavity are square and level, and are the required dimensions.
• The installation will comply with all clearance requirements and applicable standards and
regulations.
• The isolating switch will be easily accessible to the customer with the oven installed.
• The electrician provides sufficient free length of power supply cable to reach from
the bottom rear of the cavity to at least 1.5 metres in front of the bottom edge of the
opening.
• The cable may enter the cavity from the side, top or bottom, but top entry must be at
the rear of the cavity.
• The oven connection socket (if fitted) is outside the cavity if the oven is flush to the rear
wall.
• The oven will rest on a surface that can support its weight.
• The height from the floor suits the customer.
• You consult local building authorities and by-laws if in doubt regarding installation.
IMPORTANT!
Some environmental factors and cooking habits can cause condensation in and around
the oven during use. To protect surrounding cabinetry from possible damage caused by
frequent or excessive condensation, we recommend moisture-proofing the oven cavity.
z
The oven door can open fully without obstruction.
z
The power supply cable does not touch any hot metal parts.
z
The isolating switch is easily accessible to the customer with the oven installed.
z
You complete the ‘Final checklist’ at the end of the installation.
z
If, after following the instructions given, correct performance cannot be achieved, please
contact your nearest Fisher & Paykel Authorised Service Centre, Customer Care, or
contact us through our local website listed at the end of this document.
5

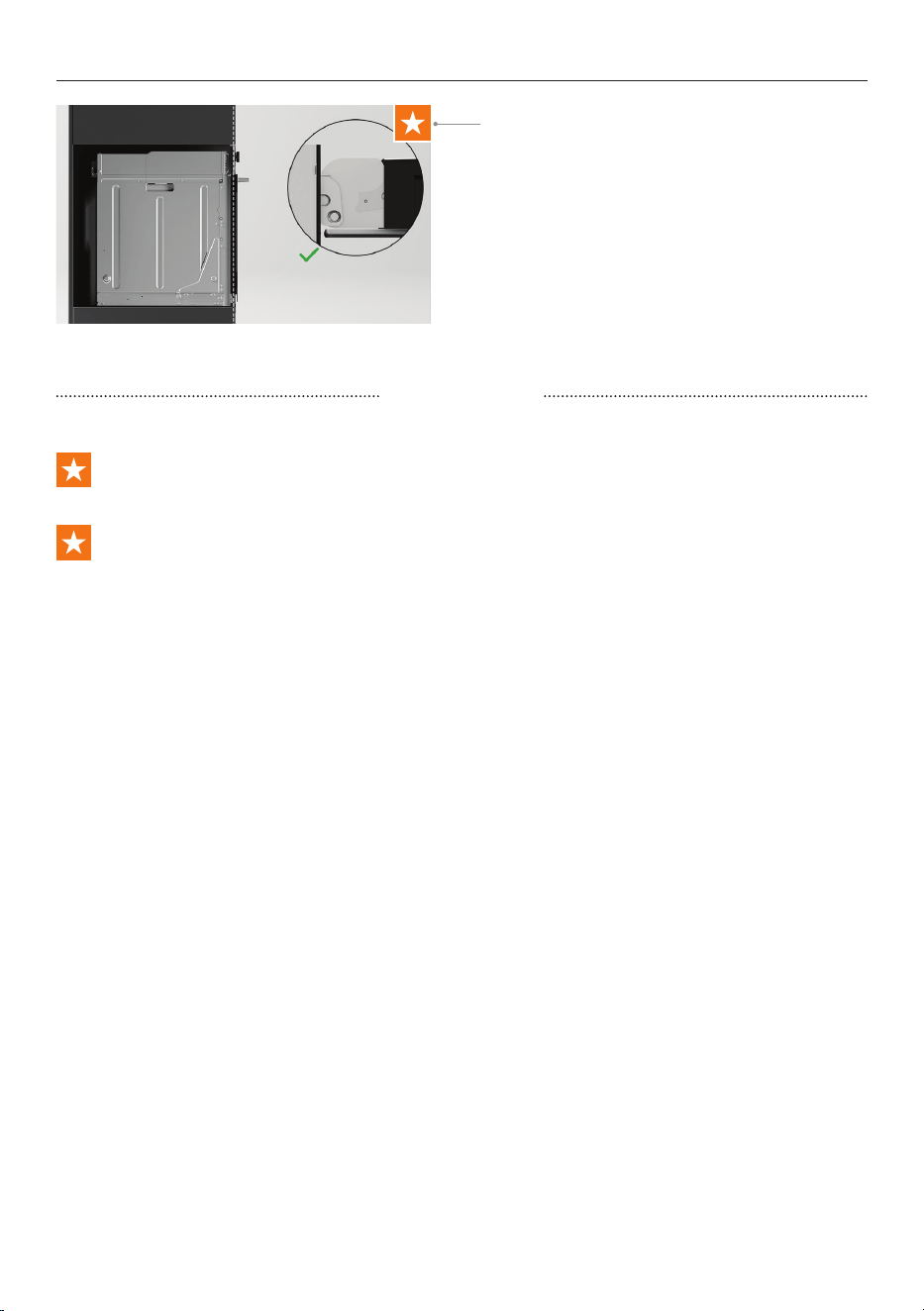

INSTALLATION MILESTONES
These milestones represent areas
throughout that are pivotal to an optimal
installation outcome. These steps require
additional installer attention and should be
quality checked once completed.
Ensure both hinges are fully locked before shutting the door.
Align oven with surrounding cabinetry and appliances.
Milestone indicator
MILESTONES
6
COMPONENTS REQUIRED
TOOLS
Supplied
F Powered driver
F Cross-head screwdriver
PARTS
All imagery shown in this guide is representative. Your product may differ.
Supplied
F Screws (2)
F Metal side shelves fixing nut (2)
7

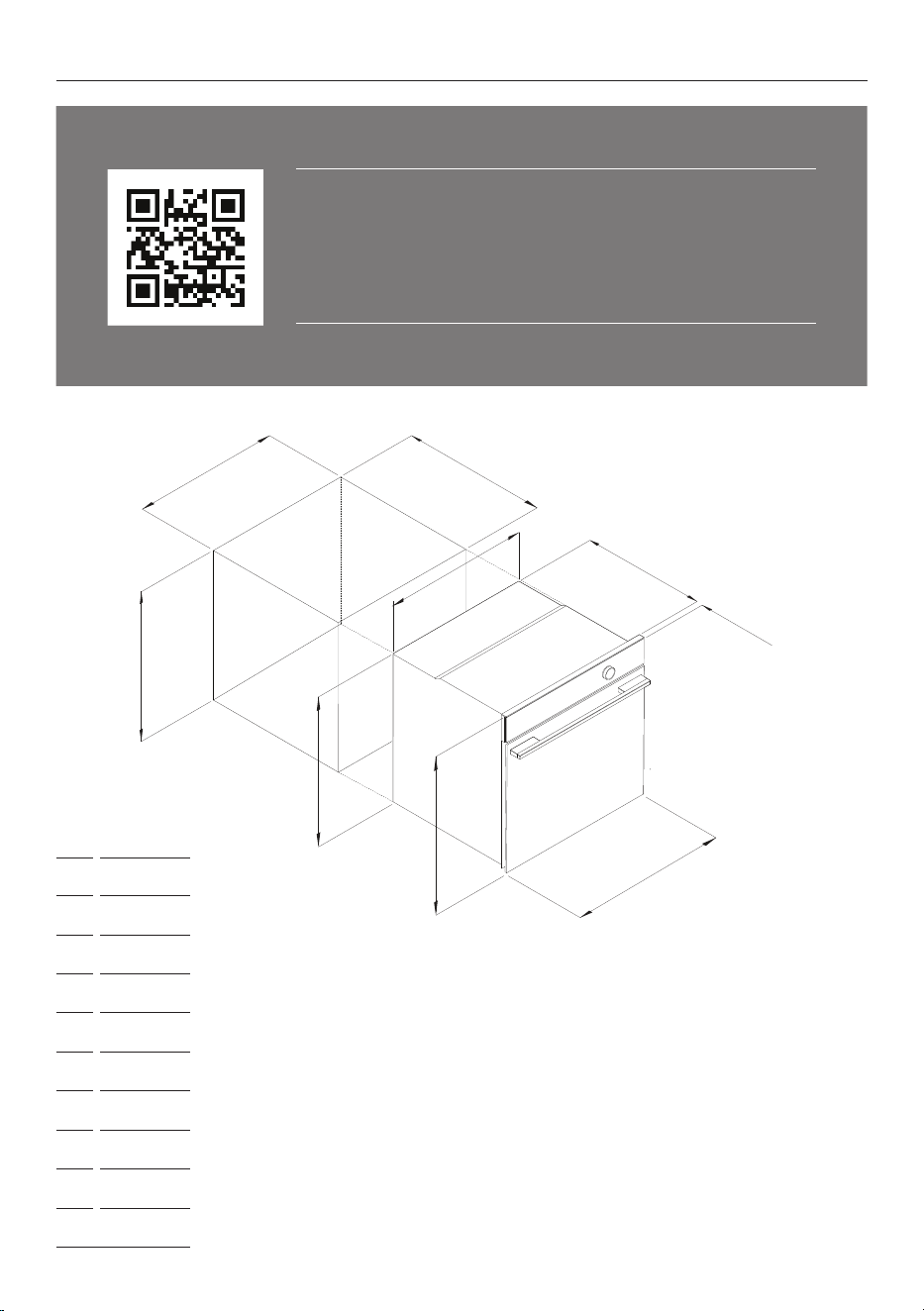

ACCESSING YOUR PRODUCT SPECIFICATIONS
For full product, cabinetry and service specifications, refer
to the Planning Guide. To access the Planning Guide, scan
the QR code or visit fisherpaykel.com/specify. Search by
appliance type, product name or model code.
MM
A
min. 580
B
min. 560
C
min. 550
D
575
E
556
F
545
G
598
H
596
i
20
D
f
i
g
H
B
C
e
A
8
SERVICES
z
This oven must be connected to the mains power supply only by a suitably
qualified person.
z
This oven must be earthed.
Before connecting the oven to the mains power supply, check that:
the domestic wiring system is suitable for the power drawn by the oven (as specified on the
rating plate)
the voltage corresponds to the value given on the rating plate.
MODEL CODE MAX POWER (W) HZ VOLTAGE (V) AMPS (A)
OB60S 2800 - 3300 50 - 60 Hz 220 - 240 V~ 12.8 - 13.8
9

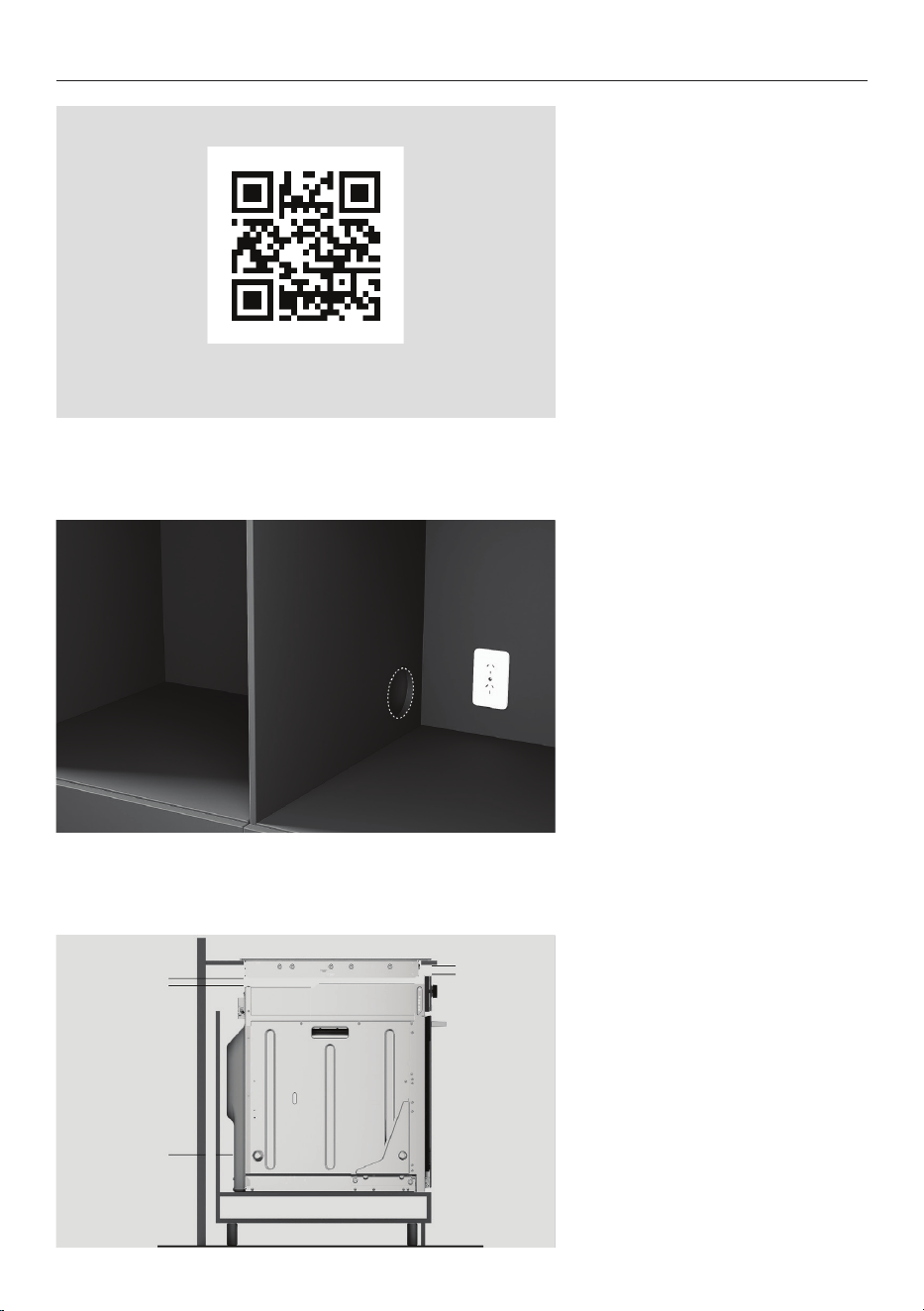

CHECK CAVITY
1. Measure cavity dimensions.
Ensure all minimum
specifications have been met.
Refer to the planning guide for
details.
For dark cabinetry, ensure
clashing has been considered
and installed.
2. Ensure service access
complies with local
requirements.
3. Ensure any cooktop
ventilation requirements have
been considered.
fisherpaykel.com/specify
10

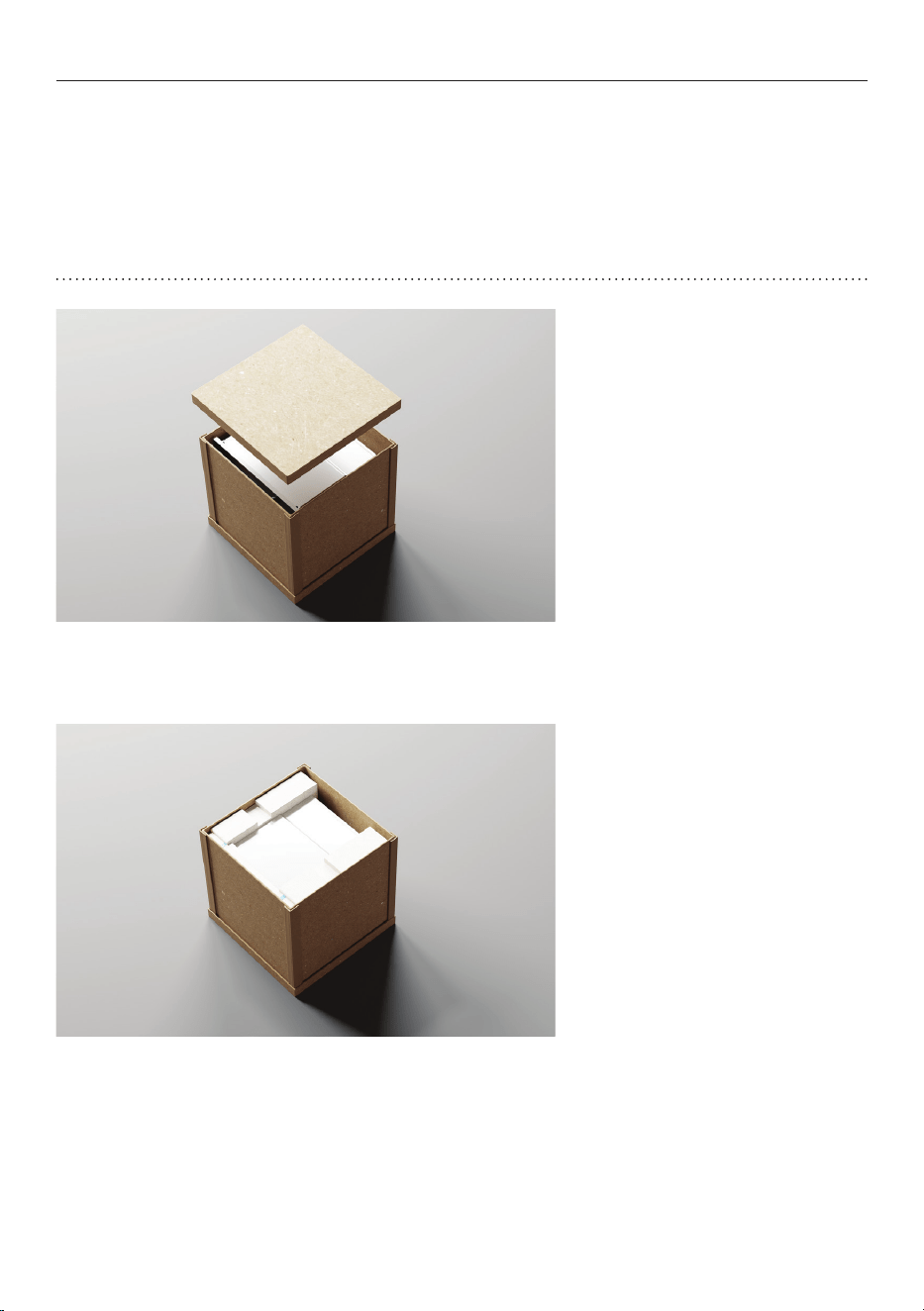

1. Cut all straps and remove the
carton top cap.
2. Lift the carton sleeve and
remove any transit packaging.
Set aside any accessories.
Dispose of packaging
responsibly.
UNPACK PRODUCT
z
Do not lift or move the product using the door handle.
z
Keep all packing materials until the unit has been inspected.
z
Inspect the product to ensure there is no shipping damage. If any damage
is detected contact the dealer or retailer you brought the product from to
report the damage.
z
Fisher & Paykel is not responsible for shipping damage.
11

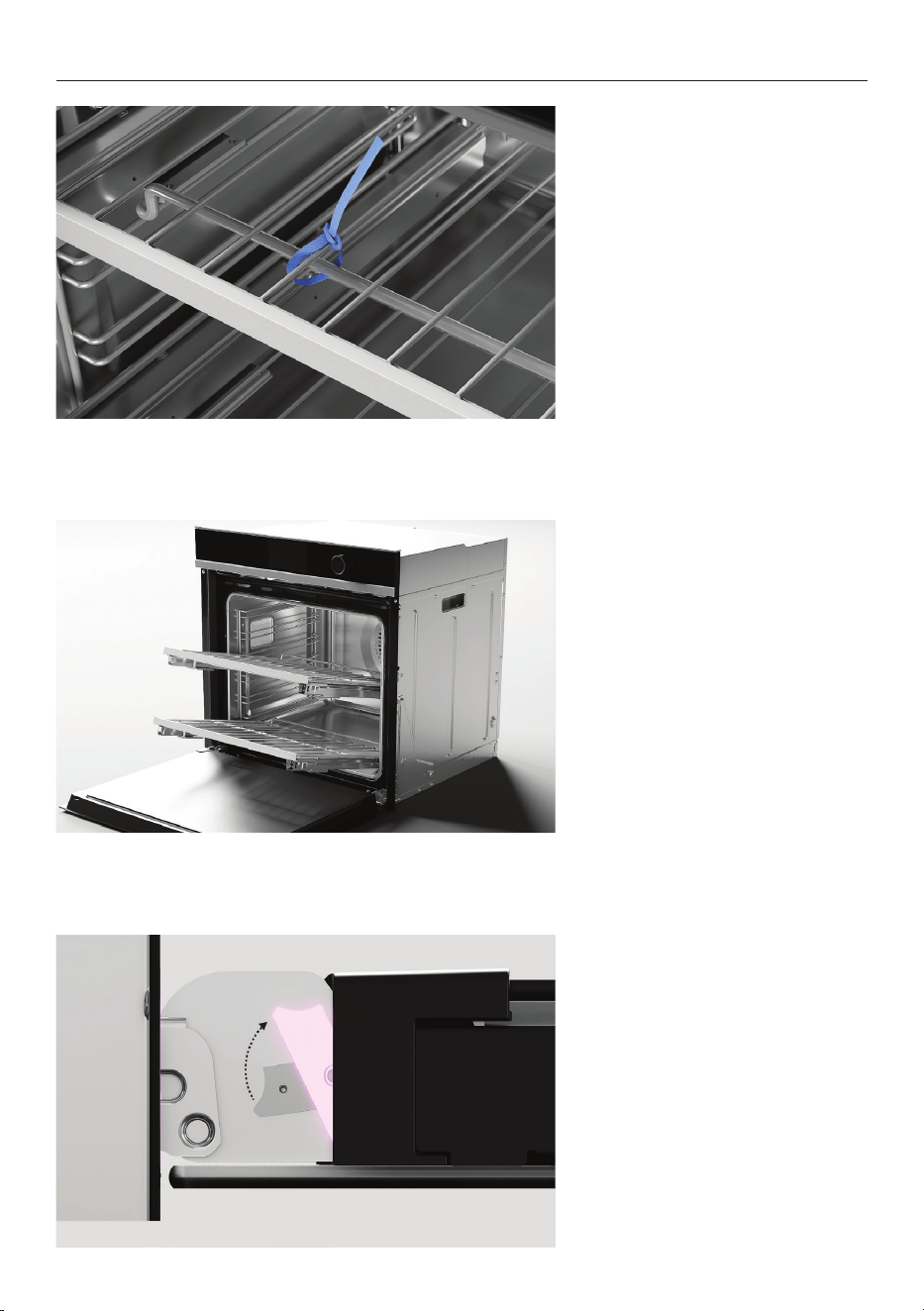

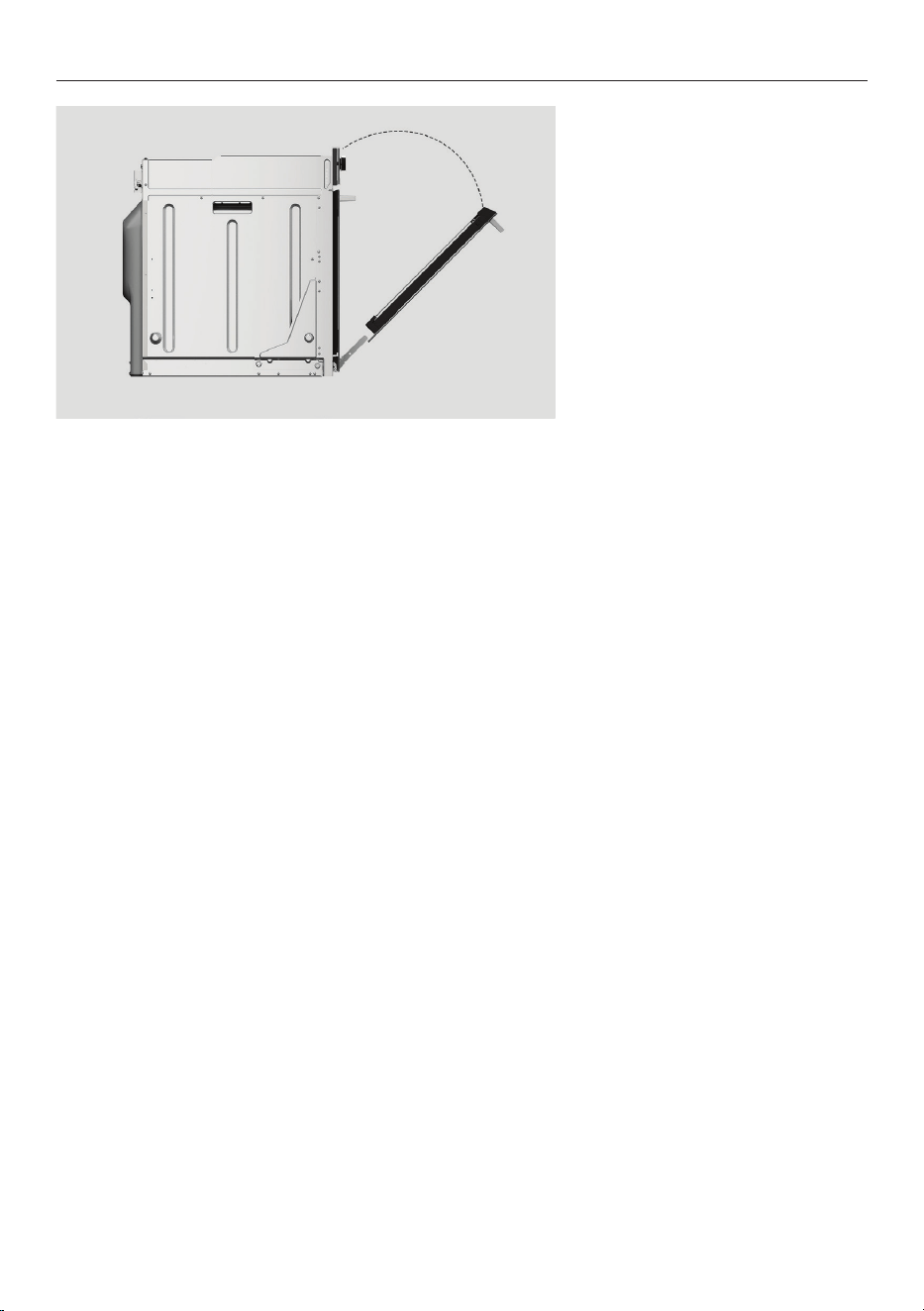

REMOVE DOOR
1. Open the door and remove
all cable ties and packaging
holding the oven shelves in
place.
2. Grip the shelves at the front,
making sure to hold the wire
shelf and frame together. Lift
upwards and pull out from the
oven.
3. Locate the hinge locks on
either side of the door. Push
the locks upwards to release.
12
4. Holding the door on both
sides, partially close the door
and carefully pull the door
away from the hinges.
REMOVE DOOR
13

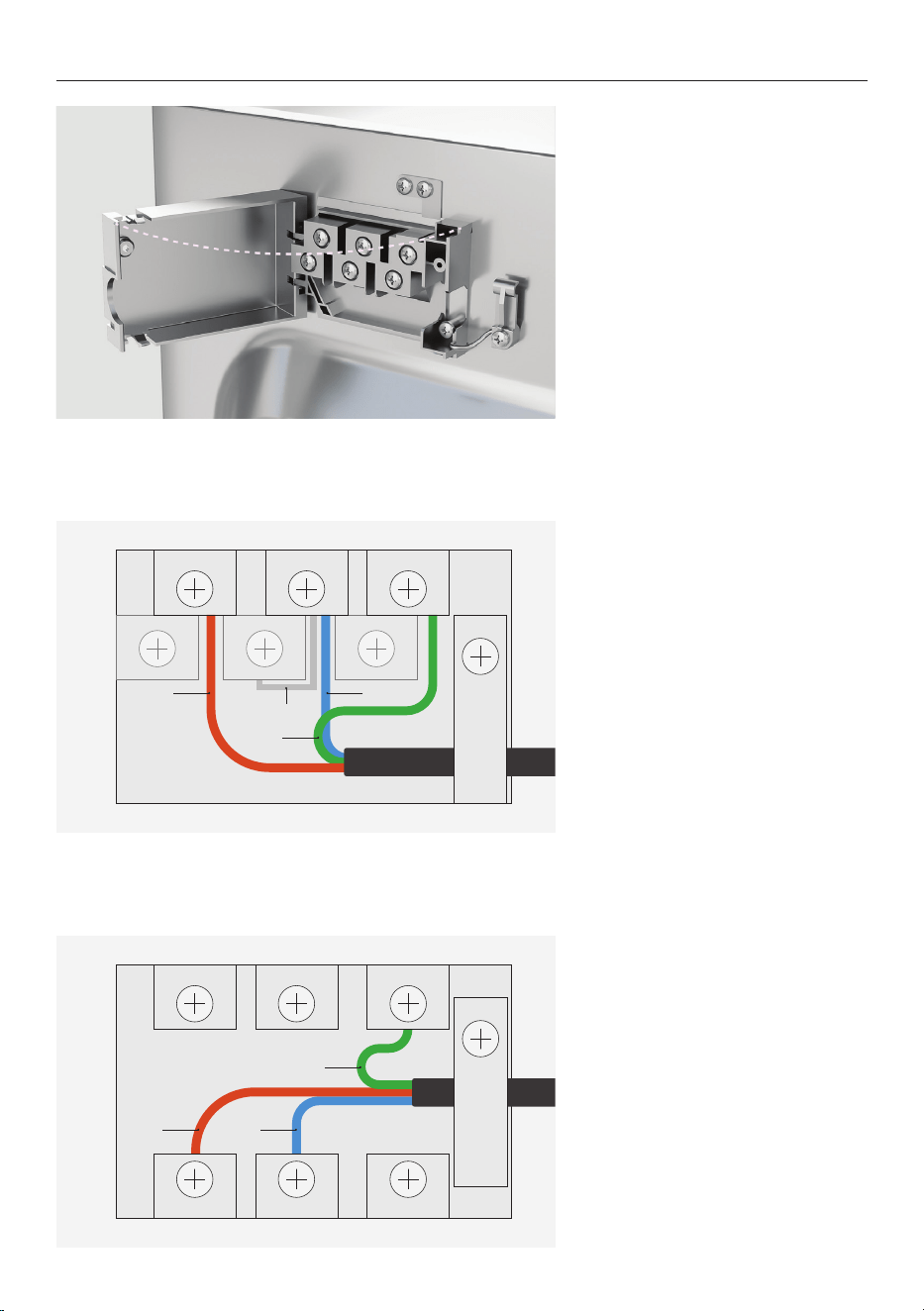

CONNECT POWER
1. Unclip and lift cover to access
terminal block.
2. Based on your terminal
block configuration, connect
wires as shown. Connector and
ports may not be present on all
models.
Ensure oven is correctly
Earthed and cable clamp is
tightened before closing the
cover.
Live
Earth
Connector
Neutral
Live
Earth
Neutral
14

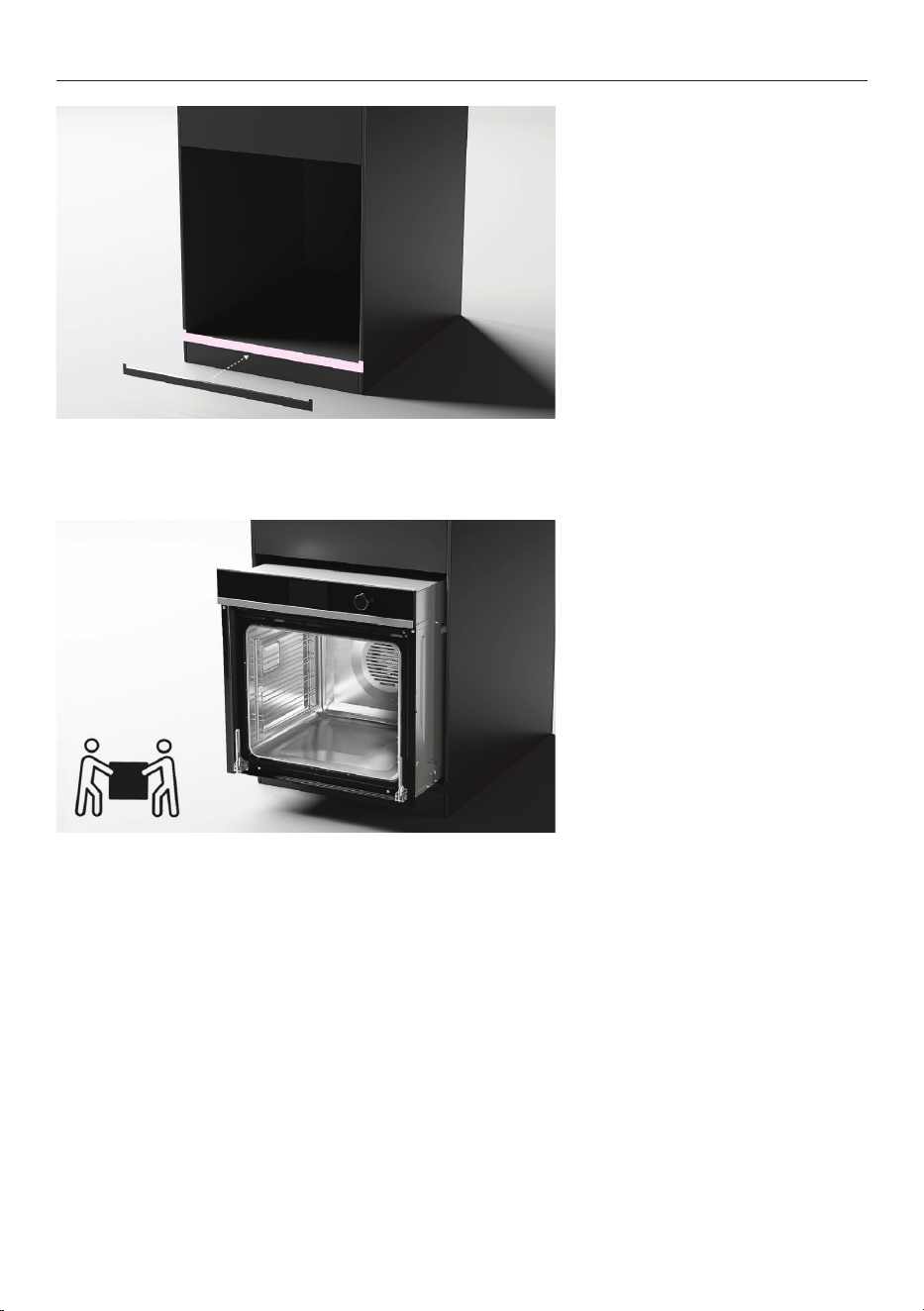

POSITION OVEN IN CAVITY
1. Some models only*
For dark cabinetry, the supplied
trim can be used to enhance
clashing finish.
To install, remove the trim
adhesive and press to secure to
cavity.
2. Lift product into cavity.
*To purchase cabinetry trim as an optional accessory, visit fisherpaykel.com
15

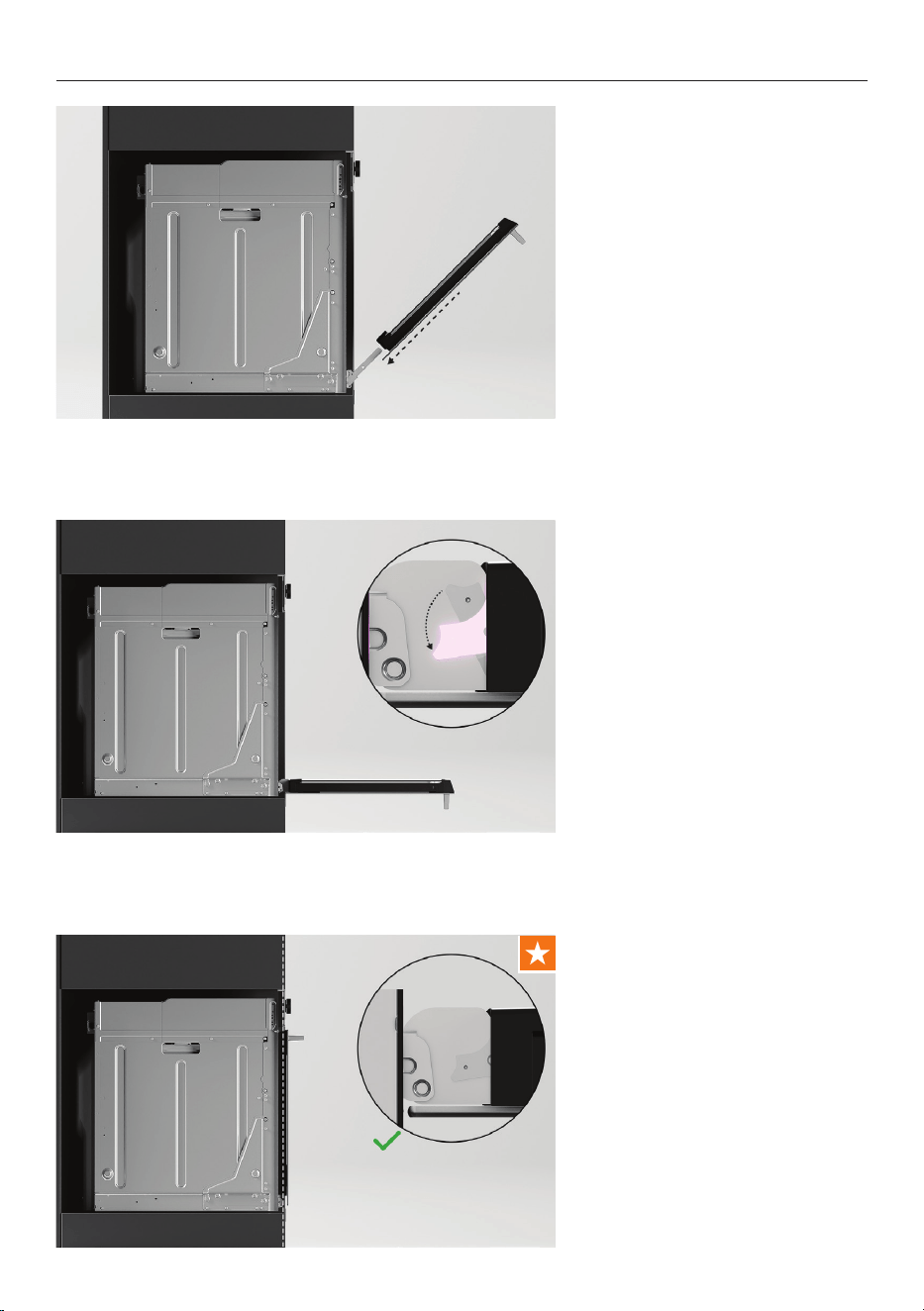

REFIT DOOR
1. Holding the door on both
sides, carefully lift door back
onto the hinges.
2. Open the door fully and push
each locking lever down and
lock into place.
3. Ensure both hinges are fully
locked before shutting the
door.
16

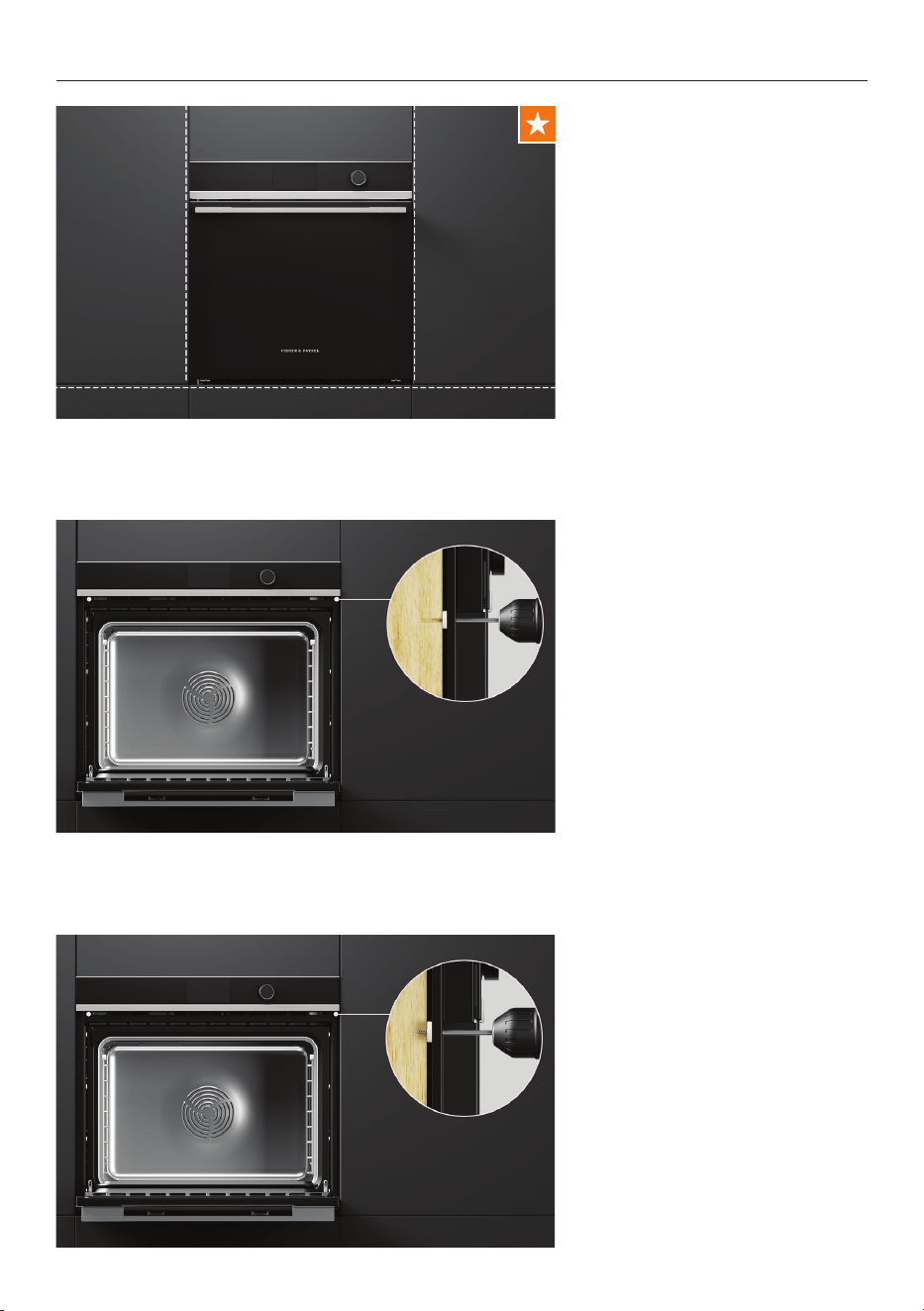

1. Align oven with surrounding
cabinetry and appliances.
2. Using the product as a guide,
pre-drill 2 x 3mm pilot holes.
3. Secure oven to cavity using
the 2 x screws provided.
ALIGN AND SECURE
17

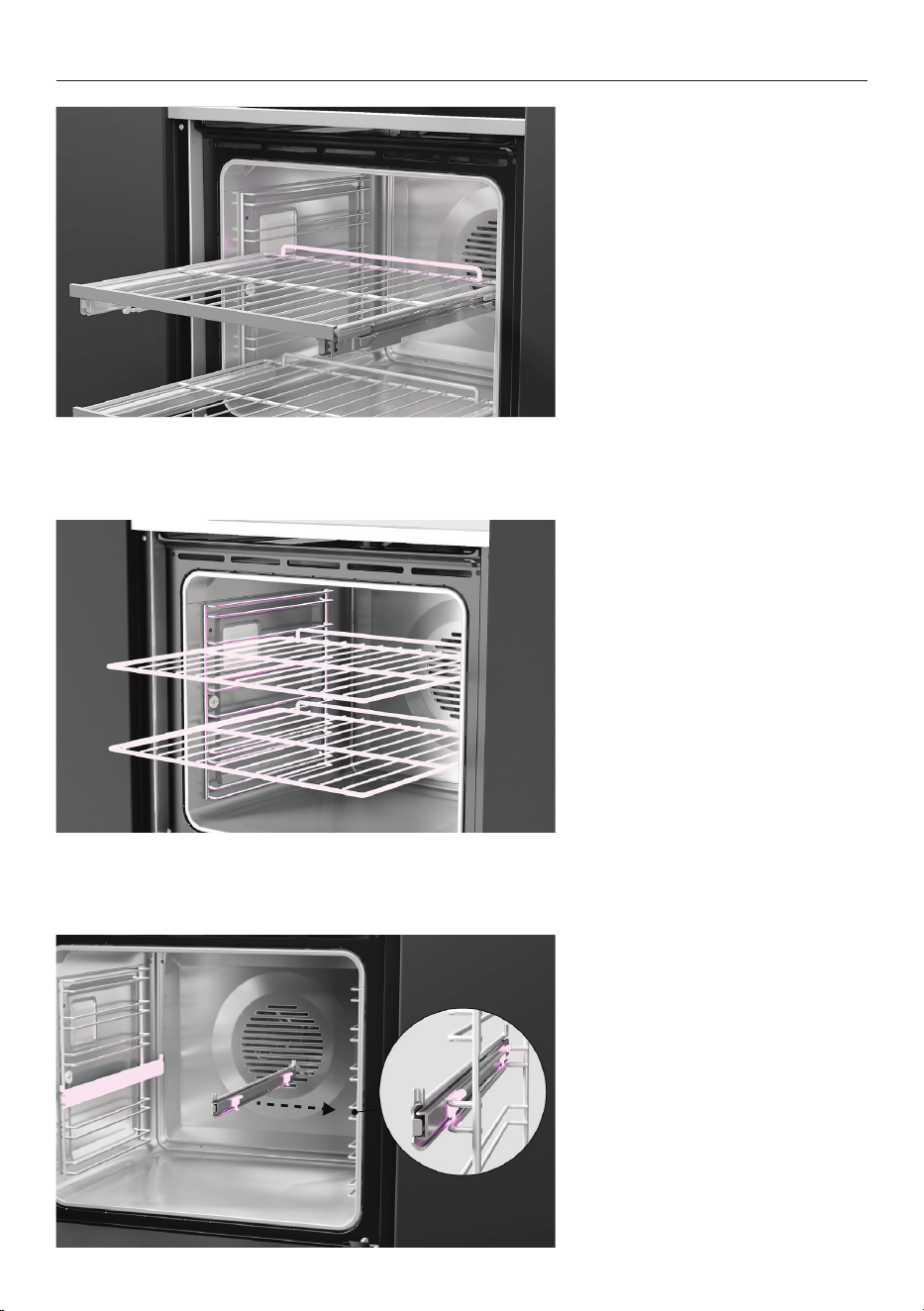

REFIT SHELVES
Sliding shelves
Place shelves back into the
oven at the desired level.
Ensure shelves are level and
correctly positioned with the
guard rail at the back.
Wire shelves
Slide shelves into the cavity.
Clip on sliding shelf supports
Ensure the slides are positioned
the correct way around, with
the triangular tab at the front.
Fit the top clips over the side
rack. The front clip should be
fitted as close to the front of
the side rack as possible. Make
sure the rear clip has engaged.
Click the bottom clips into
place.
18
ALIGN AND SECURE
1. Follow the guidance on
screen to ensure oven turns on
and heats correctly.
Refer to your User Guide for
more information.
19
Complete and keep for safe reference:
Model
Serial no.
Purchase date
Purchaser
Dealer address
Installer’s name
Installer’s signature
Installation company
Installation date
INSTALLER CHECKLIST
TO BE COMPLETED BY THE INSTALLER
Ensure the oven is level and securely fitted to the cabinetry.
Check the lower trim is undamaged.
Open the oven door slowly until it is fully open and check there is adequate clearance
between the bottom of the door and the lower trim.
This is to ensure correct air circulation. Should the lower trim become damaged, straighten
the trim and ensure the oven door opens fully without obstruction.
Ensure you remove all internal packaging (including the circular yellow packing retainers
holding the accessory box in place).
Ensure all oven vents and openings are clear and free of any obstruction or damage.
Failure to make sure all oven vents are clear may result in poor product performance.
Ensure the isolating switch is accessible by the customer.
90002632D 07.25
