EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. Lisbon Road, Brookeld, Wisc. 53005

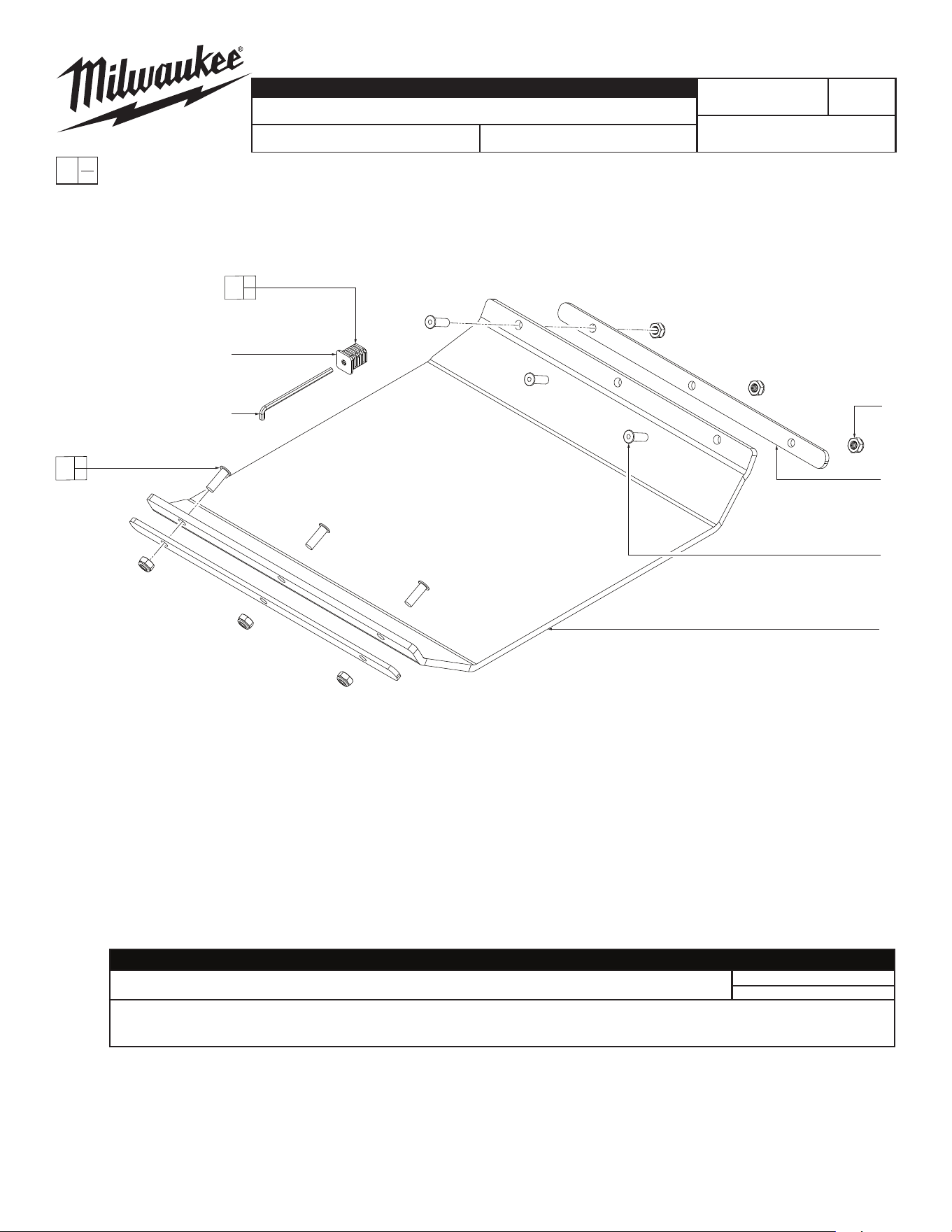

Drwg. 1
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. DESCRIPTION OF FASTENER WHERE USED (lb-in) (kgf-cm)
2 --------------- M10 x 1.5 Ultra-Low Head Skt. Screw Secure Paver Pad Support to Paver Pad 177±17 204±20
1
(6x)
3
(2x)
2
(6x)
4
6
5
5
6
8
1
2
9
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 --------------- M10-1.5 Lock Nut (6)
2 --------------- M10 x 1.5 Ultra-Low Head Skt. Screw (6)
3 --------------- Paver Pad Support (2)
4 --------------- Paver Pad (1)
5 --------------- Hex Key (1)
6 --------------- Hex Key Holder (1)
8 14-46-9981 Hex Key Service Kit (1)
9 14-46-9982 Paver Pad Hardware Service Kit (1)
SERVICE PARTS LIST
BULLETIN NO.
54-20-0045
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS REVISED BULLETIN DATE
May 2025
PAVER PAD KIT for MX FUEL Plate Compactor
WIRING INSTRUCTION
CATALOG NO. 49-49-2030 SERIAL NO.
