GS10
GS40
GS60
GS410C
GS610C
Instruction Manual
Mode d'emploi
Manual de instrucciones
Bedienungsanleitung
руководство по
эксплуатации
manual de Instruções
Manuale di istruzioni
Käyttöohje
Gebruiksaanwijzing
Bruksanvisning
Instruktionsbog
Kullanma Kılavuzu
Instrukcja obsługi
Manual Pemilik
使用说明书

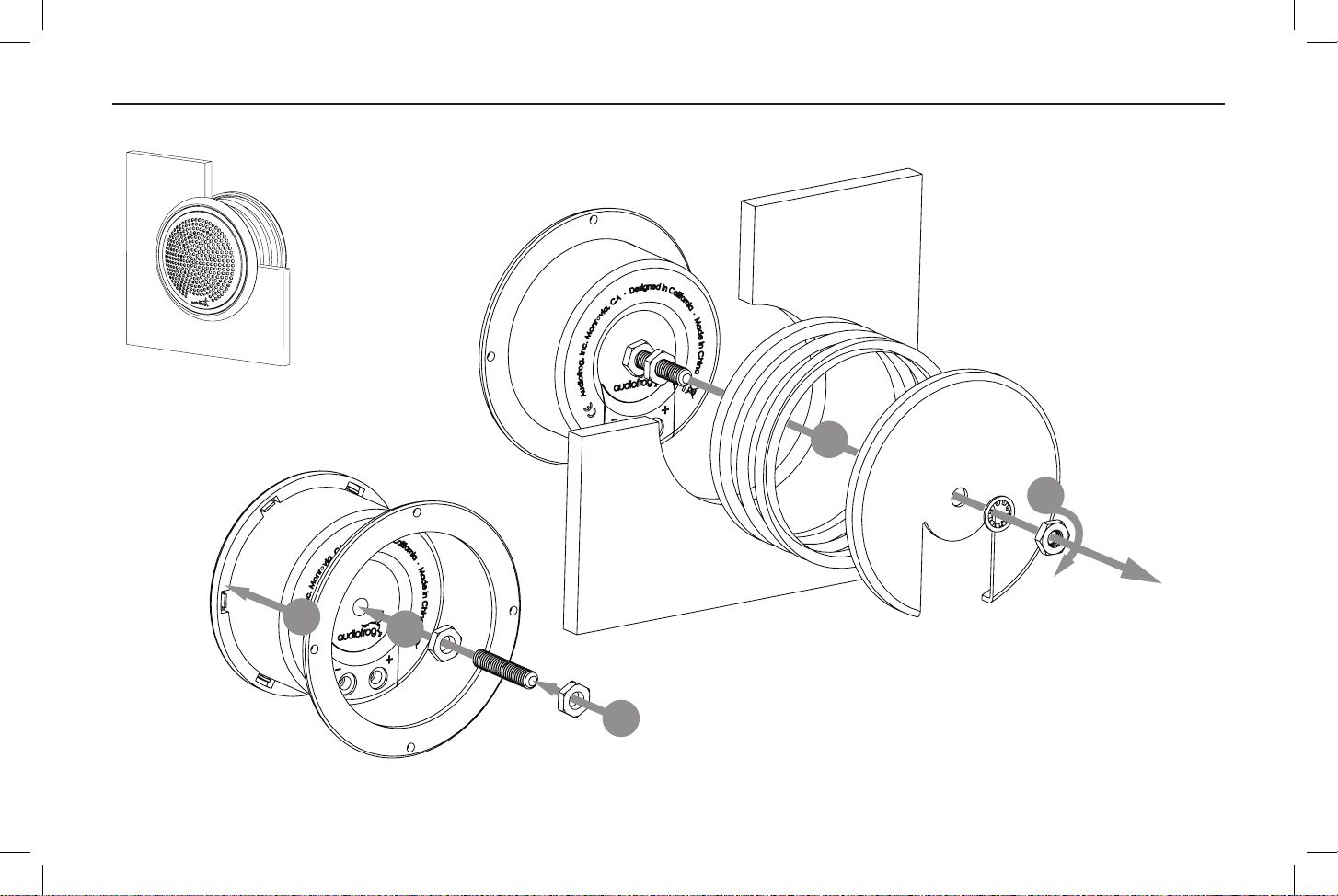

GS10
Do not overtighten!
Ne serrez pas trop!
No apriete demasiado!
Nicht zu fest anziehen!
Não aperte demais!
Non stringere troppo!
Ä
lä kiristä liikaa!
Niet te strak aandraaien!
Dra inte åt!
Undgå at overspænde!
Jangan kencangkan terlalu banyak!
7mm
GS40
GS60

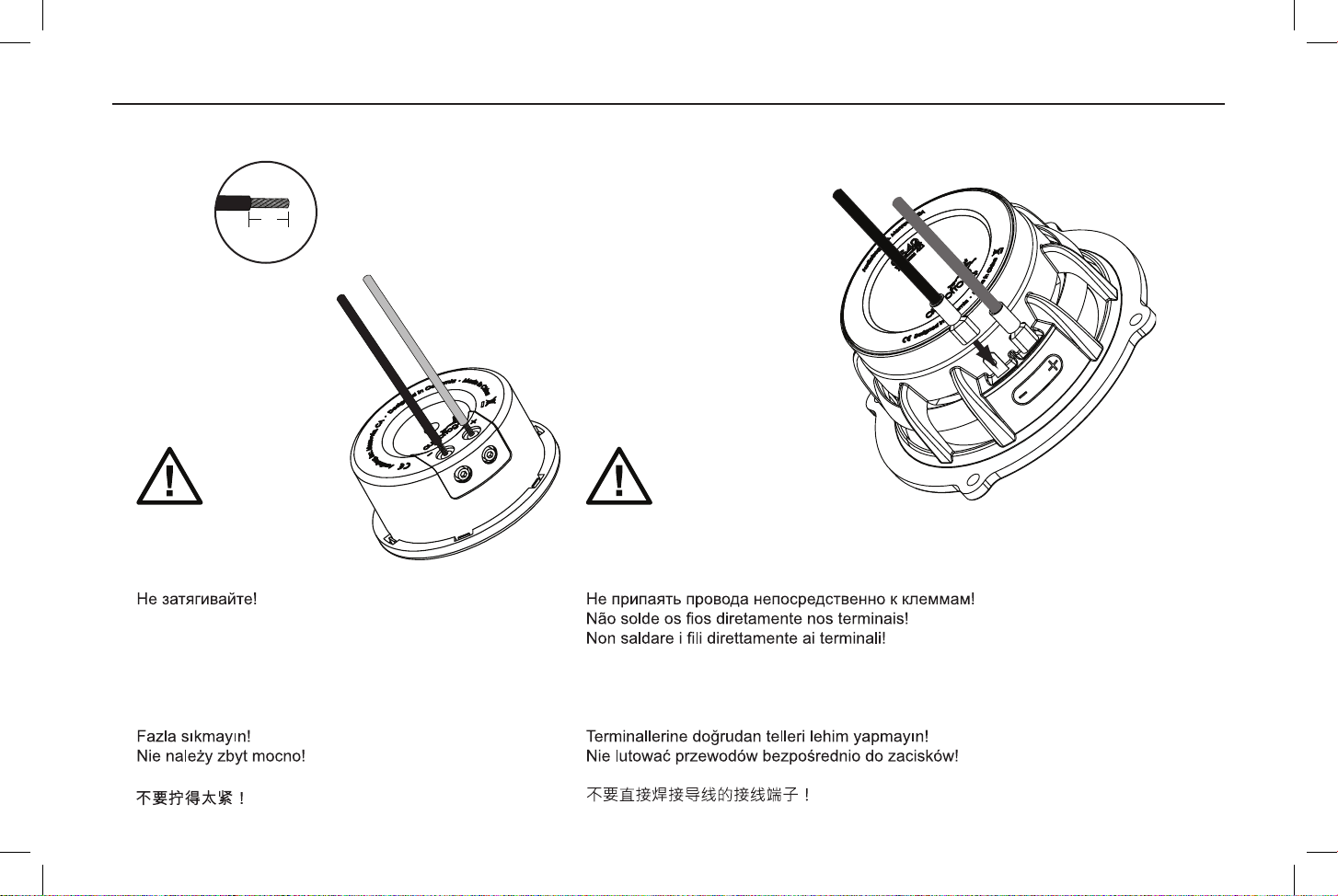

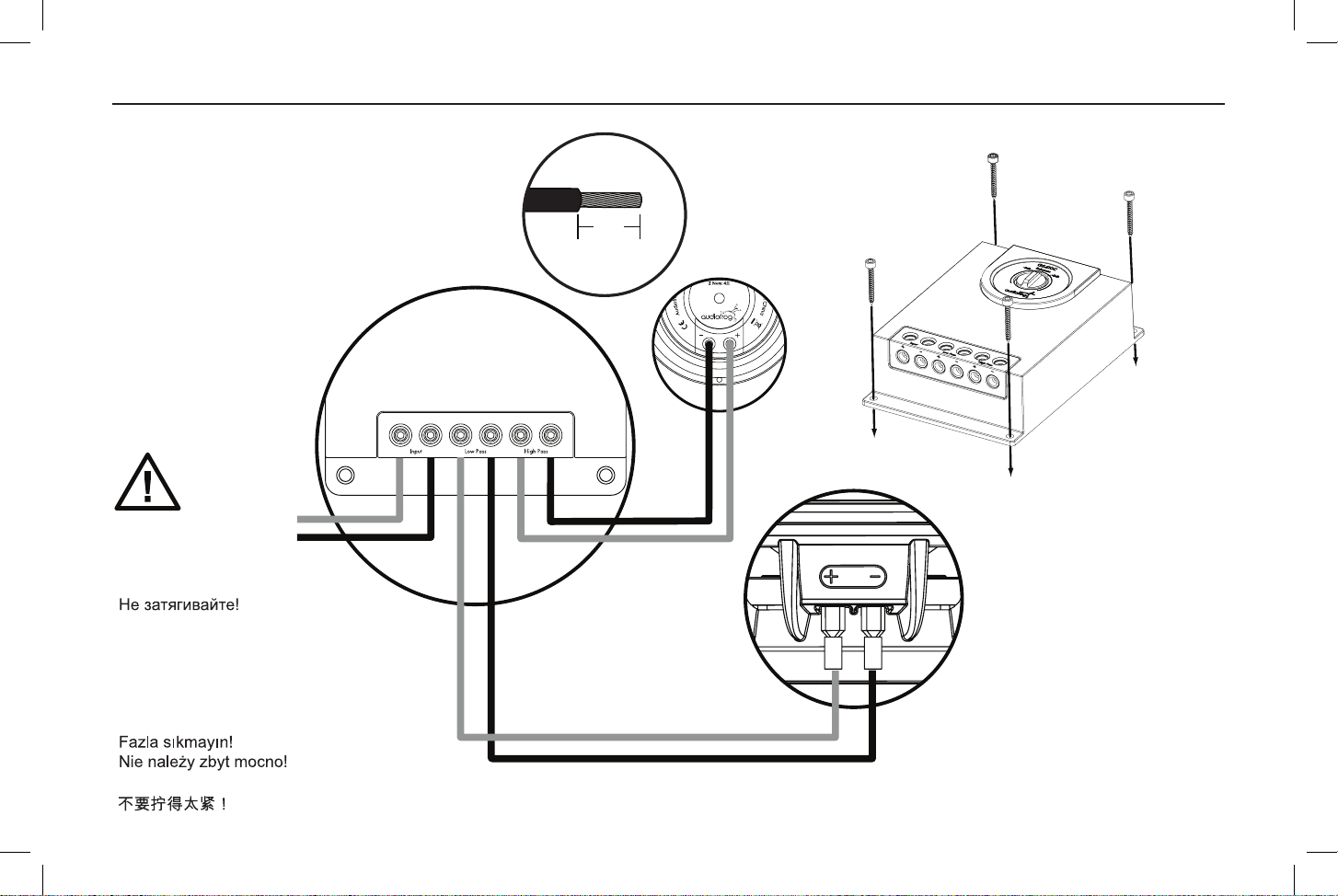

Do not solder wires directly to the terminals!
Ne soudez pas directement aux bornes!
No soldar los cables directamente a los terminales!
Löten Sie keine Drähte direkt an die Klemmen!
Älä juota johtoja suoraan liittimiin!
Laat draden niet direct solderen op de klemmen!
Löd inte kablar direkt till terminalerna!
Lod ikke ledninger direkte til terminalerne!
Jangan solder kabel langsung ke terminal!

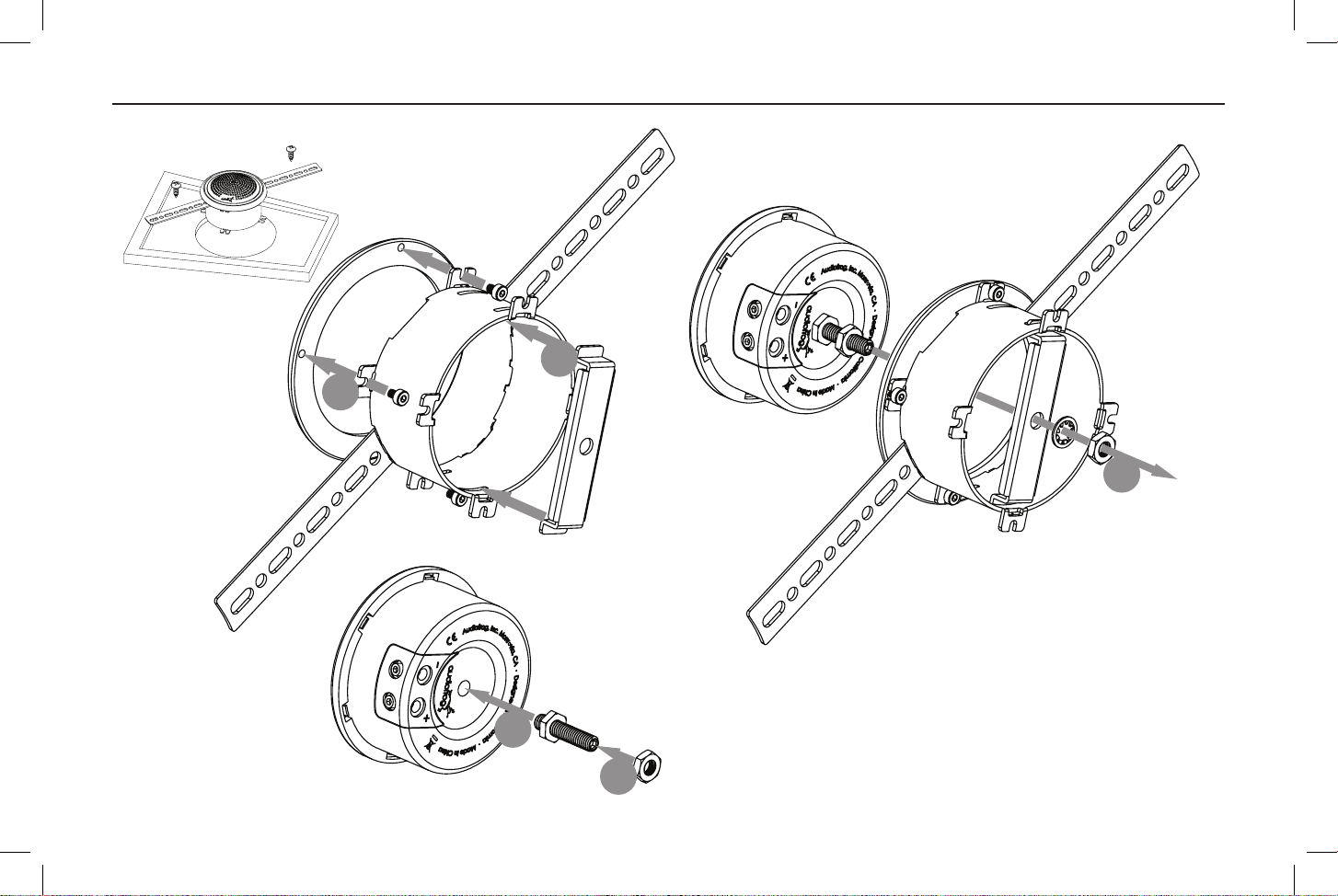

GS10
1
2
3
4
5
GS10

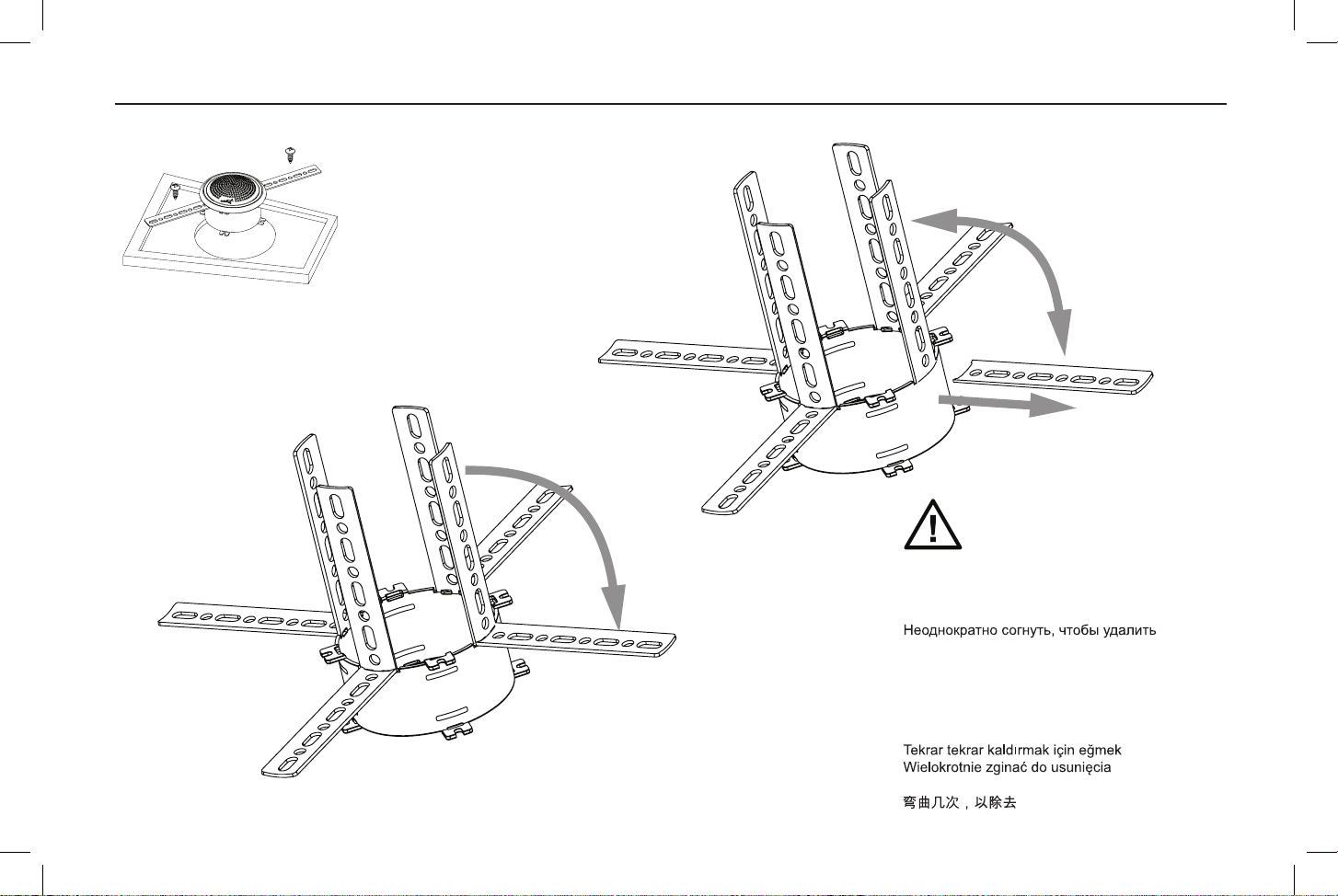

Bend repeatedly to remove
Plusieurs reprises plier à enlever
Repetidamente doblar para eliminar
Wiederholt biegen, um zu entfernen
Repetidamente dobrar para remover
Piegare ripetutamente per rimuovere
Toistuvasti taipua poistaa
Herhaaldelijk buigen om te verwijderen
Upprepade gånger böja att ta bort
Gentagne bøje for at fjerne
Berulang kali membungkuk untuk menghapus

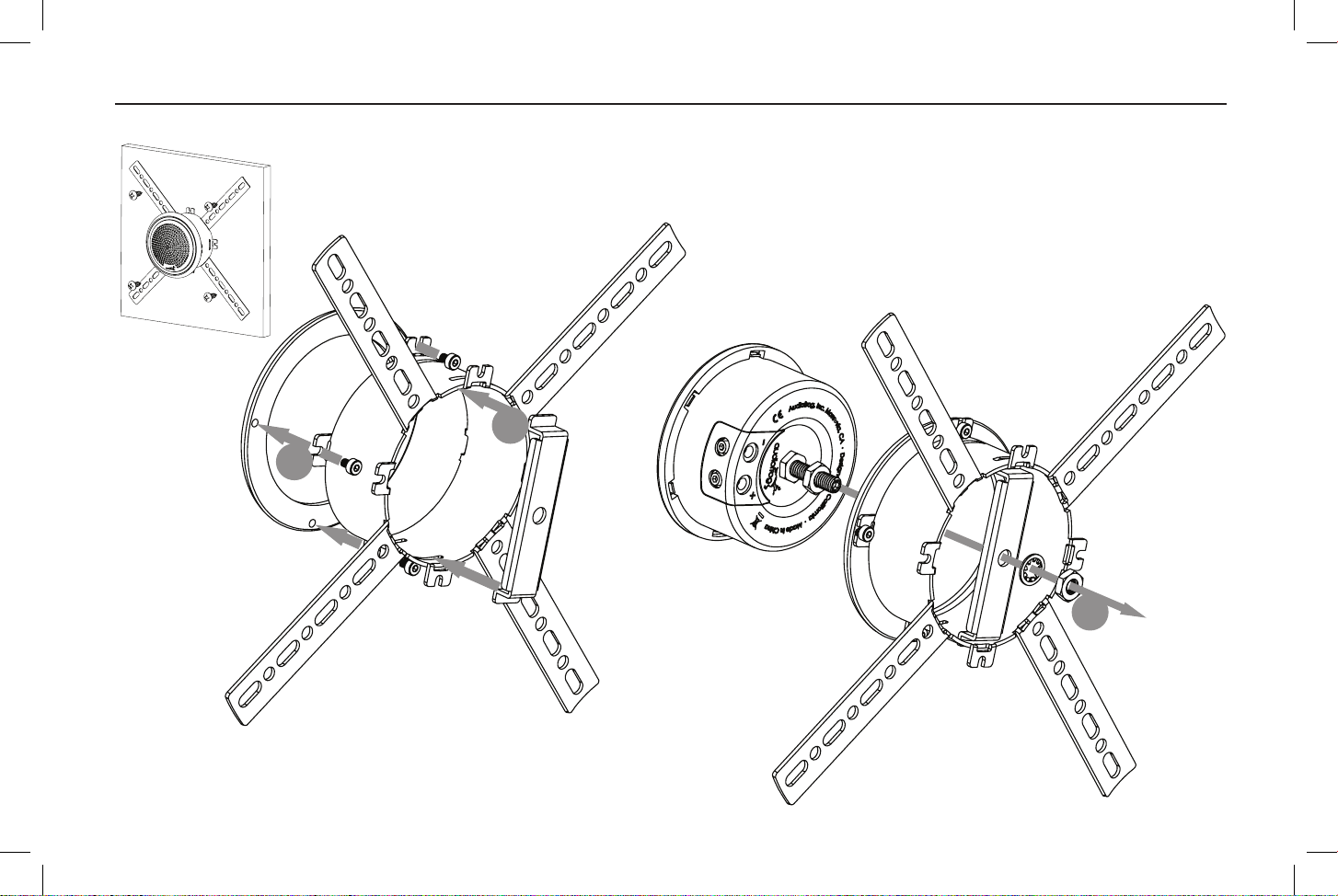

GS10
1
2
3
4
5

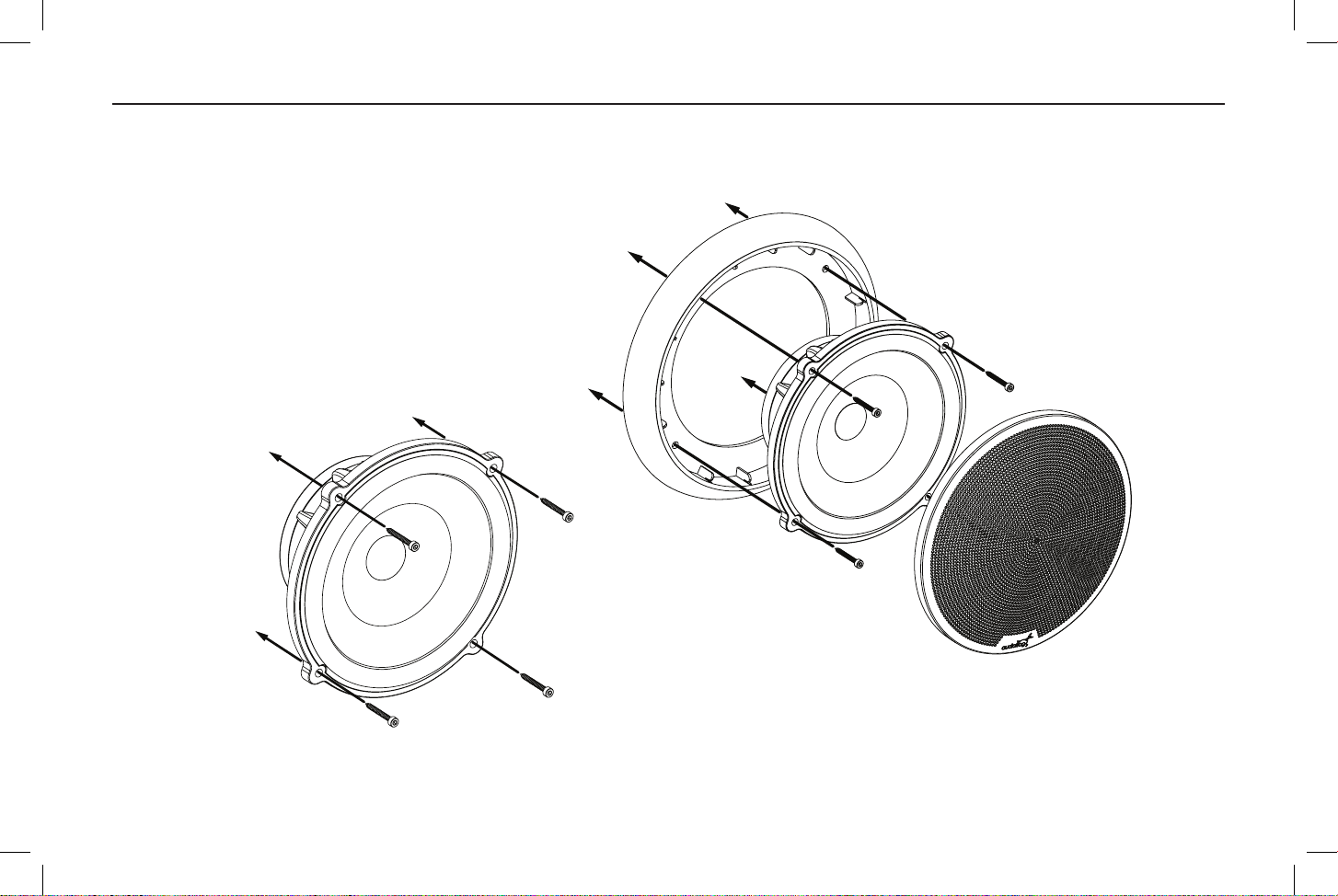

GS10
3
4
5
GS40
GS60
GS60
GS410C
GS610C

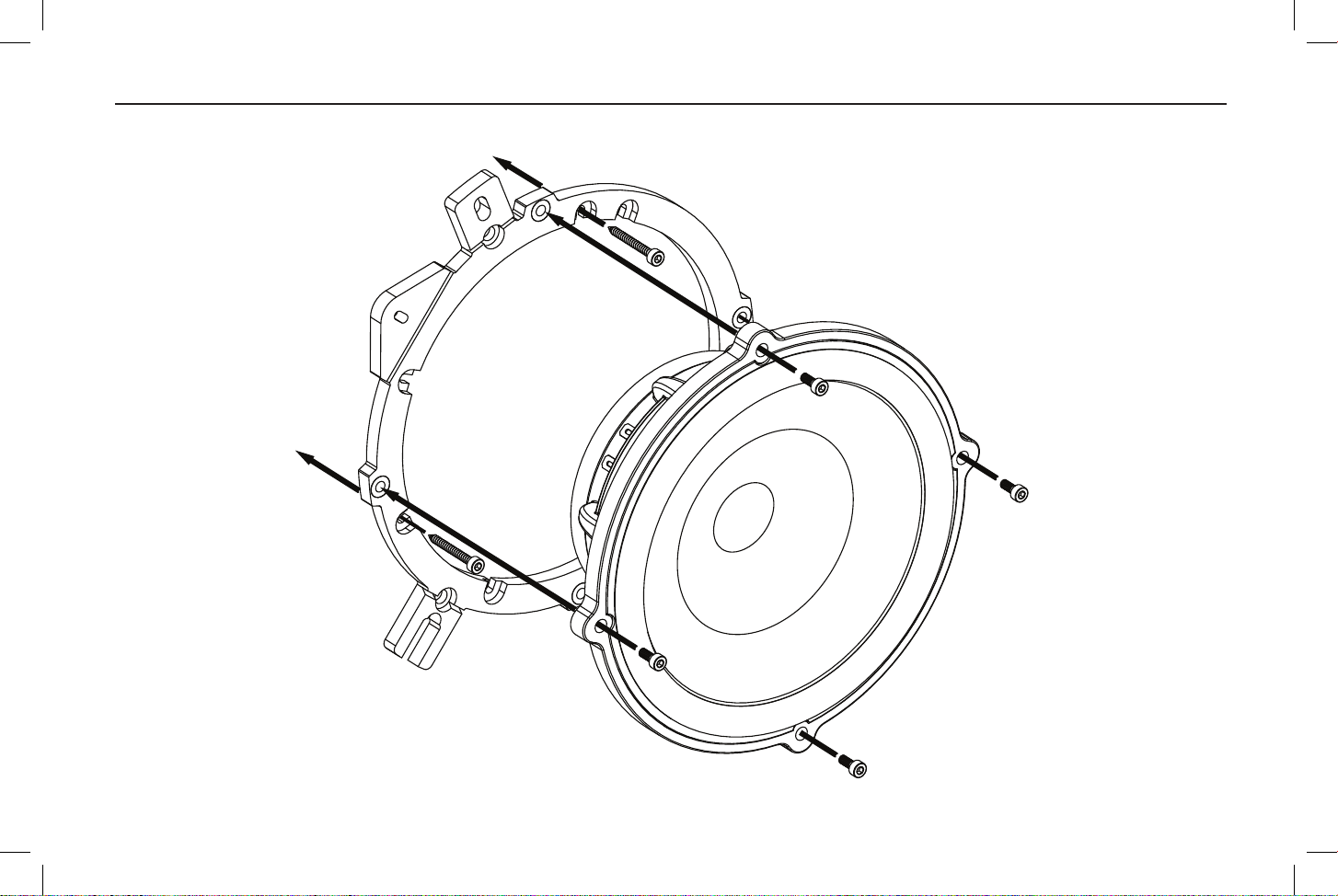

GS10
GS40
GS60
Do not overtighten!
Ne serrez pas trop!
No apriete demasiado!
Nicht zu fest anziehen!
Não aperte demais!
Non stringere troppo!
Ä
lä kiristä liikaa!
Niet te strak aandraaien!
Dra inte åt!
Undgå at overspænde!
Jangan kencangkan terlalu banyak!
7mm

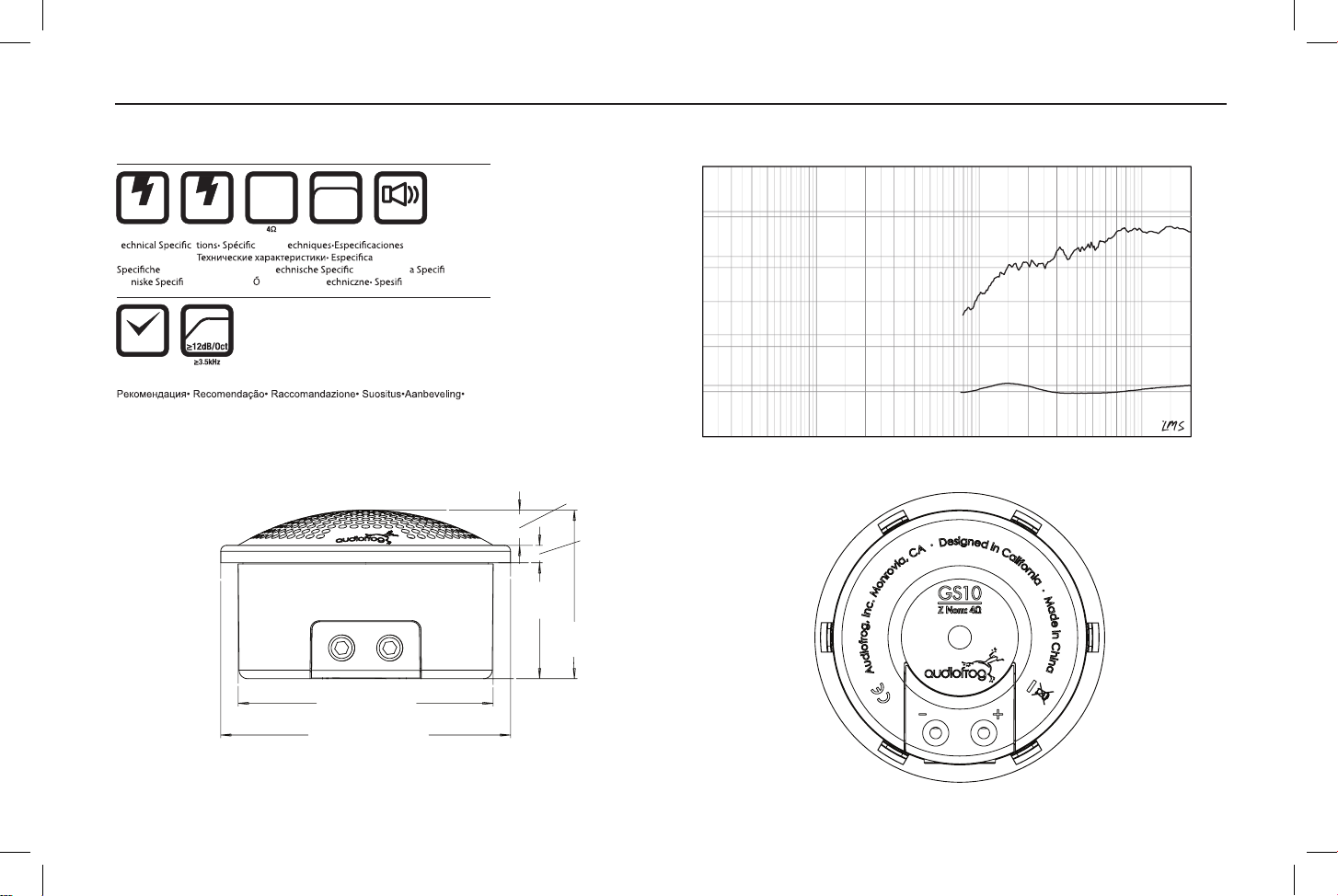

GS10
RMS
70 Watts
MAX
200 Watts
NOMINAL
Z
-3dB
1.8kHz-20kHz
2.83V/1M
92dB
RMS
15-75 Watts
T a ations T Técnicas•
Technische Daten•
ções Técnicas•
Tecniche• Tekniset Tiedot•T aties• Teknisk kationer•
Tek
kationer• Teknik zellikler• Dane T kasi Teknis•技术规格
Recommendations• Recommandations• Recomendaciones• Empfehlung•
Rekommendation• Anbefaling• Tavsiye• Rekomendacja• Rekomendasi• 推荐
20mm
(13/16”)
3mm (1/8”)
6mm (1/4”)
29mm
(1-5/32”)
44mm (1-2/4”)
50mm (1-31/32”)
dBSPL
45
55
65
75
85
95
105
20 50 100 200 500 1K 2K 5K 10K 20K
2
4
8
20
40
80
Ohm

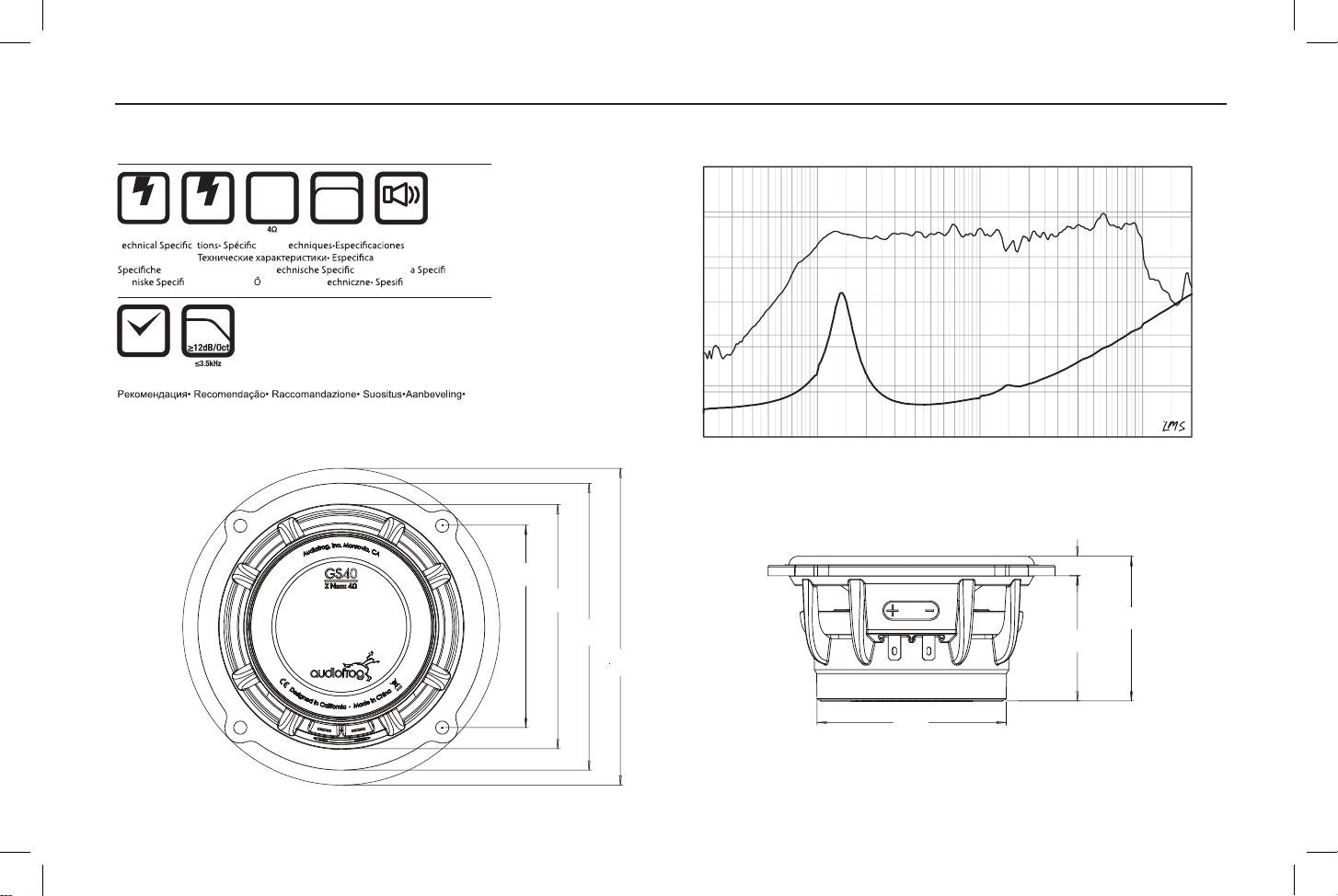

GS40
T a ations T Técnicas•
Technische Daten• ções Técnicas•
Tecniche• Tekniset Tiedot•T aties• Teknisk kationer•
Tek kationer• Teknik zellikler• Dane T kasi Teknis•技术规格
Recommendations• Recommandations• Recomendaciones• Empfehlung•
Rekommendation• Anbefaling• Tavsiye• Rekomendacja• Rekomendasi• 推荐
RMS
70 Watts
MAX
200 Watts
NOMINAL
Z
-3dB
90Hz-12kHz
2.83V/1M
88dB
RMS
15-75 Watts
93.6mm
3-11/16”
110mm
4-11/32”
121.5mm
4-13/16”
77.6mm
3-1/16”
72.5mm
2-7/8”
48mm
1-29/32”
7.5mm
5/16”
59.3mm
2-11/32”
dBSPL
45
55
65
75
85
95
105
20 50 100 200 500 1K 2K 5K 10K 20K
2
4
8
20
40
80
Ohm

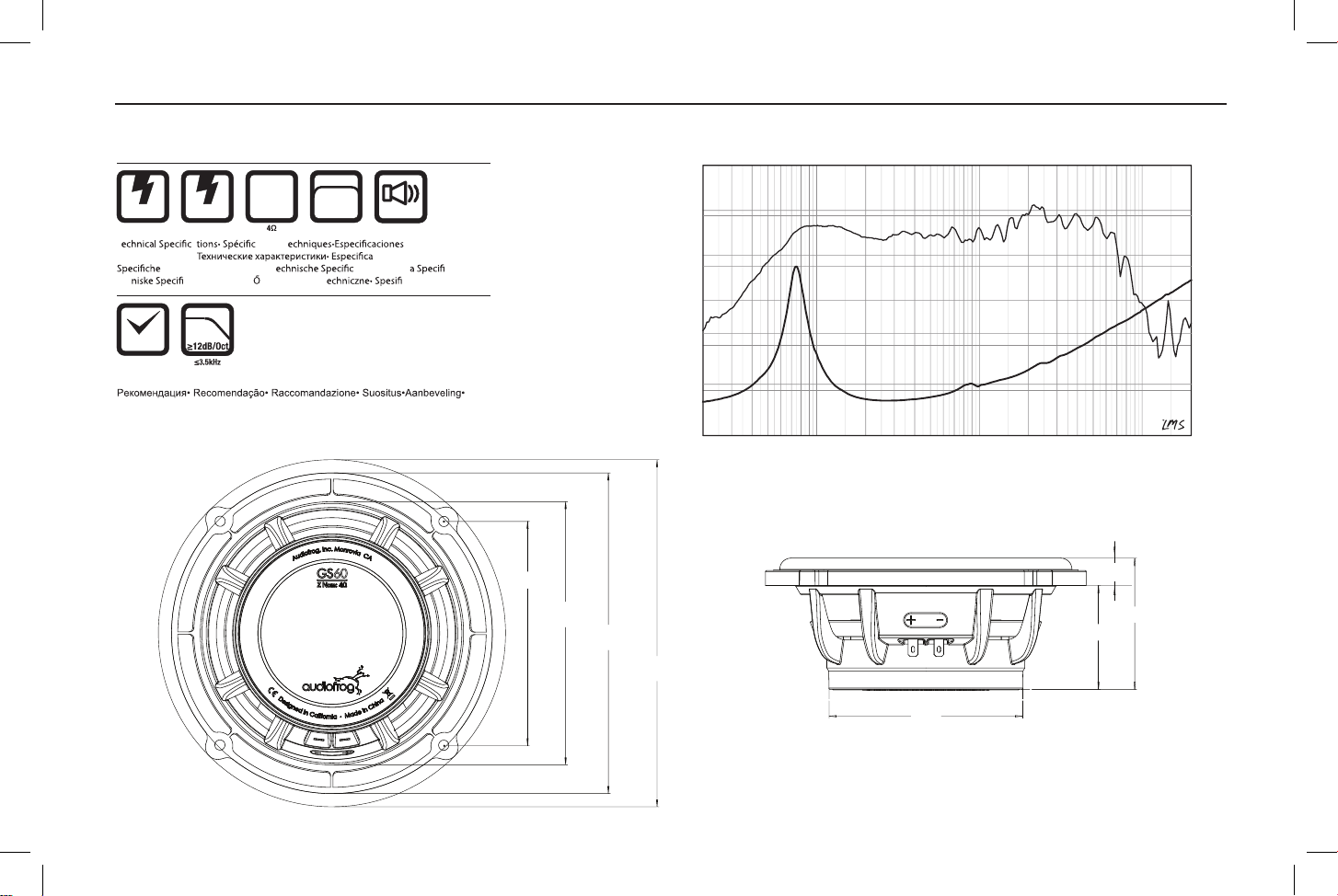

GS60
T a ations T Técnicas•
Technische Daten• ções Técnicas•
Tecniche• Tekniset Tiedot•T aties• Teknisk kationer•
Tek kationer• Teknik zellikler• Dane T kasi Teknis•技术规格
Recommendations• Recommandations• Recomendaciones• Empfehlung•
Rekommendation• Anbefaling• Tavsiye• Rekomendacja• Rekomendasi• 推荐
RMS
70 Watts
MAX
200 Watts
NOMINAL
Z
-3dB
50Hz-7kHz
2.83V/1M
89dB
RMS
15-100 Watts
129.8mm
5-1/8”
158.1mm
6-1/4”
110.6mm
4-3/8”
171.1mm
6-3/4”
95.4,mm
2-25/32”
51.2mm
2-1/32”
13.5mm
17/32”
64.7mm
2-9/16”
dBSPL
45
55
65
75
85
95
105
20 50 100 200 500 1K 2K 5K 10K 20K
2
4
8
20
40
80
Ohm

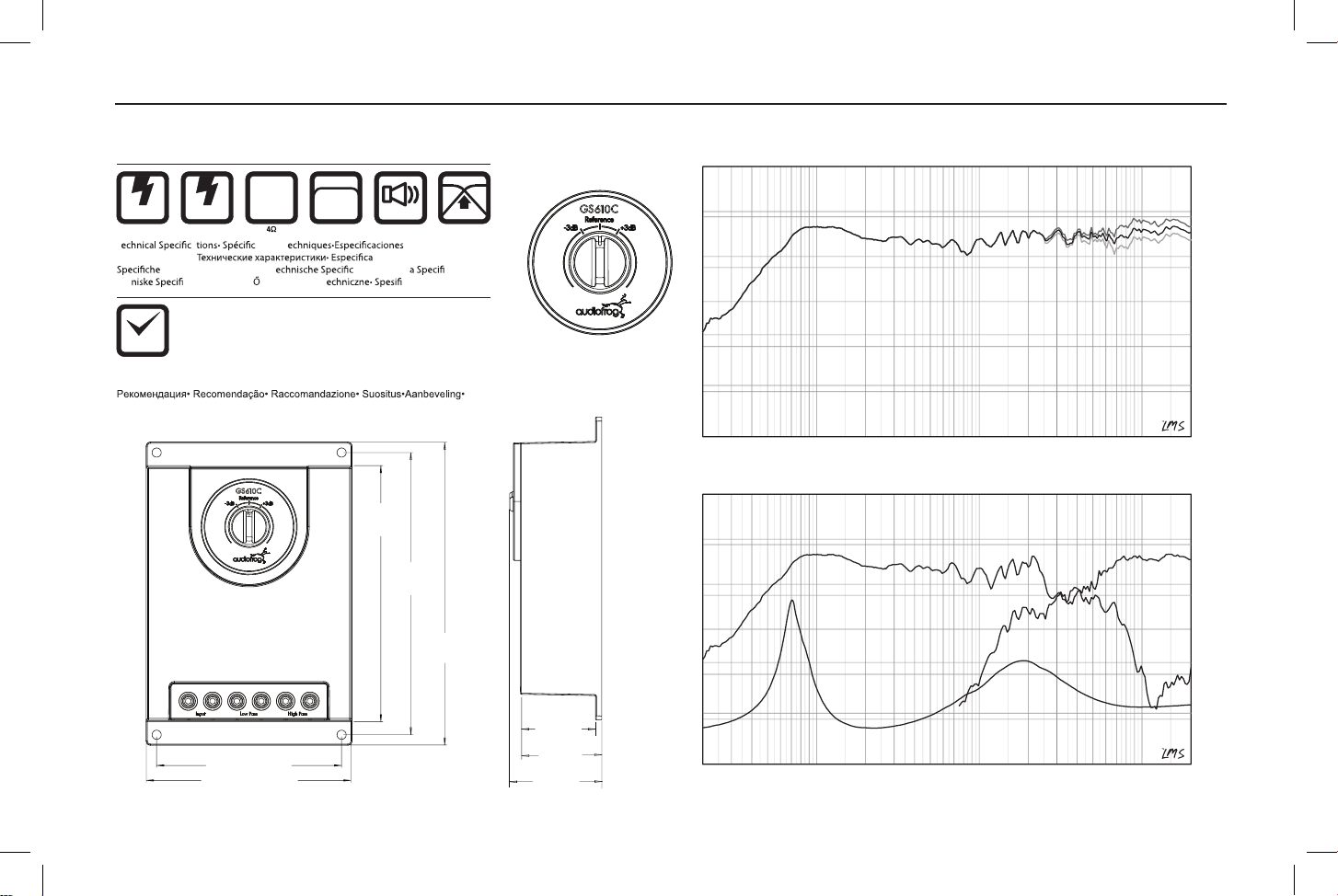

GS410C
149.3mm
(5-29/32”)
126.3mm
(5”)
139.2mm
(5-1/2”)
100.8mm (3-31/32”)
91.2mm (3-9/32”)
45mm
(1-25/32”)
39mm
(1-9/16”)
36mm
(1-7/16”)
T a ations T Técnicas•
Technische Daten• ções Técnicas•
Tecniche• Tekniset Tiedot•T aties• Teknisk kationer•
Tek kationer• Teknik zellikler• Dane T kasi Teknis•技术规格
Recommendations• Recommandations• Recomendaciones• Empfehlung•
Rekommendation• Anbefaling• Tavsiye• Rekomendacja• Rekomendasi• 推荐
Z
RMS
70 Watts
MAX
200 Watts
NOMINAL
-3dB
90Hz-20kHz
2.83V/1M
88dB
4.2kHz
RMS
15-75 Watts
dBSPL
45
55
65
75
85
95
105
20 50 100 200 500 1K 2K 5K 10K 20K
2
4
8
20
40
80
Ohm
dBSPL
45
55
65
75
85
95
105
20 50 100 200 500 1K 2K 5K 10K 20K
2
4
8
20
40
80
Ohm

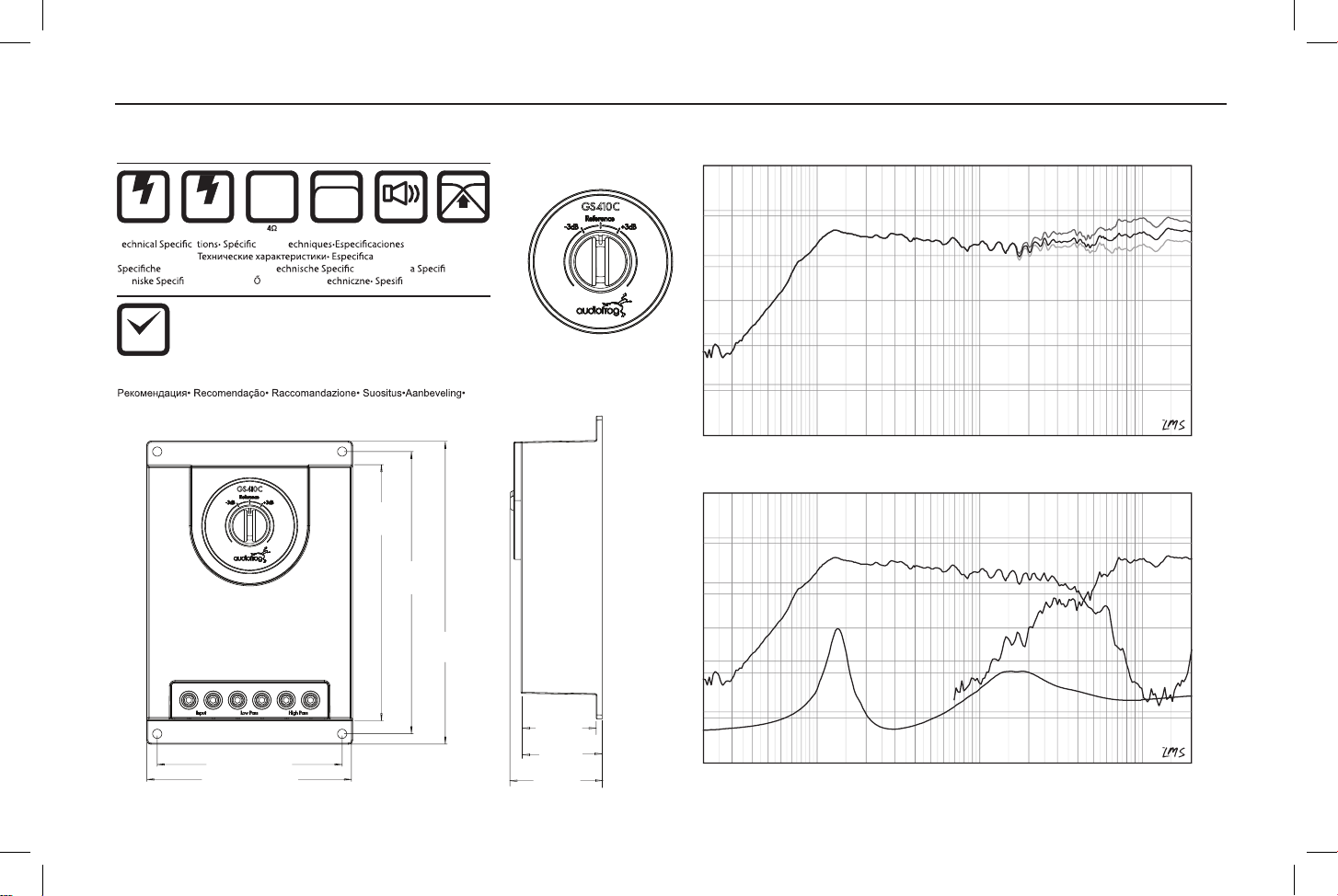

GS610C
T a ations T Técnicas•
Technische Daten•
ções Técnicas•
Tecniche• Tekniset Tiedot•T aties• Teknisk kationer•
Tek kationer• Teknik zellikler• Dane T kasi Teknis•技术规格
Recommendations• Recommandations• Recomendaciones• Empfehlung•
Rekommendation• Anbefaling• Tavsiye• Rekomendacja• Rekomendasi• 推荐
RMS
70 Watts
MAX
200 Watts
NOMINAL
Z
-3dB
50Hz-20kHz
2.83V/1M
89dB
3.5kHz
RMS
15-75 Watts
45mm
(1-25/32”)
39mm
(1-9/16”)
36mm
(1-7/16”)
149.3mm
(5-29/32”)
126.3mm
(5”)
139.2mm
(5-1/2”)
100.8mm (3-31/32”)
91.2mm (3-9/32”)
dBSPL
45
55
65
75
85
95
105
20 50 100 200 500 1K 2K 5K 10K 20K
2
4
8
20
40
80
Ohm
dBSPL
45
55
65
75
85
95
105
20 50 100 200 500 1K 2K 5K 10K 20K
2
4
8
20
40
80
Ohm

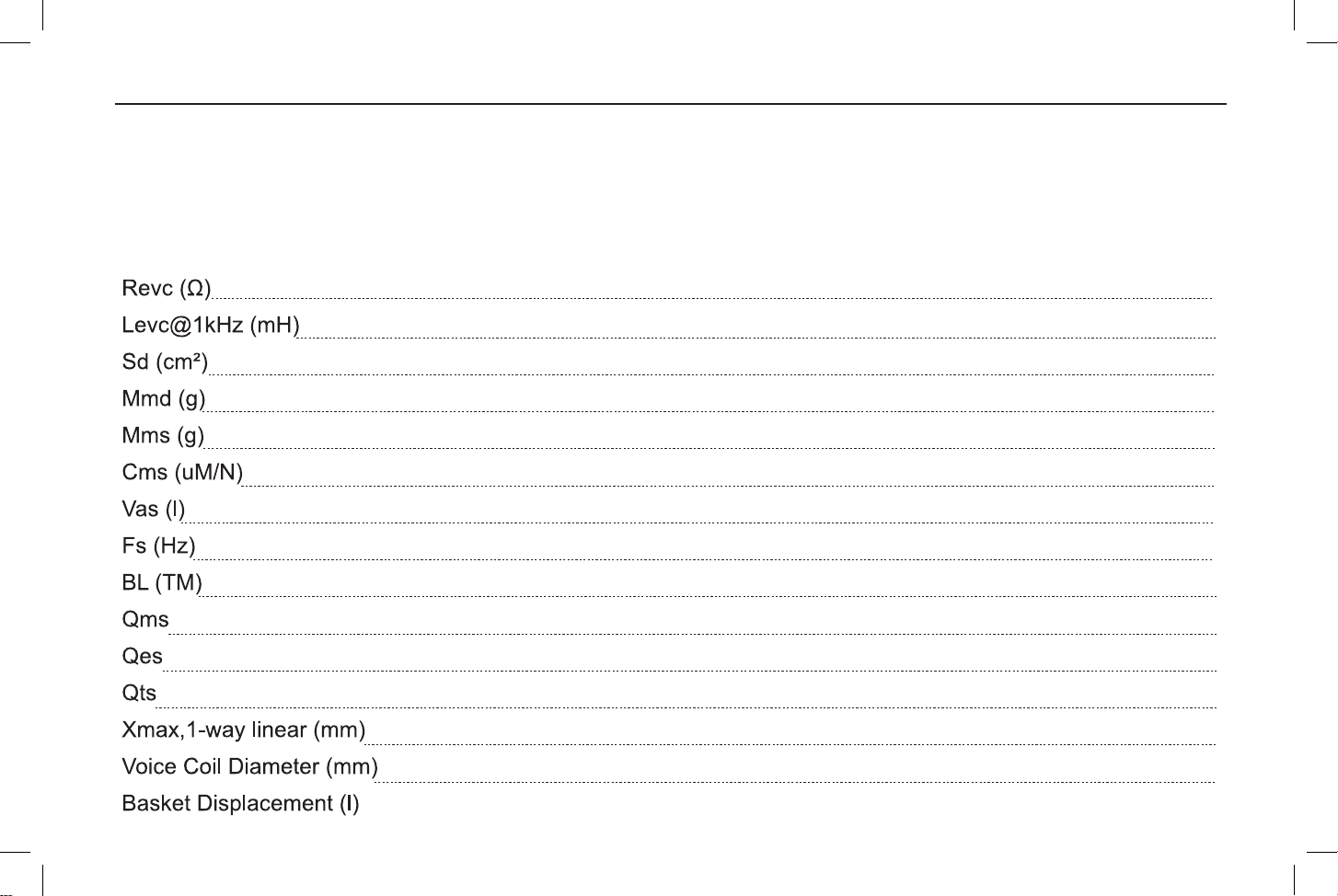

GS40
GS60
2.33
0.08
122.17
3.14
4.19
284.23
6.05
145.8
3.06
5.74
0.995
0.82
3.2
25
0.113
2.28
0.14
138.93
11.8
12.75
306.5
8.45
80.5
4.4
6.33
0.76
0.67
4
25
0.33
GS40 GS60
