DPRS-SF photo

Owners / Assembly Guide

This is the main product document for model DPRS-SF.

The file format is pdf, 30 pages, you can download this manual here .

background
BODY-SOLID,Inc.
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Phone:(708)427-3555
Fax:(708)427-3556
www.bodysolid.com

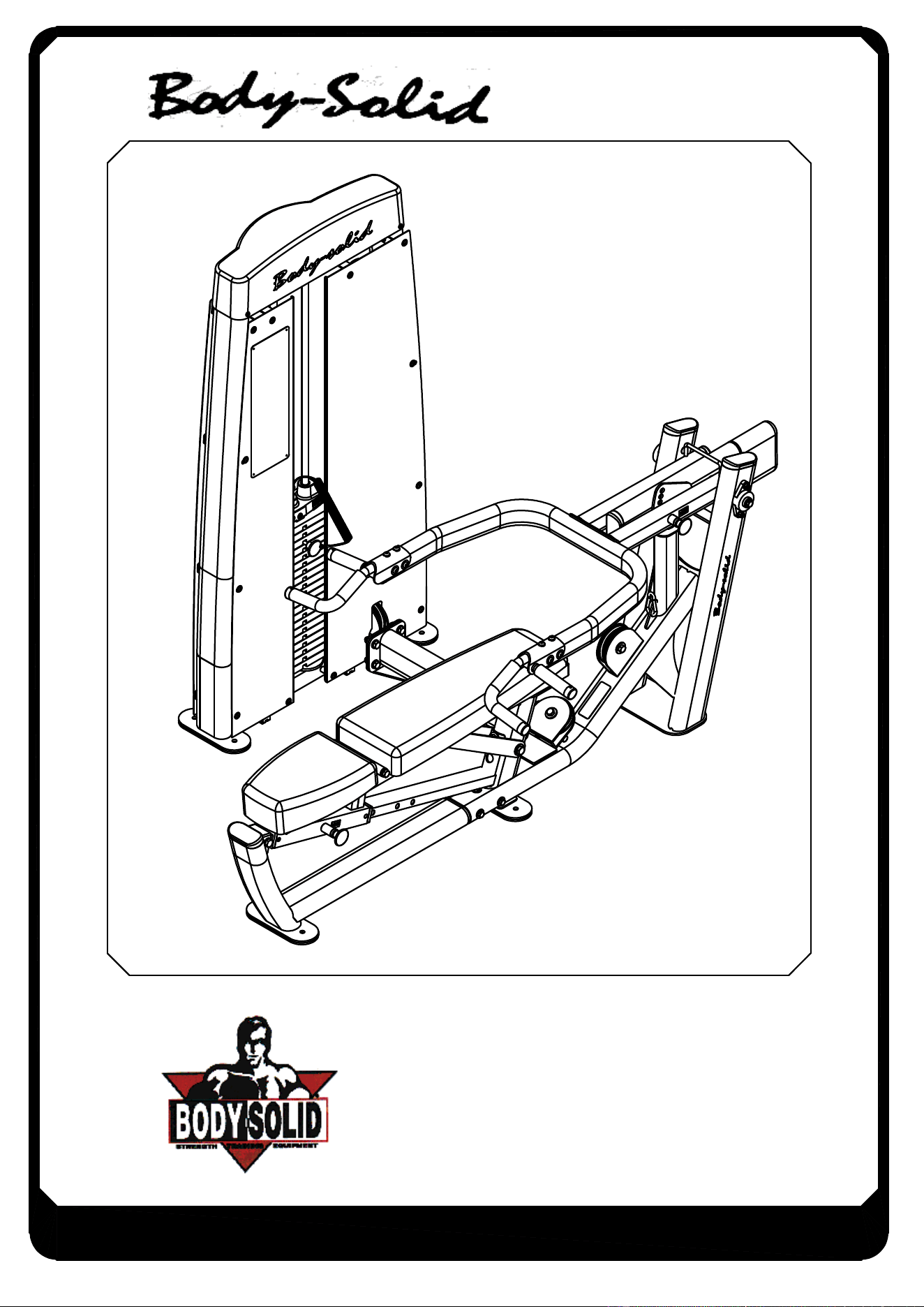

OWNER'S MANUAL
DPRS.3
background

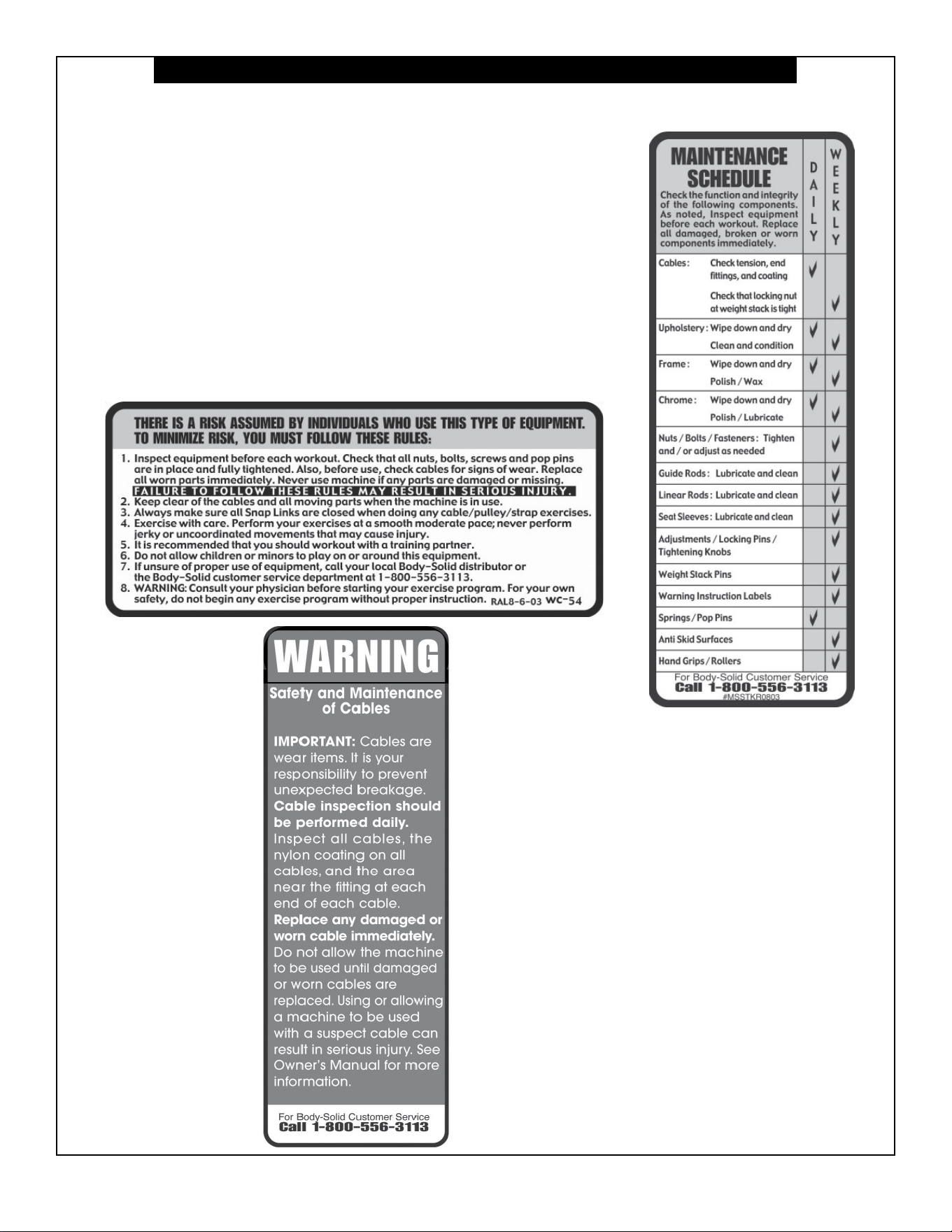

Warning, Safety & Maintenance
Be sure that all users carefully read and understand all
warning, safety and maintenance labels on the machine
before each use. Failure to do so may result in death or
serious injury.
It is imperative that you retain
your Owner’s
Manual
and be
sure all warning labels are legible and intact. Replacement
Owner’s Manuals and warning labels are available from your
local Body-Solid dealer.
If you have any questions about the operation, set up or
maintenance of this machine please call our customer service
department at 1 (800) 556-3113.

#DWRULE-4

background
Important Safety Instructions
Beforebeginninganyfitnessprogram,youshouldobtainacompletephysicalexaminationfromyourphysician.
Il est conseille de subir un examen medical complet avant d’entreprendre tout programme d’exercise.
Si vous avez des etourdissements ou des faiblesses, arretez les exercices immediatement.
Antes de comenzar cualquier programma de ejercicios, deberias tener un examen isico con su doctor.
When using exercise equipment, you
should always take basic precautions,
including the following:
m Readallinstructionsbeforeusingyour machine.
Theseinstructionsarewrittentoensureyoursafety
andtoprotecttheunit.
m Do not remove any safety labels from the
machine.
m Donotallowchildrenonorneartheequipment.
m Usetheequipmentonlyforitsintendedpurpose as
describedinthisguide.Donotuseaccessory
attachmentsthatarenotrecommendedbythe
manufacturer.Suchattachmentsmightcause
injuries.
m Wearproperexerciseclothingandshoesforyour
workout,nolooseclothing.
m Keephands,limbs,looseclothing,andlonghairwell
outofthewayofallmovingparts.
m Usecarewhengettingonorofftheunit.
m Donotoverexertyourselforworktoexhaustion.
m Ifyoufeelanypainorabnormalsymptoms,stop
yourworkoutimmediatelyandconsultyour
physician.
m Neveroperateunitwhenithasbeendroppedor
damaged.Returntheequipmenttoaservice center
forexaminationandrepair.
m Neverdroporinsertobjectsintoanyopeningin the
equipment.
m IMPORTANT: Cables are wear items. It is your
responsibility to prevent unexpected breakage.
Cable inspection should be performed daily. Inspect
all cables, and the area near the fitting at each end
of each cable. Replace any damaged or worn cable
immediately. Do not allow the machine to be used
until these are replaced.
m Donotusetheequipmentoutdoorsornearwater.
Personal Safety During Assembly
m Beforebeginningassembly,pleasetakethetime
toreadtheinstructionsthoroughly.
m Readeachstepintheassemblyinstructionsand
followthestepsinsequence.Donotskipahead.
Ifyouskipahead,youmaylearnlaterthatyou
havetodisassemblecomponentsandthatyou
mayhavedamagedtheequipment.
m Assembleandoperateyour machineonasolid,
levelsurface.Locatetheunitafewfeetfromthe
wallsorfurnituretoprovideeasyaccess.
Your machine isdesignedforyourenjoyment.By
followingtheseprecautionsandusingcommonsense,
youwillhavemanysafeandpleasurablehoursof
healthfulexercise.
Afterassembly,youshouldcheckallfunctionsto
ensurecorrectoperation.Ifyouexperienceproblems,
rstrechecktheassemblyinstructionstolocateany
possibleerrorsmadeduringassembly.Ifyouareunable
tocorrecttheproblem,callthedealerfromwhomyou
purchasedthemachineorcall1-800-556-3113forthe
dealernearestyou.
Obtaining Service
PleaseuseyourOwner’sManualtomakesurethatall
partshavebeenincludedinyourshipment.When
orderingparts,youmustusethepartnumberand
descriptionfromyourOwner’sManual.Useonly
Body-Solidreplacementpartswhenservicingthis
machine.Failuretodosowillvoidyourwarrantyand
couldresultinpersonalinjury.
Forinformationaboutproductoperationorservice,
checkouttheo󰀩cialBody-Solidwebsiteat
www.bodysolid.comorcontactanauthorized
Body-SoliddealeroraBody-Solidfactory-authorized
servicecompanyorcontactBody-Solidcustomer
serviceatoneofthefollowing:
Toll Free: 1-800-556-3113
Phone: 1-708-427-3555
Fax: 1-708-427-3556
Hours: M-F 8:30-5:00 CST
E-Mail: [email protected]
Or write to: Body-Solid, Inc.
Service Department
1900 S. Des Plaines Ave.
Forest Park, IL 60130 USA
Retain this Owner’s Manual for future
reference. If you need to order replacement
parts please be prepared to provide the
following information when contacting us so
that we can assist you better.
1. Model Number
2. Proof of Purchase
3. Place of Purchase
4. Serial Number (S/N)
5. Part # and Description
background

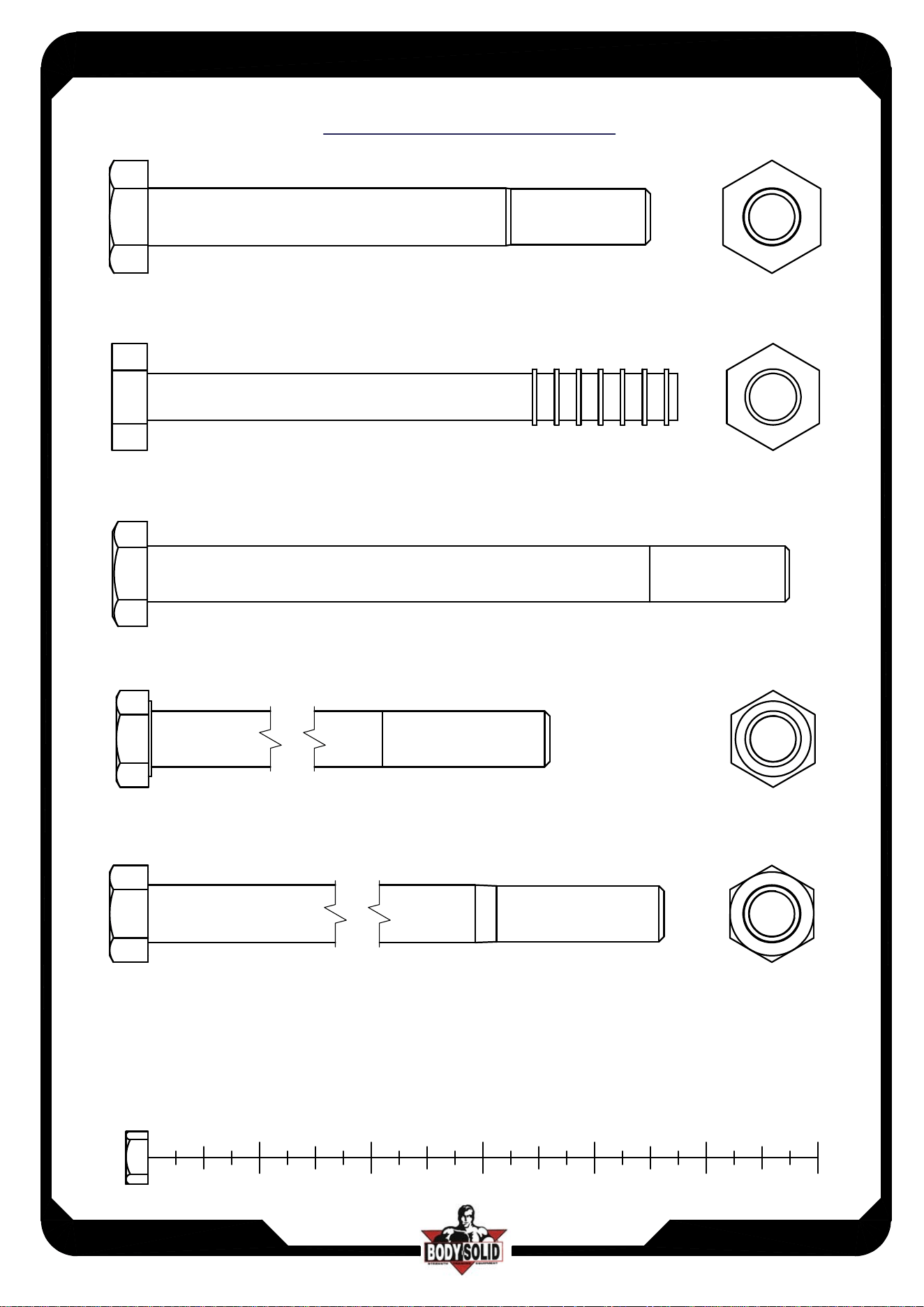

ASSEMBLY INSTRUCTIONS
Page
DPRS.3-112008
1.1
DPRS

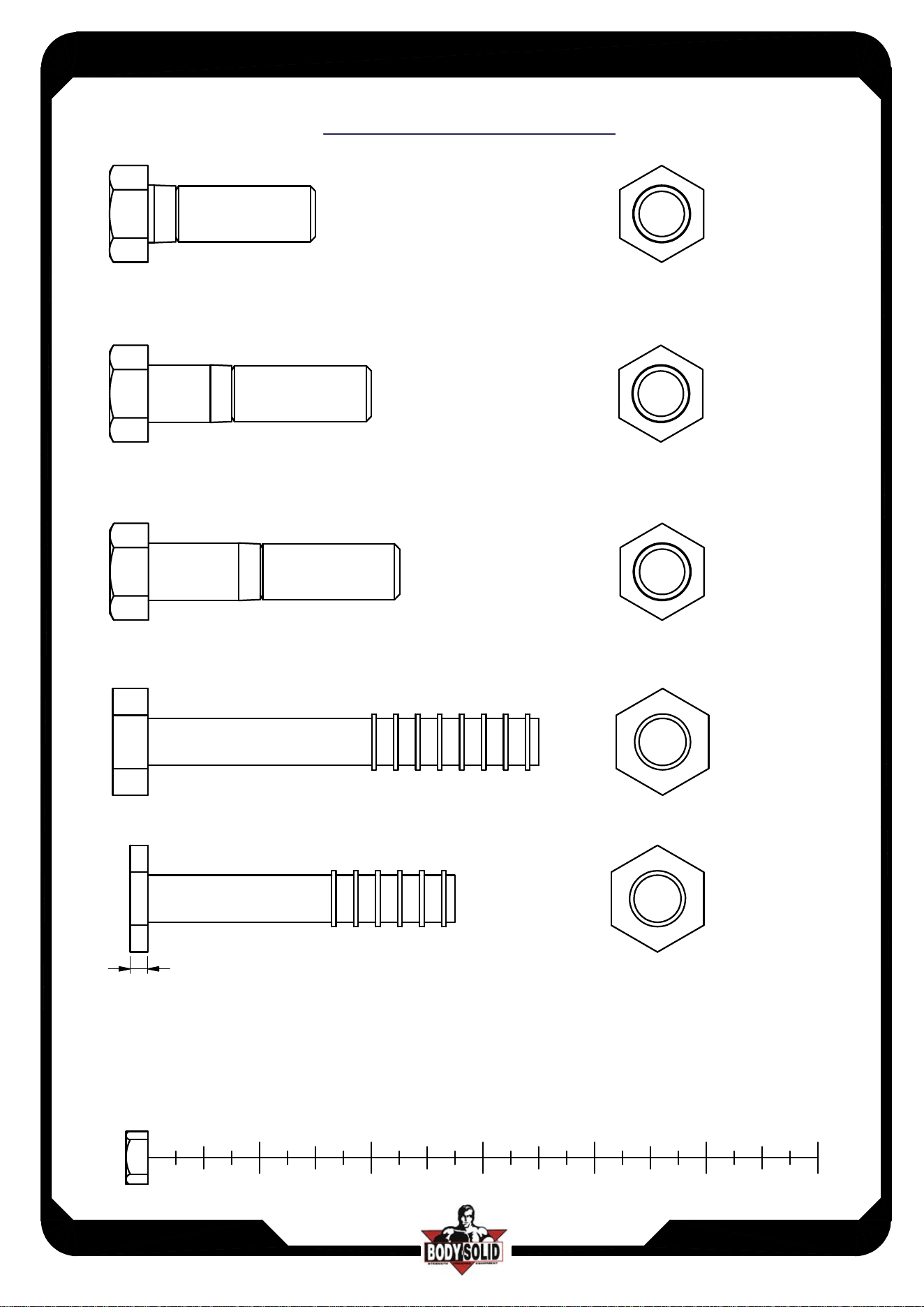

(A1)HEX BOLT 1/2"x1 1/2"L PARTIAL THREAD QTY.7
(A2)HEX BOLT 1/2"x2"L PARTIAL THREAD QTY.1
(A3)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.1
(A4)HEX BOLT 1/2"x3 1/2"L PARTIAL THREAD QTY.1
(A5)HEX BOLT 1/2"x2 3/4"L PARTIAL THREAD QTY.1
HARDWARE ILLUSTRATION
2
1
3
4
5
6
4
background
ASSEMBLY INSTRUCTIONS
Page
DPRS.3-112008
1.2
DPRS
(A6)HEX BOLT 1/2"x4 1/2"L PARTIAL THREAD QTY.1
(A7)HEX BOLT 1/2"x4 3/4"L PARTIAL THREAD QTY.1
(A8)HEX BOLT 1/2"x5 3/4"L PARTIAL THREAD QTY.1
(A9)HEX BOLT 1/2"x7"L PARTIAL THREAD QTY.1
(A10)HEX BOLT 1/2"x8 1/2"L PARTIAL THREAD QTY.1
HARDWARE ILLUSTRATION
2
1
3
4
5
6
background

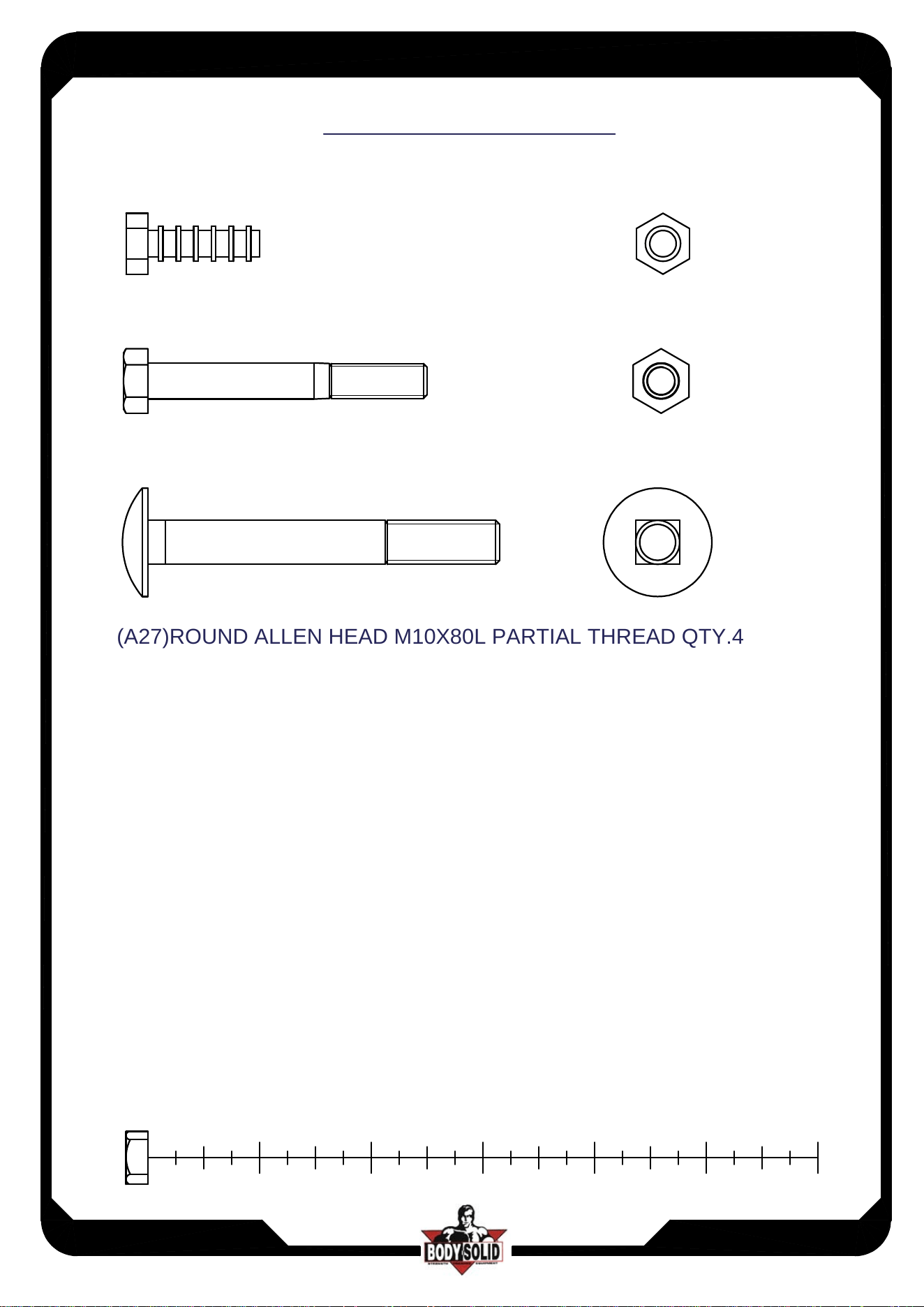

ASSEMBLY INSTRUCTIONS
Page
DPRS.3-062010
1.3
DPRS
(A13)HEX BOLT 5/16"x1"L PARTIAL THREAD QTY.3
(A15)HEX BOLT 5/16"x2 1/2"L PARTIAL THREAD QTY.4
HARDWARE ILLUSTRATION
2
1
3
4
5
6
(A27)ROUND ALLEN HEAD M10X80L PARTIAL THREAD QTY.4
background
ASSEMBLY INSTRUCTIONS
Page
DPRS
DPRS.3-112008
1.4

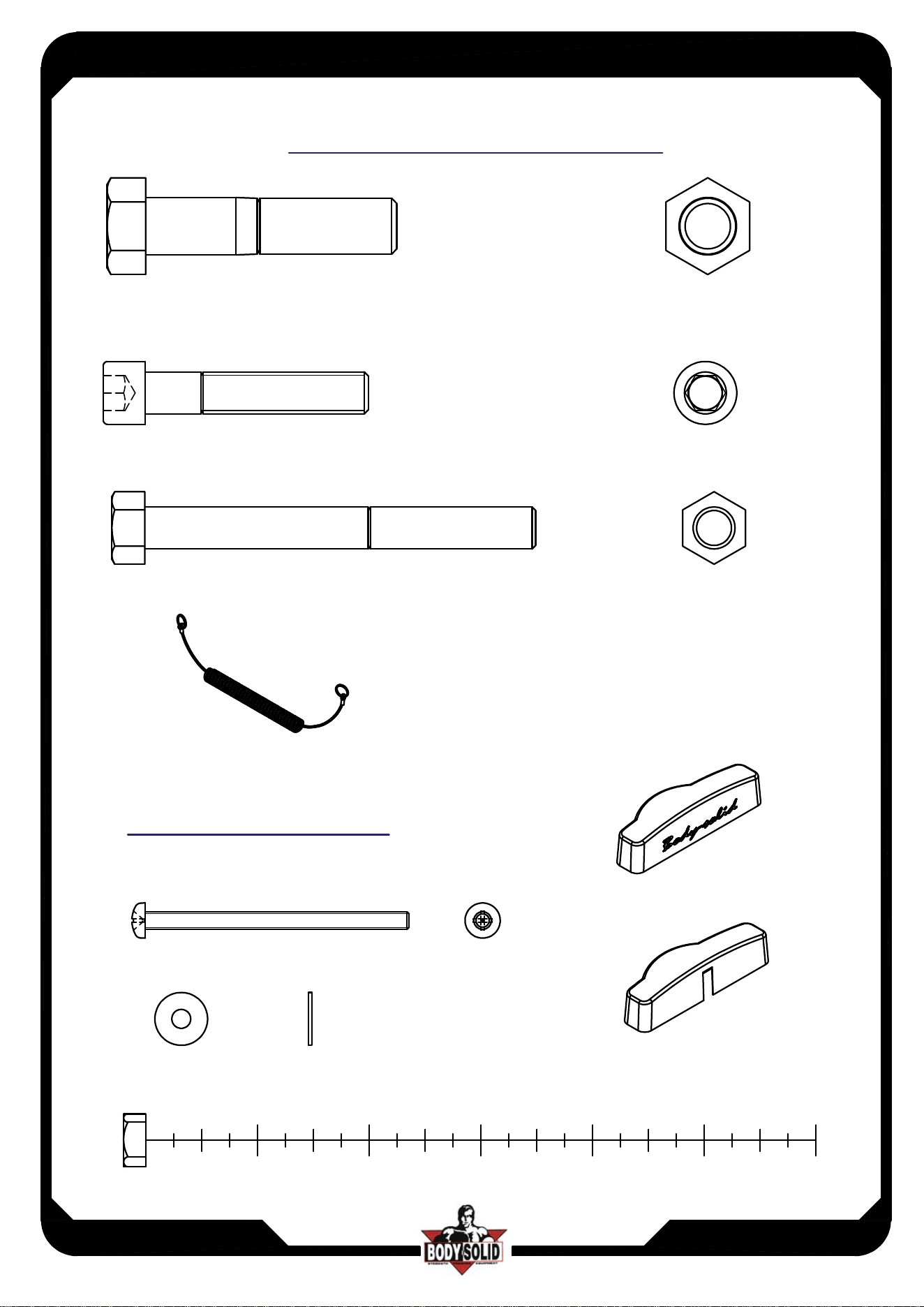

(A16)HEX BOLT 1/2"x2 1/4"L PARTIAL THREAD QTY.4
(A17)HEX BOLT M4X65L"L PARTIAL THREAD QTY.2
(A18)ROUND ALLEN HEAD 3/8"X2"L PARTIAL THREAD QTY.1
(A19)HEX BOLT 3/8"x3 1/2"L PARTIAL THREAD QTY.1
2
1
3
4
5
6
FRAME HARDWARE ILLUSTRATION
(A20)ELASTIC BOLT QTY.1
(C12)M4(I.D.)FLAT WASHER n12 QTY.2
Optional Purchase
"M4X65 ROUND BOLT" and "M4 WASHER" is used to assemble with 9211-111 and 9211-119 TOP CAP
TOP CAP(9211-111)
TOP CAP(9211-119)
background
ASSEMBLY INSTRUCTIONS
Page
DPRS
DPRS.3-112008
1.5

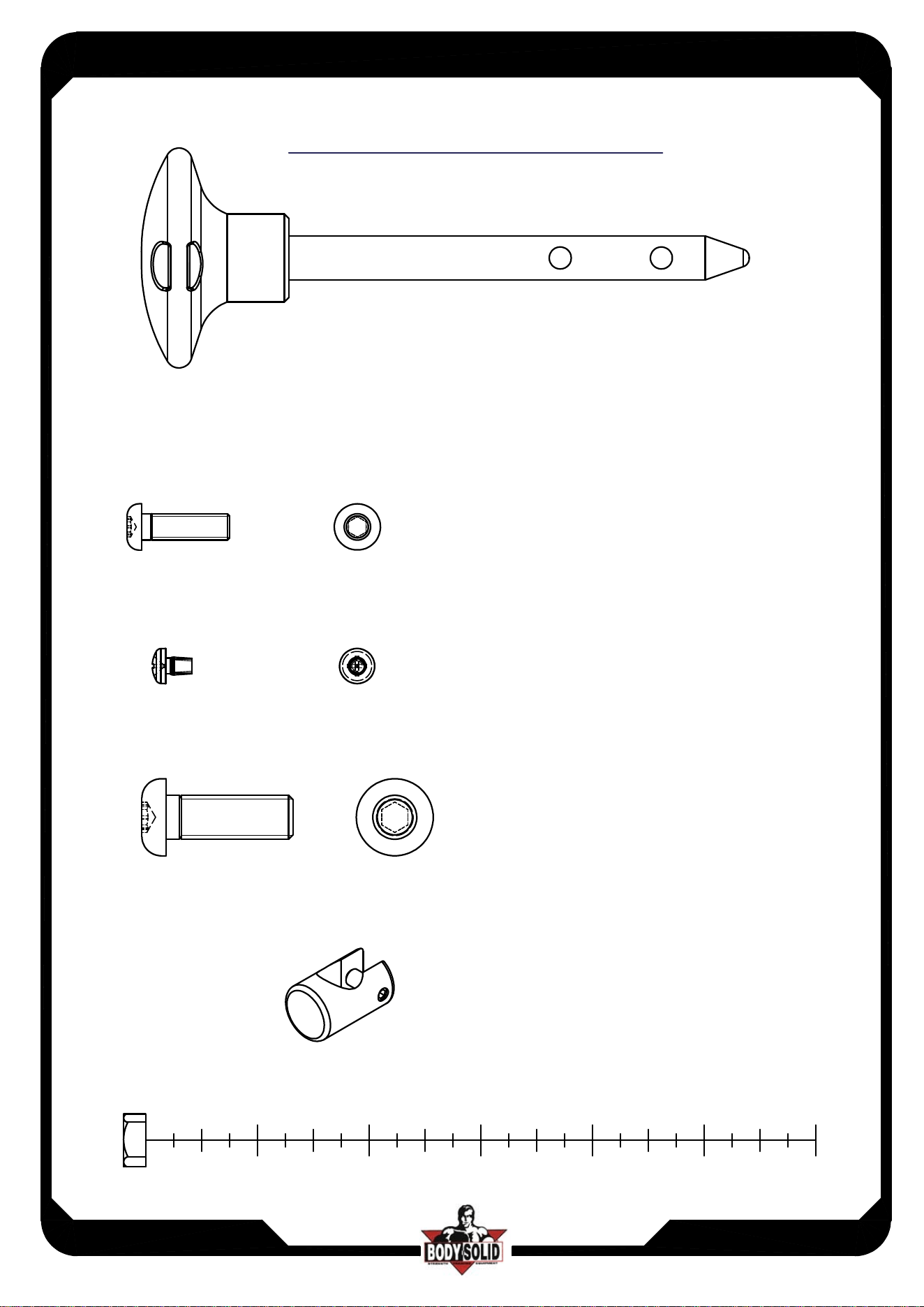

(A21)10LB PIN (8250-071) QTY.1
(A23)ROUND ALLEN HEAD M6X20L PARTIAL THREAD QTY.20
(A24)ROUND ALLEN HEAD 5/32"X1/4"L PARTIAL THREAD QTY.4
2
1
3
4
5
6
FRAME HARDWARE ILLUSTRATION
(A25)ROUND INNER HEX SCREW M10X30L PARTIAL QTY.1
(A26)FIRM SHEATH(8890-046) QTY.1
background
ASSEMBLY INSTRUCTIONS
Page
DPRS.3-062017
1.6
DPRS

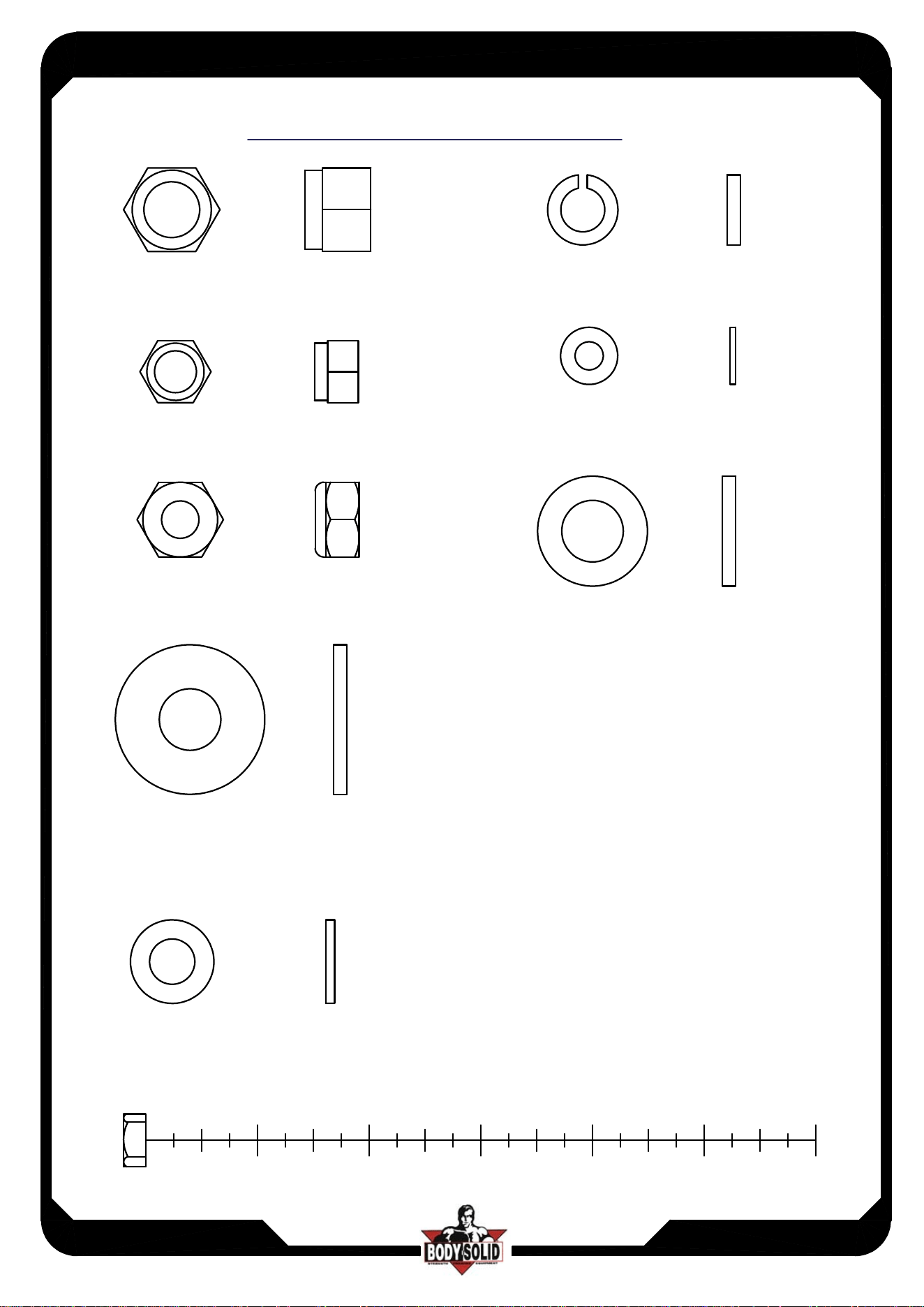

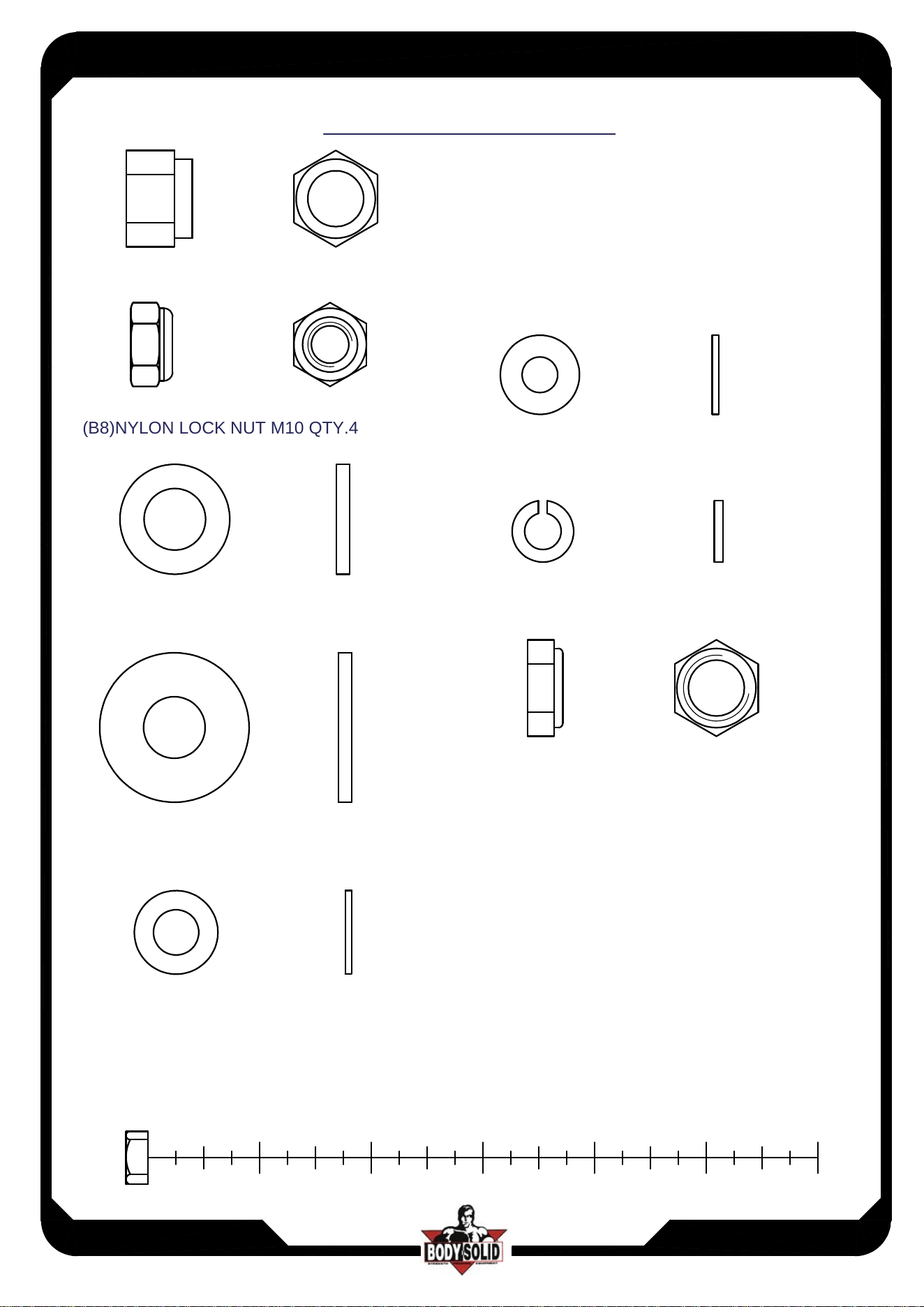

(B1)NYLON LOCK NUT 1/2" QTY.14
(B8)NYLON LOCK NUT M10 QTY.4
(C1)1/2"(I.D.)FLAT WASHER
25 QTY.14
(C2)1/2"(I.D.)FLAT WASHER
34 QTY.15
(C14)M10(I.D.)FLAT WASHER
19 QTY.4
(C5)5/16"(I.D.)FLAT WASHER
18 QTY.7
(C6)5/16" SPRING WASHER QTY.7
(B7)NYLON LOCK NUT 1/2"X8H QTY.1
HARDWARE ILLUSTRATION
2
1
3
4
5
6
background
ASSEMBLY INSTRUCTIONS
Page
DPRS
DPRS.3-112008
1.7
(B4)NYLON LOCK NUT 1/2" QTY.4
(C8)1/2"(I.D.)FLAT WASHER
n34 QTY.6
(C10)3/8" SPRING WASHER QTY.1
(C11)M6(I.D.)FLAT WASHER
n13 QTY.20
(C9)3/8"(I.D.)FLAT WASHER
n19 QTY.2
(B5)NYLON LOCK NUT 3/8" QTY.1
2
1
3
4
5
6
FRAME HARDWARE ILLUSTRATION
(C13)1/2"(I.D.)FLAT WASHER n25 QTY.2
(B6)NYLON LOCK NUT M10 QTY.1
background
ASSEMBLY INSTRUCTIONS
Page
DPRS
DPRS.3-112008
2

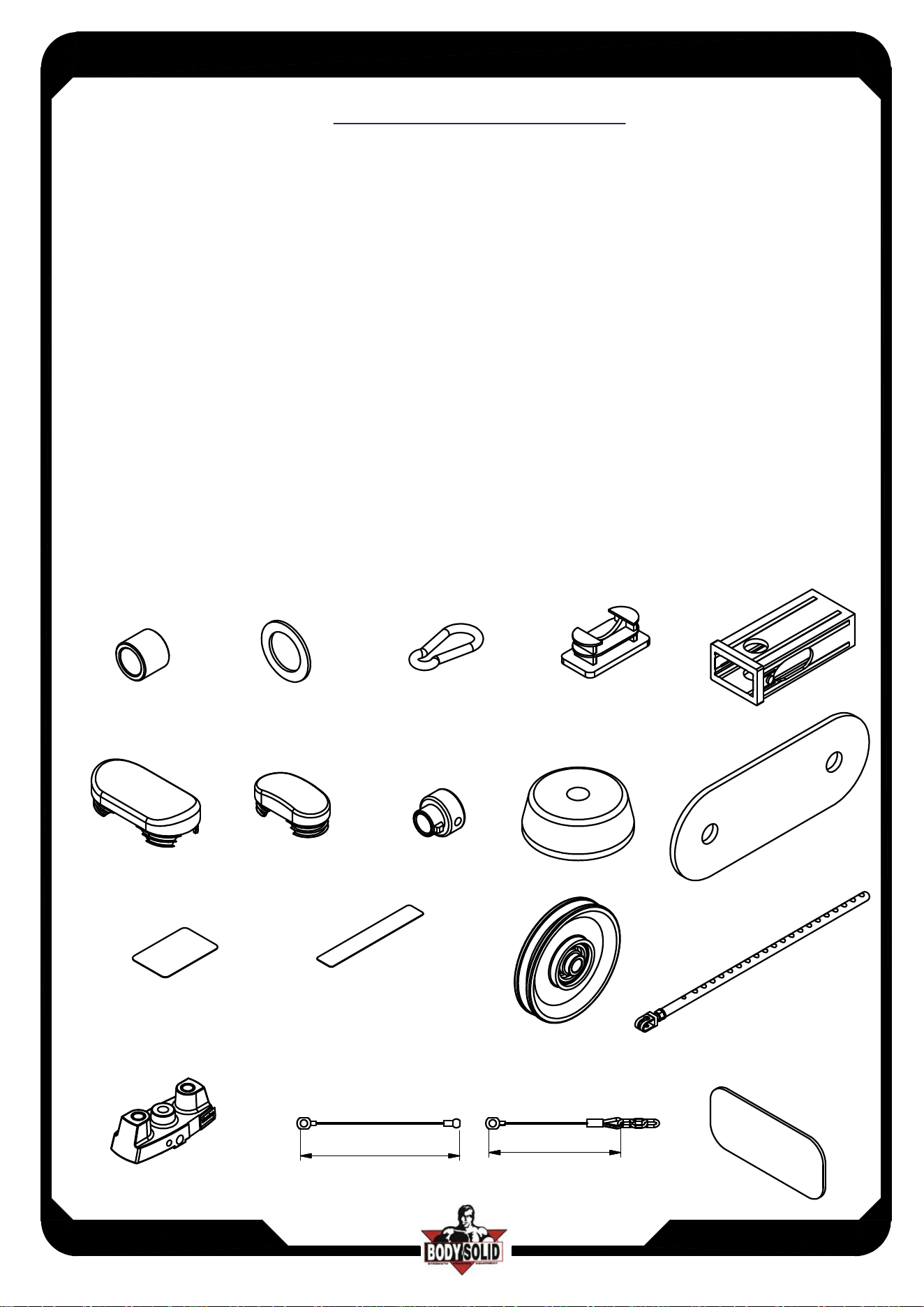

D1.
n3/4"X16L STEEL BUSHING (8110-066)---------------------[2PCS]
D2.
n30Xn20X1.5T CU WASHER (8520-007)---------------------[4PCS]
D6.58X116 END CAP(9211-112)---------------------------------------[4PCS]
D8.
n3/4" SHAFT COLLAR(9211-046)---------------------------------[2PCS]
D9.
n4" RUBBER DOUNT(9310-017)----------------------------------[2PCS]
D12.20X120 FRICTION TAPE(9440-083)----------------------------[2PCS]
D1 D2 D3
D4
D6
D7
D8 D9
D11
D12
D13
D14
D16
D5
D10
D15
D7.40X80 END CAP(9211-113)-----------------------------------------[2PCS]
D3.
n8 SPRING SNAP LINK(8810-001)------------------------------[1PCS]
D4.20X40 END CAP(9211-008)----------------------------------------[4PCS]
D5.50X75(30X60)NYLON BUSHING(9211-083)-------------------[2PCS]
D10.95X250 RUBBER PAD(9310-060)--------------------------------[4PCS]
D11.40X70 FRICTION TAPE(9440-068)------------------------------[2PCS]
D13.
n117 PULLEY(9213-010B)-----------------------------------------[7PCS]
D14.WEIGHT SELECTOR BAR(8210-042B)-------------------------[1PCS]
D15.TOP PLATE(8400-006)----------------------------------------------[1PCS]
2375
D17
D16.2375mm STEEEL CABLE(FDPRSA)----------------------------[1PCS]
D17.2615mm STEEL CABLE(FDPRSB)------------------------------[1PCS]
D18.DPRS For DGYM Steel Cable(FDPRSC)-----------------------[1PCS]
D19
D19.95X250 RUBBER PAD(9310-061)--------------------------------[1PCS]
HARDWARE ILLUSTRATION
26152615
background
ASSEMBLY INSTRUCTIONS
Page
DPRS.3-112008
3
DPRS

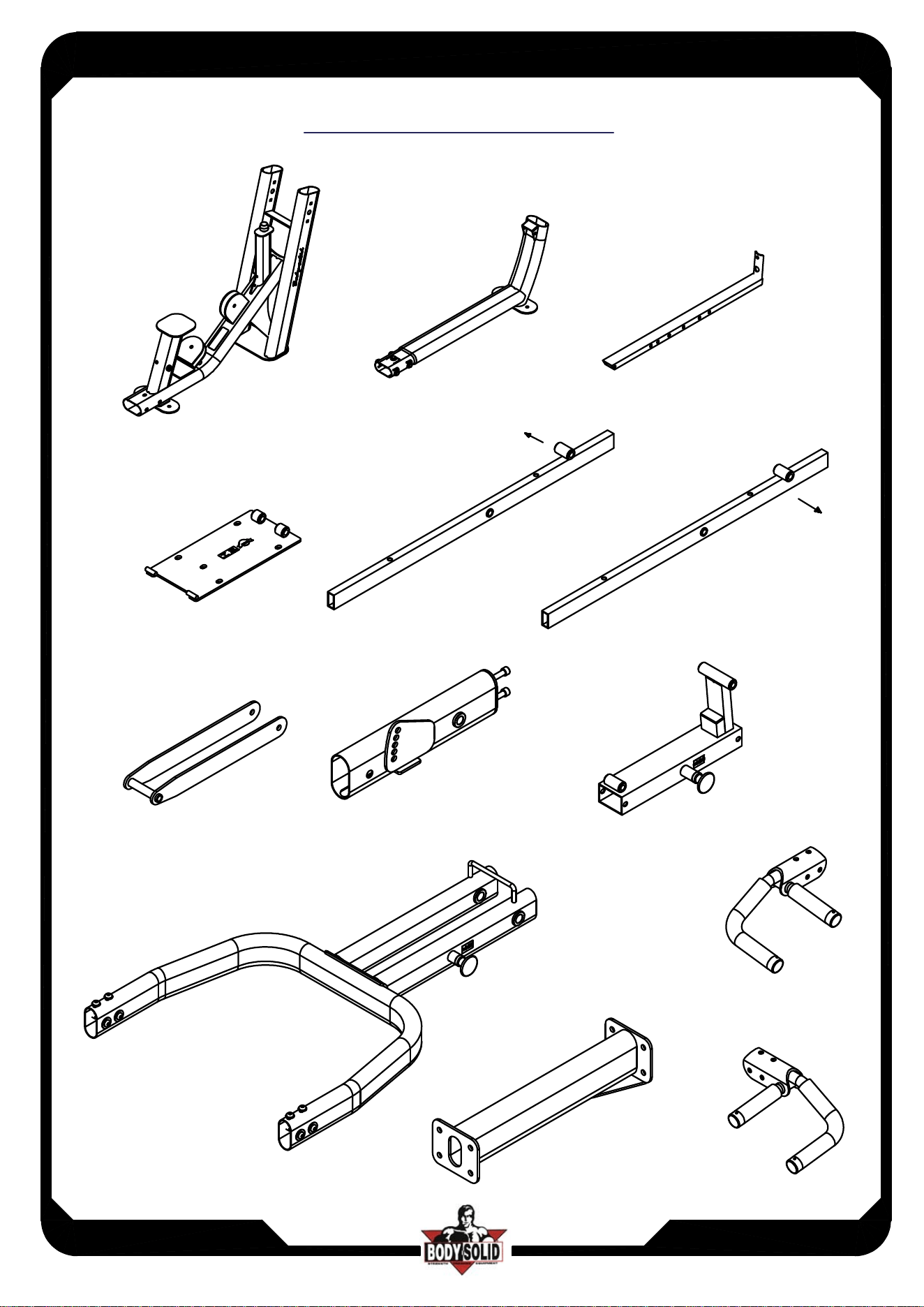

PARTS ILLUSTRATION SHEET
A1[1PCS]
B[1PCS]
C[1PCS]
D1[1PCS]
long
E1[1PCS]
long
F1[1PCS]
G[1PCS]
H[1PCS]
I[1PCS]
J1[1PCS]
L[1PCS]
M[1PCS]
K[1PCS]
background
ASSEMBLY INSTRUCTIONS
Page
DPRS.3-112008
4
DPRS

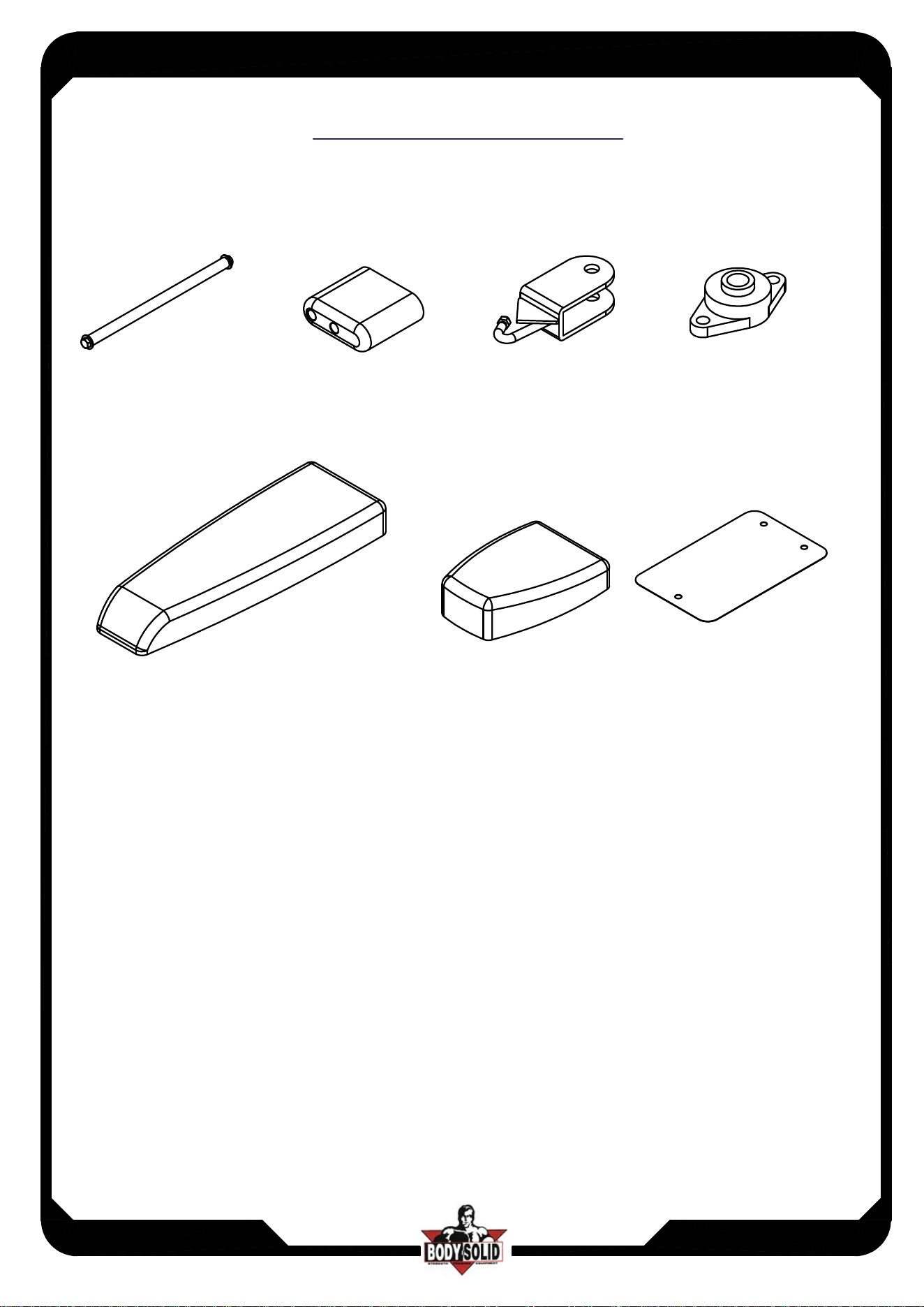

PARTS ILLUSTRATION SHEET
N[1PCS]
8220-136
n20X355L
O[1PCS]
8230-009
P[1PCS]
6640-001
Q[2PCS]
8510-040
R[1PCS]
9111-059
S[1PCS]
9121-056
T[1PCS]
9170-002
background
ASSEMBLY INSTRUCTIONS
Page
DPRS
DPRS.3-112008
5

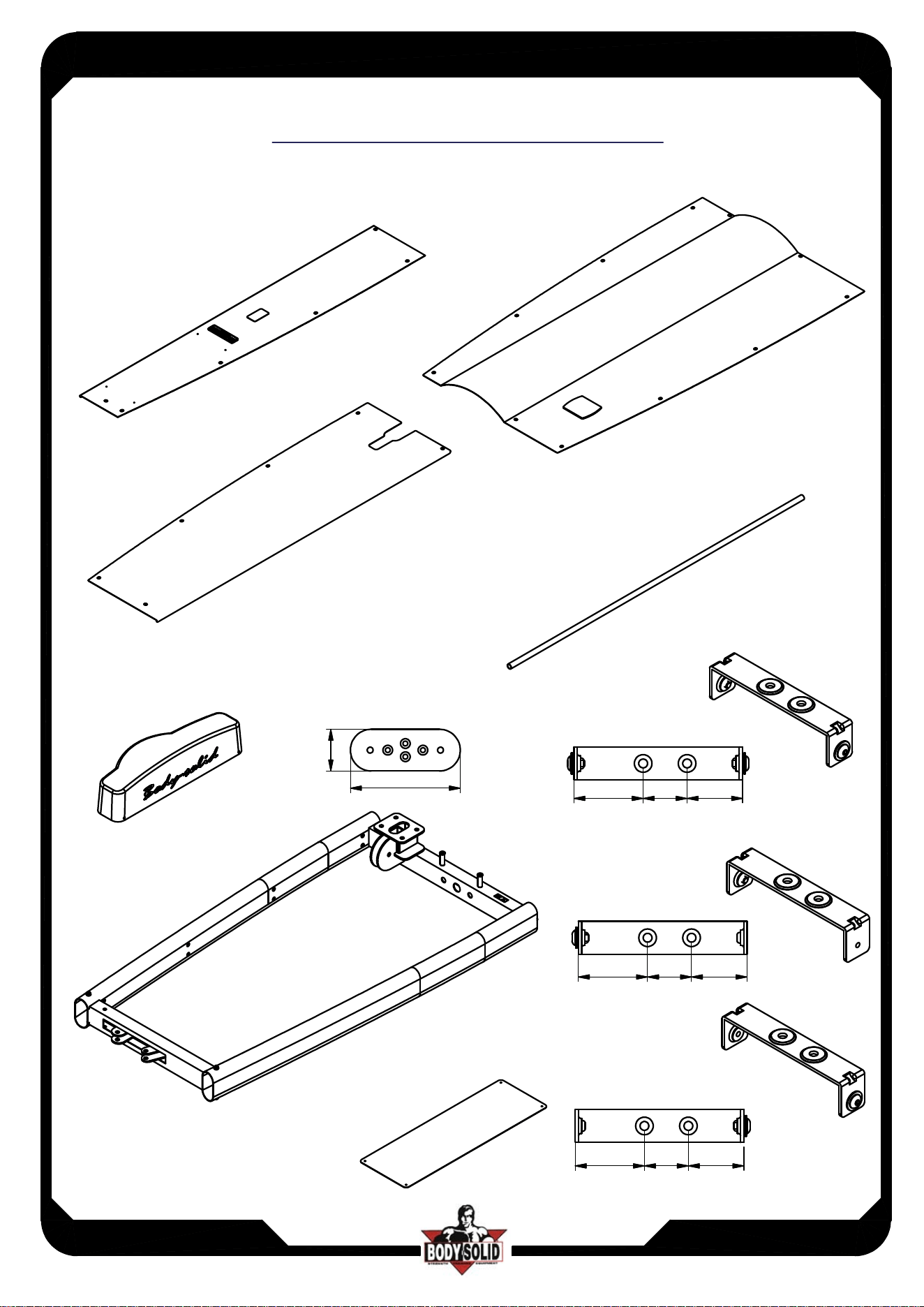

FRAME PARTS ILLUSTRATION SHEET
U[1PCS]
8380-046
W[1PCS]
8380-047
V[1PCS]
8380-048
X[2PCS]
n3/4"X1410L
AG[1PCS]
9211-111A
AA[1PCS]
6610-002
Z[2PCS]
8313-144
9
5
250
AD[9PCS]
8321-040
both side
AE[1PCS]
8321-040
one side
AF[2PCS]
8321-040
one side
63 50.5
63 50.5
50.563
AC[1PCS]
9440-167
40
40
40
background
ASSEMBLY INSTRUCTIONS
Page
DPRS.3-112008
6
DPRS

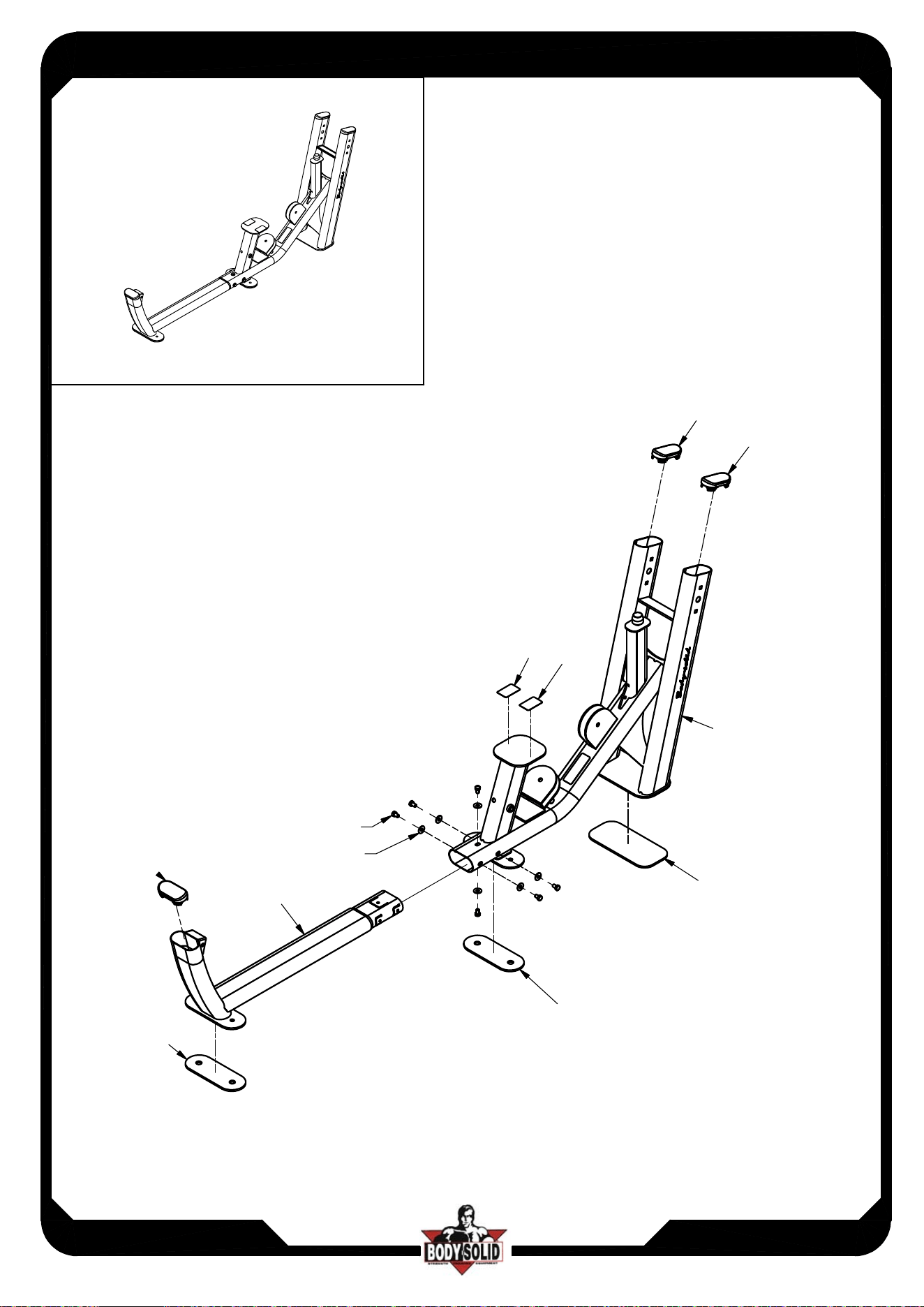

Above shows STEP 1
assembled and completed
D6
B
D10
D10
D11
D11
D6
D6
M10X16L HEX BOLT X6
M10 WASHER X6
A1
D19
background
ASSEMBLY INSTRUCTIONS
Page
DPRS.3-112008
7
DPRS

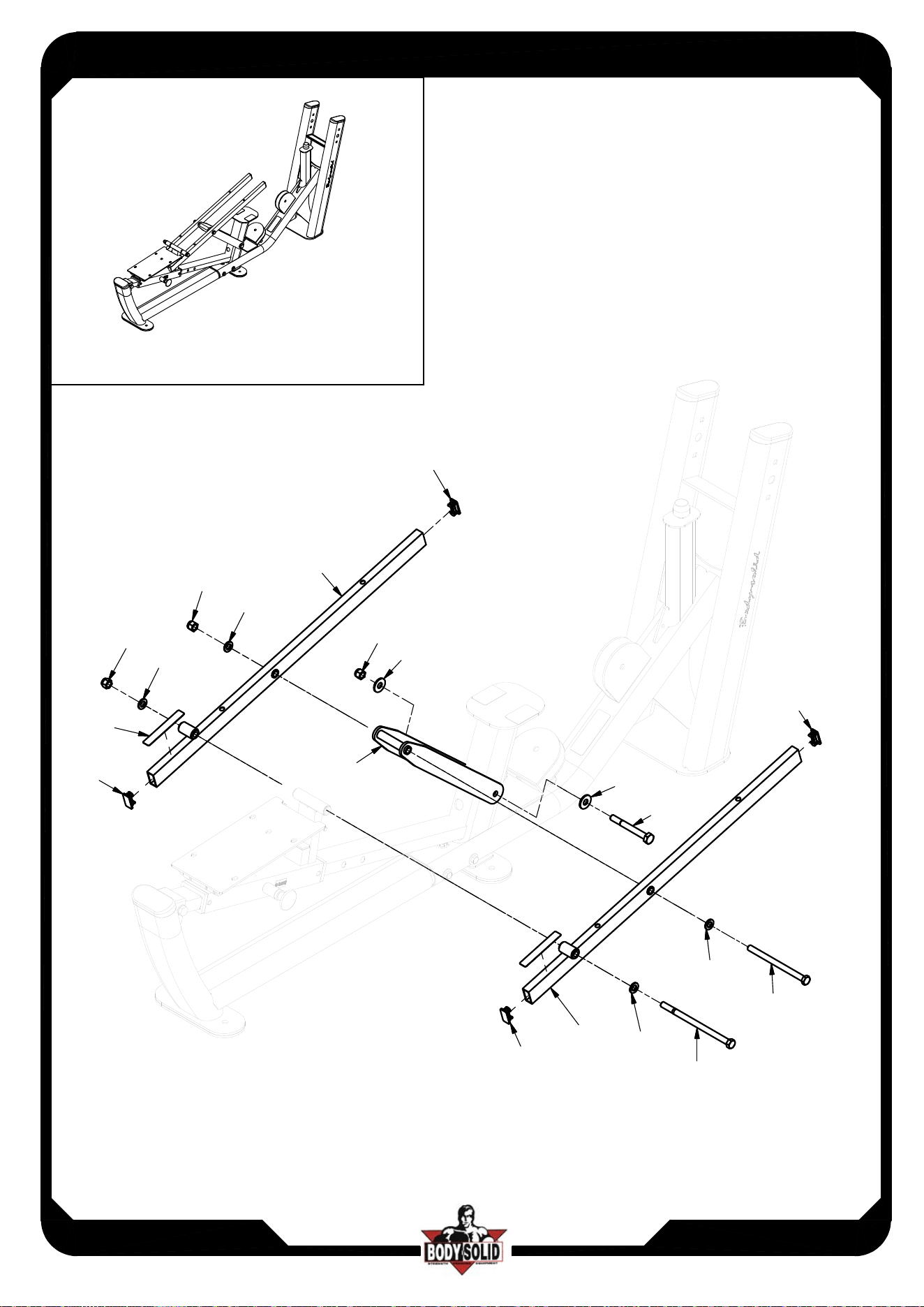

Above shows STEP 2
assembled and completed
D1
D5
A7
B1
C1
D5
C
B1
C2
C2
A8
C1
A4
I
B1
background
ASSEMBLY INSTRUCTIONS
Page
DPRS.3-112008
8
DPRS

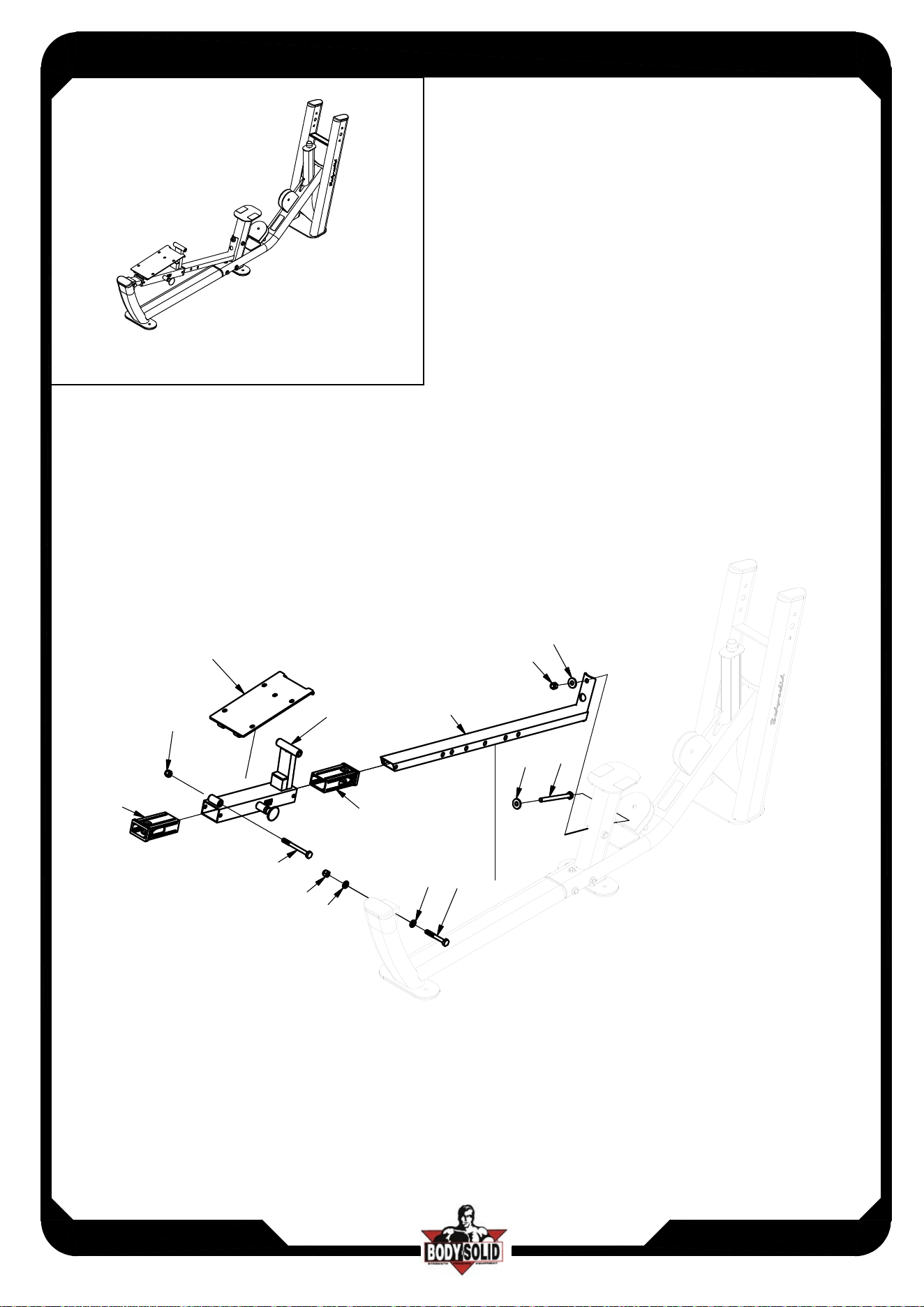

Above shows STEP 3
assembled and completed
D4
F1
B1
C1
D12
B1
C1
D4
B1
C2
G
E1
D4
C1
A10
C1
A9
C2
A6
D4
background
ASSEMBLY INSTRUCTIONS
Page
DPRS.3-062017
9
DPRS

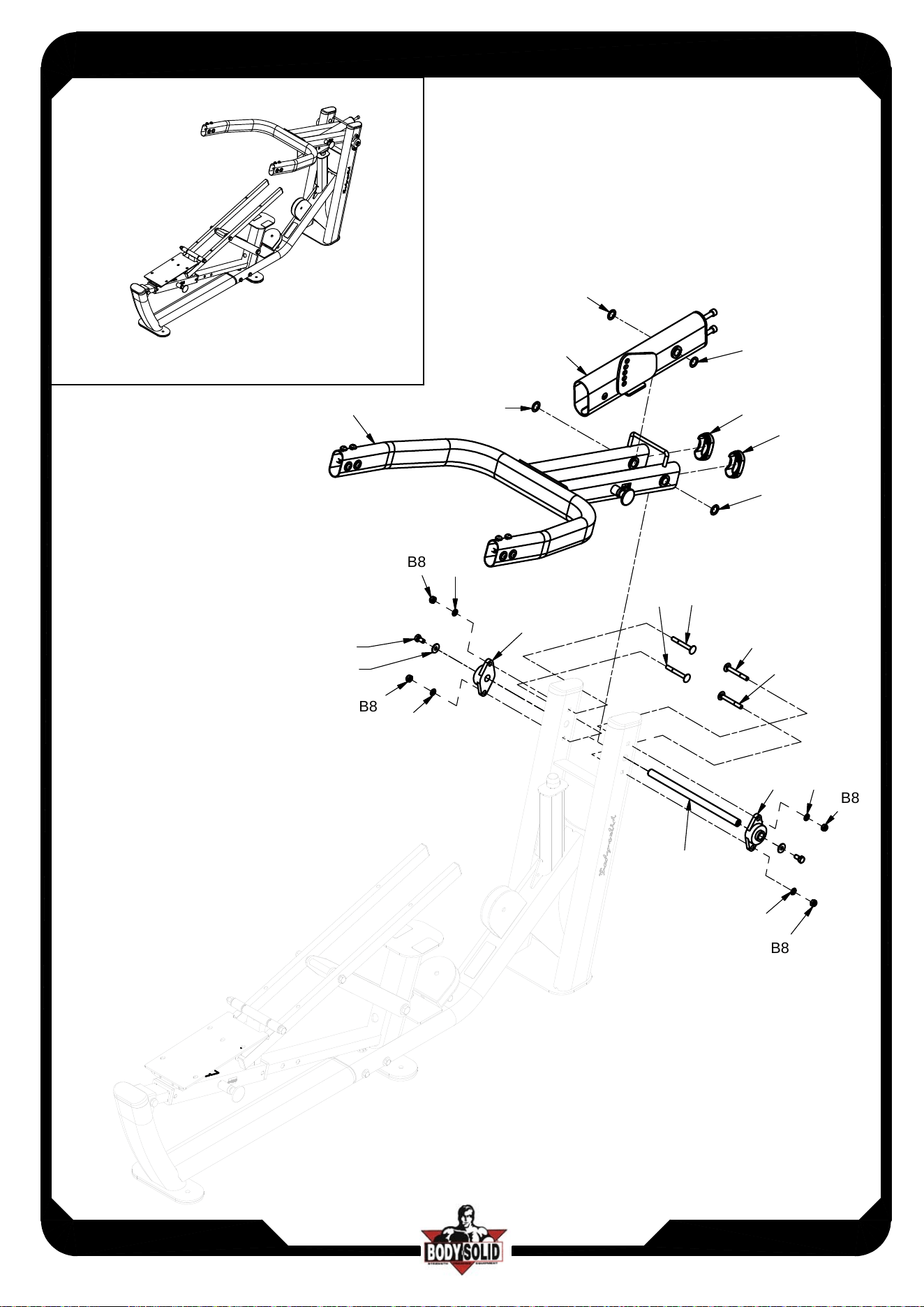

Above shows STEP 4
assembled and completed
J1
D2
H
D2
D2
D7
D7
D2
N
Q
M10 WASHER X2
Q
M10X20L HEX BOLT X2
B8
C14
B8
C14
A27
A27
A27
A27
C14
B8
C14
B8
background
ASSEMBLY INSTRUCTIONS
Page
DPRS.3-112008
10
DPRS

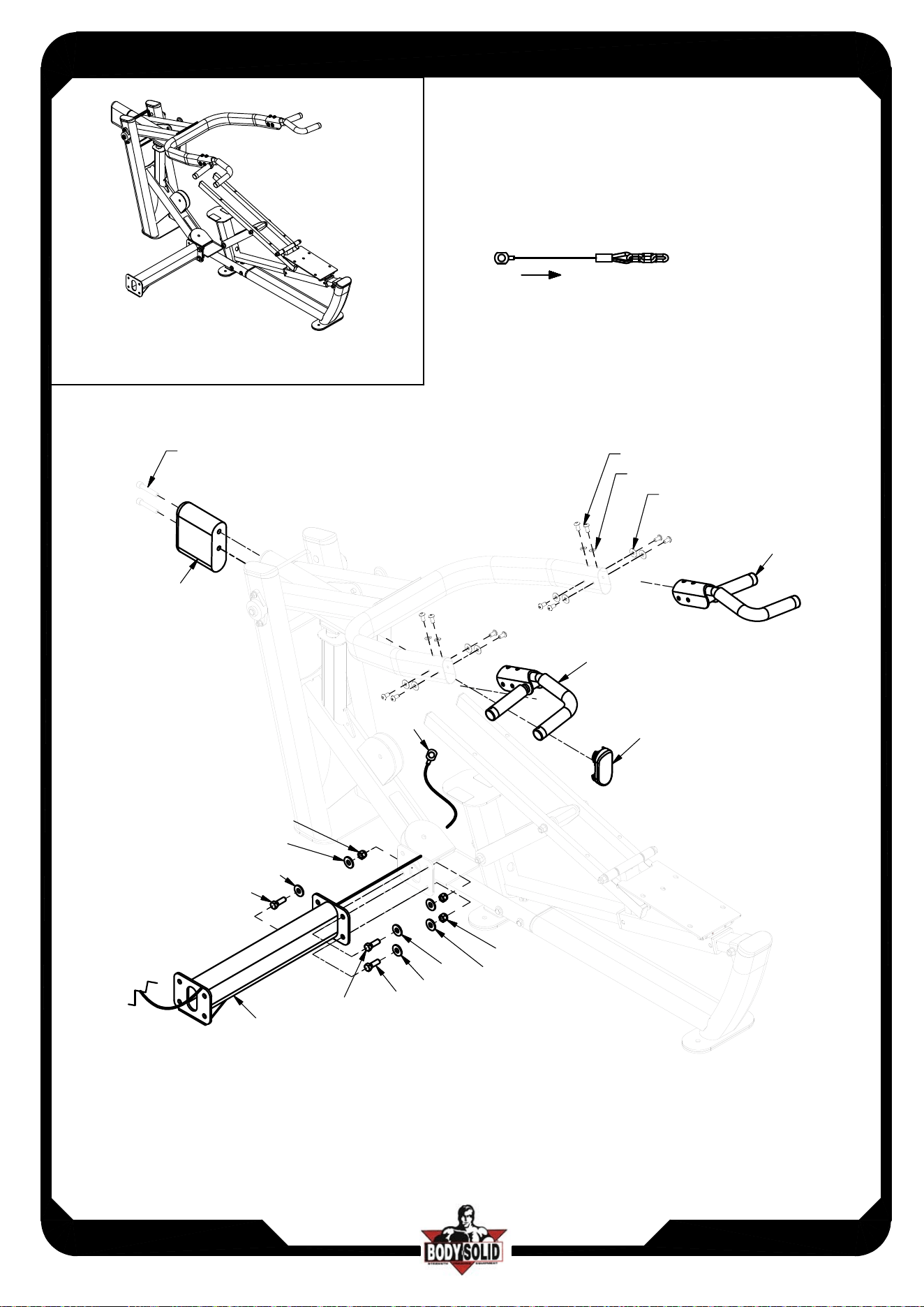

Above shows STEP 5
assembled and completed
K
A1
C2
C2
A1
A1
C2
D6
M
L
3/8" WASHER n19 X4
3/8" WASHER n27 X8
B1
C2
C2
B1
X2
X2
O
M12X65L ROUND ALLEN HEAD X2
D17
assemble direction
D17
3/8"X3/4" ROUND BOLT X12
background
ASSEMBLY INSTRUCTIONS
Page
DPRS.3-112008
11
DPRS
Above shows STEP 6
assembled and completed
R
S
C5
C6
A13
C5
C6
A13
X2
X2
X2
C6
C5
X4
X4
X4
T
A15
background

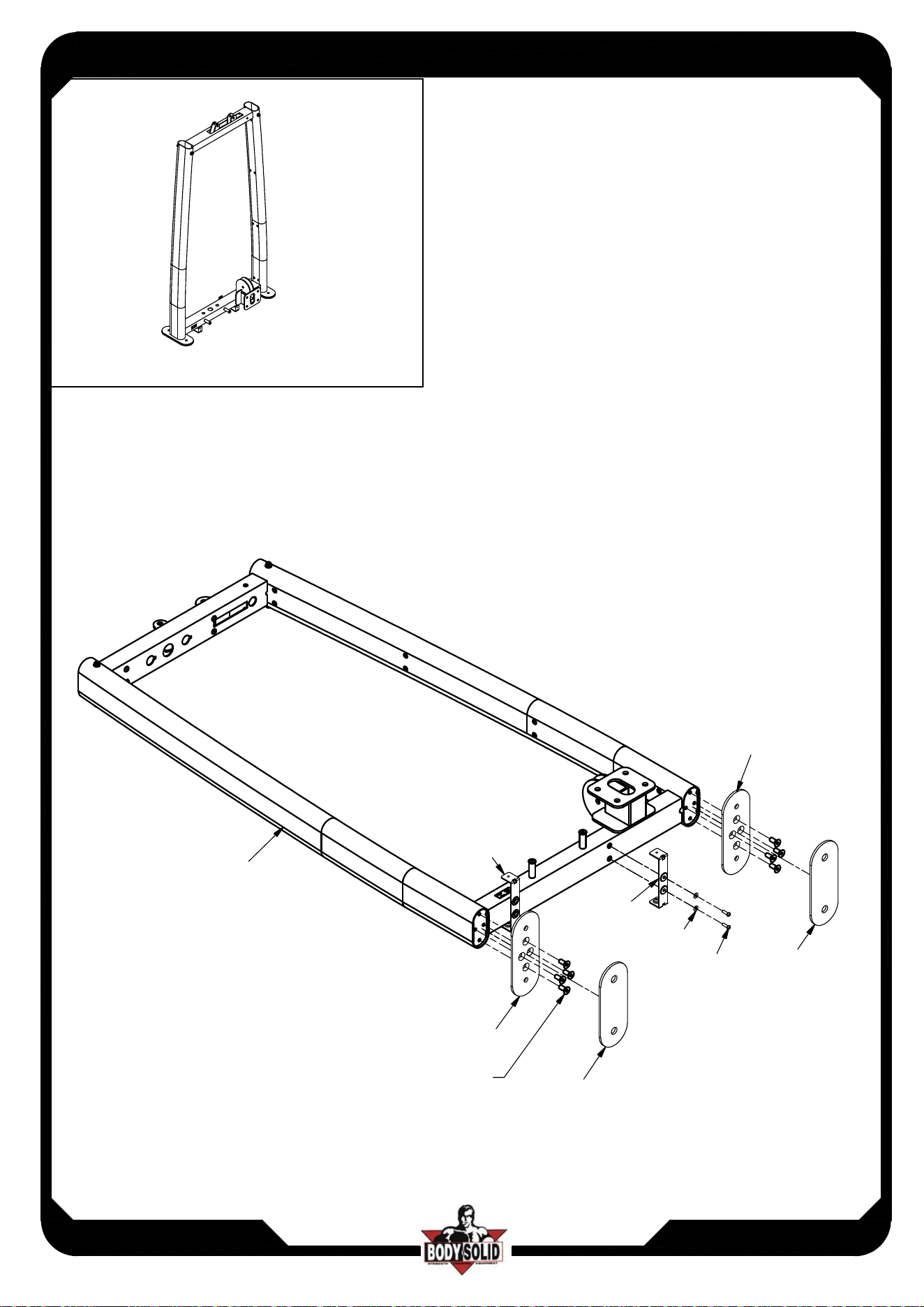

ASSEMBLY INSTRUCTIONS
Page
Above shows STEP 7
assembled and completed
DPRS
DPRS.3-112008
12
AA
Z
D10
D10
M10X25L CONE BOLT X8
Z
AF
C11
A23
x4
x4
AF
background

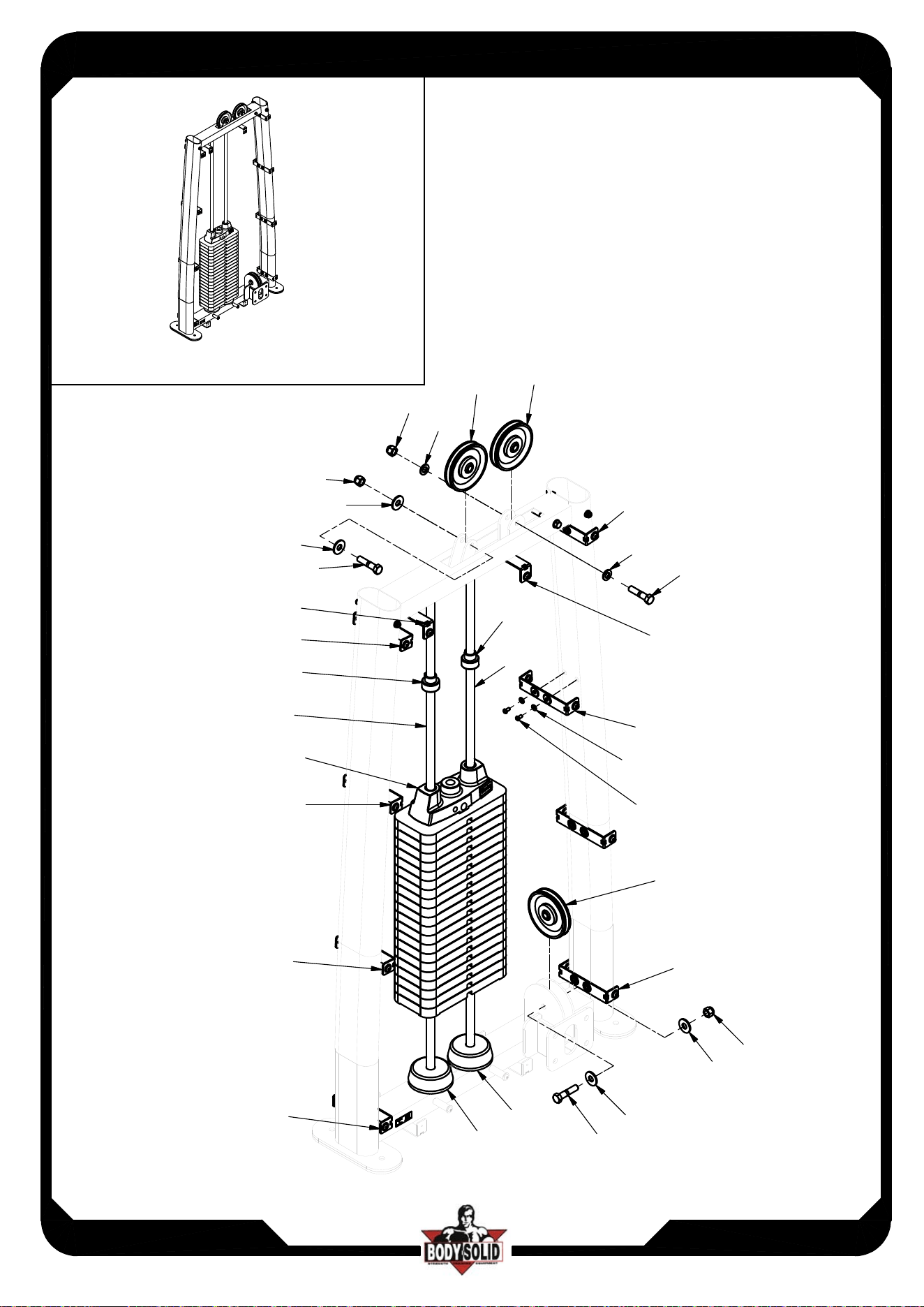

ASSEMBLY INSTRUCTIONS
Page
Above shows STEP 8
assembled and completed
DPRS
DPRS.3-112008
13
D13
A16
AD
AD
AD
AD
AE
AD
D15
X
D8
D8
C11
A23
D9
D9
A16
C8
C8
B4
D13
AD
AD
AD
x20
x20
X
C8
A16
D13
B4
C13
B4
C8
C13
background

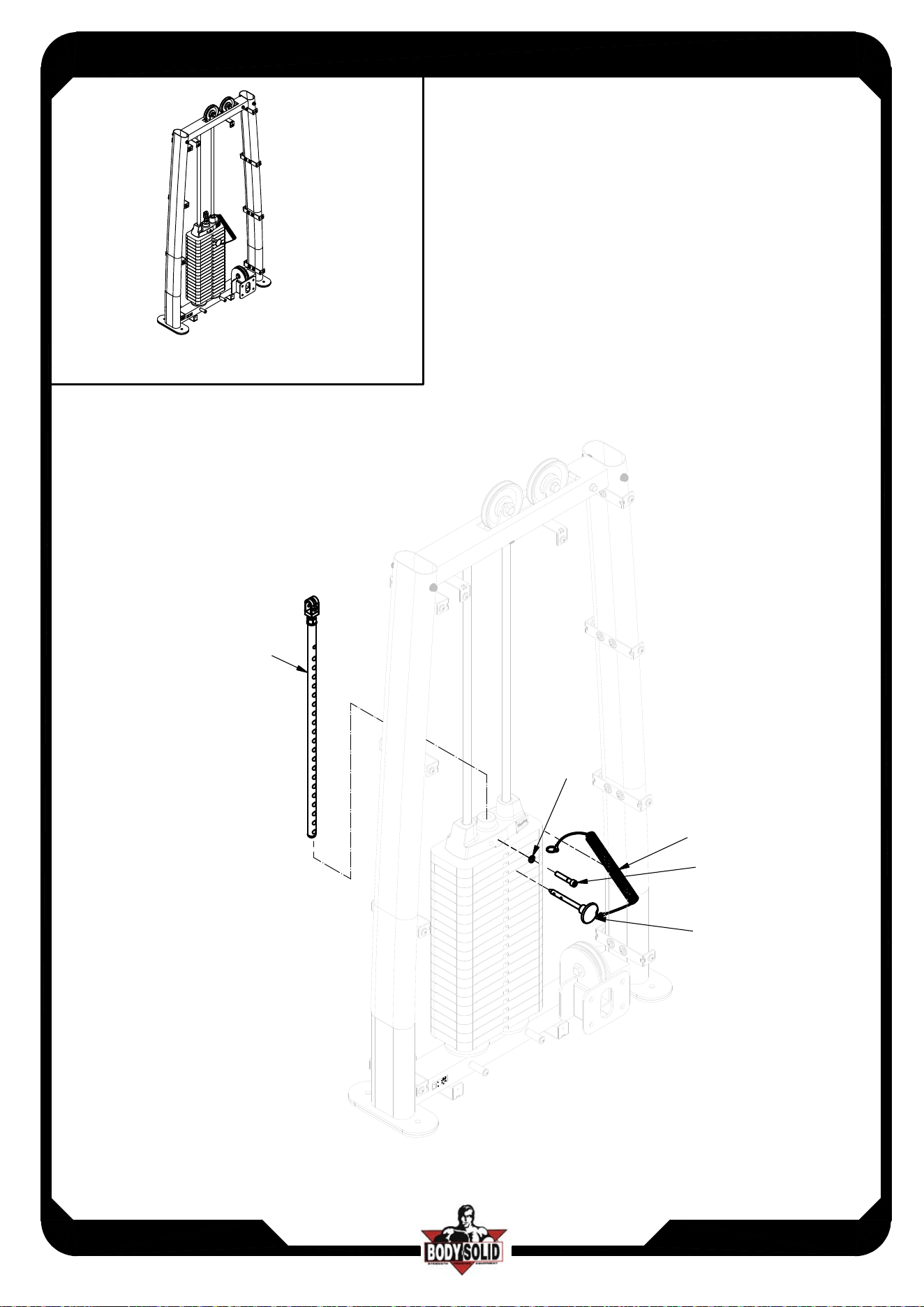

ASSEMBLY INSTRUCTIONS
Page
Above shows STEP 9
assembled and completed
DPRS
DPRS.3-112008
14
A20
C10
A18
A21
D14
background

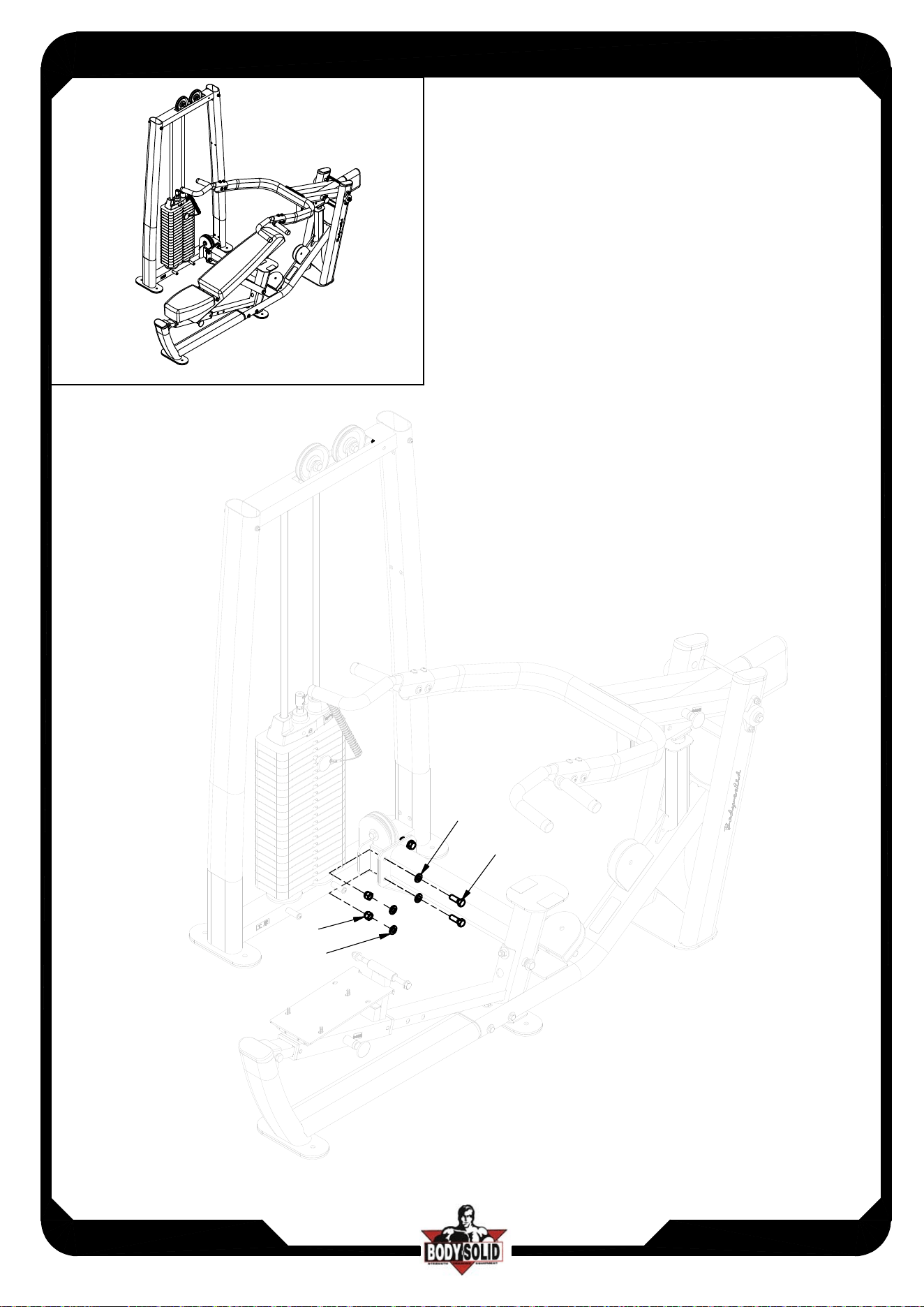

ASSEMBLY INSTRUCTIONS
Page
DPRS.3-112008
15
DPRS
Above shows STEP 10
assembled and completed
C1
A1
B1
C1x4
x4
x4
x4
background

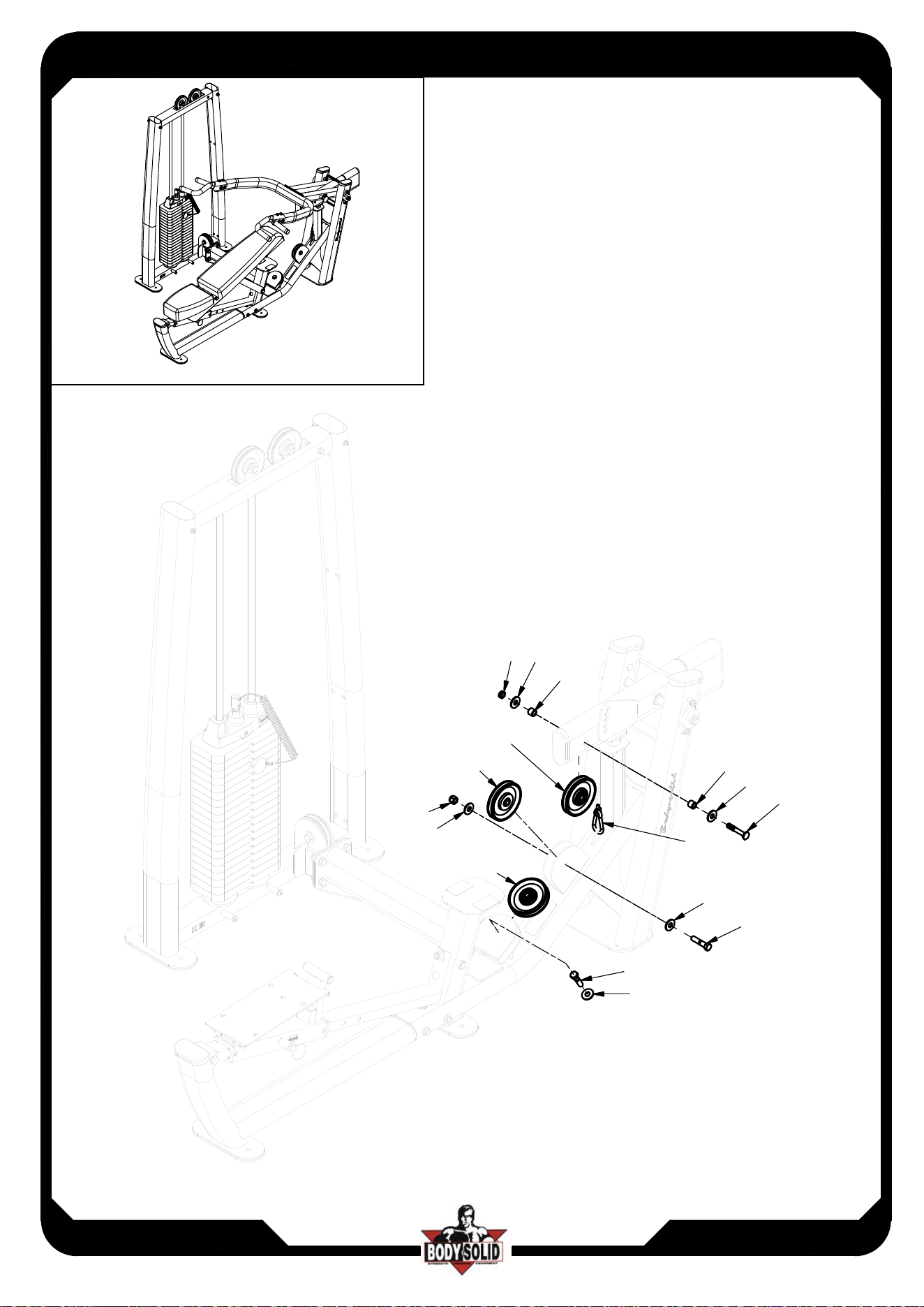

ASSEMBLY INSTRUCTIONS
Page
DPRS.3-112008
16
DPRS
Above shows STEP 11
assembled and completed
B7
C2
D1
D1
C2
A5
C2
A3
A2
C2
D13
D13
B1
C2
D13
D3
background
ASSEMBLY INSTRUCTIONS
Page
DPRS.3-112008
16.1
DPRS

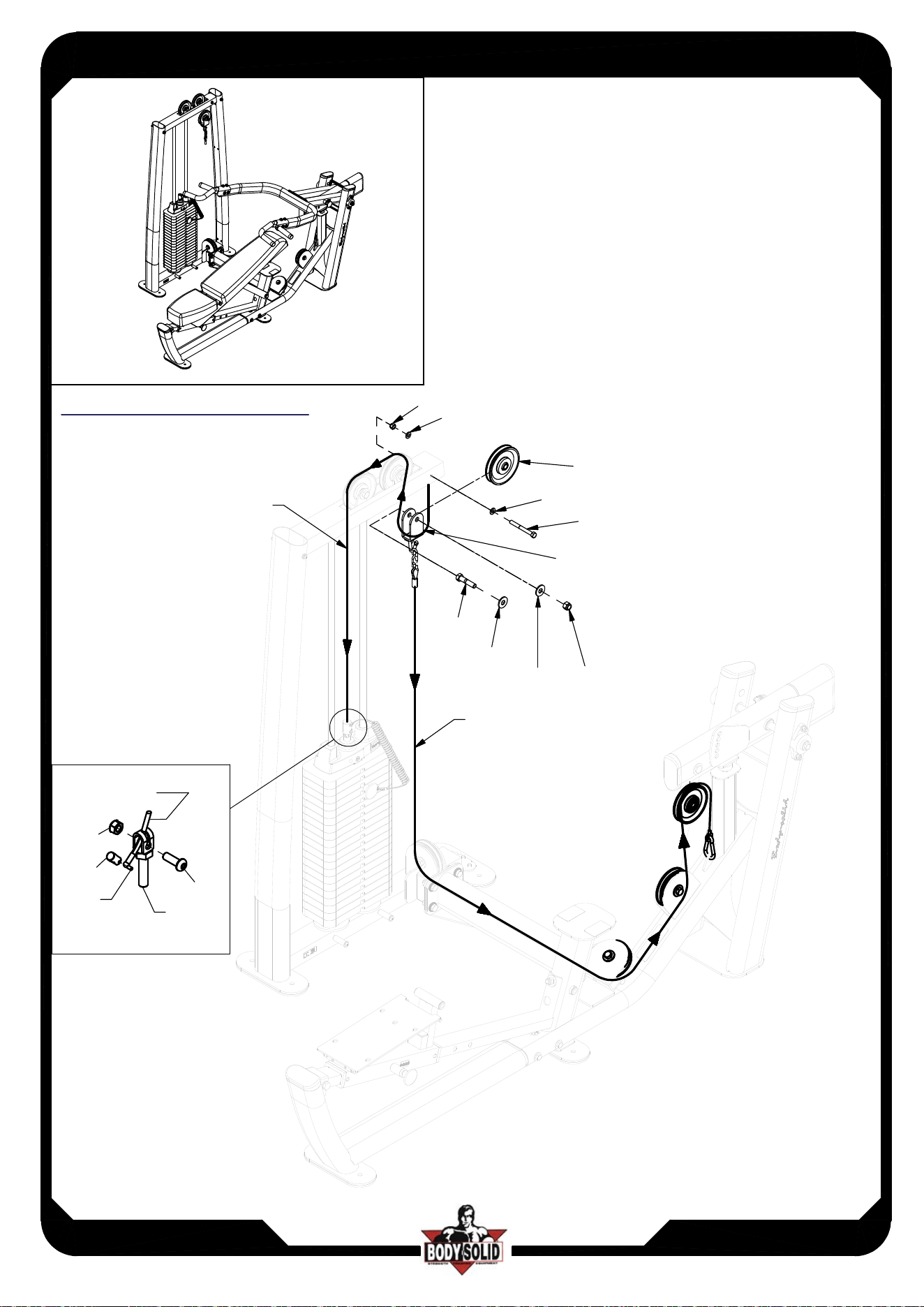

Above shows STEP 12
assembled and completed
D13
A19
C9
C9
B5
A16
C8
C8
B4
Cable to match illustration
D16
D17
P
DETAIL VIEW
A25
B6
A26
M4 SCREW
WEIGHT STACK CABLE
Selector Bar
background

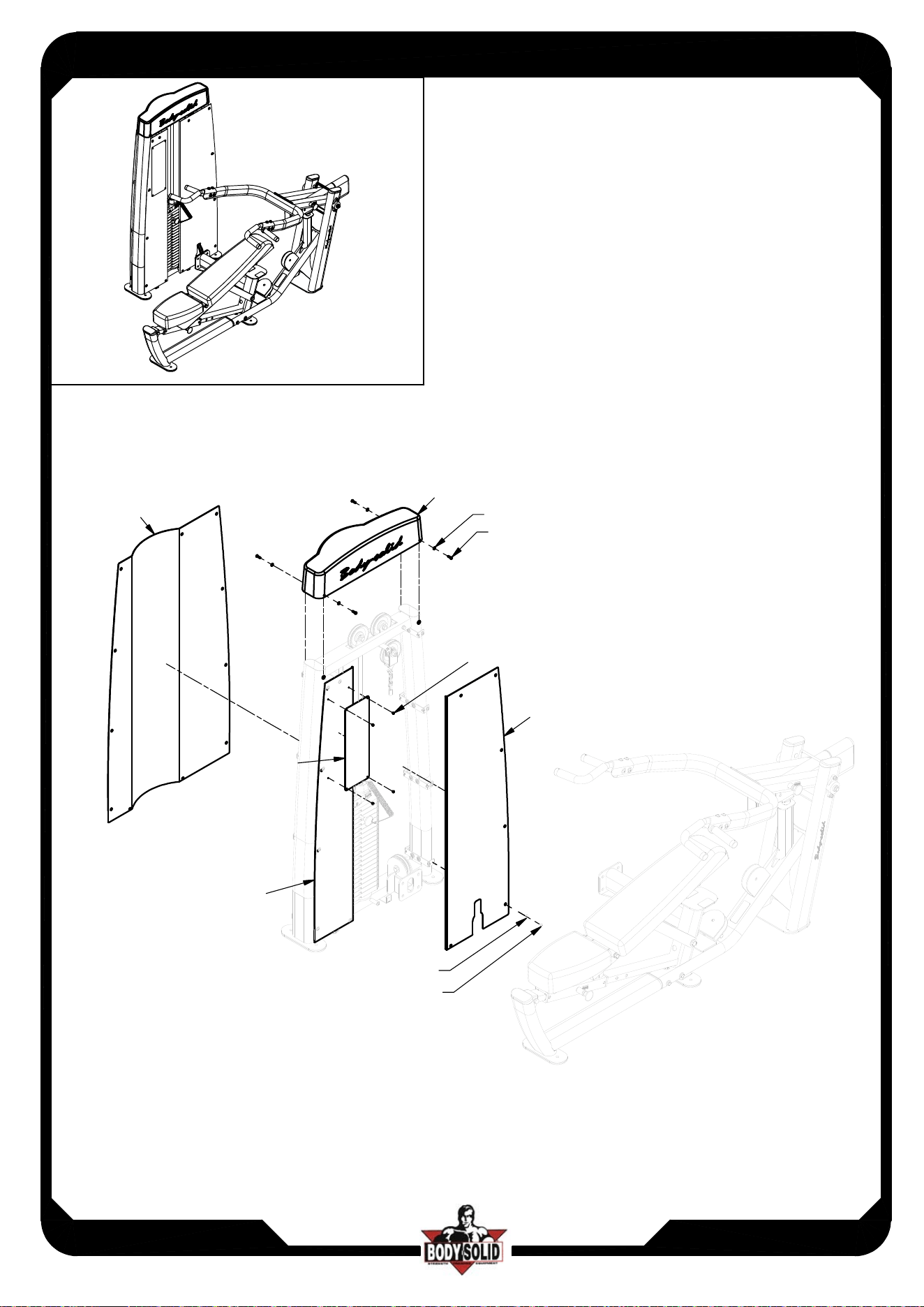

ASSEMBLY INSTRUCTIONS
Page
DPRS.3-112008
17
DPRS
Above shows STEP 12
assembled and completed
x4
V
AC
A24
W
M6 WASHERn19
M6X12L ROUND BOLT
U
AG
M6 WASHER X4
M6X20L ROUND BOLT X4
background
ASSEMBLY INSTRUCTIONS
Page
DPRS.3-112008
18
DPRS

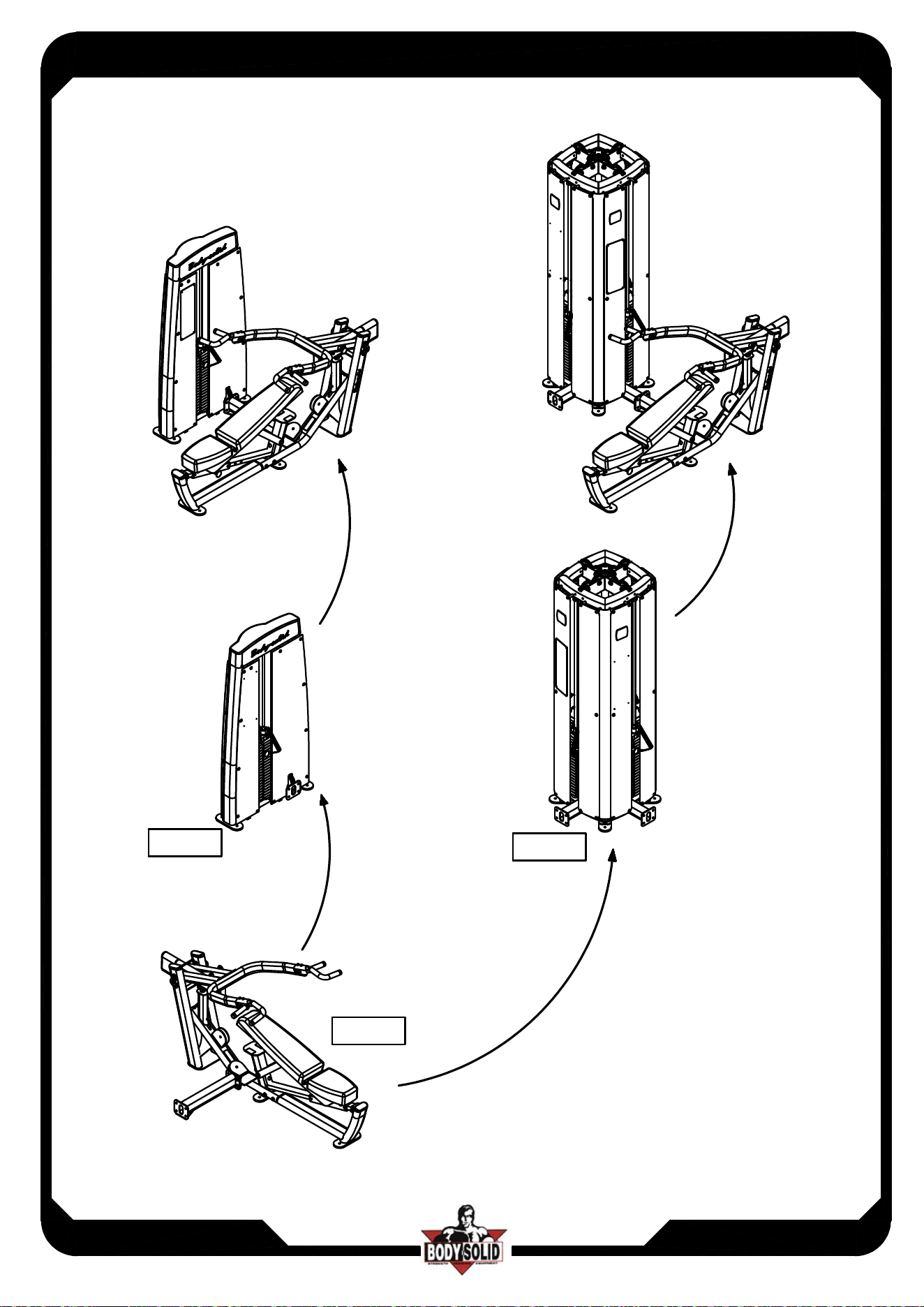

DFA
DPRS
DGYM
background
ASSEMBLY INSTRUCTIONS
Page
DPRS.3-112008
19
DPRS

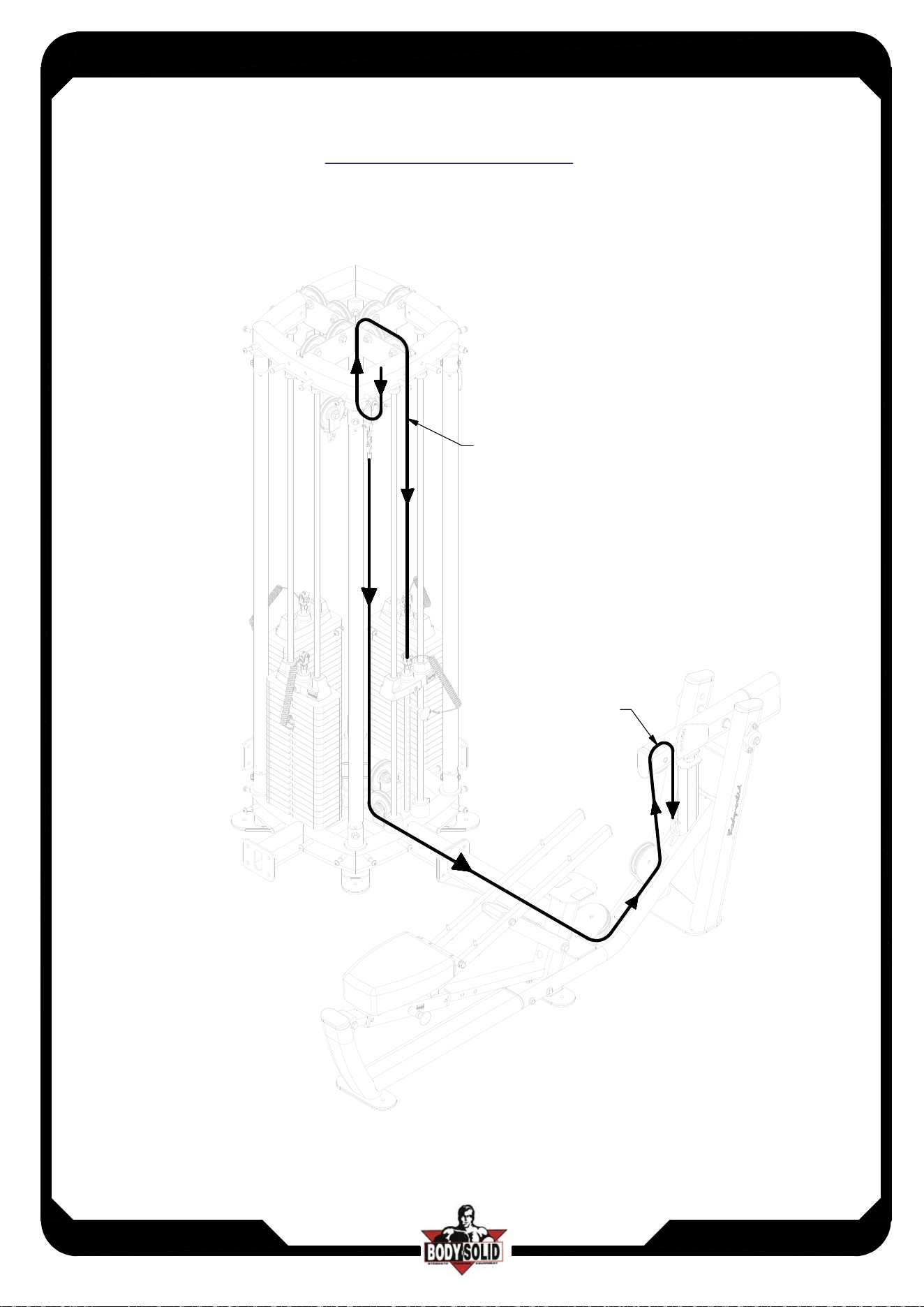

Cable to match illustration
Cable For
DGYM only (D18)
Double strength(D9)
background
ASSEMBLY INSTRUCTIONS
Page
13.5
80
3
0
BA[2PCS]
8331-015
NYLON LOCK NUT 1/2"
1/2"(I.D.)FLAT WASHER n34
1/2"(I.D.)FLAT WASHER n34
HEX BOLT 1/2"x2 1/4"L
BA
BA

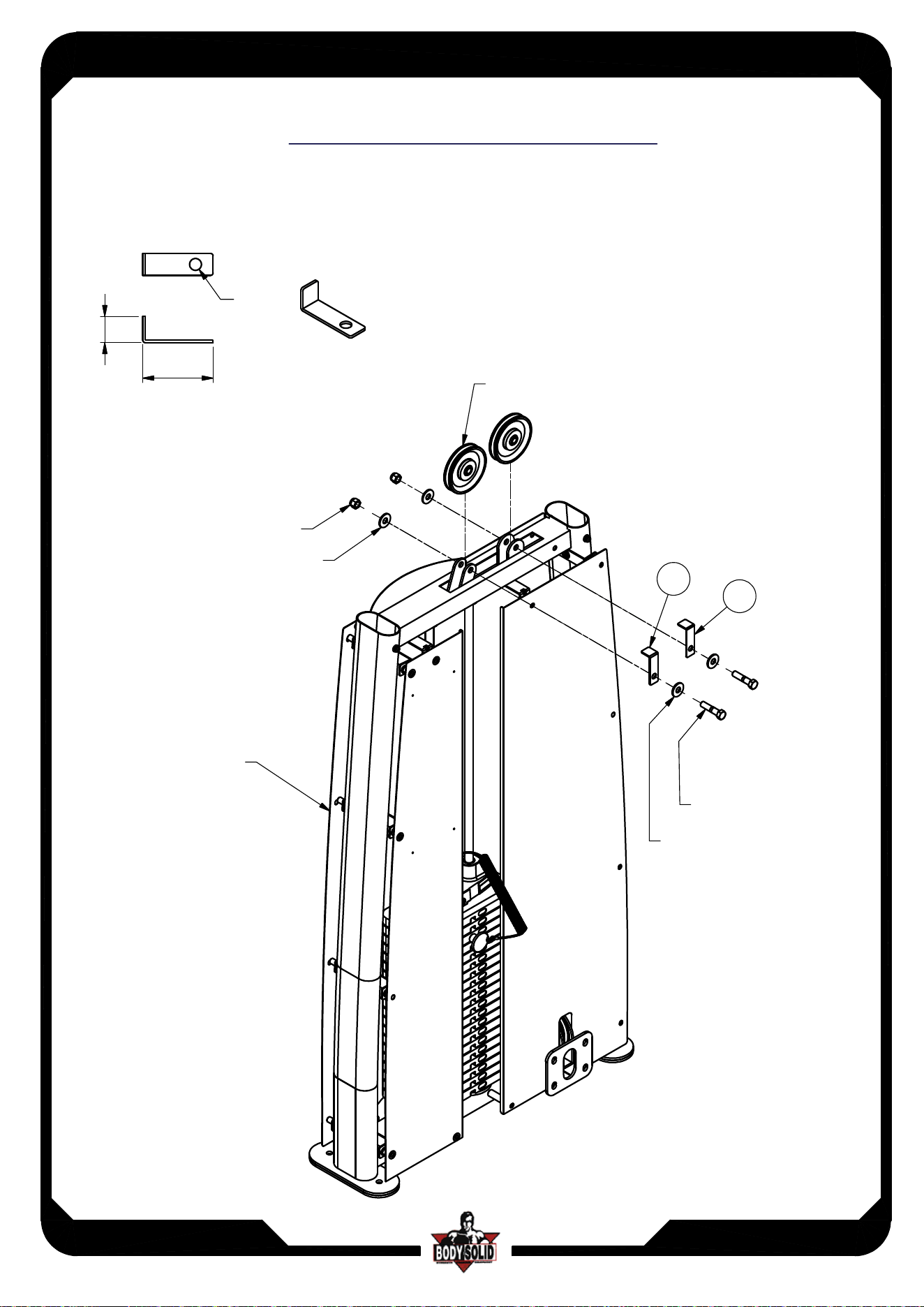

Anti-cable Break Up Supplement Page
DF-042017
DFA/DFD
PULLEY(9213-010B)

Specifications

Body-Solid DPRS-SF Questions and Answers

Find answers or ask new question.
See other models: LVLP GRCH322 STBR500 GCECSTK GPM65
Questions and Answers
