CAUTION:
Weight on this product should not exceed 300 lbs.
Owner's Manual
This Product is Distributed Exclusively by
4435 West Manufacturers Street, Springeld, MO 65803
Customer Care
1 (800) 375-7520
www.staminaproducts.com
Product May Vary Slightly From Pictured.
STAMINA PRODUCTS
MADE IN CHINA
© 2024 Stamina Products, Inc.
2024, 09
United States and/or
International patents apply
and/or are pending. See
www.staminaproducts.com
for details.
When calling for parts or
service, please specify
the following numbers
:
Model#: 55-4310,
55-4311, 55-4312
S/N: _____________
Exercise can present
a health risk. Consult
a physician before
beginning any exercise
program with this
equipment. If you feel
faint or dizzy, immediately
discontinue use.
Serious bodily injury can
occur if this equipment is
not assembled and used
in accordance with the
owner’s manual.
Follow all safety
instructions in this
owner’s manual.
!
WARNING
3
TABLE OF CONTENTS
Safety Instructions ...................................... 3
Before You Begin ........................................ 5
Equipment Warning, Caution & Notice Labels
... 6
Hardware Identication Chart .................... 7
Assembly Instructions ................................ 8
Operational Instructions ........................... 10
Storage ....................................................... 14
Maintenance ............................................... 14
Conditioning Guidelines ........................... 15
Warm-Up and Cool-Down ......................... 16
Warranty ..................................................... 17
Product Parts Drawing .............................. 18
Parts List .................................................... 19
Fax/Mail Ordering Form ............................ 21
SAFETY INSTRUCTIONS
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Consult your physician before starting this or any exercise program. This is
especially important if you are over the age of 35, have never exercised before,
are pregnant, or suer from any health problem. This product is for home use
only. Do not use in institutional or commercial applications. Failure to follow all
warnings and instructions could result in serious injury or death.
The Tension Cords(10, 53, 54) contain natural rubber latex which may cause
allergic reactions.
To reduce the risk of serious injury, read the following Safety Instructions
before using the AeroPilates® New You Reformer.
!
WARNING
!
WARNING
!
WARNING
!
WARNING
The AeroPilates® New You Reformer should only be used after a thorough review of the Owner’s
Manual by all exercisers and saved for future reference.
Make sure that the product is properly assembled and tightened before use.
We recommend that two people be available for assembly of this product.
Keep children and pets away from the AeroPilates® New You Reformer at all times. This product is
for adult use only.
When exercising on this product, do not exercise at an intensity that causes the product itself to
move. This could result in damage to your joints and to the product.
It is recommended that you place this product on an equipment mat.
Set up and operate the AeroPilates® New You Reformer on a solid level surface. Do not position
the product on loose or uneven surfaces.
Make sure that adequate space is available for access to and around the product.
When folding or unfolding the AeroPilates® New You Reformer, keep all children away from the
AeroPilates® New You Reformer and make sure your hands are clear of any folding or pinch point.
Before using, always inspect the product for worn parts that should be replaced or loose parts that
should be tightened.
Alwayschoosetheworkoutwhichbesttsyourphysicalstrengthandexibilitylevel.Knowyour
limits and train within them.
Do not wear loose clothing while using the AeroPilates® New You Reformer.
Always wear proper footwear such as running, walking, or cross training shoes.
Be careful to maintain your balance while assembling, mounting, using and dismounting the
AeroPilates® New You Reformer. Loss of balance may result in a fall or serious bodily injury.
The AeroPilates® New You Reformer should not be used by persons weighing over 300 pounds.
The AeroPilates® New You Reformer is for consumer use only. It is not for use in public or
semipublic facilities.
NEED HELP?
CONTACT US FIRST
1 (800) 375-7520
customer.care@staminaproducts.com
Hi! From all of us here at Stamina Products, thank you for your purchase. We
know that you have big fitness goals in mind and we are here to help you along.
Call us, email us, or send us a message on Facebook. Be sure to contact us if you
have any questions on your new product. We look forward to hearing from you!
With your body in mind,
Stamina Customer Care
To enact your extended warranty and to help us better
serve you, please g o online and register your new product.
register.staminaproducts.com
ONLINE
customer.care@staminaproducts.com
www.staminaproducts.com
TELEPHONE
1 (800) 375-7520
FAX
(417) 889-8064
MAIL
Stamina Products, Inc.
ATTN: Customer Care
4435 West Manufacturers
Street, Springfield, MO 65803
facebook.com/StaminaProducts
facebook.com/AeroPilates
CUSTOMER CARE HOURS:
Monday-Thursday, 7:30 AM-5:00 PM, Central Time
Friday, 8:00 AM-3:00 PM, Central Time
It is quick and easy to register online, but if you’re a little old school or just need a
reason to raise that little flag on your mailbox, fill out the info on the last page of this
manual and mail it in.
BEFORE YOU BEGIN
5
Foam Pad
Headrest
Pulley Set
Hand/Foot Strap
Rear Cover
Tension Cords
Rear Frame
Footbar
Front Frame
Front Cover
Wheels
Pulley Set
Rope
Hand/Foot Strap
Platform
Platform Cushion
Caution Label
THE FOLLOWING TOOLS ARE INCLUDED FOR ASSEMBLY :
Combination Wrench
Socket Wrench
Serial Decal
(Under the Platform)
Thank you for choosing the AeroPilates® New
You Reformer. We take great pride in this quality
product and hope it will provide many hours of
quality exercise to make you feel better, look
better, and enjoy life to its fullest.
It's a proven fact that a regular exercise program
can improve your physical and mental health.
Too often, our busy lifestyles limit our time and
opportunity to exercise. The AeroPilates® New
You Reformer provides a convenient and simple
method to begin your journey of getting your body
in shape and achieving a happier and healthier
lifestyle.
Before reading further, please review the
drawing below and familiarize yourself with the
parts that are labeled. Locate the serial decal on
the product and write the serial number on the
cover of the manual in the space provided. See
page 6 for an image of the serial decal. Model
number and serial number are required when
calling for assistance.
Read this manual carefully before using the
AeroPilates® New You Reformer.
Providing you with a quality product is Stamina's
top priority. However, sometimes there could be a
missing or incorrectly sized part. If you have any
questions or problems with the parts included with
your AeroPilates® New You Reformer, please do
not return the product. Contact us FIRST!
If a part is missing or defective, please contact
Customer Care for assistance. Call us toll free
at 1-800-375-7520 (in the U.S.) or live chat on
staminaproducts.com.OurCustomerCareStais
available to assist you from 7:30 A.M. to 5:00 P.M.
(Central Time) Monday through Thursday and 8:00
A.M. to 3:00 P.M. (Central Time) on Friday.
Be sure to have the name and model number of
the product available when you contact us.
6

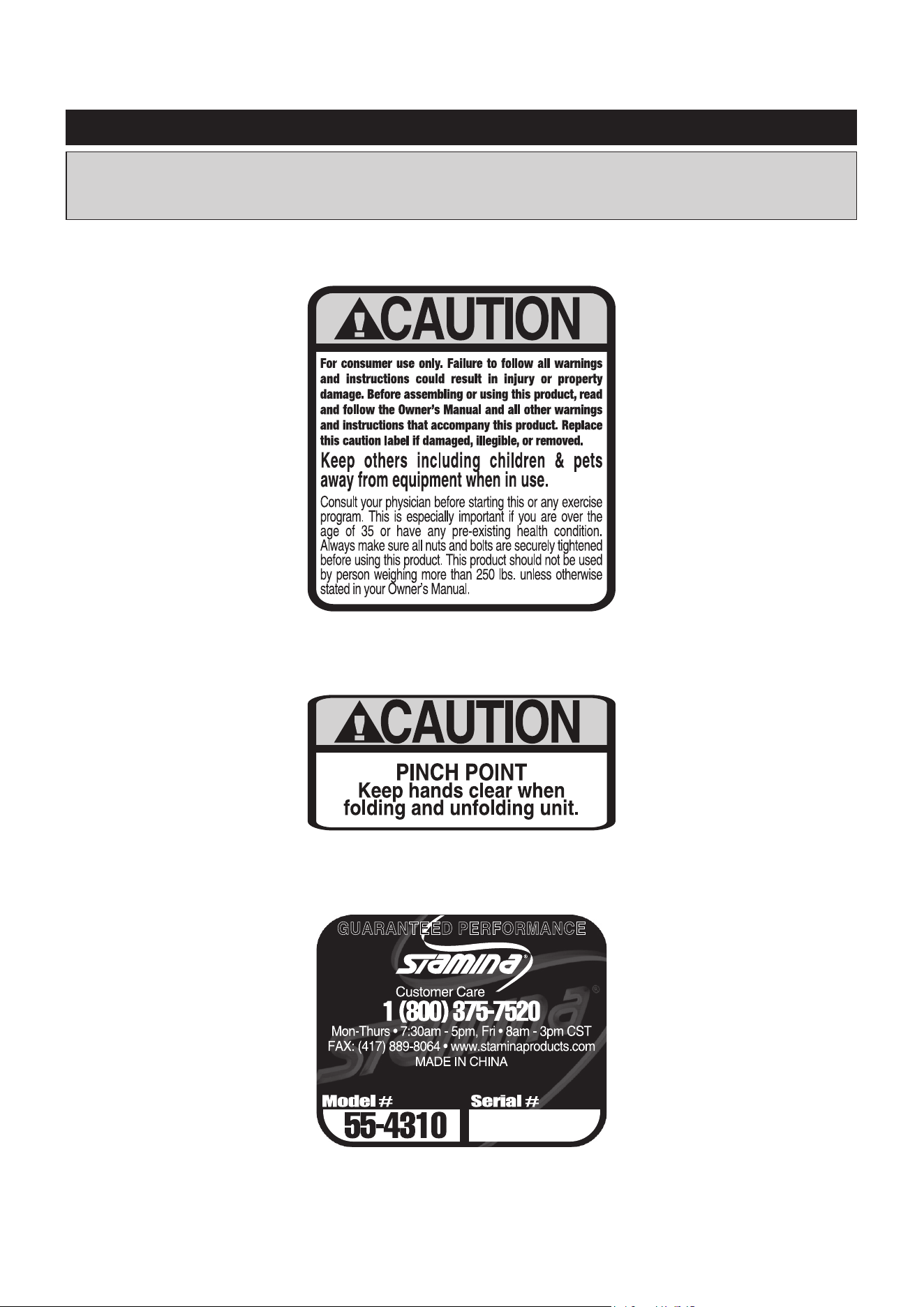

This chart is provided to help identify the warning, caution, and notice labels on the AeroPilates®
New You Reformer. Please take a moment to familiarize yourself with all of the warning, caution, and
notice labels.
EQUIPMENT WARNING, CAUTION & NOTICE LABELS
CAUTION LABEL(51)
To best serve you, our Customer Care Representatives will
need your serial number. For quick access, write in your
serial number on the cover of the manual.
SERIAL DECAL(52)
PINCH POINT CAUTION LABEL(19)
7
length
length
mm.
in.
INCHES
This chart is provided to help identify the hardware used in the assembly process. Place the washers or
the ends of the bolts or screws on the circles to check for the correct diameter. Use the small scale to
check the length of the bolts and screws.
NOTICE: The length of all bolts and screws, except those with flat
heads, is measured from below the head to the end of the bolt
or screw. Flat head bolts and screws are measured from the
top of the head to the end of the bolt or screw.
After unpacking the unit, open the hardware bag and make sure that you have all the following items.
Some hardware may be already attached to the part.
MILLIMETERS
0 10 20 30 40 50 60 70 80 90
100
110
120
130 140
150
0 1/2
1 1/2
2 1/2
3 1/2
4 1/2
5 1/2
6
6 8
10
12
3/16"
1/4"
5/16" 3/8" 1/2"
HARDWARE IDENTIFICATION CHART
Part Number and Description Qty
46 Washer (M8) 6
40 Nylock Nut (M8 x 1.25) 2
37 Screw, Round Head (M5 x 0.8 x 35mm) 4
25 Rubber Foot 4
24 Plastic Wheel 2
ASSEMBLY INSTRUCTIONS
8
STEP 1:
Remove your AeroPilates® New You Reformer from its packaging, placing the product on
its side with the LOCKING PIN(26) side upward. Remove the LOCKING PIN(26) and unfold the MAIN
FRAME ASSEMBLY separating the half that has the attached LOCKING PIN(26). When completed, the
frame should form a "V" with the frame ends separated approximately three feet.
STEP 2:
Attach the four RUBBER FEET(25) to the FRONT FRAME(1) and REAR FRAME(2) with
ROUND HEAD SCREWS(M5x0.8x35mm)(37). The ROUND HEAD SCREWS(M5X0.8X35mm)
(37) are already in the RUBBER FEET(25). Attach the WHEELS(24) to the FRONT FRAME(1) with
WASHERS(M8)(46) and NYLOCK NUTS(M8x1.25)(40).
STEP 3:
Unfold your AeroPilates® New You Reformer to a flat position by moving the FRONT
FRAME(1) away from the platform end of the REAR FRAME(2) in a clockwise position until fully
extended. Lower the AeroPilates® New You Reformer so all four RUBBER FEET(25)areatontheoor.
Placeallpartsfromtheboxinaclearedareaandpositionthemontheoorinfrontofyou.Remove
all packing materials from your area and place them back into the box. Do not dispose of the packing
materials until assembly is completed. Read each step carefully before beginning. If you are missing
a part, please go to staminaproducts.com under the Customer Care section and order the part
needed, e-mail us at customer[email protected], or call us toll free at 1-800-375-7520
(intheU.S.).OurCustomerCareStaisavailabletoassistyoufrom7:30A.M.to5:00P.M.(Central
Time) Monday through Thursday and 8:00 A.M. to 3:00 P.M. (Central Time) on Friday.
Some product parts are t tested at the factory to ensure proper t and alignment. Marks in
the paint may be noticeable, but are not an indication of damage.
ASSEMBLY INSTRUCTIONS
9
STEP 4
Remove the paper covering from the foam tape inside the FRONT COVER(3) and REAR COVER(4).
Place the FRONT COVER(3) over the end of the FRONT FRAME(1). Place the REAR COVER(4) over
the end of the REAR FRAME(2). Press the covers securely in place.
NOTE: The securing SCREWS(M6x1x35mm)(36) for the PULLEY SET(22) on each side may need
to be loosened to allow the REAR COVER(4)totsecurelyovertheframe.Refertotheinset
illustration. When retightening the screws for the PULLEY SETS(22) do not over tighten. The
PULLEY SETS(22) should swivel freely.
STEP 5
Make sure that the threaded holes in the FOOTBAR(5) are facing toward the end of the AeroPilates®
New You Reformer as shown in the illustration. Insert the FOOTBAR(5) into the mounting holes located
in the FRONT COVER(3) and FRONT FRAME(1). Insert the FOOTBAR(5) all the way to the bottom and
lock it in place with the LOCKING KNOBS(30).
STEP 6
Insert the FOAM PAD ASSEMBLIES(17) into the holes located on the PLATFORM(7). Place the HAND/
FOOT STRAPS(20) onto the FOAM PAD ASSEMBLIES(17) for storage.
OPERATIONAL INSTRUCTIONS
10
HEADREST ADJUSTMENT
The HEADREST(15) on the PLATFORM(7) can be
positioned at an incline by simply pivoting the SUPPORT
BRACKET underneath the HEADREST(15).
Support
Bracket
Slots
ROPE LENGTH ADJUSTMENT
The position of the HAND/FOOT STRAP(20) can be adjusted by sliding the ROPE(18) in the knob of
the THIN ROPE(29), refer to detail view A. Pull the THIN ROPE(29) slinghtly back from the knob, use
the Indexs on the PLATFORM CUSHION(14) to check and adjust the end of the ROPR(18) to desired
position. Be sure to adjust both ROPES(18) to the same position on both sides.
LOAD ADJUSTMENT
There are three different tension levels for the tension
cords.
● LOW TENSION CORD, YELLOW(53)
● MEDIUM TENSION CORD, BLACK(10)
● HIGH TENSION CORD, RED(54)
The resistance of the PLATFORM(7) can be adjusted by
securing the TENSION CORDS(10, 53, 54) in the slots on
the FRONT FRAME(1). You can achieve various levels of
resistancebysecuring dierent numbers of the TENSION
CORDS(10, 53, 54) in the slots.
NOTE: Over time your TENSION CORDS(10, 53, 54)
will relax. To increase resistance in the TENSION
CORDS(10, 53, 54), stretch and re-tie the tension
cords in a more taut position.
Knob
A.
Knob
Indexs
11
OPERATIONAL INSTRUCTIONS
Ideal rope length will vary depending on your height and limb length. To determine your ideal rope length,
begin by placing the hand/foot straps over the shoulder rests as shown below. Adjust the ropes so they are
taut. For complete rope length adjustment instructions, see additional Rope Length Adjustment instructions
in this Owner’s Manual.
CUSTOMIZING ROPE LENGTH
Next, lie on the reformer with your hands in the straps with shoulders against the shoulder rests. Reach
your hands toward the ceiling until they are directly over the back edge of the reformer platform as shown
below. In this position, the reformer platform should be at rest with no tension on the ropes. If there is still
tension on the ropes in this position, lengthen the ropes. If you lose tension before reaching the arm position
shown below, shorten the ropes.
12
OPERATIONAL INSTRUCTIONS
RESISTANCE CORD STRENGTH
The AeroPilates® workout wall chart and workout DVDs indicate which cords to use for each exercise.
Toreplaceoraddatensioncord,rstcarefullyreleasetheplatformandtipyourmachineonitsside.Untie
the knot that secures the cord you are replacing and simply pull it out. Thread the new cord through the
metal holes from the end of the platform to the other end.
Pull tightly on the cord stretching it to the point that allows you to tie a double knot, and release the cord
into place.
TENSION CORD SELECTION
TENSION CORD REPLACEMENT
TENSION
CORDS
YELLOW
BLACK
RED
approximately 16 pounds
approximately 24 pounds
approximately 34 pounds
CORD RESISTANCE
1 2 3 4
The approximate maximum resistance provided by each cord is outlined in the chart below. Frequency
ofuse,typeofuseanduserweightwillhaveaneectonthestrengthofyourcords.Overtimecord
strength will gradually decrease. If your reformer is under the 90 day warranty, replacement cords are
available by contacting Stamina customer care at customer[email protected]. If your reformer
isnotunderwarrantyoryouwouldliketoadddierenttensioncords,youcanpurchasenewcordsby
visiting our website www.aeropilates.com.
13
OPERATIONAL INSTRUCTIONS
Toreplaceaplatformroller,rstremovetheplatformbyreleasingthecordsandslidingtheplatformallthe
way back to the top end or rear frame of the machine. Tip your machine on its side, bend the machine at
thehinge,andsimplyslidetheplatformotheframe.
Turntheplatformupsidedownsoitiscordsideup.Usingacrescentwrenchandatheadscrewdriver,
remove the screw that is holding the roller in place. Replace the old roller with the new one, add the washer,
push the screw through the roller and tighten with the nut. Do not overtighten the nut and make sure the
roller turns easily.
PLATFORM ROLLER REPLACEMENT
You can find use and maintenance instructional video clips at www.staminaproducts.com and
www.aeropilates.com.
WEBSITE RESOURCES
1 2 3 4
The safety and integrity designed into the AeroPilates® New You Reformer can only be maintained
when the AeroPilates® New You Reformer is regularly examined for damage and wear. Special attention
should be given to the following:
STORAGE
MAINTENANCE
14
It is the sole responsibility of the user/owner to ensure that regular maintenance is performed.
Worn or damaged components must be replaced immediately or the AeroPilates® New You Reformer
should be removed from service until repair is made.
Verify that the CAUTION LABEL(51) is in place and easy to read. Call Stamina Products immediately
at 1-800-375-7520 for a replacement CAUTION LABEL(51) if it is missing or damaged.
Verify that the ROPES(18) are properly installed on the PULLEY SETS(22).
Check the condition of the ROPES(18) and replace if they are frayed or worn.
Check the TENSION CORDS(10). If any of the TENSION CORDS(10) are stretched and loose, re-tie
the knot on the end of the cord. Replace TENSION CORDS(10) that are frayed or worn.
Check the PULLEY SETS(22) for excessive wear. Replace worn PULLEY SETS(22).
Check the HAND/FOOT STRAPS(20) for damage. Replace damaged parts.
Check the FOAM SLEEVE(6) and FOAM PADS(17) and replace if damaged or worn.
Check the STOP PLATES(27) for looseness or damage and replace any damaged parts.
Check the PLATFORM CUSHION(14) and replace if it is damaged or worn.
Check and clean the ROLLERS(8) and the rolling surfaces on the rails. Clean by wiping with a dry
cloth.
Only Stamina Products supplied components should be used to maintain/repair the AeroPilates® New
You Reformer.
KeepyourAeroPilates®NewYouReformercleanbywipingitowithanabsorbentclothafteruse.
To store the AeroPilates® New You Reformer, simply keep it in a clean dry place.
The FRONT FRAME(1) of the AeroPilates® New You Reformer has built-in WHEELS(24) for easy
moving. To move, be sure at least one of the TENSION CORDS(10) is attached to prevent the
PLATFORM(7) from sliding, then lift from the end of the REAR FRAME(2) and roll.
The AeroPilates® New You Reformer folds for storage. To fold, be sure no TENSION CORDS(10) are
attached and slide the PLATFORM(7) to the end of the REAR FRAME(2). Remove the FOOTBAR(5)
and FOAM PAD ASSEMBLIES(17), then lift the AeroPilates® New You Reformer onto its side with
the LOCKING PIN(26) side up. With the machine hinging in the middle, move the FRONT FRAME(1)
toward the REAR FRAME(2) until the frame ends meet. Insert the LOCKING PIN(26) into the hole in
the REAR FRAME(2), and the AeroPilates® New You Reformer is ready to store.
!
CAUTION Keep hands clear of the hinge when folding and unfolding the unit.
How you begin your exercise program depends on your physical condition. If you have been inactive for
several years or are severely overweight, start slowly and increase your workout time gradually. Increase
your workout intensity gradually by monitoring your heart rate while you exercise.
Initially you may only be able to exercise within your target zone for a few minutes; however, your aerobic
capacity will improve over the next six to eight weeks. It is important to pace yourself while you exercise
so you don't tire too quickly.
Measure your heart rate periodically during your workout by stopping the
exercise but continuing to move your legs or walk around. Place two or
threengersonyourwristandtakeasixsecondheartbeatcount.Multiply
theresultsbytentondyourheartrate.Forexample,ifyoursixsecond
heartbeat count is 14, your heart rate is 140 beats per minute. A six second
count is used because your heart rate will drop rapidly when you stop
exercising. Adjust the intensity of your exercise until your heart rate is at the
proper level.
wrist pulse
Remember to follow these essentials:
Have your doctor review your training and diet programs.
Begin your training program slowly with realistic goals that have been set by you and your physician.
Warm up before you exercise and cool down after you work out.
Take your pulse periodically during your workout and strive to stay within a range of 60% (lower
intensity) to 90% (higher intensity) of your maximum heart rate zone. Start at the lower intensity, and
builduptohigherintensityasyoubecomemoreaerobicallyt.
If you feel dizzy or lightheaded you should slow down or stop exercising.
To determine if you are working out at the correct intensity, use a heart rate monitor or use the table
below. For effective aerobic exercise, your heart rate should be maintained at a level between 60%
and 90% of your maximum heart rate. If just starting an exercise program, work out at the low end of
your target heart rate zone. As your aerobic capacity improves, gradually increase the intensity of your
workout by increasing your heart rate.
CONDITIONING GUIDELINES
Target Heart Rate Zone Estimated by Age*
* For cardiorespiratory training benefits, the American College of Sports Medicine recommends
working out within a heart rate range of 55% to 90% of maximum heart rate. To predict the
maximum heart rate, the following formula was used: 220 - Age = predicted maximum heart rate
20 years
25 years
30 years
35 years
40 years
45 years
50 years
55 years
60 years
65 years
70 years
Average Maximum
Heart Rate 100%
Age
110-180 beats per minute
107-175 beats per minute
105-171 beats per minute
102-166 beats per minute
99-162 beats per minute
97-157 beats per minute
94-153 beats per minute
91-148 beats per minute
88-144 beats per minute
85-139 beats per minute
83-135 beats per minute
200 beats per minute
195 beats per minute
190 beats per minute
185 beats per minute
180 beats per minute
175 beats per minute
170 beats per minute
165 beats per minute
160 beats per minute
155 beats per minute
150 beats per minute
Target Heart Rate Zone
(55%-90% of Maximum Heart Rate)
15
16
WARM-UP and COOL-DOWN
Warm-Up
The purpose of warming up is to prepare your body for exercise and to minimize injuries.
Warm up for two to ve minutes before strength training or aerobic exercising. Perform activities that
raise your heart rate and warm the working muscles. Activities may include brisk walking, jogging,
jumping jacks, jump rope, and running in place.
Cool-Down
The purpose of cooling down is to return the body to its normal, or near normal, resting
state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows
blood to return to the heart. Your cool down should be completed after each strength training session.
LIMITED WARRANTY
MODEL 55-4310, 55-4311, 55-4312
17
WARRANTY
Stamina Products, Inc. (“Stamina”) warrants to the original purchaser that this product will be free from
defects in materials and workmanship that arise under normal use, service, proper assembly and proper
operation in accordance with product warnings/instructions for a period of 90 days on the parts and three
years on the frame from the date of the original purchase from an authorized retailer. THIS WARRANTY
SHALL NOT APPLY TO ANY PRODUCT WHICH HAS BEEN SUBJECT TO COMMERCIAL USE,
ABUSE, MISUSE, ALTERATION OF ANY KIND OR TO ANY DEFECT OR CHANGE CAUSED BY
IMPROPER ASSEMBLY, REPAIR, REPLACEMENT, SUBSTITUTION OR USE WITH PARTS NOT
PROVIDED BY STAMINA. Commercial use includes use of product in athletic clubs, health clubs, spas,
gyms, and all other public or semipublic facilities whether or not the product’s use is in furtherance of a
protmakingenterprise,andallotherusewhichisnotforpersonalpurposes.
To implement this limited warranty, send a written notice stating your name, date, and place of
purchase and a brief description of the defect along with your receipt to Stamina Products, Inc.
4435 West Manufacturers Street, Springfield, Missouri, USA, MO 65803, or email us at customer.
[email protected], or call us at 1-800-375-7520. If the defect is covered under this limited
warranty, you will be requested to return the product or part to us for free repair or replacement at our
option.
NO ACTION FOR BREACH OF THIS LIMITED WARRANTY MAY BE COMMENCED MORE
THAN ONE (1) YEAR AFTER THE DATE THE ALLEGED BREACH WAS OR SHOULD HAVE
BEEN DISCOVERED. NO ACTION FOR BREACH OF ANY IMPLIED WARRANTY (INCLUDING
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) MAY BE COMMENCED
MORE THAN ONE (1) YEAR AFTER DELIVERY OF THE PRODUCT TO THE PURCHASER. These
warranties are not transferable. IF ANY PART OF THE PRODUCT IS NOT IN COMPLIANCE
WITH THIS LIMITED WARRANTY OR ANY IMPLIED WARRANTY, THE REMEDY OF REPAIR OR
REPLACEMENT IS THE EXCLUSIVE REMEDY. If any claim is made under this limited warranty or any
implied warranty, Stamina reserves the right to require the product to be returned for inspection, at the
purchaser’sexpense,toStamina’spremisesinSpringeld,Missouri.Returnoftheenclosedwarranty
registration card is not required for warranty coverage, but is merely a way of establishing the date and
place of purchase.
Stamina SHALL NOT BE LIABLE FOR THE LOSS OF USE OF ANY PRODUCT, LOSS OF TIME,
INCONVENIENCE, COMMERCIAL LOSS OR ANY OTHER INDIRECT, CONSEQUENTIAL, SPECIAL
OR INCIDENTAL DAMAGES DUE TO BREACH OF THE ABOVE WARRANTY OR ANY IMPLIED
WARRANTY.
THIS LIMITED WARRANTY IS THE ONLY EXPRESS WARRANTY. NO ORAL OR WRITTEN
INFORMATION GIVEN BY STAMINA, ITS AGENTS OR EMPLOYEES, SHALL CREATE A WARRANTY
OR IN ANY WAY INCREASE THE SCOPE OF THIS WARRANTY.Thiswarrantygivesyouspeciclegal
rights, and you may also have other legal rights which vary from state to state. ANY OTHER RIGHT
WHICH YOU MAY HAVE, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY.
Thelawsinsomestatesaectthedisclaimerorlimitationofimpliedwarrantiesandconsequentialand
incidental damages. If any such law is found applicable, the foregoing disclaimers and limitations of and
onimpliedwarrantiesandconsequentialandincidentaldamagesshallbedeemedtobemodiedtothe
extent necessary to comply with applicable law.
PRODUCT PARTS DRAWING
18
FRONT
BACK
19
1 Front Frame 1
2 Rear Frame 1
3 Front Cover 1
4 Rear Cover 1
5 Footbar 1
6 Foam Sleeve 1
7 Platform 1
8 Roller 4
9 Roller Spacer 4
10 Medium Tension Cord, Black Color 1
11 Rubber Stand 4
12 Support Bushing 3
13 Stop Bushing 3
14 Platform Cushion 1
15 Headrest 1
16 Foam Pad Tube 2
17 Foam Pad 2
18 Rope 2
19 Pinch Point Caution Label 2
20 Hand/Foot Strap 2
22 Pulley Set 2
23 Pulley Spacer 2
24 Wheel 2
25 Rubber Foot 4
26 Locking Pin 1
27 Stop Plate 4
28 Stop Pad 4
29 Thin Rope 2
30 Locking Knob 2
31 Round Plug (25mm) 2
32 Shaft Bolt, Socket Head (M8 x 1.25 x 20mm) 2
33 Screw, Round Head (M4 x 12mm) 2
34 Bolt, Socket Head (M6 x 1 x 14mm) 8
35 Bolt, Round Head (M8 x 1.25 x 30mm) 4
36 Screw, Round Head (M6 x 1 x 35mm) 2
37 Screw, Round Head (M5 x 0.8 x 35mm) 4
38 Screw, Flat Head (M5 x 0.8 x 25mm) 3
39 Nylock Nut (M6 x 1) 10
40 Nylock Nut (M8 x 1.25) 4
41 Nylock Nut (M5 x 0.8) 5
42 Acorn Nut (M5 x 0.8) 4
43 Nut (M8 x 1.25) 4
44 Washer (M5) 9
45 Washer (M6) 10
46 Washer (M8) 12
47 Washer (M10) 4
48 Lock Washer (M8) 4
49 Screw, Flat Head (M5 x 0.8 x 16mm) 2
PART# PART NAME QTY
PARTS LIST
20
50 Nut (M5 x 0.8) 4
51 Caution Label 1
52 Serial Decal 1
53 Low Tension Cord, Yellow Color 1
54 High Tension Cord, Red Color 1
55 Combination Wrench 1
56 Socket Wrench 1
57 Manual 1
58 Workout Chart 1
PART# PART NAME QTY
PARTS LIST
Model Number: ...................................................................................... Serial Number: .............................................................................................
Product Name: ..................................................................................................................................................................................................................................
Place Purchased: ..............................................................................................................................................................................................................................
Date of Purchase: .................................................................................. Purchase Price: ............................................................................................
First Name: ............................................................................................ Last Name: ...................................................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
Email Address: ....................................................................................... Phone #: ( ) ......................................................................................
WouldyouliketoreceiveemailinformationorspecialoersfromStaminaProducts?*____Yes____No
*If yes, be sure your email address is included above.
Stamina Products, Inc.
4435 West Manufacturers Street, Springeld, MO 65803
If there are missing or damaged parts, you can go to parts.staminaproducts.com and order those parts. If you have questions,
please contact customer care. Do not return the product. To order parts by mail, fill out the sheet below and fax it to
417-889-8064. The part will be mailed to your address.
Mr./Ms: ..............................................................................................................................................................................................................................................
Address: ........................................ ............................................................................................. Apt. #:..........................................................................
City: .................................................................. State: ................................................................ Zip Code: .................................................
IMPORTANT : We require your phone number to process the order!
Phone #: ( ) ................................................................................ Work Phone #: ( ) .............................................................................
Date of Purchase: ..................................................................................
Model #: ............................................................................................................................................................................................................................................
Purchased From: ..............................................................................................................................................................................................................................
IMPORTANT: Before lling out the portion below, make sure you have the correct information.
Refer to the parts list to make sure you're ordering the right parts!
Stamina Products, Inc.
4435 West Manufacturers Street, Springeld, MO 65803
Detach and Mail or Fax the Form Above
TO CONTACT CUSTOMER CARE
For your convenience, Stamina’s customer care representatives can be reached by email at customer.care@staminaproducts.
com or by phone at 1-800-375-7520 (in the U.S.). Our customer care representatives are available Monday through Thursday
from 7:30 a.m. until 5:00 p.m., and Friday 8:00 a.m. until 3 p.m. Central Time.
TO REGISTER YOUR PRODUCT
WouldyouliketorecieveemailinformationorspecialoersfromStaminaProducts?Registeratcontact.staminaproducts.com
TELEPHONE
CUSTOMER CARE
Tel: 1 (800) 375-7520
FAX
CUSTOMER CARE
Fax: (417) 889-8064
MAIL
STAMINA PRODUCTS, INC.
ATTN: Customer Care
4435 West Manufacturers Street, Springeld, MO 65803
ONLINE
CUSTOMER CARE
customer[email protected]
www.staminaproducts.com
To enact your warranty, please register your product by going to register.staminaproducts.com. Please have your product model
number (printed on the cover of this owner’s manual) and the serial number (printed on the black and white sticker on your
product) ready.
Ifyoudon’thaveinternetaccess,youcancallcustomercareat1-800-375-7520,orlloutandmailtheproductregistrationform
belowtoStaminaProducts,Inc.;4435WestManufacturersStreet,Springeld,MO65803.
PRODUCT REGISTRATION FORM
TO ORDER PARTS
Detach and Mail or Fax the Form Below
PARTS ORDER FORM
PART # DESCRIPTION QUANTITY
1 Rear Unit Assembly 1
EXAMPLE:
