62366
Visit our website at: http://www.harborfreight.com
email our technical support at: [email protected]
or engine technical support at: [email protected]
301cc
SAW MILL
using an engine indoors
can KiLL yOu in MinuteS.
engine exhaust contains carbon monoxide.
this is a poison you cannot see or smell.
neVer use inside
a home or garage,
eVen iF doors and
windows are open.
Only use OutSiDe
and far away from
windows, doors,
and vents.
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual (or month and year of purchase if product has no number). Keep this manual and the
receipt in a safe and dry place for future reference. 23j
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
©
2023 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
read this material before using this product.
Failure to do so can result in serious injury.
SaVe tHiS ManuaL.
Page 2 For technical questions, please call 1-888-866-5797. ITEM 62366
SaFety Setup OperatiOn Maintenance
table of contents
Safety ......................................................... 3
Specifications ............................................. 6
Assembly .................................................... 6
Operation ................................................... 10
Maintenance .............................................. 12

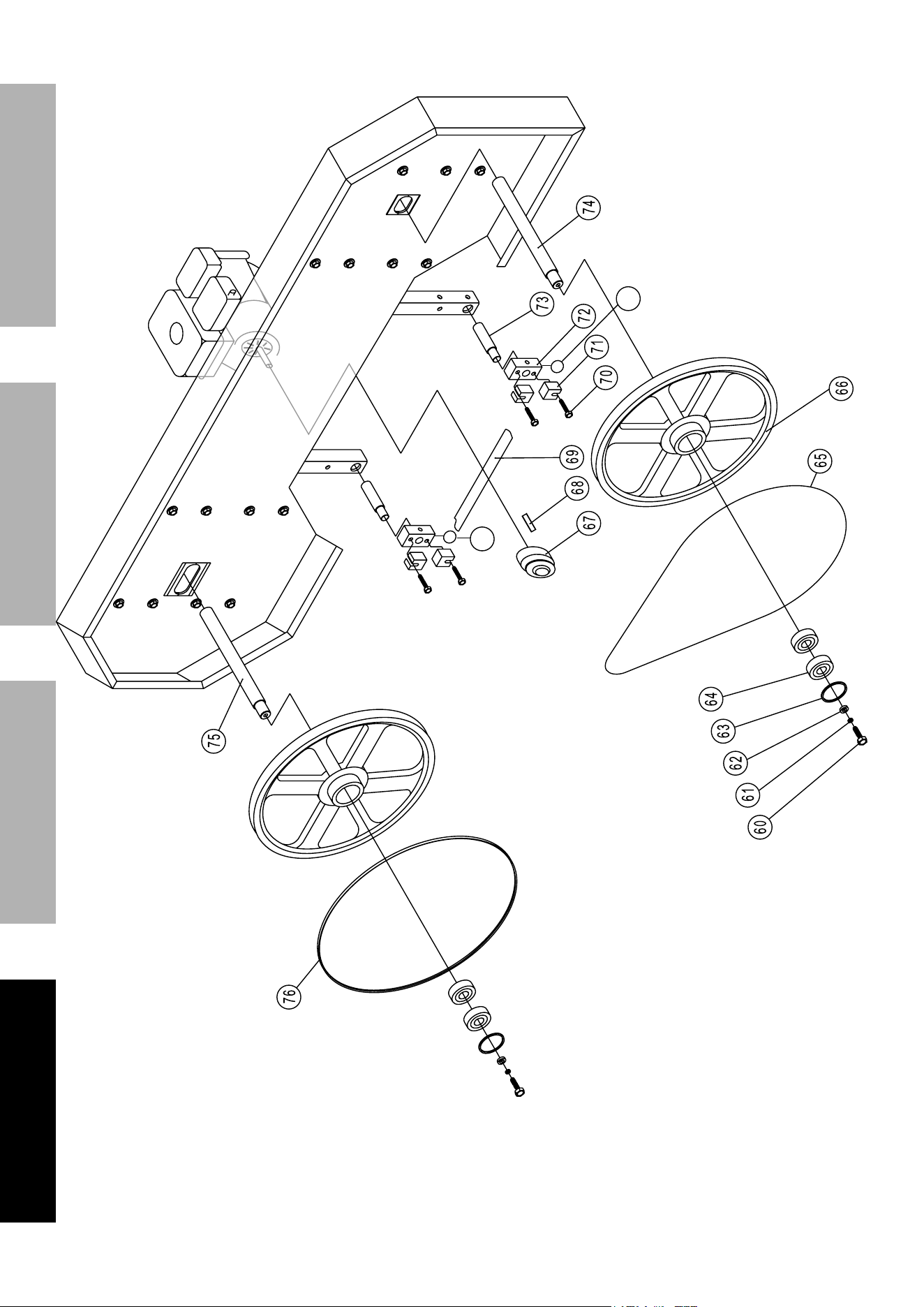

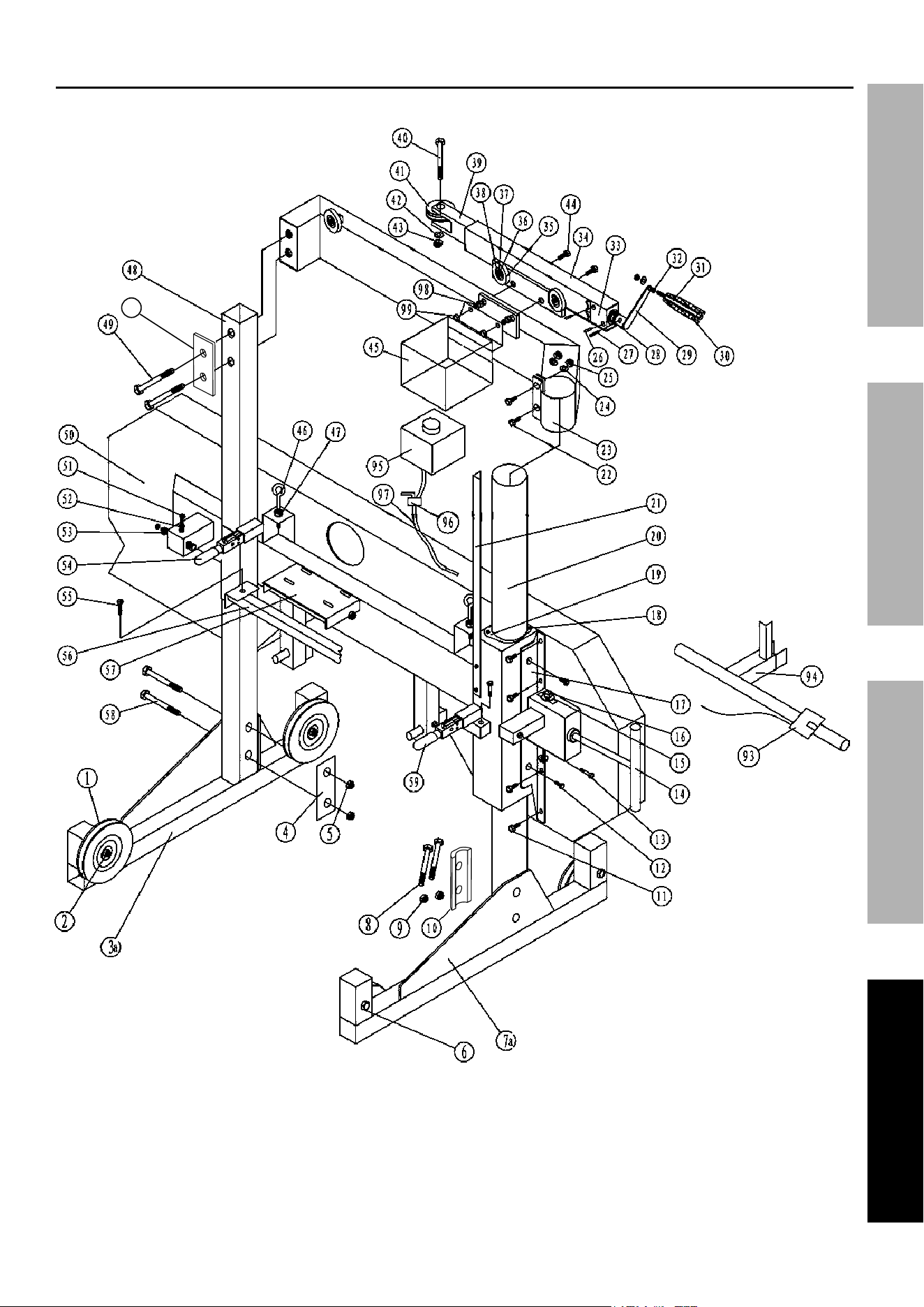

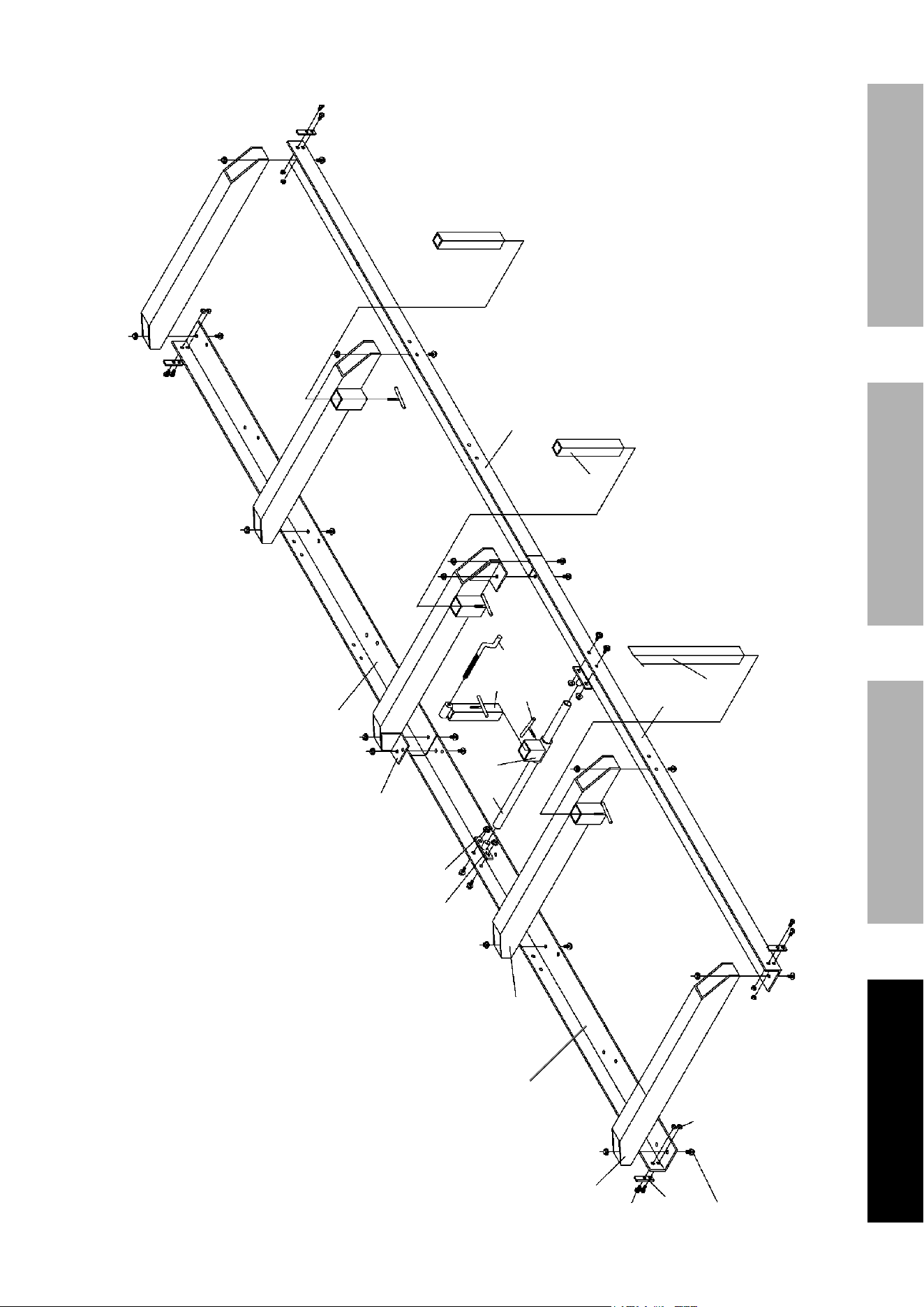

Parts List and Diagrams ............................ 14
Warranty .................................................... 19
WarninG SyMBOLS anD DeFinitiOnS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
Page 3For technical questions, please call 1-888-866-5797.ITEM 62366
SaFetySetupOperatiOnMaintenance
iMpOrtant SaFety inFOrMatiOn
WarninG! read all instructions.
Failure to follow all instructions listed below may result in fire, serious injury and/or DeatH.
The warnings and precautions discussed in this manual cannot cover all possible conditions and
situations that may occur. It must be understood by the operator that common sense and caution
are factors which cannot be built into this product, but must be supplied by the operator.
SaVe tHeSe inStructiOnS
Set up precautions
1. Gasoline fuel and fumes are flammable, and
potentially explosive. Use proper fuel storage
and handling procedures. Do not store fuel
or other flammable materials nearby.
2. Have multiple ABC class fire extinguishers nearby.
3. Operation of this equipment may create sparks that
can start fires around dry vegetation.
A spark arrestor may be required.
The operator should contact local fire
agencies for laws or regulations relating
to fire prevention requirements.
4. Set up and use only on a flat, level,
well-ventilated surface.
5. Wear ANSI-approved safety goggles, heavy-duty
work gloves, and dust mask/respirator during set up.
6. Use only lubricants and fuel recommended
in the engine manual or in the
Specifications chart of this manual.
engine precautions
Follow engine precautions and instructions
in the included engine instruction manual.
Operating precautions

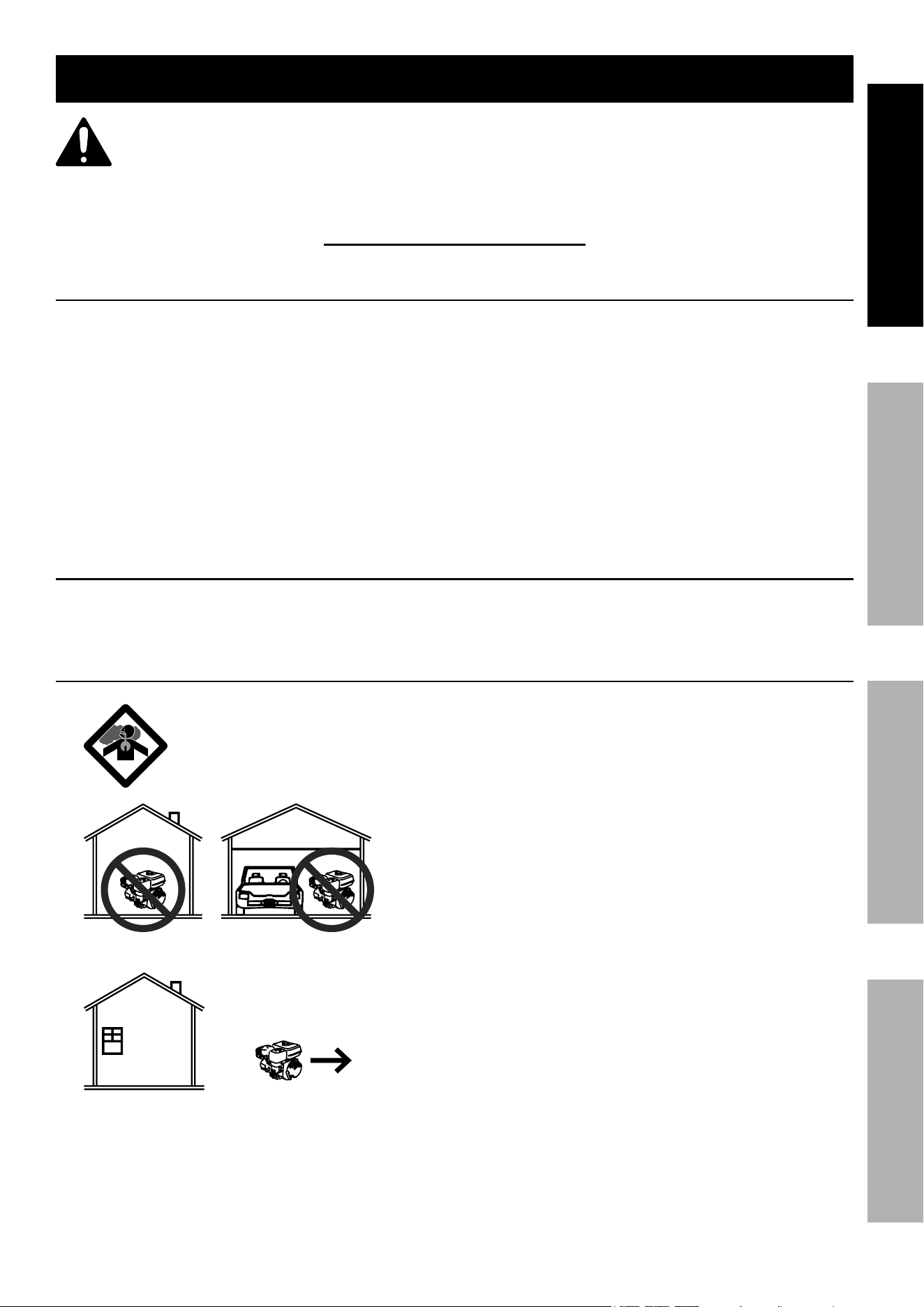

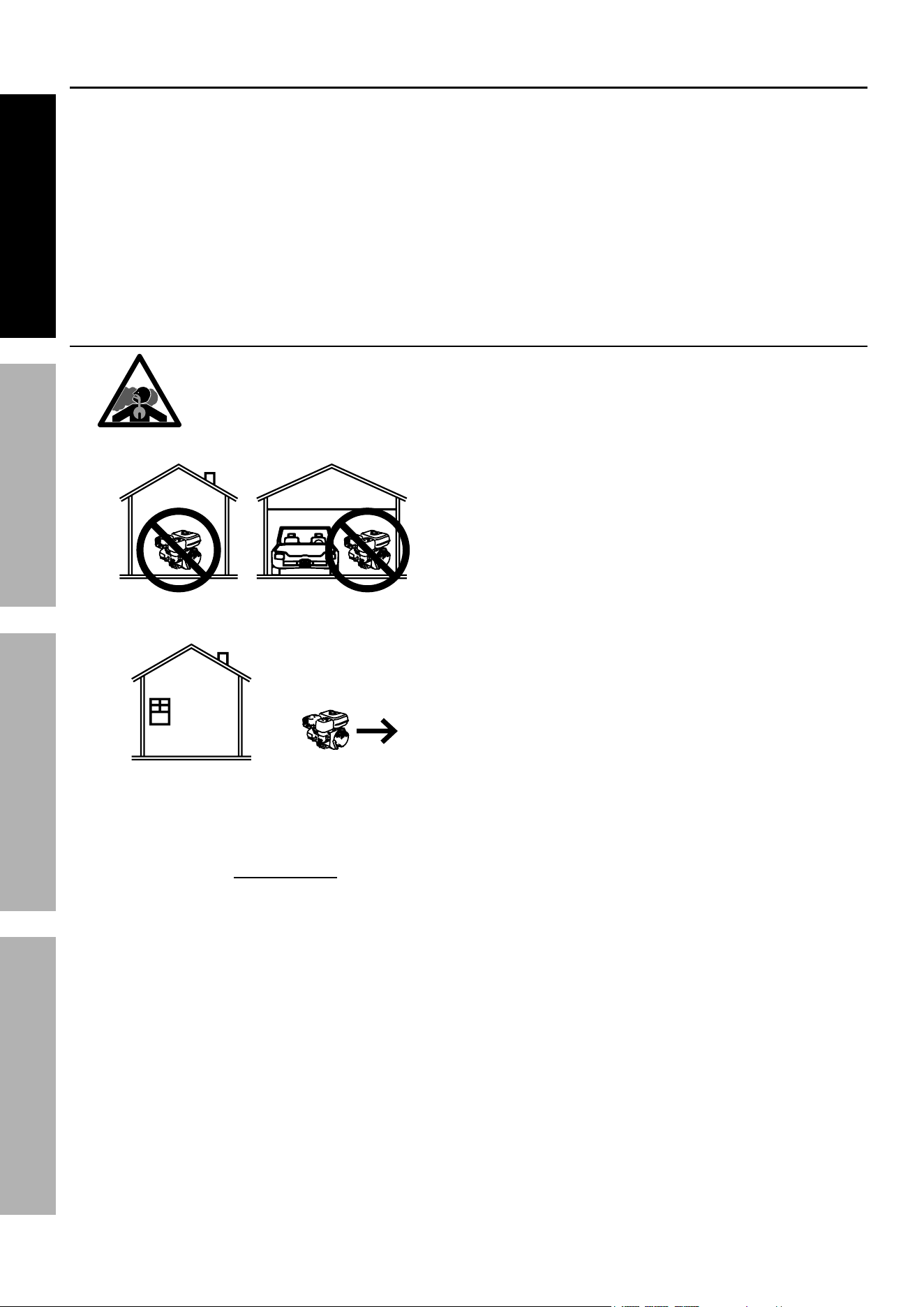

1. carBOn MOnOXiDe HaZarD
using an engine indoors can KiLL
yOu in MinuteS.
Engine exhaust contains carbon
monoxide. This is a poison you cannot
see or smell.
NEVER use inside a home or garage,
EVEN IF doors and windows are open.
Only use OUTSIDE and far away from windows,
doors, and vents.
2. Keep children away from the equipment,
especially while it is operating.
3. Do not leave the equipment unattended when it is
running. Turn off the equipment (and remove safety
keys, if available) before leaving the work area.
4. Wear ANSI-approved safety glasses, hearing
protection, and NIOSH-approved dust mask/
respirator under a full face shield during use.
5. Wear heavy-duty work gloves
when handling the blade.
6. People with pacemakers should consult their
physician(s) before use. Electromagnetic
fields in close proximity to a heart pacemaker
could cause pacemaker interference or
pacemaker failure. Caution is necessary when
near the engine's magneto or recoil starter.
7. Use only accessories that are recommended
by Harbor Freight Tools for your model.
Accessories that may be suitable for one
piece of equipment may become hazardous
when used on another piece of equipment.
Page 4 For technical questions, please call 1-888-866-5797. ITEM 62366
SaFety Setup OperatiOn Maintenance
8. Do not operate in explosive atmospheres,
such as in the presence of flammable
liquids, gases, or dust. Gasoline-powered
engines may ignite the dust or fumes.
9. Stay alert, watch what you are doing and
use common sense when operating this
piece of equipment. Do not use this piece
of equipment while tired or under the
influence of drugs, alcohol or medication.
10. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the equipment in unexpected situations.
11. Dress properly. Do not wear loose clothing
or jewelry. Keep hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or
long hair can be caught in moving parts.
12. Parts, especially exhaust system components,
get very hot during use. Stay clear of hot parts.
13. Do not cover the engine or
equipment during operation.
14. Keep the equipment, engine, and
surrounding area clean at all times.
15. Use the equipment, accessories, etc., in
accordance with these instructions and in the
manner intended for the particular type of
equipment, taking into account the working
conditions and the work to be performed. Use of
the equipment for operations different from those
intended could result in a hazardous situation.
16. Do not operate the equipment with known
leaks in the engine's fuel system.
17. When spills of fuel or oil occur, they must be
cleaned up immediately. Dispose of fluids and
cleaning materials as per any local, state, or
federal codes and regulations. Store oil rags in
a bottom-ventilated, covered, metal container.
18. Keep hands and feet away from moving parts.
Do not reach over or across
equipment while operating.
19. Before use, check for misalignment or binding
of moving parts, breakage of parts, and any
other condition that may affect the equipment's
operation. if damaged, have the equipment
serviced before using. Many accidents are
caused by poorly maintained equipment.
20. Use the correct equipment for the application.
Do not modify the equipment and do not use the
equipment for a purpose for which it is not intended.
Page 5For technical questions, please call 1-888-866-5797.ITEM 62366
SaFetySetupOperatiOnMaintenance
Service precautions
1. Before service, maintenance, or cleaning:
a. turn the engine switch to its “OFF” position.
b. allow the engine to completely cool.
c. then, remove the spark plug wire(s)
from the spark plug(s).
2. Keep all safety guards in place and in
proper working order. Safety guards include
muffler, air cleaner, mechanical guards,
and heat shields, among other guards.
3. Do not alter or adjust any part of the
equipment or its engine that is sealed by the
manufacturer or distributor. Only a qualified
service technician may adjust parts that may
increase or decrease governed engine speed.
4. Wear ANSI-approved safety goggles,
heavy-duty work gloves, and dust
mask/respirator during service.
5. Maintain labels and nameplates on the equipment.
These carry important information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
6. Have the equipment serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the equipment
is maintained. Do not attempt any service or
maintenance procedures not explained in this
manual or any procedures that you are uncertain
about your ability to perform safely or correctly.
7. Store equipment out of the reach of children.
8. Follow scheduled engine and
equipment maintenance.
9. Refueling:
a. Do not smoke, or allow sparks, flames,
or other sources of ignition around the
equipment, especially when refuelling.
b. Do not refill the fuel tank while the
engine is running or hot.
c. Do not fill fuel tank to the top. Leave a little
room for the fuel to expand as needed.
d. Refuel in a well-ventilated area only.
SaVe tHeSe inStructiOnS.
Page 6 For technical questions, please call 1-888-866-5797. ITEM 62366
SaFety Setup OperatiOn Maintenance

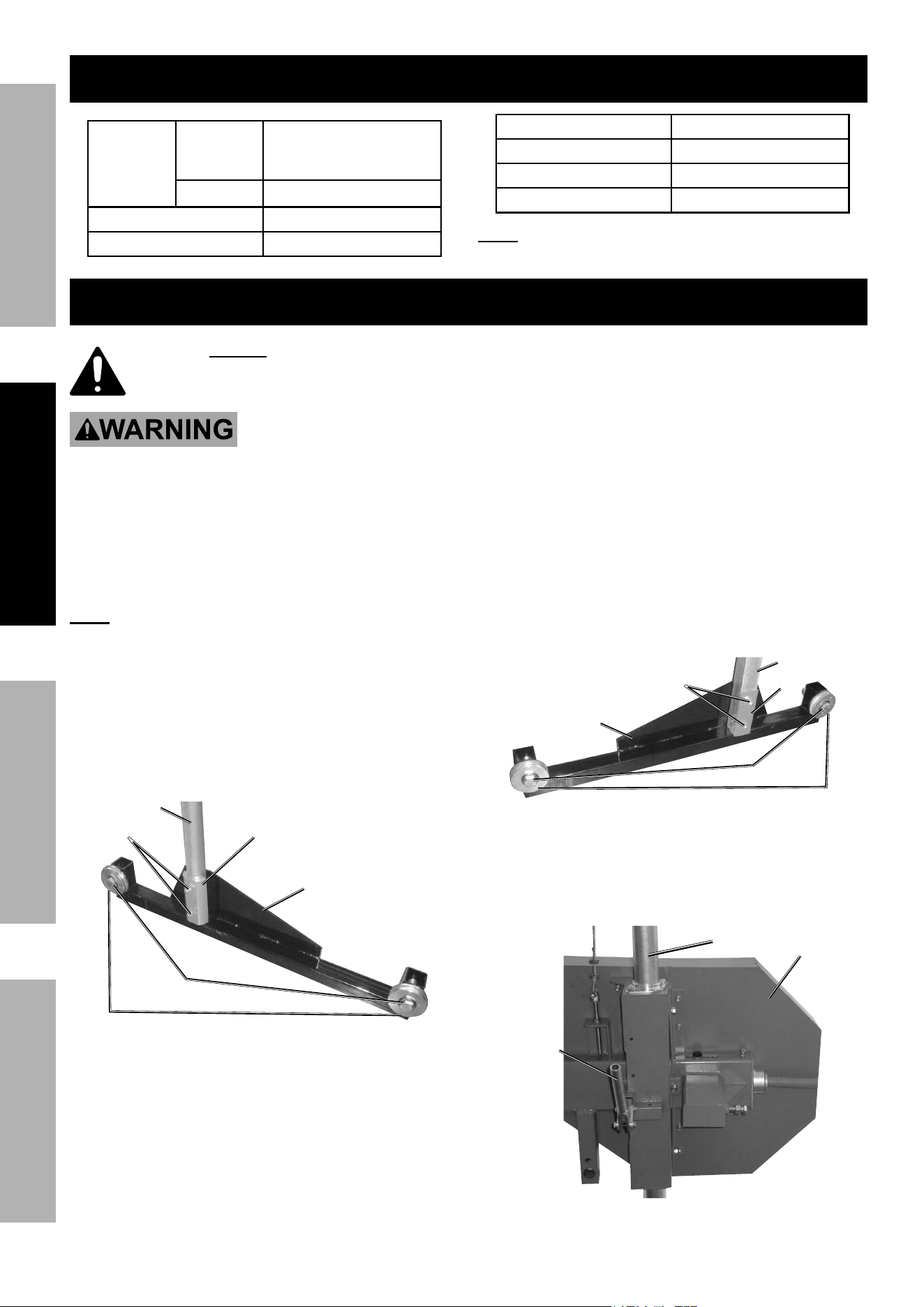

Specifications
Fuel
Type
87+ octane stabilizer-
treated unleaded
gasoline
Capacity 1 Gallon
Coolant Tank Capacity 4.2 Quarts
Blade Speed 3,279 FPM
Log Diameter 20″ Maximum
Board Width 20″ Maximum
Cutting Thickness 4-1/2″ Maximum
Cutting Length 9′-2″ Maximum (110″)
note: Engine specifications are found in the
engine manual supplied with this equipment.
assembly
read the entire iMpOrtant SaFety inFOrMatiOn section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
tO preVent SeriOuS inJury:
Operate only with proper spark arrestor installed. Operation of this equipment may create sparks that can
start fires around dry vegetation. a spark arrestor may be required.
the operator should contact local fire agencies for laws or
regulations relating to fire prevention requirements.
tO preVent SeriOuS inJury: the Saw Mill is dangerous if assembled incorrectly.
if you do not feel completely comfortable assembling it, then have a qualified technician assemble it.
note: For additional information regarding
the parts listed, refer to Assembly Diagram
near the end of this manual.

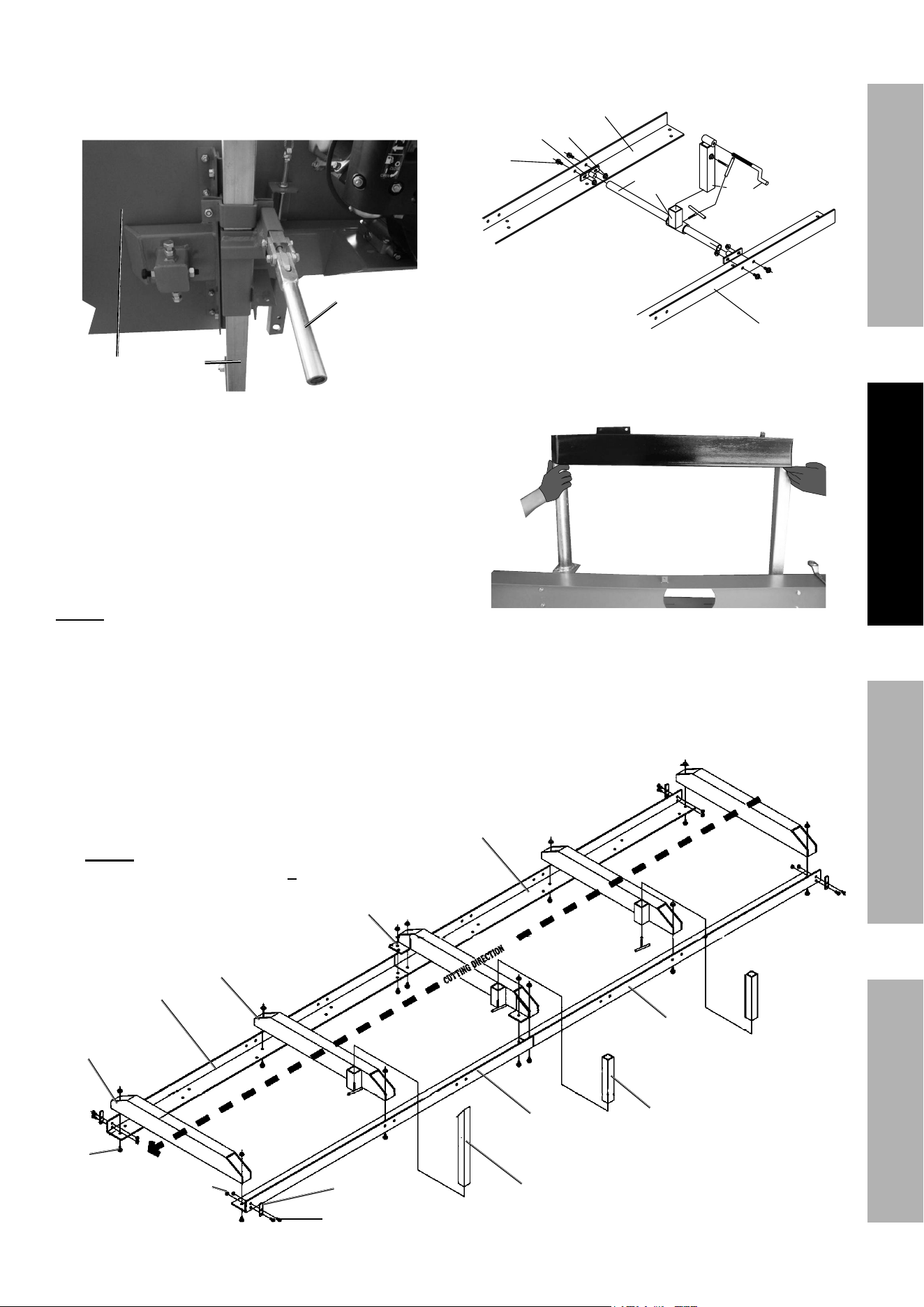

1. Secure Wheels (1) onto Right Wheel Frame (7a)
with two Bolts M20x100 (6) and Nuts M20 (2).
Attach Right Wheel Frame, Round Post (20)
and the Round Clamp (10) with
two Bolts M12x80 (8) and Nuts M12 (9).
note: Do not tighten Bolts (8) and Nuts (9) yet.
1
7a
6, 2
20
10
8, 9
Figure a: right Wheel Frame
2. Secure Wheels (1) onto Left Wheel Frame (3a)
with two Bolts M20x100 (6) and Nuts M20 (2). Then
attach Left Wheel Frame, Square Post (48) and
Square Clamp (4) with two Bolts (58) and Nuts (5).
note: Do not tighten Bolts (58) and Nuts (5) yet.
1
3a
6, 2
48
4
58, 5
Figure B: Left Wheel Frame

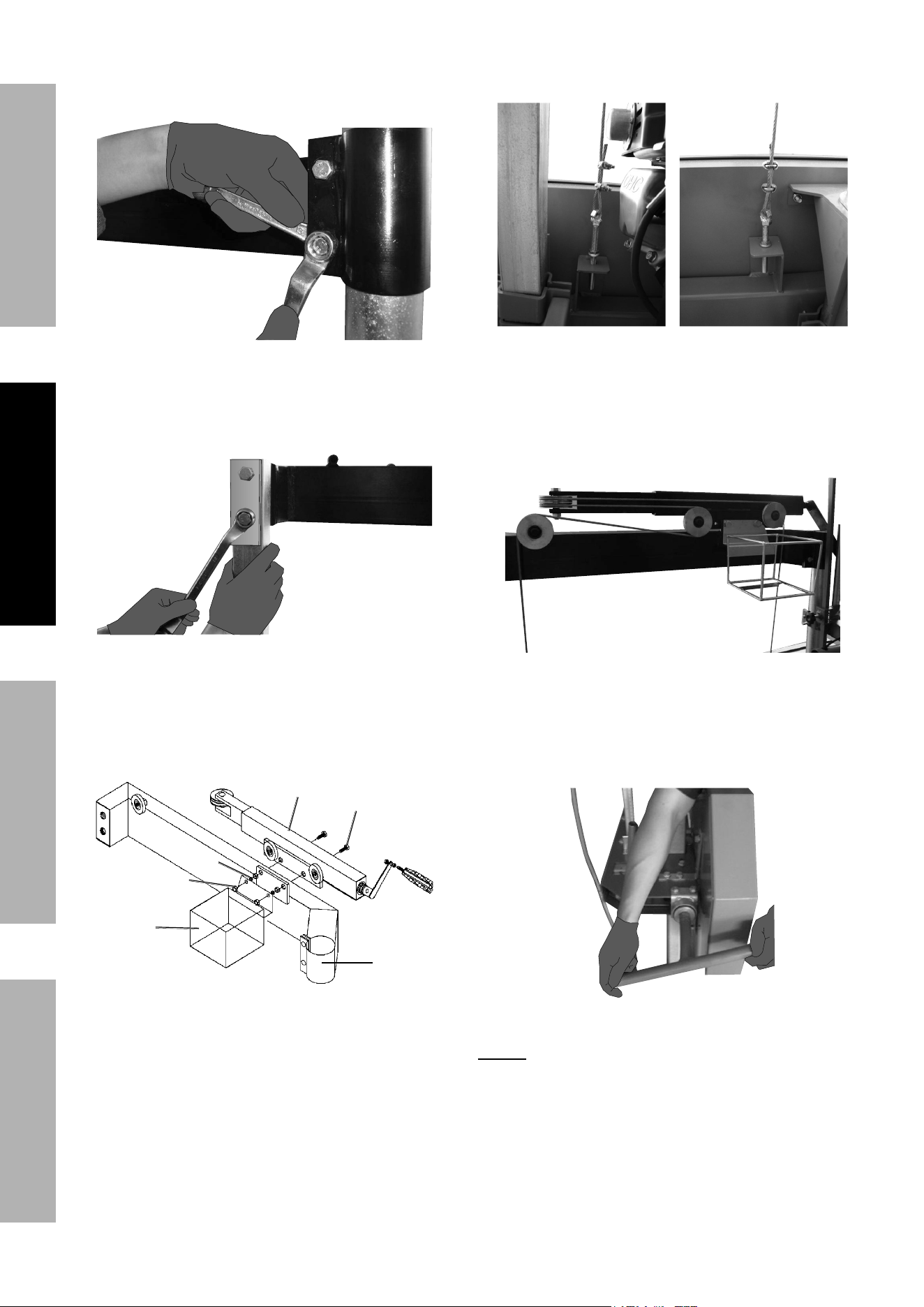

3. Slide the Round Post (20) into the Blade Guard (50),
as shown below. Adjust the bolts until Blade
Guard can move smoothly on the round post. Then
secure it in place with the Right Lock Handle (59).
Blade
Guard
(50)
right
Lock
Handle
(59)
round post (20)
Figure c: right Lock Handle
Page 7For technical questions, please call 1-888-866-5797.ITEM 62366
SaFetySetupOperatiOnMaintenance
4. Slide the Square Post (48) into the Blade Guard,
as shown below. Adjust the bolts until it can
move smoothly on the square post. Then secure
it in place with the Left Lock Handle (54).
Blade
Guard (50)
Left Lock
Handle (54)
Square
post
(48)
Figure D: Left Lock Handle
5. Lay out the Track sections (78, 92) as shown below.
6. Use the Bolts (22) and Nuts (25) to fasten the End
Stops (79) to the Track Sections, as shown below.
7. Use the Flange Bolts (77) and Flange
Nuts (84) to fasten the Center Support (90a)
and Middle Supports (81a) to the Track
Sections (78, 92), as shown below.
nOte: The Track (78) and Track (92) must be aligned
not only on the top surface, but also on the side surface.
The gap between these two parts must be small.
If the top surface of the Tracks are not aligned, use
a grinder or file (not included) to smooth them out.
8. Install the Rocker Tube (88) and Round
Tube (85) assembly as shown below.
77
78
92
83
84
85
86a
87
89
88
Figure F: rocker tube
9. Place the carriage onto the track.
10. Place the Top Frame (23) on the Posts (20, 48).
Figure G: top Frame
Figure e: track assembly
nOte: After assembly, the central distance
of the Track must be 30.315″ + 0.04″
80a
77
78
79
81a
82
92
78
90a
91
92
Saw mill
finishes cut
at this end.
Saw mill
starts cut from
this end.
22
25
Page 8 For technical questions, please call 1-888-866-5797. ITEM 62366
SaFety Setup OperatiOn Maintenance
11. Secure the two Bolts (22) attaching
the Top Frame (23) to the
Round Post (20) as shown below.
Figure H: top Frame Bolts
12. Attach the Top Frame (23) to the
Square Post (48) using the Bolts (49) and
Top Frame Brace (101) as shown below.
Figure i: top Frame Bolts 2
13. Tighten the Bolts (8,58) and Nuts (5,9).
14. Attach the External Tube (34) and the Water Tank
Tray (45) to the Top Frame (23) using the Bolts (44),
Spring Washer (98), and Nut (99), as shown below.
44
34
23
45
98
99
Figure J: Water tank tray and external tube
15. Thread the Cable Anchor Bolts (46) into
the Blade Guard (50) as shown below.
Figure K: cable anchor Bolt Locations
16. Route Cables as shown below.
Hook the loops around the two posts on the
back of the External Tube (34). The lower cable
attaches to the lower post. Adjust the Cable
Anchor Bolts (46) until the two cables are equal.
Figure L: cable route
17. Loosen the Bolt (70) and the Fixed Block (71) to
move the Fixed Block away from the Blade. Rotate
the Tension Handle (14) in a clockwise direction
to properly tension the Blade, as shown below.
Figure M: tension Handle
nOte: Pull up on Blade at Center Guard.
Allow for no more than 1/4″ - 1/2″
movement up or down (“give”) on the Blade.
The 1/4″ - 1/2″ give indicates proper Blade tension.
Page 9For technical questions, please call 1-888-866-5797.ITEM 62366
SaFetySetupOperatiOnMaintenance
18. Slide Fixed Block until it gently touches the Blade.
Then tighten the Bolt, fastening it in place.
See below. Repeat for the remaining Fixed
Blocks until there is 0.02″-0.04″ clearance
between Fixed Blocks and Blade.

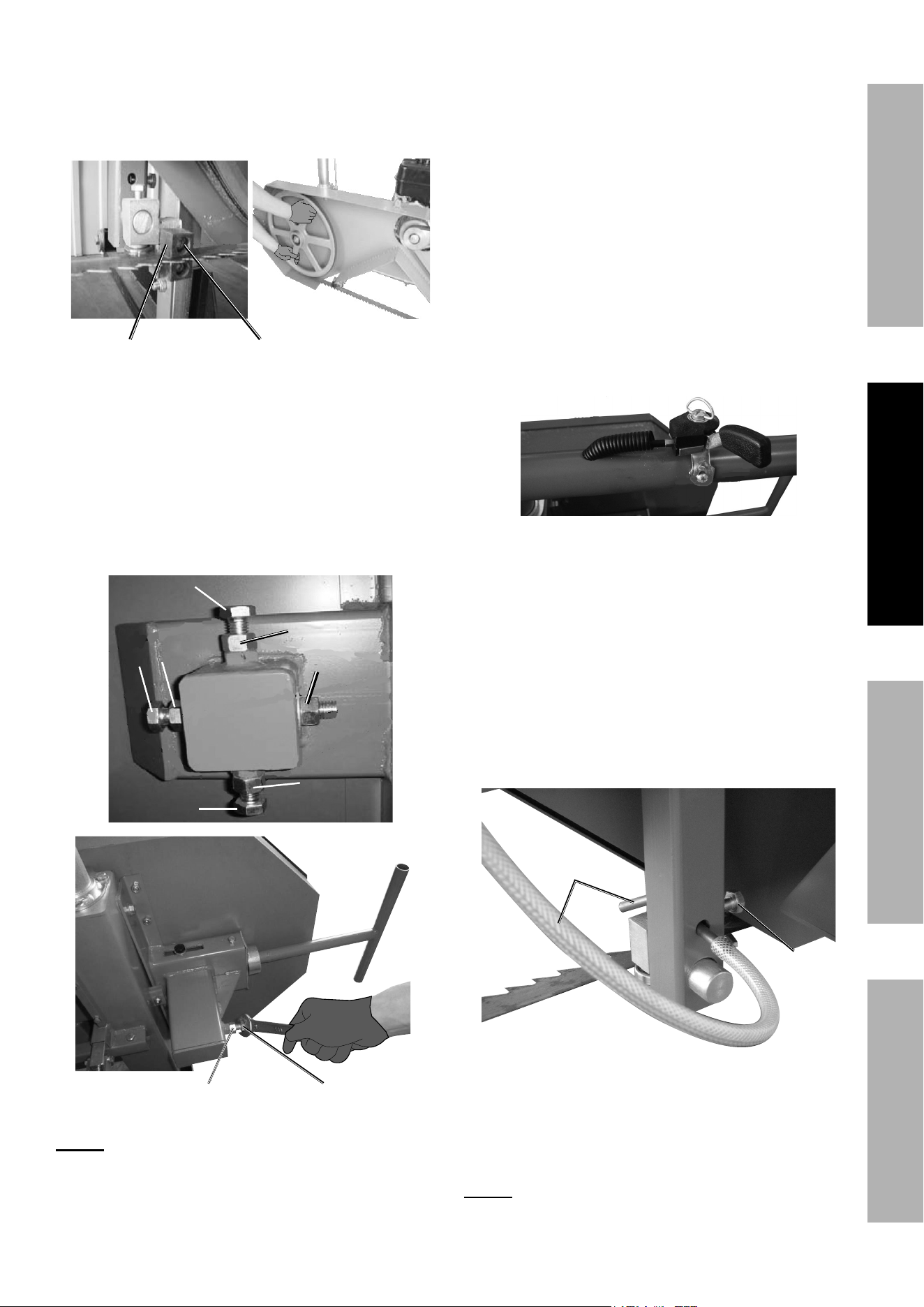

Figure n: Fixed Block and Manual rotation
Fixed Block (71) Bolt (70)
19. Rotate the Bandwheel (66) slowly
counterclockwise, watching relative position
of the Blade (69) and the Bandwheels (66).
20. If the Blade stays centered on the wheels, tighten
the lock nuts shown on Figure O. If the Blade
does not stay centered, adjust the bolts shown
on Figure O slightly and then rotate the belt
wheel again. See instructions that follow.
G
a
B
e
F
c
D
adjusting boltadjusting lock nut
Figure O: adjustment Bolts
nOte: Adjust Blade again after replacement.
Refer to Figure O for the following instructions:
BEFORE any adjustment, loosen Bolts
E and F and Nuts C and D.
If after replacement Blade starts to shift back
towards operator, loosen Nut A and hold Bolt G with
a wrench. Then tighten Nut A after adjustment.
If the Blade shifts back from the operator,
loosen Nut B and hold Bolt G with a wrench.
Then tighten Nut B after Blade adjustment.
Continue making small adjustments until
Blade stays centered, AFTER any adjustment,
tighten Bolts E and F and Nuts C and D.
21. Install Throttle Control (93) on Pushing
Handle (94) as shown below.
Figure p: throttle control
22. Lubricate the Round Post (20) and the
Square Post (48) with lithium grease to
allow the sawhead to move smoothly.
23. Install the Water Tank (95) into
the Water Tank Tray (45).
24. Route the Water Tube (97) through the
bracket on the lower right of the Blade
Guard (50) Secure in place with the tip facing
the blade using the water tube holding bolt
shown below, but do not overtighten.
Figure Q: Water tube
Blade Blade
Guard Guard
(50) (50)
lower lower
right right
bracketbracket
Water
tube (97)
Water tube Water tube
Holding Holding
BoltBolt
25. For horizontal Blade adjustment, loosen the Nut (47)
and adjust the left and right Lock Handles (54,59)
until the distance between the ends of the Blade and
the top of the Middle Support (81a) are the same.
nOte: Use a tape measure to verify distances match.
Page 10 For technical questions, please call 1-888-866-5797. ITEM 62366
SaFety Setup OperatiOn Maintenance
Operating instructions
read the entire iMpOrtant
SaFety inFOrMatiOn section at the
beginning of this manual including
all text under subheadings therein
before set up or use of this product.
engine Operation
inspect engine and equipment looking
for damaged, loose, and missing
parts before set up and starting.
if any problems are found, do not use
equipment until fixed properly.
Start procedure
Before starting the engine:
a. Follow the Set up instructions to
prepare the equipment. Follow all
instructions in the separate engine
manual provided with the engine.
b. inspect the equipment and engine.
c. Fill the engine with the proper
amount and type of fuel and oil.
d. read the equipment Operation
section that follows.
1. Start and operate the engine according
to the provided engine manual.
2. Replacement engine operating instructions can
be obtained from the engine manufacturer.
equipment Operation
1. Wear heavy-duty work gloves, ANSI-approved
goggles behind a full face shield, steel-toed
work boots, and a dust mask.
2. Operate only with assistance.
3. Fill the Water Tank with clean water.
4. The maximum log diameter that can be cut is 20″.
The maximum board width that can be cut is 20″.
The lumber must be at least 3′ 8″ long and
must rest on at least two Supports (81a, 90a)
to prevent instability.
5. Cut branches off the lumber to be
processed before milling.
6. WarninG! to prevent death and
serious injury. Do not cut lumber containing
foreign objects (nails, metal, etc.).
7. Choose the Short Log Supports (91) or the Long
Log Supports (82) according to the lumber diameter.
8. Place the lumber to be cut on the Supports.
See picture below. Brace the lumber against
the Log Supports (82, 91) to prevent movement
during milling. The lumber should be positioned so
that the force of cutting holds it against the supports.

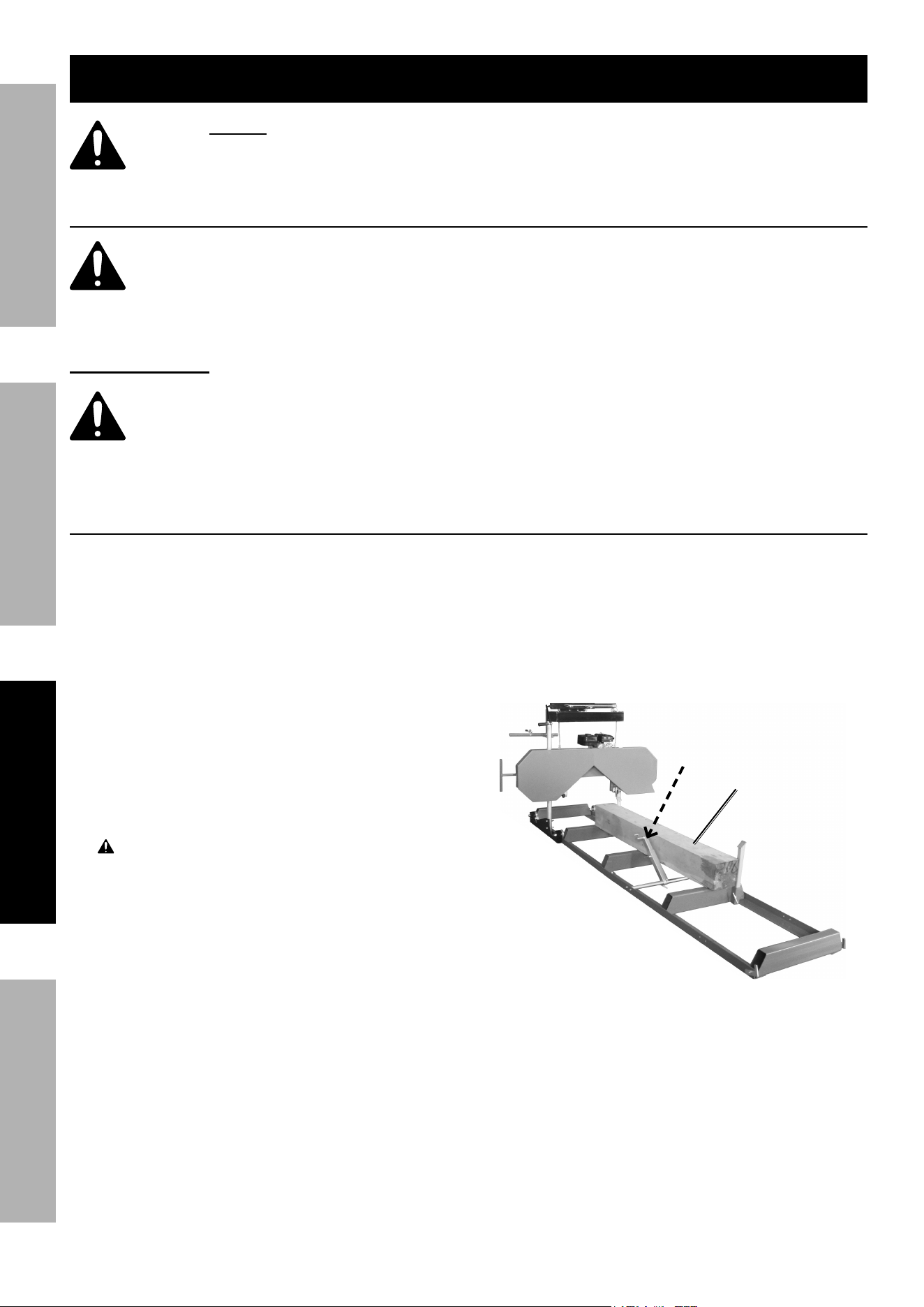

Figure r: Lumber position
Lumber on
Supports
clamp
Lumber
Here
9. Clamp the lumber in place against the Log
Supports (82, 91) using the Log Clamp (89) in
the location shown above. position the Log
clamp is below the level of the blade.
10. Tighten all Bolts and T-Handles on the Log
Clamp (89) and the Log Supports (82, 91). Verify
that they are securely in place before proceeding.
Page 11For technical questions, please call 1-888-866-5797.ITEM 62366
SaFetySetupOperatiOnMaintenance
11. Align the Blade with the top of the lumber, loosen
the Scale Knob and adjust the Scale Pointer to point
at 0″ on the Scale. Tighten the Scale Pointer Knob.

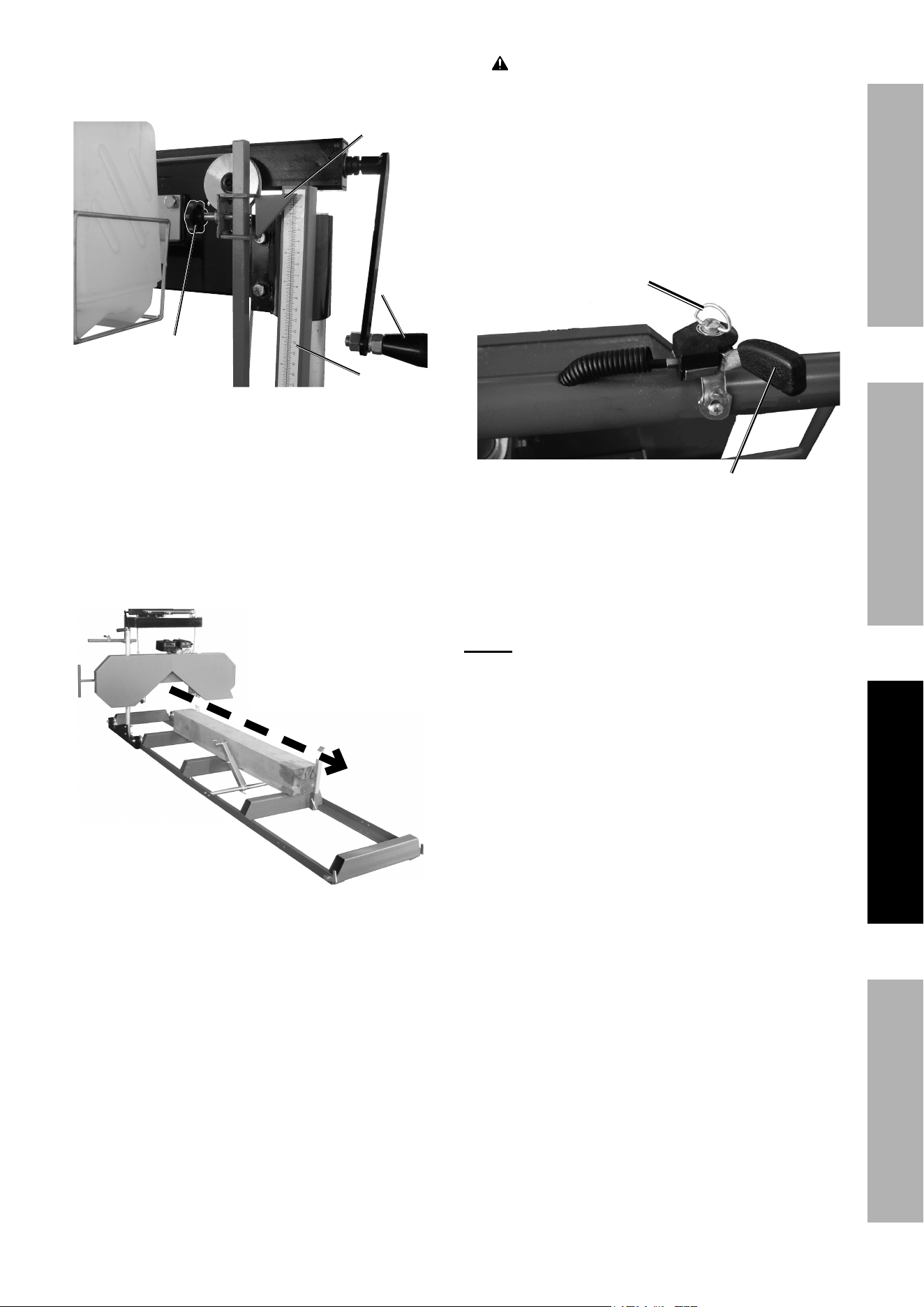

Figure S: Scale and Scale pointer
Scale
Height Height
adjustment adjustment
Handle (30)Handle (30)
Scale
pointer
Knob
Scale Scale
pointerpointer
12. Release both Lock Handles (54, 59). Turn the Height
Adjustment Handle (30) and adjust the cutting
height until the Scale Pointer points to the desired
thickness. Engage both Lock Handles (54, 59).
13. The cut direction must be as shown below. If the
log is cut from the other direction, the saw blade
will push the lumber away from the supports and
may cause the lumber to become unstable.
Figure t: Direction of cut
Start Start
of cutof cut
end
of cut
cuttinG DirectiOncuttinG DirectiOn
14. WarninG! tO preVent SeriOuS
inJury: the operator and any assistants
must stay clear of the front and back of the
blade whenever the engine is running.
15. Start and operate the engine according
to the provided engine manual.
16. Adjust the Throttle to bring the Blade
up to speed. The Locking Ring can be
turned to lock the Throttle in place.
Figure u: throttle control
Locking ring
throttle Lever
17. Throttle speed may need to be increased
when the Saw is under load.
18. Move the Saw Head slowly along the track
and against the lumber to make the cut.
nOte: Repeated adjustments will
need to be made during cutting.
19. Shut off engine if blade binds, breaks,
or another problem is suspected.
Do not try to back the blade out of an
incomplete but while engine is running.
20. Trim off the rounded sides of the lumber.
21. After the lumber is squared-off,
boards or posts can be cut.
22. To prevent accidents, turn off the engine and
disconnect its spark plug wire after use. Wait for the
engine to cool, clean external parts with clean cloth,
then store the equipment out of children's reach
according to the Storage instructions in this manual.
Page 12 For technical questions, please call 1-888-866-5797. ITEM 62366
SaFety Setup OperatiOn Maintenance
Servicing
tO preVent SeriOuS inJury FrOM acciDentaL StartinG:
turn the power Switch of the equipment to its “OFF” position, wait for the engine to cool, and disconnect
the spark plug wire(s) before performing any inspection, maintenance, or cleaning procedures.
tO preVent SeriOuS inJury FrOM eQuipMent FaiLure:
Do not use damaged equipment. if abnormal noise, vibration, or excess
smoking occurs, have the problem corrected before further use.
Maintenance procedures
Many maintenance procedures, including those not detailed in this manual, will need to be
performed by a qualified technician for safety. if you have any doubts about your ability to safely
service the equipment or engine, have a qualified technician service the equipment instead.
note: These procedures are in addition to the regular checks and maintenance
explained as part of the regular operation of the engine and equipment.
engine Maintenance and Service
Follow the instructions found in the
included engine manual.
equipment Lubrication
1. Lubricate the Bandwheel Axles and Square and
Round Posts with machine oil before each use.
2. Lubricate the Tension Handle with grease monthly.
Storage
1. Wait for engine to cool, then clean
equipment with clean cloth.
2. Clean the engine and/or prepare it for storage
according to engine manual instructions.
3. Apply a thin coat of rust preventive
oil to all uncoated metal parts.
4. Cover and store in a dry, well-ventilated
area out of reach of children.
5. For cold weather operation, store the
equipment in a cool dry area to prevent
condensation and premature wear.
Page 13For technical questions, please call 1-888-866-5797.ITEM 62366
SaFetySetupOperatiOnMaintenance
equipment troubleshooting
problem possible causes probable Solutions
Excessive blade
breakage.
1. Insufficient blade tension.
2. Incorrect speed or feed rate.
3. Lumber loose.
4. Blade rubs against wheel flange.
5. Blade teeth too coarse for
lumber, or blade too thick.
6. Teeth contacting lumber before
blade up to full speed.
7. Misaligned guides.
1. Increase blade tension.
2. Adjust speed or feed rate for the lumber being cut.
3. Make sure lumber is securely positioned
against supports. Remove stray branches
that prevent proper positioning.
4. Adjust blade tracking.
5. Use recommended blade only.
6. Allow blade to reach operating
speed before cutting.
7. Align guides.
Premature
blade dulling.
1. Teeth too coarse.
2. Blade rotating too quickly.
3. Hard spots or scale in/on material.
4. Blade installed backwards.
5. Insufficient blade tension.
1. Use recommended blade only.
2. Use lower speed.
3. Reduce speed, increase feed pressure.
4. Properly install blade.
5. Tension blade properly.
Blade cuts crooked.
1. Lumber not square.
2. Feed pressure/rate too great.
3. Inadequate blade tension.
4. Dull blade.
5. Blade guide loose.
1. Adjust lumber so that it is square with the blade.
2. Reduce feed rate.
3. Increase blade tension slightly.
4. Replace blade.
5. Adjust and secure blade guide.
Blade cuts rough.
1. Too much blade speed and/
or rate of feed.
2. Blade is too coarse.
1. Reduce blade speed and feed rate.
2. Use recommended blade only.
Blade is twisting.
1. Cut is binding blade.
2. Blade tension too high.
1. Decrease feed pressure.
2. Decrease blade tension.
Unusual wear
on back or side
of blade.
1. Blade guides worn.
2. Blade guide bearing bracket is loose.
1. Replace blade guides.
2. Tighten blade guide bearing bracket.
Teeth ripping
from blade.
1. Teeth too coarse.
2. Feed rate incorrect.
3. Lumber loose.
4. Teeth filled with debris.
1. Use recommended blade only.
2. Adjust feed rate.
3. Make sure lumber is securely positioned
against supports. Remove stray branches
that prevent proper positioning.
4. Clean debris off blade.
Follow all safety precautions whenever diagnosing or servicing the equipment or engine.
Page 14 For technical questions, please call 1-888-866-5797. ITEM 62366
SaFety Setup OperatiOn Maintenance
part Description Qty
1 Wheel 4
2 Nut M20 4
3a Left Wheel Frame 1
4 Clamp 1 1
5 Nut M12 6
6 Bolt M20×100 4
7a Right Wheel Frame 1
8 Bolt M12×80 5
9 Nut M12 6
10 Clamp 2 1
11 Bolt M8×20 9
12 Bolt M10×25 21
13 Bolt M12×65 3
14 Tension Handle 1
15 Flat Washer 12 2
16 Bolt M12×145 1
17 Hanging Plate 1
18 Bolt M8×16 5
19 Right Clamp 1
20 Round Post 1
21 Lumber Thickness Scale 1
22 Bolt M8×25 12
23 Top Frame 1
24 Flat Washer 8 9
25 Nut M8 36
26 Taper Pin B6×40 2
27 Elastic Pin 5×20 1
28 Round Nut M14×1.5 2
29 Height Adjustment Arm 1
30 Height Adjustment Handle 1
31 Bolt M12×65 3
32 Nut M12 6
33 Guide Screw Base 1
34 External Tube 1
35 Pulley 5
36 Bolt M12×20 3
37 Snap Ring 12 3
38 Washer 3
39 Internal Tube 1
40 Bolt M12×70 1
41 Washer 1
42 Flat Washer 2
43 Nut M12 1
44 Bolt M10×45 2
45 Water Tank Tray 1
46 Cable Anchor Bolt 2
47 Nut M10 4
48 Square Post 1
49 Bolt M12×65 2
50 Blade Guard 1
51 Bolt M12×45 1
part Description Qty
52 Nut M12 4
53 Bolt M12×100 1
54 Left Lock Handle 1
55 Bolt M8×45 6
56 Support Tube 1
57 Beam 1
58 Bolt M12×80 2
59 Right Lock Handle 1
60 Bolt M10×25 2
61 Elastic Washer 10 2
62 Flat Washer 10 2
63 Snap Ring 62 2
64 Bearing 6305 RZ 4
65 V- Belt B1900 1
66 Bandwheel 2
67 Clutch 1
68 Pin 1
69 Blade 1
70 Bolt M8×45 4
71 Fixed Block 4
72 Blade Guide 2
73 Blade Guide Shaft 2
74 Short Bandwheel Axle 1
75 Long Bandwheel Axle 1
76 V- Belt B1422 1
77 Flange Bolt M10×25 28
78 Track 1 2
79 End Stop 4
80a End Support 2
81a Middle Support 2
82 Log Support 2
83 Rod Support 2
84 Flange Nut M10 32
85 Round Tube 1
86a Rocker Tube Sleeve 1
87 Log Support T-Handle M10x1.5x30 5
88 Rocker Tube 1
89 Log Clamp 1
90a Center Support 1
91 Short Log Support 2
92 Track 2 2
93 Throttle Control 1
94 Pushing Handle 1
95 Water Tank 1
96 Switch 1
97 Water Tube 1
98 Spring Washer 10 2
99 Nut M10 4
100 Blade Roller Bearing 2
101 Top Frame Brace 1
parts List and Diagrams
parts List
Page 15For technical questions, please call 1-888-866-5797.ITEM 62366
SaFetySetupOperatiOnMaintenance
assembly Diagram
101
Page 16 For technical questions, please call 1-888-866-5797. ITEM 62366
SaFety Setup OperatiOn Maintenance
assembly Diagram (continued)
100
100
Page 17For technical questions, please call 1-888-866-5797.ITEM 62366
SaFetySetupOperatiOnMaintenance
assembly Diagram (continued)
92
90a
84
83
81a
80a
22
25
79
78
77
92
82
85
86A
87
88
89
91
78
Page 18 For technical questions, please call 1-888-866-5797. ITEM 62366
SaFety Setup OperatiOn Maintenance
pLeaSe reaD tHe FOLLOWinG careFuLLy
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
record product’s Serial number Here:
note: If product has no serial number, record month and year of purchase instead.
note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175528292 when ordering parts.
Page 19For technical questions, please call 1-888-866-5797.ITEM 62366
SaFetySetupOperatiOnMaintenance
Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid.
Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or
we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement.
We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
26677 agoura road • calabasas, ca 91302 • 1-888-866-5797
®
Visit our website at: http://www.harborfreight.com
email our technical support at: [email protected]
email our engine support at: [email protected]
using an engine indoors
Can KiLL yOu in MinuTeS.
engine exhaust contains carbon monoxide.
This is a poison you cannot see or smell.
neVer use inside
a home or garage,
eVen iF doors and
windows are open.
Only use OuTSiDe
and far away from
windows, doors,
and vents.
®
301 CC
HORIZONTAL ENGINE
enGine FOr 62366
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 24g
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright
©
2023 by Harbor Freight Tools
®
. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
read this material before using this product.
Failure to do so can result in serious injury.
SaVe THiS ManuaL.
Page 2 For technical questions, please call 1-888-866-5797. ENGINE FOR 62366
Table of Contents
Specifications ............................................. 2
Safety ......................................................... 3
Setup .......................................................... 6
Operation .................................................... 8
Maintenance .............................................. 12
Troubleshooting ......................................... 16
Warranties ................................................. 18
Parts Lists and Diagrams .......................... 20
Specifications
Displacement 301cc
Engine Type
Horizontal Single Cylinder
4-stroke OHV
Cooling System Forced air cooled
Fuel
Type
87+ octane stabilizer-treated
unleaded gasoline
Capacity 1.41 Gallon
Engine Oil
Type SAE
10W-30 above 32° F
5W30 at 32° F or below
Capacity 1 Quart
Run Time @ 50% Load
with full tank
3 hr.
Sound Level 106 dB
Bore x Stroke 80 mm x 60 mm
Compression Ratio 8.2:1
Rotation viewed from PTO
(power takeoff - the output shaft)
Counterclockwise
Spark Plug
Type F6TC (Torch/LG)
Gap 0.028″ - 0.031″
Valve Clearance
Intake 0.002" - 0.004"
Exhaust 0.002" - 0.004"
Speed Idle 1600 ±300 RPM

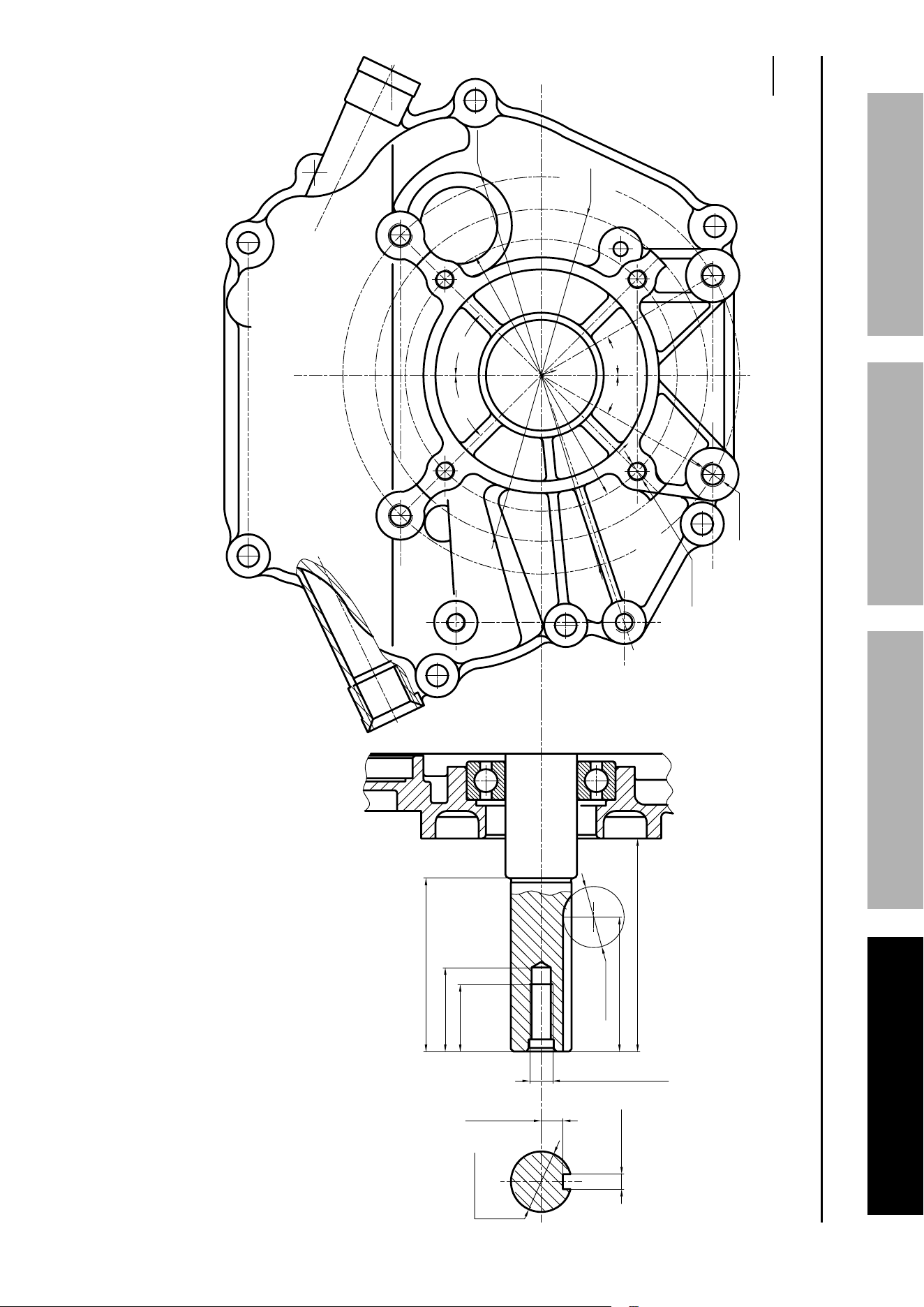

Shaft
Shaft Ø1″ x 3.48″
Keyway 0.25″
End Tapped 7/16″ - 20 UNF
The emissions control system for this Engine is warranted for standards set by the
U.S. Environmental Protection Agency. For warranty information, refer to the last pages of this manual.
®
Page 3For technical questions, please call 1-888-866-5797.ENGINE FOR 62366
SaFeTyOperaTiOnMainTenanCe SeTup
WarninG SyMBOLS anD DeFiniTiOnS
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
Symbol Definitions
Symbol property or Statement
rpM
Revolutions Per Minute
Hp
Horsepower
WARNING marking concerning
Risk of Eye Injury. Wear ANSI-approved
safety goggles with side shields.
Read the manual before
set-up and/or use.
WARNING marking concerning
Risk of Hearing Loss.
Wear hearing protection.
Symbol property or Statement
WARNING marking concerning
Risk of Respiratory Injury.
Operate engine OUTSIDE and far away
from windows, doors, and vents.
WARNING marking concerning
Risk of Fire while handling fuel.
Do not smoke while handling fuel.
WARNING marking concerning
Risk of Fire.
Do not refuel while operating.
Keep flammable objects
away from engine.
iMpOrTanT SaFeTy inSTruCTiOnS
WarninG! read all instructions.
Failure to follow all instructions listed below may result in fire, serious injury and/or DeaTH.
The warnings and precautions discussed in this manual cannot cover all possible conditions and
situations that may occur. It must be understood by the operator that common sense and caution
are factors which cannot be built into this product, but must be supplied by the operator.
SaVe THeSe inSTruCTiOnS
Page 4 For technical questions, please call 1-888-866-5797. ENGINE FOR 62366
SaFeTy OperaTiOn MainTenanCeSeTup
Set up precautions
1. Gasoline fuel and fumes are flammable, and
potentially explosive. Use proper fuel storage
and handling procedures. Do not store fuel
or other flammable materials nearby.
2. Have multiple ABC class fire extinguishers nearby.
3. Operation of this equipment may create sparks that
can start fires around dry vegetation.
A spark arrestor may be required. The operator
should contact local fire agencies for laws or
regulations relating to fire prevention requirements.
4. Set up and use only on a flat, level,
well-ventilated surface.
5. Wear ANSI-approved safety goggles, heavy-duty
work gloves, and dust mask/respirator during set up.
6. Use only lubricants and fuel recommended
in the Specifications chart of this manual.
Operating precautions
1. CarBOn MOnOXiDe HaZarD
using an engine indoors
Can KiLL yOu in MinuTeS.
Engine exhaust contains
carbon monoxide. This is a poison
you cannot see or smell.
NEVER use inside a home or garage,
EVEN IF doors and windows are open.
Only use OUTSIDE and far away from windows,
doors, and vents.
2. Keep children away from the equipment,
especially while it is operating.
3. Keep all spectators at least six feet
from the Engine during operation.
4. Fire Hazard! Do not fill gas tank while engine is
running. Do not operate if gasoline has been spilled.
Clean spilled gasoline before starting engine.
Do not operate near pilot light or open flame.
5. Do not touch engine during use.
Let engine cool down after use.
6. Never store fuel or other flammable
materials near the engine.
7. Only use a suitable means of transport and
lifting devices with sufficient weight bearing
capacity when transporting the engine.
8. Secure the engine on transport vehicles to
prevent it from rolling, slipping, and tilting.
9. Industrial applications must follow
OSHA requirements.
10. Do not leave the engine unattended when it is
running. Turn off the engine (and remove safety
keys, if available) before leaving the work area.
11. The engine can produce high noise levels.
Prolonged exposure to noise levels
above 85 dBA is hazardous to hearing.
Wear ear protection when operating the engine
or when working nearby while it is operating.
12. Wear ANSI-approved safety glasses
and hearing protection during use.
13. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to a heart pacemaker could cause
pacemaker interference or pacemaker failure.
Caution is necessary when near the
engine’s magneto or recoil starter.
14. Use only accessories that are recommended
by Harbor Freight Tools for your model.
Accessories that may be suitable for one
piece of equipment may become hazardous
when used on another piece of equipment.
15. Do not operate in explosive atmospheres,
such as in the presence of flammable
liquids, gases, or dust. Gasoline-powered
engines may ignite the dust or fumes.
16. Stay alert, watch what you are doing and
use common sense when operating this
engine. Do not use while tired or under the
influence of drugs, alcohol or medication.
17. Dress properly. Do not wear loose clothing or
jewelry. Keep hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or
long hair can be caught in moving parts.
18. Parts, especially exhaust system components,
get very hot during use. Stay clear of hot parts.
19. Do not cover the engine during operation.
20. Keep the engine and surrounding
area clean at all times.
21. Do not smoke, or allow sparks, flames,
or other sources of ignition around the
equipment, especially when refuelling.
Page 5For technical questions, please call 1-888-866-5797.ENGINE FOR 62366
SaFeTyOperaTiOnMainTenanCe SeTup
22. Use the equipment, accessories, etc., in
accordance with these instructions and in the
manner intended for the particular type of
equipment, taking into account the working
conditions and the work to be performed.
Use of the equipment for operations different from
those intended could result in a hazardous situation.
23. Do not operate the equipment with known
leaks in the engine’s fuel system.
24. When spills of fuel or oil occur, they must be
cleaned up immediately. Dispose of fluids and
cleaning materials as per any local, state, or
federal codes and regulations. Store oil rags in
a bottom-ventilated, covered, metal container.
25. Keep hands and feet away from moving parts.
Do not reach over or across
equipment while operating.
26. Before use, check for misalignment or binding of
moving parts, breakage of parts, and any other
condition that may affect the equipment’s operation.
if damaged, have the equipment serviced
before using. Many accidents are caused
by poorly maintained equipment.
27. Use the correct equipment for the application.
Do not modify the equipment and do not use the
equipment for a purpose for which it is not intended.
Service precautions
1. Before service, maintenance, or cleaning:
a. Turn the engine switch to its “OFF” position.
b. allow the engine to completely cool.
c. Then, remove the spark plug cap
from the spark plug.
2. Keep all safety guards in place and in
proper working order. Safety guards include
muffler, air cleaner, mechanical guards,
and heat shields, among other guards.
3. Do not alter or adjust any part of the
equipment or its engine that is sealed by the
manufacturer or distributor. Only a qualified
service technician may adjust parts that may
increase or decrease governed engine speed.
4. Wear ANSI-approved safety goggles,
heavy-duty work gloves, and
dust mask/respirator during service.
5. Maintain labels and nameplates on the equipment.
These carry important information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
6. Have the equipment serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the equipment
is maintained. Do not attempt any service or
maintenance procedures not explained in this
manual or any procedures that you are uncertain
about your ability to perform safely or correctly.
7. Store equipment out of the reach of children.
8. Follow scheduled engine and
equipment maintenance.
refueling:
1. Do not refill the fuel tank while the
engine is running or hot.
2. Do not smoke, or allow sparks, flames,
or other sources of ignition around the
equipment, especially when refuelling.
3. Do not fill fuel tank to the top.
Leave a little room for the fuel to expand as needed.
Refuel in a well-ventilated area only.
4. Wipe up any spilled fuel and allow excess
to evaporate before starting engine.
To prevent Fire, do not start the engine
while the smell of fuel hangs in the air.
SaVe THeSe inSTruCTiOnS.
Operating precautions (cont.)
Page 6 For technical questions, please call 1-888-866-5797. ENGINE FOR 62366
SaFeTy OperaTiOn MainTenanCeSeTup
Set up
read the enTire iMpOrTanT SaFeTy inFOrMaTiOn section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
TO preVenT SeriOuS inJury:
Operate only with proper spark arrestor installed.
Operation of this equipment may create sparks that can start fires around dry vegetation.
a spark arrestor may be required.
The operator should contact local fire agencies for laws or regulations
relating to fire prevention requirements.
WarninG! DO nOT inSTaLL THiS enGine On a VeHiCLe.
WarninG! TO preVenT SeriOuS inJury: inSTaLL THiS enGine
aCCOrDinG TO eQuipMenT inSTruCTiOnS BeFOre uSe.

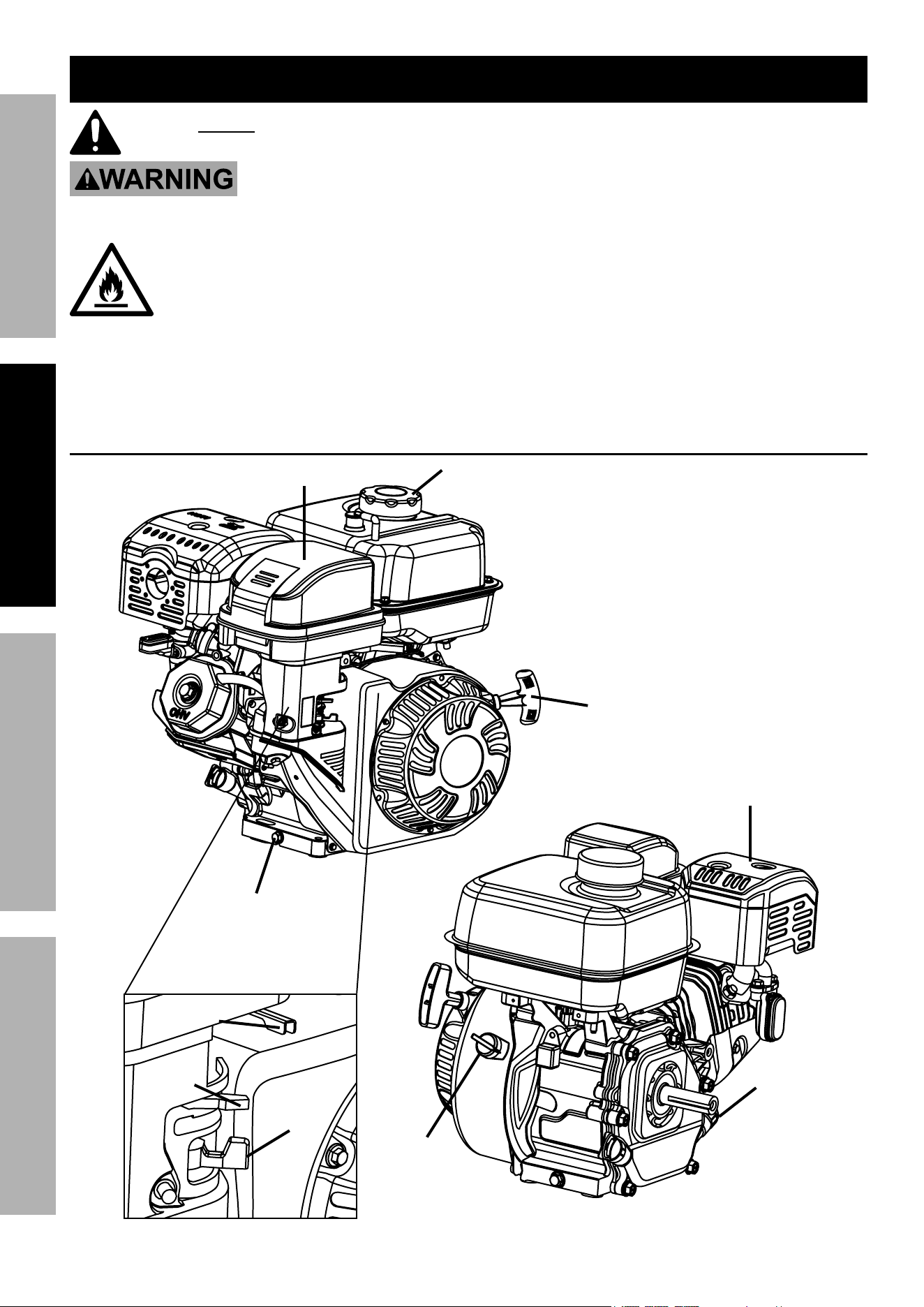

Components and Controls
engine
Switch
Starter
Handle
Oil Drain plug
air Cleaner
Fuel Valve
Choke
Fuel Cap
Throttle
Muffler
Dipstick
Page 7For technical questions, please call 1-888-866-5797.ENGINE FOR 62366
SaFeTyOperaTiOnMainTenanCe SeTup
High altitude Operation above 3000 feet
WarninG! TO preVenT SeriOuS inJury FrOM Fire:
Follow instructions in a well-ventilated area away from ignition sources.
If the engine is hot from use, shut the engine off and wait for it to cool before proceeding. Do not smoke.
nOTiCe Warranty void if necessary adjustments are not made for high altitude use.
At high altitudes, the engine’s carburetor, governor (if so equipped), and any other parts that control the fuel-air
ratio will need to be adjusted by a qualified mechanic to allow efficient high-altitude use and to prevent damage
to the engine and any other devices used with this product. The fuel system on this engine may be influenced by
operation at higher altitudes. Proper operation can be ensured by installing an altitude kit at altitudes higher than
3000 ft. above sea level. At elevations above 8000 ft, the engine may experience decreased performance, even
with the proper main jet. Operating this engine without the proper altitude kit installed may increase the engine’s
emissions and decrease fuel economy and performance. The kit should be installed by a qualified mechanic.

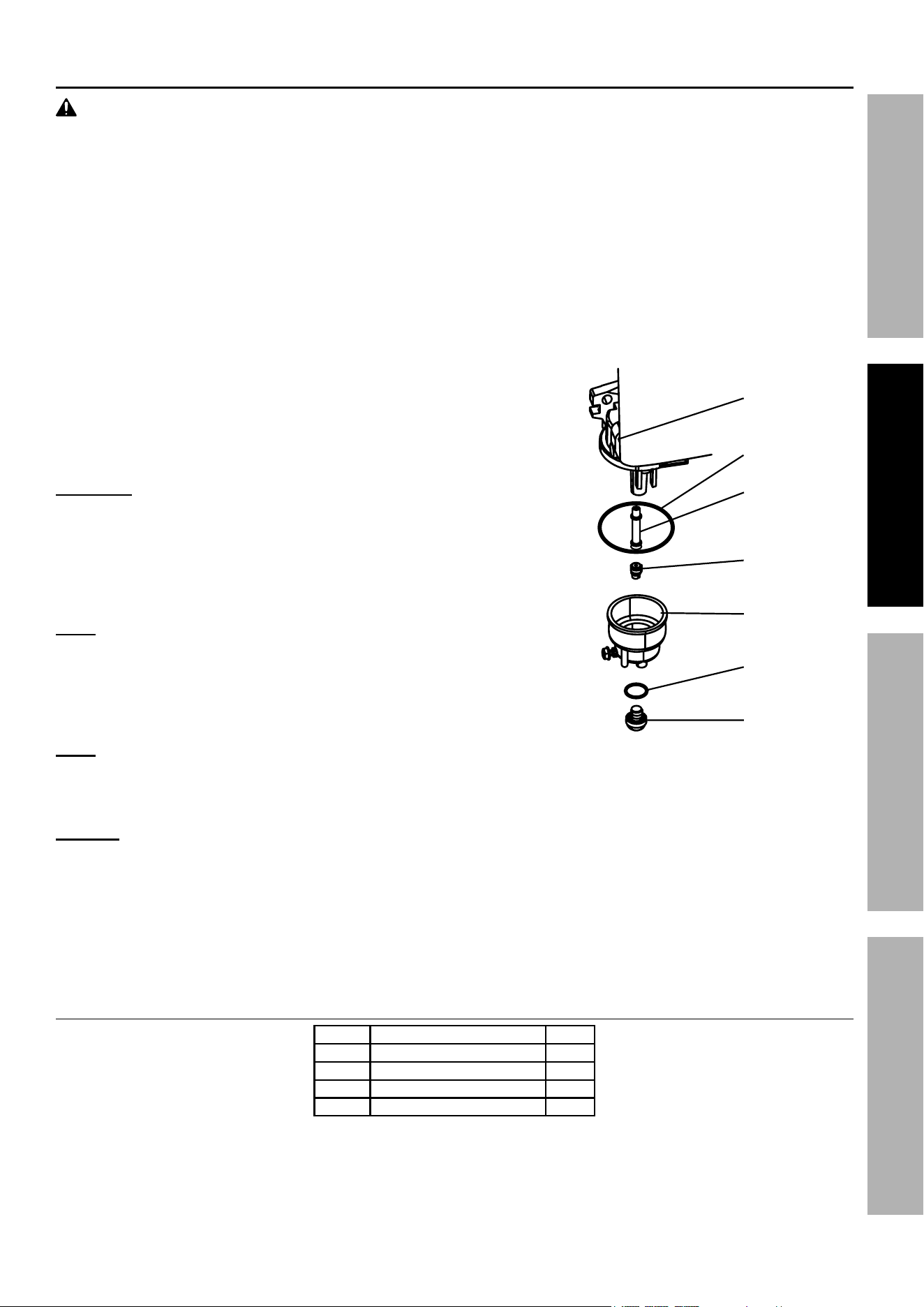

1. Turn off the engine.
2. Close the fuel valve.
3. Place a bowl under the fuel cup to catch any spilled fuel.
4. Unthread the bolt holding the fuel cup.
CauTiOn! Carburetor bowl may have gas in it
which will leak upon removing the bolt.
5. Remove the bolt, Bolt Seal, fuel cup, Fuel Cup Seal and
Main Jet from the body of the carburetor assembly.
A carburetor screwdriver (not included) is needed
to remove and install the Main Jet.
note: The mixing tube is held in place by the main jet and
might fall out when it is removed. If it falls out, replace it in
the same orientation before replacing the main jet.
6. Replace the Main Jet with the replacement Main Jet
needed for your altitude range (part 1a or 2a).
note: The Fuel Cup Seal and Bolt Seal may be damaged during removal
and should be replaced with the new ones from the kit.
7. Replace the Fuel Cup Seal (4a), fuel cup, Bolt Seal (3a), and bolt. Tighten in place.
nOTiCe: Do not cross thread bolt when tightening.
Finger tighten first and then use a wrench to make sure the bolt is properly threaded.
8. Wipe up any spilled fuel and allow excess to evaporate before starting engine.
To prevent FIRE, do not start the engine while the smell of fuel hangs in the air.
High altitude Kit parts List - a
part Description Qty
1a Main Jet 3000-6000 ft. 1
2a Main Jet 6000-8000 ft. 1
3a Bolt Seal 1
4a Fuel Cup Seal 1
Carburetor
assembly
Main Jet
Fuel Cup Seal
Mixing Tube
(might remain
inside carburetor)
Fuel Cup
Bolt Seal
Bolt
Page 8 For technical questions, please call 1-888-866-5797. ENGINE FOR 62366
SaFeTy OperaTiOn MainTenanCeSeTup

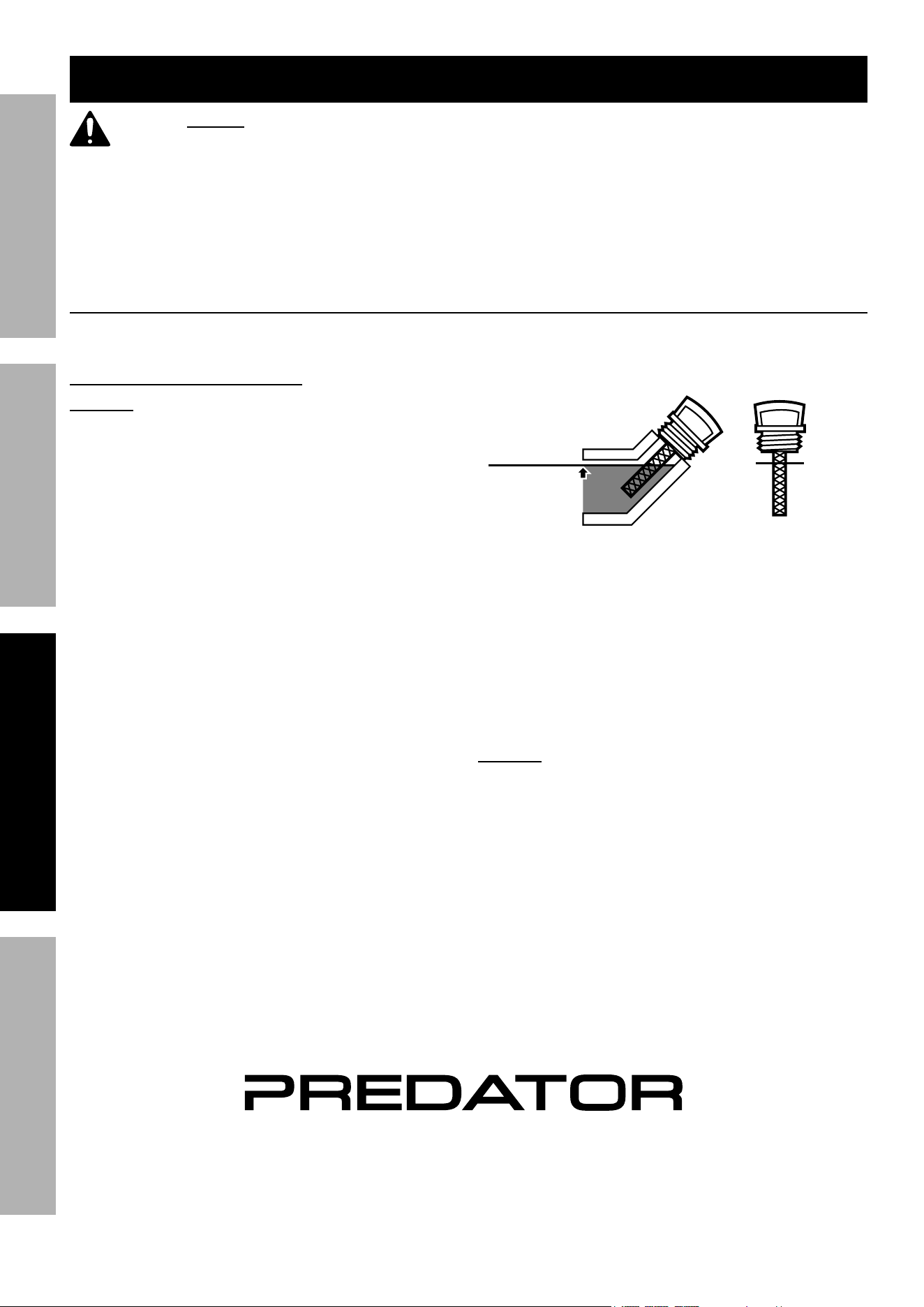

Operation
read the enTire iMpOrTanT SaFeTy inFOrMaTiOn section at the beginning of this manual
including all text under subheadings therein before set up or use of this product.
pre-Start Checks
Inspect engine and equipment looking for damaged, loose, and missing parts before set up and starting.
If any problems are found, do not use equipment until fixed properly.
Checking and Filling engine Oil
nOTiCe: your Warranty is VOiD if the engine’s
crankcase is not properly filled with oil before
each use. Before each use, check the oil level.
Engine will not start with low or no engine oil.
1. Make sure the engine is stopped and is level.
2. Close the Fuel Valve.
3. Clean the top of the Dipstick and the area around it.
Remove the Dipstick by turning it counterclockwise,
and wipe it off with a clean, lint free rag.
4.
Full level
Full level
Reinsert the Dipstick without threading it in and
remove it to check the oil level. The oil level
should be up to the full level as shown above.
5. If the oil level is at or below the low mark add the
appropriate type of oil until the oil level is at the
proper level. SAE 10W-30 oil is recommended for
general use. (The SAE Viscosity Grade chart on
page 13 in the Maintenance section shows other
viscosities to use in different average temperatures.)
6. Thread the dipstick back in clockwise.
nOTiCe: Do not run the engine with too little oil.
Engine will shut off if engine oil level is too low.
®
Page 9For technical questions, please call 1-888-866-5797.ENGINE FOR 62366
SaFeTyOperaTiOnMainTenanCe SeTup
Checking and Filling Fuel
WarninG! TO preVenT SeriOuS
inJury FrOM Fire:
Fill the fuel tank in a well-ventilated area
away from ignition sources. If the engine
is hot from use, shut the engine off and
wait for it to cool before adding fuel. Do not smoke.
1. Clean the Fuel Cap and the area around it.
2. Unscrew and remove the Fuel Cap.
3. Remove the Strainer and remove any dirt
and debris. Then replace the Strainer.
note: Do not use gasoline containing more than
10% ethanol (e10). Do not use e85 ethanol. add fuel
stabilizer to the gasoline or the Warranty is VOiD.
note: Do not use gasoline that has been stored in a
metal fuel container or a dirty fuel container. it can
cause particles to enter the carburetor, affecting
engine performance and/or causing damage.
4. If needed, fill the Fuel Tank to about 1 inch under
the fill neck of the Fuel Tank with 87 octane or
higher unleaded gasoline that has been treated
with a fuel stabilizer additive. Follow fuel stabilizer
manufacturer’s recommendations for use.
5. Then replace the Fuel Cap.
6. Wipe up any spilled fuel and allow excess
to evaporate before starting engine.
To prevent FIRE, do not start the engine
while the smell of fuel hangs in the air.
Starting the engine
Before Starting the engine
Before starting the engine:
a. Follow the Set up instructions in the equipment manual to prepare the equipment.
b. inspect the equipment and engine.
c. Fill the engine with the proper amount and type of
both stabilizer-treated unleaded gasoline and oil.
d. read the equipment Operation section in the equipment manual.
®
Page 10 For technical questions, please call 1-888-866-5797. ENGINE FOR 62366
SaFeTy OperaTiOn MainTenanCeSeTup

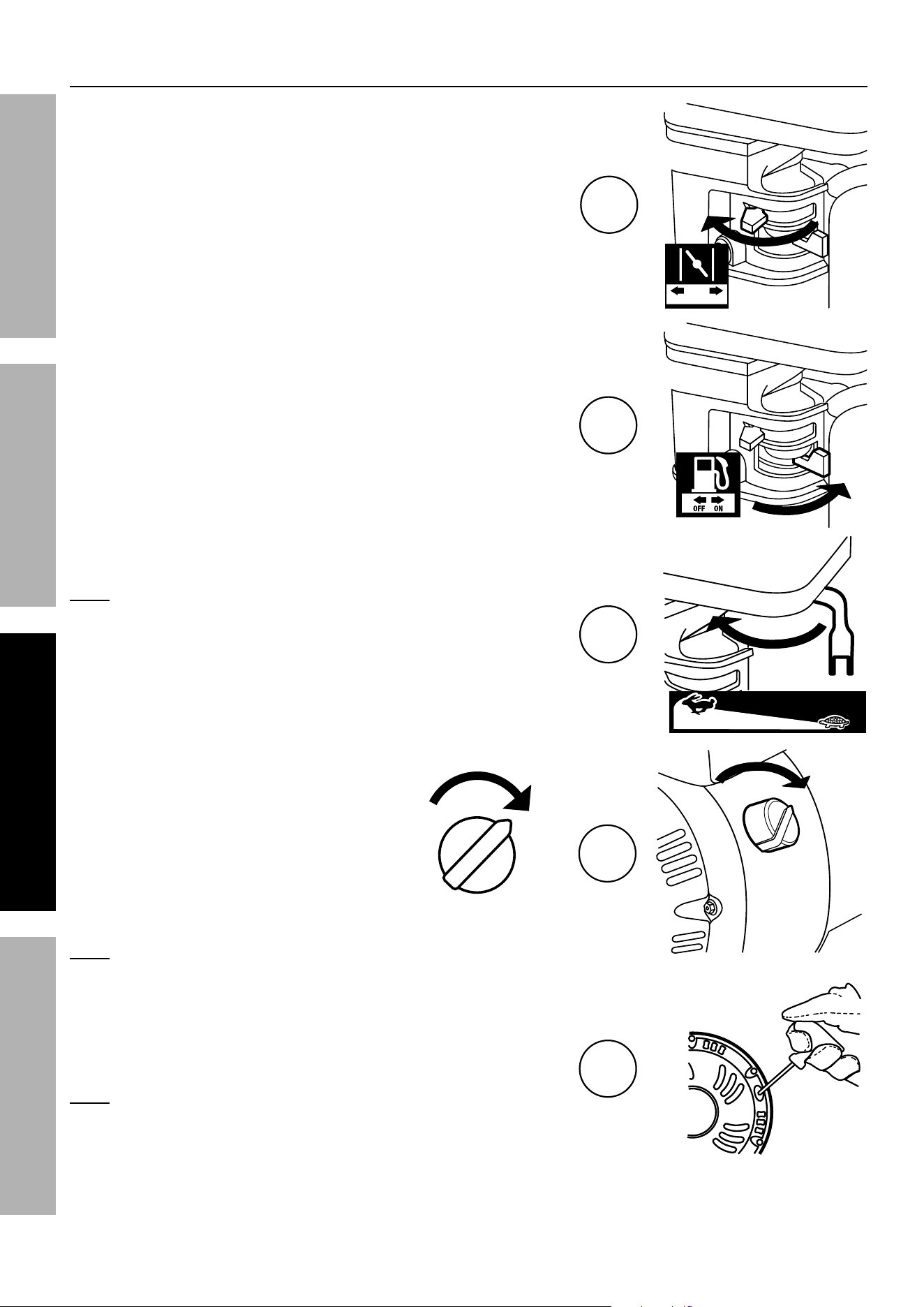

Manual Start
1. To start a cold engine, move the Choke to the
START position.
To restart a warm engine, leave the
Choke in the RUN position.
2. Open the Fuel Valve.
3. Slide the Throttle or Speed Control Lever to 1/3
away from the SLOW position (the “turtle”).
note: Some tools have a Speed Control Lever located
elsewhere on the tool which functions the same as
the Throttle. Use the Speed Control Lever in place
of the Throttle when the tool is so equipped.
4. Turn the Engine Switch on.
note: If engine does not start, check engine oil level.
Engine will not start with low or no engine oil.
5. Grip the Starter Handle of the Engine loosely and pull
it slowly several times to allow the gasoline to flow into
the Engine’s carburetor. Then pull the Starter Handle
gently until resistance is felt. Allow Cable to retract fully
and then pull it quickly. Repeat until the engine starts.
note: Do not let the Starter Handle snap back against the engine.
Hold it as it recoils so it doesn't hit the engine.
START RUN
1
2
3
On
OFF
O
i
On
4
5
Page 11For technical questions, please call 1-888-866-5797.ENGINE FOR 62366
SaFeTyOperaTiOnMainTenanCe SeTup

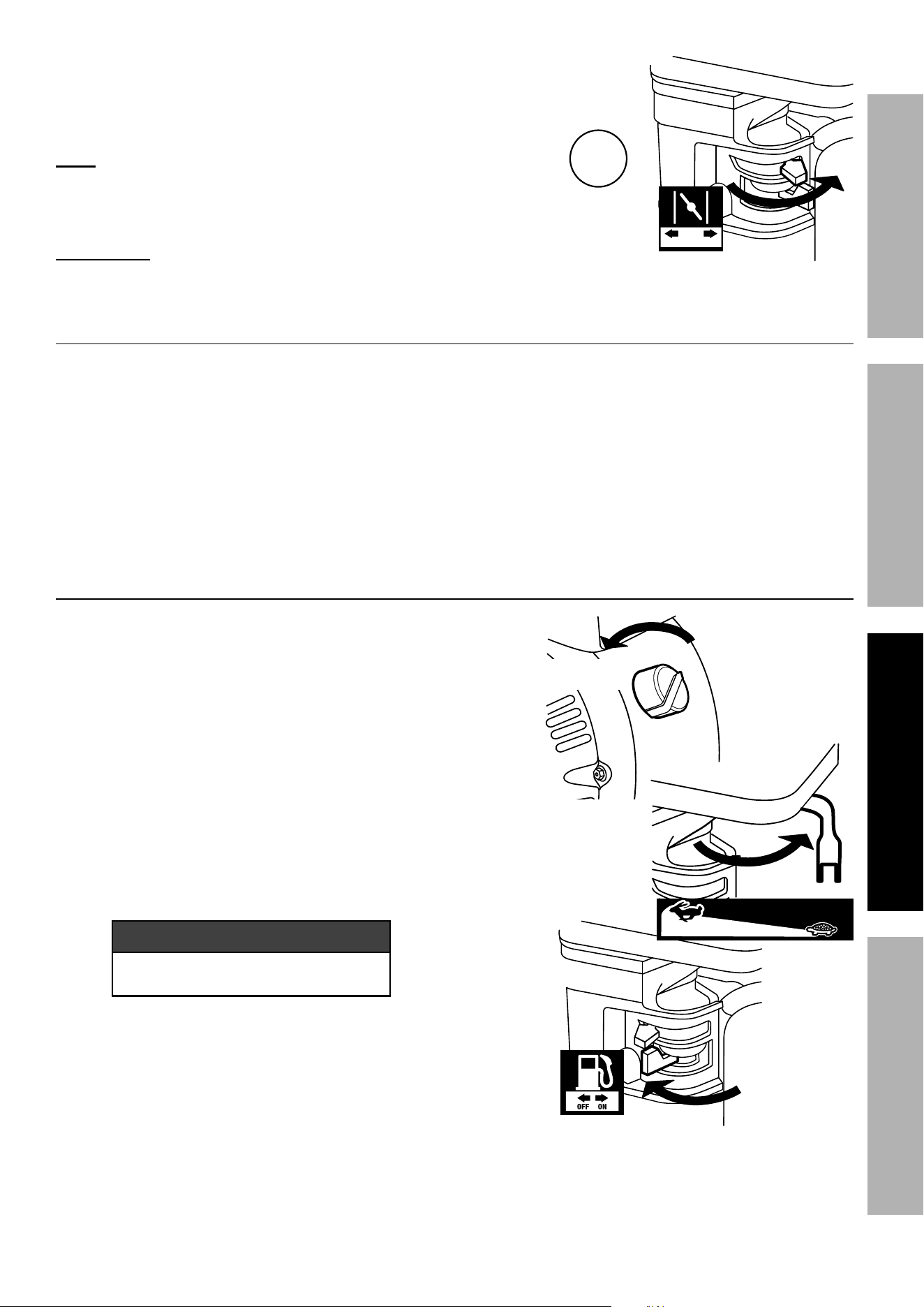

6. Allow the Engine to run for several seconds.
Then, if the Choke lever is in the START position,
move the Choke Lever very slowly to its RUN position.
note: Moving the Choke Lever too
fast could stall the engine.
iMpOrTanT: Allow the engine to run at no load for five minutes with no
load after each start-up so that the engine can stabilize.
7. Adjust the Throttle as needed.
Break-in period:
a. Breaking-in the engine will help to ensure proper equipment and engine operation.
b. The operational break-in period will last about 3 hours of use. During this period:
• Do not apply a heavy load to the equipment.
• Do not operate the engine at its maximum speed.
c. The maintenance break-in period will last about 20 hours of use.
• Change the engine oil after this period.
Under normal operating conditions subsequent maintenance follows
the schedule explained in the MAINTENANCE section.
Stopping the engine
1. To stop the engine in an emergency,
turn the Engine Switch off.
2. Under normal conditions, use the following procedure:
a. Slide the Throttle to SLOW (the “turtle”).
b. Turn the Engine Switch off.
c. Close the Fuel Valve.
NOTICE
See Long-Term Storage on page 15
for complete storage instructions.
START RUN
6
O
i
OFF
Page 12 For technical questions, please call 1-888-866-5797. ENGINE FOR 62366
SaFeTy OperaTiOn MainTenanCeSeTup
Maintenance
WarninG
TO preVenT SeriOuS inJury FrOM aCCiDenTaL STarTinG:
Turn the power Switch of the equipment to its “OFF” position, wait for the engine to cool, and disconnect
the spark plug cap before performing any inspection, maintenance, or cleaning procedures.
TO preVenT SeriOuS inJury FrOM eQuipMenT FaiLure:
Do not use damaged equipment. if abnormal noise, vibration, or excess
smoking occurs, have the problem corrected before further use.
Follow all service instructions in this manual. The engine may fail critically if not serviced properly.
Many maintenance procedures, including any not detailed in this manual, will need to be performed
by a qualified technician for safety. if you have any doubts about your ability to safely service the
equipment or engine, have a qualified technician service the equipment instead.
Cleaning, Maintenance, and Lubrication Schedule
note: This maintenance schedule is intended solely as a general guide. If performance decreases or if
equipment operates unusually, check systems immediately. The maintenance needs of each piece of equipment
will differ depending on factors such as duty cycle, temperature, air quality, fuel quality, and other factors.
note: The following procedures are in addition to the regular checks and maintenance
explained as part of the regular operation of the engine and equipment.
procedure
Before
each use
Monthly or
every 20
hr. of use
every 3 mo. or
50 hr. of use
every 6 mo. or
100 hr. of use
yearly or
every 300
hr. of use
every
2 years
Brush off outside of engine
Check engine oil level
Check air filter
Check deposit cup
Change engine oil
Clean/replace air filter
*
Check and clean spark plug
1. Check/adjust idle speed
2. Check/adjust valve clearance
3. Clean fuel tank, strainer
and carburetor
4. Clean carbon build-up from
combustion chamber
** **
Replace fuel line if necessary
**
*Service more frequently when used in dusty areas.
**These items should be serviced by a qualified technician.
®
Page 13For technical questions, please call 1-888-866-5797.ENGINE FOR 62366
SaFeTyOperaTiOnMainTenanCe SeTup

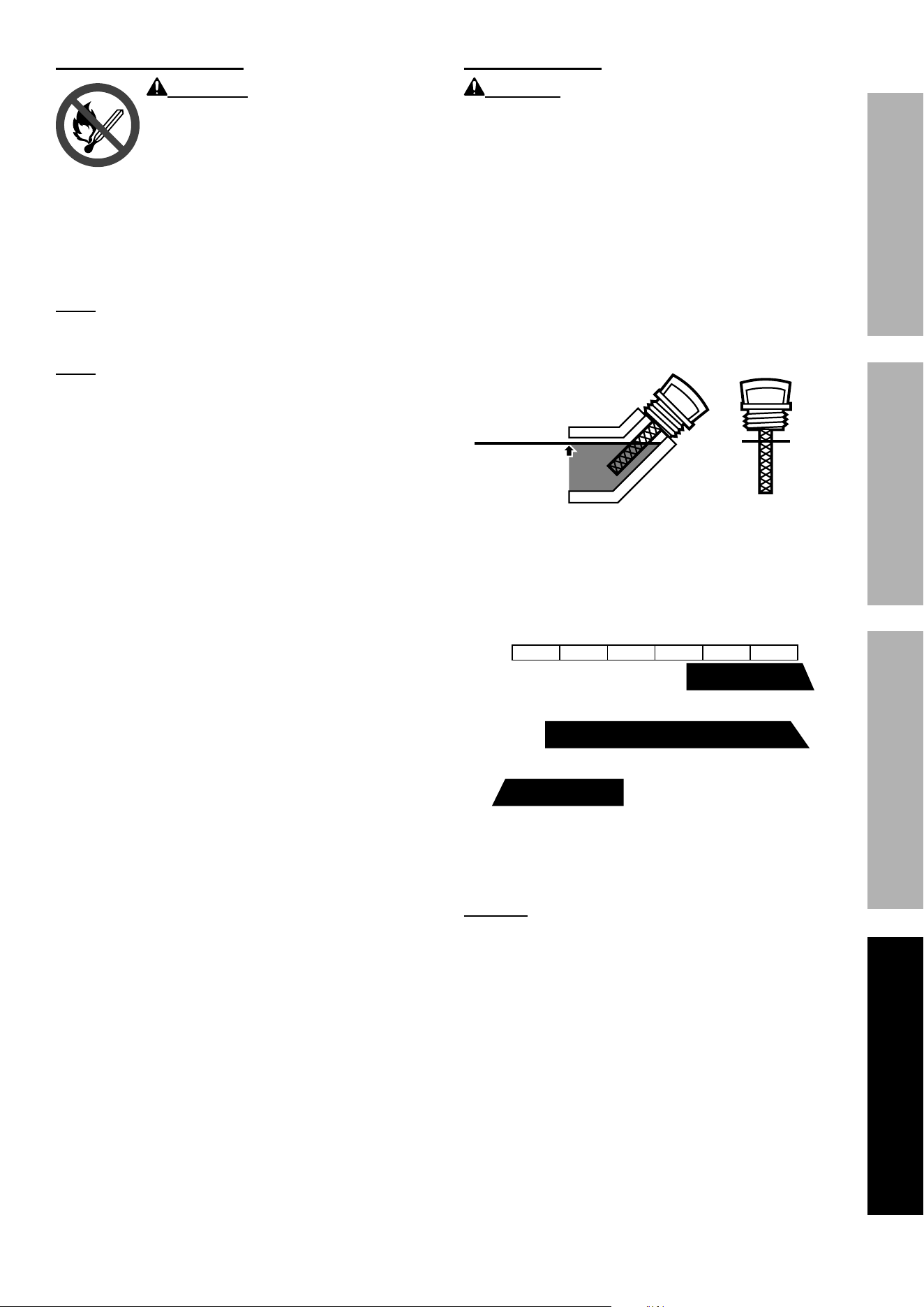

Checking and Filling Fuel
WarninG! TO preVenT SeriOuS
inJury FrOM Fire:
Fill the fuel tank in a well-ventilated area
away from ignition sources. If the engine
is hot from use, shut the engine off and
wait for it to cool before adding fuel. Do not smoke.
1. Clean the Fuel Cap and the area around it.
2. Unscrew and remove the Fuel Cap.
3. Remove the Strainer and remove any dirt
and debris. Then replace the Strainer.
note: Do not use gasoline containing more than
10% ethanol (e10). Do not use e85 ethanol. add fuel
stabilizer to the gasoline or the Warranty is VOiD.
note: Do not use gasoline that has been stored in a
metal fuel container or a dirty fuel container. it can
cause particles to enter the carburetor, affecting
engine performance and/or causing damage.
4. If needed, fill the Fuel Tank to about 1 inch under
the fill neck of the Fuel Tank with 87 octane or
higher unleaded gasoline that has been treated
with a fuel stabilizer additive. Follow fuel stabilizer
manufacturer’s recommendations for use.
5. Then replace the Fuel Cap.
6. Wipe up any spilled fuel and allow excess
to evaporate before starting engine.
To prevent FIRE, do not start the engine
while the smell of fuel hangs in the air.
engine Oil Change
CauTiOn! Oil is very hot during operation and can
cause burns. Wait for engine to cool before changing oil.
1. Make sure the engine is stopped and is level.
2. Close the Fuel Valve.
3. Place a drain pan (not included) underneath
the crankcase’s drain plug.
4. Remove the drain plug and, if possible,
tilt the crankcase slightly to help drain
the oil out. Recycle used oil.
5. Replace the drain plug and tighten it.
6. Clean the top of the Dipstick and the area around it.
Remove the Dipstick by turning it counterclockwise,
and wipe it off with a clean, lint free rag.
7.
Full level
Full level
Add the appropriate type of oil until the oil level is at
the full level. SAE 10W-30 oil is recommended for
general use.
The SAE Viscosity Grade chart shows other
viscosities to use in different average temperatures.
10W-30
30
5W-30
-20 0 20 40 60 80 100°F
Sae Viscosity Grades
average outdoor temperature
8. Thread the dipstick back in clockwise.
nOTiCe: Do not run the engine with too little oil.
Engine will not start with low or no engine oil.
Page 14 For technical questions, please call 1-888-866-5797. ENGINE FOR 62366
SaFeTy OperaTiOn MainTenanCeSeTup

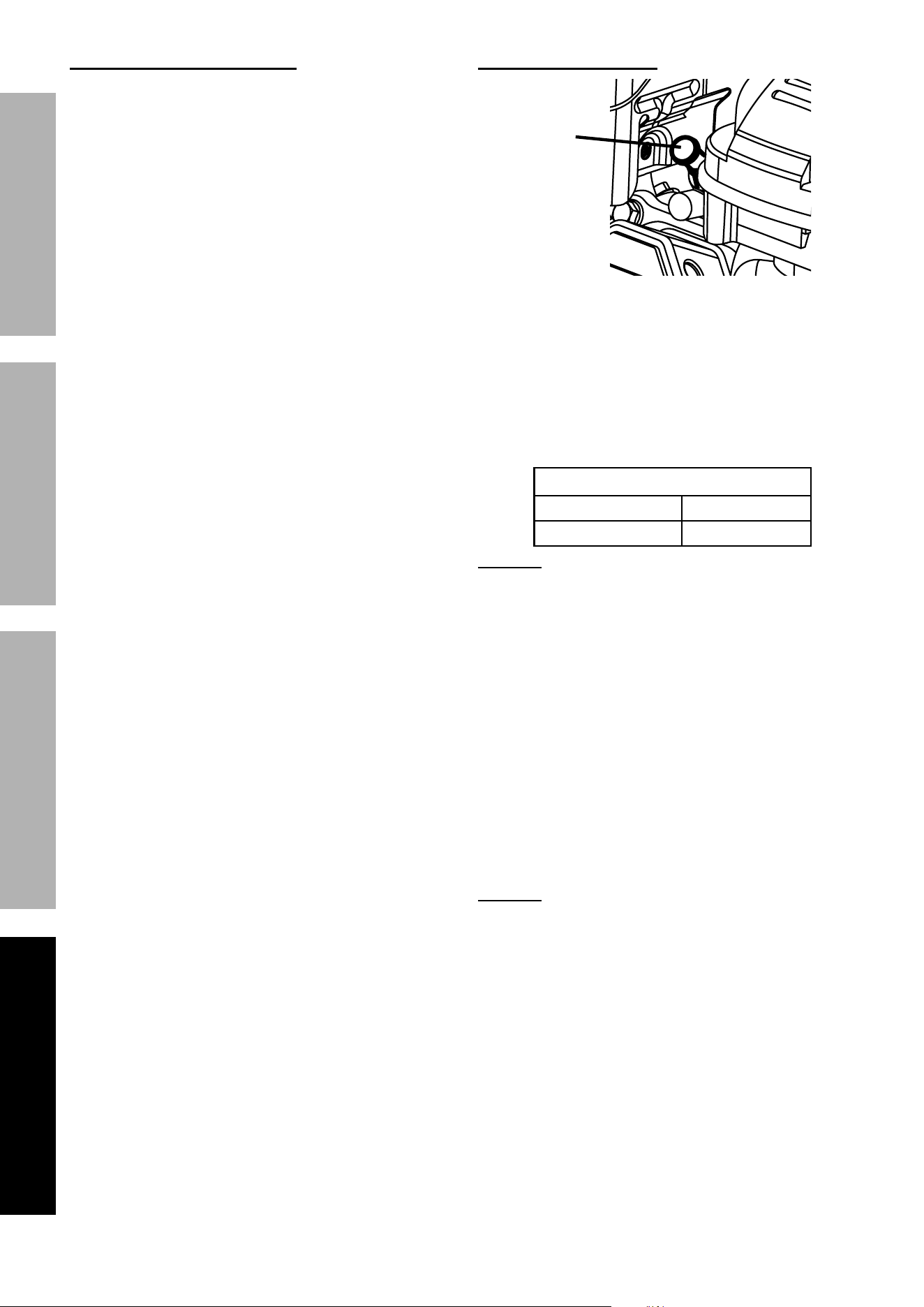

air Filter element Maintenance
1. Remove the air cleaner cover and
the air filter element(s) and check for
dirt. Clean as described below.
2. Cleaning:
• For “paper” filter elements:
To prevent injury from dust and debris,
wear ANSI-approved safety goggles,
NIOSH-approved dust mask/respirator, and
heavy-duty work gloves. In a well-ventilated
area away from bystanders, use pressurized
air to blow dust out of the air filter.
If this does not get the filter clean, replace it.
• For foam filter elements:
Wash the element in warm water and
mild detergent several times. Rinse.
Squeeze out excess water and allow it to dry
completely. Soak the filter in lightweight oil
briefly, then squeeze out the excess oil.
3. Install the cleaned filter. Secure the
Air Cleaner Cover before use.
Spark plug Maintenance
1.
Spark
plug
Cap
Disconnect spark plug cap from end of plug.
Clean out debris from around spark plug.
2. Using a spark plug wrench, remove the spark plug.
3. Inspect the spark plug:
If the electrode is oily, clean it using a clean, dry rag.
If the electrode has deposits on it, polish it using
emery paper. If the white insulator is cracked or
chipped, the spark plug needs to be replaced.
recommended Spark plugs
NGK
®
BP-6ES
NHSP
® /
TORCH
®
F6TC
nOTiCe: Using an incorrect spark plug
may damage the engine.
4. When installing a new spark plug,
adjust the plug’s gap to the specification on the
Specifications chart. Do not pry against the
electrode, the spark plug can be damaged.
5. Install the new spark plug or
the cleaned spark plug into the engine.
• Gasket-style:
Finger-tighten until the gasket
contacts the cylinder head,
then tighten about 1/2-2/3 turn more.
• non-gasket-style:
Finger-tighten until the plug
contacts the cylinder head,
then tighten about 1/16 turn more.
nOTiCe: Tighten the spark plug properly.
if loose, the spark plug will cause the
engine to overheat.
if overtightened, the threads in the
engine block will be damaged.
6. Apply dielectric spark plug boot protector
(not included) to the end of the spark plug
and reattach the wire securely.
Page 15For technical questions, please call 1-888-866-5797.ENGINE FOR 62366
SaFeTyOperaTiOnMainTenanCe SeTup
Long-Term Storage
When the equipment is to remain idle for longer than
20 days, prepare the engine for storage as follows:
1. CLeaninG:
Wait for engine to cool, then clean engine with
dry cloth. nOTiCe: Do not clean using water.
The water will gradually enter the engine and
cause corrosion damage. Apply a thin coat of
corrosion preventive oil to all metal parts.
2. FueL:
To protect the fuel tank during storage, fill the
tank with gasoline that has been treated with
a fuel stabilizer additive. Follow fuel stabilizer
manufacturer’s recommendations for use. Refer
to Checking and Filling Fuel on page 9.
WarninG! TO preVenT SeriOuS
inJury FrOM Fire:
Fill tank in a well-ventilated area away from
ignition sources. If the engine is hot from
use, shut the engine off and wait for it to
cool before adding fuel. Do not smoke.
3. LuBriCaTiOn:
a. Change engine oil.
b. Clean out area around spark plug.
Remove spark plug and pour one tablespoon of
engine oil into cylinder through spark plug hole.
c. Replace spark plug, but leave
spark plug cap disconnected.
d. Pull Starter Handle to distribute oil in cylinder.
Stop after one or two revolutions when you
feel the piston start the compression stroke
(when you start to feel resistance).
4. STOraGe area:
Cover and store in a dry, level, well-ventilated
area out of reach of children. Storage area
should also be away from ignition sources, such
as water heaters, clothes dryers, and furnaces.
nOTiCe: During extended storage periods the
Engine must be started every 3 months and allowed
to run for 15 – 20 minutes or the Warranty is VOID.
5. STarTinG enGine DurinG/aFTer STOraGe:
Before starting the Engine during or after
storage, keep in mind that untreated gasoline
will deteriorate quickly. Drain the fuel tank and
change to fresh fuel if untreated gasoline has
been sitting for a month, if treated gasoline
has been sitting beyond the fuel stabilizer’s
recommended time period, or if the Engine
does not start. For Engine starting instructions
refer to Starting the Engine on page 9.
®
Page 16 For technical questions, please call 1-888-866-5797. ENGINE FOR 62366
SaFeTy OperaTiOn MainTenanCeSeTup
Troubleshooting
problem possible Causes probable Solutions
Engine will not start
FUEL RELATED:
1. No fuel in tank or fuel valve closed.
2. Choke not in START position, cold engine.
3. Gasoline with more than 10% ethanol used.
(E15, E20, E85, etc.)
4. Low quality or deteriorated, old gasoline.
5. Carburetor not primed.
6. Dirty fuel passageways.
7. Carburetor needle stuck.
Fuel can be smelled in the air.
8. Too much fuel in chamber. This can be caused
by the carburetor needle sticking.
9. Clogged Fuel Filter.
FUEL RELATED:
1. Fill fuel tank with fresh 87+ octane stabilizer-
treated unleaded gasoline and open fuel
valve.
Do not use gasoline with more than
10% ethanol (e15, e20, e85, etc.).
2. Move Choke to START position.
3. Clean out ethanol rich gasoline from fuel
system. Replace components damaged by
ethanol. Use fresh 87+ octane stabilizer-
treated unleaded gasoline only.
Do not use gasoline with more than
10% ethanol (e15, e20, e85, etc.).
4. Use fresh 87+ octane stabilizer-treated
unleaded gasoline.
Do not use gasoline with more than
10% ethanol (e15, e20, e85, etc.).
5. Pull on Starter Handle to prime.
6. Clean out passageways using fuel additive.
Heavy deposits may require further cleaning.
7. Gently tap side of carburetor float
chamber with screwdriver handle.
8. Turn Choke to RUN position. Remove
spark plug and pull the start handle several
times to air out the chamber. Reinstall
spark plug and set Choke to START position.
9. Replace Fuel Filter.
IGNITION (SPARK) RELATED:
1. Spark plug cap not connected securely.
2. Spark plug electrode wet or dirty.
3. Incorrect spark plug gap.
4. Spark plug cap broken.
5. Incorrect spark timing or faulty ignition system.
IGNITION (SPARK) RELATED:
1. Connect spark plug cap properly.
2. Clean spark plug.
3. Correct spark plug gap.
4. Replace spark plug cap.
5. Have qualified technician diagnose/
repair ignition system.
COMPRESSION RELATED:
1. Cylinder not lubricated.
Problem after long storage periods.
2. Loose or broken spark plug.
(Hissing noise will occur
when trying to start.)
3. Loose cylinder head or damaged head gasket.
(Hissing noise will occur when trying to start.)
4. Engine valves or tappets mis-adjusted or stuck.
ENGINE OIL RELATED:
1. Low engine oil.
2. Engine mounted on slope,
triggering low oil shutdown.
COMPRESSION RELATED:
1. Pour tablespoon of oil into spark plug
hole. Crank engine a few times
and try to start again.
2. Tighten spark plug.
If that does not work, replace spark plug.
If problem persists, may have head
gasket problem, see #3.
3. Tighten head.
If that does not remedy problem,
replace head gasket.
4. Have qualified technician adjust/
repair valves and tappets.
ENGINE OIL RELATED:
1. Fill engine oil to proper level.
Check engine oil before EVERY use.
2. Operate engine on level surface.
Check engine oil level.
Follow all safety precautions whenever diagnosing or servicing the equipment or engine.
Page 17For technical questions, please call 1-888-866-5797.ENGINE FOR 62366
SaFeTyOperaTiOnMainTenanCe SeTup
problem possible Causes probable Solutions
Engine misfires
1. Spark plug cap loose.
2. Incorrect spark plug gap or
damaged spark plug.
3. Defective spark plug cap.
4. Old or low quality gasoline.
5. Incorrect compression.
1. Check cap and wire connections.
2. Re-gap or replace spark plug.
3. Replace spark plug cap.
4. Use only fresh 87+ octane stabilizer-treated
unleaded gasoline.
Do not use gasoline with more than
10% ethanol (e15, e20, e85, etc.).
5. Diagnose and repair compression.
(Use engine will not start:
COMpreSSiOn reLaTeD section.)
Engine stops
suddenly
1. Fuel tank empty or full of impure or low quality
gasoline.
2. Low oil shutdown.
3. Defective fuel tank cap creating vacuum,
preventing proper fuel flow.
4. Faulty magneto.
5. Disconnected or improperly
connected spark plug cap.
1. Fill fuel tank with fresh 87+ octane stabilizer-
treated unleaded gasoline.
Do not use gasoline with more than
10% ethanol (e15, e20, e85, etc.).
2. Fill engine oil to proper level.
Check engine oil before EVERY use.
3. Test/replace fuel tank cap.
4. Have qualified technician service magneto.
5. Secure spark plug cap.
Engine stops when
under heavy load
1. Dirty air filter
2. Engine running cold.
1. Clean element.
2. Allow engine to warm up prior
to operating equipment.
Engine knocks
1. Old or low quality gasoline.
2. Engine overloaded.
3. Incorrect spark timing, deposit buildup,
worn engine, or other mechanical problems.
1. Fill fuel tank with fresh 87+ octane stabilizer-
treated unleaded gasoline.
Do not use gasoline with more than
10% ethanol (e15, e20, e85, etc.).
2. Do not exceed equipment’s load rating.
3. Have qualified technician diagnose
and service engine.
Engine backfires
1. Impure or low quality gasoline.
2. Engine too cold.
3. Intake valve stuck or overheated engine.
4. Incorrect timing.
1. Fill fuel tank with fresh 87+ octane stabilizer-
treated unleaded gasoline.
Do not use gasoline with more than
10% ethanol (e15, e20, e85, etc.).
2. Use cold weather fuel and oil additives
to prevent backfiring.
3. Have qualified technician diagnose
and service engine.
4. Check engine timing.
After sudden
impact, engine will
run, but equipment
will not operate
Shaft key or other shear pin
broken by impact to disconnect
engine and limit damage.
Have qualified technician check and replace
broken shaft key or other shear pins.
Follow all safety precautions whenever diagnosing or servicing the equipment or engine.
Page 18 For technical questions, please call 1-888-866-5797. ENGINE FOR 62366
SaFeTy OperaTiOn MainTenanCeSeTup
Warranties
Limited 90 Day Warranty (retail)
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so
the above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY
AND FITNESS, EXCEPT FOR THE EMISSIONS CONTROL SYSTEM WARRANTY BELOW.
To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid.
Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our
inspection verifies the defect, we will either repair or replace the product at our election or we may elect to
refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return
repaired products at our expense, but if we determine there is no defect, or that the defect resulted from
causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
Page 19For technical questions, please call 1-888-866-5797.ENGINE FOR 62366
SaFeTyOperaTiOnMainTenanCe SeTup
emissions Control System Warranty
In accordance with U.S. Environmental Protection Agency (EPA) regulations, Harbor Freight Tools (HFT) is pleased
to explain the emissions control system warranty on your Model Year 2024 engine/equipment in addition to the Retail
Warranty above. HFT warrants that the emissions control system on your engine is designed, built, and equipped so
that it conforms to the United States Environmental Protections Agency’s (EPA) emissions requirements in effect at
the time of manufacture. HFT also warrants that the emissions control system on your engine will be free from defects
in material and workmanship for two (2) years, provided there has been no improper maintenance, misuse, or abuse
of your engine.
Your emissions control system may include parts such as the carburetor or fuel-injection system, and the ignition
system. Also included may be hoses, belts, connectors and other emissions-related assemblies.
CaLiFOrnia OnLy: This engine’s emission standards are governed solely by
U.S. Environmental Protection Agency regulations because it is intended for use
primarily in a farm or construction equipment or activity in California.
WHaT We WiLL DO
Where a warrantable condition exists, HFT will repair or replace, at our option, any emissions-related part on
your engine if it becomes defective, malfunctions, or otherwise fails to conform with this warranty under normal use
and service during the two (2) year term of this warranty at no cost to you, including diagnosis, parts and labor. This
warranty applies to the original purchaser and any subsequent owner within the two year warranty period.
WHaT iS COVereD?
The following parts are examples of components of the emissions control system and are covered by this
two (2) year warranty. For a full list of emissions control components covered by this warranty, please see 40 CFR
§1068, Appendix I.
1. Fuel Metering System
a. Carburetor and its internal parts.
b. Fuel pump (if so equipped).
c. Cold start enrichment system.
2. Air Induction System
a. Intake pipe/manifold.
b. Air cleaner.
3. Ignition System
a. Spark plug.
b. Magneto ignition system.
4. Catalyst System (if so equipped)
a. Exhaust pipe stud.
b. Muffler.
c. Catalytic converter (if so equipped).
5. Miscellaneous Items Used in Above Systems
a. Vacuum, temperature and time sensitive valves
and switches.
b. Hoses, belts, connectors, and assemblies.
This warranty does not cover normal maintenance services or replacement of maintenance items such as filters,
oils, or spark plugs.
WHaT yOu MuST DO TO OBTain WarranTy SerViCe
As the engine owner, you are responsible for the performance of the required maintenance listed in your
Owner’s Manual. HFT may deny you warranty coverage if your engine or a part has failed due to abuse (including
failure to follow the fuel use instructions contained in this manual), neglect, improper maintenance, or unapproved
modifications.
In order to obtain warranty repair or replacement, you may either (a) contact HFT product support at 1-888-866-5797
or [email protected]; or (b) bring the engine/equipment to your nearest Harbor Freight Tools retail store.
When going to the retail store or contacting product support, you must indicate the specific emissions control part or
defect that you are claiming and the date this was originally purchased. The nearest Harbor Freight Tools retail store
can be found on the internet at http://www.harborfreight.com.
Page 20 For technical questions, please call 1-888-866-5797. ENGINE FOR 62366
SaFeTy OperaTiOn MainTenanCeSeTup
parts Lists and Diagrams
parts List
part Description Qty
1 Head Subassembly, Cylinder 1
2 Plug, Spark 1
3 Bolt, Cylinder Head 4
4 Pin 2
5 Gasket, Cylinder Head 1
6 Cover Subassembly, Cylinder Head 1
7 Gasket, Cylinder Head Cover 1
8 Tube, Breather 1
9 Bolt Subassembly, Cylinder Head Cover 1
10 Bolt Subassembly, Cylinder Head Cover 1
11 Stud 2
12 Stud 2
13 Crankcase Subassembly 1
14 Seal, Oil 1
15 Sensor, Engine Oil 1
16 Frame, Fuel Tank Installation 2
17 Plug, Rubber 2
18 Protector, Oil 1
19 Bolt 1
20 Washer 2
21 Bolt, Drain Plug 2
22 Clip 1
23 Arm, Governor 1
24 Ring, Seal 1
25 Pin 1
26 Bolt 4
27 Bolt 2
28 Cover , Crankcase 1
29 Gasket, Crankcase 1
30 Plug Subassembly, Engine Oil 1
31 Dipstick Subassembly, Oil 1
32 Pin 2
33 Bolt 7
34 Bearing 1
35 Gear Asm, Governor 1
36 Seal, Oil 1
37 Crankshaft Asm. 1
38 Piston 2
39 Pin, Piston 1
40 Clip, Piston Pin 1
41 Rod, Connecting 1
42 Primary Ring 1
43 Secondary Ring 1
44 Ring Set, Oil 1
45 Camshaft Asm. 1
46 Valve, Intake 1
47 Valve, Exhaust 1
48 Spring, Valve 2
49 Retainer, Valve Spring 1
50 Valve Key 2
51 Guide, Seal 1
52 Retainer, Valve Spring 2
53 Lifter, Valve 2
part Description Qty
54 Tappet, Valve 2
55 Plate Subassembly, Lifter Stopper 1
56 Bolt, Valve Adjusting 2
57 Rocker, Valve 2
58 Nut, Valve Adjusting 2
59 Nut, Valve Lock 2
60 Starter Asm, Recoil 1
61 Bolt 4
62 Shroud 1
63 Shroud, Cylinder Body 1
64 Bolt 1
65 Switch Subassembly, Stop Engine 1
66 Bolt 5
67 End Cap 1
68 Carburetor Asm. 1
69 Gasket, Air Cleaner 1
70 Gasket, Carburetor 1
71 Plate, Carburetor Insulator 1
72 Gasket, Carburetor Insulator 1
73 Nut 2
74 Cleaner, Air 1
75 Block, Muffler Seat Reinforcing 1
76 Pipe, Exhaust 1
77 Gasket, Exhaust Outlet 1
78 Nut 5
79 Muffler Asm. 1
80 Tank, Fuel 1
81 Strainer, Fuel 1
82 Cover, Fuel Tank 1
83 Outlet Subassembly, Fuel Tank Oil 1
84 Clamp 2
85 Tube, Fuel 1
86 Clip 1
87 Nut 2
88 Valve, One Way 1
89 Clamp 2
90 Hose, Fuel Vapor Rubber 1
91 Hose, Air Cleaner Rubber 1
92 Nut, Flywheel 1
93 Pulley,Starter 1
94 Impeller 1
95 Flywheel Subassembly 1
96 Bolt 2
97 Coil, Ignition 1
98 Control Subassembly, Throttle 1
99 Spring, Throttle Valve Returning 1
100 Rod, Governor 1
101 Spring, Governor 1
102 Support Subassembly, Governor 1
103 Bolt 1
104 Nut 1
105 Bolt, Governor Support 1
Page 21For technical questions, please call 1-888-866-5797.ENGINE FOR 62366
SaFeTyOperaTiOnMainTenanCe SeTup

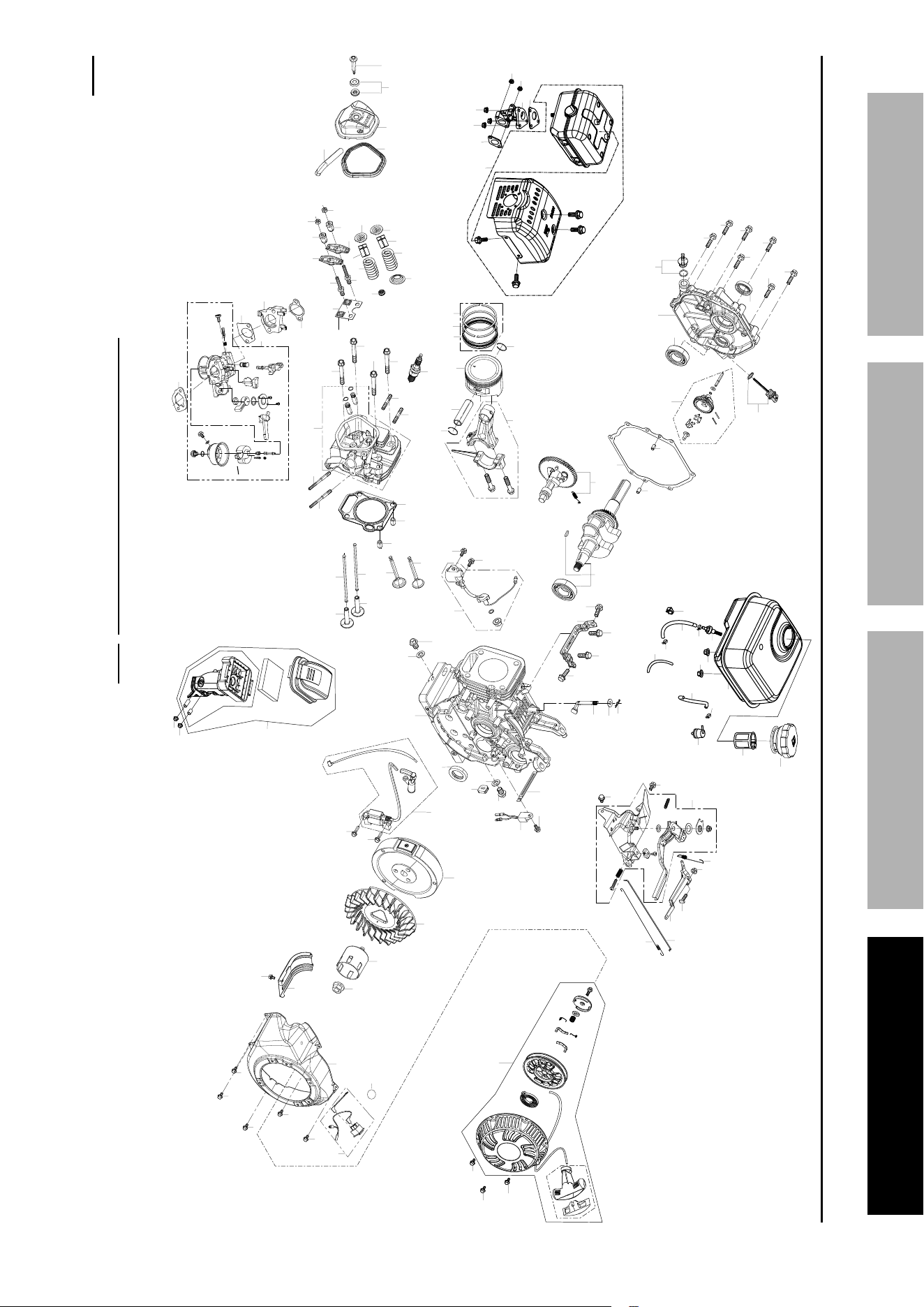

assembly Diagram
7
8
6
9
2
1
5
11
12
4
3
12
11
3
3
3
4
37
39
40
38
41
38
45
46
47
53
54
53
54
48
52
51
52
55
56
57
58
59
48
56
57
58
59
49
68
69
70
71
72
92
93
94
95
97
96
96
98
99
100
101
102
103
104
105
103
15
27
27
13
14
16
17
18
19
20
21
22
23
24
25
26
20
21
26
26
26
28
30
33
34
36
35
31
33
33
33
33
33
33
29
32
32
62
63
64
66
66
66
66
65
66
42 43
44
86
11
50
50
61
61
61
60
67
80
83
84
84
81
82
85
87
87
90
89
91
88
73
73
74
78
78
77
78
78
79
75
78
record product’s Serial number Here:
note: If product has no serial number,
record month and year of purchase instead.
note: Some parts are listed and shown for illustration purposes only, and are not
available individually as replacement parts. Engine for UPC 193175528292.
Page 22 For technical questions, please call 1-888-866-5797. ENGINE FOR 62366
SaFeTy OperaTiOn MainTenanCeSeTup

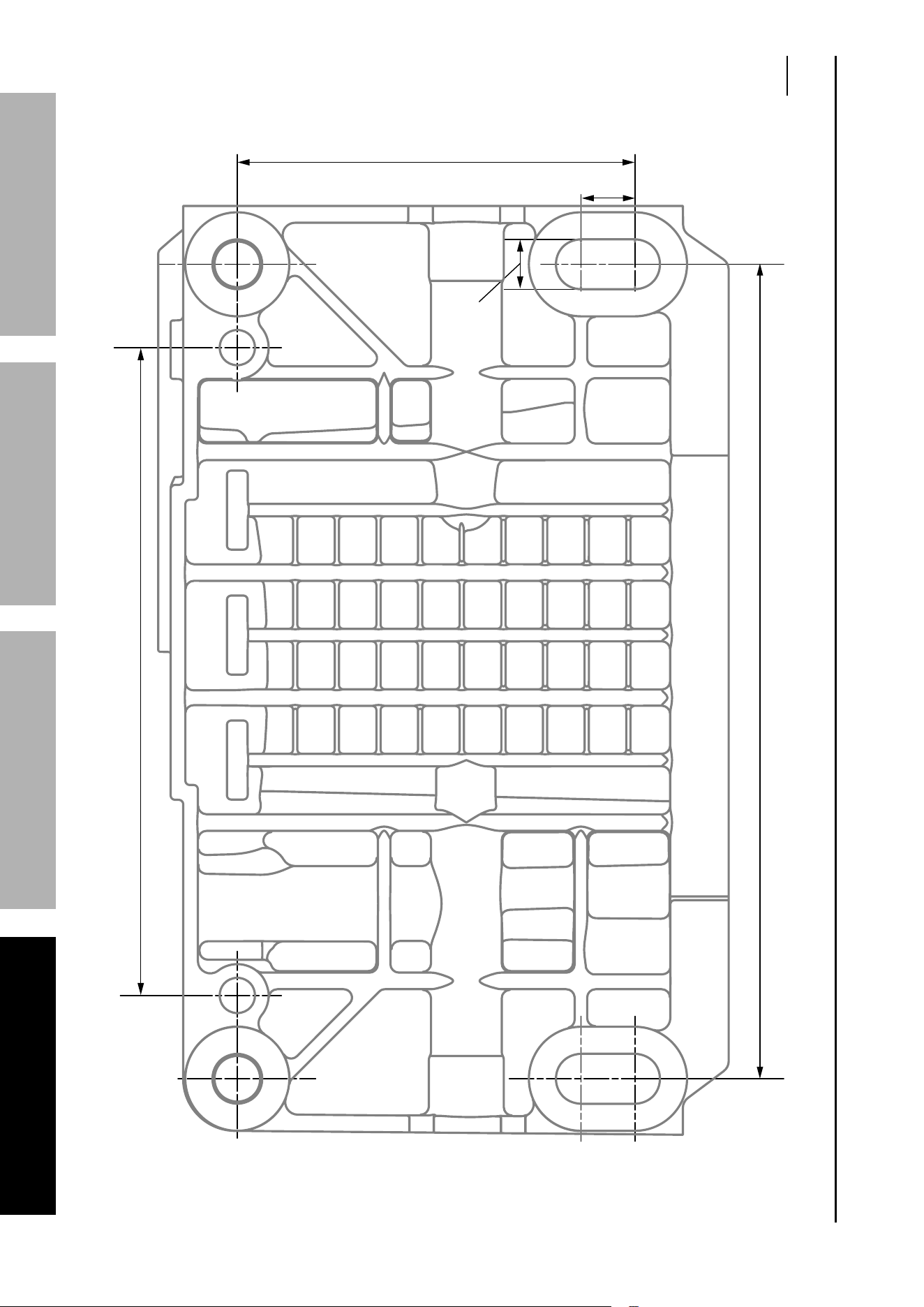

Mounting Hole Diagram
note: Not to scale.
7.69" / 195.5mm
6.12" / 155.5mm
3.78" / 95.5mm
0.51" / 13mm
0.47" / 12mm
Page 23For technical questions, please call 1-888-866-5797.ENGINE FOR 62366
SaFeTyOperaTiOnMainTenanCe SeTup
power Take-Off Diagram
note: Not to scale.
Ø3.48 in. / 88.5mm
Ø2.2 in. / 56mm
Ø1.1 in. / 28mm
Ø1.375 in. / 35mm
Ø2.84 in. / 72.2mm
7/16-20 unF
Ø1 in. / 25.4mm
Ø1 in. / 25.4mm
0.25 in. / 6.3mm
0.36 in. / 9.13mm
Ø5.43 in.
/ 138mm
Ø6.5 in. /
165.1mm
Ø4.45 in. / 113mmØ4.45 in. / 113mm
3/8-16 unC
5/16-24 unF
30º
45º
30º
45º
26677 agoura road • Calabasas, Ca 91302 • 1-888-866-5797
pLeaSe reaD THe FOLLOWinG CareFuLLy
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LISTS AND ASSEMBLY
DIAGRAMS IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR
DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE
OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED
TO REPLACE ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR
EXPRESSLY STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY
CERTIFIED AND LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK
AND LIABILITY ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT
PARTS THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
®
