INFORMATION FOR USE
1 Safety ........................................................................ 2
2 Avoiding material damage ..................................... 4
3 Environmental protection and saving energy ...... 4
4 Operating modes ..................................................... 5
5 Familiarising yourself with your appliance .......... 5
6 Accessories ............................................................. 5
7 Basic operation ....................................................... 6
8 Cleaning and servicing .......................................... 6
9 Troubleshooting ..................................................... 8
10 Disposal ................................................................. 8
11 Customer Service ................................................. 8
12 Test information .................................................... 9
13 INSTALLATION INSTRUCTIONS ......................... 9
13.4 Secure installation ............................................. 9
Safety 1 Safety
Observe the following safety instructions.
1.1 General information
¡ Read this instruction manual carefully.
¡ Keep the instruction manual and the product
information safe for future reference or for
the next owner.
¡ Do not connect the appliance if it has been
damaged in transit.
1.2 Intended use
This appliance is designed only to be built into
kitchen units. Read the special installation in-
structions.
The appliance can only be used safely if it is
correctly installed according to the safety in-
structions. The installer is responsible for en-
suring that the appliance works perfectly at its
installation location.
Only use this appliance:
¡ For extracting cooking vapour.
¡ in private households and in enclosed
spaces in a domestic environment.
¡ up to an altitude of max. 2000m above sea
level.
Do not use the appliance:
¡ With an external timer.
1.3 Restriction on user group
This appliance may be used by children aged
8 or over and by people who have reduced
physical, sensory or mental abilities or inad-
equate experience and/or knowledge,
provided that they are supervised or have
been instructed on how to use the appliance
safely and have understood the resulting
dangers.
Do not let children play with the appliance.
Children must not perform cleaning or user
maintenance unless they are at least 15 years
old and are being supervised.
Keep children under the age of 8 years away
from the appliance and power cable.
1.4 Safe use
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch
fire.
Never operate the appliance without a
grease filter.
Clean the grease filters regularly.
Never work with naked flames close to the
appliance (e.g. flambéing).
Do not install the appliance near a solid fuel
heating appliance (e.g. wood- or coal-burn-
ing) unless the heating appliance has a
sealed, non-removable cover. There must be
no flying sparks.
Hot oil and fat ignites very quickly.
Always supervise hot oil and fat.
Never extinguish burning oil or fat with water.
Switch off the hotplate. Extinguish flames
carefully using a lid, fire blanket or some-
thing similar and leave to cool down.
When gas burners are in operation without any
cookware placed on them, they can build up a
lot of heat. A ventilation appliance installed
above the cooker may become damaged or
catch fire.
Only operate the gas burners with cookware
on them.
2
Safety en
Operating multiple gas hobs at the same time
generates a great deal of heat. A ventilation
appliance installed above the cooker may be-
come damaged or catch fire.
Only operate the gas hobs with cookware on
them.
Select the highest fan setting.
Never operate two gas hobs simultaneously
on the highest flame for longer than 15
minutes. Two gas hobs correspond to one
large burner.
Never operate large burners of more than
5kW with the highest flame for longer than
15minutes, e.g. a wok.
A non-regenerable odour filter may catch fire
in the oven.
Only regenerable odour filters that can be re-
generated.
Fatty deposits in the grease filters may catch
fire.
Clean the grease filters regularly.
WARNING‒Risk of suffocation!
Children may put packaging material over their
heads or wrap themselves up in it and suffoc-
ate.
Keep packaging material away from chil-
dren.
Do not let children play with packaging ma-
terial.
Children may breathe in or swallow small
parts, causing them to suffocate.
Keep small parts away from children.
Do not let children play with small parts.
WARNING‒Risk of poisoning!
Risk of poisoning from flue gases being drawn
back in. Room-air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-oper-
ated heaters, continuous flow heaters or water
heaters) obtain combustion air from the room
in which they are installed and discharge the
exhaust gases into the open through an ex-
haust gas system (e.g. a chimney). With the
extractor hood switched on, air is extracted
from the kitchen and the adjacent rooms.
Without an adequate supply of air, the air pres-
sure falls below atmospheric pressure. Toxic
gases from the chimney or the extraction shaft
are sucked back into the living space.
Always ensure adequate fresh air in the
room if the appliance is being operated in
exhaust air mode at the same time as a
room-air-dependent heat-producing appli-
ance is being operated.
It is only possible to safely operate the appli-
ance if the pressure in the room in which the
heating appliance is installed does not fall
below 4Pa(0.04mbar). This can be
achieved whenever the air needed for com-
bustion is able to enter through openings
that cannot be sealed, for example in doors,
windows, incoming/exhaust air wall boxes or
by other technical means. An incoming/ex-
haust air wall box alone is not sufficient to
ensure compliance with the limit.
In any case, consult your responsible chim-
ney sweep. They are able to assess the
house's entire ventilation setup and will sug-
gest the suitable ventilation measures to
you.
Unrestricted operation is possible if the ap-
pliance is operated exclusively in circulating-
air mode.
Using a gas cooking appliance leads to a
build-up of heat, moisture and combustion
products in the room where the appliance is
installed.
Switch on the extractor hood when using a
gas cooking appliance.
WARNING‒Risk of burns!
The accessible parts of the appliance become
hot during operation.
Never touch these hot parts.
Keep children at a safe distance.
The appliance becomes hot during operation.
Allow the appliance to cool down before
cleaning.
WARNING‒Risk of injury!
Components inside the appliance may have
sharp edges.
Carefully clean the appliance interior.
3
en Avoiding material damage
Changes to the electrical or mechanical as-
sembly are dangerous and may lead to mal-
functions.
Do not make any changes to the electrical
or mechanical assembly.
The filter cover may swing out.
Open the filter cover slowly.
Take hold of the filter cover after opening un-
til it no longer swings out.
Close the filter cover slowly.
The light emitted by LED lights is very dazzling,
and can damage the eyes (risk group 1).
Do not look directly into the switched-on LED
lights for longer than 100seconds.
Improper repairs are dangerous.
Repairs to the appliance should only be car-
ried out by trained specialist staff.
If the appliance is defective, call Customer
Service.
"Customer Service", Page8
WARNING‒Danger: Magnetism!
The appliance contains permanent magnets.
They may affect electronic implants, e.g. pace-
makers or insulin pumps.
Persons with electronic implants must stand
at least 10cm away from the appliance.
WARNING‒Risk of electric shock!
An ingress of moisture can cause an electric
shock.
Before cleaning, pull out the mains plug or
switch off the fuse in the fuse box.
Do not use steam- or high-pressure cleaners
to clean the appliance.
Penetrating moisture may cause an electric
shock.
Do not use wet sponge cloths.
WARNING‒Risk of explosion!
Highly caustic alkaline or highly acidic clean-
ing agents in conjunction with aluminium parts
in the interior of the appliance may cause ex-
plosions.
Never use highly caustic alkaline or highly
acidic cleaning agents. In particular, do not
use commercial or industrial cleaning agents
in conjunction with aluminium parts, e.g.
grease filter on extractor hoods.
Avoiding material damage2 Avoiding material damage
ATTENTION
Condensate may cause corrosion damage.
To prevent condensation from building up, switch on
the appliance during cooking.
If moisture gets into the controls, this may result in dam-
age.
Never clean controls with a wet cloth.
Incorrect cleaning damages the surfaces.
Follow the cleaning instructions.
Do not use harsh or abrasive detergents.
Clean stainless steel surfaces in the direction of the
finish only.
Never clean controls with stainless steel cleaners.
Condensation that flows back in may damage the appli-
ance.
To prevent condensate from returning, fit the exhaust
air pipe with a 1° gradient from the appliance.
If you put incorrect stress on the design elements, they
may break off.
Do not pull design elements.
Do not place objects on the design elements or hang
objects from them.
There is a risk of surface damage if you do not peel off
the protective film.
Remove the protective film from all parts of the appli-
ance before using for the first time.
Painted surfaces are easily damaged.
Follow the cleaning instructions.
"Cleaning the appliance", Page6
Ensure that the painted surfaces are not scratched.
Environmental protection and saving energy3 Environmental protection and saving energy
3.1 Disposing of packaging
The packaging materials are environmentally compatible
and can be recycled.
Sort the individual components by type and dispose
of them separately.
3.2 Saving energy
If you follow these instructions, your appliance will use
less power.
Adjust the fan speed to the amount of steam produced
during cooking.
4
Operating modes en
The lower the fan speed, the less energy is con-
sumed.
Only use the intensive mode as required.
If cooking produces large amounts of steam, select a
higher fan speed in good time.
The odours are distributed around the room less.
Switch off the lighting if it is no longer required.
When the lighting is switched off, it does not con-
sume any energy.
Clean or replace the filters at regular intervals.
The effectiveness of the filter is retained.
Put the cooking lid on.
The cooking vapours and condensation are reduced.
Only use the additional functions if required.
Switching off additional functions reduces power con-
sumption.
Operating modes4 Operating modes
You can use your appliance in air extraction mode or
circulating-air mode.
4.1 Air extraction mode
The air which is drawn in is cleaned by the grease filters
and conveyed to the exterior by a pipe system.
The air must not be discharged into a flue
that is used for exhausting fumes from
appliances burning gas or other fuels (not
applicable to appliances that only dis-
charge the air back into the room).
If the exhaust air is to be conveyed into
a non-functioning smoke or exhaust
gas flue, you must obtain the consent
of the heating engineer responsible.
If the exhaust air is conveyed through
the external wall, a telescopic duct
should be used.
4.2 Air recirculation
The air which is drawn in is cleaned by the grease filters
and an odour filter, and conveyed back into the room.
To bind odours in air recirculation mode,
you must install an odour filter. The differ-
ent options for operating the appliance in
air circulation mode can be found in our
catalogue. Alternatively, ask your dealer.
The required accessories are available
from specialist retailers, from our after-
sales service or from the online shop.
"Accessories", Page5
Familiarising yourself with your appliance5 Familiarising yourself with your appliance
5.1 Controls
You can use the control panel to configure all functions
of your appliance and to obtain information about the
operating status.
Switching on fan setting1
Switching off the appliance
Switching on fan setting2
Switching on fan setting3
Switching on an intensive
setting
Switch the lighting on or off.
Accessories6 Accessories
You can buy accessories from the after-sales service,
from specialist retailers or online. Only use original ac-
cessories, as these have been specifically designed for
your appliance.
Accessories vary from one appliance to another. When
purchasing accessories, always quote the exact product
number (E no.) of your appliance.
Page8
You can find out which accessories are available for
your appliance in our catalogue, in the online shop or
from our after-sales service.
www.neff-international.com
Accessories Order number
Standard odor filter Z5135X1
Standard recirculation kit Z5135X3
Clean Air Plus air recircu-
lation set
Z51IXC1X6
Clean Air Plus odor filter
(replacement)
Z51IXB1X6
LongLife air recirculation
set
Z51ITD1X1
5
en Basic operation
Accessories Order number
Long Life odour filter (re-
placement)
Z51ITP0X0
Basic operation7 Basic operation
7.1 Switching on the appliance
Press .
The appliance starts at fan setting 1.
7.2 Setting a fan level
Press , or .
7.3 Switching off the appliance
Press .
Note: If the fan is running at level 2 or 3, press twice.
7.4 Switching on intensive mode
If particularly strong odours or vapours develop, you
can use intensive mode.
Press and hold .
The LED flashes red.
After approx. six minutes, the appliance automatically
switches to a lower fan setting.
Note: You can switch on the intensive mode directly in
off-mode. Once the sixminutes has elapsed, the appli-
ance is switched off again.
7.5 Switching on the lighting
The lighting can be switched on and off independently
of the ventilation system.
Press .
7.6 Switching off the lighting
Press .
Cleaning and servicing8 Cleaning and servicing
To keep your appliance working efficiently for a long
time, it is important to clean and maintain it carefully.
8.1 Cleaning products
You can obtain suitable cleaning products from after-
sales service or the online shop.
ATTENTION
Unsuitable cleaning products may damage the surfaces
of the appliance.
Do not use harsh or abrasive detergents.
Do not use cleaning products with a high alcohol con-
tent.
Do not use hard scouring pads or cleaning sponges.
Only use glass cleaners, glass scrapers or stainless
steel care products if recommended in the cleaning
instructions for the relevant part.
Wash sponge cloths thoroughly before use.
8.2 Cleaning the appliance
Clean the appliance as specified. This will ensure that
the different parts and surfaces of the appliance are not
damaged by incorrect cleaning or unsuitable cleaning
products.
WARNING‒Risk of explosion!
Highly caustic alkaline or highly acidic cleaning agents
in conjunction with aluminium parts in the interior of the
appliance may cause explosions.
Never use highly caustic alkaline or highly acidic
cleaning agents. In particular, do not use commercial
or industrial cleaning agents in conjunction with alu-
minium parts, e.g. grease filter on extractor hoods.
WARNING‒Risk of electric shock!
An ingress of moisture can cause an electric shock.
Before cleaning, pull out the mains plug or switch off
the fuse in the fuse box.
Do not use steam- or high-pressure cleaners to clean
the appliance.
WARNING‒Risk of burns!
The appliance becomes hot during operation.
Allow the appliance to cool down before cleaning.
WARNING‒Risk of injury!
Components inside the appliance may have sharp
edges.
Carefully clean the appliance interior.
1.
Observe the information regarding the cleaning
agents.
2.
Clean as follows, depending on the surface:
Clean stainless steel surfaces in the direction of the
finish using a sponge cloth and hot soapy water.
Clean painted surfaces using a damp sponge cloth
and hot soapy water.
Clean aluminium using a soft cloth and glass
cleaner.
Clean plastic using a soft cloth and glass cleaner.
Clean glass using a soft cloth and glass cleaner.
3.
Dry with a soft cloth.
4.
Apply a thin layer of the stainless steel cleaning
product to stainless steel surfaces using a soft cloth.
You can obtain stainless steel cleaning products from
the after-sales service or the online shop.
6
Cleaning and servicing en
8.3 Cleaning controls
WARNING‒Risk of electric shock!
Penetrating moisture may cause an electric shock.
Do not use wet sponge cloths.
1.
Observe the information regarding the cleaning
agents.
2.
Clean using a damp sponge cloth and hot soapy wa-
ter.
3.
Dry with a soft cloth.

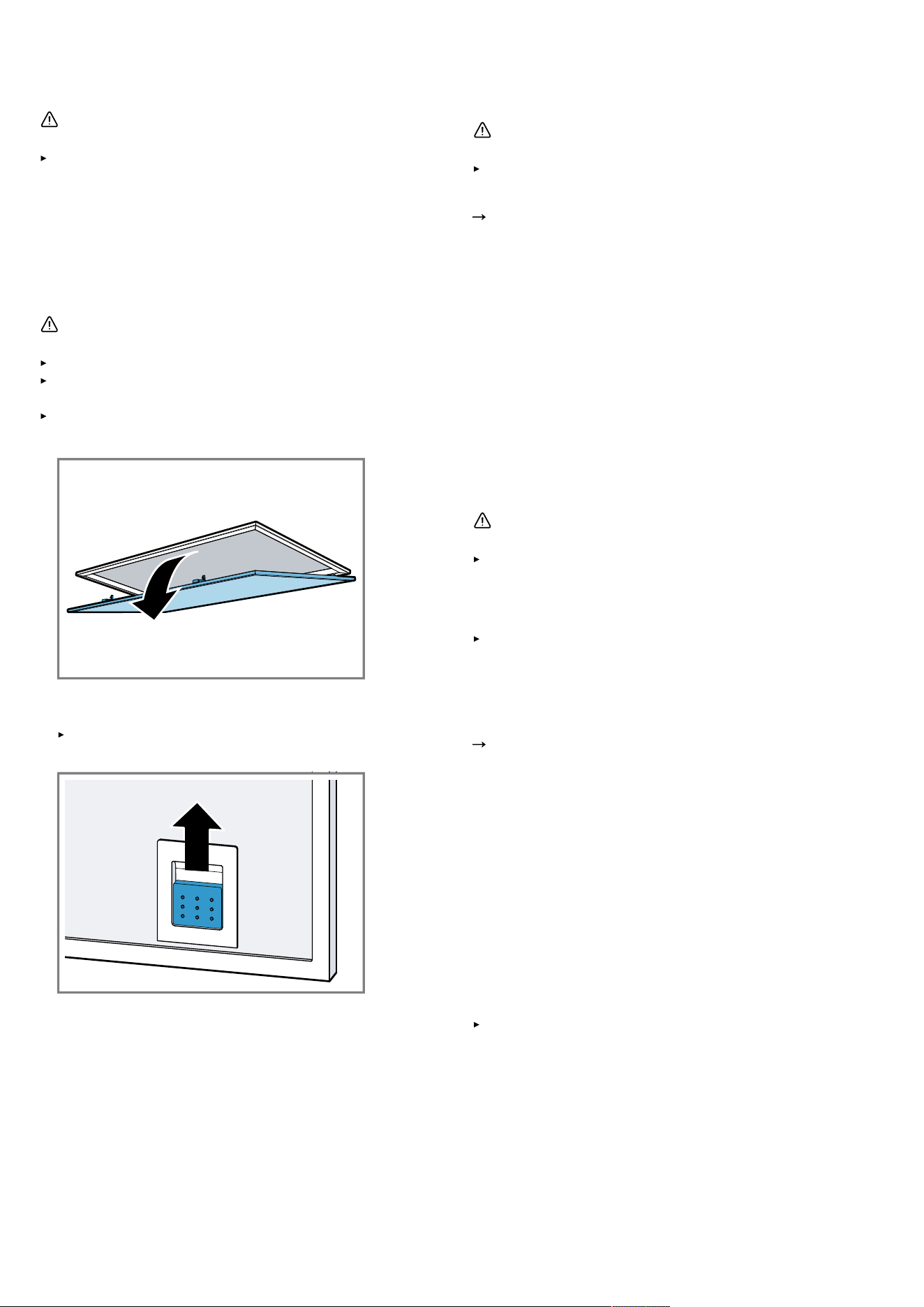

8.4 Removing the grease filter
WARNING‒Risk of injury!
The filter cover may swing out.
Open the filter cover slowly.
Take hold of the filter cover after opening until it no
longer swings out.
Close the filter cover slowly.
1.
Open the filter cover by pulling it downwards.
2.
ATTENTION‒Falling grease filters may damage the
hob below.
Grip below the grease filter with one hand.
Open the locks on the grease filters.
3.
Remove the grease filters from the holders.
To prevent grease from dripping, hold the grease fil-
ter horizontally.
8.5 Cleaning grease filters manually
The grease filters filter the grease from the cooking va-
pour. Regularly cleaned grease filters guarantee a high
level of grease removal. We recommend cleaning the
grease filters every two months.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch fire.
Clean the grease filters regularly.
Requirement: The grease filters have been removed.
"Accessories", Page7
1.
Observe the information regarding the cleaning
agents.
2.
Soak the grease filter in hot soapy water.
Use special grease solvent for stubborn dirt. You can
obtain grease solvents from customer service or the
online shop.
3.
Use a brush to clean the grease filters.
4.
Rinse the grease filters thoroughly.
5.
Allow the grease filters to drain.
8.6 Cleaning grease filters in the dishwasher
The grease filters filter the grease from the cooking va-
pour. Regularly cleaned grease filters guarantee a high
level of grease removal. We recommend cleaning the
grease filters every two months.
WARNING‒Risk of fire!
Fatty deposits in the grease filters may catch fire.
Clean the grease filters regularly.
ATTENTION
The grease filters may become damaged if they are
squeezed in the dishwasher.
Do not squeeze the grease filters.
Note: When cleaning the grease filter in the dishwasher,
light discolouration may occur. This discolouration has
no effect on the performance of the metal grease filters.
Requirement: The grease filters have been removed.
"Accessories", Page7
1.
Observe the information regarding the cleaning
agents.
2.
Place the grease filters loosely into the dishwasher.
Do not clean heavily soiled grease filters with utensils.
Use special grease solvent for stubborn dirt. You can
obtain grease solvents from customer service or the
online shop.
3.
Start the dishwasher.
Select a temperature of no more than 70°C.
4.
Allow the grease filters to drain.
8.7 Fitting grease filters
ATTENTION
Falling grease filters may damage the hob below.
Grip below the grease filter with one hand.
1.
Fit the grease filters.
2.
Fold the grease filters upwards and engage the locks.
3.
Make sure that the locks engage.
4.
Close the filter cover.
7
en Troubleshooting
Troubleshooting9 Troubleshooting
You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-
sales service. This will avoid unnecessary costs.
WARNING‒Risk of injury!
Improper repairs are dangerous.
Repairs to the appliance should only be carried out by trained specialist staff.
If the appliance is defective, call Customer Service.
"Customer Service", Page8
9.1 Replacing defective LED lights
Defective LED lights may be replaced by the manu-
facturer, their customer service or a qualified techni-
cian (electrician) only.
9.2 Malfunctions
Fault Cause and troubleshooting
The appliance is not working. The mains plug of the power cord is not plugged in.
Connect the appliance to the power supply.
The circuit breaker in the fuse box has tripped.
Check the circuit breaker in the fuse box.
There has been a power cut.
Check whether the lighting in your room or other appliances are working.
The lighting does not work. The LED lamp is defective.
Call the after-sales service.
Defective LED lights may be replaced by the manufacturer, their customer ser-
vice or a qualified technician (electrician) only.
Disposal10 Disposal
10.1 Disposing of old appliance
Valuable raw materials can be reused by recycling.
Dispose of the appliance in an environmentally
friendly manner.
Information about current disposal methods are avail-
able from your specialist dealer or local authority.
This appliance is labelled in accordance
with European Directive 2012/19/EU
concerning used electrical and elec-
tronic appliances (waste electrical and
electronic equipment - WEEE).
The guideline determines the framework
for the return and recycling of used ap-
pliances as applicable throughout the
EU.
Customer Service11 Customer Service
Function-relevant genuine spare parts according to the
corresponding Ecodesign Order can be obtained from
Customer Service for a period of at least 10 years from
the date on which your appliance was placed on the
market within the European Economic Area.
Note: Under the terms of the manufacturer's warranty
the use of Customer Service is free of charge.
Detailed information about the warranty period and the
warranty conditions in your country is available via the
QR code on the enclosed document on service con-
tacts and warranty conditions, from our customer ser-
vice or on our website.
If you contact Customer Service, you will require the
product number (E-Nr.) and the production number (FD)
of your appliance.
You can find the contact details for our customer ser-
vice via the QR code on the enclosed document on ser-
vice contacts and warranty conditions or on our website.
11.1 Product number (E-Nr.) and production
number (FD)
You can find the product number (E-Nr.) and the pro-
duction number (FD) on the appliance's rating plate.
Depending on the model, the rating plate can be found:
Inside the appliance (remove grease filters for ac-
cess).
On top of the appliance.
8
Test information en
Make a note of your appliance's details and the Cus-
tomer Service telephone number to find them again
quickly.
Test information12 Test information
This information has been produced to facilitate the in-
spection of the appliance.
Measured in accordance with EN61591.
The appliance is operated in its as-delivered condi-
tion.
The appliance is measured at a colour temperature of
4000k (switch position ).
The grease absorption level has been determined in-
cluding the removable filter cover.
Ensure that the filters do not move during the meas-
urement (by changing the appliance position to the in-
stallation position).
Installation instructions13 Installation instructions
Observe this information when installing the appliance.

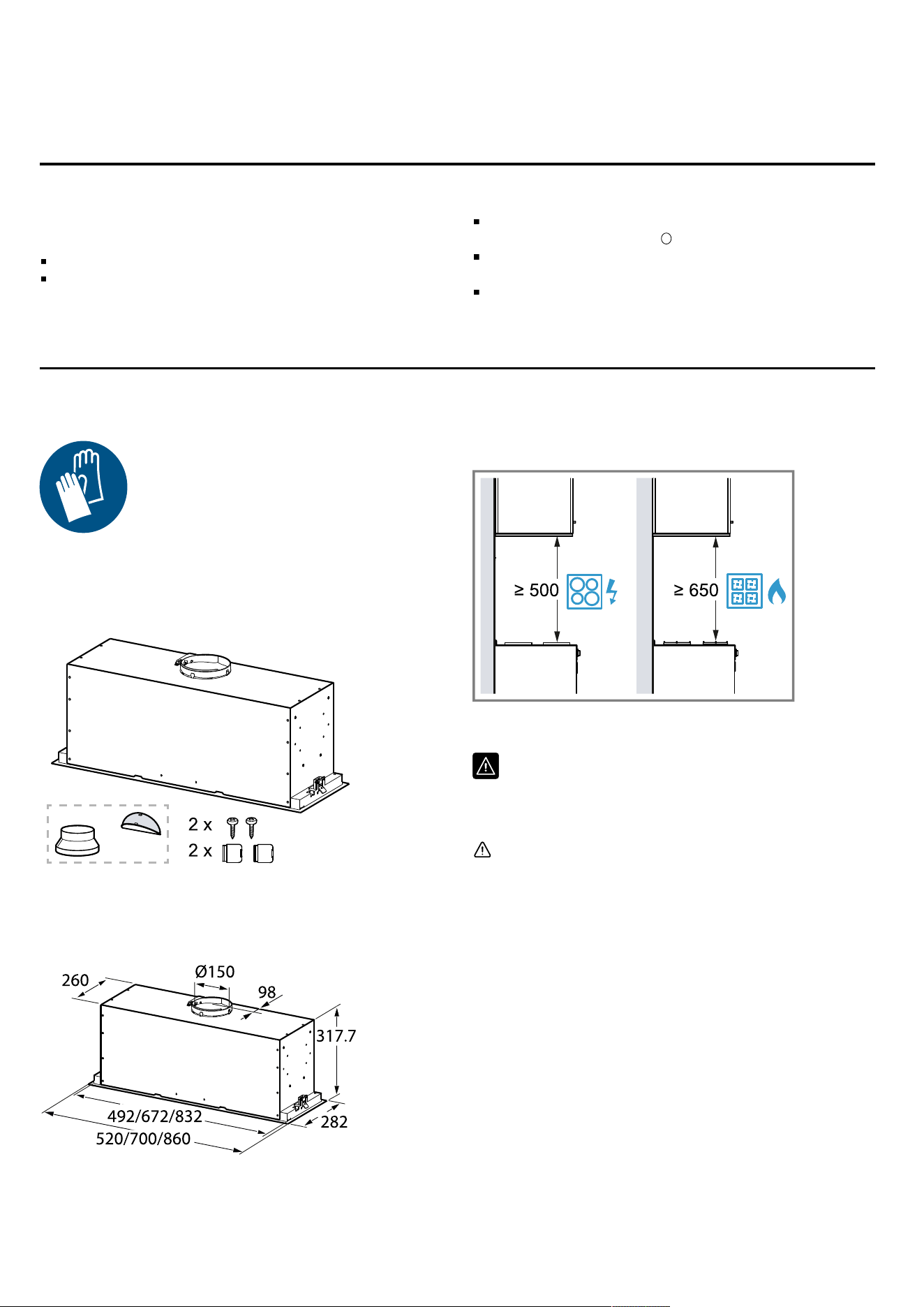

13.1 Scope of delivery
After unpacking all parts, check for any damage in
transit and completeness of the delivery.
13.2 Appliance dimensions
You will find the dimensions of the appliance here
13.3 Safety clearances
Comply with the safety clearances for the appliance.
For Australia and New Zealand the minimum safety
clearance above electrical cooktops must be 600 mm.
13.4 Secure installation
Follow these safety instructions when installing
the appliance.
WARNING‒Risk of poisoning!
Risk of poisoning from flue gases being drawn
back in. Room-air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-oper-
ated heaters, continuous flow heaters or water
heaters) obtain combustion air from the room
in which they are installed and discharge the
exhaust gases into the open through an ex-
haust gas system (e.g. a chimney). With the
extractor hood switched on, air is extracted
from the kitchen and the adjacent rooms.
Without an adequate supply of air, the air pres-
sure falls below atmospheric pressure. Toxic
gases from the chimney or the extraction shaft
9
en Installation instructions
are sucked back into the living space.
Always ensure adequate fresh air in the
room if the appliance is being operated in
exhaust air mode at the same time as a
room-air-dependent heat-producing appli-
ance is being operated.
It is only possible to safely operate the appli-
ance if the pressure in the room in which the
heating appliance is installed does not fall
below 4Pa(0.04mbar). This can be
achieved whenever the air needed for com-
bustion is able to enter through openings
that cannot be sealed, for example in doors,
windows, incoming/exhaust air wall boxes or
by other technical means. An incoming/ex-
haust air wall box alone is not sufficient to
ensure compliance with the limit.
In any case, consult your responsible chim-
ney sweep. They are able to assess the
house's entire ventilation setup and will sug-
gest the suitable ventilation measures to
you.
Unrestricted operation is possible if the ap-
pliance is operated exclusively in circulating-
air mode.
Risk of poisoning from flue gases being drawn
back in.
If an extractor hood with an open-flued heat
production source is installed, the power
supply for the extractor hood must be
provided with a suitable safety switch.
Risk of poisoning from flue gases being drawn
back in.
Do not emit the exhaust air into a smoke or
exhaust gas flue that is in operation.
Do not emit the exhaust air into a shaft that
is used to ventilate installation rooms for
heat-producing appliances.
If the exhaust air is to be conveyed into a
smoke or exhaust gas flue, you must obtain
the consent of the heating engineer respons-
ible.
WARNING‒Risk of suffocation!
Children may put packaging material over their
heads or wrap themselves up in it and suffoc-
ate.
Keep packaging material away from chil-
dren.
Do not let children play with packaging ma-
terial.
WARNING‒Risk of fire!
The grease deposits in the grease filter may
catch fire.
Never work with naked flames close to the
appliance (e.g. flambéing).
Do not install the appliance near a heat-pro-
ducing appliance for solid fuel (e.g. wood or
coal) unless a closed, non-removable cover
is present. There must be no flying sparks.
The specified safety clearances must be
complied with in order to prevent a build-up
of heat.
Observe the specifications for your cooking
appliances. If the installation instructions for
the cooking appliances specify a different
clearance, the larger of the two must always
be provided for. If gas hobs and electric
hobs are operated together, the largest spe-
cified clearance applies.
WARNING‒Risk of injury!
Components inside the appliance may have
sharp edges.
Wear protective gloves.
The appliance may fall down if it has not been
properly fastened in place.
All fastening components must be fixed
firmly and securely in place.
Changes to the electrical or mechanical as-
sembly are dangerous and may lead to mal-
functions.
Do not make any changes to the electrical
or mechanical assembly.
The filter cover may swing out.
Open the filter cover slowly.
Take hold of the filter cover after opening un-
til it no longer swings out.
Close the filter cover slowly.
WARNING‒Risk of electric shock!
Sharp-edged components inside the appliance
may damage the connecting cable.
Do not kink or trap the connecting cable.
10
Installation instructions en
Incorrect installation is dangerous.
Connect and operate the appliance only in
accordance with the specifications on the
rating plate.
Connect the appliance to a power supply
with alternating current only via a properly in-
stalled socket with earthing.
The protective conductor system of the do-
mestic electrical installation must be properly
installed.
Never equip the appliance with an external
switching device, e.g. a timer or remote con-
trol.
When the appliance is installed, the mains
plug of the power cord must be freely ac-
cessible. If free access is not possible, an
all-pole isolating switch must be installed in
the permanent electrical installation accord-
ing to the conditions of Overvoltage Cat-
egory III and according to the installation
regulations.
When installing the appliance, check that the
power cable is not trapped or damaged.
WARNING‒Danger: Magnetism!
The appliance contains permanent magnets.
They may affect electronic implants, e.g. pace-
makers or insulin pumps.
Persons with electronic implants must stand
at least 10cm away from the appliance.
13.5 General information
Follow these general instructions during the installation.
For the installation, observe the currently valid build-
ing regulations and the regulations of the local electri-
city and gas suppliers.
When discharging the exhaust air, the official and
legal regulations, such as the regional building code.,
must be observed.
In order to freely access the appliance for servicing,
select an easy-to-reach installation site.
The surfaces of the appliance are sensitive. Avoid
damaging them during installation.
13.6 Instructions for the electrical
connection
In order to safely connect the appliance to the electrical
system, follow these instructions.
WARNING‒Risk of electric shock!
It must always be possible to disconnect the appliance
from the electricity supply. The appliance must only be
connected to a protective contact socket that has been
correctly installed.
The mains plug for the mains power cable must be
easily accessible after the appliance is installed.
If this is not possible, an all-pole isolating switch must
be integrated into the permanent electrical installation
according to the conditions of overvoltage category III
and according to the installation regulations.
The permanent electrical installation must only be
wired by a professional electrician. We recommend
installing a residual-current circuit breaker (RCCB) in
the appliance's power supply circuit.
Sharp-edged components inside the appliance may
damage the connecting cable.
Do not kink or trap the connecting cable.
The connection data can be found on the rating plate.
Page8
The connecting cable is approx.1.30m long.
This appliance complies with the EC interference sup-
pression regulations.
The appliance corresponds to protection class 1. You
should therefore only use the appliance with a pro-
tective earth connection.
Do not connect the appliance to the power supply
during installation.
Ensure that the protection against contact is guaran-
teed during installation.
13.7 Information on the installation situation
Install this appliance in a kitchen cupboard.
To install additional special accessory parts, observe
the enclosed installation instructions.
The width of the extractor hood must correspond at
least with the width of the hob.
To optimally detect the cooking vapours, install the
appliance in the middle of the hob.
13.8 Instructions for the exhaust air pipe
The appliance manufacturer does not provide any war-
ranty for faults attributable to the pipeline.
Use a short, straight exhaust air pipe with as large a
pipe diameter as possible.
Long, rough exhaust air pipes, many pipe bends or
small pipe diameters reduce the suction power and
increase the fan noise.
Use an exhaust air pipe that is made of non-combust-
ible material.
To prevent condensate from returning, fit the exhaust
pipe with a 1° gradient from the appliance.
Round pipes
Use round pipes with an inner diameter of 150mm (re-
commended) or at least 120mm.
Flat ducts
Use flat ducts with an inner cross-section that corres-
ponds to the diameter of the round pipes:
Diameter of 150mm corresponds to ap-
prox.177cm².
Diameter of 120mm corresponds to ap-
prox.113cm².
Use sealing strips for different pipe diameters.
Do not use any flat ducts with sharp bends.
13.9 Instructions for the air extraction mode
For air extraction mode, a one-way flap should be in-
stalled.
11
en Installation instructions
Notes
If a one-way flap is not included with the appliance,
one can be ordered from a specialist retailer.
If the exhaust air is conveyed through the external
wall, a telescopic duct should be used.
13.10 Information about circulating-air mode
The appliance must only be operated when it is securely
installed and the pipework is connected.

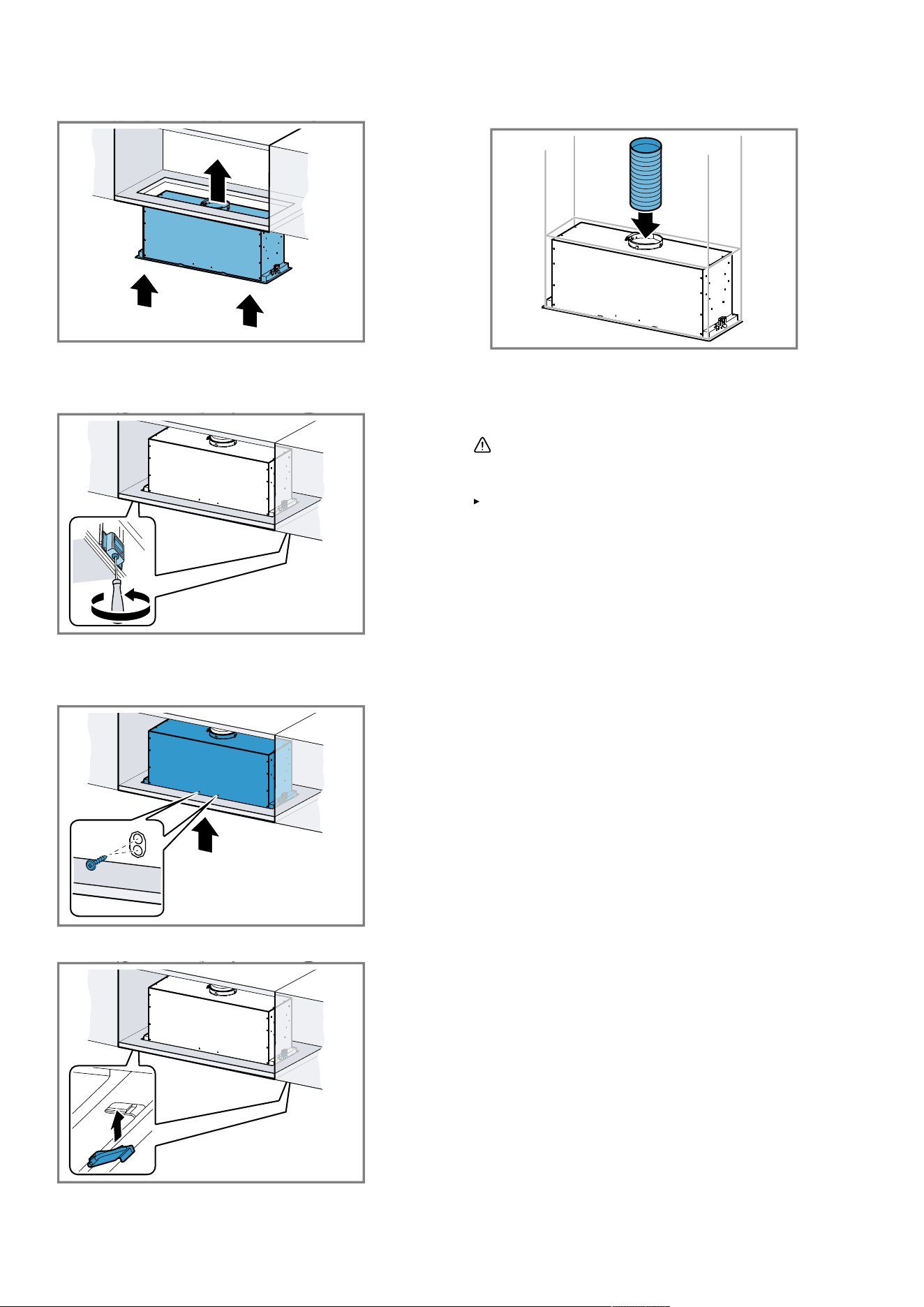

13.11 Installation
Checking the unit
1.
Check whether the fitted unit is level and has suffi-
cient load-bearing capacity.
The maximum weight of the appliance is 10kg.
Note: Note the furniture manufacturer's specifications
with regard to the load-bearing capacity of the fitted
unit.
2.
Ensure that the fitted unit is heat-resistant up to
90°C.
3.
Ensure that the fitted unit is still stable after the cut-
outs have been made.
4.
Check the door hinges setting.
Depending on the design of the furniture, these may
no longer be accessible after installation.

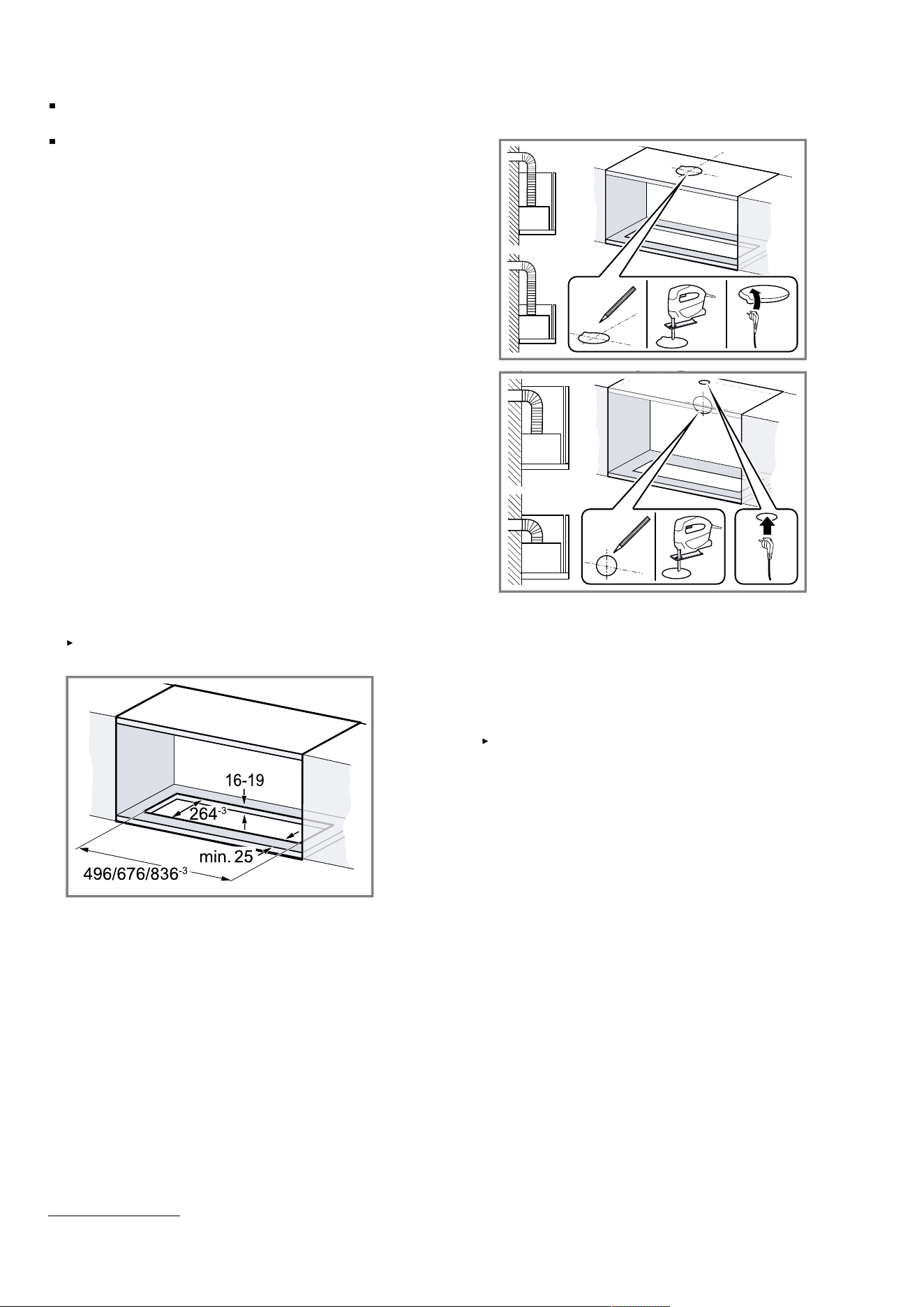

Preparing the units
Requirement: The unit is suitable for the installation.
1.
Make the cut-out for the appliance.
When doing so, make sure that the permissible di-
mensions are complied with.
2.
Make the cut-out for the exhaust air pipe either above
the fitted unit or behind the fitted unit above the appli-
ance.
Unpacking the appliance
Unpack your appliance and check all parts for any
transport damage. Wear protective gloves when you un-
pack the appliance.
ATTENTION
The appliance frame is not a hand grip element.
Do not lift the appliance by the frame.
Preparing the appliance
1.
If air extraction is required, fit the backflow flaps on
the air outlet and click them into place.
1
2.
Carefully remove the protective foil from the surface.
Installing the appliance
Note: We recommend that installation is carried out by
two persons.
1.
Insert the appliance together with the power cord into
the opening in the unit from below until you hear the
1
Depending on the appliance specifications
12
Installation instructions en
brackets engage. Avoid impacts and putting pressure
on one side when doing so.
2.
Tighten the two fastening screws alternating between
the left and right. Use a suitable tool to avoid dam-
aging the surface.
3.
Screw in the front two screws and select a hole so
that the surface of the appliance is flush with the fitted
unit.
4.
Insert the two screw covers.
Establishing the exhaust air connection
1.
Secure the air pipe to the air pipe connector.
2.
Establish the connection to the exhaust air opening.
3.
Seal the joints.
Removing the appliance
WARNING‒Risk of injury!
Components inside the appliance may have sharp
edges.
Wear protective gloves.
1.
Disconnect the appliance from the power supply.
2.
Loosen the exhaust pipe.
3.
Open the filter cover.
4.
Remove the grease filters.
To avoid causing damage, do not bend the grease fil-
ters.
5.
Loosen the two front screws
6.
Loosen the two fastening screws on the brackets al-
ternating between the left and right.
7.
Slowly take the appliance down.
13
Register your product online
neff-home.com
BSH Hausgeräte GmbH
Carl-Wery-Straße 34
81739 München, GERMANY
Valid within Great Britain:
Imported to Great Britain by
BSH Home Appliances Ltd.
Grand Union House
Old Wolverton Road
Wolverton, Milton Keynes
MK12 5PT
United Kingdom
*9001938245*
9001938245 (050312)
en
