Owner’s Manual English

This is the main product document for model 32U990A-S.

The file format is pdf, 41 pages, you can download this manual here .

background
* LG LED Monitor applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it for future reference.
www.lg.com
Copyright 2025 LG Electronics Inc. All Rights Reserved.
Owner’s Manual
LED LCD MONITOR
(LED Monitor*)
32U990A
background
2
ENGLISH
TABLE OF CONTENTS
USING THE MONITOR .......................................................................14
- Connecting to a PC ...........................................................................................................14
HDMI Connection .............................................................................................................14
DisplayPort Connection ....................................................................................................15
USB-C connection .............................................................................................................15
Thunderbolt™ Connection ................................................................................................ 15
- Connecting AV Devices .....................................................................................................16
HDMI Connection .............................................................................................................16
- Connecting Peripherals ....................................................................................................16
USB Device connection ..................................................................................................... 16
ASSEMBLING AND PREPARING .........................................................4
- Installing ............................................................................................................................5
Moving and Lifting the Monitor .........................................................................................5
Installing on a Table ...........................................................................................................6
Using the Kensington Lock .................................................................................................6
Installing on the Wall .........................................................................................................7
- Product Description ............................................................................................................ 9
How to Use the Joystick Button ........................................................................................10
Adjusting the Stand Height ..............................................................................................10
Adjusting the Angle .........................................................................................................11
Pivot Feature ....................................................................................................................11
- Supported Software .........................................................................................................13
background
3
ENGLISH
USER SETTINGS ...............................................................................18
- Activating the Main Menu ................................................................................................18
Main Menu Features .........................................................................................................18
Menu Settings .................................................................................................................. 19
[Quick Settings] ................................................................................................................19
[Input]..............................................................................................................................20
[Picture] ...........................................................................................................................21
[General] ..........................................................................................................................24
PRODUCT SPECIFICATION ................................................................25
- Support Mode ..................................................................................................................26
(Preset Mode, HDMI) ........................................................................................................26
(Preset Mode, DisplayPort) ...............................................................................................27
(Preset Mode, Thunderbolt™) ...........................................................................................28
HDMI Timing (Video) ........................................................................................................29
TROUBLESHOOTING ........................................................................30
LICENSE ........................................................................................... 31
OPEN SOURCE SOFTWARE NOTICE INFORMATION .......................... 32
BEEP GUIDE .....................................................................................33
LIMITED WARRANTY (USA) ............................................................ 36
LIMITED WARRANTY (CANADA) ......................................................38
background
4
ENGLISH
ASSEMBLING AND PREPARING
CAUTION
Always use genuine LG components to ensure safety and product performance.
The product warranty will not cover damage or injury caused by the use of unauthorized components.
It is recommended to use the supplied component.
The product figures and screen displays used in this manual are examples to help consumers use the product
and may differ from the actual product.
Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product.
(Doing so may damage the product.)
Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this
way will not be covered by the product warranty.
Do not carry the monitor upside down by just holding the base. This may cause the monitor to fall off the
stand and could result in personal injury.
When lifting or moving the monitor, do not touch the monitor screen. The force applied to the monitor screen
may cause damage to it.
For wave pattern on appearance, unlike the general method of coating, it’s applied to added glittering
material in raw material. With no peeled-off appearance, it has good durability. Please use it with confidence
because there is no problem in using the product at all.
NOTE
The components may look different from those illustrated here.
Without prior notice, all product information and specifications contained in this manual are subject to
change to improve the performance of the product.
To purchase optional accessories, visit an electronics store or an online shopping site, or contact the retailer
from which you purchased the product.
The power cord provided may differ depending upon the region.
background
5
ENGLISH
Installing
Moving and Lifting the Monitor
When moving or lifting the monitor, follow these instructions to prevent the monitor from being scratched or
damaged and to ensure safe transportation, regardless of its shape or size.
Before moving or lifting the monitor, disconnect the power cord and all other cables.
Place the monitor in the original box or packing material before attempting to move it.
Hold the bottom and side of the monitor frame firmly. Do not hold the panel itself.
When holding the monitor, the screen should face away from you to prevent it from being scratched.
When transporting the monitor, do not expose the monitor to shock or excessive vibration.
When moving the monitor, keep it upright and never turn the monitor on its side or tilt it sideways.
CAUTION
Avoid touching the monitor screen as much as possible.
- This may result in damage to the screen or some of the pixels used to create images.
Standing the monitor panel up vertically may cause the monitor to fall due to the joystick and cause damage
or injury. In addition, this may cause the joystick button to malfunction.
background
6
ENGLISH
Installing on a Table
Lift the monitor and place it on the table in an upright position. Place the monitor at least 100mm
(3.9inches) away from the wall to ensure sufficient ventilation.
: 100mm (3.9inches)
CAUTION
Unplug the power cord before moving or installing the monitor. There is risk of electric shock.
Make sure to use the power cord that is provided in the product package and connect it to a grounded power
outlet.
If you need another power cord, please contact your local dealer or the nearest retail store.
Using the Kensington Lock
For more information on installation and usage, refer to the Kensington lock owner’s manual or visit the website
at http://www.kensington.com.
NOTE
The Kensington security system is optional. You can obtain optional accessories from most electronics stores.
background
7
ENGLISH
Installing on the Wall
This monitor meets the specifications for the wall mount plate or other compatible devices.
Install the monitor at least 100mm (3.9inches) away from the wall and leave about 100mm (3.9inches)
of space at each side of the monitor to ensure sufficient ventilation. Detailed installation instructions can be
obtained from your local retail store. Alternatively, please refer to the manual for how to install and set up a
tilting wall mounting bracket.
: 100mm (3.9inches)
Installing the Wall Mount Plate
To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely fixed to the monitor and to the wall.
Wall Mount (mm) 100x100 (3.9x3.9inches)
Standard screw M4xL10
Number of screws 4
Wall Mount Plate (Optional) LSW149
background
8
ENGLISH
NOTE
Use the screws specified by VESA standards.
The wall mount kit includes the installation guide and all necessary parts.
The wall mounting bracket is optional. You can obtain optional accessories from your local dealer.
The length of the screw may differ for each wall mounting bracket. If you use screws longer than the standard
length, it may damage the inside of the product.
For more information, please refer to the user manual for the wall mounting bracket.
Be careful not to apply too much force while mounting the wall mount plate as it may cause damage to the
screen.
Remove the stand before installing the monitor on a wall mount by performing the stand attachment in
reverse.
CAUTION
Unplug the power cord before moving or installing the monitor to avoid electric shock.
Installing the monitor on the ceiling or on a slanted wall may result in the monitor falling off, which could
lead to injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.
To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation
instructions.
Applying excessive force when tightening screws may cause damage to the monitor. Damage caused in this
way will not be covered by the product warranty.
Use the wall mounting bracket and screws that conform to VESA standards. Damage caused by the use or
misuse of inappropriate components will not be covered by the product warranty.
When measured from the back of the monitor, the length of each installed screw must be 8mm (0.3inches)
or less.
background
9
ENGLISH
: Wall Mount Plate
: Back of the Monitor
: Standard screw
: Max. 8mm (0.3inches)
Product Description
A
A: Joystick Button
background
10
ENGLISH
How to Use the Joystick Button
You can easily control the functions of the monitor by pressing the joystick button or moving it left/right/up/
down with your finger.
Basic Functions
(Power on): Press the joystick button once with your finger to turn on the monitor.
(Power off): Press and hold the joystick button once more than 5 seconds with your finger to turn off the
monitor.
(Volume control): You can control the volume by moving the joystick button left/right.
: Enters the [Accessibility] menu.
Adjusting the Stand Height
1 Place the monitor mounted on the stand base in an upright position.
2 Handle the monitor with both hands for safety.
Max 60.0 mm
(2.3inches)
WARNING
When adjusting the screen height, do not place your hand on the stand body to avoid injury to your fingers.
background
11
ENGLISH
Adjusting the Angle
1 Place the monitor mounted on the stand base in an upright position.
2 Adjust the angle of the screen.
The angle of the screen can be adjusted forward or backward from -5° to 15° for a comfortable viewing
experience.
WARNING
To avoid injury to the fingers when adjusting the screen, do not hold the lower part of the monitor’s frame as
illustrated below.
Be careful not to touch or press the screen area when adjusting the angle of the monitor.
Pivot Feature
The pivot feature allows the monitor to rotate -90° counter-clockwise.
WARNING
To avoid scratching the stand base, do not use excessive force or speed when rotating the monitor using the
pivot feature, and make sure that the stand does not make contact with the monitor.
To avoid injury to your fingers, do not put them between the screen and the stand base when turning the
monitor's screen.
Take care when rotating the monitor if the cable is connected.
Monitors head
Stand
background
12
ENGLISH

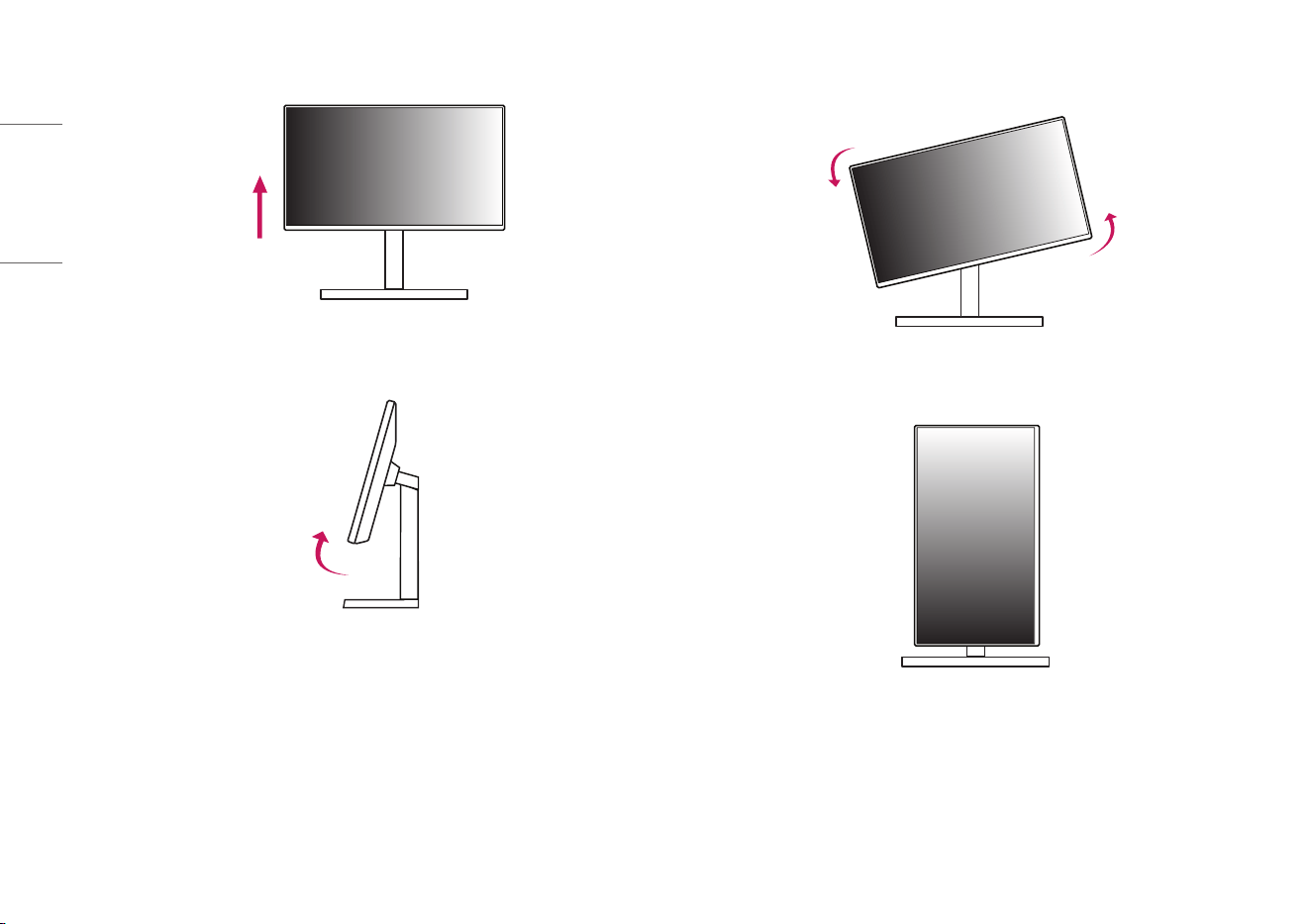

1 Raise the monitor up to the maximum height.
2 Adjust the angle of the monitor in the direction of the arrow as shown in the figure.
3 Rotate the monitor counter-clockwise as shown in the figure.
4 Complete the installation by rotating the monitor -90° as shown in the figure.
background
13
ENGLISH
NOTE
Auto Pivot feature of the display is not supported.
The screen can be rotated easily using the screen pivot shortcut key provided with your Windows operating
system. Note that some Windows versions and some graphics card drivers may use different settings for the
screen pivot key or may not support the pivot key at all.
Windows operating system screen pivot shortcut key.
- 0°: Ctrl + Alt + keyboard up key ( )
- 90°: Ctrl + Alt + keyboard left key ( )
- 180°: Ctrl + Alt + keyboard down key ( )
- 270°: Ctrl + Alt + keyboard right key ( )
Supported Software
You can download and install the latest version from the LGE website (www.lg.com).
Monitor Driver / LG Switch / Dual Controller / LG Calibration Studio
background
14
ENGLISH
USING THE MONITOR
Illustrations in this manual may differ from the actual product.
Press the joystick button, go to [Settings] > [Input], and then select the input option.
CAUTION
If you use generic cables not certified by LG, the screen may not display or there may be image noises.
Do not press the screen for a prolonged time. This may cause image distortion.
Do not display a still image on the screen for a prolonged time. This may cause image retention. Use a PC
screensaver if possible.
When connecting the power cord to the outlet, use a grounded (3-hole) power strip or a grounded power
outlet.
The monitor may flicker when turned on in an area where the temperature is low. This is normal.
Sometimes red, green, or blue spots may appear on the screen. This is normal.
Make sure to use the supplied cable of the product. Otherwise, this may cause the device to malfunction.
If the environment is reflective, move the monitor or lighting or adjust the brightness of the surroundings.
Connecting to a PC
This monitor supports the Plug and Play* feature.
* Plug and Play: A feature that allows you to add a device to your computer without having to reconfigure
anything or install any manual drivers.
HDMI Connection
Transmits digital video and audio signals from your PC to the monitor.
NOTE
Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may
not display or a connection error may occur.
Recommended HDMI cable types
- Ultra High Speed HDMI
®
/™ cable
- Ultra High Speed HDMI
®
/™ cable with Ethernet
background
15
ENGLISH
DisplayPort Connection
Transmits digital video and audio signals from your PC to the monitor.
NOTE
There may be no video or audio output depending on the DP (DisplayPort) version of the PC.
If you are using a Mini DisplayPort output graphics card, use a Mini DP to DP (Mini DisplayPort to DisplayPort)
cable or gender that supports DisplayPort2.1 or DisplayPort1.4. (Sold separately)
USB-C connection
Transmits digital video and audio signals from your PC to the monitor.
NOTE
PD (Power Delivery) and DP Alternate Mode (DP over USB-C) are supported via USB-C Port.
Features may not work properly depending on the connected devices specifications and the environment.
USB-C port is not for the monitor power source but for a PC power source. Connect adaptor to supply power
to the monitor.
Thunderbolt™ Connection
You can connect your high-resolution display or high-performance data device to the monitor via a
Thunderbolt™ ( ) port.
NOTE
Make sure to use the supplied Thunderbolt™ cable. Otherwise, this may cause the device to malfunction.
In accordance with PC products may not support the recommended resolution or some features.
Of the two Thunderbolt™ ports, use the top one to connect to a PC through Thunderbolt™.
Thunderbolt™ connectivity may be limited, depending on the performance and specifications of the PC.
background
16
ENGLISH
Connecting AV Devices
HDMI Connection
HDMI transmits digital video and audio signals from your AV device to the monitor.
NOTE
Using a DVI to HDMI / DP (DisplayPort) to HDMI cable may cause compatibility issues.
Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may
not display or a connection error may occur.
Recommended HDMI cable types
- Ultra High Speed HDMI
®
/™ cable
- Ultra High Speed HDMI
®
/™ cable with Ethernet
Connecting Peripherals
USB Device connection
The USB port on the product functions as a USB hub.
NOTE
It is recommended you install all Windows Updates to keep your Windows up-to-date before connecting to
the product for use.
Peripheral devices are sold separately.
A keyboard, mouse, or USB device can be connected to the USB port.
The charging speed may vary depending on the device.
CAUTION
Cautions when using a USB device.
- A USB device with an automatic recognition program installed, or that uses its own driver, may not be
recognized.
- Some USB devices may not be supported or may not work properly.
- It is recommended to use a USB hub or hard disk drive with power supplied. (If the power supply is not
adequate, the USB device may not be recognized properly.)
background
17
ENGLISH
Case 1: Thunderbolt™ Input
Peripheral devices connected to the USB IN port can be controlled from the PC.
If you change the input on the menu while a device is connected via the Thunderbolt™ ( ) port, then the device
connected via the USB port may not work properly.
To use Thunderbolt™ cable
To use USB 3.2 Gen2, connect the Thunderbolt™ cable from the monitor to your PC.
PC
Monitor
Case 2: HDMI/DP (DisplayPort) Input
Peripheral devices connected to the USB IN port can be controlled from the PC.
To use USB-C cable
To use USB 3.2 Gen2, connect the USB-C cable from the monitor to your PC.
PC
Monitor
background
18
ENGLISH
USER SETTINGS
NOTE
Your monitor’s OSD (On Screen Display) may differ slightly from that shown in this manual.
When [Beep Guide] is activated, pressing the joystick button will take you to [Settings] right away.
Activating the Main Menu
1 Press the joystick button.
2 Move the joystick up/down and left/right to set the options.
Joystick Button
Main Menu Features
Main Menu Description
: [Power Off] Turns off the monitor.
: [Input] Sets input mode.
: [Exit] Exits the main menu.
: [Picture Mode] Sets the picture mode.
: [Settings] Configures the screen settings.
background
19
ENGLISH
Menu Settings
1 To view the OSD menu, press the joystick button and then enter the [Settings].
2 Move the joystick up/down and left/right to set the options.
3 To return to the upper menu or set other menu items, move the joystick to or press ( ) it.
4 If you want to exit the OSD menu, move the joystick to until you exit.
[Quick Settings] [Input] [Picture] [General]
[Quick Settings]
[Settings] > [Quick Settings]
[Brightness]: Adjusts the brightness of the screen.
[Auto Brightness]: Optimizes the brightness automatically for surrounding illuminance.
[Contrast]: Adjusts the contrast of the screen.
[Volume]: Adjusts the volume level.
- You can adjust [Mute] / [Unmute] by moving the joystick button to in the [Volume] menu.
[Color Temp]: Set your own color temperature.
- [Custom]: The user can customize the red, green and blue color.
- [Warm]: Sets the screen color to a reddish tone.
- [Medium]: Sets the screen color to between a red and blue tone.
- [Cool]: Sets the screen color to a bluish tone.
- [Manual]: The user can fine-tune the color temperature.
[PBP / PIP]: Displays the screens of two input modes on one monitor.
[USB Selection]: Select the USB upstream cable connection port to use USB hub of the monitor.
background
20
ENGLISH
[Input]
[Settings] > [Input]
[Input List]: Selects the input mode.
[Auto Input Switch]: When [Auto Input Switch] is set to On, display will automatically switch to new input
when connected.
[Aspect Ratio]: Adjusts the aspect ratio of the screen. The display may look the same for [Full Wide],
[Original], and [Just Scan] options at the recommended resolution.
- [Full Wide]: Displays the video in widescreen, regardless of the video signal input.
- [Original]: Displays video according to the aspect ratio of the video signal input.
- [Just Scan]: The aspect ratio is not adjusted from the original.
[PBP / PIP]: Displays the screens of two input modes on one monitor.
- [Aspect Ratio]: Adjusts the aspect ratio of the screen.
» [Full Wide]: Displays the video in widescreen, regardless of the video signal input.
» [Original]: Displays video according to the aspect ratio of the video signal input.
PBP / PIP Connection
Sub Screen
HDMI DP
Thunderbolt™
USB-C
Main
Screen
HDMI
DP
Thunderbolt™
USB-C
[PIP Size]: Changes the size of the PIP sub-screen.
[PIP Position]: Changes the position of the PIP sub-screen.
[Main/Sub Screen Change]: Toggles between the main screen and sub screen in [PBP / PIP] mode.
[Main/Sub Sound Change]: Toggles between the audio of the main screen and sub screen in [PBP / PIP]
mode.
NOTE
If not using the [PBP / PIP] feature, [PIP Size], [PIP Position], [Main/Sub Screen Change] and [Main/Sub
Sound Change] are deactivated.
Some features are not supported in [PBP / PIP] mode.
background
21
ENGLISH
[Picture]
[Settings] > [Picture] > [Picture Mode]
[Personalized Picture]: Set up a customised picture mode tailored to your preferences. Please install the LG
Switch and proceed “Personalized Picture Wizard”.
[Custom]: Allows the user to adjust each element.
[Vivid]: Heightens contrast, brightness and sharpness to display vivid images.
[Studio1]: Optimises the screen for laptop displays (Type 1).
[Studio2]: Optimises the screen for laptop displays (Type 2).
[Studio3]: Optimises the screen for laptop displays (Type 3).
[HDR Effect]: Optimises the screen for high dynamic range.
[Reader]: Optimises the screen for reading documents. You can brighten the screen in the OSD menu.
[Cinema]: Optimises the screen to improve the visual effects of a video.
[sRGB]: A standard RGB colour space for the monitor and printer.
[Adobe RGB]: A much larger color space than sRGB. This option is suitable for printing pictures.
[DCI-P3]: Suitable for watching digital videos.
[Calibration 1]/ [Calibration 2]: Adjusts to the calibrated screen. Please install LG Calibration Studio to run
calibration.
NOTE
The [Picture Mode] that can be set depends on the Input signal.
If the [Picture Mode] is changed, the screen may flicker or the resolution of your PC screen may be affected.
HDR content may not display correctly depending on Windows OS settings, please check HDR On/Off settings
in Windows.
When the HDR function is turned on, the characters or picture quality may be poor according to Graphic card
performance.
While the HDR function is on, screen flickering or cracking may occur when changing the monitor input or
power on/off according to Graphic card performance.
background
22
ENGLISH
[Settings] > [Picture] > [Picture Adjust]
[Brightness]: Adjusts the brightness of the screen.
[Auto Brightness]: Optimizes the brightness automatically for surrounding illuminance.
[Contrast]: Adjusts the contrast of the screen.
[Sharpness]: Adjusts the sharpness of the screen.
[SUPER RESOLUTION+]: Because this is a function to increase the sharpness of low resolution pictures,
it is not recommended to use the function for normal text or for desktop icons. Doing so may result in
unnecessarily high sharpness.
- [High]: Optimizes the screen for crystal clear images. Best for high-definition video or games.
- [Middle]: Optimizes the screen for comfortable viewing, with images at the middle level between the low
and high modes.
- [Low]: Optimizes the screen for smooth and natural images. Best for still images or images with less
movement.
- [Off]: Displays in the most common setting. Disables [SUPER RESOLUTION+].
[Black Level]: Sets the offset level (for HDMI only).
Offset: As a reference for a video signal, this is the darkest color the monitor can display.
- [High]: Keeps the current contrast ratio of the screen.
- [Low]: Lowers the black levels and raises the white levels from the current contrast ratio of the screen.
[Deep Black Pro]: Provides extended contrast and gradation on a dark screen depending on game or video
content.
- [High]: Preferably for PC gaming experiences.
- [Middle]: Preferably for console gaming experiences.
- [Low]: Preferably for playing video content and internet or word-processing.
- [Off]: Disables the [Deep Black Pro] feature.
- When this feature is enabled, a slight halo effect may be shown on dark backgrounds. This is normal and
not a malfunction.
- When this feature is enabled, the screen flickering may occur intermittently.
- The function can only be used on HDR content.
- It is recommended to turn off when you are not using the gaming function.
background
23
ENGLISH
[Settings] > [Picture] > [Game Adjust]
[Response Time]: Sets a response time for displayed pictures based on the movement of the picture on the
screen. For a normal environment, it is recommended that you use [Fast]. When there is a lot of motion, it is
recommended that you use [Faster]. Setting to [Faster] may cause image sticking.
- [Faster]: Sets the response time to faster.
- [Fast]: Sets the response time to fast.
- [Normal]: Sets the response time to normal.
- [Off]: Does not use the response time improvement feature.
[Black Stabilizer]: You can control the black contrast to have better visibility in dark scenes. You can easily
distinguish objects on dark game screens.
[Settings] > [Picture] > [Color Adjust]
[Gamma]
- [Mode 1], [Mode 2], [Mode 3]: The higher the gamma value, the darker the image becomes. Likewise, the
lower the gamma value, the lighter the image becomes.
- [Mode 4]: If you do not need to adjust the gamma settings, select [Mode 4].
[Color Temp]: Set your own color temperature.
- [Custom]: The user can customize the red, green and blue color.
- [Warm]: Sets the screen color to a reddish tone.
- [Medium]: Sets the screen color to between a red and blue tone.
- [Cool]: Sets the screen color to a bluish tone.
- [Manual]: The user can fine-tune the color temperature.
[Red], [Green], [Blue]: You can customize the picture color using [Red], [Green], and [Blue] colors.
[Six Color]: Meets the user requirements for colors by adjusting the hue and saturation of the six colors (red,
green, blue, cyan, magenta, and yellow) and then saving the settings.
- Hue: Adjusts the tone of the screen colors.
- Saturation: Adjusts the saturation of the screen colors. The lower the value, the less saturated. The higher
the value, the more saturated.
[Settings] > [Picture] > [Picture Reset]
Returns picture and color to the default settings.
background
24
ENGLISH
[General]
[Settings] > [General]
[Language]: Sets the menu screen to the desired language.
[USB Selection]: Select the USB upstream cable connection port to use USB hub of the monitor.
[USB Switch]: Switch the USB device connected to the monitor to another input source.
[SMART ENERGY SAVING]: Conserve energy by using luminance compensation algorithm.
- [High]: Saves energy using the high-efficiency [SMART ENERGY SAVING] feature.
- [Low]: Saves energy using the low-efficiency [SMART ENERGY SAVING] feature.
- [Off]: Disables the feature.
- The value of energy saving data may differ depending on panel and panel suppliers.
- If you select the option of [SMART ENERGY SAVING] as [High] or [Low], monitor luminance become higher
or lower depend on source.
[User-defined Key 1]/[User-defined Key 2]: You can customize the main menu to access your preferred menu
easily. [User-defined Key 1] and [User-defined Key 2] appear at the left/right of the main menu.
[Deep Sleep Mode]: When [Deep Sleep Mode] is on, power consumption is minimized while the monitor is in
standby mode.
[Automatic Standby]: If there is no operation on the monitor for a certain period of time, the monitor will
automatically switch to standby mode.
[Input Compatibility Version]: You can set each input to match the supported version of the connected device.
- If the connected device supports 2.1 in HDMI but the screen or sound does not work properly, set this
function to 2.1(AV).
[Thunderbolt OUT]: Supports multiple monitor connection using daisy chain.
- When daisy-chaining two or more monitors, the [Thunderbolt OUT] menu of all connected monitors must
be set to ON.
[Buzzer]: This feature lets you set the sound generated from Buzzer when your monitor powers on.
[OSD Lock]: This feature disables the configuration and adjustment of menus.
All features are disabled except:
- [Brightness] / [Auto Brightness] / [Contrast] / [Volume] / [PBP / PIP] in [Quick Settings]
- [Input]
- [OSD Lock] / [Information] / [Open Source Software License] in [General]
[Screen Self-diagnosis]: Checks for any problems with the monitor image. Do not unplug the input cable.
[Sound Self-diagnosis]: Checks for any problems with the monitor sound. Do not unplug the input cable.
[Information]: The following display information will be shown; [Total Power On Time], [Resolution].
[Open Source Software License]: You can check the Open Source Software notice information.
[Reset to Initial Settings]: Returns to the default settings.
background
25
ENGLISH
PRODUCT SPECIFICATION
Specifications are subject to change without notice.
The symbol means alternating current, and the symbol means direct current.
Color Depth
10-bit color is supported.
Resolution
Max Resolution: 6144x3456 @60Hz
Recommended Resolution: 6144x3456 @60Hz
Environmental Conditions
Operating Conditions
- Temperature: 0°C to 40°C (32°F to 104°F)
- Humidity: Less than 80%
Storing Conditions
- Temperature: -20°C to 60°C (-4°F to 140°F)
- Humidity: Less than 85%
AC/DC Adaptor
Model: ADS-360RLB-20-1 200360E
Manufacturer: SHENZHEN HONOR ELECTRONIC CO., LTD
- Input: 100-240V~ 50/60Hz 5.5A
- Output: 20.0V 18.0A
Power Sources
Power Rating: 20V 12.0A
Monitor Size (Width x Height x Depth)
With Stand:
- 718.4 x 612.3 x 198.2 (mm)
- 28.2 x 24.1 x 7.8 (inches)
Without Stand:
- 718.4 x 413.5 x 26.5 (mm)
- 28.2 x 16.2 x 1.0 (inches)
Weight (Without Packaging)
With Stand: 9.5 kg (20.9 lbs)
Without Stand: 6 kg (13.2 lbs)
background
26
ENGLISH
Support Mode
(Preset Mode, HDMI)
Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks
640 x 480 31.469 59.940 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60.004 -/-
1920 x 1080 67.500 60.000 +/+
1280 x 720 44.444 59.979 +/-
1920 x 1080 66.587 59.934 +/-
2560 x 1440 88.787 59.951 +/- Recommended (PIP: On)
3840 x 2160 65.688 29.981 +/-
Recommended ([Input Compatibility Version]:
[1.4])
3840 x 2160 133.313 59.997 +/-
Recommended ([Input Compatibility Version]:
[2.1(AV)])
3072 x 3456 176.825 49.979 +/-
6144 x 3456 105.187 30.011 +/-
3072 x 3456 213.376 60.021 +/- Recommended (PBP: On)
6144 x 3456 213.374 60.021 +/-
Recommended ([Input Compatibility Version]:
[2.1(PC)])
background
27
ENGLISH
(Preset Mode, DisplayPort)
Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks
640 x 480 31.469 59.940 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60.004 -/-
1920 x 1080 67.500 60.000 +/+
1280 x 720 44.444 59.979 +/-
1920 x 1080 66.587 59.934 +/-
2560 x 1440 88.787 59.951 +/- Recommended (PIP: On)
3840 x 2160 133.313 59.997 +/-
6144 x 3456 105.187 30.011 +/-
Recommended ([Input Compatibility
Version]: [1.2])
3072 x 3456 213.376 60.021 +/- Recommended (PBP: On)
6144 x 3456 213.374 60.021 +/-
Recommended ([Input Compatibility
Version]: [1.4] or [2.1])
background
28
ENGLISH
(Preset Mode, Thunderbolt™)
Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz) Polarity (H/V) Remarks
640 x 480 31.469 59.940 -/-
800 x 600 37.879 60.317 +/+
1024 x 768 48.363 60.004 -/-
1920 x 1080 67.500 60.000 +/+
1280 x 720 44.444 59.979 +/-
1920 x 1080 66.587 59.934 +/-
2560 x 1440 88.787 59.951 +/- Recommended (PIP: On)
3840 x 2160 133.313 59.997 +/-
6144 x 3456 105.187 30.011 +/-
Recommended ([Input Compatibility
Version]: [1.2])
3072 x 3456 213.376 60.021 +/- Recommended (PBP: On)
6144 x 3456 176.962 50.018 +/- Recommended ([Thunderbolt OUT]: On)
6144 x 3456 213.374 60.021 +/-
Recommended ([Input Compatibility
Version]: [1.4] or [2.1])
background
29
ENGLISH
HDMI Timing (Video)
Resolution Horizontal Frequency (kHz) Vertical Frequency (Hz)
480P 31.5 60
720P 45.0 60
1080P 67.5 60
2160P 135.0 60
background
30
ENGLISH
TROUBLESHOOTING
Please refer to the list below if you experience any of the following issues during product use.
It may not be a malfunction.
Nothing is displayed on the screen.
Is the monitor's power cord plugged in?
- Check if the power cord is correctly plugged into the power outlet.
- If the monitor is in sleep mode (standby mode), move the mouse, or press any key on the keyboard, to
switch the display on.
- Check if the computer is turned on.
Is the monitor powered on?
- Check if the input setting is correct. ([Settings] > [Input])
Is the [The screen is not currently set to the recommended resolution.] message being displayed?
- This occurs when signals transferred from the PC (graphics card) are out of the recommended horizontal or
vertical frequency range of the monitor. Please see the "PRODUCT SPECIFICATION" section of this manual to
set the appropriate frequency.
Is the [No Signal] message being displayed?
- This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check
the cable and reconnect it.
Is the [Out of Range] message being displayed?
- This occurs when signals transferred from the PC (graphics card) are out of the horizontal or vertical
frequency range of the monitor. Please see the "PRODUCT SPECIFICATION" section of this manual to set the
appropriate frequency.
Do you see an "Unrecognized monitor, Plug and Play (VESA DDC) monitor found" message?
Have you installed the display driver?
- Be sure to install the display driver from our web site: https://www.lg.com.
- Make sure to check if the graphics card supports Plug and Play function.
The screen retains an image.
Does image sticking occur even when the monitor is turned off?
- Displaying a still image for a prolonged time may cause damage to the screen, resulting in the retention
of the image.
- To extend the lifetime of the monitor, use a screensaver.
Screen display is unstable and shaky. / Images displayed on the monitor leave shadow trails.
Did you select the appropriate resolution?
- If the selected resolution is HDMI 1080i 60/50 Hz (interlaced), the screen may be flickering. Change the
resolution to 1080p or the recommended resolution.
- Not setting the graphics card to the recommended (optimal) resolution may result in blurred text, a
dimmed screen, a truncated display area or misalignment of the display.
- The setting methods may be different depending on the computer or operating system, and some
resolutions may not be available depending on the performance of the graphics card. If this is the case,
contact the manufacturer of the computer or graphics card for assistance.
background
31
ENGLISH
The display color is abnormal.
Does the display appear discolored (16 colors)?
- Set the color to 24 bit (true color) or higher. (The settings may differ depending on the operating system
(OS) you use.)
Does the display color appear unstable or monochrome?
- Check if the signal cable is connected properly. Reconnect the cable or reinsert the PC's graphics card.
Are there spots on the screen?
- When using the monitor, pixilated spots (red, green, blue, white, or black) may appear on the screen. This
is normal for an LCD screen. It is not an error, nor is it related to the monitor's performance.
Some features are disabled.
Are some functions not available when you press the Menu button?
- The OSD is locked. Disable [OSD Lock] in [General].
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI, HDMI High-Definition Multimedia
Interface, HDMI Trade Dress and the HDMI Logos are
trademarks or registered trademarks of HDMI Licensing
Administrator, Inc.
Thunderbolt and the Thunderbolt logo are trademarks of
Intel Corporation or its subsidiaries in the U.S. and/or other
countries.
background
32
ENGLISH
VESA, VESA logo, DisplayPort compliance logo and
DisplayPort compliance logo for dual-mode source devices
are all registered trademarks of the Video Electronics
Standards Association.
USB Type-C
®
and USB-C
®
are registered trademarks of USB Implementers Forum. USB 2.0 Type-C™ is a
trademark of USB Implementers Forum.
OPEN SOURCE SOFTWARE NOTICE
INFORMATION
To obtain the source code that is contained in this product, under GPL, LGPL, MPL, and other open source
licenses that have the obligation to disclose source code, and to access all referred license terms, copyright
notices and other relevant documents, please visit https://opensource.lge.com.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing
such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge.
com.
This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of
this product.
background
33
ENGLISH
BEEP GUIDE
Menu Location
Quick Settings 1
Quick Settings - Brightness 1 1
Quick Settings - Brightness 1 1 1 Slider
Quick Settings - Auto Brightness 1 2 Toggle
Quick Settings - Contrast 1 3
Quick Settings - Contrast 1 3 1 Slider
Quick Settings - Volume 1 4
Quick Settings - Volume 1 4 1 Slider
Quick Settings - Color Temp 1 5
Quick Settings - Color Temp - Custom 1 5 1
Quick Settings - Color Temp - Warm 1 5 2
Quick Settings - Color Temp - Medium 1 5 3
Quick Settings - Color Temp - Cool 1 5 4
Quick Settings - Color Temp - Manual 1 5 5
Quick Settings - Color Temp - Manual 1 5 5 1 Slider
Quick Settings - PBP / PIP 1 6
Quick Settings - PBP / PIP - Off 1 6 1
Quick Settings - PBP / PIP - PBP 1 6 2
Quick Settings - PBP / PIP - PIP 1 6 3
Quick Settings - USB Selection 1 7
Quick Settings - USB Selection - HDMI - USB-C 1 7 1 1
Quick Settings - USB Selection - HDMI - Thunderbolt 1 7 1 2
Quick Settings - USB Selection - DisplayPort - USB-C 1 7 2 1
Quick Settings - USB Selection - DisplayPort -
Thunderbolt
1 7 2 2
Quick Settings - USB Selection - Thunderbolt - USB-C 1 7 3 1
Quick Settings - USB Selection - Thunderbolt -
Thunderbolt
1 7 3 2
Menu Location
Input 2
Input - Input List 2 1
Input - Input List - HDMI 2 1 1
Input - Input List - DisplayPort 2 1 2
Input - Input List - Thunderbolt 2 1 3
Input - Auto Input Switch 2 2 Toggle
Input - Aspect Ratio 2 3
Input - Aspect Ratio - Full Wide 2 3 1
Input - Aspect Ratio - Original 2 3 2
Input - Aspect Ratio - Just Scan 2 3 3
Input - PBP / PIP 2 4
Input - PBP / PIP - Off 2 4 1
Input - PBP / PIP - PBP 2 4 2
Input - PBP / PIP - PIP 2 4 3
Input - PIP Size 2 5
Input - PIP Size - Small 2 5 1
Input - PIP Size - Medium 2 5 2
Input - PIP Size - Large 2 5 3
Input - PIP Position 2 6
Input - PIP Position - Bottom Right 2 6 1
Input - PIP Position - Bottom Left 2 6 2
Input - PIP Position - Top Left 2 6 3
Input - PIP Position - Top Right 2 6 4
Input - Main/Sub Screen Change 2 7
Input - Main/Sub Screen Change - OK 2 7 1
Input - Main/Sub Sound Change 2 8
Input - Main/Sub Sound Change - OK 2 8 1
Picture 3
Picture - Picture Mode 3 1
Picture - Picture Mode - Personalized Picture 3 1 1
Menu Location
Picture - Picture Mode - Custom 3 1 2
Picture - Picture Mode - Vivid 3 1 3
Picture - Picture Mode - HDR Effect 3 1 4
Picture - Picture Mode - Reader 3 1 5
Picture - Picture Mode - Cinema 3 1 6
Picture - Picture Mode - sRGB 3 1 7
Picture - Picture Mode - Adobe RGB 3 1 8
Picture - Picture Mode - DCI-P3 3 1 9
Picture - Picture Mode - FPS 3 1 10
Picture - Picture Mode - RTS 3 1 11
Picture - Picture Mode - Color Weakness 3 1 12
Picture - Picture Mode - Calibration 1 3 1 13
Picture - Picture Mode - Calibration 2 3 1 14
Picture - Picture Adjust 3 2
Picture - Picture Adjust - Brightness 3 2 1
Picture - Picture Adjust - Brightness 3 2 1 1 Slider
Picture - Picture Adjust - Auto Brightness 3 2 2 Toggle
Picture - Picture Adjust - Contrast 3 2 3
Picture - Picture Adjust - Contrast 3 2 3 1 Slider
Picture - Picture Adjust - Sharpness 3 2 4
Picture - Picture Adjust - Sharpness 3 2 4 1 Slider
Picture - Picture Adjust - SUPER RESOLUTION+ 3 2 5
Picture - Picture Adjust - SUPER RESOLUTION+ - High 3 2 5 1
Picture - Picture Adjust - SUPER RESOLUTION+ -
Middle
3 2 5 2
Picture - Picture Adjust - SUPER RESOLUTION+ - Low 3 2 5 3
Picture - Picture Adjust - SUPER RESOLUTION+ - Off 3 2 5 4
Picture - Picture Adjust - Black Level 3 2 6
Picture - Picture Adjust - Black Level - High 3 2 6 1
Picture - Picture Adjust - Black Level - Low 3 2 6 2
background
34
ENGLISH
Menu Location
Picture - Picture Adjust - Deep Black Pro - High 3 2 7 1
Picture - Picture Adjust - Deep Black Pro - Middle 3 2 7 2
Picture - Picture Adjust - Deep Black Pro - Low 3 2 7 3
Picture - Picture Adjust - Deep Black Pro - Off 3 2 7 4
Picture - Game Adjust 3 3
Picture - Game Adjust - Response Time 3 3 1
Picture - Game Adjust - Response Time - Faster 3 3 1 1
Picture - Game Adjust - Response Time - Fast 3 3 1 2
Picture - Game Adjust - Response Time - Normal 3 3 1 3
Picture - Game Adjust - Response Time - Off 3 3 1 4
Picture - Game Adjust - Black Stabilizer 3 3 2
Picture - Game Adjust - Black Stabilizer 3 3 2 1 Slider
Picture - Color Adjust 3 4
Picture - Color Adjust - Gamma 3 4 1
Picture - Color Adjust - Gamma - Mode 1 3 4 1 1
Picture - Color Adjust - Gamma - Mode 2 3 4 1 2
Picture - Color Adjust - Gamma - Mode 3 3 4 1 3
Picture - Color Adjust - Gamma - Mode 4 3 4 1 4
Picture - Color Adjust - Color Temp 3 4 2
Picture - Color Adjust - Color Temp - Custom 3 4 2 1
Picture - Color Adjust - Color Temp - Warm 3 4 2 2
Picture - Color Adjust - Color Temp - Medium 3 4 2 3
Picture - Color Adjust - Color Temp - Cool 3 4 2 4
Picture - Color Adjust - Color Temp - Manual 3 4 2 5
Picture - Color Adjust - Color Temp - Manual 3 4 2 5 1 Slider
Picture - Color Adjust - Red 3 4 3
Picture - Color Adjust - Red 3 4 3 1 Slider
Picture - Color Adjust - Green 3 4 4
Picture - Color Adjust - Green 3 4 4 1 Slider
Picture - Color Adjust - Blue 3 4 5
Menu Location
Picture - Color Adjust - Blue 3 4 5 1 Slider
Picture - Color Adjust - Six Color 3 4 6
Picture - Color Adjust - Six Color - Red Hue 3 4 6 1
Picture - Color Adjust - Six Color - Red Hue 3 4 6 1 1 Slider
Picture - Color Adjust - Six Color - Red Saturation 3 4 6 2
Picture - Color Adjust - Six Color - Red Saturation 3 4 6 2 1 Slider
Picture - Color Adjust - Six Color - Green Hue 3 4 6 3
Picture - Color Adjust - Six Color - Green Hue 3 4 6 3 1 Slider
Picture - Color Adjust - Six Color - Green Saturation 3 4 6 4
Picture - Color Adjust - Six Color - Green Saturation 3 4 6 4 1 Slider
Picture - Color Adjust - Six Color - Blue Hue 3 4 6 5
Picture - Color Adjust - Six Color - Blue Hue 3 4 6 5 1 Slider
Picture - Color Adjust - Six Color - Blue Saturation 3 4 6 6
Picture - Color Adjust - Six Color - Blue Saturation 3 4 6 6 1 Slider
Picture - Color Adjust - Six Color - Cyan Hue 3 4 6 7
Picture - Color Adjust - Six Color - Cyan Hue 3 4 6 7 1 Slider
Picture - Color Adjust - Six Color - Cyan Saturation 3 4 6 8
Picture - Color Adjust - Six Color - Cyan Saturation 3 4 6 8 1 Slider
Picture - Color Adjust - Six Color - Magenta Hue 3 4 6 9
Picture - Color Adjust - Six Color - Magenta Hue 3 4 6 9 1 Slider
Picture - Color Adjust - Six Color - Magenta Saturation 3 4 6 10
Picture - Color Adjust - Six Color - Magenta Saturation 3 4 6 10 1 Slider
Picture - Color Adjust - Six Color - Yellow Hue 3 4 6 11
Picture - Color Adjust - Six Color - Yellow Hue 3 4 6 11 1 Slider
Picture - Color Adjust - Six Color - Yellow Saturation 3 4 6 12
Picture - Color Adjust - Six Color - Yellow Saturation 3 4 6 12 1 Slider
Picture - Picture Reset 3 5
Picture - Picture Reset - No 3 5 1
Picture - Picture Reset - Yes 3 5 2
General 4
Menu Location
General - Language 4 1
General - Language - English 4 1 1
General - Language - German 4 1 2
General - Language - French 4 1 3
General - Language - Spanish 4 1 4
General - Language - Italian 4 1 5
General - Language - Swedish 4 1 6
General - Language - Finnish 4 1 7
General - Language - Portuguese 4 1 8
General - Language - Portuguese (Brazil) 4 1 9
General - Language - Polish 4 1 10
General - Language - Russian 4 1 11
General - Language - Turkish 4 1 12
General - Language - Ukrainian 4 1 13
General - Language - Chinese 4 1 14
General - Language - Traditional Chinese 4 1 15
General - Language - Japanese 4 1 16
General - Language - Korean 4 1 17
General - Language - Arabic 4 1 18
General - USB Selection 4 2
General - USB Selection - HDMI - USB-C 4 2 1 1
General - USB Selection - HDMI - Thunderbolt 4 2 1 2
General - USB Selection - DisplayPort - USB-C 4 2 2 1
General - USB Selection - DisplayPort - Thunderbolt 4 2 2 2
General - USB Selection - Thunderbolt - USB-C 4 2 3 1
General - USB Selection - Thunderbolt - Thunderbolt 4 2 3 2
General - USB Switch 4 3
General - USB Switch - USB-C 4 3 1
General - USB Switch - Thunderbolt 4 3 2
General - SMART ENERGY SAVING 4 4
background
35
ENGLISH
Menu Location
General - SMART ENERGY SAVING - High 4 4 1
General - SMART ENERGY SAVING - Low 4 4 2
General - SMART ENERGY SAVING - Off 4 4 3
General - User-defined Key 1 4 5
General - User-defined Key 1 - PBP / PIP 4 5 1
General - User-defined Key 1 - Picture Mode 4 5 2
General - User-defined Key 1 - USB Switch 4 5 3
General - User-defined Key 1 - Input 4 5 4
General - User-defined Key 2 4 6
General - User-defined Key 2 - PBP / PIP 4 6 1
General - User-defined Key 2 - Picture Mode 4 6 2
General - User-defined Key 2 - USB Switch 4 6 3
General - User-defined Key 2 - Input 4 6 4
General - Deep Sleep Mode 4 7 Toggle
General - Automatic Standby 4 8
General - Automatic Standby - 8H 4 8 1
General - Automatic Standby - 6H 4 8 2
General - Automatic Standby - 4H 4 8 3
General - Automatic Standby - Off 4 8 4
General - Input Compatibility Version 4 9
General - Input Compatibility Version - 2.1(PC) / 2.1 4 9 1
General - Input Compatibility Version - 2.1(AV) / 1.4 4 9 2
General - Input Compatibility Version - 1.4 / 1.2 4 9 3
General - Thunderbolt OUT 4 10 Toggle
General - Buzzer 4 11 Toggle
General - OSD Lock 4 12 Toggle
General - Screen Self-diagnosis 4 13
General - Screen Self-diagnosis - No 4 13 1
General - Screen Self-diagnosis - No 4 13 1 1
General - Screen Self-diagnosis - Yes 4 13 2
Menu Location
General - Screen Self-diagnosis - Yes 4 13 2 1
General - Sound Self-diagnosis 4 14
General - Sound Self-diagnosis - No 4 14 1
General - Sound Self-diagnosis - No 4 14 1 1
General - Sound Self-diagnosis - Yes 4 14 2
General - Sound Self-diagnosis - Yes 4 14 2 1
General - Information 4 15
General - Information 4 15 1
General - Open Source Software License 4 16
General - Open Source Software License 4 16 1
General - Reset to Initial Settings 4 17
General - Reset to Initial Settings - No 4 17 1
General - Reset to Initial Settings - Yes 4 17 2
background
36
ENGLISH
LIMITED WARRANTY (USA)
THE PRODUCT’S FULL LIMITED WARRANTY TERMS AND CONDITIONS ARE AVAILABLE AT https://www.lg.com/us AND/OR YOUR WARRANTY.
ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG ELECTRONICS (“LG”) TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS YOU
CHOOSE TO OPT OUT. IN ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW.
PROCEDURE FOR RESOLVING DISPUTES:
ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL
JURISDICTION. BINDING ARBITRATION MEANS THAT YOU AND LG ARE EACH WAIVING THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.
Definitions. For the purposes of this section, references to “LG mean LG Electronics U.S.A., Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest,
successors, assigns and suppliers; references to dispute or claim” shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or
any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.
Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc.
Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address,
and telephone number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days, either party may proceed
to file a claim for arbitration.
Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after sending written notice to LG, you and LG agree to resolve any claims between us only by binding
arbitration on an individual basis, unless you opt out as provided below. Any dispute between you and LG shall not be combined or consolidated with a dispute involving any other person’s or entitys product or claim. More
specifically, without limitation of the foregoing, any dispute between you and LG shall not under any circumstances proceed as part of a class or representative action. Instead of arbitration, either party may bring an individual
action in small claims court, but that small claims court action may not be brought on a class or representative basis.
Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be administered by the American Arbitration Association (“AAA”) and will be
conducted before a single arbitrator under the AAAs Consumer Arbitration Rules that are in effect at the time the arbitration is initiated (referred to as the AAA Rules”) and under the procedures set forth in this section. The AAA
Rules are available online at www.adr.org/consumer. Send a copy of your written demand for arbitration, as well as a copy of this provision, to the AAA in the manner described in the AAA Rules. You must also send a copy of your
written demand to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632. If there is a conflict between the AAA Rules and the rules set forth in this section, the rules set
forth in this section will govern. This arbitration provision is governed by the Federal Arbitration Act. Judgment may be entered on the arbitrator’s award in any court of competent jurisdiction. All issues are for the arbitrator to
decide, except that issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound by the terms of this provision.
background
37
ENGLISH
Governing Law. The law of the state of your residence shall govern this Limited Warranty and any disputes between us except to the extent that such law is preempted by or inconsistent with applicable federal law.
Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees to the AAA unless you seek more than $25,000 in damages,
in which case the payment of these fees will be governed by the AAA Rules. Except as otherwise provided for herein, LG will pay all AAA filing, administration and arbitrator fees for any arbitration initiated in accordance with the
AAA Rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys’ fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the purchase amount and
claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys’ fees and expenses, an arbitrator can award them to the same extent that a court would. If the arbitrator finds either the
substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the standards set forth in Federal Rule of Civil Procedure 11(b)), then the payment of all arbitration fees
will be governed by the AAA Rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the AAA Rules. Except as otherwise provided for, LG waives
any rights it may have to seek attorneys’ fees and expenses from you if LG prevails in the arbitration.
Hearings and Location. If your claim is for $25,000 or less, you may choose to have the arbitration conducted solely on the basis of (1) documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an
in-person hearing as established by the AAA Rules. If your claim exceeds $25,000, the right to a hearing will be determined by the AAA Rules. Any in-person arbitration hearings will be held at a location within the federal judicial
district in which you reside unless we both agree to another location or we agree to a telephonic arbitration.
Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar
days from the date of the first consumer purchaser’s purchase of the product by either: (i) sending an e-mail to [email protected], with the subject line: Arbitration Opt Out” or (ii) calling 1- 800-980-2973. You must include in the
opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the serial number (the serial number can be found (i)
on the product; or (ii) online by accessing https://www.lg.com/us/support and clicking on “How do I find my model number?”).
You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure.
Opting out of this dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out,
then you accept all terms and conditions of the arbitration provision described above.
background
38
ENGLISH
LIMITED WARRANTY (CANADA)
THE PRODUCT’S FULL LIMITED WARRANTY TERMS AND CONDITIONS ARE AVAILABLE AT https://www.lg.com/ca_en/ AND/OR YOUR WARRANTY.
ARBITRATION NOTICE: THIS LIMITED WARRANTY CONTAINS AN ARBITRATION PROVISION THAT REQUIRES YOU AND LG TO RESOLVE DISPUTES BY BINDING ARBITRATION INSTEAD OF IN COURT, UNLESS THE LAWS OF YOUR PROVINCE
OR TERRITORY DO NOT PERMIT THAT, OR, IN OTHER JURISDICTIONS, IF YOU CHOOSE TO OPT OUT. FOR FURTHER CLARITY, THIS ARBITRATION PROVISION IS NOT APPLICABLE TO CONSUMERS RESIDING IN ONTARIO AND QUÉBEC. IN
ARBITRATION, CLASS ACTIONS AND JURY TRIALS ARE NOT PERMITTED. PLEASE SEE THE SECTION TITLED “PROCEDURE FOR RESOLVING DISPUTES” BELOW.
DISCLAIMER:
IF YOU ARE A CONSUMER SUBJECT TO QUÉBEC AND ONTARIO’S CONSUMER PROTECTION ACT, THE EXCLUSION OF WARRANTIES CONTAINED IN THIS SECTION DO NOT EXCLUDE OR LIMIT THE RIGHTS AND REMEDIES THAT YOU MAY
HAVE UNDER SUCH ACT, INCLUDING THE RIGHT TO MAKE A CLAIM UNDER ANY OF THE STATUTORY WARRANTIES PROVIDED THEREUNDER.
PROCEDURE FOR RESOLVING DISPUTES:
EXCEPT WHERE PROHIBITED AT LAW (INCLUDING WITH RESPECT TO QUÉBEC AND ONTARIO CONSUMERS), ALL DISPUTES BETWEEN YOU AND LG ARISING OUT OF OR RELATING IN ANY WAY TO THIS LIMITED WARRANTY OR THE PRODUCT
SHALL BE RESOLVED EXCLUSIVELY THROUGH BINDING ARBITRATION, AND NOT IN A COURT OF GENERAL JURISDICTION. EXCEPT WHERE PROHIBITED AT LAW (INCLUDING WITH RESPECT TO QUÉBEC AND ONTARIO CONSUMERS), YOU
AND LG BOTH IRREVOCABLY AGREE TO WAIVE THE RIGHT TO A JURY TRIAL AND TO BRING OR PARTICIPATE IN A CLASS ACTION.
Definitions. For the purposes of this section, references to “LG mean LG Electronics Canada, Inc., its parents, subsidiaries and affiliates, and each of their officers, directors, employees, agents, beneficiaries, predecessors in interest,
successors, assigns and suppliers; references to dispute or claim” shall include any dispute, claim or controversy of any kind whatsoever (whether based in contract, tort, statute, regulation, ordinance, fraud, misrepresentation or
any other legal or equitable theory) arising out of or relating in any way to the sale, condition or performance of the product or this Limited Warranty.
Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LGECI Legal Team at 20 Norelco
Drive, North York, Ontario, Canada M9L 2X6 (the “Notice of Dispute”). You and LG agree to engage in good faith discussions in an attempt to amicably resolve your claim. The notice must provide your name, address, and telephone
number; identify the product that is the subject of the claim; and describe the nature of the claim and the relief being sought. If you and LG are unable to resolve the dispute within 30 days of LG’s receipt of the Notice of Dispute,
the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein. You and LG both agree that, during the arbitration proceeding, the terms (including any amount) of any settlement offer made
by either you or LG will not be disclosed to the arbitrator until the arbitrator determines the dispute.
background
39
ENGLISH
Agreement to Binding Arbitration and Class Action Waiver. Upon failure to resolve the dispute during the 30 day period after LG’s receipt of the Notice of Dispute, you and LG agree to resolve any claims between you and LG
only by binding arbitration on an individual basis, unless you opt out as provided below, or you reside in a jurisdiction that prevents full application of this clause in the circumstances of the claims at issue (in which case if you are
a consumer, this clause will only apply if you expressly agree to the arbitration). To the extent permitted by applicable law, any dispute between you and LG shall not be combined or consolidated with a dispute involving any other
person’s or entitys product or claim. More specifically, without limitation of the foregoing, except to the extent such a prohibition is not permitted at law, any dispute between you and LG shall not under any circumstances proceed
as part of a class or representative action. Instead of arbitration, either party may bring an individual action in small claims court, but that small claims court action may not be brought on a class or representative basis except
to the extent this prohibition is not permitted at law in your province or territory of jurisdiction as it relates to the claims at issue between you and LG. This does not apply to consumers in Ontario and Québec. In accordance with
provincial legislation, the consumer and LG may agree to resolve the dispute using any procedure available, including commencing the action before the competent courts of those provinces.
Arbitration Rules and Procedures. To begin arbitration of a claim, either you or LG must make a written demand for arbitration. The arbitration will be private and confidential, and conducted on a simplified and expedited
basis before a single arbitrator chosen by the parties under the provincial or territorial commercial arbitration law and rules of the province or territory of your residence. You must also send a copy of your written demand to LG at
LG Electronics, Canada, Inc., Attn: Legal Department- Arbitration, 20 Norelco Drive, North York, Ontario M9L 2X6. This arbitration provision is governed by your applicable provincial or territorial commercial arbitration legislation.
For consumers in Ontario and Québec, the applicable arbitration legislation only applies if consumers agree to submit the dispute to arbitration. Judgment may be entered on the arbitrator’s award in any court of competent
jurisdiction. All issues are for the arbitrator to decide, except that, issues relating to the scope and enforceability of the arbitration provision and to the arbitrability of the dispute are for the court to decide. The arbitrator is bound
by the terms of this provision.
Governing Law. The law of the province or territory of your purchase shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with applicable
federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG attorn to the exclusive jurisdiction of the courts of the province or territory of
your purchase for the resolution of the claim, action, dispute or controversy between you and LG.
Fees/Costs. You do not need to pay any fee to begin an arbitration. Upon receipt of your written demand for arbitration, LG will promptly pay all arbitration filing fees unless you seek more than $25,000 in damages, in which
case the payment of these fees will be governed by the applicable arbitration rules. Except as otherwise provided for herein, LG will pay all filing, administration and arbitrator fees for any arbitration initiated in accordance with
the applicable arbitration rules and this arbitration provision. If you prevail in the arbitration, LG will pay your attorneys’ fees and expenses as long as they are reasonable, by considering factors including, but not limited to, the
purchase amount and claim amount. Notwithstanding the foregoing, if applicable law allows for an award of reasonable attorneys’ fees and expenses, an arbitrator can award them to the same extent that a court would. If the
arbitrator finds either the substance of your claim or the relief sought in the demand is frivolous or brought for an improper purpose (as measured by the applicable laws), then the payment of all arbitration fees will be governed
by the applicable arbitration rules. In such a situation, you agree to reimburse LG for all monies previously disbursed by it that are otherwise your obligation to pay under the applicable arbitration rules. Except as otherwise
provided for, LG waives any rights it may have to seek attorneys fees and expenses from you if LG prevails in the arbitration.
Hearings and Location. If your claim is for $25,000 or less, you may choose to have the arbitration conducted solely (1) on the basis of documents submitted to the arbitrator, (2) through a telephonic hearing, or (3) by an
in-person hearing as established by the applicable arbitration rules. If your claim exceeds $25,000, the right to a hearing will be determined by the applicable arbitration rules. Any in-person arbitration hearings will be held at the
nearest, most mutually-convenient arbitration location available within the province or territory in which you reside unless you and LG both agree to another location or agree to a telephonic arbitration.
Severability and Waiver. If any portion of this Limited Warranty (including these arbitration procedures) is unenforceable, the remaining provisions will continue in full force and effect to the maximum extent permitted by
applicable law. Should LG fail to enforce strict performance of any provision of this Limited Warranty (including these arbitration procedures), it does not mean that LG intends to waive or has waived any provision or part of this
Limited Warranty.
background
40
ENGLISH
Opt Out. The arbitration provision requires you and LG to resolve disputes by binding arbitration instead of court, unless the laws of your province or territory do not permit that, or, in other jurisdictions, if you choose to opt out.
The arbitration provision does not apply to consumers in Ontario and Québec.
For individuals that fall within the binding arbitration provisions, you may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out,
you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by either (i) sending an e-mail to [email protected], with the subject line: Arbitration Opt Out;” or
(ii) calling 1-800-980-2973. You must include in the opt out e-mail or provide by telephone: (a) your name and address; (b) the date on which the product was purchased; (c) the product model name or model number; and (d) the
serial number (the serial number can be found (i) on the product; or (ii) online by accessing https://www.lg.com/ca_en/findmodel_serial/ ).
In the event that you “Opt Out”, the law of the province or territory of your residence shall govern this Limited Warranty and any disputes between you and LG except to the extent that such law is preempted by or inconsistent with
applicable federal or provincial/territorial law. Should arbitration not be permitted for any claim, action, dispute or controversy between you and LG, you and LG agree to attorn to the exclusive jurisdiction
of the courts of the province or territory of your residence for the resolution of the claim, action, dispute or controversy between you and LG.
You may only opt out of the dispute resolution procedure in the manner described above (that is, by e-mail or telephone); no other form of notice will be effective to opt out of this dispute resolution procedure. Opting out of this
dispute resolution procedure will not affect the coverage of the Limited Warranty in any way, and you will continue to enjoy the full benefits of the Limited Warranty. If you keep this product and do not opt out, then you accept all
terms and conditions of the arbitration provision described above.
Conflict of Terms. In the event of a conflict or inconsistency between the terms of this Limited Warranty and the End User License Agreement (“EULA”) in regards to dispute resolution, the terms of this Limited Warranty shall
control and govern the rights and obligations of the parties and shall take precedence over the EULA.
background
The model and serial number of the product are located on the back and on one side
of the product.
Record them below in case you ever need service.
Model
Serial No.
This Product qualifies for ENERGY STAR
®
Changing the factory default configuration and settings or
enabling certain optional features and functionalities may
increase energy consumption beyond the limits required
for ENERGY STAR
®
certification. Refer to ENERGYSTAR.gov
for more information on the ENERGY STAR
®
program.
Supplier's Declaration of Conformity
Trade Name LG
Responsible
Party
LG Electronics USA, Inc.
Address
111 Sylvan Avenue, North
Building, Englewood Cliffs,
NJ 07632

Specifications

LG Electronics 32U990A-S Questions and Answers
