Comfort Zone CZHVP18EX 18" 3-Speed High-Velocity Industrial User Manual

Owner’s Manual

Please Read & Save These Instructions

www.comfortzone-us.com

18" High Velocity

Oscillating Pedestal Fan

Features:

•WideAreaOscillation

•ON/OFFSwitchwith

3SpeedSettings

•HighPerformance

Blade

•AdjustableHeight

•LargeStableBase

•SafetyGrilles

•120VA.C./60Hz.

CZHVP18EX

Downloaded from www.ManualsFile.com manuals search engine

CZHVP18EX

www.comfortzone-us.com

Intended Use:

This product is intended for indoor residential and ofﬁce use only,

not for industrial or other commercial applications. Use only with

electrical wiring that is in good working order and that meets

applicable codes and ordinances. If you have any questions

whether your wiring is adequate, consult a qualiﬁed electrician.

While using your fan, you should follow the IMPORTANT

INSTRUCTIONS listed below. As part of those instructions, we

have used the word "WARNING" to indicate the level of hazard:

WARNING indicates a hazard which, if not avoided, could result

in injury or death.

IMPORTANT INSTRUCTIONS

As with all electrical appliances, basic safety precautions should

always be followed to reduce the risk of electric shock, ﬁre, or

injury to persons, including the following precautions:

•฀Read฀all฀the฀instructions฀before฀using฀this฀fan.฀

•฀Use฀this฀fan฀only฀as฀described฀in฀this฀manual.฀Any฀other฀use฀not฀

recommended by the manufacturer may cause electrical shock,

ﬁre or injury to persons.

•฀Do฀not฀operate฀the฀fan฀with฀a฀damaged฀power฀cord฀or฀after฀the฀

fan malfunctions or has been dropped in any manner.

•฀Use฀of฀extreme฀caution฀is฀necessary฀when฀any฀fan฀is฀used฀by฀or฀

near children, disabled persons or pets and whenever the fan is

left operating unattended.

•฀Do฀not฀place฀the฀fan฀on฀a฀small,฀unlevel,฀uneven฀or฀any฀surface฀

which might allow fan to tip or fall.

•฀For฀proper฀operation,฀fan฀should฀be฀placed฀on฀a฀smooth,฀

non-combustible, level surface.

•฀Always฀unplug฀fan฀when฀not฀in฀use,฀when฀moving฀from฀place฀

to place, when assembling or disassembling parts, and before

cleaning.

•฀The฀use฀of฀attachments,฀not฀recommended฀or฀sold฀by฀the฀

manufacturer, may cause hazards.

•฀Do฀not฀use฀outdoors.

•฀Do฀not฀use฀fan฀in฀window.฀Rain฀may฀cause฀electrical฀hazard฀

(for non-window models).

•฀Do฀not฀operate฀the฀fan฀with฀blade฀guards฀or฀any฀safety฀device฀

removed.

•฀Avoid฀the฀use฀of฀extension฀cords฀due฀to฀risk฀of฀re.฀If฀an฀

extension฀cord฀must฀be฀used,฀the฀cord฀must฀be฀minimum฀

14 AWG and rated not less then 1875 watts.

•฀Do฀not฀run฀power฀cord฀under฀carpeting.฀Do฀not฀cover฀cord฀with฀

throw rugs, runners or the like. Arrange cord away from trafﬁc

area where it will not be tripped over.

•฀Do฀not฀insert฀or฀allow฀any฀object฀to฀enter฀any฀openings฀on฀the฀

fan.฀Doing฀so฀may฀cause฀electric฀shock฀and/or฀re฀hazard.฀

Avoid contact with moving parts.

•฀This฀appliance฀is฀not฀intended฀for฀use฀by฀persons฀(including฀

children) with reduced physical, sensory or mental capabilities

or฀lack฀of฀experience฀and฀knowledge,฀unless฀they฀have฀

been given supervision or instruction concerning use of the

appliance by a person responsible for their safety.

•฀Children฀should฀be฀supervised฀to฀ensure฀they฀do฀not฀play฀with฀

the appliance.

READ & SAVE THESE

INSTRUCTIONS

m WARNING: Shock Hazard

Use your fan only in dry environments. This fan is not intended

for use in a bathroom, laundry area, or similar locations, or near

sinks, washing machines, swimming pools or other sources of

water. Never locate fan where it may fall into a bathtub or other

water฀receptacle.฀Do฀not฀use฀in฀damp฀environments฀such฀as฀

ﬂooded basements.

m WARNING: Hot Surfaces

Do฀not฀touch฀fan฀motor฀when฀in฀use.฀This฀motor฀is฀hot฀when฀in฀

use, to avoid burns, do not let bare skin touch hot surfaces.

m WARNING: Fire Hazard

Fans฀have฀arcing฀or฀sparking฀parts฀inside.฀Do฀not฀use฀near฀

combustible materials or ﬂammable gases or sources of heat.

DO฀NOT฀USE฀in฀areas฀where฀gasoline,฀paint฀or฀ammable฀

materials are used or stored. To prevent a possible ﬁre, do not

block฀air฀intakes฀or฀exhaust฀in฀any฀manner.฀Do฀not฀insert฀or฀allow฀

foreign฀objects฀to฀enter฀any฀ventilation฀or฀exhaust฀opening฀as฀this฀

may cause an electric shock, ﬁre, or damage the fan.

m WARNING: Electrical Shock Hazard

Do฀not฀use฀with฀damaged฀cord฀or฀plug.฀Use฀with฀adequate฀

electrical system that is up to code.

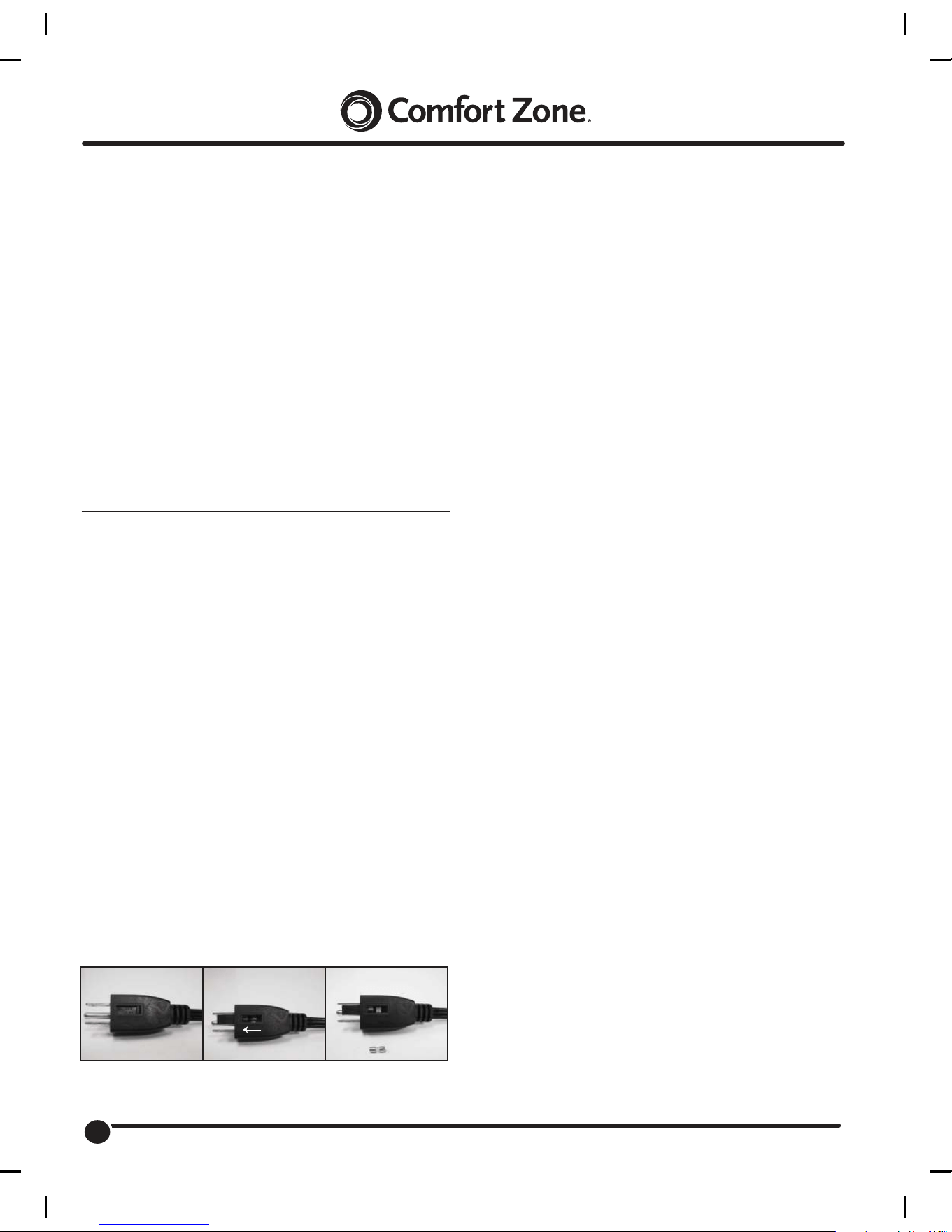

m CAUTION: to Prevent Electric Shock, this product

has a three prong grounded plug that must be inserted into a

matching properly grounded outlet to reduce the risk of electrical

shock.฀Do฀not฀attempt฀to฀defeat฀this฀safety฀feature.

m WARNING: to Reduce the Risk of Fire or Electric

Shock, do not use this product with any solid-state speed

control device.

DO NOT operate any fan with a damaged cord or plug or after

fan malfunctions, has been dropped or damaged in any manner.

Do฀not฀operate฀fan฀with฀a฀broken฀blade,฀safety฀cage฀or฀any฀visual฀

imperfections.฀Disconnect฀power฀before฀servicing.฀฀For฀repairs฀

covered฀under฀warranty,฀see฀warranty฀statement.฀For฀all฀other฀

repairs contact Comfort Zone

Customer Service by telephone or

mail for information and assistance.

DO NOT฀run฀power฀cord฀under฀carpeting.฀DO฀NOT฀cover฀cord฀

with throw rugs, runners or the like. Arrange cord away from

trafﬁc area where it will not be tripped over. Avoid the use of

extension฀cords฀due฀to฀risk฀of฀re.฀If฀an฀extension฀cord฀must฀

be used, the cord must be minimum 14 AWG and rated not

less฀then฀1875฀watts.฀Do฀not฀use฀an฀extension฀cord฀unless฀the฀

plug can be completely inserted into its receptacle. Unplug

the฀fan฀when฀not฀in฀use.฀Do฀not฀operate฀fan฀with฀its฀ventilation฀

obstructed.

Downloaded from www.ManualsFile.com manuals search engine

CZHVP18EX

www.comfortzone-us.com

Usage:

Fan Operation: Always operate the fan in the upright position

following all instructions and recommendations listed in this

manual.

Fan Location: Place the fan in the area of the room that will

provide proper fan cooling.

Fan Connection: Plug fan directly into 120 volt A.C., 60 Hz

wall outlet. Be sure plug ﬁts tightly in outlet. A loose connection

may cause overheating and damage to the plug or fan.

Note: To prevent overloading a circuit, do not plug the fan into a

circuit that is servicing other electrical needs.

Turning Fan On/Off: Place fan on stable level surface. Plug

fan into proper grounded outlet. To start the fan, rotate Control

Dial from “0” (OFF) to desired fan speed (1, 2 or 3). Rotate top

Control Dial again to “0” (OFF) position to discontinue use.

Unplug fan when not in use.

Oscillation: To start fan oscillation, press Oscillation Control

Knob (located above motor housing) down. To stop oscillation

function pull Oscillation Control Knob up while the fan is in any

oscillation position.

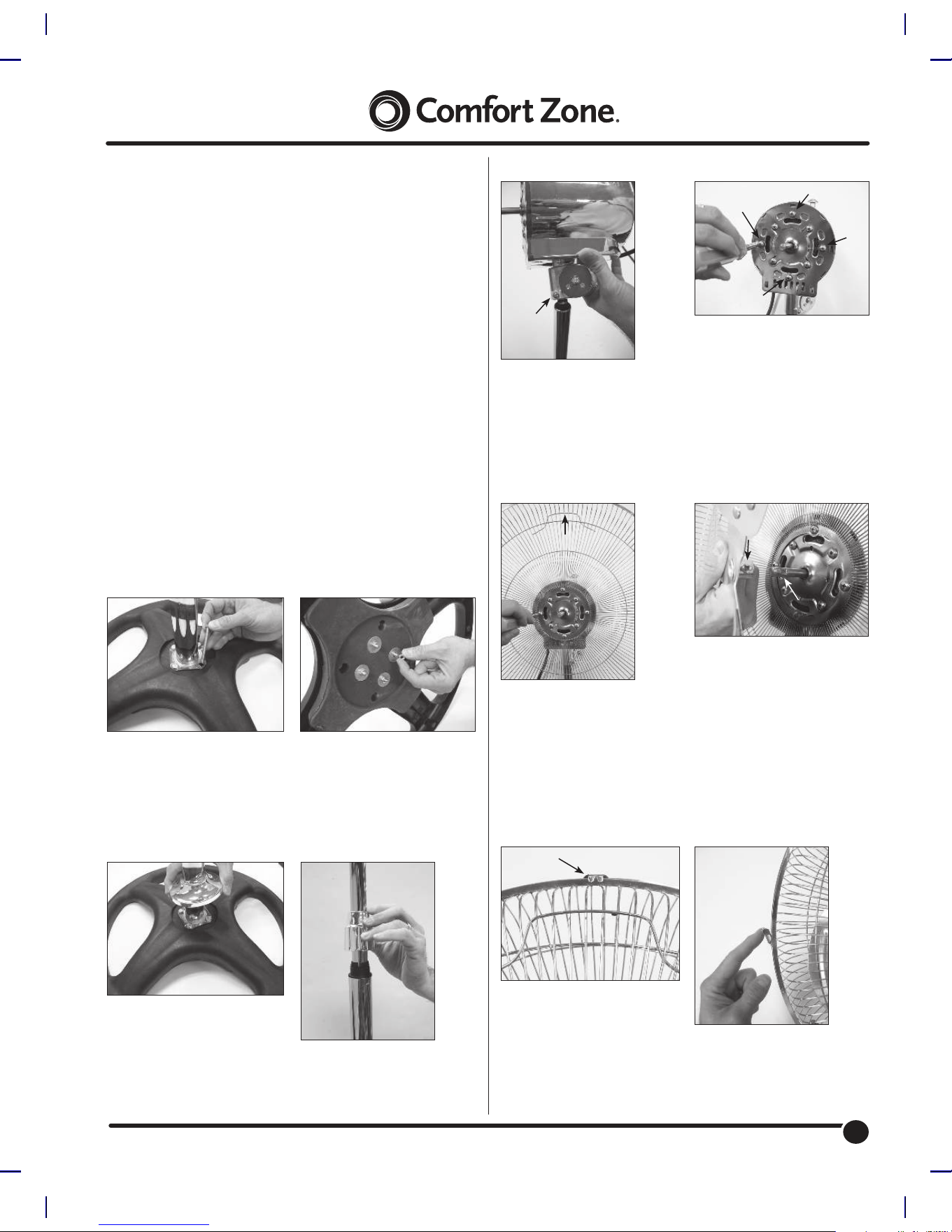

Fan Assembly: Simple assembly is required to use this fan.

Step 3

Step 5

Step 7

Step 9

Step 4

Step 6

Step 8

Step 10

Step 1 Step 2

Assemble Extension Pole onto

Base by inserting 4 ea. 2-1/2"

bolts through openings.

Place decorative Chrome

Flange over Extension Pole to

cover the base screws.

Attach Front Grille to Rear

Grille with Hook Clip centered

on the top above Wire Handle.

Assemble Rear Grille onto

Motor Housing using screws

removed in Step 6. Tighten the

4 screws securely.

Take Fan Motor Housing and

insert it into Extension Pole

and tighten set screw securely.

Using washers and nuts

supplied, tighten Extension

Pole to Base as shown.

Thread Extension Pole Nut

onto threads of Extension Pole.

Press remaining Grille Clips

onto Rear Grille to securely

attach Front Grille. Do not

operate fan without Grille

in place.

Place Fan Blade onto Motor

Shaft. Notice the ﬂat surface

on Motor Shaft. Tighten

set screw securely onto ﬂat

surface on Motor Shaft.

Remove four mounting screws

from Motor Housing where

indicated to use for Rear Grille

in Step 7.

Set

Screw

Set

Screw

Flat

Surface

Wire

Handle

on Top

Hook Clip

Downloaded from www.ManualsFile.com manuals search engine

CZHVP18EX

www.comfortzone-us.com

Limited Warranty

Products manufactured by Comfort Zone

are warranted to

the original consumer to be free of defects in material and

workmanship for twelve (12) months from the original date

of purchase. The warranty does not cover products modiﬁed

outside our factory, damage or failure caused by acts of God,

abuse, misuse, abnormal usage, faulty installation, failure to

follow suggested maintenance procedures enclosed with this

product (as deﬁned by Magnuson-Moss Warranty-Federal

Trade Commission Improvement Act). This unit is guaranteed

to the original retail purchaser against defects in quality or

workmanship for a period of one year from the date of original

purchase. If this unit fails because of a manufacturing defect

within 30 days of purchase, return the unit, with your receipt, to

the retailer. After 30 days, but within the warranty period, if the

unit was purchased within the continental United States, return it,

freight prepaid, to Comfort Zone

for repair or replacement. If the

unit was purchased outside the continental United States, return

the unit to the place of purchase. This warranty does not cover

damage due to accidents, operation on other than 120 volts /

60 hertz A.C. current, or any other abuse. All implied warranties,

including the warranties of merchantability and of ﬁtness of

purpose, if applicable, are hereby limited in duration to the period

of one year from the date of original retail purchase. Some States

do not allow limitations on how long an implied warranty lasts,

so the above limitations may not apply to you. Incidental or

consequential damages arising from a breach of either express

or implied warranties are hereby disclaimed and excluded. Some

states do not allow the exclusion of limitation of incidental or

consequential damages, so this limitation or exclusion may not

apply to you.

This warranty gives you speciﬁc legal rights, and you may also

have other rights which vary from state to state.

No informal dispute settlement mechanisms are available. This

limited warranty is given in lieu of all other warranties.

Manufactured for:

Howard Berger Co. LLC

324A Half Acre Rd.

Cranbury, NJ 08512 USA

800-221-6895

www.comfortzone-us.com

Rev. 080215

Care and Maintenance

Cleaning: CAUTION-Before cleaning the fan be sure to

disconnect power cord from the plug. Clean the grille surface

with a clean damp cloth. Do not use harsh chemical or abrasive

cleaners. DO NOT IMMERSE THE FAN OR ANY WIRES IN

WATER. Replace front grille before fan use. Allow fan to dry

completely before use. Periodic grille cleaning with a vacuum will

prevent dust build up. The motor is sealed and does not require

any interior maintenance, cleaning or lubrication.

Maintenance: The Internal motor bearings are permanently

lubricated at the factory and do not require any additional

lubrication.

Repair: DO NOT OPERATE THE FAN WITHOUT THE GRILLE IN

PLACE. DO NOT USE THE FAN IF IT HAS MALFUNCTIONED OR

BECOME DAMAGED IN ANY WAY.

Storage: Keep original carton for storage of the fan. Coil and tie

the power cord to avoid damage during storage.

This product employs overload protection (fuse). A blown fuse

indicates an overload or short-circuit situation. If the fuse blows,

unplug the product from the outlet. Replace the fuse as per the

user servicing instructions (follow product marking for proper

fuse rating) and check the product. If the replacement fuse

blows, a short-circuit may be present and the product should

be discarded or returned to an authorized service facility for

examination and/or repair.

Fuse Replacement:

1. Grasp plug and remove from the receptacle or other outlet

device. Do not unplug by pulling on cord.

2. Open fuse cover by sliding open fuse access cover on top of

attachment plug towards blades. See Fig. 2.

3. Remove fuse carefully. Use a small tool to pry the end of the

fuse from holder cavity. Be careful not to break glass window.

4. Replace fuse. WARNING: Risk of ﬁre. Replace fuse only with

identical 2.5 or 5.0 Amp, 125 Volt fuse (3.6mm x 10mm).

Be sure fuse is properly seated within its cavity.

5. Close fuse cover by sliding it back to its original closed

position.

Fig 1 Fig 2 Fig 3

Slide Cover to Open

Downloaded from www.ManualsFile.com manuals search engine

Comfort Zone CZHVP18EX 18" 3-Speed High-Velocity Industrial Oscillating Pedestal Fan

Product's Documents

English Instruction Manual

Specifications

Comfort Zone CZHVP18EX Questions and Answers
