OPERATOR'S MANUAL
MODEL #100396
3400W DUAL FUEL ELECTRIC START
INVERTER GENERATOR
REV 20240409 Champion Power Equipment, Inc.
or visit championpowerequipment.com
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
Covered by one or more of the following U.S. Patent Numbers: 10,221,780, 16,191,503 and other U.S. and foreign patents pending.
ACTIVATE YOUR WARRANTY
by registering your product:
championpowerequipment.com
SERIAL NO.

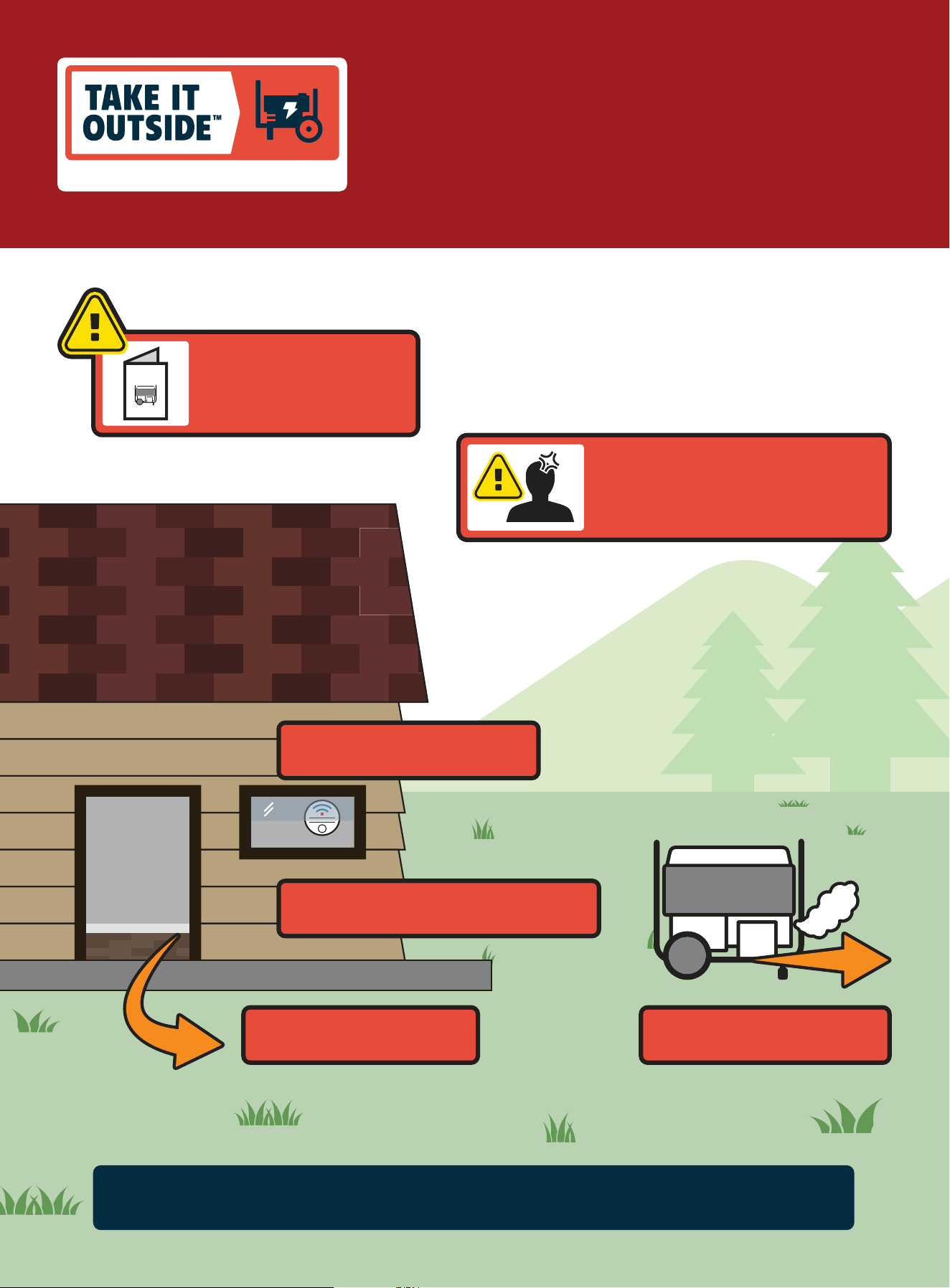

www.TakeYourGeneratorOutside.com
As the only safe way to use a portable generator, taking your generator
outside is absolutely mandatory to keep your family safe from carbon
monoxide. But there’s even more you can do. By educating yourself
about all carbon monoxide risks, you’ll be better prepared to protect
your family from this colorless, oderless threat.
CARBON MONOXIDE SAFETY: THE BIG PICTURE
KNOW THE SYMPTOMS
• Headache
• Nausea
• Shortness of breath
• Dizziness
• Fatigue
STAY ALERT WITH CARBON
MONOXIDE DETECTORS
POINT FUMES AWAY FROM
NEARBY PEOPLE
KEEP IT OUTSIDE AND AWAY FROM
DOORS, WINDOWS, AND GARAGES
ALWAYS READ
THE OPERATOR’S
MANUAL FIRST
MANUAL
IF YOU FEEL SYMPTOMS,
LEAVE RIGHT AWAY
CARBON
MONOXIDE KILLS
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
TABLE OF CONTENTS
3
TABLE OF CONTENTS
Introduction
................................................... 4
Safety Definitions ..........................................4
Important Safety Instructions .......................5
Fuel Safety ........................................................ 7
Safety and Dataplate Labels ...................................... 9

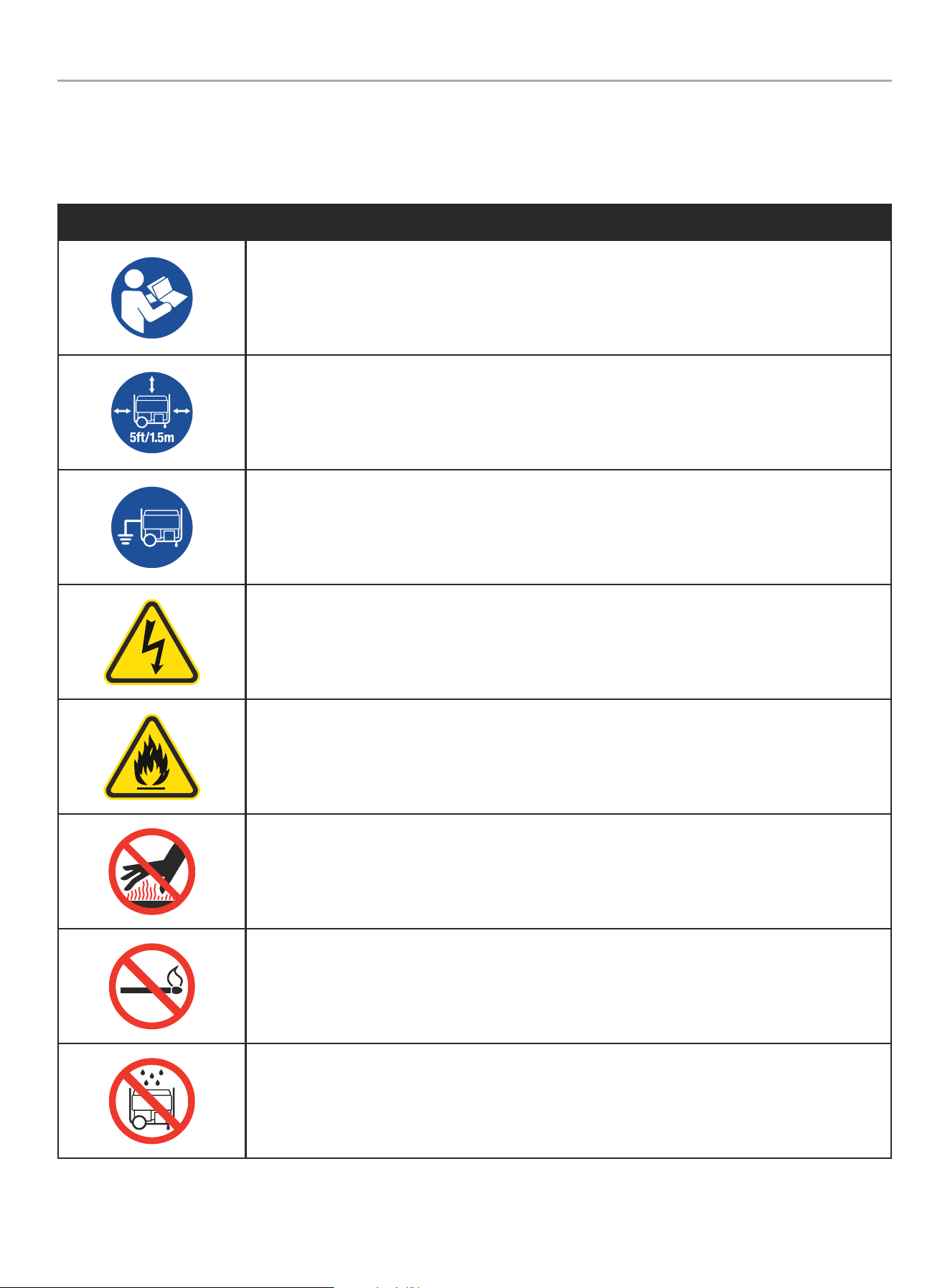

Safety Symbols ................................................... 11
Operation Symbols ............................................... 13
Controls and Features ................................. 14

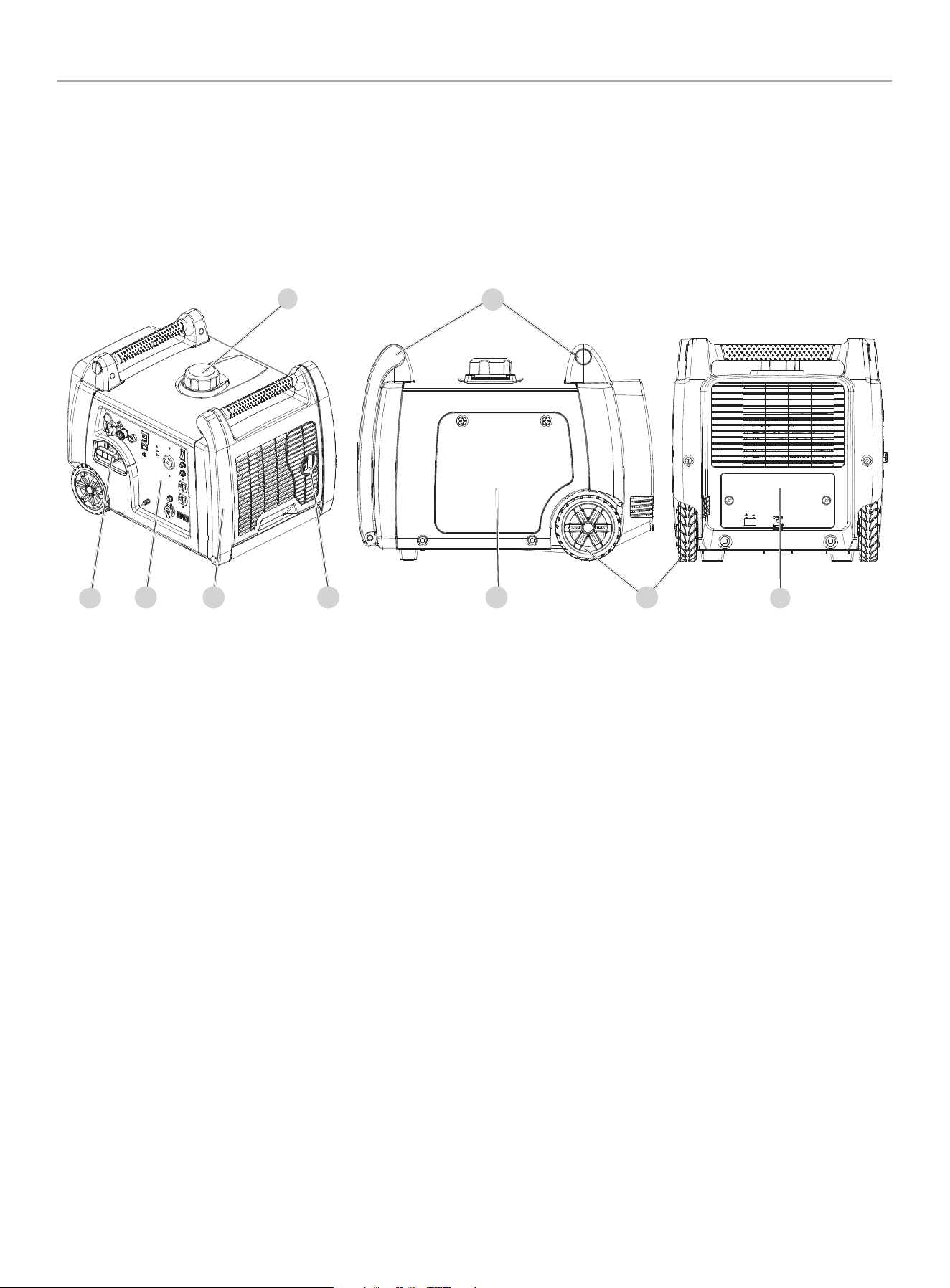

Generator ......................................................... 14
Control Panel ..................................................... 15

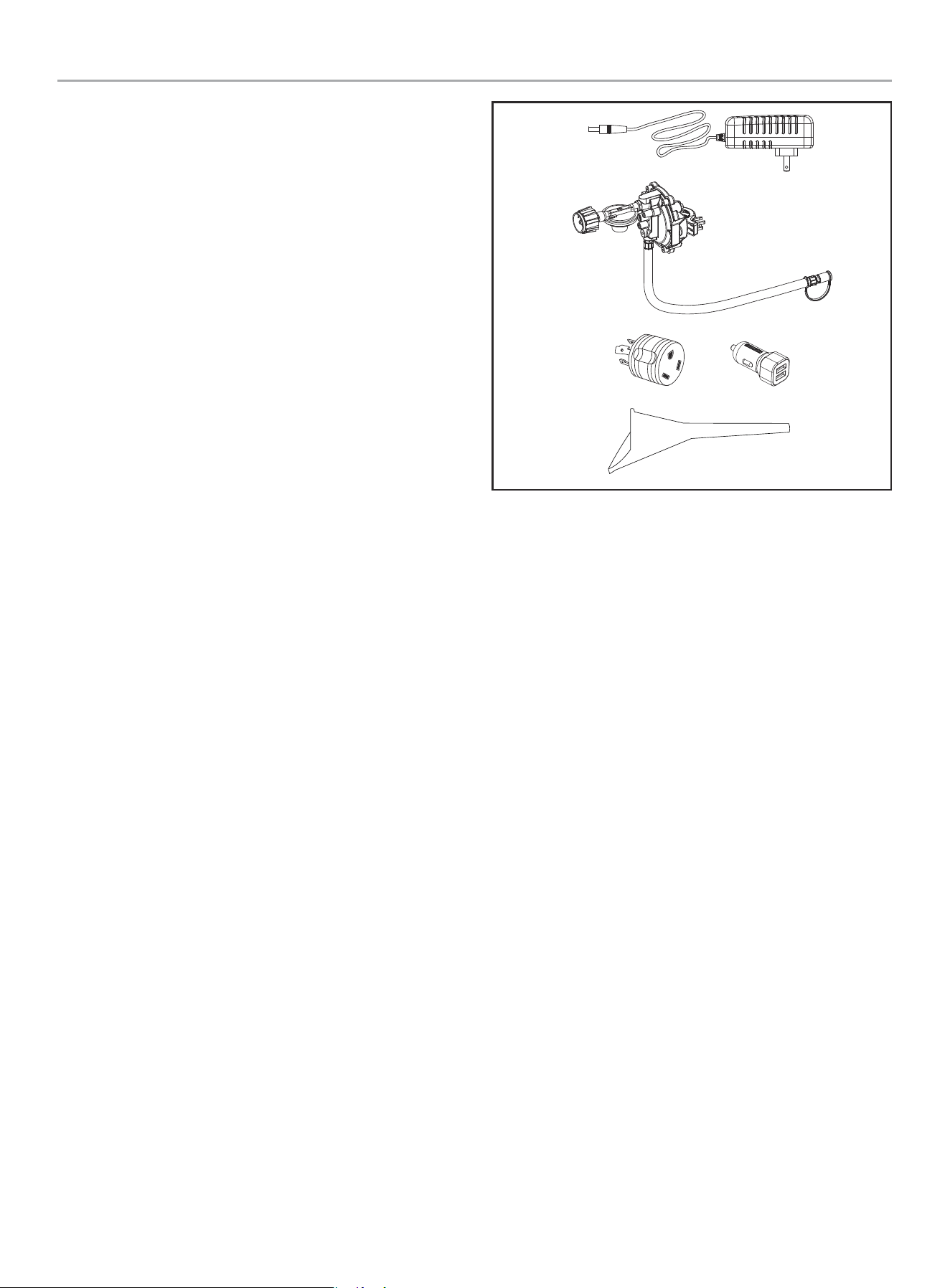

Parts Included .................................................... 16
Assembly ..................................................... 17
Unpacking ........................................................ 17
Connect the Battery .............................................. 17
Add Engine Oil .................................................... 17
Add Fuel: Gasoline ............................................... 18
Add Fuel: Propane (LPG) ......................................... 19
Grounding ........................................................ 20
Operation .....................................................21
Generator Location ............................................... 21
Surge Protection ................................................. 21
Fuel Selector Switch .............................................21
Starting the Inverter .............................................. 22
Gasoline ..........................................................22
Propane (LPG) .................................................... 23
Economy Control Switch ......................................... 25
Connecting Electrical Loads ..................................... 25
Do Not Overload Generator ...................................... 25
12V DC Regulated Automotive Style Outlet .....................26
Parallel Operation ................................................26
Stopping the Engine .............................................. 26
Moving the Generator ............................................ 27
Operation at High Altitude ....................................... 27
Overload Operation ............................................... 28
Smart Charger .................................................... 28
Maintenance ................................................28
Cleaning the Generator .......................................... 28
Changing the Engine Oil ......................................... 29
Cleaning and Adjusting the Spark Plug ..........................29
Cleaning the Air Filter ............................................ 29
Cleaning the Spark Arrestor ..................................... 30
Adjusting the Governor ........................................... 30
Generator Battery ................................................ 30
Maintenance Schedule ...........................................30
Storage ........................................................31
Short Term Storage (up to 1 year) ............................... 31
Long Term Storage (over 1 year) ................................ 32
Removing from Storage .......................................... 32
Specifications .............................................. 33
Generator Specifications ......................................... 33
Engine Specifications ............................................33
Oil Specifications .................................................33
Fuel Specifications ...............................................33
Battery Specifications............................................33
Temperature Specifications ......................................34
ICES–002 Warning ...............................................34
Troubleshooting ........................................... 35
FOR PARTS BREAKDOWN
Search by model number at
championpowerequipment.com
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
INTRODUCTION
4
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
NOTICE indicates information considered important, but not
hazard-related (e.g., messages relating to property damage).
INTRODUCTION
Congratulations on your purchase of a Champion Power Equipment
(CPE) product. CPE designs, builds, and supports all of our
products to strict specifications and guidelines. With proper
product knowledge, safe use, and regular maintenance, this
product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time of
publication, and we reserve the right to change, alter and/or
improve the product and this document at any time without prior
notice.
CPE highly values how our products are designed, manufactured,
operated, and serviced as well as providing safety to the operator
and those around the generator. Therefore, it is IMPORTANT to
review this product manual and other product materials thoroughly
and be fully aware and knowledgeable of the assembly, operation,
dangers and maintenance of the product before use. Fully
familiarize yourself, and make sure others who plan on operating
the product fully familiarize themselves too, with the proper safety
and operation procedures before each use. Please always exercise
common sense and always err on the side of caution when
operating the product to ensure no accident, property damage,
or injury occurs. We want you to continue to use and be satisfied
with your CPE product for years to come.
When contacting CPE about parts and/or service, you will need to
supply the complete model and serial numbers of your product.
Transcribe the information found on your product’s nameplate
label to the table below
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
100396
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
IMPORTANT SAFETY INSTRUCTIONS
5
IMPORTANT SAFETY INSTRUCTIONS

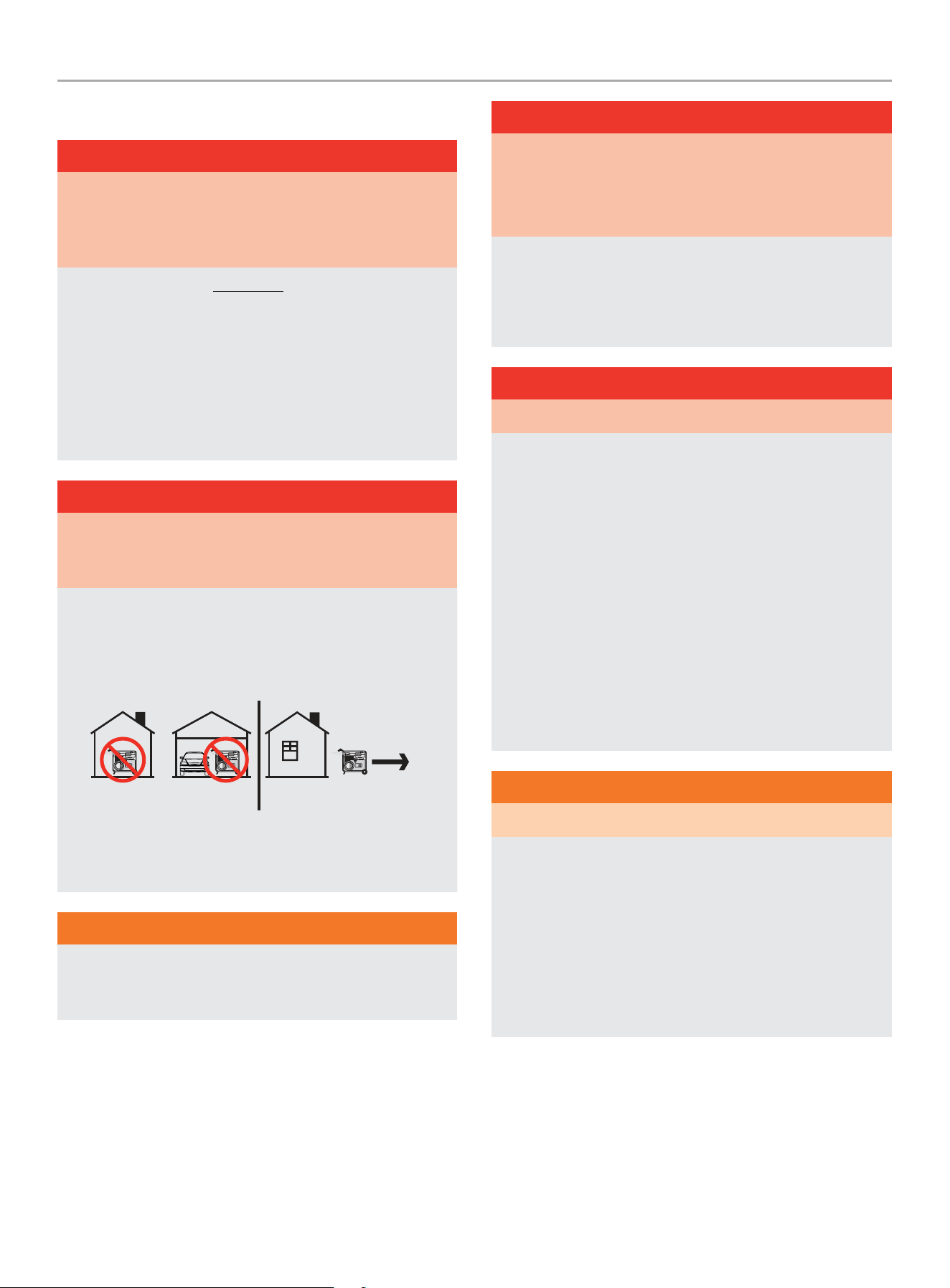

DANGER
Generator exhaust contains carbon monoxide, a colorless,
odorless, poisonous gas. Breathing carbon monoxide will
cause nausea, dizziness, fainting or death. If you start to feel
dizzy or weak, get to fresh air immediately.
OPERATE GENERATOR OUTDOORS ONLY IN A WELL
VENTILATED AREA AND POINT EXHAUST AWAY.
DO NOT operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle.
DO NOT allow exhaust fumes to enter a confined area through
windows, doors, vents or other openings.
DANGER
Using a generator indoors CAN KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a poison
you cannot see or smell.
NEVER use inside a home or garage, EVEN IF doors and
windows are open.
ONLY use OUTSIDE and far away from windows, doors,
and vents.
Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to the
manufacturer’s instructions.
WARNING
Although the generator contains a spark arrester, maintain
a minimum distance of 5 ft. (1.5 m) from dry vegetation to
prevent fires.
DANGER
Operate equipment with guards in place.
Rotating parts can entangle hands, feet, hair, clothing and/or
accessories. Traumatic amputation or severe laceration can
result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.
DANGER
Generator produces powerful voltage.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn, damaged or frayed.
Use only Champion electrical cords for proper application.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to operate or
service the generator.
Use a ground fault circuit interrupter (GFCI) in damp areas and
areas containing conductive material such as metal decking.
Connection to your home’s electrical system requires a
listed 30A transfer switch installed by a licensed electrician
and approved by the local authority having jurisdiction. The
connection must isolate the generator from the utility power
and must comply with all applicable laws and electrical codes.
WARNING
Do not use generator for medical life support uses.
In case of emergency, call 911 immediately.
NEVER use this product to power life support devices or life
support appliances.
Inform your electricity provider immediately if you or anyone in
your household depends on electrical equipment to live.
Inform your electrical provider immediately if a loss of power
would cause you or anyone in your household to experience a
medical emergency.
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
IMPORTANT SAFETY INSTRUCTIONS
6
WARNING
Spark from removed spark plug wire can result in fire or
electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it where it cannot
contact the plug or any other metal object.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.
WARNING
Rapid retraction of the recoil cord will pull hand and arm
towards the engine faster than you can let go. Broken bones,
fractures, bruises or sprains could result. Unintentional
startup can result in entanglement, traumatic amputation or
laceration.
When starting engine, pull the recoil cord slowly until
resistance is felt and then pull rapidly to avoid kickback.
DO NOT start or stop the engine with electrical devices
plugged in and turned on.
CAUTION
Exceeding the generator’s running capacity can damage the
generator and/or electrical devices connected to it.
DO NOT overload the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
CAUTION
Start the generator and allow the engine to stabilize before
connecting electrical loads.
Connect electrical equipment in the off position, and then turn
them on for operation.
Turn electrical equipment off and disconnect before stopping
the generator.
CAUTION
Improper treatment or use of the generator can damage it,
shorten its life or void the warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture, dust,
or dirt.
DO NOT allow any material to block the cooling slots.
If connected devices overheat, turn them off and disconnect
them from the generator.
DO NOT use the generator if:
– Electrical output is lost
– Equipment sparks, smokes or emits flames
– Equipment vibrates excessively
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
IMPORTANT SAFETY INSTRUCTIONS
7
Fuel Safety
DANGER
GASOLINE, GASOLINE VAPORS, AND PROPANE ARE HIGHLY
FLAMMABLE AND EXPLOSIVE
Fire or explosion can cause severe burns or death.
Gasoline and gasoline vapors:
– Gasoline vapors are highly flammable and explosive.
– Gasoline vapors can cause a fire or explosion if ignited.
– Gasoline is a liquid fuel and the resulting gasoline vapors can
ignite and cause a fire or explosion.
– Gasoline is a skin irritant and needs to be cleaned up
immediately if spilled on skin or clothes.
– Gasoline has a distinctive odor, this will help detect potential
leaks quickly.
– In any petroleum gas fire, flames should not be extinguished
unless by doing so the fuel supply valve can be turned OFF.
This is because if a fire is extinguished and a supply of fuel is
not turned OFF, then an explosion hazard could be created.
– Gasoline vapors expand and contract with ambient
temperatures. Never fill the gasoline tank past the red FULL
indicator on the fuel filter, as gasoline vapors needs room to
expand if temperatures rise.
WARNING
Propane/LPG (liquified petroleum gas) and LPG Vapors:
– LPG is a hydrocarbon gas that exists in a liquified form and
it’s vapors are highly flammable and explosive.
– LPG and it’s vapors are under pressure and can cause a
fire or explosion if ignited.
– LPG vapors are heavier than air and will settle in low
places while dissipating.
– LPG itself is odorless and tasteless. For safety, a chemical
is added to give it an odor to help detect leaks quickly.
– If a leak is detected, IMMEDIATELY turn OFF the gas
supply.
– In the event of an LPG fire and only when safe to do so,
first close the regulator valve OFF and then use a dry
powder extinguisher to put out the fire. This is because if
a fire is extinguished before the regulator valve is closed
OFF, then an explosion hazard condition could be created.
– Always keep the LPG cylinder in an upright position.
– LPG is a skin irritant and can cause severe cold burns
similar to frostbite.
– Always wear proper protective gloves when connecting to
and disconnecting from a propane bottle.
– Always keep LPG away from sparks, open flames, pilot
lights, heat and other sources of ignition.
WARNING
When adding or removing gasoline:
DO NOT light or smoke cigarettes.
Always stop the engine and allow to cool for a minimum of two
minutes before refueling.
Always loosen gasoline cap slowly to release vapor pressure
and to keep fuel from escaping around the gasoline cap.
Always replace and tighten the gasoline cap securely after
fueling.
Never remove the gasoline cap or add gasoline while the
engine is running or when the engine is hot.
Only fill or drain gasoline outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator at the gas
station.
Always store gasoline in an EPA/CARB compliant container or
to transfer the gasoline to the generator.
DO NOT overfill the gasoline tank.
Always keep gasoline, propane and natural gas vapors away
from sparks, open flames, pilot lights, heat and other sources
of ignition.
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
IMPORTANT SAFETY INSTRUCTIONS
8
WARNING
When starting the generator:
DO NOT attempt to start a damaged generator.
Always check that the gasoline cap, air filter, spark plug, fuel
lines and exhaust system are properly in place.
Always allow spilled gasoline to evaporate fully before
attempting to start the engine.
Always check the connections of the supply hose for leaks
before using LPG fuel.
Always be certain that the generator is resting firmly on level
ground.
WARNING
When operating the generator:
DO NOT move or tip the generator during operation.
WARNING
When transporting or servicing the generator:
Always check that the fuel valve is in the OFF position and the
gasoline tank is empty.
Always check that the LPG supply hose is disconnected and
stored securely away from the generator after use.
Disconnect the spark plug wire.
WARNING
When storing the generator:
Always store away from sparks, open flames, pilot lights, heat
and other sources of ignition.
Never store generator, gasoline or LPG cylinders near
furnaces, water heaters, or any other appliances that produce
heat or have automatic ignitions.
DANGER
NEVER place a gasoline container, gasoline tank, LPG cylinder
or any combustible material in the path of the exhaust stream
during operation of the engine.
WARNING
Never use a gasoline container, gasoline tank, LPG connector
hose, LPG cylinder or any other fuel item that is broken, cut,
torn or damaged.
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
IMPORTANT SAFETY INSTRUCTIONS
9

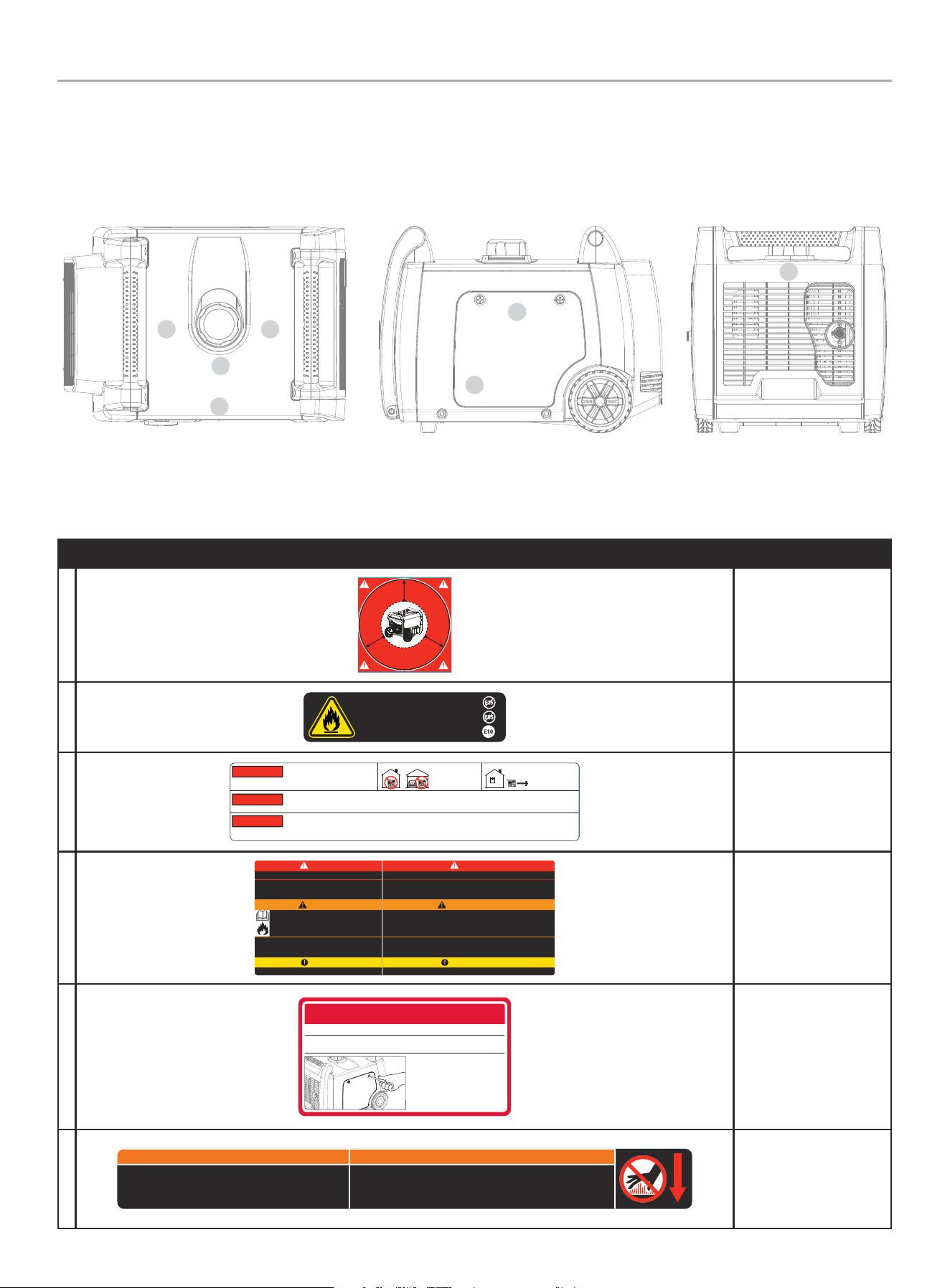

Safety and Dataplate Labels
These labels warn you of potential hazards that can cause serious injury. Read them carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.
LABEL DESCRIPTION
A
M
I
N
I
M
U
M
C
L
E
A
R
A
N
C
E
5
F
T
.
E
S
P
A
C
I
O
M
Í
N
I
M
O
1
,
5
M
M
I
N
I
M
U
M
D
'
E
S
P
A
C
E
1
,
5
M
General Minimum
Clearance
B
UNLEADED FUEL ONLY. Minimum octane rating
of 87. Maximum 10% ethanol.
GASOLINA REGULAR SOLAMENTE. 87 octanos
como mínimo. Máximo de etanol de 10%.
ESSENCE SANS PLOMB SEULEMENT. Indice
d’octane minimal de 87. Maximum 10 % d'éthanol.
1032-L-OP-B
Fuel
C
El uso de un generador en interiores PUEDE MATARLO EN MINUTOS. El escape del generador contiene monóxido de
carbono. Éste es un veneno que no se puede ver ni oler.
NUNCA lo use dentro del hogar ni el garaje, INCLUSO SI las
puertas y ventanas están abiertas. Úselo SÓLO a la INTEMPERIE lejos de ventanas, puertas, y orificios de ventilación.
PELIGRO
ONLY use OUTSIDE
and far away from
windows, doors,
and vents.
NEVER use inside
a home or garage,
EVEN IF doors and
windows are open.
1308-L-SF-D
Utiliser un génératrice à l’intérieur PEUT VOUS TUER EN QUELQUES MINUTES. L’échappement de la génératrice contient
du monoxyde de carbone. Il s’agit d’un poison que vous ne pouvez ni voir ni sentir.
Ne l’utilisez JAMAIS dans la maison ou
le garage MÊME SI les portes et les fenêtres sont ouvertes.
Utilisez la UNIQUEMENT À L’EXTÉRIEUR, loin des fenêtres,
portes et trappes de ventilation.
DANGER
Using a generator indoors CAN KILL
YOU IN MINUTES. Generator exhaust
contains carbon monoxide. This is a
poison you cannot see or smell.
DANGER
CPSC
D
Operation of this equipment may create sparks that can start fires around dry
vegetation. A spark arrester may be required. The operator should contact local
fire agencies for laws or regulations relating to fire prevention requirements.
Le fonctionnement de cet appareil peut générer de étincelles pouvant amorcer un incendie près de la
végétation sèche. Un pare-étincelles pourrait être requis. L’opérateur devrait communiquer avec les services
d’incendie locaux pour connaître la réglementation concernant les normes de prévention contre les incendies.
FOR USE IN A WEATHER PRO TECTE D AREA ONLY - DO NOT EX POSE TO R AIN
WARNING
DANGER
EMPLOYEZ U NIQUEME NT DANS UN EMPLA CEMENT A L’AB RI DES INT EMPÉRIE S - NE PAS EX POSER À L A PLUIE
FOR ELECTRICAL EQUIPMENT ONLY.
POUR MATERIEL ÉLECTRIQUE SEULEMENT.
AVERTISSEMENT
DANGER
WHEN STORING GASOLINE, PROPANE (LPG) OR EQUIPMENT WITH FUEL IN
IT: Store away from furnaces, stoves, water heaters or other appliances that
have a pilot light or other ignition source because they can ignite the fuel.
LORSQUE VOUS RANGEZ DE L’ESSENCE, DU GAZ PÉTROLE LIQUÉFIÉ (GPL) OU DU MATÉRIEL CONTENANT
DE L’ESSENCE : Rangez-les à l’écart des appareils de chauffage, des chauffe-eaux et des autres dispositifs
qui contiennent une veilleuse ou une autre source d’allumage parce qu’il peut enflammer l’essence.
Read and follow operating instructions before running engine.
Gasoline and propane (LPG) are extrememely flammable. Check for
spilled fuel or fuel leaks. If one is found, shut off fuel supply and stop
engine immediately. Allow to cool at least 2 minutes before refueling.
Lire et suivre les instructions avant de faire fonctionner le moteur.
L’essence et le gaz de pétrole liquéfié (GPL) sont extrêmement inflammables. Vérifiez la présence de carburant
renversé et de fuite de carburant. Si vous en trouvez, coupez la source d’alimentation en carburant et
arrêtez le moteur immédiatement. Laissez-le refroidir au moins 2 minutes avant de remettre du carburant.
CAUTION
MISE EN GARDE
E F
Warning
E
STOP / ALTO / ARRÊT
NO OIL IN UNIT! / ¡NO TIENE ACEITE! / MANQUE D’HUILE DANS L’UNITÉ!
REMOVE PANEL TO FILL OIL / QUITE EL PANEL PARA AGREGAR ACEITE
RETIRER LE PANNEAU POUR REMPLIR D’HUILE
READ YOUR OWNER’S MANUAL BEFORE OPERATION.
ADD OIL BEFORE INITIAL START UP. AUTOMATIC LOW OIL
SHUTOFF WILL PREVENT STARTING WITHOUT ADDING OIL.
LEA EL MANUAL ANTES DE OPERACIÓN.
AGREGUE ACEITE ANTES DE PRIMER USO. SENSOR DE NIVEL
DE ACEITE AUTOMATICO. UNIDAD FALLA DE ENCENDER
SIN ACEITE.
LIRE LE GUIDE D’UTILISATION AVANT DE FAIRE FONCTIONNER.
AJOUTER DE L’HUILE AVANT LE DÉMARRAGE INITIAL. LA
FERMETURE AUTOMATIQUE EN CAS DE MANQUE D’HUILE
EMPÊCHERA LE DÉMARRAGE SANS AJOUT D’HUILE.
Oil Stop Sign
F
WARNING
DO NOT TOUCH!
Exhaust gases, muffler
and engine components
are extremely HOT and
cause burns.
Operation of this equipment may create sparks that can start
fires around dry vegetation. A spark arrestor may be
required. The operator should contact local fire agencies for
laws and regulations relating to fire prevention requirements.
If installed, clean every 100 hours or every season.
1297-L-SF-A
AVERTISSEMENT
NE PAS TOUCHER! Les gaz
d’échappement, le silencieux
et les pièces du moteur sont
extrêmement CHAUDS et
peuvent causer des brûlures.
Cet équipement peut créer des étincelles et provoquer un incendie dans
la végétation sèche. Un pare-étincelles peut être requis. L’opérateur
doit communiquer avec le service d’incendie local pour connaître les
lois et les règlements en matière de prévention des incendies. Si elle
est installée, nettoyez toutes les 100 heures ou chaque saison.
Hot Surface
Top Back Left
B
C
G A
D
E
F
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
IMPORTANT SAFETY INSTRUCTIONS
10
LABEL DESCRIPTION
G
CHAMPION POWER EQUIPMENT, INC.
6370 S PIONEER WAY, UNIT 101
LAS VEGAS, NV 89113
USA / É.-U. • 1-877-338-0999
WWW.CHAMPIONPOWEREQUIPMENT.COM
MADE IN CHINA / FABRIQUÉ EN CHINE
AC AMPS
AMPÈRES C.A.
FREQUENCY (Hz)
FRÉQUENCE (Hz)
RPM
TR / MIN
PHASE
PHASE
POWER FACTOR
FACTEUR DE
PUISSANCE
AC VOLTS
VOLTS C.A.
MODEL
MODÈLE
XXXX-L-PR-A
Conforms to
CSA C22.2 No. 100
Conforme à
CSA C22.2 N° 100
INSULATION CLASS
CLASSE D’ISOLATION
MAX AMBIENT TEMP.
TEMP. AMBIANTE MAX.
GASOLINE WATTS
WATTS D'ESSENCE
PROPANE WATTS
WATTS AU PROPANE
25.8
100396
60
3800
1
1.0
120
F
3100
104°F
40°C
2790
SERIAL NO.
N° DE SÉRIE
REGISTER TO
ACTIVATE YOUR
WARRANTY
ENREGISTREZ-VOUS POUR
ACTIVEZ VOTRE
GARANTIE
4010077
XXXXXXXXXXXX
Dataplate
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
IMPORTANT SAFETY INSTRUCTIONS
11
Safety Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Read Operator’s Manual. To reduce the risk of injury, user must read and understand operator’s manual
before using this product.
Clearance. Keep all objects at least 5 feet (1.5m) from generator. Heat from the muffler and exhaust gas
can ignite combustible objects.
Ground. Consult with local electrician to determine grounding requirements before operation.
Electric Shock. Failure to use in dry conditions and to observe safe practices can result in electric
shock. Improper connections to a building can allow current to backfeed into utility lines, creating an
electrocution hazard. A transfer switch must be used when connecting to a building.
Fire/Explosion. Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause
severe burns or death. Keep generator at least 5 feet (1.5m) from all objects to prevent combustion.
Hot Surface. To reduce the risk of injury or damage, avoid contact with any hot surface.
Open Flame Alert. Fuel and its vapors are extremely flammable and explosive. Keep fuel away from
smoking, open flames, sparks, pilot lights, heat, and other ignition sources.
Wet Conditions Alert. Do not expose to rain or use in damp location.
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
IMPORTANT SAFETY INSTRUCTIONS
12
SYMBOL MEANING

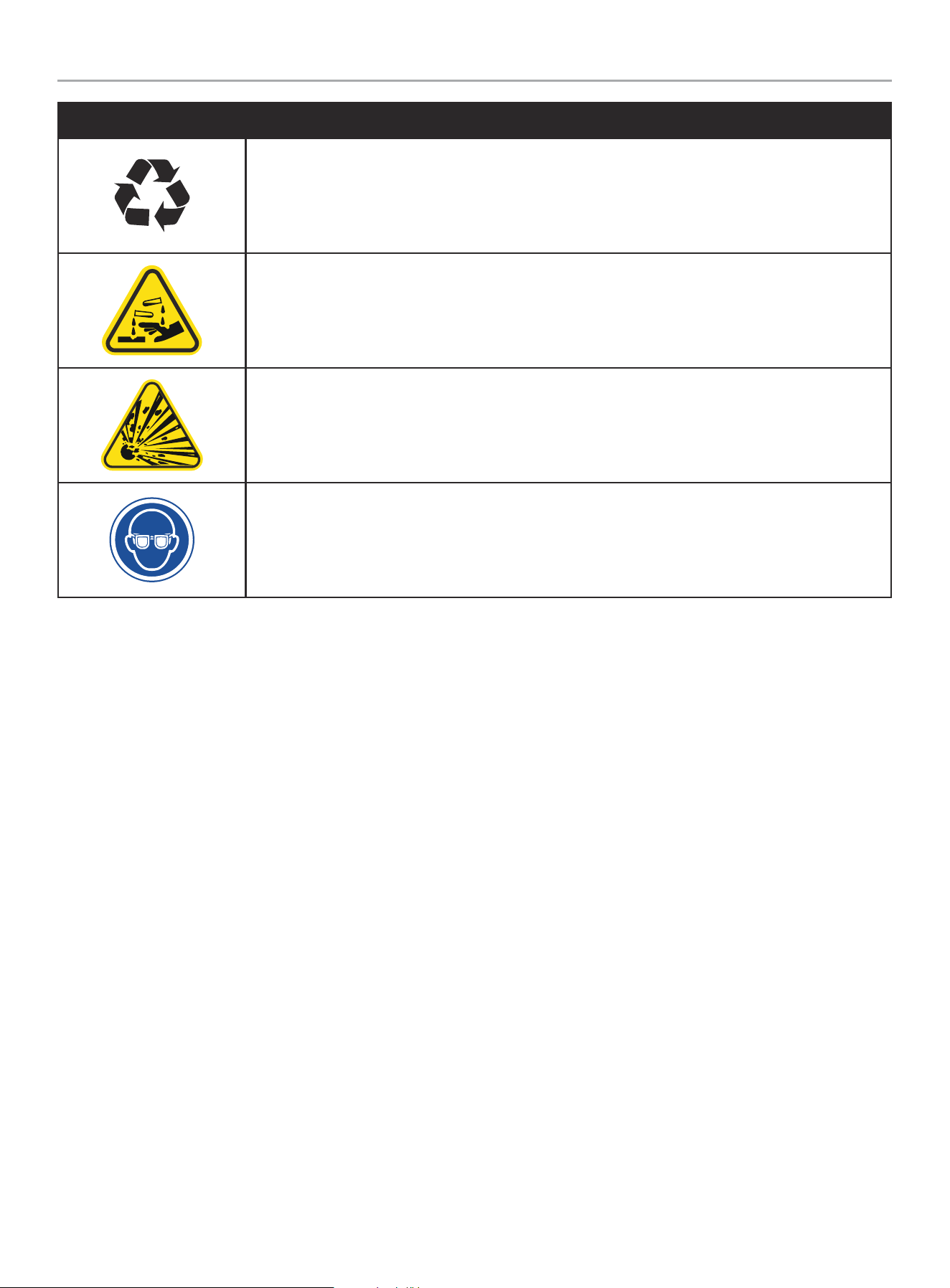

This product uses lithium-ion (Li-ion) batteries. Local, state, or federal laws may prohibit disposal of
batteries in ordinary trash. Consult your local waste authority for information regarding available recycling
and/or disposal options.
Blindness or severe burns. Electrolyte solution can cause blindness or severe burns.
Shield eyes. Explosive gases can cause blindness or injury.
If damaged, battery may emit hazardous fumes. If fumes present, move battery to a well-ventilated area.
Eye protection. Always wear eye protection with side shields marked to comply with ANSI Z87.1.
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
IMPORTANT SAFETY INSTRUCTIONS
13
Operation Symbols
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these
symbols will allow you to more safely operate the product.
SYMBOL MEANING
Propane
Gasoline
Choke
Start
On
Stop or Off
ECO
Economy Mode
Smart Charger
Output
SYMBOL MEANING
Overload
Low Oil
Twist Lock Outlet
Battery On
Battery Switch
Battery Off
RESET
Press to Reset Circuit Breakers
Parallel
Direct Current
Ground
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
CONTROLS AND FEATURES
14
CONTROLS AND FEATURES
Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.
Generator
1. Fuel Cap – Remove to add fuel.
2. Recoil Starter – Used to manually start the engine.
3. Control Panel – See Control Panel section.
4. Folding Handle – Used to move unit by lifting and rolling on
wheels. Do not use to lift or carry the unit.
5. Muffler
6. Carrying Handle(s) – Used to lift or carry the unit.
7. Maintenance Cover
8. Never Flat Wheels
9. Battery Access Cover
8
9
2
1
743
6
5
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
CONTROLS AND FEATURES
15

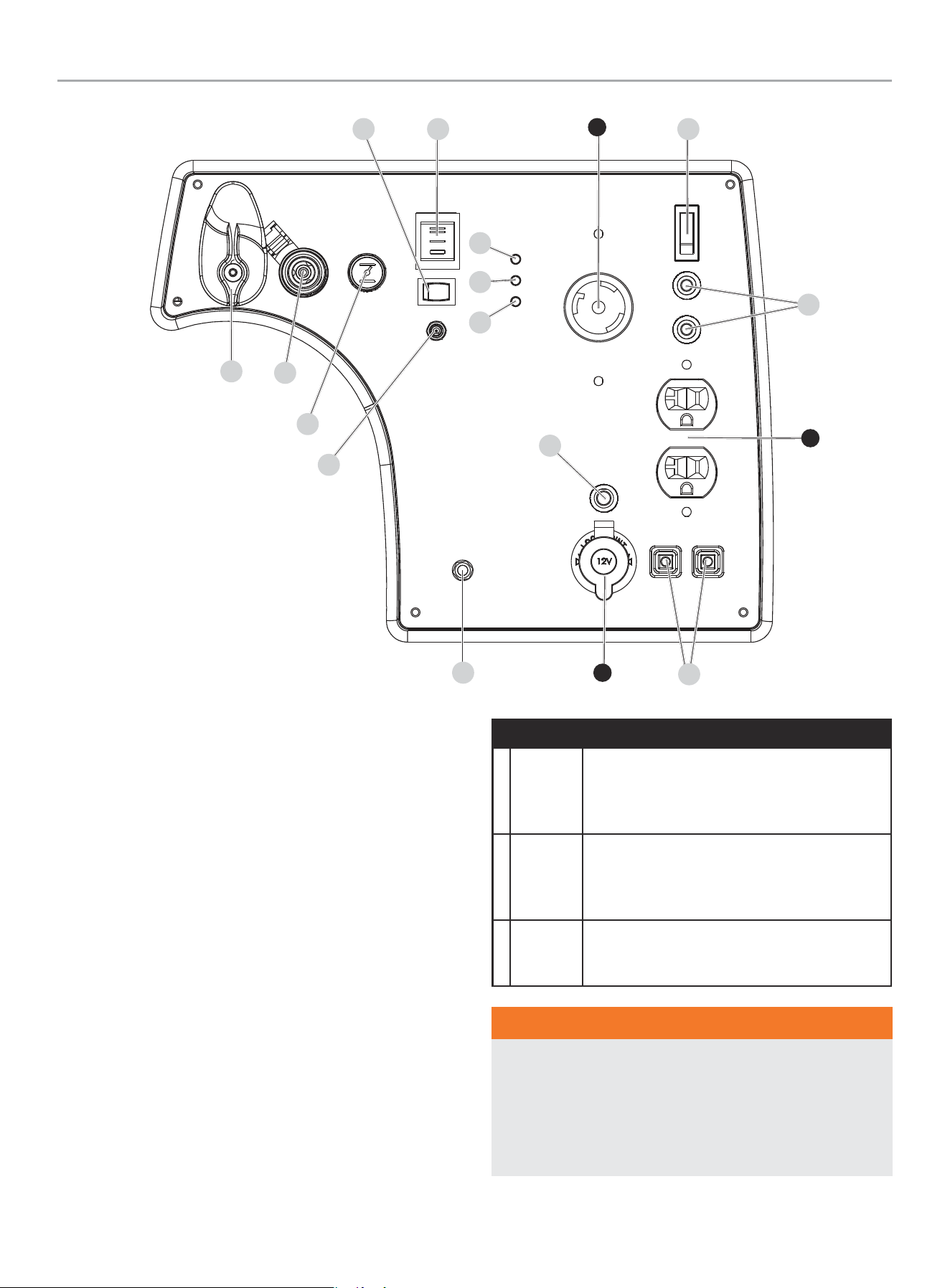

Control Panel
1. Fuel Selector Switch – Used to select and turn on gasoline
or LPG fuel source.
2. LPG Hose Quick Connect Inlet.
3. Choke
4. Smart Charger 12V DC
5. Ground Terminal – Consult an electrician for local grounding
regulations.
6. Parallel Outlets – Used to parallel two inverters together for
increased power output. (parallel kit sold separately).
7. Circuit Breaker (push-button) – Protects the generator
against electrical overload.
8. Battery Switch.
9. Oil Warning Light – Check oil level when this light turns on.
Engine will not run when indicator is lit.
10. Overload Indicator Light – This light turns ON when the
generator is overloaded and will cut power to the receptacles.
11. Output Light – Remains ON during normal operating
conditions. Shuts OFF when generator is overloaded.
12. Ignition Switch – Used to start or stop the generator.When
operating by propane, this switch will NOT stop the engine.
13. Economy Control Switch
RECEPTACLES
A
W
120V AC, 30A Locking (NEMA L5-30R)
May be used to supply electrical power for
operation of 120 Volt AC, 30 Amp, single phase,
60 Hz electrical loads.
B
A
(2×) 120V AC, 20A (NEMA 5-20R)
May be used to supply electrical power for
operation of 120 Volt AC, 20 Amp, single phase,
60 Hz electrical loads.
C
z
12V DC, 8A (Regulated Automotive)
May be used to supply electrical power for
operation of 12 Volt DC, 8 Amp electrical loads.
WARNING
Do not operate a device while it is plugged into the 12V DC
outlet. When charging a device, do not place on the exhaust
side of the generator. Extreme heat caused by exhaust
can damage the device and cause a potential fire hazard.
Prolonged exposure to engine exhaust can cause serious injury
or death.
1
2
4
5
7
81213
9
10
11
7
3
B
A
C
6
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
CONTROLS AND FEATURES
16
Parts Included
Accessories
Smart Charger
...................................................... 1
LPG Hose with Regulator 0.7 m (2.3 ft.) ..........................1
RV Adapter Plug ....................................................1
Dual 2.4A Port USB Adapter .......................................1
Oil Funnel ...........................................................1
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR

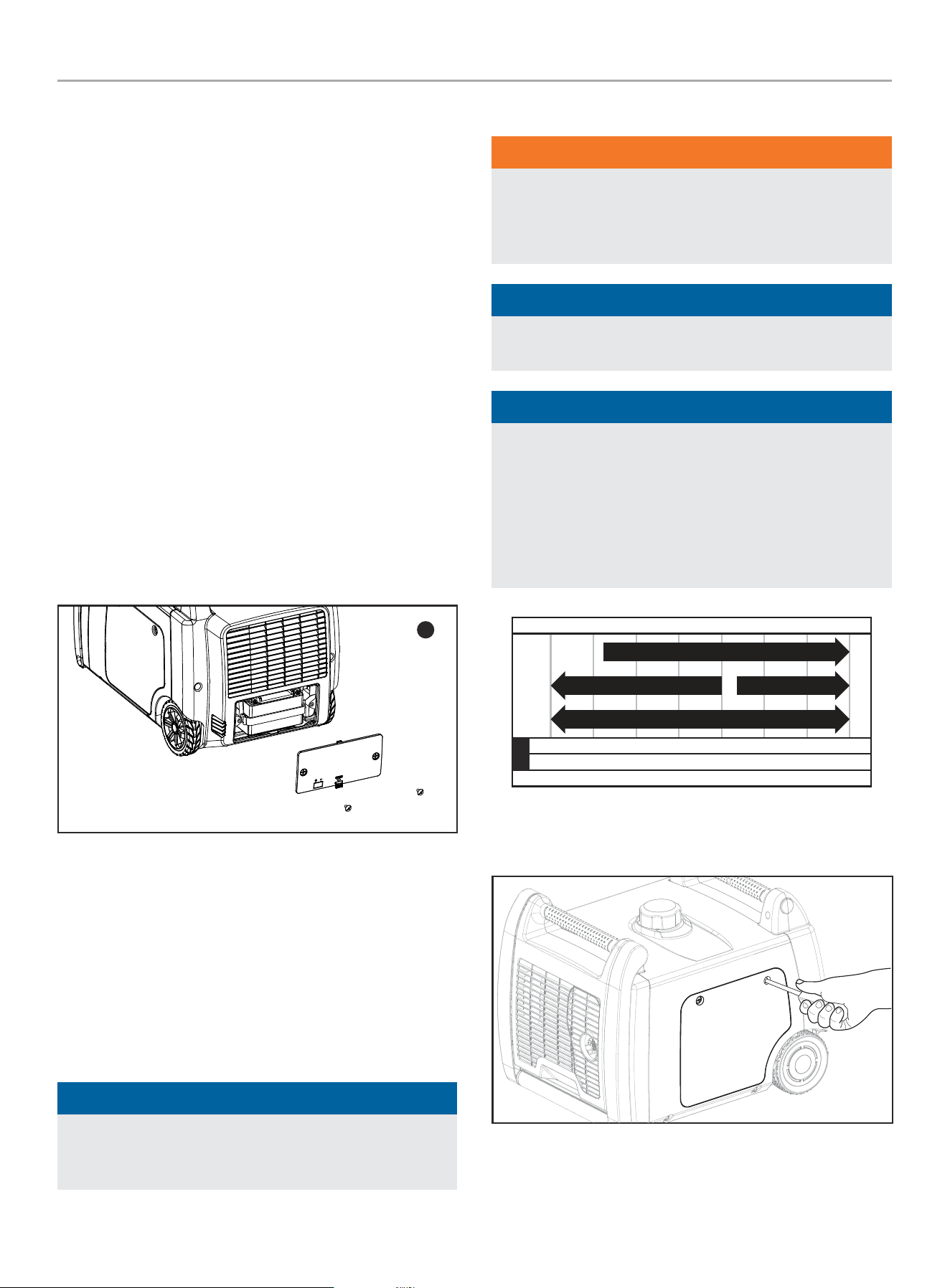

ASSEMBLY
17
ASSEMBLY
Your generator requires some assembly. It must be properly
serviced with fuel and oil before operation.
If you have any questions regarding the assembly of your
generator, call our Technical Support Team at 1-877-338-0999.
Please have your serial number and model number available.
Unpacking
1. Set the shipping carton on a solid, flat surface.
2. Remove everything from the carton except the generator.
3. Using the carrying handles of the unit, carefully remove the
generator from the box (two people lifting is recommended).
Connect the Battery
1. Using a screwdriver, remove the two (2) maintenance cover
screws from the battery maintenance cover. (A)
2. Once the screwvs have been removed, the rubber pull-tab on
the cover can be pulled out to help loosen and dislodge the
maintenance cover. (A)
3. Remove the battery maintenance cover. (A)
4. Cut zip tie that is binding the battery cables together.
5. Using a screwdriver, unscrew the battery bolt in the red,
positive (+) battery terminal.
6. Connect the red, positive (+) wire lead to the positive (+)
terminal on the battery using the bolt.
7. Pull rubber sheath over battery cable connection and battery
terminal.
8. Repeat steps 5-7 for the black, negative (-) battery wire lead
and black, negative (-) battery terminal.
NOTICE
If the battery cables are not visible once the battery maintenance
cover has been removed, please note that cables may be tucked
up above the battery, not in plain view.
Add Engine Oil
WARNING
DO NOT attempt to crank or start the engine before it has been
properly filled with the recommended type and amount of oil.
Damage to the generator as a result of failing to follow these
instructions will void your warranty.
NOTICE
The generator rotor has a sealed, pre-lubricated ball bearing
that requires no additional lubrication for the life of the bearing.
NOTICE
The recommended oil type for typical use is 5W-30
automotive oil. However, using the listed conventional oils
shown in the “Recommended Engine Oil Type” chart may be
used for typical use including the first 5 hours of the break-in
run time period of the engine.
If running generator in extreme temperatures, refer to the
“Recommended Engine Oil Type” chart.
-20 0 20 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C
-17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Full Synthetic
10W-405W-30
1. Place the generator on a flat, level surface.
2. Loosen the cover screws and remove the maintenance cover.
3. Remove oil fill cap/dipstick to add oil.
A

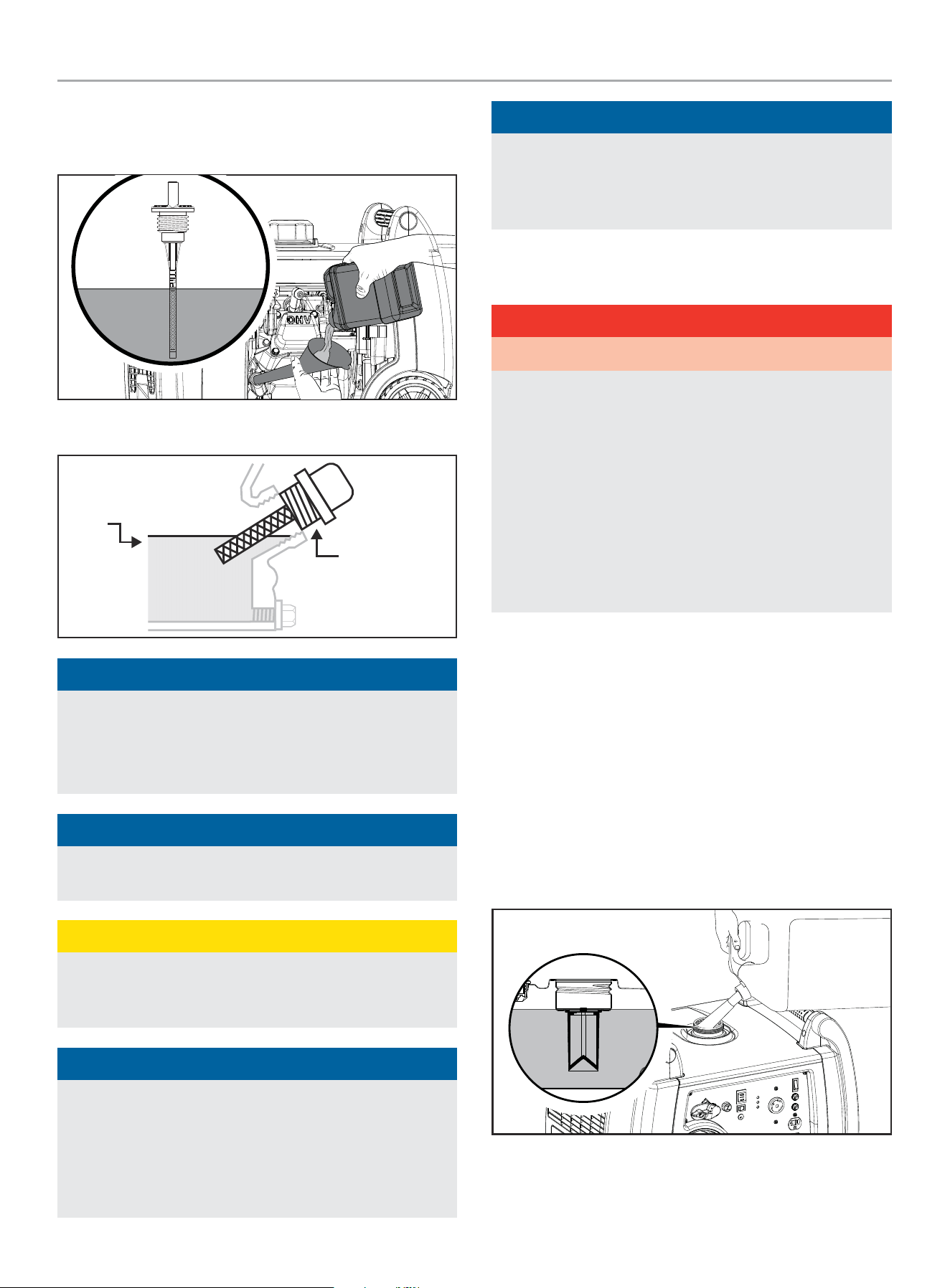

100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
ASSEMBLY
18
4. Using a funnel, add up to 20.3 fl. oz. (600 ml) of oil (not
included) and replace oil fill cap/dipstick and secure cover.
DO NOT OVERFILL.
5. Check engine oil level before each use and add as needed.
MAX
OIL DIP STICK
NOTICE
Once oil has been added, a visual check should show oil about
1-2 threads from running out of the fill hole.
When using the dipstick to check oil level, DO NOT screw in
the dipstick while checking.
NOTICE
Check oil level often during the break-in period. Refer to the
Maintenance section for recommended service intervals.
CAUTION
This engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.
NOTICE
The first 5 hours of run time are the break-in period for the
unit. During the break in period stay at or below 50% of the
running watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the load will also
cause engine speed to vary slightly and help seat piston rings.
After the 5 hour break-in period, change the oil.
NOTICE
Synthetic oil may be used after the 5 hour initial break-in
period. Using synthetic oil does not decrease the recommended
oil change interval. Full synthetic 5W-30 oil will aid in starting
in cold ambient < 41º F (5º C) temperatures.
Add Fuel: Gasoline
DANGER
Gasoline vapors are highly flammable and extremely explosive.
DO NOT light or smoke cigarettes. Fire or explosion can cause
severe burns or death.
Only fill or drain fuel outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the generator. Use an
approved container to transfer the fuel to the generator.
Never use a gasoline container, gasoline tank, or any
other fuel item that is broken, cut, torn or damaged.
DO NOT overfill the gasoline tank. Always keep fuel away from
sparks, open flames, pilot lights, heat and other sources of
ignition.
Use clean, fresh, regular unleaded gasoline with a minimum
octane rating of 87 and an ethanol content of 10% or less by
volume. ybc
DO NOT mix oil with gasoline.
1. Remove the gasoline cap.
2. Slowly add gasoline to the tank. DO NOT OVERFILL. Gasoline
can expand after filling. A minimum of ¼ in. (6.4 mm) of
space left in the tank is required for gasoline expansion,
although more than ¼ in. (6.4 mm) is recommended. Gasoline
can be forced out of the tank as a result of expansion if
overfilled, and can affect the stable running condition of the
generator.
3. Screw on the gasoline cap and wipe away any spilled fuel.
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
ASSEMBLY
19

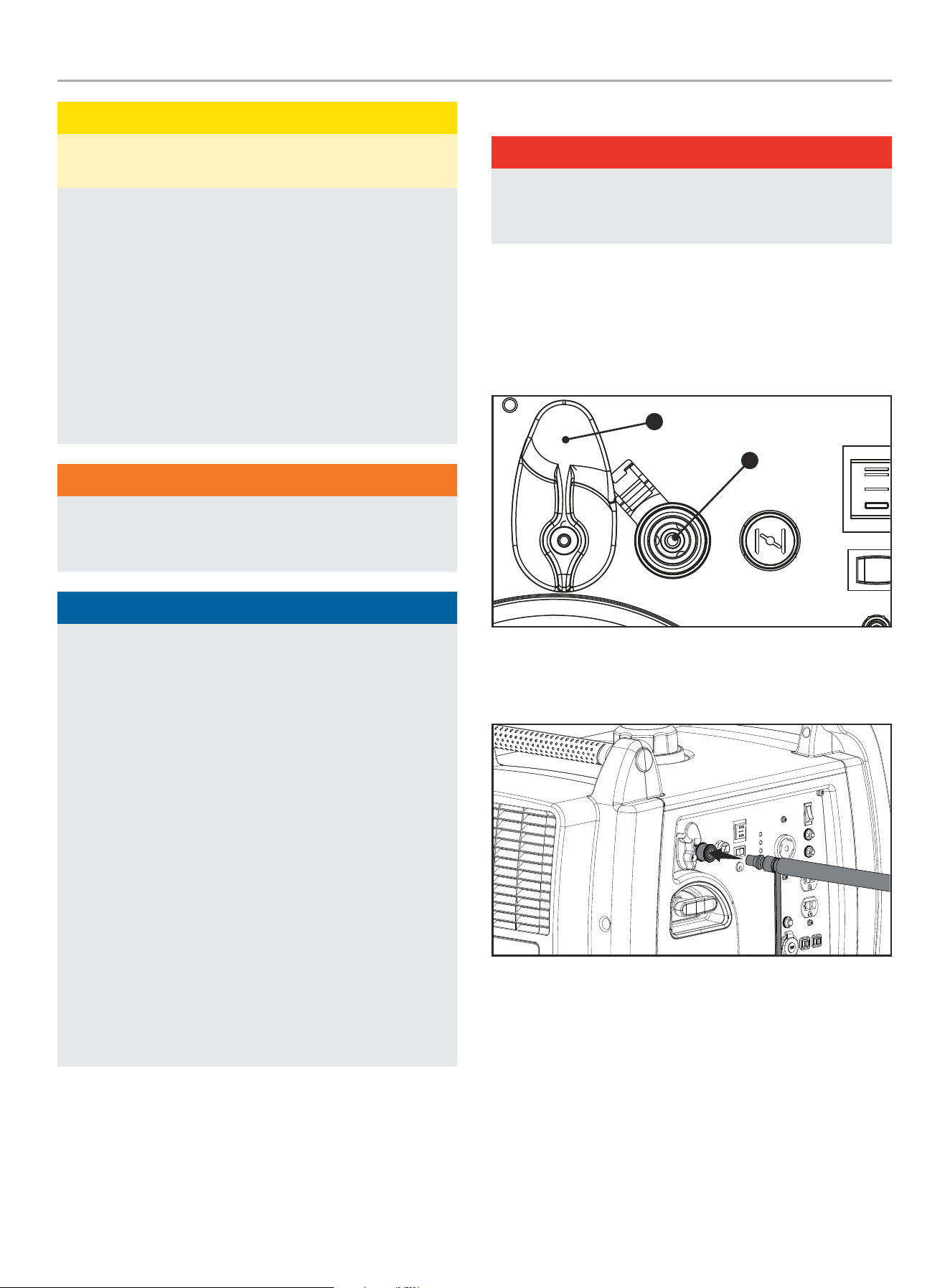

CAUTION
Use unleaded gasoline with a minimum octane rating of 87
and an ethanol content of 10% or less by volume.
DO NOT light cigarettes or smoke when filling the tank.
DO NOT mix oil and gasoline.
DO NOT overfill the tank. Fill tank to approximately ¼ in.
(6.4 mm) below the top of the tank to allow for gasoline
expansion.
DO NOT pump gasoline directly into the generator at the pump.
Use an approved fuel container to transfer the gasoline to the
generator.
DO NOT fill tank indoors.
DO NOT fill tank when the engine is running or hot.
WARNING
Pouring gasoline too fast through the fuel screen may result
in gasoline splashing over the generator and operator while
filling.
NOTICE
The generator engine works well with 10% or less ethanol
blended gasoline. When using ethanol-gasoline blends there
are some issues worth noting:
– Ethanol-gasoline blends can absorb more water than
gasoline alone.
– These ethanol blends can eventually separate, leaving
water or a watery goo in the tank, fuel valve and
carburetor. The compromised gasoline can be drawn into
the carburetor and cause damage to the engine and/or
create potential hazards.
– If a fuel stabilizer is used, confirm that it is formulated to
work with ethanol-gasoline blends.
– Any damages or hazards caused by using ethanol blended
gasoline higher than 10% by volume, improperly stored
gasoline, and/or improperly formulated stabilizers, are not
covered by manufacturer’s warranty.
It is advisable to always shut off the gasoline supply and
run the engine to starvation after each use. See Storage
instructions for extended non-use.
Add Fuel: Propane (LPG)
DANGER
NEVER place the LPG (liquefied petroleum gas) connector hose
OR LPG cylinder tank in the path of the muffler exhaust gas
stream of the generator during engine operation.
Connecting an LPG cylinder
1. Make sure the fuel selector switch on the inverter is in the 12
o’clock (vertical) position. (A)
2. Using your fingers, slide the outer barrel back on the LPG
quick connect hose fitting (B).
3. While the outer barrel is in the back position, insert the LPG
hose (included) into the inlet and release the outer barrel. The
barrel will automatically return and lock the hose in the inlet.
4. Remove the safety plug or cap from the cylinder valve.
5. Attach the other end of the hose to the LPG cylinder and hand
tighten.
6. Check all connections for leaks by wetting the fittings with a
solution of soap and water. Bubbles which appear or bubbles
which grow indicate that a leak exists. If a leak exists at a
fitting then turn off the gas valve at the tank and tighten the
fitting. Turn the gas back on and recheck the fitting with the
soap and water solution. If the leak continues or if the leak
is not at a fitting then do not use the generator and contact
customer service.
A
B
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
ASSEMBLY
20
NOTICE
– The LPG hose included with this unit works with standard
20 and 30 pound LPG tanks.
– Verify the requalification date on the cylinder has not
expired.
– Always position the cylinder so the connection between the
cylinder valve and generator inlet won’t cause sharp bends
or kinks in the LPG hose.
CAUTION
Do not allow children to tamper or play with the LPG cylinder
or hose connections.
CAUTION
Use approved LPG cylinders equipped with an OPD (overfilling
prevention device) valve. Always keep the cylinder in a vertical
position with the valve on top and installed at ground level
on a flat surface. Cylinders must not be installed near any
heat source and should not be exposed to sun, rain, and dust.
When transporting and storing, turn off the cylinder valve and
generator LPG valve, and disconnect the cylinder. Plug the
outlet, usually by a plastic protective cap, if one is available.
Keep cylinders away from heat and ventilated when in a
vehicle.
WARNING
If there is a strong smell of LPG: Close valve on the cylinder.
Check all connections for leaks by wetting the fittings with a
solution of soap and water. Bubbles which appear or bubbles
which grow indicate that a leak exists. Do not smoke or light a
cigarette, or check for leaks using a match, open flame source
or lighter. Contact a qualified technician to inspect and repair
an LPG system if a leak is found, before using the generator.
Grounding
Your generator must be properly connected to an appropriate
ground to help prevent electric shock.
WARNING
Failure to properly ground the generator can result in electric
shock.
A ground terminal connected to the panel of the generator has
been provided (see Controls and Features for terminal location).
For remote grounding, connect a length of heavy gauge
(12 AWG minimum) copper wire between the generator ground
terminal and a copper rod driven into the ground. We strongly
recommend that you consult with a qualified electrician to ensure
compliance with local electrical codes.
Neutral Floating*
– Neutral circuit IS NOT electrically connected to the frame/
ground of the generator.
– The generator (stator winding) is isolated from the frame and
from the AC receptacle ground pin.
– Electrical devices that require a grounded receptacle pin
connection will not function if the receptacle ground pin is not
functional.
Neutral Bonded to Frame*
– Neutral circuit IS electrically connected to the frame/ground of
the generator.
– The generator system ground connects lower frame cross-
member below the alternator. The system ground is connected
to the AC neutral wire.
* See your Specifications section for specified type of grounding.
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
OPERATION
21

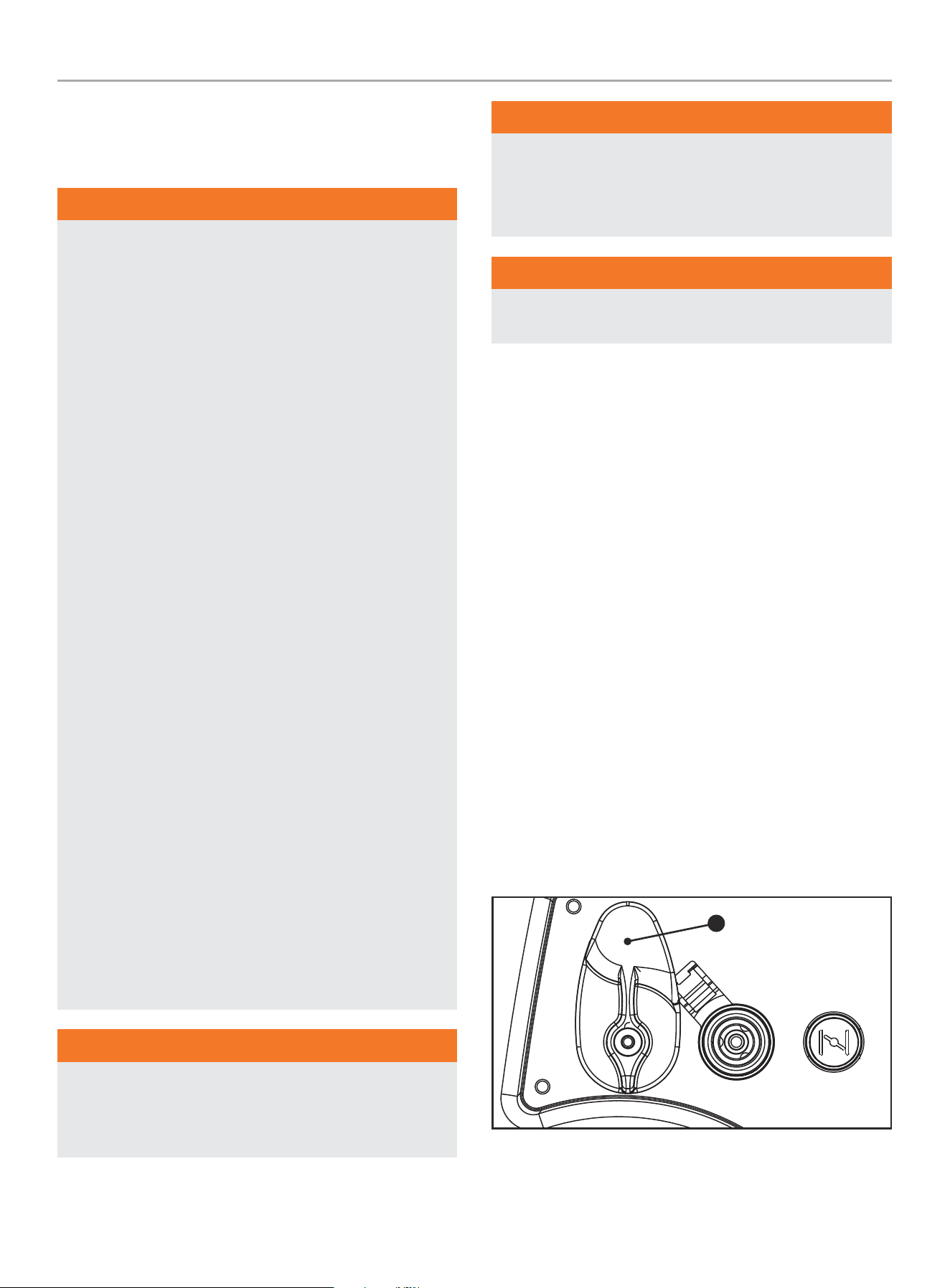

OPERATION
Generator Location
WARNING
NEVER operate the generator inside any building, garage,
basement, crawlspace, shed, enclosure or compartment,
including a generator compartment of a recreational vehicle.
NEVER operate or start the generator in the back of an
SUV, camper, trailer, truck bed (regular sides, flat or other
configuration), under staircases, stairwells, next to walls
or buildings or in any other location that will not allow for
adequate cooling of the generator or for the proper exit of the
exhaust flow from the muffler system.
DO NOT operate or store the generator in wet weather
conditions such as rain or snow. Using a generator in wet
conditions could result in serious injury or death due to
electrocution.
In some state’s generators may be required to be registered
with the local utility company when used at construction sites
and may be subject to additional rules and regulations, consult
your local municipal authority.
Generators should always be operated on a flat, level surface
at all times (even when not in operation).
Generators must have a minimum of 5 feet (1.5 m) of
clearance from all combustible material.
Generators must also have a minimum of 3 feet (91.4 cm)
of air flow clearance on all sides to allow for adequate
performance cooling, maintenance and servicing.
Always place the generator in a well-ventilated area. NEVER
place the generator near air intake vents or where exhaust
fumes could be drawn into occupied or confined spaces.
Always carefully consider wind and air currents when
positioning generator.
Always allow generators to properly cool before transport or
for storage purposes.
Failure to follow proper safety precautions may result in
personal injury, damage to the generator and void the
manufacturer’s warranty.
WARNING
During operation the muffler and exhaust fumes will become
hot. If adequate cooling and breathing space are not supplied,
or if the generator is blocked or enclosed, temperatures can
become extremely heated and may lead to fire.
WARNING
Do not expose to rain or use in damp locations.
Keep all objects a minimum of 5 feet (1.5m) away from the
generator at all times. Heat from the muffler surface and
exhaust gas stream can ignite combustible materials.
WARNING
If you must operate in rain or damp locations, DO NOT operate
without proper protection of the electrical components.
Use of a safety canopy that is fire retardant and will provide proper
air ventilation for the engine exhaust gas stream may be used.
Visit championpowerequipment.com or call to find your Storm
Shield cover.
Surge Protection
Electronic devices, including computers and many programmable
appliances use components that are designed to operate within a
narrow voltage range and may be affected by momentary voltage
fluctuations. While there is no way to prevent voltage fluctuations,
you can take steps to protect sensitive electronic equipment.
– Install UL1449, CSA-listed, plug-in surge suppressors on the
outlets feeding your sensitive equipment.
Surge suppressors come in single- or multi-outlet styles.
They’re designed to protect against virtually all short-duration
voltage fluctuations.
Fuel Selector Switch
The fuel selector switch on the front panel of the inverter is
designed to choose the desired fuel source– Gasoline or LPG. To
select the desired fuel source, simply rotate the selector switch to
the fuel symbol on the panel. Turn the fuel selector switch to the
12 o’clock (vertical) position for LPG operation. (A)
Turn the fuel selector switch to the 3 o’clock (horizontal) position
for gasoline operation. (B)
LPG
A
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
OPERATION
22

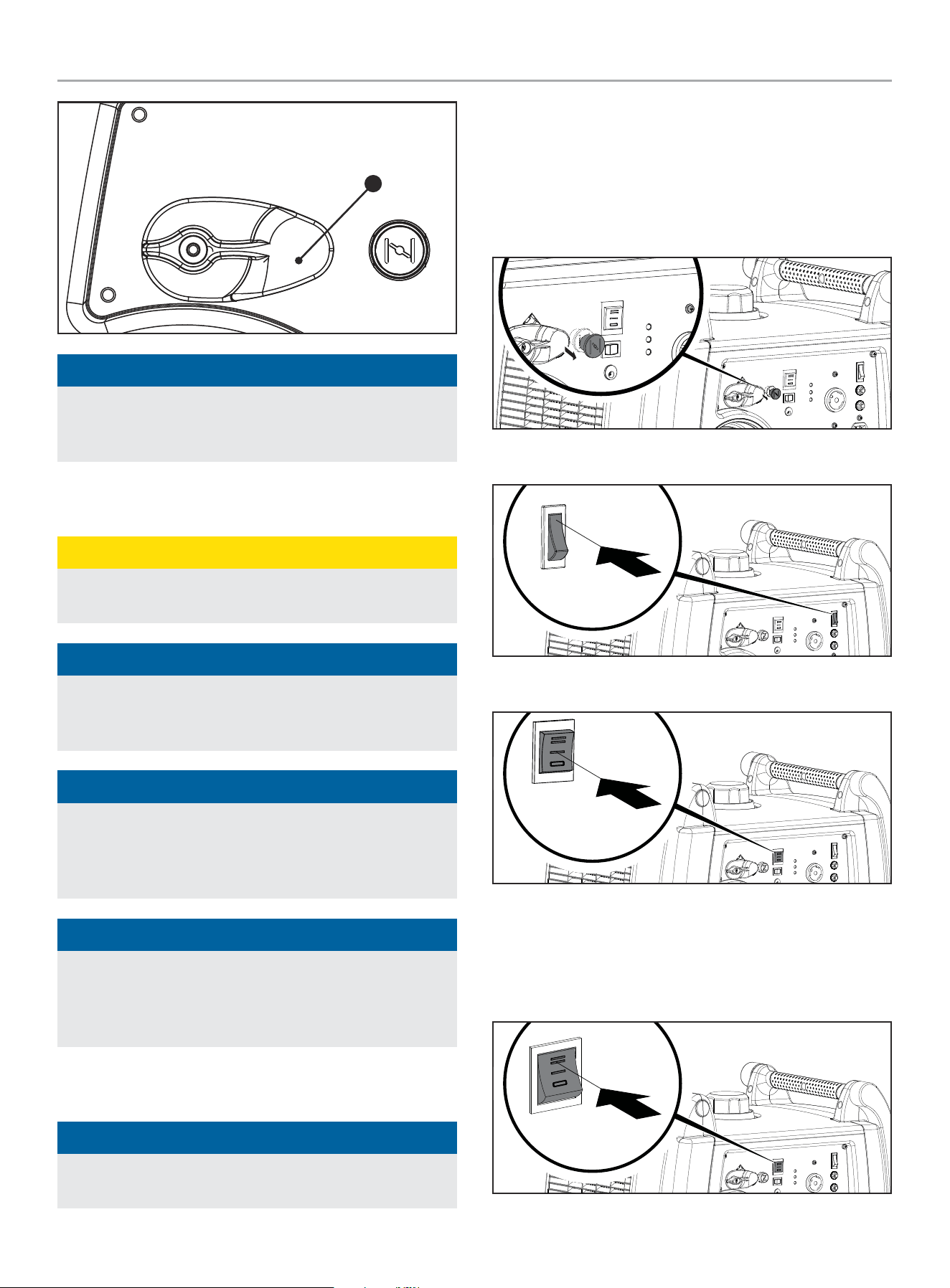

NOTICE
When the fuel selector switch is in the 3 o’clock position, the
gasoline fuel valve is OPEN. To CLOSE the gasoline fuel valve,
turn the selector switch to the 12 o’clock position.
Starting the Inverter
CAUTION
If the ignition switch is held down in the “Start” position longer
than 5 seconds it could damage the starter.
NOTICE
The supplied 12V 7AH battery does re-charge while the engine
is running, but it is also recommended that the battery be fully
charged at least once per month.
NOTICE
When the battery switch is in the “ON” position, the switch
will light up if the battery is sending out a charge. If the switch
does not light up while in the “ON” position, check that the
battery connection is still good.
NOTICE
If the engine starts but does not continue to run make certain
that the generator is on a flat, level surface. The engine is
equipped with a low oil sensor that will prevent the engine
from running when the oil level falls below a critical threshold.
Gasoline
NOTICE
The generator will NOT START with gasoline without battery
charge or an appropriate connection.
1. Make certain the generator is on a flat, level surface.
2. Disconnect all electrical loads from the generator. Never start
or stop the generator with electrical devices plugged in or
turned on.
3. Turn the fuel selector switch to the “Horizontal” position.
4. Pull the choke out to the “CHOKE” position.
5. Push the battery switch to the “ON” position.
6. Push the ignition switch to the “ON” position.
7. ELECTRIC START: Press and hold the ignition switch to the
“START” position. Release as the engine begins to start.
If the engine fails to start within five seconds, release the
switch and wait at least ten seconds before attempting to
start the engine again.
GASOLINE
B
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
OPERATION
23

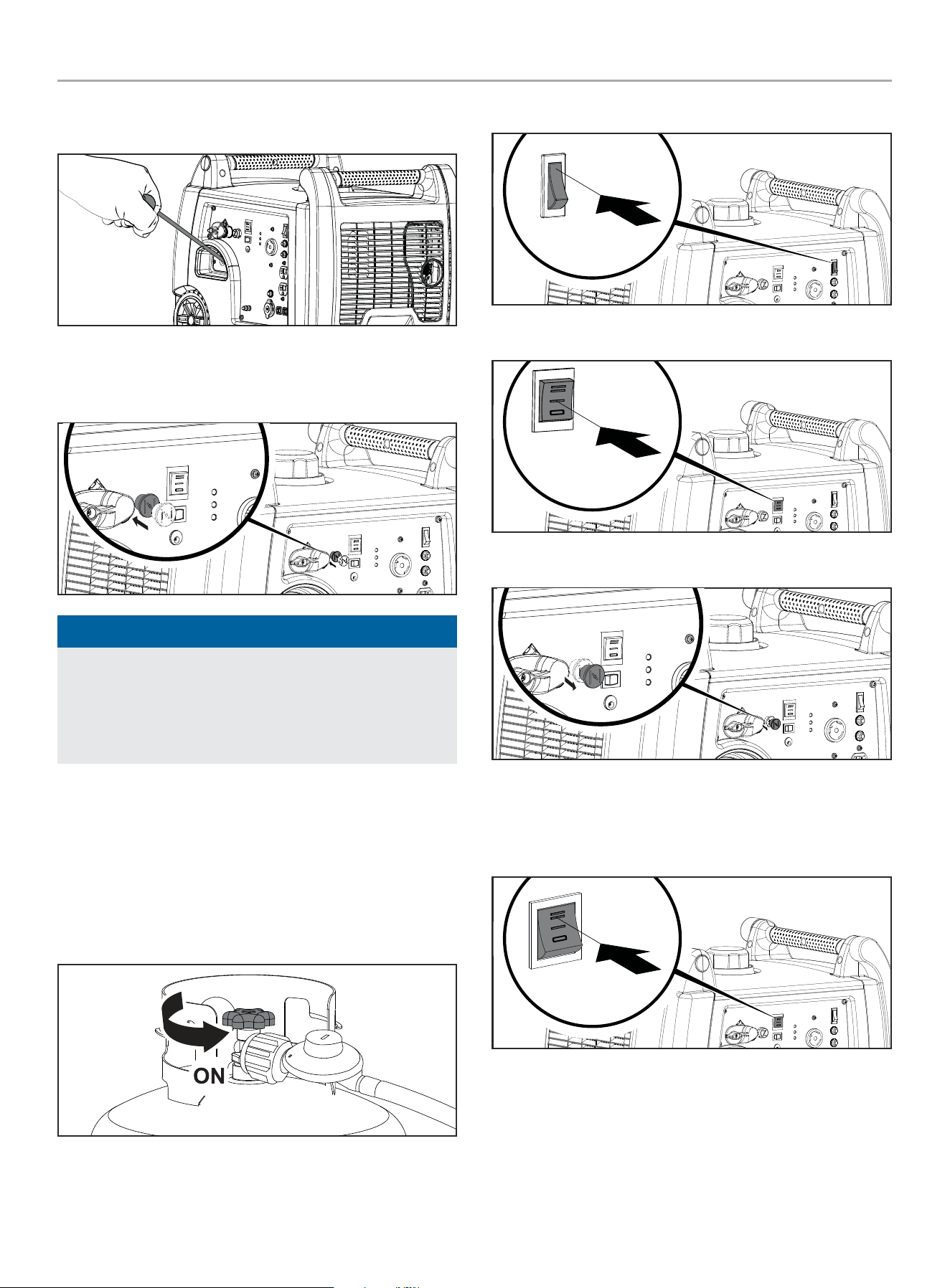

8. RECOIL START: Pull the starter cord slowly until resistance is
felt and then pull rapidly.
9. Do not over-choke. Allow the engine to warm up several
seconds before gradually pushing the choke to the “RUN”
position.
NOTICE
Keep choke in “Choke” position for only 1 pull of the recoil
starter. After first pull, push choke in for up to the next 3
pulls of the recoil starter. Too much choke leads to sparkplug
fouling/engine flooding due to the lack of incoming air. This will
cause the engine not to start.
Propane (LPG)
1. Make certain the generator is on a flat, level surface.
2. Disconnect all electrical loads from the generator. Never start
or stop the generator with electrical devices plugged in or
turned on.
3. Open the fuel valve on the propane cylinder.
4. Turn the fuel selector switch to the “Vertical” position and
connect LPG hose.
5. Push the battery switch to the “ON” position.
6. Push the ignition switch to the “ON” position.
7. ELECTRIC START: Pull the choke to the “Choke” position.
8. Press and hold the ignition switch to the “START” position.
Release as the engine begins to start. If the engine fails to
start within five seconds, release the switch and wait at least
ten seconds before attempting to start the engine again.
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
OPERATION
24

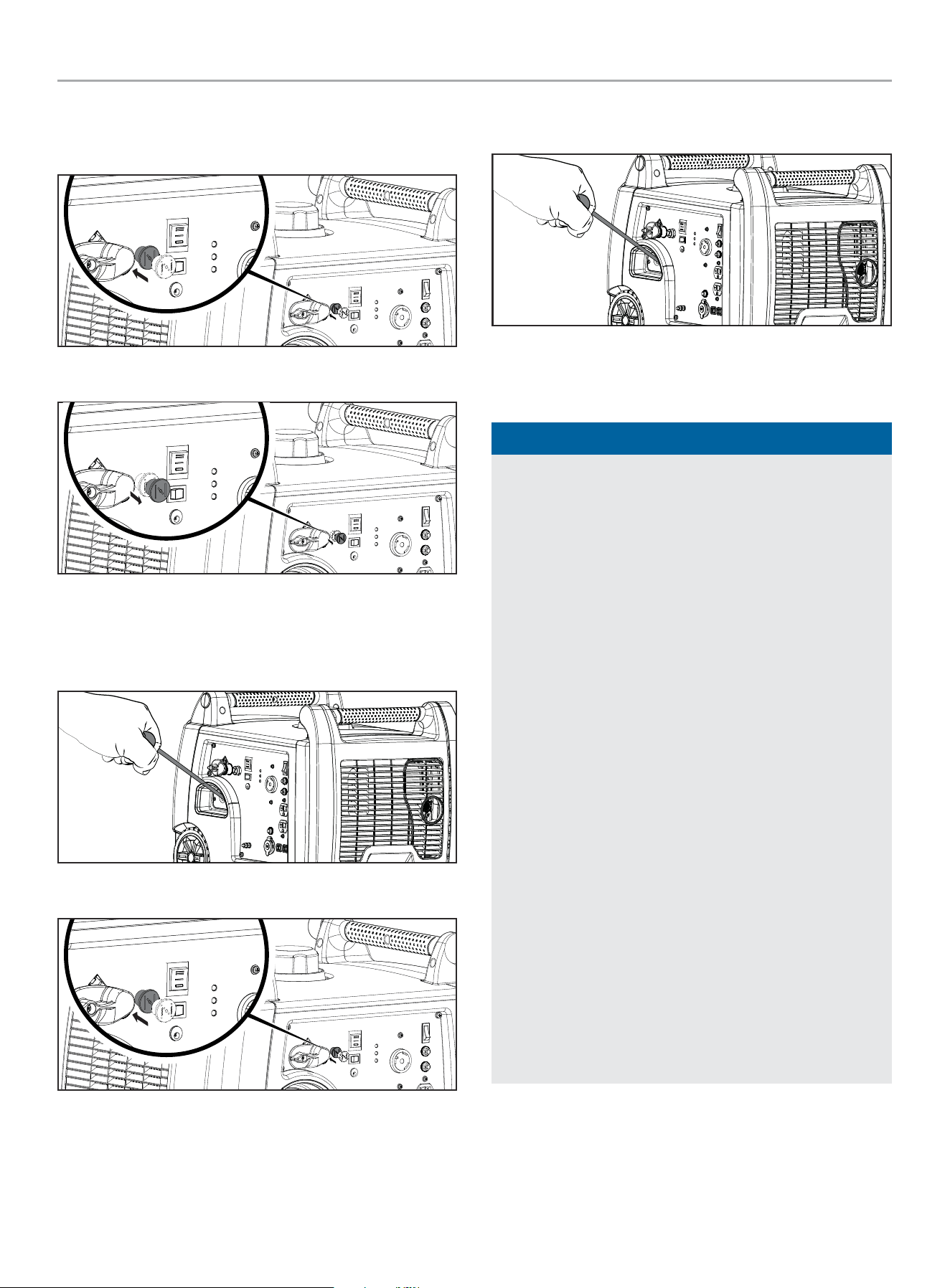

9. Do not over-choke. Allow the engine to warm up several
seconds before gradually pushing the choke to the “RUN”
position.
10. RECOIL START: Pull the choke to the “Choke” position.
11. PULL-TO-PRIME: Pull the starter cord slowly until resistance
is felt and then pull rapidly. Pull with choke out 1-2 times
until you feel a few combustion pulses that indicates that the
engine momentarily started.
12. Push the choke in.
13. Pull the starter cord slowly until resistance is felt and then
pull rapidly.
14. If engine fails to start in 1-pull with choke in the “RUN”
position, then pull choke out and repeat the PULL-TO-PRIME
step.
NOTICE
Accumulation of frost on LPG cylinder and regulators is
common during operation and normally is not an indication
of a problem. As LPG vaporizes and travels from the cylinder
to the generator engine it expands. The amount of frost that
forms can be affected by the size of the cylinder, the amount
of LPG being used, the humidity of the air and other operating
conditions.
In unusual situations this frost may eventually restrict the flow
of LPG to the generator resulting in deteriorating performance.
For example, if the cylinder temperature is reduced to a very
low level then the rate at which the LPG vaporizes is also
reduced and may not provide sufficient flow to the engine. This
is not an indication of a problem with the generator but only
a problem with the flow of LPG from the cylinder. If generator
performance seems to be deteriorating at the same time that
ice formation is observed on tank valve, hose or regulator then
some actions may be taken to eliminate this symptom.
In these rare situations it can be helpful to reduce or eliminate
the cold fuel system effects by doing one of the following:
– Exchanging fuel cylinders to allow the first cylinder to
warm up, repeating as necessary.
– Placing the cylinder at the end of the generator near the
handle, where engine fan air flows out from the generator.
This air is slightly heated by flowing over the engine. The
cylinder should not be placed in the path of the muffler
outlet.
– The cylinder can be temporarily warmed by pouring warm
water over the top of the cylinder.
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
OPERATION
25

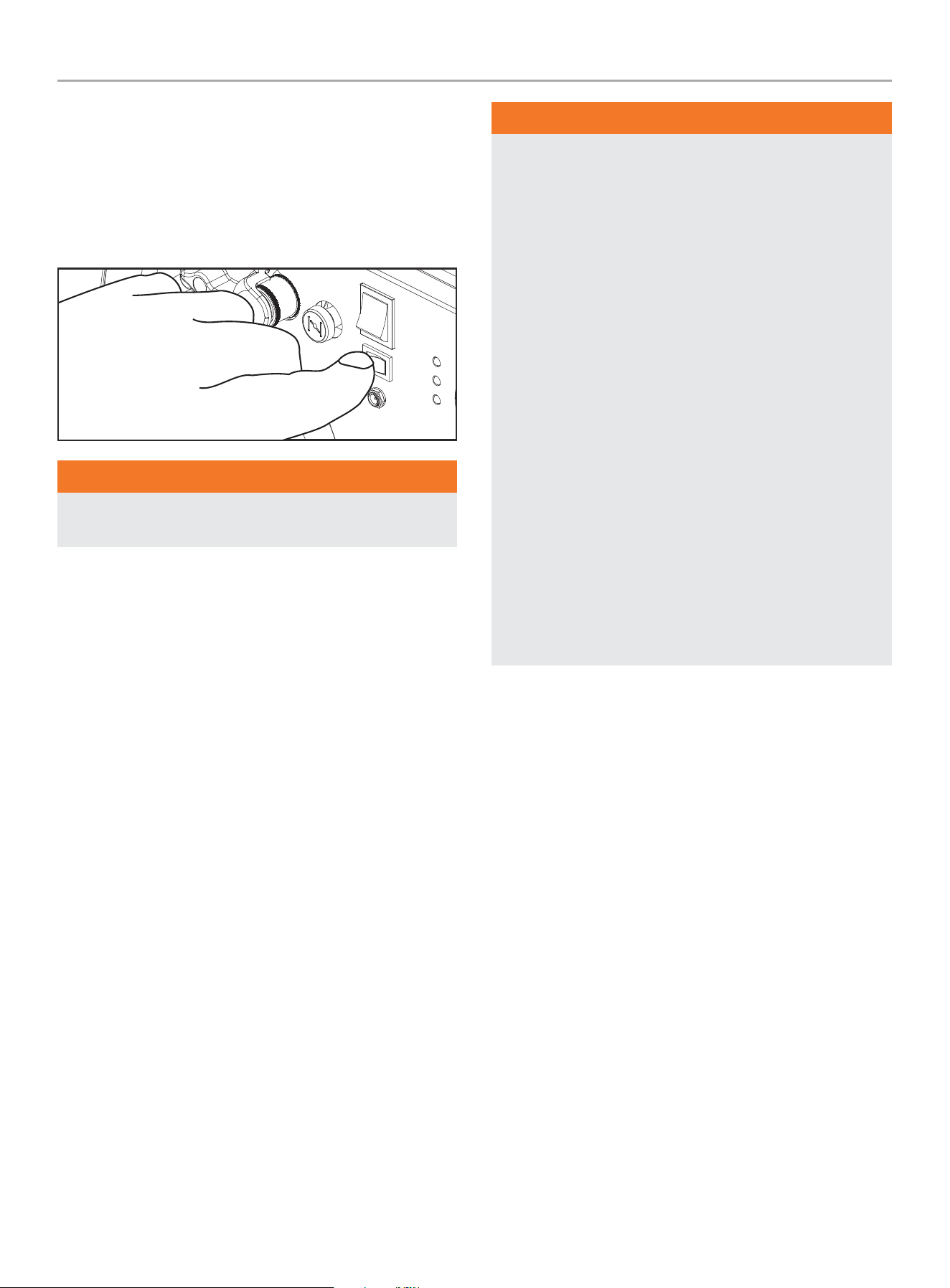

Economy Control Switch
The Economy Control switch can be activated in order to minimize
fuel consumption and noise while operating the unit during times
of reduced electrical output, allowing the engine speed to idle
during periods of non-use. The engine speed returns to normal
when an electrical load is connected. When the economy switch is
off, the engine runs at normal speed continuously.
WARNING
For periods of high electrical load or momentary fluctuations,
the Economy Control Switch should be turned OFF.
Connecting Electrical Loads
Let the engine stabilize and warm up for a few minutes after
starting.
Plug in and turn on the desired 120 or 240 (if applicable) Volt AC
single phase, 60 Hz electrical loads.
– DO NOT connect 3-phase loads to the generator.
– DO NOT overload the generator.
– Use only a high quality, insulated, compatible (3-wire or
4-wire) grounded cord set rated equal to or greater (volts and
amps) than the receptacle plugging into.
WARNING
Always remember to plug your appliances directly into the
generator and do not plug the generator power cord into any
electrical outlet or connect to the circuit breaker panel in your
home. Connecting a generator to your home’s electric utility
company’s power lines, or to another power source, called
‘backfeeding’ is a dangerous practice that is illegal in many
states and municipalities.
This action if done incorrectly could damage your generator,
appliances and could cause serious injury or death to you
or a utility worker when attempting to restore power during
an outage occurrence in the neighborhood who may then
unexpectedly encounter high voltage on the utility line and
suffer a fatal shock.
Whether injuries occur or not, if installed incorrectly and not to
applicable laws and codes, you may be subject to fines or the
utility company may disconnect your home power should this
practice be found in your home.
If the generator will be connected to a building electrical
system, those connections must isolate the generator power
from the utility power. You are responsible for ensuring your
generator’s electricity does not backfeed into the electric
utility power lines. These connections must comply with all
applicable laws and codes – Consult your local utility company
or a qualified electrician to properly install this connection.
Do Not Overload Generator
Capacity
Follow these simple steps to calculate the running and starting
watts necessary for your purposes:
1. Select the electrical devices you plan on running at the same
time.
2. Total the running watts of these items. This is the amount of
power you need to keep your items running.
3. Identify the highest starting wattage of all devices identified
in step 1. Add this number to the number calculated in step 2.
Starting wattage is the surge of power needed to start some
electric driven equipment. Following the steps listed under
“Power Management” will guarantee that only one device will
be starting at a time.
Power Management
Use the following formula to convert voltage and amperage to
watts:
Volts × Amps = Watts
To prolong the life of your generator and attached devices, follow
these steps to add electrical load:
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
OPERATION
26

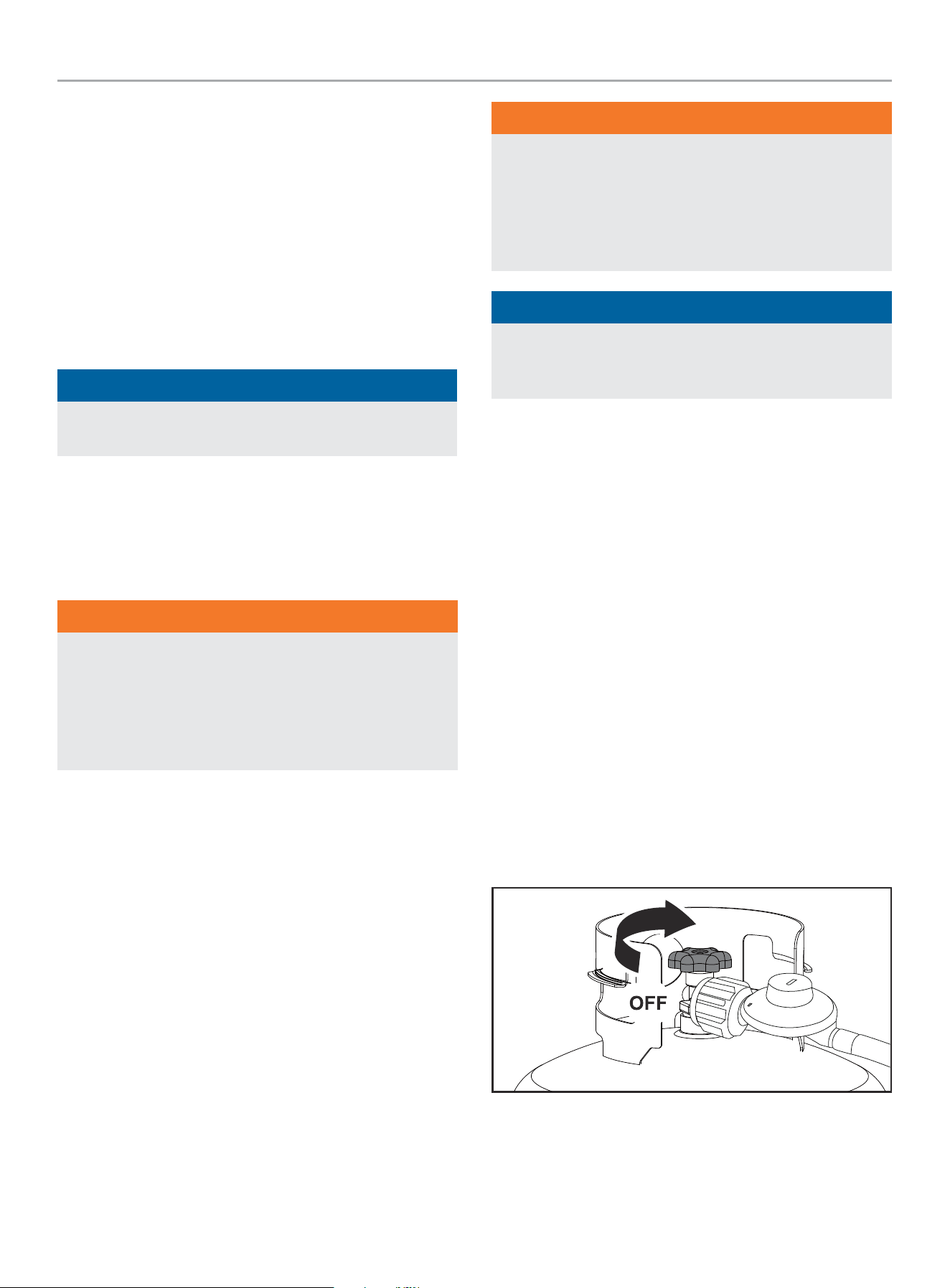

1. Start the generator with no electrical load attached.
2. Allow the engine to run for several minutes to get up to
temperature.
3. Make sure all circuit breakers are set to the run position.
4. Plug in and turn on the first item. It is best to attach the item
with the largest load first.
5. Allow the engine to stabilize.
6. Plug in and turn on the next item.
7. Allow the engine to stabilize.
8. Repeat steps 5-6 for each additional item.
NOTICE
Never exceed the specified capacity when adding loads to the
generator.
12V DC Regulated Automotive Style Outlet
The 12V DC outlet(s) can be used with supplied accessories and
other commercially available 12V DC automotive style plugs.
Confirm the input voltage range of your item is at least 12-24V DC.
WARNING
Do not operate a device while it is plugged into the 12V DC
outlet. When charging a device, do not place on the exhaust
side of the generator. Extreme heat caused by exhaust
can damage the device and cause a potential fire hazard.
Prolonged exposure to engine exhaust can cause serious injury
or death.
External Battery Charging
1. Before connecting the battery charging cable (not included) to
a battery that is installed in a vehicle, disconnect the vehicle
battery ground cable from the negative (–) battery terminal.
2. Plug the battery charging cable into the 12V DC receptacle of
the generator.
3. Connect the red (+) battery charger lead to the red (+) battery
terminal.
4. Connect the black (–) battery charger lead to the black (–)
battery terminal.
5. Start the generator.
Important: The 12V DC outlet is ONLY to be used with supplied
accessories and other commercially available 12V DC automotive
style plugs. Be sure all electric devices including the lines and
plug connections are in good condition before connection to the
generator.
WARNING
Do not start the vehicle while the battery charging cable is
connected and the generator is running. It will not give the
battery a boost of power. The vehicle or the generator may
be damaged. Charge only vented wet lead acid batteries.
Other types of batteries may burst, causing personal injury or
damage.
NOTICE
Be sure all electric devices including the lines and plug
connections are in good condition before connection to the
generator.
Parallel Operation
The Champion model 100396 is parallel ready and can be
operated in parallel with another Champion unit to increase the
total available electrical power. A Champion parallel kit (optional
equipment) is required for parallel operation. Model 100333 is
the recommended model for this unit. For a list of compatible
models or to order a parallel kit, please call customer service at
1-877-338-0999 or visitwww.championpowerequipment.com.
Detailed instructions for parallel kit installation and operation of
the connected generators are provided in the parallel kit operator’s
manual.
Stopping the Engine
1. Turn off and unplug all electrical loads. Never start or stop the
generator with electrical devices plugged in or turned on.
2. Let the generator run at no-load for several minutes to
stabilize internal temperatures of the engine and generator.
3. Turn the LPG cylinder knob to the “CLOSE” or off position if
operating by LPG.
4. Let the engine run until fuel starvation has stopped the
engine. This usually takes a few minutes.
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
OPERATION
27

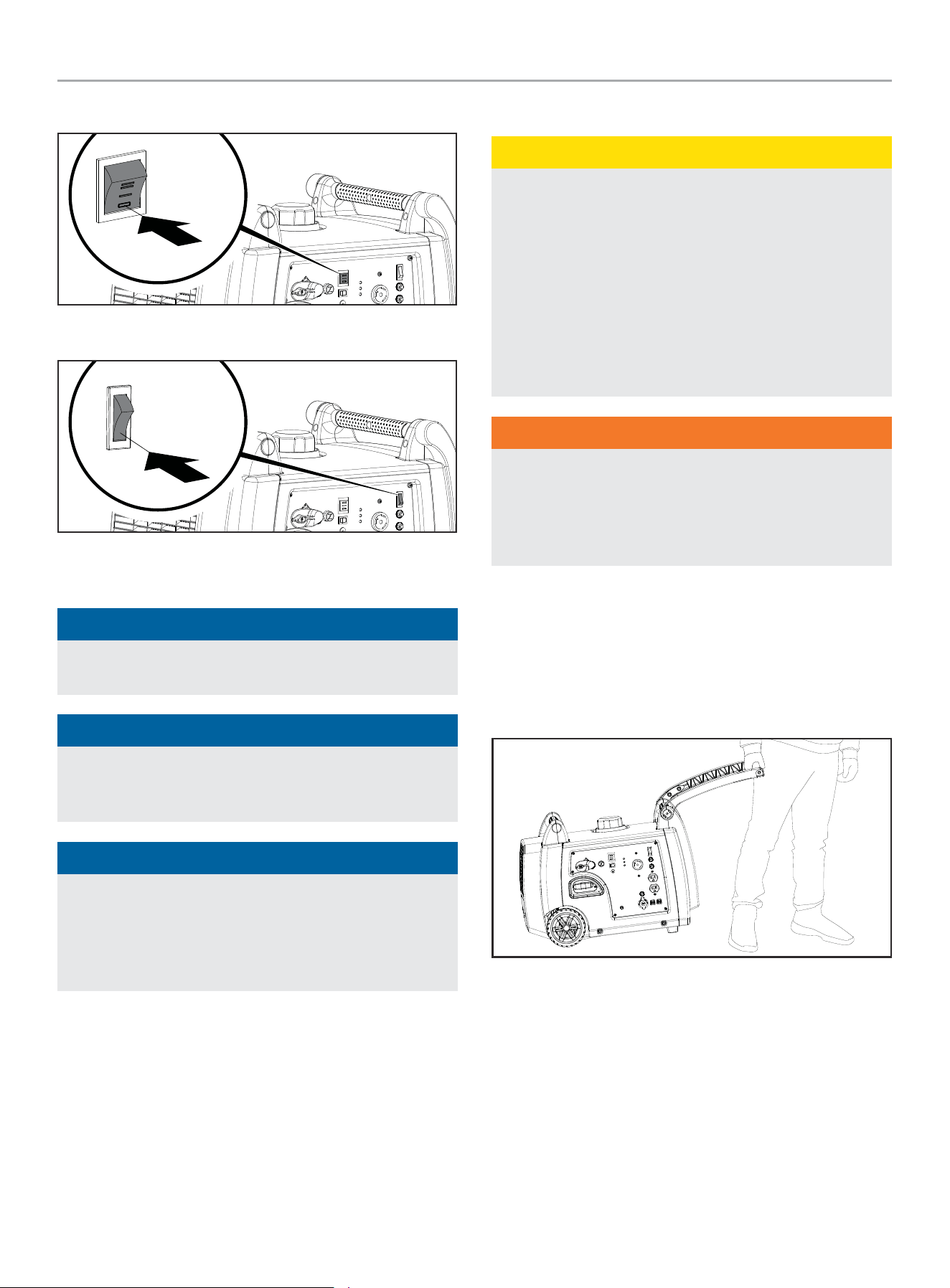

5. Press the ignition switch to the “OFF” position.
6. Turn battery switch to the “OFF” Position.
Important: Always ensure that the fuel valve and the ignition
switch are in the “OFF” position when the engine is not in use.
NOTICE
When turning off the generator after LPG operation, make sure
the LPG cylinder knob is in the fully closed position.
NOTICE
If the engine will not be used for a period of two (2) weeks or
longer, please see the Storage section for proper engine and
fuel storage.
NOTICE
Always turn the battery switch to the “OFF” position when
unit is not in use, this will stop the battery from being drained.
Follow the maintenance and storage instructions for the
generator and battery when the unit will not be used for a
period of 2 weeks or more.
Moving the Generator
CAUTION
– NEVER lift or carry the generator using the folding handle.
– NEVER tilt sideways while moving the generator.
– ALWAYS place the generator on its wheels in the upright
position.
– ALWAYS turn the generator off and ensure the fuel valve is
closed.
– ALWAYS make sure engine and muffler are cooled down
before the generator can be handled safely (typically 15-30
minutes).
WARNING
The folding handle is not long enough to hold and walk with a
full stride when moving the generator. Always side step as you
walk to avoid injury to your heels and/or feet. Failure to follow
these instructions could result in personal injury or damage to
the generator.
1. Begin by raising the folding handle, found on opposite side of
wheels.
2. Using the handle, tilt the end of the generator slightly off the
ground until balanced on the wheels.
3. While maintaining balance, roll the generator to the desired
location.
Operation at High Altitude
The density of air at high altitudes is lower than at sea level.
Engine power is reduced as the air mass and air-fuel ratio
decrease. Engine power and generator output will be reduced
approximately 3½% for every 1000 ft. of elevation above sea level.
At high altitudes increased exhaust emissions can also result due
to the increased enrichment of the air fuel ratio. Other high altitude
issues can include hard starting, increased fuel consumption and
spark plug fouling.
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
MAINTENANCE
28

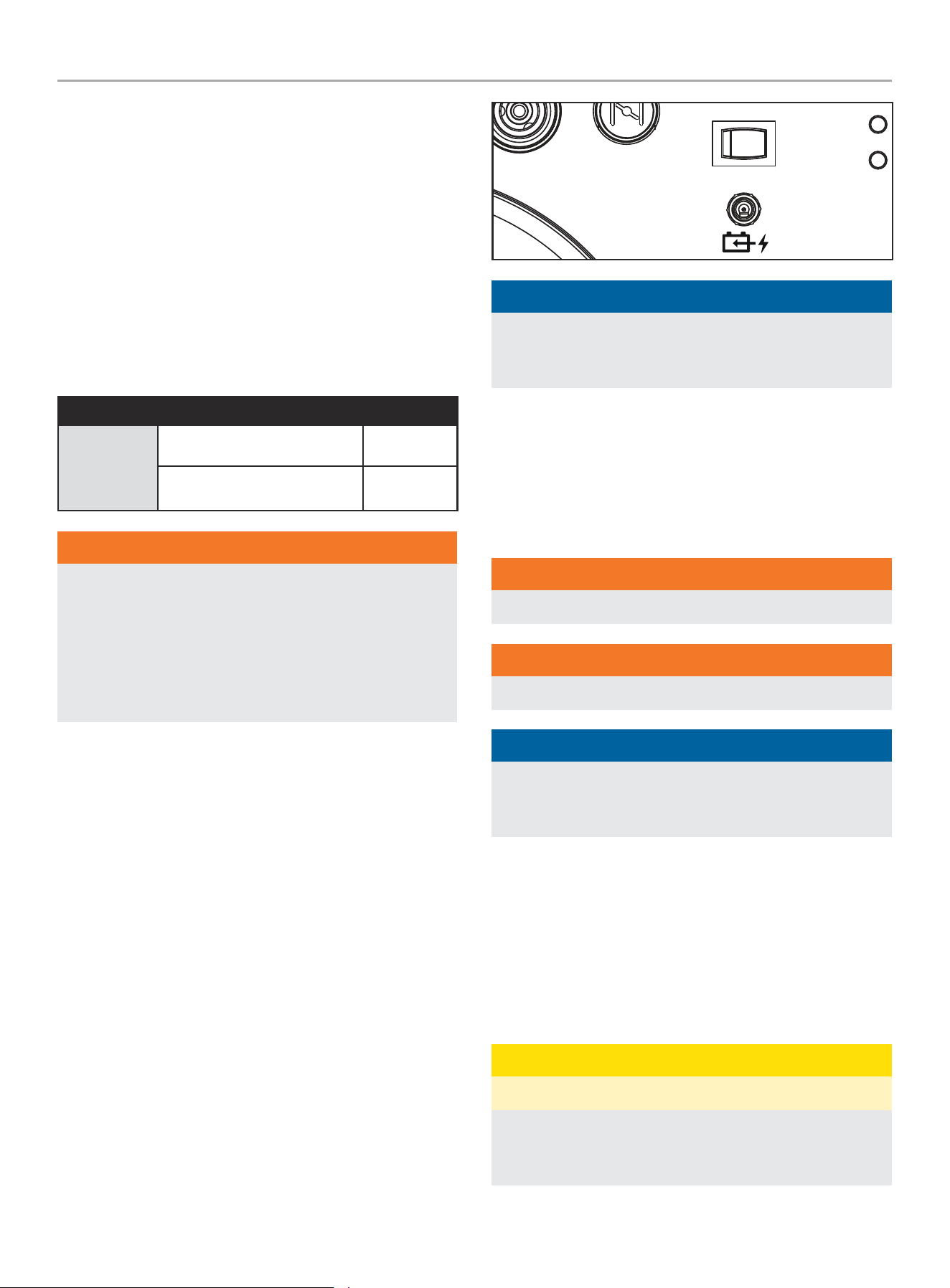

To alleviate high altitude issues other than the natural power
loss, CPE can provide a high altitude carburetor main jet. The
alternative main jet and installation instructions can be obtained
by contacting our Technical Support Team. Installation instructions
are also available in the Technical Bulletin area of the CPE website.
The part number and recommended minimum altitude for the
application of the high altitude carburetor main jet is listed in the
following table.
In order to select the correct high altitude main jet it is necessary
to identify the carburetor model. For this purpose, a code is
stamped on the side of the carburetor. Select the correct high
altitude jet part number corresponding to the carburetor code
found on your particular carburetor.
Carb. Code High Alt. Jet Part Number Min. Altitude
P25-4-H
28.131017.00.H Standard
28.131017.00.01.H
1067 m
(3500 ft.)
WARNING
Operation using the alternative main jet at elevations lower
than the recommended minimum altitude can damage the
engine. For operation at lower elevations, the originally
supplied standard main jet must be used. Operating the
engine with the wrong engine configuration at a given altitude
may increase its emissions and decrease fuel efficiency and
performance.
Overload Operation
The overload indicator light will turn on when the rated load is
exceeded. When the maximum load is reached, the LED will blink
and cut power to the receptacles. To recover the power, shut down
the engine, wait until the light turns off and restart the generator.
Smart Charger
The smart charger (included) is a device that is used to charge
the generator battery. The smart charger plugs into the generator,
into the DC input on the front panel, and then into a household
outlet power source. There is a light on the charger. If the battery
is in need of a charge or charging then the red light will light up. If
the battery is good and not in need of charging or has completed
charging then the green light will light up. The smart charger is
programmed not to charge or to stop charging when the light is
green. This is a safety feature that will help prevent damage to the
battery and generator.
NOTICE
If the battery is completely dead, and won’t hold a charge,
then the smart charger can be plugged into a power source to
enable power to the choke.
MAINTENANCE
Make certain that the generator is kept clean and stored properly.
Only operate the unit on a flat, level surface in a clean, dry
operating environment. DO NOT expose the unit to extreme
conditions, excessive dust, dirt, moisture or corrosive vapors.
WARNING
Never operate a damaged or defective generator.
WARNING
Improper maintenance will void your warranty.
NOTICE
For Emission control devices and systems, read and
understand your responsibilities for service as stated in the
Emission Control Warranty Statement of this manual.
The owner/operator is responsible for all periodic maintenance.
Complete all scheduled maintenance in a timely manner.
Correct any issue before operating the generator.
For service or parts assistance, contact our
Technical Support Team at 1-877-338-0999.
Cleaning the Generator
CAUTION
DO NOT spray generator directly with water.
Water can enter the generator through the cooling slots and
damage the generator windings. It can also contaminate the
fuel system.
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
MAINTENANCE
29

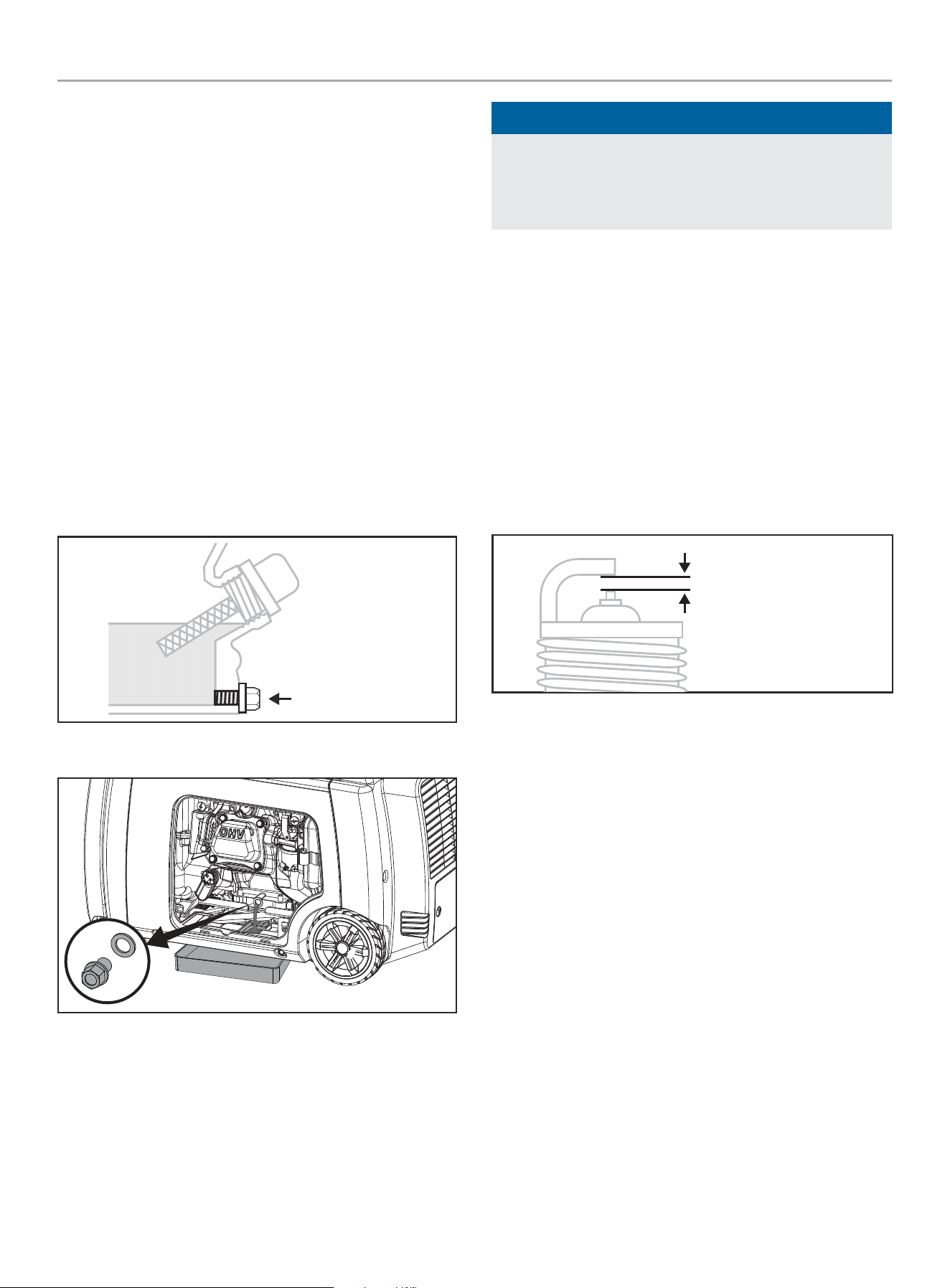

1. Use a damp cloth to clean exterior surfaces of the generator.
2. Use a soft bristle brush to remove dirt and oil.
3. Use an air compressor (25 PSI) to clear dirt and debris from
the generator.
4. Inspect all air vents and cooling slots to ensure that they are
clean and unobstructed.
To prevent accidental starting, remove and ground the spark plug
wire before performing any service.
Changing the Engine Oil
Change oil when the engine is warm. Refer to the oil specification
to select the proper grade for your operating environment.
1. Set the generator on top of a work bench or table.
2. Loosen the cover screws and remove the maintenance cover.
3. Pop up the rubber maintenance plug, from below the drain
bolt.
4. Remove the drain bolt.
DRAIN BOLT
5. Allow the oil to drain completely.
6. Replace the drain plug.
7. Add oil according to Add Engine Oil in Assembly section.
DO NOT OVERFILL. Oil not included for routine maintenance.
8. Reinstall the maintenance cover and tighten the cover screws.
9. Dispose of used oil at an approved waste management
facility.
NOTICE
Once oil has been added, a visual check should show oil
about 1-2 threads from running out of the fill hole. If using the
dipstick to check oil level, DO NOT screw in the dipstick while
checking.
Cleaning and Adjusting the Spark Plug
1. Remove the maintenance cover.
2. Remove the spark plug cable from the spark plug
3. Use a spark plug socket tool (not included), or a 13/16 in. or
21 mm socket (not included) to remove the plug.
4. Remove the spark plug.
5. Inspect the electrode on the plug. It must be clean and not
worn to produce the spark required for ignition.
6. Make certain the spark plug gap is
0.022-0.028 in. (0.55-0.7 mm).
SPARK PLUG GAP
7. Carefully thread the plug into the engine.
8. Use the spark plug socket tool (not included) or a 13/16 in. or
21 mm socket (not included) to firmly install the plug.
9. Attach the spark plug cap to the plug.
10. Reinstall the spark plug access cap, and maintenance cover
Cleaning the Air Filter
1. Remove the maintenance cover
2. Locate the air filter plastic cover.
3. Unsnap the locking hinge on the cover.
4. Remove the old filter.
5. Place the new filter in the assembly.
6. Re-snap the hinge on the air filter cover.
7. Reinstall the maintenance cover and tighten the cover screw
securely.
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
MAINTENANCE
30

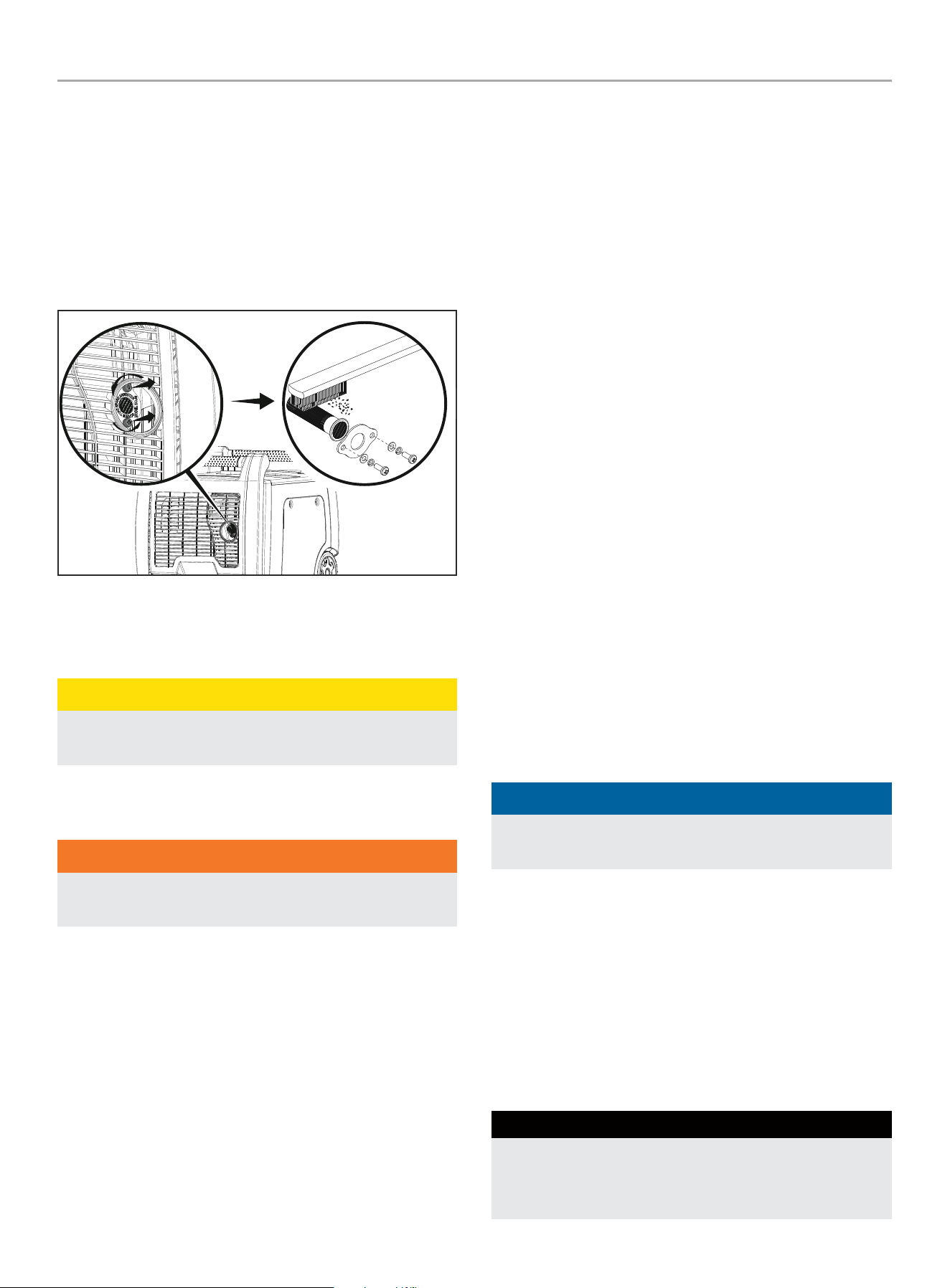

Cleaning the Spark Arrestor
1. Allow the engine to cool completely before servicing the spark
arrester.
2. Remove the two screws holding the cover plate which retains
the end of the spark arrester to the muffler.
3. Remove the spark arrester screen.
4. Carefully remove the carbon deposits from the spark arrester
screen with a wire brush.
5. Replace the spark arrester if it is damaged.
6. Position the spark arrester in the muffler and attach with the
two screws.
CAUTION
Failure to clean the spark arrestor will result in poor engine
performance.
Adjusting the Governor
WARNING
Tampering with the factory set governor will void your
warranty.
The air-fuel mixture is not adjustable. Tampering with the governor
can damage your generator and your electrical devices and
will void your warranty. Contact our Technical Support Team at
1-877-338-0999 for all other service and/or adjustment needs.
Generator Battery
This product is equipped with an automatic battery charging
circuit. The battery will receive charging voltage when the engine
is running. The battery will maintain a proper charge if the unit
is used on a regular basis (about once every two weeks). If it is
used less frequently, the battery should be connected to a trickle
charger (included) or battery maintainer to keep the battery
properly charged. If the battery is not able to start the engine, it
can be started by manually pulling the engine recoil cord. If the
battery voltage is extremely low, the charging circuit may not be
able to re-charge the battery. In this case, the battery must be
connected to a standard automotive style battery charger for
re-charging before it can be used.
Disconnect the Battery
1. Remove the battery panel cover.
2. Remove the protective cover from the black/negative battery
lead.
3. Disconnect the black/negative lead from the black/negative
terminal on the battery and store the cap screw and nut.
4. Repeat steps 1-2 for the red/positive battery lead.
5. Store the battery in a cool, dry place.
Charge the Battery
For a generator equipped with batteries for electric starting,
proper battery maintenance and storage should be followed. An
automatic battery charger (included) with automatic charging
capability should be used to charge the battery. Maximum
charging rate should not exceed 1.5 amps. Follow the instructions
included with the battery charger. The battery should be fully
charged at least once per month.
NOTICE
A Float Charger will maintain the battery condition over long
storage periods.
Maintenance Schedule
Follow the service intervals indicated in the following maintenance
schedule.
Service your generator more frequently when operating in adverse
conditions.
Contact our Technical Support Team at 1-877-338-0999 to locate
the nearest CPE certified service dealer for your generator or
engine maintenance needs.
EVERY 8 HOURS OR PRIOR TO EACH USE
Check oil level
Clean around air intake and muffler
Check propane (LPG) hose for leaks
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
STORAGE
31
FIRST 5 HOURS (BREAK IN)
Change oil
EVERY 50 HOURS OR ANNUALLY
Clean air filter
Change oil if operating under heavy load or in hot
environments
EVERY 100 HOURS OR ANNUALLY
Change oil
Clean/adjust spark plug
Clean spark arrestor
Clean fuel valve filter*
EVERY 250 HOURS
Clean combustion chamber*
Check/adjust valve clearance*
EVERY 3 YEARS
Replace fuel line*
Replace LPG hose
* To be performed by knowledgeable, experienced owners or CPE certified service
centers.
STORAGE
DANGER
Gasoline, gasoline vapors and liquid petroleum gas (LPG/
propane) are highly flammable and extremely explosive.
Fire or explosion can cause severe burns or death. Only fill
or drain fuel outdoors in a well-ventilated area. Do not pump
gasoline directly into the generator. Use an approved container
to transfer the fuel to the generator. Never use a fuel container,
hose, cylinder or any other fuel related item that is damaged or
appears damaged. Do not overfill the fuel tank. Always keep
fuel away from sparks, open flames, pilot lights, heat and
other sources of ignition. Do not light or smoke cigarettes.
Short Term Storage (up to 1 year)
Gasoline in the fuel tank has a maximum shelf life of up to 1 year
with the addition of properly formulated fuel stabilizers and if
stored in a cool, dry place. Gasoline in the carburetor, however,
WILL gum up and clog the carburetor if it isn’t used or drained
within 2 weeks.
1. Be sure all appliances are disconnected from the generator.
2. Add a properly formulated fuel stabilizer to the tank (2-3
times manufacturer’s recommended amount).
3. Run the generator for 10 minutes so the treated fuel cycles
through the fuel system and carburetor.
4. With the generator running, turn the fuel valve to the “OFF”
position and let the generator run until fuel starvation has
stopped the engine. This usually takes a few minutes.
5. Turn engine switch to the “OFF” position.
6. Allow generator to cool completely before continuing.

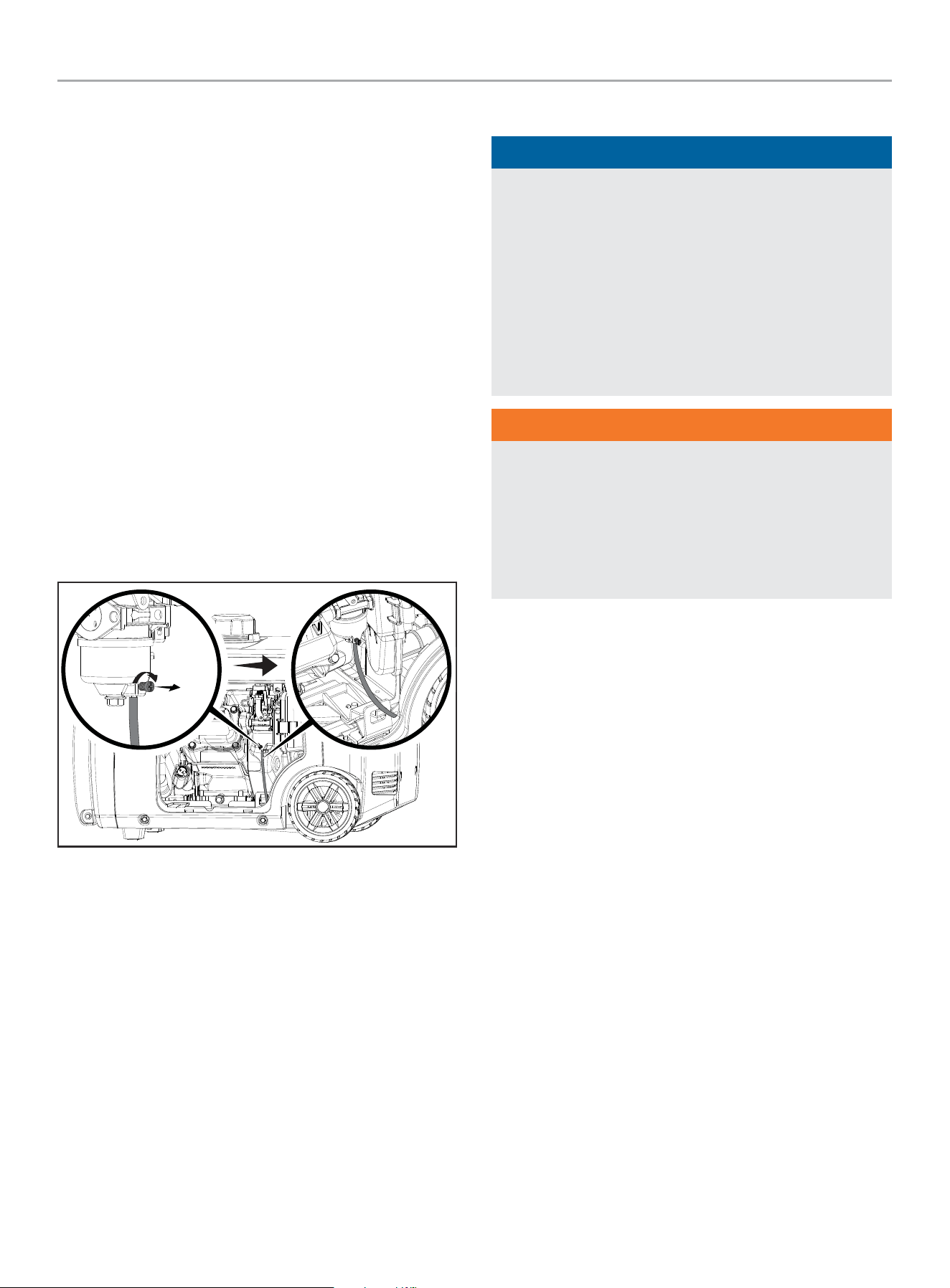

7. Optional: to ensure fuel is completely drained from the
carburetor, use the drain bolt on the carburetor to empty any
excess gasoline into an appropriate container.
8. Remove the spark plug cap and spark plug and pour about a
tablespoon of oil into the cylinder.
9. Pull the recoil slowly to crank the engine to distribute the oil
and lubricate the cylinder.
10. Reattach the spark plug and spark plug cap.
11. If the generator includes a battery, disconnect and charge
according to Generator Battery.
12. Clean the generator according to Generator Maintenance.
13. Store the generator in a cool, dry place out of direct sunlight.
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
STORAGE
32
Long Term Storage (over 1 year)
For storage over 1 year, the fuel tank and carburetor must be
completely drained of gasoline.
1. Be sure all appliances are disconnected from the generator.
2. Add a properly formulated fuel stabilizer to the fuel tank.
3. Run the generator for 10 minutes so the treated fuel cycles
through the fuel system and carburetor.
4. Run Dry Option:
4a. Let the generator run to fuel complete starvation.
4b. Turn engine switch to the “OFF” position.
4c. Allow generator to cool completely.
5. Drain Fuel Option:
5a. Turn engine switch to the “OFF” position.
5b. Allow generator to cool completely.
5c. Use the drain bolt on the carburetor to completely empty
gasoline from the fuel tank and carburetor into an
appropriate container.
5d. Replace and tighten the carburetor drain bolt.
6. Turn the fuel valve to the “OFF” position.
7. Remove the spark plug and pour about a tablespoon of oil into
the cylinder. Crank the engine slowly to distribute the oil and
lubricate the cylinder.
8. Reattach the spark plug and spark plug cap.
9. If the generator includes a battery, disconnect and charge
according to Generator Battery.
10. Clean the generator according to Generator Maintenance.
11. Store the generator in a cool, dry place out of direct sunlight.
Removing from Storage
NOTICE
If the generator has been improperly stored for a period
longer than 30 days with ethanol blended gasoline in the
gasoline tank and/or carburetor, all fuel must be drained
and the carburetor must be thoroughly cleaned of ethanol
build up. This process involves technically advanced tasks.
For assistance please call our Technical Support Team at
1-877-338-0999.
If the gasoline tank and carburetor were properly emptied of all
ethanol blended gasoline prior to the generator being stored,
follow the below steps when removing from storage.
WARNING
If there is a strong smell of LPG: Close valve on the cylinder.
Check all connections for leaks by wetting the fittings with a
solution of soap and water. Bubbles which appear or bubbles
which grow indicate that a leak exists. Do not smoke or light a
cigarette, or check for leaks using a match, open flame source
or lighter. Contact a qualified technician to inspect and repair
an LPG system if a leak is found, before using the generator.
1. Add fuel to the generator according to Add Fuel.
2. With the engine switch in the “OFF” position, turn the
fuel valve to the “ON” position. After 5 minutes check the
carburetor and air filter areas for any leaking gasoline. If
found, the carburetor will need to be disassembled and
cleaned or replaced. If no fuel leaks are found, turn the fuel
valve to the “OFF” position.
3. Check oil level and add clean, fresh oil if needed.
4. Check and clear air filter of any obstructions such as bugs or
cobwebs. If necessary, clean according to Air Filter section.
5. If the generator includes a battery, connect according to
Connect the Battery
6. Start the generator according to Starting the Engine.
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
SPECIFICATIONS
33
SPECIFICATIONS
Generator Specifications
Generator Model
........................................... 100396
Start Type ......................................... Electric, Manual
Watts (Starting/Running) .............................. 3400/3100
Watts (LPG) (Starting/Running) ........................ 3060/2790
Volts AC .......................................................... 120
AC Amps @ 120V .............................................. 25.8
Volts DC .......................................................... 12
DC Amps ............................................................8
Frequency .....................................................60 Hz
Phase ......................................................... Single
Grounding Type .....................................Neutral Floating
Weight ............................................ 95.9 lb. (43.5 kg)
Length ............................................25.1 in. (63.7 cm)
Width ............................................ 17.3 in. (44.0 cm)
Height .............................................18.3 in. (46.4 cm)
Engine Specifications
Model ................................................ YF170FD-L_G
Displacement .................................................192 cc
Type ................................................... 4-Stroke OHV
Spark Plug
OEM Type ..................................................... F7RTC
Replacement Type ......................NGK BPR7ES or equivalent
Gap ................................0.022-0.028 in. (0.55-0.7 mm)
Valve
Intake Clearance .................0.002-0.005 in. (0.06-0.12 mm)
Exhaust Clearance ...............0.003-0.006 in. (0.08-0.14 mm)
NOTICE
A technical bulletin regarding valve adjustment procedures is
available at www.championpowerequipment.com.
Oil Specifications
DO NOT OVERFILL.
Type ............................................*See following chart
Capacity ....................................... 20.3 fl. oz. (600 ml)
-20 0 20 40 60
Ambient temperature
Recommended Engine Oil Type
80 100 120
-28.9
°F
°C
-17.8 -6.7 4.4 15.6 26.7 37.8 48.9
10W-30
5W-30 Full Synthetic
10W-405W-30
NOTICE
Temperature will affect engine oil and engine performance.
Change the type of engine oil used based on temperature
shown in the “Recommended Engine Oil Type” table.
Fuel Specifications
Use unleaded gasoline with a minimum octane rating of 87 and
an ethanol content of 10% or less by volume. DO NOT USE E15 or
E85. DO NOT OVERFILL.
Gasoline Capacity ..................................... 1.6 gal. (6 L)
Propane (LPG)
– Use only an approved LPG cylinder equipped with an OPD
(overfilling prevention device) valve.
Battery Specifications
Type ..................................... Rechargeable, Lithium-ion
Volts DC .......................................................... 12
Capacity ........................................................ 7 Ah
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
SPECIFICATIONS
34
Temperature Specifications
Manual Starting Temperature
Range (°F/°C)
................................... 5 to 104/-15 to 40
Electric Starting Temperature
Range (°F/°C) ...................................23 to 104/-5 to 40
NOTICE
An important message about temperature: Your product
is designed and rated for continuous operation at ambient
temperatures up to 104°F (40°C). When needed, it may be
operated at temperatures ranging from 5°F (-15°C) to 122°F
(50°C) for short periods of time. If exposed to temperatures
outside this range during storage, it should be brought back
within this range before operation. In any event, the product
must always be operated outdoors, in a well-ventilated area
and away from doors, windows and vents.
ICES–002 Warning
This device complies with Industry Canada license - exempt RSS
standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including
interference that may cause undesired operation of the
device.
100396 - 3400W DUAL FUEL ELECTRIC START INVERTER GENERATOR
TROUBLESHOOTING
35
TROUBLESHOOTING
Problem Cause Solution
Generator will not start.
No fuel. Add fuel.
Faulty spark plug. Clean and adjust spark plug or replace.
Low oil level.
Fill crankcase to the proper level.
Place generator on a flat, level surface.
Spark plug wire loose. Attach wire to spark plug.
Old fuel or water in fuel. Drain fuel and replace with fresh fuel.
Flooded with fuel. Let unit stand for 10 mins.
Generator starts but runs roughly.
Choke in the wrong position. Adjust choke.
Dirty air filter. Clean or replace air filter.
Dirty fuel valve. Clean the fuel valve.
Clogged spark arrestor. Clean spark arrestor.
Generator will not start electrically. Generator battery is dead. Recharge generator battery.
Generator shuts down during operation.
Out of fuel. Fill fuel tank.
Low oil level.
Fill crankcase to the proper level. Place generator
on a flat, level surface.
Clogged spark arrestor. Clean spark arrestor.
Generator cannot supply enough power
or overheating.
Generator is overloaded.
Review load and adjust. See “Connecting
Electrical Loads.”
Dirty air filter. Clean or replace air filter.
Choke in wrong position. Move EZ Start Dial to the RUN position.
Generator is running but no AC output.
Poor cord connection. Check all connections.
Circuit breaker is open. Reset circuit breaker.
Loose wiring. Inspect and tighten wiring connections.
Other. Contact the help line.
Generator hunts or falters.
Engine governor defective. Contact the help line.
Dirty fuel valve. Clean the fuel valve.
Carburetor is dirty and running lean. Contact the help line.
Choke in wrong position. Adjust choke.
DUAL FUEL MODELS ONLY: Generator
will not stop.
Propane valve is still open.
Turn the propane valve to the CLOSED position on
the tank.
Repeated circuit breaker tripping.
Overload.
Review load and adjust. See “Connecting
Electrical Loads.”
Faulty power cords or device.
Check for damaged, bare or frayed wires. Replace
defective device.
Circuit breaker still too hot. Let unit sit for 5 mins.
For other issues and technical support:
Technical Support Team
Toll Free 1-877-338-0999
support@championpowerequipment.com
100269 - 3400W PORTABLE INVERTER GENERATOR
25
WARRANTY
WARRANTY*
CHAMPION POWER EQUIPMENT
3 YEAR LIMITED WARRANTY
Warranty Qualifications
To register your product for warranty and FREE lifetime call center
technical support please visit:
https://www.championpowerequipment.com/register
To complete registration you will need to include a copy of the
purchase receipt as proof of original purchase. Proof of purchase
is required for warranty service. Please register within ten (10)
days from date of purchase.
Repair/Replacement Warranty
CPE warrants to the original purchaser that the mechanical and
electrical components will be free of defects in material and
workmanship for a period of three years (parts and labor) from
the original date of purchase and 270 days (parts and labor) for
commercial and industrial use. Transportation charges on product
submitted for repair or replacement under this warranty are the
sole responsibility of the purchaser. This warranty only applies to
the original purchaser and is not transferable.
Do Not Return The Unit To The Place Of
Purchase
Contact CPE’s Technical Service and CPE will troubleshoot any
issue via phone or e-mail. If the problem is not corrected by
this method, CPE will, at its option, authorize evaluation, repair
or replacement of the defective part or component at a CPE
Service Center. CPE will provide you with a case number for
warranty service. Please keep it for future reference. Repairs or
replacements without prior authorization, or at an unauthorized
repair facility, will not be covered by this warranty.
Warranty Exclusions
This warranty does not cover the following repairs and equipment:
Normal Wear
Products with mechanical and electrical components need
periodic parts and service to perform well. This warranty does not
cover repair when normal use has exhausted the life of a part or
the equipment as a whole.
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if the product is
deemed to have been misused, neglected, involved in an accident,
abused, loaded beyond the product’s limits, modified, installed
improperly or connected incorrectly to any electrical component.
Normal maintenance is not covered by this warranty and is not
required to be performed at a facility or by a person authorized by
CPE.
Other Exclusions
This warranty excludes:
– Cosmetic defects such as paint, decals, etc.
– Wear items such as filter elements, o-rings, etc.
– Accessory parts such as starting batteries, and storage
covers.
– Failures due to acts of God and other force majeure events
beyond the manufacturer’s control.
– Problems caused by parts that are not original Champion
Power Equipment parts.
When applicable, this warranty does not apply to products used
for prime power in place of a utility.
Limits of Implied Warranty and
Consequential Damage
Champion Power Equipment disclaims any obligation to cover
any loss of time, use of this product, freight, or any incidental
or consequential claim by anyone from using this product.
THIS WARRANTY AND THE ATTACHED U.S. EPA and/or CARB
EMISSION CONTROL SYSTEM WARRANTIES (WHEN APPLICABLE)
ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty
of the original unit. The length of the warranty governing the
exchanged unit will remain calculated by reference to the purchase
date of the original unit.
This warranty gives you certain legal rights which may change
from state to state or province to province. Your state or province
may also have other rights you may be entitled to that are not
listed within this warranty.
Contact Information
Address
Champion Power Equipment, Inc.
6370 S Pioneer Way, Unit 101
Las Vegas, NV 89113 USA
www.championpowerequipment.com
Customer Service
Toll Free: 1-877-338-0999
info@championpowerequipment.com
Fax no.: 1-562-236-9429
Technical Service
Toll Free: 1-877-338-0999
tech@championpowerequipment.com
EMERGENCY 24 HOUR SUPPORT: 1-562-204-1188
*Except as otherwise stipulated in any of the following enclosed Emission Control System Warranties (when applicable) for the Emission Control System: U.S. Environment Protection Agency
(EPA) and/or California Air Resources Board (CARB).
CHAMPION POWER EQUIPMENT, INC. (CPE)
AND THE UNITED STATES ENVIRONMENT PROTECTION AGENCY (U.S. EPA)
EMISSION CONTROL SYSTEM WARRANTY
Your Champion Power Equipment (CPE) engine complies with U.S. EPA emission regulations.
YOUR WARRANTY RIGHTS AND OBLIGATIONS:
The U.S. EPA and CPE are pleased to explain the Federal Emission Control Systems Warranty on your 2024 small off-road engine (SORE)
and engine powered equipment. New engines and equipment must be designed, built and equipped, at the time of sale, to meet U.S.
EPA regulations for small off-road engines (SORE). CPE warrants the emission control system on your small off-road engine (SORE)
and equipment for the period of time listed below, provided there has been no abuse, neglect, unapproved modification, or improper
maintenance of your equipment.
Your emission control system may include parts such as the carburetor, fuel-injection system, the ignition system, catalytic converter and
fuel lines. Also included may be hoses, belts, connectors and other emission related assemblies. Where a warrantable condition exits, CPE
will repair your small off-road engine (SORE) at no cost to you including diagnosis, parts and labor.
MANUFACTURER’S EMISSION CONTROL SYSTEM WARRANTY COVERAGE:
This emission control system is warranted for two years, subject to provisions set forth below. If, during the warranty period, an emission
related part on your engine is defective in materials or workmanship, the part will be repaired or replaced by CPE.
OWNER WARRANTY RESPONSIBILITIES:
As the small off-road engine (SORE) owner, you are responsible for the performance of the required maintenance listed in your Owner’s
Manual. CPE recommends that you retain all your receipts covering maintenance on your small off-road engine (SORE), but CPE cannot
deny warranty solely for the lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
As the small off-road engine (SORE) owner, you should however be aware that CPE may deny you warranty coverage if your small, off-road
engine (SORE) or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications.
You are responsible for presenting your small off-road engine (SORE) to an Authorized CPE service outlet or alternate service outlet as
described in (3)(f.) below, CPE dealer or CPE, Las Vegas, NV. as soon as a problem exists. The warranty repairs should be completed in a
reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should contact:
Champion Power Equipment, Inc.
Customer Service
6370 S Pioneer Way, Unit 101
Las Vegas, NV 89113
1-877-338-0999
tech@championpowerequipment.com
EMISSION CONTROL SYSTEM WARRANTY
The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage.
1. APPLICABILITY: This warranty shall apply to 1997 and later model year small off-road engines (SORE). The ECS Warranty Period shall
begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive
months thereafter.
2. GENERAL EMISSIONS WARRANTY COVERAGE
CPE warrants to the original, end-use purchaser of the new engine or equipment and to each subsequent purchaser that each of its
small off-road engines (SORE) is:
2a. Designed, built and equipped so as to conform to U.S. EPA emissions standards for spark-ignited engines at or below 19 kilowatts.
2b. Free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material respects
to the part as described in the engine manufacturer’s application for certification for a period of two years.
3. THE WARRANTY ON EMISSION-RELATED PARTS WILL BE INTERPRETED AS FOLLOWS:
3a. Any warranted part that is not scheduled for replacement as required maintenance in the Owners Manual shall be warranted for
the ECS Warranty Period. If any such part fails during the ECS Warranty Period, it shall be repaired or replaced by CPE according
to Subsection “d” below. Any such part repaired or replaced under the ECS Warranty shall be warranted for any remainder of the
ECS Warranty Period.
3b. Any warranted, emissions-related part which is scheduled only for regular inspection as specified in the Owners Manual shall be
warranted for the ECS Warranty Period. A statement in such written instructions to the effect of “repair or replace as necessary”,
shall not reduce the ECS Warranty Period. Any such part repaired or replaced under the ECS Warranty shall be warranted for the
remainder of the ECS Warranty Period.
3c. Any warranted, emissions-related part which is scheduled for replacement as required maintenance in the Owner’s Manual shall
be warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first
scheduled replacement, the part shall be repaired or replaced by CPE according to Subsection “d” below. Any such emissions-
related part repaired or replaced under the ECS Warranty, shall be warranted for the remainder of the ECS Warranty Period prior to
the first scheduled replacement point for such emissions-related part.
3d. Repair or replacement of any warranted, emissions-related part under this ECS Warranty shall be performed at no charge to the
owner at a CPE Authorized Service Outlet.
3e. The owner shall not be charged for diagnostic labor which leads to the determination that a part covered by the ECS Warranty is in
fact defective, provided that such diagnostic work is performed at a CPE Authorized Service Outlet.
3f. CPE shall pay for covered emissions warranty repairs at non-authorized service outlets under the following circumstances:
i. The service is required in a population center with a population over 100,000 according to U.S. Census 2000 without a CPE
Authorized Service Outlet AND
ii. The service is required more than 100 miles from a CPE Authorized Service Outlet. The 100 mile limitation does not apply in the
following states: Alaska, Arizona, Colorado, Hawaii, Idaho, Montana, Nebraska, Nevada, New Mexico, Oregon, Texas, Utah and
Wyoming.
3g. CPE shall be liable for damages to other original engine components or approved modifications proximately caused by a failure
under warranty of an emission-related part covered by the ECS Warranty.
3h. Throughout the ECS Warranty Period, CPE shall maintain a supply of warranted emission-related parts sufficient to meet the
expected demand for such emission-related parts.
3i. Any CPE Authorized and approved emission-related replacement part may be used in the performance of any ECS Warranty
maintenance or repair and will be provided without charge to the owner. Such use shall not reduce CPE’s warranty obligation.
3j. Unapproved add-on or modified parts may not be used to modify or repair a CPE engine. Such use voids this ECS Warranty and
shall be sufficient grounds for disallowing an ECS Warranty claim. CPE shall not be liable hereunder for failures of any warranted
parts of a CPE engine caused by the use of such an unapproved add-on or modified part.
EMISSION-RELATED PARTS INCLUDE THE FOLLOWING: (using those portions of the list applicable to the
engine)
Systems covered by this
warranty
Parts Description
Fuel Metering System Fuel regulator, Carburetor and internal parts
Air Induction System Air cleaner, Intake manifold
Ignition System Spark plug and parts, Magneto ignition system
Exhaust System Exhaust manifold, catalytic converter
Miscellaneous Parts Tubing, Fittings, Seals, Gaskets, and Clamps associated with these listed systems.
Evaporative Emissions Fuel Tank, Fuel Cap, Fuel Line (for liquid fuel and fuel vapors), Fuel Line Fittings, Clamps, Pressure
Relief Valves, Control Valves, Control Solenoids, Electronic Controls, Vacuum Control Diaphragms,
Control Cables, Control Linkages, Purge Valves, Gaskets, Vapor Hoses, Liquid/Vapor Separator,
Carbon Canister, Canister Mounting Brackets, Carburetor Purge Port Connector
TO OBTAIN WARRANTY SERVICE:
You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original
purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to
sell and service that CPE product during his normal business hours. Alternate service locations defined in Section (3)(f.) above must be
approved by CPE prior to service. Claims for repair or adjustment found to be caused solely by defects in material or workmanship will not
be denied because the engine was not properly maintained and used.
If you have any questions regarding your warranty rights and responsibilities, or to obtain warranty service, please write or call
Customer Service at Champion Power Equipment, Inc.
Champion Power Equipment, Inc.
6370 S Pioneer Way, Unit 101
Las Vegas, NV 89113
1-877-338-0999
Attn.: Customer Service
tech@championpowerequipment.com
