VBE420P
4 Band Parametric Equalizer
with Subwoofer Gain Control
www.Lanzar.com
2

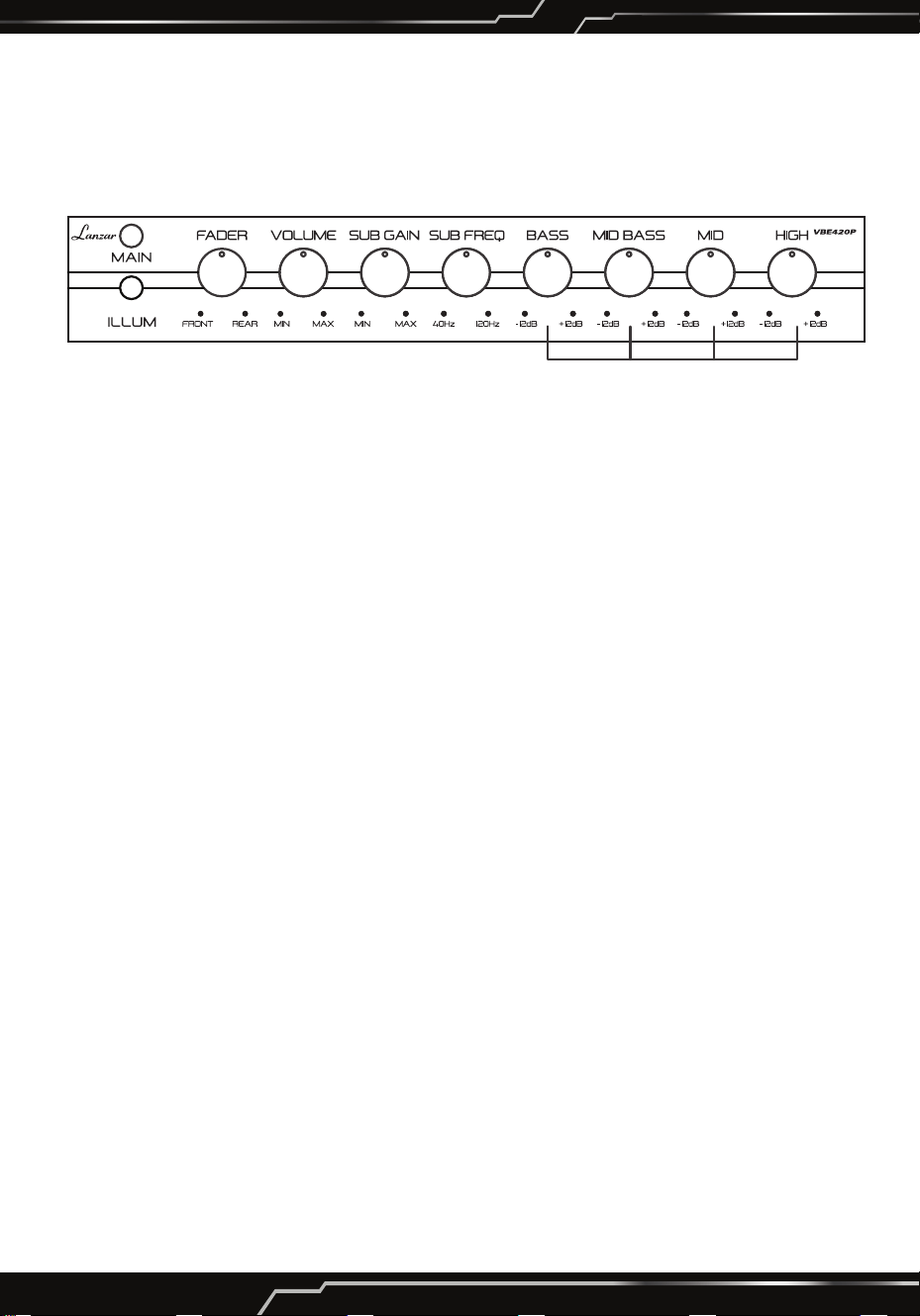

LOCATION OF CONTROLS
OPERATION
1. Input Selector Switch: Allows you to select either the radio input or CD input.
2. Illumination Selector Switch: Allows you to select either amber color or
green color illumination
3. Preamp Fader Control: Rotate clockwise or counter-clockwise to adjust the
volume between the front and rear outputs in 4 output systems.
4. Subwoofer Crossover Control: Allows you to select your desired crossover cut
o frequency in the 30Hz 250Hz range.
5. Subwoofer Volume Control: Rotate clockwise or counter-clockwise to increase
or decrease the output level.
6. Master Volume Control: Rotate clockwise or counter-clockwise to increase or
decrease the output level. We recommend that you adjust the volume of your
source unit (radio/cassette, radio/CD player, etc.) at one half to three quarters
up and leave it. We further recommend that you use the VBE420P volume
control as the master (main) volume control because its performance is more
linear than that of source units.
Note: If engine noise is audible, try raising the volume of the source unit and
also check for proper ground connection.
7. Equalizer Level Controls: Rotate clockwise or counter-clockwise to boost/cut,
up to 18 dB, the level of each of the four ( Sub, Low, Mid, Hi) frequency bands.
lnput
Selector
Switch
(1)
Subwoofer
Crossover
Control
(4)
Illumination
Selector
Switch
(2)
Preamp
Fader
(3)
Subwoofer
Volume
Control
(5)
Volume
Control
(6)
Equalizer
Level
Controls
(7)
www.Lanzar.com
3

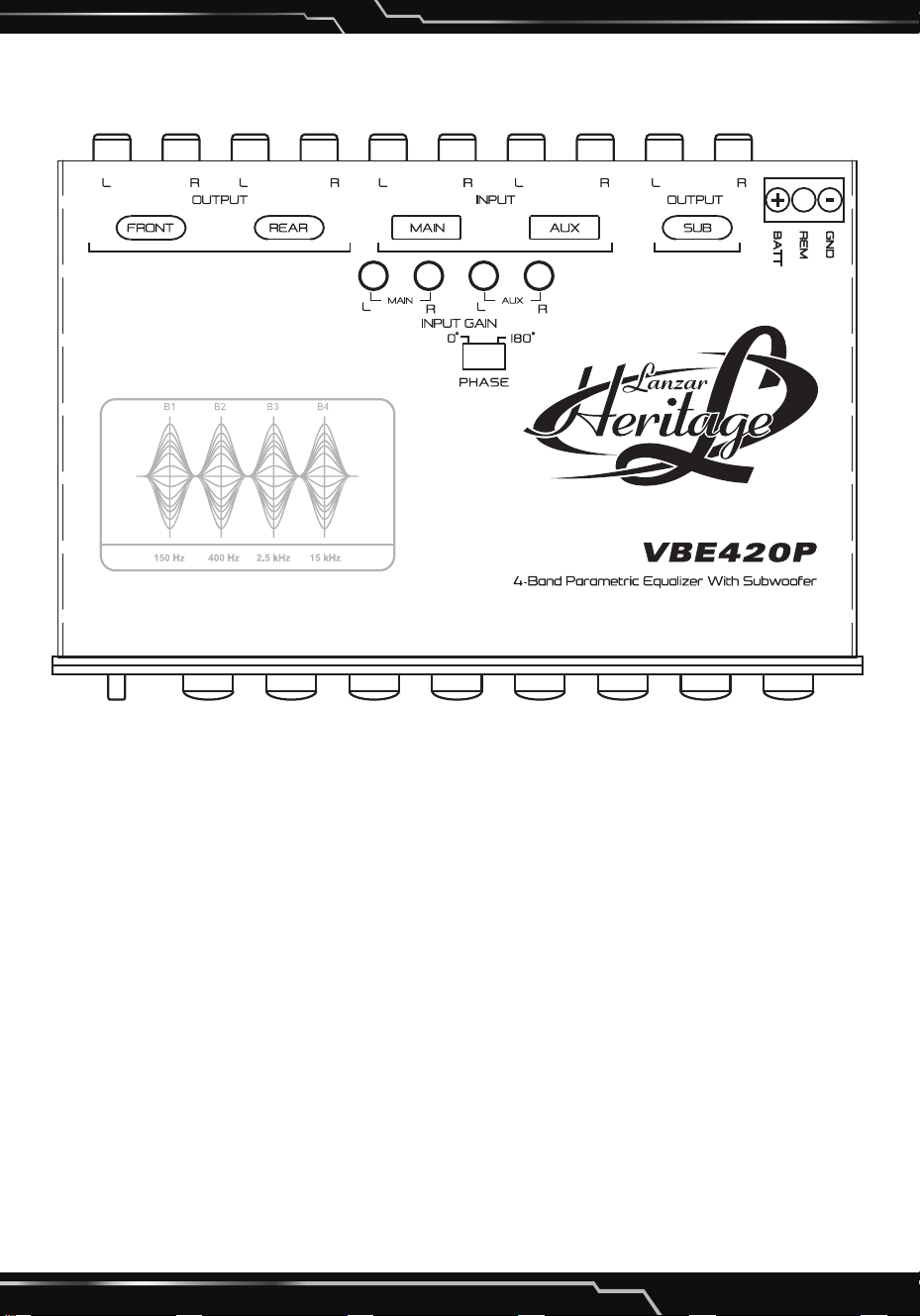

CONTROLS
CD/RADIO INPUT GAIN CONTROLS
The CD/Radio LR channel can be adjusted from the top cover.
Turn the knob clockwise to increase the input level or turn counterclockwise to
reduce the input level.
Phase Shift Selector Switch
Allows you to select the proper phase of the subwoofer output signal to
compensate for the timing dierences between the subwoofer output and the
front/rear output signals.
www.Lanzar.com
4
ELECTRICAL INSTALLATION
CD CHANGER RADIO/CASSETTE
www.Lanzar.com
5
Features
• 4 Band Parametric Equalizer
• Half Din Size
• 9 Volt RMS Pre-Amp Output
• Pre-amp Line Aux Inputs Via RCA Jacks
• 2 Input Sources Selectable
• Input Gain Adjustments
• RCA AUX Input Jack
• Source/Aux Input Selector
• Rotary Fader
• Output Volume Control
• Sub Output Volume Control
• Blue Light Illumination
• Mounting Hardware Included
• DC 12 Volt with Remote trigger
• RCA Auxiliary Input (Rear) inputs for MP3, DVD, or Phone
What's in the Box:
•
4-Band Parametric Equalizer
• 2 Mounting brackets
• 8 Phillips-head Screws
• Power Red Wire with 1A Fuse
Technical Specs:
•
Bass Equalizer Frequency: 40 Hz
• Mid-Bass Equalizer Frequency: 150 Hz
• Mid Equalizer Frequency: 1 KHz
• High Equalizer Frequency: 20 KHz
• Each Frequency Adjustable: -12dB to +12dB
• Output Voltage: 7V RMS @ 0.05% THD
• Voltage: 11V-15V
• S/N Ratio: 110dB
• Separation: > 60dB
• Frequency Response: 10 Hz~ 50 KHz
• Subwoofer Frequency: 30 Hz~ 250 Hz
• Product Dimensions: 7'' x 4.1''x 1.10'' -inches
