FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 05-74-0747 M4 x 10mm Pan Hd. Torx T-20 Screw (4)
2 42-38-0044 Top Bumper w/PLB PT/ Rotary Laser (1)
6 05-74-0748 M3 x 12mm PH Torx T-10 M Screw (16)
7 31-44-0611 Rotary Handle A-Side (1)
8 31-44-0612 Rotary Handle w/Vert. Feet /B-Side (1)
10d 05-74-0758
M2.6 x 6mm T8 ST Screw with Slot
(2)
10e --------------- Coin Cell Cover (1)
10f 42-70-0041 E-Clip / ID=1.9mm (2)
20 42-38-0043 Top Bumper w/PLB PT Kit/Rotary laser (1)
29 31-15-0226 Coin Cell Cover Assembly (1)
60 22-38-0106 Rotary Detector Clamp Assembly (1)
61 3714 Green Interior Rotary Laser Receiver (1)
62 42-55-0129 BMC - Blow Molded Case (1)
63 12-20-0451 Service Nameplate - Laser (1)
64 10-22-0259 Warning Label - Laser (1)
65 14-20-0432 Dual Slope Rotary Laser Remote Control (1)
66 12-20-0403 Service Nameplate - Remote (1)
67 12-20-0412 Service Nameplate - Receiver (1)
MILWAUKEE TOOL
l
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 1
6
(x4)
8
1
(x4)
2
1
2
20
6
(x4)
60
61
7
6
(x4)
10f
(x2)
10d
(x2)
10e
10d 10e
10f
29
63
64
6
(x4)
62
65
67
66
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).
BULLETIN NO.
54-00-3715

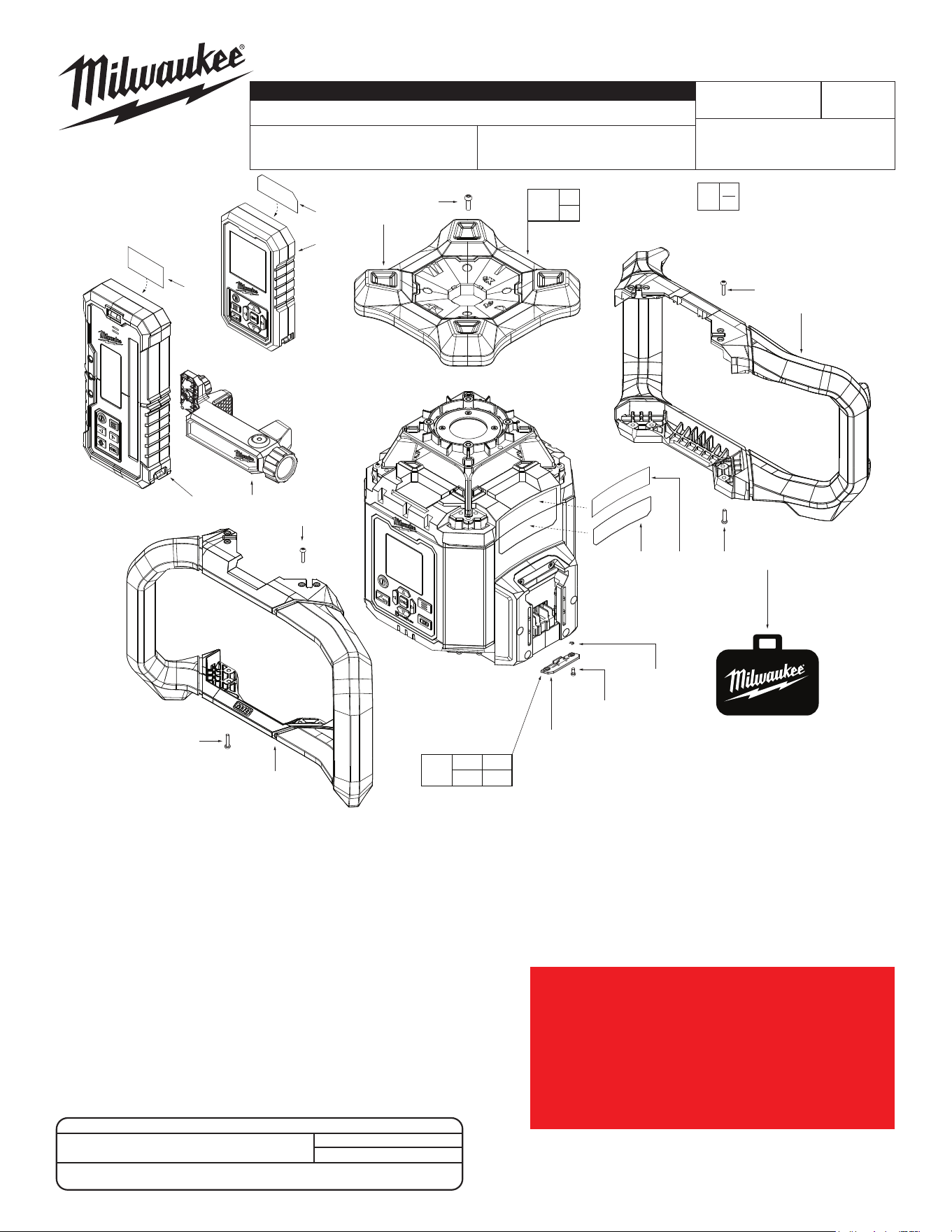

SERVICE PARTS LIST
CATALOG NO. 3704-20
14-20-0432
REVISED BULLETIN
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
M18™ Dual Slope Rotary LASER
DATE
July 2023
WIRING INSTRUCTION
M99A
N25A
FIG. NOTES
63, 64, A clean, dry surface is essential for proper performance
for any adhesive system. The area intended for application
of any adhesive label or nameplate must be prepared by
cleaning with isopropyl and alcohol. The solvent is to be
applied with a clean, lint free applicator the surface allowed
to dry before applying the label or name plate.
66, 67
Service needs pertaining to accuracy or calibration can
only be performed at MILWAUKEE TOOL Central Repair:
1401 Sycamore Ave., Greenwood, MS 38930-7277 OR
2198 Southtech Drive, Greenwood, IN 46143-6725
OR Via e-Service at: www.milwaukeetool.com/e-service.
QUESTIONS: please call 1.800.SAWDUST OR
Return it to a MILWAUKEE FACTORY SERVICE CENTER
location, freight prepaid and insured. A copy of the proof
of purchase should be included with the return product.
SCREW TORQUE SPECIFICATIONS
SEAT TORQUE
FIG. PART NO. WHERE USED (kgf-cm) (lb-in)
10d 05-74-0758 Coincell Cover 5.0 ± 0.5 4.3 ± 0.4
For more detailed information
on the Receiver and Remote,
see page 2.
SERIAL NO.
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
18 05-74-0756 M2.5 x 15mm Pan Head T8 Screw (8)
22 31-21-0048 Power Cell Door Hinge (1)
23 31-21-0049 Power Cell Door Pin (1)
24 05-74-0754 M2 x 8mm Pan Head T6 ST Screw (3)
30 05-74-0761 M3x5mm Pan Head H2 ST Screw (1)
31 43-44-0613 Leak Test Gasket/ ID=3mm T=1.2mm (1)
53 31-50-0201 Bottom Housing Assembly /Detector (1)
54 31-21-0052 Power Cell Door Assembly /Detector (1)
55 31-21-0051 Power Cell Door Kit/Detector (1)
56 43-44-0612 Leak Test Gasket Kit (1)
61 3714
Dual Slope Rotary Laser Receiver
(1)
67 12-20-0412 Service Nameplate (1)
54
24
(x3)
22
23
53
18
(x8)
30
31
67
22 23
24 54
55
30
31
56
61
0
00
EXAMPLE:
Component Parts (Small #)
Are Included When Ordering
The Assembly (Large #).

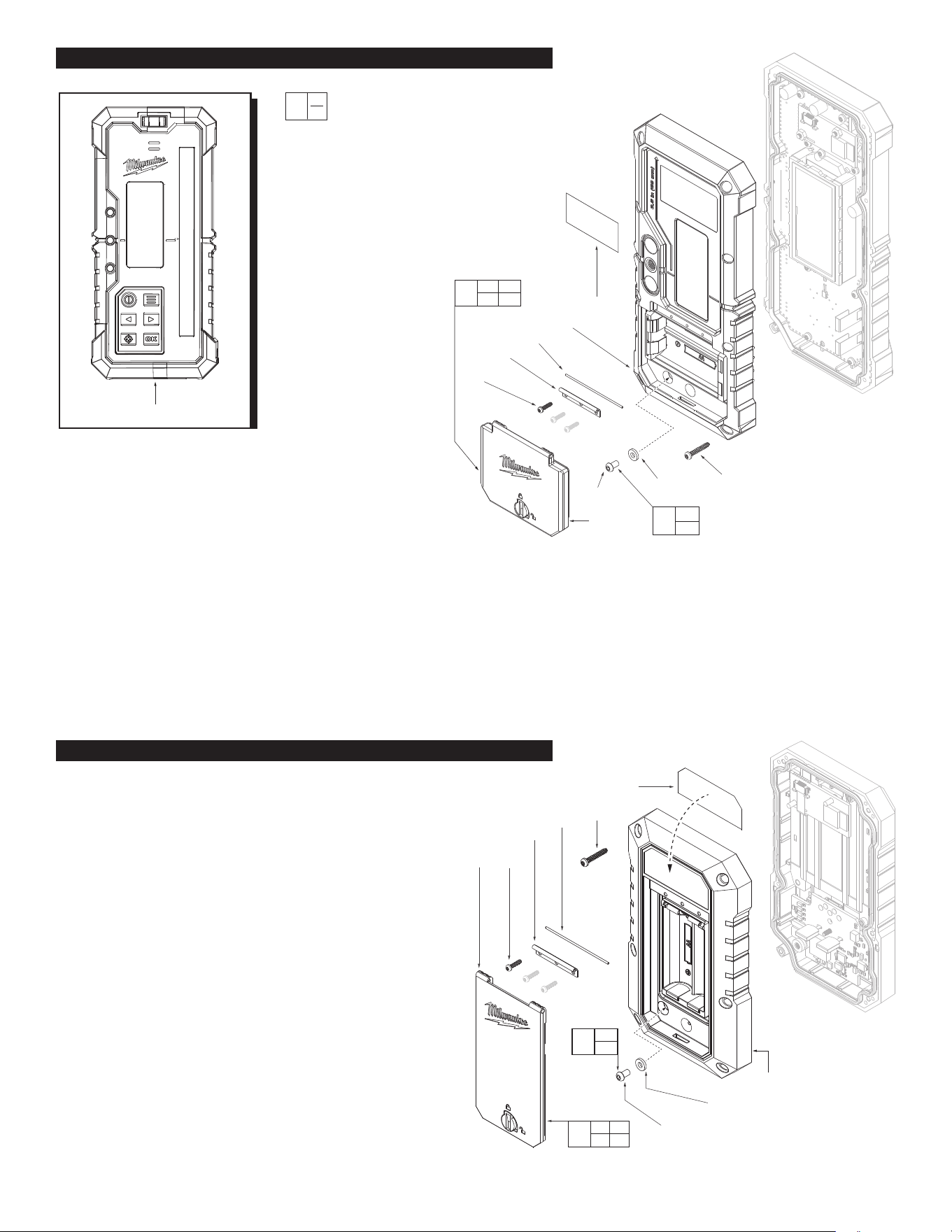

DUAL SLOPE ROTARY LASER - RECEIVER
DUAL SLOPE ROTARY LASER - REMOTE CONTROL
45
14
(x3)
12
13
9
(x6)
12 13
14 45
44
21
22
43
21
22
46
66
FIG. PART NO. DESCRIPTION OF PART NO. REQ.
9 05-74-0756 M2.5 x 15mm Pan Head T-8 Screw (6)
12 31-21-0048 Power Cell Door Hinge (1)
13 31-21-0049 Power Cell Door Pin (1)
14 05-74-0754 M2 x 8mm Pan Head T-6 ST Screw (3)
21 05-74-0761 M3x5mm Pan Head H2 ST Screw (1)
22 43-44-0613 Leak Test Gasket/ ID=3mm T=1.2mm (1)
43 31-50-0207 Bottom Housing Assembly /Remote (1)
44 31-21-0053 Power Cell Door Kit /Remote (1)
45 31-21-0054 Power Cell Door Assembly /Remote (1)
46 43-44-0612 Leak Test Gasket Kit (1)
66 12-20-0403 Service Nameplate (1)
