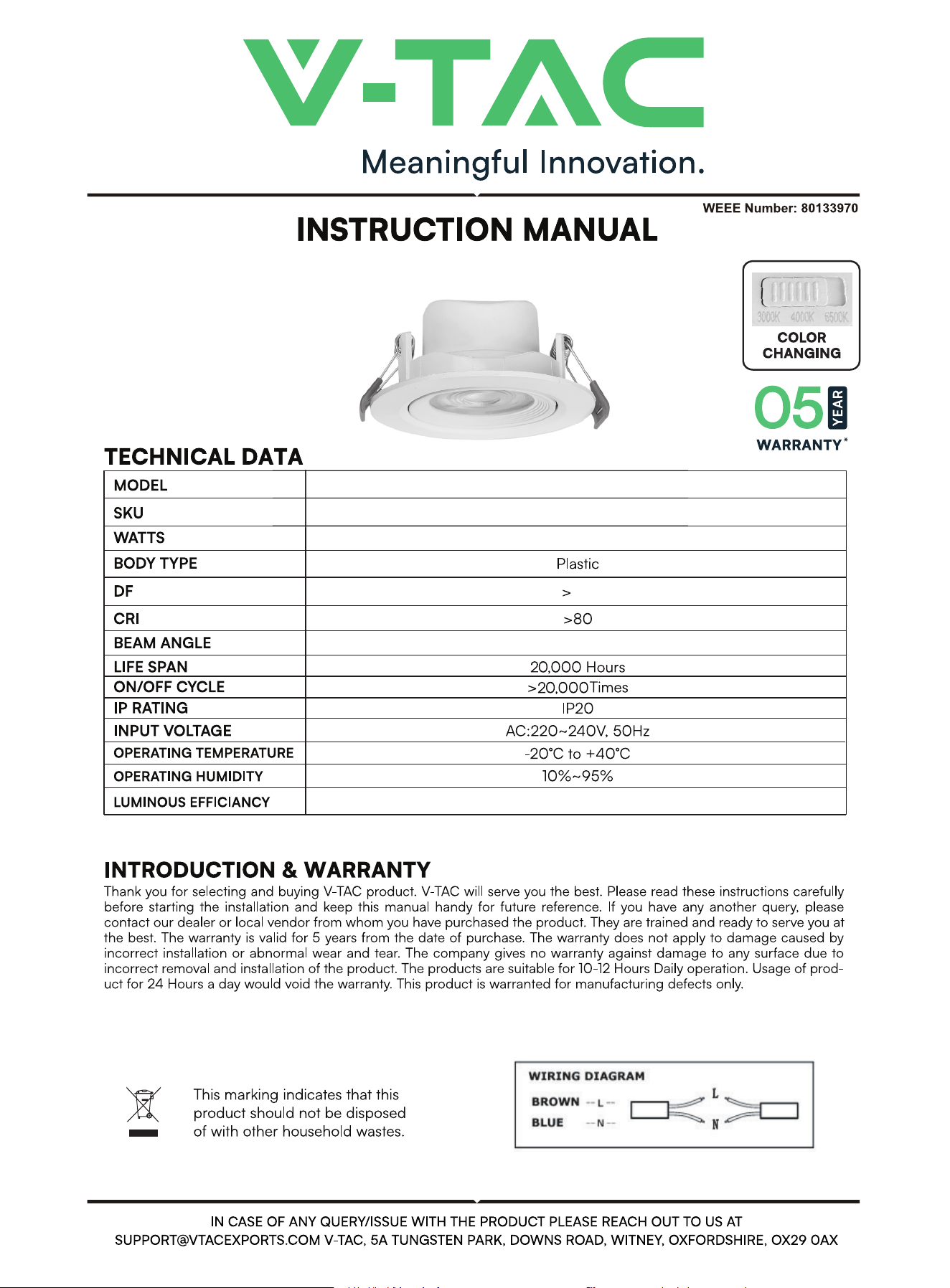

LED DOWNLIGHT
VT-2707CCT
23837
7W
38°
510LM
0.5
WARNING
•
• Installation must be performed by a certified person.
• If the external flexible cable or cord of this luminaire is damaged, it shall be
exclusively replaced by the manufacturer or his service agent or a similar
qualified person in order to avoid a hazard.
• Method of attachment of the cable or cord such that any replacement can
only be made by the manufacturer, his service agent or similar qualifed
person.
• For Indoor use only
ATTENTION!
USAGE GUIDELINES/MAINTENANCE
MOUNTING
Do not look directly at LED light beam. Product can only be supplied by rated voltage or voltage within the range
provided. It's forbidden to use the product with damaged protective cover. Product must not be used in unfavorable
conditions, e.g. dust, water, moisture, vibrations, explosive air atmosphere, fumes, or chemical fumes, etc. In the area
of strong electromagnetic interference, the functioning of the product may be disrupted.
access. Product may heat up to a higher temperature.
Read the manual before mounting. Mounting should be performed by a qualified electrician. Exercise caution. Prod-
uct has a protective contact /terminal. Failure to connect the protective lead may lead to electric shock. Mounting
diagram: see pictures. Check for proper mechanical fastening and connection to electrical power prior to first use.
1.Cut a hole using an appropriate tool according to the cut-out size.
4. Check whether the lamp is flat and electrified.
5. Clean the lamp with clean cloth.
6. Switch on the power and test the light.
3. Hold the two clips back against the panel light and push it
into the hole. Allow the springs to pull the light up to the ceiling.
2.Switch OFF the power & connect
AC: 220-240V voltage with terminals.`

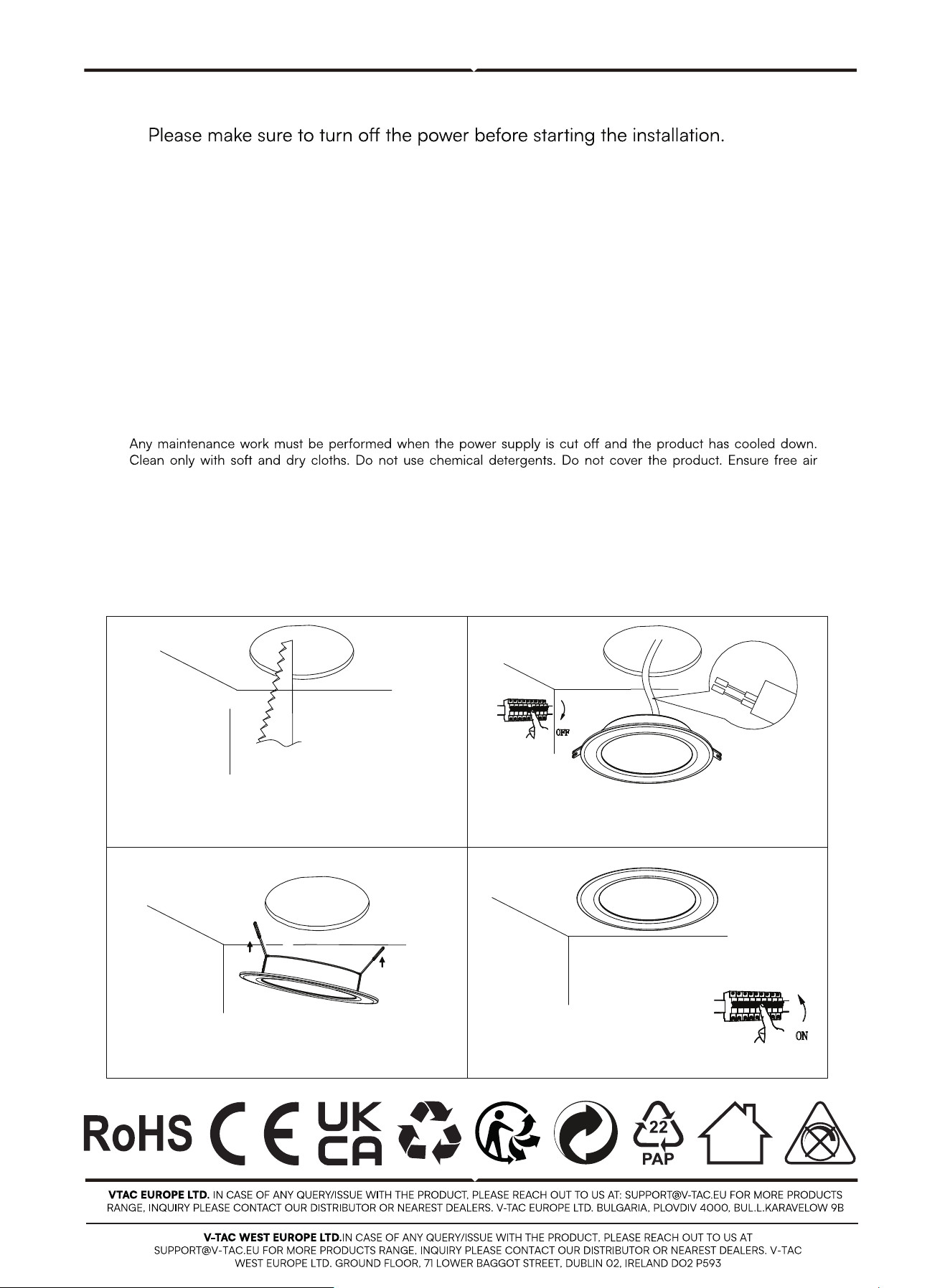

RECESSED PANEL INSTALLATION DIAGRAM
φ68-75mmHole Size:
