A18FBLW20
Original instructions
2
2
I
mportant!
It is essential that you read the instructions in this manual before
assembling, operating, and maintaining the product.
Subject to technical modifications.
A18FBLW20
3
3
A18FBLW20
BLOWER TUBE
NOZZLE LATCH
BLOWER TUBE
LATCH
NOZZLE
SCRAPER
OPERATOR'S
MANUAL
CHARGER
BATTERY PACK
CRUISE CONTROL
ON/OFF TRIGGER
HANDLE
TURBO BUTTON
4
4
11
10
6
12 7
USING THE TURBO BUTTON
USING CRUISE CONTROL
INSTALLING THE BLOWER TUBE AND NOZZLE
OPERATING THE PRODUCT REMOVING THE BLOWER TUBE AND NOZZLE
5
5
13 14
8
9
STARTING AND STOPPING THE PRODUCT
INSTALLING AND REMOVING THE BATTERY PACK
CLEANING THE PRODUCT STORING THE PRODUCT
6
6
1
2
3
4
click
click
1
2
3
4
INSTALLING THE BLOWER TUBE AND NOZZLE
REMOVING THE BLOWER TUBE AND NOZZLE
7
7
1
2
3
4
click
click
1
2
3
4
REMOVING THE BLOWER TUBE AND NOZZLE
8
8
START
STOP
1
2
1
2
click
INSTALLING AND REMOVING THE BATTERY PACK
STARTING AND STOPPING THE PRODUCT
9
9
START
STOP
1
2
1
2
click

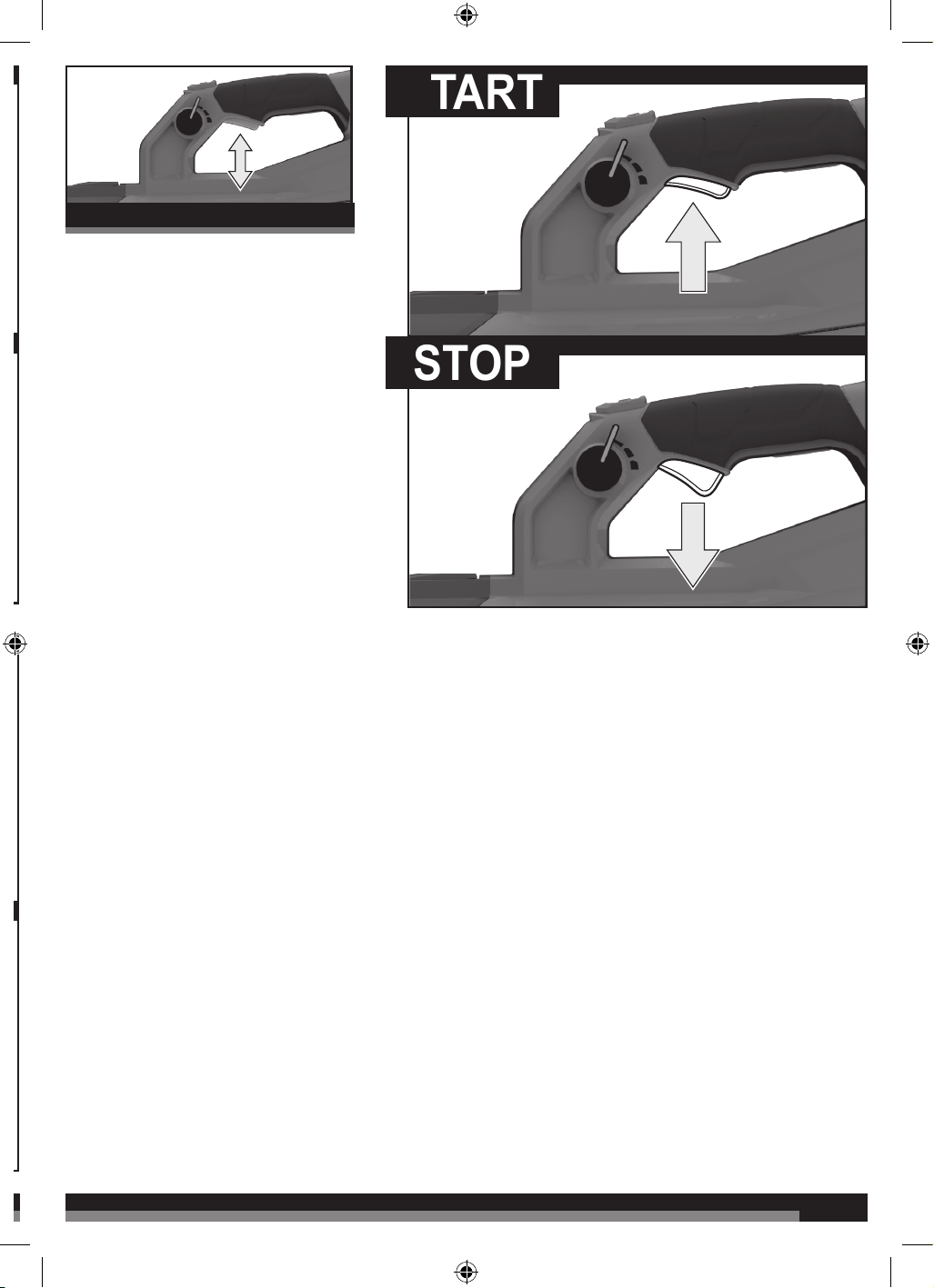

STARTING AND STOPPING THE PRODUCT
10
10
START
STOP
1
2
1
2

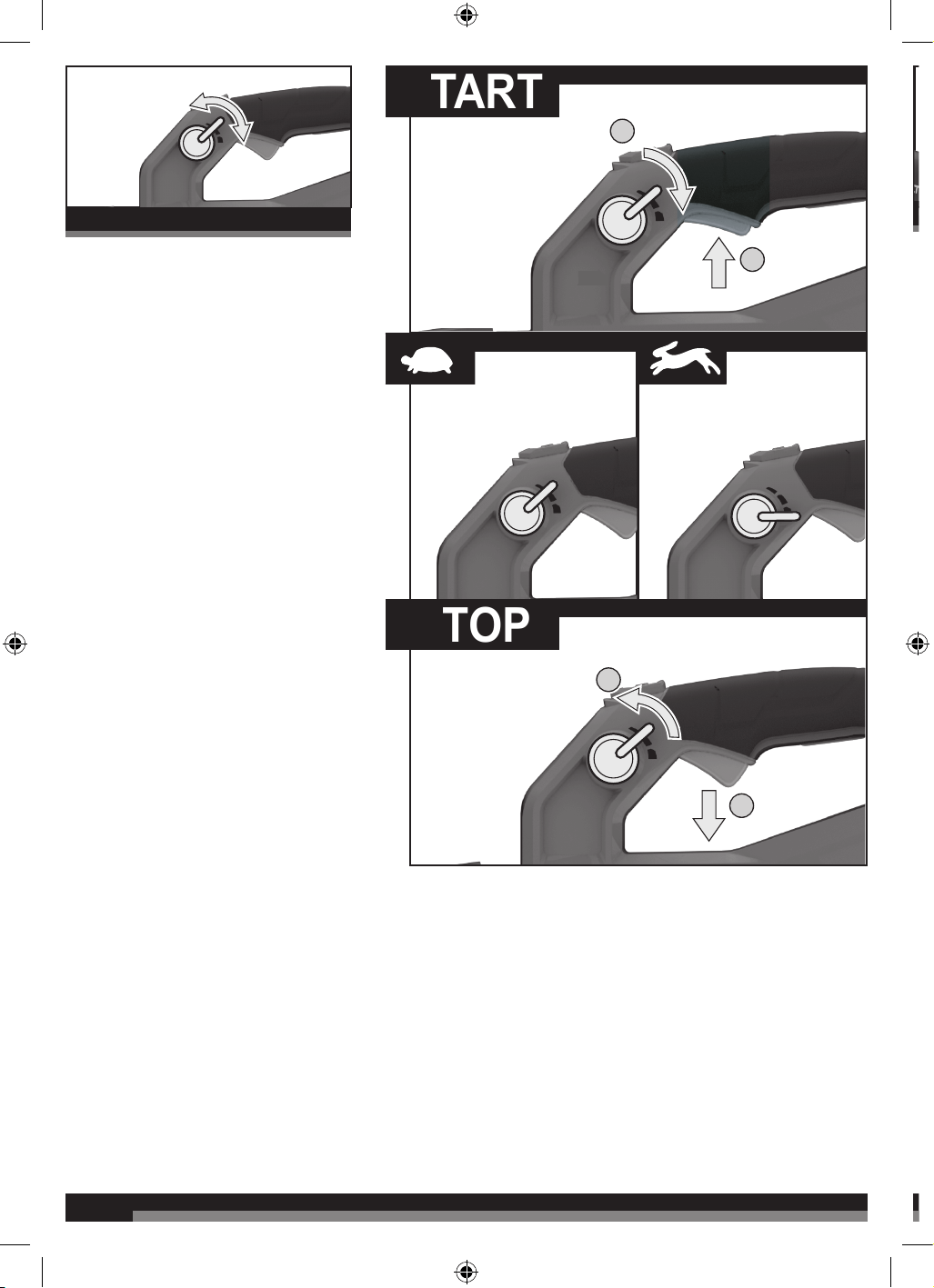

USING CRUISE CONTROL
START
STOP
TURBO BOOST
1
2
1
2

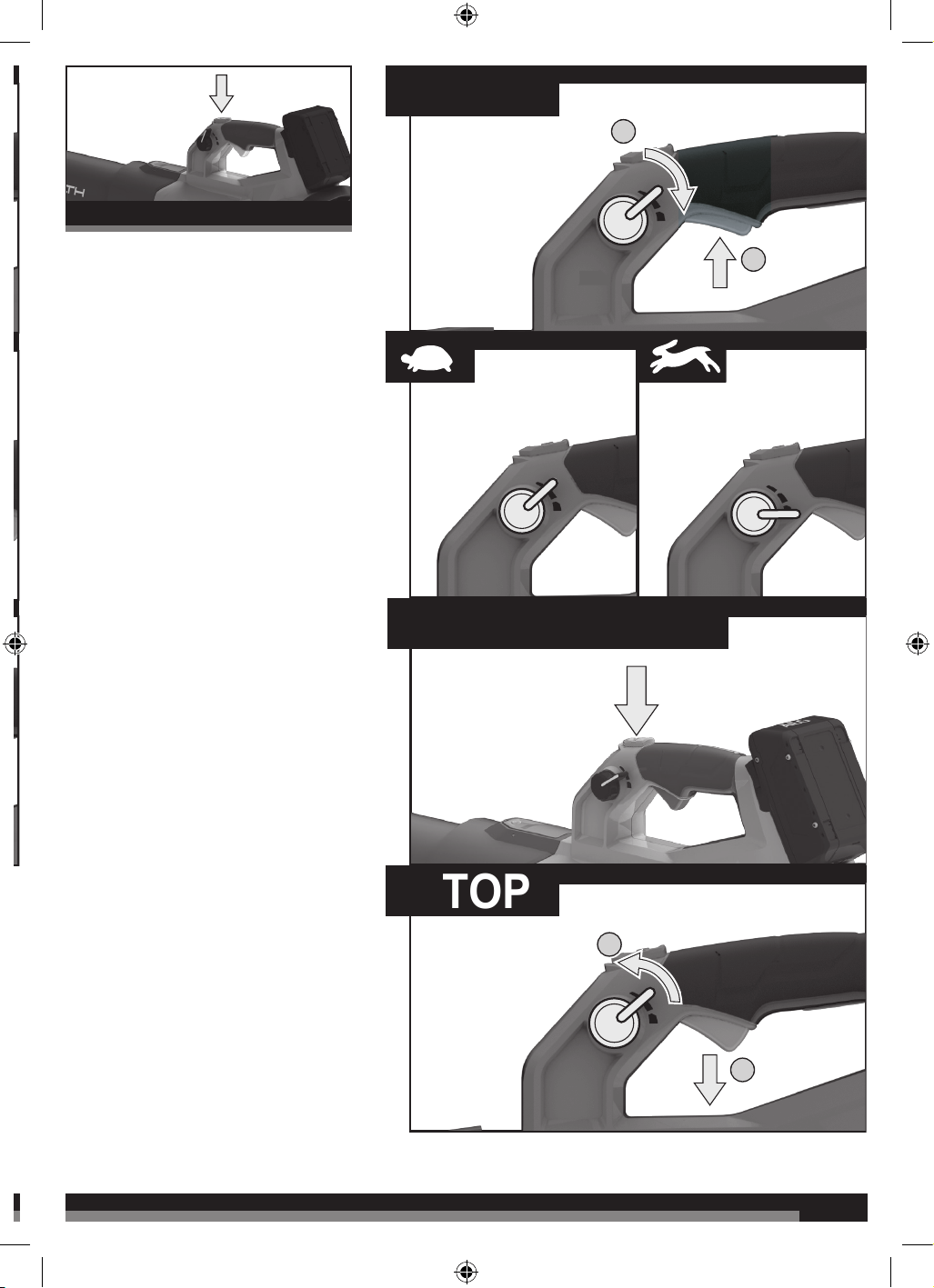

USING THE TURBO BUTTON
NOTE: The turbo boost button provides
the highest performance of the product,
but it will also drain the battery capacity
more quickly. Use turbo boost only when
required to maximise runtime.
11
11
START
STOP
1
2
1
2
START
STOP
TURBO BOOST
1
2
1
2
USING THE TURBO BUTTON
NOTE: The turbo boost button provides
the highest performance of the product,
but it will also drain the battery capacity
more quickly. Use turbo boost only when
required to maximise runtime.
12
12
3
2
1
STOP
2
1
2
1
3
2
1

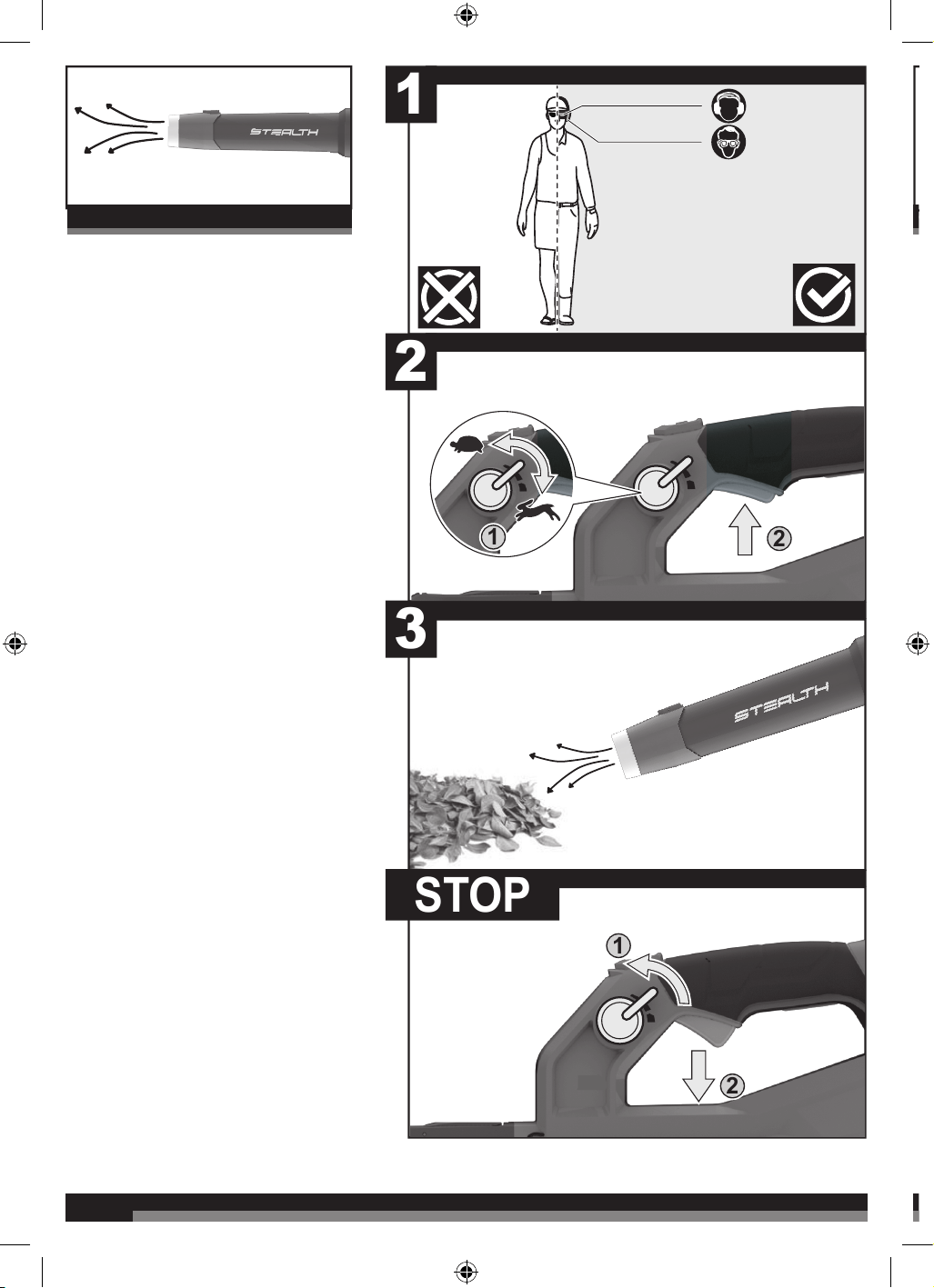

OPERATING THE PRODUCT
CLEANING THE PRODUCT
NOTE: Clean the product with a soft, dry
cloth or soft brush. Never use water.
13
13
3
2
1
STOP
2
1
2
1
3
2
1

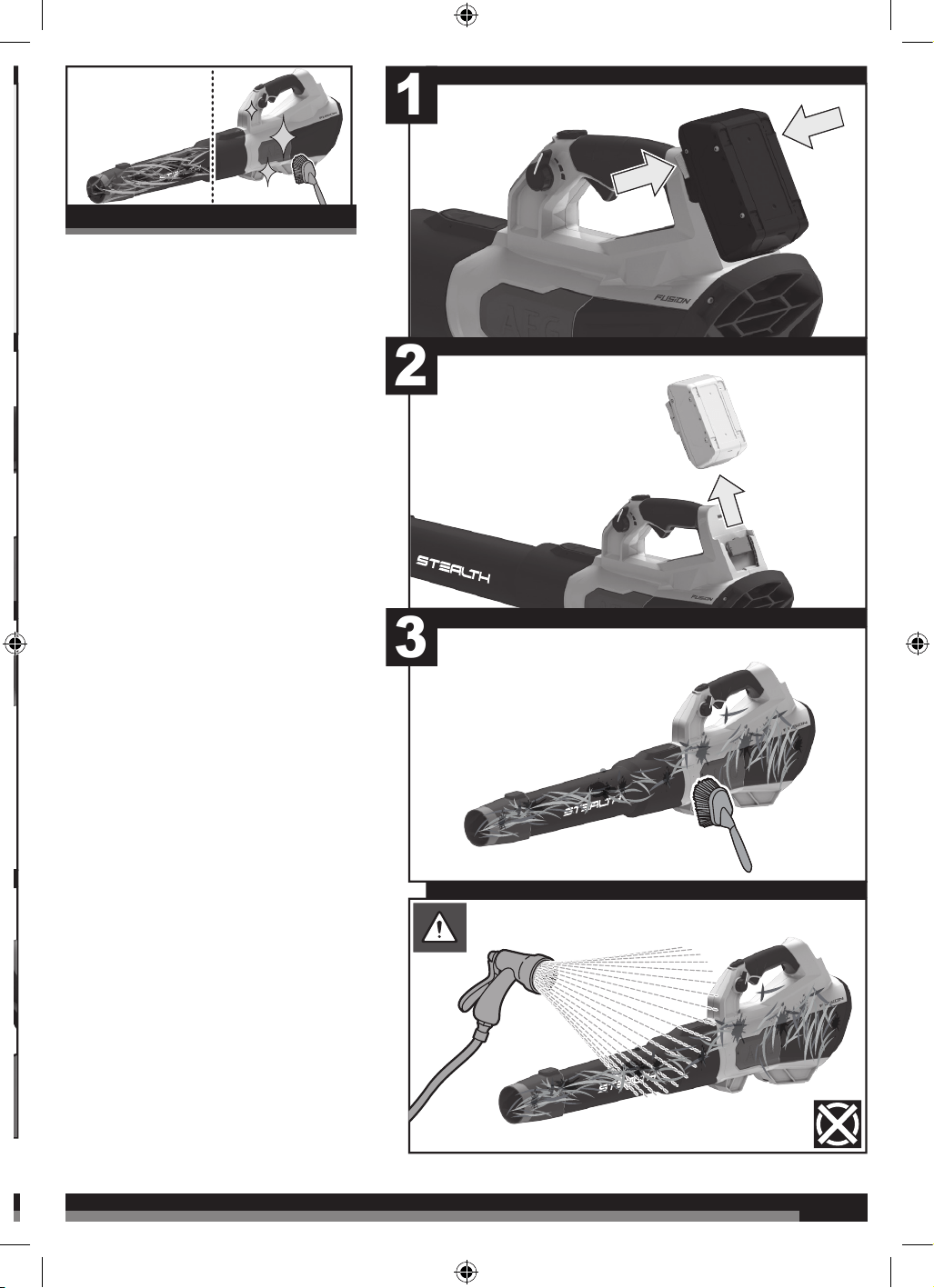

CLEANING THE PRODUCT
NOTE: Clean the product with a soft, dry
cloth or soft brush. Never use water.
14
14
3
4
2
1

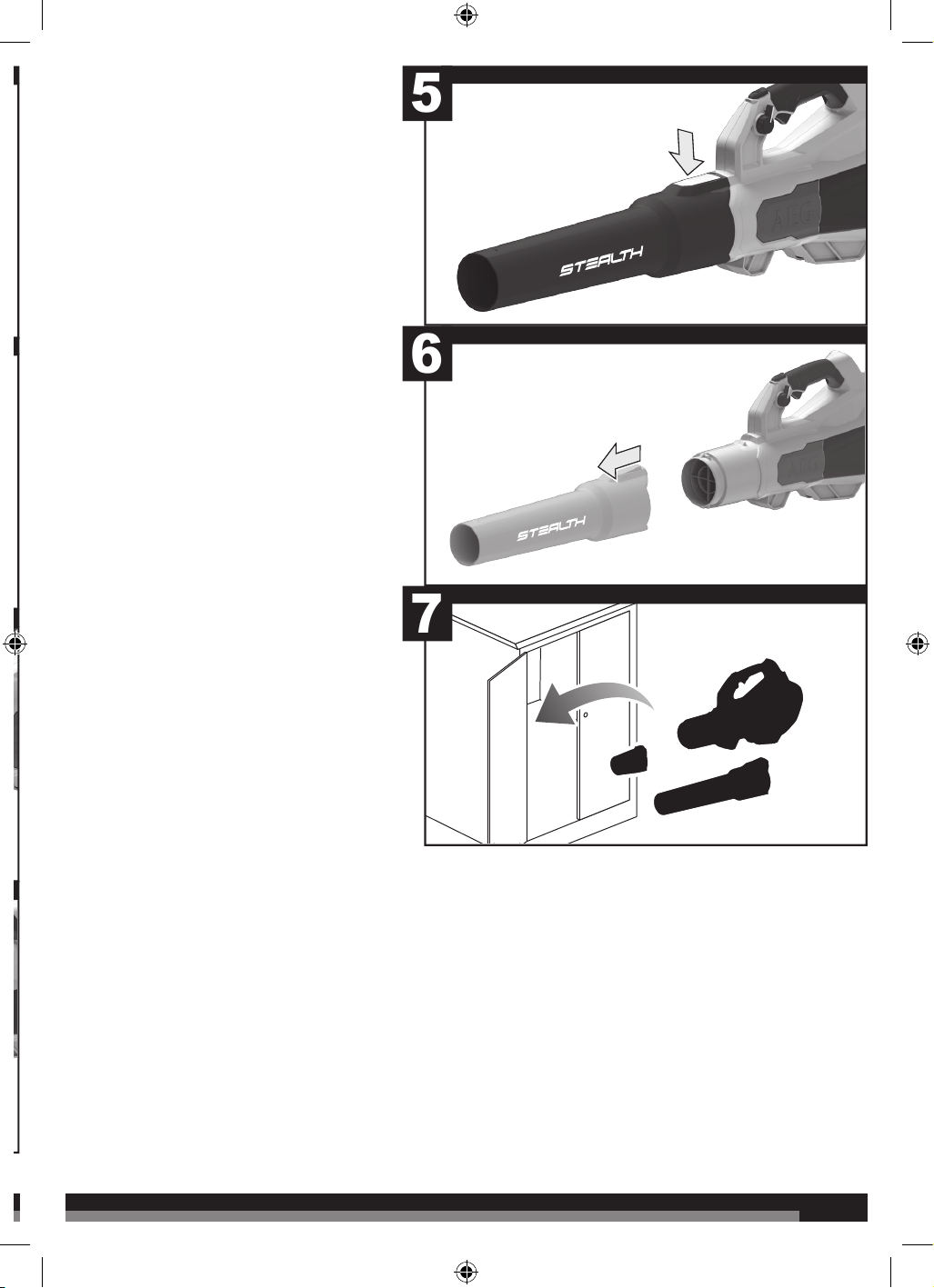

STORING THE PRODUCT
NOTE: Always store the product in a cool,
dry, and well-ventilated area.
15
15
3
4
2
1
5
6
7
NOTE: Always store the product in a cool,
dry, and well-ventilated area.
16
16
INTENDED USE
The cordless blower is intended only for use outdoors in dry and
well-illuminated conditions.
The product is not intended to be used by children or persons with
reduced physical, mental, or sensory capabilities.
The product is designed for blowing light debris, such as leaves,
grass, and other garden refuse.
Do not use the product for any other purpose.
GENERAL SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure
to follow the warnings and instructions may result in electric shock,
fire, and/or serious injury. Save all warnings and instruction for
future reference.
WARNING! Never allow children or people who are unfamiliar
with these instructions to use the product. Local regulations can
restrict the age of the operator.
TRAINING
■ Read the instructions carefully. Be familiar with the controls and
the correct use of the product.
■ Keep in mind that the operator or user is responsible for
accidents or hazards occurring to other people or their property.
■ Do not use the product while tired, ill, or under the influence of
drugs, alcohol, or medication.
PREPARATION
■ Some regions have regulations that restrict the use of the
product to some operations. Check with your local authority for
advice.
■ Wear hearing protection at all times while operating the
product.The product is noisy, and permanent hearing injury
may result if precautions to limit your exposure, reduce noise,
and wear hearing protection are not strictly adhered to.
■ Wear full eye protection at all times while operating the product.
The manufacturer strongly suggests a full face mask or fully
enclosed goggles. Normal spectacles or sunglasses are not
TECHNICAL DATA CORDLESS BLOWER A18FBLW20
Rated voltage 18 V d.c.
Rated current turbo mode 38 A
Turbo mode
Air velocity turbo mode 230 km/h
Air volume turbo mode 15.85 m
3
/min
Fan-loaded speed turbo mode 18300/min
Blowing force 14.8 N
Vibration level (in accordance with EN 50636-2-100 Annex BB) a
h
= 0.8 m/s
2
Uncertainty K = 1.5 m/s
2
Noise emission level (in accordance with EN 50636-2-100 Annex CC)
A-weighted sound pressure level at the operator’s position L
pA
= 78.1 dB(A)
Uncertainty
K
pA
= 3.0 dB(A)
A-weighted sound power level L
WA
= 94.2 dB(A)
Uncertainty
K
WA
= 3.0 dB(A)
Weight without battery pack 2.6 kg
Weight with A18OB8 8.0 Ah battery pack 3.7 kg
Compatible battery packs A18B4, A18B5, A18FB2, A18FB4, A18FB5, A18OB6, A18OB8,
L1820S, L1820SHD, L1830R-X5, L1830RHD,
L1840S, L1840SHD, L1850SHD, L1860R-X5/L1860RHD,
L1860SHD, L1880SHD, L1890R, L1890RHD
WARNING!
The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in
accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment
of exposure.
The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for dierent
applications, used with dierent accessories, or poorly maintained, the vibration and noise emission may dier. These conditions may
significantly increase the exposure levels over the total working period.
An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned o or when it is
running idle. These conditions may significantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the eects of vibration and noise, such as maintaining the tool and the
accessories, keeping the hands warm (in case of vibration), and organising work patterns.
adequate protection. Objects can be thrown at high speed by
the powerful air jet at any time and may rebound from hard
surfaces toward the operator.
■ While operating the product, always wear substantial footwear
and long trousers. Do not operate the product while barefoot or
wearing open sandals. Avoid wearing clothing with loose fitting
or that has hanging cords or ties.
■ Do not wear loose clothing or jewellery that can be drawn into
the air inlet. Secure long hair so that it is above shoulder level to
prevent entanglement in moving parts.
■ Before each use, ensure that all controls and safety devices
function correctly. Do not use the product if the off switch does
not power off the product.
■ Operate the product in the recommended position and only on
a firm and level surface.
■ Do not operate the product on a paved or gravel surface where
ejected material could cause injury.
■ Before each use, always inspect the housing for damage. Ensure
that guards and handles are in place and properly secured.
Replace worn or damaged components in sets to preserve
balance. Replace damaged or unreadable labels.
■ Never operate the product while people, especially children, or
pets are nearby.
■ Keep all cooling air inlets clear of debris.
■ Use rakes and brooms to loosen debris before blowing.
■ Clear the work area before each use. Remove all objects, such
as rocks, broken glass, nails, wire, or string that can be blown a
considerable distance by high velocity air.
BATTERY TOOL USE AND CARE
■ Recharge only with the charger specified by the manufacturer.
A charger that is suitable for one type of battery pack may
create a risk of fire when used with another battery pack.
■ Use the product only with specifically designated battery packs.
The use of any other battery packs may create a risk of injury
and fire.
■ When the battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails, screws, or
other small metal objects that can make a connection from one
terminal to another. Shorting the battery terminals together
may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the
battery pack; avoid contact. If contact accidentally occurs, flush
with water. If liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery pack may cause irritation
or burns.
■ Do not use a battery pack or product that is damaged
or modified. Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion, or risk of
injury.
■ Do not expose a battery pack or product to fire or excessive
temperatures. Exposure to fire or excessive temperatures
above 130 °C may cause explosion.
■ Follow all charging instructions and do not charge the battery
pack or product outside the temperature range specified in the
instructions. Charging improperly or at temperatures outside
the specified range may damage the battery pack and increase
the risk of fire.
17
17
TRAINING
■ Read the instructions carefully. Be familiar with the controls and
the correct use of the product.
■ Keep in mind that the operator or user is responsible for
accidents or hazards occurring to other people or their property.
■ Do not use the product while tired, ill, or under the influence of
drugs, alcohol, or medication.
PREPARATION
■ Some regions have regulations that restrict the use of the
product to some operations. Check with your local authority for
advice.
■ Wear hearing protection at all times while operating the
product.The product is noisy, and permanent hearing injury
may result if precautions to limit your exposure, reduce noise,
and wear hearing protection are not strictly adhered to.
■ Wear full eye protection at all times while operating the product.
The manufacturer strongly suggests a full face mask or fully
enclosed goggles. Normal spectacles or sunglasses are not
TECHNICAL DATA CORDLESS BLOWER A18FBLW20
Rated voltage 18 V d.c.
Rated current turbo mode 38 A
Turbo mode
Air velocity turbo mode 230 km/h
Air volume turbo mode 15.85 m
3
/min
Fan-loaded speed turbo mode 18300/min
Blowing force 14.8 N
Vibration level (in accordance with EN 50636-2-100 Annex BB) a
h
= 0.8 m/s
2
Uncertainty K = 1.5 m/s
2
Noise emission level (in accordance with EN 50636-2-100 Annex CC)
A-weighted sound pressure level at the operator’s position L
pA
= 78.1 dB(A)
Uncertainty
K
pA
= 3.0 dB(A)
A-weighted sound power level L
WA
= 94.2 dB(A)
Uncertainty
K
WA
= 3.0 dB(A)
Weight without battery pack 2.6 kg
Weight with A18OB8 8.0 Ah battery pack 3.7 kg
Compatible battery packs A18B4, A18B5, A18FB2, A18FB4, A18FB5, A18OB6, A18OB8,
L1820S, L1820SHD, L1830R-X5, L1830RHD,
L1840S, L1840SHD, L1850SHD, L1860R-X5/L1860RHD,
L1860SHD, L1880SHD, L1890R, L1890RHD
WARNING!
The declared vibration total values and the declared noise emission values given in this instruction manual have been measured in
accordance with a standardised test and may be used to compare one tool with another. They may be used for a preliminary assessment
of exposure.
The declared vibration and noise emission values represent the main applications of the tool. However, if the tool is used for dierent
applications, used with dierent accessories, or poorly maintained, the vibration and noise emission may dier. These conditions may
significantly increase the exposure levels over the total working period.
An estimation of the level of exposure to vibration and noise should take into account the times when the tool is turned o or when it is
running idle. These conditions may significantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the eects of vibration and noise, such as maintaining the tool and the
accessories, keeping the hands warm (in case of vibration), and organising work patterns.
adequate protection. Objects can be thrown at high speed by
the powerful air jet at any time and may rebound from hard
surfaces toward the operator.
■ While operating the product, always wear substantial footwear
and long trousers. Do not operate the product while barefoot or
wearing open sandals. Avoid wearing clothing with loose fitting
or that has hanging cords or ties.
■ Do not wear loose clothing or jewellery that can be drawn into
the air inlet. Secure long hair so that it is above shoulder level to
prevent entanglement in moving parts.
■ Before each use, ensure that all controls and safety devices
function correctly. Do not use the product if the off switch does
not power off the product.
■ Operate the product in the recommended position and only on
a firm and level surface.
■ Do not operate the product on a paved or gravel surface where
ejected material could cause injury.
■ Before each use, always inspect the housing for damage. Ensure
that guards and handles are in place and properly secured.
Replace worn or damaged components in sets to preserve
balance. Replace damaged or unreadable labels.
■ Never operate the product while people, especially children, or
pets are nearby.
■ Keep all cooling air inlets clear of debris.
■ Use rakes and brooms to loosen debris before blowing.
■ Clear the work area before each use. Remove all objects, such
as rocks, broken glass, nails, wire, or string that can be blown a
considerable distance by high velocity air.
BATTERY TOOL USE AND CARE
■ Recharge only with the charger specified by the manufacturer.
A charger that is suitable for one type of battery pack may
create a risk of fire when used with another battery pack.
■ Use the product only with specifically designated battery packs.
The use of any other battery packs may create a risk of injury
and fire.
■ When the battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails, screws, or
other small metal objects that can make a connection from one
terminal to another. Shorting the battery terminals together
may cause burns or a fire.
■ Under abusive conditions, liquid may be ejected from the
battery pack; avoid contact. If contact accidentally occurs, flush
with water. If liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery pack may cause irritation
or burns.
■ Do not use a battery pack or product that is damaged
or modified. Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire, explosion, or risk of
injury.
■ Do not expose a battery pack or product to fire or excessive
temperatures. Exposure to fire or excessive temperatures
above 130 °C may cause explosion.
■ Follow all charging instructions and do not charge the battery
pack or product outside the temperature range specified in the
instructions. Charging improperly or at temperatures outside
the specified range may damage the battery pack and increase
the risk of fire.
OPERATION
■ Operate the product only at reasonable hours—not early in the
morning or late at night when people might be disturbed.
■ Never operate the product in an explosive atmosphere.
■ Avoid using the product in bad weather conditions, especially
when there is a risk of lightning.
■ Keep bystanders, children, and pets 15 m away from the area
of operation. Power off the product if anyone enters the area.
■ Do not operate the product in poor lighting. The operator
requires a clear view of the work area to identify potential
hazards.
■ Operating similar tools nearby increases both the risk of hearing
injury and the potential for other persons to enter your working
area.
■ Always be sure of the footing on slopes. Walk; never run.
■ Keep proper footing and balance. Do not overreach.
Overreaching can result in loss of balance.
■ Never use the product with defective guards or shields, or
without safety devices in place.
■ Do not modify the product in any way or use parts and
accessories that are not recommended by the manufacturer.
WARNING! If the product is dropped, suers heavy impact, or
begins to vibrate abnormally, immediately power o the product
and inspect it for damage or identify the cause of the vibration. Any
part that is damaged should be properly repaired or replaced by an
authorised service centre.
■ To reduce the risk of injury associated with contacting rotating
parts, always turn off the product and remove the battery pack.
Make sure that all moving parts have come to a complete stop:
● before leaving the product unattended
● before clearing blockages
● before checking, cleaning, or working on the product
● before inspecting the product after striking a foreign object
● whenever the product starts to vibrate abnormally (inspect
immediately)
■ Immediately power off the product and remove the battery pack
in the event of an accident or a breakdown. Do not operate the
product again until it has been fully checked by an authorised
service centre.
BLOWER SAFETY WARNINGS
■ Wear a face filter mask in dusty conditions to reduce the risk of
injury associated with the inhalation of dust.
■ Slightly dampen surfaces in dusty conditions.
■ Do not operate the product near open windows.
■ Use the full blower nozzle extension so that the air stream can
work close to the ground and perform effectively.
■ Do not point the blower nozzle in the direction of people or pets.
■ Never place objects inside the blower tubes.
■ Do not place the product on top of or near loose debris. Debris
can be sucked into the intake vent, resulting in possible damage
to the product.
ADDITIONAL BATTERY SAFETY WARNINGS
WARNING! To reduce the risk of fire, personal injury, and
product damage due to a short circuit, never immerse the product,
18
18
battery pack, or charger in fluid or allow fluid to flow inside them.
Corrosive or conductive fluids, such as seawater, certain industrial
chemicals, and bleach or bleach-containing products, etc., can
cause a short circuit.
TRANSPORTATION AND STORAGE
■ Power off the product, and remove the battery pack. Make
sure that all moving parts have come to a complete stop. Allow
the product and the battery pack to cool down before storing
or transporting.
■ Remove all foreign materials from the product. Store the
product in a cool, dry, and well-ventilated place that is
inaccessible to children. Keep the product away from corrosive
agents, such as garden chemicals and de-icing salts. Do not
store the product outdoors.
■ For transportation in vehicles, secure the product against
movement or falling to prevent injury to persons or damage
to the product.
TRANSPORTING LITHIUM BATTERIES
Transport the battery pack in accordance with local and national
provisions and regulations.
Follow all special requirements on packaging and labelling when
transporting batteries by a third party. Ensure that no batteries
can come in contact with other batteries or conductive materials
while in transport by protecting exposed connectors with
insulating, non-conductive caps or tape. Do not transport batteries
that are cracked or leaking. Check with the forwarding company
for further advice.
MAINTENANCE
■ Use only original manufacturer’s replacement parts,
accessories, and attachments. Failure to do so can cause
possible injury, can contribute to poor performance, and may
void your warranty.
■ Servicing requires extreme care and knowledge and should
be performed only by a qualified service technician. Have the
product serviced by an authorised service centre only. When
servicing, use only original replacement parts.
■ Do not make adjustments and repairs that are not described
in this manual. For other repairs, contact an authorised service
centre.
■ After each use, clean the product with a soft, dry cloth.
■ Check all nuts, bolts, and screws at frequent intervals for
proper tightness to ensure that the product is in safe working
condition. Any part that is damaged should be properly
repaired or replaced by an authorised service centre.
■ Bring the product to an authorised service centre to replace
damaged or unreadable labels.
CLEARING A BLOCKAGE
■ To reduce the risk of injury associated with contacting rotating
parts, always power off the product, remove the battery pack,
and make sure that all moving parts have come to a complete
stop.
■ Remove the blower tubes to inspect for blockage. Clear the tubes
if required.
■ Reinstall the blower tubes before starting the product.
RESIDUAL RISKS
Even when the product is used as prescribed, it is still impossible
to completely eliminate certain residual risk factors. The following
hazards may arise during use, and the operator should pay special
attention to avoid the following:
■ injury caused by vibration
– Always use the right tool for the job, hold the product by the
designated handles, and use the lowest speed necessary to
achieve the task.
■ injury caused by exposure to noise
– Wear ear protection and limit exposure.
■ injury caused by flying objects from the blower tube airflow
– Wear eye protection at all times.
RISK REDUCTION
It has been reported that vibrations from handheld tools may
contribute to a condition called Raynaud’s Syndrome. Symptoms
may include tingling, numbness, and blanching of the fingers, usually
apparent upon exposure to cold. Hereditary factors, exposure to
cold and dampness, diet, smoking, and work practices are all thought
to contribute to the development of these symptoms. There are
measures that can be taken by the operator to possibly reduce the
eects of vibration:
■ Keep your body warm in cold weather. When operating the
product, wear gloves to keep the hands and wrists warm. It is
reported that cold weather is a major factor contributing to
Raynaud’s Syndrome.
■ After each period of operation, exercise to increase blood
circulation.
■ Take frequent work breaks. Limit the amount of exposure per day.
If you experience any of the symptoms of this condition, immediately
discontinue use and see your physician.
WARNING! Injuries may be caused or aggravated by prolonged
use of the product. When using the product for prolonged periods,
ensure to take regular breaks.
SYMBOLS ON THE PRODUCT
Read and understand all instructions before
operating the product. Follow all warnings and
safety instructions.
Beware of thrown or flying objects. Keep all
bystanders, especially children and pets, at least 15
m away from the operating area.
Rotating fans. Keep hands and feet out of openings
while the product is running.
Wear ear protection.
Wear eye protection.
Do not expose the product to rain or damp
conditions.
Remove the battery pack before starting any work
on the product.
Keep hands away from rotating fans.
Risk of long hair being drawn into air inlet.
Risk of loose clothing being drawn into the air
intake.
98
Guaranteed sound power level
Regulatory Compliance Mark (RCM). Product
meets applicable regulatory requirements.
Waste electrical products should not be disposed
of with household waste. Please recycle where
facilities exist. Check with your local authority or
retailer for recycling advice.
SYMBOLS IN THIS MANUAL
Note
Warning
19
19
■ Remove the blower tubes to inspect for blockage. Clear the tubes
if required.
■ Reinstall the blower tubes before starting the product.
RESIDUAL RISKS
Even when the product is used as prescribed, it is still impossible
to completely eliminate certain residual risk factors. The following
hazards may arise during use, and the operator should pay special
attention to avoid the following:
■ injury caused by vibration
– Always use the right tool for the job, hold the product by the
designated handles, and use the lowest speed necessary to
achieve the task.
■ injury caused by exposure to noise
– Wear ear protection and limit exposure.
■ injury caused by flying objects from the blower tube airflow
– Wear eye protection at all times.
RISK REDUCTION
It has been reported that vibrations from handheld tools may
contribute to a condition called Raynaud’s Syndrome. Symptoms
may include tingling, numbness, and blanching of the fingers, usually
apparent upon exposure to cold. Hereditary factors, exposure to
cold and dampness, diet, smoking, and work practices are all thought
to contribute to the development of these symptoms. There are
measures that can be taken by the operator to possibly reduce the
eects of vibration:
■ Keep your body warm in cold weather. When operating the
product, wear gloves to keep the hands and wrists warm. It is
reported that cold weather is a major factor contributing to
Raynaud’s Syndrome.
■ After each period of operation, exercise to increase blood
circulation.
■ Take frequent work breaks. Limit the amount of exposure per day.
If you experience any of the symptoms of this condition, immediately
discontinue use and see your physician.
WARNING! Injuries may be caused or aggravated by prolonged
use of the product. When using the product for prolonged periods,
ensure to take regular breaks.
SYMBOLS ON THE PRODUCT
Read and understand all instructions before
operating the product. Follow all warnings and
safety instructions.
Beware of thrown or flying objects. Keep all
bystanders, especially children and pets, at least 15
m away from the operating area.
Rotating fans. Keep hands and feet out of openings
while the product is running.
Wear ear protection.
Wear eye protection.
Do not expose the product to rain or damp
conditions.
Remove the battery pack before starting any work
on the product.
Keep hands away from rotating fans.
Risk of long hair being drawn into air inlet.
Risk of loose clothing being drawn into the air
intake.
98
Guaranteed sound power level
Regulatory Compliance Mark (RCM). Product
meets applicable regulatory requirements.
Waste electrical products should not be disposed
of with household waste. Please recycle where
facilities exist. Check with your local authority or
retailer for recycling advice.
SYMBOLS IN THIS MANUAL
Note
Warning
Parts or accessories are sold separately
The following signal words and meanings are intended to explain
the levels of risk associated with this product.
DANGER
Indicates an imminently hazardous situation, which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation, which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation, which, if not
avoided, may result in minor or moderate injury.
CAUTION
Without safety alert symbol
Indicates a situation that may result in property damage.
AEG is a registered trademark used under
license from AB Electrolux (publ).
Techtronic Industries Australia Pty Ltd
31 Gilby Road, Mount Waverley,
VIC, 3149, Australia
Techtronic Industries N.Z. Limited
Unit C, 70 Business Parade South,
Highbrook, Auckland 2013, New Zealand
www.aegpowertools.com.au
www.aegpowertools.co.nz
AEG is a registered trade mark used under
license from AB Electrolux (publ).
961087591-02
