4
5
13
11
PST 500 X
STEP100X
Technical Data,Safety Instructions, Specied Conditions of Use,
Mains connection, Maintenance, Symbols
Please read and save
these instructions!
English
15
START
STOP
VI
IX
XII
I IIIII
V
VIII
XI
IV
VII
X

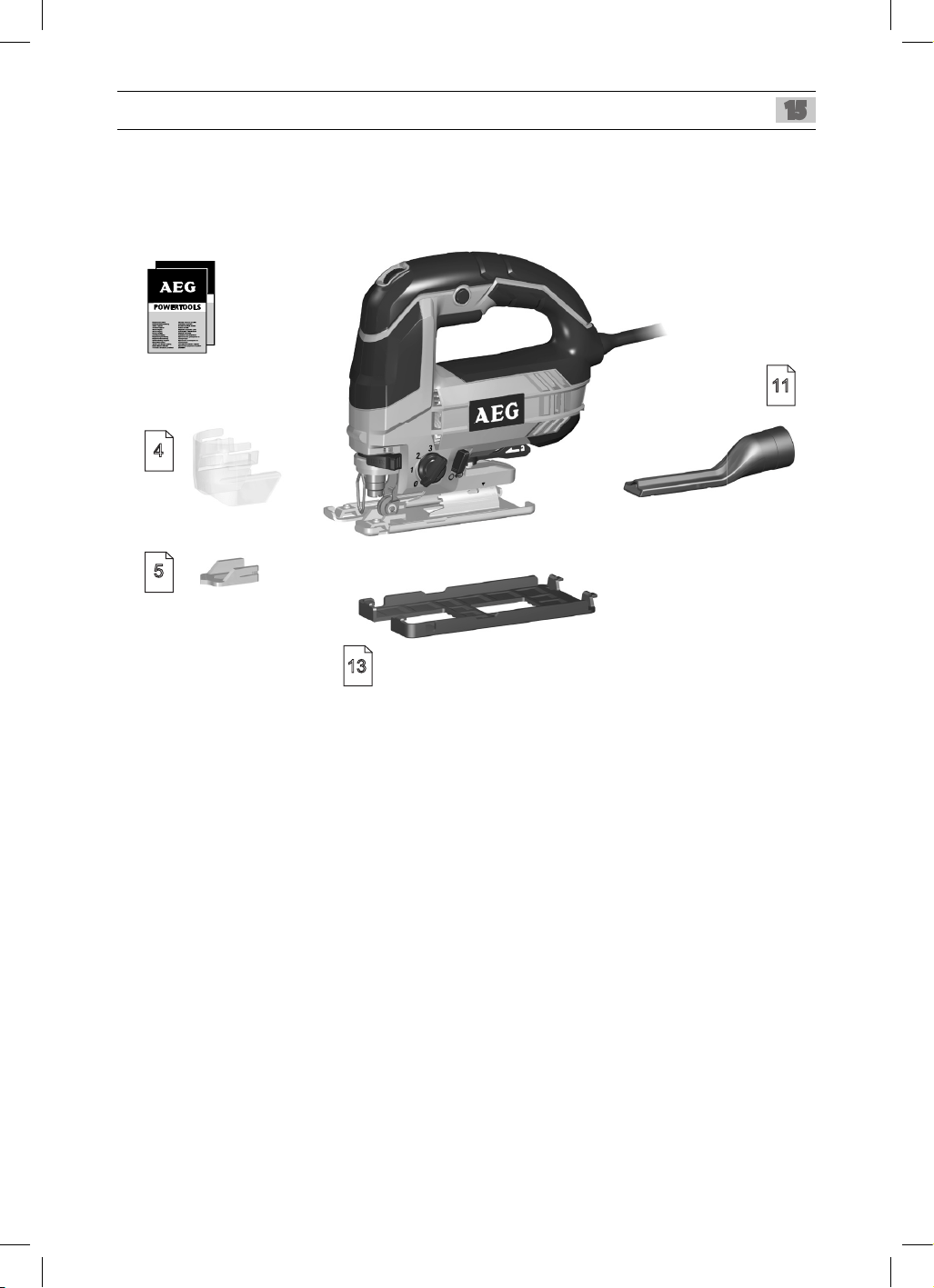

Accessory

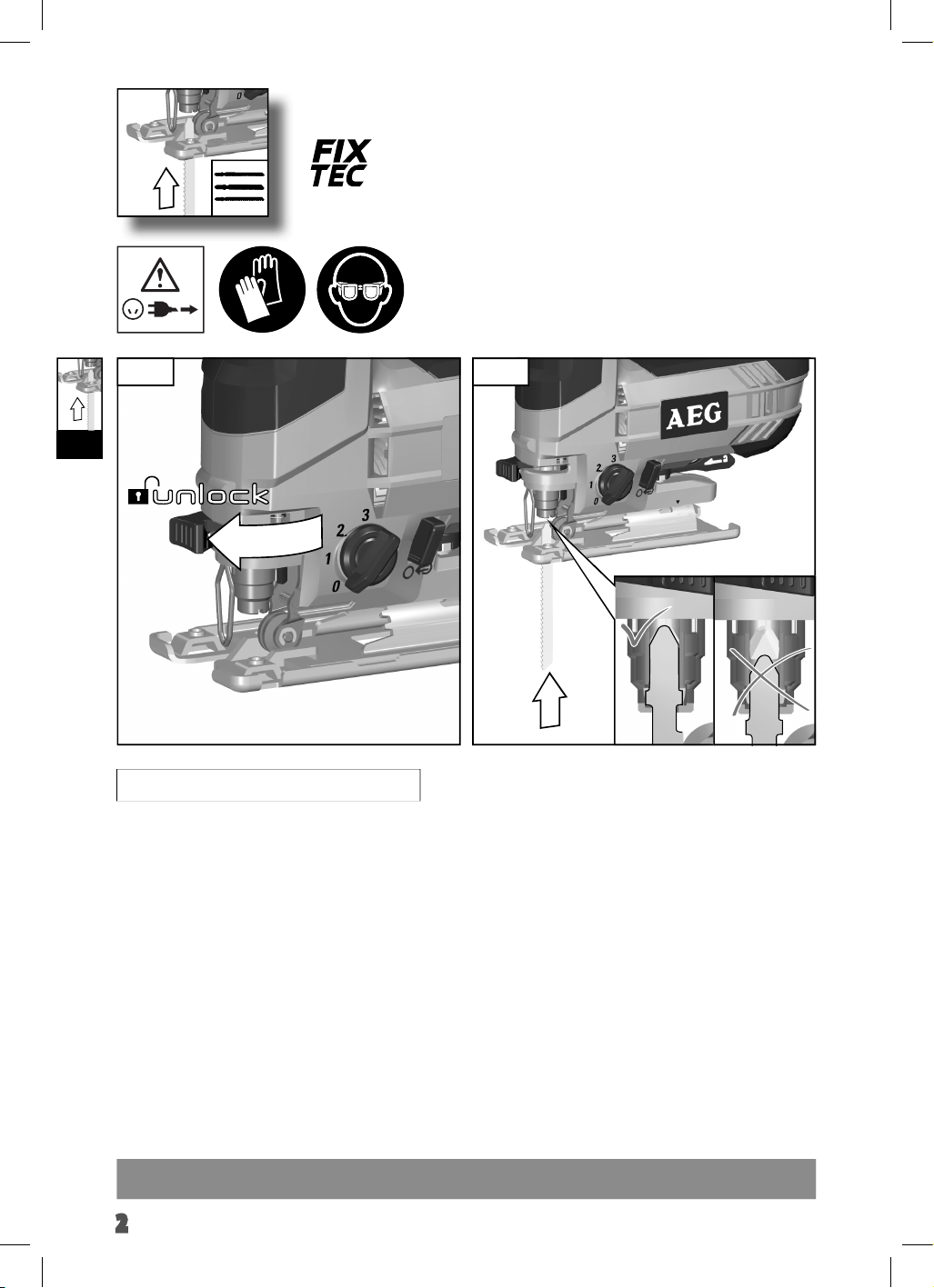

2
Press the saw blade into the Fixtec holder up to the stop.
I
I
2.1.

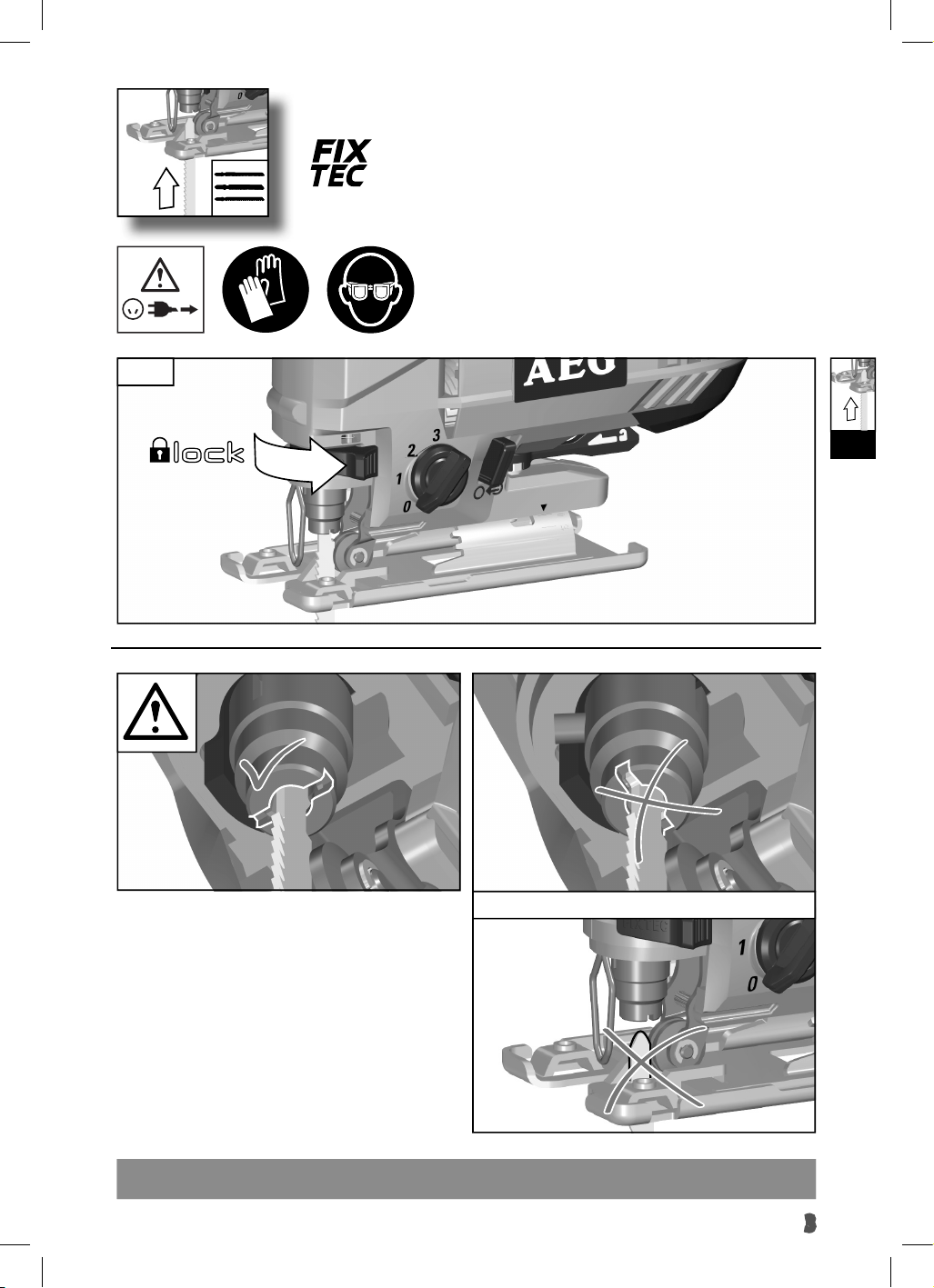

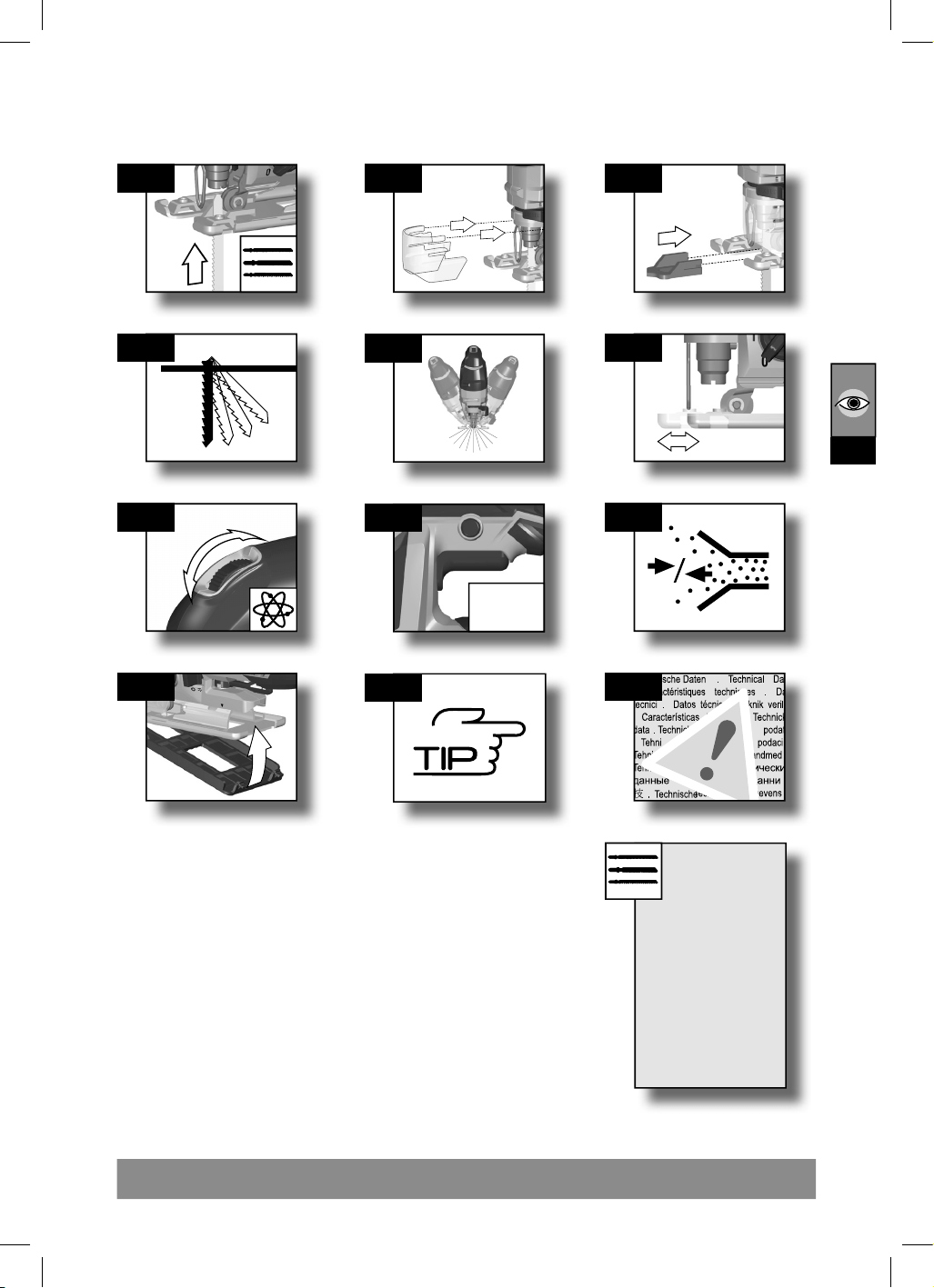

3
I
TEST
I
3.
I

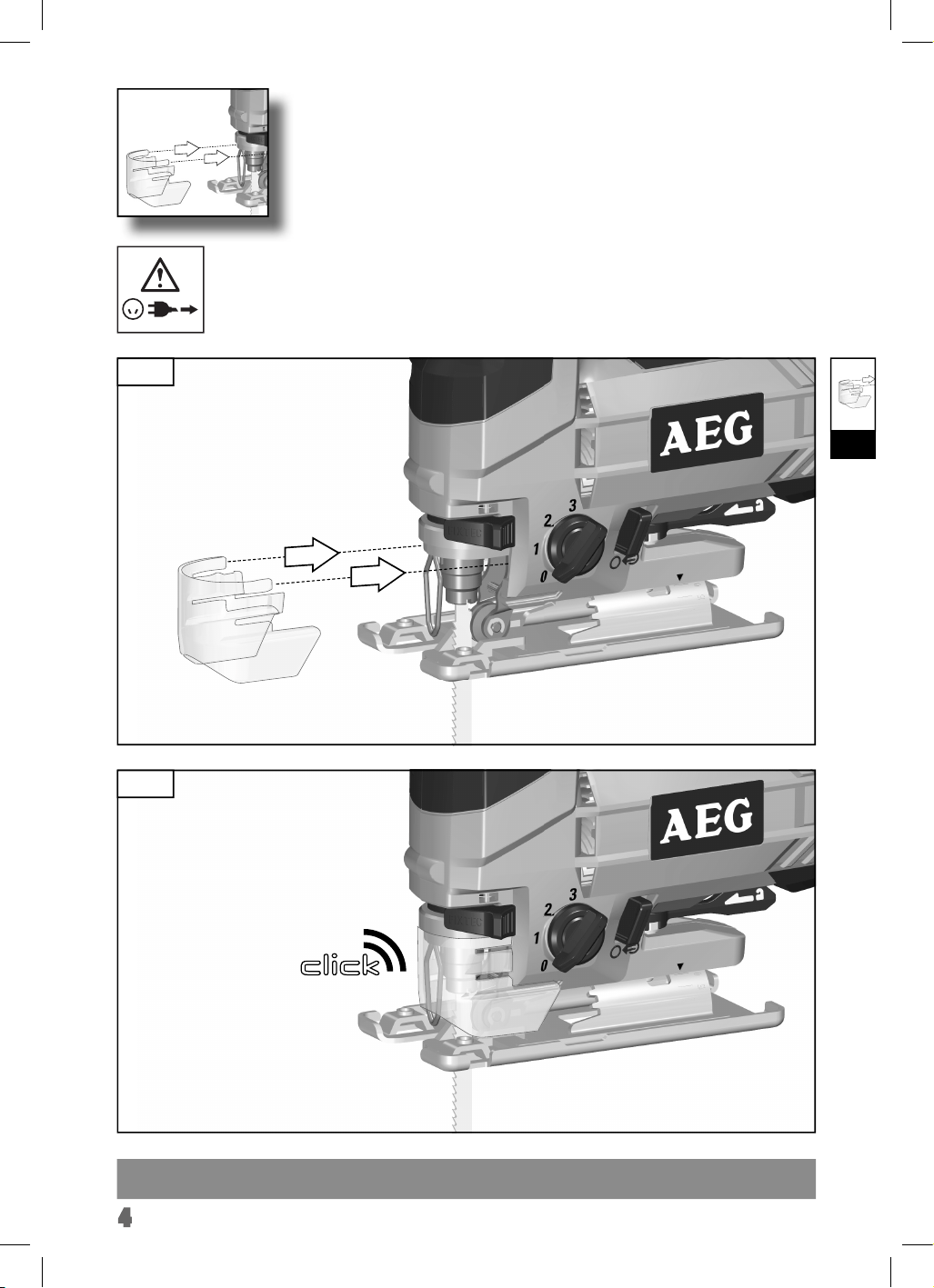

4
II
1.
2.
III
IV

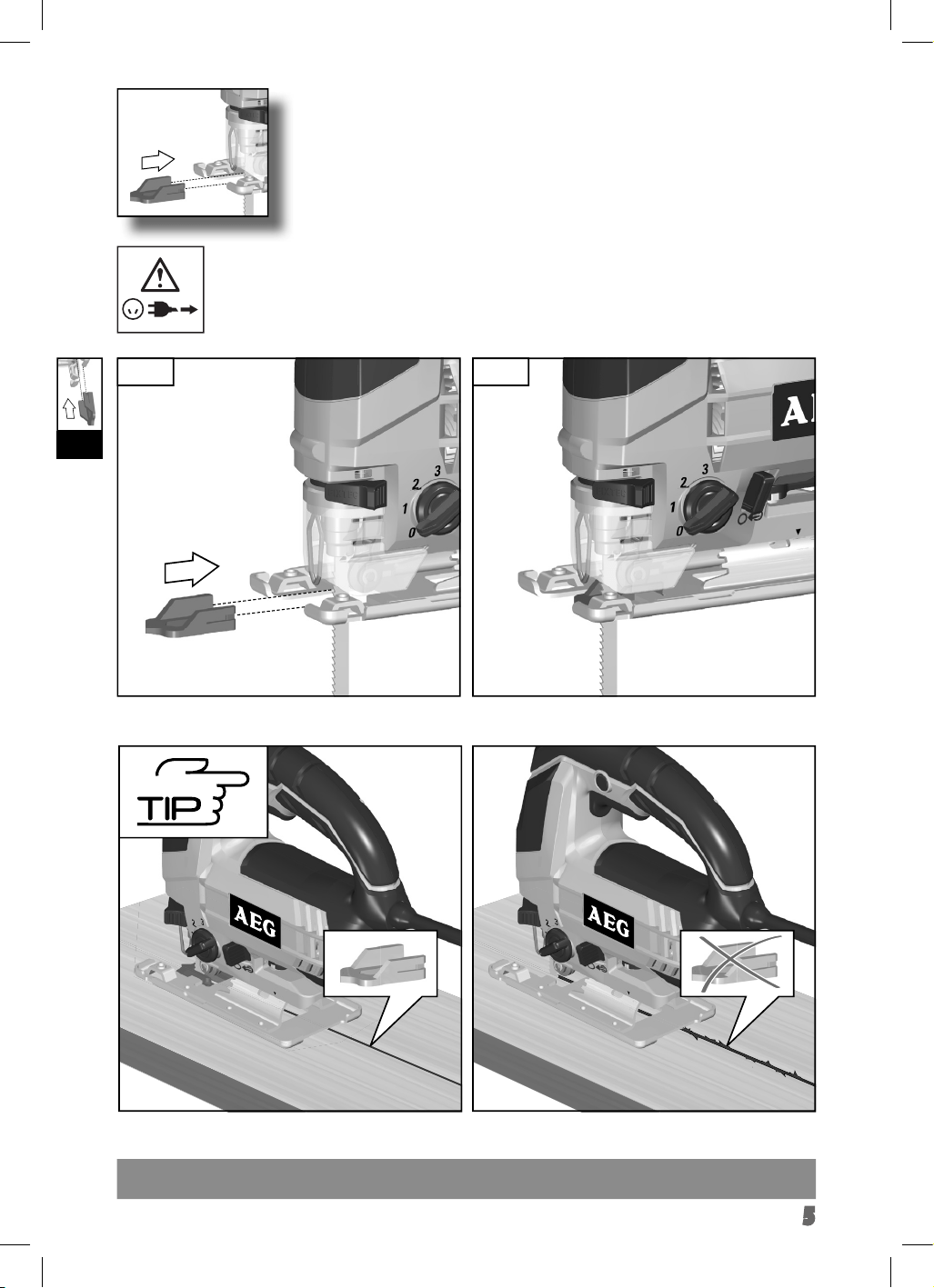

5
1. 2.
III
IV
0 1 2 3

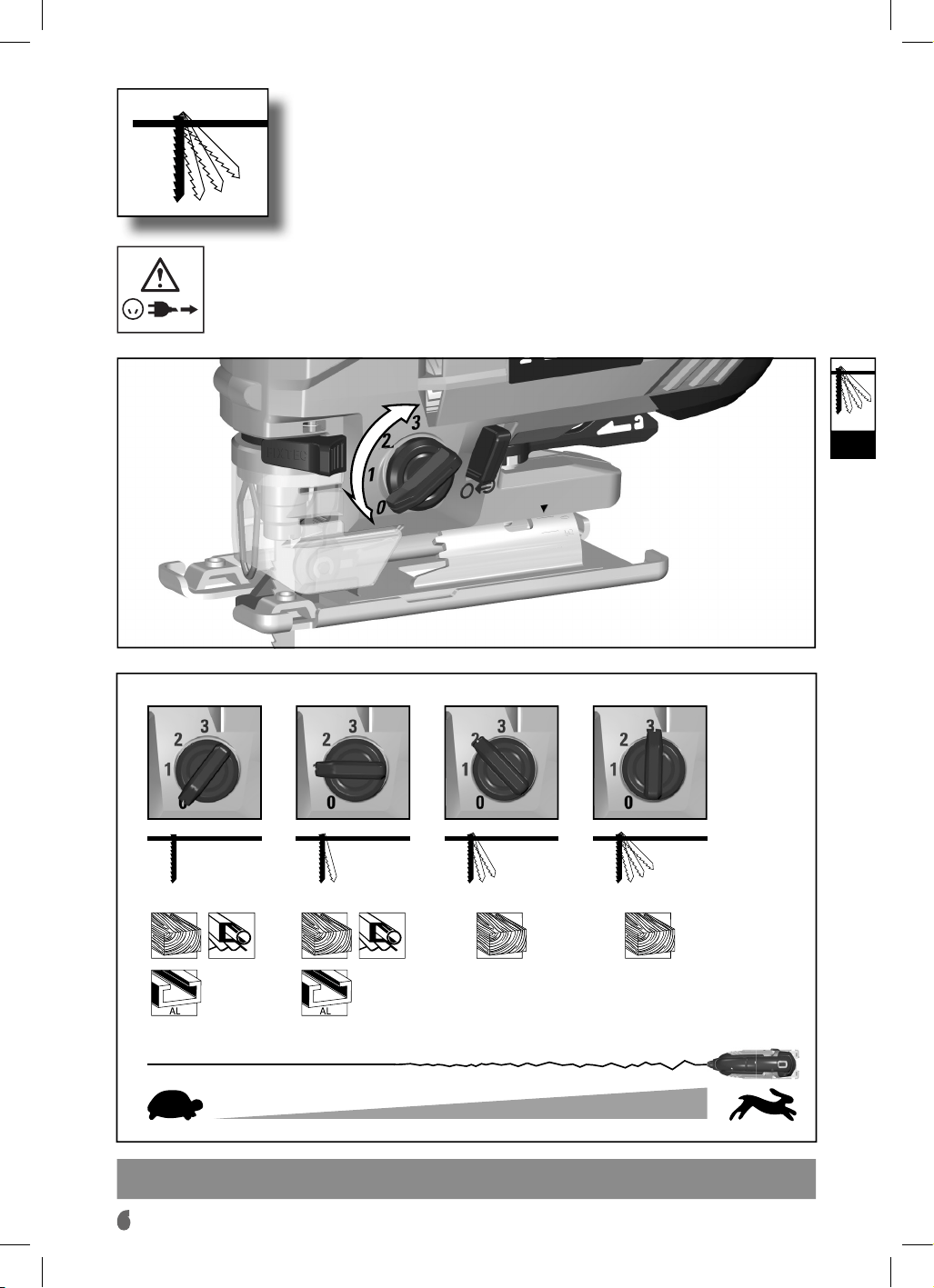

6
V
V
1. 2.

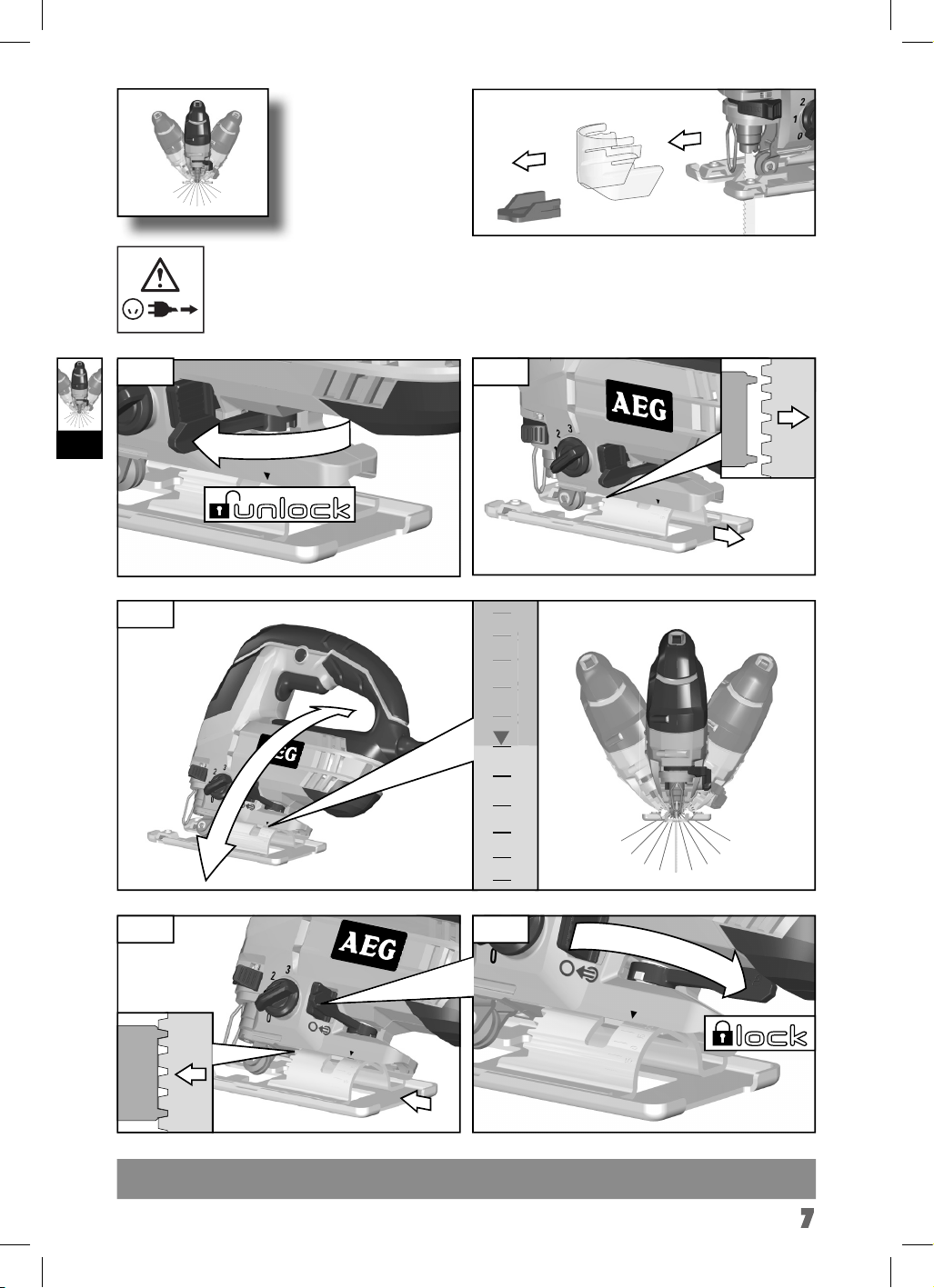

7
4.
3.
5.
15 0 15 30 45 30 15 0 15
15 0 15 30 45 30 15 0 15
VI
VI
1.
3.

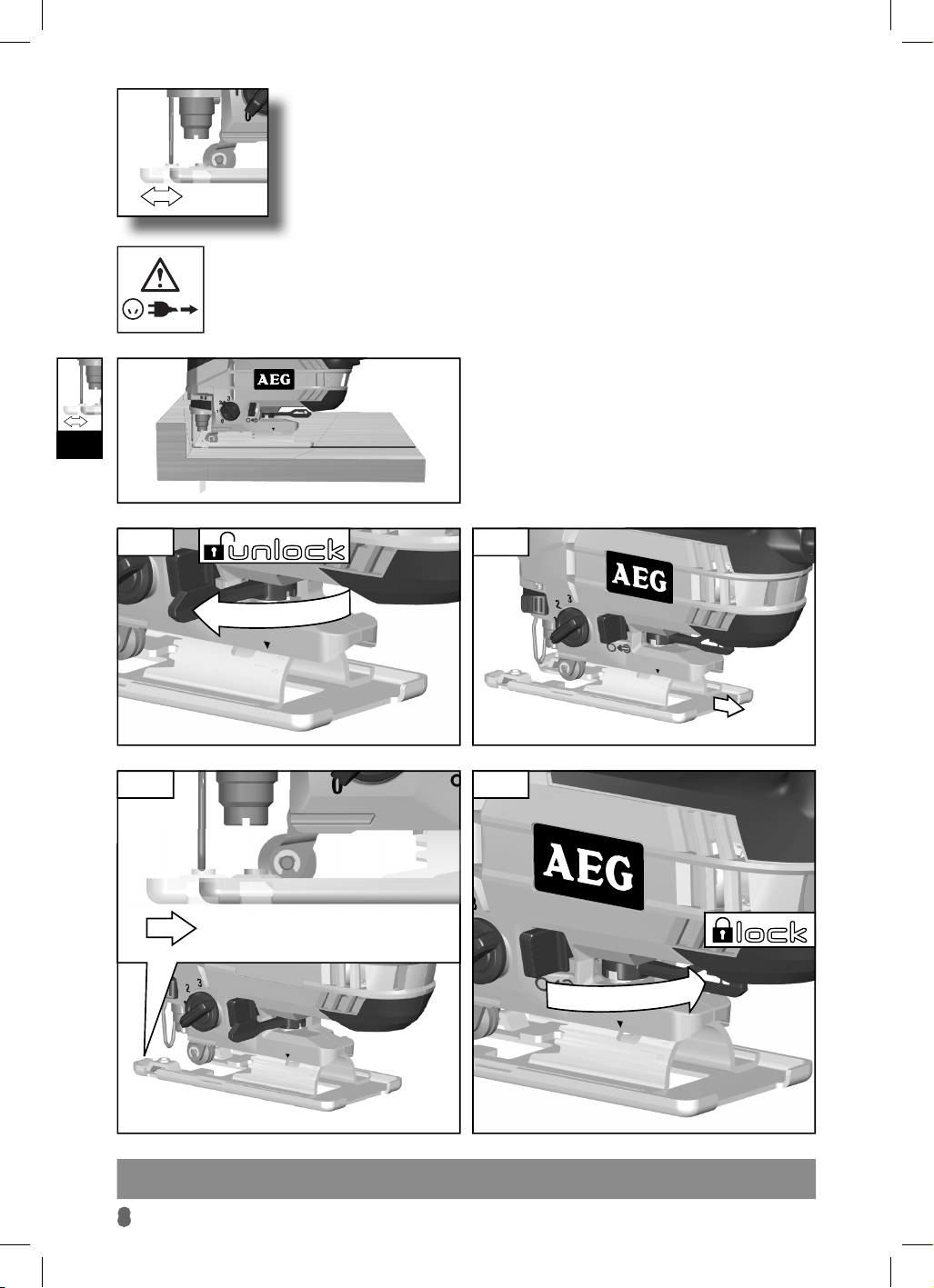

8
Flush cutting
2.
4.
VII
VIII
START
STOP
4-5 4-6 61
9

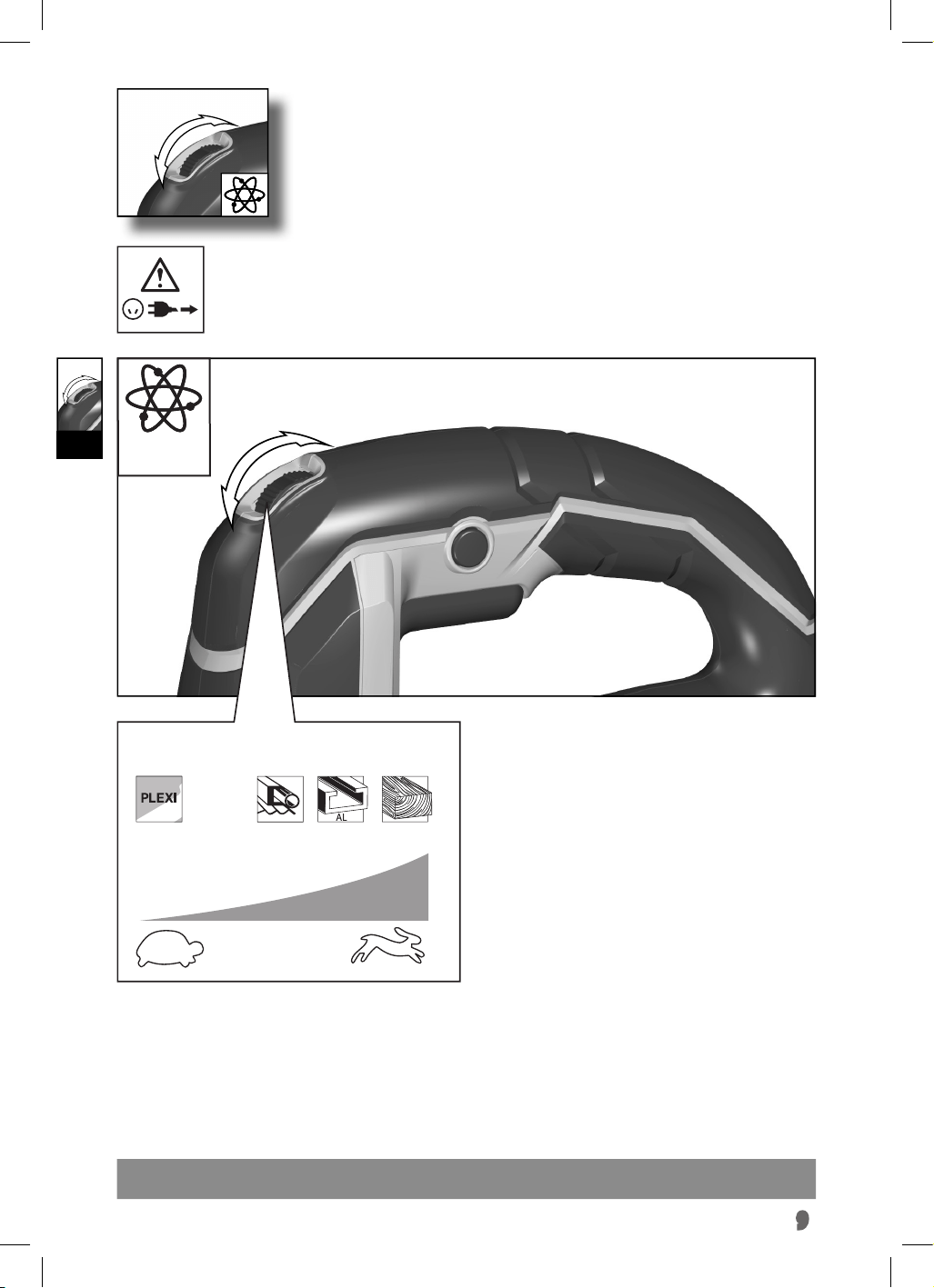

Electronic
speed
adjustment
VII
VIII
START
STOP
START
STOP
START
START
STOP
STOP
1
1
2
2

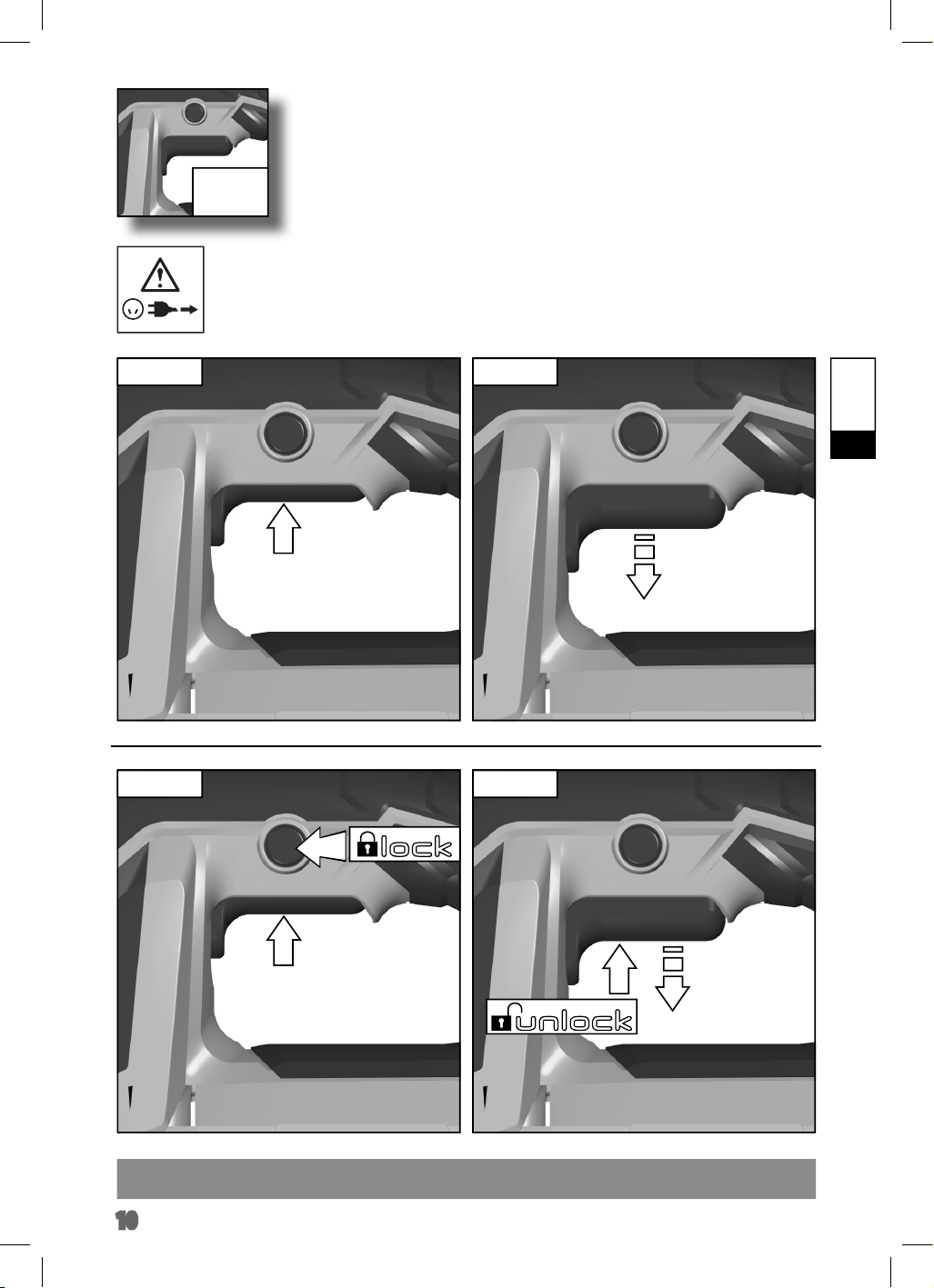

10
IX
IX
2
1
1
1
2
2
1
1.
3.
A
B
2.
4. 5.

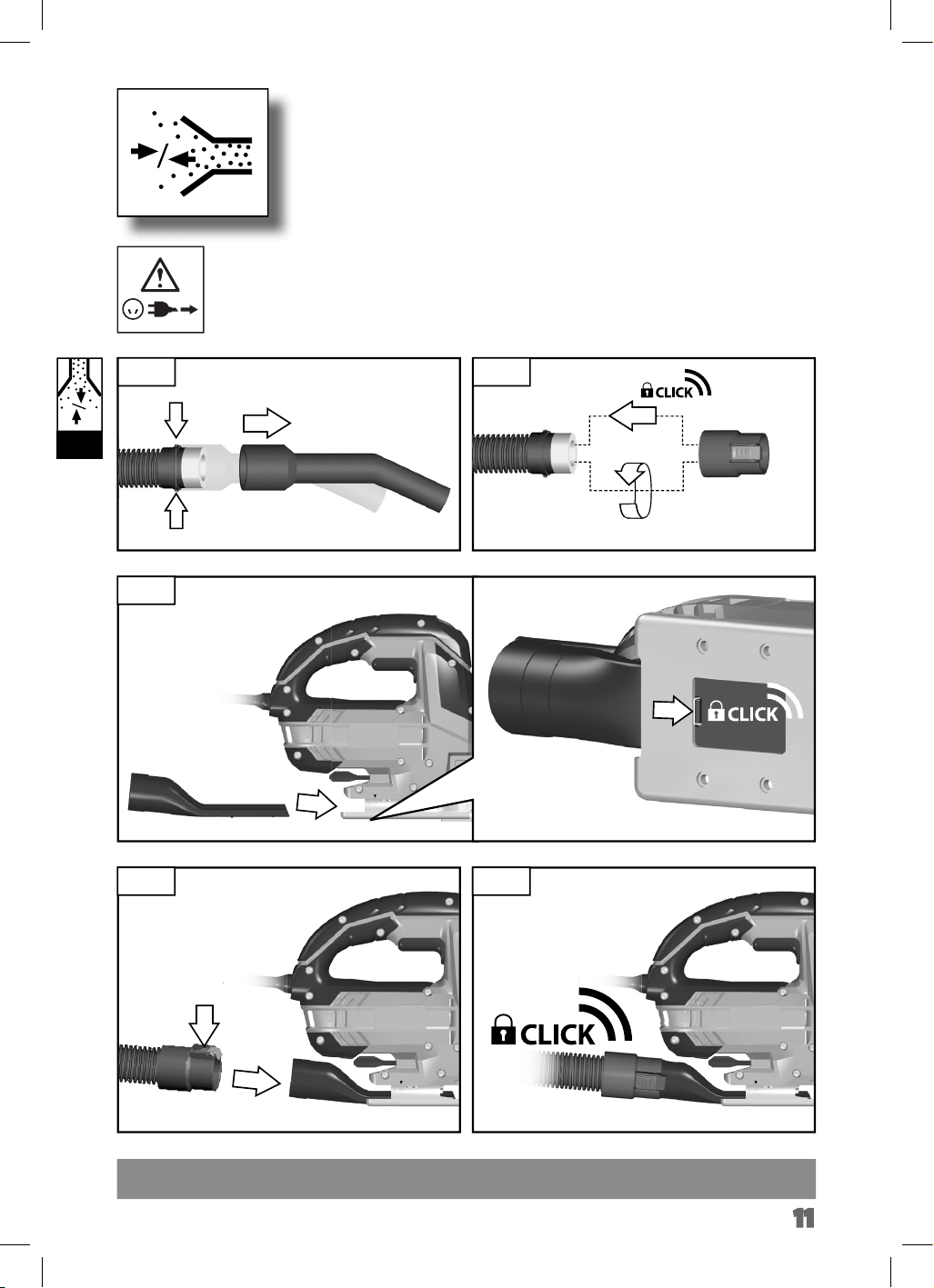

11
IX
IX

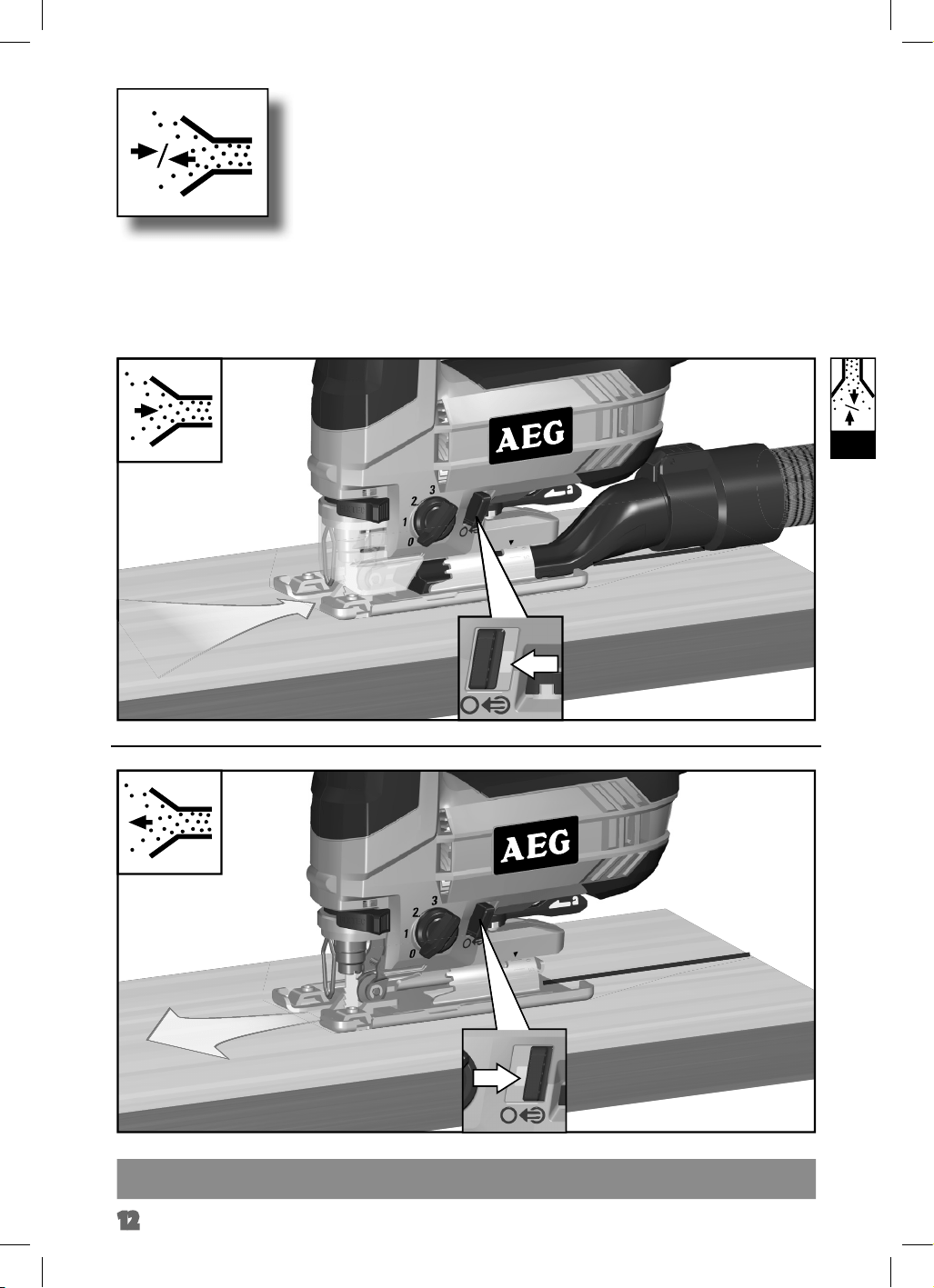

12
X
1.
XI

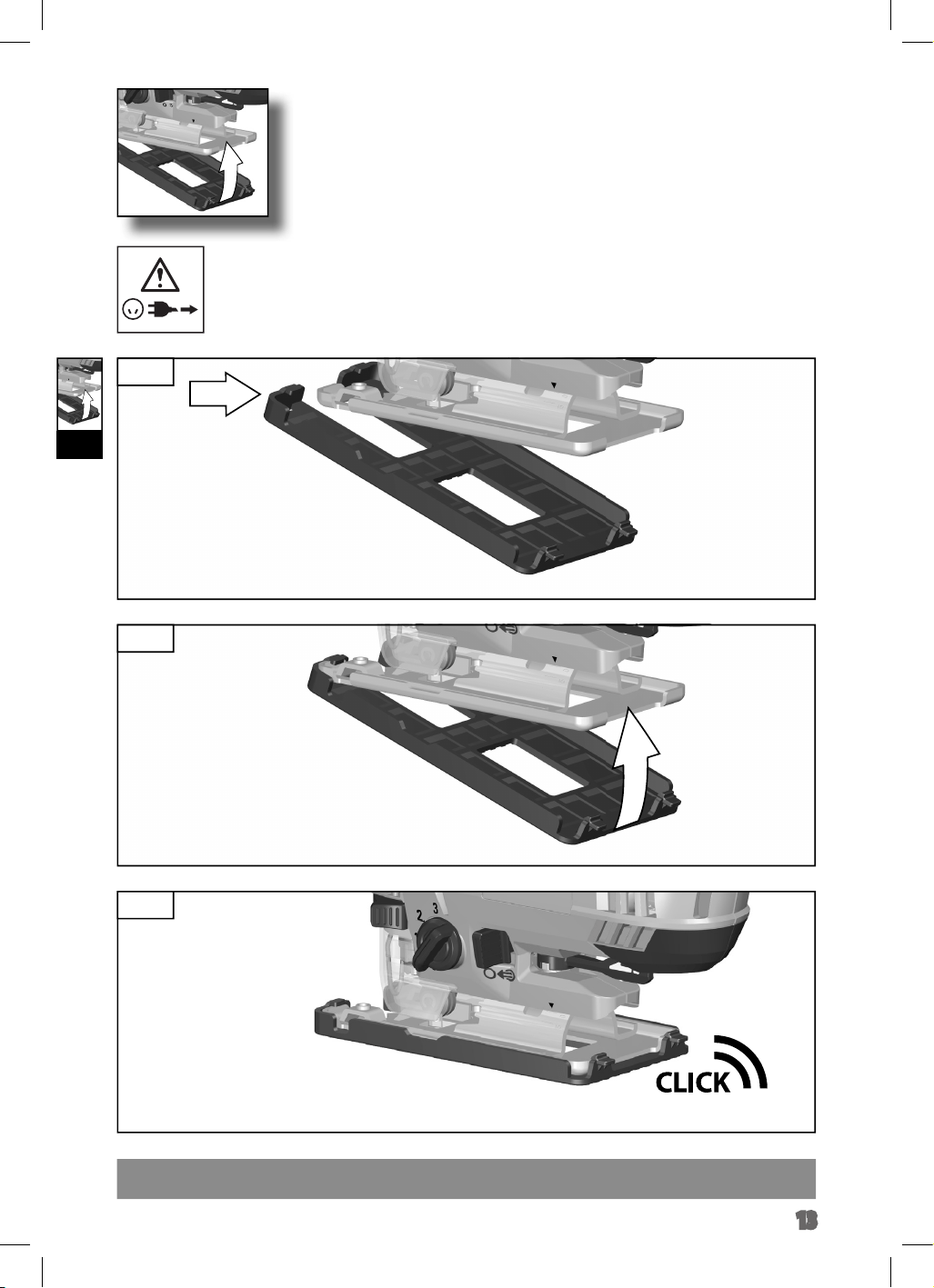

13
2.
3.
XI
2.
1.
3.
4. 5. STOP
14
START
WARNING! Read all safety warnings and all instruc-
tions. Failure to follow the warnings and instructions may result in
electric shock, re and/or serious injury. Save all warnings and
instructions for future reference.
JIG SAW SAFETY WARNINGS
Wear ear protectors. Exposure to noise can cause hearing loss.
Hold power tool by insulated gripping surfaces, when
performing an operation where the cutting accessory may
contact hidden wiring or its own cord. Cutting accessory con-
tacting a “live” wire may make exposed metal parts of the power
tool “live” and could give the operator an electric shock.
Additional Safety and Working Instructions:
Use protective equipment. Always wear safety glasses when
working with the machine. The use of protective clothing is re-
commended, such as dust mask, protective gloves, sturdy non-slip
footwear, helmet and ear defenders.
The dust produced when using this tool may be harmful to health.
Do not inhale the dust. Wear a suitable dust protection mask.
Chips and splinters must not be removed while the machine is
running.
Always use the protective shields on the machine.
Do not use cracked or distorted saw blades.

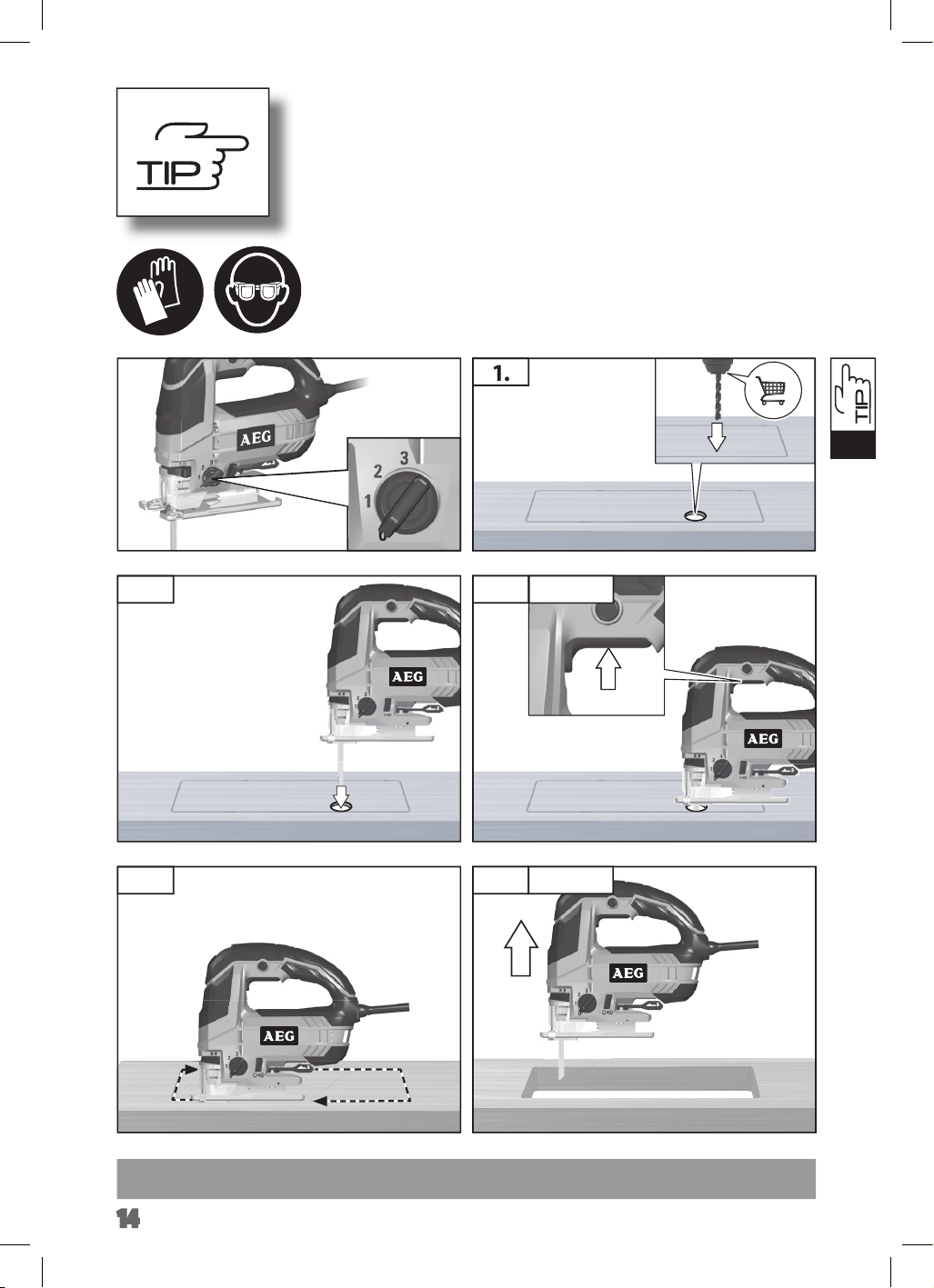

Plunge cuts without pre-drilling a hole are possible with soft ma-
terials (wood, light building materials for walls). Harder materials
(metals) must rst be drilled with a hole corresponding to the size
of the saw blade.
When working in walls ceiling, or oor, take care to avoid electric
cables and gas or waterpipes.
GB
15
TECHNICAL DATA
Jig Saw
STEP100X
Rated power 700 W
Stroke rate under no-load 1000 - 3200 min
-1
Lengths of stroke 20 mm
Bevel cuts up to 45 °
Cutting depth max. in:
Wood 100 mm
Steel 10 mm
Aluminium 20 mm
Weight according EPTA-Procedure 01/2003 2,3 kg
Voltage
220 - 240 V
50Hz
GB
SPECIFIED CONDITIONS OF USE
This jig saw is intended to cut wood, plastic and metal; it can cut
straight lines, bevels, curves, and internal cut-outs.
Do not use this product in any other way as stated for normal use.
MAINS CONNECTION
Connect only to single-phase AC system voltage as indicated on
the rating plate. It is also possible to connect to sockets without an
earthing contact as the design conforms to safety class II.
It is recommended that this tool is always supplied via a residual
current device with a rated residual current of 30mA or less.
Before doing any work on the machine, pull the plug out of the
socket.
Only plug-in when machine is switched o .
Keep mains lead clear from working range of the machine. Always
lead the cable away behind you.
Do not let any metal parts enter the airing slots - danger of short
circuit!
Under the e ect of extreme electromagnetic interferences from
the outside, temporary variations in the speed of rotation could
arise in particular cases.
MAINTENANCE
The ventilation slots of the machine must be kept clear at all times.
If the supply cord of this appliance is damaged, it must only be
replaced by a repair shop appointed by the manufacturer, to avoid
hazardous situations.
Use only AEG accessories and spare parts. Should components
need to be replaced which have not been described, please contact
one of our AEG service agents (see our list of guarantee/service
addresses).
If needed, an exploded view of the tool can be ordered. Please state
the machine type printed as well as the six-digit No. on the label
and order the drawing at your local service agents or directly at:
SYMBOLS
Please read the instructions carefully before starting the
machine.
Always wear goggles when using the machine.
Wear gloves!
CAUTION! WARNING! DANGER!
Always disconnect the plug from the socket before
carrying out any work on the machine.
Accessory - Not included in standard equipment, available
as an accessory.
Do not dispose of electric tools together with household waste
material. Electric tools and electronic equipment that have
reached the end of their life must be collected separately and
returned to an environmentally compatible recycling facility.
Check with your local authority or retailer for recycling advice
and collection point.
Class II tool Tool in which protection against electric
shock does not rely on basic insulation only, but in which
additional safety precautions, such as double insulation or
reinforced insulation, are provided. There being no provi-
sion for protective earthing or reliance upon installation
conditions.
Techtronic Industries (Australia) Pty. Ltd.
PO Box 1065
Mount Waverley VIC 3149
Tel. no. 1300 361 505
Australia
Techtronic Industries N.Z. Ltd.
PO Box 12-806
Penrose AUCKLAND 1642
Tel no. 0800 279 624
New Zealand
Regulatory Compliance mark (RCM).
This product meets applicable regulatory requirements.
Materials made of aluminium.
Material made of wood.
19
Synthetic material Perspex®, in German Plexiglas®, which is
transparent, high-impact-resistant glass.
Materials made of metal (metal sheets pipes, corrugated sheet).
16
961068080-02
Techtronic Industries GmbH
Max-Eyth-Straße 10
71364 Winnenden
Germany
Techtronic Industries (Australia) Pty. Ltd.
31 Gilby Road,
Mount Waverley VIC 3149,
Australia
Techtronic Industires New Zealand Ltd.
2 Landing Drive, Mangere,
Auckland, New Zealand 2022
