Model HMAR45HCWE/HMAR45HCBE/
HMAR45HCSE
4.4 Cu. Ft.
Compact All Refrigerator
User's Manual
10
9
10
10
10
13
11 - 12

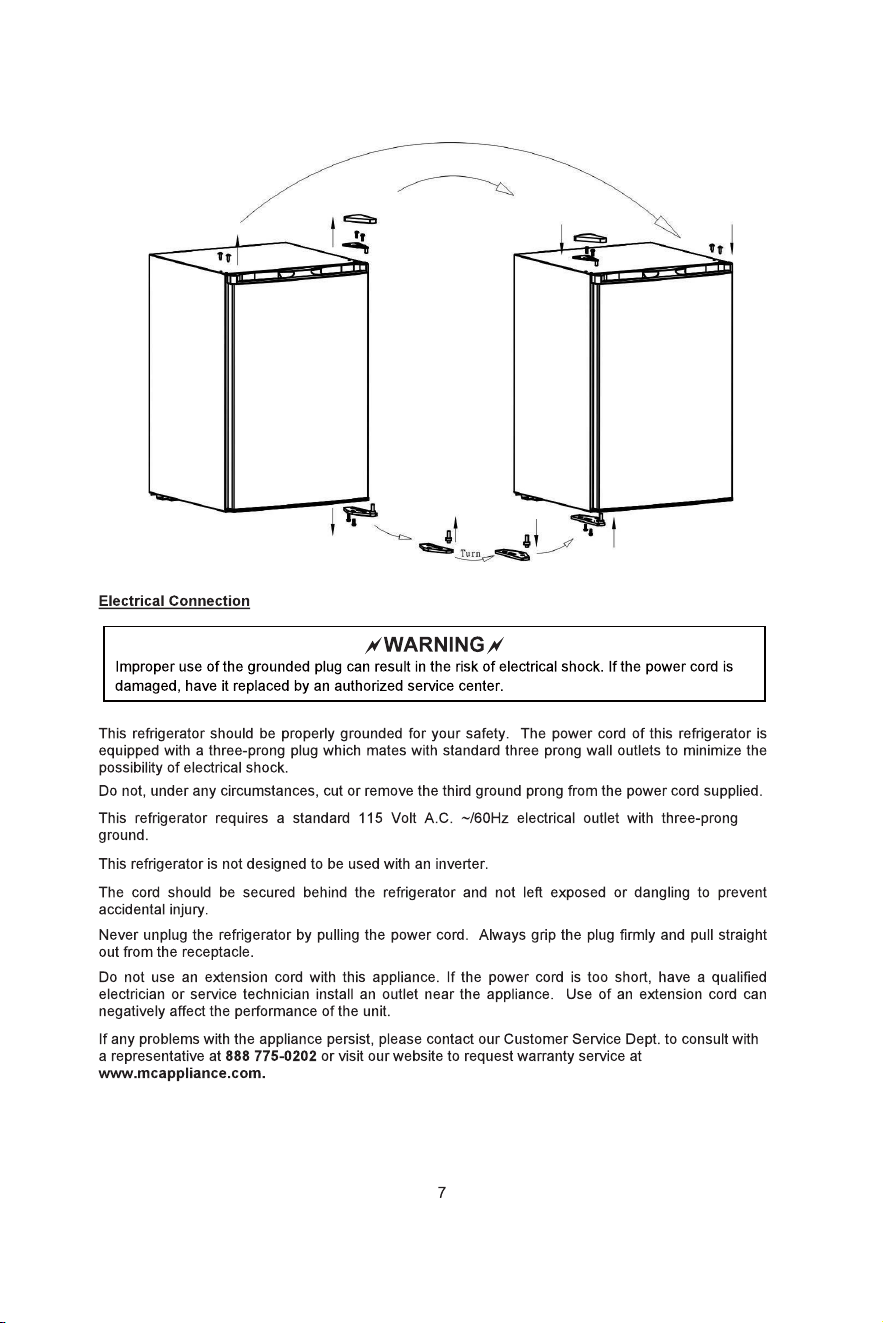

DOOR REVERSAL INSTRUCTION
HMAR45HCWE/HMAR45HCBE/
HMAR45HCSE
HMAR45HCWE/HMAR45HCBE/
HMAR45HCSE
HMAR45HCWE/HMAR45HCBE/
HMAR45HCSE
Transparent Plastic Sheff
Compact All Refrigerator
4.4
20.3
47.84
21.7 31.3
• Remove the top hinge cover.
• Using Phillips Head Screwdriver, loosen and remove the screws holding the top hinge in place.
• Remove top hinge and carefully lift off the door.
• Remove the screw hole plugs from the opposite side and insert the plugs in the screw hole
openings of the just removed screws.
• Remove any loose items in the refrigerator and carefully turn refrigerator on its back and place in
a secure area.
• Loosen the screws holding the lower hinge bracket to the refrigerator and remove screws and
bracket.
• Remove (2) screws from the other side and insert in the previously removed screw holes.
• Remove door pin by turning counter clockwise and reinsert to the underside of the bracket and
tighten.
• Align bracket and insert (2) remaining screws into the holes provided .
• Align hole in the door with the door pin and washer and gently push down until firm.
• Align upper hinge bracket with screw holes insert screws and partially secure, check that door
and cabinet are properly aligned and then secure tightly.
• Replace hinge cap.
Door Reversal Instruction
90°F (32.2°C)
10
right side

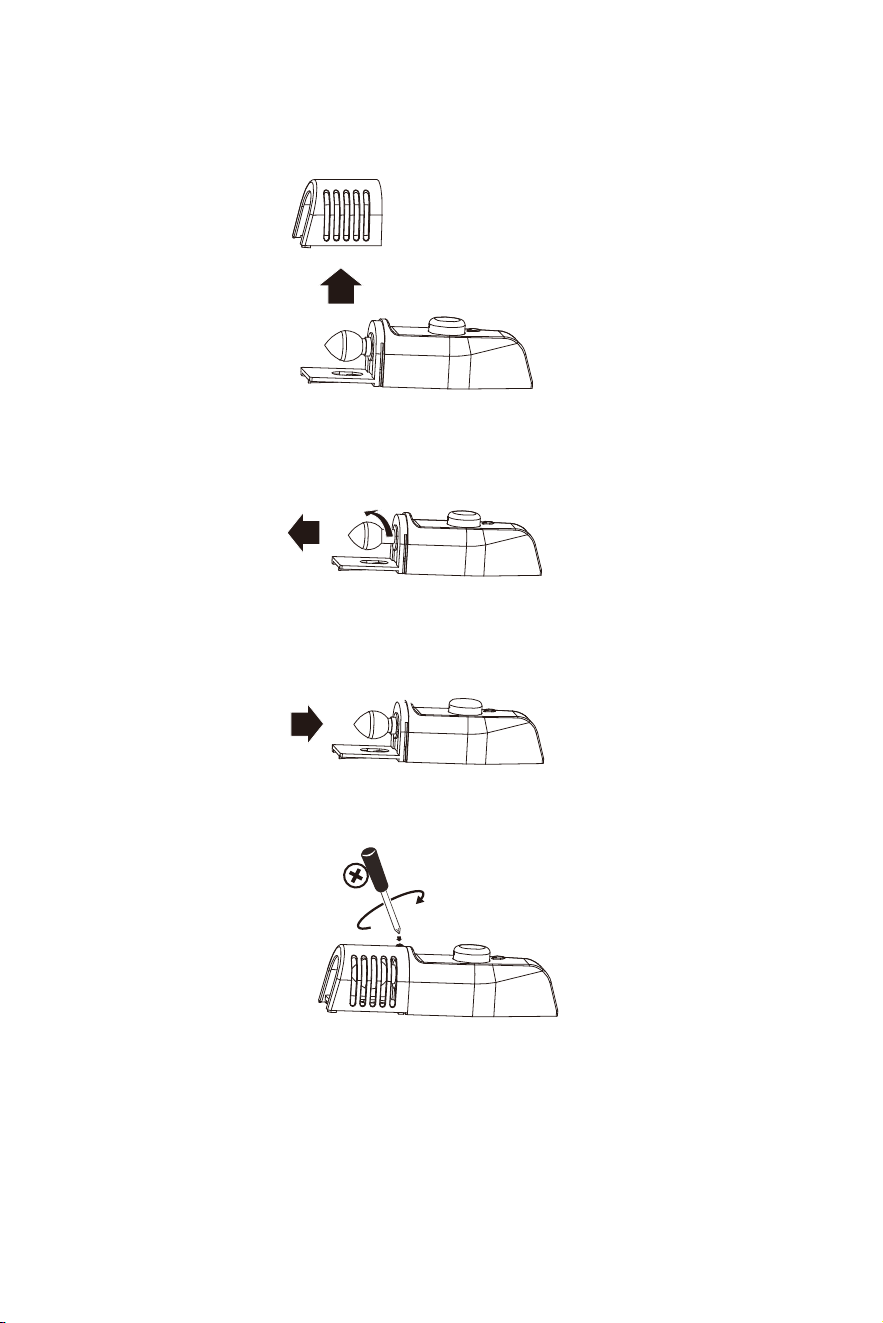

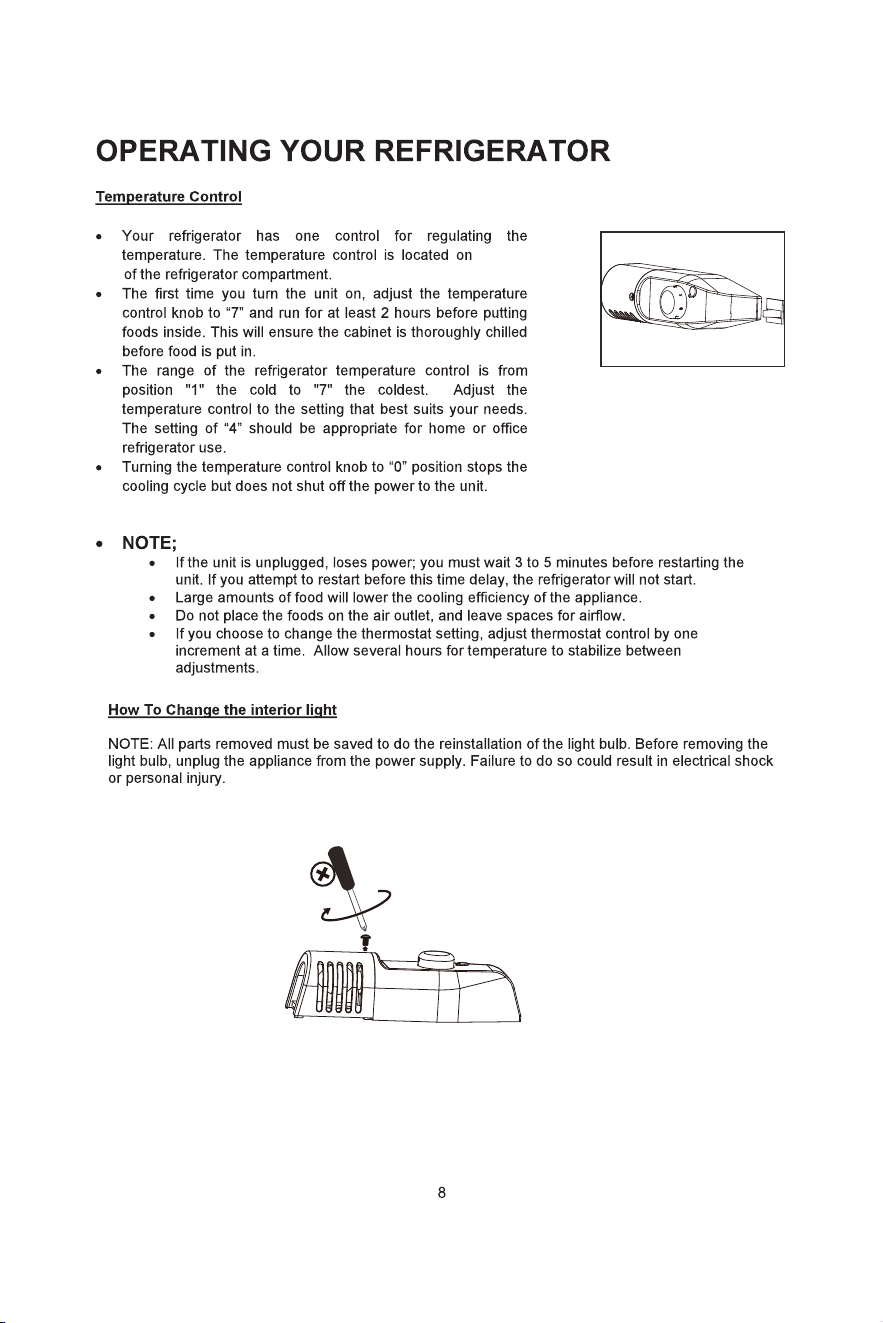

1 Use a Phillips screwdriver to remove the screw that secures the light cover.
9
2 Remove the interior light cover.
3 Unscrew and remove the old light bulb.
4 Screw in the new light bulb.
5 Reinstall the light cover.
10
11
12
13
HMAR45HCWE
HMAR45HCBE
HMAR45HCSE
V1
