POCKET GUIDE
FULL PRODUCT LINE
RESIDENTIAL & COMMERCIAL
TABLE OF CONTENTS
Introducing the ProLine
®
Family ......................................................... .......4
Contractor Rewards............................................................................ .......5
ProLine
®
Gas Family Features ............................................................ .......6
ProLine
®
Electric Family Features ...................................................... .......7
ProLine
®
Tankless Family Features ..................................................... .......8
Benefits .............................................................................................. .......9
RESIDENTIAL GAS
Premier
®
High Efficiency Power Vent .................................................. 10-11
Premier
®
High Efficiency Power Direct Vent ........................................ 12-13
Polaris
™
High Efficiency ..................................................................... 14-15
ProLine
®
XE Power Vent ...................................................................... 16-17
ProLine
®
XE Non-Condensing Power Direct Vent ................................. 18-19
ProLine
®
XE Non-Condensing Flue Damper ........................................ 20-21
ProLine
®
XE Non-Condensing Ultra-Low NOx
Flue Damper ....................................................................................... 22-23
ProLine
®
XE Ultra-Low NOx Power Vent ............................................... 24-25
ProLine
®
Master Atmospheric Vent ..................................................... 26-27

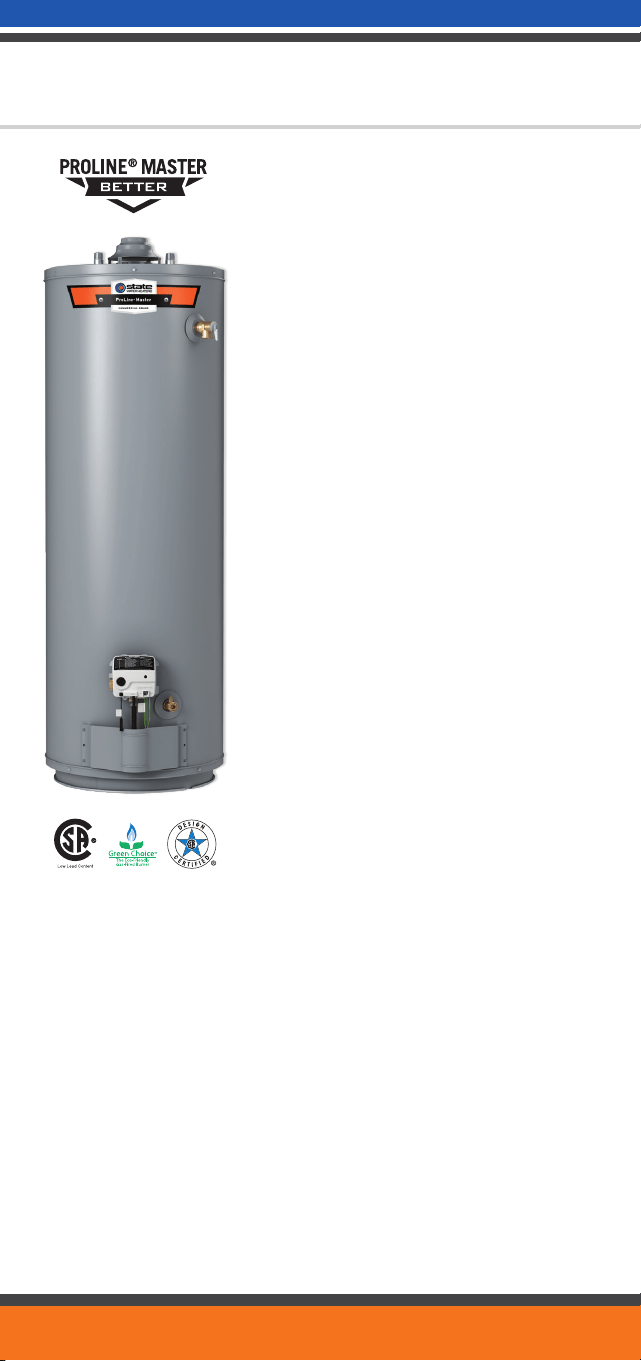

ProLine
®
Master Ultra-Low NOx .......................................................... 28-29
ProLine
®
High Capacity Atmospheric Vent .......................................... 30-31
ProLine
®
Direct Vent ........................................................................... 32-33
ProLine
®
Atmospheric Vent ................................................................. 34-37
ProLine
®
Mobile Home Atmospheric Vent ............................................ 38-39
ProLine
®
Mobile Home Direct Vent ...................................................... 40-41
ProLine
®
Ultra-Low NOx ...................................................................... 42-43
ProLine
®
Ultra-Low NOx Direct Vent .................................................... 44-45
ProLine
®
Ultra-Low NOx High Capacity ............................................... 46-47
RESIDENTIAL HYBRID ELECTRIC
Premier
®
AL Smart Hybrid Electric Heat Pump ................................... 48-49

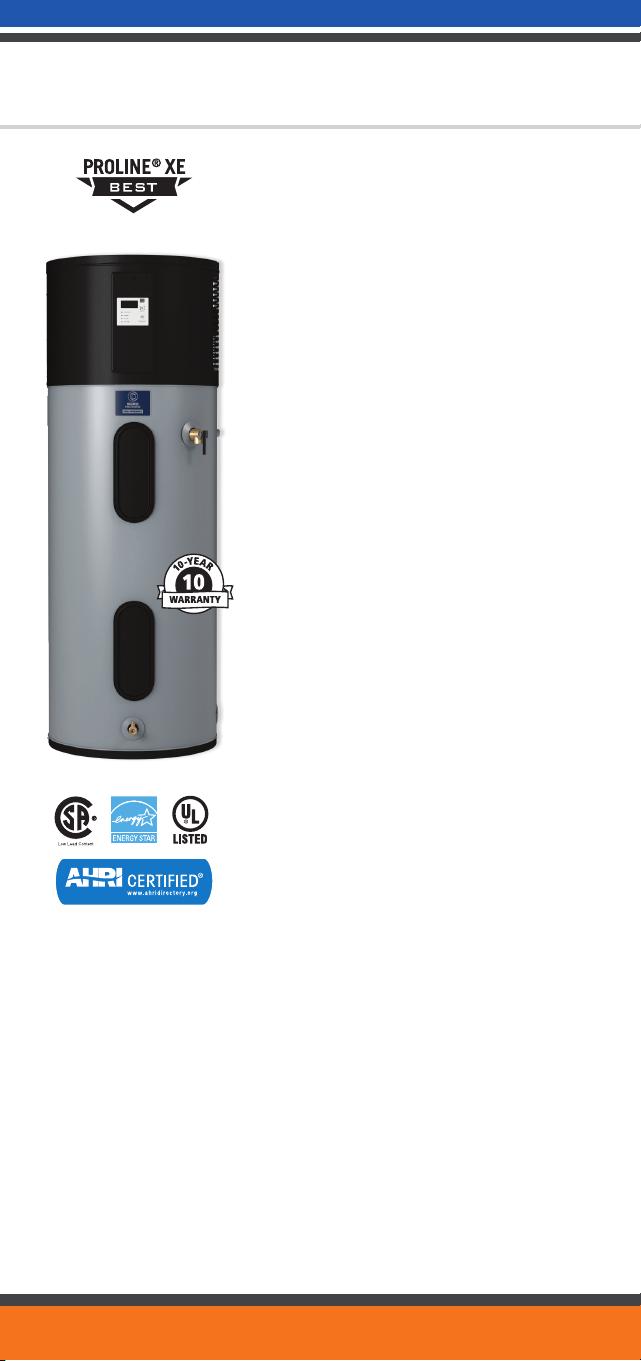

ProLine
®
XE Hybrid Electric Heat Pump - 10-Year Warranty ............... 50-51
ProLine
®
XE Hybrid Electric Heat Pump - 6-Year Warranty ................. 52-53
RESIDENTIAL ELECTRIC
ProLine
®
Master Smart Electric .......................................................... 54-55
ProLine
®
Master Electric Grid-Capable .............................................. 56-57
ProLine
®
Master ................................................................................. 58-59
ProLine
®
Grid-Capable ....................................................................... 60-61
ProLine
®
Standard ............................................................................. 62-63
Mobile Home....................................................................................... 64-65
ProLine
®
Specialty .............................................................................. 66-67
COMMERCIAL & RESIDENTIAL PUMP AND EXPANSION TANKS
Pump Mate
™
...................................................................................... 68-69
Heavy-Duty State ProLine
®
Glasslined G Series .................................. 70-71
Heavy-Duty State ProLine
®
Galvanized Z Series .................................. 72-73

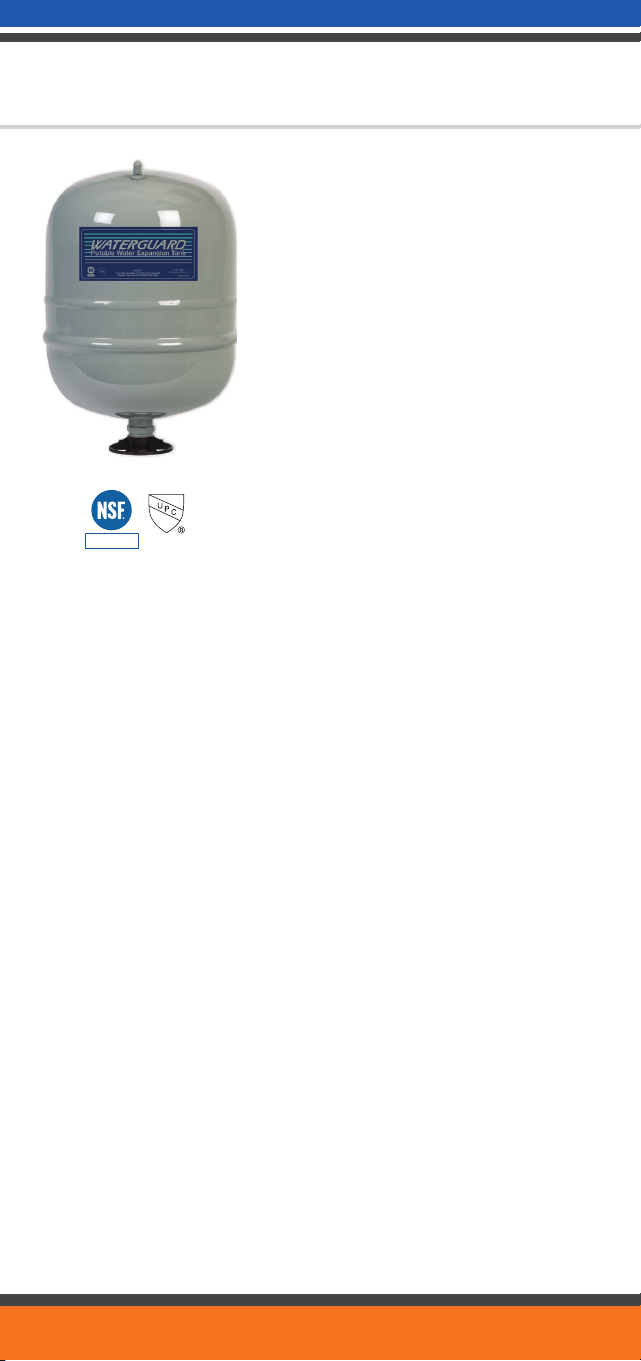

Waterguard
™
& Therm-o-Flex
™
.......................................................... 74-75

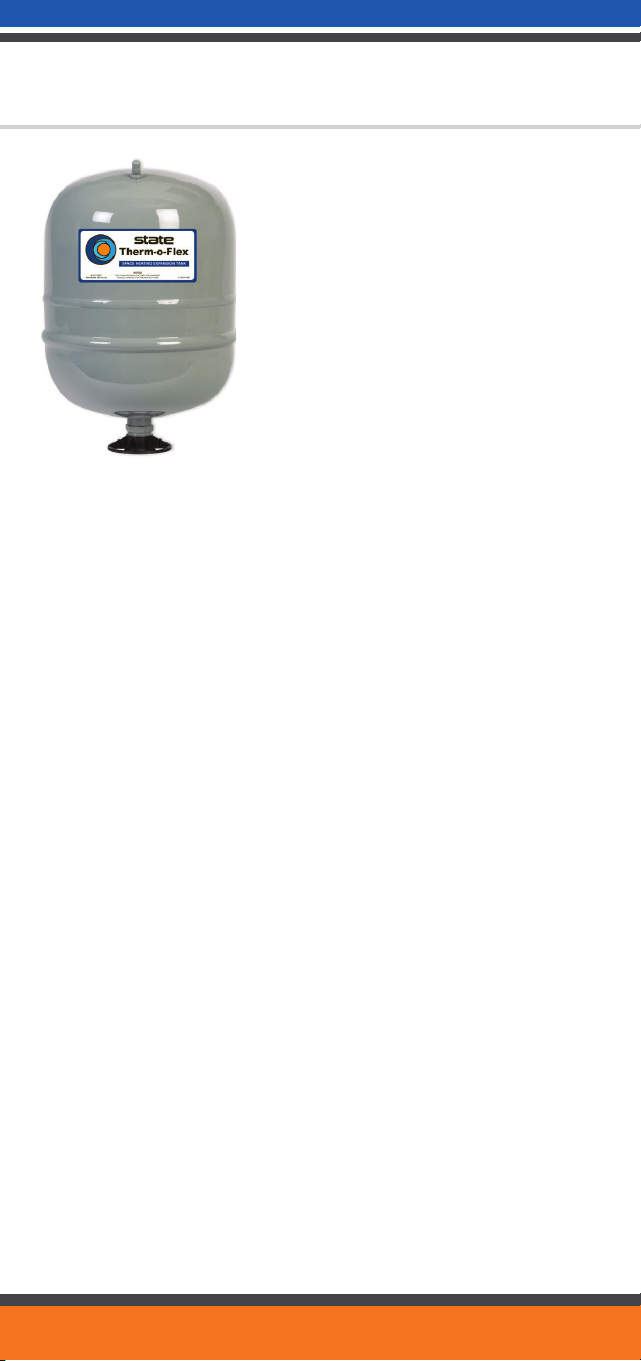

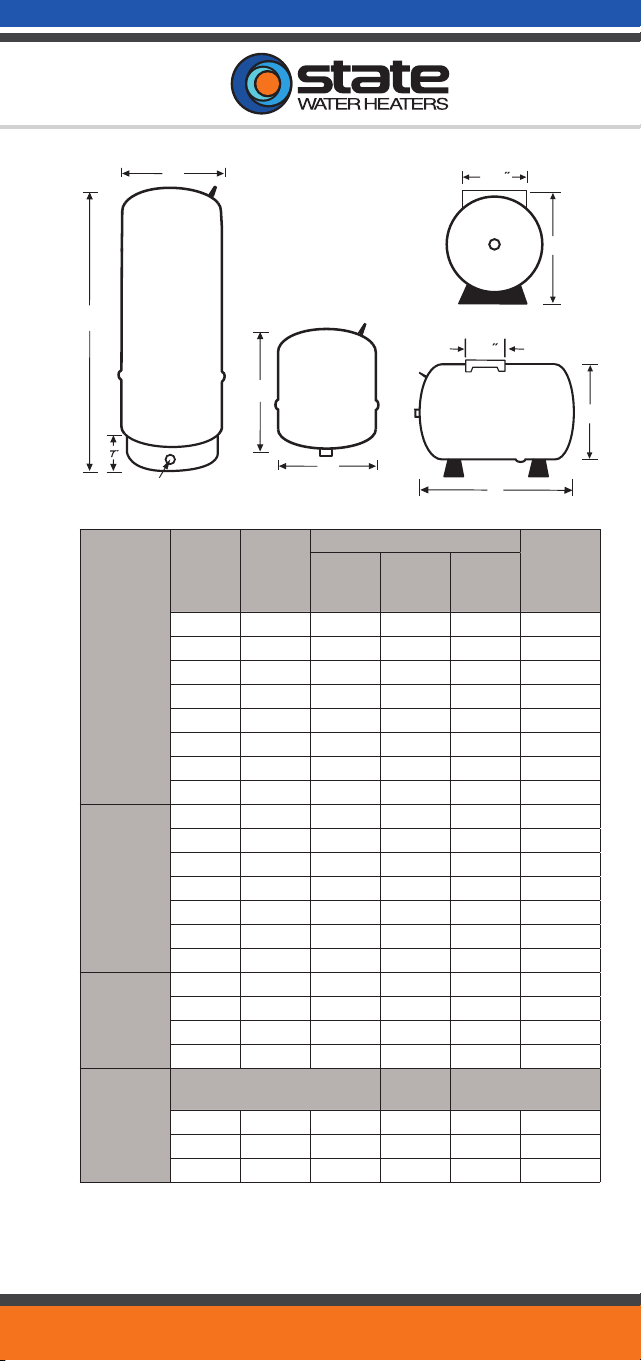

Therm-o-Flex
™
................................................................................... 76-77
TABLE OF CONTENTS
TANKLESS
ProLine
®

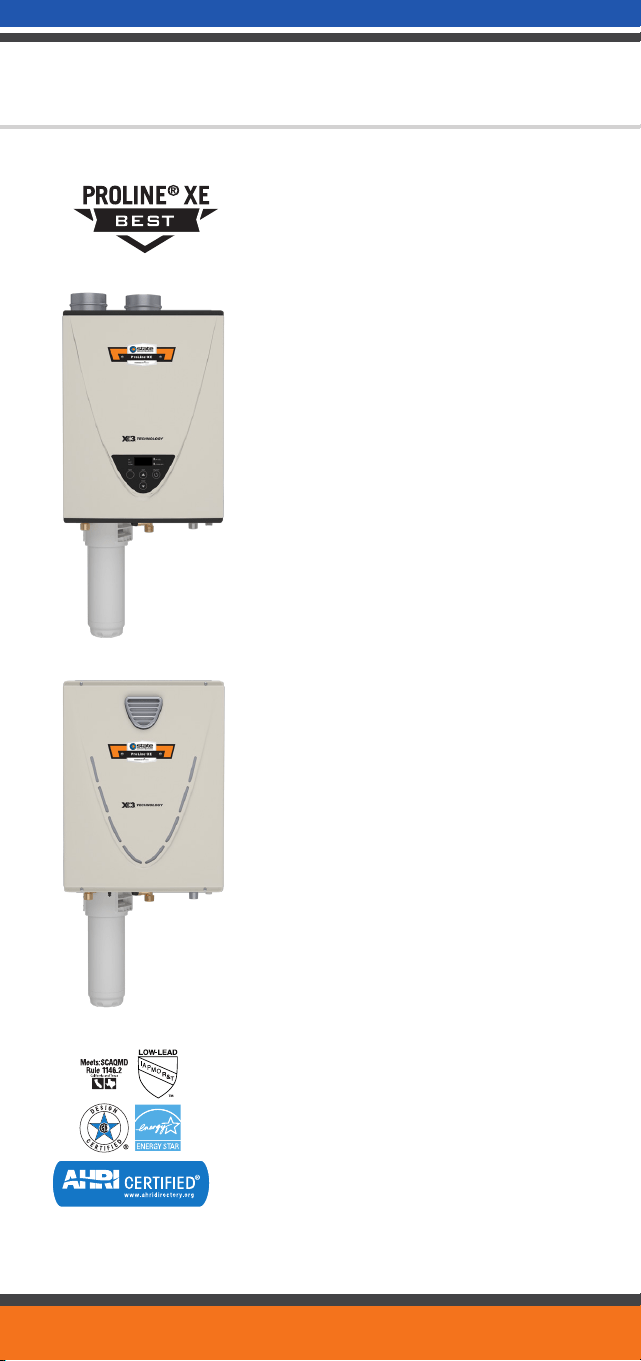

XE Condensing with X3 Scale Prevention Technology ........... 78-79
ProLine
®
XE Condensing with Recirculation Pump ............................. 80-81
ProLine
®
XE Condensing High Efficiency 140 ..................................... 82-83
ProLine
®
XE Condensing High Efficiency 240-540 .............................. 84-85

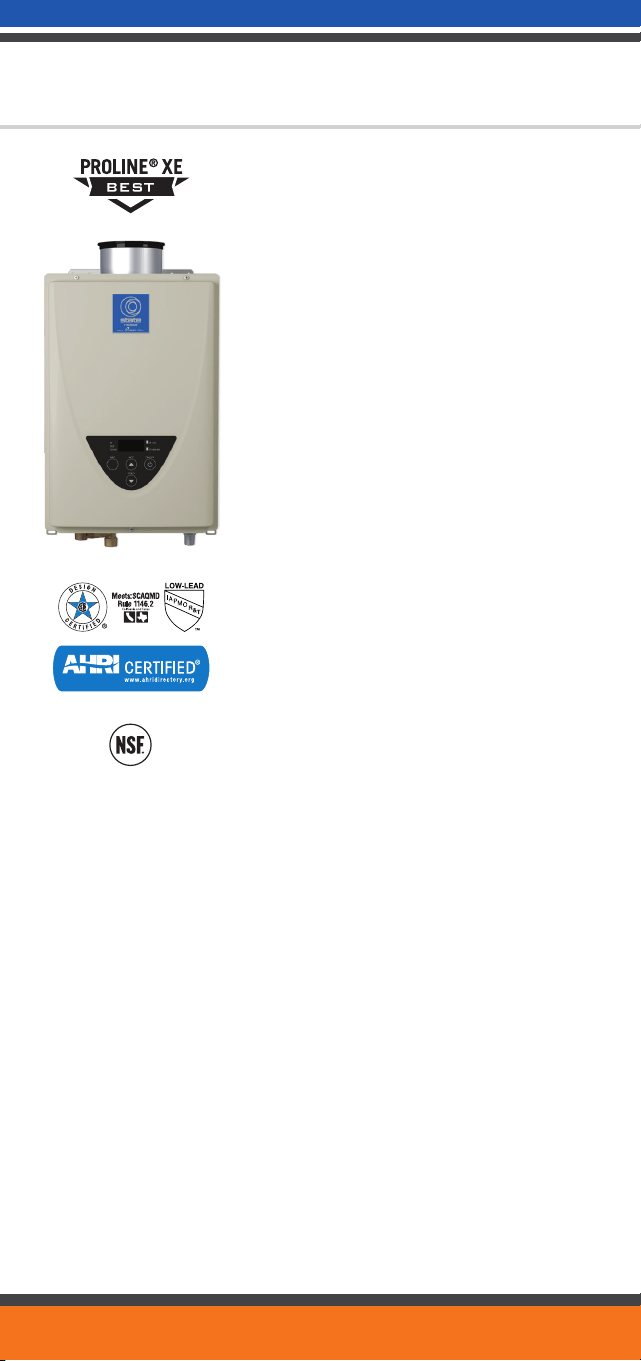

ProLine
®
XE Non-Condensing Concentric Vent ................................... 86-87
Tankless Non-Condensing Ultra-Low Nox ........................................... 88-89
Tankless Non-Condensing Heavy-Duty ............................................... 90-91
ProLine
®
XE Combi Boiler ................................................................... 92-93

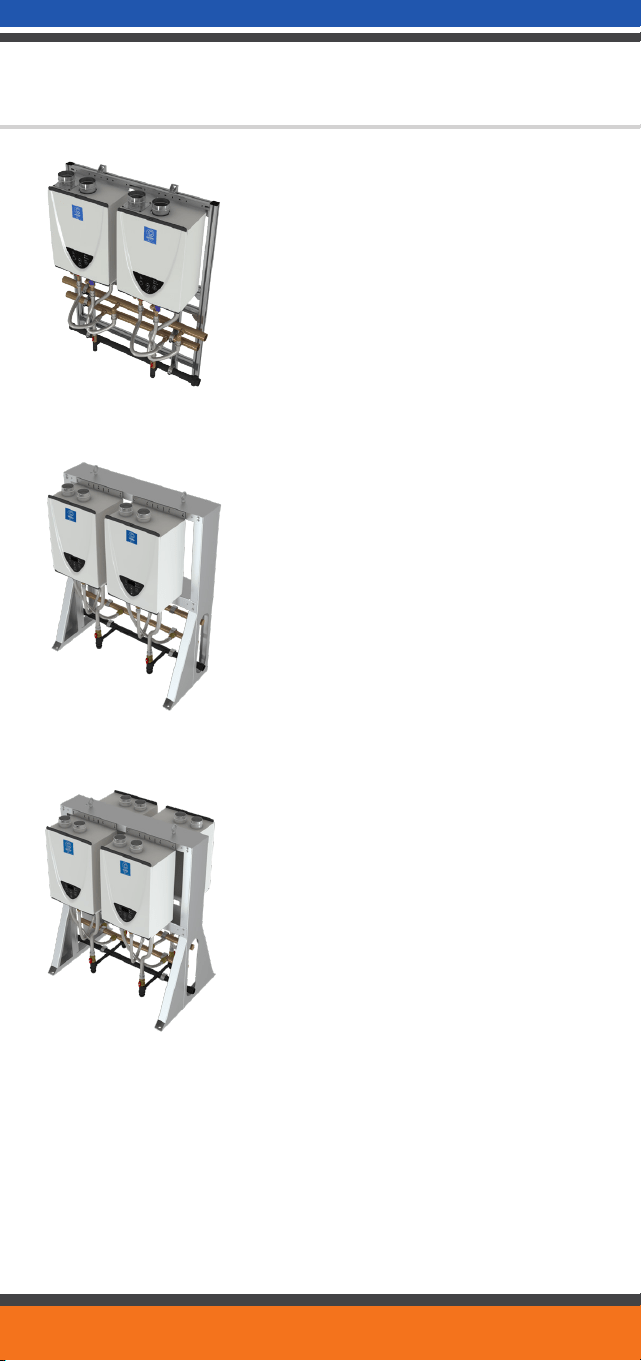

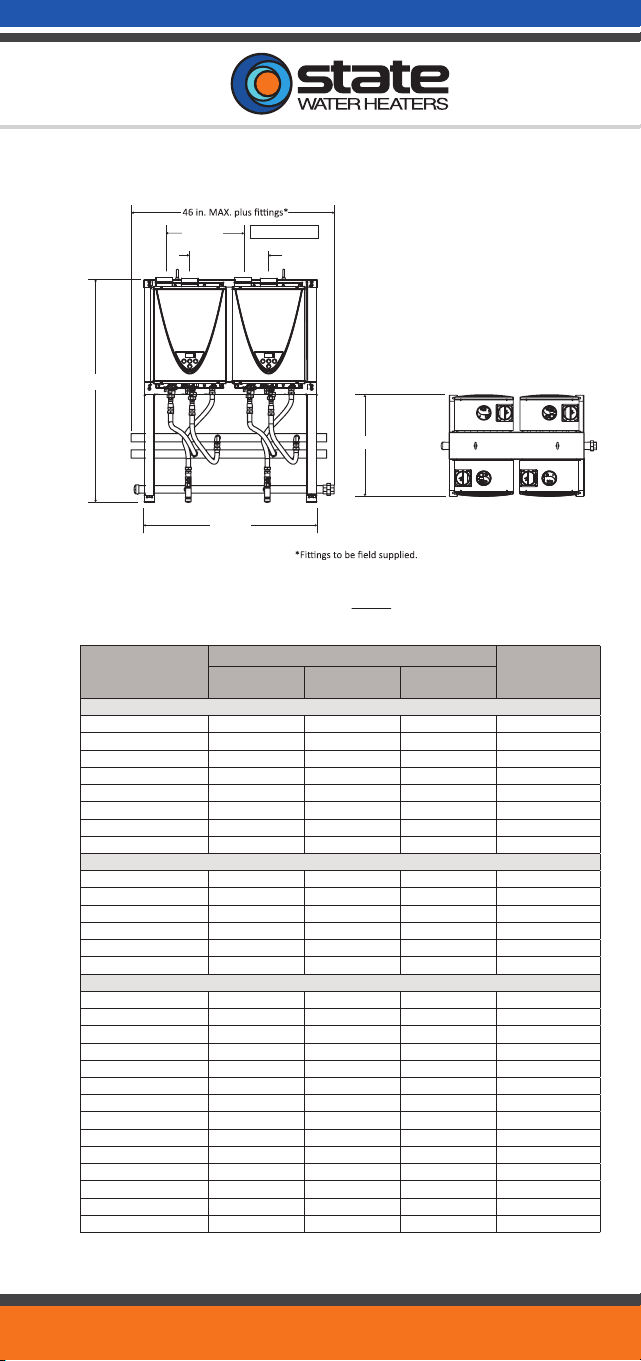

Tankless Commercial Rack System .................................................... 94-97
BACnet and Modbus Interface ............................................................ 98-99
Electric Tankless ............................................................................ 100-101
COMMERCIAL GAS AND OIL FIRED
Force
®
90 Power Vent ..................................................................... 102-103
Force
®
90+ Power Direct Vent 50 Gal ............................................. 104-105
Force
®
90+ Power Direct Vent 75 Gal ............................................. 106-107
Modulating Ultra Force
®
................................................................. 108-111
Ultra Force
™
XL .............................................................................. 112-113
Ultra Force
™
LV .............................................................................. 114-117
Polaris
™
High Efficiency ................................................................. 118-119
TX1 Integrated Tankless on Tank .................................................... 120-121
Sandblaster
®
Self Cleaning - SBD Series ....................................... 122-125
Sandblaster
®
Ultra-Low NOx .......................................................... 126-129
Sandblaster
®
- SBS Series ............................................................. 130-131
Sandblaster
®
Light-Duty ................................................................ 132-133
Force
®
Power Direct Vent ................................................................ 134-135
Sandblaster
®
Low NOx Single Flue ................................................. 136-137
State Titan
®
Power Gas Burner ....................................................... 138-139
State Titan
®
Low NOx Power Gas Burner ......................................... 140-141
State Titan
®
LV Power Gas Heavy-Duty TPG .................................... 142-145

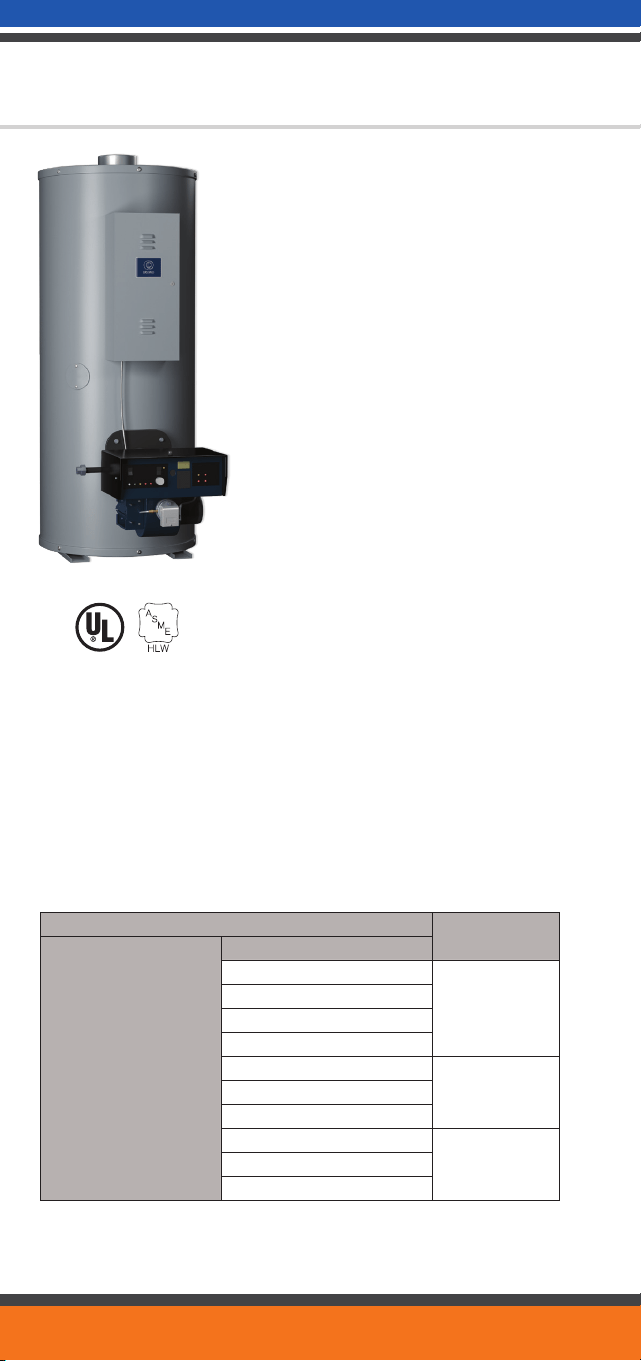

State Titan
®
Power Burner GPO Series Oil ...................................... 146-147
COMMERCIAL ELECTRIC
Patriot
™
Light-Service Electric ....................................................... 148-149
Patriot
™
Light-Duty Electric ........................................................... 150-151
Sandblaster
®
Immersion Mount Thermostat - CSB Series .............. 152-153
Sandblaster
®
Surface Mount Thermostat - CSB Series .................. 154-155
Statesman
™
Premium Heavy-Duty Electric - SSE Series ................ 156-157
COMMERCIAL HEAT PUMP

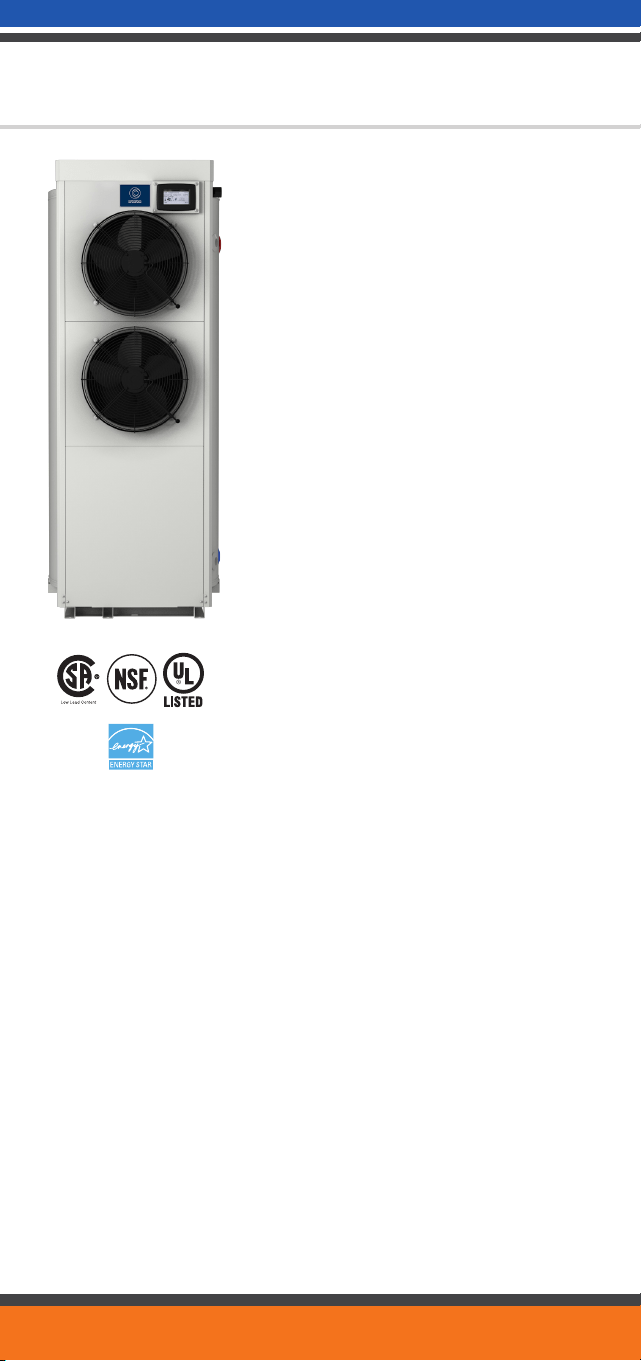

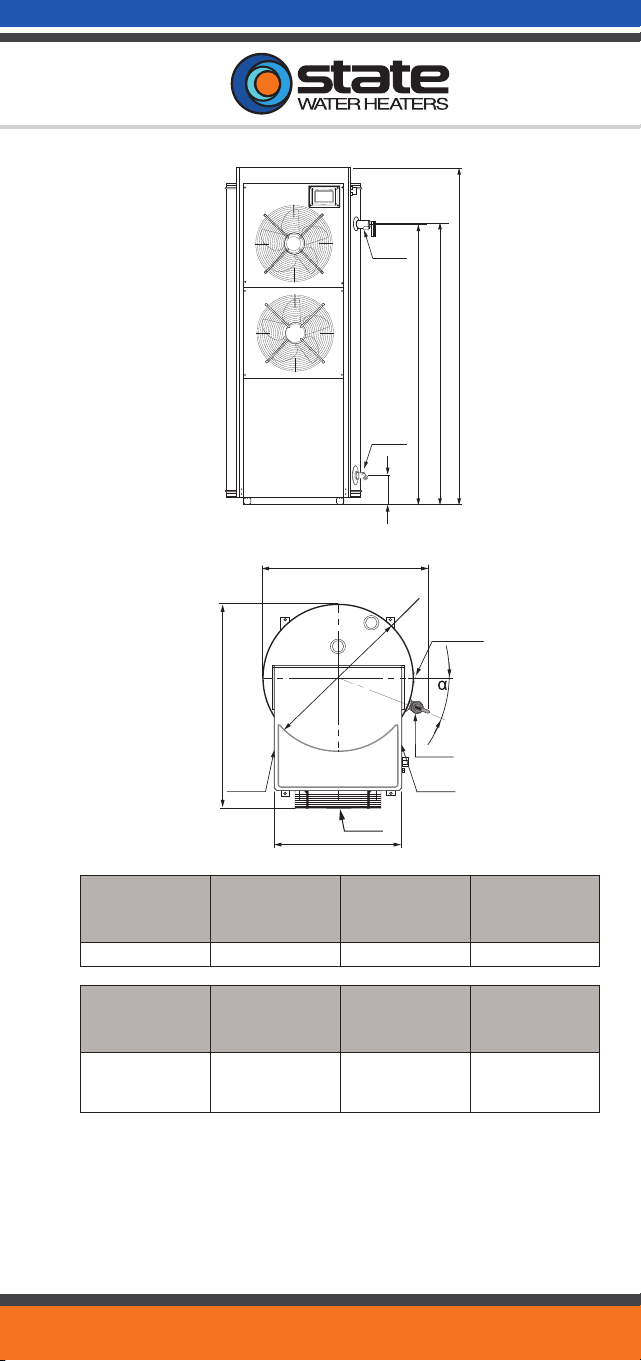

CHP-120 Fully Integrated Heat Pump ............................................. 158-159
COMMERCIAL STORAGE TANKS

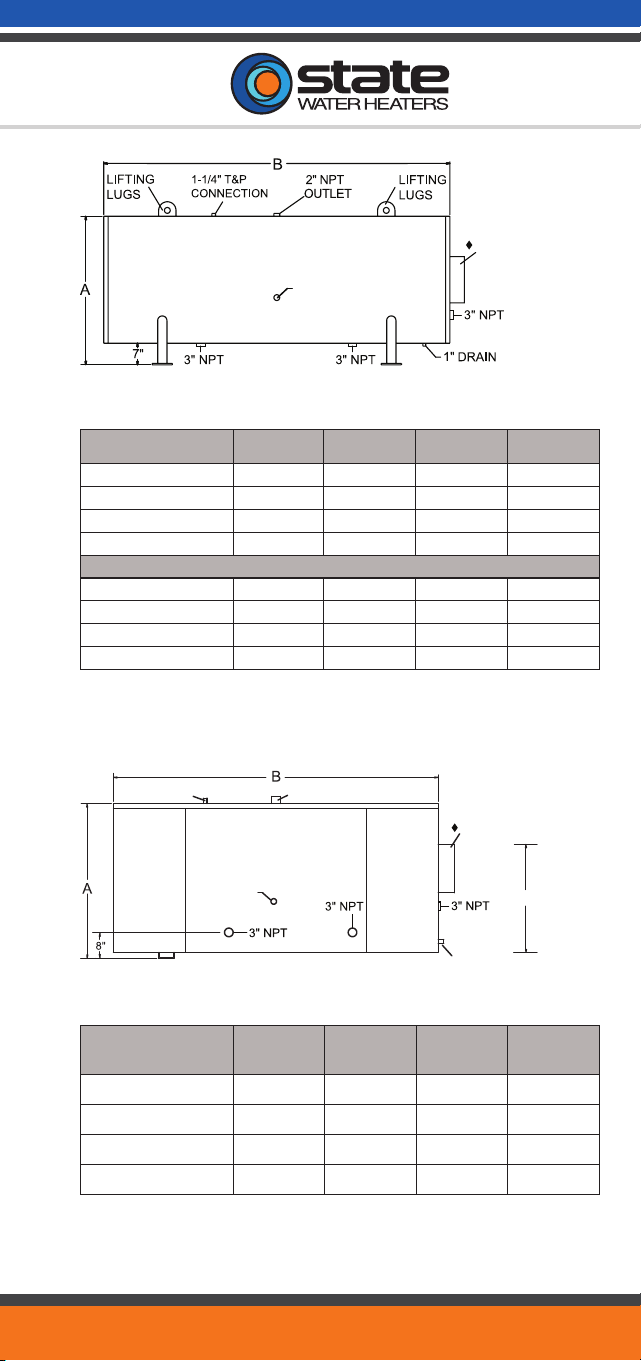

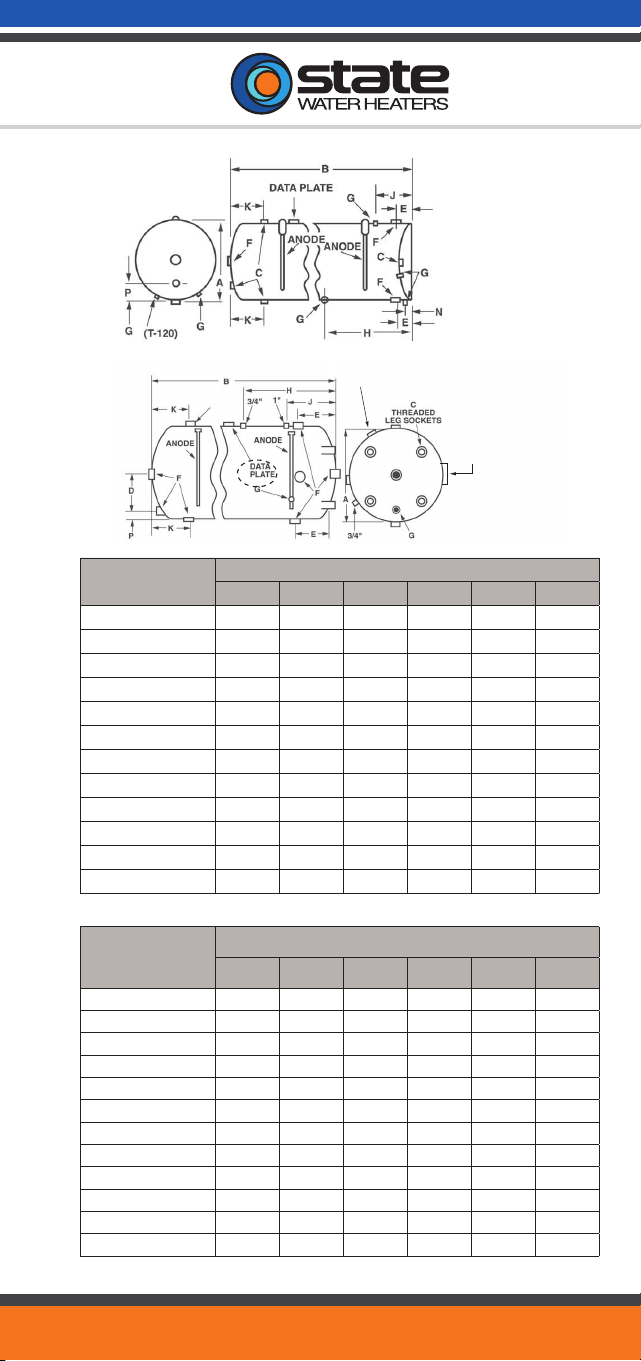

Standard Jacketed Storage Tanks................................................... 160-161
Custom-Line Factory Jacketed & Insulated Storage Tanks ............. 162-165
Uninsulated Standard Stock Bare .................................................. 166-167
Heavy-Duty Large Volume Storage Tanks ........................................ 168-171
There’s
nothing
standard
about
commercial
grade.
When it comes to providing durable and reliable hot
water, the State ProLine family of products removes the
line between what goes in a commercial water heater
and a residential unit. We draw from our expertise in
commercial water heating, house-made components,
and rigorous quality and endurance testing to ensure
that your customer’s water heater is built to overperform
no matter where it’s installed.
EARN POINTS BY PURCHASING STATE WATER HEATERS
It’s free and easy to participate. Enroll online at contractorrewards.com. Eligible products will
have a yellow reward code label worth valuable points. Two ways to enter the codes:
1. Download the smartphone
app and scan the code.
2. Enter the code at
contractorrewards.com.
3. Redeem your points on
thousands of reward items.
WHY PROFESSIONALS
CHOOSE STATE
1. Contractor Locator: A new online locator that drives thousands of consumers from our website right
to our loyal contractors. Your company listing is free and generated for you when you participate in our
Contractor Rewards™ program.* Visit statewaterheaters.com/contractorlocator for more information.
2. Contractor Rewards Program: Our program rewards our loyal contractors for buying our products.
Buy more and get rewarded with prizes and higher status on our Contractor Locator.
3. Contractor Advertising Tools: Our Advertising Resource Center allows contractors to develop an
easy, affordable and custom advertising campaign to promote their business. Go to www.statewater-
heaters.com/ads.
4. Breadth of Product Line: Residential or commercial, we have the most complete line from standard
models to the most innovative high efficiency water heaters available.
5. Product Sales Tools: We provide contractors access to the sales tools needed to close more sales.
6. Brand Support: Marketing investment in our brand drives consumers to recognize our name, visit our
website, locate local contractors and request products.
*To be listed on the Contractor Locator you must meet the minimum threshold of codes entered at
contractorrewards.com
STATE PROVIDES 6 KEY THINGS
TO HELP GROW YOUR BUSINESS & BECOME MORE PROFITABLE
Visit statewaterheaters.com/contractor to learn more.
WITH OVER 1,000,000
MERCHANDISE ITEMS,
YOUR REWARD CHOICES
ARE ENDLESS.
PROFITABLE
CONTRACTORS
CONTRACTOR
LOCATOR
CONTRACTOR
REWARDS
PROGRAM
ADVERTISING
RESOURCES
CONTRACTOR
TOOLS &
SUPPORT
BRAND
SUPPORT
BREADTH
OF PRODUCT
LINE
6

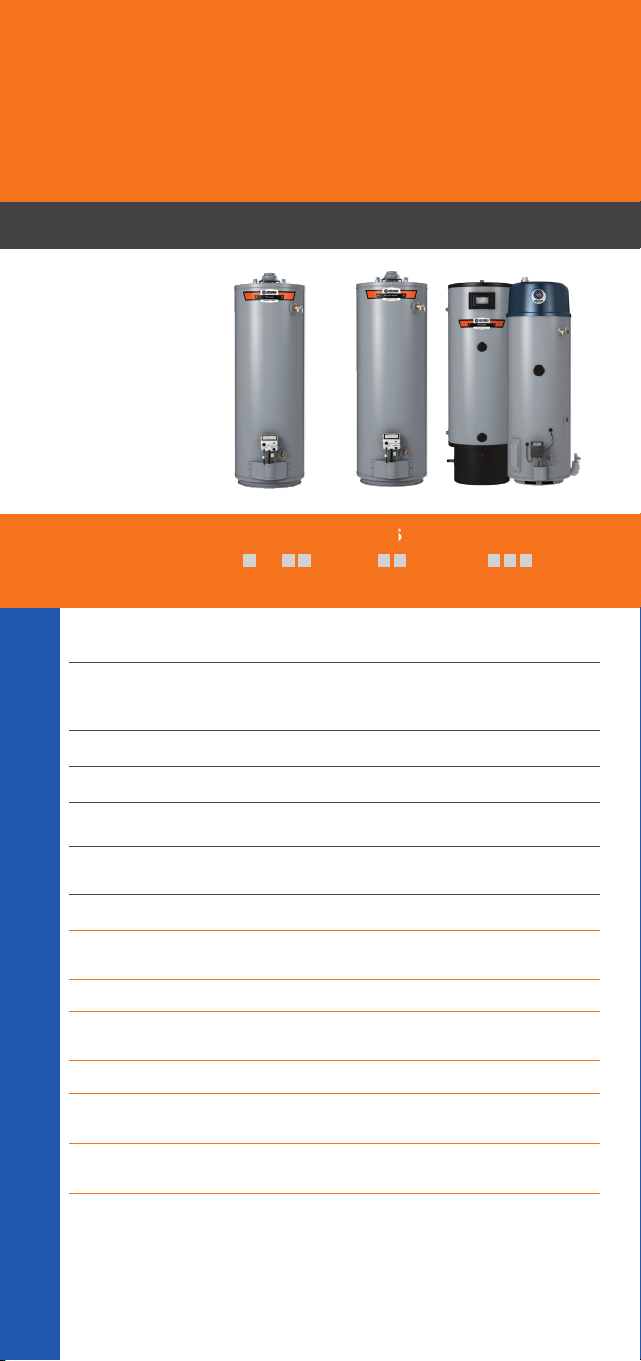

OPERATING COST $$$ $$ $
INSTALLATION SPACE
REQUIRED
WARRANTY (YEARS) 6 8 10
TO
PREMIUM FEATURES:
Benefits that homeowners love Commercial-Grade Components
Blue Diamond
®
Glass Lining
DynaClean™
Automatic Sediment-
Cleaning System
Enhanced Flow
Brass Drain Valve
Extended Warranty
Kit Available
Best-In-Class Material
and Technology
Electronic Gas Valve
Advanced Anode Protection
Electronic User Interface
Industry-Leading
Efficiency
CoreGard™ Anode
Rod Protection
Flexible Venting for
more Install Options
ProLine
®
ProLine
®
Master
ProLine
®
XE
• • •
• • •
• • •
• • •
• • •
• •
• • •
*
•
*
•
•
•
•
Gas
Water Heaters
An in-depth look at the
commercial-grade features
available in our residential
ProLine family
Heat Trap Nipples
• • •
High Efficiency
Performance
•
*Some Models Not Eligible
ENERGY STAR
®
Qualified
•
*
7
OPERATING COST $$$ $$ $
INSTALLATION SPACE
REQUIRED
WARRANTY (YEARS) 6 8 10
TO
PREMIUM FEATURES:
Blue Diamond
®
Glass Lining
DynaClean™
Automatic Sediment-
Cleaning System
CoreGard™ Anode Rod
Protection
Extended Warranty
Kit Available
Best-In-Class Material
and Technology
Heat Trap Nipples
Stainless Steel Upper Element
ENERGY STAR
®
Qualified
Advanced Anode Protection
ProLine
®
ProLine
®
Master
ProLine
®
XE
• • •
• • •
• • •
• • •
• •
• •
• • •
*
•
•
Electric
Water Heaters
An in-depth look at the
commercial-grade features
available in our residential
ProLine family
Enhanced Flow Brass
Drain Valve
• • •
Industry-Leading Efficiency
•
*Some Models Not Eligible
Commercial-Grade Components Benefits that homeowners love
Dual Stainless Steel Element
• •
iCOMM
®
Remote
Connectivity
•
*
•
Electronic User Interface
•
*
•
8
Condensing
Indoor Models
Outdoor Models
BTUs
Recirculation
Pump - DHW
Recirculation Pump -
HydronicHeating
Ultra-Low Nox
ENERGY STAR
®
Qualified
OPERATING COST $
INSTALLATION
SPACE REQUIRED
WARRANTY (YEARS) 6-10
Condensing
Non-Condensing
Indoor Models
Outdoor Models
BTUs
X3
®
Scale Prevention
Technology
Concentric Venting
Ultra-Low Nox
ENERGY STAR
®
Qualified
Model Family
Proline XE
Non-Condensing
ULN
Proline XE
Non-Condensing
Concentric Vent
160K-190K 140K-199K 140K-199K
Model Family
Proline XE
Condensing
Proline XE
Condensing with
Recirc Pump
Proline XE
Combi Boiler
120K-199K 199K 110K-199K
• • •
• •
•
• •
• • •
• • •
• •
•
•
• • •
•
*
•
*
•

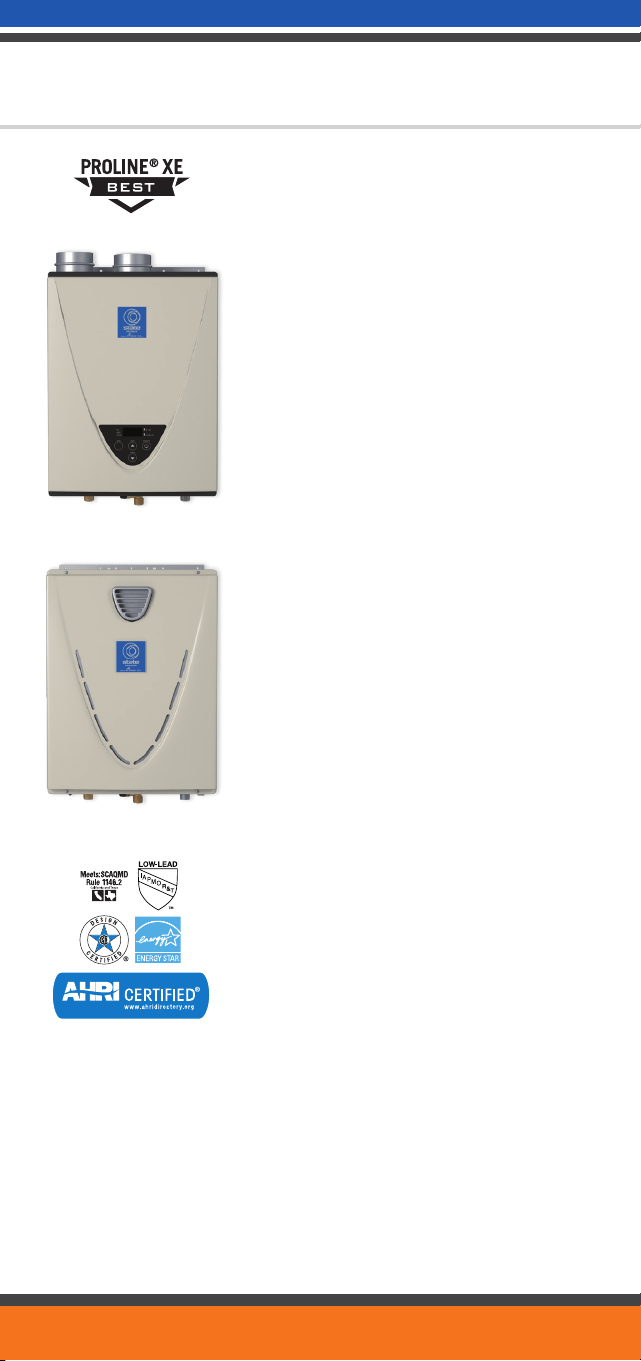

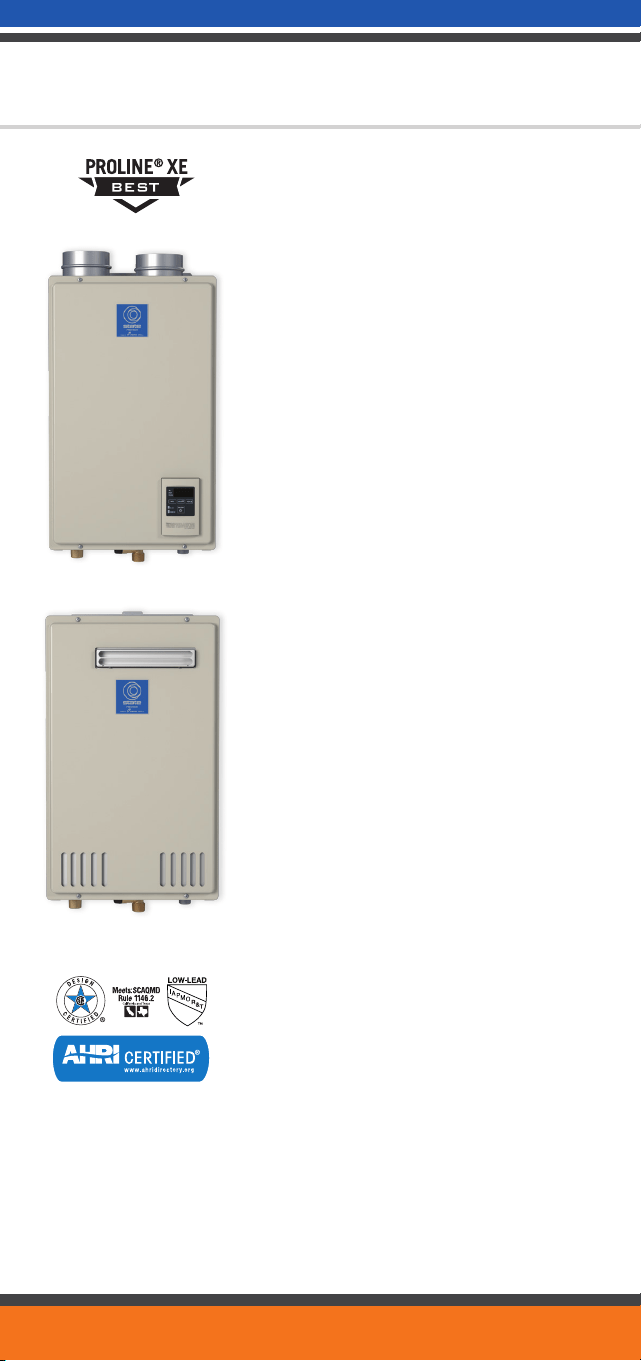

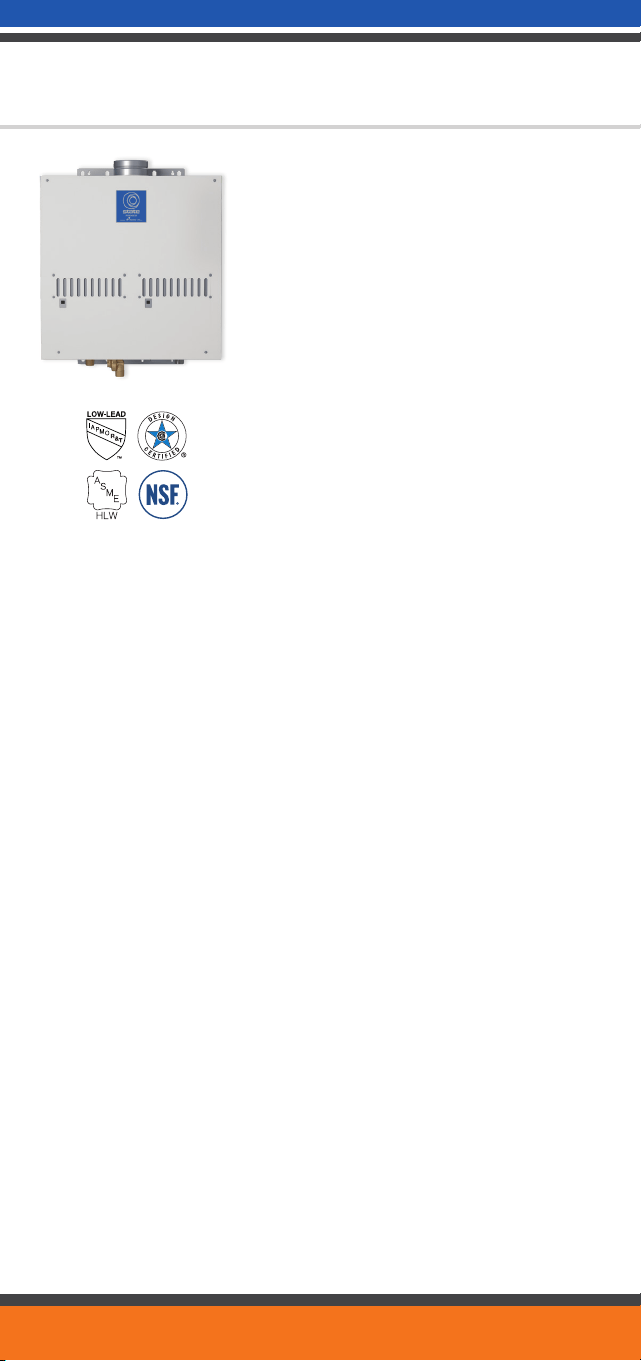

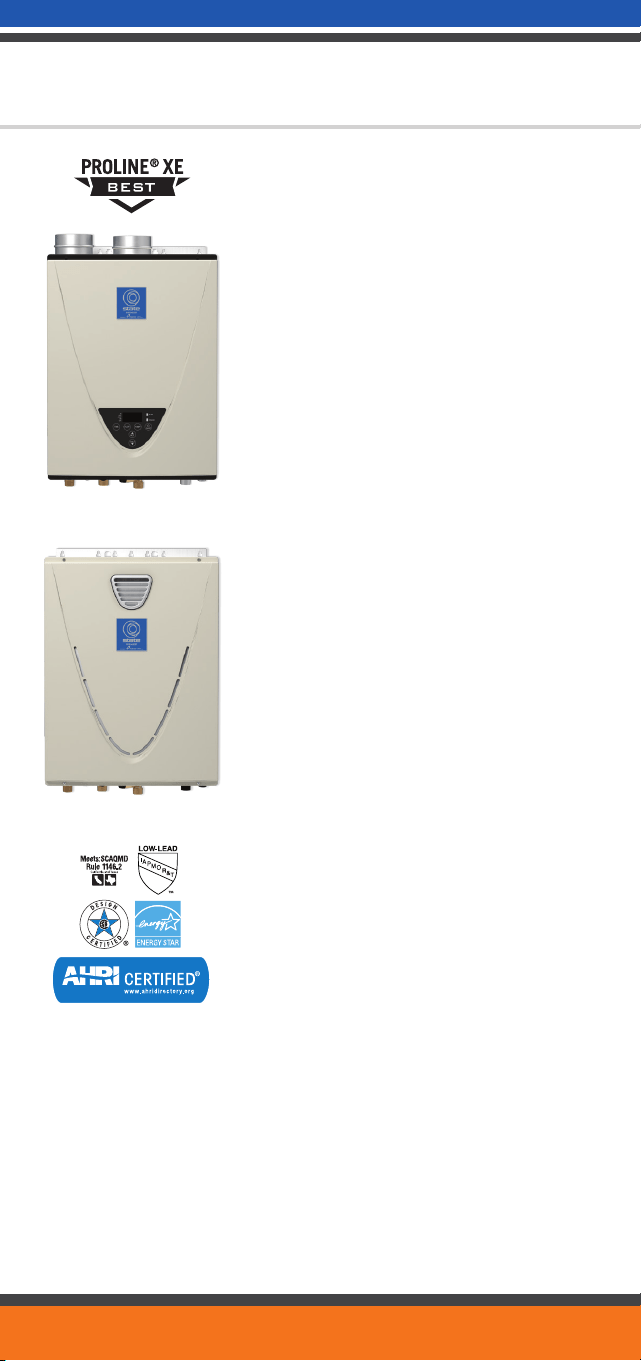

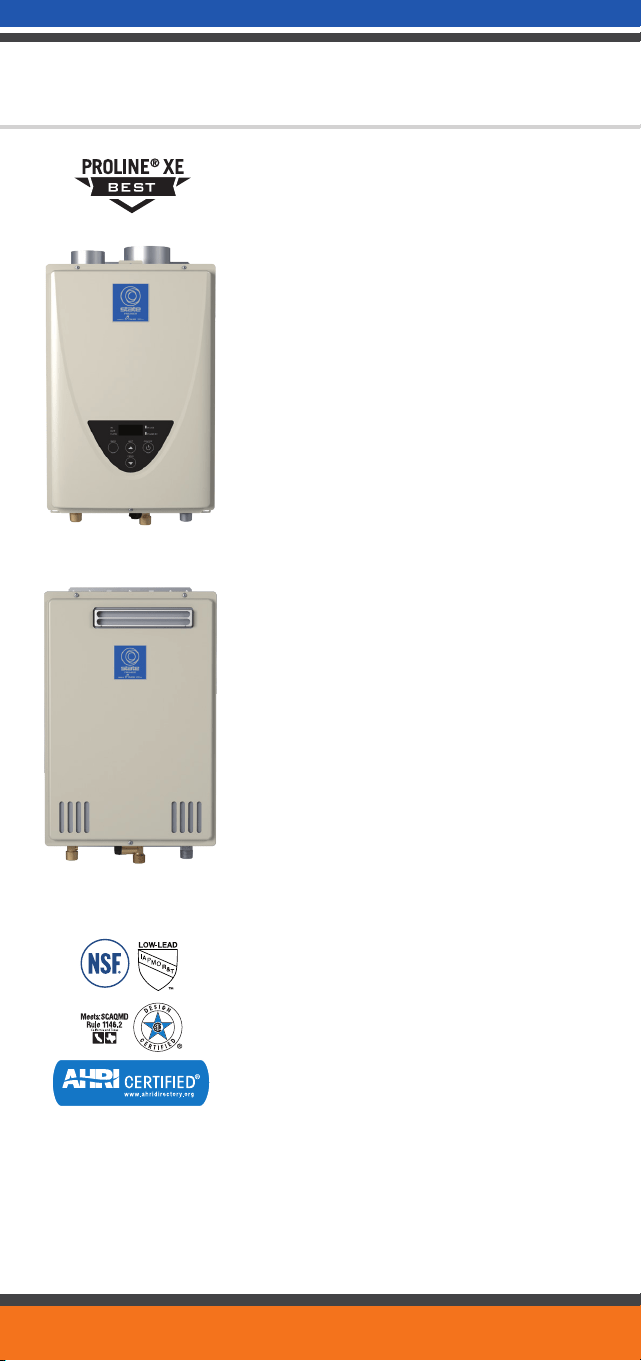

Proline XE
With X3
®
Technology
•
*
•
Tankless
Water Heaters
PREMIUM FEATURES:

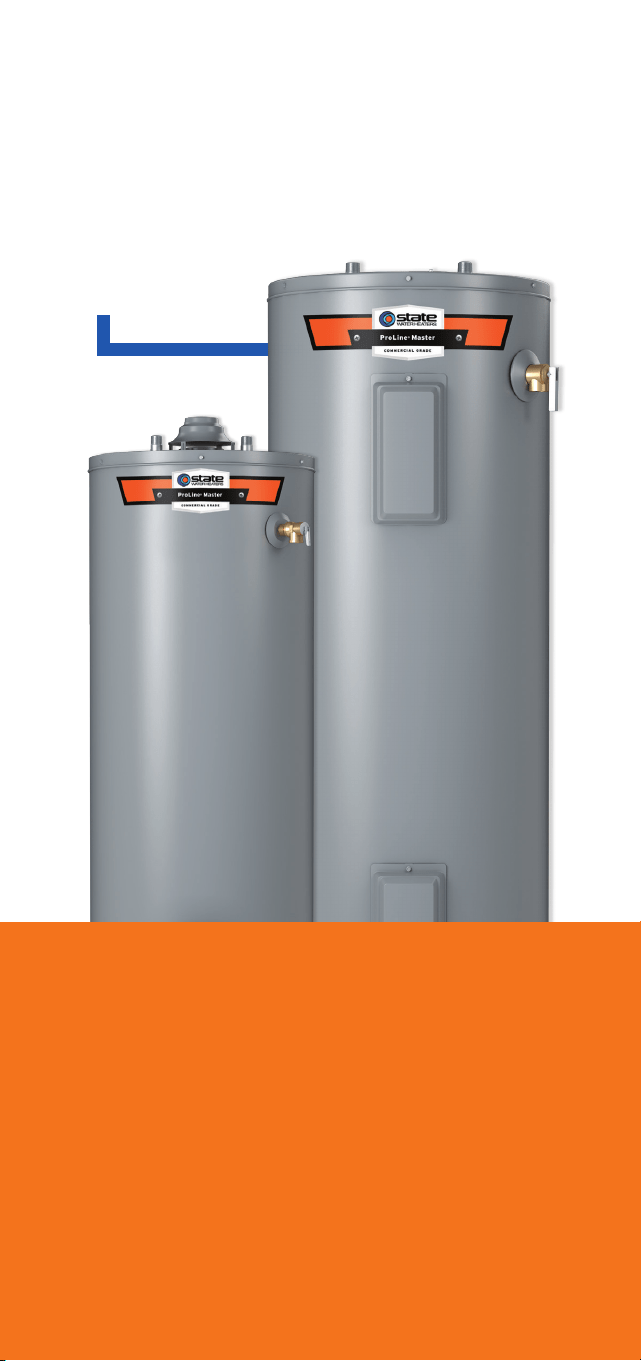

ProLine
®
XE
An in-depth look at the
commercial-grade features
available in our residential
ProLine family
• •
• • •
*Some Models Not Eligible
9

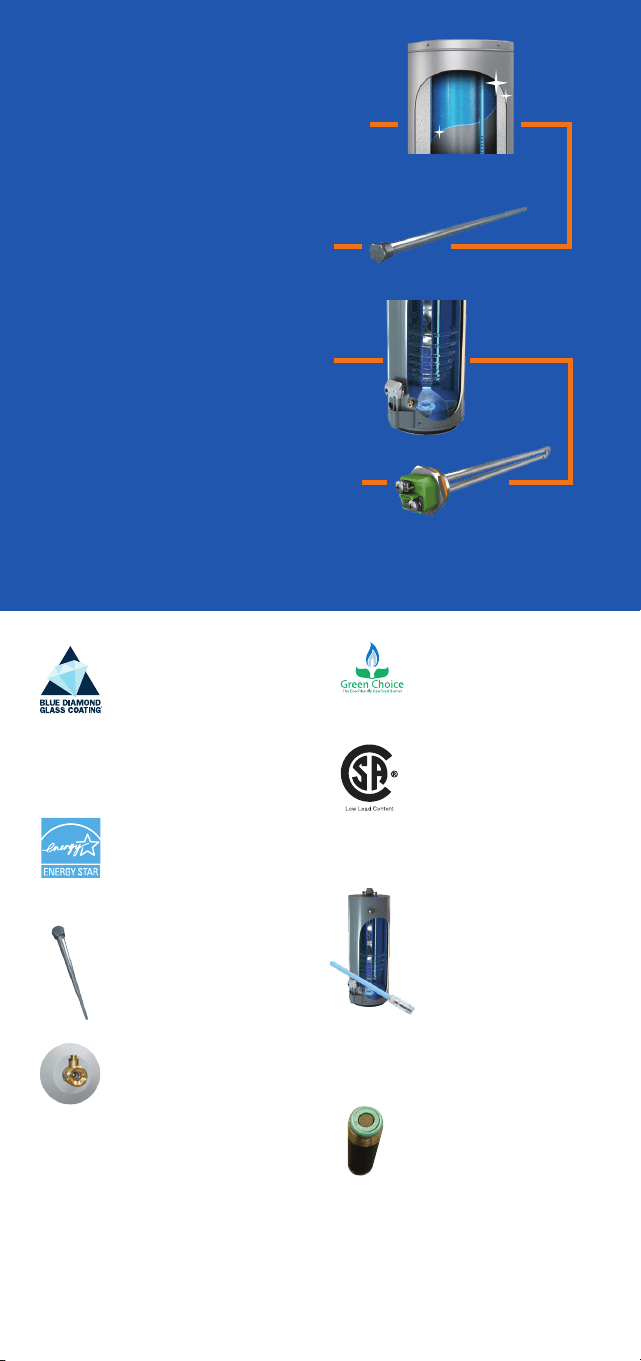

Blue Diamond
®
Glass Coating
State residential gas and electric water
heaters have the toughest protection
against corrosion to maximize tank life.
State’s Blue Diamond
®
Glass Coating
provides superior corrosion resistance
compared to the industry-standard
glass lining.
CoreGard
™
Anode Rod
Our anode rods have a stainless steel
core that extends the life of the anode
rod, allowing superior tank protection far
longer than standard anode rods.
Heat Trap Nipples
Factory-installed for faster installation
on most State residential models.
Enhanced-Flow Brass Drain Valve
Our residential water heaters have a solid
brass, tamper resistant, enhanced-flow,
ball type drain valve.
• Uses a standard female hose
fitting that allows for fast and easy
draining during maintenance.
• Designed for easy operation,
this valve includes an integral
screwdriver slot that features a 1/4
turn (open/close) radius, which not
only permits full straight-through
water flow but also a quick and
positive shut off.
Green Choice
®
Gas Burner
Patented eco-friendly burner design
reduces NOx emissions by up to 33%
and complies with Low-NOx emission
requirements of less than 40 ng/J.
ENERGY STAR
®
State Water Heaters offers a variety
of models that are ENERGY STAR
®
qualified. Learn more at
www.energystar.gov.
LOW LEAD CONTENT
CSA low lead logo on a plumbing
product signifies certification to
California’s AB1953 and Vermont’s
legislation Act 193 that limits the
lead content in plumbing fixtures that
come in contact with drinking water
to a maximum of 0.25% lead.
TOUGHER
LONGER
PERFORMANCE.
COMPONENTS.
Learn more at statewaterheaters.com
Stainless Steel Core Anode Rods
DynaClean
™
Automatic Sediment
Cleaning System
Blue Diamond
®
Glass Coating
Longer-Lasting Stainless
Steel Elements
THERE’S NOTHING STANDARD ABOUT
OUR COMMERICAL GRADE PROLINE
®
.
Self-Cleaning Systems on State
Residential Models
Automatic self-cleaning action greatly
reduces lime and sediment buildup,
maximizes hot water output. Made
from long-lasting Pex cross-linked
polymer.
Our ProLine
®
XE models come
standard with maximum sediment-
fighting power and utilize our top-of-
the-line Turbo Coil design.
®
StateWaterHeaters.com
10

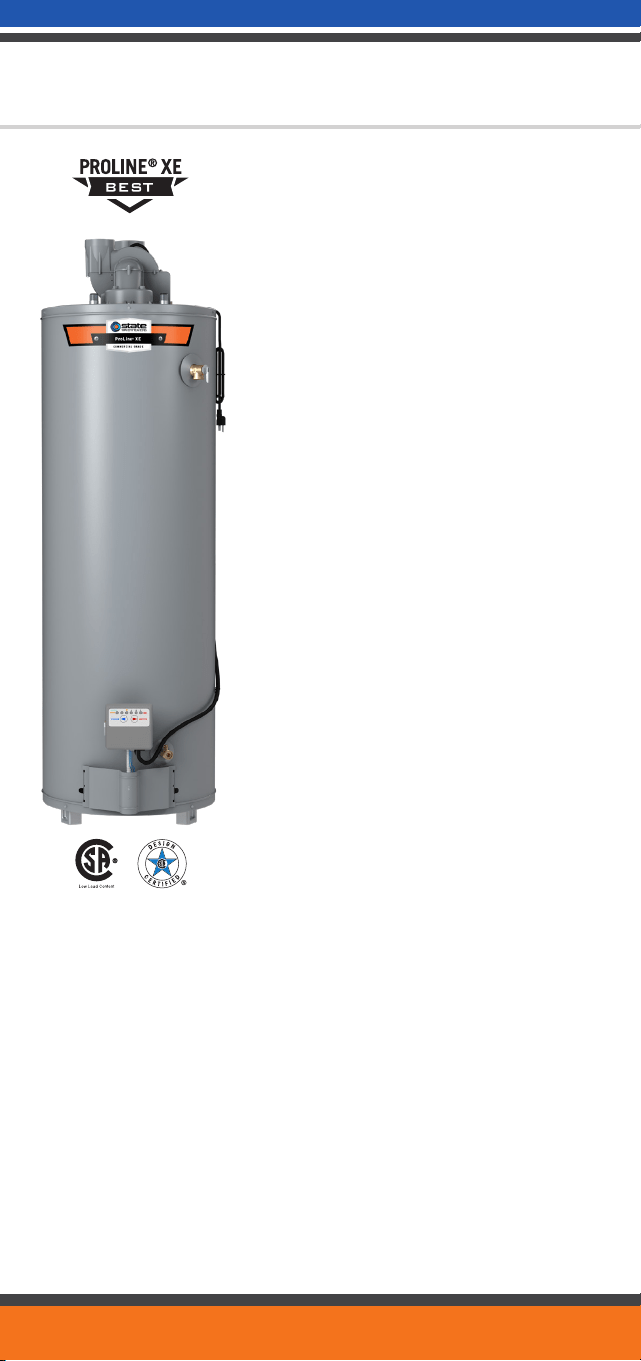

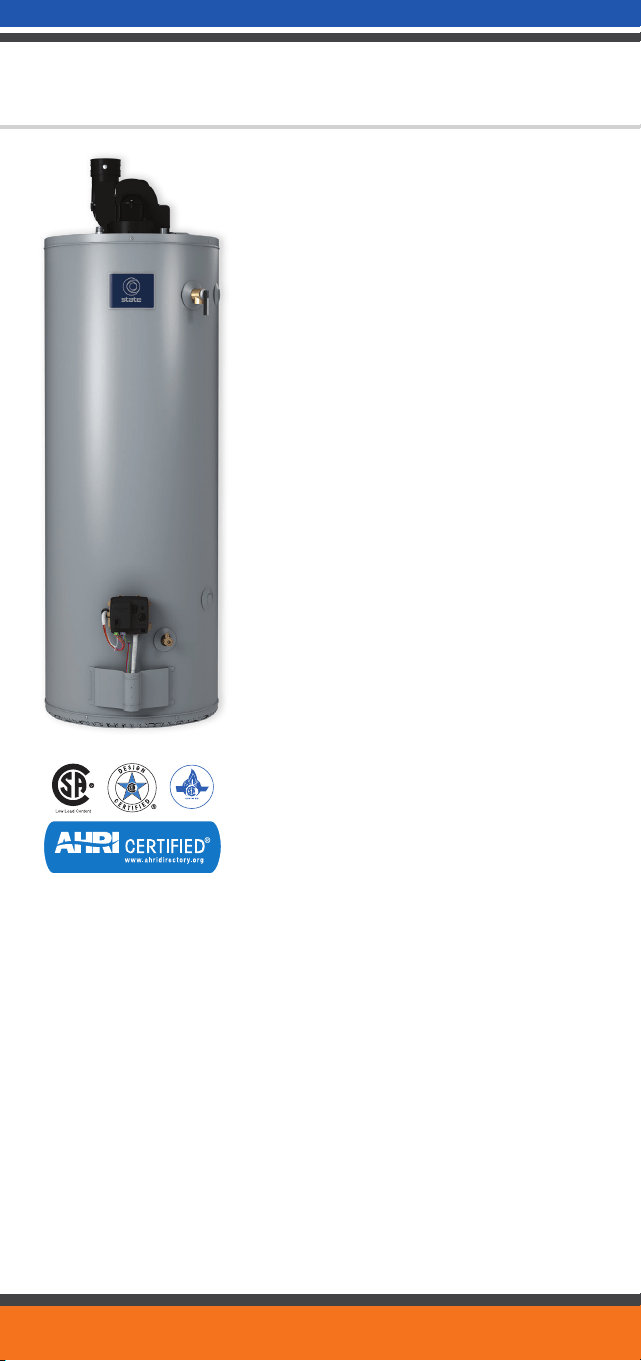

POWER VENT DESIGN FOR INSTALLATION
VERSATILITY
• Helical internal heat exchanger achieves 90%
thermal efficiency, which saves money on
operating costs compared to a standard 80%
efficient gas water heater
• Combined horizontal and vertical vent runs
terminating through outside wall, using
Schedule 40 PVC pipe as follows:
• 2˝ pipe allows vent runs up to 25 equivalent feet
• 3˝ pipe allows vent runs up to 65 equivalent feet
• 4˝ pipe allows vent runs up to 128 equivalent feet
SIDE-MOUNTED TAPS FOR RECIRCULATING
SYSTEMS
• Hot and cold “side taps” allow Premier Power
Vent to be used for combination space/water
heating applications
INTELLI-VENT
™
* GAS CONTROL WITH
SILICON NITRIDE HOT SURFACE IGNITOR
• Premium-grade hot surface ignitor eliminates
standing pilot
• Electronic circuitry provides superior system
diagnostic capabilities plus extremely precise
temperature control
BLUE DIAMOND
®
GLASS COATING WITH TWO
HEAVY DUTY ANODE RODS
• Provides superior corrosion resistance compared
to the industry-standard glass lining
GREEN CHOICE
®
GAS BURNER
• Patented eco-friendly burner design reduces
NOx emissions by up to 33% and complies with
Low-NOx emission requirements of less than
40 ng/J
SELF-CLEANING DIP TUBE
CSA CERTIFIED AND ASME RATED T&P
RELIEF VALVE
MAXIMUM HYDROSTATIC WORKING
PRESSURE: 150 PSI
CODE COMPLIANCE
• Meets UBC, CEC and ICC National Codes
• Meets the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and Current edition of ASHRAE/IES 90.1
6-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
*Intelli-Vent is a registered trademark of Emerson Electric Company

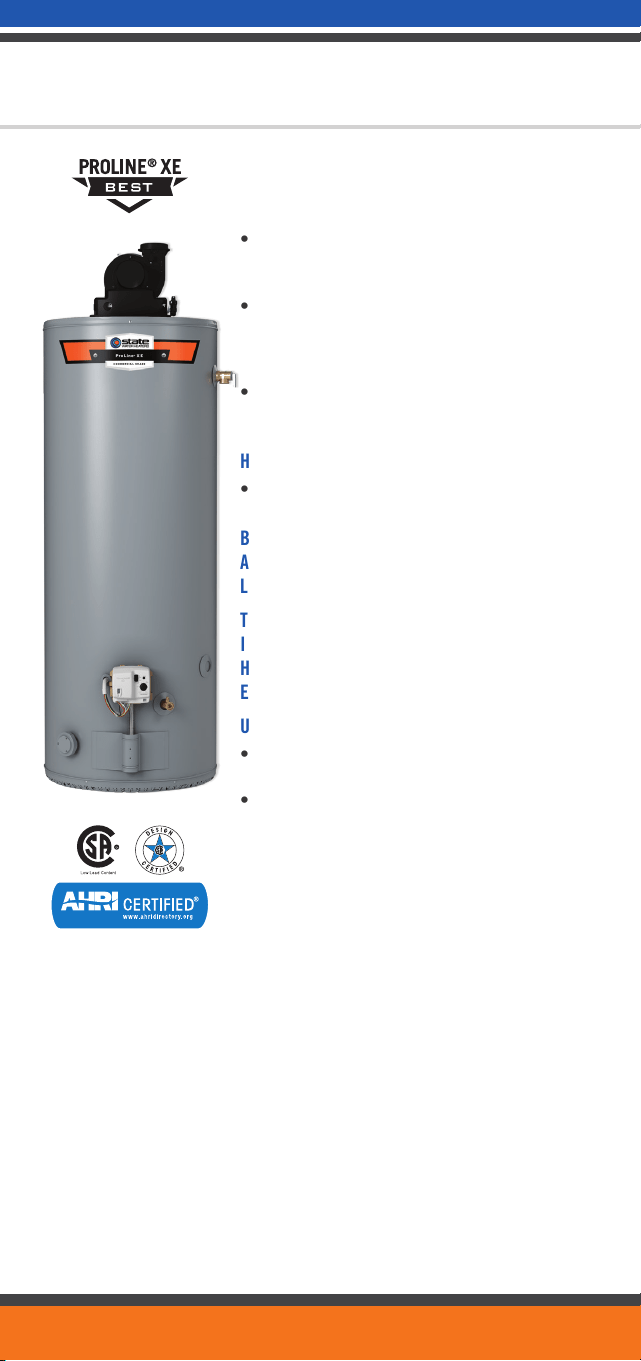

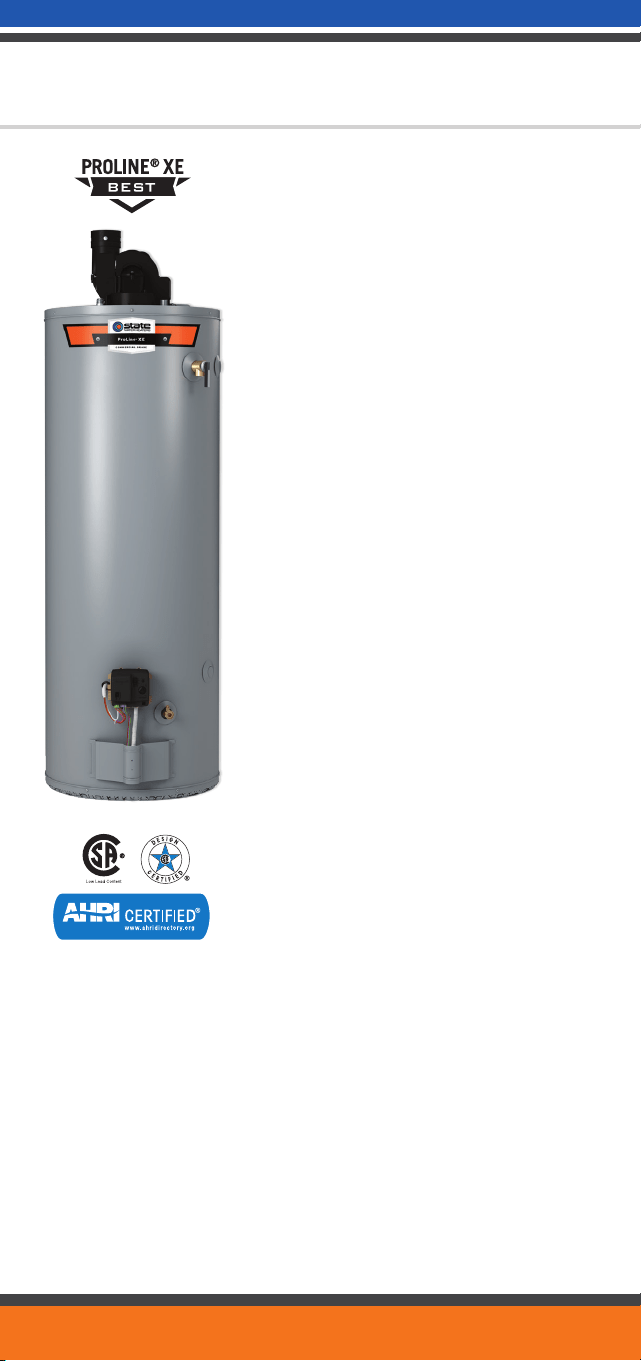

PREMIER
®
HIGH EFFICIENCY
POWER VENT
Residential Gas
11

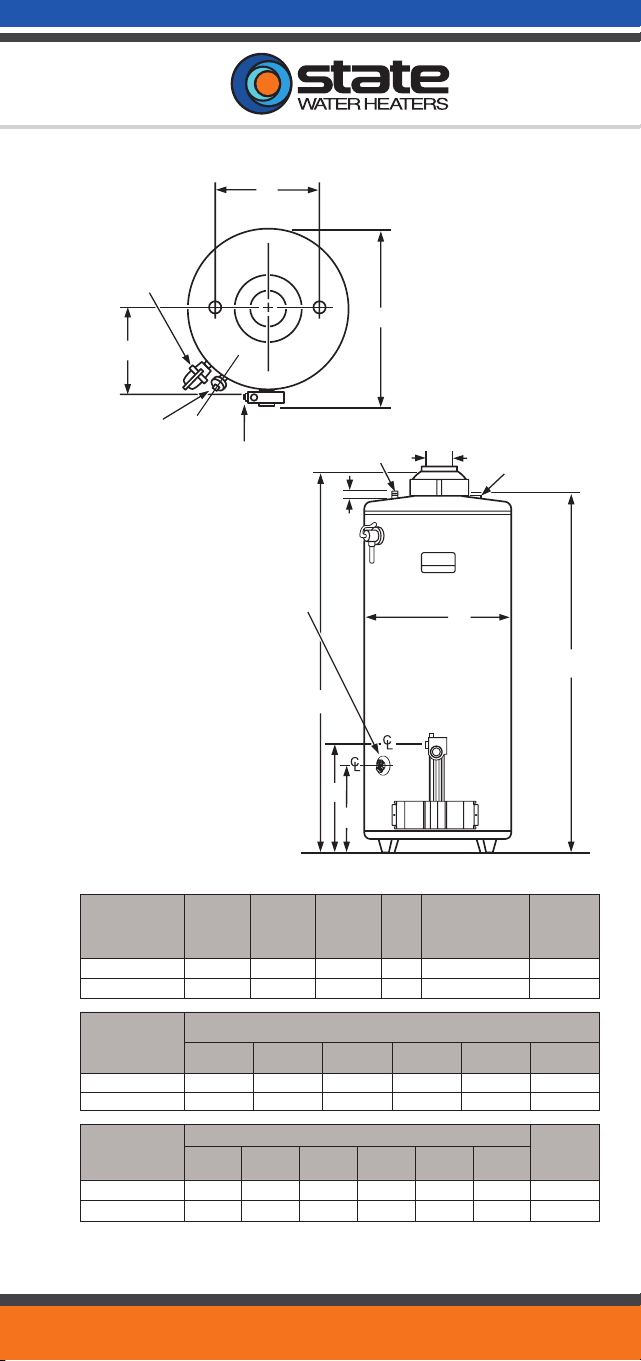

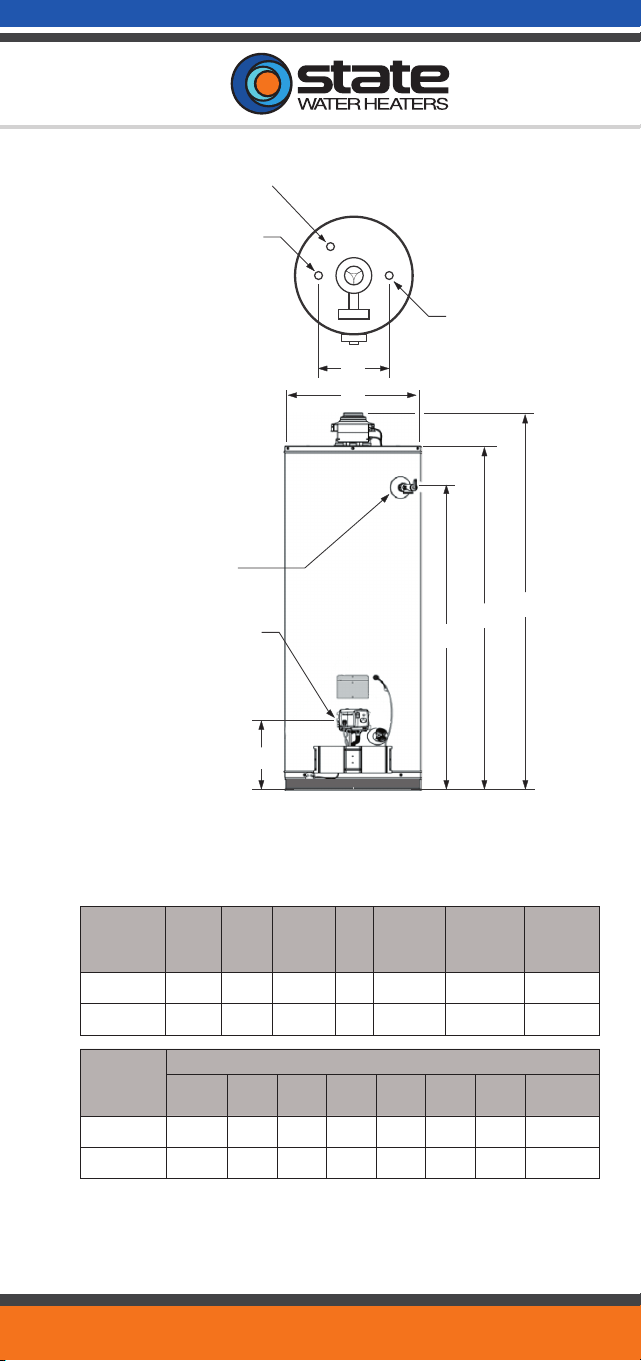

Available in natural gas only.
Standard model certified for sea level to 5,300 ft. elevation. Specify high altitude when ordering for use in
elevations up to 10,100 ft.
Optional Condensate Neutralizer Kit available (part number 100112380).

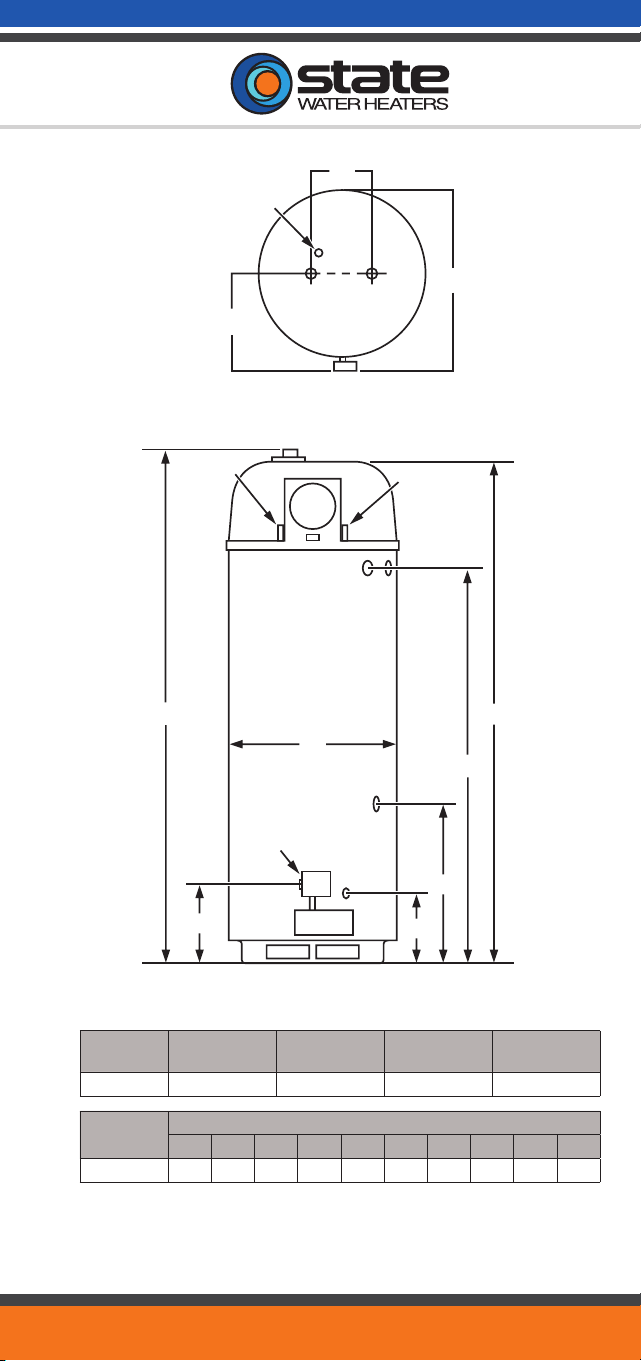

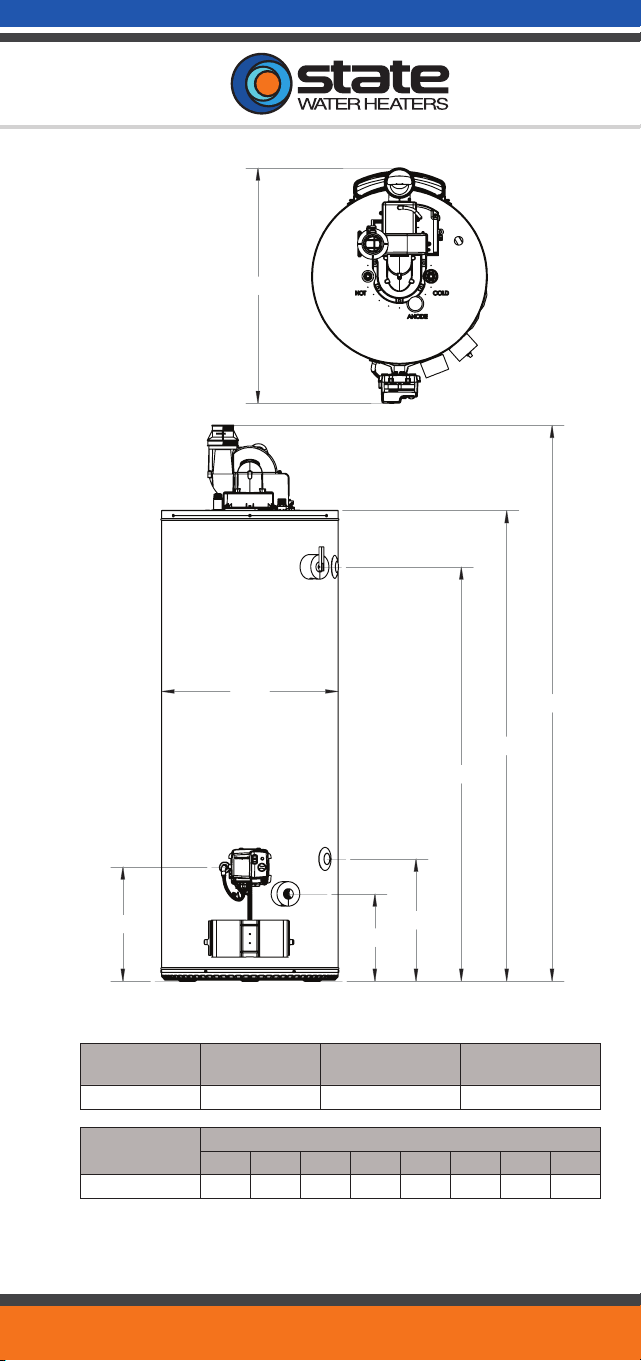

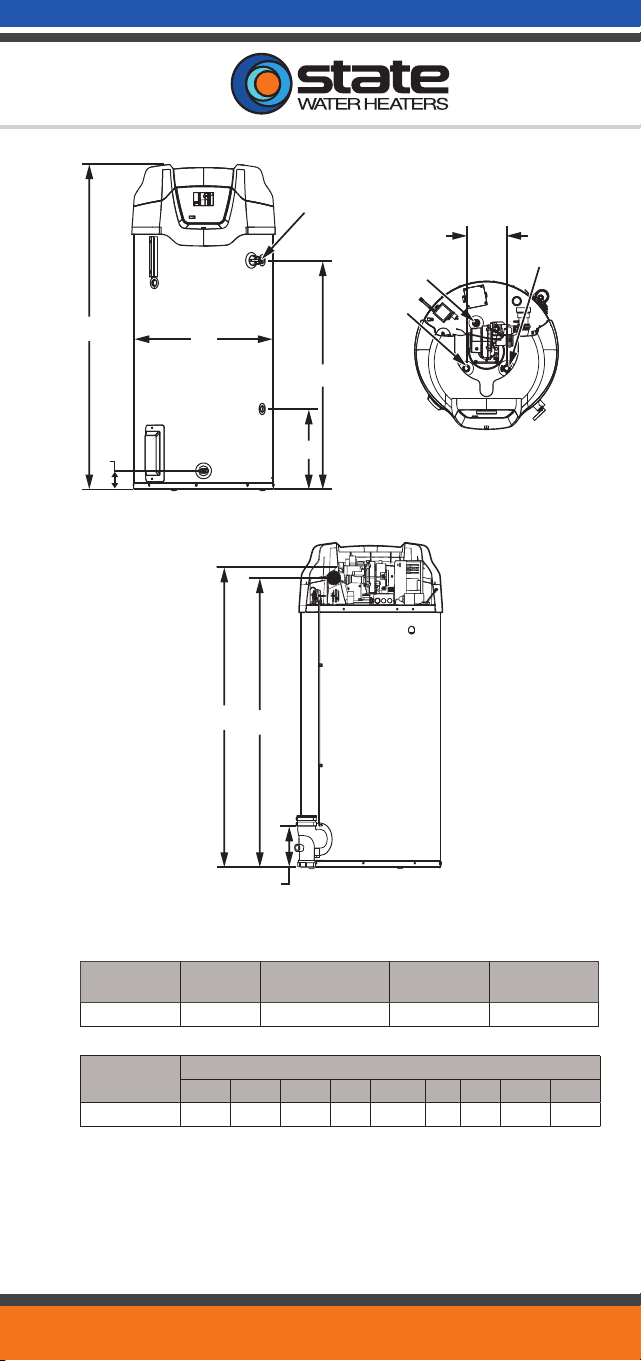

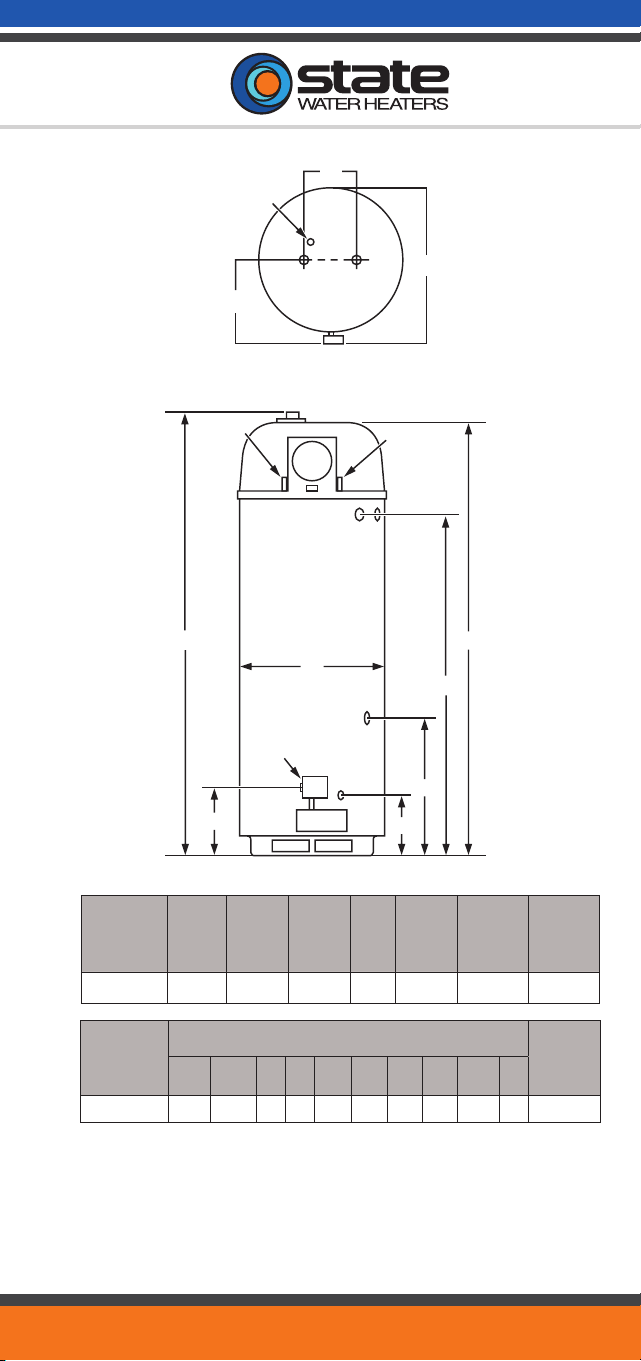

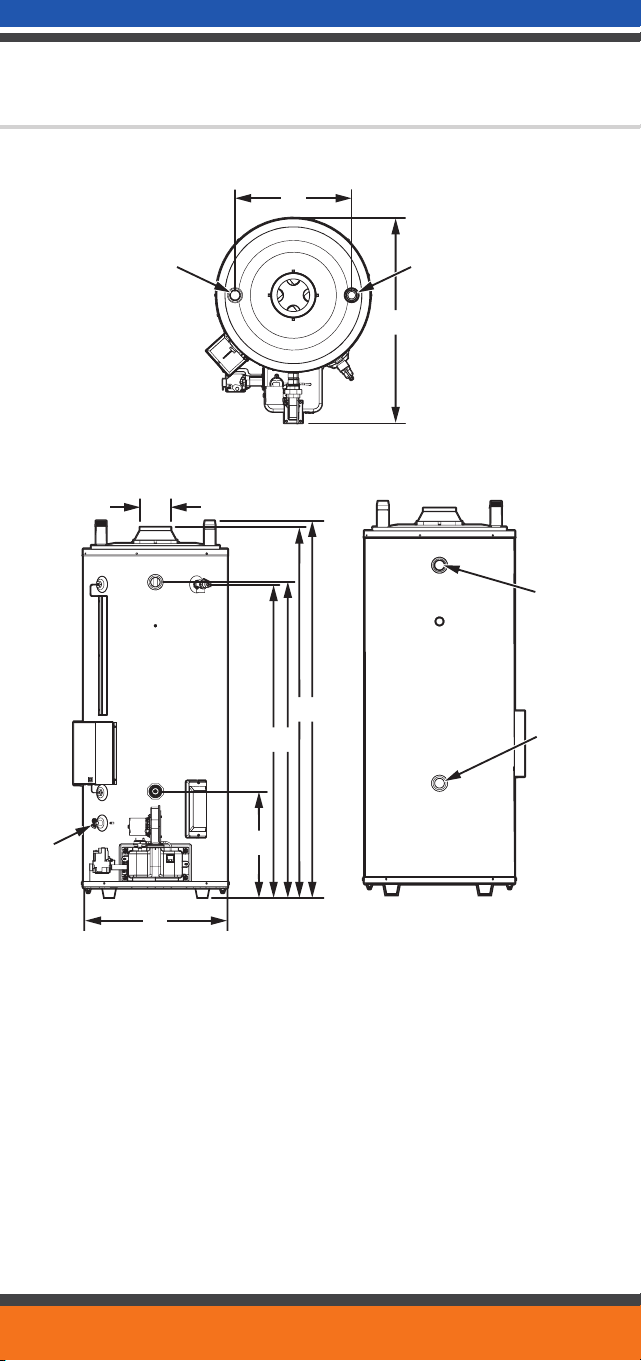

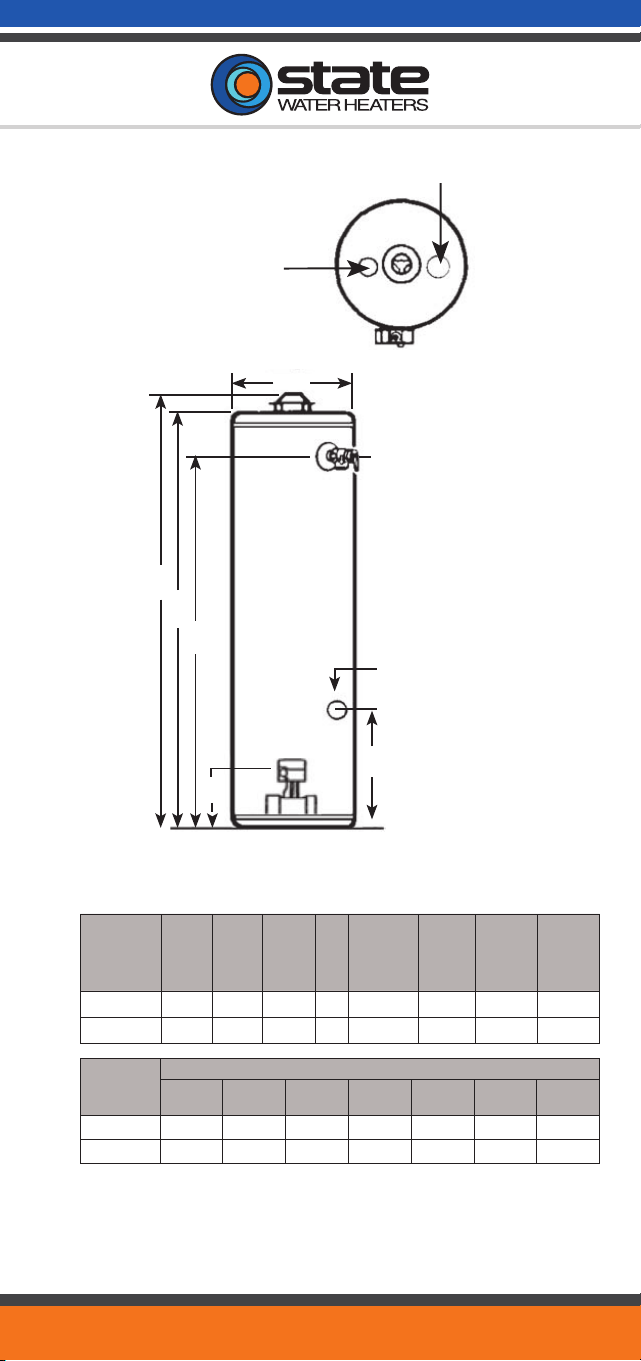

C
G
B
D
E
OUTLET
DIAMETER
ANODE
*INSTALL IN ACCORDANCE WITH LOCAL CODES
HOT
H
K
J
COLD
SIDE
OUTLET
DRAIN
VALVE
INLET
T HERMOSTAT
SIDE INLET

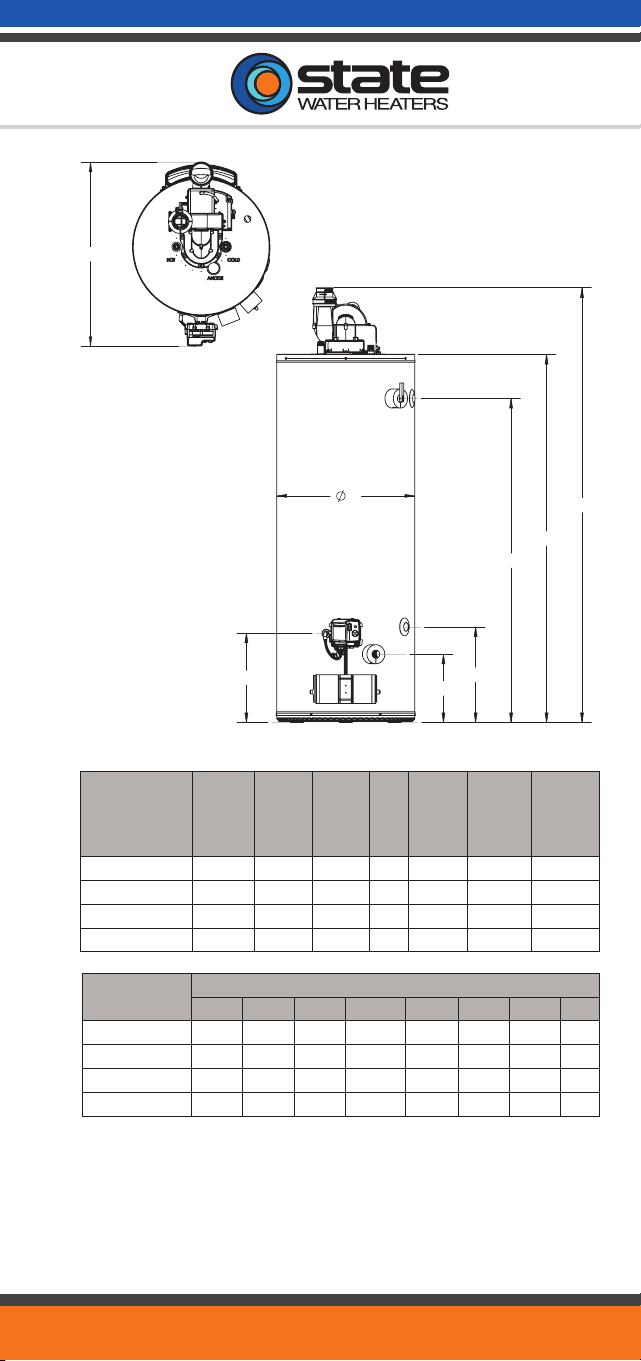

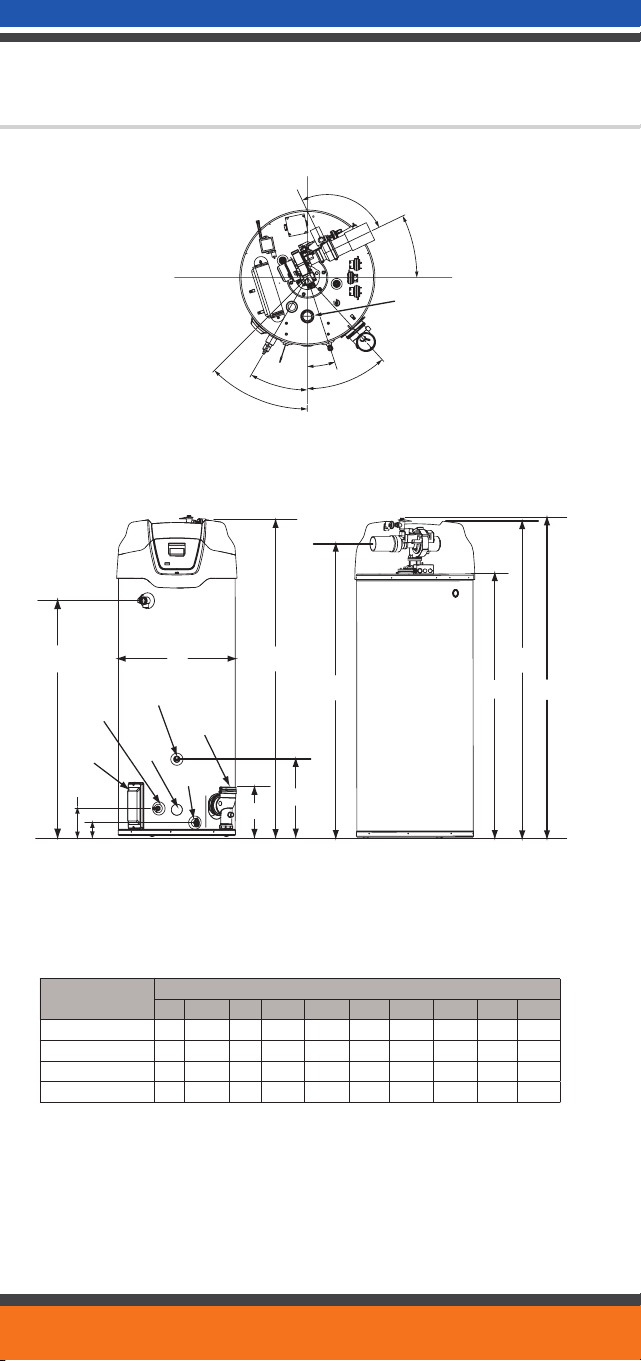

FRONT VIEW
TOP VIEW
T & P VALVE
A
F
C
G
B
D
E
OUTLET
DIAMETER
ANODE
*INSTALL IN ACCORDANCE WITH LOCAL CODES
HOT
H
K
J
COLD
SIDE
OUTLET
DRAIN
VALVE
INLET
T HERMOSTAT
SIDE INLET
FRONT VIEW
TOP VIEW
T & P VALVE
A
F
Model Number
Nominal
Capacity
Rated
Storage
Volume
First Hour
Rating
(Gallons)
UEF
Thermal
Efficiency
Recovery @
90°F Rise
Gallon
Per Hour
BTU Input
Per Hour
GP6-50-YTVIT 50 48 119 0.88 90% 92 76,000

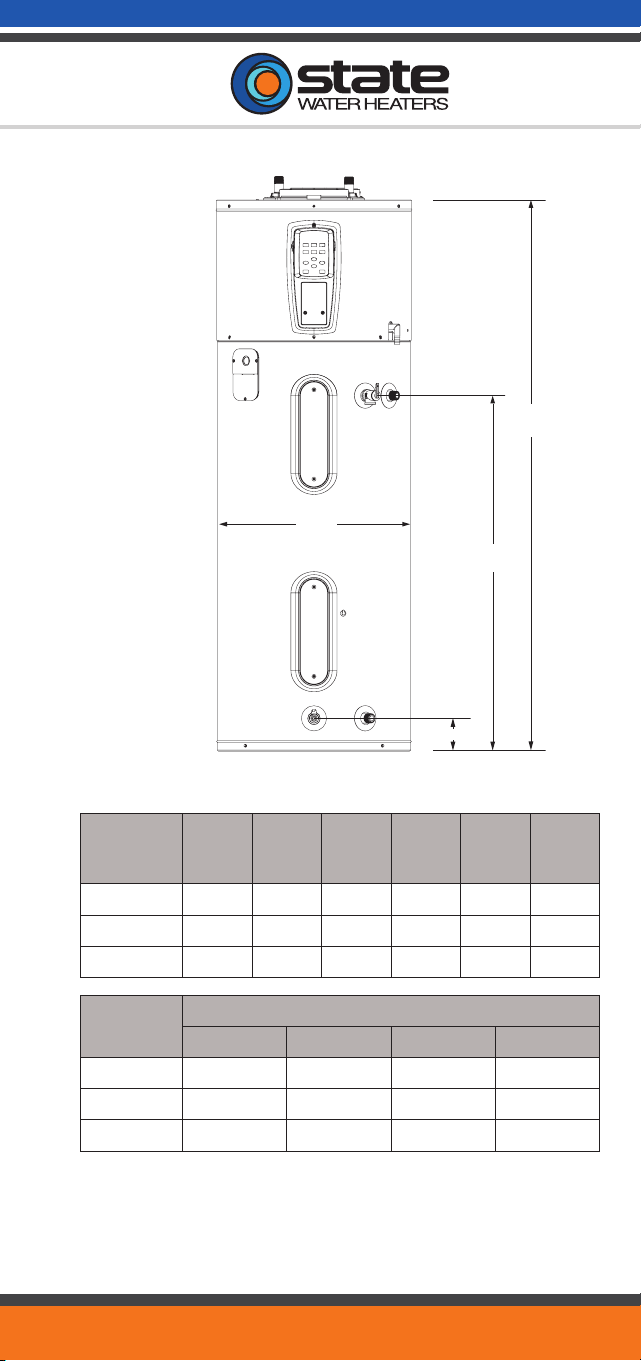

Model Number
Dimensions in Inches
Approx.
Shipping
Weight (lbs)A B C D E F G H J K
GP6-50-YTVIT 71-1/8 68-5/8 52 21 9-1/8 12 22 8 15-3/4 27 210
StateWaterHeaters.com
12

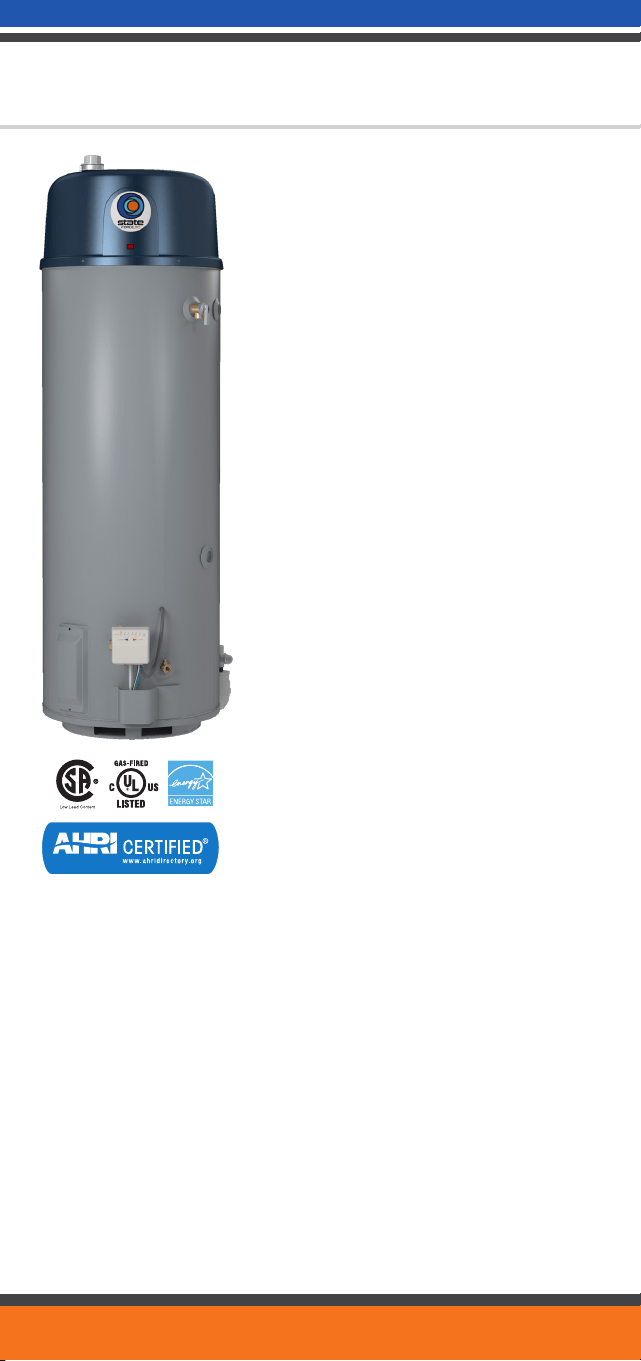

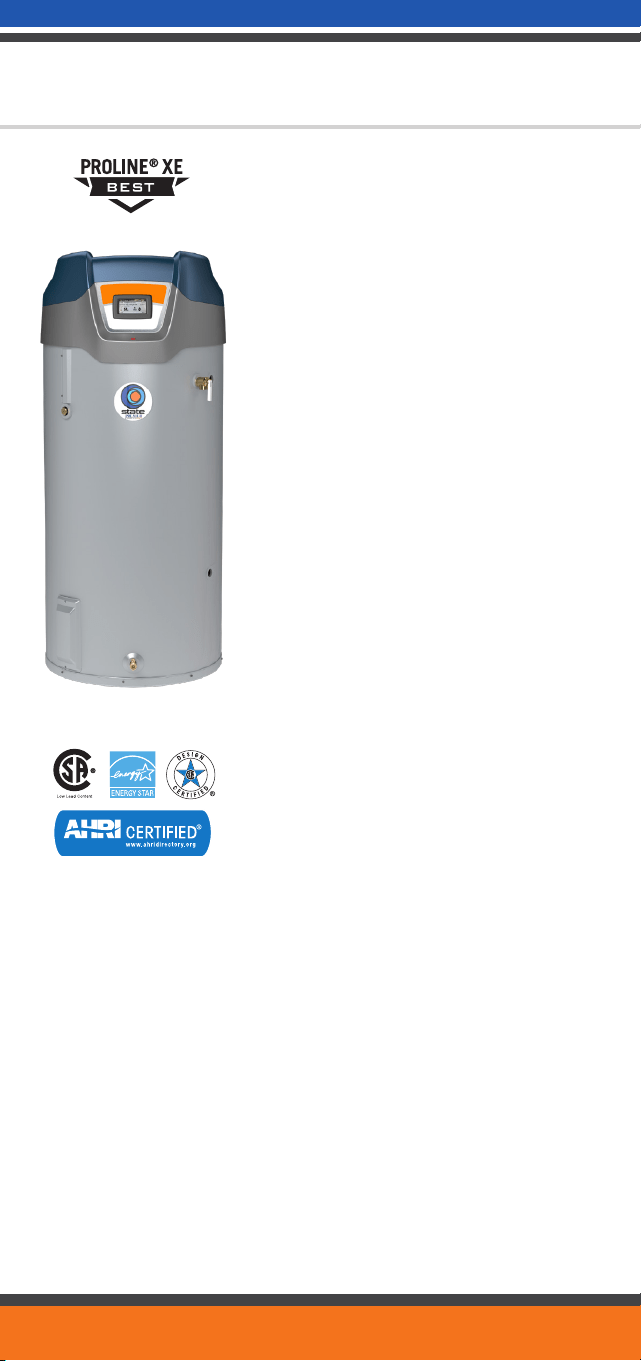

ENERGY STAR
®
QUALIFIED CONDENSING
DESIGN
• Helical internal heat exchanger keeps hot
combustion gases in the tank longer to extract
more heat into the water
• High efficiency operation with up to 0.88 UEF
(96% Thermal Efficiency) which saves money
on operating costs compared to a standard
efficiency gas water heater
ADVANCED ELECTRONIC CONTROL
• Optional Powered Anode available
• Exclusive State designed touch display control
system
• Precise temperature control
• Built-in diagnostics and operational
information
POWER DIRECT VENT DESIGN
• Power Direct vent using PVC, CPVC or
Polypropylene either thru-the-wall or
thru-the-roof
• Optional concentric vent and low profile
termination kits are available
ULTRA-LOW NOX
• Complies with SCAQMD Rule 1146.2 and other
air quality management districts with similar
requirements for Ultra-Low NOx emissions
requirements of 14 ng/J or 20 PPM
SIDE-MOUNTED HOT AND COLD
RECIRCULATING TAPS
• Hot and cold “side taps” allow Vertex Power
Direct Vent to be used for combination space/
water heating applications
CODE COMPLIANCE
• Meets IBC and ICC National Codes
• Meets the thermal efficiency and standby loss
requirements of the U. S. Department of Energy
and current edition of ASHRAE/IES 90.1
6-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
GP6 75 YTPDT

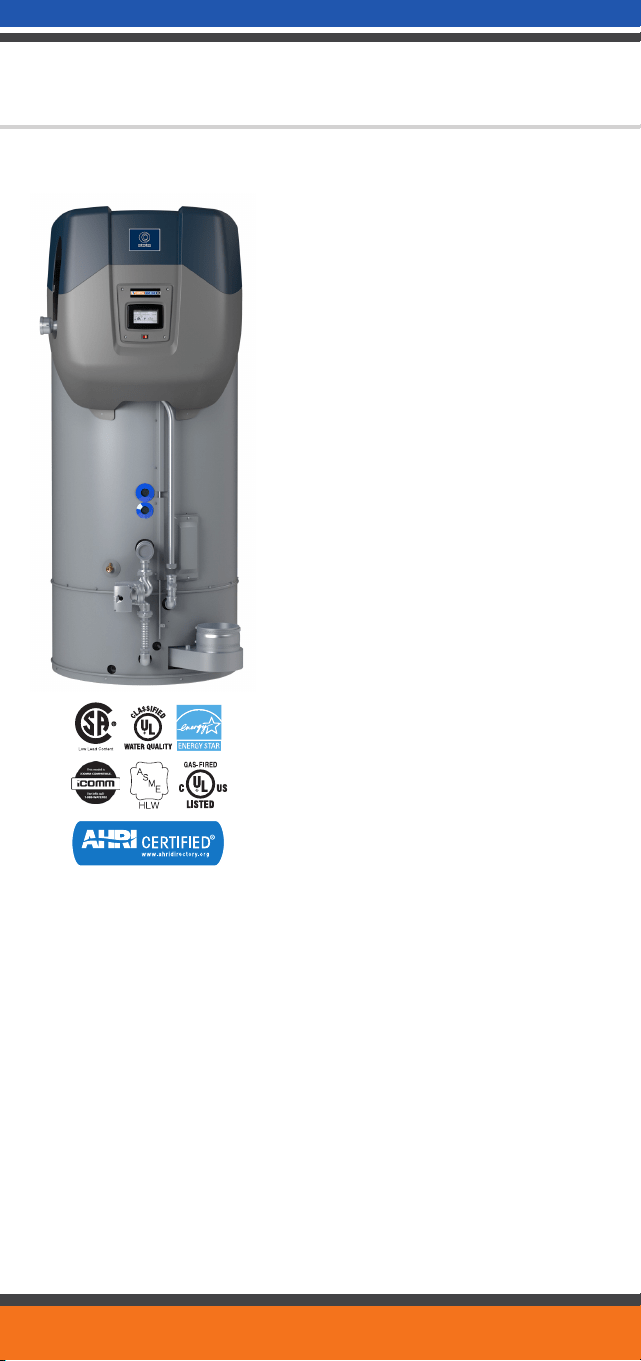

PREMIER
®
HIGH EFFICIENCY
POWER DIRECT VENT
Residential Gas
13
Available in Propane (LP) gas. Change “Y” to “H” in the model number (example: GP6 50 HTPDT).
Available with a Powered Anode. Specify when ordering.
Models certified from sea level to 10,100 ft. elevation.
Optional Condensate Neutralizer Kit available (Part Number 100112380).

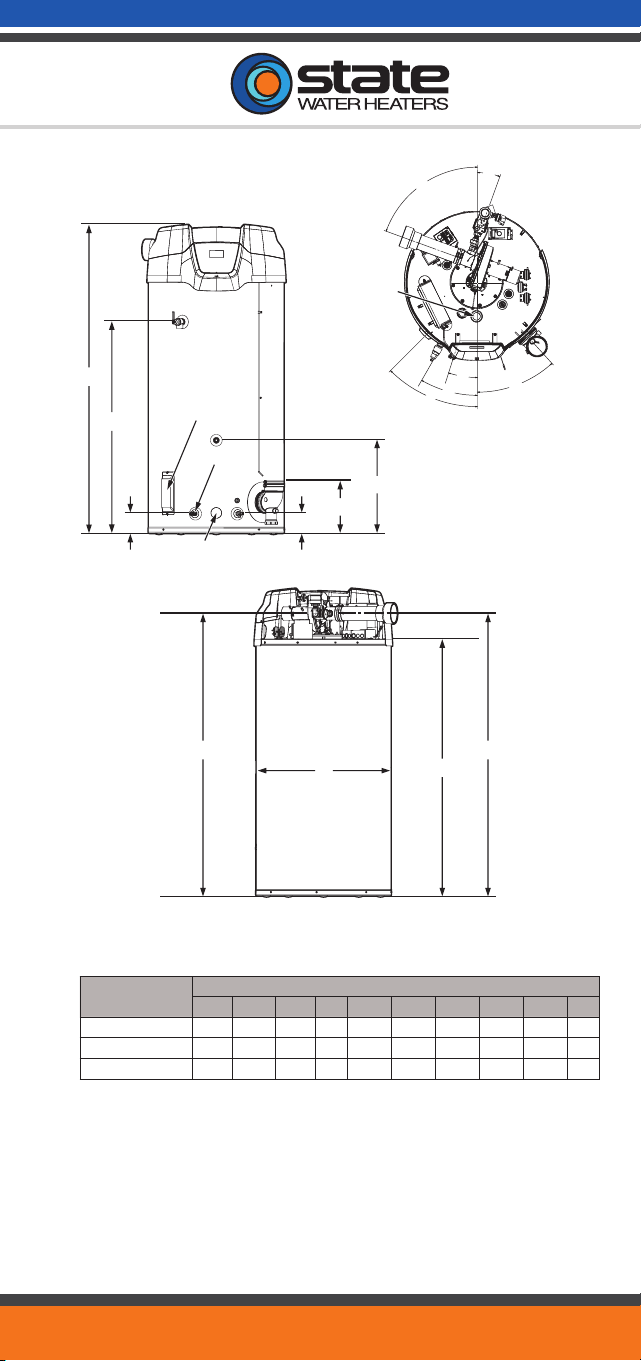

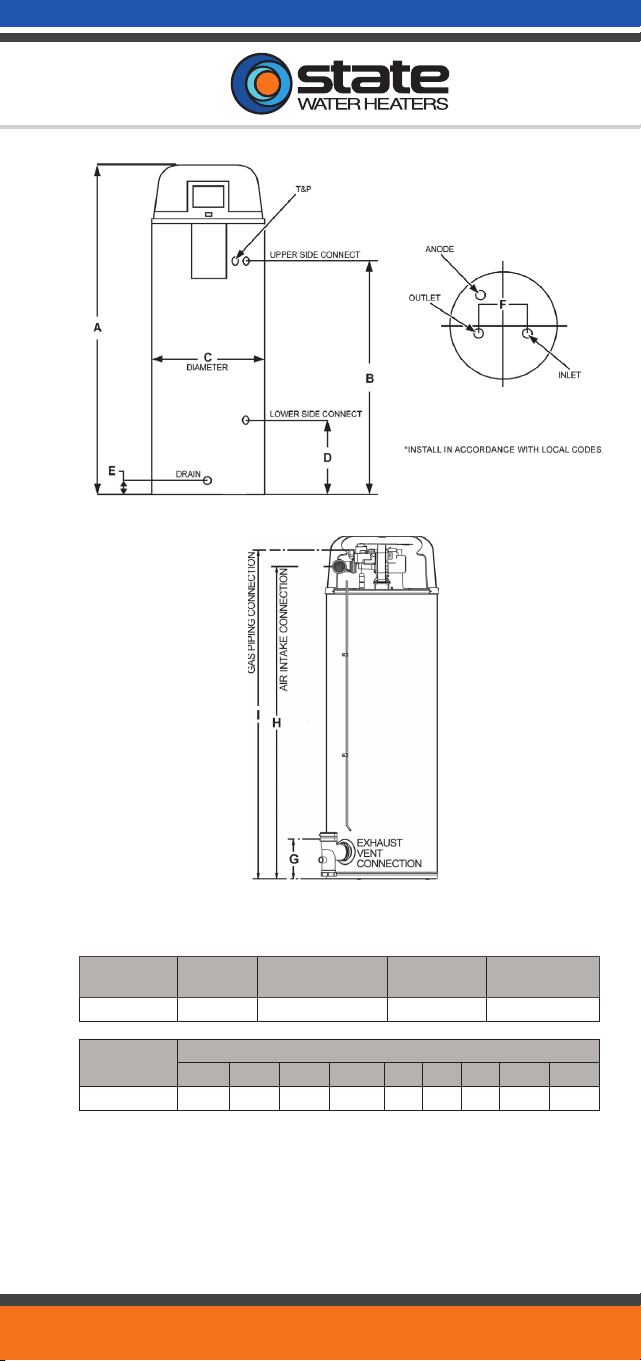

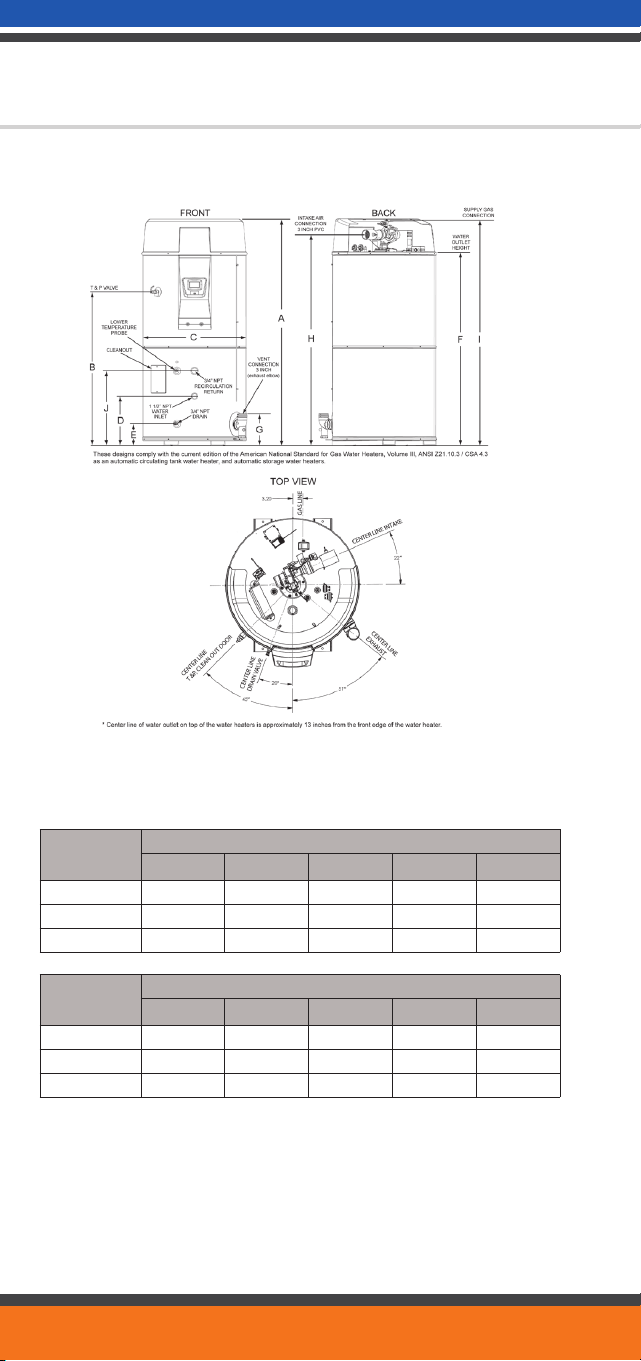

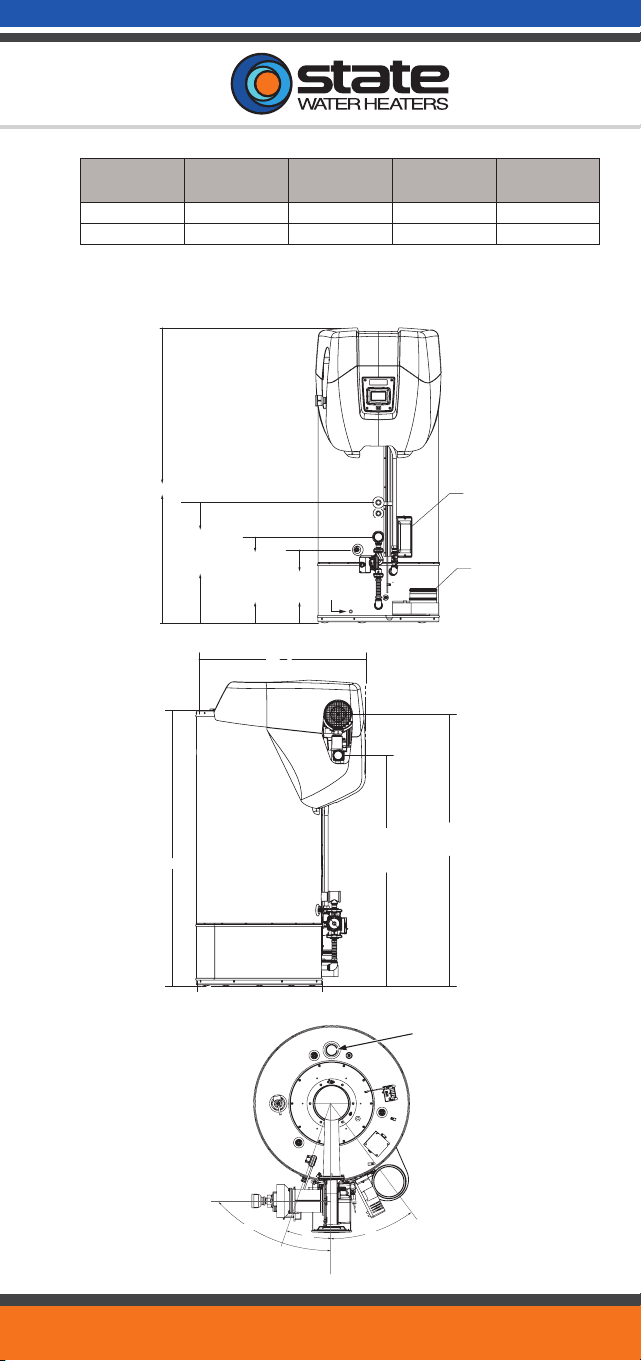

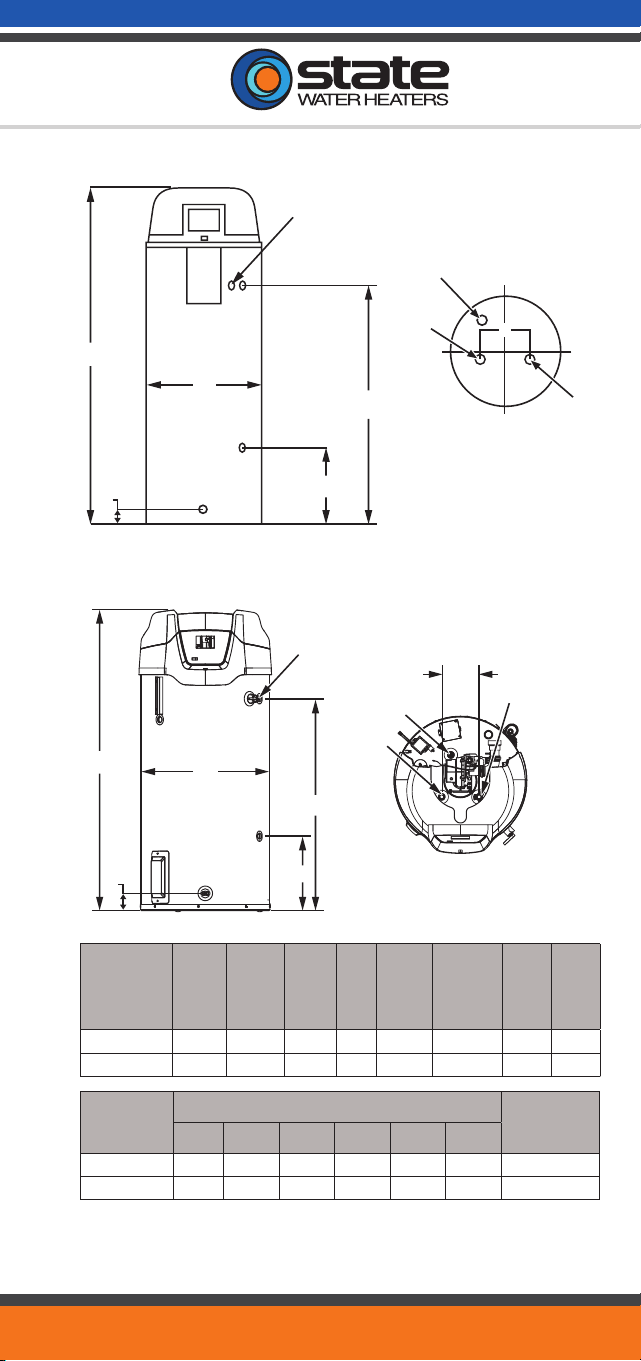

Figure 2: DIMENSIONS FOR 75 GALLON UNIT
ROUGH IN DIMENSIONS: 75 GALLON UNIT
UPPER SIDE CONNECT
GAS PIPING CONNECTIONS
AIR INTAKE CONNECTION
LOWER SIDE
CONNECT
B
C
F
D
T&P
DIAMETER
DRAIN
A
I
H
ANODE
INLET
OUTLET
E
G
ROUGH IN DIMENSIONS: 50 GALLON UNIT
Figure 1: DIMENSIONS FOR 50 GALLON UNIT
UPPER SIDE CONNECT
FRONT VIEW
ANODE
OUTLET
*INSTALL IN ACCORDANCE
WITH LOCAL CODES.
TOP VIEW
INLET
EXHAUST
VENT
CONNECTION
GAS PIPING CONNECTION
AIR INTAKE CONNECTION
LOWER SIDE CONNECT
DRAIN

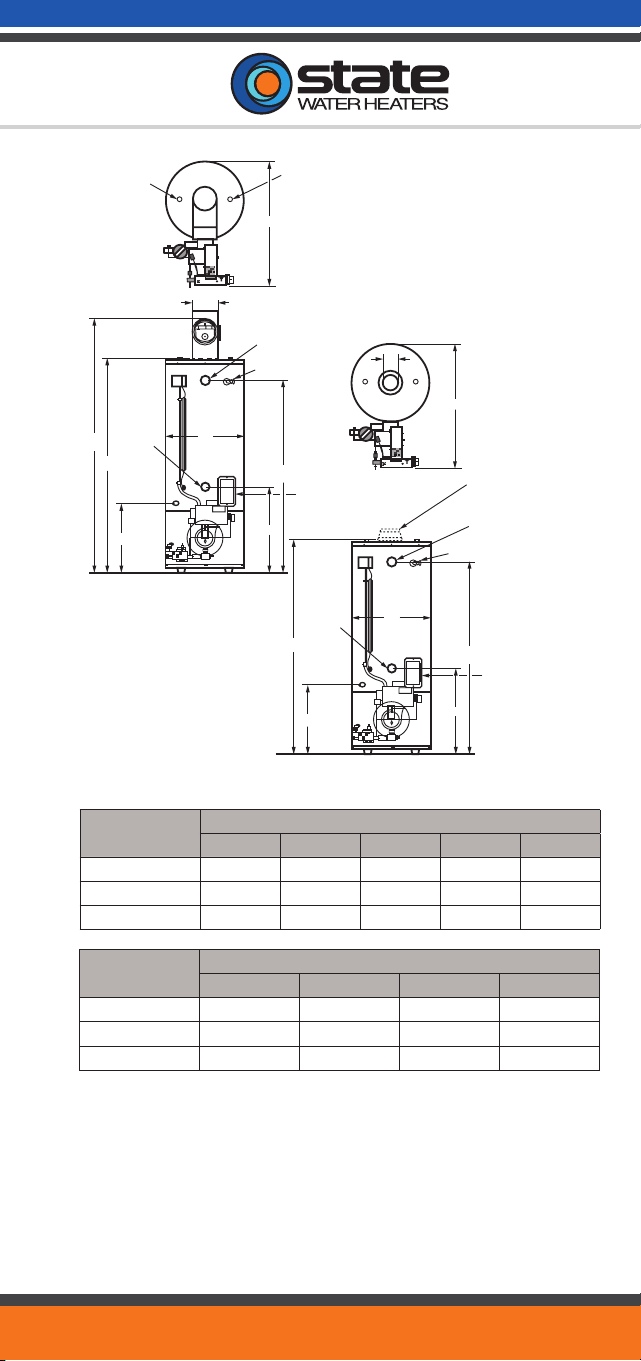

E
F
DIAMETER
T&P
A
C
D
B
I
H
G
Model
Number
Nominal
Capacity
Rated
Storage
Volume
First
Hour
Rating
(Gallons)
UEF
Thermal
Efficiency
Recovery @
90°F/50°C
Rise Gallon
Per Hour
BTU
Input
Per
Hour
Vent
Size
GP6-50-YTPDT 50 49 100 0.88 96% 129 (488) 100,000 2 or 3
GP6-75-YTPDT 75 74 130 0.86 96% 129 (488) 100,000 2 or 3
Model
Number
Dimensions in Inches
Approx. Shipping
Weight (lbs)
A B C D E F
GP6-50-YTPDT 66-3/4 49-1/4 22 15-3/4 3 8 255
GP6-75-YTPDT 65-1/4 45-5/8 27-3/4 16 3-3/4 8 382
StateWaterHeaters.com
14

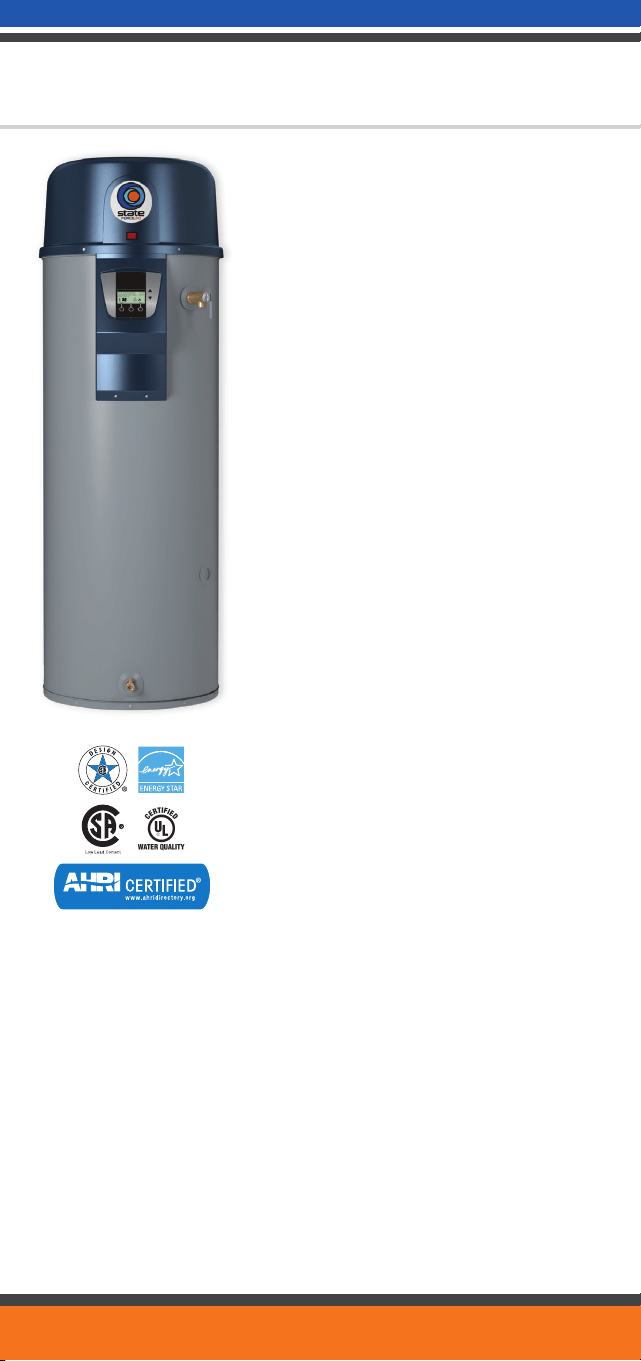

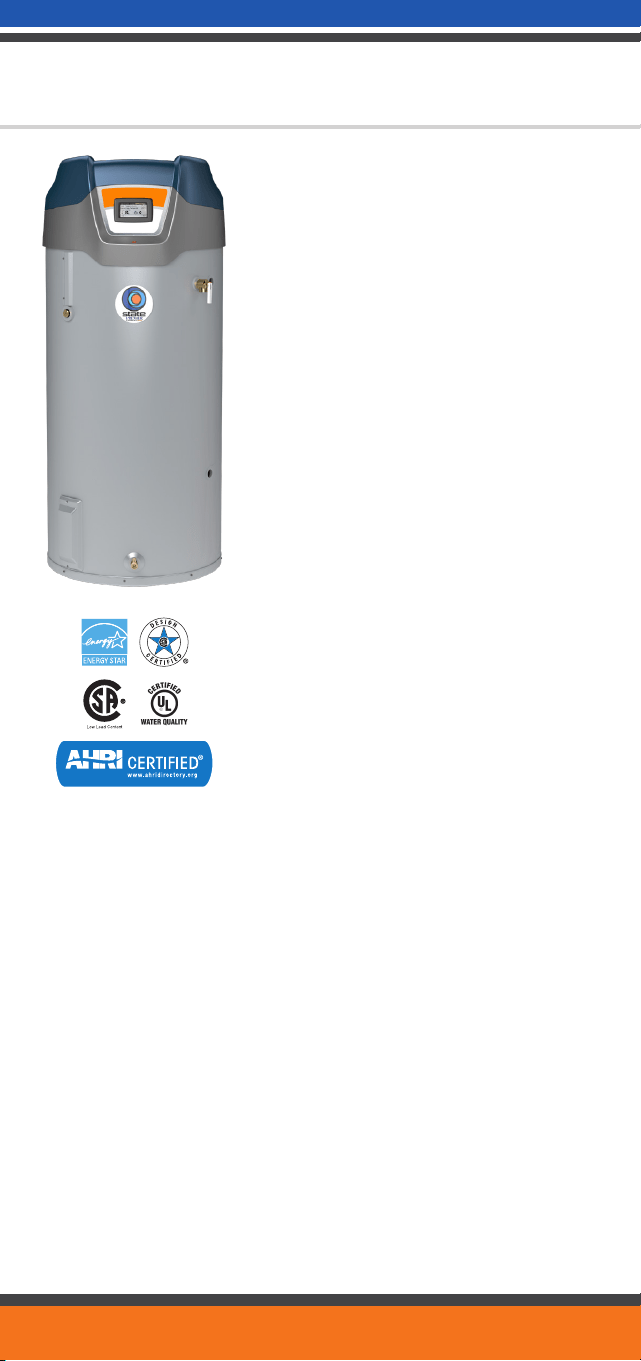

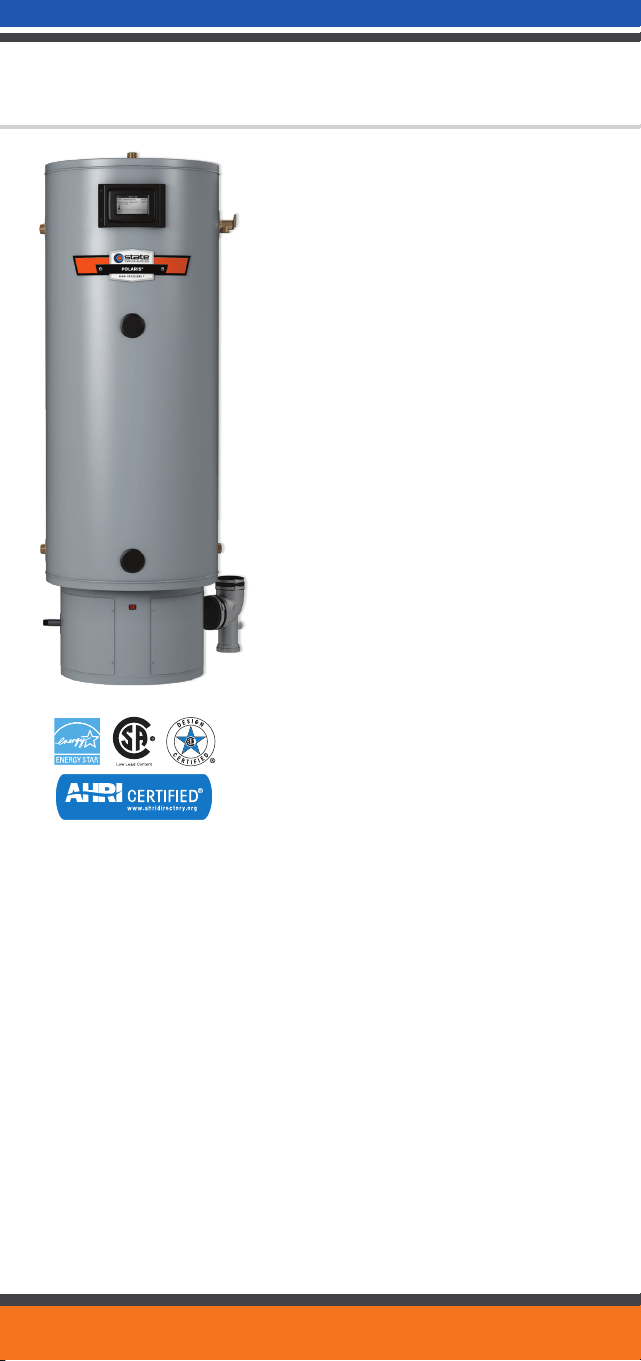

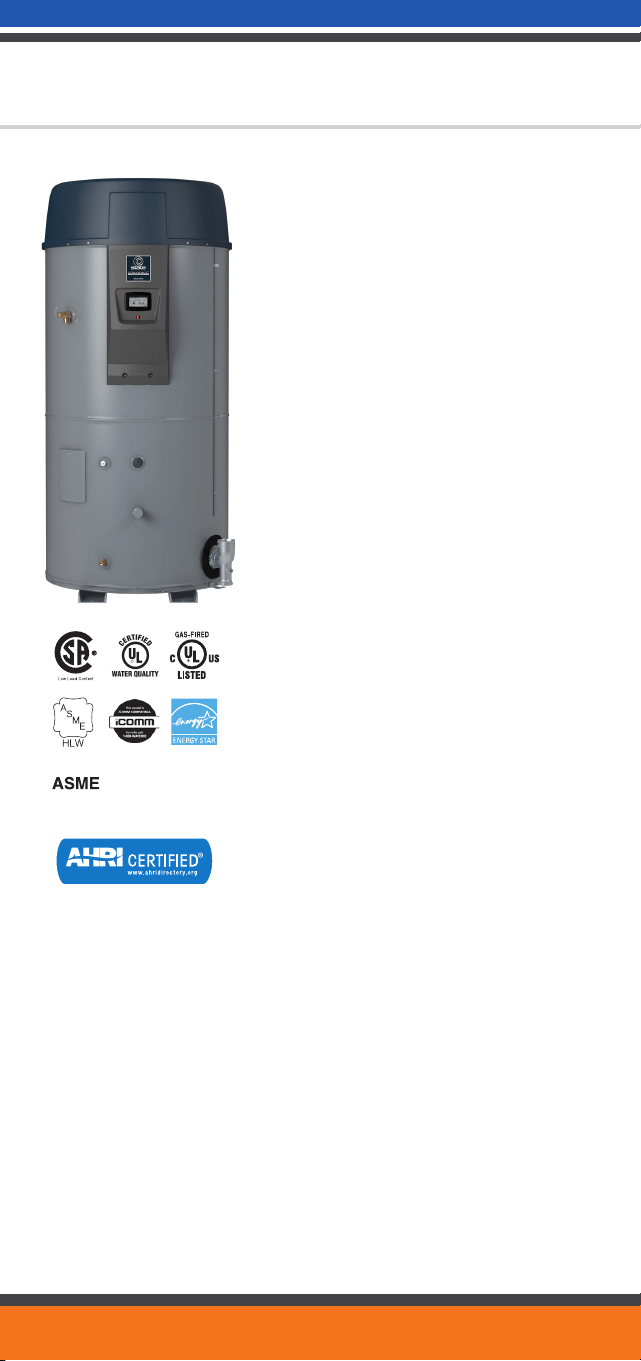

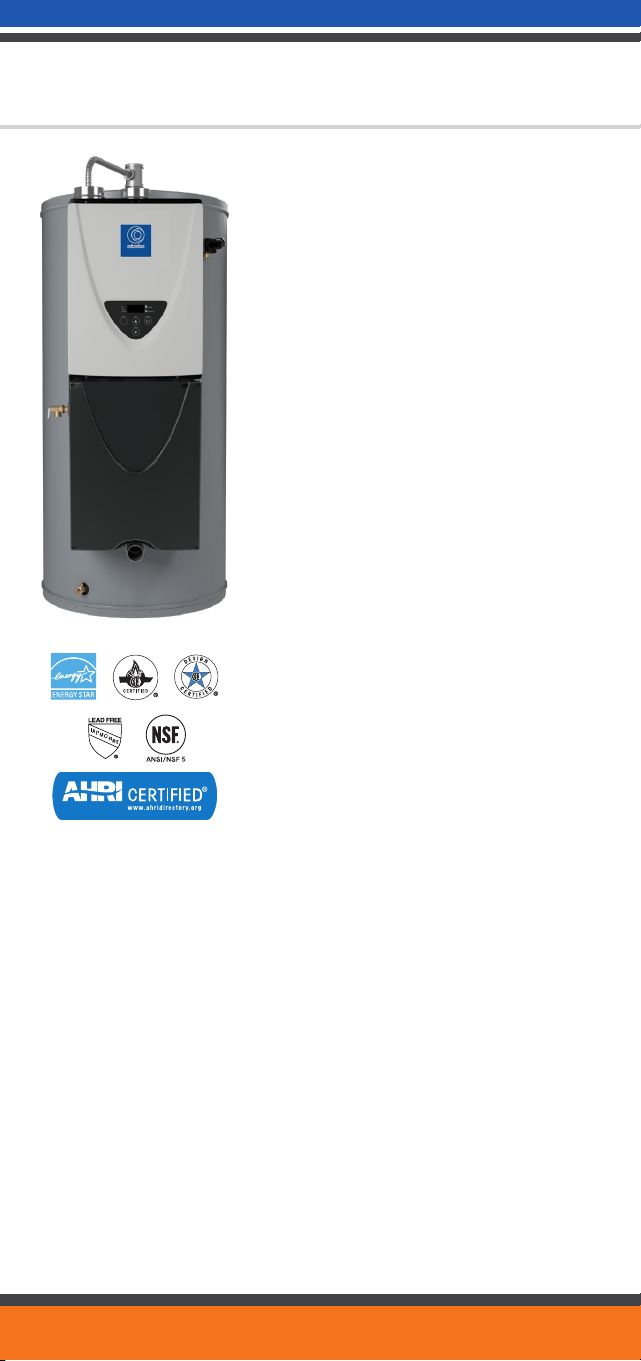

POLARIS
™
HIGH EFFICIENCY
CONDENSING DESIGN
• Operates at up to 96% thermal efficiency
which saves money on operating costs
compared to a standard 80% efficient gas
water heater
• Helical internal heat exchanger keeps hot
combustion gases in the tank longer to
extract more heat into the water
STAINLESS STEEL CONSTRUCTION
• Tank and helical heat exchanger are
constructed from 444 stainless steel for
excellent corrosion resistance without the
need for an anode
WHISPER QUIET OPERATION
• Ultra-quiet blower and burner minimize noise
POWER DIRECT VENT DESIGN
• Direct vent using PVC, CPVC or ABS either
thru-the-wall or thru-the-roof
OPTIONAL CONCENTRIC VENT KIT
ADVANCED ELECTRONIC CONTROL
• Large LCD display provides precise
temperature control and advanced
diagnostics
CODE COMPLIANCE
• Complies with SCAQMD Rule 1146.2 and
other air quality management districts with
similar requirements for Ultra-Low NOx
emissions requirements of 14 ng/J or 20 PPM
• Meets UBC, CEC, and ICC National Codes
• Meets the thermal efficiency and standby
loss requirements of the U. S. Department
of Energy and current edition of ASHRAE/
IES 90.1.
10-YEAR LIMITED TANK AND 10-YEAR
PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
Residential Gas
15

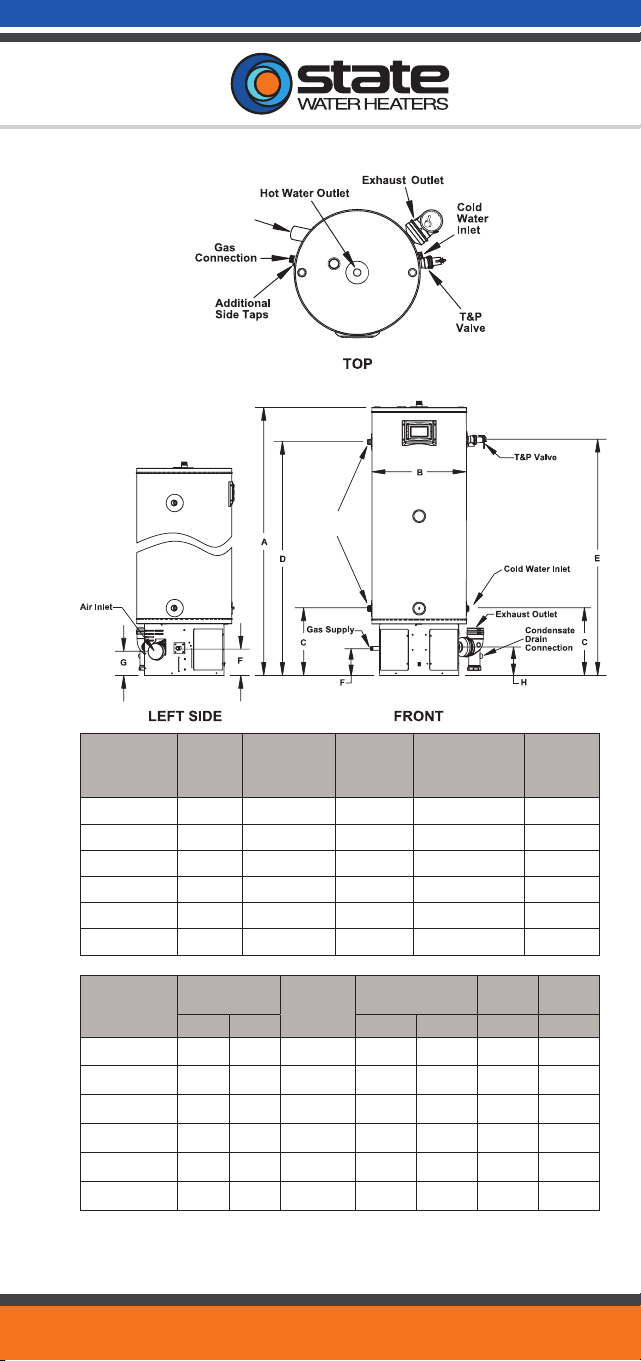

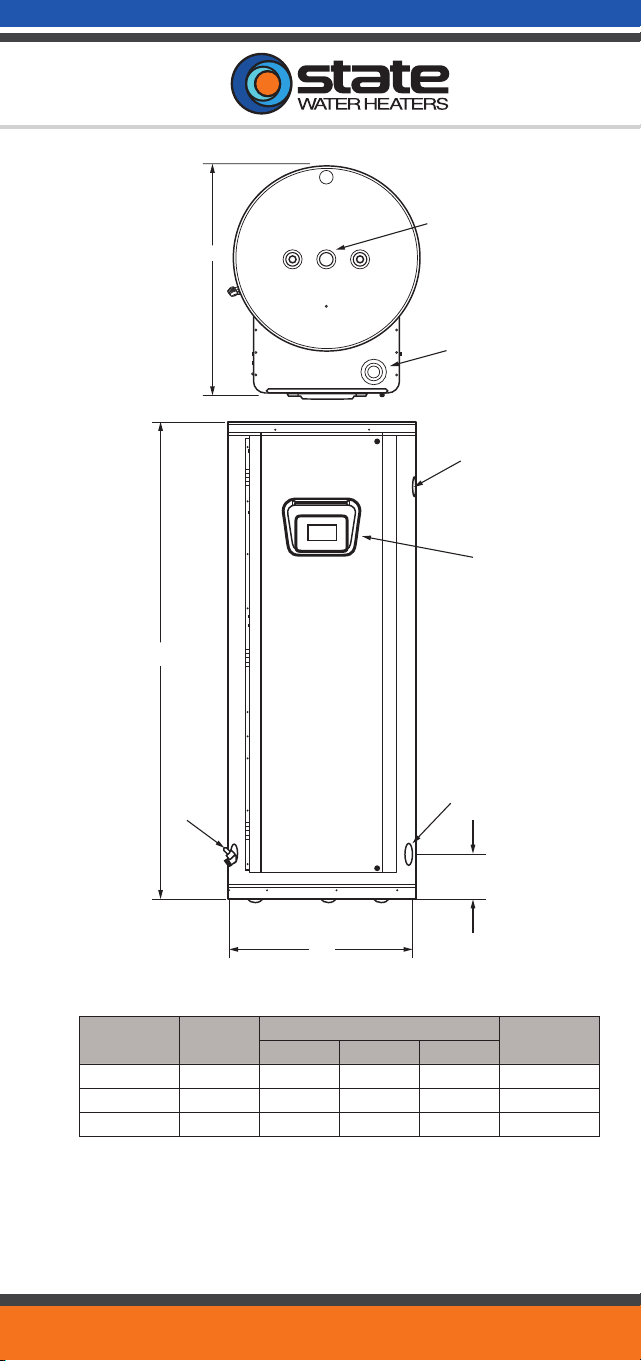

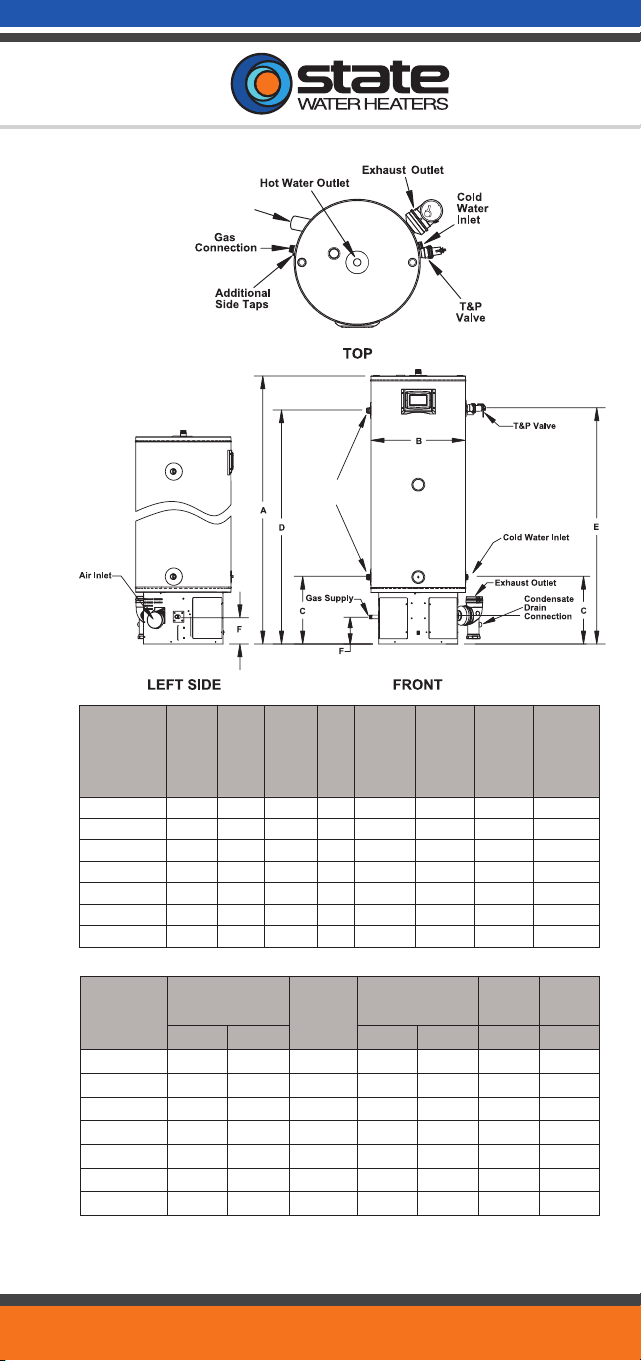

Additional
Side Taps
Air Inlet
Additional
Side Taps
Air Inlet
Additional
Side Taps
Air Inlet
For Propane (LP) gas change "N" to "P".
Models certified for sea level to 7,700 ft. elevation.
Model Number
Nominal
Capacity
Rated
Storage
Volume
First
Hour
Rating
(Gallons)
UEF
Thermal
Efficiency
Recovery
@ 90°
Rise
Gallon
Per Hour
BTU/h
Input
Gallon Per
Hour
Approx.
Shipping
Weight
(lbs)
GHX-34-100-N 34 33 170 0.90 96% 129 100,000 150
GHX-34-130-N 34 N/A N/A N/A 96% 165 130,000 150
GHX-34-150-N 34 N/A N/A N/A 94% 190 150,000 150
GHX-50-130-N 50 N/A N/A N/A 95% 165 130,000 176
GHX-50-150-N 50 N/A N/A N/A 95% 190 150,000 180
GHX-50-175-N 50 N/A N/A N/A 96% 222 175,000 180
GHX-50-199-N 50 N/A N/A N/A 96% 253 199,000 180
Model Number
Dimensions in Inches
Vent
Connection
1" Water Connections T&P
Gas
Supply*
A B C D E F
GHX-34-100-N 48-1/2 22 2 or 3 15-3/4 40-1/2 41 6-3/8
GHX-34-130-N 48-1/2 22 2 or 3 15-3/4 40-1/2 41 6-3/8
GHX-34-150-N 48-1/2 22 2 or 3 15-3/4 40-1/2 41 6-3/8
GHX-50-130-N 62-3/8 22 2 or 3 15-3/4 54-1/2 55 6-3/8
GHX-50-150-N 63-3/4 22 2 or 3 15-3/4 55-3/4 56-1/4 6-3/8
GHX-50-175-N 63-3/4 22 3 15-3/4 55-3/4 56-1/4 6-3/8
GHX-50-199-N 63-3/4 22 3 15-3/4 55-3/4 56-1/4 6-3/8
StateWaterHeaters.com
16
PROLINE
®
XE POWER VENT
VERSATILE POWER VENT DESIGN
• All models feature an exclusive 3-position
rotatable blower outlet which adds flexibility
• Combined horizontal and vertical vent runs up
to 180 equivalent feet with 4˝ diameter venting
(ABS, PVC, CPVC and polypropylene)
• All models are equipped with a protected
sensor that detects the presence of flammable
vapors and automatically disables the burner to
prevent ignition
• Air intake snorkel elevates the inlet location of
combustion air to prevent flammable vapors
from entering the sealed combustion chamber
HOT SURFACE IGNITOR
• More robust and reliable than standing pilot,
and reduces energy consumption
BUILT-IN HEAT TRAPS ON THE WATER INLET
AND OUTLET REDUCE THE AMOUNT OF HEAT
LOST THROUGH PIPING
THICK, ENVIRONMENTALLY FRIENDLY FOAM
INSULATION REDUCES THE AMOUNT OF
HEAT LOSS AND CONTRIBUTES TO OVERALL
ENERGY EFFICIENCY
USER-FRIENDLY
• State-of-the-art electronic gas control provides
more precise temperature control
• LED control light displays operation status and
diagnostics information
ENHANCED-FLOW BRASS DRAIN VALVE
AVAILABLE IN NATURAL GAS AND PROPANE
CODE COMPLIANCE:
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and current edition of ASHRAE/IES 90.1
• Complies with the Federal Energy Conservation
Standards effective April 16, 2015, in
accordance with the Energy Policy and
Conservation Act (EPCA) as amended
6-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
Residential Gas
17
A
B
G
H
E
Ø C
F
D
ANODE
COLD
HOT
A
B
G
H
E
Ø C
F
D
ANODE
COLD
HOT

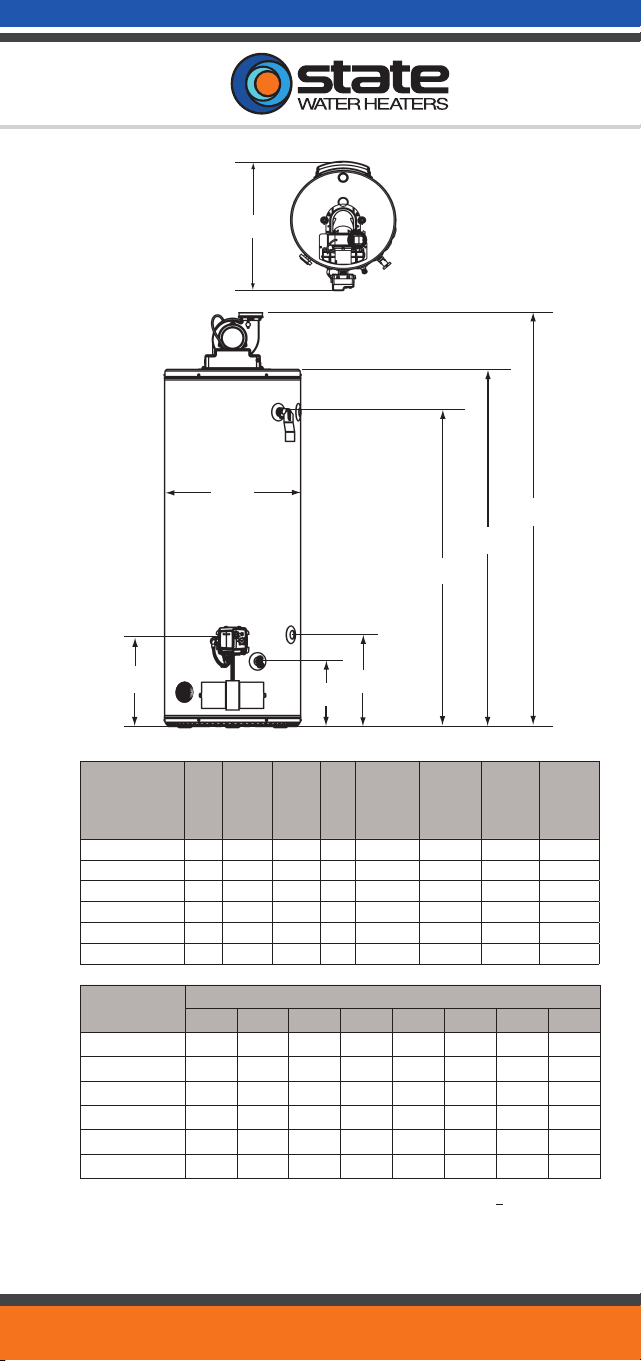

Available in Propane (LP) gas. Change “Y” to “H” in the model number (example: GS6 40 HBVIS).
Models GS6 50 YRVHSL and GS6 75 YRVHTL come from the factory standard with side loop fittings.
YRVIT models available with side connections for use in combination applications.
All models are certified from 10,100 ft. elevation.
Model Number
Dimensions in Inches
A B C D E F G H
GS6-40-YBVIS 59 49-5/8 22 29-1/8 11 13-1/4 42-1/2 N/A
GS6-40-YRVIT 68-1/2 59-1/4 20 27-1/8 11 13-1/4 53-1/8 15-1/4
GS6-50-YBVIS 60-1/8 50-3/4 24 31-1/8 11 13-1/4 43-3/4 N/A
GS6-50-YRVIT 68-1/8 58-3/4 22 29-1/8 11 13-1/4 51-3/4 15-1/4
GS6-50-YRVHSL 61-1/8 52 24 31-1/8 11 13-1/4 44-1/2 15-1/4
†GS6-75-YRVHTL 70-5/8 61-1/4 26 33-1/8 11 13-1/4 53 15-1/4
Model Number Series
Nominal
Capacity
Rated
Storage
Volume
UEF
Recovery
@ 90°F
Rise Gallon
Per Hour
BTU Input
Gallon Per
Hour
First Hour
Rating
(Gallons)
Approx.
Shipping
Weight
(lbs)
GS6 40 YBVIS 200 40 38 0.67 45 40,000 72 174
GS6 40 YRVIT 200 40 38 0.70 56 50,000 87 176
GS6 50 YBVIS 200 50 49 0.72 45 40,000 79 198
GS6 50 YRVIT 200 50 48 0.72 56 50,000 97 192
GS6 50 YRVHSL 200 50 50 0.73 69 62,000 119 212
†GS6 75 YRVHTL 310 75 72 0.69 80 76,000 116 277
StateWaterHeaters.com
18
POWER DIRECT VENT DESIGN
• Combined horizontal and vertical vent runs up
to 180 equivalent feet with 4˝ diameter venting
(ABS, PVC, CPVC and polypropylene)
• Two-pipe sealed combustion system uses
outside air, eliminating problems caused by
insufficient indoor ventilation
GREEN CHOICE
®
GAS BURNER
• Patented eco-friendly gas burner design
reduces NOx and complies with Low-NOx
emission requirements of less than 40 ng/J
HOT-SURFACE IGNITOR
• More robust and reliable than standing pilot,
and reduces energy consumption
SELF-CLEANING DIP TUBE
USER-FRIENDLY
• State-of-the-art electronic gas control provides
more precise temperature control
• LED control light displays operation status and
diagnostics information
ENHANCED-FLOW BRASS DRAIN VALVE
CSA CERTIFIED AND ASME RATED T&P
RELIEF VALVE
CODE COMPLIANCE:
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and current edition of ASHRAE/IES 90.1
• Complies with the Federal Energy Conservation
Standards effective April 16, 2015, in
accordance with the Energy Policy and
Conservation Act (EPCA) as amended
DESIGN-LISTED BY CSA INTERNATIONAL
• Certified at 300 psi test pressure and 150 psi
working pressure
• Listed according to ANSI Z21. Z21.10.1-CSA 4.1
standards governing storage tank-type water
heaters
6-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
PROLINE
®
XE NON-CONDENSING
POWER DIRECT VENT
Residential Gas
19

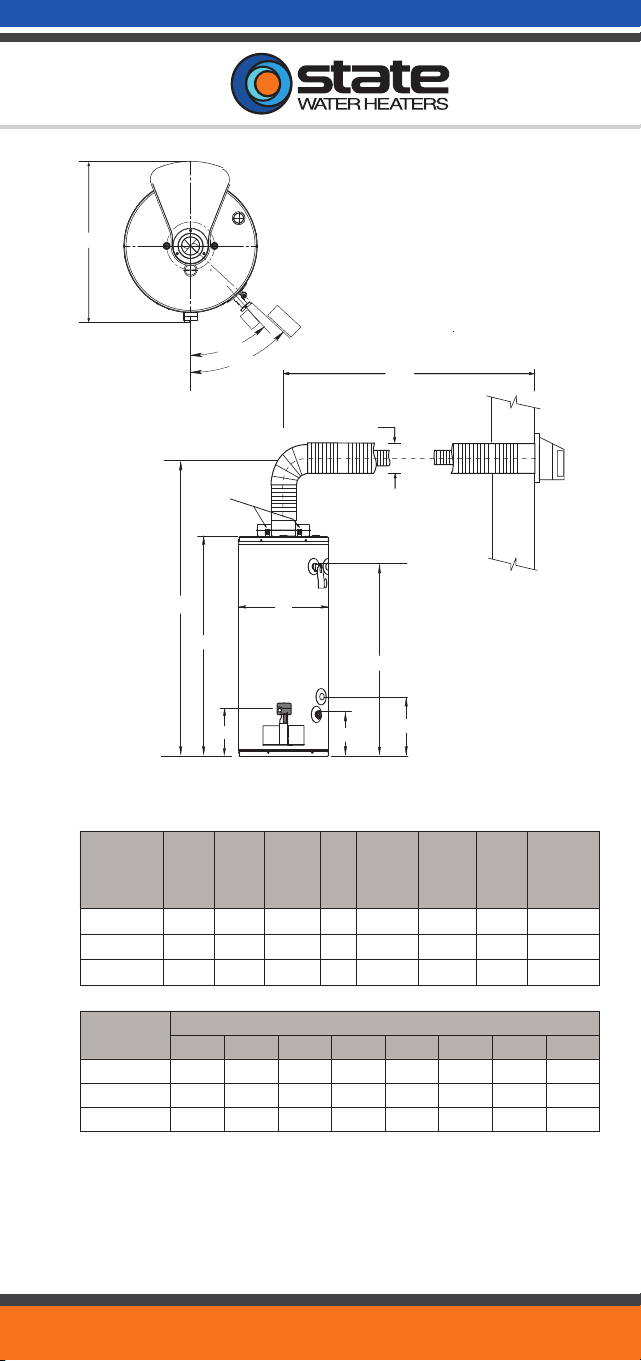

* Propane model has input of 58,000 BTU/hr.
Available in Propane (LP) gas. Specify when ordering Propane (LP) gas.
Side connections standard on GS6 50 YRPDTL5 & GS6 75 YRPDTL models
Side connections available on YBPDS and YBPDT models.
All models are certified from sea level to 10,100 ft. elevation.
D
C
E
H
G

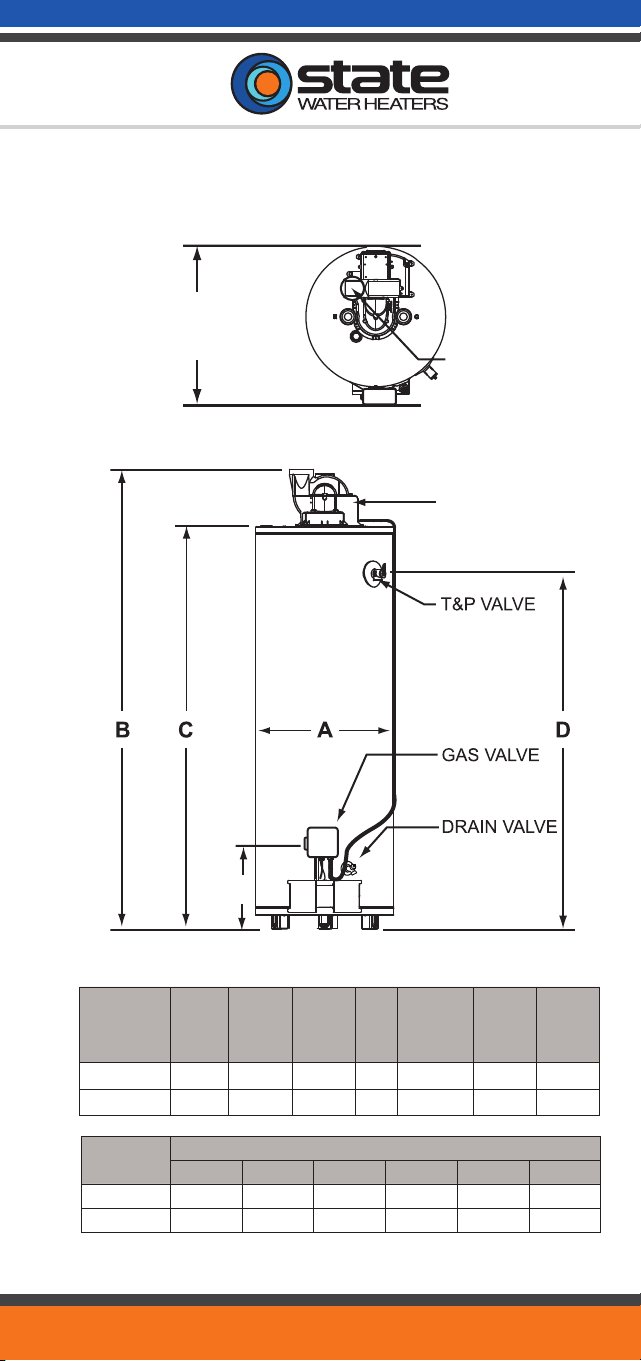

B
A
F
Model Number
Dimensions in Inches
A B C D E F G H
GS6-40-YBPDS 58-1/4 49-5/8 22 29-7/8 11 13-1/4 42-1/2 15-1/4
GS6-50-YBPDT 67-1/2 58-3/4 22 29-7/8 11 13-1/4 51-3/4 15-1/4
GS6-50-YRPDTL-5
69 60-1/4 22 29-7/8 11 13-1/4 52-3/4 15-1/4
†GS6-75-YRPDTL 70-5/8 61-1/2 26 33-7/8 11 13-1/4 53 15-1/4
D
C
E
H
G
B
A
F
Model Number
Nominal
Capacity
Rated
Storage
Volume
First Hour
Rating
(Gallons)
UEF
Input
BTU/h
Recovery
@ 90°F
Rise Gallon
Per Hour
Approx.
Shipping
Weight (lb)
GS6-40-YBPDS 40 38 74 0.68 40,000 45 174
GS6-50-YBPDT 50 48 81 0.72 45,000 50 192
GS6-50-YRPDTL-5 50 48 118 0.73 62,000** 73 200
†GS6-75-YRPDTL 75 72 129 0.68 76,000 82 277
StateWaterHeaters.com
20
AUTOMATIC FLUE DAMPER
• Increases efficiency as it automatically opens
and closes to reduce heat loss in the standby
mode
ELECTRONIC GAS CONTROL
DIAGNOSTICS
ELECTRONIC IGNITION
SELF-CLEANING DIP TUBE
GREEN CHOICE
®
GAS BURNER
• Patented eco-friendly burner design reduces
NOx emissions by up to 33% and complies with
Low-NOx emission requirements of less than
40 ng/J
COREGARD
™
ANODE ROD
ENHANCED-FLOW BRASS DRAIN VALVE
BLUE DIAMOND
®
GLASS COATING
CSA CERTIFIED AND ASME RATED T&P
RELIEF VALVE
CODE COMPLIANCE
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and current edition of ASHRAE/IES 90.1
• Complies with the Federal Energy Conservation
Standards effective April 16, 2015, in
accordance with the Energy Policy and
Conservation Act, (EPCA), as amended
DESIGN-CERTIFIED BY CSA INTERNATIONAL
• Certified at 300 psi test pressure and 150 psi
working pressure
• Listed according to ANSI Z21.10.1 - CSA 4.1
standards governing storage tank-type water
heaters
6-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
PROLINE
®
XE NON-CONDENSING
FLUE DAMPER
Residential Gas
21

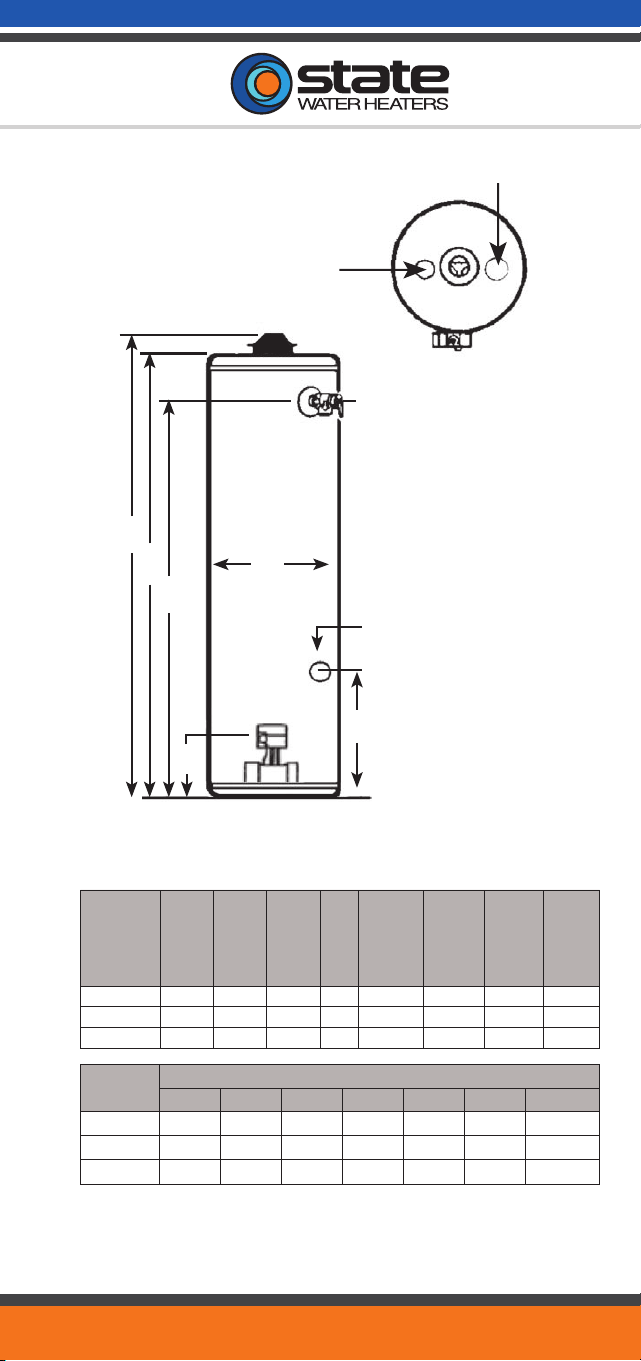

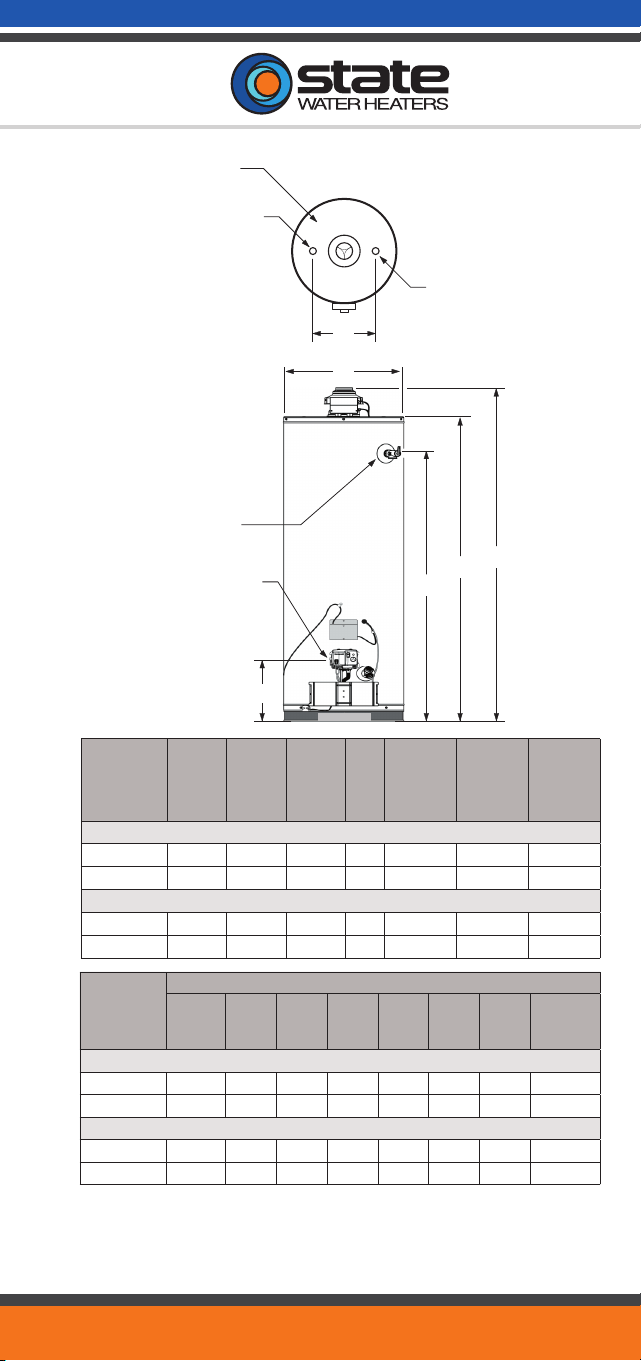

Requires 120 VAC power supply.
Water connection is 3/4˝ on all models.
When ordering top-mounted T&P valve, add “G” to the model number (example: GS6 40 YBFT G).
All models are certified from sea level to 10,100 ft. elevation.
* GS6 50 YBFS available in natural gas only, all other models available in propane (LP) gas.
B
A
F
D
1/2" GAS
CONNECTION
T&P VALVE
COLD
CONNECTION
C
E
HOT
CONNECTION
ANODE ROD*
B
A
F
D
1/2" GAS
CONNECTION
T&P VALVE
COLD
CONNECTION
C
E
HOT
CONNECTION
ANODE ROD*
Model Number
Dimensions in Inches
Foam
Thickness
A B C D E F
Draft Hood
Outlet
Tall Models
GS6-40-YBFT 2 64-1/4 58-1/4 20 13 8 51-3/4 3 or 4
GS6-50-YBFT 2 63-1/2 57-1/4 22 13 8 50-1/4 3 or 4
Short Models
GS6-40-YBFT 2 54 47-3/4 22 13 8 41 3 or 4
GS6-50-YBFT 2 55-3/4 49-1/2 24 13-1/4 8 42-1/2 3 or 4
Model Number
Nominal
Capacity
Rated
Storage
Volume
First Hour
Rating
(Gallons)
UEF
BTU Input
Gallon
Per Hour
Natural*
Recovery @
90°F Rise
Gallon Per
Hour
Approx.
Shipping
Weight (lbs)
Tall Models
GS6-40-YBFT 40 38 70 0.64 40,000 42 152
GS6-50-YBFT 50 48 84 0.69 40,000 42 167
Short Models
GS6-40-YBFT 40 38 65 0.66 40,000 42 149
GS6-50-YBFT 50 49 78 0.69 40,000 42 175
StateWaterHeaters.com
22
AUTOMATIC FLUE DAMPER
• Automatic flue damper increases efficiency to
provide maximum household annual operating
cost savings
GREEN CHOICE
®
GAS BURNER
• Enhanced Ultra-Low NOx burner complies
with SCAQMD Rule 1121 and other air
quality management districts with similar
requirements for NOx emissions of less than
10ng/J
ELECTRONIC GAS CONTROL
SELF-CLEANING DIP TUBE
COREGARD
™
ANODE ROD
BLUE DIAMOND
®
GLASS COATING
ENHANCED-FLOW BRASS DRAIN VALVE
REQUIRES 120V POWER 19.5' CORD
INCLUDED
CODE COMPLIANCE
• Meets UBC, CEC and HUD (excluding mobile
homes) National Codes
• Meets the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and current edition of ASHRAE/IES 90.1
• Complies with the Federal Energy Conservation
Standards effective April 16, 2015, in
accordance with the Energy Policy and
Conservation Act, (EPCA), as amended
CSA AND DESIGN-CERTIFIED BY CSA
INTERNATIONAL
• Certified at 300 psi test pressure and 150 psi
working pressure
• Listed according to ANSI Z21.10.1 - CSA 4.1
standards governing storage tank-type water
heaters
6-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
PROLINE
®
XE NON-CONDENSING
ULTRA-LOW NOx FLUE DAMPER
Residential Gas
23
Requires 120VAC power supply located within 19ft of the heater.
Water connection is 3/4" on all models.
Standard top T&P, specify when ordering side T&P.
All models are certified from sea level to 7,800ft elevation.
B
A
F
D
1/2" GAS
CONNECTION
T&P VALVE
(SHOWN AS
OPTIONAL
LOCATION)
COLD
CONNECTION
C
E
HOT CONNECTION
(ANODE OUTLET ON
TOP T&P MODELS)
T&P VALVE
(STANDARD LOCATION)
Maximum Hydrostatic Working Pressure: 150 PSI.
Model Number
Nominal
Capacity
Rated
Storage
Volume
First Hour
Rating
(Gallons)
UEF
BTU Input
Natural Gas
Recovery @
90°F Rise
(Gallon/Hour)
Approx.
Shipping
Weight
GS6-40-BFUT 40 38 68 0.65 40,000 42 152
GS6-50-BFUT 50 48 83 0.70 40,000 42 167
Model Number
Dimensions in Inches
Foam
Thickness
A B C D E F
Draft Hood
Outlet
GS6-40-BFUT 2 64-1/4 58-1/4 20 13 8 51-3/4 3 or 4
GS6-50-BFUT 2 63-1/2 57-1/4 22 13 8 50-1/4 3 or 4
StateWaterHeaters.com
24
POWER VENTING MADE SIMPLE
• Thru-the-Wall or Thru-the-Roof power venting
using either 2˝ or 3˝ PVC, ABS or CPVC vent pipe
INTELLI-VENT
™
GAS CONTROL
• Advanced electronics for more precise control
of water temperature and easy to understand
system diagnostics
COMBINATION THERMOSTAT/ECO
• Utilizes an intermittent ignition gas valve (no
standing pilot) with thermistor temperature
sensor and built-in high temperature cut off
QUIET AND EFFICIENT BLOWER
• Factory-installed 6-foot power cord with
3-prong male connector provided. Electrical
requirements; 110/120 VAC power source, less
than 5 amp draw
SELF-CLEANING DIP TUBE
• Helps reduce lime and sediment buildup and
maximizes hot water output. Made from long-
lasting PEX cross-linked polymer.
COREGARD
™
ANODE ROD
GREEN CHOICE
®
GAS BURNER
• Complies with SCAQMD Rule 1121 and other
air quality management districts with similar
requirements for NOx emissions of less than
10 ng/J
ENHANCED-FLOW BRASS DRAIN VALVE
CODE COMPLIANCE
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby loss
requirements of the U. S. Department of Energy
and current edition of ASHRAE/IES 90.1
• Complies with the Federal Energy Conservation
Standards effective April 16, 2015, in
accordance with the Energy Policy Conservation
Act (EPCA), as amended
6-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com

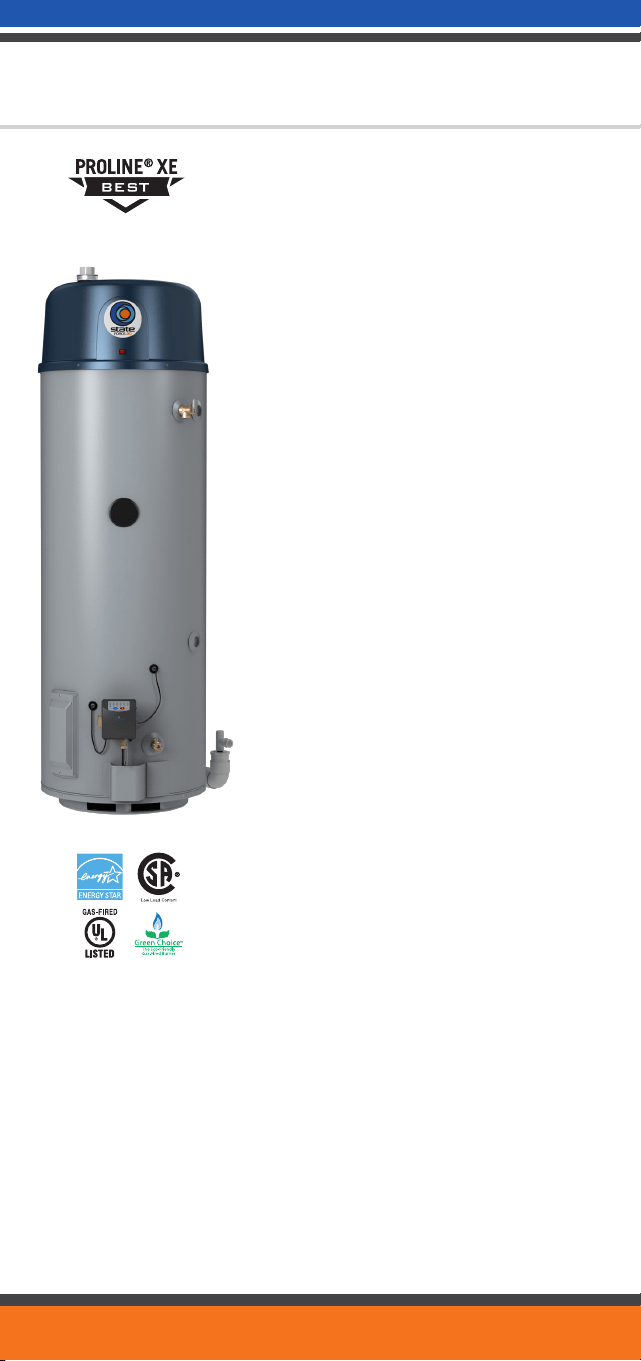

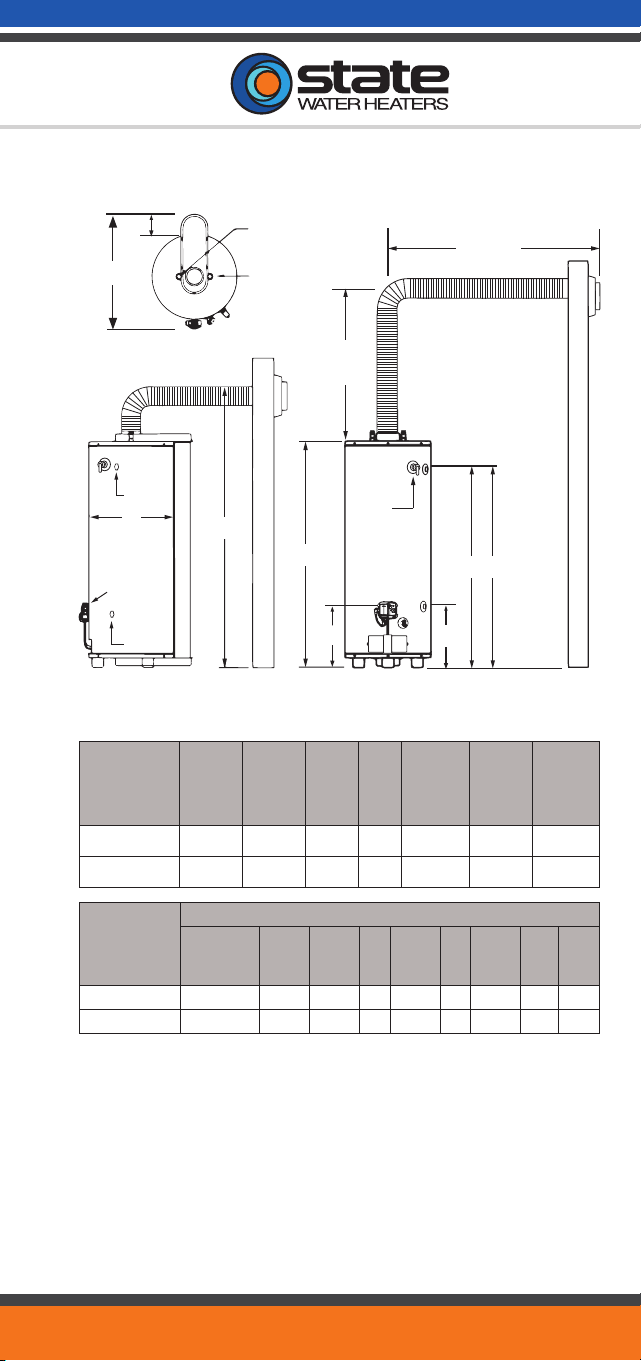

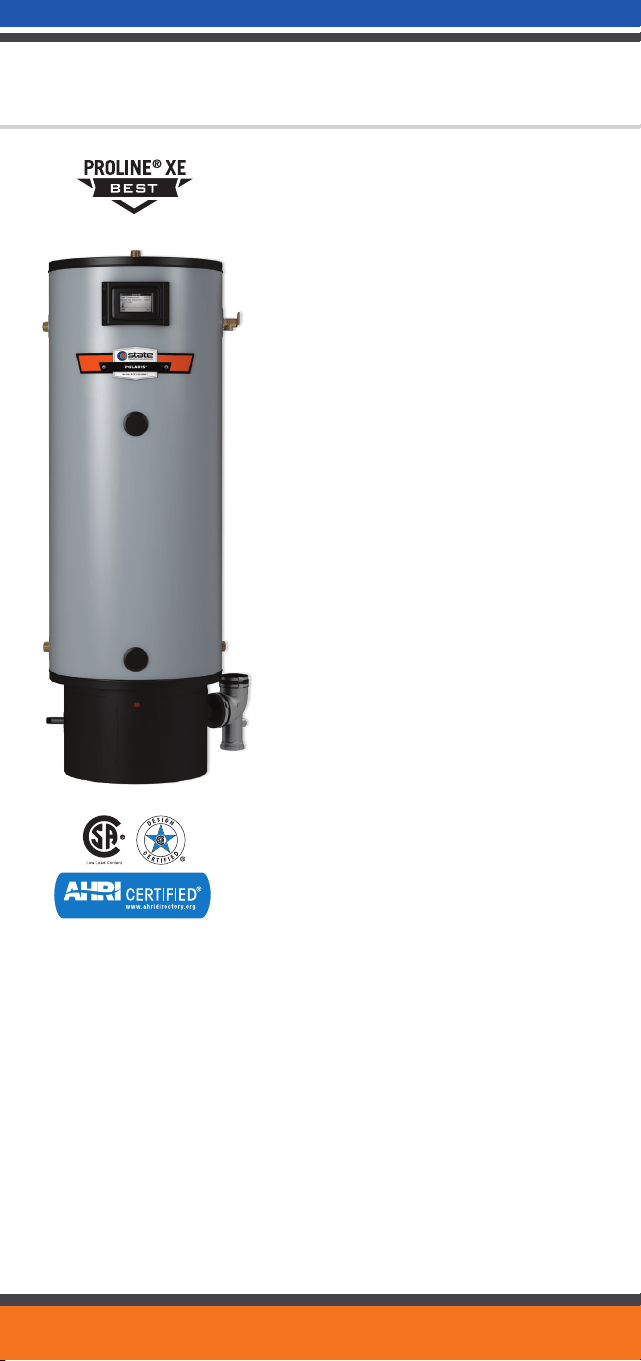

PROLINE
®
XE ULTRA-LOW NOx
POWER VENT
Residential Gas
25
No option available for top T&P valve.
BLOWER
EXHAUST
OUTLET
40-GAL. = 25"
50-GAL. = 27"
E
Top View
BLOWER
EXHAUST
OUTLET
40-GAL. = 25"
50-GAL. = 27"
E
Top View
Model Number
Dimensions in Inches
A B C D E Draft Hood
GS6-40-UBVIT 20 66-7/8 58-5/8 51-1/2 12-1/4 2 or 3
GS6-50-UBVIT 22 66-8/8 57-7/16 51 12-1/4 2 or 3
Model Number
Nominal
Capacity
Rated
Storage
Volume
First Hour
Rating
(Gallons)
UEF
Recovery @
90°F Rise
Gallon Per
Hour
BTU Input
Gallon Per
Hour
Approx.
Shipping
Weight
(lbs)
GS6-40-UBVIT 40 38 76 0.70 42.6 42,000 170
GS6-50-UBVIT 50 48 71 0.65 42.6 42,000 207
StateWaterHeaters.com
26
INTELLIGENT CONTROL LOGIC
• The internal microprocessor provides enhanced
operating parameters and tighter differentials for
precise sensing and faster heating response to
optimize performance
• Uses a thermopile to generate the power needed
to operate the electronic gas control without
requiring an external power source
• The electronic gas control incorporates an LED
status indicator that monitors system operation
and service diagnostics
*Not available on 60,000 BTU input models
(GW8 50 RCT and GW8 55 RCT)
SELF-CLEANING DIP TUBE
COREGARD
™
ANODE ROD
• ProLine
®
Master products have increased anode
protection with either longer, or multiple anodes
depending on model
PUSH-BUTTON PIEZO IGNITOR
ENHANCED-FLOW BRASS DRAIN VALVE
HEAT TRAP NIPPLES
BLUE DIAMOND
®
GLASS COATING
• Blue Diamond
®
Glass Coating blend is
formulated in the same lab that creates the
protection for our industry-leading commercial
product line
CODE COMPLIANCE
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby loss
requirements of the U. S. Department of Energy
and current edition of ASHRAE/IES 90.1
• Complies with the Federal Energy Conservation
Standards effective April 16, 2015, in
accordance with the Energy Policy and
Conservation Act, (EPCA), as amended
DESIGN-CERTIFIED BY CSA INTERNATIONAL
• Certified at 300 psi test pressure and 150 psi
working pressure
• Listed according to ANSI Z21.10.1-CSA 4.1
standards governing storage tank-type water
heaters
8-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com

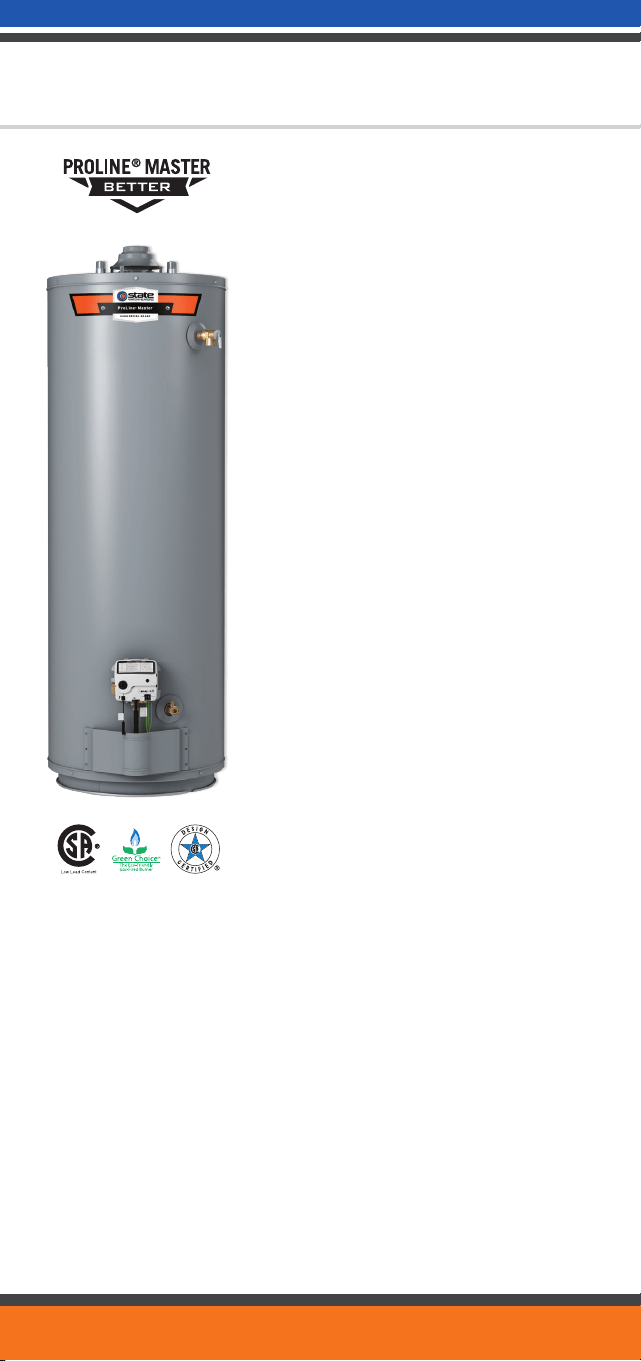

PROLINE
®
MASTER ATMOSPHERIC VENT
Residential Gas
27
Model Number
Nominal
Capacity
Rated
Storage
Volume
UEF
First Hour
Rating
(Gallons)
BTU Input
Natural
Gas
BTU Input
Propane
Gas
Recovery 90°F
Rise Gallon Per
Hour
Tall Models
GW8 40 BCT 40 38 0.64 80 40,000 36,000 42
GW8 50 BRT 50 48 0.62 81 40,000 37,000 41
GW8 50 BCT 50 48 0.62 84 40,000 37,000 43
GW8 50 RCT* 50 48 0.61 89 50,000 45,000 54
GW8 55 XCT* 55 55 0.62 83 60,000 54,000 65
Short Models
GW8 40 BCS 40 38 0.58 67 40,000 36,000 41
GW8 50 BCS 50 50 0.62 81 40,000 40,000 43

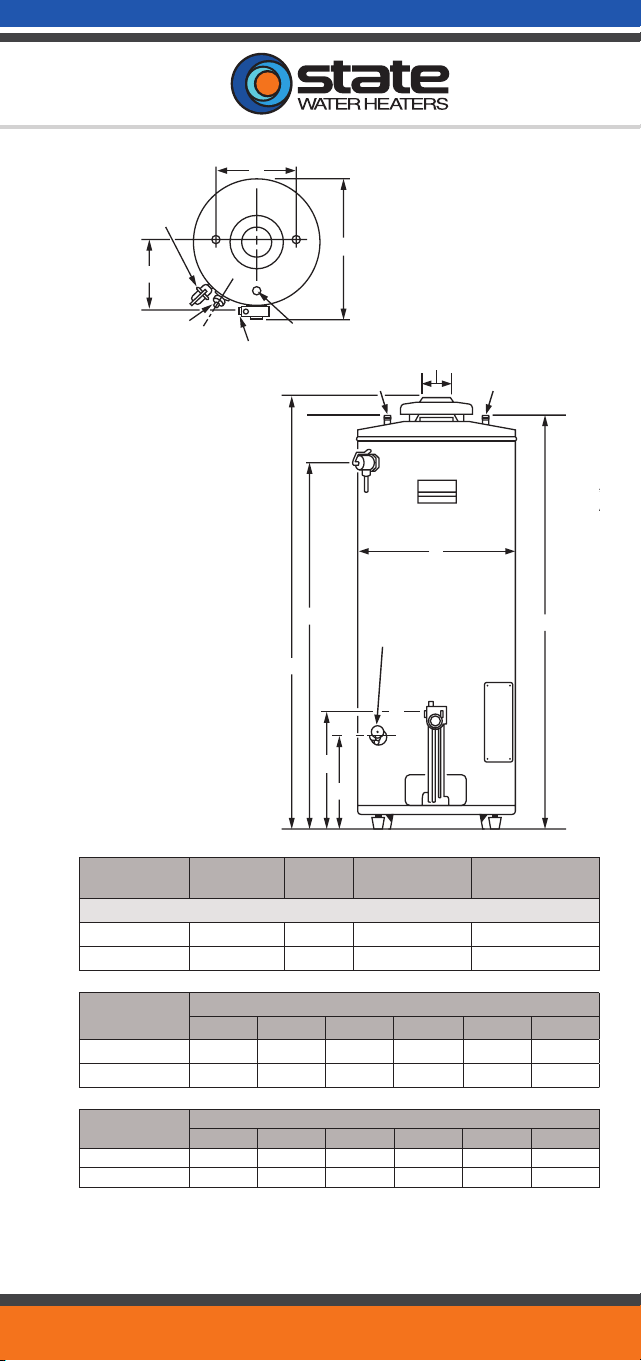

Maximum Hydrostatic Working Pressure: 150 PSI
B
A
G
H
F
D
1/2" GAS
CONNECTION
COLD
CONNECTION
C
E
HOT
CONNECTION
(ANODE OUTLET ON
TOP T&P MODELS)
ANODE ROD
(OPTIONAL T&P
LOCATION)
T&P VALVE
Maximum Hydrostatic Working Pressure: 150 PSI
B
A
G
H
F
D
1/2" GAS
CONNECTION
COLD
CONNECTION
C
E
HOT
CONNECTION
(ANODE OUTLET ON
TOP T&P MODELS)
ANODE ROD
(OPTIONAL T&P
LOCATION)
T&P VALVE
Model Number
Dimensions in Inches
Approx.
Shipping
Weight (lbs)
A B C D E F *G *H
Draft
Hood
Tall Models
GW8 40 BCT 61-3/458-1/4 20 12-1/4 8 52 N/A N/A 3 or 4 138
GW8 50 BRT 60-3/457-1/4 21 12-1/4 8 50 1/2 N/A N/A 3 or 4 148
GW8 50 BCT 60-3/457-1/4 22 12-1/4 8 50-1/2 N/A N/A 3 or 4 165
GW8 50 RCT* 60-3/457-1/4 22 12-1/4 8 50-1/2 14-1/4 50-1/2 4 165
GW8 55 XCT* 59-3/4 55-1/4 24 13-1/2 8 48 14-1/4 48 4 185
Short Models
GW8 40 BCS 51-1/2 48 22 12 8 41-1/4 N/A N/A 3 or 4 135
GW8 50 BCS 53-1/4 49-3/4 24 12 8 41-3/8 N/A N/A 3 or 4 177
Water connection is 3/4˝ on all models.
*Optional side-mounted recirculating taps, add “L” to the suffix in the model number (GW8 50 RCTL).
All models approved for installation from sea level to 10,100 ft. elevation.
StateWaterHeaters.com
28
THE ELECTRONIC GAS CONTROL
INCORPORATES AN LED STATUS INDICATOR
THAT MONITORS SYSTEM OPERATION AND
SERVICE DIAGNOSTICS
HIGH UNIFORM ENERGY FACTORS (UEFs)
• Eco-friendly non-CFC foam insulation, heat
traps and specially designed combustion
chamber combine to produce a high UEF for
maximum savings on operating costs
GREEN CHOICE
®
GAS BURNER
• Enhanced Ultra-low NOx burner complies with
SCAQMD Rule 1121 and other air quality
management districts with similar requirements
for NOx emissions of less than 10 ng/J
SELF-CLEANING DIP TUBE
COREGARD
™
ANODE ROD
• ProLine
®
Master products have increased anode
protection with either longer, or multiple anodes
depending on model
PUSH-BUTTON PIEZO IGNITOR
HEAT TRAP NIPPLES
BLUE DIAMOND
®
GLASS COATING
• Blue Diamond
®
Glass Coating blend is
formulated
in the same lab that creates the protection for
our industry-leading commercial product line
ENHANCED-FLOW BRASS DRAIN VALVE
CODE COMPLIANCE
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and current edition of ASHRAE/IES 90.1
• Complies with the Federal Energy Conservation
Standards effective April 16, 2015, in
accordance with the Energy Policy
Conservation Act (EPCA), as amended
DESIGN-CERTIFIED BY CSA INTERNATIONAL
• Certified at 300 psi test pressure and 150 psi
working pressure
• Listed according to ANSI Z21.10.1-CSA 4.1
standards governing storage tank-type gas
water heaters
8-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
PROLINE
®
MASTER ULTRA-LOW NOx
Residential Gas
29
Maximum Hydrostatic Working Pressure: 150 PSI
B
A
G
H
F
D
1/2" GAS
CONNECTION
COLD
CONNECTION
C
E
HOT
CONNECTION
(ANODE OUTLET ON
TOP T&P MODELS)
ANODE ROD
(OPTIONAL TOP
T&P LOCATION)
T&P VALVE
Maximum Hydrostatic Working Pressure: 150 PSI
B
A
G
H
F
D
1/2" GAS
CONNECTION
COLD
CONNECTION
C
E
HOT
CONNECTION
(ANODE OUTLET ON
TOP T&P MODELS)
ANODE ROD
(OPTIONAL TOP
T&P LOCATION)
T&P VALVE
All models may be ordered from the factory with top T&P valve as an option by adding “G” to the suffix of the
model number (example GW8 40 BCUTG).
*Side loop connections are standard on model GW8 50 RCUTL.
*Most models approved for installation from sea level to 7,700 ft. elevation (except GW8 50 RCUTL, approved
to 5,400 ft.).
Model Number
Nominal
Capacity
Rated
Storage
Volume
First Hour
Rating
(Gallons)
UEF
BTU Input
Natural
Gas
Recovery
@ 90°F
Rise Gallon
Per Hour
Approx.
Shipping
Weight
(lbs)
Tall Models
GW8-40-BRUT 40 38 83 0.64 40,000 41 125
GW8-40-BCUT 40 38 83 0.64 40,000 41 125
GW8-50-BRUT 50 48 84 0.61 40,000 42 148
GW8-50-BCUT 50 48 84 0.64 40,000 42 148
GW8-50-RCUTL* 50 48 91 0.60 50,000 51 177
Short Models
GW8-40-BCUS 40 38 72 0.57 40,000 41 138
Model Number
Dimensions in Inches
A B C D E F G* H* Draft Hood
Tall Models
GW8-40-BRUT 62 58-1/4 18 12 8 52 N/A N/A 3 or 4
GW8-40-BCUT 62 58-1/4 20 12 8 52 N/A N/A 3 or 4
GW8-50-BRUT 60-3/4 57-1/4 20 12 8 50-1/2 N/A N/A 3 or 4
GW8-50-BCUT 60-3/4 57-1/4 22 12 8 50-1/2 N/A N/A 3 or 4
GW8-50-RCUTL* 61 57-1/2 22 11 1/4 8 50-1/2 12-1/4 50-1/2 4
Short Models
GW8-40-BCUS 51-1/2 47-3/4 22 12 8 41-1/4 N/A N/A 3 or 4
StateWaterHeaters.com
30

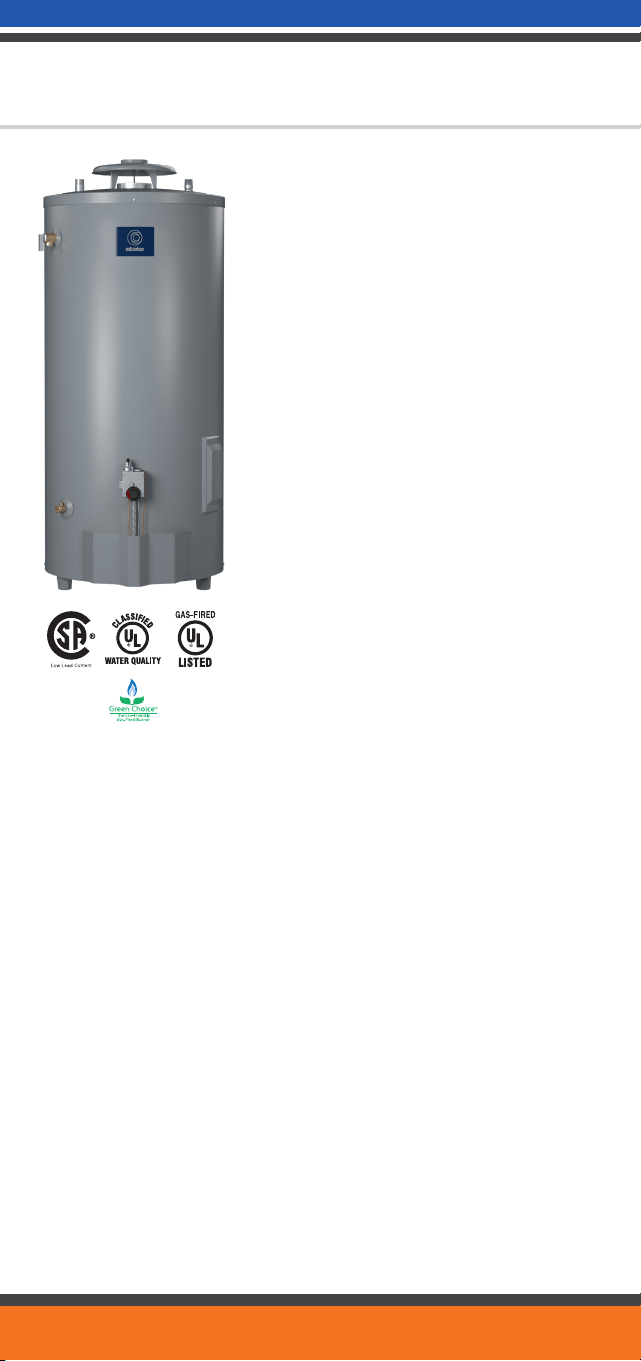

HIGHEST RECOVERIES
• Capacity/input combinations up to 98
gallons/75,100 BTUs produce recoveries up to
81 gallons per hour
THE ELECTRONIC GAS CONTROL
INCORPORATES AN LED STATUS INDICATOR
THAT MONITORS SYSTEM OPERATION AND
SERVICE DIAGNOSTICS
GREEN CHOICE
®
GAS BURNER
• Patented eco-friendly burner design reduces
NOx emissions up to 33% and complies with
Low-NOx emission requirements of 40 ng/J
SELF-CLEANING DIP TUBE
COREGARD
™
ANODE ROD
PUSH-BUTTON PIEZO IGNITOR
BLUE DIAMOND
®
GLASS COATING
ENHANCED-FLOW BRASS DRAIN VALVE
CODE COMPLIANCE
• Meets UBC, CEC and ICC National Codes
• Meets the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and current edition of ASHRAE/IES 90.1
DESIGN-CERTIFIED BY CSA INTERNATIONAL
• Certified at 300 psi test pressure and 150 psi
working pressure
• Listed according to ANSI Z21.10.1-CSA4.1
standards governing storage tank-type gas
water heaters. CSA Certified and ASME Rated
T&P Relief Valve.
MAXIMUM HYDROSTATIC WORKING
PRESSURE 150 PSI
DESIGN-LISTED BY UNDERWRITERS
LABORATORIES
• Certified at 300 psi test pressure and 150 psi
working pressure
• Listed according to ANSI Z21. 10.3 CSA 4.3
standards governing storage tank-type water
heaters
6-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
PROLINE
®
HIGH CAPACITY
ATMOSPHERIC VENT
Residential Gas
31

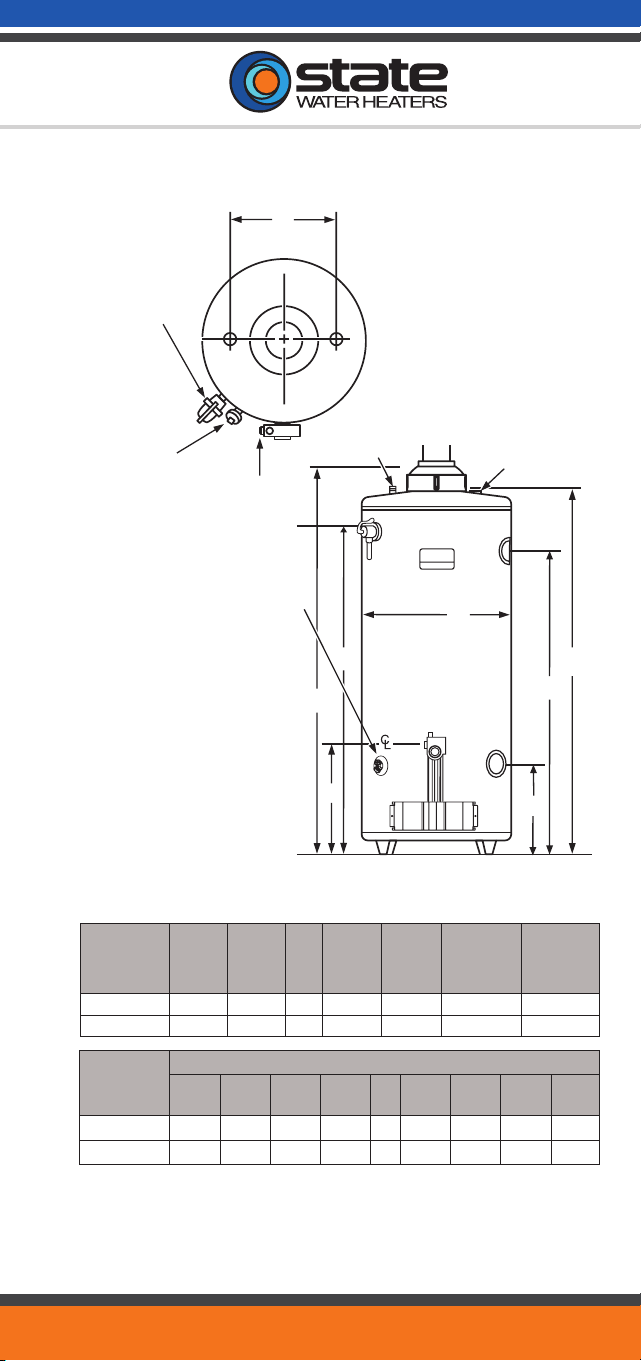

Water connections are 1˝ male NPT on GS6-75-XRRS and 1-1/4˝ on GS6-100-XRRT.
All models are certified from sea level to 7,700 ft. elevation.
For 10- year tank and 10-year parts limited warranty, change “6” to “X” in the model number (example: GSX
75 XRRS).
For optional side-mounted recirculating taps, add “L” to suffix (example: GS6-75-XRRS L).
When ordering propane (LP) gas change “X” to “C” in the model number (example: GS6-75-CRRS).
HOT
COLD
GAS INLET
B
H
A
F
FRONT VIEW
TOP VIEW
E
C
DRAIN VALVE
DRAIN
VALVE
TEMPERATURE
AND PRESSURE
RELIEF VALVE
HOT WATER
INLET
COLD WATER
INLET
D
G
T&P
HOT
COLD
GAS INLET
B
H
A
F
FRONT VIEW
TOP VIEW
E
C
DRAIN VALVE
DRAIN
VALVE
TEMPERATURE
AND PRESSURE
RELIEF VALVE
HOT WATER
INLET
COLD WATER
INLET
D
G
T&P
Model Number
Dimensions in Inches
A B C D E F G H
Draft
Hood
GS6-75-XRRS 61 58-1/2 26-1/2 15-3/16 16 50-1/4 15-1/2 50-1/4 4
GS6-100-XRRT 68-1/2 66-1/2 27-3/4 15-3/16 16 57-3/8 N/A N/A 4
Model Number
Nominal
Capacity
Rated
Storage
Volume
UEF
First Hour
Rating
(Gallons)
BTU Input
Natural
Gas
Recovery @
90°F Rise
Gallon Per
Hour
Approx.
Shipping
Weight (lbs)
GS6-75-XRRS 74 71 0.60 125 75,100 81 270
GS6-100-XRRT 98 95 0.58 170 75,100 81 340
StateWaterHeaters.com
32

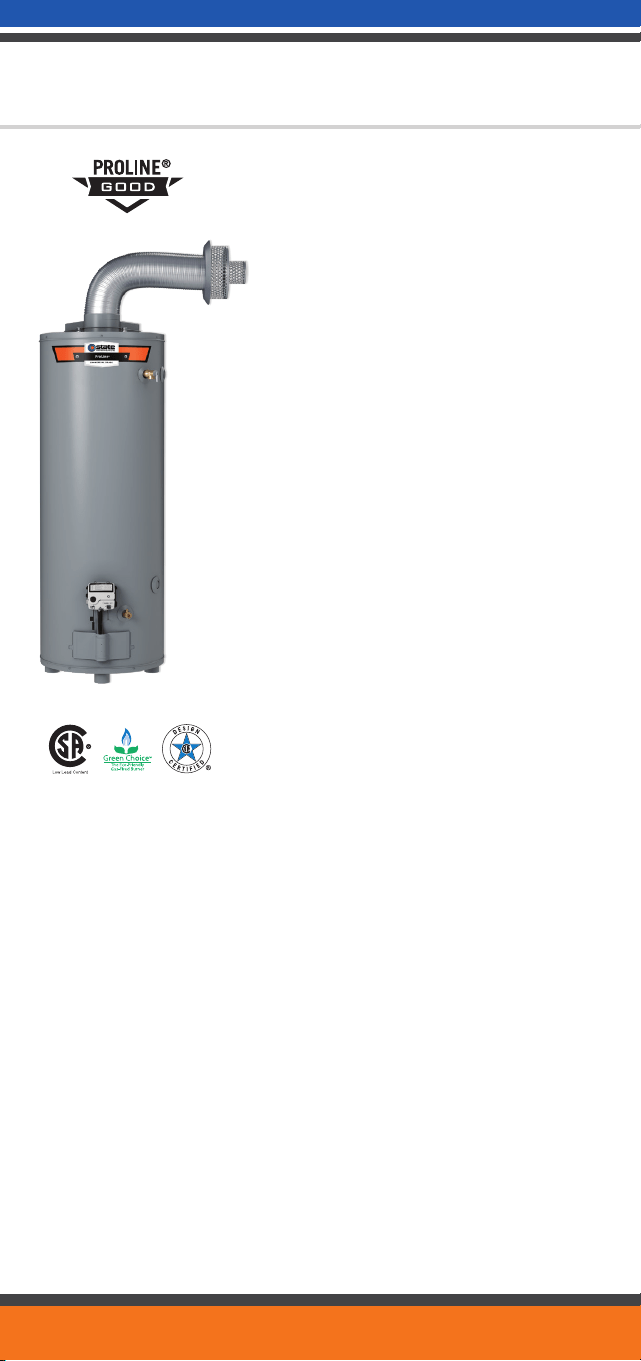

DIRECT VENT DESIGN
• One-pipe, dual-channel closed system
draws all make-up air from outside the
home, eliminating problems caused by
insufficient indoor ventilation and is FVIR
compliant
• Horizontal air intake and venting on all
models up to 80 inches from outside wall
with no electrical power needed
INTELLIGENT CONTROL LOGIC
GREEN CHOICE
®
GAS BURNER
• Patented eco-friendly gas burner design
reduces NOx emissions by up to 33%
and complies with Low-NOx emission
requirements of less than 40 ng/J
SELF-CLEANING DIP TUBE
COREGARD
™
ANODE ROD
PUSH BUTTON PIEZO IGNITOR
HEAT TRAP NIPPLES
CODE COMPLIANCE
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby
loss requirements of the U.S. Department
of Energy and current edition of ASHRAE/
IES 90.1.
• Complies with the Federal Energy
Conservation Standards effective April
16, 2015, in accordance with the Energy
Policy and Conservation Act (EPCA), as
amended
DESIGN-CERTIFIED BY CSA
INTERNATIONAL
• Certified at 300 psi test pressure and 150
psi working pressure. Listed according
to ANZI Z21. 10.1-CSA 4.1 standards
governing storage tank-type gas water
heaters
6-YEAR LIMITED TANK AND PARTS
WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com

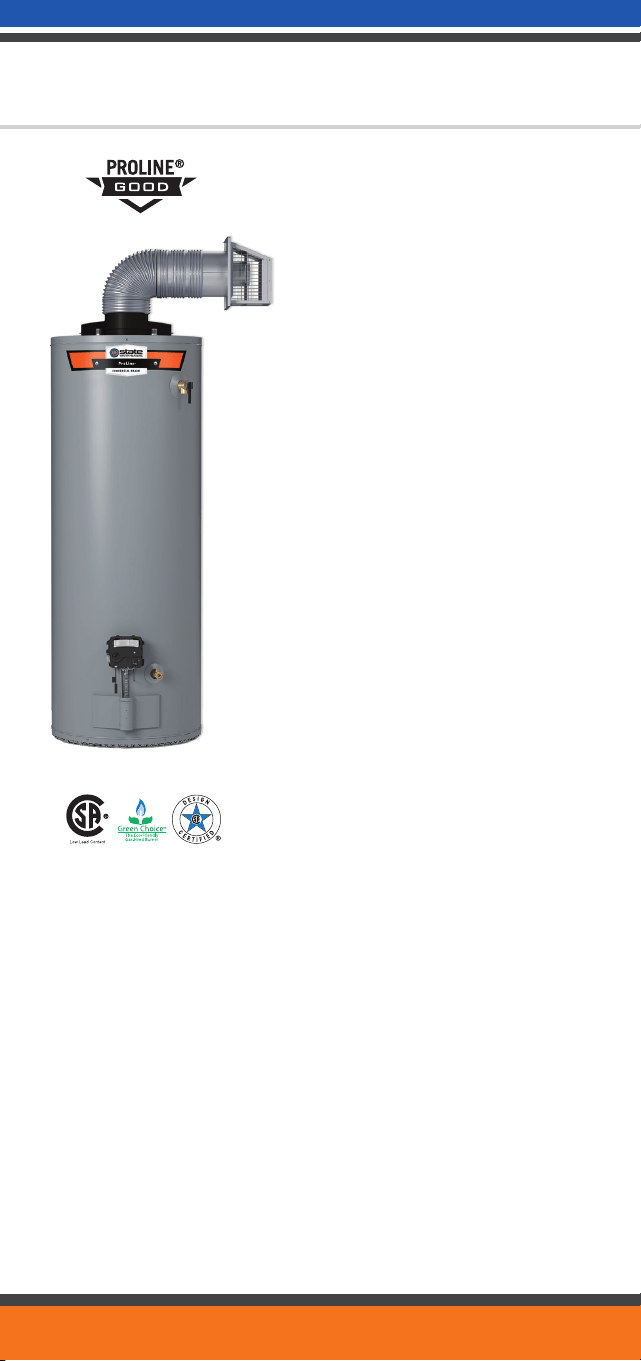

PROLINE
®
DIRECT VENT
Residential Gas
33
Dual-channel system has 3˝ vent pipe inside 6˝ air intake pipe, for the 40 and 50-gallon models.
All models have 2˝ foam cavity.
Water connection is 3/4˝ male on all models.
40 and 50 gallon models are 8˝ on center.
* Allow 29-1/2˝ front to back dimensions for air intake at rear of heater.
All models are available in propane (LP) gas (series 301).
All models are certified from sea level to 7,700 ft. elevation.
All models are available with side loop fittings. Add “L” to the model number (example: GS6-40-YBDS-L).
E
F
B
A
D
H
C
3/4
˝ MALE NPT
OUTLET & INLET
EXTERIOR
WALL
Side Tap and T&P
ut pr i or n o ti ce .
G
42°
21°
TOP
DRAIN
75 GAL. VENT
TERMINATION
CAP IS NOT
INTERCHANGEABLE
WITH VENT CAP
ON 40 & 50 GAL.
MODELS
EXTERIOR
WALL
T&P
HOT
COLD
FRONT
TOP
6”DIA. ON 40 & 50 GAL MODELS
MINIMUM VENT
17’
MAXIMUM VENT
80”
E
F
B
A
D
H
C
3/4
˝ MALE NPT
OUTLET & INLET
EXTERIOR
WALL
Side Tap and T&P
ut pr i or n o ti ce .
G
42°
21°
TOP
DRAIN
75 GAL. VENT
TERMINATION
CAP IS NOT
INTERCHANGEABLE
WITH VENT CAP
ON 40 & 50 GAL.
MODELS
EXTERIOR
WALL
T&P
HOT
COLD
FRONT
TOP
6”DIA. ON 40 & 50 GAL MODELS
MINIMUM VENT
17’
MAXIMUM VENT
80”
Model Number
Dimensions in Inches
A B C D E F *G H
GS6 40 YBDS 64 49-3/4 22 13-1/4 15-1/4 42-1/2 29 15-1/4
GS6 50 YBDS 73 59 22 13-1/4 15-1/4 51-3/4 29 15-1/4
GS6 50 YRDS 74 60 22 13-1/4 15-1/4 52-3/4 29 15-1/4
Model Number
Nominal
Capacity
Rated
Storage
Volume
First Hour
Rating
(Gallons)
UEF
Recovery
90°F Rise
Gallon Per
Hour
Input BTU
per Hour
Vent
Outlet
Approx.
Shipping
Weight (lbs)
GS6-40-YBDS 40 39 64 0.60 41 38,000 Co-Axial 178
GS6-50-YBDS 50 48 77 0.66 43 40,000 Co-Axial 200
GS6-50-YRDS 50 48 83 0.65 51 47,000 Co-Axial 215
StateWaterHeaters.com
34
INTELLIGENT CONTROL LOGIC
• The internal microprocessor provides enhanced
operating parameters and tighter differentials
for precise sensing and faster heating response
to optimize performance
• Uses a thermopile to generate the power needed
to operate the electronic gas control without
requiring an external power source
• The electronic gas control incorporates an LED
status indicator that monitors system operation
and service diagnostics
*Not available on 60,000 BTU input models
GS6-50-XCT and GS6-55-XCT
SELF CLEANING DIP TUBE
COREGARD
™
ANODE ROD
PUSH-BUTTON PIEZO IGNITOR
ENHANCED-FLOW BRASS DRAIN VALVE
HEAT TRAP NIPPLES
BLUE DIAMOND
®
GLASS COATING
CODE COMPLIANCE
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby loss
requirements of the U. S. Department of Energy
and current edition of ASHRAE/IES 90.1
• Complies with the Federal Energy Conservation
Standards effective April 16, 2015, in
accordance with the Energy Policy and
Conservation Act, (EPCA), as amended
DESIGN-CERTIFIED BY CSA INTERNATIONAL
• Certified at 300 psi test pressure and 150 psi
working pressure
• Listed according to ANSI Z21.10.1-CSA 4.1
standards governing storage tank-type water
heaters
6-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com

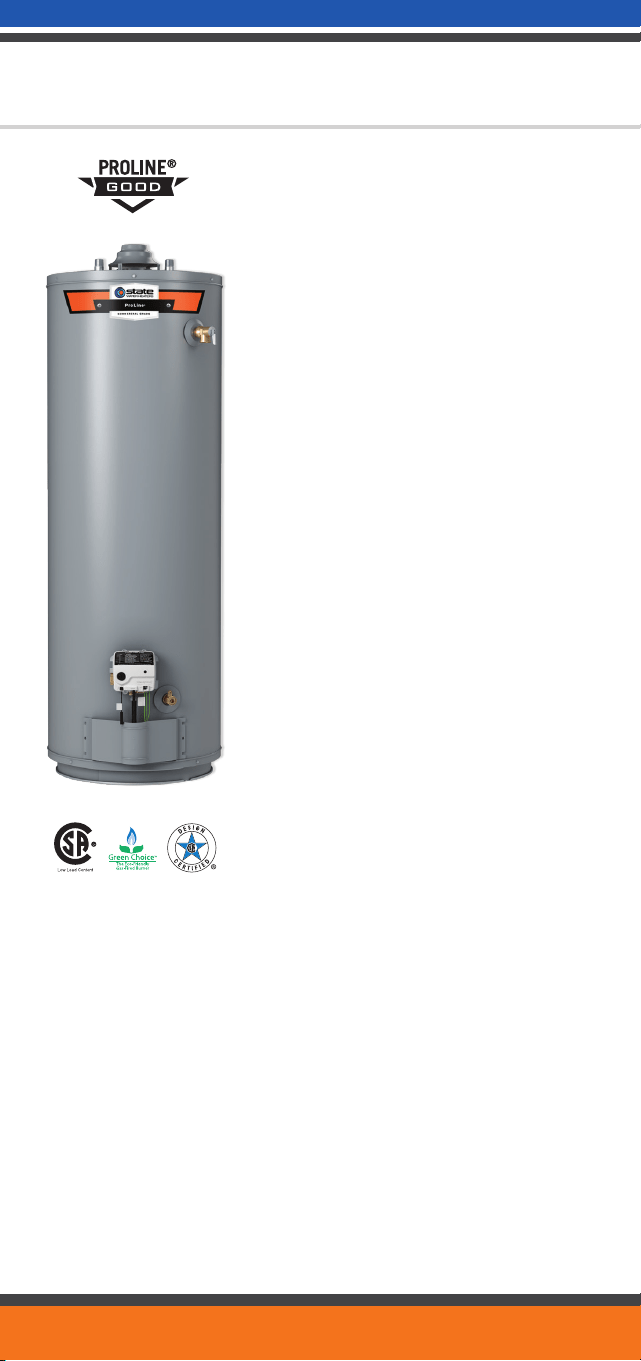

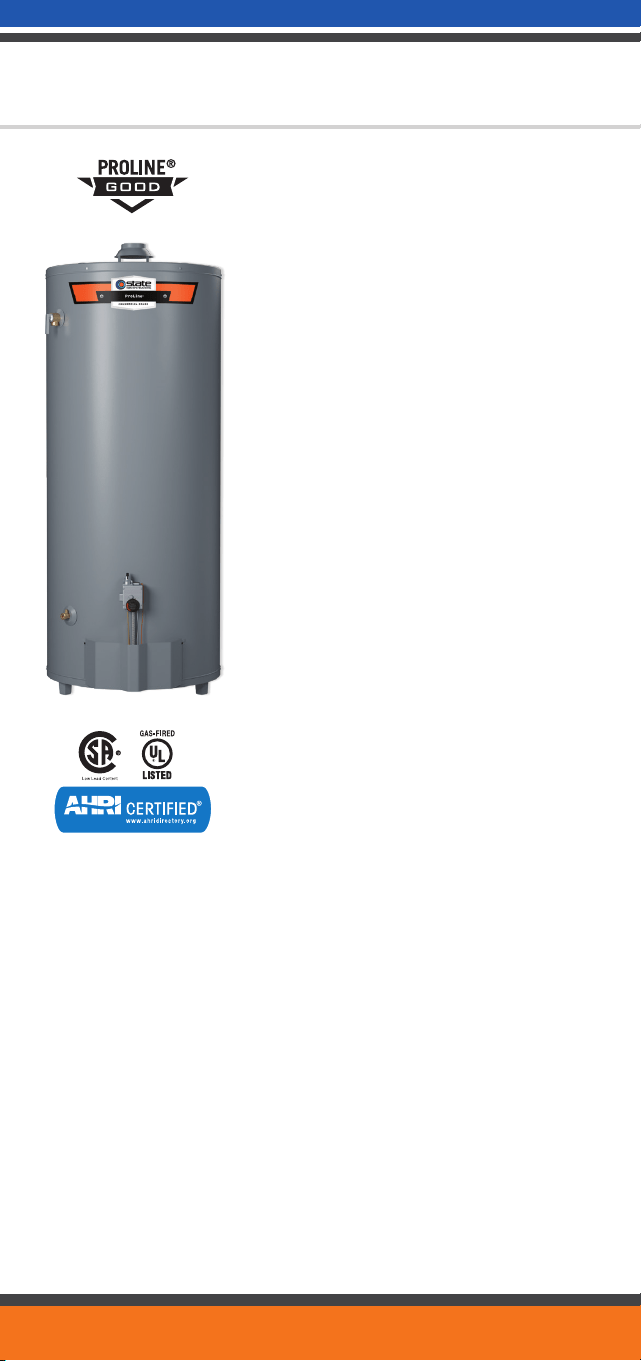

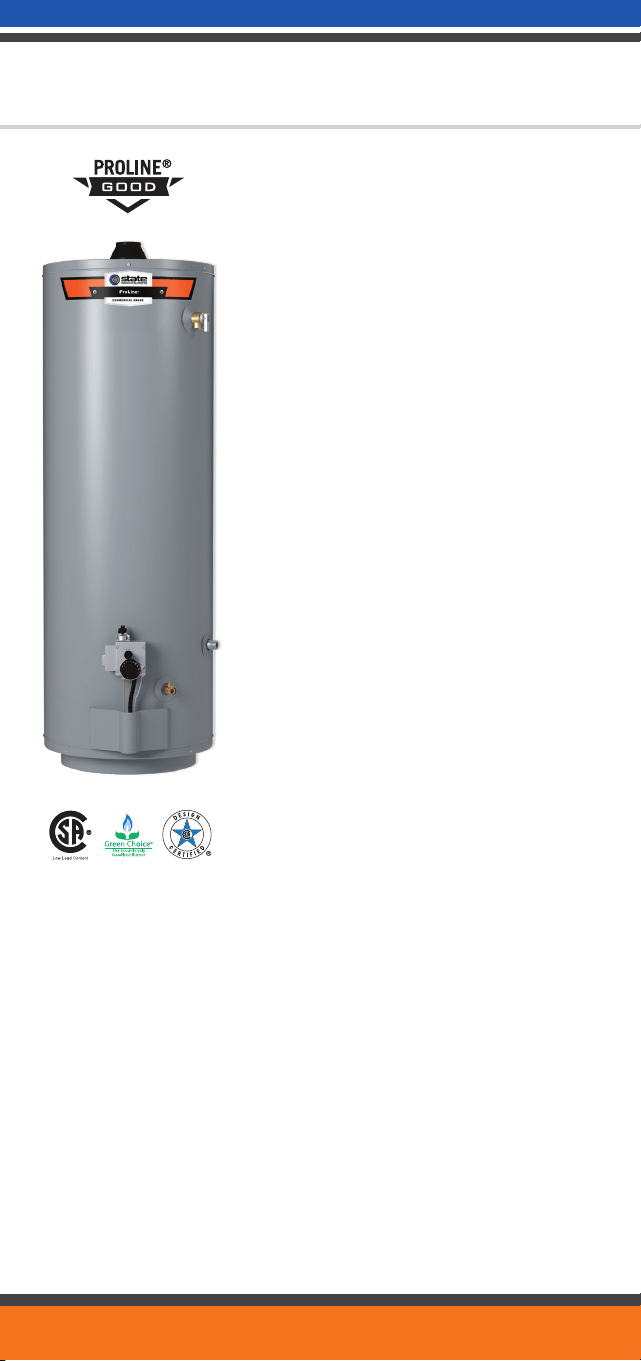

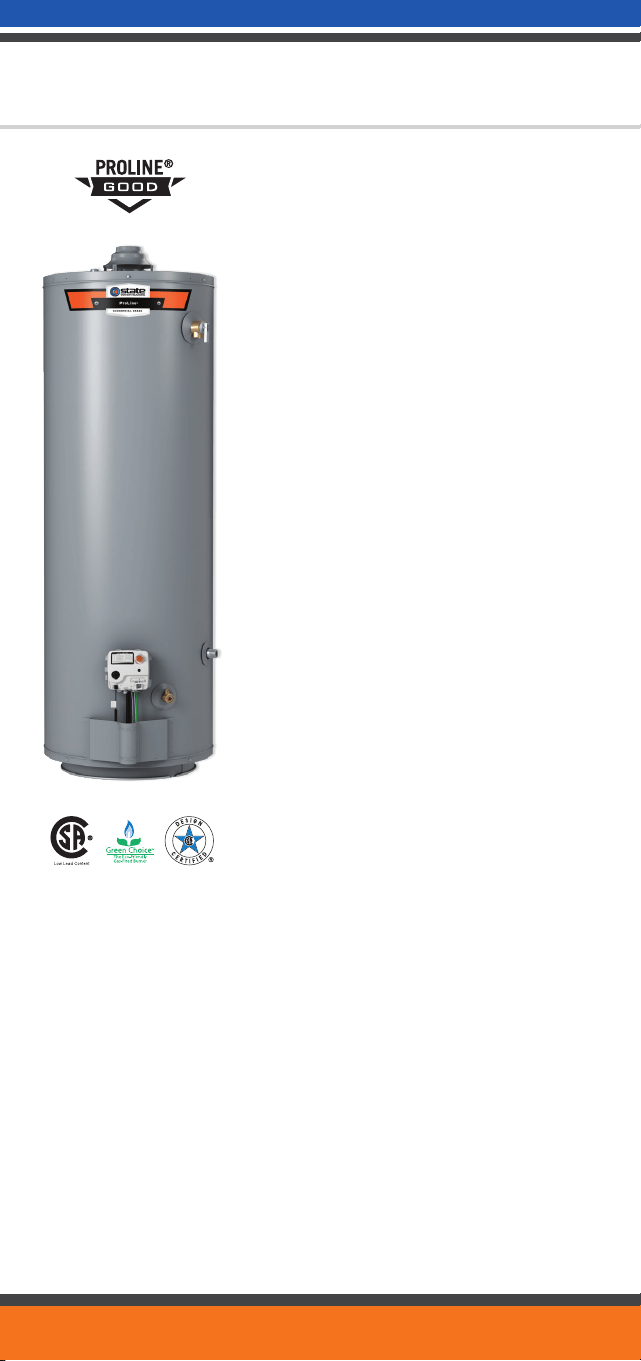

PROLINE
®
ATMOSPHERIC VENT
Residential Gas
35
Water connection is 3/4˝ on all models.
*Optional side-mounted recirculating taps, add “L” to the suffix in the model number (GS6-50-RCTL).
† Models ship with supplied insulation blanket.
For 10-year tank and 10-year parts limited warranty, change “6” to “X” in the model number (example:
GSX-30-OCT).
All models approved for installation from sea level to 10,100 ft. elevation.
‡ LP models not available on GS6-40-OCT.
Dimensions and line drawings on the following pages.
Model Number
Nominal
Capacity
Rated
Storage
Volume
First Hour
Rating
(Gallons)
UEF
BTU
Input
Natural
Gas
BTU
Input
Propane
Gas
Recovery
@ 90°F
Rise
Gallon
Per Hour
Approx.
Shipping
Weight
(lbs)
Tall Models
†GS6-30-ORBTR 30 29 62 0.60 32,000 29,000 32 123
GS6-30-OCTR 30 29 62 0.60 32,000 29,000 31 132
‡GS6-40-OCT 40 38 65 0.59 35,500 N/A 38 138
†GS6-40-BRBT 40 38 78 0.65 40,000 36,000 42 130
GS6-40-BCT* 40 38 80 0.64 40,000 36,000 42 138
GS6-50-BRT* 50 48 81 0.62 40,000 37,000 41 148
GS6-50-BCT* 50 48 84 0.62 40,000 37,000 43 165
GS6-50-RCT* 50 48 89 0.61 50,000 45,000 54 165
†GS6-50-XCT* 50 49 99 0.61 60,000 54,000 65 190
GS6-55-XCT* 55 55 83 0.62 60,000 54,000 65 185
Short Models
†GS6-30-ORBSR 30 29 65 0.60 32,000 29,000 32 114
GS6-30-OCSR 30 29 55 0.60 32,000 29,000 32 108
†GS6-40-BRBS 40 38 68 0.57 40,000 36,000 41 134
GS6-40-BCS 40 38 67 0.58 40,000 36,000 41 135
GS6-50-BCS 50 50 81 0.62 40,000 40,000 43 177
StateWaterHeaters.com
36
Maximum Hydrostatic Working Pressure: 150 PSI
B
A
G
H
F
D
1/2" GAS
CONNECTION
COLD
CONNECTION
C
E
HOT
CONNECTION
(ANODE OUTLET ON
TOP T&P MODELS)
ANODE ROD
(OPTIONAL T&P
LOCATION)
T&P VALVE
Maximum Hydrostatic Working Pressure: 150 PSI
B
A
G
H
F
D
1/2" GAS
CONNECTION
COLD
CONNECTION
C
E
HOT
CONNECTION
(ANODE OUTLET ON
TOP T&P MODELS)
ANODE ROD
(OPTIONAL T&P
LOCATION)
T&P VALVE
PROLINE
®
ATMOSPHERIC VENT
(CONTINUED)
Residential Gas
37
Model Number
Dimensions in Inches
A B C D E F *G *H
Draft
Hood
TALL MODELS
†GS6-30-ORBTR 60-1/2 57 16 14 8 51 N/A N/A 3 or 4
GS6-30-OCTR 60-1/2 57 18 14 8 51 N/A N/A 3 or 4
‡GS6-40-OCT 61-3/4 58-1/4 20 12-1/4 8 52 N/A N/A 3 or 4
†GS6-40-BRBT 61-3/4 58-1/4 18 12-1/4 8 52 N/A N/A 3 or 4
GS6-40-BCT* 61-3/4 58-1/4 20 12-1/4 8 52 14-1/4 51-3/4 3 or 4
GS6-50-BRT* 60-3/4 57-1/4 21 12-1/4 8 50 1/2 14-1/4 50-1/2 3 or 4
GS6-50-BCT* 60-3/4 57-1/4 22 12-1/4 8 50-1/2 14-1/4 50-1/2 3 or 4
GS6-50-RCT* 60-3/4 57-1/4 22 12-1/4 8 50-1/2 14-1/4 50-1/2 4
†GS6-50-XCT* 65-1/2 61 22 13-1/2 8 54-1/4 14-1/4 54-1/4 4
GS6-55-XCT* 59-3/4 55-1/4 24 13-1/2 8 48 14-1/4 48 4
SHORT MODELS
†GS6-30-ORBSR 50-1/4 46-3/4 18 14 8 40 N/A N/A 3 or 4
GS6-30-OCSR 50-1/4 46-3/4 20 14 8 40 N/A N/A 3 or 4
†GS6-40-BRBS 51-1/2 48 20 12 8 41-1/4 N/A N/A 3 or 4
GS6-40-BCS 51-1/2 48 22 12 8 41-1/4 N/A N/A 3 or 4
GS6-50-BCS 53-1/4 49-3/4 24 12 8 41-3/8 N/A N/A 3 or 4
Water connection is 3/4˝ on all models.
*Optional side-mounted recirculating taps, add “L” to the suffix in the model number (GS6-50-RCTL).
† Models ship with supplied insulation blanket.
For 10-year tank and 10-year parts limited warranty, change “6” to “X” in the model number (example:
GSX-40-BCT).
All models approved for installation from sea level to 10,100 ft. elevation.
‡ LP models not available on GS6-40-OCT.
StateWaterHeaters.com
38
COMPLIES WITH HUD STANDARDS FOR
MANUFACTURED HOUSING INSTALLATION
GAS CONTROL CONVERTIBLE FOR NATURAL
AND PROPANE GAS
• For flexibility to meet the varying needs of
manufactured housing installations
SIDE-MOUNTED 3/4˝ COLD WATER INLET
• For ease of installation when cold water supply
originates below the structure
• Top mounted 3/4˝ hot water outlet
GREEN CHOICE
®
GAS BURNER
• Patented eco-friendly burner design reduces
NOx emissions by up to 33% and complies with
Low-NOx emission requirements of less than
40 ng/J
COREGARD
™
ANODE ROD
BLUE DIAMOND
®
GLASS COATING
ENHANCED-FLOW BRASS DRAIN VALVE
CODE COMPLIANCE
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and current edition of ASHRAE/IES 90.1
• Complies with the Federal Energy Conservation
Standards effective April 16, 2015, in
accordance with the Energy Policy and
Conservation Act (EPCA), as amended
DESIGN-CERTIFIED BY CSA INTERNATIONAL
• Certified at 300 psi test pressure and 150 psi
working pressure
• Listed according to ANSI Z21.10.1-CSA4.1
standards governing storage tank-type gas
water heaters
CSA CERTIFIED AND ASME RATED T&P
RELIEF VALVE
6-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
PROLINE
®
MOBILE HOME
ATMOSPHERIC VENT
Residential Gas
39
All models ship from the factory for use with natural gas, a complete propane (LP) burner is supplied for
converting to propane gas.
All models are certified from sea level to 10,100 ft. elevation.
No option available for top T&P.
T&P VALVE
ANODE ROD
HOT WATER OUTLET
CONNECTION 3/4˝
NIPPLE SUPPLIED
COLD WATER INLET
CONNECTION,
3/4˝ NIPPLE SUPPLIED
GAS CONNECTOR
1/2˝ FEMALE
A
C
B
F
D
E
T&P VALVE
ANODE ROD
HOT WATER OUTLET
CONNECTION 3/4˝
NIPPLE SUPPLIED
COLD WATER INLET
CONNECTION,
3/4˝ NIPPLE SUPPLIED
GAS CONNECTOR
1/2˝ FEMALE
A
C
B
F
D
E
Model
Number
Dimensions in Inches
A B C D E F
Draft Hood
Outlet
GS6-30-MHG 61-1/2 58 18 13 14-1/4 52 3 or 4
GS6-40-MHG 61-3/4 58-1/4 20 13 14-1/4 51-3/4 3 or 4
Model
Number
Nominal
Capacity
Rated
Storage
Volume
First
Hour
Rating
(Gallons)
UEF
Recovery @
90°F Rise
Gallon
Per Hour
Btu Input
Per Hour
Natural
Gas
Btu Input
Per Hour
Propane
Approx.
Shipping
Weight
(lbs)
GS6-30-MHG 30 29 63 0.61 36 35,500 32,000 129
GS6-40-MHG 40 38 59 0.58 36 35,500 32,000 153
StateWaterHeaters.com
40
COMPLIES WITH HUD STANDARDS FOR
MANUFACTURED HOUSING INSTALLATION
GAS CONTROL CONVERTIBLE FOR NATURAL
AND PROPANE GAS
• For flexibility to meet the varying needs of
manufactured housing installations
DIRECT VENT MODELS PACKAGE WITH
BOTTOM INTAKE AIR VENT
• To draw all combustion make-up air from
outside the structure
OPTIONAL DUCTED AIR INLET KIT FOR
DIRECT VENT MODELS
• For use when water heater is installed over a
basement
• Provision for horizontal air inlet ducting
SIDE-MOUNTED 3/4˝ COLD WATER INLET
GREEN CHOICE
®
GAS BURNER
• Patented eco-friendly burner design reduces
NOx emissions by up to 33% and complies with
Low-NOx emission requirements of less than
40 ng/J
SELF-CLEANING DIP TUBE
COREGARD
™
ANODE ROD
ENHANCED-FLOW BRASS DRAIN VALVE
BLUE DIAMOND
®
GLASS COATING
CODE COMPLIANCE
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and current edition of ASHRAE/IES 90.1
• Complies with the Federal Energy Conservation
Standards effective April 16,2015, in
accordance with the Energy Policy and
Conservation Act (EPCA), as amended
DESIGN-CERTIFIED BY CSA INTERNATIONAL
• Certified at 300 psi test pressure and 150 psi
working pressure
• Listed according to ANSI Z21.10.1-CSA 4.1
standards governing storage tank-type gas
water heaters
CSA CERTIFIED AND ASME RATED T&P
RELIEF VALVE
6-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
PROLINE
®
MOBILE HOME
DIRECT VENT
Residential Gas
41
Certified from sea level to 5,400 ft. elevation.
No option available for top T&P.
All models ship from the factory for use with natural gas, a complete propane burner is supplied for converting
to propane gas.
Water connection is 3/4˝ on all models..
T&P VALVE
ANODE ROD
HOT WATER OUTLET
CONNECTION 3/4˝
NIPPLE SUPPLIED
COLD WATER INLET
FOR CONNECTION,
3/4˝ NIPPLE SUPPLIED
GAS CONNECTOR
1/2˝ FEMALE
A
B
F
D
E
C
T&P VALVE
ANODE ROD
HOT WATER OUTLET
CONNECTION 3/4˝
NIPPLE SUPPLIED
COLD WATER INLET
FOR CONNECTION,
3/4˝ NIPPLE SUPPLIED
GAS CONNECTOR
1/2˝ FEMALE
A
B
F
D
E
C
Model
Number
Dimensions in Inches
A B C D E F Vent Outlet
GS6-30-MDV 61 58 18 13 14-1/4 52-1/2 3
GS6-40-MDV 61-3/4 58-3/4 20 13 14-1/4 52-1/4 3
GS6-50-MDV 60 57 22 13 14-1/4 50 3
Model
Number
Nominal
Capacity
Rated
Storage
Volume
First
Hour
Rating
(Gallons)
UEF
Btu Input
Per Hour
Natural
Gas
Btu Input
Per Hour
Propane
Recovery
@ 90°F
Rise
Gallon
Per Hour
Approx.
Shipping
Weight
(lbs)
GS6-30-MDV 30 29 60 0.61 30,000 29,000 31 129
GS6-40-MDV 40 38 57 0.59 32,000 29,000 33 153
GS6-50-MDV 50 47 67 0.56 40,000 37,000 39 168
StateWaterHeaters.com
42
THE ELECTRONIC GAS CONTROL
INCORPORATES AN LED STATUS INDICATOR
THAT MONITORS SYSTEM OPERATION AND
SERVICE DIAGNOSTICS
HIGH UNIFORM ENERGY FACTORS (UEFS)
• Eco-friendly non-CFC foam insulation, heat
traps and specially designed combustion
chamber combine to produce a high UEF for
maximum savings on operating costs
GREEN CHOICE
®
GAS BURNER
• Enhanced Ultra-low NOx burner complies
with SCAQMD Rule 1121 and other air quality
management districts with similar requirements
for NOx emissions of less than 10 ng/J
SELF-CLEANING DIP TUBE
COREGARD
™
ANODE ROD
PUSH-BUTTON PIEZO IGNITOR
HEAT TRAP NIPPLES
BLUE DIAMOND
®
GLASS COATING
ENHANCED-FLOW BRASS DRAIN VALVE
CODE COMPLIANCE
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and current edition of ASHRAE/IES 90.1
• Complies with the Federal Energy Conservation
Standards effective April 16, 2015, in
accordance with the Energy Policy Conservation
Act (EPCA), as amended
DESIGN-CERTIFIED BY CSA INTERNATIONAL
• Certified at 300 psi test pressure and 150 psi
working pressure
• Listed according to ANSI Z21.10.1-CSA 4.1
standards governing storage tank-type gas
water heaters
6-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
PROLINE
®
ULTRA-LOW NOx
Residential Gas
43
Maximum Hydrostatic Working Pressure: 150 PSI
B
A
G
H
F
D
1/2" GAS
CONNECTION
COLD
CONNECTION
C
E
HOT
CONNECTION
(ANODE OUTLET ON
TOP T&P MODELS)
ANODE ROD
(OPTIONAL TOP
T&P LOCATION)
T&P VALVE
All models may be ordered from the factory with top T&P valve as an option by adding “G” to the suffix of the model
number (example GS6-30-ORUTG). *Side loop connections are standard on model GS6-50-RCUT.
Most models approved for installation from sea level to 7,700 ft. elevation (except GS6-50-RCUT, approved to 5,400
ft.). For 10-year tank and 10-year parts limited warranty, change “6” to “X” in the model number (example: GSX-30-
ORUT).
Model Number
Dimensions in Inches
A B C D E F G* H*
Draft
Hood
TALL MODELS
GS6-30-ORUT 61-3/4 58 16 12 8 51-3/4 N/A N/A 3 or 4
GS6-40-BRUT 62 58-1/4 18 12 8 52 N/A N/A 3 or 4
GS6-40-BCUT 62 58-1/4 20 12 8 52 N/A N/A 3 or 4
GS6-50-BRUT 60-3/4 57-1/4 20 12 8 50-1/2 N/A N/A 3 or 4
GS6-50-BCUT 60-3/4 57-1/4 22 12 8 50-1/2 N/A N/A 3 or 4
GS6-50-RCUT* 61 57-1/2 22 12-1/4 8 50-1/2 12-1/4 50-1/2 4
SHORT MODELS
GS6-40-BCUS 51-1/2 47-3/4 22 12 8 41-1/4 N/A N/A 3 or 4
Maximum Hydrostatic Working Pressure: 150 PSI
B
A
G
H
F
D
1/2" GAS
CONNECTION
COLD
CONNECTION
C
E
HOT
CONNECTION
(ANODE OUTLET ON
TOP T&P MODELS)
ANODE ROD
(OPTIONAL TOP
T&P LOCATION)
T&P VALVE
Maximum Hydrostatic Working Pressure: 150 PSI
B
A
G
H
F
D
1/2" GAS
CONNECTION
COLD
CONNECTION
C
E
HOT
CONNECTION
(ANODE OUTLET ON
TOP T&P MODELS)
ANODE ROD
(OPTIONAL TOP
T&P LOCATION)
T&P VALVE
Model Number
Nominal
Capacity
Rated
Storage
Volume
First
Hour
Rating
(Gallons)
UEF
BTU Input
Natural Gas
Recovery @
90°F Rise
Gallon Per
Hour
Approx.
Shipping
Weight (lbs)
Tall Models
GS6-30-ORUT 30 29 62 0.59 33,000 34 126
GS6-40-BRUT 40 38 83 0.64 40,000 41 125
GS6-40-BCUT 40 38 83 0.64 40,000 41 125
GS6-50-BRUT 50 48 84 0.61 40,000 42 148
GS6-50-BCUT 50 48 84 0.64 40,000 42 148
GS6-50-RCUT* 50 48 91 0.60 50,000 51 177
Short Models
GS6-40-BCUS 40 38 72 0.57 40,000 41 138
StateWaterHeaters.com
44
FLAMMABLE VAPOR RESISTANT/DIRECT
VENT SEALED COMBUSTION SYSTEM
DURABLE, ULTRA-LOW NOx BURNER
CONSTRUCTION
NON-CFC FOAM INSULATION
• The tank is surrounded by a thick coat of
non-CFC polyurethane foam to trap heat
inside the tank, saving energy
¾˝ TOP WATER CONNECTIONS AND SIDE
SPACE HEATING CONNECTIONS
½˝ GAS CONNECTION
COREGARD
™
ANODE ROD
BLUE DIAMOND
®
GLASS COATING
ENHANCED-FLOW BRASS DRAIN VALVE
GREEN CHOICE
®
GAS BURNER
• Complies with SCAQMD Rule 1121 and
other air quality management districts with
similar requirements for NOx emissions of
less than 10 ng/J
CODE COMPLIANCE
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby
loss requirements of the U.S. Department
of Energy and current edition of ASHRAE/
IES 90.1
• Complies with the Federal Energy
Conservation Standards effective
April 16, 2015, in accordance with the
Energy Policy and Conservation Act (EPCA),
as amended
• DESIGN-LISTED BY CSA INTERNATIONAL
• Certified at 300 psi test pressure and 150
psi working pressure
• Listed according to ANSI Z21.10.1-CSA 4.1
standards governing storage tank-type gas
water heaters
CSA CERTIFIED AND ASME RATED T&P
RELIEF VALVE
6-YEAR LIMITED TANK AND PARTS
WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
PROLINE
®
ULTRA-LOW NOx DIRECT VENT
Residential Gas
45
No option available for top T&P valve.
All models have ¾˝ top water connections and comes standard with side loop sittings.
All models are certified from sea level to 7,700 ft. elevation.
PROMAX ULTRA-LOW NOx DIRECT VENT
17˝/22˝ MIN.
80˝ MAX. HORIZONTAL VENT
T&P
VALVE
FRONT VIEW
OUTLET
GAS
VALVE
INLET
SIDE VIEW
THRU-THE-WALL
INSTALLATION
B
F H
G
A
C
T&P
VALVE
D
MAX. HEIGHT IS
68˝ ABOVE
TOP OF HEATER
TOP VIEW
COLD INLET
HOT OUTLET
E
5˝
Model Number
Nominal
Capacity
Rated
Storage
Volume
First
Hour
Rating
(Gallons)
UEF
Recovery
90°F Rise
Gallon Per
Hour
BTU Input
Per Hour
Approx.
Shipping
Weight
(lbs)
GS6-40-UBDS-L 40 28 52 0.60 39 36,000 179
GS6-50-UBDT-L 50 48 76 0.65 41 38,000 193
Model Number
Dimensions in Inches
Concentric
Vent
Connection
A B C D E F G H
GS6-40-UBDS-L 3 or 5 65-1/4 50-1/2 22 13-1/2 30 43-7/8 15 45
GS6-50-UBDT-L 3 or 5 58-1/2 73-1/2 22 13-1/2 30 52-1/4 15 53
StateWaterHeaters.com
46
FULLY AUTOMATIC CONTROLS WITH SAFETY
SHUTOFF
HEAVY GAUGE STEEL JACKET
BLUE DIAMOND
®
GLASS COATING
FOAM INSULATION
ULTRA-LOW NOx EMISSIONS
• Complies with SCAQMD Rule 1146.2 and other
Air Quality Management Districts with similar
requirements of 14 ng/J or 20 ppm
EASY-TO-INSTALL
• Completely factory-assembled. Only gas, water
and vent connections need to be made. All
connections are located in front and top of
heaters for ease-of-installation and service.
COREGARD
™
ANODE ROD
• Our anode rods have a stainless steel core
that extends the life of the anode rod, allowing
superior tank protection far longer than
standard anode rods
MAXIMUM WORKING PRESSURE
• 150 psi.
MAXIMUM GAS INLET PRESSURE
• 14˝ W.C.
CODE COMPLIANCE
• Meets UBC, CEC and ICC National Codes
• The Ultra-Low NOx atmospheric vent residential
gas water heater meets the thermal efficiency
and standby loss requirements of the U.S.
Department of Energy and Current Edition
ASHRAE/IES 90.1
6-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
PROLINE
®
ULTRA-LOW NOx
HIGH CAPACITY
Residential Gas
47
*Recovery rating based on 81% thermal efficiency
**Recovery rating based on 80% thermal efficiency
†The GS6-75-URRS comes standard with side loop fittings for use with hydronic heating applications
K
HOT WATER
OUTLET
DRAIN
VALVE
HOT
COLD
TOP VIEW
L
GAS INLET
DRAIN VALVE
K
COLD WATER
INLET
F
H
J
B
D
A
E
M
G
TEMPERATURE
AND PRESSURE
RELIEF VALVE
C
K
HOT WATER
OUTLET
DRAIN
VALVE
HOT
COLD
TOP VIEW
L
GAS INLET
DRAIN VALVE
K
COLD WATER
INLET
F
H
J
B
D
A
E
M
G
TEMPERATURE
AND PRESSURE
RELIEF VALVE
C
Model Number
Nominal
Capacity
Rated
Storage
Volume
First Hour
Rating
(Gallons)
UEF
Recovery at 90°F
Rise Gallon
Per Hour
BTU Input
Per Hour
†GS6-75-URRS 74 71 102 0.64 81 75,100
GS6-100-URRT 98 95 120 0.58 82 75,100
Model Number
Dimensions in Inches
A B C D E F
†GS6-75-URRS 62-1/16 58 29-1/2 25-1/4 15-7/8 4
GS6-100-URRT 70-1/2 66-1/2 30-15/16 27-3/4 15-3/16 4
Model Number
Dimensions in Inches
Approx.
Shipping
Weight
G H J K L M
†GS6-75-URRS 15-1/4 16 2 1 1/2 12-1/2 285 lbs
GS6-100-URRT 15-3/4 16 1-1/4 1-1/4 1/2 11-15/16 350 lbs
StateWaterHeaters.com48
LEAK PROTECTION TECHNOLOGY
• Smart anode adapts to local water conditions to
protect and extend the life of the water heater
• User is notified when the anode is consumed
and needs to be replaced
• Smart sensor alerts user in the event a leak
does occur for added peace of mind
• Compatible with accessory automatic water
shutoff valve for enhanced protection
EXCEPTIONAL ENERGY EFFICIENCY
• Improved efficiency up to 3.88 Uniform Energy
Factor (UEF) can reduce the cost of water
heating by up to 75%*
• ENERGY STAR
®
certified for many state and
local utility rebates
iCOMM
®
SMART CONNECTIVITY
• Monitor and control your water heater through
the free State Water Heaters app
• Connect through a local Wi-Fi network or
directly to the water heater through Bluetooth
• If applicable download the Time of Use schedule
of your local electric utility to prioritize heating
when the rates are most affordable
• Receive alerts and notifications
FLEXIBLE DESIGN
• Top and front water connections for easy
installation
• Zero clearance required on sides and back to fit
in tighter spaces
• Integrated ducting adapters for installations in
confined spaces
QUIET OPERATION
• Whisper-quiet operation at 45 dBA
ELECTRONIC CONTROLS
• User-friendly electronic interface allows easy
control of temperature, operating mode and
diagnostics
• Select from Heat Pump, Hybrid or Electric
modes to match hot water demand. Vacation
mode can reduce energy use while you are
away.
• Long-lasting 4500W backup elements can
supplement the heat pump depending on
operating mode, environmental conditions and
hot water demand
CODE COMPLIANCE
• NEEA Tier 4
• California Title 24 JA13 Qualified
• CTA-2045 (AC)
• OpenADR 2.0b VEN
• Meets IBC and HUD Codes
10-YEAR LIMITED TANK AND PARTS
WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
PREMIER
®
AL SMART HYBRID
ELECTRIC HEAT PUMP
*Comparing 80-gallon Premier
AL heat pump against pre-2015
similarly-sized standard electric
using DOE EF to UEF conversion
rates. Savings may vary.
Residential Electric
49
Requires 30 amp breaker.
Requires 208/240 VAC 50/60Hz single phase power and 30 amp breaker.
Top T&P option not available on this model.
Model Number
Nominal
Capacity
Rated
Storage
Volume
UEF
First Hour
Rating
(Gallons)
Approx.
Shipping
Weight
(lbs)
Warranty
Term
HPSX-50-DHPT 50 46 3.80 65 196 10
HPSX-66-DHPT 66 67 3.70 82 284 10
HPSX-80-DHPT 80 82 3.88 95 302 10
Model Number
Dimensions in Inches
A B C D
HPSX-50-DHPT 63 22 40-1/2 3-3/4
HPSX-66-DHPT 61-1/2 26-1/2 38-1/4 4
HPSX-80-DHPT 69 26-1/2 46-1/2 4
B
A
C
D
StateWaterHeaters.com50
INCREASED ENERGY EFFICIENCY
• Reduce water heating costs up to 73%
compared to a standard electric water heater
• Up to a 3.45 Uniform Energy Factor (UEF)
Rating conserves energy and meets ENERGY
STAR
®
qualifications
DUAL VOLTAGE CAPABLE
• 208/240 VAC 60Hz capable for use in almost
any residential application
CHOICE OF OPERATING MODES
• Select from Efficiency, Hybrid, or Electric
modes to match heating requirements to
environmental conditions and hot water
demand. Hybrid mode automatically adjusts
between compressor and element, depending
upon heat requirements.
• Vacation mode reduces operating costs and
provides freeze protection during extended
absence
BACKUP ELECTRIC ELEMENTS
• Long-lasting 4500W backup heating elements
help heat water according to environmental
conditions, demand and the chosen operating
mode
DRY FIRE PROTECTION
• Control system ensures the tank is full of water
during start up to prevent dry firing the heating
elements
ELECTRONIC USER INTERFACE
• User-friendly electronic interface allows easy
control of temperature setting, operating mode,
and communicates diagnostics
• Advanced diagnostics convey error messages
for service purposes. The last four error
messages are saved in the control system
memory.
OTHER FEATURES
• Ideal for basements or garage installations; the
compressor transfers heat to the water while
dehumidifying and cooling the ambient air
• Washable air filter is easily removed for routine
cleaning
• Accessory Inlet/Outlet Duct Kit
(Part number 100234320)
10-YEAR LIMITED TANK AND PARTS
WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com

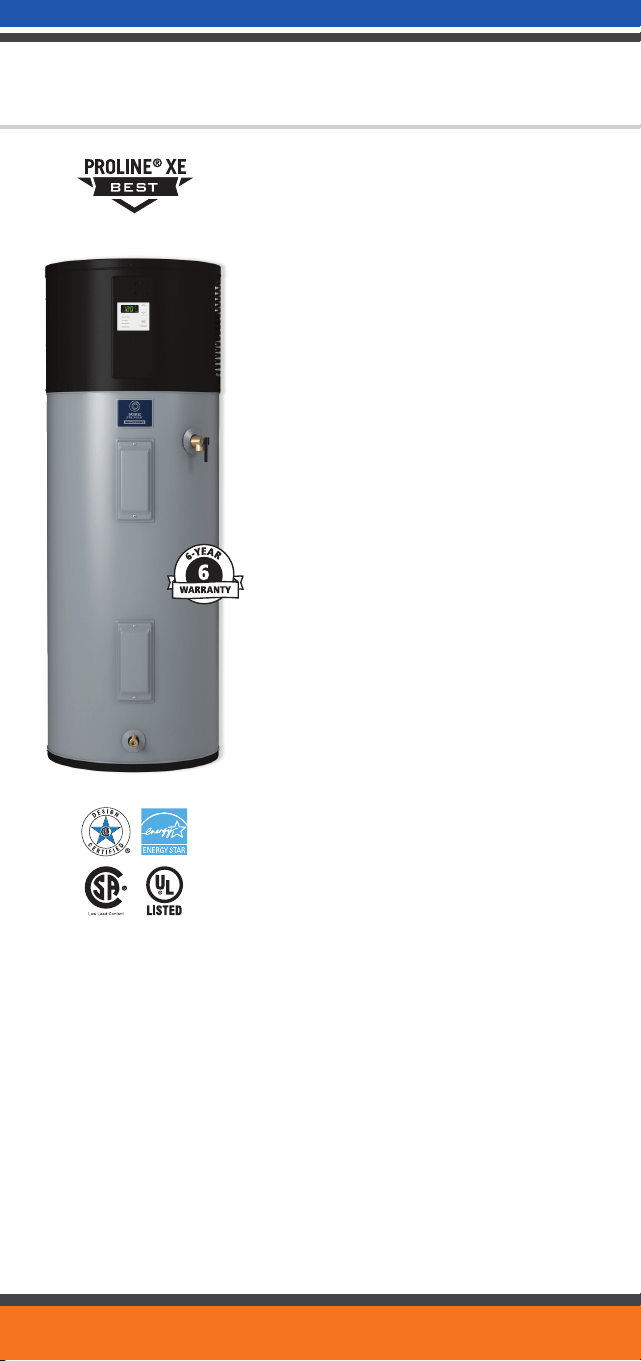

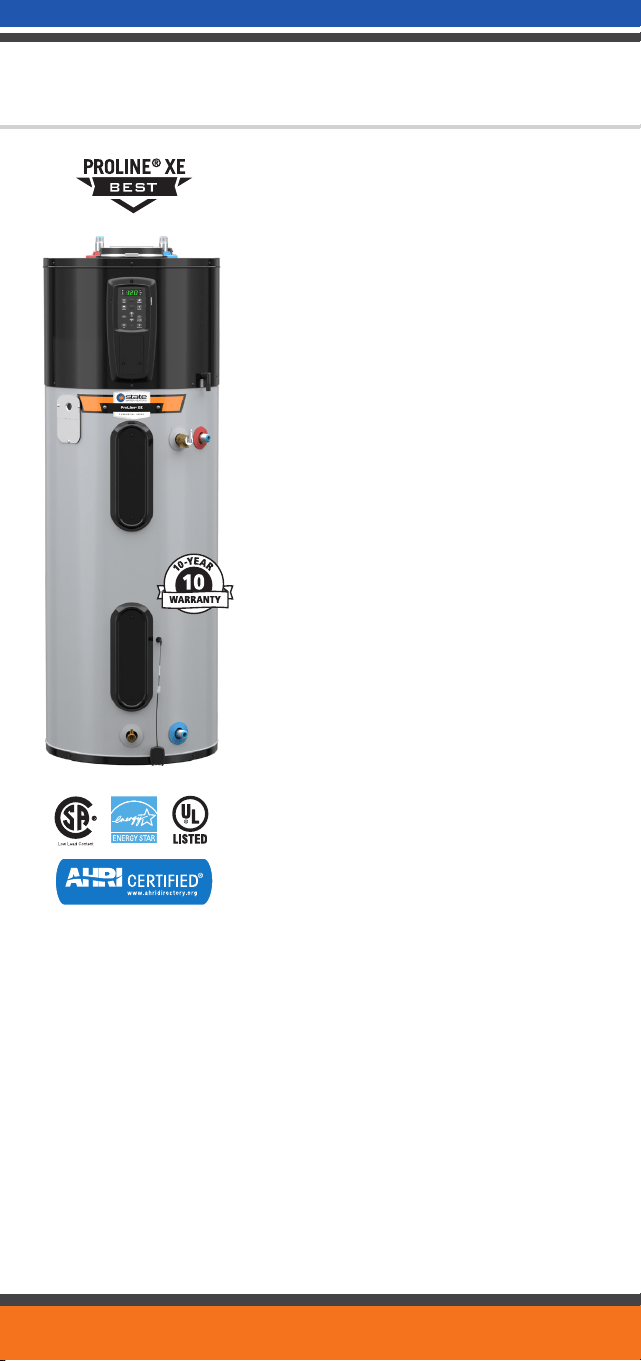

PROLINE
®
XE HYBRID ELECTRIC
HEAT PUMP WATER HEATER
Residential Electric
51
A
B
C
E
D
Requires 30 amp breaker.
Top T&P option not available.
Model Number
Nominal
Capacity
Rated Storage
Volume
UEF
First Hour
Rating
(Gallons)
Approx.
Shipping
Weight (lbs)
HPX-50-DHPTNE 50 46 3.45 66 196
HPX-66-DHPTNE 66 67 3.45 79 289
HPX-80-DHPTNE 80 82 3.45 86 307
Model Number
Dimensions in Inches
A B C D E
HPX-50-DHPTNE 63 22 40-5/8 3-3/4 40-1/2
HPX-66-DHPTNE 61 27 38 4 38
HPX-80-DHPTNE 69 27 46 4 46
StateWaterHeaters.com52
INCREASED ENERGY EFFICIENCY
• Reduce water heating costs up to 73%
compared to a standard electric water heater
• Up to a 3.45 Uniform Energy Factor (UEF)
Rating conserves energy and meets ENERGY
STAR
®
qualifications
DUAL VOLTAGE CAPABLE
• 208/240 VAC 60Hz capable for use in almost
any residential application
CHOICE OF OPERATING MODES
• Select from Efficiency, Hybrid, or Electric
modes to match heating requirements to
environmental conditions and hot water
demand. Hybrid mode automatically adjusts
between compressor and element, depending
upon heat requirements.
• Vacation mode reduces operating costs and
provides freeze protection during extended
absence
BACKUP ELECTRIC ELEMENTS
• Long-lasting 4500W backup heating elements
help heat water according to environmental
conditions, demand and the chosen operating
mode
DRY FIRE PROTECTION
• Control system ensures the tank is full of water
during start up to prevent dry firing the heating
elements
ELECTRONIC USER INTERFACE
• User-friendly electronic interface allows easy
control of temperature setting, operating mode,
and communicates diagnostics
• Advanced diagnostics convey error messages
for service purposes. The last four error
messages are saved in the control system
memory.
OTHER FEATURES
• Ideal for basements or garage installations; the
compressor transfers heat to the water while
dehumidifying and cooling the ambient air
• Washable air filter is easily removed for routine
cleaning
• Accessory Inlet/Outlet Duct Kit
(Part number 100234320)
6-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
PROLINE
®
XE HYBRID ELECTRIC
HEAT PUMP WATER HEATER
Residential Electric
53
A
B
C
E
D
Model Number
Nominal
Capacity
Rated Storage
Volume
UEF
First Hour
Rating
(Gallons)
Approx. Shipping
Weight (lbs)
HP6-50-DHPT 50 46 3.35 66 196
HP6-66-DHPT 66 67 3.42 79 289
HP6-80-DHPT 80 82 3.45 84 307
Model Number
Dimensions in Inches
Warranty Term
A B C D E
HP6-50-DHPT 63 22 40-5/8 3-3/4 40-1/2 6
HP6-66-DHPT 61 27 38 4 38 6
HP6-80-DHPT 69 27 46 4 46 6
Requires 30 amp breaker.
Top T&P option not available.
StateWaterHeaters.com54

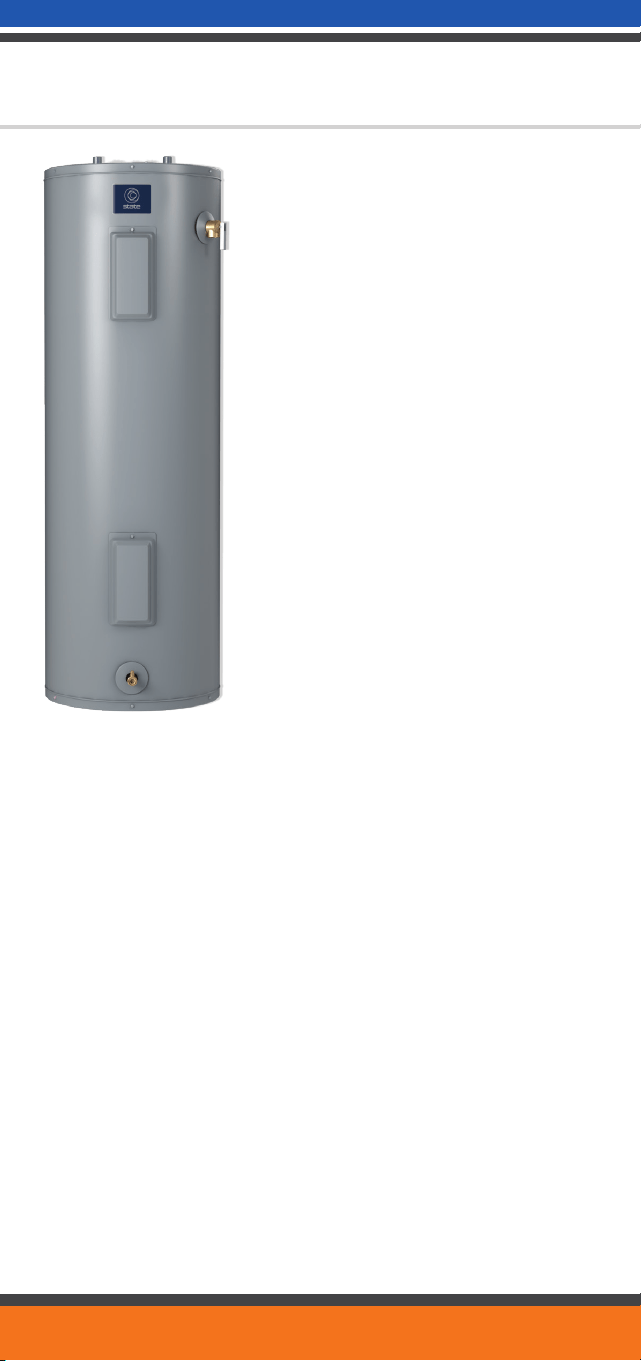

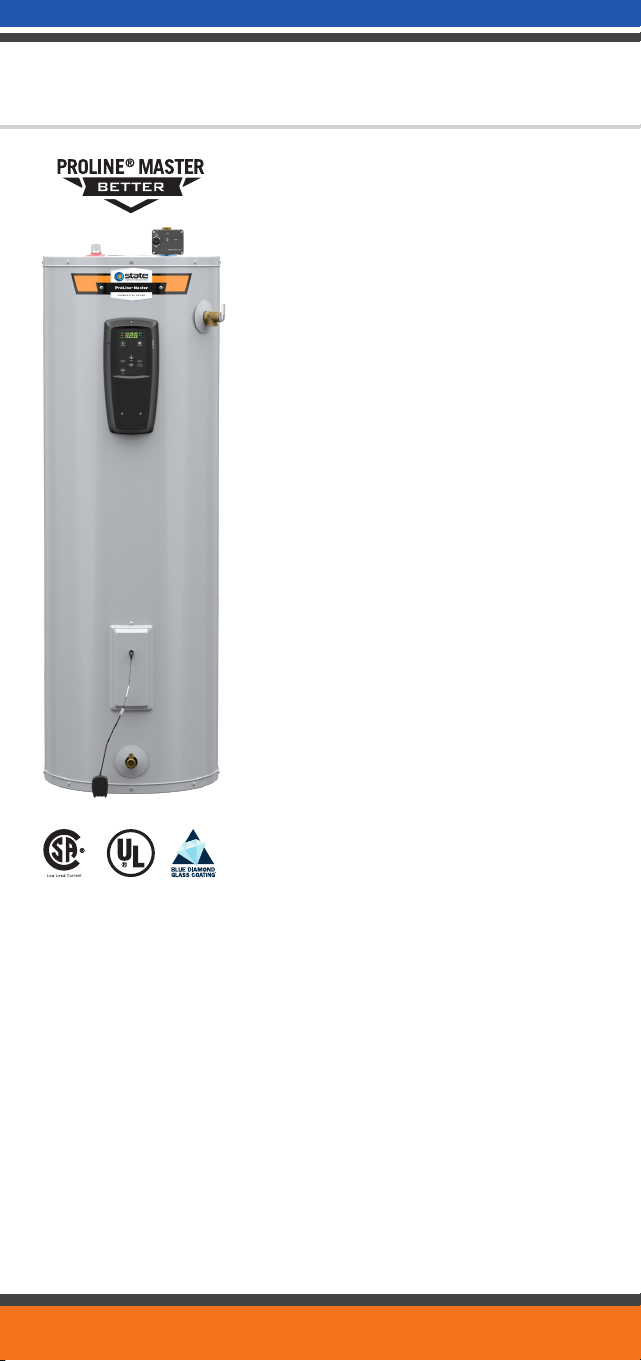

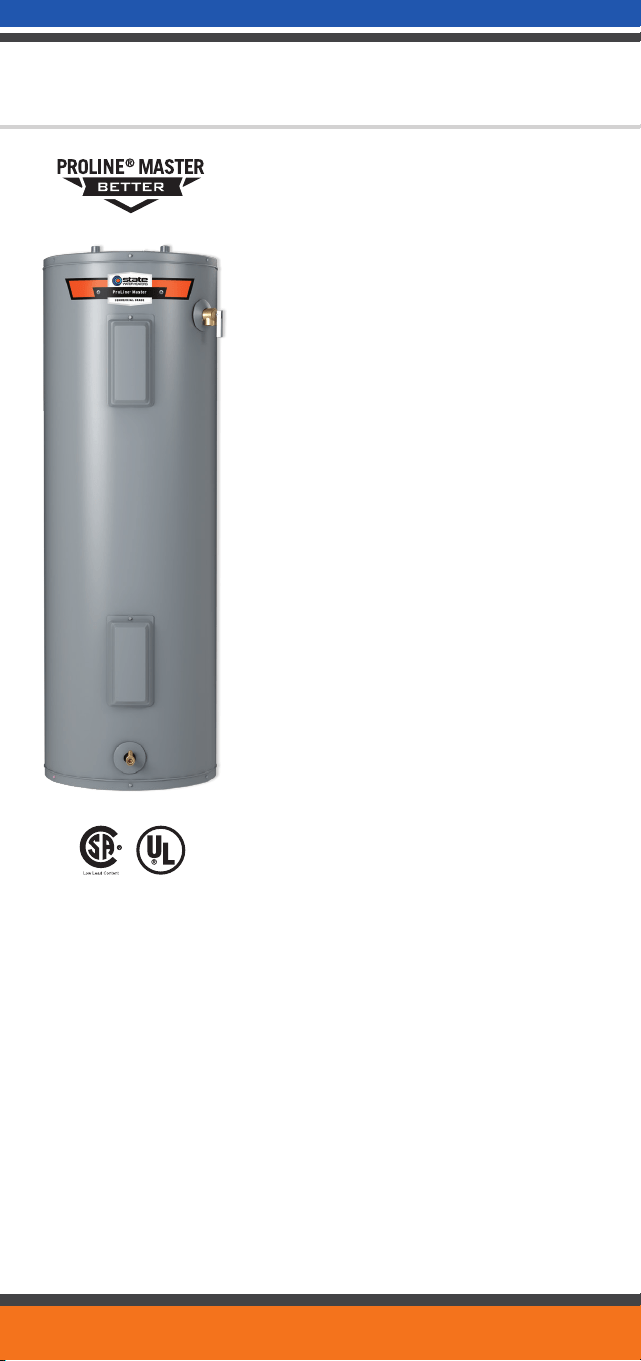

PROLINE
®
MASTER SMART ELECTRIC
ELECTRONIC CONTROLS WITH WIFI
CONNECTIVITY
• Standard and vacation operating modes
• Seven-segment display
• Diagnostic feedback
• Element “Dry-Fire” protection
REMOTE CONTROL THROUGH THE STATE
WATER HEATERS APP
• Change water temperature and operating
mode remotely
• Schedule hot water demand for optimized
performance
LEAK DETECTION SENSOR
• Sounds an audible alarm when water is
detected
AUTOMATIC SHUT-OFF VALVE
• Closes valve on incoming cold water inlet
when leak is detected
ENHANCED HEATING ELEMENTS
• Dual 5500 watt elements for the fastest
recovery and reliable operation
• Stainless steel elements last longer than
standard copper elements
HIGH ENERGY FACTORS
• Eco-friendly non-CFC foam insulation, heat
traps and other features combine to yield
a high Uniform Energy Factor (UEF) that
maximizes savings on operating costs
COREGARD™ ANODE ROD
• Our anode rods have a stainless steel
core that extends the life of the anode rod
allowing superior tank protection far longer
than standard anode rods
CODE COMPLIANCE
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby
loss requirements of the U.S. Department
of Energy and current edition of ASHRAE/
IES 90.1
• Complies with the Federal Energy
Conservation
• Standards effective April 16, 2015, in
accordance with the Energy Policy and
Conservation Act (EPCA), as amended
8-YEAR LIMITED TANK AND PARTS
WARRANTY
• 4 year warranty extension available
• For complete information, consult written
warranty or go to statewaterheaters.com
Residential Electric
55
3/4” water connections on 8” center.
Only available for 240V or 208V applications. Equipped as dual element only, no single element configurations
available. Minimum wattage available is 4,500 watt elements.
Dimensions and specifications subject to change without notice in accordance with our policy of continuous
product improvement.

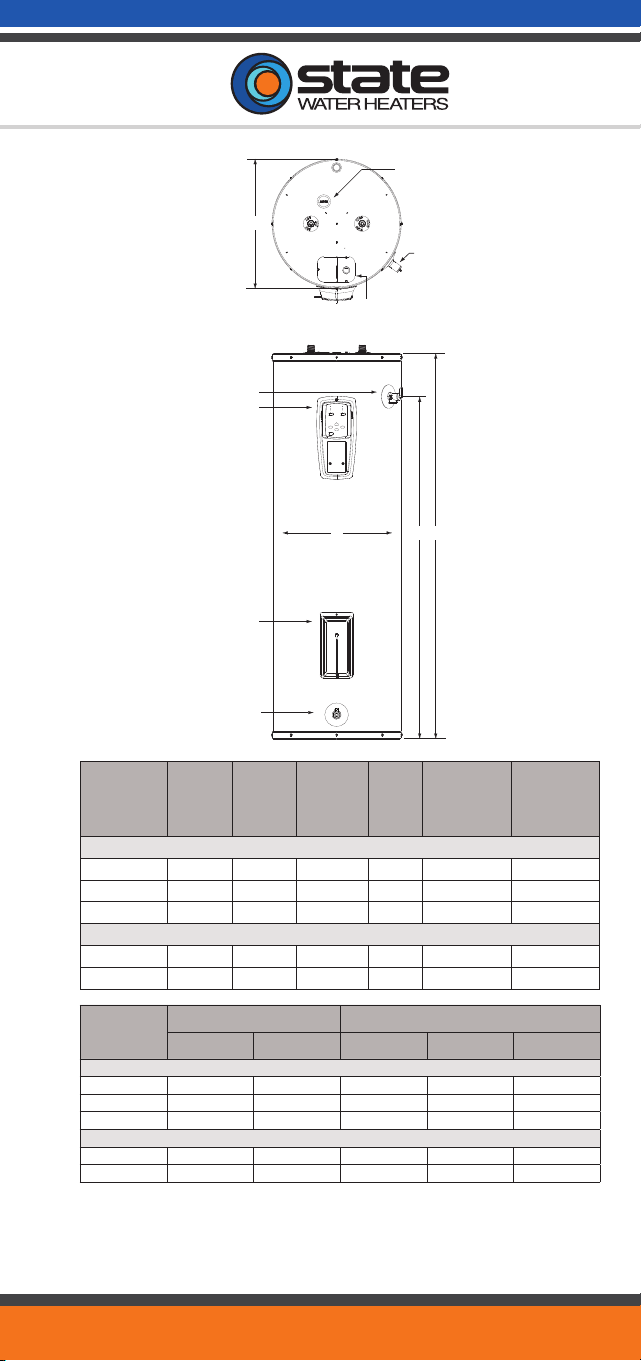

T&P VALVE
ACCESS
PANEL &
CONTROL
PANEL
DRAIN
VALVE
ACCESS
PANEL
T&P VALVE
JUNCTION BOX
ANODE
C
B A
C
Model
Number
Nominal
Capacity
Rated
Storage
Volume
First Hour
Rating
(Gallons)
UEF
Recovery
@ 90˚F Rise
Gallon
Per Hour
Approx.
Shipping
Weight (lbs)
Tall Models
EE8-40-DFRT 40 36 63 0.93 25 106
EE8-50-DFRT 50 45 74 0.92 25 109
EE8-55-DFRT 55 55 75 0.94 25 145
Short Models
EE8-40-DFRS 40 37 64 0.92 25 95
EE8-50-DFRS 50 46 67 0.92 25 117
Model
Number
Element Wattage 240V Dimensions in Inches
Standard Maximum A B C
Tall Models
EE8-40-DFRT 5500 5500 60-1/4 53-1/4 20
EE8-50-DFRT 5500 5500 59 51-1/4 20-1/2
EE8-55-DFRT 5500 5500 56-1/2 48-1/2 24
Short Models
EE8-40-DFRS 5500 5500 49-3/4 40-3/4 20-1/2
EE8-50-DFRS 5500 5500 49-3/4 40-1/4 23
StateWaterHeaters.com56

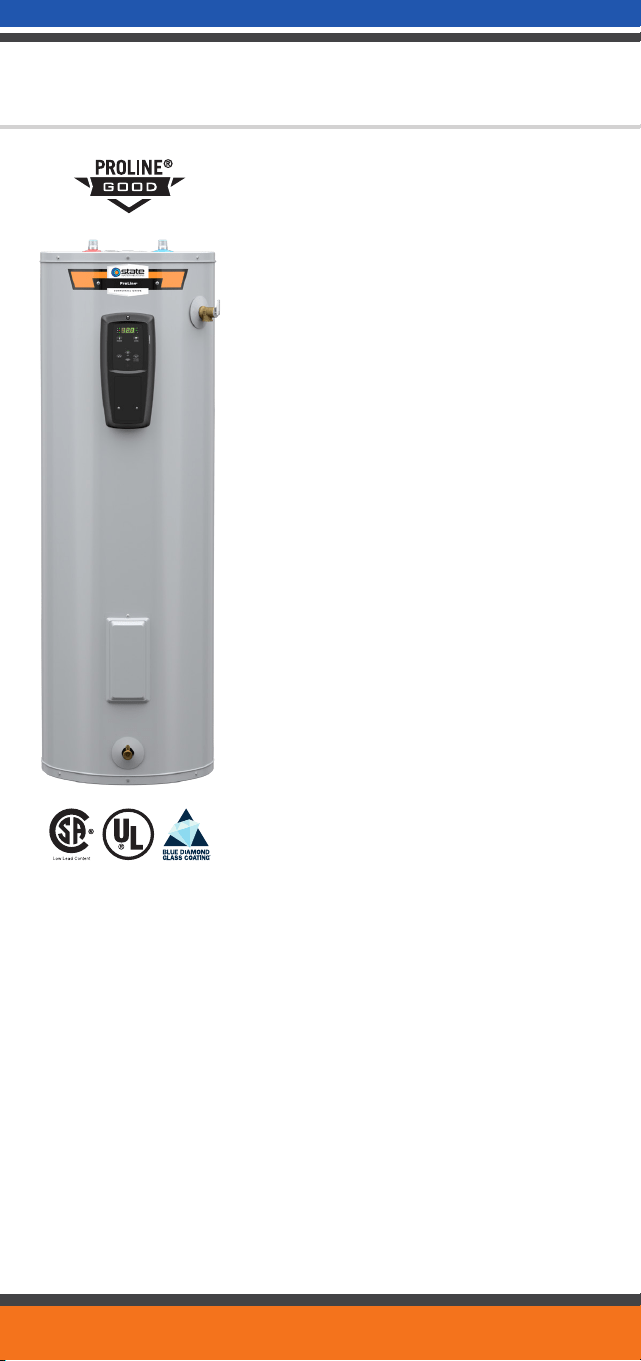

ELECTRONIC CONTROLS WITH WIFI
CONNECTIVITY
• Standard and vacation operating modes
• Seven-segment display
• Diagnostic feedback
• Element “Dry-Fire” protection
REMOTE CONTROL THROUGH THE STATE
WATER HEATERS APP
• Change water temperature and operating
mode remotely
• Schedule hot water demand for optimized
performance
LEAK DETECTION SENSOR
• Sounds an audible alarm when water is
detected
AUTOMATIC SHUT-OFF VALVE
• Closes valve on incoming cold water inlet
when leak is detected
ENHANCED HEATING ELEMENTS
• Dual 5500 watt elements for the fastest
recovery and reliable operation
• Stainless steel elements last longer than
standard copper elements
HIGH ENERGY FACTORS
• Eco-friendly non-CFC foam insulation, heat
traps and other features combine to yield
a high Uniform Energy Factor (UEF) that
maximizes savings on operating costs
COREGARD™ ANODE ROD
• Our anode rods have a stainless steel
core that extends the life of the anode rod
allowing superior tank protection far longer
than standard anode rods
CODE COMPLIANCE
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby
loss requirements of the U.S. Department
of Energy and current edition of ASHRAE/
IES 90.1
• Complies with the Federal Energy
Conservation
• Standards effective April 16, 2015, in
accordance with the Energy Policy and
Conservation Act (EPCA), as amended
• Meets state of WA and OR requirements
8-YEAR LIMITED TANK AND PARTS
WARRANTY
• 4 year warranty extension available
• For complete information, consult written
warranty or go to statewaterheaters.com
PROLINE
®
MASTER ELECTRIC
GRID-CAPABLE
Residential Electric
57
3/4” water connections on 8” center.
Only available for 240V or 208V applications. Equipped as dual element only, no single element configurations
available. Minimum wattage available is 4,500 watt elements.
Dimensions and specifications subject to change without notice in accordance with our policy of continuous
product improvement.
T&P VALVE
ACCESS
PANEL &
CONTROL
PANEL
DRAIN
VALVE
ACCESS
PANEL
T&P VALVE
JUNCTION BOX
ANODE
C
B A
C
Model
Number
Nominal
Capacity
Rated
Storage
Volume
First Hour
Rating
(Gallons)
UEF
Recovery
@ 90˚F Rise
Gallon
Per Hour
Approx.
Shipping
Weight (lbs)
Tall Models
EEA8-40-DFRT 40 36 63 0.93 25 106
EEA8-50-DFRT 50 45 74 0.92 25 109
EEA8-55-DFRT 55 55 75 0.94 25 145
Short Models
EEA8-40-DFRS 40 37 64 0.92 25 95
EEA8-50-DFRS 50 46 67 0.92 25 117
Model
Number
Element Wattage 240V Dimensions in Inches
Standard Maximum A B C
Tall Models
EEA8-40-DFRT 5500 5500 60-1/4 53-1/4 20
EEA8-50-DFRT 5500 5500 59 51-1/4 20-1/2
EEA8-55-DFRT 5500 5500 56-1/2 48-1/2 24
Short Models
EEA8-40-DFRS 5500 5500 49-3/4 40-3/4 20-1/2
EEA8-50-DFRS 5500 5500 49-3/4 40-1/4 23
StateWaterHeaters.com58
COMMERCIAL-GRADE HEATING ELEMENTS
• Dual 4500 watt elements for faster recovery and
reliable operation
• Long-lasting dual stainless steel elements last
longer than standard copper elements
BLUE DIAMOND
®
GLASS COATING
• Blue Diamond
®
Glass Coating blend is
formulated in the same lab that creates the
protection for our industry-leading commercial
product line
HIGH UNIFORM ENERGY FACTOR (UEF)
SELF-CLEANING DIP TUBE
COREGARD
™
ANODE ROD
• ProLine
®
Master products have increased anode
protection with either longer, or multiple anodes
depending on model
CODE COMPLIANCE
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and current edition of ASHRAE/IES 90.1
• Complies with the Federal Energy Conservation
Standards effective April 16, 2015, in
accordance with the Energy Policy and
Conservation Act (EPCA), as amended
APPROVED FOR MANUFACTURED HOUSING
• All residential electric water heaters are
compliant with HUD standards for mobile
homes/manufactured housing
DESIGN-LISTED BY UNDERWRITERS
LABORATORIES
• Certified at 300 psi test pressure and 150 psi
working pressure
• Listed according to UL174 standards governing
storage tank-type water heaters
8-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
PROLINE
®
MASTER
Residential Electric
59
DRAIN
VALVE
ACCESS
PANEL
ACCESS
PANEL
T&P VALVE
T&P VALVE
ANODE
JUNCTION
BOX
Male 3/4” water connections on 8” center.
Models requiring a lower wattage than what is listed in the minimum wattage column and showing the @
symbol, will change to a "W" suffix model number.
"W" suffix models are available down to 1kW. (example: EN8-40-DORS using 4,000 watt elements or less will
become "EN8-40-DORSW").
Dimensions and specifications subject to change without notice in accordance with our policy of continuous
product improvement.
Model Number
Nominal
Capacity
Rated Storage
Volume
First Hour
Rating
(Gallons)
UEF
Recovery @
90°F Rise Gallon
Per Hour
Tall Models
EN8-40-DORT 40 36 53 0.92 21
EN8-50-DORT 50 46 62 0.92 21
EN8-55-DORT 55 55 72 0.93 21
Short Models
EN8-40-DORS 40 37 55 0.92 21
EN8-40-DORSW 40 37 41 0.88 18
EN8-50-DORS 50 46 57 0.92 21
Model Number
Element Wattage 240V Dimensions in Inches
Approx. Shipping
Weight (lbs)
Standard Minimum Maximum A B C
Tall Models
EN8-40-DORT 4500 3500 6000 61-1/4 53-1/4 18 118
EN8-50-DORT 4500 @ 3000 6000 59 51-1/4 20-1/2 125
EN8-55-DORT 4500 2500 6000 56-1/2 48-1/2 24 145
Short Models
EN8-40-DORS 4500 @ 4500 6000 49-3/4 40-3/4 20-1/2 109
EN8-40-DORSW - 1000 4000 49-3/4 40-3/4 20-1/2 109
EN8-50-DORS 4500 2500 6000 49-3/4 40-3/8 23 161
StateWaterHeaters.com60
ELECTRONIC CONTROLS
• Standard and vacation operating modes
• Six-segment display
• Diagnostic feedback
• Element “Dry-Fire” protection
UTILITY GRID-CAPABLE
• Equipped with Demand Response (CTA-
2045*EcoPort
CM
) communication port
• Allows for participation in Utility Demand
Response programs
(Module needed from local utility)
• Meets state of Washington and Oregon
requirements
HIGH ENERGY FACTORS
• Eco-friendly non-CFC foam insulation, heat
traps and other features combine to yield a
high Energy Factor that maximizes savings on
operating costs
COREGARD™ ANODE ROD
• Our anode rods have a stainless steel core
that extends the life of the anode rod allowing
superior tank protection far longer than
standard anode rods
CODE COMPLIANCE
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and current edition of ASHRAE/IES 90.1
• Complies with the Federal Energy
Conservation Standards effective April 16,
2015, in accordance with the Energy Policy
and Conservation Act (EPCA), as amended
6-YEAR LIMITED TANK AND PARTS
WARRANTY
• 6 and 10 year warranty models
• For complete information, consult written
warranty or go to statewaterheaters.com
PROLINE
®
GRID-CAPABLE ELECTRIC
WATER HEATERS
Residential Electric
61
3/4” water connections on 8” center.
Only available for 240V applications.
Equipped as dual element only, no single element configurations available.
Top T&P is not available on the 10 year Lowboy models.
Minimum wattage available is 4,500 watt elements.
Dimensions and specifications subject to change without notice in accordance with our policy of continuous
product improvement.
†For 10-year tank and parts warranty, change first “E” to “P” in the model number.
Model Number
Nominal
Capacity
Rated
Storage
Volume
First Hour
Rating
(Gallons)
UEF
Element Wattage 240V
Standard Maximum
Tall Models
EE6-40-DURT† 40 36 55 0.93 4500 5500
EE6-50-DURT† 50 46 62 0.92 4500 5500
EE6-55-DURT† 55 55 75 0.94 4500 5500
Short Models
EE6-40-DURS† 40 37 53 0.92 4500 5500
EE6-50-DURS† 50 46 67 0.92 4500 5500
Lowboy Top Connect Models
EE6-40-DULS† 38 35 52 0.92 4500 5500
EE6-50-DULS† 51 48 54 0.92 4500 5500
EE6-50-DULBS† 48 44 55 0.92 4500 5500
Model Number
Recovery @
90°F Rise Gallon
Per Hour
Dimensions in Inches
Approx.
Shipping
Weight (lbs)
A B C
Tall Models
EE6-40-DURT† 21 60-1/4 53-1/4 20 106
EE6-50-DURT† 21 59 51-1/4 20-1/2 109
EE6-55-DURT† 21 56-1/2 48-1/2 24 145
Short Models
EE6-40-DURS† 21 49-3/4 40-3/4 20-1/2 95
EE6-50-DURS† 21 49-1/4 40-1/4 23 117
Lowboy Top Connect Models
EE6-40-DULS† 21 31-1/2 24 26 118
EE6-50-DULS† 21 36 26-1/4 26-1/2 154
EE6-50-DULBS† 21 34 24-1/4 26-1/2 154
T&P VALVE
ACCESS
PANEL &
CONTROL
PANEL
DRAIN
VALVE
ACCESS
PANEL
T&P VALVE
JUNCTION BOX
ANODE
C
B A
C
T&P VALVE
ACCESS
PANEL &
CONTROL
PANEL
DRAIN
VALVE
ACCESS
PANEL
T&P VALVE
JUNCTION BOX
ANODE
C
B A
C
StateWaterHeaters.com62
DRAIN
VALVE
ACCESS
PANEL
ACCESS
PANEL
T&P VALV
E
T&P
VALVE
ANODE
JUNCTION
BOX
PROLINE
®
ENHANCED HEATING ELEMENTS
• Dual 4500 watt elements for faster recovery and
reliable operation
• Incoloy stainless steel lower element lasts
longer than a standard copper element
HIGH UNIFORM ENERGY FACTOR (UEF)
SELF-CLEANING DIP TUBE
COREGARD
™
ANODE ROD
• Increased anode protection with either longer or
multiple anodes depending on model
LONG-LASTING STAINLESS STEEL UPPER
AND LOWER ELEMENTS
CODE COMPLIANCE
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and current edition of ASHRAE/IES 90.1
• Complies with the Federal Energy Conservation
Standards effective April 16, 2015, in
accordance with the Energy Policy and
Conservation Act (EPCA), as amended
APPROVED FOR MANUFACTURED HOUSING
• All residential electric water heaters are
compliant with HUD standards for mobile
homes/manufactured housing
DESIGN-LISTED BY UNDERWRITERS
LABORATORIES
• Certified at 300 psi test pressure and 150 psi
working pressure
• Listed according to UL174 standards governing
storage tank-type water heaters
6-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com

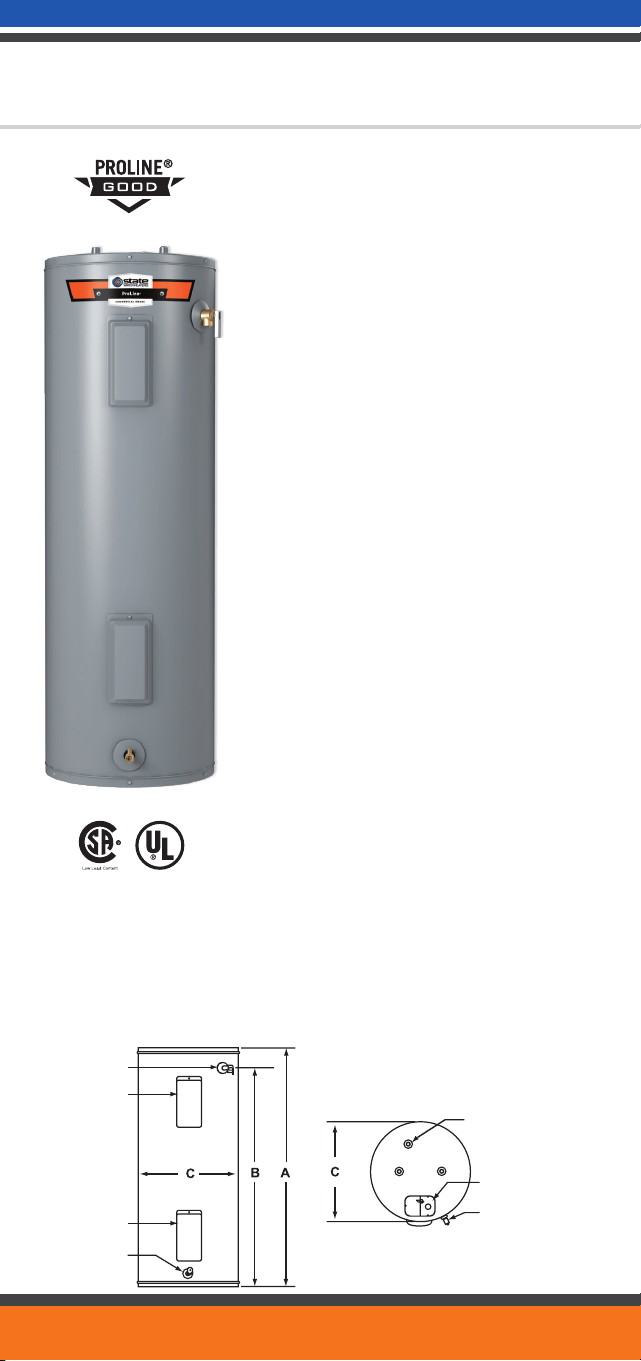

Residential Electric
63
Male 3/4”water connections on 8” center.
*Models ship with supplied insulation blanket.
†For 10-year tank and 10-year parts limited warranty, change “N6” to “SX” in select models and “R” to “N” in
tall and short model number (example: ESX-40-DONT).
"W" suffix models are available down to 1kW. (example: EN6-40-DORS using 4,000 watt elements or less will
become "EN6-40-DORSW").
Top T&P is not available on the 10 year lowboy models.
Dimensions and specifications subject to change without notice in accordance with our policy of continuous
product improvement.
Model Number
Nominal
Capacity
Rated
Storage
Volume
First Hour
Rating
(Gallons)
UEF
Recovery @
90°F Rise
Gallon
Per Hour
Approx.
Shipping
Weight (lbs)
Tall Models
†EN6-30-DORT 30 27 48 0.89 21 95
†EN6-40-DORT 40 36 53 0.92 21 118
†EN6-50-DORT 50 46 62 0.92 21 125
†EN6-55-DORT 55 55 72 0.93 21 145
Short Models
EN6-30-DOBS* 30 27 50 0.90 21 95
†EN6-30-DORS 30 27 47 0.89 21 94
†EN6-40-DORS 40 37 55 0.92 21 109
†EN6-40-DORSW 40 37 41 0.88 18 109
†EN6-50-DORS 50 46 57 0.92 21 161
Lowboy Top Connect Models
†EN6-30-DOLBS* 28 26 43 0.89 21 90
†EN6-30-DOLS 28 26 44 0.90 21 115
†EN6-36-DOLS 36 33 51 0.92 21 118
†EN6-40-DOLS 38 35 50 0.89 21 118
†EN6-40-DOLBS* 38 35 51 0.92 21 118
†EN6-40-DOLBSW* 38 35 38 0.90 18 118
†EN6-50-DOLBS* 48 44 60 0.93 21 172
†EN6-50-DOLBSW* 48 44 40 0.91 16 172
†EN6-50-DOLS 51 48 51 0.92 21 172
Model Number
Element Wattage 240V Dimensions in Inches
Standard Minimum Maximum A B C
Tall Models
†EN6-30-DORT 4500 1000 6000 46-1/2 39-1/2 19
†EN6-40-DORT 4500 3500 6000 61-1/4 53-1/4 18
†EN6-50-DORT 4500 @ 3000 6000 59 51-1/4 20-1/2
†EN6-55-DORT 4500 2500 6000 56-1/2 48-1/2 24
Short Models
EN6-30-DOBS* 4500 1000 6000 39 30-1/2 20
†EN6-30-DORS 4500 1000 6000 39-3/4 30-1/2 22
†EN6-40-DORS 4500 @ 4500 6000 49-3/4 40-3/4 20-1/2
†EN6-40-DORSW - 1000 4000 49-3/4 40-3/4 20-1/2
†EN6-50-DORS 4500 2500 6000 49-1/4 40-3/8 23
Lowboy Top Connect Models
†EN6-30-DOLBS* 4500 1000 6000 30 21-3/4 20
†EN6-30-DOLS 4500 1000 6000 31 1/4 21-3/4 24
†EN6-36-DOLS 4500 @ 4500 6000 32 24 24
†EN6-40-DOLS 4500 1000 6000 33 1/2 24 26
†EN6-40-DOLBS* 4500 @ 4500 6000 32 24 23
†EN6-40-DOLBSW* - 1000 4000 32 24 23
†EN6-50-DOLBS* 4500 @ 4000 6000 34 25 26-1/2
†EN6-50-DOLBSW* - 1000 3500 34 25 26-1/2
†EN6-50-DOLS 4500 4000 6000 36 25 26-1/2
StateWaterHeaters.com64

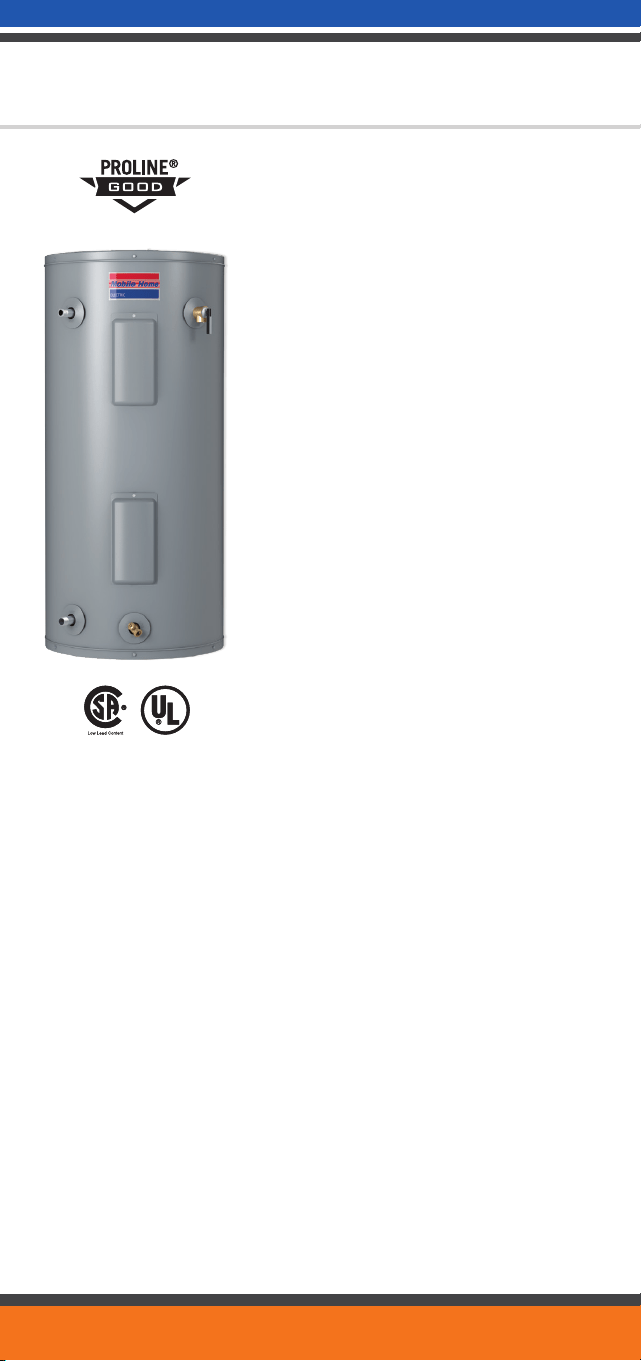

APPROVED FOR MANUFACTURED HOUSING
• All residential electric water heaters are
compliant with HUD Standards for mobile
homes/manufactured housing
SIDE WATER CONNECTIONS
• For ease of installation in mobile home
applications
COREGARD
™
ANODE ROD
• Our anode rods have a stainless steel core
that extends the life of the anode rod allowing
superior tank protection far longer than
standard anode rods
LONG-LASTING HEATING ELEMENTS
• Screw-in, direct immersion, 3500W/240V or
3000W/120V heating elements for maximum
efficiency
BLUE DIAMOND
®
GLASS COATING
ENHANCED-FLOW BRASS DRAIN VALVE
• Our residential water heaters have a solid
brass, tamper resistant, enhanced-flow, ball
type, drain valve
• Uses a standard female hose fitting that allows
for fast and easy draining during maintenance
CSA CERTIFIED AND ASME RATED T&P
RELIEF VALVE
CODE COMPLIANCE
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby loss
requirements of the U. S. Department of Energy
and current edition of ASHRAE/IES 90.1
• Complies with the Federal Energy Conservation
Standards effective April 16, 2015, in
accordance with the Energy Policy and
Conservation Act (EPCA), as amended
DESIGN-LISTED BY UNDERWRITERS
LABORATORIES
• Certified at 300 psi test pressure and 150 psi
working pressure
• Listed according to UL174 standards governing
storage tank-type water heaters
6-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
MOBILE HOME
Residential Electric
65
*Models ship with supplied insulation blanket.
MHE6 models may have limited element options due to element size or other restrictions.
¾˝ water connections
Available with side T&P only.
INLET
DRAIN
VALVE
T&P VALVE
OUTLET
ANODE
JUNCTION
BOX
T&P VALVE
WATER CONNECTIONS
ABC
C
D
E
Model Number
Nominal
Capacity
Rated
Storage
Volume
First Hour
Rating
(Gallons)
UEF
Recovery
@ 90°F
Rise Gallon
Per Hour
Voltage
EN6-30-DMHT
30 27 50 0.90 14 120
30 27 50 0.90 16 240
EN6-40-DMHSW
40 36 40 0.91 14 120
40 36 40 0.91 16 240
EN6-30-DMHLS
28 26 47 0.90 14 120
28 26 47 0.90 16 240
Model Number Voltage
Wattage Dimensions in Inches
Approx.
Shipping
Weight (lbs)
Upper
Element
Lower
Element
Height to Top
of Heater
Diameter
EN6-30-DMHT
120 3000 3000 46-3/4 19 98
240 3500 3500 46-3/4 19 98
EN6-40-DMHSW
120 3000 3000 50 22 109
240 3500 3500 50 22 109
EN6-30-DMHLS
120 3000 3000 30 22 96
240 3500 3500 30 22 96
StateWaterHeaters.com66
APPROVED FOR MANUFACTURED HOUSING
All residential electric water heaters are
compliant with HUD standards for mobile homes/
manufactured housing
TABLE TOP
• Features a convenient flat porcelain surface
at 36˝ height, providing extra “counter space”
wherever installed. All plumbing and electrical
connections are made through the back of the
water heater. This heater is equipped with a PEX
cross-linked polymer dip tube.
POINT-OF-USE
• Designed for low-demand, such as office
lavatories or buildings with remote restrooms
COMPACT
• Side-mounted plumbing and electrical
connections (optional top-mounted water
connections for field conversion). Designed for
installation under a counter, in a crawl space or
in other tight spaces.
ENHANCED-FLOW BRASS DRAIN VALVE
CODE COMPLIANCE
• Meets UBC, CEC and HUD National Codes
• Meets the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and current edition of ASHRAE/IES 90.1
• Complies with the Federal Energy Conservation
Standards effective April 16, 2015, in
accordance with the Energy Policy and
Conservation Act (EPCA), as amended
DESIGN-LISTED BY UNDERWRITERS
LABORATORIES
• Certified at 300 psi test pressure and 150 psi
working pressure
• Listed according to UL174 standards governing
storage tank-type water heaters
6-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com

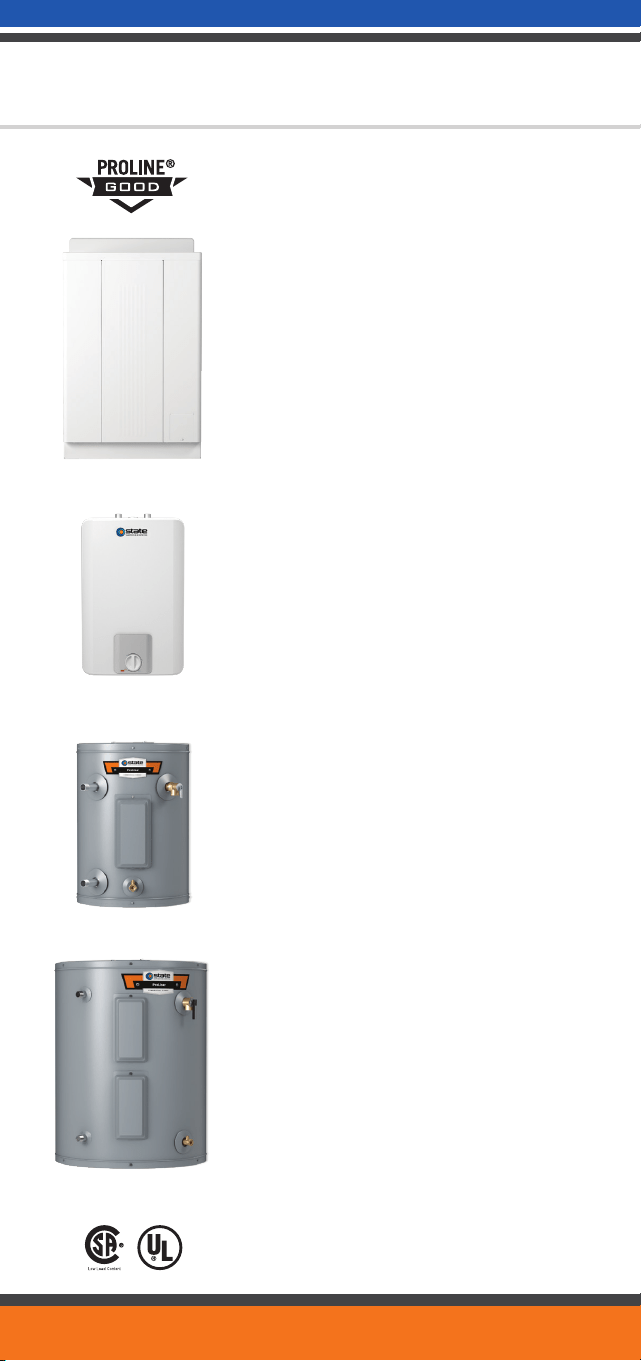

PROLINE
®
SPECIALTY
Table Top
Point-Of-Use
Lowboy
Compact
Residential Electric
67
*Models ship with a supplied insulation blanket. When ordering models EN6-40-DOMS or EN6-40-DOMSB
the model number will change for wattages of 4kW to 1kW. The new model number will include a “W” suffix
(example: EN6-40-DOMSBW). Dimensions and specifications subject to change without notice in accordance
with our policy of continuous product improvement.
Model Number
Nominal
Capacity
Rated
Storage
Volume
First Hour
Rating
(Gallons)
UEF
Recovery @ 90°F Rise
Gallons Per Hour
Compact Models
ES6-6-SOMS-K 6 6 N/A N/A 8
ES6-10-SOMS-K 10 9 N/A N/A 8
ES6-20-SOMS-K 19 17 N/A N/A 11
ES6-20-SOMT-K 19.9 18 N/A N/A 11
Lowboy Side-Connect Model
EN6-30-DOMBS* 28 26 47 0.90 21
EN6-30-DOMS 28 26 43 0.91 21
EN6-40-DOMBS* 38 35 57 0.94 21
EN6-40-DOMBSW* 38 35 38 0.91 18
EN6-40-DOMS 38 35 54 0.93 21
EN6-40-DOMSW 38 35 38 0.91 18
Table Top Model
EN6-38-2OTT 38 35 55 0.90 21
Point-Of-Use-Models
ES6-2-SMT 2.5 2.6 N/A N/A 7
ES6-4-SMT 4 3.8 N/A N/A 7
ES6-6-SMT 6 5.9 N/A N/A 7
Model Number
Element Wattage Dimensions in Inches
Approx.
Shipping
Weight (lbs)
Standard Maximum A B C
Compact Models
120V 240V
ES6-6-SOMS-K 1650 3000 15-1/4 10-3/4 14-1/4 35
ES6-10-SOMS-K 1650 6000 18-1/4 12-1/4 16 41
ES6-20-SOMS-K 2500 6000 24-3/4 18-5/8 18 68
ES6-20-SOMT-K 2500 6000 31-5/8 25-3/4 16 68
Lowboy Side-Connect Model
240V
EN6-30-DOMBS* 4500 6000 30 21-3/4 22 101
EN6-30-DOMS 4500 6000 31-1/4 21-3/4 24 115
EN6-40-DOMBS* 4500 6000 31-3/4 24 24 118
EN6-40-DOMBSW* - 4000 31-3/4 24 24 118
EN6-40-DOMS 4500 6000 33-1/2 24 26 118
EN6-40-DOMSW - 4000 33-1/2 24 26 118
Table Top Model
240V
EN6-38-2OTT 4500 5500 36 24 25 150
Point-Of-Use-Models
120V
ES6-2-SMT 1440 @ 120V 18-1/2 13-1/4 12 1/4 17
ES6-4-SMT 1440 @ 120V 23 1/4 13-1/4 12 1/4 20
ES6-6-SMT 1440 @ 120V 24 1/4 16 15 24

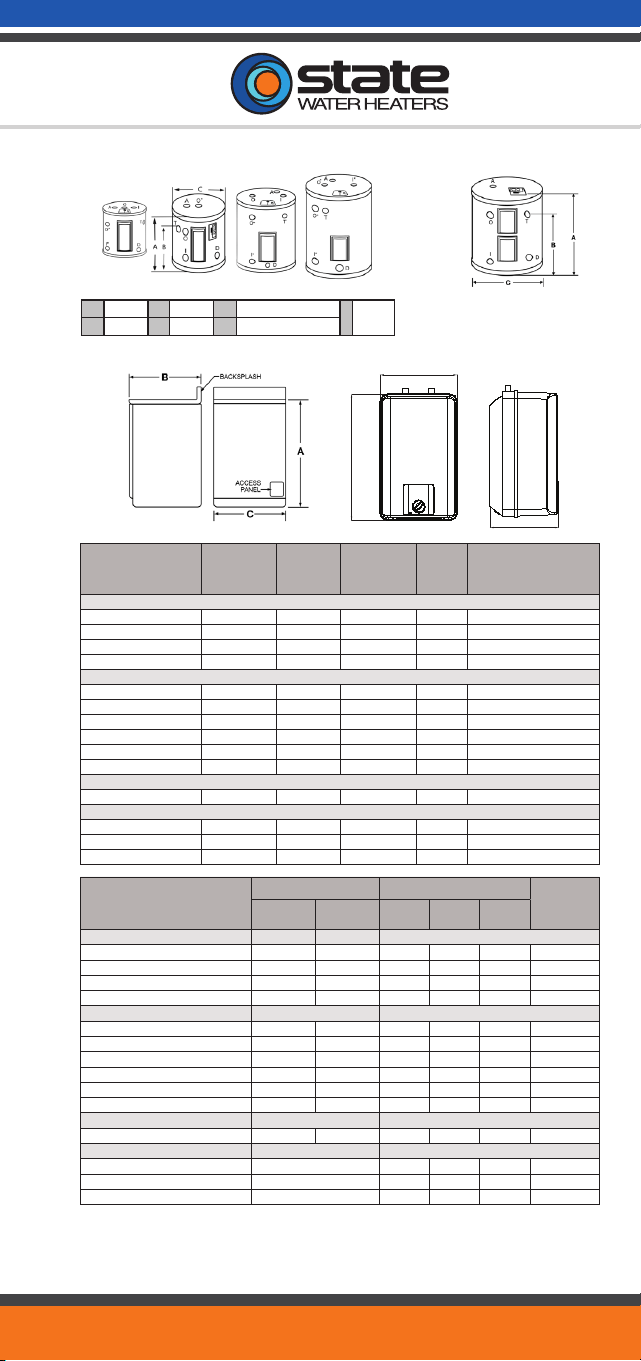

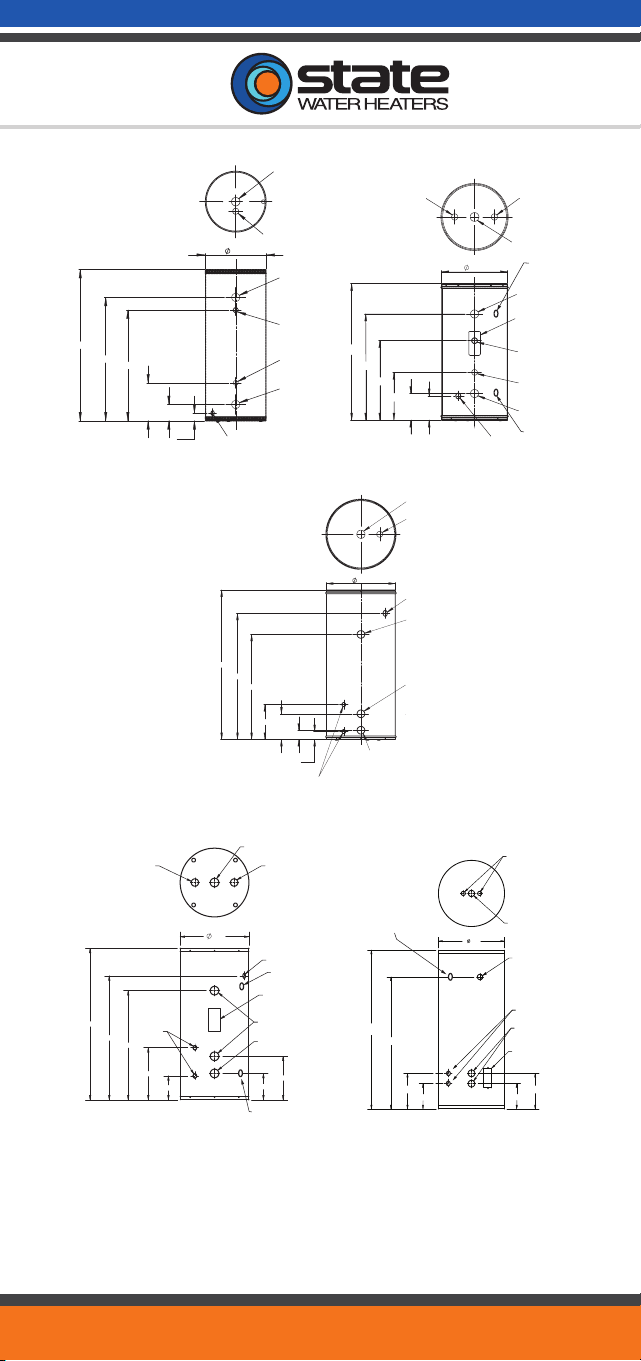

ES6 20 SOMS
Table Top Model
Compact Models
Lowboy
Point-Of-Use
ES6 10 SOMSES6 6 SOMS ES6 20 SOMS
ES6 30 DOMS, ES6 30 SOMSK,
ES6 40 DOMS, ES6 40 SOMNS K,
I INLET D DRAIN I* PLUGGED INLET
A ANODE
O OUTLET T T&P O* PLUGGED OUTLET
A
1:5
C
B
StateWaterHeaters.com
68
Certified to NSF/ANSI
61-G and 372
2 THROUGH 119-GALLON CAPACITIES IN
FREE-STANDING, IN-LINE OR HORIZONTAL
DESIGNS
DURABLE BUTYL RUBBER PARABOLIC
DIAPHRAGM
POWDER COATED LINING BONDED TO TANK
SHELL, PROTECTS AGAINST RUST
ROTATING CORROSION-RESISTANT BASE
ON FREE-STANDING MODELS ASSURES
STABILITY
TANKS ARE CERTIFIED TO NSF/ANSI
STANDARD 61-G AND 372 LISTED AND ARE
IN COMPLIANCE WITH CALIFORNIA AND
VERMONT’S NO-LEAD LEGISLATION
5-YEAR LIMITED WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
2 THROUGH 119-GALLON CAPACITIES IN
FREE-STANDING, IN-LINE OR HORIZONTAL
DESIGNS
DURABLE BUTYL RUBBER PARABOLIC
DIAPHRAGM
POWDER COATED LINING BONDED TO TANK
SHELL, PROTECTS AGAINST RUST
TANKS ARE CERTIFIED TO NSF/ANSI
STANDARD 61-G AND 372 LISTED AND ARE
IN COMPLIANCE WITH CALIFORNIA AND
VERMONT’S NO-LEAD LEGISLATION
NO-WELD STEEL BASE
5-YEAR LIMITED WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com

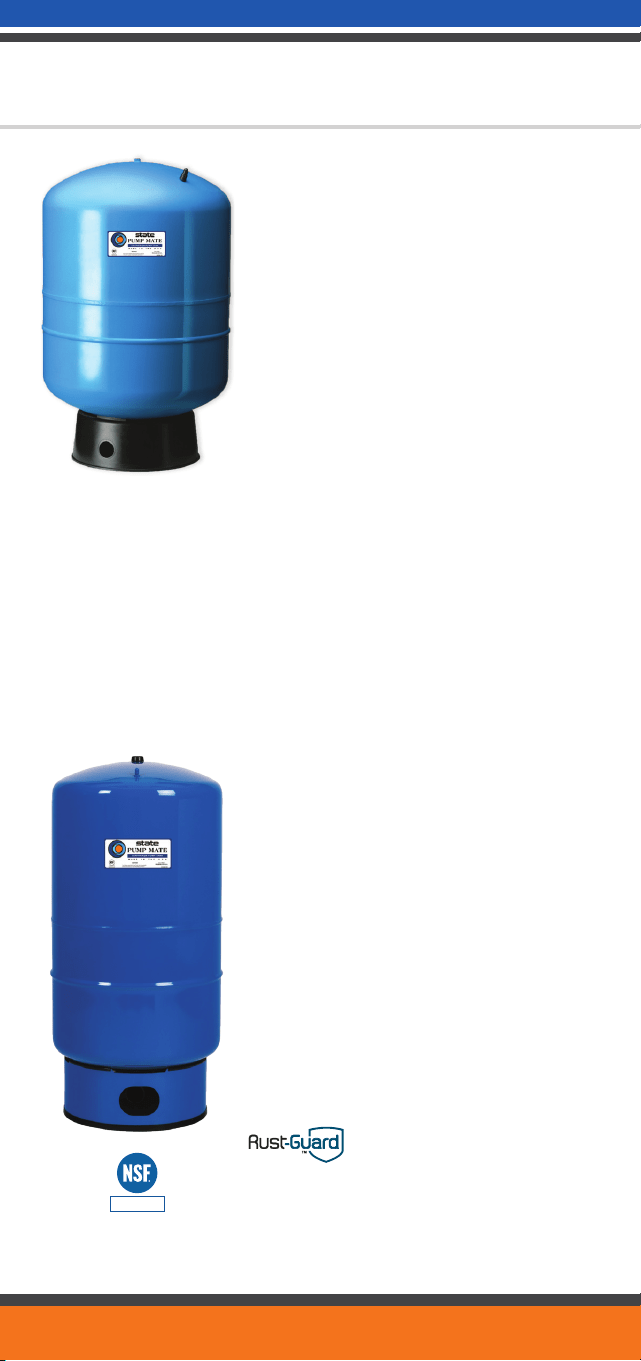

SPMD Series – Pre-Pressurized
Diaphragm Tanks
SSB Series – Pre-Pressurized
Diaphragm Tanks
PUMP-MATE
™
Water Systems
69
1˝ Female connection on 14, 20, and 36S gallons.
1-1/4˝ Female connections on 52, 86, 96, and 119 gallons.
SPMDI connection ¾˝ Male. *SPMDI-14 1˝ male
SPMDH-7 connection ¾˝ Male. *SPMDH-14, SPMDH-20 connection 1˝ Male
C
A
A
C
B
WATER CONNECTION
A
B
C
4
1
/
4
7
1
/
4
C
A
A
C
B
WATER CONNECTION
A
B
C
4
1
/
4
7
1
/
4
C
A
A
C
B
WATER CONNECTION
A
B
C
4
1
/
4
7
1
/
4
SPMD Series
Free Standing
Plastic Base
Model
Number
Volume
(Gallons)
Dimensions in Inches
Weight (lbs)
“A” Overall
Height
“B” To
Center of
Water Inlet
“C”
Diameter
SPMD-14 14 24-3/4 2-1/4 15-3/8 25.5
SPMD-20 20 32-3/4 2-1/4 15-3/8 30
SPMD-31 31 45-1/2 2-1/4 15-3/8 40
SPMD-36S 36 32-3/8 2-1/4 20 45
SPMD-52 52 38-5/8 2-1/4 23-3/8 77
SPMD-86 86 59 2-1/4 23-3/8 105
SPMD-96 96 63-3/8 2-1/4 23-3/8 111
SPMD-119 119.5 61-1/4 2-1/2 26 165
SSB Series
Free Standing
Metal Base
SSB20 20 32-3/4 2-1/4 15-3/8 30
SSB32 32 45-1/2 2-1/4 15-3/8 40
SSB36 36 32-3/8 2-1/4 20 45
SSB52 52 38-5/8 2-1/4 23-3/8 77
SSB65 65 46-5/8 2-1/4 23-3/8 87
SSB86 86 59 2-1/4 23-3/8 105
SSB119 119.5 61-1/4 2-1/2 26 165
SPMDI Series
In-Line
SPMDI-2 2 10-3/16 – 8-1/4 5
SPMDI-5 4.6 14-3/4 – 11 9
SPMDI-7 7.3 21-1/16 – 11 14
SPMDI-14 14 23-1/2 – 15-3/8 25
SPMDH Series
Horizontal
“B” Overall
Length
SPMDH-7 7.3 12-7/8 21-1/8 11 16
SPMDH-14 14 17-3/8 21-3/4 15-3/8 25.5
SPMDH-20 20 17-3/8 27-1/8 15-3/8 30
StateWaterHeaters.com
70
Heavy-Duty Glasslined G Series
5-YEAR LIMITED WARRANTY
• UL Certified
• Max working pressure is 125 psig
• Anodic Protection
• For complete information, consult written
warranty or go to statewaterheaters.com
HEAVY-DUTY STATE
PROLINE
®
GLASSLINED
Water Systems
71
1-1/4˝ NPT Spud in head for alternate motor mount or retention tank connection
All tapping 1-1/4˝ Water Connections
1/4˝ pressure switch tapping on all models
G SERIES GLASSLINED PUMP TANKS
Model
Number
Volume
(Gallons)
Dimensions in Inches
Weight
(lbs)
A B
C D
E
F
G-42-T 42 49 26 16-1/2 12 3 6 71
G-42-S 42 35-7/8 17 20 8 3 6 81
G-82 82 62-1/4 33 20 12 3 6 154
G-120 120 63 33 24 12 3 6 206
StateWaterHeaters.com
72
Galvanized Tanks Z Series
1-YEAR LIMITED WARRANTY
• Vertical Tanks
• Maximum working pressure 75 psig
• NSF Certified 61G & 372
• F
or complete information, consult written warranty or go to statewaterheaters.com
VERTICAL TANKS Z SERIES 12 TO 120 GALLONS – FREE STANDING
Model Number
Volume
(Gallons)
Dimensions in Inches
Weight
(lbs)
A B C D E
Z-12 12 26-1/2 24 12 5 13 27
Z-21 21 26-7/8 24 16 5 13 45
Z-32 32 38-3/4 36 16 8 17 52
ZT-42 42 51 48 16 12 26 71
ZS-42 42 33-5/8 30 20 8 17 71
Z-82 82 63 60 20 12 33 114
Z-120 120 64-1/2 60 24 12 33 154
HEAVY-DUTY STATE
PROLINE
®
GALVANIZED
Water Systems
73
Model
Number
Volume
(Gallons)
Dimensions in Inches
Weight
(lbs)
A B C D
E G
J K
L
Z-220 220 78 66 30
6 32 6 2-1/2 2 2 303
Z-315 315 79-1/2 66 36
6 32 7 2-1/2 2 2 416
Z-480 480 87 72 42 6 32 7-1/2 2-1/2 2 3 640
Model
Number
Volume
(Gallons)
Dimensions in Inches
Weight
(lbs)
A B C D E F G J
ZU-525 525 131 114 36 6 56 2-1/2 2-1/2 2" NPT 685
ZU-900 900 161 144 42 14 69 4 4 3" NPT 1040
LIFT LUG

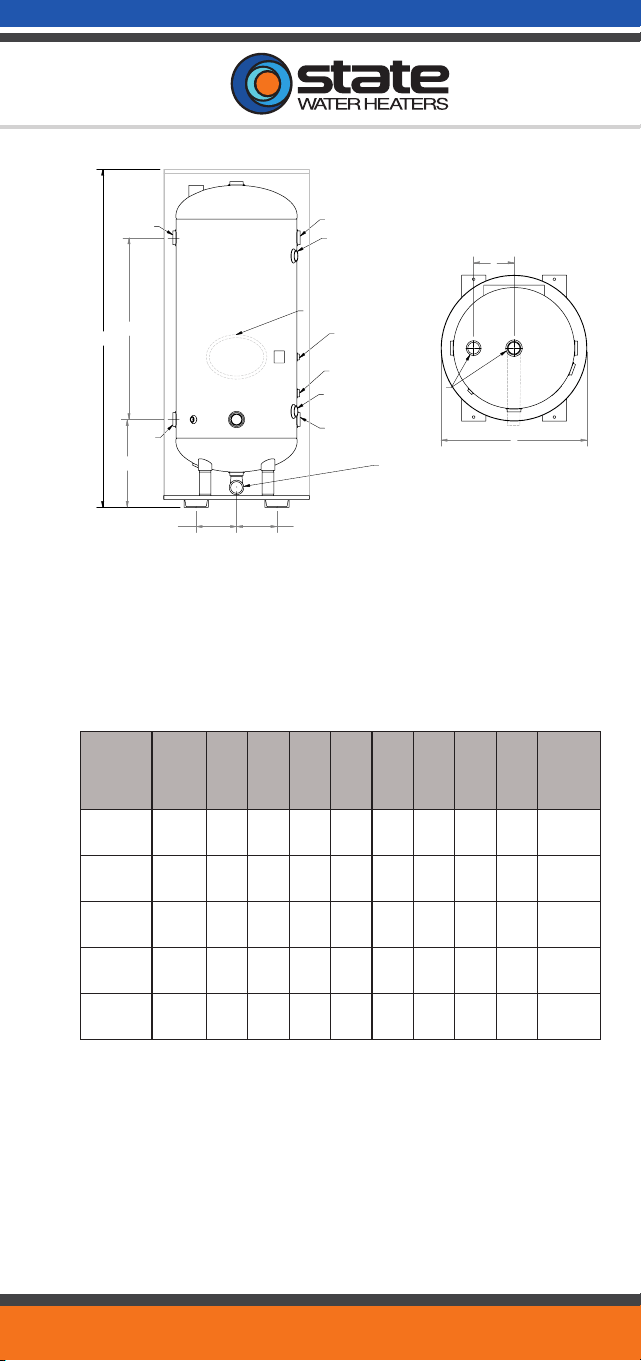

VERTICAL TANKS Z SERIES 220-480 GALLONS

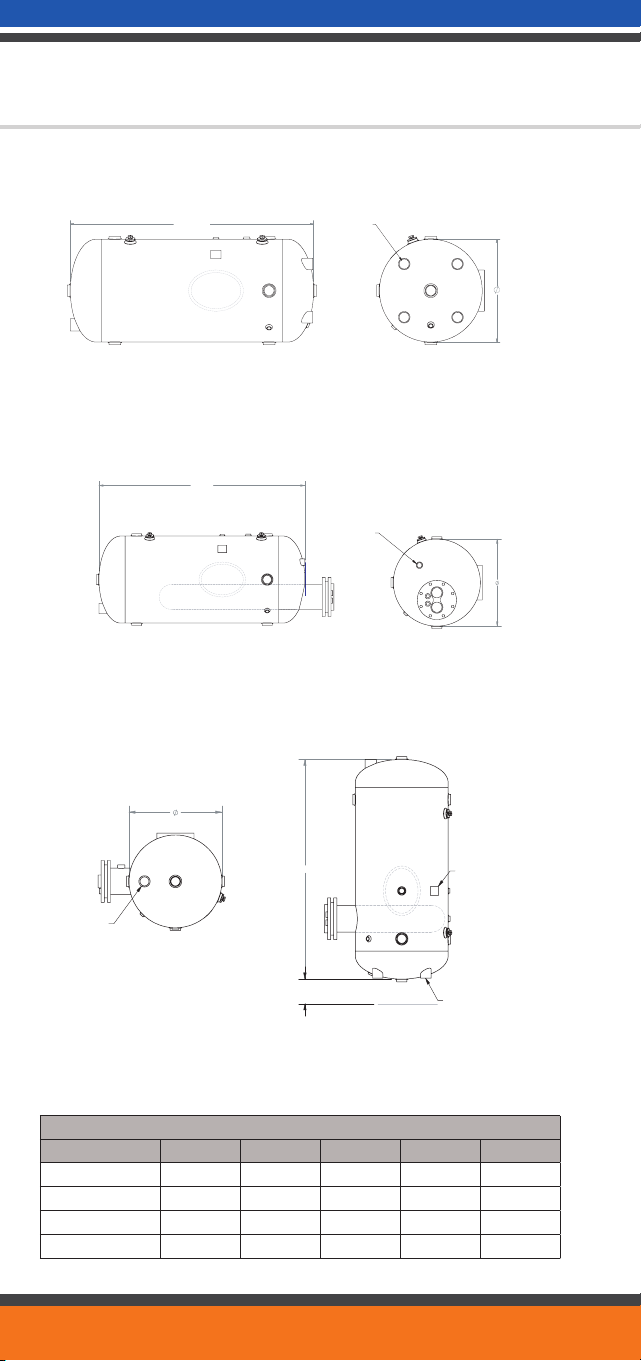

UNIVERSAL TANKS Z SERIES
525-900 GALLONS
StateWaterHeaters.com
74
• In-Line Series, Models ETC-7, ETC-14, 3/4˝ FPT
• Free Standing Series Models ETC-15 to ETC-
36, 1˝ FPT
• ETC-52 to ETC-86, 1-1/4˝ FPT
• Tanks are NSF Standard 61-G and 372 listed
• 5-year limited warranty
• For use with residential and commercial water
heaters to a maximum of 180°
• Field-adjustable 38 psi air charge
• IAPMO approved (150 psig Models)
• Tanks are NSF Standard 61-G and 372 listed
• 5-year limited tank warranty
THERM-O-FLEX
™
POTABLE WATER HEATER EXPANSION TANKS
WATERGUARD
™
POTABLE WATER HEATER EXPANSION TANKS
Certified to NSF/ANSI
61-G and 372
When used in potable applications
WATERGUARD
™
& THERM-0-FLEX
™
For complete information, consult written warranty or go to statewaterheaters.com
Water Systems
75
B
A
B
A
B
A
IN-LINE
COMBINATION UNITS
FREE-STANDING
B
A
B
A
B
A
IN-LINE
COMBINATION UNITS
FREE-STANDING
Model
Number
Maximum
(PSIG)
Working
Pressure
Tank
Volume
(Gallons)
Maximum Accepted
Volume (Gallons)
Connection
NPT Size
A B
Weight
(lbs)
20 PSI 40 PSI 60 PSI
Waterguard™-Series (Potable Expansion Tanks - 5-Year Limited Warranty)
ETC-10X 150 9.25 7.80 6.55 5.25 3/4 15-1/2 15-3/8 18
Therm-o-Flex™ Series (Potable Expansion Tanks - 5-Year Limited Warranty)
ETC-7 100 7.27 4.6 N/A N/A 3/4 21-1/16 11 14
ETC-14
100 14.6 10.5 8.0 5.6 3/4 23-1/2 15-3/8 25
ETC-15 100 14.6 10.5 8.0 5.6 1 24-3/4 15-3/8 25-1/2
ETC-20 100 20 13.5 10.1 6.7 1 32-3/4 15-3/8 30
ETC-36S
100 36 21 16.6 11.4 1 32-3/8 20 45
ETC-52 100 52 33.8 25.5 19.7 1-1/4 38-5/8 23-3/8 77
ETC-86 100 86 61.2 45.4 32.8 1-1/4 59 23-3/8 105
StateWaterHeaters.com
76
• Not for use with potable water heating
systems
• Designed for in-line or free standing
installation
• Combination models shipped with air vent and
separator
• Field-adjustable 12 psi air charge
• Drawn-steel tank with butyl rubber parabolic
diaphragm separates air and water
• Maximum temperature 240° F
• 100 psi maximum working pressure
• 1-year tank limited warranty
• For complete information, consult written
warranty or go to statewaterheaters.com
SPACE HEATING EXPANSION
TANKS
FOR USE WITH RESIDENTIAL SPACE
HEATING BOILERS IN CLOSED SYSTEMS
THERM-O-FLEX
™
Water Systems
77
B
A
B
A
B
A
IN-LINE
COMBINATION UNITS
FREE-STANDING
*Combination Units with Air Vent and Air Separator
All Models: 100 psig Maximum Working Pressure
All In-Line Models have 1/2˝ MPT connections
Combination Units Air Vent Connection Sizes: ET-2V-1, ET-5V-1, ET-7V-1 have 1˝ female connection
Combination Units Air Vent Connection Sizes: ET-2V-2, ET-5V-2, ET-7V-2 have 1-1/4˝ female connection
Model
Number
Tank
Volume
(Gallons)
Max. Acceptable
Volume (Gallons)
20 PSIG
Dimensions in Inches
Shipping
Weight
(lbs)
Height Diameter
Therm-o-Flex In-Line
ET-2 1.86 1.53 10-3/16 8-1/4 5
ET-5 4.83 3.75 14-3/4 11 9
ET-7 7.27 4.6 21-1/16 11 14
ET-14 14.6 10.5 21-3/4 15-3/8 22
Therm-o-Flex Combination Units*
ET-2V-1 1.86 1.53 20-11/16 8-1/4 10
ET-2V-2 1.86 1.53 20-11/16 8-1/4 10
ET-5V-1 4.83 3.75 25-1/8 11 13
ET-5V-2 4.83 3.75 25-1/8 11 13
ET-7V-1 7.27 4.6 31-3/8 11 16
ET-7V-2 7.27 4.6 31-3/8 11 16
StateWaterHeaters.com
78
X3 SCALE PREVENTION TECHNOLOGY
(PATENT PENDING)
• No annual descaling required
• No scale buildup means the heater
maintains like-new performance longer
ENERGY STAR
®
QUALIFIED* DURABLE
HEAT EXCHANGER
• Primary heat exchanger is constructed of
a commercial-grade copper that is more
resilient to corrosion. Copper is 25x better
at heat transfer than Stainless Steel, thus
stabilizing outgoing water temperatures
quicker
• Secondary heat exchanger is made of 316L
Stainless Steel to protect against corrosion
QUALIFIED AS LEAD FREE UNDER THE
SAFE DRINKING WATER ACT
SAFETY FEATURES
• Exhaust & Water Temperature Safety Control
• Overheat Cut-Off Fuse
• Air-Fuel Ratio (AFR) Sensor
INTERNAL FREEZE PROTECTION SYSTEM
RECIRC CAPABLE
• Tankless water heaters with X3 Technology
are approved to work with an external
recirculation pump and cross-over valve.
See training manual for full details
POWER DIRECT VENT DESIGN
• Category III or IV venting can be used
• Exhaust, 3” PVC up to 70’; 4” PVC up to
100’
• Provides flexible venting with PVC, CPVC,
polypropylene, or ABS Pipe for Intake and
Exhaust (solid core only)
ACCESSORIES
• Pipe Cover
• Neutralizer Kit
• X3 Freeze Protection Kit
• Concentric Termination
• Recess Box
WARRANTY
• No hardwater exclusions in the industry’s
first “peace of mind” limited warranty
• 15-year limited warranty on heat exchanger
in residential applications
• 5-year limited warranty on all parts in
residential applications
• 1-year limited warranty on heat exchanger
and parts in commercial applications
• For complete information, consult written
warranty or go to statewaterheaters.com

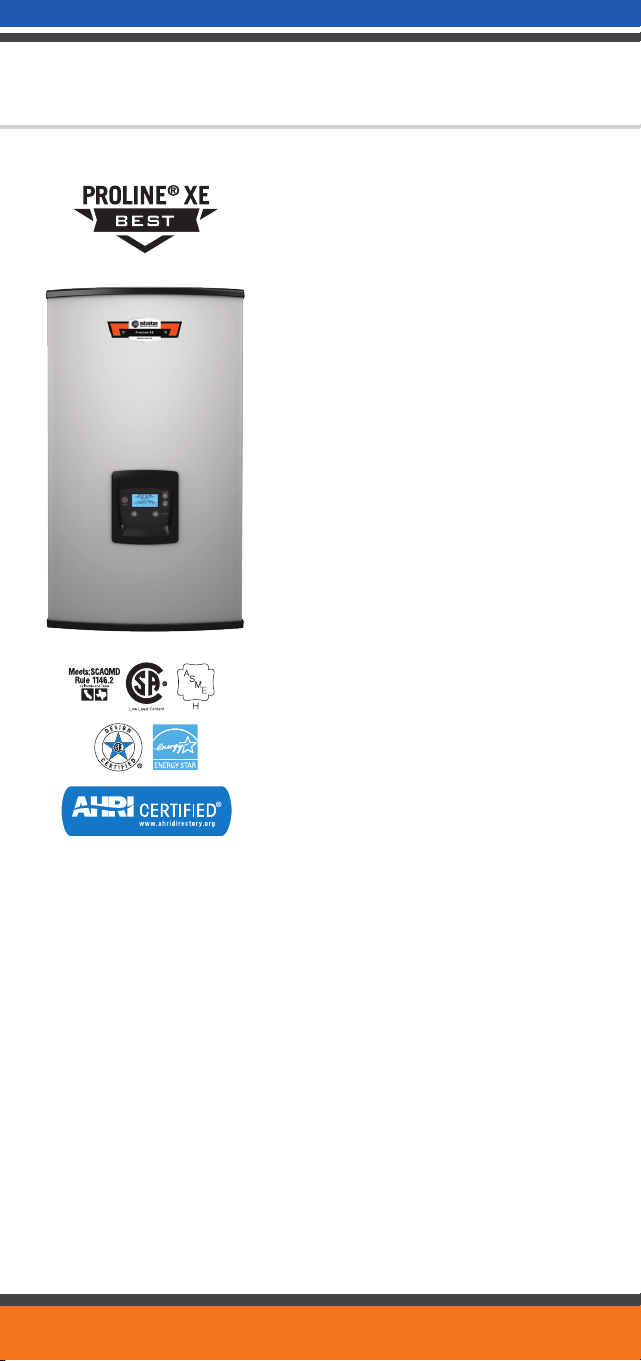

PROLINE
®
XE WITH X3
®
SCALE
PREVENTION TECHNOLOGY
ANSI Z21. 10.3 CSA 4.3
Indoor
Outdoor
*Select models
*

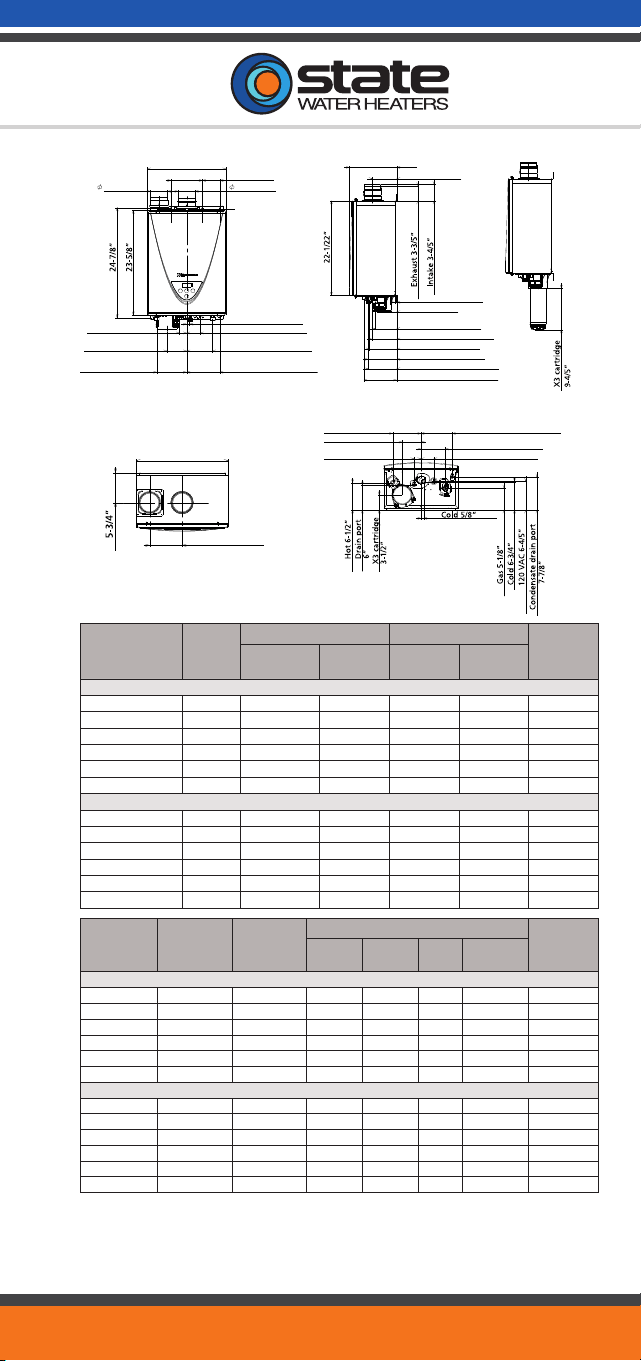

Tankless
79
15-150 PSI Water Pressure. 40 PSI or above recommended for maximum flow.
*Current numbers based on factory testing; 0.5 GPM for activation; 0.4 GPM required for
continuous fire after initial ignition. Indoor models are certified from sea level to 10,100 ft. elevations. Outdoor
models are certified from sea level to 6,000 ft. elevation.
+
ENERGY STAR
®
Qualified
Maximum
GPM*
Hot/Cold
Connections
Gas
Connection
Dimensions in Inches
Approx.
Shipping
Weight (lbs)
Height Width Depth
Height with
Cartridge
Indoor Models
6.6 3/4" NPT 3/4" NPT 23-5/8 17-3/4 11-1/4 35-9/16 72
6.6 3/4" NPT 3/4" NPT 23-5/8 17-3/4 11-1/4 35-9/16 72
8 3/4" NPT 3/4" NPT 23-5/8 17-3/4 11-1/4 35-9/16 72
8 3/4" NPT 3/4" NPT 23-5/8 17-3/4 11-1/4 35-9/16 72
10 3/4" NPT 3/4" NPT 23-5/8 17-3/4 11-1/4 35-9/16 73
10 3/4" NPT 3/4" NPT 23-5/8 17-3/4 11-1/4 35-9/16 73
Outdoor Models
6.6 3/4" NPT 3/4" NPT 23-5/8 17-3/4 11-1/4 35-9/16 71
6.6 3/4" NPT 3/4" NPT 23-5/8 17-3/4 11-1/4 35-9/16 71
8 3/4" NPT 3/4" NPT 23-5/8 17-3/4 11-1/4 35-9/16 71
8 3/4" NPT 3/4" NPT 23-5/8 17-3/4 11-1/4 35-9/16 71
10 3/4" NPT 3/4" NPT 23-5/8 17-3/4 11-1/4 35-9/16 73
10 3/4" NPT 3/4" NPT 23-5/8 17-3/4 11-1/4 35-9/16 73

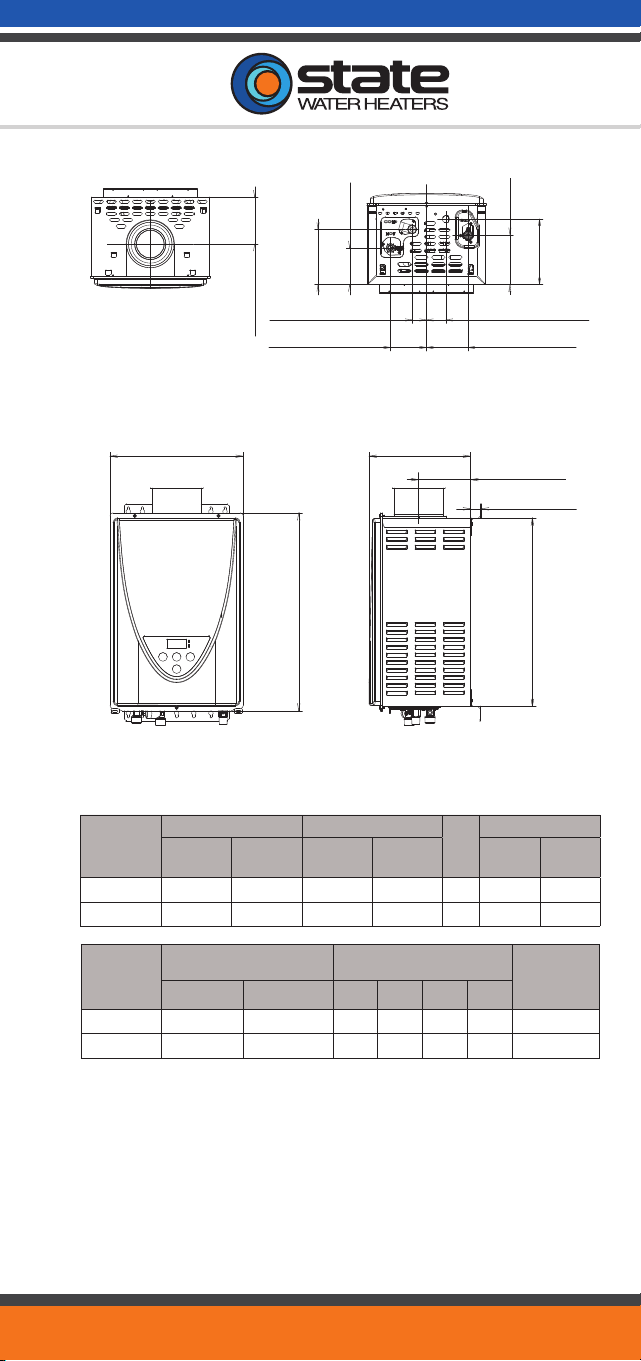

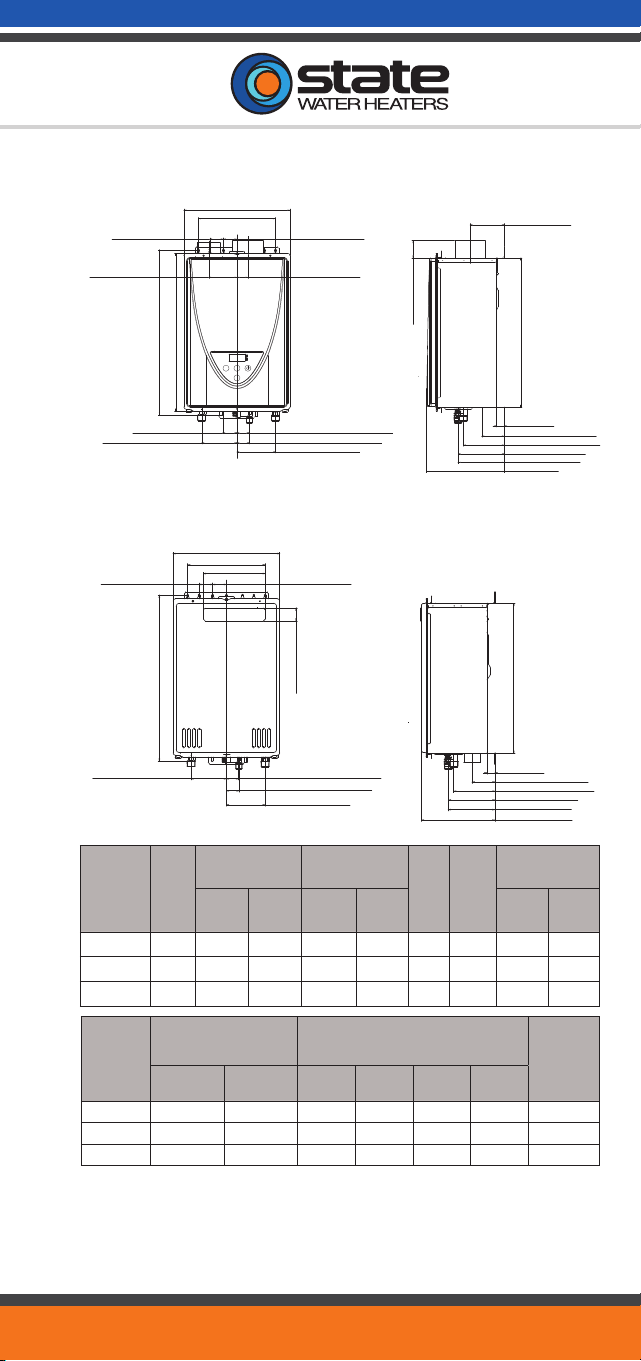

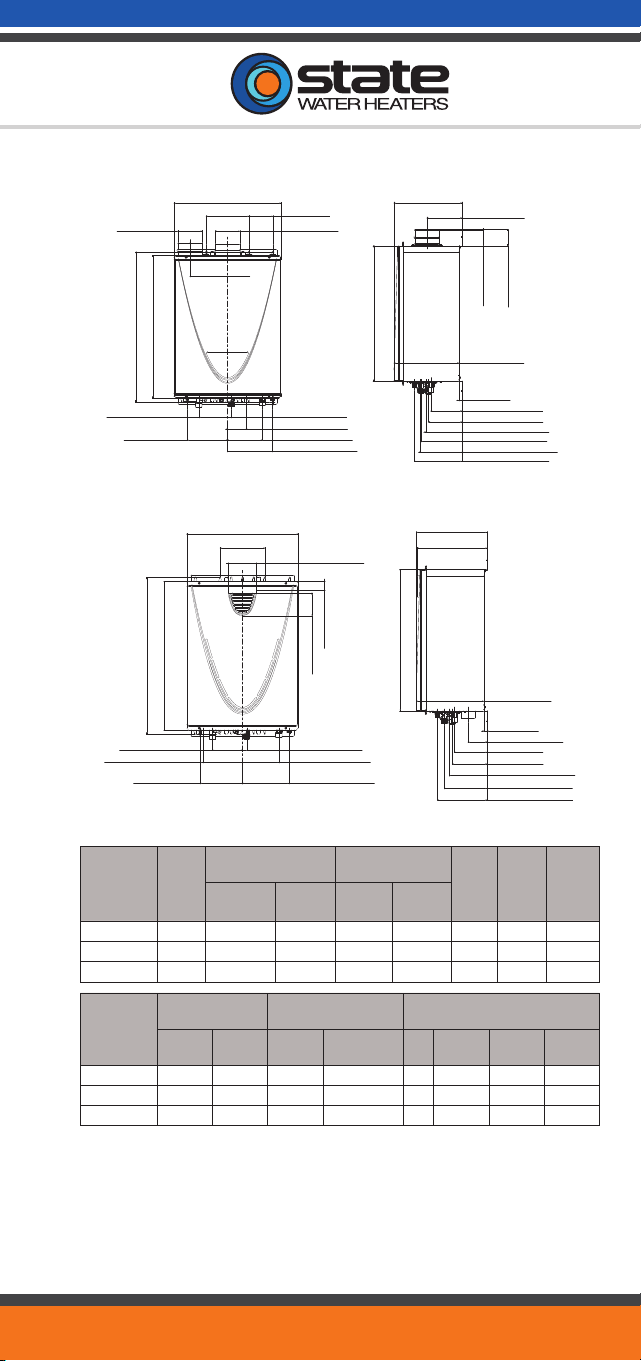

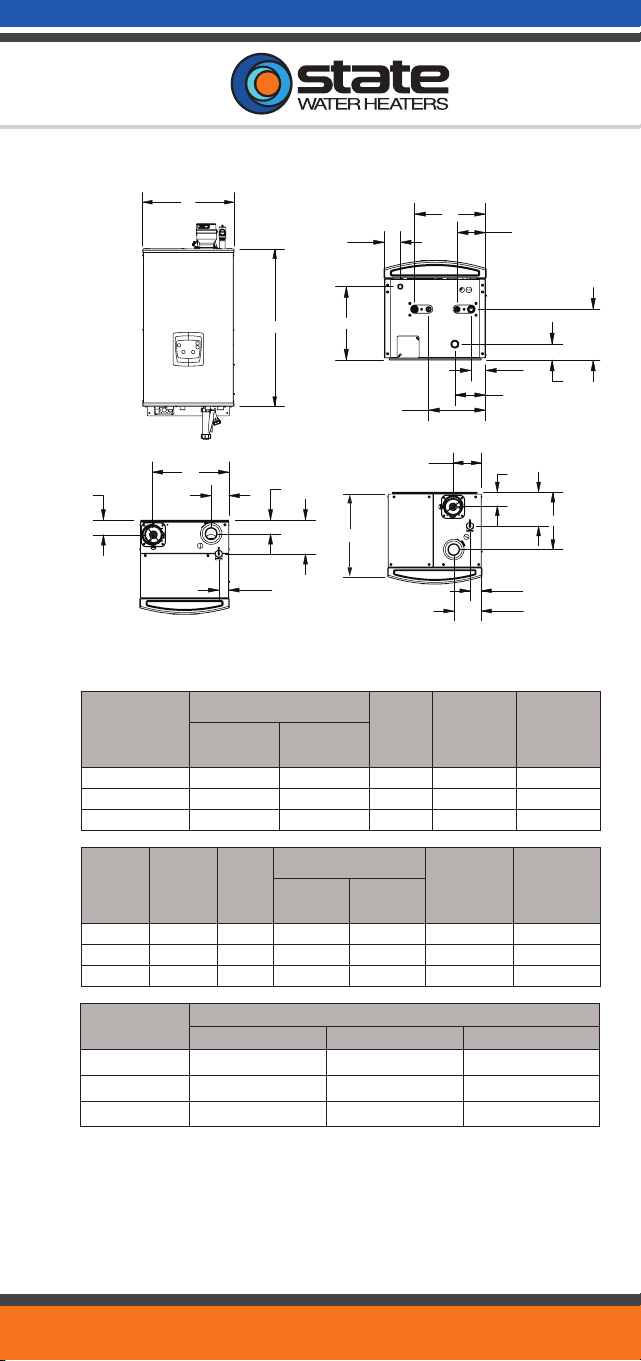

X3 cartridge
3-1/2”
Gas 5-1/8”
Drain port 6”
Hot 6-1/2”
Cold 6-3/4”
120 VAC 6-4/5”
Condensate drain port
7-7/8”
1/2”
11-1/4”
5-3/4”
17-5/8”
6-1/4”
17-3/4”
7”
3”
Female
3”
Female
4”
Drain port
X3 cartridge
X3 cartridge
1-3/5”
4-2/5”
Hot 6-3/4”
Drain port
Hot 6-3/4”
1-3/5”
4-2/5”
7-1/2”
Condensate drain port
Condensate drain port
7-1/2”
120 VAC 3”
Gas 5-3/4”
120 VAC 3”
Gas 5-3/4”
Cold 5/8”
X3 cartridge
3-1/2”
Gas 5-1/8”
Drain port 6”
Hot 6-1/2”
Cold 6-3/4”
120 VAC 6-4/5”
Condensate drain port
7-7/8”
1/2”
11-1/4”
5-3/4”
17-5/8”
6-1/4”
17-3/4”
7”
3”
Female
3”
Female
4”
Drain port
X3 cartridge
X3 cartridge
1-3/5”
4-2/5”
Hot 6-3/4”
Drain port
Hot 6-3/4”
1-3/5”
4-2/5”
7-1/2”
Condensate drain port
Condensate drain port
7-1/2”
120 VAC 3”
Gas 5-3/4”
120 VAC 3”
Gas 5-3/4”
Cold 5/8”
X3 cartridge
3-1/2”
Gas 5-1/8”
Drain port 6”
Hot 6-1/2”
Cold 6-3/4”
120 VAC 6-4/5”
Condensate drain port
7-7/8”
1/2”
11-1/4”
5-3/4”
17-5/8”
6-1/4”
17-3/4”
7”
3”
Female
3”
Female
4”
Drain port
X3 cartridge
X3 cartridge
1-3/5”
4-2/5”
Hot 6-3/4”
Drain port
Hot 6-3/4”
1-3/5”
4-2/5”
7-1/2”
Condensate drain port
Condensate drain port
7-1/2”
120 VAC 3”
Gas 5-3/4”
120 VAC 3”
Gas 5-3/4”
Cold 5/8”
X3 cartridge
3-1/2”
Gas 5-1/8”
Drain port 6”
Hot 6-1/2”
Cold 6-3/4”
120 VAC 6-4/5”
Condensate drain port
7-7/8”
1/2”
11-1/4”
5-3/4”
17-5/8”
6-1/4”
17-3/4”
7”
3”
Female
3”
Female
4”
Drain port
X3 cartridge
X3 cartridge
1-3/5”
4-2/5”
Hot 6-3/4”
Drain port
Hot 6-3/4”
1-3/5”
4-2/5”
7-1/2”
Condensate drain port
Condensate drain port
7-1/2”
120 VAC 3”
Gas 5-3/4”
120 VAC 3”
Gas 5-3/4”
Cold 5/8”
X3 cartridge
3-1/2”
Gas 5-1/8”
Drain port 6”
Hot 6-1/2”
Cold 6-3/4”
120 VAC 6-4/5”
Condensate drain port
7-7/8”
1/2”
11-1/4”
5-3/4”
17-5/8”
6-1/4”
17-3/4”
7”
3”
Female
3”
Female
4”
Drain port
X3 cartridge
X3 cartridge
1-3/5”
4-2/5”
Hot 6-3/4”
Drain port
Hot 6-3/4”
1-3/5”
4-2/5”
7-1/2”
Condensate drain port
Condensate drain port
7-1/2”
120 VAC 3”
Gas 5-3/4”
120 VAC 3”
Gas 5-3/4”
Cold 5/8”
FRONT
SIDE
TOP
BOTTOM
Model
Number
Type
Gas Consumption Input Supply Gas Pressure
UEF
Minimum UEF
BTU/H
Maximum
BTU/H
Minimum
in. W.C.
Maximum
in. W.C.
Indoor Models
GTS-240X3-NIH Natural 15,000 160,000 4.0 10.5 0.94
GTS-240X3-PIH Propane 13,000 160,000 8.0 14.0 0.94
GTS-340X3-NIH
+
Natural 15,000 180,000 4.0 10.5 0.95
GTS-340X3-PIH
+
Propane 13,000 180,000 8.0 14.0 0.95
GTS-540X3-NIH Natural 15,000 199,000 4.0 10.5 0.93
GTS-540X3-PIH Propane 13,000 199,000 8.0 14.0 0.93
Outdoor Models
GTS-240X3-NEH
+
Natural 15,000 160,000 4.0 10.5 0.95
GTS-240X3-PEH
+
Propane 13,000 160,000 8.0 14.0 0.95
GTS-340X3-NEH Natural 15,000 180,000 4.0 10.5 0.94
GTS-340X3-PEH Propane 13,000 180,000 8.0 14.0 0.94
GTS-540X3-NEH
+
Natural 15,000 199,000 4.0 10.5 0.95
GTS-540X3-PEH
+
Propane 13,000 199,000 8.0 14.0 0.95
StateWaterHeaters.com
80
INTEGRATED RECIRCULATION PUMP
• Simplify installation by eliminating added time
and money spent sourcing and installing pump
and controls. Integrated front panel controls are
easy to view and set.
• 1/2˝ pipe - 200’
• 3/4˝ pipe - 500’
PUMP CONTROLS
• Included with heater
• Two timer settings
• Adjustable differential settings
ENERGY STAR
®
QUALIFIED*
ULTRA-LOW NOx EMISSIONS
• Complies with SCAQMD 1146.2 NOx emission
requirements of 14 ng/J or 20 PPM
INDOOR MODELS
• Include integrated temperature and pump
controls with advanced diagnostics that
simplify installation and troubleshooting
• Factory-installed power cord
OUTDOOR MODELS
• Includes a wall mount temperature remote
controller and advanced diagnostics to simplify
troubleshooting
COMMON VENT INDOOR MODELS UP TO 8
HEATERS
• Easy-link with up to three 540H condensing
tankless heaters to increase flow capacity
SAFETY FEATURES
• Air-Fuel ratio (AFR) sensor
• Exhaust & water temperature safety control
• Overheat cut-off fuse
INTERNAL FREEZE PROTECTION
WARRANTY
• 15-year limited warranty on heat exchanger in
residential applications
• 6-year limited warranty on heat exchanger in
commercial applications
• 5-year limited warranty on all parts
• For complete information, consult written
warranty or go to statewaterheaters.com
Indoor
Outdoor
ANSI Z21. 10.3 CSA 4.3
PROLINE
®
XE CONDENSING WITH
RECIRCULATION PUMP
*Select models
*
Tankless
81

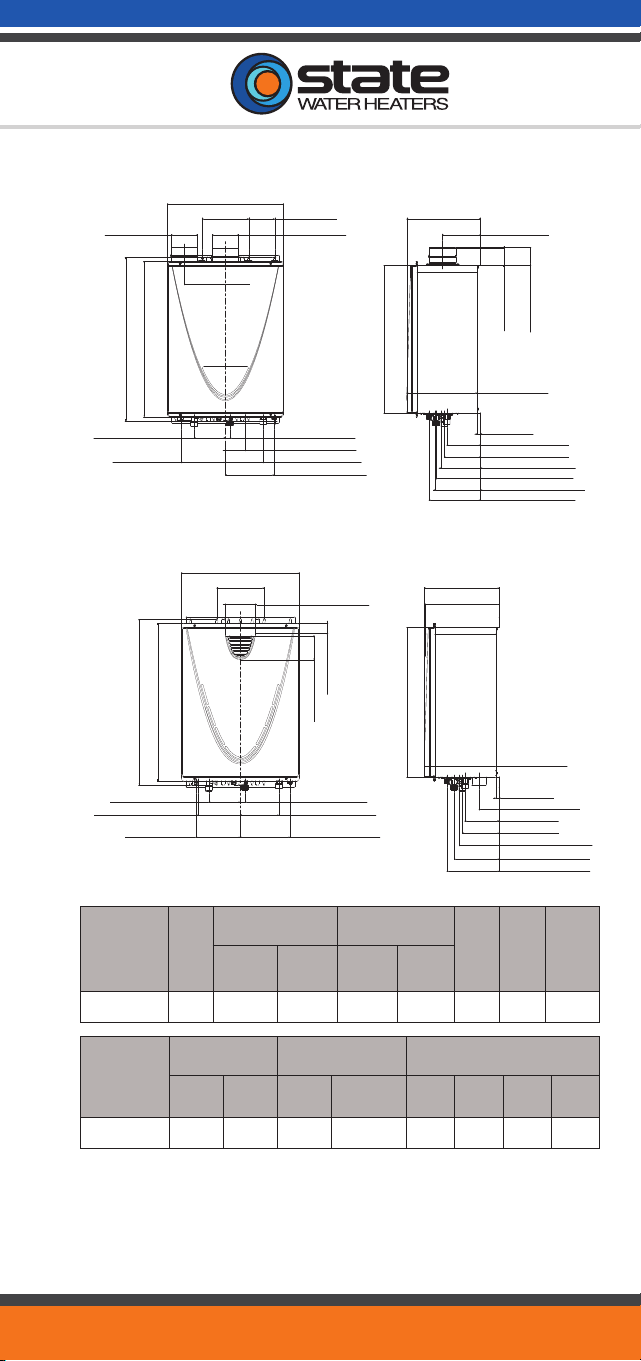

7-7/8" (199 mm)
GAS 5-1/8" (131 mm)
COLD 6-3/4" (172 mm)
HOT 5-1/2" (140 mm)
7-1/2" (189 mm)
GAS 5-7/8" (147 mm)
Condens ate drain port
COLD 5/8" (17 mm)
HOT 4-3/4" (120 mm)
17-5/8" (448 mm)
6-1/4" (159 mm)
5-3/4" (147 mm)
120 VAC 3" (77 mm)
120 VAC 6-7/8" (174 mm)
Drain port
Female
10-3/4" (272mm)
22-1/2" (570 mm)
Condensate drain port
4" (102 mm)
2-5/8" (68 mm)
Exhaust
Intake
Female
7-7/8" (199 mm)
7-1/2" (189 mm)
7" (180 mm)
4" (101 mm)
17-3/4" (450 mm)
HOT 4-3/4" (120 mm)
6-3/4" (170 mm)
COLD 5/8" (17 mm)
GAS 5-3/4" (147 mm)
Condens ate drain port
23-5/8" (600 mm)
2-5/8" (65 mm)
5-3/4" (147 mm)
11-1/4" (285 mm)
1/2 (13 mm)
GAS 5-1/8" (131 mm)
HOT 5-1/2" (140 mm)
COLD 6-3/4" (172 mm)
Condens ate drain port
6-1/4" (159mm)
4" (102 mm)
24-7/8" (631 mm)
120 VAC 3" (77 mm)
Drain port 6" (152 mm)
120 VAC 6-7/8" (174 mm)
INDOOR MODEL
17-5/8" (448 mm)
6-1/4" (159 mm)
COLD 5/8" (17 mm)
120 VAC 3" (77 mm)
HO
T 5-1/2" (140 mm)
HOT 4-3/4" (120 mm)
7-1/2" (189 mm)
Condens ate drain port
GAS 5-1/8" (131 mm)
C
OLD 6-3/4" (172 mm)
7-7/8" (199 mm)
Drain port
7-1/2" (189 mm)
10-3/4" (272 mm)
22-1/2" (570 mm)
120 VAC
Condensate drain port
7-7/8" (199 mm)
Condens ate drain port
11" (281 mm)
1/2" (13 mm)
120 VAC 3" (77 mm)
GAS (131 mm)
HOT (140 mm)
COLD 6-3/4" (172 mm)
Condens ate drain port
COLD 5/8" (17 mm)
GAS 5-3/4" (147 mm)
HOT 4-3/4" (120 mm)
6-3/4" (170 mm)
1-1/2" (37 mm)
11-1/4" (285 mm)
120 VAC 6-1/4" (159 mm)
17-3/4" (450 mm)
7" (180 mm)
23-5/8" (600 mm)
24-7/8" (631 mm)
3-5/8" (92 mm)
4-1/2" (114 mm)
Drain port 6" (152 mm)
OUTDOOR MODEL
INDOOR MODEL
OUTDOOR MODEL
* For outdoor models, change “NIH” to “NEH”. For propane models, change “N” to “P”.
** For propane models, minimum is 13,000.
*** For propane models, minimum inlet gas pressure is 8.0 in. W.C. and maximum inlet
gas pressure is 14.0 in. W.C.
† Cold climate represents 70°F temperature rise.
‡ Warm climate represents 50°F temperature rise.
+
GTS-540P-NIH and GTS-540P-PEH are ENERGY STAR
®
Qualified
Model Number* Type
Gas Consumption
Input
Inlet Gas
Pressure***
Indoor
Model
UEF
Outdoor
Model
UEF
+
Approx
Shipping
Weight
(lbs)
Minimum**
(BTU/H)
Maximum
(BTU/H)
Minimum
(in. W.C.)
Maximum
(in. W.C.)
GTS-540P-NIH Natural 15,000 199,000 4.0 10.5 0.93 0.95 71
Model Number*
Connections
Sizing Chart
(Number of Showers)
Clearances (in.)
Water Gas
Cold
Climate†
Warm
Climate‡
Top Bottom Side Front
GTS-540P-NIH 3/4" NPT 3/4" NPT 3 4.5 12 12 3 4
StateWaterHeaters.com
82
CONDENSING TECHNOLOGY PROVIDES UP TO
0.91 UEF
ULTRA-LOW NOx EMISSIONS
• Complies with SCAQMD 1146.2 NOx emission
requirements of 14 ng/J or 20 PPM
COPPER PRIMARY HEAT EXCHANGER
• 25x better heat transfer than stainless steel
thus stabilizing outgoing water temperature
quicker and reducing pressure drop across the
heat exchanger
SECONDARY HEAT EXCHANGER
• Marine-Grade 316L stainless steel to protect
against corrosion
INDOOR MODELS
• Include a built-in temperature controller
and advanced diagnostics to simplify
troubleshooting
• Factory-installed power cord included
OUTDOOR MODELS
• Include a wall mount temperature remote
controller and advanced diagnostics to simplify
troubleshooting
ELECTRONIC IGNITION–NO PILOT LIGHT
SAFETY FEATURES:
• Air Fuel Ratio (AFR) Sensor
• Exhaust and water temperature safety control
• Overheat cut-off fuse
INTERNAL FREEZE PROTECTION SYSTEM
POWER VENT OR POWER DIRECT VENT
DESIGN
WARRANTY
• 15-year limited warranty on heat exchanger in
residential applications
• 6-year limited warranty on heat exchanger in
commercial applications
• 5-year limited warranty on all parts
• For complete information, consult written
warranty or go to statewaterheaters.com
Indoor
Outdoor
ANSI Z21. 10.3 CSA 4.3
PROLINE
®
XE CONDENSING
HIGH EFFICIENCY
Tankless
83
*For outdoor models, change “NIH” to “NEH”. For propane models, change “N” to “P”.
**For propane models, minimum is 13,000.
***For propane models, minimum inlet gas pressure is 8.0 in. W.C. and maximum inlet gas pressure is 14.0 in. W.C.
† Cold climate represents 70°F temperature rise.
‡ Warm climate represents 50°F temperature rise.
Side viewFront view
13-7/8" (352mm)
4" (102mm)4" (102mm)
6-1/4" (158.5mm)
10" (254mm)
10-5/16" (262.2mm)
10-13/16" (274.6mm)
6" (152.1mm)
2-9/16" (64.8mm)
2-3/4" (70.2mm)
22-7/8 (580mm)
Gas 4/1/2" (113.7mm)
Hot 4-3/4" (121.1mm)
Condensate drain port
5-1/16" (129.1mm)
7-1/16" (180mm)
120VAC 3-1/16" (77mm)
Cold 1/2" (13.3mm)
Condensate drain port 3-1/4" (82.1mm)
Gas 4-1/8" (105.4mm)
Hot 6-1/2" (164.6mm)
Cold 7" (178.5mm)
120VAC 7-3/4" (196.5mm)
1" (25.5mm)
24" (609.4mm)
5-3/8" (137mm)
13-5/16" (338.1mm)
6" (152.1mm)
2-5/16" (58.4mm)
6-1/4" (158.5mm)
58.4
4-3/16" (106.1mm)
7-1/16" (179.2mm)
7-3/4" (197.2mm)
3-1/4" (82.8mm)
HOT 6-1/2" (165.3mm)
1/2" (13.3mm)
3-1/16" (77mm)
4-1/2" (113.7mm)
4-3/4" (121.1mm)
5-1/16" (129.1mm)
GAS
COLD
120VAC
Condensate drain port
Bo om view
Top view
INDOOR MODEL
Side view
Front view
13-7/8" (352mm)
10" (254mm)
10-5/16" (262.2mm)
22-7/8 (580mm)
Gas 4/1/2" (113.7mm)
Hot 4-3/4" (121.1mm)
5-1/16" (129.1mm)
Condensate drain port
7-1/16" (180mm)
Cold 1/2" (13.3mm)
Condensate drain port 3-1/4" (82.1mm)
Gas 4-1/8" (105.4mm)
Hot 6-1/2" (164.6mm)
Cold 7" (178.5mm)
1" (25.5mm)
5-3/8" (137mm)
7-1/16" (180mm)
5-3/8" (137mm)
2-9/16" (65.8mm)
1-11/16" (42.5mm)
3" (75.5mm)
8" (203mm)
10-3/4" (272.4mm)
120VAC 3-13/16" (96.1mm)
120VAC 1-7/16" (36.8mm)
13-5/16" (338.1mm)
Condensate drain port
GAS
COLD
HOT 6-1/2" (165.3mm)
3-1/4" (82.8mm)
4-3/16" (106.1mm)
7-1/16" (179.2mm)
1/2" (13.3mm)
4-1/2" (113.7mm)
4-3/4" (121.1mm)
5-1/16" (129.1mm)
1-7/16" (36.8mm)
Bo om view
Top view
OUTDOOR MODEL
INDOOR MODEL
OUTDOOR MODEL
Model
Number*
Type
Gas Consumption Input Inlet Gas Pressure***
Indoor
Model
UEF
Outdoor
Model
UEF
Minimum**
(BTU/H)
Maximum
(BTU/H)
Minimum
(in. W.C.)
Maximum
(in. W.C.)
GTS-140-NIH Natural 15,000 120,000 4.0 10.5 0.90 0.91
Model
Number*
Connections
Sizing Chart
(Number of Showers)
Clearances (in.)
Approx
Shipping
Weight
(lbs)
Water Gas
Cold
Climate†
Warm
Climate‡
Top Bottom Side Front
GTS-140-NIH 3/4" NPT 1/2" NPT 1.5 2.5 12 12 3 4 54
StateWaterHeaters.com
84
ENERGY STAR
®
QUALIFIED*
CONDENSING TECHNOLOGY PROVIDES UP TO
0.95 UEF
ULTRA-LOW NOx EMISSIONS
• Complies with SCAQMD Rule 1146.2 NOx
emission requirements of 14 ng/J or 20 PPM
MAXIMUM FLOW RATES UP TO 10.0 GPM
HEAT EXCHANGER
• Primary heat exchanger of the GTS-540 is
constructed of a commercial-grade copper
that is more resilient to erosion. Copper is 25x
better at heat transfer than stainless steel thus
stabilizing outgoing water temperatures quicker
and reducing pressure drop across the heat
exchanger.
• Secondary heat exchanger is made of marine-
grade 316L stainless steel to protect against
corrosion
INDOOR MODELS
• Include integrated temperature controls
and advanced diagnostics to simplify
troubleshooting
• Include factory-installed power cords
OUTDOOR MODELS
• Include wall mount temperature remote
controller and advanced diagnostics to simplify
troubleshooting
COMMON VENT INDOOR MODELS UP TO 8
UNITS
540H CAN BE USED IN BOTH RESIDENTIAL
AND COMMERCIAL APPLICATIONS
• Easy-link up to 4 heaters
• Multi-link up to 20 heaters
SAFETY FEATURES
• Air-fuel Ratio (AFR) Sensor
• Exhaust and water temperature safety control
• Overheat cut-off fuse
INTERNAL FREEZE PROTECTION SYSTEMS
POWER VENT OR POWER DIRECT VENT DESIGN
WARRANTY
• 15-year limited warranty on heat exchanger in
residential applications
• 6-year limited warranty on heat exchanger in
commercial applications
• 5-year limited warranty on all parts
• For complete information, consult written
warranty or go to statewaterheaters.com
Indoor
Outdoor
ANSI Z21. 10.3 CSA 4.3
PROLINE
®
XE CONDENSING
HIGH EFFICIENCY
*Select models
*
Tankless
85
7-7/8" (199 mm)
GAS 5-1/8" (131 mm)
COLD 6-3/4" (172 mm)
HOT 5-1/2" (140 mm)
7-1/2" (189 mm)
GAS 5-7/8" (147 mm)
Condens ate drain port
COLD 5/8" (17 mm)
HOT 4-3/4" (120 mm)
17-5/8" (448 mm)
6-1/4" (159 mm)
5-3/4" (147 mm)
120 VAC 3" (77 mm)
120 VAC 6-7/8" (174 mm)
Drain port
Female
10-3/4" (272mm)
22-1/2" (570 mm)
Condensate drain port
4" (102 mm)
2-5/8" (68 mm)
Exhaust
Intake
Female
7-7/8" (199 mm)
7-1/2" (189 mm)
7" (180 mm)
4" (101 mm)
17-3/4" (450 mm)
HOT 4-3/4" (120 mm)
6-3/4" (170 mm)
COLD 5/8" (17 mm)
GAS 5-3/4" (147 mm)
Condens ate drain port
23-5/8" (600 mm)
2-5/8" (65 mm)
5-3/4" (147 mm)
11-1/4" (285 mm)
1/2 (13 mm)
GAS 5-1/8" (131 mm)
HOT 5-1/2" (140 mm)
COLD 6-3/4" (172 mm)
Condens ate drain port
6-1/4" (159mm)
4" (102 mm)
24-7/8" (631 mm)
120 VAC 3" (77 mm)
Drain port 6" (152 mm)
120 VAC 6-7/8" (174 mm)
INDOOR MODEL
17-5/8" (448 mm)
6-1/4" (159 mm)
COLD 5/8" (17 mm)
120 VAC 3" (77 mm)
HO
T 5-1/2" (140 mm)
HOT 4-3/4" (120 mm)
7-1/2" (189 mm)
Condens ate drain port
GAS 5-1/8" (131 mm)
C
OLD 6-3/4" (172 mm)
7-7/8" (199 mm)
Drain port
7-1/2" (189 mm)
10-3/4" (272 mm)
22-1/2" (570 mm)
120 VAC
Condensate drain port
7-7/8" (199 mm)
Condens ate drain port
11" (281 mm)
1/2" (13 mm)
120 VAC 3" (77 mm)
GAS (131 mm)
HOT (140 mm)
COLD 6-3/4" (172 mm)
Condens ate drain port
COLD 5/8" (17 mm)
GAS 5-3/4" (147 mm)
HOT 4-3/4" (120 mm)
6-3/4" (170 mm)
1-1/2" (37 mm)
11-1/4" (285 mm)
120 VAC 6-1/4" (159 mm)
17-3/4" (450 mm)
7" (180 mm)
23-5/8" (600 mm)
24-7/8" (631 mm)
3-5/8" (92 mm)
4-1/2" (114 mm)
Drain port 6" (152 mm)
OUTDOOR MODEL
*For outdoor models, change “NIH” to “NEH”. For propane models, change “N” to “P”.
**For propane models, minimum is 13,000.
***For propane models, minimum inlet gas pressure is 8.0 in. W.C. and maximum inlet gas pressure is 14.0 in. W.C.
† Cold climate represents 70°F temperature rise.
‡ Warm climate represents 50°F temperature rise.
+
ENERGY STAR
®
Qualified
17-5/8" (448 mm)
6-1/4" (159 mm)
COLD 5/8" (17 mm)
120 VAC 3" (77 mm)
HO
T 5-1/2" (140 mm)
HOT 4-3/4" (120 mm)
7-1/2" (189 mm)
Condens ate drain port
GAS 5-1/8" (131 mm)
C
OLD 6-3/4" (172 mm)
7-7/8" (199 mm)
Drain port
7-1/2" (189 mm)
10-3/4" (272 mm)
22-1/2" (570 mm)
120 VAC
Condensate drain port
7-7/8" (199 mm)
Condens ate drain port
11" (281 mm)
1/2" (13 mm)
120 VAC 3" (77 mm)
GAS (131 mm)
HOT (140 mm)
COLD 6-3/4" (172 mm)
Condens ate drain port
COLD 5/8" (17 mm)
GAS 5-3/4" (147 mm)
HOT 4-3/4" (120 mm)
6-3/4" (170 mm)
1-1/2" (37 mm)
11-1/4" (285 mm)
120 VAC 6-1/4" (159 mm)
17-3/4" (450 mm)
7" (180 mm)
23-5/8" (600 mm)
24-7/8" (631 mm)
3-5/8" (92 mm)
4-1/2" (114 mm)
Drain port 6" (152 mm)
OUTDOOR MODEL
OUTDOOR MODEL
7-7/8" (199 mm)
GAS 5-1/8" (131 mm)
COLD 6-3/4" (172 mm)
HOT 5-1/2" (140 mm)
7-1/2" (189 mm)
GAS 5-7/8" (147 mm)
Condens ate drain port
COLD 5/8" (17 mm)
HOT 4-3/4" (120 mm)
17-5/8" (448 mm)
6-1/4" (159 mm)
5-3/4" (147 mm)
120 VAC 3" (77 mm)
120 VAC 6-7/8" (174 mm)
Drain port
Female
10-3/4" (272mm)
22-1/2" (570 mm)
Condensate drain port
4" (102 mm)
2-5/8" (68 mm)
Exhaust
Intake
Female
7-7/8" (199 mm)
7-1/2" (189 mm)
7" (180 mm)
4" (101 mm)
17-3/4" (450 mm)
HOT 4-3/4" (120 mm)
6-3/4" (170 mm)
COLD 5/8" (17 mm)
GAS 5-3/4" (147 mm)
Condens ate drain port
23-5/8" (600 mm)
2-5/8" (65 mm)
5-3/4" (147 mm)
11-1/4" (285 mm)
1/2 (13 mm)
GAS 5-1/8" (131 mm)
HOT 5-1/2" (140 mm)
COLD 6-3/4" (172 mm)
Condens ate drain port
6-1/4" (159mm)
4" (102 mm)
24-7/8" (631 mm)
120 VAC 3" (77 mm)
Drain port 6" (152 mm)
120 VAC 6-7/8" (174 mm)
INDOOR MODEL
INDOOR MODEL
Model
Number*
Connections
Sizing Chart
(Number of Showers)
Clearances (in.)
Water Gas
Cold
Climate†
Warm
Climate‡
Top Bottom Side Front
GTS-240-NIH 3/4" NPT 3/4" NPT 2.5 4 12 12 3 4
GTS-340-NIH 3/4" NPT 3/4" NPT 2.5 4 12 12 3 4
GTS-540-NIH 3/4" NPT 3/4" NPT 3 4.5 12 12 3 4
Model
Number*
Type
Gas Consumption Input
Inlet Gas
Pressure***
Indoor
Model
UEF
Outdoor
Model
UEF
Approx
Shipping
Weight
(lbs)
Minimum**
(BTU/H)
Maximum
(BTU/H)
Minimum
(in. W.C.)
Maximum
(in. W.C.)
GTS-240-NIH Natural 15,000 160,000 4.0 10.5 0.94 0.95
+
71
GTS-340-NIH Natural 15,000 180,000 4.0 10.5 0.95
+
0.94 71
GTS-540-NIH Natural 15,000 199,000 4.0 10.5 0.93 0.95
+
71
StateWaterHeaters.com
86
CONCENTRIC VENT DESIGN
• Power direct vent
• Vertical or horizontal venting up to 43´
FIELD CONVERTIBLE FROM NATURAL GAS TO
PROPANE
ULTRA-LOW NOx EMISSIONS
• Complies with SCAQMD Rule 1146.2 NOx
emission requirements of 14 ng/J or 20 PPM
MAXIMUM FLOW RATES UP TO 10.0 GPM
PRIMARY HEAT EXCHANGER
• Primary heat exchanger of the GTS-510C is
constructed of a commercial-grade copper
that is more resilient to erosion. Copper is 25x
better at heat transfer than stainless steel thus
stabilizing outgoing water temperatures quicker
and reducing pressure drop across the heat
exchanger.
INDOOR MODELS ONLY
• Include integrated temperature controls
and advanced diagnostics to simplify
troubleshooting
• Include factory-installed power cords
GTS-510C CAN BE USED IN BOTH
RESIDENTIAL AND COMMERCIAL
APPLICATIONS
• Easy-Link up to 4 units
• Multi-Link up to 20 units
SAFETY FEATURES
• Air-Fuel Ratio (AFT) sensor
• Water temperature safety control
• Overheat cut-off fuse
INTERNAL FREEZE PROTECTION
WARRANTY
• 15-year limited warranty on heat exchanger in
residential applications
• 6-year limited warranty on heat exchanger in
commercial applications
• 5-year limited warranty on all parts
• For complete information, consult written
warranty or go to statewaterheaters.com
(510c model only)
ANSI Z21.10.3
PROLINE
®
XE NON-CONDENSING
CONCENTRIC VENT
Tankless
87
13-3/4” (350 mm) 10-1/2” (266.5 mm)
5-7/16” (137.7 mm)
19-1/2” (495.7 mm)
20-1/2” (520 mm)
6-3/8”
(162.3 mm)
7-9/16”
(192.3 mm)
4-1/4”
(107.8 mm)
5-11/16”
(145 mm)
Cold 1-5/8” (42.0 mm)
Hot 4-1/8” (105.4 mm)
120 VAC 2-1/4” (57 mm)
Gas 4-13/16” (122.1)
1.0” (25.5 mm)
5-7/16” (137.7 mm)
Top view
Front view Side view
Boom view
13-3/4” (350 mm) 10-1/2” (266.5 mm)
5-7/16” (137.7 mm)
19-1/2” (495.7 mm)
20-1/2” (520 mm)
6-3/8”
(162.3 mm)
7-9/16”
(192.3 mm)
4-1/4”
(107.8 mm)
5-11/16”
(145 mm)
Cold 1-5/8” (42.0 mm)
Hot 4-1/8” (105.4 mm)
120 VAC 2-1/4” (57 mm)
Gas 4-13/16” (122.1)
1.0” (25.5 mm)
5-7/16” (137.7 mm)
Top view
Front view Side view
Boom view
13-3/4” (350 mm) 10-1/2” (266.5 mm)
5-7/16” (137.7 mm)
19-1/2” (495.7 mm)
20-1/2” (520 mm)
6-3/8”
(162.3 mm)
7-9/16”
(192.3 mm)
4-1/4”
(107.8 mm)
5-11/16”
(145 mm)
Cold 1-5/8” (42.0 mm)
Hot 4-1/8” (105.4 mm)
120 VAC 2-1/4” (57 mm)
Gas 4-13/16” (122.1)
1.0” (25.5 mm)
5-7/16” (137.7 mm)
Top view
Front view Side view
Boom view
*Indoor models only. Units are field convertible from natural gas to propane with supplied conversion kit.
**For propane models, minimum inlet gas pressure is 8.0 in. W.C. and maximum inlet gas pressure is 14.0 in. W.C.
† Cold climate represents 70°F temperature rise
‡ Warm climate represents 50°F temperature rise
Model
Number*
Gas Consumption Input Inlet Gas Pressure**
UEF
Connections
Minimum
(BTU/H)
Maximum
(BTU/H)
Minimum
(in. W.C.)
Maximum
(in. W.C.)
Water Gas
GTS-310C-NI 15,000 190,000 4.0 10.5 0.81 3/4" NPT 3/4" NPT
GTS-510C-NI 15,000 199,000 4.0 10.5 0.81 3/4" NPT 3/4" NPT
Model
Number*
Sizing Chart
(Number of Showers)
Clearances (in.)
Approx.
Shipping
Weight (lbs.)
Cold Climate† Warm Climate‡ Top Bottom Side Front
GTS-310C-NI 2.5 3.5 12 12 3 4 55
GTS-510C-NI 2.5 3.5 12 12 3 4 55
StateWaterHeaters.com
88
ULTRA-LOW NOx EMISSIONS
• Complies with SCAQMD Rule 1146.2 NOx
emission requirements of 14 ng/J or 20 PPM
FIELD CONVERTIBLE FROM NATURAL GAS TO
PROPANE.
MAXIMUM FLOW RATES UP TO 10.0 GPM
COPPER PRIMARY HEAT EXCHANGER
• Primary heat exchanger of the GTS-510U is
constructed of a commercial-grade copper
that is more resilient to erosion. Copper is 25x
better at heat transfer than stainless steel thus
stabilizing outgoing water temperatures quicker
and reducing pressure drop across the heat
exchanger.
INDOOR MODELS
• Include integrated temperature controls
and advanced diagnostics to simplify
troubleshooting
• Include factory-installed power cords
OUTDOOR MODELS
• Include a wall mount temperature remote
controller and advanced diagnostics to simplify
troubleshooting
GTS-510U CAN BE USED IN BOTH RESIDENTIAL
AND COMMERCIAL APPLICATIONS
• Easy-Link up to 4 units
• Multi-Link up to 20 units
SAFETY FEATURES
• Air-Fuel Ratio (AFR) Sensor
• Exhaust and water temperature safety control
• Overheat cut-off fuse
INTERNAL FREEZE PROTECTION
POWER VENT OR POWER DIRECT VENT
DESIGN
WARRANTY
• 15-year limited warranty on heat exchanger in
residential applications
• 6-year limited warranty on heat exchanger in
commercial applications
• 5-year limited warranty on all parts
• For complete information, consult written
warranty or go to statewaterheaters.com
TANKLESS NON-CONDENSING
ULTRA-LOW NOx
Indoor
Outdoor
ANSI Z21. 10.3
(510U model only)
Tankless
89
*For outdoor models, change “I” to “E”. Units are field convertible from natural gas to propane with supplied
conversion kit.
**For propane, minimum inlet gas pressure is 8.0 in. W.C. and maximum inlet gas pressure is 14.0 in. W.C.
† Cold climate represents 70°F temperature rise.
‡ Warm climate represents 50°F temperature rise.
120 VAC 1-5/8" (40 mm)
COLD 1-5/8" (41 mm)
GAS 5" (127 mm)
HOT 4-5/8" (116 mm)
20-1/2" (520 mm)
1" (26 mm)
13-3/4" (350 mm)
10" (254 mm)
1-3/4" (45 mm) 1-3/4" (45 mm)
21-1/2" (545 mm)
1-3/8" (36 mm)
4-3/8" (113mm)
19-3/8" (493 mm)
120 VAC 3" (75 mm)
GAS 5-1/4" (135 mm)
HOT 6" (153 mm)
COLD 6" (153 mm)
2-1/4" (58 mm)
3-5/8"(93 mm)
10" (256 mm)
1-7/8"(47 mm)
HOT 5"(127mm)
120VAC 1-7/8" (49 mm)
GAS 4-1/4" (109 mm)
COLD 5" (127 mm)
5-1/8" (130 mm)
13-1/8" (334 mm)
4-3/8" (113 mm)
AT-KJr3U/K5U/D3U-IN
120 VAC 1-5/8" (40 mm)
COLD 1-5/8" (41 mm)
GAS 5" (127 mm)
HOT 4-5/8" (116 mm)
1" (26 mm)
13-3/4" (350 mm)
10" (254 mm)
1-3/4" (45 mm) 1-3/4" (45 mm)
21-1/2" (545 mm)
19-3/8" (493 mm)
120 VAC 3" (75 mm)
GAS 5-1/4" (135 mm)
HOT 6" (153 mm)
COLD 6" (153 mm)
9-1/2" (241 mm)
HOT 5" (127 mm)
120VAC 1-7/8" (49 mm)
GAS 4-1/4" (109 mm)
COLD 5" (127 mm)
13-1/8" (334 mm)
8" (203 mm)
1-5/8" (43 mm)
AT-KJr3U/K5U/D3U-OS
INDOOR MODEL
OUTDOOR MODEL
Model
Number*
Type
Gas Consumption
Input
Inlet Gas
Pressure**
Indoor
Model
UEF
Outdoor
Model
UEF
Connections
Minimum
(BTU/H)
Maximum
(BTU/H)
Minimum
(in. W.C.)
Maximum
(in. W.C.)
Water Gas
GTS-110U-I Natural 15,000 140,000 4.0 10.5 0.81 0.81 3/4" NPT 3/4" NPT
GTS-310U-I Natural 15,000 190,000 4.0 10.5 0.81 0.81 3/4" NPT 3/4" NPT
GTS-510U-I Natural 15,000 199,000 4.0 10.5 0.81 0.81 3/4" NPT 3/4" NPT
Model
Number*
Sizing Chart
(Number of Showers)
Clearances (in.)
Approx
Shipping
Weight (lbs)
Cold
Climate†
Warm
Climate‡
Top Bottom Side Front
GTS-110U-I 1.5 2.5 12 12 3 4 34
GTS-310U-I 2.5 3.5 12 12 3 4 34
GTS-510U-I 2.5 3.5 12 12 3 4 35
StateWaterHeaters.com
90
COMMERCIAL-GRADE COPPER HEAT
EXCHANGER (NON-ASME MODELS)
ASME MODELS AVAILABLE
5˝ CATEGORY III STAINLESS STEEL VENTING
VERTICAL OR HORIZONTAL VENTING
INSTALLATIONS
POWER VENT OR CONVERTIBLE TO POWER
DIRECT VENT
ELECTRONIC IGNITION
LOW NOx EMISSIONS
COMBINED INDOOR/OUTDOOR MODELS
EASY-LINK UP TO 4 UNITS
MULTI-LINK UP TO 10 UNITS
WARRANTY
• 6-year limited warranty on heat exchanger
• 5-year limited warranty on all parts
• For complete information, consult written
warranty or go to statewaterheaters.com
TANKLESS NON-CONDENSING
HEAVY-DUTY
Tankless
91
8" (203mm)
5" (127mm)
24-7/8" (632.9mm)
28-7/8" (734mm)
25-1/4" (642mm)
2-1/2" (62.1mm)
1/2" (11.9mm)
12-1/4" (311.5mm)
5-7/8" (150mm) HOT
4-7/8" (122.9mm)
4" (100mm) 120V
7-3/8" (186mm)GAS
1-5/8" (40mm) COLD
15" (381mm)
1/2" (12.5mm)
7-5/8" (194.3mm) COLD
-3/8" (137.3mm) HOT
4-3/8" (110.8mm) GAS
6-3/4" (171.3mm) 120V
*”-NIEA” means ASME rated. For propane models, change “N” to “P”.
**For propane models, minimum inlet gas pressure is 8.0 in. W.C. and maximum inlet gas pressure is 14.0 in. W.C.
† Cold climate represents 70°F temperature rise.
‡ Warm climate represents 50°F temperature rise.
Model
Number*
Type
Gas Consumption
Input
Inlet Gas Pressure**
UEF
Connections
Minimum
(BTU/H)
Maximum
(BTU/H)
Minimum
(in. W.C.)
Maximum
(in. W.C.)
Water
Gas
GTS-910-NIE Natural 15,000 380,000 4.0 10.5 80% 1" NPT 1" NPT
GTS-910-NIEA Natural 15,000 380,000 4.0 10.5 80% 1" NPT 1" NPT
Model
Number*
Sizing Chart
(Number of Showers)
Clearances (in.)
Approx
Shipping
Weight (lbs)
Cold
Climate†
Warm
Climate‡
Top Bottom Side Front
GTS-910-NIE 5 7 12 12 2 24 113
GTS-910-NIEA 5 7 12 12 2 24 113
StateWaterHeaters.com
92
INDOOR INSTALLATION ONLY
ULTRA-LOW NOX EMISSIONS
• Complies with SCAQMD Rule 1146.2 NOx
Emission Requirements Of 14 ng/J or 20
PPM
MODULATING BURNER WITH 10:1
TURNDOWN RATIO
• Continuously adjusts the firing rate to
match demand for maximum comfort and
system efficiency
USER FRIENDLY CONTROLS
• Programming the combi boiler takes less
than two minutes and uses plain text rather
than number codes
QUICKER DOMESTIC HOT WATER
RESPONSE
• Advanced control technology prevents the
cold water sandwich often found with other
combi boilers
POWER DIRECT VENT DESIGN
• Two-pipe sealed combustion system uses
outside air, eliminating problems caused by
insufficient indoor ventilation
DOMESTIC HOT WATER FLOW RATE UP TO
4.8 GPM AT 77°F TEMPERATURE RISE
MAXIMUM WORKING PRESSURE
• 50 PSI max pressure (boiler); 150 PSI max
pressure (DHW)
WARRANTY
• 10-year limited warranty on heat exchanger
in residential applications
• 5-year warranty on all parts
• For complete information, consult written
warranty or go to statewaterheaters.com
ANSI Z21.13 • CSA 4.9
PROLINE
®
XE COMBI BOILER
Tankless
93
*S Models can operate up to 4,500’. For high altitude (3,000’ - 9,600’), change S to H. For liquid propane (LP),
change N to P.
**The Net AHRI Water Ratings shown are based on a piping and pickup allowance of 1.15.
The manufacturer should be consulted before selecting a boiler for installations having unusual piping and
pickup requirements, such as intermittent system operation, extensive piping systems, etc.
†For LP, minimum supply pressure is 8.0 in. W.C.
The ratings have been determined under the provisions governing forced draft boilers.
K
J
L
Q
M N T U
P
O
S
R
Q
R
O
P
N
M
B
A
E
D
G
I
F
H
C
D
I
G
F
E
H
110 Models
TOP
150-199 Models
TOP
BOTTOM
FRONT
K
J
L
Q
M N T U
P
O
S
R
Q
R
O
P
N
M
B
A
E
D
G
I
F
H
C
D
I
G
F
E
H
110 Models
TOP
150-199 Models
TOP
BOTTOM
FRONT
Model
Number*
Gas Consumption Input
AFUE%
Heating
Capacity
BTU/H
Net AHRI
Rating
BTU/H**
Minimum
BTU/H
Maximum
BTU/H
SCB-110S-N 11,000 110,000 95.0 102,000 89,000
SCB-150S-N 15,000 150,000 95.0 139,000 121,000
SCB-199S-N 19,900 199,000 95.0 185,000 161,000
Model
Number*
Dimensions
A B C
SCB-110S-N 32-1/2” 17-1/4” 18”
SCB-150S-N 32-1/2” 18-3/4” 18”
SCB-199S-N 32-1/2” 18-3/4” 18”
K
J
L
Q
M N T U
P
O
S
R
Q
R
O
P
N
M
B
A
E
D
G
I
F
H
C
D
I
G
F
E
H
110 Models
TOP
150-199 Models
TOP
BOTTOM
FRONT
K
J
L
Q
M N T U
P
O
S
R
Q
R
O
P
N
M
B
A
E
D
G
I
F
H
C
D
I
G
F
E
H
110 Models
TOP
150-199 Models
TOP
BOTTOM
FRONT
Minimum
in. W.C.†
Maximum
in. W.C.
GPM at
77°F
Rise
Water Connections
Gas Connection
Approx.
Shipping
Weight (lbs)
Space
Heating
DHW
4.0 14.0 2.6 1” NPT 3/4” NPT 1/2” NPT 139
4.0 14.0 3.6 1” NPT 3/4” NPT 1/2” NPT 142
4.0 14.0 4.8 1” NPT 3/4” NPT 1/2” NPT 159
StateWaterHeaters.com
94
MULTIPLE DESIGN AND INSTALLATION
CONFIGURATIONS
• Wall mount, free standing in-line, and free
standing back-to-back designs
• Indoor and outdoor rack designs
• Uses the 540H high efficiency condensing
tankless heaters
EXPANDABLE
• Up to 1,194,000 BTU on a single rack system
• Able to link up to 20 heaters together with
Multi-Link system
REDUNDANCY
• Multiple combustion systems provide piece of
mind
• Easily isolate a unit for maintenance which
extends the life of the heaters
LIGHTWEIGHT
• Anodized aluminum frame
• Utilizes the industry’s lightest 199,000 BTU high
efficiency condensing tankless heater
EASY FIELD INSTALLATION
• Reduce installation costs with three simple
connections (cold water, hot water, and gas)
• Ultra-Low NOx Emissions
• Complies with SCAQMD Rule 1146.2 NOx
emission requirements of 14 ng/J or 20 PPM
WARRANTY
• 6-year limited warranty on heat exchanger
• 5-year limited warranty on tankless parts
• 1-year limited warranty on rack parts
• For complete information, consult written
warranty or go to statewaterheaters.com
WALL MOUNT
FREE-STANDING
BACK-TO-BACK
TANKLESS COMMERCIAL RACK SYSTEM
Tankless
95
Model Number
Number
of Heaters
Btuh Input Max Flow (GPM)
Min Max
@
50˚F Rise
@ 70˚F
Rise
@
100˚F
Rise
Wall Mount
SCI-CRS-22WM-N 2 15,000 398,000 15.2 10.8 7.6
SCI-CRS-22WM-P 2 13,000 398,000 15.2 10.8 7.6
SCI-CRS-23WM-N 2 15,000 398,000 15.2 10.8 7.6
SCI-CRS-23WM-P 2 13,000 398,000 15.2 10.8 7.6
SCI-CRS-33WM-N 3 15,000 597,000 22.8 16.2 11.4
SCI-CRS-33WM-P 3 13,000 597,000 22.8 16.2 11.4
SCI-CRS-44WM-N 4 15,000 796,000 30.4 21.6 15.2
SCI-CRS-44WM-P 4 15,000 796,000 30.4 21.6 15.2
Freestanding
SCI-CRS-24IL-N 2 15,000 398,000 15.2 10.8 7.6
SCI-CRS-24IL-P 2 13,000 398,000 15.2 10.8 7.6
SCI-CRS-26IL-N 2 15,000 398,000 15.2 10.8 7.6
SCI-CRS-26IL-P 2 13,000 398,000 15.2 10.8 7.6
SCI-CRS-36IL-N 3 15,000 597,000 22.8 16.2 11.4
SCI-CRS-36IL-P 3 13,000 597,000 22.8 16.2 11.4
Back-to-Back
SCI-CRS-24B2B-N 2 15,000 398,000 15.2 10.8 7.6
SCI-CRS-24B2B-P 2 13,000 398,000 15.2 10.8 7.6
SCI-CRS-34B2B-N 3 15,000 597,000 22.8 16.2 11.4
SCI-CRS-34B2B-P 3 13,000 597,000 22.8 16.2 11.4
SCI-CRS-36B2B-N 3 15,000 597,000 22.8 16.2 11.4
SCI-CRS-36B2B-P 3 13,000 597,000 22.8 16.2 11.4
SCI-CRS-44B2B-N 4 15,000 796,000 30.4 21.6 15.2
SCI-CRS-44B2B-P 4 13,000 796,000 30.4 21.6 15.2
SCI-CRS-46B2B-N 4 15,000 796,000 30.4 21.6 15.2
SCI-CRS-46B2B-P 4 13,000 796,000 30.4 21.6 15.2
SCI-CRS-56B2B-N 5 15,000 995,000 38 27 19
SCI-CRS-56B2B-P 5 13,000 995,000 38 27 19
SCI-CRS-66B2B-N 6 15,000 1,194,000 45.6 32.4 22.8
SCI-CRS-66B2B-P 6 13,000 1,194,000 45.6 32.4 22.8
*For outdoor models, change SCI to SCO
StateWaterHeaters.com
96
TANKLESS COMMERCIAL RACK SYSTEM
(CONTINUED)
FREE-STANDING
Front
53.09 in.
Pipe Lengths:
41.54 in.
20.75 in.
(INLETS)
20.75 in.
(EXHAUSTS)
SEE NOTE 1.
WALL MOUNT
Back
Front
Bottom
58-3/4 in.
SEE NOTE 2
SEE NOTE 2
NOTES:
1. TOP-MOUNTED AIR SUPPLY INLET/EXHAUST VENTS ARE USED
WITH INDOOR MODELS ONLY.
2. MOUNTING BRACKETS ADJUST HORIZONTALLY ALONG CHANNEL
SLOTS.
3. INDOOR AND OUTDOOR RACK SYSTEMS HAVE IDENTICAL
DIMENSIONS. EXCEPTION: INDOOR MODELS HAVE
TOP-MOUNTED INTAKES AND EXHAUSTS. OUTDOOR MODELS
DO NOT.
42.00 in.
20 in.
(INLETS)
20 in.
(EXHAUSTS)
SEE NOTE 1
Pipe Lengths:
46 in. plus fittings
C
A
B
13 in.
4.33 in. (GAS)
13.28 in. (HOT)
17.40 in. (COLD)
Front
53.09 in.
Pipe Lengths:
41.54 in.
20.75 in.
(INLETS)
20.75 in.
(EXHAUSTS)
SEE NOTE 1.
Tankless
97
BACK-TO-BACK
Front
Top
53.09 in.
Pipe Lengths:
NOTES:
1. TOP-MOUNTED AIR SUPPLY INLET/EXHAUST VENT ARE USED WITH INDOOR MODELS ONLY.
2. INDOOR AND OUTDOOR RACK SYSTEMS HAVE IDENTICAL DIMENSIONS. EXCEPTION: INDOOR
MODELS HAVE TOP-MOUNTED INTAKES AND EXHAUSTS. OUTDOOR MODELS DO NOT.
41.54 in.
20.75 in.
(INLETS)
20.75 in.
(EXHAUSTS)
SEE NOTE 1.
30.50 in.
Model Number
Dimensions (in)
Approx Shipping
Weight (lbs)
A
Length
B
Width
C
Height
Wall Mount
SCI-CRS-22WM-N 46 13.02 57 240
SCI-CRS-22WM-P 46 13.02 57 240
SCI-CRS-23WM-N 66 13.02 57 250
SCI-CRS-23WM-P 66 13.02 57 250
SCI-CRS-33WM-N 66 13.02 57 350
SCI-CRS-33WM-P 66 13.02 57 350
SCI-CRS-44MW-N 87.54 13.02 57 550
SCI-CRS-44MW-P 87.54 13.02 57 550
Freestanding
SCI-CRS-24IL-N 46 20 53.09 330
SCI-CRS-24IL-P 46 20 53.09 330
SCI-CRS-26IL-N 66 20 53.09 396
SCI-CRS-26IL-P 66 20 53.09 396
SCI-CRS-36IL-N 66 20 53.09 448
SCI-CRS-36IL-P 66 20 53.09 448
Back-to-Back
SCI-CRS-24B2B-N 46 30.5 53.09 330
SCI-CRS-24B2B-P 46 30.5 53.09 330
SCI-CRS-34B2B-N 46 30.5 53.09 404
SCI-CRS-34B2B-P 46 30.5 53.09 404
SCI-CRS-36B2B-N 66 30.5 53.09 447
SCI-CRS-36B2B-P 66 30.5 53.09 447
SCI-CRS-44B2B-N 46 30.5 53.09 481
SCI-CRS-44B2B-P 46 30.5 53.09 481
SCI-CRS-46B2B-N 66 30.5 53.09 519
SCI-CRS-46B2B-P 66 30.5 53.09 519
SCI-CRS-56B2B-N 66 30.5 53.09 597
SCI-CRS-56B2B-P 66 30.5 53.09 597
SCI-CRS-66B2B-N 66 30.5 53.09 674
SCI-CRS-66B2B-P 66 30.5 53.09 674
*For outdoor models, change SCI to SCO
Front
Top
53.09 in.
Pipe Lengths:
NOTES:
1. TOP-MOUNTED AIR SUPPLY INLET/EXHAUST VENT ARE USED WITH INDOOR MODELS ONLY.
2. INDOOR AND OUTDOOR RACK SYSTEMS HAVE IDENTICAL DIMENSIONS. EXCEPTION: INDOOR
MODELS HAVE TOP-MOUNTED INTAKES AND EXHAUSTS. OUTDOOR MODELS DO NOT.
41.54 in.
20.75 in.
(INLETS)
20.75 in.
(EXHAUSTS)
SEE NOTE 1.
30.50 in.
Front
Top
53.09 in.
Pipe Lengths:
NOTES:
1. TOP-MOUNTED AIR SUPPLY INLET/EXHAUST VENT ARE USED WITH INDOOR MODELS ONLY.
2. INDOOR AND OUTDOOR RACK SYSTEMS HAVE IDENTICAL DIMENSIONS. EXCEPTION: INDOOR
MODELS HAVE TOP-MOUNTED INTAKES AND EXHAUSTS. OUTDOOR MODELS DO NOT.
41.54 in.
20.75 in.
(INLETS)
20.75 in.
(EXHAUSTS)
SEE NOTE 1.
30.50 in.
Front
Top
53.09 in.
Pipe Lengths:
NOTES:
1. TOP-MOUNTED AIR SUPPLY INLET/EXHAUST VENT ARE USED WITH INDOOR MODELS ONLY.
2. INDOOR AND OUTDOOR RACK SYSTEMS HAVE IDENTICAL DIMENSIONS. EXCEPTION: INDOOR
MODELS HAVE TOP-MOUNTED INTAKES AND EXHAUSTS. OUTDOOR MODELS DO NOT.
41.54 in.
20.75 in.
(INLETS)
20.75 in.
(EXHAUSTS)
SEE NOTE 1.
30.50 in.
StateWaterHeaters.com
98
• Use the ICC Control to enable/disable the water heater
• Change temperature set points and differentials
• Two models with four different configurations to connect to
BACnet and Modbus
• Ethernet and Serial RS-485 versions available
• 2 wire or 4 wire RS-485 Network
• Heater connection wiring supplied with unit
• Power can be supplied via the USB cable, as a 7-24 VDC
input on the main terminal block, or via IEEE 802.3af power
over ethernet (PoE on ETH-1000 only)
• Configure protocols, network characteristics, and client/
server object definitions
• Graphically interact with the internal database in real-time
via USB connection
• Automatically discover and configure IP settings ethernet
gateways connected to the current subnet
• Update firmware
BUILDING MANAGEMENT SYSTEM
BACnet and MODBUS INTERFACE
Commercial System Management
99
One unit needed per water heater.
BUILDING MANAGEMENT SYSTEM
BACNET AND MODBUS INTERFACE
BMS gateway for control of State
Water Heaters
Connect your State Water Heater to your building management
system using the new Millennium control from ICC (Industrial
Control Communications, Inc.)
• Works with Ultra Force, SUF, SUFL, SHE, SEV/SEH, SSE and
CSB-IFE
Kit Part # Connection Type
100316044
Serial
100316045
Ethernet (IP)
ETH-1000 Ethernet connection
Mirius Serial Gateway
StateWaterHeaters.com
100
ELECTRIC TANKLESS
DRY-FIRE PROTECTION
• Prevents element failure due to dry fire
• Internal air bypass
• Temporary shutoff with excess air in
chamber
WIDE VARIETY OF KW AND VOLTAGE
OPTIONS FOR EVERY APPLICATION
• 12.2kW – 32kW
• 208V and 240V options
EASY INSTALL
• Mounts easily to the wall
• No venting required
• ¾” NPT water connections
• No T&P valve required (check local codes)
CONTINUOUS HOT WATER
WHEN SIZED APPROPRIATELY
SCALE-REDUCTION TECHNOLOGY
• Reduces failures and service requirements
due to hard scale buildup
• Power-sharing technology reduces scale
deposits on the element
• Dupont
TM
Zytel
®
chambers naturally resist
scaling buildup
SOFT START
• Unit will not cause lights to dim with hard
electricity draw
CODE COMPLIANCE
• Meets current UBC and CEC National Codes
• Meets or exceeds current federal minimum
energy standards, according to the National
Appliance Energy Conservation Act (NAECA)
• Listed and tested to UL 499 Appliance and
UL 834 Space Heating standards
• Control tested to achieve temperature limit
control requirements of UL 353 and CSA
C22.2
5-YEAR LIMITED WARRANTY
• For complete information, consult the written
warranty or go to statewaterheaters.com
RESIDENTIAL
COMMERCIAL
Tankless
101

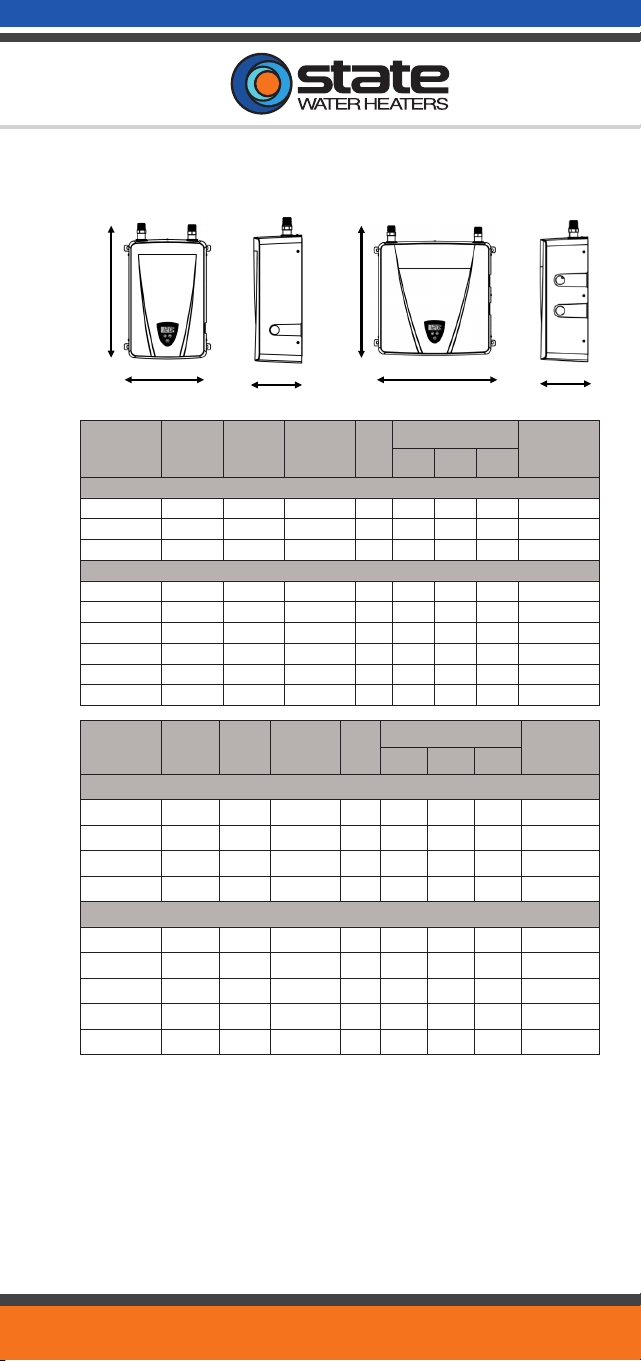

Dimensions and specifications are subject to change without notice in accordance with our policy of continuous
product improvement.
Temperature Range: 90°- 140°F.
Recommended that all wire be rated 90°C or greater.
Factory set point is 120°F. This can easily be changed in the field as needed or desired.
Refer to National Electric Code Article 220 for calculating load contribution.
240V models can run on 208V with 25% reduced power output.
Refer to local code where applicable.
* Maximum recommended wire size is #6 cu AWG.
Model
Number
Wattage
(kW)
Voltage
(V)
Amperage
(A)
UEF
Dimensions (in)
Approx.
Shipping
Weight (lbs)
A B C
Residential 2-Chamber Models
R2VS-140E 14 240 58 0.84 17-3/4 11-1/2 6-1/8 13
R2VS-140X 14 208 67 0.84 17-3/4 11-1/2 6-1/8 13
R2VS-160E 16 240 67 0.84 17-3/4 11-1/2 6-1/8 13
Residential 4-Chamber Models
R4LS-180E 18 240 75 0.92 18-1/8 17 6-1/8 20
R4LS-220E 22 240 92 0.92 18-1/8 17 6-1/8 20
R4LS-240E 24 240 100 0.92 18-1/8 17 6-1/8 20
R4LS-280E 28 240 117 0.92 18-1/8 17 6-1/8 20
R4LS-280X 28 208 135 0.92 18-1/8 17 6-1/8 20
R4MS-320E 32 240 133 0.93 18-1/8 17 6-1/8 20
Front View
Front View
Side View
Side View
4-chamber models
2-chamber models
C
C
B
B
A
A
Model
Number
Wattage
(kW)
Voltage
(V)
Amperage
(A)
UEF
Dimensions (in)
Approx.
Shipping
Weight (lbs)
A B C
Commercial 2-Chamber
C2VS-120E 12.2 240 51 0.84 17-3/4 11-1/2 6-1/8 13
C2VS-140E 14 240 58 0.84 17-3/4 11-1/2 6-1/8 13
C2VS-140X 14 208 67 0.84 17-3/4 11-1/2 6-1/8 13
C2VS-160E 16 240 67 0.84 17-3/4 11-1/2 6-1/8 13
Commercial 4-Chamber
C4LS-180E 18 240 75 0.92 18-1/8 17 6-1/8 20
C4LS-220E 22 240 92 0.92 18-1/8 17 6-1/8 20
C4LS-280E 28 240 117 0.92 18-1/8 17 6-1/8 20
C4LS-280X 28 208 135 0.92 18-1/8 17 6-1/8 20
C4MS-320E 32 240 133 0.93 18-1/8 17 6-1/8 20
StateWaterHeaters.com
102
ENERGY STAR
®
QUALIFIED CONDENSING
DESIGN
• Helical internal heat exchanger achieves 94%
thermal efficiency, which saves money on
operating costs compared to a standard 80%
efficient gas water heater
POWER VENT DESIGN FOR INSTALLATION
VERSATILITY
• Combined vertical and horizontal runs
terminating through an outside wall, using
Schedule 40 PVC or CPVC pipe
• 2˝ pipe allows vent runs up to 25 equivalent feet
• 3˝ pipe allows vent runs up to 65 equivalent feet
• 4˝ pipe allows vent runs up to 128 equivalent feet
HIGH OUTPUT WITH SMALL FOOTPRINT
• 22˝ diameter, combined with 90% efficiency,
50-gallon tank and 76,000 BTU input means
Force
®
90 can be installed in less space than
a larger 75-gallon unit, with equal or better
performance
SIDE-MOUNTED HOT AND COLD
RECIRCULATING TAPS
3-YEAR LIMITED TANK AND 1-YEAR LIMITED
PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
FORCE
®
90 POWER VENT
Commercial Gas
103
Model Number Gallon Capacity
Recovery Capacity
GPH @ 100°F Rise
BTU Input Per Hour
Approx. Shipping
Weight (lbs)
SHE50-76N 50 83 76,000 210
Model Number
Dimensions in Inches
A B C D E F G H J K
SHE50-76N 71 68-5/8 52 21 9-1/8 12 22 8 15-3/4 27
Available in natural gas only.
Standard model certified for sea level to 5,300 ft. elevation. Order SHE70-76NED for elevations to 10,100 ft.
Optional Condensate Neutralizer Kit available (Part Number 100112380).
C
G
B
D
E
OUTLET
DIAMETER
ANODE
*INSTALL IN ACCORDANCE WITH LOCAL CODES
HOT
H
K
J
COLD
SIDE
OUTLET
DRAIN
VALVE
INLET
T HERMOSTAT
SIDE INLET
FRONT VIEW
TOP VIEW
T & P VALVE
A
F
C
G
B
D
E
OUTLET
DIAMETER
ANODE
*I
NSTALL IN ACCORDANCE WITH LOCAL CODE
S
HOT
H
K
J
COLD
SIDE
OUTLET
DRAIN
VALVE
INLET
T HERMOSTAT
SIDE INLET
FRONT VIEW
TOP VIEW
T & P VALVE
A
F
StateWaterHeaters.com
104
ENERGY STAR
®
QUALIFIED CONDENSING
DESIGN
• Helical internal heat exchanger keeps hot
combustion gases in the tank longer to extract
more heat into the water
• High efficiency operation with up to 0.88 UEF
(96% Thermal Efficiency) which saves money
on operating costs compared to a standard
efficiency gas water heater
ADVANCED ELECTRONIC CONTROL
• Optional Powered Anode available
• Exclusive State designed touch display control
system
• Precise temperature control
• Built-in diagnostics and operational
information
POWER DIRECT VENT DESIGN
• Power Direct vent using PVC, CPVC or
Polypropylene either thru-the-wall or
thru-the-roof
• Optional concentric vent and low profile
termination kits are available
ULTRA-LOW NOX
• Complies with SCAQMD Rule 1146.2 and other
air quality management districts with similar
requirements for Ultra-Low NOx emissions
requirements of 14 ng/J or 20 PPM
SIDE-MOUNTED HOT AND COLD
RECIRCULATING TAPS
• Hot and cold “side taps” allow Vertex Power
Direct Vent to be used for combination space/
water heating applications
CODE COMPLIANCE
• Meets IBC and ICC National Codes
• Meets the thermal efficiency and standby loss
requirements of the U. S. Department of Energy
and current edition of ASHRAE/IES 90.1
3-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
FORCE
®
90+ POWER DIRECT VENT
Commercial Gas
105
Standard model certified from sea level to 10,100 ft. elevation.
Available with a Powered Anode. Specify when ordering.
Optional Concentric Vent Kits (100111100) and Condensate Neutralization Kits (100112380).
Substitute “P” for “N” in the model number for LP (Propane) gas model.
Front View
Top View
Rear View
Front View
Top View
Rear View
Front View
Top View
Rear View
Front View
Top View
Rear View
Model Number
Gallon
Capacity
Recovery Capacity
GPH @ 100°F Rise
BTU Input
Per Hour
Approx. Shipping
Weight (lbs)
SHE50-100NE 50 116 100,000 255
Model Number
Dimensions in Inches
A B C D E F G H I
SHE50-100NE 66-3/4 49-1/4 22 15-3/4 3 8 8 62 65
StateWaterHeaters.com
106
ENERGY STAR
®
QUALIFIED CONDENSING
DESIGN
• Helical internal heat exchanger keeps hot
combustion gases in the tank longer to extract
more heat into the water
• High efficiency operation with up to 0.88 UEF
(96% Thermal Efficiency) which saves money
on operating costs compared to a standard
efficiency gas water heater
ADVANCED ELECTRONIC CONTROL
• Optional Powered Anode available
• Exclusive State designed touch display control
system
• Precise temperature control
• Built-in diagnostics and operational
information
POWER DIRECT VENT DESIGN
• Power Direct vent using PVC, CPVC or
Polypropylene either thru-the-wall or thru-the-
roof
• Optional concentric vent and low profile
termination kits are available
ULTRA-LOW NOX
• Complies with SCAQMD Rule 1146.2 and other
air quality management districts with similar
requirements for Ultra-Low NOx emissions
requirements of 14 ng/J or 20 PPM
SIDE-MOUNTED HOT AND COLD
RECIRCULATING TAPS
• Hot and cold “side taps” allow Vertex Power
Direct Vent to be used for combination space/
water heating applications
CODE COMPLIANCE
• Meets IBC and ICC National Codes
• Meets the thermal efficiency and standby loss
requirements of the U. S. Department of Energy
and current edition of ASHRAE/IES 90.1
3-YEAR LIMITED TANK AND PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
FORCE
®
90+ POWER DIRECT VENT
Commercial Gas
107
Model Number
Gallon
Capacity
Recovery Capacity
GPH @ 100°F Rise
BTU Input
Per Hour
Approx. Shipping
Weight (lbs)
SHE75-100NE 75 116 100,000 382
Standard model certified from sea level to 10,100 ft. elevation.
Available with a Powered Anode. Specify when ordering.
Optional Concentric Vent Kits (100111100) and Condensate Neutralization Kits (100112380).
Substitute “P” for “N” in the model number for LP (Propane) gas model (example: SHE75-100PE).
UPPER SIDE CONNECT
GAS PIPING CONNECTIONS
AIR INTAKE CONNECTION
LOWER SIDE
CONNECT
B
C
F
D
T&P
DIAMETER
DRAIN
A
I
H
ANODE
INLET
OUTLET
E
G
UPPER SIDE CONNECT
GAS PIPING CONNECTIONS
AIR INTAKE CONNECTION
LOWER SIDE
CONNECT
B
C
F
D
T&P
DIAMETER
DRAIN
A
I
H
ANODE
INLET
OUTLET
E
G
UPPER SIDE CONNECT
GAS PIPING CONNECTIONS
AIR INTAKE CONNECTION
LOWER SIDE
CONNECT
B
C
F
D
T&P
DIAMETER
DRAIN
A
I
H
ANODE
INLET
OUTLET
E
G
Model Number
Dimensions in Inches
A B C D E F G H I
SHE75-100NE 65-1/4 45-5/8 27-3/4 16 3-3/4 8 8 57-1/4 59
StateWaterHeaters.com
108

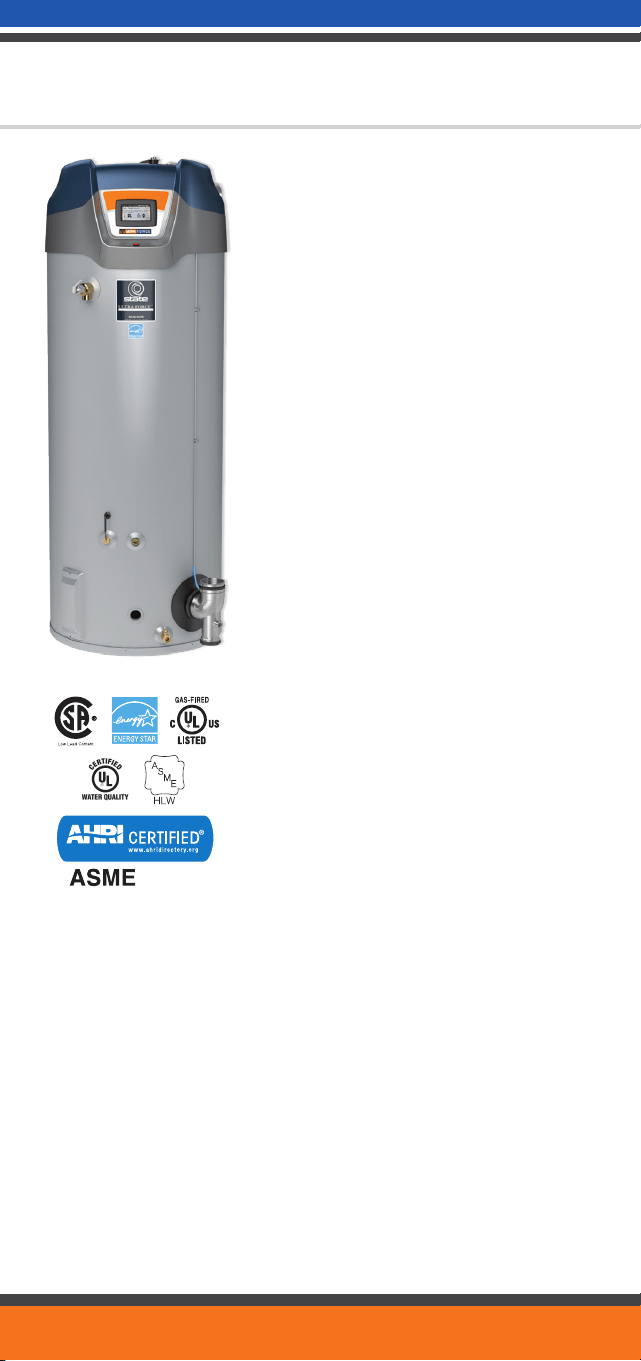

HIGH EFFICIENCY MODULATING PRE-MIX
POWERED BURNER
• Down-fired pre-mix burner provides optimum
efficiency and quiet operation
• Top-mounted burner position prevents
condensation from affecting burner operation
UP TO 98% EFFICIENT
INTELLIGENT CONTROL SYSTEM WITH TOUCH
SCREEN DISPLAY
• Exclusive State designed control system
• Provides detailed water heater status
information
• Precise temperature control adjustable from
90 to 180
• Built-in diagnostics
• Run history information
• Ultra Force
®
water heaters include iCOMM
remote connectivity. Models 120-250 require
optional Wi-Fi communications kit, models
300-500 come standard with Wi-Fi connectivity.
SUBMERGED COMBUSTION CHAMBER, WITH
HELICAL HEAT EXCHANGER COIL
• Positioned in center of tank, surrounded by
water to virtually eliminate radiant heat loss
from chamber
• Direct spark ignition
• Spiral heat exchanger keeps hot burner gases
swirling, uses centrifugal force to maximize
efficiency of heat transfer to water in tank
• Spiral heat exchanger reduces lime scale
from forming on water-side surfaces, which
maintains energy efficiency over time
POWERED ANODES STANDARD ON ALL
MODELS
• Provides long-lasting tank protection in varying
water conditions
• Powered anodes are non-sacrificial
• Automatically adjusts output needed to properly
protect the tank
3-YEAR LIMITED TANK AND 1-YEAR LIMITED
PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
ANSl/NSF-5
MODULATING ULTRA FORCE
®
Commercial Gas
109
Electrical characteristics - 120V - 60Hz A.C., 5.0A
Change “N” to “P” in model number for propane. “A” in model represents ASME construction.
Concentric Vent Kit 100111100 for SUF60-120 through SUF 100-250 Models
Concentric Vent Kit 100113124 for SUF130-300 & SUF130-500 Models.
Dimensions and Line Drawings on the following pages.
Model Number
Approx. Gallon
Capacity
Recovery
Capacity
Input
BTU/Hr
Approx.
Shipping
Weight Std
Approx.
Shipping
Weight ASME
SUF60-120NE(A) 60 138 120,000 460 490
SUF100-150NE(A) 100 178 150,000 523 553
SUF100-199NE(A) 100 235 199,900 523 553
SUF100-250NE(A) 100 291 250,000 523 553
SUF119-300NE(A) 119 349 300,000 855 855
SUF119-400NE(A) 119 460 399,900 855 855
SUF119-500NE(A) 119 576 499,900 855 855
StateWaterHeaters.com
110
Model Number
Dimensions in Inches
A B C D E F G H I J
SUF60-120NE(A) 3 27.75 6.3 35 53.5 55.5 11.25 42.25 48.5 18.25
SUF100-150-NE(A) 3 27.75 6.3 56.38 75.75 76 11.25 64 70 18.25
SUF100-199NE(A) 3 27.75 6.3 56.38 75.75 76 11.25 64 70 18.25
SUF100-250NE(A) 3 27.75 6.3 56.38 75.75 76 11.25 64 70 18.25
* Center line of water outlet on top of the water heaters is
approximately 7 inches from the front edge of the water heater.
FRONT
VENT
CONNECTION
3 INCH PVC
(exhaust elbow)
E
T & P VALV E
D
G
J
B
CLEANOUT
3/4” NPT
DRAIN
3/4” NPT
RECIRCULATION
RETURN
1 1/2” NPT
WATER
INLET
LOWER
TEMPERATURE
PROBE
BACK
E
SUPPLY GAS
CONNECTION
F
INTAKE AIR
CONNECTION
3 INCH PVC
H
I
WATER
OUTLET
HEIGHT
C
A
ALL MODELS
TOP VIEW
45°
30°
GAS
CLEAN OUT
T&P VALVE
DRAIN
VALVE
FRONT
1½" NPT WATER
OUTLET
EXHAUST
AIR INTAKE
18°
42°
26°
90°
* Center line of water outlet on top of the water heaters is
approximately 7 inches from the front edge of the water heater.
FRONT
VENT
CONNECTION
3 INCH PVC
(exhaust elbow)
E
T & P VALV E
D
G
J
B
CLEANOUT
3/4” NPT
DRAIN
3/4” NPT
RECIRCULATION
RETURN
1 1/2” NPT
WATER
INLET
LOWER
TEMPERATURE
PROBE
BACK
E
SUPPLY GAS
CONNECTION
F
INTAKE AIR
CONNECTION
3 INCH PVC
H
I
WATER
OUTLET
HEIGHT
C
A
ALL MODELS
TOP VIEW
45°
30°
GAS
CLEAN OUT
T&P VALVE
DRAIN
VALVE
FRONT
1½" NPT WATER
OUTLET
EXHAUST
AIR INTAKE
18°
42°
26°
90°
Electrical characteristics - 120V - 60Hz A.C., 5.0A
Change “N” to “P” in model number for propane (Example: SUF119 300PE).
“A” in model represents ASME construction.
Concentric Vent Kit 100111100 for SUF60-120 through SUF100-250 Models
Concentric Vent Kit 100113124 for SUF119-300 & SUF119-500 Models.
Models are certified from sea level to 10,100 ft. elevation.
MODULATING ULTRA FORCE
®
(CONTINUED)
Commercial Gas
111
Model Number
Dimensions in Inches
A B C D E F G H I J
SUF119-300NE(A) 4.75 33.12 4.75 52 75.75 73.75 12.75 63.13 69.25 23
SUF119-400NE(A) 4.75 33.12 4.75 52 75.75 73.75 12.75 63.13 69.25 23
SUF119-500NE(A) 4.75 33.12 4.75 52 75.75 73.75 12.75 63.13 69.25 23
GAS
INTAKE
CLEANOUT
T&P
DRAIN
EXHAUST
1 1/2" NPT
WATER
OUTLET
FRONT
18°
30°
45°
42°
70°
20°
TOP
CLEANOUT
T&P
3/4" NPT DRAIN
1 1/2" NPT
WATER INLET
BACK
FRONT
J
1 1/2" SUPPLY
GAS CONNECTION
4" PVC AIR INTAKE
GAS CONNECTION
4" EXHAUST VENT
CONNECTION
3/4" NPT RECIRC
RETURN
WATER
OUTLET HEIGHT
F I
E
B
CA
H
D
G
GAS
INTAKE
CLEANOUT
T&P
DRAIN
EXHAUST
1 1/2" NPT
WATER
OUTLET
FRONT
18°
30°
45°
42°
70°
20°
TOP
CLEANOUT
T&P
3/4" NPT DRAIN
1 1/2" NPT
WATER INLET
BACK
FRONT
J
1 1/2" SUPPLY
GAS CONNECT
ION
4" PVC AIR INTAKE
GAS CONNECTION
4" EXHAUST VENT
CONNECTION
3/4" NPT RECIRC
RETURN
WATER
OUTLET HEIGHT
F I
E
B
CA
H
D
G
GAS
INTAKE
CLEANOUT
T&P
DRAIN
EXHAUST
1 1/2" NPT
WATER
OUTLET
FRONT
18°
30°
45°
42°
70°
20°
TOP
CLEANOUT
T&P
3/4" NPT DRAIN
1 1/2" NPT
WATER INLET
BACK
FRONT
J
1 1/2" SUPPLY
GAS CONNECTION
4" PVC AIR INTAKE
GAS CONNECTION
4" EXHAUST VENT
CONNECTION
3/4" NPT RECIRC
RETURN
WATER
OUTLET HEIGHT
F I
E
B
CA
H
D
G
Electrical characteristics - 120V - 60Hz A.C., 5.0A
Change “N” to “P” in model number for propane (Example: SUF119-300PE).
“A” in model represents ASME construction.
Concentric Vent Kit 100111100 for SUF60-120 through SUF100-250 Models
Concentric Vent Kit 100113124 for SUF119-300 & SUF119-500 Models.
Models are certified from sea level to 10,100 ft. elevation.
StateWaterHeaters.com
112
EXTENDS ULTRA FORCE CONDENSING
PRODUCTS TO 1,000,000 BTU/H
• High efficiency, condensing water heaters
with modulating burner to 1,000,000 Btu/h
• Primary and secondary heat exchangers keep
hot combustion gases in the tank longer to
extract more heat into the water
• Models from 750,000 to 1,000,000 Btu/h
deliver thermal efficiencies of 97%, saving
money on operating costs
• PermaGlas
®
glass-lining provides superior
protection against corrosion for the ASME-
certified tank and primary heat exchanger
ELECTRONIC CONTROL & DISPLAY
• iCOMM™ connectivity platform provides
diagnostic and operational information
• Integrated color touch display/control
system.is standard on all models
• Precise temperature control, adjustable from
90° F. to 180° F
• Remote monitoring, diagnostic fault
notifications, and control of the set point and
differential via the free State mobile app
PRIMARY AND SECONDAY HEAT
EXCHANGERS
• Glass-lined 304L stainless steel primary HX
positioned in center of tank, surrounded by
water, to virtually eliminate radiant heat loss
from chamber
• Secondary HX (where condensing process
occurs) constructed of type 316L stainless
steel for additional corrosion resistence
• 2-step heat transfer process between
primary and secondary HX maximizes heat
transfer, creating thermal efficiency of 97%
POWER ANODES STANDARD ON ALL
MODELS
• Provides long-lasting tank protection in
varying water conditions
• Non-sacrificial powered anodes prevent lime
scale from forming on water-side surfaces,
which maintains energy efficiency over time
• Automatically adjusts output needed to
properly protect the tank
5-YEAR LIMITED TANK AND 1-YEAR
LIMITED PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
ULTRA FORCE
TM
XL
Commercial Gas
113
Electrical characteristics - 120V-60 Hz A.C., 5.0A
"A" in model number represents ASME construction.
Models are certified from sea level to 10,100 ft. elevation.
Model Number Gallon Capacity
Recovery
Capacity
Input
BTU/HR
Approx. Shipping
Weight (lbs) ASME
SUS-120-750A 120 882 750,000 1,300
SUS-120-1000A 120 1,176 1,000,000 1,300
44
1
2
"
72"
6" PVC
AIR INTAKE
61"
2"NPT
GAS
CONNECTION
73"
20"
3/4"
Drain
23 1/2”
2" NPT
Cold Water
Inlet
ASME
Plate
Cleanout
6" Vent
Connection
80 3/4"
3/8"H X 1/2" NPT
Condensate
Connection
33"
3/4" NPT
Recirculation
Return
2” NPT Hot Water Outlet
Exhaust
Front
37º
Drain
ekatnI
Gas
20º
90º
Top view with
plastic cover
removed.
44
1
2
"
72"
6" PVC
AIR INTAKE
61"
2"NPT
GAS
CONNECTION
73"
20"
3/4"
Drain
23 1/2”
2" NPT
Cold Water
Inlet
ASME
Plate
Cleanout
6" Vent
Connection
80 3/4"
3/8"H X 1/2" NPT
Condensate
Connection
33"
3/4" NPT
Recirculation
Return
2” NPT Hot Water Outlet
Exhaust
Front
37º
Drain
ekatnI
Gas
20º
90º
Top view with
plastic cover
removed.
44
1
2
"
72"
6" PVC
AIR INTAKE
61"
2"NPT
GAS
CONNECTION
73"
20"
3/4"
Drain
23 1/2”
2" NPT
Cold Water
Inlet
ASME
Plate
Cleanout
6" Vent
Connection
80 3/4"
3/8"H X 1/2" NPT
Condensate
Connection
33"
3/4" NPT
Recirculation
Return
2” NPT Hot Water Outlet
Exhaust
Front
37º
Drain
ekatnI
Gas
20º
90º
Top view with
plastic cover
removed.
StateWaterHeaters.com
114
LARGE VOLUME TANK + CONDENSING
DESIGN
• Large volume, integrated storage capacity to
250-gallons eliminates need for multiple water
heaters or separate storage tank, saving space
and install cost
• Helical internal heat exchanger keeps hot
combustion gases in the tank longer to extract
more heat into the water
• Models from 150,000 to 500,000 Btu/h deliver
thermal efficiencies to 96%, saving money on
operating costs
• PermaGlas
®
glass-lining process provides
superior protection against corrosion for the
large volume, ASME-certified storage tank
ELECTRONIC CONTROL & DISPLAY
• iCOMM™ connectivity platform provides
diagnostic and operational information
• Integrated color touch display/control system is
standard on all models
• Precise temperature control, adjustable from
90° F. to 180° F
• Remote monitoring, diagnostic fault
notifications, and control of the set point and
differential via the free State mobile app
SUBMERGED COMBUSTION CHAMBER WITH
HELICAL HEAT EXCHANGER COIL
• Positioned in center of tank, surrounded by
water to virtually eliminate radiant heat loss
from chamber
• Direct spark ignition
• Spiral heat exchanger keeps hot burner gases
swirling, uses centrifugal force to maximize
efficiency of heat transfer to water in tank
• Spiral heat exchanger reduces lime scale
from forming on water-side surfaces, which
maintains energy efficiency over time
POWER ANODES STANDARD ON ALL MODELS
• Provides long-lasting tank protection in varying
water conditions
• Powered anodes are non-sacrificial
• Automatically adjusts output needed to properly
protect the tank
5-YEAR LIMITED TANK AND 1-YEAR LIMITED
PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
(All
models
except
SUFL-220-
500A)
MODULATING ULTRA FORCE
TM
LV
Commercial Gas
115
"A" in model number represents ASME construction.
Models are certified from sea level to 10,100 ft. elevation.
Model Number Gallon Capacity
Recovery
Capacity
Input
BTU/HR
Approx.
Shipping
Weight (lbs)
ASME
SUFL-250-150A 250 175 150,000 1125
SUFL-250-199A 250 230 199,900 1125
SUFL-250-250A 250 285 250,000 1125
SUFL-220-300A 220 342 300,000 1420
SUFL-220-400A 220 451 399,900 1420
SUFL-220-500A 220 557 499,900 1420
StateWaterHeaters.com
116
SUFL-250-150A --- SUFL-250-250A
Figure 5. Rough-In Dimensions
Optional Concentric Vent Kits available. 100111100 (SUFL-250-150A through SUFL-250-250A models).
Optional Condensate Neutralization Kits available. 100112380 (SUFL-250-150A through SUFL-250-199A
models), 100112381 (SUFL-250-250A through SUFL-220-500A models).
Electrical characteristics - 120V-60 Hz A.C., 5.0A
"A" in model number represents ASME construction.
Models are certified from sea level to 10,100 ft. elevation.
Model Number
Dimensions
A B C D E
SUFL-250-150A 91-1/2 62-5/8 42-1/8 20-1/2 8-1/2
SUFL-250-199A 91-1/2 62-5/8 42-1/8 20-1/2 8-1/2
SUFL-250-250A 91-1/2 62-5/8 42-1/8 20-1/2 8-1/2
Model Number
Dimensions
F G H I J
SUFL-250-150A 78-1/8 12 85 90-1/8 30-1/2
SUFL-250-199A 78-1/8 12 85 90-1/8 30-1/2
SUFL-250-250A 78-1/8 12 85 90-1/8 30-1/2
MODULATING ULTRA FORCE
TM
LV
(CONTINUED)
Commercial Gas
117

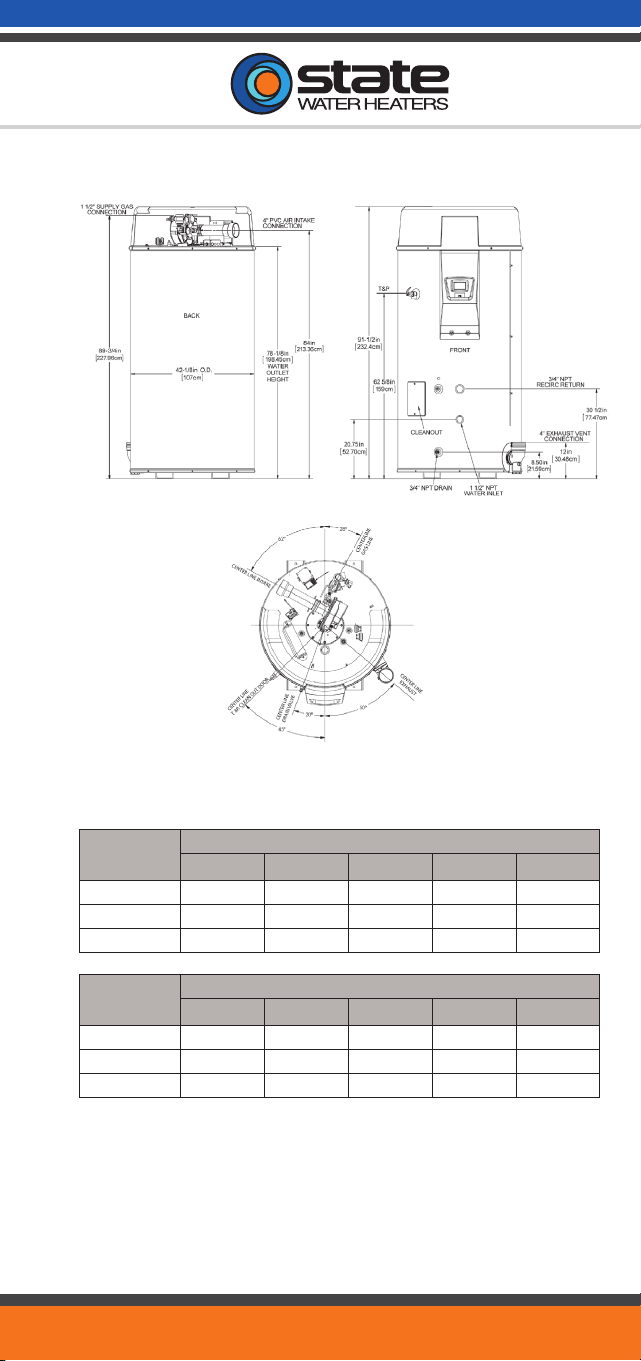

TOP VIEW
Optional Concentric Vent Kits available. 100113124 (SUFL-220-300A through SUFL-220-500A models).
Optional Condensate Neutralization Kits available. 100112381 (SUFL-250-150A through
SUFL-220-500A models).
Electrical characteristics - 120V-60 Hz A.C., 5.0A
"A" in model number represents ASME construction.
Models are certified from sea level to 10,100 ft. elevation.
Model Number
Dimensions
A B C D E
SUFL-220-300A 91-1/2 62-5/8 42-1/8 20-3/4 8-1/2
SUFL-220-400A 91-1/2 62-5/8 42-1/8 20-3/4 8-1/2
SUFL-220-500A 91-1/2 62-5/8 42-1/8 20-3/4 8-1/2
Model Number
Dimensions
F G H I J
SUFL-220-300A 78-1/8 12 84 89-3/4 30-1/2
SUFL-220-400A 78-1/8 12 84 89-3/4 30-1/2
SUFL-220-500A 78-1/8 12 84 89-3/4 30-1/2
SUFL-220-300A --- SUFL-220-500A
StateWaterHeaters.com
118
POLARIS
™
HIGH EFFICIENCY
CONDENSING DESIGN
• Operates at up to 96% thermal efficiency
which saves money on operating costs
compared to a standard 80% efficient gas
water heater
• Helical internal heat exchanger keeps hot
combustion gases in the tank longer to
extract more heat into the water
STAINLESS STEEL CONSTRUCTION
• Tank and helical heat exchanger are
constructed from 444 stainless steel for
excellent corrosion resistance without the
need for an anode
WHISPER QUIET OPERATION
• Ultra-quiet blower and burner minimize noise
POWER DIRECT VENT DESIGN
• Direct vent using PVC, CPVC or ABS either
thru-the-wall or thru-the-roof
OPTIONAL CONCENTRIC VENT KIT
ADVANCED ELECTRONIC CONTROL
• Large LCD display provides precise
temperature control and advanced
diagnostics
CODE COMPLIANCE
• Complies with SCAQMD Rule 1146.2 and
other air quality management districts with
similar requirements for Ultra-Low NOx
emissions requirements of 14 ng/J or 20 PPM
• Meets UBC, CEC, and ICC National Codes
• Meets the thermal efficiency and standby
loss requirements of the U. S. Department
of Energy and current edition of ASHRAE/
IES 90.1
3-YEAR LIMITED TANK AND 1-YEAR
LIMITED PARTS WARRANTY
• For complete information, consult written
warranty or go to statewaterheaters.com
Commercial Gas
119
Model Number
Gallon
Capacity
BTU/h Input
Gallon Per Hour
Thermal
Efficiency
Recovery Capacity
GPH @ 100°F Rise
Approx.
Shipping
Weight (lbs)
SPC-34-130-NE 34 130,000 96% 149 150
SPC-34-150-NE 34 150,000 94% 171 150
SPC-50-130-NE 50 130,000 95% 149 176
SPC-50-150-NE 50 150,000 95% 171 180
SPC-50-175-NE 50 175,000 96% 200 180
SPC-50-199-NE 50 199,000 96% 227 180
Additional
Side Taps
Air Inlet
Additional
Side Taps
Air Inlet
Additional
Side Taps
Air Inlet
For Propane (LP) gas change "NE" to "PE"
Models certified for sea level to 7,700 ft. elevation.
Model Number
Dimensions in
Inches
Vent
Connection
1" Water Connections T&P
Gas
Supply*
A B C D E F
SPC-34-130-NE 48-1/2 22 2 or 3 15-3/4 40-1/2 41 6-3/8
SPC-34-150-NE 48-1/2 22 2 or 3 15-3/4 40-1/2 41 6-3/8
SPC-50-130-NE 62-3/8 22 2 or 3 15-3/4 54-1/2 55 6-3/8
SPC-50-150-NE 63-3/4 22 2 or 3 15-3/4 55-3/4 56-1/4 6-3/8
SPC-50-175-NE 63-3/4 22 3 15-3/4 55-3/4 56-1/4 6-3/8
SPC-50-199-NE 63-3/4 22 3 15-3/4 55-3/4 56-1/4 6-3/8
StateWaterHeaters.com
120
TX1 INTEGRATED
TANKLESS ON TANK
DELIVERS 96% THERMAL EFFICIENCY
ULTRA-LOW NOX OPERATION
• Complies with SCAQMD Rule 1146.2 and other
Air Quality Management Districts with similar
requirements for ultra low-NOx emissions
USES CT-199 COMMERCIAL TANKLESS
• Modulating burner
• Primary heat exchanger constructed of
commercial grade copper
• Secondary heat exchanger constructed of 316
grade stainless steel
• Advanced electronic control with integrated
diagnostics
• 185°F maximum temperature
119 GALLON STORAGE TANK
• 4.1 GPM pump
• Glass lined tank
• Multiple anodes to protect the tank
• Front water inlet and top water outlet
6 YEAR LIMITED HEAT EXCHANGER AND
TANK, 5 YEAR LIMITED PARTS WARRANTY
• For complete warranty information, consult
written warranty or go to statewaterheaters.com
Commercial Gas
121

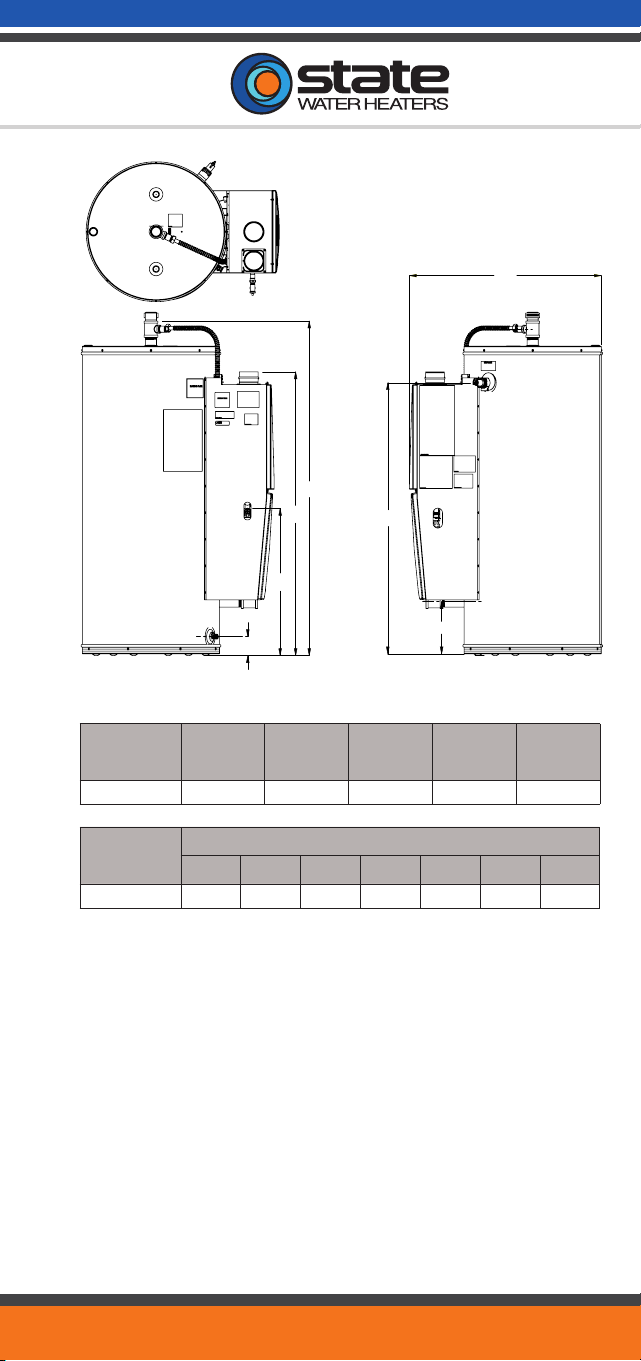

E
G
F
A
C
D
B
Electrical characteristics-120V-60Hz A.C., 5.0 A
Propane gas models available
Dimensions and specifications subject to change without notice in accordance with our policy of continuous
product improvement
Model Number
Dimensions
A B C D E F G
STX-199 72 58-11/16 41 11-13/16 4-5/16 61-3/8 30
Model Number
Gallon
Capacity
Input BTU/ HR
Thermal
Efficiency %
Recovery @
100° Rise GPH
Approx.
Shipping
Weight (lbs.)
STX-199 119 199,000 96 232 520
StateWaterHeaters.com
122

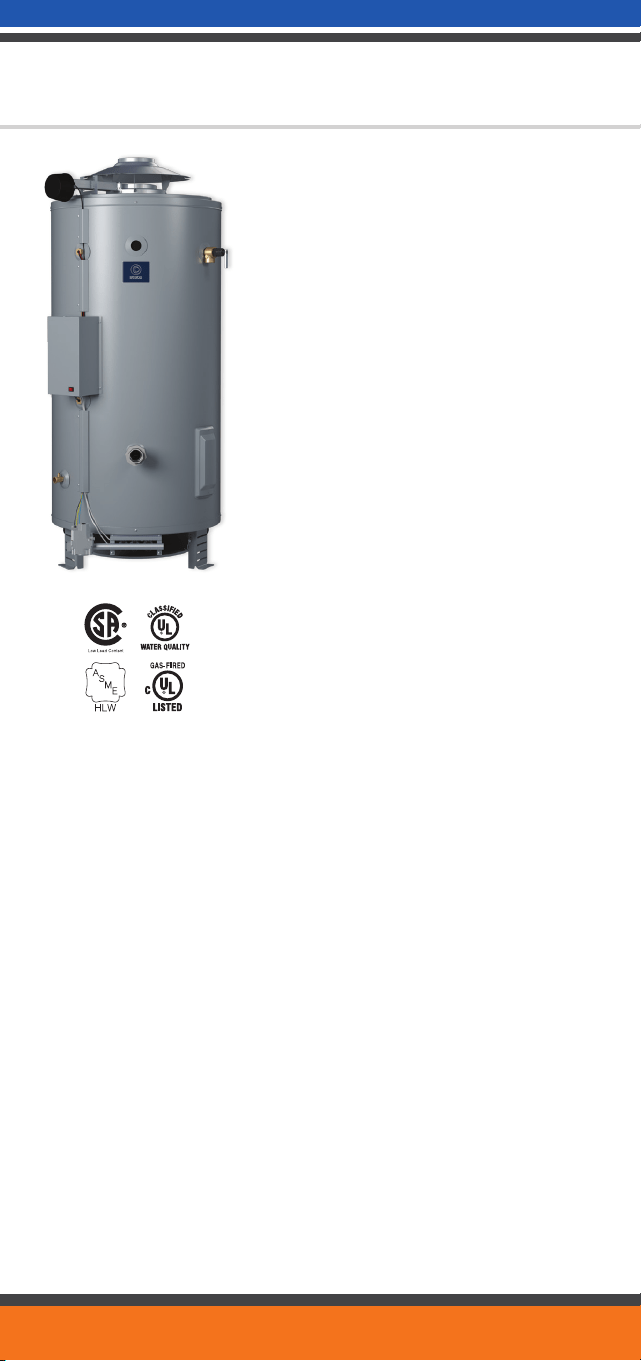

SELF-CLEANING HYDRO CANNON
™
• Significantly reduces sediment buildup inside
the tank
• Maintains rated thermal efficiency, reduces
water heating costs
• Maximizes tank life
AUTOMATIC FLUE DAMPER
(120–390 MODELS)
• Automatic motorized flue damper helps
minimize standby heat loss
• Low-profile draft diverter helps for installation
in tight spaces
• SBD85 500 Model features induced draft design
and no damper
THREE WATER CONNECTION OPTIONS
• Hot and cold water connections can be made
through front, top or rear of unit
• Hydro Cannon
™
operates when cold water is
connected through front
INTERMITTENT ELECTRONIC IGNITION
• Eliminates standing pilot, saves energy
• Includes power ON/OFF switch
• Provides flame failure response in less than
one second
3-YEAR LIMITED AND 1-YEAR LIMITED TANK
WARRANTY
• For complete warranty information, consult
written warranty or go to statewaterheaters.com
SANDBLASTER
®
SELF-CLEANING - SBD SERIES
Commercial Gas
123
Model Number
Gallon
Capacity
Input BTU/HR
100°F Rise
Recovery G.P.H.
Approx. Shipping
Weight (lbs)
FLUE DAMPER MODELS
SBD71-120NE† 71 120,000 116 400
SBD81-154NE 81 154,000 149 470
SBD81-180NE 81 180,000 175 470
SBD100-199NET 100 199,000 193 603
SBD100-199NE 100 199,000 193 603
SBD81-199NE 81 199,000 193 470
SBD100-199NES 100 199,000 193 630
SBD100-250NE* 100 250,000 242 630
SBD65-251NE* 65 251,000 243 750
SBD100-275NE* 100 275,000 267 630
SBD65-305NE 65 305,000 296 750
SBD85-365NE 85 365,000 354 725
SBD100-390NE 100 390,000 378 760
SBD85-500NE*** 85 500,000 485 812
ASME MODELS - ASME Models are design certified for a maximum allowable working
pressure of 160 PSI
SBD100-199NE-A 100 199,000 193 724
SBD100-250NE-A* 100 250,000 242 725
SBD65-251NE-A* 65 251,000 243 862
SBD100-275NE-A* 100 275,000 267 725
SBD65-305NE-A 65 305,000 296 862
SBD85-365NE-A 85 365,000 354 833
SBD100-390NE-A 100 390,000 378 874
SBD85-500NE-A*** 85 500,000 485 857
Dimensions and Line Drawings on the following pages.
Model SBD71-120NE is shipped with 6˝x 5˝ flue outlet adapter.
**Models certified for either 6˝ or 8˝ venting, see local codes.
***Induced draft design, Category I Venting
Substitute “P” for “N” in model number for LP (Propane) gas models (Example: SBD100-199PE).
StateWaterHeaters.com
124

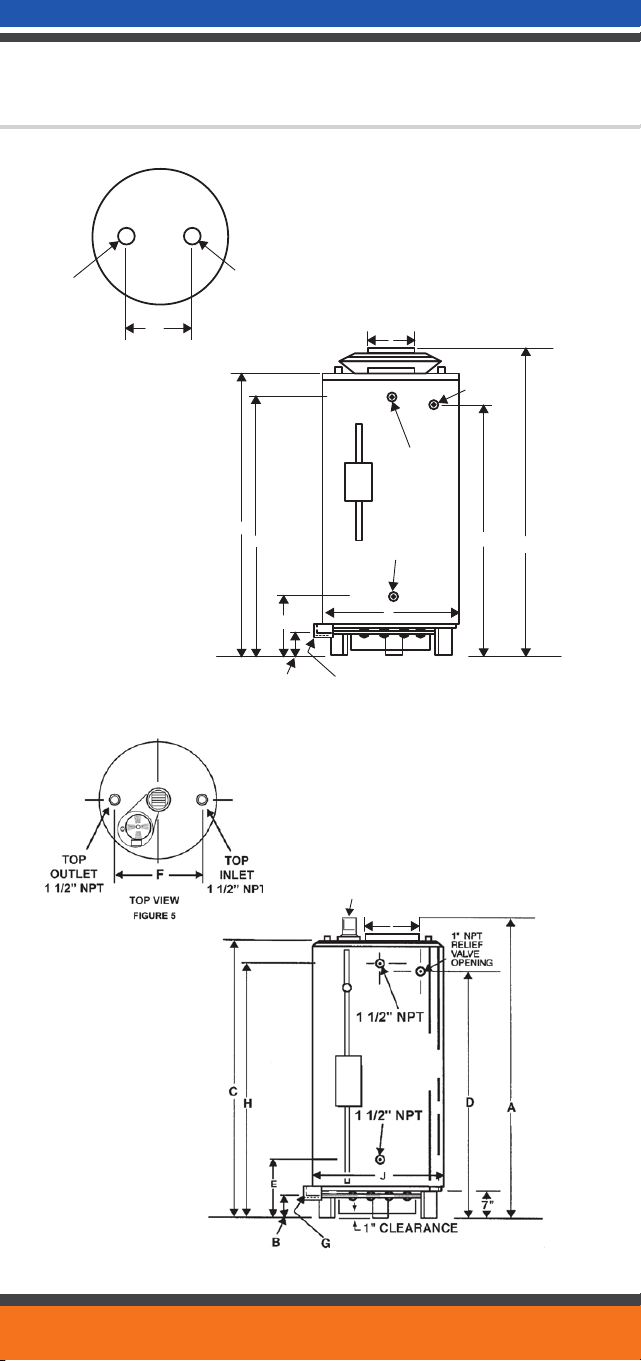

A
C
H
E
B
TOP
OUTLET
TOP
INLET
G
F
J
INLET
GAS CONNECTION
D
OUTLET
I
1" NPT
RELIEF
VALVE
OPENING
MODEL
SBD85 500
MODELS
SDB85 120-390
INDUCED DRAFT MOTOR
I
A
C
H
E
B
TOP
OUTLET
TOP
INLET
G
F
J
INLET
GAS CONNECTION
D
OUTLET
I
1" NPT
RELIEF
VALVE
OPENING
MODEL
SBD85 500
MODELS
SDB85 120-390
INDUCED DRAFT MOTOR
I
A
C
H
E
B
TOP
OUTLET
TOP
INLET
G
F
J
INLET
GAS CONNECTION
D
OUTLET
I
1" NPT
RELIEF
VALVE
OPENING
MODEL
SBD85 500
MODELS
SDB85 120-390
INDUCED DRAFT MOTOR
I
A
C
H
E
B
TOP
OUTLET
TOP
INLET
G
F
J
INLET
GAS CONNECTION
D
OUTLET
I
1" NPT
RELIEF
VALVE
OPENING
MODEL
SBD85 500
MODELS
SDB85 120-390
INDUCED DRAFT MOTOR
I
Models SBD 120-390
Model SBD 500
SANDBLASTER
®
SELF-CLEANING - SBD SERIES
(CONTINUED)
Commercial Gas
125
†Model SBD71 120NE is shipped with 6˝x 5˝ flue outlet adapter.
**Models certified for either 6˝ or 8˝ venting, see local codes.
***Induced draft design, Category I Venting
Substitute “P” for “N” in model number for LP (Propane) gas models(Example: SBD71 120PE).
Model Number
Dimensions in Inches
A B C D E F
SBD71-120NE† 69-3/4 4-1/4 59-1/2 50-7/8 19-11/16 19
SBD81-154NE 67-1/2 4-1/2 62 53-1/2 20-1/2 21
SBD81-180NE 67-1/2 4-1/2 62 53-1/2 20-1/2 21
SBD81-199NE 67-1/2 4-1/2 62 53-5/8 20-1/2 21
SBD100-199NET 75 4-1/2 70 61-5/8 20-1/2 21
SBD100-199NE 75 4-1/2 70 61-5/8 20-1/2 21
SBD100-199NES-(A) 67-1/2 4-1/2 62 53-5/8 20-1/2 21
SBD100-250NE-(A)* 72 4-1/2 65-1/8 55-7/8 19-3/4 23
SBD65-251NE-(A)* 72 4-1/2 65-1/8 55-7/8 19-3/4 23
SBD100-275NE-(A)* 72 4-1/2 65-1/8 55-7/8 19-3/4 23
SBD65-305NE-(A) 75 4-1/2 65-3/4 57-1/4 20 N/A
SBD85-365NE-(A) 79-1/2 4-1/2 70-1/4 62-1/2 22-1/2 23
SBD100-390NE-(A) 75-1/2 4-1/2 67-1/2 58-1/4 26-3/4 23
SBD85-500NE-(A)*** 81-1/2 17-1/2 77-1/4 67-1/2 27 21
Model Number
Dimensions in Inches
G H I J
SBD71-120NE† 1/2 51-7/8 6 27-3/4
SBD81-154NE 1/2 54-5/8 6 27-3/4
SBD81-180NE 1/2 54-5/8 6 27-3/4
SBD81-199NE 1/2 54-5/8 6 27-3/4
SBD100-199NET 1/2 62-5/8 6 27-3/4
SBD100-199NE 1/2 61-1/2 6 27-3/4
SBD100-199NES-(A) 1/2 54-5/8 6 27-3/4
SBD100-250NE-(A)* 1/2 56-3/8 8 30-1/4
SBD65-251NE-(A)* 1/2 56-3/8 8 30-1/4
SBD100-275NE-(A)* 1/2 56-3/8 8 30-1/4
SBD65-305NE-(A) 1/2 58-3/4 8 27-3/4
SBD85-365NE-(A) 3/4 63 8 27-3/4
SBD100-390NE-(A) 3/4 59 8 30-1/4
SBD85-500NE-(A)*** 1 67-1/2 8 27-3/4
StateWaterHeaters.com
126

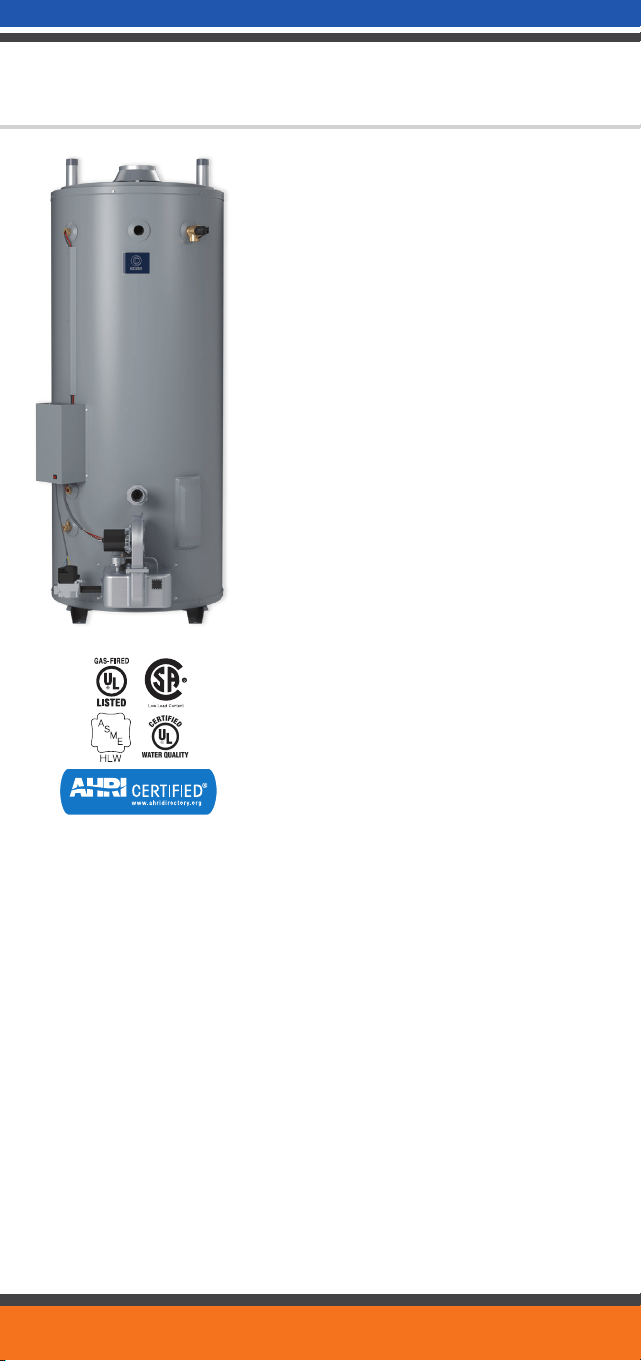

80% THERMAL EFFICIENCY MEANS LOWER
OPERATING COSTS
FAN ASSISTED COMBUSTION
• The blower is built into the low NOx burner
assembly
• Complies with California SCAQMD Rule 1146.2
and other Air Quality Management Districts
with similar NOx emission requirements of 14
ng/J or 20 ppm
AIR-FLAPPER
• A stainless steel air flapper is used inside the
premix system to replace externally mounted
flue damper to minimize the standby heat loss
and to minimize the overall heater height
METAL VENTING
• Rated Category I Appliance. Uses standard
double wall type “B” vent.
• Can be commonly vented with other Category I
appliances
• Vent connects directly to the vent connector
outlet
• An excellent choice for retrofit and upgrade
installations
3-YEAR LIMITED TANK AND 1-YEAR LIMITED
PARTS WARRANTY
• For complete warranty information, consult
written warranty or go to statewaterheaters.com
SANDBLASTER
®
ULTRA-LOW NOx
Commercial Gas
127
Model Number Gallon Capacity Input BTU/HR
Recovery Capacity
GPH @ 100°F Rise
SBL81-120NE 81 120,000 115
SBL81-154NE 81 154,000 148
SBL81-180NE 81 180,000 173
SBL81-199NE 81 199,000 191
SBL100-199NE 100 199,000 191
SBL100-250NE 100 250,000 240
SBL100-275NE 100 275,000 264
SBL86-310NE 86 310,000 298
SBL86-366NE 86 366,000 352
SBL86-390NE 86 390,000 375
SBL100-250NEA 100 250,000 240
SBL100-275NEA 100 275,000 264
SBL86-310NEA 86 310,000 298
SBL86-366NEA 86 366,000 352
SBL86-390NEA 86 390,000 375
Electrical characteristics-120V-60 Hz A. C., 5.0A.
“A” after the model number designates ASME construction.
Leg kits for UL sanitation to meet NSF-5 (increase overall height by 4˝).
SBL models not available in LP gas.
Dimensions and line drawings on the following pages.
StateWaterHeaters.com
128
TOP VIEW
ROUGH IN DIMENSIONS: MASTER-FIT BTL 199 ULN
F
TOP OUTLET
1 1/2 NPT
B
K
TOP INLET
1 1/2 NPT
FRONT VIEW BACK VIEW
J
C
I
G
A
HD
E
L
TOP VIEW
ROUGH IN DIMENSIONS: MASTER-FIT BTL 199 ULN
F
TOP OUTLET
1 1/2 NPT
B
K
TOP INLET
1 1/2 NPT
FRONT VIEW BACK VIEW
J
C
I
G
A
HD
E
L
TOP VIEW
ROUGH IN DIMENSIONS: MASTER-FIT BTL 199 ULN
F
TOP OUTLET
1 1/2 NPT
B
K
TOP INLET
1 1/2 NPT
FRONT VIEW BACK VIEW
J
C
I
G
A
HD
E
L
SANDBLASTER
®
ULTRA-LOW NOx
(CONTINUED)
Commercial Gas
129
Electrical characteristics-120V-60 Hz A. C., 5.0A.
“A” after the model number designates ASME construction.
Leg kits for UL sanitation to meet NSF-5 (increase overall height by 4˝).
SBL models not available in LP gas.
Model Dimension
SBL81 120, 154,
180, 198
SBL100 199, 250(A),
275(A)
SBL86 310(A), 366(A),
400(A)
Dimensions in Inches
A
63-3/4 71-3/4 71-3/4
B
37 37 37
C
65 73 73
D
52-3/4 60-3/4 60-3/4
E
20-3/4 20-1/2 20-1/2
F
21 21 21
G
3/4 NPT
H
53 61 61
I
6 6-8 6-8
J
27-3/4 27-3/4 27-3/4
K
1-1/2 NPT
L
1-1/2 NPT
Approx. Shipping
Weight (lbs)
SBL81 120, 154,
180, 198
SBL100 199, 250(A),
275(A)
SBL86 310(A), 366(A),
400(A)
Standard
650 750 810
ASME
N/A 800 860
StateWaterHeaters.com
130
CODE COMPLIANCE
• Commercial gas water heater meets
the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and Current Edition ASHRAE/IES 90.1
FULLY AUTOMATIC CONTROLS WITH SAFETY
SHUTOFF
• Accurate, dependable control system requires
no electric connections. Fixed automatic
gas shutoff device for added safety. Not
recommended for 180˚F sanitizing.
HEAVY GAUGE STEEL JACKET
• Finished with baked enamel over bonderized
undercoat
FOAM INSULATION
• Saves fuel, helps reduce standby heat loss
LOW NOx EMISSIONS
• Complies with Texas and other districts
requirements for NOx emissions less than ng/J
EASY-TO-INSTALL
• Completely factory-assembled. Only gas, water
and vent connections need to be made. All
connections are located in front and top of
heaters for ease-of-installation and service.
3-YEAR LIMITED TANK AND 1-YEAR LIMITED
PARTS WARRANTY
• For complete warranty information, consult
written warranty or go to statewaterheaters.com
SANDBLASTER
®
SBS
Commercial Gas
131
Gas Type
Capacity Input Rating Temperature Rise GPH (LPH)
Gallon Litres
BTU/
HR
kW/
Hr.
30°F
(17°C)
40°F
(22°C)
50°F
(28°C)
60°F
(33°C)
70°F
(39°C)
80°F
(45°C)
Natural Gas 55 208 60,000 17.6
194
(734)
145
(551)
116
(440)
97
(367)
83
(315)
73
(275)
Propane (LP) 55 208 54,000 15.8
175
(661)
131
(496)
105
(396)
87
(330)
75
(283)
65
(248)
Gas Type
Capacity Input Rating Temperature Rise GPH (LPH)
Gallon Litres
BTU/
HR
kW/
Hr.
90°F
(50°C)
100°F
(56°C)
110°F
(61°C)
120°F
(67°C)
130°F
(72°C)
140°F
(78°C)
Natural Gas 55 208 60,000 17.6
65
(245)
58
(220)
53
(200)
48
(184)
45
(169)
42
(157)
Propane (LP) 55 208 54,000 15.8
58
(220)
52
(198)
48
(180)
44
(165)
40
(152)
37
(142)
Model
Number
Gallon
Capacity
First Hour
Rating
Gallon
Energy
Factor
Recovery
Eff.
BTU Input
Natural
Gas
BTU Input
Propane
Gas
GPH Recovery
@ 100°F Rise
Natural
SBS55-60 55 106 0.59 0.80 60,000 54,000 58
Model
Number
GPH
Recovery
@ 100°F
Rise LP
Dimensions in Inches
Approx.
Shipping
Weight (lbs)
A B C D E F
Draft
Hood
SBS55-60 52 59-3/4 55-1/4 24 13-1/2 8 48 4 185
Maximum Hydrostatic Working Pressure: 150 PSI
B
A
G
H
F
D
1/2" GAS
CONNECTION
COLD
CONNECTION
C
E
HOT
CONNECTION
(ANODE OUTLET ON
TOP T&P MODELS)
ANODE ROD
(OPTIONAL T&P
LOCATION)
T&P VALVE
Maximum Hydrostatic Working Pressure: 150 PSI
B
A
G
H
F
D
1/2" GAS
CONNECTION
COLD
CONNECTION
C
E
HOT
CONNECTION
(ANODE OUTLET ON
TOP T&P MODELS)
ANODE ROD
(OPTIONAL T&P
LOCATION)
T&P VALVE
StateWaterHeaters.com
132
GLASSLINED TANK
• Maximizes tank life
• Fully Automatic Controls with Safety Shutoff
• Accurate, dependable control system requires
no electric connections. Fixed automatic
gas shutoff device for added safety. Not
recommended for 180°F sanitizing.
HEAVY GAUGE STEEL JACKET
• Finished with baked enamel over bonderized
undercoat
FOAM INSULATION
• Saves fuel, helps reduce standby heat loss
LOW NOx
• Complies with Texas and other Districts
Requirements for NOx Emissions Less than 40 ng/J
EASY-TO-INSTALL
• Completely factory-assembled. Only gas,
water and vent connections need be made.
All connections are located in front and top of
heaters for ease of installation and service.
3-YEAR LIMITED TANK/1-YEAR LIMITED
PARTS WARRANTY
• For complete warranty information, consult
written warranty or go to statewaterheaters.com
SANDBLASTER
®
LIGHT-DUTY
Commercial Gas
133
K
HOT WATER OUTLET
T&P
VALVE
DRAIN
VALVE
K
COLD WATER INLET
F
A
B
D
H
M
C
L
C
L
J
C
E
DRAIN VALVE
*TEMPERATURE
AND PRESSURE
RELIEF VALVE
*INSTALL IN
ACCORDANCE
WITH LOCAL
CODES.
ANODE ROD
COLD
HOT
GAS INLET
G
L
K
HOT WATER OUTLET
T&P
VALVE
DRAIN
VALVE
K
COLD WATER INLET
F
A
B
D
H
M
C
L
C
L
J
C
E
DRAIN VALVE
*TEMPERATURE
AND PRESSURE
RELIEF VALVE
*INSTALL IN
ACCORDANCE
WITH LOCAL
CODES.
ANODE ROD
COLD
HOT
GAS INLET
G
L
Model Number
Dimensions in Inches
A B C D E F
SBS75-76NE 61-1/8 58-1/2 26-1/2 15-3/16 16 4
SBS100-76NE 68-5/8 66-1/2 27-3/4 15-3/16 16 4
NSF leg kit 100111360.
Specify when ordering (LP) gas.
Model Number
Gallon
Capacity
Input
BTU/HR
Recovery Capacity
GPH @ 100°F Rise
Approx. Shipping
Weight (lbs)
LIGHT DUTY
SBS75-76NE 74 75,100 73 275
SBS100-76NE 98 75,100 73 350
Model Number
Dimensions in Inches
G H J K L M
SBS75-76NE 14-1/2 29-11/16 54-1/4 1 1/2 11-15/16
SBS100-76NE 15-3/4 30-15/16 54-1/4 1 1/2 11-15/16
StateWaterHeaters.com
134
®
SELF-CLEANING DIP TUBE
• Helps reduce lime and sediment buildup and
maximizes hot water output. Made from long-
lasting PEX cross-linked polymer
BLUE DIAMOND
®
GLASS COATING
• Provides superior corrosion resistance compared
to the industry-standard glasslining
HOT SURFACE IGNITION
• Has a solid state hot surface ignition that does
not flutter or blow out
• Eliminates the pilot and saves energy
STANDARDS
• Design-certified by CSA International, according
to ANSI Z21.10.3-CSA 4.3 standards governing
storage-type water heaters
• Meets the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and current edition of ASHRAE/IES 90.1
3-YEAR LIMITED TANK AND 1-YEAR LIMITED
PARTS WARRANTY
• For complete warranty information, consult
written warranty or go to statewaterheaters.com
FORCE
®
POWER DIRECT VENT
Commercial Gas
135
D
C
E
H
G
B
A
F
D
C
E
H
G
B
A
F
Can be installed up to 10,100 feet without alteration.
Specify when ordering propane (LP) gas.
Recovery capacity based on 81% thermal efficiency.
Model Number Btuh Input Approx. Capacity
Approx. Shipping
Weight (lbs)
SDV75-76NE 76,000 75 277
Model Number
Dimensions in Inches
A B C D E F G H
SDV75-76NE 70-5/8 61-1/4 26 33-1/8 11 13-1/4 53 15-1/4
StateWaterHeaters.com
136
CODE COMPLIANCE
• The Ultra-Low NOx atmospheric vent
commercial gas water heater which meets
the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and Current Edition ASHRAE/IES 90.1
FULLY AUTOMATIC CONTROLS WITH SAFETY
SHUTOFF
• Accurate, dependable control system requires
no electric connections. Fixed automatic
gas shutoff device for added safety. Not
recommended for 180˚F sanitizing.
HEAVY GAUGE STEEL JACKET
• Finished with baked enamel over bonderized
undercoat
FOAM INSULATION
• Saves fuel, helps reduce standby heat loss
ULTRA-LOW NOx EMISSIONS
• Complies with SCAQMD Rule 1146.2 and other
Air Quality Management Districts with similar
requirements of 14 ng/J or 20 ppm
EASY-TO-INSTALL
• Completely factory-assembled. Only gas, water
and vent connections need to be made. All
connections are located in front and top of
heaters for ease-of-installation and service.
3-YEAR LIMITED TANK AND 1-YEAR LIMITED
PARTS WARRANTY
• For complete warranty information, consult
written warranty or go to statewaterheaters.com
SANDBLASTER
®
LOW NOx SINGLE FLUE
Commercial Gas
137

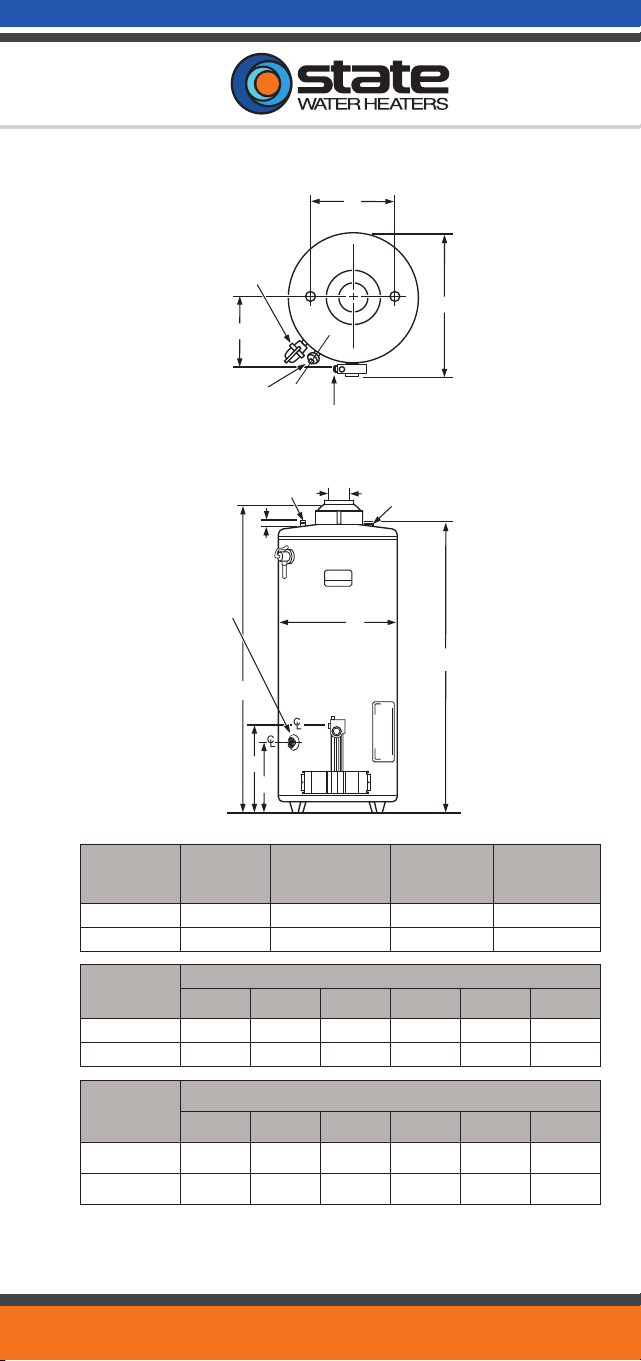

OUTLET
DRAIN
VALVE
HOT
COLD
TOP VIEW
L
GAS INLET
DRAIN VALVE
K
COLD WATER
INLET
F
H
J
B
D
A
E
M
G
TEMPERATURE
AND PRESSURE
RELIEF VALVE
C
OUTLET
DRAIN
VALVE
HOT
COLD
TOP VIEW
L
GAS INLET
DRAIN VALVE
K
COLD WATER
INLET
F
H
J
B
D
A
E
M
G
TEMPERATURE
AND PRESSURE
RELIEF VALVE
C
Available in natural gas only.
*Recovery rating based on 81% thermal efficiency
**Recovery rating based on 80% thermal efficiency
Model Number
Gallon
Capacity
Input BTU/HR
Recovery
Capacity GPH @
100° Rise
Approx. Shipping
Weight (lbs)
SBL75-76NE** 74 75,100 BTU/h 73 285
SBL100-76NE* 98 75,100 BTU/h 74 350
Model Number
Dimensions in Inches
G H J K L M
SBL75-76NE 15-1/4 16 2 1 1/2 12-1/2
SBL100-76NE 15-3/4 16 1-1/4 1-1/4 1/2 11-15/16
Model Number
Dimensions in Inches
A B C D E F
SBL75-76NE 62-1/16 58 29-1/2 25-1/4 15-7/8 4
SBL100-76NE 70-1/2 66-1/2 30-15/16 27-3/4 15-3/16 4
StateWaterHeaters.com
138

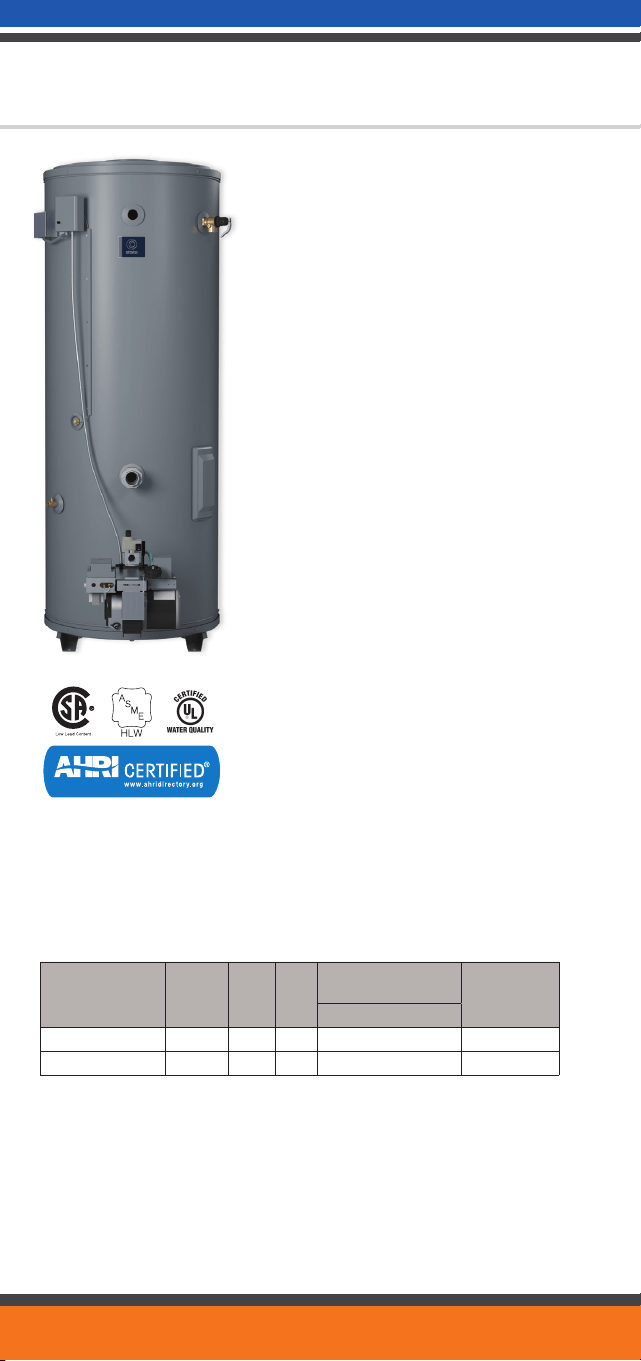

** GPG81 370NE available in Natural Gas only.
POWERED GAS BURNER
• Premix burner operation
• Safety features: Internal blocked flue sensor,
separate pilot system, internal thermal cutoff
and anti-flashback barrier
CATEGORY 1 VENTING
• Conventional atmospheric venting on GPG
models only with supplied Barometric Draft
damper
AUTOMATIC CONTROLS
• Safety shut-off, high-temperature limit control
• Dual thermostat for accurate temperature
adjustment from 120ºF to 180ºF
3-YEAR LIMITED TANK AND 1-YEAR LIMITED
PARTS WARRANTY
• For complete warranty information, consult
written warranty or go to statewaterheaters.com
Model Number
BTU Input
Per Hour
Tank
Size
GPH
Recovery Gallons Per
Hour Temperature Rise
Maximum
Amperes 120V,
60 Hz, 1
100°
GPG81-270NE-(A) 270,000 81 GPH 262 5
GPG81-370NE-(A)** 370,000 81 GPH 359 5
STATE TITAN
®
POWER GAS BURNER
Commercial Gas

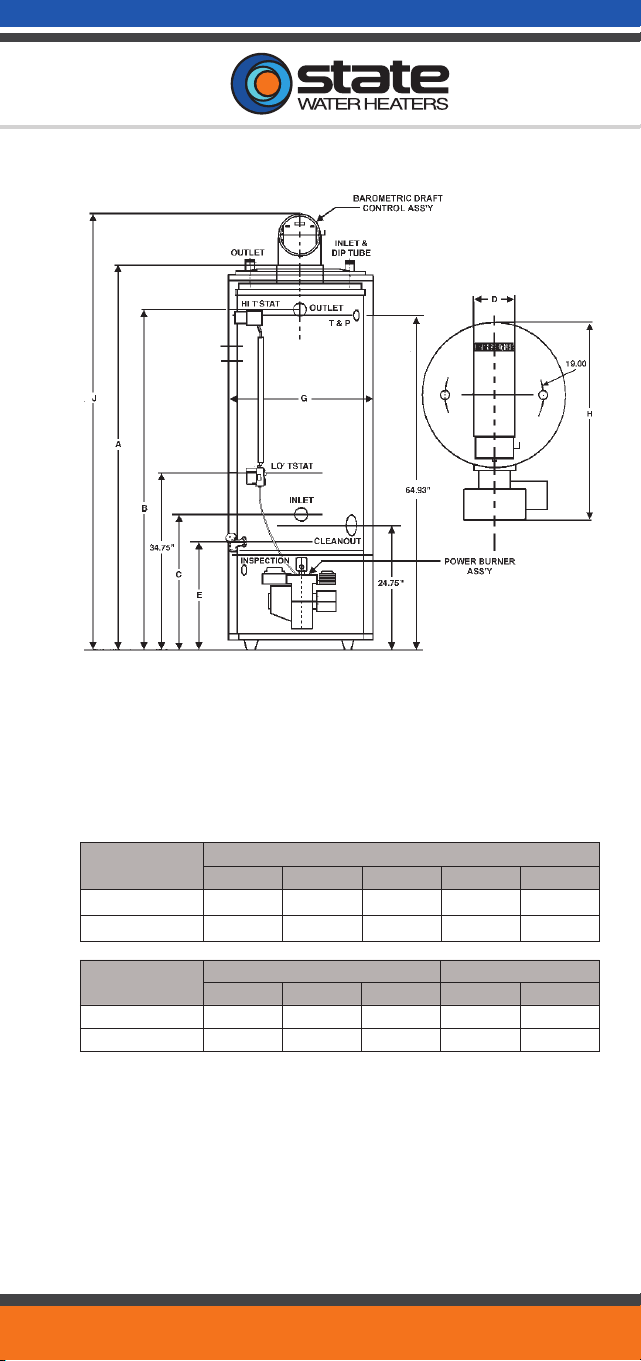

139
** GPG81-370NE available in Natural Gas only.
Specify when ordering propane (LP) gas.
“A” in the model number represents ASME construction.
Change “N” to “P” in the model number for Propane.
Burner and barometric control packaged separately.
Model Number
Dimensions in Inches
A B C D E
GPG81-270NE-(A) 74-3/4 65 26-3/4 6 21-3/8
GPG81-370NE-(A)** 74-3/4 65 26-3/4 6 21-3/8
Model Number
Dimensions in Inches Approx. Shipping Weight
G H J Standard ASME
GPG81-270NE-(A) 27-3/4 38 85-1/4 547 lbs 632 lbs
GPG81-370NE-(A)** 27-3/4 38 85-1/4 547 lbs 632 lbs
StateWaterHeaters.com
140

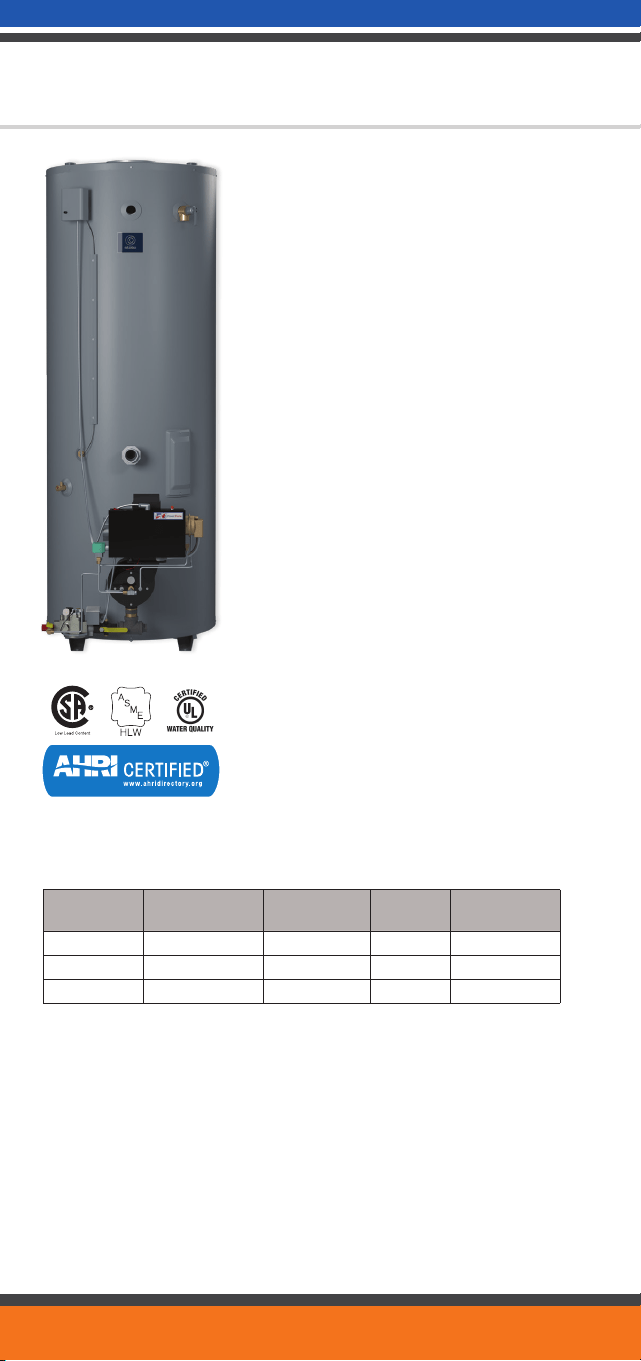

POWERED GAS LOW NOx BURNER (NATURAL
GAS ONLY)
• Premix burner operation includes internal Flue
Gas Recirculation (FGR)
• Safety features: Internal blocked flue sensor,
separate pilot system, internal thermal cutoff
and anti-flashback barrier
THREE VENTING OPTIONS
• Conventional atmospheric venting on GPG
models only with supplied Barometric Draft
damper
• Horizontal atmospheric sidewall venting or
direct venting on GPV models only
• For sidewall venting order Vent Kit Part #
100125500
• For direct venting order Vent Kit Part #
100131270
AUTOMATIC CONTROLS
• Safety shut-off, high-temperature limit control
• Dual thermostat for accurate temperature
adjustment from 120ºF to 180ºF
3-YEAR LIMITED TANK AND 1-YEAR LIMITED
PARTS WARRANTY
• For complete warranty information, consult
written warranty or go to statewaterheaters.com
Not available in propane (LP).
Vent Kit included in unit price when ordered with heater.
Authorized start-up service included; required to activate warranty. (Continental U.S. only).
For direct or sidewall vent change the last letter in the model to “V” (example: GPV85-540NEA).
Model Number
Gallon Capacity
GPH @ 100°F Rise
Input/BTU/HR
Natural Gas
Recovery
Capacity
Approx. Shipping
Weight (lbs)
GPG85-540NEA 85 540,000 523 950
GPG85-650NEA 85 650,000 630 950
GPG85-740NEA 85 740,000 718 950
STATE TITAN
®
LOW NOx POWER GAS BURNER
Commercial Gas
141
1-1/2"
OUTLET
1-1/2" INLET
& DIP TUBE
1-1/2" NPT OUTLET
OPENING
(FRONT & BACK)
1" NPT T&P
VALVE OPENING
CLEANOUT
OPENING
G
A
F
C
B
D
E
H
1-1/2" NPT
INLET
OPENING
(FRONT &
BACK)
I
I
1-1/2" NPT
OUTLET OPENING
(FRONT & BACK)
FLUE REDUCER
SHIPPED W/VENT
HOOD
1" NPT T&P
VALVE OPENING
CLEANOUT
OPENING
A
F
C
B
H
1-1/2" NPT
INLET
OPENING
(FRONT &
BACK)
Not available in propane (LP).
Vent Kit included in unit price when ordered with heater.
Authorized start-up service included; required to activate warranty. (Continental U.S. only).
For direct vent or sidewall change the last letter in the model to “V” (example: GPV85-540NEA).
Model Number
Dimensions in Inches
A B C D E
GPG85-540NEA 80-3/4 73 32-1/4 9 26-1/2
GPG85-650NEA 80-3/4 73 32-1/4 9 26-1/2
GPG85-740NEA 80-3/4 73 32-1/4 9 26-1/2
Model Number
Dimensions in Inches
F G H I
GPG85-540NEA 26-1/2 93 29-1/2 48-1/2
GPG85-650NEA 26-1/2 93 29-1/2 48-1/2
GPG85-740NEA 26-1/2 93 29-1/2 48-1/2
StateWaterHeaters.com
142
POWER GAS BURNER
• Suitable for natural or propane gas
• Electronic flame safeguard control with
intermittent spark ignition
• Main and pilot automatic gas valves with gas
pressure regulators
• Diaphragm air switch for proof of blower
operation
• Flame inspection port
FULLY AUTOMATIC CONTROLS WITH SAFETY
SHUTOFF
• High-temperature limit control (manual reset)
• CSA certified and ASME rated T&P relief valve
• Hinged door control compartment with key lock
for ease of access
• Two thermostats, upper and lower, for accurate
temperature control
• Standard control is for 120˚-180˚F water service
• Factory-installed low-water cutoff
BLUE DIAMOND
®
GLASS COATING
• Provides superior corrosion resistance
compared to the industry-standard glasslining
CODES AND STANDARDS
• Design-certified by UL (Underwriters
Laboratories), according to ANSI Z21. 10.3-4.3
CSA Standards
• Meets the thermal efficiency and standby loss
requirements of the U.S. Department of Energy
and current edition of ASHRAE/IES 90.1
Low NOx not available in LP.
Change G to X when ordering Low NOx units. Example TPX140 400NE
Optional Low Nox Burners
VTPN/NMP Motor HP
Available
Low Nox Burner
BTU Input Sizes
(Nat. Gas Only)
BTUH
400,000
1/4 HP
540,000
600,000
720,000
800,000
1/2 HP1,000,000
1,250,000
1,500,000
1 HP1,750,000
2,000,000
STATE TITAN
®
LV POWER GAS
HEAVY-DUTY TPG
Commercial Gas
143
Dimensions and Line Drawings on the following pages.
Specify when ordering propane (LP) gas.
Change G to X when ordering Low NOx units. Example TPX140-400NE
Model Number
Gallon
Capacity
Input BTU/HR
Recovery Capacity
GPH @ 100°F Rise
Approx. Shipping
Weight (lbs)
TPG150-140NEA 163 140,000 136 1292
TPG150-199NEA 163 199,000 193 1292
TPG150-255NEA 163 255,000 247 1292
TPG150-270NEA 163 270,000 262 1397
TPG150-400NEA 151 400,000 388 1397
TPG150-540NEA 151 540,000 524 1505
TPG150-720NEA 145 720,000 698 1510
TPG200-300NEA 221 300,000 291 2098
TPG200-600NEA 221 600,000 582 2098
TPG200-800NEA 221 800,000 776 2103
TPG200-1000NEA 221 1,000,000 970 2103
TPG200-1250NEA 210 1,250,000 1212 2467
TPG200-1500NEA 201 1,500,000 1454 2757
TPG300-300NEA 300 300,000 291 2150
TPG300-600NEA 300 600,000 582 2150
TPG300-800NEA 411 800,000 776 2308
TPG300-1000NEA 411 1,000,000 970 2308
TPG300-1250NEA 411 1,250,000 1212 2584
TPG300-1500NEA 411 1,500,000 1454 2774
TPG400-600NEA 411 800,000 776 3207
TPG400-800NEA 411 800,000 776 3212
TPG400-1000NEA 411 1,000,000 970 3212
TPG400-1250NEA 411 1,250,000 1212 3212
TPG400-1500NEA 411 1,500,000 1454 3528
TPG400-1750NEA 404 1,750,000 1697 3669
TPG400-2000NEA 397 2,000,000 1939 3667
TPG600-720NEA 594 720,000 698 3667
TPG600-1000NEA 594 1,000,000 970 3667
TPG600-1250NEA 594 1,250,000 1212 3667
TPG600-1500NEA 594 1,500,000 1454 3837
TPG600-1750NEA 594 1,750,000 1697 3837
TPG600-2000NEA 594 2,000,000 1939 3837
TPG600-2250NEA 585 2,250,000 2182 4477
TPG600-2500NEA 575 2,500,000 2424 4619
StateWaterHeaters.com
144
STATE TITAN
®
LV POWER GAS
HEAVY-DUTY TPG
(CONTINUED)
Commercial Gas
145
Specify when ordering propane (LP) gas.
Change G to X when ordering Low NOx units. Example TPX140-400NE
Model Number
Dimensions in Inches
A B C D E F G H J
TPG150-140NEA 82-1/4 13-1/2 1/2 29-1/4 1-1/4 36-1/2 5 47 73-1/2
TPG150-199NEA 82-1/4 13-1/2 1/2 29-1/4 1-1/4 36-1/2 6 47 73-1/2
TPG150-255NEA 82-1/4 13-1/2 1/2 29-1/4 1-1/4 36-1/2 6 47 73-1/2
TPG150-270NEA 82-1/4 13-1/2 1 29-1/4 1-1/4 36-1/2 6 57-1/2 73-1/2
TPG150-400NEA 82-1/4 13-1/2 1 29-1/4 1-1/4 36-1/2 7 57-1/2 73-1/2
TPG150-540NEA 82-1/4 13-1/2 1 29-1/4 1-1/4 36-1/2 8 57-1/2 73-1/2
TPG150-720NEA 82-1/4 13-1/2 1-1/4 29-1/4 1-1/4 36-1/2 10 57-1/2 73-1/2
TPG200-300NEA 84-1/2 17-1/2 1 34-3/4 1-1/2 44-3/4 6 66-1/2 74-3/4
TPG200-600NEA 84-1/2 17-1/2 1 34-3/4 1-1/2 44-3/4 8 66-1/2 74-3/4
TPG200-800NEA 84-1/2 17-1/2 1-1/4 34-3/4 1-1/2 44-3/4 10 66-1/2 74-3/4
TPG200-1000NEA 84-1/2 17-1/2 1-1/4 34-3/4 1-1/2 44-3/4 10 66-1/2 74-3/4
TPG200-1250NEA 84-3/4 13-1/2 1-1/4 29-1/2 1-1/2 44-3/4 12 66-1/2 75
TPG200-1500NEA 84-3/4 13-1/2 1-1/2 29-1/2 1-1/2 44-3/4 12 81-1/2 75
TPG300-300NEA 92 14 1 29-1/4 1-1/2 44-3/4 6 66-1/2 82-1/2
TPG300-600NEA 92 14 1 29-1/4 1-1/2 44-3/4 8 66-1/2 81-1/2
TPG300-800NEA 92 14 1-1/4 29-1/4 1-1/2 44-3/4 10 66-1/2 81-1/2
TPG300-1000NEA 92 14 1-1/4 29-1/4 1-1/2 44-3/4 10 66-1/2 81-1/2
TPG300-1250NEA 92 14 1-1/4 29-1/4 1-1/2 44-3/4 12 66-1/2 81-1/2
TPG300-1500NEA 92 14 1-1/2 29-1/4 1-1/2 44-3/4 12 81-1/2 81-1/2
TPG400-600NEA 89 17-1/2 1 33-1/4 2 55 8 76-1/2 78-3/4
TPG400-800NEA 89 17-1/2 1-1/4 33-1/4 2 55 10 76-1/2 78-3/4
TPG400-1000NEA 89 17-1/2 1-1/4 33-1/4 2 55 10 76-1/2 78-3/4
TPG400-1250NEA 89 17-1/2 1-1/4 33-1/4 2 55 12 76-1/2 78-3/4
TPG400-1500NEA 89 17-1/2 1-1/2 33-1/4 2 55 12 91-1/2 78-3/4
TPG400-1750NEA 89 17-1/2 2 33-1/4 2 55 14 91-1/2 78-3/4
TPG400-2000NEA 96-1/4 17-1/2 2 33-1/4 2 55 14 91-1/2 86-1/2
TPG600-720NEA 114 17-1/2 1-1/4 33-1/4 2 55 10 76-1/2 105
TPG600-1000NEA 114 17-1/2 1-1/4 33-1/4 2 55 10 76-1/2 105
TPG600-1250NEA 114 17-1/2 1-1/4 33-1/4 2 55 12 76-1/2 105
TPG600-1500NEA 114 17-1/2 1-1/2 33-1/4 2 55 12 91-1/2 105
TPG600-1750NEA 114 17-1/2 2 33-1/4 2 55 14 91-1/2 105
TPG600-2000NEA 114 17-1/2 2 33-1/4 2 55 14 91-1/2 105
TPG600-2250NEA 114 17-1/2 2 33-1/4 2 55 16 91-1/2 105
TPG600-2500NEA 114 17-1/2 2 33-1/4 2 55 14 91-1/2 105
StateWaterHeaters.com
146
EFFICIENT COMBUSTION CHAMBER
• Precast, high temperature combustion
chamber made of alumina silica ceramic
fiber. Engineered for maximum insulation and
heat reflection. Unique design assures more
complete combustion by stabilizing flame
pattern.
BAROMETRIC DRAFT REGULATOR
FLAME OBSERVATION PORT
• Permits Convenient Flame Check
TWO HAND-HOLE CLEANOUTS
• Allows easy cleaning on standard models
GPO75 385 OE(A) and larger and ASME models
EASY-TO-INSTALL BURNER
• Three bolt mounting of burner assures easy
installations
3-YEAR LIMITED TANK AND 1-YEAR LIMITED
PARTS WARRANTY
• For complete warranty information consult
written warranty or go to statewaterheaters.com
STATE TITAN
®
POWER BURNER
GPO SERIES OIL
147
Commercial Oil
ASME models have “A” at the end of the model number
Based on No. 2 fuel oil. All models have 1/8 HP motor.
Burner and Barometric packaged separately.
Authorized start-up service included - Required to activate warranty, contact factory
Electrical characteristics 120V, 60Hz A.C.
Model Number
Dimensions in Inches
A B C D E F
GPO86-199-OE 74-1/2 36-3/4 27-3/4 2 3/4 NPT 6
GPO86-245-OE 74-1/2 36-3/4 27-3/4 2 3/4 NPT 8
GPO84-315-OE(A) 74-1/2 36-3/4 27-3/4 2 3/4 NPT 8
GPO75-385-OE(A) 73-3/4 36-3/4 27-3/4 2 3/4 NPT 8
GPO75-455-OE(A) 73-3/4 36-3/4 27-3/4 2 3/4 NPT 8
GPO69-700-OE(A) 73-3/4 36-3/4 27-3/4 2 3/4 NPT 10
Model Number
Gallon
Capacity
Input
BTU/HR
Recovery
Capacity GPH
@ 100°F Rise*
Motor
HP
Approx. Shipping
Weight (lbs)
Standard ASME
GPO86-199-OE 86 199,000 191 1/8 553 N/A
GPO86-245-OE 86 245,000 235 1/8 554 N/A
GPO84-315-OE(A) 84 315,000 302 1/8 554 657
GPO75-385-OE(A) 75 385,000 369 1/8 624 742
GPO75-455-OE(A) 75 455,000 436 1/8 700 747
GPO69-700-OE(A) 69 700,000 671 1/8 739 822
Model Number
Dimensions in Inches
G H J K L
GPO86-199-OE 26-5/8 74-1/2 1-1/2 NPT 1-1/2 NPT 22-3/4
GPO86-245-OE 26-5/8 74-1/2 1-1/2 NPT 1-1/2 NPT 22-3/4
GPO84-315-OE(A) 26-5/8 74-1/2 1-1/2 NPT 1-1/2 NPT 22-3/4
GPO75-385-OE(A) 24-3/4 73-3/4 1-1/2 NPT 1-1/2 NPT 23-7/16
GPO75-455-OE(A) 24-3/4 73-3/4 1-1/2 NPT 1-1/2 NPT 23-7/16
GPO69-700-OE(A) 30-3/16 79-3/16 1-1/2 NPT 1-1/2 NPT 28-7/8
StateWaterHeaters.com
148
Designed for light duty commercial applications
with intermittent hot water loads
GLASSLINED TANK
• Tank interior is coated with glass specially
designed by State Water Heaters for water
heater use
HEATING ELEMENTS
• Two 4.5 KW zinc plated copper sheathed
elements are standard
STANDARD VOLTAGES
• The standard voltage is 240V single phase
TOP MOUNTED RECESSED JUNCTION BOX
CONTROLS
• Thermostat is adjustable through a range
of 120º to 181ºF with a manual reset high
temperature cutoff. The heater is wired for
non-simultaneous single phase operation.
COREGARD™ ANODE ROD
• Our anode rods have a stainless steel core
that extends the life of the anode rod allowing
superior tank protection for longer than
standard anode rods
ENHANCED-FLOW BRASS DRAIN VALVE
• Solid brass, tamper resistant, enhanced-flow,
ball type, drain valve
MAXIMUM WORKING PRESSURE 150 PSI
FACTORY INSTALLED CSA CERTIFIED AND
ASME RATED TEMPERATURE AND PRESSURE
RELIEF VALVE
CERTIFIED TO UL 1453 FOR COMMERCIAL
ELECTRIC WATER HEATERS
COMPLIANCE
• Meets the standby loss requirements of the U.S.
Department of Energy and current edition of
ASHRAE/IES 90.1
WARRANTY
• 6-year limited tank/1-year limited parts
• For complete information consult the written
warranty or statewaterheaters.com
PATRIOT
™
LIGHT-SERVICE ELECTRIC
Commercial Electric
149
Model Number
Gallon
Capacity
Standard
Element
Wattage
240 VAC
Dimensions in Inches Approx.
Shipping
Weight
(lbs)
A B C D
EDT-662ORT 66 4500 60-1/4 53 22 8 146
EDT-802ORT 80 4500 60-1/2 52-1/4 24 8 175
EDT-1202ORT 119 4500 61-1/2 54-1/2 28 8 268
Not available with top mounted T&P valve option
DRAIN
VALVE
ACCESS
PANEL
ACCESS
PANEL
T&P VALVE
T&P VALVE
ANODE
JUNCTION
BOX
DRAIN
VALVE
ACCESS
PANEL
ACCESS
PANEL
T&P VALVE
T&P VALVE
ANODE
JUNCTION
BOX
StateWaterHeaters.com
150
GLASSLINED TANK
• Thirteen sizes, 6 thru 119 gallon capacity
• Tank interior is coated with glass specially
designed by State for water heater use
ELEMENTS
• Zinc plated copper sheaths for longer life.
Medium watt density means lower surface
temperature to minimize scale build-up
and more surface to heat water. Element
sizes from 1.5 to 6 KW. Maximum input
12 KW
STANDARD VOLTAGES
• 120, 277 single phase and 208, 240 and
480V unbalanced three-phase delta; easily
converted to single-phase at terminal
block (except 208V with 6000 watt
elements)
• Single element heater, single-phase only
TERMINAL BLOCK
• Factory-installed. Just bring the service
to heater and connect to block. Terminal
block not supplied on 120V & 277 volt
models.
Element Wattage (Upper/Lower)
U. S. Gallons/Hr at Temperature Rise Indicated
F° 100
Non-Simultaneous Operation
/1500 GPH 6
/2000 GPH 8
/2500 GPH 10
3000/3000 GPH 12
4000/4000 GPH 16
4500/4500 GPH 18
5000/5000 GPH 20
6000/6000 GPH 24
Simultaneous Operation
3000/3000 GPH 24
4000/4000 GPH 32
4500/4500 GPH 36
5000/5000 GPH 41
6000/6000 GPH 49
PATRIOT
™
LIGHT-DUTY ELECTRIC
Commercial Electric
151
TOP VIEW
PCE 6 10MSA, PCE 10 10MSA
PCE 17 10MSA, PCE 20 10MSA
FRONT VIEW
PCE 6 10MSA, PCE 10 10MSA
PCE 17 10MSA, PCE 20 10MSA
B
C
A
OUTLET
3/4"(FEMALE)
NPT*
ALTERNATE OUTLET
3/4" (FEMALE) NPT
3/4" NPT
RELIEF VALVE
OPENING
ELECTRICAL
CONNECTION
INLET
3/4" (FEMALE)
NPT
INLET
3/4" (FEMALE)
NPT
TOP VIEW
PCE 30 20LSA, PCE 40 20LSA,
PCE 50 20LSA
JUNCTION
BOX
2 1/2"
OUTLET
3/4" (FEMALE)
NPT
3/4" NPT
RELIEF VALVE
OPENING
BRASS
DRAIN
VALVE
B
C
A
3 3/4"
FRONT VIEW
PCE 30 20LSA, PCE 40 20LSA,
PCE 50 20LSA
OUTLET
3/4" (FEMALE)
NPT
JUNCTION
BOX
TOP VIEW
3/4" NPT
RELIEF VALVE
OPENING
2 1/2"
INLET
3/4" (FEMALE)
NPT
FRONT VIEW
PCE 30 20RTA – PCE 120 20RTA
3 3/4"
DRAIN
VALVE
D D
A
B
OUTLET PCE 6-1OMSA
TOP VIEW
PCE 6 10MSA, PCE 10 10MSA
PCE 17 10MSA, PCE 20 10MSA
FRONT VIEW
PCE 6 10MSA, PCE 10 10MSA
PCE 17 10MSA, PCE 20 10MSA
B
C
A
OUTLET
3/4"(FEMALE)
NPT*
ALTERNATE OUTLET
3/4" (FEMALE) NPT
3/4" NPT
RELIEF VALVE
OPENING
ELECTRICAL
CONNECTION
INLET
3/4" (FEMALE)
NPT
INLET
3/4" (FEMALE)
NPT
TOP VIEW
PCE 30 20LSA, PCE 40 20LSA,
PCE 50 20LSA
JUNCTION
BOX
2 1/2"
OUTLET
3/4" (FEMALE)
NPT
3/4" NPT
RELIEF VALVE
OPENING
BRASS
DRAIN
VALVE
B
C
A
3 3/4"
FRONT VIEW
PCE 30 20LSA, PCE 40 20LSA,
PCE 50 20LSA
OUTLET
3/4" (FEMALE)
NPT
JUNCTION
BOX
TOP VIEW
3/4" NPT
RELIEF VALVE
OPENING
2 1/2"
INLET
3/4" (FEMALE)
NPT
FRONT VIEW
PCE 30 20RTA – PCE 120 20RTA
3 3/4"
DRAIN
VALVE
D D
A
B
OUTLET PCE 6-1OMSA
TOP VIEW
PCE 6 10MSA, PCE 10 10MSA
PCE 17 10MSA, PCE 20 10MSA
FRONT VIEW
PCE 6 10MSA, PCE 10 10MSA
PCE 17 10MSA, PCE 20 10MSA
B
C
A
OUTLET
3/4"(FEMALE)
NPT*
ALTERNATE OUTLET
3/4" (FEMALE) NPT
3/4" NPT
RELIEF VALVE
OPENING
ELECTRICAL
CONNECTION
INLET
3/4" (FEMALE)
NPT
INLET
3/4" (FEMALE)
NPT
TOP VIEW
PCE 30 20LSA, PCE 40 20LSA,
PCE 50 20LSA
JUNCTION
BOX
2 1/2"
OUTLET
3/4" (FEMALE)
NPT
3/4" NPT
RELIEF VALVE
OPENING
BRASS
DRAIN
VALVE
B
C
A
3 3/4"
FRONT VIEW
PCE 30 20LSA, PCE 40 20LSA,
PCE 50 20LSA
OUTLET
3/4" (FEMALE)
NPT
JUNCTION
BOX
TOP VIEW
3/4" NPT
RELIEF VALVE
OPENING
2 1/2"
INLET
3/4" (FEMALE)
NPT
FRONT VIEW
PCE 30 20RTA – PCE 120 20RTA
3 3/4"
DRAIN
VALVE
D D
A
B
OUTLET PCE 6-1OMSA
TOP VIEW
PCE 6 10MSA, PCE 10 10MSA
PCE 17 10MSA, PCE 20 10MSA
FRONT VIEW
PCE 6 10MSA, PCE 10 10MSA
PCE 17 10MSA, PCE 20 10MSA
B
C
A
OUTLET
3/4"(FEMALE)
NPT*
ALTERNATE OUTLET
3/4" (FEMALE) NPT
3/4" NPT
RELIEF VALVE
OPENING
ELECTRICAL
CONNECTION
INLET
3/4" (FEMALE)
NPT
INLET
3/4" (FEMALE)
NPT
TOP VIEW
PCE 30 20LSA, PCE 40 20LSA,
PCE 50 20LSA
JUNCTION
BOX
2 1/2"
OUTLET
3/4" (FEMALE)
NPT
3/4" NPT
RELIEF VALVE
OPENING
BRASS
DRAIN
VALVE
B
C
A
3 3/4"
FRONT VIEW
PCE 30 20LSA, PCE 40 20LSA,
PCE 50 20LSA
OUTLET
3/4" (FEMALE)
NPT
JUNCTION
BOX
TOP VIEW
3/4" NPT
RELIEF VALVE
OPENING
2 1/2"
INLET
3/4" (FEMALE)
NPT
FRONT VIEW
PCE 30 20RTA – PCE 120 20RTA
3 3/4"
DRAIN
VALVE
D D
A
B
OUTLET PCE 6
Model Number
No. of
Elements
Tank
Capacity
A B C D
Approx.
Shipping
Weight
U.S. Gals. Inches Inches Inches Inches lbs.
PCE-6-1OMSA 1 6 15-1/2 14-1/4 11 N/A 35
PCE-10-10MSA 1 10 18-1/4 18 12-1/2 N/A 54
PCE-17-OMSA 1 15 26 18 20-1/2 N/A 58
PCE-20-1OMSA 1 20 22-1/4 21-3/4 15-3/8 N/A 73
PCE-30-2OLSA 2 30 30-7/8 21-3/4 24-1/8 8 100
PCE-40-2OLSA 2 40 32-1/4 24 25-9/16 8 125
PCE-50-2OLSA 2 50 32-1/4 26-1/2 25-1/8 8 166
PCE-30-2ORTA 2 30 34-1/2 20-1/2 N/A 8 98
PCE-40-2ORTA 2 40 45-1/8 20-1/2 N/A 8 113
PCE-52-2ORTA 2 50 54-7/8 20-1/2 N/A 8 131
PCE-66-2ORTA 2 66 60-3/4 21-3/4 N/A 8 176
PCE-82-2ORTA 2 80 59-3/8 24 N/A 8 211
PCE-120-2ORTA 2 119 62-7/16 29-3/8 N/A 8 326
StateWaterHeaters.com
152
ADVANCED ELECTRONIC CONTROL
• Plain English Text and Animated Icons Display
Diagnostics
ECONOMY MODE OPERATION LOWERS
THE OPERATING SET POINT AND REDUCES
OPERATING COSTS
THERMOSTATIC LINEAR SEQUENCING
CONTROL HELPS REDUCE CURRENT SURGES
AND PROVIDES ACCURATE CONTROL OF
WATER TEMPERATURE
GOLDENROD ELEMENTS
• All CSB models ship standard with patented
Goldenrod 24K gold plated elements. Goldenrod
elements provide long life with superior scaling
resistance.
3-YEAR LIMITED TANK AND 1-YEAR LIMITED
PARTS WARRANTY
• For complete warranty information, consult
written warranty or go to statewaterheaters.com
SANDBLASTER
®
IMMERSION MOUNT THERMOSTAT-CSB SERIES
Commercial Electric
153
See specification sheets or contact your local rep for optional kW’s available.
208 volt models may use three additional elements. 54 kW not available in 208 single phase.
3/4” NPT
OPENING
DISPLAY FOR
ELECTRONIC
CONTROL
MODELS ONL
Y
WATER
OUTLET
CONDUIT
OPENING
INLET
OPENING
DRAIN
VALVE
A
B
5.25
C
Model Number
Gallon
Capacity
Dimensions in Inches
Approx.
Shipping Weight
A B C
CSB-52 50 55-3/4 21-3/4 27 265
CSB-80 80 60-1/4 25-1/2 31 280
CSB-120 119 62-1/4 29-1/2 35 390
StateWaterHeaters.com
154
GOLD ELEMENTS
• CSB models ship with the Goldenrod 24K gold
plated elements (see spec sheet for kw options)
• Patented Goldenrod elements provide long life
and superior scaling resistance
• Low watt density means lower surface
temperature to minimize scale buildup and
more surface to heat water. Goldenrod elements
carry a one-year warranty against failure due to
lime scale buildup.
FUSING
• Protects all elements, thermostats, and internal
wiring circuits against excess current flow
• Meets National Electrical Code requirements
that non-ASME tanks must have internal fusing
when current draw exceeds 48 amps. Available
as an option on Canadian built heaters.
• Standard Voltages 208, 240, 277, 480V
single-phase and three phase delta. Convertible
from three-phase to single-phase (in Field) and
Vice Versa (except 208/54kW) 277 single-phase
only.
ELEMENT AVAILABILITY
• CSB heaters available from 3kw to 54 KW with
recoveries of 25 to 837 GPH at a 100°F rise
(CSB-52 has 36kw max)
MEETS THE STANDBY LOSS REQUIREMENTS
OF THE U.S. DEPARTMENT OF ENERGY AND
CURRENT EDITION OF ASHRAE/IES 90.1
3-YEAR LIMITED TANK AND 1-YEAR LIMITED
PARTS WARRANTY
• For complete warranty information, consult
written warranty or go to statewaterheaters.com
SANDBLASTER
®
SURFACE MOUNT THERMOSTATS - CSB SERIES
Commercial Electric
155
3/4” NPT
OPENIN
G
INLET
OPENING
DRAIN
VALVE
A
B
5.25
WATER
OUTLET
CONDUIT
OPENING
C
3/4” NPT
OPENING
INLET
OPENING
DRAIN
VALVE
A
B
5.25
WATER
OUTLET
CONDUIT
OPENING
C
208 volt models may use three additional elements. 54 kW not available in 208 single phase.
For ASME tank construction add “A” to the model number.
**CSB-52 is maximum 36kW.
Model
Number
Tank
Capacity
Dimensions
Inlet/Outlet
(NPT
Approx.
Shipping
Weight
A B C
gal. litre Inches cm Inches cm Inches cm Inches cm lbs kG
CSB-52** 50 189 55-3/4 142 21-3/4 55.2 27 68.6 1-1/4 3.2 265 120
CSB-80 80 300 60-1/4 153 25-1/2 64.8 31 78.7 1-1/4 3.2 280 127
CSB-120 119 450 62-1/4 158.1 29-1/2 75 35 88.9 1-1/4 3.2 390 177
StateWaterHeaters.com
156
ADVANCED ELECTRONIC CONTROL
• Provides Precise Temperature Control and Plain
English Text with Animated Icons Displayed
LOW-WATER CUTOFF-REMOTE ELECTRONIC
IMMERSION-TYPE PROBE TO PREVENT
ENERGIZING OF THE ELEMENTS,
ELIMINATING ACCIDENTAL DRY FIRING
INCOLOY-SHEATH HEATING ELEMENTS
STANDARD
FACTORY-WIRED, 120V CIRCUIT CONTROLS
POWER-CIRCUIT FUSING FOR SYSTEM
PROTECTION
GLASS-LINED TANK WITH ASME
CONSTRUCTION
CSA CERTIFIED AND ASME RATED T&P
RELIEF VALVE
BACNET AND MODBUS COMPATIBLE WITH
ICC INTERFACE
3-YEAR LIMITED TANK AND 1-YEAR LIMITED
PARTS WARRANTY
• For complete warranty information, consult
written warranty or go to statewaterheaters.com
STATESMAN
™
PREMIUM HEAVY-DUTY ELECTRIC - SSE SERIES
Commercial Electric
157
Model
Number
Tank
Capacity
Gallons
Maximum
kW Input
Dimensions in Inches
Approx.
Shipping
Weight
lbs.
A B C D
SSE-5 5 3 20-1/4 16-1/4 22-1/2 5-1/4 82
SSE-10 10 6 26-1/4 18-3/4 25 5-1/4 116
SSE-20 20 18 27-1/4 20-1/2 26-1/2 5-3/4 145
SSE-30 30 24 35-3/4 20-1/2 26-1/2 5-3/4 150
SSE-40 40 36 45-3/4 20-1/2 26-1/2 5-3/4 190
SSE-50 50 90 54-3/4 20-1/2 26-1/2 5-3/4 221
SSE-65 65 90 54 26-1/2 33-1/2 7 280
SSE-80 80 90 52-1/4 28 35 7 285
SSE-100 100 90 60-1/2 28 35 7 354
SSE-120 120 90 65-1/2 30 37 7-1/2 420
StateWaterHeaters.com
158
ENERGY SAVING & ENVIRONMENTALLY
FRIENDLY
• Heat pump transfers heat from surrounding
area into the tank
• Industry leading 4.2 COP
• Multiple operating modes maximize efficiency
while meeting specific hot water needs
• Integrated, large capacity tank enables heat
pump to operate more frequently than electric
elements, saving money
• Meets standby loss requirements of U.S.
Department of Energy and current edition of
ASHRAE 118.1
COMMERCIAL PERFORMANCE
• First hour delivery of 150 GPH
• Electric heating element capacity of 12 kW
(240Vac)
• Max. water temperature of 150°F in Efficiency/
Hybrid modes and 180°F in Electric mode
• Ambient room temperature operating range of
40° to 110°F
• Dual evaporator fans maximize performance
and provide room cooling
• Low operating sound measured at 59 dB (A)
EASE OF OPERATION
• Integrated design and pre-charged refrigeration
system facilitates fast, easy installation
• Large touch screen LCD display allows for
mode selection, provides run information and
includes troubleshooting alerts and detail
• Three operating modes: Efficiency, Hybrid or
Electric
DEPENDABLE & LONG LASTING DESIGN
• State-developed glass coated tank
• Tank rated at 160 PSI working pressure
• Commercial grade anode protects the tank and
extends service life
• Electric elements have incoloy sheathing and
provide excellent protection from oxidation and
scaling
3-YEAR LIMITED TANK AND 1-YEAR LIMITED
PARTS/COMPRESSOR WARRANTY
• For complete warranty information, consult
written warranty or go to statewaterheaters.com
FULLY INTEGRATED HEAT PUMP
Commercial Electric
159
Model Number Gallon Capacity COP Number of Elements
CSHP-120
119 4.2 2
Total Element Wattage
(both elements @
240V)
First Hour Delivery in
Hybrid
Mode (GPH)
Recovery in GPH at
100° Temperature Rise
Approx. Shipping
Weight (lbs)
12,000 150
Efficency = 41
Hybrid = 90
Electric = 50
620
G
F E A
Drain Valve
(3/4”NPT)
Relief Valve
(3/4” NPT)
ØB
Water
Connection
(3/4” NPT)
Relief Valve
Air Inlet
Air Outlet
D
Air Inlet
C
H
G
F E A
Drain Valve
(3/4”NPT)
Relief Valve
(3/4” NPT)
ØB
Water
Connection
(3/4” NPT)
Relief Valve
Air Inlet
Air Outlet
D
Air Inlet
C
H
StateWaterHeaters.com
160
GLASSLINED TANK
• Alkaline borosilicate composition permanently
fused to steel by firing at a temperature of
1600°F, providing years of corrosion protection
and dependable use
IDEAL FOR USE WITH GAS FIRED COPPER
HEAT EXCHANGER EQUIPMENT FOR POTABLE
WATER AT TEMPERATURES UP TO 180°F
THREADED OPENINGS
• All tanks furnished with threaded openings for
thermometer, relief valve, 2˝ recirculation lines,
tankstat, and drain valve
ASME CONSTRUCTION ON SELECT MODELS
• 160 psi standard working pressure on all ASME
models
ANODIC PROTECTION ALL MODELS
• Magnesium anode for anti-corrosion protection
MEETS R12.5 MINIMUM THERMAL
INSULATION REQUIREMENTS OF THE U.S.
DEPARTMENT OF ENERGY AND CURRENT
EDITION OF ASHRAE/IES 90.1
5-YEAR LIMITED TANK AND 1-YEAR LIMITED
PARTS WARRANTY
• For complete warranty information, consult
written warranty or go to statewaterheaters.com
Model Number
Nominal
Gallon
Capacity
Overall
Length
(Inches)
Diameter
(Inches)
Approx.
Shipping
Weight (lbs)
Figure
PVG-0080-00VT- Jacketed-Vertical Only 80 63 25-1/4 236 1
PVG-0120-00VT- Jacketed-Vertical Only 119 62 29-3/8 320 2
PVG-0080-00VTA-125 80 54-7/8 26-1/2 369 3
PVG-0120-00VTA-125 119 61-3/4 28 411 4
PVG-0200-00VSA-125 175 77 32 560 5
STANDARD JACKETED STORAGE TANKS
Commercial Storage Tanks
161
7"
16"
47"
51 7/8"
6
3"
25 1/4"
3 3/4"
2" NPT
FRONT & REAR
3/4" NPT
REAR
3/4" NPT
FRONT
2" NPT
FRONT & REAR
3/4" NPT
REAR
2" NPT
3/4" NPT
(ANODE)
11"
19 1/2"
32 1/4"
42 3/4"
5
4 7/8"
26 1/2"
9 3/4"
2" NPT
FRONT & REAR
3/4" NPT
REAR
ASME PLATE
UNDER COVER
3/4" NPT
FRONT
2" NPT
FRONT & REAR
3/4" NPT
REAR
3/4" NPT
(ANODE)
2" NPT
1" NPT
2" ASME INSPECTION
OPENING (PLUGGED)
2" ASME INSPECTION
OPENING (PLUGGED)
4 1/8"
11"
42 1/4"
6
2"
3 1/2"
15"
54 1/4"
1" NPT
FRONT
2" NPT
FRONT
2" NPT
FRONT
2" NPT
FRONT & REAR
3/4" NPT
FRONT
2" NPT
3/4" NPT
(
ANODE)
29 3/8"
10 3/4"
17 3/4"
44 1/2 "
6
1 3/4"
28"
9 3/4"
21 1/4"
50 1/2"
2" NPT FRONT
2" NPT FRONT
& REAR
3/4" NPT
1" NPT
ASME PLATE
LOCATED UNDER
COVER
1" NPT
1-1/4" NPT
(ANODE)
2" NPT
2" ASME INSPECTION
OPENING (PLUGGED)
2" ASME INSPECTION
OPENING (PLUGGED)
77 "
12 1/4"
17 1/4"
32 "
12 1/4"
17 1/4"
64"
1" NPT
ASME RATING PLATE AND
HAND HOLE LOCATED
UNDER COVER
2" NPT
3/4" NPT
3/4" NPT
(ANODES)
2" NPT
2" ASME INSPECTION
OPENING (PLUGGED)
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
7"
16"
47"
51 7/8"
6
3"
25 1/4"
3 3/4"
2" NPT
FRONT & REAR
3/4" NPT
REAR
3/4" NPT
FRONT
2" NPT
FRONT & REAR
3/4" NPT
REAR
2" NPT
3/4" NPT
(ANODE)
11"
19 1/2"
32 1/4"
42 3/4"
5
4 7/8"
26 1/2"
9 3/4"
2" NPT
FRONT & REAR
3/4" NPT
REAR
ASME PLATE
UNDER COVER
3/4" NPT
FRONT
2" NPT
FRONT & REAR
3/4" NPT
REAR
3/4" NPT
(ANODE)
2" NPT
1" NPT
2" ASME INSPECTION
OPENING (PLUGGED)
2" ASME INSPECTION
OPENING (PLUGGED)
4 1/8"
11"
42 1/4"
6
2"
3 1/2"
15"
54 1/4"
1" NPT
FRONT
2" NPT
FRONT
2" NPT
FRONT
2" NPT
FRONT & REAR
3/4" NPT
FRONT
2" NPT
3/4" NPT
(
ANODE)
29 3/8"
10 3/4"
17 3/4"
44 1/2 "
6
1 3/4"
28"
9 3/4"
21 1/4"
50 1/2"
2" NPT FRONT
2" NPT FRONT
& REAR
3/4" NPT
1" NPT
ASME PLATE
LOCATED UNDER
COVER
1" NPT
1-1/4" NPT
(ANODE)
2" NPT
2" ASME INSPECTION
OPENING (PLUGGED)
2" ASME INSPECTION
OPENING (PLUGGED)
77 "
12 1/4"
17 1/4"
32 "
12 1/4"
17 1/4"
64"
1" NPT
ASME RATING PLATE AND
HAND HOLE LOCATED
UNDER COVER
2" NPT
3/4" NPT
3/4" NPT
(ANODES)
2" NPT
2" ASME INSPECTION
OPENING (PLUGGED)
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
7"
16"
47"
51 7/8"
6
3"
25 1/4"
3 3/4"
2" NPT
FRONT & REAR
3/4" NPT
REAR
3/4" NPT
FRONT
2" NPT
FRONT & REAR
3/4" NPT
REAR
2" NPT
3/4" NPT
(ANODE)
11"
19 1/2"
32 1/4"
42 3/4"
5
4 7/8"
26 1/2"
9 3/4"
2" NPT
FRONT & REAR
3/4" NPT
REAR
ASME PLATE
UNDER COVER
3/4" NPT
FRONT
2" NPT
FRONT & REAR
3/4" NPT
REAR
3/4" NPT
(ANODE)
2" NPT
1" NPT
2" ASME INSPECTION
OPENING (PLUGGED)
2" ASME INSPECTION
OPENING (PLUGGED)
4 1/8"
11"
42 1/4"
6
2"
3 1/2"
15"
54 1/4"
1" NPT
FRONT
2" NPT
FRONT
2" NPT
FRONT
2" NPT
FRONT & REAR
3/4" NPT
FRONT
2" NPT
3/4" NPT
(
ANODE)
29 3/8"
10 3/4"
17 3/4"
44 1/2 "
6
1 3/4"
28"
9 3/4"
21 1/4"
50 1/2"
2" NPT FRONT
2" NPT FRONT
& REAR
3/4" NPT
1" NPT
ASME PLATE
LOCATED UNDER
COVER
1" NPT
1-1/4" NPT
(ANODE)
2" NPT
2" ASME INSPECTION
OPENING (PLUGGED)
2" ASME INSPECTION
OPENING (PLUGGED)
77 "
12 1/4"
17 1/4"
32 "
12 1/4"
17 1/4"
64"
1" NPT
ASME RATING PLATE AND
HAND HOLE LOCATED
UNDER COVER
2" NPT
3/4" NPT
3/4" NPT
(ANODES)
2" NPT
2" ASME INSPECTION
OPENING (PLUGGED)
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
7"
16"
47"
51 7/8"
6
3"
25 1/4"
3 3/4"
2" NPT
FRONT & REAR
3/4" NPT
REAR
3/4" NPT
FRONT
2" NPT
FRONT & REAR
3/4" NPT
REAR
2" NPT
3/4" NPT
(ANODE)
11"
19 1/2"
32 1/4"
42 3/4"
5
4 7/8"
26 1/2"
9 3/4"
2" NPT
FRONT & REAR
3/4" NPT
REAR
ASME PLATE
UNDER COVER
3/4" NPT
FRONT
2" NPT
FRONT & REAR
3/4" NPT
REAR
3/4" NPT
(ANODE)
2" NPT
1" NPT
2" ASME INSPECTION
OPENING (PLUGGED)
2" ASME INSPECTION
OPENING (PLUGGED)
4 1/8"
11"
42 1/4"
6
2"
3 1/2"
15"
54 1/4"
1" NPT
FRONT
2" NPT
FRONT
2" NPT
FRONT
2" NPT
FRONT & REAR
3/4" NPT
FRONT
2" NPT
3/4" NPT
(
ANODE)
29 3/8"
10 3/4"
17 3/4"
44 1/2 "
6
1 3/4"
28"
9 3/4"
21 1/4"
50 1/2"
2" NPT FRONT
2" NPT FRONT
& REAR
3/4" NPT
1" NPT
ASME PLATE
LOCATED UNDER
COVER
1" NPT
1-1/4" NPT
(ANODE)
2" NPT
2" ASME INSPECTION
OPENING (PLUGGED)
2" ASME INSPECTION
OPENING (PLUGGED)
77 "
12 1/4"
17 1/4"
32 "
12 1/4"
17 1/4"
64"
1" NPT
ASME RATING PLATE AND
HAND HOLE LOCATED
UNDER COVER
2" NPT
3/4" NPT
3/4" NPT
(ANODES)
2" NPT
2" ASME INSPECTION
OPENING (PLUGGED)
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
7"
16"
47"
51 7/8"
6
3"
25 1/4"
3 3/4"
2" NPT
FRONT & REAR
3/4" NPT
REAR
3/4" NPT
FRONT
2" NPT
FRONT & REAR
3/4" NPT
REAR
2" NPT
3/4" NPT
(ANODE)
11"
19 1/2"
32 1/4"
42 3/4"
5
4 7/8"
26 1/2"
9 3/4"
2" NPT
FRONT & REAR
3/4" NPT
REAR
ASME PLATE
UNDER COVER
3/4" NPT
FRONT
2" NPT
FRONT & REAR
3/4" NPT
REAR
3/4" NPT
(ANODE)
2" NPT
1" NPT
2" ASME INSPECTION
OPENING (PLUGGED)
2" ASME INSPECTION
OPENING (PLUGGED)
4 1/8"
11"
42 1/4"
6
2"
3 1/2"
15"
54 1/4"
1" NPT
FRONT
2" NPT
FRONT
2" NPT
FRONT
2" NPT
FRONT & REAR
3/4" NPT
FRONT
2" NPT
3/4" NPT
(
ANODE)
29 3/8"
10 3/4"
17 3/4"
44 1/2 "
6
1 3/4"
28"
9 3/4"
21 1/4"
50 1/2"
2" NPT FRONT
2" NPT FRONT
& REAR
3/4" NPT
1" NPT
ASME PLATE
LOCATED UNDER
COVER
1" NPT
1-1/4" NPT
(ANODE)
2" NPT
2" ASME INSPECTION
OPENING (PLUGGED)
2" ASME INSPECTION
OPENING (PLUGGED)
77 "
12 1/4"
17 1/4"
32 "
12 1/4"
17 1/4"
64"
1" NPT
ASME RATING PLATE AND
HAND HOLE LOCATED
UNDER COVER
2" NPT
3/4" NPT
3/4" NPT
(ANODES)
2" NPT
2" ASME INSPECTION
OPENING (PLUGGED)
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
StateWaterHeaters.com
162
STANDARD SIZES
• From 140 to 1,000 gallons; all stock
tanks glasslined
HORIZONTAL OR VERTICAL MOUNTING
OPTIONS AVAILABLE
HIGH-DENSITY, FIBERGLASS INSULATED
JACKETS MEET R12.5 MINIMUM THERMAL
INSULATION REQUIREMENTS OF THE
U.S. DEPARTMENT OF ENERGY AND
CURRENT EDITION OF ASHRAE/IES 90.1
ASME CONSTRUCTION
• Available in 100, 125, 150 and 160
working pressures 125 standard
ANODIC PROTECTION
ACCESSORIES
• Tanks will be supplied with the fittings
located as indicated on the drawings
unless specified otherwise. An 11˝ x 15˝
manhole or 4˝ x 6˝ handhole is optional on
glasslined tanks 36˝ diameter or less
CABINET
• Heavy gauge steel with high quality
powder coat paint provides additional
insulating qualities for greater energy
savings
5-YEAR LIMITED TANK WARRANTY
• For complete warranty information
consult written warranty or go to
statewaterheaters.com
FACTORY JACKETED
& INSULATED
Commercial Storage Tanks
163
Continued on the following page.
C
D
A
H H
I
I*
I*
F
G
G
G
G
1"
3/4"
E
B
G
Model
Number
Nominal
Capacity
A B C D E F G H
“I” ASME
Inspection
Openings
PVG-0140-
00VTA125
140 87 30 21-1/2 51 8 1-1/2 2-1/2 6-3/8 2”
PVG-0200-
00VTA125
200 83 36 22 45 10 1-1/2 2-1/2 7-3/4 2”
PVG-0250-
00VTA125
250 96 36 22 58 10 1-1/2 2-1/2 7-3/4 2”
PVG-0350-
00VTA125
350 97 42 24-1/2 54 14 1-1/2 2-1/2 9-1/2 2”
PVG-0400-
00VTA125
400 105 42 24-1/2 61 14 1-1/2 2-1/2 9-1/2 2”
*Note: These connections are not for piping connections. They are the anode locations and also serve as the
required ASME 2” inspection openings.
NOTE: • Other tanks to 72” diameter and 3500 gallon are available on
special order.
• All openings Female Pipe Thread except as noted.
• “F” opening Male Pipe Thread.
Working pressure for all models less than 500 gallons is 160 PSI
StateWaterHeaters.com
164
FACTORY JACKETED
& INSULATED
(CONTINUED)
VERTICAL ROUND JACKETED ASME
VERTICAL SQUARE JACKETED ASME
Model Number A B C D
Nominal
Capacity
PVG-500-00VSA125 91 46 20.75 2” 500
PVG-600-00VTA125 92 52 22.875 2” 600
PVG-700-00VTA125 101 52 22.875 2” 700
PVG-750-00VTA125 104 52 22.875 2” 750
PVG-1000-00VTA125 128 52 22.875 2” 1000
Model Number A B C D
Nominal
Capacity
PVG-1250-00VTA125 133 60 24.375 3” 1,250
PVG-1500-00VTA125 129 66 25.875 3” 1,500
PVG-2000-00VTA125 126 78 28.375 3” 2,000
B
A
C
B
BULBWELL
MANHOLE
ANODE
3" NPT
D
3" NPT
3" NPT
BULBWELL
LIFTING LUG
ACCESS
D
1-1/4" T&P
CONNECTION
3"
NPT
MANHOLE
3" NPT
ANODE
B
B
A
C
B
BULBWELL
MANHOLE
ANODE
3" NPT
D
3" NPT
3" NPT
BULBWELL
LIFTING LUG
ACCESS
D
1-1/4" T&P
CONNECTION
3"
NPT
MANHOLE
3" NPT
ANODE
B
Working Pressure 125 PSI standard, 150 PSI optional
Working Pressure 125 PSI standard, 150 PSI optional
Commercial Storage Tanks
165
HORIZONTAL ROUND JACKETED ASME TANKS
HORIZONTAL SQUARE JACKETED ASME TANKS
Model Number A B Diameter
Nominal
Capacity
PVG-0250-00HTA125 41 87 34 250
PVG-0300-00HTA125 47 76 40 300
PVG-0400-00HTA125 53 76 46 400
PVG-0500-00HSA125 53 87 46 500
PVG-0600-00HTA125 59 88 52 600
PVG-0700-00HTA125 59 97 52 700
PVG-0750-00HTA125 59 100 52 750
PVG-1000-00HTA125 59 124 52 1000
Model Number A B Depth
Nominal
Capacity
PVG-1250-00HTA125 68.5 134 60.25 1,250
PVG-1500-00HTA125 74.5 127 66.25 1,500
PVG-2000-00HTA125 86.5 127 78.25 2,000
PVG-2500-00HTA125 86.5 144 78.25 2,500
/
MANHOLE
/
/” ”
”
"
Working Pressure 125 PSI standard, 150 PSI optional
StateWaterHeaters.com
166
GLASSLINED PER ASME, HLW
PROCEDURES
HORIZONTAL AND VERTICAL
MOUNTING OPTIONS
HIGH-DENSITY, FIBERGLASS
INSULATED JACKETS OR BARE
STEEL TANKS
CEMENT OR EPOXY LININGS
AVAILABLE
ASME CONSTRUCTION
MAGNESIUM ANODES PROTECT
AGAINST CORROSION
5-YEAR LIMITED TANK WARRANTY
• For complete warranty information
consult written warranty or go to
statewaterheaters.com
Model Number
Gallon
Capacity
Overall Dimensions in
Inches
Approx. Shipping
Weight (lbs)
UVG-0800-00VT 80 20 x 62-18 170
UVG-0120-00VT 119 24-1/4 x 65 287
UVG-0200-00VT 200 30 x 72 460
UVG-0350-00VT 350 36 x 88 670
UVG-0140-00VTA125 140 24 x 76-1/4 400
UVG-0200-00VTA125 200 30 x 72 460
UVG-0250-00VTA125 250 30 x 84 505
UVG-0350-00VTA125 350 36 x 88 670
UVG-0400-00VTA125 400 36 x 97 775
UVG-0500-00VTA125 500 42 x 89 815
UVG-0750-00VTA125 750 48 x 106 1290
UVG-01000-00VTA125 1000 48 x 138 1655
UNINSULATED STANDARD STOCK BARE
Commercial Storage Tanks
167
2” ASME INSPECTION/ANODE OPENING
(ON 36” DIAMETER AND BELOW)
12”x 16” ASME INSPECTION
OPENING (ON 42” DIAMETER
AND ABOVE)
2” ASME INSPECTION/ANODE OPENING
(ON 36” DIAMETER AND BELOW)
12”x 16” ASME INSPECTION
OPENING (ON 42” DIAMETER
AND ABOVE)
Model Number
Dimensions in Inches
A B C D E F
UVG-0800-00VT 20 61-1/2 2 N/A 7 2
UVG-0120-00VT 24-1/4 64-3/8 2 N/A 7 2
UVG-0200-00VT 30 70-3/4 2-1/2 10 13 2-1/2
UVG-0350-00VT 36 86 2-1/2 14 16 2-1/2
UVG-0140-00VTA125 24 75 2-1/2 8 12 2-1/2
UVG-0200-00VTA125 30 70-3/4 2-1/2 10 13 2-1/2
UVG-0250-00VTA125 30 84 2-1/2 10 13-1/4 2-1/2
UVG-0350-00VTA125 36 86 2-1/2 14 16 2-1/2
UVG-0400-00VTA125 36 96 2-1/2 14 16 2-1/2
UVG-0500-00VTA125 42 88 3 16 18 3
UVG-0750-00VTA125 48 105 3 18 19-3/4 3
UVG-01000-00VTA125 48 136 3 18 19-3/4 3
Model Number
Dimensions in Inches
G H J K N P
UVG-0800-00VT 3/4 46-1/4 16 3-1/2 3-1/4 4
UVG-0120-00VT 3/4 34-1/2 15-1/2 10-1/2 3-1/2 4-1/8
UVG-0200-00VT 3/4 28-1/2 19-1/2 13 N/A 4
UVG-0350-00VT 3/4 31-1/2 20-1/4 16 N/A 4
UVG-0140-00VTA125 3/4 27-1/2 18-1/2 12 N/A 4
UVG-0200-00VTA125 3/4 28-1/2 19-1/2 13 N/A 4
UVG-0250-00VTA125 3/4 28-1/2 19-1/2 13 N/A 4
UVG-0350-00VTA125 3/4 31-1/2 20-1/4 16 N/A 4
UVG-0400-00VTA125 3/4 31-1/2 20-1/4 16 N/A 4
UVG-0500-00VTA125 3/4 33-1/2 24-1/2 18 N/A 5
UVG-0750-00VTA125 3/4 32-3/4 26-3/4 19-3/4 N/A 6
UVG-01000-00VTA125 3/4 32-3/4 26-3/4 19-3/4 N/A 6
80 AND 120
GALLON MODELS
StateWaterHeaters.com
168
CUSTOMER BUILT TANKS FROM 80
TO 12,500 GALLONS
HORIZONTAL OR VERTICAL
MOUNTING OPTIONS AVAILABLE
HIGH-DENSITY, FIBERGLASS
INSULATED JACKETS OR BARE
STEEL TANKS
GLASSLINED, CEMENT OR EPOXY
LININGS AVAILABLE
ASME CONSTRUCTION
• Available in 125, 150 and 160 psi
working pressure
ANODIC PROTECTION
MANHOLES, HANDHOLES, HEATING
COILS, ADDITIONAL TANK OPENING,
M LIFTING LUGS, ANGLE LEGS,
RING BASES AND HORIZONTAL
TANKS SADDLES ALL AVAILABLE
AS OPTIONS
INSULATED TANKS MEET R12.5
MINIMUM THERMAL INSULATION
REQUIREMENTS OF THE U.S.
DEPARTMENT OF ENERGY AND
CURRENT EDITION OF ASHRAE/
IES 90.1
5-YEAR LIMITED TANK AND 1-YEAR
LIMITED PARTS WARRANTY
• For complete warranty information,
consult written warranty or go to
statewaterheaters.com
OPTIONAL
HEAVY-DUTY LARGE VOLUME
STORAGE TANKS
Commercial Storage Tanks
169
Model Number
Gallon
Capacity
Diameter
(Inches)
Nominal
Approx.
O. A.
Length
Model Number
Diameter
(Inches)
Nominal
Approx.
O. A.
Length
Gallon
Capacity
UGV-20-00080-VA125 80 20 60” UGV-54-00650-VA125 54 71” 650
UGV-20-000100-VA125 100 20 72” UGV-54-00750-VA125 54 81” 750
UGV-24-00125-VA125 125 24 66” UGV-54-00900-VA125 54 95” 900
UGV-24-00140-VA125 150 24 75” UGV-54-01000-VA125 54 105” 1,000
UGV-24-00175-VA125* 175 24 90” UGV-54-01250-VA125* 54 129” 1,250
UGV-30-00175-VA125 175 30 60” UGV-54-01500-VA125* 54 153” 1,500
UGV-30-00200-VA125 200 30 71” UGV-54-01800-VA125* 54 181” 1,800
UGV-30-00250-VA125 250 30 84” UGV-60-00800-VA125* 60 72” 800
UGV-30-00300-VA125* 300 36 99” UGV-60-01000-VA125* 60 88” 1,000
UGV-36-00250-VA125 250 36 60” UGV-60-01250-VA125* 60 107” 1,250
UGV-36-00300-VA125 300 36 71” UGV-60-01500-VA125* 60 126” 1,500
UGV-36-00350-VA125 350 36 86” UGV-60-01750-VA125* 60 146” 1,750
UGV-36-00400-VA125 400 36 93” UGV 60 02000 VA125* 60 165” 2,000
UGV-36-00500-VA125* 500 36 122” UGV-66-01000-VA125* 66 75” 1,000
UGV-42-00375-VA125 375 42 67” UGV-66-01500-VA125* 66 107” 1,500
UGV-42-00450-VA125 450 42 79” UGV-66-02000-VA125* 66 139” 2,000
UGV-42-00500-VA125 500 42 88” UGV-66-02500 VA125* 66 171” 2,500
UGV-42-00600-VA125 600 42 103” UGV 72 02500 VA125* 72 147” 2,500
UGV-42-00700-VA125 700 42 119” UGV 72 03000-VA125* 72 174” 3,000
UGV-42-00800-VA125* 800 42 134” UGV-72-03500-VA125* 72 201” 3,500
UGV-48-00500-VA125 500 48 73” UGV-72-04000-VA125* 72 228” 4,500
UGV-48-00600-VA125 600 48 81” UGV-84-04000-VA125* 84 173” 4,000
UGV-48-00700-VA125 700 48 93” UGV-84-05000-VA125* 84 212” 5,000
UGV-48-00750-VA125 750 48 105” UGV-84-06000-VA125* 84 252” 6,000
UGV-48-00900-VA125 900 48 117” UGV-84-08000-VA125* 84 330” 8,000
UGV-48-01000-VA125 1,000 48 137” UGV-96-07500-VA125* 96 244” 7,500
UGV-48-01250-VA125 1,250 48 159” UGV-96-10000-VA125* 96 319” 10,000
UGV-48-01500-VA125 1,500 48 190” UGV-96-12500-VA125* 96 395” 12,500
StateWaterHeaters.com
170
Dimensions in Inches
A B C D E
20 2 3/4 1-1/2 6 3/4
24 thru 36 2-1/2 3/4 2-1/2 8 1
42 thru 48 3 3/4 3 10 1
54 thru 96 3 3/4 3 10 1
HEAVY-DUTY LARGE VOLUME
STORAGE TANKS
(CONTINUED)
B
THREADED LEG SOCKET
"C"
A
A
A
A
OVERALL
AA
B
E
A
B
A
AA
A
A
ASME PLATE
STATE CUSTOM STORAGE TA NKS
STORAGE TANKS (20” THRU 96” DIA. TANKS)
STORAGE TA NKS (20” THRU 96” DIA. TANKS)
NOTE:
1) 54” Diameter and larger tanks must be ordered with angle legs rather than threaded leg sockets for vertical installations.
2) Specify for horizontal or vertical installation.
3) No leg sockets provided on horizontal tanks.
2 each 2” ASME inspection openings are standard on tanks 36” diameter and below.
12”x16” ASME inspection openings are standard on tanks with 42” diameters and above.
OVERALL
AA
E
B
ASME PLATE
A
B
A
A
AA
1-1/4" CONTROL
OPENING
A
A
A
B
NOTE:
1) State Custom Storage Tanks with Heating Coils (Horizontal Conguration)
2) Specify for horizontal or vertical installation.
3) No leg sockets provided on horizontal tanks.
NOTE:
State Custom Storage Tanks with Heating Coils
(Vertical Conguration)
ALL DIMENSIONS IN INCHES
OVERALL
D
THREADED LEG SOCKET
"C"
A
B
A
E
B
ASME PLATE
A
AA
A
AA
A
B
T&P VALVE
OPENING
DIMENSION CHART
DIMENSION A B C D E
20 2 3/4 1 1/2 6 3/4
24 THRU 36 2 1/2 3/4 2 1/2 8 1
42 AND 48 3 3/4 3 10 1
54 THRU 96 3 3/4 3 10 1
B
THREADED LEG SOCKET
"C"
A
A
A
A
OVERALL
AA
B
E
A
B
A
AA
A
A
ASME PLATE
STATE CUSTOM STORAGE TA NKS
STORAGE TANKS (20” THRU 96” DIA. TANKS)
STORAGE TA NKS (20” THRU 96” DIA. TANKS)
NOTE:
1) 54” Diameter and larger tanks must be ordered with angle legs rather than threaded leg sockets for vertical installations.
2) Specify for horizontal or vertical installation.
3) No leg sockets provided on horizontal tanks.
2 each 2” ASME inspection openings are standard on tanks 36” diameter and below.
12”x16” ASME inspection openings are standard on tanks with 42” diameters and above.
OVERALL
AA
E
B
ASME PLATE
A
B
A
A
AA
1-1/4" CONTROL
OPENING
A
A
A
B
NOTE:
1) State Custom Storage Tanks with Heating Coils (Horizontal Conguration)
2) Specify for horizontal or vertical installation.
3) No leg sockets provided on horizontal tanks.
NOTE:
State Custom Storage Tanks with Heating Coils
(Vertical Conguration)
ALL DIMENSIONS IN INCHES
OVERALL
D
THREADED LEG SOCKET
"C"
A
B
A
E
B
ASME PLATE
A
AA
A
AA
A
B
T&P VALVE
OPENING
DIMENSION CHART
DIMENSION A B C D E
20 2 3/4 1 1/2 6 3/4
24 THRU 36 2 1/2 3/4 2 1/2 8 1
42 AND 48 3 3/4 3 10 1
54 THRU 96 3 3/4 3 10 1
B
THREADED LEG SOCKET
"C"
A
A
A
A
OVERALL
AA
B
E
A
B
A
AA
A
A
ASME PLATE
STATE CUSTOM STORAGE TA NKS
STORAGE TANKS (20” THRU 96” DIA. TANKS)
STORAGE TA NKS (20” THRU 96” DIA. TANKS)
NOTE:
1) 54” Diameter and larger tanks must be ordered with angle legs rather than threaded leg sockets for vertical installations.
2) Specify for horizontal or vertical installation.
3) No leg sockets provided on horizontal tanks.
2 each 2” ASME inspection openings are standard on tanks 36” diameter and below.
12”x16” ASME inspection openings are standard on tanks with 42” diameters and above.
OVERALL
AA
E
B
ASME PLATE
A
B
A
A
AA
1-1/4" CONTROL
OPENING
A
A
A
B
NOTE:
1) State Custom Storage Tanks with Heating Coils (Horizontal Conguration)
2) Specify for horizontal or vertical installation.
3) No leg sockets provided on horizontal tanks.
NOTE:
State Custom Storage Tanks with Heating Coils
(Vertical Conguration)
ALL DIMENSIONS IN INCHES
OVERALL
D
THREADED LEG SOCKET
"C"
A
B
A
E
B
ASME PLATE
A
AA
A
AA
A
B
T&P VALVE
OPENING
DIMENSION CHART
DIMENSION A B C D E
20 2 3/4 1 1/2 6 3/4
24 THRU 36 2 1/2 3/4 2 1/2 8 1
42 AND 48 3 3/4 3 10 1
54 THRU 96 3 3/4 3 10 1
B
THREADED LEG SOCKET
"C"
A
A
A
A
OVERALL
AA
B
E
A
B
A
AA
A
A
ASME PLATE
STATE CUSTOM STORAGE TA NKS
STORAGE TANKS (20” THRU 96” DIA. TANKS)
STORAGE TA NKS (20” THRU 96” DIA. TANKS)
NOTE:
1) 54” Diameter and larger tanks must be ordered with angle legs rather than threaded leg sockets for vertical installations.
2) Specify for horizontal or vertical installation.
3) No leg sockets provided on horizontal tanks.
2 each 2” ASME inspection openings are standard on tanks 36” diameter and below.
12”x16” ASME inspection openings are standard on tanks with 42” diameters and above.
OVERALL
AA
E
B
ASME PLATE
A
B
A
A
AA
1-1/4" CONTROL
OPENING
A
A
A
B
NOTE:
1) State Custom Storage Tanks with Heating Coils (Horizontal Conguration)
2) Specify for horizontal or vertical installation.
3) No leg sockets provided on horizontal tanks.
NOTE:
State Custom Storage Tanks with Heating Coils
(Vertical Conguration)
ALL DIMENSIONS IN INCHES
OVERALL
D
THREADED LEG SOCKET
"C"
A
B
A
E
B
ASME PLATE
A
AA
A
AA
A
B
T&P VALVE
OPENING
DIMENSION CHART
DIMENSION A B C D E
20 2 3/4 1 1/2 6 3/4
24 THRU 36 2 1/2 3/4 2 1/2 8 1
42 AND 48 3 3/4 3 10 1
54 THRU 96 3 3/4 3 10 1
Commercial Storage Tanks
171
Part No. Tank Dia. A B
P2-2600-20 20 22 6
P2-2600-24 24 26 6
P2-2600-30 30 32 6
P2-2600-36 36 38 6
P2-2600-42 42 44 6
P2-2600-48 48 50 6
P2-2600-54 54 56 8
P2-2600-60 60 62 8
P2-2600-66 66 58 8
P2-2600-72 72 74 10
P2-2600-84 84 86 10
TANK SADDLES
SOLID. STATE.
