HYDRAULIC PUNCH DRIVER
USER'S MANUAL
Technical Suppo and E-Warranty Ceicate
www.vevor.com/suppo
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only
represents an estimate of savings you might benefit from buying certain tools with
us compared to the major top brands and does not necessarily mean to cover all
categories of tools offered by us. You are kindly reminded to verify carefully when
you are placing an order with us if you are actually saving half in comparison with
the top major brands.
01
HYDRAULIC PUNCH DRIVER
USER'S MANUAL
NEED HELP? CONTACT US!
Have product questions? Need technical suppo? Please feel free to contact us:
This is the original instruction, please read all manual instructions carefully before operating. VEVOR
resees clear interpretation of our user manual. The appearance of the product shall be subject to
the product you received. Please forgive us that we won't inform you again if there is any technology
or software updates on our product.
SYK-8B/SYK-8B-1/SYK-15
Technical Support and E-Warranty Certificate www.vevor.com/support
INTRODUCTION
SYK Series hydraulic punching tool is a professional tool for punching metal sheet, such as steel
sheet, copper sheet, aluminum sheet. Before use the tool，please read the instruction and the
requirement carefully .The mounting and disassembling of spare pas need to be carried out by
trained person.
Warranty is 12 months from the time of delive under proper operation
Attention
Make sure the oil pipe is (No. 13)well connected with coupler on the cylinder (No. 5) and pump.
※Make sure to turn the rota screw(No.9)180 degrees,otherwiseit will caused leakage.
※Make sure the pump in the horizontal during working.
※Male sure the cover(No.8 )covered the coupler without working, it will protect the tools from
dusty.
Warning
1) A component failure could cause broken pas.
- Do not allow anyone to stand in front of the punch or behind the hydraulic ram.
- Close access doors or covers on any equipment that is in line with the punch or ram.
2) do not attempt to punch a hole through two or more layers of mate-rial. This will bend or break
the draw stud, and could throw pas with great force
3) Set up the tool properly. An improper setup could cause a component to fail and strike nearby
personnel with great force.
-Thread the punch completely onto the draw stud. All of the punch threads must be engaged by
the draw stud threads. Incomplete assembly could cause a component failure.
4) Replace worn, damaged or missing components with Vevor replacement pas. Worn or
damaged components can fail, resulting in inju or propey damage.
-Inspect the pump, hoses, couplers, and ttings for wear or damage.
-Inspect all punch components (punch, die, draw stud, etc.) for wear or damage.
5) Do not exceed the rated capacity of this tool. Exceeding the rated capacity could cause a
component failure, which could throw broken pas with.
Failure to obsee these warnings could result in severe inju or death.
Caution
The punch driver will fall free when the punch is complete.
- Suppo the weight of the tool when punching.
- Do not allow anyone to stand beneath an overhead punch.
Failure to obsee this warning may result in inju or propey damage.
Use this tool for the manufacturer’s intended purpose only. Any other use may result in inju or
propey damage.
02
03

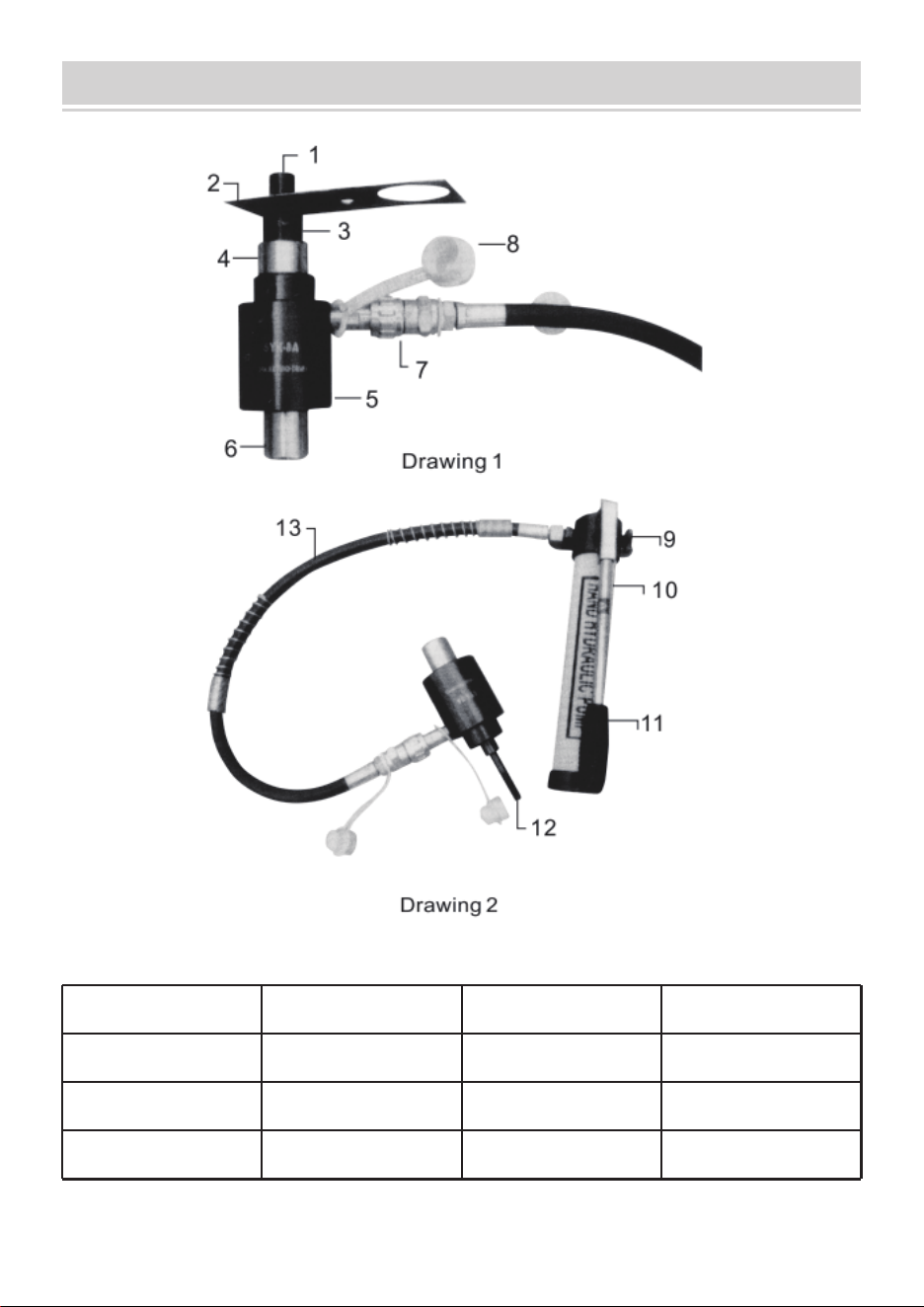

DESCRIPTION OF PRODUCT
PROHIBIT PUMP WITHOUT PUNCHES!!!
1.upper punch
5.cylinder
9.tum screw
13.oil pipe
2.metal sheet
6.Piston
10.pump body
3.down punch
7.coupler
11.movable handle
4.metal gasket
8.cover
12. bolt
PRODUCT SPECIFICATION
04
Max. Punch Force
Stroke
Thread Specication
Materials
Sheet Thickness
Punch Type
G.W
N.W
10T
15~18mm
M20X1.5/ M10X1
carbon steel 201 stainless
steel
T=3mm T=1.2mm
Double punching type
9.8Kg
7.7Kg
15T
15~18mm
M20X1.5/ M10X1
carbon steel 201 stainless
steel
T=3mm
Double punching type
19.8Kg
16.3Kg
10T
15~18mm
M20X1.5/ M10X1
carbon steel 201 stainless
steel
T=3mm T=1mm
Three-petal punching type
10.3Kg
8.1Kg
T=2mm
( ≤2inch )
T=1.5mm
( ＞2inch)
SYK-8B SYK-8B-1 SYK-15
Model
SPEC.
Hydraulic Punch Driver
Bolt
Round Punch(inch)
Round Punch(mm)
Multiple Diameter Drill
Toolbox
User’Manual
1
2
½、¾、1、1-¼、
1-
½、2
Ф22，Ф27.5，Ф34，
Ф43，Ф49，Ф60
1
1
1
1
2
½、¾、1、1-¼、
1-
½、2
Ф22，Ф27.5，Ф34，
Ф43，Ф49，Ф60
1
1
1
1
2
½、¾、1、1-¼、
1-
½、2、2-½、3、
3-
½、4
Ф22，Ф27.5，Ф34，
Ф43，Ф49，Ф60，Ф76,
Ф89，Ф101 ，Ф114
1
1
1
SYK-8B SYK-8B-1 SYK-15
Model
Pas
05
Step1: Before punching, drill a lead hole Ф 11.5mm by electric drill on the metal sheet.(No.2)
Select appropriate punch(No.3 and No. 1) set and the right bolt (No. 12) at rst.
Attention: The diameter of round punch below 22mm, use M 10X1""bolt(called small bolt).
The diameter of round punch above 22mm,use M 20X1.5""It(called big bolt).
Each square punch accessorily with one bolt.
Step2: then Screw the bolt into the cylinder(No.5),put the metal gasket(No.4) into the bolt to
protect the cylinder suace, following screw the down punch(No.3) and put the metal sheet(-
No.2)after screw the upper punch (No.1), made the knife edge next to the machined suace
closely.
Step3: In order to sta punching procedure,the turn screw (no.9) must be turned 180degree
anticlockwise while movable handle is pushed towards the pump body (No.10). A punching
process is initiated by pumping the movable handle(No.11),the piston in the head is pushed by the
oil pressure and the piston drive the upper and down punch move towards ahead, make sure the
two punches touched slightly,the punching process will be nished by the metal punching
through completely.
Attention: make sure the punching completely during the operation to avoid the scrap remaining
the down punch.
The products should be storage in right way . Avoid and strike or hard hit. Do not use beyond the
working range.keep clean afte operation and apply grease to prevent rust. Structure of assem-
bling strict,without any disassembles at will. Keep clean during disassembly to prevent dust from
entering the equipment. It is normal that little oil leaked and le the oil in time after long-time
using.
Maintenance: please unscrew the nut of head, spring, steel ball. pull out the steel ball and then
reset the steel ball meanwhile knock the steel ball a bit, make sure the space between the steel
ball and inner aide. Last reset the spring and screw the nut tightly.
OPERATION
MAINTENANCE AND SERVICE
06
