Thank you for choosing your electriQ cooker hood.
This instruction manual is designed to provide you with all required instructions
related to the installation, use and maintenance of the appliance. In order to operate
the unit correctly and safely, please read this instruction manual carefully before
installation and usage.
2
CONTENTS
SAFETY 3
INSTALLATION 5
OPERATION 9
CLEANING AND MAINTENANCE 10
FILTER INFORMATION 10
LIGHT INFORMATION 11
TROUBSLEHSOOTING 12
SUPPORT 12
PRODUCT FICHE 13
3
SAFETY PRECAUTIONS
Whilst this product is compliant with all safety requirements, incorrect or
inappropriate use can lead to both personal injury and potential damage
to property. Please read the contents of this instruction booklet
thoroughly before fitting or using this appliance.
• The cooker hood must be installed in accordance with the installation
instructions and all measurements followed.
• All installation work must be carried out by a competent person or
qualified electrician.
• The unit must be connected to an earthed power supply.
• If venting externally, make sure the ducting has no bends sharper than
90 degrees as this will reduce the efficiency of the cooker hood.
• The cooker hood is for domestic use only and is not designed for
commercial use. It should only be used for the purpose it was intended
– to extract vapours and cooking odours.
• Do not flambé or use an open flame under the cooker hood.
• Do not try to use the cooker hood without the grease filters or if the
filters are excessively greasy! They should be cleaned regularly (see
“Maintenance”) or replaced as necessary.
• The extraction fan must be level to avoid grease collection at one end,
as this could cause a potential fire risk.
• Do not leave frying pans unattended during use because overheated
fat or oils might catch fire.
• If the cooker hood is damaged, do not attempt to use it.
• If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or a similarly qualified person in order to avoid a
hazard.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved.
• Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the
appliance. It is not a toy.
• The plug must be accessible after installation for isolation in case of an
emergency – or an appropriate fused switch if the unit is hard-wired to
the mains via a spur.
4
• The minimum distance between the surface of the hob and the lowest
part of the hood should be at least 65cm. A distance of between 65cm
and 75cm gives peak efficiency.
• The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels.
• When the hood is vented externally and used with appliances which
burn fuel (e.g. gas, oil, wood) the area must be sufficiently ventilated to
ensure safe operation. Fresh air must be allowed to freely enter the
room to prevent a partial vacuum.
• A partial vacuum can starve the heating appliance of oxygen, impairing
combustion. It can also prevent toxic fumes from leaving the room, or
can cause fumes to be sucked into the room from outside.
• Safe operation is only possible when the partial vacuum within the
working area does not exceed 4 Pa (0.04 mbar). This can be achieved
by ensuring air is able to enter the room from outside through a suitable
sized opening which cannot be sealed during operation. A number of
alternative solutions are available to ensure this. If in any doubt,
professional advice should be sought.
• Regulations concerning the discharge of air have to be fulfilled.
• There is a potential fire risk if cleaning is not carried out in accordance
with the instructions.
• Clean your appliance periodically by following the method given in the
chapter MAINTENANCE
• If used in recirculation mode, the charcoal filters trap odours and must
be replaced at least once a year depending on how frequently the
cooker hood has been used.
• For safety reason, please use only the same size of fixing or mounting
screw, which are recommended in this instruction manual.
• Warning: Failure to install the screws or fixing device in accordance
with these instructions may result in electrical hazards
CAUTION: Accessible parts of the hood can become very hot during
use with cooking appliances, whether in use or not, due to heat rising
from the hob. Sufficient time should be allowed for the unit to cool
before touching either the housing or the grease filters.
5

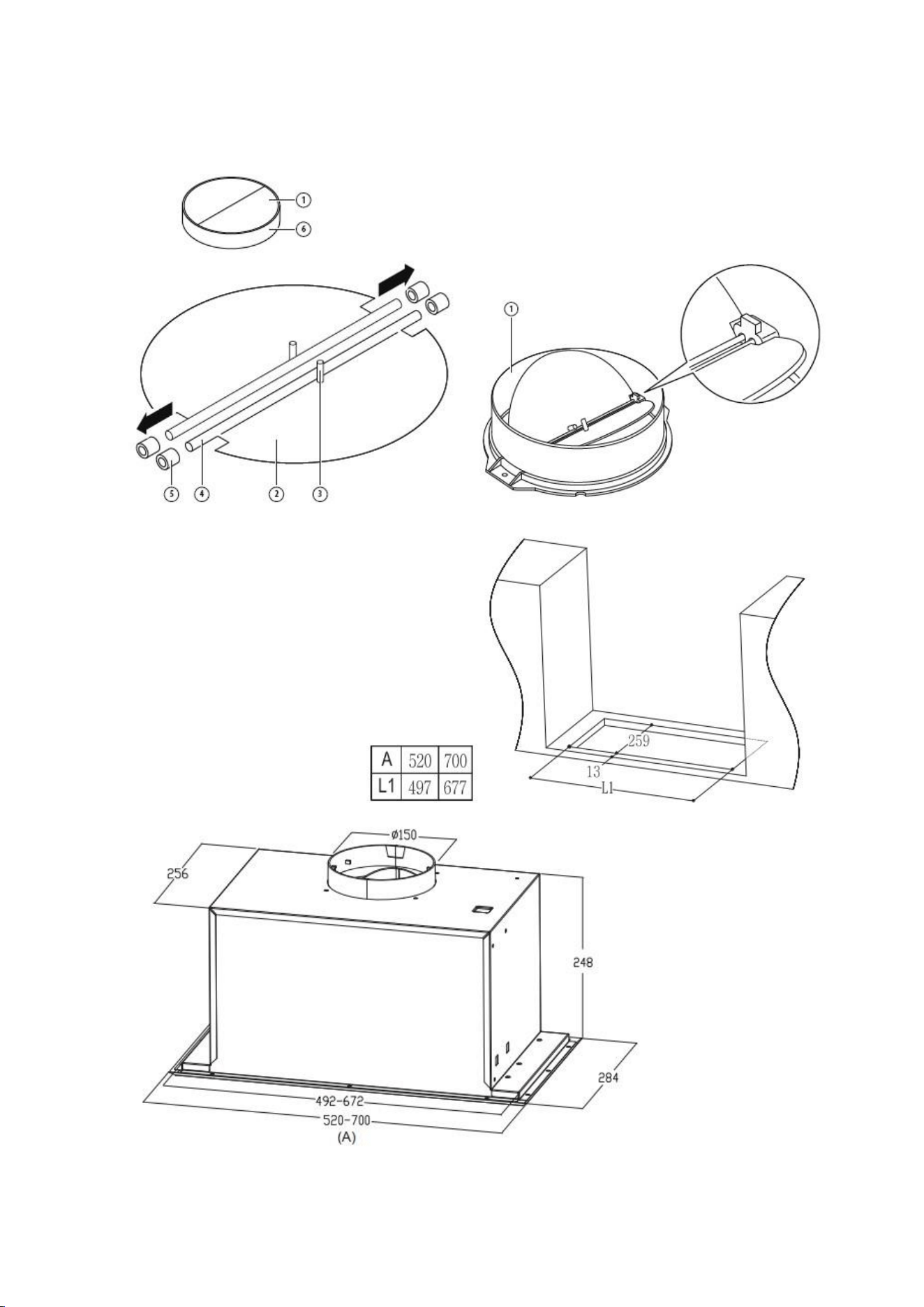

V-FLAP INSTALLATION
DIMENSIONS
6

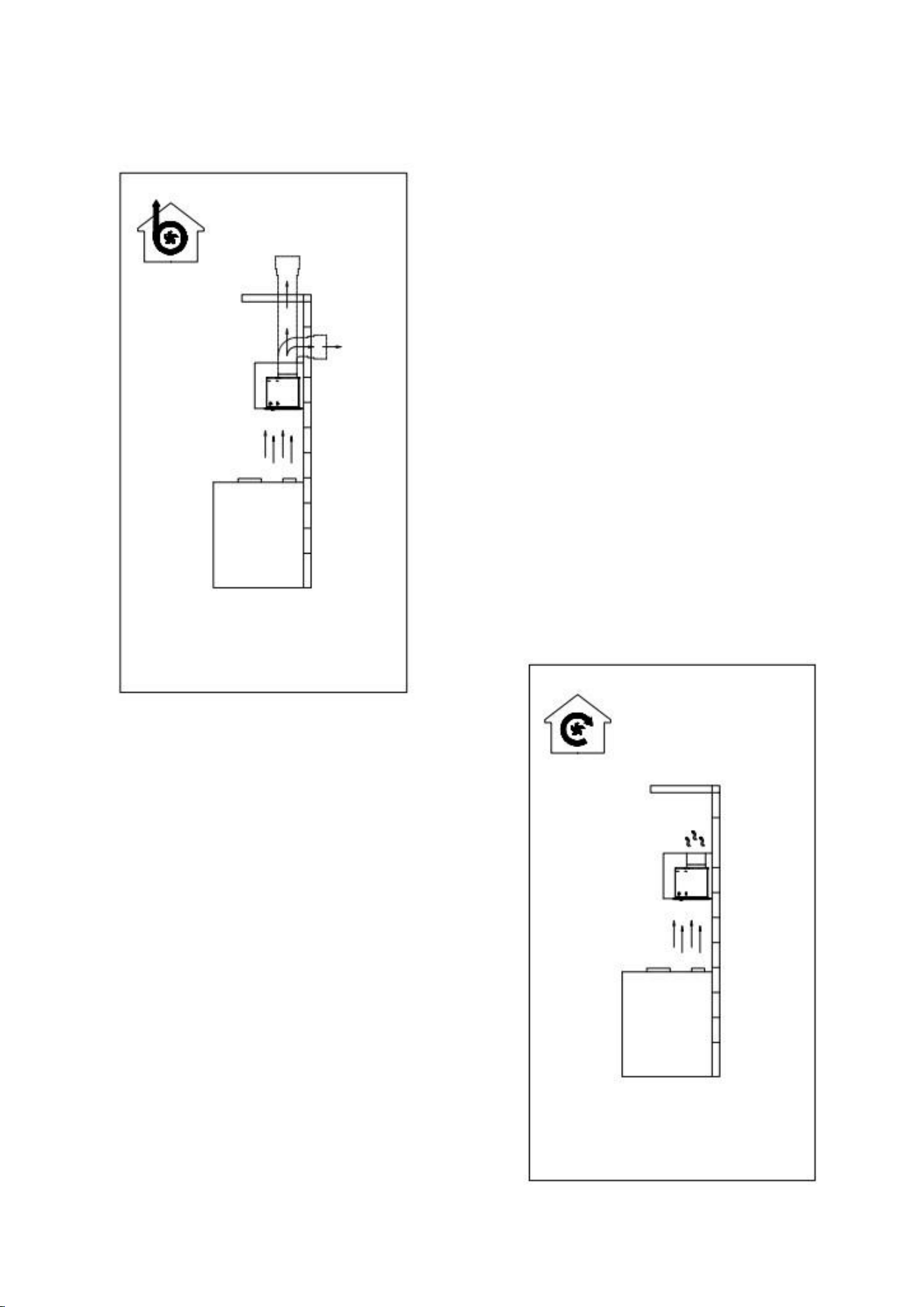

OPTIONS FOR VENTING
EXTERNAL VENTING
If you have an outlet to the outside, your cooker
hood can be connected as shown in the
diagram using the flexible exhaust pipe (NOT
SUPPLIED). Alternatively, any suitable
extraction duct (enamel, aluminium, flexible
pipe or inflammable material with an interior
diameter of 150mm) can be used. An adaptor is
also supplied to enable you to connect your
hood to pre-existing 120mm diameter ducting. If
this is the chosen installation method
consideration to the route of the vent pipe
should be made prior to installation. Please
note: the performance of the hood may be
affected if the diameter of the pipe is reduced,
or if the airflow is restricted.
RECIRCULATION
This cooker hood also supports the recirculation
of air once it has passed through the filters. The
filtered air is then expelled through the vent
holes in the side of the chimney. When setting
the unit up in this configuration, carbon filters
should also be used to remove odours from the
air. Details of sourcing and fitting the filters can
be found in the carbon filter section of this
manual.
7
INSTALLATION

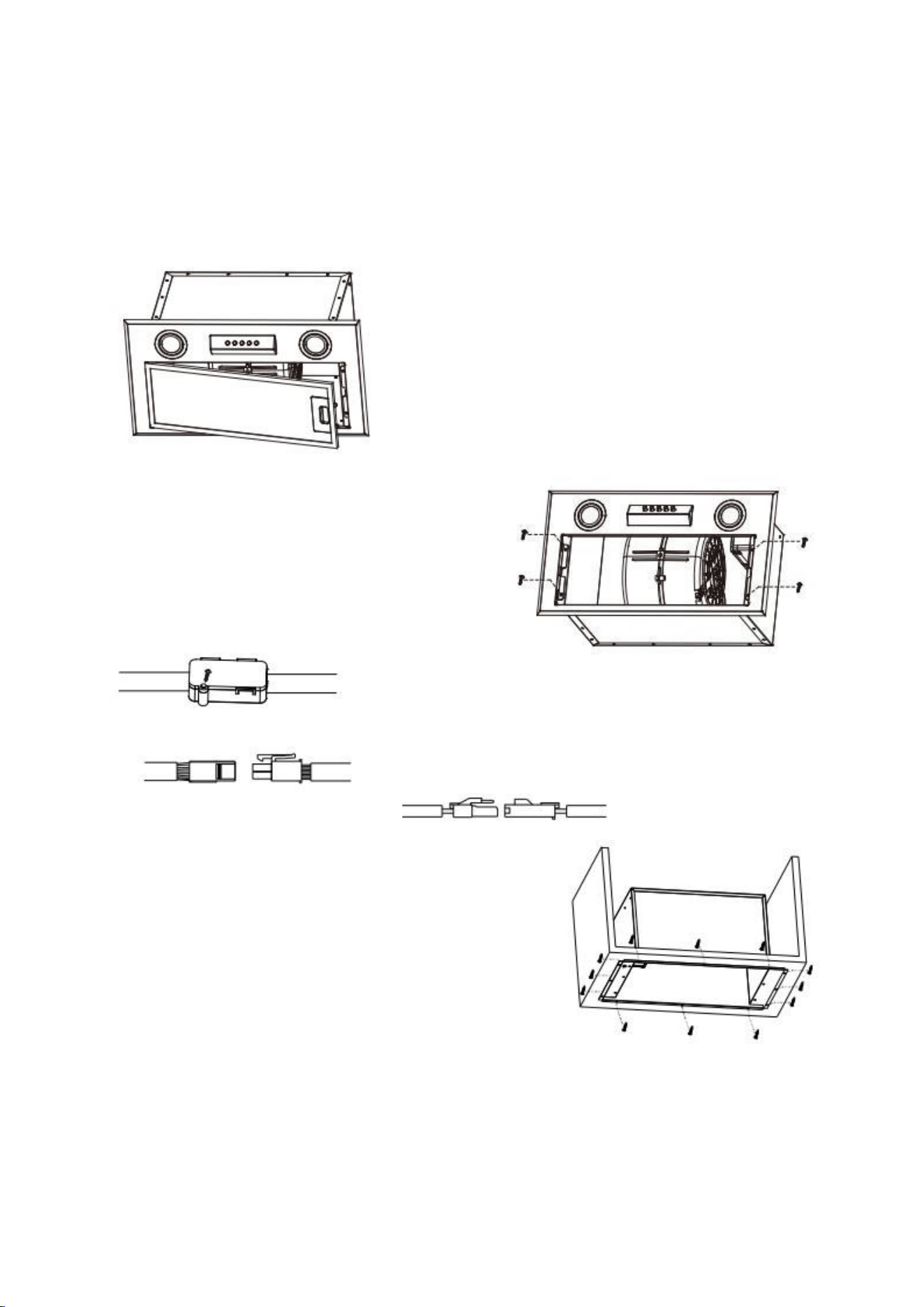

If you have an outlet to the outside, your cooker hood can be connected as below
picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-
flammable material with an interior diameter of 150/120mm).
Before installation, turn the unit off and ensure it is not plugged in.
Press the lock catch of metal Filter, remove
the Filter.
Remove the stainless-steel frame by
unfastening the 4 screw (M4*10).
Unfasten the screws (ST4*10), remove the lid of
terminal box, disconnect the wires to the
Commands at the connectors. Disconnect the
wires to the Light at the connectors.

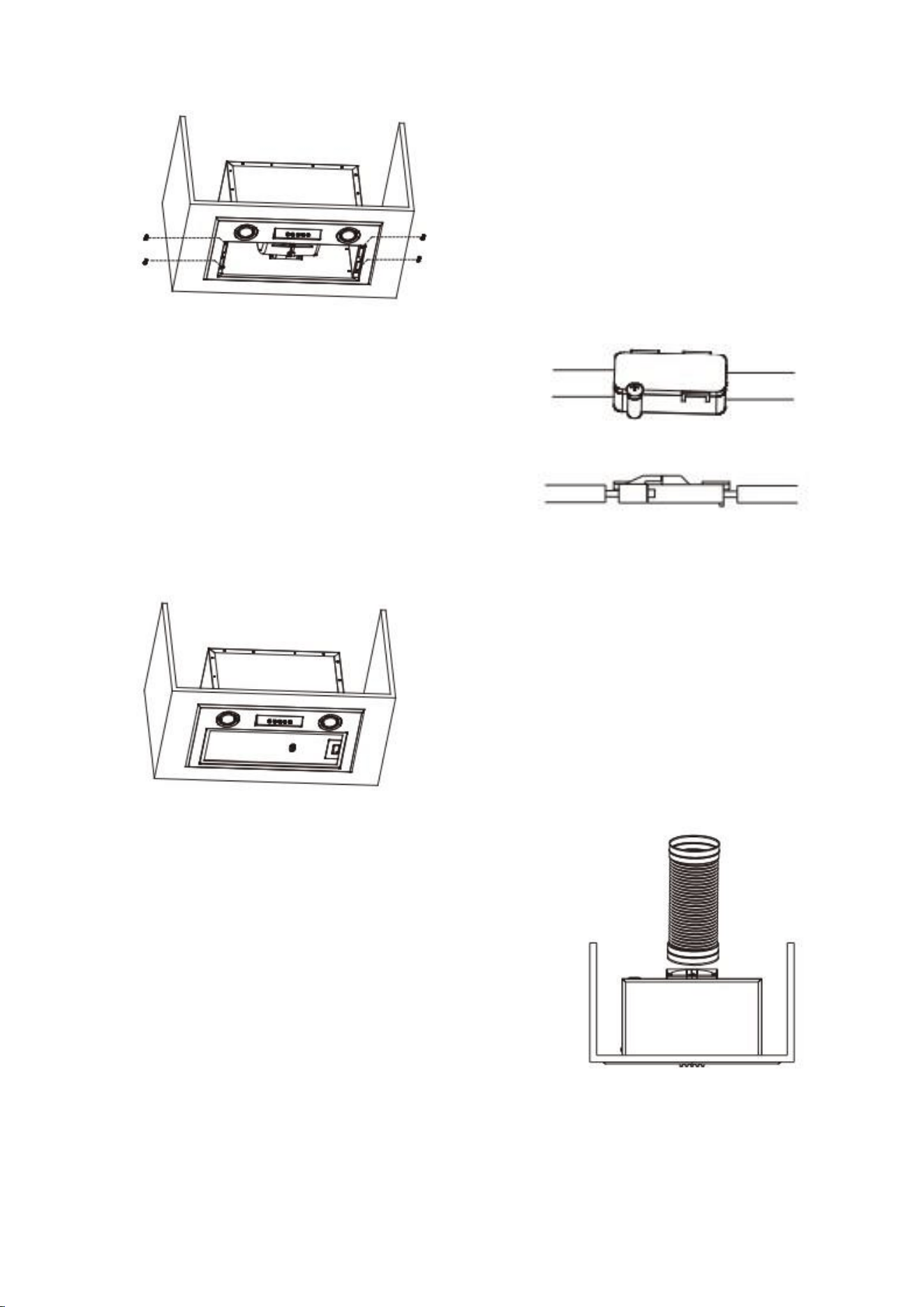

Fasten the Hood in the cabinet by using the 12
screws (ST4*18).
8
Screw the stainless steel frame
back into place using the 4 screws
removed as described above.
Reconnect the wires to the Commands
and Light.
Replace the metal filter.
Install the air outlet pipe(optional).
9
OPERATION

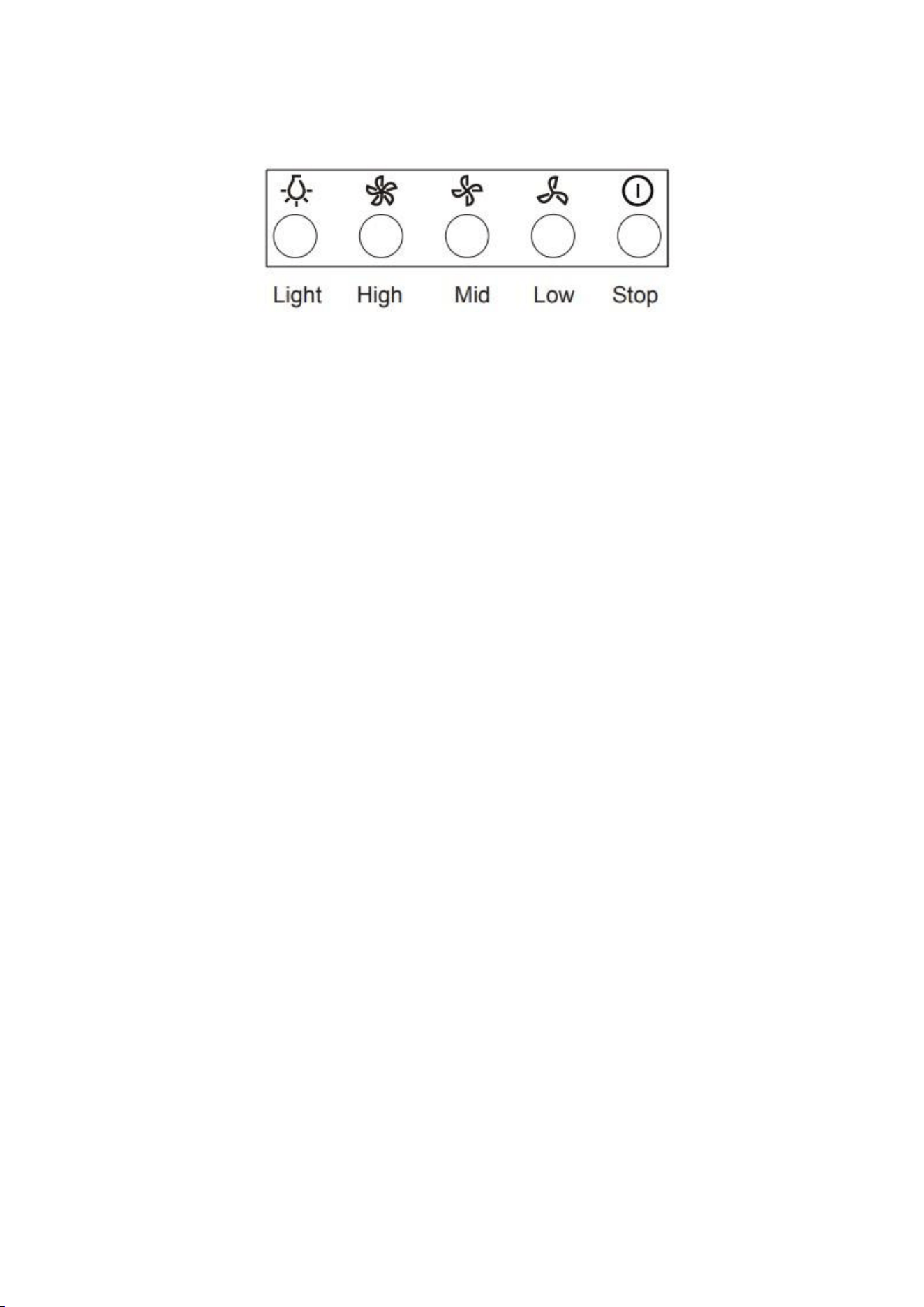

• Press the Light button, the two lighting lamps will come on. Press it again and the
lamps will be turned off. Press the High (speed) button, the motor runs at high speed.
• Press the Low (speed) button, the motor runs at low speed.
• Press the Mid (speed) button, the motor runs at mid speed. • Press Stop button, the
motor will stop running.
CLEANING MAINTENANCE
Before cleaning, switch the unit off and disconnect the power.
Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning
detergent. Never use metal pads, chemicals, abrasive material or a stiff brush to clean
the unit.
NOTE: Do not use a steam-cleaner to clean the hood; electrical components could be
damaged or short-circuit as a result.
MONTHLY CLEANING FOR METALLIC ANTI-GREASE FILTER
ESSENTIAL NOTE: Clean the filter every month; an excessive build-up of grease can
become a fire hazard. The filter collects grease, smoke and dust, so the filter directly
affects the efficiency of the cooker hood. If it’s not cleaned, the grease residue
(potentially flammable) will saturate on the filter.
Clean it with a soft nylon brush in a mild solution of warm water and a small amount of
washing up liquid. Washing up liquid alone should not be used. After cleaning, allow
the filter to drain and then dry thoroughly.
The grease filter may also be dishwasher cleaned; using a 60°C program, with the
filter upright (short sides upright) in the lower basket. Please be aware some
dishwasher cleaning agents can permanently discolour the filter, though this will not
affect its performance.
Replacement grease filters are of the universal type available from many household
and DIY stores.
10
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g.weekly) to ensure long life
expectancy.
Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.
Ensure that wiping is done along with the grain of the stainless steel to prevent any
unsightly crisscross scratching patterns from appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is
clean and well wrung before cleaning. Use a dry soft cloth to remove any excess
moisture left after cleaning.
Using neutral detergents and avoid using harsh cleaning chemicals, strong household
detergents or products containing abrasives, as this will affect the appliance
appearance and potentially remove any printing of artwork on the control panel and
will void manufactures warrantee.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand. Soak them for about 3 minutes in water with
a mild detergent then brush it gently with a soft brush. Please do not apply too much
pressure, avoid to damage it . (Leave to dry naturally out of direct sun light) Filters
should be washed separately to crockery and kitchen utensils. it is advisable not to
use rinse aid.
INSTALLING GREASE MESH FILTERS
To install filters for the following four steps.
1. Angle the filter into slots at the back of the
hood.
2. Push the button on handle of the filter.
3. Release the handle once the filter fits into a
resting position. 4. Repeat to install all filters.

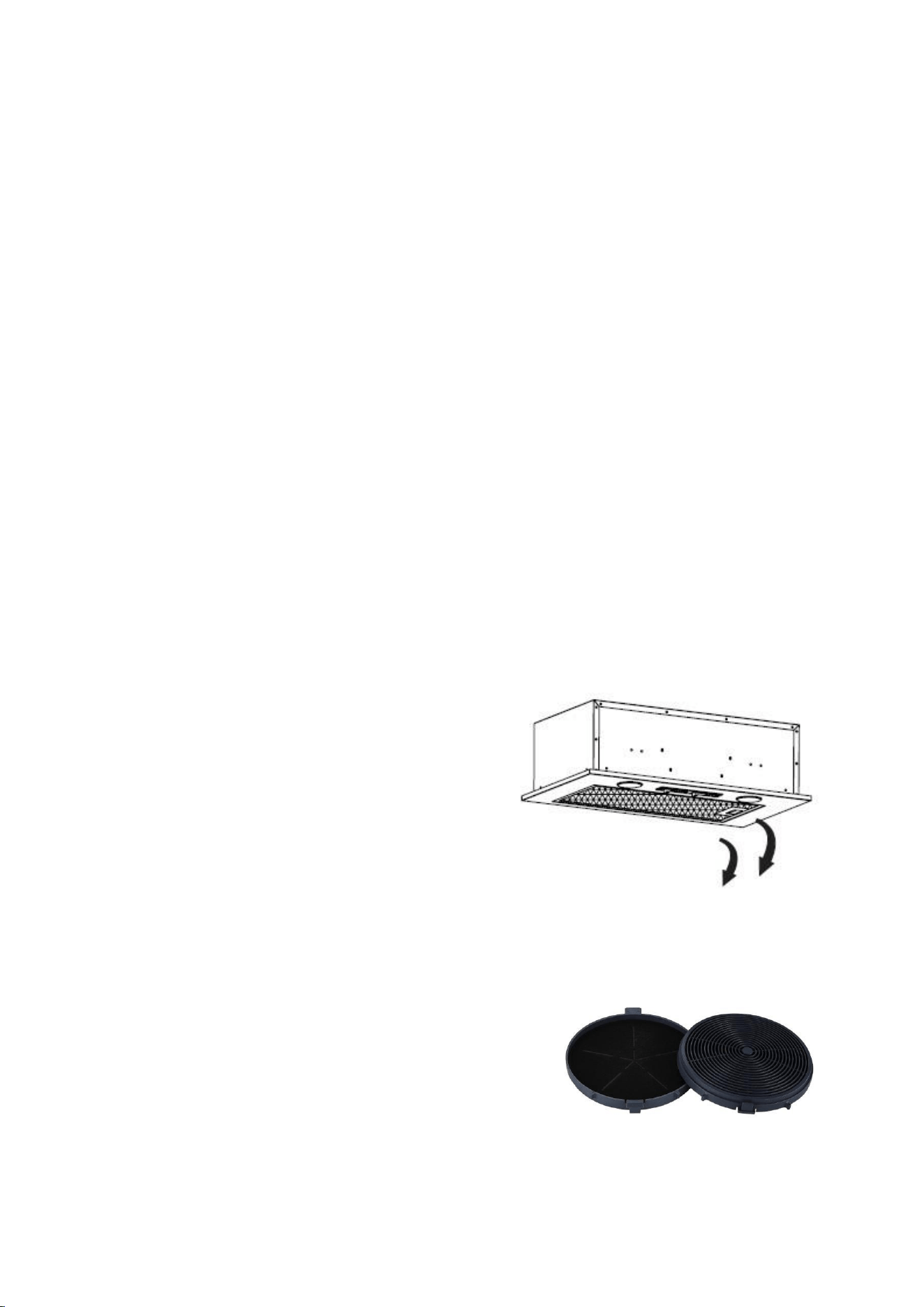

CARBON FILTER-not supplied
Activated carbon filter can be used to trap odors. Normally the activated carbon filter
should be changed at three or six months according to your cooking habit. The
installation procedure of activated carbon filter is as below.
1. Put the pin of the carbon filter into the
rectangular hole of the fan(as per the arrow A
shown below)
2. Push the other side of the carbon filter toward
the fan to make it flat(as per the arrow B
shown),and then press filter into fan.
3. If you want to remove the filter, press fastener of filter and remove it by turning
anticlockwise.
11
NOTE:
• Make sure the filter is securely locked. Otherwise, it
would loosen and cause dangerous.
• When activated carbon filter attached, the suction
power will be lowered.
Filters for eiQCANOPY52s/BL/W Filters for eiQCANOPY70s/BL/W
Grease filter eiqgf7628 Grease filter – eiqgf7628
Carbon filter - eiqmidcarbon Carbon filter – eiqmidcarbon

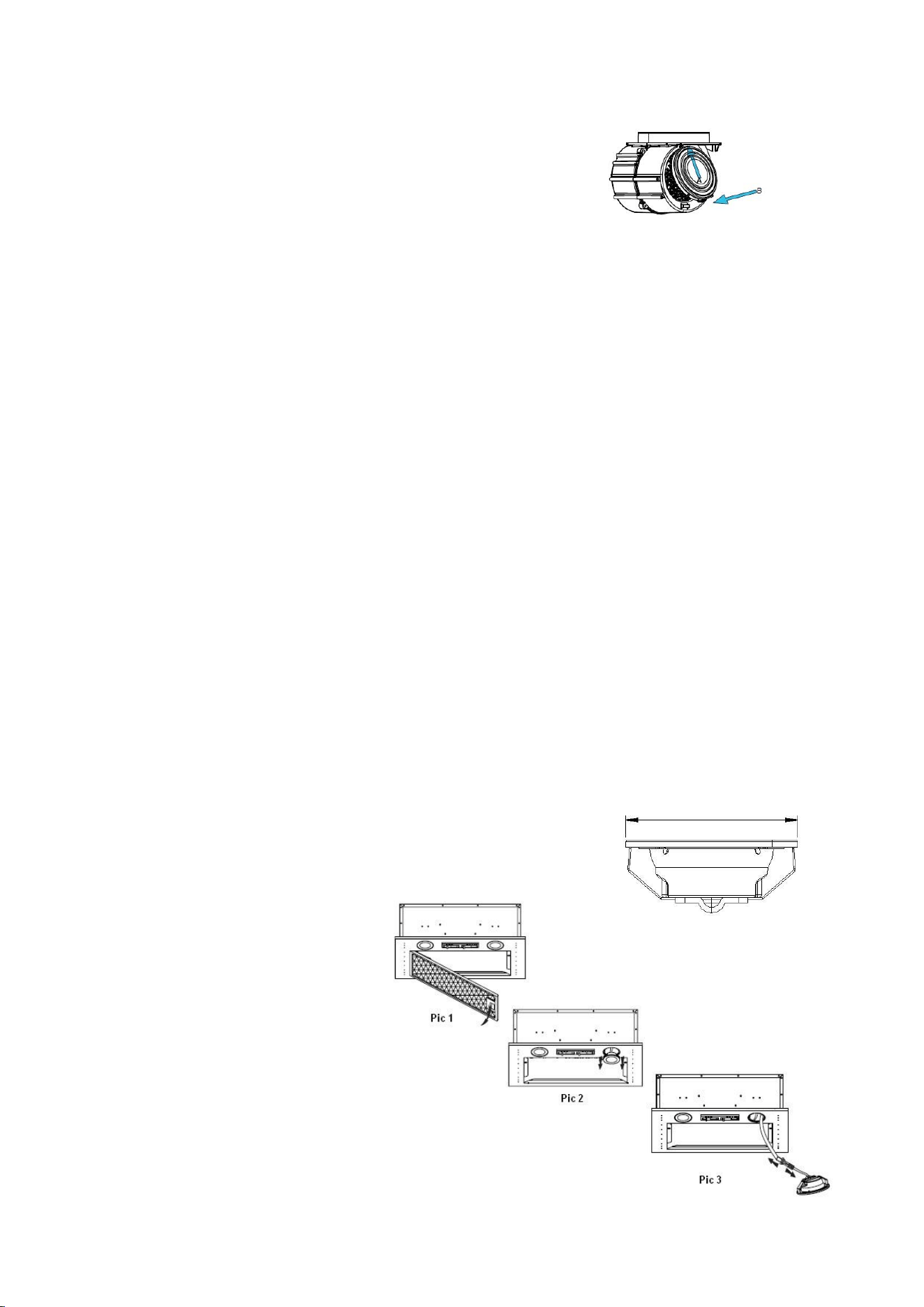

BULB REPLACEMENT
The bulb must be replaced by the manufacturer, its service agent or similarly qualified
persons.
Always switch off the electricity supply before carrying out any operations on the
appliance. When handling bulb, make sure it is completely cool down before any direct
contact to hands.
When handling globes hold with a cloth or gloves to ensure perspiration does not
come in contact with the globe as this can reduce the life of the globe.
Before changing the lights, make sure that the appliance is plugged off.
• Protect against danger when changing lights, such as wearing gloves.
CHANGING THE LIGHTS
1. Remove the grease filter.
2. Put one hand into the cavity to gently push out the LED light, and use the other
hand to grab the light and pull it out, and then pull out the light cable.
3. After changing the lamp, plug in the lamp cable, and put the lamp into the lamp
hole.
ILCOS D code for this lamp is: DBR-2/65-H-64
• LED modules– round lamp
• Max wattage: 2×2 W
• Voltage range: AC 110-240V
12
TROUBLESHOOTING
FAULT
CAUSE
SOLUTION
Light on, but
fan does not
work
The fan blade is
jammed.
Switch off the unit. Repair to be carried
out by qualified service personnel only.
The motor is damaged.
Both light and
fan do not
work
Light bulb blown
Replace the bulb with correct rating.
Power cord loose
Plug in to the power supply again.
Excessive
Vibration
The fan blade is
damaged.
Switch off the unit. Repair to be carried
out by qualified service personnel only.
The fan motor is not
fixed tightly.
Switch off the unit. Repair to be carried
out by qualified service personnel only.
Suction
performance
not good
1 Grease filters clogged
2 Distance between the
unit and the
cooking plane too great.
1 Clean or replace grease filters.
2. Readjust the distance to between
65cm and 75cm.
INFORMATION FOR DISMANTLING
Do not dismantle the appliance in a way which is not shown in the user manual. The appliance
could not be dismantled by user. At the end of life, the appliance should not be disposed of with
household waste. Check with you Local Authority or retainer for recycling advice.
electriQ UK SUPPORT
www.electriQ.co.uk/support www.electriQ.co.uk
Call: 0871 984 4416
Office hours: 9AM - 5PM Monday to Friday
Unit J6, Lowfields Business Park
Lowfields Way, Elland
West Yorkshire, HX5 9DA
Recycling facilities are now available for all customers at which you
can deposit your old electrical products. Customers will be able to
take any old electrical equipment to participating sites run by their
local councils. Please remember that this equipment will be further
handled during the recycling process, so please be considerate
when depositing your equipment. Please contact the local council for
details of your local household waste recycling centres.
13
PRODUCT FICHE
Symbol
Value
Unit
Model identification
eiQCANOPY70S/BL/W
Annual Energy Consumption
AEC
hood
49.0
kWh/a
Time increase factor
f
1.5
Fluid Dynamic Efficiency
FDEhood
15.1
Fluid Dynamic Efficiency
class
Class D
Energy Efficiency Index
EEIhood
76.8
Energy Efficiency class
Class C
Maximum airflow
Qmax
381.3
m
3
/h
Measured airflow rate at the
best efficiency
QBEP
227.7
m
3
/h
Measured air pressure at
best efficiency point
PBEP
201
Pa
Measured electric power
input at best efficiency point
WBEP
84.2
W
Nominal power of the lighting
system
W
L
4.0
W
Average illumination of the
lighting system on the
cooking surface
Emiddle
165
lux
Measured power
consumption on off mode
PO
0.00
W
Measured power
consumption on standby
mode
PS
-
W
Sound power level
LWA
Highest setting: 69
Lowest setting: 58
dB
14
Symbol
Value
Unit
Model identification
eiQCANOPY52S/BL/W
Annual Energy Consumption
AEC
hood
52.7
kWh/a
Time increase factor
f
1.6
Fluid Dynamic Efficiency
FDEhood
11.2
Fluid Dynamic Efficiency class
Class E
Energy Efficiency Index
EEIhood
81.8
Energy Efficiency class
Class C
Maximum airflow
Qmax
364.7
m
3
/h
Measured airflow rate at the
best efficiency
QBEP
180.5
m
3
/h
Measured air pressure at best
efficiency point
PBEP
190
Pa
Measured electric power input
at best efficiency point
WBEP
85.2
W
Nominal power of the lighting
system
W
L
4.0
W
Average illumination of the
lighting system on the cooking
surface
Emiddle
177
lux
Measured power consumption
on off mode
PO
0.00
W
Measured power consumption
on standby mode
PS
-
W
Sound power level
LWA
Highest setting: 68
Lowest setting: 56
dB
