INSTRUCTION MANUAL
BUILT-IN BEVERAGE COOLER
SKU: ZX-BRU-03-HZ-HM
Email:support@homyd.com
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS 3
PRODUCT DIAGRAM 6
INSTALLATION INSTRUCTIONS 7
Before Using Your Beverage cooler 7
To Install Stainless Steel Handle 7
To Install Your Beverage cooler 8
OPERATION INSTRUCTIONS 9
Controls 10
Storage 10
Shelves 11
CARE & MAINTENANCE 12
Cleaning Your Beverage cooler 12
Power Failure 12
Vacation Time 12
Moving Your Beverage cooler 13
Energy Saving Tips
13
TROUBLESHOOTING GUIDE 14-15
Reversing the door
11
Door Lock
10
Light 10
3
IMPORTANT SAFETY INSTRUCTIONS

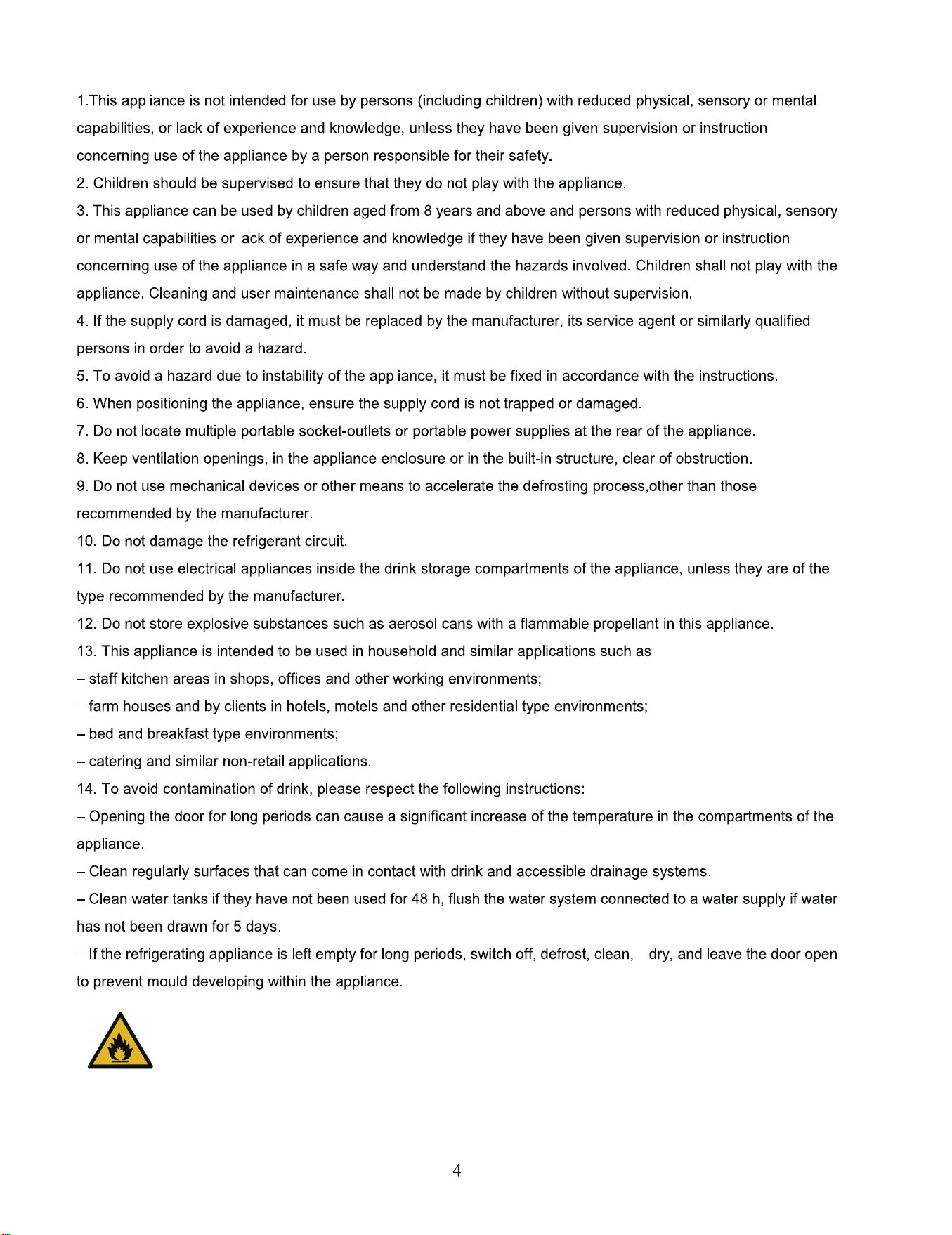

Your safety and the safety of others are very im portant.
This Beverage cooler complies with the applicable safety requirements and is safe for daily use.
However, basic safety precautions should always be followed when using an electrical appliance,
to reduce the risk of fire, elect ric shock, and personal injury.
.
Plug into its own individual electrical outlet with a voltage rating that mat ches the rat i ng
label on the cooler (115 V/60Hz). Use receptacles that cannot be
turned off by a
switch or pull chain. Be sure that the plug is fully inserted into the
receptacle.
.
Plug into a grounded 3-prong outlet. Do not under any circumstances cut or remove the
third grou nd prong from the power cord supplied.
.
To protect against electric shock, do not immerse the Beve rage cooler , plug or cord in
wa
ter or other liquids.
.
Never unplug the cooler by pulling the power cord. To disconnect the Beverage cooler,
always grip the plug firmly and pull straight out from the wall outlet.
.
Repair or replace immediately all power cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks o r abrasion damage along its length o r at
either end.
.
Do not connect or disconnect the electric plug when your hands are wet. Do not operate
the cooler with wet hands, while
standing on a wet surface or while standing in water.
.
Unplug the Beve rage cooler or disconnect power before cleaning or servicing. Failure to
do so can result in electrical shock or death.
.
When mo ving the Beverage cooler, be careful not to roll over or damage the power cord.
.
Never clean Beverage cooler parts with flammable fluids. These fumes can create a fire
hazard or expl osion. And do not store or use gasoline or other f lammable vapor and
liquids in the vicinit y of this or
any other appliance. The fumes can create a fire hazard
or explosion.
.
Do not attempt to repair or replace any part of your Beverage cooler unless it is
specifically recommended in this manual. All other servicing should be referred to a
qualified technician.
.
An empty Beverage cooler can be dangerous to children. Remove any latches, lids, locks,
and/or doors from unused or discarded Beverage coolers to prevent child entrapment
and suffocation. Never allow children to op
erate, play with or craw l inside this Be vera ge
cooler.
WARNING:Risk of fire / flammable materials
The coolant circuit of this unit contains the refrigerant lsobutane (R600a),a natural gas that-is
flammable and of high environmental compatibility. Make sure no parts of the coolant circuit
get damaged-during transport and installation of the appliance.
5
.
Do not use this wine cooler for other than its inten ded purpose. For indoor, household
use only.
.
Move this wine cooler by 2 people. Failure to do so can result in injury.
.
Place this wine cooler in a well-ventilated area with temperatures abo ve 15°C (60°F) and
below 32°C (90°F).
.
To ensure proper ventilation for your wine cooler, the front of the cooler must be
completel y unobstructed.
.
This wine cooler must be installed in an area away from wind, rain, water spray or drips.
.
The wine cooler shou ld not be loca ted next to ovens, grills o r other sources of high heat.
.
Do not kink or pinch the power supply cord of wine cooler.
.
It is important for the wine cooler to be levele d in order to work properly. You may need
to make several adjustmen ts to level it.
.
This wine cooler is designed for storing and cooling wines. Do not store perishable food
or medical products inside the cooler.
.
When disposing of refrigeration wine coolers, special handling is often required. It is the
consumer’s responsibility to comply wit h federal and local regulations when disposing of
this product.
.
WARNING: Risk of child entrapment and suffocation. Before you throw away this o r an
old cooler, remove the door. Leave the shelves in place, so that children may not e asily
climb inside.
FLAMMABLE REFRIGERANT GAS
DANGER - Risk o f fire o r explosion. Fl ammable refrigerant used.
DO NOT use mechanical devices to defrost refrige rator. DO NOT puncture refrigerant
tubing.
DANGER - Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained
service personnel. DO NOT puncture refrige rant tubing.
CAUTION - Risk of fire or explosion. Flammable refrigerant used. Consult repair manual / owner ’s
guide bef ore attempting to service this product. All safety precauti
ons must be followed.
CAUTION - Risk of fire or explosion. Disp ose of property in accordance with f e deral or local
regulations. Flammable refrigerant used.
CAUTION - Risk of fire or explosion due to puncture of refrigerant tubin g. Follow handling
instructions carefully. Flammable refrigerant used.
CAUTION - To prevent a child from being entrapped, keep out of reach of children and not in the
vicinity of the cooler.
6

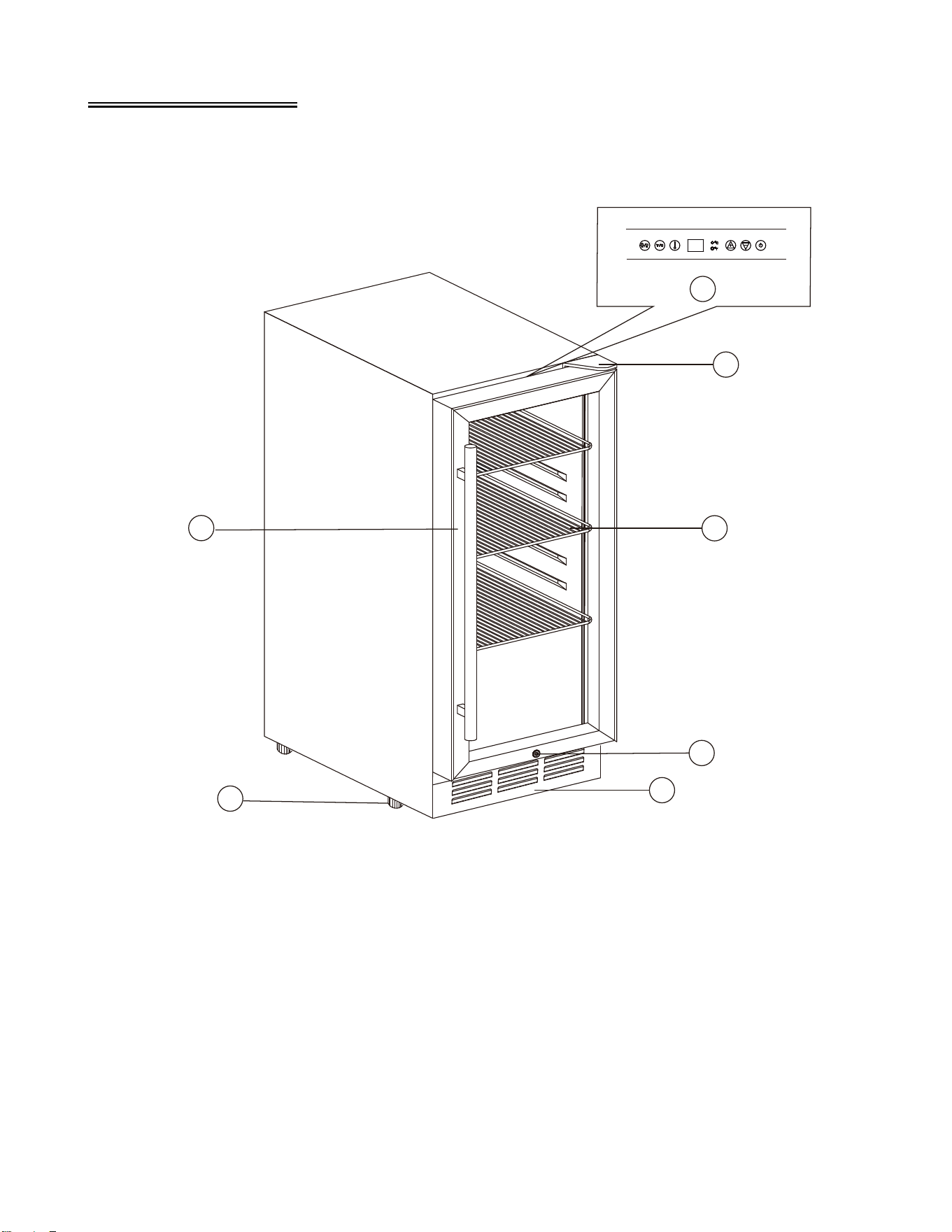

PRODUCT DIAGRAM
1
Top Hinge
5 Exhaust Window
2
Control Panel
6 Glass Door with Handle
3 Shelves 7 Leveling Legs
4 Lock
1
2
3
4
5
6
7
7
INSTALLATION INSTRUCTIONS
Before Using Your Beverage cooler
—
Remove the exterior and interi or packaging.
—
Check to be sure you have all of the following parts:
o
3 wired S helves
o
Stainless Steel Handle
o
Instruction Manual
o
2 Extra Screws for Installing Handle
—
IMPORTANT: Before connecting this Beverage cooler to a power source, let it stand upright
for ap proximately 24 hours. This will reduce the possibility of a malfunction in the cooling
system from handling during transportation.
—
Clean the interior surface with lukewarm water using a soft cloth.
—
Install the han dle on the left side of the door.

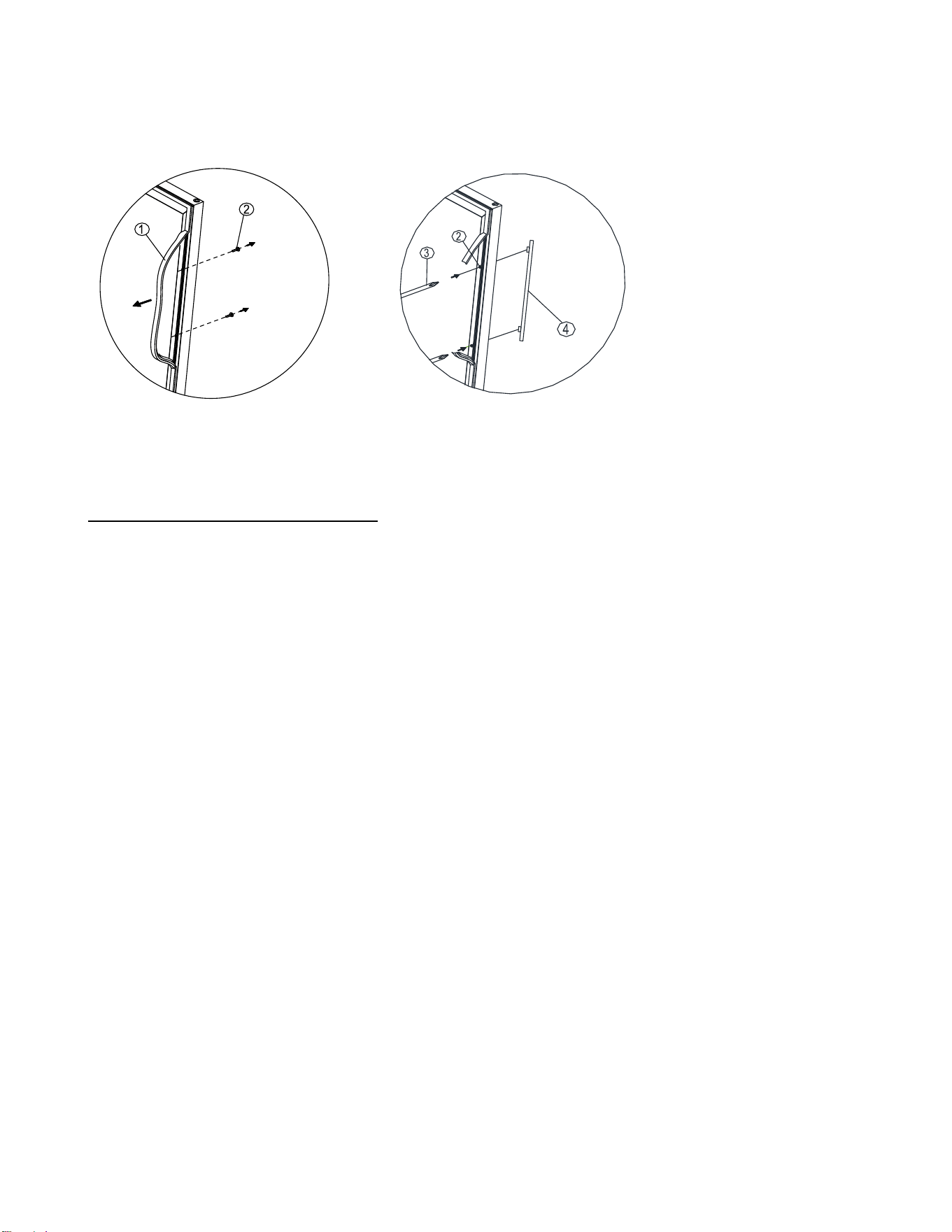

To Install Stainless Steel Handle
1) Pull away the door gasket in the area where the handle is to be installed, as Illustration #1.
The gaske t i s easily removed by hand, no tools are necessary.
2) Align the handle with the pre-installed screws on the door frame. Tighten the screws with a
screwdriver until the handles secure tightly against the door frame, as Illustration #2. ( Do NOT
over tighten as this will c
ause damage to the handle assembly).
3) Replace the door gasket to its original position.
Note: This B e verage cooler includes stainless steel handles that are not required to operate this
Beverage cooler. If you choose not to use the handle supplied, simply follow step 1 to access the
pre-installed screws and remove them and then place 2 decorative plugs (NOT included) into the
two holes separately. Continue on to step 3 to replace the door gasket to its original position.
o
2
Keys
8
Illustration #1 Illustration #2
To Install Your Beverage coo ler
-
This Beverage cooler is designed for free standing or built-in (fully recess e d) installation.
-
Place your Beverage cooler on a solid and level floor that is strong enough to support it when
it is fully loaded. This will ensure a vibration-free and noise-free operation. Adjust the leveling
legs in and out to stab ilize the cooler horizontally. If the legs are not properly adjusted, the
cooler may be unstable and result in excess noise or vibration.
-
Locate the B e verage cooler away from direct sunlight and sources of heat (stove, heater,
radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase
electrical consumption. Extremely cold ambient temperatures may also cause the cooler not
to perform prope rly.
-
It is not advisable to install this cooler in moist areas or directly adjacent to a kitchen sink, as
moisture could cause premature corrosion to the components of your new cooler.
-
It is recommended you install the Beverage cooler in a place with temperatures above 60°F
(15°C) and below 90°F (32°C), and humidity is under 60%. If the ambient temperature is
above or below recommended temperatures, the performance of the cooler may be affected.
Placing your cooler in extremely cold or hot con ditions may cause interior temperatures to
1 Gasket
2 Screw
3 Screw Driver
4 Handle
9
fluctuate, and the temperature range of 3ºC-18ºC (37ºF-65ºF) may not be reached.
-
Connect the Beverage cooler to an excl usive, properly grounded, standard electrical supply
(115V/60Hz ), in accordance with the National Electrica l Code and l ocal codes and ordinances.
Any questions concerning power and/or grounding should be directed toward a certifi e d
electrician or an authorized products service center.
Warning: Improper use of the grounded plug can result i n the risk of ele ctrical shock. If the
power cord is dam aged, have it replaced by an authorized service center.
.
The Beverage cooler should always be plugged into its own individual electrical outlet
which has a voltage rating that matches the rating label on the Beverage cooler. This
provides the best performance and also prevent s overloading house wiring circuit s that
could cause a fire hazard f rom overheated.
.
Do not under any circumstances cut or remove the third ground prong from the power
cord supplie d.
.
Do not use an exte nsion cord or adapter plug. How e ver, if you m ust use an extension
cord, it is ab solutely necessary that it be a UL-li sted, 3-wire grounding type Be verage
cooler extens ion cord having a grounding type plug and outlet and that the electrical
rating of the cord is 10 amperes (minimum) and 120 volts.
.
Do not use a cord that shows crack s or abrasion damage along its length or at either end.
.
If the Beverage cooler is going to be used in an area that is prone to power
surges/outages, it is suggested that you use a power surge protector. The surge
protector that you select must have a surge block high enough to prote ct the Beverage
cooler it is connected to. Damages due to power surges are not considered a
manufacturer covered defect and will void your product warranty.
OPERATION INSTRUCTIONS

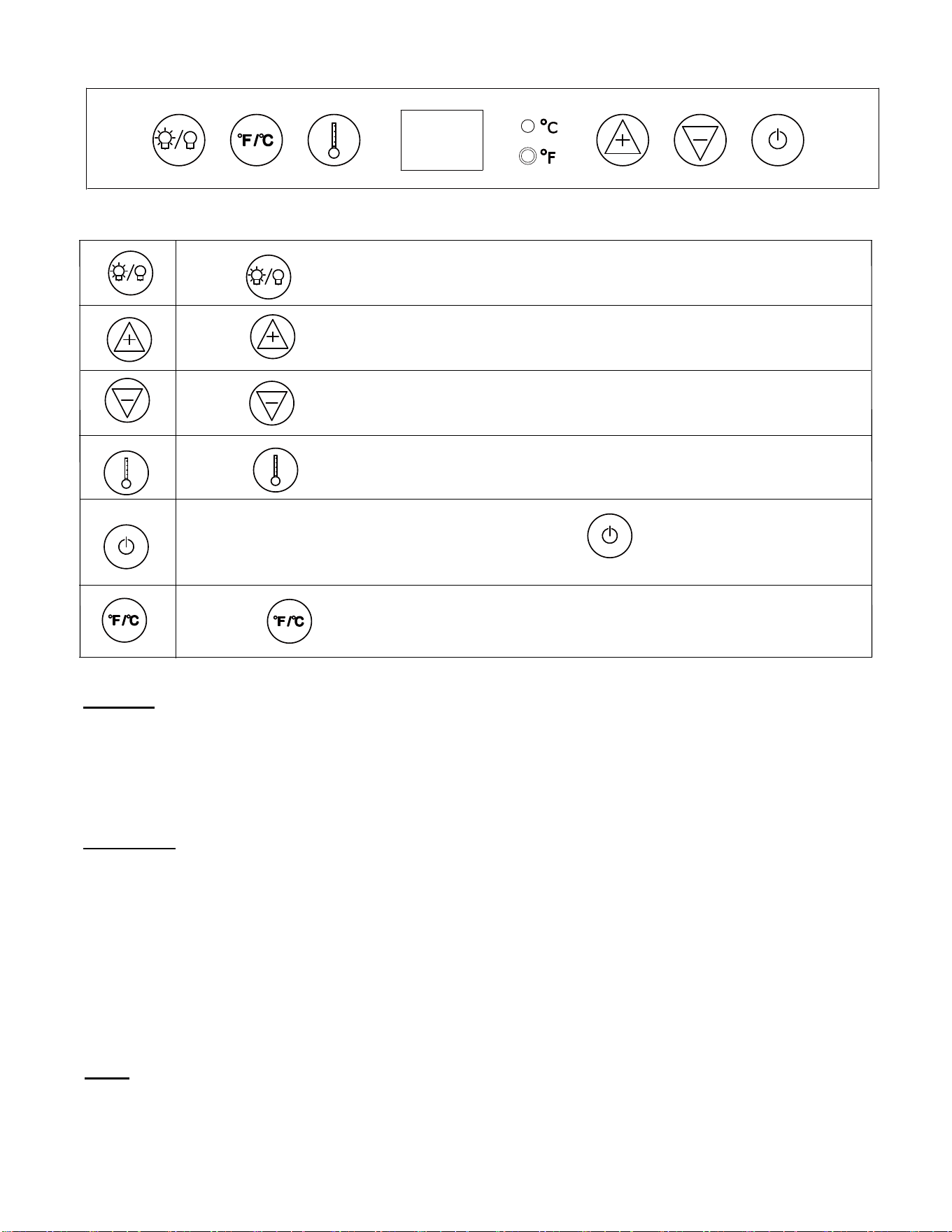

Controls
After plugging the Beverage cooler into a wa ll outlet, the cooler would turn on auto matically and
the LCD screen would show the tempe rature inside of the cooler.
After set ting your desired serving temperature, allow the cooler to cool down for 3 to 4 hours
before placing wine bottles in the Beverage cooler.
10
Press once to turn the interior light ON or OFF
Press to begin adjusting the temperature
Press once to turn ON the cooler. Press and hold about 3 seconds to turn OFF
the cooler
Toggles the temperature display between Celsius and Fahrenheit
Temperature setting range：3-18℃(37℉-65℉)
Press the temperature in 1 degree increments
Press the temperature in 1 degree decrements
Storage
Many cans and bottles may differ in size and dimensions. As such the actual number of bottles
you may be able to store may vary..
Door Lock
This cooler can be secured with a lock and key. The keys are located inside the plastic bag that
contains the Instruction Manual. Insert the key into the lock and turn it clockwise to lock the
door, making sure the metal pin is engaged completely. To unlock the door, do the reverse.
Remove the key and put it in a secure location.
When the lights are turned off, the lights will automatically turn on when the door is opened and
the lights will automatically turn off when the door is closed.
Light
Shelves
To remove the shelves from the track, pull each shelf out to the shelf post,as shown in figure A. Lift
it up again, then slowly pull the shelf out, as shown in figure B.
Figure A
Figure B
11

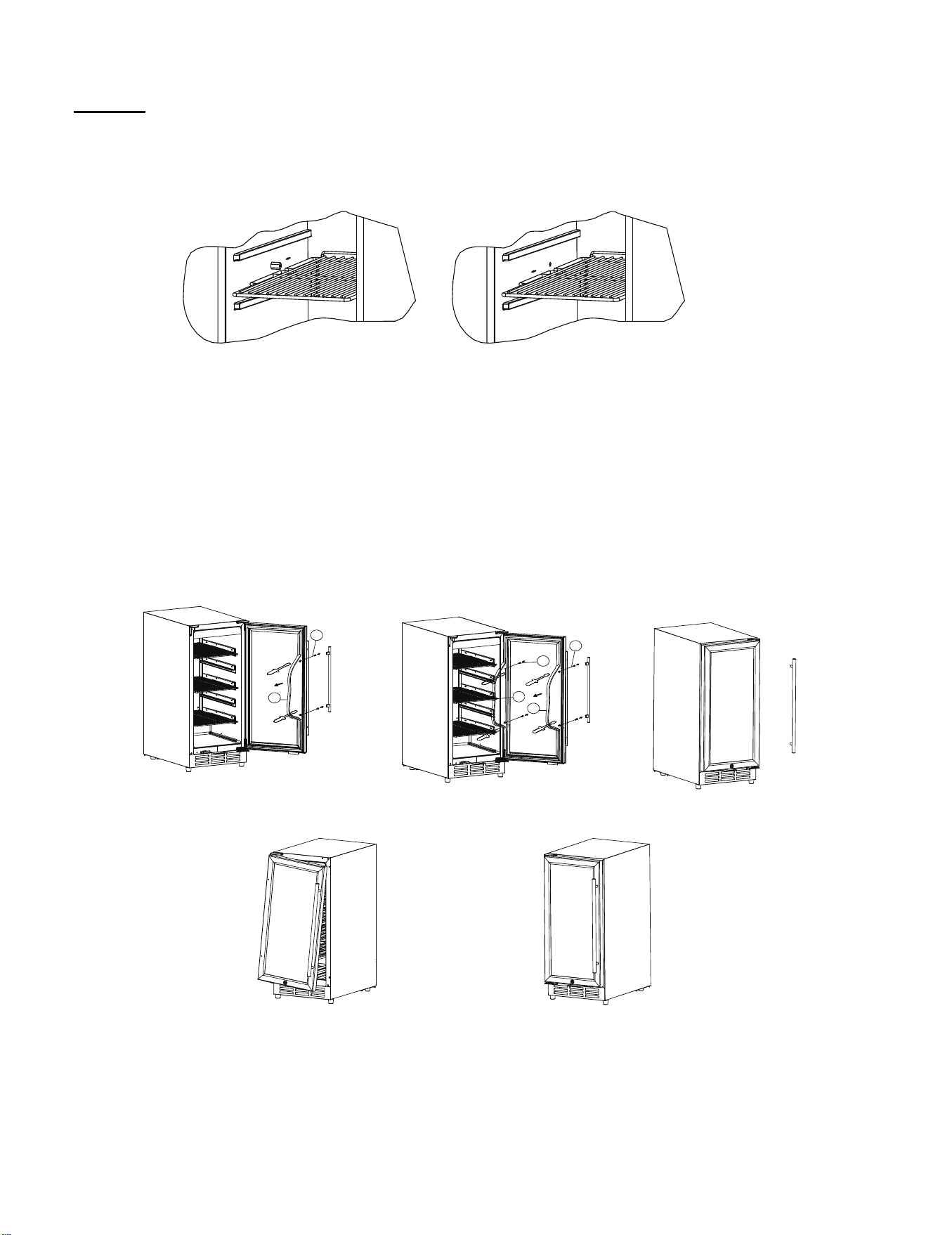

Reversing the door
Model:YC-100C Glass Door
The door is reversible. The default way to open the door is from the left. If you need to reverse
SKU :ZX-BRU-03-HZ-HM
the door, follow these diagrams:
3
4
2
2
1
1
fig:4
fig:5
fig:1
fig:2
fig:3
12
CARE & MAINTENANCE
Cleaning Your Beverage cooler
IMPORTANT: Always unplug the cooler before cleaning or perfor ming maintenance. Never use
harsh cleansers or scouring pads to clean any part of the cooler.
.
Turn off the power, unplug the Beverage cooler, and remove all items including shelves.
.
Wash the inside surfaces with warm water and baking soda solution. The solution should
be about 2 tablespoons of baking soda to a quart of water.
.
Wash the shelves with a mild detergent soluti on.
.
Wring excess water out of the sponge or cloth when cleaning the area near the controls,
or any electrical parts.
Power failure
Most power failures are corrected within a few hours and shoul d not affect the temperature of
your Beverage cooler. If the power is off for an extended period of time, proper steps should be
taken to protect your contents.
Vacation Time
Leave the Beverage cooler operating during vacations of less than three weeks. For periods
longer than this, turn the Beverage cooler o ff and leave the door slightly ajar to prev e nt odor
from building inside the Beverage cooler.
.
Wash the outside cabinet with warm water and a mild liquid detergent. Rinse well and
wipe dry with a clean soft cloth. Do not use steel wool or steel brush to rub the stainless
steel, which will contamina te the stainless steel with steel par ticles and
rusting may
occur.
13
Moving Your Beverage cooler
-
Remove all items (bottles) f rom the cooler;
-
Securely tape down any loose items, such as shelves, i nside the cooler.
-
Turn the adjustable leg up to the base to avoid damage.
-
Tape the door shut.
-
Ensure that the Beverage cooler stays securely in the upright position during tra nsportation.
Protect the outside of the Beverage cooler with a blanket or a similar item.
Energy saving tips
- The cool e r should be located i n the coolest area of the roo m away from heat sources or direct
sunlight.
- Ensure that the cooler is adequately ventilated. Never cover air vents.
- Only open the cooler door for as long as necessary. Frequent opening of the door will affect
internal temperature.
14
TROUBLESHOOTING GUIDE
PROBLEM POSSIBLE CAUSE SOLUTION
The Beverage
cooler does not
run.
The Beverage cooler may not be
plugged in, or plug may be loose.
Ensure the Beverage cooler has been
plugged in properly.
The Beverage cooler is turned off.
Press to turn on th e cooler.
House fuse blown or tri pped circuit
breaker.
Check/replace fuse. Reset circuit
breaker.
The Beverage
cooler is not
cold eno ugh.
External environment may require a
higher setting.
Set a colder setting. Allow several h ours
for t
he temperature to stabilize.
The Beverage cooler has recently
been disconnected for a pe r i od of
time.
It takes 3-4 hours for the Beverage
cooler to cool down completely.
Prolonged or f r equent door
openings.
Open the door less often.
The door is not close d completely. Close the door properly.
The door gasket does n ot seal
properly.
Check the door gasket. Clean or change
gasket if necessary.
The comp r essor
turns on and of f
frequently.
The room temperature is hotter than
norma
l.
It’s normal fo r the Beverage cooler to
work harder under these conditions.
A large amount of contents has been
added to t he cooler.
A large amount of contents cause the
Beverage cooler to run more until the
desired temperature is reached.
Prolonged or f r equent door
openings.
Open the door less often.
The temperature has not been set
correctly.
Press either or to check
the set temperature, and set the
temperature properly.
The door is not close d completely. Close the door pr
operly.
The door gasket does n ot seal
properly.
Check the door gasket. Clean or change
gasket if necessary.
15
PROBLEM POSSIBLE CAUSE SOLUTION
The light does not
work.
Not plugged in. Plug the cooler in.
The circuit breaker tripped
or a bl own fuse.
Check the breaker and/or fuses.
The light button is “OFF”.
Press to turn the ligh t ON.
Vibrations.
The cooler is not leveled. Check to assure that th e cooler is level.
The bottles a r e vibrating.
Make sure the bottles d on
’
t touch each
others.
There is an object u nder the
cooler.
Remove the object under the cooler.
The cooler seem s to
make too m uc
h
noise.
The cooler is not level. Level the coole r .
Normal noise from the flow
of the r efrigerant
The rattling noise may come from the flow
of the r efrigerant, which is normal. As each
cycle ends, you may hea r gurgling sounds
caused by the flow of refrigerant in your
cooler. Contraction and expansion of the
inside walls m a y cause popping and
crackling noi se s.
The door will not
close properly.
The cooler is not level. Level the coole r .
The door was reversed and
not properly instal
led.
Re-install th e door properly.
The gasket is dirty. Clean the door gasket.
The shelves are out of
position.
Place the shelves properly.
Moisture build up on
interior or
exterior of the
Beverage cooler.
This is normal during high
humidity periods.
Lower the room humidity.
This is normal in high
temperature environment.
Move the cooler to a cooler place, and avoid
heat and sunlight.
Prolonged or f r equent door
openings.
Open the door less often.
The door does not seal
compl
etely.
Check door gaskets for proper seal.
Error Code:
E1-E2- E3-E4-E7-E8
A sensor has failed. Contact the customer service
