Overview
6
PRODUCT INFORMATION
Overview
You can find information about the individual products in the ew 100 G4 se-
ries under “ew 100 G4 series products”.
For information about the available accessories, see “Accessories”.
You can find information about the ew 100 G4 series frequency bank sys-
tem under “The frequency bank system”.
ew 100 G4 series products
7
ew 100 G4 series products
You can also find more information here:
• A variety of frequency variants are available from the individual prod-
ucts. You can find more information under “Product variants”.
•You can find technical specifications about the individual products un-
der “Specifications”.
• You can find information about installing the products under “Installing
and starting up ew 100 G4 series devices”.
• You can find information about operating the products under “Using
ew 100 G4 series devices”.
9

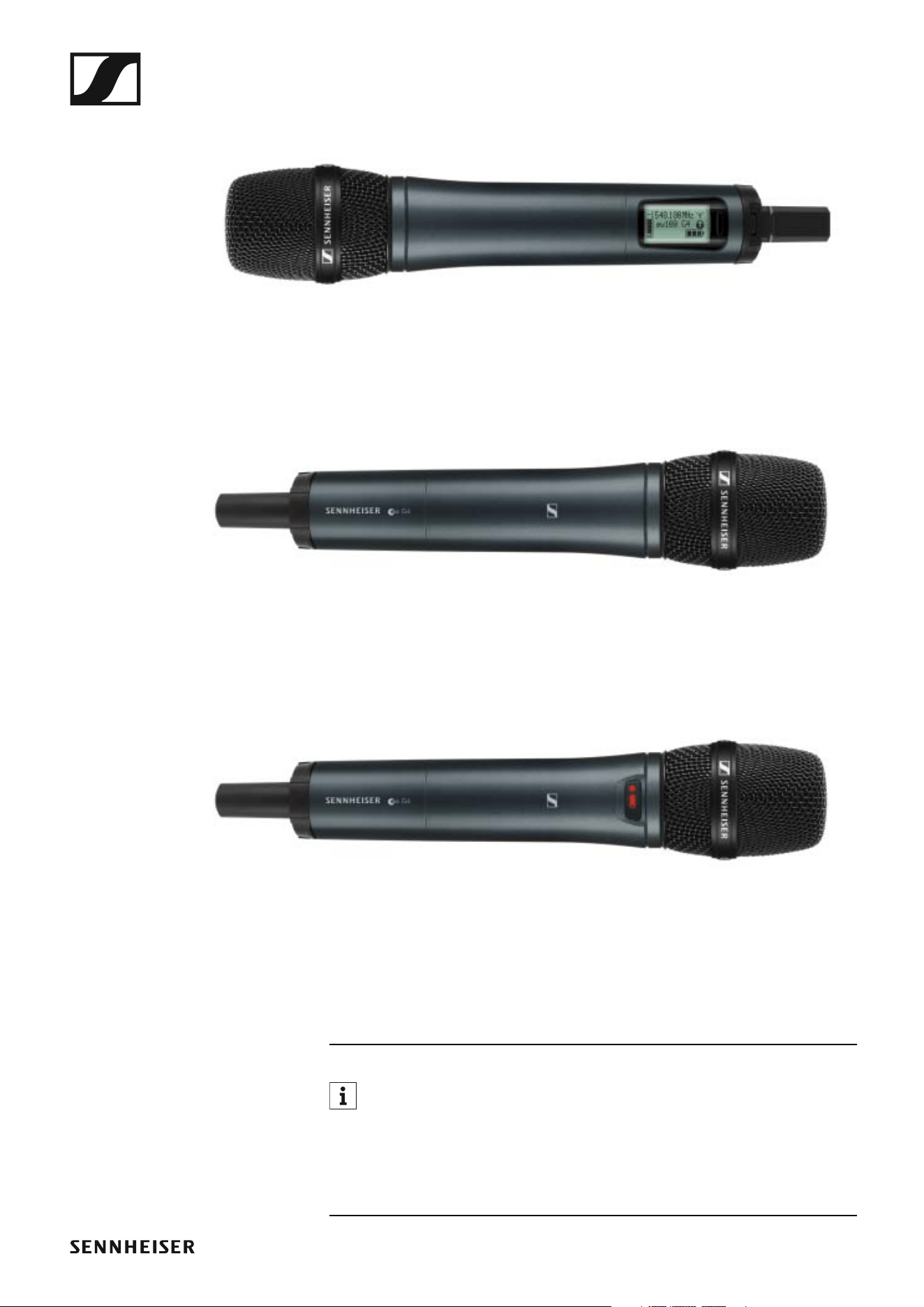

SKM 100 G4 handheld transmitter
►
SKM 100 G4 variant:
►
SKM 100 G4-S variant:
►
The SKM 100 G4 handheld transmitter is also available in the SKM 100 G4-
S variant with an integrated mute switch.
You can find more detailed information about the SKM 100 G4 in the
following sections:
• Installation and Startup: “Installing the SKM 100 G4”
• Operation: “Using the SKM 100 G4”
• Technical Data: “SKM 100 G4”

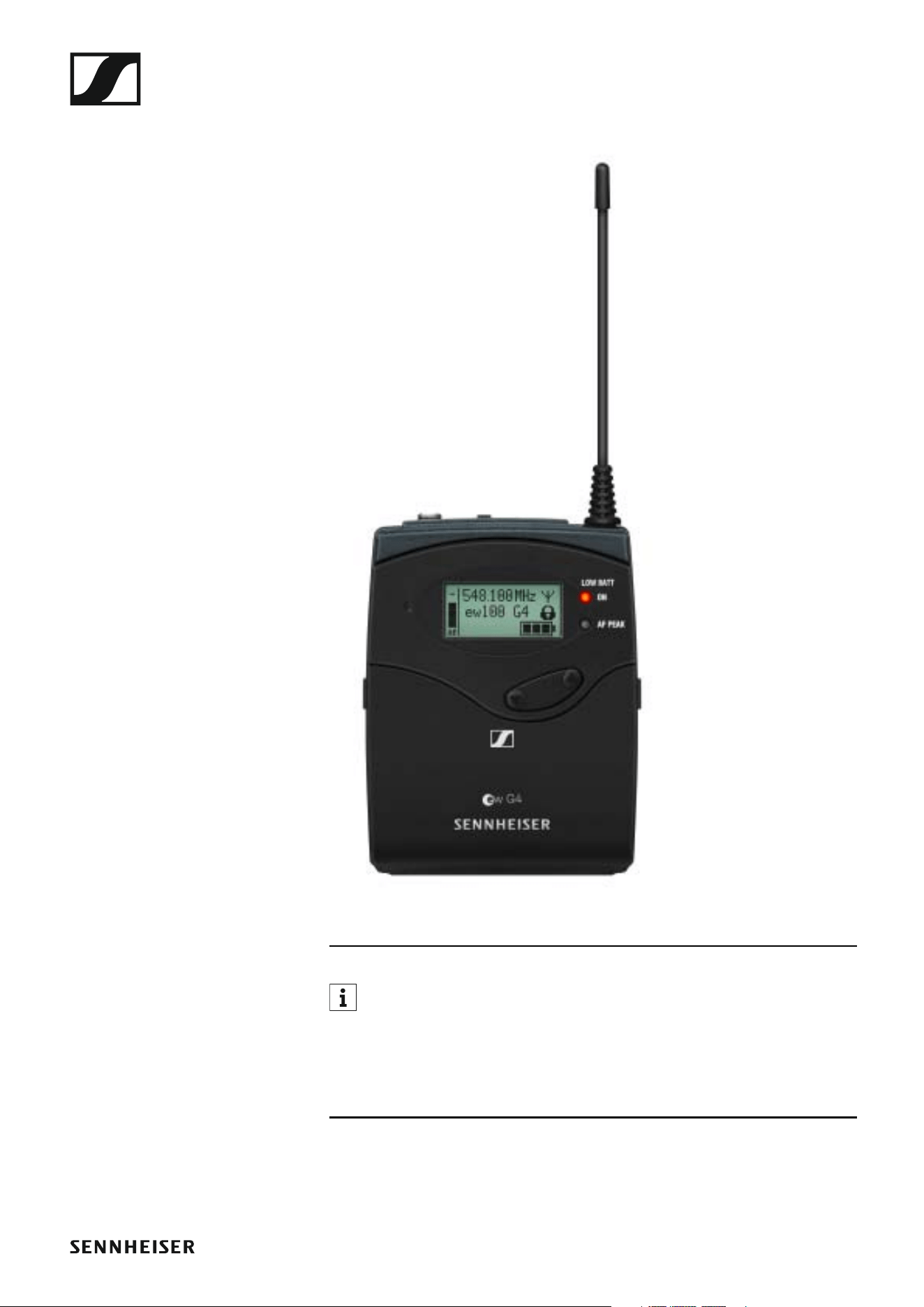

Accessories
11
Accessories
A variety of accessories are available for the ew 100 G4 series.
Accessories
12
Microphones and cables
Microphone modules
We recommend using the following microphone modules with the
SKM 100 G4 and SKM 100 G4-S handheld transmitters.
►
You can find more information about the individual microphone mod-
ules on their respective product pages at www.sennheiser.com.
Headset and Lavalier microphones
We recommend using the following Lavalier microphones and headset mi-
crophones with the SK 100 G4 bodypack transmitter.
►
Module Features Article
no.
MMD 835-1 BK Dynamic, cardioid, black 502575
MMD 845-1 BK Dynamic, super-cardioid, black 502576
MME 865-1 BK Capacitor, super-cardioid, black 502581
MMD 935-1 BK Dynamic, cardioid, black 502577
MMD 945-1 BK Dynamic, super-cardioid, black 502579
MMK 965-1 BK Capacitor, switchable
Cardioid/super-cardioid, black
502582
MMK 965-1 NI Capacitor, switchable
Cardioid/super-cardioid, nickel
502584
MMD 42-1 Dynamic, omni-directional, black 506772
Microphone Features Article
no.
ME 2-II Lavalier microphone, omni-direc-
tional, black
507437
ME 3-II Headset microphone, cardioid,
black
506295
ME 4-N Lavalier microphone, cardioid,
black
005020
MKE 1-ew Lavalier microphone, omni-direc-
tional, black
502876
MKE 1-ew-3 Lavalier microphone, omni-direc-
tional, beige
502879
MKE 2-ew Gold Lavalier microphone, omni-direc-
tional, black
009831
MKE 2 ew-3 Gold Lavalier microphone, omni-direc-
tional, beige
009832
MKE 40-ew Lavalier microphone, cardioid,
black
500527
Accessories
13
You can find more information about the individual microphones on
their respective product pages at www.sennheiser.com.

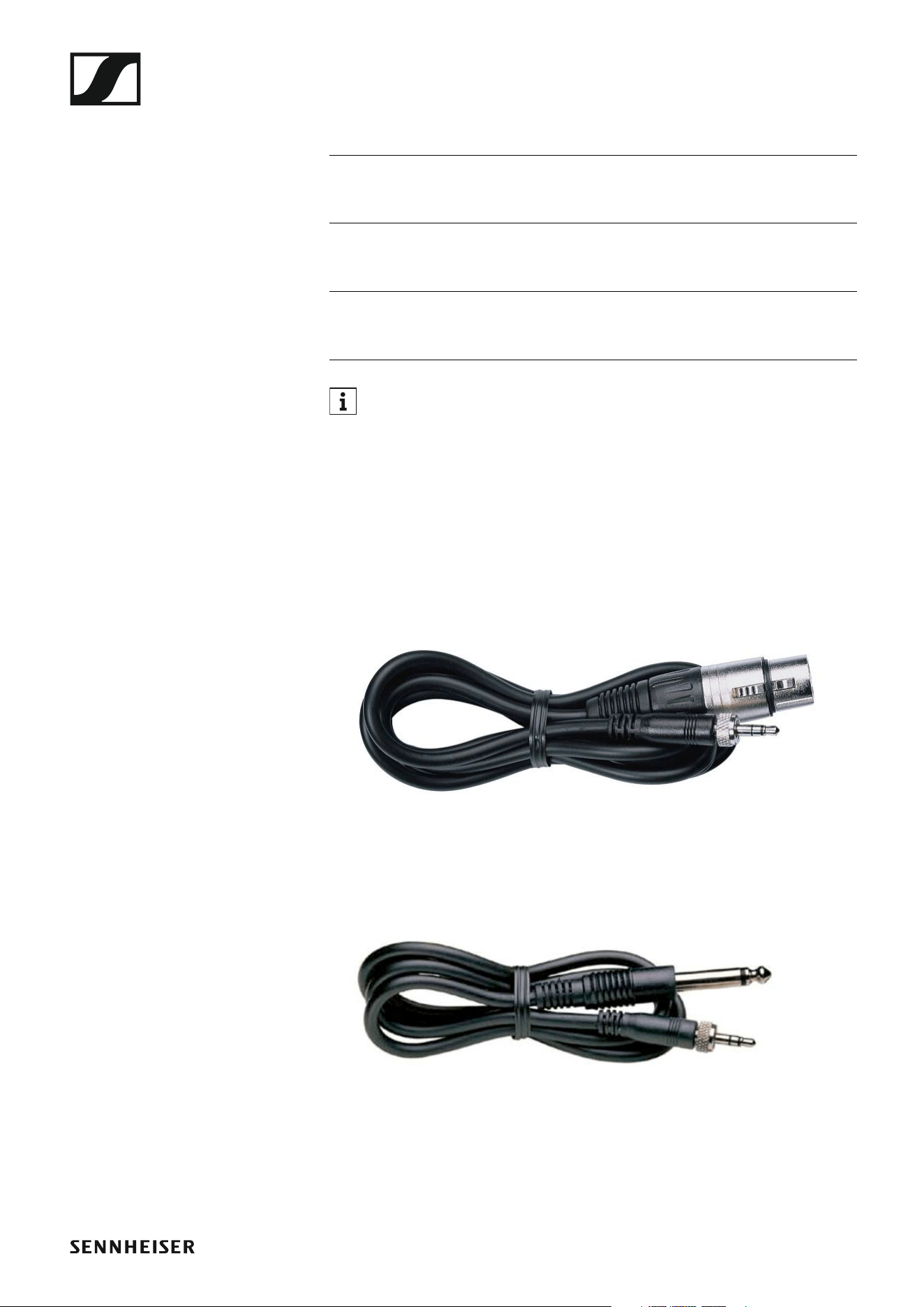

Line/instrument cables
The following cables are available to connect instruments and line sources
to the SK 100 G4 bodypack transmitter:
• Sennheiser CL 2
Line cable with XLR-3F plug on lockable 3.5 mm jack plug, article no.
004840
►
• Sennheiser Ci 1-N
Guitar cable with 6.3 mm jack plug on lockable 3.5 mm jack plug, article
no. 005021
►
SL Headmic 1 BE Headband microphone, omni-di-
rectional,
beige
506272
SL Headmic 1 BK Headband microphone, omni-di-
rectional,
black
506271
SL Headmic 1 SB Headband microphone, omni-di-
rectional,
silver
506904
Microphone Features Article
no.
Accessories
14

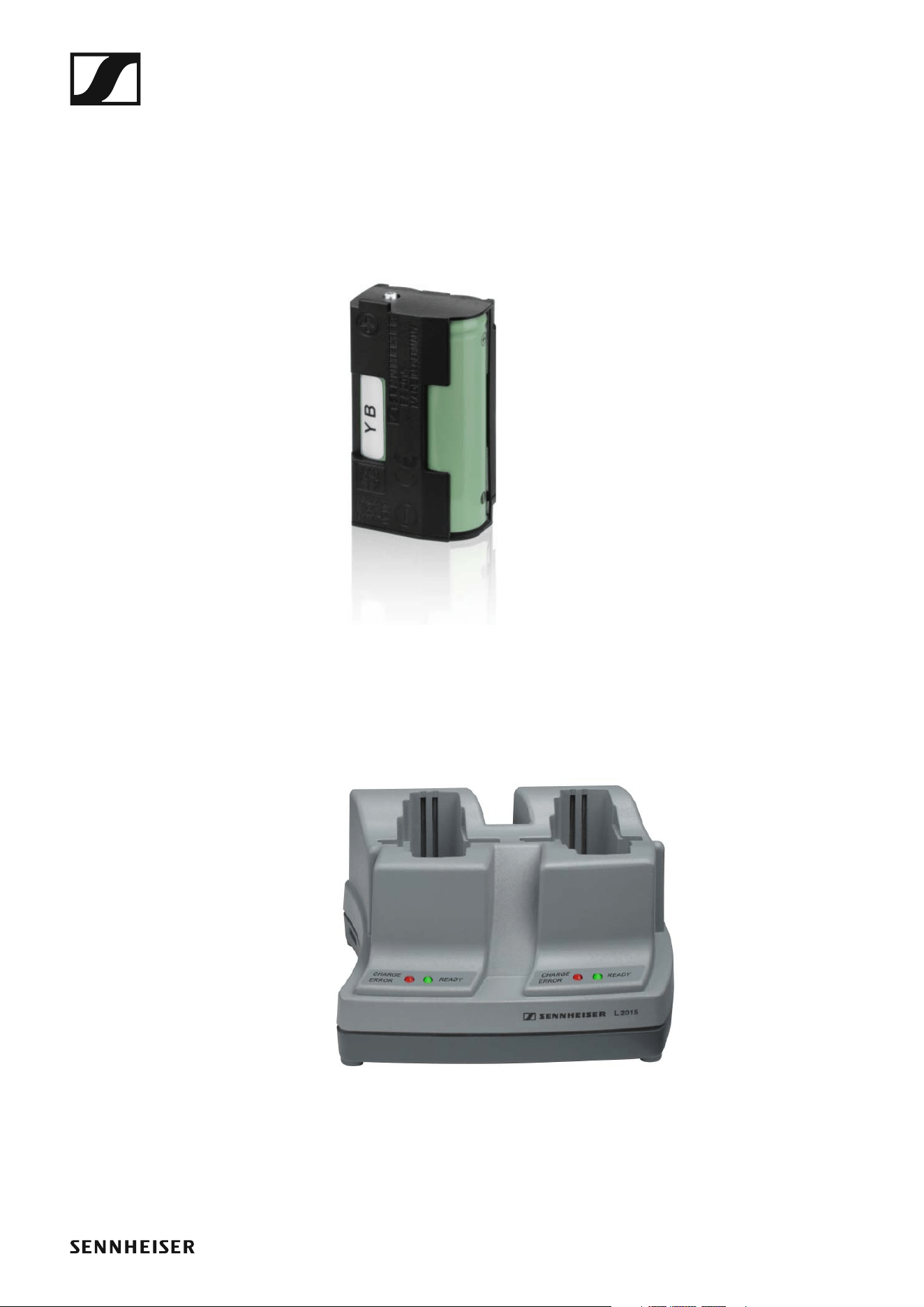

Rechargeable battery and charger
BA 2015 rechargeable battery
The BA 2015 rechargeable battery is designed for use with evolution wire-
less G4 series handheld transmitters, bodypack transmitters and
bodypack receivers.
Article no. 009950
►
L2015 charger
The BA 2015 rechargeable battery can be charged in the L 2015 charger on
its own or inside of the bodypack transmitter/bodypack receiver.
Article no. 009828
►
Accessories
15

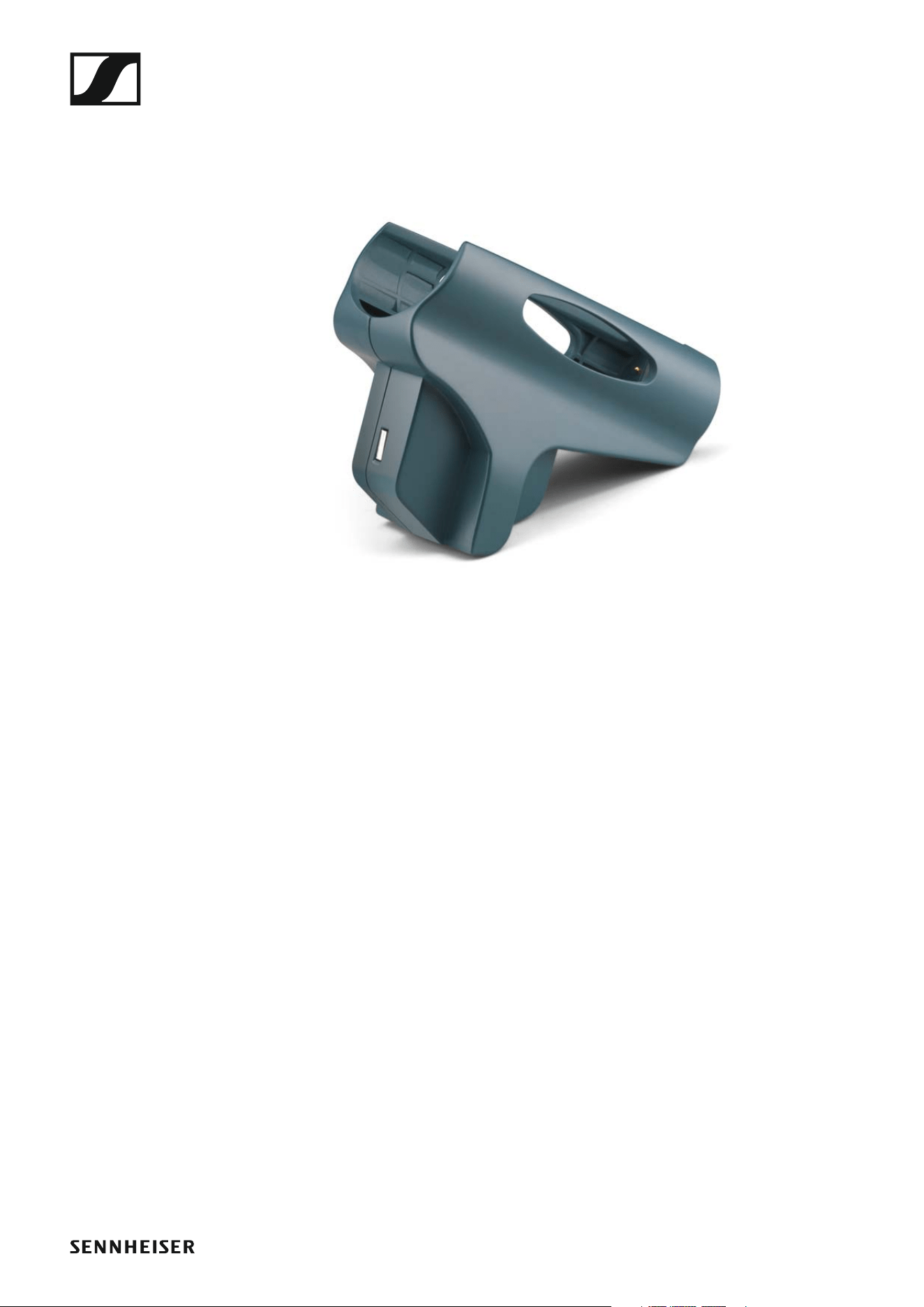

LA 2 charging adapter
Charging adapter for L 2015 charger for charging SKM G4 handheld trans-
mitters with installed BA 2015 rechargeable battery.
Article no. 503162
►
Accessories
16
Accessories for rack mounting

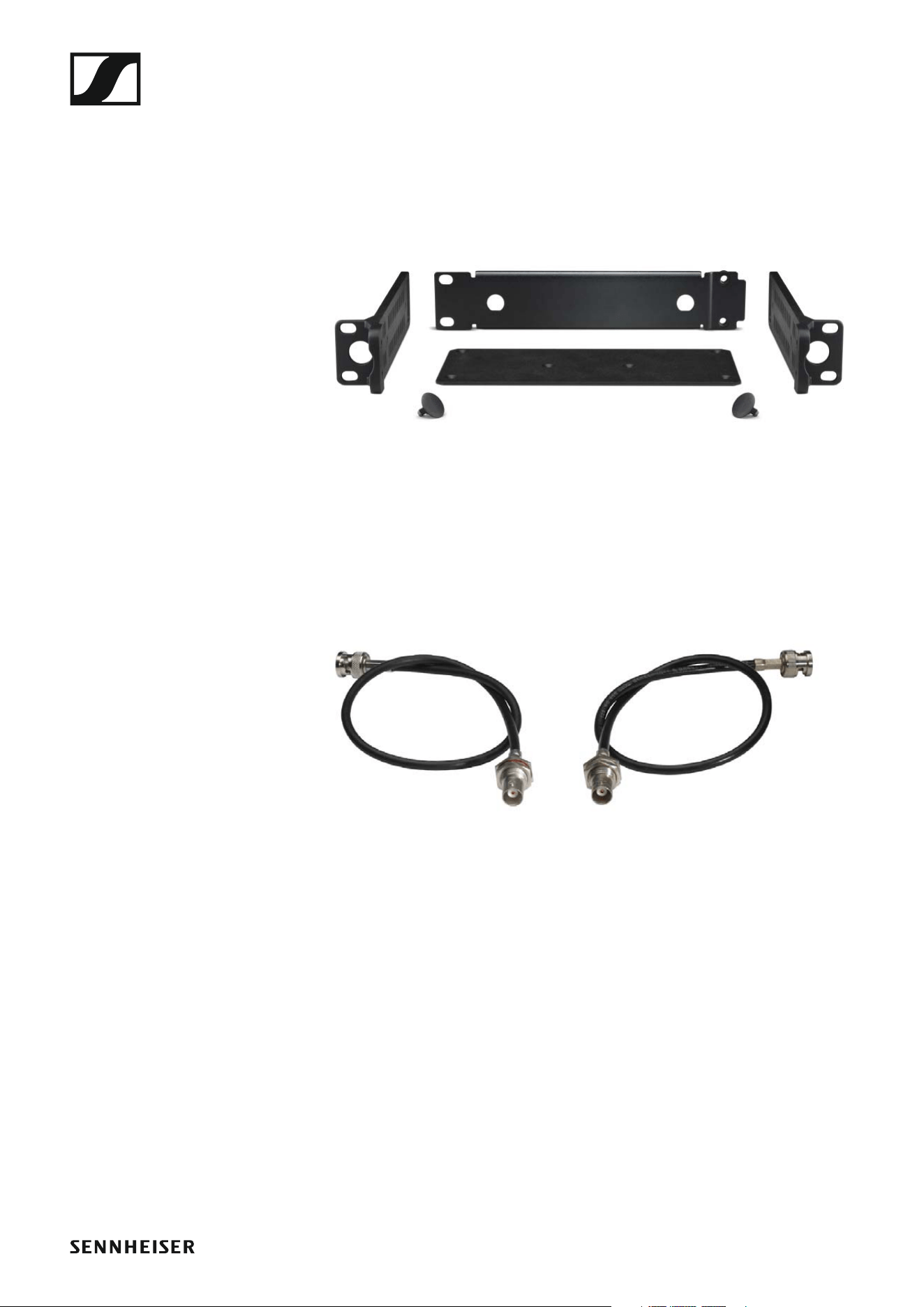

GA 3 rack mount kit
19” rack adapter for mounting the EM 100 G4, EM 300-500 G4 or
SR IEM G4 in a 19” rack.
Article no. 503167
►
AM 2 antenna front mounting kit
Antenna front mounting kit for installing antenna connections on the front
of the rack when using the EM 100 G4, EM 300-500 G4 or SR IEM G4 to-
gether with the GA 3 rack mounting kit.
Article no. 009912
►
►
Accessories
17
Antennas and accessories
The following antenna components are available as accessory parts.
Omni-directional antennas
• A 1031-U, passive omni-directional antenna, article no. 004645
Directional antennas
• A 2003 UHF, passive directional antenna, article no. 003658
• AD 1800, passive directional antenna, 1.8 GHz range, article no. 504916
Antenna splitter
►
• ASA 214, active antenna splitter 2×1:4
• ASA 214-UHF variant, 470 – 870 MHz, article no. 508241
• ASA 214-1G8 variant, 1785 – 1800 MHz, article no. 508242
• See “Installing the ASA 214” and “Using the ASA 214”
Antenna amplifiers
• AB 3700, broadband antenna amplifier, article no. 502196
• AB 3, antenna amplifier, up to 42 MHz bandwidth
• AB 3-A variant, frequency range A, article no. 502567
• AB 3-A1 variant, frequency range A1, article no. 507367
• AB 3-B variant, frequency range B, article no. 502568
• AB 3-C variant, frequency range C, article no. 502569
• AB 3-D variant, frequency range D, article no. 502570
• AB 3-E variant, frequency range E, article no. 502571
• AB 3-G variant, frequency range G, article no. 502572
• AB 3-GB variant, frequency range GB, article no. 504680
• AB 3-K variant, frequency range K, article no. 505550
• AB 3-1G8 variant, frequency range 1G8, article no. 504915
Antenna cables
• GZL 1019, BNC/BNC coaxial cable, antenna cable with 50 Ω character-
istic (wave) impedance
• GZL 1019-A1 variant, 1 m (3 ft), article no. 002324
• GZL 1019-A5 variant, 5 m (16 ft), article no. 002325
• GZL 1019-A10 variant, 10 m (32 ft), article no. 002326
Accessories
18
Additional accessories

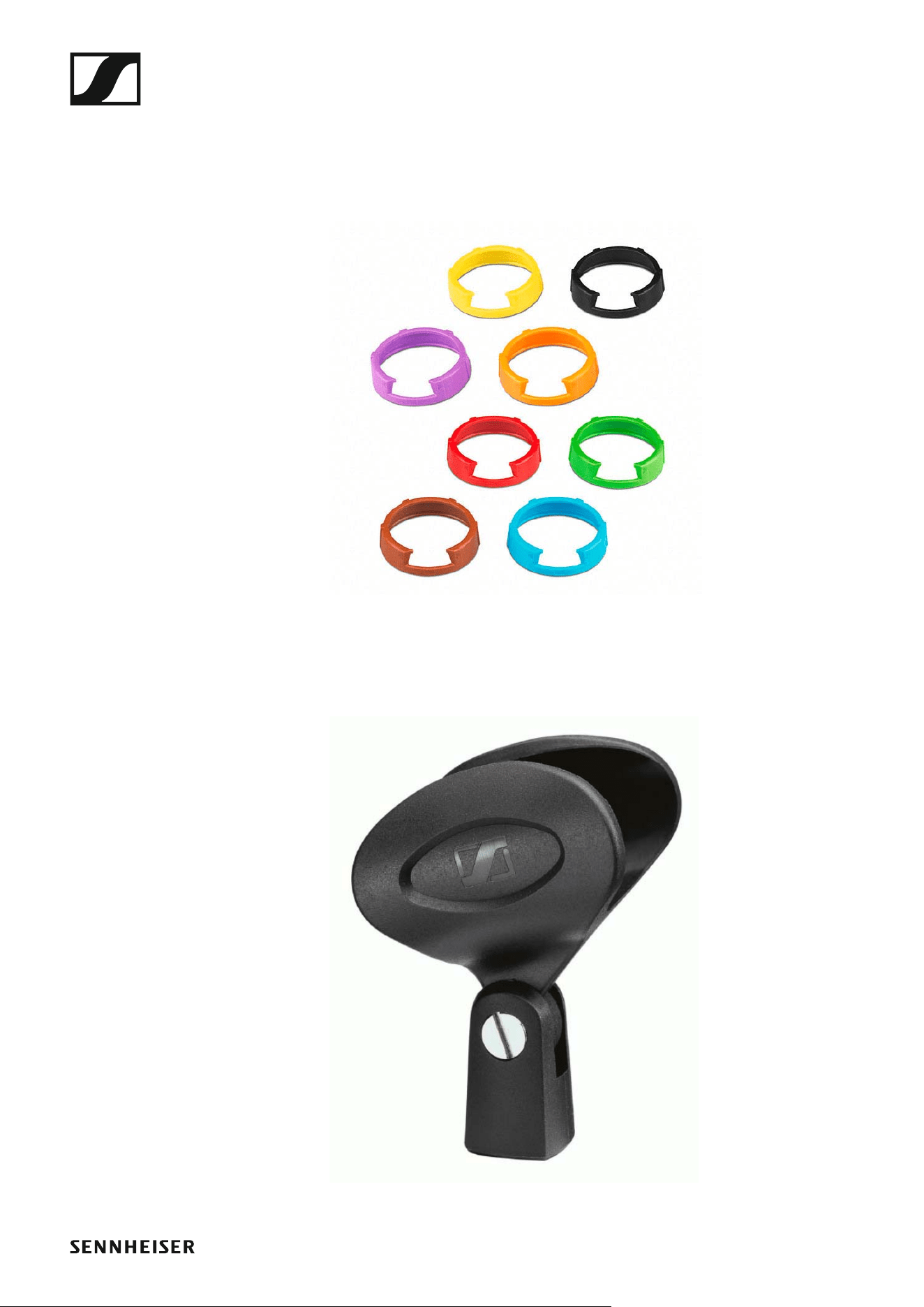

Color labeling set
• KEN 2, color labeling set for SKM handheld transmitters, article no.
530195
►
Microphone clamp
• MZQ 1, microphone clamp for SKM handheld transmitters, article no.
076670
►
The frequency bank system
19
The frequency bank system
There are different frequency ranges in the UHF band available for trans-
mission.
The following frequency ranges are available for the ew 100 G4 series:
• A1 range: 470 – 516 MHz
• A range: 516 – 558 MHz
• AS range: 520 – 558 MHz
• G range: 566 – 608 MHz
• GB range: 606 – 648 MHz
• B range: 626 – 668 MHz
• C range: 734 – 776 MHz
• D range: 780 – 822 MHz
• TH range: 794 – 806 MHz
• JB range: 806 – 810 MHz
• E range: 823 – 865 MHz
• K+ range: 925 – 937.5 MHz
• 1G8 range: 1785 – 1800 MHz

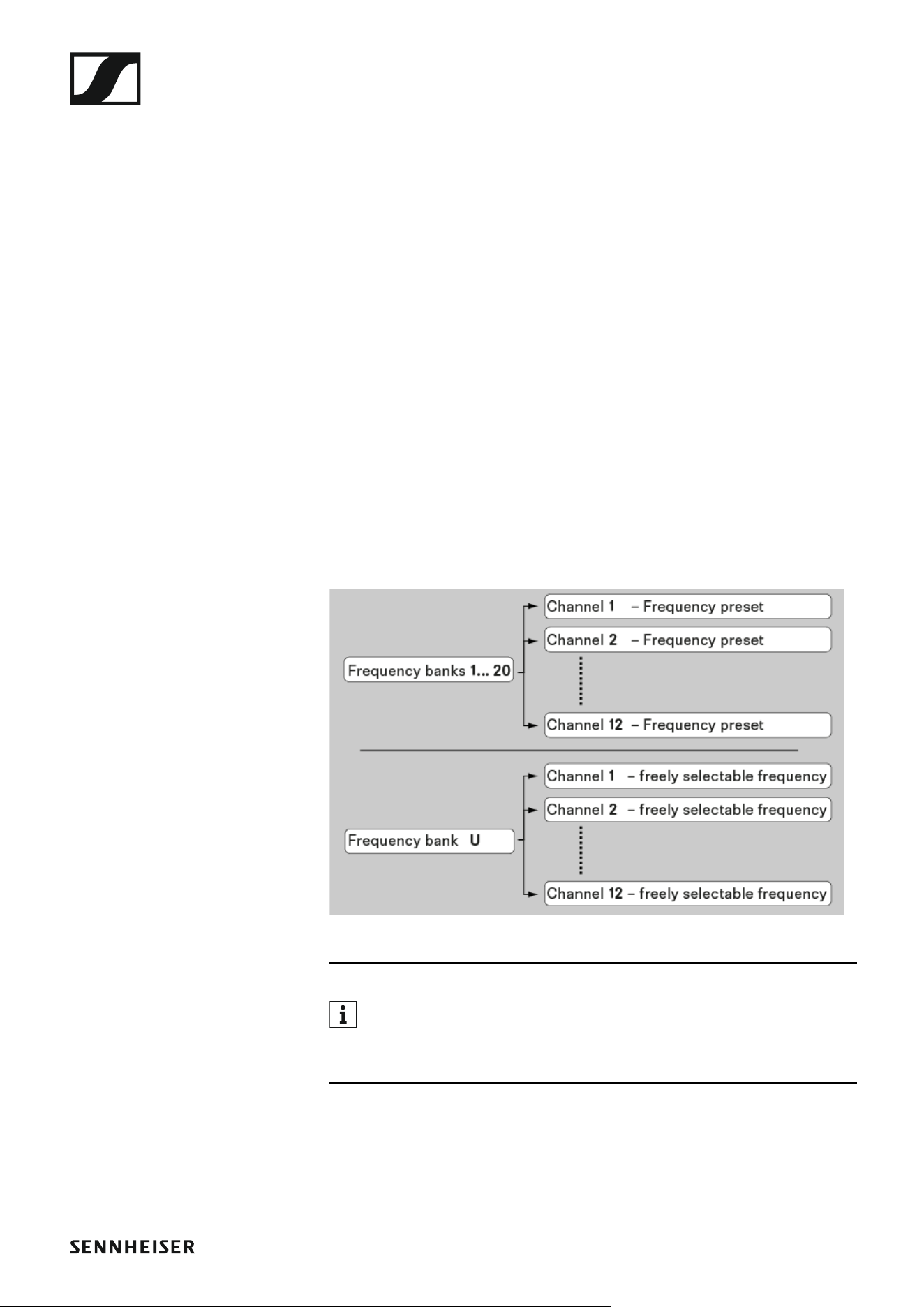

Every frequency range has 21 frequency banks with up to 12 channels:
►
You can find information about the frequency presets in the frequen-
cy tables of the respective frequency ranges under “Frequency ta-
bles”.
Installing and starting up ew 100 G4 series devices
20
INSTALLATION
Installing and starting up ew 100 G4 se-
ries devices

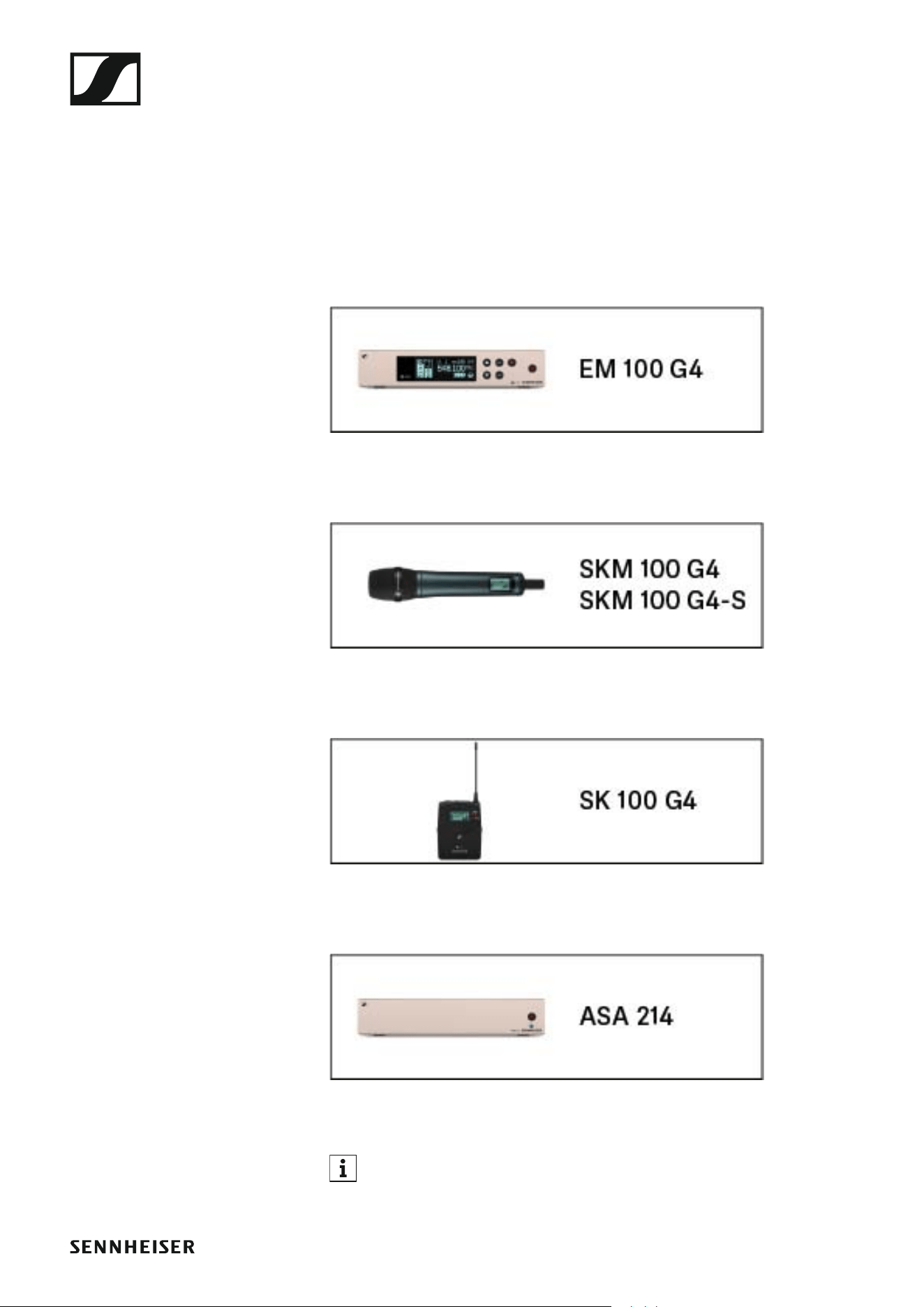

You can find information about installing and connecting ew 100 G4 series
devices in the following sections.

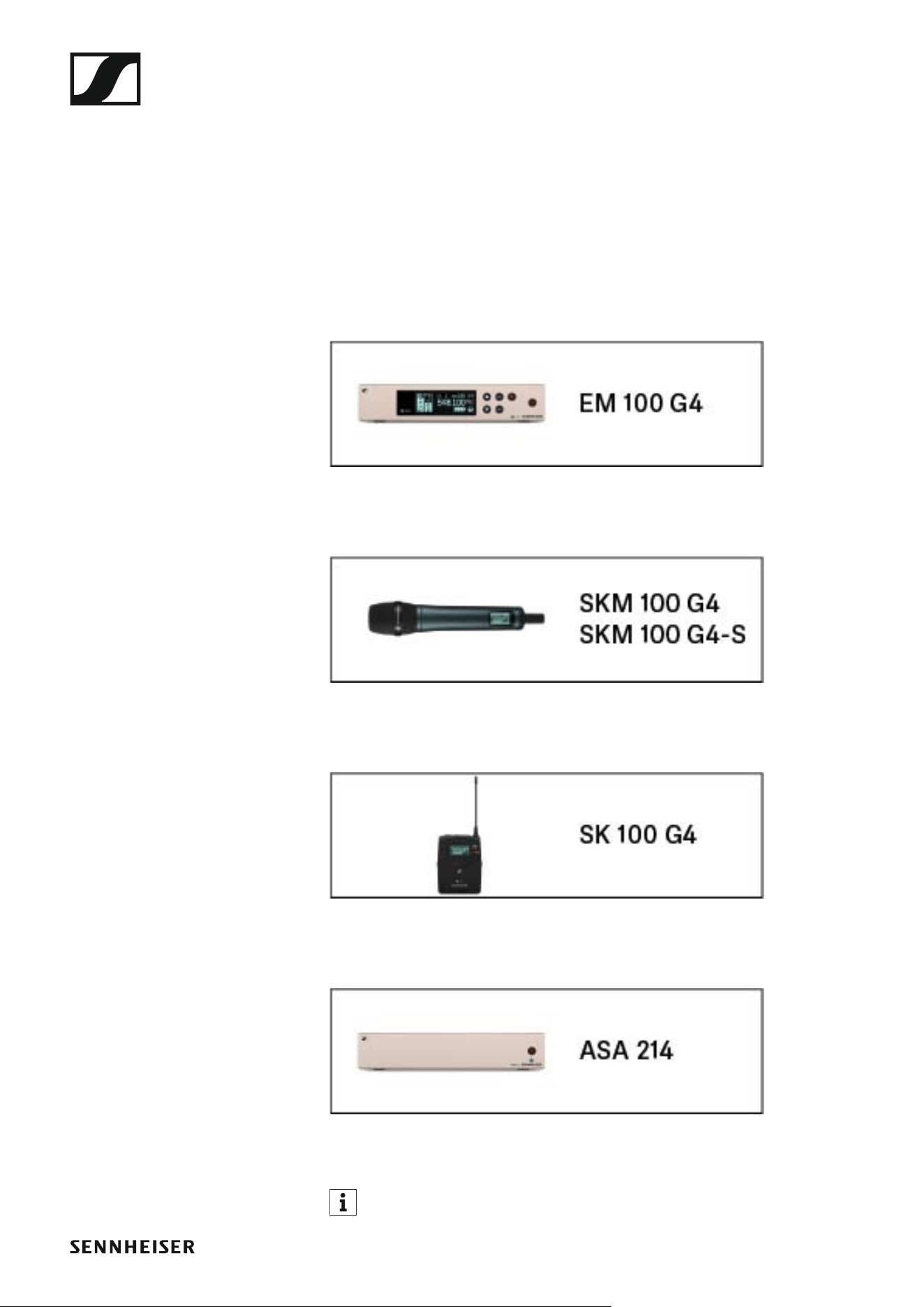

• EM 100 G4 rack receiver >> “Installing the EM 100 G4”
• SKM 100 G4(-S) handheld transmitter >> “Installing the SKM 100 G4”
• SK 100 G4 bodypack transmitter >> “Installing the SK 100 G4”
• ASA 214 antenna splitter>> “Installing the ASA 214”
You can find information about operating the products under “Using
ew 100 G4 series devices”.
Installing the EM 100 G4
22
Connectors on the rear of the device

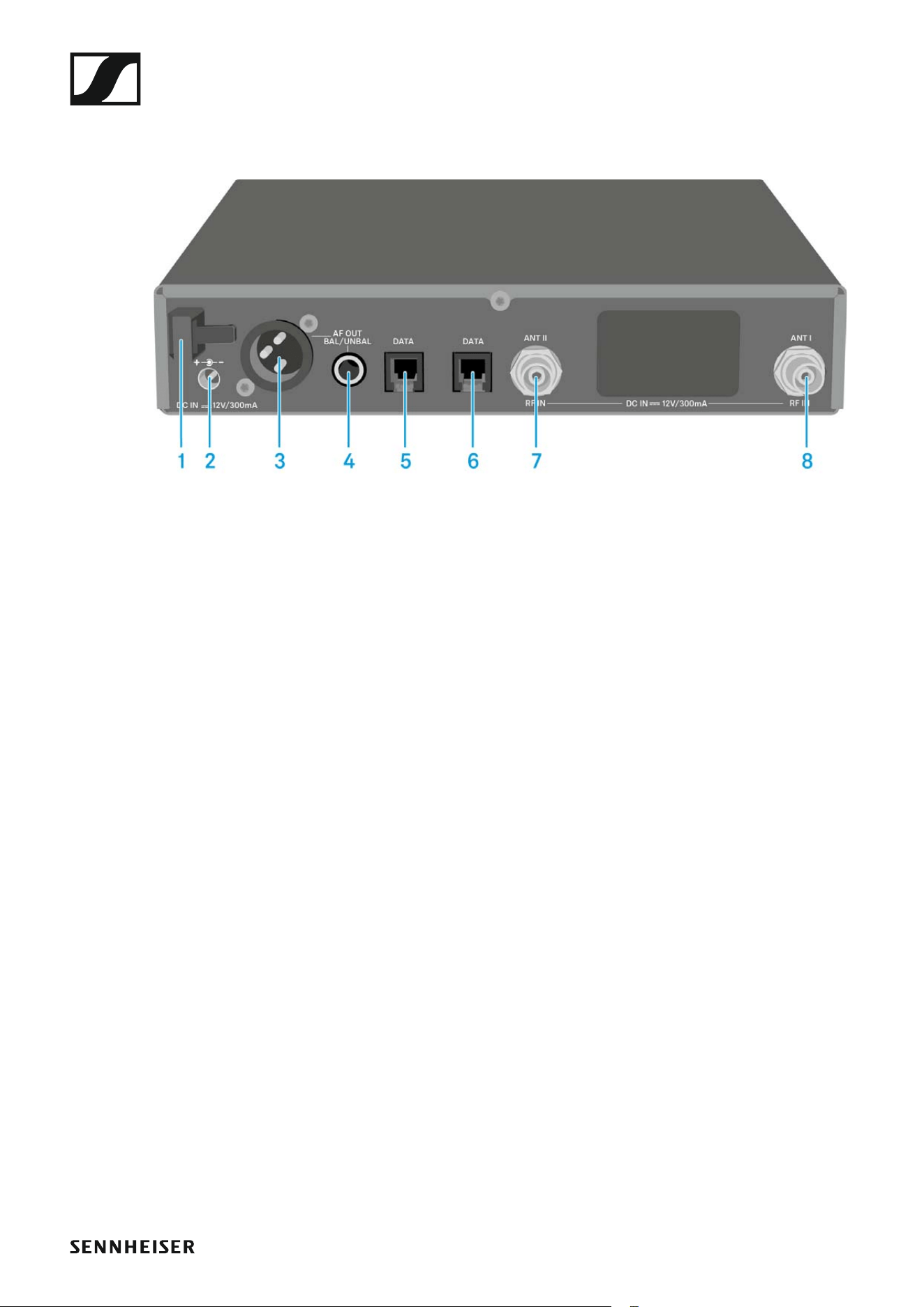

Product overview for the rear side of the EM 100 G4
►
1 Strain relief for the cable of the power supply unit
• See “Connecting/disconnecting the EM 100 G4 to/from the power
supply system”
2 Connecting cables for the power supply unit (DC IN)
• See “Connecting/disconnecting the EM 100 G4 to/from the power
supply system”
3 XLR-3 socket for audio output, balanced (AF OUT BAL)
• See “Outputting audio signals”
4 6.3 mm jack socket for audio output, unbalanced (AF OUT UNBAL)
• See “Outputting audio signals”
5 RJ-10 interface (DATA)
• See “Creating a data network”
6 RJ-10 interface (DATA)
• See “Creating a data network”
7 BNC socket, antenna input II (ANT II) with remote power supply unit
• See “Connecting antennas”
8 BNC socket, antenna input I (ANT I) with remote power supply unit
• See “Connecting antennas”
Installing the EM 100 G4
23
Connecting/disconnecting the EM 100 G4 to/from
the power supply system
Only use the supplied power supply unit. It is designed for your receiver
and ensures safe operation.

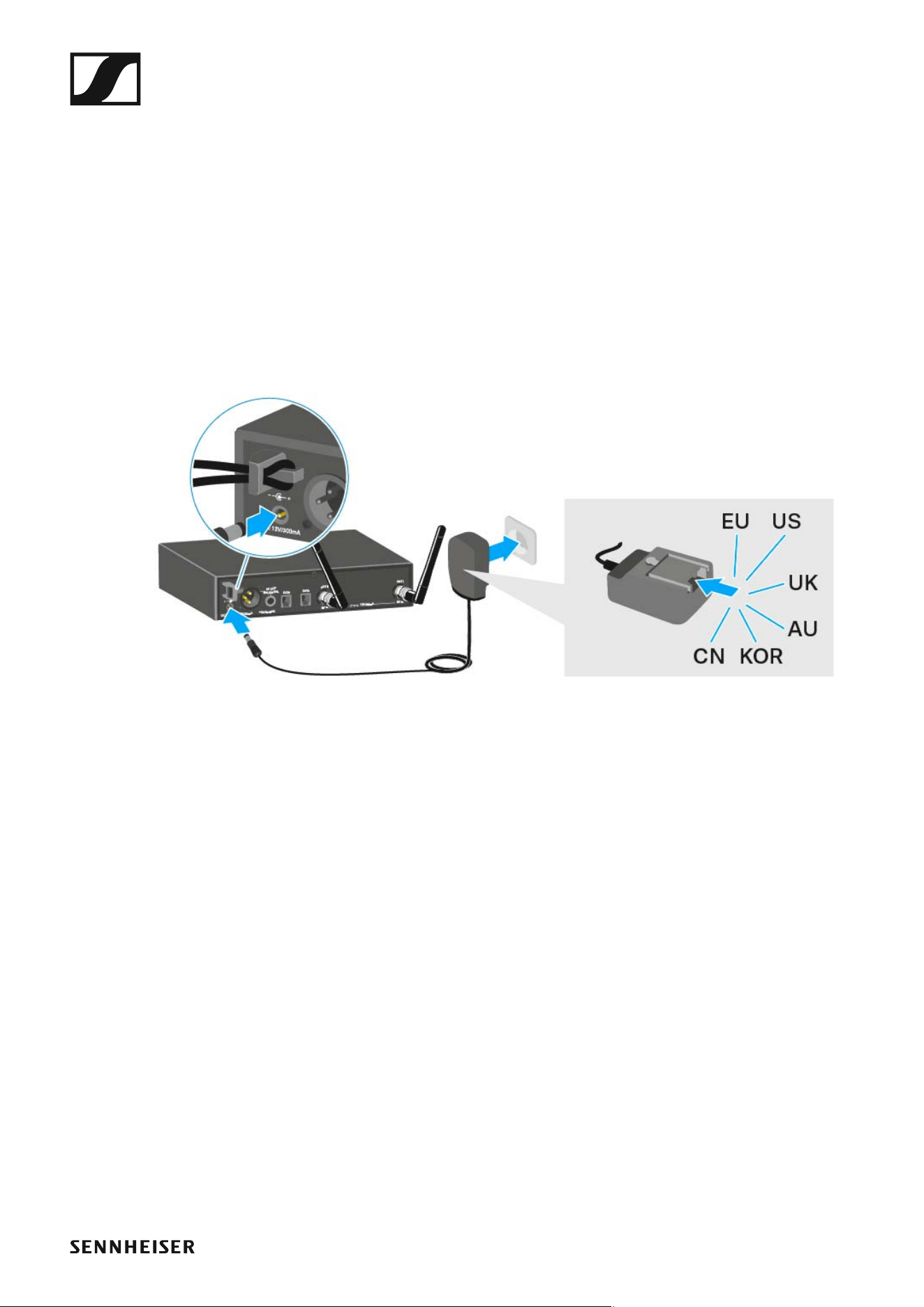

To connect the EM 100 G4 to the power supply system:
▷ Insert the plug of the power supply unit into the DC IN socket of the re-
ceiver.
▷ Pass the cable of the power supply unit through the cable grip.
▷ Slide the supplied country adapter onto the power supply unit.
▷ Plug the power supply unit into the wall socket.
To completely disconnect the EM 100 G4 from the power supply system:
▷ Unplug the power supply unit from the wall socket.
▷ Unplug the power supply unit from the DC IN socket of the receiver.
Installing the EM 100 G4
24
Creating a data network
You can cascade multiple EM 100 G4s to a multi-channel system using the
two DATA RJ-10 interfaces (up to 12 receivers). You can perform a frequen-
cy setup for the entire multi-channel system via this data network using the
Easy Setup function.
The setup only works when all of the receivers have the same frequency
range.

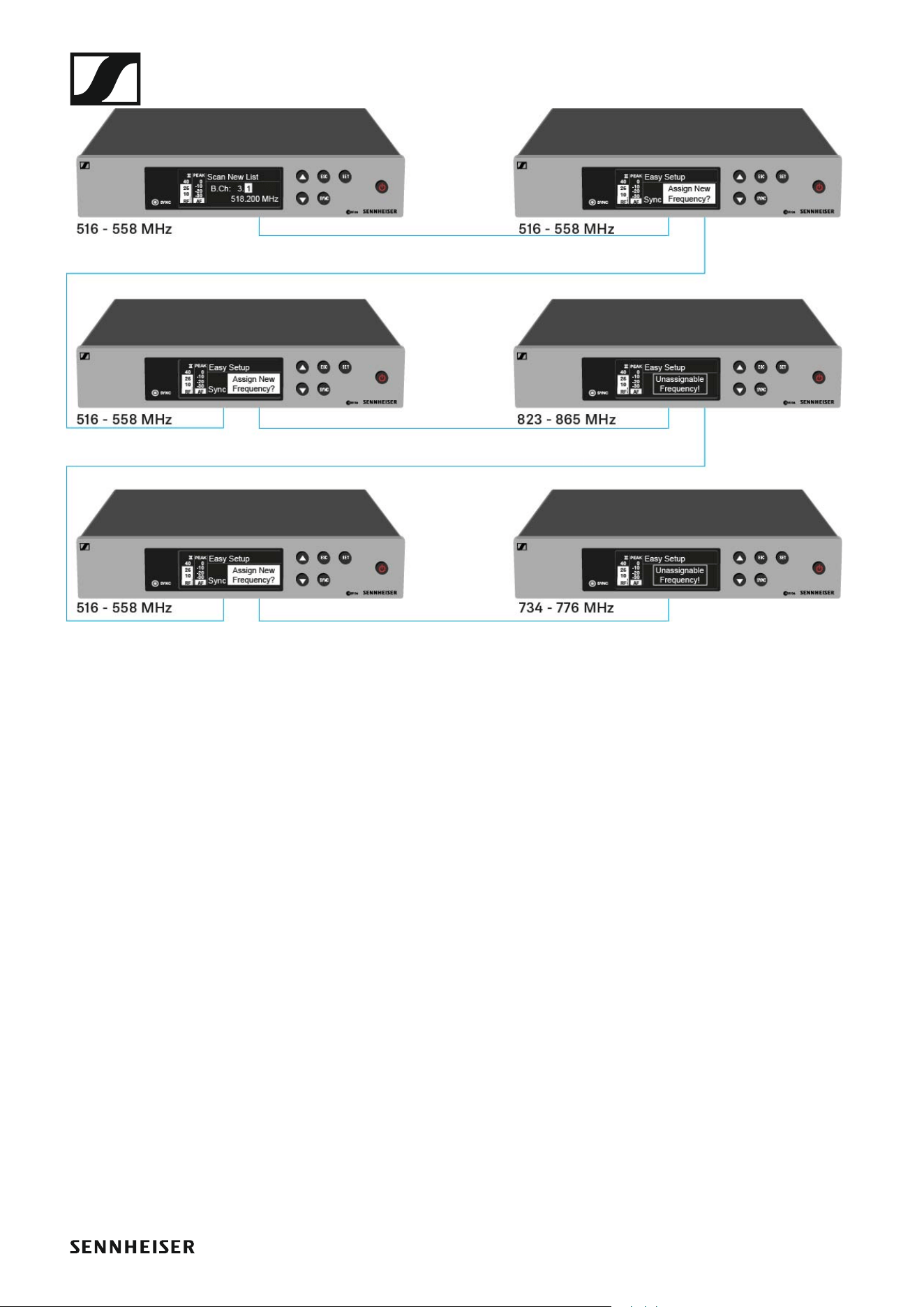

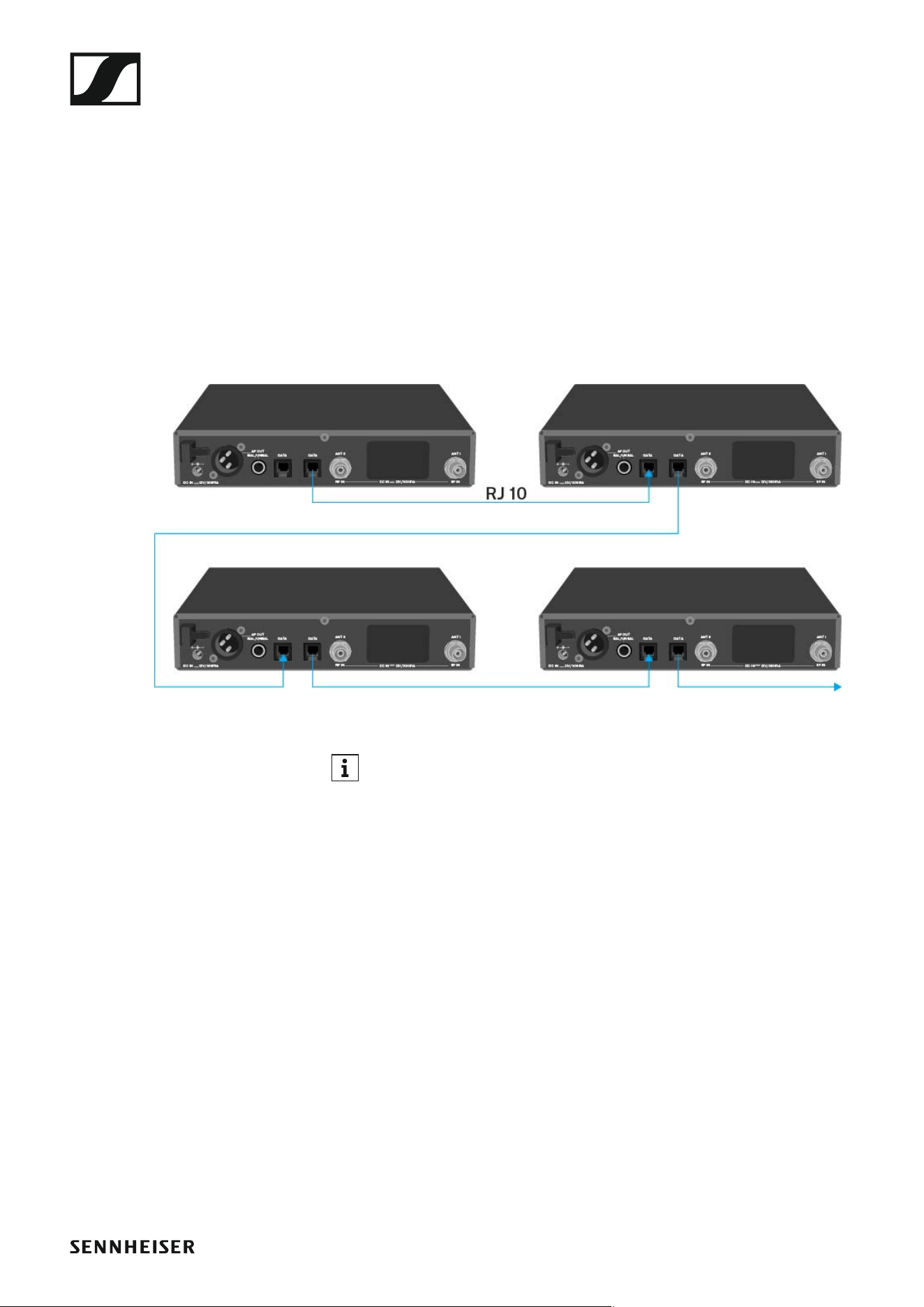

▷ Connect the receivers to create a multi-channel system using the sup-
plied RJ-10 cables as shown in the diagram.
Both RJ-10 sockets are interchangeable. There is no set order for ca-
bling.
►
You can find more information about the Easy Setup function under
“Easy Setup menu item”.
Installing the EM 100 G4
25
Setting up a multi-channel system with more than 12 receivers
You can use the Easy Setup function to automatically set up a maximum
of 12 receivers.
If you assign the frequencies manually, however, you can use up to 20 re-
ceivers in a multi-channel system (not possible in the TH, JB, K+ and 1G8
frequency ranges).

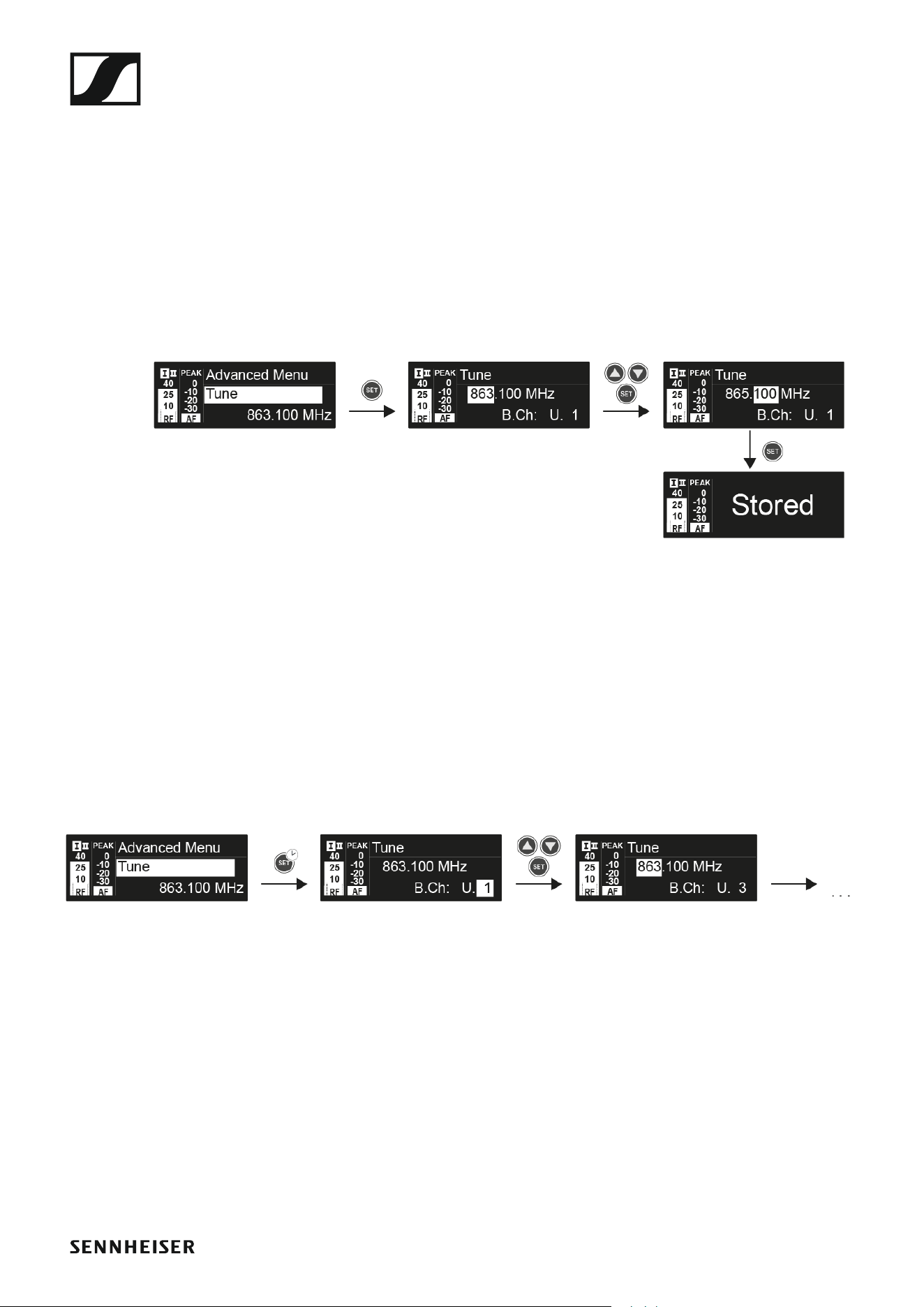

▷ To do so, set a frequency manually in each receiver (see “Advanced ->
Tune menu item”).

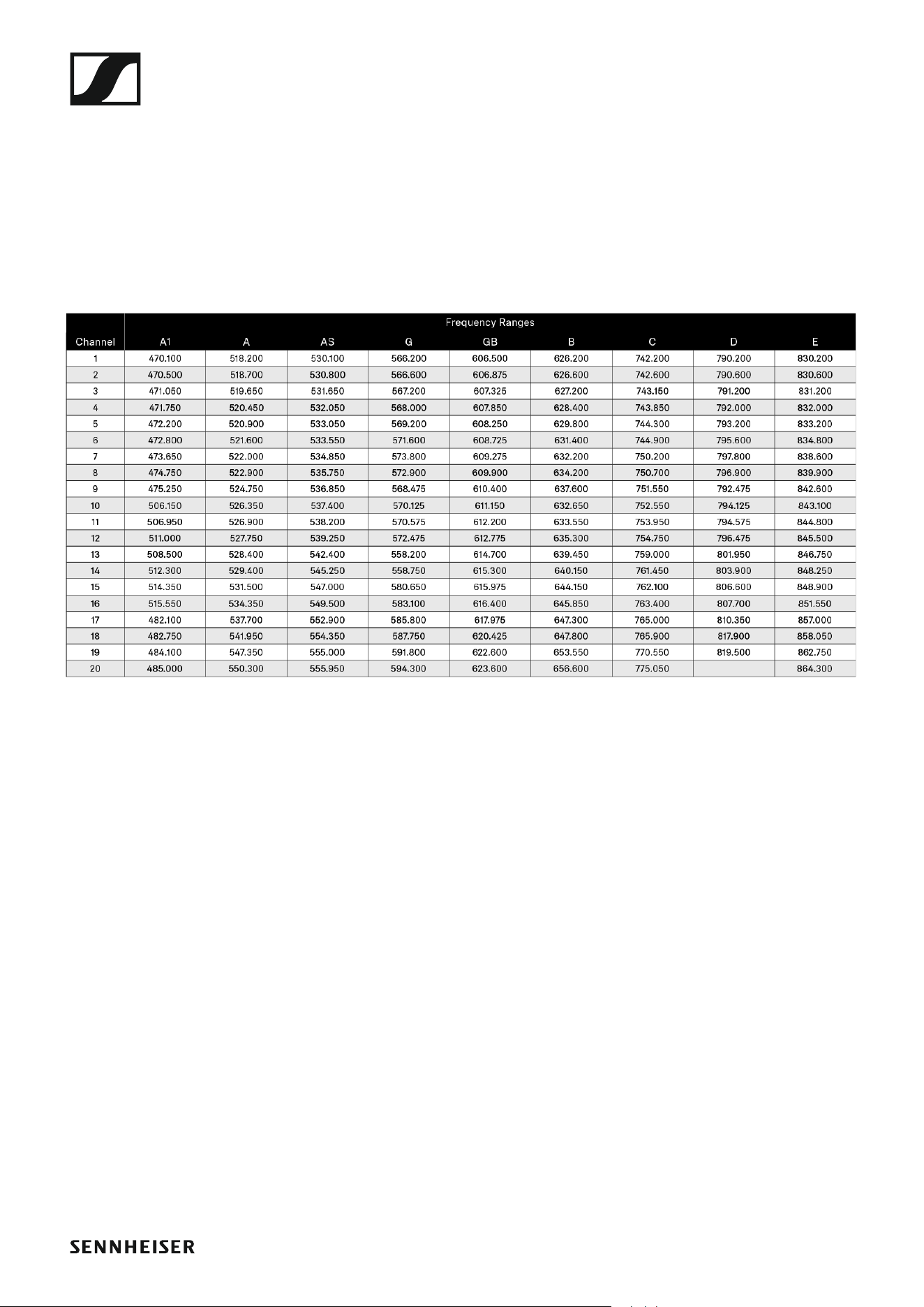

▷ Use the frequencies from the following table.
►
Installing the EM 100 G4
26

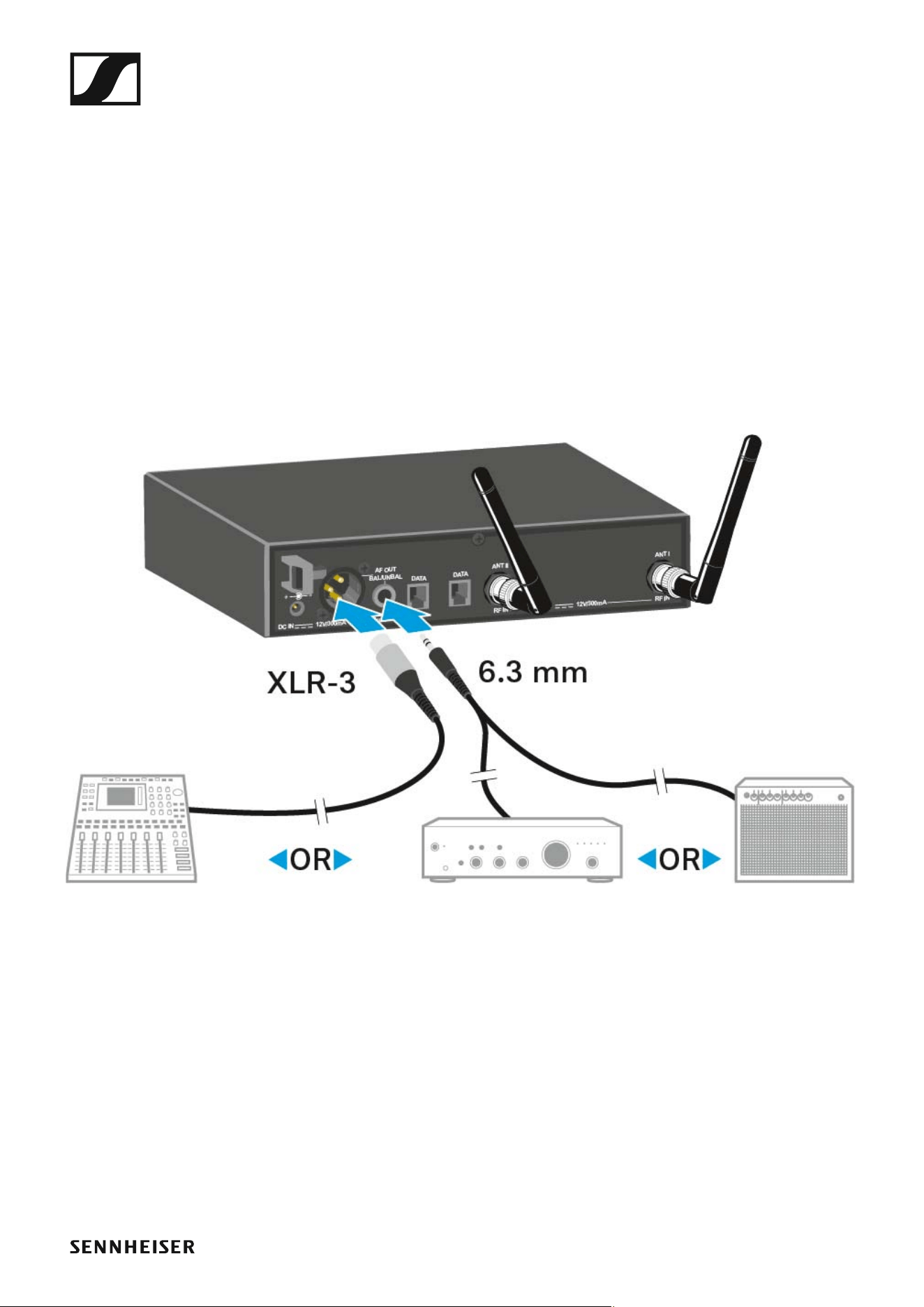

Outputting audio signals
The EM 100 G4 has a balanced XLR-3M output socket and an unbalanced
6.3 mm jack output socket.
▷ Always use only one of the two AF OUT output sockets for each chan-
nel.
To connect an XLR cable:
▷ Plug the XLR cable into the AF OUT BAL socket of the EM 100 G4.
To connect a jack cable:
▷ Plug the jack cable into the AF OUT UNBAL socket of the EM 100 G4.
Installing the EM 100 G4
27
Connecting antennas

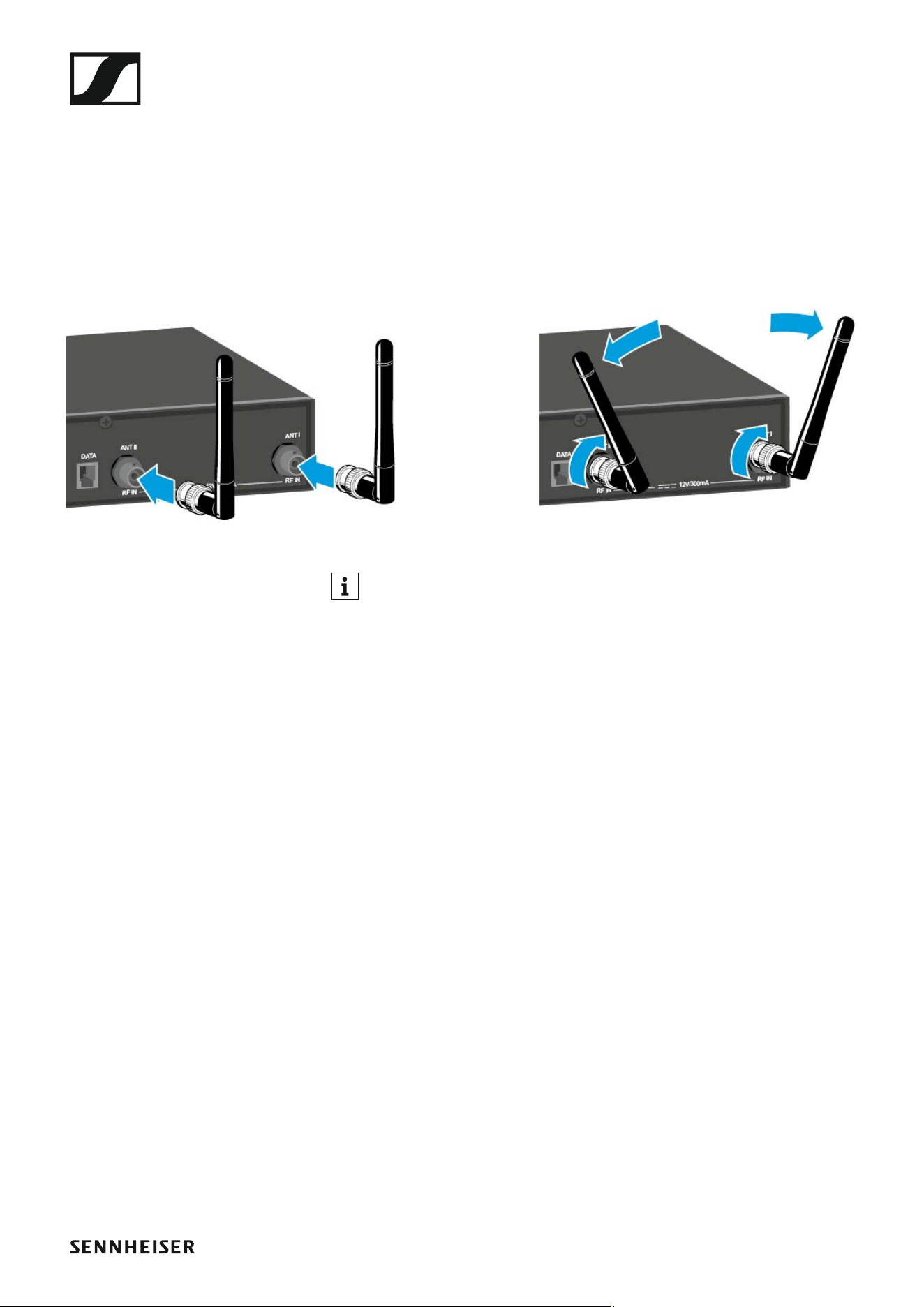

To connect the supplied rod antennas:
▷ Connect the first rod antenna to the ANT I socket on the rear side of the
EM 100 G4.
▷ Connect the second rod antenna to the ANT II socket on the rear side
of the EM 100 G4.
▷ Gently angle the rod antennas to the left and right as shown in the fig-
ure.
If you are using more than one receiver, we recommend using remote
antennas and the ASA 214 antenna splitter. You can find more infor-
mation here:
•“Installing the ASA214”
•“Using the ASA214”
Installing the EM 100 G4
28
Installing the EM 100 G4 in a rack
CAUTION
Rack mounting poses risks
When installing the device in a closed or multi-rack assembly, please con-
sider that, during operation, the ambient temperature, the mechanical
loading and the electrical potentials will be different from those of devices
which are not mounted into a rack.
▷ Make sure that the ambient temperature within the rack does not ex-
ceed the permissible temperature limit specified in the specifications.
See “EM 100 G4”.
▷ Ensure sufficient ventilation; if necessary, provide additional ventila-
tion.
▷ Make sure that the mechanical loading of the rack is even.
▷ When connecting to the power supply system, observe the information
indicated on the type plate. Avoid circuit overloading. If necessary, pro-
vide overcurrent protection.
▷ When rack mounting, please note that intrinsically harmless leakage
currents of the individual power supply units may accumulate, thereby
exceeding the allowable limit value. As a remedy, ground the rack via
an additional ground connection.
Installing the EM 100 G4
29
Mounting a single receiver in a rack
To mount the receiver in a rack, you will need the GA 3 rack mounting kit
(optional accessory).

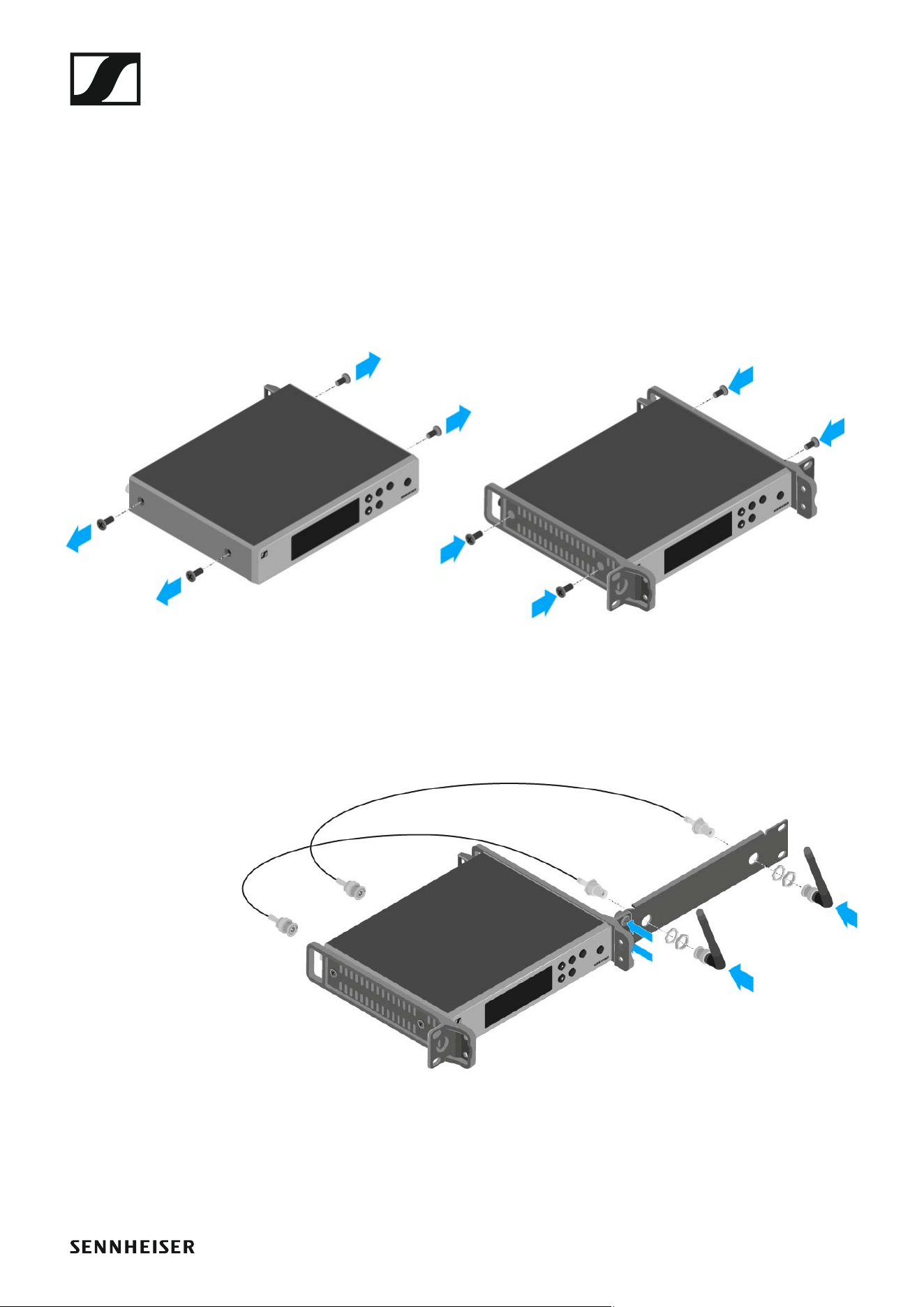

To fasten the mounting angle of the GA 3 rack mounting kit:
▷ Unscrew and remove the two recessed head screws (M4x8) on each
side of the receiver.
▷ Secure both of the the mounting angles to the sides of the receiver us-
ing the previously removed recessed head screws.
►
▷ Secure the blanking plate to one of the mounting angles using two re-
cessed head screws (M6x10).

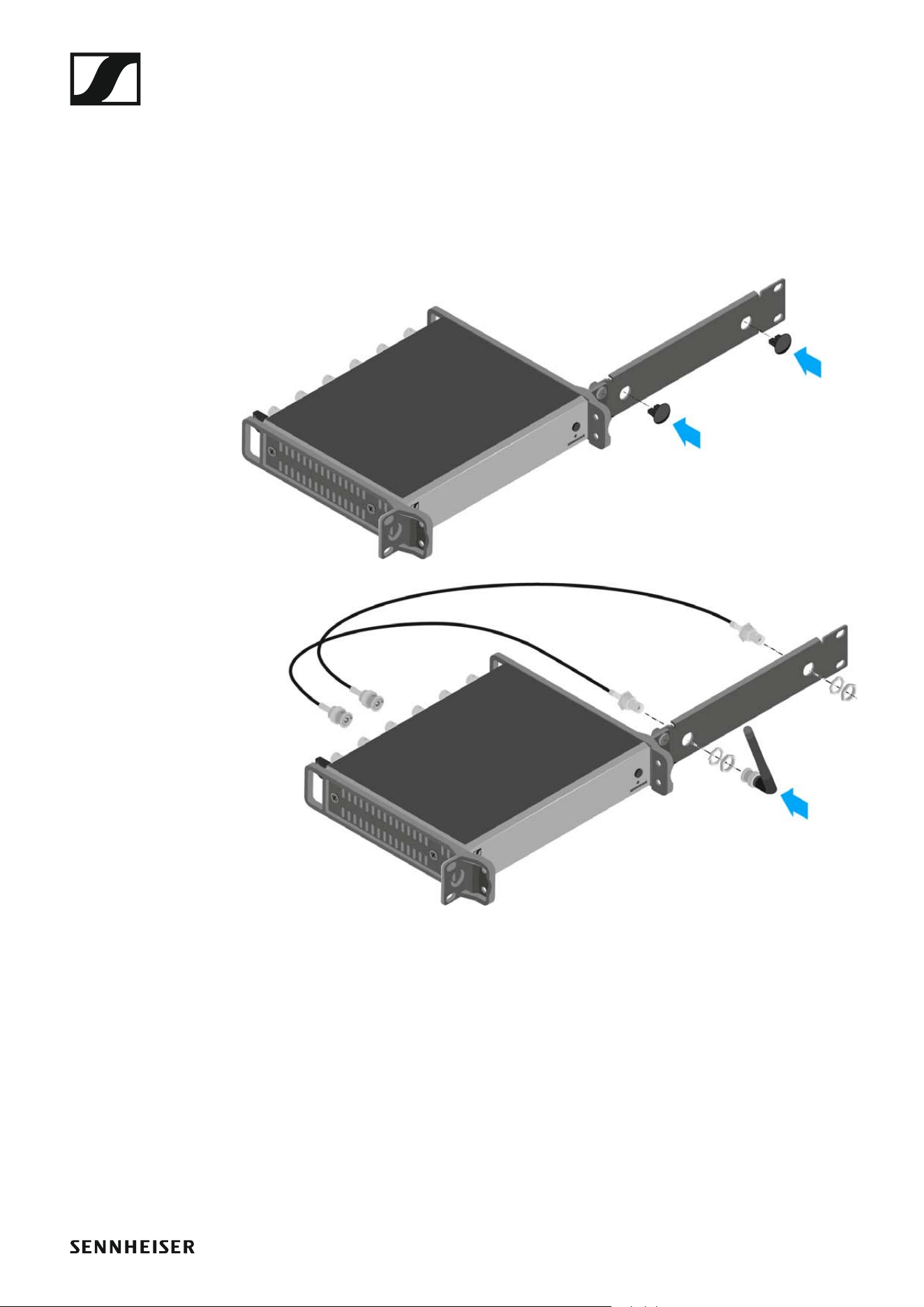

▷ Attach the AM 2 antenna front mounting set (optional accessory) and
mount the rod antennas on the blanking plate (right diagram).
►
▷ Slide the receiver with the mounted blanking plate into the 19" rack.
▷ Secure the mounting angle and the blanking plate to the 19" rack.
▷ Align the mounted antennas in a V-shape.
Installing the EM 100 G4
30
Mounting two receivers side by side in a rack
When you mount two receivers side by side, it is only possible to front
mount antennas when you use the ASA 214 antenna splitter in com-
bination with the AM 2 front mounting kit and an additional GA 3 rack
mounting kit,

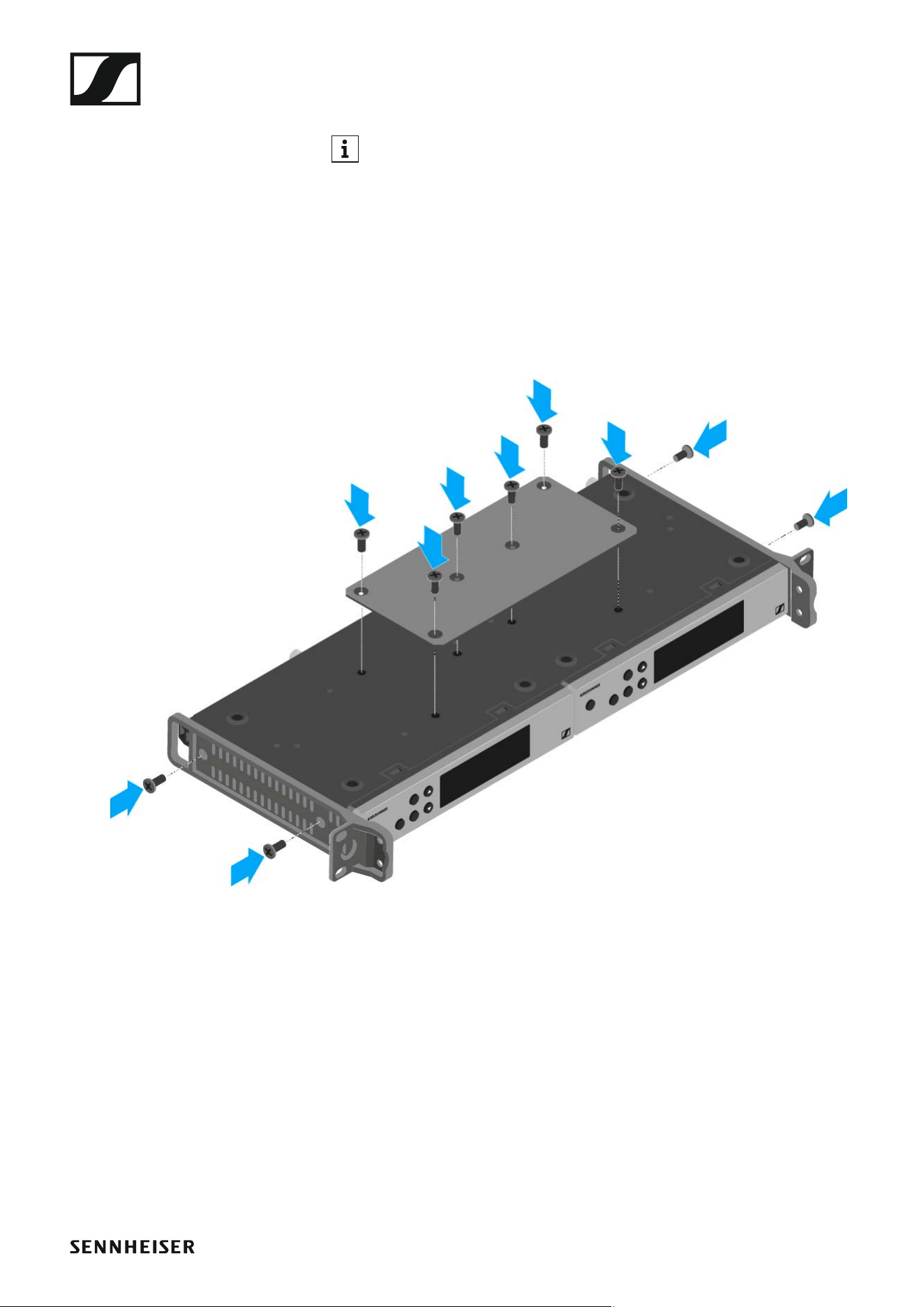

To mount the receiver using the GA 3 rack mounting kit (optional accesso-
ry):

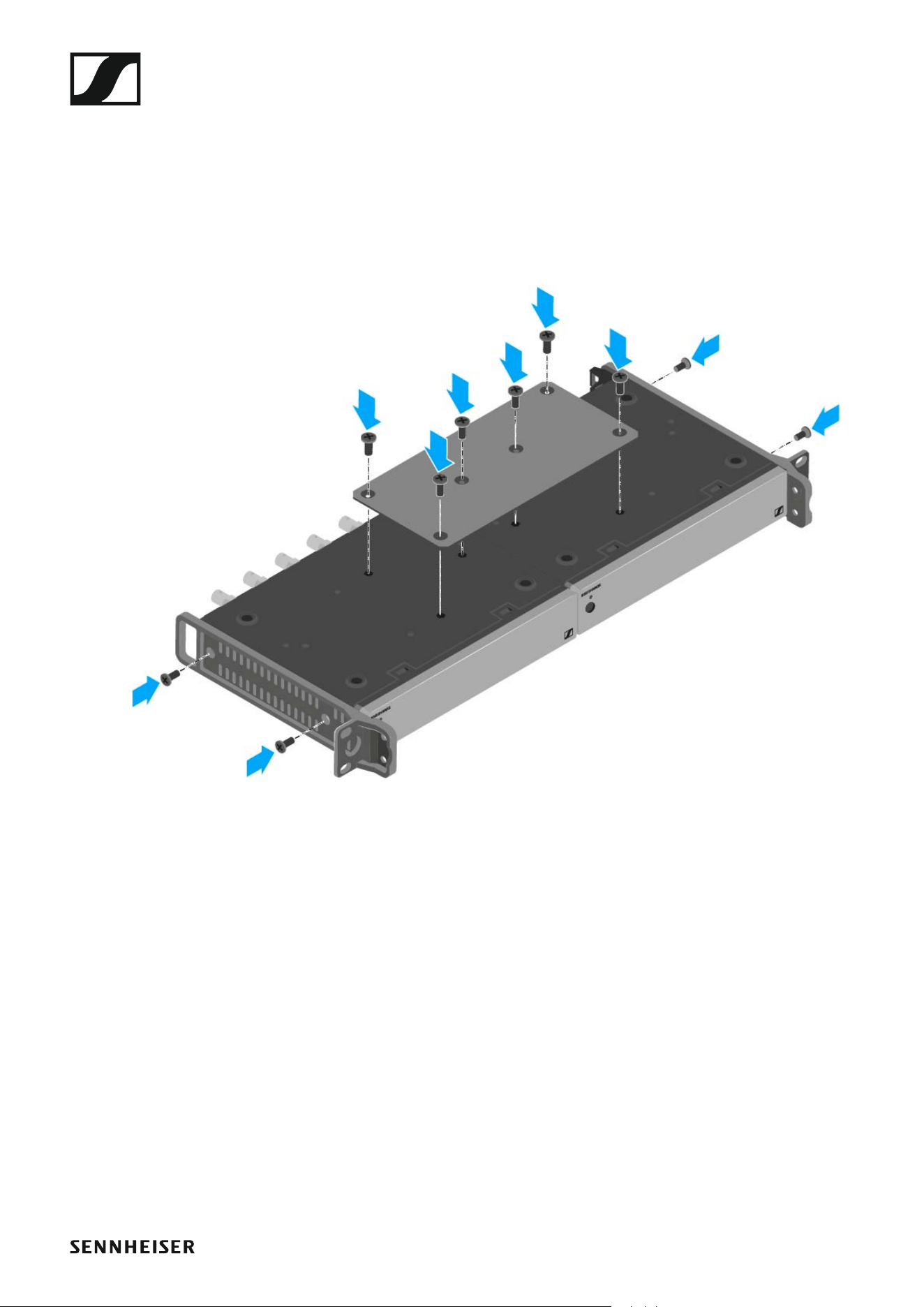

▷ Place both receivers upside down and side by side on an even surface.
▷ Secure the jointing plate to the transmitters using the six recessed
head screws (M3x6).
▷ Secure the mounting angle.
►
Installing the SKM 100 G4
32

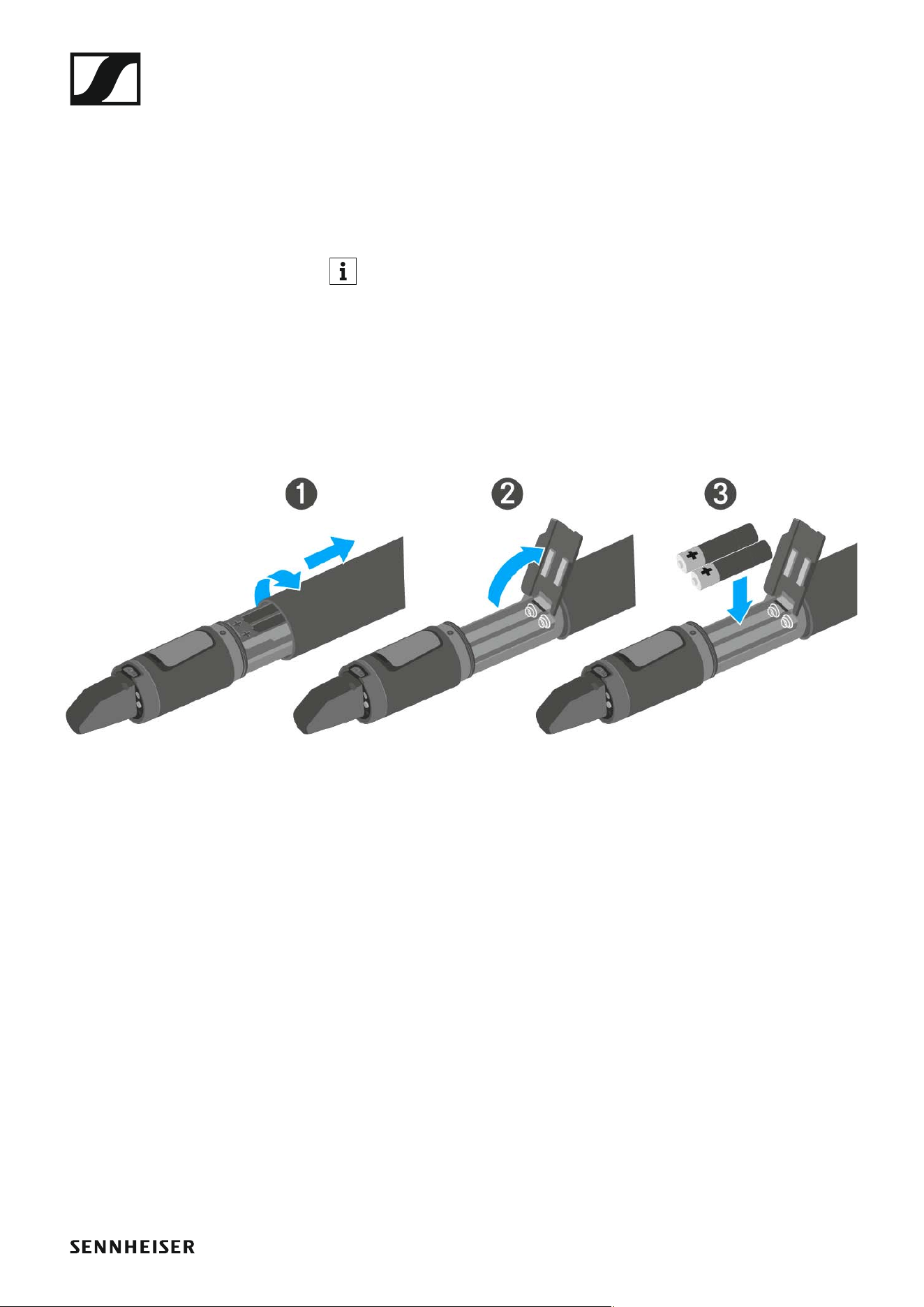

Inserting and removing the batteries/rechargeable
batteries
You can operate the wireless microphone either with batteries (AA, 1.5 V)
or with the rechargeable Sennheiser BA 2015 battery.

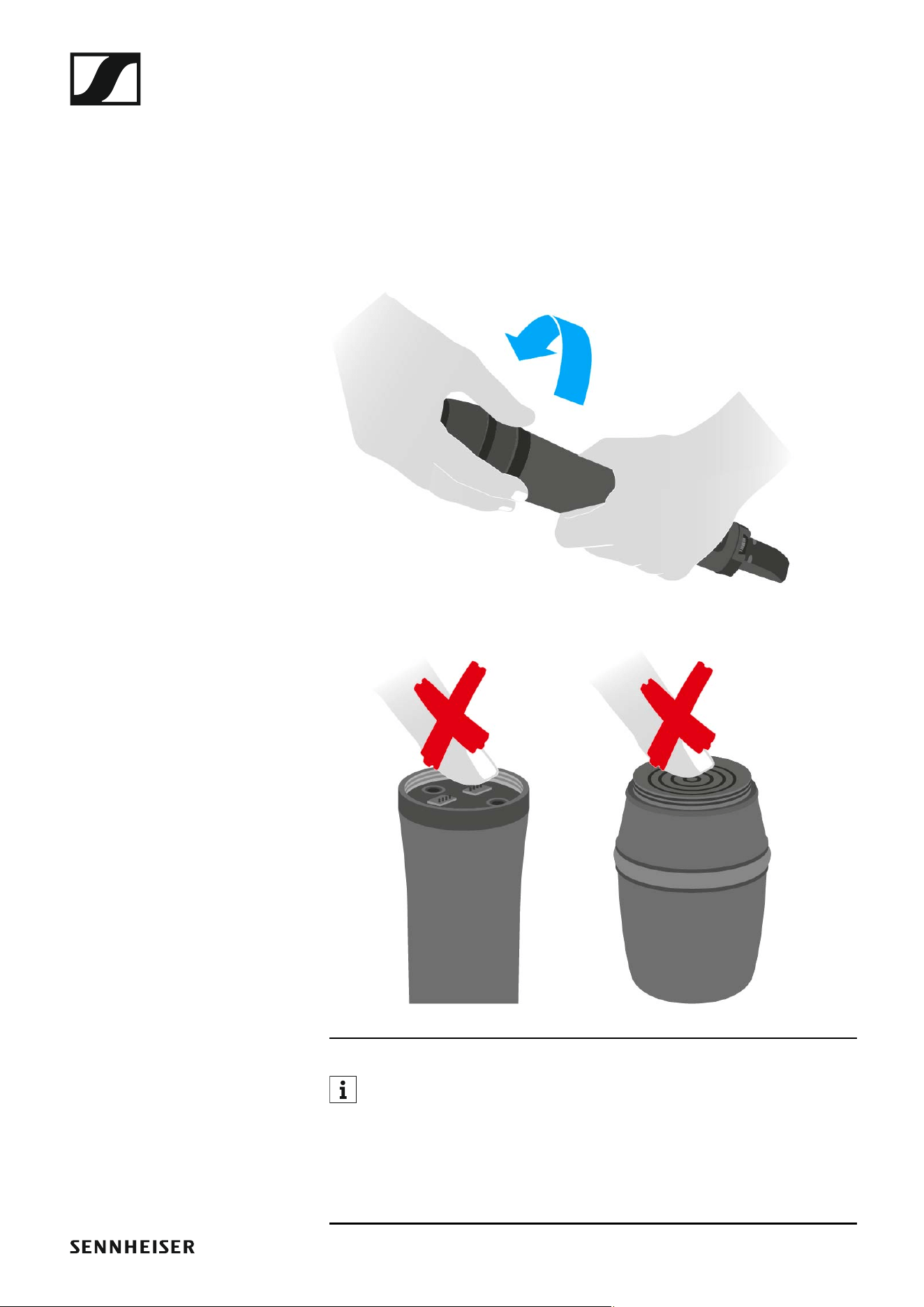

▷ Screw the rear part of the wireless microphone in the direction of the
arrow (counter-clockwise) off of the handle of the wireless microphone.
When you remove the wireless microphone during operation, mute is
automatically activated. MUTE appears in the display panel. When
you screw the microphone back together, mute is deactivated.
▷ Pull the rear part of the wireless microphone all the way out.
▷ Open the cover of the battery compartment.
▷ Place the batteries or the BA 2015 rechargeable battery in the battery
compartment as shown on the cover. Please observe correct polarity
when inserting the batteries/accupack.
▷ Close the cover.
▷ Push the battery compartment into the handle of the wireless micro-
phone.
▷ Screw the rear part of the wireless microphone back onto the handle.
Installing the SKM 100 G4
33

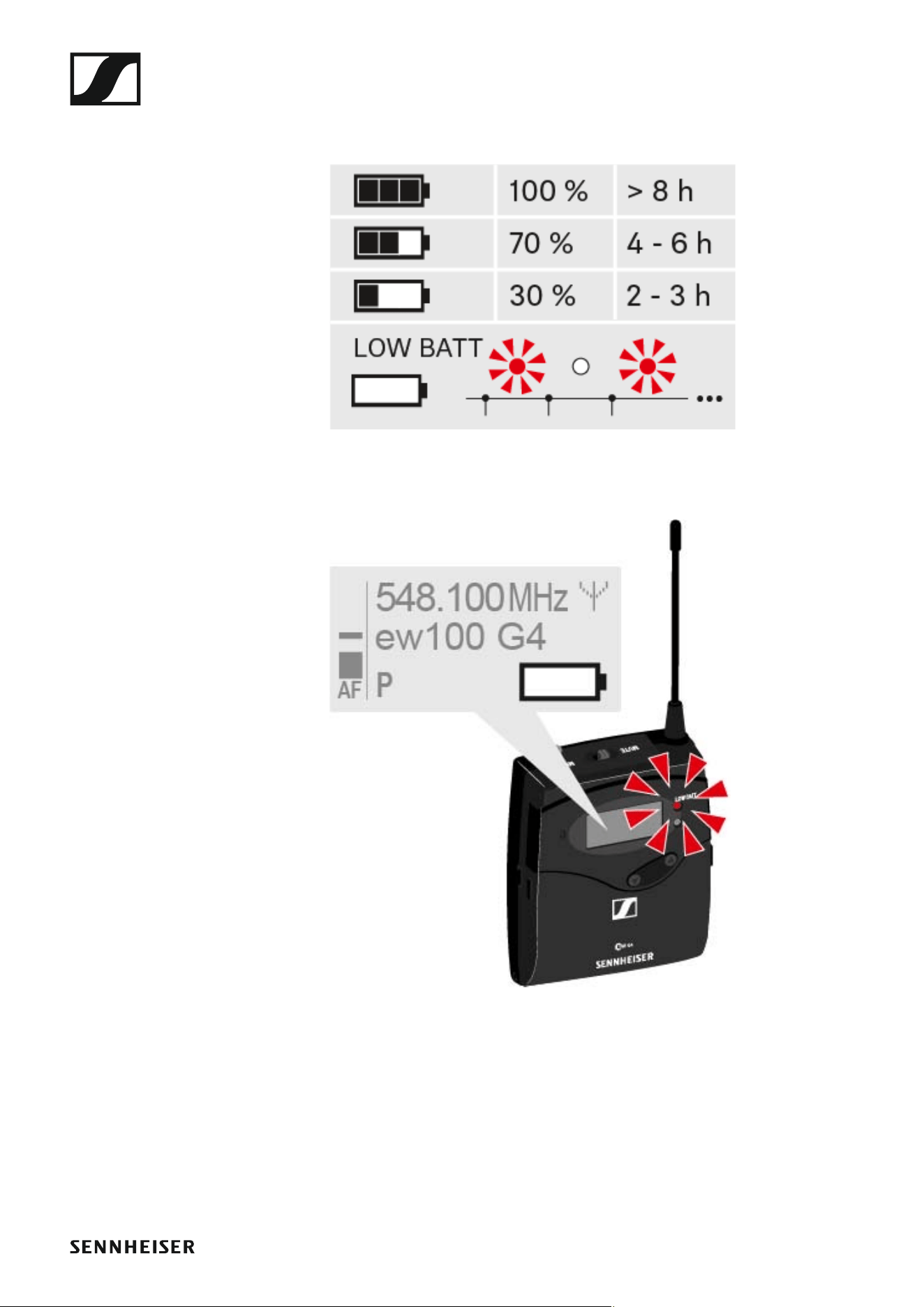

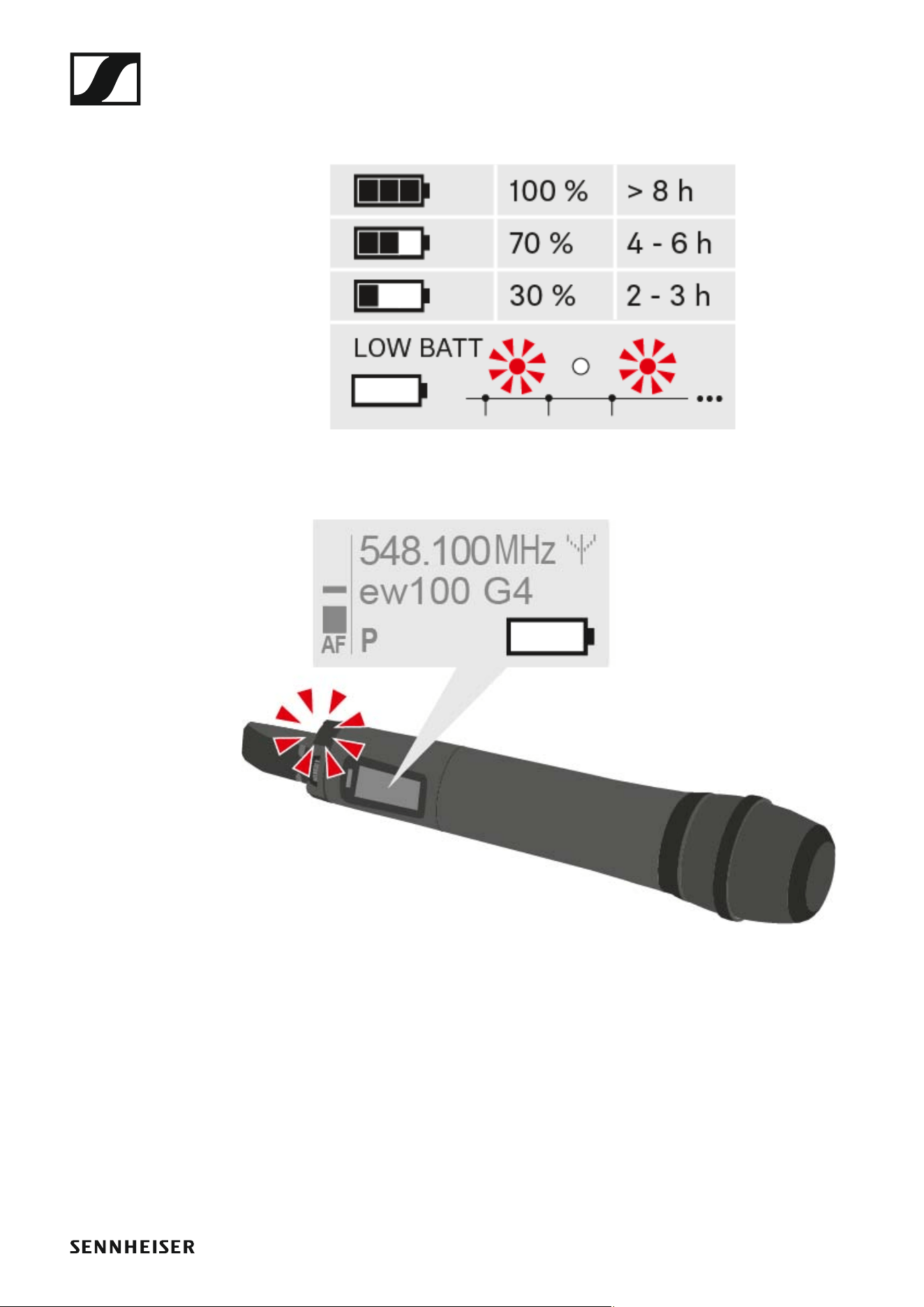

Battery status
Charge status of the batteries:
►
Charge status is critical (LOW BATT):
►
Installing the SKM 100 G4
34
Replacing the microphone module
You can find a list of the recommended microphone modules for the hand-
held transmitter under “Microphones and cables”.

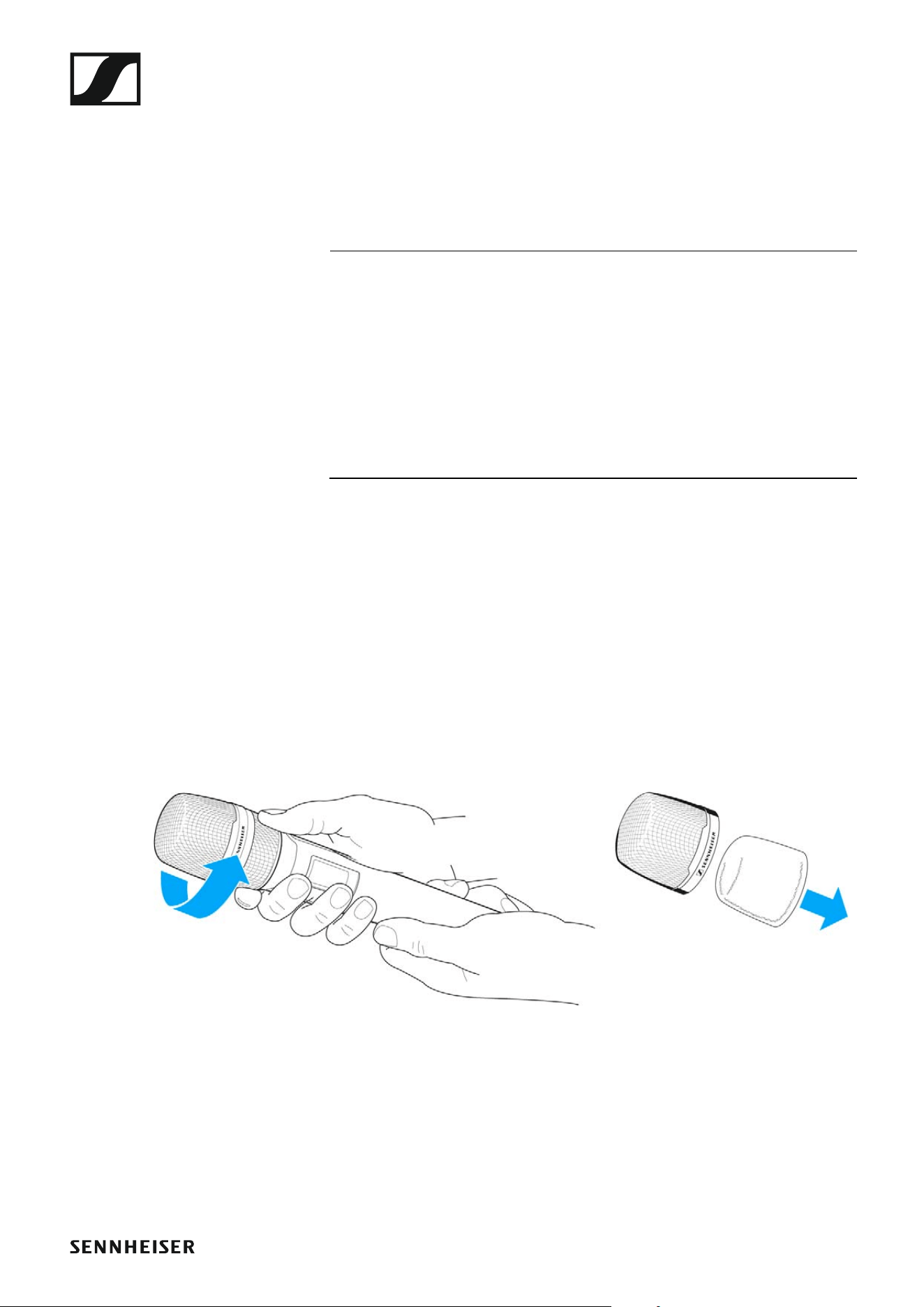

To change the microphone module:
▷ Unscrew the microphone module.
▷ Screw the desired microphone module on.
►
Do not touch the wireless microphone contacts or the microphone
module contacts. If you touch the contacts, they may become dirty or
bent.
When you unscrew the microphone module during operation, mute is au-
tomatically activated. MUTE appears in the display panel. When you screw
the microphone module back on, mute is deactivated.
Installing the SKM 100 G4
35
Changing the colored ring

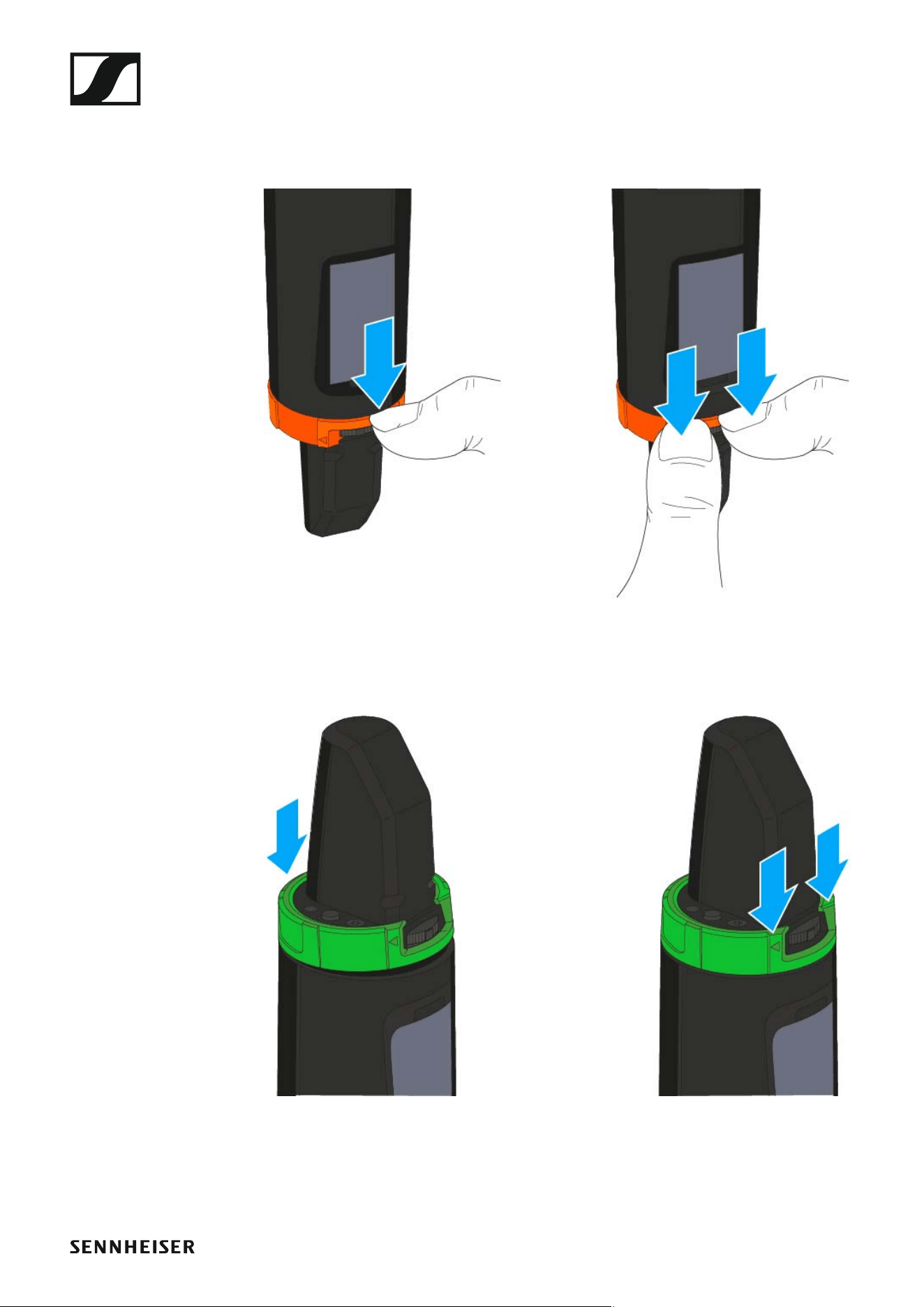

To change the colored ring:
▷ Pull the colored ring off as shown in the diagram.
►
▷ Attached a colored ring in the color you want as shown in the diagram.
►
Installing the SK 100 G4
37
Inserting and removing the batteries/rechargeable
batteries

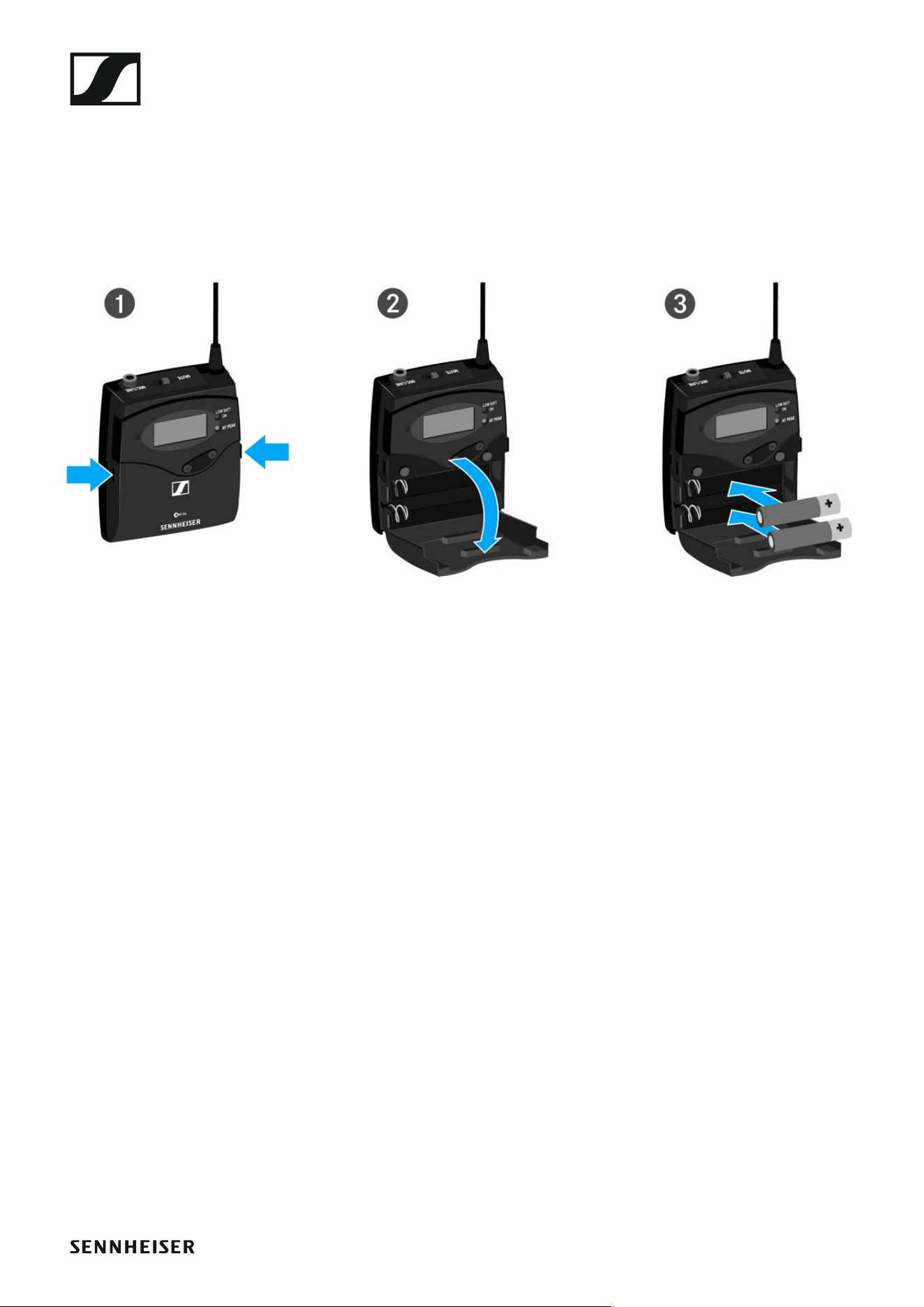

You can operate the bodypack transmitter either with batteries (AA, 1.5 V)
or with the rechargeable Sennheiser BA 2015 battery.

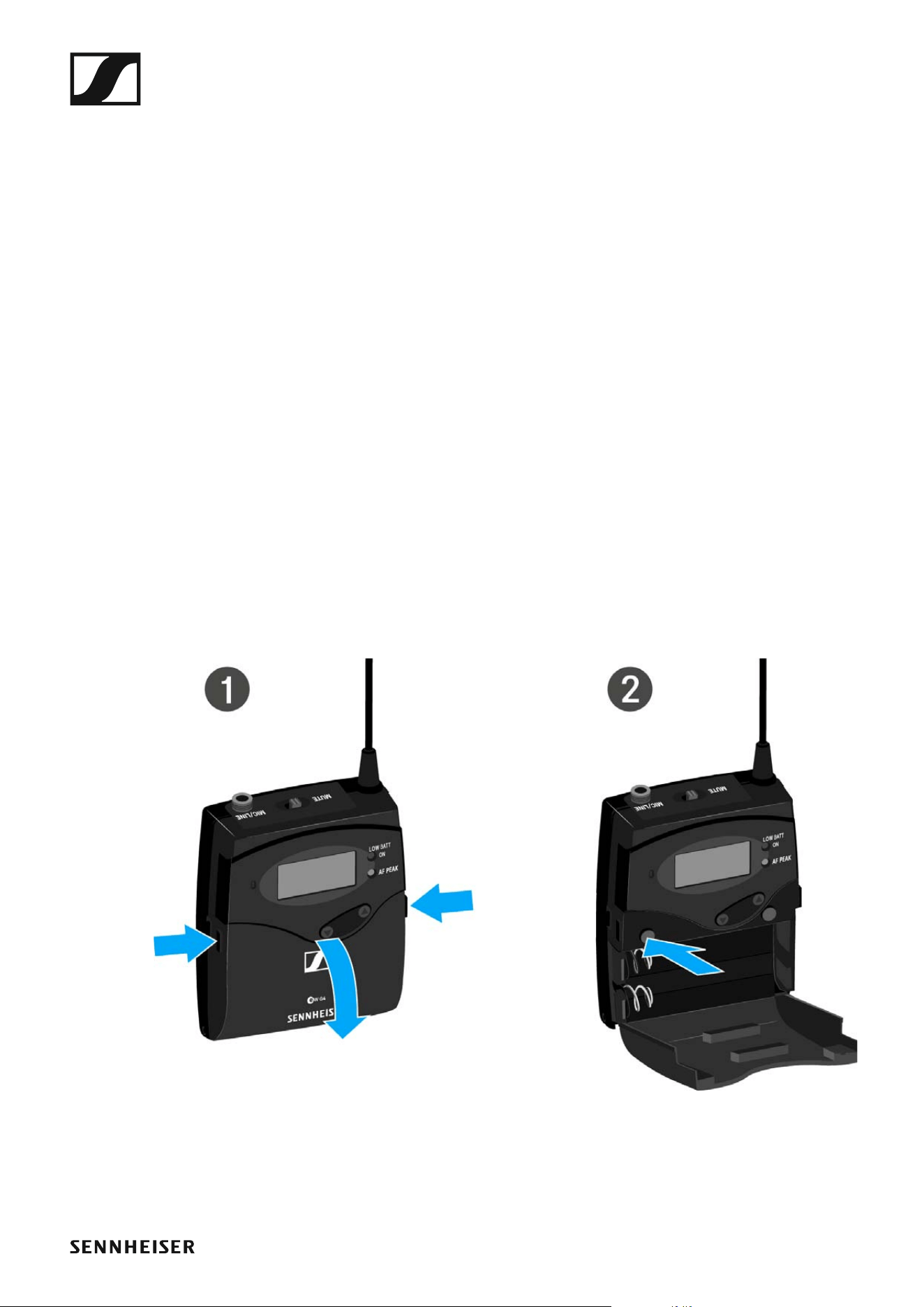

▷ Press the two catches and open the battery compartment cover.
▷ Insert the batteries or the rechargeable battery as shown below. Please
observe correct polarity when inserting the batteries.
►
▷ Close the battery compartment.
The cover locks into place with an audible click.
Installing the SK 100 G4
38
Battery status
Charge status of the batteries:
►
Charge status is critical (LOW BATT):
►
Installing the SK 100 G4
39
Connecting a microphone to the SK 100 G4
You can find a list of recommended Lavalier and headset microphones for
the bodypack transmitter under “Microphones and cables”.

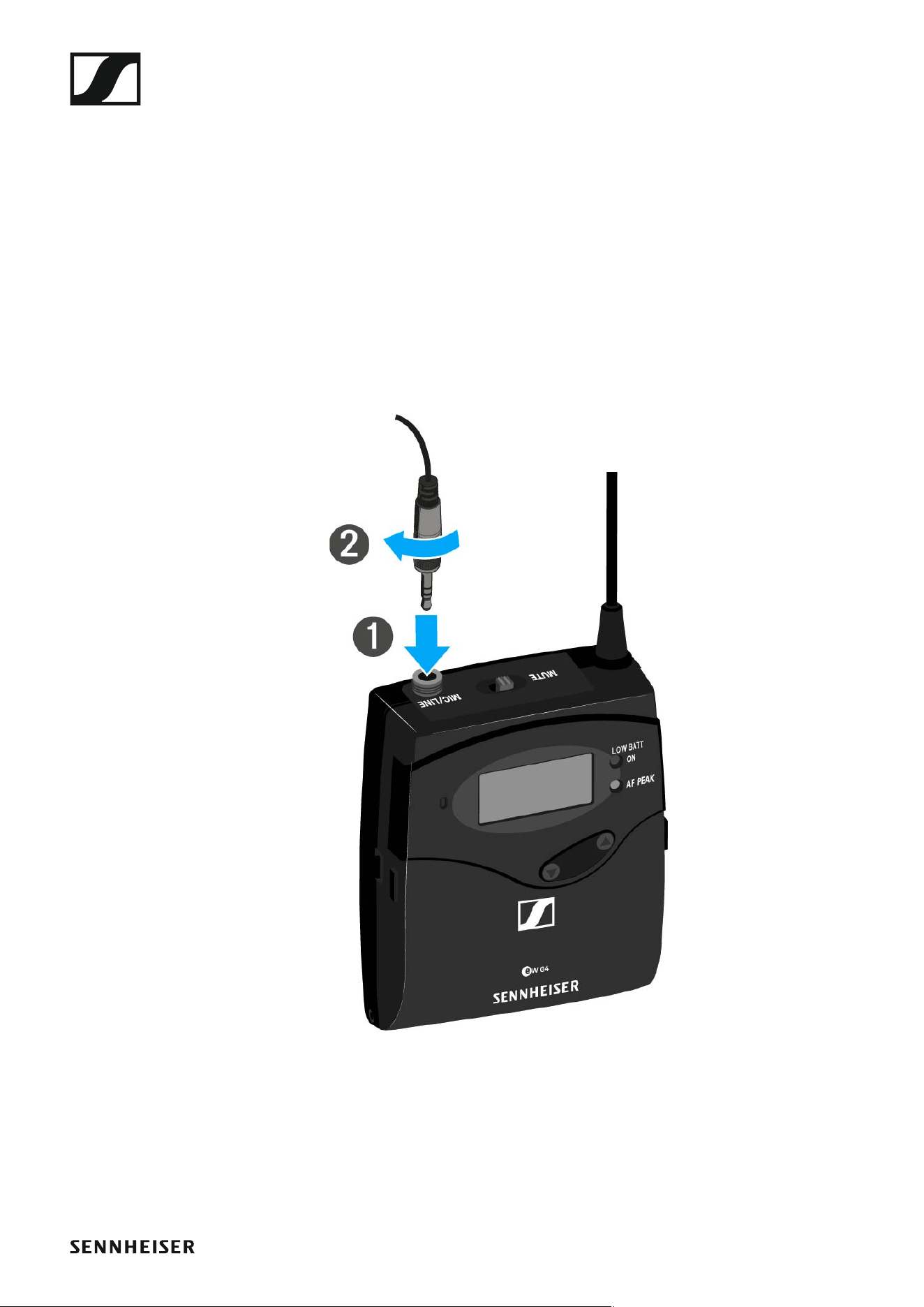

To connect a microphone to the bodypack transmitter:

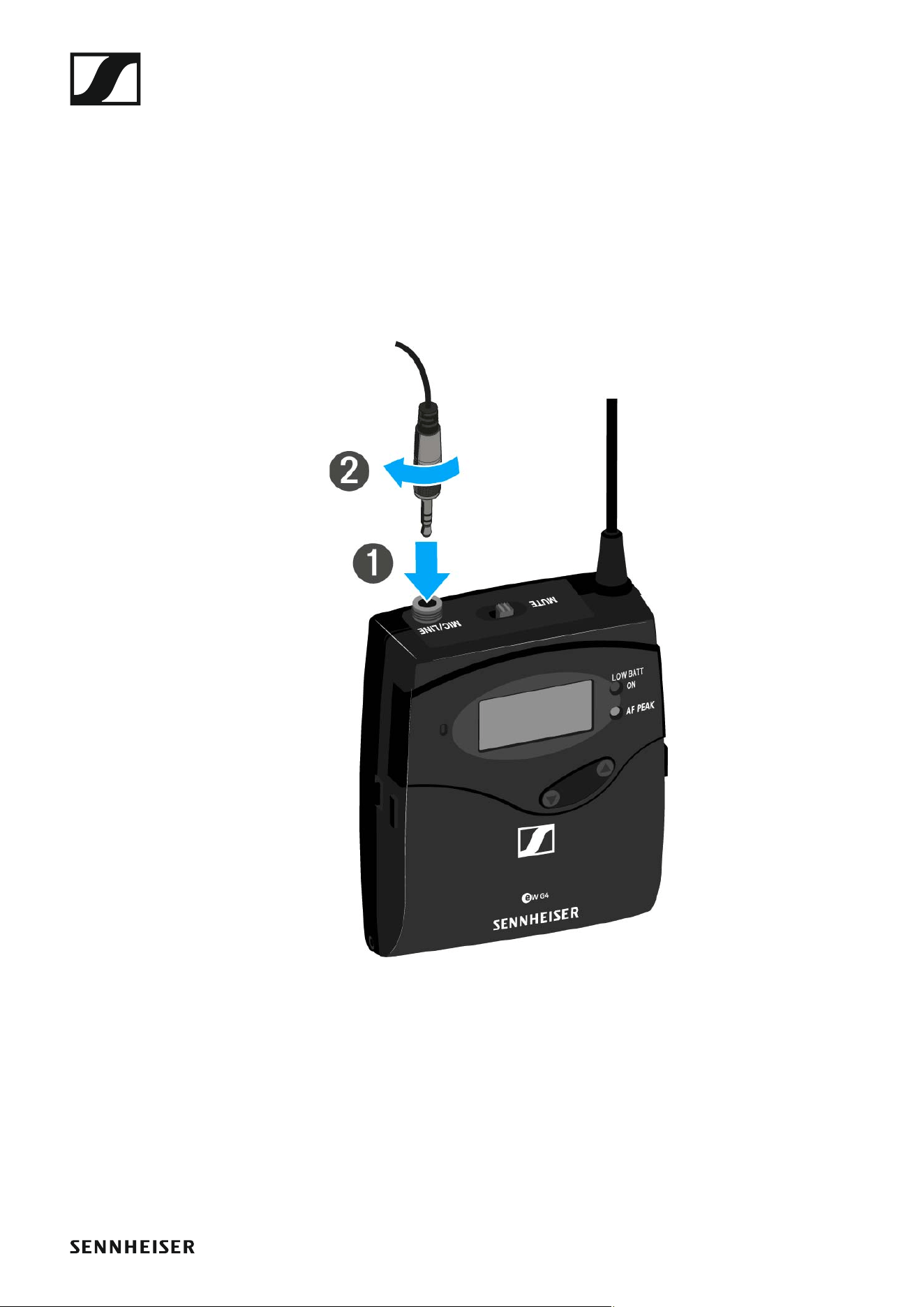

▷ Insert the cable’s 3.5 mm jack plug into the MIC/LINE socket on the
bodypack transmitter as shown in the diagram.
▷ Screw the plug’s coupling ring onto the audio socket thread of the
bodypack transmitter.
Installing the SK 100 G4
40
Connecting an instrument or line source to the
SK 100 G4
You can connect instruments or audio sources with a line level to the
bodypack transmitter.
To do this, you will need the Ci 1-N (6.3 mm jack plug on a lockable 3.5 mm
jack plug) or CL 2 (XLR-3F plug on lockable 3.5 mm jack plug) Sennheiser
cables.
To connect an instrument or line source to bodypack transmitter:
▷ Insert the cable’s 3.5 mm jack plug into the MIC/LINE socket on the
bodypack transmitter as shown in the diagram.
▷ Screw the plug’s coupling ring onto the audio socket thread of the
bodypack transmitter.
►
Installing the SK 100 G4
41

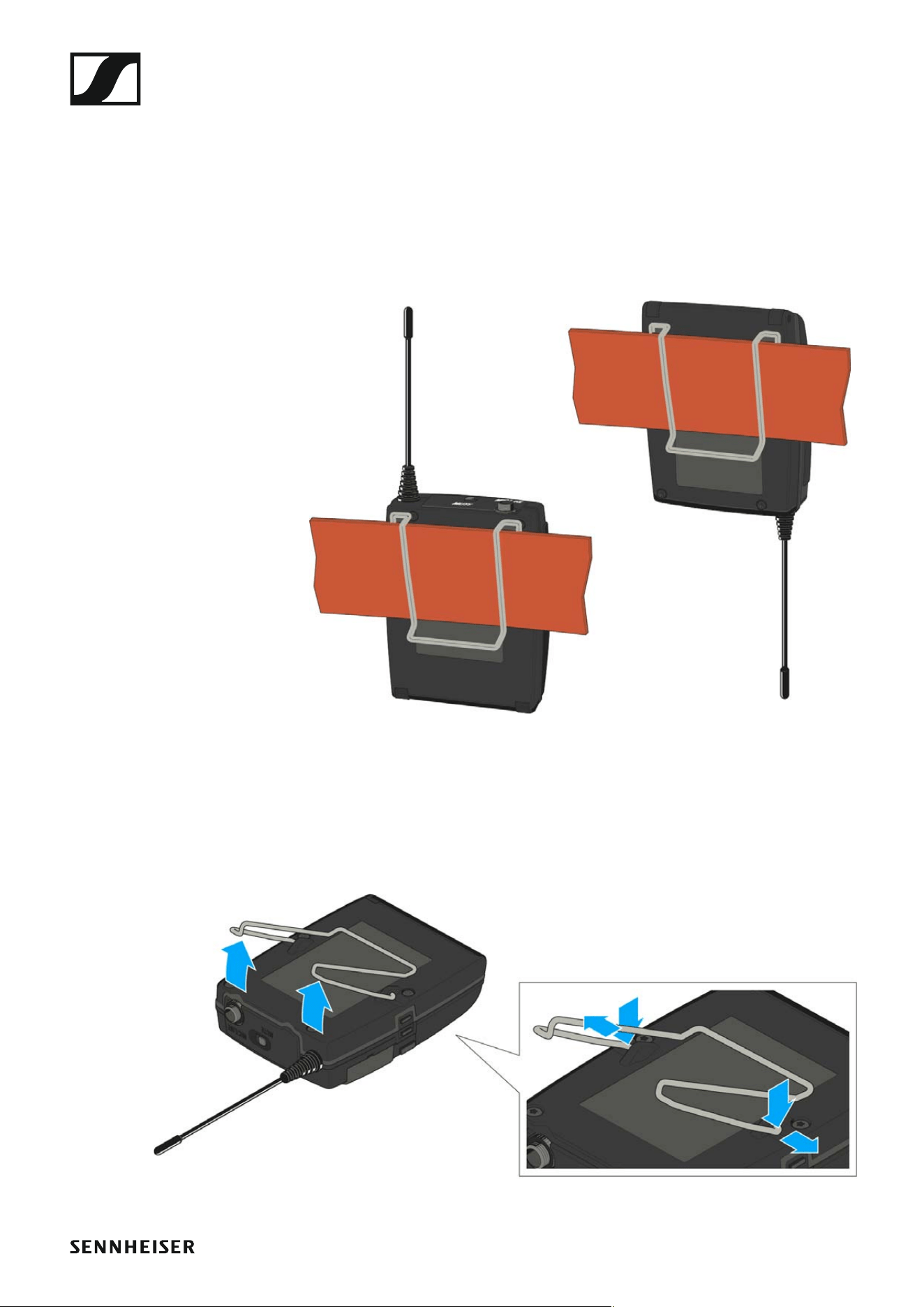

Attaching the bodypack transmitter to clothing
You can use the belt clip to attach the bodypack transmitter to your waist-
band or on a guitar strap.
The belt clip is detachable so that you can also attach the bodypack trans-
mitter with the antenna pointing downwards. To do so, withdraw the belt
clip from its fixing points and attach it the other way round.
The belt clip is secured so that it cannot slide out of its fixing points acci-
dentally.
►
To detach the belt clip:
▷ Lift the belt clip as shown in the diagram.
▷ Press one side of the clip downward on the fixing hole and pull it out of
the transmitter housing.
▷ Do the same thing on the other side.

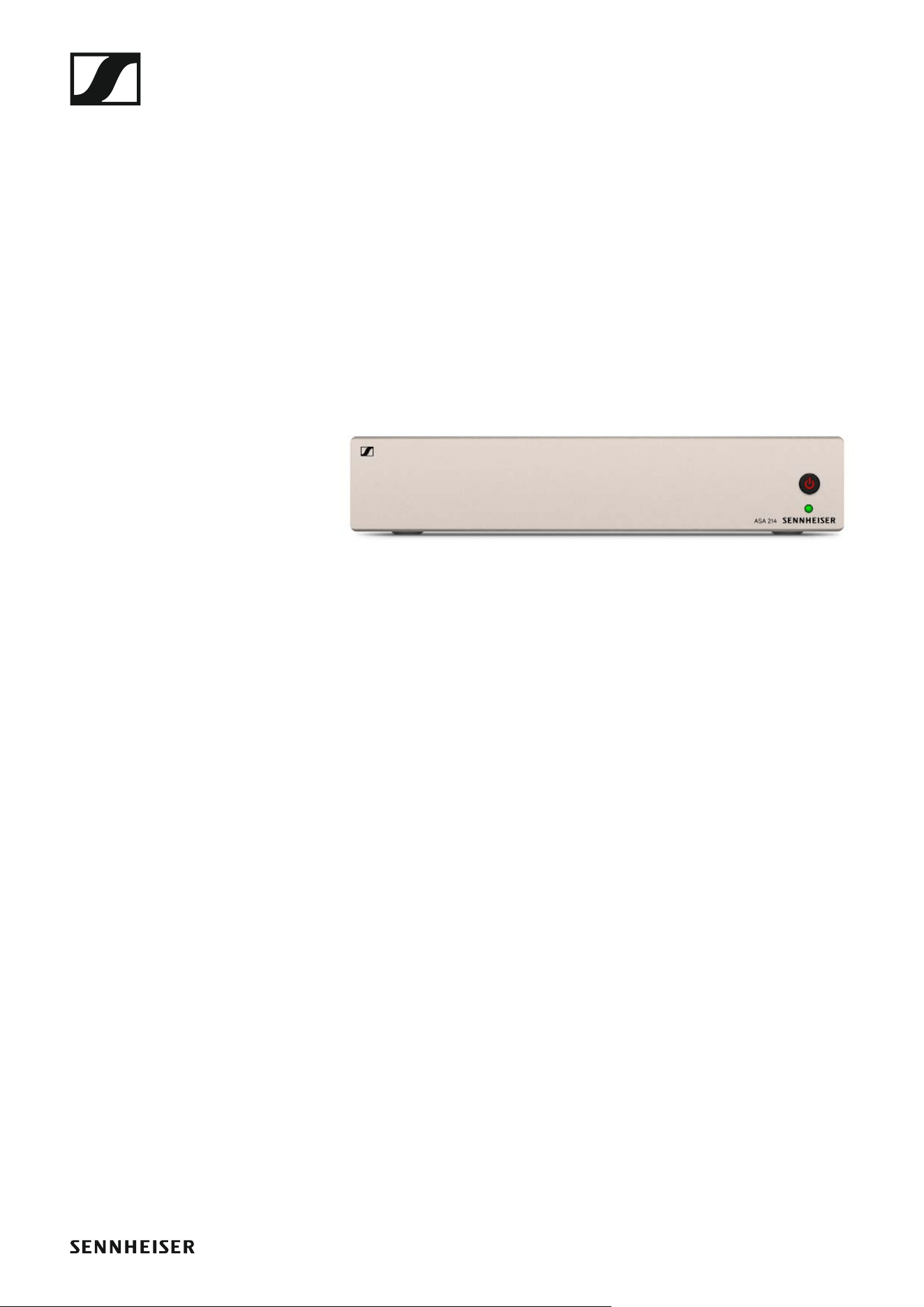

Installing the ASA 214
43

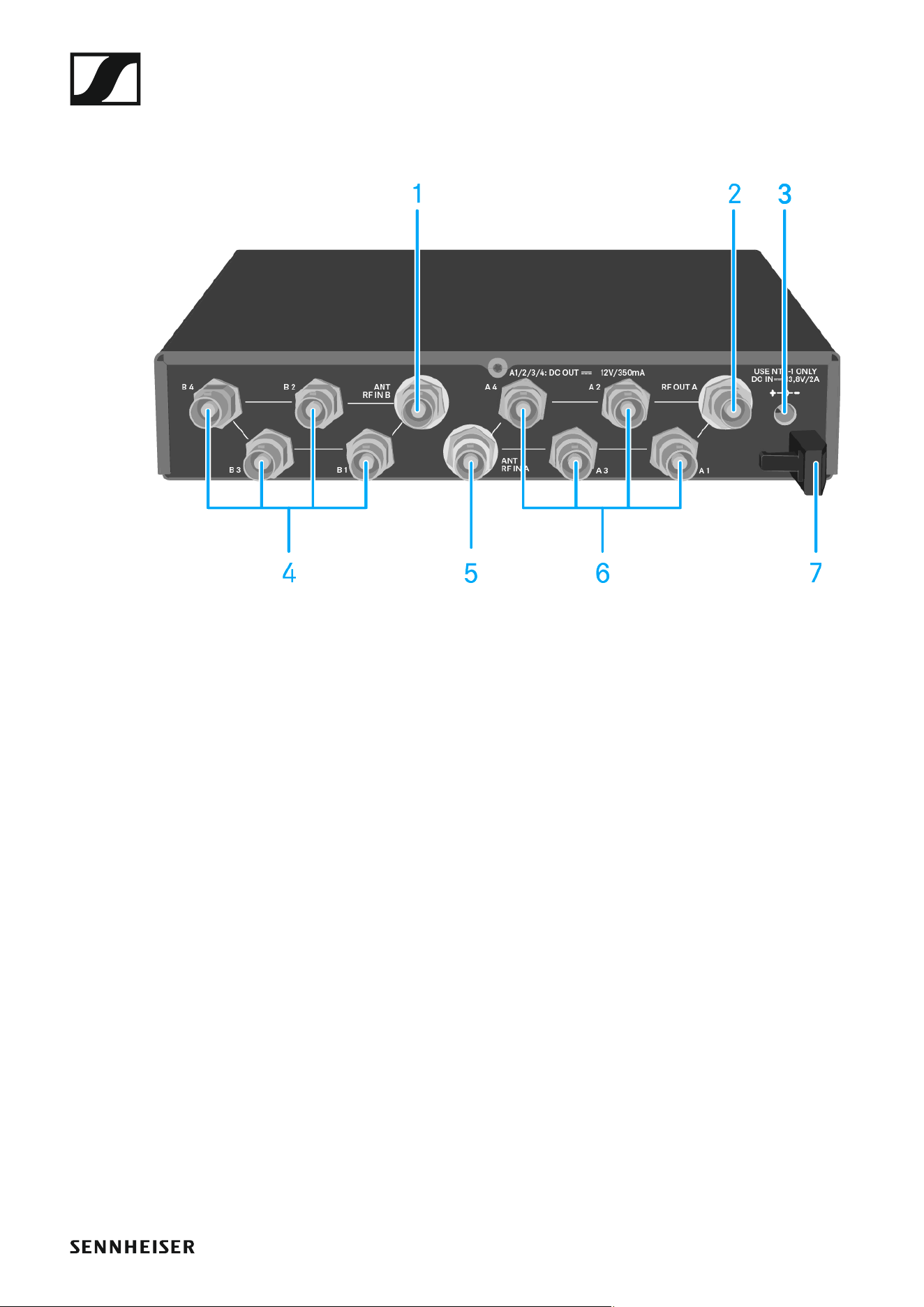

Connectors on the rear of the device
Product overview for the rear side of the ASA 214
►
1 ANT RF IN B BNC socket
• Antenna input of diversity branch B
• See “Connecting antennas”
2 RF OUT A BNC socket
• RF output only for connecting an additional ASA 214 to build an 8-
channel diversity system
• See “Configuring multi-channel systems”
3 DC INsocket
• To connect the NT 1-1 power supply unit
• See “Connecting/disconnecting the ASA 214 to/from the power sup-
ply system”
4 4 BNC sockets B1 to B4
• RF outputs of diversity branch B for connection to the receiver
• See “Connecting receivers to the ASA 214”
5 ANT RF IN A BNC socket
• Antenna input of diversity branch A
• See “Connecting antennas”
6 4 BNC sockets A1 to A4
• RF outputs of diversity branch A for connection to the receiver
• Every one of these RF outputs can also provide voltage to a receiver.
• See “Connecting receivers to the ASA 214”
7 Strain relief for the cable of the power supply unit
• See “Connecting/disconnecting the ASA 214 to/from the power sup-
ply system”
Installing the ASA 214
44

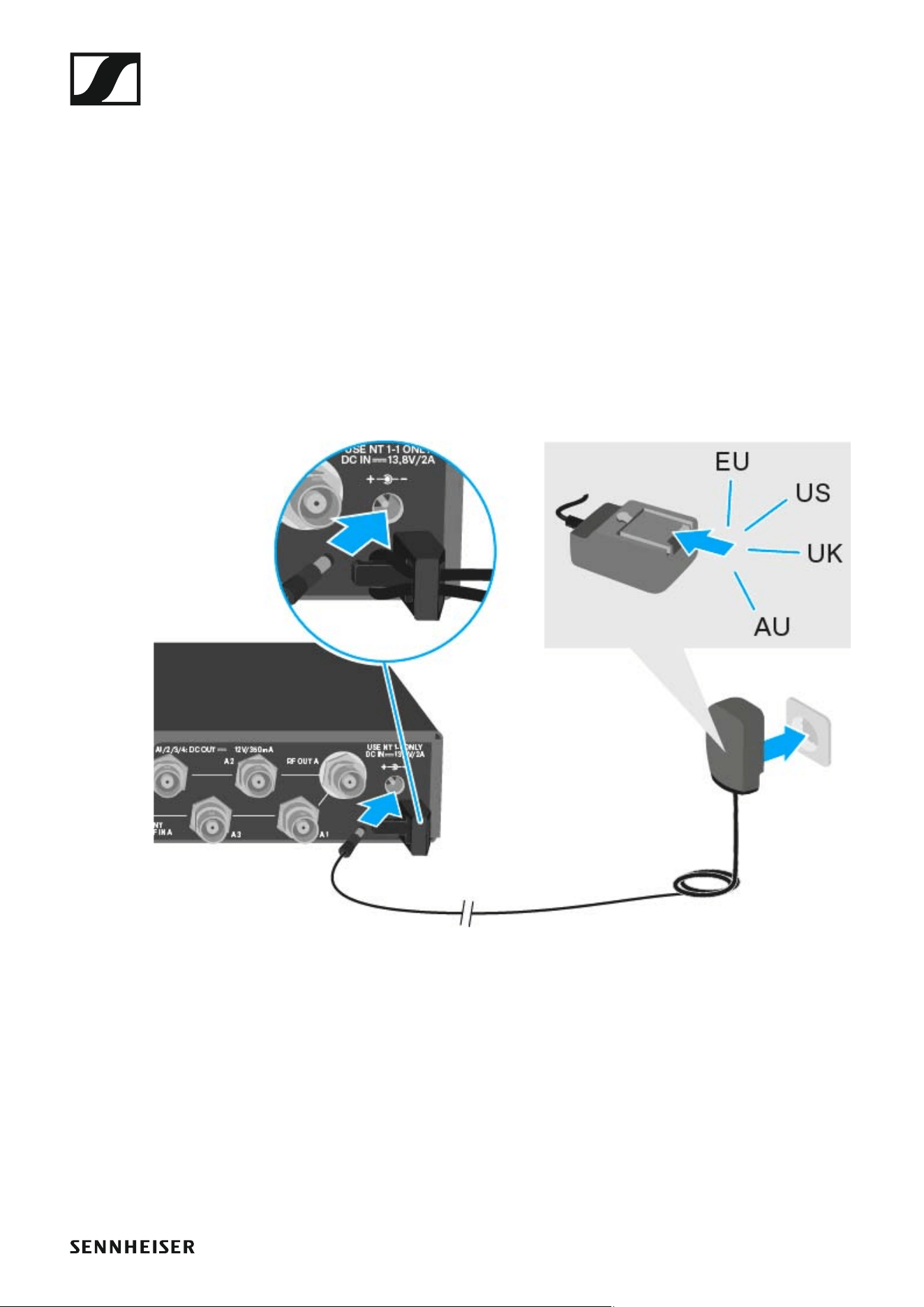

Connecting/disconnecting the ASA 214 to/from the
power supply system
To supply power to the ASA 214, the connected receivers and any antenna
amplifiers used, you will need the NT 1-1 power supply unit.
Only use the supplied NT 1-1 power supply unit. It is designed for your an-
tenna splitter and ensures safe operation.
To connect the ASA 214 antenna splitter to the power supply system:
▷ Plug the hollow jack plug of the power supply unit into the DC IN socket
of the antenna splitter.
▷ Pass the cable of the power supply unit through the cable grip.
▷ Slide the supplied country adapter onto the power supply unit.
▷ Plug the power supply unit into the wall socket.
To completely disconnect the ASA 214 antenna splitter from the power
supply system:
▷ Unplug the power supply unit from the wall socket.
▷ Unplug the hollow jack plug of the power supply unit from the DC IN
socket of the antenna splitter.
Installing the ASA 214
45

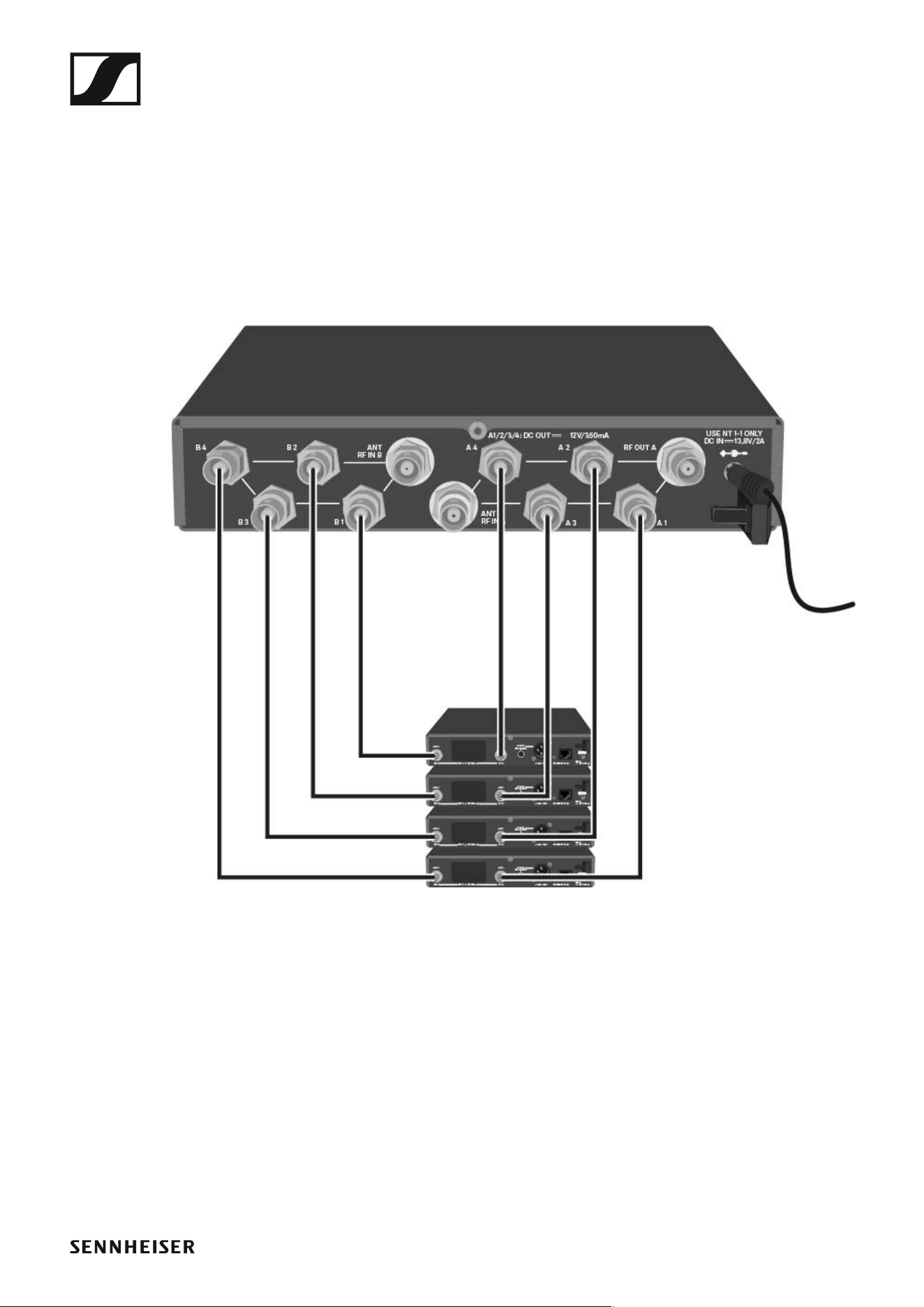

Connecting receivers to the ASA 214
You can connect and operate up to four stationary receivers to the
ASA 214.
Sennheiser receivers of the ew G4 and ew G3 series can also be supplied
with power from the ASA 214.
The following receivers are compatible:
evolution wireless G4:
•EM 100 G4
•EM 300-500 G4
evolution wireless G3:
•EM 100 G3
•EM 300 G3
• EM 500 G3
2000 series:
• EM 2000 (with its own power supply)
• EM 2050 (with its own power supply)
Installing the ASA 214
46
To connect the receivers to the ASA 214 antenna splitter:
▷ Connect one of the receiver’s antenna inputs to one of the BNC sockets
A1 to A4 using one of the supplied BNC cables.
The compatible receivers listed above do not require their own power
supply. They are powered via the BNC sockets A1 to A4.
▷ Connect the receiver’s other antenna input to one of the BNC sockets
B1 to B4 using one of the supplied BNC cables.
Installing the ASA 214
47
Connecting antennas
For more information about antennas and antenna accessories, see
“Antennas and accessories”.
In order to ensure optimal reception even in the case of poor recep-
tion conditions, we recommend using remote antennas.
Connecting remote antennas

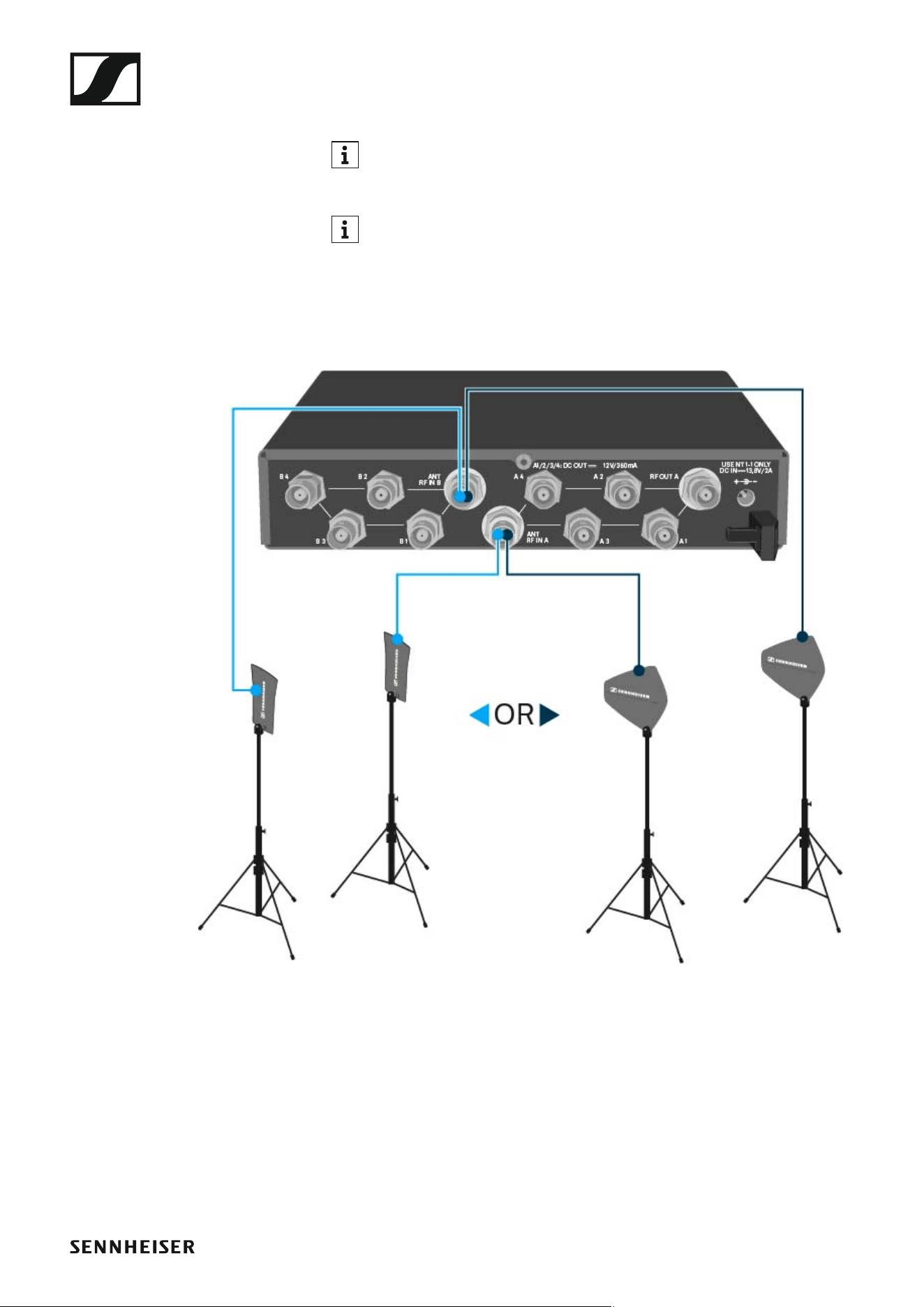

▷ Mount two antennas or a combination of an antenna and an antenna
amplifier to the BNC sockets ANT RF IN A and ANT RF IN B.
►
Connecting rod antennas
▷ Mount the antennas to the BNC sockets ANT RF IN A and ANT RF IN B.
▷ Align the antennas in a V-shape in order to ensure the best possible re-
ception.
Installing the ASA 214
48
Information on antenna amplifiers and cable lengths
The following table shows which cable lengths require the use of the AB 3
or AB 4 antenna amplifier as well as the maximum recommended cable
lengths.
Use the AB 3 for the following frequency ranges:
• A1 range: 470 – 516 MHz
• A range: 516 – 558 MHz
• G range: 566 – 608 MHz
• GB range: 606 – 648 MHz
• B range: 626 – 668 MHz
• C range: 734 – 776 MHz
• D range: 780 – 822 MHz
• TH range: 794 – 806 MHz
• JB range: 806 – 810 MHz
• E range: 823 – 865 MHz
• K+ range: 925 – 937.5 MHz
• 1G8 range: 1785 – 1800 MHz
Use the AB 4 for the following frequency ranges:
Max. cable length
RG 58 GZL 5000
Number
of AB 3
or AB 4
Frequen-
cy range
around
Device
ASA 214
(AB 3 &
AB 4)
500 MHz 0 8 m 16 m
1 36 m 72 m
2 64 m 128 m
0 7 m 14 m
1 30 m 60 m
2 53 m 106 m
0 6 m 12 m
1 26 m 52 m
2 46 m 92 m
0
700 MHz
900 MHz
1800
MHz
ASA 214
- 1G8
(AB 3)
4 m 8 m
1 16 m 36 m
2 28 m 64 m
Installing the ASA 214
49
• Aw+ range: 470 – 558 MHz
• Gw range: 558 – 626 MHz
• GBw range: 606 – 678 MHz
• Bw range: 526 – 698 MHz
• Cw range: 718 – 790 MHz
• Dw range: 790 – 865 MHz
Installing the ASA 214
50

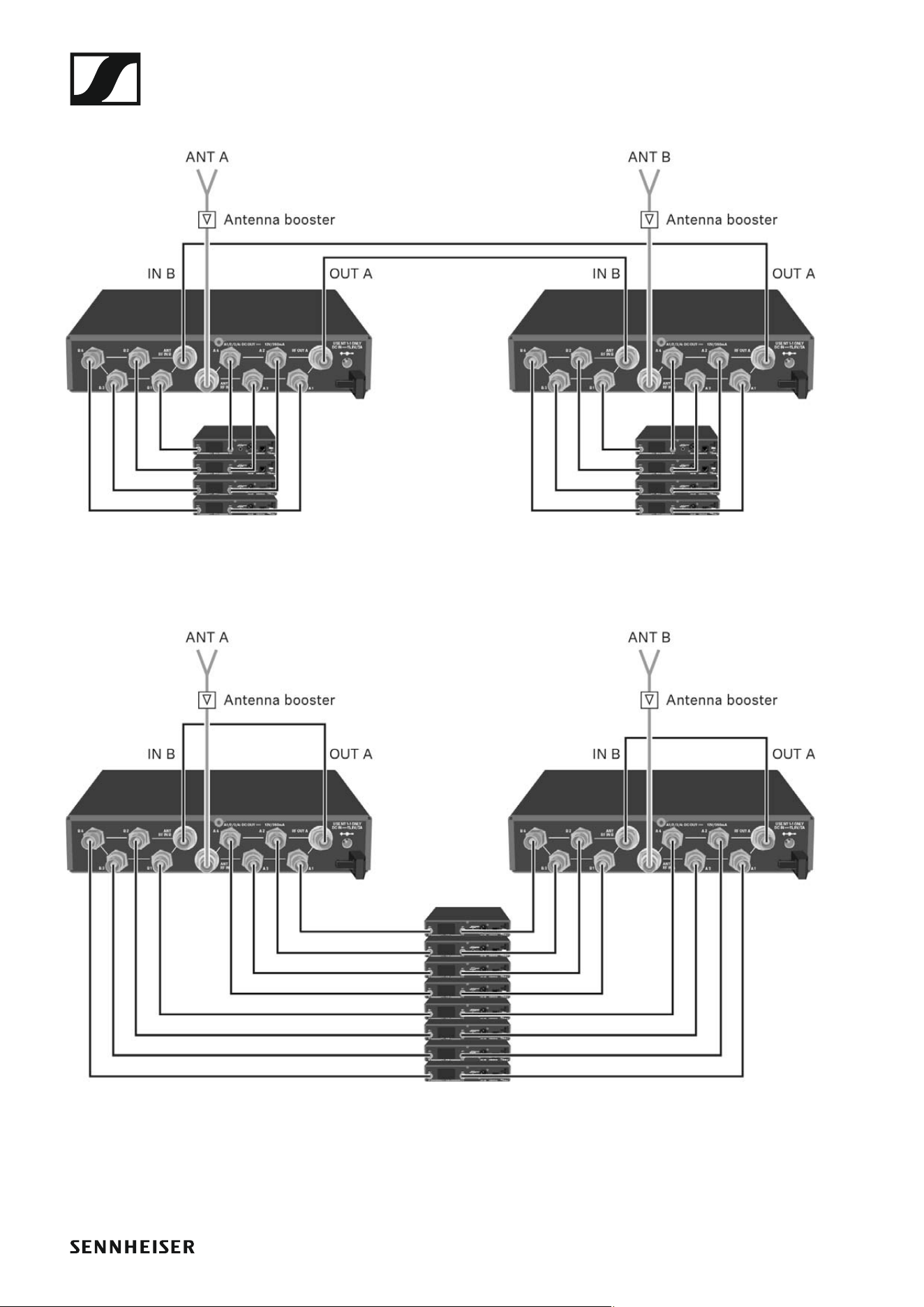

Configuring multi-channel systems
The following options for connecting multi-channel systems are possible:

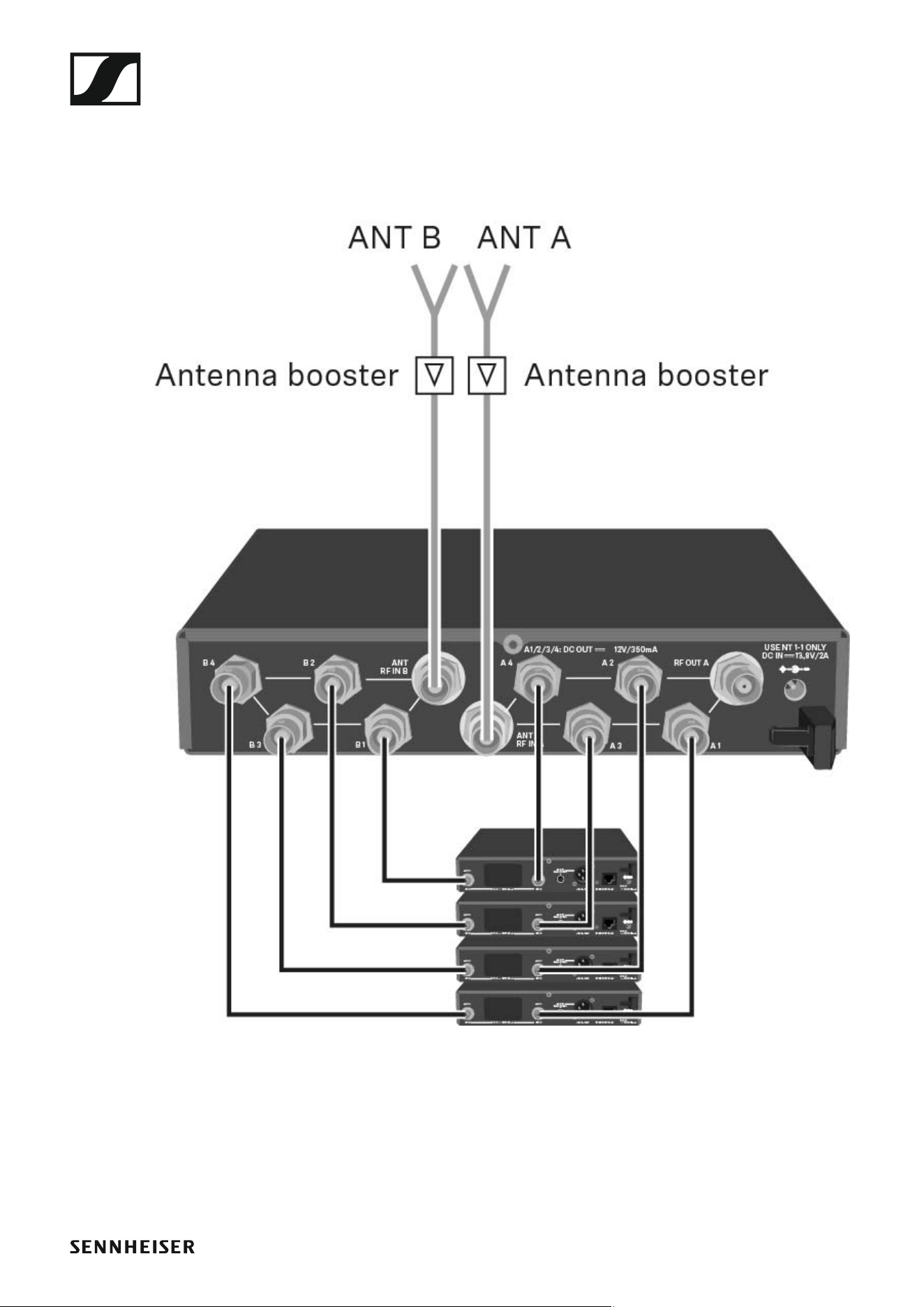

Option 1: Two antennas supply a 4-channel system
Installing the ASA 214
51
Option 2: Two 4-channel systems are interconnected
Option 3: Two antennas supply a 8-channel system
Installing the ASA 214
52
Installing the ASA 214 in a rack
CAUTION
Rack mounting poses risks
When installing the device in a closed or multi-rack assembly, please con-
sider that, during operation, the ambient temperature, the mechanical
loading and the electrical potentials will be different from those of devices
which are not mounted into a rack.
▷ Make sure that the ambient temperature within the rack does not ex-
ceed the permissible temperature limit specified in the specifications.
See “Specifications”.
▷ Ensure sufficient ventilation; if necessary, provide additional ventila-
tion.
▷ Make sure that the mechanical loading of the rack is even.
▷ When connecting to the power supply system, observe the information
indicated on the type plate. Avoid circuit overloading. If necessary, pro-
vide overcurrent protection.
▷ When rack mounting, please note that intrinsically harmless leakage
currents of the individual power supply units may accumulate, thereby
exceeding the allowable limit value. As a remedy, ground the rack via
an additional ground connection.
Installing the ASA 214
53
Mounting a single antenna splitter in a rack
To mount the antenna splitter in a rack, you will need the GA 3 rack mount-
ing kit (optional accessory).

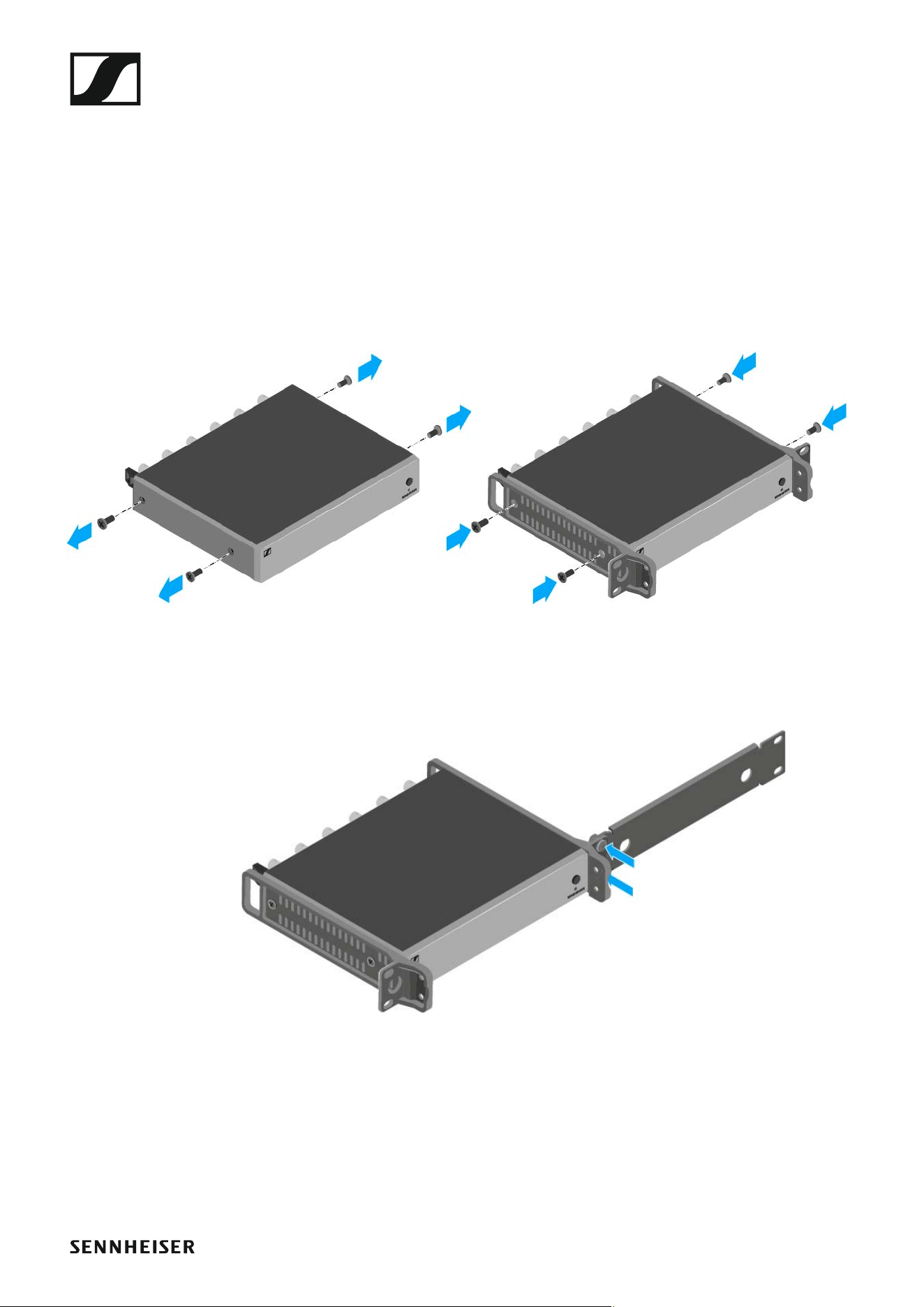

To fasten the mounting angle of the GA 3 rack mounting kit:
▷ Unscrew and remove the two recessed head screws (M4x8) on each
side of the antenna splitter.
▷ Secure the mounting angles to the sides of the antenna splitter using
the previously removed recessed head screws.
►
▷ Secure the blanking plate to one of the mounting angles using two re-
cessed head screws (M6x10).
►
Installing the ASA 214
54
▷ Attach the antennas. You have the following options:
• Connect the supplied rod antennas on the rear side of the antenna
splitter. In this case, cover the antenna holes with the two covers (left
diagram).
• Attach the AM 2 antenna front mounting set (optional accessory) and
mount the rod antennas on the blanking plate (right diagram).
►
►
▷ Slide the antenna splitter with the mounted blanking plate into the 19"
rack.
▷ Secure the mounting angle and the blanking plate to the 19" rack.
▷ Align the mounted antennas in a V-shape.
Installing the ASA 214
55
Mounting two antenna splitters side by side in a rack
To mount the antenna splitters using the GA 3 rack mounting kit (optional
accessory):
▷ Place both antenna splitters upside down and side by side on an even
surface.
▷ Secure the jointing plate to the transmitters using the six recessed
head screws (M3x6).
▷ Secure the mounting angle.
►
Using ew 100 G4 series devices
56
OPERATION
Using ew 100 G4 series devices
You can find information about using ew 100 G4 series devices in the fol-
lowing sections.
• EM 100 G4 rack receiver >> “Using the EM 100 G4”
• SKM 100 G4(-S) handheld transmitter >> “Using the SKM 100 G4”
• SK 100 G4 bodypack transmitter >> “Using the SK 100 G4”
• ASA 214 antenna splitter>> “Using the ASA 214”
You can find information about installation and start up of the prod-
ucts under “Installing and starting up ew 100 G4 series devices”.
Using ew 100 G4 series devices
57
In the sections below, you can find important information about specific
use cases.
• Establishing a radio link between the transmitter and receiver >> “Es-
tablishing a radio link”
• Synchronizing the receiver settings to the transmitter >> “Synchroniz-
ing devices”
•Using the menu of the receiver >> “Displays on the EM 100 G4 display
panel”
•Using the menu of the handheld transmitter >> “Displays on the
SKM 100 G4 handheld transmitter display panel”
•Using the menu of the bodypack transmitter >> “Displays on the
SK 100 G4 bodypack transmitter display panel”
Using the EM 100 G4
59

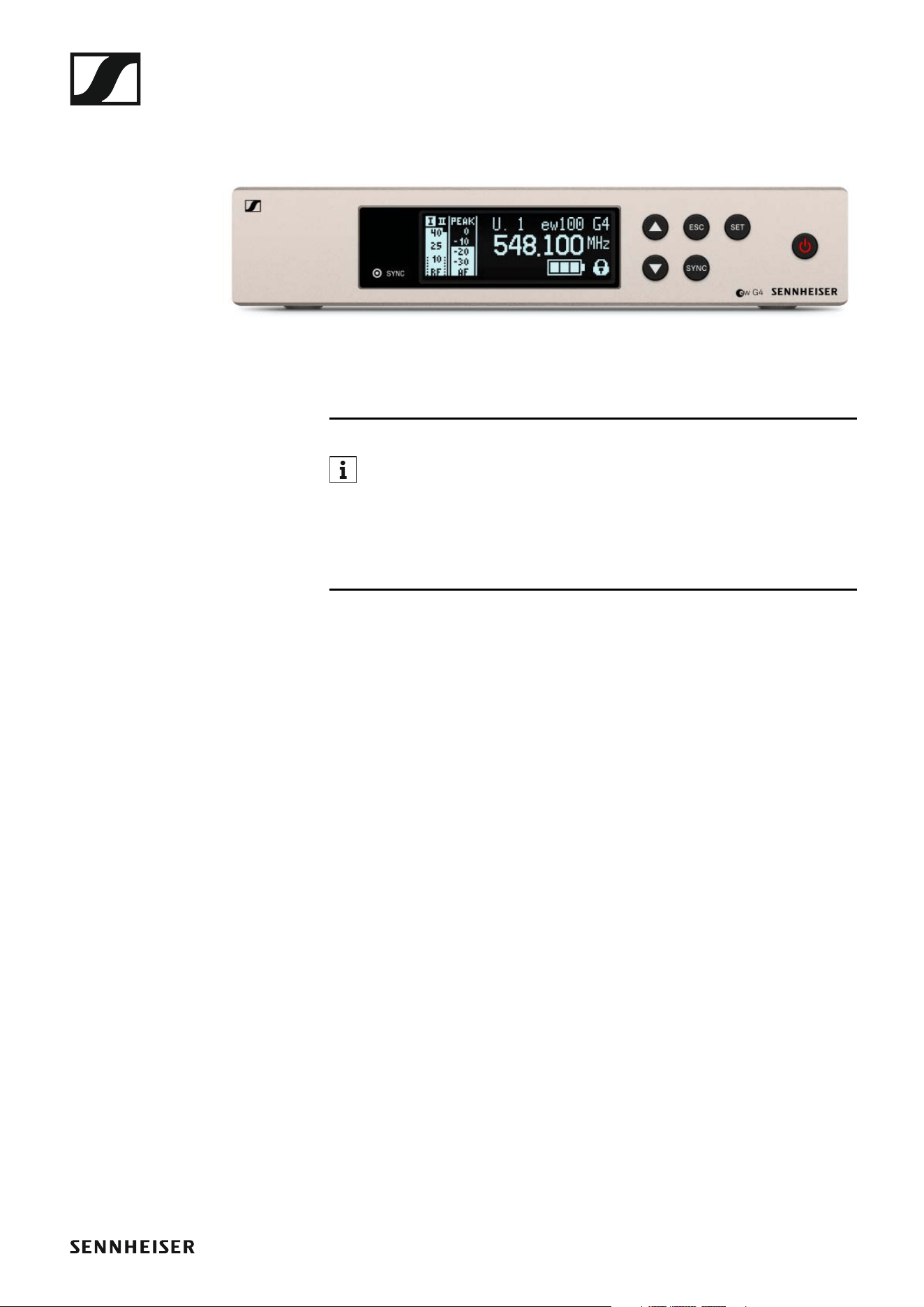

Operating elements on the front of the device

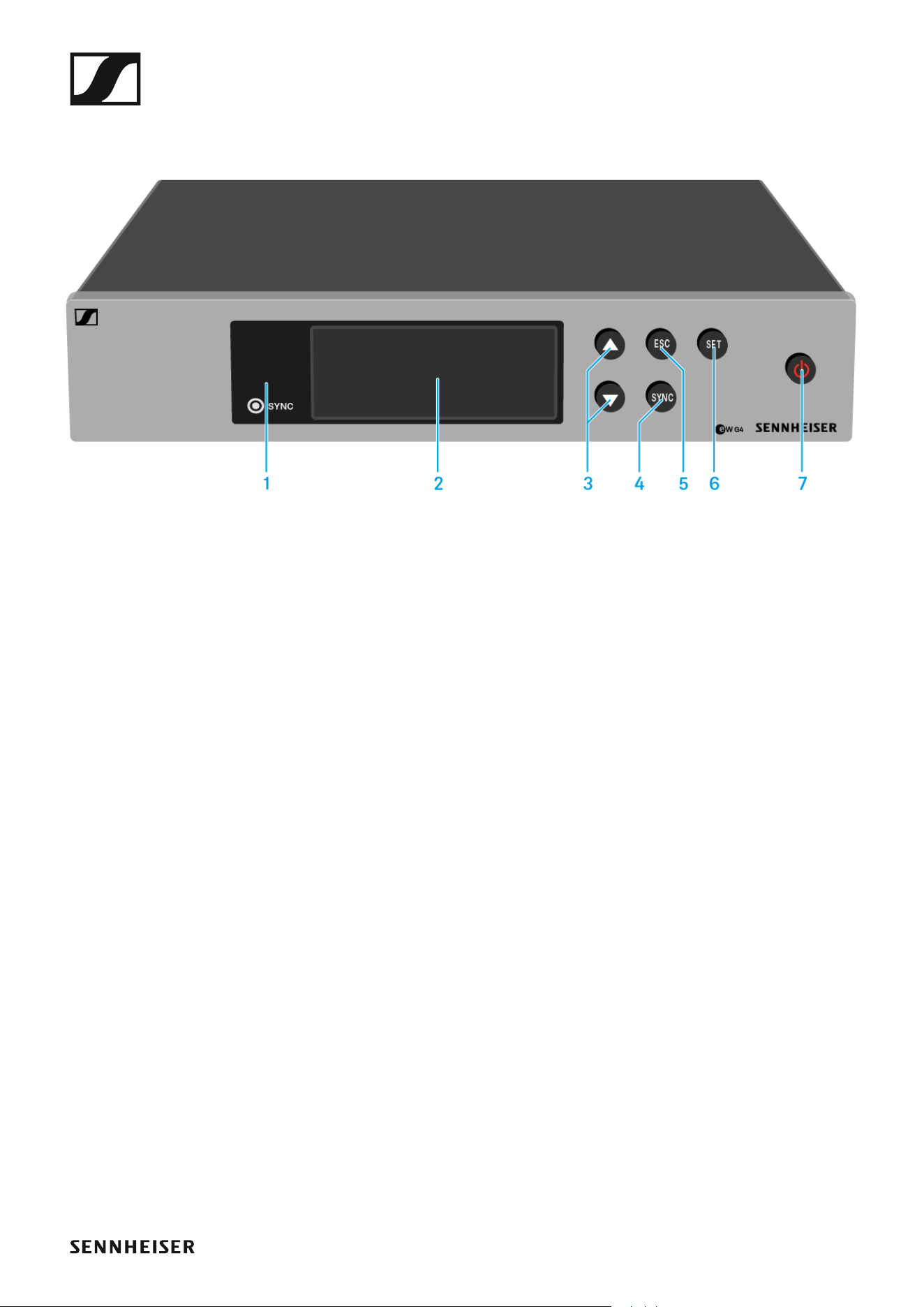

Product overview for the front of the EM 100 G4
►
1 Infrared interface with a blue LED
• See “Synchronizing devices”
2 Display panel
• See “Displays on the EM 100 G4 display panel”
3 UP/DOWN buttons
• See “Buttons for navigating through the menu”
4 SYNC button
• See “Synchronizing devices”
5 ESC button
• See “Buttons for navigating through the menu”
6 SET button
• See “Buttons for navigating through the menu”
7 STANDBY button
• See “Switching the EM 100 G4 on and off”
Using the EM 100 G4
60
Switching the EM 100 G4 on and off

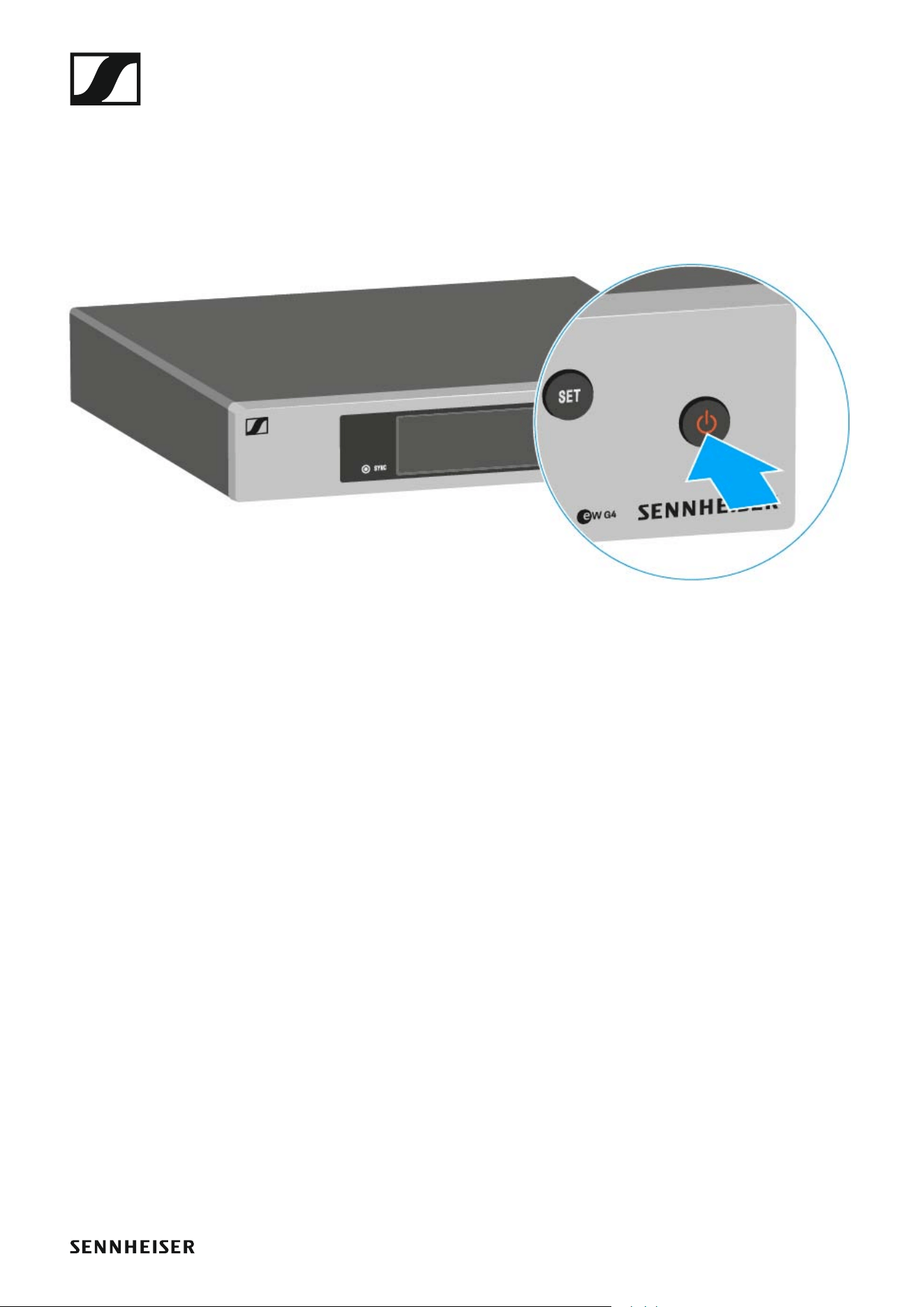

To switch the receiver on:
▷ Short-press the STANDBY button.
The receiver switches on and the Receiver Parameters standard dis-
play appears.
►
To switch the receiver to standby mode:
▷ If necessary, deactivate the lock-off function (see “Lock-off function”).
▷ Press and hold the STANDBY button until OFF appears on the display
panel.
The display panel switches off.
To completely switch the receiver off:
▷ Disconnect the receiver from the power supply system by unplugging
the power supply unit from the wall socket.
Using the EM 100 G4
61

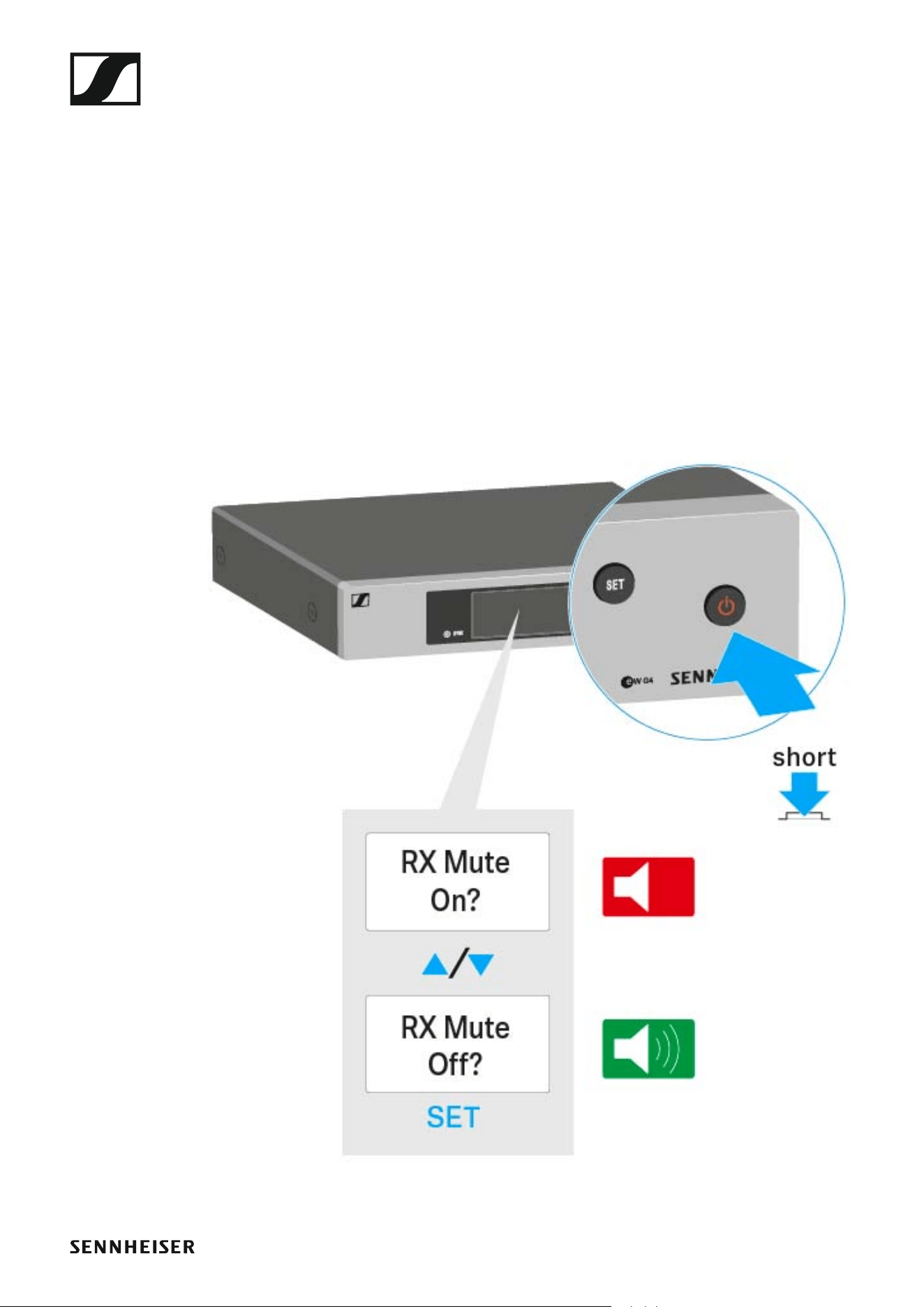

Muting the audio output
To mute the audio signal of the receiver:
▷ Short-press the STANDBY button in one of the standard displays.
The RX Mute On? display appears.
▷ Press the SET button.
The audio signal is muted.
To cancel the muting:
▷ Short-press the STANDBY button.
The RX Mute Off? display appears.
▷ Press the SET button.
The audio output is no longer muted.
►
Using the EM 100 G4
62

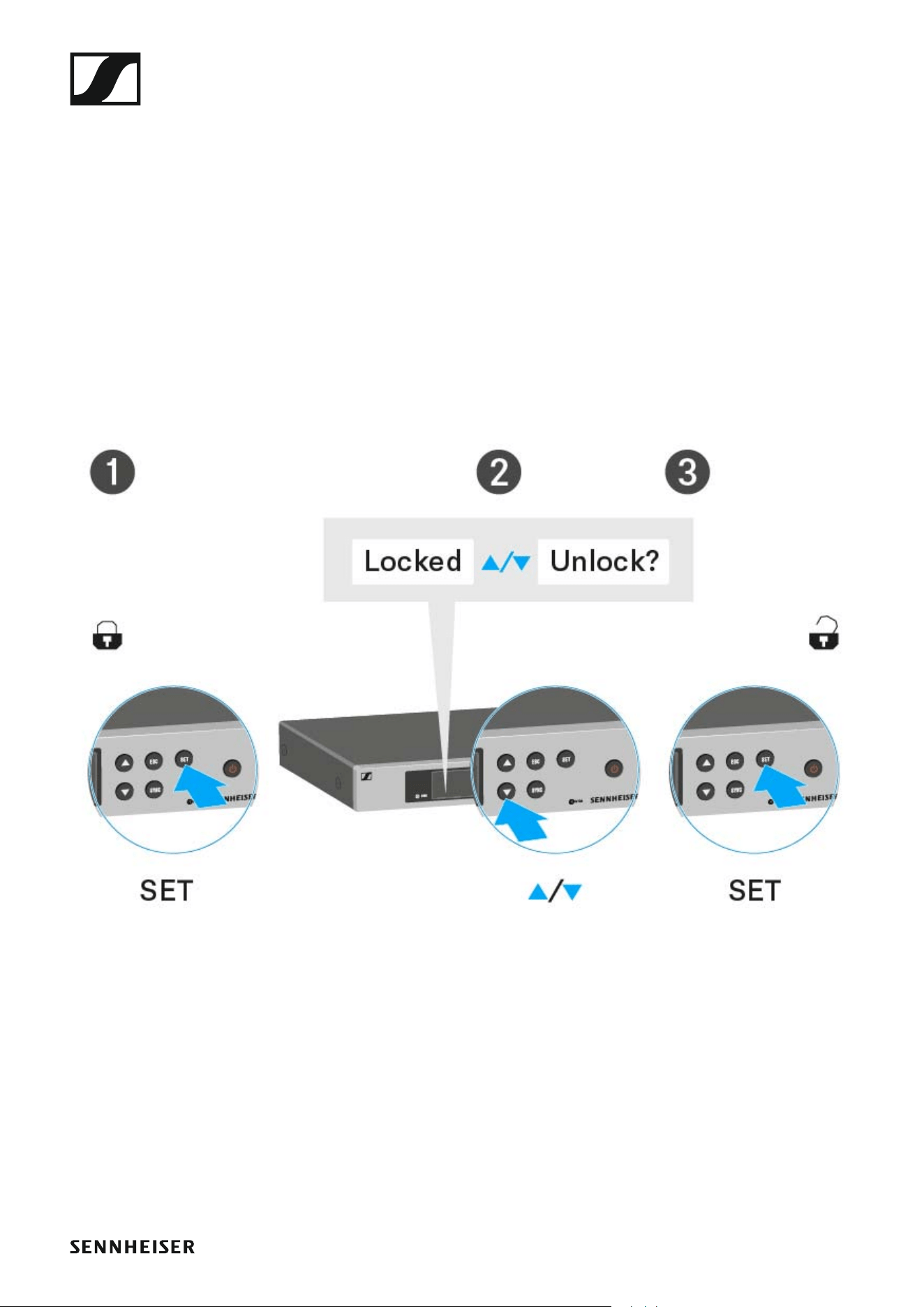

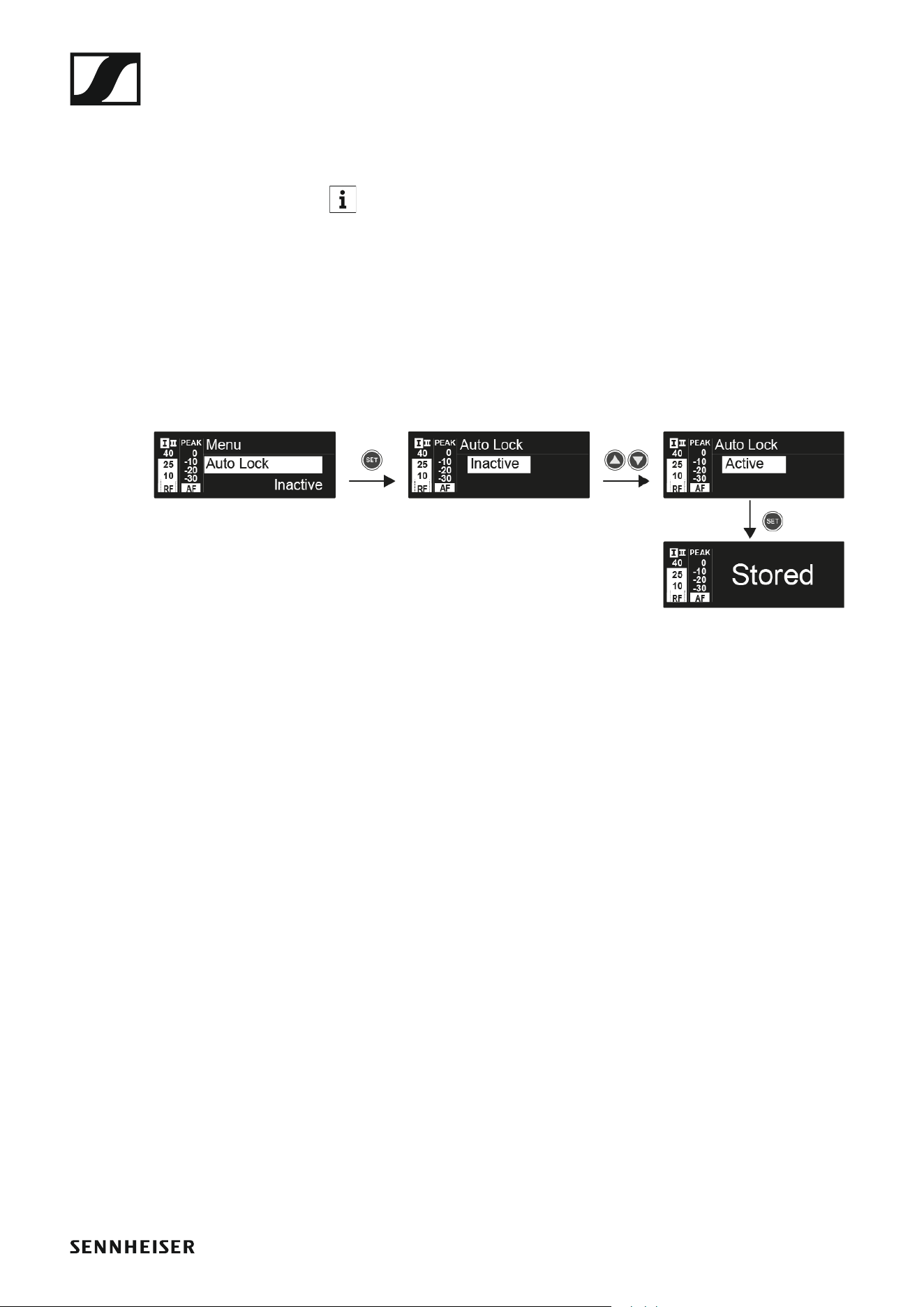

Lock-off function
You can set the automatic lock-off function in the Auto lock menu (see
“Auto Lock menu item”).
When you have switched on the lock-off function, you will have to turn the
receiver off and on again in order to operate it.
To temporarily deactivate the lock-off function:
▷ Press the SET button.
Locked appears in the display panel.
▷ Press the UP or DOWN button.
Unlock? appears in the display panel.
▷ Press the SET button.
Lock-off function is now temporarily deactivated.
►
When you are in the operating menu
>> Lock-off function is deactivated long enough for you to work in the op-
erating menu.
When one of the standard displays is shown
>> Lock-off function is automatically activated after 10 seconds.
The Lock-off function icon flashes while the lock-off function is being acti-
vated again.
Using the EM 100 G4
63
Displays on the EM 100 G4 display panel
Status information such as reception quality, battery status, audio level,
etc. is displayed on the home screen of the display panel.
• See “Home screen”.
The display panel also displays the operating menu which you can use to
configure all of the settings.
• See “Setting options in the menu”.

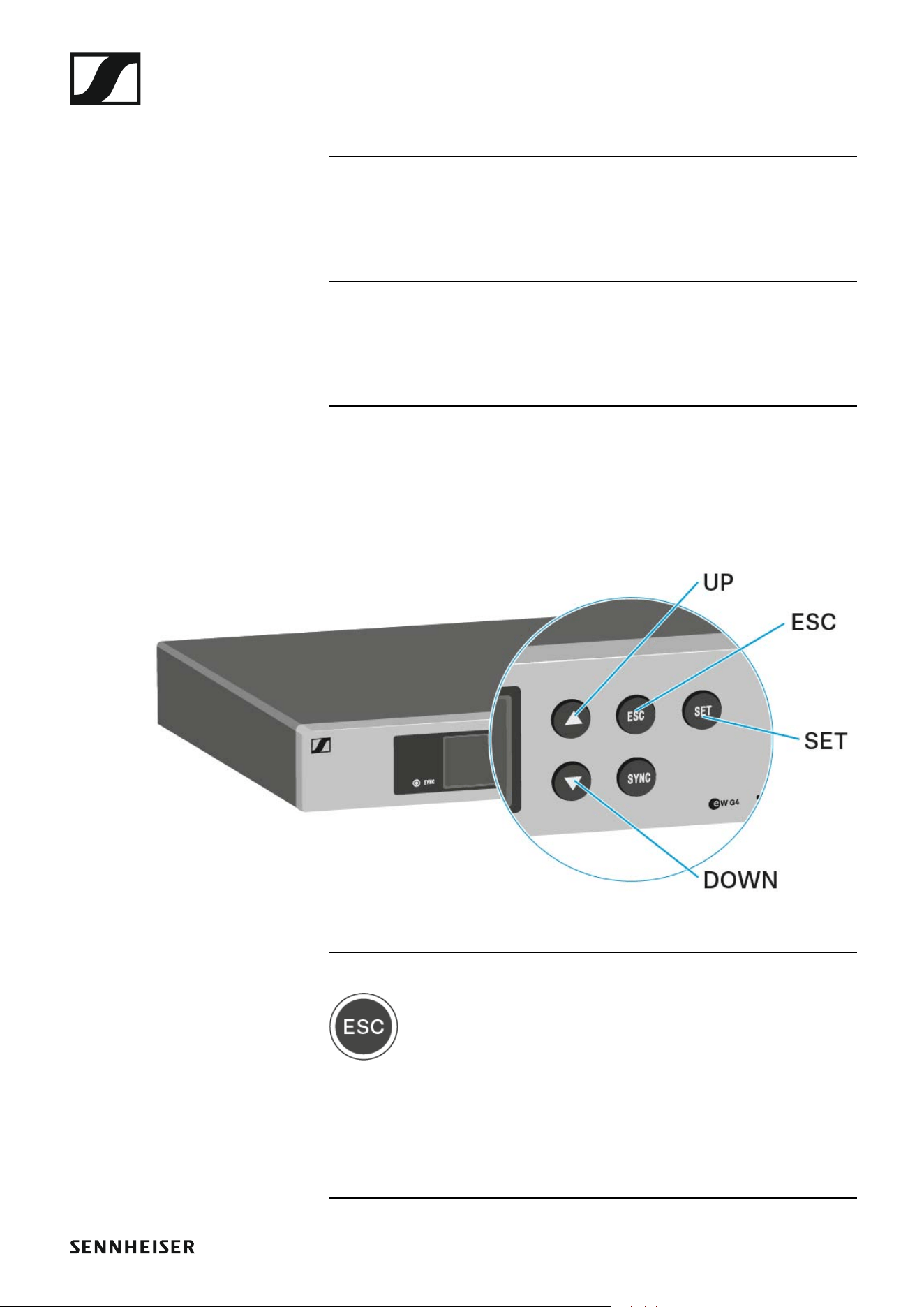

Buttons for navigating through the menu
To navigate through the EM 100 G4 operating menu, you need the follow-
ing buttons.
►
►
Short-press the ESC button
• Cancels the entry and returns to the previous display
Long-press the ESC button
• Cancels the entry and returns to the home screen
Using the EM 100 G4
64
►

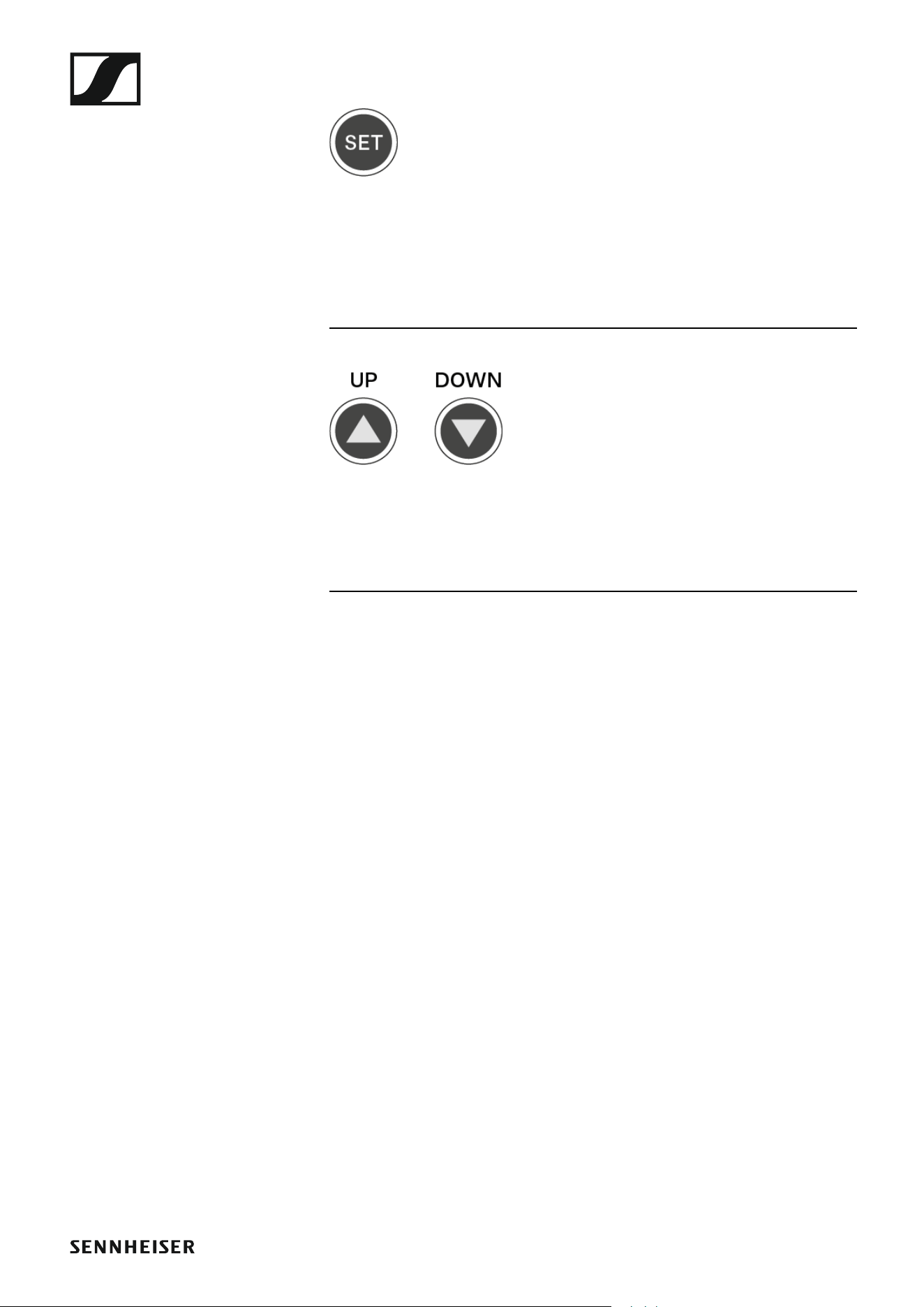

Press the SET button
• Changes from the current standard display to the operating menu
• Calls up a menu item
• Changes to a submenu
• Stores the settings and returns to the operating menu
►
Press the UP or DOWN button
• Selects a standard display (see “Home screen”)
• Changes to the previous or next menu item
• Changes the setting of a menu item
Using the EM 100 G4
65
Home screen
After you switch on the receiver, the display panel initially displays the
Sennheiser logo. After a short time, the home screen is then displayed.
The home screen has three different standard displays.
▷ On the home screen, press the UP and DOWN buttons to switch be-
tween the standard displays.

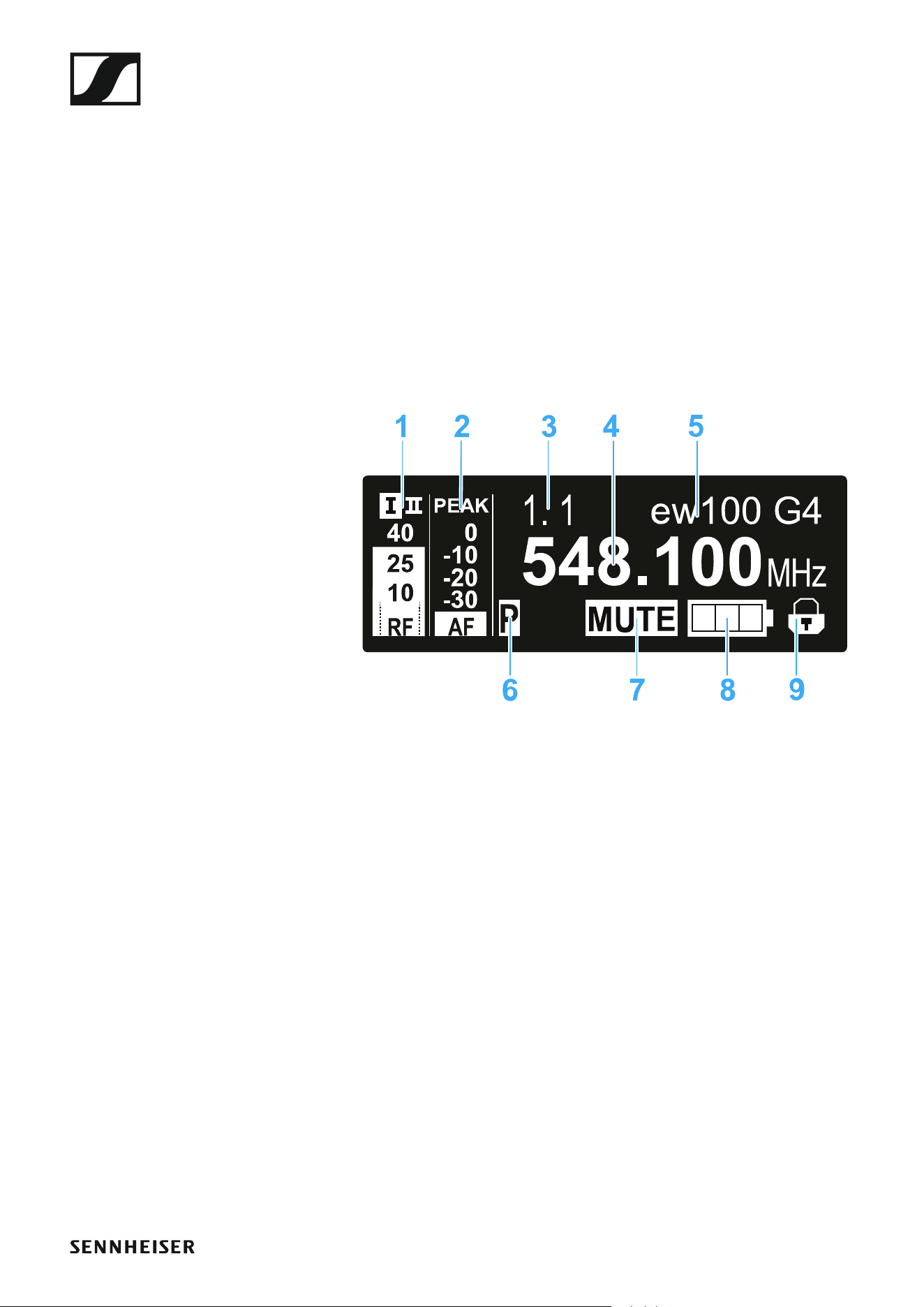

Receiver Parameters standard display
►
1 RF RF level (radio frequency)
• RF signal level display
• including the display of the squelch threshold (see “Squelch menu
item”)
2 AF audio level (audio frequency)
• Displays the audio level of the received transmitter
When the display shows full deflection, the audio input level is exces-
sively high. When the transmitter is overloaded frequently or for ex-
tended periods of time, the PEAK display is shown inverted.
• See “AF Out menu item”
3 Frequency bank and channel
• Current frequency bank and channel number
• See “Frequency Preset menu item”
4 Frequency
• Current receiving frequency
• See “Frequency Preset menu item”
5 Name
• Freely selectable name of the receiver
• See “Name menu item”
6 P pilot tone
Using the EM 100 G4
66
• Activated pilot tone evaluation
• See “Advanced -> Pilot Tone menu item”
7 MUTE muting function
• Receiver or transmitter is muted
• See “Muting the audio output”
8 Battery status of the transmitter
• SKM 100 G4: see “Inserting and removing the batteries/rechargeable
batteries”
• SK 100 G4: see “Inserting and removing the batteries/rechargeable
batteries”
9 Lock-off function
• Lock-off function is activated on the receiver
• See “Lock-off function”

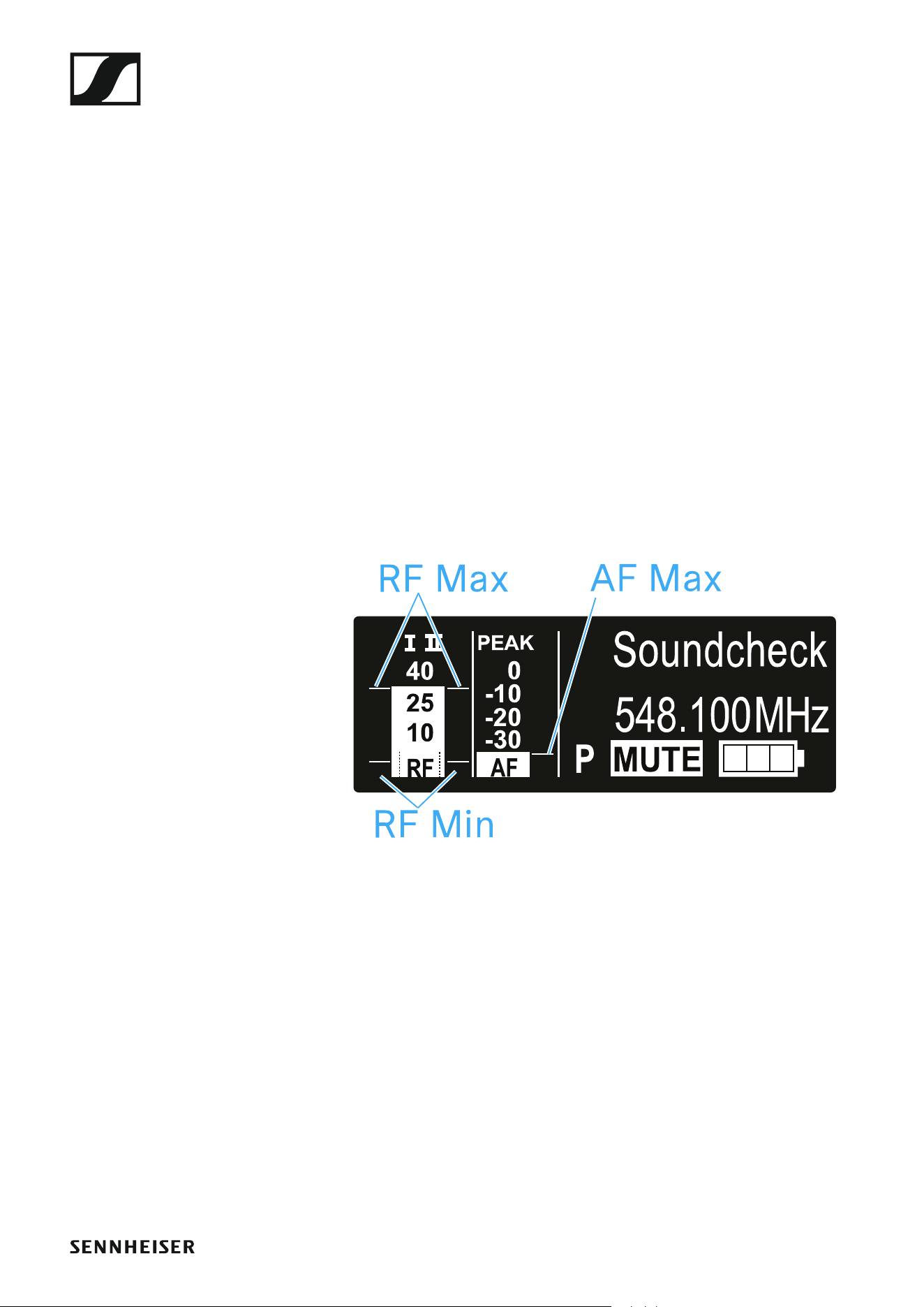

Soundcheck standard display
The Soundcheck standard display shows the transmission quality between
the transmitter and the receiver.
►
By doing a soundcheck, you can ensure adequate transmission quality in
the entire area in which you want to use the transmitter. You can do the
soundcheck without the help of another person.
▷ With the transmitter, walk up and down the area in which you want to
use the transmitter.
The receiver records the following parameters:
RF Min
• Minimum RF signal level
• must be well above the squelch threshold level for one of the two anten-
nas
Ways to optimize
▷ Check that the antennas and the antenna cables are correctly connect-
ed.
▷ Improve the position of the antennas.
▷ If necessary, use an antenna booster.
Using the EM 100 G4
67
RF Max
• Maximum RF signal level
• both antennas should reach 40 dBμV
Ways to optimize
▷ Check that the antennas and the antenna cables are correctly connect-
ed.
▷ Improve the position of the antennas.
▷ If necessary, use an antenna booster.
AF Max
Maximum audio level
Ways to optimize
On your transmitter, adjust the audio level as high as possible without the
display for the audio level showing full deflection (AF Max is at a level with
the PEAK display).
See “AF Out menu item”.

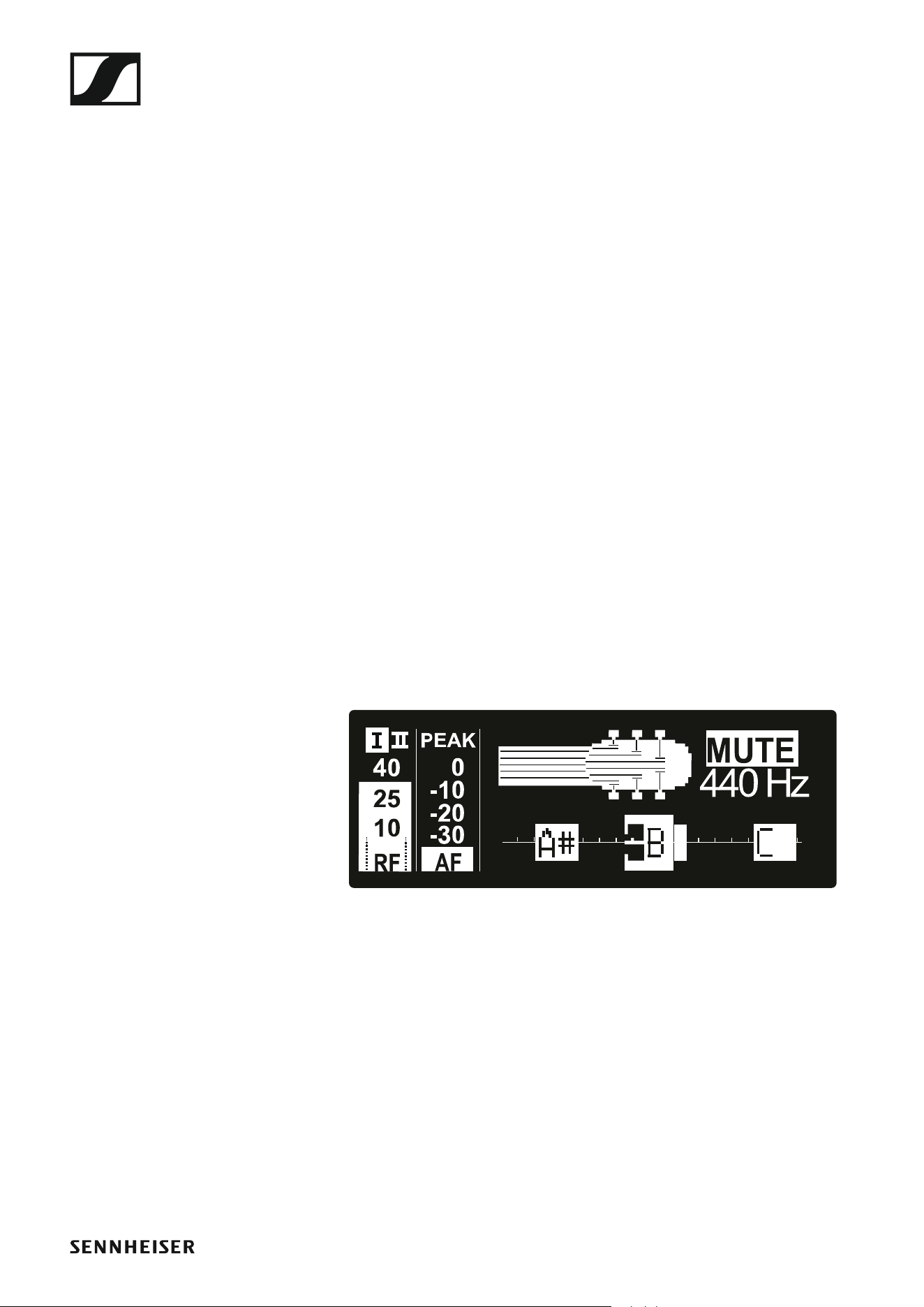

Guitar Tuner standard display
The Guitar Tuner standard display shows the guitar tuner (only for the
SK 100 G4).
►
The Guitar Tuner standard display is deactivated upon delivery. To show
this standard display, you have to activate it (see “Advanced -> Guitar Tun-
er menu item”).
Using the EM 100 G4
68
Setting options in the menu
In the EM 100 G4 menu, you can configure the following settings.
Adjusting the squelch threshold
▷ See “Squelch menu item”
Scanning for unused frequency presets, releases and selects frequen-
cy presets
▷ See “Easy Setup menu item”
Setting the frequency bank and the channel
▷ See “Frequency Preset menu item”
Entering a freely selectable name
▷ See “Name menu item”
Adjusting the audio output level
▷ See “AF Out menu item”
Adjusting the frequency response of the output signal
▷ See “Equalizer menu item”
Activate/deactivate the automatic lock-off function
▷ See “Auto Lock menu item”
Configuring enhanced settings in the Advanced Menu:
• Adjusting the receiving frequencies for the U frequency bank
• Adjusting the guitar tuner options
• Activating/deactivating the pilot tone evaluation
• Adjusting the contrast of the display panel
• Resetting the receiver
• Displaying the current software revision
▷ See “Advanced menu item”
Using the EM 100 G4
69

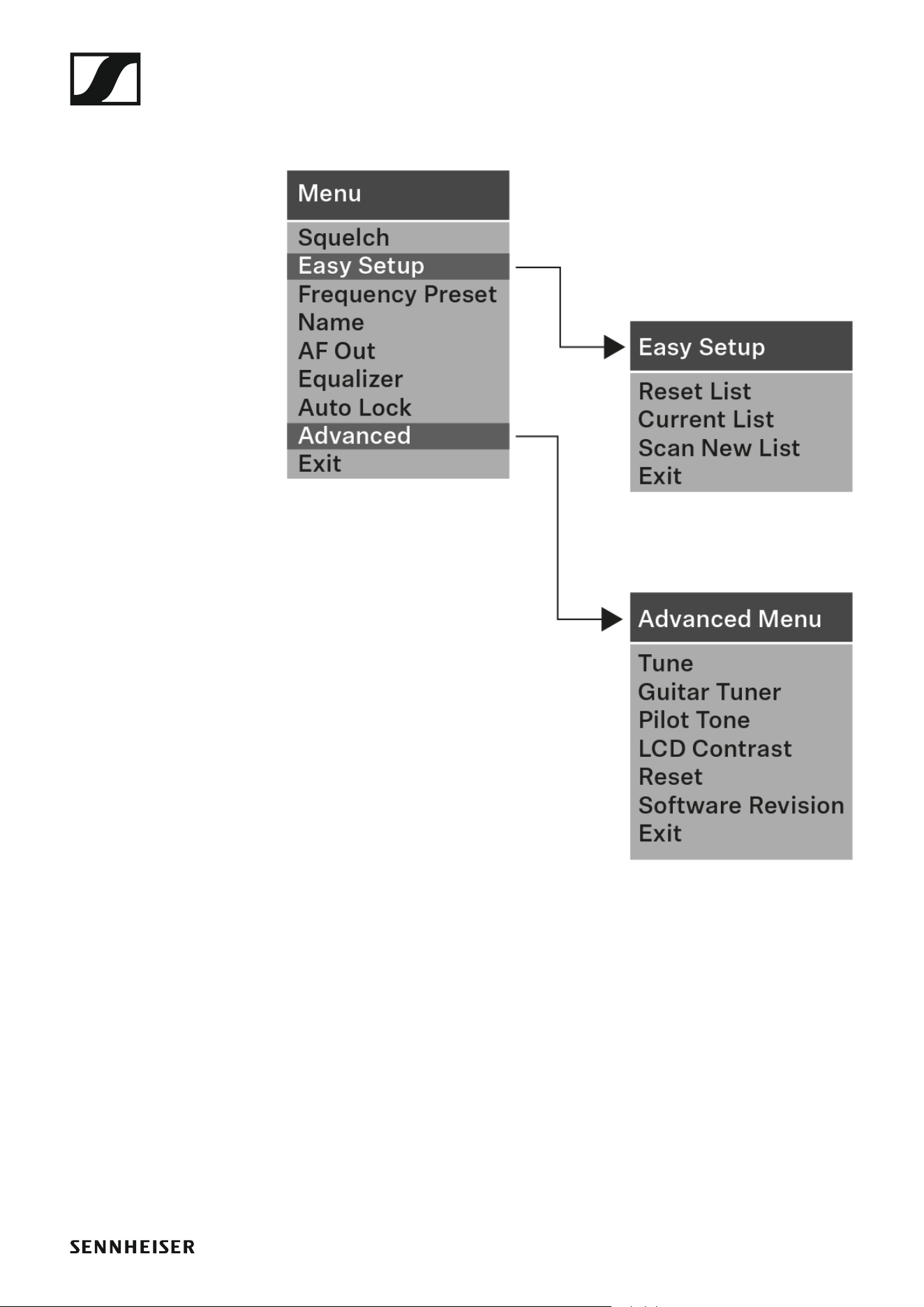

Menu structure
The figure shows the complete EM 100 G4 menu structure in an overview.
►
Using the EM 100 G4
70

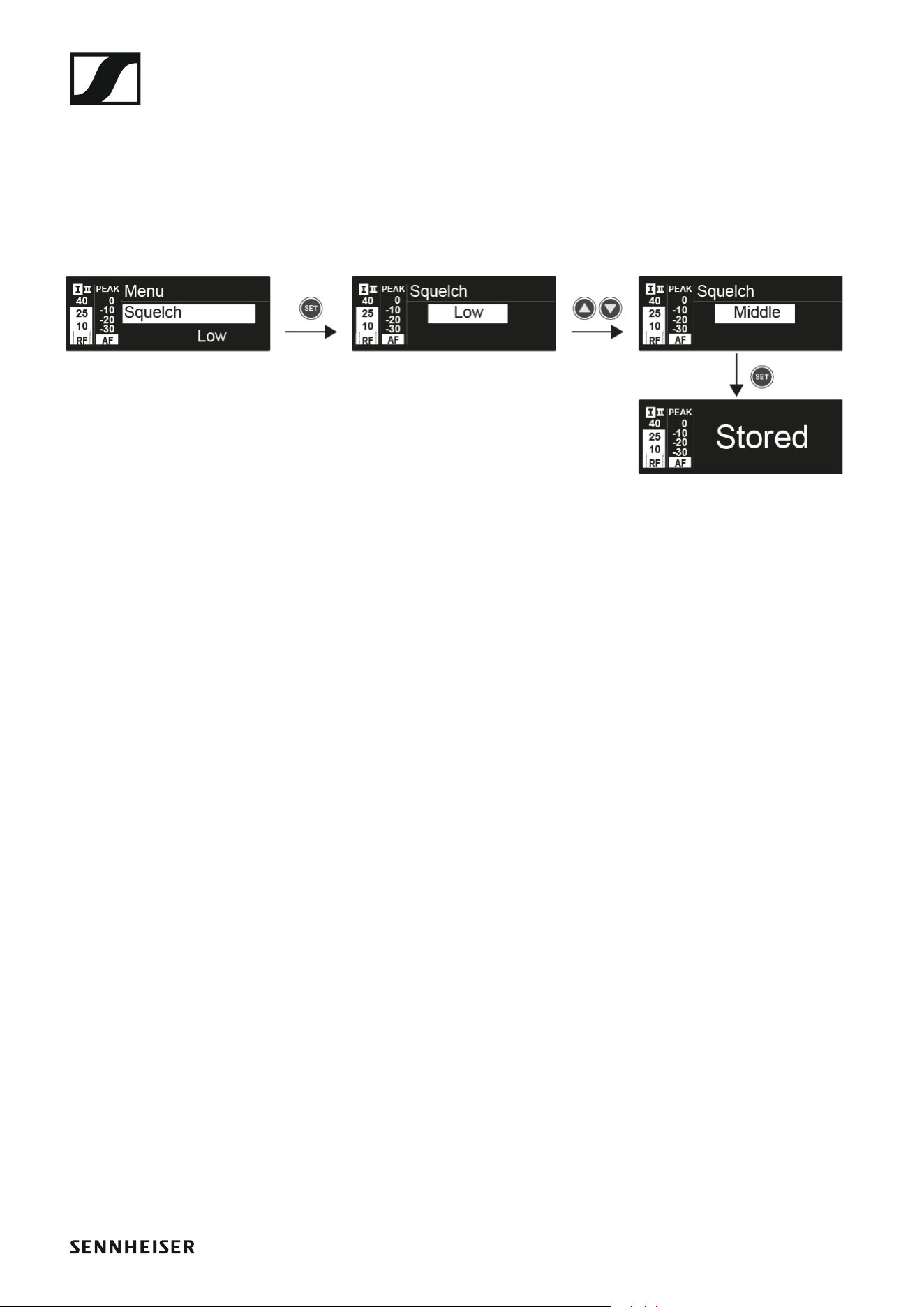

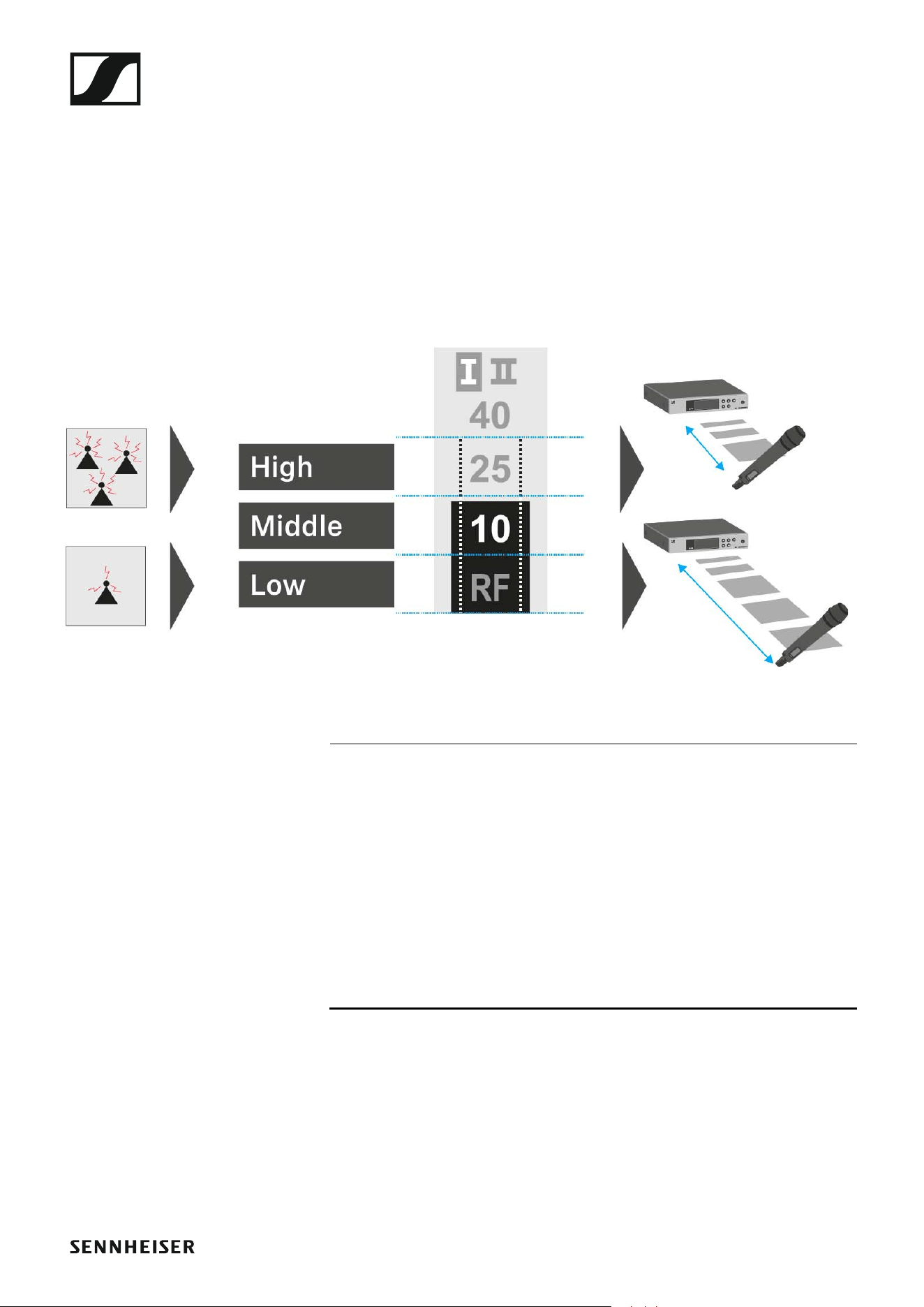

Squelch menu item
You can adjust the squelch threshold in the Squelch menu item.
Setting range:
• Low >> 5 dBμV
• Middle >> 15 dBμV
• High >> 25 dBμV
The squelch threshold is displayed on the home screen in the RF signal lev-
el area.
►
CAUTION
Risk of hearing and material damage
If you set the squelch threshold to a very low value, a very loud hissing
noise can occur in the receiver. This hissing noise can be loud enough to
cause hearing damage or overload your system’s loudspeakers.
▷ Before adjusting the squelch threshold, set the volume of the audio out-
put to the minimum.
▷ Never change the squelch threshold during a live transmission.
Using the EM 100 G4
71
To open the Squelch menu item:
▷ On the home screen, press the SET button to open the operating menu.
▷ Press the UP or DOWN button until the Squelch menu item appears in
the selection frame.
▷ Press the SET button to open the menu item.
▷ Adjust the settings as desired.
►
▷ Press the SET button to save the changes you made to the settings.
or
▷ Press the ESC button to cancel the entry without saving the setting.
Using the EM 100 G4
72

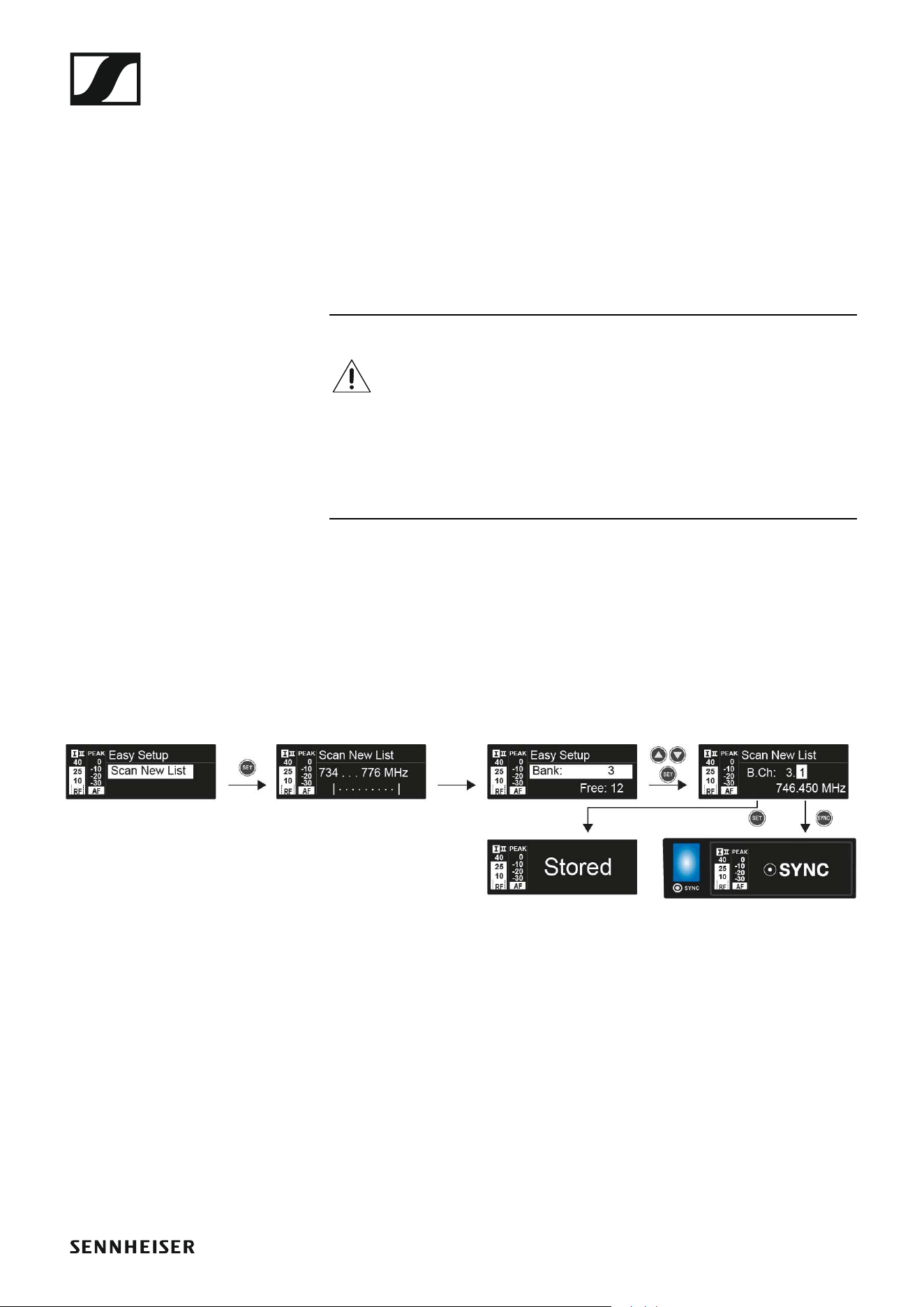

Easy Setup menu item
You can scan for unused frequencies using the Easy Setup menu item.
When you have connected multiple EM 100 G4 devices to a network via the
RJ-10 interfaces (see “Creating a data network”), you can perform the fre-
quency setup for all of the connected receivers. You can find more informa-
tion about connecting multiple devices under “Performing multi-channel
frequency setup”
Switch off all transmitters before you perform the scan. If transmit-
ters are still switched on, they are detected as unavailable frequen-
cies and the frequencies that are actually available cannot then be
used.
The squelch threshold setting influences the result. Set the squelch thresh-
old to Low for as many frequencies as possible, and to High for as many
safe frequencies as possible (see “Squelch menu item”).
To open the Easy Setup menu item:
▷ On the home screen, press the SET button to open the operating menu.
▷ Press the UP or DOWN button until the Easy Setup menu item appears
in the selection frame.
▷ Press the SET button to open the menu item.
Scan New List
▷ Select Scan New List to scan for unused frequencies.
▷ Press the SET button to start the scan.
The frequency range of the receiver is scanned. As a result, the number
of unused frequencies is displayed for every frequency bank.
▷ Press the UP or DOWN buttons to select a frequency bank.
▷ Press the SET button to confirm your selection.
▷ Press the UP or DOWN buttons to select an unused frequency from the
selected bank.
Using the EM 100 G4
73
▷ Press the SET button to save your selection and synchronize the select-
ed frequency with the transmitter at a later point (see “Synchronizing
devices”).
or
▷ Press the SYNC button to synchronize the selected frequency with the
transmitter immediately.
Current List
▷ Select Current List to show the list of unused frequencies from the last
scan.
Reset
▷ Select Reset List to delete the list of unused frequencies.
Performing multi-channel frequency setup
To perform the automatic frequency setup for multiple receivers (max. 12)
simultaneously:
▷ Connect all of the receivers to one network.
See “Creating a data network”.
▷ Open the Easy Setup menu item on one of the receivers.
This receiver is the master. You can choose any receiver to be the mas-
ter.
▷ Perform the frequency scan on the master receiver as described above.
After the scan, the display panels of the other receivers will display the
message Assign New Frequency?.
Receivers with non-compatible frequency ranges will display the mes-
sage Unassignable Frequency!.
▷ Select an unused frequency for the first receiver on the master receiv-
er.
▷ Press the SET button on the receiver that you would like to assign this
frequency to.
▷ Use this procedure to assign a frequency to each connected receiver,
one after another.
▷ For the last step, assign a frequency to the master receiver.
This completes the multi-channel frequency setup.
Using the EM 100 G4
74
►
Using the EM 100 G4
75
Setting up a multi-channel system with more than 12 receivers
You can use the Easy Setup function to automatically set up a maximum
of 12 receivers.
If you assign the frequencies manually, however, you can use up to 20 re-
ceivers in a multi-channel system (not possible in the JB, K+ and 1G8 fre-
quency ranges).
▷ To do so, set a frequency manually in each receiver (see “Advanced ->
Tune menu item”).
▷ Use the frequencies from the following table.
►
Using the EM 100 G4
76

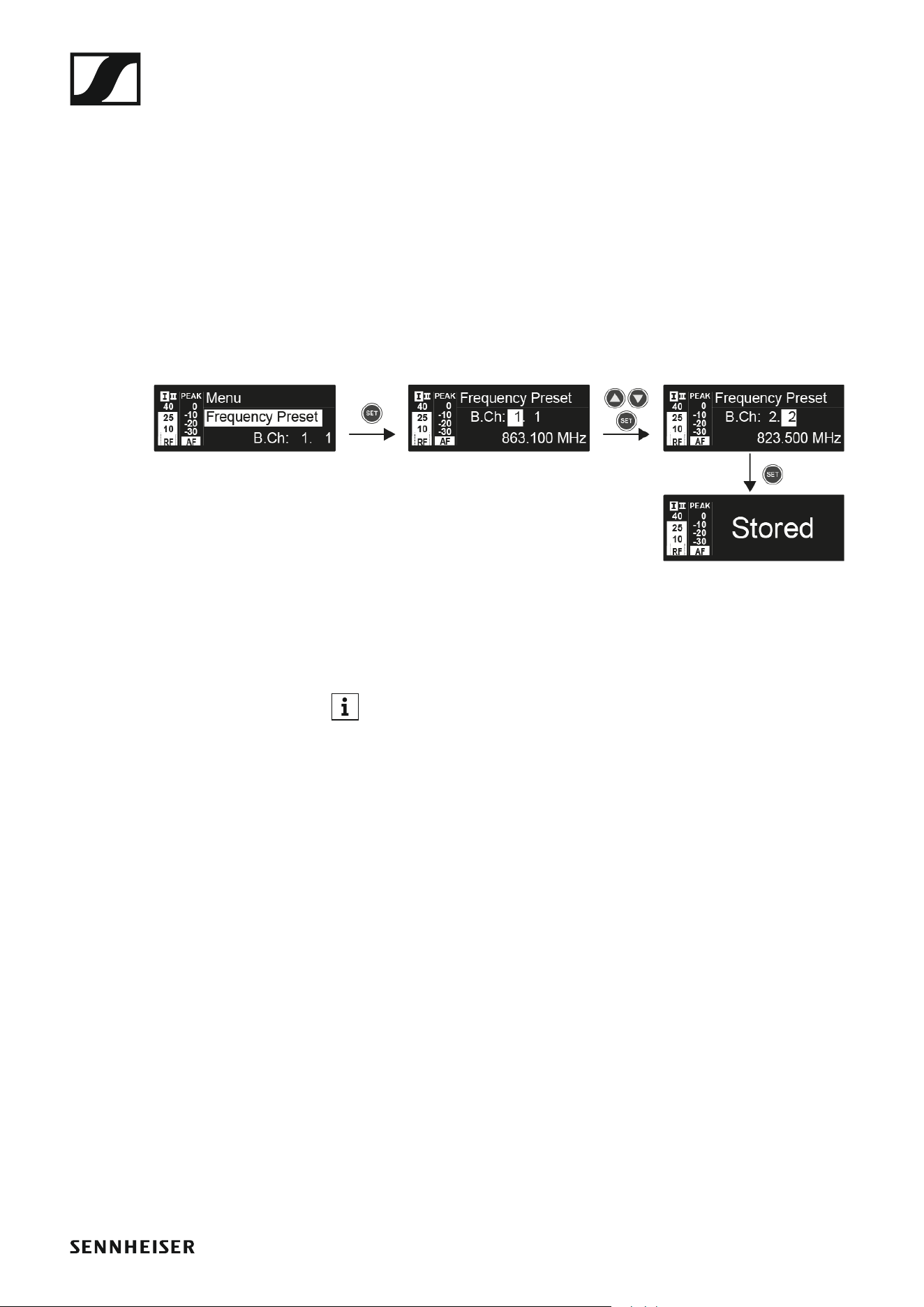

Frequency Preset menu item
In the Frequency Preset menu item, you can adjust the receiving frequen-
cy of the receiver by adjusting the frequency bank and the channel.
To open the Frequency Preset menu item:
▷ On the home screen, press the SET button to open the operating menu.
▷ Press the UP or DOWN button until the Frequency Preset menu item
appears in the selection frame.
▷ Press the SET button to open the menu item.
▷ Adjust the settings as desired.
►
▷ Press the SET button to save the changes you made to the settings.
or
▷ Press the ESC button to cancel the entry without saving the setting.
You can set the frequencies of the frequency bank U here: “Advanced
-> Tune menu item”
Using the EM 100 G4
77

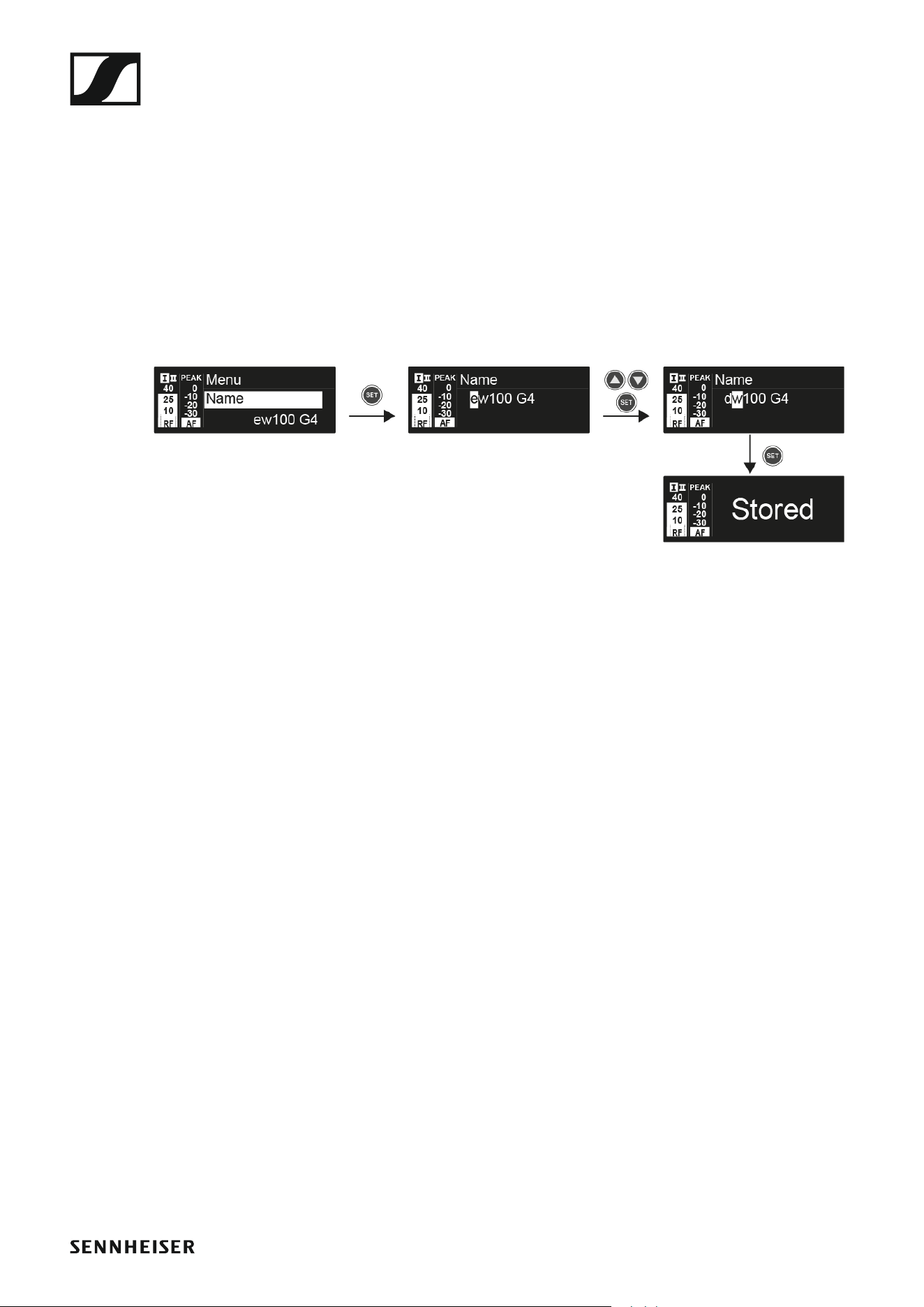

Name menu item
In the Name menu item you can enter a name for the radio link.
To open the Name menu item:
▷ On the home screen, press the SET button to open the operating menu.
▷ Press the UP or DOWN button until the Name menu item appears in the
selection frame.
▷ Press the SET button to open the menu item.
▷ Adjust the settings as desired.
►
▷ Press the SET button to save the changes you made to the settings.
or
▷ Press the ESC button to cancel the entry without saving the setting.
Using the EM 100 G4
78

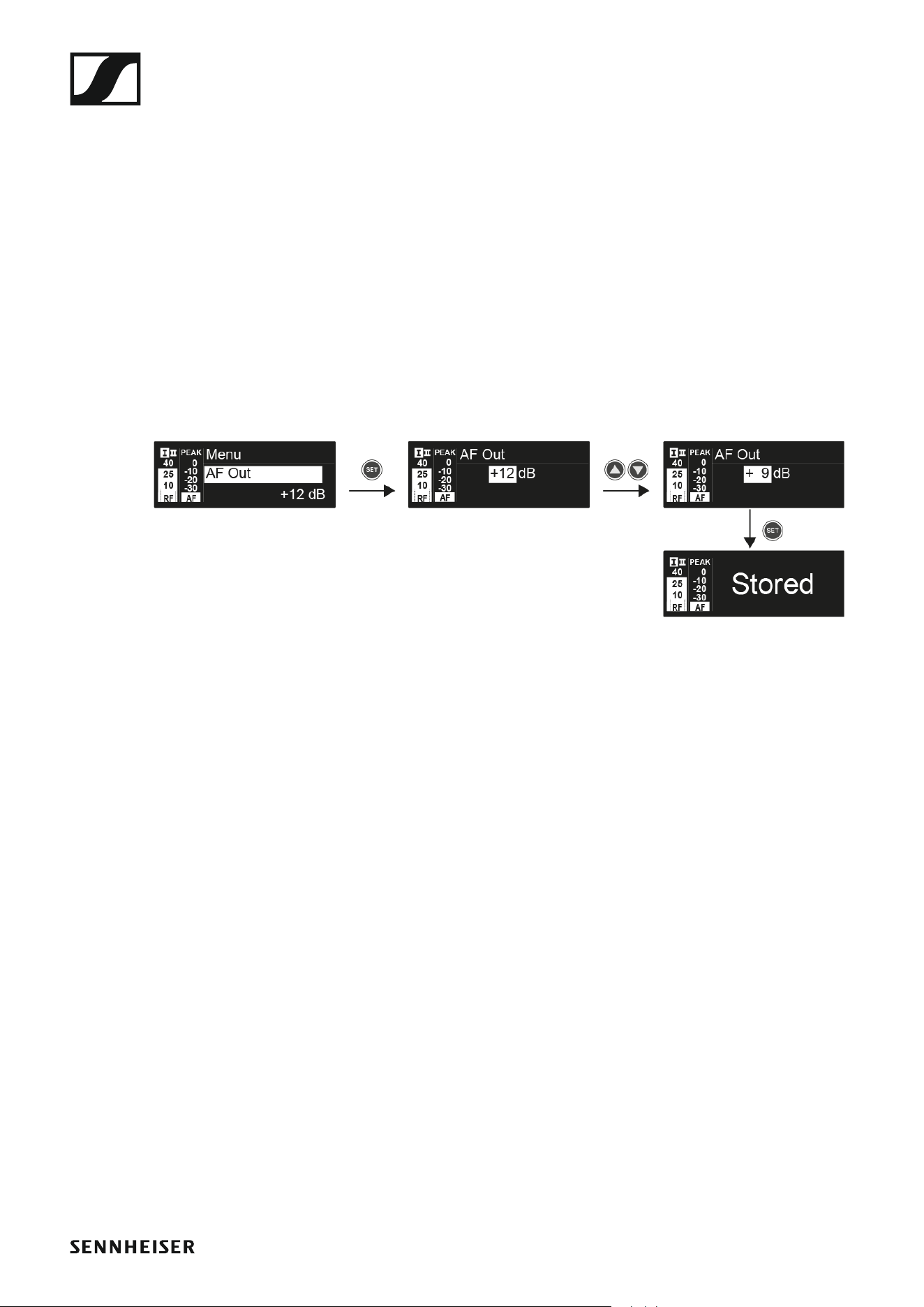

AF Out menu item
In the AF Out menu item, you can set the audio level that is output via the
receiver audio outputs.
Setting range:
• –24 dB to +18 dB in 3 dB steps
To open the AF Out menu item:
▷ On the home screen, press the SET button to open the operating menu.
▷ Press the UP or DOWN button until the AF Out menu item appears in
the selection frame.
▷ Press the SET button to open the menu item.
▷ Adjust the settings as desired.
►
▷ Press the SET button to save the changes you made to the settings.
or
▷ Press the ESC button to cancel the entry without saving the setting.
Using the EM 100 G4
79

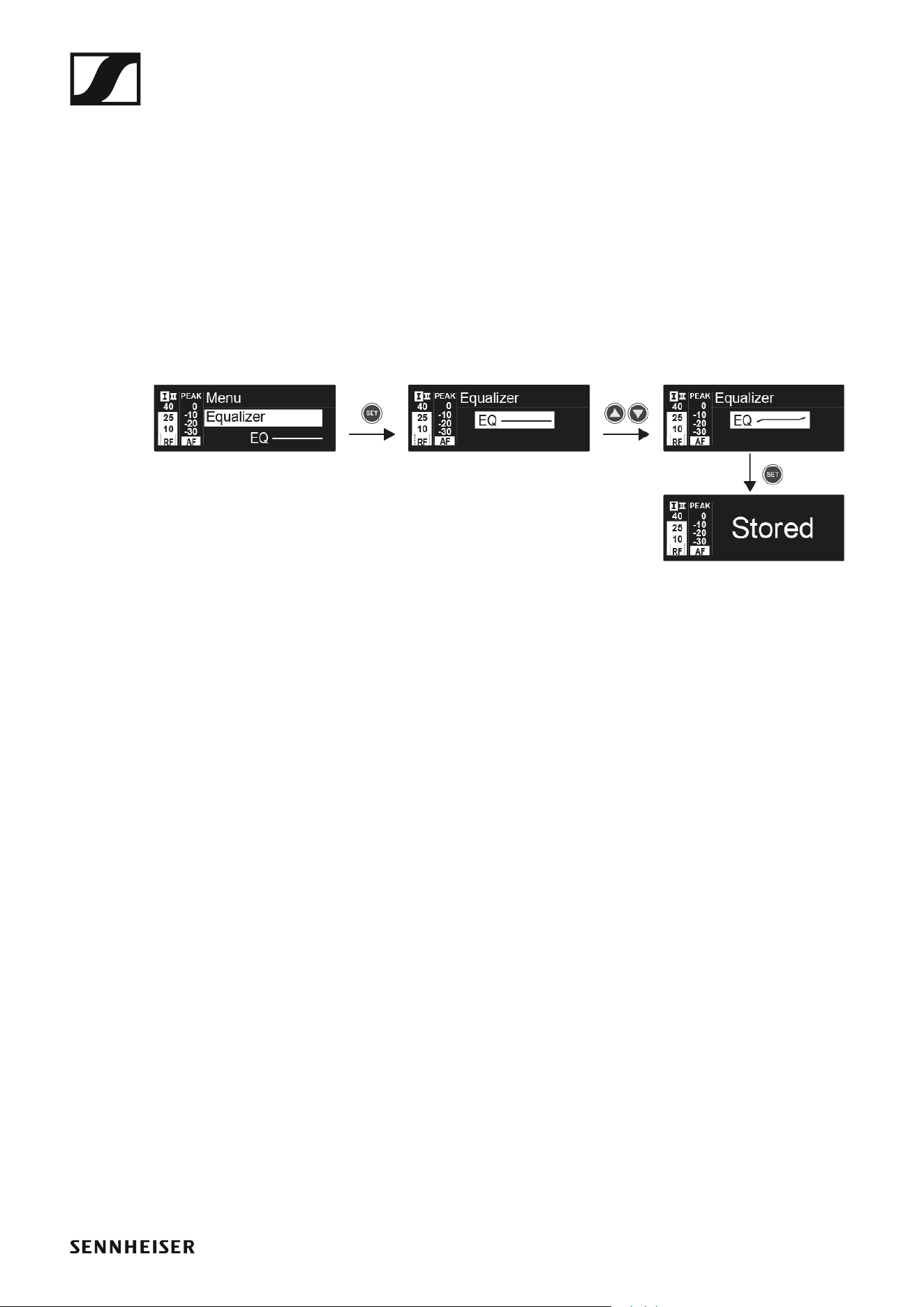

Equalizer menu item
In the Equalizer menu item, you can change the frequency response of the
output signal. You can reduce the bass range and boost the treble range.
To open the Equalizer menu item:
▷ On the home screen, press the SET button to open the operating menu.
▷ Press the UP or DOWN button until the Equalizer menu item appears
in the selection frame.
▷ Press the SET button to open the menu item.
▷ Adjust the settings as desired.
►
▷ Press the UP or DOWN buttons to configure the desired settings.
▷ Press the SET button to save the changes you made to the settings.
or
▷ Press the ESC button to cancel the entry without saving the setting.
Using the EM 100 G4
80
Auto Lock menu item
In the Auto Lock menu item you can activate or deactivate the auto lock-
off function.
You can find information about temporarily deactivating the lock-off
function during operation under “Lock-off function”.
To open the Auto Lock menu item:
▷ On the home screen, press the SET button to open the operating menu.
▷ Press the UP or DOWN button until the Auto Lock menu item appears
in the selection frame.
▷ Press the SET button to open the menu item.
▷ Adjust the settings as desired.
►
▷ Press the SET button to save the changes you made to the settings.
or
▷ Press the ESC button to cancel the entry without saving the setting.
Using the EM 100 G4
81
Advanced menu item
In the Advanced submenu you can configure enhanced settings.
To open the Advanced submenu:
▷ On the home screen, press the SET button to open the operating menu.
▷ Press the UP or DOWN button until the Advanced menu item appears
in the selection frame.
▷ Press the SET button to open the menu item.
The following sub-items are available:
Adjusting the receiving frequencies for the U frequency bank
▷ See “Advanced -> Tune menu item”
Adjusting the guitar tuner options
▷ See “Advanced -> Guitar Tuner menu item”
Activating/deactivating the pilot tone evaluation
▷ See “Advanced -> Pilot Tone menu item”
Adjusting the contrast of the display panel
▷ See “Advanced -> LCD Contrast menu item”
Resetting the receiver
▷ See “Advanced -> Reset menu item”
Displaying the current software revision
▷ See “Advanced -> Software Revision menu item”
Using the EM 100 G4
82
Advanced -> Tune menu item
In the Tune menu item of the Advanced submenu, you can configure the
receiving frequencies for the U frequency bank.
You can save a total of 12 frequencies in the U frequency bank.
Only adjusting the frequency
▷ Open the Tune menu item in the Advanced menu.
▷ Adjust the settings.
►
▷ Press the SET button to save the changes you made to the settings.
or
▷ Press the ESC button to cancel the entry without saving the setting.
Setting the channel and frequency
▷ Select the Tune menu item and call it up by holding down the SET but-
ton until the channel selection appears.
▷ Adjust the settings.
►
▷ Press the SET button to save the changes you made to the settings.
or
▷ Press the ESC button to cancel the entry without saving the settings.
Using the EM 100 G4
83

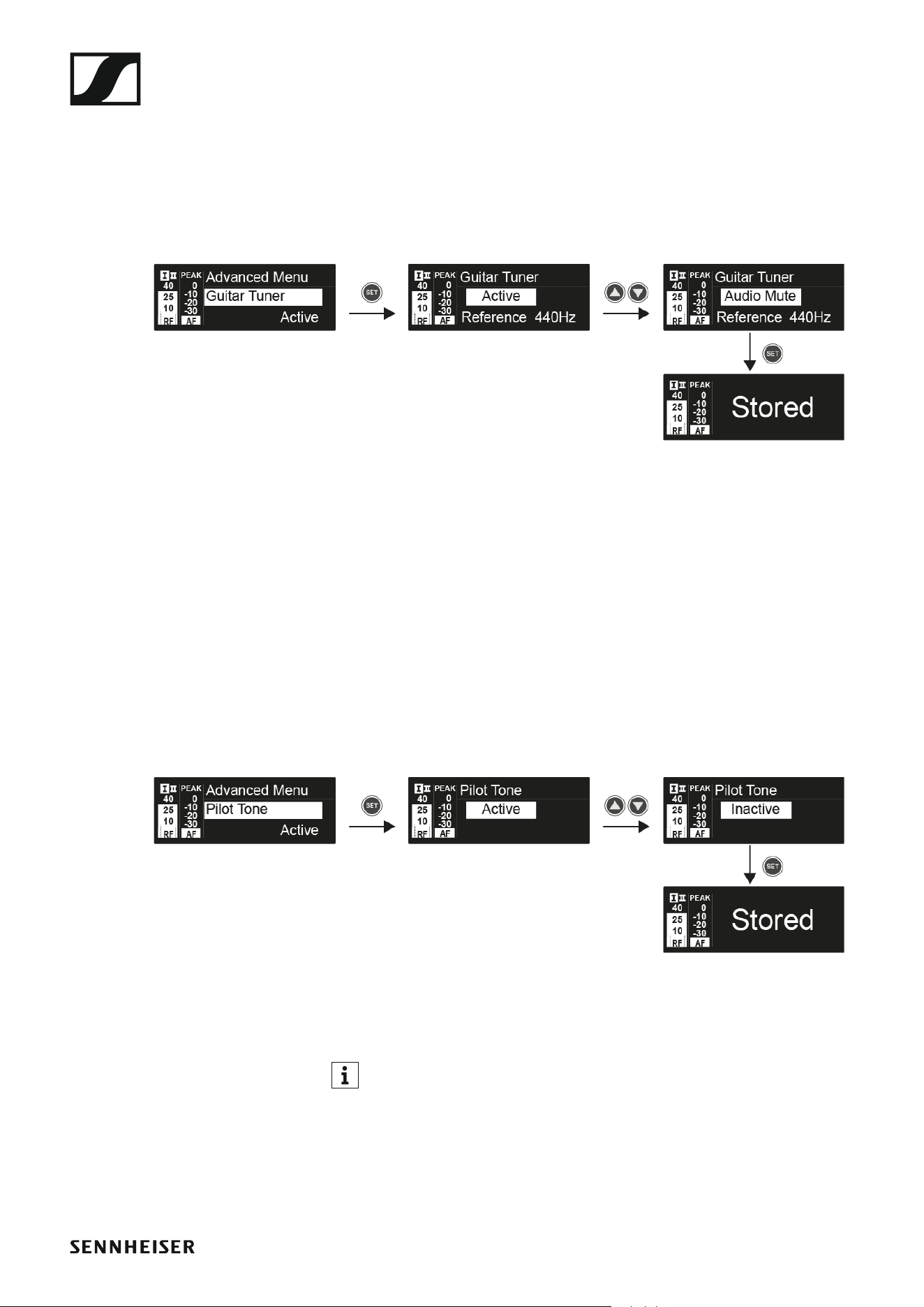

Advanced -> Guitar Tuner menu item
In the Guitar Tuner menu item of the Advanced submenu, you can adjust
the options of the guitar tuner.
The guitar tuner is opened in the Guitar Tuner standard display on the
home screen. See “Guitar Tuner standard display”.
►
• Inactive: The guitar tuner is deactivated.
• Active: The guitar tuner is activated.
• Audio mute: The guitar tuner is activated. Once the Guitar Tuner stan-
dard display is open on the home screen, the audio signal is muted.
Advanced -> Pilot Tone menu item
In the Pilot Tone menu item of the Advanced submenu, you can activate
and deactivate the pilot tone evaluation.
►
The pilot tone has an inaudible frequency that is sent from the transmitter
and evaluated by the receiver. It supports the receiver’s squelch function.
For the best possible operational reliability, we recommend leaving
the pilot tone activated.
Using the EM 100 G4
84

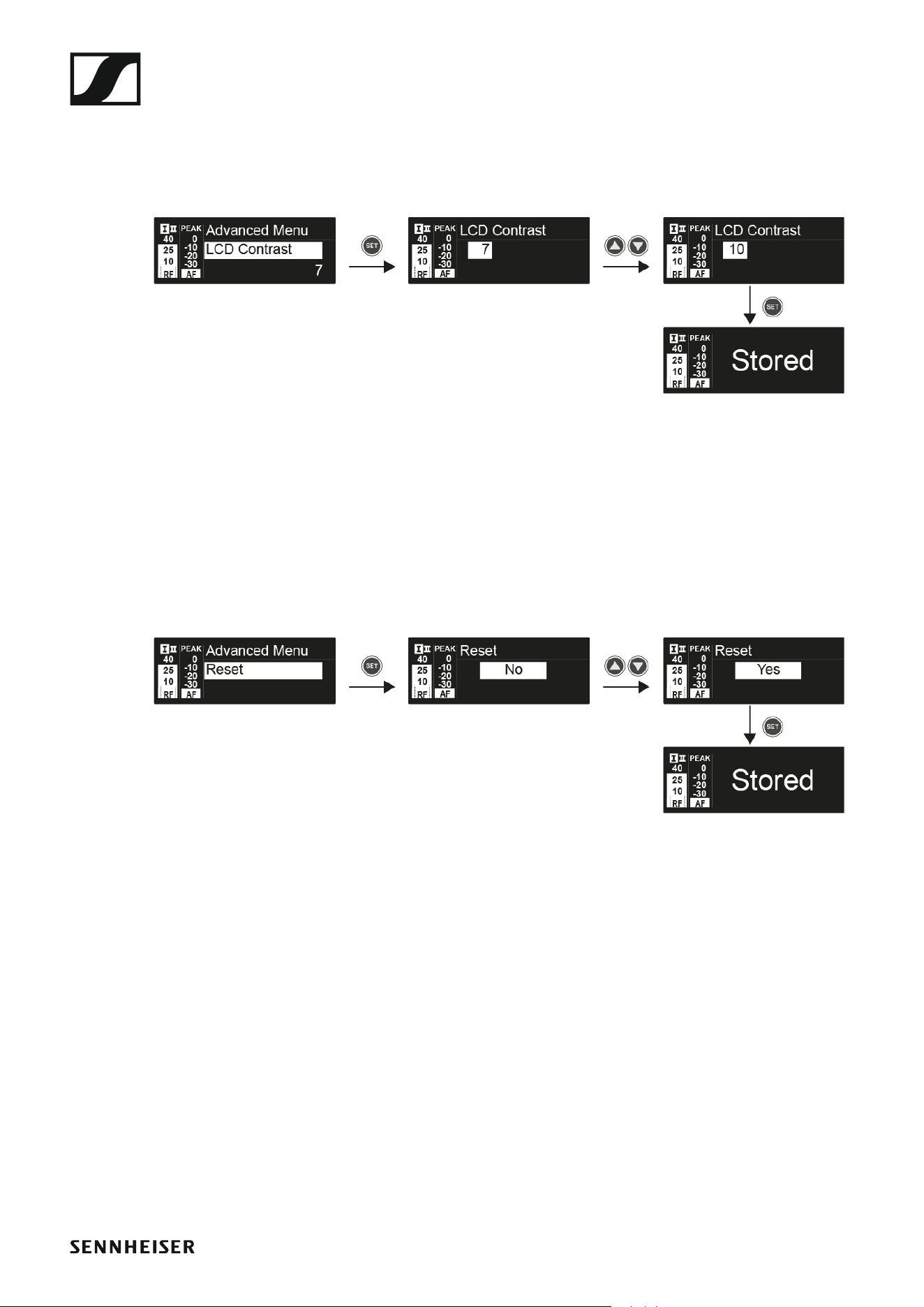

Advanced -> LCD Contrast menu item
In the LCD Contrast menu item of the Advanced submenu, you can adjust
the display contrast of the display panel.
►
Advanced -> Reset menu item
In the Reset menu item of the Advanced submenu, you can reset all of the
settings of the receiver to the factory settings.
►
Advanced -> Software Revision menu item
In the Software Revision menu item of the Advanced submenu, you can
display the current software version of the receiver.
Using the SKM 100 G4
86

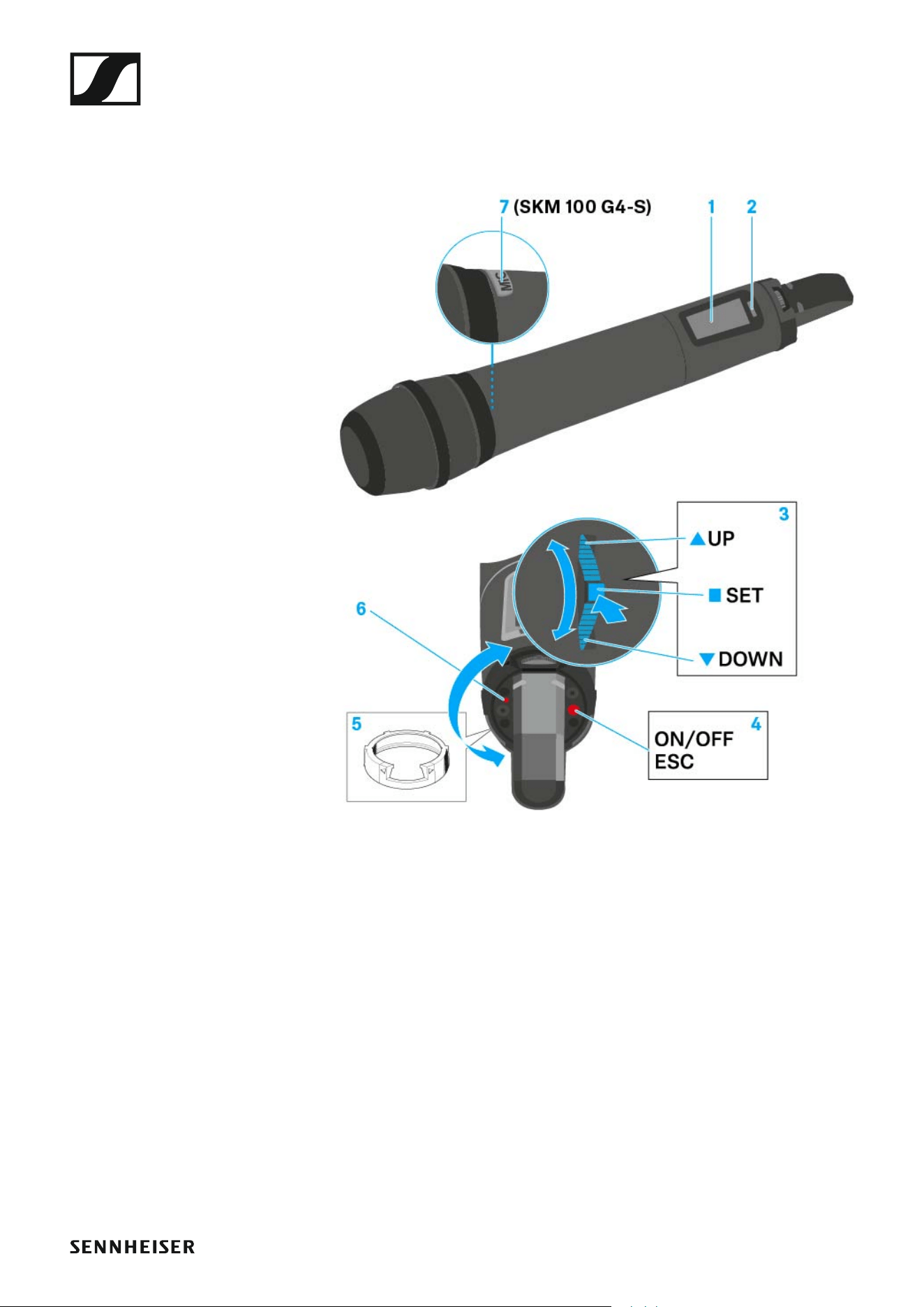

Operating elements of the SKM 100 G4 handheld
transmitter
►
1 Display panel
• See “Displays on the SKM 100 G4 handheld transmitter display pan-
el”
2 Infra-red interface
• See “Synchronizing devices”
3 DOWN, UP and SET multi-function switch
• See “Buttons for navigating the SKM 100 G4 menu”
4 ON/OFF button with ESC function in the operating menu
• Switch the transmitter on or off
See “Switching the SKM 100 G4 handheld transmitter on and off”
• Escape function in the menu
See “Buttons for navigating the SKM 100 G4 menu”
5 Colored ring
• Available in different colors (see “Additional accessories” and
“Changing the colored ring”)
• Can be turned to protect the multi-function switch
Using the SKM 100 G4
87
6 Operation and battery indicator, red LED
• illuminated = ON
See “Switching the SKM 100 G4 handheld transmitter on and off”
•flashing = LOW BATTERY
See “Inserting and removing the batteries/rechargeable batteries”
7 MIC button (only SKM 100 G4-S)
• See “Muting the handheld transmitter (AF mute)”
• See “Advanced > Mute Mode menu item (SKM 100 G4-S only)”

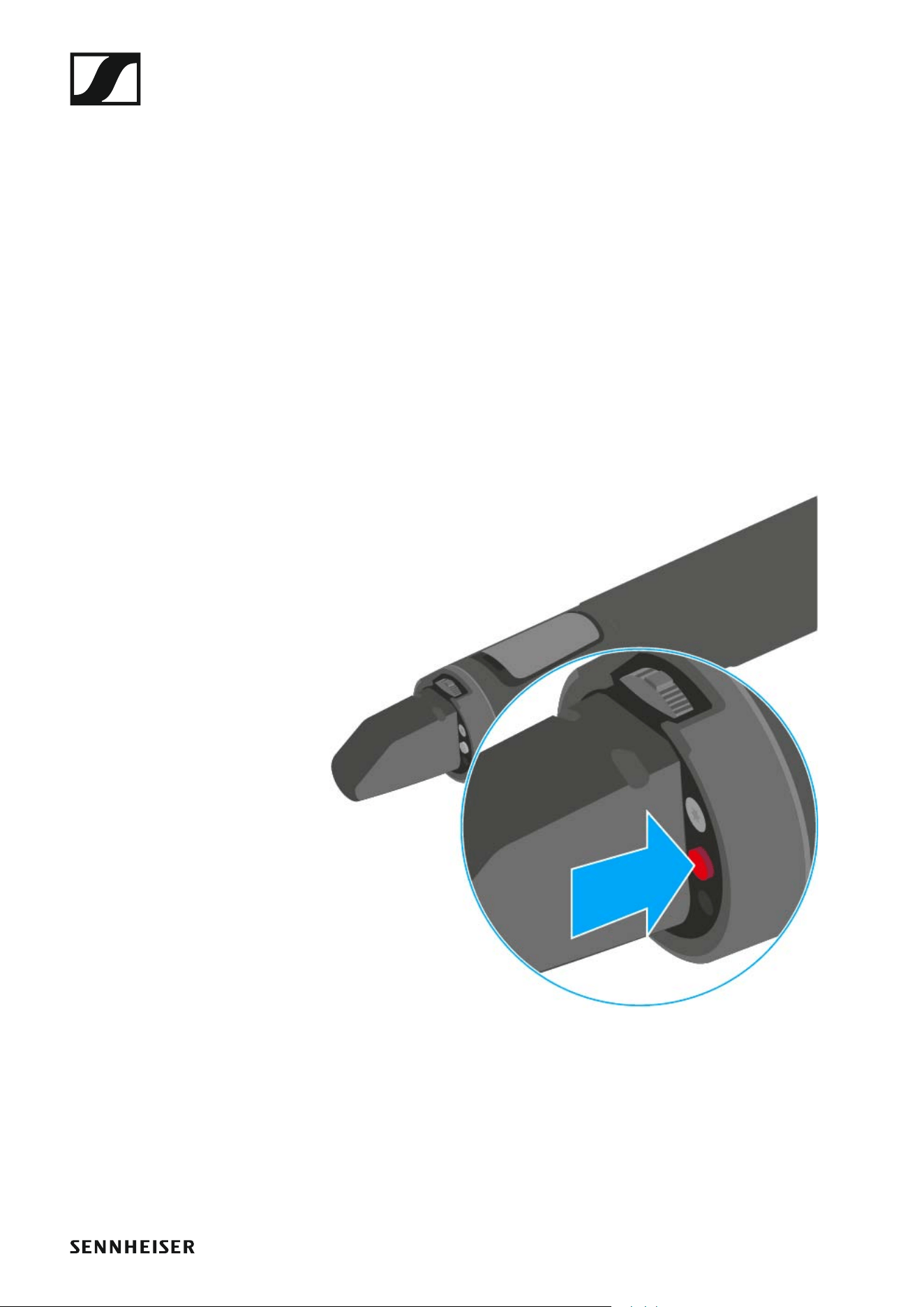

Switching the SKM 100 G4 handheld transmitter on
and off
To switch on the SKM 100 G4:
▷ Hold down the ON/OFF button until the Sennheiser logo appears on the
display.
►
To switch off the SKM 100 G4:
▷ Hold down the ON/OFF button until the display goes off.
Using the SKM 100 G4
88
Muting the handheld transmitter (AF mute)
SKM 100 G4
The audio signal of the transmitter cannot be muted.
However, when you deactivate the RF signal no AF signal is output. See
“Deactivating the RF signal (RF mute)”.

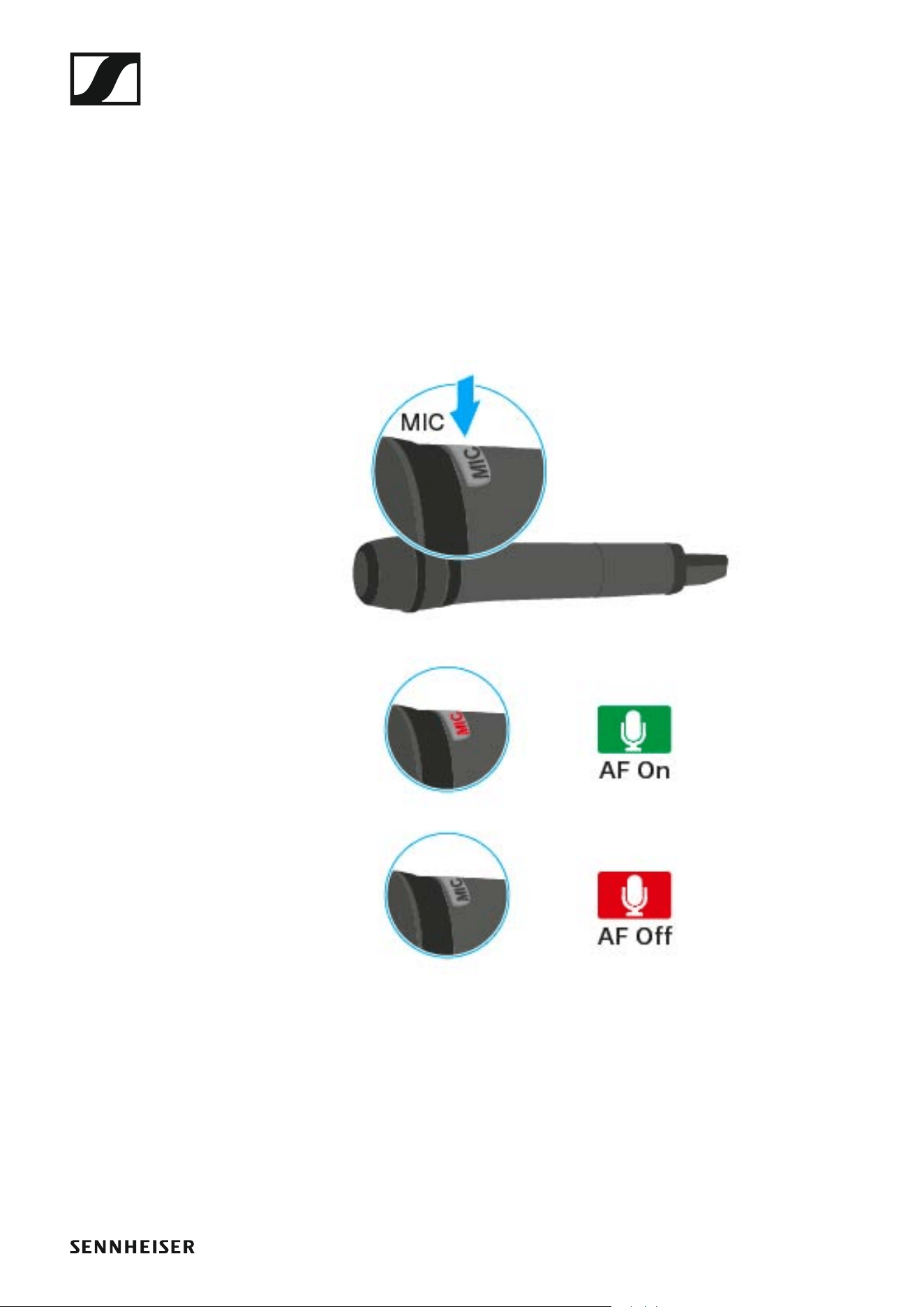

SKM 100 G4-S
You can mute the audio signal by pressing the MIC button.
•The MIC button lights up red: the audio signal is activated
•The MIC button is not lit: the audio signal is muted
Using the SKM 100 G4
89

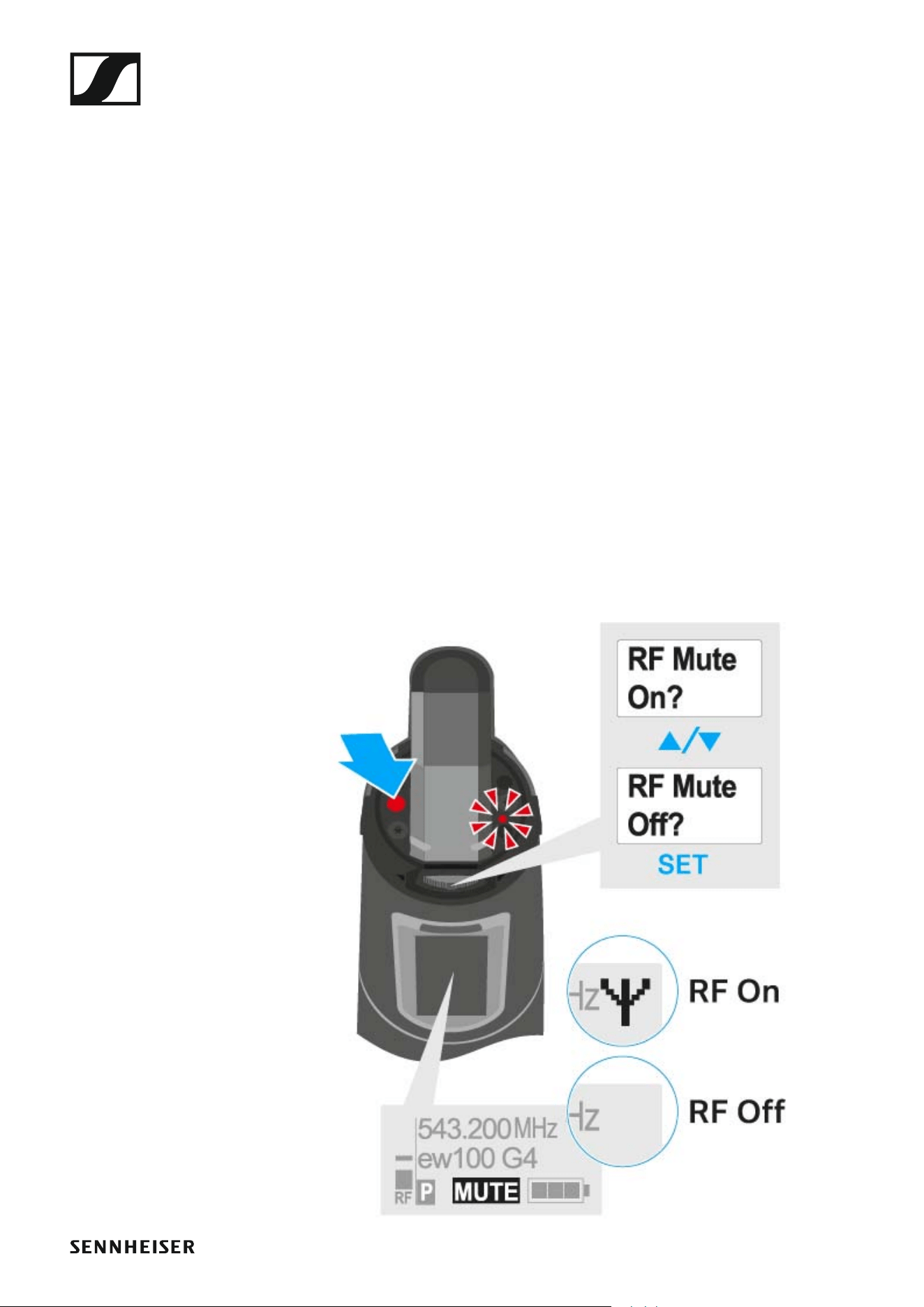

Deactivating the RF signal (RF mute)
You can temporarily deactivate the RF signal when the microphone is
switched on. When the RF signal is deactivated, no audio signal is output.
Use this function to save battery or when you want to prepare a micro-
phone for use during live broadcast without interfering with the current
transmission path.
To deactivate the RF signal:
▷ Short-press the ON/OFF button.
RF Mute On? appears.
▷ Press the SET button.
The transmission frequency is displayed, however the wireless micro-
phone is not transmitting an RF signal. The transmission icon is not lit
(see “Displays on the SKM 100 G4 handheld transmitter display pan-
el”).
To activate the RF signal:
▷ Short-press the ON/OFF button.
RF Mute Off? appears.
▷ Press the SET button.
The transmission icon appears again (see “Displays on the SKM 100 G4
handheld transmitter display panel”).
►
Using the SKM 100 G4
90

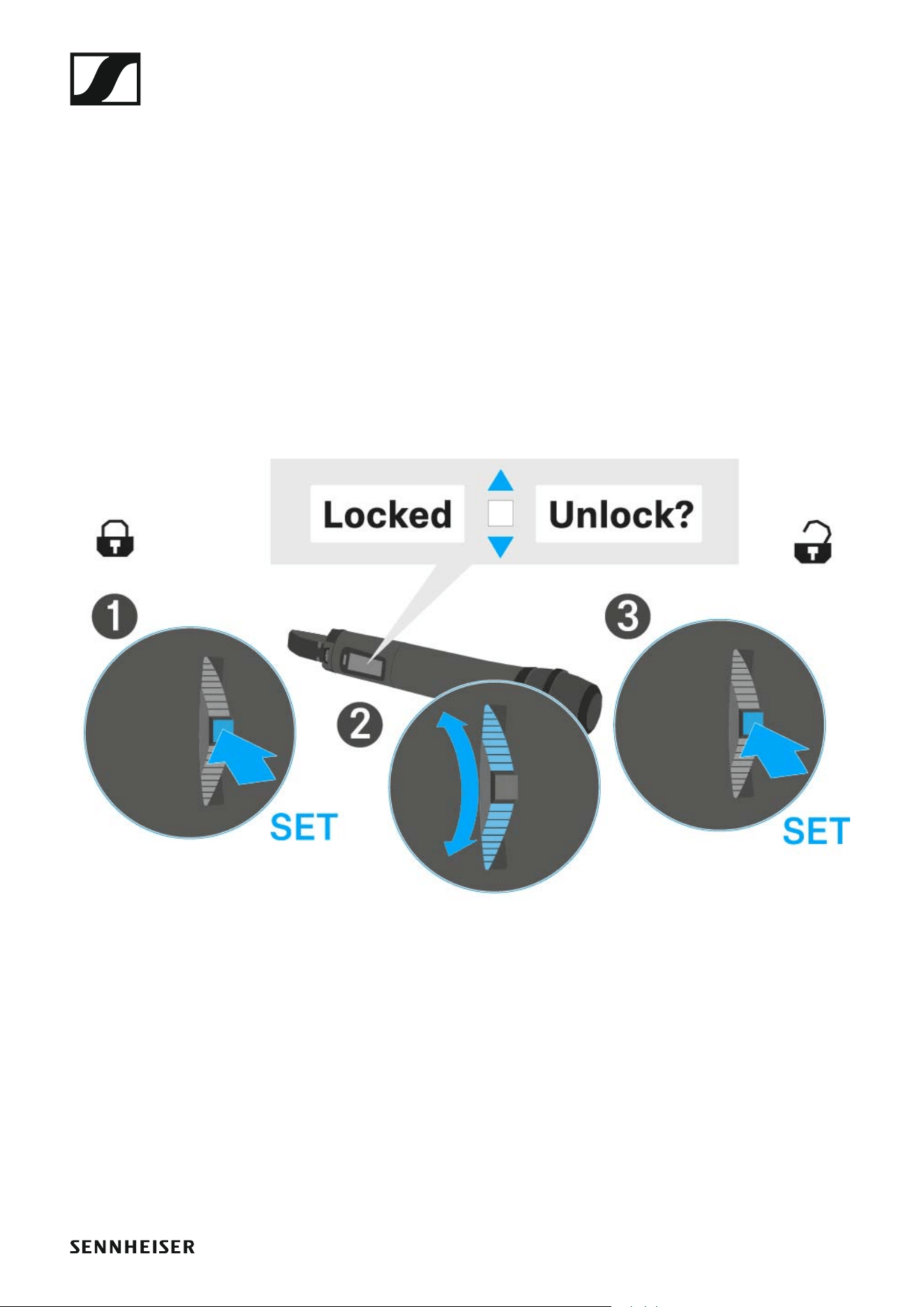

Lock-off function
You can set the automatic lock-off function in the Auto lock menu (see
“Buttons for navigating the SKM 100 G4 menu”).
When you have switched on the lock-off function, you will have to turn the
transmitter off and on again in order to operate it.
To temporarily deactivate the lock-off function:
▷ Press the SET button.
Locked appears in the display panel.
▷ Press the UP or DOWN button.
Unlock? appears in the display panel.
▷ Press the SET button.
Lock-off function is now temporarily deactivated.
►
Using the SKM 100 G4
91

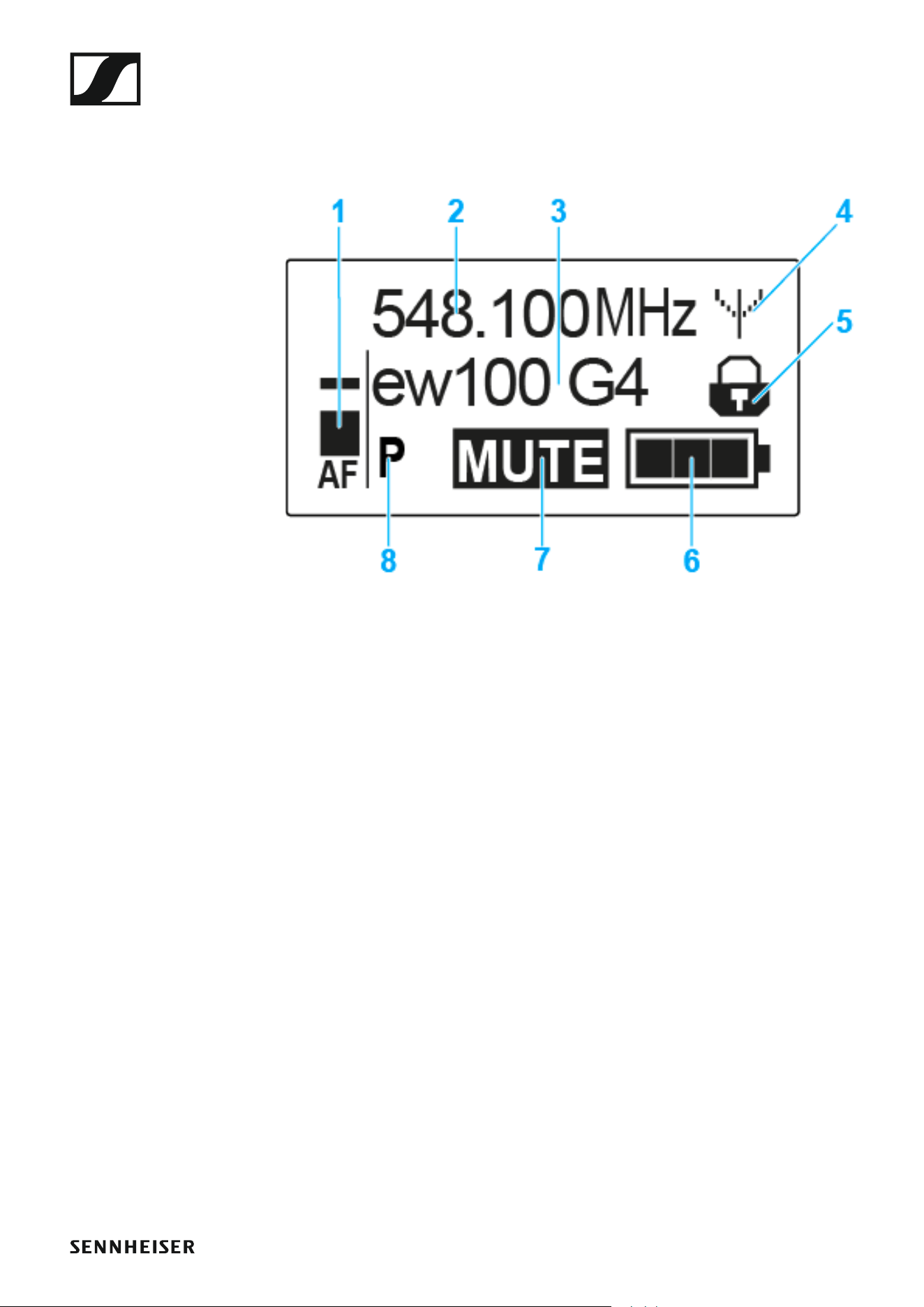

Displays on the SKM 100 G4 handheld transmitter
display panel
You can view the following information on the transmitter display.
►
1 AF audio level
• Displays the audio level with peak hold function
• See “Sensitivity menu item”
2 Frequency
• Configured transmission frequency
• See “Frequency Preset menu item”
3 Name
• Freely selectable name of the receiver
• See “Name menu item”
4 Transmission icon
• RF signal is being transmitted
• See “Deactivating the RF signal (RF mute)”
5 Lock-off function
• Lock-off function is activated
• See “Auto Lock menu item”
6 Battery status
• See “Battery status”
7 MUTE muting function
• The audio signal is muted
• See “Muting the handheld transmitter (AF mute)”
• See “Deactivating the RF signal (RF mute)”
8 P pilot tone
• Pilot tone transmission is activated
• See “Advanced > Pilot Tone menu item”
Using the SKM 100 G4
92
>> “Buttons for navigating the SKM 100 G4 menu”
>> “Setting options in the menu”
Select a standard display
▷ Move the multi-function switch to select a standard display:
Frequency/Name standard display
►
Channel/Frequency standard display
►
Name/Channel standard display
►
ew100 G4
MHz
548.100
MUTE
P
AF
MHz
548.100
B.Ch: 20.12
MUTE
P
AF
B.Ch: 20.12
MUTE
P
AF
ew100 G4
Using the SKM 100 G4
93
Buttons for navigating the SKM 100 G4 menu
Navigating through the menu
To open the menu:
▷ Press the SET button.
The operating menu is shown on the transmitter display panel.
To open a menu item:
▷ Press the UP or DOWN buttons to navigate through the individual
menu items.
▷ Press the SET button to open the selected menu item.
“Operating elements of the SKM 100 G4 handheld transmitter”
Making changes in a menu item
After you open a menu item, you can make changes as follows:
▷ Press the UP or DOWN buttons to set the displayed value.
▷ Press the SET button to save the setting.
▷ Press the ESC (ON/OFF) button to leave the menu item without saving
the setting.
“Operating elements of the SKM 100 G4 handheld transmitter”
>> “Displays on the SKM 100 G4 handheld transmitter display panel”
>> “Setting options in the menu”
Using the SKM 100 G4
94
Setting options in the menu
In the SKM 100 G4 menu, you can configure the following settings.
Adjusting the input sensitivity
▷ See “Sensitivity menu item”
Setting the frequency bank and the channel
▷ See “Frequency Preset menu item”
Entering a freely selectable name
▷ See “Name menu item”
Activating/deactivating the automatic lock-off function
▷ See “Auto Lock menu item”
Configuring enhanced settings in the Advanced Menu:
• Adjusting the transmission frequencies for the U frequency bank
• Defining the MIC button setting (SKM 100 G4-S only)
• Activating/deactivating the pilot tone evaluation
• Adjusting the contrast of the display panel
• Resetting the transmitter
• Displaying the current software revision
▷ See “Advanced menu item”
Using the SKM 100 G4
95

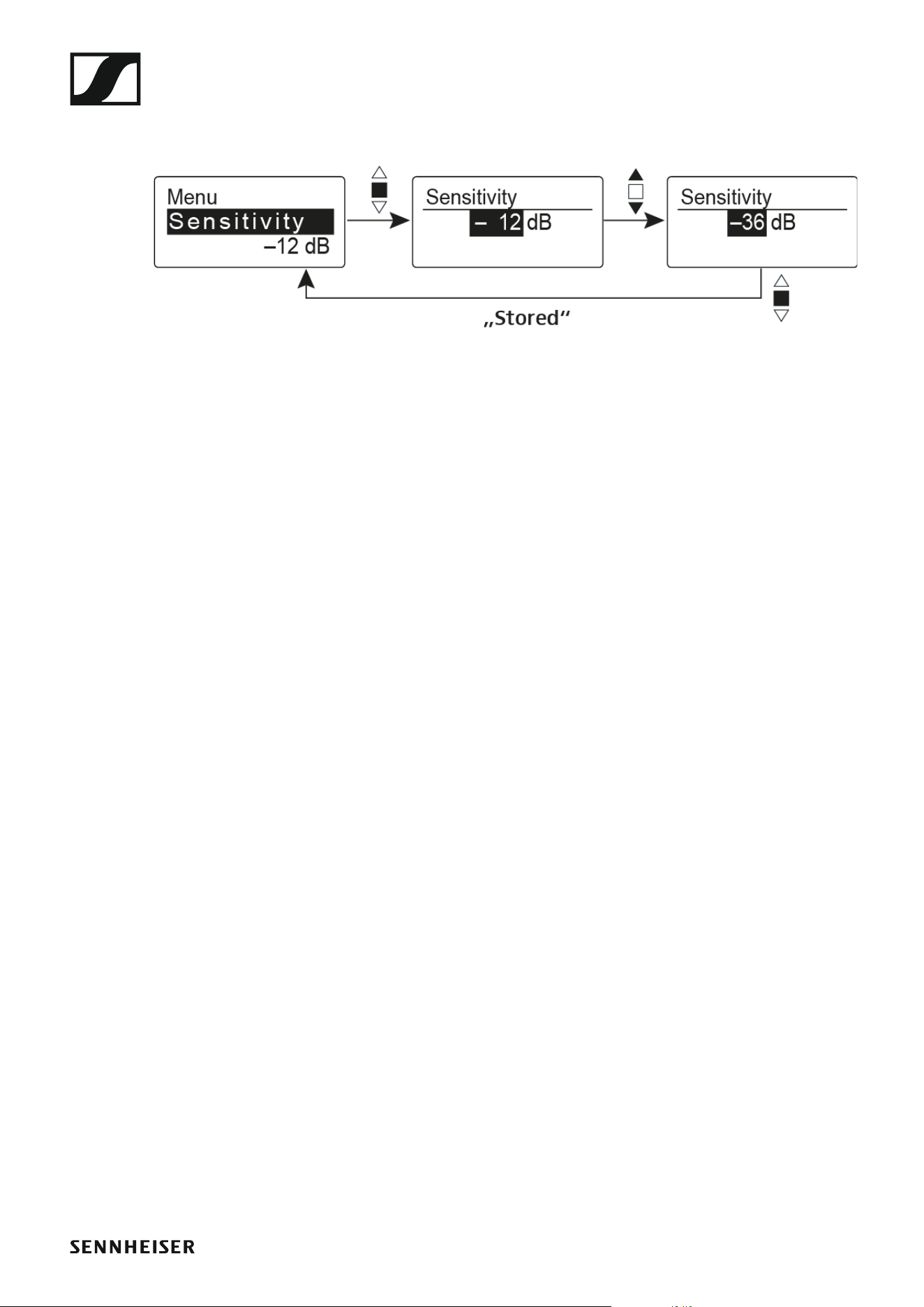

Sensitivity menu item
• Adjusting the input sensitivity – AF audio level
►
Setting range: 0 dB to -48 dB in 6 dB steps.
The AF audio level is also displayed when the wireless microphone is mut-
ed, e.g. to check the sensitivity before a live broadcast.
Recommended presets:
• Loud music/vocals: -48 to -18 dB
• Moderation: -18 to -12 dB
• Interviews: -12 to 0 dB
Using the SKM 100 G4
96

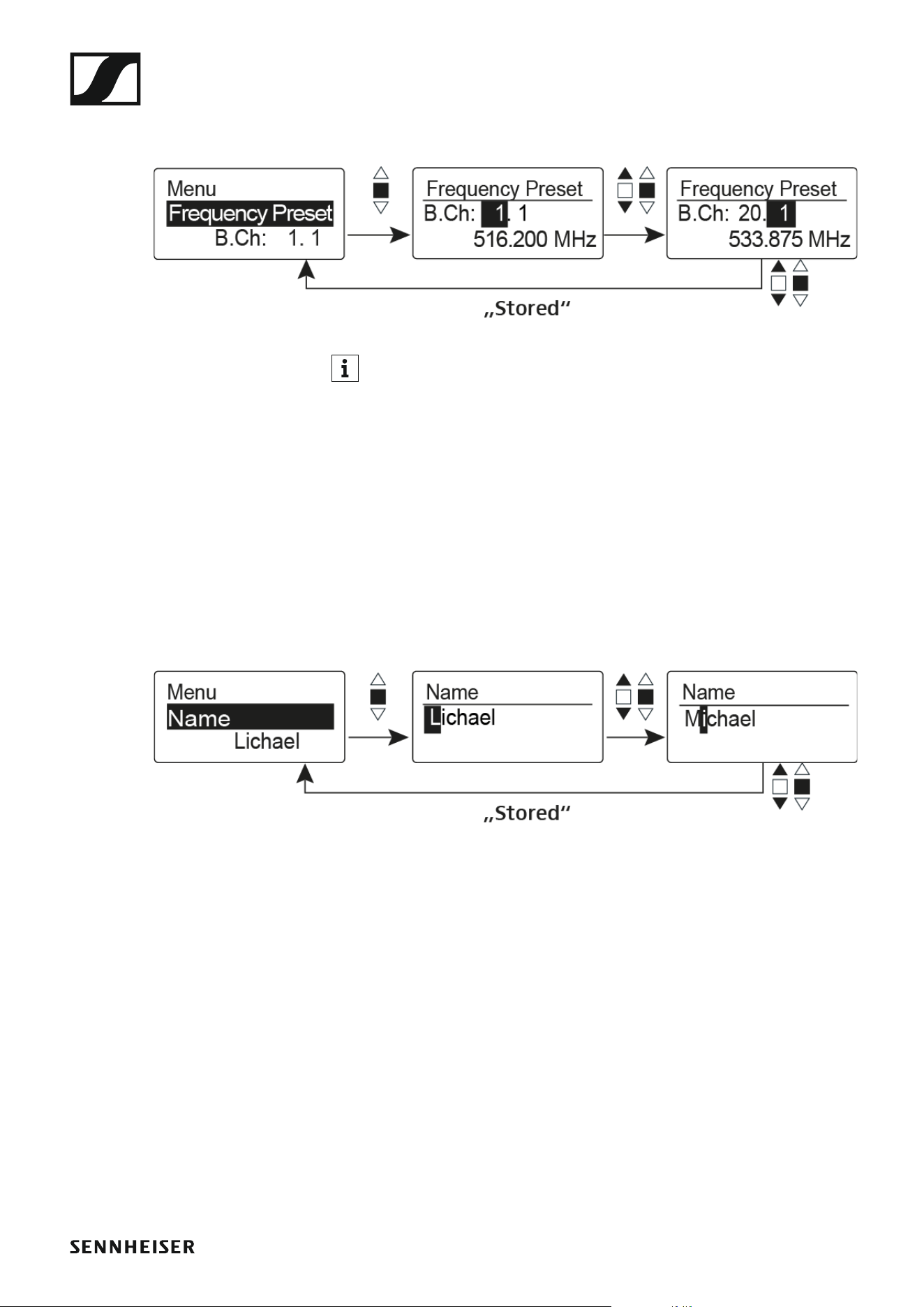

Frequency Preset menu item
• Manually selecting a frequency bank and channel
►
While you work in the Frequency Preset menu, the RF signal is deac-
tivated.
Please note when creating multi-channel systems:
Only the factory-preset frequencies within one frequency bank are inter-
modulation-free. The wireless microphone and receiver must be set to the
same frequency. Be sure to note the information on frequency selection
under “Establishing a radio link”.
Name menu item
• Entering names
►
In the Name menu item you can enter any name you want for the wireless
microphone (e.g. the names of the musicians).
The name can be shown in the Frequency/Name and Name/Channel stan-
dard displays.
The names are a maximum of 8 characters:
• All letters except umlauts.
• Numbers from 0 to 9
• Special characters and spaces
Enter the names as follows:
▷ Move the multi-function switch to select a character.
▷ Press the multi-function switch to jump to the next space or to save the
name you have entered once it is complete.
Using the SKM 100 G4
97

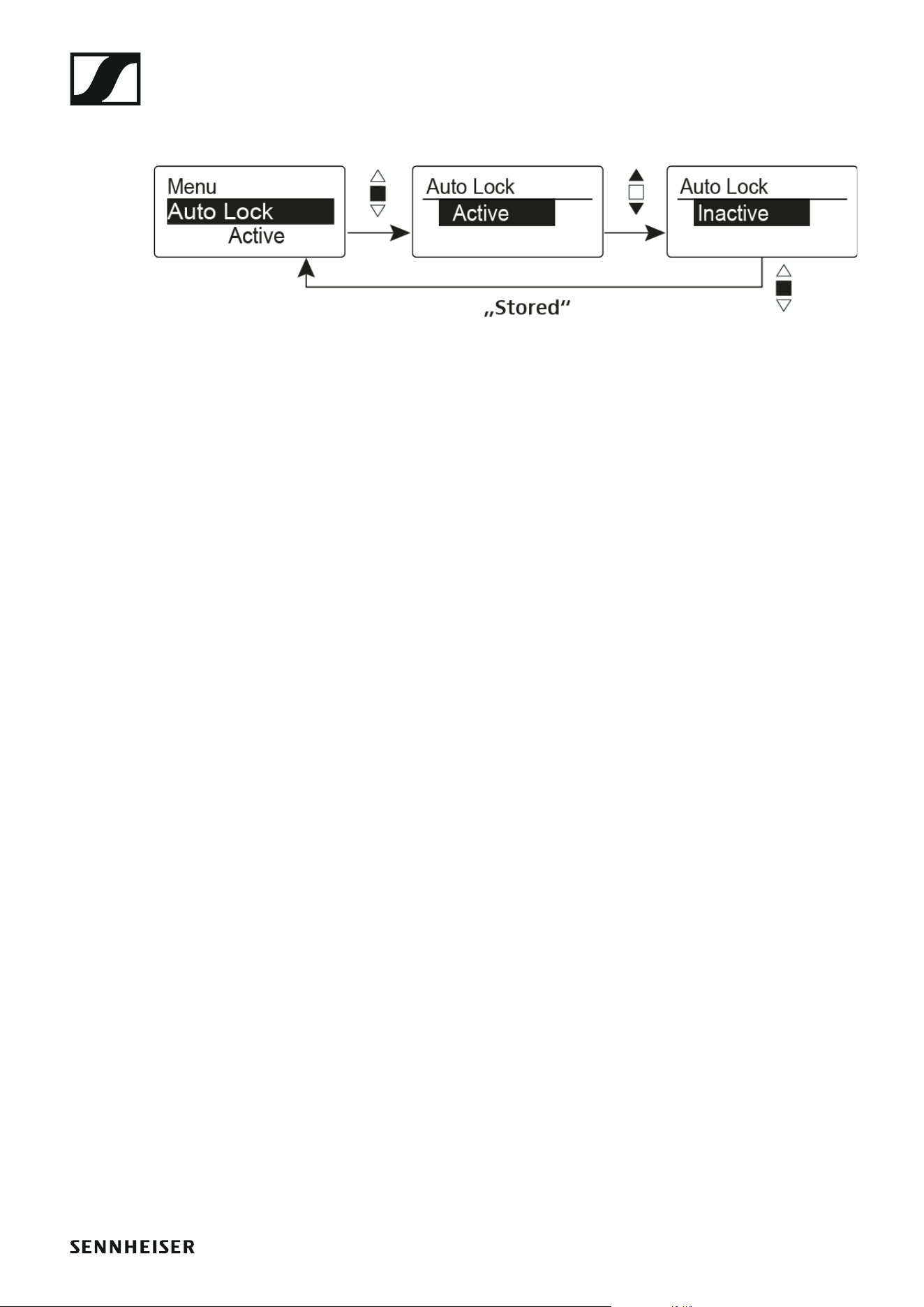

Auto Lock menu item
• Switching the automatic lock-off function on and off
►
This lock prevents the wireless microphone from being unintentionally
switched off and also prevents any unintentional changes to the transmit-
ter’s configuration. In the current standard display, the lock icon shows
whether the lock-off function is currently switched on.
You can find information about using the lock-off function under “Lock-off
function”.
Using the SKM 100 G4
98
Advanced menu item
In the Advanced submenu you can configure enhanced settings.
The following sub-items are available:
Adjusting the transmission frequencies for the U frequency bank
▷ See “Advanced > Tune menu item”
Defining the MIC button setting (SKM 100 G4-S only)
▷ See “Advanced > Mute Mode menu item (SKM 100 G4-S only)”
Activating/deactivating the pilot tone evaluation
▷ See “Advanced > Pilot Tone menu item”
Adjusting the contrast of the display panel
▷ See “Advanced > LCD Contrast menu item”
Resetting the transmitter
▷ See “Advanced > Reset menu item”
Displaying the current software revision
▷ See “Advanced > Software Revision menu item”
Using the SKM 100 G4
99

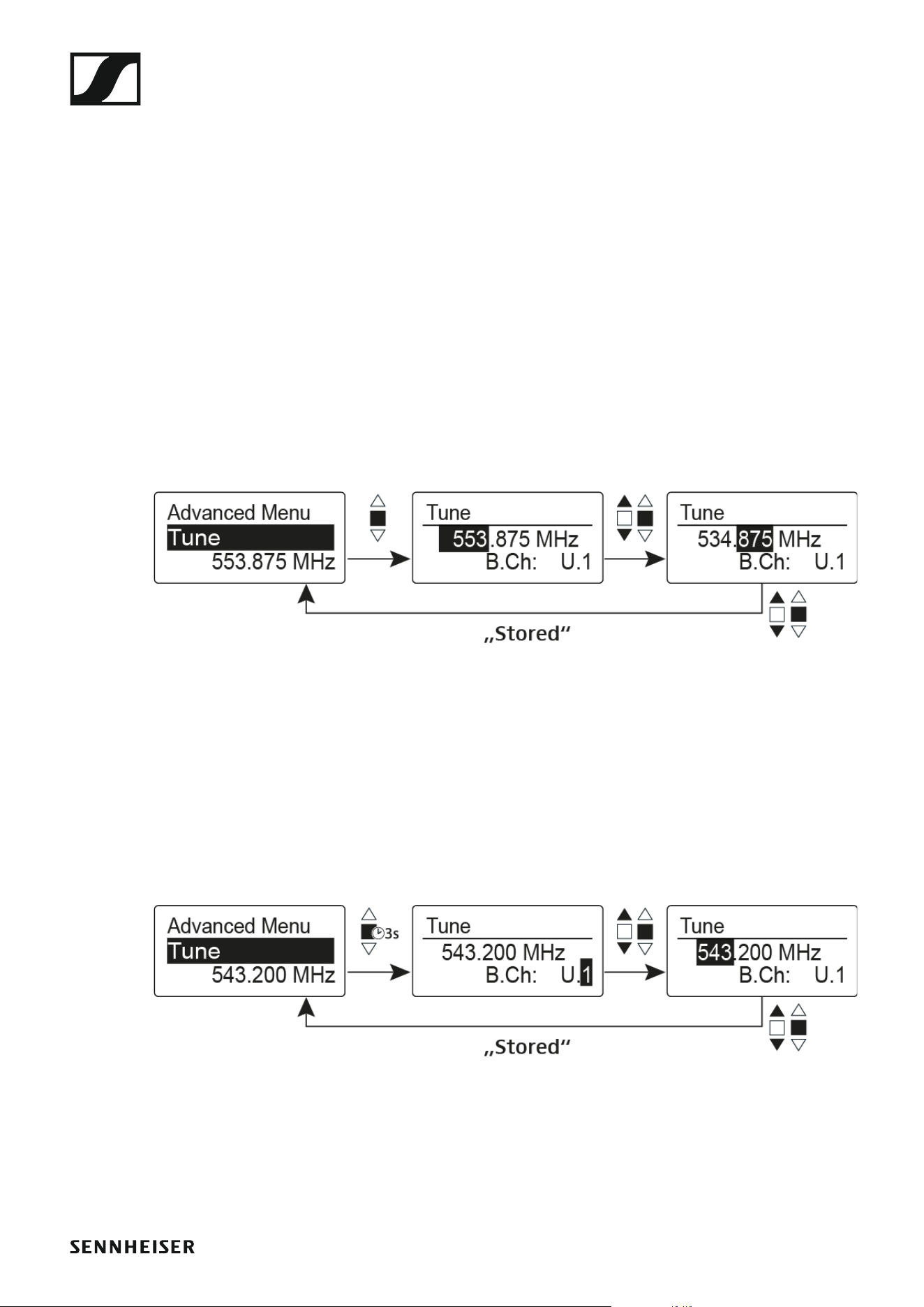

Advanced > Tune menu item
• Configuring the transmission frequency and frequency bank U
When you have configured the wireless microphone to a system bank and
you call up the Tune menu item, channel 1 of the frequency bank U is auto-
matically set. The message U.1 briefly appears in the display. In the factory
settings, the channels of the frequency bank U are not assigned to any
transmission frequency.
While you work in the Tune menu, the RF signal is deactivated.
You can configure a transmission frequency for the current channel or se-
lect a channel in the frequency bank U and configure a transmission fre-
quency for this channel in the Tune menu. Be sure to note the information
on frequency selection, see “Setting notes”.
Only adjusting the frequency
To configure the transmission frequency for the current channel:
▷ Open the Tune menu item in the Advanced menu.
The frequency selection appears.
►
▷ Configure the desired frequency.
▷ Press the multi-function switch.
Your settings will be saved. You are now back in the operating menu.
Setting the channel and frequency
To select a channel and assign it a frequency:
▷ Move the multi-function switch until the Tune menu item appears.
▷ Hold down the multi-function switch until the frequency bank selection
appears.
►
▷ Set the desired channel.
▷ Press the multi-function switch.
The frequency selection appears.
▷ Configure the frequency.
Using the SKM 100 G4
100

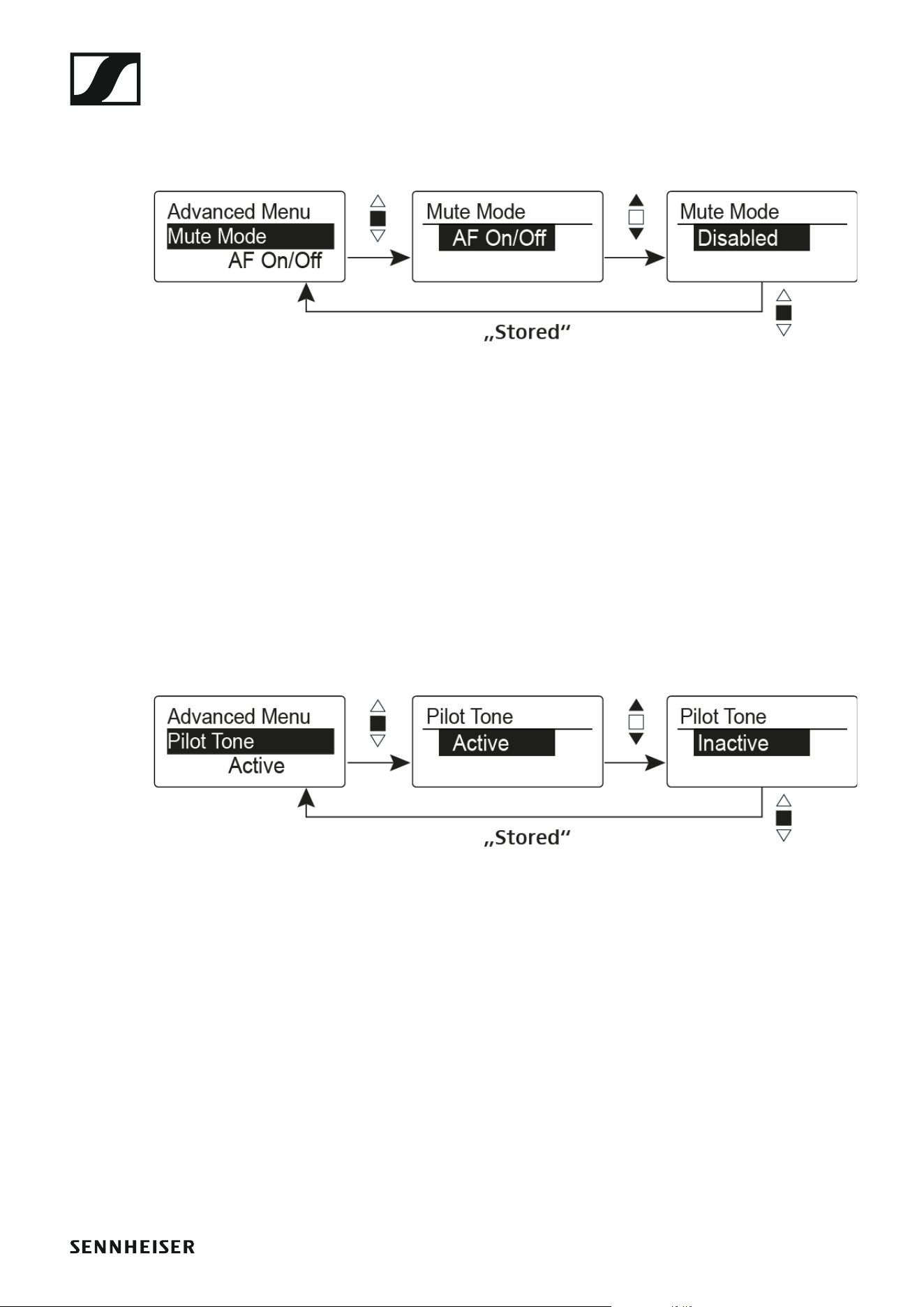

Advanced > Mute Mode menu item (SKM 100 G4-S
only)
• Configuring the function of the MIC button
►
AF On/Off mode
• When you press the MIC button, no audio signal is transmitted.
Disabled mode
• No function
You can find information about the MIC button under “Muting the handheld
transmitter (AF mute)”.
Advanced > Pilot Tone menu item
• Activating/deactivating pilot tone transmission
►
The pilot tone has an inaudible frequency that is sent from the transmitter
and evaluated by the receiver. It supports the receiver’s squelch function.
Advanced > LCD Contrast menu item
• Adjusting the contrast of the display panel
You can configure the contrast of the display in 16 steps.
Using the SKM 100 G4
101

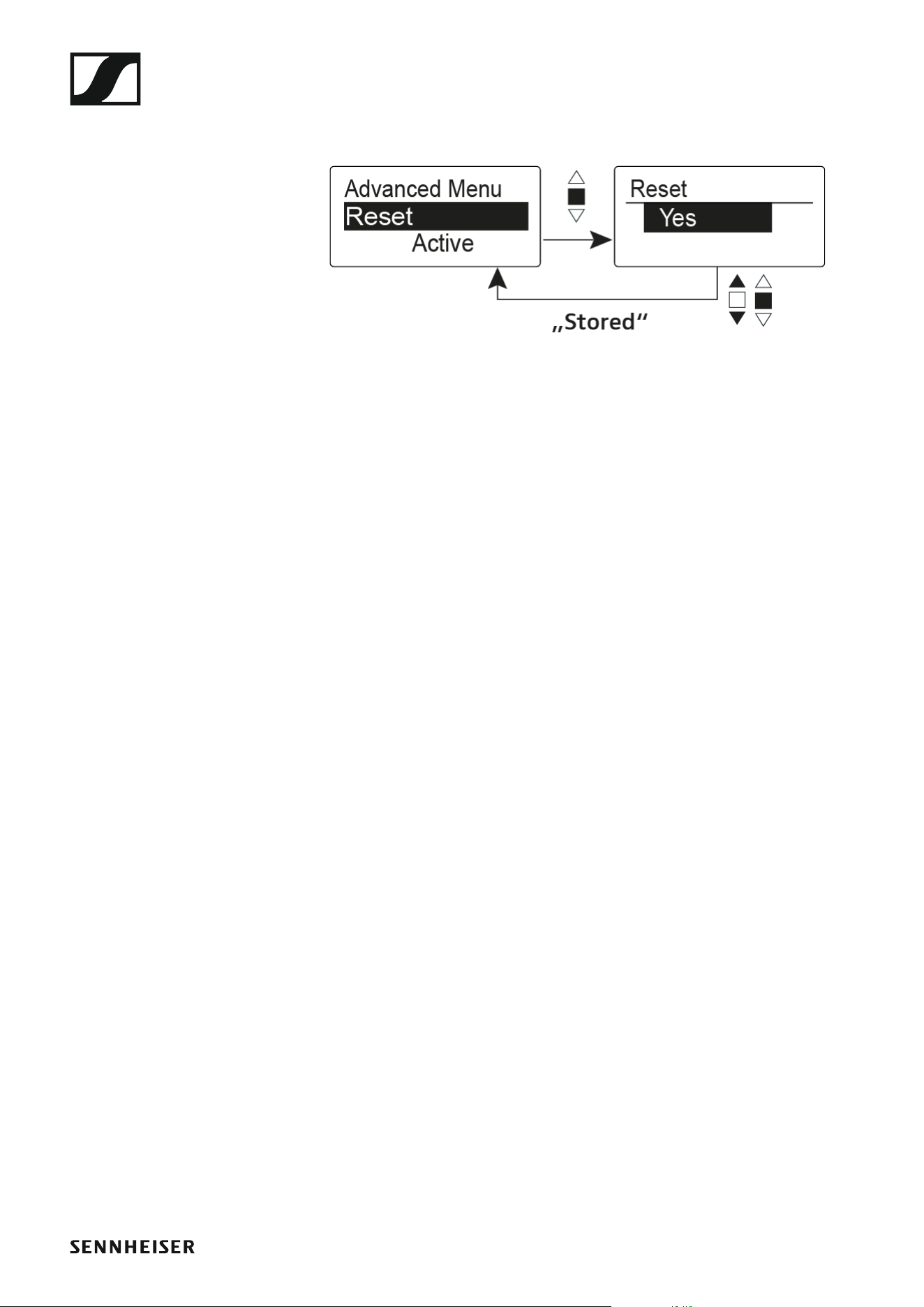

Advanced > Reset menu item
• Resetting the wireless microphone
►
When you reset the wireless microphone, only the selected settings of the
pilot tone and the U frequency bank are retained.
Advanced > Software Revision menu item
• Show software revision
You can display the current software revision.
Using the SK 100 G4
103

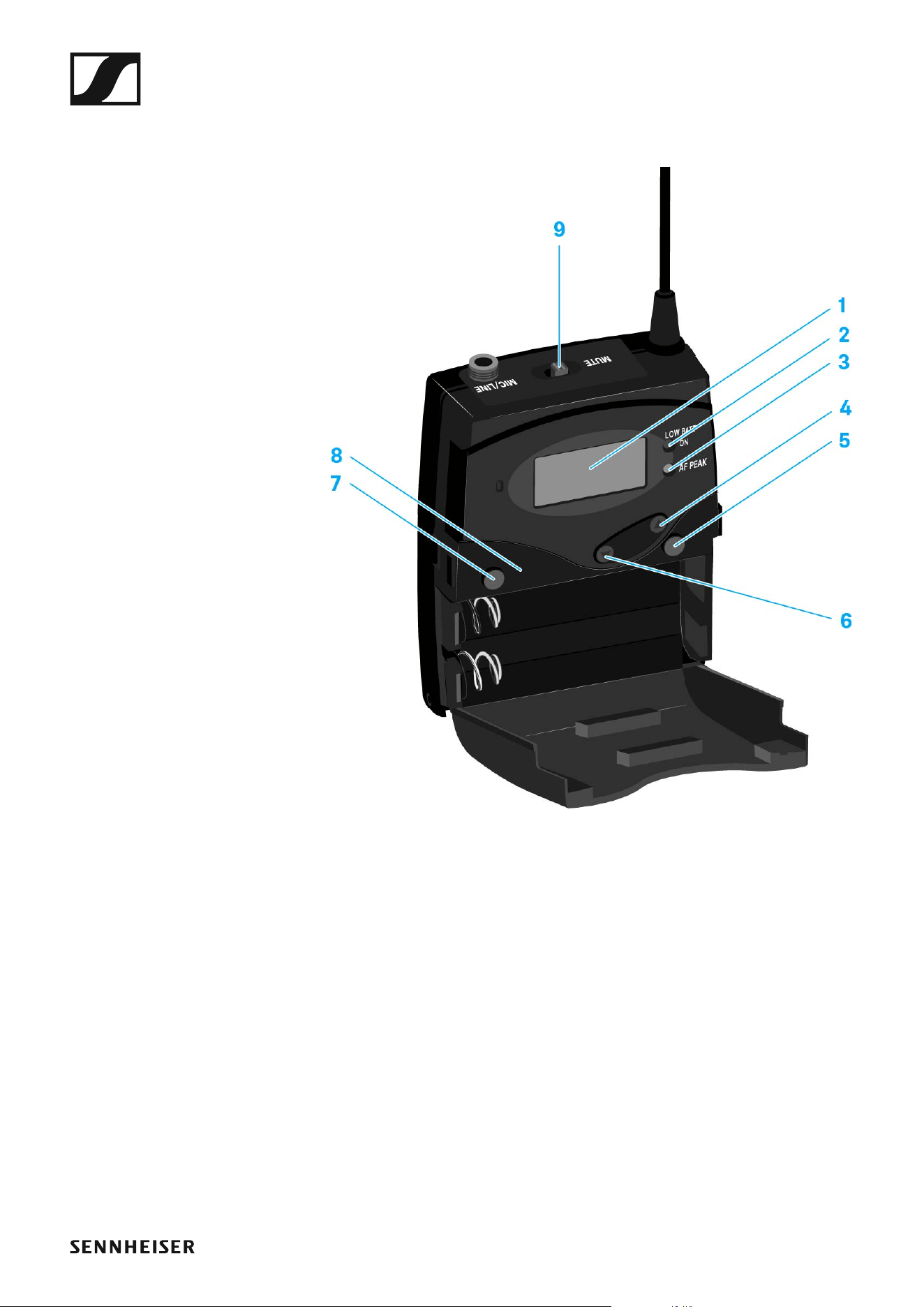

Operating elements of the SK 100 G4 bodypack
transmitter
►
1 Display panel
• See “Displays on the SK 100 G4 bodypack transmitter display panel”
2 Operation and battery indicator, red LED
• illuminated = ON
See “Switching the SK 100 G4 bodypack transmitter on and off”
•flashing = LOW BATTERY
See “Inserting and removing the batteries/rechargeable batteries”
3 Audio overload indicator, yellow LED
• illuminated = AF PEAK (overload)
See “Sensitivity menu item”
4 UP button
• See “Buttons for navigating the SK 100 G4 menu”
5 SET button
• See “Buttons for navigating the SK 100 G4 menu”
6 DOWN button
• See “Buttons for navigating the SK 100 G4 menu”
Using the SK 100 G4
104
7 ON/OFF button with ESC function in the operating menu
• Switch the transmitter on or off
See “Switching the SK 100 G4 bodypack transmitter on and off”
• Escape function in the menu
See “Buttons for navigating the SK 100 G4 menu”
8 Infra-red interface
• See “Synchronizing devices”
9 MUTE switch
• Deactivate and activate audio signal
See “Muting the bodypack transmitter (AF mute)”
• Deactivate and activate RF signal
See “Deactivating the RF signal (RF mute)”
Switching the SK 100 G4 bodypack transmitter on
and off
▷ Press the two catches and open the battery compartment cover.
To switch on the SK 100 G4:
▷ Hold down the ON/OFF button until the Sennheiser logo appears on the
display.
To switch off the SK 100 G4:
▷ Hold down the ON/OFF button until the display goes off.
Using the SK 100 G4
105

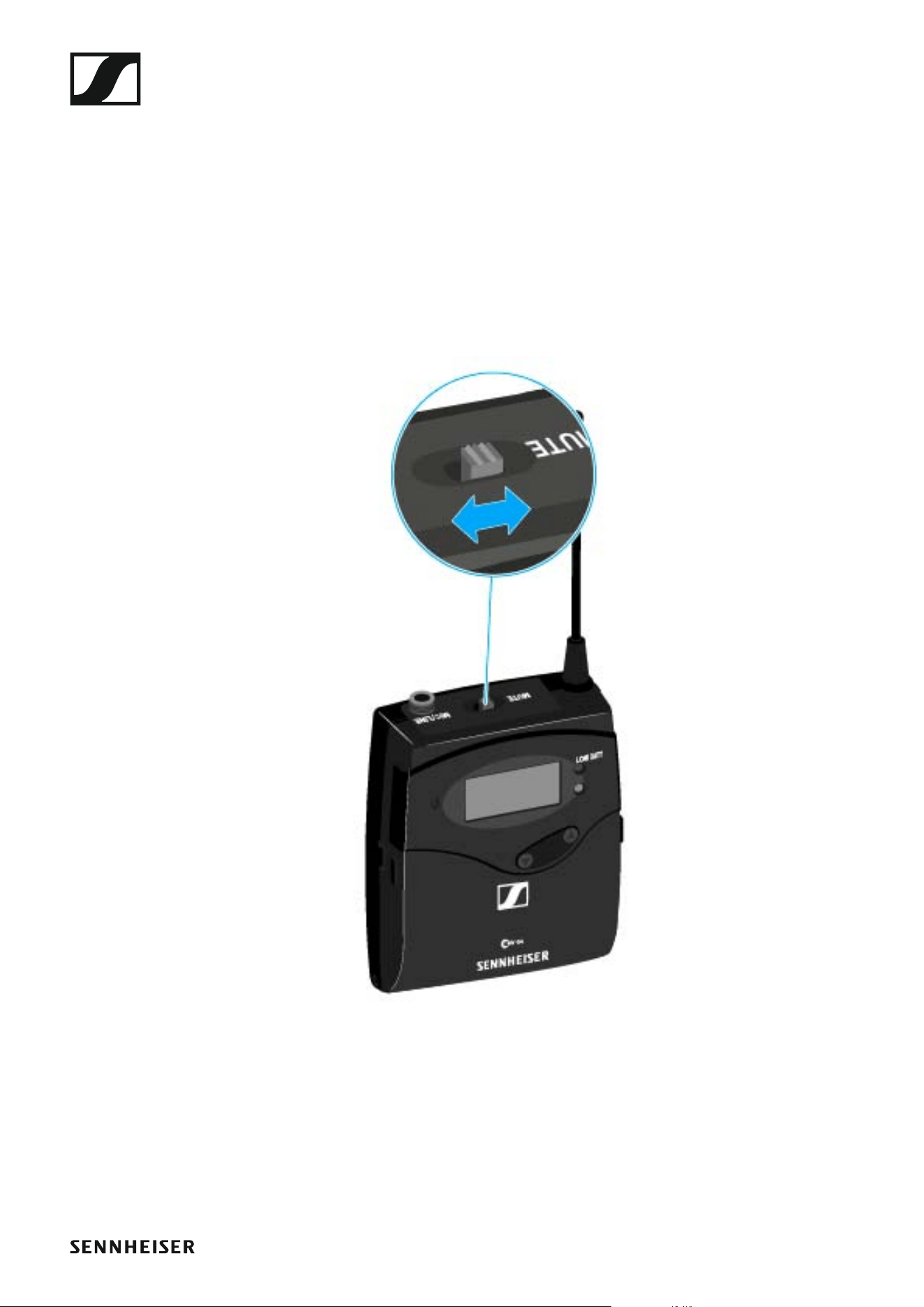

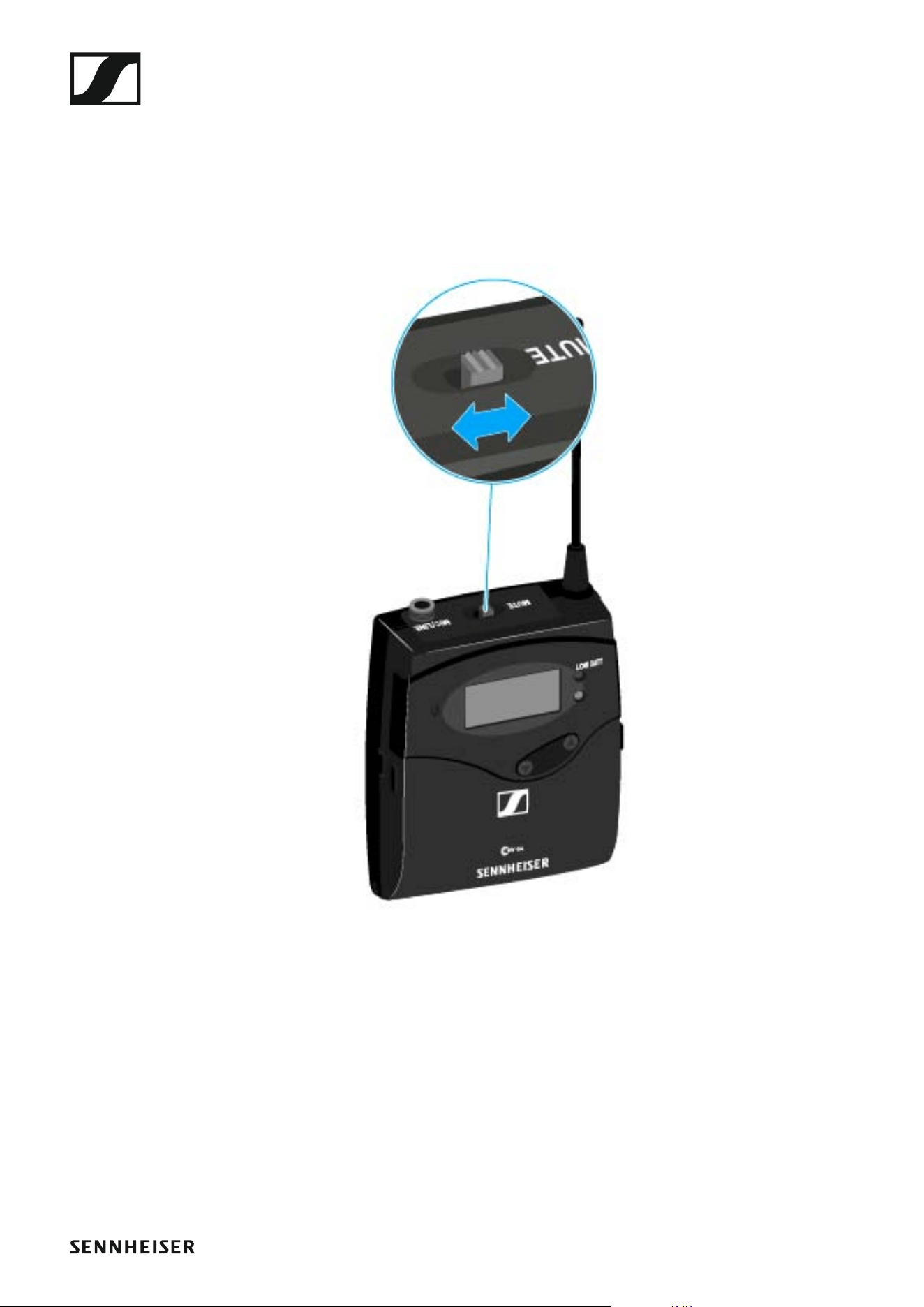

Muting the bodypack transmitter (AF mute)
You can deactivate the audio signal with the MUTE switch.
To do this, the MUTE switch function must be configured to AF On/Off.
You can find more information about this subject under “Advanced > Mute
Mode menu item”.
►
▷ Slide the MUTE switch to the MUTE position.
The audio signal is muted. The message MUTE is shown on the display.
Using the SK 100 G4
106
Deactivating the RF signal (RF mute)
You can deactivate the RF signal in two ways:
Deactivating the RF signal with the MUTE switch
You can deactivate the RF signal with the MUTE switch.
To do this, the MUTE switch function must be configured to RF On/Off.
You can find more information about this subject under “Advanced > Mute
Mode menu item”.
►
Using the SK 100 G4
107

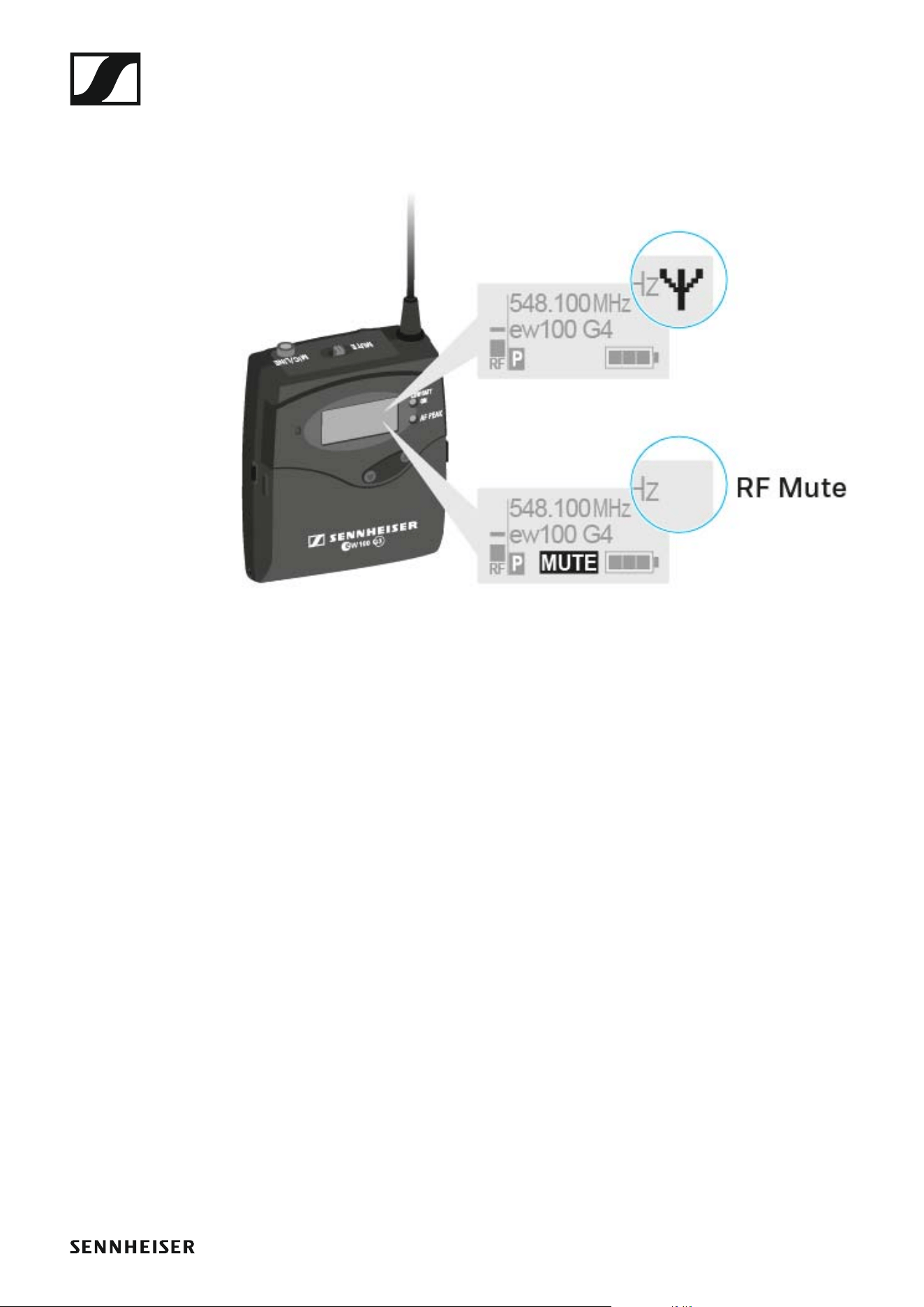

▷ Slide the MUTE switch to the MUTE position.
The RF signal is deactivated. The message MUTE is shown in the dis-
play and the transmission icon no longer appears.
Using the SK 100 G4
108

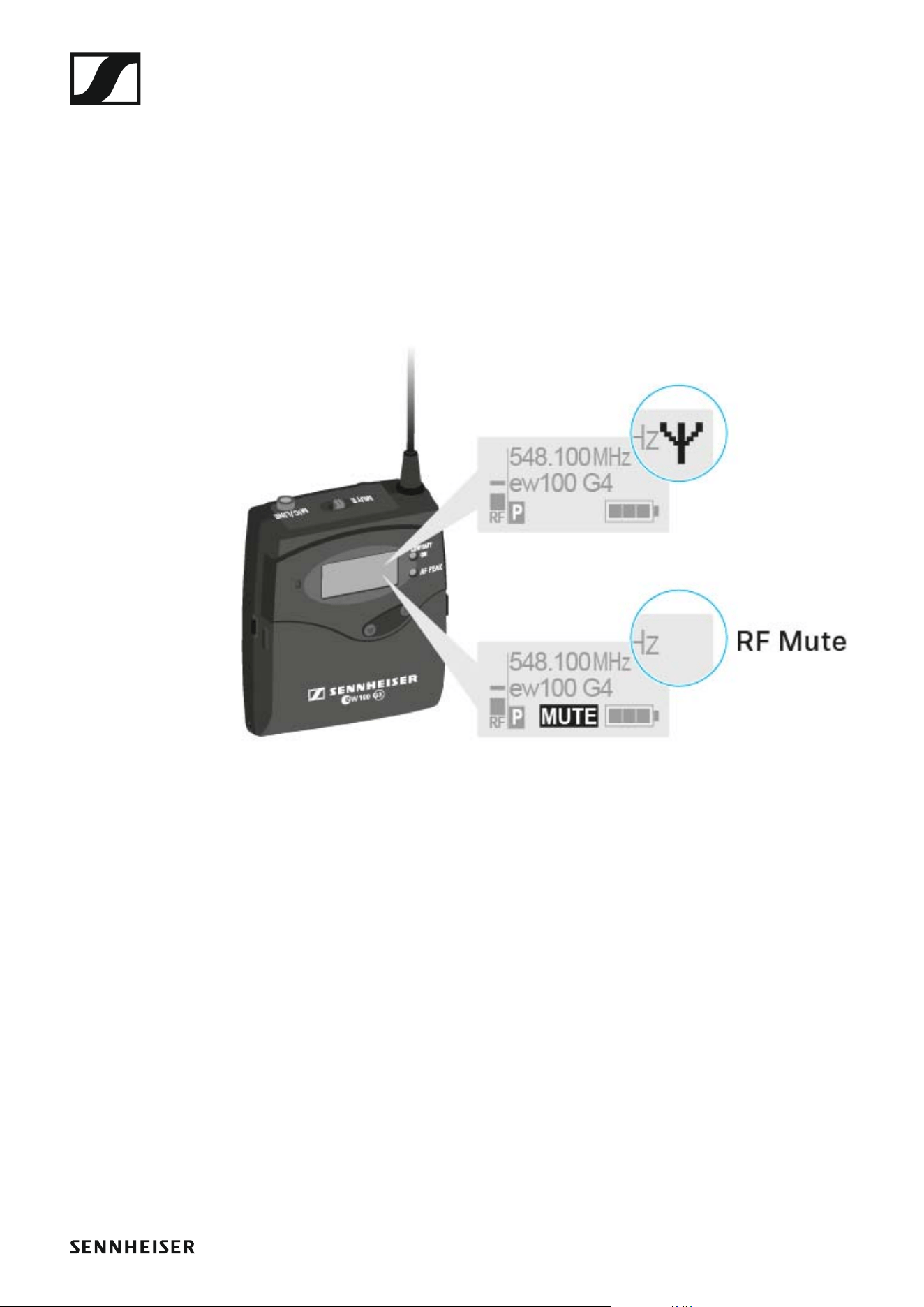

Deactivating the RF signal with the ON/OFF button
You can deactivate the RF signal with the ON/OFF button.
To deactivate the RF signal:
▷ Short-press the ON/OFF button.
RF Mute On? appears.
▷ Press the SET button.
The RF signal is deactivated. The message MUTE is shown in the dis-
play and the transmission icon no longer appears.
To activate the RF signal:
▷ Short-press the ON/OFF button.
RF Mute Off? appears.
▷ Press the SET button.
The transmission icon appears again.
Using the SK 100 G4
109

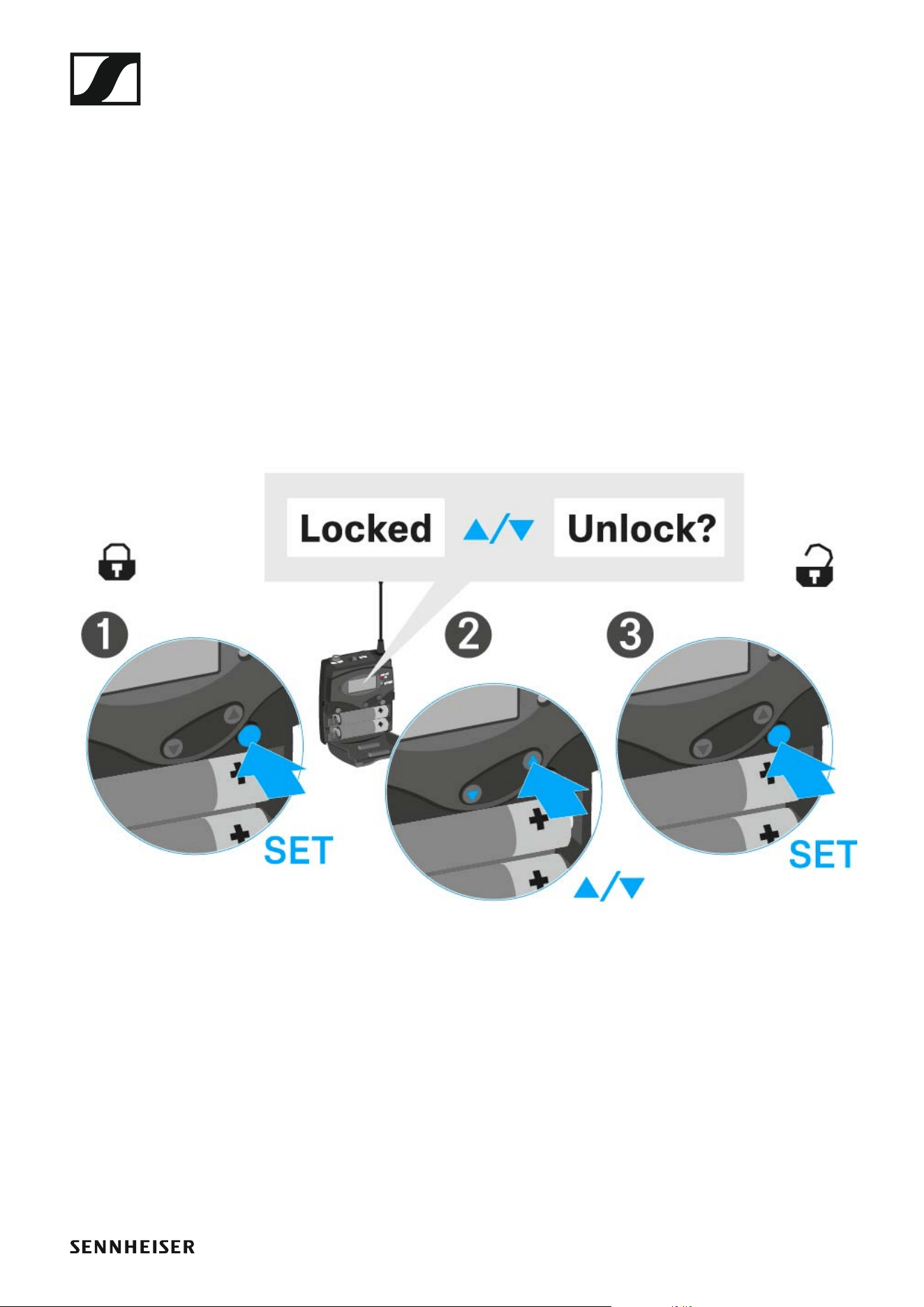

Lock-off function
You can set the automatic lock-off function in the Auto lock menu (see
“Buttons for navigating the SK 100 G4 menu”).
When you have switched on the lock-off function, you will have to turn the
transmitter off and on again in order to operate it.
To temporarily deactivate the lock-off function:
▷ Press the SET button.
Locked appears in the display panel.
▷ Press the UP or DOWN button.
Unlock? appears in the display panel.
▷ Press the SET button.
Lock-off function is now temporarily deactivated.
►
Using the SK 100 G4
110
Displays on the SK 100 G4 bodypack transmitter
display panel
You can view the following information on the transmitter display.
►
1 AF audio level
• Displays the audio level with peak hold function
• See “Sensitivity menu item”
2 Frequency
• Configured transmission frequency
• See “Frequency Preset menu item”
3 Name
• Freely selectable name of the receiver
• See “Name menu item”
4 Transmission icon
• RF signal is being transmitted
• See “Deactivating the RF signal (RF mute)”
5 Lock-off function
• Lock-off function is activated
• See “Auto Lock menu item”
6 Battery status
• See “Battery status”
7 MUTE muting function
• The audio signal is muted
• See “Muting the bodypack transmitter (AF mute)”
• See “Deactivating the RF signal (RF mute)”
8 P pilot tone
• Pilot tone transmission is activated
• See “Advanced > Pilot Tone menu item”
Using the SK 100 G4
111
>> “Buttons for navigating the SK 100 G4 menu”
>> “Setting options in the menu”
Select a standard display
▷ Press the UP or DOWN buttons to select a standard display.
Frequency/Name standard display
►
Channel/Frequency standard display
►
Name/Channel standard display
►
ew100 G4
MHz
548.100
MUTE
P
AF
MHz
548.100
B.Ch: 20.12
MUTE
P
AF
B.Ch: 20.12
MUTE
P
AF
ew100 G4
Using the SK 100 G4
112
Buttons for navigating the SK 100 G4 menu
Navigating through the menu
To open the menu:
▷ Press the SET button.
The operating menu is shown on the transmitter display panel.
To open a menu item:
▷ Press the UP or DOWN buttons to navigate through the individual
menu items.
▷ Press the SET button to open the selected menu item.
“Operating elements of the SK 100 G4 bodypack transmitter”
Making changes in a menu item
After you open a menu item, you can make changes as follows:
▷ Press the UP or DOWN buttons to set the displayed value.
▷ Press the SET button to save the setting.
▷ Press the ESC (ON/OFF) button to leave the menu item without saving
the setting.
“Operating elements of the SK 100 G4 bodypack transmitter”
>> “Displays on the SK 100 G4 bodypack transmitter display panel”
>> “Setting options in the menu”
Using the SK 100 G4
113
Setting options in the menu
In the SK 100 G4 menu, you can configure the following settings.
Adjusting the input sensitivity
▷ See “Sensitivity menu item”
Setting the frequency bank and the channel
▷ See “Frequency Preset menu item”
Entering a freely selectable name
▷ See “Name menu item”
Activating/deactivating the automatic lock-off function
▷ See “Auto Lock menu item”
Configuring enhanced settings in the Advanced Menu:
• Adjusting the transmission frequencies for the U frequency bank
• Configuring the MUTE switch
• Configuring the guitar cable emulation
• Activating/deactivating the pilot tone evaluation
• Adjusting the contrast of the display panel
• Resetting the transmitter
• Displaying the current software revision
▷ See “Advanced menu item”
Using the SK 100 G4
114

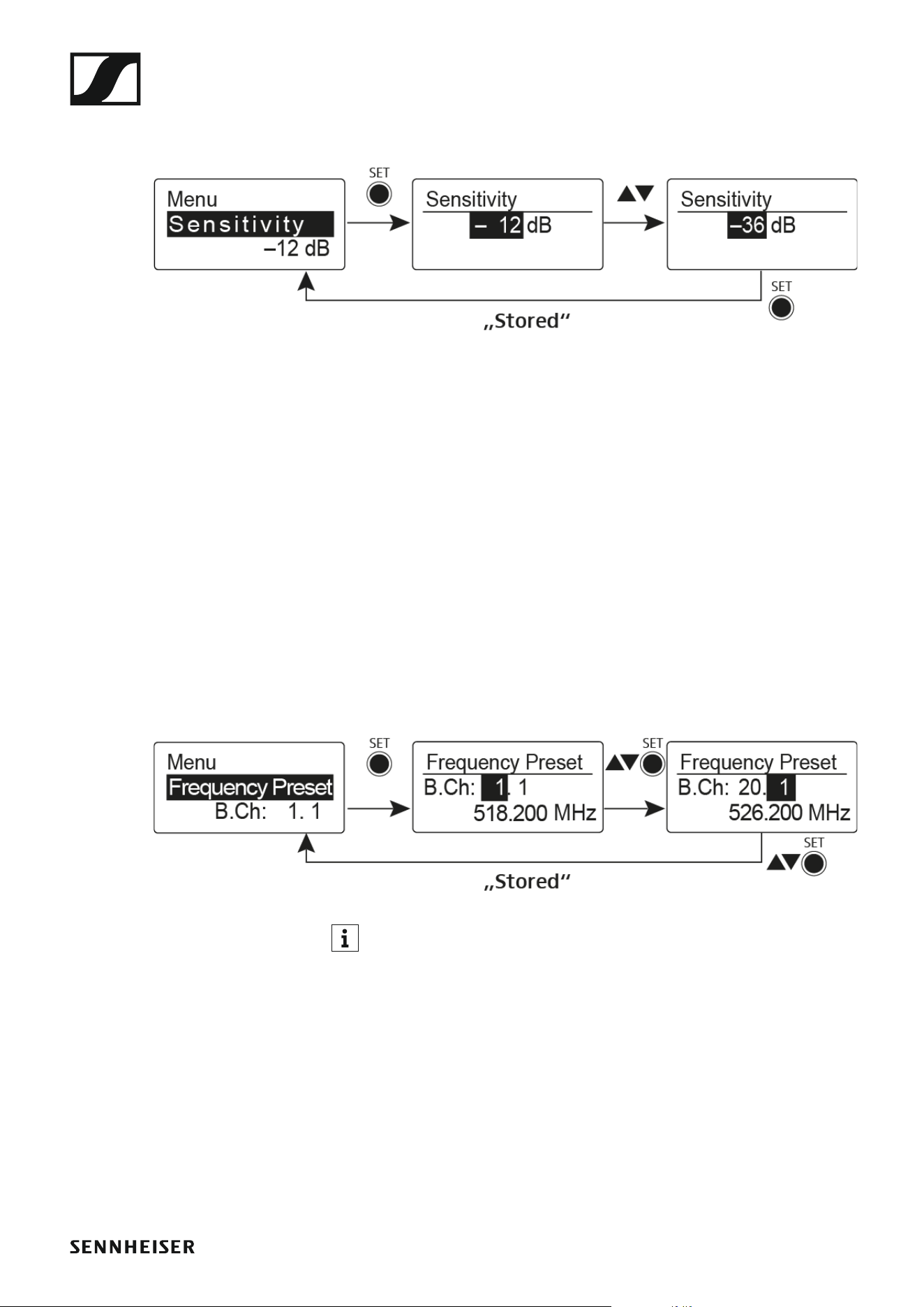

Sensitivity menu item
• Adjusting the input sensitivity – AF audio level
►
Setting range: 0 dB to –60 dB in 6 dB steps.
The AF audio level is also displayed when the bodypack transmitter is mut-
ed, e.g. to check the sensitivity before a live broadcast.
Recommended presets:
• Loud music/vocals: –30 to –21 dB
• Moderation: -21 to 0 dB
• Electric guitar with single-coil pickups: –30 to -24 dB
• Electric guitar with Humbucker pickups: -45 to -30 dB
• Electric guitars with active electronics: -45 to -30 dB
Frequency Preset menu item
• Manually selecting a frequency bank and channel
►
While you work in the Frequency Preset menu, the RF signal is deac-
tivated.
Please note when creating multi-channel systems:
Only the factory-preset frequencies within one frequency bank are inter-
modulation-free. The bodypack transmitter and receiver must be set to the
same frequency. Be sure to note the information on frequency selection
under “Establishing a radio link”.
Using the SK 100 G4
115

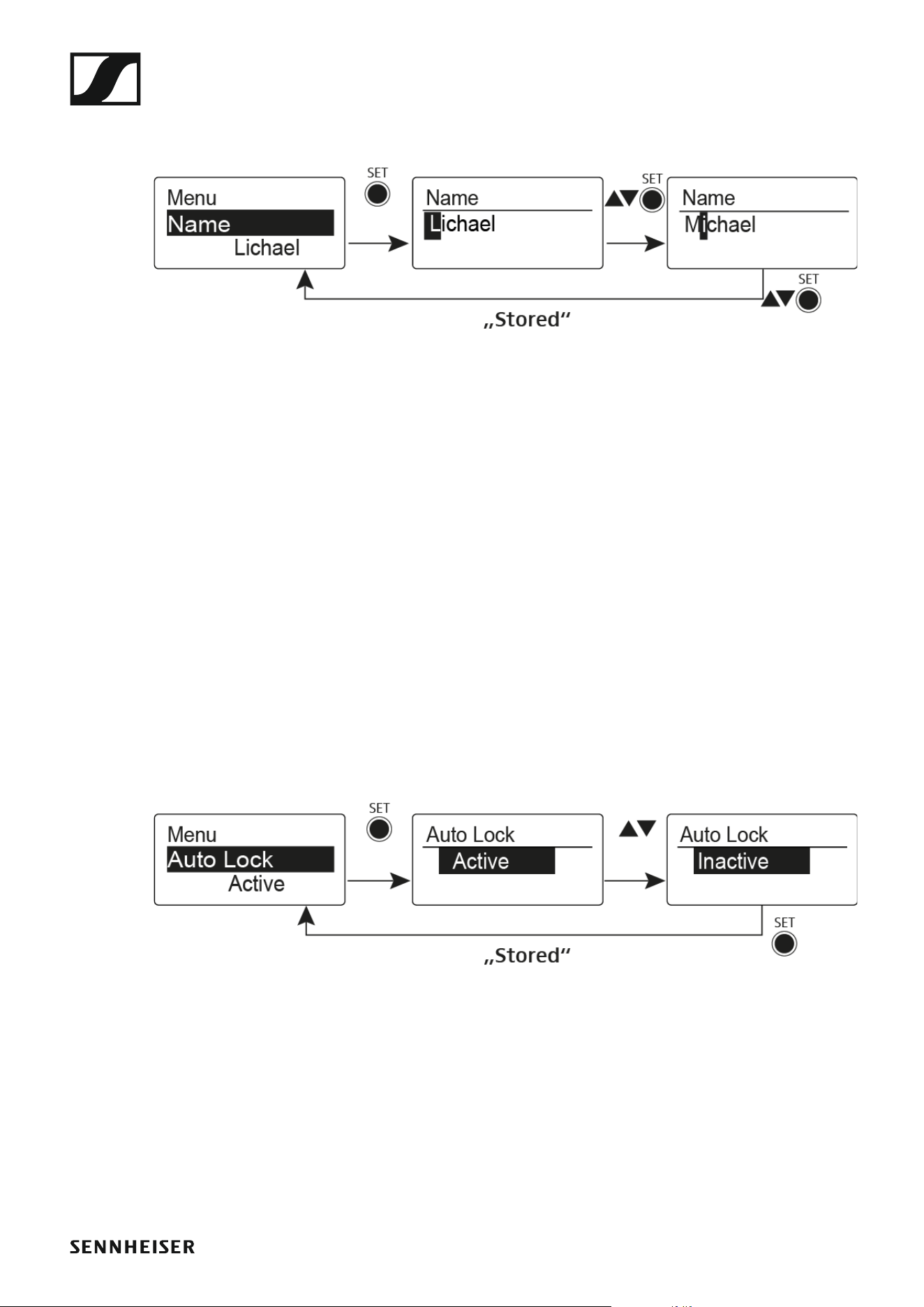

Name menu item
• Entering names
►
In the Name menu item you can enter any name you want for the bodypack
transmitters (e.g. the names of the musicians).
The name can be shown in the Frequency/Name and Name/Channel stan-
dard displays.
The names are a maximum of 8 characters:
• All letters except umlauts.
• Numbers from 0 to 9
• Special characters and spaces
Enter the names as follows:
▷ Press the UP or DOWN buttons to select a character.
▷ Press the SET button to switch to the next space or to save the name
you have entered once it is complete.
Auto Lock menu item
• Switching the automatic lock-off function on and off
►
This lock prevents the wireless microphone from being unintentionally
switched off and also prevents any unintentional changes to the transmit-
ter’s configuration. In the current standard display, the lock icon shows
whether the lock-off function is currently switched on.
You can find information about using the lock-off function under “Lock-off
function”.
Using the SK 100 G4
116
Advanced menu item
In the Advanced submenu you can configure enhanced settings.
The following sub-items are available:
Adjusting the transmission frequencies for the U frequency bank
▷ See “Advanced > Tune menu item”
Configuring the MUTE switch
▷ See “Advanced > Mute Mode menu item”
Configuring the guitar cable emulation
▷ See “Advanced > Cable Emulation menu item”
Activating/deactivating the pilot tone evaluation
▷ See “Advanced > Pilot Tone menu item”
Adjusting the contrast of the display panel
▷ See “Advanced > LCD Contrast menu item”
Resetting the transmitter
▷ See “Advanced > Reset menu item”
Displaying the current software revision
▷ See “Advanced > Software Revision menu item”
Using the SK 100 G4
117

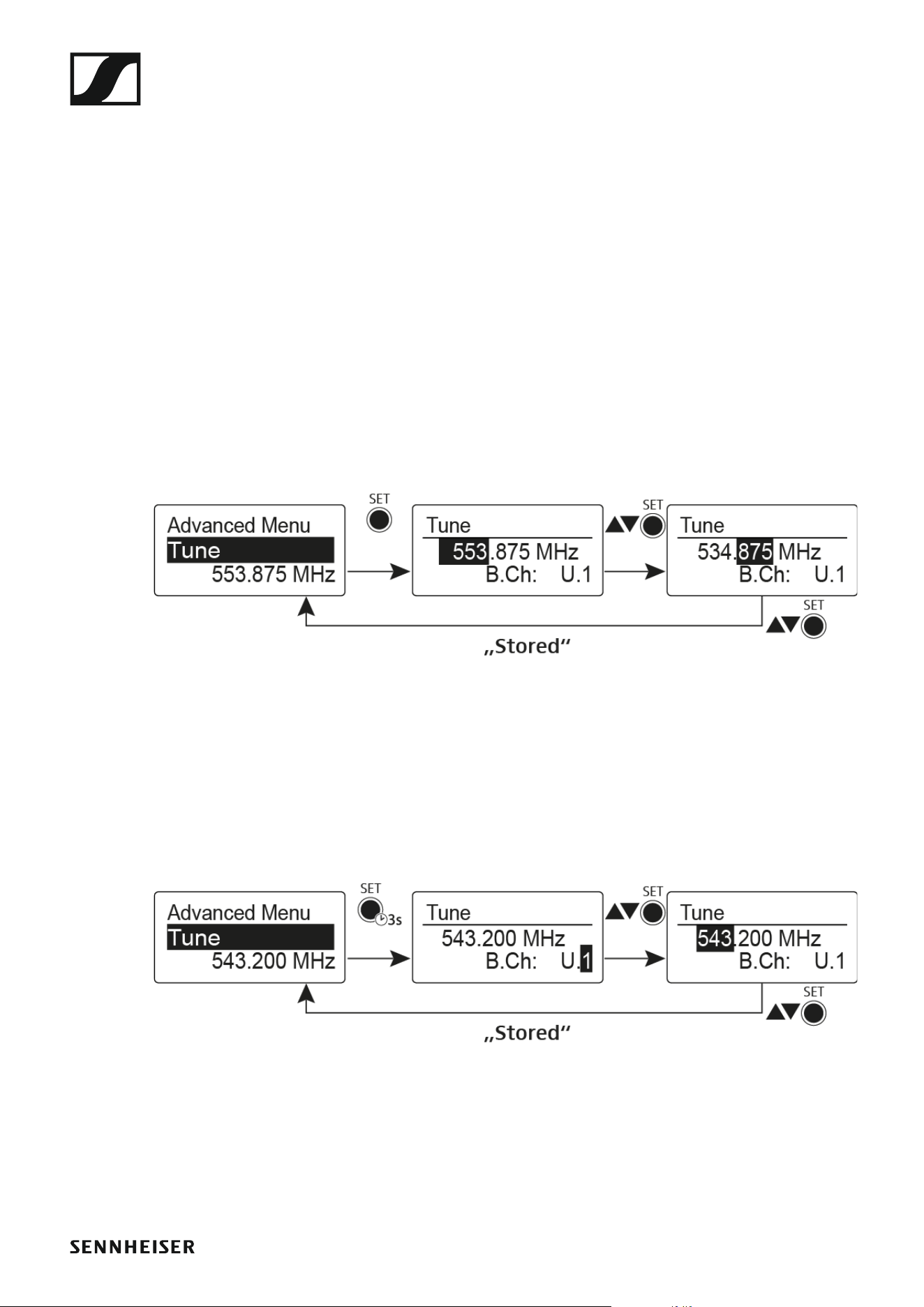

Advanced > Tune menu item
• Configuring the transmission frequency and frequency bank U
When you have configured the bodypack transmitter to a system bank and
you call up the Tune menu item, channel 1 of the frequency bank U is auto-
matically set. The message U.1 briefly appears in the display. In the factory
settings, the channels of the frequency bank U are not assigned to any
transmission frequency.
While you work in the Tune menu, the RF signal is deactivated.
You can configure a transmission frequency for the current channel or se-
lect a channel in the frequency bank U and configure a transmission fre-
quency for this channel in the Tune menu. Be sure to note the information
on frequency selection, see “Setting notes”.
Only adjusting the frequency
To configure the transmission frequency for the current channel:
▷ Open the Tune menu item in the Advanced menu.
The frequency selection appears.
►
▷ Configure the desired frequency.
▷ Press the SET button.
Your settings will be saved. You are now back in the operating menu.
Setting the channel and frequency
To select a channel and assign it a frequency:
▷ Open the Tune menu item in the Advanced menu by pressing and hold-
ing the SET button until the frequency bank selection appears.
►
▷ Set the desired channel.
▷ Press the SET button.
The frequency selection appears.
▷ Configure the frequency.
Using the SK 100 G4
118

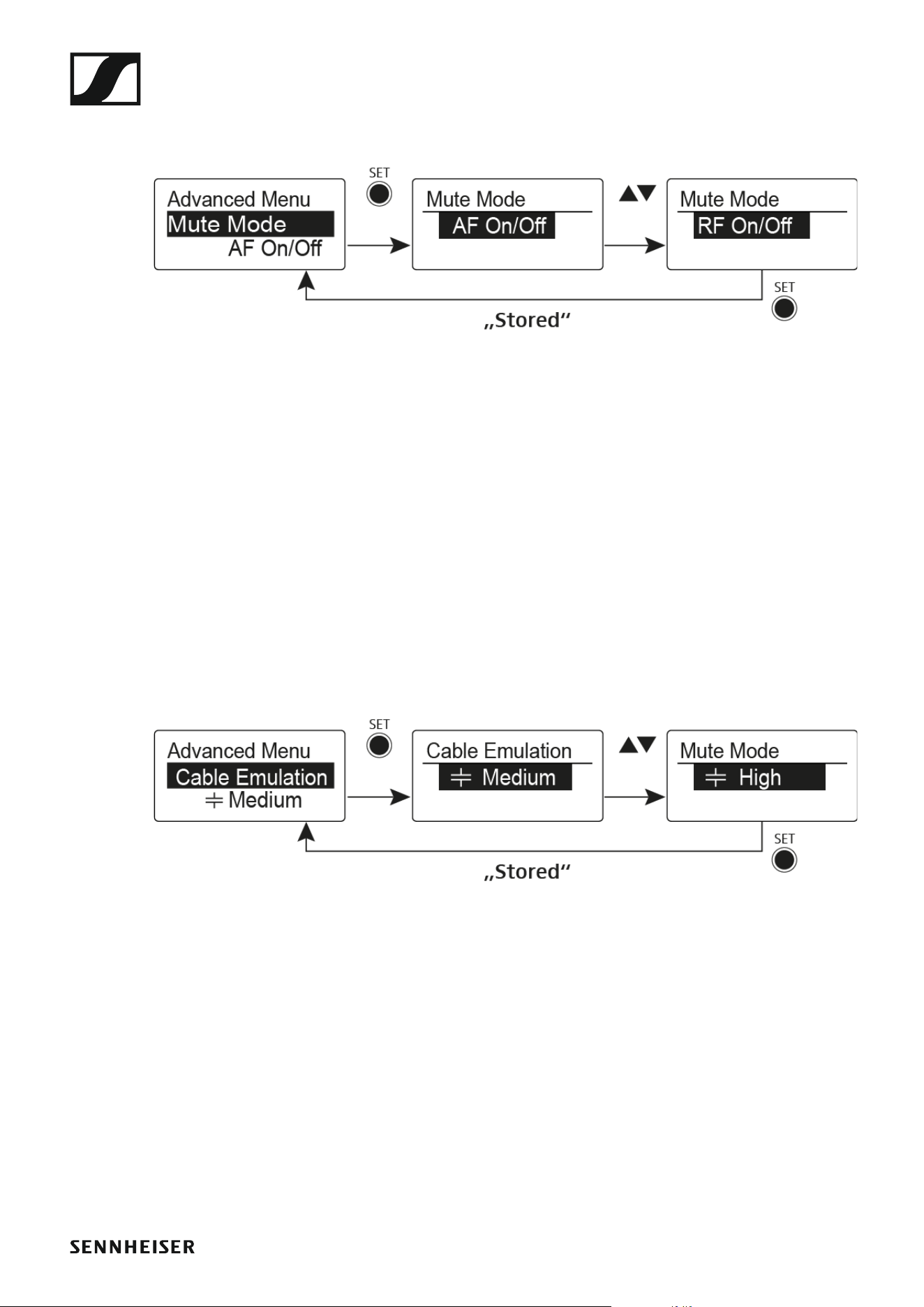

Advanced > Mute Mode menu item
•Configuring the MUTE switch
►
AF On/Off mode
• If set to position MUTE, the audio signal is muted.
RF On/Off mode
• If set to position MUTE, the RF signal is deactivated.
Disabled mode
• No function
You can find information about operating the mute switch under “Muting
the bodypack transmitter (AF mute)” and “Deactivating the RF signal (RF
mute)”.
Advanced > Cable Emulation menu item
• Emulating a guitar cable
►
Using this menu item you can emulate the capacitances of your guitar ca-
bles and influence the sound of your guitar.
Using the SK 100 G4
119

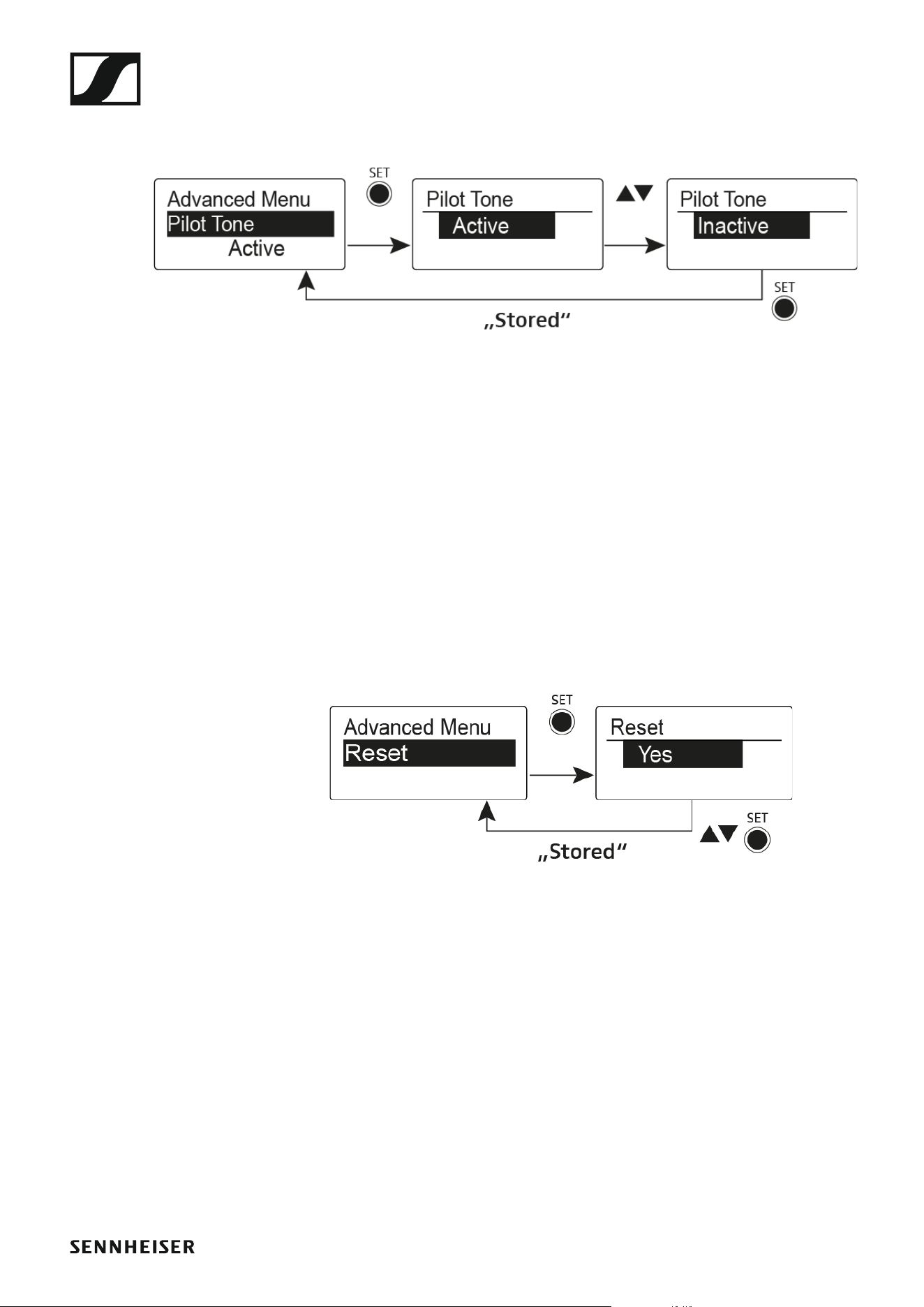

Advanced > Pilot Tone menu item
• Activating/deactivating pilot tone transmission
►
The pilot tone has an inaudible frequency that is sent from the transmitter
and evaluated by the receiver. It supports the receiver’s squelch function.
Advanced > LCD Contrast menu item
• Adjusting the contrast of the display panel
You can configure the contrast of the display in 16 steps.
Advanced > Reset menu item
• Resetting the bodypack transmitter
►
When you reset the bodypack transmitter, only the selected settings of the
pilot tone and the U frequency bank are retained.
Advanced > Software Revision menu item
• Show software revision
You can display the current software revision.
Establishing a radio link
120

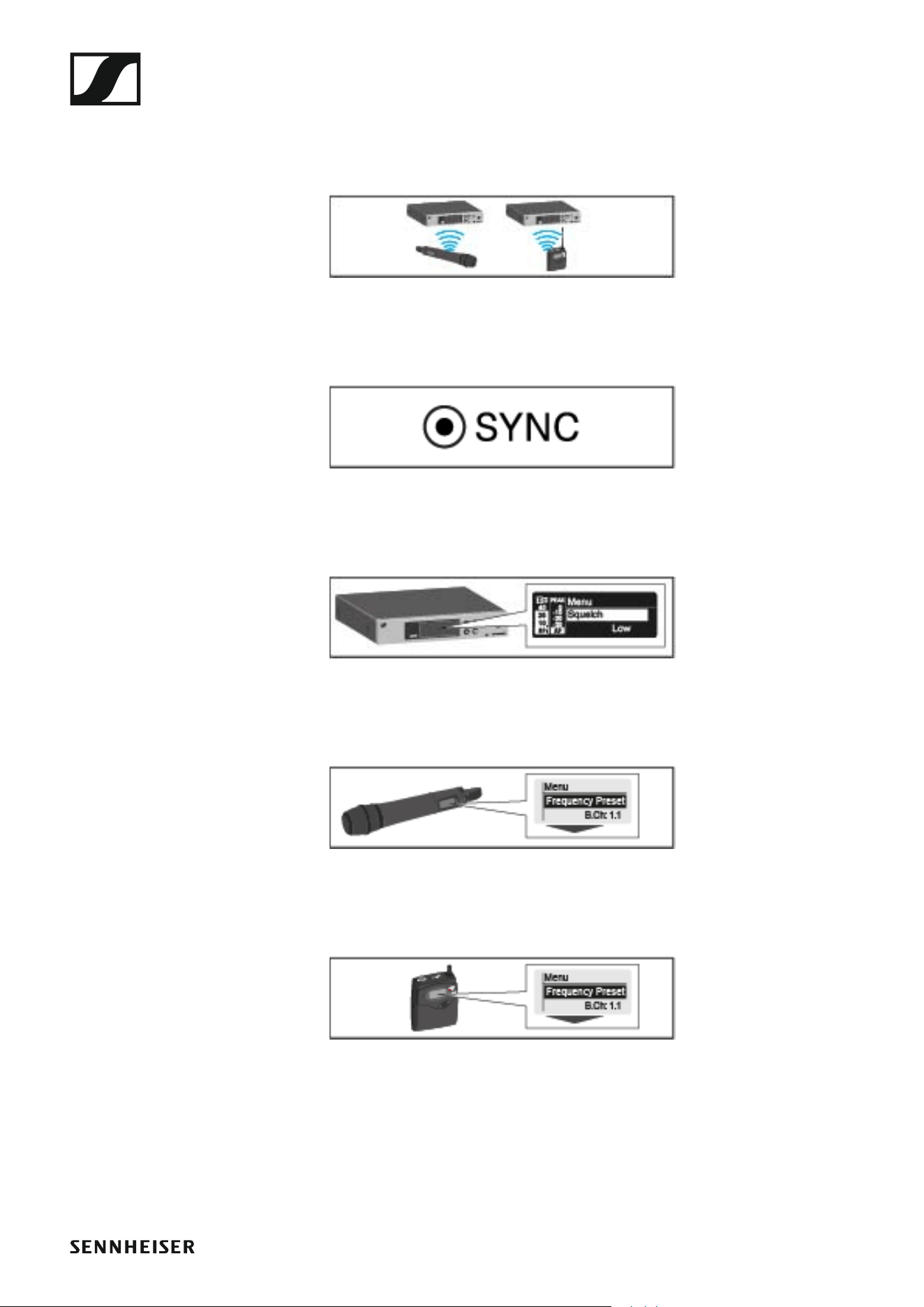

Establishing a radio link
To establish a radio link between the transmitter and receiver, the same
frequency must be set in both devices.
You can do this in a number of different ways:
1. Use the Easy Setup function to perform an automatic frequency set-
up (see “Easy Setup menu item”).
2. Set a frequency in the receiver manually (see “Frequency Preset menu
item”) and synchronize it with the transmitter (see “Synchronizing de-
vices”).
3. Set the frequency on the receiver and the transmitter manually
(EM 100 G4: “Frequency Preset menu item”, SKM 100 G4: “Frequency
Preset menu item”, SK 100 G4: “Frequency Preset menu item”)
Setting notes
Please note the following when synchronizing a transmitter with a receiv-
ers:
▷ Only use transmitters and receivers from the same frequency range
(see the type plate on the transmitter and receiver).
▷ Make sure that your chosen frequencies are listed in the frequency ta-
ble for the particular frequency range (see “Frequency tables”).
▷ Ensure that the desired frequencies are permitted in your country and
apply for an operating license if necessary.
Please note the information at the following address:
General conditions and restrictions for the use of frequencies
Synchronizing devices
121

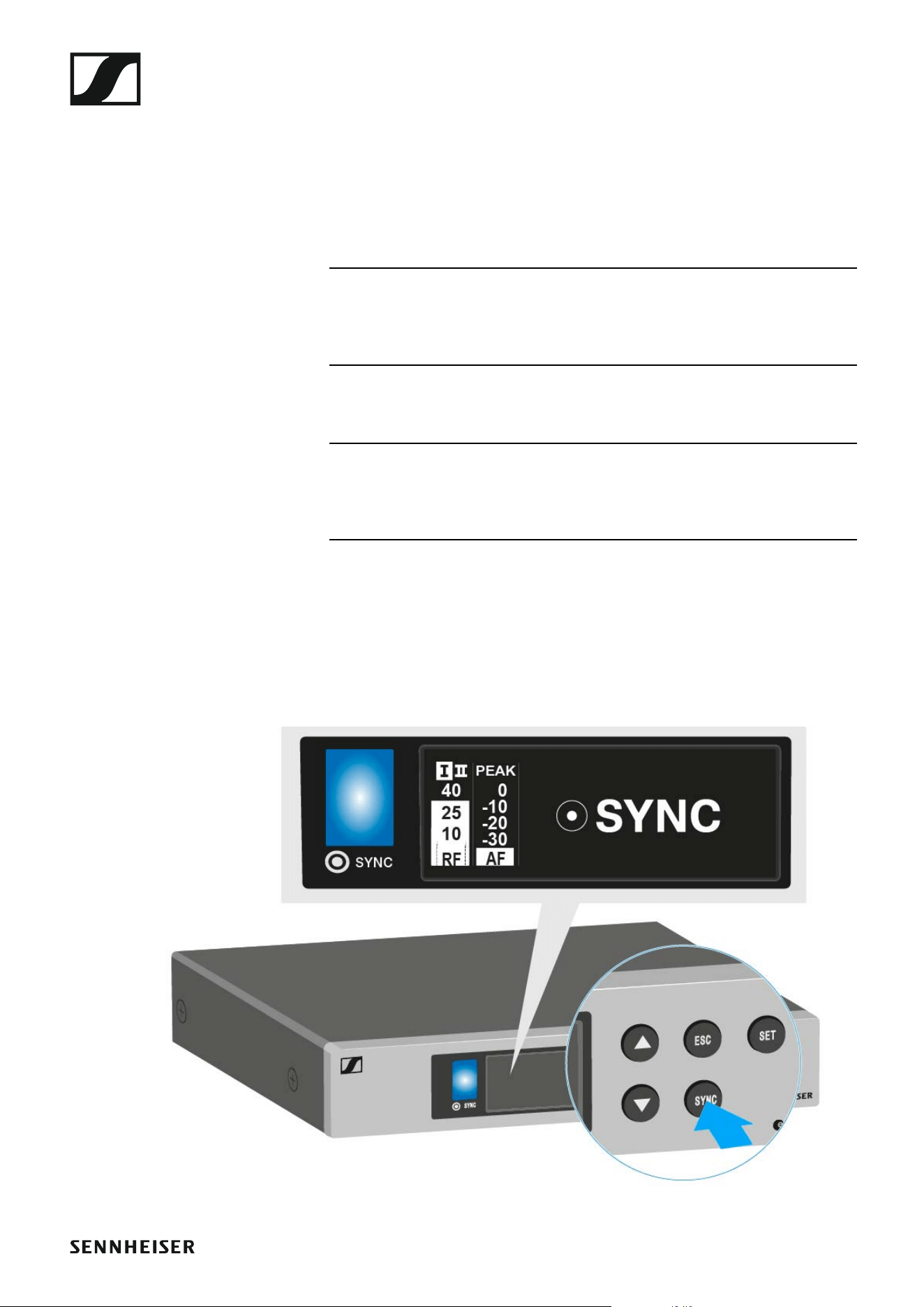

Synchronizing devices
You can synchronize ew 100 G4 series transmitters and receivers via the
receiver’s infrared interface.
The following Parameters are transferred to the transmitters:
• Frequency Preset >> currently configured frequency (see “Frequency
Preset menu item”)
• Name >> individually configured name (see “Name menu item”)
• Pilot Tone >> current setting of the pilot tone on the receiver (see “Ad-
vanced -> Pilot Tone menu item”)
To synchronize the devices:
▷ Switch the transmitter and the receiver on.
▷ Press the SYNC button on the receiver.
Sync appears in the receiver’s display and the blue LED turns blue.

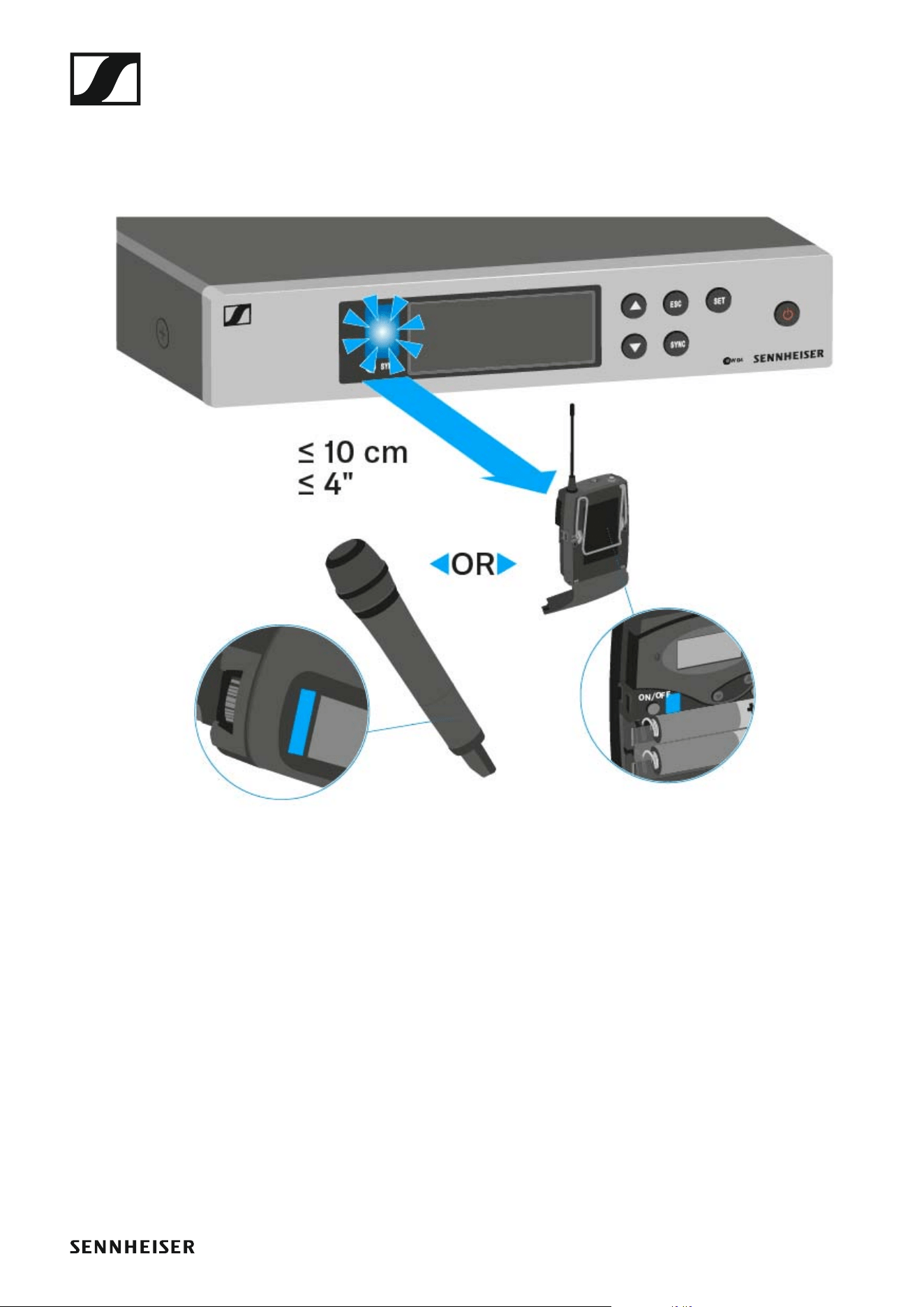

▷ Hold the infra-red interface of the transmitter (see “Operating elements
Synchronizing devices
122
of the SKM 100 G4 handheld transmitter” and “Operating elements of
the SK 100 G4 bodypack transmitter”) in front of the infra-red interface
of the receiver (see “Operating elements on the front of the device”).
The parameters are transferred to the transmitter. The blue LED blinks
during transmission.
When the transfer is complete, a tick appears in the receiver’s display
as a confirmation. Then the receiver will return to the current standard
display.
To cancel synchronization:
▷ Press the ESC button on the receiver.
An X appears in the display.
This icon also appears when:
• no transmitter is found or the transmitter is not compatible.
• no transmitter is found and the synchronization process automatically
ends after 30 seconds.
Using the ASA 214
125

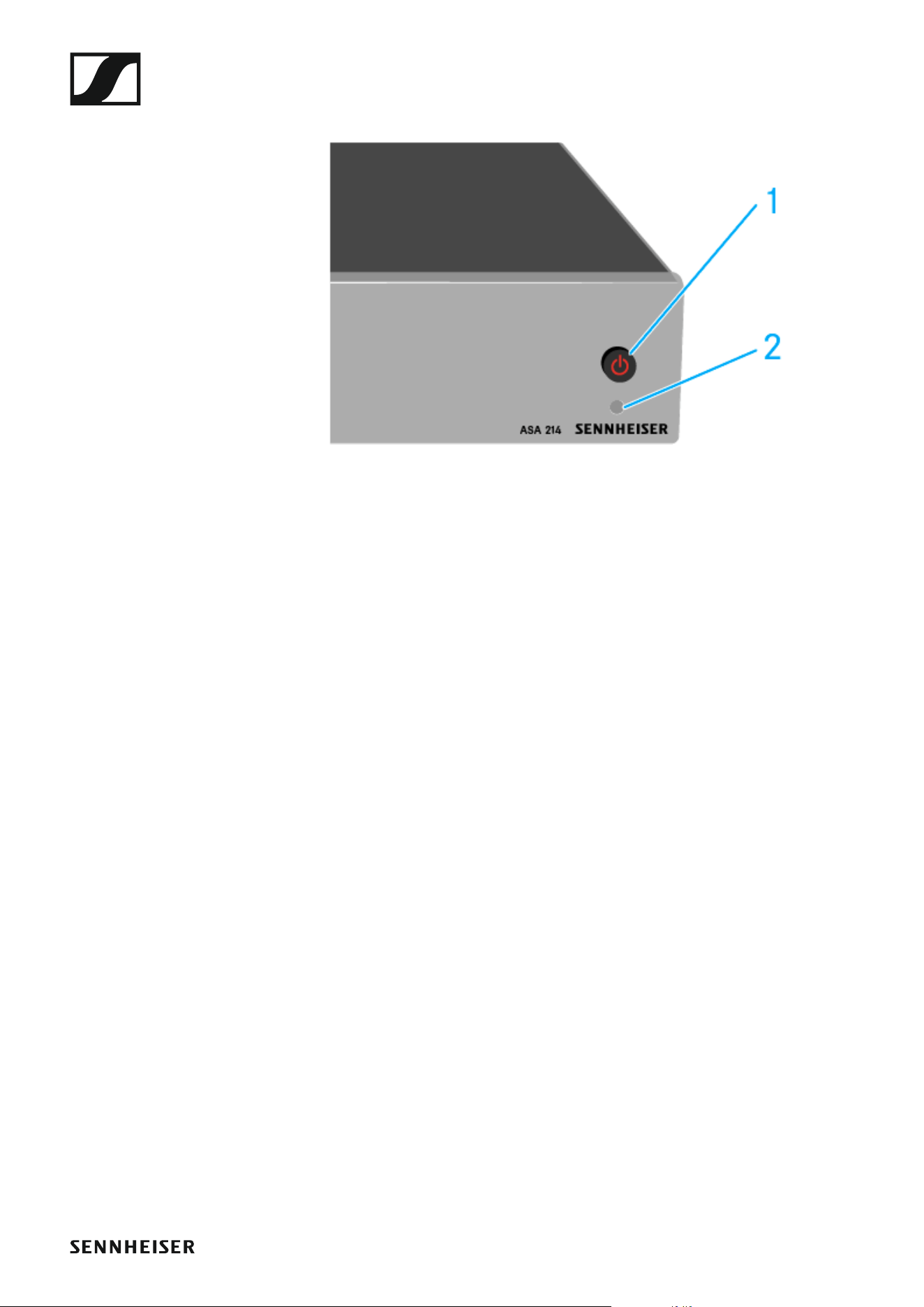

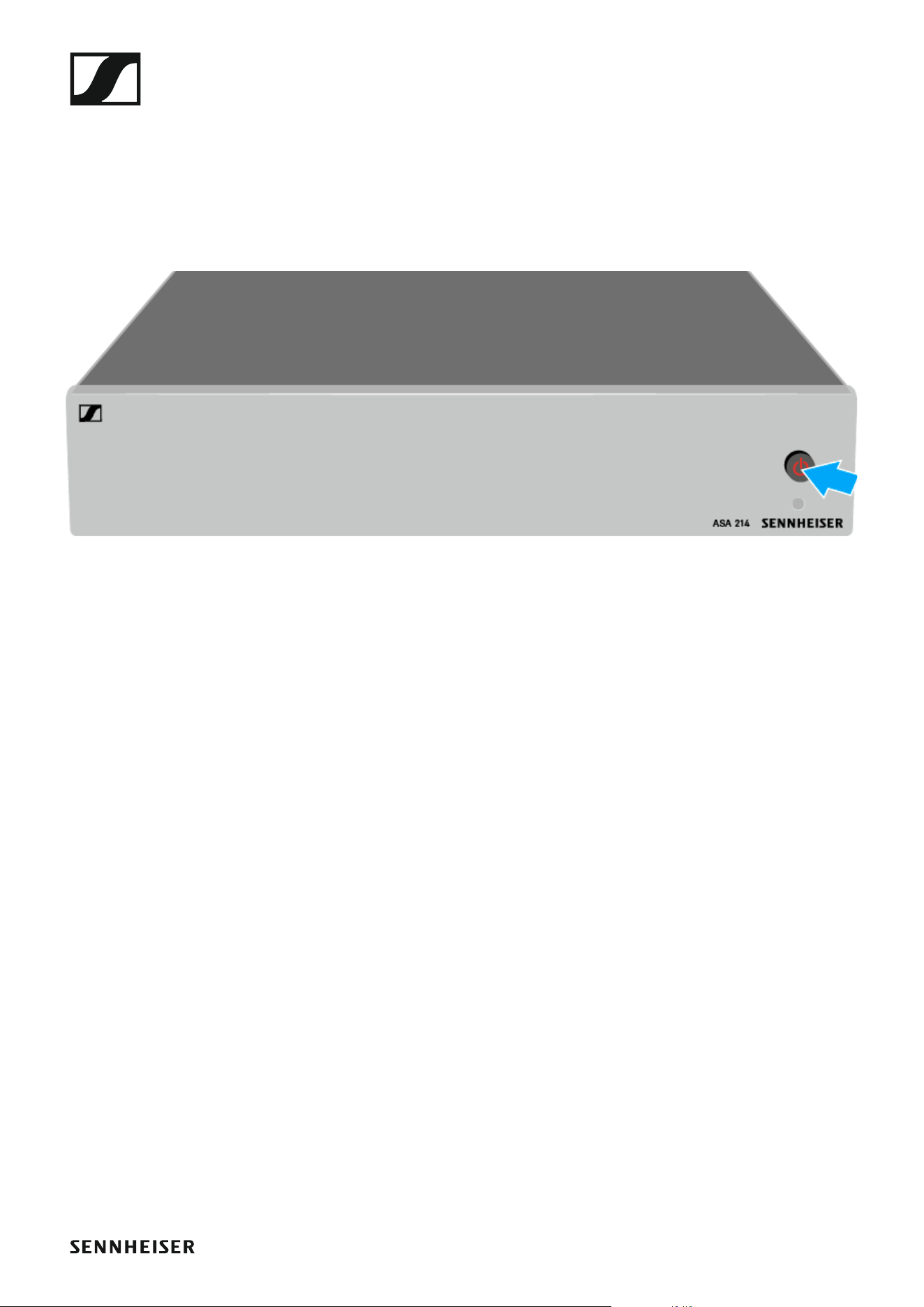

Switching the ASA 214 on and off
To switch on the antenna splitter:
▷ Short-press the STANDBY button.
The antenna splitter switches on and the power LED turns green.
The RF signals of the connected antennas are distributed to all con-
nected receivers.
To switch the antenna splitter to standby mode:
▷ Press the STANDBY button for approx. 2 seconds.
The LED turns off. The connected antenna amplifiers are switched off.
Connected receivers are switched off if they draw their supply voltage
from the BNC sockets A1 to A4 (see “Connecting receivers to the
ASA 214”).
To fully switch off the antenna splitter:
▷ Disconnect the antenna splitter from the power supply system by un-
plugging the power supply unit from the wall socket.
The LED turns off.
Overview
126
SPECIFICATIONS
Overview
In the sections below, you can find information about the different variants
of the products in the ew 100 G4 series as well as technical data for the in-
dividual products.
• Product variants and frequency variants >> “Product variants”
• Frequency tables with overviews of all banks and channels >> “Fre-
quency tables”
• Product-specific technical data >> “Specifications”
• Information about plug assignments >> “Pin assignment”
You can also find information about safely cleaning and maintaining
evolution wireless G4 series products.
• “Cleaning and maintenance”
Product variants
127
Product variants
EM 100 G4 product variants
Made in Germany
►
Assembled in the USA
►
EM 100 G4-A1 470 – 516 MHz Art. no. 507603
EM 100 G4-A 516 – 558 MHz Art. no. 507604
EM 100 G4-GB 606 – 648 MHz Art. no. 507605
EM 100 G4-G 566 – 608 MHz Art. no. 507606
EM 100 G4-B 626 – 668 MHz Art. no. 507607
EM 100 G4-C 734 – 776 MHz Art. no. 507608
EM 100 G4-E 823 – 865 MHz Art. no. 507609
EM 100 G4-1G8 1785 – 1800 MHz Art. no. 507610
EM 100 G4-K+ 925 – 937.5 MHz Art. no. 507611
EM 100 G4-A1 470 – 516 MHz Art. no. 507945
EM 100 G4-A 516 – 558 MHz Art. no. 507946
EM 100 G4-AS 520 – 558 MHz Art. no. 507947
EM 100 G4-G 566 – 608 MHz Art. no. 507948
EM 100 G4-B 626 – 668 MHz Art. no. 507949
EM 100 G4-C 734 – 776 MHz Art. no. 507950
EM 100 G4-D 780 – 822 MHz Art. no. 507951
EM 100 G4-JB 806 – 810 MHz Art. no. 507952
Product variants
128
SKM 100 G4 product variants
Made in Germany
SKM 100 G4-S
►
SKM 100 G4
►
Assembled in the USA
SKM 100 G4-S
►
SKM 100 G4-S-A1 470 – 516 MHz Art. no. 507594
SKM 100 G4-S-A 516 – 558 MHz Art. no. 507595
SKM 100 G4-S-GB 606 – 648 MHz Art. no. 507596
SKM 100 G4-S-G 566 – 608 MHz Art. no. 507597
SKM 100 G4-S-B 626 – 668 MHz Art. no. 507598
SKM 100 G4-S-C 734 – 776 MHz Art. no. 507599
SKM 100 G4-S-E 823 – 865 MHz Art. no. 507600
SKM 100 G4-S-1G8 1785 – 1800 MHz Art. no. 507601
SKM 100 G4-S-K+ 925 – 937.5 MHz Art. no. 507602
SKM 100 G4-A1 470 – 516 MHz Art. no. 507660
SKM 100 G4-A 516 – 558 MHz Art. no. 507661
SKM 100 G4-GB 606 – 648 MHz Art. no. 507662
SKM 100 G4-G 566 – 608 MHz Art. no. 507663
SKM 100 G4-B 626 – 668 MHz Art. no. 507664
SKM 100 G4-C 734 – 776 MHz Art. no. 507665
SKM 100 G4-E 823 – 865 MHz Art. no. 507666
SKM 100 G4-1G8 1785 – 1800 MHz Art. no. 507667
SKM 100 G4-K+ 925 – 937.5 MHz Art. no. 507668
SKM 100 G4-S-A1 470 – 516 MHz Art. no. 507937
SKM 100 G4-S-A 516 – 558 MHz Art. no. 507938
SKM 100 G4-S-AS 520 – 558 MHz Art. no. 507939
SKM 100 G4-S-G 566 – 608 MHz Art. no. 507940
SKM 100 G4-S-B 626 – 668 MHz Art. no. 507941
SKM 100 G4-S-C 734 – 776 MHz Art. no. 507942
SKM 100 G4-S-D 780 – 822 MHz Art. no. 507943
SKM 100 G4-S-JB 806 – 810 MHz Art. no. 507945
Product variants
129
SKM 100 G4-S
►
SK 100 G4 product variants
Made in Germany
►
Assembled in the USA
►
SKM 100 G4-A1 470 – 516 MHz Art. no. 508001
SKM 100 G4-A 516 – 558 MHz Art. no. 508002
SKM 100 G4-AS 520 – 558 MHz Art. no. 508003
SKM 100 G4-G 566 – 608 MHz Art. no. 508004
SKM 100 G4-B 626 – 668 MHz Art. no. 508005
SKM 100 G4-C 734 – 776 MHz Art. no. 508006
SKM 100 G4-D 780 – 822 MHz Art. no. 508007
SKM 100 G4-JB 806 – 810 MHz Art. no. 508008
SK 100 G4-A1 470 – 516 MHz Art. no. 507585
SK 100 G4-A 516 – 558 MHz Art. no. 507586
SK 100 G4-GB 606 – 648 MHz Art. no. 507587
SK 100 G4-G 566 – 608 MHz Art. no. 507588
SK 100 G4-B 626 – 668 MHz Art. no. 507589
SK 100 G4-C 734 – 776 MHz Art. no. 507590
SK 100 G4-E 823 – 865 MHz Art. no. 507591
SK 100 G4-1G8 1785 – 1800 MHz Art. no. 507592
SK 100 G4-K+ 925 – 937.5 MHz Art. no. 507593
SK 100 G4-A1 470 – 516 MHz Art. no. 507929
SK 100 G4-A 516 – 558 MHz Art. no. 507930
SK 100 G4-AS 520 – 558 MHz Art. no. 507931
SK 100 G4-G 566 – 608 MHz Art. no. 507932
SK 100 G4-B 626 – 668 MHz Art. no. 507933
SK 100 G4-C 734 – 776 MHz Art. no. 507934
SK 100 G4-D 780 – 822 MHz Art. no. 507935
SK 100 G4-JB 806 – 810 MHz Art. no. 507936
Specifications
131
Specifications
You can find product-specific technical data in the sections below.
132
EM 100 G4
RF characteristics
►
Modulation Wideband FM
Receiving frequency ranges A1: 470 – 516 MHz
A: 516 – 558 MHz
AS: 520 – 558 MHz
G: 566 – 608 MHz
GB: 606 – 648 MHz
B: 626 – 668 MHz
C: 734 – 776 MHz
D: 780 – 822 MHz
TH: 794 – 806 MHz
E: 823 – 865 MHz
JB: 806 – 810 MHz
K+: 925 – 937.5 MHz
1G8: 1785 – 1800 MHz
Receiving frequencies Max 1680 receiving frequencies,
adjustable in 25 kHz steps
20 frequency banks, each with up
to 12 factory-preset channels,
no intermodulation
1 frequency bank with up to 12
programmable channels
Switching bandwidth up to 42 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Receiver principle True diversity
Sensitivity
(with HDX, peak deviation)
< 2.5 μV for 52 dBA
eff S/N
Adjacent channel selection Typically ≥ 65 dB
Intermodulation attenuation Typically ≥ 65 dB
Blocking ≥ 70 dB
Squelch Off
Low: 5 dBμV
Middle: 15 dBμV
High: 25 dBμV
Pilot tone squelch Can be switched off
Antenna inputs 2 BNC sockets
133
AF characteristics
►
Overall device
►
Compander system Sennheiser HDX
EQ presets (switchable, act on
line and monitor outputs):
Preset 1: Flat
Preset 2: Low Cut –3 dB at 180 Hz
Preset 3: Low Cut / High Boost –3 dB at 180 Hz
+6 dB at 10 kHz
Preset 4: High Boost +6 dB at 10 kHz
Signal-to-noise ratio
(1 mV, peak deviation)
≥ 110 dBA
Total harmonic distortion (THD) ≤ 0.9 %
AF output voltage
(at peak deviation, 1 kHz AF)
6.3 mm jack socket
(unbalanced): +12 dBu
BNC socket
(balanced): +18 dBu
AF OUT setting range 48 dB in 3 dB steps
Temperature range -10 °C to +55 °C (14 °F to 131 °F)
Power supply 12 V DC
Power consumption 300 mA
Dimensions Approx. 190 x 212 x 43 mm
Weight approx. 980 g
134
SKM 100 G4
RF characteristics
►
AF characteristics
►
Modulation Wideband FM
Receiving frequency ranges A1: 470 – 516 MHz
A: 516 – 558 MHz
AS: 520 – 558 MHz
G: 566 – 608 MHz
GB: 606 – 648 MHz
B: 626 – 668 MHz
C: 734 – 776 MHz
D: 780 – 822 MHz
E: 823 – 865 MHz
JB: 806 – 810 MHz
K+: 925 – 937.5 MHz
1G8: 1785 – 1800 MHz
Transmission frequencies Max 1680 receiving frequencies,
adjustable in 25 kHz steps
20 frequency banks, each with up
to 12 factory-preset channels
1 frequency bank with up to 12
programmable channels
Switching bandwidth up to 42 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Frequency stability ≤ ±15 ppm
RF output power at 50 ? Max. 30 mW
Pilot tone squelch Can be switched off
Compander system Sennheiser HDX
AF frequency response 80 – 18,000 Hz
Signal-to-noise ratio
(1 mV, peak deviation)
≥ 110 dBA
Total harmonic distortion (THD) ≤ 0.9 %
Input voltage 3 V
eff
Input impedance 40 kΩ
Input capacitance Switchable
Setting range for input sensitivity 48 dB in 6 dB steps
135
Overall device
►
Temperature range -10 °C to +55 °C (14 °F to 131 °F)
Power supply 2 AA batteries, 1,5 V or
BA 2015 accupack
Nominal voltage 3 V battery /
2.4 V rechargeable battery
Power consumption
at nominal voltage
with transmitter switched off
typically 180 mA
≤ 25 μA
Operating time Typically 8 h
Dimensions Approx. Ø 50 x 265 mm
Weight (with batteries) Approx. 450 g
136
SK 100 G4
RF characteristics
►
AF characteristics
►
Modulation Wideband FM
Receiving frequency ranges A1: 470 – 516 MHz
A: 516 – 558 MHz
AS: 520 – 558 MHz
G: 566 – 608 MHz
GB: 606 – 648 MHz
B: 626 – 668 MHz
C: 734 – 776 MHz
D: 780 – 822 MHz
E: 823 – 865 MHz
JB: 806 – 810 MHz
K+: 925 – 937.5 MHz
1G8: 1785 – 1800 MHz
Transmission frequencies Max. 1680 receiving frequencies,
adjustable in 25 kHz steps
20 frequency banks, each with up
to 12 factory-preset channels
1 frequency bank with up to 12
programmable channels
Switching bandwidth up to 42 MHz
Nominal/peak deviation ±24 kHz / ±48 kHz
Frequency stability ≤ ±15 ppm
RF output power at 50 ? Max. 30 mW
Pilot tone squelch Can be switched off
Compander system Sennheiser HDX
AF frequency response Microphone: 80 – 18,000 Hz
Line: 25 – 18,000 Hz
Signal-to-noise ratio
(1 mV, peak deviation)
≥ 110 dBA
Total harmonic distortion (THD) ≤ 0.9 %
Max. input voltage
Microphone/line
3 V
eff
Input impedance
Microphone/line
40 kΩ, unbalanced/1 MΩ
Input capacitance Switchable
Setting range for input sensitivity 60 dB in 3 dB steps
137
Overall device
►
Temperature range -10 °C to +55 °C (14 °F to 131 °F)
Power supply 2 AA batteries, 1,5 V or
BA 2015 accupack
Nominal voltage 3 V battery
2.4 V rechargeable battery
Power consumption
at nominal voltage
with transmitter switched off
typically 180 mA
≤ 25 μA
Operating time Typically 8 h
Dimensions approx. 82 x 64 x 24 mm
Weight (with batteries) Approx. 160 g
138
ASA 214
Specifications
►
ASA 214 antenna splitter 2 × 1:4 or 1 × 1:8, active
Connection cable 8 pieces, 50 cm, BNC
Frequency range
ASA 214-UHF:
ASA 214-1G8:
470 – 870 MHz at –3 dB
1785 – 1805 MHz at –3 dB
Amplification
In A – Out A
In A – Out A1 ... A4
In B – Out B1 ... B4
0 ± 1 dB
0 ± 1 dB
0 ± 1 dB
IIP3 20 dBm min.
23 dBm, typical
Impedance 50 Ω
Reflection loss 10 dB (all RF outputs)
Operating voltage 13.8 V DC (with power supply unit
NT 1-1)
Power consumption
ASA 214: 245 mA
ASA 214-1G8: 350 mA
Total power consumption max. 2.0 A with 4 receivers and 2 ×
2 antenna amplifiers per antenna
input
Antenna amplifier power supply
at ANT RF IN A and ANT RF IN B
12 V, 130 mA
Receiver power supply at A1 to
A4
12 V (protected against reverse
supply), 350 mA
Relative air humidity 5 to 95%
Temperature range
Operation:
Storage:
-10 °C to +55 °C (14 °F to 131 °F)
-20 °C to +70 °C (-4 °F to 158 °F)
Dimensions approx. 212 x 168 x 43 mm
Weight approx. 1090 g
139

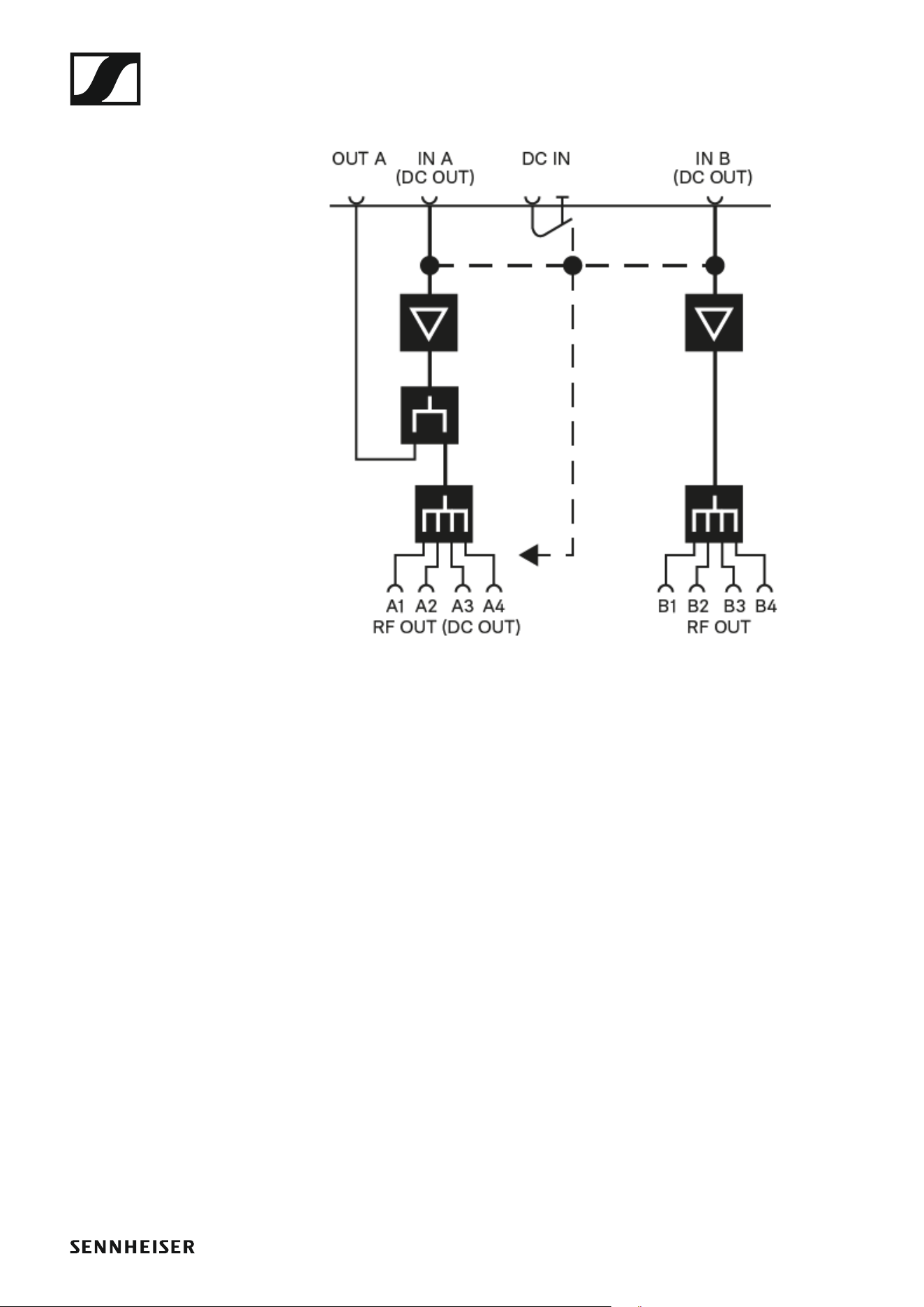

Block diagram
Pin assignment
140
Pin assignment
3.5 mm stereo jack plug
►
• Plug for headphone and earphone cables, e.g. IE 4.
•Connect to:
•EK IEM G4
•EK 500 G4
3.5 mm mic jack plug
►
• Plug for lavalier and headset microphone, e.g. ME 2.
•Connect to:
•SK100G4
•SK 300 G4
•SK 500 G4
3.5 mm line jack plug
►
• Plug for line and instrument cables, e.g. Ci 1-N
•Connect to:
•SK100G4
•SK 300 G4
•SK 500 G4
6.3 mm stereo jack plug, balanced (audio in/loop out)
►
•Connect to:
• SR IEM G4 Audio In
• SR IEM G4 Loop Out
RL
Mic
Line +
Pin assignment
141
6.3 mm mono jack plug, unbalanced
►
•Connect to:
•EM 100 G4 Audio Out
• EM 300-500 G4 Audio Out
6.3 mm stereo jack plug for headphone jack
►
•Connect to:
• EM 100 G4 headphone input
• EM 300-500 G4 headphone input
• SR IEM G4 headphone input
XLR-3 plug, balanced
►
Hollow jack plug for power supply
►
LR
1
3
2
Cleaning and maintenance
142
Cleaning and maintenance
Note the following information when cleaning and maintaining evolution
wireless G4 series products.
CAUTION
Liquids can damage the products’ electronics.
Liquids entering the product housing can cause a short-circuit and damage
the electronics.
▷ Keep all liquids away from the products.
▷ Do not use any solvents or cleansing agents.
▷ Disconnect the products from the power supply system and remove re-
chargeable batteries and batteries before you begin cleaning.
▷ Clean all products only with a soft, dry cloth.
▷ Note the special cleaning instructions below for the following products.
Cleaning the sound inlet basket of the microphone module
▷ Unscrew the top sound inlet basket from the microphone module by
turning it counterclockwise.
▷ Remove the foam insert.
You can clean the sound inlet basket in two ways:
▷ Use a slightly damp cloth to clean the top sound inlet basket from the
inside and outside.
▷ Use a brush and rinse with clean water.
▷ If necessary, clean the foam insert with a mild detergent or replace the
foam insert.
▷ Dry the top sound inlet basket and foam insert.
▷ Reinsert the foam insert.
Cleaning and maintenance
143
▷ Screw the sound inlet basket back onto the microphone module.
From time to time, you should also clean the microphone module contacts:
▷ Wipe the contacts of the microphone module with a soft, dry cloth.
