54-49-1020
SERVICE PARTS LIST
BULLETIN NO.
MILWAUKEE TOOL
www.milwaukeetool.com
13135 W. LISBON RD., BROOKFIELD, WI 53005
Drwg. 2
EXAMPLE:
Component Parts (Small #) Are Included
When Ordering The Assembly (Large #).
0
00
1
2
3
4
5
48-22-1020
HAMMER TACKER
Jan. 2015
REVISED BULLETIN
WIRING INSTRUCTION
DATE
CATALOG NO.
SPECIFY CATALOG NO. AND SERIAL NO. WHEN ORDERING PARTS
SERIAL
NUMBER

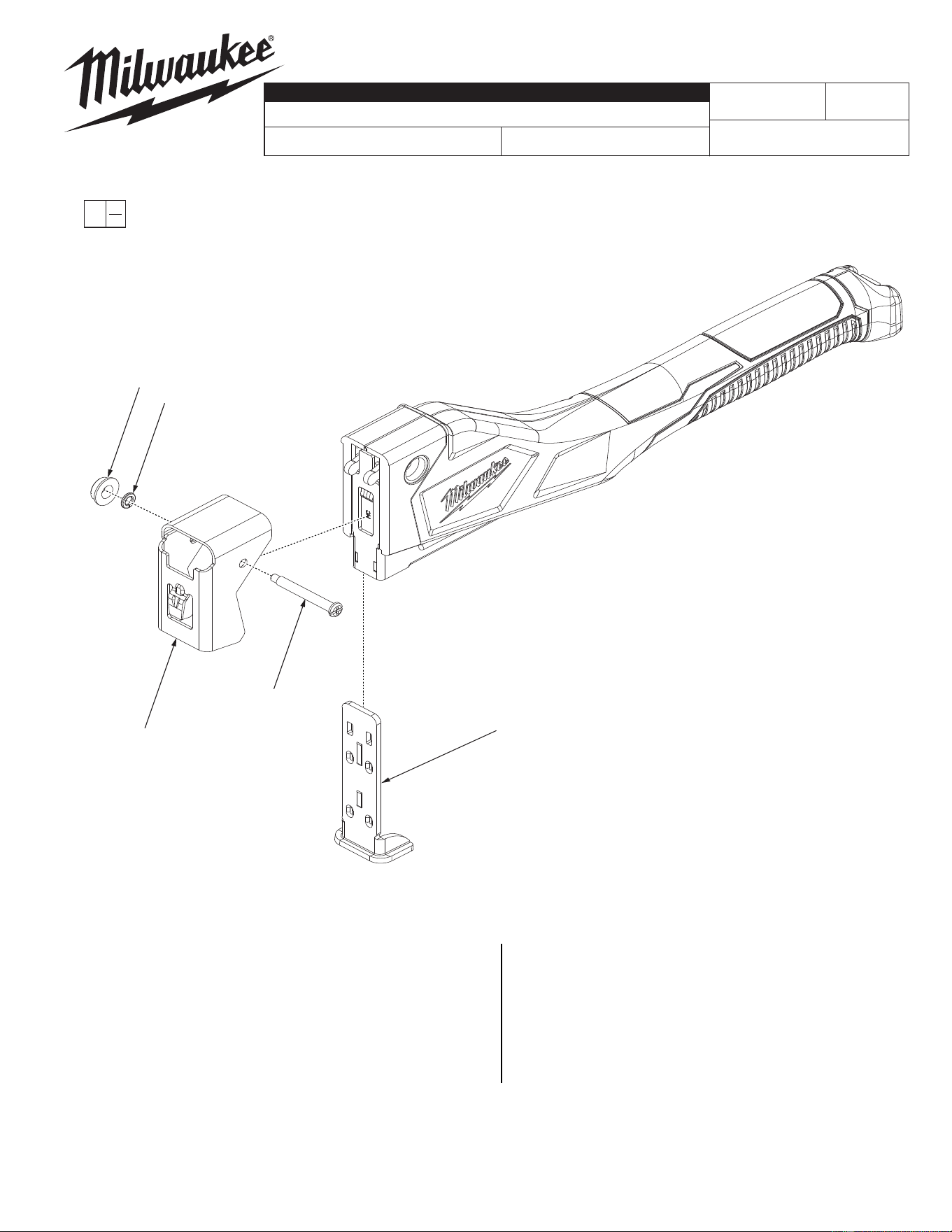

FIG. PART NO. DESCRIPTION OF PART NO. REQ.
1 45-16-0110 Impact Shoe (1)
2 --------------- Front Cover (1)
3 --------------- Pan Head Phillips Threaded Pin (1)
4 --------------- Split Ring Lock Washer (1)
5 --------------- Nylok Hex Nut (1)
FIG. NOTES
1,2 Front Cover must be loosened or removed before
replacing Impact Shoe.
