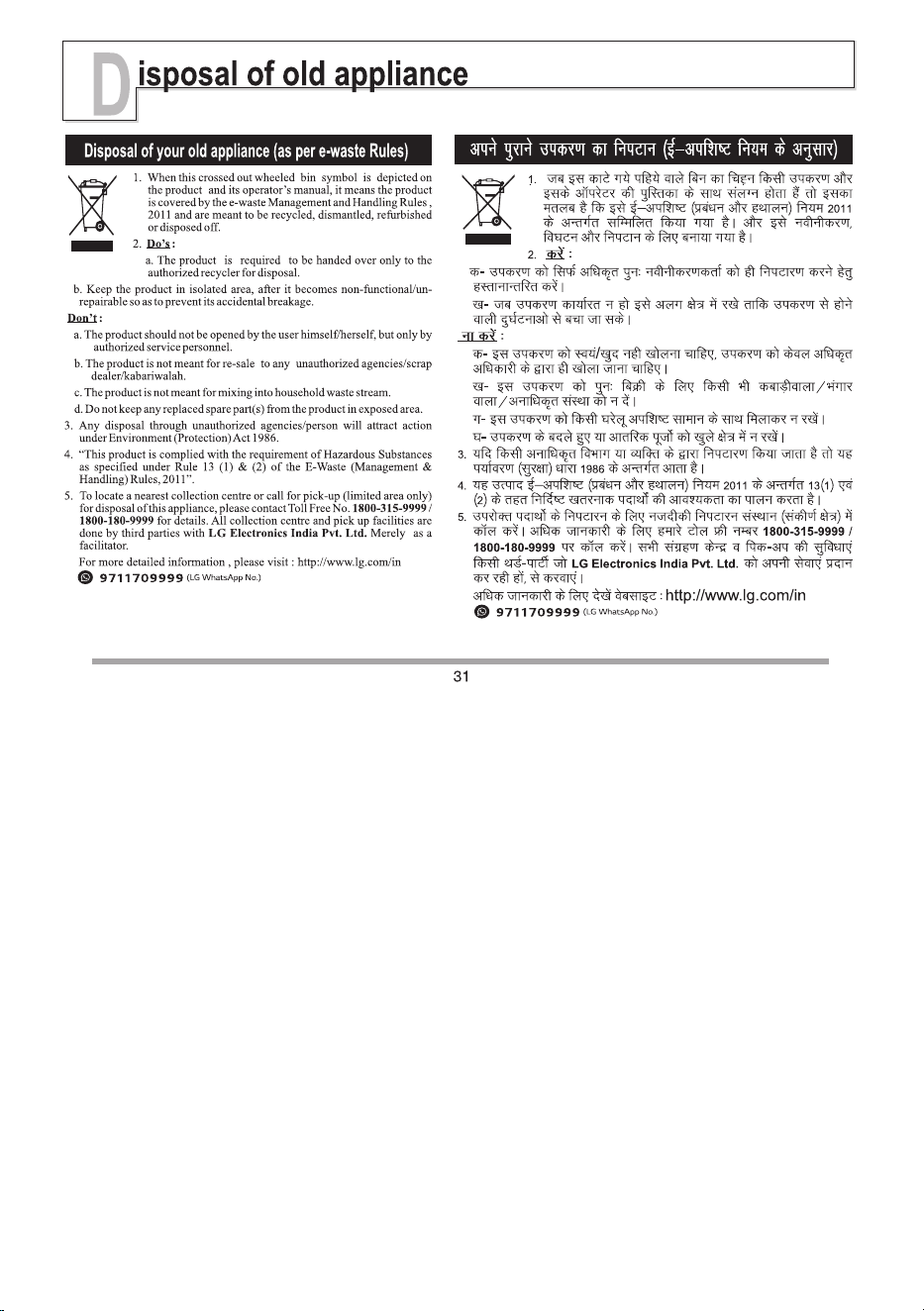

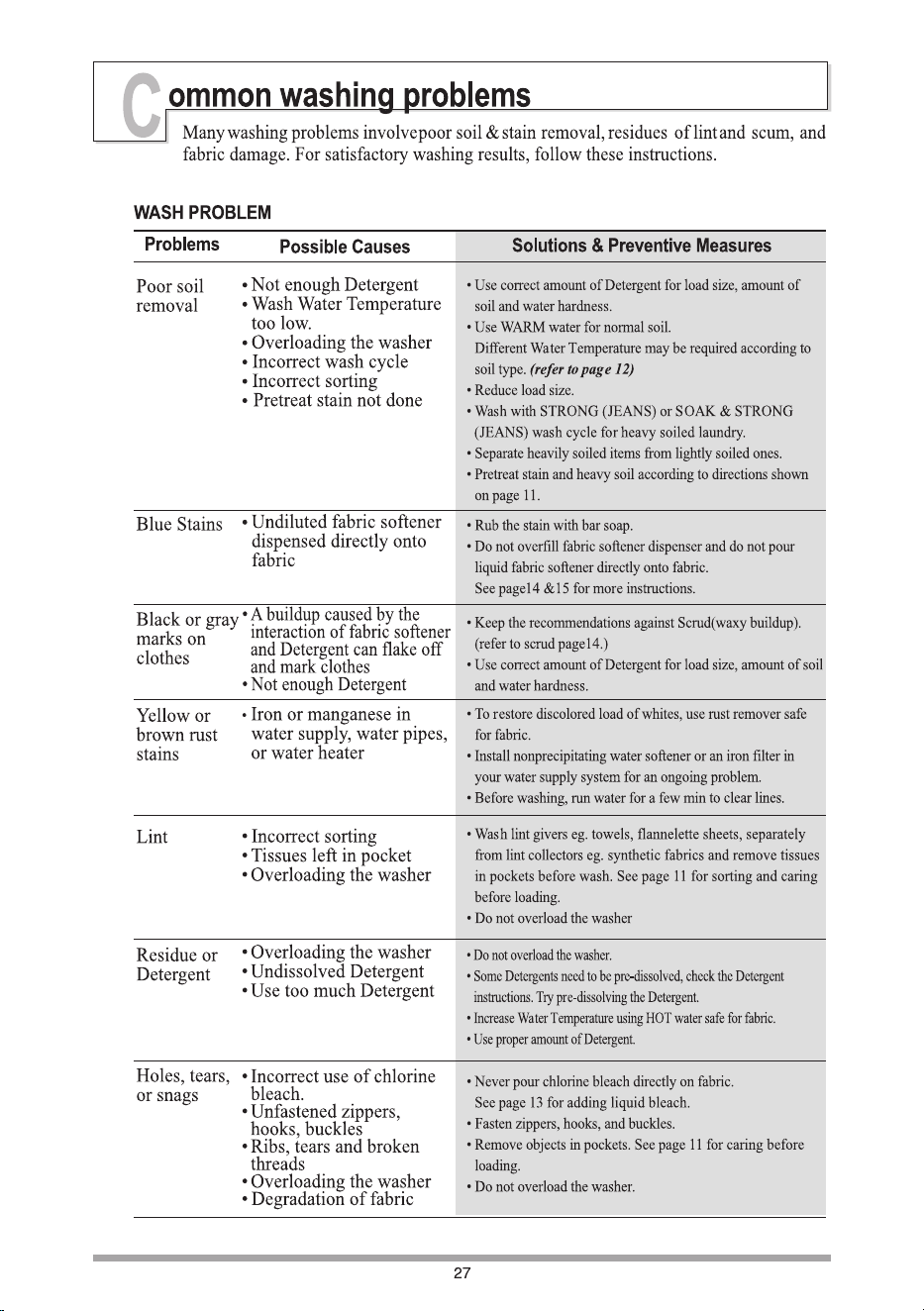

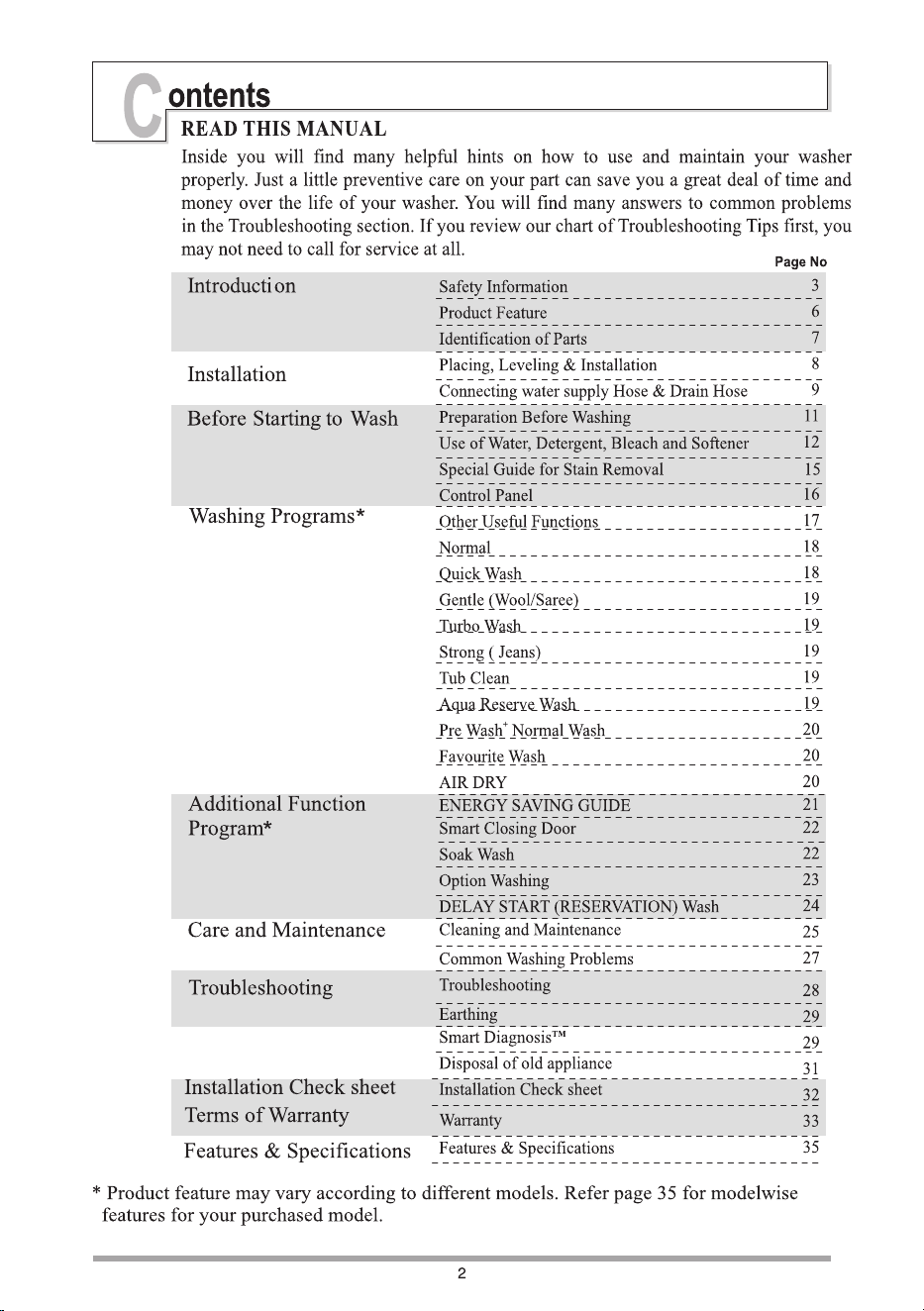

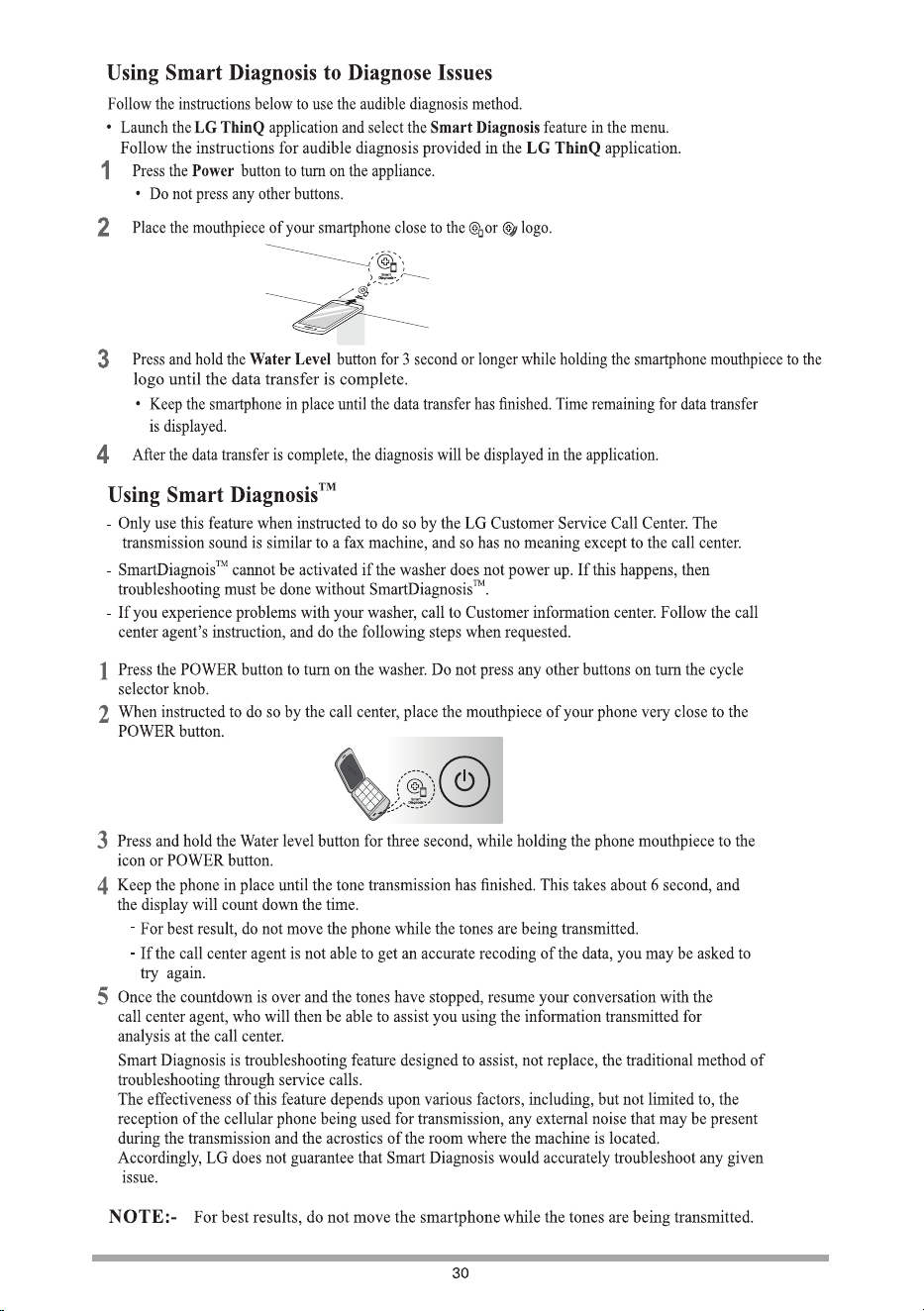

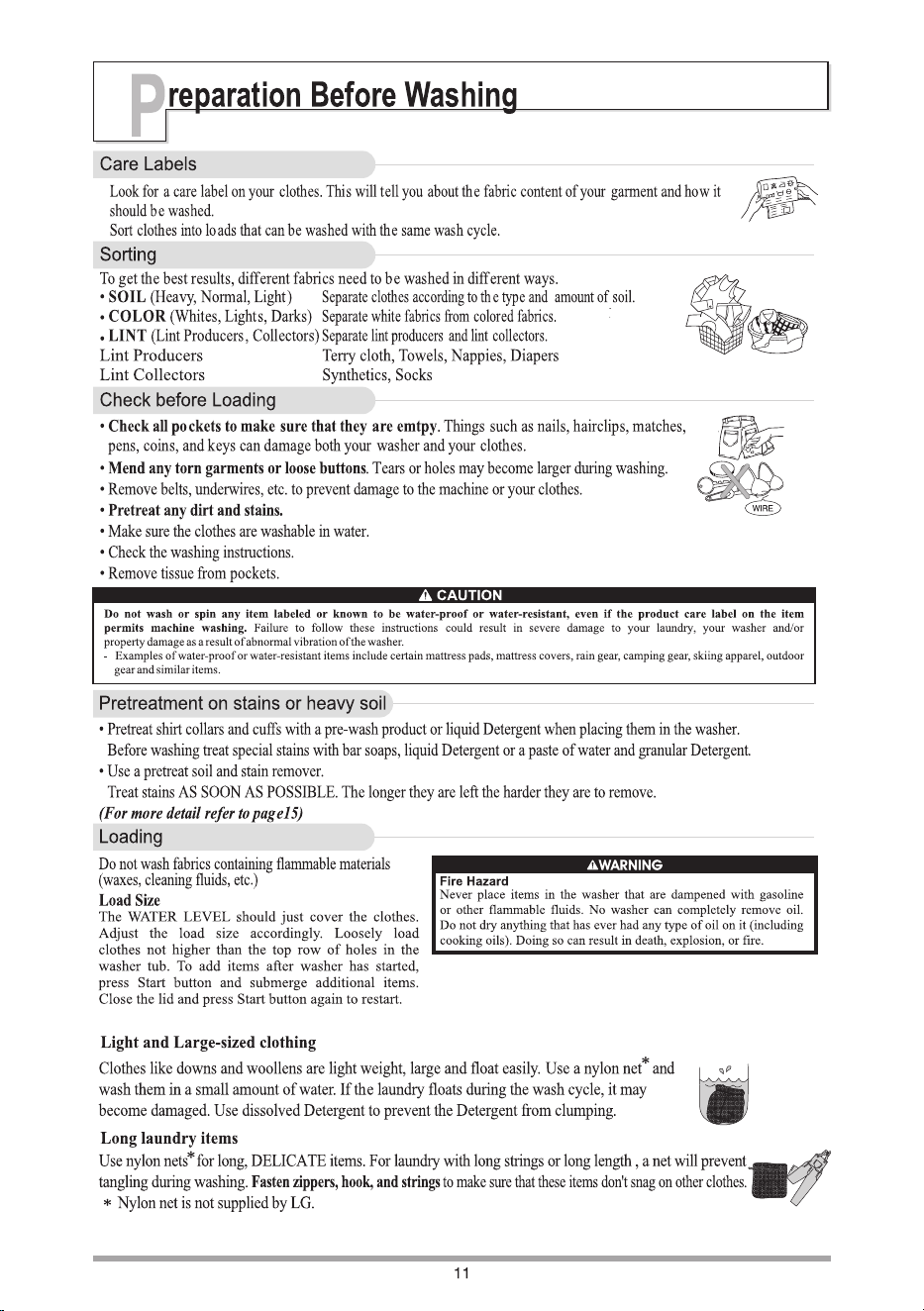

MFL68486526
Rev.00_150722

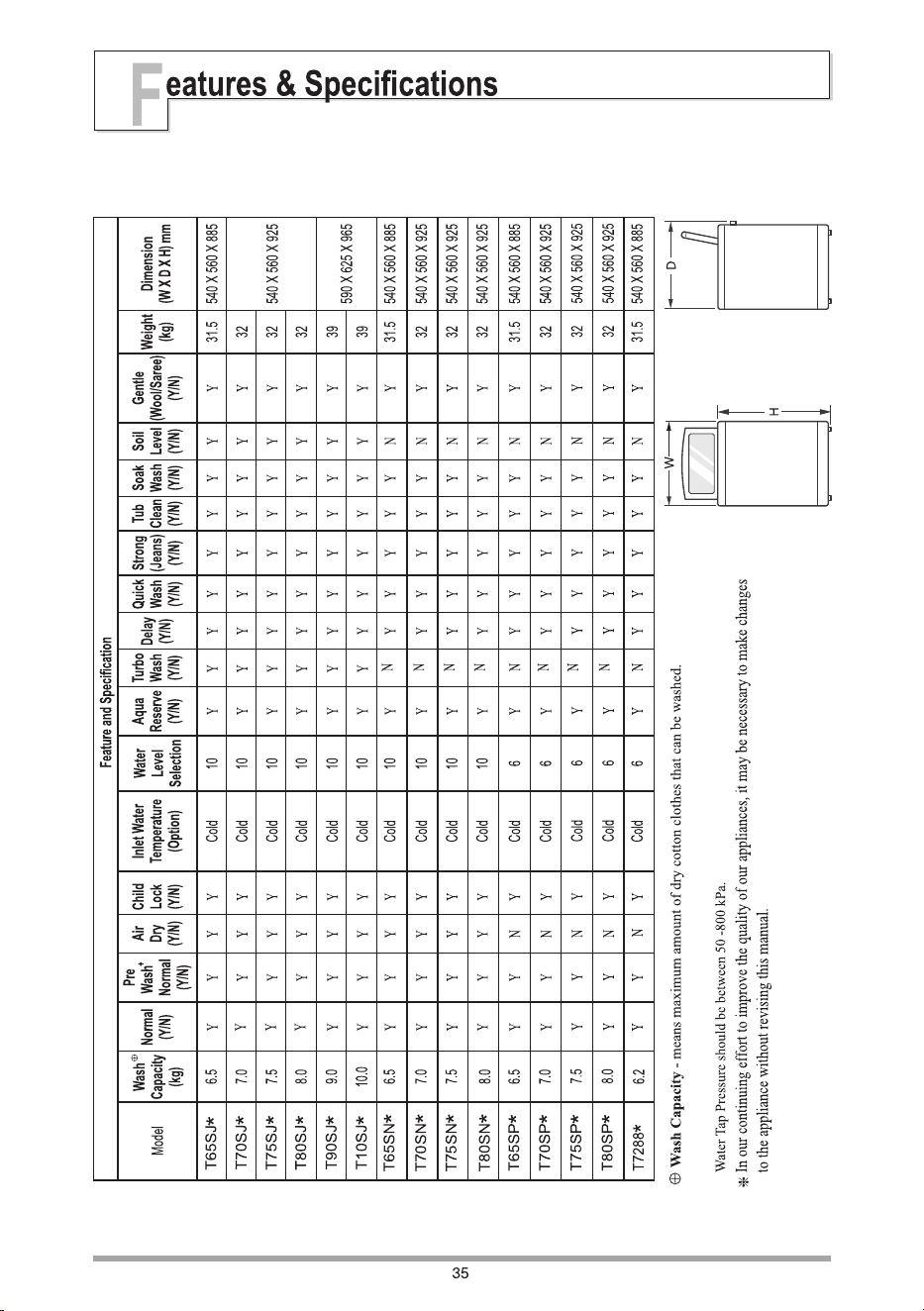

T65SJ T70SJ T75SJ T80SJ T90SJ T10SJ
/ / / / /
* * * * * *
T65SN T70SN T75SN T80SN
/ / /
* * * *
T65SP T70SP T75SP T80SP
/ / /
* * * *
T7288
*

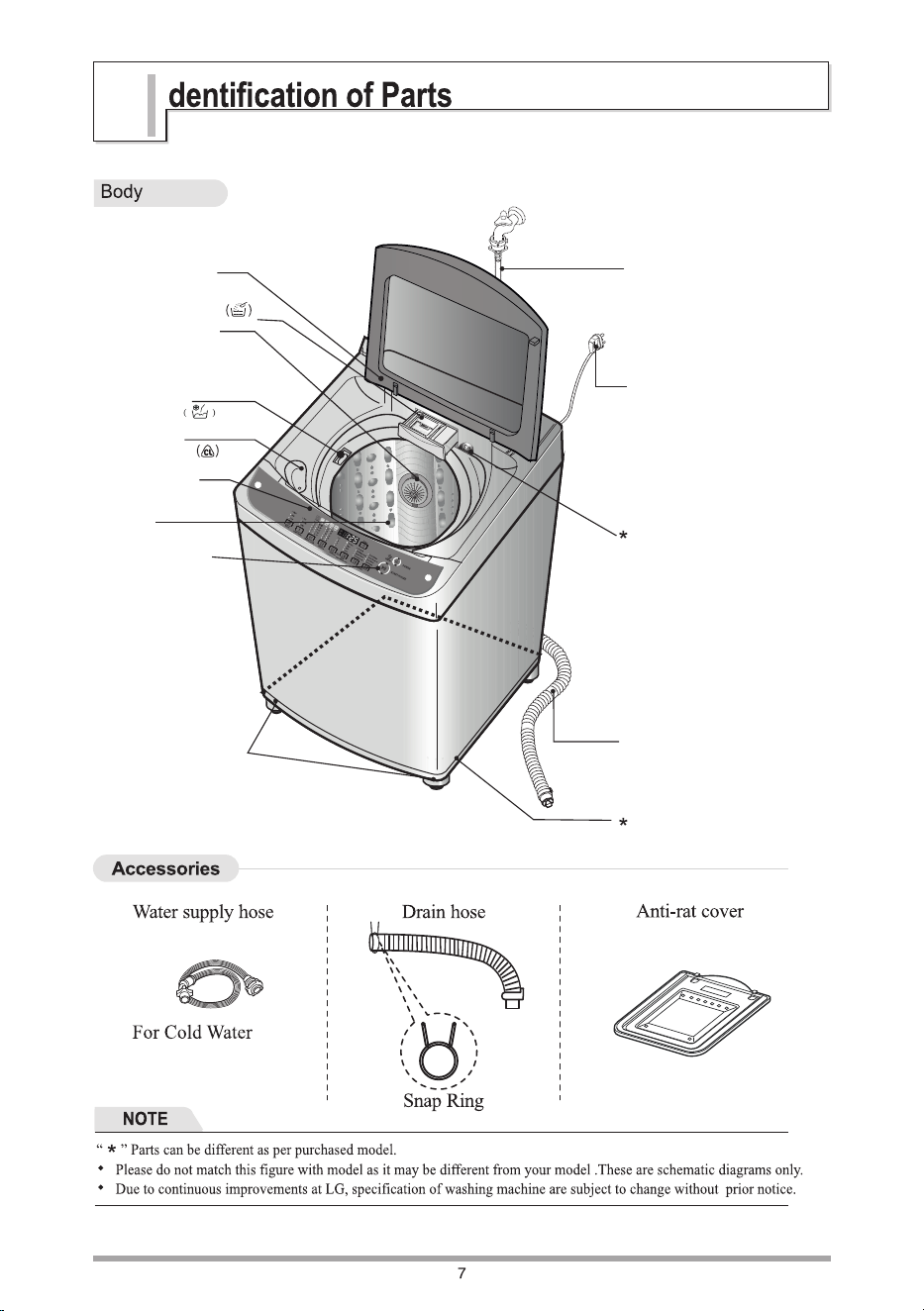

WATER SUPPLY
HOSE

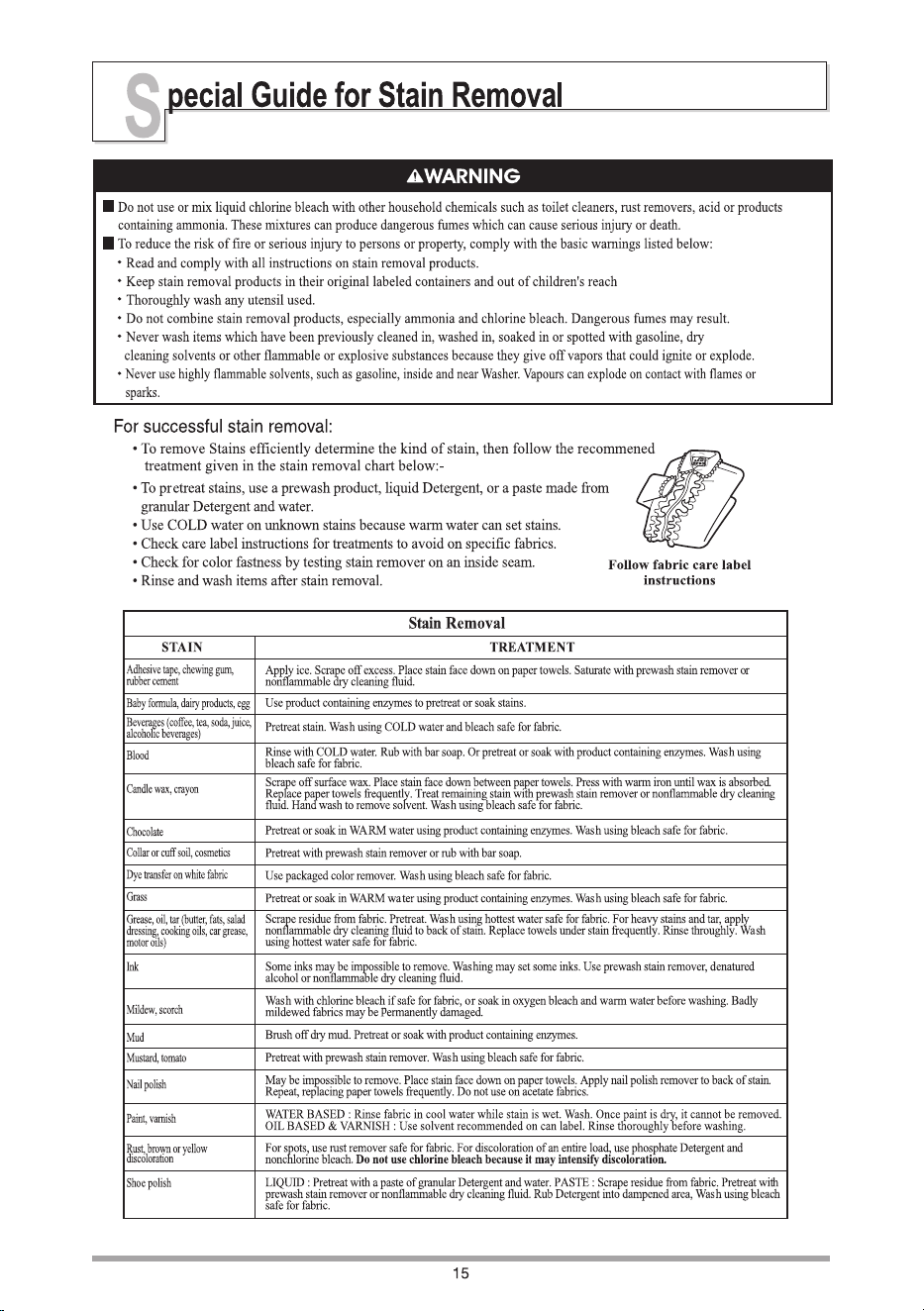

BLEACH
DISPENSER

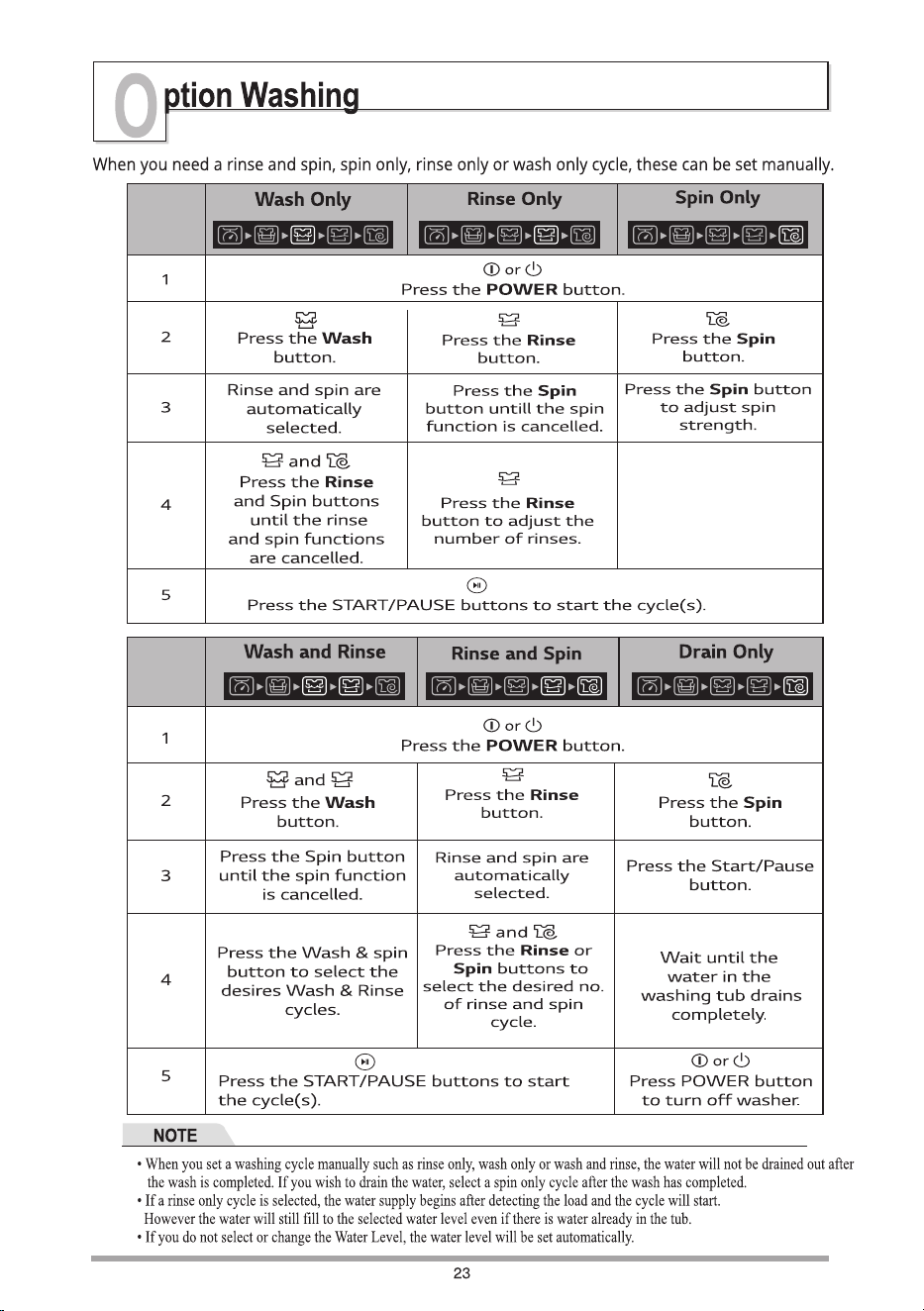

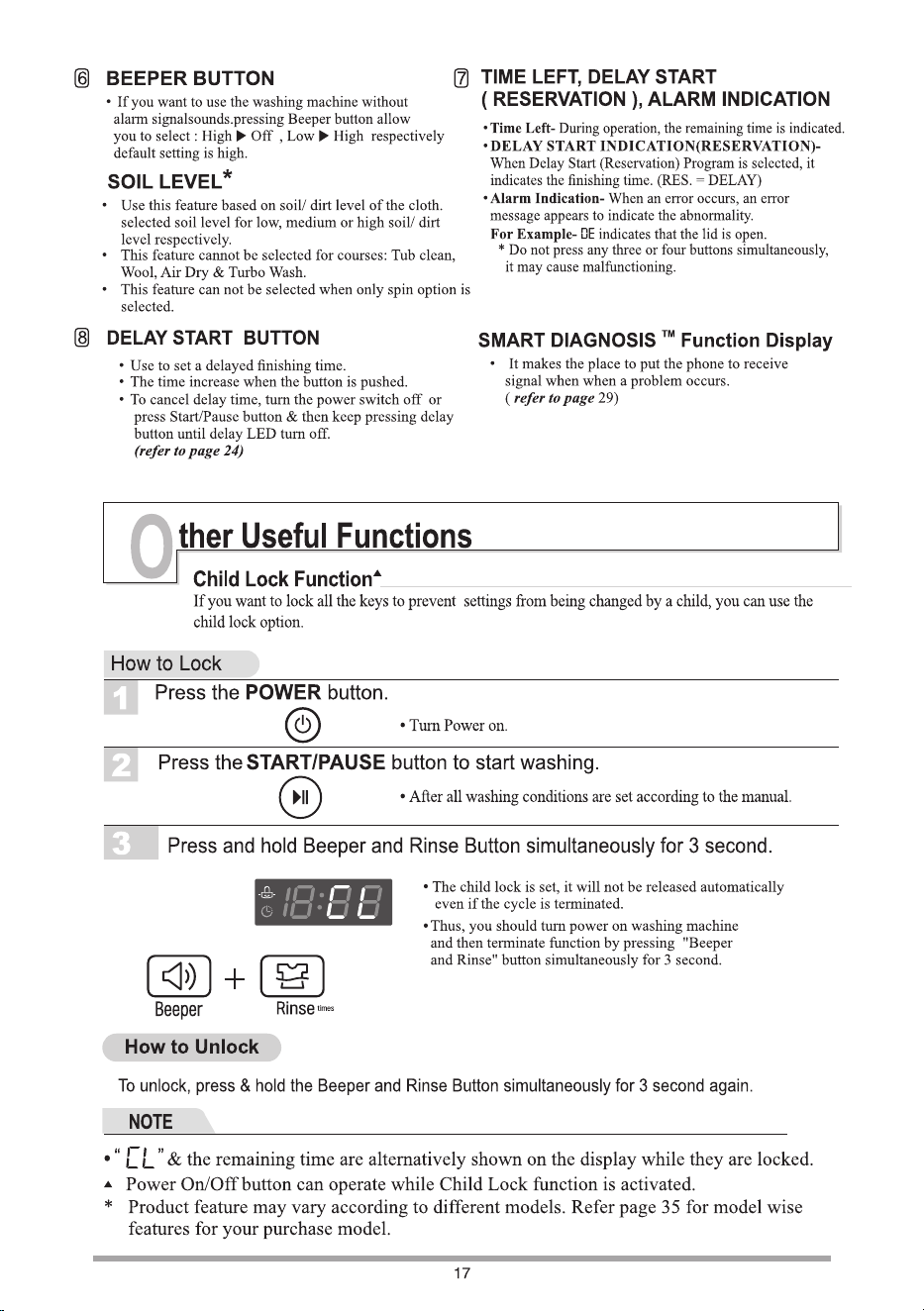

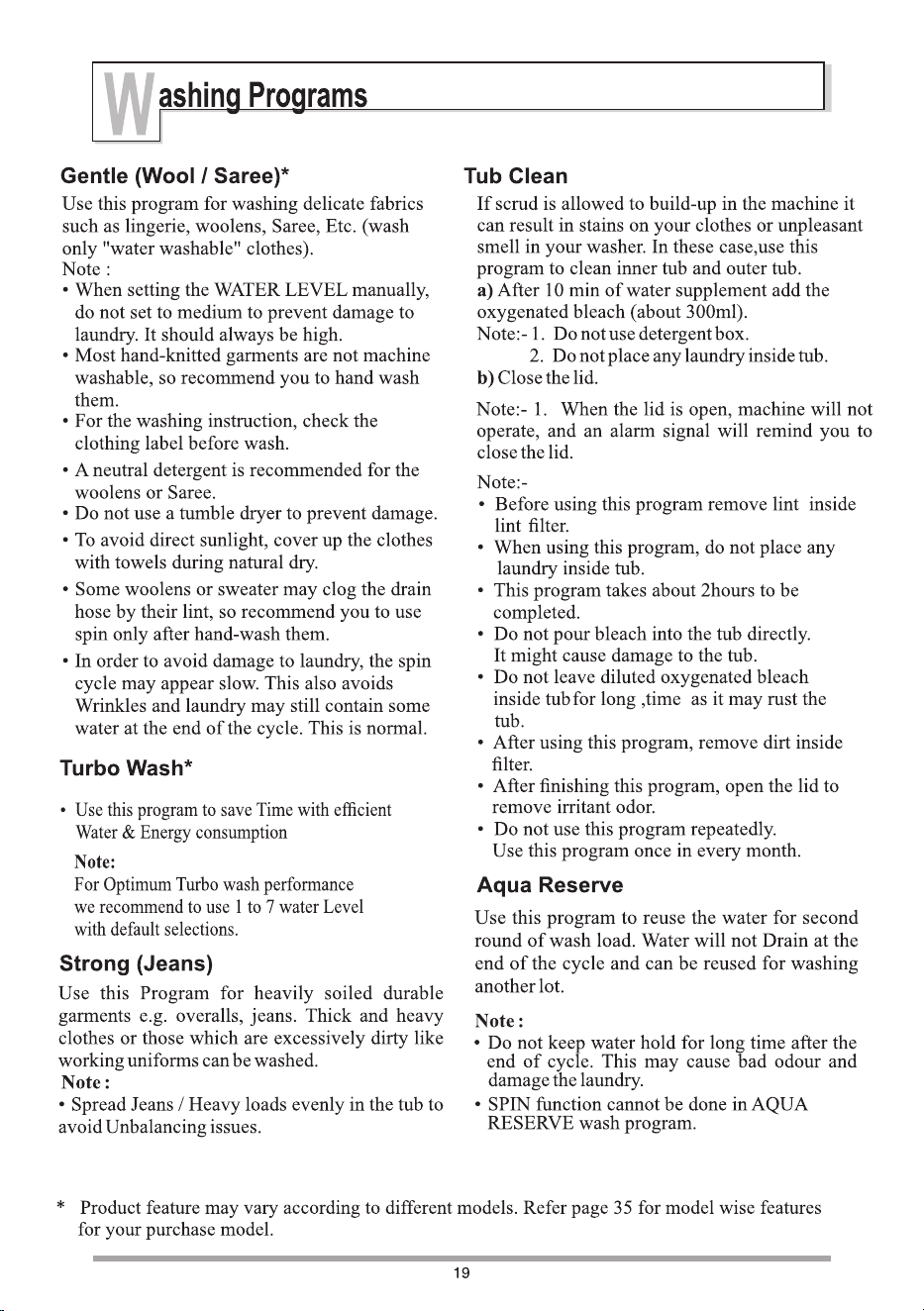

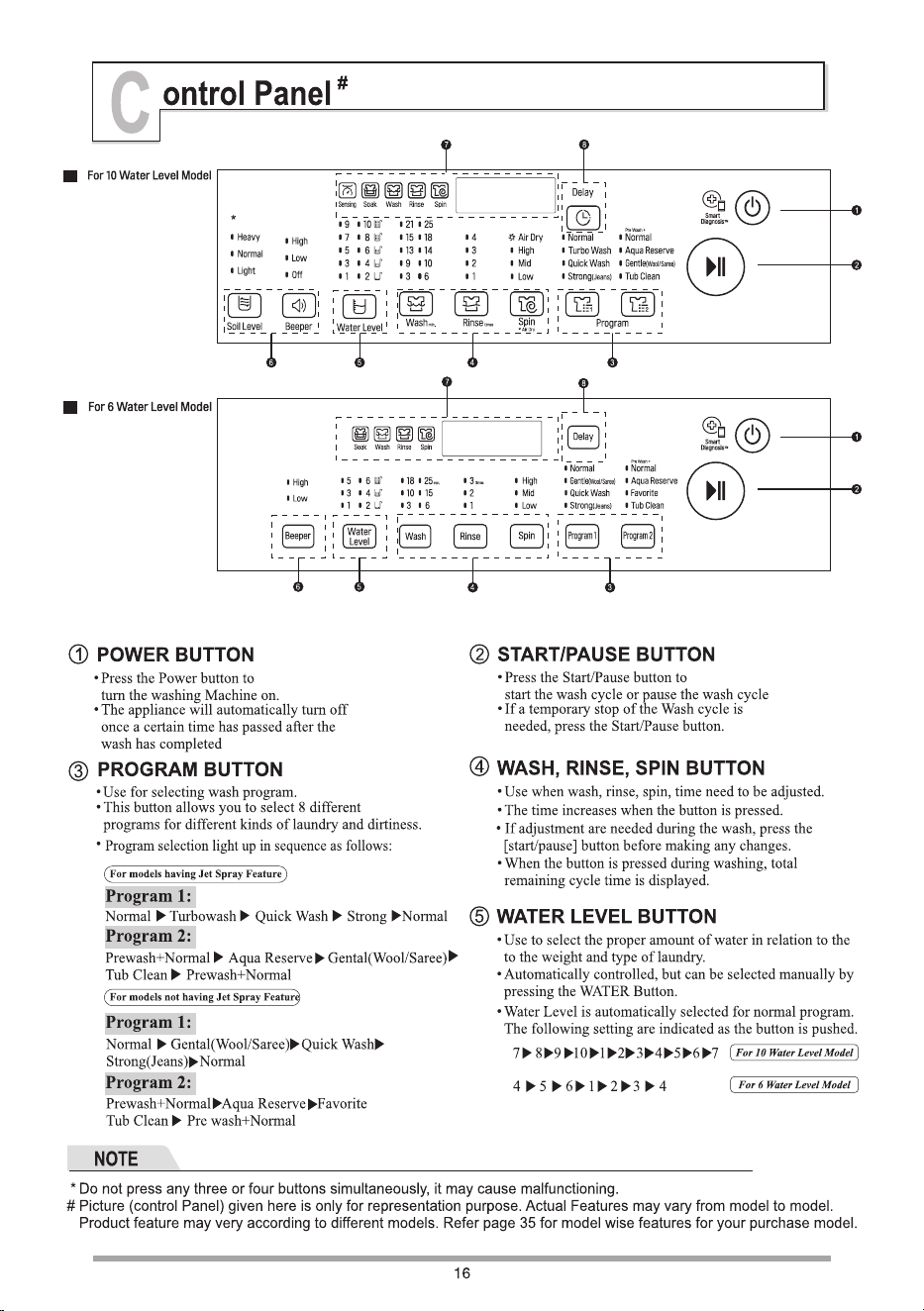

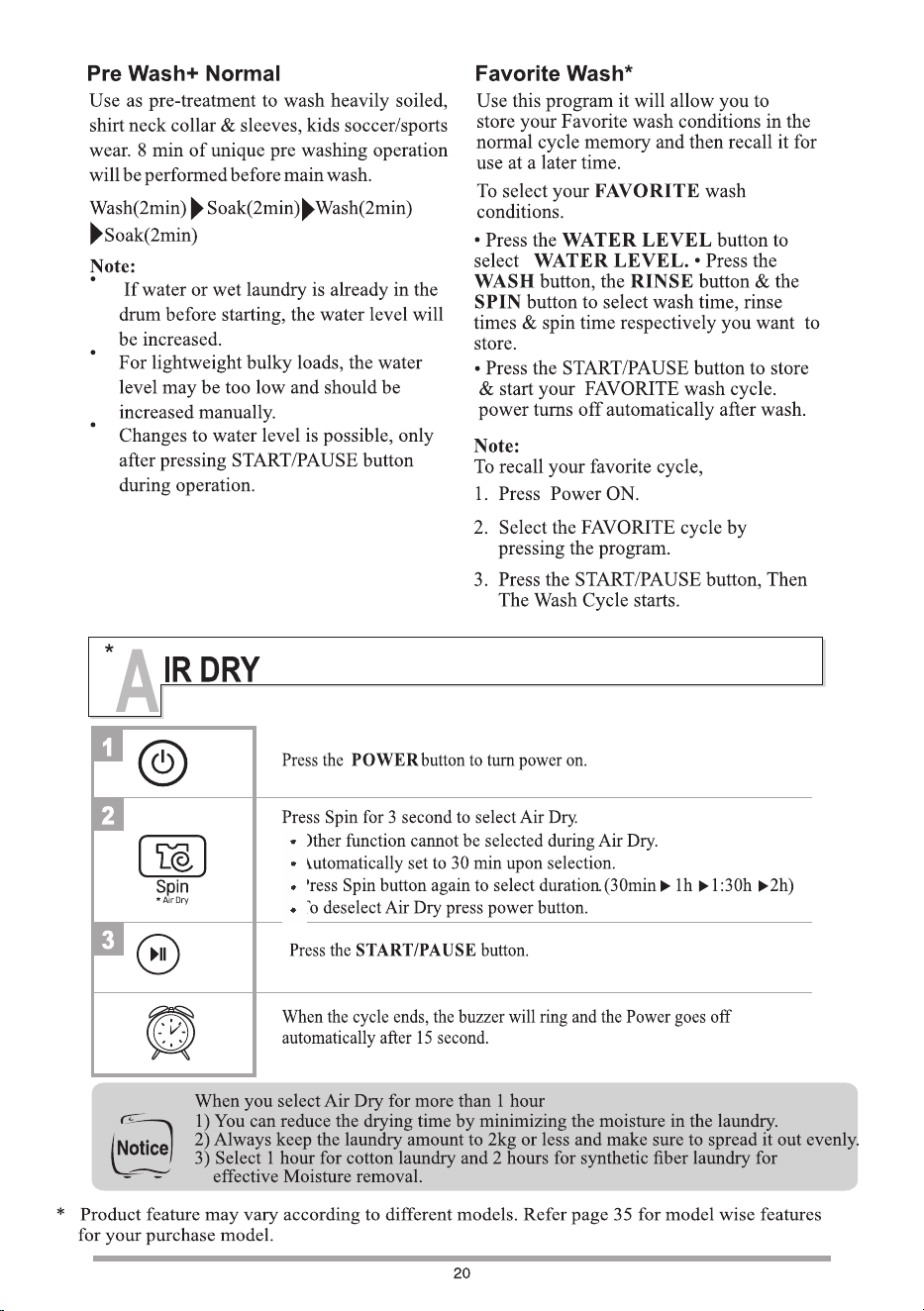

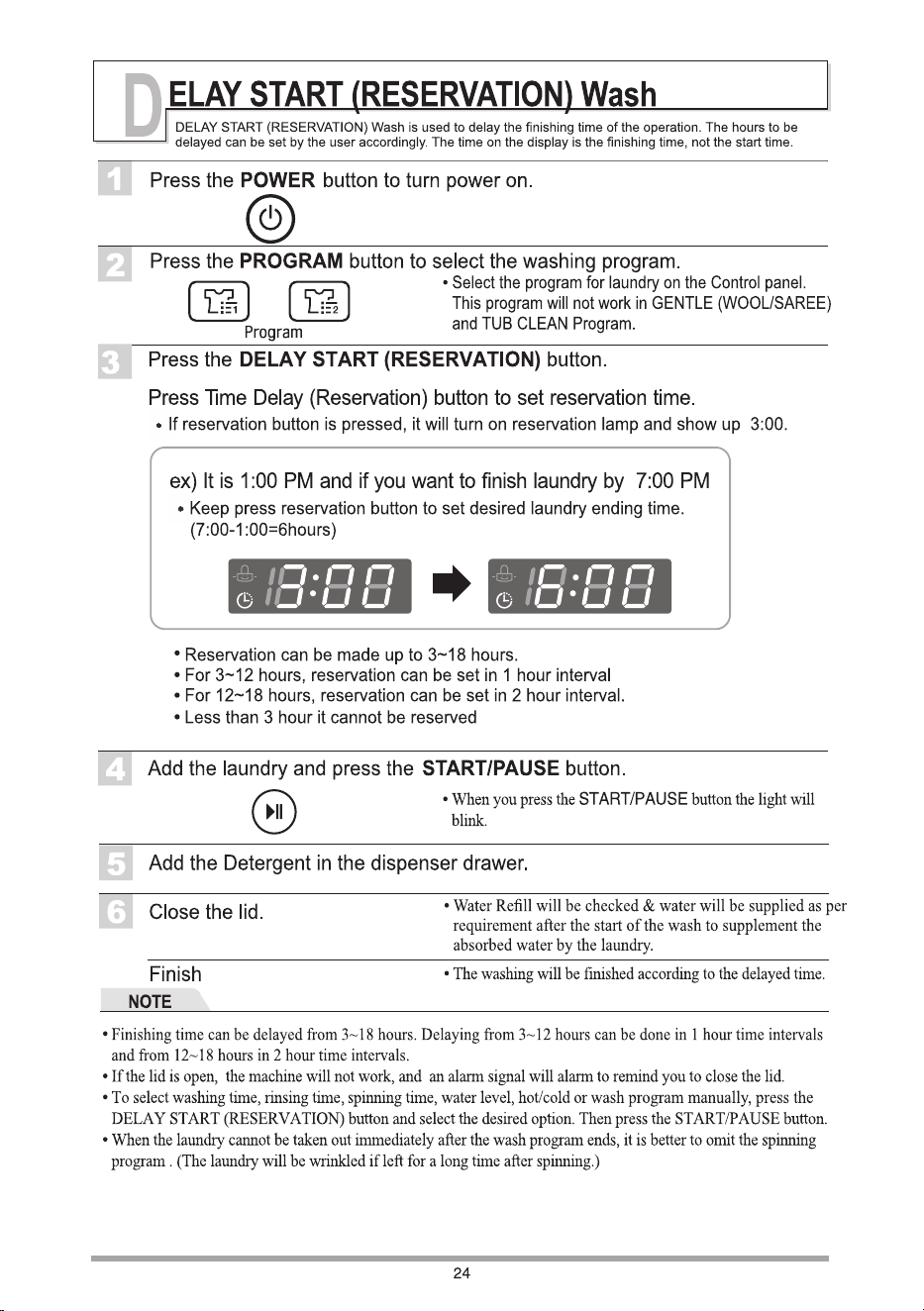

FUNCTION
SELECTOR
TUB
BASE
ADJUSTABLE LEGS
DRAIN HOSE

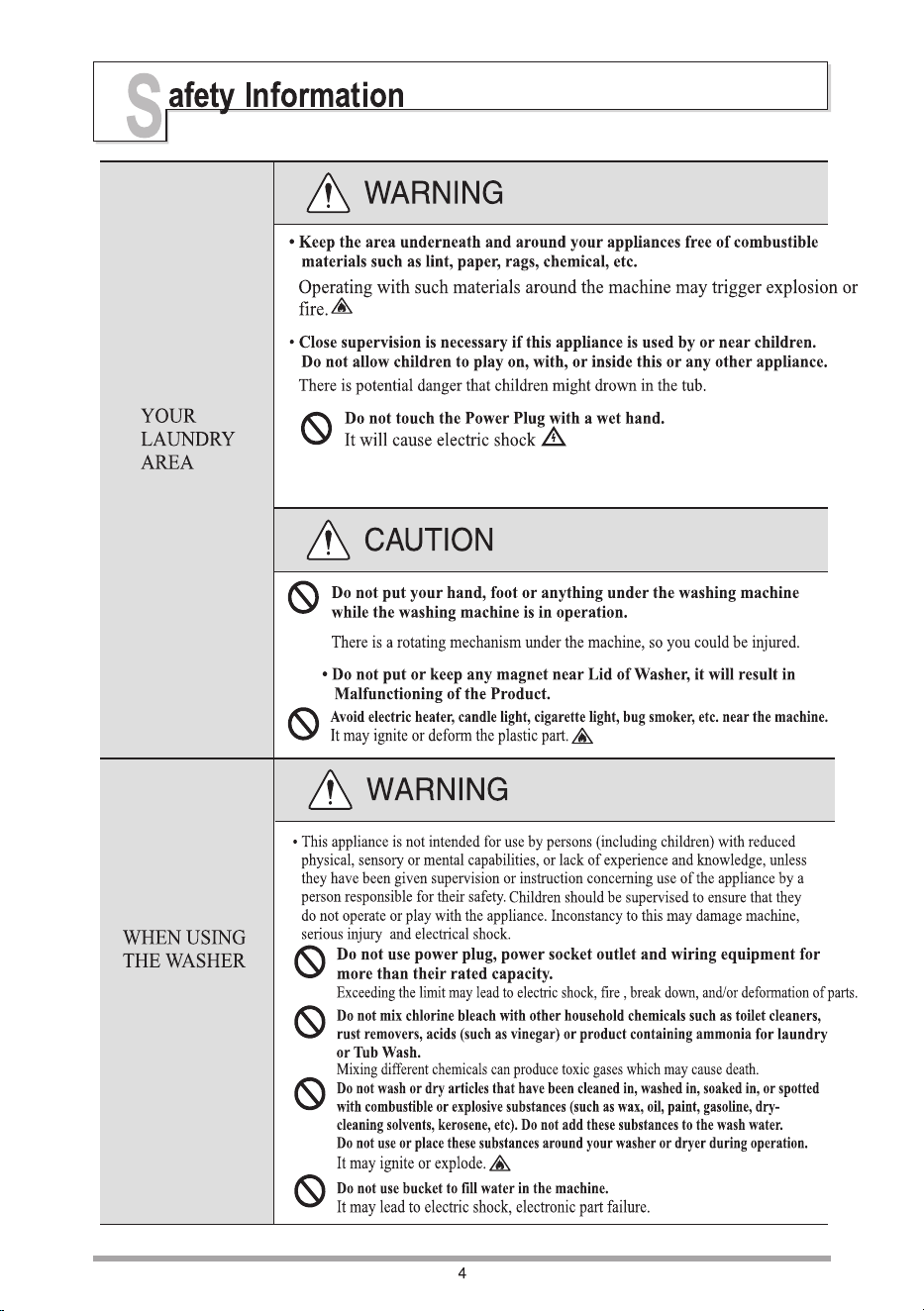

POWER PLUG

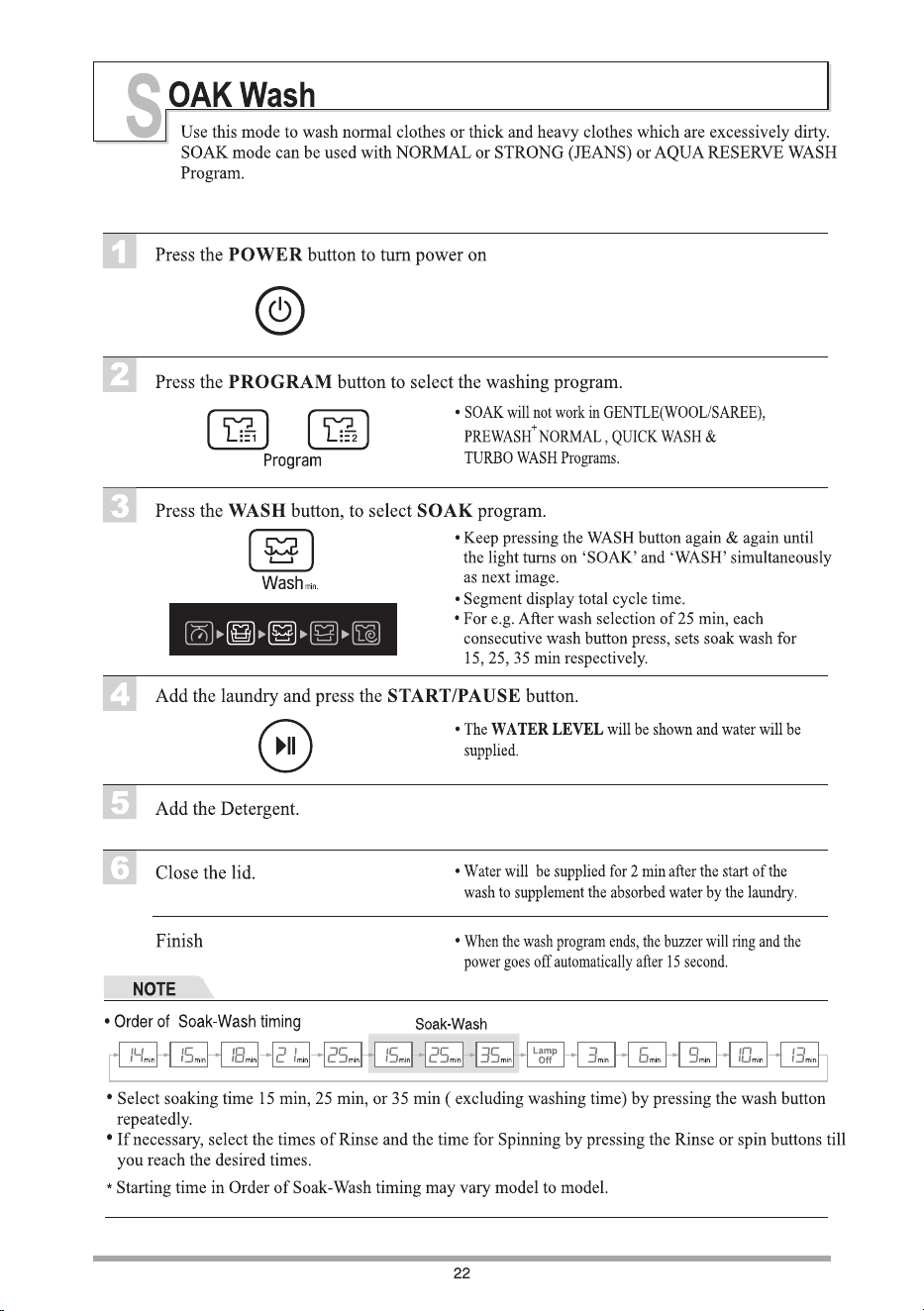

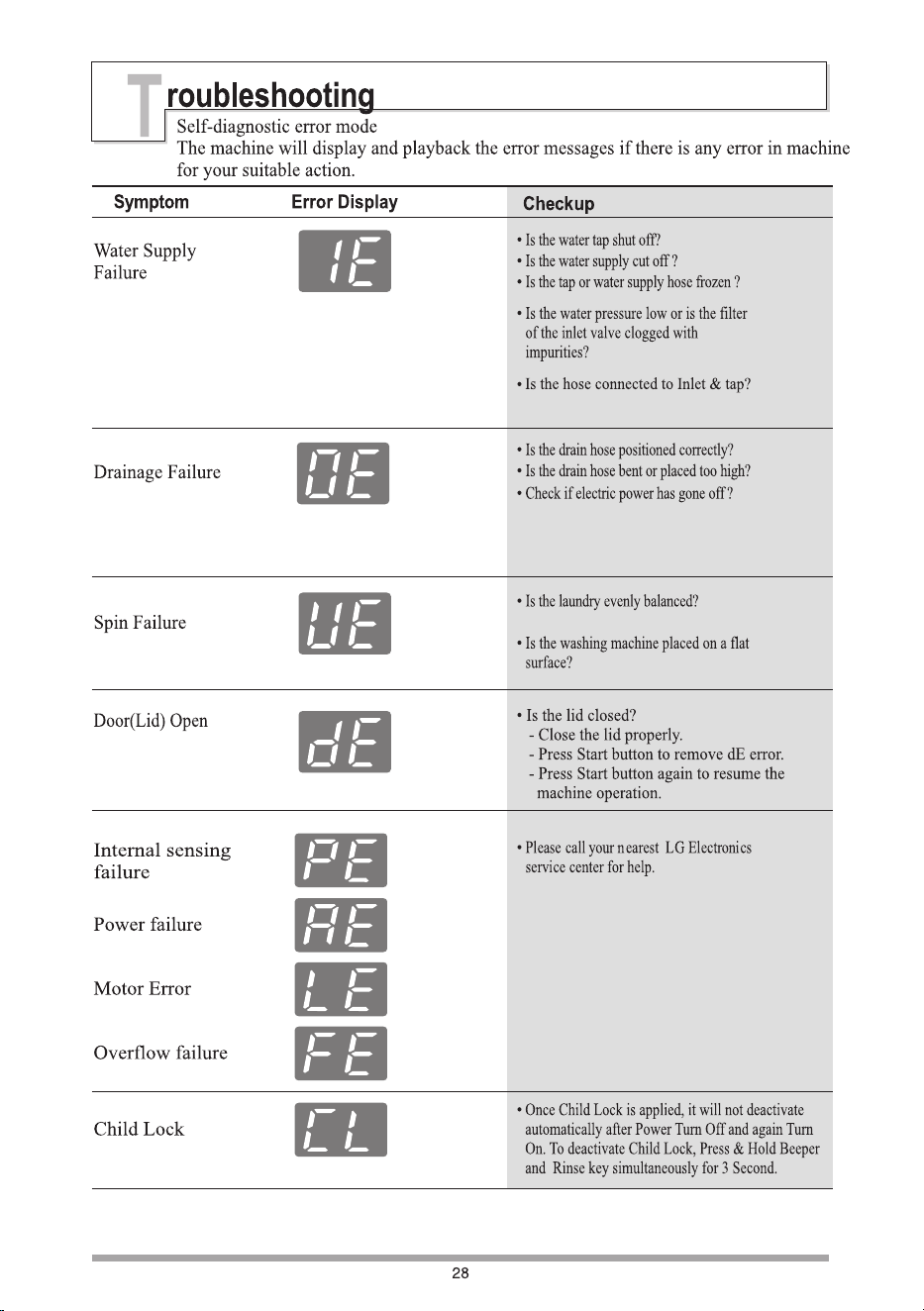

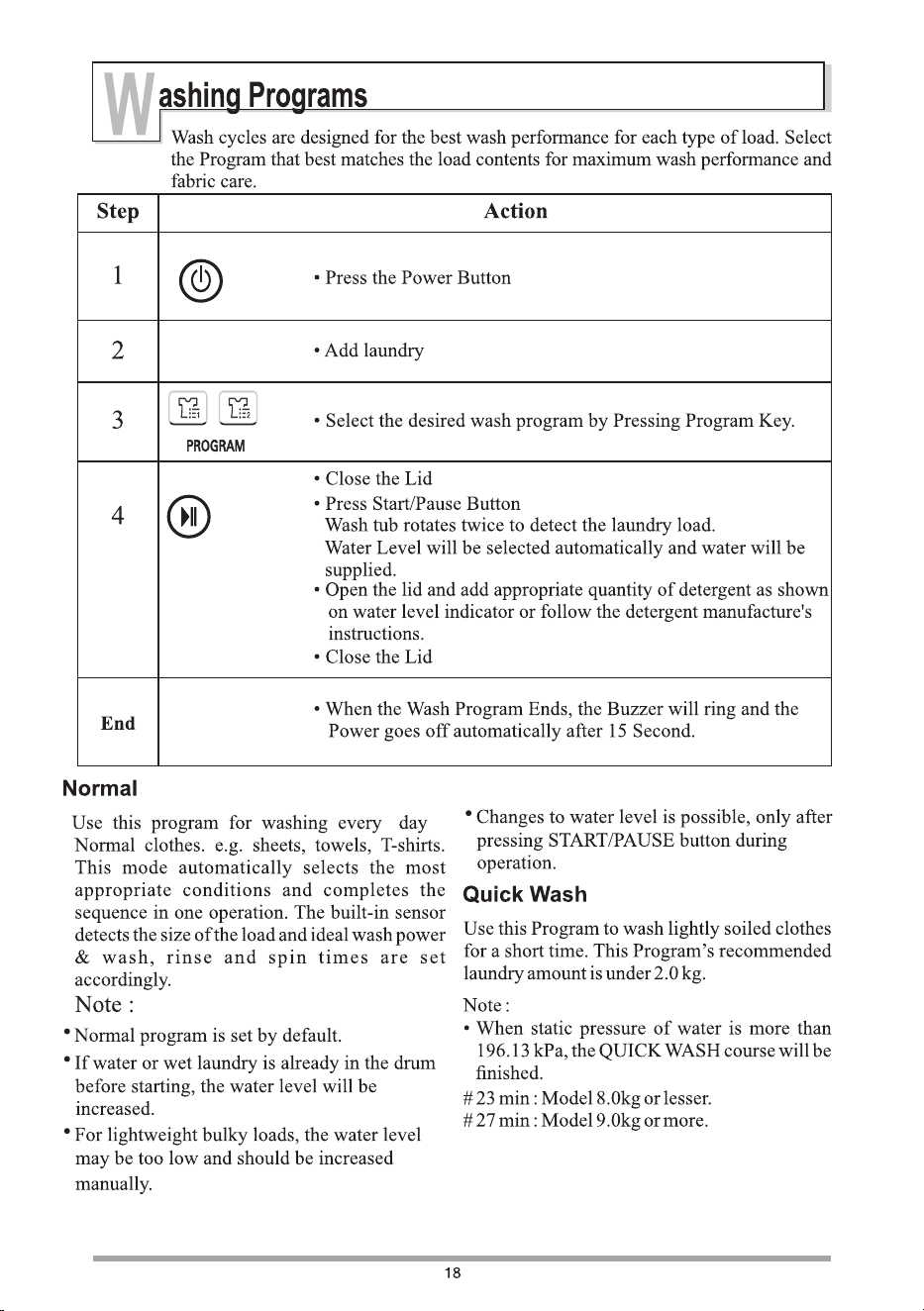

START/PAUSE
BUTTON
Use to start or
stop the washing
machine
temporarily.
Make sure the
water does not
leak.

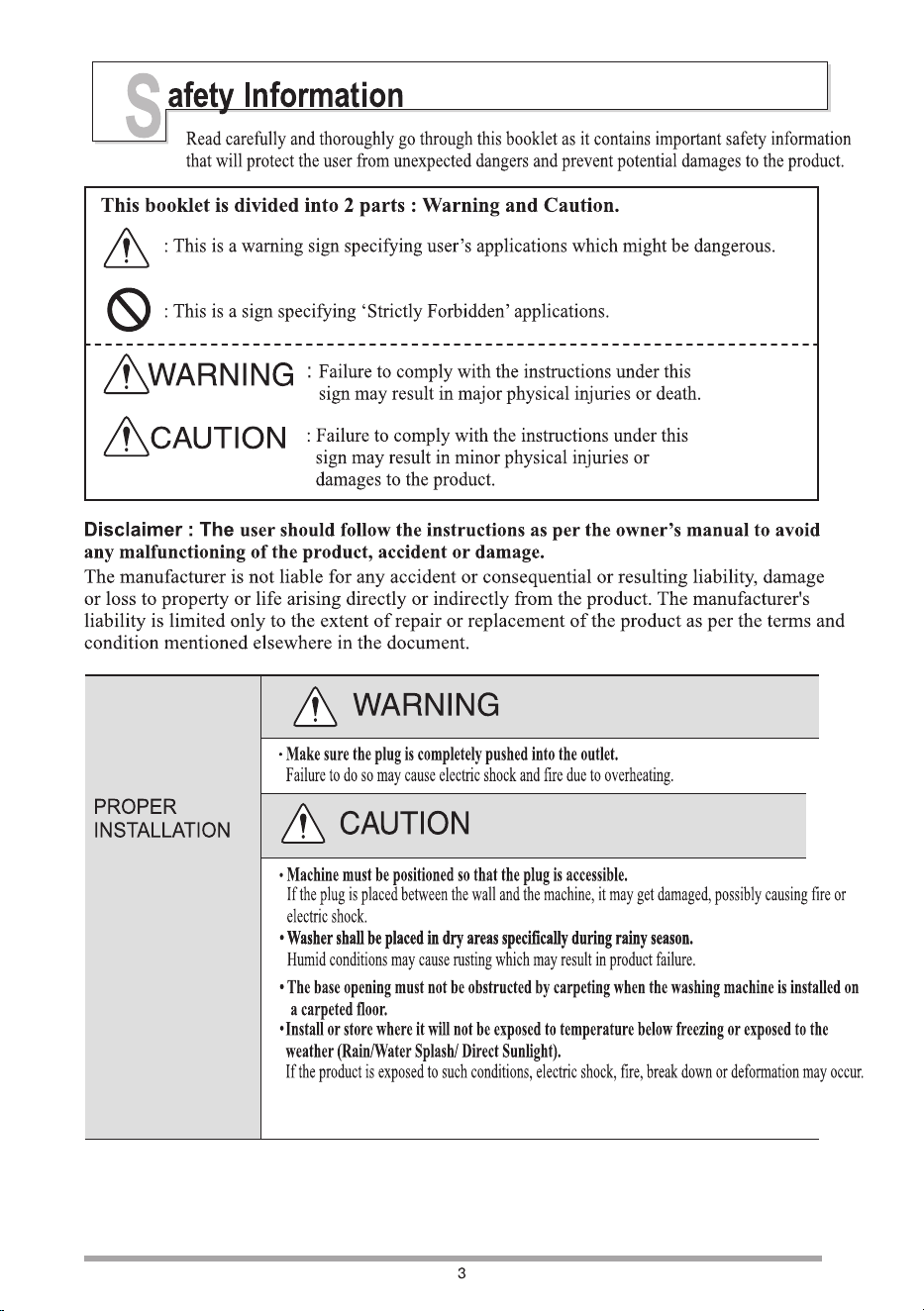

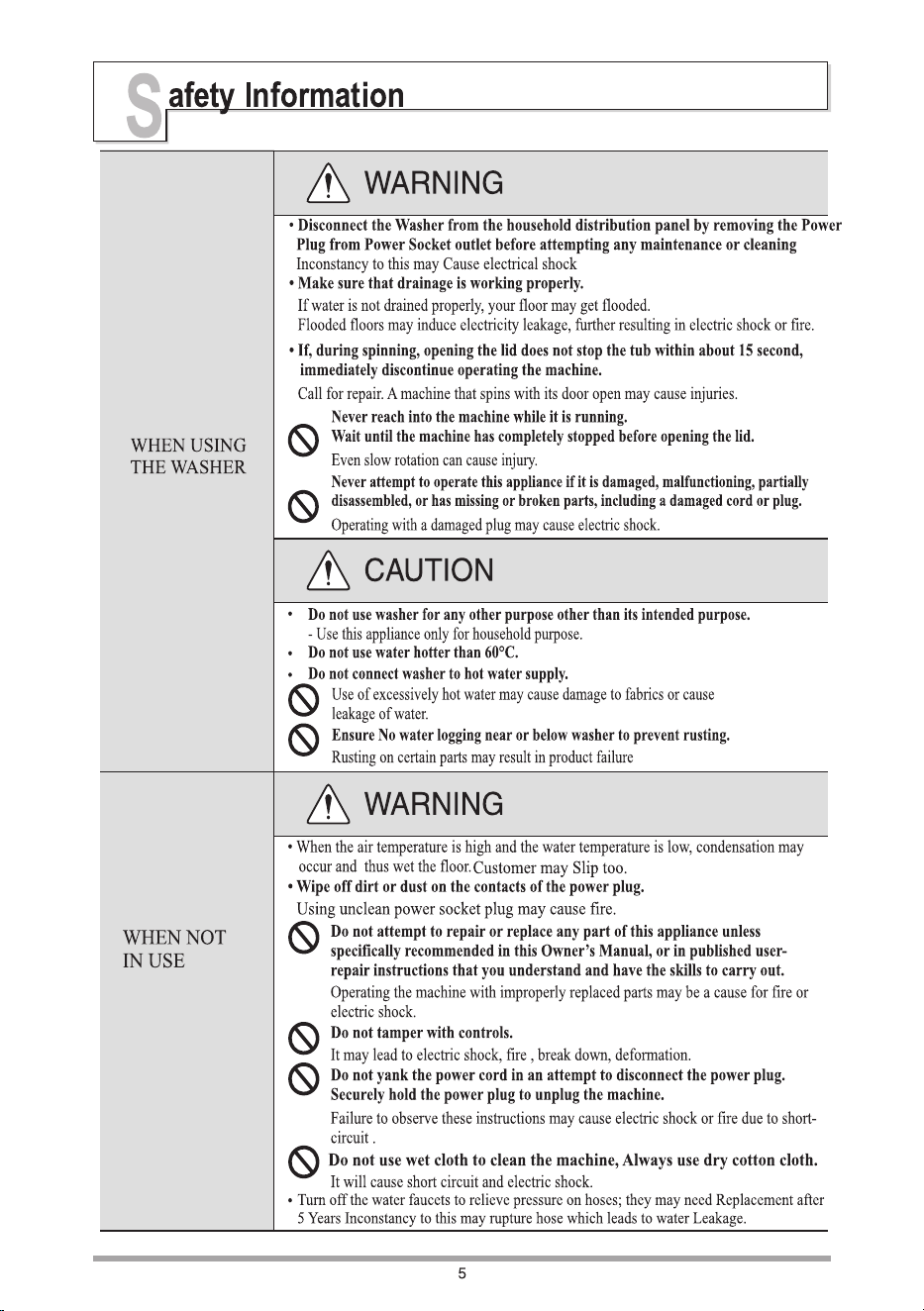

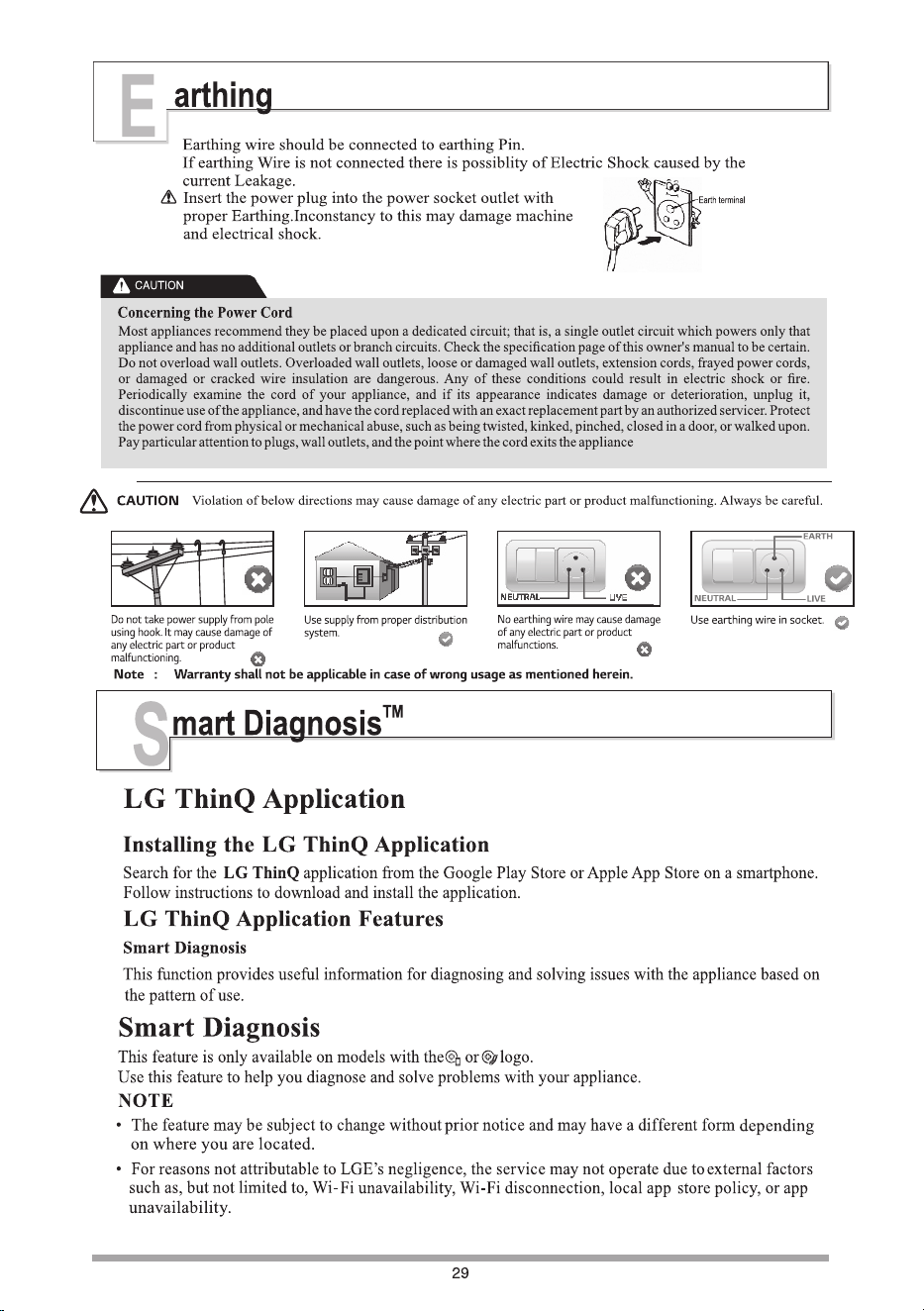

If the supply cord is
damaged, it must be
replaced by the
manufacturer or its
service agents or
similarly qualified
person in order to
avoid a hazard.

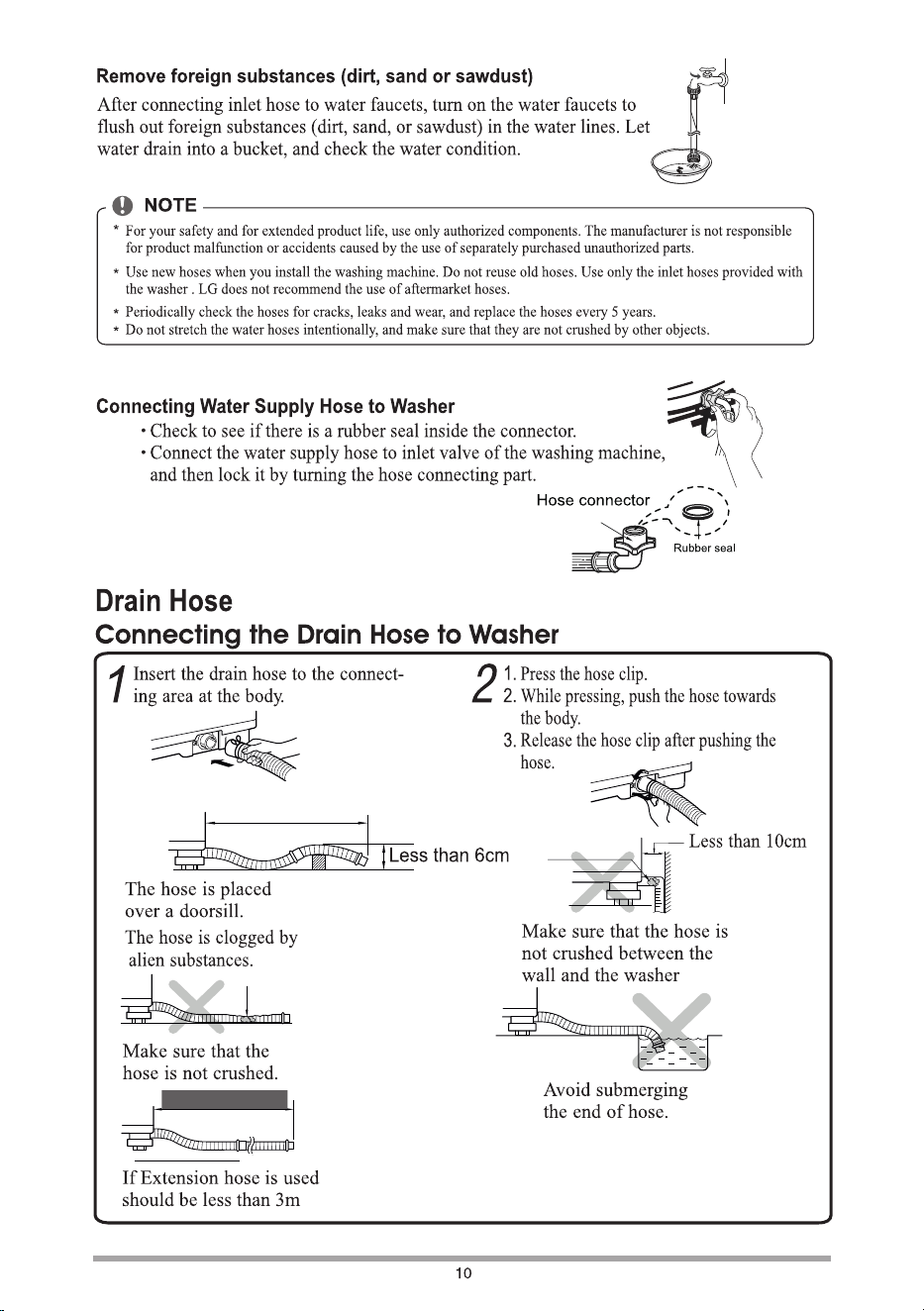

Keep the drain hose
flipped down while
washing is in progress.

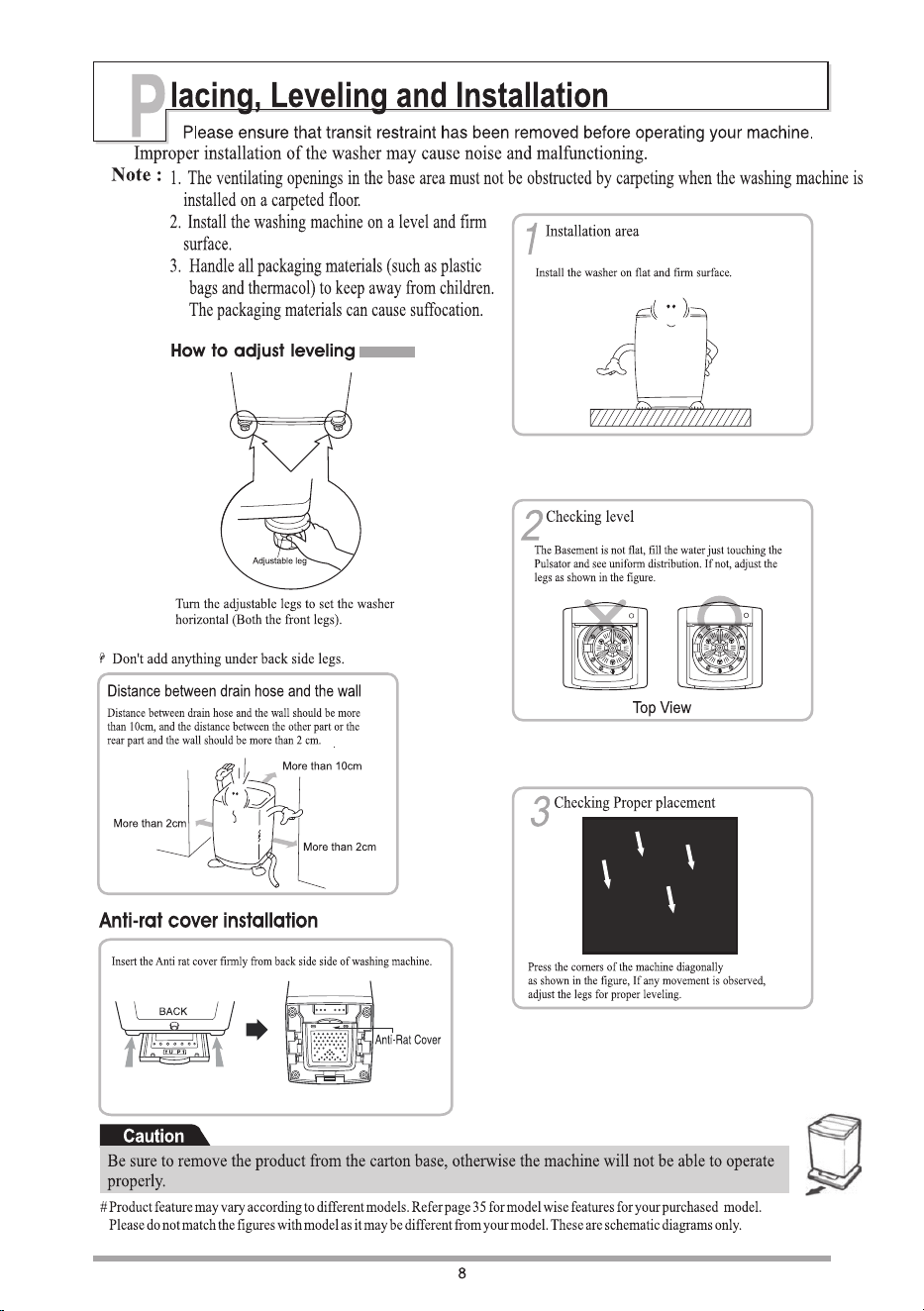

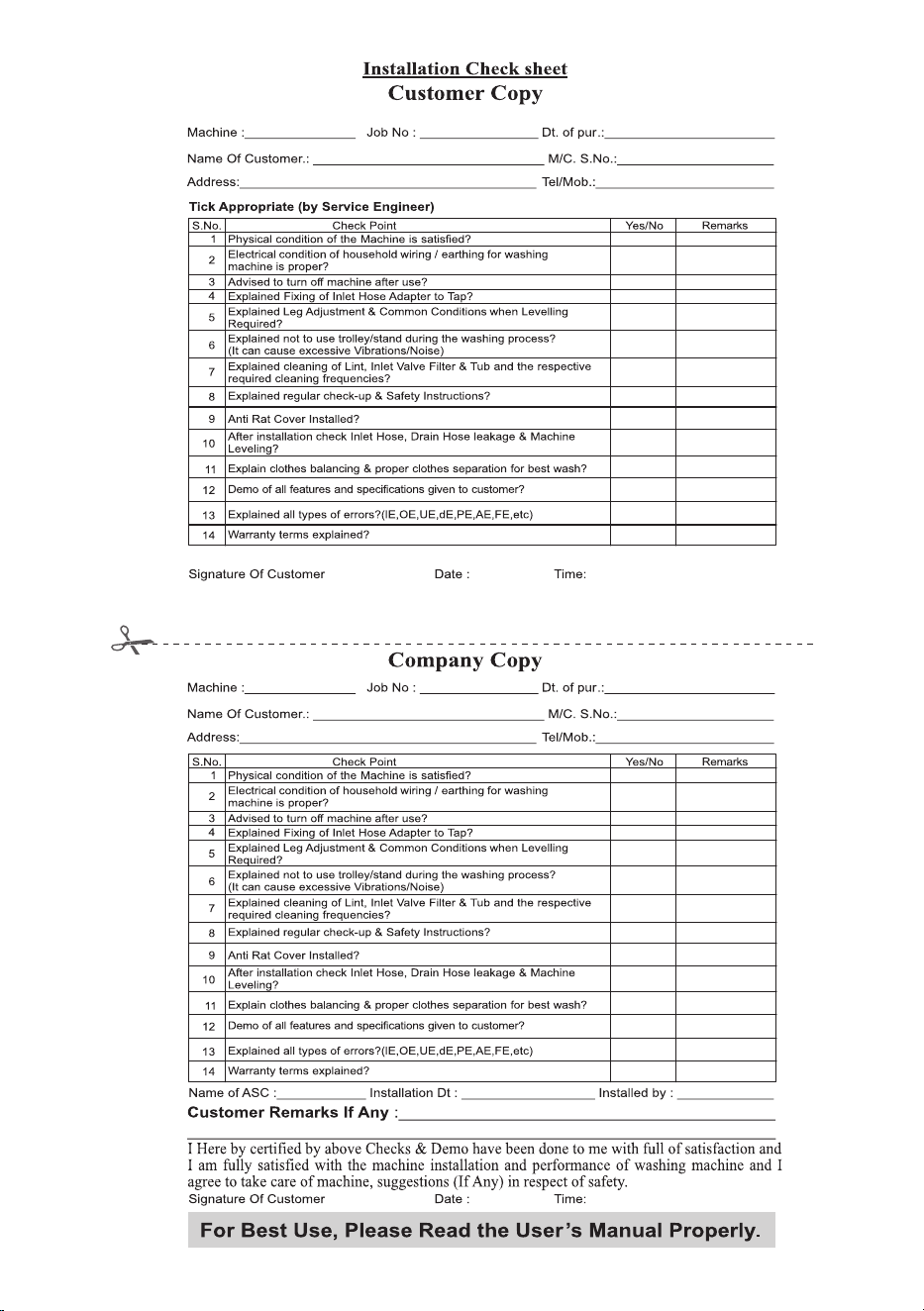

Use to level the washing
machine for correct
balance & spin
operation.

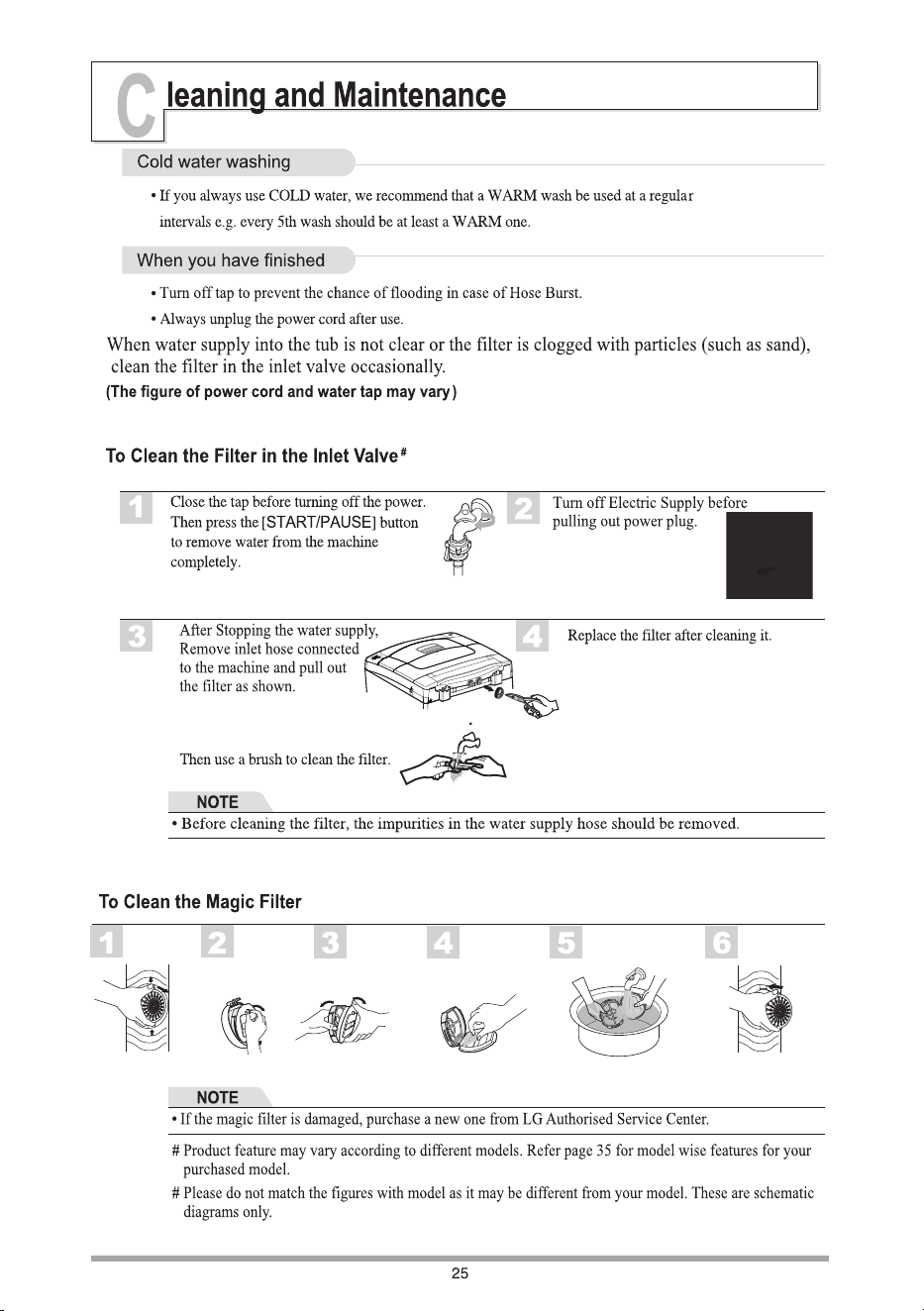

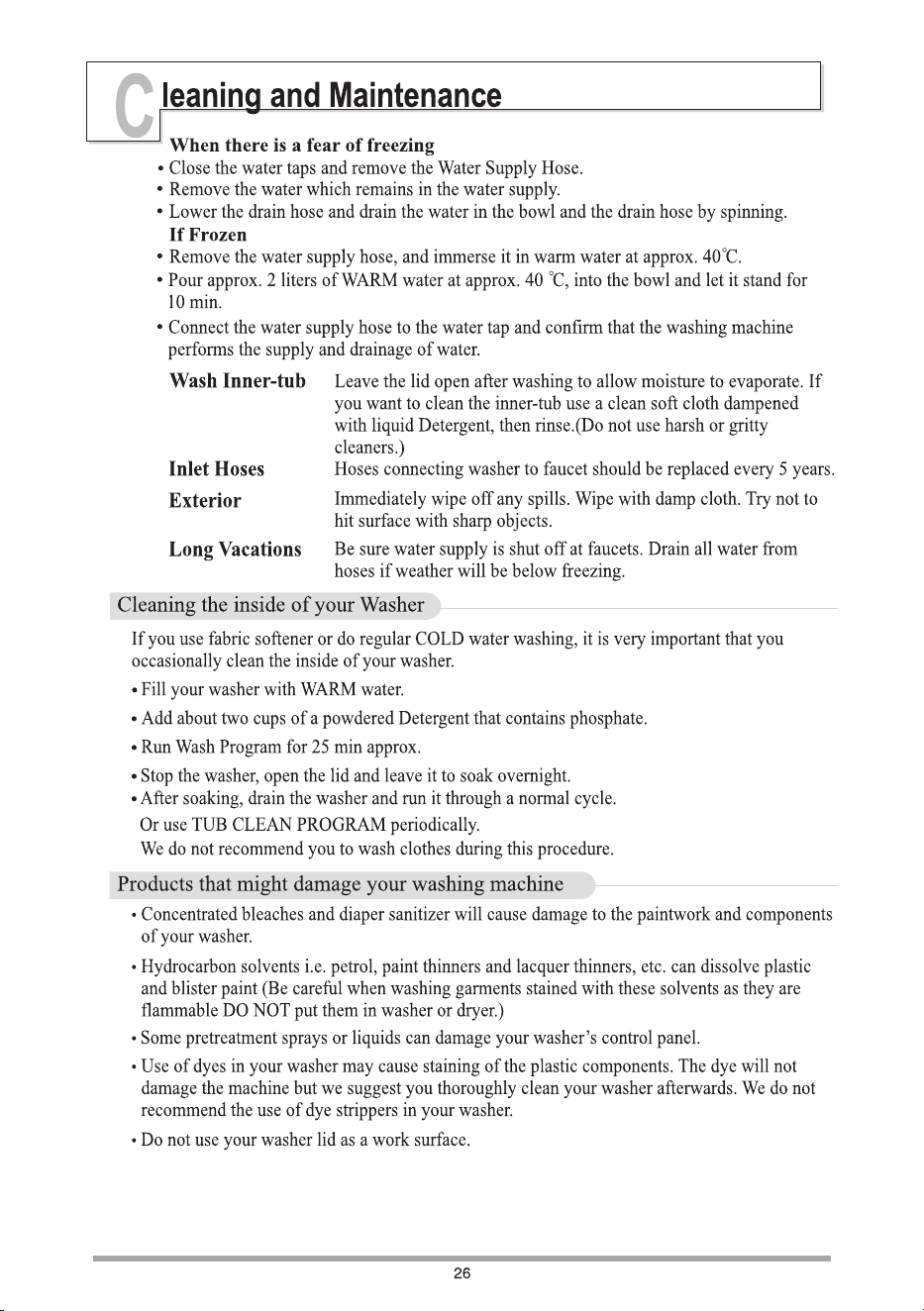

MAGIC FILTER
Clean regularly to
stop linting on the
clothes load.

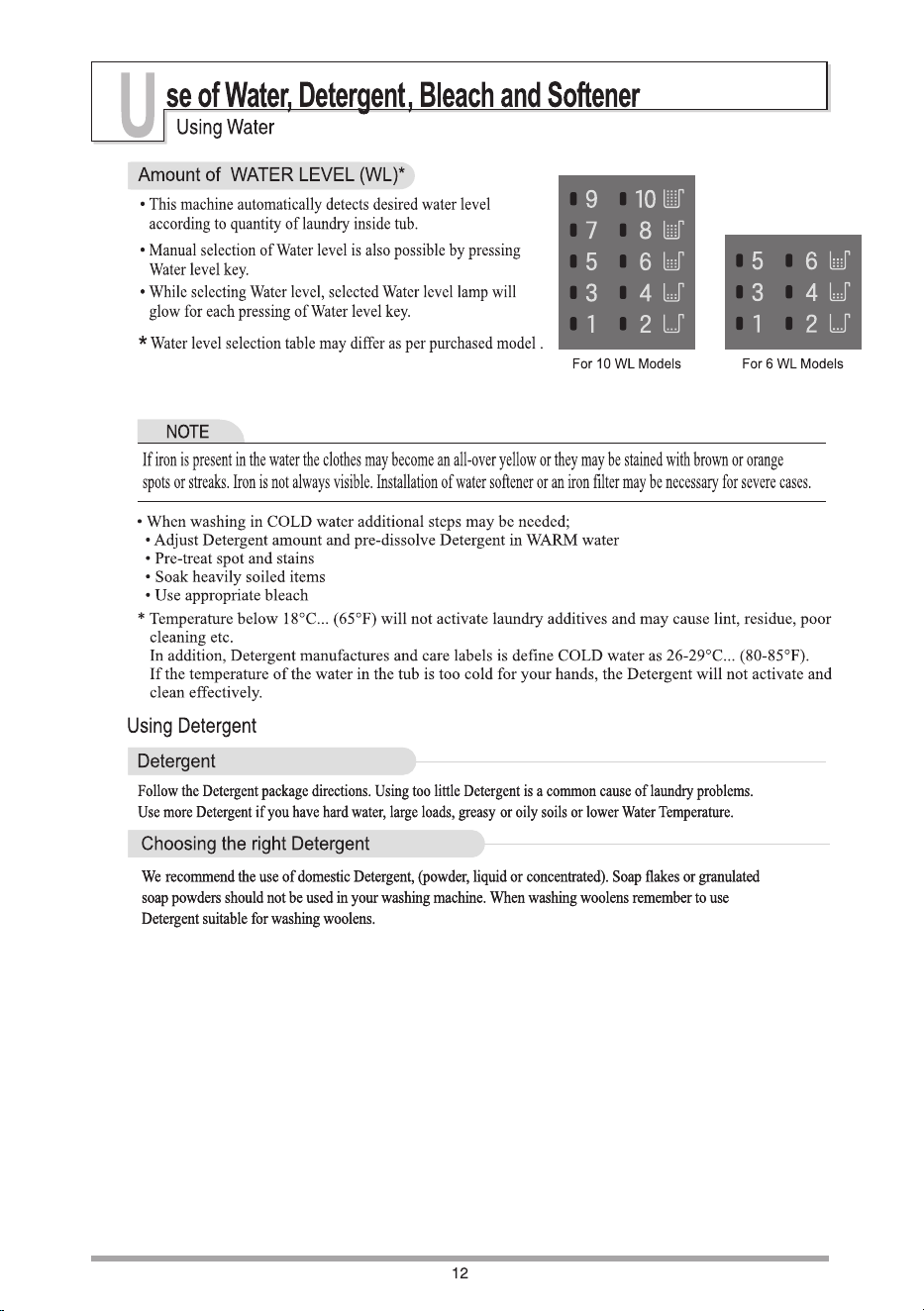

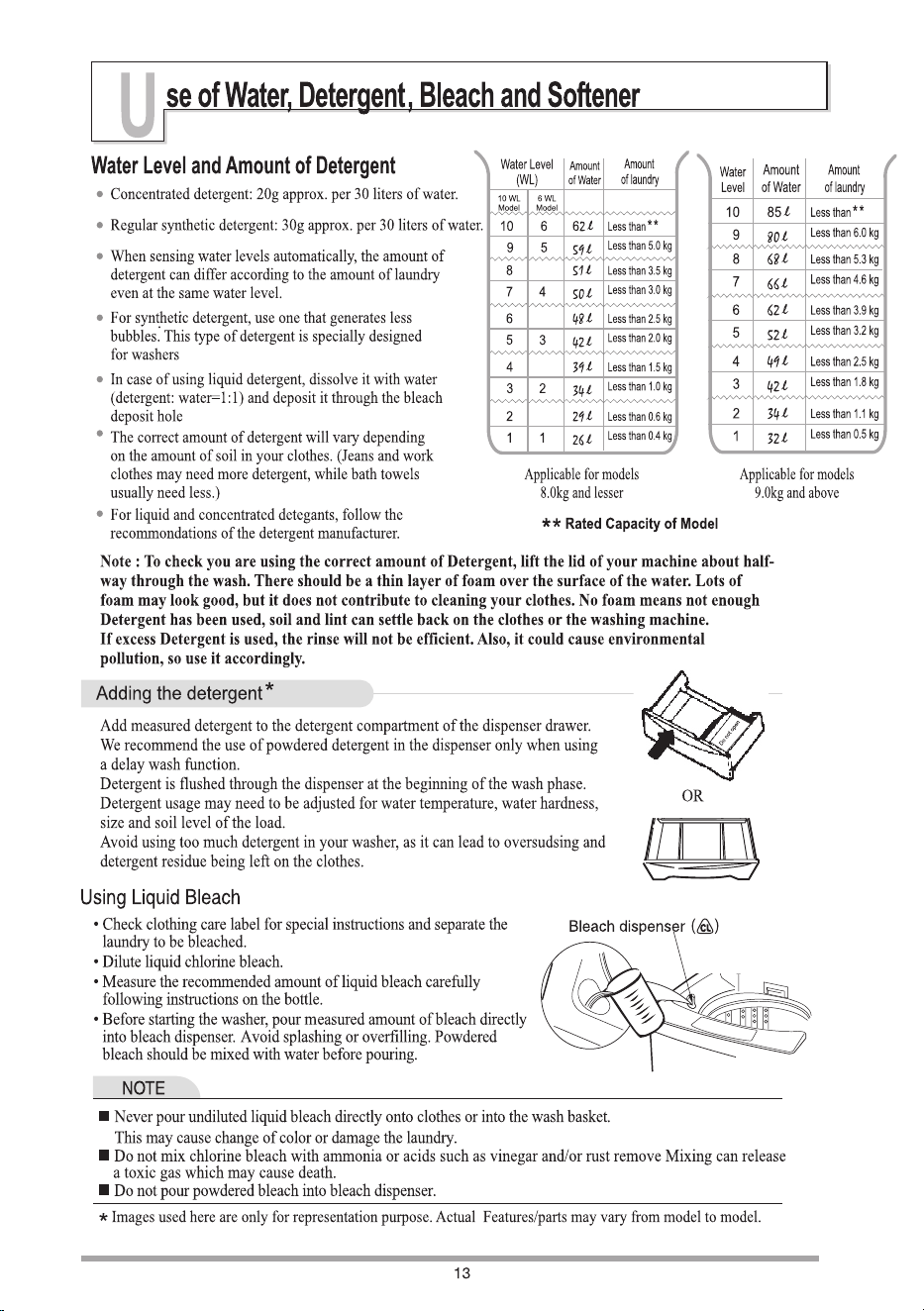

POWDER
DETERGENT BOX

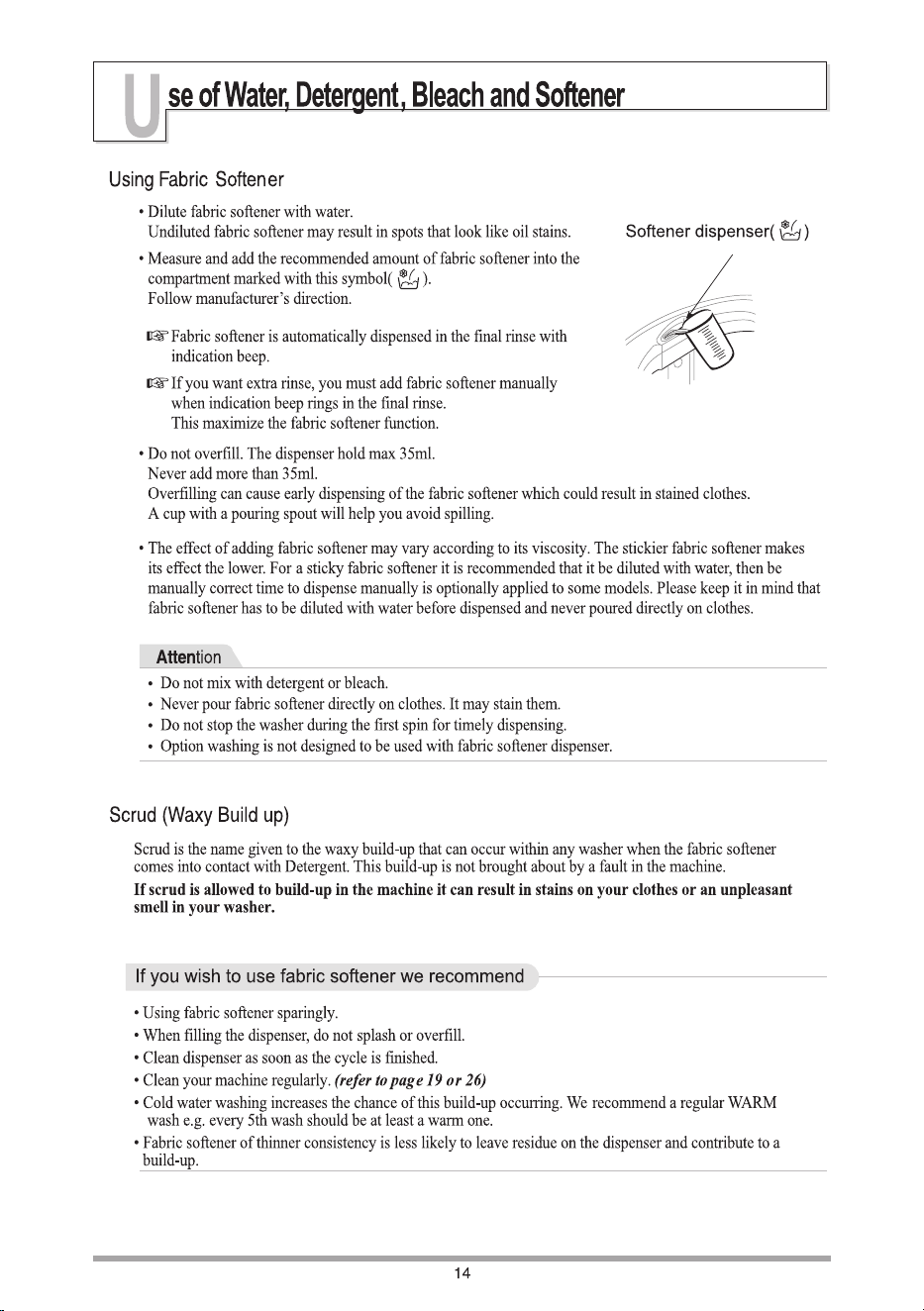

SOFTENER
INLET
Do not open

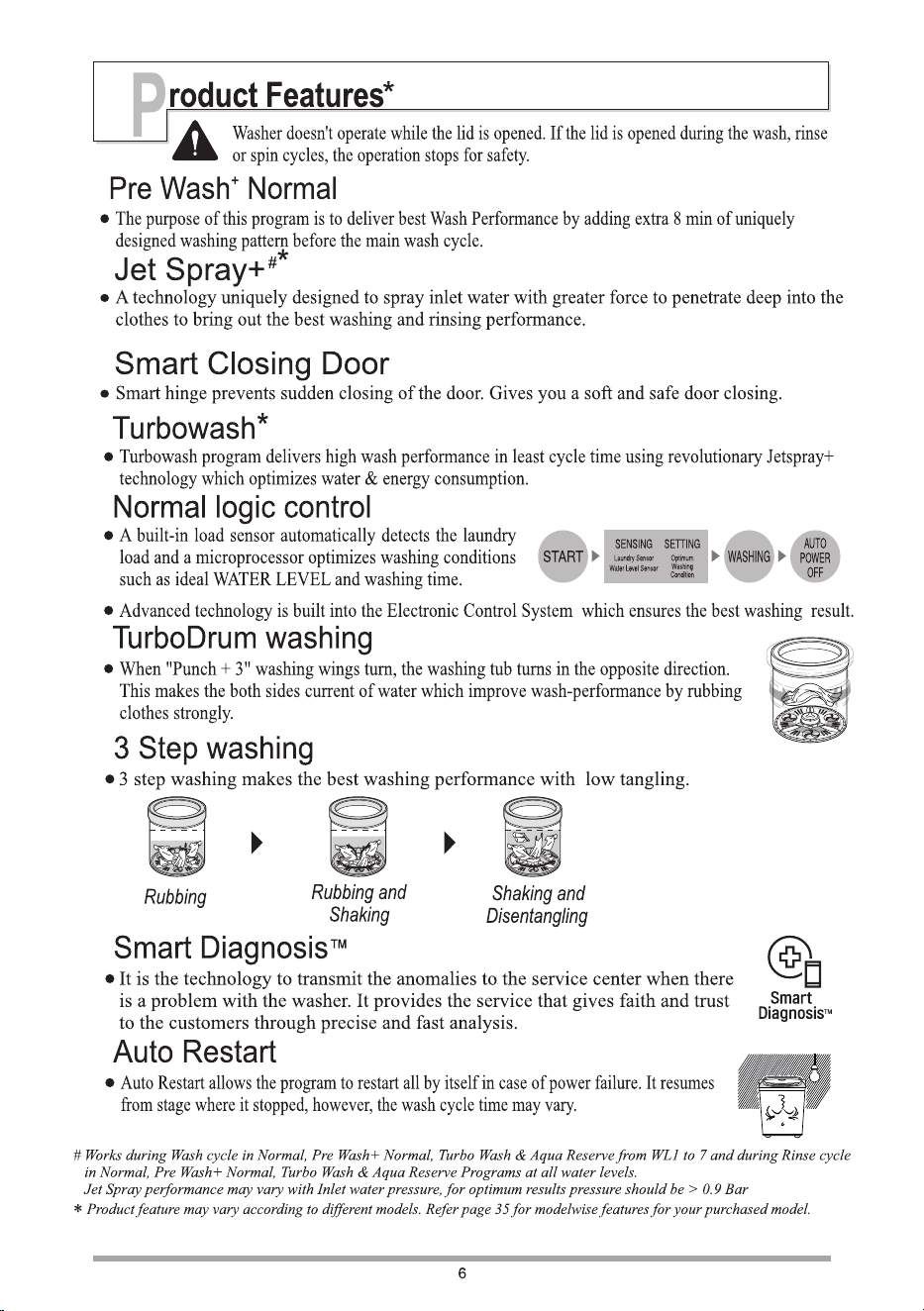

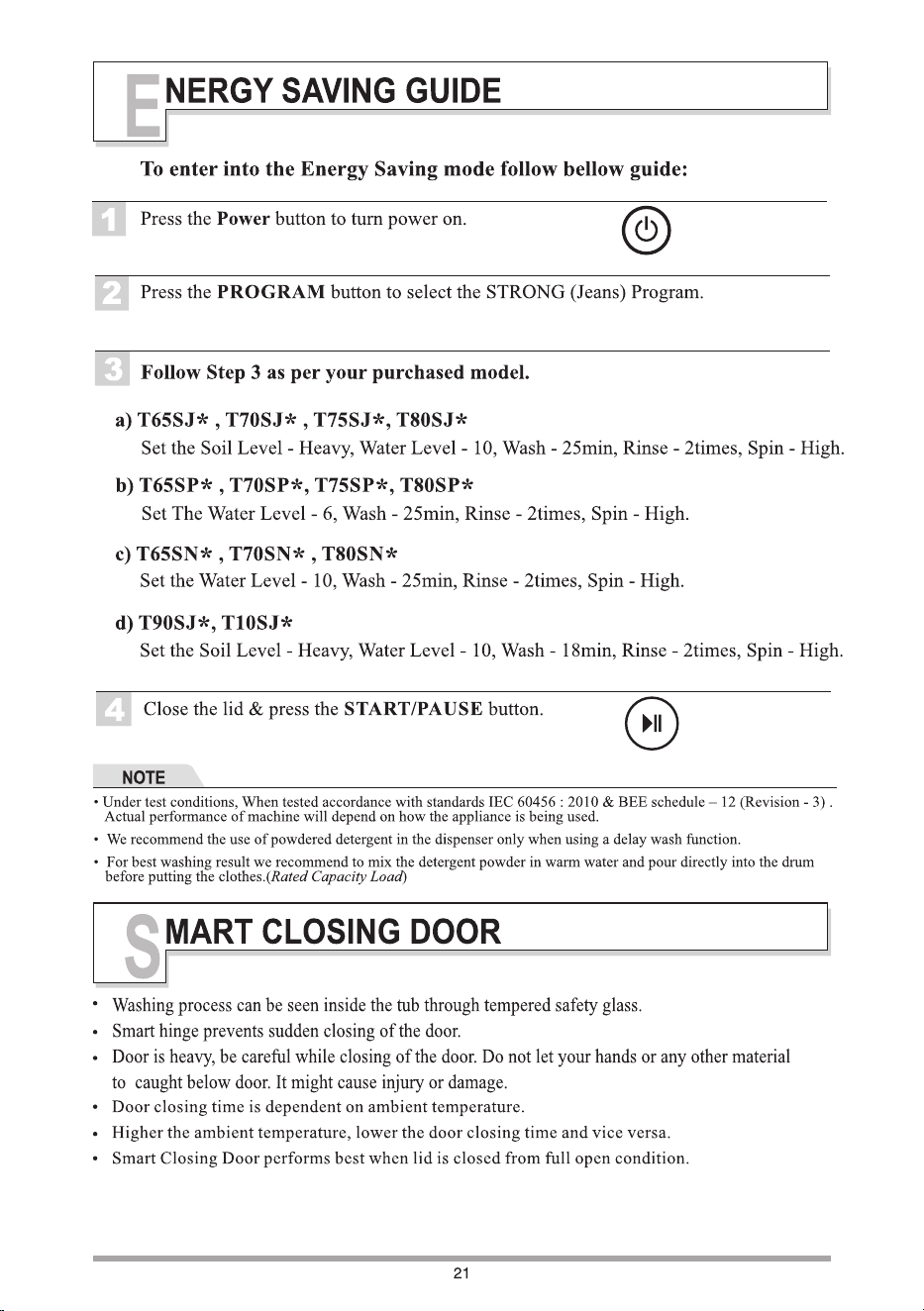

Smart Hinge
JET SPRAY NOZZLE
Depending upon the Inlet
Water Pressure, performance
of Jet Spray may vary.
(Works in Normal, Turbo Wash,
+
Pre Wash Normal & Aqua
Reserve Wash Programs).

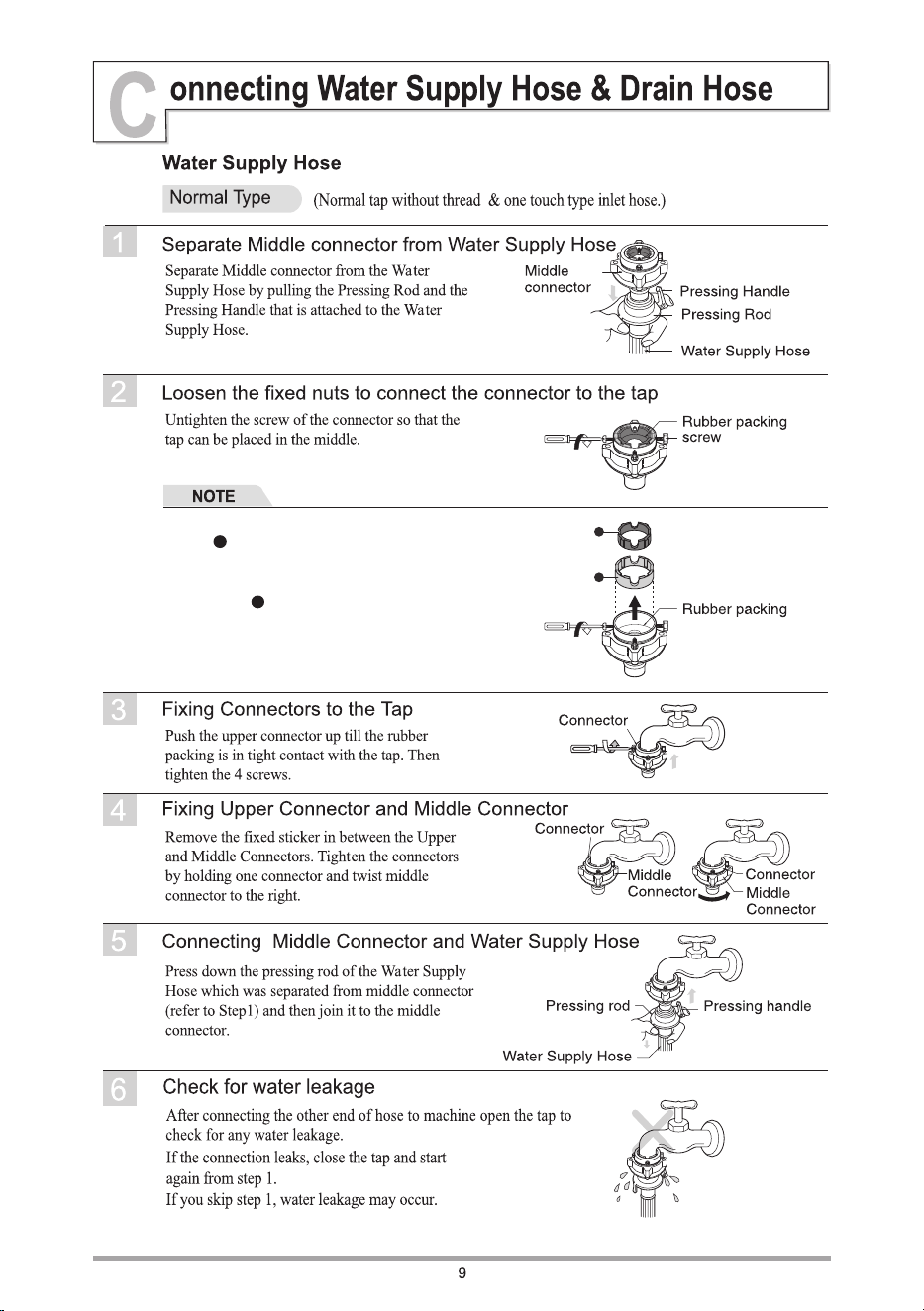

If the tap is large, remove the inner guide
plate and adjust the screws to leave the 1
inside of the adapter open.
If the tap is still too large, remove the outer
guide plate and adjust the screws again.2
1)
2)
1
2
*Part / Image may vary according to different models.
*
Less than 2m
Extra Function : Hold 3 seconds
(
BACK
SIDE
)
Max.
10 mm
MFL68486526
